Cybex Plate Loaded 16120 Smith Press Owner’s Manual
Safety
Safety Guidelines And Practices
Cybex International partners with equipment owners to establish the safest and most effective setup
of Cybex equipment. Cybex International urges each facility owner to carefully follow all safety
precautions. Following theses precautions are the best protection against personal injury or damage
to equipment or facility.
The most important safety precaution is to maximize stability for every piece of equipment. The
equipment should be securely anchored to the oor. It is imperative the oor be level.
Cybex recommends that all tness equipment be used in a supervised area. It is recommended that
the equipment be located in an access controlled area. Control is the responsibility of the owner. The
extent of control is at the discretion of the owner.
It is the responsibility of the purchaser/owners of Cybex products to read and understand the owner’s
manual, and warning labels; as well as instruct all individuals, whether end users or supervising
personnel, on proper usage of the equipment.
Read the Owner’s Manual carefully before assembling, servicing, or using the equipment. In an
institutional environment, it is the facility owner’s responsibility to properly instruct users on the proper
operation of the equipment and to warn them of the potential hazards.
Follow and enforce the User Safety Precautions to protect both the user and the equipment.
Keep children away from selectorized strength equipment. Teenagers or disabled users must be
supervised.
Do not allow anyone, including trainers, to use equipment in a manner other than shown on the
instructional placards located on every machine.
It is the responsibility of the facility owner and/or owner of the equipment to instruct users on proper
operation of the equipment and review all labels.
WARNING: Serious injury or death could occur if these safety precautions are not
followed:
User Safety Precautions
• Read all warnings posted on the machine. Warnings are posted on each machine to alert the
user to potential problems. Following warning labels will prevent injury or equipment damage.
• Read and understand warning labels and instructional placards prior to exercising. Obtain
instruction prior to use. Each machine has instructions posted on the equipment for proper
use.
4
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
• Use the selectorized and plate loaded machines as shown on placards. DO NOT modify the
machine.
• Never pin the weights in an elevated position. DO NOT use the machine if found in this condition.
Seek assistance from oor staff. Weights pinned up have the potential to fall if the user pulls the
pin. Floor staff should lower the weights to prevent potential problems.
• Be certain that the weight pin is completely inserted (for selectorized strength equipment that
employ weight stacks). If the pin is not completely inserted the user may accidentally drop the
weights if the pin falls out.
• Never use dumbbells or other means to incrementally increase the weight resistance. Use only
those means provided by the manufacturer for the equipment. Altering the machine design by
adding additional weight as with dumbbells or other means can injure the user, may damage the
equipment, and will void the warranty.
• Set up, anchor, and operate selectorized strength equipment on a solid level surface. If the oor is
not level the equipment is not stable.
• DO NOT wear loose or dangling clothing or jewelry while using selectorized strength equipment.
Stay clear of all moving components. Loose clothing or dangling jewelry can become entangled in
moving parts and potentially cause severe injury or damage.
• Consult a physician prior to commencing an exercise program. If at any time during exercise you
feel faint, dizzy or experience pain, stop and consult your physician. Users must be responsible
and cautious with the condition of their own health. Consulting a physician before beginning a
program can alert the user to the personal risk if health is an issue.
• Use a spotter for Free Weight equipment. A spotter adds an additional level of safety.
• DO NOT exceed the maximum specied user weight. Too much weight on a machine may prevent
it from proper function or damage the machine.
• DO NOT use if equipment appears damaged or inoperable upon inspection. If the equipment
appears damaged or inoperable- contact the oor staff.
• DO NOT attempt to x a broken or jammed equipment. Notify oor staff. It is the owner’s
responsibility to repair broken or jammed equipment.
• DO NOT use if guards are missing or damaged. A missing or broken guard should be replaced by
a qualied technician. Guards prevent things from interfering with function.
• DO NOT remove any labeling from equipment. Replace any damaged labels. Labels give users
specic information and alerts. Replacing damaged labels ensures users can read the labels for
information provided.
Facility Safety Precautions
• Read the Owner’s Manual carefully before assembling, servicing or using the equipment.
• It is the sole responsibility of the user/owner or facility operator to ensure that regular maintenance
is performed.
5
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
• Inspect the equipment for worn or loose components prior to use. Tighten/replace any loose or
worn components before to using. Pay close attention to belts, cables, grips or pulleys and their
connections. Always look for potential problems in equipment condition. Loose components should
be tightened to function properly. Replacing worn components maintains the equipment is in the
best condition for regular use.
• To maximize stability, securely anchor each machine to the oor using the anchor holes provided
in each machine. Each machine must be set up, anchored, and operated on a solid level surface.
Do not install equipment on an uneven surface!
DANGER !
Death or serious injury will occur if the
following requirements are not met:
Cybex is not able to anchor the equipment due to local building codes.
The owner is responsible for the actual anchoring of equipment.
Consult with a professional contractor.
Use fasteners having a minimum of 500 lbs. tensile capacity -- Cybex
recommends 3/8” grade 2 bolts or better.
If legs/frame does not contact surface, DO NOT pull down with
anchors. Shim any leg or frame not in contact with surface using at
washers.
• Ensure that all users are properly trained on how to use the equipment.
• Verify there is enough room for safe access and operation of the equipment. Spacing requirements
for each piece of equipment vary depending on placement. The Assembly section gives equipment
dimensions but it is up to the facility to verify there is clearance between and around each machine
to operate without interference.
• Perform regular maintenance checks on the equipment as detailed in the Maintenance section
of this manual. Inspect all areas most susceptible to wear, including, (but not limited to) cables,
pulleys, belts, and grips.
• Immediately replace worn or damaged components. If unable to immediately replace worn or
damaged components then remove from service until the repair is made.
• Use only Cybex supplied components to maintain/repair the equipment.
• Keep a repair log of all maintenance activities.
• Display the Facility Safety Sign so it is visible and prominent.
6
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
Securing Equipment
Do not use machine until it is properly anchored.
The machine has holes in the feet, which allow for ease in anchoring to the oor. All anchoring holes
must be used to maximize stability. Equipment must be secured to a solid, level surface to eliminate
rocking, tipping, or falling over due to incorrect usage and misuse.
The solid, level surface should not deviate more than 1/8” over a 10’ distance or as dened and
required by local building and architectural codes.
Anchoring of equipment must be completed by a qualied licensed contractor.
Due to the wide variation of ooring on which machines may be anchored or installed, verify
anchoring method and anchoring fasteners with a qualied and licensed contractor.
A minimum pull out force of 220 lbs/100 kgs is required for each anchor position.
PROPER USAGE
Use equipment only as described in the manual or on the placards located on each machine. Failing
to follow proper instructions may result in injury.
STANDARD COMPLIANCE
Cybex products meets applicable ASTM and EN Standards.
Regular Maintenance Activities
Preventative maintenance activities must be performed to maintain normal and safe operation of your
equipment. Keeping a log sheet of all maintenance actions will assist you in staying current with all
preventative maintenance activities. The preventative maintenance actions are described in detail in
the maintenance section of this manual. Briey, they include:
Daily
Clean upholstery.
Weekly
• Inspect all nuts and bolts for looseness. Tighten as required.
7
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
• Inspect all cables and belts for damage or wear. If a cable or belt is worn or damaged, immediately
discontinue use until cable or belt has been replaced.
• Check for worn handles, worn snap links, and worn warning labeling. Replace all worn parts
immediately.
• Inspect for loose or worn grips. Replace all loose or worn grips immediately.
• Inspect weight stacks for proper alignment and operation. Correct all improper alignment and
operation issues immediately.
• Lubricate guide rods using automotive engine oil only.
Yearly
Replace all cables and belts at least annually.
8
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
Warnings and Cautions
Warning decals indicate a potentially hazardous situation that could result in death or serious injury if
the precautions are not observed.
Caution decals indicate a potentially hazardous situation that could result in death or serious injury if
the precautions are not observed.

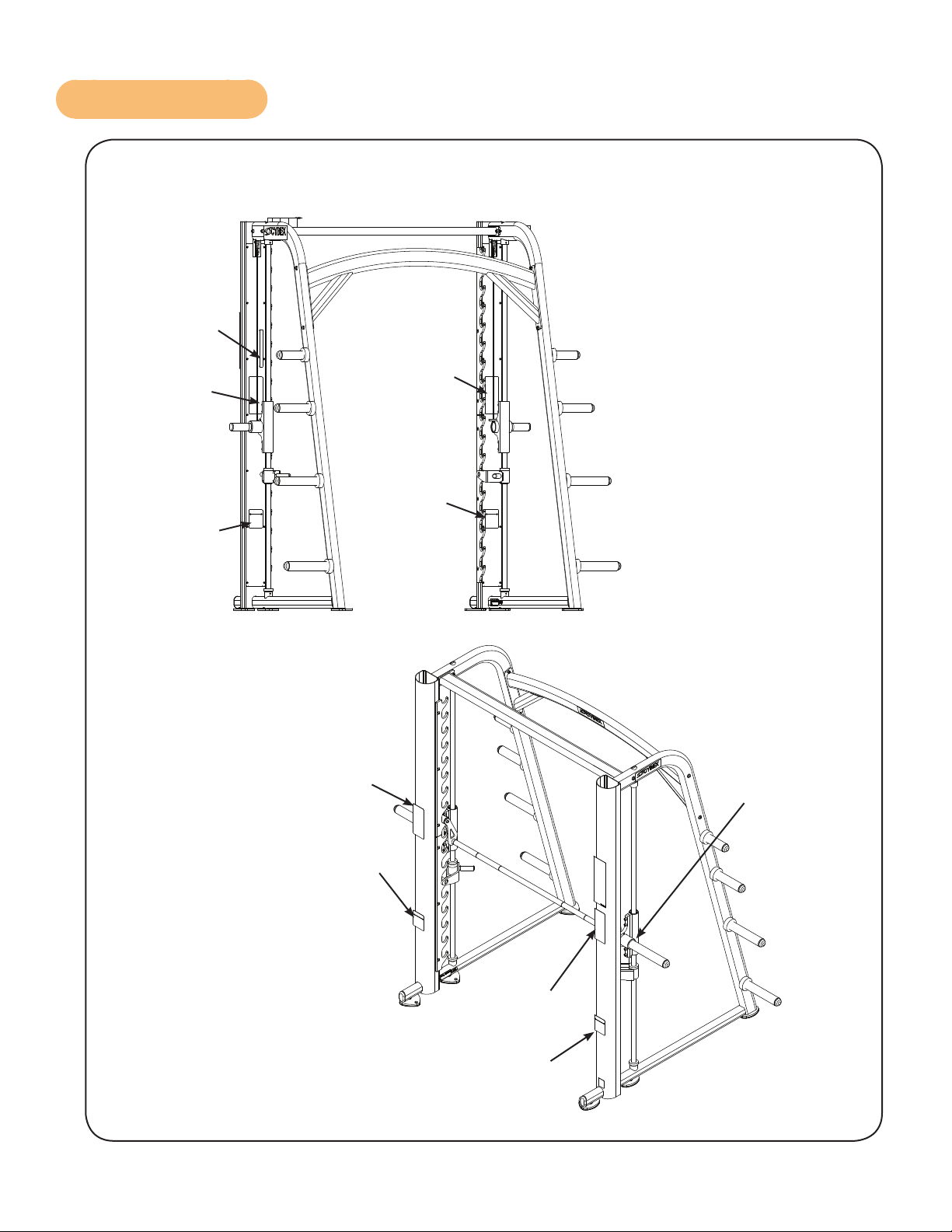

The diagram following the decals show where each decal is located.
DECAL, WARNING ENGLISH
5220-364-4
JKW/BG
4/1/09
A
5/5/09
BB
BB
5/5/09
NOTE: See Engineering Drawing 5220-364-X
SAFETY ORANGE PMS 152 BLACK TRIANGLE W/ ORANGE
EXCLAMATION POINT, BLACK LETTERS
19 PT ARIAL BOLD
R .19
4 PLACES
INSET .06
WHITE
PART NUMBER
BLACK LETTERS 8 PT ARIAL BOLD
WHITE BACKGROUND WITH
BLACK LETTERS 8 PT ARIAL BOLD
Specs
Master Artwork
BLACK LETTERS
10 PT ARIAL BOLD
125
1:1
OWATONNA
MFG. APPR.
TECH. PUBS. APPR. DATE
DATE
REV.
DWG. NO.
SCALE
SIZE
CHECKED BY
DWG. BY
TITLE:
FINISH:
MATERIAL:
B
SHEET
OF
EXCEPT AS NOTED
GENERAL
TOLERANCES:
2 DECIMALS ± .03
3 DECIMALS ± .015
ANGLES ± 1°
FEATURES SHOWN
PERPENDICULAR OR
PARALLEL SHALL BE
SO WITHIN ± 1°
REMOVE ALL BURRS
BREAK SHARP EDGES
.005/.010 R
SURFACE FINISH
INDICATED PER
ANSI B46.1-1985
GENERAL
MACHINING
DIMENSIONS
IN INCHES
DATE
DATE
REMOVE CARBURIZATION
AND SCALE FROM LASER
AND PLASMA CUT EDGES
ALL MATERIAL MUST COMPLY TO
EUROPEAN UNION DIRECTIVE
2002/95/EC RoHS (RESTRICTION
OF HAZARDOUS SUBSTANCES)
1.75
7.50
1
1
WARNING
SERIOUS INJURY
COULD OCCUR IF
THESE PRECAUTIONS
ARE NOT OBSERVED
2. Stop exercising if feeling
faint, dizzy or
experiencing pain and
consult your physician.
3. Obtain instructions
before using. Lisez les
instructions avant
I’untilisation.
9. Inspect machine prior to
use. DO NOT use if it
appears damaged or
inoperable.
10. DO NOT attempt to fix
a broken or jammed
machine.
1. Obtain a medical exam
before beginning any
exercise program.
12. Replace any warning
labels if damaged, worn
or illegible.
7. Keep body and clothing
free from and clear of
all moving parts.
5. Keep all children (12 and
under) away. Teenagers
(13 and over) and disabled
must be supervised.
Garder tous les enfants
(de 12 ans et moins)
éloignés. Les adolescents
(de 13 ans et plus) et les
handicapés doivent être
surveillés.
6. Use a spotter.
5220-364-4 A
4. Read and understand the
owner’s manual and all
warnings posted on the
machine before using.
8. Use the machine only for
the intended use. DO NOT
modify the machine.
11. Report any malfunctions,
damage or repairs to the
facility.
125
1:1
OWATONNA
MFG. APPR.
TECH. PUBS. APPR. DATE
DATE
REV.
DWG. NO.
SCALE
SIZE
CHECKED BY
DWG. BY
TITLE:
FINISH:
MATERIAL:
B
SHEET
OF
EXCEPT AS NOTED
GENERAL
TOLERANCES:
2 DECIMALS ± .03
3 DECIMALS ± .015
ANGLES ± 1°
FEATURES SHOWN
PERPENDICULAR OR
PARALLEL SHALL BE
SO WITHIN ± 1°
REMOVE ALL BURRS
BREAK SHARP EDGES
.005/.010 R
SURFACE FINISH
INDICATED PER
ANSI B46.1-1985
GENERAL
MACHINING
DIMENSIONS
IN INCHES
DATE
DATE
REMOVE CARBURIZATION
AND SCALE FROM LASER
AND PLASMA CUT EDGES
ALL MATERIAL MUST COMPLY TO
EUROPEAN UNION DIRECTIVE
2002/95/EC RoHS (RESTRICTION
OF HAZARDOUS SUBSTANCES)
16120-340-4
DECAL, WARNING
ENGLISH
1 1
REL
4-9-09
BB
4-13-09
C
Specs
Master
Artwork
8.00
R .19
4 PLACES
PART NUMBER
6 PT ARIAL
WHITE BACKGROUND WITH
BLACK 14 PT ARIAL BOLD
RED CIRCLE WITH LINE THROUGH
INSET .06
WHITE
SAFETY ORANGE PMS152
BLACK TRIANGLE W/ ORANGE
EXCLAMATION POINT, BLACK LETTERS
32 PT ARIAL BOLD
WHITE BACKGROUND WITH
BLACK 14 PT ARIAL BOLD
SAFETY ORANGE PMS152
BLACK TRIANGLE W/ ORANGE
EXCLAMATION POINT, BLACK LETTERS
32 PT ARIAL BOLD
WARNING
Serious injury can result if
bar catch is not hooked
properly and falls.
UNHOOKED
HOOKED
Make sure bar catch is fully
engaged over hook to avoid
injury.
16120-340-4 C
Serious injury or death may
result if the adjustable bar
stops are not set properly.
PROPER use of adjustable
bar stops allow an immediate
exit in case of accident or
emergency.
DO NOT start an
exercise unless
adjustable bar
stops are in
place.
WARNING
NOTE: See Engineering Drawing 16120-340-X for material specifications.
3.25
YELLOW
WARNING
Serious injury can result if
bar catch is not hooked
properly and falls.
UNHOOKED
HOOKED
Make sure bar catch is fully
engaged over hook to avoid
injury.
16120-340-4 C
Serious injury or death may
result if the adjustable bar
stops are not set properly.
PROPER use of adjustable
bar stops allow an immediate
exit in case of accident or
emergency.
DO NOT start an
exercise unless
adjustable bar
stops are in
place.
WARNING
125
1:1
OWATONNA
MFG. APPR.
TECH. PUBS. APPR. DATE
DATE
REV.
DWG. NO.
SCALE
SIZE
CHECKED BY
DWG. BY
TITLE:
FINISH:
MATERIAL:
B
SHEET
OF
EXCEPT AS NOTED
GENERAL
TOLERANCES:
2 DECIMALS ± .03
3 DECIMALS ± .015
ANGLES ± 1°
FEATURES SHOWN
PERPENDICULAR OR
PARALLEL SHALL BE
SO WITHIN ± 1°
REMOVE ALL BURRS
BREAK SHARP EDGES
.005/.010 R
SURFACE FINISH
INDICATED PER
ANSI B46.1-1985
GENERAL
MACHINING
DIMENSIONS
IN INCHES
DATE
DATE
REMOVE CARBURIZATION
AND SCALE FROM LASER
AND PLASMA CUT EDGES
ALL MATERIAL MUST COMPLY TO
EUROPEAN UNION DIRECTIVE
2002/95/EC RoHS (RESTRICTION
OF HAZARDOUS SUBSTANCES)
16120-341-4
DECAL, WARNING
ENGLISH
1 1
REL/BG
3-10-09
C
Master
Artwork
Specs
3.25
4.00
R .19
4 PLACES
PART NUMBER
6 PT ARIAL
INSET .06
WHITE
WHITE BACKGROUND WITH
BLACK 13 PT ARIAL BOLD
SAFETY ORANGE PMS152
BLACK TRIANGLE W/ ORANGE
EXCLAMATION POINT, BLACK LETTERS
32 PT ARIAL BOLD
RED PMS 185
YELLOW
WARNING
16120-341-4 C
Serious injury or death may result
if the adjustable bar stops are set
BELOW THIS location when doing
SQUAT EXERCISE
.
PROPER placement of adjustable
bar stops allow an immediate exit
in case of accident or emergency.
DO NOT start
SQUAT EXERCISE
unless adjustable
bar stops are in
place.
NOTE: See Engineering Drawing 16120-340-X for material specifications.
WARNING
16120-341-4 C
Serious injury or death may result
if the adjustable bar stops are set
BELOW THIS location when doing
SQUAT EXERCISE
.
PROPER placement of adjustable
bar stops allow an immediate exit
in case of accident or emergency.
DO NOT start
SQUAT EXERCISE
unless adjustable
bar stops are in
place.
Personal injury may occur.
CAUTION
4000Y316-4 A
2.50
1.50
R .19
4 PLACES
PART NUMBER
6 PT ARIAL BOLD
WHITE BACKGROUND WITH
BLACK 11.5 PT ARIAL BOLD TEXT
SAFETY YELLOW PMS 108
BACKGROUND. BLACK TRIANGLE
W/ YELLOW EXCLAMATION POINT,
BLACK LETTERS 26 PT ARIAL
BOLD FONT
INSET .06
WHITE
Keep away from moving
parts to avoid injury.
DECAL, CAUTION ENGLISH
4000Y316-4
JKW
8/28/06
A
8/28/06
BB
125
1:1
OWATONNA
MFG. APPR.
TECH. PUBS. APPR. DATE
DATE
REV.
DWG. NO.
SCALE
SIZE
CHECKED BY
DWG. BY
TITLE:
FINISH:
MATERIAL:
B
SHEET
OF
1 1
EXCEPT AS NOTED
GENERAL
TOLERANCES:
2 DECIMALS ± .03
3 DECIMALS ± .015
ANGLES ± 1°
FEATURES SHOWN
PERPENDICULAR OR
PARALLEL SHALL BE
SO WITHIN ± 1°
REMOVE ALL BURRS
BREAK SHARP EDGES
.005/.010 R
SURFACE FINISH
INDICATED PER
ANSI B46.1-1985
GENERAL
MACHINING
DIMENSIONS
IN INCHES
DATE
DATE
THIS NOTE REFERS TO ALL PLASTIC PARTS
AND ASSEMBLIES CONTAINING PLASTICS.
RAW MATERIAL AND COMPONENTS ON
SUB-ASSEMBLIES AND ASSEMBLIES MUST
COMPLY WITH EUROPEAN DIRECTIVE
RoHS 2002/95/EC.
REMOVE CARBURIZATION
AND SCALE FROM LASER
AND PLASMA CUT EDGES
NOTE: See Engineering Drawing 4000Y316-X for specifications.
Personal injury may occur.
CAUTION
4000Y316-4 A
Keep away from moving
parts to avoid injury.
9
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
Label Placement
16120-341-X
16120-340-X
16120-341-X
16120-340-X
16120-341-X
16120-340-X
16120-341-X
16120-340-X
5220-364-X
4000Y316-X
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
10
Assembly
Tools Required
• 9/16” Socket wrench
• 7/16” Wrench
• 7/32” Allen wrench
• 9/16” Wrench
• 5/16” Allen wrench
16120 Smith Press
Total Weight and Size
380 lbs. inches - 84 W x 54 L x 84 H
173 kg cm - 213 W x 137 L x 213 H
Three people will be required for this procedure.
It is the responsibility of the facility owner/owner of the equipment to ensure that there is appropriate
clearance around each machine to allow for safe use and passage.
1. Read and understand all instructions thoroughly before starting any of the procedures
listed below.
2. Verifyyouhavereceivedtheappropriateconguration.
• Verify you received the correct color machine that you ordered.
• Verify you received the appropriate owner’s manual.
• Verify you received the warranty sheet.
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
11
WARNING: Use extreme caution when removing Smith Press Assembly from pallet.
Failure to do so could result in injury.
3. Move to desired location and unpack.
• Keep all shipping packages near area of installation.
• Remove hardware pack and verify contents.
A. Locknut .375-16 (8), HN704902
B. HHCS .250-20 x 2.00 (2), HC621215
C. SHCS .375-16 X 1.25 (8), JC702821
D. BHSCS .375-16 X2.50 (4),HC700430
E. Split, Lockwasher .375 (8), HS348300
F. Foot Pad (6), 16010-311
G. Loctite 242 (1) YA000008
A
B
C
D
E
F
G
• Carefully remove foam and shrink wrap securing frame mounts, set frame mounts aside.
• Carefully remove foam and shrink wrap securing weight bar to frame, set weight bar aside.
• Using a 7/32” Allen wrench and a 9/16” wrench remove the four Button Head Socket Cap Screws
(BHSCS) from shipping bracket securing frame halves together. Do not discard BHSCS or
locknuts.
• Using a 9/16” wrench remove the four lag bolts securing frame to pallet.
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
12
4. Assemble Frame
• With assistants hold frames in an upright position.
• Carefully place foot pad (supplied with machine) on each foot of the frame.
• Align front frame mount in place.
Front Frame Mount
BHSCS
(Qty of 2 each side)
Locknut (Qty of 2 each side)
• Using a 7/32” Allen wrench and a 9/16” wrench secure front frame mount in place with the four
BHSCS and locknuts removed in step 3.
• Place back frame mount in position. Using a 7/32” Allen wrench and a 9/16” secure back frame
mount to frame with the four BHSCS and locknuts from shipping package.
Back Frame Mount
Locknut (Qty of 2 each side)
BHSCS (Qty of 2
both sides)
Locknut
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
13
5. Install weight bar assembly.
• Carefully place weight bar on frame and secure in place by latching bar catch on hooks.
• Verify each bar catch is hooked properly on the hook.
Hook
Weight Bar
Bar Catch
• Slide bearing housing up (located at bottom of guide shaft) and align holes with weight bar
bracket.
• Locate four Socket Head Cap Screws (SHCS), four washers and loctite from shipping package.
• Place a small drop of loctite on the four SHCS and in threaded holes of weight bar bracket.
• Place washer over SHCS.
• Using a 5/16” Allen wrench tighten the four SHCS securing the weight bar bracket to the bearing
housing.
• Repeat step 5 for opposite side.
Bearing Housing
Weight Bar Bracket
SHCS (Qty 4)
Loctite
Washers
(Qty 4)
Guide Shaft
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
14
6. Cable Installation.
• Locate two Hex Head Cap Screw HHCS from shipping package.
• Place a small drop of loctite on HHCS and in threaded hole.
• Using a 7/16” wrench, attach cable end to weight bar bracket with HHCS. Cable end must
be attached straight to avoid a kink in cable.
• Repeat step 6 for opposite cable end.
HHCS
Cable
End
Cable
Weight Bar Bracket
Cable end must be attached
straight to avoid kink in cable.
7. Securelyanchormachinetotheoorusingtheanchorholesprovidedineachmachine.
CAUTION: Cybex is not responsible for the actual anchoring of equipment. Consult with
a professional contractor.
WARNING: Use fasteners having a minimum of 500 lbs. tensile capacity (3/8’’ grade 2
bolts or better).
WARNING: If legs/frame does not contact surface, DO NOT pull down with anchors. Shim
any leg or frame not in contact with surface using at washers.
8. Verify proper operation.
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
15
16
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
Exercise
Intended Use
The intended commercial use of this machine is to aid exercise and improve general physical tness.
Instructions
Read and understand all instructions and warnings prior to using this machine in the Safety
section of the Owner’s Manual.
This machine is very versatile. Exercises that can be perforned include, Squats, Bench and Incline
Press, Bent-Over Rows and Over head Press.
All adjustment points on the machine have yellow handles or knobs.
CAUTION: Serious injury can result if precautions are not followed. Use equipment
only as described in placards located on each machine. Failure to use in the
manner depicted can result in injury.
SMITH PRESS
Bench Press
Squat
17
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
SET UP

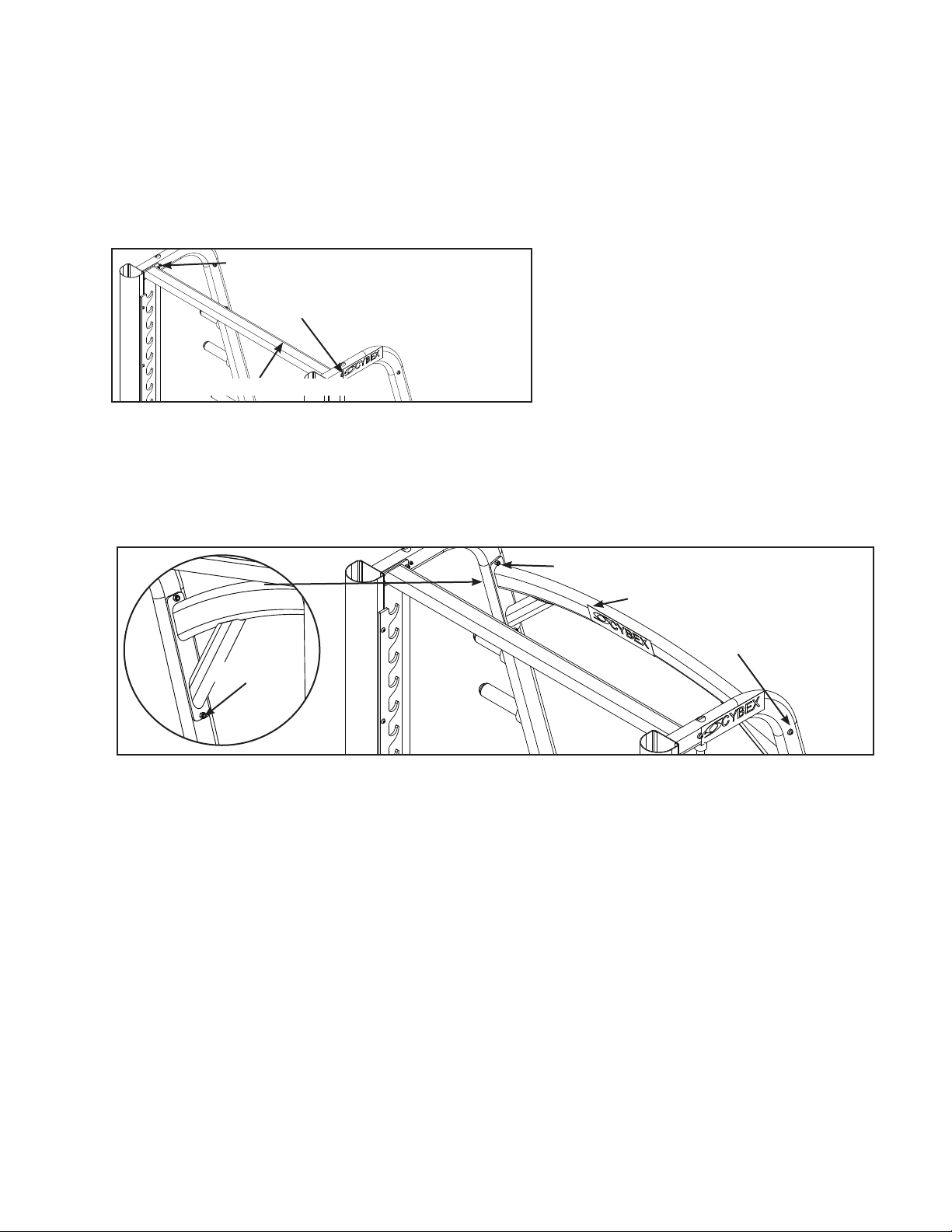

1. Adjust bar to appropriate height for exercise. See Diagram A.
2. Adjust bar stops to appropriate height for exercise. See Diagram B.
3. Load bar evenly with appropriate resistance. Unloaded bar weight = 15 lbs (7kg).
Diagram A
Diagram B
MOVEMENT

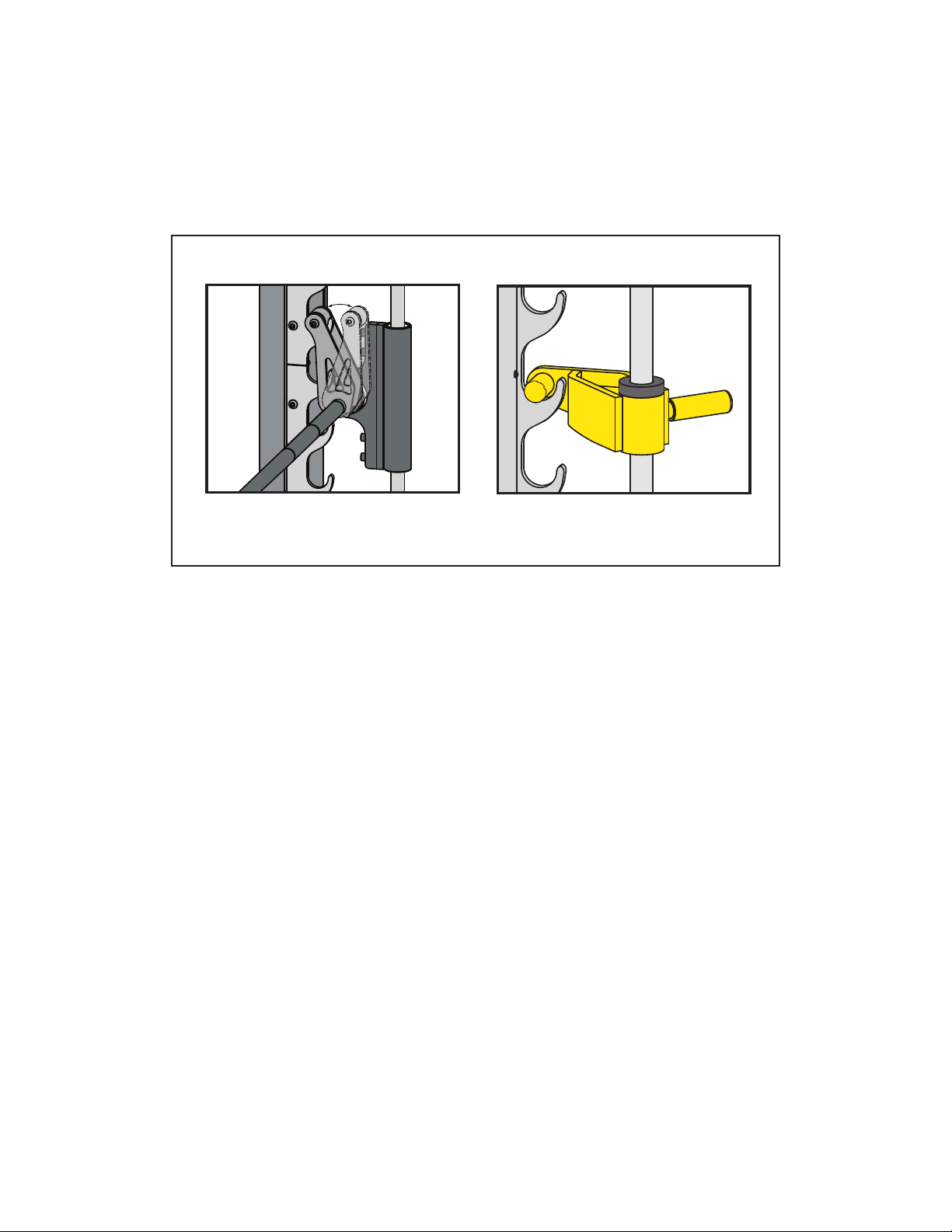

1. Position yourself for the exercise to be perfomed and grasp bar.
2. Lift bar rotate to release catch. See Diagram A.
3. Lift/lower bar with smooth, controlled movements.
4. Lock bar by rotating until catch is fully engaged. See Diagram A. Ensure bar catch is fully
engaged over hook before releasing grip on bar.
18
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
Maintenance
All preventive maintenance activities must be performed on a regular basis. Performing routine
preventive maintenance actions can aid in providing safe, trouble-free operation of all Cybex Strength
Systems equipment.
Cybex is not responsible for performing regular inspection and maintenance actions for your
machines. Instruct all personnel in equipment inspection and maintenance actions and also in
accident reporting/recording. Cybex representatives are available to answer any questions that you
may have.
All inspections and repairs must be performed by trained service personnel only. Cybex will
void warranty if non-Cybex replacement parts are used.
NOTE: All inspections
and repairs must be
performed by trained
service personnel only.
Cybex will void warranty if
non-Cybex replacement parts
are used.
Use only Cybex replacement
parts when servicing.
Failure to do so could result
in personal injury.
CAUTION
Daily Procedures
When using strong cleaning agents such as rubbing alcohol or bleach, it is advisable to rst test in an
inconspicuous area. Other cleaning agents may contain harsh or unknown solvents and are subject to
formula changes by the product manufacturer without notice. Should you desire to use other cleaning
agents, carefully try them in an inconspicuous area to determine potential damage to the material.
Never use harsh solvents or cleaners which are intended for industrial applications. To clean stained
or soiled areas, a soft white cloth is recommended. Avoid use of paper towels.
Cleaning products may be harmful/irritating to your skin, eyes, etc. Use protective gloves and eye
protection. Do Not inhale or swallow any cleaning product. Protect surrounding area/clothing from
exposure. Use in well ventilated area. Follow all product manufacturer’s warnings. CYBEX and
its vendors cannot be held responsible for damage or injuries resulting from the use or misuse of
cleaning products.
19
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
Clean Upholstery
If Then
Light Soiling
1. Prepare a solution of 10% household
liquid soap and warm water.
2. Apply with a soft damp cloth.
3. If necessary, apply a solution of liquid
cleanser with a soft bristle brush.
4. Dampen a clean soft cloth in water and
wipe residue away.
MoreDifcultStains
1. Prepare a solution of 10% household
bleach (sodium hypochlorite) and 90%
water. Dampen a soft white cloth in the
solution.
2. Rub gently on the stained area.
3. Dampen a clean soft cloth in water and
rinse area.
4. If stains are still present, a full strength
household bleach may be used. Allow
bleach to puddle on the affected area
or apply with a bleached-soaked cloth
for approximately 30 minutes. Dampen
a clean soft cloth in water, and rinse
area to remove any remaining bleach
concentration.
MoreDifcultStains(AlternativeMethod)
1. Dampen a soft white cloth with rubbing
alcohol.
2. Gently rub stained area.
3. Dampen a clean soft cloth in water and
rinse area.
Restoring Luster
1. Apply a light coat of furniture wax for 30
seconds.
2. Lightly rub area using a clean white cloth.
Clean Frames
Wipe down all frames using a mild solution of warm water and car wash soap. Be sure to dry
thoroughly. AVOID acid or chlorine based cleaners and also cleaners containing abrasives as these
could scratch or damage the equipment.
20
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
Clean Chrome
Clean chrome tubes, rst using chrome polish and then using a car wax seal. Neutral cleaners with a
pH between 5.5 and 8.5 are recommended. Be sure to dry thoroughly. AVOID acid or chlorine based
cleaners and also cleaners containing abrasives as these could scratch or damage the equipment.
Guidelines for cleaning front panel:
Use clean soft cloths or sponges for application of cleaners and again for washing and rinsing. Follow
up each application with warm water rinse.
• DO NOT use abrasives or high alkaline cleaners.
• DO NOT leave cleaners on for long periods, wash immediately.
• DO NOT apply cleaners in direct sunlight or at elevated temperatures.
• DO NOT use scrapers, squeegees, or razors.
• DO NOT clean with gasoline.
Compatible Cleaners and Detergents:
• Formula 409
• Top Job
• Joy
• Palmolive
• Windex with Ammonia D
To Minimize Fine or Hairline Scratches:
Mild automotive polish applied and removed with a soft clean cloth will help ll scratches.
Suggested Polishes:
• Johnson Paste Wax
• Mirror Glaze #10 Plastic Polish (by Mirror Bright Polish Co.)
• Novus Plastics Polish #1, #2 (By Novus Inc.)
21
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
Weekly Procedures
Inspect All Nuts and Bolts
Tighten all loose nuts and bolts as required.
WARNING: Serious injury or death may result if the following precautions are not
followed. Replace all worn cables and belts. Worn cables and belts can fail if
not replaced.
Inspect cables and belts
Inspect all cables and belts for wear or damage and proper tension. When inspecting cables and
belts, run ngers on the cable or belt, paying particular attention to bends in cables and attachment
points. The following conditions may indicate a worn cable:
Cables
Condition of Cable Diagram
A tear or crack in the cable sheath
that exposes the cable
A kink in the cable
A curled sheath
Necking - A stretched cable sheath
22
Cybex Plate Loaded 16120 Smith Press Owner’s Manual

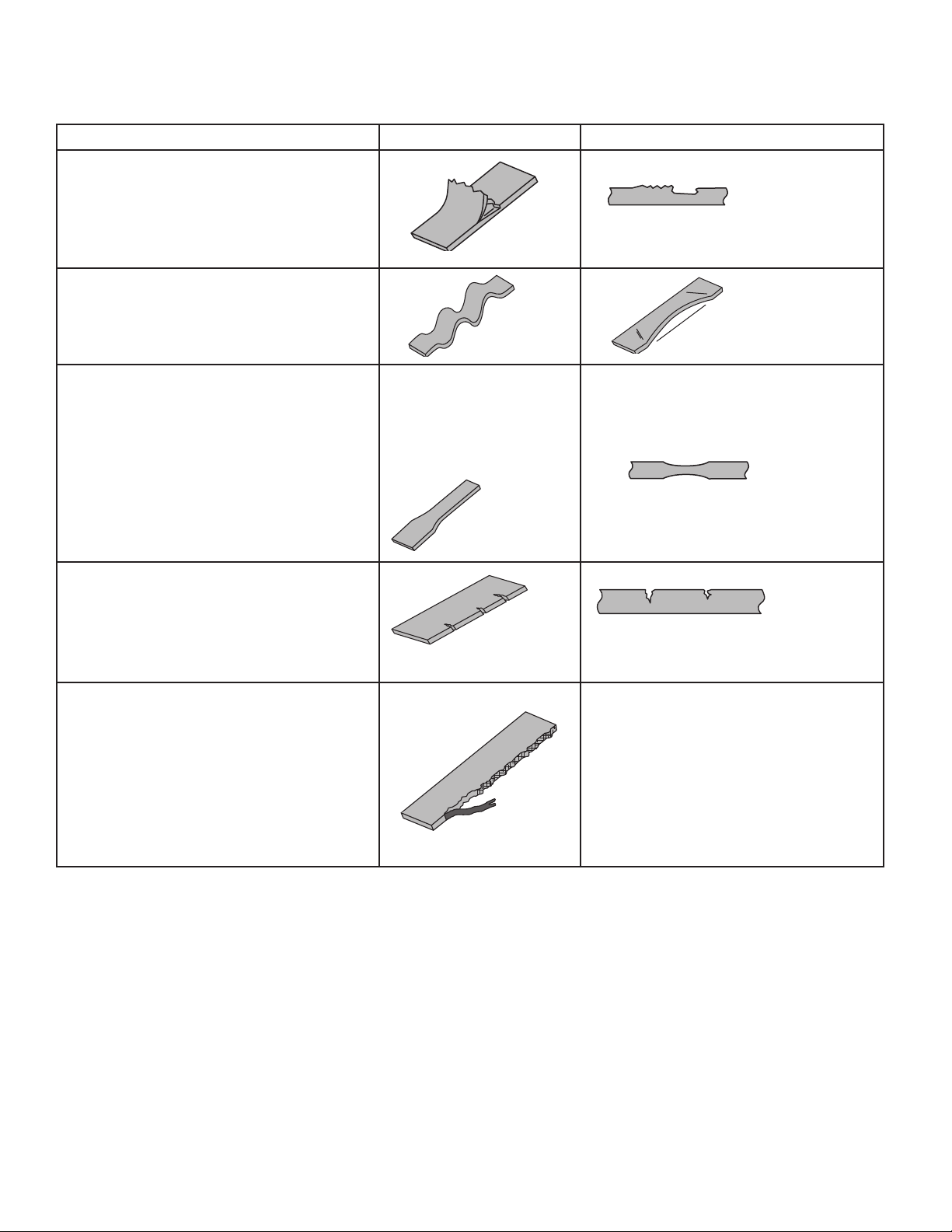

Belts
Condition of Belt 3D View 3D or Side View
Peeling of the belt’s skin.
Wave in belt
Belt is necked down (narrow section)
Replace belt if any
section is over 1/32”
(.03) narrower than the
rest of belt
Examine edge of belt (both sides).
Replace belt if any section is
narrower than the rest.
Cracks or splits
One or more strands of kevlar is
hanging out, or if there is a signicant
amount of frayed kevlar.
23
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
CAUTION: Personal injury or property damage may occur if the following precautions
are not followed. Do not use if less than 1/8” of material remains to the edge.
Replace all worn handles immediately. Failure to replace worn handles can
result in injury or property damage.

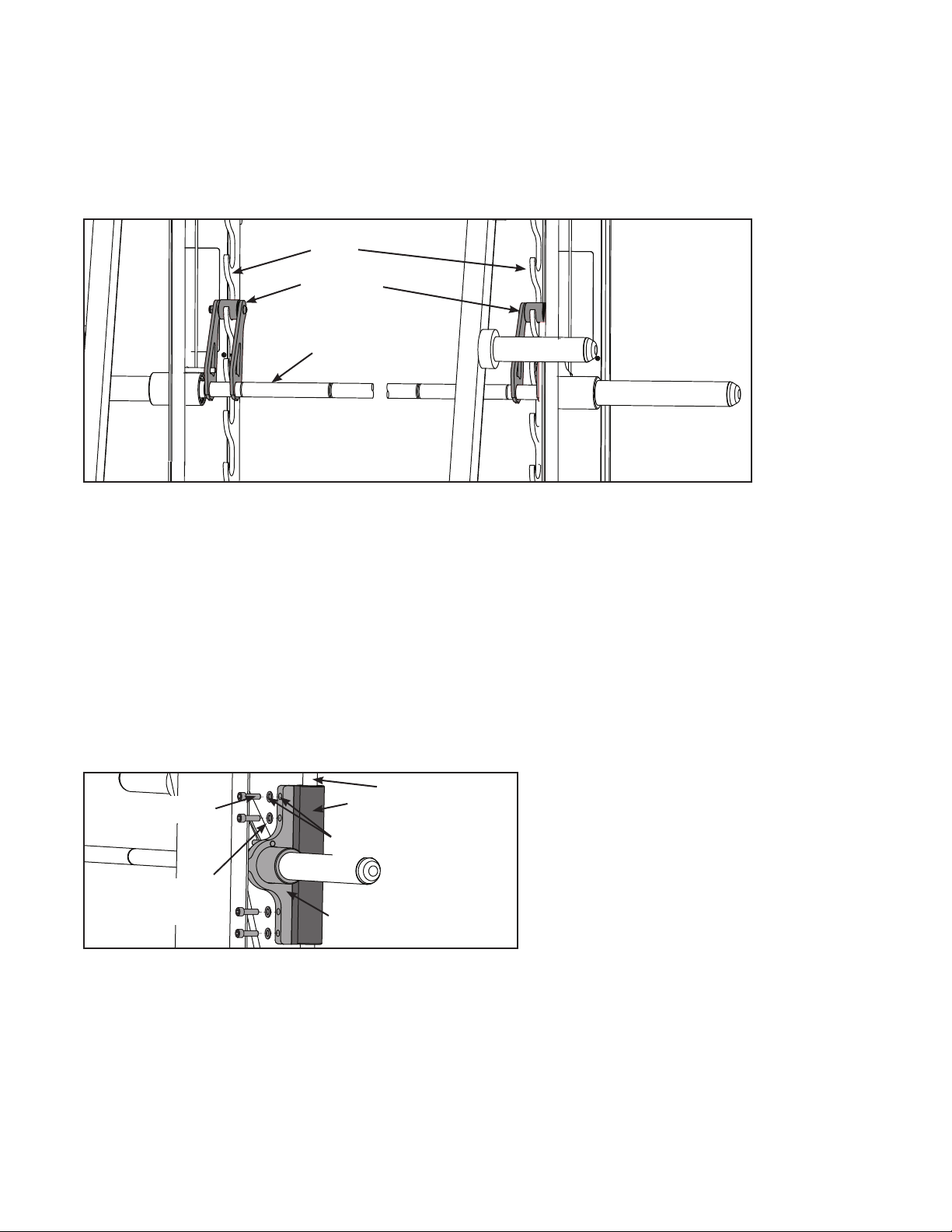

Inspect bars and handles for wear, paying particular attention to tab area connection points.
Attachment
Hole
Replace bar if less
than 1/8” of material
remains to the edge.
Inspection Action
Inspect bars and handles for wear, paying
particular attention to tab area connection points.
Replace all worn handles immediately.
Inspect snap links for proper latching (indicates
wear).
Replace all loose or worn grips immediately.
Inspect all labeling for readability, including
instructional placards, warning and caution
decals.
Replace all worn labeling immediately.
Inspect all weight stacks for proper alignment
and operation.
Correct all improper alignment and operation
issues immediately.
Inspect guide rods for lubrication.
Wipe Weight Stack Guide Rods clean over entire
length. Lubricate with a light coat of medium
weight automotive engine oil.
Yearly Procedures
Replace all cables and belts annually
24
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
Cable Adjustment
Tools Required
9/16” Wrench (2)

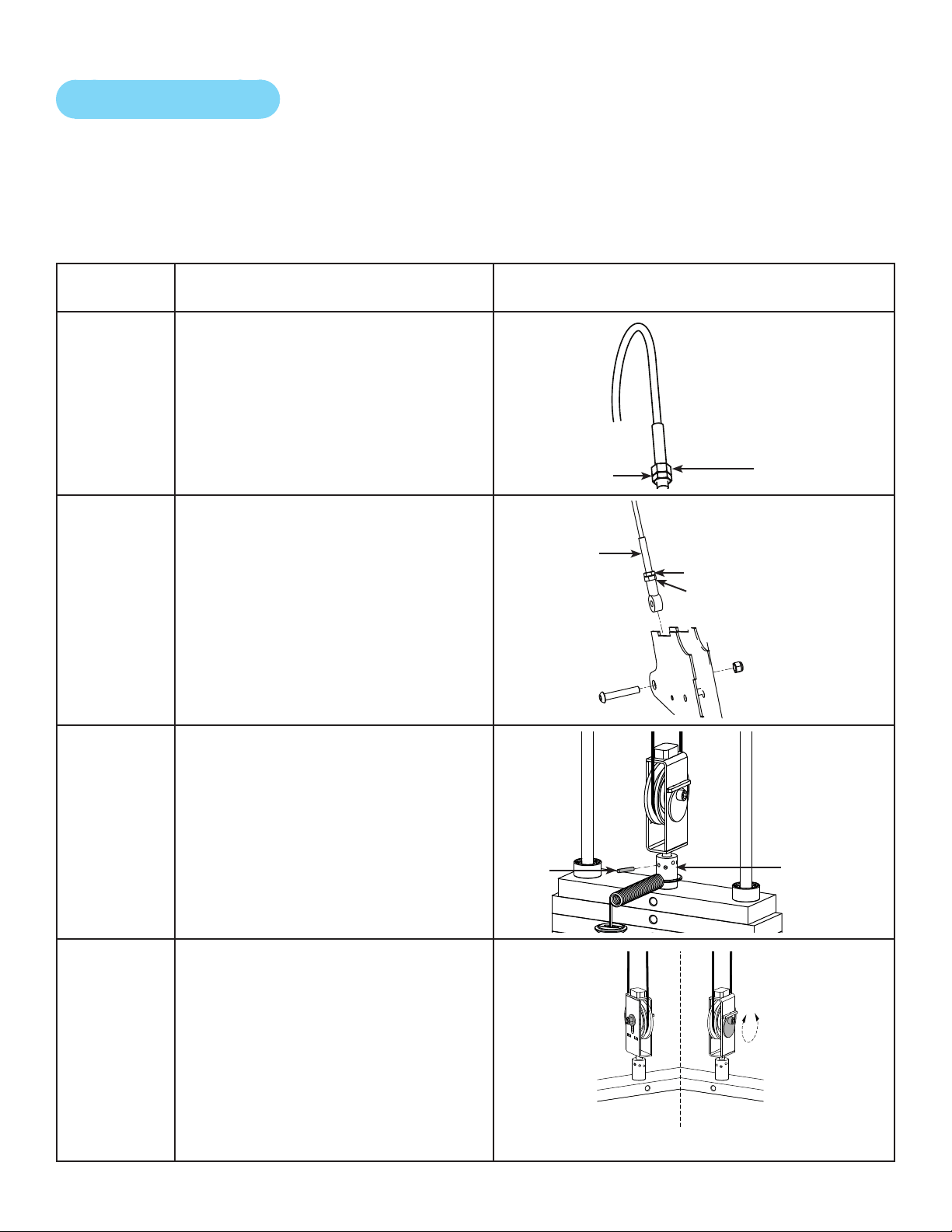

Four types of cable tension adjustment are used on Cybex Strength Systems:
Cable
Adjustment
Description Diagram
Jam Nut
Adjustment
This type of adjustment uses a jam
nut and a tension adjustment nut at
the cable cam end as the primary
adjustment. The other end of the
cable usually contains a roll pin
adjustment.
Tension
Adjustment
Nut
Jam
Nut
Rod End
Adjustment
This type of adjustment uses a
socket head cap screw (SHCS)
securing a cable rod end bearing to
the machine. Primary adjustment
is by turning the rod end bearing.
The other end of the cable usually
contains a roll pin cable adjustment.
Cable
End
Jam Nut
Cable Rod End
Bearing
SHCS
Nylon
Locknut
Roll Pin
Adjustment
This type of adjustment uses a roll
pin and series of holes in the weight
stack top weight connector.
Top Weight
Connector
Roll
Pin
Cam End
Adjustment
This type of adjustment uses an
adjustment bolt on the pulley
bracket. Loosen nut and rotate cam
bolt to adjust cable.
Nut
Cam Bolt
Adjustment
25
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
Belt Adjustment
Tools Required
• 7/32” Wrench
• Torque wrench (lbs-in)
Belt Adjustment Action
Loose Belt
1. Using a 7/32” Allen wrench loose set screws.
2. Pull belt tight.
3. Secure belt in place with set screws.
4. Torque set screws to 300-350 lb-in.
5. Verify that the belt is moving smoothly and is routed straight from
the top pulley bracket to the to weight belt clamp
26
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
Customer Service
Product Registration
To register product do the following:
1. Visit www.cybexintl.com.
2. Locate Product Registration in the Support section.
3. Fill out form completely.
4. Click the Submit button to register product.
Contacting Service
Hours of phone service are Monday through Friday from 8:30 a.m. to 6:00 p.m. Eastern Standard
Time.
For Cybex customers living in the USA, contact Cybex Customer Service at 888-462-9239.
For Cybex customers living outside the USA, contact Cybex Customer Service at 508-533-4300 or
fax 508-533-5183. email address [email protected]
Find information on the web at www.cybexintl.com.
To contact us online go to www.cybexintl.com. Select Support > Service. In the left navigation panel,
click Get Service - Service Request Form. Fill out form completely and click the Submit Query button.
Ordering Parts
To order parts online go to www.cybexintl.com. Select Support > Parts / Ordering. In the left
navigation panel, click Parts Diagrams - Current Products. Select from the drop down boxes.
To speak with a customer service representative, call 888-462-9239 (for customers living within the
USA) or 508-533-4300 (for customers outside the USA).
27
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
The following information located on the serial number decal will assist our Cybex representatives in
serving you.
• Unit Serial Number, Product Name and Model Number
This product may be produced under
one or more of the following patents
5,628,715 5,643,152 5,616,107
5,722,921 5,620,402 6,488,612
6,743,158 7,179,209 7,335,139
7,338,415 7,503,882 D480,773
D481,428 D486,535 D490,127
D490,128 D490,865 D491,237
D491,238 D497,190 6,033,350
7,727,128 7,717,831
1975 24th Ave SW Owatonna,MN. 55060 1-888-462-9239
Made in U.S.A.
MODEL# 8810-90
SERIAL# XXXXXXXXXXXXX
125
1:1
OWATONNA
MFG. APPR.
TECH. PUBS. APPR. DATE
DATE
REV.
DWG. NO.
SCALE
SIZE
CHECKED BY
DWG. BY
TITLE:
FINISH:
MATERIAL:
B
SHEET
OF
1 1
EXCEPT AS NOTED
GENERAL
TOLERANCES:
2 DECIMALS ± .03
3 DECIMALS ± .015
ANGLES ± 1°
FEATURES SHOWN
PERPENDICULAR OR
PARALLEL SHALL BE
SO WITHIN ± 1°
REMOVE ALL BURRS
BREAK SHARP EDGES
.005/.010 R
SURFACE FINISH
INDICATED PER
ANSI B46.1-1985
GENERAL
MACHINING
DIMENSIONS
IN INCHES
DATE
DATE
REMOVE CARBURIZATION
AND SCALE FROM LASER
AND PLASMA CUT EDGES
Serial Number 8800 Decal
REL 2/4/2011
ALL MATERIAL MUST COMPLY TO
EUROPEAN UNION DIRECTIVE
2002/95/EC RoHS (RESTRICTION
OF HAZARDOUS SUBSTANCES)
• Part Description and Part Number if you have it. All parts can be found on the web at
www.cybexintl.com
• Shipping Address
• Contact Name
• Include a description of the problem.
In addition to your shipping address and contact name, your account number is helpful but not
required. You may also fax orders to 508-533-5183.
Return Material Authorization (RMA)
The Return Material Authorization (RMA) system is used when returning material for placement,
repair or credit. The system assures that returned materials are properly handled and analyzed.
Follow the following procedures carefully.
Contact your authorized Cybex dealer on all warranty-related matters. Your local Cybex dealer will
request a RMA from Cybex, if applicable. Under no circumstances will defective parts or equipment
be accepted by Cybex without proper RMA and an Automated Return Service (ARS) label.
Please contact Cybex Customer Service for the return of any item that is defective.
Provide the technician with a detailed description of the problem you are having or the defect in the
item you wish to return. Provide the model and serial number of your Cybex equipment.
At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for
evaluation and repair or replacement. The technician will assign you a RMA number and will send
you an ARS label. The ARS label and the RMA numbers must be clearly displayed on the outside
of the package that contains the item(s) to be returned. Include the description of the problem, the
serial number of the equipment and the name and address of the owner in the package along with the
part(s).
Merchandise returned without an RMA number on the outside of the package or shipments sent COD
will not be accepted by the Cybex receiving department.
28
Cybex Plate Loaded 16120 Smith Press Owner’s Manual
Damaged Parts
Materials damaged in shipment should not be returned for credit. Shipping damages are the
responsibility of the carrier (UPS, Federal Express, trucking companies, etc.)
Apparent Damage
Upon receipt of your shipment, check all items carefully. Any damage seen with a visual check must
be noted on the freight bill and signed by the carrier’s agent. Failure to do so will result in the carriers
refusal to honor your damage claim. The carrier will provide you with the required forms for ling such
claims.
Concealed Damage
Damage not seen with a visual check upon receipt of a shipment but notices later must be reported
to the carrier as soon as possible. Upon discovery of the damage, a written or phone request to
the carrier asking them to perform an inspection of the materials must be made within ten days of
the delivery date. Keep all shipping containers and packing materials as they will be needed in the
inspection process. The carrier will provide you with an inspection report and the necessary forms for
ling a concealed damage claim. Concealed damage claim is the carrier’s responsibility.
10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX 508-533-5183
www.cybexintl.com • [email protected]
