SOLAR GARDEN LIGHT
INTRODUCTION & WARRANTY
2
YEARS
WARRANTY
*
FEATURES
Solar Powered Auto On/Off
Power
DIY Work
Modes
Cordless
IP65
RATING
TECHNICAL DATA
SOLAR GARDEN LIGHT
Ideal for streets, public parks, cark parks and similar environments.
INSTALLATION DIAGRAM
APPLICATION
NOTES

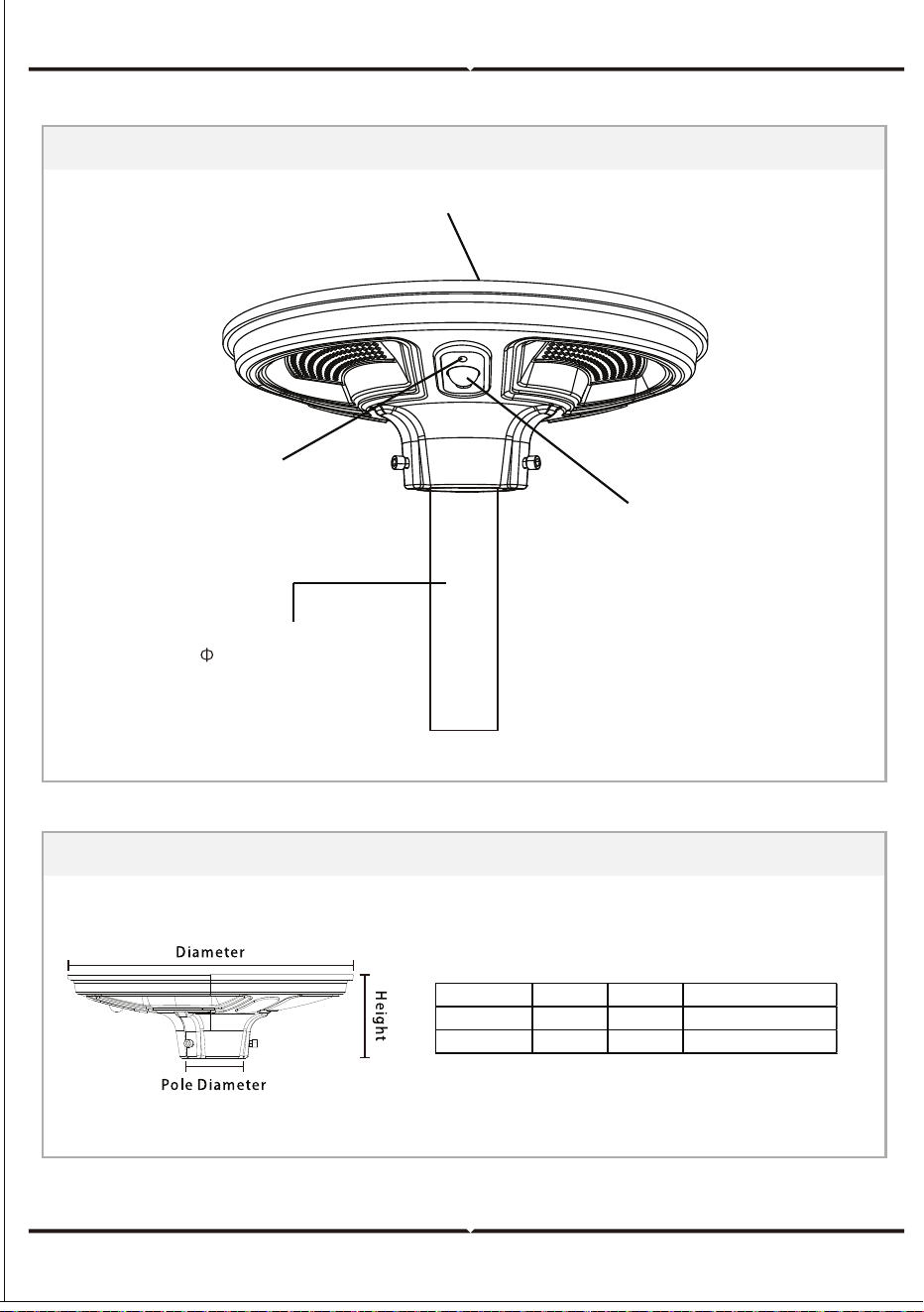

DIMENSIONS
VT-45W
VT-65W
123MM
137MM
Model
60MM
60MM
Diameter
Height
Pole Diameter
Product Size

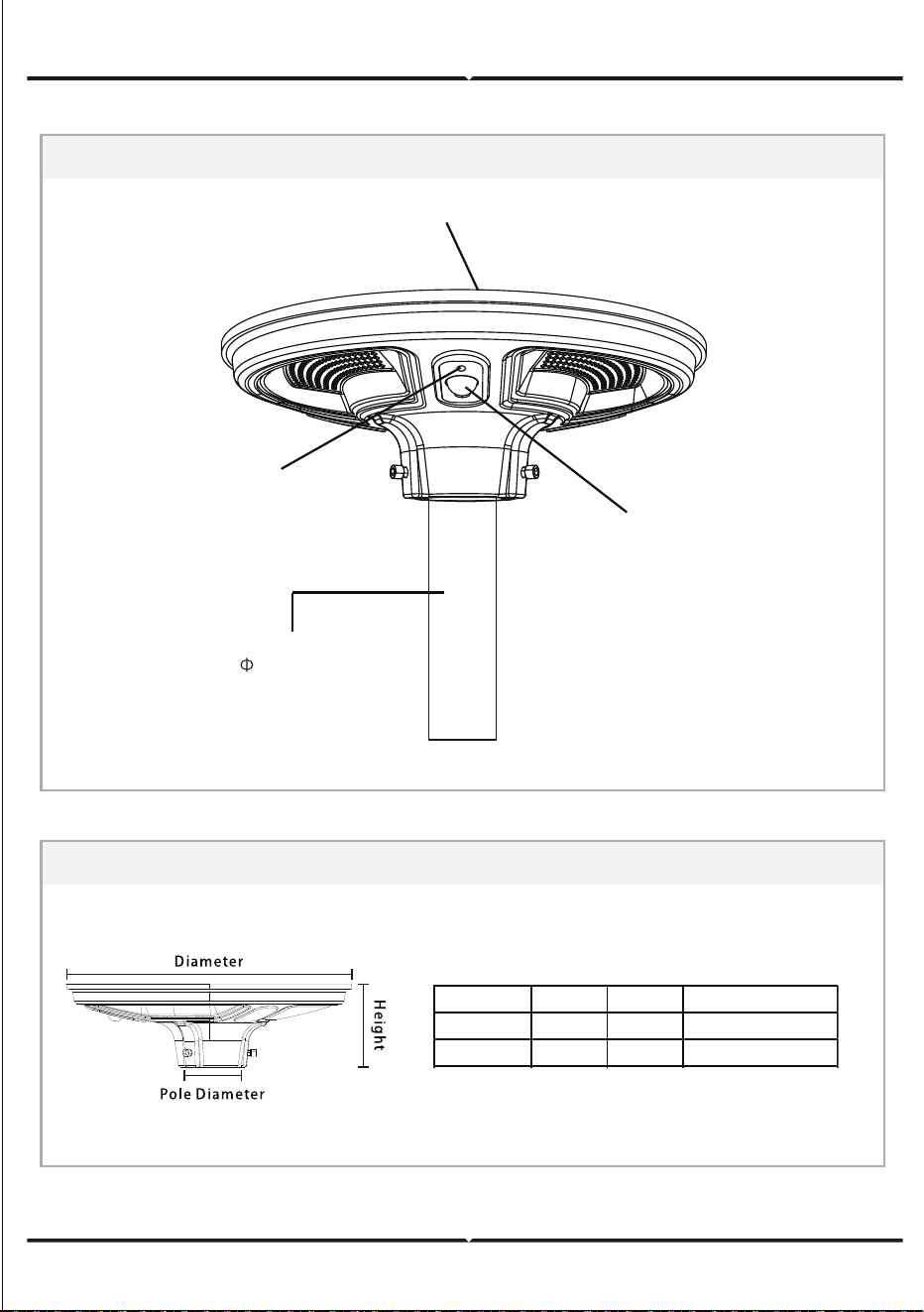

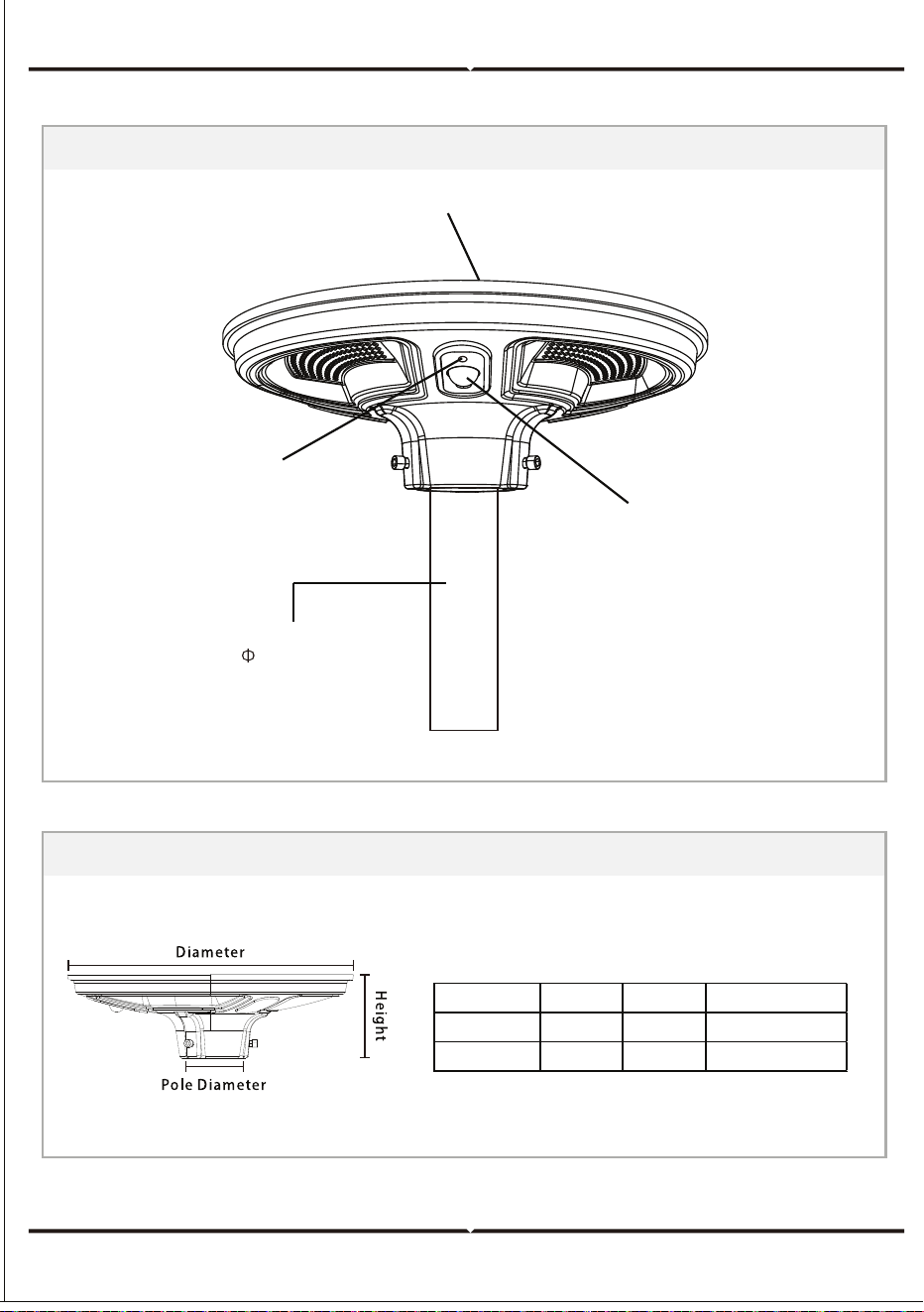

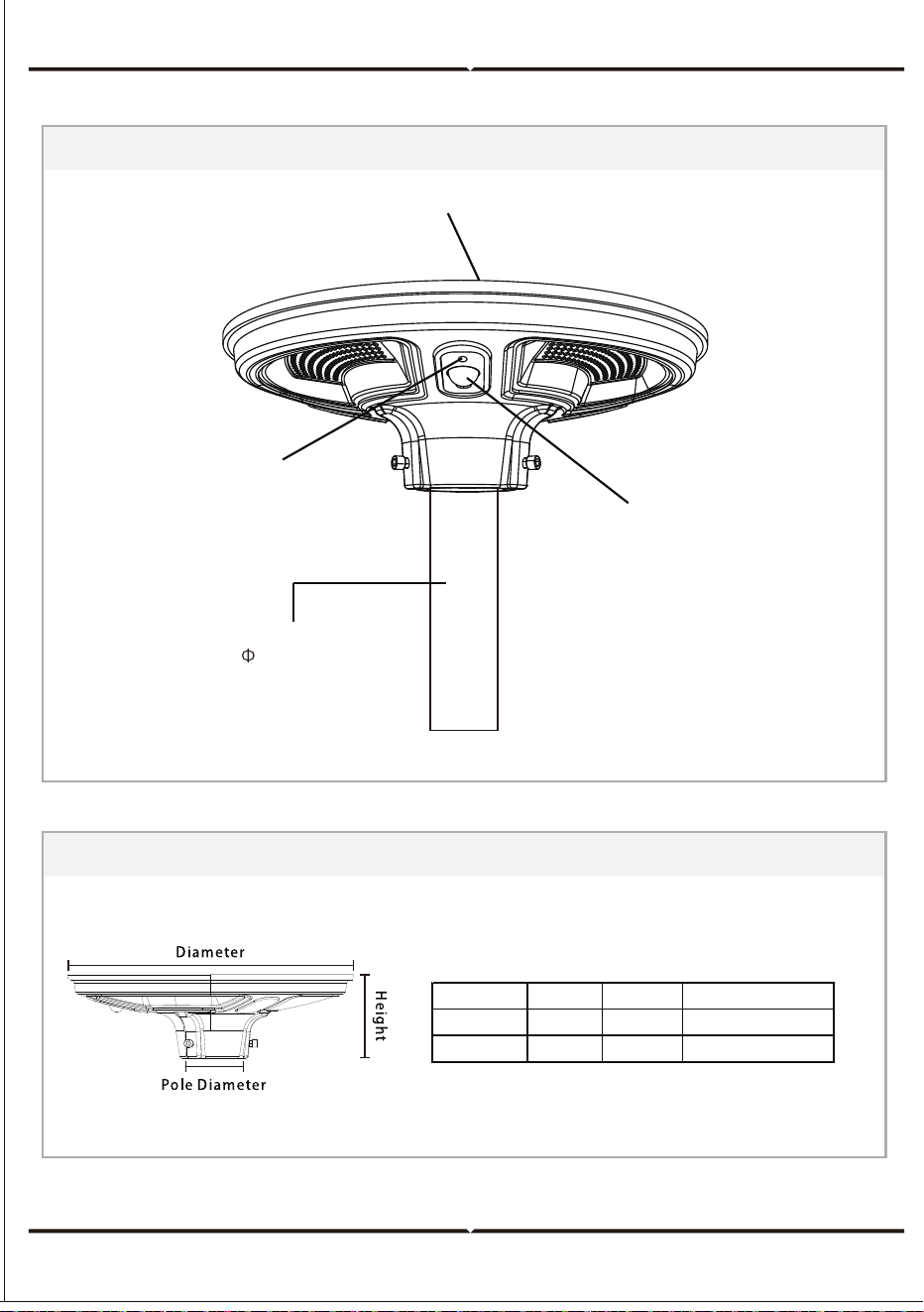

PARTS DIAGRAM
Remote Controller
Receptor
Switch
Solar Panel
Pole Diameter
60mm
• Please press button on the lamp firstly to turn on the lamp and activate remote control.
• Only one working mode can be selected at a time.
Remote Control Distance <12 Meters
DIY WORKING MODES BY REMOTE CONTROL

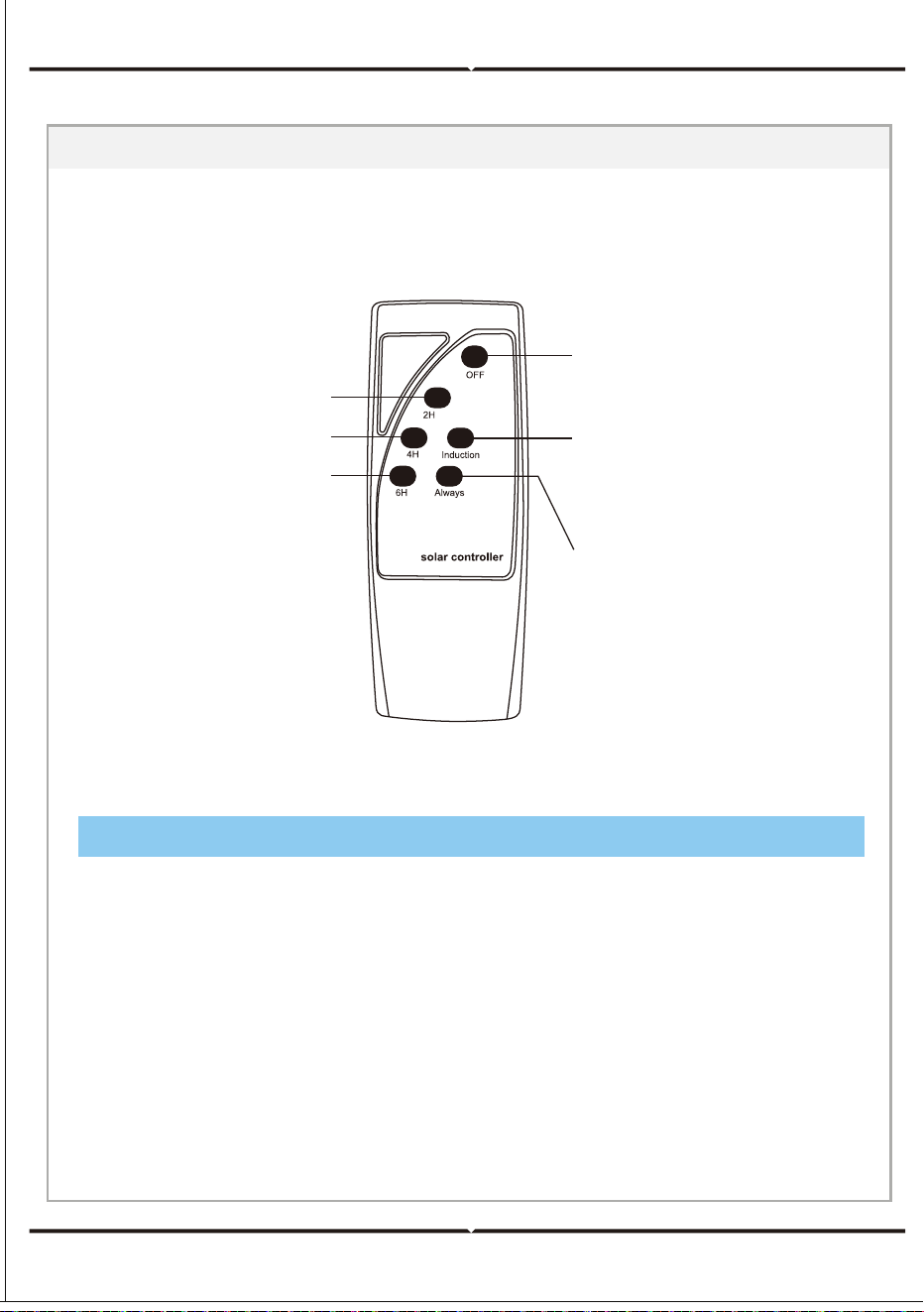

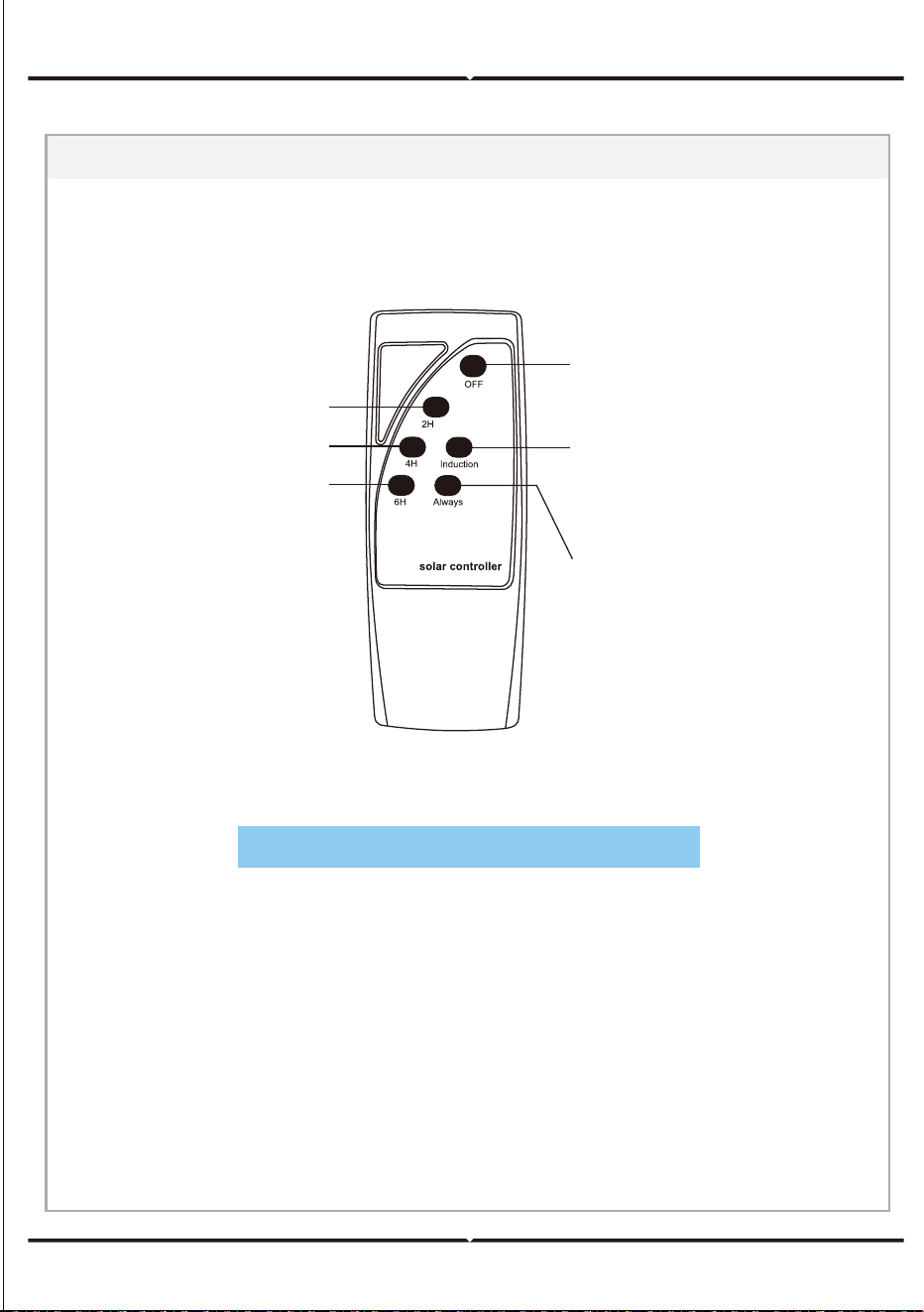

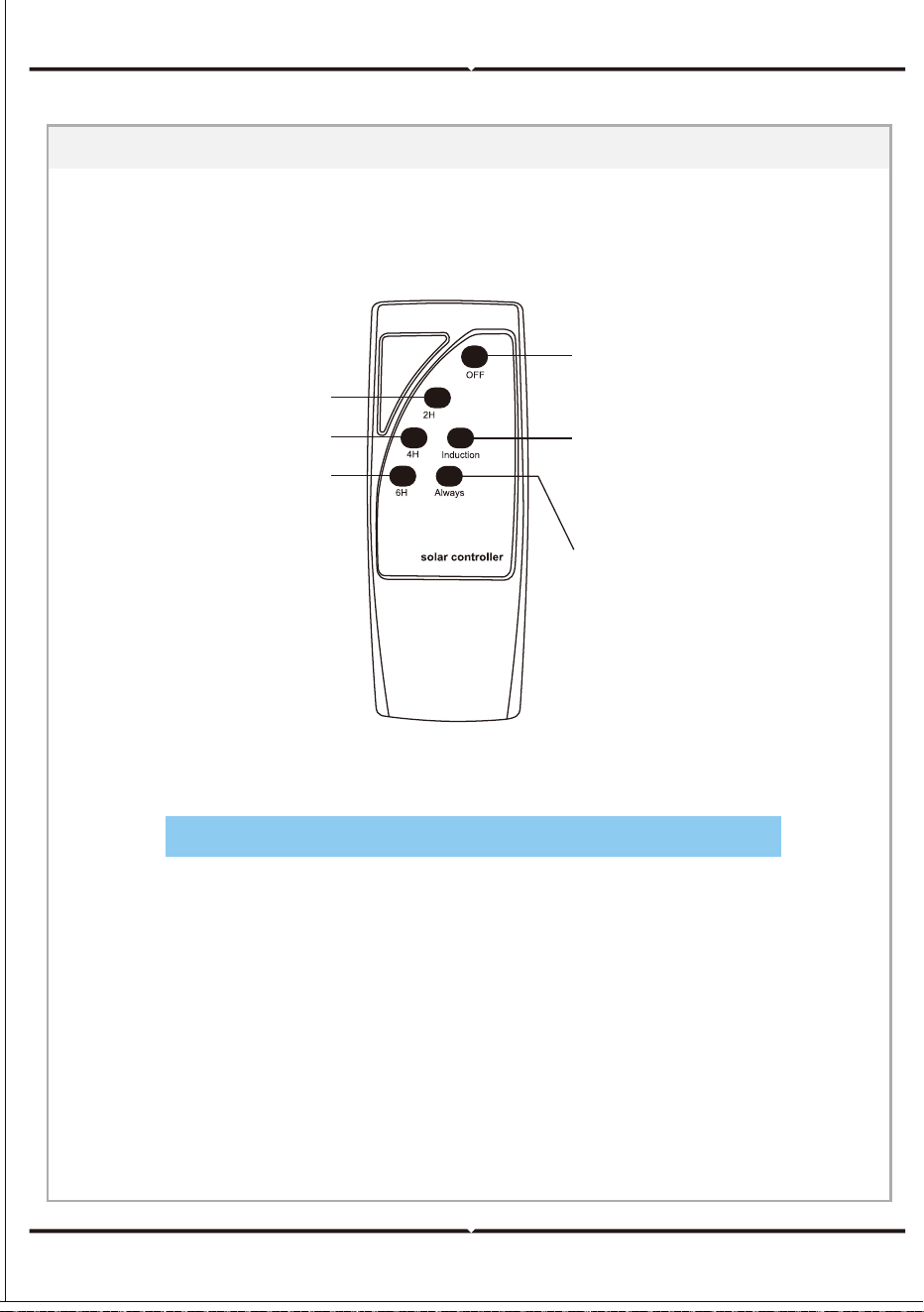

REMOTE CONTROL FUNCTIONS
Work in radar mode, keep weak light at night and adapted to 100% lightness when people pass by
automatically.

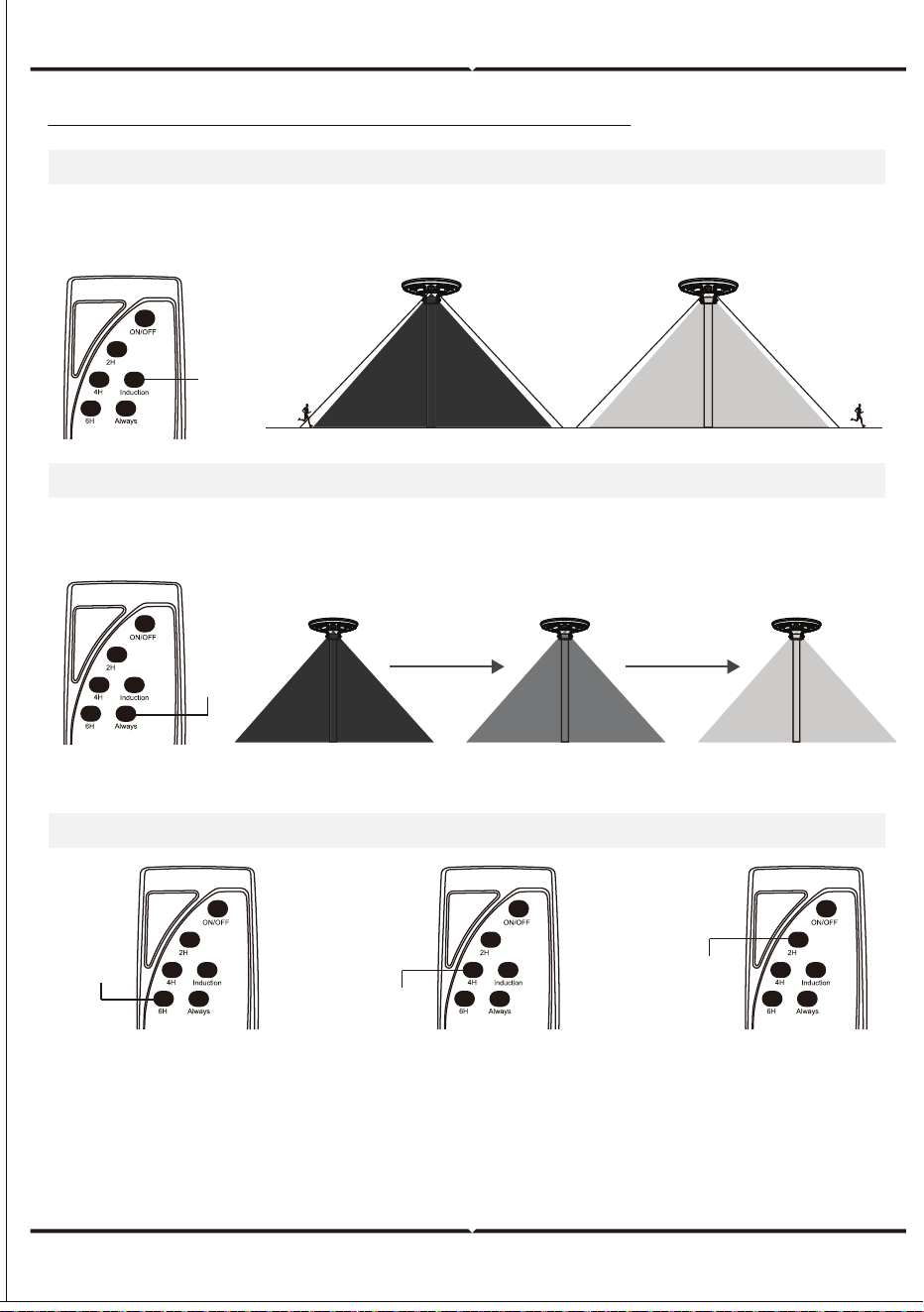

OPTION 1: Induction Mode
Press
this button
OPTION 2: Always Mode
OPTION 3: Hours Mode
Press
this button
Work for 6 hours from nightfall
Press
this button
Press
this button
After 1 hours After 3 hours
Press
this button
75% Lightness 50% Lightness 20% Lightness
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST
DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instruc-
tions carefully before starting the installation and keep this manual handy for future reference. If you have any
another query, please contact our dealer or local vendor from whom you have purchased the product. They are
trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The
warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company
gives no warranty against damage to any surface due to incorrect removal and installation of the product. This
product is warranted for manufacturing defects only.
WARNING
1. Installation/Disassembling must be performed by a certified person.
2. This is a solar powered lamp, please install it in a location where can get enough sunshine.
3. Built-in intelligent system is with over-charge, over-discharge and over-voltage protection, safe and durable.
4. Please do not dispose the battery with
household garbage to avoid explosion.
This marking indicates that this
product should not be disposed of
with other household wastes.
Turn off the light
75%
50%
20%
Work at nightfall, lightness adapted automatically, 75% lightness for first 1H, then 50% lightness for next
3H, 20% lightness to the day break.
Work for 4 hours from nightfall Work for 2 hours from nightfall
1. When the lamp is turned off by pressing the button on lamp, it can't be used or controlled by the remote
controller.
2. Please note the lighting time depends on the sunshine duration & weather & work modes.
3. This product is of IP65 for outdoor use, it cannot be used underwater.
4. The Solar panel is fragile, please handle with care during transport and installation.
MODEL
LUMEN / LED TYPE
BATTERY PACK
MONO SOLAR PANEL
LAMP DIMENSION
INSTALLATION HEIGHT
INSTALLATION SPACING
EFFECTIVE PROJECTION SURFACE
CHARGING TIME
WORKING TIME (FULLY CHARGED)
BEAM ANGLE
POLE DIAMETER
RADAR SENSOR
WORKING TEMPERATURE
STORAGE TEMPERATURE
VT-45W
1000LM (SMD2835*252PCS)
LiFePO4, 32650, 3.2V, 15AH
15W, 5V
420XH123mm
Up to 3 Meters
8~20 Meters
95sqm
8 hrs to fully charge(Charging
From sunset to sunrise
120°
60mm(POLE NOT INCLUDED)
DECTECTION ANGLE: 120°
under sunshine of 100000lux)
DECTECTION
DISTANCE: <6 Meters
VT-65W
1500LM (SMD2835*447PCS)
LiFePO4, 32650, 3.2V, 25AH
24W, 5V
520XH137mm
Up to 3 Meters
8~20 Meters
95sqm
8 hrs to fully charge(Charging
From sunset to sunrise
120°
60mm(POLE NOT INCLUDED)
DECTECTION ANGLE: 120°
under sunshine of 100000lux)
DECTECTION DISTANCE: <6 Meters
-10 -10
IP CLASS
IP65 IP65
ENGLISH

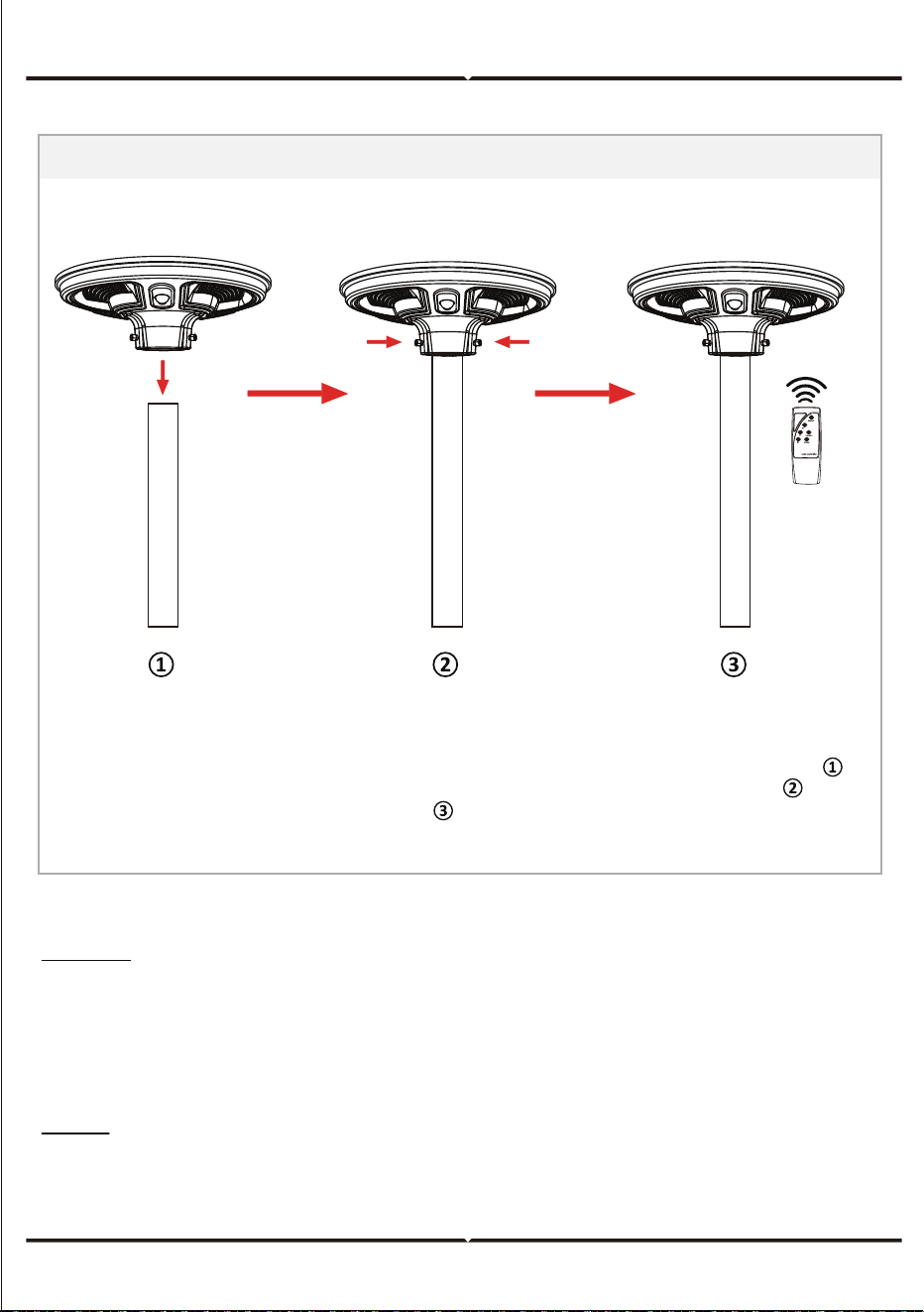

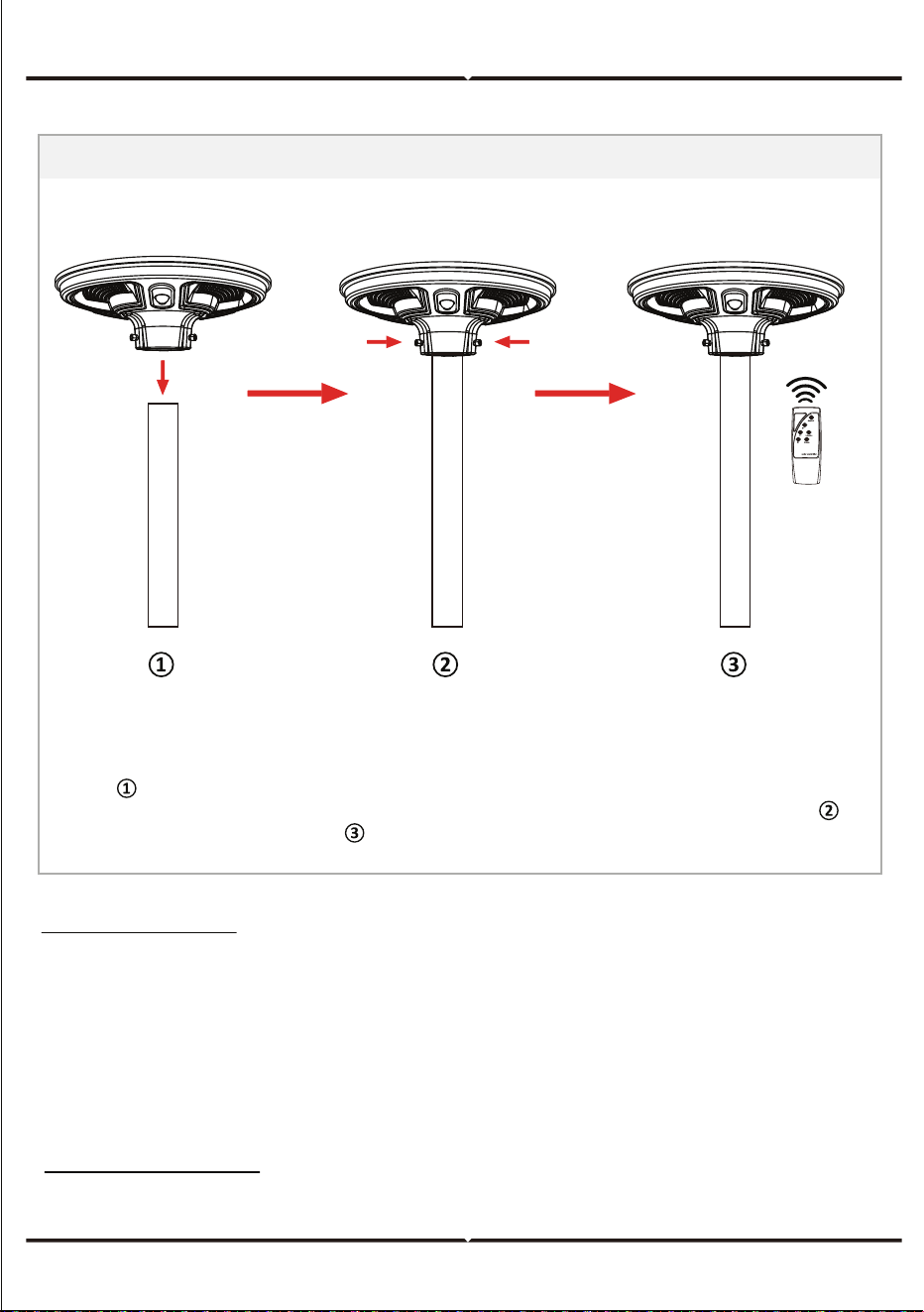

INSTALLATION
1. Prepare lamp, accessories and tools, and then turn on the lamp by pressing the button on the lamp( ).
2. Set the lamp on a lamp pole with a diameter of 60mm and fix it will 2 screws M8*20MM ( ).
3. Use remote control to set desired working mode( ).
