LED SOLAR GARDEN LIGHT WITH SENSOR
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
This marking indicates that this
product should not be disposed
of with other household wastes.
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read
these instructions carefully before starting the installation and keep this manual handy for future
reference. If you have any another query, please contact our dealer or local vendor from whom
you have purchased the product. They are trained and ready to serve you at the best. The warran-
ty is valid for 3 years from the date of purchase. The warranty does not apply to damage caused
by incorrect installation or abnormal wear and tear. The company gives no warranty against
damage to any surface due to incorrect removal and installation of the product. The products are
suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the war-
ranty. This product is warranted for manufacturing defects only.
INSTRUCTION MANUAL
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
COLOR
CHANGING
3-IN-1
LUMENS
MODEL VT-12014CCT
SKU 24098
2200 lm
POWER
15W
LEDs SMD2835 x 160pcs
BATTERY LiFePO4, 32700, 12000mAh 3.2V 38.4Wh
SOLAR PANEL Mono, DC 5V, 8.5W
COLOR TEMPERATURE CCT (6000K, 4000K, 3000K)
SENSOR PIR, 120°, <8Meters
BEAM ANGLE 360°
CHARGING TIME 7 Hours Strong Sunshine to Fully Charge
WORKING TIME 70 Hours Max.
INSTALLATION HEIGHT
2-3 Mtrs
BODY TYPE ABS+PC
DIMENSION Ø324.7*184.8mm
LIGHTING AREA 80 m
2
2 OPTIONAL
WORK MODES
Keep Lighting Mode
Sensor Mode
TECHNICAL DATA
WARNING
1. Please press the ON/OFF button on the lamp to turn it on before installation.
2. This is a solar-powered lamp; install it in a location that receives sucient sunlight.
3. Even when the lamp is turned o, it will still charge during the day using solar energy.
4. Lighting duration depends on sunlight exposure and the selected work mode.
5. The built-in intelligent system includes overcharge and over-discharge protection,
ensuring safety and durability.
6. The lamp contains an internal, replaceable battery pack.
7. Do not disassemble the lamp unless you are a qualified professional.
8. Do not dispose of the battery with household waste, as it may pose an explosion risk.
WORKING MODES
PIR Sensor
Indicator Light
Button Control
(On/O; Switch Work Mode/CCT)
* The remote control can only be used aer the lamp is activated by pressing the
on/o button on the lamp.

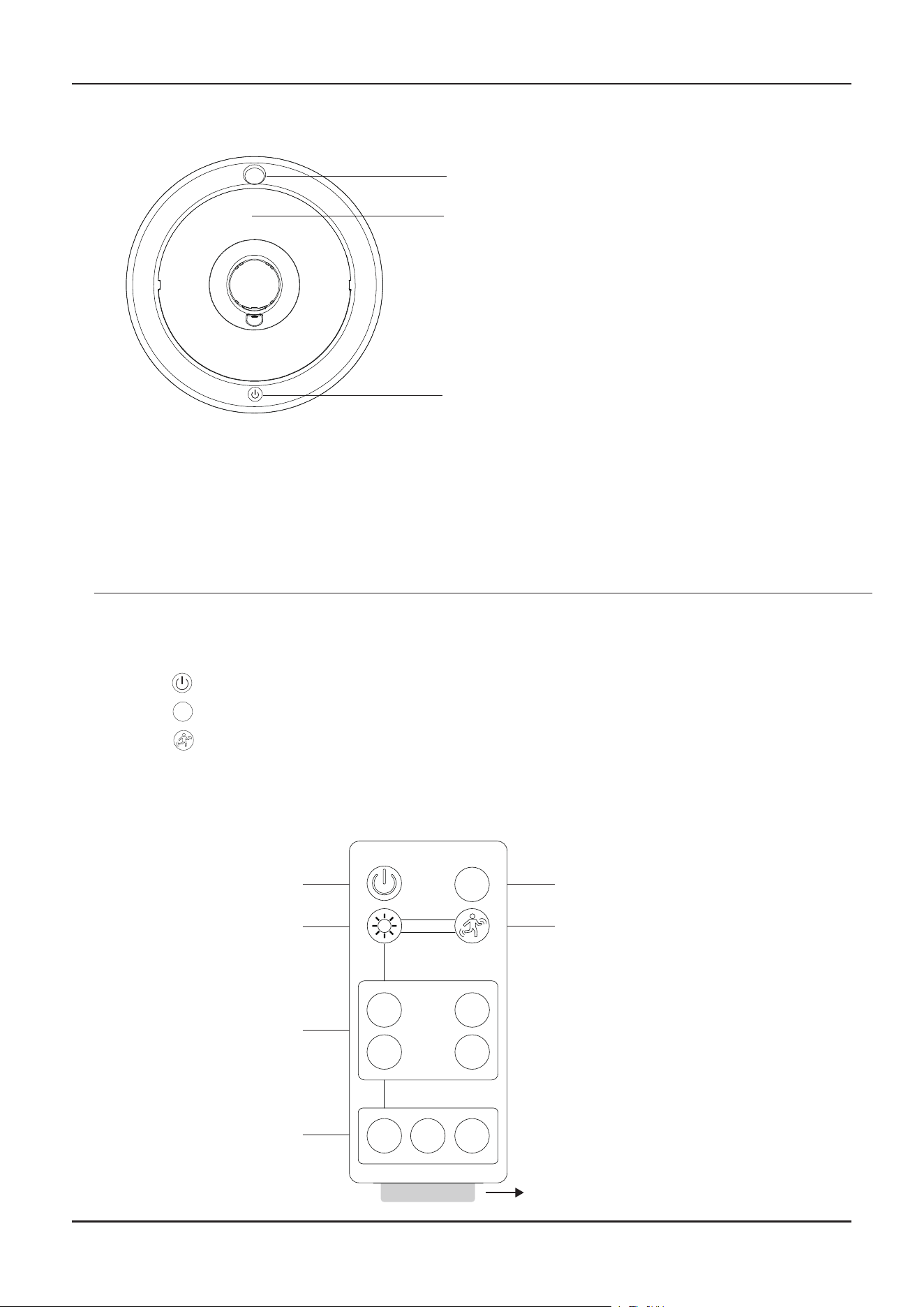

SELECT WORK MODE & CCT BY REMOTE
On/O
Switch Color Temperature
Keep Lighting Mode
Remove this film before use.
MODE
8H
60% 40%
20%
5H
H12
3H
CCT
Sensor Mode
Lighting Brightness
Lighting Time
* Lighting brightness and time can only be adjusted in Keep Lighting Mode.
CCT
* Remote control distance: ≤5 meters.
* Remote control has memory function.
* Press , lamp turns on / o directly;
Press , lamp switches lighting color directly;
Press , lamp flashes twice;
Press other buttons on the remote, lamp flashes once.
Press the button 1st time, lamp flashes once, it enters Keeping Lighting Mode.
Press the button 2nd time, lamp flashes twice, it enters Sensor Mode.
Press the button 3rd time, lamp turns o.
Press and hold the button for 3 seconds to switch the lighting CCT.
SELECT WORK MODE &
CCT BY BUTTON CONTROL ON THE LAMP

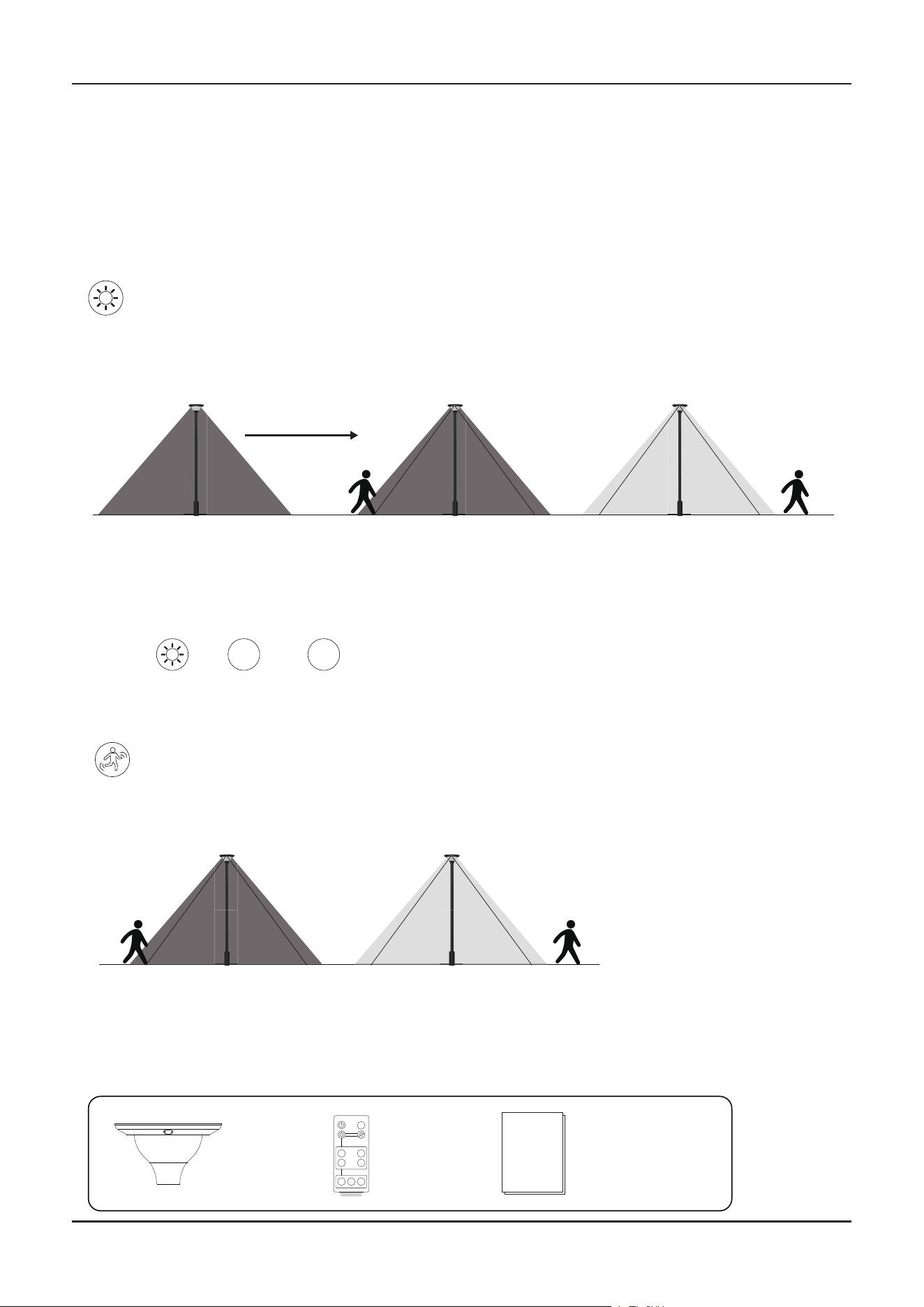

Lamp automatically lights up at night and turns to full brightness when motion is
detected in the range, then turns to 3% brightness aer 20 seconds of no motion.
ln the Sensor Mode, if activities are frequently detected within the sensing
range, the lamp will automatically trigger the AlM intelligent sensing mode.
SENSOR MODE
Lamp automatically lights up at night and keeps 60% brightness for 3 hours,
aer which lamp turns to Sensor Mode.
KEEP LIGHTING MODE
Aer 3 hours
In this mode, you can select the desired lighting time and brightness
by the remote control.
For example:
Press + + , the lamp will work as below:
Lamp automatically lights up at night and keeps 40% brightness for 5 hours,
aer which lamp turns to Sensor Mode.
40%
5H
PACKAGE CONTENT
MODE
8H
60% 40%
20%
5H
H12
3H
CCT
Lamp Remote User Manual
MANUAL
INSTRUCTION
INDICATOR LIGHT
Battery
Capacity
Day Time
(Battery Charging)
Night Time
(Battery Discharging)
0-30% Red light flashes every 3 seconds. Red light flashes every second.
30%-60% Blue light flashes every 3 seconds. Blue light stays o.
60%-90% Green light flashes every 3 seconds. Green light stays o.
Green light stays on. Green light stays o.
90%-100%
INSTALLATION INSTRUCTIONS
φ 60mm
On/O Button
Select Work Mode
Switch CCT
MODE
8H
60% 40%
20%
5H
H12
3H
CCT

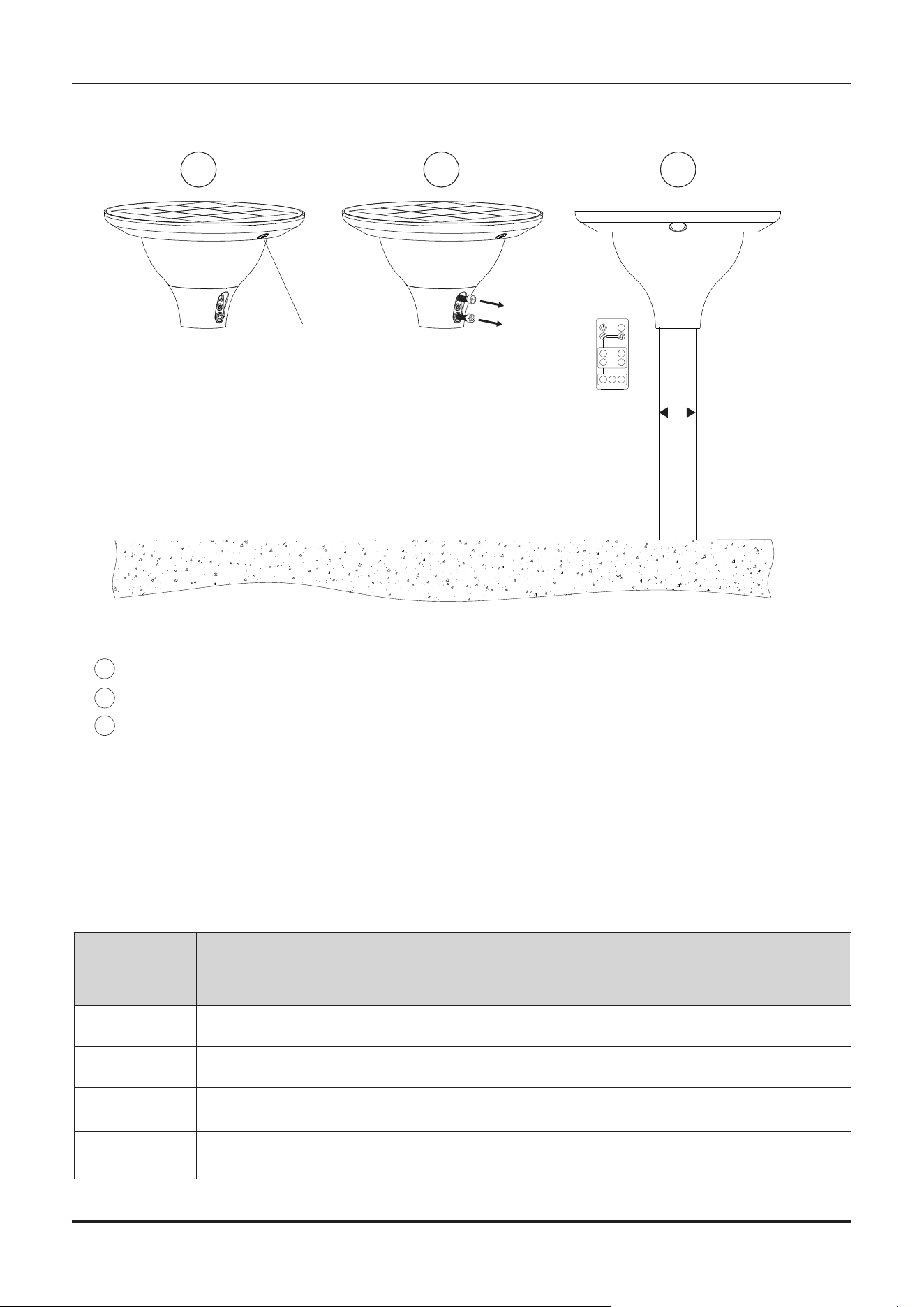

Prepare lamp and required tool first.
Press the button on the lamp to turn it on.
Loosen the screws on the lamp.
Insert the lamp onto the pole (Ø60mm), aim the PIR sensor at the area that
needs to be sensed, then fix the screws well.
Select desired work mode and CCT by the remote control.
1 32
1
3
2
This lamp has a RGB indicator light, which shows the charging status of the lamp and
the battery capacity.
REMOTE CONTROL SAFETY INSTRUCTIONS
BATTERY REPLACEMENT INSTRUCTIONS
• Before using this product, make sure that all parts are configured correctly
according to the instructions in the attached instruction.
• The product should not be used by persons under 5 years of age without
supervision by a parent or guardian.
• Ensure that the power batteries are configured correctly and have the
appropriate parameters as specified by the manufacturer.

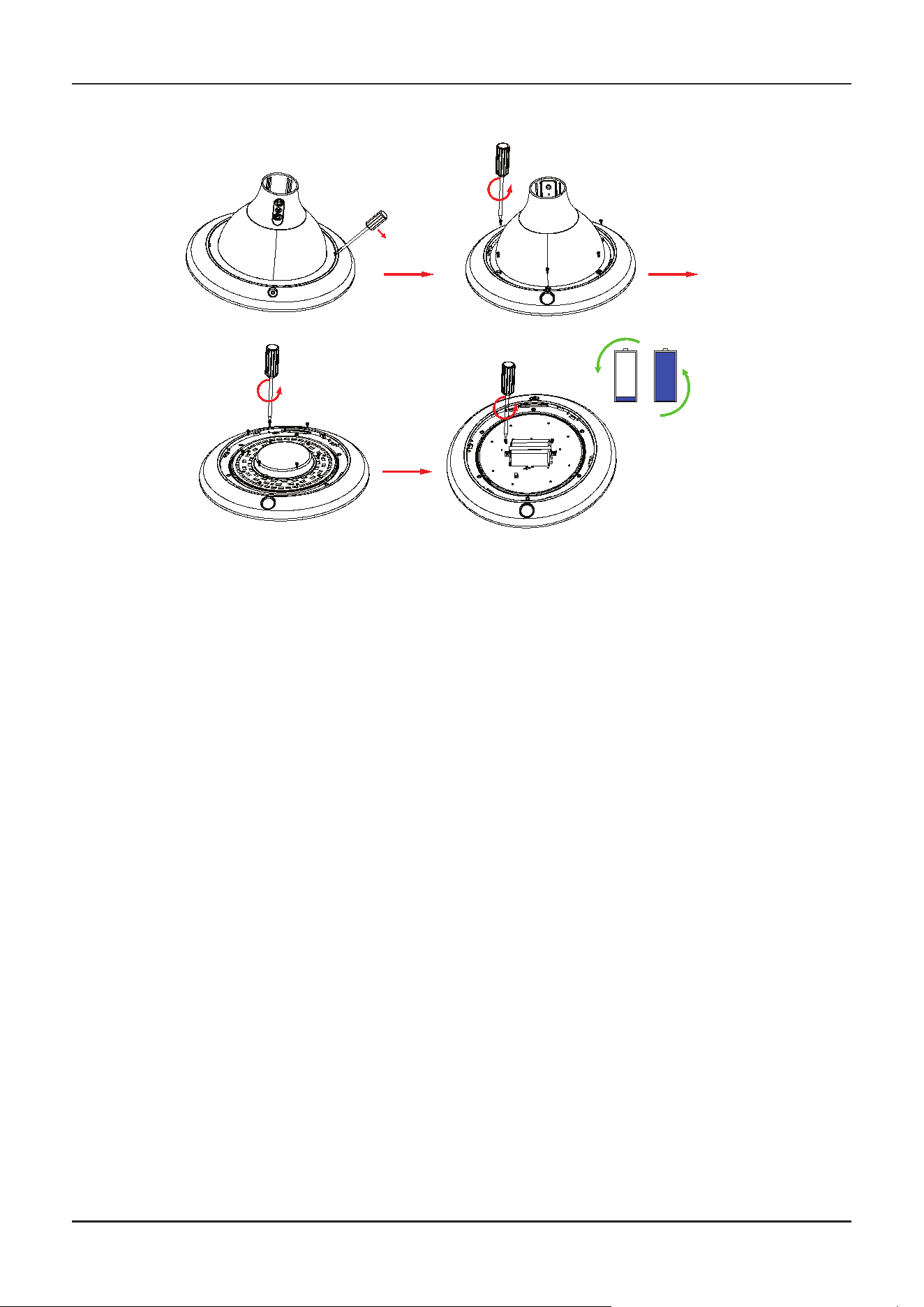

• Step 1: Using an appropriate tool, gently pry open the cover plate at the designated
notch as illustrated.
• Step 2: Loosen the screws securing the milky white cover and carefully remove the
cover.
• Step 3: Loosen the screws on the nano reflector and detach the reflector.
• Step 4: Loosen the screw securing the battery retaining bar. Then disconnect the
battery terminal to proceed with the replacement.
SOLAR PANEL MAINTENANCE & WARNING
• Do not use solvents, petrol, etc. Otherwise the light will be damaged.
• Clean the light with a dry, lint-free cloth.
• Check the solar panel for dirt regularly. If dirt or is present remove it to
guarantee flawless function of the product.
• Especially during the winter, keep the product free from snow and ice.
• Confirm installation direction is correct (solar panel should be at top)
• Confirm no objects blocking the solar panel to receive sunlight
• Keep away from the fire.
• Don’t immerse in the water
V-TAC UK LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT
SUPPORT@VTACEXPORTS.COM V-TAC, 5A TUNGSTEN PARK, DOWNS ROAD, WITNEY, OXFORDSHIRE, OX29 0AX
V-TAC WEST EUROPE LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT:
[email protected] FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC WEST EUROPE LTD. GROUND FLOOR, 71 LOWER BAGGOT STREET, DUBLIN 02, IRELAND DO2 P593
• This product contains battery type "Secondary" (rechargeable).
• Electrical and electronic equipment that has become waste is known as old equip-
ment/device. Old devices must not be disposed of with other household waste.
• Owners of old devices at the end of its service life must return the device by taking them
to the collection points set up by public waste disposal authorities or distributors. This
return does not entail any costs for you.
• Owners of old devices have an obligation to remove accessible batteries / rechargeable
batteries as well as non-destructively removable lamps from the old device prior to return.
This does not apply if old devices are being prepared for reuse with the participation of a
public law firm.
• Battery removal warning: The battery contained in this product must be removed only by
professional personnel only. The battery must never be removed by the end user, if not
removed correctly it could damage the battery which could cause fire.
• Batteries removed from an old electronic device should be disposed of separately. This
return of battery does not entail any costs for you and the user is obliged to return the
battery.
• Please make sure that this product is not powered on when removing the battery. Fire
hazard! Avoid short-circuiting the contacts of a detached battery. Do not incinerate the
battery. Please handle the battery with Caution!
• If electrical appliances or batteries are disposed of in landfills or dumps, hazardous sub-
stances can leak into the groundwater and get into the food chain, damaging your health
and well-being.
• The symbol of "Crossed rubbish bins "indicates that this product should not be disposed
of with other household wastes and must be collected separately from unsorted municipal
waste at the end of its service life.
• Please use the link below to view the online directory of the collection and return
points:https://www.ear-system.de/ear-verzeichnis/sammel-und-ruecknahmestellen
IMPORTANT NOTES
