QUICK SETUP GUIDE

Bluetooth Earbuds

NS-CAHBTEP02 / NS-CAHBTEP02-C

PACKAGE CONTENTS

• Bluetooth earbuds

• USB charging cable

• Quick Setup Guide

FEATURES

• Bluetooth 4.1 • In-line control with a built-in mic

• Up to six hours battery • MicroUSB charging

life for music playback

CHARGING YOUR EARBUDS

When the red indicator LED blinks three times every one minute, the battery is low. To charge

the battery, plug the microUSB charging cable into your computer and into the microUSB port

on your earbuds. The red LED turns on to indicate that the battery is charging and turns o

when fully charged.

USING YOUR EARBUDS

1 Place the earbud cable around your neck.

2 Attach the cable clip to the earbud cable by pressing the cable into the groove in the cable clip.

3 Adjust the position, then clip the cable clip to your collar. The inline control falls naturally in

front of your right shoulder.

Turning your earbuds on and o

Press and hold the MFB (multi-function button) for three seconds. The LED blinks blue (when turned

on) or red (when turned o) and the voice prompt says “Power on” or “Power o.”

BLUETOOTH BASIC INDICATION

PAIRING YOUR EARBUDS

Notes:

• Range is 33 feet (10 meters)

• Supports easy pairing

• Prompts you by saying “Device Connected,” when connected

• Supports a battery indicator icon on an iOS device

Pairing with a cell phone or MP3 player

1 With your earbuds turned o, press and hold MFB for four seconds. The blue and red LEDs blink

alternately.

2 On your phone or MP3 player, select INSIGNIA NS-CAHBTEP02 from the list of discovered

devices, then enter the password 0000 (four zeros) (if required) to pair your earbuds.

For more information on pairing Bluetooth devices to your cell phone or MP3 player, see the

device’s documentation.

Note: After the earbuds have been successfully paired with the cell phone or MP3 player, the earbuds will

automatically reconnect to the phone or MP3 player.

Bluetooth version:

Supported proles:

Frequency spectrum:

Working distance:

Operating

temperature:

Bluetooth 4.1

A2DP, AVRCP, HFP, HSP

2.4 ~ 2.4835 GHz

ISM Band

Up to 33 ft. (10 m)

23 ~ 122° F

(-5 ~ 50° C)

Operating time:

Standby time:

Weight:

Average charging

time:

Talk: 6 hours

Music: 6 hours,

playback music track

100 hours

0.388 oz (11g)

2 hours

Pairing with a computer running Windows

Note: Before you pair the earbuds with the computer, make sure that the computer is equipped with Bluetooth. Refer

to the computer’s documentation or contact the computer manufacturer for more information. If your computer is not

Bluetooth compatible, install a Bluetooth USB adapter (dongle).

1 Turn on Bluetooth on the computer. For instructions, see the computer’s documentation or contact

the computer manufacturer.

2 Double-click the Bluetooth icon in the system tray, then click Add a device (Add Wireless

Device using Windows Vista).

3 With the earbuds turned o, press and hold MFB for four seconds. The LED blinks blue and red

alternately. Pairing mode is activated.

4 Double-click the INSIGNIA NS-CAHBTEP02 icon on the computer or highlight the icon, then

click Next.

Note: If you are unable to locate the INSIGNIA NS-CAHBTEP02 icon, click the Search Again button.

5 If required, enter 0000 (four zeros) in the Bluetooth security code eld, then click Next.

6 After the earbuds have been paired, click Close. If you are using Windows XP, continue with steps 7

through 9.

7 Select one of the Bluetooth hands-free types shown on the Add a Bluetooth Device Wizard screen,

then click Next.

8 Select the services shown on the wizard screen to use with your Bluetooth earbuds, then click Finish.

9 To connect the device, double-click the INSIGNIA NS-CAHBTEP02 Hands-Free Unit icon or the

INSIGNIA NS-CAHBTEP02 Stereo Audio icon.

Note: The earbuds should be automatically selected as the default playback device (Windows® 8, Windows® 7, or

Windows Vista®) or the default recording and playback device (Windows XP). To make those settings manually,

refer to the User Guide.

Pairing with a Mac computer

Note: Before you pair the headphones with the computer, make sure that the computer is Bluetooth compatible. Refer

to the computer’s documentation or contact the computer manufacturer for more information. If your computer is not

Bluetooth compatible, install a Bluetooth USB adapter (dongle).

1 Turn on Bluetooth on the computer. For instructions, see the computer’s documentation or

contact the computer manufacturer.

2 Click the Bluetooth status menu.

3 Click Set up Bluetooth Device. The Bluetooth Setup Assistant opens.

4 Click Continue.

5 Select Headset as the device type, then click Continue.

6 With the earbuds turned o, press and hold MFB for four seconds. The LED blinks blue and red

alternately. Pairing mode is activated.

7 Select INSIGNIA NS-CAHBTEP02 , then click Continue. The computer gathers information.

8 Click Continue.

9 Enter 0000 (four zeros) into the Passkey eld, then click Continue.

10 Click Quit to nish.

Note: To use the earbuds, they must be selected as the default input and output device on the computer.

11 Click System Preferences, then click Sound.

12 Under Input, select INSIGNIA NS-CAHBTEP02 , then under Output, select INSIGNIA

NS-CAHBTEP02 .

For more information on using your headphones with Skype, refer to your User Guide.

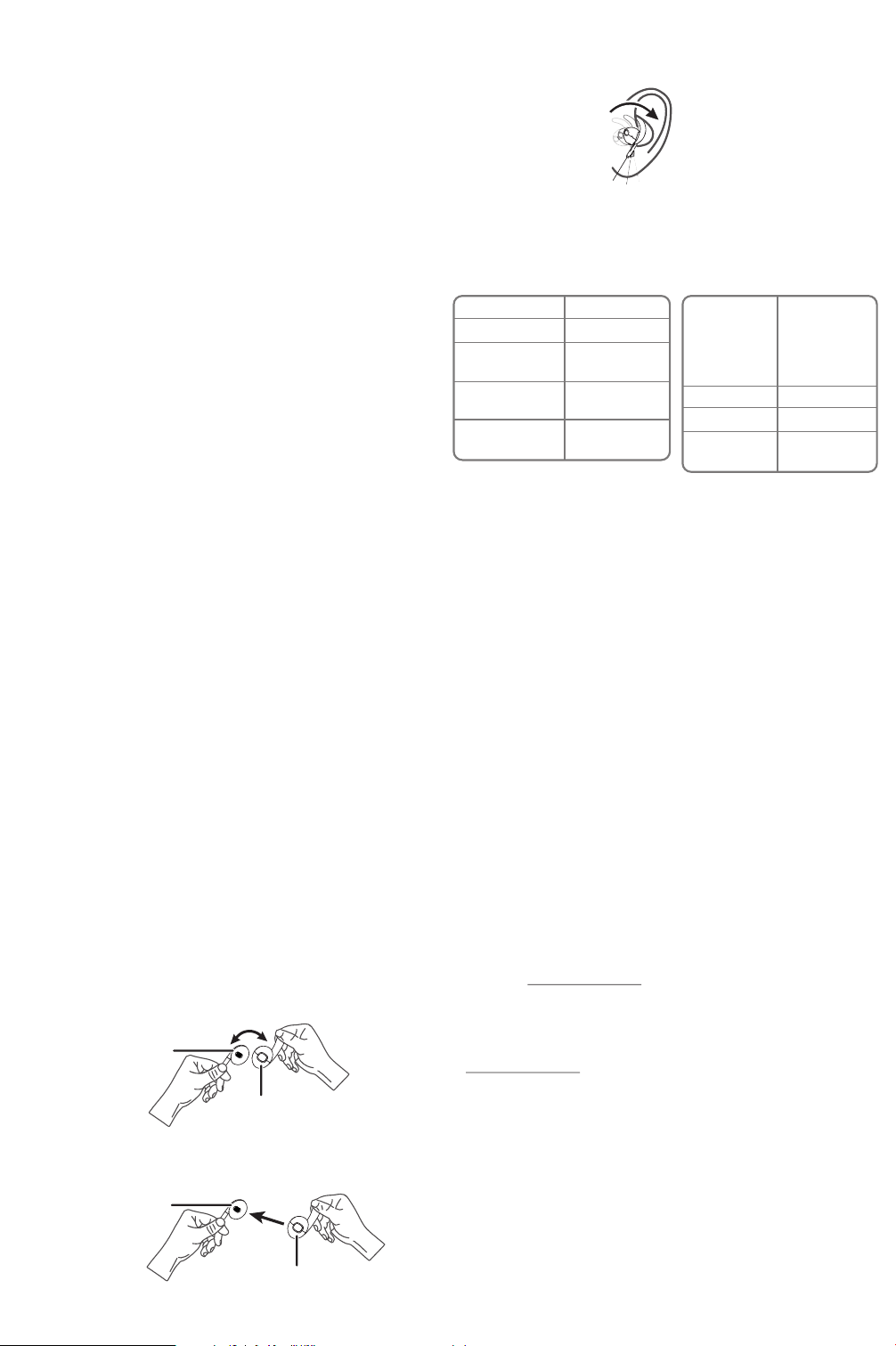

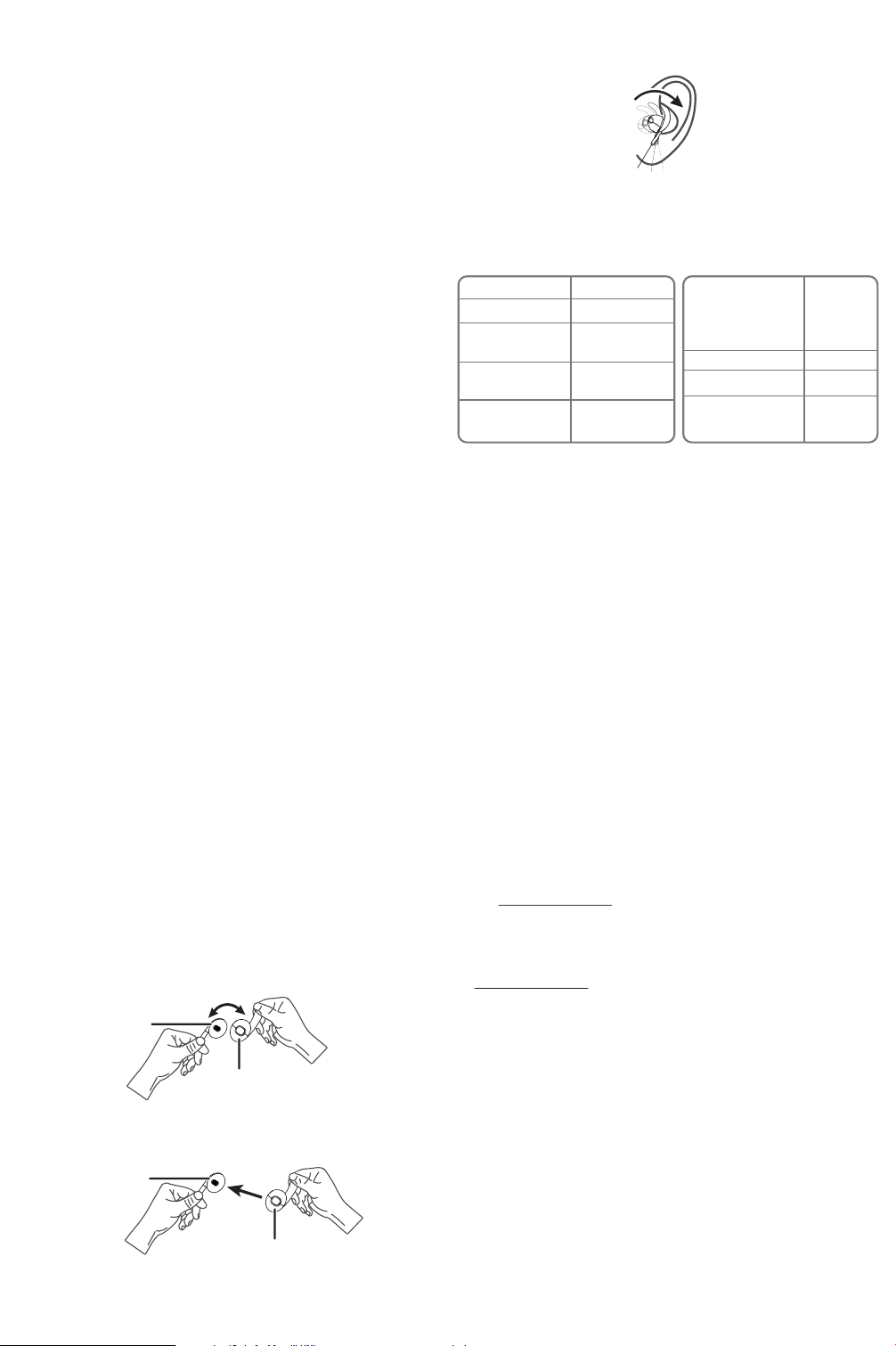

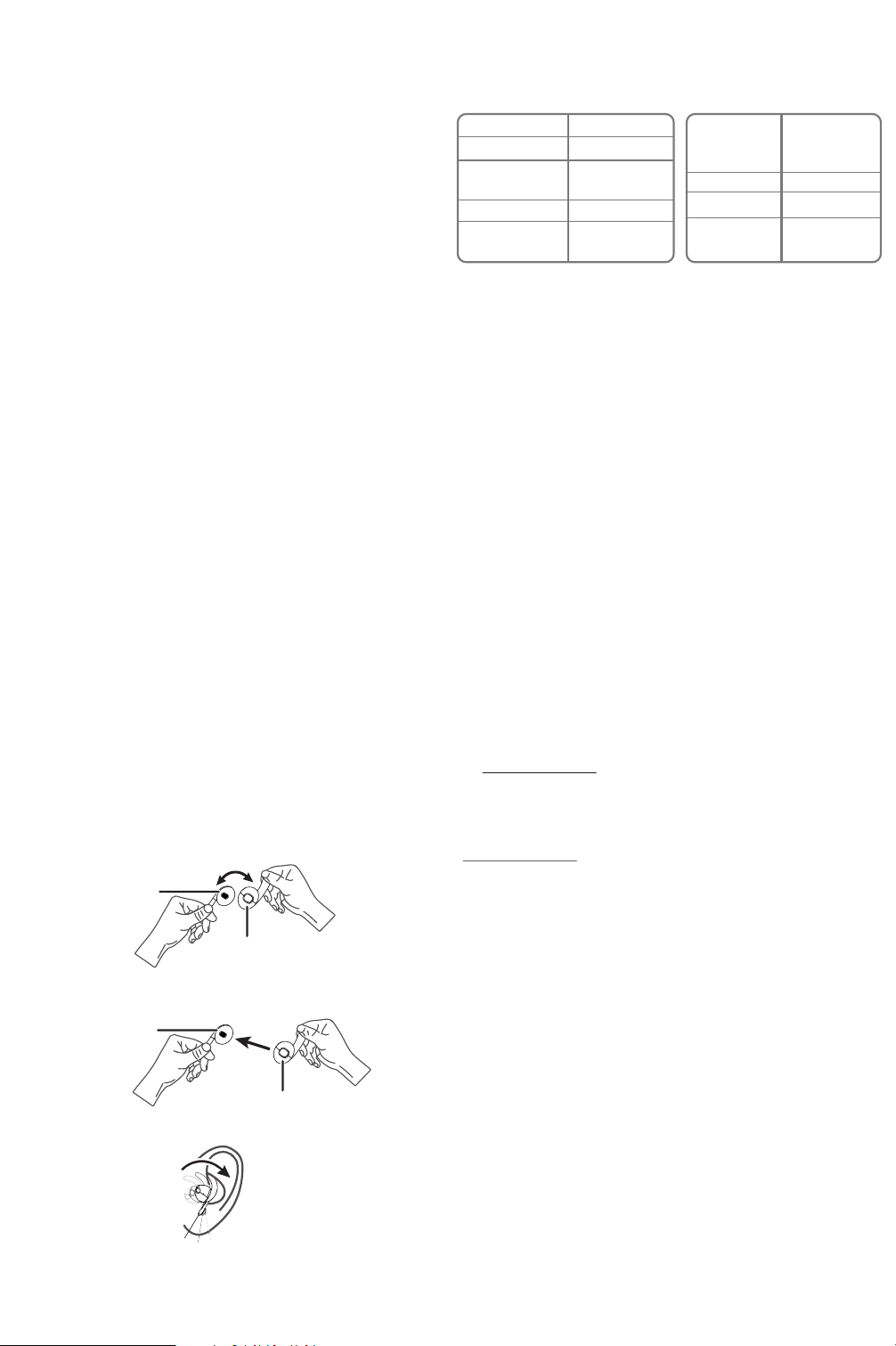

CHANGING YOUR EARTIPS

1 Select the correct size eartip for your ears.

2 To remove the eartip, grip the ear bud in one hand and the eartip in the other, then twist and

pull to remove the eartip from the ear bud. Repeat for the other ear bud.

3 To attach the eartip, hold the ear bud in one hand, place the new eartip over the ear bud and

press together until joined. Repeat for the other ear bud.

4 Place the assembled ear bud in your ear and turn clockwise until comfortable.

RESETTING YOUR EARBUDS

• To reset your earbuds, with your earbuds turned o, press and hold MFB for 10 seconds.

SPECIFICATIONS

TROUBLESHOOTING

• Reset your BT headphone • Plug microUSB cable for charging

LEGAL NOTICES

FCC statement:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution:

Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, maybe cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and

on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent form that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

RSS‐Gen & RSS‐247 Statement:

This device complies with Industry Canada licence‐exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any

interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée

aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

RSS‐102 Statement:

Before using your new product, please read these instructions to prevent any damage.

ACTION

Power on

Power o

Pairing mode

Play/Pause

Volume Up/Down

Next Track/

Previous Track

Incoming call

Answer call

Reject call

Redial

Reset device list

OPERATION

Press and hold MFB more than

two seconds

Press and hold MFB more than

three seconds

Press and hold MFB more than

four seconds in power o

mode

Press and release MFB button

Press and release + / - button

Press and hold + / - button

Press and release MFB when a

call is incoming

Press and hold MFB when a

call is incoming

Double press MFB

Press and hold MFB more than

10 seconds in power o mode

LED INDICATION

Blue LED on 1.5 seconds

Red LED on 1.5 seconds

Blue and red LED

blinking alternately

Blue LED blinks three

times every ve seconds

when a call is received

All LEDs turn o

SOUND

“power on”

“power o”

Two short beeps

Two high beeps for

maximum volume.

Two low beeps for

minimum volume

Ring tones

One short beep

One long beep

Two short beeps

This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled environment.

Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites établies pour un environnement non contrôlé.

ONEYEAR LIMITED WARRANTY

Visit www.insigniaproducts.com for details.

CONTACT INSIGNIA:

1-877-467-4289 (U.S. and Canada)

01-800-926-3000 (Mexico)

www.insigniaproducts.com

INSIGNIA is a trademark of Best Buy and its aliated companies. Distributed by Best Buy Purchasing, LLC

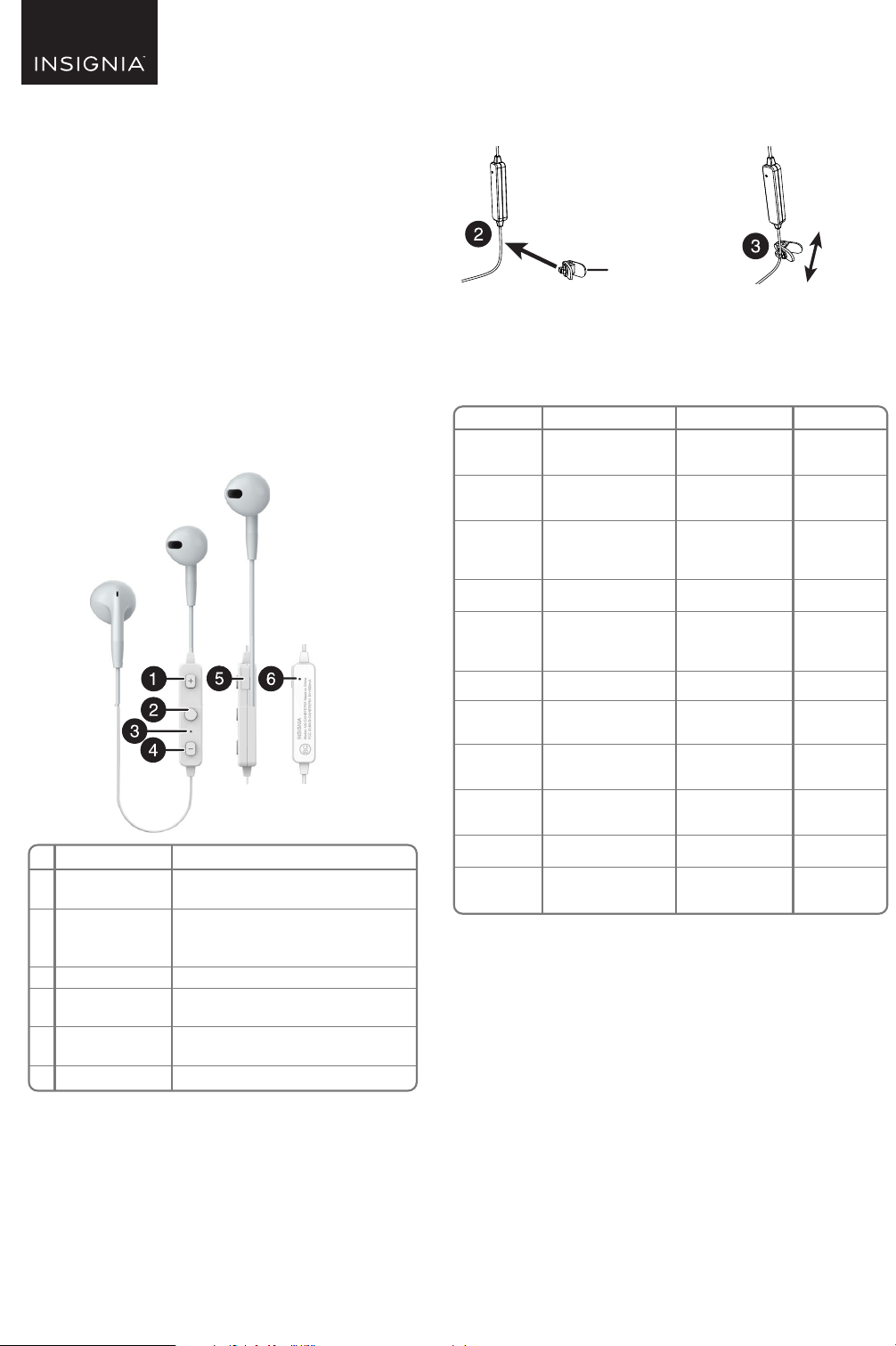

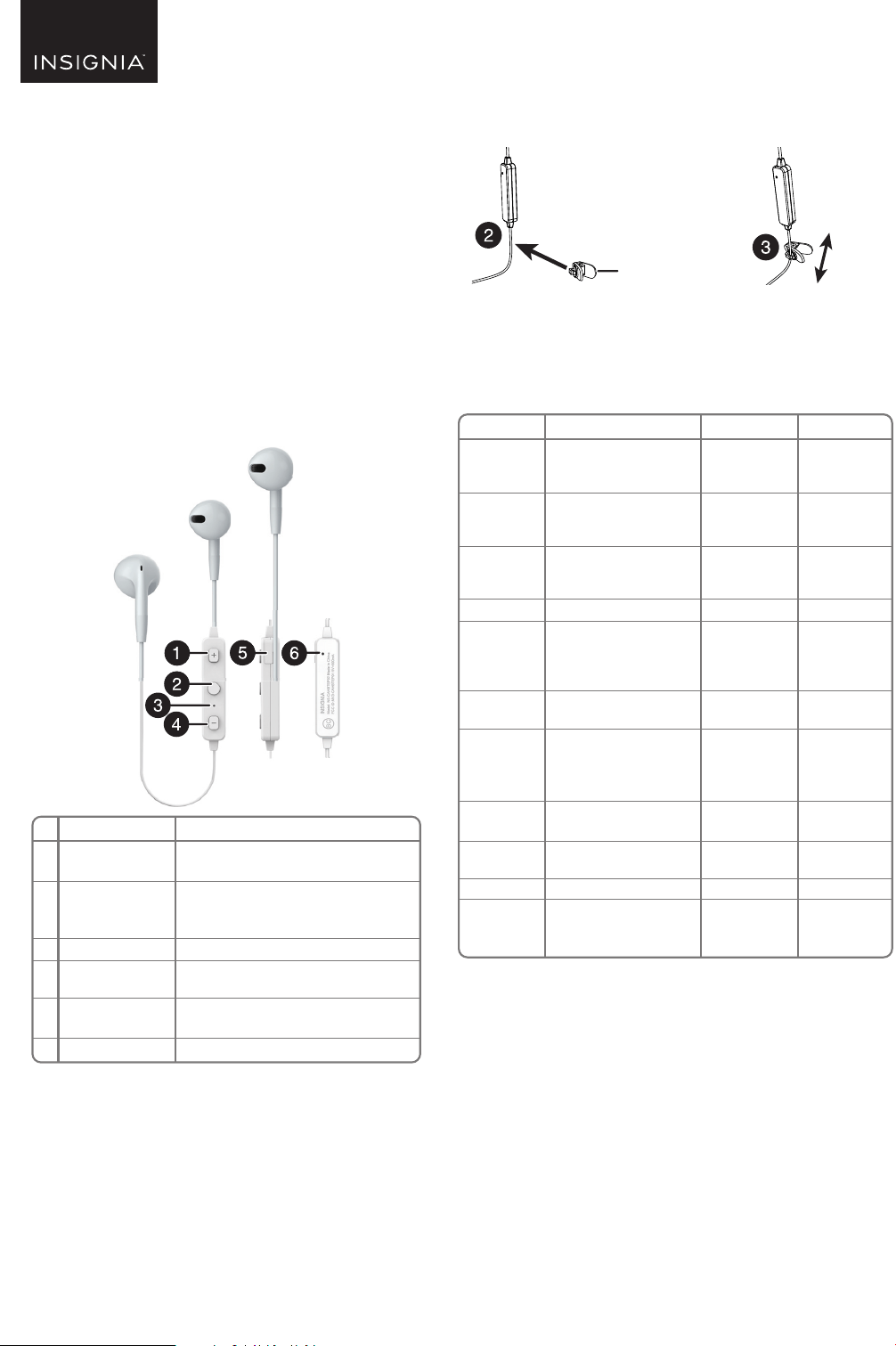

# DESCRIPTION
