User Manual Microwave
Location of Controls
1 Oven Window
2 Door Safety Lock System
3 Door Release Button
Push to open the door. Opening the door during cooking will stop the cooking process without cancelling the program.
Cook resumes as soon as the door is closed and Start is pressed. It is quite safe to open the door at any time during a cooking program and there is no risk of Microwave exposure.
4 External oven air vents
5 Glass Tray
- a. DO NOT operate the oven without the roller ring and glass tray in place.
- b. Only use the glass tray specifically designed for this oven. Do not substitute any other glass tray.
- c. If the glass tray is hot, allow to cool before cleaning or placing in water.
- d. DO NOT cook directly on the glass tray. Always place food on a microwave-safe dish, or on a rack set in a microwave-safe dish.
- e. If food or utensil on the glass tray touches oven walls, causing the tray to stop moving, the tray will automatically rotate in the opposite direction. This is normal.
- f. Glass tray can rotate in either direction.
- g. Always place the container on the center of glass tray when cooking.
6 Roller Ring
- a. Roller ring should be cleaned regularly to avoid excessive noise.
- b. Roller ring and glass tray should be used at the same time.
7 Broil and Convection Heater
8 Waveguide Cover (do not remove)
9 Menu Label
10 Caution Label (hot surfaces)
11 Warning Label
12 Control Panel
13 Power Supply Cord
14 Power Supply Plug
15 Enamel Tray
- a. The enamel tray is for cooking on Airfry, Broil, Convection and Combo. Do not use enamel tray in Microwave mode only.
- b. The enamel tray must always be in place on the glass tray (unless stated).
- c. Take it out with thermal insulation gloves after use. To avoid scalding, do not touch it with your hands.
16 Wire Rack (with spacers)
- a. A wire rack is included with the oven in order to facilitate browning of small dishes.
- b. Wire rack should be cleaned regularly.
- c. When using wire rack in the manual Airfry, Broil, Convection and Combo cooking modes, be careful to choose heat-proof containers; containers made of plastic or paper may melt or burn when exposed to the heat radiating from the Broil.
- d. When using the Combo mode, never place any aluminum or metal container directly on wire rack. Always insert a glass plate or dish between wire rack and the aluminum container. This will prevent sparking that may damage the oven.
- e. Do not use wire rack when cooking in the MICROWAVE mode only.
- f. Spacers: Do not remove when cooking.
17 Oven Light
Oven Light will turn on during cooking and also when door is opened.
18 Warning Label
19 DHHS Label
20 Airfry Basket
The Airfry Basket is for Airfry function. The Airfry Basket must always be in place on the wire rack on Enamel tray, and glass tray (unless stated).
21 Function Label
22 Identification Plate
Notes:
1. The above illustration is for reference only.
2. The glass tray, wire rack, enamel tray and airfry basket are the only accessories with this oven. All other cooking utensils mentioned in this manual must be purchased separately.
Oven Accessories
The following chart shows correct use of the accessories in the oven.

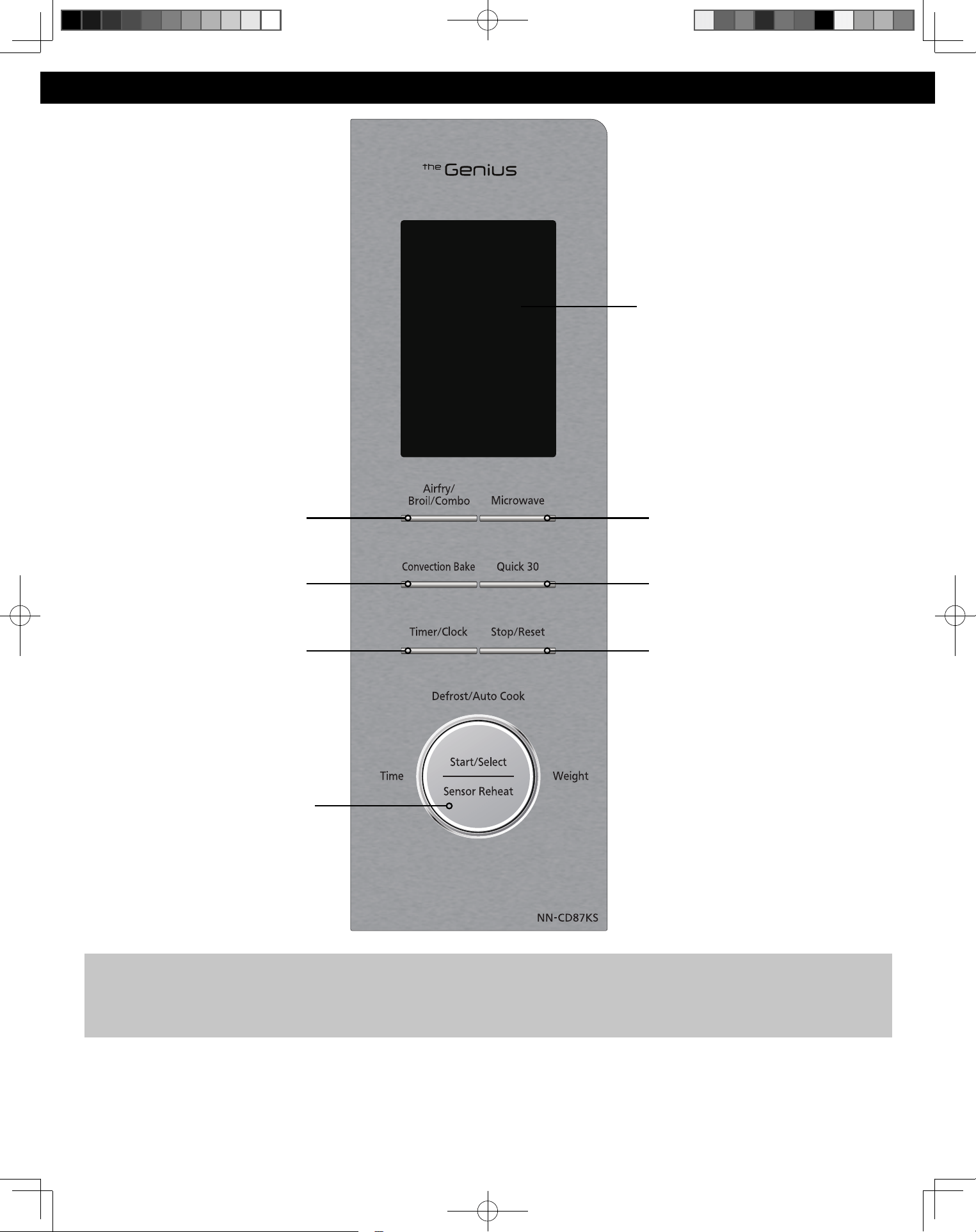

Control Panel
Beep Sound: When a Button is pressed correctly, a beep sound will be heard. If a Button is pressed and no beep is heard, the unit did not or could not accept the instruction. The oven will beep twice between programmed stages. The oven will beep three times after preheating. At the end of any completed program, the oven will beep 5 times.
Note: If an operation (except “One Push Reheating”) is set and Start is not pressed, after 6 minutes, the oven will automatically cancel the operation. This display will revert back to clock or colon mode.
Display Window
To help you operate the oven conveniently, the present state will appear in the display window.
Note: When cooking time is longer than 60 minutes, the time will appear in hours and minutes.
Dial Feature
Time (Cooking time)
After selecting a manual cooking mode, enter time by turning the dial. Use the dial for the Add Time function (page 30).
Defrost/Auto Cook (Defrost, Auto/Sensor Cook, Steam Clean)
a. When clock mode is displayed, turn the dial to select auto programs and weight (pages 33-41).
b. Steam Clean: This Program is to clean the cavity and remove any food odour from the microwave oven (page 42).
Start/Select (Confirmation)
Press the dial to start operating the oven or confirm the setting. If during cooking the door is opened or Stop/Reset is pressed once, Start has to be pressed again to continue cooking.
Sensor Reheat (One Push Reheating)
When Clock mode is displayed, press dial for quick start reheating chilled meal (page 32).
Cooking Modes
The diagrams shown below are examples of the accessories. It may vary depending on recipe/dish used.
Operation
Using the Microwave for the First Time
Plug into a properly grounded electrical outlet. "WELCOME TO PANASONIC REFER TO OWNER’S MANUAL BEFORE USE" scrolls across display window.
Function Features
This unique function of your Panasonic microwave oven allows you to establish the initial non-cooking features of your Oven. This microwave oven has the functions below:
• WEIGHT/TEMPERATURE UNITS CHOICE
• LANGUAGE CHOICE
• BEEP CHOICE
Plug into a properly grounded electrical outlet.
NOTES:
1. These choices can be selected only when you plug-in the oven.
2. Press Stop/Reset, it will revert to initial mode (" : ").
3. After setting, it will revert back to Weight/Temperature Units Choice setting if Start is pressed again, press Stop/ Reset to exit
WEIGHT/TEMPERATURE UNITS CHOICE:
The oven has a choice of Metric Units or Imperial Units display.
Press Start (Dial) once. "LB-F/KG-C" scrolls across display window.
Select the "LB-F" or "KG-C" by pressing Timer/Clock. The default weight unit is LB-F.
3. After setting, press Stop/Reset to exit.
LANGUAGE CHOICE:
The oven has a choice of English, French or Spanish display.
Press Start (Dial) twice. "LANGUAGE" scrolls across display window. The default language is English.
3. After setting, press Stop/Reset to exit.
BEEP CHOICE:
The oven has both Beep On and Beep Off mode.
Press Start (Dial) 3 times. "BEEP ON/OFF" scrolls across display window. The default mode is Beep ON.
Press Timer/Clock once. The mode changes to Beep OFF.
3. After setting, press Stop/Reset to exit.
Demo Mode
- When "DEMO MODE PRESS ANY KEY" or "D" appears in the display window, it means the oven is under demonstration mode, microwave does not emit. Demo mode is designed for retail store display. In this mode, the oven can be demonstrated with no cooking power in the oven.
- To cancel: Press Microwave once, Start 4 times and Stop/Reset 4 times.
Step 1.
Step 2.
Step 3.
NOTES:
1. To set Demo Mode, repeat step 1-3.
2. Default mode is Demo Mode off.
Menu Action ON/OFF
This feature helps you to program your oven by prompting the next step to be taken. When you become familiar with your oven, the prompt can be turned off. This feature can be selected when colon or clock appears in the display window.
To turn ON/OFF:
Press Timer/Clock 4 times to turn Menu Action ON/OFF. The default setting is Menu Action ON.
NOTES: This function only can be operated when word prompt turns on.
Setting the Clock
With the oven NOT cooking, press Timer/Clock twice; the colon will blink.
Set time of day by turning dial. Time appears in the display window; colon continues flashing.
Press Timer/Clock to finish setting and the colon (:) will stop blinking.
NOTES:
1. To reset the clock, repeat steps.
2. The clock will retain the time of day as long as the oven is plugged in and electricity is supplied.
3. The clock is a 12-hour display.
4. Oven will not operate while colon (:) is flashing.
Setting the Child Safety Lock
When the colon or time of day appears in the display, press Stop/Reset three times; “
” will appear in the display
Press Stop/Reset three times; the display will return to the colon or time of the day and Child Safety Lock will be cancelled.
NOTES:
1. This feature prevents the electronic operation of the oven until cancelled. It does not lock the door.
2. To set or cancel Child Safety Lock, Stop/Reset button must be pressed 3 times within 10 seconds.
3. You can set Child Safety Lock feature when the display shows a colon or time of day
Airfry
The Airfry function combines intense heat and maximized airflow to cook food crispy and brown. No need to set temperature and preheating, turn the Dial to set the cooking time up to 9 hours after selecting Airfry function.
Press Airfry/Broil/Combo button once.
Set desired cooking time by turning dial (up to 9 hours)
Press dial to Start, the cooking will start and the time will count down in the display. At the end of cooking, five beeps will sound.
Oven accessories to use
Airfry basket on wire rack on enamel tray
NOTES:
1. Ensure to use the proper accessories. Put the food on the Airfry Basket on the Wire Rack on the Enamel Tray for dripping oil. DO NOT remove the spacer on the Wire Rack.
2. Arrange food evenly in the Airfry Basket. For best results, place food in a single layer and leave space between pieces. For large amount of food, stir or rearrange the food several times during cooking.
3. When the selected cooking time is less than one hour, the time counts down second by second.
4. When the selected cooking time is over one hour, the time counts down minute by minute until only “1H 00” (1 hour) remains. The display then indicates minutes and seconds and counts down second by second.
CAUTION: Food, accessories and the surrounding oven will get very hot. Use oven mitts
Airfry Chart
Broil
Directions for Broiling:
There are two power levels for Broil. When broiling, heat is radiated from heater. The Broil is especially suitable for thin slices of meat and seafood as well as bread and meals. Preheating isn’t required before broiling. Select Broil setting, set the time and start the oven. The food being broiled should normally be turned over after half the broiling time. When the oven door is opened, the program is interrupted. Turn the food over, place it back the oven, close the door and restart oven. While broiling, the oven door can be opened at any time to check the food.
Press Airfry/Broil/Combo button until the desired power level appears in the display window.
Set desired cooking time by turning dial (up to 1 hour and 30 minutes).
Press dial to Start, the cooking will start and the time will count down in the display. At the end of cooking, five beeps will sound
Oven accessories to use
When broiling foods the glass tray should be in position, with the enamel tray and the wire rack on top. Place food on wire rack on the enamel tray on the glass tray. The wire rack will allow fat to drip through into the enamel tray to reduce excess splatter and smoke when broiling steaks, chops and other fatty foods. If broiling fish or small items, place the enamel tray on top of the wire rack.
Cooking Tips:
1. Most meat items e.g. sausages, chops can be cooked on the hottest setting - Broil 1 (High). This setting is also suitable for toasting bread, muffins and teacakes etc.
2. Broil 2 (Low) used for more delicate foods or those that require a longer broil time e.g. fish or chicken portions.
NOTES:
1. There is no microwave power on the Broil only program.
2. Use the accessories provided, as explained.
3. The Broil will only operate with the oven door closed.
4. Do not preheat the broil.
5. Never cover the food when broiling.
6. After broiling it is important that the broil accessories are removed for cleaning before reuse and that the oven walls and floor are wiped with a cloth squeezed in hot soapy water to remove any grease.
CAUTION: Food, accessories and the surrounding oven will get very hot. Use oven mitts.
Combo
Press Airfry/Broil/Combo button until the desired power level appears in the display window.
Set desired cooking time by turning dial (up to 9 hours).
Press dial to Start; the cooking will start and the time will count down in the display. At the end of cooking, five beeps will sound.
CAUTION: Food, accessories and the surrounding oven will get very hot. Use oven mitts.
Combo 1 (Casserole)
This function is suitable for cooking casserole dishes. The cooking power combines microwave and broil. Follow the recommended recipes and cooking time on the next page, use microwaveable dishes, and cook without lids. For other recipe of casserole, please set cooking time as you desired.
* See casserole recipes on next page.
Combo 2 (Frozen foods)
This function is suitable for baking frozen foods. The cooking power combines microwave and convection bake. Follow the chart as below, put the frozen foods directly on the enamel tray on the wire rack, turn over at recommended time. For other Frozen foods, please set cooking as you desired.
NOTES:
1. Food is usually cooked uncovered.
2. The wire rack and enamel tray are designed to be used for Combo and broiling. Never attempt to use any other metal accessory except the one provided with the oven. Place the enamel tray underneath to catch any fat or drips.
3. Do not use plastic microwave containers on Combo programs. Dishes must be able to withstand the heat of the top heater. Do not put dishes on wire rack directly under the heater, use the enamel tray.
4. When the selected cooking time is less than one hour, the time counts down second by second.
5. When the selected cooking time is over one hour, the time counts down minute by minute until only “1H 00” (1 hour) remains. The display then indicates minutes and seconds and counts down second by second.
6. To turn food just press the door release, take out the enamel tray and wire rack, turn the food, return to the oven, close the door and press dial to Start. The oven will continue to count down the remaining cooking time.
7. Foods should always be cooked until browned and piping hot.
8. After cooking it is important that the accessories are removed for cleaning before re-use and that the oven walls and floor are wiped with a cloth squeezed in hot soapy water to remove any grease.
Convection Bake
The oven can be used as a conventional oven using the Convection mode which incorporates a heating element with a fan. There is a choice of Convection temperatures 100 °F (40 °C) and 215 °F (100 °C) - 425 °F (220 °C). For quick selection of the most commonly used cooking temperatures, the oven starts at 300 °F (150 °C) and then for each press the temperature will count up in 18 °F (10 °C) stages to 425 °F (220 °C), then to, 100 °F (40 °C), 215 °F (100 °C), 230 °F (110 °C) etc. This feature provides 2 modes to select. For best results always place food in a preheated oven.
With Preheating:
Press Convection Bake until the desired temperature appears in the display window.
Press dial to preheat. “PREHEAT” will scrolls across display window once then a “P” will appear in the display window. When preheating is completed, the oven will beep and “P END” will display in the display window. Then open the door and place the food inside.*
Set desired cooking time by turning dial (up to 9 hours).
Press dial to Start. The cooking time appears in the display window and begins to count down.
NOTES:
1. * Open the door using the door release button, because if the Stop/ Reset button is pressed the program may be cancelled.
2. When preheating, the screen displays the actual temperature of the oven cavity. The current temperature is not displayed until more than 215 °F (100 °C) is reached. To change the temperature during cooking, press the Convection Bake button.
3. The oven will maintain the selected preheated temperature for approximately 30 minutes without the door opened. If no food has been placed inside the oven or a cooking time set, then it will beep 5 times and automatically cancel the cooking program and revert to colon or time of day.
4. Once you open the door and Start is not pressed, after 6 minutes, the oven will automatically cancel the preheated program. This display will revert back to clock or colon mode.
5. The oven cannot preheat to 100 °F (40 °C).
Convection Bake
Without Preheating: (100 °F (40 °C) is available in Convection without preheating.)
Press Convection Bake until the desired temperature appears in the display window.
Set desired cooking time by turning dial. (up to 9 hours).
Press dial to Start. The cooking time appears in the display window and begins to count down.
NOTES:
1. When the selected cooking time is less than one hour, the time counts down second by second.
2. When the selected cooking time is over one hour, the time counts down minute by minute until only “1H 00” (1 hour) remains. The display then indicates minutes and seconds and counts down second by second.
Oven accessories to use
When using the Convection oven the glass tray should be in position and must have the enamel tray placed on top. The food is then placed onto the enamel tray. Follow your individual recipe guidelines. When using the oven as a Convection oven, there is NO MICROWAVE POWER, i.e. the oven is operating as a conventional oven and you can use all your standard metal baking tins and ovenware. It is not recommended to cook on more than one level when using the Convection oven. When cooking 2 trays of buns etc, cook in two batches.
CAUTION: Food, accessories and the surrounding oven will get very hot. Use oven mitts.
Microwave
This feature allows you to set the desired power and time to cook food. Do not place food directly on the glass tray. Use microwave safe dishes, plates or bowls covered with a lid or pierced cling film.
Press Microwave until the desired power level appears in the display. 1000 W is the highest and 100 W is the lowest.
Set cooking time by turning dial. 1000 W and KEEP WARM have max. cooking time of 30 minutes. For other power levels, the max. time is 1 hour and 30 minutes.
Press dial to Start; the cooking will start and the time will count down in the display. At the end of cooking, five beeps will sound.
NOTES:
1. Opening the door and taking out the defrosted parts during the operating time is recommended. Turn over, stir or rearrange the parts which are still in icy.
2. When the selected cooking time is less than one hour, the time counts down second by second.
3. When the selected cooking time is over one hour, the time counts down minute by minute until only “1H 00” (1 hour) remains. The display then indicates minutes and seconds and counts down second by second.
DO NOT OVERCOOK: This oven requires less time to cook than older units. Overcooking will cause food to dry out and may cause a fire. A microwave oven’s cooking power tells you the amount of microwave power available for cooking.
Caution: DO NOT defrost food at a high power setting. Doing so can cause energy concentration at a focused point, which can lead to arcing and damage to the oven. Use the “Defrost” function instead.
Keep Warm
(Will keep “cooked“ food warm for up to 30 minutes after cooking)
Press Microwave 7 times to select the KEEP WARM
Set warming time by turning dial (up to 30 minutes). Set 20 minutes cooking for an example.
Press dial to Start, the cooking will start and the time will count down in the display. At the end of cooking, five beeps will sound.
NOTES: KEEP WARM can be set as the final stage after cook time has been manually entered. It cannot be used with auto programs (such as Defrost, Sensor Reheat, Auto/Sensor Cook and Steam Clean)
Quick 30
(Set or add cooking time in 30 seconds increments)
Press Quick 30 until the desired cooking time (up to 5 minutes) appears in the display. Power level is pre-set at 1000 W.
Press dial to Start; the cooking will start and the time will count down in the display. At the end of cooking, five beeps will sound.
NOTES:
1. If desired, you can use other power levels. Select desired power level before pressing Quick 30.
2. After setting the time by Quick 30 button, you cannot use the Dial.
3. Quick 30 button can also be used to add more time during manual cooking.
4. It cannot be used with auto programs (such as Defrost, Sensor Reheat, Auto/Sensor Cook and Steam Clean)
Setting the Kitchen Timer
This feature allows you to program the oven as a kitchen timer. Press Timer/Clock once.
Set desired amount of kitchen time by turning dial (up to 1 hour and 30 minutes).
Press dial to Start. Time will count down without oven operating.
Caution: If oven lamp is lit while using the timer feature with door closed, the oven is NOT set properly; STOP OVEN IMMEDIATELY and re-read instructions.
NOTES:
1. If the oven door is opened during Kitchen Timer, Standing Time, Delay Start, the time in the display window will continue to count down.
2. If the time exceeds one hour, it will count down in units of minutes. If less than one hour, the time will count down in units of seconds.
3. An “H” will appear in the display to denote hours.
Setting a Standing Time
Some recipes call for a standing time after cooking. Press Microwave until the desired power level appears in the display. 1000 W is the highest and 100 W is the lowest.
Set cooking time by turning dial (see previous page for maximum times).
Press Timer/Clock once.
Set desired standing time by turning dial (up to 1 hour and 30 minutes).
Press dial to Start. Cooking will start. After cooking, standing time will count down without oven operating
NOTES:
1. If the oven door is opened during Kitchen Timer, Standing Time, Delay Start, the time in the display window will continue to count down.
2. Standing Time and Delay Start can not be programmed together with auto programs (such as Defrost, Sensor Reheat, Auto/Sensor Cook and Steam Clean) and preheating. This is to prevent the starting temperature of food from rising before defrosting or cooking begins. A change is starting temperature could cause inaccurate results.
3. When using Standing Time or Delay Start, it is up to 2 power stages.
4. If the time exceeds one hour, it will count down in units of minutes. If less than one hour, the time will count down in units of seconds. 5. An “H” will appear in the display to denote hours.
Setting a Delayed Start
The start time can be delayed to start cooking at a later time. To do this, first press Timer/ Clock once.
Set the desired delay time by turning dial (up to 1 hour and 30 minutes).
Press Microwave until the desired power level appears in the display. 1000 W is the highest and 100 W is the lowest.
Set cooking time by turning dial (see previous page for maximum times).
Press dial to Start, the delay time will count down, then cooking will begin.
NOTES:
1. If the oven door is opened during Kitchen Timer, Standing Time, Delay Start, the time in the display window will continue to count down.
2. Standing Time and Delay Start can not be programmed together with auto programs (such as Defrost, Sensor Reheat, Auto/Sensor Cook and Steam Clean) and preheating. This is to prevent the starting temperature of food from rising before defrosting or cooking begins. A change is starting temperature could cause inaccurate results.
3. When using Standing Time or Delay Start, it is up to 2 power stages.
4. If the time exceeds one hour, it will count down in units of minutes. If less than one hour, the time will count down in units of seconds.
5. An “H” will appear in the display to denote hours.
Add Time
(Example: To add cooking time after Broil 1 (High).
Set the desired cooking program, by entering cooking method and time required. After cooking, “ADD TIME OR ENJOY YOUR MEAL” will appear in the display window,.
Set desired cooking time by turning dial.
Press dial to Start. Time will be added. The time in the display window will count down
NOTES:
1. This feature is not available for auto programs (such as Defrost, Sensor Reheat, Auto/Sensor Cook and Steam Clean).
2. The Add Time function will be cancelled if you do not perform any operation within 1 minute after cooking.
3. The Add Time function can be used after the 3-stage cooking.
4. The power level is the same as the last stage.
3-Stage Setting
(Example: Continually set [800 W] 2 minutes, [Combo 2 (Frozen foods)] 3 minutes and [Broil 2 (Low)] 2 minutes.)
Press twice to select 800 W.
Set as 2 minutes by turning dial.
Press 5 times to select Combo 2 (Frozen foods).
Set as 3 minutes by turning dial.
Press 3 times to select Broil 2 (Low).
Set as 2 minutes by turning dial.
Press dial to Start. The time will count down at the first stage in the display window.
NOTES:
1. When operating, two beeps will sound between each stage.
2. Auto programs (such as Defrost, Sensor Reheat, Auto/Sensor Cook and Steam Clean) and preheating can not be used with 3-stage cooking.
3. Standing Time, Delay Start can be used with 3-stage cooking.
4. During cooking, one press on Stop/Reset stops the operation. You can re-start it by pressing Start. A second press of Stop/Reset will cancel the selected program.
5. Whilst not operating, one press of Stop/Reset cancels the selected program.
Example to use: Mug cake (1 mug)
Auto Defrost (No.1)
To allow auto program operation, ensure the oven is in clock mode. Select the Defrost by turning dial. The weight is 0.1 - 6.0 lbs (0.1 - 3.0 kg). (see chart on page 36.)
Press the dial to confirm the program.
Select the weight of the food by turning dial. Turning the dial slowly will count up in 0.1 lb (0.1 kg) steps.
Press dial to Start. The time appears in the display window and begins to count down.
NOTES:
1. Defrost can be used to defrost many cuts of meat, poultry and fish by weight. The oven will determine the defrosting time and power levels. Once the oven is programmed, the defrosting time will appear in the display. For best results the minimum recommended weight is 0.1 lb (0.1 kg).
2. Turn over the food, remove defrosted food and shield thin ends/fat bones of roast with foil when buzzer rings in the middle of cooking.
3. Allow standing time so that the center of the food thaws out. (Minimum of 1 hour for joints of meat and whole chickens).
Conversion
Follow the chart to convert ounces or hundredths of a pound into tenths of a pound. To use Defrost, enter the weight of the food in pounds (1.0) and tenths of a pound (0.1). If a piece of meat weighs 1.95 lbs or 1 lb 14 oz., enter 1.9 lbs.
Auto Cook (Sensor):
Popcorn (No.2)
To allow auto program operation, ensure the oven is in clock mode. Select the Popcorn by turning the dial. The weight is 1.5 - 3.2 oz. (42 - 90 g). (see chart on page 36.)
Press the dial to confirm the program.
Press dial to Start. The food category will be repeated in the display window until the oven calculates the cooking time after detecting a burst of steam. Do not open the oven door until the remaining cooking time appears in the display window.
NOTES:
1. If desires, More/Less adjustment can be done. Turn dial to add or subtract the cooking time (5 levels can be select), after turning the dial within 14 seconds.
2. Pop one bag at a time.
3. Place bag in oven according to manufacturers’ directions.
4. Start with popcorn at room temperature.
5. Allow popped corn to sit unopened for a few minutes.
6. Open bag carefully to prevent burns, because steam will escape.
7. Do not reheat unpopped kernels or reuse bag.
8. If popcorn is of a different weight than listed, follow instructions on popcorn package.
9. Never leave the oven unattended.
10. If popping slows to 2 to 3 seconds between pops, stop oven. Overcooking can burn popcorn or cause fire.
11. When popping multiple bags one right after the other, the cooking time may vary slightly. This does not affect the popcorn results.
12. If the temperature of the cavity is too high, Sensor Cook feature cannot be used. The message “HOT INSIDE WAIT” will appears in the display window. Sensor Cook feature can be used again when the “HOT INSIDE WAIT” message disappears. Please open the door in order to cool the temperature of the cavity more quickly
Auto Cook (Sensor): (No.3 - No.5)
To allow auto program operation, ensure the oven is in Clock mode. Select the desired menu by turning the dial. (see chart on the next page.)
Press the dial to confirm the program.
Press dial to Start. The food category will be repeated in the display window until the oven calculates the cooking time after detecting a burst of steam. Do not open the oven door until the remaining cooking time appears in the display window
NOTES:
1. If desires, More/Less adjustment can be done. Turn dial to add or subtract the cooking time (3 levels can be select), after turning the dial within 14 seconds.
2. After having used the Sensor Cook feature a few times, you may decide you would prefer your food cooked to a different doneness – that is why you would like to turning the dial.
3. When steam is detected by the Genius Sensor and two beeps sound, the remaining cooking time will appear in the display.
4. Automatic features are provided for your convenience. If results are not suitable to your individual preference, or if serving size is other than what is listed in next page, please refer to manual cooking on page 25.
5. If the temperature of the cavity is too high, Sensor Cook feature cannot be used. The message “HOT INSIDE WAIT” will appears in the display window. Sensor Cook feature can be used again when the “HOT INSIDE WAIT” message disappears. Please open the door in order to cool the temperature of the cavity more quickly.
For the best results with the GENIUS SENSOR, follow these recommendations:
BEFORE Reheating/Cooking:
1. The room temperature surrounding the oven should be below 95 °F (35 °C).
2. Food weight should exceed 4 oz. (110 g).
3. Be sure the glass tray, the outside of the cooking containers and the inside of the microwave oven are dry before placing food in the oven. Residual beads of moisture turning into steam can mislead the sensor.
4. Cover food with lid, or with vented plastic wrap. Never use tightly sealed plastic containers—they can prevent steam from escaping and cause food to overcook.
DURING Reheating/Cooking:
DO NOT open the oven door until two beeps sound and cooking time appears in the display. Doing so will cause inaccurate cooking since the steam from food is no longer contained within the oven cavity. Once the cooking time begins to count down, the oven door may be opened to stir, turn or rearrange foods.
AFTER Reheating/Cooking:
All foods should have a standing time.
1. Defrost
This feature allows you to defrost minced meat, chops, chicken portions, meat joints. Foods should be placed in a suitable dish. Chops, chicken portions should be placed in a single layer. It is not necessary to cover the foods. Turn over or stir the food after beeps. Allow standing time so that the center of the food thaws out.
2. Popcorn
Pop one bag at a time. Place bag in oven according to manufacturers’ directions. Start with popcorn at room temperature. Allow popped corn to sit unopened for a few minutes. Open bag carefully to prevent burns, because steam will escape. Do not reheat unpopped kernels or reuse bag. If popcorn is of a diff erent weight than listed, follow instructions on popcorn package.
3. Potatoes
Pierce each potato with a fork 6 times spacing around surface. Place potato or potatoes around the edge of paper-towel-lined glass tray, at least 1 inch (2.5 cm) apart. Do not cover. Turn at beeps. Let stand 5 minutes to complete cooking.
4. Steam
Vegetables All pieces should be the same size. Wash thoroughly, add 1 tbsp (15 ml) of water per ½ cup (125 ml) of vegetables, and cover with lid or plastic wrap. Pierce with a fork several times. Stir at beeps. Do not salt/butter until after cooking.
5. Fresh Fish
To cook fresh fillets or steaks of fish. Place fish in a suitable size container, add 2 tbsp (30 ml) water. Cover with lid or plastic wrap. Pierce with a fork several times.
Defrosting Tips & Techniques
Preparation For Freezing:
1. Freeze meats, poultry, and fish in packages with only one or two layers of food. Place wax paper between layers.
2. Package in heavy-duty plastic wraps, bags (labeled “For Freezer”), or freezer paper.
3. Remove as much air as possible.
4. Seal securely, date, and label.
To Defrost:
1. Remove wrapper. This helps moisture to evaporate. Juices from food can get hot and cook the food.
2. Set food in microwave safe dish.
3. Place roasts fat-side down. Place whole poultry breast-side down.
4. Select power and minimum time so that items will be underdefrosted.
5. Drain liquids during defrosting.
6. Turn over (invert) items during defrosting
After Defrosting:
1. Large items may be icy in the center. Defrosting will complete during Standing Time.
2. Let stand, covered, following standing time directions on page 28.
3. Rinse foods indicated in the chart.
4. Items which have been layered should be rinsed separately or have a longer standing time
Microwave shortcuts
Defrosting Chart
Select Defrost microwave. The times given below are a guideline only. Always check the progress of the food by opening the oven door and then re-starting. For larger quantities adjust times accordingly. Food should not be covered during defrosting.
Note: Opening the door and taking out the defrosted parts during the operating time is recommended. Turn over, stir or rearrange the parts which are still in icy
Reheating Chart
The times given in the charts below are a guideline only, and will vary depending on starting temperature, dish size etc.
Note: Always check that food is piping hot after reheating in the microwave. If unsure return to oven. Foods will still require a standing time, especially if they cannot be stirred. The denser the food the longer the standing time.
Cooking Chart
The times given in the charts below are a guideline only, and will vary depending on starting temperature, dish size etc.
Note: Always check that food is piping hot after reheating in the microwave. If unsure return to oven. Foods will still require a standing time, especially if they cannot be stirred. The denser the food the longer the standing time.
Note: Always check that food is piping hot after reheating in the microwave. If unsure return to oven. Foods will still require a standing time, especially if they cannot be stirred. The denser the food the longer the standing time.
Note: Always check that food is piping hot after reheating in the microwave. If unsure return to oven. Foods will still require a standing time, especially if they cannot be stirred. The denser the food the longer the standing time.
Care and Cleaning of Your Microwave Oven
Please see below and the following page for particular cleaning instructions for each section of the oven.
BEFORE CLEANING: Unplug oven at wall outlet. If outlet is inaccessible, leave oven door open while cleaning.
AFTER CLEANING: Be sure to place the Roller Ring and the Glass Tray in the proper position and press Stop/ Reset Button to clear the Display.
1. Outside oven surfaces: Clean with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into ventilation openings.
2. Label: Do not remove. Wipe with a damp cloth.
3. Inside the Oven: Wipe with a damp cloth after using. Mild detergent may be used if needed. Do not use harsh detergents or abrasives.
4. Oven Door: Wipe with a soft dry cloth when steam accumulates inside or around the outside of the oven door. During cooking, especially under high humidity conditions, steam is given off from the food. (Some steam will condense on cooler surfaces, such as the oven door. This is normal.) Inside surface is covered with a heat and vapor barrier film. Do not remove.
5. Oven Cavity Floor: Clean the bottom surface of the oven with mild detergent, water or window cleaner, and dry.
6. Waveguide Cover: Do not remove Waveguide Cover. It is important to keep cover clean in the same manner as the inside of the oven. Failure to do so may damage the cover.
7. Control Panel: If the Control Panel becomes wet, clean it with a soft dry cloth. Do not use harsh detergents or abrasives. For some models: The Control Panel is covered with a removable protective film to prevent scratches during shipping. Small bubbles may appear under this film, so if this is the case, remove by applying masking or clear tape to an exposed corner and pull gently.
8. Glass Tray: Remove and wash in warm soapy water or in a dishwasher.
9. Roller Ring: Roller Ring may be washed in mild soapy water or dishwasher. These areas should be kept clean to avoid excessive noise.
AS WITH ANY COOKING APPLIANCE, MICROWAVE OVENS REQUIRE THE SAME LEVEL OF CARE TO PREVENT OVERHEATING OR DAMAGE. IT IS IMPORTANT TO KEEP THE OVEN CLEAN AND DRY. FOOD RESIDUE AND CONDENSATION MAY CAUSE RUSTING OR ARCING AND DAMAGE TO THE OVEN. AFTER USE, WIPE DRY ALL SURFACES, INCLUDING VENT OPENINGS, OVEN SEAMS, AND UNDER GLASS TRAY.
NOTES:
1. After cooking, the oven should be cleaned with a soft cloth moistened with soapy water. If the oven is not cleaned occasionally to eliminate grease, it can accumulate and cause the oven to “Smoke” during use.
2. DO NOT SPRAY DIRECTLY INSIDE THE OVEN. A steam cleaner is not to be used for cleaning.
Before Requesting Service
The oven causes TV interference.
- Some radio, TV, Wi-Fi, cordless telephone, baby monitor, blue tooth or other wireless equipment interference might occur when you cook with the microwave oven. This interference is similar to the interference caused by small appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a problem with your oven.
Steam accumulates on oven door and warm air comes from the oven vents.
- During cooking, steam and warm air are given off from the food. Most of the steam and warm air are removed from the oven by the air which circulates in the oven cavity. However, some steam will condense on cooler surfaces such as the oven door. This is normal. After use, the oven should be wiped dry (see page 53).
Smoke and burnt smell will occur after the first use.
- This is not a malfunction and will go away after a few uses.
Oven will not turn on.
- The oven is not plugged in securely or needs to be reset; remove plug from outlet, wait ten seconds and re-insert.
- Main circuit breaker or main fuse is tripped or blown. Reset main circuit breaker or replace main fuse.
- There is a problem with the outlet; plug another appliance into the outlet to check if it is working.
Oven will not start cooking.
- The door is not closed completely. Close the oven door securely.
- Start was not pressed after programming; Press dial to Start.
- Another program is already entered into the oven; press Stop/Reset to cancel the previous program and enter new program.
- The program is not correct; program again according to the Owner’s manual.
- Stop/Reset has been pressed accidentally; program oven again.
The Glass Tray wobbles.
- The Glass Tray is not positioned properly on the Roller Ring or there is food under the Roller Ring. Take out Glass Tray and Roller Ring. Wipe with a damp cloth and reset Roller Ring and Glass Tray properly..
When the oven is operating, there is noise coming from the Glass Tray
- The Roller Ring and oven bottom are dirty; clean these parts according to Care and Cleaning of Your Microwave Oven (see page 53)
The “ “ appears in the display window.
- The CHILD SAFETY LOCK was activated by pressing Stop/Reset three times; Deactivate CHILD SAFETY LOCK by pressing Stop/Reset three times.
The oven stops cooking and “H00“, “H97” or “H98” appears in the display.
- The oven’s power supply has failed; please contact an authorized Service Center (see next page).
“HOT INSIDE WAIT” appears in the display window.
- The cavity is overheated. Operate again after it cools down. Please open the door in order to cool the temperature of the cavity more quickly.
“DEMO MODE PRESS ANY KEY” or “D” appears in the display window.
The oven is under demonstration mode. Press Microwave button once, Start 4 times and Stop/Reset button 4 times.
See other models: NN-SD78LS NN-GN68KS NB-G110P-W 10M-MFT H-H014AK
