Installation instructions
REFRESH-BUTLER
Textile care system
J14001113-R06
07/04/2017
1
The appliance should be installed by qualified personnel only.
Each step must be carried out and checked in full in the order specified.
Validity
These installation instructions apply to the model: 14001, 14002
Transport
Transport the appliance in an upright position only! Transporting it in any other position will result in damage to the
appliance! When carried carefully without being shaken, the appliance may be tilted a maximum of 90° to the left
(viewed from the front).
The appliance must be allowed to stand in the standard operating position for about 2 hours before using the heat pump.
Failure to observe this can result in damage to the appliance.
Front
Front
Side
Front,
upside down
Back
Front
Use a stair climber
trolley to avoid bumps
to the appliance!!
Identification plate
▸ Open the appliance door.
– The identification plate is located on the inside of the
appliance door at the top (see arrow).
Installation instructions
REFRESH-BUTLER
Textile care system
J14001113-R06
07/04/2017
2

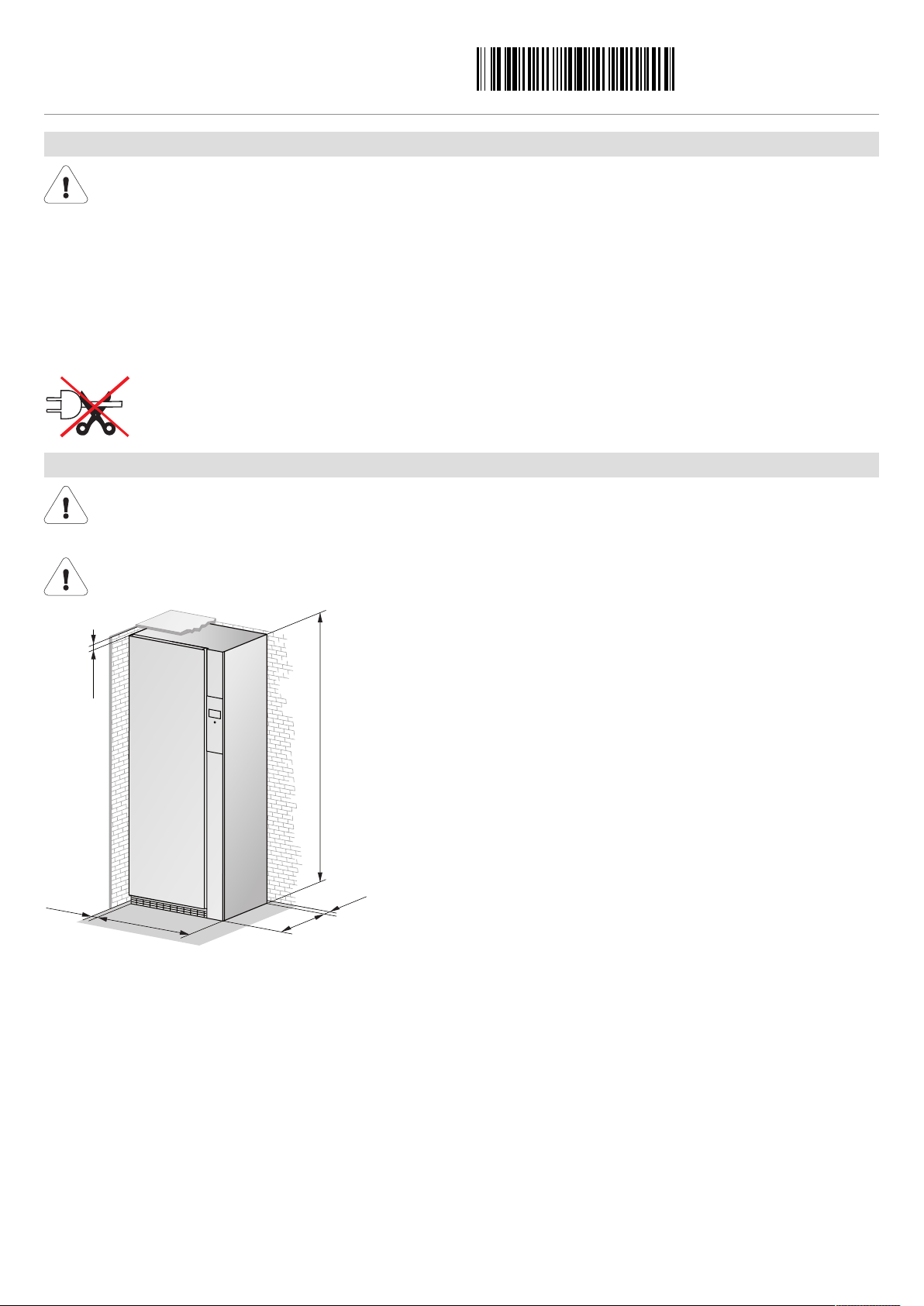

Electrical connections
Electrical connections must be carried out by qualified personnel in accordance with the guidelines and standards
for low-voltage installations and the specifications of the local electricity supply companies.
A plug-in appliance may only be connected to a socket outlet with earthing contact, installed according to specifications.
An all-pole mains isolating device with 3 mm contact opening should be provided in the house wiring system. Switches,
plug and socket devices, circuit breakers and fusible cut-outs which are accessible after installation and which have all-
poles switching are permissible as isolating devices. Effective earthing and separately installed neutral and earth con-
ductors ensure safe and fault-free operation. After installation, live parts and cables with basic insulation must not be ac-
cessible. Check old installations.
▸ The appliance is designed for use up to a max. altitude of 2000 m above sea level.
▸ Refer to the identification plate for information on the required mains voltage, current type and fuse protection.
The mains plug must not be cut off.
Installation
Do not install the appliance behind a door that locks, a sliding door or a door with a hinge that lies opposite the
hinge of the appliance.
Free-standing position
When positioning a REFRESH-BUTLER so that it is free-standing, a distance of min. 3mm must be kept to the walls
to the left and right.
≥3
775
570
≥1
1
≥ 0
1
960
Installation instructions
REFRESH-BUTLER
Textile care system
J14001113-R06
07/04/2017
3
Positioning in a niche
Door across entire width of opening, not connected to door of REFRESH-BUTLER
A = ≥200 cm²
B
19
852
30
49 775
837
12+1
570
REFRESH-BUTTLER
Mount filler strip after
installing appliance
A: Ventilation slit on the top at the back or above the cabinet door
B: Load-bearing capacity of cabinet floor: min.170kg
Cabinet doors with
belt attached at sides
REFRESH-BUTLER
25 mm gap to floor
for air circulation
Base reinforcement for appliance

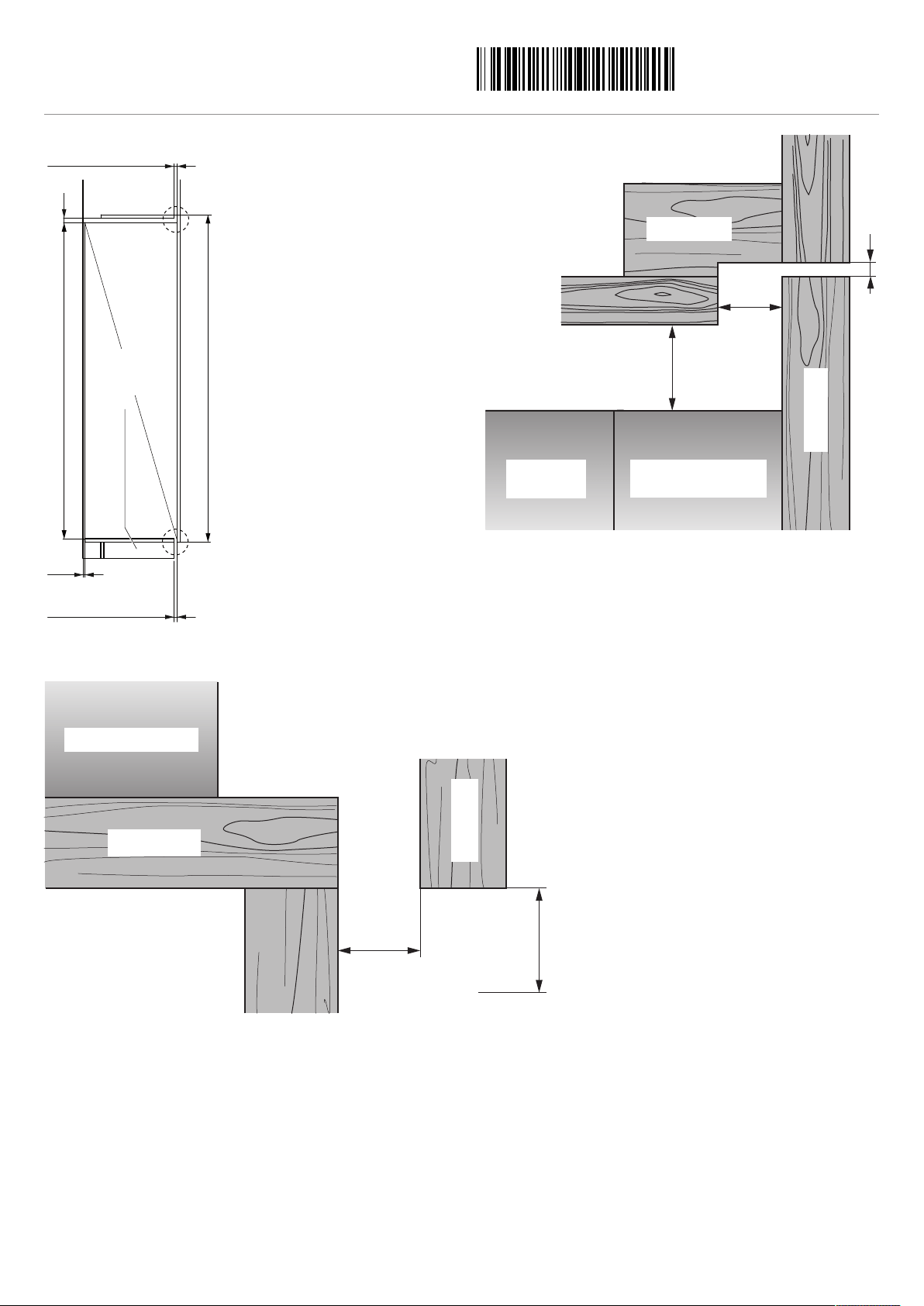

≥11
2028
1960 30
25 mm gap to floor
for air circulation
25 mm gap to ceiling
for air circulation
Base reinforcement
for appliance
REFRESH-
BUTLER
Installation instructions
REFRESH-BUTLER
Textile care system
J14001113-R06
07/04/2017
4
Positioning in a niche (decor panel fixed to door of REFRESH-BUTLER)
7
7
5
2028
5
70
+
C
B
A = ≥200 cm²
49
≥40
(775)19 15 + 1
810
Monut right filler strip
after installing appliance
C
643
90°
570
Detail
W
Detail
X
≥ 11
D
90°
Angle bracket (see installation set W56295):
69
(32)
1922
2028 (Decor panel height)
360
643
(Decor panel
width)
866
102
37
22.5
R10
80
10–19
(Decor panel
thickness)
4
E
Upper
angle bracket
Medium
angle bracket
Lower
angle bracket
A
Ventilation slit on the top at the back or above the cab-
inet door
D
REFRESH-BUTLER door with decor panel and
five angle brackets*
Maximum permissible weight of decor panel: 35kg
B
Load-bearing capacity of cabinet floor:
min.170kg+weight of decor panel
C
Thickness of decor panel
E
Installation drawing for decor panel
*
Angle brackets are included in the scope of delivery (see
installation set W56295)
Installation instructions
REFRESH-BUTLER
Textile care system
J14001113-R06
07/04/2017
5

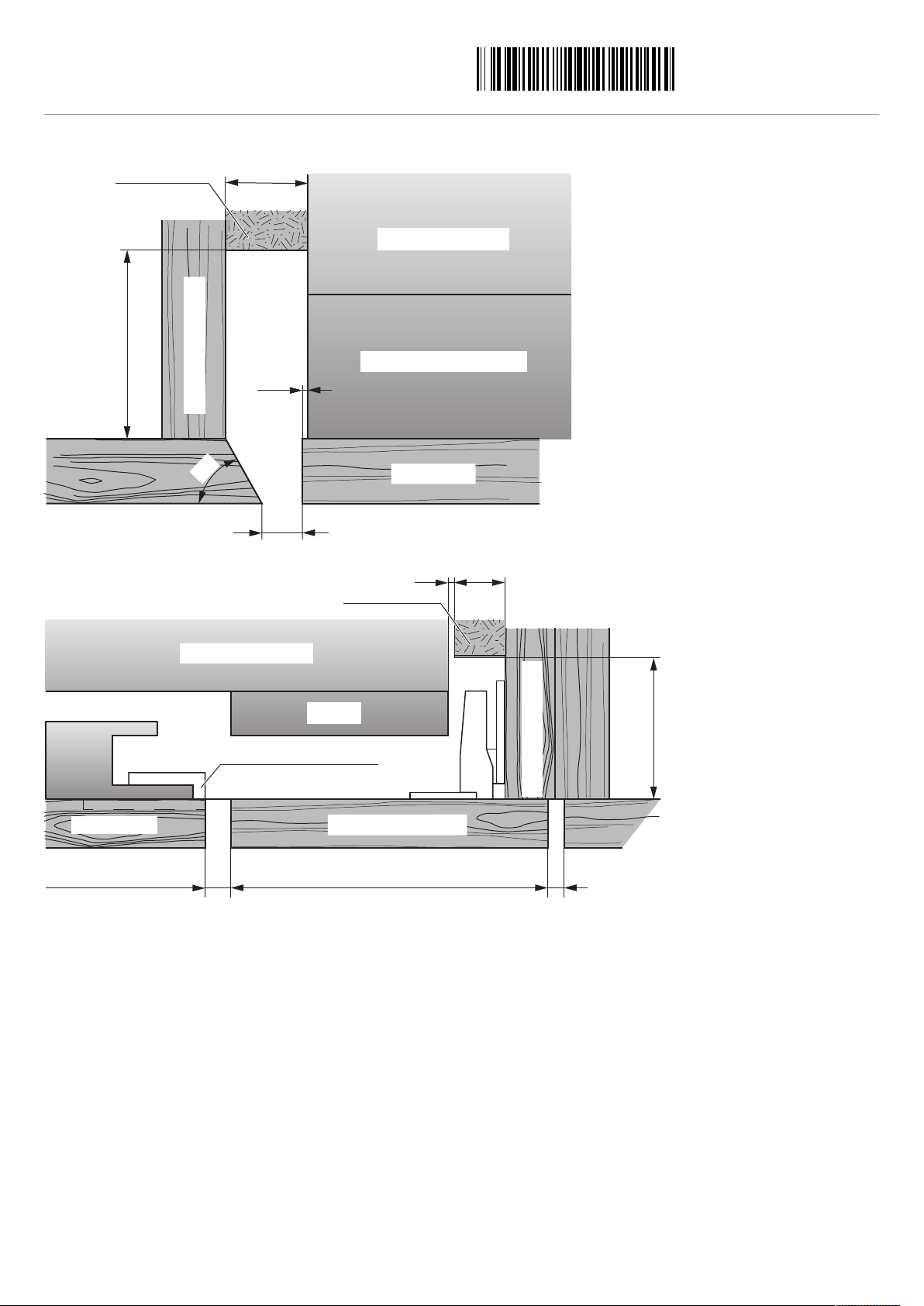

REFRESH-BUTLER door
REFRESH-BUTLER
7
1.2
19
50
Filler strip
Detail W
Decor panel
Inside wall of cabinet
60°
7643 156
Hinge
Filler strip
4
151
REFRESH-BUTLER
Medium angle bracket
Display
50
Detail X
Inside wall of cabinet
Decor panel
Decor panel - display
Installation instructions
REFRESH-BUTLER
Textile care system
J14001113-R06
07/04/2017
6
≥11
2028
1960 30
25 mm gap to floor
for air circulation
25 mm gap to ceiling
for air circulation
Base reinforcement
for appliance
REFRESH-
BUTLER
Detail Z
Detail Y
4
Detail Y
30
25
REFRESH-BUTLER
door
REFRESH-
BUTLER
Cabinet top
Decor panel
Detail Z
REFRESH-BUTLER
25
≥25
Minimum
distance to floor
Cabinet base
Decor panel
Installation instructions
REFRESH-BUTLER
Textile care system
J14001113-R06
07/04/2017
7
Levelling
To ensure fault-free operation, the appliance must stand level with all 4 feet firmly on the ground and not wobble.
Setting the height
Tools: Open-end wrench (SW 10) K and spirit level L
Rear adjuster feet:
Maximum height adjustment of 14 mm / 1.5 mm per turn.
▸ Align the appliance vertically by turning the feet with the
wrenchK.
Front adjuster feet:
▸ Align the appliance vertically by turning the feet with the
wrenchK.
– The appliance must not wobble!
L
K
