ENGLISH
DR389
P/N0: MFL56842610
As an E
NERGY
S
TAR
®
Partner, LG
has determined that this product
or product models meet the
E
NERGY
S
TAR
®
guidelines for
energy efficiency.
E
NERGY
S
TAR
®
is a U.S. registered mark.
2
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE
COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SER-
VICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of uninsulated dangerous
voltage within the product’s enclosure that may be of sufficient magni-
tude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance (serv-
icing) instructions in the literature accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT
EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
WARNING: Do not install this equipment in a confined space such as a book
case or similar unit.
CAUTION: Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
Slots and openings in the cabinet are provided for ventilation and to ensure reli-
able operation of the product and to protect it from over heating. The openings
should be never be blocked by placing the product on a bed, sofa, rug or other
similar surface. This product should not be placed in a built-in installation such
as a bookcase or rack unless proper ventilation is provided or the manufactur-
er's instruction has been adhered to.
CAUTION:CLASS 3B VISIBLE AND INVISIBLE LASER
RADIATION WEN OPEN AND INTERLOCKS
DEFEATED AVOID EXPOSER TO THE BEAM.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read this owner’s manual carefully
and retain it for future reference. Should the unit require maintenance, contact
an authorized service center.
Use of controls, adjustments or the performance of procedures other than those
specified herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure.
Visible laser radiation when open. DO NOT STARE INTO BEAM.
CAUTION: The apparatus should not be exposed to water (dripping or splash-
ing) and no objects filled with liquids, such as vases, should be placed on the
apparatus.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit;
That is, a single outlet circuit which powers only that appliance and has no addi-
tional outlets or branch circuits. Check the specification page of this owner's
manual to be certain. Do not overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords, frayed power cords, or dam-
aged or cracked wire insulation are dangerous. Any of these conditions could
result in electric shock or fire. Periodically examine the cord of your appliance,
and if its appearance indicates damage or deterioration, unplug it, discontinue
use of the appliance, and have the cord replaced with an exact replacement
part by an authorized service center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or
walked upon. Pay particular attention to plugs, wall outlets, and the point where
the cord exits the appliance. To disconnect power from the mains, pull out the
mains cord plug. When installing the product, ensure that the plug is easily
accessible.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The appliance is not intended for use by young children or
frail
persons
without supervision.
Young Children should be supervised to ensure that they do not play with
appliance.
If the appliance is supplied from a cord extension set or an electrical portable
outlet device, the cord extension set on electrical portable outlet device must be
positioned so that it is not subject to splashing or ingress of moisture.
3
Copyrights
Recording equipment should be used only for lawful copying and you are
advised to check carefully what is lawful copying in the area in which you are
making a copy. Copying of copyright material such as films or music is unlaw-
ful unless permitted by a legal exception or consented to by the rights owner.
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners. Use of this copy-
right protection technology must be authorized by Macrovision Corporation,
and is intended for home and other limited viewing uses only, unless other-
wise authorized by Macrovision corporation. Reverse engineering or disas-
sembly is prohibited.
CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVI-
SION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY
CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF
625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED
THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFI-
NITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET
COMPATIBILITY WITH THIS MODEL 625p RECORDER, PLEASE CON-
TACT OUR CUSTOMER SERVICE CENTER.
Manufactured under license from Dolby Laboratories. Dolby and the double-
D symbol are registered trademarks of Dolby Laboratories.
4
Contents
Before you start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Main Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Hooking up the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-11
Operating USB Flash Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Auto setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Using the Home Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13
Adjust the SETUP settings . . . . . . . . . . . . . . . . . . . . . . . . .13-16
Displaying disc Information . . . . . . . . . . . . . . . . . . . . . . . .17-18
Play a disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-19
Playing a DivX
®
movie files . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Listening to a music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Viewing a photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23-24
Editing a title . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-27
Language Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Area Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Before connecting, operating or adjusting this product,
please read this instruction booklet carefully and completely.
Before you start
Recordable and Playable discs
This unit can play and record all widely-used DVD types. The table below shows some specific compatibility differences depending on the disc types.
Playable discs
The table below shows the file formats and media types that this unit can playback.
5

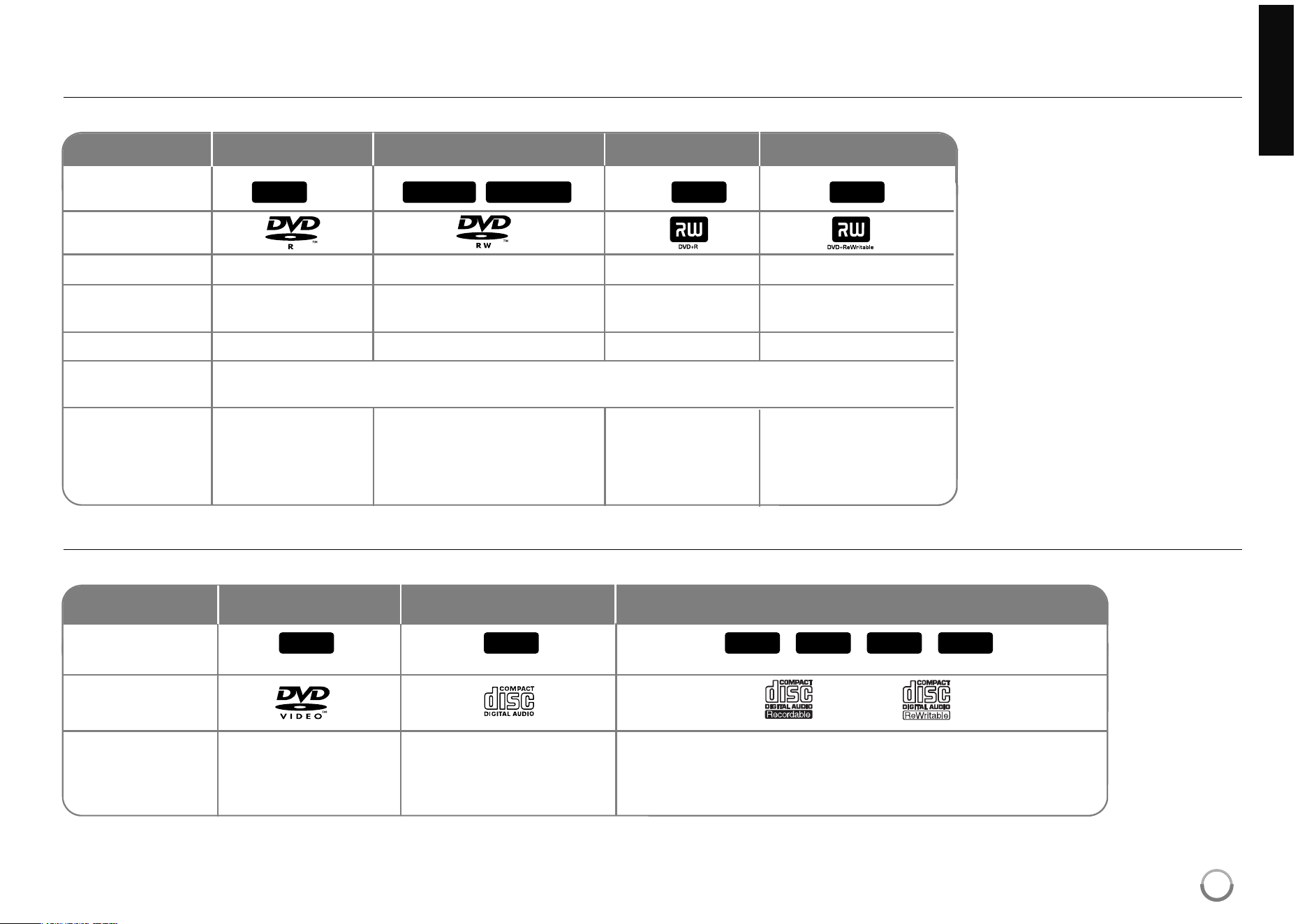

DVD-R DVD-RW DVD+R DVD+RW
Symbol used in
this manual
Logos
Re-Writable
Formatting Mode
(new discs)
Editing
Play on other
players
Recommended
discs
No Yes No Yes
Video mode Video mode Auto Auto
Limited Yes Limited Yes
The player must compatible with corresponding media and the media has to be finalized.
Mitsubishi(8x,16x) Mitsubishi(4x) Mitsubishi(8, 16x) Mitsubishi(4x)
Verbatim(8x,16x) Verbatim(4x) Verbatim(8, 16x) HP(4x)
JVC(4x) Verbatim(4x)
Maxell(4x) Ricoh(4x)
+RW+R-RW
Video
-RW
VR
-R
DVD Audio CD Data disc (DivX, JPEG, MP3 or WMA)
Symbol used in
this manual
Logos
Characteristics
WMAMP3
JPEG
DivXACDDVD
Music CDs or CD-R/RWs
in music CD format that
can be purchased
Discs such as movies
that can be
purchased or rented.
CD-R/CD-RW/DVD discs that contain DivX,
JPEG, MP3 or WMA files.
6
Notes on discs
Depending on the conditions of the recording equipment or the CD-R/RW (or
DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs cannot be
played on the unit.
Do not attach any seal or label to either side (the labelled side or the record-
ed side) of a disc.
Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal). Doing
so may result in malfunctions.
Depending on the recording software & the finalization, some recorded discs
(CD-R/RW or DVD±R/RW) may not be playable.
DVD-R/RW, DVD+R/RW and CD-R/RW discs recorded using a personal
computer or a DVD or CD Recorder may not play if the disc is damaged or
dirty, or if there is dirt or condensation on the Unit’s lens.
If you record a disc using a personal computer, even if it is recorded in a
compatible format, there are cases in which it may not play because of the
settings of the application software used to create the disc. (Check with the
software publisher for more detailed information.)
This unit requires discs and recordings to meet certain technical standards
in order to achieve optimal playback quality. Pre-recorded DVDs are auto-
matically set to these standards. There are many different types of record-
able disc formats (including CD-R containing MP3 or WMA files) and these
require certain pre-existing conditions (see above) to ensure compatible
playback.
Customers should note that permission is required in order to download
MP3 / WMA files and music from the Internet. Our company has no right to
grant such permission. Permission should always be sought from the copy-
right owner.
Restrictions on copying
Some video material is copy-once protected: Such material cannot be copied to
DVD. You can identify copy-once protected material during playback by display-
ing disc information on-screen.
NTSC format signal is not recorded correctly with this unit.
Video signals in SECAM format (from the built-in TV tuner or from the ana-
log inputs) are recorded in PAL format.
About the Symbol Display
“ ” may appear on your TV display during operation and indicates that the
function explained in this owner’s manual is not available on that specific media.
Regional Codes
This unit has a regional code printed on the rear of the unit. This unit can play
only DVD discs labelled same as the rear of the unit or “ALL”.
Most DVD discs have a globe with one or more numbers in it clearly visible
on the cover. This number must match your unit’s regional code or the disc
cannot play.
If you try to play a DVD with a different regional code from the unit, the mes-
sage “Incorrect region code. Can’t play back” appears on the TV screen.
Remote Control Operation
Point the Remote Control at the remote sensor and press the buttons.
R
emote Control Battery Installation
Remove the battery cover on the rear of the Remote Control, and insert R03
(size AAA) battery with 3 and # matched correctly.
7

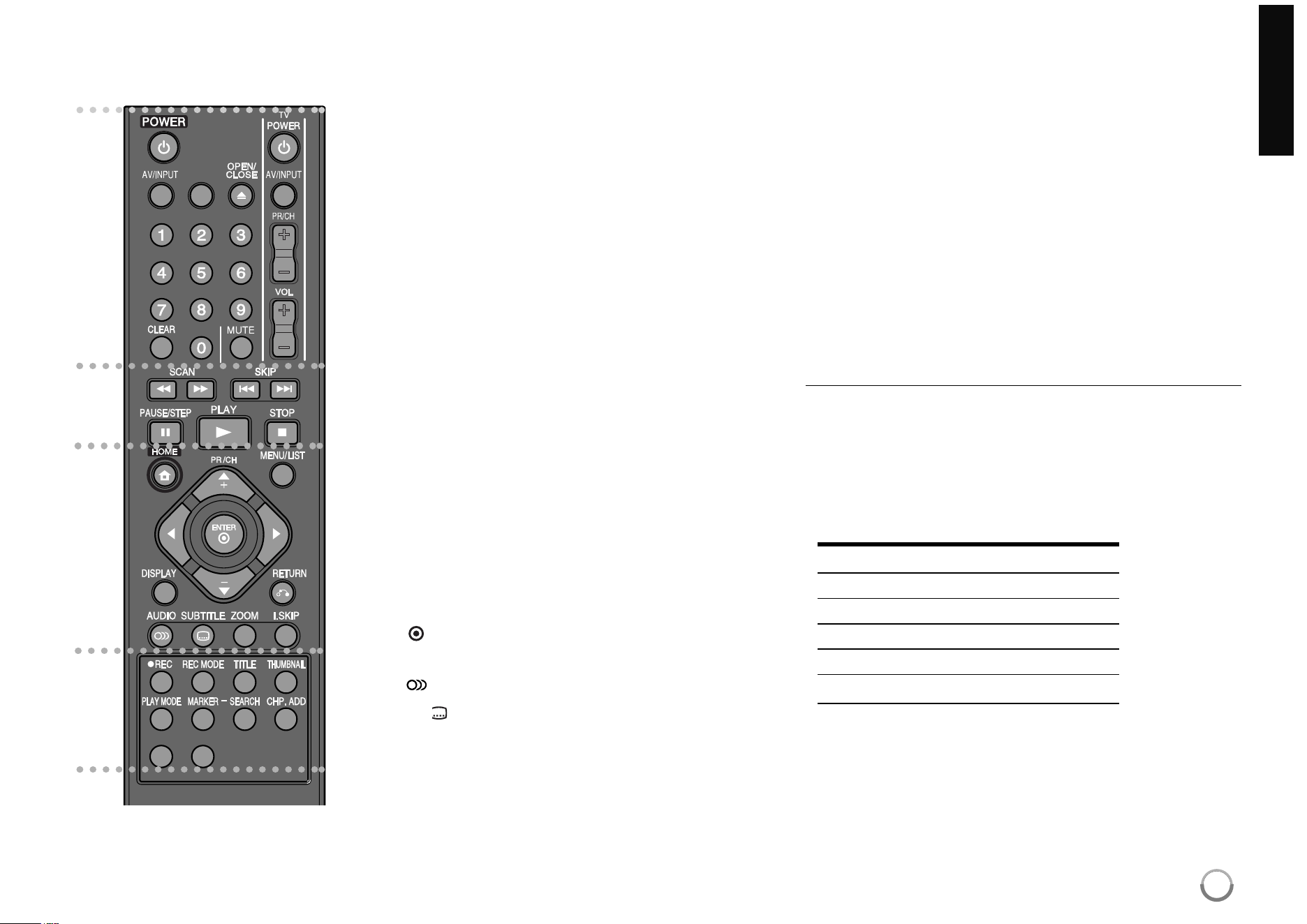

Remote control
* *
*
a
POWER: Switches the unit ON or OFF.
AV/INPUT: Changes the input source (Tuner, AV1-2, or DV
IN).
OPEN/CLOSE: Opens and closes the disc tray.
0-9 numerical buttons: Selects numbered options in a menu.
CLEAR: Removes a mark on the Marker Search menu.
TV Control Buttons: You can control the sound level, input
source, selects TV’s channel and power switch of your TV.
b
SCAN (m / M): Search backward or forward.
SKIP (. / >): Go to next or previous chapter or track.
PAUSE/STEP (X): Pause playback or recording temporarily.
PLAY (N): Starts playback.
STOP (x): Stops playback or recording.
c
HOME:
Accesses or removes the HOME menu.
MENU/LIST: Accesses menu on a DVD disc. Switches
between Title List-Original and Title List-Playlist menu.
DISPLAY: Accesses On-Screen Display.
RETURN (O): Removes the on-screen displays.
b / B / v / V (left/right/up/down):
Used to navigate on-screen displays.
ENTER ( ): Acknowledges menu selection.
PR/CH (+/-): Scans up or down through memorized channels.
AUDIO ( ): Selects an audio language or audio channel.
SUBTITLE ( ): Selects a subtitle language.
ZOOM: Enlarges DVD video image.
I.SKIP (INSTANT SKIP): Skips 30 seconds forward during
playback.
d
REC (z): Starts recording.
REC MODE: Selects the recording mode.
TITLE: Displays the disc’s Title menu, if available.
THUMBNAIL: Selects a thumbnail picture.
PLAY MODE: Selects a play mode.
MARKER: Marks any point during playback.
SEARCH: Displays Marker Search menu.
CHP. ADD: Inserts a chapter marker when playing/record-
ing.
*
:
Feature is not available.
Setting up the remote to control your TV
You can operate your TV with the supplied remote control.
If your TV is listed in the table below, set the appropriate
manufacturer code.
While holding down TV POWER button, and press the man-
ufacturer code for your TV with the numerical buttons (see
the table below). Release the TV POWER button to com-
plete setting.
Manufacturer Code Number
LG / GoldStar 1 (Default), 2
Zenith 1, 3, 4
Samsung 6, 7
Sony 8, 9
Hitachi 4
Depending on your TV, some or all buttons may not function on
the TV, even after entering the correct manufacturer code.
When you replace the batteries of the remote, the code number
you have set may be reset to the default setting. Set the appro-
priate code number again.
a
b
c
d
8

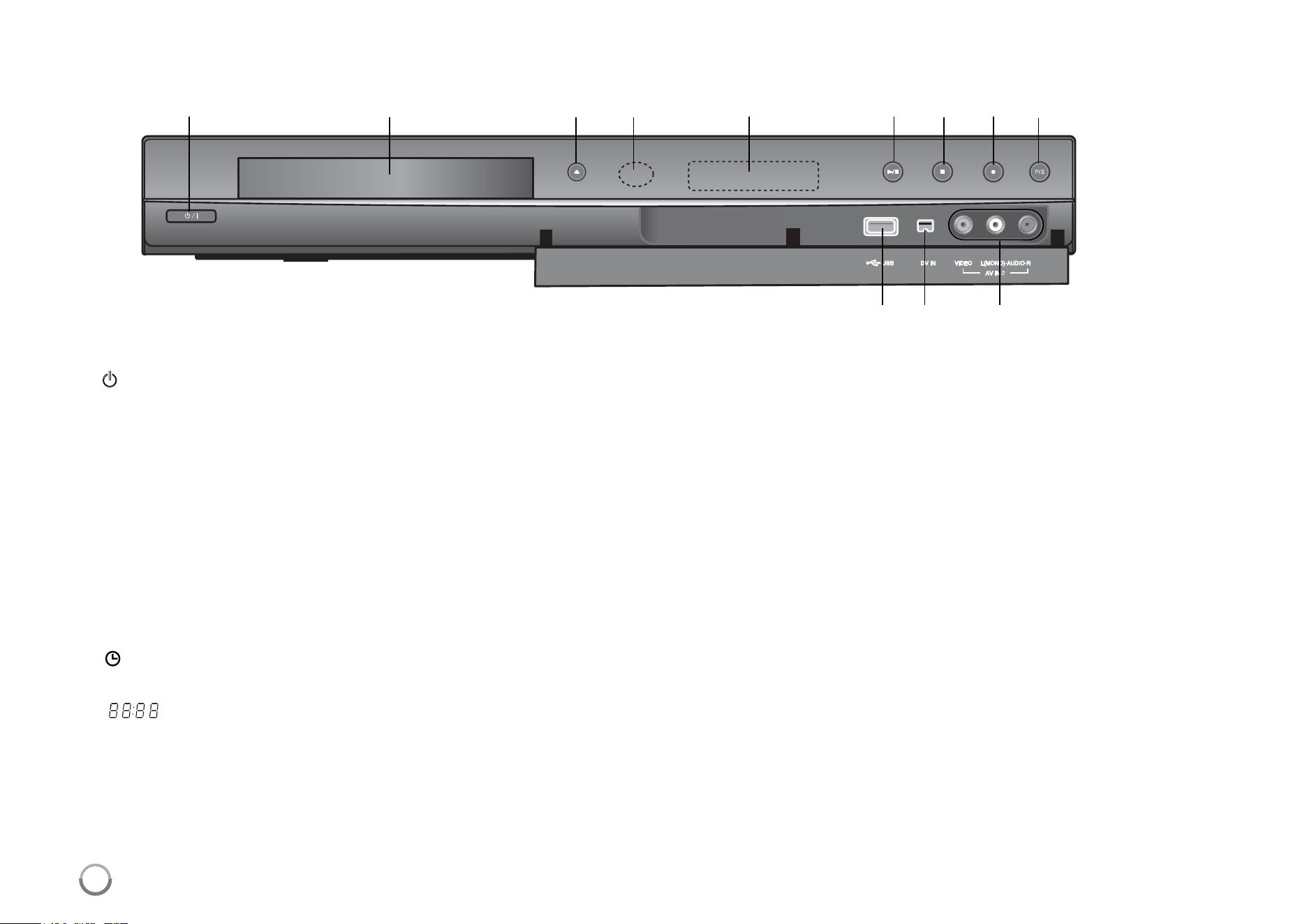

Main Unit
a
1
/ I (POWER button)
Switches the unit ON or OFF.
b
Disc Tray
Insert a disc here.
c
OPEN/CLOSE (
Z
)
Opens or closes the disc tray.
d
Remote Sensor
Point the remote control here.
e
Display window
Shows the current status of the recorder.
REC: The recorder is recording.
TV: Indicates when the recorder is in TV tuner mode.
: Indicates when the recorder is in timer recording or a timer recording
is programmed.
: Shows the current status of the recorder. (clock, program num-
ber, etc).
f N
/
X
(PLAY / PAUSE)
Starts playback.
Pause playback or recording temporarily, press again to exit pause mode.
g x
(STOP)
Stops playback or recording.
h z
(REC)
Starts recording. Press repeatedly to set the recording time.
i
P/S (Progressive Scan)
Switches the progressive mode.
576i(OFF), 576p(ON)
j
USB Port
Connect an USB Memory Stick.
k
DV IN
Connect the DV output of a digital camcorder.
l
AV IN 2 (VIDEO IN/AUDIO IN (Left/Right))
Connect the audio/video output of an external source (Audio system, TV/
Monitor, VCR, Camcorder, etc.).
a b c d e f g h i
j k l
9
A
C
I
N
~
A
C
I
N
~

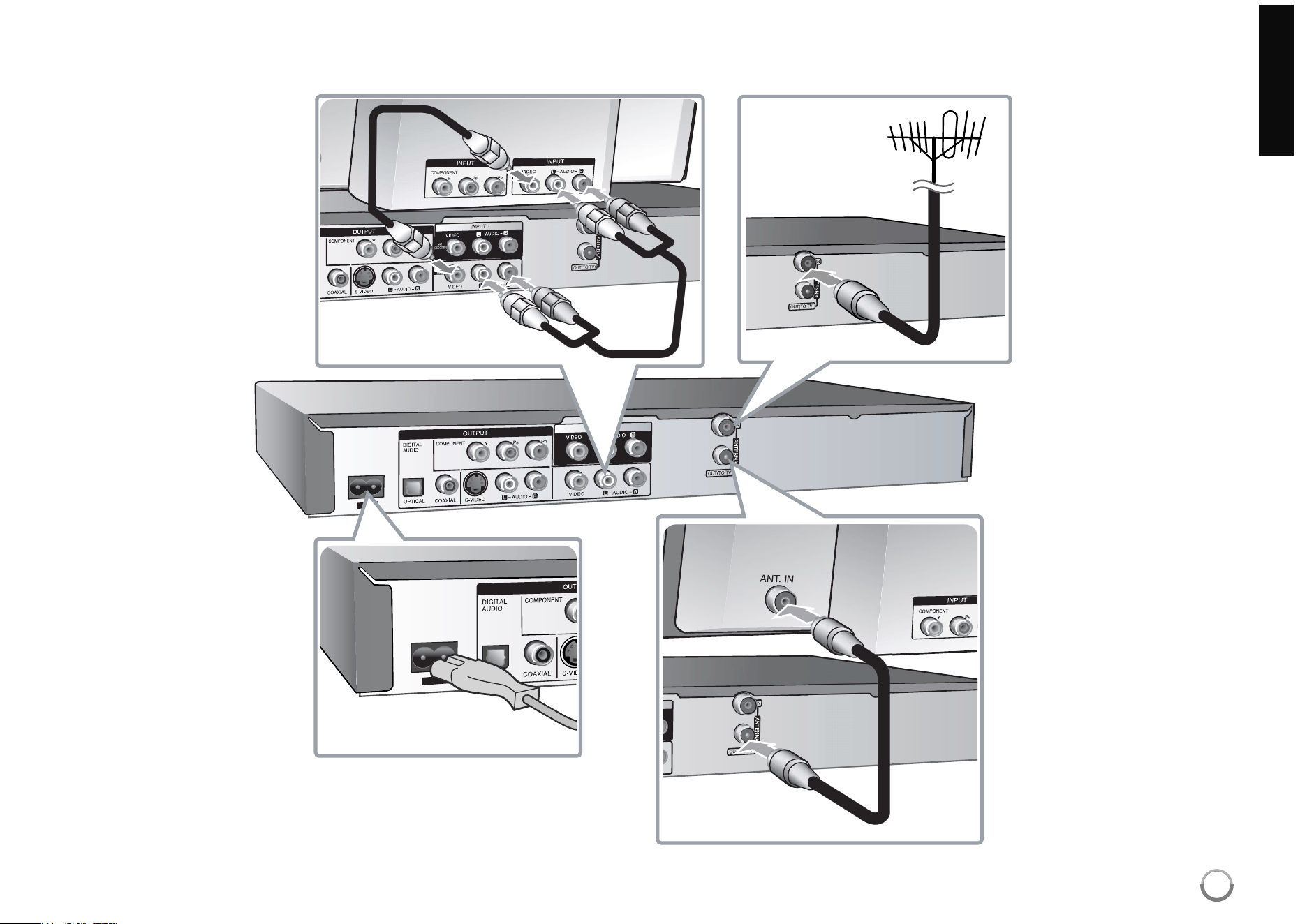

Hooking up the unit
a Antenna connection
Connect the Terrestrial
TV antenna to the
ANTENNA IN jack on
the unit.
b Antenna connection to
your TV
Connect one end of the RF
cable to ANTENNA OUT jack
on the unit and other end to
ANTENNA IN jack on your
TV.
c Audio/Video connection
Connect one end of the
video(yellow) cable to the
VIDEO OUTPUT jack on the
unit and other end to the
VIDEO INPUT jack on your
TV.
Connect one ends of the
audio cables (red and white)
to the analogue AUDIO
OUTPUT jack on the unit
and other ends to the AUDIO
INPUT jack on your TV.
d Power cord connection
Connect the mains lead to
the AC IN terminal on the
unit. Then plug the power
cord into the mains.
10
Hooking up the unit - more you can do

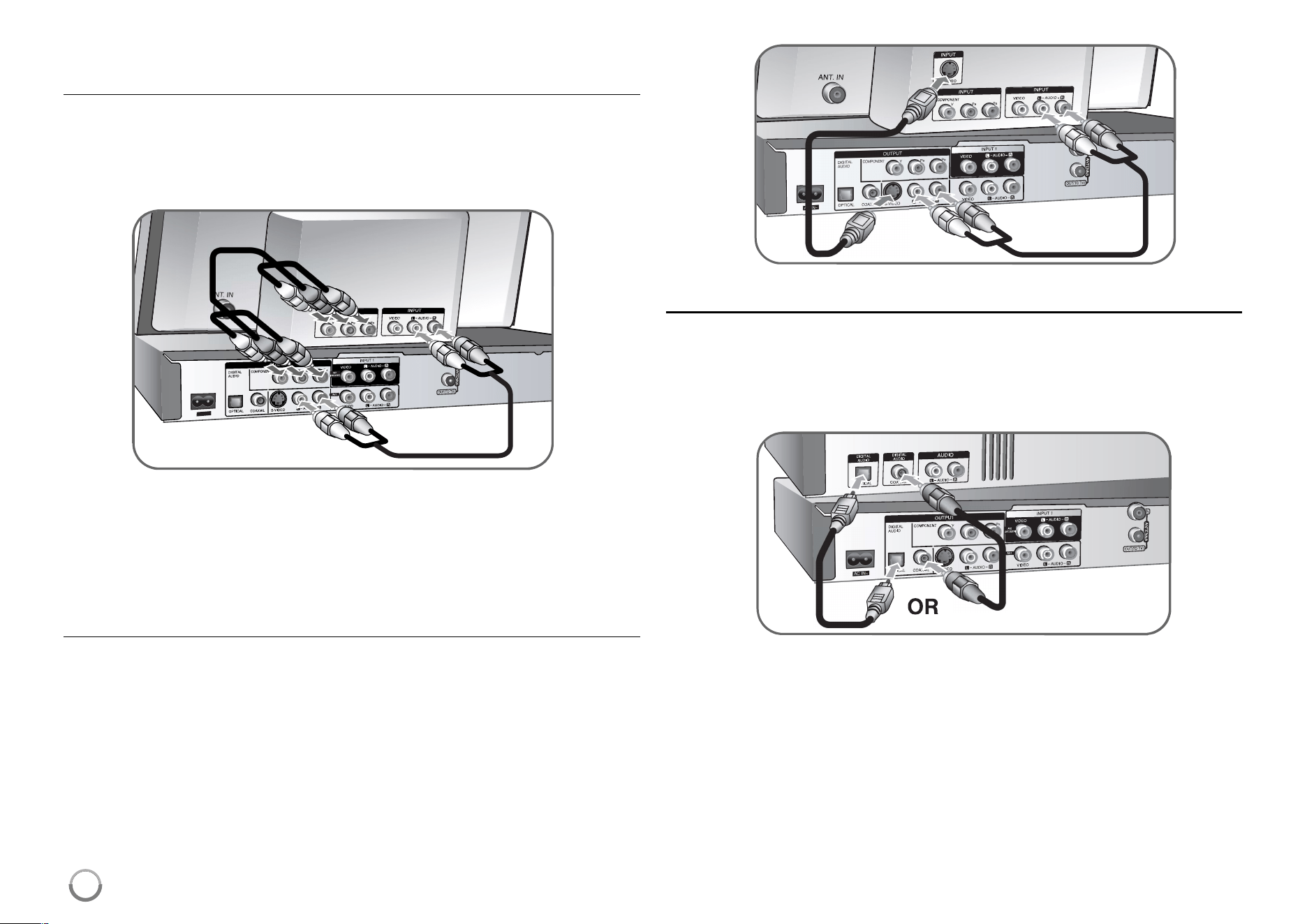

Component connection
Connect one end of the component(Y PB PR) cable to the COMPONENT OUT-
PUT jack on the unit and other the end to the COMPONENT INPUT jack on
your TV.
Connect one end of the audio cables (red and white) to the analogue AUDIO
OUTPUT jack on the unit and other end to the AUDIO INPUT jack on your TV.
If your television is a high-definition or “digital ready” television, you may take
advantage of the unit’s progressive scan output for the highest video resolution
possible. If your TV does not accept the Progressive Scan format, the picture
will appear scrambled with the progressive signal.
Set the resolution to 576p using P/S button on the front panel for progressive
signal.
S-Video connection
Connect one end of the S-Video cable to the S-VIDEO OUTPUT jack on the
unit and other end to the S-Video INPUT jack on your TV.
Connect one ends of the audio cables (red and white) to the analog AUDIO
OUTPUT jack on the unit and other ends to the AUDIO INPUT jack on your TV..
Digital audio connection
Connecting to an amplifier/receiver, Dolby Digital/MPEG/DTS decoder or other
equipment with a digital input.
Connect one end of the digital audio cables (COAXIAL or OPTICAL) to the digi-
tal audio output jack (COAXIAL or OPTICAL) on the unit and other end to the
digital audio input jack (COAXIAL or OPTICAL) on your amplifier.
This recorder does not perform internal (2 channel) decoding of a DTS sound
track. To enjoy DTS multi channel surround, you must connect this recorder to a
DTS compatible receiver via one of this recorder’s digital audio outputs.
A
C
I
N
~
A
C
I
N
~
A
C
I
N
~
11

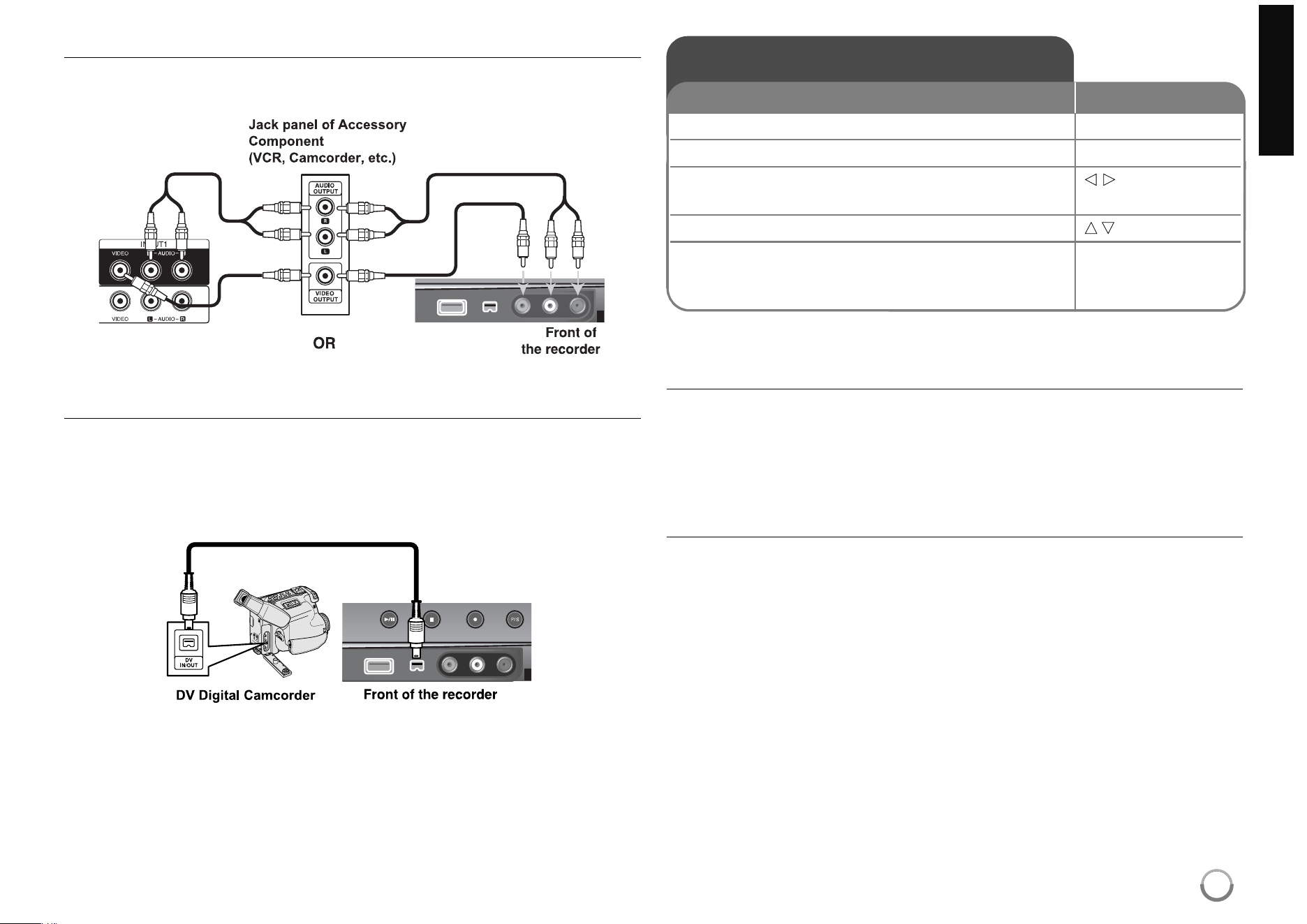

Connecting to the INPUT 1 or AV IN 2 Jacks
Connect the input jacks (INPUT 1 or AV IN 2) on the unit to the audio/video out
jacks on your accessory component using audio/video cables.
Connecting a Digital Camcorder
Using the front panel DV IN jack, it is possible to connect a DV digital
camcorder and digitally transfer DV tapes to DVD.
Use a DV cable (not supplied) to connect the DV in/out jack of your DV cam-
corder to the front panel DV IN jack of this unit.
The DV IN jack is for connection to DV digital camcorder only. It is not compatible
with digital satellite tuners or D-TAPE video decks. Disconnecting the DV cable
while recording a contents of the connected digital camcorder may result in
malfunction.
Using USB Flash Drive
Using an USB Flash Drive
This unit can play the MP3/WMA/JPEG/DivX files contained in the USB Flash
Drive.
Inserting the USB Flash Drive – Insert straight-in until it fits into place.
Removing the USB Flash Drive – Withdraw the USB Flash Drive carefully
when the connected USB Flash Drive is not operating.
Notes on USB Flash Drive
The contents on the disc cannot be moved or copied to USB Flash Drive.
Keep the USB Flash Drive out of reach of children. If swallowed, seek med-
ical advice immediately.
This unit supports only USB Flash Drive with FAT16 or FAT32 format.
The USB Flash Drives which require additional program installation when
you have connected it to a computer are not supported.
This unit is compatible with the Flash type USB device that supports USB
1.1.
This unit may not support some USB Flash Drives.
Do not extract the USB Flash Drive while operating (play, etc.).
It may cause a malfunction on this unit
.
Rear of
Recorder
Operating USB Flash Drive
1. Insert an USB Flash Drive to the USB port: –
2 Displays the HOME menu: HOME
3 Select a main option:
b B
[MUSIC], [PHOTO] or [MOVIE] option
4 Select the [USB] option:
v V
5 Displays corresponding menu list: ENTER
For details of operations on each files, refer to
relevant pages.
ON REMOTE
12
Auto setup
Adjust the programmed channels
Press HOME, then use
b B
to select [Setup] option. Press ENTER while [Start]
is selected. The SETUP menu appears on the screen. Select the [Program Edit]
on the second level options then press
B
to move to the third level. Press
ENTER while [Edit] option is selected. The channel editing screen appears on
the screen.
Select which channel you would like to edit and press ENTER. An option menu
appear on the left side of the screen.
[Program Edit]: Change the settings of a channel manually.
[Station Rename]: Change a name of the selected channel.
[Move]: Moves the program’s location on the program list.
[Delete]: Delete the selected channel from programmed channel list.
[NICAM Auto/off]: Sets the channels for the NICAM broadcast.

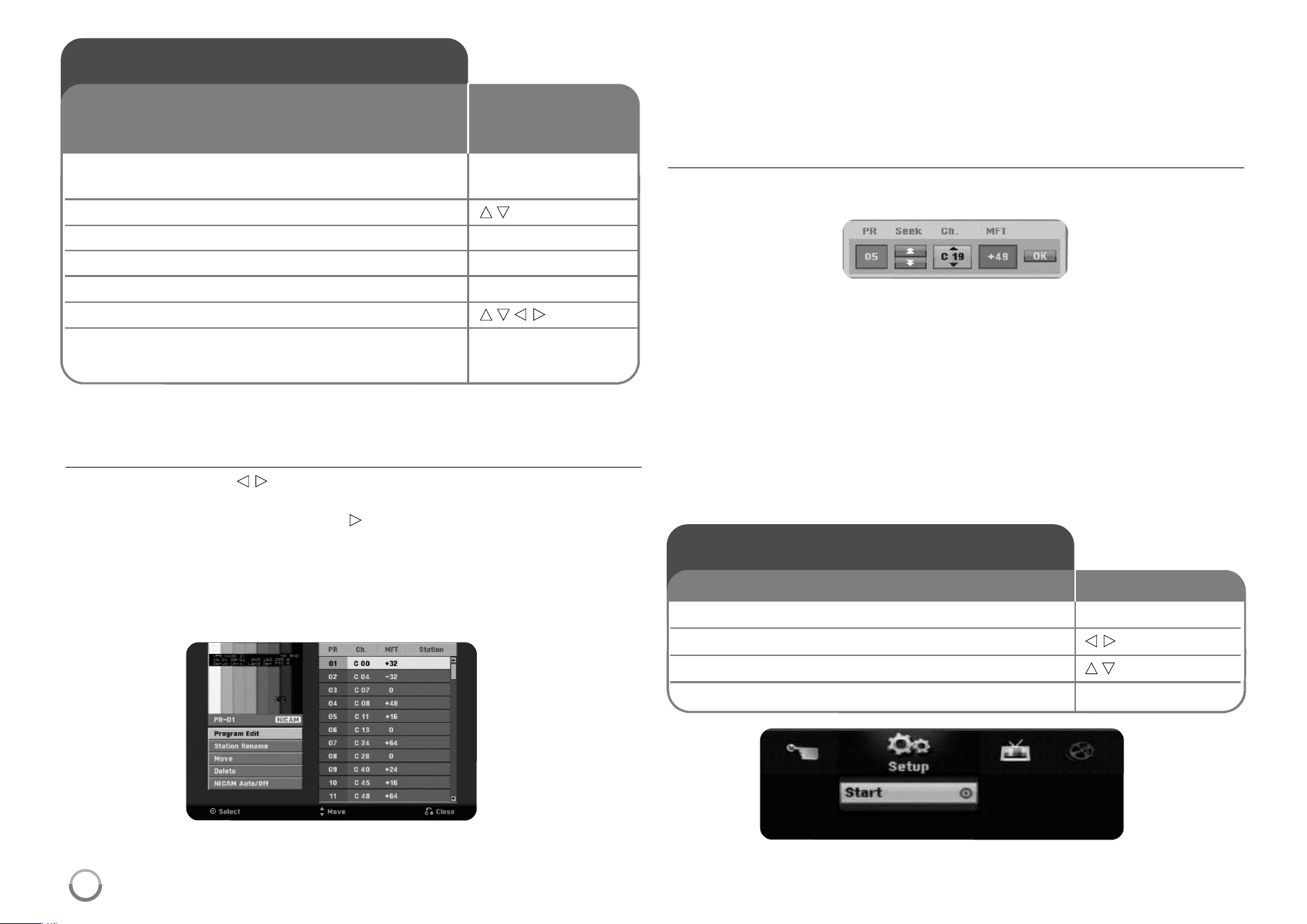

Editing a channel
You can change the settings of programmed channel by selecting [Program
Edit] option on the left side of the channel editing screen.
[PR]: Indicates the selected channel position.
[Seek]: Searches for a channel automatically. Searching stops when the unit
tunes in a channel.
[Ch.] Changes the channel number.
[MFT] Fine tunes the channel to obtain a clearer picture.
[OK]: Confirm the settings and return to the channel list menu.
Using the Home Menu
1 Displays the HOME menu: HOME
2 Select a main option:
b B
3 Select a sub option:
v V
4 Exit the HOME menu: HOME
ON REMOTE
Auto setup
1 Turn on the unit POWER
The initial setup wizard appears on the screen.
2 Choose a language:
v V
3 Select the chosen language: ENTER
4 Check the antenna and go to the next step: ENTER
5 Select the [Start] and starts channel scan: ENTER
6 Set the clock:
v V b B
, ENTER
7 Close the initial setup: ENTER
When the first time to turn on the unit, the initial setup
wizard sets the language, clock and channels
automatically.
13
Using the Home Menu - more you can do
Setup
Start – Displays SETUP menu. (page 13-16)
MOVIE
DISC
– Displays [Title List] menu, which shows recorded titles on the disc. (page
24)
– Displays [Movie List] menu, which shows DivX
®
movie files on the disc.
(page 20)
– Plays DVD-Video disc (page 18).
USB – Displays [Movie List] menu on the USB Flash Drive. (page 20)
DISC – Displays [Photo List] menu, which shows photo files on the disc. (page
22)
USB – Displays [Photo List] menu, which shows photo files on the USB Flash
Drive. (page 22)
MUSIC
DISC – Displays [Music List] menu, which shows music files or audio tracks on
the disc. (page 21)
USB – Displays [Music List] menu, which shows music files on the USB Flash
Drive. (page 21)
Easy Menu
Disc Manager – Displays the disc settings menu. (page 16)
DV Input – Changes to DV Input mode.
Rec Mode – Displays [Disc Record Mode] option in the SETUP Menu. (page
15)
TV
Auto Ch. Scan – Displays [Auto Programming] option in the SETUP Menu.
(page 14)
PR Edit – Displays [Program Edit option in the SETUP Menu. (page 12)
Timer Record – Displays [Timer Record] menu. (page 23-24)

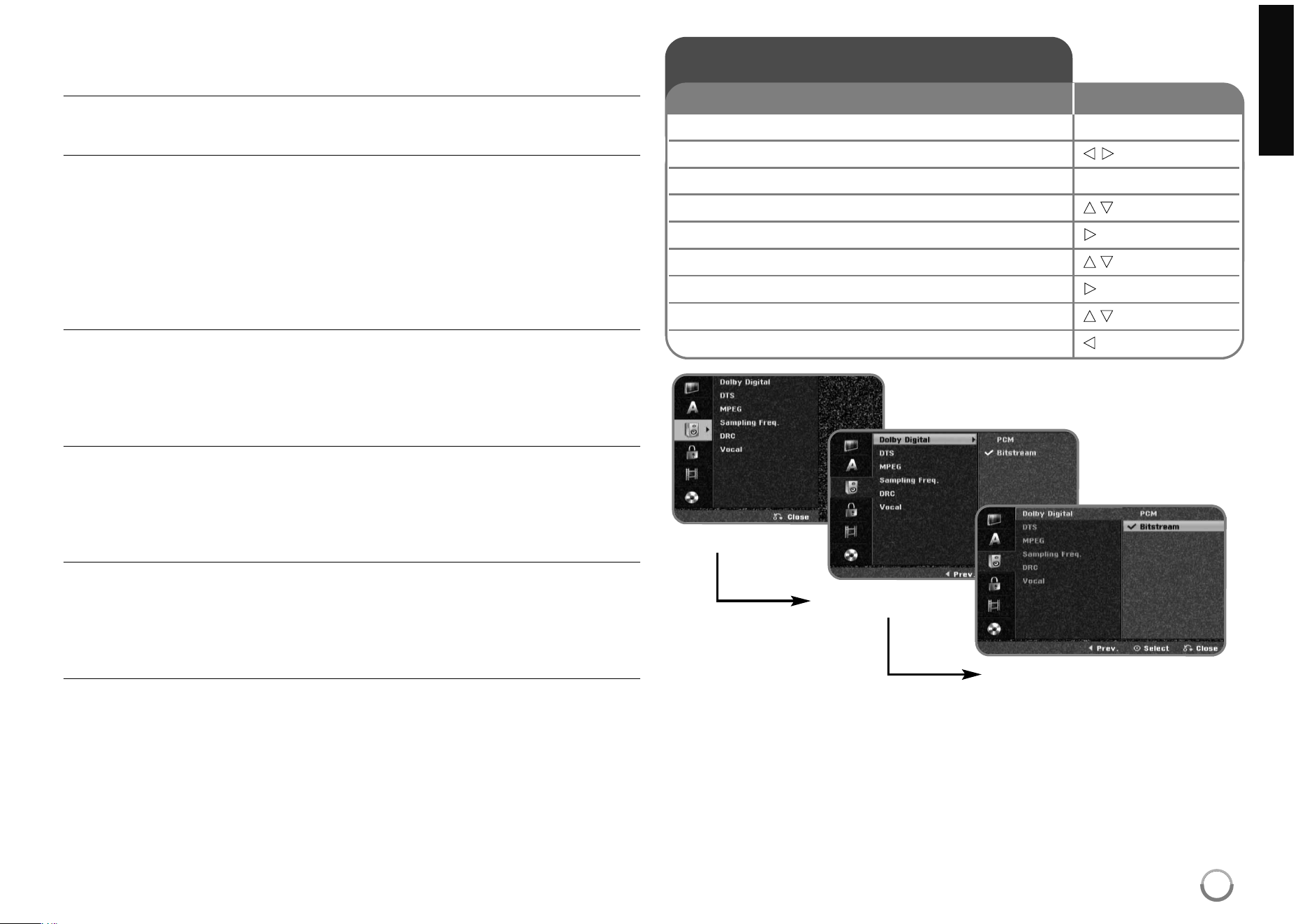

Adjust the SETUP settings
1 Displays the HOME menu: HOME
2 Select the [Setup] option:
b B
3 Select the [Start] option: ENTER
4 Select a desired option on the first level:
v V
5 Move to second level:
B
6 Select a desired option on the second level:
v V
7 Move to third level:
B
8 Adjust or confirm the setting:
v V
, ENTER
9 Go back to the previous level:
b
ON REMOTE
First level
Second level
Third level
14
Adjust the SETUP settings

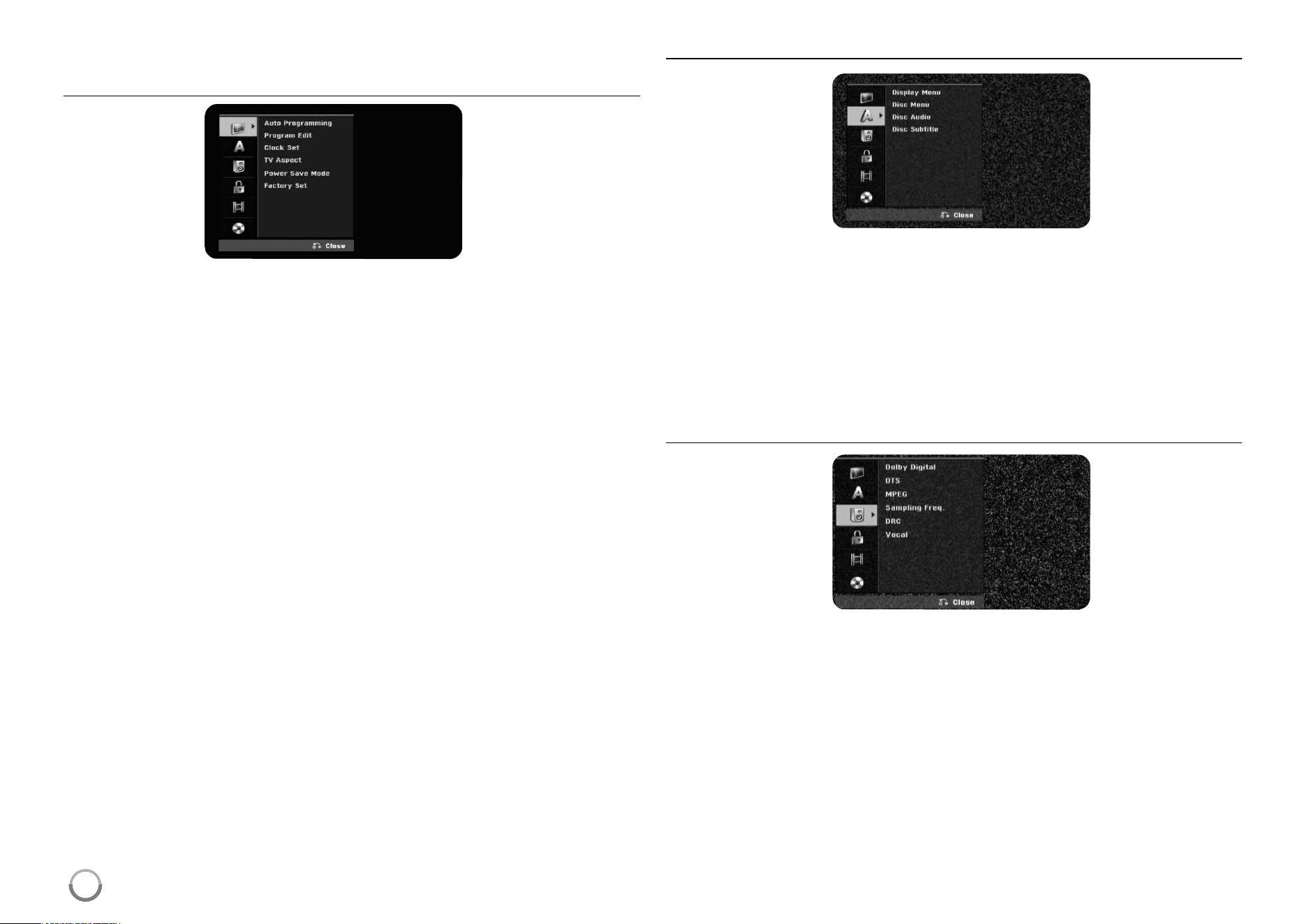

Adjust the general settings
Auto Programming – This option automatically scans and sets the available
channels.
[Start]: Start the channel scanning.
Program Edit– This option allows you to add channels and edit preset
channels.
[Edit]: Displays the screen which show preset channel list and channel
editing options. (page 12)
Clock Set– The clock must be set in order to use [Timer record].
TV Aspect – Selects the aspects ratio of the connected TV.
[4:3 Letter Box]: Select this when connecting to a standard 4:3 screen TV
and prefer the wide picture with bands on the upper and lower portions of the
screen.
[4:3 Pan Scan]: Select this when connecting to a standard 4:3 screen TV and
prefer the wide picture on the entire screen cuts off the portions that do not
fit.
[16:9 Wide]: Select this when connecting to a wide-screen TV.
Power Save mode – Selects whether this unit is in power save mode when the
power is turned off. This option is not available when a timer recording is set.
[ON]: The front panel display is off and only signals arriving at the antenna
input are passed through when the unit is turned off.
[OFF]: Turns off the [Power Save Mode].
Factory Set – You can reset the unit to all its factory settings. Some options
cannot be reset (Rating, Password, and Area Code). The auto setup menu
appears on the screen after the factory settings.
Adjust the language settings
Display Menu – Select a language for the Setup menu and on-screen display.
Disc Menu/Audio/Subtitle – Select a language for the Menu/Audio/Subtitle.
[Original]: Refers to the original language in which the disc was recorded.
[Others]: To select another language, press number buttons to enter the cor-
responding 4-digit number according to the language code list on page 28. If
you make a mistake while entering number, press CLEAR repeatedly to
delete numbers one by one then correct it.
[OFF] (for Disc Subtitle): Turn off Subtitle.
Adjust the audio settings
Dolby Digital / DTS / MPEG – Selects the type of digital audio signal when
using the DIGITAL AUDIO OUTPUT jack.
[Bitstream] – Select this when you connect this unit’s DIGITAL AUDIO
OUTPUT jack to an audio component with a built-in Dolby Digital, DTS or
MPEG decoder.
[PCM] (for Dolby Digital / MPEG) – Select this when you connect this unit’s
DIGITAL AUDIO OUTPUT jack to an audio component without a built-in
Dolby Digital or MPEG decoder.
[Off] (for DTS) – Select this when you connect this unit’s DIGITAL AUDIO
OUTPUT jack to an audio component without a built-in DTS decoder.
15
Sampling Freq. (Frequency) – Selects the sampling frequency of the audio
signal.
[48 kHz]: In case of DVD with 96KHz sampling, Output is converted to
48kHz. If your receiver or amplifier is NOT capable of handling 96 kHz sig-
nals, select [48 kHz].
[96 kHz]: The digital audio signals are output in their original sampling format.
DRC (Dynamic Range Control) – Make the sound clear when the volume is
turned down (Dolby Digital only). Set to [On] for this effect.
Vocal – Select [On] to mix karaoke channels into normal stereo. This function is
effective for multi-channel karaoke DVDs only.

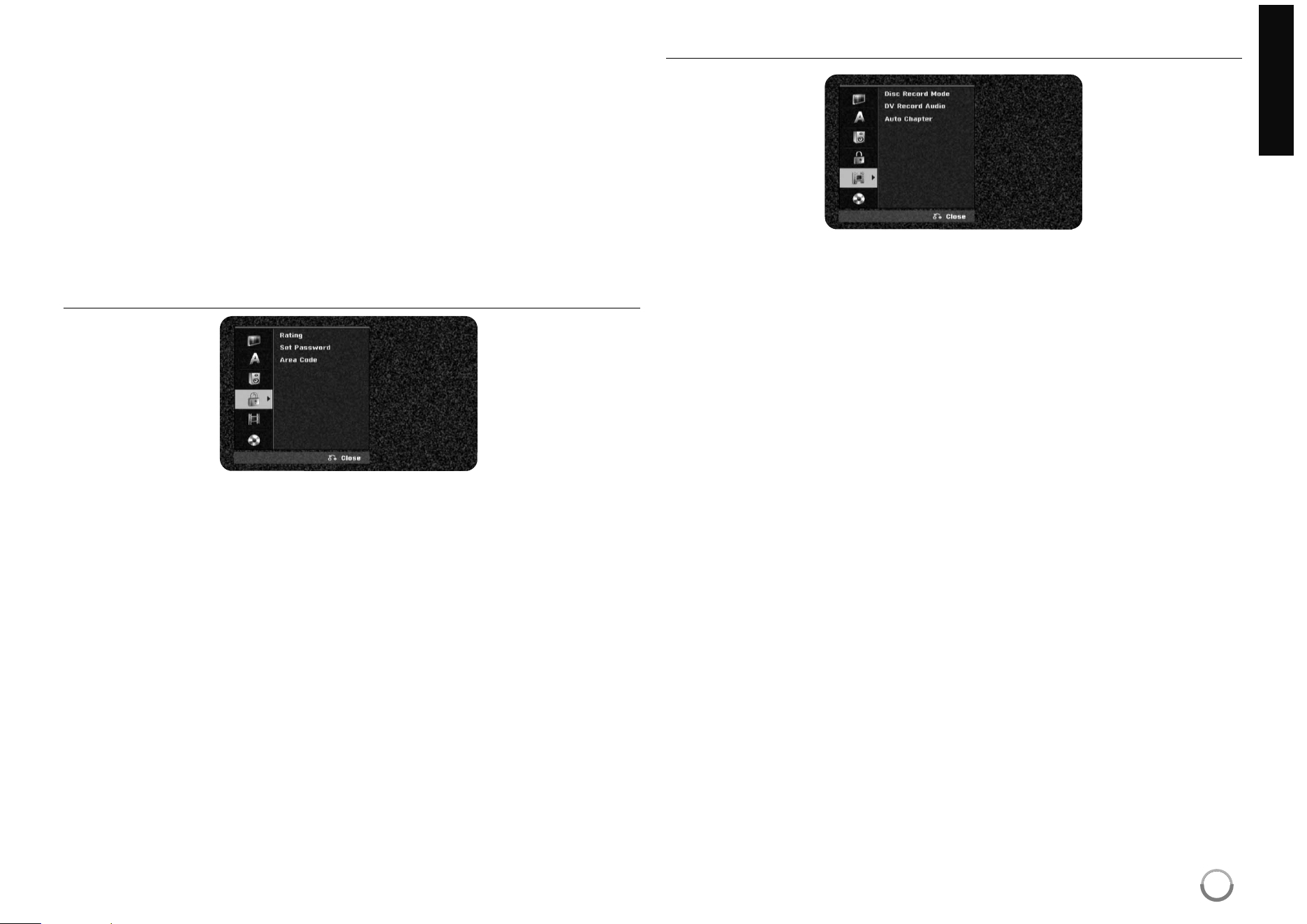

Adjust the lock settings
To access the Rating, Password or Area Code options, you must enter the 4-
digit password. If you have not yet entered a password you are prompted to do
so. Enter a 4-digit password. Enter it again to verify. If you make a mistake
while entering number, press CLEAR repeatedly to delete numbers one by one
then correct it.
If you forget your password, you can reset it. Display the SETUP menu. Input
‘210499’ and select [OK] to confirm. The password has now been cleared.
Rating – Select a rating level. The lower the level, the stricter the rating. Select
[No Limit] to deactivate the rating.
Set Password – Changes or deletes the password.
[Change]: Enter the new password twice after entering the current password.
[Delete]: Delete the current password after entering the current password.
Area code – Select a code for a geographic area as the playback rating level.
This determines which area’s standards are used to rate DVDs controlled by the
parental lock. See the Area Codes on page 28.
Adjust the recording settings
Disc Record Mode – Select the picture quality for recording from XP, SP, LP,
EP or MLP. See recording time of each mode on page 30.
[XP]: Highest picture quality.
[SP]: Standard picture quality.
[LP]: Slightly lower picture quality than [SP] mode.
[EP]: Low picture quality.
[MLP]: The longest recording time with the lowest picture quality.
DV Record Audio – You need to set this if you have a camcorder using
32kHz/12-bit sound connected to the front panel DV IN jack.
Some digital camcorders have two stereo tracks for audio. One is recorded at
the time of shooting; the other is for overdubbing after shooting.
On the Audio 1 setting, the sound that was recorded while shooting is used.
On the Audio 2 setting, the overdubbed sound is used.
Auto Chapter – When DVD recording, chapter markers are added automatical-
ly in every specified interval (5 or 10 min.).
If you select None, switch off automatic chapter marking altogether with the No
Separation setting.
16

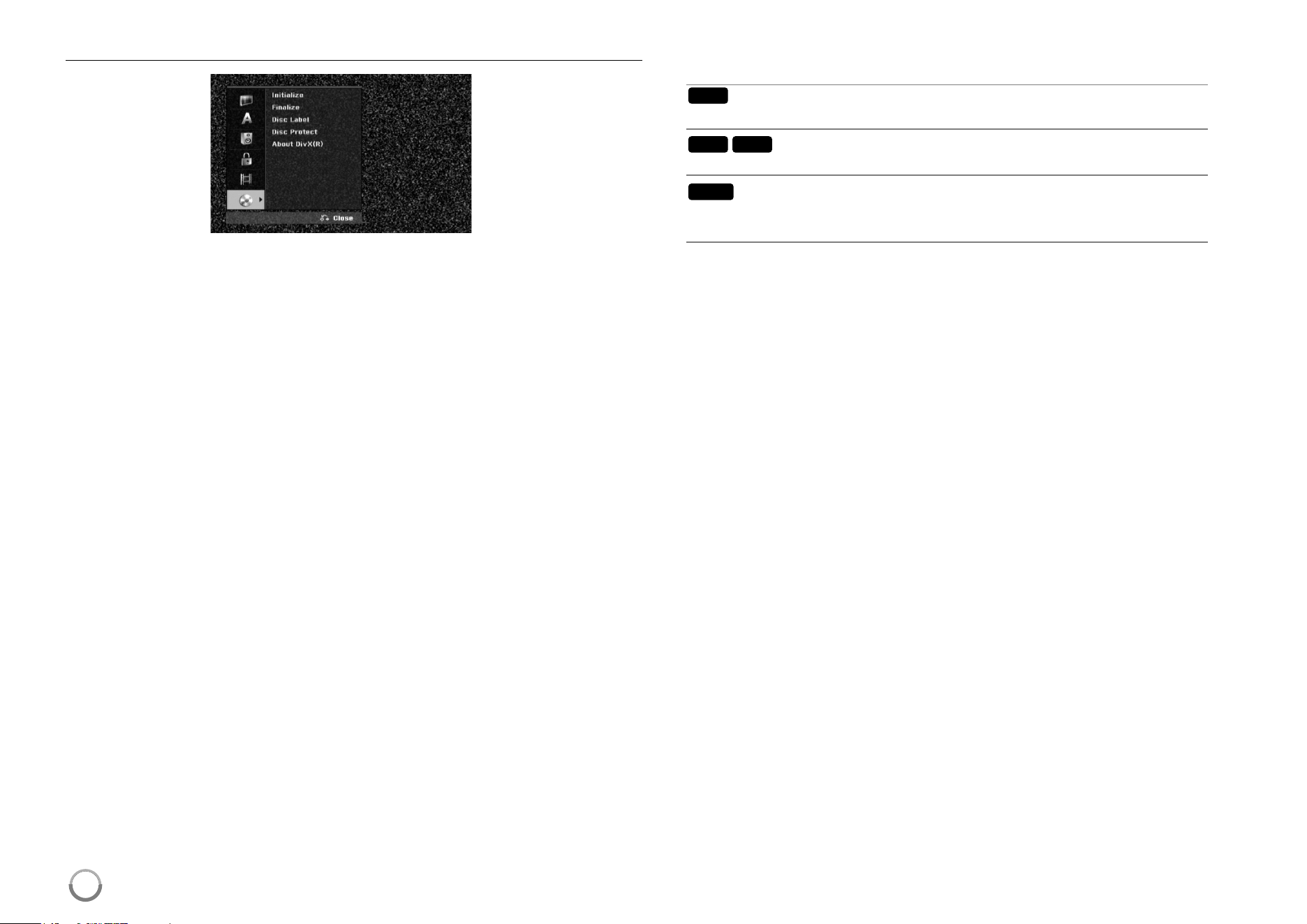

Adjust the disc settings
Initialize – You can Initialize a DVD by pressing ENTER while [Start] is select-
ed. The [Initialize] menu appears. The unit starts formatting after
confirmation. You can select a mode between VR and Video for DVD-RW discs.
The everything recorded on the DVD will be erased after formatting.
The disc format for DVD-R, DVD+R, DVD+RW, discs is always “Video” format -
the same as pro-recorded DVD-Video discs.
(You can play a DVD-R, DVD+R, DVD+RW, discs in a regular player).
If you load a completely blank disc, the unit will initialize the disc automatically.
See “Formatting mode (new disc)” on page 5 for more information.
Finalize – Finalizing is necessary when you play disc recorded with this unit on
other DVD equipment. How long finalization takes depends on the disc condi-
tion, recorded length and number of titles.
[Finalize]: The [Finalize] menu appears. The unit starts finalizing after
confirmation.
[Unfinalize]: The finalized DVD-RW discs can be unfinalized after confirming
on the [Unfinalize] menu. After unfinalizing, the disc can be edited and re-
recorded to.
Before finalizing, check the characteristics between the disc type in the table
below.
The finalized DVD-RW discs can be unfinalized
so that the disc can be edited or recorded to again.
Once you finalize a disc, you can not edit or
record anything on the disc.
Discs are automatically finalized when removed from
the unit. The edited contents are playable on DVD+RW
+RW
-R+R
-RW
compatible players only after finalization
Disc Label – This function allow you to change the default disc name to some-
thing more descriptive. This name appears when you load a disc and when you
display disc information on-screen. The keyboard menu appears by pressing
ENTER while [Edit] is selected.
Disc Protect – This function allow you to protect discs from accidental record,
erasure and editing by setting this option to [ON]. The DVD-R and Video mode
formatted DVD-RW are not available to protect.
About DivX(R) – We provide you with the DivX® VOD (Video On Demand) reg-
istration code that allows you to rent and purchase videos using the DivX® VOD
service. For more information, visit www.divx.com/vod.
Press ENTER when [Enter] icon is highlighted and you can view the registration
code of the unit.
17

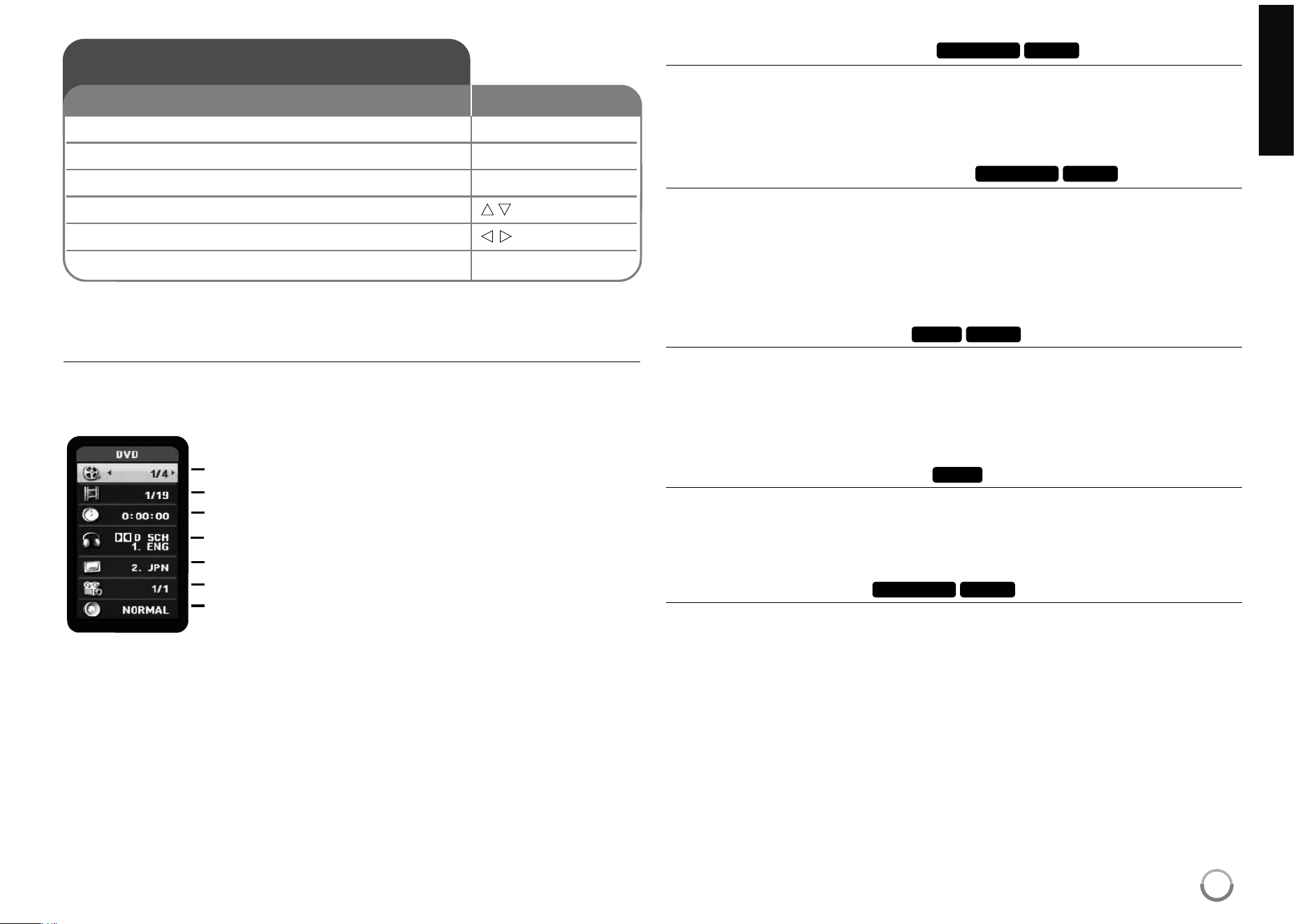

Displaying disc Information
Adjusting playback menu item
You can select an item by pressing vV and change or select the setting by
pressing b B.
Moving to another title/track/file
When a disc has more than one title, you can move to another title.
Press DISPLAY twice during playback then use v / V to select the title icon.
Then, press the appropriate numbered button (0-9) or b / B to select a title
number.
Starting playback from selected time
Press DISPLAY twice during playback. The time search box shows the elapsed
playing time. Select the time search box and then input the required start time
in hours, minutes, and seconds from left to right. For example, to find a scene
at 2 hours, 10 minutes, and 20 seconds, enter "21020" and press ENTER.
If you enter the wrong numbers, press b
/
B to move the under bar (_) to the
wrong number. Then enter the correct numbers.
Selecting a subtitle language
During playback, press DISPLAY twice to display the playback menu. Use v V
to select the subtitle option then use b B to select desired subtitle language.
OR
During playback, press SUBTITLE then use b B to select desired subtitle
language.
Watching from a different angle
If the disc contains scenes recorded at different camera angles, you can change
to a different camera angle during playback.
During playback, press DISPLAY twice to display the playback menu. Use v V
to select the angle option then use b B to select desired angle.
Selecting a sound mode
This unit can produce a 3D Surround effect, which simulates multi-channel
audio playback from two conventional stereo speakers, instead of the five or
more speakers normally required to listen to multi-channel audio from a home
theatre system.
During playback, press DISPLAY twice to display the playback menu. Use v V
to select the sound option then use b B to select desired sound mode
(3D SUR. or NORMAL).
DivXDVD ALL
DVD
DivXDVD
DivXDVD ALL
DivXDVD ALL
Displaying disc information
1 Play the disc loaded on the unit PLAY
2 Displays current status of playback: DISPLAY
3 Displays the playback menu: DISPLAY
4 Select an item:
v V
5 Adjust the playback menu settings:
b B
6 Exit the disc playback menu DISPLAY
ON REMOTE
Current title/track / Total number of titles/tracks
Current chapter / total number of chapters
Elapsed playing time
Selected audio language or audio channel
Selected subtitle
Selected angle / Total number of angles
Selected sound mode
18

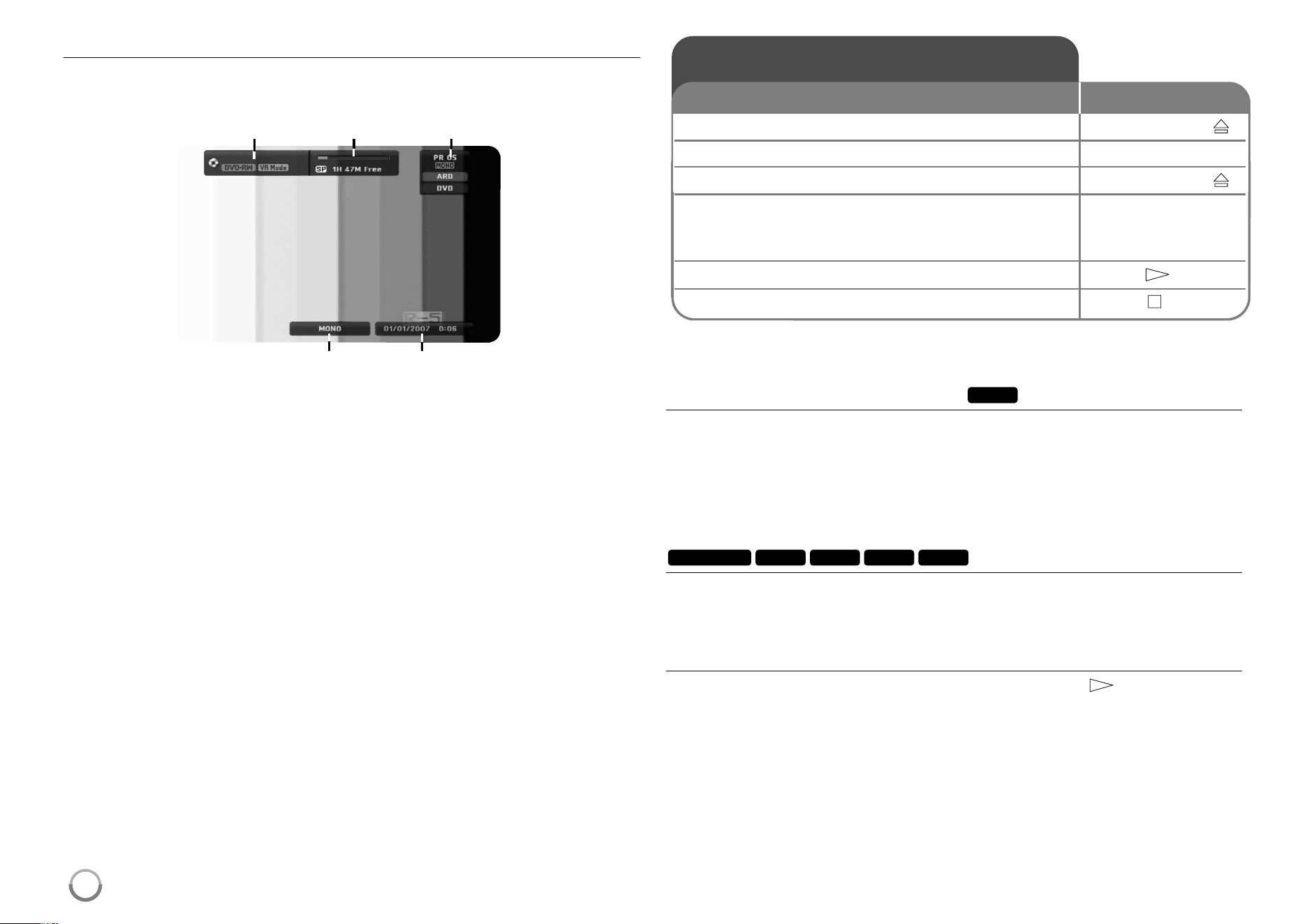

Displaying information while watching TV
During viewing the TV, Press DISPLAY to display the information displayed
on-screen.
a Indicates disc name and format.
b Indicates the record mode, free space, and elapsed time progress bar.
c Indicates channel number, station name, and audio signal (STEREO,
MONO) received by the tuner.
d Indicates current audio channel.
e Indicates current date and time.
Play a disc
Playing a disc that contains a menu
The menu screen may be displayed first after loading a DVD which contains a
menu.
DVD – Use the b / B / v / V buttons to select the title/chapter you want to view,
then press ENTER to start playback. Press TITLE or MENU/LIST to return to
the menu screen.
Skip to the next/previous chapter/track/file
Press SKIP (>) to move to the next chapter/track/file.
Press SKIP (.) to return to the beginning of the current chapter/track/file.
Press SKIP (.) twice briefly to step back to the previous chapter/track/file.
Pause a playback
Press PAUSE/STEP (X) to pause playback. Press PLAY (
N
) to continue
playback.
DivXWMAMP3ACDDVD ALL
DVD
a b c
d e
Play a disc
1 Open the disc tray: OPEN/CLOSE (
Z
)
2 Insert a disc: -
3 Close the disc tray: OPEN/CLOSE (
Z
)
4 Adjust the disc menu settings:
v V b B
A disc menu may not appears on the screen
depending on the disc.
5 Starts playback: PLAY (
N
)
6 Stops playback: STOP (
x
)
ON REMOTE
Frame-by-Frame playback
Press PAUSE/STEP (X) repeatedly to play Frame-by-Frame playback.
Fast forward or fast reverse
Press SCAN (m or M) to play fast forward or fast reverse during playback.
You can change the various playback speed by pressing SCAN (m or M)
repeatedly. Press PLAY (
N
) to continue play at normal speed.
Hearing a different audio
Press AUDIO then press b or B repeatedly to hear a different audio language,
audio track or encoding method.
Slow down the playing speed
While playback is paused, press SCAN (bb or BB) to slow down forward or
reverse playback. You can change the various playback speed by pressing
SCAN (m or M) repeatedly. Press PLAY (
N
)to continue play at normal
speed.
Playing repeatedly
Press PLAY MODE repeatedly to select an item to be repeated. The current
title, chapter, folder or track will be played back repeatedly. To return to normal
playback, press PLAY MODE repeatedly to select [Off].
Repeating a specific portion (A-B)
Press PLAY MODE to select [A-] at the beginning of the portion you wish to
repeat and press ENTER at the end of the portion. Your selected portion will be
repeated continually.
To return to normal playback, press PLAY MODE repeatedly to select [Off].
Watching a enlarged video image
During playback or pause mode, press ZOOM repeatedly to select zoom mode.
You can move through the zoomed picture using vVb B buttons. Press CLEAR
to exit.
Marking a favourite scene
You can mark positions by pressing MARKER at the desired position up to six
markers. Also you can recall or clear positions by pressing SEARCH.
Use b / B / v / V to select a desired marker, then press ENTER to recall it or
CLEAR to clear it.
Viewing the Title menu
Press TITLE to displays the title menu or disc menu. If the current DVD title has
a menu, the title menu appears on the screen. Otherwise, the disc menu may
appears.
Last Scene Memory
This unit memorizes last scene from the last disc that is viewed. The last scene
remains in memory even if you remove the disc from the player or switch off the
unit. If you load a disc that has the scene memorized, the scene is automatical-
ly recalled.
DVD
DVD
DVD ALL
DVD ALL
ACDDVD ALL
WMAMP3ACDDVD ALL
DVD ALL
DivXDVD ALL
DivXACDDVD ALL
DivXDVD ALL
19
20

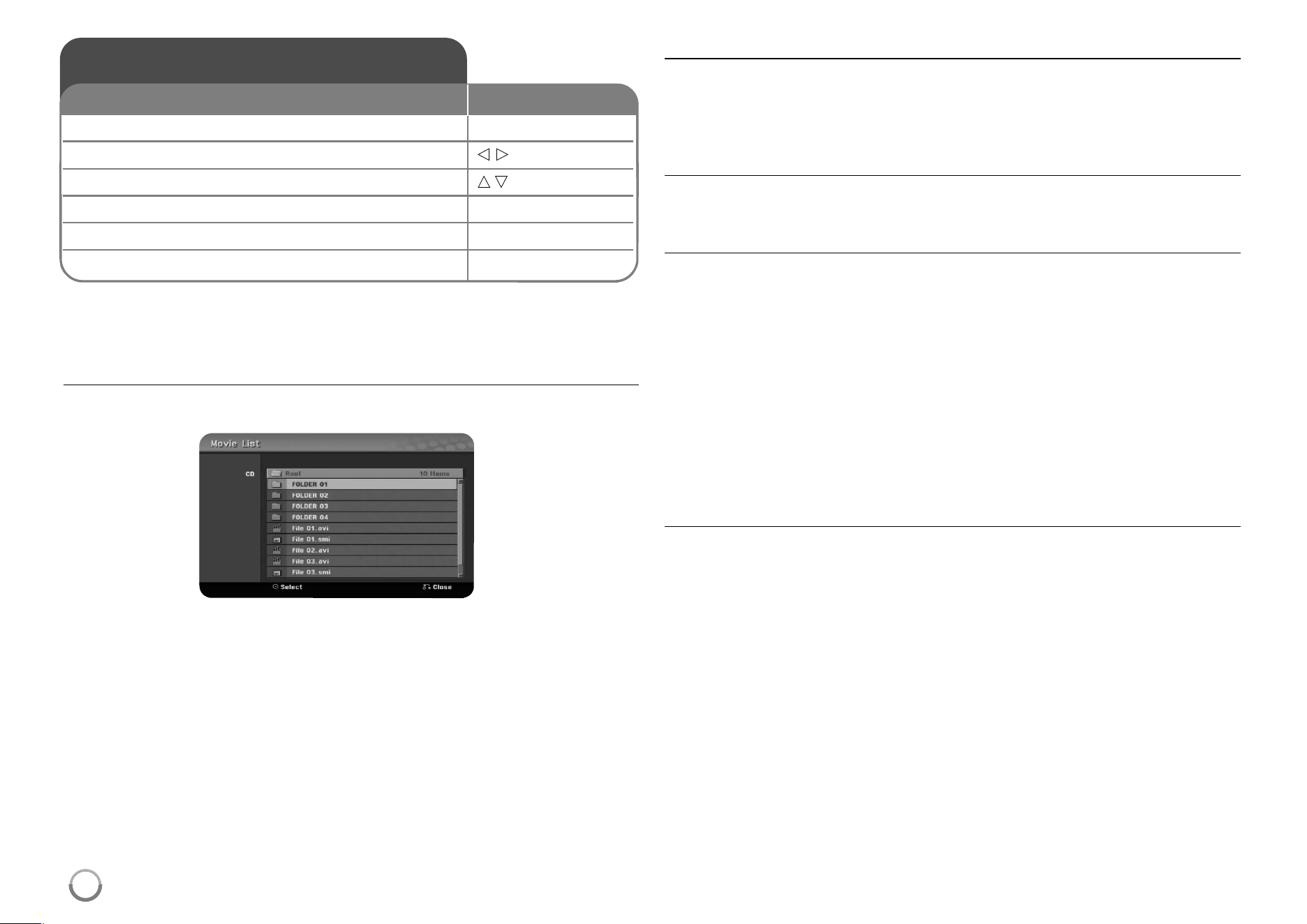

Playing a DivX
®
movie files
Movie List menu options
Select which file you would like to show menu and press ENTER. An options
menu appear on the left side of the screen.
[Play]: Starts playback the selected file.
[Open]: Opens the folder and a list of files in the folder appears.
Notice for displaying DivX
®
subtitle
If the subtitle does not display properly, press PAUSE/STEP when the subtitle
appears. Then press and hold SUBTITLE about 3 seconds to display the
language code menu. Use b / B to change the language code until the subtitle
is displayed properly. Press PLAY (N) to continue playback.
Displaying movie file information
Press DISPLAY while the file you want to show the file information is selected.
The unit shows the various kind of file information on the screen.
Divx file requirement
Available resolution size: 720x576 (W x H) pixel
DivX file extensions: “.avi”, “.divx”
Playable DivX subtitle: “.smi”, “.srt”, “.sub (Micro DVD format only)”,
“.txt (Micro DVD format only)”
Playable Codec format: “DIV3”, “MP43”, “DIVX”, “DX50”,
Playable Audio format: “AC3”, “PCM”, “MP2”, “MP3”, “WMA”
Sampling frequency: within 8-48 kHz (MP3), within 32-48kHz (WMA)
Bit rate: within 8 - 320kbps (MP3), within 32 - 192kbps (WMA)
CD-R Format: ISO 9660 and JOLIET.
DVD±R/RW Format: ISO 9660 (UDF Bridge format)
Maximum Files/Disc: Less than 650 (total number of files and folders)
Notes on DivX format
The DivX
®
subtitle file name has to be identified with the DivX
®
file name to
be display on the unit.
If the number of the screen frames is over 29.97 frames per second, this
unit may not operate normally.
If the video and audio structure of DivX
®
file is not interleaved, the player
returns to the menu screen.
If there is an impossible code to express in the DivX
®
file name, it may be
displayed as a “
*
” mark.
This unit does not support the DivX file that is recorded with GMC (Global
Motion Compensation).
If the bitrate of a DivX file on the USB is over 4Mbps, the file may not be
played properly.
Playing DivX
®
movie files
1 Displays the HOME menu: HOME
2 Selects a [MOVIE] option:
b B
3 Selects an option that contains DivX file:
v V
ENTER
4 Selects a movie file from the menu:
v V
5 Plays the selected movie file: PLAY
6 Stops the playback: STOP
ON REMOTE
21

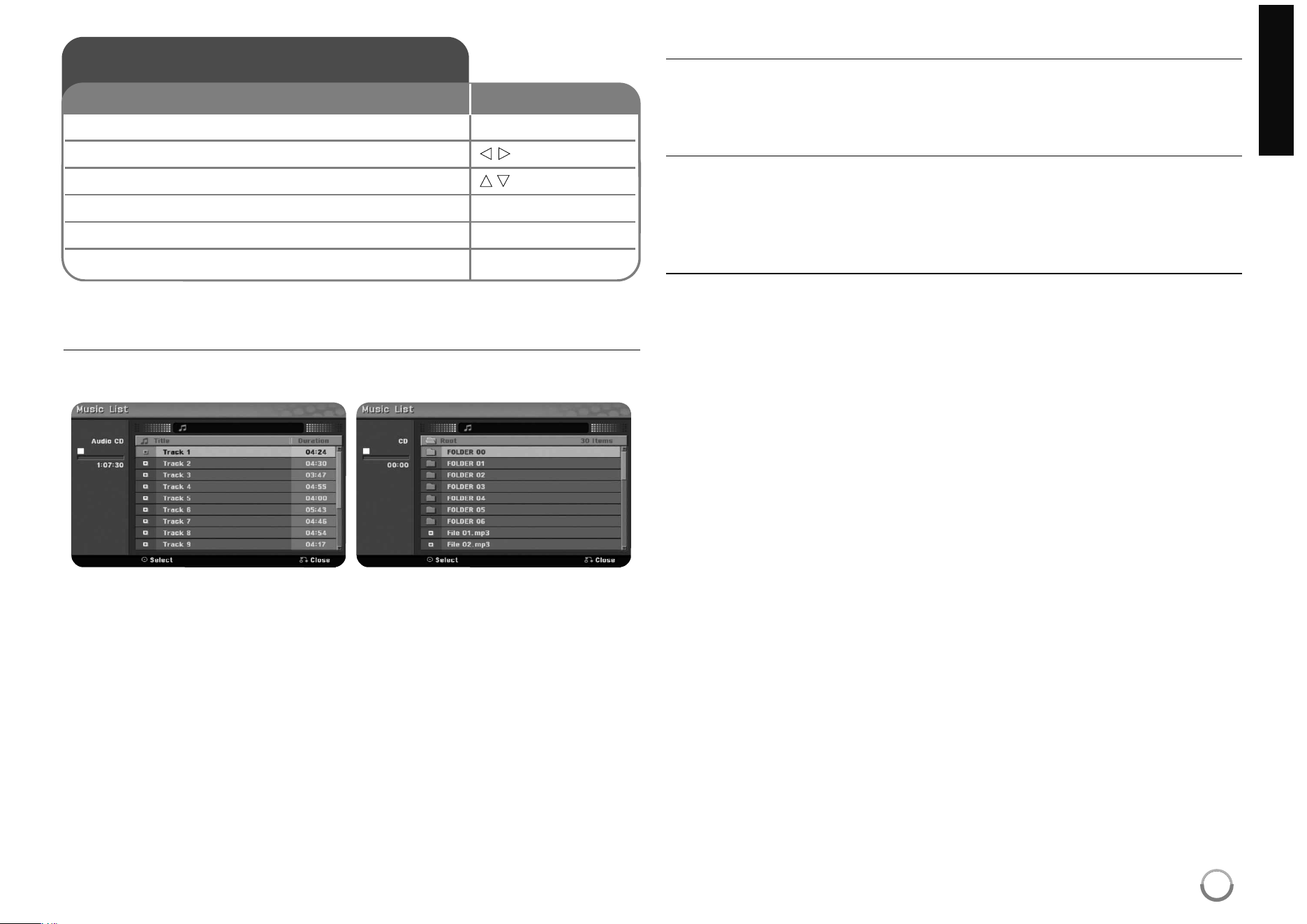

Listening to a music
Music List menu options
Select which file/track you would like to show menu and press ENTER.
A menu appears on the left side of the screen.
[Play]: Starts playback of the selected file/track.
[Random]: Starts or stops random playback.
[Open]: Opens the folder and a list of files in the folder appears.
Displaying MP3/WMA file information
Press DISPLAY while the file you want to show the file information of is select-
ed. The unit shows the ID3-Tag information of the file. If the file does not have
ID3-Tag information, [ID3-Tag: None] appears on the screen.
Playing music in random order
When you select the [RANDOM] option on the Music List menu then press
ENTER, the unit automatically begins random playback and “RANDOM”
appears on the menu screen. To return to normal playback, select [Random]
option again then press ENTER.
MP3/WMA audio file requirement
File extensions: “.mp3”, “.wma”.
Sampling frequency: within 8 - 48 kHz (MP3), within 32 - 48kHz (WMA)
Bit rate: within 8 - 320kbps (MP3), within 32 - 192kbps (WMA)
CD-R Format: ISO 9660 and JOLIET.
DVD±R/RW Format: ISO 9660 (UDF Bridge format)
Maximum Files/Disc: Less than 650 (total number of files and folders)
Listening to a music
1 Displays the HOME menu: HOME
2 Select a [MUSIC] option:
b B
3 Selects an option that contains music:
v V
ENTER
4 Selects a music from the menu:
v V b B
5 Plays the selected music: PLAY
6 Stops the playback: STOP
ON REMOTE
Audio CD MP3/WMA

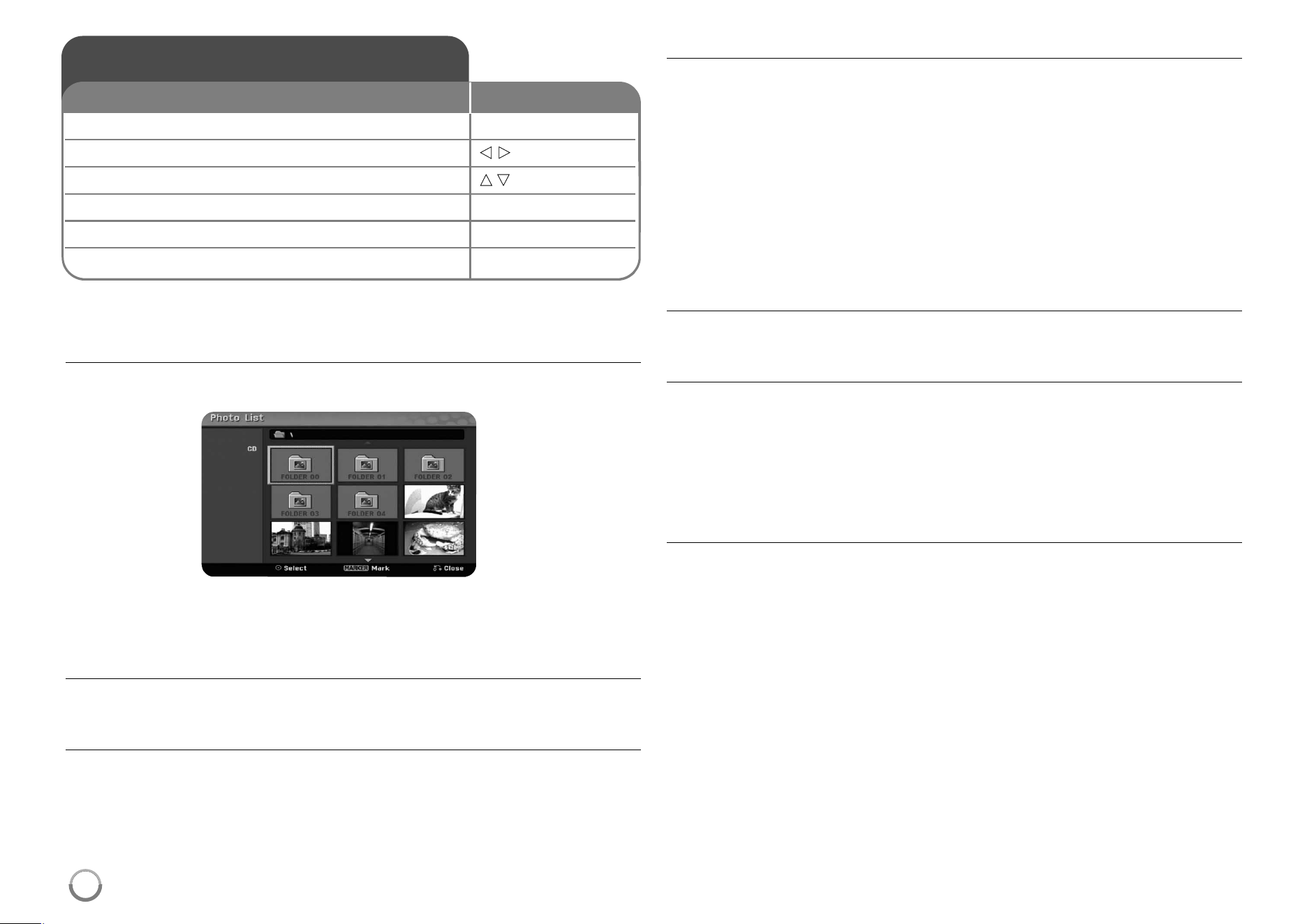

Viewing a photo
Photo List menu options
Select which file/track you would like to show from the menu and press ENTER.
A menu appears on the left side of the screen.
[Full Screen]: Shows the selected file in full screen.
[Open]: Opens the folder and a list of files in the folder appears.
[Slide Show]: Displays the [Slide Show] menu.
Skip to the next/previous photo
Press SKIP (. or >) to view the previous/next photo while displayed in full
screen.
Rotate a photo
Use vV to rotate the photo while displayed in full screen.
Viewing photo files as a slide show
To display photos as a slide show in the [Photo list], select the [Slide Show]
option on the left side of the screen then press ENTER, The [Slide Show] menu
appears on the screen. Set the [Object] and [Speed] options then press ENTER
while [Start] option is selected. The unit starts slide show as you set on the
menu.
[Object] option:
[Selected] Views slide show of only selected files.
Use the MARKER button to select multiple files.
[All] Views slide show of all files.
[Speed] option:
Sets the Slide Show speed to [Slow], [Normal], or [Fast].
Pause a slide show
Press PAUSE/STEP to pause a slide show. Press PLAY to continue the slide
show.
Photo file requirement
File extension: “.jpg”
Photo size: Less than 4MB recommended
CD-R Format: ISO 9660 and JOLIET.
DVD±R/RW Format: ISO 9660 (UDF Bridge format)
Maximum Files/Disc: Less than 650 (total number of files and folders)
Notes on JPEG file
Progressive and lossless compression JPEG image files are not supported.
Depending on the size and number of the JPEG files, it may take several
minutes to read the contents of the media.
22
Viewing a photo
1 Displays the HOME menu: HOME
2 Selects a [PHOTO] option:
b B
3 Selects an option that contains photo file:
v V
ENTER
4 Selects a photo from the menu:
v V b B
5 Displays the selected photo in full screen: PLAY
6 Returns to the Photo List: STOP
ON REMOTE
23

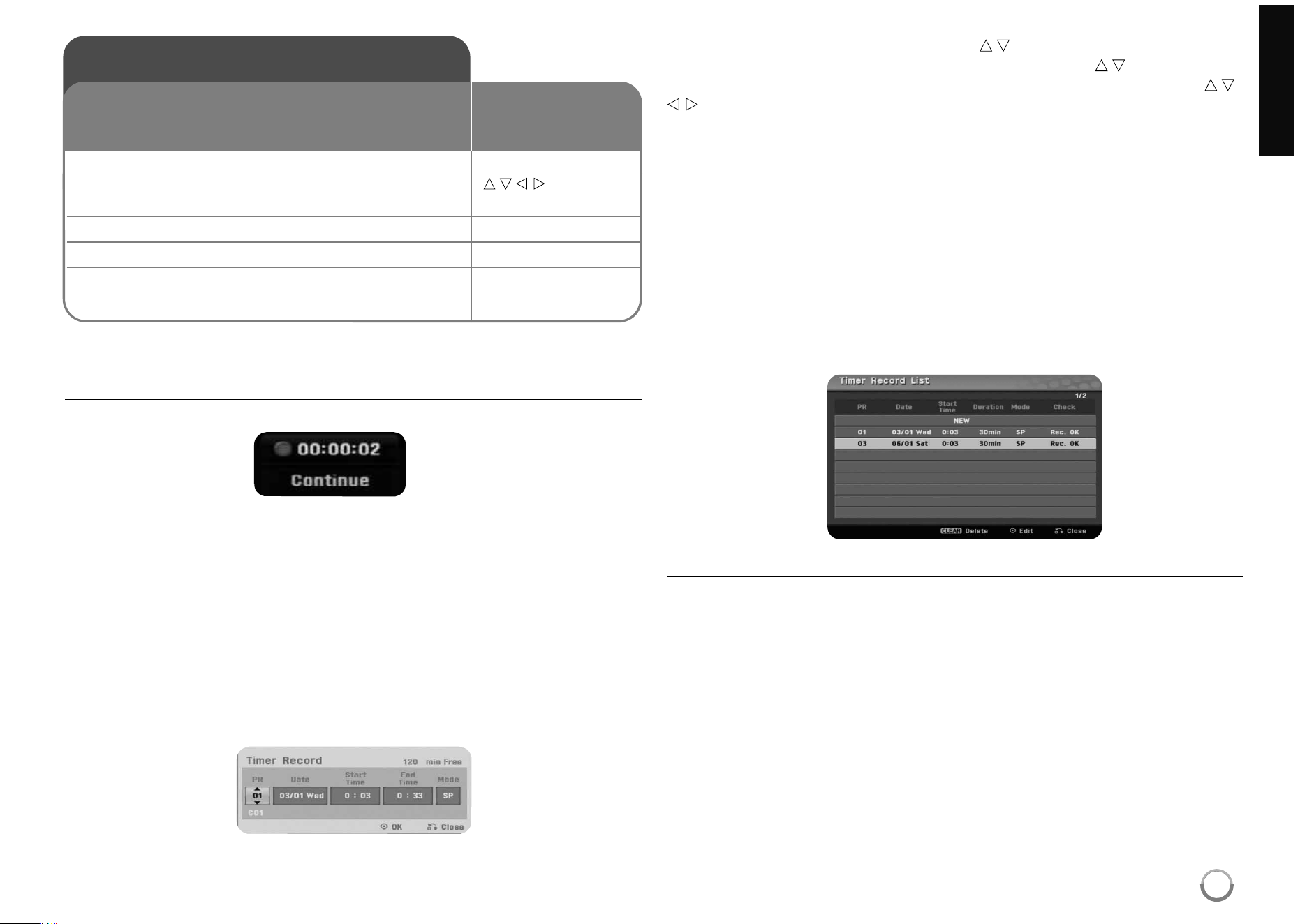

Recording - more you can do
Instant timer recording
Instant timer recording allows you to make a recording of preset length easily.
When the REC is first pressed, recording starts. Press REC repeatedly to select
a certain amount of time. Each press of REC displays the increased recording
time on-screen. You can set the instant timer recording within the free space
available.
To Pause the Recording
Press PAUSE/STEP to pause recording. When you want to continue recording,
press PAUSE/STEP.
Setting a timer record
This unit can be programmed to record up to 16 timer recording within a month.
The clock must be set correctly before setting a timer record.
Press HOME and select [TV] option. Press
v V
to select the [Timer Record]
and press ENTER to display [Timer record List] menu. Use
v V
to select [New]
and press ENTER to display [Timer Record] menu. Adjust each field using
v V
b B
.
[PR]: Choose a memorized program number, or one of the external inputs
from which to record.
[Date]: Choose a date up to
1 month
in advance.
[Start Time]: Set the start time.
[End Time]: Set the end time.
[Mode] Choose a recording mode (XP, SP, LP, EP, MLP or AT)
AT (Auto) mode determines how much time is available on the disc and
switches record mode, if necessary, to complete recording the program.
Press ENTER to set timer recording. The “Rec OK” on the [Check] field on the
[Timer Record List] menu indicates the timer recording is programmed
correctly.
Cancelling a timer recording
You can cancel a timer recording before the timer recording actually starts.
Select a timer recording that you want to cancel on the [Timer Record List]
menu and press CLEAR to confirm.
Recording
1 Selects a recording mode:
You can select a recording mode on the
SETUP menu. (XP, SP, LP, EP or MLP)
2 Selects a channel or source you want to record:
3 Starts recording:
4 Stops recording:
ON REMOTE
HOME
v V b B
ENTER
PR(+, -) or AV/INPUT
REC
STOP
Follow the instruction below to record a TV channel or
other source. The recording continues until the media
is full or you stop the recording.
24

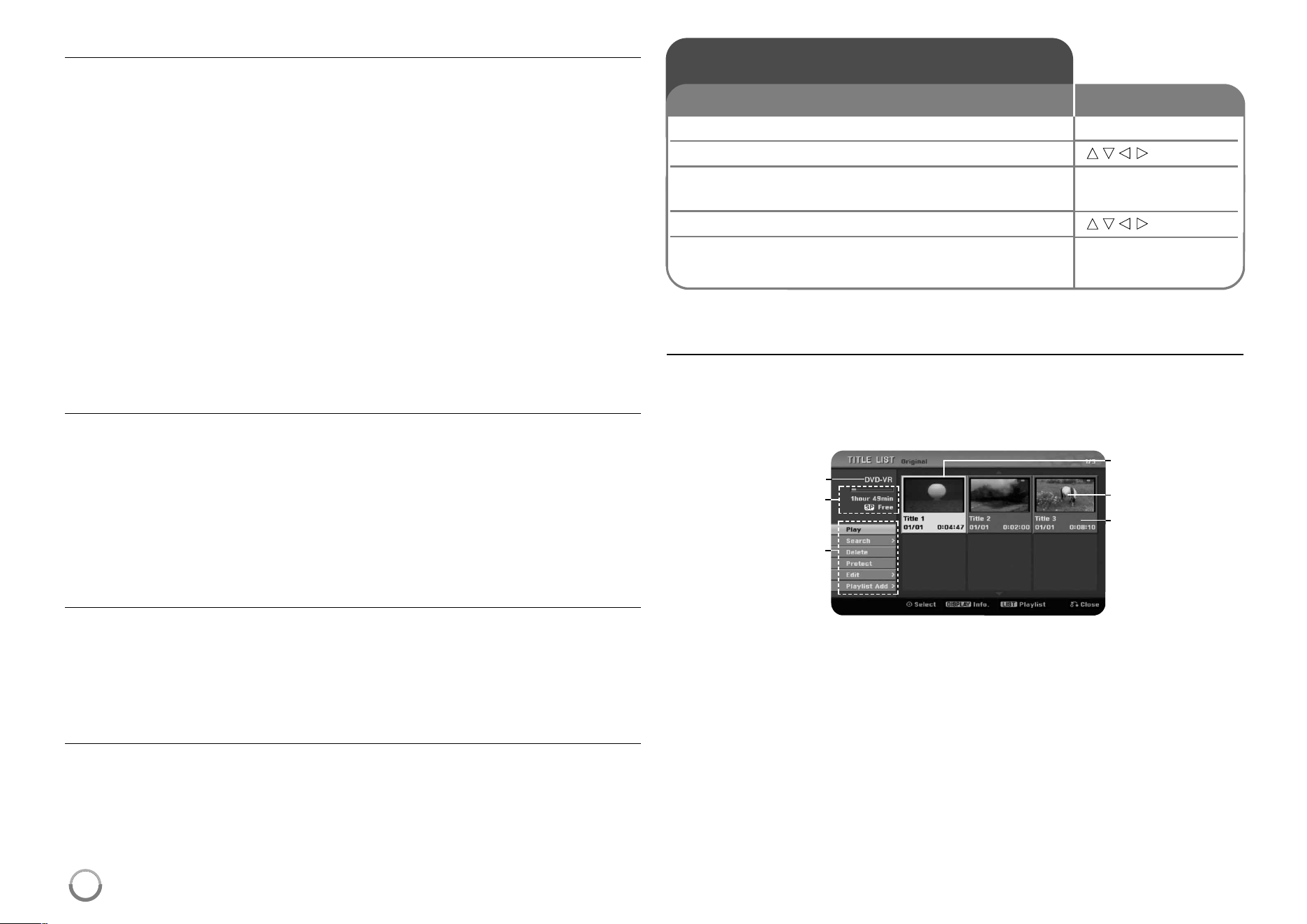

Timer Recording Troubleshooting
Even though the timer is set, the unit will not record when:
– There is no disc loaded.
– A non-recordable disc is loaded.
–
[Disc Protect] option is set to [ON] in the Setup menu (see page 16).
– The unit is in operating (recording, deleting etc.).
– There are already 99 titles (DVD-RW, DVD-R), 49 titles (DVD+R,
DVD+RW) recorded on the disc.
You cannot enter a timer program when:
– A recording is already underway.
– The time you’re trying to set has already passed.
– There are already 16 timer programs set.
If two or more timer programs overlap:
– The earlier program takes priority.
– When the earlier program finishes, the later program starts.
– If two programs are set to start at exactly the same time, the program
entered first takes priority.
Recording From an external inputs
You can record from an external component, such as a camcorder or VCR,
connected to any of the recorder’s external inputs.
Each press of the AV/INPUT changes the input source as described below.
Make sure that the component you want to record from is connected properly to
the unit before recording an external source.
Tuner: Built-in tuner
AV1: AV IN 1 (VIDEO, AUDIO (L/R)) mounted on the rear panel
AV2: AV IN 2 (VIDEO, AUDIO (L/R)) mounted on the front panel
Recording the NTSC format signals
You can record NTSC format signals from the analog or the DV inputs.
Load a recordable DVD discs formatted in NTSC.
(Refer to “How to create an NTSC formatted DVD disc” below)
Press AV/INPUT repeatedly to select an external NTSC input (AV1, AV2, or DV).
Press REC (z) once. Press STOP (x) to stop recording.
How to create an NTSC formatted DVD disc
Press AV/INPUT repeatedly to select an external NTSC input (AV1, AV2, or DV).
Load a recordable DVD discs. Initialize the disc on the setup menu.
(Refer to “Initialize” on page 16.)
You cannot play back a DivX file while viewing an NTSC format signals from the
analog or the DV inputs. To play back the DivX file, you must select tuner mode.
Editing a title
About title list menu
Press MENU/LIST to display the Title List menu. Playback should be stopped
when you do this. You can also access it using HOME menu, select [MOVIE]
option then select [DISC] option and press ENTER. If you are editing a VR
mode disc, press MENU/LIST to switch between Original and Playlist menu.
a Current media
b Indicates the record mode, free space, and elapsed time progress bar.
c Menu options: To display menu option, select a title or chapter then press
ENTER. The options displayed differ depending on the disc type.
d Currently selected title.
e Thumbnail
f Shows the title name, recorded date, and recording length.
Editing a title
1 Displays a [Title List] menu:
2 Selects a title you want to edit:
3 Displays an editing menu:
The options are differ depending on the media type.
4 Selects a menu option:
5 Exit the [Title List] menu:
ON REMOTE
MENU/LIST
v V b B
ENTER
v V b B
,
ENTER
RETURN
Using the Title list menu,you can edit video contents.
a
b
c
d
e
f
25

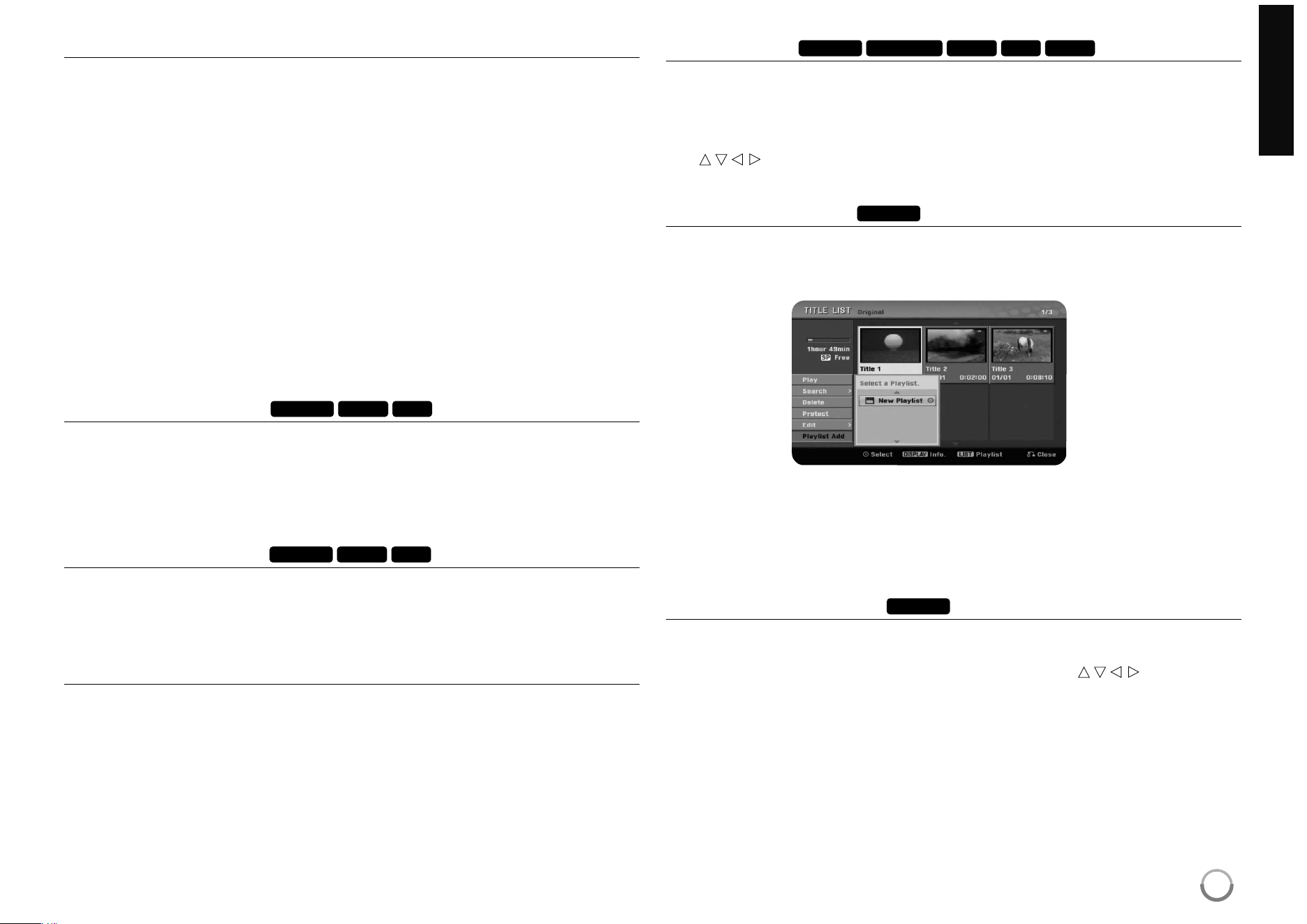

Before editing
This unit offers various edit options for various disc types. Before you edit,
check the disc type, and select the option available for your disc.
You can enjoy advanced edit functions with VR mode formatted DVD (DVD-
RW). Editing either the original recording(called the “original”), or the playback
information created from the original (called a “Playlist).
Edits made to the original titles are final. If you plan to edit a title without editing
the original title, you can create a Playlist title for editing.
A Playlist is a group of Playlist titles created from the original title for editing
purpose.
Titles in the disc’s original content contain one or more chapters. When you
insert a disc’s title into the Playlist, all the chapters within that title also appear.
In other words, chapters in the Playlist behave exactly as chapters on a DVD-
Video disc do. Parts are sections of Original or Playlist titles. From the Original
and Playlist menu you can add or delete parts. Adding a chapter or title to the
Playlist creates a new title made up of a section (ie., chapter) of an Original
title. Deleting a part removes part of a title from the Original or Playlist menu.
Adding chapter markers
You can create chapters within a title by inserting chapter marks at the desired
point. Press CHP.ADD at the desired point while playback or recording.
A chapter marker icon appears on the screen.
The chapter markers can be added at regular interval automatically by setting
the [Auto Chapter] option in the SETUP menu.
Changing the thumbnail
Each title displayed in the Title List menu is represented by a thumbnail picture
taken from the start of that title or chapter.
Press THUMBNAIL to make the currently displayed picture appear in the Title
List menu.
Deleting a title or chapter
When you delete a title or chapter from the PlayList, the title or chapter in the
Original still remains. However, if you delete a chapter or title from Original, the
title or chapter deleted from the Original are also removed from PlayList.
Select a title or chapter that you want to delete and press ENTER. Select
[Delete] option from the menu on the left of the screen and press ENTER to
confirm.
Chapter search
You can select the start of a title by searching a chapter. Select a title that you
want to search and press ENTER. Select [Chapter] in the [Search] option from
the menu on the left of the screen, and press ENTER to display the [Chapter
List] menu.
Use
v V b B
to find the chapter you want to start playback, and press PLAY to
start playback.
Making a new PlayList
The PlayList allows you to edit or re-edit a title or chapter without changing the
Original recordings. Use this function to add an Original title or chapter to a new
PlayList or the registered Playlist.
Select an Original title or chapter that you want to put into the PlayList then
press ENTER. Select the [Playlist Add] option and then press ENTER to display
the [Select PlayList] menu. Choose a PlayList-title that you want to put the
selected Original title or chapter or select the [New PlayList] to create a new
PlayList.
Moving a PlayList chapter
Use this function to re-arrange the playing order of a PlayList title on the
[Chapter List-Playlist] menu. Select [Move] option from the menu on the left of
the [Chapter List-Playlist] screen and press ENTER. Use
v V b B
to choose
the place you want to move the chapter then press ENTER. The updated menu
is displayed.
-RW
VR
-RW
VR
-R+R+RW-RW
Video
-RW
VR
+R+RW-RW
VR
+R+RW-RW
VR
26

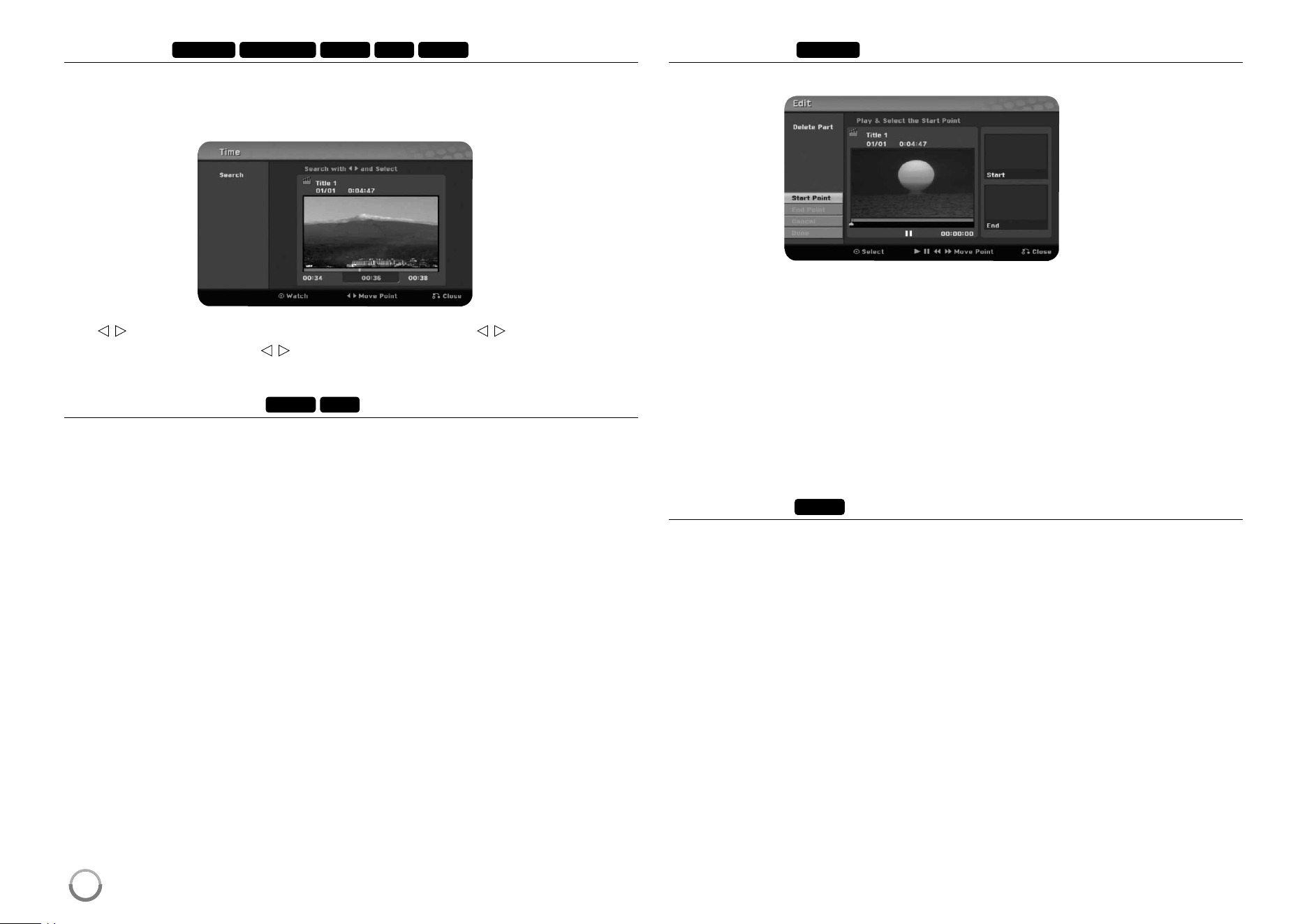

Time search
You can select the start time of a title by searching time. Select a title that you
want to search and press ENTER. Select [Time] in the [Search] option from the
menu on the left of the screen and press ENTER to display the [Search] menu.
Use
b B
to find the time you want to start. Each press of
b B
to moves 1
minute and press and hold
b B
to moves 5 minutes. Press ENTER to watch a
title from a selected time.
Hiding a chapter or title
You can skip through playing chapters or titles without actually deleting them.
Select a chapter or title you want to hide and press ENTER. Select [Hide] in the
[Edit] option then press ENTER.
If you want to recover the hidden title or chapter, select the hidden title or chap-
ter and press ENTER. Select [Show] in the [Edit] option then press ENTER to
recover it.
Deleting a part
You can delete a part which you do not want in the title.
Select a title that you want to delete part of and press ENTER. Select [Delete
Part] in the [Edit] option from the menu on the left of the screen and press
ENTER to display the [Delete part] menu. You can find the point using PLAY,
SCAN, PAUSE/STEP buttons.
[Start Point]: Select the starting point of a part that you want to delete then
press ENTER.
[End Point]: Select the end point of a part that you want to delete then press
ENTER.
[Cancel]: Press ENTER to cancel the selected part.
[Done]: Press ENTER to delete the selected part.
Dividing a title
Use this function to split a title up into two titles. Select a title that you want to
divide and press ENTER. Select [Divide] in the [Edit] option from the menu on
the left of the screen and press ENTER to display the [Divide] menu. Find the
point you want to divide the title using PLAY, SCAN, PAUSE/STEP buttons and
press ENTER while [Divide] option is selected. The playback screen shows the
divided point. Select [Done] option and press ENTER
+RW
-RW
VR
+R+RW
-R+R+RW-RW
Video
-RW
VR
27

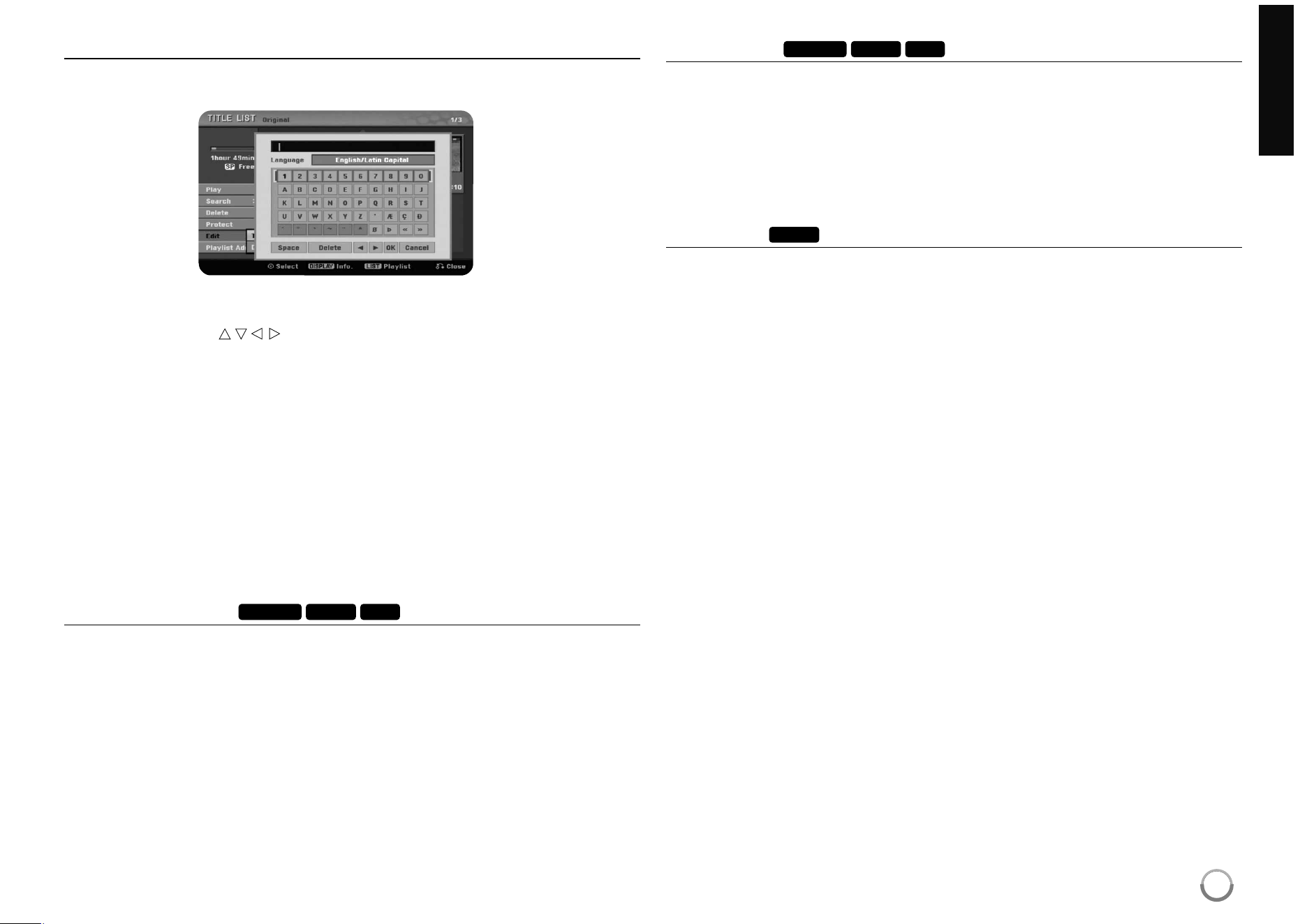

Naming a title
When a title is recorded by this unit, the title will be named by a number. You
can change a title name by using this function.
Select the title that you want to rename and press ENTER. Select [Title Name]
option from the menu on the left of the screen and press ENTER to display the
keyboard menu. Use
v V b B
to select a character then press ENTER to con-
firm your selection on the keyboard menu.
[OK]: Finish the naming.
[Cancel]: Cancels all entered characters.
[Space]: Inserts a space at the cursor position.
[Delete]: Deletes the previous character at the cursor position.
You can use the remote control buttons for entering a name
PLAY (N): Inserts a space at the cursor position.
X (PAUSE/STEP): Deletes the after character at the cursor position.
x (STOP), CLEAR: Deletes the previous character at the cursor position.
. / >: Moves cursor to left or right.
MENU/LIST, DISPLAY: Changes the character set on the keyborard menu.
Numbers (0-9): Enters the corresponding character at the cursor position.
Combining chapters
Use this function to merge the selected chapter with an adjacent chapter. Select
a chapter and press ENTER. Select [Combine] option to view combine indicator
between chapter thumbnails. Press ENTER to combine indicated two chapters.
This function is not available in conditions as listed below.
There is only one chapter within the title.
The first chapter is selected.
The chapters that you want to combine are created by deleting a part from
an Original title.
The chapters that you want to combine are created from different titles.
One of the playlist chapter that you want to combine has been moved.
Protect a title
Use this function to protect a title against accidental recording, editing or delet-
ing. Select a title you want to protect and press ENTER. Select [Protect] option
from the menu on the left and press ENTER. The lock mark will appear on the
title thumbnail.
If you want to unprotect the title, select the protected title and press ENTER.
Select [Unprotect] option from the menu on the left and press ENTER to unpro-
tect it.
Overwriting
You can overwrite a new video recording on a recorded title that is not protect-
ed. Select the TV channel or input source you want to record. Press DISC
MENU/LIST to display the Title List menu. Use v V b B to highlight a title you
want to overwrite and then press REC to start overwrite. To stop the recording,
press STOP.
If you overwrite and the new title is a longer recording than the current title on
the fully recorded disc, the next title is overwritten. If next title is protected, the
overwriting stops at the starting point of the title.
+RW
+R+RW-RW
VR
+R+RW-RW
VR
Language Codes
Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu.
Area Codes
Choose an area code from this list.
Language Code
Afar 6565
Afrikaans 6570
Albanian 8381
Ameharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Aymara 6588
Azerbaijani 6590
Bashkir 6665
Basque 6985
Bengali; Bangla 6678
Bhutani 6890
Bihari 6672
Breton 6682
Bulgarian 6671
Burmese 7789
Byelorussian 6669
Chinese 9072
Language Code
Croatian 7282
Czech 6783
Danish 6865
Dutch 7876
English 6978
Esperanto 6979
Estonian 6984
Faroese 7079
Fiji 7074
Finnish 7073
French 7082
Frisian 7089
Galician 7176
Georgian 7565
German 6869
Greek 6976
Greenlandic 7576
Guarani 7178
Gujarati 7185
Language Code
Hausa 7265
Hebrew 7387
Hindi 7273
Hungarian 7285
Icelandic 7383
Indonesian 7378
Interlingua 7365
Irish 7165
Italian 7384
Javanese 7487
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kirghiz 7589
Korean 7579
Kurdish 7585
Laothian 7679
Latin 7665
Latvian, Lettish 7686
Language Code
Lingala 7678
Lithuanian 7684
Macedonian 7775
Malagasy 7771
Malay 7783
Malayalam 7776
Maori 7773
Marathi 7782
Moldavian 7779
Mongolian 7778
Nauru 7865
Nepali 7869
Norwegian 7879
Oriya 7982
Panjabi 8065
Pashto, Pushto 8083
Persian 7065
Polish 8076
Portuguese 8084
Language Code
Quechua 8185
Rhaeto-Romance 8277
Rumanian 8279
Russian 8285
Samoan 8377
Sanskrit 8365
Scots Gaelic 7168
Serbian 8382
Serbo-Croatian 8372
Shona 8378
Sindhi 8368
Singhalese 8373
Slovak 8375
Slovenian 8376
Spanish 6983
Sudanese 8385
Swahili 8387
Swedish 8386
Tagalog 8476
Language Code
Tajik 8471
Tamil 8465
Telugu 8469
Thai 8472
Tonga 8479
Turkish 8482
Turkmen 8475
Twi 8487
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapük 8679
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 7473
Yoruba 8979
Zulu 9085
Area Code
Afghanistan AF
Argentina AR
Australia AU
Austria AT
Belgium BE
Bhutan BT
Bolivia BO
Brazil BR
Cambodia KH
Canada CA
Chile CL
China CN
Colombia CO
Congo CG
Area Code
Costa Rica CR
Croatia HR
Czech Republic CZ
Denmark DK
Ecuador EC
Egypt EG
El Salvador SV
Ethiopia ET
Fiji FJ
Finland FI
France FR
Germany DE
Great Britain GB
Greece GR
Area Code
Greenland GL
Hong Kong HK
Hungary HU
India IN
Indonesia ID
Israel IL
Italy IT
Jamaica JM
Japan JP
Kenya KE
Kuwait KW
Libya LY
Luxembourg LU
Malaysia MY
Area Code
Maldives MV
Mexico MX
Monaco MC
Mongolia MN
Morocco MA
Nepal NP
Netherlands NL
Netherlands Antilles AN
New Zealand NZ
Nigeria NG
Norway NO
Oman OM
Pakistan PK
Panama PA
Area Code
Paraguay PY
Philippines PH
Poland PL
Portugal PT
Romania RO
Russian Federation RU
Saudi Arabia SA
Senegal SN
Singapore SG
Slovak Republic SK
Slovenia SI
South Africa ZA
South Korea KR
Spain ES
Area Code
Sri Lanka LK
Sweden SE
Switzerland CH
Taiwan TW
Thailand TH
Turkey TR
Uganda UG
Ukraine UA
United States US
Uruguay UY
Uzbekistan UZ
Vietnam VN
Zimbabwe ZW
28
29
Troubleshooting
General
The power does not turned on.
b
Plug the power cord into the wall outlet securely.
There is no picture.
b
Select the appropriate video input mode on the TV so the picture from the
unit appears on the TV screen.
b
Connect the video connection securely.
Picture noise appears.
b
You are playing a disc recorded in a colour system that is different from
your TV.
b
The video signal from the external component is copy-protected.
b Set the resolution that your TV can accept.
The channel is not found or stored.
b
Check your antenna connection.
There is no sound.
b
Connect the audio connection securely.
b
The input source setting on the amplifier or the connection to the amplifier
is incorrect.
b
The unit is in scan, slow motion, or pause mode.
The remote control does not work properly.
b
The remote control is not pointed at the remote sensor of the unit.
b
The remote control is too far from the unit.
b
There is an obstacle in the path of the remote control and the unit.
b
The batteries in the remote control are exhausted.
Playback
The unit does not start playback.
b
Insert a playable disc. (Check the disc type, colour system, and regional
code.)
b
Place the disc with the playback side down.
b
Place the disc on the disc tray correctly inside the guide.
b
Clean the disc.
b
Cancel the Rating function or change the rating level.
Cannot play a disc recorded using this unit on an other player.
b
Finalize the disc.
b
Check the disc compatibility of the player.
b
Place the disc on the disc tray correctly inside the guide.
b
Discs recorded with copy-once material cannot be played on other
players.
The angle cannot be changed.
b
Multi-angles are not recorded on the DVD Video being played.
b
The angle cannot be changed for the titles recorded on this unit.
The subtitle language cannot be changed or turned off.
b
Subtitles are not recorded on the DVD Video being played.
b
The subtitle cannot be changed for the titles recorded on this unit.
Cannot play MP3/WMA/JPEG/DivX files.
b
The files are not recorded in a format that the unit can play.
b
The unit does not support the codec of the DivX movie file.
b
The resolution is higher than the unit can support.
Recording
Cannot record or does not record successfully.
b
Check the remaining space on the disc.
b
Check that the source you are trying to record from is not copy protected.
b
The power may have failed during recording.
b
Use a VR mode formatted disc for copy-once material.
Timer record does not record successfully.
b
Clock is not set to correct time.
b
The start time of the timer recording is past.
b
Two timer recordings may have overlapped, in which case only the earlier
one will record completely.
b
When setting the recording channel, make sure you set the unit’s built-in
tuner, not the TV’s built-in tuner.
Stereo Audio Record and/or Playback is not present.
b
TV is not Stereo-compatible.
b
Broadcast program is not in stereo format.
b
The A/V Output jacks on the unit are not connected to TV A/V In jacks.
Specifications
Recording
Recording format DVD Video Recording, DVD-VIDEO
Recordable media DVD-RW, DVD-R, DVD+RW, DVD+R
Recordable time DVD (4.7GB): Approx. 1 hour (XP mode),
2 hours (SP mode), 4 hours (LP mode),
6 hours (EP mode), 14 hours (MLP mode)
Video recording format
Sampling frequency 27MHz
Compression format MPEG2 (VBR supported)
Audio recording format
Sampling frequency 48kHz
Compression format Dolby Digital
Playback
Frequency response DVD (PCM 48 kHz): 8 Hz to 22 kHz,
CD: 8 Hz to 20 kHz
DVD (PCM 96 kHz): 8 Hz to 44 kHz
Signal-to-noise ratio More than 100 dB (AUDIO OUT connector)
Harmonic distortion Less than 0.008% (AUDIO OUT connector)
Inputs
Dynamic range More than 95 dB (AUDIO OUT connector)
ANTENNA IN Antenna input, 75 ohms
VIDEO IN 1.0 Vp-p 75 ohms, sync negative,
RCA jack x 2
AUDIO IN 2.0 Vrms more than 47 kohms, RCA jack
(L, R) x 2
DV IN 4 pin (IEEE 1394 standard)
USB IN 4 pin (USB 1.1 standard)
Outputs
VIDEO OUT 1 Vp-p 75
Ω
, sync negative, RCA jack x 1
S-VIDEO OUT (Y) 1.0 V (p-p), 75
Ω
, sync negative,
Mini DIN 4-pin x 1(C) 0.3 V (p-p) 75
Ω
COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75
Ω
, sync negative,
RCA jack x 1, (PB)/(PR) 0.7 V (p-p), 75
Ω
,
RCA jack x 2
Audio output (digital audio) 0.5 V (p-p), 75
Ω
, RCA jack x 1
Audio output (optical audio) 3 V (p-p), Optical connector x 1
Audio output (analog audio) 2 Vrms (1 kHz, 0 dB), 600
Ω
,
RCA jack (L, R) x 2
Accessories
RF cable (1), Remote control (1), Batteries (1), Audio cable (1),
Video cable (1)
30
Resetting the unit
If you observe any of the following symptoms.
The unit is plugged in, but the power will not turn on or off.
The front panel display is not working.
The unit is not operating normally.
You can reset the unit as follows.
Press and hold the POWER button for at least five seconds. This will
force the unit to power off then turn the unit back on.
Unplug the power cord, wait at least five seconds, and then plug it in
again.
General
Power requirements AC 200-240V, 50/60 Hz
Power consumption 15W
Dimensions (approx.) 430 X 49 X 245 mm (w x h x d) without foot
Net weight (approx.) 2.5 kg
Operating temperature 5˚C to 35˚C
Operating humidity 5 % to 65 %
Television system PAL B/G colour system
Recording format PAL
