ENGLISH
RH397D/RH399D
P/NO : MFL56778744
As an E
NERGY
S
TAR
®
Partner, LG
has determined that this product
or product models meet the
E
NERGY
S
TAR
®
guidelines for
energy efficiency.
E
NERGY
S
TAR
®
is a U.S. registered mark.
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 1
2
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE
COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SER-
VICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of non insulated dangerous
voltage within the product’s enclosure that may be of sufficient magni-
tude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance (serv-
icing) instructions in the literature accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT
EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
WARNING: Do not install this equipment in a confined space such as a book
case or similar unit.
CAUTION: Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
Slots and openings in the cabinet are provided for ventilation and to ensure reli-
able operation of the product and to protect it from over heating. The openings
should be never be blocked by placing the product on a bed, sofa, rug or other
similar surface. This product should not be placed in a built-in installation such
as a bookcase or rack unless proper ventilation is provided or the manufactur-
er's instructions have been adhered to.
CAUTION:CLASS 3B VISIBLE AND INVISIBLE LASER
RADIATION WEN OPEN AND INTERLOCKS
DEFEATED AVOID EXPOSER TO THE BEAM.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read this owner’s manual carefully
and retain it for future reference. Should the unit require maintenance, contact
an authorized service centre.
Use of controls, adjustments or the performance of procedures other than those
specified herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure.
Visible laser radiation when open. DO NOT STARE INTO BEAM.
CAUTION: The apparatus should not be exposed to water (dripping or splash-
ing) and no objects filled with liquids, such as vases, should be placed on the
apparatus.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit;
That is, a single outlet circuit which powers only that appliance and has no addi-
tional outlets or branch circuits. Check the specification page of this owner's
manual to be certain. Do not overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords, frayed power cords, or dam-
aged or cracked wire insulation are dangerous. Any of these conditions could
result in electric shock or fire. Periodically examine the cord of your appliance,
and if its appearance indicates damage or deterioration, unplug it, discontinue
use of the appliance, and have the cord replaced with an exact replacement
part by an LG authorized service centre. Protect the power cord from physical
or mechanical abuse, such as being twisted, kinked, pinched, closed in a door,
or walked upon. Pay particular attention to plugs, wall outlets, and the point
where the cord exits the appliance. To disconnect power from the mains, pull
out the mains cord plug. When installing the product, ensure that the plug is
easily accessible.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The appliance is not intended for use by young children or frail persons
without supervision.
Young Children should be supervised to ensure that they do not play with
appliance.
If the appliance is supplied from a cord extension set or an electrical portable
outlet device, the cord extension set or electrical portable outlet device must be
positioned so that it is not subject to splashing or ingress of moisture.
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 2
3
Copyrights
Recording equipment should be used only for lawful copying and you are
advised to check carefully what is lawful copying in the area in which you are
making a copy. Copying of copyright material such as films or music is unlaw-
ful unless permitted by a legal exception or consented to by the rights owner.
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners. Use of this copy-
right protection technology must be authorized by Macrovision Corporation,
and is intended for home and other limited viewing uses only, unless other-
wise authorized by Macrovision corporation. Reverse engineering or disas-
sembly is prohibited.
CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVI-
SION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY
CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF
625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED
THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFI-
NITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET
COMPATIBILITY WITH THIS MODEL 625p HDD/DVD RECORDER,
PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.
Open source software notice
This product includes
Freetype library : copyright © 2003 The FreeType Project (www.freetype.org).
Zlib compression library developed by Jean-loup Gailly and Mark Adler.
Copyright (C) 1995-2005 Jean-loup Gailly and Mark Adler
Doubly Linked List licensed by Artistic license.
You can download this software from http://freshmeat.net/projects/linklist/
Manufactured under license from Dolby Laboratories. Dolby and the
double-D symbol are trademarks of Dolby Laboratories.
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 3
4
Contents
Before you start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Main Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

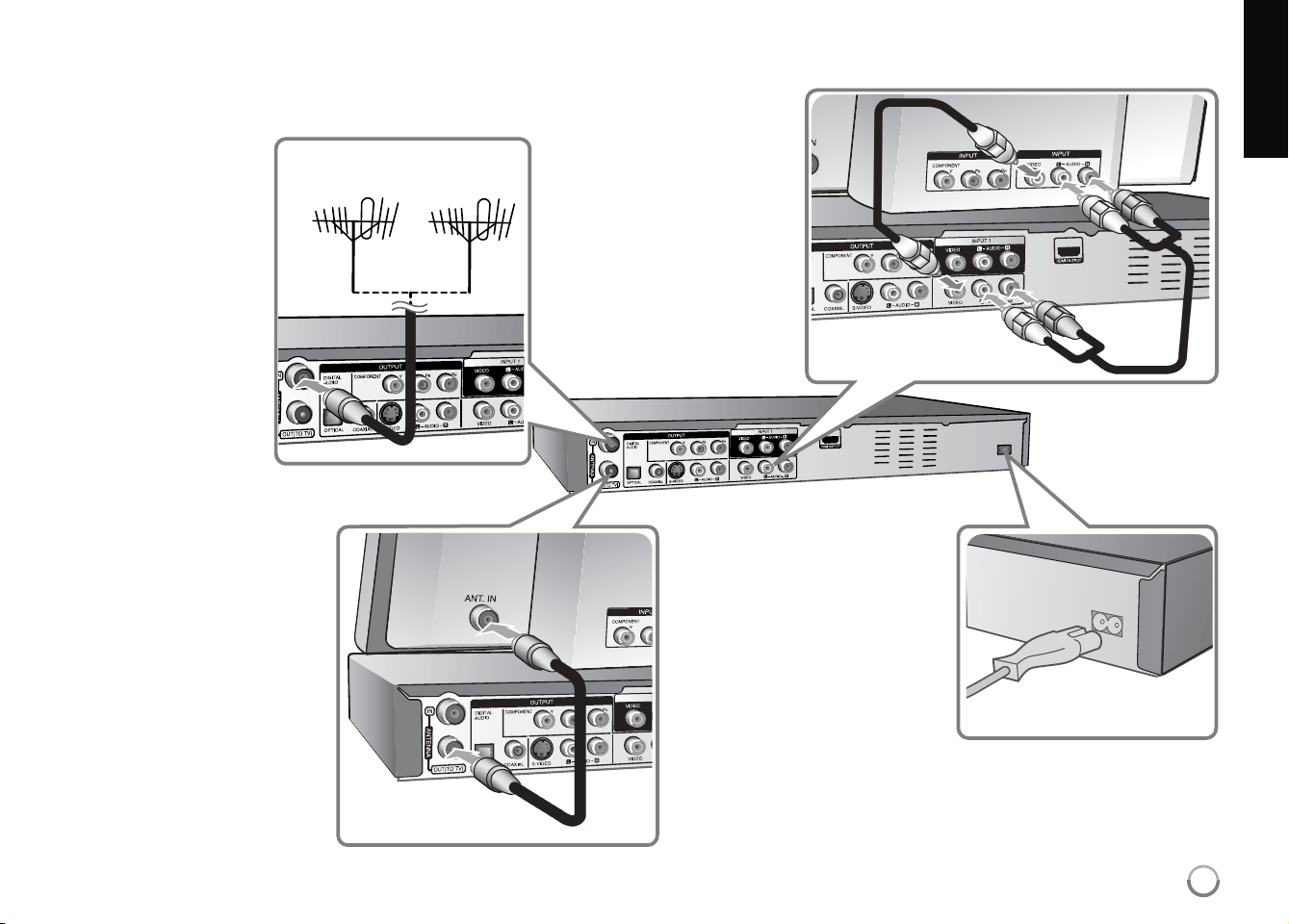

Hooking up the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-13
Operating USB Flash Drive . . . . . . . . . . . . . . . . . . . . . . . . . .13
Auto setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-15
Using the Home Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-16
Adjust the SETUP settings . . . . . . . . . . . . . . . . . . . . . . .16-21
Displaying disc Information . . . . . . . . . . . . . . . . . . . . . . .21-23

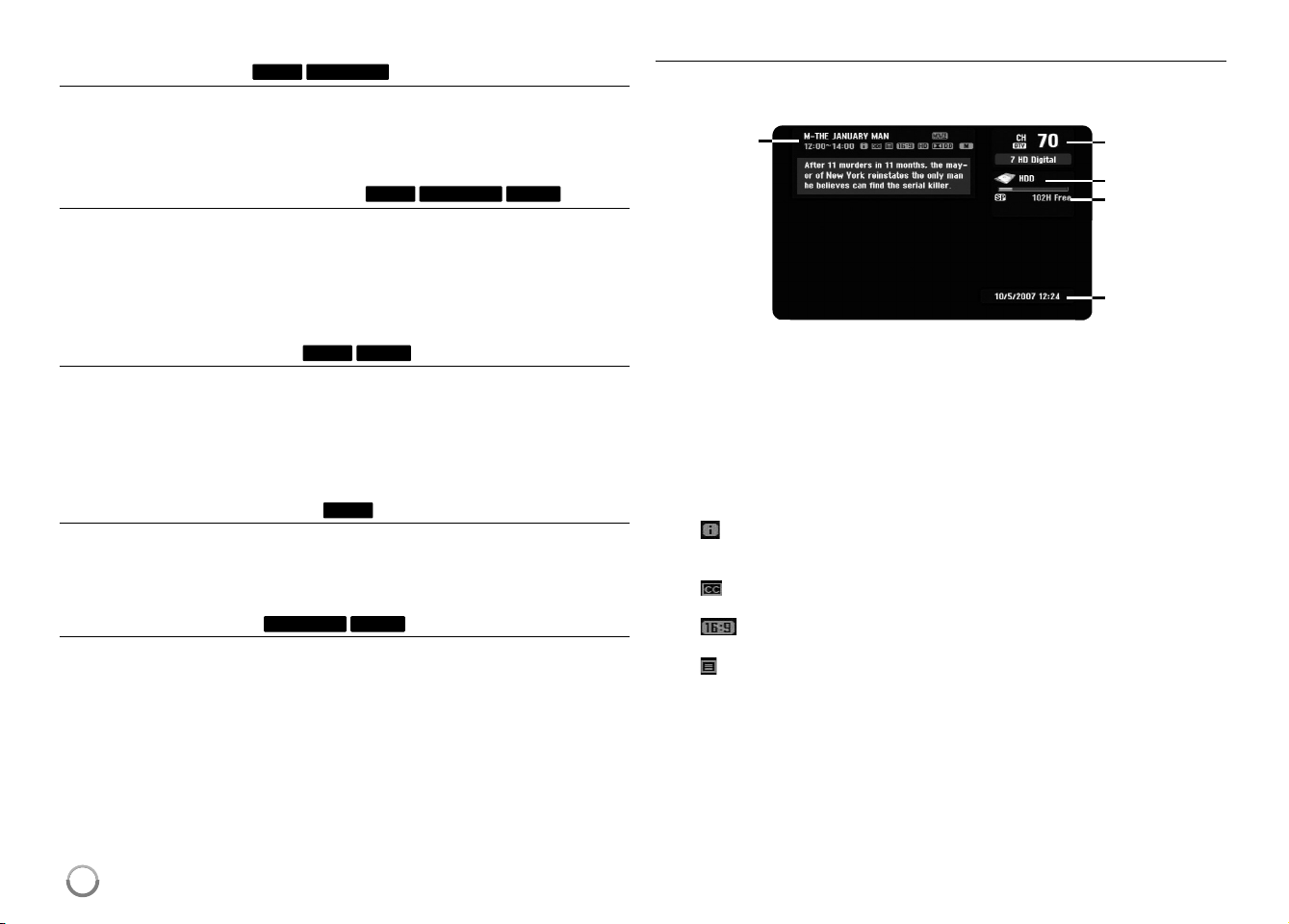

Using the digital EPG . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-25
Play a disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25-26
Playing DivX
®
movie files . . . . . . . . . . . . . . . . . . . . . . . . .27-28
Listening to a music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Viewing a photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31-33
Editing a title . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33-36
Dubbing a title . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Language Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Area Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39-40
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Before connecting, operating or adjusting this product,
please read this instruction booklet carefully and completely.
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 4
5
Before you start
Recordable and Playable discs
This unit can play and record all widely-used DVD types. The table below shows some specific compatibility differences depending on the disc types.
Playable discs
The table below shows the file formats and media types that this unit can playback.
HDD DVD-R DVD-RW DVD-RAM DVD+R DVD+R(DL) DVD+RW
Symbol used in
this manual
Logos
Re-Writable
Formatting Mode
(new discs)
Editing
Play on other
players
Recommended
discs
Yes No Yes Yes No No Yes
– Video mode Video mode VR mode Auto Auto Auto
Yes Limited Yes Yes Limited Limited Yes
– The player must be compatible with corresponding media and the media has to be finalized.
Mitsubishi(8x,16x) Mitsubishi(4x) Mitsubishi(3x) Mitsubishi(8, 16x) Mitsubishi(2.4x, 8x) Mitsubishi(4x)
– Verbatim(8x,16x) Verbatim(4x) Maxell(5x) Verbatim(8x,16x) HP(4x)
JVC(4x) Verbatim(4x)
Maxell(4x) Ricoh(4x)
+RW+R+RRAM-RW
Video
-RW
VR
-RHDD
DVD Audio CD Data disc (DivX, JPEG, MP3 or WMA)
Symbol used in
this manual
Logos
Characteristics
WMAMP3
JPEG
DivXACDDVD
Music CDs or CD-R/RWs
in music CD format that
can be purchased
Discs such as movies
that can be
purchased or rented.
Discs that contain DivX, JPEG, MP3 or WMA
files.
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 5
6
Notes on discs
Depending on the conditions of the recording equipment or the CD-R/RW (or
DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs cannot be
played on the unit.
Do not attach any seal or label to either side (the labeled side or the record-
ed side) of a disc.
Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal). Doing
so may result in malfunctions.
Depending on the recording software & the finalization, some recorded discs
(CD-R/RW or DVD±R/RW) may not be playable.
DVD-R/RW, DVD+R/RW and CD-R/RW discs recorded using a personal
computer or a DVD or CD Recorder may not play if the disc is damaged or
dirty, or if there is dirt or condensation on the Unit’s lens.
If you record a disc using a personal computer, even if it is recorded in a
compatible format, there are cases in which it may not play because of the
settings of the application software used to create the disc. (Check with the
software publisher for more detailed information.)
This unit requires discs and recordings to meet certain technical standards
in order to achieve optimal playback quality. Pre-recorded DVDs are auto-
matically set to these standards. There are many different types of record-
able disc formats (including CD-R containing MP3 or WMA files) and these
require certain pre-existing conditions (see above) to ensure compatible
playback.
Customers should note that permission is required in order to download
MP3 / WMA files and music from the Internet. Our company has no right to
grant such permission. Permission should always be sought from the copy-
right owner.
Availability of copying or moving feature
From To MP3/WMA JPEG DivX Title*
1
HDD DISC - - - Yes
DISC HDD Yes Yes Yes Yes
USB drive HDD Yes Yes Yes -
*1 The title is recorded from this unit.
Restrictions on copying
Some video material is copy-once protected: Such material cannot be copied to
HDD or DVD. You can identify copy-once protected material during playback by
displaying disc information on-screen.
NTSC format signals from the analog or the DV inputs is not recorded cor-
rectly with this unit.
Video signals in SECAM format (from the built-in TV tuner or from the ana-
log inputs) are recorded in PAL format.
About the Symbol Display
“ ” may appear on your TV display during operation and indicates that the
function explained in this owner’s manual is not available on that specific media.
Regional Codes
This unit has a regional code printed on the rear of the unit. This unit can play
only DVD discs labeled same as the rear of the unit or “ALL”.
Most DVD discs have a globe with one or more numbers in it clearly visible
on the cover. This number must match your unit’s regional code or the disc
cannot play.
If you try to play a DVD with a different regional code from the unit, the mes-
sage “Incorrect region code. Can’t play back” appears on the TV screen.
Remote Control Operation
Point the Remote Control at the remote sensor and press the buttons.
R
emote Control Battery Installation
Remove the battery cover on the rear of the Remote Control, and insert R03
(size AAA) battery with 3 and # matched correctly.
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 6
7
Remote control
a
AV/INPUT: Changes the input source (Tuner, AV1-2, or
DV IN).
OPEN/CLOSE: Opens and closes the disc tray.
POWER: Switches the unit ON or OFF.
DVD: Selects the unit’s mode to DVD.
HDD: Selects the unit’s mode to HDD.
AUDIO ( ): Selects an audio language or audio channel.
TITLE: Displays the disc’s Title menu, if available.
b
HOME: Accesses or removes the HOME menu.
DISPLAY: Accesses On-Screen Display.
MENU/LIST: Accesses menu on a DVD disc. Switches
between Title List-Original and Title List-Playlist menu.
b / B / v / V (left/right/up/down):
Used to navigate on-screen displays.
(ENTER): Acknowledges menu selection or displays the
program list.
PR/CH (v/V): Scans up or down through memorized
channels.
RETURN (O): Removes the on-screen displays.
REC(z): Starts recording. Press repeatedly to set the
recording time.
MARKER: Selects multiple files/titles on the list.
c
PLAY (N): Starts playback.
STOP (x): Stops playback or recording.
PAUSE/STEP (X): Pause playback or recording temporarily.
SCAN (m / M): Search backward or forward.
SKIP (. / >): Go to next or previous chapter/track/file.
d
Color buttons: Use when an EPG screen is displayed or
when tuned to a teletext program of a digital broadcast. The
function of each button will be described on-screen, and
changes depending on the screen being displayed.
FAV: Displays the favorite program list.
REPEAT: Repeat sequence, chapter, track, title, all.
SUBTITLE: Selects a subtitle language.
TEXT: Switches between teletext mode and normal TV
viewing.
EPG: Displays the EPG menu.
TIMESHIFT: Activates pause live TV/playback (timeshift) for
a live TV program.
CLEAR: Removes a track number on the Program List.
0-9 numerical buttons: Selects numbered options in a
menu.
TV Control Buttons: You can control the sound level, input
source, and power switch of your TV.
*
: This button is not available.
a
b
c
d
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 7
8
a
1
/ I (POWER button)
Switches the unit ON or OFF.
b Disc Tray
Insert a disc here.
c DVD
Set the recorder’s mode to DVD.
d OPEN/CLOSE (Z)
Opens or closes the disc tray.
e HDD
Set the recorder’s mode to HDD.
f Display window
Shows the current status of the unit.
T/S: Indicates the timeshift mode.
REC: The unit is recording.
HDD: The unit is HDD mode.
DVD: The unit is DVD mode.
HDD b B DVD: The unit is dubbing.
: Indicates when the unit is in timer recording or a timer recording is pro-
grammed.
: Indicates clock, total playing time, elapsed time, title number,
chapter/track number, channel, etc.
g Remote Sensor
Point the remote control here.
h N / X (PLAY / PAUSE)
Starts playback.
Pause playback or recording temporarily,
press again to exit pause mode.
i x (STOP)
Stops playback or recording.
j z (REC)
Starts recording. Press repeatedly to set the recording time.
k RESOLUTION
Sets the output resolution for HDMI and COMPONENT OUTPUT jacks.
- HDMI: 576i, 576p, 720p, 1080i, 1080p
- COMPONENT: 576i, 576p
l USB Port
Connect a USB Flash Memory.
m DV IN
Connect the DV output of a digital camcorder.
n AV IN 2 (VIDEO IN/AUDIO IN (Left/Right))
Connect the audio/video output of an external source (Audio system, TV/
Monitor, VCR, Camcorder, etc.).
Main Unit
l m n
a b c d e f g h i j k
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 8
9
Hooking up the unit
a Antenna connection
Connect the Terrestrial
TV antenna to the
ANTENNA IN jack on
the unit.
If you want to use an
indoor antenna, use one
with a signal amplifier
rated at 5V, 100mA and
set [Antenna Feed 5V]
to [ON] in the setup
menu.
b Antenna connection to
your TV
Connect one end of the RF
cable to ANTENNA OUT jack
on the unit and other end to
ANTENNA IN jack on your
TV.
Passes the signal from the
ANTENNA IN jack to your
TV/monitor.
c Audio/Video connection
Connect one end of the
video(yellow) cable to the
VIDEO OUTPUT jack on the
unit and other end to the
VIDEO INPUT jack on your
TV.
Connect one end of the
audio cables (red and white)
to the analog AUDIO
OUTPUT jacks on the unit
and other ends to the AUDIO
INPUT jacks on your TV.
d Power cord connection
Connect the mains lead to
the AC IN terminal on the
unit. Then plug the power
cord into the mains.
Antenna
(Digital)
Antenna
(Analog)
and/or
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 9
10
Hooking up the unit
General about connection
Picture and sound
Digital TV is a transmission technology that replaces the traditional analogue
technique.
This means that several TV channels, radio channels and other digital services
can be transmitted on the same space as just one channel took up before. As a
consumer you get access to many more channels and services than before at
the same time as they are received with perfect picture and audio quality.
The recorder converts the digital signal into a format that is suitable for your TV
and sound system.
Connecting your recorder is just as simple as connecting for example a video
recorder. You get the best picture quality by using a HDMI cable for connection
to your TV-set. The best audio experience is obtained by connecting an optical
cable to your sound system.
Coverage
Before buying this product it is anticipated that you have made sure that there
are digital transmissions covering your region.
Antenna / Signal source
Depending on the reception your recorder may be connected to a simple indoor
antenna or to an existing outdoor antenna system. If you live in a flat you should
make sure that the digital terrestrial signals are distributed to your wall antenna
outlet. If you have your own antenna system you must make sure that it is
equipped with antennas, filter and/or amplifier that can handle those frequen-
cies that the digital channels are transmitted on.
Cable-TV
Please observe that this recorder is not designed for the reception of regular
digital cable-TV signals (QAM-signal). Despite this, operators of smaller cable
networks may have chosen to distribute the digital terrestrial signals
(COFDM signal) in the network. In this case this recorder may well be used.
Check with your landlord if you are insecure about what type of TV-signal that is
provided in the wall antenna outlet.
Component connection
Connect one end of the component (Y PB PR) cables to the COMPONENT
OUTPUT jacks on the unit and other ends to the COMPONENT INPUT jacks on
your TV.
Connect one end of the audio cables (red and white) to the analog AUDIO
OUTPUT jacks on the unit and other ends to the AUDIO INPUT jacks on your
TV.
If your television is a high-definition or “digital ready” television, you may take
advantage of the unit’s progressive scan output for the highest video resolution
possible. If your TV does not accept the Progressive Scan format, the picture
will appear scrambled with the progressive signal.
Set the resolution to 576p using RES. button on the front panel to obtain the
progressive signal.
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 10
11
S-Video connection
Connect one end of the S-Video cable to the S-VIDEO OUTPUT jack on the
unit and the other end to the S-VIDEO INPUT jack on your TV.
Connect one end of the audio cables (red and white) to the analog AUDIO
OUTPUT jacks on the unit and the other ends to the AUDIO INPUT jacks on
your TV.
Digital audio connection
Connecting to an amplifier/receiver, Dolby Digital/MPEG/DTS decoder or other
equipment with a digital input.
Connect one end of the digital audio cables (COAXIAL or OPTICAL) to the digi-
tal audio output jack (COAXIAL or OPTICAL) on the unit and other end to the
digital audio input jack (COAXIAL or OPTICAL) on your amplifier.
This recorder does not perform internal (2 channel) decoding of a DTS sound
track . To enjoy DTS multi channel surround, you must connect this recorder to
a DTS compatible receiver via one of this recorder’s digital audio output.
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 11
12
HDMI connection
Connect one end of the HDMI cable to the HDMI OUTPUT jack on the unit and
other end to the HDMI INPUT jack on your TV.
When you use the HDMI connection, you can change the resolution (576i,
576p, 720p,1080i or 1080p) for the HDMI output by pressing RES. button
repeatedly
.
About HDMI
HDMI (High Definition Multimedia Interface) supports both video and audio on a
single digital connection for use with DVD Players, Set-Top Boxes, and other AV
devices.
HDMI was developed to provide the technologies of HDCP (High-bandwidth
Digital Contents Protection). HDCP is used to protect digital content transmitted
and received.
HDMI has the capability to support standard, enhanced, or high-definition video
plus standard to multi-channel surround-sound audio, HDMI features include
uncompressed digital video, a bandwidth of up to 5 gigabytes per second, one
connector (instead of several cables and connectors), and communication
between the AV source and AV devices such as DTVs.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI licensing LLC.
Note on HDMI connection
If your TV is NOT capable of handling 96 kHz sampling frequency, set
the [Sampling Freq.] option to [48 kHz] on the setup menu (See page
18). When this choice is made, this unit will automatically convert any 96
kHz signals to 48 kHz so your system can decode them.
If your TV is not equipped with Dolby Digital and MPEG decoder, set the
[Dolby Digital] and [MPEG] options to [PCM] on the setup menu (See
page 18).
If your TV is not equipped with DTS decoder, set the [DTS] options to
[OFF] on the setup menu (See page 18). To enjoy DTS multi channel
surround, you must connect this unit to a DTS compatible receiver via
one of this unit’s digital audio outputs.
If there is noise or lines on the screen, please check the HDMI cable.
Changing the resolution when the unit is connected with HDMI connector
may result in malfunctions. To solve the problem, turn off the unit and
then turn it on again.
When you connect a HDMI or DVI compatible device make sure of the
following:
- Try switching off the HDMI/DVI device and this unit. Next, switch on
the HDMI/DVI device and leave it for around 30 seconds, then switch
on this unit.
- The connected device’s video input is set correctly for this unit.
- The connected device is compatible with 720(1440)x576i, 720x576p,
1280x720p, 1920x1080i or 1920x1080p video input.
Not all HDCP-compatible DVI devices will work with this unit.
- The picture will not be displayed properly with non-HDCP device.
What is SIMPLINK?
Some functions of this unit are controlled by TV’s remote control when this
unit and LG TV with SIMPLINK are connected through HDMI connection.
• Controllable functions by LG TV’s remote control; Play, Pause, Scan, Skip,
Stop, Power Off, etc.
• Refer to the TV owner’s manual for the details of SIMPLINK function.
• LG TV with SIMPLINK function has the logo as shown above.
TV
Recorder
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 12
13
Connecting to the INPUT 1 or AV IN 2 Jacks
Connect the input jacks (INPUT1, AV IN 2) on the unit to the audio/video out
jacks on your accessory component using audio/video cables.
Connecting a Digital Camcorder
Using the front panel DV IN jack, it is possible to connect a DV digital
camcorder and digitally transfer DV tapes to DVD.
Use a DV cable (not supplied) to connect the DV in/out jack of your DV cam-
corder to the front panel DV IN jack of this unit.
The DV IN jack is for connection to DV digital camcorder only. It is not compati-
ble with digital satellite tuners or D-VHS video decks. Disconnecting the DV
cable while recording a contents of the connected digital camcorder may result
in malfunction.
Using USB Flash Drive
Using an USB Flash Drive
This unit can play the MP3/WMA/JPEG/DivX files contained in the USB Flash
Drive.
Inserting the USB Flash Drive – Insert straight-in until it fits into place.
Removing the USB Flash Drive – Withdraw the USB Flash Drive carefully
when the connected USB Flash Drive is in use.
Notes on USB Flash Drive
The contents on the disc or HDD cannot be moved or copied to a USB
Flash Drive.
Keep the USB Flash Drive out of reach of children. If swallowed, seek med-
ical advice immediately.
This unit supports only USB Flash Drive with FAT16 or FAT32 format.
The USB Flash Drives which require additional software will not be
supported.
This unit is compatible with the Flash type USB device that supports USB
1.1.
This unit may not supports some USB Flash Drive.
Do not extract the USB Flash Drive in operating (play, copy, etc.).
It may cause a malfunction on this unit
.
L
R
VIDEO
OUTPUT
AUDIO
OUTPUT
Jack panel of Accessory Component
(VCR, Camcorder, etc.)
Rear of
the recorder
Front of
the recorder
Operating USB Flash Drive
1. Insert an USB Flash Drive to the USB port: –
2 Displays the HOME menu: HOME
3 Select a main option:
b B
[MUSIC], [PHOTO] or [MOVIE] option
4 Select the [USB] option:
v V
5 Displays corresponding menu list: ENTER
For details of operations on each file, refer to
relevant pages.
ON REMOTE
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 13
14
Auto setup
Adjust the programmed channels
Press HOME, then use
b B
to select [Easy Menu] option. Press ENTER while
[SETUP] is selected. The SETUP menu appears on the screen. Select the
[Program Edit] on the second level options then press B to move to the third
level. Press ENTER while [Edit] option is selected. The channel editing screen
appears on the screen.
Select which channel you would like to edit and press ENTER. An option menu
on the left side of the screen will be highlighted.
[Favorite] Set the program to favorite channel.
[Delete]: Delete the selected channel from programmed channel list.
[Move]
(Analog channel only):
Change the order of the channels and which
numerical button they correspond to.
[Block] Blocks the program.
[Station Rename]
(Analog channel only):
change a name of the selected
channel.
[Program Edit]
(Analog channel only):
Change the settings of a channel
manually.
Editing a channel (Analog channel only)
You can change the settings of programmed channel by selecting [Program
Edit] option on the left side of the channel editing screen.
[PR]: Indicates the selected channel position.
[Seek]: Searches for a channel automatically. Searching stops when the unit
tunes in a channel.
[Ch.] Changes the channel number.
[MFT] Fine tunes the channel to obtain a clearer picture.
[NICAM]: Sets the channels for the NICAM broadcast.
[OK]: Confirm the settings and return to the channel list menu.
Auto setup
1 Turn on the unit: POWER
The initial setup wizard appears on the screen.
2 Choose a language:
v V
3 Select the chosen language: ENTER
4 Check the antenna and go to the next step: ENTER
5 Choose a clock setting mode:
v V
6 Select the chosen clock setting mode: ENTER
7 Set the clock:
v V b B
,
This step is not available for Auto mode ENTER
8 Choose a broadcasting type: All or Analog
B v V
9 Select the [Start] and starts channel scan:
B
ENTER
10 Close the initial setup: ENTER
ON REMOTE
When the first time to turn on the unit, the initial setup
wizard sets the language, clock and channels
automatically.
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 14
Switching the program list on the channel editing screen
You can switch the program list on the channel editing screen.
Press v V to move the highlight position to top of the program list.
Press b B to select [DIGITAL TV], [ANALOG TV] or [RADIO] then press v V to
select a program on the list.
Setting a favorite program
You can set a program to favorite channel.
Press v V to select a program on the program list then press ENTER to high-
light the option menu on the left side of the screen. Press v V to select
[Favorite] option then press ENTER. The program is set to the favorite program
and [FAV] appears on the TV screen.
Using the Home Menu
MOVIE
HDD – Displays the [Title List] menu, which shows recorded titles on HDD.
(page 33)
HDD DivX – Displays [Movie List] menu, which shows DivX
®
movie files on
HDD. (page 27)
DISC
– Displays [Title List] menu, which shows recorded titles on the disc. (page
33)
– Displays [Movie List] menu, which shows DivX
®
movie files on the disc.
(page 27)
– Plays DVD-Video disc (page 25).
USB – Displays [Movie List] menu, which shows DivX
®
movie files on the USB
Flash Drive. (page 27)
15
Using the Home Menu
1 Displays the HOME menu: HOME
2 Select a main option:
b B
3 Select a sub option:
v V
4 Execute the selected option: ENTER
5 Exit the HOME menu: HOME
ON REMOTE
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 15
HDD – Displays [Photo List] menu, which shows photo files on HDD. (page 30)
DISC – Displays [Photo List] menu, which shows photo files on the disc. (page
30)
USB – Displays [Photo List] menu, which shows photo files on the USB Flash
Drive. (page 30)
MUSIC
HDD – Displays [Music List] menu, which shows music files on HDD. (page 29)
DISC – Displays [Music List] menu, which shows music files or audio tracks on
the disc. (page 29)
USB – Displays [Music List] menu, which shows music files on the USB Flash
Drive. (page 29)
Easy Menu
SETUP – Displays SETUP menu. (page 16)
Rec Mode – Displays [Record Mode Set] option in the SETUP Menu. (page 20)
Dubbing – Dubs a currently playing title from a finalized DVD±R or a DVD-ROM
title without copy protection. (page 37)
TV
HDD – Returns to live TV viewing in HDD mode. Pressing the HDD button on
the remote control will also allow you to directly choose this option.
DVD – Returns to live TV viewing in DVD mode. Pressing the DVD button on
the remote control will also allow you to directly choose this option.
Timer Record – Displays [Timer Record] menu. (page 31)
16
Adjust the SETUP settings
1 Displays the HOME menu: HOME
2 Select the [Easy Menu] option:
b B
3 Select the [SETUP] option: ENTER
4 Select a desired option on the first level:
v V
5 Move to second level:
B
6 Select a desired option on the second level:
v V
7 Move to third level:
B
8 Adjust or confirm the setting:
v V
, ENTER
9 Go back to the previous level: b
ON REMOTE
First level
Second level
Third level
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 16
17
Adjust the SETUP settings
Adjust the general settings
Auto Programming – This option automatically scans and sets the available
channels. Password is needed to access this option, if [Lock System] option is
set to [On]. (page 19)
[All, Digital or Analog]: Select a broadcasting type which you want to scan
automatically.
[Start]: Start the channel scanning.
Program Edit– This option allows you to add channels and edit preset
channels. Password is needed to access this option, if [Lock System] option is
set to [On]. (page 19)
[Add Channel]: Select the broadcasting type between [Digital] and [Analog]
and then press
v V
to select the channel and press ENTER to add the
selected channel.
[Edit]: Displays the screen which show preset channel list and channel
editing options. (page 14)
Clock Set– The clock must be set in order to use [Timer record].
[Auto]: Set the channel that broadcasts a clock signal and the clock will be
set automatically. If the clock that has automatically set is different with your
local clock, you can add more time using [Time Offset] option. (For example,
when summer time is started in local area.) Press B to select [Time Offset]
option. Press v V to select a value then press ENTER (0, 30, 60, 90, 120).
Select “0” if the clock that has automatically set is identified with your local
clock. You can select the [Time Zone] option to set a time relative to GMT.
[Manual]: If there is no channel that broadcasts a clock signal in your area,
you can set the time and date manually.
TV Aspect – Selects the aspect ratio of the connected TV. If the resolution is
set to 720p or 1080i, [TV Aspect] will be disable in the setup menu.
[4:3 Letter Box]: Select this when connecting to a standard 4:3 screen TV
and prefer the wide picture with bands on the upper and lower portions of the
screen.
[4:3 Pan Scan]: Select this when connecting to a standard 4:3 screen TV and
prefer the wide picture on the entire screen. Cuts off the portions at the sides
that do not fit.
[16:9 Wide]: Select this when connecting to a wide-screen TV.
Power Save mode – Selects whether this unit is in power save mode when the
power is turned off. This option is not available when a timer recording is set.
[ON]: The front panel display is off and only signals arriving at the antenna
input are passed through when the unit is turned off.
[OFF]: Turns off the [Power Save Mode].
Antenna Feed 5V – If you are using an indoor antenna, use one with a signal
amplifier rated at DC 5V, 100mA and set this option to [ON].
[ON]: Power is supplied to the connected antenna.
[OFF]: The unit does not supply power to the connected antenna.
Initialization – You can reset the unit to its original factory settings
and format the HDD.
[Factory Set]: You can reset the unit to all its factory settings. Some options
cannot be reset (DVD Rating, Parental Guidance, Password, and Area
Code). The auto setup menu appears on the screen after the factory settings.
[HDD format]: Everything recorded on the HDD will be erased.
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 17

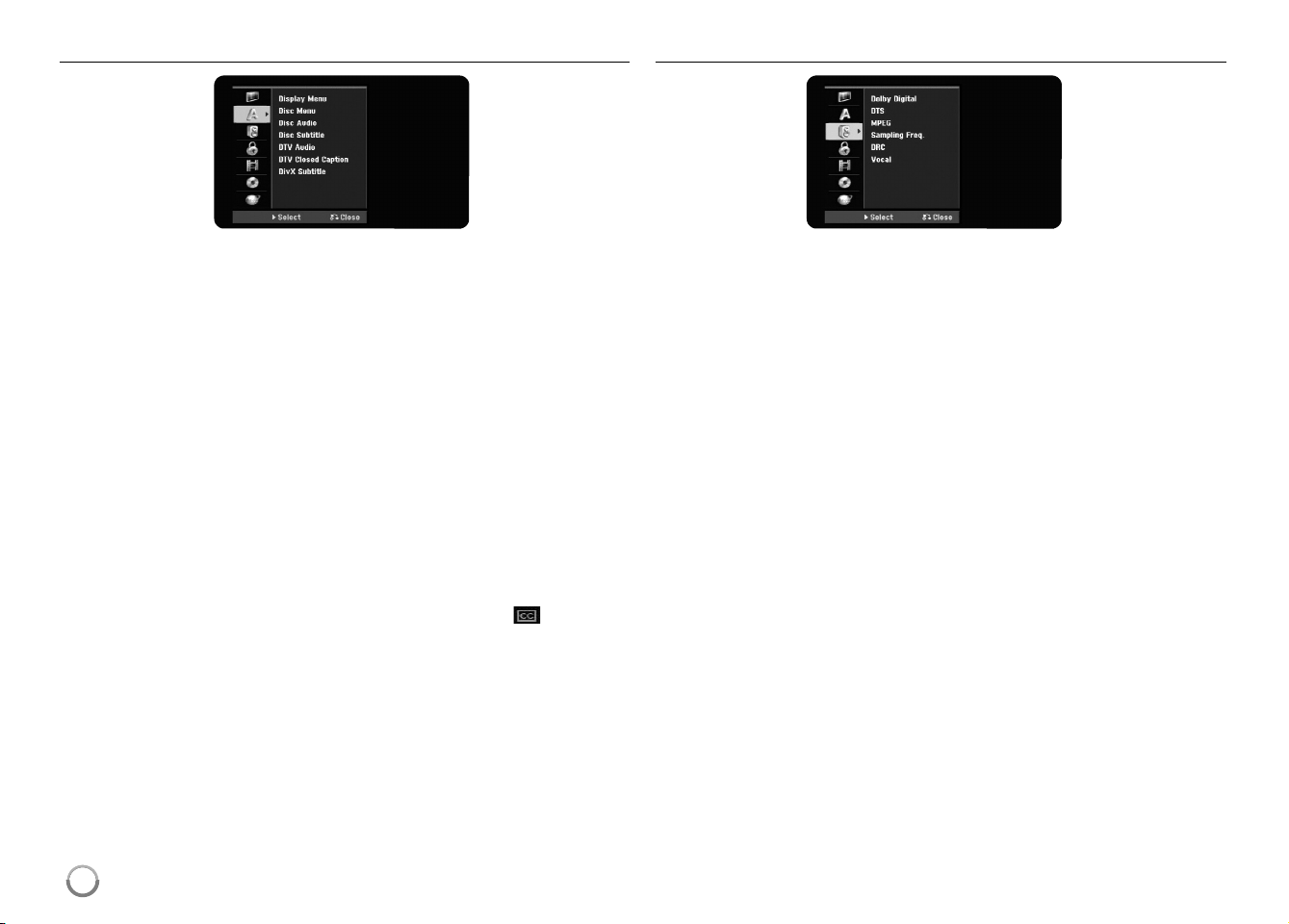

Adjust the language settings
Display Menu – Select a language for the Setup menu and on-screen display.
Disc Menu/Audio/Subtitle – Select a language for the Menu/Audio/Subtitle.
[Original]: Refers to the original language in which the disc was recorded.
[Others]: To select another language, press number buttons then ENTER to
enter the corresponding 4-digit number according to the language code list
on page 38. If you make a mistake while entering number, press CLEAR to
delete numbers.
[OFF] (for Disc Subtitle): Turn off Subtitle.
DTV Audio –
Digital channels sometimes provide multiple audio tracks, often in a
different language. You can set a default audio language with this setting.
If provided by the broadcaster, you can also select a different audio language
while viewing TV by pressing AUDIO repeatedly.
DTV Closed Caption –
Digital channels sometimes provide Closed Caption,
often in a different language. You can set a default Closed Caption language with
this setting,
if DTV Closed Caption is provided by the broadcaster.
Press SUBTITLE repeatedly to select a Closed Caption language while viewing
digital TV viewing.
If Closed Captions are available, the DTV Closed Caption icon ( ) appears
on the program information display to indicate that you can select one of those
Closed Caption options with the SUBTITLE button.
DivX Subtitle – Select a language code for the DivX
®
subtitle.
Adjust the audio settings
Dolby Digital / DTS / MPEG – Selects the type of digital audio signal when
using the DIGITAL AUDIO OUTPUT jack.
[Bitstream] – Select this when you connect this unit’s DIGITAL AUDIO
OUTPUT jack to an audio component with a built-in Dolby Digital, DTS or
MPEG decoder.
[PCM] (for Dolby Digital / MPEG) – Select this when you connect this unit’s
DIGITAL AUDIO OUTPUT jack to an audio component without a built-in
Dolby Digital or MPEG decoder.
[Off] (for DTS) – Select this when you connect this unit’s DIGITAL AUDIO
OUTPUT jack to an audio component without a built-in DTS decoder.
Sample Freq. (Frequency) – Selects the sampling frequency of the audio
signal.
[48 kHz]: In case of DVD with 96KHz sampling, the output is converted to
48KHz. If your receiver or amplifier is NOT capable of handling 96KHz signal,
select [48KHz].
[96 kHz]: The audio signals are output in their original format.
DRC (Dynamic Range Control) – Make the sound clear when the volume is
turned down (Dolby Digital only). Set to [On] for this effect.
Vocal – Select [On] to mix karaoke channels into normal stereo. This function is
effective for multi-channel karaoke DVDs only.
18
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 18
19

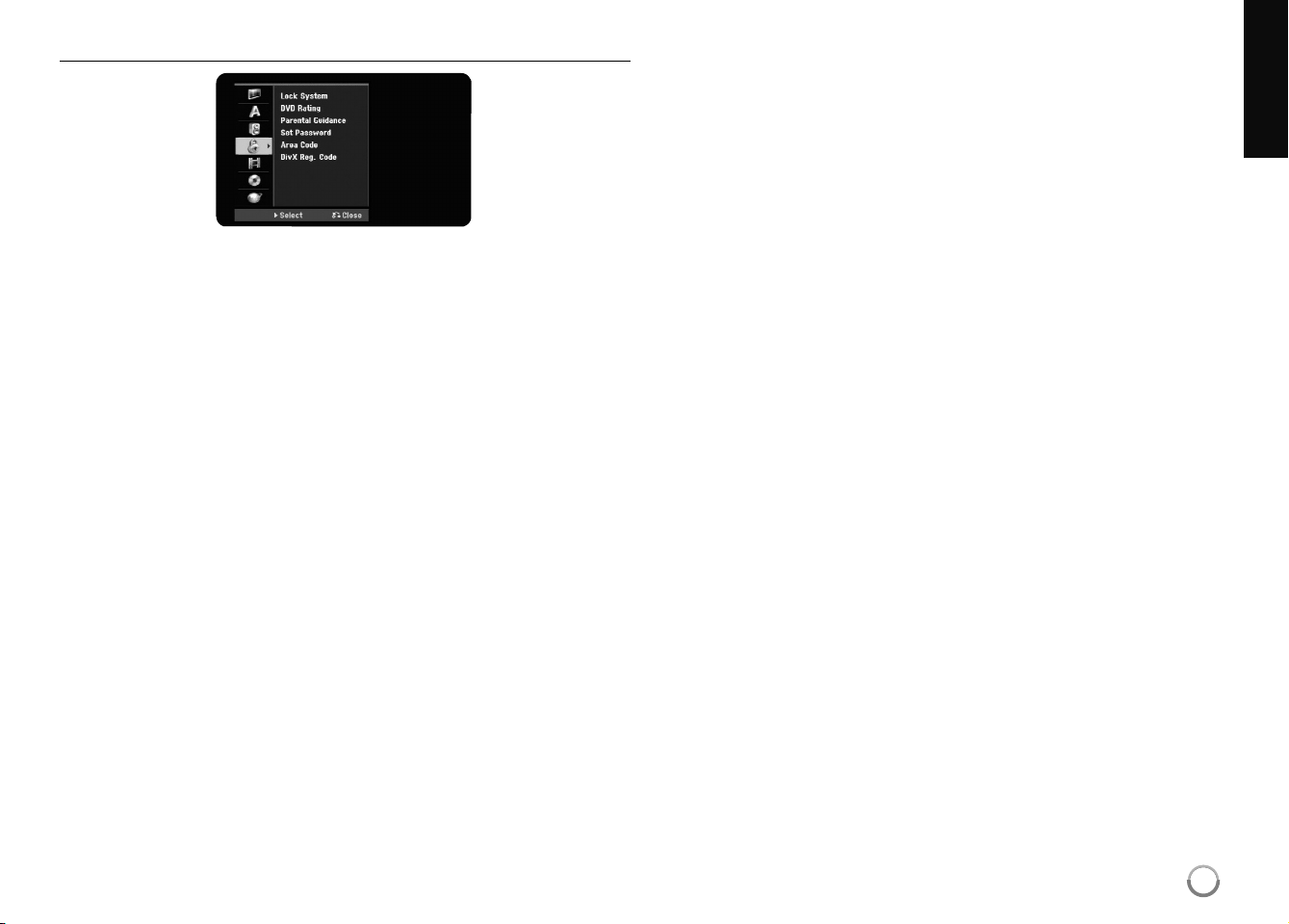

Adjust the lock settings
To access the Lock System, DVD Rating, Parental Guidance, Set Password or
Area Code options, you must enter the 4-digit password. If you have not yet
entered a password you are prompted to do so. Enter a 4-digit password. Enter
it again to verify. If you make a mistake while entering number, press CLEAR to
delete numbers.
If you forget your password, you can reset it. Displays the SETUP menu. Input
‘210499’ and press ENTER. The password has now been cleared.
Lock System – Allows you to set up specific programs and ratings through
blocking schemes. Also allows you to activate or disable all of the lock schemes
previously set up. A password is required to gain access to the lock menu
options. When the Lock System is set to [OFF], the [Parental Guidance] is not
effective.
DVD Rating – Select a DVD rating level. The lower the level, the stricter the
rating. Select [No Limit] to deactivate the rating.
Parental Guidance – You can set the ratings to block out all the programs with
ratings above a specified level. If you set a rating, all programs with the same
rating or lower are viewed. Higher rated scenes are not viewed unless an
alternate scene is available in the program. The alternative must have the same
rating or a lower one. If no suitable alternative is found, you cannot view the
program. You must change the rating level in order to view the program.
[OFF]: Cancel the blocking.
[R] (Restricted 18+): Not for children under age 18. Strong elements of sex
and/or violence.
[AV] (Adult Audience strong violence 15+)
[MA] (Mature Adult Audience 15+): Mature Adult only. Mature Audience
Only. This program is specifically designed to be viewed by adults and
therefore may be unsuitable for children under 15.
[M] (Mature Audience 15+): Mature Audience only. This program is specifi-
cally designed to be viewed by adults and therefore may be unsuitable for
children under 15.
[PG] (Parental Guidance Recommended): Content is such that parents may
not want their children to view the program.
[G] (General Audiences): Content is not offensive to most viewers.
[C] (Children’s 7+): This program is designed for age 7 and above.
[P] (Pre school 5+): This program is designed for age 5 and above.
All Block: Blocks all programs.
Set Password – Changes or deletes the password.
[Change]: Enter the new password twice after entering the current password.
[Delete]: Delete the current password after entering the current password.
Area code – Select a code for a geographic area as the playback rating level.
This determines which area’s standards are used to rate DVDs controlled by the
parental lock. See the Area Codes on page 38.
DivX Reg. Code– We provide you with the DivX® VOD (Video On Demand)
registration code that allows you to rent and purchase videos using the DivX®
VOD service. For more information, visit www.divx.com/vod.
Press ENTER when [View] icon is highlighted and you can view the registration
code of the unit.
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 19
Adjust the recording settings
Record Mode Set – Select the picture quality for recording from XP, SP, LP, EP
or MLP. See recording time of each mode on page 41.
[XP]: Highest picture quality.
[SP]: Standard picture quality.
[LP]: Slightly lower picture quality than [SP] mode.
[EP]: Low picture quality.
[MLP]: The longest recording time with the lowest picture quality.
Record Aspect – This option sets the recording aspect ratio to suit the material
you are recording on DVD.
DV Record Audio – You need to set this if you have a camcorder using
32kHz/12-bit sound connected to the front panel DV IN jack.
Some digital camcorders have two stereo tracks for audio. One is recorded at
the time of shooting; the other is for overdubbing after shooting.
On the Audio 1 setting, the sound that was recorded while shooting is used.
On the Audio 2 setting, the overdubbed sound is used.
TV Record Audio – Select an audio channel to record when recording a bilin-
gual program.
[Main+Sub]: Main language and sub language
[Main]: Main language only
[Sub]: Sub language only
Auto Chapter – When DVD recording, chapter markers are added
automatically in every specified interval (5, 10 or 15 min.).
Time Shift – Setting this option to [ON] activates the Time Shift function
automatically without pressing TIMESHIFT button. The timeshift will start in
5 seconds after TV tuner mode is started.
Adjust the disc settings
Disc Format – You can Initialize a DVD by pressing ENTER while [Start] is
selected. The [Disc Format] menu appears. The unit starts formatting after
confirmation. You can select a mode between VR and Video for DVD-RW discs.
Everything recorded on the DVD will be erased after formatting.
If you load a completely blank disc, the unit will initialize the disc automatically.
See “Formatting mode (new disc)” on page 5 for more information.
Finalize – Finalizing is necessary before you can play a disc recorded with this
unit on other DVD equipment. How long finalization takes depends on the disc
condition, recorded length and number of titles.
[Finalize]: The [Finalize] menu appears. The unit starts finalizing after
confirmation.
[Unfinalize]: The finalized DVD-RW discs can be unfinalized after confirming
on the [Unfinalize] menu. After unfinalizing, the disc can be edited and re-
record.
Before finalizing, check the characteristics between the disc type in the table
below.
The finalized DVD-RW discs can be unfinalized
so that the disc can edit or record again.
Once you finalize a disc, you can not edit or
record anything on the disc.
Discs are automatically finalized when removed from
the unit.
Finalization is not needed.
RAM
+RW
-R+R
-RW
20
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 20
Disc Label – This function allows you to change the default disc name to
something more descriptive. This name appears when you load a disc and
when you display disc information on-screen. The keyboard menu appears by
pressing ENTER while [Edit] is selected.
Disc Protect – This function allows you to protect discs from accidental
recording, erasure and editing by setting this option to [ON]. The DVD-R and
Video mode formatted DVD-RW are not available to protect.
Adjust the network settings
Software Update – Your recorder is able to keep the built-in digital tuner up to
date with the latest software. You can either check for updates manually, or
have the unit do it automatically at regular interval.
While the unit is in updating, there may have a disruption in reception for a few
hours. The reception should return to normal after the update is complete.
This unit must be plugged into AC power to receive updates. Do not unplug
your recorder while an update is in progress. The update is not available during
recording, Timeshift, viewing teletext or EPG menu.
[Standby mode] Updates the software when this unit is turned off. The check
mark appears when this option is selected.
[Operation Mode] Update the software when this unit is turned on. The check
mark appears when this option is selected.
[Time] Set the time to update the software.
[Freq] Selects the updates interval.(Weekly or Daily)
[Start] Updates the software immediately.
System Information – Shows system information. (software version,
DTV Signal Quality and DTV Signal Strength)
Displaying disc Information
Adjusting playback menu item
You can select an item by pressing vV and change or select the setting by
pressing b B.
a Current title/track/file / Total number of titles/tracks/files
b Current chapter / total number of chapters
c Elapsed playing time
d Selected audio language or audio channel
e Selected subtitle
f Selected angle / Total number of angles
g Selected sound mode
21
Displaying disc information
1 Play the disc loaded on the unit: PLAY
2 Displays current status of playback: DISPLAY
3 Displays the playback menu: DISPLAY
4 Select an item:
v V
5 Adjust the playback menu settings:
b B
6 Exit the disc playback menu: DISPLAY
ON REMOTE
a
b
c
d
e
f
g
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 21
Moving to another title
When a disc has more than one title, you can move to another title.
Press DISPLAY twice during playback then use v / V to select the title icon.
Then, press the appropriate numbered button (0-9) or b / B to select a title
number.
Starting playback from selected time
Press DISPLAY twice during playback. The time search box shows the elapsed
playing time. Select the time search box and then input the required start time
in hours, minutes, and seconds from left to right. For example, to find a scene
at 2 hours, 10 minutes, and 20 seconds, enter “21020” and press ENTER.
If you enter the wrong numbers, press b
/
B to move the under bar (_) to the
wrong number. Then enter the correct numbers.
Selecting a subtitle language
During playback, press DISPLAY twice to display the playback menu. Use v V
to select the subtitle option then use b B to select desired subtitle language.
OR
During playback, press SUBTITLE then press b B repeatedly to select a
desired subtitle language.
Watching from a different angle
If the disc contains scenes recorded at different camera angles, you can change
to a different camera angle during playback.
During playback, press DISPLAY twice to display the playback menu. Use v V
to select the angle option then use b B to select desired angle.
Selecting a sound mode
This unit can produce a 3D Surround effect, which simulates multi-channel
audio playback from two conventional stereo speakers, instead of the five or
more speakers normally required to listen to multi-channel audio from a home
theater system.
During playback, press DISPLAY twice to display the playback menu. Use v V
to select the sound option then use b B to select desired sound mode
(3D SUR. or NORMAL).
Displaying information while watching TV
During viewing the TV, Press DISPLAY to display the information displayed
on-screen.
a Indicates channel number, station name, and audio signal
(Stereo, Bilingual, Mono) received by the tuner.
(The audio signal indication is available only for the analog channels.)
b Indicates media name and format.
c Indicates the record mode, free space, and elapsed time progress bar.
d Indicates current date and time.
e Indicates program title, start time, end time, parental guidance level etc.
(Digital Programs only)
(Extended Text Message Icon): Indicates that there is an Extended
Text Message available to provide detailed descriptions of the program
(see page 24).
(DTV Closed Caption Icon): Indicates that the current program con-
tains the Closed Caption.
(Wide Icon): Indicates that the current program is shown in wide
picture format.
(Teletext Icon): Indicates that there is a Teletext available (see page
25).
DivXDVD ALL
DVD
DivXDVD
DivXDVD ALLHDD
DVD ALLHDD
22
a
b
c
d
e
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 22
23

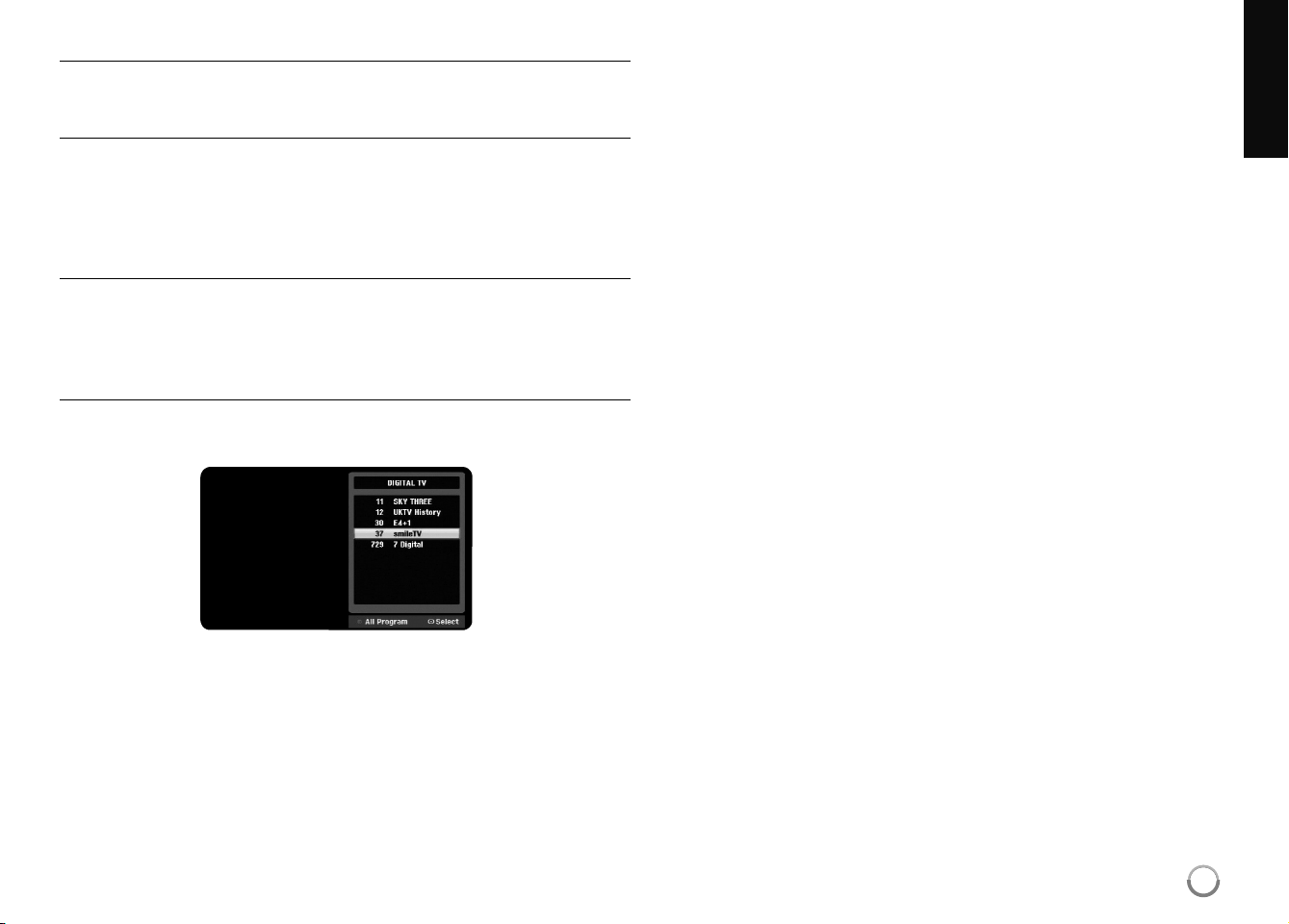

Changing TV program
Use PR/CH on the remote control to change the programs in memory or use
numbered (0-9) buttons to select a program directly.
Changing TV program with program list
You can display TV program list using the ENTER button and switch into other
TV program on the channel list.
While watching a program, press ENTER to display the TV program list.
Select your desired channel using the v / V and press ENTER to change the
TV program.
Switching the program list
You can switch the program list to DIGITAL TV, ANALOG TV or RADIO.
Press v to move the highlight position to top of the program list.
Press b B to select a [DIGITAL TV], [ANALOG TV], or [RADIO]. Selected pro-
gram list appears.
Displaying the favorite program list
You can display favorite channel list that organized by your private taste.
To set a favorite program, use [Program Edit] option in the Setup menu. (page
17.)
Press Red colored button while watching a TV. The favorite options appears.
Press v V to select a desired program then press ENTER to watch the selected
program.
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 23
24
Using the digital EPG - more you can do
About the digital EPG
The digital EPG shows a table of scheduled digital TV programs and detailed
information about individual program. The digital EPG screen consist of
program information, channel list and general program list.
Note that the unit’s clock must be set to the correct time and date to ensure all
relevant EPG information is displayed.
Displaying the detailed Information window
You can view detailed information for the highlighted program. Press blue color
button to display detailed information window. To exit the detail information win-
dow, press blue color button again.
Switching the EPG menu
The EPG screen provides two search menus.
Press yellow color button when the EPG menu is displayed.
Now/Next: The screen shows now and next programs.
8 Days: The screen shows programs within 8 days. When the EPG menu
with 8 days is displayed, you can also change the date of the EPG menu by
pressing the green color button then use b / B to select a date.
You can set a timer record using EPG menu with 8 days. Select a program
then press red color button. The red timer icon will be displayed and the pro-
gram will be memorized by the recorder.
You can check the programming on the [Timer Record List] menu (see page.
31). To cancel the timer recording, select the program then press red color
button. The red timer icon disappears.
Using the digital EPG
1 Displays the EPG menu: EPG
2 Select a TV program:
v V
3 Displays the next/previous menu list: . >
4 Shows the selected program currently on air: ENTER
5 Exit the EPG menu: EPG or RETURN
ON REMOTE
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 24
25
Viewing a Teletext service
Teletext is a free broadcasting service by some TV stations which gives
up-to-the-minute information on news, weather, television programs, share
prices and many other topics.
The recorder gives you access to teletext which is greatly improved in various
aspects such as text and graphics. This teletext can be accessed by special
teletext services and specific services which broadcast teletext.
Use numbered (0-9) buttons or PR/CH on the remote control to change the pro-
gram which broadcast teletext. Press TEXT to access on the teletext.
Follow the indications on teletext and move onto the next or previous step by
pressing color (RED or GREEN) or SKIP (. / >) buttons.
Press (TEXT) or RETURN (O) to turn the teletext off and return to TV viewing.
Selecting teletext page
Enter the desired page number as a three digit number with the numbered
buttons. If during selection you press a wrong number, you must complete the
three digit number and then enter the correct page number again.
Use RED/GREEN buttons to move up and down pages.
Play a disc - more you can do
Playing a disc that contains a menu
The menu screen may be displayed first after loading a DVD which contains a
menu.
Use the b / B / v / V buttons to select the title/chapter you want to view, then
press ENTER to start playback. Press TITLE or MENU/LIST to return to the
menu screen.
Skip to the next/previous chapter/track/file
Press SKIP (>) to move to the next chapter/track/file.
Press SKIP (.) to return to the beginning of the current chapter/track/file.
Press SKIP (.) twice briefly to step back to the previous chapter/track/file.
DivXWMAMP3ACDDVD ALLHDD
DVD
Play a disc
1 Open the disc tray: OPEN/CLOSE (
Z
)
2 Insert a disc: -
3 Close the disc tray: OPEN/CLOSE (
Z
)
4 Adjust the disc menu settings: v V b B, ENTER
A disc menu may not appears on the screen
depending on the disc.
5 Starts playback: PLAY (
N
)
6 Stops playback: STOP (
x
)
ON REMOTE
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 25
Pause a playback
Press PAUSE/STEP (X) to pause playback. Press PLAY (
N
) to continue
playback.
Frame-by-Frame playback
Press PAUSE/STEP (X) repeatedly to play Frame-by-Frame playback.
You can advance or back up the picture frame-by-frame by pressing b / B
repeatedly during PAUSE mode.
Fast forward or fast reverse
Press SCAN (m or M) to play fast forward or fast reverse during playback.
You can change the various playback speed by pressing SCAN (m or M)
repeatedly. Press PLAY (
N
) to continue play at normal speed.
Hearing a different audio
Press AUDIO then press b or B repeatedly to hear a different audio language,
audio track or encoding method.
Slow down the playing speed
While playback is paused, press SCAN(bb or BB) to slow down forward or
reverse playback. You can change the various playback speed by pressing
SCAN (m or M) repeatedly. Press PLAY (
N
)to continue play at normal
speed.
Viewing the Title menu
Press TITLE to displays the title menu or disc menu. If the current DVD title has
a menu, the title menu appears on the screen. Otherwise, the disc menu may
appears.
Playing repeatedly
Press REPEAT repeatedly to select an item to be repeated. The current title,
chapter, folder or track will be played back repeatedly. To return to normal play-
back, press REPEAT repeatedly to select [OFF].
Repeating a specific portion (A-B)
Press REPEAT to select [A-] at the beginning of the portion you wish to repeat
and press ENTER at the end of the portion. Your selected portion will be repeat-
ed continually. You cannot select a portion less than 3 seconds.
To return to normal playback, press REPEAT repeatedly to select [OFF].
Last Scene Memory
This unit memorizes last scene from the last disc that is viewed. The last scene
remains in memory even if you remove the disc from the player or switch off the
unit. If you load a disc that has the scene memorized, the scene is automatical-
ly recalled.
DVD
ACDDVD ALLHDD
WMAMP3ACDDVD ALLHDD
DVD
DVD ALLHDD
DivXDVD ALLHDD
DivXACDDVD ALLHDD
DVD ALLHDD
26
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 26
27

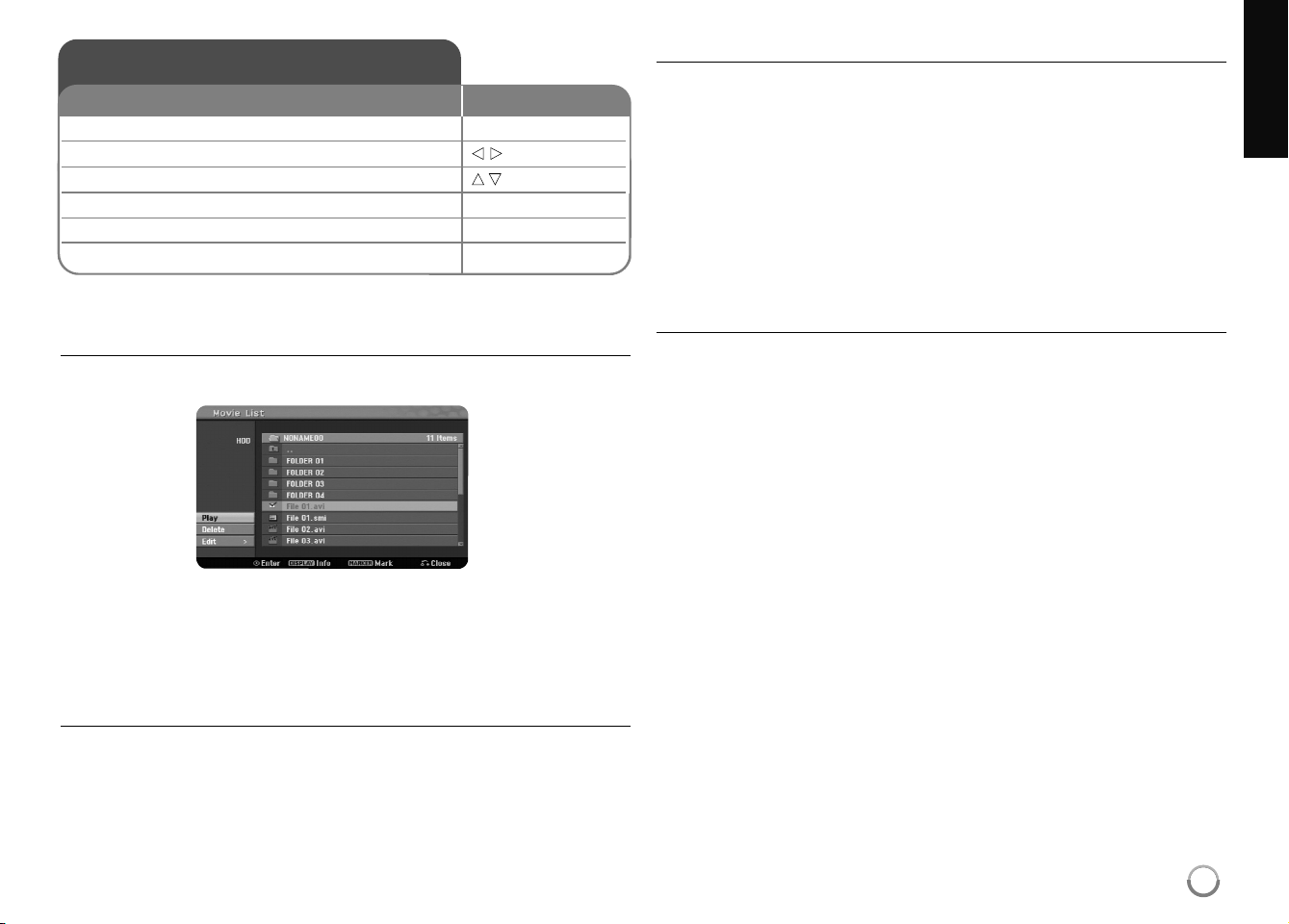

Playing a DivX
®
movie files
Movie List menu options
Select which file you would like to show from the menu and press ENTER. An
options menu appears on the left side of the screen.
[Play]: Starts playback of the selected file.
[Open]: Opens the folder and a list of files in the folder appears.
[Delete]: Deletes the file(s) of folder (s) from the hard disk drive.
[Rename]: Edits the file name in the HDD.
[Move]: Moves selected file(s) to another folder in the HDD.
[Copy]: Copies a file(s) to another folder in the HDD.
Displaying movie file information
Press DISPLAY to show file information on the highlighted file in the movie list.
Divx file requirement
Available resolution size: 720x576 (W x H) pixel
DivX file extensions: “.avi”, “.divx”
Playable DivX subtitle: “.smi”, “.srt”, “.sub (Micro DVD format only)”,
“.txt (Micro DVD format only)”
Playable Codec format: “DIV3”, “MP43”, “DIVX”, “DX50”
Playable Audio format: “AC3”, “PCM”, “MP2”, “MP3”, “WMA”
Sampling frequency: within 8-48 kHz (MP3), within 32-48kHz (WMA)
Bit rate: within 8 - 320kbps (MP3), within 32 - 192kbps (WMA)
CD-R Format: ISO 9660 and JOLIET.
DVD±R/RW Format: ISO 9660 (UDF Bridge format)
Maximum Files/Disc: Less than 1999 (total number of files and folders)
Notes on DivX format
The DivX subtitle file name has to be identified with the DivX file name to be
display on the unit.
If the subtitle file does not display properly, change the language code in the
[DivX Subtitle] option. (page 18)
If the number of the screen frames is over 29.97 frames per second, this
unit may not operate normally.
If the video and audio structure of DivX file is not interleaved, the audio and
video output may not be matched properly.
If there is an impossible code to express in the DivX file name, it may be
displayed as a “_” mark.
If the bitrate of a DivX file on the USB is over 4Mbps, the file may not be
played properly.
Playing DivX
®
movie files
1 Displays the HOME menu: HOME
2 Selects a [MOVIE] option:
b B
3 Selects an option that contains DivX file:
v V
, ENTER
4 Selects a movie file from the menu: v V
5 Plays the selected movie file: PLAY
6 Stops the playback: STOP
ON REMOTE
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 27
28
Selecting multiple files or folders on the list
You can select not only a single file but also multiple files using the MARKER
button. Press MARKER at the desired files to select multiple files.
This function is not available for Audio CD.
Selecting all files and folders on the current list
If
you want to select all files and folders on the list, press CLEAR at any file or
folder on the list. Press CLEAR again to deselect files and folders.
This function is not available for Audio CD.

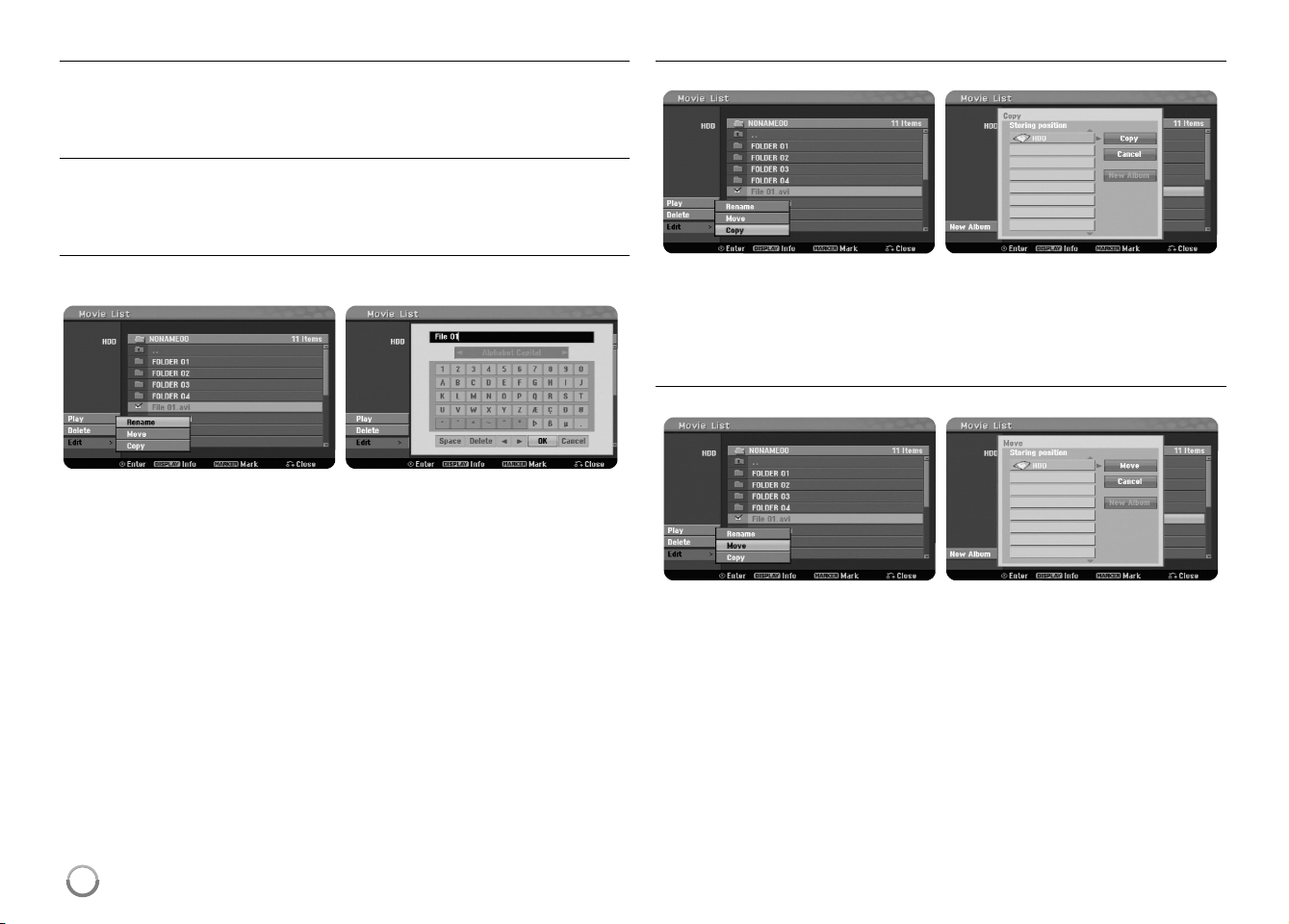

Naming a file or folder on the HDD
You can name a file or folder on the HDD. The length of a name can be up to
32 characters long.
Select a file or folder you would like to rename then press ENTER. Select [Edit]
option then press ENTER to show sub options. The keyboard menu appears by
pressing ENTER while [Rename] option is selected.
Copying file(s) or folder(s) to the HDD
You can copy file(s) or folder(s) to the HDD.
Select file(s) or folder(s) you would like to copy then press ENTER. Select [Edit]
option then press ENTER to show sub options. The [Copy] menu appears by
pressing ENTER while [Copy] option is selected. Select a directory that you
would like to copy to. Select the [Copy] option then press ENTER to begin
copying.
Moving file(s) or folder(s) to an other folder on the HDD
You can move file(s) or folder(s) to an other folder on the HDD.
Select file(s) or folder(s) you would like to move then press ENTER. Select
[Edit] option then press ENTER to show sub options. The [Move] menu appears
by pressing ENTER while [Move] option is selected. Select a directory that you
would like to move to. Select the [Move] option then press ENTER to begin
moving.
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 28
29
Listening to music
Music List menu options
Select which file/track you would like to show from the menu and press ENTER.
A menu appears on the left side of the screen.
[Play]: Starts playback of the selected file/track.
[Random]: Starts or stops random playback.
[Open]: Opens the folder and a list of files in the folder appears.
[Delete]: Deletes the file(s) or folder(s) from the hard disk drive.
[Rename]: Edits the file name in the HDD.
[Move]: Moves selected file(s) to another folder in the HDD.
[Copy]: Copies a file(s) to another folder in the HDD.
[Program Add]: Adds a file(s)/track(s) to [Program List].
[Save]: Saves a [Program List] that you have arranged in the HDD.
[Load]: Loads a saved [Program List] in the HDD.
Displaying MP3/WMA file information
Press DISPLAY while the file you want to show the file information for is
selected. The unit shows the ID3-Tag information of the file. If the file does not
have ID3-Tag information, [ID3-Tag: None] appears on the screen.
MP3/WMA audio file requirement
File extensions: “.mp3”, “.wma”.
Sampling frequency: within 8 - 48 kHz (MP3), within 32 - 48kHz (WMA)
Bit rate: within 8 - 320kbps (MP3), within 32 - 192kbps (WMA)
CD-R Format: ISO 9660 and JOLIET.
DVD±R/RW Format: ISO 9660 (UDF Bridge format)
Maximum Files/Disc: Less than 1999 (total number of files and folders)
Creating your own program
You can play the contents in the order you want by arranging the order of the
music files. The program is cleared when exiting the [Music List] screen.
To add or erase music on the program list, press MENU/LIST to display the
[Program List].
Select a desired music file from the [Music List] then press ENTER. If you want
to select multiple files/tracks, press MARKER at the every desired file/track.
Select the [Program Add] option then press ENTER to add the selected
file/track to the [Program List]. Select a music file from the [Program List] then
press PLAY to start programmed playback.
You can change the playing order using [Move] option on the program list
menu.
Erasing tracks/files from Program List
To delete a music file from the program list, select the music file you want to
delete then press ENTER.
An option menu appear on the left side of the screen.
Select the [Delete] option then press ENTER to erase the music file from the
list.
Save your Program List (HDD only)
This unit memorizes the [Program List] that you have programmed. Select a file
on the [Program List] then press ENTER. Select the [Save] option then press
ENTER to save the [Program List].
Listening to music
1 Displays the HOME menu: HOME
2 Select a [MUSIC] option:
b B
3 Selects an option that contains music:
v V
, ENTER
4 Selects a music from the menu: v V
5 Plays the selected music: PLAY
6 Stops the playback: STOP
ON REMOTE
Audio CD MP3/WMA
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 29
Viewing a photo
Photo List menu options
Select which file you would like to show from the menu and press ENTER.
A menu appears on the left side of the screen.
[Full Screen]: Shows the selected file in full screen.
[Open]: Opens the folder and a list of files in the folder appears.
[Delete]: Deletes the file(s) or folder(s) from the hard disk drive.
[Rename]: Edits the file name in the HDD.
[Move]: Moves selected file(s) to another folder in the HDD.
[Copy]: Copies a file(s) to another folder in the HDD.
[Slide Show]: Displays the [Slide Show] menu.
Skip to the next/previous photo
Press SKIP (. or >) to view the previous/next photo while displayed in full
screen mode.
Rotate a photo
Use vV to rotate the photo while displayed in full screen mode.
Viewing photo files as a slide show
To view photos as a slide show, in the [Photo list] select the [Slide Show] option
on the left side of the screen then press ENTER, The [Slide Show] menu
appears on the screen. Set the [Object] and [Speed] options then press ENTER
while [Start] option is selected. The unit starts slide show as you selected on
the menu.
[Object] option:
[Selected] Views slide show of only selected files.
Use the MARKER button to select multiple files.
[All] Views slide show of all files.
[Speed] option:
Sets the Slide Show speed to [Slow], [Normal], or [Fast].
Listening to music during slide show
You can view photos as a slide show while listening to MP3/WMA music files on
HDD. Press ENTER while [Simultaneous Music play] option is selected on the
[Slide Show] menu. The music file selection menu appears on the screen.
Press MARKER at the desired files to play then press ENTER while [Start]
option is selected. The unit starts slide show with music playing.
[Select All]: Select all files in current directory.
[Deselect All]: Deselect all files.
Pause a slide show
Press PAUSE/STEP to pause a slide show. Press PLAY to continue the slide
show.
Photo file requirement
File extension: “.jpg”
Photo size: Less than 4MB recommended
CD-R Format: ISO 9660 and JOLIET.
DVD±R/RW Format: ISO 9660 (UDF Bridge format)
Maximum Files/Disc: Less than 1999 (total number of files and folders)
Notes on JPEG file
Progressive and lossless compression JPEG image files are not supported.
Depending on the size and number of the JPEG files, it may take several
minutes to read the contents of the media.
30
Viewing a photo
1 Displays the HOME menu: HOME
2 Selects a [PHOTO] option:
b B
3 Selects an option that contains photo file:
v V
, ENTER
4 Selects a photo from the list: v V b B
5 Displays the selected photo in full screen: PLAY
6 Returns to the Photo List: STOP
ON REMOTE
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 30
31
Recording
Changing TV audio channel
Before recording, you can change the TV audio channel for stereo and bilingual
broadcast. Press AUDIO repeatedly to change the audio channel. The current
audio channel is displayed on-screen. Set the [TV Rec Audio] option in the
SETUP menu when recoding a bilingual broadcast.
Instant timer recording
Instant timer recording allows you to make a recording of preset length easily.
When the REC is first pressed, recording starts. Press REC repeatedly to select
a certain amount of time. Each press of REC displays the increased recording
time on-screen. You can set the instant timer recording up to 240 minutes on
HDD or up to 720 minutes on DVD, depending on the free space available.
Setting a timer record
This unit can be programmed to record up to 16 timer recordings within a
month. The clock must be set correctly before setting a timer recording.
Press HOME and select TV option. Press
v V
to select the [Timer Record] and
press ENTER to display [Timer record List] menu. Use
v V
to select [New] and
press ENTER to display [Timer Record] menu. Adjust each field as described
below using
v V b B
.
[Media]: Choose a media to record (HDD or DVD).
[CH/PR]: Choose a memorized program number, or one of the external
inputs from which to record. (You cannot select DV input and radio channel.)
[Date]: Choose a date up to
1 month
in advance.
[Start Time]: Set the start time.
[End Time]: Set the end time.
[Repeat] Choose a desired repeat (Once, Daily (Mon-Fri), or Weekly).
Recordings from EPG menu will always be set to [Once].
Press REC repeatedly to set the recording mode (XP, SP, LP, EP or MLP) then
press ENTER to set a timer recording. The “Rec OK” or “OK” on the [Check]
field on the [Timer Record List] menu indicates the timer recording is
programmed correctly.
Recording
1 Selects a recording mode: HOME,
You can select a recording mode on the
v V b B
,
SETUP menu. (XP, SP, LP, EP or MLP) ENTER
2 Selects a recording media: HDD or DVD
3 Selects a channel or source you want to record: PR/CH, AV/INPUT
4 Starts recording: REC
5 Stops recording: STOP
ON REMOTE
Follow the instruction below to record a TV channel or
other source. The recording continues until the media
is full, you stop the recording or the progress of
recording is more than 12 hours.
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 31
32
Canceling a timer recording
You can cancel a timer recording before the timer recording actually starts.
Select a timer recording that you want to cancel on the [Timer Record List]
menu and press CLEAR.
Timer Recording Troubleshooting
Even though the timer is set, the unit will not record when:
– There is no disc loaded and there is not free space on the HDD.
– A non-recordable disc is loaded and there is not free space on the HDD.
–
[Disc Protect] option is set to [ON] in the Setup menu and there is not free
space on the HDD (see page 21).
– The unit is in operating (recording, copying, deleting etc.).
– There are already 99 titles (DVD-RW, DVD-R), 49 titles (DVD+R,
DVD+RW) recorded on the disc and there are already 255 titles recorded
on the HDD.
You cannot enter a timer program when:
– A recording is already underway.
– The time you’re trying to set has already passed.
– There are already 16 timer programs set.
If two or more timer programs overlap:
– The earlier program takes priority.
– When the earlier program finishes, the later program starts.
– If two programs are set to start at exactly the same time, the program
entered first takes priority.
Simultaneous playback and record
You can play other contents while you are recording. Simply press HOME and
select the playable contents you want to play while recording. You cannot
playback other contents while copying or dubbing. The DivX file cannot be
played while recording. When you are recording on a DVD, other contents on
the DVD cannot be played.
Time Slip
You can watch the title that you are currently recording to HDD with this func-
tion. After the recording is progressed over 15 seconds, press PLAY to playback
the title that you are currently recording. If you stop playback the title, returns to
the current recording position.
Record from a camcorder
You can record from a DV-equipped camcorder to the HDD by connecting it
with a DV cable. You can also record from a digital camcorder connected to the
DV in jack on the front of the unit. Press AV/INPUT repeatedly to select the DV
input. Find the place on the camcorder recording that you want to begin record-
ing from and press REC to start recording. Depending on your camcorder, you
can use this recorder’s remote to control the camcorder using the STOP, PLAY
and PAUSE functions. Press STOP to end recording.
Recording From an external input
You can record from an external component, such as a camcorder or VCR,
connected to any of the recorder’s external inputs.
Each press of the AV/INPUT changes the input source as described below.
Make sure that the component you want to record from is connected properly to
the unit before recording an external source.
Tuner: Built-in tuner
AV1: INPUT 1 (VIDEO, AUDIO (L/R)) mounted on the rear panel
AV2: AV IN 2 (VIDEO, AUDIO (L/R)) mounted on the front panel
DV: DV IN mounted on front panel
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 32
33
Using time shift function
This feature allow you to pause or rewind live TV, so you do not miss a thing if
you were interrupted.
Press TIMESHIFT then press PAUSE/STEP while watching live broadcast. The
timeshift function will record the broadcast for later viewing. Before using this
function, make sure that the unit is in HDD mode.
If no button is pressed for 6 hours, the timeshift will stop automatically. You can
use trick play functions (slow, scan, etc.) during timeshift. Refer to playback
operation on page 20.
Stop timeshift by pressing STOP and confirm by pressing ENTER. You will be
returned to watch a broadcast in real time.
Jump to start or end during timeshift
Press ENTER to show progress bar during timeshift. Press
b
to jump to the
beginning and
B
to jump to the end of the timeshift recording.
Clip recording
If you want to record a timeshifted program as a title, press REC at the starting
point and ending point you want to record. The timeshift progress bar indicates
a clip that you select with red bar. You can make more clips by repeating this
instruction. The clips will be recorded when you exit the timeshift function.
Using time shift function automatically
If the [Time Shift] option in the SETUP menu is set to [ON], timeshift starts
automatically without pressing TIMESHIFT button in HDD mode.
If you want to quit timeshift function, set the [Time Shift] function to [OFF].
Editing a title
About title list menu
Press MENU/LIST to display the Title List menu. Playback should be stopped
when you do this. You can also access it using HOME menu, select [MOVIE]
option then select [HDD] or [DISC] option and press ENTER. If you are editing
a VR mode disc, press MENU/LIST to switch between Original and Playlist
menu.
a Current media
b Indicates the record mode, free space, and elapsed time progress bar.
c Menu options: To display menu option, select a title or chapter then press
ENTER. The options displayed differ depending on the disc type.
d Currently selected title.
e Thumbnail
f Shows the title name, recorded date, and recording length.
a
b
c
d
e
f
Editing a title
1 Selects a recording media: HDD or DVD
2 Displays a [Title List] menu: MENU/LIST
3 Selects a title you want to edit:
v V b B
4 Displays an editing menu: ENTER
The options are differ depending on the media type.
5 Selects a menu option:
v V b B
, ENTER
6 Exit the [Title List] menu: RETURN
ON REMOTE
Using the Title list menu,you can edit video contents.
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 33
Before editing
This unit offers various edit options for various disc types. Before you edit,
check the disc type, and select the option available for your disc.
You can enjoy advanced edit functions with VR mode formatted DVD (DVD-RW
or DVD-RAM). Editing either the original recording(called the “Original”), or the
playback information created from the original (called a “Playlist”).
Edits made to the original titles are final. If you plan to edit a title without editing
the original title, you can create a Playlist title for editing.
A Playlist is a group of Playlist titles created from the original title for editing
purposes.
Titles in the disc’s original content contain one or more chapters. When you
insert a disc’s title into the Playlist, all the chapters within that title also appear.
In other words, chapters in the Playlist behave exactly as chapters on a DVD
Video disc do. Parts are sections of Original or Playlist titles. From the Original
and Playlist menu you can add or delete parts. Adding a chapter or title to the
Playlist creates a new title made up of a section (i.e. chapter) of an Original
title. Deleting a part removes part of a title from the Original or Playlist menu.
Adding chapter markers
You can create chapters within a title by inserting chapter marks at the desired
point. Press MARKER at the desired point while playback or recording.
A chapter marker icon appears on the screen. Adding a chapter while recording
is not available for HDD title.
The chapter markers can be added at regular intervals automatically by setting
the [Auto Chapter] option in the SETUP menu.
Deleting a title or chapter
When you delete a title or chapter from the PlayList, the title or chapter in the
Original still remains. However, if you delete a chapter or title from Original, the
title or chapter deleted from the Original are also removed from PlayList.
Select a title or chapter that you want to delete and press ENTER. Select
[Delete] option from the menu on the left of the screen and press ENTER to
confirm.
HDD – You can delete multiple files using MARKER button. Press MARKER at
the desired files to select multiple files and then follow the instructions above.
Chapter search
You can select the start of a title by searching a chapter. Select a title that you
want to search and press ENTER. Select [Chapter] in the [Search] option from
the menu on the left of the screen, and press ENTER to display the [Chapter
List] menu.
Use
v V b B
to find the chapter you want to start playback, and press PLAY to
start playback.
Making a new PlayList
The PlayList allows you to edit or re-edit a title or chapter without changing the
Original recordings. Use this function to add an Original title or chapter to a new
PlayList or the registered Playlist.
Select an Original title or chapter that you want to put into the PlayList then
press ENTER. Select the [Playlist Add] option and then press ENTER to display
the [Select PlayList] menu. Choose a PlayList-title that you want to put the
selected Original title or chapter in, or select the [New PlayList] to create a new
PlayList.
Moving a PlayList chapter
Use this function to re-arrange the playing order of a PlayList title on the
[Chapter List-Playlist] menu. Select [Move] option from the menu on the left of
the [Chapter List-Playlist] screen and press ENTER. Use
v V b B
to choose
the place you want to move the chapter to then press ENTER. The updated
menu is displayed
RAM-RW
VR
RAM-RW
VR
RAM-R+R+RW-RW
Video
-RW
VR
HDD
RAM+R+RW-RW
VR
HDD
34
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 34
35
Time search
You can select the start of a title by searching through the time duration. Select
a title that you want to search and press ENTER. Select [Time] in the [Search]
option from the menu on the left of the screen and press ENTER to display the
[Search] menu.
Use
b B
to find the time you want to start. Each press of
b B
to moves 1
minute and press and hold
b B
to moves 5 minutes. Press ENTER to watch a
title from a selected time.
Sorting the titles
Press ENTER to bring up the options menu. Select [Sort] option and press
ENTER to view the further options. Here you can choose to sort titles according
to [Date] (when they were recorded), [Title] (alphabetical order) or by [Category]
(sort by genre).
Combining titles
Use this function to merge the selected title with another title. Select a title and
press ENTER. Select [Combine] in the [Edit] option then press ENTER. Select
a title you want to combine with current title and press ENTER to confirm.
Hiding a chapter or title
You can skip through playing chapters or titles without actually deleting them.
Select a chapter or title you want to hide and press ENTER. Select [Hide] in the
[Edit] option then press ENTER.
If you want to recover the hidden title or chapter, select the hidden title or chap-
ter and press ENTER. Select [Show] in the [Edit] option then press ENTER to
recover it.
Dividing a title
Use this function to split a title up into two titles. Select a title that you want to
divide and press ENTER. Select [Divide] in the [Edit] option from the menu on
the left of the screen and press ENTER to display the [Divide] menu. Find the
point you want to divide a title using PLAY, SCAN, PAUSE/STEP buttons and
press ENTER while [Divide] option is selected. The playback screen shows the
divided point. Select [Done] option and press ENTER to divide. You cannot
select dividing point less than 3 seconds.
Protect a title
Use this function to protect a title against accidental recording, editing or delet-
ing. Select a title you want to protect and press ENTER. Select [Protect] option
from the menu on the left and press ENTER. The lock mark will appears on the
title thumbnail.
If you want to unprotect the title, select the protected title and press ENTER.
Select [Unprotect] option from the menu on the left and press ENTER to unpro-
tect it.
Deleting a part
You can delete a part which you do not want in the title.
Select a title that you want to delete part of and press ENTER. Select [Delete
Part] in the [Edit] option from the menu on the left of the screen and press
ENTER to display the [Delete part] menu. You can find the point using PLAY,
SCAN, PAUSE/STEP buttons.
[Start Point]: Select starting point of a part that you want to delete then press
ENTER.
[End Point]: Select ending point of a part that you want to delete then press
ENTER.
[Next Part]: Press ENTER to delete an additional part (HDD only).
[Cancel]: Press ENTER to cancel the selected part.
[Done]: Press ENTER to delete the selected part.
RAM-RW
VR
HDD
RAM+R+RW-RW
VR
+RWHDD
+R+RW
HDD
HDD
RAM-R+R+RW-RW
Video
-RW
VR
HDD
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 35
Naming a title
When a title is recorded by this unit, the title name will be named by a number.
You can change a title name by using this function.
Select a title that you want to change the name of and press ENTER. Select
[Rename] or [Title Name] option from the menu on the left of the screen and
press ENTER to display the keyboard menu. Use
v V b B
to select a character
then press ENTER to confirm your selection on the keyboard menu.
[OK]: Finish the naming.
[Cancel]: Cancels all entered characters.
[Space]: Inserts a space at the cursor position.
[Delete]: Deletes the previous character at the cursor position.
You can use remote control buttons for entering a name
PLAY (N): Inserts a space at the cursor position.
X (PAUSE/STEP): Deletes the character after the cursor position.
x (STOP), CLEAR: Deletes the character before the cursor position.
. / >: Moves cursor to left or right.
MENU/LIST, DISPLAY: Changes the character set on the keyboard menu.
Numbers (0-9): Enters the corresponding character at the cursor position.
You can apply a genre for a selected title on HDD. When a character is high-
lighted on the keyboard menu, keep pressing
b
until the curser jumps across to
the Genre field. Choose desired genre and press ENTER to select it.
The chosen genre name will appear at the lower right corner of the title thumbnail.
Combining chapters
Use this function to merge the selected chapter with adjacent chapter. Select a
chapter and press ENTER. Select [Combine] option to view combine indicator
between chapter thumbnails. Press ENTER to combine indicated two chapters.
This function is not available in conditions as listed below.
There is only one chapter within the title.
The first chapter is selected.
The chapters that you want to combine are created by deleting a part from
an Original title.
The chapters that you want to combine are created from different titles.
One of the playlist chapters that you want to combine has been moved.
Using the Disc menu
Using the title list menu in DVD mode, you can use the disc setting functions
without entering the SETUP menu.
Use
v V b B
to select the [Disc] option on the DVD title list menu and then
press ENTER to show further options.
[Disc Format]: Format the inserted disc. (page 20)
[Finalize]: Finalize the inserted disc. (page 20)
[Unfinalize]: Unfinalize the inserted disc. (page 20)
[Disc Label]: Use this to enter a name for the disc. This name appears when
you load the disc and disc information on-screen. (page 21)
[Protect]: Use this to prevent accidental recording, editing, deleting of the
inserted disc. (page 21)
[Unprotect]: Release the protect function.
Overwriting
You can overwrite a new video recording on a recorded title that is not protect-
ed. Select the TV channel or input source you want to record. Press
MENU/LIST to display the Title List menu. Use v V b B to highlights a title you
want to overwrite and then press REC to start overwrite. To stop the recording,
press STOP.
If you overwrite a longer recording than the current title on the fully recorded
disc, the next title is overwritten. If the next title is protected, the overwriting
stops at the starting point of the title.
+RW
RAM+R+RW-RW
VR
HDD
36
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 36
37
Dubbing a title
Before dubbing
Use the copying features of this recorder to:
Back up important recordings stored on the HDD to a DVD.
Make a DVD copy of a recording on the HDD to play in another player.
Transfer video from a DVD to the HDD for editing.
Transfer edited video from the HDD to DVD.
About ‘Fast’ copying
Copying between DVD and HDD is a completely digital process and therefore
involves no loss of quality in the audio or video. This allows high speed copying
for ease and convenience.
When copying from HDD to DVD, the speed of copying depends on the
recording mode and the kind of DVD disc you’re using. The Fast copying is
available for unedited original video titles, and may not be possible when using
disc initialized on another recorder.
When you dub a title from the DVD to HDD, only a VR mode formatted disc can
use [Fast] mode.
When you dubs a title from the HDD to VR mode DVD-RW or DVD-RAM, the
[Fast] mode is not available for edited HDD title and Clip Recording title. And
dub an edited title from VR mode formatted DVD-RW or DVD-RAM to HDD also
cannot use [Fast] mode.
Dub multiple titles from HDD to DVD
You can select not only a single title but also multiple titles using MARKER
button. Press MARKER at the desired titles to select multiple titles, and press
ENTER to display the menu on the left of the screen. Select [Dubbing] option
from the menu on the left of the screen and press ENTER to display the
[Dubbing] menu. Use
v V b B
to select [Start] icon then press ENTER to
confirm.
Dub a currently playing title
This feature copies a single title to the HDD in real time. When you start
copying, playback jumps back to the start of the title, then continues through to
the end of the title, when recording automatically stops. The copy will be made
in the recording mode (XP, SP, LP, EP or MLP) that is currently set in the
SETUP menu.
During DVD playback, press HOME to display the HOME menu. Select the
[Dubbing] in the [Easy Menu] option, and press ENTER to start dubbing. The
[Dubbing] option in the HOME menu will be activated only for a title from a
finalized DVD±R or DVD-ROM title without copy protection.
-R+R
HDD
Dubbing a title
1 Selects a recording media: HDD or DVD
2 Displays a [Title List] menu: MENU/LIST
3 Selects a title you want to dub:
v V b B
4 Displays an editing menu: ENTER
5 Selects the [Dubbing] option:
v V
6 Displays the [Dubbing] menu: ENTER
7 Sets the [Rec mode] option:
v V b B
XP, SP, LP, EP, MLP, AUTO or Fast modes
8 Highlights the [Start] icon:
v V
9 Starts dubbing: ENTER
ON REMOTE
Using the title list menu, you can dub video contents.
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 37
Language Codes
Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu.
Area Codes
Choose an area code from this list.
Language Code
Afar 6565
Afrikaans 6570
Albanian 8381
Ameharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Aymara 6588
Azerbaijani 6590
Bashkir 6665
Basque 6985
Bengali; Bangla 6678
Bhutani 6890
Bihari 6672
Breton 6682
Bulgarian 6671
Burmese 7789
Byelorussian 6669
Chinese 9072
Language Code
Croatian 7282
Czech 6783
Danish 6865
Dutch 7876
English 6978
Esperanto 6979
Estonian 6984
Faroese 7079
Fiji 7074
Finnish 7073
French 7082
Frisian 7089
Galician 7176
Georgian 7565
German 6869
Greek 6976
Greenlandic 7576
Guarani 7178
Gujarati 7185
Language Code
Hausa 7265
Hebrew 7387
Hindi 7273
Hungarian 7285
Icelandic 7383
Indonesian 7378
Interlingua 7365
Irish 7165
Italian 7384
Javanese 7487
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kirghiz 7589
Korean 7579
Kurdish 7585
Laothian 7679
Latin 7665
Latvian, Lettish 7686
Language Code
Lingala 7678
Lithuanian 7684
Macedonian 7775
Malagasy 7771
Malay 7783
Malayalam 7776
Maori 7773
Marathi 7782
Moldavian 7779
Mongolian 7778
Nauru 7865
Nepali 7869
Norwegian 7879
Oriya 7982
Panjabi 8065
Pashto, Pushto 8083
Persian 7065
Polish 8076
Portuguese 8084
Language Code
Quechua 8185
Rhaeto-Romance 8277
Rumanian 8279
Russian 8285
Samoan 8377
Sanskrit 8365
Scots Gaelic 7168
Serbian 8382
Serbo-Croatian 8372
Shona 8378
Sindhi 8368
Singhalese 8373
Slovak 8375
Slovenian 8376
Spanish 6983
Sudanese 8385
Swahili 8387
Swedish 8386
Tagalog 8476
Language Code
Tajik 8471
Tamil 8465
Telugu 8469
Thai 8472
Tonga 8479
Turkish 8482
Turkmen 8475
Twi 8487
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapü k 8679
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 7473
Yoruba 8979
Zulu 9085
Area Code
Afghanistan AF
Argentina AR
Australia AU
Austria AT
Belgium BE
Bhutan BT
Bolivia BO
Brazil BR
Cambodia KH
Canada CA
Chile CL
China CN
Colombia CO
Congo CG
Area Code
Costa Rica CR
Croatia HR
Czech Republic CZ
Denmark DK
Ecuador EC
Egypt EG
El Salvador SV
Ethiopia ET
Fiji FJ
Finland FI
France FR
Germany DE
Great Britain GB
Greece GR
Area Code
Greenland GL
Hong Kong HK
Hungary HU
India IN
Indonesia ID
Israel IL
Italy IT
Jamaica JM
Japan JP
Kenya KE
Kuwait KW
Libya LY
Luxembourg LU
Malaysia MY
Area Code
Maldives MV
Mexico MX
Monaco MC
Mongolia MN
Morocco MA
Nepal NP
Netherlands NL
Netherlands Antilles AN
New Zealand NZ
Nigeria NG
Norway NO
Oman OM
Pakistan PK
Panama PA
Area Code
Paraguay PY
Philippines PH
Poland PL
Portugal PT
Romania RO
Russian Federation RU
Saudi Arabia SA
Senegal SN
Singapore SG
Slovak Republic SK
Slovenia SI
South Africa ZA
South Korea KR
Spain ES
Area Code
Sri Lanka LK
Sweden SE
Switzerland CH
Taiwan TW
Thailand TH
Turkey TR
Uganda UG
Ukraine UA
United States US
Uruguay UY
Uzbekistan UZ
Vietnam VN
Zimbabwe ZW
38
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 38
39
Troubleshooting
General
The power does not turn on.
b
Plug the power cord into the wall outlet securely.
There is no picture.
b
Select the appropriate video input mode on the TV so the picture from the
unit appears on the TV screen.
b
Connect the video connection securely.
Picture noise appears.
b
You are playing a disc recorded in a colour system that is different from
your TV.
b
The video signal from the external component is copy-protected.
b Set the resolution that your TV can accept.
The channel is not found or stored.
b
Check your antenna connection.
There is no sound.
b
Connect the audio connection securely.
b
The input source setting on the amplifier or the connection to the amplifier
is incorrect.
b
The unit is in scan, slow motion, or pause mode.
The remote control does not work properly.
b
The remote control is not pointed at the remote sensor of the unit.
b
The remote control is too far from the unit.
b
There is an obstacle in the path of the remote control and the unit.
b
The batteries in the remote control are exhausted.
Playback
The unit does not start playback.
b
Insert a playable disc. (Check the disc type, colour system, and regional
code.)
b
Place the disc with the playback side down.
b
Place the disc on the disc tray correctly inside the guide.
b
Clean the disc.
b
Cancel the Rating function or change the rating level.
Cannot play a disc recorded using this unit on other player.
b
Finalize the disc.
b
Check the disc compatibility of the player.
b
Place the disc on the disc tray correctly inside the guide.
b
Discs recorded with copy-once material cannot be played on other
players.
The angle cannot be changed.
b
Multi-angles are not recorded on the DVD Video being played.
b
The angle cannot be changed for the titles recorded on this unit.
The subtitle language cannot be changed or turned off.
b
Subtitles are not recorded on the DVD Video being played.
b
The subtitle cannot be changed for the titles recorded on this unit.
Cannot play MP3/WMA/JPEG/DivX files.
b
The files are not recorded in a format that the unit can play.
b
The unit does not support the codec of the DivX movie file.
b
The resolution is higher than the unit can support.
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 39
Recording
Cannot record or does not record successfully.
b
Check the remaining space on the disc.
b
Check that the source you are trying to record from is not copy protected.
b
The power may have failed during recording.
b
Use a VR mode formatted disc for copy-once material.
Timer record does not record successfully.
b
Clock is not set to correct time.
b
The start time of the timer recording is past.
b
Two timer recordings may have overlapped, in which case only the earlier
one will record completely.
b
When setting the recording channel, make sure you set the unit’s built-in
tuner, not the TV’s built-in tuner.
Stereo Audio Record and/or Playback is not present.
b
TV is not Stereo-compatible.
b
Broadcast program is not in stereo format.
b
The A/V Output jacks on the unit are not connected to TV A/V In jacks.
HDMI
The connected HDMI device does not display any picture.
b
Try disconnecting then reconnecting the HDMI cable.
b
Try switching the power of the HDMI device off then back on.
b
The video input of the connected device is set correctly for this unit.
b
The HDMI cable you are using is fully HDMI-compliant . Using a non-stan-
dard cable may result in no picture being output.
b
Not all HDCP-compatible DVI devices will work with this unit.
The connected HDMI device does not output sounds.
b
Some HDMI-compatible devices do not output sounds (check the manual
that came with the connected device).
b
If your TV is not capable of handling 96 kHz sampling frequency, set the
[Sampling Freq.] option to [48 kHz] on the setup menu. When this choice
is made, this unit will automatically convert any 96 kHz signals to 48 kHz
so your system can decode them.
b
If your TV is not equipped with Dolby Digital and MPEG decoder, set the
[Dolby Digital] and [MPEG] options to [PCM] on the setup menu.
b
If your TV is not equipped with DTS decoder, set the [DTS] options to
[OFF] on the setup menu. To enjoy DTS multi channel surround, you must
connect this unit to a DTS compatible receiver via one of this unit’s digital
audio outputs.
Setting up the remote to control your TV
You can operate your TV with the supplied remote control.
If your TV is listed in the table below, set the appropriate manufacturer code.
While holding down TV POWER button, and press the manufacturer code for
your TV with the numerical buttons (see the table below). Release the TV
POWER button to complete setting.
Manufacturer Code Number
LG / GoldStar 1 (Default), 2
Zenith 1, 3, 4
Samsung 6, 7
Sony 8, 9
Hitachi 4
Depending on your TV, some or all buttons may not function on the TV, even
after entering the correct manufacturer code. When you replace the batteries of
the remote, the code number you have set may be reset to the default setting.
Set the appropriate code number again.
40
Resetting the unit
If you observe any of the following symptoms.
The unit is plugged in, but the power will not turn on or off.
The front panel display is not working.
The unit is not operating normally.
You can reset the unit as follows.
Press and hold the POWER button for at least five seconds. This will
force the unit to power off then turn the unit back on.
Unplug the power cord, wait at least five seconds, and then plug it in
again.
RH397D-W_BAUSLL_ENG 6/16/08 1:31 PM Page 40
41
Specifications
General
Power requirements AC 200-240V, 50/60 Hz
Power consumption 30W
Dimensions (approx.) 430 X 49 X 275 mm (w x h x d) without feet
Net weight (approx.) 4 kg
Operating temperature 5˚C to 35˚C
Operating humidity 5 % to 65 %
Television system Analog: PAL B/G color system
Digital: DVB-T Standard Compliant
Recording format PAL
Recording
Recording format DVD Video Recording, DVD-VIDEO
Recordable media HDD (RH397D:160GB, RH399D:320GB),
DVD-RW, DVD-R, DVD+RW, DVD+R,
DVD+R(Double Layer), DVD-RAM
Recordable time DVD (4.7GB): Approx. 1 hour (XP mode),
2 hours (SP mode), 4 hours (LP mode),
6 hours (EP mode), 14 hours (MLP mode)
DVD+R DL (8.5GB): Approx. 3 hours
(XP mode), 3.8 hours (SP mode),
7.3 hours (LP mode), 9.1 hours (EP mode),
21 hours (MLP mode)
HDD (160/320GB, MPEG2 Recording):
Approx. 43/85 hours (XP mode),
84/165 hours (SP mode),
164/323 hours (LP mode),
233/456 hours (EP mode),
477/935 hours (MLP mode)
Video recording format
Sampling frequency 27MHz
Compression format MPEG2
Audio recording format
Sampling frequency 48kHz
Compression format Dolby Digital
Playback
Frequency response DVD (PCM 48 kHz): 8 Hz to 22 kHz,
CD: 8 Hz to 20 kHz
DVD (PCM 96 kHz): 8 Hz to 44 kHz
Signal-to-noise ratio More than 90 dB (AUDIO OUT connector)
Harmonic distortion Less than 0.02% (AUDIO OUT connector)
Dynamic range More than 95 dB (AUDIO OUT connector)
Inputs
ANTENNA IN Antenna input, 75 ohms
VIDEO IN 1.0 Vp-p 75 ohms, sync negative, RCA jack x 2
AUDIO IN 2.0 Vrms more than 47 kohms, RCA jack
(L, R) x 2
DV IN 4 pin (IEEE 1394 standard)
USB IN 4 pin (USB 1.1 standard)
Outputs
VIDEO OUT 1.0 Vp-p 75 ohms, sync negative, RCA jack x 1
S-VIDEO OUT (Y) 1.0 V (p-p), 75
Ω
, sync negative,
Mini DIN 4-pin x 1(C) 0.3 V (p-p) 75
Ω
COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75
Ω
, sync negative,
RCA jack x 1, (PB)/(PR) 0.7 V (p-p), 75
Ω
,
RCA jack x 2
HDMI video/audio output 19 pin (HDMI standard, Type A)
Audio output (digital audio) 0.5 V (p-p), 75
Ω
, RCA jack x 1
Audio output (optical audio) 3 V (p-p), Optical connector x 1
Audio output (analog audio) 2 Vrms (1 kHz, 0 dB), 600
Ω
,
RCA jack (L, R) x 2
Accessories
RF cable (1), Remote control (1), Battery (1), Audio cable (1), Video cable (1)
