3-242-704-14(1)
Integrated Remote
Commander
Operating Instructions
© 2002 Sony Corporation
RM-AV3000
2
WARNING
To prevent fire or shock
hazard, do not expose the
unit to rain or moisture.
To avoid electrical shock, do
not open the cabinet. Refer
servicing to qualified
personnel only.
WARNING
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your authority to
operate this equipment.
For the customers in the USA
Owner’s Record
The model number is located on the front
panel.
The serial number is located on the inner
side of the battery compartment.
Record these numbers in the spaces
provided below. Refer to them whenever
you call upon your Sony dealer
regarding this product.
Model No. RM-AV3000
Serial No.
NOTICE FOR THE CUSTOMERS IN
THE U.S.A.
NOTE
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance with
the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or
television reception, which can be
determined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment to an outlet on
a circuit different from that to which
the receiver is connected.
– Consult the dealer or an experienced
radio/TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your authority to
operate this equipment.
3
Features
The RM-AV3000 Remote Commander
provides centralized control of all your
AV components from a single remote
commander and saves the trouble of
operating different AV components with
different remote control devices. The
following are its main features.
Customizing 258 labels of control
keys in the dot matrix
LCD with dot matrix makes label
customizing possible. A total of 258 labels
on the LCD, such as component labels,
macro labels, etc., can be customized. A
label of up to 8 letters with digits,
characters or symbols can be selected and
displayed.
Control of 18 components
Control of a maximum of 18 components
(TV, STB, VCR, DVD, CD, AMP, etc.) is
possible.
Components are selectable with 6
buttons on the Commander for the
components frequently used and 12 keys
on the LCD (displayed by pressing the
OTHER button). Component Select
buttons of light storage type are easy-to-
operate and visible in the dark.
Setting a maximum of 45 macro
commands of a maximum of 32
successive steps
A maximum of 45 macro commands
which provide a maximum of 32
successive steps by pressing a single
button can be set (15 system control
macros, 18 component macros, and 12
timer macros). Macro execution speed is
changeable. All power on/off macro
commands for Sony components are
preset at the factory.
Clock display and timer function
Using a maximum of 12 timer macros,
timer control of automatic on/off and other
controls (such as recording, stopping, etc.)
of each component are possible.
Centralized control of Sony AV
components with this one remote
commander
This Commander is preset at the factory
to operate Sony brand components, so
you can use it out of the box as a control
center for your Sony AV components.
Remote control signals for non-Sony
components are also preset
This Commander is preset for most major
brands components including Sony. You
can remote control your components by
setting their code numbers (page 12).
Learning function for programming
other remote control signals you need
This Commander has a learning function,
to learn remote control signals to operate
non-preset components or functions
(page 19).
In addition, the Commander can learn
remote control signals (infrared signals
only) of non Audio Visual components
such as air-conditioners, lights, etc. (some
specific appliances or functions may not
be available) (page 49).
Channel macro function allows you
to select a channel with a single key
Up to 4 key steps can be programmed on
macro keys (Label keys). If you set the
key operations for entering a channel
number on a macro key, you can select
the channel by pressing that macro key
(page 58).
Easy-to-operate touch key LCD with
blue back light
This Commander has a touch key LCD that
changes the key display according to the
selected component. The Commander is
easy to operate as only the keys necessary
to operate the selected component are
displayed. The display backlight allows
operation even in the dark.
4
Table of Contents
Getting Started
Location and Function of Controls ....................................................................................... 6
Installing the Batteries ......................................................................................................... 7
When to replace the batteries.............................................................................................. 8

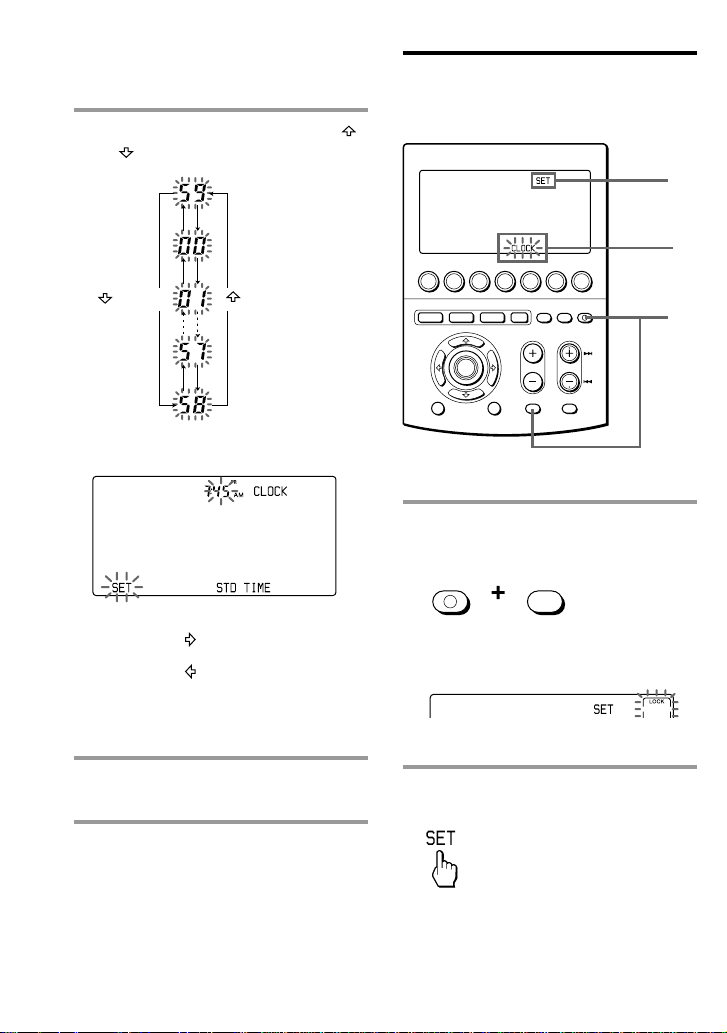

Setting the Clock .................................................................................................................. 8
Setting the clock for the first time after installing batteries............................................ 8
Adjusting the clock after setting the clock ...................................................................... 10
Basic Operations
Setting the Code for Preset Audio and Visual Components ............................................... 12
Setting a component code ................................................................................................. 12
Checking if the code number works ................................................................................ 15
Finding a component code with the Search function.................................................... 16
Operating Your Components with the Remote Commander .............................................. 18
To control the volume ........................................................................................................ 19
Using Non-Preset Remote Control Operations — Learning Function ................................ 19
For accurate learning ......................................................................................................... 25
Changing or erasing the function of a taught key or button ....................................... 25
Advanced Features
Controlling the Volume of Visual Components Connected to an Audio System................. 29
Executing a Series of Commands — System Control Functions......................................... 31
Programming a series of commands for the SYSTEM CONTROL buttons
or the Label keys .............................................................................................................. 32
Notes on System Control Operations .............................................................................. 37
Programming a series of commands for the Component Select buttons
or the Label keys .............................................................................................................. 38
Changing the interval between operation steps ............................................................ 40
To change the component macro executing time........................................................... 42
Adding an Extra Function to the Component Select Buttons............................................. 43
Programming the Power-On command of the selected component
(for Sony components only) ........................................................................................... 43
Adding a command that is required when selecting a component ............................ 45
Assigning Other Components to the Component Select Buttons or the Label keys .......... 47
Copying the settings of a Component Select button
or a Label key to another button or key ....................................................................... 47
Programming a Frequently Used Key Operation for SYSTEM CONTROL Buttons
or Label Keys .................................................................................................................... 49
Notes on learning the signals of an air-conditioner ...................................................... 52

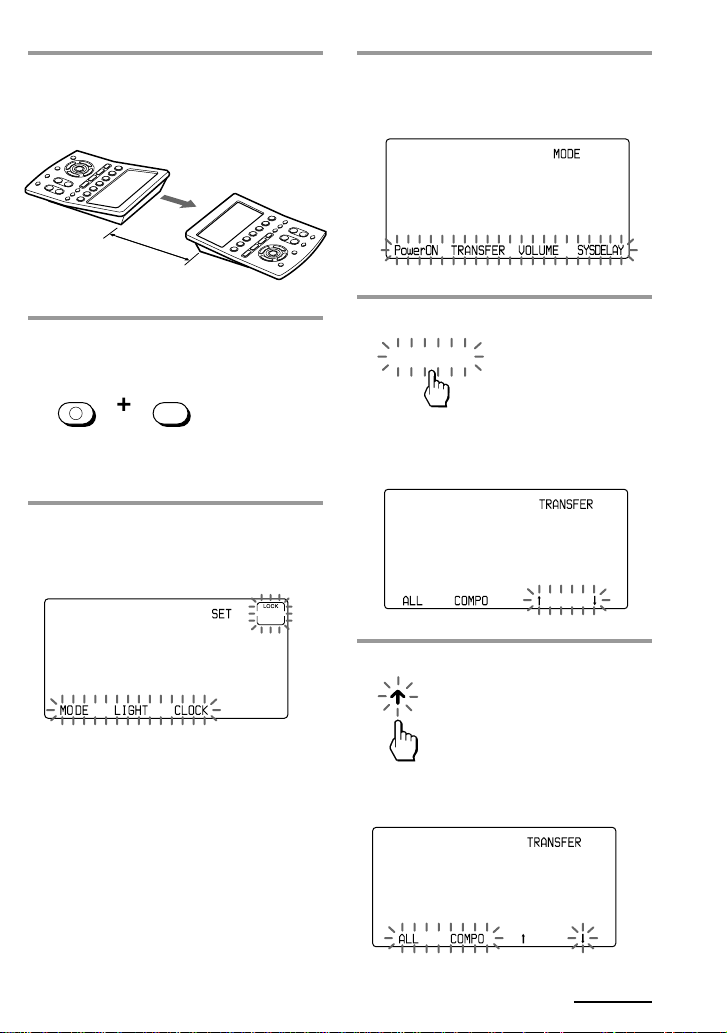

Transferring Data between Commanders ........................................................................... 52
Transferring data ................................................................................................................ 52
Receiving the data ..............................................................................................................56
5
Selecting a Channel with a Single Key Press — Channel Macro Function ......................... 58
Setting the Timer ................................................................................................................ 61
Setting the new timer program......................................................................................... 61
Changing the program already set or changing another program
that you select................................................................................................................... 65
Using Other Functions
Locking the Controls — Hold Function............................................................................... 71
Protecting your settings — Setting Lock Function............................................................. 72

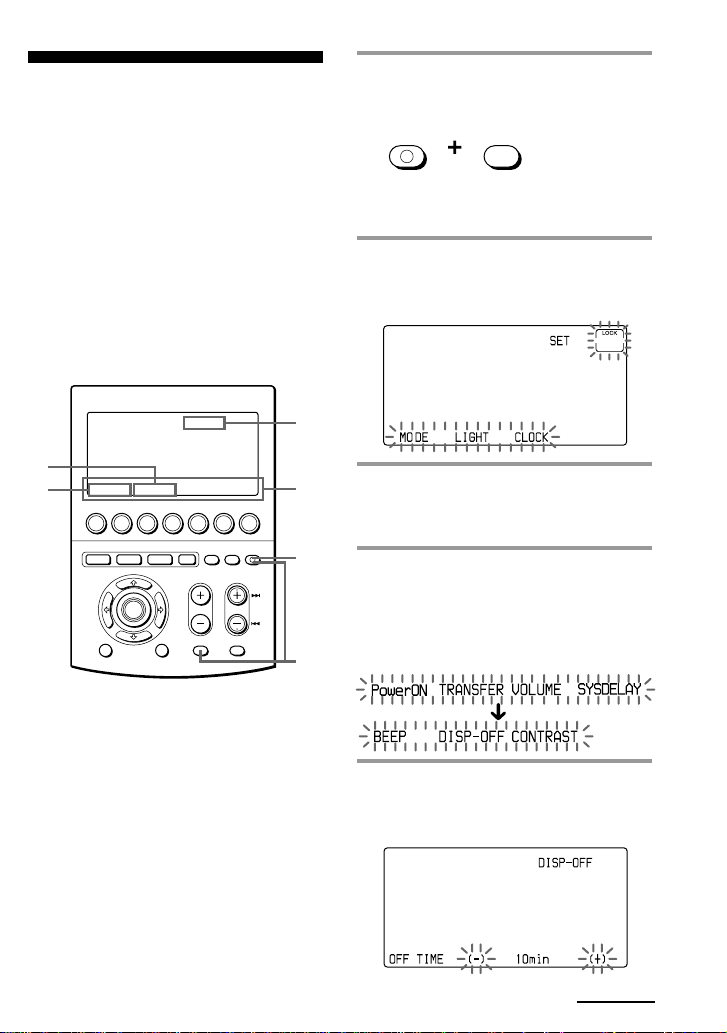

Setting the Automatic-Off Time of the Display Window .................................................... 73
Adjusting the Backlight of the Display Window ................................................................. 74

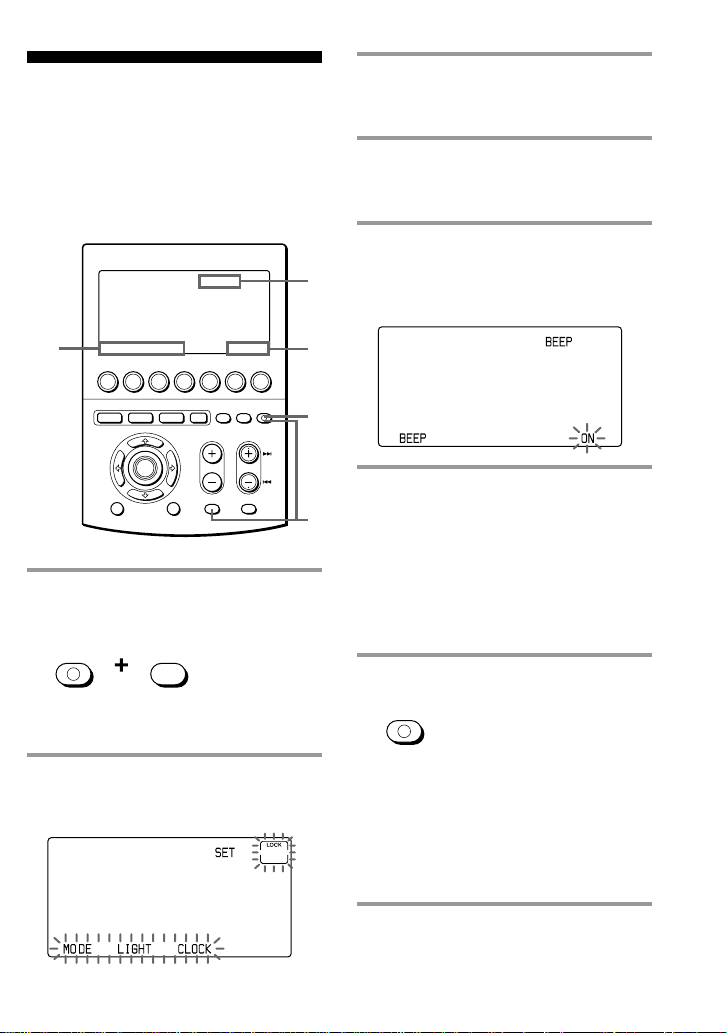

Setting the Key-Touch Beep ................................................................................................ 77
Adjusting the Contrast of the Display Window .................................................................. 78
Changing the Names of the Label Keys or the Component Names
on the Mode Display Key ................................................................................................. 79

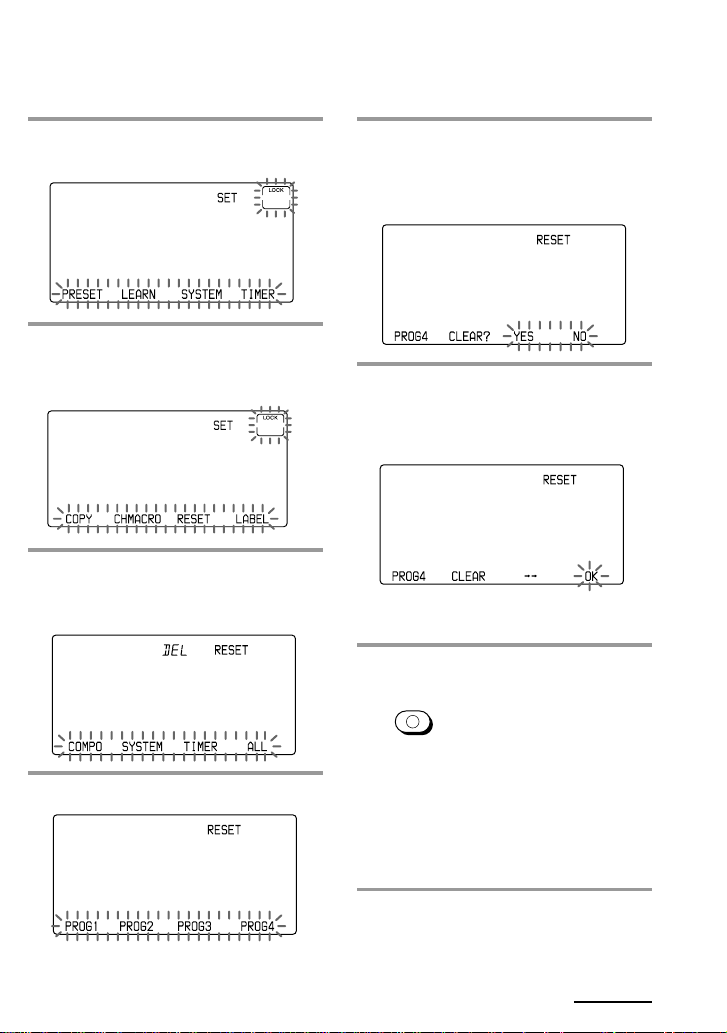

Erasing All the Settings....................................................................................................... 81
Additional Information
Precautions ......................................................................................................................... 83
Maintenance ....................................................................................................................... 83
Specifications...................................................................................................................... 83
Troubleshooting .................................................................................................................. 84
Appendix
Table of Preset Functions.................................................................................................... 88
TV.......................................................................................................................................... 88
STB (Digital satellite).......................................................................................................... 89
STB2 (Digital cable box)..................................................................................................... 90
VCR, VCR2, VCR3.............................................................................................................. 91
DVD, DVD2 ......................................................................................................................... 92
CD ......................................................................................................................................... 93
AMP...................................................................................................................................... 94
MD ........................................................................................................................................ 95
TAPE A, TAPE B ................................................................................................................. 96
CABLE (Cable box) ............................................................................................................ 97
LD (Laser disc player)........................................................................................................ 97
DVR (Digital video recorder)............................................................................................ 98
DAT....................................................................................................................................... 99
LIGHTING......................................................................................................................... 100
Quick Reference of Operations......................................................................................... 101

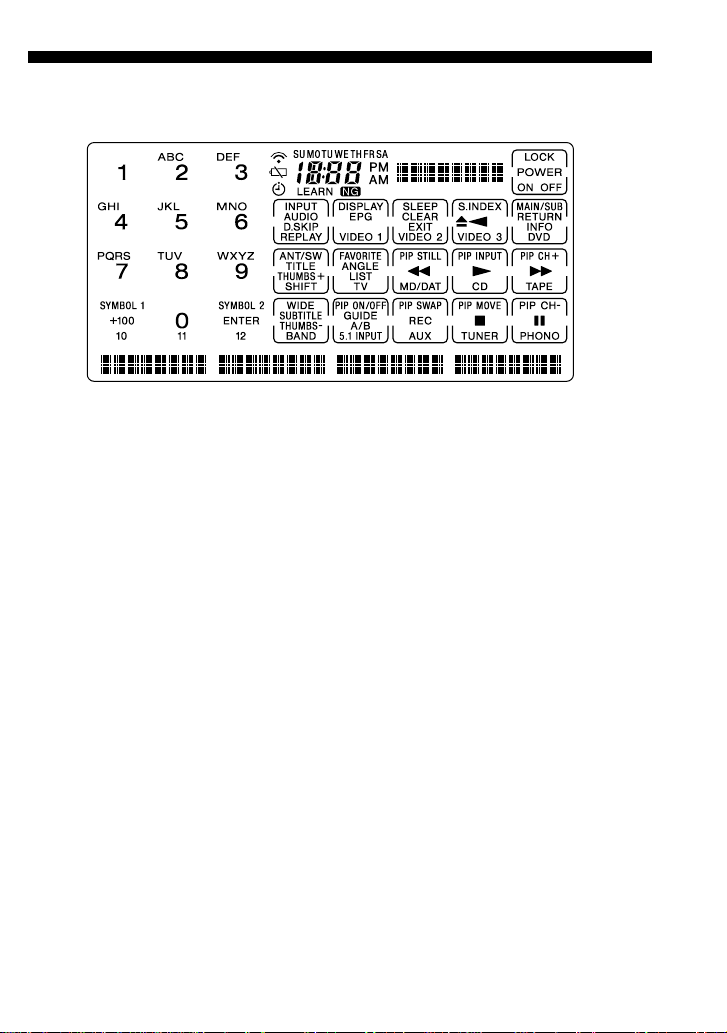

Full display........................................................................................................................ 103
Index ......................................................................................................................Back cover
6
Location and Function
of Controls
1 Clock Display key (page 8)
Displays the clock, the transmission
mark, the battery mark and the timer
mark.
2 Mode Display key (page 8, 13, 20, 30,
32, 40)
Displays the status of the selected
mode.
Function of the key changes according
to the selected mode.
3 LCD touch key display
The keys used for operating each
component and setting the
Commander are displayed.
Note
Do not press the touch keys using sharp
objects such as pins or ball-point pens.
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
2
1
4
5
7
qk
qh
qg
qj
8
9
0
3
6
qa
qs
qd
qf
4 Label keys (page 8, 13, 20, 23, 30,
32, 40, 79)
The selected modes (up to 8 characters
in each Label key) are displayed.
Labels change in the order from the
first stage to the third stage and come
back to the first, and so on, each time
you press the Mode Display key,
OTHER, MORE, or TIMER button
according to the selected mode.
5 Component Select buttons (page 12)
Selects the component to control.
6 OTHER button (page 13)
Label keys change in the order from
the first stage to the third stage and
come back to the first, and so on, each
time you press the OTHER button
when the selected component name is
displayed on the Label keys.
7 TIMER button (page 68)
Used to set the timer program, and to
set the timer program on or off.
8 LIGHT button (page 76)
Used to light up the LCD display in
the dark. Press the button once to turn
on the light, and once again to turn it
off.
9 COMMANDER OFF button
Turns the power of the Commander
off. Then all the display contents are
turned off.
0 CHANNEL +/– buttons (page 88, 89,
90, 91)
Select the channel.
qa RECALL button (page 88)
qs VOLUME +/– buttons* (page 19, 29)
Adjust the volume.
qd MUTING button* (page 19, 31)
Mutes the audio. Press the button
once again to resume at the previous
volume.
Getting Started
7
qf EXIT button (page 89)
Used to exit the setting menu.
qg MENU button (page 88)
Calls up the menu display of the
buttons or keys that have menu
function.
qh OK button and Cursor Control
buttons (page 9, 64, 88)
qj SYSTEM CONTROL buttons (page 31)
You can program up to 32 consecutive
key operations to each of the three
SYSTEM CONTROL buttons . You can
automatically carry out the entire
program by pressing one button.
qk MORE button (page 32)
Label keys change in the order from
the first stage to the third stage and
come back to the first, and so on, each
time you press the MORE button in
the system mode.
* Note on the VOLUME +/– and
MUTING buttons
The Commander controls or mutes the TV’s
volume when you select a visual component.
The Commander controls or mutes the
amplifier’s volume when you select an audio
component.
You can change this setting also (page 29).
Note on the power on and off of the
display of the Commander
To turn on the display, press any button except
the COMMANDER OFF button.
To turn off the display, press COMMANDER
OFF, or if you don’t use the Commander, the
display automatically turns off after 10
minutes. This interval can also be changed
(page 74).
Installing the Batteries
Slide open the battery compartment lid
and insert four size AA (R6) alkaline
batteries (not supplied). Be sure to line
up the + and – on the batteries with the +
and – on the battery compartment.
Continued
8
When to replace the batteries
Batteries for remote control
operation and backlight (four
size AA (R6) batteries)
Under normal conditions, alkaline
batteries will last up to 5 months. If the
Commander does not operate properly,
alkaline batteries might be worn out and
E is displayed on the LCD touch panel.
When the display dims or the backlight
for the touch keys grows dim, replace the
alkaline batteries with new ones.
Notes on batteries
• Do not mix old batteries with new ones or
mix different types of batteries together.
• If the electrolyte inside the battery should
leak, wipe the contaminated area of the
battery compartment with a cloth and replace
the old batteries with new ones. To prevent
the electrolyte from leaking, remove the
batteries when you plan not to use the
Commander for a long period of time.
• After replacing batteries, set the clock (page
8).
Setting the Clock
Setting the clock for the first
time after installing batteries
For the first time after installing batteries,
the Commander is in the clock setting
mode. “CLOCK” is displayed on the
Mode Display key, and “ –:– –” flashes on
the Clock Display key, and “STD TIME”
and “DS TIME” on the Label keys are
flashing.
1
Select STD TIME (standard time)
or DS TIME (daylight saving time).
If the summer time (daylight saving
time) is used in your area, press the
DS TIME key when it is in the
summer time. If not, press the STD
TIME key.
If the summer time is not used in your
area, press the STD TIME key.
The selected STD TIME or DS TIME
key lights.
“SET” and “SU” flash and “12:00 AM”
lights on the Clock Display key.
or
Installing the Batteries (continued)
9
2 Set the day of the week.
Select the day of the week by pressing
the or button.
Selected day of the week flashes.
SU : Sunday
MO : Monday
TU : Tuesday
WE : Wednesday
TH : Thursday
FR : Friday
SA : Saturday
Then press the button. The day of
the week is set.
“12”, “ AM” and “SET” flash.
Note
If you press the button, the day of the week
is set and setting mode skips to Step 4.
Continued
3 Set the hour and AM (or PM) by
pressing the
or button.
The selected hour and AM (or PM)
flash.
Then press the button.
The hour and
AM (or PM) are set.
“00”(minute) and “SET” flash.
Note
If you press the button, the hour and AM
(or PM) are set and the setting mode
returns to Step 2.
button
button
button
button
10
Adjusting the clock after
setting the clock
1 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
2 Press the Mode Display key (SET)
twice.
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
2
3
1
4 Set the minute by pressing the
or button.
The selected minute flashes.
Notes
• If you press the button, the minute is set
and the setting mode returns to Step 2.
• If you press the
button, the minute is set
and the setting mode returns to Step 3.
• If you want to finish the clock setting, go to
Step 5.
5 Press the SET key.
The clock starts from 0 second.
Note
If you press the SET key in any step above, the
clock is set then. The clock starts from 0
seconds.
COMMANDER
OFF
MUTING
Setting the Clock (continued)
button
button
11
Each time the SET key is pressed, the
Label keys change as follows.
“CLOCK” appears and flashes on one
of the Label keys on the display.
3 Press the CLOCK key.
The Commander enters clock setting
mode.
“CLOCK” appears on the Mode Display
key, and the current time flashes.
To select STD TIME (standard
time) or DS TIME (daylight
saving time)
When the Commander enters the clock
setting mode when the clock is already
set, the time mode previously set (STD
TIME or DS TIME) stays lit and the other
time mode flashes, and the setting mode
goes to Step 4.
If you want to change the time mode, press
the flashing key (STD TIME or DS TIME).
The selected STD TIME or DS TIME key
lights, and the setting mode goes to Step 4.
If you do not want to change the time
mode, press the or button. The
setting mode goes to Step 4.
When the time mode is changed from
STD TIME to DS TIME
The time of the clock returns by one hour.
When the time mode is changed from
DS TIME to STD TIME
The time of the clock advances by one hour.
4 To set the clock, follow Steps 2 - 5
on page 9-10.
Note
If you press the SET key in Step 3 or 4, the
clock is set then. The clock starts from 0 second.
12
Basic Operations
Setting the Code for
Preset Audio and Visual
Components
The Commander is preset at the factory
to operate Sony brand AV components
(see the table below). If you are using the
Commander with a factory-set Sony
components, skip the following
procedures.
You can use the Commander with other
preset AV components also. To use with
other AV components, you need to follow
the procedures to set the correct codes for
each component.
* Analog audio compact cassette deck
See “Table of Preset Functions” (page 88)
for the functions of keys and buttons as
for each component.
Setting a component code
Compo-
nent Select
Button
TV
STB
VCR
DVD
CD
AMP
Factory setting
Sony TV
Sony digital
satellite
Sony VHS VCR
(VTR3)
Sony DVD
player
Sony CD player
Sony amplifier
Preset
component
TV
Digital satellite
VCR
DVD player
CD player
Amplifier
Label key
DVD2
LD
DAT
LIGHTING
Factory setting
Sony portable
DVD player
Sony LD player
Sony DAT deck
Light
Preset
component
DVD player
LD player
DAT deck
Light
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
3
4
5
2
7
Label key
MD
TAPE A
TAPE B
CABLE
VCR2
VCR3
STB2
DVR
Factory setting
Sony MD deck
Sony cassette
deck
Sony cassette
deck
Cable box
Sony 8mm VCR
(VTR2)
Sony Beta VCR
(VTR1)
Sony digital
cable box
Sony digital
video recorder
Preset
component
MD deck
Cassette deck*
Cassette deck*
Cable box
VCR
VCR
Digital cable box
Digital video
recorder
13
Example: To set up a Philips’ TV
1 See the tables in the supplied
“Component Code Numbers,”
and find the four-digit code
number for the desired
component.
If more than one code number is
listed, use the number that is listed
first.
For example, to set up a Philips ’TV,
you would use the code number 8056.
The first digit of the component code
number means the component
category (TV, VCR, etc.). For further
details, see the tables in the supplied
“Component Code Numbers.”
2 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
3 Press the PRESET key.
“PRESET” appears on the Mode
Display key.
4 Select the desired component by
pressing the Component Select
button or the Label key.
To change the Label keys, press the
OTHER button repeatedly. Each time
you press the OTHER button, the
display of the Label keys changes as
follows.
When the desired component is
selected, the component name
previously preset to the Component
Select button or the Label key (in this
case, TV), and the four-digit
component code number previously
set to the component are displayed.
“0” - “9,” “ENTER,” “CLEAR” and
“POWER” flash.
Continued
COMMANDER
OFF
MUTING
TV
14
5 Press the four-digit component
code number followed by the
ENTER key on the touch-key
display.
Example: To enter “8056”
Input “8,” “0,” “5,” “6,” and press
“ENTER”.
If you press the CLEAR key during
inputting the digits
Input digits are canceled. The four-
digit component code number
previously set is displayed, and the
cursor returns to the first digit.
When the setting of the code
succeeded
The selected component name, the
preset four-digit component code
number and “OK” light while a beep
sounds. And the display returns to
Step 3.
Setting the Code for Preset Audio
and Visual Components
(continued)
6 If you want to set a code for
another component, repeat Steps
4 and 5.
7 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
Notes
• If you press a component code number that is
not on the table in the supplied “Component
Code Numbers”, the Commander beeps five
times and “NG” flashes after you press the
ENTER key. The setting returns to the
previous one. If this happens, check the
component code number, and try setting
again.
• If you don’t input anything into the
Commander for over two minutes between
each step, the setup procedure will be
canceled. To set the code, you must again
press MUTING while pressing
COMMANDER OFF.
• The first digit of the component code number
means the component category (TV, VCR,
etc.). The component corresponding to the
four-digit component code number is preset
in Step 5. If you preset the component of
which category is different from that preset
previously to the Component Select button or
the Label key, you can, if necessary, change
the component names on the Mode Display
key or the Label keys (see page 79).
• If you preset a component code after you
input character contents to the Mode Display
key (page 24) or the Label keys (page 23),
they are cleared and return to the original
display. Edit the characters after you decide
the component to be used by presetting a
code.
COMMANDER
OFF
15
4 If you have succeeded, check that
the Commander is operating the
other functions of your
component, such as channel and
volume control.
See page 18 for details.
5 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
If the Commander does not seem to
be working
Try repeating these setup procedures using the
other codes listed for your components (see
page 12).
Notes on keys which have
“learned” a remote control
signal already
If another signal has already been
programmed on that key or button by the
learning function (page 19), that
“learned” signal will apply even after
you set the component code number. To
use it as a preset component key or
button, first erase its learned signal (page
25).
Checking if the code number
works
1 Press the corresponding
Component Select button or the
Label key for the component you
have set up.
To display and change the Label keys,
press the OTHER buttons repeatedly.
The Commander turns on and the
touch-keys appear on the display.
2 Turn on the component by its
power switch.
3 Aim the Commander at the
component and press the POWER
key in the touch-key display.
When the remote control signal is
sent, is shown on the display.
The component should turn off.
Continued
TV
COMMANDER
OFF
16
Setting the Code for Preset Audio
and Visual Components
(continued)
“SET” appears on the Mode Display
key.
2 Press the PRESET key.
“PRESET” appears on the Mode
Display key.
3 Select the desired component by
pressing the Component Select
button or the Label key.
To change the Label keys, press the
OTHER button repeatedly. Each time
you press the OTHER button, the
display of the Label keys changes as
in Step 4 on page 13.
When the desired component is
selected, the component name
previously preset to the Component
Select button or the Label key (in this
case, TV) and the four-digit
component code number previously
set to the component is displayed.
Finding a component code
with the Search function
You can find a code number available for
a component that doesn’t have one in the
supplied “Component Code Numbers”.
Before starting the Search
function
Set each component to the following
status to enable the Search function.
TV, AMP: Power-on
CD, MD, TAPE, DAT: Power-on with a
playback source (disc, cassette tape, etc.)
LIGHTING: Light-on
Other components: Power-off
1 While pressing COMMANDER
OFF, press MUTING.
COMMANDER
OFF
MUTING
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
2
3
6
1
4
7
TV
17
4
Press CHANNEL + or CHANNEL –
to search component code numbers
in the same category (in this case,
code numbers which begin with “8”).
Press CHANNEL + to go to the next
code number.
Press CHANNEL – to go back to the
previous code number.
Note
To search component code numbers in
another category, return to Step 3, or input
a four-digit component code number of
another category (for example, a code
number which begins with “3”, “4”, etc.)
before Step 4.
5 Aim the Commander at the
component and press the POWER
key.
When the remote control signal is
sent, is shown on the display.
If it successfully works (power-off for
TV, AMP, playback for CD, MD, DAT,
TAPE, light-off for LIGHTING and
power-on for other components), go
to Step 6.
If it doesn’t, repeat Steps 4 to 5.
6 Press the ENTER key.
A beep sounds, and the selected
component name, the preset four-
digit component code number and
“OK” light for two seconds. And the
display returns to Step 2.
Note
It is recommended to write down the code
number.
7 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous set mode.
CHANNEL
COMMANDER
OFF
18
Example: To play a DVD player
1 Press the corresponding
Component Select button or the
Label key for the component you
have set up.
To display and change the Label keys,
press the Mode Display key
repeatedly.
The Commander comes on and the
keys for operating the selected
component are displayed.
Operating Your
Components with the
Remote Commander
When you operate a non-Sony
component, make sure you set the
component code first (page 12).
To change the Label keys, press the
Mode Display key (in this case, DVD)
repeatedly. Each time you press the
DVD key, the display of the Label
keys changes as follows.
2 Press the desired key in the
touch-key display.
When the remote control signal is
sent, is displayed on the display.
If necessary, you can also use buttons
on the Commander, such as the
VOLUME +/
–
buttons, the MUTING
button or the CHANNEL +/
–
buttons,
other than LCD touch-keys.
See “Table of Preset Functions” (page
88) for the functions of keys and
buttons for each component.
3 When you are done using the
Commander, press
COMMANDER OFF to turn the
Commander off.
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
1
3
2
DVD
DVD
COMMANDER
OFF
19
Using Non-Preset
Remote Control
Operations
— Learning Function
To operate non-preset components or
functions, use the following “learning”
procedure to “teach” any of the
programmable buttons and keys to
operate the functions of another remote
control. You can also use the learning
function to change the signal of
individual keys and buttons after setting
the component code number (page 12).
To “teach” to the Component Select
buttons or Label keys, see page 45.
To “teach” to the SYSTEM CONTROL
buttons or Label keys, see page 49.
Note
Some specific remote control signals may not
be learned.
Continued
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
3
4
5
2
8
Note
The remote control signals may be different for
some components or functions. In this case,
program the remote control signals with the
learning function (see page 19). Note, however,
that components and functions that do not
support the remote control of infrared signals
will not work with this Commander.
To control the volume
Press the VOLUME +/– buttons to
control the volume, and the MUTING
button to mute. When you select a visual
component, the TV’s volume will be
controlled, and when you select an audio
component, the amplifier’s volume will
be controlled. You can change this setting
also (page 29).
Notes
• If you have programmed any signal for the
VOLUME or MUTING button for any
component using the learning function (page
19), that signal will be transmitted instead of
controlling the volume of the TV or amplifier
once you select that component.
• If you have programmed any signal for the
VOLUME +/– buttons or the MUTING
button of TV or AMP using the learning
function, that signal will be also transmitted
when you select another component.
However, if you have programmed any
signal for the VOLUME +/– buttons or the
MUTING button of another component, that
signal will be transmitted only after you
select that component.
• If you have assigned another component to
the TV or AMP button, the volume of the TV
or amplifier cannot be controlled even when
you select other components.
20
Using Non-Preset Remote Control
Operations
— Learning Function (continued)
Remote control for
your component
RM-AV3000
about 2 – 4 inches
(5 – 10 cm) away
3 Press the LEARN key.
“LEARN” appears on the Mode
Display key.
4 Select the desired component of
which signals are to be learned by
pressing the Component Select
button or the Label key.
To change the Label keys, press the
OTHER button repeatedly. Each time
you press the OTHER button, the
display of the Label keys changes as
follows.
All the learnable keys flash.
Example: To program the N
(Play) signal of your component
to the VCR N (Play) key of the
Commander
1 Place the RM-AV3000 head to
head with your component’s
remote control.
2 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
COMMANDER
OFF
MUTING
LEARN
VCR
21
Continued
To change the Label keys, press the
Mode Display key (in this case, VCR)
repeatedly. Each time you press the
VCR key, the display of the Label keys
changes as follows.
Note on the flashing display
The keys or buttons that are already preset
for that component flash twice while those
that are not preset flash once.
To change the name of the Label
key
Follow the procedure on page 23.
To change the component name on
the Mode Display key
See page 24.
To change the function display of
the key
Follow the procedure on page 23.
5 Press the key or button on the
Commander you want to “teach”.
“LEARN” flashes and the only
pressed key remains on the display.
VCR
When teaching on the button that
is not on the LCD
Only “LEARN” flashes.
6 Press and hold down the button
on the other remote control until
you hear a beep.
(If you release the button before you
hear a beep, the signal may not be
learned correctly.)
“LEARN” stops flashing and stays lit.
When the command has been learned
successfully, the learned keys stay lit
and the other learnable keys flash.
If “NG” flashes on the display
Learning did not succeed. Try Steps 5 and 6
again.
7 Repeat Steps 5 and 6 to teach
functions to other keys or
buttons.
To learn another component’s
remote control signal
Select the component in Step 4, and then
follow Steps 5 and 6 to perform learning.
8 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previously by set mode.
COMMANDER
OFF
22
Using Non-Preset Remote Control
Operations
— Learning Function (continued)
Notes
• If you do not perform learning steps within
two minutes, learning mode ends.
• If you do not perform Step 6 within 10
seconds after Step 5, the display turns back to
the display in Step 4. (All the learnable keys
flash.) In this case, perform Step 5 again
while the display is flashing,
• If you touch a key by mistake in step 6, while
pressing the DEL key, press the mistaken key.
Then repeat from Step 5 to continue learning.
If the Commander does not seem to
be working
If the learned key or button does not operate
properly, teach once again. (For example, if the
volume becomes very loud after pressing the
VOLUME+ button only once, noise may have
interfered during the learning procedure.)
If you set a component code after
learning a signal
If you have programmed any signal for a key
or button using the learning function, that
signal will remain assigned to that key or
button even after you set a component code.
When you teach the REC (record)
signal
If you have to press two buttons at the
same time (for example, z and B) to start
recording on your cassette deck or VCR,
teach the REC signal in one of the
following ways.
To operate with two keys on the
Commander
In Step 5 (page 21), while pressing the REC key,
press the B key to display both keys. Then
press the two buttons on your component’s
remote control in Step 6.
To operate with one key on the
Commander
In Step 5 (page 21), press only the REC key.
Then press the two buttons on your
component’s remote control in Step 6.
When you teach signals to the
VOLUME +/ – or MUTING buttons
•If you have programmed any signal on
the VOLUME +/– or MUTING button
for components other than TV and
AMP using the learning function, that
signal will be transmitted only when
you select that component.
•If you have programmed any signal for
the VOLUME +/– buttons or the
MUTING button of TV or AMP using
the learning function, that signal will be
also transmitted when you select
another component.
However, if you have programmed any
signal for the VOLUME +/– buttons or
the MUTING button of another
component, that signal will be
transmitted only after you select that
component.
When you teach the signals of an
air-conditioner
See the notes on page 52.
To display only the frequently
used keys
You can hide keys you do not use.
After Step 4 on page 20, while pressing
the DEL key, press the key you want to
hide (flashing). The pressed key changes
to slower flashing and will no longer be
displayed during remote control
operations.
To display it again, perform the same
procedure again.
Note
You cannot hide a key which has “learned” any
signal.
23
To change the function display of
a key
You can select the most suitable function
display among all the displays the key
has, and set it to the key.
1 After Step 4 (page 20), while
pressing the Mode Display key
(in this case, VCR), press the key
you want to teach repeatedly.
Each time the key is pressed, the
display is changed in order.
2 When the desired display
appears, release the Mode
Display key.
3 Then follow Steps 6 to 8 (page
21).
Continued
Notes
• You can change the display of a key only
when you program it using the learning
function. If you want to change the display of
the key that has learned a signal, clear the
signal first (page 25). Then teach the key
again using the above procedure to change its
display.
• If you don’t change the display of a key, the
default display is used.
• You cannot change the display of the area of
the numeric keys 1 to 9.
To change the name of the Label
key
You can change the display of the Label
key to the most suitable name using up
to 8 characters or digits.
1 After Step 4 (page 20), hold the
Label key of which name you
want to change (for example,
COUNTER) pressed for more
than 2 seconds.
The Commander enters the Label
Input mode.
VCR
COUNTER
24
3 Decide the digit or the character
you input by pressing the
button or another number key.
The cursor moves to the right.
When the button is pressed, the
cursor moves to the left. You can
input a digit or character to the place
where the cursor flashes.
4 Repeat Steps 2 and 3 until you
input a suitable name to the Label
key.
When the cursor reaches to the right
end, if the button or another
number key is pressed, the cursor
returns back to the left end.
5 Decide the display of the Label
key by pressing the RETURN key.
The LCD display goes to Step 5 on
page 21.
2 Input digits or characters on the
Label key by pressing the number
keys (0 - 9), SYMBOL 1 key or
SYMBOL 2 key on the LCD
display.
The cursor flashes in the left end of
the Label key.
Begin inputting digits or characters
from the left. Press repeatedly the
number key until you obtain the
desired digit or character.
The digits or characters are assigned
to the keys as follows.
1: 1
2: A t B t C t a t b t c t 2
3: D t E t F t d t e t f t 3
4: G t H t I t g t h t i t 4
5: J t K t L t j t k t l t 5
6: M t N t O t m t n t o t 6
7: P t Q t R t S t p t q t r t
s t 7
8: T t U t V t t t u t v t 8
9: W t X t Y t Z t w t x t y
t z t 9
0: 0
SYMBOL 1 :!, &, /, ?, p, P, O, o, +, -, :,
,, ., ", ', ~, *, #, |, space
SYMBOL 2 :space, , 9, , , , ,
(, ), <, >, b, B, t, T, x,
W, X, x, $
If you make a mistake, move the
cursor to the digit or character you
want to correct by pressing the or
button, and input again.
If you press the CLEAR key, the Label
key returns to the previous display.
Using Non-Preset Remote Control
Operations
— Learning Function (continued)
25
Changing or erasing the
function of a taught key or
button
To change the learned function, clear it
first and perform learning again.
To clear the learned function of a
single key or button
1 After Step 4 (page 20), while
pressing the DEL key, press the
key or button you want to erase.
The cleared key flashes together with
other learnable keys.
2 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previously set mode.
For accurate learning
•Do not move the remote units during
the learning procedure.
•Be sure to keep holding down the
button of the other remote control until
you hear the confirmation beep.
•Use fresh batteries in both remote
control units.
•Avoid learning in places under direct
sunlight or strong fluorescent light.
•The remote control detector area may
differ depending on each remote unit. If
learning does not work, try changing
the positions of the two remote control
units.
•When you teach signals of an
interactive signal exchange system
remote control unit (supplied with
some of Sony’s receivers and
amplifiers) to the Commander, the
response signal of the main unit may
interfere with the learning of the
Commander. In such a case, move to a
place where the signals will not reach
the main unit (e.g. other rooms, etc.).
IMPORTANT
Be sure to place the Commander out
of the reach of small children or pets.
Also set the Hold function to lock the
all buttons on the Commander (page
71) when it is not used. Components
such as air conditioners, heaters,
electric appliances, and electric
shutters or curtains receiving an
infrared signal can be dangerous if
misused.
Continued
COMMANDER
OFF
26
Using Non-Preset Remote Control
Operations
— Learning Function (continued)
To clear all signals learned for a
specific component
1 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
2 Press the Mode Display key (SET)
once
“RESET” appears and flashes on one
of the Label keys on the display.
3 Press the RESET key.
“RESET” appears on the Mode
Display key.
4 Press the COMPO key
Component names appear on the
Label keys.
To change the Label keys, press the
OTHER button repeatedly. Each time
you press the OTHER button, the
display of the Label keys changes as
in Step 4 on page 13.
COMMANDER
OFF
MUTING
RESET
COMPO
27
5 Press the Component Select
button or the Label key of which
preset settings you want to erase.
The component name is displayed on
the left Label key.
6 Press the YES key.
During erasing, “c c ” stays lit. When
erasing finishes, “OK” is displayed
with a beep sound.
If you press the NO key
The display returns to Step 4.
If you want to erase the learned
signals for other Component
Select buttons or corresponding
Label keys
Repeat Steps 5 - 6.
7 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previously set mode.
To clear all signals learned for all
Component Select buttons or
corresponding Label keys
1 Follow Steps 1 - 3 on page 26.
2 While pressing the DEL key, press
the COMPO key.
Continued
YES
COMMANDER
OFF
COMPO
28
3 Press the YES key.
“REALLY?” stays lit. “YES” and
“NO” flash.
If you press the NO key
The display returns to Step 1.
4 Press the YES key.
While erasing, “c c c c” stays lit.
When all settings programmed for the
Component Select buttons and
corresponding Label keys are erased,
“OK” is displayed with a beep sound.
If you press the NO key
The display returns to Step 1.
5 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
Using Non-Preset Remote Control
Operations
— Learning Function (continued)
YES
YES
COMMANDER
OFF
29
Component
Select button
TV
STB
VCR
DVD
CD
AMP
Controls the volume of
TV
TV
TV
TV
amplifier
amplifier
Advanced Features
Controlling the Volume
of Visual Components
Connected to an Audio
System
The Commander is factory preset based
on the assumption that you hear the
sound of your visual components from
your TV speakers, and that you hear
sound of your audio components from
the loudspeakers connected to your
amplifier.
This feature enables you to control the
volume of your TV or amplifier without
having to select TV or AMP each time
you want to control the volume.
For example, to control the volume while
using a VCR, you don’t need to press the
TV button to control the TV volume.
You can switch the volume of all the
visual components to the amplifier at the
same time.
The following table shows the factory
setting of which volume would be
controlled for each component.
However, if your visual components are
connected to an audio system, you
probably hear TV or VCR sound from the
loudspeakers via your amplifier, not
from your TV speakers. In this case, you
need to change the factory preset so that
you can control the volume of your
visual components without first having
to switch to the amplifier.
To change the Factory Preset of
the Volume Control
Label key
MD
TAPE A
TAPE B
CABLE
VCR2
VCR3
STB2
DVR
DVD2
LD
DAT
LIGHTING
Controls the volume of
amplifier
amplifier
amplifier
TV
TV
TV
TV
TV
TV
TV
amplifier
––––––––
Continued
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
2
5
3
6
1
4
SET
30
Controlling the Volume of Visual
Components Connected to an
Audio System (continued)
1 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
2 Press the Mode Display key (SET)
twice.
Each time the SET key is pressed, the
Label keys changes as in Step 2 on
page 13.
“MODE” appears and flashes on one
of the Label keys.
3 Press the MODE key.
“MODE” appears on the Mode
Display key.
4 Press the VOLUME key.
“VOLUME” appears on the Mode
Display key, and “AMP” flashes on
one of the Label key.
5 To change the volume control
setting of visual components (TV,
STB, STB2, DVR, VCR, VCR2,
VCR3, DVD, DVD2, LD and
CABLE) press the AMP key.
With a beep sound, the volume
control setting of visual components
is switched to the amplifier.
To return the volume control setting
to "TV", press the TV key.
COMMANDER
OFF
MUTING
MODE
VOLUME
31
6 Hold COMMANDER OFF
pressed for more than 2 seconds
to turn the Commander off.
If you keep COMMANDER OFF
pressed for less than 2 seconds, the
display returns to the previous setting
mode.
Notes
• If you have already programmed any signal
for the VOLUME or MUTING button of each
component by “learning”, the procedure
above will not change the function of the
VOLUME and MUTING buttons.
• If you have programmed volume control
signals on VOLUME or MUTING buttons of
TV or AMP, you can only use that signal
when you select TV or AMP. For other
component, the preset volume control signals
for TV or AMP (depending on the above
setting procedure) will be transmitted. To use
the new signals, you need to program each
button for each component by the learning
procedure (page 20).
Executing a Series of
Commands
— System Control Functions
With the System Control function, you
can program a series of operating
commands, and execute them by
pressing just one button.
For example, when you watch a video, a
series of operations like the ones below
are necessary.
COMMANDER
OFF
Continued
Example:
1 Turn on the TV.
2 Turn on the video (VCR).
3 Turn on the amplifier.
4 Set the input selector of the amplifier
to VIDEO 1.
5 Set the input mode of the TV to VIDEO 1.
6 Start video playback
You can program up to 32 consecutive
operation steps to each of the SYSTEM
CONTROL buttons (1-3) or the Label
keys (SYSTEM 4-15).
If you have set the System Control
function for a Component Select button
or a Label key (page 38), the execution of
the programmed commands begins
when you press the Component Select
button for more than 2 seconds.
The component macro executing time is
variable by changing the setting (page 42).
While executing the programmed
commands, at the same time that each
remote control signal is transmitted, the
corresponding key is displayed.
Preset programs for the SYSTEM
CONTROL 1 and 3 buttons
The SYSTEM CONTROL 1 and 3 buttons
are preset at the factory to execute each
program as follows.
SYSTEM CONTROL 1 button:
Turn off all the Sony components that
could receive the signal from the
Commander at the same time.
SYSTEM CONTROL 2 button:
Turn on all the Sony components that
could receive the signal from the
Commander at the same time.
32
COMMANDER
OFF
MUTING
2 Press the SYSTEM key.
“SYSTEM” appears on the Mode
Display key.
3 Select the system number by
pressing the SYSTEM CONTROL
button (in this case, SYSTEM
CONTROL 2) or the Label key.
To change label keys, press the MORE
button repeatedly until you obtain the
desired system number.
Each time you press the MORE
button, the display of the Label keys
changes as follows.
The selected system number is
displayed on the Mode Display key.
Example: To program the
procedure above for the SYSTEM
CONTROL 2 button
1 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
Programming a series of
commands for the SYSTEM
CONTROL buttons or the
Label keys
SET
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
5
2
7
1
3
4
SYSTEM
Executing a Series of Commands
— System Control Functions
(continued)
33
TV
Continued
COMMANDER
OFF
6 Repeat Steps 4 and 5 and
program the buttons and keys for
the series of operations.
In this example, press the following
buttons and keys.
7 When you have programmed all
the keys and buttons, press
COMMANDER OFF.
With a beep sound, a series of
operating commands is registered and
displayed in order. When the display
of keys for the component of which
key you programmed last appears,
the System Control setting finishes.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
When you have programmed the
buttons on the Commander
The names of buttons on the
Commander which are not on the
LCD touch key display (VOLUME +/
-, MUTING, CHANNEL +/-,
RECALL, MENU, OK, EXIT, , , ,
and ) are displayed on the right
Label key.
To program a new series of
operations for the buttons which
have already been set
SYSTEM CONTROL 1 or 3 button:
Erase the factory preset program. See
page 37.
Other buttons:
Erase the program. See page 35.
4 Select the component to operate
by pressing the Component Select
button (in this case, TV) or the
Label key.
To change label keys, press the
OTHER button repeatedly until you
obtain the desired component name.
The selected component name is
displayed on the Mode Display key,
and the keys for the selected
component flash.
5 Press the key(s) or button(s) for
the desired operation.
If you want to turn on the TV, press
the POWER key.
34
Executing a Series of Commands
— System Control Functions
(continued)
Notes
• If you interrupt the procedure at any point
for over two minutes, the setting mode ends
and the series of commands will be
programmed to that point. In this case, clear
the program (page 35) and start again from
Step 1 to set the entire program from the
beginning. You cannot continue from where
you let off.
• If a SYSTEM CONTROL button or a Label
key has already “learned” a remote control
signal (page 49), “NG” flashes and you
cannot program on this button. Clear the
learned contents first (page 51).
•If you change the component code number
(page 12) or program a new signal by
learning (page 19) on a key or button that has
been programmed in the series of commands
of the System Control function, the new
signal will be transmitted when you press the
corresponding SYSTEM CONTROL button or
a Label key.
• During programming of a series of operating
commands, the DEL key is not displayed and
you cannot clear any operation step you have
programmed. If you have programmed an
incorrect operation by mistake, start again
from Step 1.
• If you try to program more than 32 steps, the
System Control setting finishes, and the 32 steps
you have programmed are registered. If you
want to program again, clear the program (page
35) and start again from Step 1.
• When programming a power-on command
for the System Control function, if you select
the Component Select button or the Label key
for which you programmed the Power-on
setting (page 43), the Power-on setting is also
available. So, the power of the selected
component turns off if the POWER key of the
component is programmed.
In this case, clear the Power-on setting, or do
not program the POWER key of the
component.
About the interval between
operation steps
• You can change the interval between
operation steps (page 40).
• If you cannot receive signals successfully
during consecutive operation steps, program
the interval between steps by pressing the
TIMER button between operation steps in Step
6 on page 33. This operation of programming an
interval is counted also as a step.
To change the display of the
component name on the Mode
Display key
When you program a series of operating
commands, you can change the display
of the component name to the most
suitable name using up to 8 characters or
digits.
After Step 3 (page 32), hold the Mode
Display key pressed for more than 2
seconds. Then follow the same procedure
as that for changing the name of the
Label key in “To change the display of
the Label key”, Steps 2 - 5 on page 24.
If you press the CLEAR key, the Label
key returns to the previous display.
About the order of operation steps
• Some of the components may not accept
consecutive remote control signals. For
example, a TV generally does not react to
next signal right after the Power-on signal.
So, a series of commands such as TV Power-
on and input select may not work properly.
In this case, insert other signals like the
example below;
TV Power-on t VCR Power-on
t VCR play back t TV input select
• After the series of input commands is
executed, the Commander displays the
touch-keys of the component in the final step.
By programming an often-used component’s
command as the final step, you can save the
step of pressing a Component Select button
or a Label key when you start operating that
component. (In the example on page 33, the
touch-keys of TV are displayed.)
• If a series of commands is programmed for
the Component Select button or the Label
keys (page 38), the display of that component
is shown after the program is executed.
35
Continued
To clear programmed commands
for a specific SYSTEM CONTROL
button or corresponding Label key
1 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
2 Press the Mode Display key (SET)
once to display “RESET” on one
of the Label keys on the display.
3 Press the RESET key.
“RESET” appears on the Mode
Display key.
4 Press the SYSTEM key.
System numbers appear on the Label
keys.
To change Label keys, press the
MORE button repeatedly until you
obtain the desired system number.
Each time you press the MORE
button, the display of the Label keys
changes as in Step 3 on page 32.
5 Press the SYSTEM CONTROL
button (1, 2 or 3) or the Label key
(SYSTEM4 - SYSTEM15) of which
programmed commands you
want to erase.
The selected system number is
displayed on the left Label key.
6 Press the YES key.
COMMANDER
OFF
MUTING
RESET
YES
SYSTEM
36
Executing a Series of Commands
— System Control Functions
(continued)
YES
To erase all programmed
commands for all SYSTEM
CONTROL buttons and
corresponding Label keys
1 Follow Steps 1 - 3 in the left.
2 While pressing the DEL key, press
the SYSTEM key.
3 Press the YES key.
“REALLY?” stays lit, and “YES” and
“NO” flash.
If you press the NO key
The display returns to Step 1.
4 Press the YES key.
While erasing, “c c c c” stays lit.
When all settings programmed for the
Component Select buttons and
corresponding Label keys are erased,
“OK” is displayed with a beep sound.
YES
If you press the NO key
The display returns to Step 4.
While erasing, “c c” stays lit. When
erasing finishes, “OK” is displayed
with a beep sound.
7 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
COMMANDER
OFF
SYSTEM
37
Continued
COMMANDER
OFF
If you press the NO key
The display returns to Step 1.
5 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
To erase the SYSTEM CONTROL 1
or 3 button
At the factory, the SYSTEM CONTROL 1
button is preset with a series of power-off
commands for Sony components and the
SYSTEM CONTROL 3 button with a
series of power-on commands for Sony
components.
To erase the programmed commands for
each button, follow the steps below.
1While pressing COMMANDER OFF,
press MUTING.
2 Press the SYSTEM key on the display.
3 While pressing the DEL key, press the
SYSTEM CONTROL 1 or 3 button.
The program for the selected button is
erased.
To set the SYSTEM CONTROL 1 or
3 button back to the factory
setting
To reset them to the factory settings,
follow the steps below.
1 Clear the “learned” function (See “To
clear the learned function of a single
key or button,” page 25.) or the System
Control function (See “To clear
programmed commands for a specific
SYSTEM CONTROL button or
corresponding Label key,” page 35.)
programmed on SYSTEM CONTROL 1
or 3.
2 Clear again the System Control
function programmed on SYSTEM
CONTROL 1 or 3 (page 35).
Select SYSTEM CONTROL 1 or 3, in
Step 5 on page 35.
Note
The interval setting (page 40) is not reset to the
factory setting, even if you perform these steps.
Notes on System Control
Operations
•If the remote control detectors of the
components are too far apart, or if
something is blocking them, some of
the components may not operate
consecutively even after you press the
SYSTEM CONTROL button or a Label
key.
•If some of the components did not
operate correctly because of the above
or for any other reason, always set all
the components back to the states they
were in before you pressed the SYSTEM
CONTROL button or a Label key.
Failure to do this can result in incorrect
operation when you press the SYSTEM
CONTROL button or a Label key again.
•Some components may not always be
powered on by the System Control
function. This is because the power of
the component goes on and off
alternatively when receiving the power
on/off signal. In this case, check the
operating component’s power on/off
state before using the system control
function.
38
Executing a Series of Commands
— System Control Functions
(continued)
Programming a series of
commands for the Component
Select buttons or the Label keys
As with the SYSTEM CONTROL buttons
or the Label keys, you can also program a
series of operating commands for the
Component Select buttons (up to 32 steps).
To execute the commands programmed
on a Component Select button or a Label
key by the System Control function, press
the button or key for more than 2 seconds.
The component macro executing time is
variable by changing the setting (page
42).
Notes
• The programmed commands are executed
when you press a Component Select button
or a Label key for more than 2 seconds.
When you press the button or the Label key
for less than 2 seconds, it works as the
normal Component Select button or key, and
the corresponding touch-keys are displayed.
• See also “About the interval between
operation steps” on page 34 and “Notes on
System Control Operations” on page 37.
Example: To program the
procedure on page 31 for the TV
button
1 Follow Steps 1 and 2 on page 32.
If a series of commands is already
programmed for that button
The programmed operations are displayed
in order. To program a new series of
operations, clear the program first (page 39).
2 Press the Component Select
button for which you want to
program a series of commands.
The selected component name
appears on the Mode Display key.
Other component names are
displayed on the Label keys.
You can select the Label key for
programming a series of commands
by pressing the desired Label key.
To change the component names of
the Label keys, press the OTHER
button repeatedly. Each time you
press the OTHER button, the display
of the Label keys changes as in Step 4
on page 13.
3 Follow Steps 4 to 7 on pages 33.
TV
39
To clear a System Control
function programmed for
Component Select buttons and
Label keys
1 Follow Steps 1-4 on page 26.
2 While pressing the DEL key, press
the Component Select button (or
Label key) of the System Control
function you want to clear.
To change the Label keys, press the
OTHER button repeatedly.
3 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
Continued
Notes
• You can program the System Control
functions for a Component Select button or a
Label key on which the Power-On function
(page 43) has been programmed. In this case,
the Power-On function is overwritten and
cannot be used. If you clear the System
Control functions for the button, the Power-
On function is resumed, and you can use it
again.
• You cannot program the System Control
functions for a Component Select button or a
Label key for which a signal has been
programmed by “learning” (page 45). (“NG”
flashes on the display.)
• You can program the Power-On function
(page 43) for a Component Select button or a
Label key for which a System Control
function has been programmed, but the
Power-On function cannot be used. If you
clear the System Control function from the
button, you can use the Power-On function.
• If you interrupt the procedure at any point
for over two minutes, the setting mode ends
and the series of commands will be
programmed to that point. In this case, clear
the program and start again from Step 1 to
set the entire program from the beginning.
You cannot continue from where you let off.
•If you change the component code number
(page 12) or program a new signal by
learning (page 19) for a key or button that has
been programmed with the series of
commands of a System Control function, the
new signal will be transmitted when you
press the corresponding Component Select
button or a Label key.
COMMANDER
OFF
40
3 Press the MODE key.
“MODE” appears on the Mode
Display key.
4 Press the SYSDELAY key.
“SYSDELAY” is displayed on the
Mode Display key.
5 Select the system number, the
component name or the timer
program number of the interval
you want to change by pressing
the SYSTEM CONTROL button,
the Component Select button or
the Label key.
To change the Label keys for system
numbers
Press the MORE button repeatedly.
To display and change the Label keys
for component names
Press the OTHER button repeatedly.
Changing the interval
between operation steps
You can control the interval from 100-
900ms in units of 50ms.
1 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
2 Press the Mode Display key (SET)
twice to display “MODE” on one
of the Label keys on the display.
Executing a Series of Commands
— System Control Functions
(continued)
COMMANDER
OFF
MUTING
SYSDELAY
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
5
4
2
8
1
3,6
41
8 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
To display and change the Label keys
for timer program numbers
Press the TIMER button repeatedly. For
timer settings, see page 61.
When you select the Component name,
go to Step 6.
When you select the system number or
the timer program number, go to Step 7.
6 Press the INTERVAL key.
The current interval setting stays lit,
and (+) and (-) flash.
7 Press the (+) or (-) key to change
the interval. You can control the
interval from 100 to 900ms in
units of 50ms.
Each time you the (+) key is pressed,
the interval increases by 50 ms.
Each time you the (-) key is pressed,
the interval decreased by 50 ms.
(ms: 1/1000 second)
COMMANDER
OFF
Continued
42
To change the component
macro executing time
1 Follow the procedure of Steps 1 -
5 on page 40.
2 Press the TIME key.
The current component macro executing
time stays lit, and (+) and (-) flash.
3 Press the (+) or (-) key to change
the component macro executing
time. You can control the time
from 0 to 2 sec (seconds) in units
of 1 sec.
Each time you the (+) key is pressed,
the time increased by 1 sec.
Each time you the (-) key is pressed,
the time decreases by 1 sec.
Executing a Series of Commands
— System Control Functions
(continued)
4 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
COMMANDER
OFF
43
Example: To program the TV
button
1 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
2 Press the Mode Display key (SET)
twice to display “MODE” on one
of the Label keys on the display.
3 Press the MODE key.
“MODE” appears on the Mode
Display key.
Adding an Extra
Function to the
Component Select
Buttons
Programming the Power-On
command of the selected
component (for Sony
components only)
When using Sony components, you can
program the Power-on signal for each
component on a Component Select
button or a Label key. You can select the
desired component and turn it on by just
pressing that Component Select button or
a Label key.
COMMANDER
OFF
MUTING
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
5
2
1
3,4
Continued
44
Adding an Extra Function to the
Component Select Buttons
(continued)
4 Press the PowerON key.
“PowerON” appears on the Mode
Display key.
The display of the component names
(preset by Sony) for which you can
program the Power-on signal flashes.
The display of the other components
stays lit.
5 Select the desired component by
pressing the Component Select
button or the Label key. (To
change the Label keys, press the
OTHER button repeatedly.)
The selected component name
appears on the Mode display key and
“POWER ON” appears on the display
with a beep sound.
PowerON
TV
To clear the Power-on command
Repeat the procedure above.
The following display appears.
6 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
COMMANDER
OFF
45
Adding a command that is
required when selecting a
component
In addition to the original function of
selecting the operating keys and buttons
of the desired component, the
Component Select button or the Label
key can have another remote control
signal by “learning.”
For example, if you always have to
change input select of the amplifier to CD
when listening to the CD player, program
the signal of “changing the amplifier’s
input select” to the CD button of this
Commander. Then whenever you press
the CD button, it automatically works as
the original CD Component Select button
and changes also the amplifier input
select to CD. (In this case, the amplifier
should be turned on first.)
Note
Some specific remote control signals may not
be learned.
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
3
5
Continued
Notes
• If the component code of a non-Sony product
has been set for a Component Select button
or a Label key, you cannot program the
Power-On function for it.
• Even if you have programmed a signal by
“learning” (See “Adding a command that is
required when selecting a component”, page
45) or a System Control function (page 38) for
a Component Select button or a Label key,
you can program the Power-On function for
that button, but it cannot be used. If you clear
a “learned” signal or the System Control
function from the button or key, you can use
the Power-On function.
• You can program a signal by “learning” (page
45) or a System Control function (page 38) for
a Component Select button for which the
Power-On function has been programmed. In
this case, the Power-On function is
overwritten and cannot be used. If you clear
the “learned” signal or the System Control
function from the button or key, the Power-
On function is resumed, and you can use it
again.
• You can set the learning function (page 46) or
the System Control function (page 31) to the
Component Select button or the Label key for
which you programmed the Power-on signal.
In this case, the Power-on setting is also
available and the Power-on signal is output.
So check the setting of Power-on signal
before setting the learning function or the
System Control function.
46
3 While pressing the Mode Display
key (LEARN), press the
Component Select button or the
Label key you want to “teach,”
and release both keys.
(To change the Label keys, press the
OTHER button repeatedly.)
The selected component name
appears on the Mode Display key, and
“LEARN” begins to flash.
4 Press and hold down the button
on the component’s remote
control (amplifier in this example)
until you hear a beep.
(If you release the button before
you hear a beep, the signal may
not be learned correctly.)
“LEARN” stops flashing and stays lit.
If “NG” flashes on the display
Learning did not succeed. Try Steps 3 and
4 again.
5 Press COMMANDER OFF.
Adding an Extra Function to the
Component Select Buttons
(continued)
COMMANDER
OFF
Example : To program the input
select signal of your amplifier to
the CD button
1 Place the RM-AV3000 head to
head with your component’s
remote control.
2 Follow Steps 2 and 3 on page 20
in “Learning Function”.
RM-AV3000
Remote control of
your component
about 2 – 4 inches
(5 – 10 cm) away
47
To clear the learned function of
the Component Select button
1 Follow Steps 2 and 3 on page 20 in
“Learning Function.”
2 While pressing the DEL key, press the
Component Select button which you
want to clear.
Notes
• You can program a signal by “learning” for a
Component Select button or a Label key for
which the Power-On function (page 43) has
been programmed. In this case, the Power-On
function is overwritten and cannot be used. If
you clear the “learned” signal from the
button, the Power-On function is resumed,
and you can use it again.
• You cannot program a System Control
function (page 38) for a Component Select
button or a Label key for which a signal has
been programmed by “learning.”
• You can program the Power-On function for a
Component Select button for which a signal
has been programmed by “learning,” but
then the Power-On function cannot be used.
If you clear a “learned” signal from the
button, you can use the Power-On function.
Assigning Other
Components to the
Component Select
Buttons or the Label
Keys
Copying the settings of a
Component Select button or
a Label key to another button
or key
You can copy the entire settings of a
Component Select button or a Label key
to another Component Select button or a
Label key. The settings of the component
code (page 12), the channel macro
function (page 58), the learned functions
(page 19) and character contents are
copied to a new button or key.
Notes
• You cannot copy the settings to a Component
Select button or a Label key for which any
learning function or channel macro function
has been programmed. (“NG” flashes.)
• The character contents are overwritten to a
new button or key.
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
4,5
1
6
3
2
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previously set mode.
Continued
48
Assigning Other Components to
the Component Select Buttons or
the Label Keys (continued)
Example: To copy the settings of
the DVD button to the VCR button
1 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
2 Press the Mode Display key (SET)
once to display “COPY” on one of
the Label keys on the display.
3 Press the COPY key.
“COPY” appears on the Mode
Display key.
COMMANDER
OFF
MUTING
COPY
DVD
4 Press the Component Select
button or the Label button of
which contents are to be moved.
(To change the Label buttons press the
OTHER button.)
The component name of which
contents are to be moved appears on
the Mode Display key.
5 While pressing the Mode Display
key (in this case, DVD), press the
Component Select button or the
Label key to which the contents
are to be moved (in this case,
VCR).
(To change the Label keys, press the
OTHER button.)
49
“COPY” appears on the Mode
Display key.
In this case, “DVD c c VCR” flashes
on the Label keys and moving finishes
with a beep sound. And the keys for
VCR appears.
6 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
To return to the original setting
Follow steps in “To clear all signals
learned for a specific component”, page
26.
COMMANDER
OFF
Programming a
Frequently Used Key
Operation for SYSTEM
CONTROL Buttons or
Label Keys
In addition to their original System
Control functions (see page 31), SYSTEM
CONTROL 1, 2 or 3 buttons or SYSTEM 4
- 15 Label keys can be programmed to
“learn” any remote control signal.
As they operate independently from
other buttons, SYSTEM CONTROL 1, 2
or 3 buttons can work as one-touch
buttons without any preceding operation
such as pressing a Component Select
button to select a component.
This is useful if you prefer having the
SYSTEM CONTROL button as a “one-
touch” button for a single operation
rather than executing a series of
commands.
Note
Some specific remote control signals may not
be learned. Refer to the operating instructions
supplied to the specific remote control as well.
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
4
6
2
3
Continued
50
Programming a Frequently Used
Key Operation for SYSTEM
CONTROL Buttons or Label Keys
(continued)
LEARN
3 Press the LEARN key.
“LEARN” appears on the Mode
Display key.
If a signal has been learned on that
button, the display stays lit. If you
want to program on that button, clear
the signal first (page 51).
4 Press the SYSTEM CONTROL
button (in this case, 2).
Or press the MORE button to display
the SYSTEM (4-15) Label keys. To
change the Label keys press the
MORE button repeatedly. Then press
the Label key you want to teach.
The display for the pressed SYSTEM
CONTROL button or Label key
appears on the Mode Display key.
“LEARN” flashes for 10 seconds, and
the Commander enters receiving
mode.
2
Example: To store the On/Off
signal of an air-conditioner to
the SYSTEM CONTROL 2 button
1 Place the Commander head to
head with the remote control of
the air-conditioner.
2 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
RM-AV3000
Remote control of
your air-conditioner
about 2 – 4 inches
(5 – 10 cm) away
COMMANDER
OFF
MUTING
51
5 Press and hold down the button
of the remote control until you
hear a beep.
(If you release the button before you
hear a beep, the signal may not be
learned correctly.)
While receiving the signal, “LEARN”
stays lit.
If “NG” flashes on the display and
“NG” sound is heard five times
Learning did not succeed. Try Steps 4 and
5 again.
6 Press COMMANDER OFF.
Note
You cannot program a remote control signal for
a SYSTEM CONTROL button or a Label key by
“learning” for which the System Control
function have been programmed. If you want to
program a remote control signal for that button,
clear programmed commands first (page 35).
COMMANDER
OFF
To clear the learned remote
control signal
1 While pressing COMMANDER OFF,
press MUTING.
2 Press the LEARN key.
“LEARN” appears on the Mode
Display key.
3 While pressing the DEL key, press the
SYSTEM CONTROL button or the
Label key of which learned signals are
to be cleared.
The learned signals are cleared.
4 Press COMMANDER OFF.
If you want to program a new signal for
that button, follow Steps 4 to 6 in the left
column.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
Continued
52
Notes on learning the signals
of an air-conditioner
About seasonal adjustments
If you change the settings of the air-
conditioner for the season, you have to
program the remote control signals of the
new settings on the Commander.
If the power-on/off operation
does not work correctly
The air-conditioner may not be turned on
or off properly with the button or key of
this Commander, for which you have
programmed its power-on/off signal.
If the Commander can operate only
“ON” with one button or key and “OFF”
with another, while your air-
conditioner’s remote control can operate
“ON/OFF” with a single button or key,
program the signal on two buttons or
keys of the Commander as follows.
1 Clear the learned power-on/off signal.
(In the example on page 51, clear the
learned signal from the SYSTEM
CONTROL 2 button.)
2 Program the signal (transmitted from
the power-on/off button of the air-
conditioner’s remote control) for the
SYSTEM CONTROL 2 button again.
3 Program the signal from the same
button of the remote control for
another button or key (for example,
the SYSTEM CONTROL 3 button).
The two buttons or keys of the
Commander have been programmed
with the power-on signal and the power-
off signal of the air-conditioner,
respectively so that you can operate the
air-conditioner with the Commander.
Transferring Data
between Commanders
You can transfer data, such as learned
signals and component code settings,
between this Commander and another
Sony RM-AV3000.
Transferring data
You can transfer all the data of this
Commander or the data of a Component
Select button or a Label key on this
Commander to another Sony RM-AV3000.
To transfer all the data of the
Commander
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
6
2
10
9
5
3
4,7
Programming a Frequently Used
Key Operation for SYSTEM
CONTROL Buttons or Label Keys
(continued)
53
Another RM-AV3000
4 Press the MODE key.
“MODE” appears on the Mode
Display key.
5 Press the “TRANSFER” key.
“TRANSFER” appears on the Mode
Display key.
6 Press the X key.
X : Transfer data
x : Receive data
1 Place the RM-AV3000 head to
head with another RM-AV3000.
2 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
3 Press the Mode Display key (SET)
twice to display “MODE” on one
of the Label keys on the display.
COMMANDER
OFF
MUTING
TRANSFER
about 2 – 4 inches
(5 – 10 cm) away
RM-AV3000
Continued
54
COMPO
7 Press the ALL key.
ALL: All data of the Commander
COMPO: Data of a Component
Select button or a Label key
“ALL X” appears on the Mode
Display key, and “ALL” appears on
the left Label key.
8 Confirm that the receiving
Commander is ready for data.
(To set the receiving commander,
follow the procedure on page 56.)
9 Press the “ENTER” key.
During transferring the data,
“
c
c
c
c
c
c
c
c
” flashes.
When the all data has been
successfully transferred, “END”
appears on the right Label key.
Note
If “NG” appears while sending the data, go
back to Step 5 and continue the operation
or press COMMANDER OFF to stop the
operation.
10 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
Note
Be sure that the receiving Commander is ready
to receive data.
To transfer the data of a
Component Select button or a
Label key
The data of a Component Select button or
a Label key on this Commander (the
settings and learned signals programmed
on the keys and buttons) can be
transferred to a Component Select button
or key on another Sony RM-AV3000.
1 Follow Steps 1 to 6 on page 53.
2 Press the COMPO key.
ALL
COMMANDER
OFF
Transferring Data between
Commanders (continued)
55
5 Press the “ENTER” key.
During transferring the data,
“
c
c
c
c
” flashes.
When the data has been successfully
transferred, “END” appears on the
right Label key.
Note
If “NG” appears while sending the data, go
back to Step 6 and continue the operation
or press COMMANDER OFF to stop the
operation.
6 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
Notes
• The data of the System Control function
programmed for a Component Select button
cannot be transferred.
• Be sure that the receiving Commander is
ready to receive data.
TV
“COMPO X” appears on the Mode
Display key, and the selected
component name appears on the left
Label key.
3 Press the Component Select
button of which data you want to
send.
Or press the Label key of which data
you want to send. (To change the
Label keys, press the OTHER button
repeatedly.)
The component name of which
contents are to be transferred appears
on the left Label key.
4 Confirm that the receiving remote
commander is ready to accept
data.
(To set the receiving commander,
follow the procedure on page 56.)
COMMANDER
OFF
Continued
56
ALL
Transferring Data between
Commanders (continued)
“ALL x” appears on the Mode
Display key, and “ALL” appears on
the left Label key.
4 Press the ENTER key.
During receiving the data,
“cccc cccc” flashes.
When all the data has been
successfully transferred, “ALL”
appears on the right Label key.
Notes
• If the Commander is not ready for
receiving the data, press the CLEAR key,
then press the RETURN key to clear all
the learned signals.
• If “NG” appears during data transfer, go
back to Step 3 and continue the operation
or press COMMANDER OFF to stop the
operation. If you continue the operation,
you have to set the sending Commander
again to send data.
Receiving the data
This Commander can receive the data of
another Sony RM-AV3000.
To receive all the data from
another remote commander
1 Follow Steps 1 to 5 on page 53.
2 Press the x key.
X : Transfer data
x : Receive data
3 Press the ALL key.
ALL: All data of the Commander
COMPO: Data of a Component
Select button or a Label key
57
COMMANDER
OFF
Continued
5 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
COMPO
To receive the data of a
Component Select button or key
from another remote
commander
1 Perform Steps 1 and 2 on pages
56.
2 Press the COMPO key.
“COMPO x” appears on the Mode
Display key.
3 Press the Component Select
button to which you want to
assign the data.
Or press the Label key to which you
want to assign the data. To change the
Label keys, press the OTHER button
repeatedly.
The selected component name
appears on the left Label key.
4 Press the ENTER key.
During receiving the data, “c
c
c
c”
flashes.
When the data has been successfully
received, the selected component
name appears on the right Label key.
TV
58
Selecting a Channel
with a Single Key Press
— Channel Macro Function
You can program the Channel Macro
function of the components of which the
first digit of the four-digit preset
component code number is 3 (STB),
8 (TV) or 9 (CABLE).
And you can program the Channel
Macro function for the macro keys (Label
keys) when the selected component name
is displayed on the Mode Display key in
Step 4, page 59.
If you program the operation of entering
the 1, 2, 3 and ENTER keys for a macro
key (Label key), you can select channel
123 by pressing that single key.
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
1
8
4
3
5
2
6
COMMANDER
OFF
Transferring Data between
Commanders (continued)
Notes
• If the Commander is not ready for
receiving the data, press the CLEAR key,
then press the RETURN key to clear the
learned signal on all or one of the
Component Select buttons.
• If “NG” appears during data transfer, go
back to Step 3 and continue the operation
or press COMMANDER OFF to stop the
operation. If you continue the operation,
you have to set the sending Commander
again to send data.
5 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
59
COMMANDER
OFF
MUTING
CHMACRO
TV
Continued
Example: To program TV channel
123 for the VIDEO4 key
1 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
2
Press the Mode Display key (SET)
once to display “CHMACRO” on
one of the Label keys.
3 Press the CHMACRO key.
“CHMACRO” appears on the Mode
Display key.
The component names on the Label
keys for which the Channel Macro
function can be programmed flash. To
change the Label keys, press the
OTHER button.
4 Select the component by pressing
the Component Select button or
the Label key.
The selected component name
appears on the Mode Display key.
The macro keys (Label keys) flash. To
change the Label keys, press the Mode
Display key (in this case, TV).
If you select the component name
for which the Channel Macro
function cannot be programmed
“NG” flashes twice and “NG” sound is
heard.
5 Select the macro key by pressing
the Label key.
The selected label lights on the Label
key. The numeric keys and “ENTER”
flash.
VIDEO4
60
Note
You cannot program the Channel Macro
function for a macro key that has “learned” a
signal. Try again with another macro key, or
clear the “learned” signal (page 25) from the
button and program the Channel Macro
function on it.
To clear the Channel Macro
function
1 While pressing COMMANDER OFF,
press MUTING.
2 Press the SET key.
3 Press the CHMACRO key.
4 Select the component by pressing the
Component Select button or the Label
key.
5 While pressing the DEL key, press the
macro key.
Note
You can also clear the character contents you
input by following the procedure above
repeatedly.
COMMANDER
OFF
Selecting a Channel with a Single
Key Press — Channel Macro
Function (continued)
If you press the Label key for
which the Channel Macro function
cannot be programmed
“NG” flashes twice and “NG” sound is
heard.
To change the name of the macro
key (Label key)
Keep the macro key (Label key) pressed for
more than 2 seconds, and follow Steps 2 - 5,
page 24.
6 Press the keys for the operation in
order (1t 2 t 3 t ENTER).
Note
If you enter more than four keys, the
last four keys are programmed for the
macro key.
7 Press the macro key (in this case,
VIDEO 4).
“1,” “2,” “3,” and “ENTER” appear
twice.
8 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
61
Setting the Timer
Up to 12 timer setting programs can be set
on this commander. You can program the
timer setting of the day of the week, the
hour, the minute and the contents of the
program (Timer Macro). You can set each
program of the timer to be executed or not.
There are two ways for the timer setting as
below.
- Setting the new timer program
- Changing the program already set or
changing another program that you
select (page 65)
Setting the new timer
program
Example: To set the timer
program at 7:30 AM on Saturday
to the PROG4 key
1 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
2 Press the TIMER key.
“TIMER” appears on the Mode
Display key.
The program numbers “PROG1” -
“PROG4” appears on the Label keys.
To change the Label keys, press the
TIMER button on the Commander
repeatedly.
The program numbers having timer
setting programs which are set to be
executed (stand-by mode) stay lit.
The program numbers having timer
setting programs which are set not to
be executed flash.
The program numbers without timer
setting programs flash.
TIMER
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
3
1
11
5
6,4
7,2
8
Continued
COMMANDER
OFF
MUTING
62
Setting the Timer (continued)
The selected program number
appears on the Mode Display key. (If
the pressed Label key has character
contents you input, the character
contents appear on the Mode Display
key.)
“ON/OFF,” “TEST,” “SETUP,” and
“COPY” flash on the Label keys.
“SU” and “12:00 AM” are displayed
on the Clock Display key.
If the day of the week and the time for
the timer program are set in this
setting mode, or if you try changing
the program already set (page 65), the
set contents are displayed on the
Clock Display key.
SETUP
3 Select the program number to
which you want to set the timer
by pressing the Label key.
PROG4
4 Press the SETUP key.
“DAY,” “TIME” and “MACRO” flash
on the Label keys.
5 Press the DAY key, and set the
timer-on day(s) of the week by
pressing the
or button.
63
6 Press the TIME key.
Set the timer-on hour by pressing
the
or button. Then press the
button so that the minute
flashes.
(You can switch the mode
between the hour setting and the
minute setting by pressing the
or button.)
Set the minute by pressing the
or button. Then press the
ENTER key.
The time of the timer setting is
decided.
The display returns to step 4.
7 Press the MACRO key.
The Commander enters the Timer
Macro setting mode.
Continued
button
button
Each time the or button is
pressed the display of day(s) of the
week changes as follows.
SU : Sunday
MO : Monday
TU : Tuesday
WE : Wednesday
TH : Thursday
FR : Friday
SA : Saturday
Then press the ENTER key to decide
the day(s).
The display returns to step 4.
64
Setting the Timer (continued)
COMMANDER
OFF
11
When you have programmed a
series of Timer Macro setting,
press COMMANDER OFF.
With a beep sound, a series of Timer
Macro setting is registered and
displayed in order.
When you have programmed the
buttons on the Commander
The names of buttons on the
Commander which are not on the
LCD touch key display (VOLUME
+/-, MUTING, CHANNEL +/-,
RECALL, MENU, OK, EXIT, , , ,
and ) are displayed on the right
Label key.
The display returns to Step 3.
If you want to check the execution
of the timer setting or set the
timer program to the standby
mode
See page 67.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The timer setting of the program is
decided, and the Commander turns
off. In this case, the timer program is
not set to the standby mode.
Note
Some programs cannot be executed at the set
time because the execution time of the remote
control output is different depending on the
contents of the timer execution. Or, if the
execution time arrives while the previous timer
program is outputted, the timer program
begins after the execution of the previous one.
In this case also, the program cannot be
executed at the set time. So, set the timer
regarding the contents and the duration of the
timer execution.
8 Press a Component Select button,
a SYSTEM CONTROL button, or
a Label key to program the
information of that button or key
as a procedure to be executed by
the timer.
When selecting a Label key for a
component name, press the OTHER
button to change the Label keys.
When selecting a Label key for a
system number, press the MORE
button to change the Label keys.
If you select a component name
Function keys for the component are
displayed. Go to Step 9.
If you select a system number
Go to Step 10.
9 Press a button or a key of which
function you want to program as
a step.
10
Repeat Steps 8 and 9.
When 32 steps are input, the Macro
step programming finishes with a
beep sound, and a series of Macro
procedure appears on the display
window.
And the display returns to step 3.
Notes
• You can input up to 32 steps for one timer
program number.
• A System Macro can be input as a step.
• A macro programmed for the Component
Select button or the Label key is available as
the same setting as its output setting.
• The step of the TIMER button has an interval
of 250ms.
• The Mode Display key, the OTHER button,
the LIGHT button and the MORE button are
not counted as steps.
65
To change the program name on
the Mode Display key
After Step 3, hold the Mode Display key
pressed for more than 2 seconds. The
Commander enter the Label Inputting
mode.
Then follow the same procedure as that
for changing the name of the Label key in
Steps 2 - 5 on page 24.
To change the interval between
timer operation steps
See page 40.
Notes
• When using the timer setting on this
Commander, only one setting can be assigned
to one program. If you want to set the timer
to turn on at a programmed time, and to set
the timer to turn off at another time, program
the two settings separately.
• If there are some programs set to be executed
at the same time, they start in order from the
lowest program number.
• According to the status of the component
operated by the timer program, the next
program might not function successfully.
When setting a timer program, check
carefully the setting of other programs.
Changing the program
already set or changing
another program that you
select
1 Follow Steps 1 - 3 on page 61, 62.
2 Press the COPY key.
If you want to change the program
already set, go to Step 6 without
pressing the COPY key.
The program number appears on the
left Label key, and “COPY” flashes on
the right Label key.
3 Press the COPY key repeatedly
until the program number of
which contents you want to
change appears. (Each time the
COPY key is pressed, the
program number which has the
timer setting information appears
in order.)
Continued
66
Setting the Timer (continued)
6 Press the key of which contents
you want to change.
DAY: See Step 5 on page 62.
TIME: See Step 6 on page 63.
MACRO: The display turns as below.
7 Press the OK key.
With a beep sound, the Timer Macro
setting is cleared, and the Commander
enters the Timer Macro setting mode
(Step 7 on page 63).
If you press the NG key
The display returns to Step 5.
Note
You cannot change the Timer Macro
setting partially. If you want to change
the program without clearing the
frequently used procedure, use the
System Control function (page 31).
For example, if Steps A to D are
frequently used when you want to
program Steps A, B, C, D and E,
program Steps A to D using the
system macro. Then program Step E
in the Timer Macro adding to that
system macro.
4 When the program number of
which contents you want to
change appears on the left Label
key, press that Label key.
With a beep sound, the contents of
selected program is copied to the
program number on the Mode
Display key (in this case, PROG4).
The day of the week and the time for
the copied timer program are
displayed on the Clock Display key.
“ON/OFF,” “TEST,” “SETUP,” and
“COPY” flash on the Label keys.
5 Press the SETUP key.
“DAY,” “TIME,” and “MACRO” flash.
67
To check the execution of the
timer program or set the timer
program to the standby mode
1 Follow Steps 1 - 3 on page 61, 62.
2 Press the TEST key or the ON/
OFF key.
TEST: You can check the timer
program setting by transmitting the
Timer Macro signals.
ON/OFF: The display turns as below.
With a beep sound, “ON” appears,
and the Commander enters the timer
standby mode. The display returns to
Step 2 on page 61.
To reset the timer standby mode,
press the ON/OFF key again.
3 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
COMMANDER
OFF
Continued
68
4 Keep COMMANDER OFF
pressed for more than 2 seconds
to turn the Commander off.
To reset the standby mode to off,
follow Steps 1 - 3 again.
Notes
• If the TEST key or the ON/OFF key is
pressed when the timer program is not
set, the “NG” sound is heard twice and
“NG” flashes.
• When you finish the timer setting mode
after you set the timer standby mode,
“c” mark stays lit beside the clock. This
means that one or more timer programs
are set to the timer standby mode.
• The timer program contents you have set
on this Commander repeat every week
until you set the timer standby mode to
OFF (weekly timer). If you want to
execute the timer program once, set the
timer standby mode to OFF after the
execution of the timer program.
IMPORTANT
The timer function of this
Commander is designed for the timer
operation of AV components. Do not
use the timer function to operate an
air-conditioner or electrical
appliances. It may cause a fire or a
serious injury.
To switch quickly the timer
standby mode to on or off using
the TIMER button
1 Press the TIMER button.
The program numbers of which timer
program is set to the standby mode
stay lit, and the other program
numbers flash on the Label keys.
To change the Label keys, press the
TIMER button repeatedly.
2 Select the program number of
which timer standby mode you
want to switch to on by pressing
the Label key.
If you select the program number
which has no timer program data, the
“NG” sound is heard and “NG”
flashes twice.
3 Press the ON OFF key.
With a beep sound, “c” mark lights
and the standby mode of the selected
timer program is set to on. The
display returns to Step 1.
Setting the Timer (continued)
69
To clear timer settings
programmed for a specific PROG
(1-12) Label key
1 While pressing COMMANDER
OFF, press MUTING.
2 Press the Mode Display key (SET)
once to display “RESET” on one
of the Label keys on the display.
3 Press the RESET key.
“RESET” appears on the Mode
Display key.
4 Press the TIMER button.
Continued
“PROG1” - “PROG4” are displayed.
To change the Label keys, press the
TIMER button.
5 Press the Label key of which
timer settings you want to erase.
The selected program number is
displayed on the left Label key.
6 Press the YES key.
During erasing, “c
c” stays lit. When
erasing finishes, “OK” is displayed
with a beep sound.
If you press the NO key
The display returns to Step 4.
7 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previously set mode.
COMMANDER
OFF
70
COMMANDER
OFF
To clear all timer settings
programmed for all PROG (1 - 12)
Label keys
1 Proceed Steps 1 - 3 on page 69.
2 While pressing the DEL key, press
the TIMER key.
3 Press the YES key.
“REALLY?” stays lit, and “YES” and
“NO” flash.
If you press the NO key
The display returns to Step 1.
4 Press the YES key.
If you press the NO key
The display returns to Step 1.
During erasing, “c
c
c
c” stays lit.
When all timer settings programmed
for all PROG (1 - 12) Label keys are
erased, “OK” is displayed with a beep
sound.
5 Press COMMANDER OFF.
If you hold COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you hold COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
Setting the Timer (continued)
71
1 While pressing the Clock Display
key, press COMMANDER OFF.
With a beep sound, “LOCK” appears
on the Mode Display key, and every
LCD display disappears except the
clock and “LOCK.”
After a second, every LCD display
disappears.
Using Other Functions
Locking the Controls
— Hold Function
To prevent accidental operation, you can
lock all the buttons with the Hold
function. However, the timer functions
while the controls are locked.
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
1
COMMANDER
OFF
COMMANDER
OFF
When the controls are locked
When you press a button on the
Commander, the “NG” sound is heard
twice, and “LOCK”, the clock, and “c”
mark (when the timer is set to be
executed) are displayed for a second.
To unlock the controls
Keep COMMANDER OFF pressed for
more than 2 seconds.
With a key-touch sound, the display
returns to the status before setting of the
Hold function.
72
2 While pressing the LOCK key,
press the Label key on which the
setting mode you want to lock is
displayed. (To change the Label
keys, press the SET key.)
The selected setting mode is locked
and the display of the locked setting
mode on the Label key stays lit.
To lock other setting modes, repeat
Step 2.
3 Press COMMANDER OFF.
When the setting is locked
If you try to display the locked setting
mode by pressing the Label key, “NG”
will flash and the “NG” sound is heard
twice.
To unlock the setting
Follow Steps 1 and 2. And while pressing
the LOCK key, press the Label key on
which the setting mode you want to
unlock is displayed. (To change the Label
keys, press the SET key.) When the
setting is unlocked, the display of the
setting mode on the Label key flashes.
Protecting your
Settings
— Setting Lock Function
You can lock the Commander so that you
cannot change, add, or clear any of your
data in each setting mode.
1 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key, “LOCK” flashes and setting
modes flash on the Label keys.
COMMANDER
OFF
COMMANDER
OFF
MUTING
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
2
1
3
PRESET
73
Setting the Automatic-
Off Time of the Display
Window
The Commander is preset at the factory
to turn off the LCD display window
automatically if you do not operate for
more than 10 minutes. (Then all the
display contents are turned off.) To
change this setting, perform the
following procedure.
You can adjust the Automatic-Off time of
the LCD display window (from 1 minute
to 30 minutes in units of 1 minute).
1 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
2 Press the Mode Display key (SET)
twice to display “MODE” on one
of the Label keys.
3 Press the MODE key.
“MODE” appears on the Mode
Display key.
4 Press the Mode Display key
(MODE) once to display “DISP-
OFF” on one of the Label keys.
Each time you press the MODE key,
the Label keys changes as follows.
5 Press the DISP-OFF key.
“DISP-OFF” appears on the Mode
Display key.
COMMANDER
OFF
MUTING
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
6
2,4
7
1
3
5
Continued
74
Setting the Automatic-Off Time of
the Display Window (continued)
COMMANDER
OFF
Adjusting the Backlight
of the Display Window
The Commander is preset at the factory
to brighten backlight, and to switch off
the backlight automatically if you do not
operate for more than 10 seconds. To
change this setting, perform the
following procedure.
You can adjust the backlight Automatic-
Off time (from 1 second to 60 seconds in
the units of 1 second), the brightness
(bright or dim) and the setting of the
buttons to lighten the Display Window.
COMMANDER
OFF
MUTING
1 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
2
4-9
10
1
3
6 Press the (+) or (–) key to change
the Automatic-Off time of the
LCD display window.
You can adjust from 1 minute to 30
minutes.
Each time the (+) key is pressed, the
minute increases by one.
Each time the (–) key is pressed, the
minute decreases by one.
For example, “2min” on the Label key
means 2 minutes.
Note
When you set the Automatic-Off time of the
display window longer than 10 minutes
(factory setting), the battery life may be
short.
7 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
75
2 Press the Mode Display key (SET)
twice to display “LIGHT” on one
of the Label keys.
3 Press the LIGHT key.
“LIGHT” appears on the Mode
Display key.
4 Press the OFF TIME key.
The display becomes in the setting
mode of the Automatic-Off time of the
backlight.
5 Press the (+) or (–) key to change
the Automatic-Off time of the
backlight. Then press
COMMANDER OFF to decide the
Automatic-Off time of the
backlight. The display returns to
Step 3.
You can adjust from 1 second to 60
seconds.
Each time the (+) key is pressed, the
second increases by 1.
Each time the (–) key is pressed, the
second decreases by 1.
For example, “20sec” on the Label key
means 20 seconds.
Note
When you set the Automatic-Off time of the
backlight longer than 10 seconds (factory
setting), the battery life may be short.
If you hold COMMANDER OFF
pressed for more than 2 seconds
The setting is decided, and the
Commander turns off.
6 Press the LEVEL key.
The display becomes in the brightness
setting mode. The current setting
(BRIGHT or DIM) stays lit. The other
flashes.
Continued
76
Adjusting the Backlight of the
Display Window (continued)
COMMANDER
OFF
7 Press the BRIGHT or DIM key to
select the brightness. Then press
COMMANDER OFF to decide the
brightness.
The display returns to Step 3.
BRIGHT: bright
DIM: dark
8 Press the ON MODE key.
The commander enter the setting
mode to select the buttons to lighten
the display window. The current
setting (LIGHT or ALL) stays lit. The
other flashes.
9 Press the LIGHT or ALL key to
select the buttons on the
Commander to light the display
window.
If you press COMMANDER OFF, the
display returns to Step 3.
LIGHT: The Display Window is lit by
pressing the LIGHT button
only.
ALL: The Display Window is lit by
pressing any button on the
Commander except the
VOLUME +/-, MUTING,
CHANNEL +/-, RECALL and
COMMANDER OFF.
Note
If you use the Commander frequently with
the “ALL” position, the battery life may be
short. In this case, shorten the Automatic-
Off time (page 73, 74).
10Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previously set mode.
77
Setting the Key-Touch
Beep
The Commander is preset at the factory
to turn on the key-touch confirmation
beep. You can turn on or off the key-
touch confirmation beep.
1 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
2 Press the Mode Display key (SET)
twice to display “MODE” on one
of the Label keys.
COMMANDER
OFF
MUTING
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
2,4
6
7
1
3,5
3 Press the MODE key.
“MODE” appears on the Mode
Display key.
4 Press the Mode Display key
(MODE) once to display “BEEP”
on one of the Label keys.
5 Press the BEEP key.
“BEEP” appears on the Mode Display
key.
6
Press the ON (or OFF) key. Each
time you press the key, the display
changes between “ON” and “OFF”
with a beep sound. The display of
the current setting flashes.
ON: Turns on the key-touch beep.
OFF: Turns off the key-touch beep.
7 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
COMMANDER
OFF
78
4 Press the Mode Display key
(MODE) once to display
“CONTRAST” on one of the
Label keys.
5 Press the CONTRAST key.
“CONTRAST” appears on the Mode
Display key. “
****
” appears on each
Label key. The DVD display appears
on the other part of the display
window.
6 Press the CHANNEL + or
CHANNEL - button to adjust the
contrast of the display window.
Each time you press the button the
contrast changes as follows.
CHANNEL +:Deeper than the actual
contrast setting
CHANNEL -: Lighter than the actual
contrast setting
7 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previously set mode.
COMMANDER
OFF
Adjusting the Contrast
of the Display Window
1 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
2 Press the Mode Display key (SET)
twice to display “MODE” on one
of the Label keys.
3 Press the MODE key.
“MODE” appears on the Mode
Display key.
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
2,4
5
7
1
3
6
COMMANDER
OFF
MUTING
79
Changing the Names of
the Label Keys or the
Component Names on
the Mode Display Key
You can change the display of the
Component names on the Mode Display
key or on the Label keys, the function
displays of components, the SYSTEM4 -
SYSTEM15 and PROG1 - PROG12 on the
Label keys to the most suitable name
using up to 8 characters or digits.
COMMANDER
OFF
MUTING
1 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
2 Press the Mode Display key (SET)
once to display “LABEL” on one
of the Label keys on the display.
3 Press the LABEL key.
“LABEL” appears on the Mode
Display key.
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
2
3
5
7
1
4
6
Continued
80
Changing the Names of the Label
Keys or the Component Names on
the Mode Display Key (continued)
4 Select the sort of Labels by
pressing the COMPO, SYSTEM or
TIMER key.
COMPO: Displays component
names. To change the
Label keys, press the
OTHER button.
Press the component select
button or the Label key of
which the name you want
to change.
To change the component name on
the Mode Display key
Keep the Mode Display key on which the
component name is displayed pressed for
more than 2 seconds. The Commander
enters the component name changing
mode.
Input the name on the Mode Display key.
Follow Steps 2-5, on page 24.
SYSTEM: Displays SYSTEM4 -
SYSTEM7. To change the
Label keys, press the
MORE button.
TIMER: Displays PROG1 - PROG4.
To change the Label keys,
press the TIMER button.
5 Press the Label key of which the
name you want to change.
The commander enters the Label
name changing mode.
COMPO:(Example : TV-VIDEO2)
SYSTEM:(Example : SYSTEM6)
TIMER:(Example : PROG10)
81
COMMANDER
OFF
Erasing All the Settings
You can erase all the settings to reset the
Commander to its factory settings.
1 While pressing COMMANDER
OFF, press MUTING.
“SET” appears on the Mode Display
key.
2 Press the Mode Display key (SET)
once to display “RESET” on one
of the Label keys on the display.
MENU EXIT
COMMANDER
OFF
MORE321
TV STB VCR DVD CD AMP
OTHER
TIMER LIGHT
MUTING RECALL
CHANNELVOLUME
SYSTEM CONTROL
OK
2
4
3,5,6
1
7
COMMANDER
OFF
MUTING
Continued
6 Input the name of the Label key.
Follow Steps 2 - 5, on page 24.
7 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
82
6 Press the YES key.
During erasing, “ALL c
c
c
c c
c
c
c” stays lit. When all the settings on
the Commander are erased, “OK” is
displayed with a beep sound. The
Commander is reset to its factory
settings.
If you press the NO key
The display returns to Step 3.
7 Press COMMANDER OFF.
If you keep COMMANDER OFF
pressed for more than 2 seconds
The Commander turns off.
If you keep COMMANDER OFF
pressed for less than 2 seconds
The Commander returns to the
previous setting mode.
COMMANDER
OFF
3 Press the RESET key.
“RESET” appears on the Mode
Display key.
4 Press the ALL key.
“ALL RESET?” stays lit, and “YES”
and “NO” flash.
5 Press the YES key.
“REALLY?” stays lit, and “YES” and
“NO” flash.
If you press the NO key
The display returns to Step 3.
ALL
Erasing All the Settings
(continued)
83
Specifications
Operating distance
Approx. 32.8 ft. (10 meters) (varies depending
on components of different manufacturers)
Power requirements
Remote control and backlight: Four size AA
(R6) batteries
Battery life
Approx. 5 months (varies depending on
frequency of use)
Dimensions
Approx. 4
3
/4 × 7 × 1
1
/2 in. (w × h × d)
(120 × 175 × 38 mm)
Mass
13 oz. (380 g) (not including batteries)
Learnable signals*
Capacity par signal: up to 300 bit
Signal frequency range: up to 500 kHz
Signal interval: up to 1 second
* Some signals cannot be learned by the
Commander, even though the signals comply
with these specifications.
Design and specifications are subject to change
without notice.
The CE mark on the unit is
valid only for products
marketed in the European
Union.
Additional Information
Precautions
•Do not drop the unit or give a shock to
the unit, or it may cause a malfunction.
•Do not leave the unit in a location hear
heat sources, or in a place subject to
direct sunlight, excessive dust or sand,
moisture, rain or mechanical shock.
•Do not put foreign objects into the unit.
Should any liquid or solid object fall
into the unit, have it checked by
qualified personnel before operating
the unit any further.
•Do not expose the remote control
detectors of your components to direct
sunlight or other strong illumination.
Too much light there can interfere with
remote control operations.
•Be sure to place the Commander out of
the reach of small children or pets.
Components such as air conditioners,
heaters, electric appliances, and electric
shutters or curtains receiving an
infrared signal can be dangerous if
misused.
Maintenance
Clean the surface with a soft cloth
slightly moistened with water or a mild
detergent solution. Do not use any type
of solvent such as alcohol, benzine or
thinner as they may damage the finish of
the surface.
84
Troubleshooting
If you have problems setting up or using the Remote Commander, first check the
batteries (page 7), then check the items below.
Remedy
• Go closer to the component. The maximum operating distance is
approximately 32.8 ft. (10 m).
• Check that you are aiming the Commander directly at the component,
and that there are no obstructions between the Commander and the
component.
• Turn on the components first, if necessary.
• Check that the component has infrared remote capability. For example,
if your component didn’t come with a remote commander, it probably
isn’t capable of being controlled by a remote commander.
• You have assigned a different component to the Component Select
button or Label key. A corresponding component is fixed by presetting
a component code number. Therefore, the name of component you have
preset may be different from that of the Component Select button or the
Label key. In this case, it is recommended to preset again (page 12) and
change the component name on the Mode Display key or the name of
the Label key (page 23, 24).
• Set the component code correctly. If the code that is listed first for your
component doesn’t work, try all the codes for your component in the
order in which they are listed in the supplied “Component Code
Numbers”.
• Some features may not be preset. If some or all of the keys do not
function correctly even after you have set the component codes, then
use the learning function to program the remote control signals for the
component (page 19).
• If your visual components are connected to an audio system, make sure
you’ve set up the Commander as described in “Controlling the Volume
of Visual Components Connected to an Audio System” (page 29).
• You have assigned another component to the TV or AMP button (page
45, 46). In this case, the volume cannot be controlled when you select a
component other than TV or AMP.
• When you teach signals of an interactive signal exchange system remote
control unit (supplied with some of Sony’s receivers and amplifiers) to
the Commander, the response signal of the main unit may interfere with
the learning of the Commander. In such a case, move to a place where
the signals will not reach the main unit (e.g. other rooms, etc.).
• Make sure that the Remote Commander has learned the correct signals.
If not, see “For accurate learning” (page 25) and try the learning
procedure again (page 19).
Symptom
You cannot operate the
components.
You cannot operate the
components even after
setting the component
code numbers.
You cannot control the
volume.
The Commander fails to
learn the remote control
signals.
You cannot operate a
component even after
you programmed the
remote control signals
with the “learning”
function.
85
Symptom
“NG” flashes five times.
“NG” flashes twice.
Remedy
• Leaning has not succeeded. After checking the follows, try learning
procedure again (page 19).
- Change the distance between remote commanders.
- See “For accurate learning” (page 25).
• The component codes cannot be set. See the supplied “Component
Code Numbers” and try setting the component codes again (page 12).
• The data have not been transferred. See “Transferring data” (page 52)
and try transferring the data again.
• The data has not been received. See “Receiving the data” (page 56) and
try receiving the data again.
• Learned signals have been programmed for the button or key to which you
want to set the learning, System Control or Channel Macro function. Clear
the learned signals (page 35, 60) and try setting again.
• Learned signals or the Channel Macro function have been programmed for
the Component Select button or the Label key to which you want to copy
the settings of another Component Select button or the Label key using the
copying function (page 47). Clear the contents (page 25, 60) and try the
copying procedure again.
• The key for which you want to program the Channel Macro function is not
a Channel Macro key. You can program the Channel Macro function only
for the Label keys.
• You may try to clear the learned signals in the Channel Macro setting mode
(page 60). In this mode, only Channel Macro settings can be cleared by
pressing the macro key while keeping the DEL key pressed. To clear the
learned signals, see page 46.
• Learned signals have been programmed for the Label key to which you
want to set the Channel Macro function. Clear the learned signals (page 25)
and try setting again. Or set to another Label key.
• There are some keys, for which learned signals have been programmed, on
the display for the Component Select button or the Label key when the
Commander receives the data from another Commander. Clear the learned
signals using the CLEAR key and the RETURN key on the display of the
receiving mode (page 56). Or see “Changing or erasing the function of a
taught key or button” (page 25), and clear the learned signals.
• The program contents you want to change are set to be executed by the
timer. Set the timer setting in which that program is included not to be
executed (page 65), and edit the program contents.
• You may try to program the Power-On function (page 43) for a Component
Select button or the Label key to which the component code of a non-Sony
product has been set. This function is only for Sony components.
• You may try to operate the preset function (page 12) after operating the
learning function (page 19). You cannot operate the preset function after
operationg the learning function. Preset after clearing the learned signals
(page 25), or preset to another Component Select button or Label key that is
not used.
Continued
86
Troubleshooting (continued)
Symptom
“NG” appears during
learning.
“NG” flashes if you try to
copy the settings of the
Component Select button
or the Label key to another
Component Select button
or Label key.
A system control
program does not
function correctly.
Your Commander does
not work as expected
after data transfer.
The component set to be
operated by the timer of
the Commander does not
function as expected.
The timer program is
executed in the next
week though that
program has been
already executed.
The character contents
you have input return to
the original display.
The character contents
you have input are not
displayed.
Remedy
• The memory is full. Clear infrequently used learned keys (page 25), then
carry out learning operations.
• There are some keys, for which learned signals or the Channel Macro
function have been programmed, on the display for the Component
Select button or the Label key. Copy the settings to another Component
Select button or the Label key, or clear the learned signals (page 25) or
the Channel Macro function (page 60).
• Make sure that you have programmed the commands in the correct
order (page 31).
• Try changing the orientation of the Commander. If that does not help,
try placing the components as close to each other as possible.
• Check the status of the components and make sure that you have set the
components properly to receive commands (page 37).
• The component codes are changed or a new signals have been learned
for a key or button that has been programmed with a series of
commands. In this case, the new signals are transmitted when the series
of commands is executed.
• The interval may be too short. See “Changing the interval between
operation steps” (page 40) and set a longer interval, or adjust the series
of commands by changing the order of buttons and keys. (When
programming the system control function, you can make an interval of
a while by pressing the TIMER button.)
• Data transfer to/from a single Component Select button or Label key
cannot transfer System Control functions set to each button or key.
Either set up the receiving Commander from the start, or perform whole
data transfer (page 52).
• The component could not receive the signal from the Commander
successfully. When using the timer, check the following.
- Check that the timer macro program functions correctly by pressing
the TEST key, after programming the timer (page 66).
- Check the location of the Commander.
• The status of each component is not suitable for operation. (For
example, you program the power-on setting, assuming that power of
the component is off when the timer turns on. However, if power of the
component is on when the component receives the timer signal from the
Commander, the component will turn off.)
• The timer program contents you have set on this Commander repeat
every week (weekly timer). If you want to execute the timer program
once, set the timer standby mode to OFF after checking the execution of
the timer program (page 67).
• If you preset a component code after inputting character contents, they
are cleared and return to the original display. Edit the characters after
you decide the component to be used by presetting a code.
• If you input characters to the Label keys which have no data (displayed
“∗∗∗∗”), the input characters are not displayed. In this case, first input
data to the Label keys by learning function (page 19) and input
characters. However, the input characters are displayed during the
learning operation.
87
For the customers in the U.S.A.
Customer Support Information
After you have read through this manual, if you still cannot get the Remote Commander to work
properly, call the Sony Customer Support Helpline at 1-800-822-2217.
Symptom
The display of the
Commander turns off by
itself.
E is displayed only
when transferring the
data and lighting the
LCD display window.
The Commander enters
the clock setting mode by
itself.
“LOCK” is displayed on
the LCD and the display
for operation does not
appear when you press a
button.
Remedy
• This Commander is preset at the factory to turn the display off
automatically if you do not operate for more than 10 minutes. You can
change the Automatic-Off time from 1 to 30 minutes (page 74).
• The batteries begin to be exhausted. Replace the batteries as early as
possible (page 7).
• The batteries might have been replaced, or the batteries are worn out.
Replace the batteries with new ones (page 7). After replacing the
batteries, the set contents remain. So, to use the Commander with the
previous set contents, you should only set the clock (page 8).
• The Hold function is on. Unlock the Hold function (page 71).
88
KEY DISPLAY
POWER
1 – 9, 0, ENTER
INPUT
DISPLAY
SLEEP
MAIN/SUB
ANT/SW
WIDE
MENU
OK
PIP ON/OFF
PIP CH+/–
PIP INPUT
PIP MOVE
PIP STILL
PIP SWAP
TV
FUNCTION
To turn the power on/off
To change the channel
For example, to change to
channel 5, press 0 and 5 (or,
press 5 and ENTER)
To change the input mode
To display the current
channel on TV
To operate SLEEP function on
the TV (works only for a TV
with SLEEP function)
To switch the sound of the
duplex broadcast
To switch the multiplex
antenna input
To switch to WIDE
To call up the MENU display
To move the cursor upward
To move the cursor
downward
To move the cursor to the
right
To move the cursor to the left
To enter the selection of the
MENU display
To turn on/off the “window”
To change the TV channel in
the “window” picture
To change the input mode of
the “window” picture
To move the location of the
“window” picture
To freeze the “window”
To swap the “window”
Appendix
Table of Preset
Functions
Note
There may be some components or functions
that cannot be operated with this Commander.
KEY DISPLAY
CHANNEL +/–
RECALL
VOLUME +/–
MUTING
VIDEO1
VIDEO2
VIDEO3
VIDEO4
TV TUNER
NORMAL
PIP AUDIO
PIP OFF
AU MODE
PIC MODE
CAPTION
FUNCTION
Channel up: +
Channel down: –
To operate JUMP,
FLASHBACK or CHANNEL
RETURN function on the TV
depending on the setting of
the TV’s manufacturer
Volume up: +
Volume down: –
To mute the volume on the
TV. Press again to turn
muting off.
To select the input source:
VIDEO 1
To select the input source:
VIDEO 2
To select the input source:
VIDEO 3
To select the input source:
VIDEO 4
To return to the TV (to reset
the external input)
To return the picture and
sound quality to the standard
status
To change the sound of the
main display and sub display
To turn off the “window”
To select the sound adjusting
mode
To select the picture adjusting
mode
To display the CRT screen
subtitle
89
KEY DISPLAY
POWER
1 – 9, 0, ENTER
INPUT
DISPLAY
S.INDEX
INFO
FAVORITE
GUIDE
ANT/SW
*
1
m
*
1
N
*
1
M
*
1
REC
*
1
x
*
1
X
MENU
OK
STB (Digital Satellite)
FUNCTION
To turn the power on/off
To change the channel
For example, to change to
channel 5, press 0 and 5 (or,
press 5 and ENTER)
To switch the output of the
SAT receiver to the TV (When
connecting a TV cable or
antenna to the receiver, the
output switches between a
TV and SAT program)
To turn on the display
To bring up the Station Index
To display program
information
To use the “FAVORITE”
function
To bring up Master Guide
To switch the antenna input
in order
To rewind
To play
To fast-forward
To record, press B while
pressing REC. First release B,
then release REC.
To stop
To pause
To call up the MENU display
To move the cursor upward
To move the cursor
downward
To move the cursor to the
right
To move the cursor to the left
To bring up the Station Index
when a program guide is not
displayed
To select the channel that is
highlighted
KEY DISPLAY
EXIT
CHANNEL +/–
RECALL
OUTPUT
REPLAY
CATEGORY
DOT
FUNCTION
To exit the setting menu
Channel up: +
Channel down: –
To select the channel
previously selected
Cyclic HDTV output
resolution
To replay the built-in DVR
Category guide
Decimal point for channel
number
*
1
The operation of the built-in DVR or the
video on demand
Continued
90
Table of Preset Functions
(continued)
KEY DISPLAY
POWER
1 – 9, 0, ENTER
INPUT
DISPLAY
FAVORITE
*
1
m
*
1
N
*
1
M
*
1
REC
*
1
x
*
1
X
MENU
OK
EXIT
CHANNEL +/–
RECALL
OPTION
STB2 (Digital Cable box)
FUNCTION
To turn the power on/off
To change the channel
For example, to change to
channel 5, press 0 and 5 (or,
press 5 and ENTER)
To switch the output of the
SAT receiver to the TV (When
connecting a TV cable or
antenna to the receiver, the
output switches between a
TV and SAT program)
To turn on the display
To use the “FAVORITE”
function
To rewind
To play
To fast-forward
To record, press B while
pressing REC. First release B,
then release REC.
To stop
To pause
To call up the MENU display
To move the cursor upward
To move the cursor
downward
To move the cursor to the
right
To move the cursor to the left
To bring up the Station Index
when a program guide is not
displayed
To select the channel that is
highlighted
To exit the setting menu
Channel up: +
Channel down: –
To turn on the display of a
shortcut menu
To display the function tag
KEY DISPLAY
EPG
VIEWER
HOME
BACK
FWD
FUNCTION
To call up the title bar and
toggle the title bar on/off in
CABLE mode
To display a drop menu and
toggle to change the user
To return to the home display
from any display
To return to the just previous
display from any display
To forward the display
returned by the BACK key
*
1
The operation of the built-in DVR or the
video on demand
91
KEY DISPLAY
POWER
1 – 9, 0, ENTER
INPUT
DISPLAY
ANT/SW
MAIN/SUB
MENU
OK
m
N
M
REC
x
X
Z
CHANNEL +/–
COUNTER
Q.TIMER
TSEARCH
SEARCHt
COMMERCL
VCR, VCR2, VCR3
FUNCTION
To turn the power on/off
To change the channel
For example, to change to
channel 5, press 0 and 5 (or,
press 5 and ENTER)
To change the input mode
To activate the on-screen
display
To switch the antenna output
To switch the sound of the
duplex broadcast
To call up the MENU display
To move the cursor upward
To move the cursor
downward
To move the cursor to the
right
To move the cursor to the left
To enter the selection of the
MENU display
To rewind
To play
To fast-forward
To record, press N while
pressing REC.*
2
First release
N, then release REC.
To stop
To pause
To eject a cassette
Channel up: +
Channel down: –
To change the counter
display
To select the recording time
by 30 minutes and begin
recording
REVIEW locked picture
search
CUE locked picture search
To skip over commercials
*
2
In order to avoid recording by mistake, the
REC key does not work by itself. You can
assign this operation (record) to a single key
using the learning function (page 19).
KEY DISPLAY
SP/LP
H.S.REW
PLAY x2
LINE1
LINE2
DVin
TVTUNER
FUNCTION
To switch the tape speed
To rewind at high speed
To play at double speed
To select the input source:
LINE 1
To select the input source:
LINE 2
To select the input source: DV
To return to the TV (to reset
the external input)
Continued
92
Table of Preset Functions
(continued)
KEY DISPLAY
POWER
1 – 9, 0
+10
ENTER
AUDIO
DISPLAY
ANGLE
CLEAR
RETURN
(RECALL)
TITLE
SUB TITLE
A/B
MENU
OK
m
N
M
x
X
> (CH+)
. (CH–)
Z
TIME
SET UP
DVD, DVD2
FUNCTION
To turn to the power on/off
Number buttons: To set items
selected from the screen
To select numbers 10 and
above
To enter a setting or to set
items selected from the screen
To change the sound
To show the current play
status on the screen
To switch angle
To clear the selected
characters from the screen
To return to the last previous
screen
To display the title menu
To switch the subtitle
To decide the distance
between A and B
To display the DVD menu
To move the cursor upward
To move the cursor
downward
To move the cursor to the
right
To move the cursor to the left
To execute items selected
from the screen
To rewind
To play
To fast-forward
To stop
To pause
To proceed to the next
location or song
To proceed to the previous
location or song
To open or close the tray
To change the time display
To call up the setting up
menu
KEY DISPLAY
REV SLOW
FWD SLOW
REPEAT
EDIT
PLAYMODE
DISC
SEARCHt
TSEARCH
DNR
VES
FUNCTION
Slow playback in the reverse
direction
Slow playback in the forward
direction
To go into the repeat mode
To switch the edit mode to
on/off
To change the playback mode
To change a disc
To search in the forward
direction
To search in the reverse
direction
To change the level of the
Digital Noise Reduction
To change the mode of the
Virtual Enhanced Surround
93
KEY DISPLAY
POWER
1 – 9, 0
+10
ENTER
D.SKIP
DISPLAY
CLEAR
m
N
M
x
X
Z
> (CH+)
. (CH–)
CONTINUE
SHUFFLE
PROGRAM
REPEAT
CD
FUNCTION
To turn the power on/off
To select the track number (0
selects track 10)
To select track numbers
above 10, see the descriptions
on the +10 button below.
To select numbers 10 and
above
To enter the setting
To select next disc
To switch the display of the
CD player to on/off
To clear the setting
To rewind
To play
To fast-forward
To stop
To pause
To open/close
To select the next track
To select the previous track
To select continuous play
mode
To play in random order
To use for program play
To select repeat play mode
KEY DISPLAY
DISC
TRACK
GROUP
EDIT
DSP MODE
DSP OFF
FADER
PLAYMODE
FUNCTION
To decide the numeric key
operation
To decide the numeric key
operation
To decide the numeric key
operation
To go into the setting mode of
automatic program and time
fade
To toggle the mode of DSP
added to the CD
To turn the DSP off
To toggle the fade-in/fade-
out operation
To change the play mode
cyclically
Continued
94
Table of Preset Functions
(continued)
KEY DISPLAY
SHIFT
BAND
EXIT
CHANNEL
+/–
VOLUME +/–
MUTING
S.FIELD
GENRE
MODE
T.TONE
CENTER+
CENTER-
REAR+
REAR-
SUB
WOOFER+
SUB
WOOFER-
TD.INPUT
D.INPUTt
FUNCTION
To shift band or preset select
To select FM/AM
To return to the basic MENU
Presetting or tuning frequency
to a higher: +
Presetting or tuning frequency
to a lower: –
Volume up: +
Volume down: –
To mute the volume on the
AMP
Press again to turn muting off
To turn on/off the sound field
To select a sound field genre
To select a sound field mode
To output a test tone
To adjust the center speaker
level: +
To adjust the center speaker
level: -
To adjust the rear speaker level:
+
To adjust the rear speaker level:
-
To adjust the subwoofer level: +
To adjust the subwoofer level: -
To switch the digital input: T
To switch the digital input: t
KEY DISPLAY
POWER
1 - 9, 0
ENTER
VIDEO 1
VIDEO 2
VIDEO 3
AUX
DVD
TV
CD
MD/DAT
TUNER
TAPE
PHONO
5.1 INPUT
MENU
OK
AMP
FUNCTION
To turn the power on/off
Keys to use the tuner directly
To enter the setting
To select the input source:
VIDEO 1
To select the input source:
VIDEO 2
To select the input source:
VIDEO 3
To select the input source:
AUX
To select the input source: DVD
To select the input source: TV
To select the input source: CD
To select the input source: MD
To select the input source:
TUNER
To select the input source:
TAPE
To select the input source:
PHONO
To change the multi-channel of
5.1ch and above
To call up the MENU display,
or return to the previous
MENU
To move the cursor upward
To move the cursor downward
To move the cursor to the right
To move the cursor to the left
To enter the selection of the
MENU display
95
KEY DISPLAY
POWER
1 – 9, 0
+10
ENTER
D.SKIP
DISPLAY
CLEAR
m
N
M
REC
x
X
Z
> (CH+)
. (CH–)
MD
FUNCTION
To turn the power on/off
To select the track number (0
selects track 10)
To select track numbers
above 10, see the descriptions
on the +10 button below.
To select numbers 10 and
above
To enter the setting
To select the next disc
To change the display mode
or turn the display on/off
To clear the setting
To rewind
To play
To fast-forward
To record, press N while
pressing REC.
First release N, then release
REC.
To stop
To pause
To open/close
To select the next track
To select the previous track
KEY DISPLAY
CONTINUE
SHUFFLE
PROGRAM
REPEAT
DECK A
DECK B
RECMODE
CD-SYNC
FADER
FUNCTION
To select continuous play
mode
To play in random order
To use for program play
To switch the repeat play of a
single or all track(s) to on/off
To select a deck of the dual
MD deck: A
To select a deck of the dual
MD deck: B
To toggle the recording mode
To start synchronizing with
the CD
To select the fade-in/fade-out
Continued
96
Table of Preset Functions
(continued)
KEY DISPLAY
POWER
1 – 9, 0
ENTER
m
n
N
M
REC
x
X
DISPLAY
A/B
REW AMS
FF AMS
FADER
TAPE A, TAPE B
FUNCTION
To turn the power on/off
To select the track number
To enter the setting
To rewind
To reverse
To play
To fast-forward
To enter the record standby
mode, press REC.
To record, press N while
pressing REC.
To record in reverse, press n
while pressing REC.
To stop
To pause
To change the display mode
To select a tape deck: Deck A
or B (dual cassette deck only)
To search the beginning of a
track in the rewind direction
To search the beginning of a
track in the fast forward
direction
To stop after fading out and
fade in after starting
KEY DISPLAY
REC MUTE
DOLBY NR
REC LEVEL+
REC LEVEL–
C.RESET
C.MEMORY
PROGRAM
FUNCTION
Record muting
To toggle the Dolby Noise
Reduction
To make the recording level
higher
To make the recording level
lower
To reset the tape counter
To switch the position
memory operation according
to the tape counter to on/off
To go into the program mode
by first pressing, and start
program play by second
pressing
97
KEY DISPLAY
POWER
1 – 9, 0, ENTER
CHANNEL +/–
RECALL
CABLE (Cable box)
FUNCTION
To turn the power on/off
To change the channel
For example, to change to
channel 5, press 0 and 5 (or ,
press 5 and ENTER)
Channel up :+
Channel down : –
To operate JUMP,
FLASHBACK or CHANNEL
RETURN function
KEY DISPLAY
POWER
1 – 9, 0
+10
ENTER
DISPLAY
CLEAR
ANT/SW
m
N
M
x
X
> (CH+)
. (CH–)
Z
SIDE A
SIDE B
x2/x3
PROGRAM
LD (Laser disc player)
FUNCTION
To turn the power on/off
To select the track number (0
selects track 10)
To select track numbers
above 10, see the descriptions
on the +10 button below
To select numbers 10 and
above
To enter the setting
To show the current play
status on the screen
To clear the selected
characters from the screen
To switch between the TV
and the video
To rewind
To play
To fast-forward
To stop
To pause
To proceed to the next
location or song
To proceed to the previous
location or song
To open or close the tray
To select disc side A, when
the side is selectable
To select disc side B, when
the side is selectable
To go into the double or triple
speed mode
To go into the program mode
Continued
98
Table of Preset Functions
(continued)
KEY DISPLAY
POWER
1 – 9, 0, ENTER
INPUT
DISPLAY
CLEAR
GUIDE
INFO
*
3
THUMBS+
*
3
THUMBS–
m
N
M
REC
x
X
MENU
DVR (Digital video recorder)
FUNCTION
To turn the power on/off
To change the channel
For example, to change to
channel 5, press 0 and 5 (or,
press 5 and ENTER)
To switch the output of the
SAT receiver to the TV
(When connecting a TV cable
or antenna to the receiver, the
output switches between a
TV and SAT program)
To turn on the display
To clear the setting
To bring up Master Guide
To display program
information
To select the desired recorded
program
(It is necessary to have
recorded the desired
program.)
To select the desired recorded
program
(It is necessary to have
recorded the desired
program.)
To rewind
To play
To fast-forward
To record, press N while
pressing REC. First release
N, then release REC.
To stop recording, perform
the same procedure.
To stop
To pause
To call up the MENU display
To move the cursor upward
To move the cursor
downward
To move the cursor to the
right
To move the cursor to the left
KEY DISPLAY
OK
EXIT
CHANNEL +/–
*
3
EPG
*
3
REPLAY
*
3
Live TV
*
3
LIST
CUE SKIP
*
3
ADVANCE
*
3
PAGE+
*
3
PAGE–
FUNCTION
To bring up the Station Index
when a program guide is not
displayed
To select the channel that is
highlighted
To exit the setting menu
Channel up: +
Channel down: –
To access to all aspects of the
service
To replay
Or to go into REC/REVIEW
mode during play (After
about 5-second rewind,
replay begins.)
To bring up Master Guide
To call up the title of the
recorded program
To skip over commercials
To end the recorded program
instantly
Page up: +
Page down: –
*
3
This key corresponds to Tivo service or the replay
service. Refer to its instruction manual for details.
99
KEY DISPLAY
POWER
1 – 9, 0
+10
ENTER
D.SKIP
DISPLAY
CLEAR
m
N
M
REC
x
X
Z
> (CH+)
. (CH–)
DAT
FUNCTION
To turn the power on/off
To select the track number (0
selects track 10)
To select track numbers
above 10, see the descriptions
on the +10 button below.
To select numbers 10 and
above
To enter the setting
To select the next disc
To change the display mode
or turn the display on/off
To clear the settings
To rewind
To play
To fast-forward
To record, press N while
pressing REC.
First release N, then release
REC.
To stop
To pause
To open/close
To select the next track
To select the previous track
KEY DISPLAY
HIGH REV
HIGH CUE
FADER
REC MUTE
FUNCTION
High speed review
High speed cue
To select the fade-in/fade out
Record muting
Continued
100
KEY
DISPLAY
OFF
1
2
3
4
5
6
7
8
9
10
11
12
SCENE13
SCENE14
SCENE15
SCENE16
ALL ON
ALL OFF
ON
OFF
CHANNEL +
CHANNEL –
RECALL
LIGHTING
Spacer
Raise
Lower
Toggle
Spacer
System
OFF
SCENE1
SCENE2
SCENE3
SCENE4
FULL ON
Raise
Lower
Grafik
Eye
OFF
SCENE1
SCENE2
SCENE3
SCENE4
SCENE5
SCENE6
SCENE7
SCENE8
SCENE9
SCENE10
SCENE11
SCENE12
SCENE13
SCENE14
SCENE15
SCENE16
Raise
Lower
RadioRA
ALL OFF
SCENE1
SCENE2
SCENE3
SCENE4
SCENE5
SCENE6
SCENE7
SCENE8
SCENE9
SCENE10
SCENE11
SCENE12
SCENE13
SCENE14
SCENE15
ALL ON
ALL OFF
Raise
Lower
Home-
Works
Interac-
tive
MACRO1
MACRO2
MACRO3
MACRO4
MACRO5
MACRO6
MACRO7
MACRO8
MACRO9
MACRO10
MACRO11
MACRO12
MACRO13
MACRO14
MACRO15
MACRO16
X10
OFF
SCENE1
SCENE2
SCENE3
SCENE4
SCENE5
SCENE6
SCENE7
SCENE8
SCENE9
SCENE10
SCENE11
SCENE12
SCENE13
SCENE14
SCENE15
SCENE16
ALL ON
ALL OFF
ON
OFF
Raise
Lower
Lutron
FUNCTION (Key display of other remote commanders)
Table of Preset Functions (continued)
101
Quick Reference of Operations
To
Enter the setting
mode
Enter the learning
mode
Enter the setting
mode of the System
Control function
Enter the timer
program setting
mode
Input the character
contents to each
Label key for the
component
Input the character
contents to each
Label key for the
System Control
Input the character
contents to each
Label keys for the
timer program
Program the
Power-on command
Set the Channel
Macro function
Transfer/receive the
data
Change the volume
control setting
Copy the setting of a
Component
For
details,
see
page 12
page 19
page 32
page 61
page 79
page 79
page 79
page 43
page 58
page 52
page 29
page 47
Press
COMMANDER OFF + MUTING
(If you do not perform any step within two minutes,
the mode ends.)
COMMANDER OFF + Component Select
COMMANDER OFF + SYSTEM CONTROL (1, 2, 3)
COMMANDER OFF + VOLUME+ + VOLUME–
COMMANDER OFF + OTHER
COMMANDER OFF + MORE
COMMANDER OFF + VOLUME– + OTHER
(To reset the command, repeat the procedure.)
COMMANDER OFF + VOLUME– + CHANNEL–
COMMANDER OFF + TIMER
COMMANDER OFF + VOLUME– + Component Select
COMMANDER OFF + CHANNEL+ + Component Select
COMMANDER OFF + CHANNEL+ + OTHER
COMMANDER OFF +
COMMANDER OFF + MENU + Component Select
COMMANDER OFF + MENU + OTHER
COMMANDER OFF + MENU + MORE
COMMANDER OFF + MENU + TIMER
Continued
102
To
Set the interval
between operation
steps of the System
Control
Set the component
macro executing time
Adjust the contrast of
the LCD display
window
Turn the key-touch
beep on/off
Set the Automatic-Off
time of the LCD
display window
Set the Automatic-Off
time
Set the brightness of
the backlight
Select the buttons to
light the LCD display
window
Set the STD (standard)
time
Set the DS (daylight
saving) time
Set the clock
Lock the Remote
Commander
Unlock the Remote
Commander
For
details,
see
page
40, 42
page 78
page 77
page 73
page 74
page 74
page 74
page
8, 11
page
8, 11
page 10
page 23
page 71
Press
COMMANDER OFF + EXIT
COMMANDER OFF + OK
COMMANDER OFF + MUTING
(ON) MUTING + VOLUME+
x
(OFF) MUTING + VOLUME–
COMMANDER OFF + VOLUME– + CHANNEL+
Clock Display + CHANNEL–
Clock Display + CHANNEL+
COMMANDER OFF + LIGHT
COMMANDER OFF + LIGHT + VOLUME+
COMMANDER OFF + LIGHT + VOLUME–
Clock Display + RECALL
Clock Display + COMMANDER OFF
COMMANDER OFF
(Keep the button pressed for more than 2 seconds.)
Quick Reference of Operations (continued)
103
Full Display
104
Index
A
Automatic-Off
of the backlight 74
of the display window
73
B
Backlight
adjusting 74
Automatic-Off 74
Batteries 7
C, D
Changing
component name on the
Mode display key 24
function display of keys
23
interval of the System
Control function 40
name of the Label key
23
CHANNEL button 6
Channel Macro function 58
Clearing/Changing
Channel Macro function
60
learned signal 25, 46, 51
System Control function
35, 39
timer setting 67, 70
Clock setting 8
DS time 8, 11
STD time 8, 11
Code number 13
Component Select buttons
assigning other
components 47
copying settings 47
programming a signal
43
programming System
Control function 38
receiving data 56
setting Power-On
function 43
transferring data 52
COMMANDER OFF button
6
Copying
settings of Component
Select buttons 47
E
Erasing
all the settings 81
See “Clearing/
Changing”
F, G
Factory setting 12, 29, 37
H
Hold Function 71
K
Key touch beep 77
L
LCD
brightness 74
full display 103
Learning Function 19, 45,
49
LIGHT button 6, 74
Locking
control of Commander
71
settings on Commander
72
Printed in Malaysia
M, N, O
MUTING button 6, 19, 22
P, Q
Power-On function
setting 43
SYSTEM CONTROL3
button 37
Power-Off function
See “System Power-Off
function”
Preset components 12
R
Receiving data 56
S
Setting Lock function 72
SYSTEM CONTROL
buttons 7
programming a signal
49
programming System
control function 31
System Control function
changing interval 40
clearing 35, 37, 39
System Power-Off function
SYSTEM CONTROL 1
button 37
T, U
Timer setting 61
Transferring data 52
Troubleshooting 84
V, W, X, Y, Z
VOLUME buttons 6, 19, 22
Volume Control 19, 29
