USER GUIDE
NZ AU GB IE HK SG IN
8699A08.19
ACTIVESMART™
INTEGRATED REFRIGERATOR
RS90A, RS80A models & RS9120W
1
IMPORTANT!
SAVE THIS USER GUIDE
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, visit our
website fisherpaykel.com or contact your
local Fisher & Paykel dealer.
Note: the word ‘refrigerator’, throughout
this user guide, refers to the combination
of refrigerator/freezer products.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
fisherpaykel.com
CONTENTS
Introduction 3
Safety and warnings 4

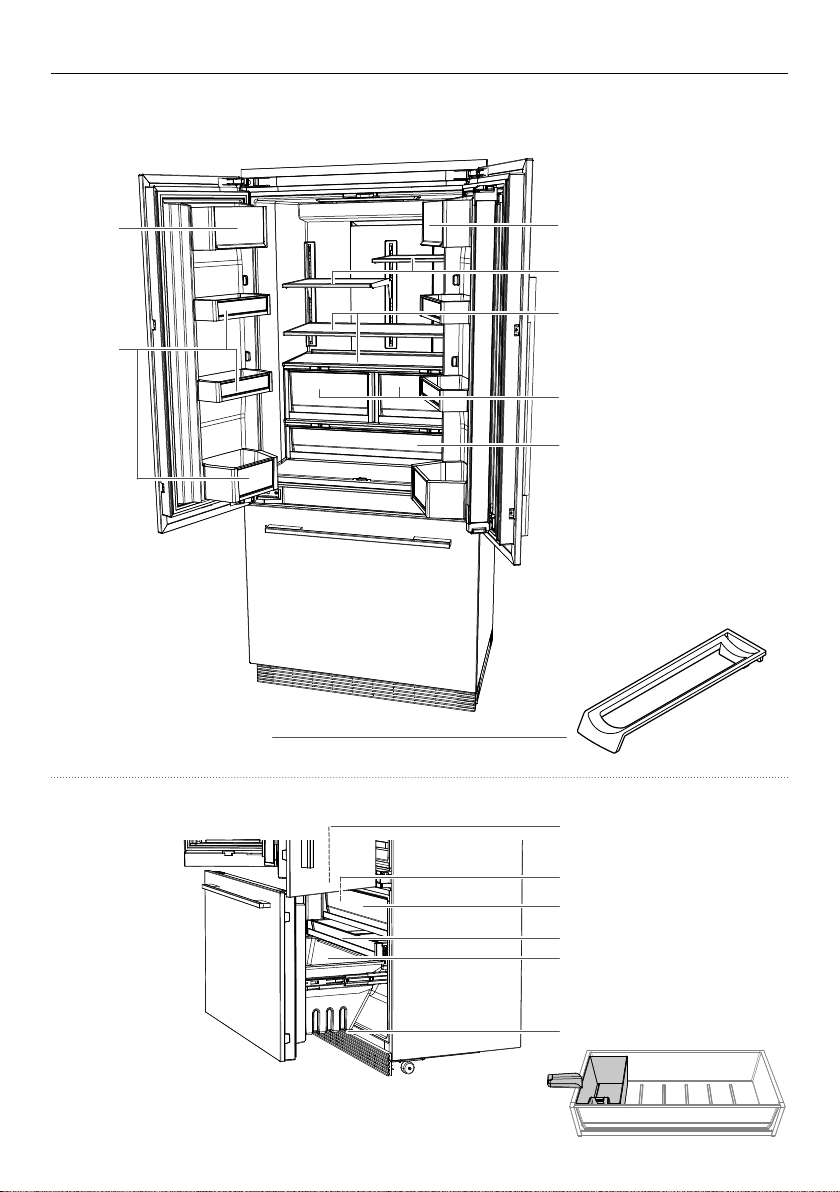

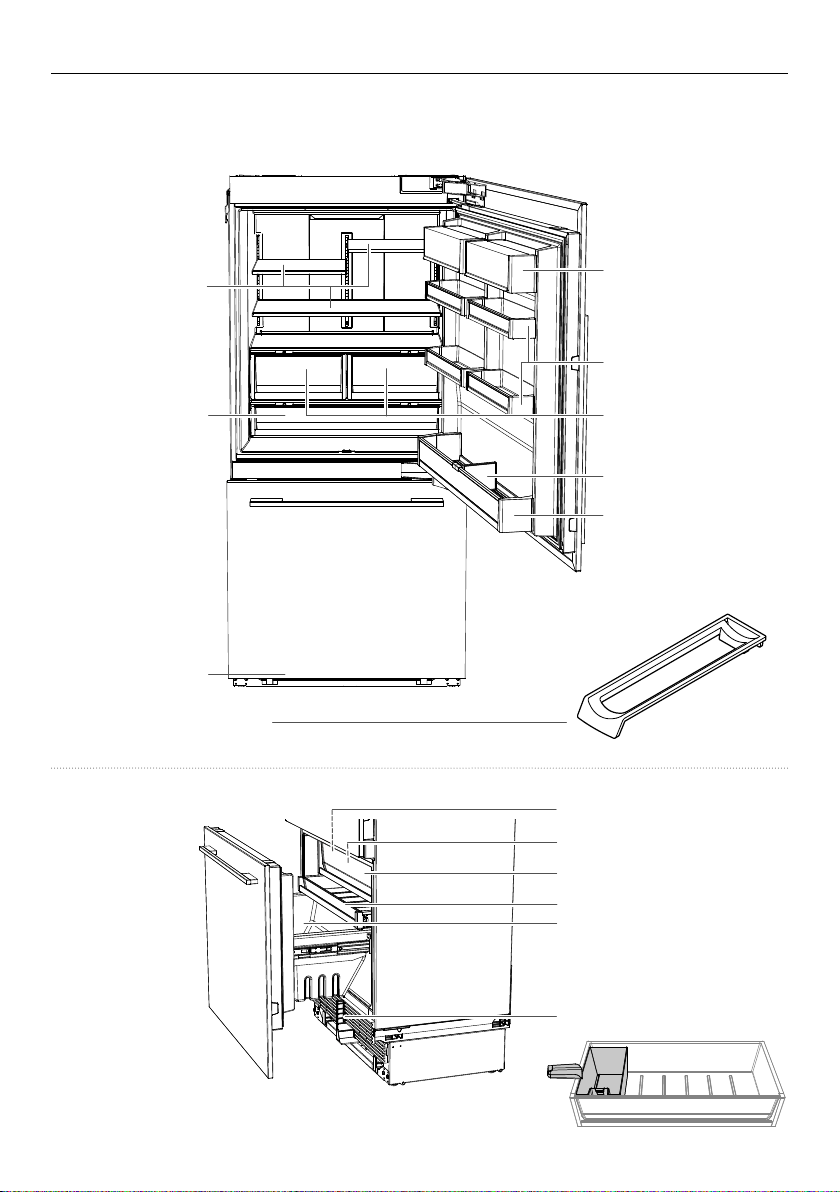

Storage features 12
RS80 and RS90 models 12
RS9120W models 14
ActiveSmart™ special features 16

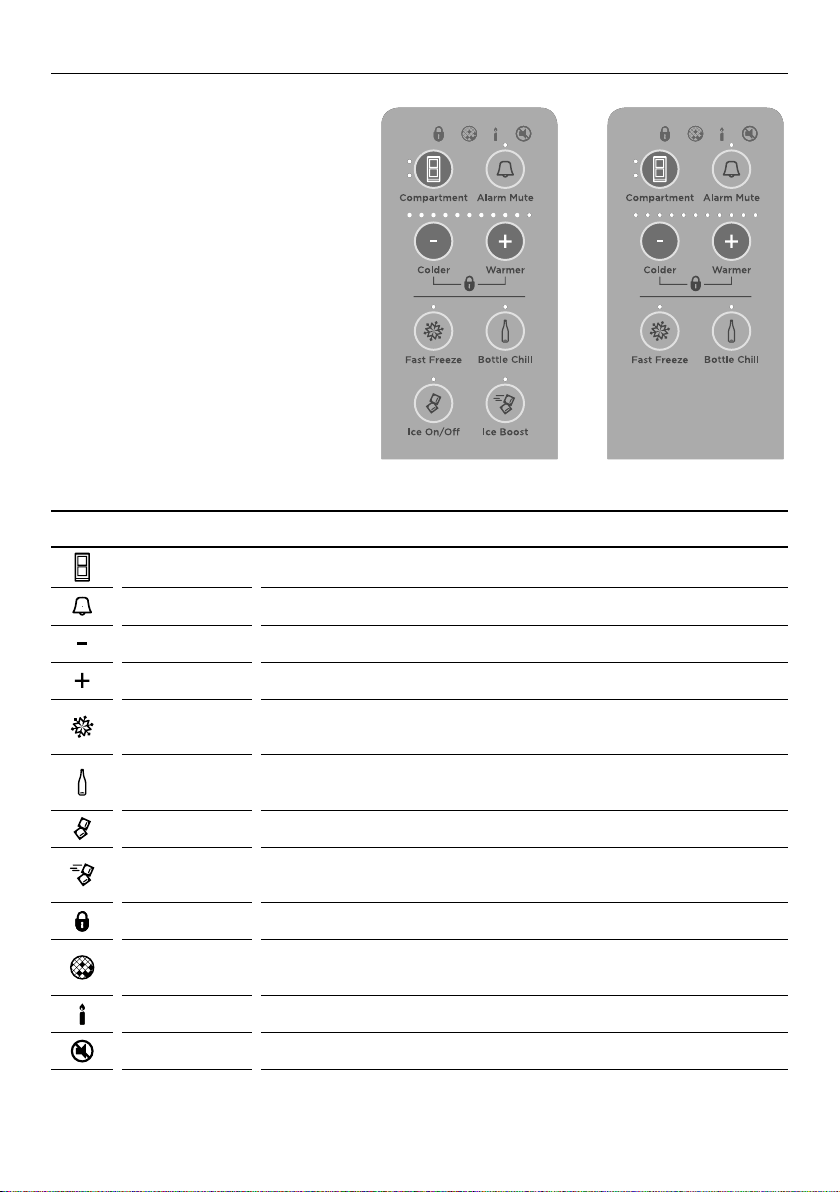

Control panel 16
External display (Ice & Water models only) 17
Humidity control system 18
Fast Freeze 19
Ice On/Off 19
Ice Boost 19
Bottle Chill 19
Operating instructions 20

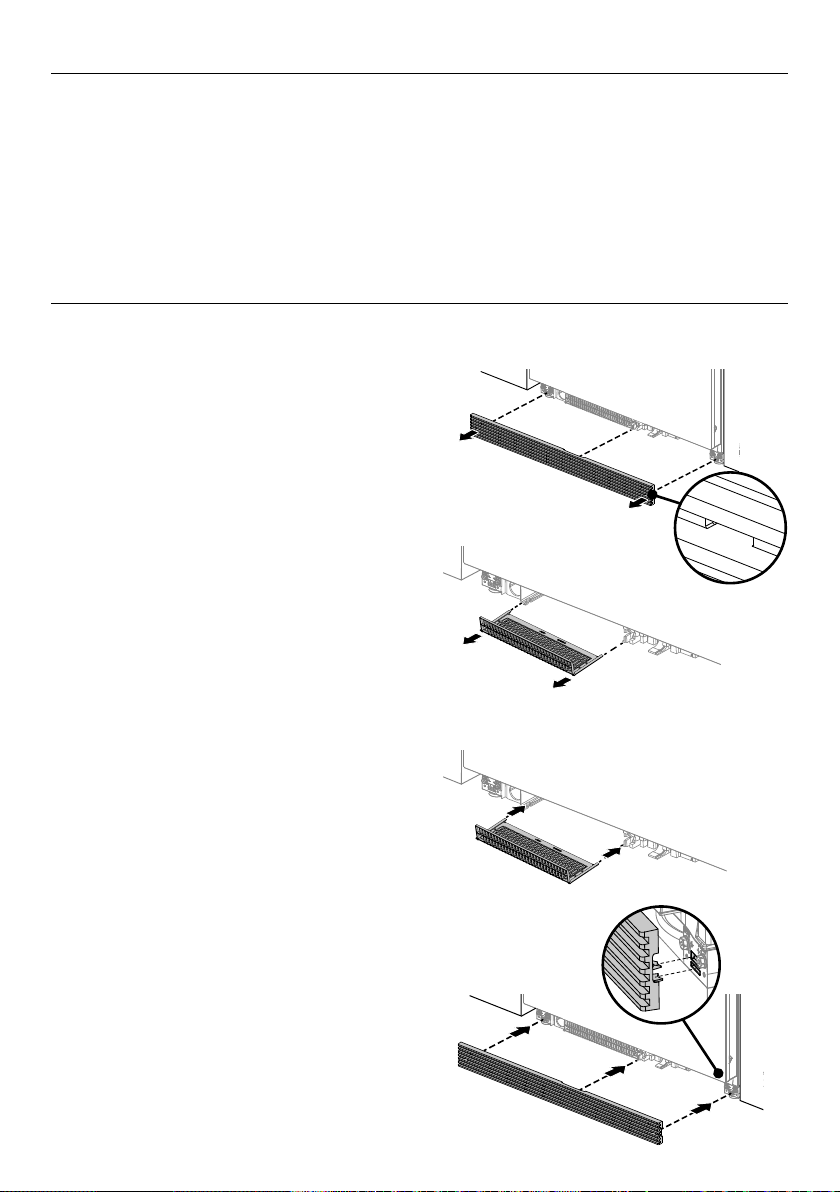

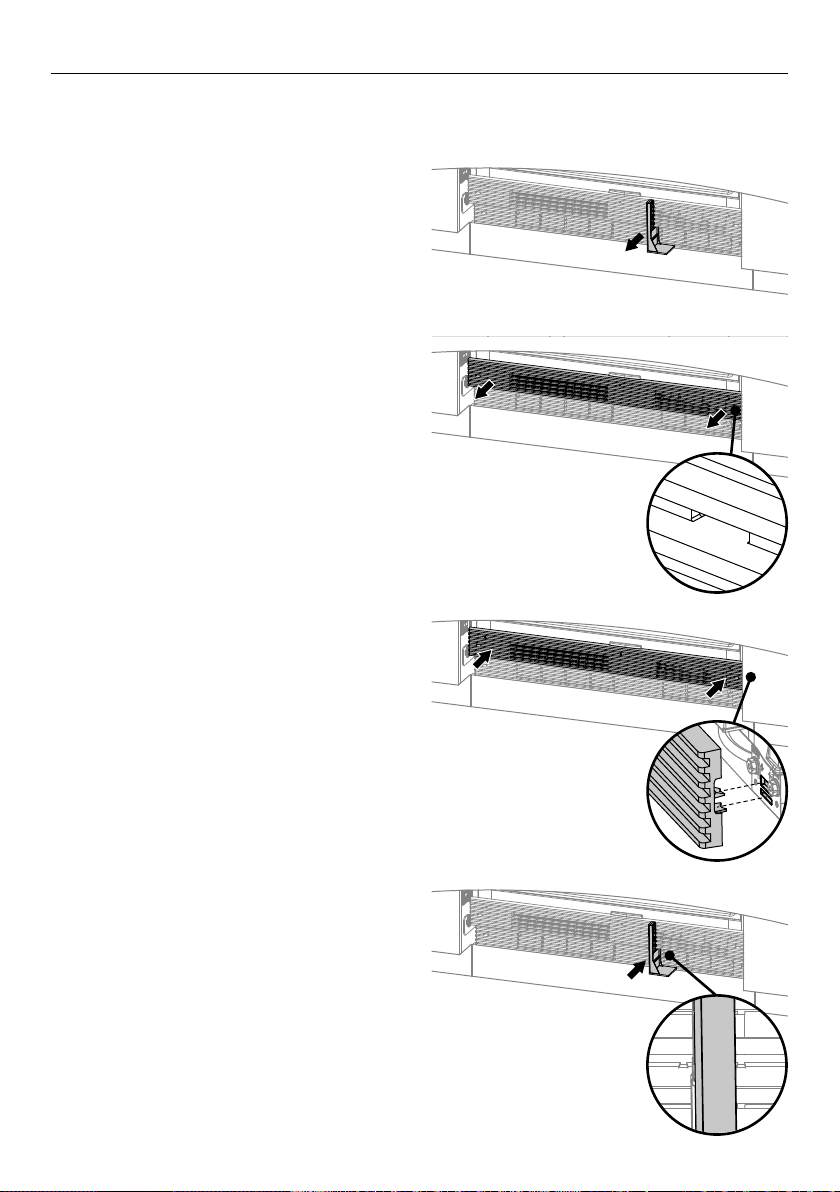

Cleaning care 25
Food care 30
User warnings and sounds 31
Troubleshooting 32
European Directive 2012/19/EU on WasteElectricalandElectronic
Equipment(WEEE) 36
Service & Warranty 37
3
Thank you for buying this Fisher & Paykel integrated refrigerator.
Introducing the next generation in Fisher & Paykel refrigeration. With a new
flush-fit design, and the ability to easily slide into existing kitchen spaces or be
integrated behindkitchen cabinetry, these family-sized fridges offer a seamless look to
the kitchenwhile providing excellent food care with ActiveSmart™ technology.
As your life changes, so can your refrigerator. This book explains the features
andfunctions that will help you get the most out of your refrigerator.
We hope you enjoy your new integrated refrigerator.
Note: Not all models are available in all countries.
INTRODUCTION
RS90AU
RS90A
RS36A72U1 (with RD3672U SS Door skin) RS36A72J1 (with RD3672 SS Door skin)
RS36A80U1 (with RD3680U SS Door skin)
RS36A80J1 (with RD3680 SS Door skin)
RS36A80U1 (with RD3684U SS Door skin) RS36A80U1 (with RD3684 SS Door skin)
RS36A72J1 (shown with custom panels)
RS36A80J1 (shown with 80’’ custom panels)
RS36A80U1 (shown with 84’’ custom panels)
RS36A72U1 (with RD3672U SS Door skin) RS36A72J1 (with RD3672 SS Door skin)
RS36A80U1 (with RD3680U SS Door skin)
RS36A80J1 (with RD3680 SS Door skin)
RS36A80U1 (with RD3684U SS Door skin) RS36A80U1 (with RD3684 SS Door skin)
RS36A72J1 (shown with custom panels)
RS36A80J1 (shown with 80’’ custom panels)
RS36A80U1 (shown with 84’’ custom panels)
RS9120W
RS9120WU
RS36W72RU1 (with RD3672RU SS Door skin) RS36W72RJ1 (with RD3672R SS Door skin)
RS36W80RU1 (with RD3680RU SS Door skin) RS36W80RJ1 (with RD3680R SS Door skin)
RS36W80RU1 (with RD3684RU SS Door skin) RS36W80RU1 (with RD3684R SS Door skin)
RS36W72RU1 (with RD3672RU SS Door skin) RS36W72RJ1 (with RD3672R SS Door skin)
RS36W80RU1 (with RD3680RU SS Door skin) RS36W80RJ1 (with RD3680R SS Door skin)
RS36W80RU1 (with RD3684RU SS Door skin) RS36W80RU1 (with RD3684R SS Door skin)
RS80A
RS80AU
4
!
WARNING!
Electric Shock Hazard
Read and follow the safety and warnings
outlined in this user guide before operating
this appliance.
Failure to do so can result in death,
electricshock, fire or injury to persons.
R600a
This appliance contains flammable
refrigerant isobutane (R600a).
Use this appliance only for the intended purpose
asdescribed in the user guide.
SAFETY AND WARNINGS
5
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
Read the entire user guide. Failure to follow all
guides and rules could cause personal injury or
property damage. When using this appliance
always exercise basic safety precautions including
the following:
• Children should be supervised to ensure that they do
not play with the appliance.
• Children aged 3 to 8 years may load and unload this
appliance under supervision.
• Cleaning and user maintenance shall not be
undertaken by children without supervision.
• This appliance can be used by children aged from
8years and above and persons withreduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use
of theappliance in a safe way and understand the
hazards involved.
• The manufacturer’s installation instructions
for product and cabinetry ventilation must be
followedwhen installing the appliance.
• To avoid hazard due to instability of the
appliance,itmust be fixed in accordance with
installation guide.
• Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means
toaccelerate the defrosting process, other than
those recommended by the manufacturer.
SAFETY AND WARNINGS
6
SAFETY AND WARNINGS
• Do not damage the refrigerant circuit.
• In case of damage to the refrigerant circuit, ventilate
the area by opening all windows.
• Donot operate electrical equipment or any
otherequipment that may produce arcs, sparks or
flames in the area. Contact your Fisher & Paykel
trained and supported service technician immediately
to arrange for theappliance to be repaired.
• It is hazardous for anyone other than a
Fisher & Paykel trained and supported service
technician to service this appliance. InQueensland,
Australia, the service technician must hold a gas
work license or authorization for hydrocarbon
refrigerants to carry our service or repairs which
involve removal of covers.
Electrical
WARNING!
• This appliance must be installed in accordance
withthe installation instructions beforeuse.
• To allow disconnection of the appliance from
thesupply after installation, incorporate a switch in
the fixed wiring in accordance with thewiringrules.
• Never unplug your refrigerator by pulling on the
power cord. Always grip the plug firmly and pull
straight out from the outlet.
• Do not plug in any other appliance at the same
power point as your refrigerator or use extension
cords or double adapters.
7
SAFETY AND WARNINGS
• Repair or replace immediately all electric service
cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks
or abrasion along its length or at either the plug
or appliance end.
• If the power supply cord is damaged, it must
only be replaced by your Fisher & Paykel trained
and supported service technician because special
purpose tools are required.
• When moving your appliance away from the
wall, be careful not to roll over or damage the
powercord.
• Do not use electrical appliances inside the food
storage compartments of the appliance.
• When positioning the appliance, ensure the power
cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
IMPORTANT!
Your refrigerator is designed to operate for
many years without the need for service checks.
However, if your refrigerator is malfunctioning,
have it attended to by your Fisher & Paykel trained
and supported service technician as soon as
possible. All electrical repairs must be carried out
by an adequately trained service technician or
qualifiedelectrician.
• If you suspect that the product is not getting
cold—items such as ice cream are melting—remove
all perishable food and store in another appliance
or cooler to prevent spoilage. Immediately call for a
service technician.
8
SAFETY AND WARNINGS
Cleaning
• Use only soap-based cleaning products.
• Many commercially available cleaning products
contain solvents that may degrade the plastic
components of your refrigerator and cause
them tocrack.
• Avoid using anti-bacterial cleaning products
on either the interior or exterior of the cabinet
as they may cause rusting of metal components
andcracking of plastic components.
• Regularly clean accessible draining systems and
surfaces that come in contact with food.
• If the appliance will be left empty for long periods,
switch off, defrost, clean, dry, and leave the
door open to prevent mould developing within
the appliance.
• Please refer to the ‘Cleaning care’ section of
this user guide for further information.
Disposal
• Extreme care must be taken when disposing
of your old appliance to avoid hazards:
– The flammable refrigerant gas must be
safely removed by a qualified service technician.
– The thermal insulation foam in this appliance
contains flammable insulation which can
emit gases. Anyexposed foam may be highly
flammable andmust be carefully treated
during disposal.
– DANGER: The doors and panels should be
removed andtheshelves left in place so that
children maynot easily climb inside.
9
SAFETY AND WARNINGS
– DANGER: Risk of child entrapment. Before you
throw away your old refrigerator or freezer, the
doors and panels should be removed and the
shelves left in place so that children may not
easily climb inside.
• Consult your local energy authority or local codes as
to the best way to dispose of your old appliance.
• Your Fisher & Paykel trained and supported
service technician will be able to give advice on
environmentally-friendly methods of disposing of
your old refrigerator or freezer.
Storing food and drinks
• Store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip
onto other food.
• Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
• Never store volatile or flammable materials in your
appliance as they may explode.
• Never freeze liquids in glass containers. Liquid
expands when it freezes and can cause the container
to explode.
• Never freeze carbonated drinks to prevent the
container from exploding.
• Do not consume food if it is too cold. Food removed
from the freezer compartment may be cold enough
to cause damage when brought into contact with
bare skin, egfrozen ice cubes.
10
Water filter
IMPORTANT!
• The water connection to your Ice & water refrigerator
must be installed by an authorised plumber or
Fisher & Paykel trained and supported service
technician and comply with all state and local laws.
• Installation and use MUST comply with all state
and local plumbing codes. Check with your local
public works department for plumbing codes. You
must follow their guidelines as you install the water
filtration system.
• Connect to a safe drinking water supply only.
• Use new tubing supplied with the appliance. DO NOT
reuse old tubing from old water and ice connections.
• Clean the water tanks if they have not been used for
48 hours. Flush the water system connected to the
water supply if water has not been used for 5 days.
WARNING!
To reduce the risk associated with choking:
• DO NOT allow children under 3 years of age to have
access to small parts during the installation of the
water filter.
Power failure — food safety
Do not refreeze frozen foods that have thawed
completely. The food may be dangerous to eat.
Follow the recommendations below if you discover
food in your freezer has thawed:
• Ice crystals still visible—food may be refrozen
but should be stored for a shorter period
thanrecommended.
SAFETY AND WARNINGS
11
• Thawed but refrigerator cold—refreezing generally
not recommended. Fruit and some cooked food
can be refrozen, but make sure it is use as soon
aspossible.
• Meat, fish, poultry—use immediately or cook
then refreeze.
• Vegetables—discard as they usually become limp
andsoggy.
• Thawed and warmer than 5°C—discard all food.
Ice making
IMPORTANT!
• Avoid contact with the moving parts of the ice maker
ejector mechanism, and do not place your fingers
on the automatic ice-making mechanism while the
appliance is inoperation.
• Do not use ice cubes that may have become
discolored, usually with a green-blue color.
Ifsuchdiscoloration is noted, discard the ice cubes
and contact your Fisher&Paykel trained and
supported service technician.
SAFETY AND WARNINGS
12
STORAGE FEATURES
Freezer compartment
Acessories
Manual ice tray with lid (non-Ice & Water models only)
RS80 and RS90 models
Refrigerator compartment
Accessories
Single bottle holders
Door
shelves
Dairy
shelf
Ice maker (top left of freezer)
(Ice& Water models only)
Ice storage bin with scoop
Mid tray
Large bottom bin
Top bin
Water filter
Dairy shelf
Full-width cantilever glass shelves
Fruit and vegetable bins
with humidity control lids
Slim bin with humidity control lid
Half-width cantilever glass shelves
13
STORAGE FEATURES
REFRIGERATOR COMPONENTS
Fruit and vegetable bins
with humidity control lids
Store all fruit and vegetables in separate bins without
external packaging.
Separate the fruit and vegetables to prevent the
ethylene-sensitive produce from ripening too
quickly—helps to extend their storage life.
Slim bin with humidity
control lid
The slim bin stores long vegetables which cannot
fitin the fruit and vegetable bins.
Also used for storing deli items and beverages, or
fordefrosting foods.
Cantilever glass shelving
Heat treated safety glass.
Can be removed and positioned at heights to suit
your storage requirements.
The half-width shelves can be positioned side by
side; best when storing large items such as platters.
Maximize the storage space when storing items of
varying heights by positioning the half-width shelves
at different levels.
Dairy shelf and door shelves
The top shelves are dairy compartments (designed
tostore butter and cheeses).
The middle shelves are designed for general items,
condiments and drinks.
The bottom shelves are designed to store large
drinks or those drinks you require frequent access to.
Clear windows give ultimate visibility to what is
being stored in the door shelves.
Adjustable door shelves with dividers.
Single bottle holders
Placed along the length of any shelf to store a
varietyof bottles.
Store bottles with the neck facing the front of
therefrigerator.
Unused bottle holders can be stacked on top ofone
another to maximize shelf space.
FREEZER COMPONENTS
Ice maker
(Ice & Water models only)
Removable ice container.
Hygienic ice scoop.
Freezer bins
Allow for easy storage of frozen food items.
14
STORAGE FEATURES
Large aluminum
extrusion door shelf
Fruit and vegetable bins
with humidity control lids
Cantilever
glass shelving
Door shelves
Bottle divider
Slim bin with
humidity control lid
Dairy shelf
Freezer compartment
Ice maker (top left of freezer)
Ice storage bin with scoop
Top bin
Mid tray
Large bottom bin
Accessories
Single bottle holders
Acessories
Manual ice tray with lid (non-Ice & Water models only)
Water filter
RS9120W models
Refrigerator compartment
15
STORAGE FEATURES
REFRIGERATOR COMPONENTS
Fruit and vegetable bins
with humidity control lids
Store all fruit and vegetables in separate bins without
external packaging.
Separate the fruit and vegetables to prevent the
ethylene-sensitive produce from ripening too
quickly—helps to extend their storage life.
Slim bin with humidity
control lid
The slim bin stores long vegetables which cannot
fitin the fruit and vegetable bins.
Also used for storing deli items and beverages, or
fordefrosting foods.
Cantilever glass shelving
Heat treated safety glass.
Can be removed and positioned at heights to suit
your storage requirements.
The half-width shelves can be positioned side by
side; best when storing large items such as platters.
Maximize the storage space when storing items of
varying heights by positioning the half-width shelves
at different levels.
Dairy shelf and door shelves
The top shelves are dairy compartments (designed
tostore butter and cheeses).
The middle shelves are designed for general items,
condiments and drinks.
The bottom shelves are designed to store large
drinks or those drinks you require frequent access to.
Clear windows give ultimate visibility to what is
being stored in the door shelves.
Adjustable door shelves with dividers.
Single bottle holders
Placed along the length of any shelf to store a
varietyof bottles.
Store bottles with the neck facing the front of
therefrigerator.
Unused bottle holders can be stacked on top ofone
another to maximize shelf space.
FREEZER COMPONENTS
Ice maker
(Ice & Water models only)
Removable ice container.
Hygienic ice scoop.
Freezer bins
Allow for easy storage of frozen food items.
16
ACTIVESMART™ SPECIAL FEATURES
Control panel
The control panel enables you to
view and modify all the features
and options of yourrefrigerator.
SmartTouch™ CONTROL PANEL FEATURES
Compartment Allows you to select which compartment to adjust the temperature.
Alarm mute Deactivates the door alarm for 20minutes.
Colder Reduces the temperature of compartments.
Warmer Increases the temperature of compartments.
Fast Freeze
Boosts the freezing speed by dropping the freezer to its coldest
temperature for 12hours.
Bottle Chill
Allows you to rapidly chill your beverage for a set time of
15minutes.
Ice On/Off Indicates when automatic ice maker is on or off.
Ice Boost
Increases ice production up to 30% from standard ice making,
and deactivates automatically after 24hours.
Key lock Allows you to disable the buttons on the control panel.
Filter change
indicator
Icon will illuminate indicating that water filter requires changing.
Sabbath mode All alarms, lights and displays are deactivated for 80hours.
Key mute Allows you to silence all button presses.
Ice & Water models Non-Ice & Water models
17
ACTIVESMART™ SPECIAL FEATURES
External display (Ice & Water models only)
The external display enables you to lock the water dispenser, indicates to you when
‘Bottle Chill’ is activated and when your water filter requires changing.
EXTERNAL DISPLAY FEATURES
Dispenser lock
button and
LED light
Locks/unlocks the water dispenser.
When locked the LED above the button will illuminate.
Bottle Chill
indicator
Icon illuminates to indicate when ‘Bottle Chill’
is activated and flashes when beverage is ready.
Filter change
indicator
Icon will illuminate indicating when water filter requires
changing. Check online at fisherpaykel.com for information
on how to reorder a filter.
18
ACTIVESMART™ SPECIAL FEATURES
Humidity control system
Humidity control lids
The control lids are fitted to the fruit and vegetable bins and slim bin of your refrigerator.
These lids seal the bins and provide a humid microclimate to extend the storage
timesof fruit and vegetables.
The lids have specially designed grooves that retain moisture to prevent condensation
from dripping onto the fruits and vegetables at times of high humidity.
Humidity slide
Each bin has an adjustable humidity slide that enables you to choose a fruit or
vegetable setting depending on your storage needs.
If there is too much water in the bins (due to high humidity), the control can be
adjustedtowards the fruit setting to reduce drips of water and/or wipe the
waterdry (if required).
Be aware that a small amount of water in the bins is beneficial for fruit and
vegetablestorage.
Use the vegetable setting when you store ethylene-sensitive vegetables such
aslettuce, spinach, broccoli, cabbage, carrots.
Use the fruit setting when you store high-ethylene fruits such ascitrus fruits,
stonefruits and some tropical fruits.
We recommend adjusting the humidity slide to the center when you store both
fruitsandvegetables.
We recommend storing all fruit and vegetables without external packaging and
inseparate bins.
– Separating the fruit and vegetables prevent ethylene-sensitive produce
fromripening too quickly, and help extend their storage life.
Humidity control graphic
19
ACTIVESMART™ SPECIAL FEATURES
Fast Freeze
‘Fast Freeze’ boosts the freezing speed by dropping the freezer to its coldest
temperature for 12hours. This helps retain the freshness, texture and taste during
thefreezing process.
To activate, press on the control panel. The light above illuminates to indicate
thisfeature is activated.
Ice On/Off
The ice maker is off when you turn on your refrigerator for the first time after installation.
To activate your automatic ice maker, press once. The light above illuminates
toindicate the Ice maker is on.
Ice Boost
Increases ice production by up to 30%, and deactivates automatically after 24hours.
The ‘Ice Boost’ feature is off when you turn on your ice maker for the first time.
To activate, press . The light above will illuminate when the ‘Ice Boost’ feature
ison.
To deactivate ‘Ice Boost’ feature manually, press again. The light above button
willnot illuminate.
Activating the ‘Ice Boost’ feature will automatically turn on the ice maker.
Deactivating the ice maker automatically deactivates the ‘Ice Boost’ feature.
Bottle Chill
This feature allows you to rapidly chill your beverage for 15minutes. The time taken
to chill depends on the size of your beverage. If your beverage is not cold enough,
returnitto the freezer and reset the ‘Bottle Chill’ feature.
To activate, press . The light above will illuminates to indicate this feature is activated.
For Ice & Water model, the icon will illuminate on the external display.
An alarm will sound after 15minutes to remind you to remove your beverage from
thefreezer.
To silence the alarm — Automatic ice model
Open the fresh food compartment door and press the button on the controlpanel.
To silence the alarm — Ice & Water model:
Open the fresh food compartment door and press the button on the controlpanel,
orpress the button once on the external display.
When ‘Bottle Chill’ is deactivated, the light above will not illuminate and the icon is
notvisible on the external display (Ice & Water model only).
20
OPERATING INSTRUCTIONS
Temperature control
Once you turn on your refrigerator for the first time, the cooling system will
automatically cool all compartments to their set temperatures.
This will take between 2 – 3 hours
The control panel enables you to change and control the temperatures of both
compartments accurately and independently regardless of the temperature or
humidityof the surroundings whether it is summer or winter.
We recommend checking the operation of your refrigerator once every 4hours
forthefirst 24hours.
If at any time you notice that the refrigerator is not cooling properly, call your installer
or Fisher & Paykel trained and supported service technician to verify if the unit
isoperatingproperly. Take immediate steps to prevent food from spoiling by storing
inanother refrigerator or freezer.
Adjusting the fresh food compartment temperature
When the fresh food compartment door is opened, the interior light automatically
illuminates. The temperature for this compartment will show as a series of lights.
To increase the temperature, press . This will increase the number of lights.
To decrease the temperature, press . This will decrease the number of lights.
Fewer lights illuminated indicates a colder temperature for the compartment selected.
Adjusting the freezer compartment temperature
Press once, the freezer compartment light will be illuminated.
To increase the temperature, press . This will increase the number of lights.
To decrease the temperature, press . This will decrease the number of lights.
Fewer lights illuminated indicates a colder temperature for the compartment selected.
Note: successively pressing will automatically scroll between compartments.
Whenthe door is re-opened the control panel will return automatically to the
freshfoodcompartment setting.
21
OPERATING INSTRUCTIONS
Door alarms
If the fresh food compartment door is left open, the alarm will beep after 90seconds,
ifthe freezer door is left open, the alarm will beep after 60seconds.
If either of the doors remains open, subsequent beeps will sound every 30seconds
for5minutes
If either door remains open for 5minutes or longer, an alarm will sound continuously
and the interior compartment light(s) will turn off. The alarm will stop only when the
door(s) is closed.
Alarm Mute
To activate, press once.
The light above will illuminate to indicate the appliance is muted.
If the doors are left open for 5minutes or more, the compartment light turns off
andnormal door alarms are suspended.
‘Alarm Mute’ will deactivate after 20minutes.
To deactivate manually, press again.
Closing the door also deactivates the ‘Alarm Mute’.
Key mute
Key mute allows you to silence all button presses.
To activate key mute, press for 4seconds.
The icon on the control panel illuminates.
Once key mute is activated, all key sounds are silenced.
Door alarms and ‘Bottle Chill’ alarm are still operational.
To deactivate, press for 4seconds. The icon will no longer illuminate.
Key lock
‘Key Lock’ allows you to disable the buttons on the control panel. This is useful when
cleaning your appliance.
To activate key lock, press and together for 4seconds.
The icon on the control panel will illuminate.
Pressing any buttons will sound several beeps to let you know they are disabled.
To deactivate, press and together for 4seconds.
The icon will not illuminate.
Sabbath mode
When activated — the display, all alarms and lights are deactivated for 80 hours.
To activate Sabbath mode, press , and together for 4 seconds.
The icon on the control panel will illuminate.
To deactivate manually, press , and together for 4seconds.
Note: If you turn off your appliance while in Sabbath mode, it will resume
automaticallyonce the appliance is switched on again.
22
OPERATING INSTRUCTIONS
Before you start using the Ice & Water or automatic ice
Ensure your ice and water system is correctly installed by following the installation
guidesupplied with your appliance.
Check your refrigerator is switched on.
Allow at least 2hours for your refrigerator to cool before use.
Complete all the flushing steps detailed in this user guide to ensure optimum
performance of your water filter.
Water dispenser (Ice & Water model only)
Flushing out the water filtration system
Press the water dispenser pad to dispense 1 gal (4L) of water.
– There may be carbon residue dispensed together
with water. This is not harmful, and normal during
flushing process.
Wait for 4 minutes before dispensing again.
Dispense another 1 gal (4L) of water. Your water dispenser
is now ready for use.
Water will continue to drip from the dispenser for a few
more days after installation as the remaining trapped air
is released from the system.
Dispensing
Your water dispenser is designed for one-handed operation.
To dispense water, gently press the dispensing pad with a glass or container.
To stop the flow of water, simply pull your glass away from the dispensing pad.
Pressing hard against the dispensing pad will not increase the flow or dispense
morewater.
IMPORTANT!
To avoid damage to property or personal injury do not put hands,
fingers or objects up the dispenser opening.
Dispenser lock
The dispenser lock is located on the external display
and can be activated to prevent water from being dispensed.
This is useful when you are cleaning the external display or
when there are small children around.
To activate dispenser lock, press for 4seconds.
The light above will illuminate.
When the dispenser pad is pressed, several beeps will sound
to alert the user that water cannot be dispensed.
To deactivate dispenser lock and dispense water, press
for 4seconds. The LED above will not illuminate.
Water dispenser
Dispenser lock
23
Automatic ice maker
Before turning on your automatic ice maker, the water
filter must be installed (refertoyour installation guide)
and flushed to remove any impurities or trappedair
inthe filter system.
1
To activate your automatic ice maker, press once.
Thelight above illuminates to indicate the ice maker
is on.
2
Press the , and together for 4seconds then
closethe doors. The ice tray will empty the water into
the bin below. The ice tray will only empty after the
doors are closed.
3
Repeat step
2
to remove dust in the ice tray collected
during manufacture and transport.
4
Empty the water, dry the bin and return it correctly.
5
Once your ice maker is turned on the first bin of ice may be discolored, this is not
harmful and normal during the flushing process. Discard the first full bin of ice made.
Your ice maker is now ready for use.
– For Ice & Water models, the water filter will reach optimum performance aftertwo
to three full bins of ice.
– For Ice only models, the water filter will reach optimum performance after
fourtofive full binsof ice.
Turn the ice maker off if:
There is no water supply for several hours.
You are removing the ice storage bin for a period of time.
You are going on holiday/vacation.
Collecting ice
Your automatic ice maker produces approximately eight cubes of ice every 3 – 4 hours,
depending on the freezer compartment temperature and the number of times the door
is opened.
The ice cube tray is filled with filtered water.
Frozen ice cubes are dispensed from the ice tray and into the ice storage bin below.
Ice making will continue until the storage bin is full, and only resumes once you start
touse the stored ice.
When the ‘Ice Boost’ feature is activated, ice production will increase up to 30%
fromstandard ice making. This function automatically deactivates after 24 hours.
If large amounts of ice are needed, remove the ice storage bin and allow ice to fill
thetop freezer bin.
For maximum ice storage, level the stored cubes with the ice scoop.
If ice is not used often, the quality of ice cubes will deteriorate. Empty the ice storage
bin periodically and wash in lukewarm water. Dry thoroughly and place back into the
correct position.
IMPORTANT!
Avoid contact with the moving parts of the ice maker ejector mechanism, and do not
place your fingers on the automatic ice making mechanism while the refrigerator is
inoperation.
OPERATING INSTRUCTIONS
Turning ice maker on
24
OPERATING INSTRUCTIONS
Water filter
The water supplied to your appliance for ice making is filtered to remove impurities
through a filter located in the bottom front of your appliance. Replace your filter
cartridgeevery 6months.
There is a replacement indicator icon on the control panel which will appear
whenthe filter needs replacing.
Replacement filter cartridges can be purchased online from fisherpaykel.com or
bycalling Fisher & Paykel Customer Care. Details of the replacement filter cartridge
arelabeled on the cartridge. Instructions on how to install your replacement
waterfilterareprovided with the filter.
To reset indicator:
Press and together for 4 seconds.
The on the control panel will turn off when reset.
IMPORTANT!
We recommend the water filter to be used from the time of installation.
Do not reset indicator before filter is changed or filter monitoring will be inaccurate.
To disable the filter indicator:
When no filter is fitted, you can disable the filter indicator.
To disable filter indicator, press , and together for 4seconds to turn it off.
The will flash once on the internal and external displays.
To turn on the filter indicator again, press , and together for 4seconds.
The on the control panel and external display will flash twice.
25
CLEANING CARE
Exterior
Stainless exterior doors
Clean the exterior door with liquid dishwashing detergent dissolved in warm water
andasoft cloth.
Dry the door with a lint-free cloth.
DO NOT use any stainless steel cleaners or solvents that are abrasive on the door
surface.
Other exterior surfaces
Clean all other exterior surfaces with a mix of warm water and liquid dishwashing
detergent, and a soft cloth.
Rinse with clean water and dry with a clean, lint-free cloth.
For custom door panels follow manufacturers cleaning instructions
Door gasket
We recommend you clean the magnetic door gasket every three months with a
toothbrush, and liquid detergent dissolved in warm water.
External display and water dispenser (Ice & Water models only)
Activate the ‘Lock’ function to prevent water from dispensing when cleaning, refer to
‘Dispenser lock’. Clean the pad and interface panel with a damp, soft lint-free cloth.
Drip tray (Ice & Water models only)
To clean, remove the drip tray from
thedispenser panel (A).
Pull the two halves of the tray apart (B).
Clean with liquid detergent dissolved
inwater and a soft lint-free cloth.
Rinse with clean water and dry with
aclean, lint-free cloth.
Securely clip the two halves together.
Re-insert the drip tray back into the
dispenser panel.
Cleaning the drip tray
A
B
26
CLEANING CARE
RS80 and RS90 models only
A
4
D
To clean the toe kick grille and filter
1
Remove the toe kick grille by inserting
fingers into the left and right square
openings on the grille. Pull towards you
(A).
2
To remove toe kick filter, insert fingers
into the left and right square openings
on the filter. Pulltowards you (B).
3
Clean both components with
liquiddishwashing detergent dissolved
in warm water and a softlint-free cloth.
4
Rinse with clean water and dry witha
clean, lint-free cloth.
C
B
To replace toe kick filter and grille
5
To replace toe kick filter, align filter
tabs onto the rails and pushto the rear
until it clips securely (C).
6
To replace toe kick grille, ensure
spacers on the inside of the toe kick
are positioned correctly. Alignsecuring
hooksthen firmly push grille onto
product until it clips securely (D).
Toe kick grilles and filter
Your refrigerator is fitted with a toe kick
grille and filter to protect the internal
working components. We recommend
cleaning the grille and filter in
conjunction with changing your water
filter cartridge (every 6months).
IMPORTANT!
Keep ventilation openings clear of
obstructions by regularly vacuuming
the flooring in front of your appliance
to maximize the operating efficiency of
your appliance.
Clean your appliance regularly especially
for houses that are dusty or houses with
pets that shedhair.
27
RS9120W models only
DETAIL A
SCALE 1 : 1
DETAIL D
SCALE 2 : 1
IF TOEKICK IS HIGHER THAN 4" USE SIDE CUTTER TO
1.
CUT UNREQUIRED VANES FROM DOTTOM
DRILL HOLES THROUGH DIMPLES
2.
USE PROVIDED SCREWS TO FIX GRILL TO
3.
MATCHING HOLES ON PLASTIC PARTS
B
Removing top toe kick grille
4
DETAIL A
SCALE 1 : 1
DETAIL D
SCALE 2 : 1
IF TOEKICK IS HIGHER THAN 4" USE SIDE CUTTER TO
1.
CUT UNREQUIRED VANES FROM DOTTOM
DRILL HOLES THROUGH DIMPLES
2.
USE PROVIDED SCREWS TO FIX GRILL TO
3.
MATCHING HOLES ON PLASTIC PARTS
Removing air flow divider
A
DETAIL A
SCALE 1 : 1
DETAIL D
SCALE 2 : 1
IF TOEKICK IS HIGHER THAN 4" USE SIDE CUTTER TO
1.
CUT UNREQUIRED VANES FROM DOTTOM
DRILL HOLES THROUGH DIMPLES
2.
USE PROVIDED SCREWS TO FIX GRILL TO
3.
MATCHING HOLES ON PLASTIC PARTS
Replacing top toe kick grille
C
DETAIL A
SCALE 1 : 1
DETAIL D
SCALE 2 : 1
IF TOEKICK IS HIGHER THAN 4" USE SIDE CUTTER TO
1.
CUT UNREQUIRED VANES FROM DOTTOM
DRILL HOLES THROUGH DIMPLES
2.
USE PROVIDED SCREWS TO FIX GRILL TO
3.
MATCHING HOLES ON PLASTIC PARTS
DETAIL A
SCALE 1 : 1
DETAIL D
SCALE 2 : 1
IF TOEKICK IS HIGHER THAN 4" USE SIDE CUTTER TO
1.
CUT UNREQUIRED VANES FROM DOTTOM
DRILL HOLES THROUGH DIMPLES
2.
USE PROVIDED SCREWS TO FIX GRILL TO
3.
MATCHING HOLES ON PLASTIC PARTS
D
Replacing air flow divider
CLEANING CARE
To clean the toe kick grille and filter:
1
Remove the air flow divider by pulling
towards you (A).
2
To remove the top toe kick grille, insert
fingers into the left and right square
openings on the grille. Pull towards
you(B).
3
To remove toe kick filter, insert fingers
into the left and right square openings
on the filter. Pull towards you. Refer to
‘Removing and replacing toe kick filter’
drawing.
4
Clean both components with liquid
dishwashing detergent dissolved in
warm water and a soft lint-free cloth.
5
Rinse with clean water and dry with a
clean, lint-free cloth.
To replace toe kick filter and
toe kick grille:
6
To replace toe kick filter, align filter tabs
onto the rails and push to the rear until
it clips securely.
7
To replace top toe kick grille, align
securing hooks then firmly push grille
onto product until it clips securely (C).
8
To replace air flow divider, align the
divider underneath the grille tabs
indicator and clip onto the vanes of the
bottom grille (D).
28
CLEANING CARE
Interior
It is important to keep the interior of the refrigerator clean to help prevent food
frombecoming contaminated during storage.
The amount and types of food stored determines how often cleaning should be
carriedout in the refrigerator (ideally once every 1 – 2 weeks).
For ease of cleaning, empty the refrigerator first and remove all glass shelves, door
shelves and storage bins.
Do not use harsh chemicals, abrasives, ammonia, chlorine, bleach, concentrated
detergents, solvents or abrasive scouring pads on any part of your appliance.
Someofthese chemicals may damage your appliance.
Clean all surfaces with a mild liquid detergent dissolved in warm water and a soft cloth.
Rinse with clean water and dry with a clean, lint-free cloth.
Cantilever glass shelves
Clean with liquid detergent dissolved in warm water and a soft lint-free cloth.
Rinse with clean water and dry with a clean, lint-free cloth.
1
To remove glass shelves, hold the front and back edge of the shelf firmly.
2
Push the shelf up vertically to dislodge from back support lugs.
3
Pull the shelf towards you.
Single bottle holders
Clean with liquid detergent dissolved in warm water and a soft lint-free cloth.
Rinse with clean water and dry with a clean, lint-free cloth.
Humidity control system
We recommend to use only liquid detergent dissolved in warm water and a soft lint-free
cloth when you clean the glass shelf above the fruit and vegetable bins.
Rinse with clean water and dry with a clean, lint-free cloth.
You don’t need to disassemble the parts when cleaning the humidity control lid that
isattached to the underside of the glass shelf.
Clean the lid by simply wiping the grooves with a damp, lint free cloth.
29
CLEANING CARE
Fruit and vegetable bins and slim bin
When cleaning, use only liquid detergent dissolved in warm water and a soft lint-free
cloth. Rinse with clean water and dry with a clean, lint-free cloth.
1
To remove a bin, extend the bin on its runners, and make sure you empty the bin.
2
Hold both sides of the bin corners and push the bin firmly upwards to dislodge from
thesecuring tabs.
3
Pull the bin towards you to remove. Push both runners back into the refrigerator.
4
To return the bin, extend the runners and place the bin on top of the runners.
5
Push the bin slowly onto of the runners until you feel it clip onto the runners.
Ensure the bin tabs are clipped securely onto the runners before use.
IMPORTANT!
The runners are pre-lubricated to help opening and closing the bins.
They do not need to be lubricated again. Do not remove the grease from the
runnersto maintain smooth function. Do not immerse the runners in water.
Freezer bins and freezer tray
Removing the freezer bins and tray when cleaning is not necessary. Simply wipe
cleanwith a soft lint-free cloth.
Ice storage bin
We recommend that you regularly clean your ice bin and discard any old ice in the
bottom ofthebin(s) regularly. Cleaning the ice maker components is not necessary.
Use only liquid detergent dissolved in warm water and a soft lint free cloth when
cleaning. Rinse with clean water and dry with a clean, lint-free cloth.
Ensure that the ice scoop is always placed in front of the bin.
We recommend that you turn off the ice maker before you leave for a vacation/holiday.
Refer to ‘Automatic ice maker’ section.
On your return, turn on the automatic ice maker and discard the first full bin of ice.
Refer to ‘Automatic ice maker’ section.
Holiday/Vacation
Leave your refrigerator operating while you are on holiday/vacation.
For Ice & Water models
Turn the ice maker off on the control panel.
Shut off the water supply to the refrigerator.
On your return, turn on the water supply to the refrigerator.
Dispense 1gal (4L) of water and discard to ensure the water tank is refilled with fresh water.
Turn on the ice maker.
Discard the first full bin of ice.
30
FOOD CARE
For best food care
Store only high-quality, fresh food in your appliance.
Store perishable foods in the appliance immediately after purchase. Storingatroom
temperature increases the rate of deterioration and can allow harmfulmicrobialgrowth.
Foods such as meat, poultry and seafood should be well wrapped or sealed in
suitablepackaging to prevent dehydration, color deterioration, loss of flavor, and
transfer ofodor.
– We recommend storing these foods on the bottom shelf of your appliance
orinone of the bins to prevent potential spills and cross-contamination with
otherfoods.
Ensure hot foods and beverages are cooled sufficiently before placing them into
theappliance. Hot items may cause other foods to warm to unsafe temperatures.
Itmayalso cause sealed items to sweat/condensate — which is undesirable.
Beverages are best stored standing upright in the door shelves or on the bottle
racksprovided.
Ensure raw and cooked foods are stored separately to avoid cross-contamination.
Consume food items within the recommended storage times. Discard foods that
showsign of spoilage.
Keep door openings to a minimum to maintain optimum storage temperatures inside
your appliance.
We recommend using ‘Fast Freeze’ when you are adding food items toyour freezer,
such as after grocery shopping. This feature will ensure the food isfrozen within
the shortest period of time, locking in the freshness andextending the shelf life of
yourfood.
Items stored in your refrigerator
Dairy items such as butter and cheeses should be stored in the covered door shelf
tominimize any transfer of odor or odor absorption from other foods.
Eggs should be stored in their carton to avoid absorption of strong odors through
theirporous shell structure.
Items stored in your freezer
We recommend cooling carbonated beverages in your freezer only when the ‘Bottle
Chill’ function isactive.
– Do not store carbonated drinks without activating this function. Beverages stored
for long periods of time can lead to freezing liquid and the possibility ofbottle/
canexplosion.
Ensure air is removed from packaging to avoid large formation of ice crystals and
prevent freezer burn.
We recommend defrosting foods in the refrigerator to maintain freshness and quality.
Ensure partially or fully defrosted foods are never re-frozen — cook immediately.
31
USER WARNINGS AND SOUNDS
Faults
Count the number of beeps made when the fresh food compartment door isopened.
Record the number and sequence of temperature lights displayed on the internal control
panel and contact a Fisher & Paykel trained and supported service technician in order
to repair the fault. You can do this by going online to fisherpaykel.com or by contacting
our Customer Care Centre.
To silence the fault alarm press any button on the internal control panel.
Normal refrigerator sounds
ActiveSmart™ refrigerators are designed to have excellent energy ratings and
cooling performance. As a result, you may hear sounds somewhat different to your
old refrigerator.
Normal operational sounds include:
Fan air flow sound. ActiveSmart™ refrigerators have fans which change speed
depending on demand. During cooling periods, such as after frequent door openings,
fans circulate the cold air in the refrigerator and freezer compartments producing
some air flow sound. This is quite normal.
Cracking or popping sounds. This may occur when the automatic defrost function
is operating.
Running water sound. This is the liquid refrigerant in the system and can be heard
as a boiling or gurgling noise.
An audible hissing sound after closing the freezer door. This is due to the pressure
difference between the warm air that has entered the cabinet and suddenly cooled,
and the outside airpressure.
Humming sounds. This is the compressor running and is quite normal.
Gasket noises. Normally occur over time due to a build up of dirt and/or grime. See
‘Cleaning care’ section.
Ice maker and water dispenser sounds:
– Motor operation (low humming).
– Running water as the ice maker and/or water tank fills.
– Water valve opening and closing (hissing sound).
– Loosened from the ice molding tray (cracking).
– ce dropping into bin (clunking).
Other sounds may be heard for the following reasons:
– Cabinet not level
– Floor uneven or weak
– Bottles or jars rattling on shelves
32
TROUBLESHOOTING
If there is a problem with your appliance, check the following points before contacting
your local Fisher & Paykel trained and supported service technician or the Customer
Care Centre.
Product parts and accessories can be purchased through Fisher & Paykel Customer Care
Centre or online at fisherpaykel.com (this service is available to selected markets only).
All models
PROBLEM POSSIBLE CAUSES WHAT TO DO
Appliance does
not operate
No electricity at power
outlet.
Check that the plug is correctly
connected and power switched on.
Check another appliance at the same outlet.
Check house fuse.
Light not
working
Light not functioning. The light cannot be serviced by the user.
Contact your Fisher & Paykel trained and
supported service technician.
Refrigerator not working. Check refrigerator is turned on at the
wall or at the isolating switch.
Motor operates
for long
periods
Hot weather. Minimize door openings to allow
temperature to stabilize.
Frequent door openings.
Large amount of food
recentlyadded.
Temperature control set
too low.
See ‘Operating instructions’ section.
Doors not sealing
properly.
Check that cabinet is level and gasket
seals are clean. See ‘Cleaning Care’
section.
Storage
compartments
too warm
Temperature setting not
correct.
See ‘Operating instructions’ section.
Frequent door openings. Minimize door openings to allow
temperature to stabilize.
Large amount of food
recentlyadded.
Food freezing
in the fridge
compartment
Temperature setting
not correct.
See ‘Operating instructions’ section.
Food placed directly in
front of air outlets.
Move chill sensitive foods away from
thecenter back of the shelves.
Unfamiliar
noises
Cabinet not stable or level. See ‘Installation instructions’ booklet.
Freezer is defrosting. This is normal.
33
TROUBLESHOOTING
All models
PROBLEM POSSIBLE CAUSES WHAT TO DO
Fault alarm sounds
when the fresh
food compartment
door is opened
Record the number of beeps along
with the number and sequence of
temperature lights displayed on the
internal control panel.
Contact Customer Care Center.
Water in the
vegetable bins
Condensation is formed by
the water produced by fruit
and vegetables.
A small amount of condensation is
beneficial for fruit and vegetable
storage.
Wipe out water with a cloth.
Exterior of cabinet
is warm
This is normal.
Condensation
on outside of
refrigerator/
freezer
Not unusual during periods
of high humidity.
Wipe dry.
Condensation
inside fridge
compartment
Frequent or long
door openings.
Minimize door openings.
Door gasket leaking. Check that gasket is sitting flat
andsealing tightly.
Not unusual during periods
of high humidity.
Wipe dry.
Tray/bin does not
slide in and out
evenly
Packaging trapped. Check to ensure no food or
packaging is trapped behind the
tray/bin.
Ice cubes taste
tainted
Unsealed packages may be
transmitting odor/taste.
Discard ice cubes and clean ice
storage bin. See ‘Cleaning care’
section.
Wrap or cover strong smelling foods.
Excessive gasket
noise
May be due to a build up of
dirt and/or grime.
See ‘Cleaning care’ section.
Door not closing An obstruction is blocking
door closing.
Move obstruction.
34
TROUBLESHOOTING
Ice & Water models only
PROBLEM POSSIBLE CAUSES WHAT TO DO
Automatic ice
maker does
notwork
Ice maker has not been
turned on.
Switch on ice maker, see ‘Automatic ice
maker’ section.
Water supply turned off or
not connected.
Connect water supply.
Freezer compartment
notworking.
Contact Customer Care Center.
Water pressure too low. Check water pressure.
Water line kinked/squashed. Check water line for kinks/squashing.
Filter clogged. Water filter may need replacing.
Ice cubes stick in ice bin. Remove ice bin, loosen cubes and
remove clumped ice. Refit ice box.
Ice cubes
taste tainted
Unsealed packages may be
transmitting odor/taste.
Discard ice cubes and clean ice storage
bin. See ‘Cleaning care’ section.
Wrap or cover strong smelling foods.
Poor taste from
incomingwater.
Replacement filter cartridges can be
purchased online from fisherpaykel.com or
by calling Fisher&Paykel Customer Care.
Slow ice cube
freezing
Door may have been leftajar. Close door.
Freezer compartment set
toowarm.
Turn temperature to a colder setting.
(See ‘Operating instructions’ section).
Small cubes Low water pressure. Check water pressure.
Filter blocked. Replace filter cartridge. Replacement
filter cartridges can be purchased online
from fisherpaykel.com or by calling
Fisher&Paykel Customer Care. Instructions
on how to install your replacement water
filter are provided with the filter.
Wet ice/
iceclumping
Long freezer door openings. Gently tap ice to unstick or, if large
clumps occur, empty ice bin and make
new ice.
High ambient temperature.
Ice bin left out of freezer
compartment for a length
oftime.
Ice will stick together
overtime.
35
TROUBLESHOOTING
Ice & Water models only
PROBLEM POSSIBLE CAUSES WHAT TO DO
Water has poor
taste/odor
Refrigerator not used for
anextended period.
Flush the water filtration system.
Dispense and discard 1 gal (4L) of
water, this will ensure the water tank
isrefilled with fresh water.
Poor incoming
water quality
Refrigerator not used for
anextended period.
Flush the water filtration system.
Dispense and discard 1 gal (4L) of
water, this will ensure the water tank
isrefilled with fresh water.
Water dispenser
does not work
Water supply turned off or
not connected.
Turn water on.
Supply line may be blocked. Check incoming connection for kinks
or leaks.
On first installation there
may be air in water system.
To remove air, run 1 gal (4L) of water
through the dispenser.
Filter may be blocked and
needs replacing.
Replace filter cartridge. Replacement
filter cartridges can be purchased
online from fisherpaykel.com or by
calling Fisher&Paykel Customer Care.
Water frozen in tank. Increase temperature to a warmer
setting in fresh food compartment
andfreezer.
Water in first
glass is warm
Water dispenser not used
for extended period.
Discard first glass of water dispensed.
Tank capacity used recently. Allow water time to cool.
Drips overflow
drip tray
Air trapped in tank. Flush the water filtration system.
Dispense and discard 1 gal (4L) of
water, then rest the dispenser pad for
a further 2minutes.
Dispense and discard a further 1gal
(4L) of water. This will displace trapped
air in the water tank and filter system.
New filter installed.
Water flow rate
has slowed
down
Filter cartridge is restricted.
Check if filter icon is
illuminating.
Replace filter cartridge. Replacement
filter cartridges can be purchased
online from fisherpaykel.com or by
calling Fisher&Paykel Customer Care.
Kinked water supply line.
Ice buildup
inside freezer
compartment
Freezer door not closing
tightly.
Arrange items in freezer so door can
close tightly.
Check and clean door gasket seal.
Ice maker sounds
Normal ice maker operation. See ‘User warnings and sounds’ section.
Small or large
ice cubes
Insufficient or excessive
water pressure.
Check water pressure.
36
EUROPEAN DIRECTIVE 2012/19/EU ON
WASTEELECTRICALANDELECTRONIC EQUIPMENT(WEEE)
EU This appliance is marked according to the European Directive 2012/19/EU on
WasteElectrical and Electronic Equipment (WEEE). By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate
handling of this product.
The symbol marked on the serial plate, or on the documents accompanying
theproduct, indicates that this appliance cannot be treated as household waste.
Itshallbe handed over to the applicable collection point for the recycling of electrical
and electronic equipment. Disposal of the appliance shall be carried out in accordance
with the local environment regulations for waste disposal and ensure the refrigerant
circuit is not damaged.
For more detailed information about treatment, recovery and recycling of this product,
please contact your local city office, your household waste disposal service or your
Fisher & Paykel retailer/dealer from whom you purchased this product.
37
SERVICE & WARRANTY
For details of your manufacturer’s warranty and contacts for servicing, refer to your
separate service and warranty book provided with your appliance.
This product has been designed for use in a normal domestic (residential environment).
This product is not designed for any commercial use. Any commercial use by the
customer will affect this products manufacturer’s warranty
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer
City
State
Zip
Country
NZ AU GB IE HK SG IN
8699A08.19
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2019. All rights reserved.
The product specifications in this booklet apply to the specific products
and models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time. You
should therefore check with your Dealer to ensure this booklet correctly
describes the product currently available.
