INSTALLATION GUIDE
US CA
INTEGRATED COLUMN
REFRIGERATOR & FREEZER
RS2484S, RS2484SH, RS084S, RS084SH
RS1884F, RS2484F & RS084F
REFRIGERATOR-FREEZER
RS084W & RS084W
WINE CABINET
RS2484V
3
Safety and warnings 4
Integrated refrigerator & freezer 5
Integrated refrigerator-freezer 6
Integrated wine cabinet 6
Supplied parts 7
Required parts 8
Door panel kit 9
Handle kit 10

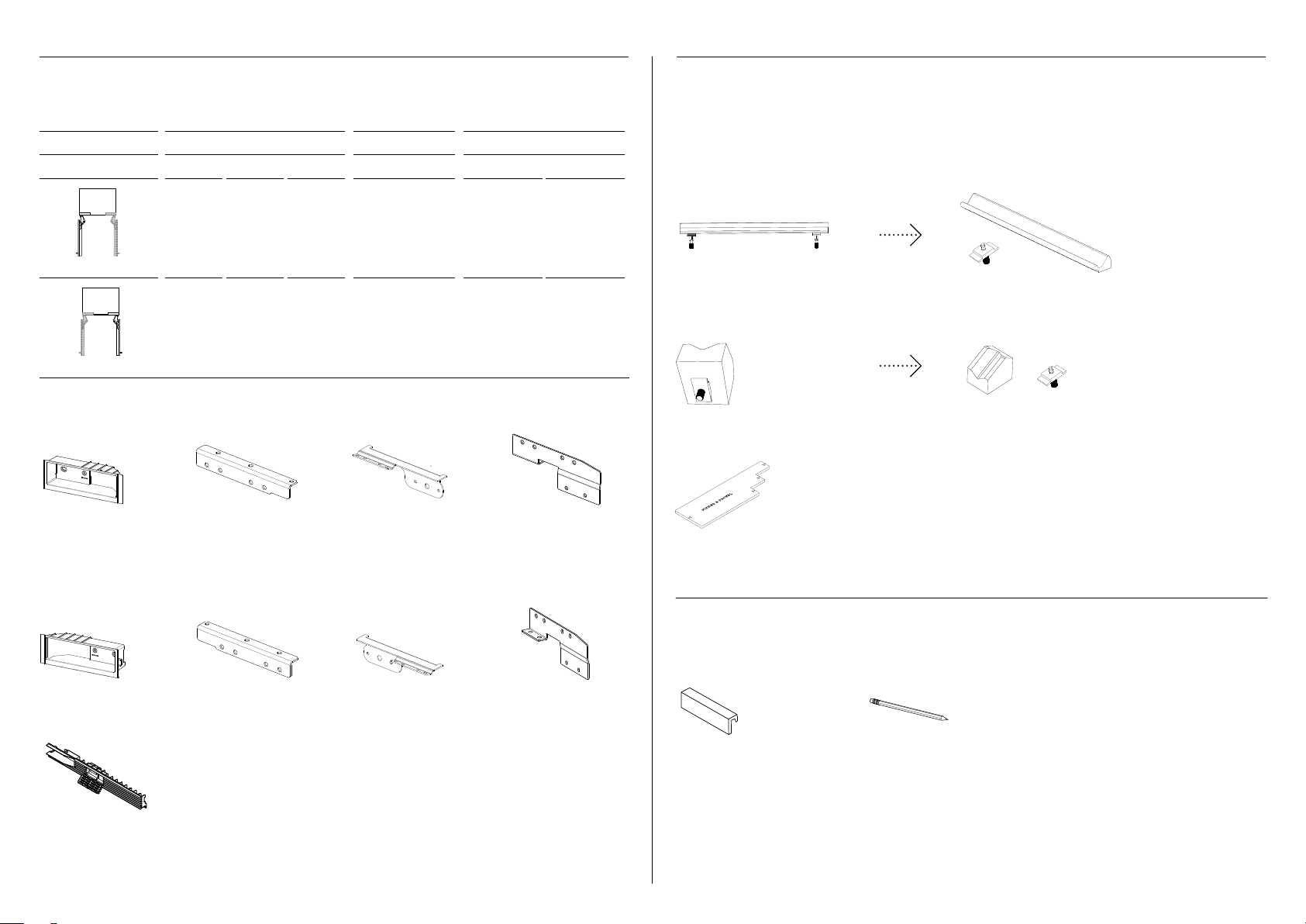

Hinge change kit 11
Wine display accessories 11

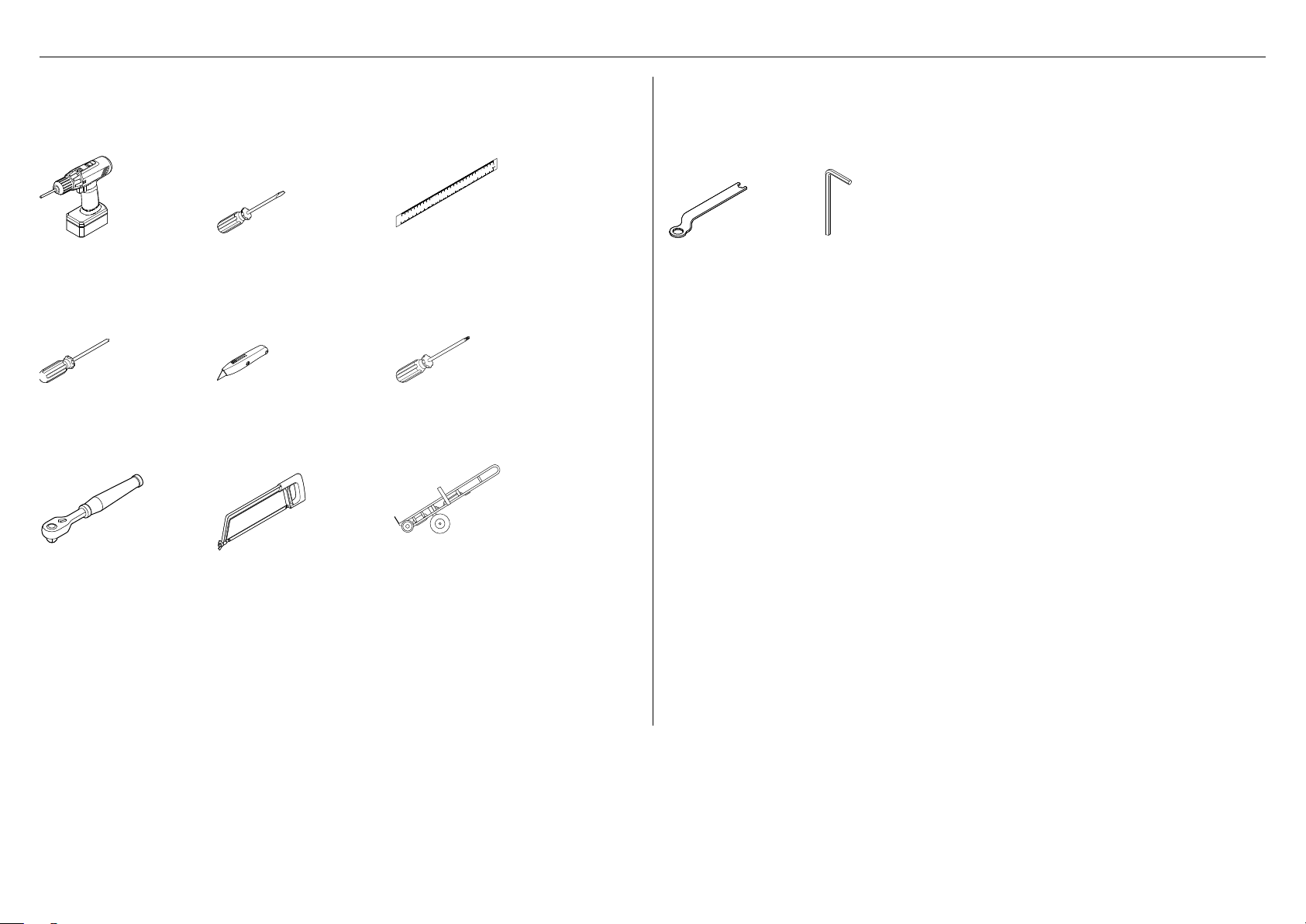

Tools 12
Product dimensions 13
Cabinetry dimensions — Single installation 14
Cabinetry dimensions — Multiple installation 15
Stainless steel Door panel dimensions — Single installation 16
Custom Door panel dimensions — Single installation 17
Custom Door panel dimensions — Multiple installation 18
Toe kick dimensions 19
Installation options 20

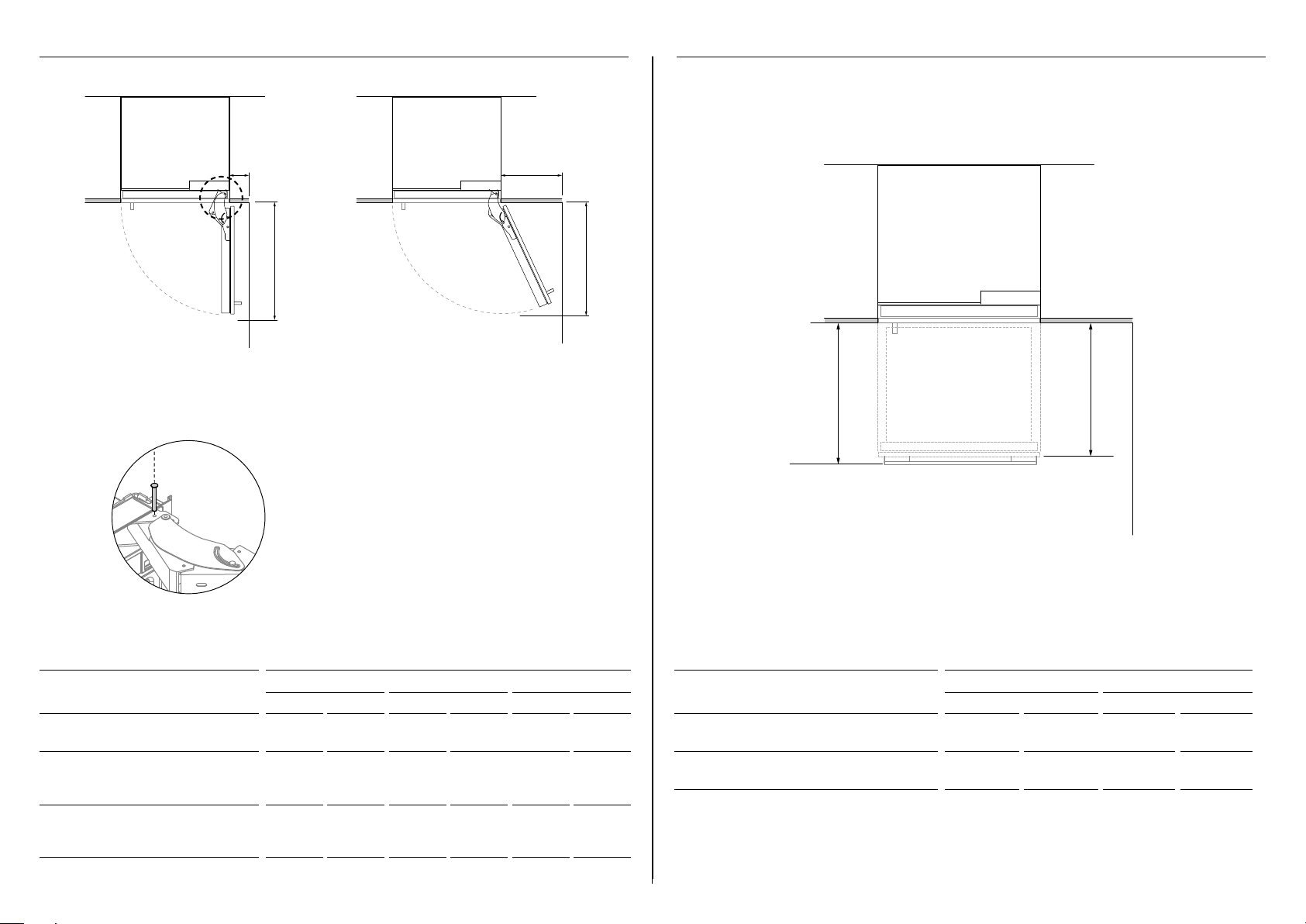

Door clearance 21
Drawer clearance 21
Electrical and plumbing 22
Custom door panel install dimensions 23
Before installation 28
Cavity preparation 30
CONTENTS
Appliance preparation 31
Door panel preparation — Stainless steel panel 33
Door panel preparation — Custom panel 34
Door panel preparation — Wine cabinet only 35
Power and water supply connection 37

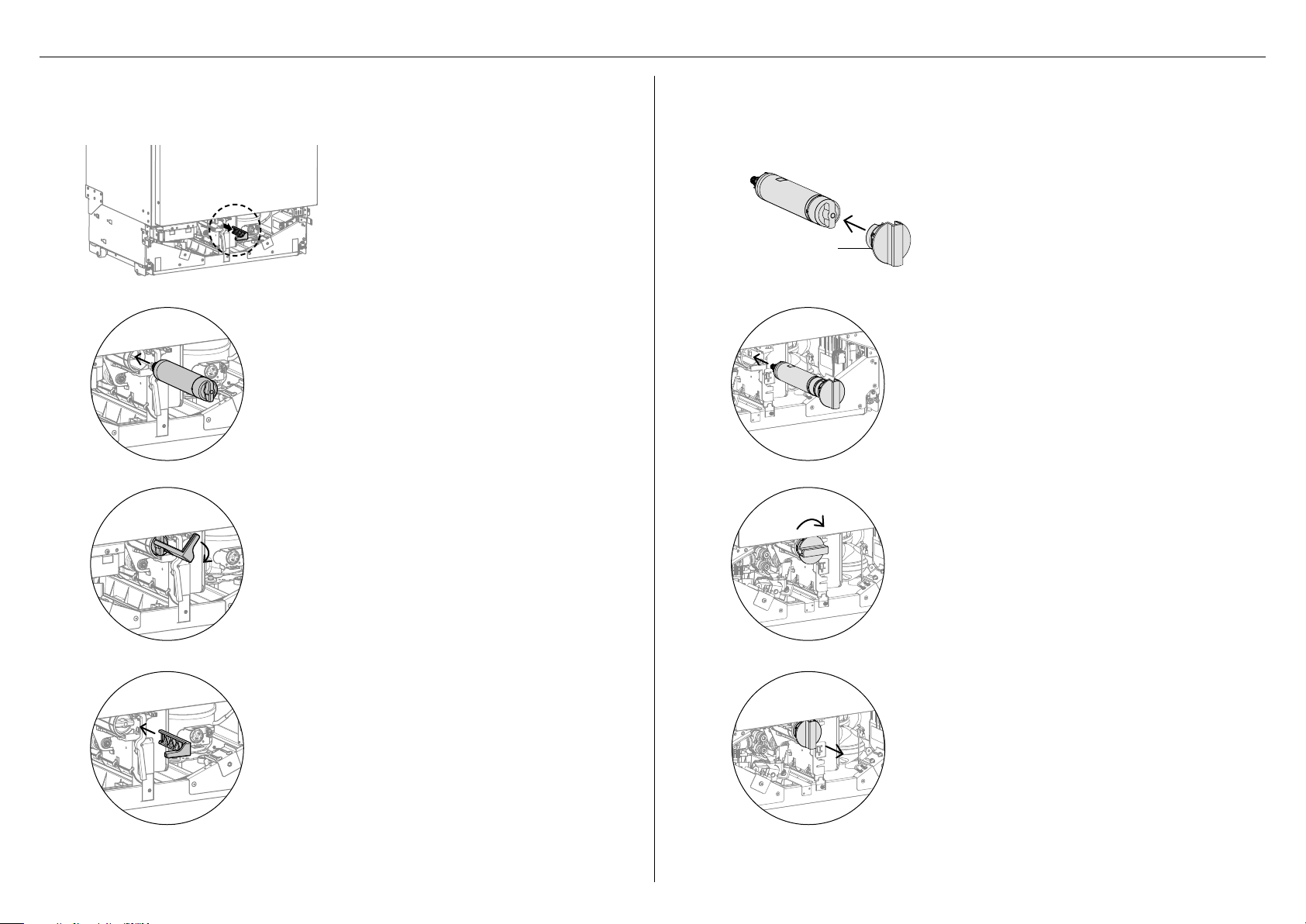

Install water filter 38
Single installation — Align appliance into cabinetry 39

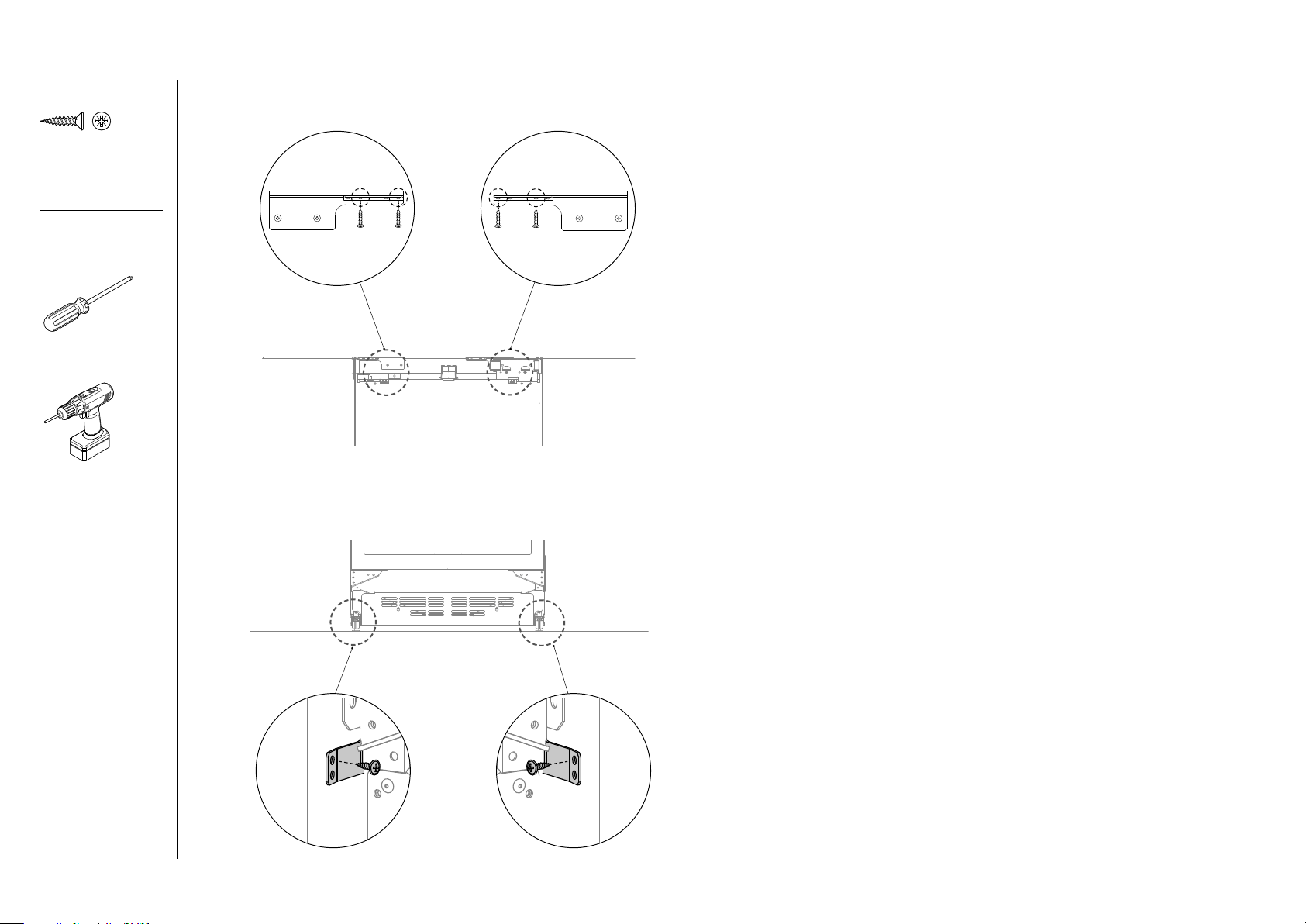

Single installation — Secure appliance into cabinetry 41
door panel installation 42

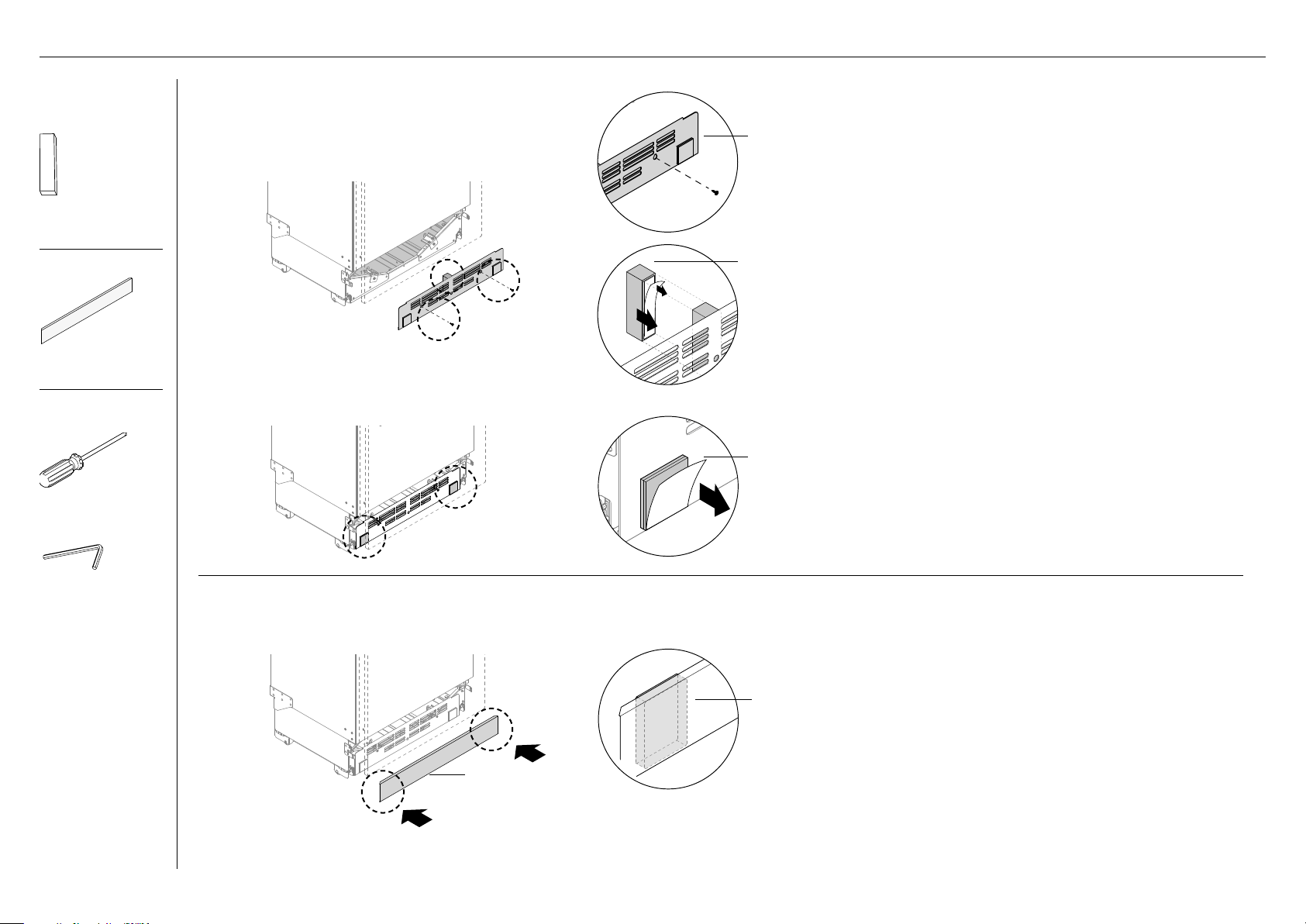

Toe kick installation 44
Grilles installation 46

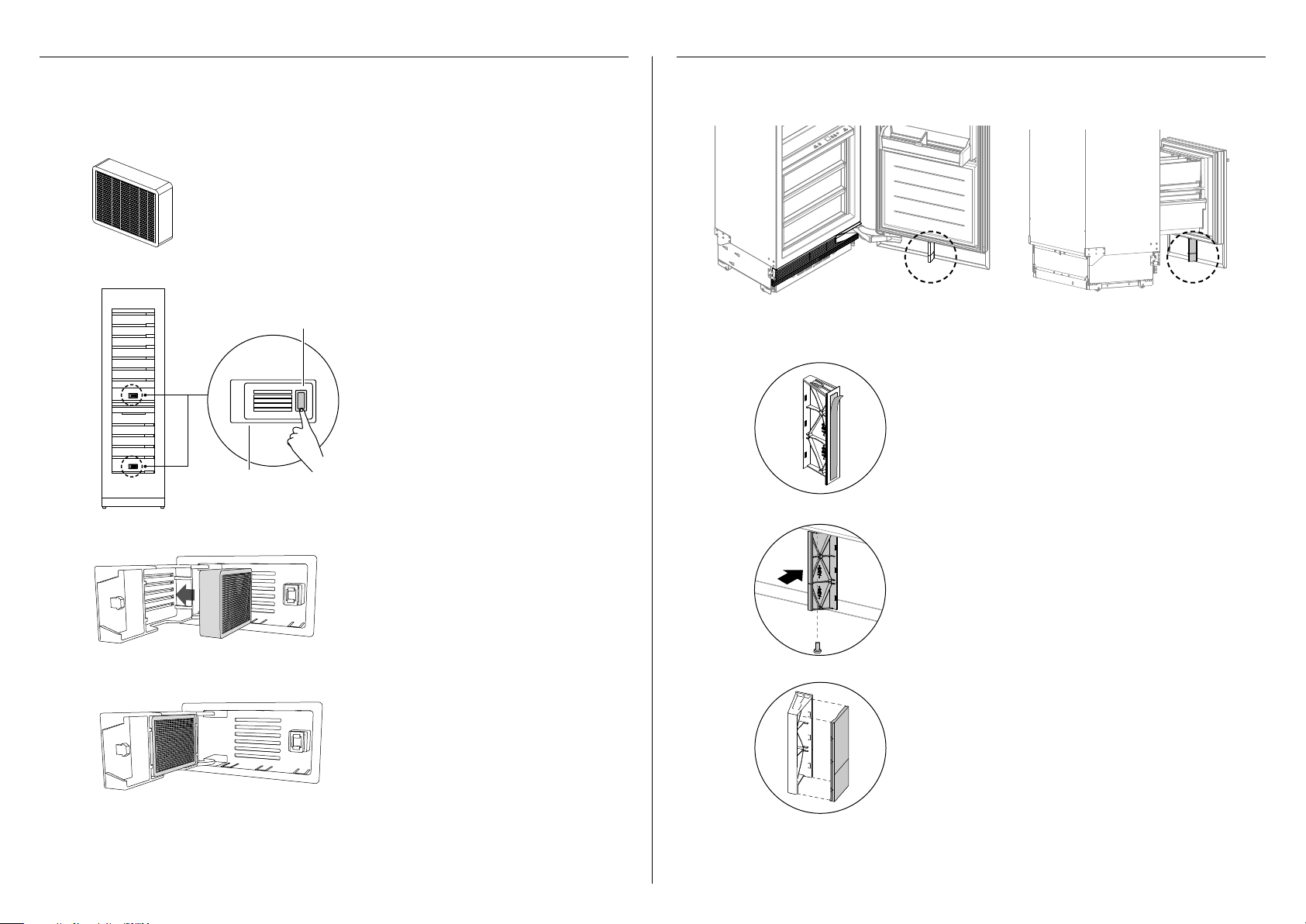

Carbon filter installation 47
Air flow divider installation 47

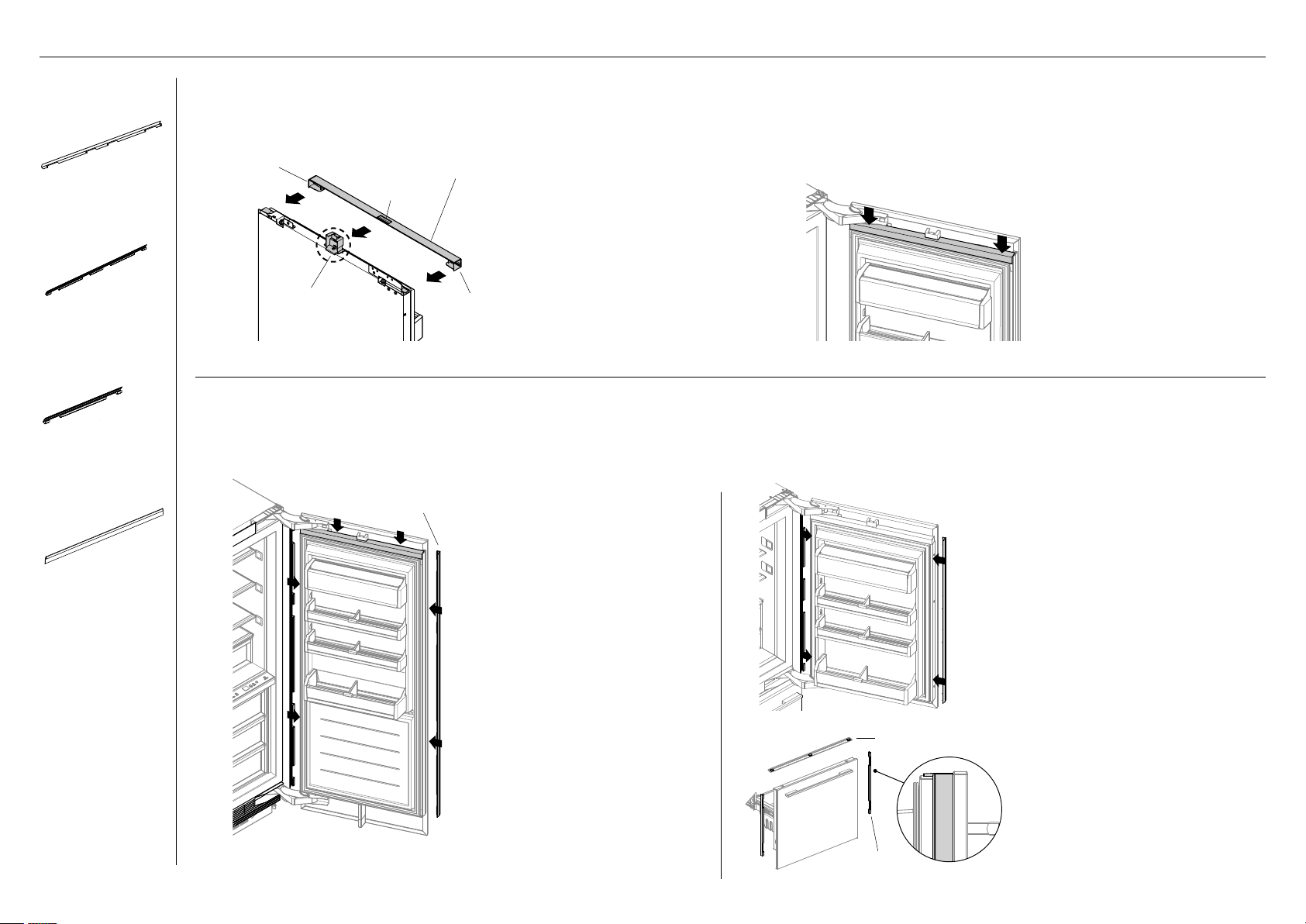

Cabinet trims installation 48
Top trim & hinge pocket covers installation 50
Multiple installation — Appliance preparation 51
Multiple installation — Align first appliance into cabinetry 52
Multiple installation — Secure first appliance into cabinetry 53
Multiple installation — Align second appliance into cabinetry 54
Multiple installation — Secure second appliance into cabinetry 55
Multiple installation — Install cabinet trims 56
Wine display for Wine cabinet (optional) 57

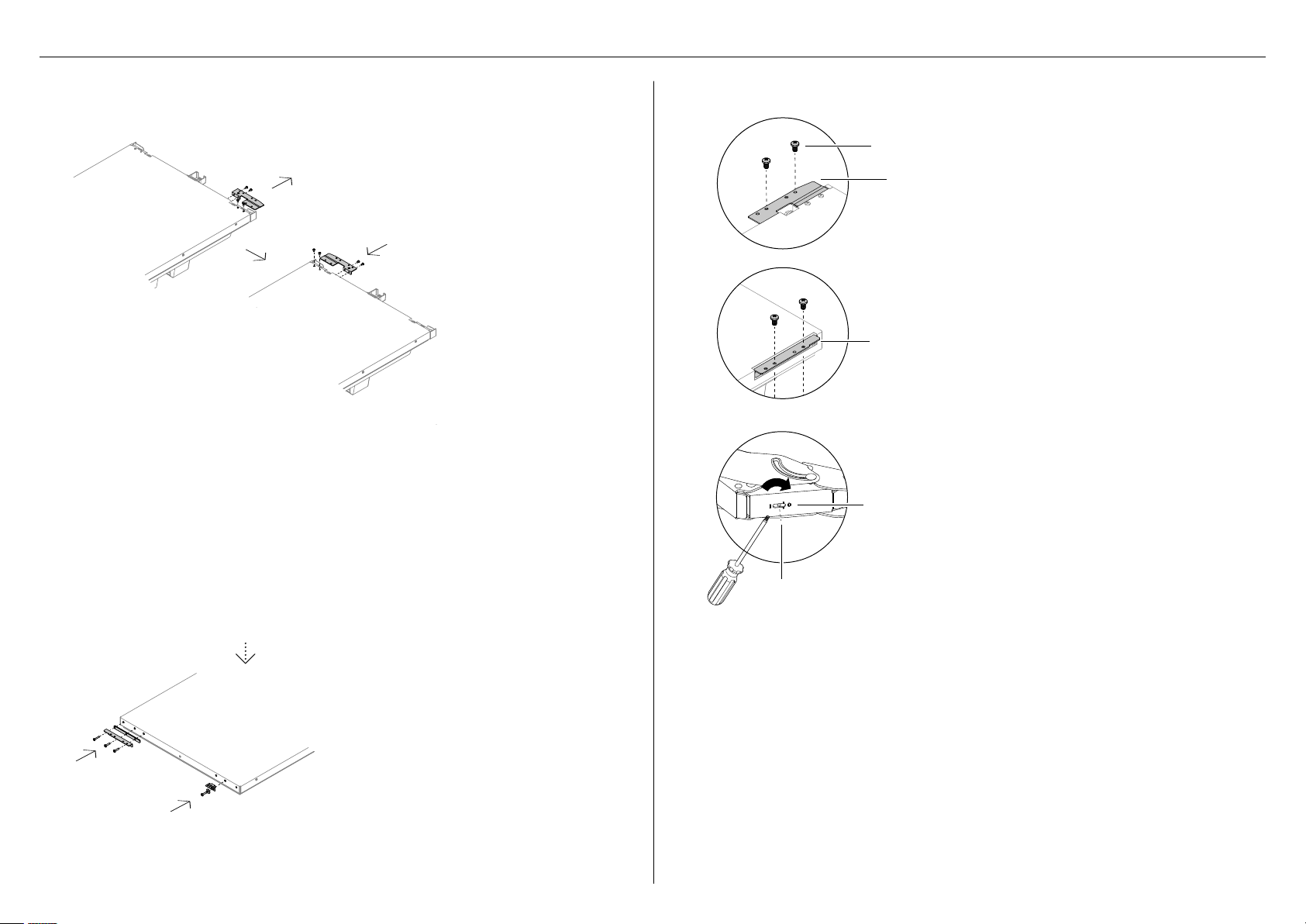

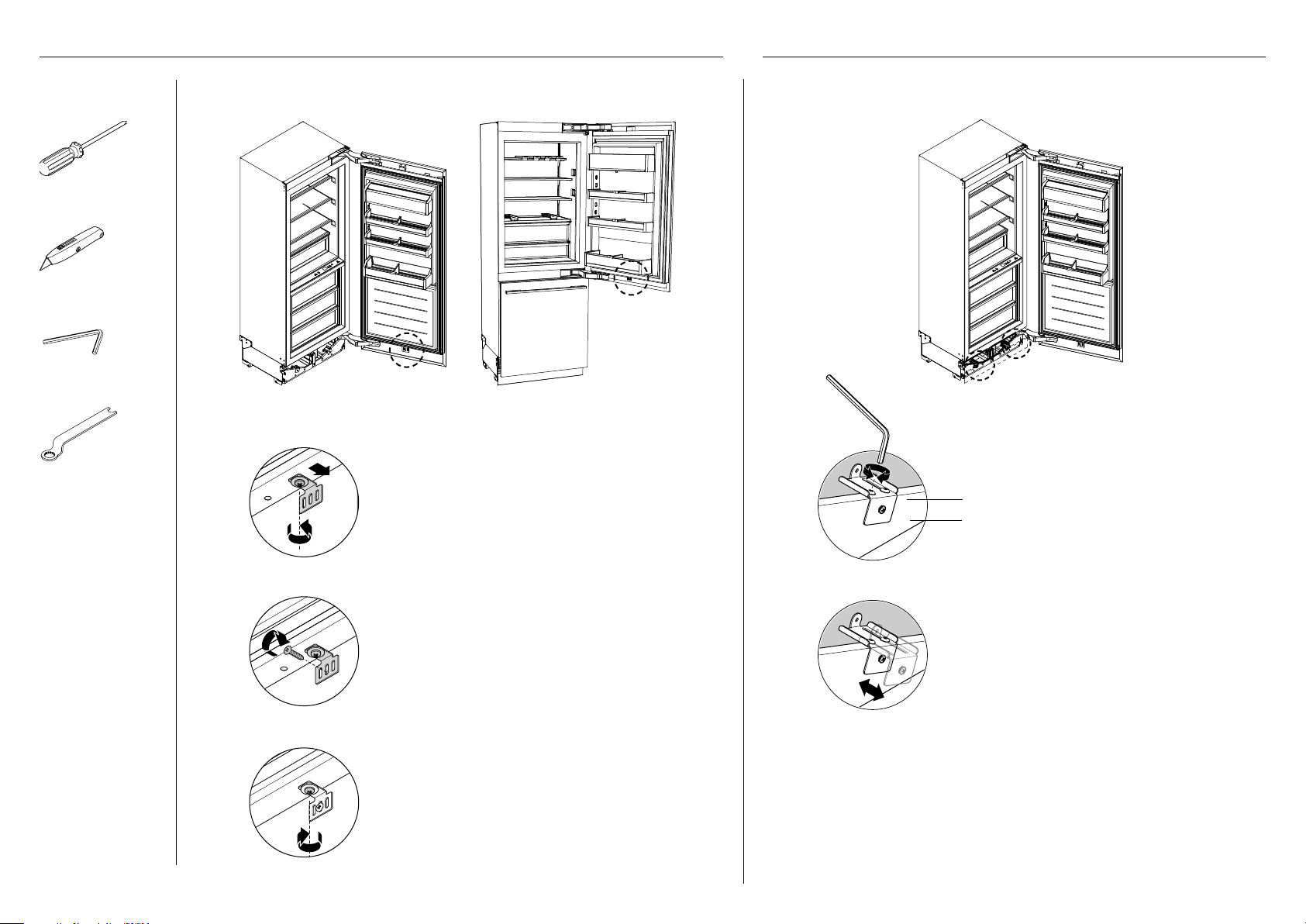

Change the door hinges (optional) 58
Final checklist 63
4
SAFETY AND WARNINGS
READ AND SAVE THIS GUIDE
WARNING!
To avoid hazard, follow these instructions carefully before Installing or using thisappliance.
z
Please make this information available to the persons installing the appliance.
z
Assume all electrical parts are live.
z
Disconnect power supply before servicing and installation.
BEFORE INSTALLATION
z
The appliance has front and rear rollers to easily move forward and backward. Do not
move the appliance sideways to avoid damaging the rollers or the floor covering/surface.
z
Ensure your appliance is not exposed to any heat generating appliance eg cooktop, oven
or dishwasher.
z
The appliance must be installed by a qualified installer, or Fisher and Paykel trained and
supported service technician to avoid faulty electrical and plumbing connections.
z
All connections for electrical power and grounding must comply with local codes and
ordinances and be made by licensed personnel when required.
z
Avoid installation of the appliance/s under a ground fault circuit interrupter (GFCI).
z
Ensure the appliance is installed properly. Improper installation that results in appliance
failure is not covered under the appliance warranty.
UNPACKING
z
The appliance is heavy and requires at least twopersons to move and install.
z
Remove the installation kit (internal box) and trims kit (external box) while the product is
still on the pallet.
z
Avoid scratching the surface of your appliance when moving or installing.
z
Keep the appliance stable and door closed to prevent tipping over when moving to the
installation location.
z
Ensure the feet of the appliance are retracted before moving to the installation location.
z
If the appliance is damaged, contact your Fisher and Paykel dealer.
z
Ensure all components and accessories are complete. Refer to 'Before installation' page.
z
Record the default Wifi password, and the model and registration numbers for future
servicing or repair of your appliance.
ELECTRICAL/PLUMBING
z
We recommend to locate the electrical and water supply connections of the appliance in
an adjacent area or unit (cabinet or cupboard) that are easily accessible in case of repair
or disconnection.
z
Ensure an isolating switch is available if electrical connection is not easily accessible.
!
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• Read and follow the safety and warnings
outlined in this User guide before operating this
appliance.
!
WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care: panel edges may be sharp.
• Do not put fingers in the drawers when closing.
!
WARNING!
Tip Hazard
• This product may tip. Keep children away and
take care. Failure to follow this advice may
result in injury.
• This appliance is top-heavy and must
be secured to prevent the possibility of
tippingforward.
To ensure that the appliance is stable under
all loading conditions:
• Theanti-tip bracket and fittings supplied
must be installed by a professional installer
according tothe installation steps in this guide.
5
SAFETY AND WARNINGS
INSTALLATION
z
The anti-tip bracket and fittings supplied must be fitted tothe wall of the finished
enclosure to withstand a 220lbs (100kg) load.
z
Ensure that the anti-tip bracket is installed correctly to prevent the possibility of the
appliance tipping forward when the door is open.
z
Ensure the door of the appliance is closed when rolling into thecabinetry.
z
Ensure the power cord is not run over or damaged when rolling the product into
the cabinetry.
z
For flush installation, ensure the door panels are installed flush with cabinetry front surface.
Ensure the appliance is properly centered.
z
All four corners of the appliance must be supported firmly on the floor to eliminate any
movement. Installing the appliance on a soft, uneven, or not level floor may cause twisting
and poor door sealing.
z
Use low speed, low torque setting when using a powered driver for the screws when fixing
or aligning the product.
z
Open the appliance door to remove the alignment brackets from both sides of the
appliance, and then re-tighten the screws.
z
When removing the top door extrusion, ensure the magnet remains in place and not
damaged as this will affect the operation of the appliance.
Stainless steel panel
z
Protect the finish of the Fisher and Paykel Stainless Steel door panels from any scratch
or damage.
z
Remove the blue tape attached to inner edges of the door panels after the handles are
installed.
z
We recommend to load the shelves in the appliance door with weights to ensure an
accurate door panel gap width. Load 33lbs (15kg) for 24" models, and 44lbs (20kg) for
30" models.
Custom panel
z
If using Custom door panels, ensure they are prepared as per 'Custom door panel install
dimensions' section.
z
The thickness of the custom door panel can vary as long as the screws do not penetrate
beyond the full depth of the door panel, and as long as the overall weight of door panel
does not exceed the allowable weight. Refer to 'Door panel dimensions' for maximum door
panel weight of your product.
z
Do not place the handle holes in marked areas to avoid clashing with panel
attachment brackets.
z
Minimum panel thickness where screw hole is drilled must be 5/8" (16mm).
Changing the door hinge (optional)
z
Door hinges are interchangeable for each model. A hinge change kit is available and can be
purchased separately if you prefer to change from ‘right hinge door’ to ‘left hinge door’ or
vice versa.
INTEGRATED REFRIGERATOR & FREEZER
Left or Right hinged door available for each model.
18" Freezer
RS1884FLJ1, RS1884FLJK1,
RS1884FRJ1 & RS1884FRJK1
24" Freezer
RS2484FLJ1, RS2484FLJK1,
RS2484FRJ1 & RS2484FRJK1
24" Refrigerator
RS2484SL1, RS2484SLK1,
RS2484SLHK1, RS2484SRHK1,
RS2484SR1 & RS2484SRK1
30" Freezer
RS3084FLJ1, RS3084FLJK1,
RS3084FRJ1 & RS3084FRJK1
30" Refrigerator
RS3084SL1, RS3084SLK1,
RS3084SLHK1, RS3084SRHK1,
RS3084SR1 & RS3084SRK1
6
24" Refrigerator-Freezer
RS2484WLU1, RS2484WLUK1,
RS2484WRU1 & RS2484WRUK1
30" Refrigerator-Freezer
RS3084WLU1, RS3084WLUK1,
RS3084WRU1 & RS3084WRUK1
INTEGRATED REFRIGERATOR-FREEZER INTEGRATED WINE CABINET
24" Wine Cabinet
RS2484VL2K1 & RS2484VR2K1
Left or Right hinged door available for each model.
7

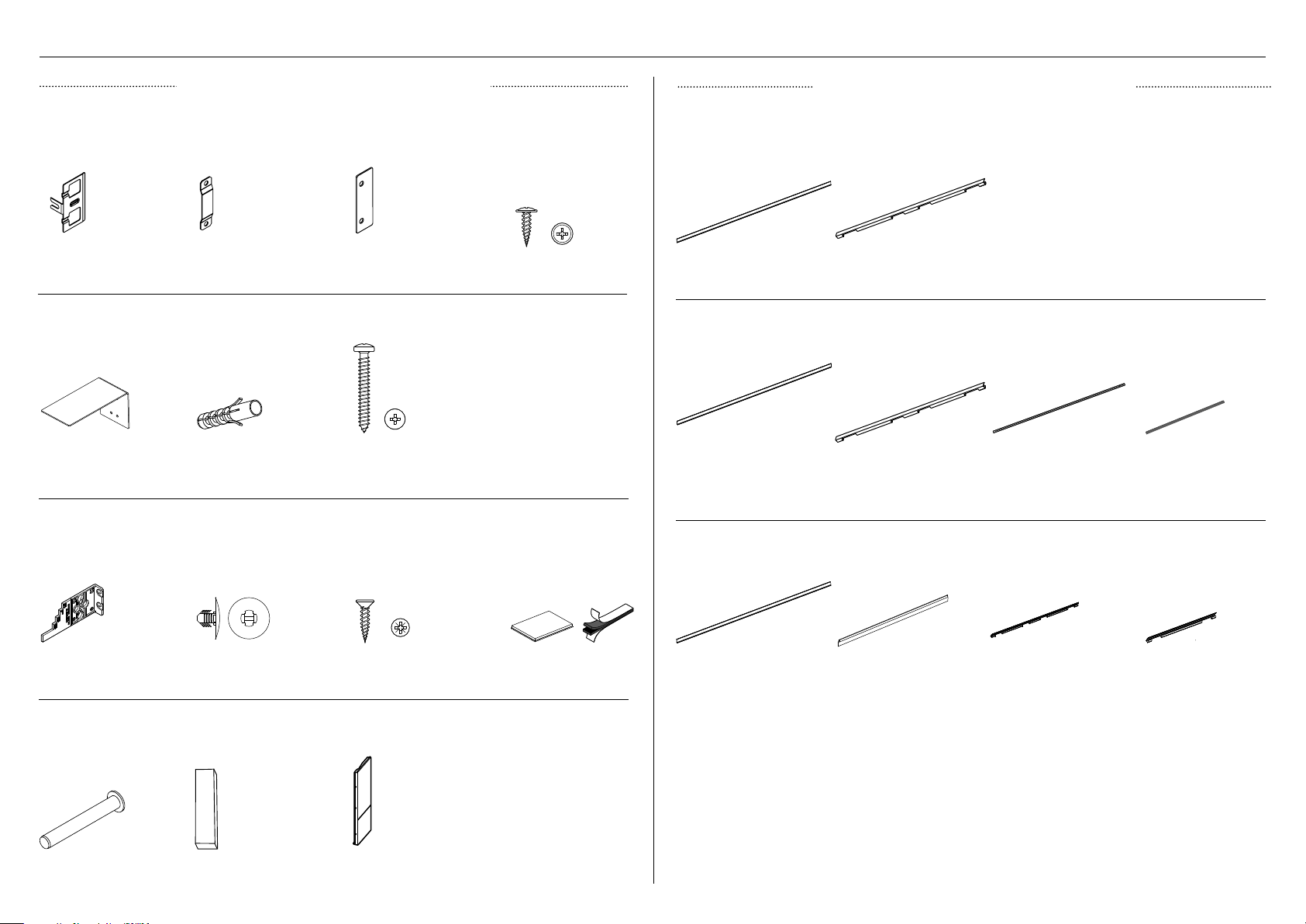

Depth alignment
gauge (4x)
Hinge limiting pin (3x)
Door panel attachment kit Refrigerator or Freezer
Install fasteners kit
Miscellaneous parts
Side spacer
bracket (7x)
8Gx16 Countersunk
screw (7x)
Dual adhesive
strips (8x)
M5x12 Cross-head
screw (35x)
Side bracket (7x)
#8 x 19
Countersunk
Twin Thread
Posi Screw
#8 x 19
Countersunk
Twin Thread
Posi Screw
#8 x 16
Mush Washer
Twin Thread
Philips Screw
#8 x 16
Mush Washer
Twin Thread
Philips Screw
Bracket slider (7x)
Barbed plug (2x)
Air toe kick seal (1x)
Anti-tip bracket (1x)
10-12x35mm
crosshead screw (5x)
#10x40
Pan Head
Philips Screw
#10x40
Pan Head
Philips Screw
Masonry plug (5x)
INSTALLATION KIT (INTERNAL BOX)
SUPPLIED PARTS
TRIMS INSTALL KIT (EXTERNAL BOX)
Flow divider cap (1x)
Door panel side cover (2x)Cabinet side trim (2x)
Wine Cabinet
Cabinet side trim (2x) Door panel side
cover (2x)
Anti-tip bracket assembly
Door panel side
cover (2x) with
magnets
Cabinet side trim (2x) Drawer top trim (1x)
Refrigerator-Freezer
Drawer panel side
cover (2x) with
magnets
Long glass trim (2x) Short glass trim (2x)
8
REQUIRED PARTSSUPPLIED PARTS
Not supplied and can be purchased separately through an authorised Fisher and Paykel dealer.
Visitfisherpaykel.com for more information.
Standard toe kick height is 4"(102mm) forstandard
stainless steel door panel.
For Custom door panel installation, atoe kick
2 - 6" (50 - 152mm) must be fitted andadjusted
accordingly.
An extra bottom grille is required when you
use 2" (50mm) toe kick height.
You can purchase the extra bottom grille
(#847542P) online at fisherpaykel.com.
STAINLESS STEEL TOE KICK PANEL
Toe kick panel (1x)
Air carbon filters (2x)
#862755
For Wine Cabinet only
MISCELLANEOUS ITEMS (MI) PACK
Installation guide
INSTALLATION GUIDE
US CA
INTEGRATED COLUMN
REFRIGERATOR & FREEZER
RS2484S, RS2484SH, RS3084S, RS3084SH
RS1884F, RS2484F & RS3084F
REFRIGERATOR-FREEZER
RS3084W & RS3084W
WINE CABINET
RS2484V
1/4" (6mm) Stainless
steel braided hose with
7/16-24 UNS thread (1x)
1/4” (6.35mm)
Adaptor (2x)
Collet locking clip (1x)
Water filter (1x)
#847200
WATER FILTER KIT
Service & Warranty
SERVICE & WARRANTY
SERVICE ET GARANTIE
ΣΈΡΒΙΣ ΚΑΙ ΕΓΓΎΗΣΗ
SERVIZIO E GARANZIA
SERVICE & GARANTIE
HUOLTO JA TAKUU
SERVICE OG GARANTI
保修和维修
服務和保修
User guide
USER GUIDE
US CA
INTEGRATED
REFRIGERATOR & FREEZER
INTEGRATED REFRIGERATOR
RS2484S, RS2484SH, RS3084SH & RS3084S
INTEGRATED FREEZER
RS1884F, RS2484F & RS3084F
Supplied in models with Ice & Water function only
(RS2484SH, RS3084SH, RS1884F, RS2484F, RS3084F, RS2484W & RS3084W)
M6 Hex nut (1x)
M5x20 Cap screw (1x)
M6x16 Washer
screw (1x)
8Gx16 Mush washer
screw (2x)
M6 Washer
843453
M5 Washer
M5 x20
Cap Screw
847984
M6 x 12
Cap Screw
248072
8Gx16
Mush Washer
840371
10 x 50
Dual Lock
M6 Nut
839455
M5 Nut
839107
M6x16 screw plastic washer
M6 Washer
843453
M5 Washer
M5 x20
Cap Screw
847984
M6 x 12
Cap Screw
248072
8Gx16
Mush Washer
840371
10 x 50
Dual Lock
M6 Nut
839455
M5 Nut
839107
M6x16 screw plastic washer
#8 x 16
Mush Washer
Twin Thread
Philips Screw
#8 x 16
Mush Washer
Twin Thread
Philips Screw
M5x16x1 Plain
washer (1x)
M6x12x3.2 Plastic
washer (1x)
Central spacer (1x)

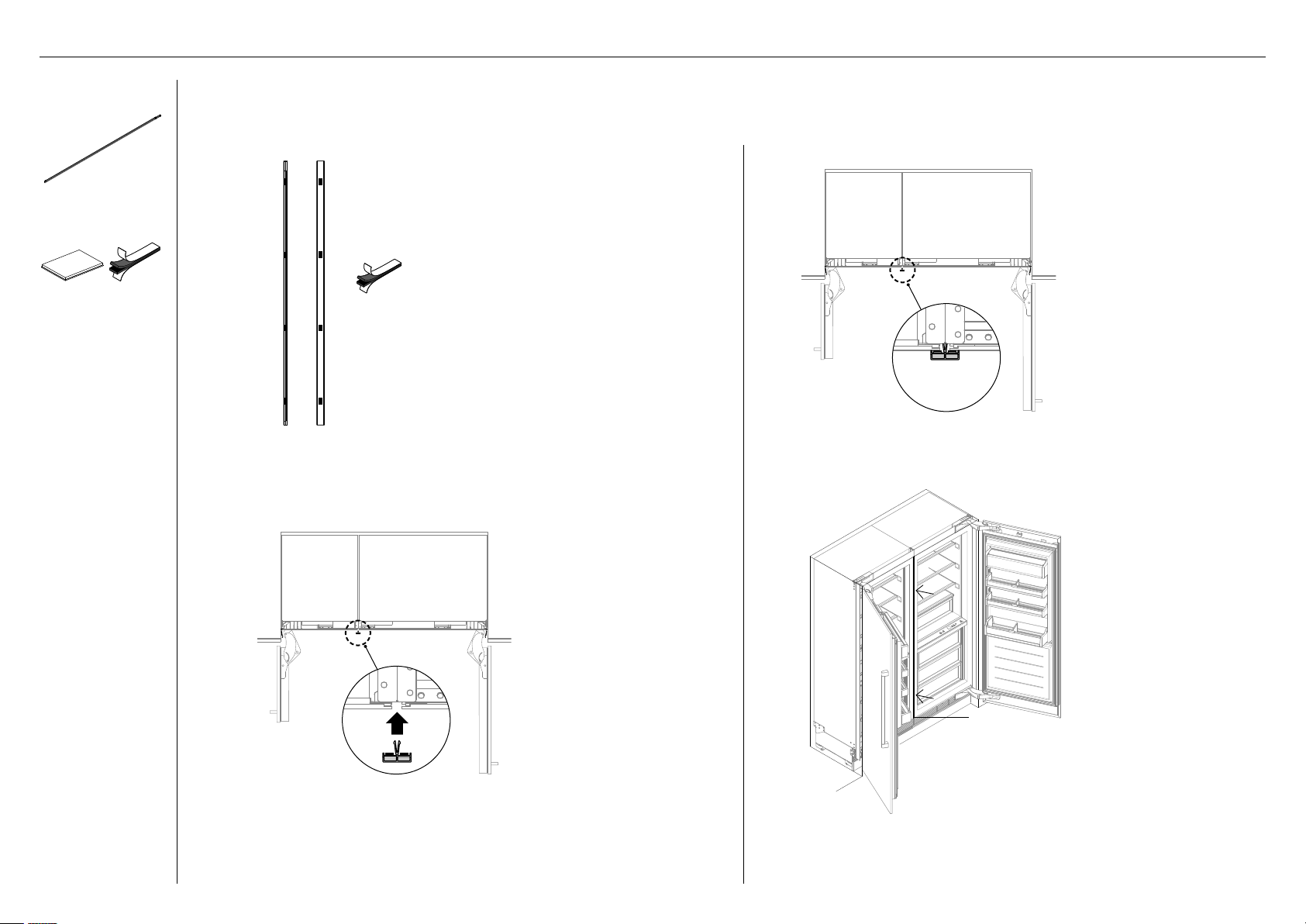

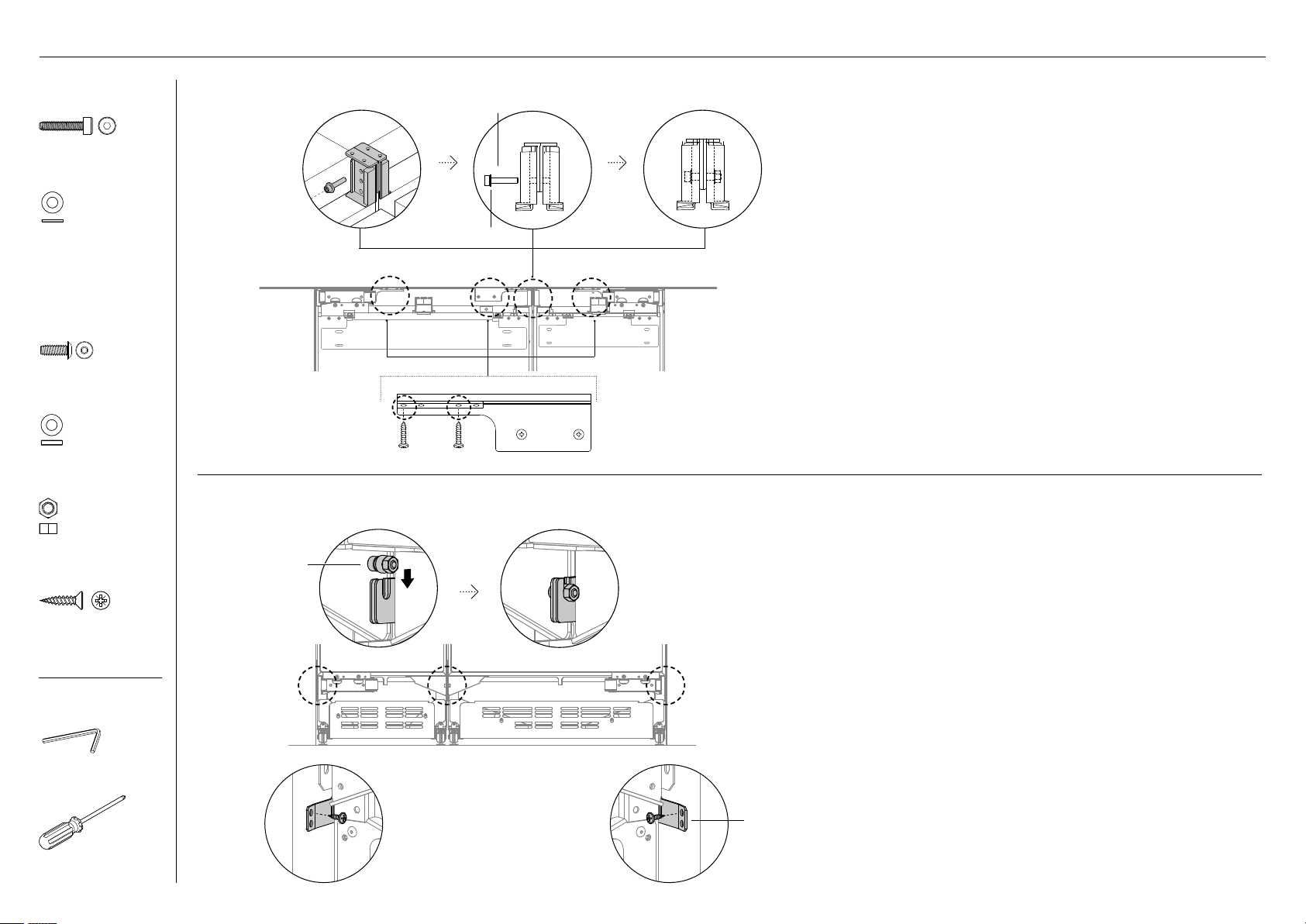

INSTALL JOINER KIT
Used for combined installation of multiple appliances. Supplied in selected appliances only
(Freezer and Wine Cabinets). For other models, the joiner kit (AJ-RS84LR) can be purchased
separately through an authorised Fisher and Paykel dealer. Visitfisherpaykel.com for more
information.
Top joiner fastener kit
Bottom joiner fastener kit
Top joiner bracket kit
Aluminium center
trim (1x)
9
Custom door panel Custom door panel
Custom door panel
The Custom door panel must leave the glass pane visible. A full
custom panel sheathing over the glass pane does not meet the
specifications of the Wine Cabinet.
M5 x 14
Mush Head
SS
Philips Screw
M5 x 14
Mush Head
SS
Philips Screw
8Gx16 Mush washer screw (32x)
RH LH
RS24 RD2484WRD RD2484WLD
RS30 RD3084WRD RD3084WLD
Stainless steel door panel kit Stainless steel door panel kit Stainless steel door panel kit
DOOR PANEL KIT
REFRIGERATOR OR FREEZER REFRIGERATOR-FREEZER WINE CABINET
Custom door panels must be supplied by the customer to match their cabinetry. Stainless steel door panels are not supplied and must be purchased separately through an authorised Fisher and Paykel dealer.
Take note of the part numbers above to ensure you are ordering the correct door panel set. Visitfisherpaykel.com for more information.
M5x12 Cross-head screw (35x)
Included in Installation kit
#8 x 16
Mush Washer
Twin Thread
Philips Screw
#8 x 16
Mush Washer
Twin Thread
Philips Screw
M5x12 Cross-head screw (35x)
Included in Installation kit
#8 x 16
Mush Washer
Twin Thread
Philips Screw
#8 x 16
Mush Washer
Twin Thread
Philips Screw
M5x12 Cross-head screw (35x)
Included in Installation kit
#8 x 16
Mush Washer
Twin Thread
Philips Screw
#8 x 16
Mush Washer
Twin Thread
Philips Screw
M5 x 14
Mush Head
SS
Philips Screw
M5 x 14
Mush Head
SS
Philips Screw
8Gx16 Mush washer screw (32x)
RH LH
RS18 RD1884R4D RD1884L4D
RS24 RD2484R4D RD2484L4D
RS30 RD3084R4D RD3084L4D
M5 x 14
Mush Head
SS
Philips Screw
M5 x 14
Mush Head
SS
Philips Screw
8Gx16 Mush washer screw (32x)
RH LH
RS24 RD2484VR4 RD2484VL4
10
CONTEMPORARY
PROFESSIONAL

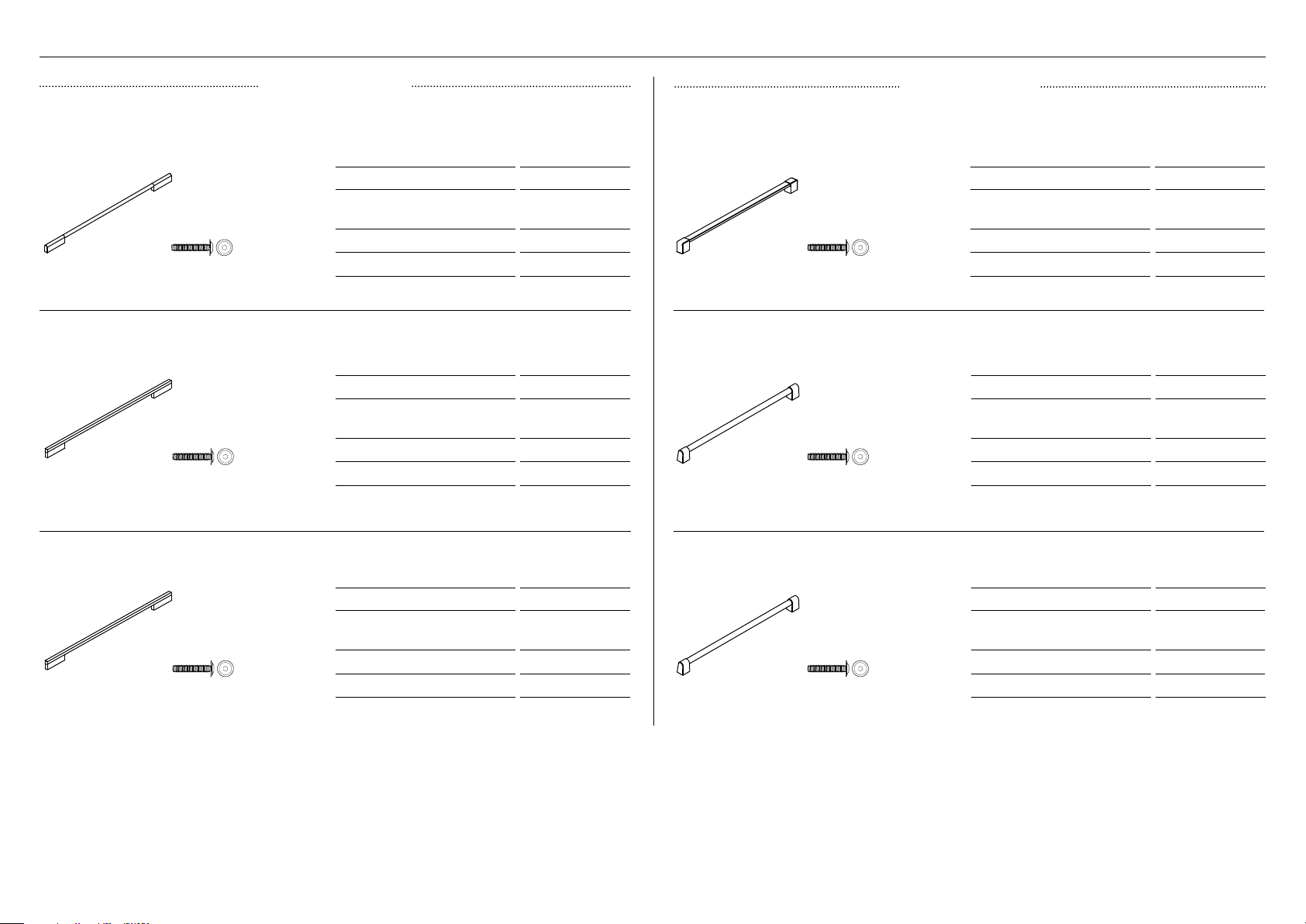

HANDLE KIT
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
Square handle (1x) M5x25 Hex screw (4x)
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
Square handle (1x) M5x25 Hex screw (4x)
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
Square fine
handle (1x)
M5x25 Hex screw (4x)
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
Round handle (1x) M5x25 Hex screw (4x)
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
Round handle (1x) M5x25 Hex screw (4x)
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
Round flush
handle (1x)
M5x25 Hex screw (4x)
MODEL CODES
REFRIGERATOR/FREEZER
WINE CABINET
AHD3-RD84
24" REFRIGERATOR-FREEZER AHD3-RD2484W
30" REFRIGERATOR-FREEZER AHD3-RD3084W
MODEL CODES
REFRIGERATOR/FREEZER
WINE CABINET
AHV2-RD84
24" REFRIGERATOR-FREEZER AHV2-RD2484W
30" REFRIGERATOR-FREEZER AHV2-RD3084W
MODEL CODES
REFRIGERATOR/FREEZER
WINE CABINET
AHD5-RDSF
24" REFRIGERATOR-FREEZER AHD5RD2484W
30" REFRIGERATOR-FREEZER AHD5RD3084W
MODEL CODES
REFRIGERATOR/FREEZER
WINE CABINET
AHC-RD84
24" REFRIGERATOR-FREEZER AHC-RD2484W
30" REFRIGERATOR-FREEZER AHC-RD3084W
MODEL CODES
REFRIGERATOR/FREEZER
WINE CABINET
AHS-RD84
24" REFRIGERATOR-FREEZER AHSRD2484W
30" REFRIGERATOR-FREEZER AHSRD3084W
MODEL CODES
REFRIGERATOR/FREEZER
WINE CABINET
AHP3-RDSF
24" REFRIGERATOR-FREEZER AHP3-RD2484W
30" REFRIGERATOR-FREEZER AHP3-RD3084W
Aluminium/Black square handle set Stainless steel square handle set
Aluminium/Black square fine handle set Stainless steel round handle set
Aluminium round handle set Stainless steel round flush handle set
The handle kit is not supplied and must be purchased separately through an authorised Fisher and Paykel dealer. Visitfisherpaykel.com for more information.
For Refrigerator-Freezer models, each handle kit includes two (2x) handles for door and drawer panels, and M5x25 hex screws (8x).
11

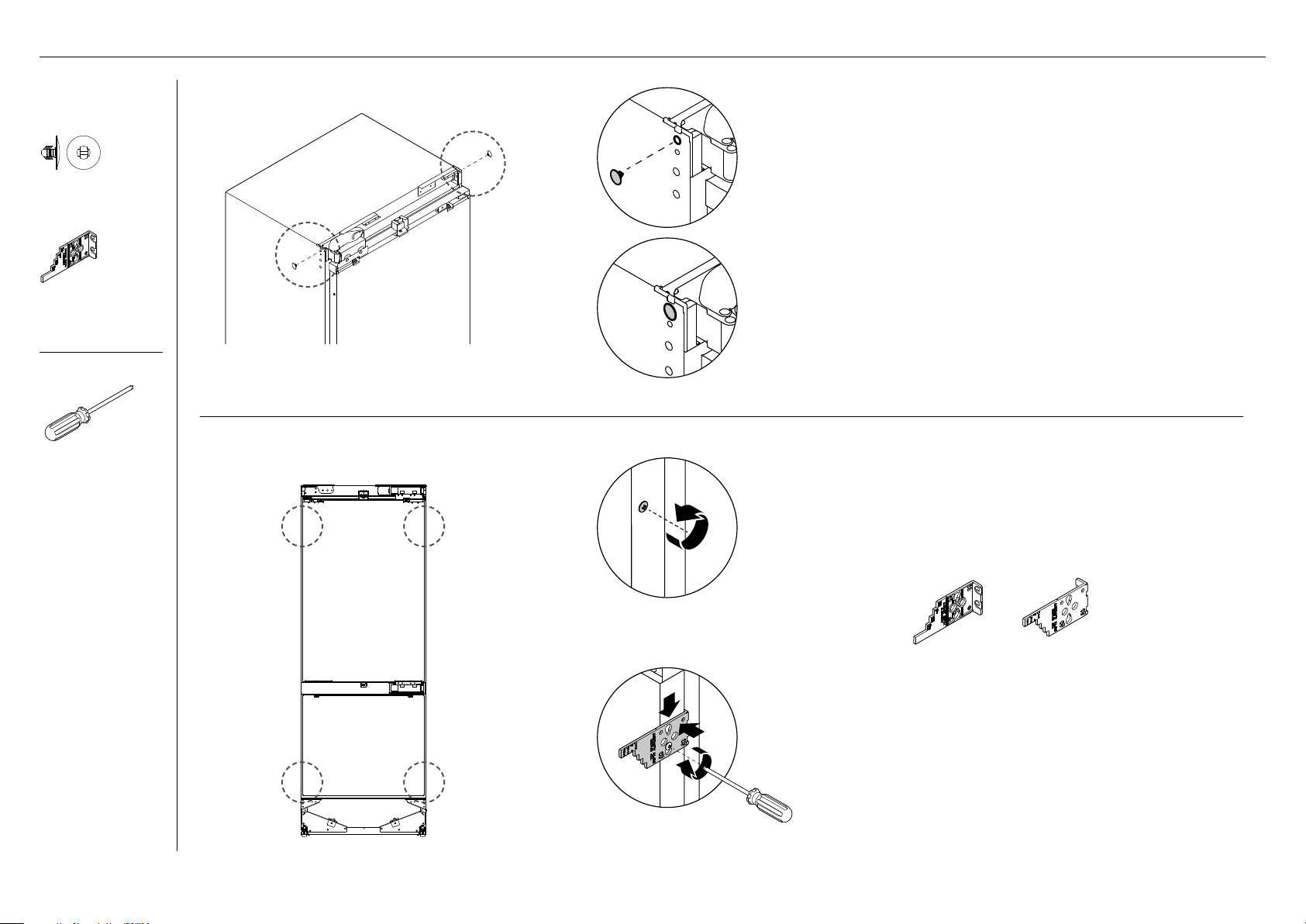

HINGE CHANGE KIT
Not supplied and must be purchased separately through an authorised Fisher and Paykel dealer.
Visitfisherpaykel.com for more information. Select among the hinge change kit options below:
Top alcove bracket
RH (2x)
Top alcove bracket
LH (2x)
K05 top adaptor*
bracket RH (1x)
K05 top adaptor*
bracket LH (1x)
Top hinge pocket
RH (2x)
Top hinge pocket
LH (2x)
Top grille (1x)
Supplied in Hinge change kit
for Refrigerator & Freezer and
Wine Cabinet only.
POCKET HINGE TOP RH
POCKET HINGE TOP LH
POCKET HINGE TOP RH
POCKET HINGE TOP LH
BRACKET ALCOVE TOP LH
BRACKET ALCOVE TOP RH
BRACKET ALCOVE TOP LH
BRACKET ALCOVE TOP RH
BRACKET ADAPT COL K05 RH
BRACKET ADAPT COL K05 LH
BRACKET ADAPT COL K05 RH
BRACKET ADAPT COL K05 LH
K05 bottom adaptor*
bracket RH (1x)
K05 bottom adaptor*
bracket LH (1x)
BRACKET ADAPT K05 BTM RH
BRACKET ADAPT K05 BTM LH
BRACKET ADAPT K05 BTM RH
BRACKET ADAPT K05 BTM LH
Left to Right hinge kit
Right to Left hinge kit
* Top and bottom adaptor brackets for Wine Cabinet different from illustration.
WINE DISPLAY ACCESSORIES
HINGE KIT REFRIGERATOR OR FREEZER WINE CABINET REFRIGERATOR-FREEZER
18" 24" 30" 24" 24" 30"
Left to Right hinge
848186 848188 848190 864757P 848184P 848184P
Right to Left hinge
848185 848187 848189 864759P 848183P 848183P
2x
1x
Handle assembly (1)
Cradle assembly (4)
Spacer (1)
Accessories are not supplied with the appliance. A wine display kit and a label kit are sold
separately and can be purchased online at fisherpaykel.com.
Wine display kit
Label (14)
Pencil (1)
Wine label kit
NO FILL NO FILL NO FILLFILL
NO FILL NO FILL NO FILLFILL
12
M4 hex key
Spanner
Supplied tools
Ruler
T20 star-head
screwdriver
(Used for changing hinge)
Powered driver
Cross-head
screwdriver
Hacksaw
(For cutting air flow
divider to length)
Hand truck
Flathead screwdriver
Cutter (1)
Required tools
Not supplied and must be provided by the installer.
1/2" (13mm) socket
wrench
(Used for drawer panel of
Refrigerator-Freezer model)
TOOLS
13
C
B
A
E
D
18" 24" 30"
PRODUCT DIMENSIONS IN MM IN MM IN MM
A Overall height
84 2134 84 2134 84 2134
B Overall width
17 3/4 451 23 3/4 603 29 3/4 756
C Overall depth (excluding door panel)
24 610 24 610 24 610
D Depth of toe kick (measured from back of door panel)
27/8–4 73–102 27/8–4 73–102 27/8–4 73–102
E Height from floor to bottom of Stainless steel door/drawer panel
4 102 4 102 4 102
F Height from floor to top of drawer panel (Refrigerator-Freezer only)
— — 34 7/16 874 34 7/16 874
G Gap between door and drawer panels (Refrigerator-Freezer only)
— — 1/8 3 1/8 3
PRODUCT WEIGHT (WITHOUT PACKAGING) LBS KG LBS KG LBS KG
Refrigerator or Freezer
223 101 258 117 295 134
Refrigerator-Freezer
— — 313 142 359 163
Wine cabinet
— — 335 152 — —
18" model for Freezer only. Wine Cabinet available in 24" only.
PRODUCT DIMENSIONS
REFRIGERATOR OR FREEZER REFRIGERATOR-FREEZER WINE CABINET
C
B
A
C
B
A
E
D
E
F
D
G
Illustrations may differ from your purchased appliance.
FRONT FRONT FRONTPROFILE PROFILE PROFILE
14
18" 24" 30"
CAVITY DIMENSIONS IN MM IN MM IN MM
A Overall height of cavity 84 2134 84 2134 84 2134
B Overall width of cavity 18 457 24 610 30 762
C Minimum overall depth of cavity* 25 635 25 635 25 635
d Minimum gap from edge of door panel to cabinetry 1/8 3 1/8 3 1/8 3
e Minimum required finished return 4 102 4 102 4 102
* Assumes a door panel thickness of 3/4" (19mm).
CABINETRY DIMENSIONS — SINGLE INSTALLATION
E
D
UNFRAMED
Aligns appliance with cabinetry
FRAMED
Aligns appliance with frame of cabinetry
D
E
D
E
Flush with front
of cabinetry
ISOMETRIC
PLAN
Illustrations may differ from your purchased appliance.
A
B
C
15
CABINETRY DIMENSIONS — MULTIPLE INSTALLATION
DUAL INSTALL
42" 48" 54" 60"
CAVITY DIMENSIONS
IN MM IN MM IN MM IN MM
A Overall height of cavity
84 2134 84 2134 84 2134 84 2134
B Overall width of cavity
42 1067 48 1220 54 1372 60 1524
C Minimum overall depth of cavity*
25 635 25 635 25 635 25 635
DUAL INSTALL
TRIPLE INSTALL
Illustrations may differ from your purchased appliance.
A
B
C
A
B
C
TRIPLE INSTALL
66" 72" 78" 84" 90"
CAVITY DIMENSIONS
IN MM IN MM IN MM IN MM IN MM
A Overall height of cavity
84 2134 84 2134 84 2134 84 2134 84 2134
B Overall width of cavity
66 1677 72 1829 78 1982 84 2134 90 2286
C Minimum overall depth of cavity*
25 635 25 635 25 635 25 635 25 635
16
Illustrations may differ from your purchased appliance.
18" 24" 30"
DOOR PANEL DIMENSIONS IN MM IN MM IN MM
A Height of door panel
79 7/8 2029 79 7/8 2029 79 7/8 2029
b Width of door panel
17 3/4 451 23 3/4 603 29 3/4 756
C Depth of door panel*
3/4 19 3/4 19 3/4 19
* Excluding handle
24" 30"
DOOR PANEL DIMENSIONS IN MM IN MM
A Height of top door panel
49 3/8 1254 49 3/8 1254
B Height of bottom drawer panel
30 3/8 772 30 3/8 772
C Width of door panel
23 3/4 603 29 3/4 756
D Depth of door panel*
3/4 19 3/4 19
* Excluding handle
REFRIGERATOR OR FREEZER / WINE CABINET
REFRIGERATOR-FREEZER
C
A
B
C
A
B
D
A
C
B
STAINLESS STEEL DOOR PANEL DIMENSIONS — SINGLE INSTALLATION
18" 24" 30"
DOOR PANEL WEIGHT* LBS KG LBS KG LBS KG
Weight of Refrigerator or
Freezer door panel
44 20 55 25 66 30
Weight of Wine cabinet
door panel
— — 18 8 — —
* Without packaging
24" 30"
DOOR PANEL WEIGHT* LBS KG LBS KG
Weight of top door panel 20 9 22 10
Weight of bottom drawer panel 13 6 15 7
* Without packaging
17
18" 24" 30"
DOOR PANEL DIMENSIONS
IN MM IN MM IN MM
A Height of door panel
77 7/8
- 81 7/8
1978
- 2080
77 7/8
- 81 7/8
1978
- 2080
77 7/8
- 81 7/8
1978
- 2080
b Width of door panel
17 3/4 451 23 3/4 603 29 3/4 756
C Depth of door panel*
min 5/8
max 1
min 16
max 25
min 5/8
max 1
min 16
max 25
min 5/8
max 1
min 16
max 25
* Excluding handle
18" 24" 30"
DOOR PANEL WEIGHT* LBS KG LBS KG LBS KG
Weight of Refrigerator or
Freezer door panel
max 44 max 20 max 55 max 25 max 66 max 30
Weight of Wine cabinet
door panel
— — max 55 max 25 — —
* Without packaging
24" 30"
DOOR PANEL DIMENSIONS
IN MM IN MM
A Height of top door panel
49 3/8 1254 49 3/8 1254
B Height of bottom drawer panel
28 3/8
- 32 3/8
721 - 822
28 3/8
- 32 3/8
721 - 822
C Width of door panel
23 3/4 603 29 3/4 756
D Depth of door panel*
min 5/8
max 1
min 16
max 25
min 5/8
max 1
min 16
max 25
* Excluding handle
24" 30"
DOOR PANEL WEIGHT* LBS KG LBS KG
Weight of top door panel max 33 max 15 max 40 max 18
Weight of drawer panel max 20 max 9 max 24 max 11
* Without packaging
REFRIGERATOR OR FREEZER / WINE CABINET
REFRIGERATOR-FREEZER
C
A
B
C
A
B
CUSTOM DOOR PANEL DIMENSIONS — SINGLE INSTALLATION
For Wine cabinet, the Custom door panel must leave the glass pane visible. A full custom panel sheathing over the glass pane does not meet the specifications of this appliance.
For all models, maximum panel weight must not be exceeded.
Illustrations may differ from your purchased appliance.
D
A
C
B
18
Illustrations may differ from your purchased appliance.
CUSTOM DOOR PANEL DIMENSIONS — MULTIPLE INSTALLATION
DUAL INSTALL
TRIPLE INSTALL
CUSTOM PANEL
18" 24" 30"
DIMENSIONS IN MM IN MM IN MM
A Height of door panel
79 7/8 2029 79 7/8 2029 79 7/8 2029
b Width of door panel
17 13/16 454 23 13/16 605 29 13/16 757
c Minimum clearance
between door panels and
cabinetry
1/8 3 1/8 3 1/8 3
* Excluding handle
The illustrations below are examples of custom door panels of different combinations for dual
installation. Minimum gaps of 1/8" (3mm) must be retained between door panel side edges and
cabinetry regardless of door panel widths.
The illustrations below are examples of custom door panels of different combinations for triple
installation. Minimum gaps of 1/8" (3mm) must be retained between door panel side edges and
cabinetry regardless of door panel widths.
CUSTOM PANEL
18" 24" 30"
DIMENSIONS IN MM IN MM IN MM
A Height of door panel
79 7/8 2029 79 7/8 2029 79 7/8 2029
b Width of door panel
17 13/16 452 23 13/16 605 29 13/16 757
c Minimum clearance
between door panels and
cabinetry
1/8 3 1/8 3 1/8 3
* Excluding handle
C C C
C
A
BB
C C C C
C
A
BBB
19
TOE KICK DIMENSIONS
Illustrations may differ from your purchased appliance.
Custom toe kick options
27/8”(73mm) –4” (102mm)
toe kick clearance measured
from rear of door panel
A
B
SINGLE INSTALL
18" 24" 30"
STAINLESS STEEL/CUSTOM PANEL
IN MM IN MM IN MM
A Height of toe kick*
2 - 6 50 - 152 2 - 6 50 - 152 2 - 6 50 - 152
B Width of toe kick 177/8 454 23 7/8 606 29 7/8 759
SINGLE INSTALL DUAL INSTALL TRIPLE INSTALL
DUAL INSTALL
36" 42" 48" 54" 60"
STAINLESS STEEL/CUSTOM PANEL
IN MM IN MM IN MM IN MM IN MM
A Height of toe kick*
2 - 6 50 - 152 2 - 6 50 - 152 2 - 6 50 - 152 2 - 6 50 - 152 2 - 6 50 - 152
b Width of toe kick
3 5 7/ 8 912 41 7/8 1064 47 7/8 1216 5 3 7/ 8 1368 5 9 7/ 8 1521
TRIPLE INSTALL
66" 72" 78" 84"
STAINLESS STEEL/CUSTOM PANEL
IN MM IN MM IN MM IN MM
A Height of toe kick*
2 - 6 50 - 152 2 - 6 50 - 152 2 - 6 50 - 152 2 - 6 50 - 152
B Width of toe kick
65 7/8 1674 7 1 7/ 8 1826 78 1982 83 7/8 2131
*Stainless steel toe kick height is 4” (102mm) for all install options.
2” (51mm) toe kick height
(with extra lower grille attached)
B
A
B
A
6” (152mm) toe kick height 4” (102mm) toe kick height
20
INSTALLATION OPTIONS
The illustrations above show acceptable installation options with reference to the door opening range and partition (optional). Be aware of clashing (circled) of doors or handles when opening at the same time.
If installing a partition between the appliances, ensure there is enough clearance to avoid doors/handles from interfering with each other when opening or closing.
If necessary, use a hinge limiting pin to restrict door opening rotation to 90°. Refer to ‘Door Clearance’ for more information.
SINGLE INSTALL MULTIPLE INSTALL
WALL
WALL
WALL
4" (100mm)
2 3/8" (60mm)
WALL
WALL
WALL WALL
WALL
WALL
WALL
WALL WALL
WALL
WALL
WALL
WALL WALL
WALL
Illustrations may differ from your purchased appliance.
21
DOOR CLEARANCE DRAWER CLEARANCE
FULL INTERNAL ACCESS
A
B
Insert hinge limiting pin
Before pushing the appliance into the cabinetry,
insert the supplied hinge limiting pin into the
borehole of the top and bottom/middle door
hinges. The hinge limiting pin limits door swing
to 90°.
Wall
LIMITED INTERNAL ACCESS
A
C
B
A
These dimensions apply to Refrigerator-Freezer models only.
DIMENSIONS
18" 24" 30"
IN MM IN MM IN MM
A Depth of door (90° open)
measured from front of door
20 508 26 660 32 813
B Minimum door clearance to
adjacent wall*
(115°—full internal access)
11 1/2 292 14 356 16 1/2 419
C Minimum door clearance* to
adjacent wall*
(90°—reduced internal access)
4 5/16 110 4 5/16 110 4 5/16 110
DIMENSIONS
24" 30"
IN MM IN MM
A Maximum drawer extension when open
(including handle)*
18 1/8 461 18 1/8 461
B Maximum drawer extension when open
(excluding handle)
16 9/16 420 16 9/16 420
* Assumes handle depth of 1 5/8" (41mm).
Illustrations may differ from your purchased appliance.
22
ELECTRICAL SPECIFICATIONS
Supply 115 VAC, 60 Hz
Service 10 amp circuit
Receptacle 3-prong grounding-type
PLUMBING SPECIFICATIONS
Supply 1/2” (12.7mm) BSP Stainless steel braided hose with adaptor
Pressure 22psi (min 151kPa) - 120psi (max 827kPa) @ 68°F (20°C)
SUPPLY AREA DIMENSIONS IN MM
A Overall height of supply area 9 229
B Overall depth of supply area 1 25
C Width of notch in supply area (both sides) 1/2 13
D Height of sides of supply area (both sides) 5 127
ELECTRICAL AND PLUMBING
Recommended locations for
connection at rear of cabinetry
POWER CORD
18" 24" 30"
IN MM IN MM IN MM
A Total length exiting from left side
of appliance (excluding plug)
54 1/2 1385 71 1/4 1809 68 1/4 1733
B Total length exiting from right
side of appliance (excluding plug)
55 9/16 1411 72 1/4 1835 69 1/4 1759
WATER HOSE
18" 24" 30"
IN MM IN MM IN MM
C Total length exiting from left side
of appliance
89 7/16 2271 86 7/16 2196 68 1/4 1733
D Total length exiting from right
side of appliance
77 1956 72 1/4 1878 69 1/4 1759
D
B
C
A
Electrical connection must be
within this space if located
behind the appliance and must
not protrude from the back wall.
A
C
D B
Illustrations may differ from your purchased appliance.
23
CUSTOM DOOR PANEL INSTALL DIMENSIONS
77 7/8” – 81 7/8” (1978 – 2080mm)
70” (1778mm)
50” (1270mm)
20” (508mm)
5” (127mm)
2” (50mm)
87/8” (225mm)
2” (51mm)
1 1/4” (32mm) — For Single install
1 5/16 (33mm) — For Multiple install
2” (50mm)
2” (50mm)
2” (50mm)
23/8” (60mm)
3/4” (20mm)
31/2” (90mm)
For 6" (152mm) toe kick, door panel
height should be 2" (51mm) shorter
For 2" (51mm) toe kick, door panel
height should be 2" (51mm) longer
18" FREEZER
Dimensions apply for the preparation and installation of Custom door panels. For Dwg and Dxf files of the below panel preparation, download the folder from http://thekitchentools.fisherpaykel.com.
The thickness of the custom door panel can vary provided that the screws do not penetrate beyond the full depth of the door panel.
Ø1/16” (Ø2mm) REF
18x Pilot holes recommended
for bracket attachment.
(Do not penetrate front surface).
Do not place pilot holes
for handle attachment
in marked areas to avoid
clashing with panel
attachment brackets
24
3/4” (20mm)
31/2” (90mm)
2” (50mm)
2” (50mm)
2” (50mm)
2” (50mm)
77 7/8” – 81 7/8” (1978 – 2080mm)
70” (1778mm)
50” (1270mm)
20” (508mm)
5” (127mm)
2” (51mm)
8” (203mm)
117/8” (302mm)
23/8” (60mm)
For 6" (152mm) toe kick, door panel
height should be 2" (51mm) shorter
For 2" (51mm) toe kick, door panel
height should be 2" (51mm) longer
1 1/4” (32mm) — For Single install
1 5/16 (33mm) — For Multiple install
CUSTOM DOOR PANEL INSTALL DIMENSIONS
30" REFRIGERATOR OR FREEZER24" REFRIGERATOR OR FREEZER
23/8” (60mm)
2” (51mm)
8” (203mm)
147/8” (378mm)
5” (127mm)
2” (50mm)
2” (50mm)
20” (508mm)
50” (1270mm)
70” (1778mm)
77 7/8” – 81 7/8” (1978 – 2080mm)
2” (50mm)
2” (50mm)
3/4” (20mm)
31/2” (90mm)
Ø1/16” (Ø2mm) REF
22x Pilot holes recommended
for bracket attachment.
(Do not penetrate front surface).
Ø1/16” (Ø2mm) REF
22x Pilot holes recommended
for bracket attachment.
(Do not penetrate front surface).
Do not place pilot holes
for handle attachment
in marked areas to avoid
clashing with panel
attachment brackets.
For 6" (152mm) toe kick, door panel
height should be 2" (51mm) shorter
For 2" (51mm) toe kick, door panel
height should be 2" (51mm) longer
1 1/4” (32mm) — For Single install
1 5/16 (33mm) — For Multiple install
Do not place pilot holes
for handle attachment
in marked areas to avoid
clashing with panel
attachment brackets.
25
CUSTOM DOOR PANEL INSTALL DIMENSIONS
For Wine cabinet, the Custom door panel must leave the glass pane visible. A full custom panel sheathing over the glass pane does not meet the specifications of this appliance.
3/4” (20mm)
31/2” (90mm)
2” (50mm)
2” (50mm)
2” (50mm)
2” (50mm)
77 7/8” – 81 7/8” (1978 – 2080mm)
70” (1778mm)
50” (1270mm)
20” (508mm)
5” (127mm)
Do not place pilot holes for
handle attachment in marked
areas to avoid clashing with
panel attachment brackets.
2” (51mm)
8” (203mm)
117/8” (302mm)
23/8” (60mm)
Ø1/16” (Ø2mm) REF
For 6" (152mm) toe kick, door panel
height should be 2" (51mm) shorter
For 2" (51mm) toe kick, door panel
height should be 2" (51mm) longer
1 1/4” (32mm) — For Single install
1 5/16 (33mm) — For Multiple install
24" WINE CABINET
22x Pilot holes recommended
for bracket attachment.
(Do not penetrate front surface).
16 5/16" (415mm)
62 9/16 (1589mm)
7 7/8" (200mm)
26
CUSTOM DOOR PANEL INSTALL DIMENSIONS
24" REFIGERATOR-FREEZER
TOP DOOR PANEL
24" REFIGERATOR-FREEZER
DRAWER PANEL
Dimensions apply for the preparation and installation of Custom door panels. For Dwg and Dxf files of the below panel preparation download the folder on thekitchentools.fisherpaykel.com.
z
The thickness of the custom door panel can vary provided that the screws do not penetrate beyond the full depth of the door panel.
3 9/16" (90mm)
13/16" (20mm)
11 7/8" (301.6mm)
8" (203.2mm)
2" (50.8mm)
1 1/4" (32.6mm)
2" (50mm)
5" (127mm)
20" (507.8mm)
43" (1092mm)
2" (50mm)
2" (50mm)
49 3/8" (1254mm)
Ø 1/16 (Ø2mm) REF
10x Pilot holes recommended
for bracket attachment.
(Do not penetrate front surface).
Do not place pilot holes for
handle attachment in marked
areas to avoid clashing with
panel attachment brackets
11 7/8" (301.6mm)
8" (203.2mm)
2" (50.8mm)
1 1/4" (32.6mm)
2" (50mm)
1 1/2" (38.1mm)
3 1/2" (88.1mm)
20" (508.4mm)
22" (558.4mm)
30 3/8" (771.5mm)
Cutouts in the hanging
bracket are applicable for
Fisher and Paykel handles only.
Ø 1/6" (Ø2mm) REF
10x Pilot holes recommended
for bracket attachment.
(Do not penetrate front surface).
Iflocating a custom handle in
the shaded area shown above,
ensure handle screw headsare
countersunk into the back of the
door panel to avoid interference
with the hanging bracket.
2 3/8" (60mm)
For 6" (152mm) toe kick, door panel
height should be 2" (51mm) shorter
For 2" (51mm) toe kick, door panel
height should be 2" (51mm) longer
27
Dimensions apply for the preparation and installation of Custom door panels. For Dwg and Dxf files of the below panel preparation download the folder on thekitchentools.fisherpaykel.com.
z
The thickness of the custom door panel can vary provided that the screws do not penetrate beyond the full depth of the door panel.
CUSTOM DOOR PANEL INSTALL DIMENSIONS
Ensure handle is
mounted 65mm from
edge of panel to the
centre — this will avoid
interference with bracket.
1/6" (Ø2mm) REF
10x Pilot holes recommended
for bracket attachment.
(Do not penetrate front surface).
Ø2mm REF
10x Pilot holes recommended
for bracket attachment.
(Do not penetrate front surface).
Cutouts in the hanging
bracket are applicable for
Fisher and Paykel handles only.
Iflocating a custom handle in
the shaded area shown above,
ensure handle screw headsare
countersunk into the back of the
door panel to avoid interference
with the hanging bracket.
30" REFIGERATOR-FREEZER
TOP DOOR PANEL
30" REFIGERATOR-FREEZER
DRAWER PANEL
14 7/8" (377.8mm)
8" (203.2mm)
2" (50.8mm)
1 1/4" (32.6mm)
2" (50mm)
5" (127mm)
20" (507.8mm)
43" (1092mm)
2" (50mm)
2" (50mm)
49 3/8" (1254mm)
13/16" (20mm)
2 3/8" (60mm)
8" (203.2mm)
2" (50.8mm)
1 1/4" (32.6mm)
2" (50mm)
1 1/2" (38.1mm)
3 1/2" (88.1mm)
20" (508.4mm)
22" (558.4mm)
30 3/8" (771.5mm)
14 7/8" (377.8mm)
3 9/16" (90mm)
For 6" (152mm) toe kick, door panel
height should be 2" (51mm) shorter
For 2" (51mm) toe kick, door panel
height should be 2" (51mm) longer
28
Check the power supply and water connections
z
Ensure that there is a separate power socket for each appliance.
z
Avoid sharing the power point with other appliances to prevent accidental switching off
of the appliance.
z
For power requirements, refer to the information on the serial plate.
z
Ensure your appliance is properly grounded.
z
Connect your appliance to an electrical supply with the fitted plug and lead.
z
If power connection is located behind the appliance, we recommend to install
an isolating switch to a location that is easily accessible to the user for repair
or disconnection.
z
Follow local codes and ordinances when installing the appliance.
BEFORE INSTALLATION
Remove the trims kit from the back of the
appliance. Refer to Supplied Parts — Trims
install kit for parts included in the box.
Remove the installation kit and
miscellaneous items kit from inside the
appliance.
Checking your cabinetry
Checking your appliance
Unpack your appliance following the steps printed on the packaging box. Ensure your appliance is the correct model as your order. Ensure components and install kits are complete.
Check the dimensions of the cabinetry: height, width, depth, floor level, finished alcove returns. Refer to 'Cavity Dimensions' for the correct measurements.
INTEGRATED COLUMNS
RS4621F, RS6121F, RS7621F,
RS6121S & RS7621S models
INSTALLATION GUIDE
NZ AU GB EU
849164B 10.18
Illustrations may differ from your purchased appliance.
29
BEFORE INSTALLATION
Removing pre-installed parts Moving your appliance
Be careful when tilting the appliance forward/backward. Tape the door shut to prevent
opening while moving the appliance. You need at least two persons to move this appliance.
1
2
3
4
Remove the brackets from the
non-hinge side of the pallet.
Tilt the appliance slightly forward
and insert the hand truck between
pallet and appliance.
Restrain the appliance with
strap and remove the remaining
brackets.
Tilt backward to load the appliance
onto the hand truckandsetaside
thepallet
Pushthehandtrucktothe
installationlocation
Hand truck
Strap
Top trim
Disengage one end of the top trim from dual lock
strips on the non-hinge side of the appliance.
Slide the top trim out from the hinge pocket of the
appliance.
Top door cover
Remove the trim caps of the top cover carefully from
both ends of the top of the door.
Ensure the magnet remains in place and not
damaged as this will affect the operation of the
appliance.
Toe kick mounting plate
Remove the screws to detach the toe kick mounting
plate.
Air flow divider
Remove the screw to detach the air flow divider.
Set aside all the removed parts to reuse later.
Top grille*
Open the door and remove hinge pocket cover using
a flat head screwdriver in theslot.
Open the water filter hatch on the bottom grille and
unscrew the #8x16 screw.
Remove the bottom grille by unscrewing the #8x16
screws from both ends of the grille.
*Top grille for Refrigerator-Freezer different from illustration.
Bottom grille
The bottom grille is detachable via magnets.
Illustrations may differ from your purchased appliance.
30
CAVITY PREPARATION
Anti-tip bracket
assembly kit
Anti-tip bracket (1x)
Masonry plug (4x)
#10x40
Pan Head
Philips Screw
#10x40
Pan Head
Philips Screw
#10x40
cross-head screw (4x)
Tools
Cross-head
screwdriver
Powered drill
Pencil
min 7 3/4"
(197mm)
bracket
Floor
A
B
overhead
cabinetry
back wall
PROFILE VIEW
For solid wall installation
Drill holes suitable to the size of the
masonry plugs.
Hammer 10x30mm masonry plugs into
wall until flush. Fix bracket to wall with
#10x40mm cross head screws, and screw
tightly.
For plaster board wall
Fix the anti-tip bracket to the wall with
#10x40mm cross head screws, and screw
tightly into the stud with a screwdriver.
1
2
3
4
5
Attaching the anti-tip bracket
Measure the height (A) of the attachment
location from the floor to the alcove
return.
z
The height (A) must not exceed
84 3/16" (2138mm) to ensure the
appliance does not tip over during
installation.
Mark a horizontal line (B) at the back wall.
z
Ensure there is a stud behind the wall.
Place the bracket to the backwall. Align
the undersurface of the bracket along the
marked line.
Mark screw hole locations, and drill screw
holes with powered drill.
When rollng the appliance into the
cabinetry, ensure the anti-tip bracket
overlaps the back edge of the appliance.
z
The bracket must overlap the appliance
by a minimum 7 1/16" (180mm) for a
secure hold.
If minimum 7 1/16" (180mm) overlap
cannot be achieved, install a solid spacer
to the wall stud behind the bracket.
z
Be careful not to run over the power
cord when rolling in the appliance.
Illustrations may differ from your purchased appliance.
31
APPLIANCE PREPARATION
Remove the M8 nut and M8
washer from the M8 screw at
the top of the door using the
supplied hex key and spanner.
Remove the hanging bracket
and set aside to use later.
3
Loosen the M8 screws by
1/8" (3mm).
1/8" (3mm).
M8 screw
1
2
M8 nut
M8 washer
Removing the hanging brackets
4
For Refrigerator-Freezer:
Repeat steps 1 - 3 to remove
the bracket of the drawer. Use
a socket wrench to loosen the
M8 nut.
Tools
M8 hex key
1/2" (13mm) spanner
1/2" (13mm) socket
wrench
Illustrations may differ from your purchased appliance.
32
APPLIANCE PREPARATION
Before rolling into the cavity, insert a barbed plug into the
large holes at the top right and left sides of the appliance.
The plugs protect the inside surface of cabinetry from
being damaged by screws when pushing in the appliance.
Attaching the barbed plugs
Attaching the depth alignment gauges
Left
Right
Place the alignment gauge by inserting the screw head
through the keyhole of the gauge.
Push the alignment gauge down to lock the position.
Tighten the screw just enough to firmly hold the gauge.
z
The alignment gauges are only temporary and must be
removed after installation.
Install fasteners
kit
Barbed plugs (2x)
Cabinet depth
alignment gauge
(4x)
Tools
Cross-head
screwdriver
Loosen the right and left screws at the top and bottom
sides of the door.
Locate the alignment gauges at correct orientation to the
right and left screws.
Illustrations may differ from your purchased appliance.
33
DOOR PANEL PREPARATION — STAINLESS STEEL PANEL
Door handle kit
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5x25 Hex screw
(4x)
Door panel
attachment kit
Side bracket (6x)
Bracket slider (6x)
Bracket spacer (6x)
Door panel kit
M5 x 14
Mush Head
SS
Philips Screw
M5 x 14
Mush Head
SS
Philips Screw
8Gx16 Mush washer
screw (32x)
Tools
Powered driver
Attaching the handle
For Refrigerator/Freezer/Wine cabinet
Remove the plastic plugs from handle
holes (4x) of the door panel.
Align the handle to the holes and secure
with M5x25 hex screws.
For Refrigerator-Freezer
Secure the top hanging bracket to the
screw holes of the door panel with 8Gx16
Mush washer screws.
z
10x screws for 24” or 30” Column
Secure the bottom hanging bracket to the
screw holes of the drawer door panel with
8Gx16 Mush washer screws.
Secure the bracket spacer, side bracket
and bracket slider (in order as illustrated)
to the screw holes on both sides of the
door and drawer panels with 8Gx16 mush
washer screws.
top hanging
bracket
side
bracket
bottom hanging
bracket
Attaching the brackets
side
bracket
hanging
bracket
For Refrigerator/Freezer/Wine cabinet
Secure the top hanging bracket to the
screw holes of the door panel with 8Gx16
Mush washer screws.
z
6x screws for 18” Column
z
10x screws for 24” or 30” Column
Secure the bracket spacer, side bracket
and bracket slider (in order as illustrated)
to the screw holes on both sides of the
door and drawer panels with 8Gx16 mush
washer screws.
bracket spacer
bracket slider
side bracket
Illustrations may differ from your purchased appliance.
Remove the protective film around the handle attachment area before installing
the handle. Protect the finish of the door panel to avoid damage or scratches to
the surface.
For Refrigerator-Freezer
Remove the plastic plugs from handle
holes (4x) of the top door panel.
Align the handle to the holes and secure
with M5x25 hex screws.
Secure the handle to the handle holes of
the drawer door panel with M5x25 hex
screws.
Remove the blue tape attached to the inner edges of the door panel after the
handles are installed.
34
DOOR PANEL PREPARATION — CUSTOM PANEL
Attaching the handle
Refer to 'Custom door panel installation dimensions' page for correct screw hole
positions on the door panel.
Attaching the brackets
Refer to 'Custom door panel installation dimensions' page for correct screw hole
positions on the door panel.
Door handle kit
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5x25 hex screw (4x)
Door panel
attachment kit
Side bracket (6x)
Bracket slider (6x)
Bracket spacer (6x)
#8 x 16
Mush Washer
Twin Thread
Philips Screw
#8 x 16
Mush Washer
Twin Thread
Philips Screw
M5x12 cross-head
screw (32x)
Tools
Powered driver
For all models
Mark a line across the centre of the
custom door panel.
Align the ‘V’ notch at the top of the
bracket to the centreline.
Secure the top hanging bracket to the
screw holes of the refrigerator custom
door panel with M5x12 cross-head
screws.
side bracket
top hanging
bracket
bottom hanging
bracket
For Refrigerator-Freezer
Secure the handle to the handle holes of
the top door panel with
M5x25 hex screw.
Secure the handle to the handle holes of
the drawer door panel with M5x25 hex
screw.
For Refrigerator/Freezer/Wine cabinet
Secure the door handle to the handle
holes of door panel with
M5x25 hex screw.
marked line
side bracket
top hanging
bracket
Illustrations may differ from your purchased appliance.
For Refrigerator-Freezer
Secure the bottom hanging bracket to
the screw holes of the drawer door panel
with M5x12 cross-head screws.
Ensure the door and drawer handles do not interfere when attaching the side
attachment brackets.
35
Installation kit
Long trim (2x)
Tools
Cutter
Continue attaching the long trim for
the length of the door panel cutout,
peeling off the film as you go.
Cut-off the excess length of the
bottom end of the long trim.
Repeat all steps to the other side of
door panel cutout.
Attaching the long glass trims
Glass trims are attached to cover the gap between the door panel and glass panel.
DOOR PANEL PREPARATION — WINE CABINET ONLY
3
2
long trim
Do not exceed
pass this line
flange
Peel off a small portion of red
protective film from one end of
the long trim.
1
red protective film
long trim
Attach the peeled portion of the trim
starting from the top of the flange on
one side of the door panel cutout.
z
Ensure the trim does not overlap
the hanging bracket.
Align the trim flush with inside edge
of the flange.
Cut excess length of
trim along this line
hanging bracket
36

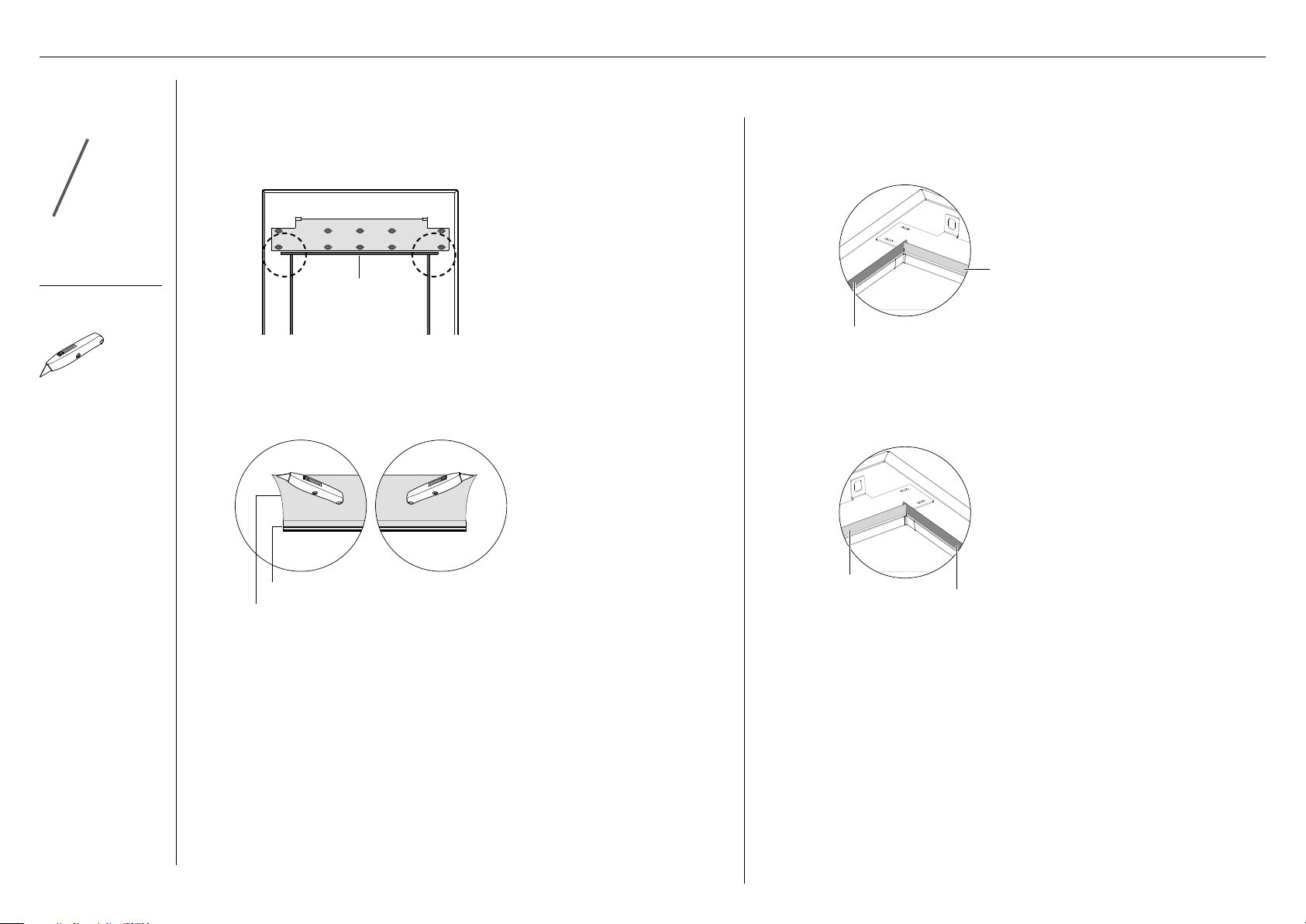

Attaching the short glass trims
Place the short trim along the
length of the top of door panel
cutout across the top ends of the
long trims.
Attach the peeled portion
starting from one end of flange
perpendicular to top end of
long trim.
long trim
short trim
Installation kit
Short trim (2x)
Tools
Cutter
DOOR PANEL PREPARATION — WINE CABINET ONLY
1
3
Cut both ends of the short trim
to length.
Peel off a small portion of red
protective film from the short
edge.
2
short edge
long edge
short trim
long trim
Continue attaching the short
trim for the length of the top of
door panel cutout, peeling off
the film as you go.
Ensure the trim is aligned flush
to inside edge of flange.
Attach the remaining peeled
portion of short trim to the
flange perpendicular to top end
of the other long trim.
Repeat steps 1 – 5 to the
bottom of door panel cutout.
4
short trim
37
Water fittings kit
Collet locking
clip (1x)
1/2 BSP Stainless
steel braided hose
with 7/16-24 UNS
thread (1x)
1/4” (6mm) Adaptor
(2x)
POWER AND WATER SUPPLY CONNECTION
Connect one end of a braided water
hose to the water tap.
Flush water through the hose prior to
connection to the appliance to remove
any debris in the hose.
1
braided hose
3
Pull the hose to the front of the
appliance.
6
locking clip
Secure the connection with a locking
clip between the PLV and hose end of
the adaptor.
4
Connect an 1/4" (6mm) adaptor to the
braided hose.
Connecting to water supply
Ensure the door of the appliance is closed before rolling into thecabinetry. Push the appliance carefully towards the front of the cabinetry close enough to allow
access at the back for power and water connection. Ensure an isolating tap is available if water supply is not easily accessible.
Connecting to power supply
At the back of your appliance, connect
the power plug to the power outlet
(115VAC, 60Hz).
z
You will hear a chime sound when
the appliance is powered on.
When powered on for the first time,
your appliance will default to Install
mode.
Once installation is complete,
unlock the control panel and
hold Compartment
button for
four seconds to start cooling.
z
Refer to your ‘User guide’ for more
information on activating your
appliance.
Insert the other end of the braided
hose through a hole at the rear of the
plinth and push all the way to the front
of the appliance.
2
Illustrations may differ from your purchased appliance.
5
Insert the tube end of the adaptor
fully into the PLV at the bottom front
of the appliance.
PLV
38
INSTALL WATER FILTER
Freezer and Refrigerator with Ice & Water function Refrigerator-Freezer
filter removal tool
11
2
3 3
44
2
Keep the door closed and ensure the
appliance is stable before installing the
water filter to avoid risk of appliance
tipping over.
Remove the packaging of the supplied
water filter, and the filter removal tool
from the top grille.
Align the filter head with the slot of the
filter removal tool and push until it clips
in place.
Remove the filter removal tool from the
water filter and return it to the top grille.
Turn on the water supply to check for
leaks.
Use the water dispenser to check if water
is flowing freely. Refer to your User guide
for more information.
Using the filter removal tool, hold the
water filter with the handle positioned
vertically and insert into the casing until
the filter head is pushed all the way inside
the casing.
Push firmly until the water filter is all the
way into the casing.
Turn the filter removal tool clockwise to
lock the water filter in place.
Keep the door closed and ensure the
appliance is stable before installing the
water filter to avoid risk of appliance
tipping over.
Remove the packaging of the supplied
water filter.
Pull the filter tool gently to dislodge from
the front of the appliance.
Insert the water filter all the way into the
filter casing and press firmly until the filter
head is pushed further inside the casing
Using the filter tool, rotate the filter head
90° clockwise to lock in place
Return the filter tool to its storage
position.
Turn on the water supply to check for
leaks.
Use the water dispenser to ensure water
is flowing freely. Refer to your User guide
for more information.
Illustrations may differ from your purchased appliance.
39
Roll the appliance carefully into the cabinetry until the anti-tip bracket overlaps the
back edge of the appliance.
z
Ensure the bracket overlaps the appliance by a minimum 7 1/16" (180mm) for a
secure hold.
z
Be careful not to run over the water hose and power cord when rolling in
the appliance.
SINGLE INSTALLATION — ALIGN APPLIANCE INTO CABINETRY
Pushing into the cabinetry
Aligning the depth gauges
NO FILL NO FILL NO FILLFILL
Tools
Cross-head
screwdriver
Ruler
Pencil
Check if the gaps between appliance and cabinetry side walls are
even on left and right sides.
On the 'Cabinet depth alignment' side of the depth gauges, mark the step on both
sides of the door based on the thickness of the door panel.
z
Example illustration show the door panel thickness 1" (25.4mm) marked on the
gauges.
Left
Right
7 1/16" (180mm)
Illustrations may differ from your purchased appliance.
40
Rear foot
adjustment
screw
Front foot
adjustment
screw
Foot
Rear feet
Front feet
Tools
Cross-head
screwdriver
Powered driver
(optional)
SINGLE INSTALLATION — ALIGN APPLIANCE INTO CABINETRY
Turn the front and rear adjustment screws clockwise to extend the
front feet and rear feet until they engage the floor and the top bracket
reaches the cabinetry ceiling.
Check the depth gauges while adjusting the screws to maintain
alignment of the appliance.
Adjusting the alignment in the cabinetry
Clockwise turn of the front and rear adjustment screws raise the
height of the appliance.
Counter-clockwise turn of the adjustment screws lower the height of
the appliance.
1
2
3
Illustrations may differ from your purchased appliance.
41
Install fasteners
kit
#8 x 19
Countersunk
Twin Thread
Posi Screw
#8 x 19
Countersunk
Twin Thread
Posi Screw
8Gx16 Countersunk
screw (6x)
Tools
Cross-head
screwdriver
Powered driver
(optional)
SINGLE INSTALLATION — SECURE APPLIANCE INTO CABINETRY
Fix the top brackets to the ceiling surface of the
cabinetry with 8Gx16 countersunk screws.
Fix the side brackets (2x) to the lower right and left sides
of the cabinetry with 8Gx16 countersunk screws.
Once the appliance is secured to the cabinetry, remove
the alignment gauges and re-tighten the side screws.
Securing the top brackets
Securing the side brackets
Illustrations may differ from your purchased appliance.
42

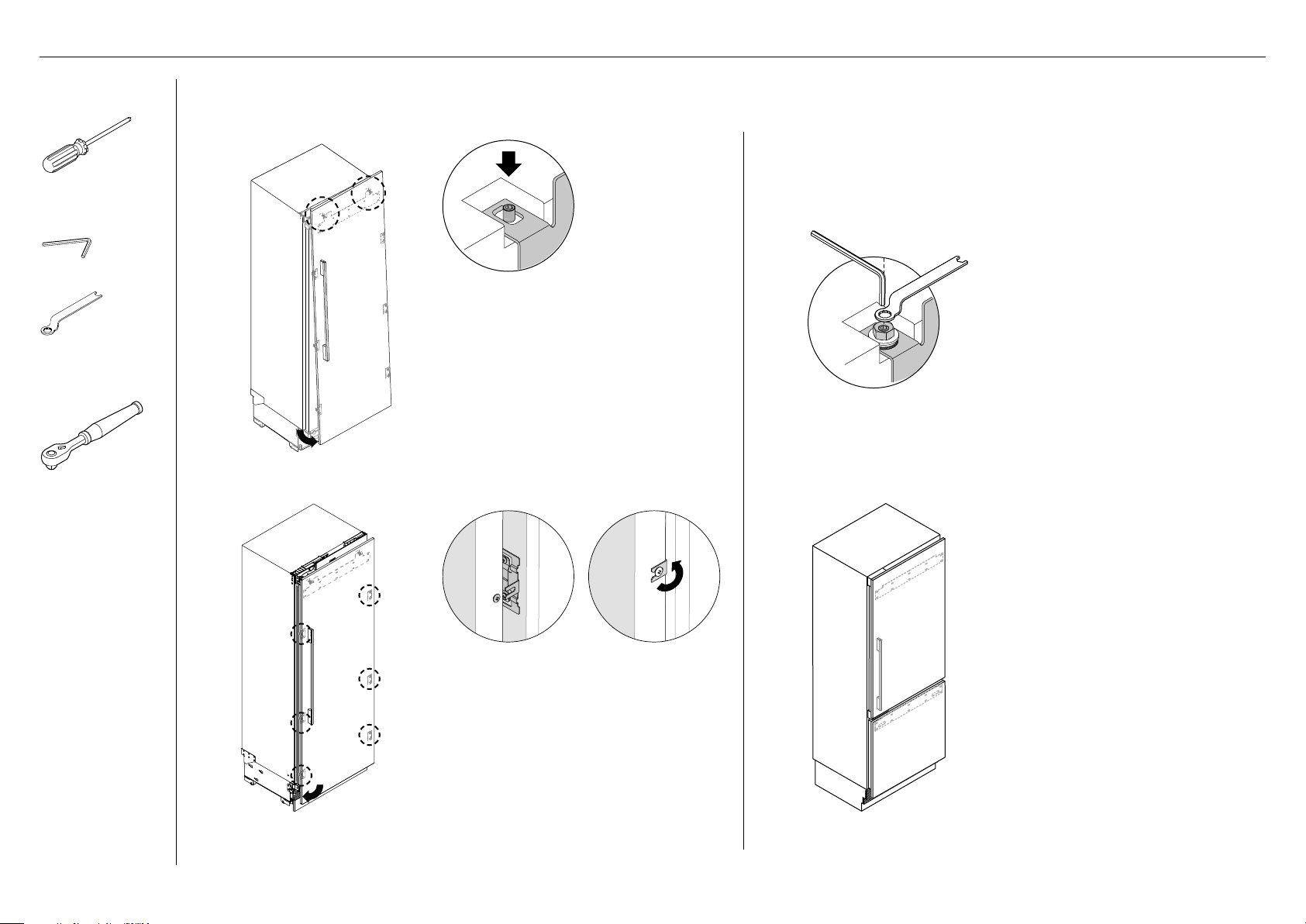

DOOR PANEL INSTALLATION
Hanging the door panel
For Refrigerator-Freezer
Repeat steps 1 - 3 for the top door and
drawer panels.
Use a 1/2" (13mm) socket wrench to
tighten or loosen the M8 nut in the drawer
panel.
Tools
Cross-head
screwdriver
M4 hex key (1x)
1/2" (13mm) spanner
(1x)
1/2" (13mm) socket
wrench
1
3
Hold the door panel at an angle from
the top of the door and lower the screw
holes of the hanging bracket onto the
adjustment screws. .
Screw the M8 washer and nut to the
adjustment screw and loosely tighten.
2
Align the door panel straight with the
door and slide-in the side brackets to the
side screws of the door,
Tighten the side screws loosely to
temporarily secure the door panel.
Illustrations may differ from your purchased appliance.
43
DOOR PANEL INSTALLATION
Tools
Cross-head
screwdriver
M4 hex key (1)
13mm spanner (1x)
Adjust the depth of door panel
Re-adjusing the door panel
Adjusting the height of door the panel
Ensure the side brackets are loosely screwed when adjusting the height of the
door panel. Do not adjust the door panel height when the side brackets are
screwed tight. This can generate friction which causes the hanging brackets to
bend.
To adjust door panel further, remove the
door panel then loosen the fixing screws
of the hanging bracket and move the
bracket sideways to suit.
To adjust door panel further, remove the
door panel then loosen the fixing screws
of the hanging bracket and move the
bracket sideways to suit.
z
Once satisfied with door panel position,
fully tighten M8 washer and nut to
adjustment screw.
Loosen side screws on the side
brackets, and slide door panel
forward/backward.
Re-tighten once satisfied.
Lower
Raise
Turn the adjustment screw to raise
or lower the height of the door panel
relative to the door.
Continue adjustment until gap with
cabinetry is more than 3mm.
z
Do not adjust the adjustment screw
higher than 1/4" (6.5mm) from its
fully down position.
Illustrations may differ from your purchased appliance.
44
TOE KICK INSTALLATION
Loosen the screw at the bottom
of the door, and slide thelocking
bracket out until it touches the panel.
Refrigerator-Freezer
The locking bracket is located at the
bottom of the top door panel.
Fix the locking bracket to the door
panel with 8Gx16 countersunk screw.
Re-tighten the screw at the bottom
of the door.
Loosen the cap screws of the
adjustment brackets on both
sides of the plinth with a hex key.
Tools
Cross-head
screwdriver
Cutter
M4 hex key (1x)
13mm spanner (1x)
Adjust the brackets to the
desired depth by moving it
forward/backward.
Re-tighten the cap screws once
satisfied.
DOOR PANEL INSTALLATION
B
REFRIGERATOR OR FREEZER / WINE CABINET
REFRIGERATOR—FREEZER
1
1
2
2
3
cap screw
adjustment
brackets
Adjusting mounting plate bracketsInstalling locking bracket
Illustrations may differ from your purchased appliance.
45
Miscellaneous
components
Air toe kick seal (1x)
Toe kick install kit
Toe kick panel (1x)
Tools
Cross-head
screwdriver
M4 hex key (1x)
Position the toe kick in front of the mounting plate.
z
The spacers on the toe kick must be aligned with the
magnets of the mounting plate.
Press the toe kick firmly onto the mounting plate to fix
the position.
z
For custom toe kick, spacers are not needed.
z
For correct dimensions of toe kick, refer to 'Toe kick
panel dimensions' for more information.
TOE KICK INSTALLATION
toe kick
1
2
1
Attaching the mounting plate
Attaching the toe kick panel
Re-attach the toe kick mounting plate to the plinth
using same screws that were set aside previously.
Peel off the adhesive tape backing of the magnets
attached to the mounting plate.
z
Ensure the adhesive surface is clean and free of dust
or small particles.
If toe kick depth is less than 3 5/8" (92mm), attach an
air toe kick seal to the mounting plate.
Peel off the adhesive tape of air toe kick seal and attach
to the middle of the back side of the mounting plate.
Press firmly to ensure the tape adheres to the mounting
plate.
mounting plate
adhesive tape
spacer
air toe kick seal
Illustrations may differ from your purchased appliance.
46
Tools
Cutter
Cross-head
screwdriver
GRILLES INSTALLATION
Refrigerator or Freezer/
Wine Cabinet
Open the door, and secure
both ends of the grille and
behind the water filter hatch
with #8x16 screws.
Attaching the bottom grille
Attaching the top grille
top grille
Refrigerator or Freezer/
Wine Cabinet
Re-attach the bottom grille
via magnets.
Refrigerator-Freezer
Reattach the top grille with
#8x16 screws.
For toe kick heights 41/2”–5” (114 – 127mm), shorten the bottom grille by cutting along the vertical ribs.
bottom grille
Refrigerator-Freezer
Re-attach the bottom grille
via magnets.
top grille
bottom grille
Illustrations may differ from your purchased appliance.
47
The carbon filter is used for Wine Cabinet models only. Ensure the cover is completely closed
to prevent hatch or filter from being damaged. Replacement filters (862755) can be purchased
online from fisherpaykel.com or by calling Fisher & Paykel Customer Care.
1
2
3
The air flow divider blocks the air flow from bypassing the front of the bottom grille.
Remove the adhesive layer off the air flow
divider.
Press the flow divider firmly against the
bottom of the door/drawer panel.
Ensure the adhesive layer side of the
divider contacts the door panel.
Secure the air flow divider to the panel
with screw.
Attach a flow divider cap to the flow
divider.
REFRIGERATOR & FREEZER / WINE CABINET
REFRIGERATOR—FREEZER
CARBON FILTER INSTALLATION
Remove the packaging of the filter.
Insert the carbon filter in the hatch.
Push the filter gently into the hatch until
flush, and then close the cover until it
locks to the latch.
1
2
3
4
Open the cover of filter housing by
pushing the latch.
AIR FLOW DIVIDER INSTALLATION
Push-open latch
Housing
Illustrations may differ from your purchased appliance.
48
CABINET TRIMS INSTALLATION
Installing cabinet side trimsTrims install kit
Cabinet side trim (2x)
Dual adhesive strips
(4x)
For Refrigerator-Freezer
Hold the same angle and slide the bottom
end of side trim behind the middle hinge
down to the bottom drawer side.
Slide the top end of side trim behind the
top hinge.
Dual adhesive strips are pre-attached at
four locations along the side trims.
z
Ensure the adhesive strips are pressed
firmly to the cabinet side trims.
Peel off the liners from the dual adhesive
strips.
z
Ensure the adhesive surface is clean
and free of dust or small particles.
For Refrigerator or Freezer/Wine cabinet
Hold the same angle and slide the bottom
end of side trim behind the bottom hinge.
Slide the top end behind the top hinge.
Slide trim in behind lower hinge, then top hinge
Reveal dual-lock adhesive
Slot trim in behind hinge pocket, then press adhesive to cavity
ensuring trim is also tight against fridge inner face.
door hinge
trim
Slide trim in behind lower hinge, then top hinge
Reveal dual-lock adhesive
Slot trim in behind hinge pocket, then press adhesive to cavity
ensuring trim is also tight against fridge inner face.
adhesive strip
Position the trim at an angle on
the throat of the door hinge.
Slot the side trim behind the top hinge pocket.
Press the adhesive strip to the cavity to ensure the trim is
also tight against the inner face of the appliance.
On the non-hinge side, slide in the side trim behind the
top trim.
Press firmly on the dual-lock strip locations to ensure the
side trims are securely attached.
Slide trim in behind lower hinge, then top hinge
Reveal dual-lock adhesive
Slot trim in behind hinge pocket, then press adhesive to cavity
ensuring trim is also tight against fridge inner face.
REFRIGERATOR OR FREEZER
WINE CABINET
REFRIGERATOR—FREEZER
Slide trim in behind lower hinge, then top hinge
Reveal dual-lock adhesive
Slot trim in behind hinge pocket, then press adhesive to cavity
ensuring trim is also tight against fridge inner face.
1
2
3
Illustrations may differ from your purchased appliance.
49
top cover
trim cap
trim cap
notch
magnet housing
DOOR COVERS & TRIMS INSTALLATION
Re-installing the top cover (for all models)
Remove the backing film of dual adhesive strips pre-attached to the top of the door. Ensure the magnet is in place before installing the top cover.
2
Align the top cover to the top
of the door.
Clip the notch into the magnet
housing, and the trim caps on
top of the adhesive strips.
Press down both ends of the top
cover to engage the trim caps on
the adhesive strips.
Ensure the magnet remains in
place and not damaged as this
will affect the operation of the
appliance.
Illustrations may differ from your purchased appliance.
Trims install kit
Door panel side
cover (2x)
For Refrigerator or Freezer/
Wine Cabinet
Door panel side
cover (2x)
For Refrigerator-Freezer
Drawer panel side
cover (2x)
For Refrigerator-Freezer
Drawer top trim (1x)
For Refrigerator-Freezer
Installing the door side covers
Ensure the door surface is free of dust or small particles. Clean the door surfaces with a cleaning liquid to improve adhesion of the adhesive strips. Dual adhesive strips
are pre-attached to the side covers and drawer top trim.
Refrigerator or Freezer/
Wine Cabinet
Peel off the liners of the dual
adhesive strips.
Slide the door panel side cover
into the gap between the door
and door panel.
Align the top of the door panel
side cover with the top door
panel extrusion.
Press firmly to ensure the
adhesive strips are fully adhered
to the door surface.
door panel
side cover
1
Refrigerator-Freezer
Magnets are pre-attached to the door
and drawer side covers.
Press the door side covers into the
panel gaps on the right and left sides
of the door.
Align the top of the side covers to fit
with the right and left ends of the top
cover.
Remove the backing film of adhesive
strips on the drawer top trim.
Press down the trim firmly to engage
the back surface of drawer panel.
z
Ensure the trim is fully seated
against the drawer top surface.
Insert the drawer side covers into the
panel gaps on the right and left sides
of the drawer.
z
Ensure the cabinet is centered
to prevent the side covers from
interfering with the cabinet.
drawer top trim
drawer panel
side cover
50

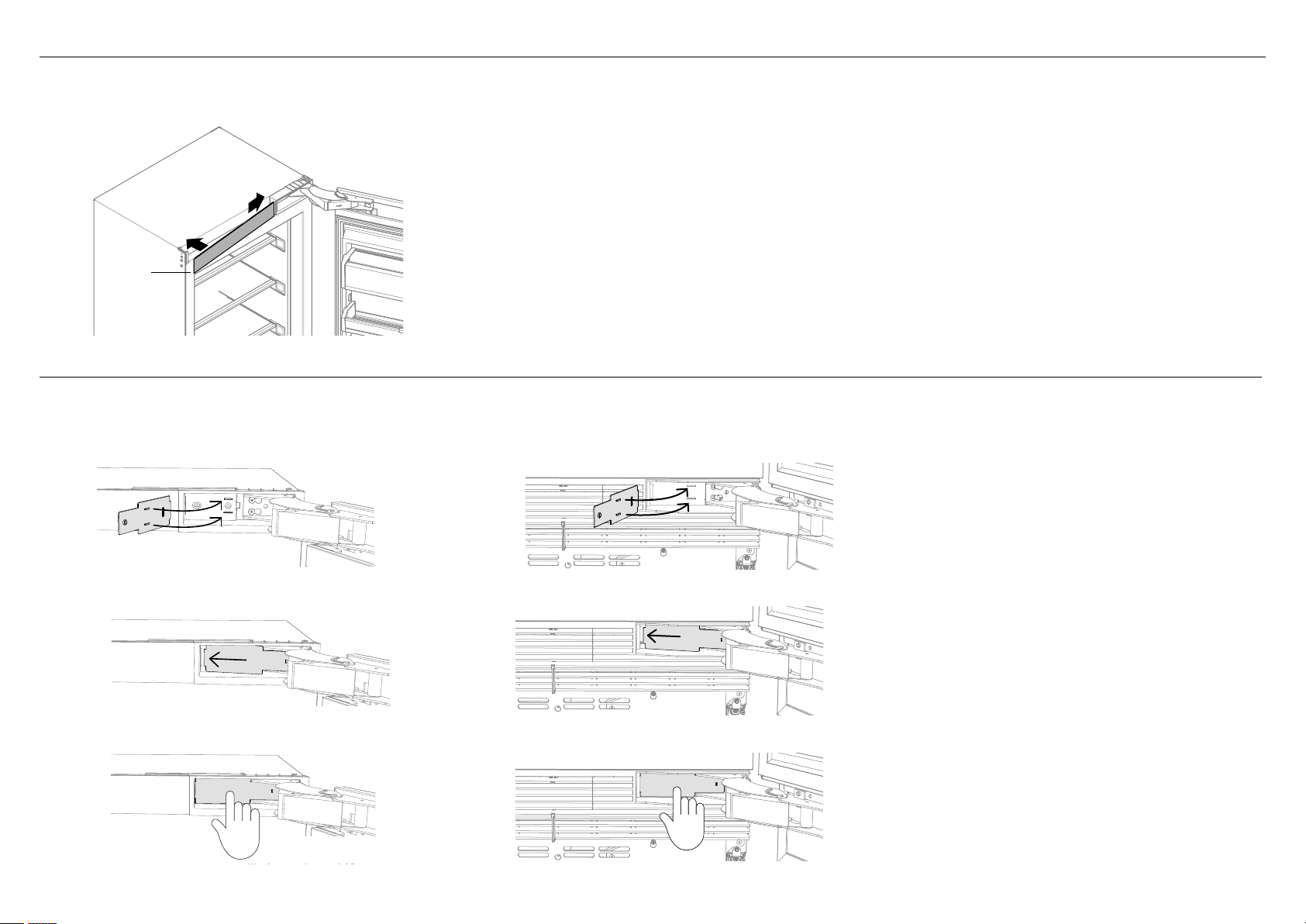

installing the top trim (for all models)
top trim
Slide one end of the top trim into the hinge pocket
of the appliance.
Press the other end to engage the dual lock strips
on the non-hinge side of the appliance.
Your Integrated Installation is now complete!
Illustrations may differ from your purchased appliance.
TOP TRIM & HINGE POCKET COVERS INSTALLATION
installing the hinge pocket covers (for all models)
Follow the steps below to install the covers for the top, bottom or middle hinge pockets.
1
2
Place the hinge pocket cover to the hinge pocket,
matching the studs on the cover to the slots in the
hinge pocket.
3
Slide the cover inside the pocket.
Press the pocket cover to ensure the cover clips
into the pocket.
51
MULTIPLE INSTALLATION — APPLIANCE PREPARATION
Install fasteners
kit
Barbed plugs (2)
Cabinet depth
alignment gauges
(4)
Top joiner
bracket kit
Central spacer
(1)
#8 x 16
Mush Washer
Twin Thread
Philips Screw
#8 x 16
Mush Washer
Twin Thread
Philips Screw
8Gx16 Mush washer
screw (2)
Tools
Cross-head
screwdriver
Powered driver
(optional)
The central spacer must be installed
to ensure correct installation of the
appliances.
Measure the widths from left (A) and
right (B) cabinetry sides towards
thecenter to determine the attachment
location of the central spacer.
Refer to "Cabinetry dimensions' page for
correct cavity width.
On the 'Top spacer depth alignment' side
of the depth gauge, mark the attachment
location of the central spacer on the
cabinetry.
The depth position of spacer depends on
the door panel thickness.
Secure the central spacer to the alcove
ceiling with two 8Gx16 countersunk
screws.
Tightenthescrews with a screwdriver or
powered driver.
A
b
Attaching the central spacer to cabinetry Attaching barbed plugs and depth alignment gauges
1
2
3
central spacer
2
1
3
Left
Right
Place the alignment gauge by inserting
the screw head through the keyhole of the
gauge.
Push the alignment gauge down to lock the
position.
Tighten the screw just enough to firmly
hold the gauge.
z
The alignment gauges are only
temporary and must be removed after
installation.
Loosen the right and left screws at the top
and bottom sides of the door. (A)
Locate the alignment gauges at correct
orientation to the right and left screws.
Before rolling into the cavity, insert
the barbed plugs into large holes on
the top right and left sides of both
appliances.
The plugs protect the inside surface
of cabinetry from being damaged by
screws when pushing in the appliance.
barbed plugs
depth gauges locations
Illustrations may differ from your purchased appliance.
52
Tools
Ruler
Roll the first appliance slowly into one side of the cabinetry until the
anti-tip bracket overlaps the back edge of the appliance.
Ensure the bracket overlaps the appliance by a minimum 7 1/16" (180mm)
for a secure hold. Refer to 'Attach the anti-tip bracket' for more information.
Align the top cap of the first appliance flush with the front of the spacer.
MULTIPLE INSTALLATION — ALIGN FIRST APPLIANCE INTO CABINETRY
Mark the step of the depth gauges on the cabinetry side of the
door based on the thickness of door panel.
Align the marked line flush with the front surface of the adjacent
cabinetry.
PROFILE VIEW
min 7 1/16" (180mm)
Pushing first appliance into the cabinetry
Aligning the depth gauges
1
1
first appliance
anti-tip bracket
top cap
marked line
spacer
depth gauge
Illustrations may differ from your purchased appliance.
53

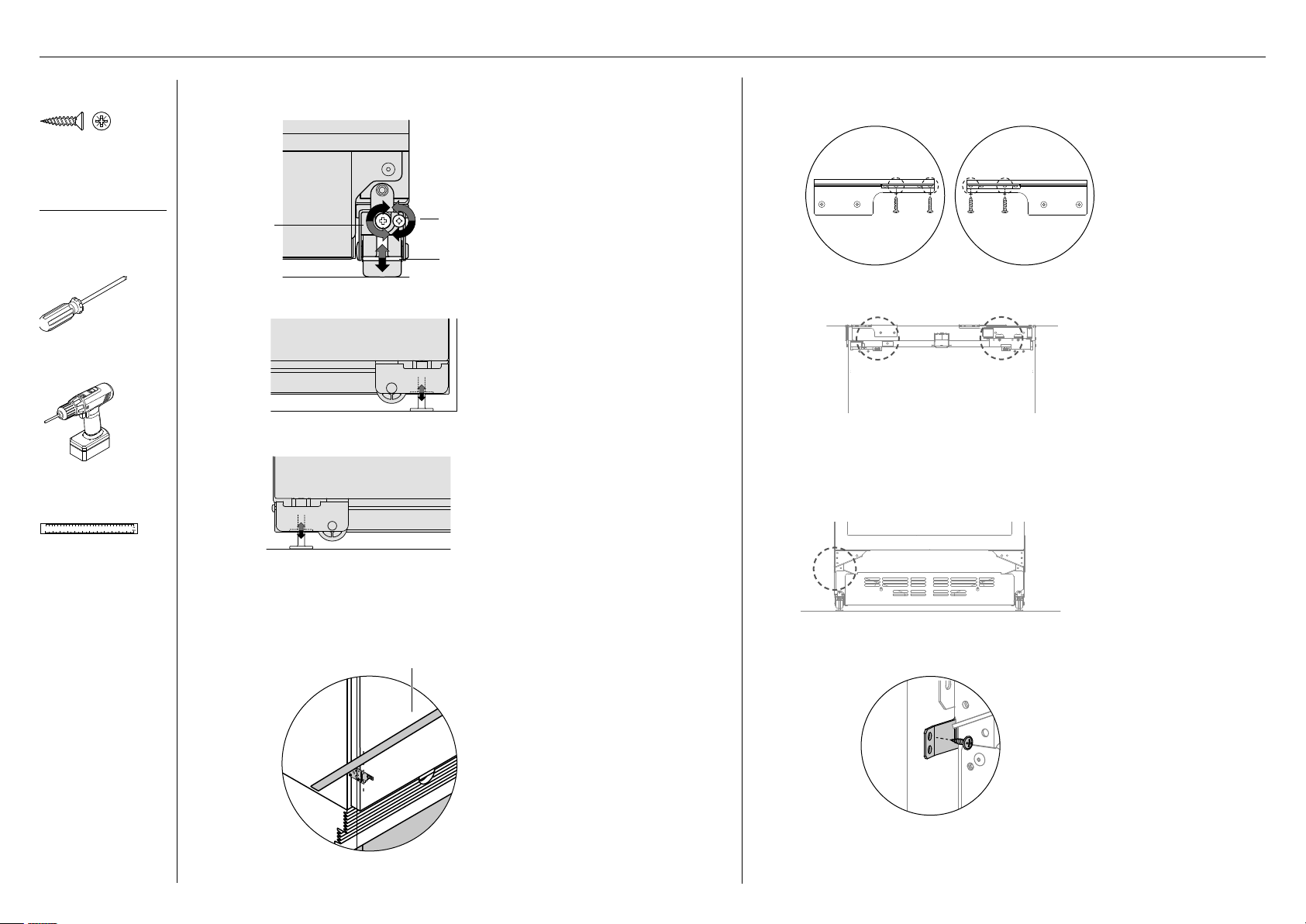

MULTIPLE INSTALLATION — SECURE FIRST APPLIANCE INTO CABINETRY
Turn the front and rear adjustment
screws clockwise to raise
height of the appliance and
counter-clockwise to lower the
height.
Rear foot
adjustment
screw
Front foot
adjustment
screw
Foot
Fix one lower side
bracket to the cabinetry
side surface with 8Gx16
countersunk screws.
Fix the left and right top
brackets to the ceiling
surface of the cabinetry with
8Gx16 countersunk screws.
Turn the front and rear adjustment
screws clockwise to extend the
feet until it engages the floor, and
the top bracket reaches ceiling of
the alcove.
Rear foot
Front foot
Check the alignment gauges while
adjusting the screws to maintain
the alignment of the appliance.
Using a ruler, check if the gaps
between appliance and cabinetry
side wall are even.
Install fasteners kit
#8 x 19
Countersunk
Twin Thread
Posi Screw
#8 x 19
Countersunk
Twin Thread
Posi Screw
8Gx16 Countersunk
screw (6)
Tools
Cross-head
screwdriver
Powered driver
(optional)
Ruler
ruler
1
1
1
2
3
Adjusting alignment of first appliance in cabinetry Securing the top brackets
Securing the side brackets
Left top bracket
Left lower side bracket
Right top bracket
54
Tools
Ruler
MULTIPLE INSTALLATION — ALIGN SECOND APPLIANCE INTO CABINETRY
Align the top cap of the second appliance flush with the
central spacer and top cap of the first appliance.
Mark the step of depth gauge on the cabinetry side of
the door based on the thickness of door panel.
Align the marked line flush with the front surface of the
adjacent cabinetry.
Adjust the height of the second appliance. Refer to
'Adjust height of first appliance in cabinetry' (page 51).
Using a ruler, check if the gaps between appliances and
cabinetry side walls are even.
H
Push the second appliance to roll slowly into the
other side of the cabinetry side by side with the first
appliance.
Ensure the bracket overlaps the appliance by a minimum
7 1/16" (180mm) for a secure hold. Refer to 'Install anti-
tip bracket' for more information.
adjacent cabinetry
PROFILE VIEW
Pushing into the cabinetry
Aligning the depth gauges
min 7 1/16" (180mm)
first appliance
anti-tip bracket
1
2
C
E
D
adjacent cabinetry
55
MULTIPLE INSTALLATION — SECURE SECOND APPLIANCE INTO CABINETRY
Top joiner
fastener kit
M5x20 Cap
screw (1)
M5x16x1 Plain washer
(1)
Bottom joiner
fastener kit
M6 Washer
843453
M5 Washer
M5 x20
Cap Screw
847984
M6 x 12
Cap Screw
248072
8Gx16
Mush Washer
840371
10 x 50
Dual Lock
M6 Nut
839455
M5 Nut
839107
M6x16 screw plastic washer
M6x16 Washer screw
(1)
M6x12x3.2
Plastic washer (1)
M6 Hex nut (1)
#8 x 19
Countersunk
Twin Thread
Posi Screw
#8 x 19
Countersunk
Twin Thread
Posi Screw
8Gx16
Countersunk screw
(5)
Tools
M4 Hex key
Cross-head
screwdriver
Secure the top caps of both appliances to the central
spacer with M5x20 cap screw and washer.
Secure the top brackets to the ceiling surface of the
cabinetry with 8Gx16 countersunk screw.
NO FILL NO FILL NO FILLFILL
NO FILL NO FILL NO FILLFILL
Secure the bottom joiner brackets of both appliances
together with the bottom joiner fastener.
Secure the left and right bottom side brackets of
the second appliance to the cabinetry with 8Gx16
countersunk screw.
Refer to pages 40 — 50 to complete your installation.
NO FILL NO FILL NO FILLFILL
Securing the top brackets
Securing the joiner bracket and side brackets
cap screw
washer
side brackets
bottom joiner
fastener
1
1
56
Position the trim between the
throats of both appliances.
Push and press the trim on
the appliances/throat.
Make sure the top end of the
trim is pushed up against the
cavity ceiling before fixing
the position.
Four dual adhesive strips
are pre-attached along the
center trim.
Peel off the liners from the
dual adhesive strips.
Press the center trim to fix
the position.
Press firmly to ensure the
adhesive strips are fully
adhered.
Installing the center trim
The center trim is installed after the top trims and grilles to the appliances.
Tools
Aluminium center
trim (1x)
Dual adhesive
strips (4x)
MULTIPLE INSTALLATION — INSTALL CABINET TRIMS
1
2
3
4
center trim
57
Handle assembly
Retainer blocks are pre-assembled at the bottom of both ends of the handle.
Cradle assembly
A retainer block is pre-assembled at the bottom of each cradle. Use a spacer to correctly
position the cradle and avoid wine bottles being too upright resulting in bottles tipping over.
Align handle to the front end of
display rack.
2
Insert retainer block at desired
location between slats of display
rack. Do not tighten.
1
Place ‘cradle guide’ on the slats
behind the handle..
Align cradle on spacer based on
size and type of wine bottle.
2
Rotate the retainer block to lock
position, and tighten screw.
Remove cradle guide from the rack
after use.
3
Loosen the screws until the
retainer blocks can be inserted
between slats of display rack.
1
Rotate retainer block to lock
position and tighten screw to lock
handle in place.
3
Write the name or type of wine on
the label.
Wine label kit
1
Fit label over front edge of rack to
match displayed wine.
2
Wipe the labels with a damp cloth
to erase.
3
WINE DISPLAY FOR WINE CABINET (OPTIONAL)
58
CHANGE THE DOOR HINGES (OPTIONAL)
You have the option to switch the door hinge side of your appliance from right hand hinge to left hand hinge or vice versa. A hinge change kit is required for this installation, and must
be purchased separately. Ensure that you remove all the shelves, covers and trims from the appliance before changing the hinges. Take care not to damage the door.
Detaching the door
bottom/middle hinge
Top hinge
M6x10 hex screws
1
REFRIGERATOR & FREEZER / WINE CABINET REFRIGERATOR & FREEZER / WINE CABINETREFRIGERATOR—FREEZER REFRIGERATOR—FREEZER
2
‘0’
T20 screw
Release the hinge spring by turning the
T20 screw in the hinge to the ‘0’ position.
Close the door and lay the appliance on
its back on the pallet.
Detach the door from the appliance by
unscrewing the door hinge M6x10 hex
screws (4x) at the top hinge and bottom/
middle hinge.
59
1 Rotate the top hinge (A) outwards and remove the top hinge pocket cover (B)
using the flat head screwdriver in the slot of the cover.
2 Unscrew M6x16 countersunk screws (C) to remove top hinge, and set
aside to use later.
3 Unscrew M6x16 countersunk screws (D) from hinge pocket to remove hinge
pocket and top alcove bracket.
4 Unscrew M5x12 countersunk screws (E) to remove top hinge bracket and spacer.
5 For the non-hinge side, remove the top alcove bracket by unscrewing the M6x16
countersunk screws (F).
1 Rotate the middle hinge (A) and
unscrew M6x16 countersunk screws (B)
to remove middle hinge, and set
aside to use later.
2 Unscrew M5x12 countersunk
screws (C) to remove top hinge
bracket and spacer.
CHANGE THE DOOR HINGES (OPTIONAL)
b
D
E
C
A
f
B
A
C
Detaching the top door hinge
Detaching the middle door hinge — For Refrigerator-Freezer
1 Rotate the bottom hinge (A)
outwards and remove bottom hinge
pocket cover (B) using a flat head
screwdriver in theslot.
2 Remove the hinge by unscrewing the
M6x16 countersunk screws (2x) (C).
3 Open the water filter hatch on
the bottom grille and unscrew the
#8x16 screw (D) while holding the
grille in place.
4
Remove the bottom grille by
unscrewing the #8x16 screws (E) from
the bottom left and right of the grille.
5 Remove bottom hinge
bracket by unscrewing M6x16
countersunk screws (F).
IMPORTANT!
Do not remove plinth-to-cabinet retention
brackets!
Detaching the bottom door hinge — For Refrigerator & Freezer / Wine Cabinet
B
d
a
F
C
E
E
Do not
remove!
60
F
Unclip the hall sensor
from the housing.
Move the sensor housing
to align the opposite hall
sensor clip with the centre
of the cabinet.
Unhook the interceptor
board harness from
sensor housing so
harness is loose.
Reinstall the sensor housing
using #8x16 screws (2x)
into the pre-drilled holes in
the cabinet top panel.
Clip the hall sensor into
the sensor housing in
the pocket closest to the
centreline of the cabinet.
Press the harness from
the interceptor board into
the forks on the sensor
housing.
Remove the #8x16 screws
(2x) from the sensor
housing.
CHANGE THE DOOR HINGES (OPTIONAL)
Moving the sensor housing
1 54
2 6
3 7
61
A
b
f
e
D
c
CHANGE THE DOOR HINGES (OPTIONAL)
1 Reinstall the hinge top bracket and bracket spacer with M5x12 countersunk
screws (A) onthe new hinge side at the other side of theappliance.
2 Install the new hinge pocket and alcove top bracket on the new hinge side using
two (2x) M6x16 countersunk screws (B).
z
The new hinge pocket and top alcove bracket are supplied with the hinge kit.
3 Install the new hinge in the new hinge pocket by screwing M6x16 countersunk
screws (2x) (C).
4 Open the hinge (D) and clip the top hinge pocket cover (E) to the
top hinge pocket.
5 Install a new top alcove bracket on the new
non-hinge side (F).
1 Reinstall the middle hinge
bracket and spacer with M5x12
countersunk screws (A).
2 Open the middle hinge (B) and
reinstall the hinge with M6x16
countersunk screws (C).
C
B
A
Re-attaching the top door hinge
Re-attaching the middle door hinge — Refrigerator-Freezer
1 Install a new lower hinge bracket
on the new hinge side with M6x16
screws (2x) (A).
2 Ensure that the tab on the top of the
bracket inserts into the slot in the
plinth front bracket.
3 Use the hinge that was removed from
the top of the appliance and insert
the tabs into the hinge lower bracket.
Rotate the hinge into place and fix with
M5x12 countersunk screws (2x) (B).
4
Open the hinge (C), and install the new
top grille assembly.
5
Fasten in place with #8x16 screws (3x)
(D). One each at the bottom left and
right of the grille and one behind the
water filter hatch.
6
Clip the bottom hinge pocket cover to
the new hinge pocket (E).
Re-attaching the bottom door hinge — Refrigerator or Freezer / Wine Cabinet
E
d
C
A
B
D
D
62
A
NO FILL NO FILL NO FILLFILL
CHANGE THE DOOR HINGES (OPTIONAL)
1 Unscrew the M5x10 screws (4x) to
remove the top adapter bracket from
the top of the door (A).
2 Install the new top adapter bracket into
the other side of thetop of the door
with M5x10 screws (4x) (B).
1 Remove the door panel locking
bracket and washer from thebottom
of the door by unscrewing M6x25
screw (1x) (C).
2 Remove the bottom adapter bracket
and spacer from the bottom of the
door by unscrewing M6x25 screws (2x)
andM5x30 screw (1x) (D).
3 Install the new bottom adapter bracket
and existing spacer to the other side of
the door with M6x25 screws (2x) and
M5x30 screw (1x) (E).
4 Install the existing door panel locking
bracket and washer tothe other side of
the door with M6x25 screw (1x) (F).
e
f
use existing
locking bracket
NO FILL NO FILL NO FILLFILL
b
NO FILL NO FILL NO FILLFILL
use new top
adaptor bracket
NO FILL NO FILL NO FILLFILL
Changing the top door brackets Reinstalling the door
Changing the bottom door bracket
use new bottom
adaptor bracket
and spacer
NO FILL NO FILL NO FILLFILL
Bottom/middle hinge
Top hinge
M6x10 hex screws
1 Secure the door to the top hinge and
bottom/middle hinge with M6x10
hex screws (4x).
‘I’
T20 screw
2 Activate the hinge spring by turning the
star T20 screws to the I position.
3 Return the appliance to the
upright position, and reinstall all
covers and trims.
NO FILL NO FILL NO FILLFILL
63
ALL MODELS
F Cabinet Level: Ensure the appliance is level and dimensions accurate.
Refer to 'Cabinetry Dimensions, pages 14-15'.
F Anti-tip: Ensure the appliance is securely supported to the cabinetry with the supplied
anti-tip bracket and fittings. Refer to 'Cavity preparation, page 30'
F Door panel/and toe kick: Ensure door panel/s and toe kick are attached securely
and properly aligned; Refer to 'Install door panel, pages 42-44 and 'Install toe kick',
pages 44-45.
F Doors closing freely: Ensure the door/drawer can open and close freely with no
resistance from surrounding cabinetry or product. Refer to 'Door clearance' and 'Drawer
clearance', page 21.
F Hinge pin: Ensure hinge limiting pin is fitted for 90° door swing. Refer to 'Door
clearance', page 21.
F Vent clearance: Ensure the cabinet installation provides the minimum vent clearance
required. Check that the gap between the bottom of the door panel and the ground is at
least 50mm. Refer to 'Product dimensions', page 13.
F Cabinet trims: Ensure the cabinet side trims are securely attached. Refer to 'Install
cabinet trims', page 48.
F Door covers & trims: Ensure the door trims, door covers, and hinge pocket cover are
securely attached. Refer to "Installl Door Covers & Trims", page 49, and "Install Top Trim
& Hinge Pocket Covers", page 50.
Complete and keep for safe reference:
Model _____________________________________________________________
Serial No. _____________________________________________________________
Purchase Date _____________________________________________________________
Purchaser _____________________________________________________________
Dealer Address _____________________________________________________________
Installer’s Name _____________________________________________________________
Installer’s Signature _____________________________________________________________
Installation Company _____________________________________________________________
Installation Date _____________________________________________________________
FINAL CHECKLIST
TO BE COMPLETED BY THE INSTALLER
F Door opening sensor: Ensure the magnets at door are in place so door opening sensor
works properly. Refer to 'Install trims', page 47.
F Packaging: Ensure all internal and external packaging has been removed. Refer to 'Before
installation', page 27.
F Installation mode: Ensure the Installation Mode is de-activated (hold on Compartment
button for 4 sec. Refer to 'Power and water supply connection', page 35.
F Fault codes: Ensure no error codes are shown.
F User guide: Check the User Guide is inside the product in a visible area for the customer.
FOR PRODUCTS WITH ICE ONLY, WATER ONLY OR ICE & WATER FUNCTION
F Water filter: Water filter is installed and engaged in a horizontal position. Refer to 'Install
water filter', page 39.
F Ice maker: Turn ice maker ON. Force a manual ice maker cycle by pressing
the , and buttons together for four seconds then close the door(s). The ice tray
will turn over and activate the valve. Repeat force manual ice maker cycle. The ice tray
will fill and empty into the bin below, dry the bin and return it correctly. Refer to page 19
of your User Guide.
F Dispenser: Ensure the water is flowing through the system using the dispenser pad. Refer
to page 18 of your User Guide.
FISHERPAYKEL.COM
866169A 10.20
© Fisher & Paykel Appliances 2020. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
