Operating and Installation
Instructions
Ventilation Hood
To prevent accidents and damage to the appliance, you must read
these instructions before installing the appliance and using it for the
first time.
en-US M.-Nr. 11 742 410
Contents
2
IMPORTANT SAFETY INSTRUCTIONS ............................................................ 4
Caring for the environment .............................................................................. 12
Description of functions ................................................................................... 13
Guide to the appliance...................................................................................... 14
Operation............................................................................................................ 16
Switching the blower on and off ......................................................................... 16
Turning off the blower.......................................................................................... 16
Turning the overhead lighting on/off.................................................................... 16
Energy-saving tips............................................................................................. 17
Cleaning and care ............................................................................................. 18
Stainless steel housing........................................................................................ 18
Important information for appliances with lacquered housing....................... 18

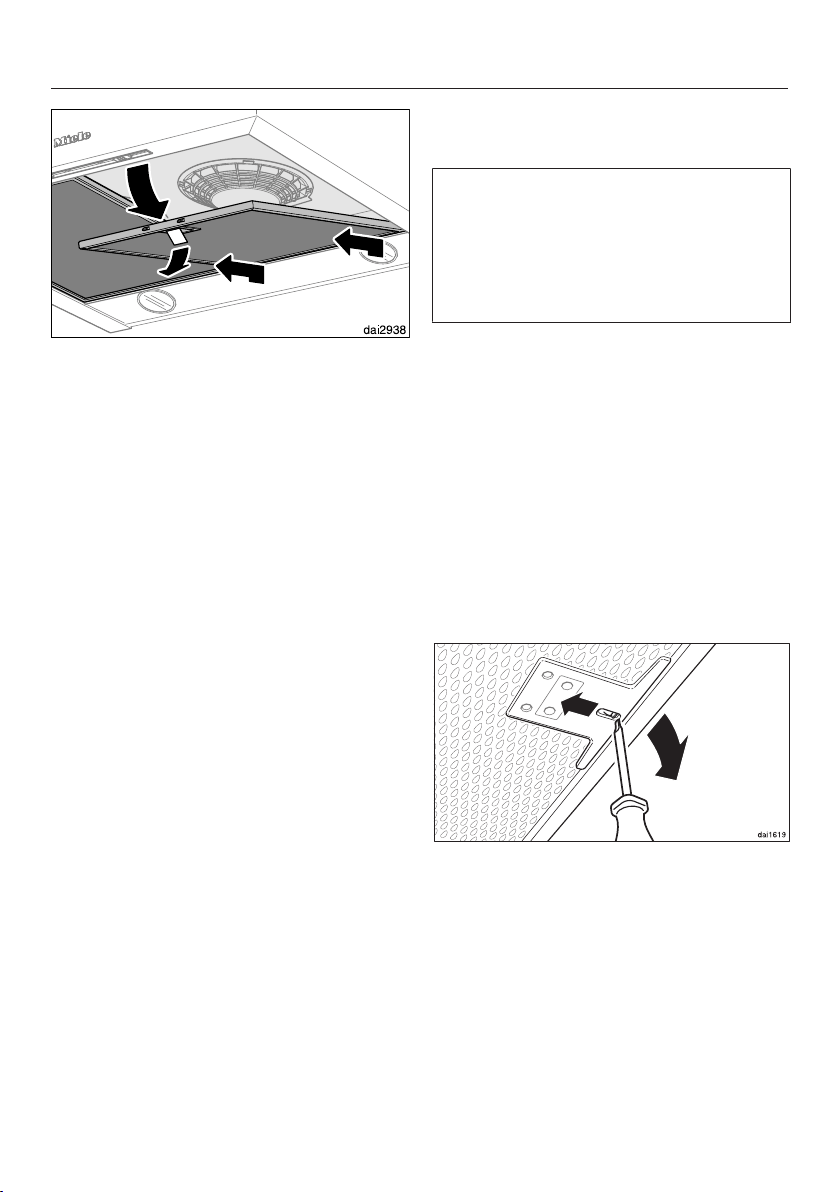

Grease filters ....................................................................................................... 19
OdorFree Charcoal Filter ..................................................................................... 21
Disposing of charcoal filters ........................................................................... 21

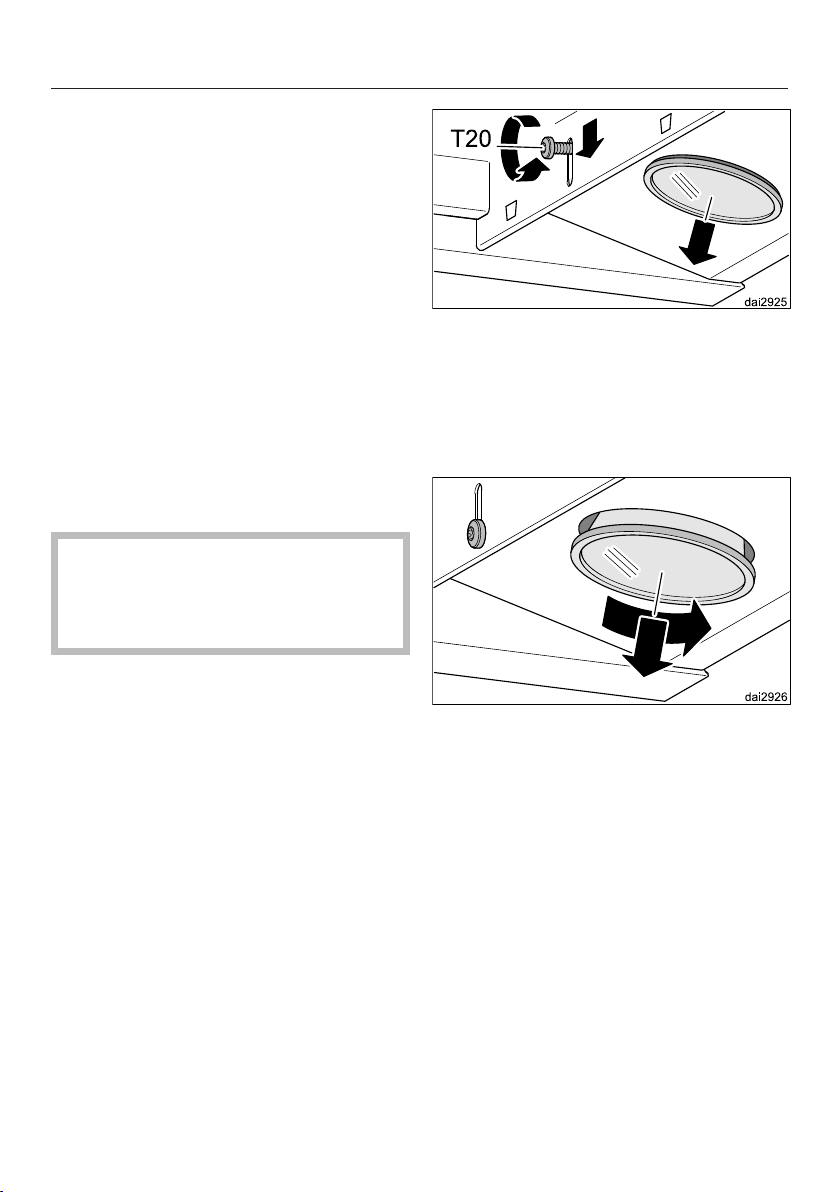

Changing a light bulb .......................................................................................... 22
Installation.......................................................................................................... 23
Before installation................................................................................................ 23

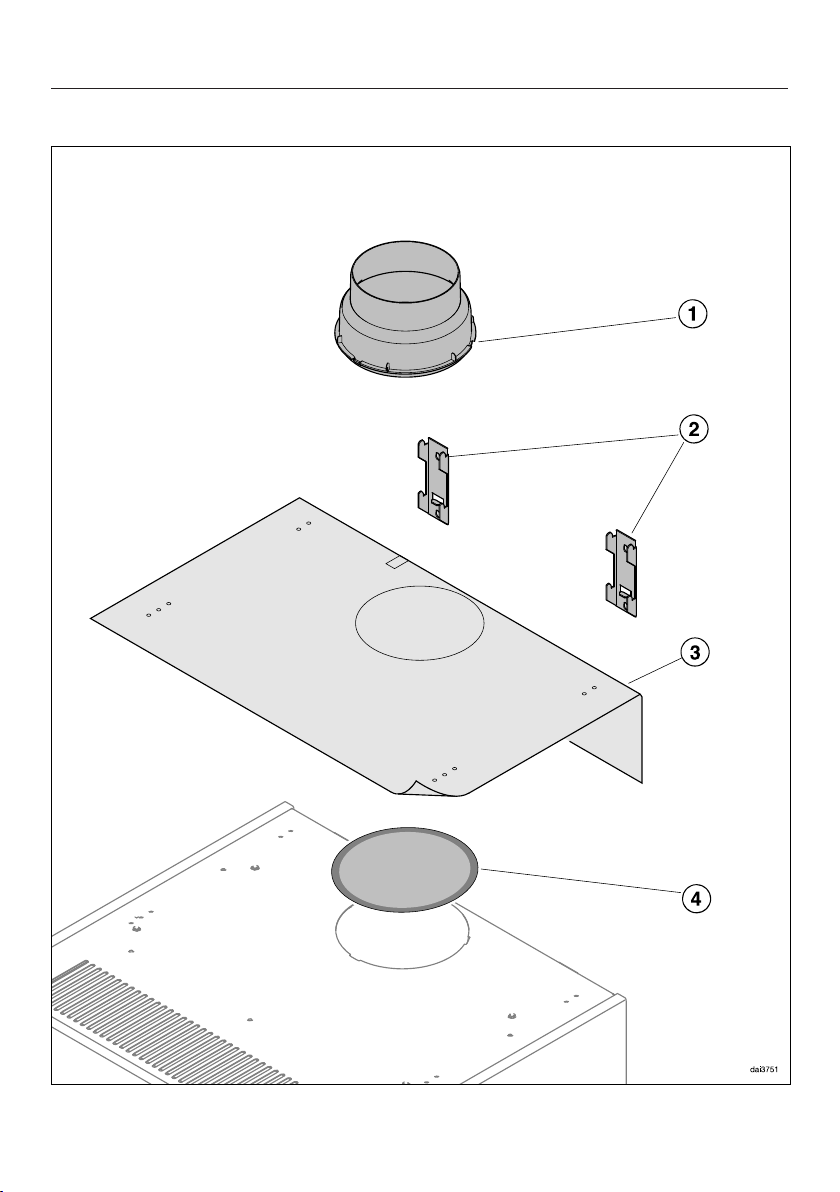

Installation materials............................................................................................ 24

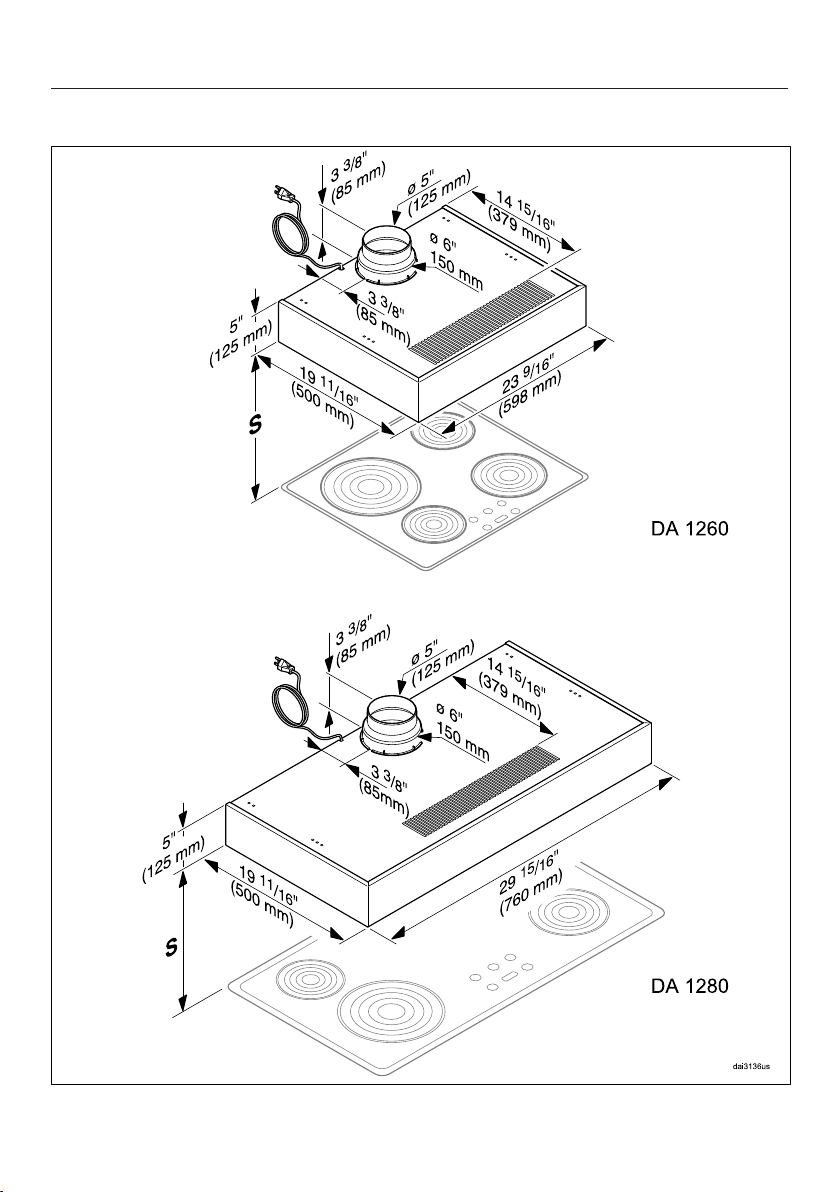

Appliance dimensions ......................................................................................... 26
Distance between cooktop and ventilation hood (S)........................................... 27
Installation recommendations ............................................................................. 28
Removing the protective film............................................................................... 28
Deflector.............................................................................................................. 28

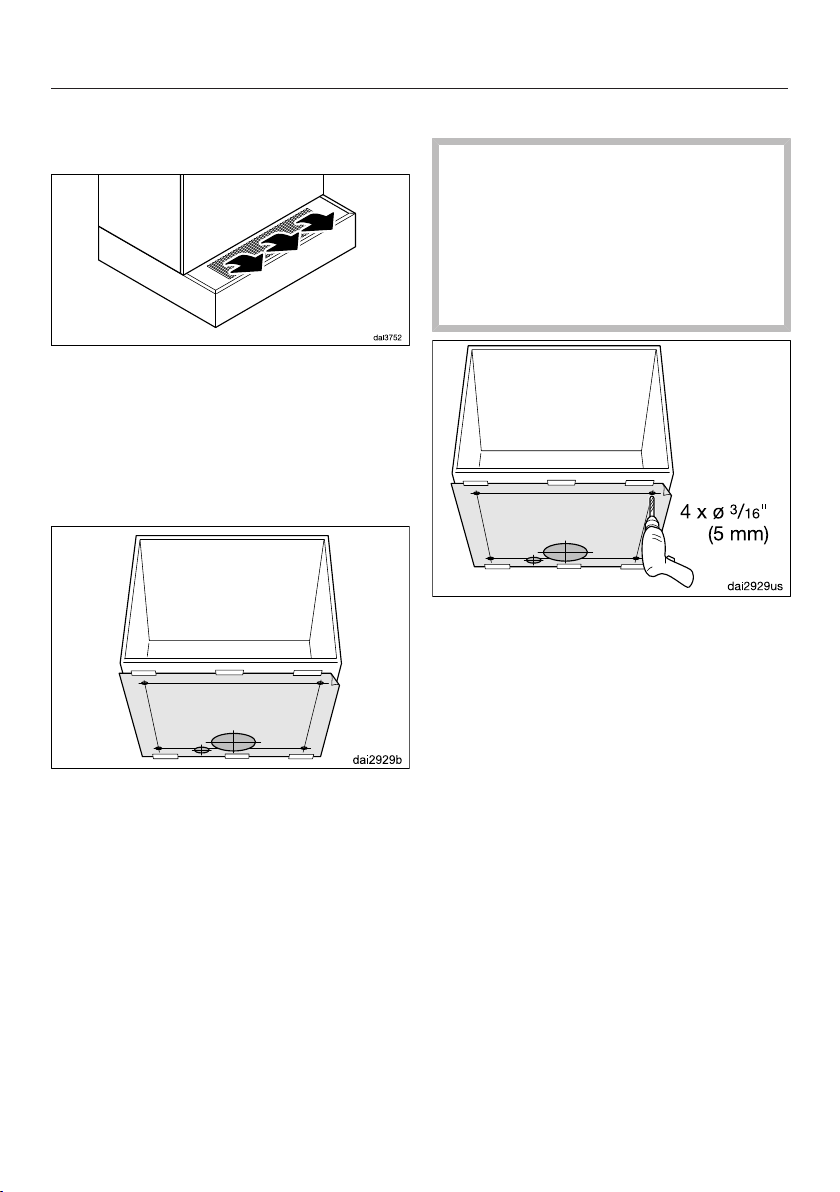

Installation underneath the wall unit.................................................................... 30

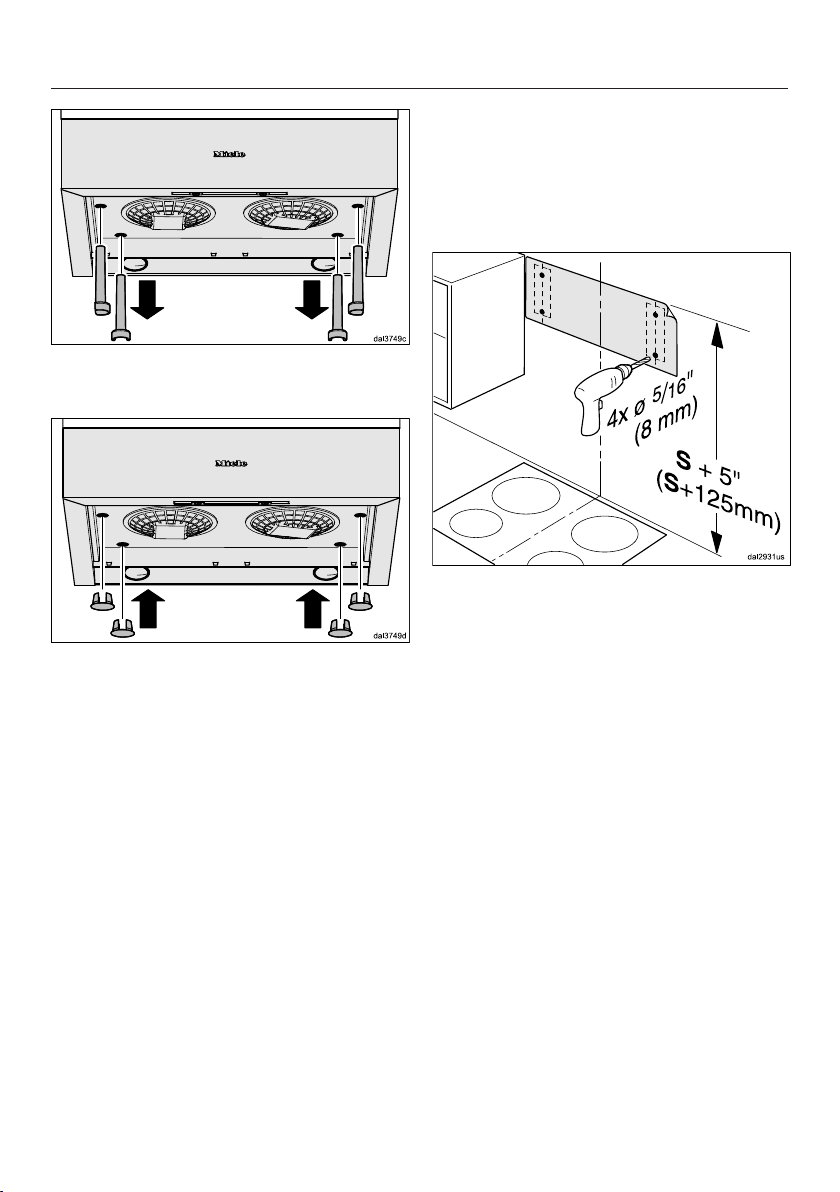

Wall installation.................................................................................................... 32

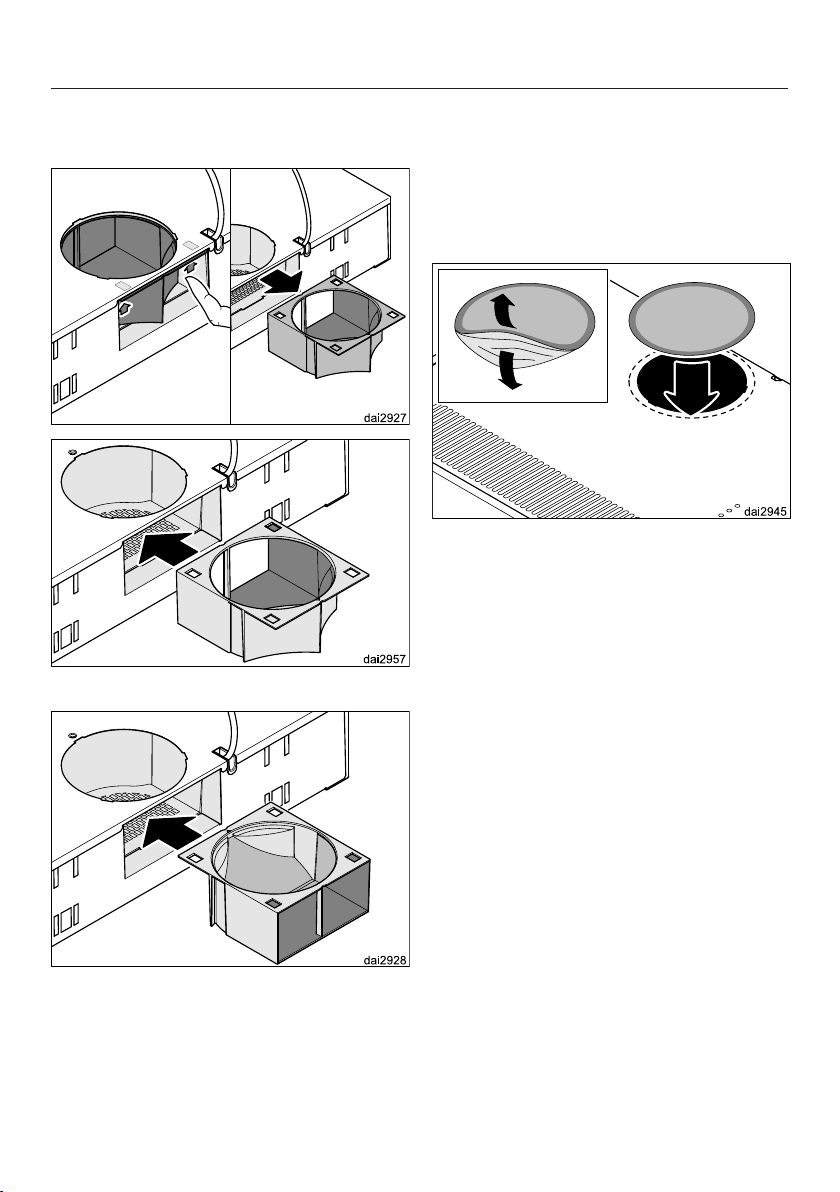

Preparation for extraction mode.......................................................................... 34
Preparation for recirculation mode...................................................................... 35
Power supply....................................................................................................... 35
Functional check ................................................................................................. 35
Electrical connection ........................................................................................... 36
Air venting ........................................................................................................... 37
Condensate .................................................................................................... 38
Customer Service.............................................................................................. 39
Contact in the event of a fault ............................................................................. 39
Location of the data plate ................................................................................... 39
Appliance warranty and product registration ...................................................... 39
IMPORTANT SAFETY INSTRUCTIONS
4
READ AND SAVE THESE INSTRUCTIONS
This appliance complies with current safety requirements.
Improper use of the appliance can lead to personal injury and
material damage.
Read all instructions before installing or using the appliance for the
first time. Only use the appliance for its intended purpose.
Keep these operating instructions in a safe place and pass them
on to any future user.
Appropriate use
CAUTION: For General Ventilating Use Only. Do Not Use To
Exhaust Hazardous Or Explosive Materials And Vapors.
This appliance is intended for residential use only. Use only as
described in these operating instructions.
This ventilation hood is not intended for outdoor use.
It must only be used to extract and clean vapors produced during
cooking. Any other use occurs at the owner's own risk.
This appliance is suitable for installation above gas or electric
cooking surfaces.
Persons who lack physical, sensory or mental abilities, or
experience with the appliance should not use it without supervision
or instruction by a responsible person.
IMPORTANT SAFETY INSTRUCTIONS
5
Safety with children
Children must be kept away from the ventilation hood unless they
are constantly supervised.
Please supervise children in the vicinity of the hood and do not let
them play with it.
The LED ClearView lighting is very intense.
Ensure that especially babies/small children don't look into the light.
Danger of suffocation. While playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head, presenting the risk of suffocation. Keep packaging
material away from children.
Technical safety
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- Use this appliance only in the manner intended by the
manufacturer. If you have questions, contact Miele.
- Before servicing or cleaning the appliance, switch power off at the
service panel and lock the service disconnecting means to
prevent power from being switched on accidentally. If the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
Unauthorized installation, maintenance, and repairs can cause
considerable danger for the user. Installation, maintenance, and
repairs must only be carried out by a Miele authorized technician.
A damaged ventilation hood can be dangerous. Always check for
visible signs of damage. Never use a damaged ventilation hood.
IMPORTANT SAFETY INSTRUCTIONS
6
Be certain your appliance is properly installed and grounded by a
qualified technician. To guarantee the electrical safety of this
appliance, continuity must exist between the appliance and an
effective grounding system. It is imperative that this basic safety
requirement be met. If there is any doubt, have the electrical system
of the house checked by a qualified electrician.
Reliable and safe operation of this hood can only be guaranteed if
it has been connected to the electrical supply.
To avoid damaging the ventilation hood, make sure that the
connection data (voltage and frequency) on the data plate
correspond to the building's power supply before connecting the
appliance.
If in doubt, consult a qualified electrician.
Do not use a power bar or extension cord to connect the
ventilation hood to electricity. These are a fire hazard and do not
guarantee the required level of appliance safety.
To ensure safe operation, only use the ventilation hood after it has
been properly installed.
This ventilation hood may not be used in non-stationary locations
(e.g. on a ship).
Adequate ventilation must be provided when the hood is operated
simultaneously with devices that burn gas or other fuels.
Only open the housing as described in the enclosed “Installation
diagram” and in the “Cleaning and care” section of this manual.
Under no circumstances should any other parts of the housing be
opened.
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operation faults.
IMPORTANT SAFETY INSTRUCTIONS
7
Defective components should be replaced by Miele original parts
only. Only with these parts can safety of the appliance be assured as
intended by the manufacturer.
If the power cord is damaged, it must only be replaced by a
qualified service technician.
During installation, maintenance, and repair work, the ventilation
hood must be disconnected from the electrical supply. It is only
completely isolated from the electricity supply if one of the following
applies:
- The circuit breakers on the electrical service panel are tripped.
- The screw-type fuses on the electrical service panel have been
removed.
- The power cord (if present) has been unplugged from the socket
(pull the plug not the cord).
Correct use
WARNING: TO REDUCE THE RISK OF A COOKTOP GREASE
FIRE:
- a) Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers may ignite. Heat oils slowly
on low or medium settings.
- b) Always turn the hood on when cooking at a high heat.
- c) Clean the ventilation hood frequently. Grease should not be
allowed to accumulate on the fan or filter.
- d) Use the proper pan size. Always use cookware appropriate for
the size of the cooking area.
Open flames are a fire hazard.
The use of an open flame under the ventilation hood is not
permitted. To avoid the danger of fire, do not flambé or grill over an
open flame. When switched on, the ventilation hood could draw
flames into the filter. Fat deposits could ignite, presenting a fire
hazard.
IMPORTANT SAFETY INSTRUCTIONS
8
WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A COOKTOP GREASE FIRE, OBSERVE THE
FOLLOWING*:
- a) SMOTHER FLAMES with a close fitting lid, cookie sheet, or
metal tray then turn off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
- b) NEVER PICK UP A FLAMING PAN - You may be burned.
- c) DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
- d) Use a fire extinguisher ONLY if:
– 1) You have a class ABC extinguisher, and you know how to operate it.
– 2) The fire is small and contained in the area where it started.
– 3) The fire department is being called.
– 4) You can fight the fire with your back to an exit.
*Based on “Kitchen Fire Safety Tips” published by NFPA.
The ventilation hood may become damaged if exposed to
excessive heat from a gas cooktop.
- When using the ventilation hood over a gas cooktop, ensure that
any burners in use are always covered by cookware. Turn burners
off when removing the cookware, even if doing so for just a short
time.
- Select cookware that is suitable for the size of the burner.
- Adjust the flame so that it never extends up the sides of the
cookware.
- Avoid overheating the cookware (e.g., when cooking with a wok).
Always turn the ventilation hood on whenever a burner is in use to
prevent damage from condensation.
IMPORTANT SAFETY INSTRUCTIONS
9
Overheated oil and fat can ignite, causing fire damage to the
ventilation hood.
Do not leave cookware, pans, and deep-fat fryers unattended when
cooking with oil or fat. Similarly, never leave an open flame
unattended when grilling.
Fat and debris deposits impair the proper functioning of the
ventilation hood.
To ensure that cooking vapors are properly cleaned, never use the
ventilation hood without the grease filters in place.
There is a risk of fire if cleaning is not completed according to the
instructions in this manual.
Please note that the heat rising from the stovetop during cooking
can cause the ventilation hood to become very hot.
Do not touch the housing or the grease filters until the ventilation
hood has cooled down.
IMPORTANT SAFETY INSTRUCTIONS
10
Proper installation
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- a) Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
- b) Sufficient air is needed for combustion and exhausting of gases
through the flue (chimney of fuel burning equipment to prevent
back drafting. Follow the heating equipment manufacturer’s
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA) and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
- c) When cutting or drilling into the wall or ceiling, do not damage
electrical wiring and other hidden utilities.
- d) Ducted hoods must always be vented to the outdoors.
- e) Do not use this hood with any solid-state speed control device.
To determine whether a ventilation hood may be operated above
your cooking appliance, please refer to the information provided by
the appliance's manufacturer.
Safety regulations prohibit the installation of a ventilation hood
over solid fuel stoves.
An insufficient safety distance between the cooktop and the
ventilation hood can result in damage to the ventilation hood.
The minimum safety distances between the top of the cooktop and
the bottom of the ventilation hood given in the “Installation” section
of this manual must be observed, unless the cooktop manufacturer
states that a greater safety distance is required.
If more than one cooking appliance is installed beneath the
ventilation hood, and they have different minimum safety distances
to the ventilation hood, select the greater distance.
IMPORTANT SAFETY INSTRUCTIONS
11
The information provided in “Installation” must be observed when
installing the ventilation hood.
Components can have sharp edges which may cause injury.
Wear gloves to protect your hands.
When installing the exhaust duct, only use pipes or tubes made of
non-flammable material. These can be obtained from your Miele
dealer or from Miele Technical Service.
Exhaust air should not be vented into a chimney or vent flue which
is otherwise in use and should not be channeled into ducting which
ventilates rooms with fuel-burning installations.
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
WARNING: TO REDUCE THE RISK OF FIRE USE ONLY METAL
DUCTWORK.
Cleaning and maintenance
Never use a steam cleaner to clean the ventilation hood.
The steam can reach the electrical components and cause a short
circuit.
Accessories
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty will become void.
Caring for the environment
12
Disposal of the packing
material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these
materials improperly by disposing of
them in your household waste can be
harmful to your health and the
environment. Therefore, please do not
dispose of your old appliance with
regular household waste and follow
local regulations on proper disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed. Please
ensure that your old appliance is kept
away from children until removal.
Observe safety requirements for
appliances that may tip over or pose an
entrapment hazard.
Description of functions
13
The following functions are available on
your ventilation hood, depending on the
model:
Extraction mode
The air is drawn in and cleaned by the
grease filters and directed outside.
Recirculation mode
The recirculation mode requires a
recirculation kit and OdorFree Charcoal
Filter (available as optional accessories,
see “Technical Data” for more
information)
The air is drawn in and first cleaned by
the grease filters and then by an
OdorFree Charcoal Filter. The cleaned
air is then recirculated back into the
kitchen.
Guide to the appliance
14
Guide to the appliance
15
a
Controls
b
Overhead lighting
c
Charcoal filters
Optional accessories for recirculation mode
d
Cover for the charcoal filter compartment
e
Grease filter
f
Vent collar
(6" (150mm) or 5" (125mm) with reducing collar).
g
Exhaust outlet
h
Recirculation vents
i
Sliding switch for the cooktop lighting
j
Sliding switch for the blower
Operation
16
Switching the blower on and
off
Switch the blower on as soon as you
start cooking. This is to ensure that
vapors are captured right from the start.
Power levels 1 to 3 are available for light
to heavy cooking vapors and odors.
For strong vapors and odors that are
temporarily produced when cooking,
e.g., during searing, select the B
Booster setting.
Use the blower switch to turn on
the blower and select the appropriate
power level.
Turning off the blower
It is advisable to run the blower for a
few minutes after cooking has finished
to neutralize any lingering vapors and
odors in the air.
To turn the blower off, turn the blower
switch to 0.
Turning the overhead lighting
on/off
The overhead lighting can be turned on
and off independently from the blower.
Use the light switch to turn the
overhead lighting on (1) and off (0).
Energy-saving tips
17
This hood operates in a very efficient
and energy-saving manner. The
following will help you to save even
more energy when using it:
- Ensure that there is sufficient
ventilation in the kitchen when
cooking. If there is insufficient air flow
during extraction mode, the hood
cannot operate efficiently, causing
increased operating noise levels.
- Always cook with the lowest possible
setting. This produces fewer cooking
vapors so that you can use a lower
hood power level and therefore
benefit from reduced energy
consumption.
- Check the power level selected on
the hood. A lower power level is
generally sufficient for the majority of
cooking. Only use the booster level
when necessary.
- When a large volume of cooking
vapors are being produced, switch to
a high power level in good time. This
is more efficient than operating the
hood for longer to try to capture
cooking vapors that have already
been distributed throughout the
kitchen.
- Make sure that you switch off the
hood after use.
- Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
Cleaning and care
18
Before proceeding with any
maintenance or cleaning task, the
ventilation hood must be
disconnected from the power supply,
see “IMPORTANT SAFETY
INSTRUCTIONS”.
Stainless steel housing
General information
Unsuitable cleaning agents can
damage the surfaces and control
elements.
Do not use any cleaning agents
containing soda, acid, chloride, or
solvent.
Do not use any abrasive cleaning
agents, e.g., powder cleaners or
cream cleaners and abrasive
sponges, as well as pot scourers or
sponges which have been used
previously with abrasive cleaning
agents
Moisture in the ventilation hood
can cause damage.
Make sure that water does not get
into the ventilation hood.
Clean all surfaces and control buttons
using a small amount of warm water
and liquid dish soap. Apply with a
sponge cloth.
After cleaning, wipe the surfaces dry
using a soft cloth.
Important information for appliances
with stainless steel surfaces
This information does not apply to the
control buttons.
Stainless steel surfaces can be cleaned
with a non-abrasive cleaning agent
designed specifically for use on
stainless steel.
To prevent the surfaces from quickly
becoming dirty again, we recommend
treating them with a stainless steel care
product (available from Miele).
Important information for appliances
with lacquered housing
Minor scratches on the surface are
inevitable when cleaning the casing;
they may be visible depending on the
lighting in the kitchen.
Cleaning and care
19
Important information for the
controls
If soiling is not removed promptly, it
could cause the control elements to
alter or discolor.
Remove soiling immediately.
The surface of the control elements
can become damaged if they are
cleaned using stainless steel
cleaning agents.
Do not use stainless steel cleaning
agents on the control elements.
Grease filters
Risk of fire
Oversaturated grease filters are a fire
hazard.
Clean the grease filters at regular
intervals.
The re-usable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapors, preventing soiling of the
ventilation hood.
The grease filters must be cleaned at
regular intervals.
Heavily soiled grease filters hinder air
extraction and will lead to increased
levels of soiling in the ventilation hood
and in the kitchen.
Cleaning intervals
Accumulated grease solidifies over a
longer period of time and makes
cleaning more difficult. The grease
filters should therefore be cleaned every
3 to 4 weeks.
Removing the grease filters
When handling the grease filter,
be careful not to drop it.
This can result in damage to the filter
and the cooktop below.
Make sure you hold the filter securely
at all times when handling it.
Cleaning and care
20
To remove a grease filter, release the
locking clip. Then, open the filter to a
45° angle, unhook it, and remove it
from the hood.
Cleaning the grease filters by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and dish soap. Do not use undiluted
dish soap.
Unsuitable cleaning agents
Unsuitable cleaners can cause damage
to the filter surfaces if used regularly.
Do not use any of the following:
- Lime removers
- Abrasive powders or abrasive liquids
- Aggressive all-purpose cleaners and
degreaser sprays
- Oven sprays
Cleaning the grease filters in a
dishwasher
Place the grease filters upright or
slightly inclined in the lower basket.
Ensure the spray arm is not
obstructed.
Use a commonly available household
dishwashing detergent.
In a Miele dishwasher use the
“Normal” program.
Depending on the detergent used,
cleaning the filters in a dishwasher
may cause the inside filter surfaces to
become discolored. However, this will
not affect the functioning of the grease
filters in any way.
After cleaning
After cleaning, leave the filters on an
absorbent surface to dry.
When removing the filters for
cleaning, also clean off any
accessible oil or fat buildup from the
housing. Doing so will prevent a fire
hazard.
Reinstall the grease filters. When
inserting the filters, make sure that
the locking clip is facing down.
If the filters have been installed
incorrectly, you can insert a small
screwdriver into the slit to disengage
the locking clip.
Cleaning and care
21
OdorFree Charcoal Filter
With recirculation mode, a charcoal
filter must be installed in addition to the
grease filters. The charcoal filter is
designed to absorb cooking odors.
The charcoal filter is installed in the
canopy above the grease filters.
Charcoal filters are available to order via
the Miele Web Store, Miele Technical
Service (see end of this manual for
contact details), or from your Miele
dealer. The model designations are
listed in the “Technical data” chapter.
Installing/replacing the OdorFree
Charcoal Filter
To install or replace the OdorFree
Charcoal Filter, the grease filters must
first be removed as described above.
Push the cover for the charcoal filter
compartment slightly to the right and
then lower it to remove it.
Remove the charcoal filter from its
packaging.
Insert the charcoal filter into its
compartment and push the filter up
against the recirculation grille.
Reinsert the cover and the grease
filters.
When to change the OdorFree
Charcoal Filter
Replace the charcoal filter when it no
longer absorbs kitchen odors
effectively.
It should be replaced at least every 6
months.
Disposing of charcoal filters
Used charcoal filters can be disposed
of with normal household waste.
Cleaning and care
22
Changing a light bulb
The bulbs should be replaced with the
following:
Bulb type .............................. LED, GU10
Power ............................................... 3W
Replacement bulbs are available from
Miele.
Turn off the blower and the lighting.
Remove the grease filters.
Disconnect the hood from the
electrical supply before replacing the
bulbs (see “IMPORTANT SAFETY
INSTRUCTIONS”).
While the light is turned on, the
bulbs become very hot.
Allow the bulbs to cool down for a
few minutes before changing them.
Loosen the lamp's securing screw a
little.
Slide the screw and the lamp
downwards.
Then tighten the screw again.
Turn the bulb counter-clockwise and
pull it out.
Install the new bulb. Observe the
manufacturer's instructions.
Slightly loosen the screw again, push
the light upwards, and tighten the
screw.
Reinstall the grease filters.
Installation
*INSTALLATION*
23
Before installation
Before installation, it is important
to read the information contained in
this chapter and in the “IMPORTANT
SAFETY INSTRUCTIONS” chapter.
Installation
*INSTALLATION*
24
Installation materials
Installation
*INSTALLATION*
25
a
1vent collar
for 6" (150mm) or5" (125mm)
exhaust ducting (not to be used with
recirculation mode).
b
2 brackets
for securing the ventilation hood to
the wall (not required when installed
underneath the upper cabinet).
c
1 drilling template
d
1cover foil
for rear exhaust opening when using
recirculation mode. The foil is
included with the charcoal filter
(optional accessory).
4 screws 5x60mm and
8 plugs 8x50mm
for attaching to the wall.
The screws and plugs are
designed for use in solid walls only.
Use different fasteners for other wall
construction types.
Make sure that the wall can support
the load.
4 self-tapping screws 4.2x30mm
for securing the ventilation hood onto
the upper cabinet (from the top).
4 wood screws 4x30mm
for securing the ventilation hood onto
the upper cabinet (from below).
4cover caps
Installation
*INSTALLATION*
26
Appliance dimensions
Installation
*INSTALLATION*
27
Distance between cooktop and ventilation hood (S)
Provided a larger distance is not given by the manufacturer of the cooktop,
follow the minimum safety distances between a cooktop and the bottom of the
hood.
Please also observe the information contained in the “IMPORTANT SAFETY
INSTRUCTIONS” section.
Minimum distance S
Cooking appliance Miele
appliance
Non-Miele
appliance
Electric Cooktops 24" (610mm)
Electric Barbeques and Fryers 26" (660mm)
Multiburner Gas Cooktops
≤ 43,000 BTU/hr (12.6kW),
no burner > 15,000 BTU/hr (4.5 kW).
26" (660mm) 30" (760mm)
Multiburner Gas Cooktops
≤ 73,800 BTU/hr (21.6kW),
no burner > 16,500 BTU/hr (4.8 kW)
30" (760mm)
Multiburner Gas Cooktops
> 73,800 BTU/hr (21.6kW),
or one of the burners > 16,500 BTU/hr (4.8 kW)
Not possible
Single Burner Gas Cooktops
≤ 20,500 BTU/hr (6 kW)
26" (660mm) 30" (760mm)
Single Burner Gas Cooktops
> 20,500 BTU/hr (6 kW)
≤ 27,600 BTU/hr (8.1 kW)
30" (760mm)
Single Burner Gas Cooktops
> 27,600 BTU/hr (8.1 kW)
Not possible
Installation
*INSTALLATION*
28
Installation recommendations
- To achieve optimum vapor extraction,
the hood must be centered over the
cooktop, not to the side.
- The cooktop should be no wider than
the hood. Preferably, it should be
narrower for better extraction.
- The mounting area must be easily
accessible. The ventilation hood
should be easy to reach and
disassemble in case a service call is
necessary. This should be taken into
consideration when planning the
position of cabinetry, shelves,
ceilings or decorative elements in the
vicinity of the ventilation hood.
Removing the protective film
Protective film has been used to cover
all housing components attached to
stainless steel models. This will shield
them from any damage that may occur
during transport.
Remove the grease filters from the
appliance and remove the protective
film from the frames of the grease
filters and the housing. The film can
be peeled off easily.
Deflector
A deflector is installed in the rear of the
hood. Its position depends on operating
mode. During the extraction mode, the
air is directed upwards and out of the
housing at the back. During the
recirculation mode, the opening is
closed and the air is directed forward
through the recirculation grille.
Installation
*INSTALLATION*
29
Check the installation position of the
deflector.
Extraction mode
Recirculation mode
Remove the deflector if necessary
and turn it as appropriate for the
operating mode required. To do this,
press the two hooks, remove the
deflector, turn it, and push it back in
until it clicks into position.
For operation in the recirculation
mode, attach the cover foil to the
opening at the back of the range
hood. The foil comes with the
OdorFree Charcoal Filter (optional
accessory).
Installation
*INSTALLATION*
30
Installation underneath the
wall unit
When selecting the installation position,
ensure that the recirculation grille at the
front of the appliance are not covered
by the wall unit.
Opening for exhaust duct and power
cord
Attach the pre-cut drilling template to
the bottom of the wall unit.
When using the extraction mode, cut
an opening in the bottom of the
cabinet that is at least 6¹¹/
₁₆" (170mm)
If the power cord must be fed
through the cabinet, a hole is required
for it the unit as well.
Attachment from the top
Use only the attachment points
shown on the drilling template and
the screws supplied.
Incorrect attachment can lead to
damage to the hood and could
compromise electrical safety (e.g.
electric shock).
Use the drilling template to drill
four³/₁₆" (5mm) through the
bottom of the cabinet.
Remove the drilling template.
Installation
*INSTALLATION*
31
Lift the hood and place it underneath
the wall unit and run the power cord
through the floor of the cabinet.
Use the self-tapping screws
(provided) to attach the hood from
the inside of the cabinet.
Attachment from below
As described previously, Miele
recommends the attachment from
above. Should it not be possible to
proceed with the attachment from
above, the hood can also be mounted
to the cabinet's floor from below.
The provided screws are intended for
the attachment of the hood to a solid
wooden cabinet floor with a
minimum thickness of ⁵/₈" (16mm).
Ensure the floor can permanently
support the applied load.
Lift the hood underneath the wall unit.
Insert the wood screws (provided)
into the guide plugs and attach the
hood to the cabinet floor.
Installation
*INSTALLATION*
32
Remove the guide plugs from the
housing.
Use the cover caps to close the holes
(this also applies when mounting the
hood from above).
Reinsert the grease filters.
Wall installation
You also have the option of mounting
the range hood to the wall by means of
two brackets. Two mounting brackets
are supplied for this purpose.
Attach the pre-cut drilling template to
the wall. The top edge of the template
indicates the top edge of the
ventilation hood. Please refer to the
safety distances (S) to the cooktop
(see “Appliance dimensions”). Follow
the safety distances noted in
“Distance between cooktop and
ventilation hood (S)”.
Mark and drill four holes for the
mounting brackets (5/16" (8mm).
Remove the drilling template.
Installation
*INSTALLATION*
33
Attach the mounting brackets to the
wall, using the wall anchors and
screws provided.
The screws and plugs are
designed for use in solid walls only.
Use different fasteners for other wall
construction types.
Make sure that the wall can support
the load.
Removing the bulb:
- Loosen the bulb's securing screw
slightly.
- Slide the screw and the bulb
downwards.
- Then tighten the screw again.
- Turn the bulb counter-clockwise and
pull it out.
Installation
*INSTALLATION*
34
Insert the hood.
Tighten the two screws on the right
and left hand sides of the back of the
appliance. This will adjust the angle
and secure the ventilation hood.
Refit the bulbs.
Reinsert the grease filters.
Preparation for extraction
mode
When using 6" (150mm) exhaust
ducting, use a sharp knife to cut the
exhaust socket to size.
When using5" (125mm) exhaust
ducting, install the exhaust socket as
it is.
Attach the exhaust ducting, e.g.,
flexible hose, to the exhaust socket
using a hose clip (available as an
optional accessory).
Insert the vent collar into the exhaust
opening and secure it by turning it
slightly clockwise.
Installation
*INSTALLATION*
35
See “Connection for air extraction”
for additional instructions on
attaching the ducting.
Preparation for recirculation
mode
Fit the charcoal filter (see “Cleaning
and care”).
Power supply
Refer to the notes in “Electrical
connection” and “IMPORTANT
SAFETY INSTRUCTIONS” before
connecting to the electricity supply.
Connect the hood to the electrical
supply.
Functional check
To do this, switch the blower on.
- In extraction mode, the air should not
come out of the recirculation grille at
the front of the hood.
- In recirculation mode, the air should
come out of the recirculation grille at
the front of the hood.
If this does not happen, the deflector is
not installed correctly (see “Deflector”).
Installation
*INSTALLATION*
36
Electrical connection
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
All electrical work should be
performed by a qualified electrician
in strict accordance with national
regulations (for USA: ANSI-NFPA 70)
and local safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous.
Ensure that power to the appliance is
OFF while installation or repair work
is performed.
Verify that the voltage, load and
circuit rating information found on
the data plate (see "Technical
Service"), match the household
electrical supply before installing the
hood.
Use only with ventilation hood cord-
connection kits that have been
investigated and found acceptable
for use with this model hood.
If there is any question concerning
the electrical connection of this
appliance to your power supply,
please consult a licensed electrician
or call Miele’s Technical Service
Department.
WARNING: THIS APPLIANCE MUST
BE GROUNDED
Grounding Instructions
WARNING - Improper grounding can
result in a risk of electric shock.
This appliance must be grounded. In
the event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing a path of least
resistance. This appliance is equipped
with a cord having a grounding wire
with a grounding plug.
If there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
Do not use an extension cord. If the
power supply cord is too short, have a
qualified electrician install an outlet near
the appliance.
The plug must be plugged into an
outlet that is properly installed and
grounded.
WARNING - Grounding instructions
(Canada)
The grounding-type attachment plug
shall be connected to a grounding-
type receptacle installed in
accordance with CSA C22.1-12,
Canadian Electrical Code, Part I.
Installation
*INSTALLATION*
37
Air venting
WARNING: Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be
harmful or fatal if inhaled.
To reduce the risk of fire and to
properly exhaust air, the exhaust
gases extracted by the hood should
be vented outside of the building
only.
Do not vent exhaust air into spaces
within walls or ceilings or in attics,
crawl spaces or garages.
To reduce the risk of fire, only use
metal ductwork.
Please read and follow the
“IMPORTANT SAFETY
INSTRUCTIONS” to reduce the risk
of personal injury. Follow all local
building codes when installing the
hood.
Only use smooth pipes or flexible
ducting made from approved non-
flammable materials for ducting.
To achieve the most efficient air
throughput with the lowest noise levels,
please note the following:
- The diameter of the vent ducting
must not be smaller than the cross-
section of the vent collar (see
“Appliance dimensions”). This applies
in particular when using flat ducting.
- The ducting should be as short and
straight as possible.
- Only use wide radius bends.
- The ducting must not be kinked or
compressed.
- All connections must be strong and
airtight.
- If the ducting has flaps, these must
be opened whenever the ventilation
hood is switched on.
Any constriction of the air throughput
will reduce extraction performance
and increase operating noise.
Ventilation stack
If the exhaust air is to be ducted into a
flue, the ducting must be directed in the
flow direction of the flue.
If the flue is used by several ventilation
units, the cross-section of the flue must
be large enough.
A non-return flap ensures that when the
ventilation hood is not in operation, the
duct is closed to prevent unwanted
exchange of room air and outside air.
If the exhaust is ducted through an
outside wall, a Miele wall vent or roof
vent (available as an optional
accessory) is recommended. Both of
these have a built-in non-return flap.
If the on-site vent system does not have
a non-return flap, you can purchase one
as an optional accessory.
Installation
*INSTALLATION*
38
Condensate
If the ducting is to run through cool
rooms or ceiling space, for example, the
significant variations in temperature
between the different areas can cause
condensate to form. Insulate the
ducting to reduce temperature
variations.
If the ducting is to be laid horizontally, it
must be laid with a downwards sloping
gradient of at least ³/₈" (1cm) per meter.
This is to ensure that condensate
cannot drain back into the ventilation
hood.
In addition to insulating the ducting, it is
advisable to also install a condensate
trap for collecting and evaporating any
potential condensate.
Condensate traps for 5" (125mm) or
6" (150mm) diameter ducting are
available as optional accessories.
When installing a condensate trap,
ensure that it is positioned vertically
and as closely as possible to the
ventilation hood above the exhaust
vent. The arrow on the casing indicates
the direction of airflow.
Miele will not accept warranty claims
for any functional defects or damage
caused by inadequate ducting.
Customer Service
39
Contact in the event of a fault
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or Miele Customer Service.
You can book a Miele Service Call
online at www.miele.com/service.
Contact information for Miele
Customer Service can be found at the
end of this document.
Please quote the model identifier and
serial number of your appliance (SN)
when contacting Miele Customer
Service. Both pieces of information can
be found on the data plate.
Location of the data plate
The data plate is visible once you have
removed the grease filters.
Appliance warranty and
product registration
You can register your product and/or
view the manufacturer´s warranty terms
and conditions for Miele appliances and
vacuum cleaners at
www.mieleusa.com.
MieleCare
This service is available in USA only.
MieleCare, our Extended Service
Contract program, gives you the
assurance of knowing that your
appliance investment is covered by
5years of worry free ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts.
Only genuine Miele parts installed by
factory trained professionals can
guarantee the safety, reliability, and
longevity of your Miele appliance.
Please note that unless expressly
approved in writing by Miele’s Service
department, Extended Service
Contracts offered by other providers for
Miele products will not be recognized
by Miele. Our goal is to prevent
unauthorized (and untrained) service
personnel from working on your Miele
products, possibly doing further
damage to them, you and/or your
home.
To learn more about MieleCare
Extended Service Contracts, please
contact your appliance dealer or visit us
online at:
www.mieleusa.com
Technical data
40
Blower motor 2x140W
Overhead lighting 2x3W
Total connected load 286W
Supply voltage, frequency 120V AC, 60Hz
Fuse rating 15A
Power cord length 2.5ft (0.75m)
Weight
DA1260 24.6lbs (11.2kg)
DA1280 30.8lbs (14kg)
Optional accessories for recirculation mode
1 OdorFree Charcoal Filter DKF18-900
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-4298
Customer Service & Support
Phone:
Fax:
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
888-99-MIELE(64353)
888-586-8056
Customer Care Centre
Phone:
800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 11 742 410 / 00en-US
DA1260, DA1280
