Philips BDL4988XL/00 Video Wall Display User Manual

www.philips.com/welcome

BDL4988XL

V1.00

User Manual (English)

BDL4988XL

Safety Instructions

Safety precautions and maintenance

WARNING: Use of controls, adjustments or procedures other than those specied in this documentation may result in exposure to

shock, electrical hazards and/or mechanical hazards.

Read and follow these instructions when connecting and using your display:

Operation:

• Keepthedisplayoutofdirectsunlightandawayfromstovesoranyotherheatsources.

• Removeanyobjectthatcouldfallintoventilationholesorpreventpropercoolingofthedisplay’selectronics.

• Donotblocktheventilationholesonthecabinet.

• Whenpositioningthedisplay,makesurethepowerplugandoutletareeasilyaccessible.

• Whenturningoffthedisplaybydetachingthepowercord,wait6secondsbeforere-attachingthepowercordfornormaloperation.

• EnsuretheuseofanapprovedpowercordprovidedbyPhilipsatalltimes.Ifyourpowercordismissing,pleasecontactyourlocalservicecenter.

• Donotsubjectthedisplaytoseverevibrationorhighimpactconditionsduringoperation.

• Donotknockordropthedisplayduringoperationortransportation.

Maintenance:

• Toprotectyourdisplayfrompossibledamage,donotputexcessivepressureontheLCDpanel.Whenmovingyourdisplay,grasptheframetolift;do

notliftthedisplaybyplacingyourhandorngersontheLCDpanel.

• Unplugthedisplayifyouarenotgoingtouseitforanextensiveperiodoftime.

• Unplugthedisplayifyouneedtocleanitwithaslightlydampcloth.Thescreenmaybewipedwithadryclothwhenthepowerisoff.However,never

useorganicsolvent,suchas,alcohol,orammonia-basedliquidstocleanyourdisplay.

• Toavoidtheriskofshockorpermanentdamagetotheset,donotexposethedisplaytodust,rain,wateroranexcessivelymoistenvironment.

• Ifyourdisplaybecomeswet,wipeitwithdryclothassoonaspossible.

• Ifaforeignsubstanceorwatergetsinyourdisplay,turnthepoweroffimmediatelyanddisconnectthepowercord.Thenremovetheforeignsubstance

orwater,andsendtheunittothemaintenancecenter.

• Donotstoreorusethedisplayinlocationsexposedtoheat,directsunlightorextremecold.

• Inordertomaintainthebestperformanceofyourdisplayandensurealongerlifetime,westronglyrecommendusingthedisplayinalocationthatfalls

withinthefollowingtemperatureandhumidityranges.

- Temperature:0-40°C32-104°F

- Humidity:20-80%RH

IMPORTANT:Alwaysactivateamovingscreensaverprogramwhenyouleaveyourdisplayunattended.Alwaysactivateaperiodicscreenrefresh

applicationiftheunitwilldisplayunchangingstaticcontent.Uninterrupteddisplayofstillorstaticimagesoveranextendedperiodmaycause“burnin”,

alsoknownas“after-imaging”or“ghostimaging”,onyourscreen.Thisisawell-knownphenomenoninLCDpaneltechnology.Inmostcases,the“burned

in”or“after-imaging”or“ghostimaging”willdisappeargraduallyoveraperiodoftimeafterthepowerhasbeenswitchedoff.

WARNING:Severe“burn-in”or“after-image”or“ghostimage”symptomswillnotdisappearandcannotberepaired.Thisisalsonotcoveredunderthe

termsofyourwarranty.

Service:

• Thecasingcovershouldbeopenedonlybyqualiedservicepersonnel.

• Ifthereisanyneedforrepairorintegration,pleasecontactyourlocalservicecenter.

• Donotleaveyourdisplayunderdirectsunlight.

Ifyourdisplaydoesnotoperatenormally,havingfollowedtheinstructionssetoutinthisdocument,pleasecontactatechnicianor

yourlocalservicecenter..

BDL4988XL

iii

Read and follow these instructions when connecting and using your display:

• Unplugthedisplayifyouarenotgoingtouseitforanextensiveperiodoftime.

• Unplugthedisplayifyouneedtocleanitwithaslightlydampcloth.Thescreenmanybewipedwithadryclothwhenthepoweris

off.However,neverusealcohol,solventsorammonia-basedliquids.

• Consultaservicetechnicianifthedisplaydoesnotoperatenormallywhenyouhavefollowedtheinstructionsinthismanual.

• Thecasingcovershouldbeopenedonlybyqualiedservicepersonnel.

• Keepthedisplayoutofdirectsunlightandawayfromstovesoranyotherheatsources.

• Removeanyobjectthatcouldfallintotheventsorpreventpropercoolingofthedisplay’selectronics.

• Donotblocktheventilationholesonthecabinet.

• Keepthedisplaydry.Toavoidelectricshock,donotexposeittorainorexcessivemoisture.

• WhenturningoffthedisplaybydetachingthepowercableorDCpowercord,waitfor6secondsbeforere-attachingthepower

cableorDCpowercordfornormaloperation..

• Toavoidtheriskofshockorpermanentdamagetothesetdonotexposethedisplaytorainorexcessivemoisture.

• Whenpositioningthedisplay,makesurethepowerplugandoutletareeasilyaccessible.

• IMPORTANT:Alwaysactivateascreensaverprogramduringyourapplication.Ifastillimageinhighcontrastremainsonthe

screenforanextendedperiodoftime,itmayleavean‘after-image’or‘ghostimage’onthefrontofthescreen.Thisisawell-known

phenomenonthatiscausedbytheshortcomingsinherentinLCDtechnology.Inmostcasestheafterimagewilldisappeargradually

overaperiodoftimeafterthepowerhasbeenswitchedoff.Beawarethattheafter-imagesymptomcannotberepairedandisnot

coveredunderwarranty.

BDL4988XL

Regulatory Information

CE Declaration of Conformity

ThisdevicecomplieswiththerequirementssetoutintheCouncilDirectiveontheApproximationoftheLawsoftheMemberStatesrelatingto

ElectromagneticCompatibility(2014/30/EU),Low-voltageDirective(2014/35/EU),andRoHSdirective(2011/65/EU).

ThisproducthasbeentestedandfoundtocomplywiththeharmonizedstandardsforInformationTechnologyEquipment,theseharmonizedstandards

publishedunderDirectivesofOfcialJournaloftheEuropeanUnion.

ESD Warnings

Whenuserclosetothemonitormaycausetheequipmentdischargeandreboottothedisplayofmainmenu.

Warning:

ThisequipmentiscompliantwithClassAofEN55032/CISPR32.Inaresidentialenvironmentthisequipmentmaycauseradiointerference.

Federal Communications Commission (FCC) Notice (U.S. Only)

NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigitaldevice,pursuanttopart15ofthe

FCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferencewhentheequipmentisoperated

inacommercialenvironment.Thisequipmentgenerates,uses,andcanradiateradiofrequencyenergyand,ifnotinstalledandusedin

accordancewiththeinstructionmanual,maycauseharmfulinterferencetoradiocommunications.Operationofthisequipmentina

residentialareaislikelytocauseharmfulinterferenceinwhichcasetheuserwillberequiredtocorrecttheinterferenceathisown

expense.

Changesormodicationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatethe

equipment.

UseonlyanRFshieldedcablethatwassuppliedwiththedisplaywhenconnectingthisdisplaytoacomputerdevice.

Topreventdamagewhichmayresultinreorshockhazard,donotexposethisappliancetorainorexcessivemoisture.

THISCLASSADIGITALAPPARATUSMEETSALLREQUIREMENTSOFTHECANADIANINTERFERENCE-CAUSINGEQUIPMENTREGULATIONS.

ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseharmful

interference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.

BDL4988XL

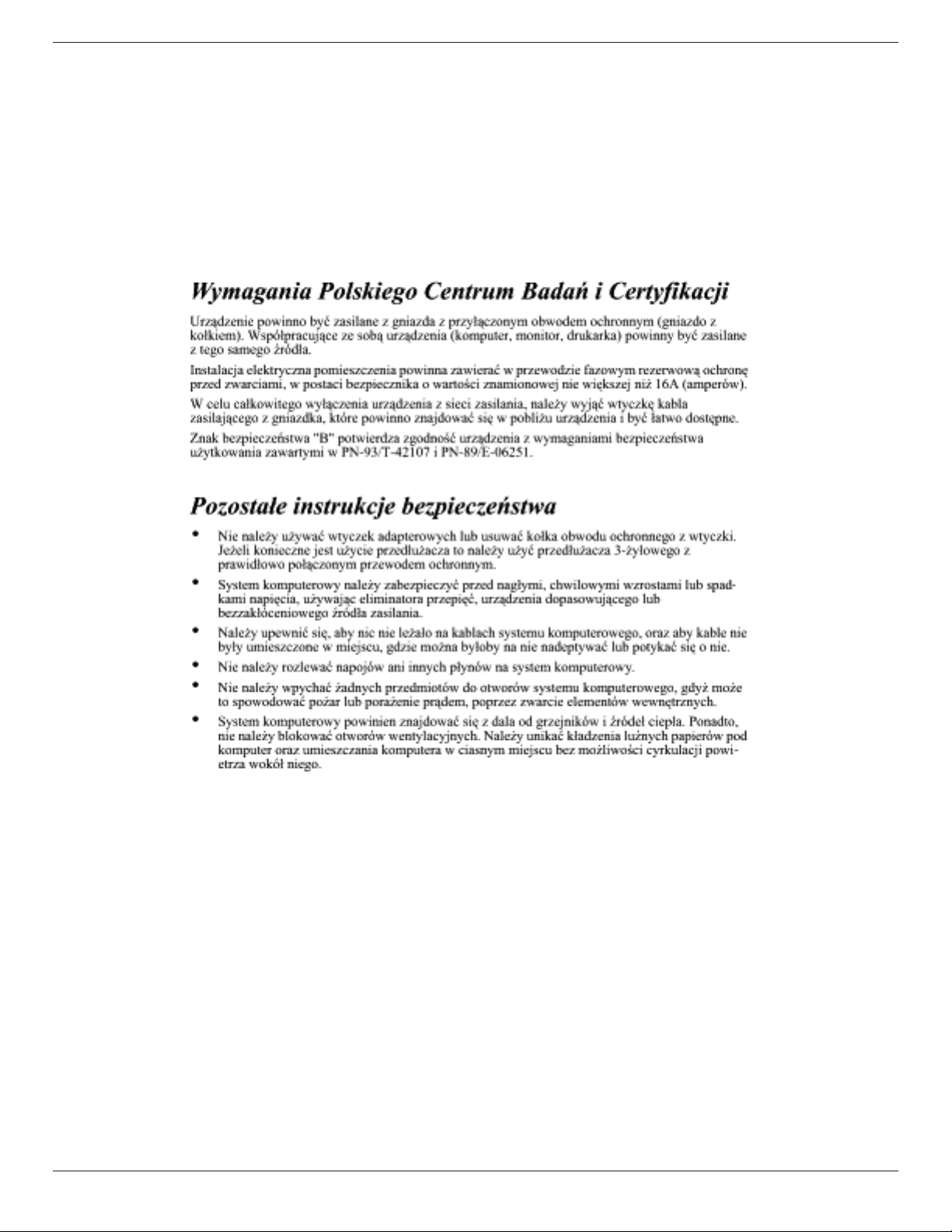

Polish Center for Testing and Certication Notice

Theequipmentshoulddrawpowerfromasocketwithanattachedprotectioncircuit(athree-prongsocket).Allequipmentthatworkstogether(computer,

display,printer,andsoon)shouldhavethesamepowersupplysource.

Thephasingconductoroftheroom’selectricalinstallationshouldhaveareserveshort-circuitprotectiondeviceintheformofafusewithanominalvalue

nolargerthan16amperes(A).

Tocompletelyswitchofftheequipment,thepowersupplycablemustberemovedfromthepowersupplysocket,whichshouldbelocatednearthe

equipmentandeasilyaccessible.

Aprotectionmark“B”conrmsthattheequipmentisincompliancewiththeprotectionusagerequirementsofstandardsPN-93/T-42107andPN-89/

E-06251.

Electric, Magnetic and Electronmagnetic Fields (“EMF”)

1. Wemanufactureandsellmanyproductstargetedatconsumers,which,likeanyelectronicapparatus,ingeneralhavetheabilitytoemitandreceive

electromagneticsignals.

2. OneofourleadingBusinessPrinciplesistotakeallnecessaryhealthandsafetymeasuresforourproducts,tocomplywithallapplicablelegal

requirementsandtostaywellwithintheEMFstandardsapplicableatthetimeofproducingtheproducts.

3. Wearecommittedtodevelop,produceandmarketproductsthatcausenoadversehealtheffects.

4. Weconrmthatifitsproductsarehandledproperlyfortheirintendeduse,theyaresafetouseaccordingtoscienticevidenceavailabletoday.

5. WeplayanactiveroleinthedevelopmentofinternationalEMFandsafetystandards,enablingustoanticipatefurtherdevelopmentsinstandardization

forearlyintegrationinitsproducts.

BDL4988XL

Information for U.K. only

(A)

(B)

WARNING - THIS APPLIANCE MUST BE EARTHED.

Important:

Thisapparatusissuppliedwithanapprovedmoulded13Aplug.Tochangeafuseinthistypeofplug

proceedasfollows:

1. Removefusecoverandfuse.

2. FitnewfusewhichshouldbeaBS13625A,A.S.T.A.orBSIapprovedtype.

3. Retthefusecover.

Ifthettedplugisnotsuitableforyoursocketoutlets,itshouldbecutoffandanappropriate3-pin

plugttedinitsplace.

Ifthemainsplugcontainsafuse,thisshouldhaveavalueof5A.Ifaplugwithoutafuseisused,thefuse

atthedistributionboardshouldnotbegreaterthan5A.

NOTE: Theseveredplugmustbedestroyedtoavoidapossibleshockhazardshoulditbeinserted

intoa13Asocketelsewhere.

How to connect a plug

Thewiresinthemainsleadarecolouredinaccordancewiththefollowingcode:

BLUE-“NEUTRAL”(“N”)

BROWN-“LIVE”(“L”)

GREEN&YELLOW-“EARTH”(“E”)

1. TheGREEN&YELLOWwiremustbeconnectedtotheterminalintheplugwhichismarkedwith

theletter“E”orbytheEarthsymbolorcolouredGREENorGREEN&YELLOW.

2. TheBLUEwiremustbeconnectedtotheterminalwhichismarkedwiththeletter“N”orcoloured

BLACK.

3. TheBROWNwiremustbeconnectedtotheterminalwhichmarkedwiththeletter“L”or

colouredRED.

Beforereplacingtheplugcover,makecertainthatthecordgripisclampedoverthesheathofthelead

-notsimplyoverthethreewires.

BDL4988XL

vii

中国大陆RoHS

根据中国大陆《电子电气产品有害物质限制使用标识要求》，以下部分列出了产品中可能包含

的有害物质的名称和含量。

产品中有害物质的名称及含量

零部件名称

有害物质

铅（Pb）汞（Hg）镉（Cd）

六价铬

（Cr（VI））

多溴联苯

(PBB)

多溴二苯醚

(PBDE)

塑胶外壳 ○ ○ ○ ○ ○ ○

后壳 ○ ○ ○ ○ ○ ○

LCD panel

CCFL × × ○ ○ ○ ○

LED × ○ ○ ○ ○ ○

电路板组件 × ○ ○ ○ ○ ○

底座 ○ ○ ○ ○ ○ ○

电源线 × ○ ○ ○ ○ ○

其它线材 × ○ ○ ○ ○ ○

遥控器 × ○ ○ ○ ○ ○

*:：电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等。

本表格依据SJ/ T 11364的规定标志。

O: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572规定的限量要求以下。

X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T26572规定的限量要求，但是符

合欧盟RoHS法规要求（属于豁免部分）。

备注：上表仅做为范例，实际标示时应依照各产品的实际部件及所含有害物质进行标示。

環保使用期限

此標識指期限(十年)，電子信息產品中含有的有害物質在正常使用的條件下不會發生外泄或突變，電子

信息產品用戶使用該電子信息產品不會對環境造成嚴重污染或對其人身、財產造成嚴重損害的期限。

BDL4988XL

viii

《废弃电器电子产品回收处理管理条例》提示性说明

为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电器电子产品

回收处理相关法律法规，将其交给当地具有国家认可的回收处理资质的厂商进行回收处理。

娤⌈

㨢᳸$䵥ᵥ⍿Ʋ◦䏝㯹䉭❁ᳫ濕媣ᵥ⍿⊭侻󰵹廞ノ㒞䵽䏳ⴰㄮƲ◦店䢋⾃⁳᳉濕⊭侻斾堿䏦ヵ

⪷ⴰㄮ悅⊔⃅⩜⊭圊䕂㉨㑻Ʋ

單元

限用物質及其化學符號

鉛

(Pb)

汞

(Hg)

鎘

(Cd)

六價鉻

(Cr

)

多溴聯苯

(PBB)

多溴二苯醚

(PBDE)

塑料外框 ○ ○ ○ ○ ○ ○

後殼 ○ ○ ○ ○ ○ ○

－ ○ ○ ○ ○ ○

電路板組件－ ○ ○ ○ ○ ○

底座 ○ ○ ○ ○ ○ ○

電源線－ ○ ○ ○ ○ ○

其他線材－ ○ ○ ○ ○ ○

遙控器－ ○ ○ ○ ○ ○

備考1.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。

備考2.〝－〞係指該項限用物質為排除項目。

液晶面板

警語 : 使用過度恐傷害視力。

注意事項 :

(1) 使用30分鐘請休息10分鐘。

(2) 未滿2歲幼兒不看螢幕，2歲以上每天看螢幕不要超過1小時。

警告使用者 :

此為甲類資訊技術設備 , 於居住環境中使用時 , 可能會造成射頻擾動 , 在此種情況下 , 使用者會被

要求採取某些適當的對策。

Turkey RoHS:

TürkiyeCumhuriyeti:EEEYönetmeliğineUygundur.

Ukraine RoHS:

ОбладнаннявідповідаєвимогамТехнічногорегламентущодообмеженнявикористаннядеякихнебезпечнихречовинвелектричномута

електронномуобладнанні,затвердженогопостановоюКабінетуМіністрівУкраїнивід3грудня2008№1057.

BDL4988XL

North Europe (Nordic Countries) Information

Placering/Ventilation

VARNING:

FÖRSÄKRADIGOMATTHUVUDBRYTAREOCHUTTAGÄRLÄTÅTKOMLIGA,NÄRDUSTÄLLERDINUTRUSTNINGPÅPLATS.

Placering/Ventilation

ADVARSEL:

SØRGVEDPLACERINGENFOR,ATNETLEDNINGENSSTIKOGSTIKKONTAKTERNEMTTILGÆNGELIGE.

Paikka/Ilmankierto

VAROITUS:

SIJOITALAITESITEN,ETTÄVERKKOJOHTOVOIDAANTARVITTAESSAHELPOSTIIRROTTAAPISTORASIASTA.

Plassering/Ventilasjon

ADVARSEL:

NÅRDETTEUTSTYRETPLASSERES,MÅDUPASSEPÅATKONTAKTENEFORSTØMTILFØRSELERLETTEÅNÅ.

End-of-Life Disposal

YournewPublicInformationDisplaycontainsmaterialsthatcanberecycledandreused.Specializedcompaniescanrecycleyourproducttoincreasethe

amountofreusablematerialsandtominimizetheamounttobedisposedof.

PleasendoutaboutthelocalregulationsonhowtodisposeofyourolddisplayfromyourlocalPhilipsdealer.

(For customers in Canada and U.S.A.)

Thisproductmaycontainleadand/ormercury.Disposeofinaccordancetolocal-stateandfederalregulations.Foradditionalinformationonrecycling

contactwww.eia.org(ConsumerEducationInitiative)

Waste Electrical and Electronie Equipment-WEEE

Attention users in European Union private households

Thismarkingontheproductoronitspackagingillustratesthat,underEuropeanDirective2012/19/EUgoverningusedelectricaland

electronicappliances,thisproductmaynotbedisposedofwithnormalhouseholdwaste.Youareresponsiblefordisposalofthis

equipmentthroughadesignatedwasteelectricalandelectronicequipmentcollection.Todeterminethelocationsfordroppingoffsuch

wasteelectricalandelectronic,contactyourlocalgovernmentofce,thewastedisposalorganizationthatservesyourhouseholdorthe

storeatwhichyoupurchasedtheproduct.

Attention users in United States:

PleasedisposeofaccordingtoallLocal,StateandFederalLaws.Forthedisposalorrecyclinginformation,contact:www.mygreenelectronics.comorwww.

eiae.org.

End of Life Directives-Recycling

YournewPublicInformationDisplaycontainsseveralmaterialsthatcanberecycledfornewusers.

PleasedisposeofaccordingtoallLocal,State,andFederallaws.

AsanENERGYSTARPartner,wehavedeterminedthatthisproductmeetstheENERGYSTARguidelinesforenergyefciency.

BDL4988XL

Restriction on Hazardous Substances statement (India)

Thisproductcomplieswiththe“E-Waste(Management)Rules,2016”CHAPTERV,rule16,sub-rule(1).WhereasNewElectricalandElectronic

EquipmentandtheircomponentsorconsumablesorpartsorsparesdonotcontainLead,Mercury,Cadmium,HexavalentChromium,polybrominated

biphenylsandpolybrominateddiphenylethersbeyondamaximumconcentrationvalueof0.1%byweightinhomogenousmaterialsforlead,mercury,

hexavalentchromium,polybrominatedbiphenylsandpolybrominateddiphenylethersandof0.01%byweightinhomogenousmaterialsforcadmium.

exceptofexemptionssetinSchedule2oftheRule.

E-Waste Declaration for India

Thissymbolontheproductoronitspackagingindicatesthatthisproductmustnotbedisposedofwithyourotherhouseholdwaste.

Insteaditisyourresponsibilitytodisposeofyourwasteequipmentbyhandingitovertoadesignatedcollectionpointfortherecycling

ofwasteelectricalandelectronicequipment.Theseparatecollectionandrecyclingofyourwasteequipmentatthetimeofdisposal

willhelptoconservenaturalresourcesandensurethatitisrecycledinamannerthatprotectshumanhealthandtheenvironment.

FormoreinformationaboutE-wastepleasevisithttp://www.india.philips.com/about/sustainability/recycling/index.pageandtoknow

whereyoucandropoffyourwasteequipmentforrecyclinginIndiapleasecontactonbelowgivencontactdetails.

Helplinenumber:1800-425-6396(MondaytoSaturday,9a.m.to5:30pm)

CentralizedE-wastecollectioncenter

Address:TPVTechnologyIndiaPrivateLimited,

59,MaheswariNagar,1stMainRoad,MahadevapuraPost,WhiteeldRoad

Bangalore,Karnataka,PIN:560048,Tel:080-3023-1000

E-mail:[email protected]

Batteries

For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There

is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation.

Please contact your local authority for details on the collection and recycling schemes.

For Switzerland: The used battery is to be returned to the selling point.

For other non-EU countries: Please contact your local authority for correct method of disposal of the used battery.

According to EU directive 2006/66/EC, the battery can’t be disposed improperly. The battery shall be separated

to collect by local service.

Após o uso, as pilhas

deverão ser entregues ao

estabelecimento comercial

e/ou baterias

rede de assistência técnica

autorizada.

Information for EAC

Month and year of manufacturing please refer information in Rating label.

Name and location of manufacturer ООО “Профтехника”

Адрес: 3-й Проезд Марьиной рощи, 40/1 офис 1. Москва, 127018, Россия

Importer and information Наименование организации: ООО “Профтехника”

Адрес: 3-й Проезд Марьиной рощи, 40/1 офис 1. Москва, 127018, Россия

Контактное лицо: Наталья Астафьева,

+7 495 640 20 20

nat@profdisplays.ru

BDL4988XL

Table Of Contents

1. Unpacking and Installation .......................................................1

1.1. Unpacking.........................................................................................1

1.2. PackageContents........................................................................1

1.3. InstallationNotes.........................................................................1

1.4. InstallingandRemovingTableStands(optional)........2

1.5. MountingonaWall....................................................................3

1.5.1. VESAGrid....................................................................3

1.6. MountinginPortraitPosition................................................4

1.7. OperatingInstructionsofEdgeAlignmentKit............5

1.7.1. InstallingEdgeAlignmentKit..............................5

1.8. UsingofEdgeFinishingKit(Optional).............................6

1.8.1. InstallingEdgeFinishingKit..................................6

2. Parts and Functions ...................................................................7

2.1. ControlPanel.................................................................................7

2.2. Input/OutputTerminals.............................................................8

2.3. RemoteControl...........................................................................9

2.3.1. Generalfunctions.....................................................9

2.3.2. IDRemoteControl..............................................10

2.3.3. Insertingthebatteriesintheremote

control..........................................................................11

2.3.4. Handlingtheremotecontrol..........................11

2.3.5. Operatingrangeoftheremotecontrol...11

3. Connecting External Equipment.......................................... 12

3.1. ConnectingExternalEquipment(DVD/VCR/

VCD)...............................................................................................12

3.1.1. UsingCOMPONENTvideoinput..............12

3.1.2. UsingVideoSourceinput..................................12

3.1.3. UsingHDMIvideoinput...................................13

3.2. ConnectingaPC.......................................................................13

3.2.1. UsingVGAinput.....................................................13

3.2.2. UsingDVIinput......................................................13

3.2.3. UsingHDMIinput.................................................14

3.2.4. UsingDisplayPortinput.....................................14

3.3. ConnectingAudioEquipment...........................................14

3.3.1. Connectingexternalspeakers........................14

3.3.2. Connectinganexternalaudiodevice........15

3.4. ConnectingMultipleDisplaysinaDaisy-chain

Conguration..............................................................................15

3.4.1. Displaycontrolconnection..............................15

3.4.2. Digitalvideoconnection....................................16

3.4.3. Analogvideoconnection..................................16

3.5. IRconnection..............................................................................17

3.6. IRPass-throughConnection...............................................17

3.7. Wire-connectingtoNetwork...........................................18

4. Operation ................................................................................. 19

4.1. WatchtheConnectedVideoSource............................19

4.2. ChangePictureFormat.........................................................19

4.3. PlaymultimedialesviaLocalAreaNetwork..........19

4.3.1. Setupthenetwork..............................................19

4.3.2. HowtouseDLNA-DMP.................................19

4.3.3. HowtouseDLNA-DMRfromPC............20

4.4. PlaymultimedialesfromUSBdevice.........................20

4.5. Playoptions..................................................................................21

4.5.1. Playingmusicles..................................................21

4.5.2. Playingmovieles.................................................21

4.5.3. Playingphotoles.................................................21

4.6. HowtouseOperabrowser(HTML5).......................21

5. Change your settings ............................................................. 23

5.1. Settings............................................................................................23

5.1.1. Picture..........................................................................23

5.1.2. Sound...........................................................................24

5.1.3. Tiling..............................................................................24

5.1.4. Network.....................................................................25

5.1.5. Generalsettings......................................................26

6. USB device compatibility ....................................................... 29

7. Input Mode ............................................................................... 31

8. Pixel Defect Policy .................................................................. 32

8.1. PixelsandSub-Pixels...............................................................32

8.2. TypesofPixelDefects+DotDenition....................32

8.3. BrightDotDefects...................................................................32

8.4. DarkDotDefects.....................................................................33

8.5. ProximityofPixelDefects...................................................33

8.6. PixelDefectTolerances.........................................................33

8.7. MURA.............................................................................................33

9. Cleaning and Troubleshooting .............................................. 34

9.1. Cleaning..........................................................................................34

9.2. Troubleshooting.........................................................................35

10. Technical Specications ......................................................... 37

BDL4988XL

1. Unpacking and Installation

1.1. Unpacking

• Thisproductispackedinacarton,togetherwiththestandardaccessories.

• Anyotheroptionalaccessorieswillbepackedseparately.

• Duetothesizeandweightofthisdisplayitisrecommendedfortwopeopletomoveit.

• Afteropeningthecarton,ensurethatthecontentsarecompleteandingoodcondition.

1.2. Package Contents

Pleaseverifythatyoureceivedthefollowingitemswithyourpackagecontent:

• LCDdisplay

• CDROM

• RemotecontrolwithAAAbatteries

• Powercord(1.8m)

• DVIcable(1.8m)

• RS232cable(1.8m)

• Daisychaincable(1.8m)

• IRsensorcable

• IRcable

• Quickstartguide

• EdgeAlignmentKit-1:1PC

• EdgeAlignmentKit-2:2PCS

• ThumbScrew:8PCS

• EdgeAlignmentPin:2PCS

* The supplied power cord varies depending on destination.

Power Cord

DVI Cable

CD ROM

Quick start guide

Remote Control

and AAA Batteries

RS232 Cable

Daisy Chain Cable

Edge Alignment Kit-1

Edge Alignment Kit-2

Edge Alignment Pin

Thumb Screw

IR Sensor Cable

IR Cable



*Differencesaccordingtoregions

Displaydesignandaccessoriesmaydifferfromthoseillustratedabove.

NOTES:

• Forallotherregions,applyapowercordthatconformstotheACvoltageofthepowersocketandhasbeenapprovedbyandcomplieswiththe

safetyregulationsoftheparticularcountry.

• Youmightliketosavethepackageboxandpackingmaterialforshippingthedisplay.

1.3. Installation Notes

• Duetothehighpowerconsumption,alwaysusetheplugexclusivelydesignedforthisproduct.Ifanextendedlineisrequired,pleaseconsultyour

serviceagent.

• Theproductshouldbeinstalledonaatsurfacetoavoidtipping.Thedistancebetweenthebackoftheproductandthewallshouldbemaintained

forproperventilation.Avoidinstallingtheproductinthekitchen,bathroomoranyotherplaceswithhighhumiditysoasnottoshortentheservicelife

oftheelectroniccomponents.

• Theproductcannormallyoperateonlyunder3000minaltitude.Ininstallationsataltitudesabove3000m,someabnormalitiesmaybeexperienced.

BDL4988XL

1.4. Mounting on a Wall

Tomountthisdisplaytoawall,youwillhavetoobtainastandardwall-mountingkit(commerciallyavailable).Werecommendusingamountinginterface

thatcomplieswithTUV-GSand/orUL1678standardinNorthAmerica.

Protective Sheet

VESA Grid

Tabletop standTable

1. Layaprotectivesheetonatable,whichwaswrappedaroundthedisplaywhenitwaspackaged,beneaththescreensurfacesoasnottoscratchthe

screenface.

2. Ensureyouhaveallaccessoriesformountingthisdisplay(wallmount,ceilingmount,tablestand,etc).

3. Followtheinstructionsthatcomewiththebasemountingkit.Failuretofollowcorrectmountingprocedurescouldresultindamagetotheequipment

orinjurytotheuserorinstaller.Productwarrantydoesnotcoverdamagecausedbyimproperinstallation.

4. Forthewall-mountingkit,useM6mountingscrews(havingalength10mmlongerthanthethicknessofthemountingbracket)andtightenthem

securely.

5. Unitwithoutbaseweight=21.6kg.Theequipmentanditsassociatedmountingmeansstillremainsecureduringthetest.ForuseonlywithULListed

WallMountBracketwithminimumweight/load:86.4kg.

1.4.1. VESA Grid

BDL4988XL

400(H)x400(V)mm

Caution:

Topreventthedisplayfromfalling:

• Forwallorceilinginstallation,werecommendinstallingthedisplaywithmetalbracketswhicharecommerciallyavailable.Fordetailedinstallation

instructions,refertotheguidereceivedwiththerespectivebracket.

• Tolessentheprobabilityofinjuryanddamageresultingfromfallofthedisplayincaseofearthquakeorothernaturaldisaster,besuretoconsultthe

bracketmanufacturerforinstallationlocation.

Ventilation Requirements for enclosure locating

Toallowheattodisperse,leavespacebetweensurroundingobjectsasshowninthe

diagrambelow.

100 mm 100 mm

100 mm

BDL4988XL

1.5. Mounting in Portrait Position

Thisdisplaycanbeinstalledinportraitposition.

1. Removethetablestand,ifattached.

2. Rotate90degreesanticlockwise.The“ ”logoshouldbebristlingwhenfacingthedisplayattheback.

BDL4988XL

1.6. Operating Instructions of Edge Alignment Kit

1.6.1. Installing Edge Alignment Kit

• Beforeinstalledgealignmentkit,displaysmustbemountedtovideowallframecorrectly.

• Using“ThumbScrew”foreasyinstalling.

• Using“EdgeAlignmentKit-1”onadjacentfourdisplays.

• Using“EdgeAlignmentKit-2”onadjacenttwodisplays.

2 3

NOTE: Wheninstallingtheedgealignmentkit,pleaseconsultaprofessionaltechnicianforproperinstallation.Weacceptnoliabilityforinstallationsnot

performedbyaprofessionaltechnician.

BDL4988XL

1.7. Using of Edge Finishing Kit (Optional)

Youcouldusetheedgenishingkittoprotectthedisplayandhaveabetterappearance.

1.7.1. Installing Edge Finishing Kit

InstallingEdgeFinishingKitfor1x1DisplayConguration

Edge Finishiing

Kit-Left(*1PC)

Edge Finishiing Kit-Top

(*1PC)

Edge Finishiing Kit-Bottom

(*1PC)

Screw

(QTY is different depending

on models)

Edge Finishiing

Kit-Right(*1PC)

Corner(*4PCS)

InstallingEdgeFinishingKitfor2x2DisplayConguration

Edge Finishiing Kit-Top

(*2PCS)

Edge Finishiing

Kit-Left(*2PCS)

Screw

(QTY is different depending

on models)

Edge Finishiing Kit-Bottom

(*2PCS)

Edge Finishiing

Kit-Right

(*2PCS)

Connector

(*4PCS)

Connector

(*4PCS)

*Formoredetailinformation,pleasechecktheinstructionguideinthepackageofkit.

BDL4988XL

2. Parts and Functions

2.1. Control Panel

1 2 3 4 5 6 7 8

MUTE INPUT

[ ] button

Usethisbuttontoturnthedisplayonorputthedisplaytostandby.

[MUTE] button

SwitchtheaudiomuteON/OFF.

[INPUT] button

Choosetheinputsource.

• Usedas[ ]buttonintheOn-Screen-Displaymenu.

[ ] button

IncreasetheadjustmentwhileOSDmenuison,orincreasethe

audiooutputlevelwhileOSDmenuisoff.

[ ] button

DecreasetheadjustmentwhileOSDmenuison,ordecreasethe

audiooutputlevelwhileOSDmenuisoff.

[ ] button

MovethehighlightbaruptoadjusttheselecteditemwhileOSD

menuison.

[ ] button

MovethehighlightbardowntoadjusttheselecteditemwhileOSD

menuison.

[MENU] button

ReturntopreviousmenuwhileOSDmenuison,ortoactivatethe

OSDmenuwhenOSDmenuisoff.

Remote control sensor and power status indicator

• Receivescommandsignalsfromtheremotecontrol.

• IndicatestheoperatingstatusofthedisplaywithoutOPS:

- Lightsgreenwhenthedisplayisturnedon

- Lightsredwhenthedisplayisinstandbymode

- LightsamberwhenthedisplayentersAPMmode

- When{SCHEDULE}isenabled,thelightblinksgreenandred

- Ifthelightblinksred,itindicatesthatafailurehasbeen

detected

- Lightsoffwhenthemainpowerofthedisplayisturnedoff

BDL4988XL

2.2. Input/Output Terminals

11 12

4 5

AC IN

ACpowerinputfromthewalloutlet.

MAIN POWER SWITCH

Switchthemainpoweron/off.

AC OUT

ACpowersupplytotheACINjackofamediaplayer.

IR IN /

IR OUT

IRsignalinput/outputfortheloop-throughfunction.

NOTES:

• Thisdisplay’sremote

controlsensorwillstopworkingifthejack

[IR IN]isconnected.

• ToremotelycontrolyourA/Vdeviceviathisdisplay,refertopage

16forIR Pass Throughconnection.

RS232C IN /

RS232C OUT

RS232Cnetworkinput/outputfortheloop-throughfunction.

RJ-45

LANcontrolfunctionfortheuseofremotecontrolsignalfrom

controlcenter.

HDMI1 IN /

HDMI2 IN

HDMIvideo/audioinput.

DVI IN

DVI-Dvideoinput.

DVI OUT / VGA OUT

DVIorVGAvideooutput.

DisplayPort IN /

DisplayPort OUT

DisplayPortvideoinput/output.

VGA IN (D-Sub)

VGAvideoinput.

COMPONENT IN (BNC)

ComponentYPbPrvideosourceinput.

Y/CVBS

Videosourceinput.

PC LINE IN

AudioinputforVGAsource(3.5mmstereophone).

SPEAKER SWITCH

Internalspeakeron/offswitch.

AUDIO IN

AudioinputfromexternalAVdevice(RCA).

AUDIO OUT

AudiooutputtoexternalAVdevice.

USB PORT

ConnectyourUSBstoragedevice.

SPEAKERS OUT

Audiooutputtoexternalspeakers.

OPS SLOT

SlotforinstallingtheoptionalOPSmodule.

NOTES:WerecommendtouseAdvantechARK-DS220B-D6A1E

orWinmateOMIS-OPSmodules.We’llnotguaranteeother

OPSmodules

BDL4988XL

2.3. Remote Control

2.3.1. General functions

[POWER] button

Turnthedisplayonorputthedisplaytostandby.

[PLAY] buttons

Controlplaybackofmediales.

[ ] SOURCE button

Chooseinputsource.Press[ ]or[ ]buttontochoosefrom

USB

,

Network

,

HDMI 1

,

HDMI 2

,

DisplayPort

,

Card

OPS

,

DVI-D

,

YPbPr

,

,or

VGA

.Press[ ]buttonto

conrmandexit.

[ ] HOME button

AccesstheOSDmenu.

[ ] LIST button

Nofunction.

[ ] [ ] [ ] [ ] NAVIGATION buttons

Navigatethroughmenusandchooseitems.

[ ] button

Conrmanentryorselection.

[ ] ADJUST button

Accesscurrentlyavailableoptions,pictureandsoundmenus.

[ ] MUTE button

Presstoturnthemutefunctionon/off.

[ ] [ ] [ ] [ ] COLOR buttons

Choosetasksoroptions.

[Number/ ID SET/ ENTER] button

Entertextfornetworksetting.

PresstosetthedisplayID.Referto2.3.2. ID Remote Control

formoredetail.

[ ] FORMAT button

Changepictureformat.

[ ] BACK button

Returntothepreviousmenupageorexitfromtheprevious

function.

[ ] INFO button

Displayinformationaboutcurrentactivity.

[ ] OPTIONS button

Accesscurrentlyavailableoptions,pictureandsoundmenus.

[ ] [ ] VOLUME button

Adjustvolume.

BDL4988XL

2.3.2. ID Remote Control

YoucansettheremotecontrolIDwhenyouwanttousethisremote

controlononeofseveraldifferentdisplays.

Press[ID]button.TheredLEDblinkstwice.

1. Press[IDSET]buttonformorethan1secondtoentertheID

Mode.TheredLEDlightsup.

Pressthe[IDSET]buttonagainwillexittheIDMode.TheredLED

lightsoff.

Pressthedigitnumbers[0]~[9]toselectthedisplayyouwantto

control.

Forexample:press[0]and[1]fordisplayNo.1,press[1]and[1]for

displayNo.11.

Thenumbersavailablearefrom[01]~[255].

2. Notpressinganybuttonwithin10secondswillexittheIDMode.

3. Ifanerrorpressingofbuttonsotherthanthedigitsoccured,wait

1secondaftertheredLEDlightsoffandthenlightsupagain,then

pressthecorrectdigitsagain.

4. Press[ENTER]buttontoconrm.TheredLEDblinkstwiceand

thenlightsoff.

NOTE:

• Press[NORMAL]button.ThegreenLEDblinkstwice,indicatingthe

displayisinnormaloperation.

• ItisnecessarytosetuptheIDnumberforeachdisplaybefore

selectingitsIDnumber.

BDL4988XL

2.3.3. Inserting the batteries in the remote control

Theremotecontrolispoweredbytwo1.5VAAAbatteries.

Toinstallorreplacebatteries:

1. Pressandthenslidethecovertoopenit.

2. Alignthebatteriesaccordingtothe(+)and(–)indicationsinsidethe

batterycompartment.

3. Replacethecover.

Caution:

Theincorrectuseofbatteriescanresultinleaksorbursting.Besuretofollowtheseinstructions:

• Place“AAA”batteriesmatchingthe(+)and(–)signsoneachbatterytothe(+)and(–)signsofthebatterycompartment.

• Donotmixbatterytypes.

• Donotcombinenewbatterieswithusedones.Itcausesshorterlifeorleakageofbatteries.

• Removethedeadbatteriesimmediatelytopreventthemfromliquidleakinginthebatterycompartment.Don’ttouchexposedbatteryacid,asitcan

damageyourskin.

NOTE: Ifyoudonotintendtousetheremotecontrolforalongperiod,removethebatteries.

2.3.4. Handling the remote control

• Donotsubjecttostrongshock.

• Donotallowwaterorotherliquidtosplashtheremotecontrol.Iftheremotecontrolgetswet,wipeitdryimmediately.

• Avoidexposuretoheatandsteam.

• Otherthantoinstallthebatteries,donotopentheremotecontrol.

2.3.5. Operating range of the remote control

Pointthetopoftheremotecontroltowardthedisplay’sremotecontrolsensor(back

side)whenpressingabutton.

Usetheremotecontrolwithintherangewhichisshowninthefollowingtable.

Operation Angle RC operational distance

θ=0º(forH&V) ≥8m

θ=20º(forH&V) ≥5m

θ=45º(forHonly) ≥2m

NOTE: Theremotecontrolmaynotfunctionproperlywhentheremotecontrol

sensoronthedisplayisunderdirectsunlightorstrongillumination,orwhen

thereisanobstacleinthepathofsignaltransmission.



BDL4988XL

3. Connecting External Equipment

3.1. Connecting External Equipment (DVD/VCR/VCD)

3.1.1. Using COMPONENT video input

DVD / VCR / VCD

[AUDIO IN]

[COMPONENT IN]

(YPbPr)

COMPONENT Out

(YPbPr)

Audio Out

[R]

[L]

3.1.2. Using Video Source input

DVD / VCR / VCD

[AUDIO IN]

[Y/CVBS IN]

Y/CVBS Out

[R]

[L]

BDL4988XL

3.1.3. Using HDMI video input

DVD / VCR / VCD

HDMI Out

[HDMI IN]

3.2. Connecting a PC

3.2.1. Using VGA input

[VGA IN]

[VGA AUDIO IN]

VGA Out

D-Sub 15 pin

Audio Out

3.2.2. Using DVI input

[VGA AUDIO IN]

DVI Out

Audio Out

[DVI IN]

BDL4988XL

3.2.3. Using HDMI input

HDMI Out

[HDMI IN]

3.2.4. Using DisplayPort input

DisplayPort Out

[DisplayPort IN]

3.3. Connecting Audio Equipment

3.3.1. Connecting external speakers

External speakers

BDL4988XL

3.3.2. Connecting an external audio device

Stereo Amplifier

[AUDIO OUT]

Audio In

3.4. Connecting Multiple Displays in a Daisy-chain Configuration

Youcaninterconnectmultipledisplaystocreateadaisy-chaincongurationforapplicationssuchasavideowall.

3.4.1. Display control connection

Connectthe[RS232COUT]connectorofDISPLAY1tothe[RS232CIN]connectorofDISPLAY2.

DISPLAY 1

DISPLAY 2

[RS-232C IN]

[RS-232C]

[RS-232C OUT] [RS-232C IN]

DISPLAY 1

DISPLAY 2

[RJ-45] [RS-232C OUT] [RS-232C IN]

[RJ-45]

BDL4988XL

3.4.2. Digital video connection

Connectthe[DVIOUT/VGAOUT]connectorofDISPLAY1tothe[DVIIN]connectorofDISPLAY2.

[DVI IN]

[DVI]

[DVI/VGA OUT] [DVI IN]

DISPLAY 1 DISPLAY 2

Connectthe[DPOUT]connectorofDISPLAY1tothe[DPIN]connectorofDISPLAY2.

[DP IN]

[DP]

[DP OUT] [DP IN]

DISPLAY 1 DISPLAY 2

Connectthe[DVIOUT]connectorofDISPLAY1tothe[DVIIN]connectorofDISPLAY2.

DISPLAY 1 DISPLAY 2

[DVI IN]

[HDMI]

[DVI OUT] [DVI IN]

DVD / VCR / VCD

3.4.3. Analog video connection

Connectthe[DVIOUT/VGAOUT]connectorofDISPLAY1tothe[VGAIN]connectorofDISPLAY2.

DISPLAY 1 DISPLAY 2

[VGA IN]

[VGA]

[DVI/VGA OUT] [VGA IN]

BDL4988XL

3.5. IR connection

[IR IN]

External

IR Receiver

NOTE: Thisdisplay’sremotecontrolsensorwillstopworkingifthe[IR IN]isconnected.

3.6. IR Pass-through Connection

DVD / VCR / VCD

(DVD / VCR / VCD)

Remote Control

[IR OUT]

[IR IN]

BDL4988XL

3.7. Wire-connecting to Network

Ifyouconnectthisdisplaytoahomenetwork,youcanplayphotos,musicandvideosfromyourcomputer.SeePlay multimedia les via Local Area Network

(Page18)formoredetail.

[RJ-45]

ROUTER

INTERNET

To setup the network:

1. SwitchontherouterandswitchonitsDHCPsetting.

2. ConnecttheroutertothisdisplaywithanEthernetcable.

3. Press[ ] HOME

buttonontheremotecontrol,thenselect

Setup

4. Select

Connect to network

,thenpress[ ]button.

5. Followtheon-screeninstructionstoinstallthenetwork.

6. Waitforthisdisplaytondthenetworkconnection.

7. Ifyouareprompted,agreetothe“End User Licence Agreement”.

NOTE: ConnectingwithashieldedCAT-5EthernetcabletocomplywiththeEMCdirective.

BDL4988XL

4. Operation

NOTE: Thecontrolbuttondescribedinthissectionismainlyonthe

remotecontrolunlessspeciedotherwise.

4.1. Watch the Connected Video Source

Seepage11forexternalequipmentsconnection.

1. Press

[ ] SOURCEbutton.

2. Press[ ]

or[ ]buttontochooseadevice,thenpress[ ]

button.

4.2. Change Picture Format

Youcanchangethepictureformattosuitthevideosource.Eachvideo

sourcehasitsavailablepictureformats.

Theavailablepictureformatsdependonthevideosource:

1. Press[ ] FORMATbutton.

2. Press[ ]

or[ ]buttontochooseapictureformat,thenpress

[ ]button.

• {Auto zoom}:Enlargethepicturetollthescreen.

RecommendedforminimalscreendistortionbutnotforHDor

PC.

• {Movie expand 16:9}:Scale4:3formatto16:9.Not

recommendedforHDorPC.

• {Wide screen}:Showswidescreenformatcontentunstretched.

NotrecommendedforHDorPC.

• {Unscaled}:ProvidemaximumdetailforPC.Onlyavailable

whenPCmodeisselectedinthe{Picture}menu.

• {4:3}:Displaytheclassic4:3format.

• {Custom zoom}:Choosetoapplycustomizezoomsettingsin

thePictureandedgessubmenu

4.3. Play multimedia files via Local Area

Network

ToplaylesviaLocalAreaNetwork,youwillneed:

• Awiredhomenetwork,connectedwithaUniversalPlugandPlay

(uPnP)router.

• Optional:ALANcablethatconnectsyourdisplaytoyourhome

network.

• Amediaserverrunningonyourcomputer.

• Appropriatesettingsonyourcomputerrewalltoallowyoutorun

themediaserver.

4.3.1. Set up the network

1. Connectyourdisplayandthecomputertothesamehomenetwork.

Seeillustrationbelowtoconnectyourdisplaytoanetwork.

2. Switchonyourcomputerandtherouter.

• Single display setup:

[RJ-45]

ROUTER

• Multiple display setup:

[RJ-45]

[RJ-45] [RJ-45]

ROUTER

DISPLAY 1

DISPLAY 2

NOTE: IftheapparatusdoesnotreturntoDLNAmodedueto

externalelectricaldisturbances(e.g.electrostaticdischarge),user

interventionisrequired.

Set up media sharing

1. Installamediaserveronyourcomputertosharemediales.These

aresomemediaservers:

• ForPC:WindowsMediaPlayer11(orhigher)orTVersity

• ForMac:Twonky

2. Switchonmediasharingonyourcomputerusingthemediaserver.

Formoreinformationonhowtosetupthemediaserver,referto

thewebsiteofthemediaserver.

4.3.2. How to use DLNA-DMP

Ensureyouhaveconnectedtothenetwork.

Youcanpress buttontodisplaytheconnectionofthenetwork.

Picture format

Picture style

Sound style

Smart power

Volume

Monitor group

Monitor ID

Model name

SWVersion

Serial no

Temperature

Network configuration

IP address

Netmask

Gateway

Network name

Ethernet MAC address

Wide screen

Standard

Personal

Off

BDL4988XL

1.51

25°C

DHCP & Auto IP

192.168.1.116

255.255.255.0

192.168.1.1

BDL4988XL

FF:FF:FF:FF:FF:FF:

HDMI 1 1080p60 26/09/2014 Friday 09:32:00

Play les from display

1. Press[ ]SOURCEbutton,chooseNetwork,andpress[

]button.

USB

Network

Internet

SmartCMS

HDMI 1

HDMI 2

Display Port

Card OPS

DVI-D

YPbPr

VGA

2. Now,youcanseeallthePC’sconnectedtothesamerouteronthe

screen.Choosetherightone.

3. Press[ ]and[ ]tochoosethedirectoryandlestoplay.

4. Youcanconnectupto4displaystothesamePCandplaysame

mediastream.

BDL4988XL

4.3.3. How to use DLNA-DMR from PC

1. Press[ ]HOMEbutton,chooseNetworkandpress[ ]

button.


Sound

Tiling

Network

General settings

Network settings

Digital Media Rendere...

Network name

Clear Internet memory

2. Set

Digital Media Renderer DMR

as

Network settings

Digital Media Rendere...

Network name

Clear Internet memory


Sound

Tiling

Network

General settings

Off

3. Setthenameofyourdisplay.

Network settings

Digital Media Renderer - D...

Network name

Clear Internet memory

Cancel

Done Clear

BDL4988XL

4. Press[ ] HOMEbutton,andpress[ ]

SOURCE

button.

Then,choose

Network

andpress[ ]button.

5. OnyourPC,goto

Network and Sharing Center

,andclick

Choose homegroup and sharing options

6. Checkthemediaformats.Then,click

Choose media

streaming options....

7. Goto

Advanced sharing settings

,andcheck

Turn on

network discovery

8. Now,gotothedirectoryofyourmediales.Choosethemedia

lebyrightclick.Onthesubmenufrom

Play To

,Youcanndall

displaysconnectedtoyournetwork.Choosethedisplay,andclick

themedialetoplay..

Play les

1. Press[ ] SOURCEbutton.

2. Choose

Network

,andpress[ ]button.

3. Choosealefromthecontentbrowser,andpress[ ]button

tostartplaying.

4. Pressthe[PLAY] buttonsontheremotecontroltocontrolplaying.

Tips:

• Choosethetopbartolteryourlesbytype.

• Choose

Sort

toarrangethelesbyalbumname,artist,orother

elds.

• Toclearthelistofofinemediaservers,press[ ] OPTIONS

button.Then,choose

Clear ofine servers

andpress[ ]

button.

4.4. Play multimedia files from USB device

1. ConnectyourUSBdevicetotheUSBportonthedisplay.

USB

2. Press[ ]

SOURCE

button,choose

USB

,andpress[ ]

button.

USB

Network

Internet

SmartCMS

HDMI 1

HDMI 2

Display Port

Card OPS

DVI-D

YPbPr

VGA

3. TheconnectedUSBdeviceisdetectedautomaticallyforallits

playableles,whichwillbeautomaticallysortedinto3types:

Music

,

Movie

,and


4. Press[ ] BACKbuttontogouptothetoplayerinthescreen.

Press[ ]

or[ ]buttontochoosetheletype.Press[ ]

buttontoenteritsplaylist.

5. Choosetheleyouwant.Press[ ]buttontostartplaying.

6. Followtheon-screeninstructiontocontroltheplayoption.

7. Press[PLAY] buttons(

H F G I J

)tocontrolplaying.

BDL4988XL

4.5. Play options

4.5.1. Playing music files

1. Choose

Music

inthetopbar.

Music

2. Chooseonemusictrack,andpress[ ]button.

• Toplayallthetracksinafolder,chooseonemusicle.Then,

press[ ] to

Play All

• Toskiptothenextorprevioustrack,press[ ] or [ ]button.

• Topausethetrack,press[ ]button.Press[ ]button

againtoresumeplayback.

•

Toskipbackwardorforward10seconds,press[ ]or[ ]

button.

• Tosearchbackwardorforward,press[

]

[

]button,

pressrepeatedlytotogglebetweendifferentspeeds.

• Tostopthemusic,press[

]button.

Music options

Whileyouplaymusic,press[ ] OPTIONS button,thenpress[ ]

buttontochooseanoption:

• {Shufe}:Enableordisablerandomplayoftracks.

• {Repeat}:Choose{Repeat}toplayatrackoranalbumrepeatedly,

orchoose{Play once}toplayatrackonce.

NOTE: Toviewinformationaboutasong(forexample,title,artistor

duration),choosethesong,thenpress[ ] INFObutton.To

hidetheinformation,press[ ] INFO buttonagain.

4.5.2. Playing movie files

1. Choose

Movie

inthetopbar.

Movie

2. Chooseavideo,andpress[ ]button.

• Toplayallthevideosinafolder,chooseonevideole.Then,

press[ ] to

Play All

• Topausethevideo,press[ ]button.Press[ ]button

againtoresumeplayback.

•

Toskipbackwardorforward10seconds,press[ ]or[ ]

button.

• Tosearchbackwardorforward,press[

]

[

]button,

pressrepeatedlytotogglebetweendifferentspeeds.

• Tostopthevideo,press[

]button.

Movie options

Whileplayingvideo,press[ ] OPTIONSbutton,thenpress[ ]

buttontochooseanoption:

• {Subtitles}:Choosetheavailablesubtitlesettings.

• {Subtitle language}:Choosethelanguageforsubtitlesifavailable.

• {Shufe}:Enableordisablerandomplayofvideoles.

• {Repeat}:Choose{Repeat}toplaythevideolerepeatedlyor

{Playonce}toplaythevideoleonce.

• {Status}:Toviewinformationaboutavideo(forexample,played

position,duration,title,ordate).

4.5.3. Playing photo files

1. Choose


inthetopbar.


2. Chooseaphotothumbnail,thenpress ]button.

Start a slideshow

Iftherearemultiplephotosinafolder,chooseaphoto.Then,press

[ ] to

Play All

•

Toskiptothepreviousornextphoto,press[ ]or[ ]button,

andthenpress[ ]button.

• Tostoptheslideshow,press[

]button.

Slideshow options

Whileyouplayaslideshow,press[ ] OPTIONSbutton,thenpress

[ ]buttontochooseanoption:

• {Shufe}:Enableordisablerandomdisplayofpicturesinthe

slideshow.

• {Repeat}:Choose{Repeat}towatchaslideshowrepeatedlyor

{Play once}towatchonce.

• {Slideshow Time}:Choosethedisplayingtimeforeachphotointhe

slideshow.

• {Slideshow Transitions}:Choosethetransitionfromonephototo

thenext.

4.6. How to use Opera browser (HTML5)

PleasechecktheLANwiretomakesurethenetworkisconnected.

1. Press[ ]

SOURCE

button,andchoose

Internet

andpress

[ ] button.

USB

Network

Internet

SmartCMS

HDMI 1

HDMI 2

Display Port

Card OPS

DVI-D

YPbPr

VGA

2. MovethecursortoURLaddressbar.Press[ ] buttonandit

willpopouttheon-screenkeyboard.Youcanmovethecursorto

entertheURLaddress.AfternishingtheURLaddress,choose

Done

BDL4988XL

History

Bookmark

Web Address：



Internet

www.google.com

http://

Done

Hide

. , @ ‘

g h i

p q r s

a b c

j k l

t u v

? ! -

d e f

m n o

w x y z

abc ABC 123 www Backspace

3. Movethecursorto“



”iconandpress[ ] button.

History

Bookmark

Web Address：

Internet

www.google.com

http://www.google.com



4. Now,youcanseethewebpage.

NOTES:

• TheOperabrowserdoesnotsupportFLASHformat.

• Thebrowserisnotavideosource.Itwillnotstayatthebrowser

screenafteryourestartthedisplay.

BDL4988XL

5. Change your settings

Using the remote control:

EXIT

SET

1. Press[MENU]buttonontheremotecontroltodisplaytheOSD

menu.

2. Press[ ]or[ ]buttontochoosetheitemyouwanttoadjust.

3. Press[SET]or[ ]buttontoenterthesubmenu.

4. Inthesubmenu,press[ ]or[ ]buttontotoggleamongitems,

press[ ]or[ ]buttontoadjustsettings.Ifthereisasubmenu,

press[SET]or[ ]buttontoenterthesubmenu.

5. Press[EXIT]buttontoreturntothepreviousmenu,orpress

[MENU]buttontoexittheOSDmenu.

Using the display’s control buttons

1. Press[ ]buttontodisplaytheOSDmenu.

2. Press[ ][ ][ ]or[ ]buttontochoosemenuitemoradjust

itsvalue.

3. Press[ ]buttontoconrmmenuselectionandenterits

submenu.

4. Press[ ]buttontoexittheOSDmenu.

5.1. Settings

Press[ ] HOMEbutton.

5.1.1. Picture

Picture style

Backlight

Colour

Sharpness

Noise reduction

MPEG artifact reducti...

Picture enhancement

Advanced

Scan mode

Format and edges

Picture reset


Sound

Tiling

Network

General settings

Picture style

Chooseapredenedpicturesetting.

Backlight

Adjustthebrightnessofthisdisplay’sbacklight.

Colour

Adjustthecoloursaturationofthepicture.

Sharpness

Adjustthesharpnessofthepicture.

Noise reduction

Choosetheamountofnoisereductionforthepicture.

MPEG artifact reduction

Smoothentransitionsandhazinessinthedigitalpicture.

Picture enhancement

Fine-tuneeachpixeltomatchsurroundingpixelsandproduceabrilliant,

high-denitionimage.

• {Advanced sharpness}:Enablesuperiorsharpness,especiallyon

linesandcontoursinthepicture.

• {Dynamic contrast}:Dynamicallyenhancethedetailsinthe

dark,mediumandlightareasofthepicture.

• {Colour enhancement}:Dynamicallyenhancethevividnessand

detailsofcolours.

Advanced

Accessadvancedsettingssuchasgamma,tint,videocontrastandsoon.

• {Gamma}:Adjustthenon-linearsettingforpictureluminance

andcontrast.

• {Tint}:Changethecolourbalance.

• {Custom tint}:Customisecolourbalancesetting.Onlyavailable

if{Tint}



{Custom}ischosen.

• {Video contrast}:Adjustvideocontrast.

• {Brightness}:Adjustscreenbrightness.

• {Hue}:Adjustscreenhue.

Scan mode

Changethedisplayareaoftheimage.

Format and edges

• {Picture format}:Changethepictureformat.

• {Zoom}:Expandsthehorizontalandverticalsizesoftheimage

simultaneously.

• {HZoom}:Expandsthehorizontalsizeoftheimageonly.

BDL4988XL

• {VZoom}:Expandstheverticalsizeoftheimageonly.

Note:Zoom,HZoomandVZoomarefunctionalonlywhenthe

PictureformatsettingissettoCustomZoom.

Seepage18forthedescriptionsabout

Picture format

Picture reset

Resetallyourpicturesettingstothefactorydefaults.

5.1.2. Sound

Sound style

Bass

Treble

Balance

Volume

Minimum volume

Maximum volume

Surround mode

Audio out (line out)

Advanced

Sync. Volume

Sound reset


Sound

Tiling

Network

General settings

Sound style

Accesspredenedsoundsettings.

Bass

Adjusttoincreaseordecreaselower-pitchedsounds.

Treble

Adjusttoincreaseordecreasehigher-pitchedsounds.

Balance

Adjusttoemphasizeleftorrightaudiooutputbalance.

Volume

Adjusttoincreaseordecreasethevolume.

Minimum volume

SettheMinimumvolume.

Maximum volume

SettheMaximumvolume.

Surround mode

Setsurroundeffectsforaudioperformance.

Audio out (line out)

Adjustaudiooutputvolume.

Advanced

Accessadvancedsettingstoenhanceyouraudioexperience.

• {Auto volume leveling}:Enablethereductionofsuddenvolume

changes.

• {Speaker settings}:Turnonorofftheinternalspeakers.

• {Clear sound}:Enhancesoundquality.

• {Audio out format}:Choosethetypeofaudiooutputthrough

thedigitalaudiooutputconnector.(HDMIonly)

• {Audio out delay}:Automaticallysynctheimageonthisdisplay

totheaudiofromaconnectedhometheatre.

• {Audio out offset}:Adjustthesettingforaudiooutputdelay.

Availableif{Audio out delay}isswitchedon.

Sync. Volume

Chooseto{On}or{Off}theSync.Volumefunction.Set{On}to

synchronizethevolumeofinternalspeakerandline-out.Set{Off}to

adjustthevolumeofinternalspeakerandline-out,respectively.

Sound reset

Resettodefaultsetting.

Card OPS audio

ChoosetosetOPSaudiooutputformat.

Theoptionsare:{Auto},{Analog},{Digital}

NOTE: WhentheuserselectCardOPSsource,thisitemwillbe

appearinOSDmenu.

5.1.3. Tiling

Enable

H monitors

V monitors

Position

Frame comp.

Switch on delay

Auto ID


Sound

Tiling

Network

General settings

Withthisfunctionyoucancreateasinglelarge-screenmatrix(video

wall)thatconsistsofupto100setsofthisdisplay(up to 10-sets on the

vertical and 10-sets on the horizontal sides).

Enable

Chooseto{On}or{Off}theTilingfunction.If{On},thedisplaywill

applythesettingsin{H monitors},{V monitors},{Position},and

{Frame comp.}.

H monitors

Adjustdisplaysonthehorizontalside.

V monitors

Adjustdisplaysontheverticalside.

Position

Adjustthepositionofthisdisplayinthescreenmatrix.

Example: 2 x 2 screen matrix (4 displays)

Hmonitors=2displays

Vmonitors=2displays

1 2

3 4

H monitors

V monitors

Position

BDL4988XL

Example: 5 x 5 screen matrix (25 displays)

Hmonitors=5displays

Vmonitors=5displays

1 2

6 7

3 4

8 9

11 12 13 14 15

16 17 18 19 20

21 22 23 24 25

H monitors

V monitors

Position

Frame comp.

Choosetoturntheframecompensationfunctiononoroff.Ifselected

{On},thedisplaywilladjusttheimagetocompensateforthewidthof

thedisplaybezelsinordertoaccuratelydisplaytheimage.

{On}

{Off}

Switch on delay

Adjustthepower-ondelayingtime(inseconds)allowsasequential

powering-onforeachdisplaybytheirIDnumberwhenmultipledisplays

areconnected.

Auto ID

Thesetupfunctionenablessettingup{MonitorID}ofconnected

machineaccordingto{Hmonitors}settings.

Example:Hmonitorssetsas4

1 2

5 6

3 4

7 8

9 10 11 12

13 14 15 16

Note:Tousethisfunction,serialconnectallmachineswithRS-232cable

andsettheirNetworkcontrolporttoRS-232too.

Note:TousethisfunctionforDP1.2connectivity,themaximum

resolutiononlysupportto1920x1080/60Hz@4sets.For4Kx2K/30Hz

resolutiononlysupportto2setsconnectivity.

5.1.4. Network


Sound

Tiling

Network

General settings

Network settings

Digital Media Rendere...

Network name

Clear Internet memory

Network settings

• {Networkconguration}:Choosehowthisdisplayshouldassign

addressestothenetworkresources.

Theusercanchoose{DHCP & Auto IP}(suggested)or{Static IP}.

• {Networktype}:ChooseWired(default)tosetthenetworktype.

Digital Media Renderer - DMR

Receivemultimedialesfromtheconnecteddevicebyyournetwork.

Network name

Inthemultiple-displayconnection,youcanrenameeachdisplayforeasy

identication.

Usetheon-screenkeyboardortheremotecontrolkeypadtoenterthe

name.

Clear Internet memory

Clearallthecookies,bookmarks,historylistandtextusedforautoll.

BDL4988XL

5.1.5. General settings


Sound

Tiling

Network

General settings

Menu language

Monitor Group

Monitor ID

Eco mode

Auto search

Clock

Scheduling

Sleep timer

OneWire

Local KB lock

RC lock

Menu language

ChooselanguageusedforOSDmenus.

Monitor group

Adjustthegrouprangebetween1to255.Thedefaultsettingis255.

Monitor ID

AdjusttheIDnumberforcontrollingthedisplayviatheRS232C

connection.EachdisplaymusthaveauniqueIDnumberwhenmultiple

setsofthisdisplayareconnected.MonitorIDnumberrangeisbetween

1to255.Thedefaultsettingis1.

Eco mode

Setthisdisplaytoreducethepowerconsumptionautomatically.

Note:Factorydefaultsettingis“lowpowerstandby”,butusercouldnot

resetittodefaultaftersettingEcomodeto”Normal”by“Factoryreset”

inMENU.However,usercanstillchangetheECOmodebackto“low

powerstandby”manually.

Auto search

Choosetoletthisdisplaydetectanddisplayavailablesignalsources

automatically.

Clock

Setthecurrentdateandtimeforthedisplay’sinternalclock.

Scheduling

Thisfunctionallowsyoutoprogramupto7differentscheduledtime

intervalsforthisdisplaytoactivate.

Youcanset:

• Whichinputsourcethedisplaywilluseforeachscheduled

activationperiod.

• Thetimeforthedisplaytoturnonandturnoff.

• Thedaysinaweekforthedisplaytoactivate.

NOTES:

• Werecommendyoutosetupcurrentdateandtimeinthe{Clock}

menubeforeusingthisfunction.

• Afterchangingthe{Clock}optioninthe{General settings}menu,

youneedtosetthis{Scheduling}again.


Sound

Tiling

Network

General settings

Menu language

Monitor Group

Monitor ID

Eco mode

Auto search

Clock

Scheduling

Sleep timer

OneWire

Local KB lock

RC lock

1. Thereare7schedulecanbeset.Goto

Status

andchoose

Status

Source

On time

Off time

Repeat modes

Playlist setting

Off

Schedule 1

Schedule 2

Schedule 3

Schedule 4

Schedule 5

Schedule 6

Schedule 7

2. Goto

Source

andchooseinputsource.If{Source}



{USB}

ischosen.Youneedtosetplayliist.If{Source}



{BROWSER}is

chosen.YouneedtosetURLaddress.

NOTE: If{Source}



{Autoplay}ischosen.Youneedtocreatea

foldernamed“

philips

”

intherootdirectoryoftheUSBand

puttheles(picturesorvideos)youwanttodisplayinthe

folder.

Status

Source

On time

Off time

Repeat modes

Playlist setting

Schedule 1

Schedule 2

Schedule 3

Schedule 4

Schedule 5

Schedule 6

Schedule 7

Slideshow durations

USB playlist

HDMI 1

HDMI 2

DisplayPort

Card OPS

DVI-D

YPbPr

VGA

Internet

SmartCMS

BDL4988XL

3. Set

On time

Status

Source

On time

Off time

Repeat modes

Playlist setting

Schedule 1

Schedule 2

Schedule 3

Schedule 4

Schedule 5

Schedule 6

Schedule 7

On time

Cancel Done

00 : 00

4. Set

Off time

Status

Source

On time

Off time

Repeat modes

Playlist setting

Schedule 1

Schedule 2

Schedule 3

Schedule 4

Schedule 5

Schedule 6

Schedule 7

Off time

Cancel

14 : 00

Done

5. Goto

Repeat modes

andchoose.

Status

Source

On time

Off time

Repeat modes

Playlist setting

Schedule 1

Schedule 2

Schedule 3

Schedule 4

Schedule 5

Schedule 6

Schedule 7

No repeat

Every Sunday

Every Monday

Every Tuesday

Every Wednesday

Every Thursday

Every Friday

Every Saturday



6. If{Source}



{USB}ischosen.Goto

Playlist setting

0001/0002

Options Exit


Video

- Press[ ] [ ] buttonstochooseles.

- Press[ ] [ ]buttonstoswitchPlaylistandFileManager.

- Press[ ]buttontosetorcleartheplaylist.

7. Tosavetheplaylist,press[ ] andchoose

Save list

0004/0004

Options Exit


[..]

Movie.avi

\media\photo




Sort

Recursive Parser

Media Type

Save list

NOTES:

• EachPlaylistsupportsupto30les.

• Playlistwillnotbeclearedafter{Factory settings}.Youhaveto

manuallyremovethelesordeleteusb_schedulinglist.txtinthe

USB.

Sleep timer

Switchoffthisdisplayafteraspeciedtime.

OneWire

ConnectandcontrolyourHDMI-CECcompliantdevicesthroughHDMI

porttothisdisplaywiththesameremotecontrol.

BDL4988XL

Local KB lock

Choosetoenableordisablethekeyboard(controlbuttons)functionof

thedisplay.

• {Unlock}:Enablethekeyboardfunction.

• {Lock all}:Lockallkeyboardfunction.

• {Lock but volume}:Disableallthekeyboardfunctionexceptthe

[ ] and [ ] button.

• {Lock but power}:Disableallthekeyboardfunctionexceptthe

[ ]button.

• {Lock all expect volume and power}:Disableallthekeyboard

functionexceptthe[ ], [ ] and [ ] button:

RC lock

Choosetoenableordisablethebuttonfunctionoftheremotecontrol.

• {Unlock}:Enablethekeyboardfunction.

• {Lock all}:Lockallkeyboardfunction.

• {Lock but volume}:Disableallthekeyboardfunctionexceptthe

[ ] and [ ] button.

• {Lock but power}:Disableallthekeyboardfunctionexceptthe

[ ] POWERbutton.

• {Lock all expect volume and power}:Disableallthekeyboard

functionexceptthe[ ] [ ] and [ ] POWER button:

NOTE: Todisablethelockfunctionfrom

Local KB lock

or

RC lock

item,pressbuttons[ ] and 1 9 9 8onthe

remotecontrol.

Pixel shift

Forvideoinputsources,youmaychoose{On}tomovethescreen

imageautomaticallytoprotectthedisplayfrom“burn-in”or“after-image”

symptoms30secondsafternotoperatingthedisplay.

Smart power

Chooseabacklightleveltooptimisedynamicpowerconsumptionand

picturecontrast.

Theoptionsare:{Off},{Standard},{Medium},{High}.

Wake on lan

Choose{On}andyoucanturnonthedisplaybynetwork.

Switch on state

Choosethedisplaystatususedforthenexttimeyouconnectthe

powercord.

• {On}-Thedisplaywillturnonwhenthepowercordisconnected

toawalloutlet.

• {Standby}-ThedisplaywillremainStandbywhenthepowercordis

connectedtoawalloutlet.

• {Last status}-Thedisplaywillreturntothepreviouspowerstatus

(on/off/standby)whenremovingandreplacingthepowercord.

Light sensor

Choose{On}andthedisplaywillautomaticallyadjustbacklight.

Human sensor

Setthedisplaytoturnonbacklightifitdoessensorhumanandturnoff

backlightafteranamountofthespecied.

Theoptionsare:{Off,10~60}minutes.Onlyavailablewhenyouplugin

CRD41.

Power LED Light

Choose{Off}toturnofftheindicator.

Logo

Choose{Off}andthedisplaywillnotdisplaythe logowhenyou

switchon.

Advanced power management

Choose{On}.Then,whennosignal,thedisplaywillautomaticallyturnoff.

Source notication

Whenyoupress[ ] POWERbuttontoturnonthedisplayfrom

standbymodeorchangetheinputsignal,theinformationOSDis

displayedontheupperleftcornerofthescreen.

Choose{Off}toturnoffthisfunction.

DisplayPort Ver.

SettheDisplayPortversionto1.1aor1.2,thissettingisonlyvalidon

DisplayPortinputandoutput,

1.1a:SwitchDisplayPortVer.to1.1a(default),theDisplayPortoutputis

thecloneoftheDisplayPortinput.

1.2:SwitchDisplayPortVer.to1.2tosupportMST(Multi-Stream

Transport)

NOTE: IfthedisplayisblackscreenorabnormalunderDisplayPort

source,pleaseswitchto1.1aandturnACoffandon.

Cooling Fan

Select{On}toturnonthecoolingfanallthetime.Select{Auto}toturn

on/offthecoolingfanaccordingtothedisplay’stemperature.

NOTES:

• Thedefault{Auto}optionwillstartrunningthecoolingfanifthe

temperatureof60°C(140°F)isreached,.

• Ifthetemperatureexceeds70°C(158°F)over3minutesandthen

atemperaturewarningmessagewillbeshownonthescreenfor10

seconds,thedisplaywillbeshutdownautomaticallywithblinkingred

&greenLEDlights.

Network control port

ChoosetheRS232controlformCardOPSorembeddedRS232inPD

set.

Factory settings

Resetallyourcustomizedsettingstothefactorydefaults.

BDL4988XL

5.1.6. Advanced


Sound

Tiling

Network

General settings

Advanced

Jitter clean

EQ boost

USB copying

Jitter clean

Turnon/offJittercleaningfunctionforHDMIandDVIsignalquality

enhancement.Thedefaultsettingison.


Sound

Tiling

Network

General settings

Advanced

Jitter clean

EQ boost

USB copying

Off

EQ boost

AdjustdigitalsignalEQboost.


Sound

Tiling

Network

General settings

Advanced

Jitter clean

EQ boost

USB copying

12.4dB

6.5dB

7.5dB

8.6dB

9.2dB

10.1dB

4.3dB

USB copying

Copyuserlogo“Welcomelogo.png”tointernalmemory.


Sound

Tiling

Network

General settings

Advanced

Jitter clean

EQ boost

USB copying

BDL4988XL

6. USB device compatibility

USB Video Subtitle Formats (for language subtitles, etc.)

File

Extensions

Container Videocodec Maximumresolution Max.FrameRate(fps)

Max.BitRate

(Mbps)

Audiocodec

.mpg

mpeg

.vob

MPEG-1 1920x1080 25p,30p,50i,60i 30

MPEG-1(L1&L2),

MPEG-1,2,2.5L3,

AAC/HE-AAC(v1&v2),

DVD-PCM,AC3

MPEG-2 1920x1080 25p,30p,50i,60i 30

MPEG-4ASP 1920x1080 25p,30p,50i,60i 30

H.264 1920x1080 25p,30p,50p,60p,60i 30

.ts TS

MPEG-2 1920x1080 25p,30p,50i,60i 30

MPEG-1(L1&L2),

MPEG-1,2,2.5L3,

AAC/HE-AAC(v1&v2),

AC3,E-AC3,

DolbyPulse

MPEG-4ASP 1920x1080 25p,30p,50i,60i 30

H.264 1920x1080 25p,30p,50p,60p,60i 30

MVC

1920x1080i@eldrate=50,60Hz

1920x1080p@framerate=24,25,30Hz

1280x720p@framerate=50,60Hz

- 30

.ts

.m2ts

.mts

.mt2

MaTSTTS

MPEG-2 1920x1080 25p,30p,50i,60i 30

MPEG-1(L1&L2),

MPEG-1,2,2.5L3,

AAC/HE-AAC(v1&v2),

AC3,E-AC3,

DolbyPulse

MPEG-4ASP 1920x1080 25p,30p,50i,60i 30

H.264 1920x1080 25p,30p,50p,60p,60i 30

MVC

1920x1080i@eldrate=50,60Hz

1920x1080p@framerate=24,25,30Hz

1280x720p@framerate=50,60Hz

- 30

.ts

.m2ts

.mts

AVCHD

MPEG-2 1920x1080 25p,30p,50i,60i 30

MPEG-1(L1&L2),

MPEG-1,2,2.5L3,

AAC/HE-AAC(v1&v2),

AC3,E-AC3,

DolbyPulse

MPEG-4ASP 1920x1080 25p,30p,50i,60i 30

H.264 1920x1080 25p,30p,50p,60p,60i 30

.ts

.m2ts

.mts

AVCHD MVC

1920x1080i@eldrate=50,60Hz

1920x1080p@framerate=24,25,30Hz

1280x720p@framerate=50,60Hz

- 30

MPEG-1(L1&L2),

MPEG-1,2,2.5L3,

AAC/HE-AAC(v1&v2),

AC3,E-AC3,

DolbyPulse

.m4v M4V H.264 1920x1080 25p,30p,50p,60p,60i 30 AAC

.ism/Manifest

.mpd

fragMP4

H.264 1920x1080 25p,30p,50p,60p,60i 30

AAC/HE-AAC(v1&v2),

AC3,E-AC3,WMA,

WMA-PRO

MVC

1920x1080i@eldrate=50,60Hz

1920x1080p@framerate=24,25,30Hz

1280x720p@framerate=50,60Hz

- 30

.mp4 MP4

MPEG-4ASP 1920x1080 25p,30p,50i,60i 30

AAC/HE-AAC(v1&v2),

AC3,E-AC3,WMA,

WMA-PRO

H.264 1920x1080 30

MVC

1920x1080i@eldrate=50,60Hz

1920x1080p@framerate=24,25,30Hz

1280x720p@framerate=50,60Hz

- 30

WMV9/VC1 1920x1080 30p,60i 30

.mkv

.mk3d

MKV

MPEG-4ASP 1920x1080 25p,30p,50i,60i 30

MPEG-1(L1&L2),

MPEG-1,2,2.5L3,

AAC/HE-AAC(v1&v2),

AC3,E-AC3,WMA,

WMA-PRO

H.264 1920x1080 30

USB Multimedia Formats

FileExtensions Container Videocodec Maximumresolution

Frequency

(kHz)

Max.BitRate

(Mbps)

Audiocodec

.mp3 MP3 - - 48 384 MPEG-1,2,2.5L3

BDL4988XL

.wma

.asf

WMA

(V2uptoV9.2)

- - 48 192 WMA

.wma WMAPro - - 96 768 WMA,WMAPro

.wav(PC) LPCM - - 192 768 LPCM

.aif(mac)

.aiff(mac)

LPCM - - 192 768 LPCM

.aac

.mp4

.m4a

AAC - - 48 1024 AAC,HE-AAC(v1&v2)

.pls

.m3u

Playlists - - - - -

.m4a M4A - - 48 1024 AAC,HE-AAC(v1&v2)

NOTES:

• Soundorvideomaynotworkifthecontentshaveastandardbitrate/framerateabovethecompatibleFrame/seclistedinthetableabove.

• VideocontentwithaBitrateorFrameratelargerthantheratespeciedinthetableabovecancausechoppyvideoduringplayback.

BDL4988XL

7. Input Mode

VGA Resolution:

Standard

Resolution

ActiveResolution

RefreshRate PixelRate AspectRatio StandforMode

HPixels VLines

VGA 640 480

60Hz 25.175MHz

4:3 VideoGraphicArray72Hz 31.5MHz

75Hz 31.5MHz

WVGA 720 400 70Hz 33.75MHz 16:9 WideVideoGraphicArray

SVGA 800 600

60Hz 40MHz

4:3 SuperVGA

75Hz 49.5MHz

XGA 1024 768

60Hz 65MHz

4:3 ExtendedGraphicArray

75Hz 78.75MHz

WXGA 1280 768 60Hz 79.5MHz 5:3 WideXGA

WXGA 1280 800 60Hz 79.5MHz 16:10 WideXGA

SXGA 1280 1024 60Hz 108MHz 5:4 SuperXGA

WXGA 1360 768 60Hz 85.5MHz 16:9 WideXGA

UXGA 1600 1200 60Hz 162MHz 4:3 UltraXGA

HD1080 1920 1080 60Hz 148.5MHz 16:9 HD1080

SDTV Resolution:

Standard

Resolution

ActiveResolution

RefreshRate PixelRate AspectRatio StandforMode

HPixels VLines

480i

720 480

29.97Hz 13.5MHz

4:3 ModiedNTSCStandard

480p 59.94Hz 27MHz

576i

720 576

25Hz 13.5MHz

4:3 ModiedPALStandard

576p 50Hz 27MHz

HDTV Resolution:

Standard

Resolution

ActiveResolution

RefreshRate PixelRate AspectRatio StandforMode

HPixels VLines

720p 1280 720

50Hz

74.25MHz 16:9 NormallyDVBMode

60Hz

1080i 1920 1080

25Hz

74.25MHz 16:9 NormallyATSCMode

30Hz

1080p 1920 1080

50Hz

148.5MHz 16:9 NormallyATSCMode

60Hz

• ThePCtextqualityisoptimuminHD1080mode(1920x1080,60Hz).

• YourPCdisplayscreenmightappeardifferentdependingonthemanufacturer(andyourparticularversionofWindows).

• CheckyourPCinstructionbookforinformationaboutconnectingyourPCtoadisplay.

• Ifaverticalandhorizontalfrequency-selectmodeexists,select60Hz(vertical)and31.5KHz(horizontal).Insomecases,abnormalsignals(suchas

stripes)mightappearonthescreenwhenthePCpoweristurnedoff(orifthePCisdisconnected).Ifso,pressthe[INPUT]buttontoenterthe

videomode.Also,makesurethatthePCisconnected.

• WhenhorizontalsynchronoussignalsseemirregularinRGBmode,checkPCpowersavingmodeorcableconnections.

• ThedisplaysettingstablecompliestotheIBM/VESAstandards,andbasedontheanaloginput.

• TheDVIsupportmodeisregardedassametothePCsupportmode.

• Thebesttimingfortheverticalfrequencytoeachmodeis60Hz.

BDL4988XL

8. Pixel Defect Policy

Westrivetodeliverthehighestqualityproductsandusesomeoftheindustry’smostadvancedmanufacturingprocesseswhilstpracticingstringentquality

control.However,pixelorsub-pixeldefectsonthePDP/TFTpanelsusedinPlasma-&LCD-displaysaresometimesunavoidable.Nomanufacturercan

guaranteethatallpanelswillbefreefrompixeldefects,butPhilipsguaranteesthatanyPlasma-&LCD-displayswithanunacceptablenumberofdefects

willberepairedduringthewarrantyperiodinlinewithyourlocalguaranteeconditions.

ThisnoticeexplainsthedifferenttypesofpixeldefectsanddenestheacceptabledefectlevelfortheLCDscreen.Inordertoqualifyforrepairunder

warranty,thenumberofpixeldefectsmustexceedacertainlevelasshowninthereferencetable.IftheLCDscreeniswithinspecicationawarranty

exchange/claimbackwillberefused.Additionally,becausesometypesorcombinationsofpixeldefectsaremorenoticeablethanothers,Philipssetseven

higherqualitystandardsforthose.

8.1. Pixels and Sub-Pixels

subpixel

pixel

Apixel,orpictureelement,iscomposedofthreesub-pixelsintheprimarycolorsofred,greenand

blue.Manypixelstogetherformanimage.Whenallsub-pixelsofapixelarelit,thethreecolored

sub-pixelstogetherappearasasinglewhitepixel.Whenallaredark,thethreecoloredsub-pixels

togetherappearasasingleblackpixel.Othercombinationsoflitanddarksub-pixelsappearas

singlepixelsofothercolors.

8.2. Types of Pixel Defects + Dot Definition

Pixelandsub-pixeldefectsappearonthescreenindifferentways.Therearethreecategoriesofpixeldefectsandseveraltypesofsub-pixeldefectswithin

eachcategory.

Dot denition = What is a defective “Dot”? :

Oneormoredefective,adjacentsub-pixelaredenedasone“dot”.Theno.ofdefectivesub-pixelsarenotrelevanttodeneadefectivedot.Thismeans

thatadefectivedotcanconsistofone,twoorthreedefectivesub-pixelswhichcanbedarkorlit.

RR G B

Onedot=OnePixel;consistsofthreesub-pixelsofRed,Green,andBlue.

8.3. Bright Dot Defects

Brightdotdefectsappearaspixelsorsub-pixelsthatarealwayslitor“on”.Thesearetheexamplesofbrightdotdefects:

Onelitred,greenorbluesubpixel Twoadjacentlitsubpixels:

Red+Blue=Purple

Red+Green=Yellow

Green+Blue=Cyan(LightBlue)

Threeadjacentlitsubpixels(onewhitepixel)

BDL4988XL

8.4. Dark Dot Defects

Blackdotdefectsappearaspixelsorsub-pixelsthatarealwaysdarkor“off”.Thesearetheexamplesofblackdotdefects:

Onedarkdot Twoadjacentdarkdots=1pairofdarkdots Twodarkdots,specicationsdenesthe

minimumdistancebetweendarkdots

8.5. Proximity of Pixel Defects

Becausepixelandsub-pixelsdefectsofthesametypethatarenearbyoneanothermaybemorenoticeable,Philipsalsospeciestolerancesforthe

proximityofpixeldefects.Inthetablebelowyoucanndspecicationsabout:

• Allowedamountofadjacentdarkdots=(adjacentdarkdots=1pairofdarkdots)

• Minimumdistancebetweendarkdots

• Totalno.ofalldefectivedots

8.6. Pixel Defect Tolerances

Inordertoqualifyforrepairduetopixeldefectsduringthewarrantyperiod,aPDP/TFTpanelinaPhilipsPlasma/LCD-displaymusthavepixelorsub-

pixeldefectsexceedingthetoleranceslistedinthefollowingtable.

BRIGHTDOTEFFECT ACCEPTABLELEVEL

1litsubpixel 2

BLACKDOTEFFECT ACCEPTABLELEVEL

1darksubpixel 10

TOTALDOTDEFECTSOFALLTYPES 12

NOTE:*1or2adjacentsubpixeldefects=1dotdefect

8.7. MURA

Darkspotsorpatchesmayoccasionallyappearonsomeliquidcrystaldisplay(LCD)panels.ThisisknownwithintheindustryasMura,whichisaJapanese

termfor“unevenness.”Itisusedtodescribeanirregularpatternorareainwhichunevenscreenuniformityappearsundercertainconditions.Muraisa

resultofthedeteriorationoftheliquidcrystalalignmentlayerandismostcommonlycausedbylong-termoperationunderhighambienttemperatures.It

isanindustry-widephenomenonandMuraisnotrepairable.Itisalsonotcoveredbyourwarrantyterms.

MurahasbeenaroundsincetheintroductionofLCDtechnologyandwithscreensgettingbiggerandinoperation24/7,manydisplaysarerunninginlow

lightconditions.ThisalladdstothepossibilityofMuraaffectingdisplays.

HOW TO SPOT MURA

TherearemanysymptomsofMuraandalsomultiplecauses.Severalofthesearelistedbelow:

• Impuritiesorforeignparticlesinthecrystalmatrix

• UnevendistributionofLCDmatrixduringmanufacturing

• Non-uniformluminancedistributionofthebacklight

• Panelassemblyinducedstress

• FlawswithintheLCDcells

• Thermalinducedstress-hightemperatureoperationoverlongperiodsoftime

HOW TO AVOID MURA

AlthoughwecannotguaranteethecompleteeradicationofMuraeverytime,ingeneraltheappearanceofMuracanbeminimizedbythesemethods:

• Lowerthebacklightbrightness

• Useascreensaver

• Reducetheambienttemperaturearoundtheunit

BDL4988XL

9. Cleaning and Troubleshooting

9.1. Cleaning

Caution When Using the Display

• Donotbringyourhands,faceorobjectsclosetotheventilationholesofthedisplay.Thetopofthedisplayisusuallyveryhotduetothehigh

temperatureofexhaustairbeingreleasedthroughtheventilationholes.Burnsorpersonalinjuriesmayoccurifanybodypartsarebroughttoo

close.Placinganyobjectnearthetopofthedisplaycouldalsoresultinheatrelateddamagetotheobjectaswellasthedisplayitself.

• Besuretodisconnectallcablesbeforemovingthedisplay.Movingthedisplaywithitscablesattachedmaydamagethecablesandthuscausere

orelectricshock.

• Disconnectthepowerplugfromthewalloutletasasafetyprecautionbeforecarryingoutanytypeofcleaningormaintenanceprocedure.

Front Panel Cleaning Instructions

• Thefrontofthedisplayhasbeenspeciallytreated.Wipethesurfacegentlyusingonlyacleaningclothorasoft,lint-freecloth.

• Ifthesurfacebecomesdirty,soakasoft,lint-freeclothinamilddetergentsolution.Wringtheclothtoremoveexcessliquid.Wipethesurfaceof

thedisplaytoremovedirt.Thenuseadryclothofthesametypetodry.

• Donotscratchorhitthesurfaceofthepanelwithngersorhardobjectsofanykind.

• Donotusevolatilesubstancessuchasinsertsprays,solventsandthinners.

Cabinet Cleaning Instructions

• Ifthecabinetbecomesdirty,wipethecabinetwithasoft,drycloth.

• Ifthecabinetisextremelydirty,soakalint-freeclothinamilddetergentsolution.Wringtheclothtoremoveasmuchmoistureaspossible.Wipe

thecabinet.Useanotherdryclothtowipeoveruntilthesurfaceisdry.

• Donotallowanywaterordetergenttocomeintocontactwiththesurfaceofthedisplay.Ifwaterormoisturegetsinsidetheunit,operating

problems,electricalandshockhazardsmayresult.

• Donotscratchorhitthecabinetwithngersorhardobjectsofanykind.

• Donotusevolatilesubstancessuchasinsertsprays,solventsandthinnersonthecabinet.

• DonotplaceanythingmadefromrubberorPVCnearthecabinetforanyextendedperiodsoftime.

BDL4988XL

9.2. Troubleshooting

Symptom Possible Cause Remedy

No picture is displayed 1. Thepowercordisdisconnected.

2. Themainpowerswitchonthebackofthe

displayisnotswitchedon.

3. Theselectedinputhasnoconnection.

4. Thedisplayisinstandbymode.

1. Pluginthepowercord.

2. Makesurethepowerswitchisswitchedon.

3. Connectasignalconnectiontothedisplay.

Interference displayed on the display or audible

noise is heard

Causedbysurroundingelectricalappliancesor

uorescentlights.

Movethedisplaytoanotherlocationtoseeisthe

interferenceisreduced.

Color is abnormal Thesignalcableisnotconnectedproperly. Makesurethatthesignalcableisattachedrmly

tothebackofthedisplay.

Picture is distorted with abnormal patterns 1. Thesignalcableisnotconnectedproperly.

2. Theinputsignalisbeyondthecapabilitiesof

thedisplay.

1. Makesurethatthesignalcableisattached

rmly.

2. Checkthevideosignalsourcetoseeifit

isbeyondtherangeofthedisplay.Please

verifyitsspecicationswiththisdisplay’s

specicationsection.

Display image doesn’t ll up the full size of the

screen

1. Thezoommodeisnotsetcorrectly.

2. ScanModemaybesetincorrectlyto

underscan.

3. Iftheimageexceedsthescreensize,Scan

ModemayneedtobesettoUnderscan.

UsetheZoommodeorCustomzoomfunction

intheScreenmenutonetunedisplaygeometry

andtimefrequencyparameter.

Can hear sound, but no picture Improperlyconnectedsourcesignalcable. Makesurethatbothvideoinputsandsound

inputsarecorrectlyconnected.

Can see picture but no sound is heard 1. Improperlyconnectedsourcesignalcable.

2. Volumeisturnedallthewaydown.

3. {Mute}isturnedon.

4. Noexternalspeakerconnected.

1. Makesurethatbothvideoinputsandsound

inputsarecorrectlyconnected.

2. Press[ ]or[ ]buttontohearsound.

3. SwitchMUTEoffbyusingthe[ ]button.

4. Connectexternalspeakersandadjustthe

volumetoasuitablelevel.

Some picture elements do not light up Somepixelsofthedisplaymaynotturnon. Thisdisplayismanufacturedusinganextremely

highlevelofprecisiontechnology:however,

sometimessomepixelsofthedisplaymaynot

display.Thisisnotamalfunction.

After-Images can still be seen on the display

after the display is powered off. (Examples

of still pictures include logos, video games,

computer images, and images displayed in 4:3

normal mode)

Astillpictureisdisplayedforanoverextended

periodoftime

Donotallowastillimagetobedisplayedfor

anextendedperiodoftimeasthiscancausea

permanentafter-imagetoremainonthedisplay.

BDL4988XL

How to setup the settings in the menu to

control all the monitors at the same time and

individually via RC?

DaisychainedbyRS232andnoIRcable 1.Therstdisplaysetsas“Primary”onOSD

(Advancedoption/IRcontrolitem),otherssetas

“Secondary”.

2.ThesetupOSDwillshowonTop-Leftofdisplay.

(ToggleMENUwillshowagainifitdisappear)

3.Defaultsetting:IDNO:0,GPNO:0,thissetting

cancontrolalldisplaysbyIR.

The“+”,“-”canchange“IDNO”tocontrol

signaldisplayby“MonitorID”.

The“UP”,“DOWN”canchange“GPNO”to

controlmulti-displayby“GroupID”.

*TherstdisplayalwaysbecontrolledbyIR.

How is the RC working? Daisychain:noRS232connectedandIRcable Noneedsetting,justtoconnectwithIRcables

andcontrolbyIR.

*Thiswayhasout-of-synchronizmphenomenon.

SuggesttouseabovesettingwithRS-232cable.

BDL4988XL

10. Technical Specifications

Display:

Item Specications

ScreenSize(ActiveArea) 48.5”(123.2cm)LCD

AspectRatio 16:9

Numberofpixels 1920(H)x1080(V)

Pixelpitch 0.559(H)x0.559(V)[mm]

Displayablecolors 1.07Bcolors

Brightness(typical) 450cd/m



Contrastratio(typical) 1300:1

Viewingangle 178degrees

In/Out Terminals:

Item Specications

SpeakerOutput InternalSpeakers

ExternalSpeakers

10W(L)+10W(R)[RMS]/8Ω

1Way1SpeakerSystem

82dB/W/M/160Hz~13KHz

AudioOutput 3.5mmphonejackx1 0.5V[rms](Normal)/2Channel(L+R)

AudioInput RCAJackx2

3.5mmphonejackx1

0.5V[rms](Normal)/2Channel(L+R)

RS232C 2.5mmPhonejackx2 RS232Cin/RS232Cout

RJ-45 RJ-45Jackx1(8pin) 10/100LANPort

HDMIInput

HDMIJackx2

(TypeA)(18pin)

DigitalRGB:TMDS(Video+Audio)

MAX:

Video-720p,1080p,1920x1080/60Hz(WUXGA)

Audio-48KHz/2Channel(L+R)

SupportsLPCMonly

DVI-DInput DVI-Djack DigitalRGB:TMDS(Video)

VGAInput D-SubJackx1(15pin) AnalogRGB:0.7V[p-p](75Ω),H/CS/V:TTL(2.2kΩ),SOG:1V[p-p](75Ω)

MAX:720p,1080p,1920x1080/60Hz(WUXGA)

DVI-I(DVI-D&VGA)

Output

DVI-IJackx1(29pin) DigitalRGB:TMDS(Video)

AnalogRGB:0.7V[p-p](75Ω),H/CS/V:TTL(2.2kΩ),SOG:1V[p-p](75Ω)

MAX:720p,1080p,1920x1080/60Hz(WUXGA)

ComponentInput BNCJackx3 Y:1V[p-p](75Ω),Pb:0.7V[p-p](75Ω),Pr:0.7V[p-p](75Ω)

MAX:480i,576i,480p,576p,720p,1080i,1080p

VideoInput BNCx1(Sharewith

Component_Y)

Composite1V[p-p](75Ω)

Displayportin/out DisplayportJackx2

(20pin)

DigitalRGB:TMDS(Video+Audio)

MAX:

Video-720p,1080p,1920x1080/60Hz(WUXGA)

Audio-48KHz/2Channel(L+R)

SupportsLPCMonly

BDL4988XL

General:

Item Specications

PowerInput 100-240V~,50-60Hz,6.0A

PowerOutput 100-240V~,50-60Hz,2.5A

PowerConsumption(Max) 235W

PowerConsumption(typ.) 110W

PowerConsumption(Standby&Off) <0.5W(RS232inactive)

Dimensions(WithoutStand)[WxHxD] 1077.7x607.9x93.5(@Wallmount)/103.8(@Handle)

Weight(WithoutStand) 21.6Kg

GrossWeight(WithoutStand) 33.5Kg

Environmental Condition:

Item Specications

Temperature Operational 0~40°C

Storage -20~60°C

Humidity Operational 20~80%RH(Nocondensation)

Storage 5~95%RH(Nocondensation)

Altitude Operational 0~3,000m

Storage/Shipment 0~9,000m

Internal Speaker:

Item Specications

Type 1Way1Speaker

Input 10W(RMS)

Impedance 8Ω

OutputSoundPressure 82dB/W/M

FrequencyResponse 160Hz~13KHz

Philips and the Philips Shield Emblem are registered trademarks of

Koninklijke Philips N.V. and are used under license from

Koninklijke Philips N.V.

Specications are subject to change without notice.

Philips BDL4988XL/00 Video Wall Display

Product's Documents

User Manual

Specifications

Philips BDL4988XL/00 Questions and Answers

Related Products

Philips 55BDL4007X/00 Video Wall Display

Philips 55BDL1007X/00 Video Wall Display

Philips BDL5588XH/00 Video Wall Display

Philips 55BDL1005X/00 Video Wall Display

Philips BDL4677XH/00 Video Wall Display
