Operating Instructions
Model: GCMF220
2.5L Misting Fan
General Care and Safety Guide
Thank you for choosing this Goldair product. This Goldair appliance has been designed
and manufactured to high standards of engineering and with proper use and care, as
described in this leaflet, will give you years of useful service. Please read these
instructions carefully and keep them for future reference.
1. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
4. Ensure that the fan is switched off from the supply mains before removing the
guard.
5. Use only the voltage specified on the rating plate of the appliance.
6. Keep all objects at least 1 Metre from the front, sides and rear of the appliance
7. This appliance is intended for household use only and not for commercial or
industrial use.
8. Use this appliance only as described in this manual. Any other use is not
recommended by the manufacturer and may cause fire, electric shock or injury.
9. The common cause of overheating is deposits of dust or fluff in the appliance.
Ensure these deposits are removed regularly by unplugging the appliance and
vacuum cleaning the air vents and grills.
10. Always unplug appliance when not in use.
11. When the appliance has been unpacked, check it for transport damage and ensure
all parts have been delivered. If parts are missing or the appliance has been
damaged, contact the Goldair Customer Services Team.
12. If your appliance does not work, or is not working properly, contact the place of
purchase. Repair work on the appliance by unqualified persons can cause serious
risk to the user.
13. Ensure hands are dry before handling the plug or the main unit.
14. Carry out regular checks of the supply cord to ensure no damage is evident.
15. Ensure that the cord is fully extended (not coiled) while in use.
16. Avoid contact with the moving parts. Keep hands, hair, clothing, away from blade
of the fan during operation to reduce the risk of injury to person and/or damage
to the unit.
17. Switch off and use handles provided when moving.
18. It is recommended that this fan is plugged directly into the wall socket.
19. A correctly specified, undamaged extension cord may be used with this fan
provided it is used in a safe manner.
TECHNICAL SPECIFICATION
Model: GCMF220
Supply: 220-240VAC 50Hz
Wattage: 90W
General Care and Safety Guide
20. Never place appliance close to radiant heat source.
21. Never operate in areas where petrol, paint or other flammable liquids are used or
stored.
22. Never use the appliance to dry clothes.
23. Never insert or allow foreign objects to enter any ventilation or exhaust opening,
as this may cause an electric shock, fire or damage to the appliance.
24. Never use abrasive cleaning products on this appliance. Clean with a damp cloth
(not wet) rinsed in hot soapy water only. Always remove plug from the mains
supply before cleaning.
25. Never connect the appliance to mains supply until completely assembled and
adjusted.
26. Never remove plug from power socket until the appliance has been switched off.
27. Never remove plug from power socket by pulling cord – always grip plug.
28. Never twist, kink or wrap the cord around the appliance, as this may cause the
insulation to weaken and split. Always ensure that all cord has been removed from
any cord storage area and is unrolled before use.
29. Never use this appliance in the immediate surrounds of a bath, a shower, or a
swimming pool or other liquids. The appliance must not be immersed in any
liquids.
30. Due to the risk of injury, never use this appliance for any purpose other than its
intended use. This appliance is intended for use in household and similar
applications such as staff kitchen areas in shops, offices and other working
environments; farm houses, by clients in hotels, motels, bed and breakfast type
environments and other residential type environments
31. Never use this appliance outdoors.
32. Never operate the appliance with a damaged cord or plug, after it malfunctions, or
if it has been damaged in any manner. Have the appliance checked and repaired
by a qualified electrician if repair is necessary.
33. Never place the unit in wardrobes or other enclosed spaces as this may cause fire
hazards.
Remote control
• On/Off button
• Timer setting
• Misting setting
• Wind speed setting
• Front guard rotate setting
• Ion function on/off
Note: The function buttons on the remote
control work in the same way as the buttons on
the operating panel, with the exception of the
child lock and screen-off functions which are not
on the remote control.

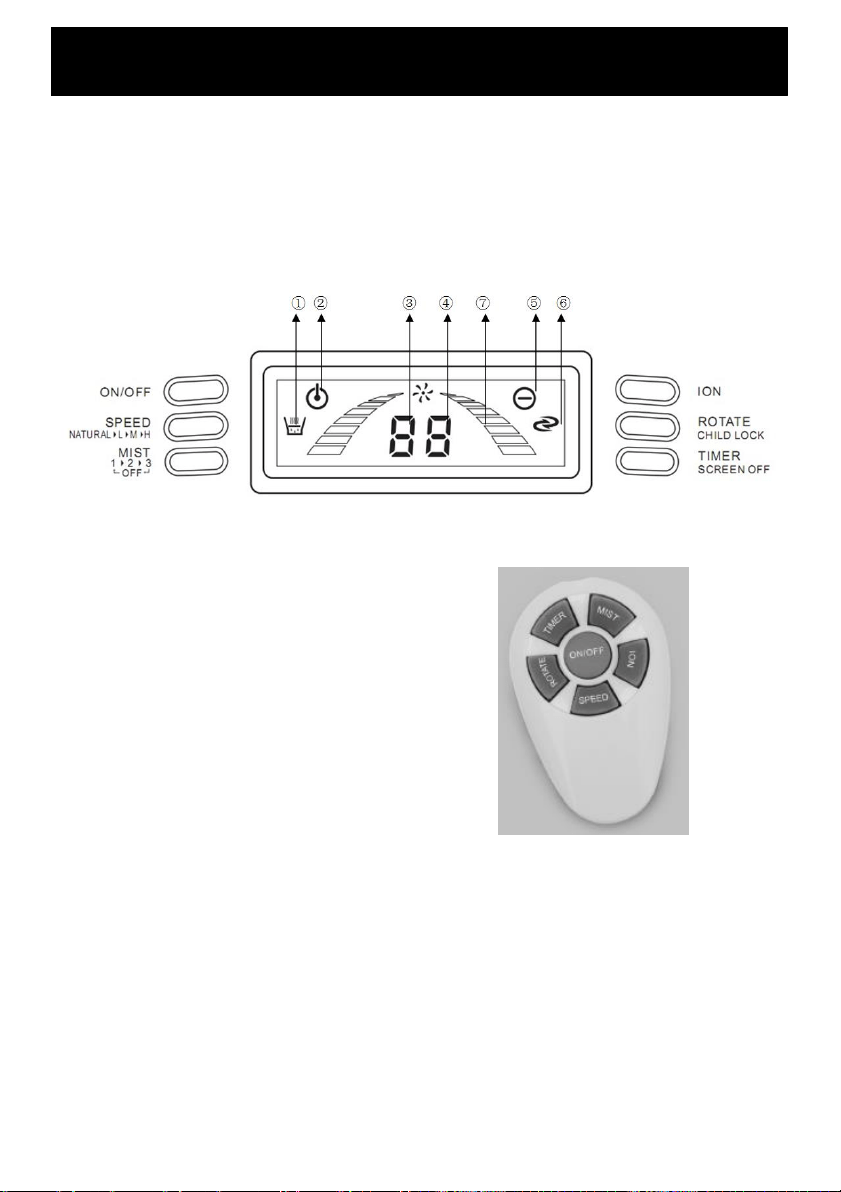

Display Screen Icons
1. Misting icon
2. Power on icon
3. Wind speed icon
4. Timer icon
5. Ion function icon
6. Rotation icon
7. Fan function icon
Buttons on the panel
• On/Off button
• Wind speed button
• Misting button
• Ion function button
• Rotate /Child lock function button
• Timer/Screen Off button
Components
Misting function: Using high frequency vibration (Frequency 1.7 MHz or 2.4MHz, which is
inaudible and poses no harm to the human body) the ceramic misting plate breaks up the water
droplets, creating an elegant dry mist, without the need to heat or add any chemical agent.
Photocatalyst function: The blue piece at the base of the fan bottom houses the photocatalyst.
A light powered air purifier, it can decompose noxious gases, inorganic compounds, inhibit the
growth of the bacteria and the activity of viruses in order to supply fresh air.
Ionizer function: Negative ions can refresh the air by neutralising positive ions. Air pollution is
made up of many positive ions (solid particles, bacteria and chemical fog). When they combine,
the positive and negative ions attract which can make the pollutants drop out of the air.

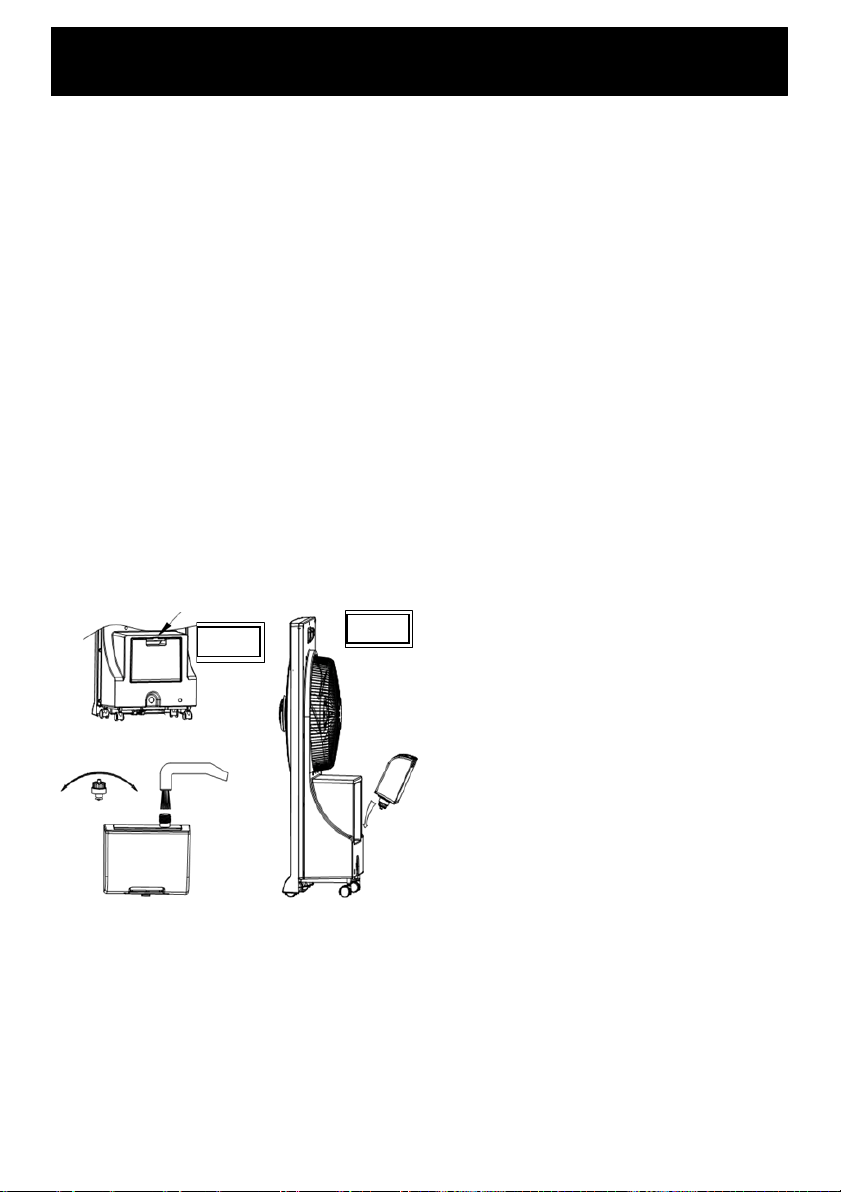

Filling the water tank
Press the water tank handle button to take out the water tank.
(Please refer to picture 1).
Fill the water tank with water, then place the water tank back in the machine. Ensure that the
water tank has been securely fastened to the back cover.
(Please refer to picture 2).
Pic 1
Pic 2
Operating your Fan
This unit features four functions: Misting fan, Photo catalyzer, Ionizer and Box fan in one. You
can use these functions at the same time or separately.
Place the fan on a dry, level and sturdy surface.
Ensure the unit is OFF. Plug the power cord into the socket, you will hear a beep sound, and the
power icon will illuminate on the screen.
ON/OFF
To operate the fan, press the On/Off Button. The fan will start in Natural Wind mode, and the fan
function icon will illuminate on the screen. The screen will display the set speed (speed 1).
The Natural Wind mode means that the fan will run for 2 seconds then stop for 3 seconds.
Each press of the on/off button will circulate through Natural-Normal-Off.
FAN SPEED
By pressing the SPEED button, the fan speed will change to normal wind mode (out of Natural
mode, and operate in speed 2), and the screen will display at 2.
Each press of the speed button will now circulate through Mid-High-Off-Low fan speeds.
MIST
Press the MIST button to start the misting function, the misting icon will illuminate.
The misting function works in three modes:
Mode 1: Continuous misting.
Mode 2: Misting function operates for 3 minutes then stops for 5 minutes.
Mode 3: Misting function operates for 5 minutes then stops for 10 minutes.
Each press of the Mist button will circulate through 1-2-3-Off modes.
The mist function operates separately from the fan function, so you can use it as humidifier.
ION
Press the ION button to start the Ion function, Ion function icon will illuminate on the screen.
Press it again to turn the function off.
ROTATE/CHILD LOC
While the fan function is operating at speed most comfortable to you press the ROTATE button to
start the oscillating louvre. The rotation icon will illuminate on the screen.
Press the button again to switch the oscillation off.
NOTE: When the fan function is off, the oscillating louvre will not operate.
Press and hold the ROTATE key for 3 seconds to activate the CHILD LOCK function. In this function
the buttons can be pressed without any changes being made to the settings.
Press and hold again for 3 seconds to cancel CHILD LOCK. The CHILD LOCK function can only be
used when the fan is on.
TIMER
To set the timer, turn the unit on at the desired speed, press the timer button until the desired
run time is illuminated.
Each press of the Timer button will increase the hours from 1-9, in 1 hour increments before the
unit switches off.
Always choose a safe location for the fan, keeping in mind the safety precautions outlined.
Ensure all packaging has been removed from the unit before use. This appliance requires no
installation, it should be used solely as a portable appliance.
Operating your Fan
Cleaning and Maintenance
To avoid risk of electric shock, before cleaning, you MUST ALWAYS switch off and unplug the Fan.
Cleaning the Main Unit
Use only a soft, damp cloth to gently wipe the Fan and dry well.
DO NOT immerse the Fan in water and never allow water to enter the motor housing.
DO NOT use harsh chemicals to clean the Fan.

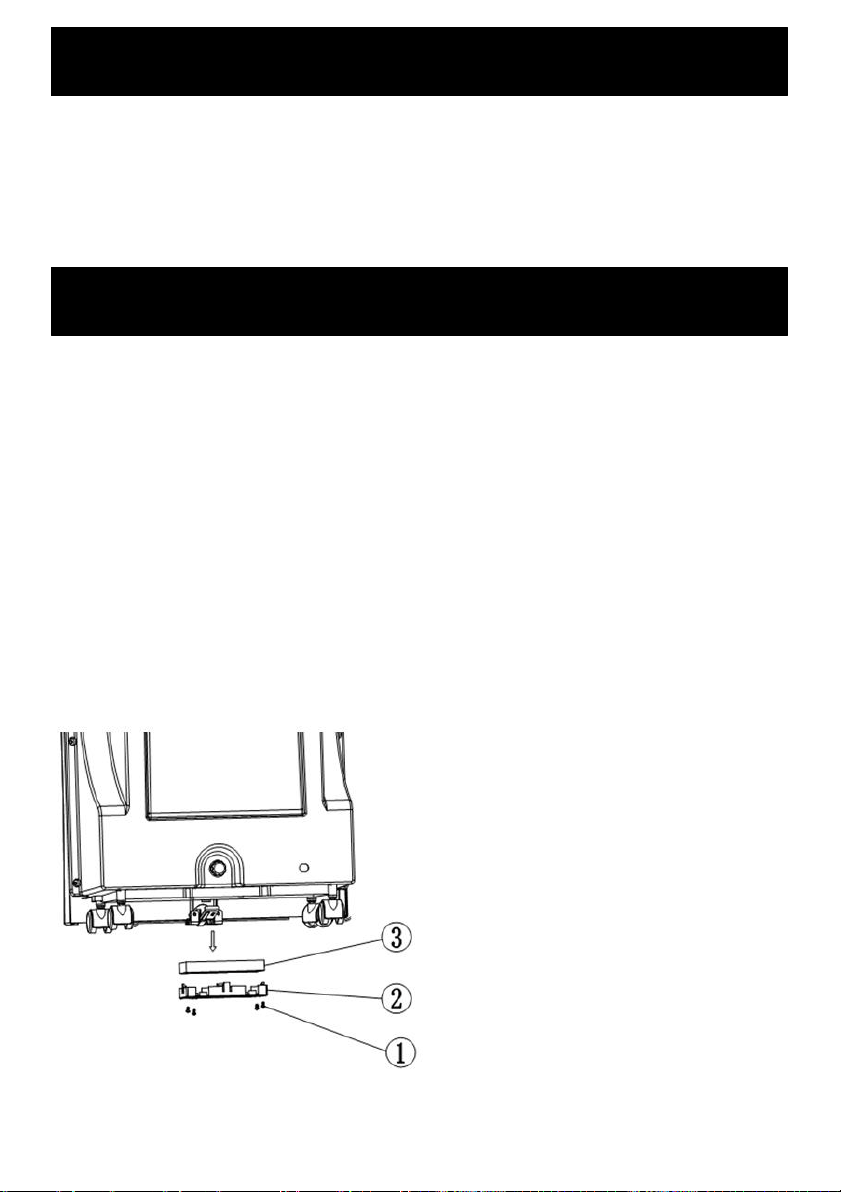

Cleaning the photocatalyst
Remove the 4 screws ① on the bottom box securing this item.
Take off the photocatalyst housing ②.
Remove photocatalyst ③.
Use only a soft, damp cloth to gently wipe the photocatalyst and holder, and dry well.
Re-install all these parts.
It is recommended that the Photocatalyst is cleaned monthly.
Storage:
When not in use put the machine into the box and store it in a dry place with good air circulation.
Operating your Fan
SLEEP
Press and hold the TIMER button for 3 seconds to turn the screen light off, the screen will not
illuminate, but the fan will continue to run. This is designed to avoid excess light when you sleep.
Press it again for 3 seconds to illuminate the screen.
Cleaning and Maintenance

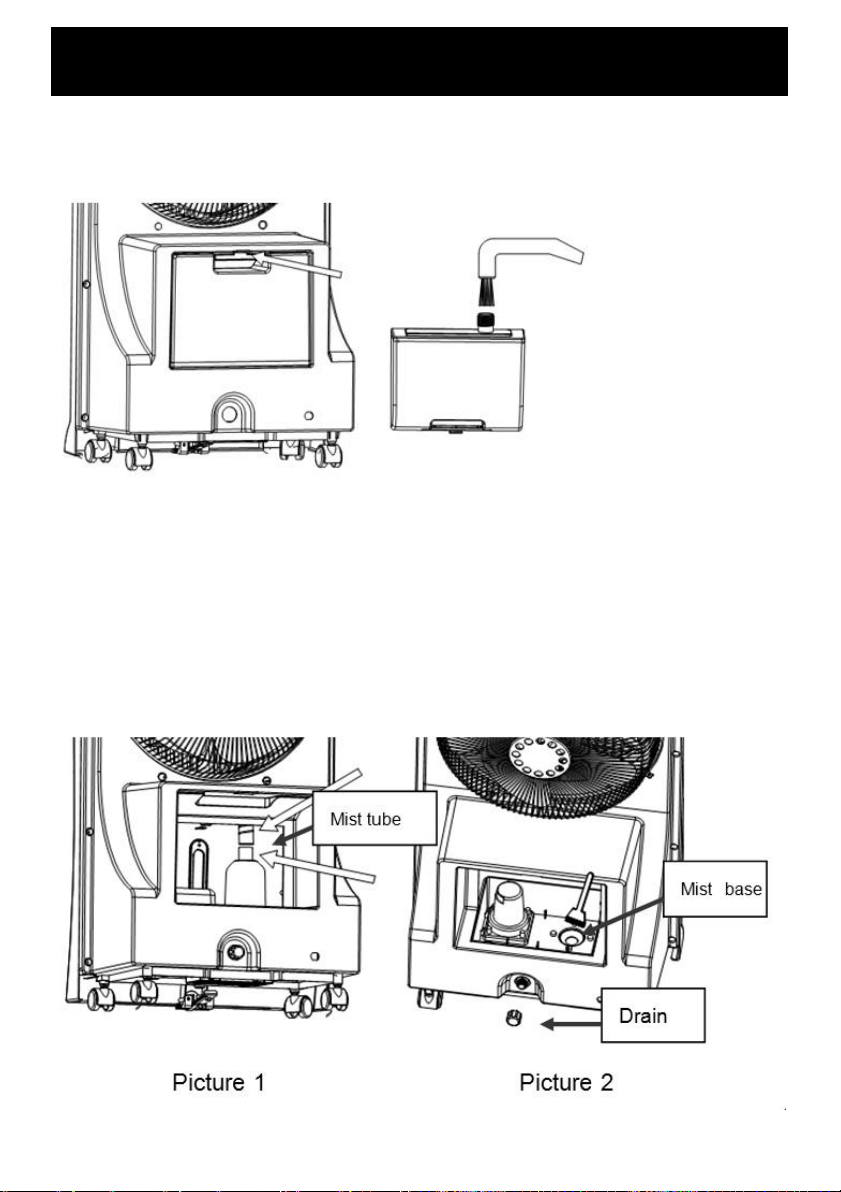

Cleaning water tank
Take out the water tank and rinse with clean water, then pour out the water and wipe the tank
with a clean cloth.
Cleaning misting box and cover
Pull out the mist tube from the mist box cover, then take out the mist box and wipe it with a
clean cloth (see picture 1).
Remove the scale on the mist plate and mist box with a soft brush, then flush with clean water.
Drain the water and dry it with a clean cloth. (See picture1）
It is recommended that the water tank and the misting box is cleaned once a fortnight.
Cleaning and Maintenance
Cleaning the misting plate
Ensure that the fan is switched off from the supply mains before
removing the guard.
Pull out the decorative ring on the misting plate ①.
Remove the 3 screws from the cover ②.
Pull out the misting plate cover ③.
Remove the 2 screws from the misting
plate base ⑤.
Pull out the misting plate base ⑥.
Pull out the front air louvre ⑦.
Clean each component with a soft cloth and re-assemble.
It is recommended that the misting plate is cleaned once a month.

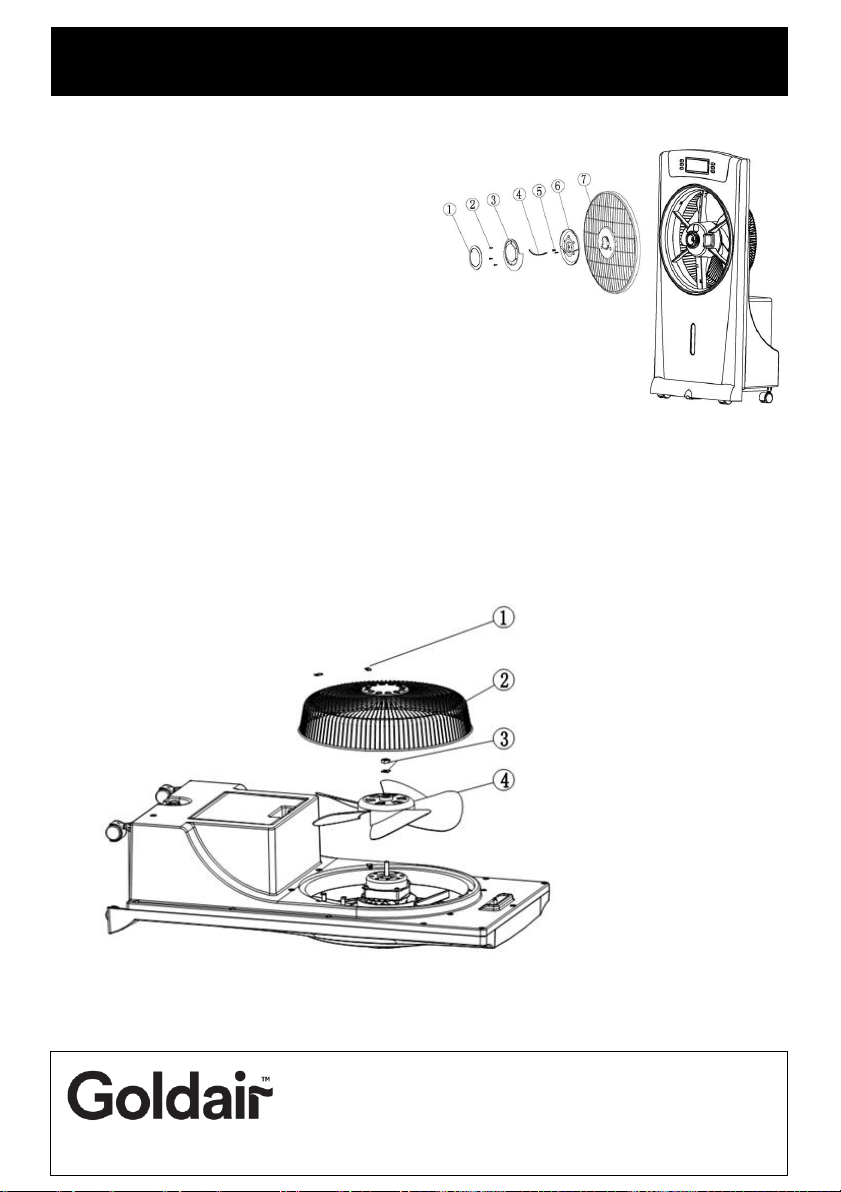

Cleaning the fan blade and back guard
Remove both screws ① on the back guard ②, and take the net clip off.
Take the back guard off.
Remove the nut and nut washer from the
motor axle ③.
Take the fan blade ④ off.
Clean each component with a soft cloth and re-assemble.
Goldair – New Zealand
Monday – Friday 8am-5pm
Phone +64 (0)9 917 4000
Phone 0800 232 633
Goldair – Australia
Monday – Friday 8am-5pm
Phone +61 (0)3 9365 5100
Phone 1300 465 324
SUPPORT AND TECHNICAL ADVICE
PROOF OF PURCHASE
To receive warranty retain receipt as proof of purchase. (Refer to back of booklet).
Thank you for purchasing this Goldair product. Your product is warranted against faults and manufacture when used in
normal domestic use for a period of one year. In non-domestic use Goldair limits the voluntary warranty to three
months.
Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault
during the warranty period.
This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work carried out
by anyone other than a qualified electrical service technician.
PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.
The benefits to you given by this warranty are in addition to other rights and remedies available to you under a law in
relation to the goods or services to which this warranty relates.
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).
One Year Warranty
Goldair One Year Warranty (IMPORTANT: Please complete and retain this warranty card)
Name
Address
Place Of Purchase Date of Purchase
Name Of Product Model Number
Attach a copy of the purchase receipt to this warranty card
Due to continual design improvements, the product illustrated in this User Manual may differ slightly from the actual product.
Goldair – New Zealand
CDB Goldair
PO Box 100-707
N.S.M.C
Auckland, 0745
Phone +64 (0)9 917 4000
Phone 0800 232 633
www.goldair.co.nz
Goldair – Australia
CDB Goldair Australia Pty
PO Box 574
South Morang
Victoria, 3752
Phone +61 (0)3 9365 5100
Phone 1300 GOLDAIR (1300 465 324)
www.goldair.com.au
New Zealand
PO Box 100707,
North Shore Mail Centre,
Auckland, 0745
www.goldair.co.nz
Australia
PO Box 574,
South Morang,
Victoria, 3752
www.goldair.com.au
