CRITICAL DIMENSIONS
NOTES:
• Care should be taken in location of electrical supply
entry in relationship to wall sleeve to ensure access
to power once the unit is installed.
• If the case is installed with any appreciable
projection (1” or greater) into the room, an insulation
kit (RAK901L) is available to minimize the formation
of condensation on the case.
31-30780-1 08-16 GEA
NOTES:

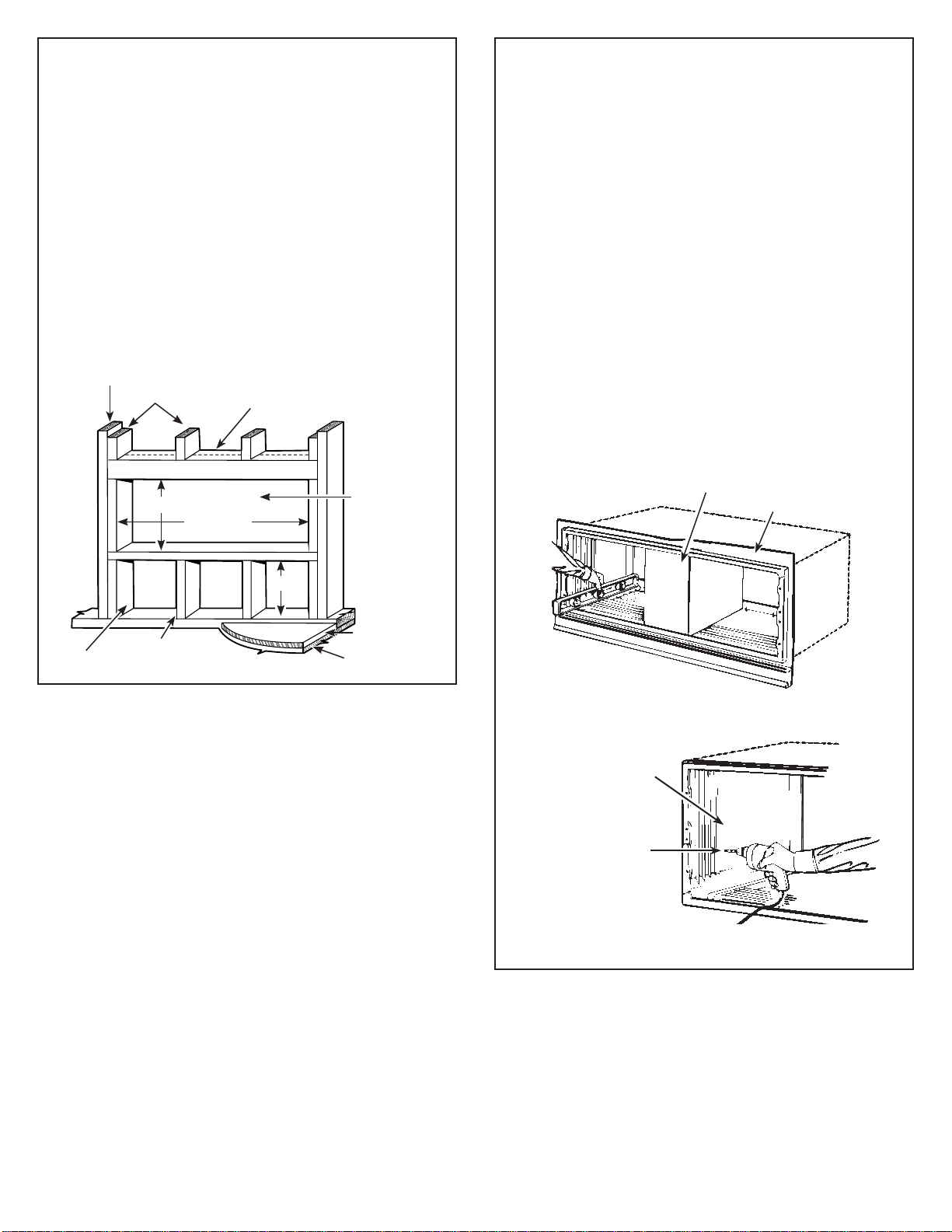

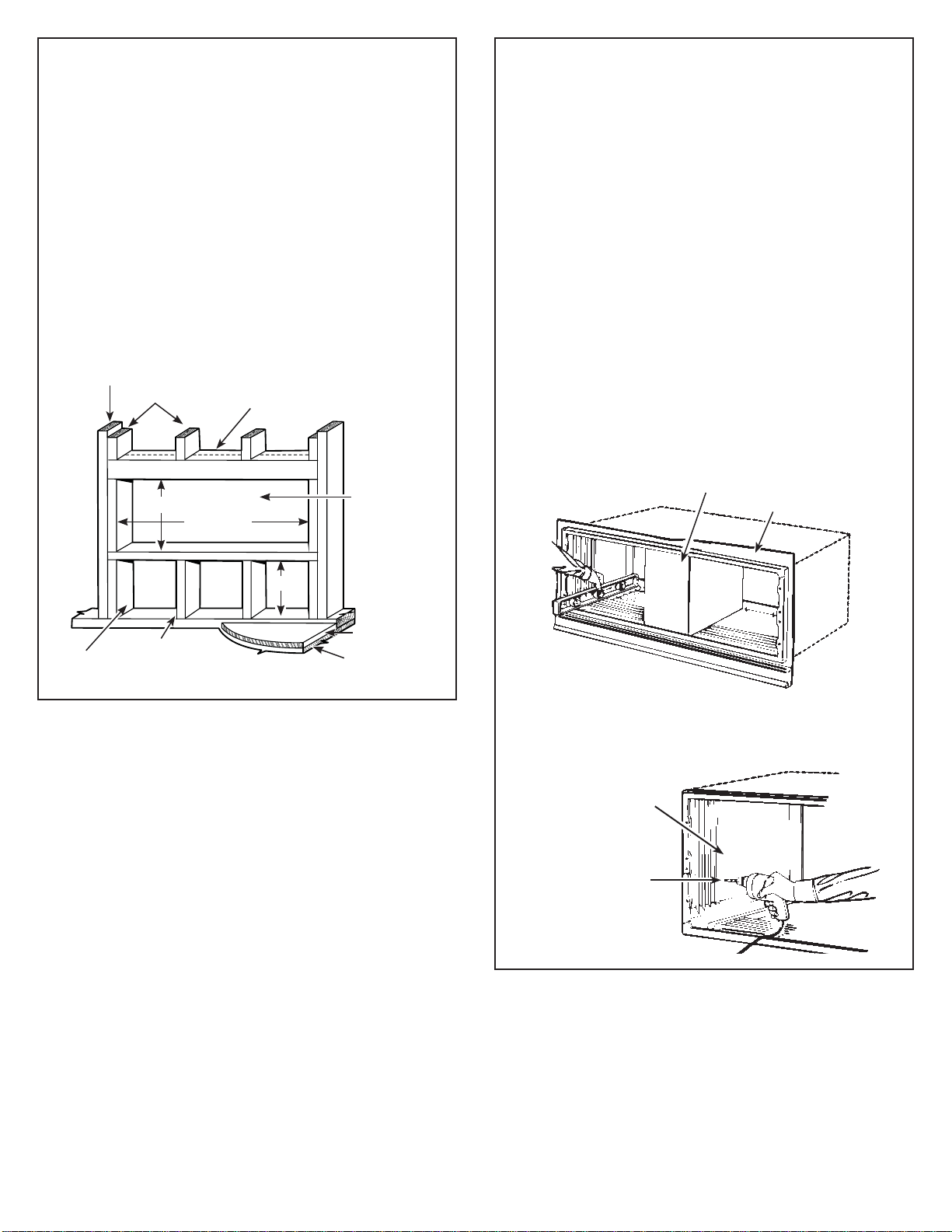

• Handle the case carefully.
• The cardboard stiffener inside the case, and the rear
protective panel must remain in place until the chassis is
installed to assure case rigidity and squareness.
• If a sub-base is to be used, it may be desirable to
assemble it to the case before securing case to the
wall.

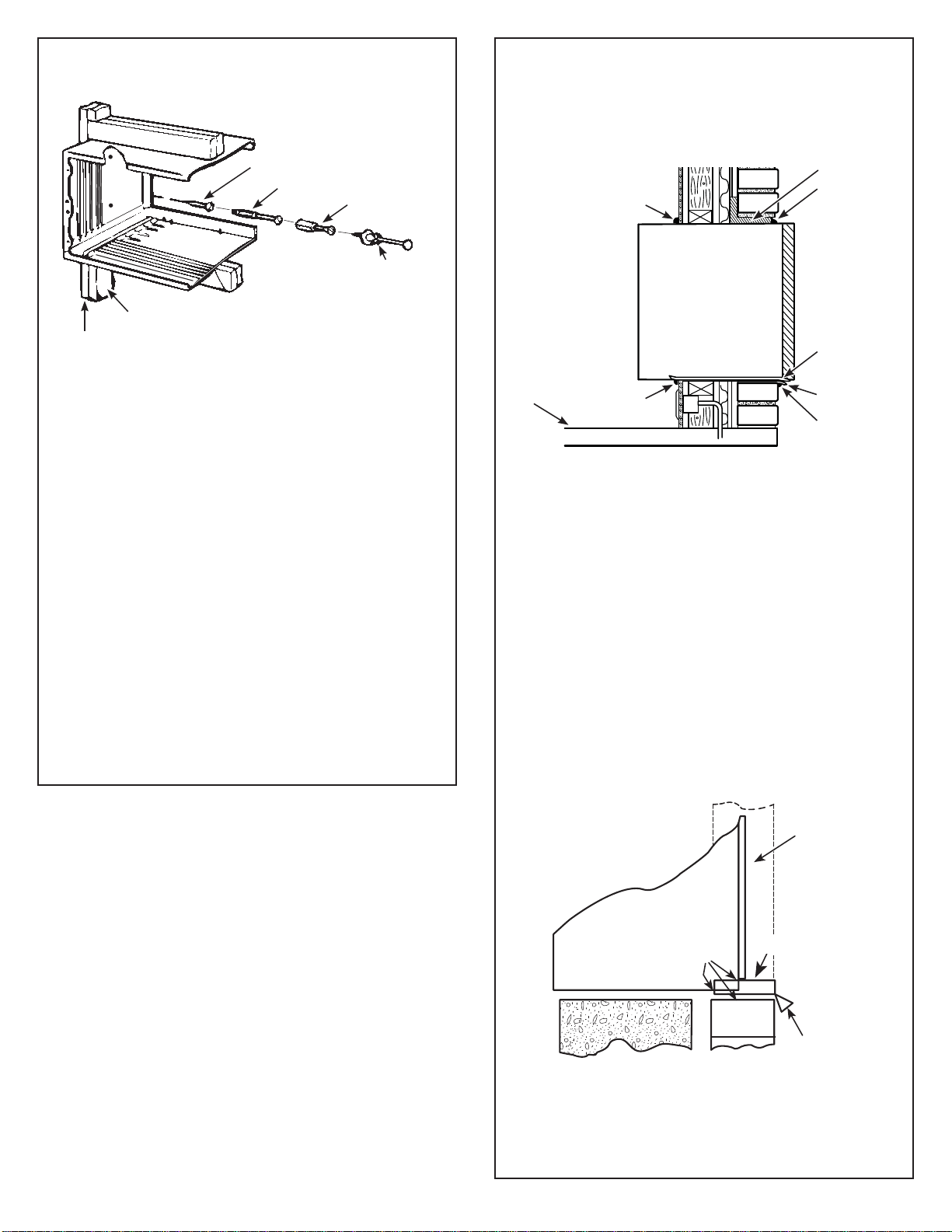

CASE LOCATION
As a general rule the air conditioner should
be located in an outside wall to ensure proper
distribution of conditioned air. It should be located
in a portion of the wall where there is no electrical
wiring or plumbing, and where there are no
obstructions immediately inside or outside.
For further details, refer to the GE Architects & Engineers Design Data Manual for Zonelines. To obtain a copy
of that manual, call the GE Answer Center
®
at 800.626.2000 or visit us at www.Zoneline.com.
Ceiling
“A”
“B”
“C”
Roomside
Outside wall
“D”
Finished floor or top of carpet
Printed in the United States
RECOMMENDED
DIMENSIONS INSTALLATION CLEARANCE
A 7RSRIFDVHWRILQLVKHGFHLOLQJ²ƎPLQ
B Projection of case into room—
ƎPLQQRVXEEDVH
2
3
»8ƎPLQZKHQVXEEDVHLVXVHG
,IPRUHWKDQƎRIWKHFDVHSURMHFWV
into the room, a sub-base or other
support is recommended.
C 3URMHFWLRQRIFDVHWRRXWVLGH²ƎPLQ
D Height above finished floor or
top of carpet—
ƎPLQZLWKRXWVXEEDVH
ƎPLQZLWKVXEEDVH
E Left/Right side of case to adjacent
ZDOO²ƎPLQ
Installation Instructions
for your new
Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner’s Manual for future reference.
RAB77B
Room Air Conditioner Case
for AZ Series Zoneline Models
Only
Top of case
Outside wall
“E” “E”
INSTALL CASE LEVEL IN ALL DIRECTIONS
