FEATURES
• Form-tted to attach to the Nintendo Switch Lite
• Intelligently designed to extend battery life
• Built-in stand to aid in hands-free operation
• 5,000 mAh Lithium battery capacity for extended playing time
• Wrap-around design to keep your Switch Lite safe
• Cutouts for ventilation ensures necessary airow
• LED indicator lights to show current battery level
CAUTION
• Read these instructions.
• To preserve battery lifespan, fully recharge at least once every four months.
• Replacement of a battery with an incorrect type will defeat the safeguards.
• WARNING: Disposal of a battery into re or a hot oven, or mechanically crushing or cutting of a
battery, can result in an explosion.
• WARNING: Leaving a battery in an extremely high temperature surrounding environment can
result in an explosion or the leakage of ammable liquid or gas.
• WARNING: A battery subjected to extremely low air pressure (altitudes above 6500 ft. [2000 m])
may result in an explosion or the leakage of ammable liquid or gas.
• Exceeding the operating or storage temperatures stated in the specications could result in
damage to your battery pack.

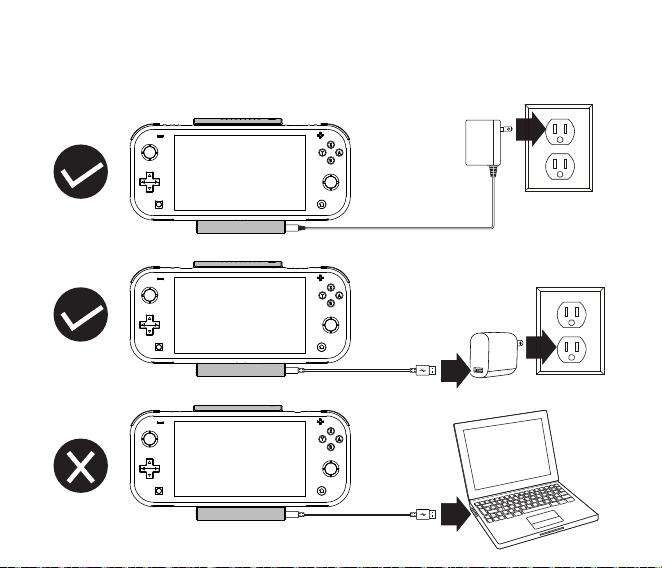

CHARGING YOUR BATTERY PACK
1 Plug in the USB Type-C charging cable (included) into a USB wall charger
(not included).
Note: For optimal charging speed, use the Nintendo Switch Lite’s AC adapter (not
included). Using a charger without the Power Delivery feature may result in
charging times over ve hours.
2 Plug the small end of the cable into the USB Type-C port on the side of
the battery pack.
The LED indicator light should start blinking to indicate it is charging.
Each LED represents 33% of the battery charge. When all lights are on
and not blinking, it is fully charged.
Note: The indicator light only indicates the battery pack’s charge level. If you want
to check the battery level of the Switch Lite, check the built-in charging icon on
the top left of the Switch Lite screen while in the home screen.

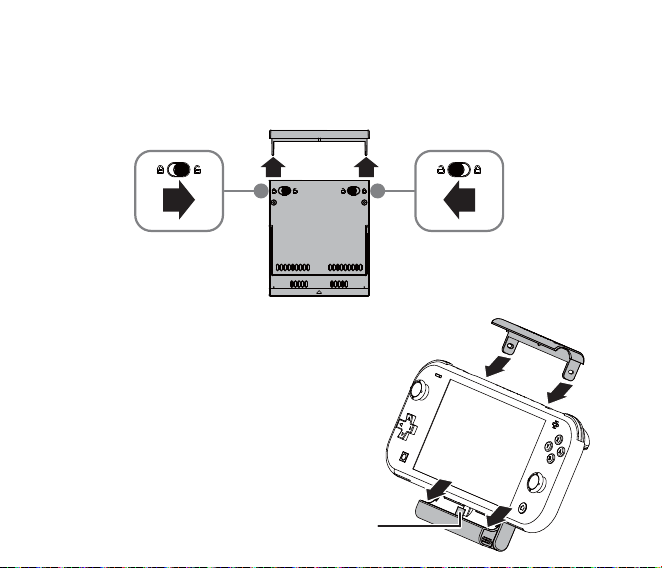

To install the battery pack:
1 Locate the two sliding switches on the back of the battery pack, then
slide the locking switches to the unlock state and remove the top piece
of the battery pack.
2 Carefully slide your Switch Lite onto the
battery pack. Make sure that you have
the USB Type-C port lined up properly to
the Switch Lite charging port.
QUICK SETUP GUIDE
Extended Play
Battery Pack
NS-GNSMB
PACKAGE CONTENTS
• Extended Play Battery Pack
• Battery stand
• USB Type-C charging cable
• Quick Setup Guide
Before using your new product, please read these instructions to prevent any damage.
3 Replace the top piece of the battery pack, then slide the locking
switches to the locked state.
USB Type-C port
LED indicator
lights
