Sony KP-65WS510 65" 16:9 Hiscan Projection Television User Manual

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

WARNING

To prevent fire or shock hazard, do not

expose the projection TV to rain or

moisture.

This symbol is intended to alert the user to the

presence of uninsulated “dangerous voltage”

within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of

electric shock to persons.

This symbol is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

CAUTION

To prevent electric shock, do not use this polarized AC

plug with an extension cord, receptacle or other outlet

unless the blades can be fully inserted to prevent blade

exposure.

CAUTION

When using TV games, computers, and

similar products with your projection TV,

or viewing a TV station whose logo

always stays on the screen, keep the

brightness and picture functions at low

settings. If a fixed (non-moving) pattern

such as a station logo is left on the

screen for long periods of time, especially

at a high brightness or picture setting, the

image can be permanently imprinted onto

the screen. These types of imprints are

not covered by your warranty.

Note on Caption Vision

This television receiver provides display of television

closed captioning in accordance with §15.119 of the FCC

rules.

Note on convergence adjustment

Before you use your projection TV, make sure to adjust

convergence. For details, see “Adjusting the Convergence

Automatically – FLASH FOCUS™ –” on page 33.

Note to CATV system installer

This reminder is provided to call the CATV system

installer’s attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be

connected to the grounding system of the building, as

close to the point of cable entry as practical.

Use of this television receiver for other than private

viewing of programs broadcast on UHF, VHF,

transmitted by cable companies or satellite for the use of

the general public may require authorization from the

broadcaster/cable company and/or program owner.

NOTIFICATION

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses,

and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions,

may cause harmful interference with radio

communications. However, there is no guarantee that

interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio

or television reception, which can be determined by

turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the

following measures:

Owner’s Record

The model and serial numbers are located at the rear

of the projection TV, below the Sony logo, on the

sticker, and also on the TV box (white label). Record

these numbers in the spaces provided below. Refer to

them whenever you call upon your Sony dealer

regarding this product.

Model No.

Serial No._______________________

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION

RISQUE DE CHOC ELECTRIQUE,

NE PAS OUVRIR

PRECAUCION

RIESGO DE CHOQUE ELECTRICO

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER

(

OR BACK

)

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

NO ABRIR

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

❑ Reorient or relocate the receiving antenna.

❑ Increase the separation between the equipment and

receiver.

❑ Connect the equipment into an outlet on a circuit

different from that to which the receiver is

connected.

❑ Consult the dealer or an experienced radio/TV

technician for help.

CAUTION

How to reduce the risk of “Image

Retention” on your Projection TV

Bright, stationary images such as TV station logos

displayed on your TV can cause permanent damage to

your TV, resulting in retention of the image in the picture.

Please take the following steps to reduce the risk of

causing image retention:

View a variety of program sources or programming

material.

Image retention can occur when bright stationary images

such as TV station logos are viewed. Changing the

program material viewed reduces the possibility that a

single image will become imprinted on the picture tubes

in your TV.

When viewing programs with stationary images, adjust

the picture setting to reduce the “Picture” and

“Brightness” levels. Image retention is accelerated by

higher “Brightness” and higher “Picture” settings.

Please refer to your instruction manual for instructions on

adjusting picture settings.

This will help you reduce the risk of causing image

retention.

IMAGE RETENTION IS NOT COVERED BY

YOUR WARRANTY

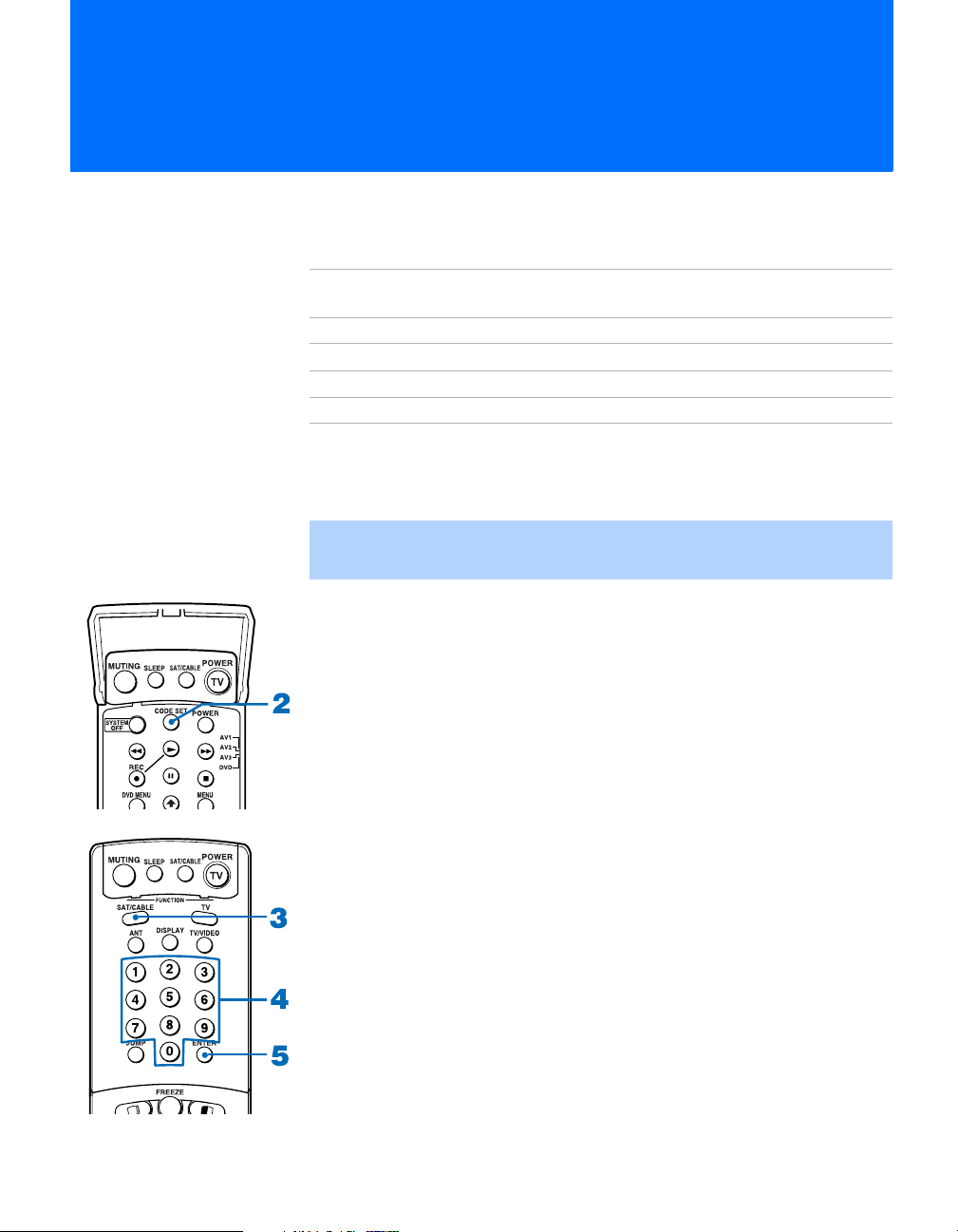

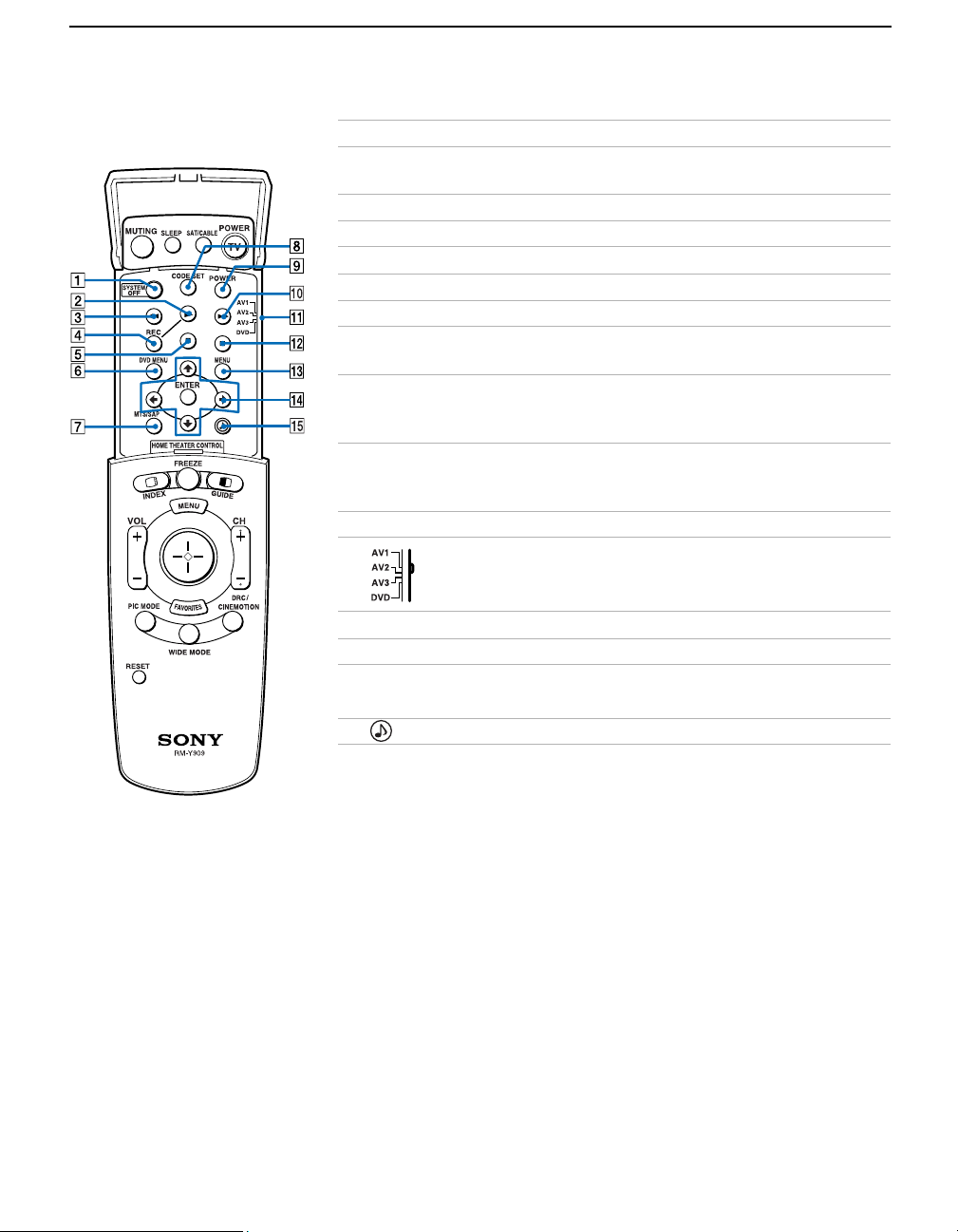

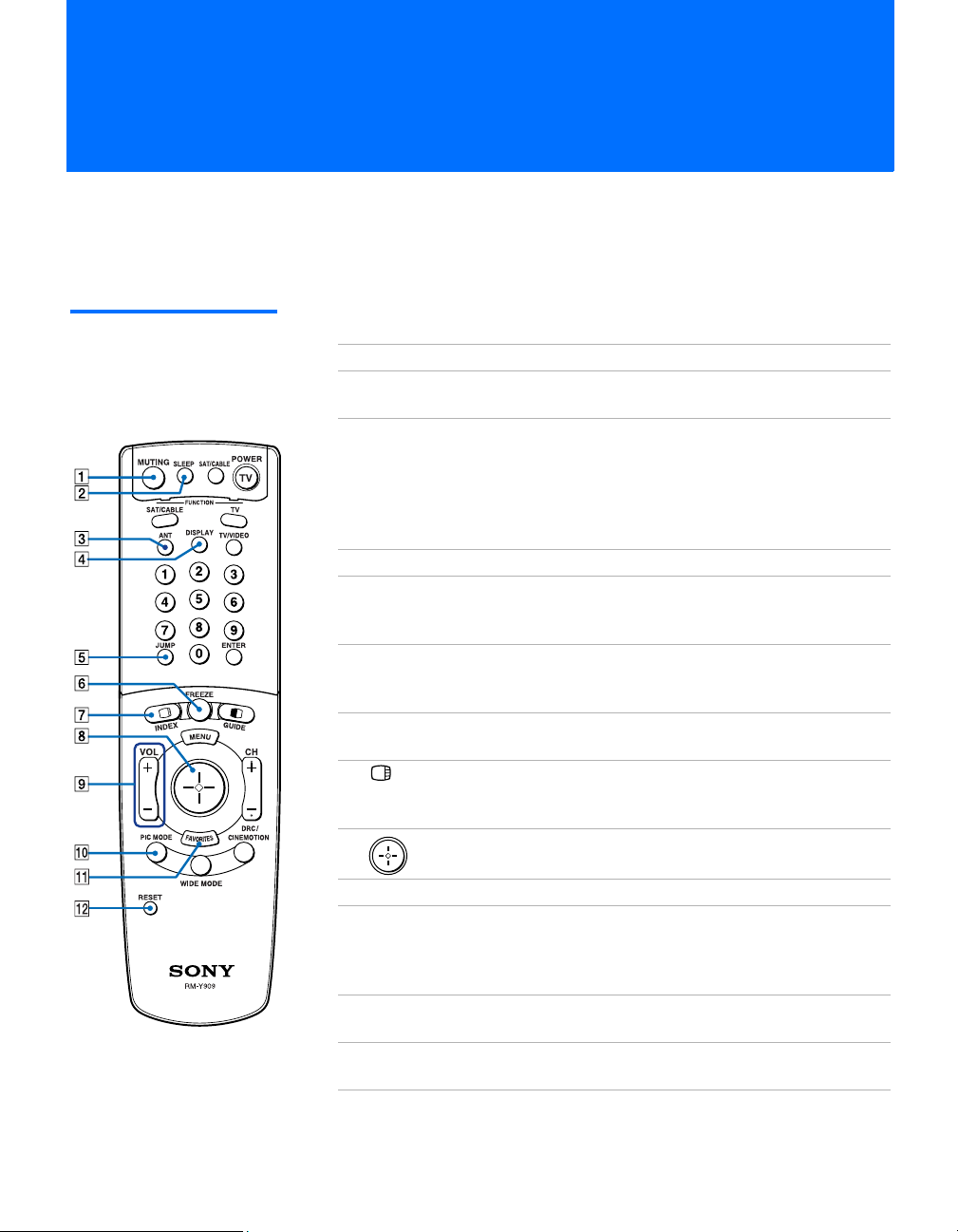

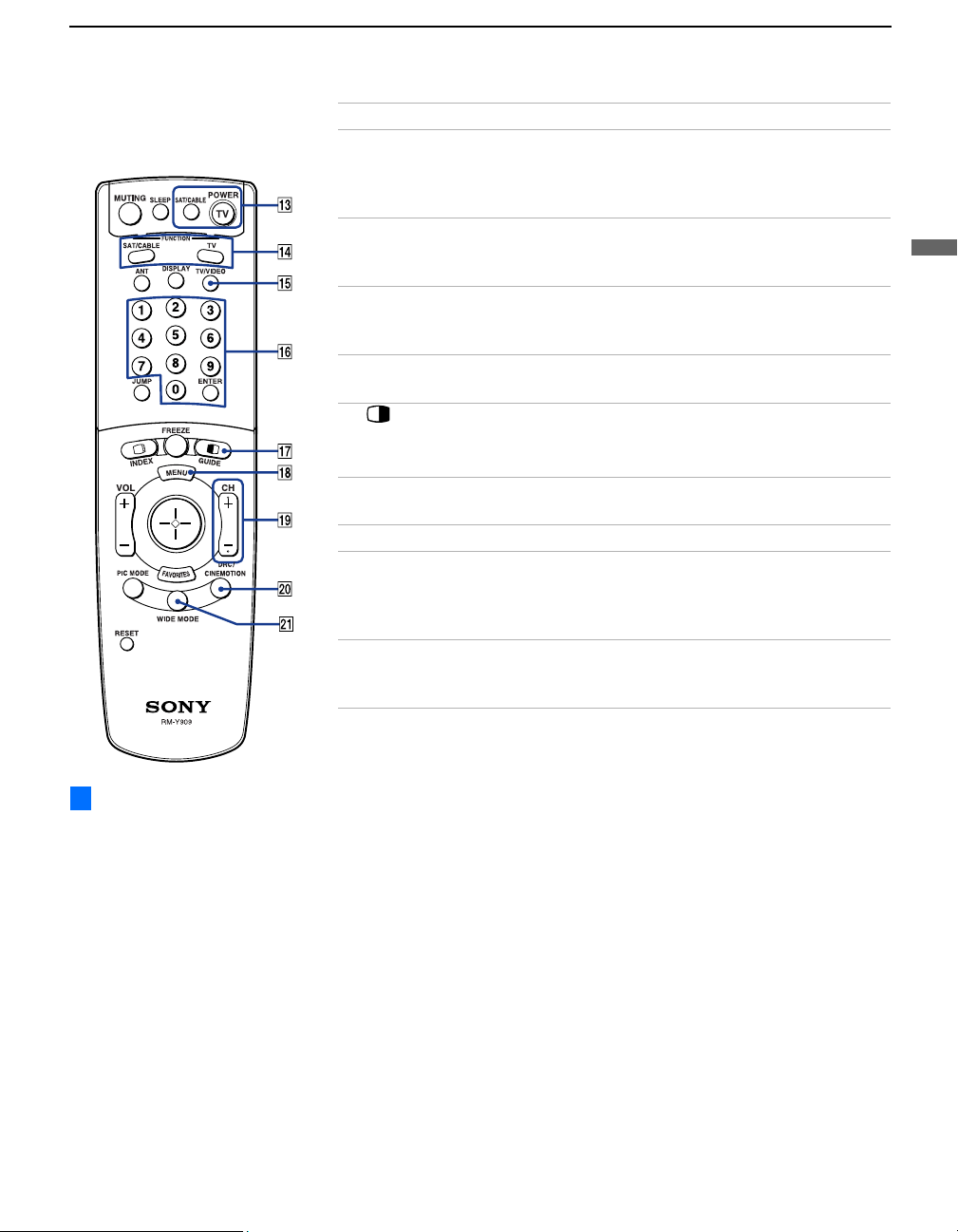

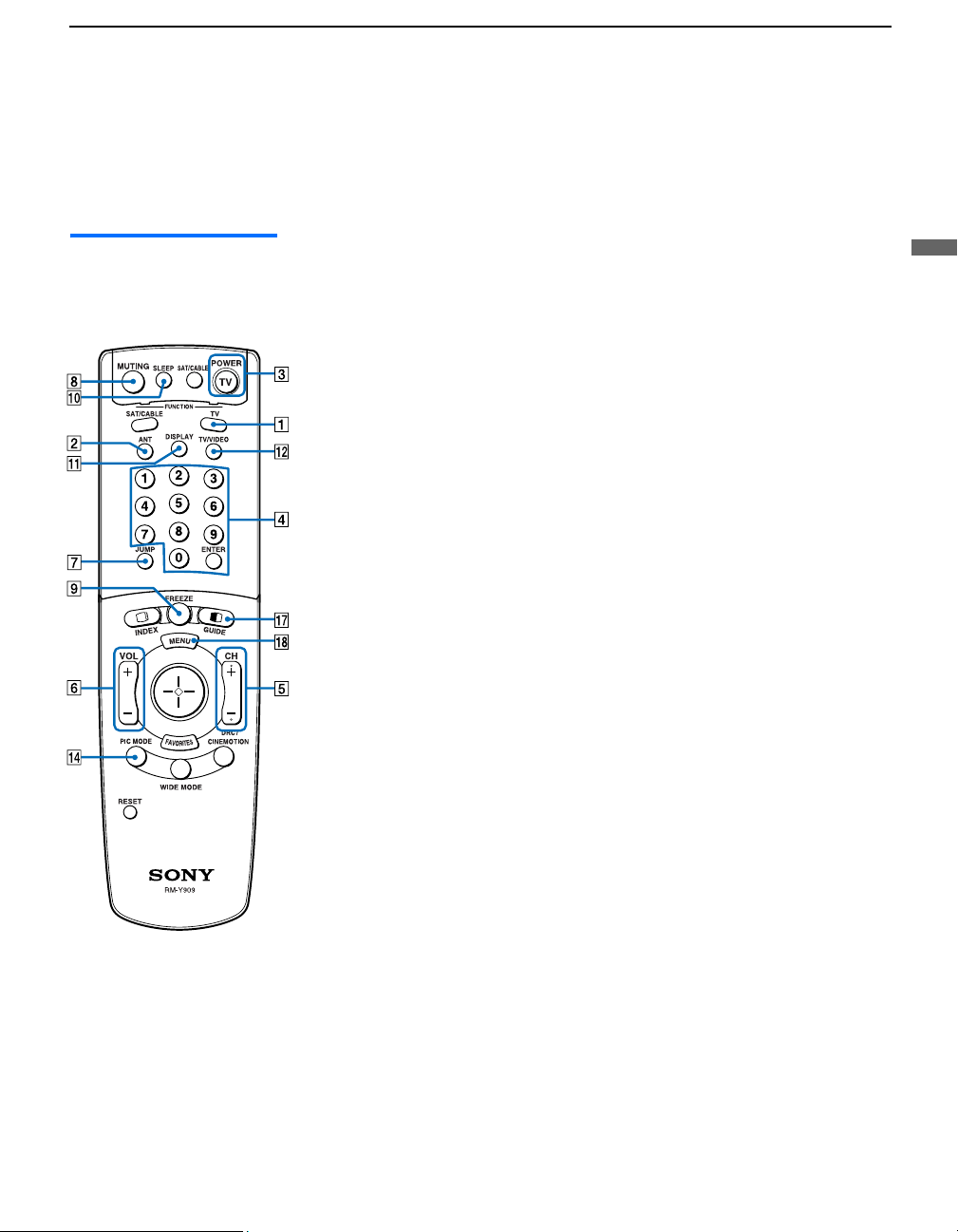

This document is for the remote control RM-Y909.

MODELS: KP-46WT510, KP-51WS510, KP-57WS510,

and KP-65WS510.

Please keep this notice with the instruction manual.

Safety

❑ Operate the projection TV only on 120 V AC.

❑ The plug is designed, for safety purposes, to fit into

the wall outlet only one way. If you are unable to

insert the plug fully into the outlet, contact your

dealer.

❑ If any liquid or solid object should fall inside the

cabinet, unplug the projection TV immediately and

have it checked by qualified service personnel

before operating it further.

❑ If you will not be using the projection TV for several

days, disconnect the power by pulling the plug itself.

Never pull on the cord.

For details concerning safety precautions, see

“IMPORTANT SAFEGUARDS” on page 3.

Installing

❑ To prevent internal heat buildup, do not block the

ventilation openings.

❑ Do not install the projection TV in a hot or humid

place, or in a place subject to excessive dust or

mechanical vibration.

❑ Avoid operating the projection TV at temperatures

below 5°C (41°F).

❑ If the projection TV is transported directly from a

cold to a warm location, or if the room temperature

changes suddenly, the picture may be blurred or

show poor color due to moisture condensation. In

this case, please wait a few hours to let the moisture

evaporate before turning on the projection TV.

❑ To obtain the best picture, do not expose the screen

to direct illumination or direct sunlight. It is

recommended to use spot lighting directed down

from the ceiling or to cover the windows that face

the screen with opaque drapery. It is desirable to

install the projection TV in a room where the floor

and walls are not of a reflective material.

Trademark Information

TruSurround, SRS and symbol are trademarks of

SRS Labs, Inc. TruSurround technology is incorporated

under license from SRS Labs, Inc.

BBE and BBE Symbol are trademarks of BBE Sound,

Inc. and are licensed by BBE Sound, Inc. under U.S.

Patent No. 4,638,258 and 4,482,866.

Steady Sound, Digital Reality Creation, Caption

Vision, CineMotion, Memory Stick, and Twin View

are registered trademarks of Sony Corporation.

ClearEdge VM and HD Detailer are trademarks of

Sony Corporation.

You are cautioned that any changes or

modifications not expressly approved in

this manual could void your warranty and

your authority to operate this equipment.

As an ENERGY STAR

Partner,

Sony Corporation has determined

that this product meets the

ENERGY STAR

guidelines for

energy efficiency.

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

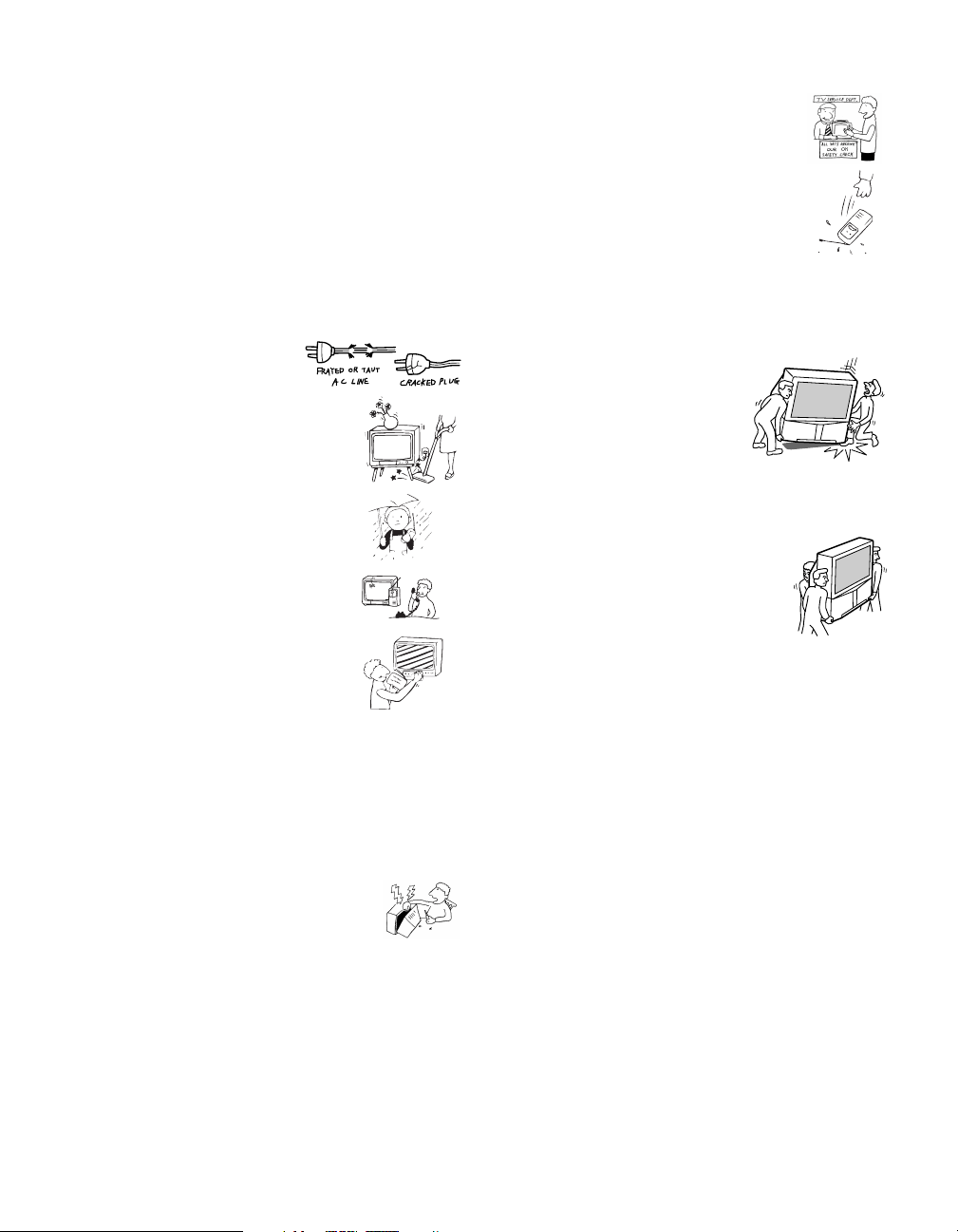

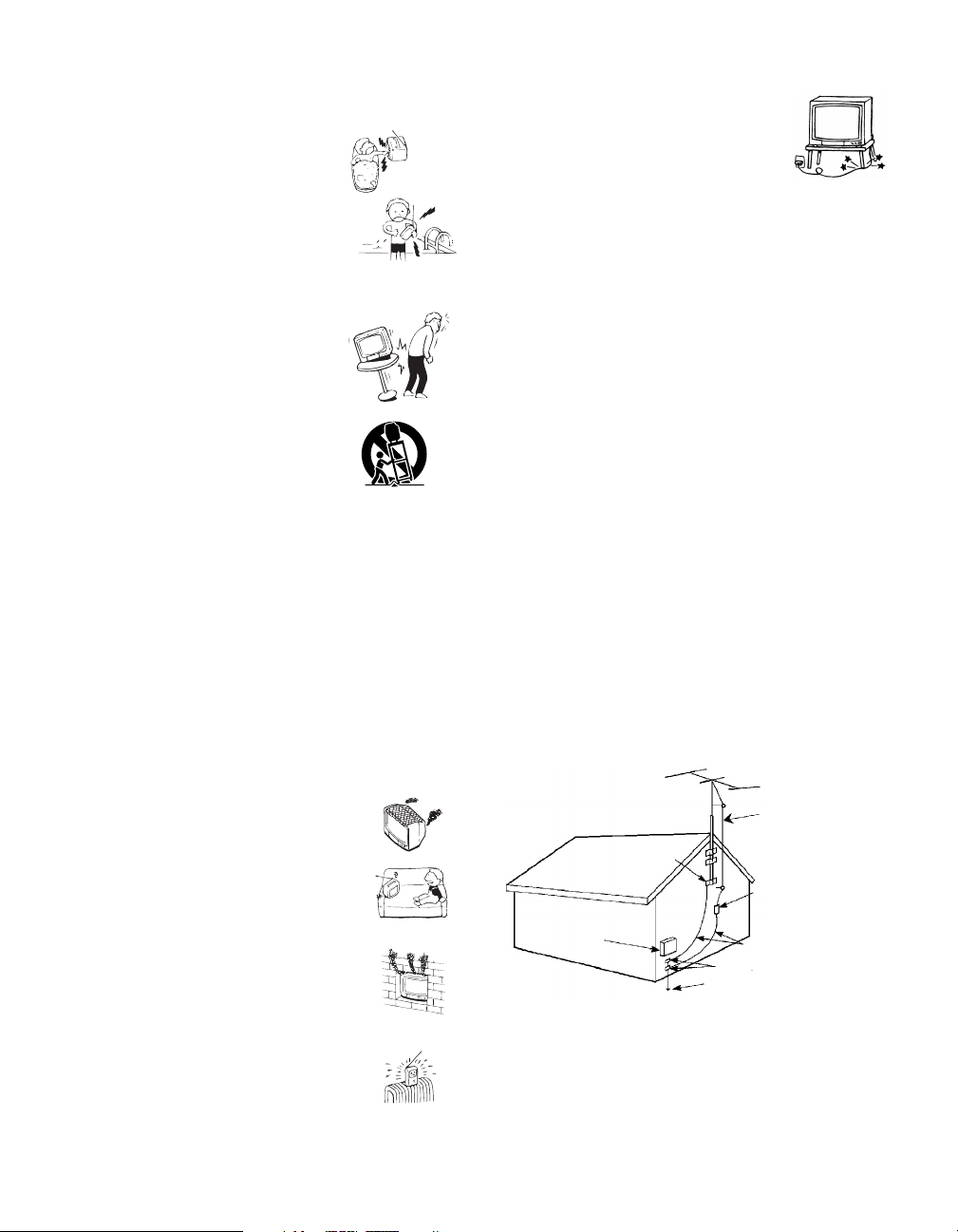

IMPORTANT SAFEGUARDS

For your protection, please read these instructions

completely, and keep this manual for future reference.

Carefully observe and comply with all warnings, cautions

and instructions placed on the set or described in the

operating instructions or service manual.

WARNING

To guard against injury, the following basic safety

precautions should be observed in the installation, use

and servicing of the set.

Use

Power Sources

This set should be operated only from

the type of power source indicated on

the serial/model plate. If you are not sure

of the type of electrical power supplied

to your home, consult your dealer or

local power company. For those sets designed to operate

from battery power, refer to the operating instructions.

Grounding or Polarization

This set is equipped with a polarized AC power cord plug

(a plug having one blade wider than the other), or with a

three-wire grounding type plug (a plug having a third pin

for grounding). Follow the instructions below:

For the set with a polarized AC power cord

plug

This plug will fit into the power outlet

only one way. This is a safety feature. If

you are unable to insert the plug fully

into the outlet, try reversing the plug. If

the plug still fails to fit, contact your electrician to have a

suitable outlet installed. Do not defeat the safety purpose

of the polarized plug by forcing it in.

For the set with a three-wire grounding type

AC plug

This plug will only fit into a grounding-

type power outlet. This is a safety

feature. If you are unable to insert the

plug into the outlet, contact your

electrician to have a suitable outlet

installed. Do not defeat the safety purpose of the

grounding plug.

Overloading

Do not overload wall outlets, extension

cords or convenience receptacles

beyond their capacity, since this can

result in fire or electric shock.

Always turn the set off when it is not

being used. When the set is left

unattended and unused for long

periods of time, unplug it from the

wall outlet as a precaution against the

possibility of an internal malfunction that could create a

fire hazard.

If a snapping or popping sound from a TV

set is continuous or frequent while the TV

is operating, unplug the TV and consult

your dealer or service technician. It is

normal for some TV sets to make

occasional snapping or popping sounds,

particularly when being turned on or off.

Object and Liquid Entry

Never push objects of any kind into the

set through the cabinet slots as they may

touch dangerous voltage points or short

out parts that could result in a fire or

electric shock. Never spill liquid of any

kind on the set.

Attachments

Do not use attachments not

recommended by the manufacturer, as

they may cause hazards.

Cleaning

Clean the cabinet of the projection TV

with a dry soft cloth. To remove dust

from the screen, wipe it gently with a soft

cloth. Stubborn stains may be removed

with a cloth slightly dampened with

solution of mild soap and warm water. Never use strong

solvents such as thinner or benzine for cleaning.

If the picture becomes dark after using the projection TV

for a long period of time, it may be necessary to clean the

inside of the projection TV. Consult qualified service

personnel.

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Installation

Water and Moisture

Do not use power-line operated sets

near water — for example, near a

bathtub, washbowl, kitchen sink, or

laundry tub, in a wet basement, or

near a swimming pool, etc.

Accessories

Do not place the set on an unstable

cart, stand, table or shelf. The set

may fall, causing serious injury to a

child or an adult and serious damage

to the set. Use only a cart or stand

recommended by Sony for the

specific model of TV. No part of the

TV set should overhang any edge of

the TV cart or stand; any

overhanging edge is a safety hazard.

An appliance and cart combination

should be moved with care. Quick

stops, excessive force, and uneven

surfaces may cause the appliance

and cart combination to overturn.

Ventilation

The slots and openings in the cabinet and in the back or

bottom are provided for necessary ventilation. To ensure

reliable operation of the set, and to protect it from

overheating, these slots and openings must never be

blocked or covered.

❑ Never cover the slots and openings

with a cloth or other materials.

❑ Never block the slots and openings by

placing the set on a bed, sofa, rug or

other similar surface.

❑ Never place the set in a confined

space, such as a bookcase or built-in

cabinet, unless proper ventilation is

provided.

❑ Do not place the set near or over a

radiator or heat register, or where it is

exposed to direct sunlight.

Power-Cord Protection

Do not allow anything to rest on or roll

over the power cord, and do not place the

set where the power cord is subject to

wear or abuse.

Antennas

Outdoor Antenna Grounding

If an outdoor antenna is installed, follow the precautions

below. An outdoor antenna system should not be located

in the vicinity of overhead power lines or other electric

light or power circuits, or where it can come in contact

with such power lines or circuits.

WHEN INSTALLING AN OUTDOOR ANTENNA

SYSTEM, EXTREME CARE SHOULD BE TAKEN TO

KEEP FROM CONTACTING SUCH POWER LINES

OR CIRCUITS AS CONTACT WITH THEM IS

ALMOST INVA RIABLY FATAL.

Be sure the antenna system is grounded so as to provide

some protection against voltage surges and built-up static

charges.

Section 810 of the National Electrical Code (NEC) in

USA and Section 54 of the Canadian Electrical Code in

Canada provides information with respect to proper

grounding of the mast and supporting structure,

grounding of the lead-in wire to an antenna discharge

unit, size of grounding conductors, location of antenna

discharge unit, connection to grounding electrodes, and

requirements for the grounding electrode.

Antenna Grounding According to the

National Electrical Code, ANSI/NFPA 70

Antenna lead-in wire

Ground clamps

Antenna discharge unit

(NEC Section 810-20)

Grounding conductors

(NEC section 810-21)

Power service grounding

electrode system (NEC Art

250 Part H)

Ground clamp

Electrical

service

equipment

NEC: National

Electrical Code

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Lightning

For added protection for this television receiver during a

lightning storm, or when it is left unattended and unused

for long periods of time, unplug it from the wall outlet

and disconnect the antenna. This will prevent damage to

the receiver due to lightning and power-line surges.

Service

Damage Requiring Service

Unplug the set from the wall outlet and refer servicing to

qualified service personnel under the following

conditions:

❑ When the power cord or

plug is damaged or frayed.

❑ If liquid has been spilled into

the set.

❑ If the set has been exposed

to rain or water.

❑ If the set has been subject to

excessive shock by being

dropped, or the cabinet has

been damaged.

❑ If the set does not operate

normally when following the

operating instructions.

Adjust only those controls

that are specified in the

operating instructions.

Improper adjustment of

other controls may result in

damage and will often

require extensive work by a

qualified technician to restore the set to normal

operation.

❑ When the set exhibits a distinct change in

performance, it indicates a need for service.

Servicing

Do not attempt to service the set by yourself

since opening the cabinet may expose you to

dangerous voltage or other hazards. Refer all

servicing to qualified service personnel.

Replacement Parts

When replacement parts are required, be sure the service

technician certifies in writing that he has used

replacement parts specified by the manufacturer that have

the same characteristics as the original parts.

Unauthorized substitutions may result in fire, electric

shock or other hazards.

Safety Check

Upon completion of any service or repairs

to the set, ask the service technician to

perform routine safety checks (as specified

by the manufacturer) to determine that the

set is in safe operating condition, and to so

certify. When the set reaches the end of its

useful life, improper disposal could result

in a picture tube implosion. Ask a qualified

service technician to dispose of the set.

For Safety

Be careful when moving

the projection TV

When you place the projection TV

in position, be careful not to drop it

on your foot or fingers.

Watch your footing while installing the projection TV.

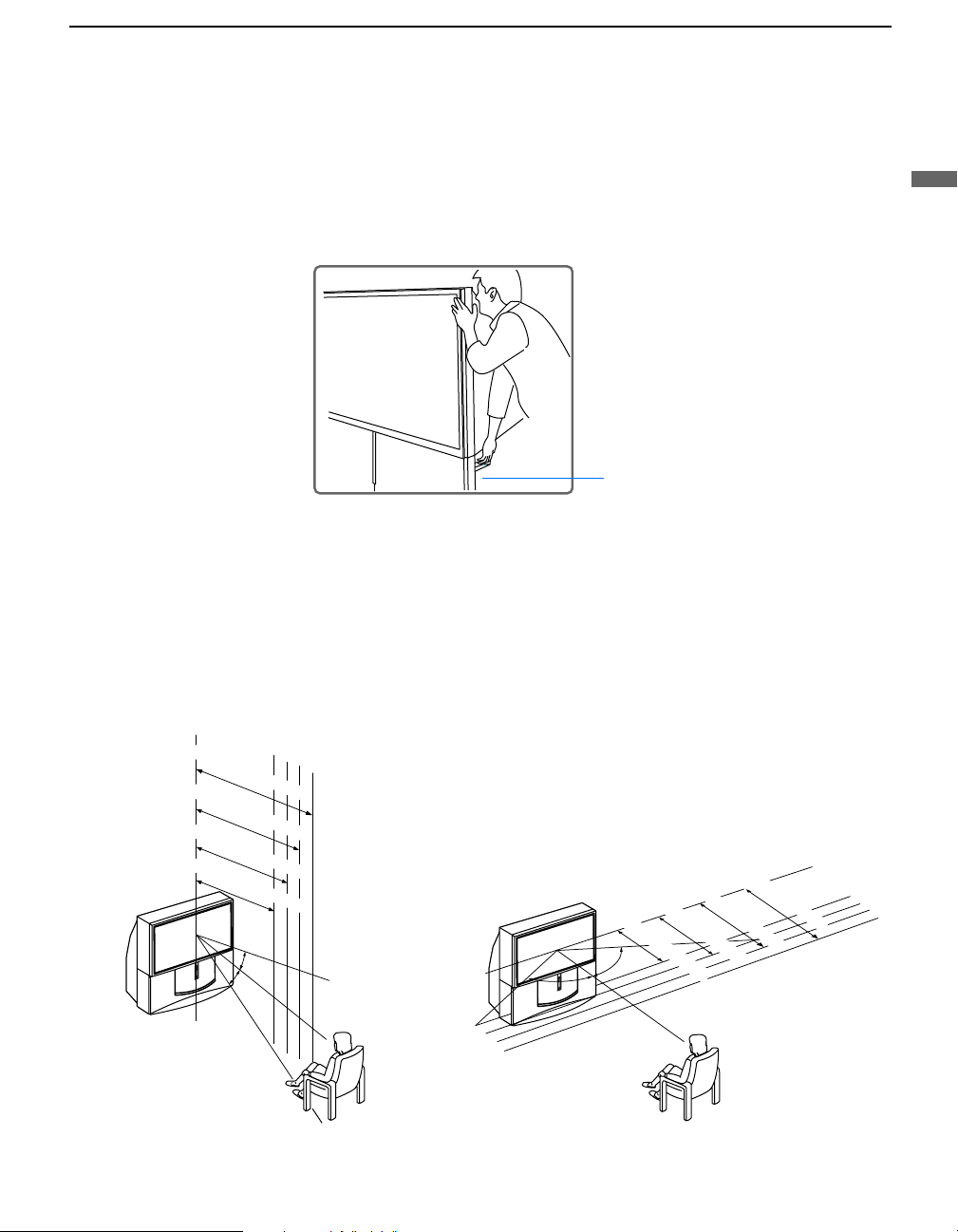

Carry the projection TV in the

specified manner

If you carry the projection TV in a manner

other than the specified manner and

without the specified number of persons, it

may drop and a serious injury may be

caused. Be sure to follow the instructions mentioned

below.

❑ Carry the projection TV with the specified number

of persons. (see page 11)

❑ Do not carry the projection TV holding the speaker

grill.

❑ Hold the projection TV tightly when carrying it.

❑ Model KP-65WS510 has handles that you can use to

carry the unit.

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Contents

Introducing the Sony Projection TV

Presenting the Sony Projection TV..........................8

Using this manual ....................................................9

Installing and Connecting the

Projection TV

Contents .................................................................10

Inserting Batteries into the Remote Control ..........10

Carrying Your Projection TV ................................11

Installing the Projection TV...................................11

Connector Types ....................................................12

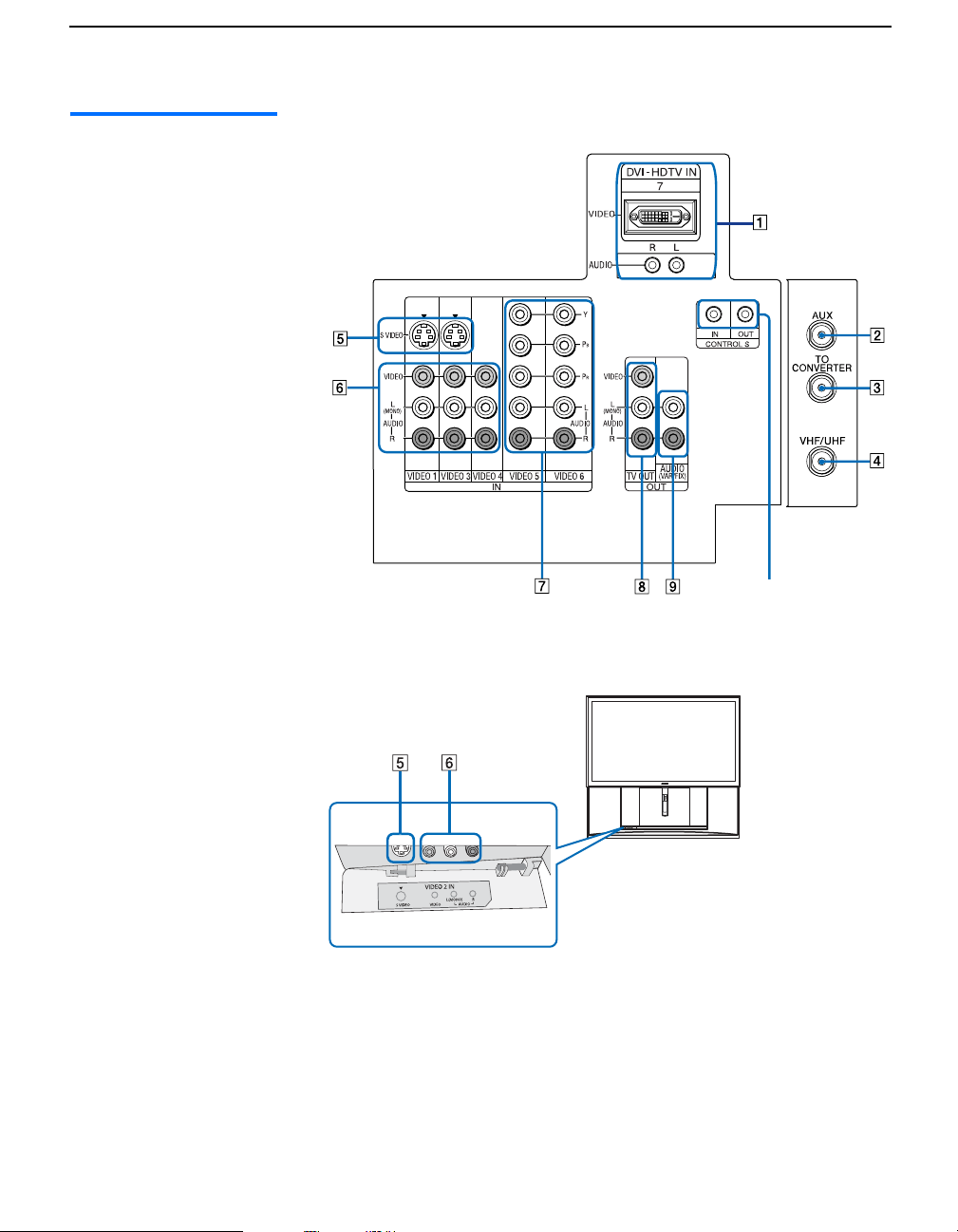

Projection TV Controls and Connectors................13

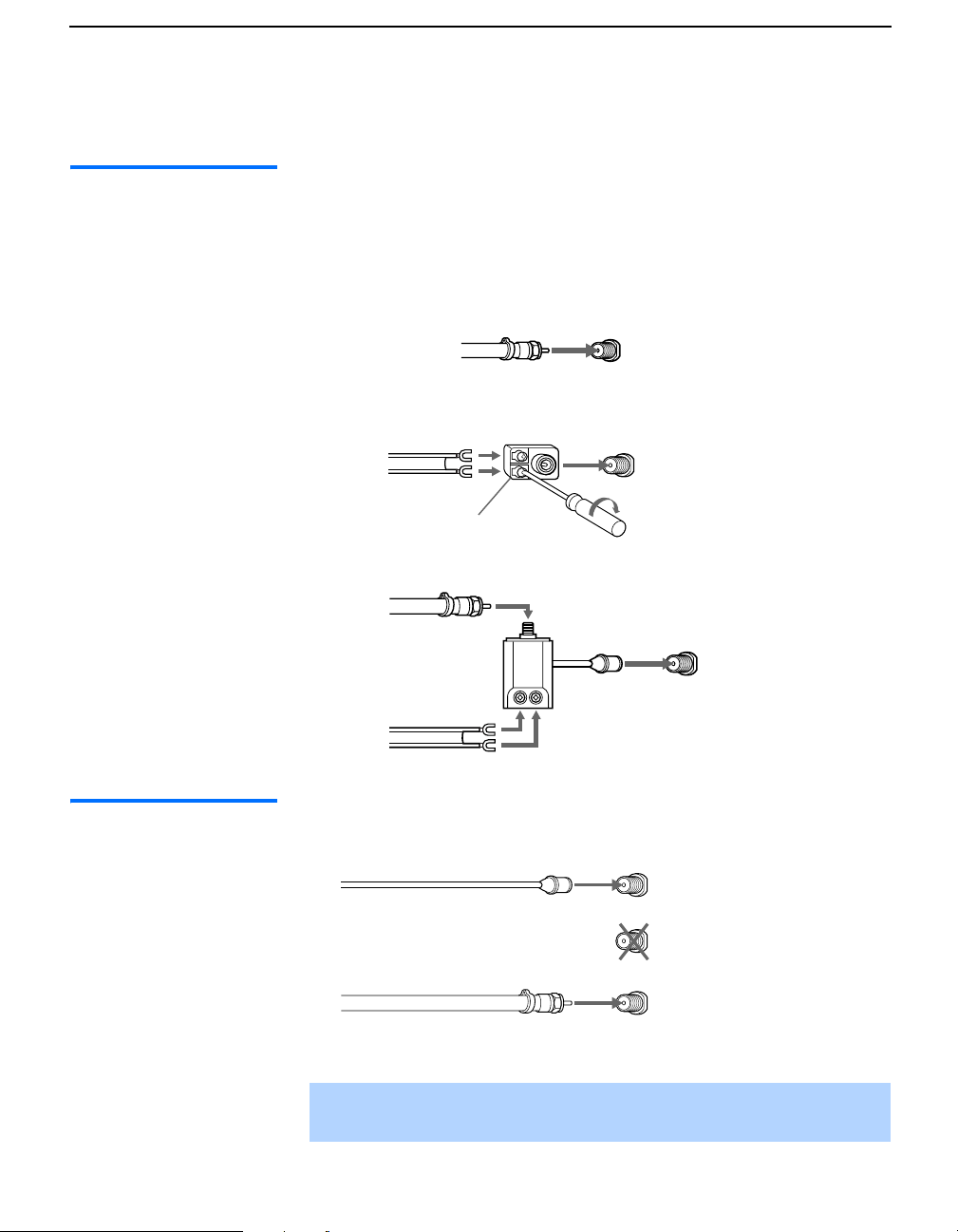

Basic Connections (Connecting Cable TV or

Antenna).........................................................16

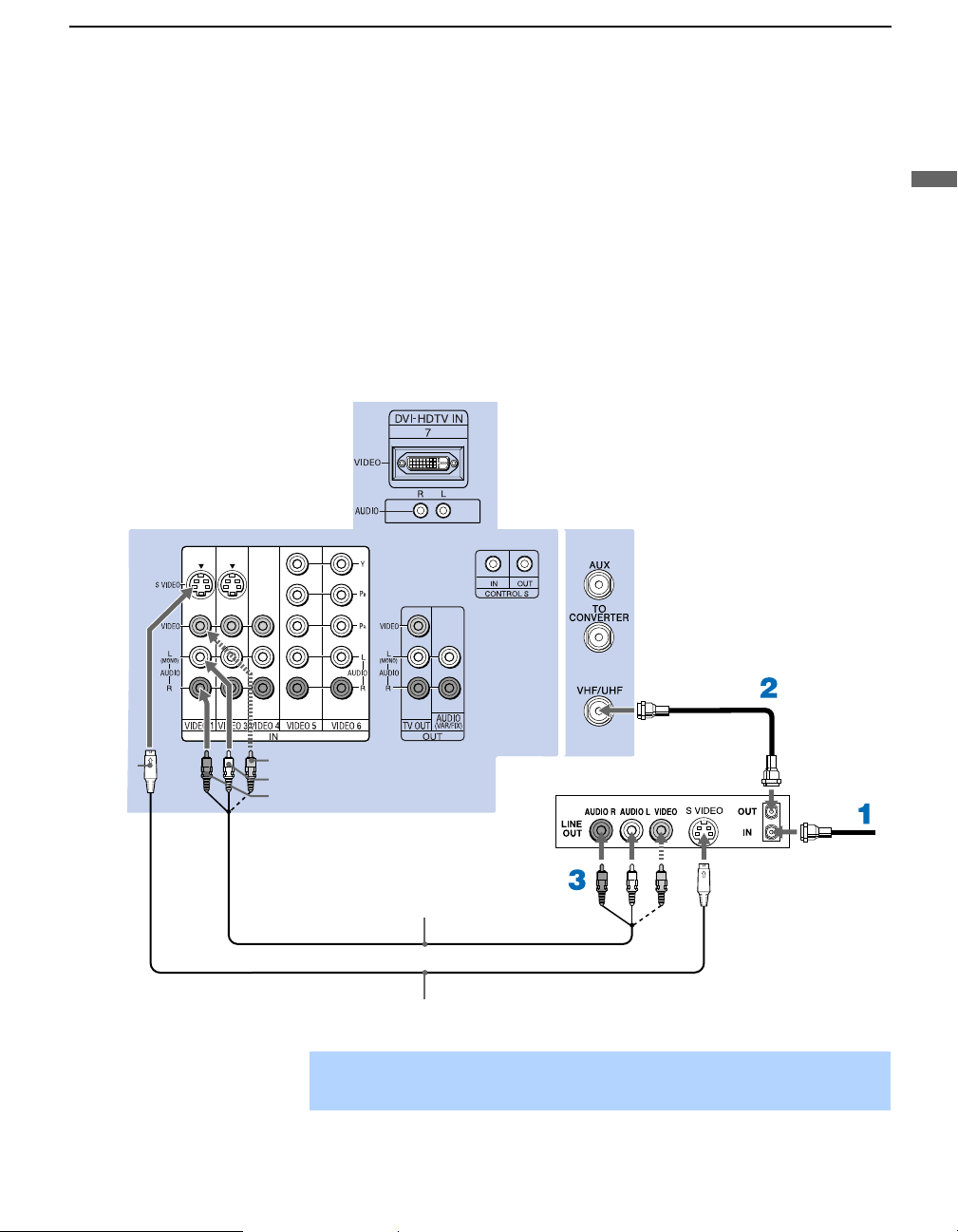

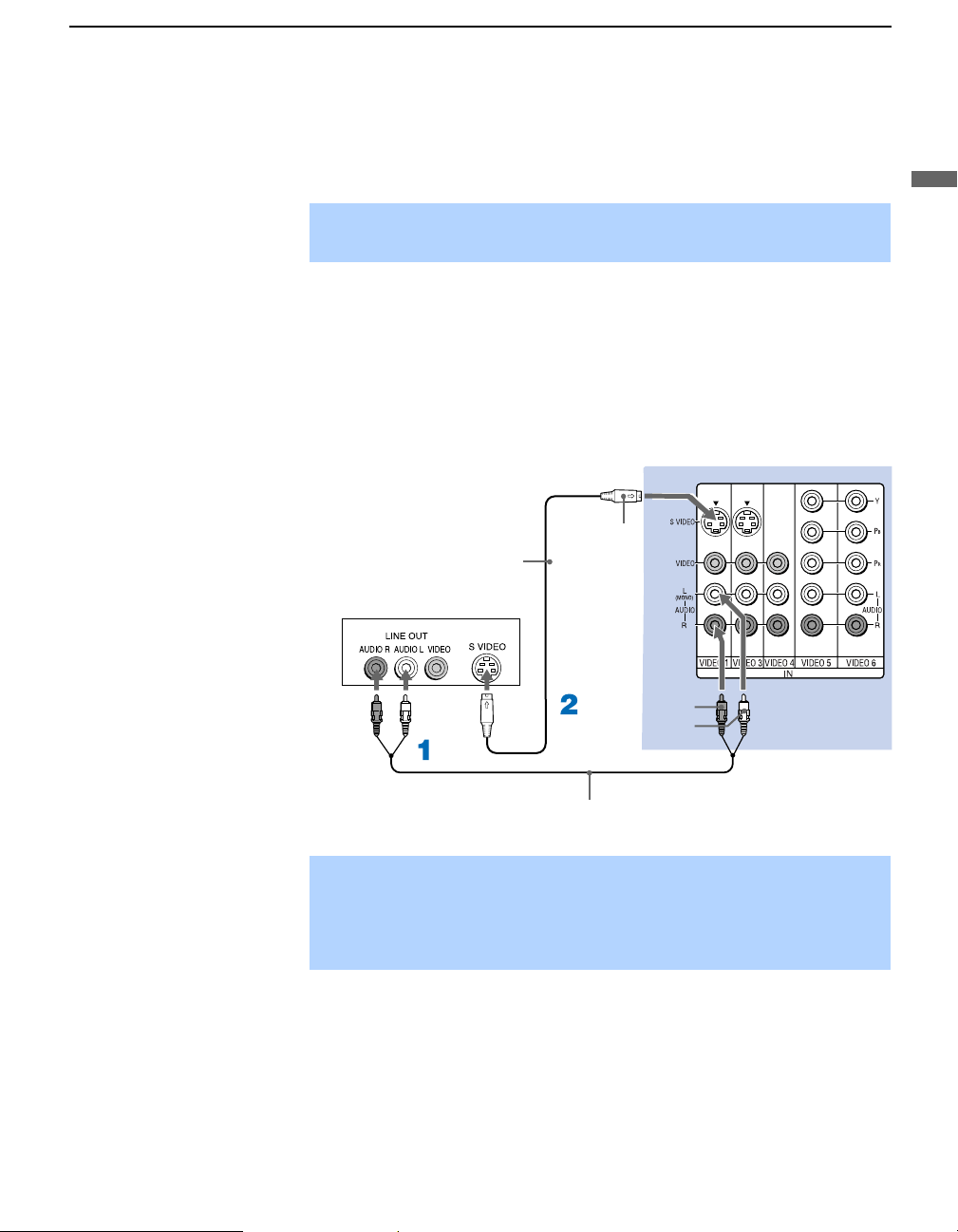

Connecting a VCR and Cable................................19

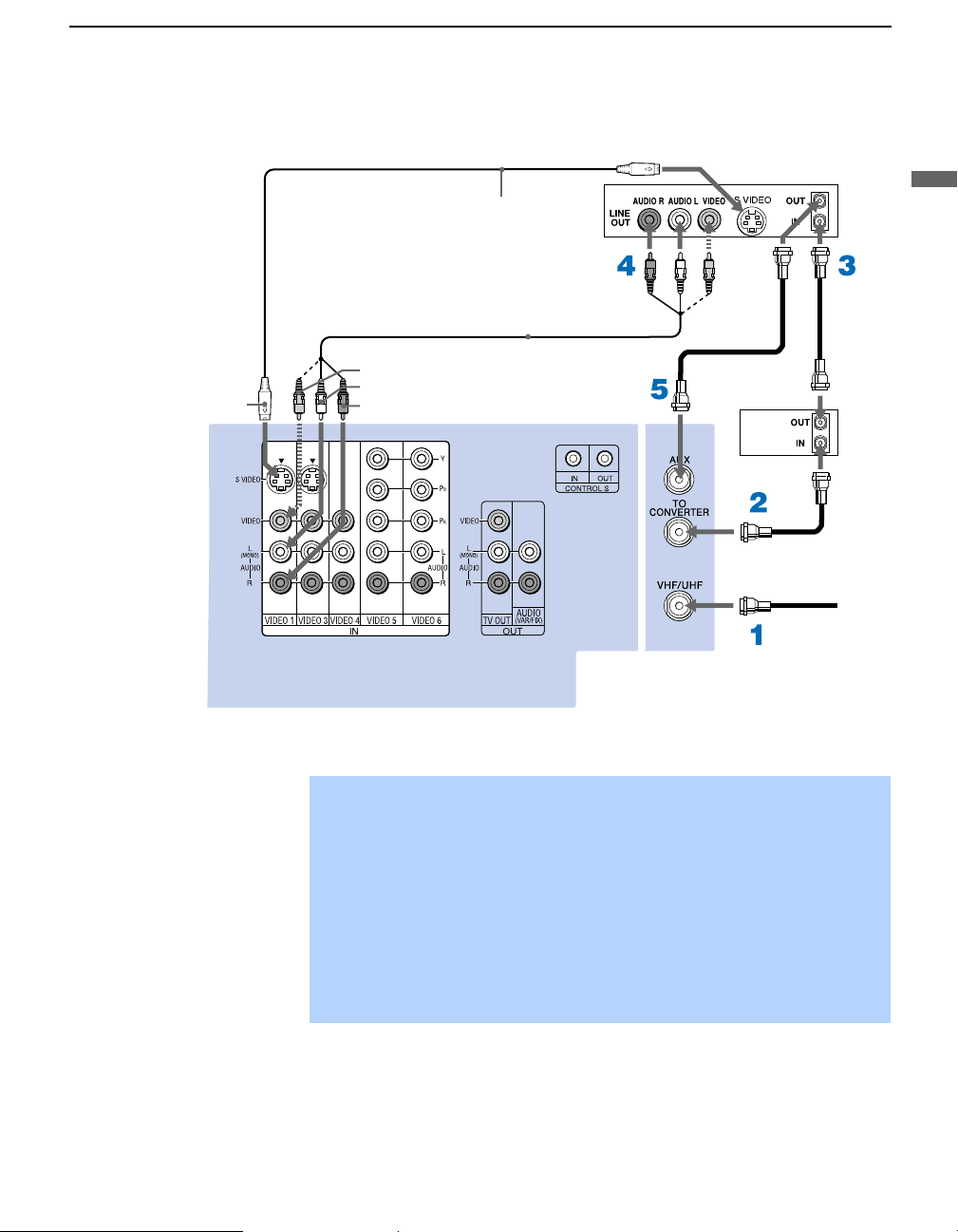

Connecting a VCR and Cable Box ........................20

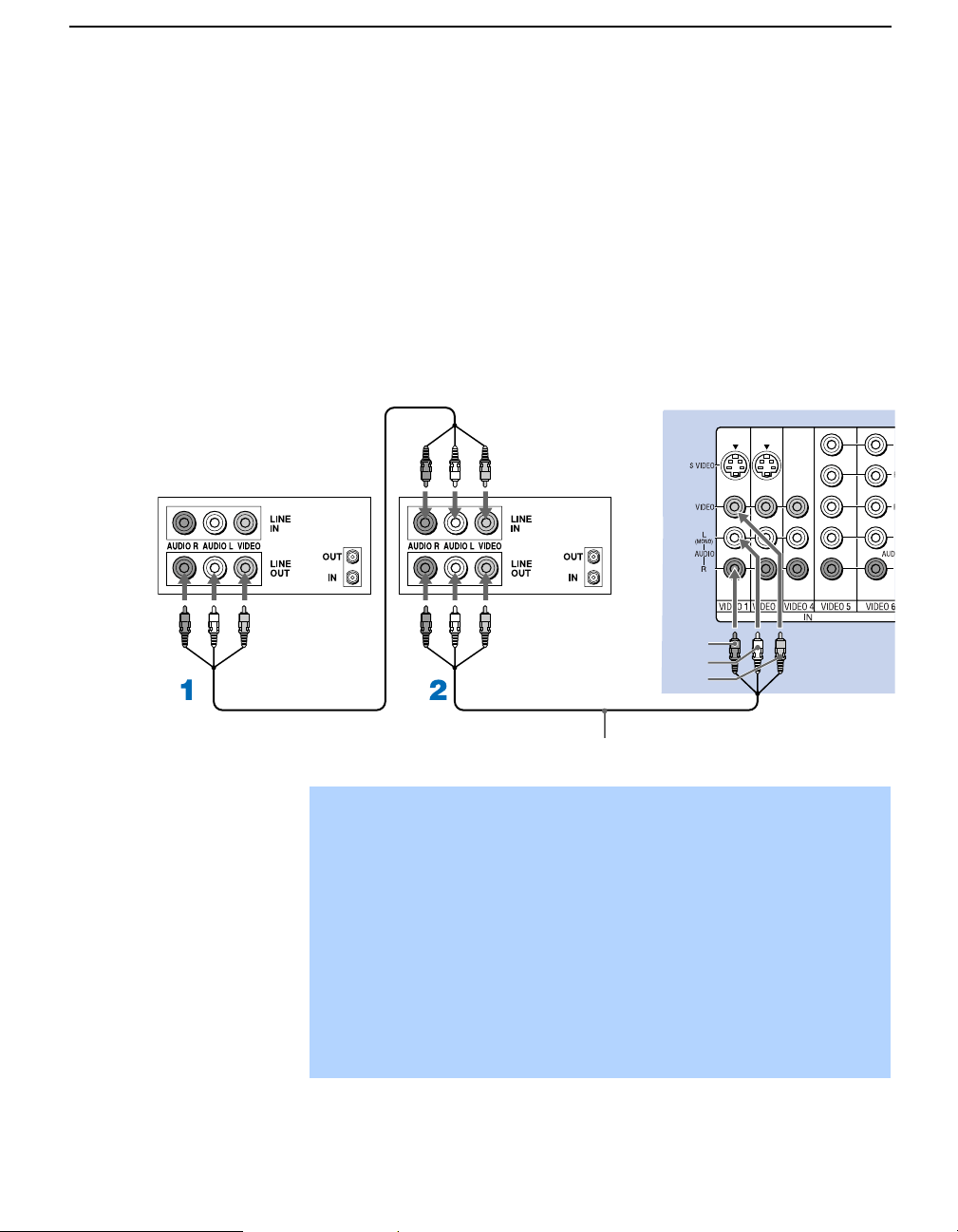

Connecting Two VCRs for Tape Editing ..............22

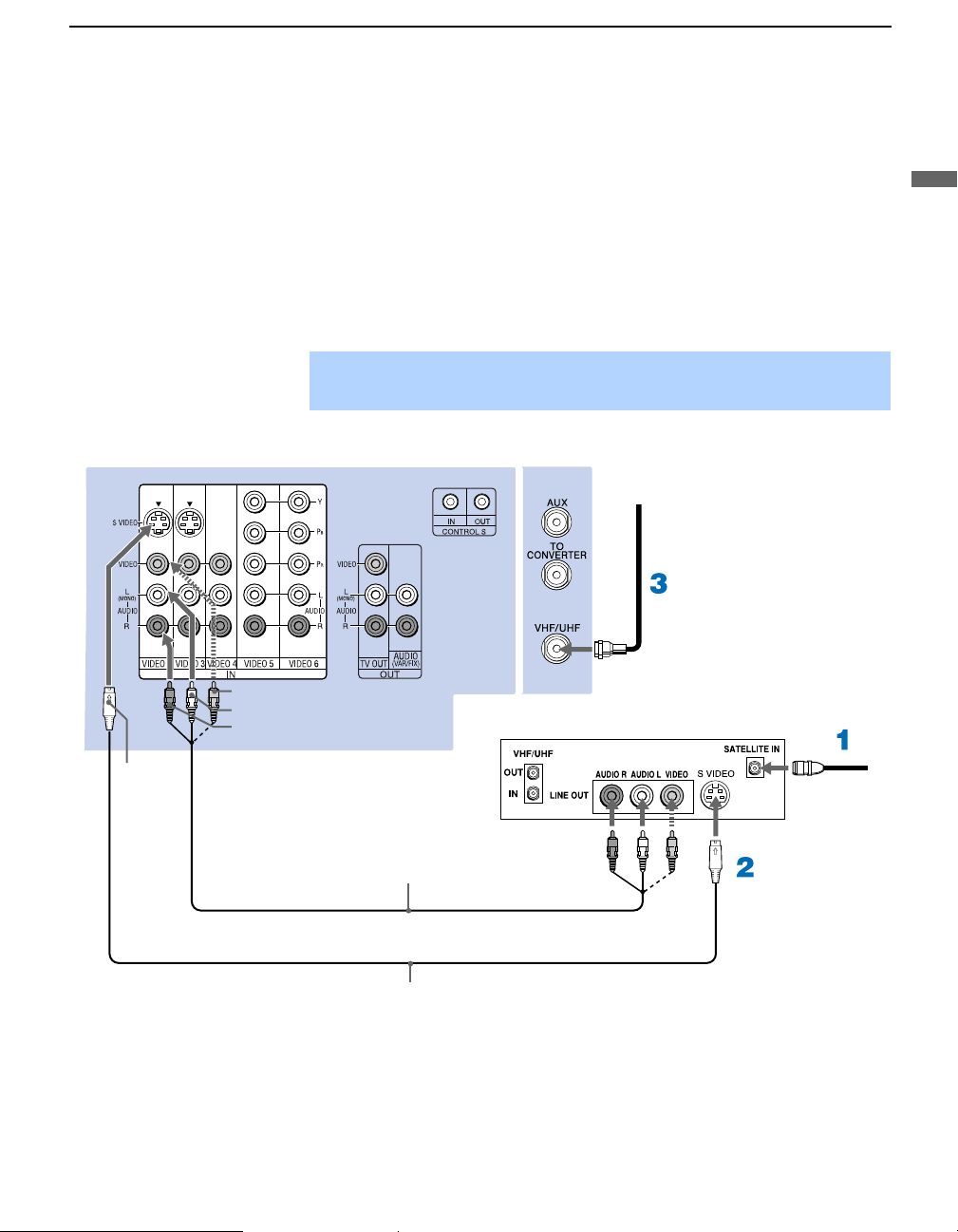

Connecting a Satellite Receiver.............................23

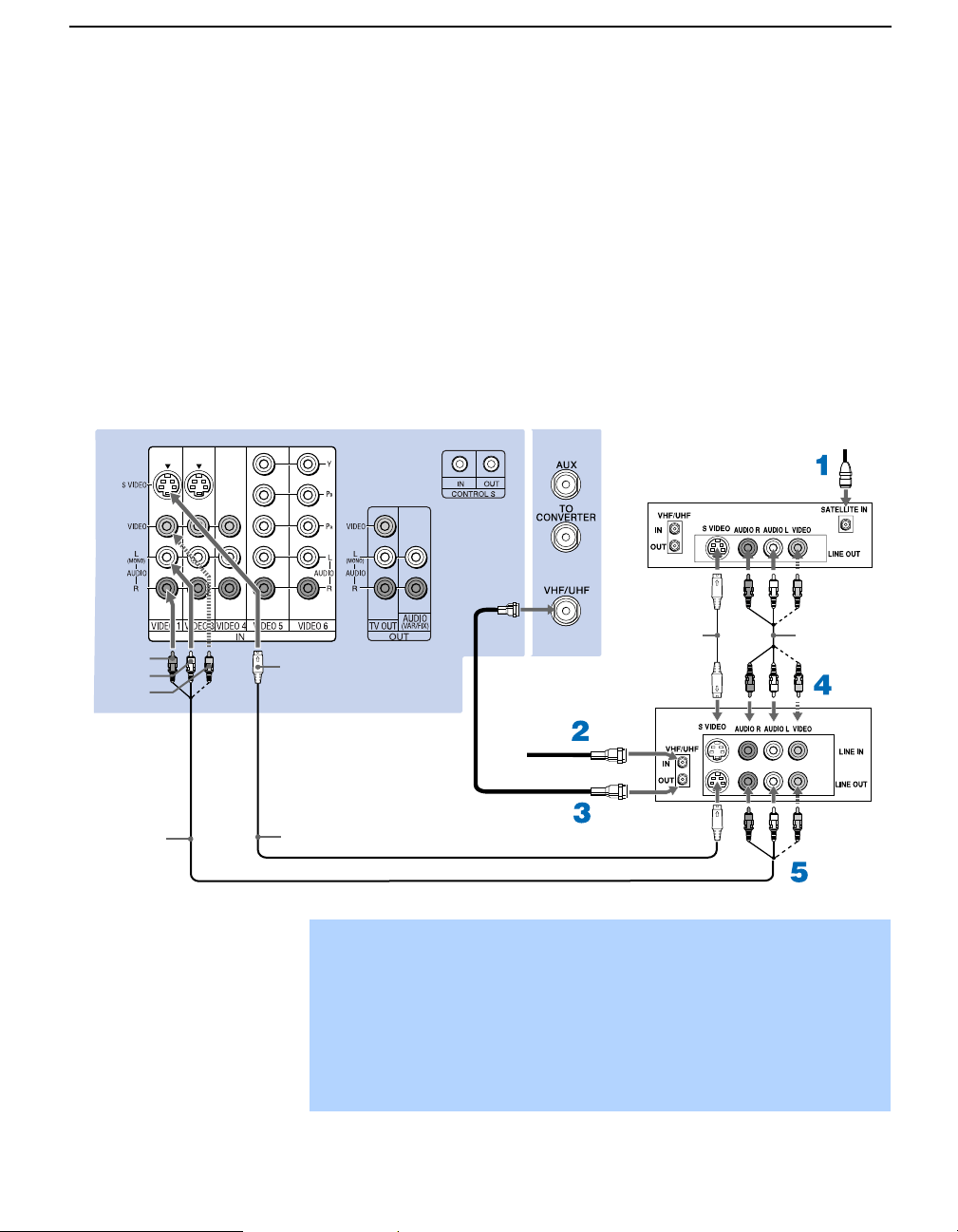

Connecting a Satellite Receiver with a VCR.........24

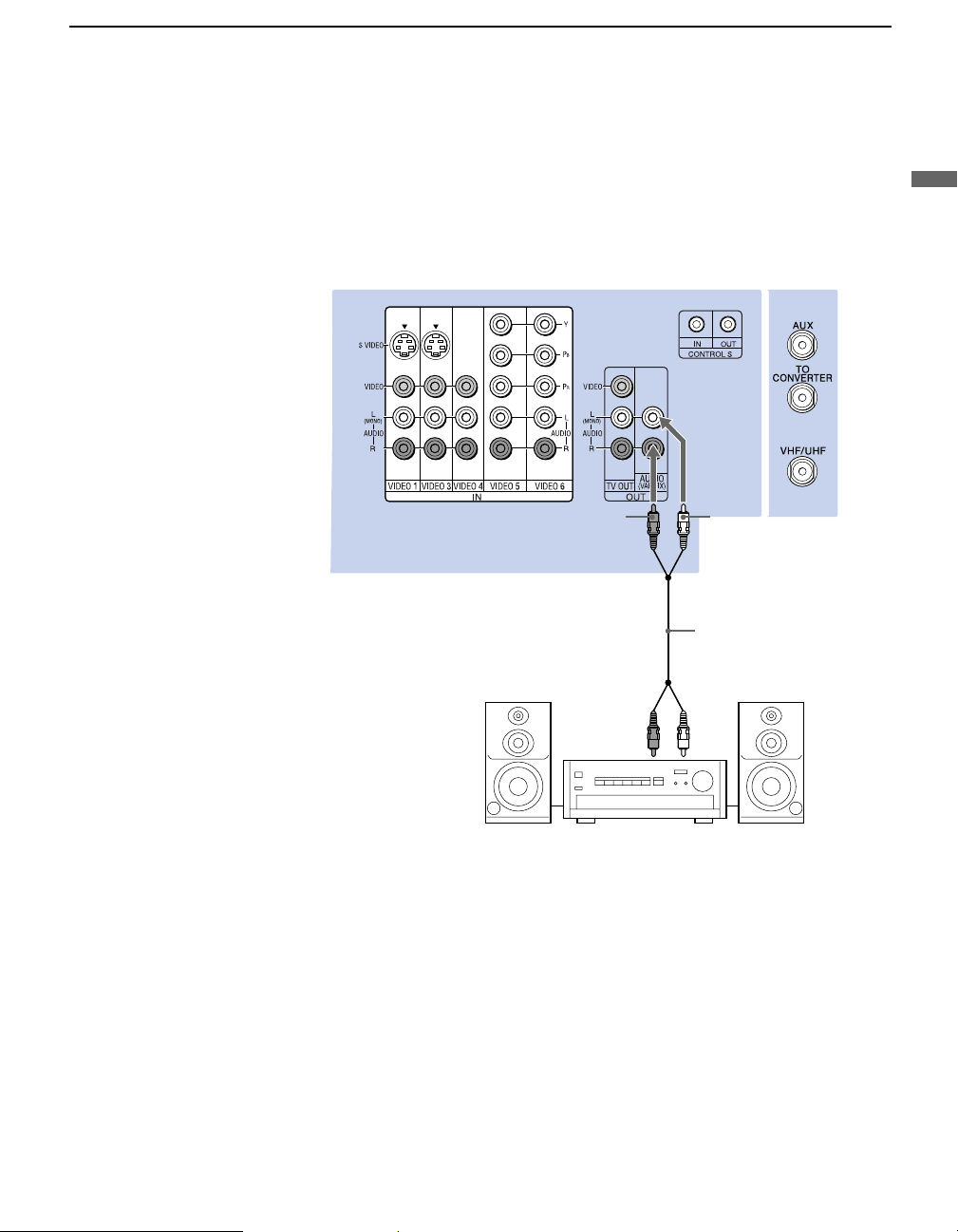

Connecting an Audio Receiver ..............................25

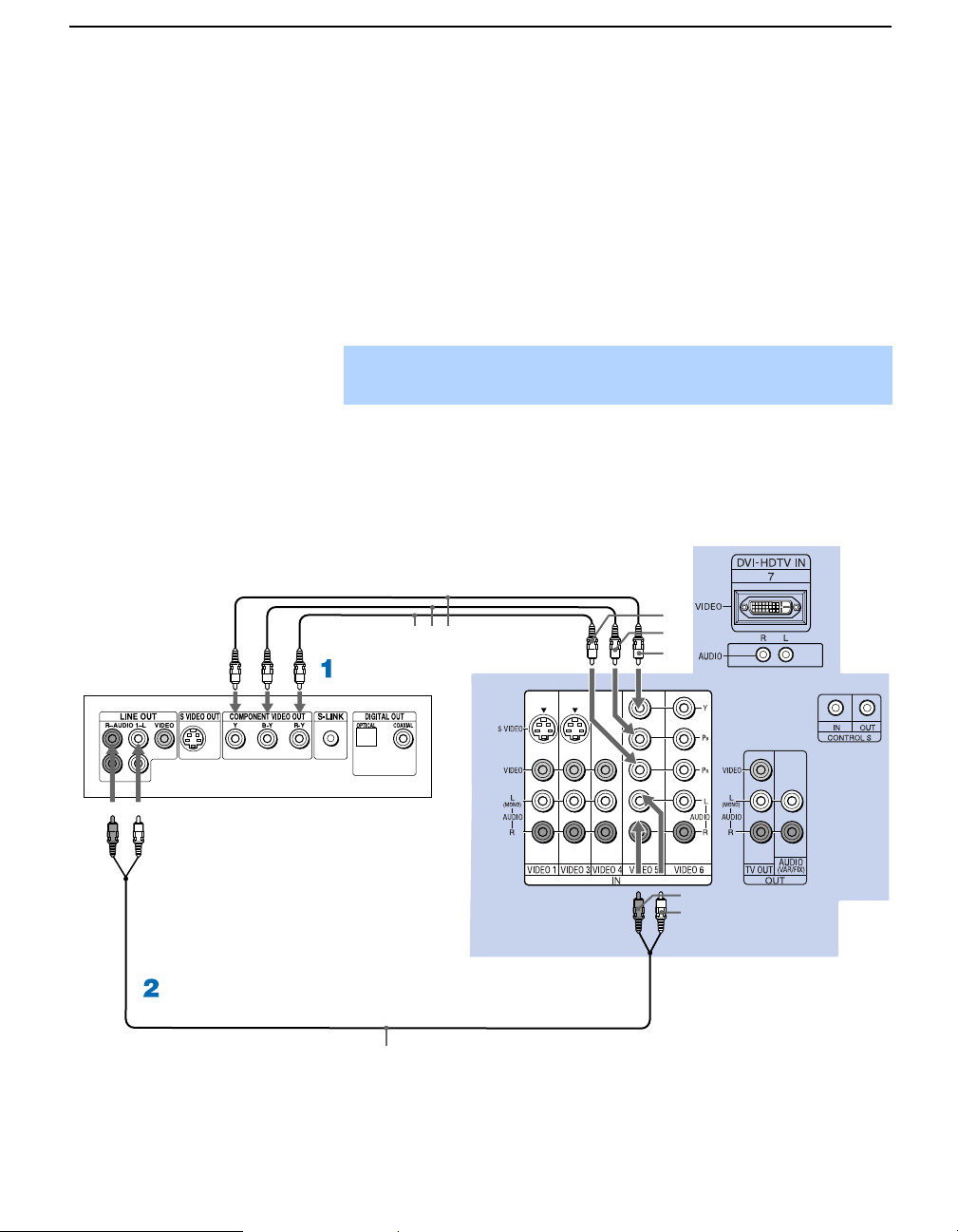

Connecting a DVD Player with Component

Video Connectors ..........................................26

Connecting a DVD Player with A/V Connectors ..27

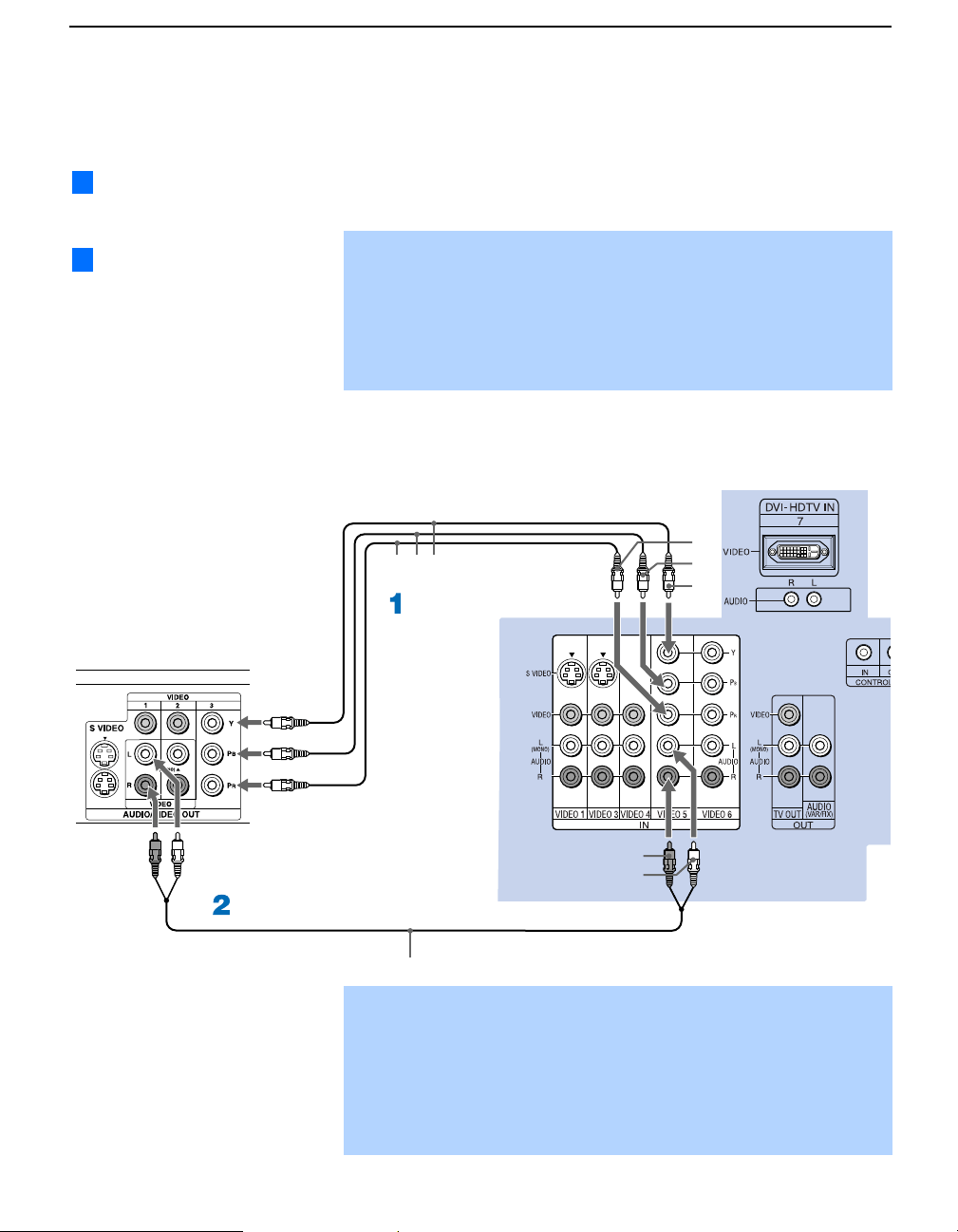

Connecting a Digital TV Receiver.........................28

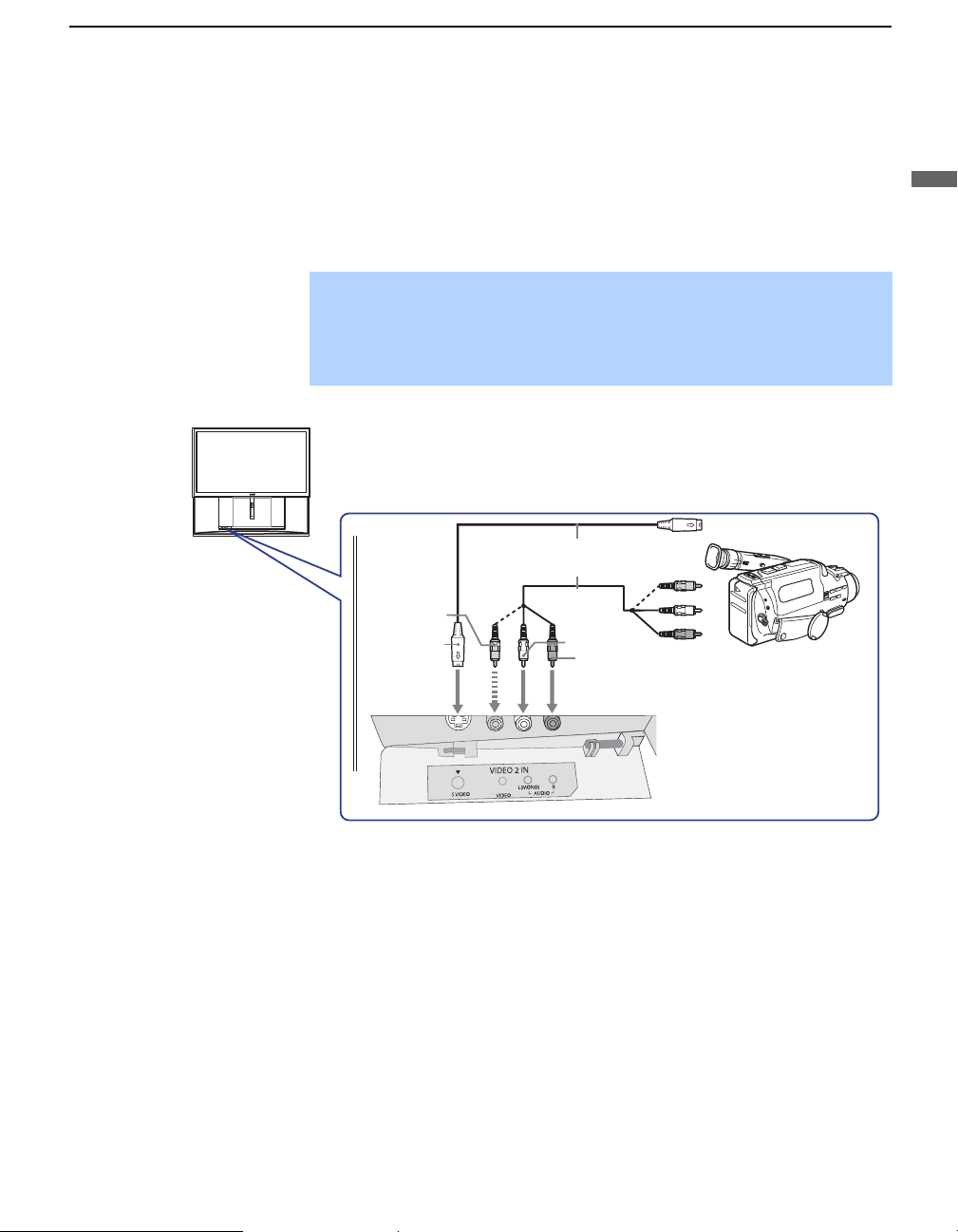

Connecting a Camcorder .......................................29

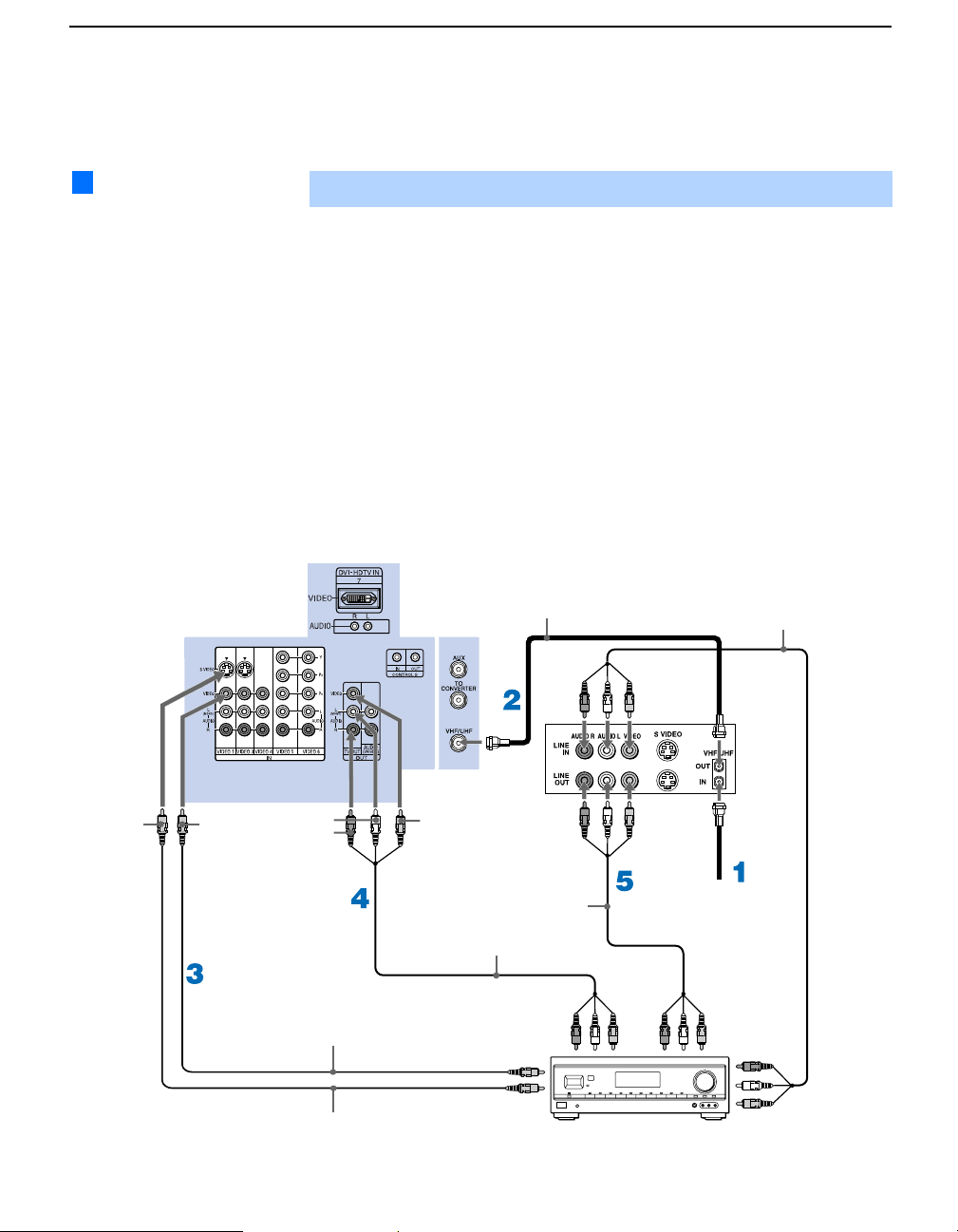

Connecting an AV Receiver ..................................30

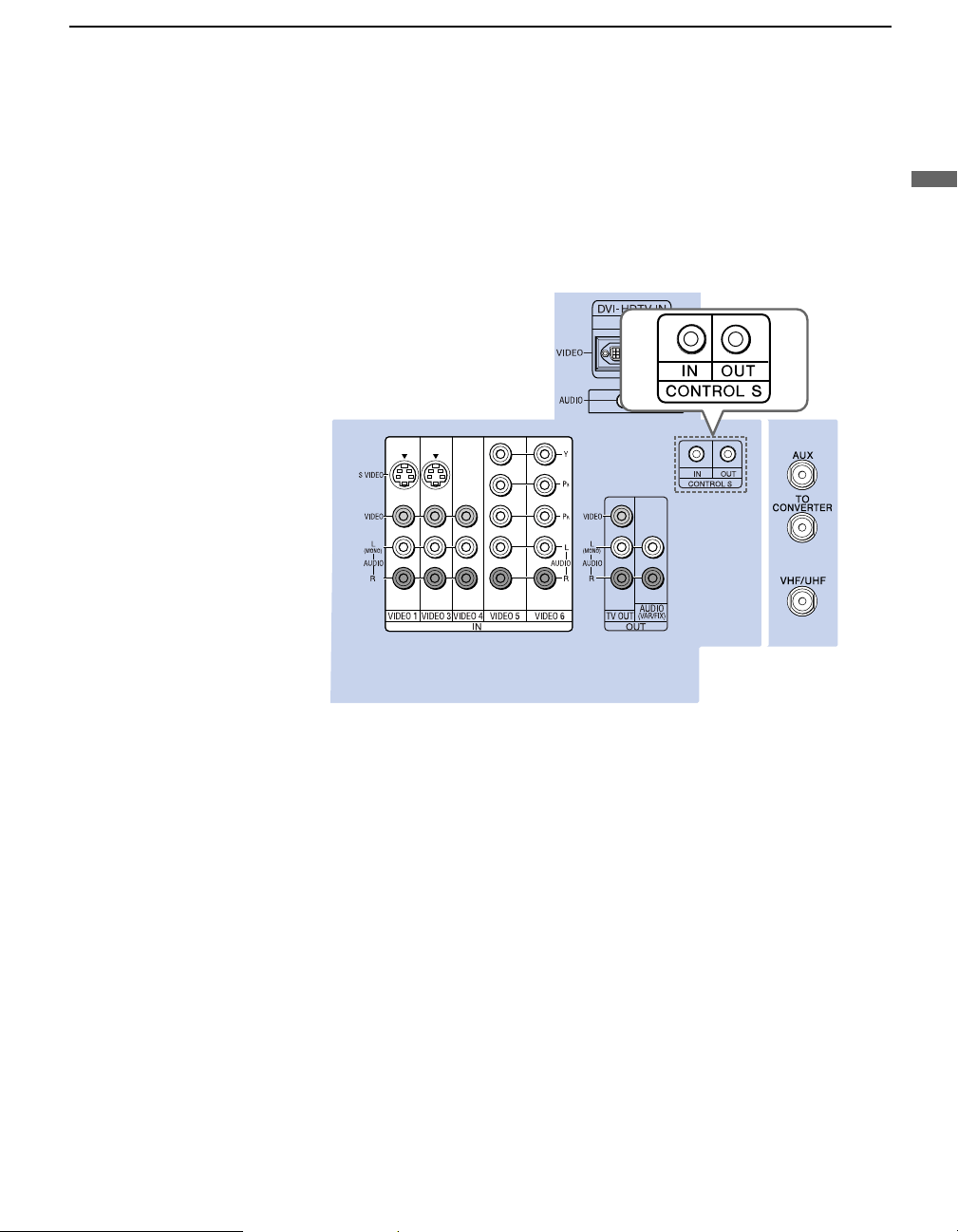

Using the CONTROL S Feature............................31

Setting Up the Projection TV Automatically.........32

Adjusting the Convergence Automatically – FLASH

FOCUS™ –....................................................33

Adjusting the Convergence Manually ...................34

Using the Features

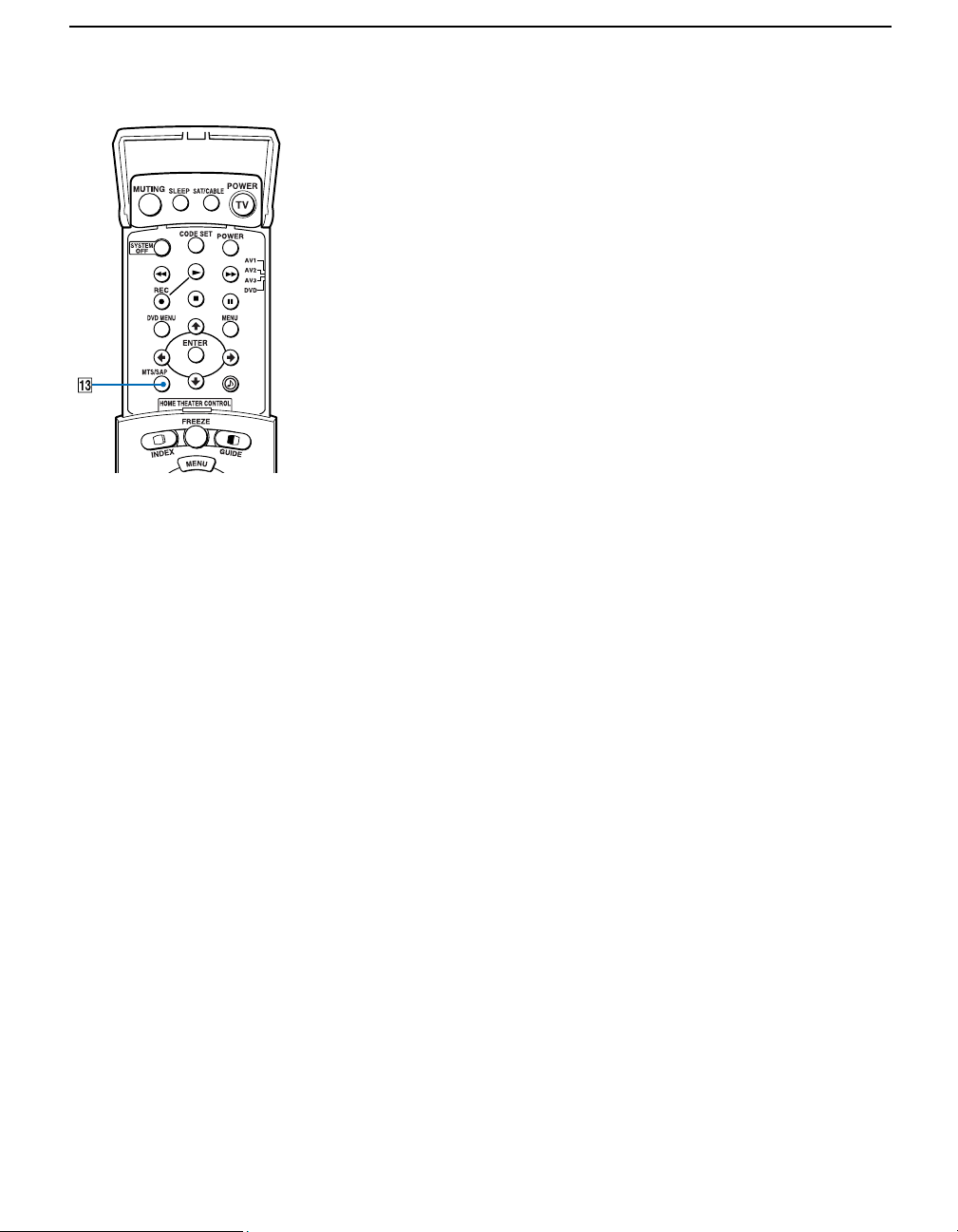

Using the Remote Control .....................................36

Watching the TV....................................................39

Watching the Digital TV........................................41

Using Favorite Channels........................................42

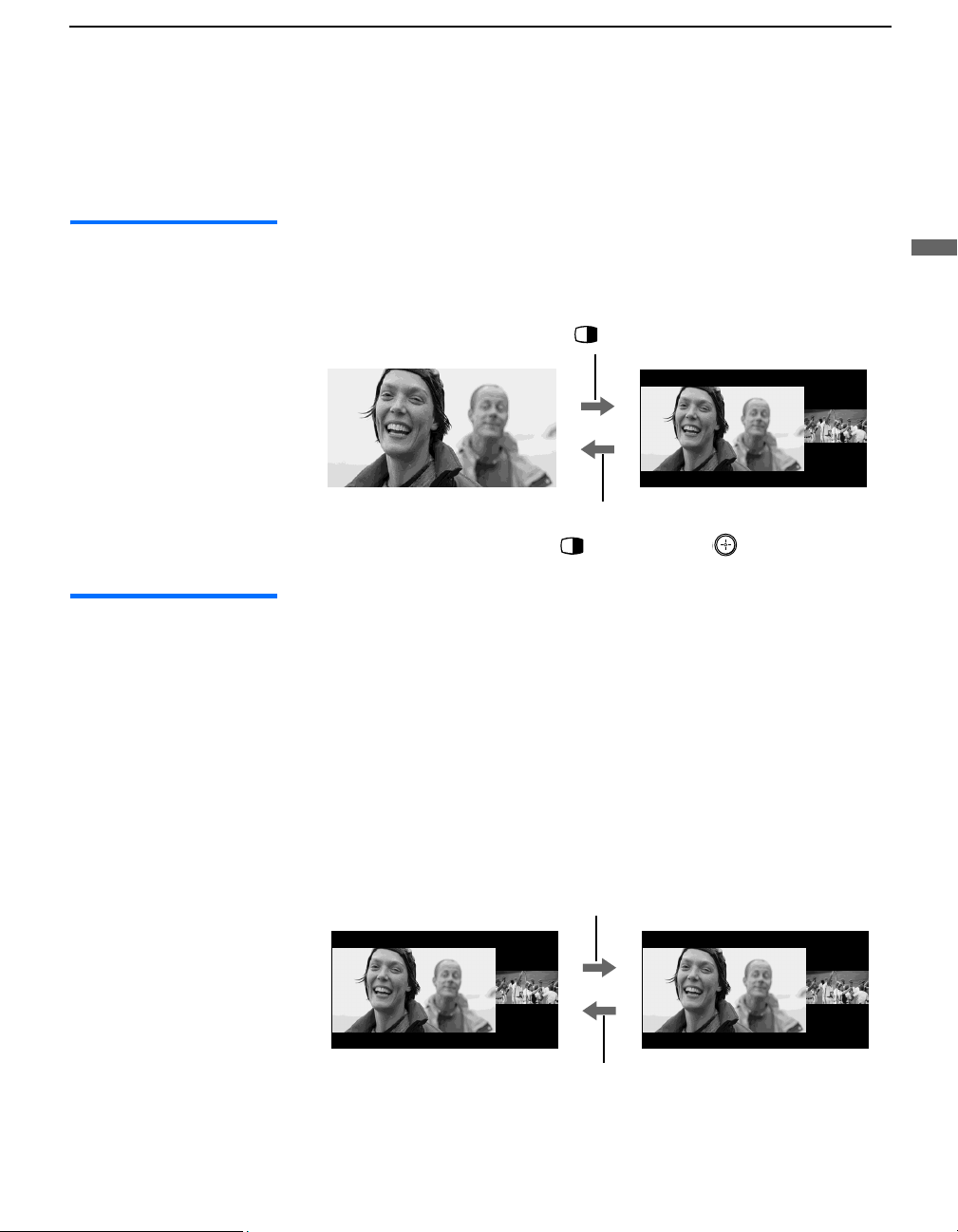

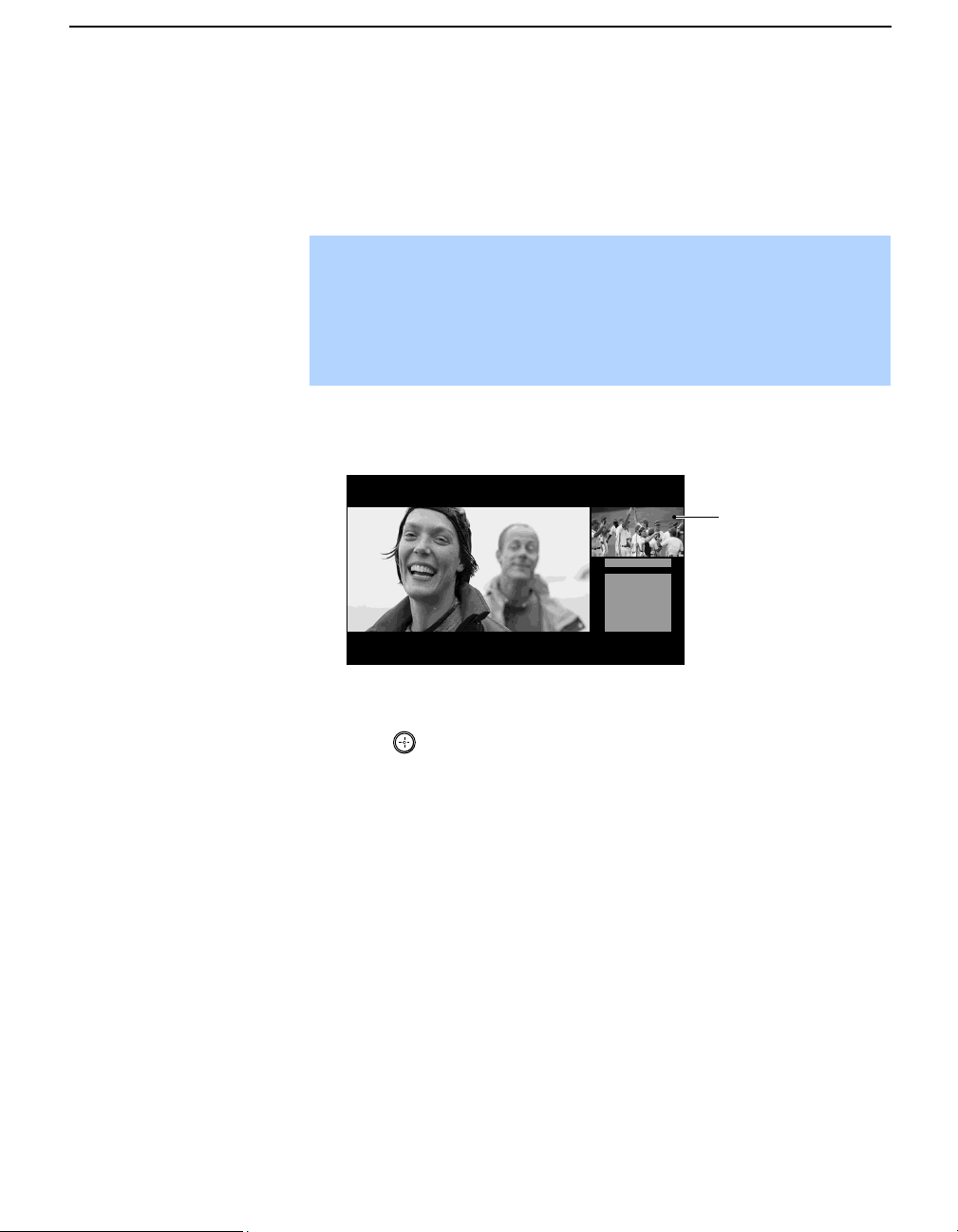

Using Twin View™...............................................43

Using the Freeze Function .....................................46

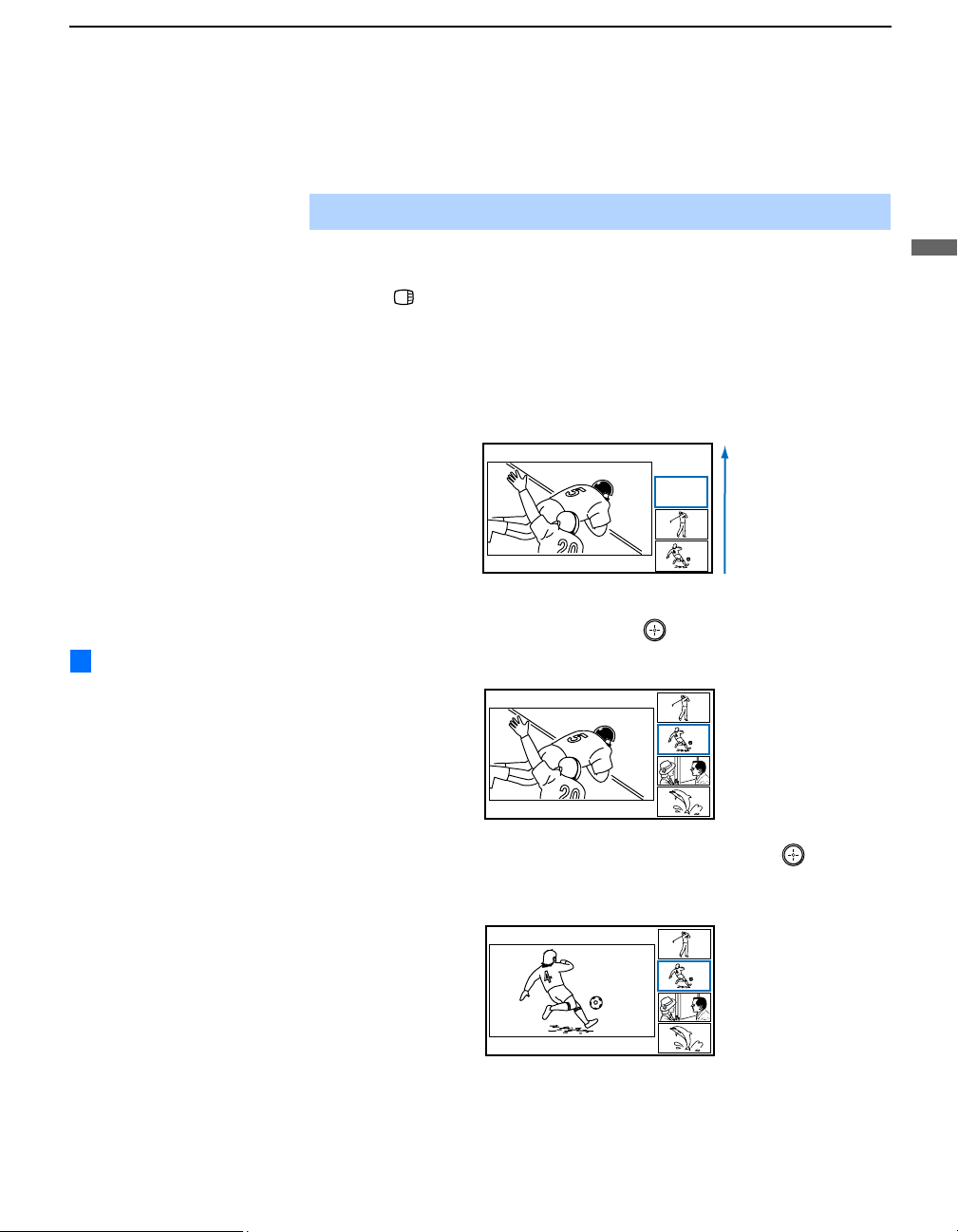

Using Scrolling Channel Index..............................47

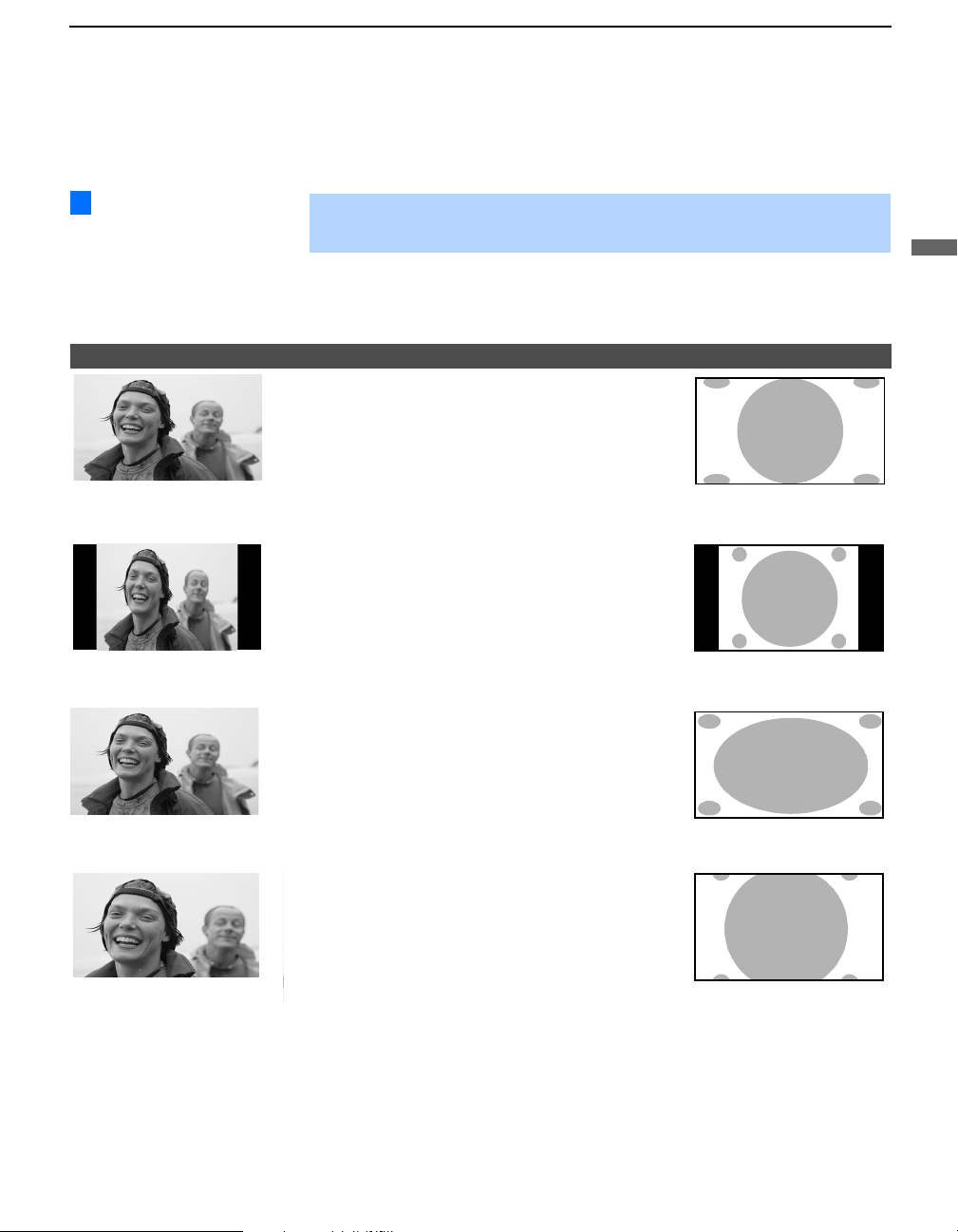

Using Wide Mode ..................................................49

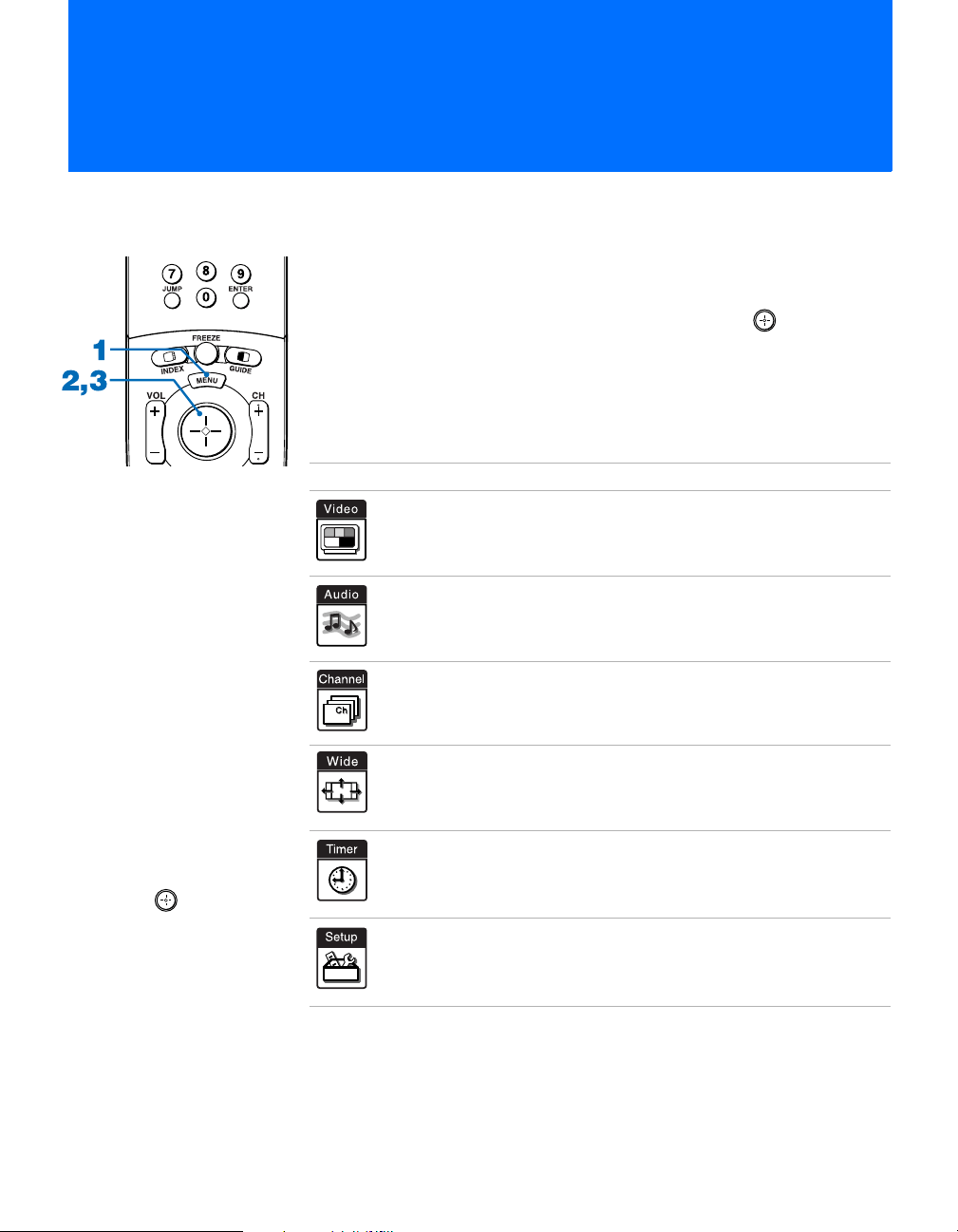

Using the Menus

Overview................................................................50

Using the Video Menu..........................................51

Using the Audio Menu..........................................53

Using the Channel Menu ......................................55

Using the Wide Menu...........................................57

Using the Timer Menu..........................................59

Using the Setup Menu ..........................................60

Other Information

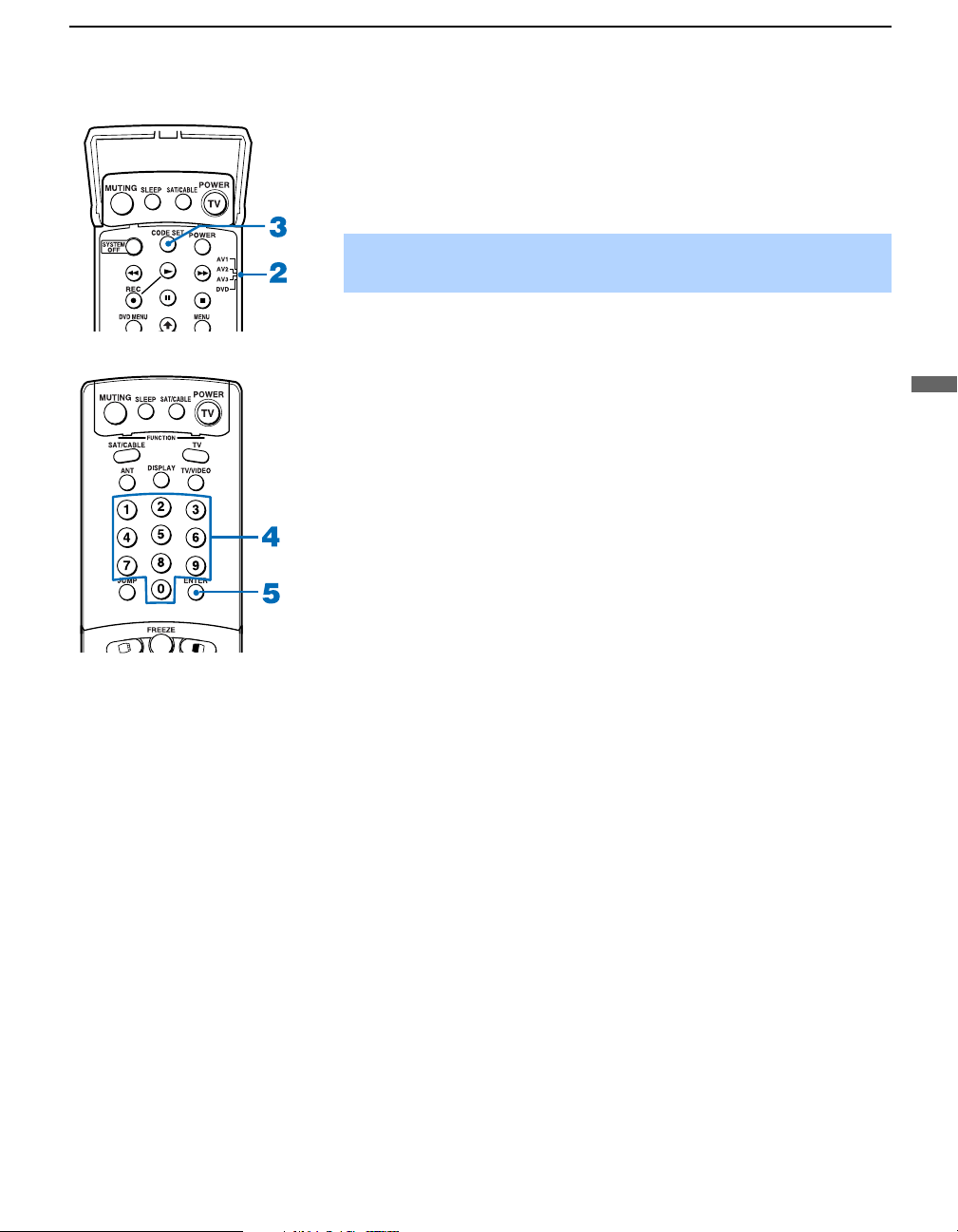

Programming the Remote Control.........................70

Operating Other Components with Your Projection

TV Remote Control .......................................73

Troubleshooting.....................................................75

Specifications.........................................................78

Index ......................................................................80

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Introducing the Sony Projection TV

Presenting the Sony Projection TV

Thank you for purchasing the Sony Projection TV.

This manual is for models KP-46WT510, KP-51WS510, KP-57WS510, and

KP-65WS510. KP-51WS510 is used for illustration purposes, unless

indicated otherwise.

Features Some of the features that you will enjoy with your new projection TV

include:

❑ Hi Scan 1080

™

: Enables you to receive the 1080i, 720p, 480p and 480i

digital TV formats. By using the VIDEO 5/6/7 IN jacks, you can

connect a DTV (digital television) receiver to view DTV programs.

❑ DRC

™

Multi-Function: Unlike conventional line doublers, the DRC

feature doubles vertical and horizontal lines, resulting in four times the

density for quality sources such as DVD, Satellite and Digital

camcorder.

❑ CineMotion

™

: Reverse 3-2 pulldown processing provides optimal

picture quality for film-based sources (media originally shot in 24

frames per second).

❑ Twin View

™

: Using Multi-Image Driver (MID-X), Twin View allows

you to watch two programs side by side with the ability to zoom in on

one picture and listen to the program in the selected window. You can

watch pictures from two different sources (1080i, 720p, 480p or 480i)

simultaneously.

❑ Steady Sound

™

: Equalizes volume levels so there is consistent output

between programs and commercials.

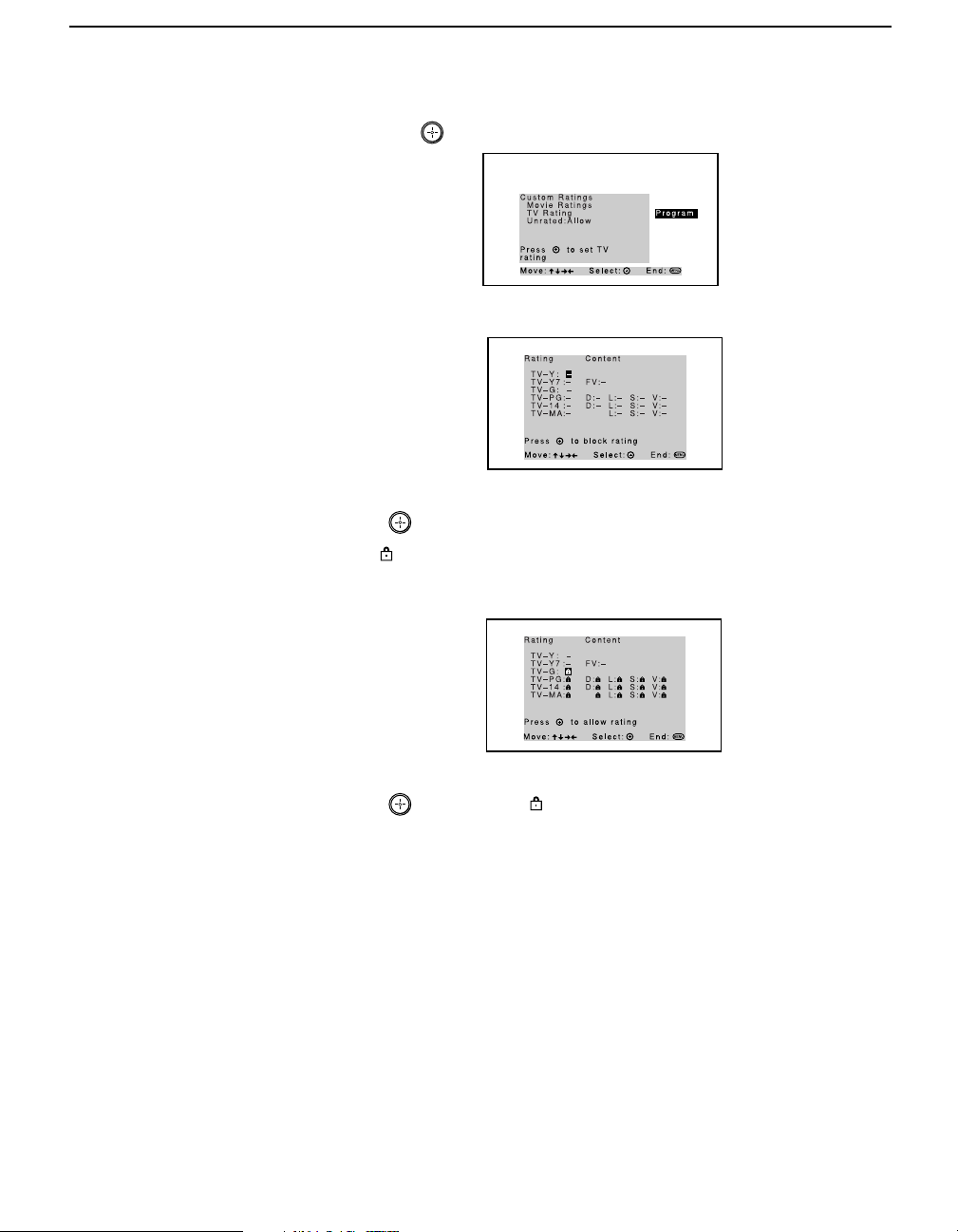

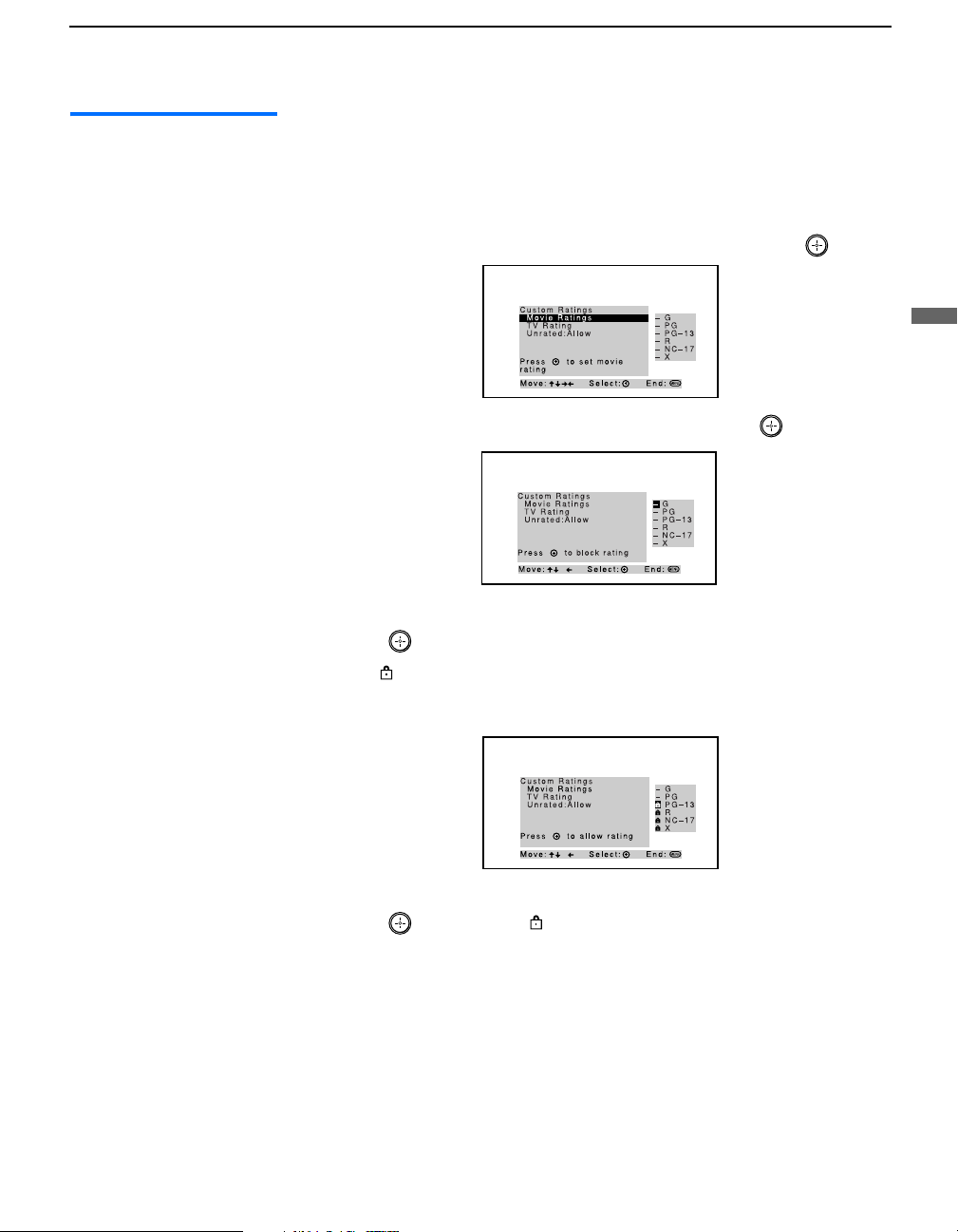

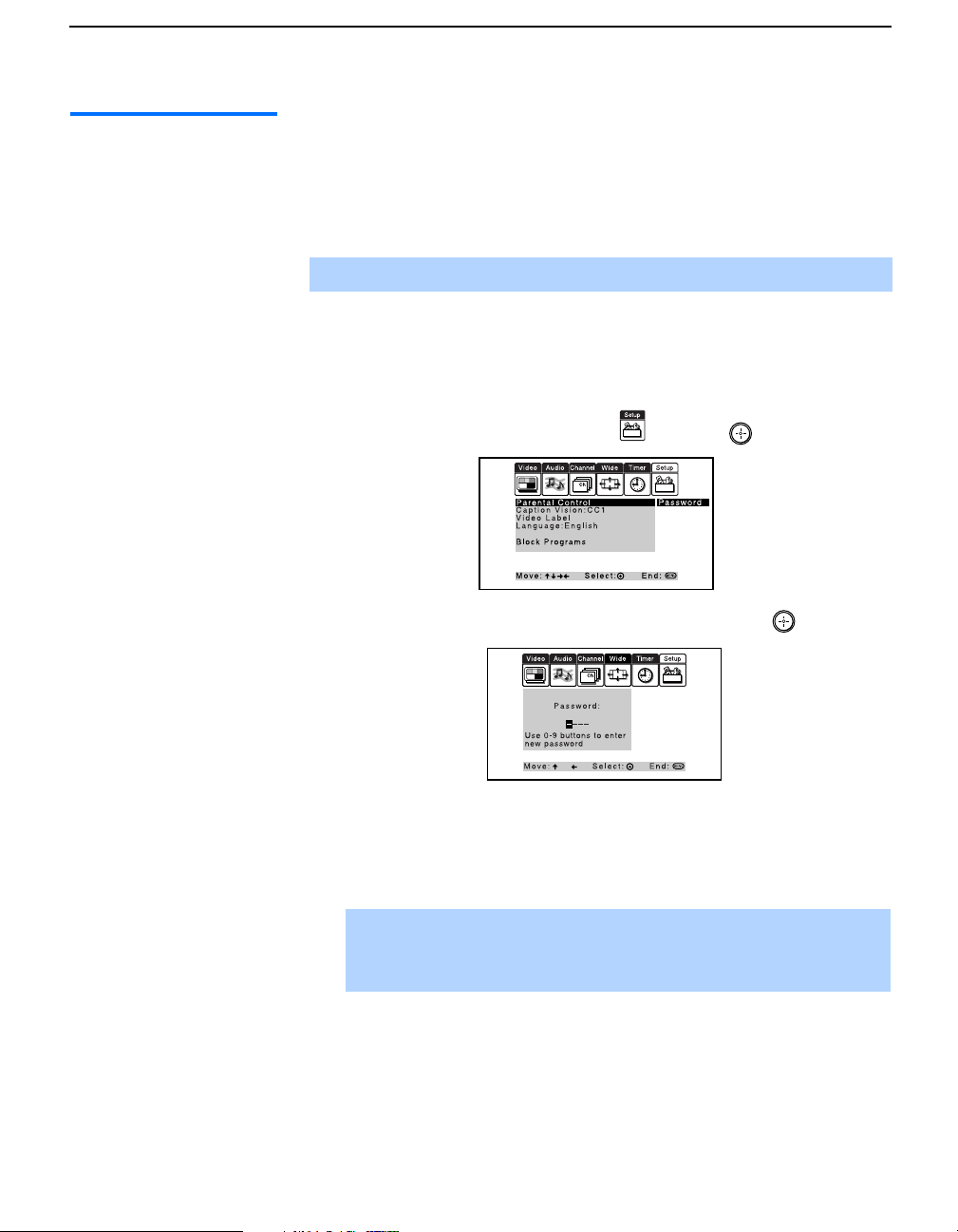

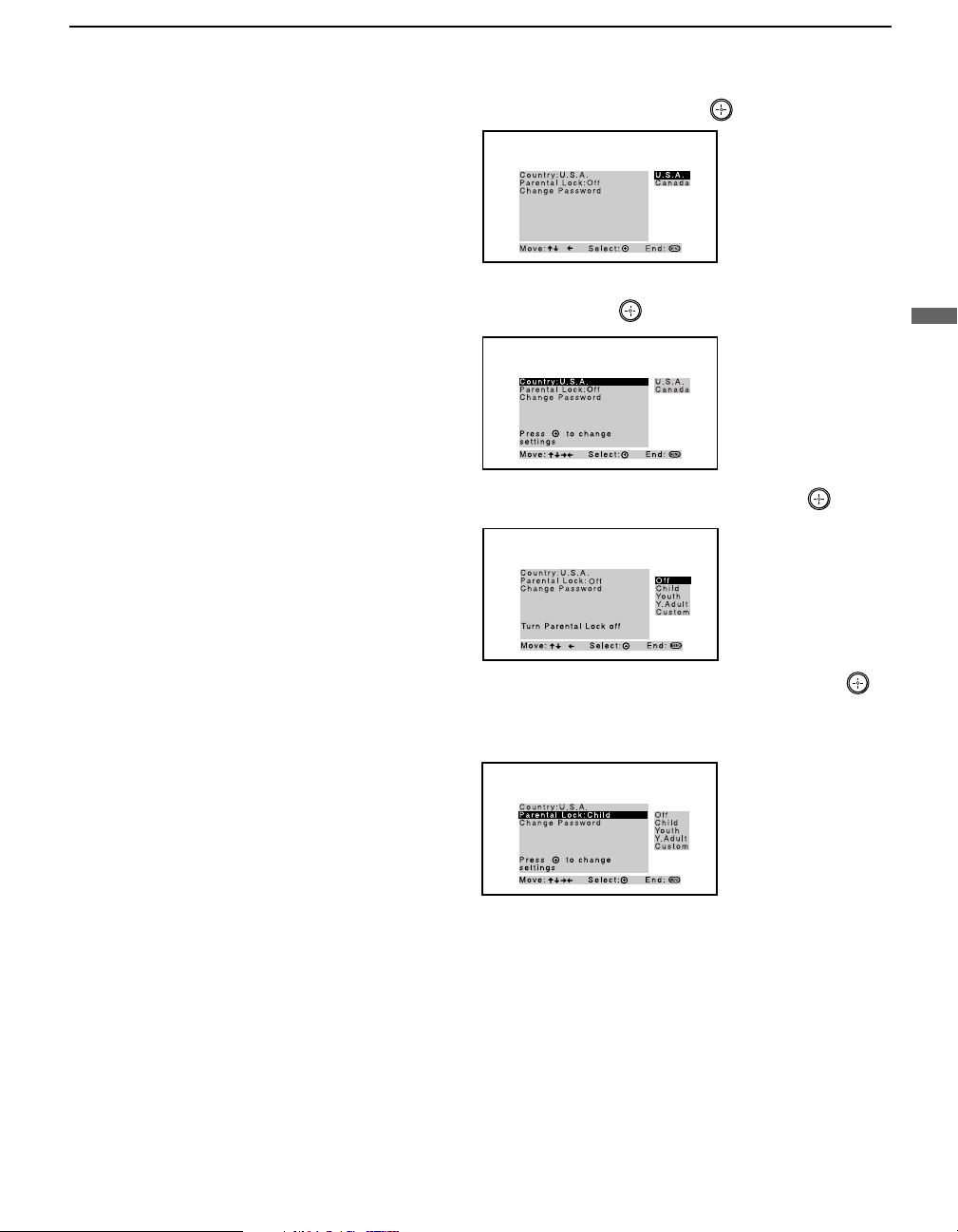

❑ Parental Control: V-Chip technology allows parents to block

unsuitable programming for younger viewers.

❑ Component Video Inputs: Offers the best video quality for DVD

(480p, 480i) and Digital Set-top box (1080i, 720p, 480p, 480i)

connections.

❑ S-VIDEO Inputs: Provides a high-quality image for connected

equipment.

❑ Favorite Channel Preview: Preview up to eight favorite channels

without leaving the current channel.

❑ Scrolling Channel Index: Allows you to view and choose channels

from scrolling pictures without leaving the current channel.

Introducing the Sony Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

❑ Wide Screen Mode: Allows you to watch 4:3 normal broadcasts in

wide screen mode (16:9 aspect ratio).

❑ Auto Wide: Allows you to select the wide screen mode automatically.

❑ Flash Focus

™

: Allows you to adjust convergence automatically.

❑ Manual Convergence: Allows you to manually adjust the convergence

of specific areas of the screen.

❑ Digital Visual Interface (DVI): Can accommodate a copyprotected

digital connection (HDCP

) to other devices (such as digital set-top

boxes) that have compatible interfaces. The DVI-HDTV input terminal

is compliant with the EIA-861 standard and is not intended for use with

personal computers.

Using this manual

We recommend that you carefully review the contents of the following three

sections in the order shown to ensure that you fully understand the operation

of your new projection TV.

1 Installing and Connecting the Projection TV

This section guides you through your initial setup. It shows you how to

install your projection TV, to connect your new components and to connect

the antenna and cable.

2 Using the Features

This section shows you how to begin using your new projection TV. It also

shows you how to use your remote control functions.

3 Using the menus

This section teaches you how to access on-screen menus and adjust your

projection TV settings.

Instructions in this manual are written for the remote control. Similar

controls are also found on the projection TV console.

* High-bandwidth Digital Content Protection

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Installing and Connecting the Projection TV

Contents

The box contains your new projection TV, a remote control and two AA

batteries. No peripheral cables are included. If you intend to add additional

equipment to your projection TV, please check the hookup instructions for

your desired setup before you begin. You may need to purchase cables and/

or splitters to complete the hookup properly.

Inserting Batteries into the Remote Control

Insert two size AA (R6) batteries (supplied) by matching the + and – on the

batteries to the diagram inside the battery compartment.

✍ Remove the batteries to avoid damage from possible battery leakage

whenever you anticipate that the remote control will not be used for an

extended period.

✍ Handle the remote control with care. Avoid dropping it, getting it wet, or

placing it in direct sunlight, near a heater, or where the humidity is high.

✍ Your remote control can be programmed to operate most video

equipment. (See “Programming the Remote Control” on page 70.)

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Carrying Your Projection TV

Carrying the projection TV requires four (4) or more people.

The projection TV has been equipped with casters for easy movement on a

hard surface. Please move your projection TV using the casters.

(KP-51WS510, KP-57WS510, and KP-65WS510 only)

Installing the Projection TV

min. 1.8 m (approx. 6 ft.)

min. 2.1 m (approx. 7 ft.)

65"

min. 2.4 m (approx. 8 ft.)

57"

51"

46"

min. 1.6 m (approx. 5 ft.)

60˚

min. 1.8 m (approx. 6 ft.)

min. 2.1 m (approx. 7 ft.)

51"

57"

65"

min. 2.4 m (approx. 8 ft.)

60˚

min. 1.6 m (approx. 5 ft.)

46"

Recommended viewing area (Horizontal)Recommended viewing area (Vertical)

Handle (KP-65WS510 only)

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Connector Types

You may find it necessary to use some of the following connector types

during set up.

Coaxial cable

Standard TV cable and antenna cable

S Video cable

High quality video cable for enhanced picture quality

Audio/Video cable

Video - Yellow

Audio (Left) - White

Audio (Right) - Red

Some DVD Players are equipped with the following three video connectors:

Y - Green

B (CB, Cb or B–Y) - Blue

R (CR, Cr or R–Y) - Red

CONTROL S cable

CONTROL S connections are exclusive to Sony products and allow greater

control of all Sony equipment.

DVI cable

DVI connection for a high-bandwidth copy-protected signal

Plug Type

Screw-on Type

Push into connection.

Screw into connection.

Align guides and push

into connection.

Push into connection.

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Projection TV Controls and Connectors

Front Panel Menu

Controls

The front panel menu controls allow access to the on-screen menus without

the use of a remote control. Pressing

MENU brings up the on-screen menus.

The arrow buttons move the on-screen cursor in the menus and by pressing

the Select button ( ) selects the menu item.

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Projection TV Rear

and Front Panel

Connectors

Rear of projection TV

Front of projection TV

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Connection Description

1 DVI-HDTV

VIDEO

AUDIO R/L

(VIDEO 7 IN)

Can accommodate a copy-protected digital connection

(HDCP

) to other devices (such as digital set-top boxes) that

have compatible interfaces. The DVI-HDTV input terminal is

compliant with the EIA-861 standard, and is not intended for

use with personal computers. See the instruction manual that

came with your equipment for details about connecting and

using it with the TV.

* High-bandwidth Digital Content Protection.

2 AUX Allows you to view local and cable channels if your cable

provider does not feature local channels. You can switch

between local and cable channels easily by pressing ANT

on the remote control. Devices connected to the AUX

input cannot be viewed in Twin View.

3 TO CONVERTER This is a VHF/UHF OUT jack that lets you set up your

projection TV to switch between scrambled channels

(through a cable box) and normal cable channels (CATV).

Use this jack instead of a splitter to get better picture

quality when switching between scrambled and

unscrambled cable channels.

4 VHF/UHF Connects to your VHF/UHF antenna or cable.

5 S VIDEO

(Rear and front)

Connects to the S VIDEO OUT jack of your VCR or other S

VIDEO-equipped video component. Provides better picture

quality than the VHF/UHF jacks or the Video IN jack.

6 VIDEO

(L/R)/AUDIO

(Rear and front)

Connects to the audio and video OUT jacks on your VCR

or other video component. A fourth video input (VIDEO 2)

is located on the front panel of the projection TV.

7 Y/PB/PR

(L/R)/AUDIO

Connects to your DVD player’s or Digital Set-top box’s

component video (Y, PB, PR) and audio (L/R) jacks.

8 TV OUT Outputs the signal that the TV is tuned to (regardless of

the picture displayed on the screen).

9 AUDIO OUT

(VAR/FIX)

L (MONO)/R

Connects to the left and right audio inputs of your audio or

video component.

0 CONTROL S

IN/OUT

To control other Sony equipment with the projection TV's

remote control, connect the CONTROL S IN jack of the

equipment to the CONTROL S OUT jack on the

projection TV with the CONTROL S cable.

To control the projection TV with a remote control for

another Sony product, connect the CONTROL S OUT

jack of the equipment to the CONTROL S IN jack on the

projection TV with the CONTROL S cable.

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Basic Connections (Connecting Cable TV or Antenna)

Connecting Directly

to Cable or an

Antenna

The connection you choose depends on the cable found in your home. Newer

homes are equipped with standard coaxial cable (see A); older homes

probably have 300-ohm twin lead cable (see B); other homes may contain

both (see C).

A VHF Only or VHF/UHF or Cable

B VHF Only or UHF Only or VHF/UHF

C VHF and UHF

Cable and Antenna If your cable provider does not feature local channels, you may find this

setup convenient.

Select CABLE or antenna (ANT) mode by pressing

ANT on the remote

control.

75-ohm coaxial

cable

Rear of projection TV

VHF/UHF

Rear of projection TV

Antenna connector

300-ohm twin lead cable

VHF/UHF

Rear of projection TV

75-ohm coaxial cable

VHF/UHF

U/V Splitter

(not supplied)

300-ohm twin lead cable

✍ To receive channels with an antenna, you need to turn your Cable to Off

(see page 55) and perform the Auto Program function (see page 56).

CATV cable

Rear of projection TV

CONVERTER

(No connection to

TO CONVERTER)

VHF/UHF

Antenna cable

AUX

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Cable Box

Connections

Cable Box and Cable

This is the preferred basic cable TV hookup to use if:

❑

Your cable TV company scrambles some channels, but not all of them (pay

channels vs. regular cable channels) and you need to use a cable box, and

❑ You want to enjoy the Twin View feature.

With this setup you can:

❑ Use the projection TV remote control to change channels using your

cable box when the signal is scrambled.

❑ Use the projection TV remote control to change channels using your

projection TV when the signal is not scrambled. (Your projection TV’s

tuner provides a better signal than the cable box.)

❑ Use the Twin View feature. (When all channels are routed through your

cable box, only one channel is sent to the projection TV, so you can not

use the Twin View or Channel Index features for your cable box.)

1 Connect the Cable TV cable to the projection TV’s VHF/UHF jack.

2 Using a coaxial cable, connect the projection TV’s TO CONVERTER

jack to the cable box’s IN jack. The projection TV’s internal converter

allows you to switch between unscrambled signals coming straight into

the projection TV and scrambled signals coming in through the cable

box, eliminating the need for an external splitter.

3 Using a coaxial cable, connect the cable box’s OUT jack to the

projection TV’s AUX jack.

✍ DIGITAL CABLE BOX USERS: Do not use this connection. The TO

CONVERTER jack is not compatible with digital cable boxes.

✍ Pressing ANT on the remote control switches between the channels

coming in through the cable box (scrambled) and those coming directly

to the TV (unscrambled).

Rear of

projection TV

CONVERTER

VHF/UHF

AUX

Cable box

OUT

Signal

75-ohm coaxial cable (not supplied)

CATV cable (unscrambled channels)

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Cable Box Only

Use this hookup if:

❑ You subscribe to a cable TV system that uses scrambled or encoded

signals requiring a cable box to view all channels, and

❑ You do not intend to hook up any other audio or video equipment to

your projection TV.

When all channels are routed through your cable box, only one unscrambled

channel is sent to the projection TV, so you cannot use the Twin View

feature. If some channels are scrambled, but others are not, consider using

the hookup on page 17 instead.

1 Connect the coaxial connector from your cable service to the cable

box’s IN jack.

2 Using a coaxial cable, connect the cable box’s OUT jack to the TV’s

VHF/UHF jack.

Also, set Cable to On in the Channel menu (see page 55).

✍ Your Sony remote control can be programmed to operate your cable box

(see “Programming the Remote Control” on page 70).

✍ To change channels using the cable box, set your projection TV to

channel 3 or 4 depending on the cable box channel output. If you will be

controlling all channel selection through your cable box, consider using

the Channel Fix feature to set your projection TV to channel 3 or 4 (see

page 56).

If you have a digital

cable box, you cannot use

this connection because

the TO CONVERTER

jack is not compatible with

digital cable boxes.

VHF/UHF

Rear of projection TV

Cable

OUT

Cable box

Setting the Channel

Fix feature in the Channel

menu (see “Using the

Channel Menu” on page

55), ensures that you do

not accidentally switch

the channels using your

projection TV.

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Connecting a VCR and Cable

Use this hookup if:

❑ You have cable TV that does not require a cable box.

Disconnect all power sources before making any connections.

1 Connect the cable TV cable to the VCR’s IN jack.

2 Using a coaxial cable, connect the VCR’s OUT jack to the projection

TV’s VHF/UHF jack.

3 Using AUDIO and S VIDEO cables, connect the VCR’s Audio and

S Video OUT jacks to the projection TV’s AUDIO and S VIDEO IN

jacks.

Coaxial cable

Rear of Projection TV

VIDEO (yellow)

AUDIO-L (white)

AUDIO-R (red)

Cable

VCR

VMC-810S/820S

(not supplied)

S VIDEO

YC-15V/30V (not supplied)

✍ If your VCR is not equipped with S VIDEO, use a VIDEO cable (yellow)

instead of the S VIDEO cable.

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Connecting a VCR and Cable Box

Use this hookup if:

❑ Your cable TV company scrambles some channels, but not all of them

(pay channels vs. regular cable channels) and you need to use a cable

box, and

❑ You want to enjoy the Twin View feature.

With this setup you can:

❑ Use the projection TV remote control to change channels on your cable

box when the signal is scrambled. To program your Sony remote control

to operate your cable box, see “Programming the Remote Control” on

page 70.

❑ Use the projection TV remote control to change channels using your

projection TV when the signal is not scrambled. Your projection TV’s

tuner provides a better signal than the cable box.

❑ Use the Twin View feature. (When all channels are routed through your

cable box, only one signal is sent to the projection TV, so you cannot

use the Twin View feature.)

Disconnect all power sources before making any connections.

1 Connect the Cable TV cable to the projection TV’s VHF/UHF jack.

2 Using a coaxial cable, connect the TV’s TO CONVERTER jack to the

cable box’s IN jack. The projection TV’s internal converter allows you

to switch between unscrambled signals coming straight into the

projection TV and scrambled signals coming in through the cable box,

eliminating the need for an external splitter.

3 Using a coaxial cable, connect the cable box’s OUT jack to the VCR’s

IN jack.

4 Using AUDIO and S VIDEO cables, connect the VCR’s AUDIO and S

VIDEO OUT jacks to the projection TV’s AUDIO and S VIDEO IN

jacks.

5 Using a coaxial cable, connect the VCR’s OUT jack to the projection

TV’s AUX jack.

✍ DIGITAL CABLE BOX USERS: If you are connecting a digital cable box,

you will need a special bi-directional splitter that is designed to work

with your digital cable box. Contact your cable provider for details.

✍ To view scrambled channels, press ANT to switch to the AUX input.

Change channels using your cable box.

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Coaxial

cable

Cable box

VCR

Rear of projection TV

VIDEO (yellow)

AUDIO-L (white)

AUDIO-R (red)

VMC-810S/820S

(not supplied)

Coaxial cable

YC-15V/30V

(not supplied)

S VIDEO

✍ If your VCR is not equipped with S VIDEO, use a VIDEO cable (yellow)

instead of the S VIDEO cable.

✍ You will not be able to change channels on the VCR. Set your projection

TV and VCR to channel 3 or 4, depending on your cable box.

✍ Pressing ANT on the remote control switches between the channels

coming in through the cable box (scrambled) and those coming directly

to the projection TV (unscrambled).

✍ If you are connecting a digital cable box, you will need a special

bi-directional splitter designed to work with your cable box.

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Connecting Two VCRs for Tape Editing

If you connect two VCRs, you can record from one VCR to the other while

using your projection TV to monitor what is being recorded.

Disconnect all power sources before making any connections.

1 Using AUDIO and VIDEO cables, connect the playback VCR’s AUDIO

and VIDEO OUT jacks to the recording VCR’s Audio and Video IN

jacks.

2 Using AUDIO and VIDEO cables, connect the recording VCR’s

AUDIO and Video OUT jacks to the projection TV’s AUDIO and

VIDEO IN jacks.

Rear of projection TV

VCR (playback)

VCR (recording)

VMC-810S/820S (not supplied)

AUDIO-R (red)

AUDIO-L (white)

VIDEO (yellow)

✍ To perform tape editing, set the projection TV to the video input intended

for playback by pressing TV/VIDEO on the remote control.

✍ You may need to change the video input on your VCR. Consult your

VCR’s operating manual for instructions.

✍ If both VCRs have an S VIDEO jack, you can use the S VIDEO connection

instead of the yellow video cable on a combined A/V cable.

To use an S VIDEO cable, connect the VIDEO OUT jack of the playback

VCR to the VIDEO IN jack of the recording VCR. Since S VIDEO does not

provide audio, you must still connect audio cables to provide sound.

✍ You cannot record signals from equipment connected to the Y, PB, PR

input.

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Connecting a Satellite Receiver

Disconnect all power sources before making any connections.

1 Connect the satellite antenna cable to the satellite receiver’s

SATELLITE IN jack.

2 Using AUDIO and S VIDEO cables, connect the satellite receiver’s

AUDIO and S VIDEO OUT jacks to the projection TV’s AUDIO and

S VIDEO IN jacks.

3 Connect a coaxial cable from your cable or antenna to the projection

TV’s VHF/UHF jack.

✍ If your satellite receiver is not equipped with S VIDEO, use a VIDEO cable

(yellow) instead of the S VIDEO cable.

Coaxial

cable

Satellite receiver

VMC-810S/820S (not supplied)

Rear of projection TV

VIDEO (yellow)

AUDIO-L (white)

AUDIO-R (red)

Satellite

antenna

cable

S VIDEO

YC-15V/30V (not supplied)

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Connecting a Satellite Receiver with a VCR

Disconnect all power sources before making any connections.

1 Connect the satellite antenna cable to the satellite receiver’s

SATELLITE IN jack.

2 Connect the CATV cable to the VCR’s VHF/UHF IN jack.

3 Using a coaxial cable, connect the VCR’s OUT jack to the projection

TV’s VHF/UHF jack.

4 Using AUDIO and S VIDEO cables, connect the satellite receiver’s

AUDIO and S VIDEO OUT jacks to the VCR’s AUDIO and S VIDEO

IN jacks.

5 Using AUDIO and S VIDEO cables, connect the VCR’s AUDIO and S

VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.

Coaxial

cable

Rear of projection TV

S VIDEO

AUDIO-R (red)

AUDIO-L (white)

VIDEO (yellow)

Satellite receiver

VCR

YC-15V/30V

(not supplied)

VMC-810S/

820S (not

supplied)

YC-15V/30V (not supplied)

VMC-810S/820S

(not supplied)

Satellite

antenna

cable

Cable

✍ Be sure your VCR’s video input is set correctly. Consult your VCR’s

operating manual for instructions.

✍

Use TV/VIDEO to select

- VIDEO 1 to watch satellite TV or the VCR (your VCR must be turned on).

- VHF/UHF to watch cable TV.

✍ If your VCR or satellite receiver is not equipped with S VIDEO, use a

VIDEO cable (yellow) instead of the S VIDEO cable.

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Connecting an Audio Receiver

Disconnect all power sources before making any connections.

Using audio cables, connect the projection TV’s AUDIO OUT (VAR/FIX)

jacks to the audio receiver’s audio LINE IN jacks.

Rear of projection TV

AUDIO-R

(red)

AUDIO-L

(white)

Line

input

RK-74A

(not supplied)

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Connecting a DVD Player with Component

Video Connectors

This is the preferred hookup to use if:

❑ Your DVD player has component (Y, B-Y, R-Y) jacks.

Disconnect all power sources before making any connections.

1 Using three separate component video cables, connect the DVD player’s

Y, B-Y and R-Y jacks to the Y, P

B and PR jacks on the projection TV.

Use the VIDEO IN 5 or 6 connections.

2 Using an audio cable, connect the DVD player’s Audio OUT jacks to

the projection TV’s AUDIO IN jacks. Be sure to use the same row of

inputs that you used for the video connection (VIDEO IN 5 or 6).

✍ The Y, B-Y and R-Y jacks on your DVD player are sometimes labeled

Y, C

B and CR, or Y, PB and PR. If so, connect the cables to like colors.

VMC-10HG (not supplied)

Rear of projection TV

RK-74A (not supplied)

DVD player

AUDIO-R (red)

AUDIO-L (white)

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Connecting a DVD Player with A/V Connectors

Use this hookup if:

❑ Your DVD player does not have component (Y, PB, PR) jacks.

Disconnect all power sources before making any connections.

1 Using audio cables, connect the DVD player’s Audio OUT jacks to the

projection TV’s AUDIO IN jacks.

2 Using an S VIDEO cable, connect the DVD player’s S VIDEO jack to

the projection TV’s S VIDEO jack.

✍ If your DVD player has video component output connectors: for best

picture quality use the connection described on page 26.

Rear of projection TV

YC-15V/30V

(not supplied)

DVD player

RK-74A (not supplied)

AUDIO-R (red)

AUDIO-L (white)

S VIDEO

✍ Use TV/VIDEO on the remote control to switch between the VCR, DVD

player and cable TV inputs.

✍ If your VCR is not equipped with S VIDEO, use a VIDEO cable (yellow)

instead of the S VIDEO cable.

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Connecting a Digital TV Receiver

Disconnect all power sources before making any connections.

1 Using three separate component video cables, connect the Digital TV

Set-top box’s Y, P

B and PR jacks to the projection TV.

2 Using an audio cable, connect the Digital TV Set-top box’s Audio OUT

jacks to the projection TV’s AUDIO IN jacks.

✍ The Y, PB and PR jacks do not provide audio, so audio cables must

be connected to provide sound.

✍ Component video connection is necessary to view 480p, 720p, and

1080i formats. You may also use the S VIDEO or Composite Video

connections, however, component video (Y, P

B, PR) will provide the

best picture quality for all format types.

Be sure to read the

Set-top box manual.

Some Digital TV

Receivers are equipped

with a DVI connection.

Refer to your Digital TV

Receiver manual for

setup instructions using

this connection.

VMC-10HG (not supplied)

Digital TV Set-top box

RK-74A (not supplied)

AUDIO-R (red)

AUDIO-L (white)

Rear of projection TV

✍ You cannot record the signal from any equipment connected into the

Y, P

B and PR connectors.

✍ This projection TV is not compatible with digital TV receivers

configured with RGB or VGA output connectors.

✍ The DVI connection is compliant with the EIA-861 standard and is

not intended for use with personal computers.

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Connecting a Camcorder

For easy connection of the camcorder, the projection TV has front Audio and

Video inputs (shown below). However, if you prefer, you can also connect

the camcorder to the projection TV’s rear Audio and Video IN jacks.

Using AUDIO and S VIDEO cables, connect the camcorder’s Audio and S

VIDEO OUT jacks to the projection TV’s AUDIO and S VIDEO IN jacks.

✍ If you have a mono camcorder, connect its left audio output to the

projection TV’s AUDIO L (MONO) jack.

✍ If your camcorder is not equipped with S VIDEO, use a VIDEO cable

(yellow) instead of the S VIDEO cable.

S VIDEO

YC-15V/30V (not supplied)

VMC-810S/820S

(not supplied)

VIDEO

(yellow)

A/V output

AUDIO-L (white)

AUDIO-R (red)

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Connecting an AV Receiver

For greater control of all audio and video equipment, connect an AV receiver.

Disconnect all power sources before making any connections.

1 Connect the coaxial cable from the incoming cable connection or

antenna to IN on the VCR.

2 Using a coaxial cable, connect OUT on the VCR to VHF/UHF on the

projection TV.

3 Using a VIDEO cable, connect VIDEO of VIDEO 1 IN on the

projection TV to MONITOR OUT on the AV receiver.

4 Using an AUDIO/VIDEO cable, connect TV OUT on the projection TV

to AUDIO/VIDEO 2 IN on the AV receiver.

5 Using an AUDIO/VIDEO cable, connect the video equipment to the AV

receiver.

6 Select the Setup menu and set “Video Label” to “Receiver” to fix your

TV’s input to AV receiver (see “Video Label” on page 61).

✍ Change “Video Label” for the VIDEO 1 input to “Receiver” (see page 61).

You can connect an

AV receiver using both

composite video and S

VIDEO. If both are

connected, then the TV

will detect and display an

S VIDEO signal. To take

advantage of this feature,

connect your receiver

with Video 1.

Rear of projection TV

AUDIO-L

AUDIO-R

VMC-10HG (not supplied)

Cable/

Antenna

Coaxial cable (not supplied)

VMC-810S/820S

(not supplied)

VMC-810S/820S

(not supplied)

AUDIO/

VIDEO 1 IN

AUDIO/VIDEO 1 OUT

AV receiver

VMC-810S/820S (not supplied)

MONITOR

OUT

VIDEO

VCR

AUDIO/

VIDEO 2 IN

S VIDEO

Optional S VIDEO cable

YC-15V/30V (not supplied)

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Using the CONTROL S Feature

CONTROL S allows you to control your projection TV system and other

Sony equipment with one remote control. In addition to allowing you to

control multiple devices with one remote control, the CONTROL S feature

allows you to always point your remote control at your projection TV,

instead of having to point it at the other equipment, which might be hidden

or out of direct line of sight.

Rear of projection TV

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Setting Up the Projection TV Automatically

After you finish connecting your projection TV, you can run Auto Setup to

set up your channels. The Auto Setup screen appears when you turn your

projection TV on for the first time after installing it. If you do not want to set

up the channels at this time, you can do it later by using the Auto Program

feature in the Channel menu (see page 56).

Using Auto Setup 1 Press POWER on the front panel of your projection TV or on the remote

control

to turn on the projection TV.

2 Press the TV (FUNCTION) button on your remote control. Red light will

briefly appear.

3 Press CH+ on your projection TV to run Auto Setup, or press CH– to

exit. If you use the channel buttons on your remote control, be sure to

use the main set of buttons ( ).

✍ The Auto Setup feature does not apply for installations that use a cable

box for all channel selection.

✍ You can run Auto Program by selecting it in the Channel menu, as

described on page 56.

Projection TV front panel

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Adjusting the Convergence Automatically – FLASH FOCUS™ –

The projection tube image appears on the screen in three colors (red, green

and blue). If they do not converge, the color is poor and the picture blurs.

Before you use your projection TV, be sure to adjust the convergence.

The FLASH FOCUS feature allows you to adjust the convergence

automatically.

1 Receive a TV or cable TV program.

2 Press FLASH FOCUS.

The cross pattern shown below appears and FLASH FOCUS begins to

work. The adjustment is completed when the cross pattern becomes

white and you are returned to the program you were watching.

✍ It is recommended to perform FLASH FOCUS about 30 minutes after the

projection TV is first turned on.

✍ You cannot perform any other functions until FLASH FOCUS has

completed its cycle.

✍ If you perform any other operation while FLASH FOCUS is in progress,

FLASH FOCUS operation is canceled.

✍ Unshielded speakers or other metallic objects can cause picture

distortion if placed close to the projection TV.

✍ If you would like to manually perform additional fine adjustments, see

page 34.

Projection TV

front panel

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Adjusting the Convergence Manually

The Manual Convergence feature gives you more control over the TV's

picture than the Flash Focus feature, allowing you to fine-tune the color

alignment of each section of the TV screen.

1 Press MENU to display the Menu.

2 Move the joystick B or b to highlight the Setup icon and press .

3 Move the joystick to highlight Convergence and press .

A pattern of white crosses appears, with a yellow around one of the

crosses. Aligned crosses (which do not need adjustment) look white and

have little or no red or blue showing. Crosses that are not aligned show

red or blue shades beyond their edges.

4 Using the joystick, move the to surround a cross that you want to

adjust. Press . The changes to red.

5 If the cross that you selected has red edges, move the joystick until the

red image is replaced with a white cross. Once you have finished this (or

the cross does not have red edges), press . The changes to blue.

6 If the cross you selected has blue edges, move the joystick until the blue

image is replaced with a white cross. Once you have finished this, press

. The changes to yellow again.

7 Repeat steps 4 to 6 to adjust other crosses. When finished, press MENU

to exit the manual convergence screen and the Setup menu.

✍ Before using Manual Convergence, you must first perform Flash Focus

(as described on page 33).

✍ Use the joystick of your remote control to perform the steps below.

✍ You can scroll up and down through the 9 x 7 field of crosses to

manually converge all portions of the screen.

Full/Normal

Move

Select:

End:menu

For details on using the

Setup Menu, see page 60.

Installing and Connecting the Projection TV

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Notes on Adjusting

the Convergence

Manually

❑ For best results, stand about 3 to 5 feet back from the picture when

adjusting the convergence. Begin with the crosses in the center area of

the screen and, once those are adjusted, move to the crosses on the edges

of the screen.

❑ You can make separate adjustments to each wide mode: Full/Normal,

Zoom, Wide Zoom, and 1080i high-definition input. The cross pattern

settings appear different in each wide mode, but the adjustment

procedure is the same. Press the WIDE MODE button on the remote to

toggle through the wide mode screens.

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Using the Features

Using the Remote Control

The following table describes the buttons on the remote control that are for

more advanced functions.

Button Descriptions Outside Panel

Button Description

1 MUTING Press to mute the sound. Press again or press VOL + to

restore the sound.

2 SLEEP Press repeatedly until the projection TV displays the time

in minutes (15, 30, 45, 60, or 90) that you want the

projection TV to remain on before shutting off

automatically. Cancel by pressing until Sleep Off appears

or turning the power off. While the Sleep feature is set,

press once to view the remaining time.

3 ANT Changes between the VHF/UHF input and the AUX input.

4 DISPLAY Press once to display the current time and channel label (if

set) and channel number. Press again to turn Display off.

See page 59 for details on setting the time.

5 JUMP Press to jump back and forth between two channels. The

projection TV alternates between the current channel and

the last channel that was selected.

6 FREEZE Freezes the window picture. Press again to restore the

picture.

7 INDEX Press to enter the Scrolling Channel Index mode. You can

view and select from all receivable channels scrolling on

the screen without leaving the current one.

8 The joystick allows for movement of the on-screen cursor.

Pressing down on the center of the joystick selects the item.

9 VOL +/– Adjusts the volume.

q; PIC MODE Press repeatedly to step through the available video picture

modes: Vivid, Standard, Movie and Pro. Also available in

the Video menu. For details, see “Selecting Video Options”

on page 51.

qa FAVORITES Displays the Favorite Channels list. For details, see “Using

Favorite Channels” on page 42.

qs RESET Press when in a menu to reset the settings to the factory

defaults.

Using the Features

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

qd POWER

buttons

(GREEN)

Turn on and off the projection TV and other audio/video

equipment you have programmed into the remote control.

For instructions, see “Programming the Remote Control”

on page 70.

qf FUNCTION

buttons

Select the equipment (TV, SAT/CABLE) that you want to

operate. The indicator lights up momentarily when pushed

to show which device the remote control is operating.

qg TV/VIDEO

Cycles through the video equipment connected to your

projection

TV’s video inputs:

VIDEO 1

VIDEO 2

VIDEO 3

VIDEO 4

VIDEO 5, VIDEO 6

and

VIDEO 7

qh 0 – 9 and

ENTER

Press 0 - 9 to select a channel, the channel changes after 2

seconds. Press ENTER to select immediately.

GUIDE

Turns on/off Twin View. For details, see “Using Twin

View™” on page 43.

Displays the program guide of your satellite.

qk MENU Press to display the projection TV on-screen menu. Press

again to exit from the menu.

ql CH +/– Scan through channels.

w; DRC/

CINEMOTION

Press repeatedly to step through the available high-

resolution picture modes: Interlaced, Progressive and

CineMotion. For details, see “Using the Video Menu” on

page 51.

wa WIDE MODE Press to step through the wide screen modes: Wide Zoom,

Normal, Full and Zoom. For details, see “Using Wide

Mode” on page 49.

Button Description

To scan rapidly through the

channels, press and hold down

CH+ or CH–.

Using the Features

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Inside Panel

Button Description

1 SYSTEM OFF Press to turn off the projection TV and all equipment

connected with S-Link.

2 N Play

3 m Rewind

4 REC Record

5 x Stop

6 DVD MENU Displays the DVD menu.

7 MTS/SAP Press to scroll through the Multi-channel TV Sound (MTS)

options: Stereo, Auto SAP, and Mono.

8 CODE SET Used for programming the remote control to operate non-

Sony video equipment. For details, see “Programming the

Remote Control” on page 70.

9 POWER Press to turn on the DVD/VCR player you have

programmed into the remote control. For instructions, see

“Programming the Remote Control” on page 70.

q; M Fast-forward

Use to switch control for connected video equipment. You

can program one video source for each switch position. For

details, see “Programming the Remote Control” on page 70.

qs X Pause (Press again to resume normal playback)

qd MENU Displays the Video equipment menu.

qf M, m, <, ,,

and ENTER

Use to operate the DVD menu.

qg Press to select an audio option: Steady Sound On or Off.

Using the Features

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Watching the TV

Many TV features can be accessed directly through the remote control. The

following will explain the function of some of the buttons found on your

remote control.

Buttons for

Projection TV

Operations

1 TV (FUNCTION)

Activates the remote control for use with the projection TV.

2 ANT— (AUX input)

Press to change between the VHF/UHF input and the AUX input.

3 TV (POWER)

Turns the projection TV on and off. If a video input indication (e.g.,

VIDEO 1, VIDEO 2) appears on the screen, press

TV/VIDEO or CH +/ – until

a channel number appears.

4 0-9 and ENTER

Use for direct channel selection. Press 0-9 to select a channel (for example,

to select channel 10, press

1 and 0). The channel will change after 2 seconds,

or you can press

ENTER for immediate selection.

5 CH +/–

Press to scan through the channels (+ up or – down).

6 VOL +/–

Press to adjust the volume (+ up or – down).

7 JUMP

Press to alternate or jump back and forth between two channels. The

projection TV will jump between the current channel and the last channel

selected.

8 MUTING

Press to mute the sound. “MUTING” will appear on the screen and will dim

three seconds later. To restore the sound, press again or press

VOL +.

9 FREEZE — (yellow labeled button)

This is useful when you need to copy down information that appears on the

TV’s screen (see “Using the Freeze Function” on page 46).

q; SLEEP

Press repeatedly until the projection TV displays the approximate time in

minutes (15, 30, 45, 60, or 90) that you want the projection TV to remain on

before shutting off automatically.

Cancel by pressing

SLEEP until “Sleep Off” appears or turning the power

off.

Using the Features

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

qa DISPLAY

Press to display the channel number, current time and channel label (if set).

To turn the display off, press

DISPLAY again.

qs TV/VIDEO

Press repeatedly to scroll through available video inputs: TV, VIDEO 1,

VIDEO 2, VIDEO 3, VIDEO 4, VIDEO 5

VIDEO 6, and VIDEO 7.

If you select

Skip as a Video Label in the Setup menu, your projection TV

will skip the video input you selected (see “Video Label” on page 61).

qd MTS/SAP

Press to scroll through the Multi-channel TV Sound (MTS) options (see

“MTS” on page 53).

qf PIC MODE

Press PIC MODE repeatedly to directly choose one of four different video

modes that best suits the program you are watching.

Vivid: Select for enhanced picture contrast and sharpness.

Standard: Select to display a standard picture for normal viewing

environments.

Movie: Select to display a finely detailed picture for low light environments.

Pro (Professional): Select to display a picture with minimum enhancements.

When you select each mode, you can also adjust the picture quality (such as

Brightness, Color, etc.) to suit your taste. For details, see “Mode” on page

51.

Using the Features

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Watching the Digital TV

When you have connected the DTV receiver, you can enjoy digital TV

programs. This projection TV is capable of receiving 1080i, 720p, 480p and

480i digital TV formats (note that 720p is displayed as 480p).

To view a digital TV program

1 Connect the DTV receiver to VIDEO 5, 6 or 7 IN on the projection TV.

(for details, see page 28)

2 Press TV/VIDEO to select VIDEO 5, 6 or 7.

3 Select a digital channel on the DTV receiver. For details, see the

Operating Manual of the DTV receiver.

4 Adjust the volume of the projection TV as necessary.

Using the Features

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Using Favorite Channels

The Favorite Channel feature lets you select programs from a list of favorite

channels that you preset.

To display a list of your favorite channels:

1 Press FAVORITES.

The Favorite Channel options appear.

2 Move the joystick up or down to highlight the channel you want to

watch. The program of that channel appears in the preview window.

Press to select.

✍ Your Favorite Channel options can be set automatically or manually. The

factory setting for Favorite Channel is Auto.

When Favorite Channel is set to Auto, the last eight channels selected

with 0-9 buttons will be set as Favorite Channel options. If you want to

input your own selections as Favorite Channel settings, see “Favorite

Channel” on page 55.

Favorites

124

Exit

Preview window

Using the Features

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Using Twin View™

Twin View enables you to watch two programs at the same time. You can

also change the size of both the left and right pictures.

Activating Twin

Pictures

To display twin pictures

1 Make sure your projection TV is tuned to

a working channel.

2 Press .

To cancel twin pictures

❑

Press again (or press ).

Activating the


Although two pictures appear on the screen at the same time, only one

picture is active. For an active picture, you can:

❑ Change channels.

❑ Adjust the volume.

❑ Switch the input sources from VHF/UHF to cable by pressing ANT or

TV/VIDEO to switch the video input.

When the picture on the right is activated, the input sources cannot be

switched to VIDEO 5, 6, 7, or AUX by pressing ANT.

❑ Change the picture size (see page 45).

To activate the right picture

❑

Move the joystick to the right.

To activate the left picture

❑

Move the joystick to the left.

Using the Features

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

✍ Factors Affecting Twin View:

- If you use a cable box to view all channels, the same channel

appears in both windows because the cable box unscrambles only

one channel at a time.

- If you use a cable box, you can view the cable box output in one

window and view a different source (such as a VCR or DVD player)

in the second window by using the

TV/VIDEO button.

- Sources connected to the AUX, VIDEO 5, VIDEO 6, and VIDEO 7

inputs display in the left window, but not the right.

- If you are viewing a 4:3 source and a 16:9 enhanced source (such

as a DVD) side by side, the 4:3 source appears larger.

- Twin View does not display channels that are blocked by Parental

settings (page 62).

✍ The active picture is highlighted in cyan.

Using the Features

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Changing the

Picture Size

The zoom feature lets you change the size of the left and right pictures.

To enlarge the left

picture (reduce

the right)

1 Move the

joystick left to

activate the left

picture (if not

already

activated).

2 Move the

joystick up to

enlarge the

picture and

move the

joystick down

to reduce the

picture.

To enlarge the

right picture

(reduce the left)

1 Move the

joystick right

to activate the

right picture

(if not already

activated).

2 Move the

joystick up to

enlarge the

picture and

move the

joystick down

to reduce the

picture.

✍ When you adjust the twin screen sizes, the projection TV memorizes the

change. The next time you use the Twin View function, the memorized

sizes appear.

Using the Features

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Using the Freeze Function

The FREEZE button allows you to temporarily capture a program’s picture.

You can use this feature to write down information such as phone numbers,

recipes, etc.

To use the Freeze function

1 When the program information you want to capture is displayed, press

FREEZE.

2 The projection TV switches to Twin View mode and displays the

“frozen” picture on the right, while the current program continues on the

left.

3 To cancel and return to normal viewing, press FREEZE.

✍ Freeze feature is not available if you are already in Twin View™ or Index

mode.

Call 555-1234

Current program

in progress

Frozen picture

Using the Features

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Using Scrolling Channel Index

Scrolling Channel Index allows you to view and select from all receivable

channels scrolling on the screen without leaving the current channel.

To use the Scrolling Channel Index function

1 Press .

The current channel will be reduced in size and displayed on the left in

normal motion picture format. The first channel is briefly displayed on

the bottom-right side of the screen, then frozen. It scrolls up and the next

channel appears on the bottom-right, and the process is repeated with

the other channels.

2 Move the joystick up and down so that the channel you wish to view is

displayed in the cyan frame, and press .

To return to scrolling, move the joystick up and down again.

3 To enlarge the selected channel into the left frame, press again.

The selected channel will be displayed in normal motion picture, and

the sound also switches to this channel.

✍

Scrolling Channel Index will not function when Parental Lock is activated.

To change the direction of

scrolling, move the joystick up

or down once.

To increase scrolling speed,

hold the joystick up or down.

Using the Features

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

4 Press .

The selected channel will be enlarged for normal viewing.

To cancel Scrolling Channel Index

Press again to resume normal viewing.

✍ Sound will only be heard from the center picture.

✍ If one of the pictures received through Scrolling Channel Index is snowy,

the entire screen may become unstable. In this case, skip the snowy

channel. (see “Channel Skip/Add” on page 56)

✍ If you leave the Scrolling Channel Index screen displayed for an hour

without any additional operation, Scrolling Channel Index is canceled

and the normal picture reappears.

✍ The Scrolling Channel Index cannot be used in combination with set-top

boxes, DBS receivers, or cable boxes.

✍ Scrolling Index feature does not function if you use a cable box to view

all channels.

Using the Features

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Using Wide Mode

Wide Screen mode lets you watch 4:3 normal broadcasts in several Wide

Screen modes (16:9 aspect ratio).

❑ Press WIDE MODE repeatedly to toggle through the following Wide

Mode settings.

When you change channels or inputs, the Wide Mode settings revert

to the

4:3 Default setting in the Screen menu. To retain the current Wide

Mode setting as channels and inputs are changed, set

4:3 Default to Off.

For details, see page 57.

✍

When viewing high-definition programs broadcast in 720p/1080i, it is not

possible to change between Wide Screen modes.

You can also access the

Wide Mode settings in the

Screen menu. For details, see

page 57.

Example Description

Wide Zoom enlarges the center portion of the 4:3

picture proportionately; however, only the left and

right edges of the screen are stretched to fill the 16:9

screen. The picture has a normal appearance, as

much as possible.

Normal returns the 4:3 picture to its original size.

Bars are visible at left and right sides to fill the 16:9

screen.

Full Mode stretches the entire 4:3 picture horizontally

only, to fill the 16:9 screen. The picture has an

elongated appearance.

Zoom Mode enlarges the entire 4:3 picture

proportionately to fill the 16:9 screen. Useful for

watching Letterbox movies.

Wide Zoom

Normal

Full

Zoom

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Using the Menus

Overview

Opening and choosing a menu:

1 Press MENU to display the menu screen.

2 Move the joystick to the desired menu icon and press to select it.

3 Use the joystick to scroll through the features.

4 See the specific menu page for instructions on moving through the

menu.

The menu gives you access to the following features:

Menu Icon Description Page

Allows you to make adjustments to your picture settings.

It also allows you to customize the Picture Mode based on

the type of program you are viewing.

Offers enhanced audio options such as listening to second

audio programming (SAP), or customizing the Effect of

the sound on your projection TV.

Allows you to set up a Favorite Channel list, run the Auto

Program function, and more.

Allows you to set the wide screen mode, adjust the

vertical center in wide mode, and set the 4:3 Default

mode.

Lets you set the clock on your projection TV and allows

you to program your projection TV for scheduled viewing

using the Timers.

Provides several options for setting up your channels,

labeling your Video inputs, and selecting the language of

the on-screen menus.

To end a menu session:

Press MENU again.

To end one menu

session and move to

another:

Press the joystick B to

return to the menu icons.

Move the joystick B or b to

choose the next menu icon

and press to select it.

Using the Menus

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Using the Video Menu

To select the Video Menu

1 Press MENU.

2 Move the joystick to the Video

icon and press .

3 Use the joystick to scroll

through the features.

4 Press to select a feature.

That feature’s adjustment

appears.

5 Use the joystick to make the desired adjustments.

6 Press to select/set.

7 Press MENU to exit the menu screen.

To restore the factory default settings for Picture, Brightness, Color,

Hue, Sharpness and Color Temp

❑ Press RESET on the remote control when in the Video menu.

Selecting Video

Options

The Video menu includes the following options.

To quickly and easily

change from one Video

Mode to another, use the

PIC MODE on the remote

control.

Option Description

Mode

Customized


viewing

Vivid Select for enhanced picture contrast and

sharpness.

Standard Recommended for Normal viewing conditions.

Movie Select for soft, film like, picture.

Pro Select for professional monitor like appearance.

✍ You can alter the Video menu settings (Picture, Brightness,

Color, etc.) for each Mode.

Picture Adjust to increase picture contrast and deepen the color or decrease

picture contrast and soften the color.

Brightness Adjust to brighten or darken the picture.

Color Adjust to increase or decrease color intensity.

Hue Adjust to increase or decrease the green tones.

Sharpness Adjust to sharpen or soften the picture.

Color Temp

White

intensity

adjustment

Choose from three color temperatures:

Cool Select to give the white colors a blue tint.

Neutral Select to give the white colors a neutral tint.

Warm Select to give the white colors a red tint (NTSC-

Standard).

Using the Menus

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

DRC Mode

Digital

Reality

Creation

Creates a high-resolution picture with 4x density, for high quality

sources (i.e., DVD player, Satellite receiver).

Interlaced Recommended for moving pictures.

Progressive Recommended for still images and text.

CineMotion Recommended for 24 frame-per-second films.

Option Description

Using the Menus

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Using the Audio Menu

To select the Audio Menu

1 Press MENU.

2 Move the joystick to the

Audio icon and press .

3 Use the joystick to scroll

through the options.

4 Press to select an option.

That option’s settings appear.

5 Use the joystick to scroll through the settings.

6 Press to select the desired setting.

7 Press MENU to exit the menu screen.

To restore the factory default settings for Treble, Bass and Balance

❑

Press RESET on the remote control when in the Audio menu.

Selecting Audio

Options

The Audio menu includes the following options:

Option Description

Treble Adjust to increase or decrease higher-pitched sounds.

Bass Adjust to increase or decrease lower-pitched sounds.

Balance Adjust to emphasize left or right speaker balance.

Steady

Sound

On Select to stabilize the volume.

Off Select to turn off Steady Sound.

Effect TruSurround Select for surround sound (for stereo programs

only).

Simulated Adds a surround-like effect to mono programs.

Off Normal stereo or mono reception.

MTS

Enjoy stereo,

bilingual and

mono

programs

Stereo Select for stereo reception when viewing a program

broadcast in stereo.

Auto-SAP Select to automatically switch the projection TV to

second audio programs when a signal is received.

(If no SAP signal is present, the projection TV

remains in Stereo mode.)

Mono Select for mono reception. (Use to reduce noise

during weak stereo broadcasts.)

Using the Menus

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Speaker On Select to turn on the projection TV speakers.

Off Select to turn off the projection TV speakers and

listen to the projection TV's sound only through

your external audio system speakers.

Audio Out

Easy control

of volume

adjustments

Var iable The projection TV’s speakers are turned off, but

the volume output from your audio system can still

be controlled by the projection TV’s remote

control.

Fixed The projection TV’s speakers are turned off and the

volume, bass and treble output of the projection TV

is fixed. Use your audio receiver’s volume control

to adjust the volume through your audio system.

Option Description

Using the Menus

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Using the Channel Menu

To select the Channel Menu

1 Press MENU.

2 Move the joystick to the

Channel icon and press

3 Use the joystick to scroll

through the features.

4 Press to select a feature.

That feature’s options appear.

5 Use the joystick to scroll through the options.

6 Press to select the desired option.

7 Press MENU to exit the menu screen.

Selecting Channel

Options

The Channel menu includes the following options:

Option Description

Favorite Channel Auto Select if you want Favorite Channel options to

be set automatically to the last eight channels

selected with the 0-9 buttons.

Manual Select if you want to input your own selections

as Favorite Channel options.

1 Press to select a favorite channel

number.

2 Use the joystick to scroll through the

channels until you find the channel you

want to add to your favorites.

3 Press to select it.

Cable On Select if you are receiving cable channels with a

CATV cable.

Off Select if you are using an antenna.

✍ You should run Auto Program after changing the Cable

setting.

Using the Menus

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Channel Fix

Useful when you

have a cable box

or satellite

receiver connected

2-6 “Fix” your projection TV’s channel setting to 3

or 4 and use the cable box, VCR or satellite

receiver to change channels. Select one of these

settings if you have connected the device to the

VHF/UHF jack.

AUX 2-6 Same as 2-6, except you select one of these

settings if you have connected the device to the

AUX jack. (see page 15)

Video 1 Use when connecting a cable box to control

external video sources. TV output should be

connected through the cable box.

Auto Program Automatically programs the projection TV for all receivable

channels.

Channel

Skip/Add

Removes and adds viewable channels.

1 Use the joystick to scroll through the channels until you

find the channel you want to skip/add.

2 Press to select it.

3 Press the joystick up or down to toggle between “Add” and

“Skip.”

4 Press to select.

Channel Label Label up to 20 channels with their station call letters.

Option Description

Using the Menus

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Using the Wide Menu

To select the Wide menu

1 Press MENU.

2 Use the joystick to move to the

Wide icon and press .

3 Move the joystick to scroll

through the features.

4 Press to select a feature.

That feature’s options appear.

5 Use the joystick to scroll through the options.

6 Press to select the desired option.

7 Press MENU to exit the menu screen.

Selecting Wide

Options

The Wide menu includes the following options:

To change from one

Wide Mode to another,

use the WIDE MODE

button on the remote

control.

Wide Mode is

unavailable while in Twin

View, Index or Freeze

mode.

The 4:3 Default

functions only when the

projection TV receives

480i signals.

Option Description

Wide Mode

Select a Wide

Mode to use for

4:3 sources.

Wide Zoom Select to enlarge the 4:3 picture, while the

upper and lower parts of the picture are

condensed to fit the wide screen.

Normal Select to return the 4:3 picture to normal

mode.

Full Select to enlarge the 4:3 picture horizontally

only, to fill the wide screen.

Zoom Select to enlarge the 4:3 picture horizontally

and vertically to an equal aspect ratio that fills

the wide screen.

4:3 Default

Select the default

Screen Mode to

use for 4:3

sources.

Wide Zoom Select to enlarge the 4:3 picture, while the

upper and lower parts of the picture are

condensed to fit the wide screen.

Normal Select to return the 4:3 picture to normal

mode.

Full Select to enlarge the 4:3 picture horizontally

only, to fill the wide screen.

Zoom Select to enlarge the 4:3 picture horizontally

and vertically to an equal aspect ratio that fills

the wide screen.

Off Select to continue using the current Wide

Mode setting when the channel or input is

changed.

Using the Menus

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Vertical Center Allows you to move the position of the picture up and down in

the window. (Available only in Wide Zoom and Zoom modes.)

Move the joystick up or down to choose a position and press

✍ Some wide-screen programs (particularly certain theatrical releases) will be

shown in aspect ratios that require the display of black bands at the top and

bottom of your 16:9 screen. For more details, check the documentation that

came with your DVD, or contact your content provider.

Option Description

If 4:3 Default is set to

anything but Off, the Wide

Mode setting changes

only for the current

channel. When you

change channels (or

inputs), Wide Mode is

automatically replaced

with the 4:3 Default

setting. To retain the

current Wide Mode setting

as channels and inputs

are changed, set 4:3

Default to Off.

Using the Menus

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Using the Timer Menu

To select the Timer menu

1 Press MENU.

2 Move the joystick to the

Timer icon and press .

To set the Current Time

1 Use the joystick to select

“Current Time”, then press

2 If it is currently Daylight Saving Time, be sure to set the mode to “On”

first.

3 Use the joystick to enter the correct time, then press .

4 Press MENU to exit the menu screen.

To set the Timer

Before setting the timer, be sure to set your projection TV’s clock to the

current time and Daylight Saving Mode.

1 Move the joystick to “Timer 1” or “Timer 2”, then press .

2 Use the joystick to enter your day, time, channel, and timer duration

preferences; then, press to select each one.

3 Press MENU to exit the menu screen.

To reset the Clock or Timers

❑

Press RESET on the remote control after selecting that option in the

Timer menu.

Selecting Timer

Options

The Timer menu includes the following options:

Option Description

Timer 1

Timer 2

Program Select to set the Timer by day, time, duration,

and channel.

Off Select to turn off the Timer. (Your previous

settings will be saved.)

Current Time Set the current time.

Daylight Saving On Select in the Spring to adjust the time during

Daylight Saving Time.

Off Select in the Fall to adjust the time at the end

of Daylight Saving Time.

Using the Menus

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Using the Setup Menu

To select the Setup Menu

1 Press MENU.

2 Move the joystick to the Setup

icon and press .

3 Use the joystick to scroll

through the features.

4 Press to select a feature.

That feature’s options appear.

5 Use the joystick to scroll through the options.

6 Press to select the desired option.

7 Press MENU to exit the menu screen.

Selecting

Setup Options

The Setup menu includes the following options:

Option Description

Parental Control Allows you to set up the TV to block programs according to

their content and rating levels. For details about setting, see

“Using the Parent Menu” on page 62.

Caption Vision Allows you to select from three closed caption modes (for

programs that are broadcast with closed captioning).

Off Turns off Caption Vision.

CC1, CC2,

CC3, CC4

Displays a printed version of the

dialog or sound effects of a program.

(Should be set to CC1 for most

programs.)

Tex t 1 , Text 2 ,

Tex t 3 , Text 4

Displays network/station information

presented using either half or the

whole screen (if available). For closed

captioning, set to CC1.

XDS

(Extended Data

Service)

Displays a network name, program

name, program length, and time of the

show if the broadcaster offers this

service.

(Continued)

Using the Menus

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Video Label Allows you to label the audio/video components you connected

to the projection TV so you can identify them when using TV/

VIDEO. When in the Setup menu’s Video Label feature, use

the joystick to highlight an input to label, then press to

select it. Use the joystick to scroll through the labels. Press

to select the component you connected to each of the input

jacks on the back of your projection TV. Select “Skip” if you do

not have a component connected to a particular set of input

jacks.

VIDEO 1 Receiver, VHS, DVD, Satellite, Cable

Box, 8 mm, DTV, LD, Beta, Skip

VIDEO 2/3/4 VHS, DVD, Satellite, Cable Box,

8 mm, DTV, LD, Beta, Skip

VIDEO 5/6/7 DVD, Satellite, Cable Box, DTV, HD,

Skip

If you select “Skip”, your projection TV skips this connection

when you press TV/VIDEO.

✍ When you have set the Video Label for Video 1 to "Receiver",

you are able to change channels with the remote, and the

TV input will stay on Video 1. Refer to "Connecting an AV

Receiver" on page 30 for more details.

Language Select to display all on-screen menus in your language of

choice: English, Español, Français.

Option Description

Using the Menus

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Using the Parent

The Parent menu allows you to set up the TV to block programs according to

their content and rating levels.

These ratings are assigned by a federal rating board. Not all programs are

rated. Using the Parental Lock blocks programs with a specific rating, but it

does not block an entire channel.

To select the rating

First, set a password, then select the country you reside in (U.S.A. or

Canada) and your desired rating.

1 Press MENU.

2 Move the joystick to the Setup icon and press .

3 Make sure that “Parental Control” is selected, and press .

4 Use the 0-9 buttons on the remote control to enter your four-digit

password.

5 Confirm your password by entering it again. Your password is stored

and the Parent menu options appear.

✍ Scrolling Channel Index will not function when Parental Lock is activated.

✍ You need the password entered here for any future access into the Parent

menu. If you lose your password, see “Lost password” on page 76.

✍ If you want to change the password, see page 64.

Using the Menus

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

6 Make sure that “Country” is selected, and press .

7 Move the joystick up or down to select U.S.A. or Canada according to

the country you reside in, and press .

8 Move the joystick down to select “Parental Lock”, and press .

9 Move the joystick up or down to select a desired rating, and press .

If you select Child, Youth, Young Adult or Custom, the Parental Control

is activated automatically.

If you want to select the ratings from Custom, see “Using Custom

Rating Options” on page 65.

10 Press MENU to exit the menu screen.

Using the Menus

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

The Parent menu includes the following options.

To deactivate the Parental Control feature

❑

Set Parental Lock to Off when in the Parent menu.

To change the password

1 Select Change Password option when in the Parent menu using the

joystick, and press .

2 Enter a new four-digit password using the 0-9 buttons.

3 Confirm the new password by entering it again.

4 Press MENU to exit the menu screen.

Viewing Blocked

Programs

You can view a blocked program by entering the password.

1 Press ENTER when tuned to a blocked program.

2 Enter your password using the 0-9 buttons.

Parental Control will be canceled temporarily until you turn your

projection TV off.

Option Description

Parental Lock

Turn ratings on/

off and select a

rating system

Off Parental lock is off. No programs are blocked

from viewing.

Child Maximum ratings permitted are:

❏ US: TV-Y, TV-G, G

❏ Canada: TV-Y, C, G

Yo u th Maximum ratings permitted are:

❏ US: TV-PG, PG

❏ Canada: TV-PG, PG, 8 ans+

Young Adult Maximum ratings permitted are:

❏ US: TV-14, PG-13

❏ Canada: TV-14, 14+, 13 ans+

Custom Select to set ratings manually.

❏ US: See page 68 for details.

❏ Canada: See page 69 for details.

Change

Password

For changing your password. (see below)

For descriptions of

Child, Youth, and Young

Adult ratings, see

pages 68 and 69.

If you are not familiar

with the Parental

Guideline rating system,

you should select Child,

Youth, or Young Adult to

help simplify the rating

selection. To set more

restrictive ratings, select

Custom.

Using the Menus

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Using Custom

Rating Options

If you want to select the ratings to be blocked from Custom, follow the

procedure below.

1 Perform the steps 1 to 8 in “To select the rating” on page 62 to display

the Parental Lock options.

2 Move the joystick up or down to select “Custom,” and press .

3 Make sure that “Movie Ratings” is selected, and press .

4 Move the joystick up or down to select the rating to be blocked, and

press .

The indicator automatically appears beside the selected rating and all

“higher” ratings, indicating that the programs that match the ratings will

be blocked.

To unblock a rating, select it by moving the joystick up or down, then

press . The indicator changes into “-” and all “lower” ratings are

unblocked.

Using the Menus

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

5 Move the joystick left, then down, to select “TV Rating” or “Program,”

and press .

6 The “TV Rating” setting menu appears.

7 Move the joystick up or down to select the rating to be blocked, and

press .

The indicator automatically appears beside the selected rating and all

“higher” ratings, indicating that the programs that match the ratings will

be blocked.

To unblock a rating, select it by moving the joystick up or down, then

press . The indicator changes into “-” and all “lower” ratings are

unblocked.

Some TV ratings have additional content ratings called “extenders.” The

extenders are defined as follows: D (sexually suggestive Dialog), FV

(Fantasy Violence), L (Coarse Language), S (Sexual situations) and V

(Violence). By setting the extenders, you can define additional viewing

limits. All of the extenders included in the selected ratings will be

blocked. If you wish to allow any of them to be viewed, go to step 8.

(Continued)

Using the Menus

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

8 Move the joystick left or right to select the extender to be viewed, and

press .

“-” appears beside the selected extender, indicating that the programs

that match the extender can be viewed.

If you press again, is displayed to show that the programs that

match the extender will be blocked again.

9 Repeat step 8 for other extenders.

All programs that match the ratings you select and higher, except for the

extenders that were canceled, will be blocked.

10 Press MENU to exit the menu screen.

Using the Menus

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

US custom rating options

If you selected U.S.A. as the country of residence on page 62, the Custom

Rating Menu includes the following options. (If you selected Canada, see

page 69.)

Option Description

Movie Rating G All children and General Audience.

PG Parental Guidance suggested.

PG-13 Parental Guidance for children under 13.

R Restricted viewing, parental guidance is suggested

for children under 17.

NC-17

and X

No one 17 and under allowed.

TV Rating

Block programs

by their rating,

content or both

Age-Based Options

TV-Y All children.

TV-Y7 Directed to older children.

TV-G General Audience.

TV-PG Parental Guidance suggested.

TV-14 Parents Strongly cautioned.

TV-MA Mature Audience only.

Content-Based Options

FV Fantasy Violence.

D Suggestive Dialogue.

L Strong Language.

S Sexual situations.

V Violence.

Unrated

Block programs

or movies that

are broadcast

without a rating

Block Blocks all programs and movies that are broadcast

without a rating.

Allow Allows programs and movies that are broadcast

without a rating.

✍ The content ratings will increase depending on the level of the age-based rating.

For example, a program with a TV-PG V (Violence) rating may contain moderate

violence, while a TV-14 V (Violence) rating may contain more intense violence.

To ensure maximum

blocking capability, the

age-based ratings should

be blocked.

If you choose to block

unrated TV programs,

please be aware that the

following programs may

be blocked: emergency

broadcasts, political

programs, sports, news,

public service

announcements, religious

programs and weather.

(Continued)

Using the Menus

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Canadian custom rating options

If you selected Canada as the country of residence on page 62, the Custom

Rating Menu includes the following options. (If you selected U.S.A., see

page 68.)

Option Description

English Rating C All children.

C8+ Children 8 years and older.

G General programming.

PG Parental Guidance.

14+ Viewers 14 and older.

18+ Adult programming.

French Rating G General programming.

8 ans+ Not recommended for young children.

13 ans+ Not recommended for ages under 13.

16 ans+ Not recommended for ages under 16.

18 ans+ Programming restricted to adults.

USA Rating See “TV Rating” on page 68 for details.

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Other Information

Programming the Remote Control

The remote control is preset to operate Sony brand video equipment.

If you have video equipment other than Sony brand that you want to control

with the projection TV’s remote control, use the following procedures to

program the remote control.

From the “Manufacturer’s Codes” listed on page 72, select the three-digit

code number for the manufacturer’s code for your component. If more than

one code number is listed, start with the number listed first. Use the code

number to complete the following procedure.

To program a cable box or a satellite receiver

1 Open the panel of the remote control.

2 Press CODE SET inside the panel.

3 Close the panel and press SAT/CABLE (FUNCTON).

4 Enter the three-digit manufacturer’s code number using the 0-9 buttons.

5 Press ENTER.

6 To check if the code number works, aim the projection TV’s remote

control at the component and press the green

POWER button that

corresponds with that component. If it responds, the programming is

completed. If not, try using the other codes listed for that manufacturer.

Sony

Equipment

Switch Position

on Remote Control

Programmable

Code Number

Beta, ED Beta VCRs AV1 303

8 mm VCR AV2 302

VHS VCR AV3 301

DVD Player DVD 751

✍ The equipment must have infrared (IR) remote capability in order to be

used with the remote control.

Other Information

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

To program video equipment

1 Open the panel of the remote control.

2 Move the slide switch to the desired component type.

3 Press CODE SET inside the panel.

4 Close the panel and enter the three-digit manufacturer’s code number

using the

0-9 buttons.

5 Press ENTER.

6 To check if the code number works, aim the projection TV’s remote

control at the component, open the panel, and press the green

POWER

button. If it responds, the programming is completed. If not, try using

the other codes listed for that manufacturer.

Tips

❑

If more than one code number is listed, try entering them one by one

until you come to the correct code for your component.

❑ If you enter a new code number, the code number you previously

entered at that setting is erased.

❑ In some rare cases, you may not be able to operate your component with

the Sony remote control. In this case, use the component’s own remote

control unit.

✍ You must perform step 4 within 10 seconds of step 3, or you must

start again from step 3.

Other Information

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Manufacturer’s Codes

VCRs

DVD Players

Cable Boxes

Satellite Receivers

Manufacturer Code

Sony 301

Admiral

(M. Ward)

327

Aiwa 338, 344

Audio Dynamic 314, 337

Broksonic 319, 317

Canon 309, 308

Citizen 332

Craig 302, 332

Criterion 315

Curtis Mathes 304, 338, 309

Daewoo 341, 312, 309

DBX 314, 336, 337

Dimensia 304

Emerson 319, 320, 316,

317, 318, 341

Fisher 330, 335

Funai 338

General Electric 329, 304, 309

Go Video 322, 339, 340

Goldstar 332

Hitachi 306, 304, 305,

338

Instant Replay 309, 308

JC Penney 309, 305, 304,

330, 314, 336,

337

JVC 314, 336, 337,

345, 346, 347

Kenwood 314, 336, 332,

337

LXI (Sears) 332, 305, 330,

335, 338

Magnavox 308, 309, 310

Marantz 314, 336, 337

Marta 332

Memorex 309, 335

Minolta 305, 304

Mitsubishi/

MGA

323, 324, 325,

326

Multitech 325, 338, 321

NEC 314, 336, 337

Olympic 309, 308

Optimus 327

Panasonic 308, 309, 306,

307

Pentax 305, 304

Philco 308, 309

Philips 308, 309, 310

Pioneer 308

Quasar 308, 309, 306

RCA/

PROSCAN

304, 305, 308,

309, 311, 312,

313, 310, 329

Realistic 309, 330, 328,

335, 324, 338

Sansui 314

Samsung 322, 313, 321

Sanyo 330, 335

Scott 312, 313, 321,

335, 323, 324,

325, 326

Sharp 327, 328

Shintom 315

Signature 2000

(M. Ward)

338, 327

SV2000 338

Sylvania 308, 309, 338,

310

Symphonic 338

Tashiro 332

Tatung 314, 336, 337

Teac 314, 336, 338,

337

Technics 309, 308

Toshiba 312, 311

Manufacturer Code

Wards 327, 328, 335,

331, 332

Yamaha 314, 330, 336,

337

Zenith 331

Manufacturer Code

Sony 751

Panasonic 753

Pioneer 752

RCA 755

Toshiba 754

Manufacturer Code

Hamlin/Regal 222, 223, 224,

225, 226

Jerrold/G.I./

Motorola

201, 202, 203,

204, 205, 206,

207, 208, 218

Oak 227, 228, 229

Panasonic 219, 220, 221

Pioneer 214, 215

Scientific

Atlanta

209, 210, 211

Tocom 2 16 , 2 17

Zenith 212, 213

Manufacturer Code

Sony 801

General

Electric

802

Hitachi 805

Hughes 804

Panasonic 803

RCA/

PROSCAN

802, 808

Toshiba 806, 807

Manufacturer Code

Other Information

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Operating Other Components with Your Projection TV Remote

Control

Operating a VCR Open the panel and move the slide switch to the AV input you coded for this

device.

Operating a DVD

Player

Open the panel and move the slide switch to the DVD input you coded for

this device.

To Do This ... Press

Turn on/off green POWER button (inside the panel)

Change channels CH +/–

Record N and REC simultaneously

Play N

Stop x

Fast forward M

Rewind the tape m

Pause X (press again to resume normal playback)

Search the picture

forward or backward

M or m during playback

(release to resume normal playback)

Change input mode Slide switch

To Do This ... Press

Turn on/off green POWER button (inside the panel)

Play N

Stop x

Pause X (press again to resume normal playback)

Step through different tracks of

an audio disc

M to step forward or m to step backward

Step through different chapters

of a video disc

CH+ to step forward or CH– to step backward

Display the DVD menu DVD MENU

Display the menu (Setup) MENU

Operate the DVD menu M, m, <, ,, ENTER

Other Information

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Operating a Cable

Box

Operating a Satellite

Receiver

To Do This ... Press

Turn on/off SAT/CABLE (POWER)

Select Cable Box SAT/CABLE (FUNCTION)

Select a channel 0-9 buttons, ENTER

Change channels CH +/–

Back to previous channel JUMP

To Do This ... Press

Turn on/off SAT/CABLE (POWER)

Select Satellite Receiver SAT/CABLE (FUNCTION)

Select a channel 0-9 buttons, ENTER

Change channels CH +/–

Back to previous channel JUMP

Display channel number DISPLAY

Display DBS guide GUIDE

Display DBS menu MENU

Move highlight (cursor) Joystick or arrows

Select item

Other Information

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Troubleshooting

If, after reading these operating instructions, you have additional questions related to the use of your

Sony television, please call our Customer Information Services Center at 1-800-222-SONY (7669) (U.S.

residents only) or (416) 499-SONY (7669) (Canadian residents only).

Problem Possible Remedies

No picture

(screen not lit),

no sound

❏ Make sure the projection TV’s power cord is connected securely to the wall outlet.

❏ Push the power button on the front of the projection TV.

❏ Check to see if the TV/VIDEO setting is correct: when watching TV, set to TV,

and when watching connected equipment, set to VIDEO 1, 2, 3, 4, 5, 6 or 7.

❏ Try another channel. It could be station trouble.

❏ The Parental Control feature is activated (see “Using the Parent Menu” on page

62).

❏ If your projection TV does not turn on, and a red light keeps flashing, your

projection TV may need service. Call your local Sony Service Center.

Remote control

does not operate

❏ Batteries could be weak. Replace the batteries.

❏ Press TV (FUNCTION) when operating your projection TV.

❏ Make sure the projection TV’s power cord is connected securely to the wall outlet.

❏ Locate the projection TV at least 3-4 feet away from fluorescent lights.

❏ Check the orientation of the batteries.

Dark, poor or no

picture (screen lit),

good sound

❏ Adjust the Picture setting in the Video menu (see page 51).

❏ Adjust the Brightness setting in the Video menu (see page 51).

❏ Check antenna/cable connections.

❏ Adjust the convergence again using FLASH FOCUS (see “Adjusting the

Convergence Automatically – FLASH FOCUS™ –” on page 33).

Good picture,

no sound

❏ Press MUTING so that “MUTING” disappears from the screen (see page 36).

❏ Make sure Speaker is set to On in the Audio menu (see page 54).

❏ Check the MTS setting in the Audio menu (see “MTS” on page 53).

Cannot receive digital channels

(when a DTV receiver is

connected)

❏ Check the connections between the DTV receiver and the projection TV (see page

28).

❏ Check your local listings to find out if you can receive digital broadcasts in your

area.

Cannot receive upper channels

(UHF) when

using an antenna

❏ Change Cable to Off (see page 55).

❏ Use Auto Program in the Channel menu to add receivable channels that are not

presently in TV memory (see page 56).

No color ❏ Adjust the Color settings in the Video menu (see page 51).

Only snow and noise

appear on the screen

❏ Check the Cable setting in the Channel menu (see “Cable” on page 55).

❏ Check the antenna/cable connections.

❏ Make sure the channel is broadcasting programs.

❏ Press ANT to change the input mode (see page 39).

Dotted lines

or stripes

❏ Adjust the antenna.

❏ Move the projection TV away from noise sources such as cars, neon signs, or hair-

dryers.

Other Information

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Projection TV is fixed to one

channel

❏ Use Auto Program in the Channel menu to add receivable channels that are not

presently in TV memory (see page 56).

❏ Check your Channel Fix settings (see page 56).

Double images or ghosts ❏ Use a highly directional outdoor antenna or a cable (when the problem is caused by

reflections from nearby mountains or tall buildings).

Cannot operate menu ❏ If the item you want to choose appears in gray, you cannot select it.

❏ Turn the projection TV’s power off and on again.

Cannot receive any channels

when using cable TV

❏ Use Auto Program in the Channel menu to add receivable channels that are not

presently in TV memory (see page 56).

❏ Check your cable settings.

❏ Make sure Cable is set to On in the Channel menu (see page 55).

Cannot gain enough volume

when using a cable box

❏ Increase the volume of the cable box using the cable box’s remote control. Then

press TV (FUNCTION) and adjust the projection TV’s volume.

The TV does not display all

available cable channels

❏ Make sure Cable is set to On in the Channel menu (see “Cable” on page 55).

❏ Use Auto Program in the Channel menu to add receivable TV channels that are

not presently in TV memory (see page 56).

Cannot receive channels

Unable to select a channel

❏ Use Auto Program in the Channel menu to add receivable TV channels that are

not presently in TV memory (see page 56).

Lost password ❏ In the password screen (see page 62), enter the following master password: 4357.

The master password clears your previous password; it cannot be used to

temporarily unblock channels.

Cannot change channels with

the remote control

❏ Be sure you have not inadvertently switched your projection TV from channel 3 or

4 setting if you are using another device to change channels.

❏ If you are using another device to control channels, be sure the “function” button

for that device has been pressed, or the slide switch is set correctly. For example, if

you are using your cable to control channels, be sure to press SAT/CABLE.

Cannot cycle through the other

video equipment connected to

the projection TV

❏ Be sure the Video Label feature has not been set to Skip (see page 61).

There is a black box on the

screen

❏ You have selected a text option in the Setup menu and no text is available. (see

page 60 to reset Setup selections) To turn this feature off, select Off in the Caption

Vision option. If you were trying to get closed captioning, select CC1 instead of

Tex t 1 - 4.

There is no twin picture or it is

just static

❏ Be sure your twin picture is set to a video source/channel that has a program airing.

❏ You may be tuned to a video input with nothing connected to it. Try cycling

through your video inputs using TV/VIDEO.

❏ Twin View is not set to receive a signal from the AUX input. If you have

connected a VCR, DVD player or satellite receiver to the AUX input on the

projection TV, it will not show in the second picture.

Problem Possible Remedies

(Continued)

Other Information

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

You get the same program in the

window picture as in the main


❏ Both may be set to the same channel. Try changing channels in either the main

picture or the window picture.

❏ You may be running all your channels through a cable box. The cable box will

only unscramble one signal at a time, so you cannot use the Twin View feature. If

possible, run a direct cable to your projection TV’s VHF/UHF input (this will only

work if your cable system provides an unscrambled signal.)

You cannot get anything but TV

channels in your second picture

❏ Be sure the video label has not been set to skip your video inputs. See the Setup

menu on page 60.

Favorite Channel does not

display your choices

❏ Verify that Favorite Channel is set to Manual in the Channel menu (see

“Favorite Channel” on page 55).

Some video sources do not

appear when you press TV/

VIDEO

❏ Ensure that Video Label is not set to SKIP (see “Video Label” on page 61).

Digital cable box does not

work

❏ Be sure that you have not connected the digital cable box to the TV's TO

CONVERTER jack. This jack is not compatible with digital cable boxes.

❏ If you are connecting a VCR and digital cable box, you must use a special bi-

directional splitter that is designed to work with your digital cable box. Contact

your cable provider for details.

Problem Possible Remedies

Other Information

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Specifications

Projection System 3 picture tubes, 3 lenses, horizontal in-line system

Picture Tube 7-inch high-brightness monochrome tubes (6.3 raster size), with optical

coupling and liquid cooling system

Projection Lenses High performance, large

diameter hybrid lens F1.1

Antenna 75 ohm external terminal for VHF/UHF

Television System NTSC, American TV Standard

Screen Size (measured diagonally) 46 inches (116.84 cm) (KP-46WT510)

51 inches (129.54 cm) (KP-51WS510)

57 inches (144.78 cm) (KP-57WS510)

65 inches (165 cm) (KP-65WS510)

Channel Coverage

VHF 2-13

UHF 14-69

CATV 1-125

Power Requirements 120V, 60 Hz

Number of Inputs / Outputs

DVI-HDTV 1 terminal, 3.3V T.M.D.S., 50 ohms

The DVI input terminal is compliant with the

EIA-861 standard and is not intended for use

with personal computers.

Video (IN) 4 1 Vp-p, 75 ohms unbalanced, sync negative

S Video (IN) 3

Y: 1 Vp-p, 75 ohms unbalanced, sync negative

C: 0.286 Vp-p (Burst signal), 75 ohms

Audio (IN) 6 500 mVrms (100% modulation)

Impedance: 47 kiloohms

AUDIO (VAR/FIX) 1 500 mVrms at the maximum volume setting

(Variable)

500 mVrms (Fixed)

Impedance (output): 1 kiloohm

TV Out 1 Video: 1 Vp-p 75 ohms unbalanced, Sync

negative

Audio: 500 mVrms (100% modulation)

Impedance (output): 1 kiloohm

CONTROL S (IN/OUT) 1 minijacks

Component Video Input 2 (Y, P

, P

) Y: 1.0 Vp-p, 75 ohms unbalanced, sync

negative

: 0.7 Vp-p, 75 ohms

RF Inputs 2

Converter 1

Speaker Output 20 W × 2

(Continued)

Other Information

Model name1[KP-46WT510] Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-65WS510]

[4-094-605-12]

Design and specifications are subject to change without notice.

Dimensions (W × H × D) 42

/4 × 40 × 24 inches (1,086 × 1,017 × 609 mm) (KP-46WT510)

47 × 53

/8 × 25

/8 inches (1,194 × 1,350 × 650 mm) (KP-51WS510)

/4 × 54

/4 × 27

/4 inches (1,326 × 1,377 × 690 mm) (KP-57WS510)

/4 × 57

/4 × 29

/2 inches (1,542 × 1,466 × 750 mm) (KP-65WS510)

Mass 135 lb (61.3 kg) (KP-46WT510)

172 lb (78.2 kg) (KP-51WS510)

195 lb (88.6 kg) (KP-57WS510)

300 lb (136 kg) (KP-65WS510)

Power Consumption

In Use 230 W

In Standby Under 1 W

Supplied Accessories

Remote Control RM-Y909

AA (R6) Batteries 2 supplied for remote control

Optional Accessories

AV Cable VMC-810/820/830 HG

Audio Cable RKC-515HG

Control S Cable RK-G69HG

Component Video Cable VMC-10/30 HG

AV Receiver STR-V555ES or equivalent

TV Stand SU-46WT5

Model name[KP-46WT510] 1Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-46WT510]

[4-094-605-12]

Index

Activating a Twin View screen 43

Adding channels to the channel list 56

Adjusting audio, Steady Sound 53

ANT button 36

Antenna, connecting 16

Audio menu 50, 53

Audio receiver, connecting 25

Audio/Video cable 12

Auto Program (channel setup) 32, 56

AV receiver, connecting to TV OUT 15, 30

Balance, adjusting 53

Bass, adjusting 53

Batteries, inserting in remote 10

Bilingual audio 53

Brightness, adjusting 51

Cable

connecting 16–18

setting ON/OFF

with VCR, connecting

19–20

Cable box

connecting with VCR 20

using with TV remote control

Camcorder, connecting 29

Caption Vision 60

CATV. See cable.

Channel list, adding channels

Channel menu 50, 55

Channel Skip/Add 56

Channels

Auto Program 56

creating labels

setting up

CineMotion, DRC 37, 52

Closed caption modes 60

CODE SET button 38

Color temperature, adjusting 51

Color, adjusting 51

Connecting

Audio receiver 25

AV receiver

Cable box

16–21

Cable or antenna

Camcorder

Digital TV Receiver

DVD player

26, 27

Satellite receiver

23, 24

VCR

20–22, 24

Connector Types 12

Contents of box 10

CONTROL S 31

Convergence, adjusting automatically 33

Convergence, adjusting manually 33

Daylight saving 59

Digital Reality Creation 52

Digital TV

connecting 28

watching

Digital TV program 41

Digital TV receiver, connecting 28

DISPLAY button 36

Display, turning off 36

DRC (Digital Reality Creation) Mode, described 8

DRC⁄ CINEMOTION button 37

DVD MENU button 38

DVD player

using with TV remote control 73

with A/V connectors, connecting

with component video connectors, connecting

Effect

OFF 53

Simulated

TruSurround

Enlarging pictures, in Twin View 45

Extended Data Service 60

Favorite Channel

auto 55

described

manual

setting up

using

FAVORITES button 36

Features 8

Flash Focus

described 9

performing

FREEZE button 36

Freeze, using 39, 46

Front Panel Controls 13

FUNCTION buttons (WHITE) 37

Hookups 16–31

Hue, adjusting 51

Inputs, labeling 61

Installation of the projection TV 16–31

JUMP button 36

(Continued)

Other Information

Model name[KP-46WT510] 1Model name2[KP-51WS510] Model name3[KP-57WS510] Model name4[KP-46WT510]

[4-094-605-12]

Jump, using 39

Label

channels 56

video inputs

MENU button 37

Menus

Audio 50, 53

Channel

50, 55

Setup

50, 60

Timer

50, 59

Video

50, 51

Wide

50, 57

MODE

Movie 40, 51

Pro

40, 51

Standard

40, 51

Vivid

40, 51

MTS/SAP button 40

MTS/SAP, using 53

Muting, using 39

Parental control, described 8

Password, changing 64

PIC MODE button 36

Picture contrast, adjusting 51

Picture size, adjusting in Twin View 45

POWER button 38

POWER buttons (GREEN) 37

Presetting channels 32, 56

Problems, troubleshooting 75

Ratings

setting 62–67

viewing blocked programs

Rear panel controls and connections 14, 15

Remote control

buttons inside panel 38

Function of buttons

39, 40

inserting batteries

programming

70–72

Remote control, operating other components with

Cable box 74

DVD player

Satellite receiver

VCR

Removing channels from the channel list 56

RESET button 36

Resetting

Audio options 53

Timer options

Video options

S Video cable 12

SAT/CABLE function button 37

SAT/CABLE power button 37

Satellite receiver

connecting 23

using with TV remote control

Setting up channels 32, 56

Setup menu 50, 60

Sharpness, adjusting 51

SLEEP button 36

Sleep, using 39

Specifications 78–79

Steady Sound

adjusting 53

described

Surround sound 53

SYSTEM OFF button 38

Time

set current 59

set daylight saving

Timer menu 50, 59

Timer setting 59

Treble, adjusting 53

Troubleshooting 75–77

TV function button 37

TV power button 37

TV/VIDEO button 37

Twin View™

activating a picture 43

described

using

VCR

connecting two, for tape editing 22

using with TV remote control

with cable box, connecting

with cable, connecting

with satellite receiver, connecting

Video inputs, labeling 61

Video menu 50, 51

Video Modes, selecting 51

Viewing area, recommended 11

VOL +/– button 36, 39

Zoom feature, with Twin View 45
