INSTALLATION INSTRUCTION
VT-4551D
LED LINEAR LIGHTING SYSTEM
WEEE Number: 80133970
INTRODUCTION
Thank you for selecng and buying V-TAC LED Emergency Spotlight. V-TAC will serve you
the best. Please read these instrucons carefully before starng the installaon and keep
this manual handy for future reference. If you have any other query, please contact our
dealer or local vendor from whom you have purchased the product. They are trained and
ready to serve you at the best.
• Install should be performed only by qualified technician.
• Make sure no voltage while doing the installaon.
• Connect cable wires according to wire labeling.
• Max current should not exceed 16A in one power feed circuit.
SAFETY NOTES

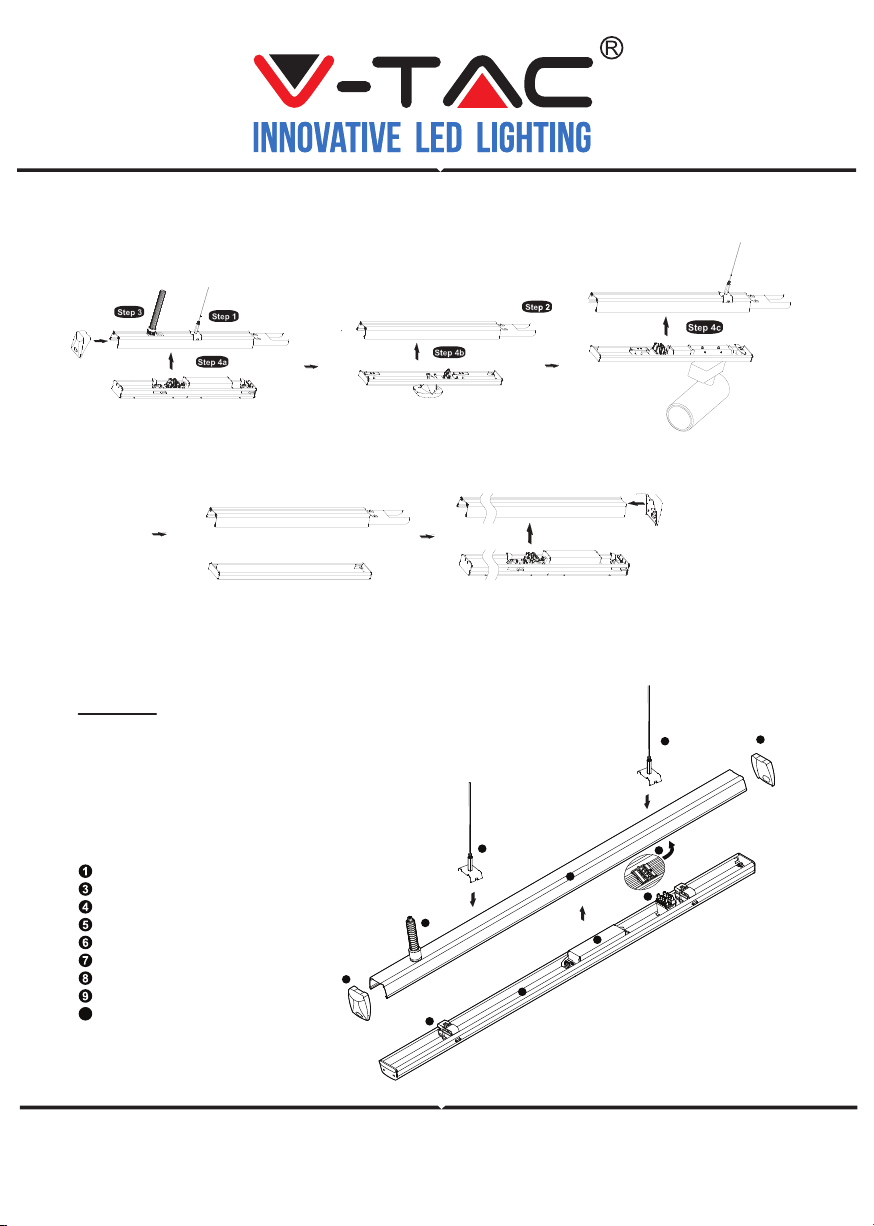

Luminaire
Sensor
Track spot
Blank cover
Luminaire
7
7
1
9
3
10
10
6
4
5
8
Trunking Rail
Power cable feed in hole
Luminaire
Driver
Lock holder
End cap
Male connector
Female connector
Installaon cord
10
Master:
Master module can be independently installed
as a single unit it also can be connected by
Follow at end of one linear light row
INSTALLATION INSTRUCTION

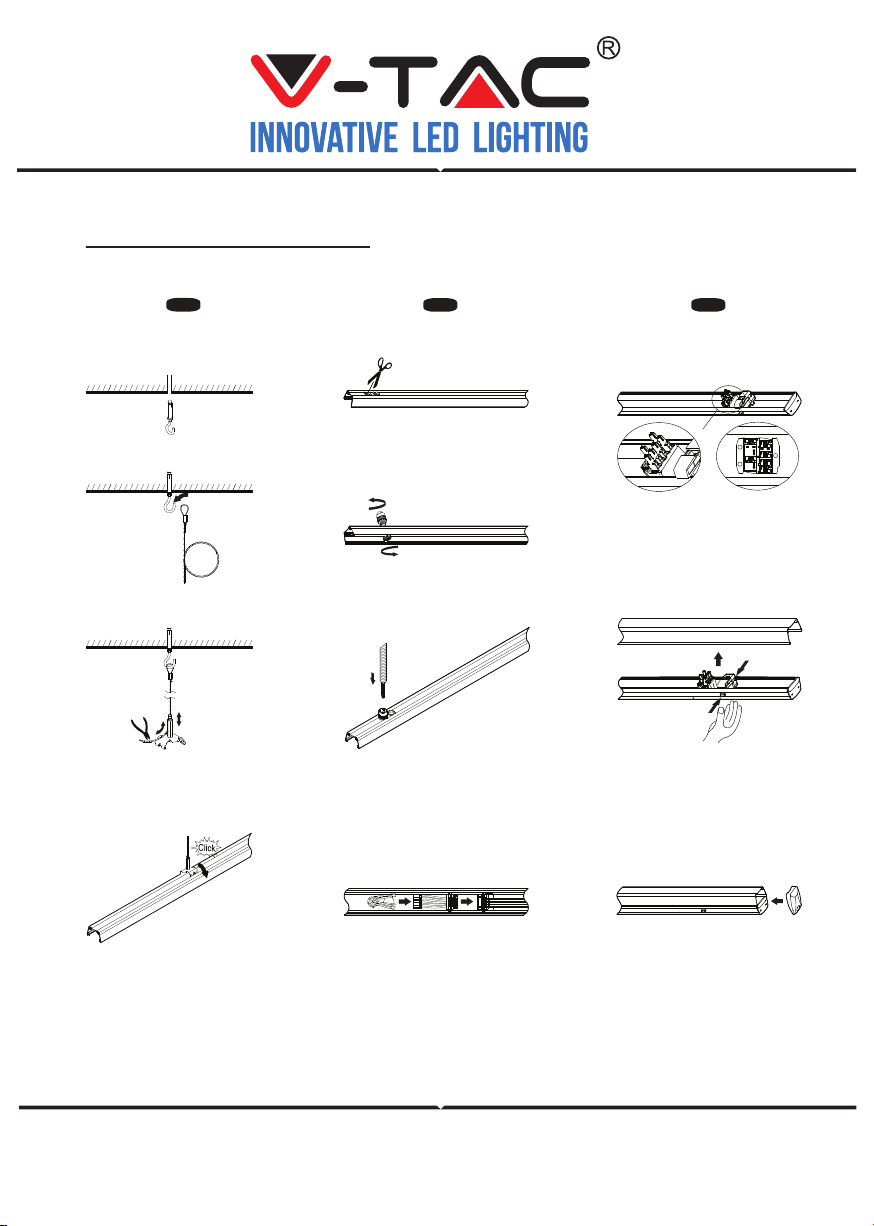

Mounng Suspension
Drill a hole on ceiling
Adjust length of suspension cord:
a. press down Hexagon bolt;
b. Pull in/out cord to adjust length
Click in mounng clip into trunking rail
Fix mounng hook into ceiling
Step 1
Connecng Power Supply
Cut the Rubber cap to pass the power
cable
Screw in the conduit gland
Put in conduit with cable inside and
pull up conduit gland to lock
Connect wires according labeling on
wires to feed in connector then connect
to connector in trunking rail
Step 2
Mounng Luminaire
Push the sliding lock to lock the
luminaire to trunking rail
Slide knob to select phase L1/L2/L3
Make sure male & female connectors
in right posion then fix the luminaire
to trunking rail
Step 3
L1
L3
In case of any query /issue with the product please reach out to us at [email protected]
• This product is warranted from manufacturing defect only.
• The warranty does not apply to damage caused by incorrect installaon or
abnormal wear and tear.
• The company gives no warranty against damage to any surface due to
incorrect removal and installaon of the product.
WARRANTY
• The product uses a very high power LED. As with any light source, direct
viewing should be avoided.
• NOTE: Although easy to fit, this lamp requires wiring to the main and for
safety should onle be fied by a qualified electrician.
• Having issued this warning, the company accepts no responsibility for issues
arising for any failutes to comply with these clear instrucons.
• The company will not accept any responsibility for any other issues arising from
improper use of fing of this product as these materials are beyond our control.
WARNING
• Risk of shock, hence disconnect at fuse or circuit breaker before installaon
or servicing.
• Suitable for a Maximum use of 10-20 Hours Daily. Usage of product for 24Hours
a day would void the warranty.
NOTICE
