©2009 Sony Corporation
4-131-723-11(2)
Multi Channel AV
Receiver
Operating Instructions
STR-DH800
2
US
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
To reduce the risk of fire, do not cover the
ventilation opening of the apparatus with
newspapers, tablecloths, curtains, etc. Do not place
the naked flame sources such as lighted candles on
the apparatus.
Do not install the appliance in a confined space, such
as a bookcase or built-in cabinet.
To reduce the risk of fire or electric shock, do not
expose this apparatus to dripping or splashing, and
do not place objects filled with liquids, such as
vases, on the apparatus.
As the main plug is used to disconnect the unit from
the mains, connect the unit to an easily accessible
AC outlet. Should you notice an abnormality in the
unit, disconnect the main plug from the AC outlet
immediately.
Do not expose batteries or apparatus with battery-
installed to excessive heat such as sunshine, fire or
the like.
The unit is not disconnected from the mains as long
as it is connected to the AC outlet, even if the unit
itself has been turned off.
Excessive sound pressure from earphones and
headphones can cause hearing loss.
For customers in the United
States and Canada
This symbol is intended to alert
the user to the presence of the Hot
Surface that may be hot if it is
touched during the normal
operation.
ENERGY STAR
®
is a U.S. registered
mark.
As an ENERGY STAR
®
partner, Sony
Corporation has determined that this
product meets the ENERGY STAR
®
guidelines for energy efficiency.
For customers in the United
States
Owner’s Record
The model and serial numbers are located on the rear
of the unit. Record these numbers in the space
provided below. Refer to them whenever you call
upon your Sony dealer regarding this product.
Model No.
Serial No.
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9) Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has
two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong. The wide blade or the third
prong are provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10)Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11)Only use attachments/accessories specified by
the manufacturer.
WARNING
3
US
12) Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13)Unplug this apparatus during lightning storms or
when unused for long periods of time.
14)Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
The following FCC statement
applies only to the version of
this model manufactured for
sale in the U.S.A. Other
versions may not comply with
FCC technical regulations.
NOTE:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment
and receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
You are cautioned that any changes or modifications
not expressly approved in this manual could void
your authority to operate this equipment.
To reduce the risk of electric shock, the speaker cord
should be connected to the apparatus and the
speakers in accordance with the following
instructions.
1) Disconnect the AC power cord from the MAINS.
2) Strip 10 to 15 mm of the wire insulation of the
speaker cord.
3) Connect the speaker cord to the apparatus and
the speakers carefully so as not to touch the core
of speaker cord by hand. Also disconnect the AC
power cord from the MAINS before
disconnecting the speaker cord from the
apparatus and the speakers.
4
US
About This Manual
• The instructions in this manual are for model
STR-DH800. Check your model number by
looking at the lower right corner of the front panel.
In this manual, models of area code U is used for
illustration purposes unless stated otherwise. Any
difference in operation is clearly indicated in the
text, for example, “Models of area code CA only”.
• The instructions in this manual describe the

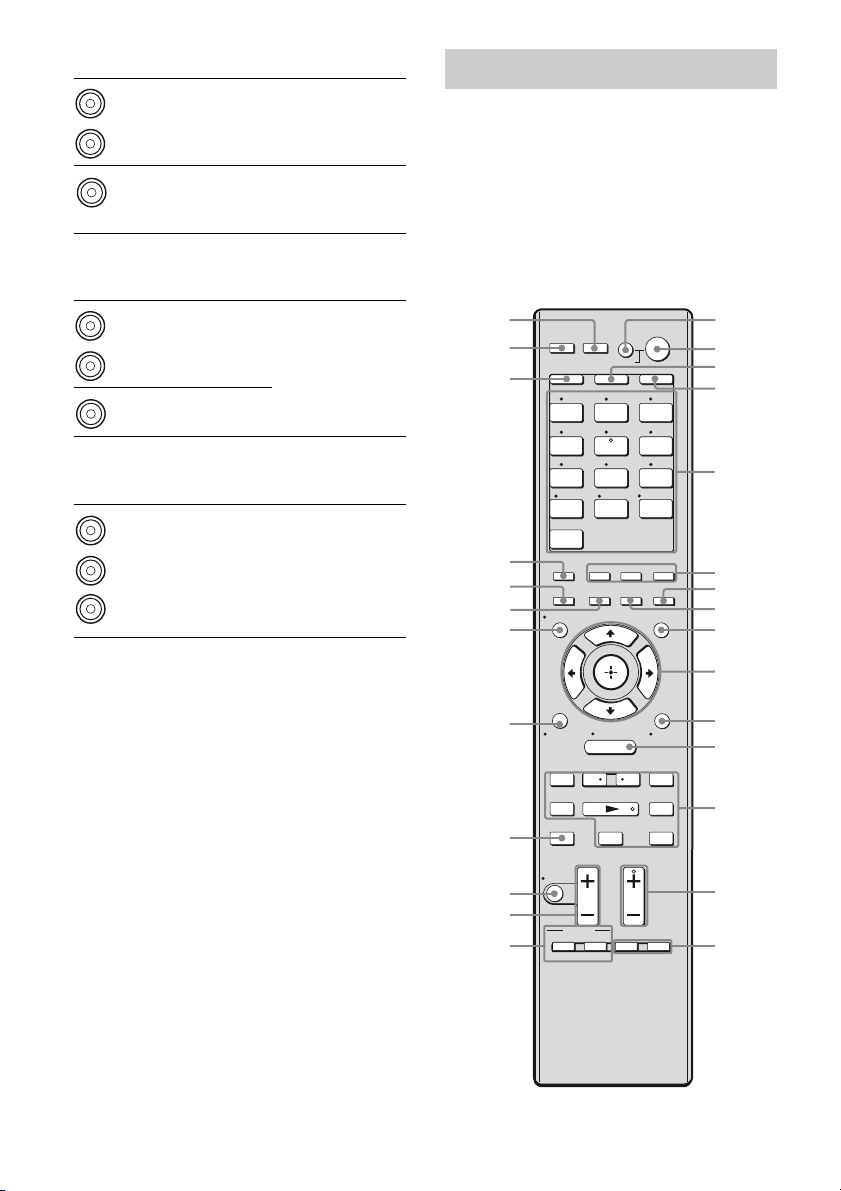

controls on the supplied remote. You can also use
the controls on the receiver if they have the same
or similar names as those on the remote.
This receiver incorporates Dolby* Digital and Pro
Logic Surround and the DTS** Digital Surround
System.
* Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
** Manufactured under license under U.S. Patent
#’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,226,616; 6,487,535; 7,212,872; 7,333,929;
7,392,195; 7,272,567 & other U.S. and
worldwide patents issued & pending. DTS is a
registered trademark and the DTS logos, Symbol,
DTS-HD and DTS-HD Master Audio are
trademarks of DTS, Inc. © 1996-2008 DTS, Inc.
All Rights Reserved.
This receiver incorporates High-Definition
Multimedia Interface (HDMI
TM
) technology.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
This product is manufactured under license from
Neural Audio Corporation and THX Ltd. Sony
Corporation hereby grants the user a non-exclusive,
non-transferable, limited right of use to this product
under USA and foreign patent, patent pending and
other technology or trademarks owned by Neural
Audio Corporation and THX Ltd. “Neural
Surround”, “Neural Audio”, “Neural” and “NRL”
are trademarks and logos owned by Neural Audio
Corporation, THX is a trademark of THX Ltd.,
which may be registered in some jurisdictions. All
rights reserved.
SIRIUS, XM and all related marks and logos are
trademarks of Sirius XM Radio Inc. and its
subsidiaries. All rights reserved.
“x.v.Color (x.v.Colour)” and “x.v.Color
(x.v.Colour)” logo are trademarks of Sony
Corporation.
“BRAVIA” is a trademark of Sony Corporation.
“S-AIR” and its logo are trademarks of Sony
Corporation.
About area codes
The area code of the receiver you purchased is
shown on the lower right portion of the rear panel
(see the illustration below).
Any differences in operation, according to the area
code, are clearly indicated in the text, for example,
“Models of area code AA only”.
LR
LR
SURROUND
FRONT A
2 IN 1 OUT
Area code
On Copyright
5
US
Table of Contents

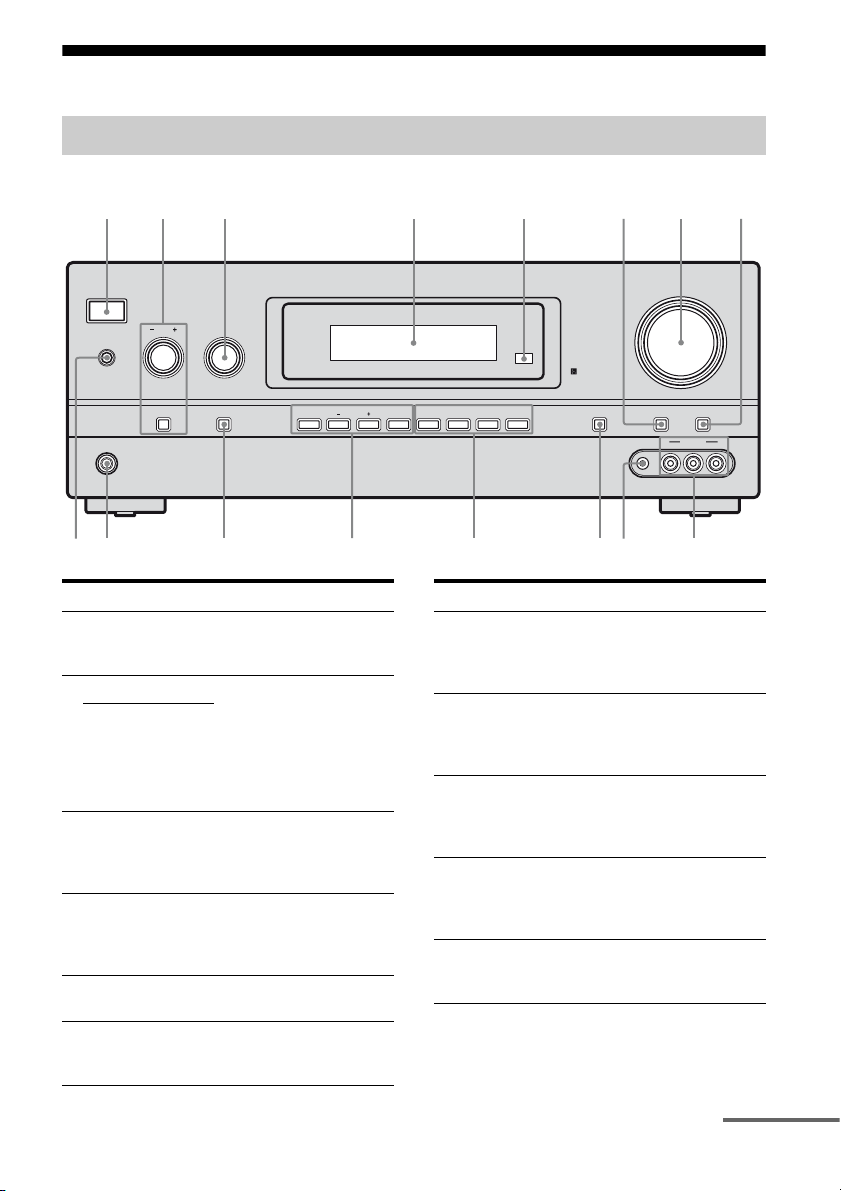

Description and location of parts .................. 7
Getting Started

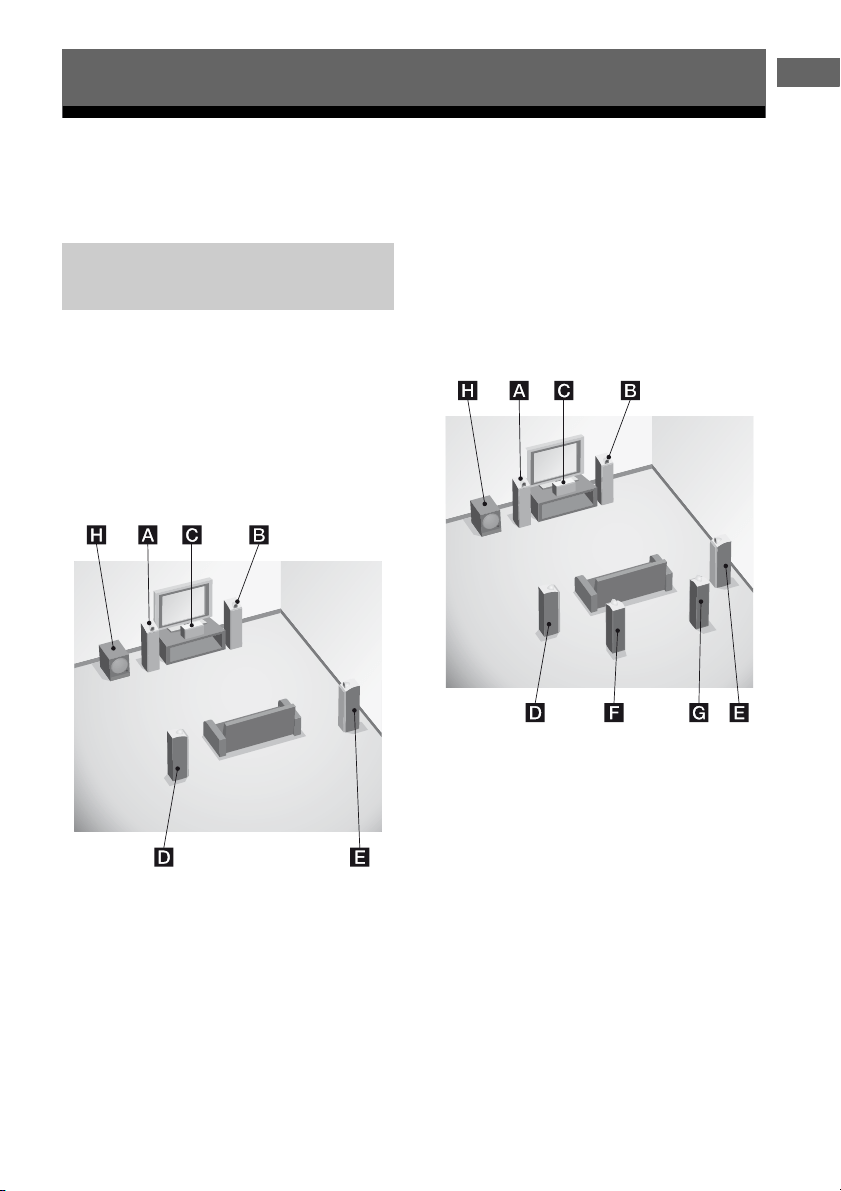

1: Installing the speakers ............................. 17

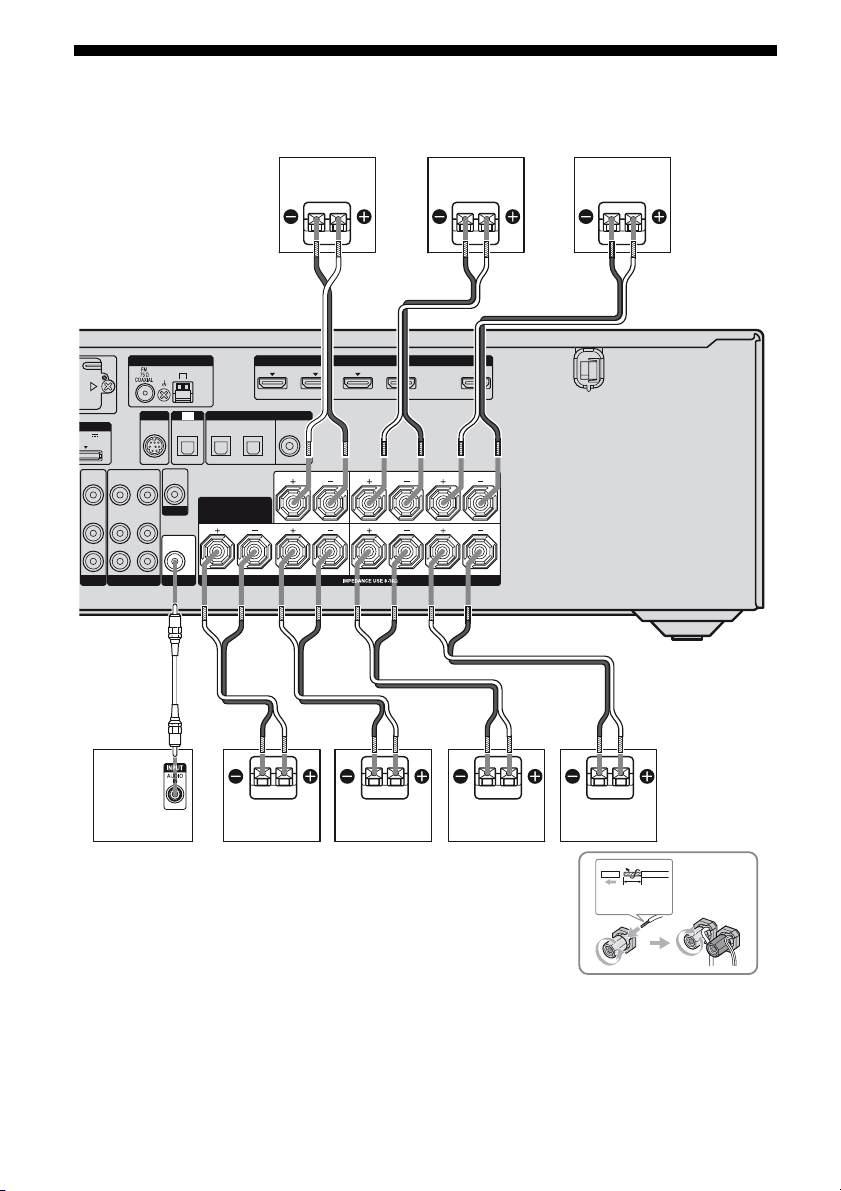

2: Connecting the speakers ......................... 18

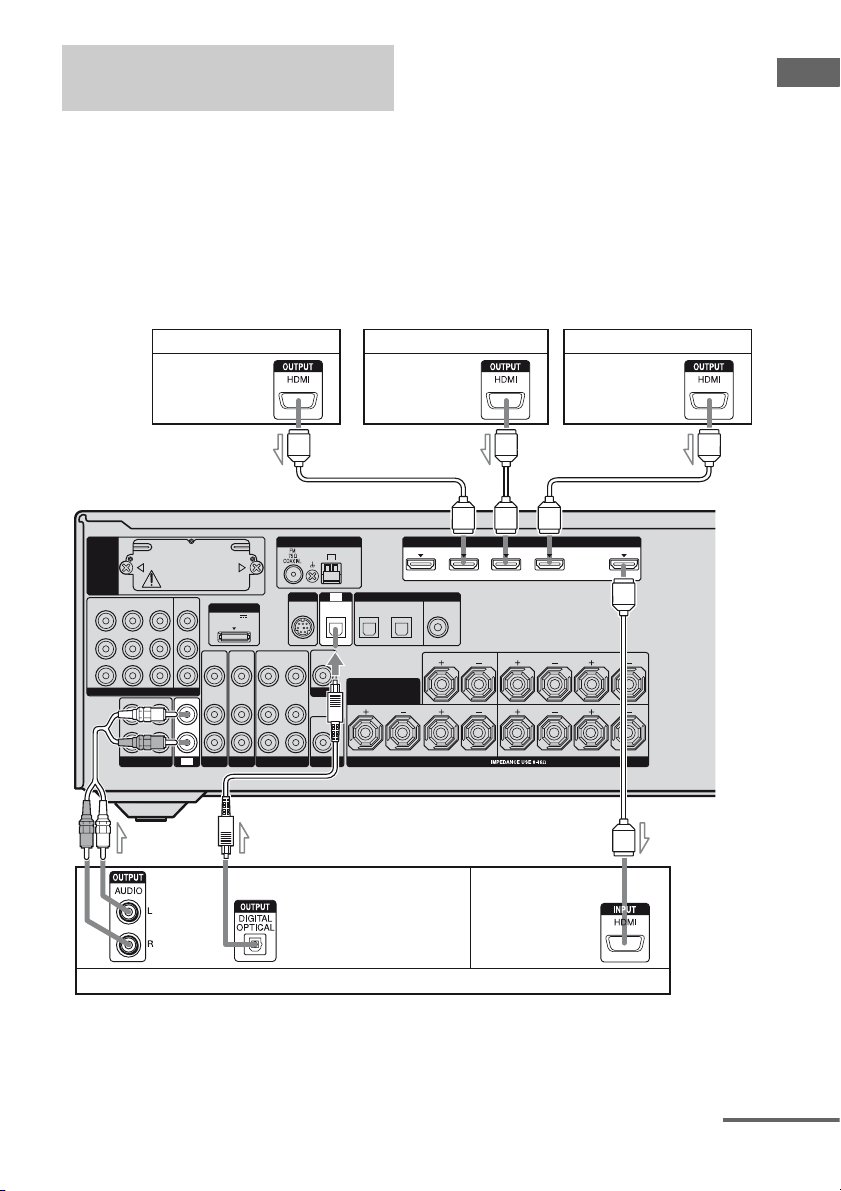

3: Connecting the TV .................................. 21

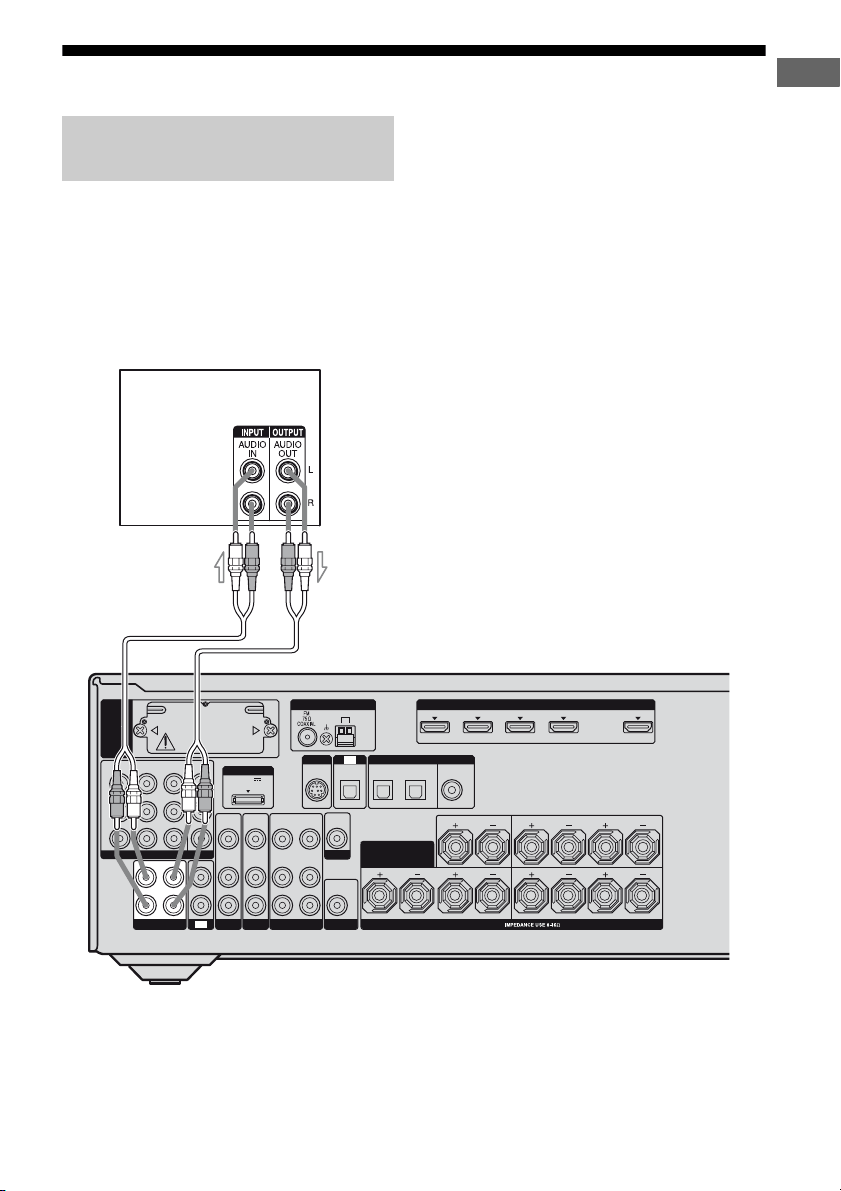

4a: Connecting the audio components ........ 23

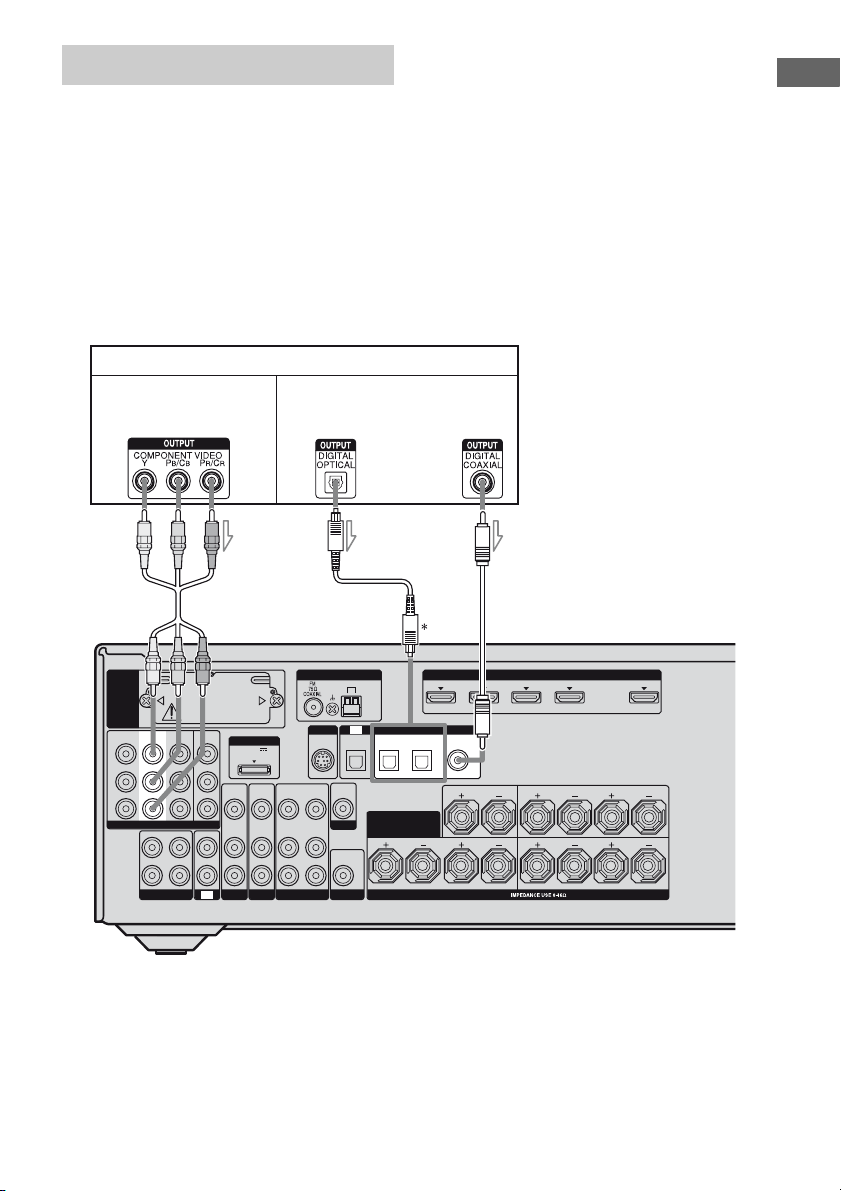

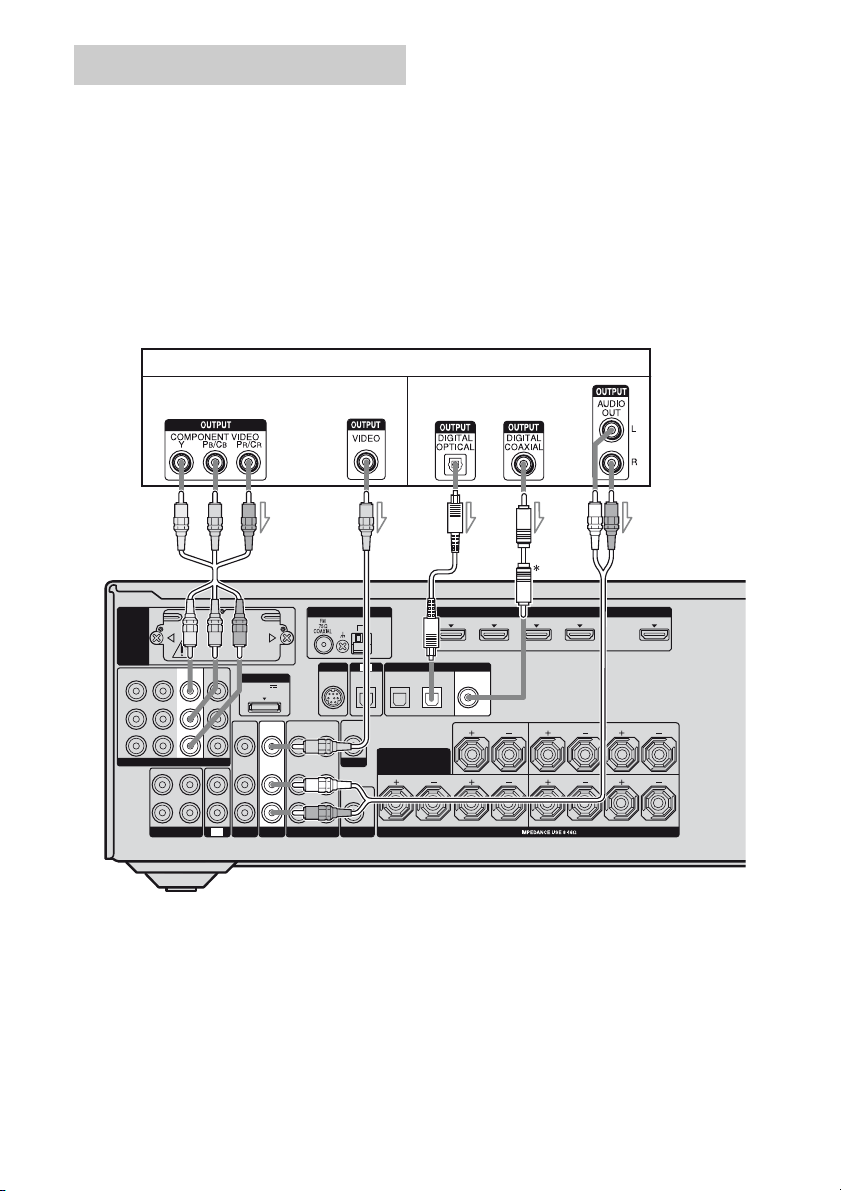

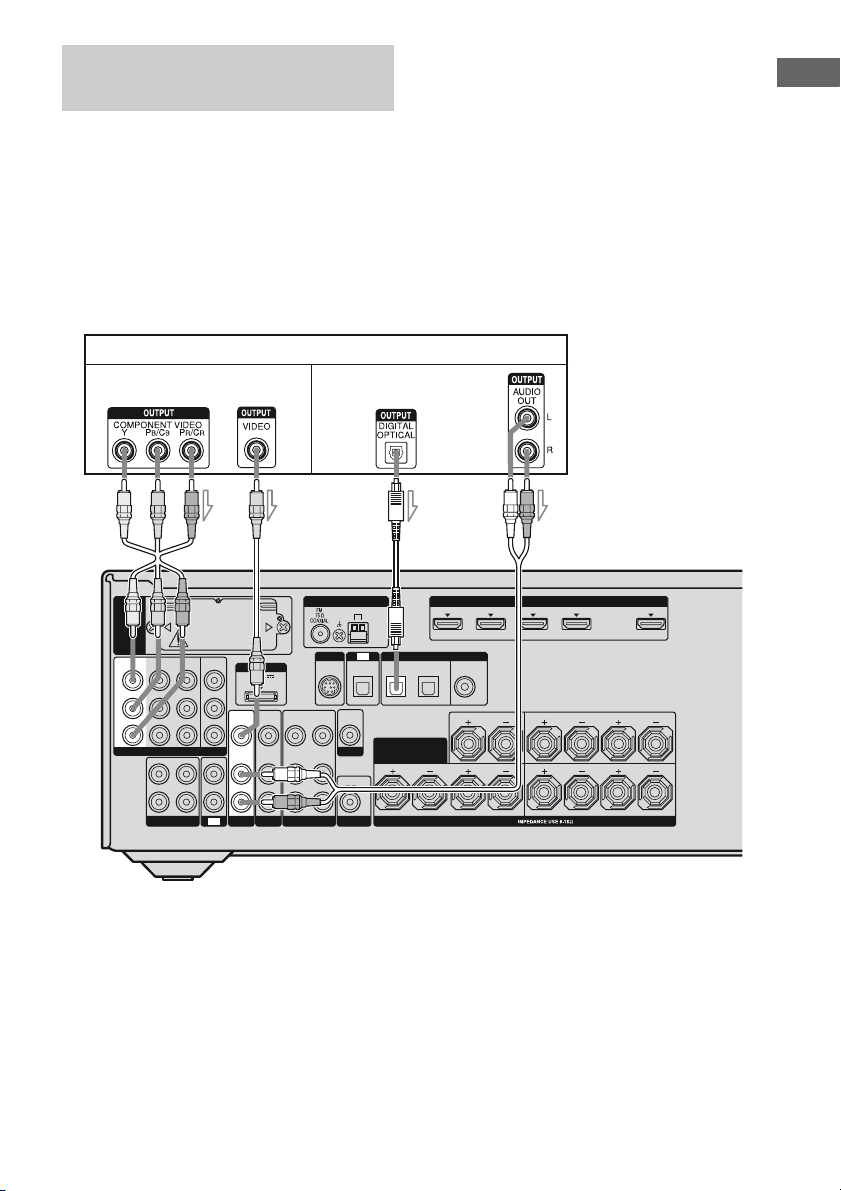

4b: Connecting the video components ........ 24

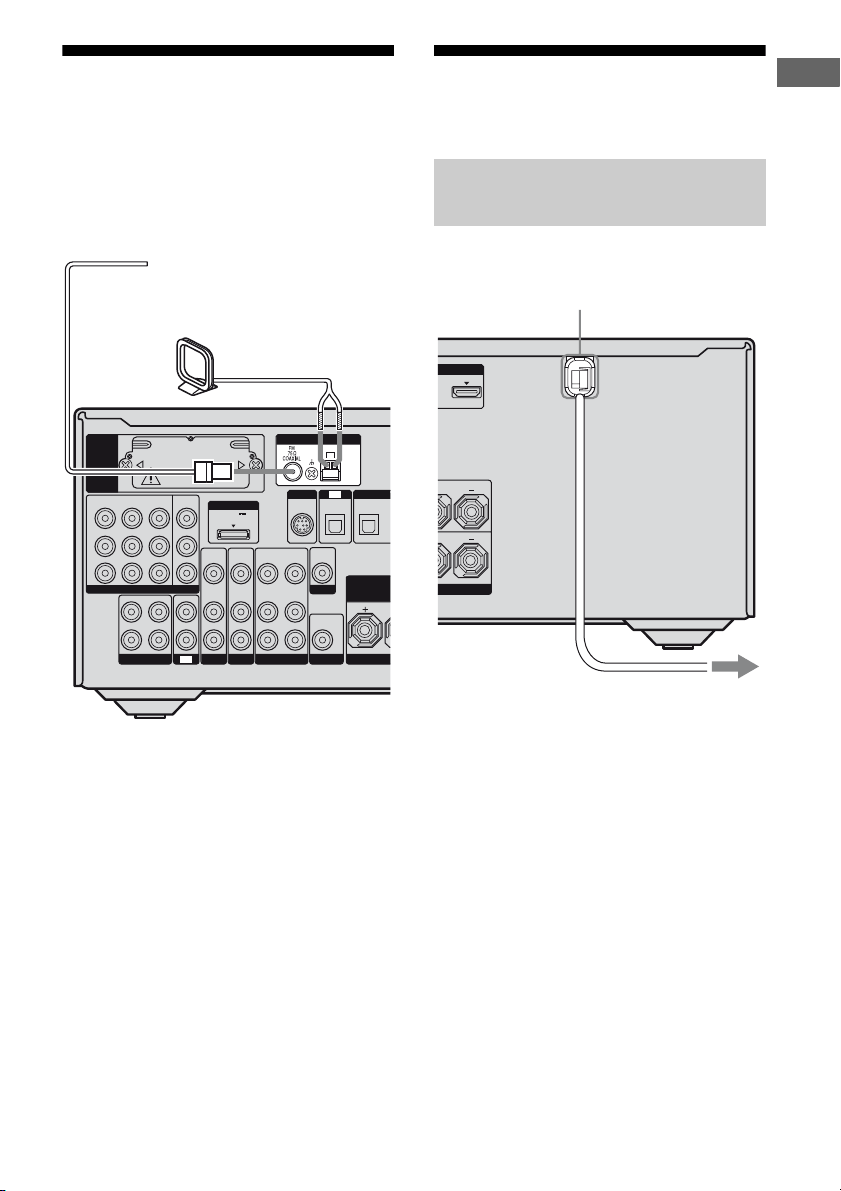

5: Connecting the antennas (aerials) ........... 31
6: Preparing the receiver and the remote..... 31
7: Selecting the speaker system .................. 33

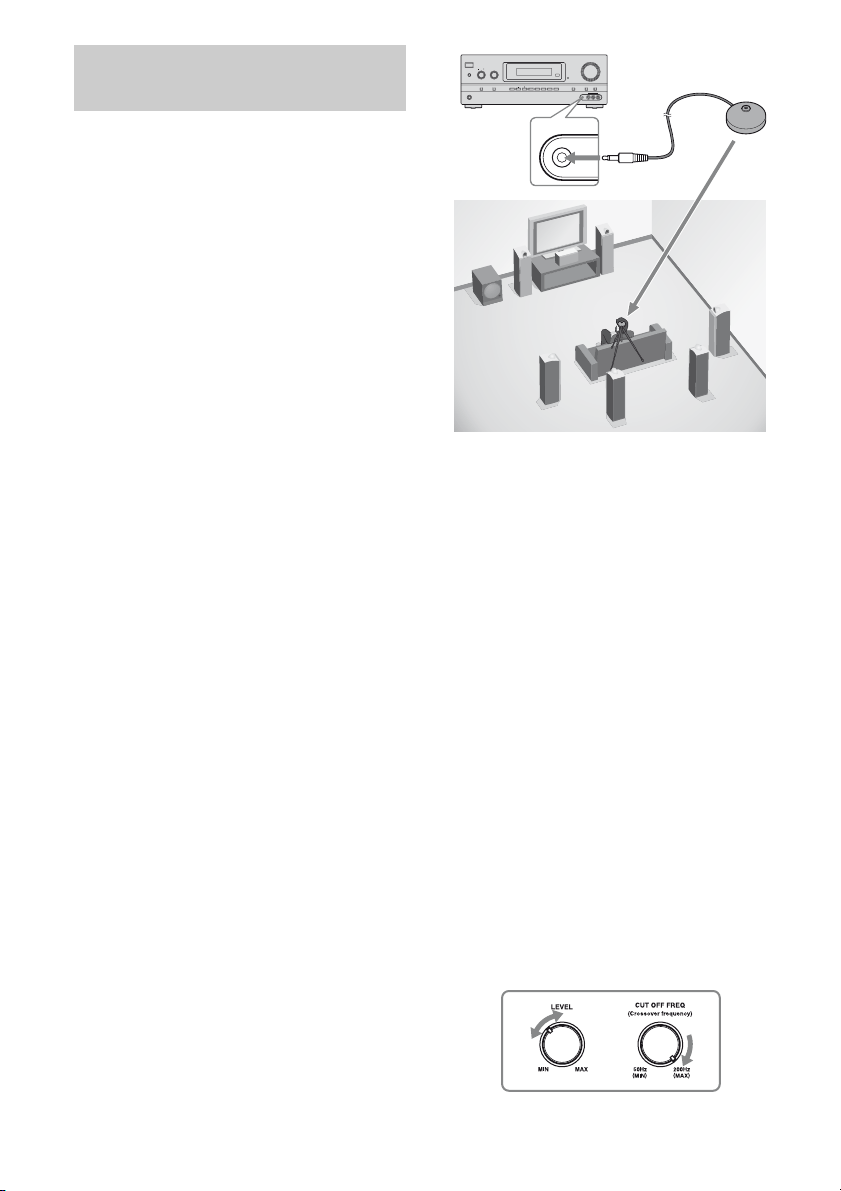

8: Calibrating the appropriate settings
automatically
(AUTO CALIBRATION) ...................... 33
9: Adjusting the speaker levels and
balance (TEST TONE)........................... 40
Playback
Selecting a component ................................ 41
Listening/Watching a component................ 43
Amplifier Operations
Navigating through menus .......................... 45
Adjusting the level (LEVEL menu) ............ 50
Settings for the speakers
(SPEAKER menu) ................................. 51
Settings for the surround sound
(SURROUND menu) ............................. 54
Adjusting the equalizer (EQ menu) ............ 55
Settings for the tuner (TUNER menu) ........ 55
Settings for the audio (AUDIO menu) ........ 56
Settings for the video (VIDEO menu) ........ 57
Settings for the HDMI (HDMI menu) ........ 58
Settings for the system
(SYSTEM menu) ................................... 59

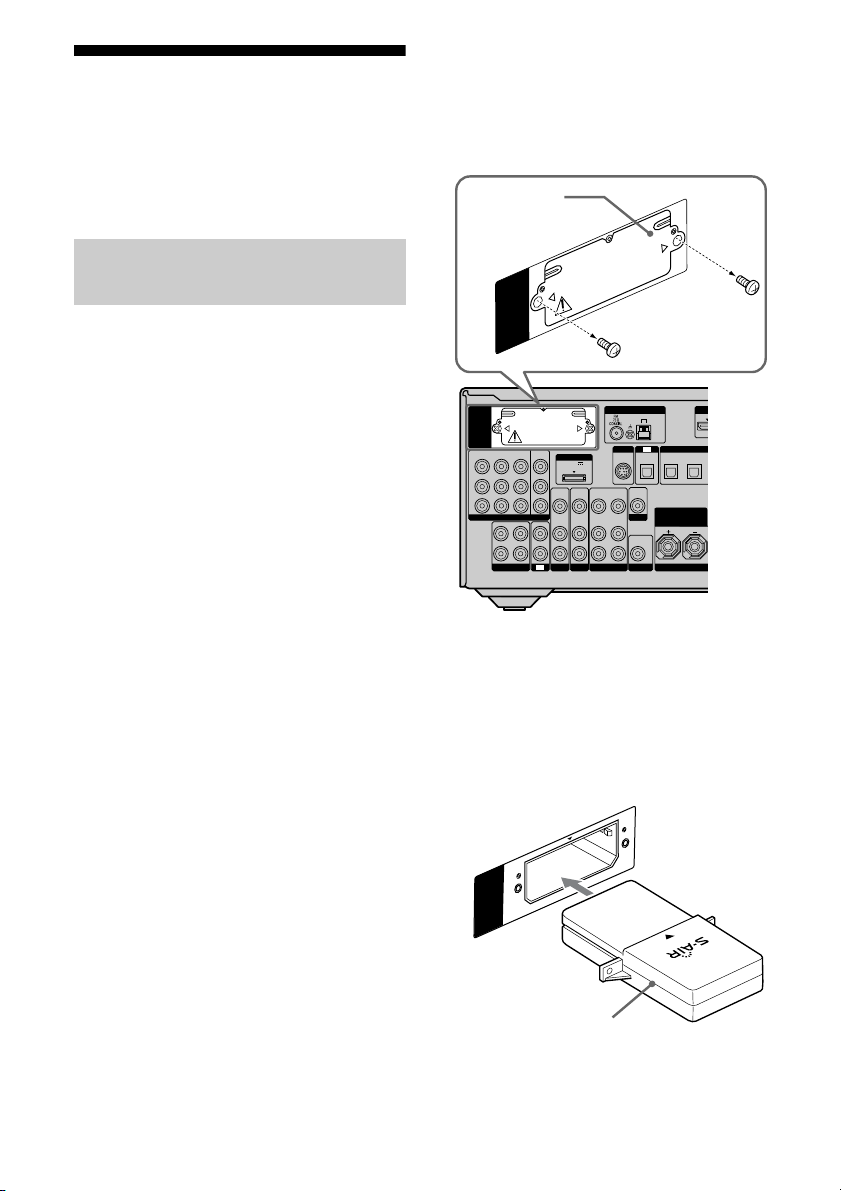

Settings for the S-AIR (S-AIR menu)......... 59
Enjoying Surround Sound
Enjoying a pre-programmed sound field.....60
Enjoying the surround effect at low
volume levels (NIGHT MODE) .............65
Using only the front speakers
(2CH STEREO)......................................66
Listening to the sound without any
adjustment (ANALOG DIRECT)...........66
Resetting sound fields to the initial
settings....................................................67
Tuner Operations
Listening to FM/AM radio ..........................67
Presetting FM/AM radio stations ................69
Listening to Satellite Radio .........................71
Connecting the SIRIUS Satellite Radio ......72
Preparing to listen to the SIRIUS
Satellite Radio ........................................73
Selecting a channel of the SIRIUS
Satellite Radio ........................................74
Presetting SIRIUS Satellite Radio
channels .................................................. 76
Restricting access to specific channels
(Parental Lock) (SIRIUS only)...............77
“BRAVIA” Sync Features
What is “BRAVIA” Sync?...........................81
Preparing for the “BRAVIA” Sync..............82
Watching a DVD/Blu-ray disc
(One-Touch Play) ...................................83
Enjoying the TV sound from the speakers
connected to the receiver
(System Audio Control) .........................84
Turning off the receiver with the TV
(System Power Off) ................................84
continued
6
US
S-AIR Operations
About S-AIR products.................................85
Setting up an S-AIR product .......................86
Enjoying the system’s sound in another
room........................................................90
Changing the channel for better sound
transmission ............................................91
Enjoying the S-AIR receiver while the
S-AIR main unit is in standby mode ......92
Other Operations
Switching between digital and analog
audio (INPUT MODE) ...........................93
Enjoying the sound/images from other
inputs ......................................................94
Enjoying the DIGITAL MEDIA PORT
(DMPORT) .............................................96
Changing the display ...................................98
Using the Sleep Timer .................................99
Recording using the receiver .......................99

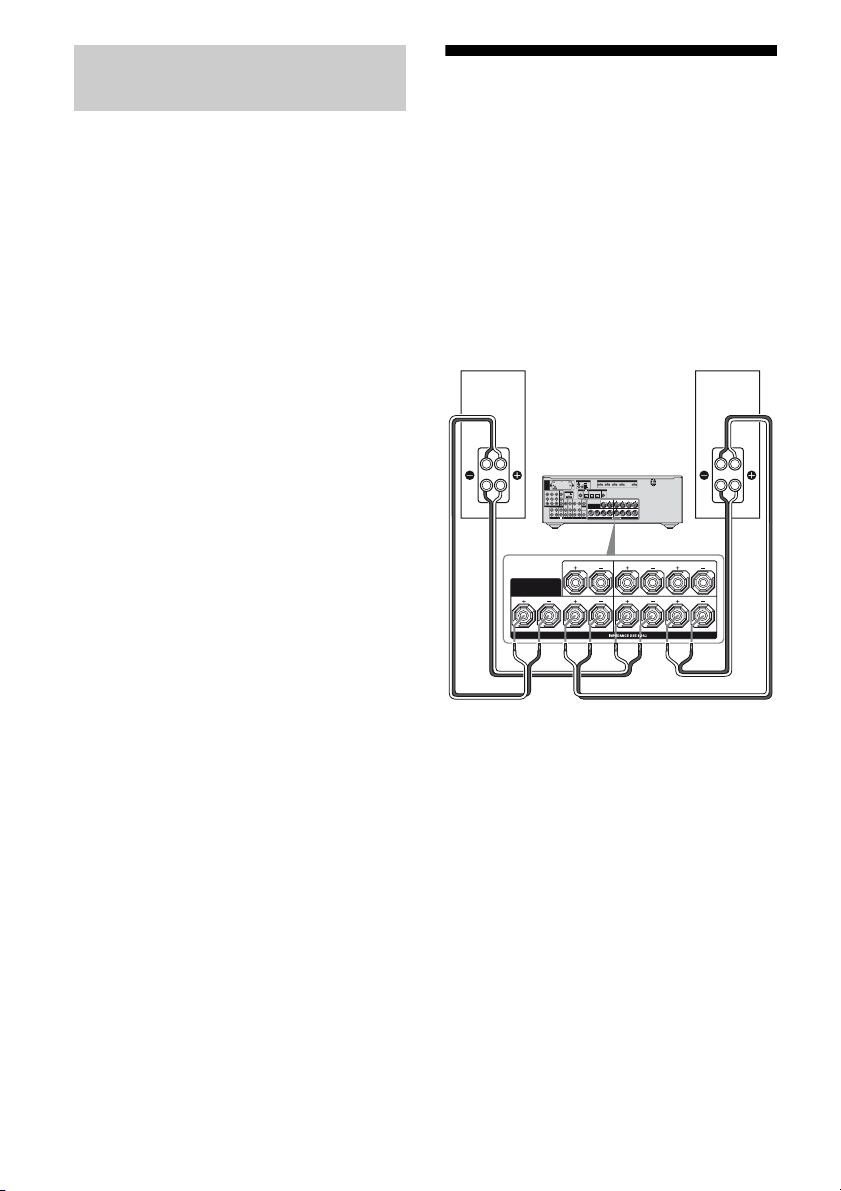

Using a bi-amplifier connection ................100
Using the Remote
Operating each component using the
remote ...................................................102
Programming the remote ...........................104
Additional Information
Glossary .....................................................108
Precautions ................................................111
Troubleshooting.........................................113
Specifications.............................................119
Index ..........................................................121
7
US
Description and location of parts
Front panel
?/1
PHONES
SPEAKERS
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
TONE MODE DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
TONE
VIDEO 2 IN
VIDEO L AUDIO R
AUTO CAL MIC
9
q;
qa
qf
qs
8
qd
132456
qh qg
7
Name Function
A ?/1
(on/standby)
Press to turn the receiver on
or off (page 32, 43, 44, 67,
69).
B TONE +/– Adjust the bass and treble
for the front channels. Press
TONE MODE repeatedly
to select BASS or
TREBLE, then turn TONE
+/– to adjust the level (page
55).
TONE MODE
C INPUT
SELECTOR
Turn to select the input
source to play back (page
41, 42, 43, 44, 66, 68, 70,
93, 98, 100).
D Display The current status of the
selected component or a list
of selectable items appears
here (page 9).
E Remote sensor Receives signals from
remote commander.
F DIMMER Press repeatedly to adjust
the brightness of the display
(page 59).
Name Function
G MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time (page 40, 41, 43,
44).
H MUTING Press to turn off the sound
temporarily.
Press MUTING again to
restore the sound (page 42).
I VIDEO 2 IN
jacks
Connects to a portable
audio/video component
such as a camcorder or
video game (page 30, 41).
J AUTO CAL MIC
jack
Connects to the supplied
optimizer microphone for
the Auto Calibration
function (page 34).
K DISPLAY Press to select information
displayed on the display
(page 98).
continued
8
US
Name Function
L 2CH/A.DIRECT Press to select a sound field
(page 60).
A.F.D.
MOVIE
MUSIC
M TUNING MODE Press to operate a tuner
(FM/AM) and satellite
radio (SIRIUS) (page 67,
73).
TUNING +/–
MEMORY/
ENTER
N INPUT MODE Press to select the input
mode when the same
components are connected
to both digital and analog
jacks (page 93).
O PHONES jack Connects to headphones
(page 113).
P SPEAKERS Press to select the front
speaker system (page 33).
9
US
About the indicators on the display
12
3
4 5
6
7
98 0
qj qh
wa
qk3qlw;
qg qf
qs
qd
qa
Name Function
A SW Lights up when the audio signal
is output from the
SUBWOOFER jacks.
B LFE Lights up when the disc being
played back contains an LFE
(Low Frequency Effect)
channel and the LFE channel
signal is actually being
reproduced.
C Input
indicators
COAX
OPT
ANALOG
Light up to indicate the current
input.
Lights up when INPUT MODE
is set to “AUTO” and the source
signal is a digital signal being
input through the COAXIAL
jack (page 93).
Lights up when INPUT MODE
is set to “AUTO” and the source
signal is a digital signal being
input through the OPTICAL
jack (page 93).
Lights up when INPUT MODE
is set to “ANALOG” or no
digital signals are detected
when INPUT MODE is set to
“AUTO” (page 93).
Name Function
D Dolby
Digital
Surround
indicators
D
D EX
D+
TrueHD
Lights up one of the respective
indicators when the receiver is
decoding the corresponding
Dolby Digital format signals.
Dolby Digital
Dolby Digital Surround EX
Dolby Digital Plus
Dolby TrueHD
Note
When playing a Dolby Digital
format disc, be sure that you
have made digital connections
and that INPUT MODE is set to
“AUTO” (page 93).
E Neural - THX Lights up when the receiver
applies Neural - THX
processing to input signals.
F DTS(-ES)
indicators
DTS
DTS-ES
DTS 96/24
Light up when DTS or DTS-ES
signals are input.
Lights up when the receiver is
decoding DTS signals.
Lights up when the receiver is
decoding DTS-ES signals.
Lights up when the receiver is
decoding DTS 96 kHz/24 bit
signals.
Note
When playing a DTS format
disc, be sure that you have made
digital connections and that
INPUT MODE is set to
“AUTO” (page 93).
G D.RANGE Lights up when dynamic range
compression is activated (page
51).
continued
10
US
Name Function
H Tun ing
indicators
CAT
MEM
MONO
ST
SIRIUS
Lights up when the receiver
tunes in radio stations, or
satellite radio stations.
The category mode is set to
“ONE CAT” during the satellite
radio operation (page 75).
Lights up when a memory
function, such as Preset
Memory (page 69), etc., is
activated.
Monaural broadcast
Stereo broadcast
The SiriusConnect Home tuner
is connected and “SIRIUS” is
selected.
I SP A/SP B/
SP A+B
Lights up according to the
speaker system used (page 33).
However, these indicators do
not light up if the speaker output
is turned off or if headphones
are connected.
J SLEEP Lights up when the sleep timer
is activated (page 99).
K A.DIRECT Lights up when the receiver is
processing Analog Direct
signals.
L S-AIR Lights up when the S-AIR
transmitter (not supplied) is
connected.
M Dolby
Pro Logic
indicators
PL
PL II
PL IIx
Lights up one of the respective
indicators when the receiver
applies Dolby Pro Logic
processing to 2 channel signals
in order to output the center and
surround channel signals.
Dolby Pro Logic
Dolby Pro Logic II
Dolby Pro Logic IIx
Note
These indicators do not light up
when either the center speaker
and surround speaker is not
connected.
N BI-AMP Lights up when surround back
speakers selection is set to
“BI-AMP” (page 100).
O EQ Lights up when the equalizer is
activated.
Name Function
P NEO:6 Lights up when DTS Neo:6
Cinema/Music decoder is
activated (page 63).
Q DTS-HD
indicators
DTS-HD
MSTR
DTS-HD HI
RES
Lights up one of the respective
indicators when the receiver is
decoding the corresponding
DTS-HD format signals.
DTS-HD Master Audio
DTS-HD High Resolution
Audio
R LPCM Lights up when Linear PCM
signals are detected.
S DMPORT Lights up when DIGITAL
MEDIA PORT adapter is
connected and “DMPORT” is
selected.
T HDMI Lights up when the receiver
recognizes a component
connected via an HDMI IN jack
(page 25).
U Playback
channel
indicators
L
R
C
SL
SR
S
SBL
SBR
SB
The letters (L, C, R, etc.)
indicate the channels being
played back. The boxes around
the letters vary to show how the
receiver downmixes or upmixes
the source sound (based on the
speaker settings).
Front Left
Front Right
Center (monaural)
Surround Left
Surround Right
Surround (monaural or the
surround components obtained
by Pro Logic processing)
Surround Back Left
Surround Back Right
Surround Back (the surround
back components obtained by
6.1 channel decoding)
Example:
Speaker pattern: 3/0.1
Recording format: 3/2.1
Sound Field: A.F.D. AUTO
11
US

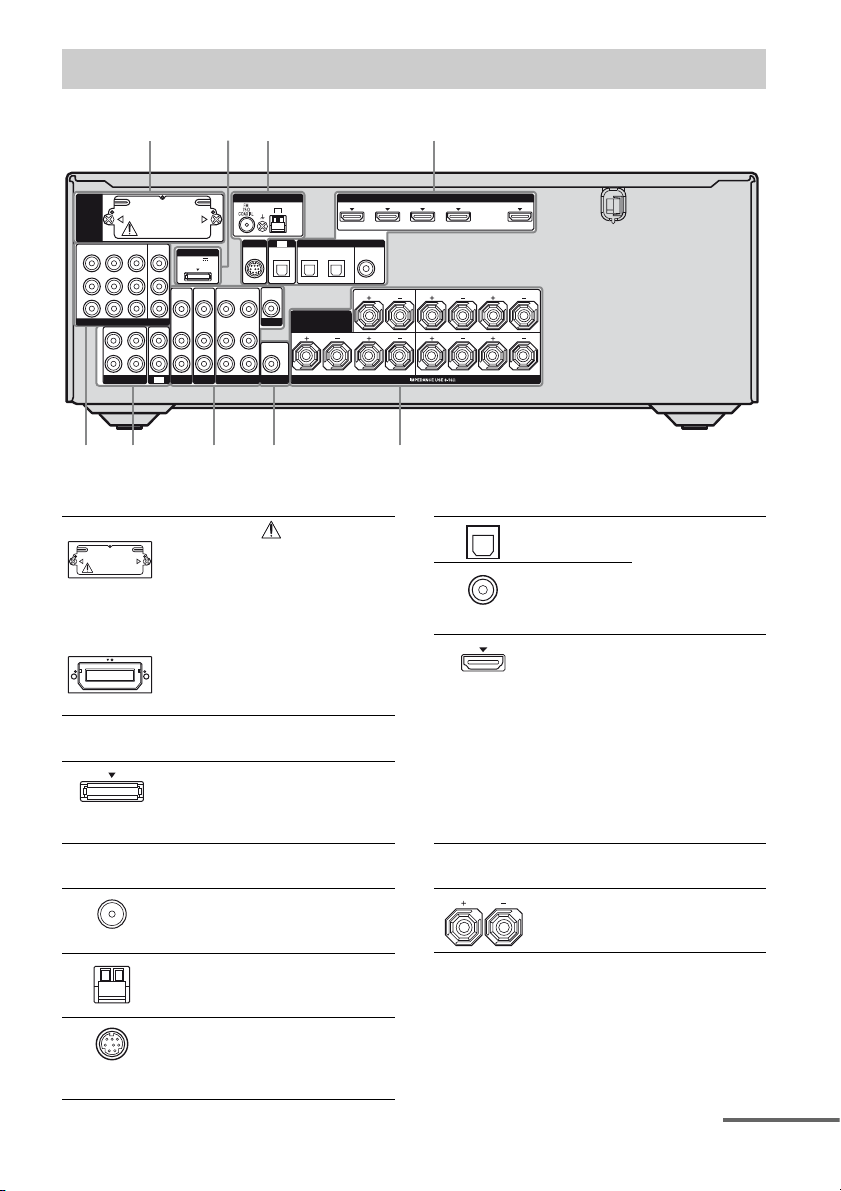

Rear panel
5668 7
1
2 3 4
DIGITAL
(ASSIGNABLE)
DC5V
0.7A MAX
ANTENNA
DMPORT
AM
IN 2
IN 1
MONITOR
OUT
VIDEO 1
IN
TV
AUDIO
IN
VIDEO
IN
SAT
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
IN
OPTICAL
AUDIO
IN
VIDEO
IN
SUBWOOFER
MONITOR
AUDIO
IN
VIDEO
IN
BD
LR
LR
LR
SPEAKERS
SAT
IN
BD
IN
DVD
IN
OPTICAL
CENTER
SURROUND
FRONT A
COAXIAL
SURROUND BACK/
BI-AMP/
FRONT B
TV
EZW-T100
R
SA-CD/CD/CD-R
IN 3
Y
P
B
/
C
B
P
R
/
C
R
COMPONENT VIDEO
ASSIGNABLE (INPUT ONLY)
OUT
IN
L
HDMI
IN 4
ASSIGNABLE (INPUT ONLY)
(for AUDIO)
IN 2
IN 3
IN 1 OUT
SIRIUS
A S-AIR (EZW-T100)
CAUTION
Please do not
remove the slot
cover until you want
to install the wireless
transmitter.
Connects to a
wireless transmitter
(not supplied) (page
86).
B DMPORT section
DMPORT
jack
Connects to a
DIGITAL MEDIA
PORT adapter (page
97).
C ANTENNA section
FM
ANTENNA
jack
Connects to the
supplied FM wire
antenna (page 31).
AM
ANTENNA
terminals
Connects to the
supplied AM loop
antenna (page 31).
SIRIUS jack Connects to a
SiriusConnect
Home tuner (not
supplied) (page 72).
With slot cover
slot
D DIGITAL INPUT/OUTPUT section
OPTICAL IN
jacks
Connects to a DVD
player, etc. The
COAXIAL jack
provides a better
sound quality (page
21, 27, 28, 29).
COAXIAL IN
jack
HDMI IN/
OUT* jacks
Connects to a DVD
player, satellite
tuner, or a Blu-ray
disc player, etc. The
image is output to a
TV or a projector
while the sound can
be output from a TV
or/and speakers
connected to this
receiver (page 25).
E SPEAKERS section
Connects to
speakers (page 18).
continued
12
US
* You can watch the selected input image when you
connect the HDMI OUT or MONITOR OUT jack
to a TV (page 21, 25).

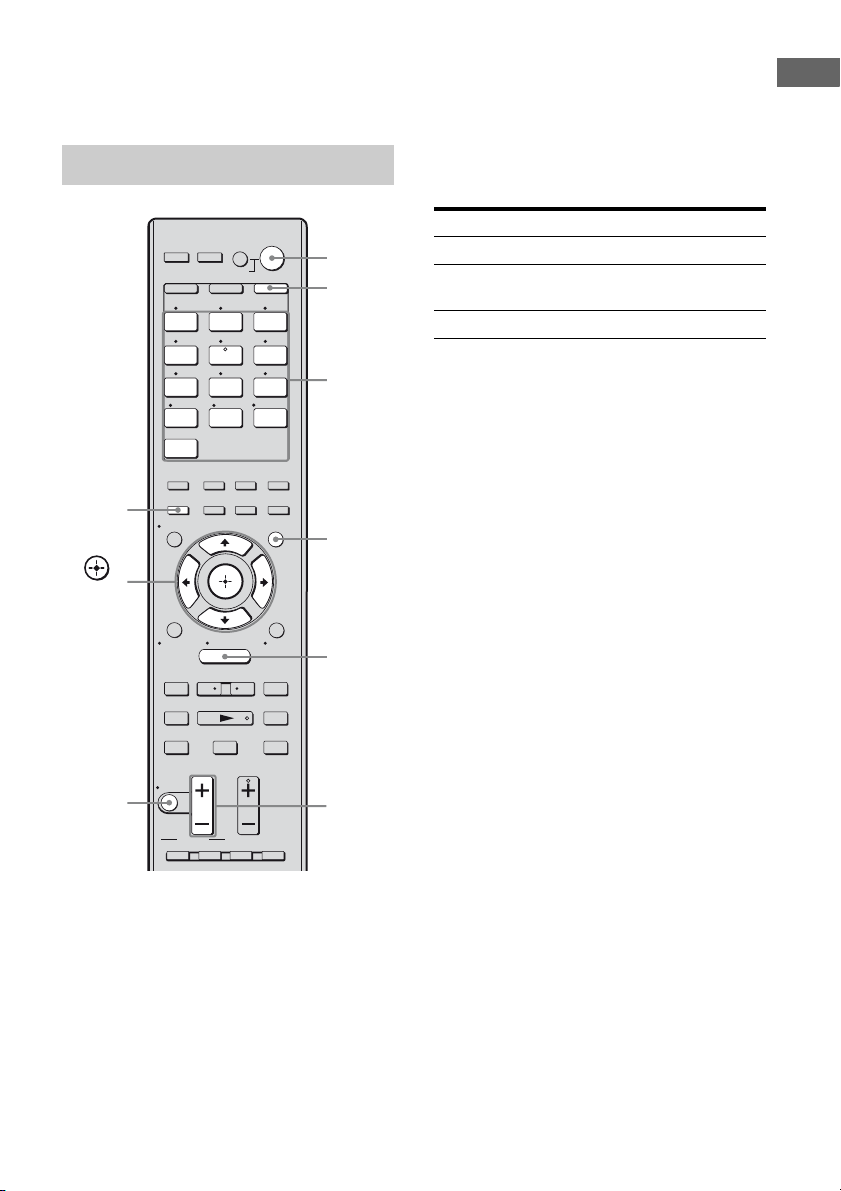

You can use the supplied remote to operate the
receiver and to control the Sony audio/video
components that the remote is assigned to
operate.
You can also program the remote to control
non-Sony audio/video components. For details,
see “Programming the remote” (page 104).
RM-AAP043
F AUDIO INPUT/OUTPUT section
AUDIO IN/
OUT jacks
Connects to a Super
Audio CD player,
etc. (page 21, 23).
AUDIO OUT
jack
Connects to a
subwoofer (page
18).
G VIDEO/AUDIO INPUT/OUTPUT
section
AUDIO IN/
OUT jacks
Connects to a VCR,
Blu-ray disc player,
etc. (page 28 – 30).
VIDEO IN/
OUT* jacks
H COMPONENT VIDEO INPUT/
OUTPUT section
Y, PB/CB,
P
R/CR IN/
OUT* jacks
Connects to a DVD
player, TV, satellite
tuner, etc. (page 21,
27, 28, 29).
White (L)
Red (R)
Black
White (L)
Red (R)
Yellow
Green
(Y)
Blue
(P
B/CB)
Red
(PR/CR)
Remote commander
1 2 3
4 5 6
7 8 9
-/-- 0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
THEATER
SYSTEM STANDBY
RM SET UP
?/1
CLEAR
/
>10
SHIFT
TUNING – TUNING +
DISC SKIP D.TUNING
AUTO CAL
.
mM
>
Xx
MUTING
VIDEO 1 VIDEO 2 BD
SAT TV
HDMI 3HDMI 2HDMI 1
HDMI 4
SA-CD/
CD
DMPORTTUNER
TV VOL
MASTER VOL
TV CH
PRESET
<
<
MENU
AV
?/1
F1 F2
TV INPUT
TOP MENU MENU
BD/DVD
WIDE
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
TV AMP
– CATEGORY +
CATEGORY MODE
qh
qj
qk
ql
w;
wg
wh
wj
wa
1
2
3
4
6
7
9
0
qa
qs
qd
qf
qg
8
wf
wd
5
ws
13
US
Name Function
A AV ?/1
(on/standby)
Press to turn on or off the
audio/video components that
the remote is programmed to
operate.
To turn the TV on or off, press
TV (C) and then press AV
?/1.
If you press ?/1 (B) at the
same time, it will turn off the
receiver and other components
(SYSTEM STANDBY).
Note
The function of the AV ?/1
switch changes automatically
each time you press the input
buttons (5).
B ?/1
(on/standby)
Press to turn the receiver on or
set it to standby mode.
To turn off all components,
press ?/1 and AV ?/1 (A) at
the same time (SYSTEM
STANDBY).
Saving the power in
standby mode
When “CTRL:HDMI” is set to
“CTRL OFF” (page 49) and
“S-AIR STBY” is set to
“STBY OFF” (page 49).
C TV Press to light up the button. It
changes the remote key
function to activate the buttons
with yellow printing. It also
activate the (J), V/v/B/b
(J), TOOLS/OPTIONS
(K), MENU/HOME (L),
RETURN/EXIT O (w;), and
DISPLAY (wa) buttons to
perform menu operations for
Sony TVs only.
D AMP Press to light up the button to
activate the receiver operation
(page 36).
E Input buttons Press one of the buttons to
select the component you want
to use. When you press any of
the input buttons, the receiver
turns on. The buttons are
factory assigned to control
Sony components.
You can program the remote to
control non-Sony components
following the steps in
“Programming the remote” on
page 104.
Name Function
Numeric
buttons
(number 5
a)
)
Press SHIFT (wg) and then
press numeric buttons to
– preset/tune to preset stations.
– select track numbers of the
CD player, VCD player, LD
player, DVD player, MD
deck, DAT deck, or tape
deck. Press 0/10 to select
track number 10.
– select channel numbers of
the VCR, satellite tuner, Blu-
ray disc player, PSX, DVD/
VHS COMBO, or DVD/
HDD COMBO.
Press TV (3) and then press
the numeric buttons to select
the TV channels.
-/-- Press SHIFT (wg) and then
press -/-- to select the channel
entry mode, either one or two
digit of the VCR or satellite
tuner.
To select the channel entry
mode of the TV, press TV (C)
and then press -/--.
ENT/MEM Press SHIFT (wg) and then
press ENT/MEM to enter the
value after selecting a channel,
disc or track using the numeric
buttons of the VCR, CD
player, VCD player, LD
player, MD deck, DAT deck,
tape deck, satellite tuner, Blu-
ray disc player, or PSX.
To enter the value of Sony TV,
press TV (C) and then press
ENT/MEM.
Press SHIFT (wg) and then
press ENT/MEM to store a
station during tuner operation.
CLEAR/>10 Press SHIFT (wg) and then
press CLEAR/>10 to clear a
mistake when you press the
incorrect numeric button of the
DVD player, Blu-ray disc
player, PSX, satellite tuner,
DVD/VHS COMBO, or DVD/
HDD COMBO.
Press SHIFT (wg) and then
press CLEAR/>10 to select
track numbers over 10 of the
CD player, VCD player, LD
player, MD deck, tape deck,
TV, VCR, or satellite tuner.
continued
14
US
Name Function
F A.F.D. Press to select a sound field
(page 61, 63).
MOVIE
MUSIC
G NIGHT MODE Press to activate the Night
Mode function (page 65).
H SLEEP Press to activate the Sleep
Timer function and the
duration which the receiver
turns off automatically.
I AMP MENU Press to display the menu to
operate the receiver.
J
V/v/B/b
After pressing AMP (D),
press MENU/HOME (L) for
receiver operation, then press
V/v/B /b to select the
settings.
After pressing BD/DVD TOP
MENU (P) or BD/DVD
MENU (P), press V/v/B/b
to select the settings, and then
press to enter the
selection.
Press also to enter the
selection of the receiver,
VCR, satellite tuner, DVD
player, Blu-ray disc player,
PSX, DVD/VHS COMBO, or
DVD/HDD COMBO.
K TOOLS/
OPTIONS
Press to display and select
items from the options menus
for DVD player or Blu-ray
disc player.
To display the options of
Sony TV, press TV (C) and
then press TOOLS/
OPTIONS.
L MENU/HOME Press to display the menus of
the receiver, VCR, DVD
player, satellite tuner, Blu-ray
disc player, PSX, DVD/VHS
COMBO, or DVD/HDD
COMBO on the TV screen.
Then, use V/v/B/b and to
perform menu operations.
To display the menus of Sony
TV, press TV (C) and then
press MENU/HOME.
,
Name Function
M ./>
b)
Press to skip tracks of the
VCR, CD player, VCD
player, LD player, DVD
player, MD deck, DAT deck,
tape deck, Blu-ray disc player,
PSX, DVD/VHS COMBO, or
DVD/HDD COMBO.
/ Press to replay the previous
scene or fast forward the
current scene of the DVD
player, Blu-ray disc player,
DVD/VHS COMBO, or
DVD/HDD COMBO.
m/M
b)
Press to
– search tracks in the forward/
backward direction of the
CD player, VCD player,
DVD player, LD player,
MD deck, Blu-ray disc
player, PSX, DVD/VHS
COMBO, or DVD/HDD
COMBO.
– fast forward/rewind of the
VCR, DAT deck, or tape
deck.
N
a)b)
Press to start playback of the
VCR, CD player, VCD
player, LD player, DVD
player, MD deck, DAT deck,
tape deck, Blu-ray disc player,
PSX, DVD/VHS COMBO, or
DVD/HDD COMBO.
X
b)
Press to pause playback or
recording of the VCR, CD
player, VCD player, LD
player, DVD player, MD
deck, DAT deck, tape deck,
Blu-ray disc player, PSX,
DVD/VHS COMBO, or
DVD/HDD COMBO. (Also
starts recording with
components in recording
standby.)
x
b)
Press to stop playback of the
VCR, CD player, VCD
player, LD player, DVD
player, MD deck, DAT deck,
tape deck, Blu-ray disc player,
PSX, DVD/VHS COMBO, or
DVD/HDD COMBO.
<
<
15
US
Name Function
CATEGORY +/– Press to select the category
for satellite tuner (page 75).
TUNING +/– Press to scan a station.
CATEGORY
MODE
Press to select the category
mode for satellite tuner
(page 75).
D.TUNING Press to enter direct tuning
mode.
N TV CH +
a)
/– Press TV (C) and then
press TV CH +/– to select
preset TV channels.
PRESET
+
a)
/–
Press to
– select preset stations.
– select preset channels of
the VCR, satellite tuner,
Blu-ray disc player, DVD
player, DVD/VHS
COMBO, or DVD/HDD
COMBO.
O F1, F2 Press F1 or F2 to select a
component.
• DVD/HDD COMBO
F1: HDD mode
F2: DVD mode
• DVD/VHS COMBO
F1: DVD mode
F2: VHS mode
P BD/DVD TOP
MENU
Press to display the menu or
on-screen guide of the DVD
or Blu-ray disc on the TV
screen. Then, use V/v/B/b
and to perform menu
operations.
BD/DVD MENU Press to display the menu of
the DVD or Blu-ray disc on
the TV screen. Then, use
V/v/B/b and to perform
menu operations.
TV INPUT Press TV (C) and then
press TV INPUT to select
the input signal (TV input or
video input).
WIDE Press TV (C) and then
press WIDE to select the
wide picture mode.
Q TV VOL +/– Press TV (C) and then
press TV VOL +/– to adjust
the TV volume level.
MASTER
VOL +/–
Press to adjust the volume
level of all speakers at the
same time.
Name Function
R MUTING Press to turn off the sound
temporarily. Press MUTING
again to restore the sound.
Press TV (C) and then press
MUTING to activate the TV’s
muting function.
S DISC SKIP Press to skip disc of the CD
player, VCD player, DVD
player, or MD deck (multi-
disc changer only).
T RETURN/
EXIT O
Press to
– return to the previous menu.
– exit the menu while the
menu or on-screen guide of
the VCD player, LD player,
DVD player, Blu-ray disc
player, PSX, DVD/VHS
COMBO, or satellite tuner
is displayed on the TV
screen.
To return to the previous
menu of Sony TV, press TV
(3) and then press
RETURN/EXIT O.
U DISPLAY Press to select information
displayed on the display
window or TV screen of the
VCR, VCD player, LD player,
DVD player, CD player, MD
deck, Blu-ray disc player,
PSX, satellite tuner, DVD/
VHS COMBO, or DVD/HDD
COMBO.
To select information of Sony
TV, press TV (C) and then
press DISPLAY.
V INPUT MODE Press AMP (4), then press
INPUT MODE to select the
input mode when the same
components are connected to
both digital and analog jacks
(page 93).
W AUTO CAL Press to activate the Digital
Cinema Auto Calibration
function.
X 2CH/
A.DIRECT
Press to select sound field or
to switch the audio of the
selected input to analog signal
without any adjustment (page
66).
continued
16
US
a)
The number 5/SAT, TV CH +/PRESET + and N
buttons have tactile dots. Use the tactile dots as
references when operating the receiver.
b)
This button is also available for DIGITAL MEDIA
PORT adapter operation. For details on the
function of the button, refer to the operating
instructions supplied with the DIGITAL MEDIA
PORT adapter.
Notes
• Some functions explained in this section may not
work depending on the model.
• The above explanation is intended to serve as an
example only. Therefore, depending on the
component, the above operation may not be
possible or may operate differently than described.
Name Function
Y SHIFT Press to light up the buttons. It
changes the remote button
function to activate the
buttons with pink printing.
Z THEATER Press to turn the Theater mode
on and off when connecting
the receiver to products
featuring “BRAVIA” Sync.
wj RM SET UP Press to set up the remote.
17
US
Getting Started
1: Installing the speakers
This receiver allows you to use a 7.1 channel
system (7 speakers and one subwoofer).
To fully enjoy theater-like multi channel
surround sound requires five speakers (two
front speakers, a center speaker, and two
surround speakers) and a subwoofer (5.1
channel).
Example of a 5.1 channel
speaker system configuration
AFront speaker (Left)
BFront speaker (Right)
CCenter speaker
DSurround speaker (Left)
ESurround speaker (Right)
HSubwoofer
You can enjoy high fidelity reproduction of
DVD software recorded sound in the Surround
EX format if you connect one additional
surround back speaker (6.1 channel) or two
surround back speakers (7.1 channel).
Example of a 7.1 channel
speaker system configuration
AFront speaker (Left)
BFront speaker (Right)
CCenter speaker
DSurround speaker (Left)
ESurround speaker (Right)
FSurround back speaker (Left)
GSurround back speaker (Right)
HSubwoofer
Tips
• When you connect a 6.1 channel speaker system,
place the surround back speaker behind the
listening position (page 53).
• Since the subwoofer does not emit highly
directional signals, you can place it wherever you
want.
Getting Started
Enjoying a 5.1/7.1 channel
system
18
US
2: Connecting the speakers
Before connecting the cords, be sure to disconnect the AC power cord (mains lead).
AFront speaker A (Left)
BFront speaker A (Right)
CCenter speaker
DSurround speaker (Left)
ESurround speaker (Right)
FSurround back speaker (Left)
a)b)c)
GSurround back speaker (Right)
a)b)c)
HSubwoofer
d)
DIGITAL
(ASSIGNABLE)
D
C5V
0
.7A MAX
ANTENNA
M
PORT
AM
VIDEO 1
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
IN
OPTICAL
AUDIO
IN
VIDEO
IN
MONITOR
AUDIO
IN
VIDEO
IN
BD
SAT
IN
BD
IN
DVD
IN
OPTICAL
COAXIAL
TV
HDMI
IN 4
ASSIGNABLE (INPUT ONLY)
(for AUDIO)
IN 2
IN 3
IN 1 OUT
SIRIUS
LRLR
FRONT A
SURROUND BACK/
BI-AMP/
FRONT B
AUDIO
OUT
13/32 in.
(10 mm)
SPEAKERS
LR
CENTER
SURROUND
SUBWOOFER
H
E
A
B
D
G
A Monaural audio cord (not supplied)
B Speaker cord (not supplied)
AB
C
B
B
F
B
19
US
Getting Started
a)
If you connect only one surround back speaker,
connect it to the SPEAKERS SURROUND
BACK/BI-AMP/FRONT B L terminals.
b)
If you are not using surround back speaker, and
you have an additional front speaker system,
connect the additional front speaker system to the
SPEAKERS SURROUND BACK/BI-AMP/
FRONT B terminals. Set “SB ASSIGN” to
“SPK B” in the SPEAKER menu (page 52).
You can select the front speaker system you want
to use with SPEAKERS on the front panel
(page 33).
c)
If you are not using surround back speakers, you
can connect the front speakers to the SPEAKERS
SURROUND BACK/BI-AMP/FRONT B
terminals using a bi-amplifier connection
(page 100).
Set “SB ASSIGN” to “BI-AMP” in the SPEAKER
menu (page 52).
d)
When you connect a subwoofer with an auto
standby function, turn off the function when
watching movies. If the auto standby function is
set to on, it turns to standby mode automatically
based on the level of the input signal to a
subwoofer, then sound may not be output.
Note
Before connecting the AC power cord (mains lead),
make sure that metalic wires of the speaker cords are
not touching each other between the SPEAKERS
terminals.
20
US
After you have install and connect your speaker, be sure to select the speaker pattern from
SPEAKER menu (page 47).
Select the speaker pattern according to your speaker setting. For details of each parameter, see the
table as follows.
Selecting a speaker pattern
Speaker connected
Front
left/right
Center Surround
left/right
Surround
back left
Surround
back right
Subwoofer
Speaker pattern
3/4.1 aaaaa a
3/4 aaaaa
3/3.1 aaaa a
3/3 aaaa
2/4.1 a aaa a
2/4 a aaa
3/2.1 aaa a
3/2 aaa
2/3.1 aaa a
2/3 aaa
2/2.1 aa a
2/2 aa
3/0.1 aa a
3/0 aa
2/0.1 aa
2/0 a
21
US
Getting Started

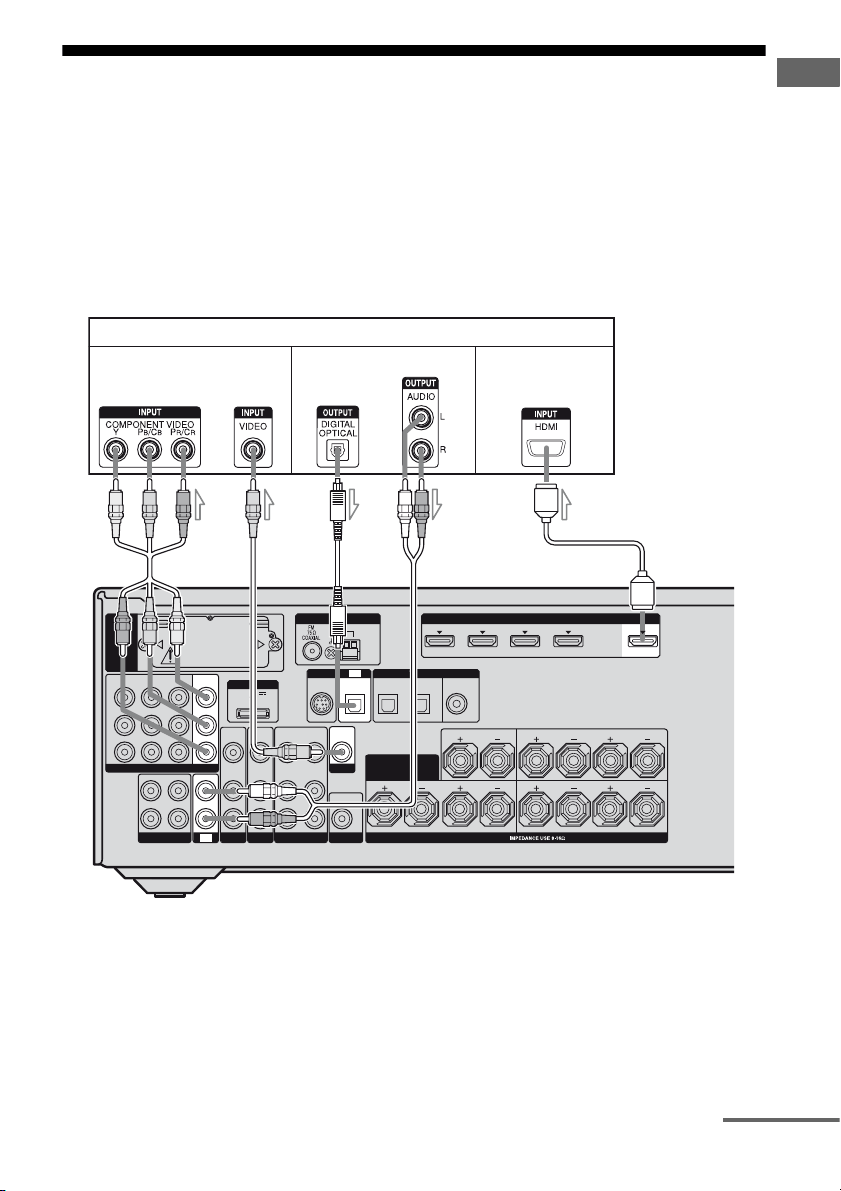

3: Connecting the TV
You can watch the selected input image when
you connect the HDMI OUT or MONITOR
OUT jack to a TV.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components.
Before connecting cords, be sure to disconnect
the AC power cord.
DIGITAL
(ASSIGNABLE)
DC5V
0.7A MAX
ANTENNA
DMPORT
AM
VIDEO 1
AUDIO
IN
VIDEO
IN
SAT
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
IN
OPTICAL
AUDIO
IN
VIDEO
IN
SUBWOOFER
AUDIO
IN
VIDEO
IN
BD
LR
LR
LR
SPEAKERS
SAT
IN
BD
IN
DVD
IN
OPTICAL
CENTER
SURROUND
FRONT A
COAXIAL
SURROUND BACK/
BI-AMP/
FRONT B
TV
EZW-T100
R
SA-CD/CD/CD-R
OUT
IN
L
SIRIUS
IN
TV
VIDEO
OUT
MONITOR
HDMI
IN 4
ASSIGNABLE (INPUT ONLY)
(for AUDIO)
IN 2
IN 3
IN 1 OUT
MONITOR
OUT
Y
P
B
/
C
B
P
R
/
C
R
COMPONENT VIDEO
ASSIGNABLE (INPUT ONLY)
IN 2
IN 1
IN 3
TV
BA
A Component video cord (not supplied)
B Video cord (not supplied)
C Optical digital cord (not supplied)
D Audio cord (not supplied)
E HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
Audio/Video
signals
D
Audio signals
CE
Video signals
continued
22
US
Notes
• Be sure to turn on the receiver when the video and
audio signals of a playback component are being
output to a TV via the receiver. Unless the power is
turned on, neither video nor audio signals will be
transmitted.
• Connect image display components such as a TV
monitor or a projector to the HDMI OUT or
MONITOR OUT jack on the receiver. You may
not be able to record, even if you connect recording
components.
• Depending on the status of the connection between
the TV and the antenna (aerial), the image on the
TV screen may be distorted. In this case, place the
antenna (aerial) farther away from the receiver.
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tips
• To output the sound of the TV from the speakers
connected to the receiver, be sure to
– connect the audio output jacks of the TV to the
TV IN jacks of the receiver.
– turn off the TV’s volume or activate the TV’s
muting function.
• All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
23
US
Getting Started
4a: Connecting the audio components
The following illustration shows how to
connect a Super Audio CD player, CD player
or CD recorder. Before connecting cords, be
sure to disconnect the AC power cord.
After connecting your audio component,
proceed to “4b: Connecting the video
components” (page 24).
Connecting a Super Audio CD/CD
player or CD recorder
DIGITAL
(ASSIGNABLE)
DC5V
0.7A MAX
ANTENNA
DMPORT
AM
IN 2
IN 1
MONITOR
OUT
VIDEO 1
IN
TV
AUDIO
IN
VIDEO
IN
SAT
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
IN
OPTICAL
AUDIO
IN
VIDEO
IN
SUBWOOFER
MONITOR
AUDIO
IN
VIDEO
IN
BD
LR
LR
LR
SPEAKERS
SAT
IN
BD
IN
DVD
IN
OPTICAL
CENTER
SURROUND
FRONT A
COAXIAL
SURROUND BACK/
BI-AMP/
FRONT B
TV
EZW-T100
R
SA-CD/CD/CD-R
IN 3
Y
P
B
/
C
B
P
R
/
C
R
HDMI
IN 4
ASSIGNABLE (INPUT ONLY)
(for AUDIO)
IN 2
IN 3
IN 1 OUT
SIRIUS
COMPONENT VIDEO
ASSIGNABLE (INPUT ONLY)
OUT
IN
L
Super Audio
CD player/
CD player/
CD recorder
A Audio cord (not supplied)
A
24
US
4b: Connecting the video components
This section describes how to connect your
video components to this receiver. Before you
begin, see “Component to be connected”
below for the pages which describe how to
connect each component.
After connecting all your components,
proceed to “5: Connecting the antennas
(aerials)” (page 31).
Component to be connected
If you want to connect several
digital components, but cannot
find an unused input
See “Enjoying the sound/images from other
inputs” (page 94).
The image quality depends on the connecting
jack. See the illustration that follows. Select
the connection according to the jacks on your
components.
Notes
• Before connecting cords, be sure to disconnect the
AC power cord.
• Be sure to turn on the receiver when the video and
audio signals of a playback component are being
output to a TV via the receiver. Unless the power is
turned on, neither video nor audio signals will be
transmitted.
How to connect your
components
Component Page
TV 21
With HDMI jack 25
DVD player 27
Blu-ray disc player 28
Satellite tuner/Set-top box 29
VCR, DVD recorder 30
Camcorder, video game, etc. 30
Video input/output jack to be
connected
HDMI
VIDEO
COMPONENT VIDEO
Y
P
B
/
C
B
P
R
/
C
R
Digital Analog
High quality image
25
US
Getting Started
HDMI is the abbreviated name for High-
Definition Multimedia Interface. It is an
interface which transmits video and audio
signals in digital format.
Notes
• Be sure to change the factory setting of the HDMI
1–4 input button on the remote so that you can use
the button to control your components. For details,
see “Programming the remote” (page 104).
• You can also rename the HDMI input so that it can
be displayed on the receiver’s display. For details,
see “Naming inputs” (page 42).
To enjoy TV multi channel
surround sound broadcasting
You can listen to TV multi channel surround
sound broadcasting from the speakers
connected to the receiver.
Connect the OPTICAL output jack of the TV
to the OPTICAL IN jack of the receiver.
a)
Connect at least one of the audio cords (B or C).
Connecting components with
HDMI jacks
DIGITAL
(ASSIGNABLE)
DC5V
0.7A MAX
ANTENNA
DMPORT
AM
IN 2
IN 1
MONITOR
OUT
VIDEO 1
AUDIO
IN
VIDEO
IN
SAT
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
IN
AUDIO
IN
VIDEO
IN
SUBWOOFER
MONITOR
AUDIO
IN
VIDEO
IN
BD
LR
LR
LR
SPEAKERS
SAT
IN
BD
IN
DVD
IN
OPTICAL
CENTER
SURROUND
FRONT A
COAXIAL
SURROUND BACK/
BI-AMP/
FRONT B
TV
EZW-T100
R
SA-CD/CD/CD-R
IN 3
Y
P
B
/
C
B
P
R
/
C
R
COMPONENT VIDEO
ASSIGNABLE (INPUT ONLY)
OUT
IN
L
HDMI
IN 4
ASSIGNABLE (INPUT ONLY)
IN 2
IN 3
IN 1 OUT
SIRIUS
IN
TV
OPTICAL
(for AUDIO)
Satellite tuner/Set-top box
A HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
B Optical digital cord (not supplied)
a)
C Audio cord (not supplied)
a)
DVD player Blu-ray disc player
Audio/video
signals
Audio/video
signals
Audio/video
signals
Audio signals
TV, etc.
Audio/video
signals
AAA
ABC
continued
26
US
HDMI features
• A digital audio signals transmitted by HDMI
can be output from the speakers connected to
the receiver. This signal supports Dolby
Digital, DTS, and Linear PCM.
• This receiver can receive multi channel
Linear PCM (up to 8 channels) with a
sampling frequency of 192 kHz or less with
an HDMI connection.
• This receiver supports High Bitrate Audio
(DTS-HD Master Audio, Dolby TrueHD)
and HDMI (Deep Color, x.v. Color).
• This receiver supports the Control for HDMI
function. For details, see ““BRAVIA” Sync
Features” (page 81).
• HDMI 3 input has a better sound quality.
When you need a higher sound quality,
connect your component to the HDMI IN 3
(for AUDIO) jack and select HDMI 3 as
input.
Notes on connecting cables
• We recommend that you use a Sony HDMI
cable.
• We recommend that you use an HDMI cable
with the HDMI logo (made by Sony) for the
HDMI jack corresponding to high speed (an
HDMI version1.3, category 2 cable) when
you view images or listen to sound during a
Deep Color transmission or when you watch
a video image of 1080p or higher.
• We do not recommend using an HDMI-DVI
conversion cable. When you connect an
HDMI-DVI conversion cable to a DVI-D
component, the sound and/or the image may
not be output. Connect other audio cords or
digital connecting cords, then set
“A. ASSIGN” in AUDIO menu (page 57)
when the sound is not output correctly.
Notes on HDMI connections
• An audio signal input to the HDMI IN jack
is output from the SPEAKERS jacks and
HDMI OUT jack. It is not output from any
other audio jacks.
• Video signals input to the HDMI IN jack can
only be output from the HDMI OUT jack.
The video input signals cannot be output
from the VIDEO OUT jacks or MONITOR
OUT jacks.
• When you want to listen to the sound from
the TV speaker, set “AUDIO OUT” to
“TV+AMP” in the HDMI menu (page 58). If
you cannot play back multi channel
software, set to “AMP”. However, the sound
will not output from the TV speaker.
• DSD signals of Super Audio CD are not
input and output.
• The multi/stereo area audio signals of a
Super Audio CD are not output.
• Audio signals (sampling frequency, bit
length, etc.) transmitted from an HDMI jack
may be suppressed by the connected
component. Check the setup of the
connected component if the image is poor or
the sound does not come out of a component
connected via the HDMI cable.
• Sound may be interrupted when the
sampling frequency or the number of
channels of audio output signals from the
playback component is switched.
• When the connected component is not
compatible with copyright protection
technology (HDCP), the image and/or the
sound from the HDMI OUT jack may be
distorted or may not be output.
In this case, check the specification of the
connected component.
• You can enjoy High Bitrate Audio (DTS-
HD Master Audio, Dolby TrueHD), multi-
channel Linear PCM only with an HDMI
connection.
• Set the image resolution of the player to
more than 720p/1080i to enjoy High Bitrate
Audio (DTS-HD Master Audio, Dolby
TrueHD).
• The image resolution of player may need
certain settings be made before you can
enjoy multi channel Linear PCM. Refer to
the operating instructions of the player.
• Not every HDMI component supports all
functions that are defined by the specified
HDMI version. For example, components
that support HDMI, version 1.3, may not
support Deep Color.
• Refer to the operating instructions of each
connected component for details.
27
US
Getting Started
The following illustration shows how to
connect a DVD player.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components.
Notes
• The initial setting of the COMPONENT VIDEO
IN 2 jacks are DVD player. If you want to connect
your DVD player to the COMPONENT VIDEO IN
1 or IN 3 jacks, set “V. ASSIGN” in the VIDEO
menu (page 57).
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
• To input multi channel digital audio from the DVD
player, set the digital audio output setting on the
DVD player. Refer to the operating instructions
supplied with the DVD player.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
* When you connect a component equipped with an
OPTICAL jack, set “A. ASSIGN” in the AUDIO
menu (page 57).
Connecting a DVD player
DC5V
0.7A MAX
ANTENNA
DMPORT
AM
VIDEO 1
IN
TV
AUDIO
IN
VIDEO
IN
SAT
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
OPTICAL
AUDIO
IN
VIDEO
IN
SUBWOOFER
MONITOR
AUDIO
IN
VIDEO
IN
BD
LR
LR
LR
SPEAKERS
CENTER
SURROUND
FRONT A
SURROUND BACK/
BI-AMP/
FRONT B
TV
EZW-T100
R
SA-CD/CD/CD-R
OUT
IN
L
HDMI
IN 4
ASSIGNABLE (INPUT ONLY)
(for AUDIO)
IN 2
IN 3
IN 1 OUT
SIRIUS
DIGITAL
SAT
IN
BD
IN
OPTICAL
COAXIAL
IN 3
Y
P
B
/
C
B
P
R
/
C
R
COMPONENT VIDEO
ASSIGNABLE (INPUT ONLY)
IN 2
IN 1
MONITOR
OUT
(ASSIGNABLE)
DVD
IN
IN
DVD player
A
A Component video cord (not supplied)
B Optical digital cord (not supplied)
C Coaxial digital cord (not supplied)
Video signals Audio signals
CB
28
US
The following illustration shows how to
connect a Blu-ray disc player.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components.
Notes
• The initial setting of the COMPONENT VIDEO
IN 1 jacks are Blu-ray disc player. If you want to
connect your Blu-ray disc player to the
COMPONENT VIDEO IN 2 or IN 3 jacks, set
“V. ASSIGN” in the VIDEO menu (page 57).
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
• To input multi channel digital audio from the Blu-
ray disc player, set the digital audio output setting
on the Blu-ray disc player. Refer to the operating
instructions supplied with the Blu-ray disc player.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
* When you connect a component equipped with a
COAXIAL jack, set “A. ASSIGN” in the AUDIO
menu (page 57).
Connecting a Blu-ray disc player
DC5V
0.7A MAX
ANTENNA
DMPORT
AM
VIDEO 1
IN
TV
AUDIO
IN
VIDEO
IN
SAT
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
IN
OPTICAL
AUDIO
IN
VIDEO
IN
SUBWOOFER
MONITOR
L
AUDIO
IN
VIDEO
IN
BD
R
LR
LR
SPEAKERS
CENTER
SURROUND
FRONT A
SURROUND BACK/
BI-AMP/
FRONT B
TV
EZW-T100
R
SA-CD/CD/CD-R
OUT
IN
L
HDMI
IN 4
ASSIGNABLE (INPUT ONLY)
(for AUDIO)
IN 3
IN 1 OUT
SIRIUS
SAT
IN
BD
IN
OPTICAL
COAXIAL
IN 2
IN 3
Y
P
B
/
C
B
P
R
/
C
R
COMPONENT VIDEO
ASSIGNABLE (INPUT ONLY)
DIGITAL
(ASSIGNABLE)
DVD
IN
IN 1
MONITOR
OUT
IN 2
Blu-ray disc player
AB
A Component video cord (not supplied)
B Video cord (not supplied)
C Optical digital cord (not supplied)
D Coaxial digital cord (not supplied)
E Audio cord (not supplied)
Video signals Audio signals
CED
29
US
Getting Started
The following illustration shows how to
connect a satellite tuner or set-top box.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components.
Notes
• The initial setting of the COMPONENT VIDEO
IN 3 jacks are satellite tuner or set-top box. If you
want to connect your satellite tuner or set-top box
to the COMPONENT VIDEO IN 1 or IN 2 jacks,
set “V. ASSIGN” in the VIDEO menu (page 57).
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
Connecting a satellite tuner/
set-top box
DIGITAL
(ASSIGNABLE)
DC5V
0.7A MAX
ANTENNA
DMPORT
AM
VIDEO 1
IN
TV
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
IN
OPTICAL
AUDIO
IN
VIDEO
IN
SUBWOOFER
MONITOR
AUDIO
IN
VIDEO
IN
BD
LR
LR
LR
SPEAKERS
SAT
IN
BD
IN
DVD
IN
OPTICAL
CENTER
SURROUND
FRONT A
COAXIAL
SURROUND BACK/
BI-AMP/
FRONT B
TV
EZW-T100
R
SA-CD/CD/CD-R
OUT
IN
L
HDMI
IN 4
ASSIGNABLE (INPUT ONLY)
(for AUDIO)
IN 2
IN 3
IN 1 OUT
SIRIUS
AUDIO
IN
VIDEO
IN
SAT
MONITOR
OUT
Y
P
B
/
C
B
P
R
/
C
R
COMPONENT VIDEO
ASSIGNABLE (INPUT ONLY)
IN 2
IN 1
IN 3
BA
Audio signalsVideo signals
C
Satellite tuner/Set-top box
D
A Component video cord (not supplied)
B Video cord (not supplied)
C Optical digital cord (not supplied)
D Audio cord (not supplied)
30
US
The following illustration shows how to
connect a component which has analog jacks
such as a VCR, DVD recorder, etc.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components.
Notes
• Be sure to change the factory setting of the VIDEO
1 input button on the remote so that you can use the
button to control your DVD recorder. For details,
see “Programming the remote” (page 104).
• You can also rename the VIDEO 1 input so that it
can be displayed on the receiver’s display. For
details, see “Naming inputs” (page 42).

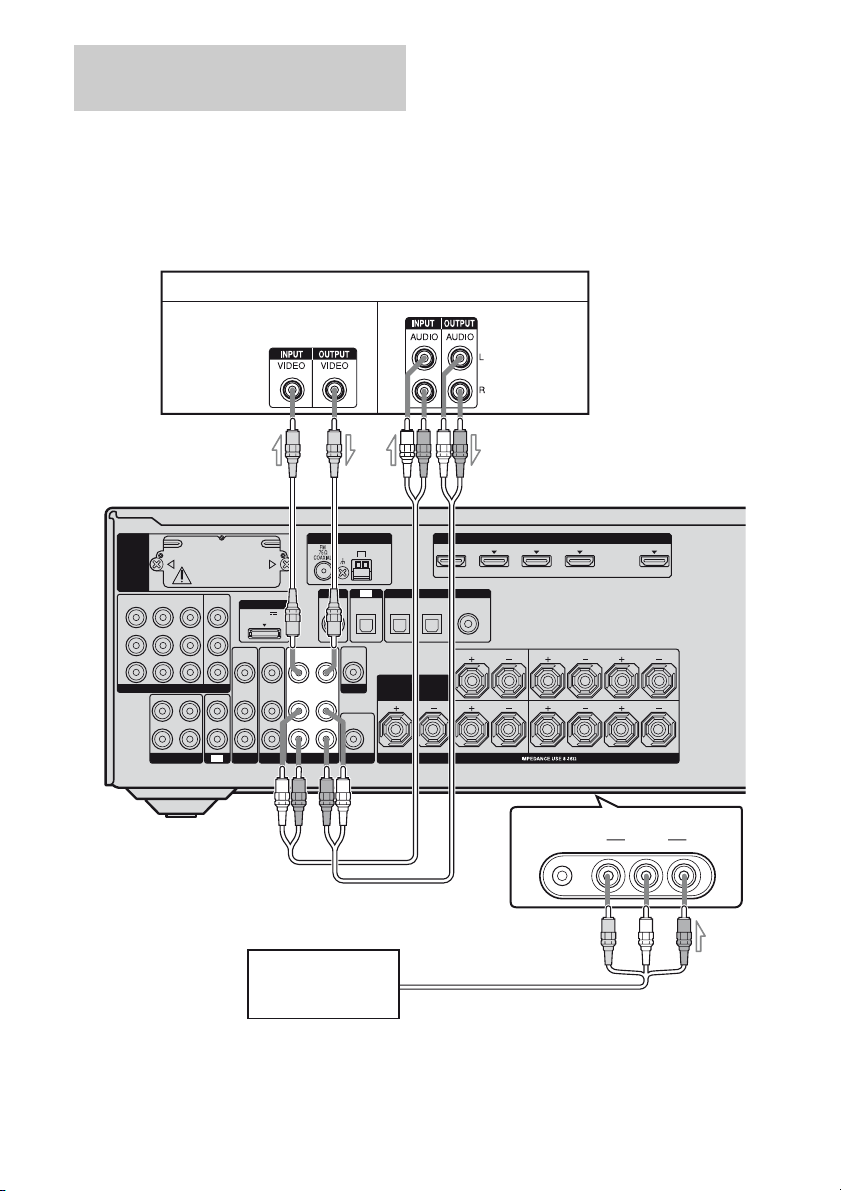

Connecting components with
analog video and audio jack
DIGITAL
(ASSIGNABLE)
DC5V
0.7A MAX
ANTENNA
DMPORT
AM
IN 2
IN 1
MONITOR
OUT
IN
TV
AUDIO
IN
VIDEO
IN
SAT
AUDIO
OUT
VIDEO
OUT
IN
OPTICAL
MONITOR
AUDIO
IN
VIDEO
IN
BD
LR
LR
LR
SPEAKERS
SAT
IN
BD
IN
DVD
IN
OPTICAL
CENTER
SURROUND
FRONT A
COAXIAL
SURROUND BACK/
BI-AMP/
FRONT B
TV
EZW-T100
R
SA-CD/CD/CD-R
IN 3
Y
P
B
/
C
B
P
R
/
C
R
COMPONENT VIDEO
ASSIGNABLE (INPUT ONLY)
OUT
IN
L
HDMI
IN 4
ASSIGNABLE (INPUT ONLY)
(for AUDIO)
IN 2
IN 3
IN 1 OUT
SIRIUS
AUDIO
OUT
VIDEO
OUT
AUDIO
IN
VIDEO
IN
VIDEO L AUDIO RAUTO CAL MIC
VIDEO 2 IN
SUBWOOFER
VIDEO 1
VCR, DVD recorder
B
Camcorder/
video game
C
Audio signals
Video signals
A Video cord (not supplied)
B Audio cord (not supplied)
C Audio/video cord (not supplied)
A
(On the front panel)
31
US
Getting Started
5: Connecting the
antennas (aerials)
Connect the supplied AM loop antenna
(aerial) and FM wire antenna (aerial).
Before connecting antennas (aerials), be sure
to disconnect the power cord.
Notes
• To prevent noise pickup, keep the AM loop
antenna (aerial) away from the receiver and other
components.
• Be sure to fully extend the FM wire antenna
(aerial).
• After connecting the FM wire antenna (aerial),
keep it as horizontal as possible.
6: Preparing the receiver
and the remote
Connect the AC power cord (mains lead) to a
wall outlet.
DIGI
T
DC5V
0.7A MAX
DMPORT
AM
IN 2
IN 1
MONITOR
OUT
VIDEO 1
IN
TV
AUDIO
IN
VIDEO
IN
SAT
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
IN
OPTICAL
AUDIO
IN
VIDEO
IN
SUBWOOFER
MONITOR
AUDIO
IN
VIDEO
IN
BD
R
SAT
IN
OPTI
C
SURROUND
BI-AM
P
FRONT
TV
EZW-T100
R
SA-CD/CD/CD-R
IN 3
Y
P
B
/
C
B
P
R
/
C
R
COMPONENT VIDEO
ASSIGNABLE (INPUT ONLY)
OUT
IN
L
SIRIUS
ANTENNA
FM wire antenna (aerial) (supplied)
AM loop antenna (aerial)
(supplied)
Connecting the AC power cord
(mains lead)
L
L
OUT
AC power cord (mains lead)
To the wall outlet
32
US
Before using the receiver for the first time,
initialize the receiver by performing the
following procedure. This procedure can also
be used to return settings you have made to
their factory defaults.
Be sure to use the buttons on the receiver for
this operation.
1 Press ?/1 to turn off the
receiver.
2 Hold down ?/1 for 5 seconds.
After “Clear All” appears on the display
for a while, “Press ENT” appears.
3 Press MEMORY/ENTER.
After “CLEARING” appears on the
display for a while, “CLEARED”
appears.
All the settings you have changed or
adjusted are reset to the initial settings.
Insert two R6 (size-AA) batteries in the
RM-AAP043 Remote Commander.
Observe the correct polarity when installing
batteries.
Notes
• Do not leave the remote in an extremely hot or
humid place.
• Do not use a new battery with old ones.
• Do not mix manganese batteries and other kinds of
batteries.
• Do not expose the remote sensor to direct sunlight
or lighting apparatuses. Doing so may cause a
malfunction.
• If you do not intend to use the remote for an
extended period of time, remove the batteries to
avoid possible damage from battery leakage and
corrosion.
• When you replace the batteries, the programmed
remote codes may be cleared. If this happens,
program the remote codes again (page 104).
• When the remote no longer operates the receiver,
replace all the batteries with new ones.
Performing initial setup
operations
?/1
PHONES
SPEAKERS
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
TONE MODE DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
TONE
VIDEO 2 IN
VIDEO L AUDIO RAUTO CAL MIC
?/1
MEMORY/ENTER
Inserting batteries into the
remote
33
US
Getting Started
7: Selecting the speaker
system
You can select the front speakers you want to
drive.
Be sure to use the buttons on the receiver for
this operation.
Press SPEAKERS repeatedly to
select the front speaker system
you want to drive.
* To select “SP B” or “SP A + B”, set “SB ASSIGN”
to “SPK B” in the SPEAKER menu (page 52).
To turn off the speaker output
Press SPEAKERS repeatedly until the “SP A”,
“SP B” and “SP A+B” indicators on the
display do not light up.
“ALL OFF” appears on the display for a while.
Note
You cannot switch the front speaker system by
pressing SPEAKERS when the headphones are
connected.
8: Calibrating the
appropriate settings
automatically
(AUTO CALIBRATION)
This receiver is equipped with DCAC (Digital
Cinema Auto Calibration) Technology which
allows you to perform automatic calibration as
follows:
• Check the connection between each speaker
and the receiver.
a)
• Adjust the speaker level.
• Measure the distance of each speaker from
your listening position.
a)
• Measure the speaker size.
a)
• Measure the speaker polarity.
• Measure the frequency characteristics.
a)b)
a)
The measurement result is not utilized in the
following cases.
– ANALOG DIRECT is selected.
b)
The measurement result is not utilized in the
following cases.
– Dolby TrueHD signals with a sampling
frequency of more than 96 kHz are being
received.
– PCM signals with a sampling frequency of more
than 96 kHz are being received.
The DCAC is designed to obtain proper sound
balance in your room. However, you can
adjust the speaker levels and balance manually
according to your preference. For details, see
“9: Adjusting the speaker levels and balance
(TEST TONE)” (page 40).
To select Light up
The front speakers connected to the
SPEAKERS FRONT A terminals
SP A
The front speakers connected to the
SPEAKERS SURROUND BACK/
BI-AMP/FRONT B terminals
SP B*
The front speakers connected to both
the SPEAKERS FRONT A and
SPEAKERS SURROUND BACK/
BI-AMP/FRONT B terminals (parallel
connection)
SP A + B*
?/1
PHONES
SPEAKERS
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
TONE MODE DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
TONE
VIDEO 2 IN
VIDEO L AUDIO R
AUTO CAL MIC
SPEAKERS
34
US
Before you perform the Auto Calibration, set
up and connect the speakers (page 17, 18).
• The AUTO CAL MIC jack is used for the
supplied optimizer microphone only. Do not
connect other microphones to this jack.
Doing so may damage the receiver and the
microphone.
• During the calibration, the sound that comes
out of the speakers is very loud. The volume
of the sound cannot be adjusted. Pay
attention to the presence of children or to the
effect on your neighborhood.
• Perform the Auto Calibration in a quiet
environment to avoid the effect of noise and
get a more accurate measurement.
• If there are any obstacles in the path between
the optimizer microphone and the speakers,
the calibration cannot be performed
correctly. Remove any obstacles from the
measurement area to avoid measurement
error.
• When you use a bi-amplifier connection, set
“SB ASSIGN” to “BI-AMP” in the
SPEAKER menu (page 52) before you
perform Auto Calibration.
• When you use speakers front B connection,
set “SB ASSIGN” to “SPK B” in the
SPEAKER menu (page 52) before you
perform Auto Calibration.
• If you want to use surround amplifier, be
sure to pair the surround amplifier to S-AIR
main unit before you perform Auto
Calibration (page 88).
• Select the seating position as position 1, 2 or
3 to save the Auto Calibration result (page
38).
Notes
• The Auto Calibration function does not work in the
following cases.
– SPEAKERS is set to off.
– Headphones are connected.
• If you activate the muting function during Auto
Calibration, the muting function will automatically
be set to off.
1 Connect the supplied optimizer
microphone to the AUTO CAL
MIC jack.
2 Set up the optimizer
microphone.
Place the optimizer microphone at your
listening position. Use a stool or tripod so
that the optimizer microphone remains at
the same height as your ears.
On setting up the active
subwoofer
• When a subwoofer is connected, turn on the
subwoofer and turn up the volume
beforehand. Turn the MASTER VOLUME
knob to just before the mid-point.
• If you connect a subwoofer with a crossover
frequency function, set the value to the
maximum.
• If you connect a subwoofer with an auto
standby function, set this function to off
(deactivated).
Before you perform Auto
Calibration
?/1
PHONES
SPEAKERS
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
TONE MODE DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
TONE
VIDEO 2 IN
VIDEO L AUDIO RAUTO CAL MIC
AUTO CAL MIC
Optimizer microphone
35
US
Getting Started
Note
Depending on the characteristics of the subwoofer
you are using, the setup distance value may be
further away from the actual position.
Press AUTO CAL.
Measurement starts in 5 seconds. A count
down is displayed.
The measurement process will take
approximately 30 seconds to complete.
The table below shows the display when
measurement starts.
Tips
• Operations other than turning the receiver on or off
are deactivated during the measurement.
• The measurements may not be performed correctly
or Auto Calibration cannot be performed when
special speakers, such as dipole speakers are used.
To cancel Auto Calibration
The Auto Calibration function will be
canceled when you do the following during the
measurement process:
–Press ?/1.
– Press the input buttons or turn the INPUT
SELECTOR on the receiver.
– Change the volume level.
– Press MUTING.
– Change the setting of the SPEAKERS.
– Connect headphones.
– Press AUTO CAL again.
Performing Auto Calibration
1 2 3
4 5 6
7 8 9
-/-- 0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
THEATER
SYSTEM STANDBY
RM SET UP
?/1
CLEAR
/
>10
SHIFT
TUNING – TUNING +
DISC SKIP D.TUNING
AUTO CAL
.
mM
>
Xx
MUTING
VIDEO 1 VIDEO 2 BD
SAT TV
HDMI 3HDMI 2HDMI 1
HDMI 4
SA-CD/
CD
DMPORTTUNER
TV VOL
MASTER VOL
TV CH
PRESET
<
<
MENU
AV
?/1
F1 F2
TV INPUT
TOP MENU MENU
BD/DVD
WIDE
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
TV AMP
– CATEGORY +
CATEGORY MODE
Input
buttons
?/1
switch
MUTING
MASTER
VOL +/–
AUTO
CAL
,
V/v/B/b
AMP
MENU
AMP
MENU/
HOME
Measurement for Display
Speaker existence TONE
Speaker gain, distance, frequency
response
T.S.P.
Subwoofer gain and distance WOOFER
36
US
1 Confirm the measurement
result.
When the measurement ends, a beep
sounds and the measurement result
appears on the display.
2 Press AMP and then press V/v
repeatedly to select the item.
Then, press .
3 Select “SAVE EXIT” in step 2 to
save the measurement result.
“COMPLETE” appears on the display
and the settings are registered as selected
position number.
4 Press V/v repeatedly to select
CAL TYPE, then press .
Tip
The size of a speaker (LARGE/SMALL) is
determined by the low frequency
characteristics.
The measurement results may vary, depending
on the position of the optimizer microphone
and speakers, and the shape of the room. It is
recommended that you follow the
measurement results. However, you can
change those settings in the SPEAKER menu
(page 51). Save the measurement results first,
then try to change the settings if you want.
Confirming/saving the
measurement results
Measurement
result
Display Explanation
When the
measurement
process
completes
properly
SAVE EXIT
Proceed to step
2.
When the
measurement
process fails
E -
xxx
:
xx
See “When
error codes
appear” (page
37).
Item Explanation
EXIT Exits the setting process
without saving the
measurement results.
LEVEL INFO Displays the measurement
result for speaker level.
DIST. INFO Displays the measurement
result for speaker distance.
PHASE INFO Displays the phase of each
speaker (in phase/out of
phase). See “When you
select “PHASE INFO””
(page 37).
WARN CHECK Displays warning
concerning the
measurement results. See
“When you select “WARN
CHECK”” (page 38).
SAVE EXIT Saves the measurement
results and exits the setting
process.
RETRY Performs the Auto
Calibration again.
Setting Explanation
FULL FLAT Makes the measurement of
frequency from each
speaker flat.
ENGINEER Sets the frequency
characteristics to a set that
matches that of the Sony
listening room standard.
FRONT REF Adjusts the characteristics
of all speakers to match the
characteristics of the front
speaker.
OFF Sets the Auto Calibration
equalizer level to off.
37
US
Getting Started
When error codes appear
Check the problem of the error and perform
Auto Calibration again.
*1
xxx
represent a speaker channel
F Front
S Surround
SB Surround back
To perform Auto Calibration
again
1
Press .
2 Press V/v to select “RETRY? YES”,
then press .
When you select “PHASE INFO”
You can check the phase of each speaker (in
phase/out of phase).
Press V/v repeatedly to select a
speaker, then press to return to
step 2 of “Confirming/saving the
measurement results” (page 36).
*2
xxx
represent a speaker channel
FL Front left
FR Front right
CNT Center
SL Surround left
SR Surround right
SB Surround back
SBL Surround back left
SBR Surround back right
SW Subwoofer
Display Explanation
E -
xxx
*1
: 31 SPEAKERS is set to OFF. Set
it to others (page 33) and
perform the measurement
again.
E -
xxx
*1
: 32 None of the speakers were
detected. Make sure that the
optimizer microphone is
connected properly and
perform the measurement
again. If the optimizer
microphone is connected
properly but the error code
appears, the optimizer
microphone cable may be
damaged or improperly
connected.
E -
xxx
*1
: 33 • None of the front speakers
are connected or only one
front speaker is connected.
• The optimizer microphone is
not connected.
• Either the left or right
surround speakers is not
connected.
• Surround back speakers are
connected even though
surround speakers are not
connected. Connect the
surround speaker(s) to the
SURROUND terminals.
• The surround back speaker is
connected only to the
SPEAKERS SURROUND
BACK/BI-AMP/FRONT B
R terminals. When you
connect only one surround
back speaker, connect it to
the SPEAKERS
SURROUND BACK/BI-
AMP/FRONT B L terminals.
Display Explanation
xxx
*2
: IN The speaker is in phase.
xxx
*2
: OUT The speaker is out of phase. The
“+” and “–” terminals of the
speaker may be connected the
other way around. However,
depending on the speakers,
“
xxx : OUT” appears on the
display even though the speakers
are connected properly. This is
because of the speakers’
specifications. In this case, you
can continue to use the receiver.
continued
38
US
When you select “WARN
CHECK”
If a warning on the measurement result is
present, detailed information is displayed.
Press to return to step 2 of
“Confirming/saving the
measurement results” (page 36).
*3
xxx
represent a speaker channel
FL Front left
FR Front right
CNT Center
SL Surround left
SR Surround right
SBL Surround back left
SBR Surround back right
SW Subwoofer
Tip
Depending on the position of the subwoofer, the
measurement results for polarity may vary.
However, there will be no problems even if you
continue to use the receiver with that value.
After you have finished
Disconnect the optimizer microphone from the
receiver.
Note
If you have reposition your speaker, we recommend
that you perform Auto Calibration again to enjoy the
surround sound.
You can use the AUTO CAL menu to make
various adjustments for Auto Calibration
settings and to name inputs.
Select “AUTO CAL” in the amplifier menus.
For details on adjusting the parameters, see
“Navigating through menus” (page 45) and
“Overview of the menus” (page 46).
x A.CAL START (Auto Calibration)
x CAL TYPE (Calibration type)*
Lets you select the Auto Calibration type for
each seating position. For details, see step 4 of
“Confirming/saving the measurement results”
(page 36).
* You can select this parameter only when you have
performed the Auto Calibration and saved the
settings.
xPOSITION (Position)
You can register three patterns as position 1, 2,
3, depending on the seating positions, listening
environment, and measurement conditions.
If you do not select the position number, the
Auto Calibration result will automatically save
as POS. 1 (initial setting).
Display Explanation
W -
xxx
*3
: 40 The measurement has
completed. However, the noise
level is high. You may be able
to perform the measurement
properly if you try it again,
even though the measurement
cannot be performed in all
environments. Try to perform
the measurement in a quiet
environment.
W -
xxx
*3
: 41 The sound input from the
optimizer microphone is
outside the acceptable range. It
is louder than the loudest
sound that can be measured.
Try to perform the
measurement when the
environment is quiet enough to
allow proper measurement.
W -
xxx
*3
: 42 The volume of the receiver is
out of the acceptable range.
Try to perform the
measurement when the
environment is quiet enough to
allow proper measurement.
W -
xxx
*3
: 43 The distance and position of a
subwoofer cannot be detected.
This may be caused by noise.
Try to perform the
measurement in a quiet
environment.
NO WARN There is no warning
information.
AUTO CAL menu parameters
39
US
Getting Started
To register more than one set of
settings for the listening
environment
You can select the seating position you want
and register the measurement results of the
Auto Calibration for that seating position.
1 Press AMP MENU.
2 Press V/v repeatedly to select “AUTO
CAL”.
3 Press or b to enter the menu.
4 Press V/v repeatedly to select
“POSITION”.
5 Press or b to enter the parameter.
6 Press V/v repeatedly to select the
position (POS. 1, 2, 3) for which you
want to register the measurement
results, then press .
7 Press V/v repeatedly to select “A.CAL
START”, then press to perform
Auto Calibration.
You can also use AUTO CAL on the
remote. For details, see “Performing Auto
Calibration” (page 35).
The measurement results is registered as
the position you selected in step 6.
8 Repeat step 1 to 7 to register another
seating position.
To select the registered seating
position
1
Press AMP MENU.
2 Press V/v repeatedly to select “AUTO
CAL”.
3 Press or b to enter the menu.
4 Press V/v repeatedly to select
“POSITION”.
5 Press or b to enter the parameter.
6 Press V/v repeatedly to select position
(POS. 1, 2, 3) you want, then press .
The registered seating position is selected.
To exit the menu
Press MENU/HOME or AMP MENU.
x NAME IN (Naming inputs)
You can rename the position name.
To name the position
1
Select the position (POS. 1, 2, 3) for
which you want to name.
2 Press V/v repeatedly to select “NAME
IN”.
3 Press or b to enter the parameter.
The cursor flashes and you can select a
character.
4 Press V/v to select a character, then
press B/b to move the cursor to the
next position.
If you made a mistake
Press B/b until the character you want to
change flashes, then press V/v to select the
correct character.
Tips
• You can select the character type as follows by
pressing V/v.
Alphabet (upper case) t Numbers t
Symbols
• To enter a blank space, press b without
selecting a character.
5 Press .
The name you entered is registered.
40
US
9: Adjusting the speaker
levels and balance
(TEST TONE)
You can adjust the speaker levels and balance
while listening to the test tone from your
listening position.
1 Press AMP MENU.
2 Press V/v repeatedly to select
“LEVEL”, then press or b.
3 Press V/v repeatedly to select
“TEST TONE” then press .
4 Press V/v repeatedly to select
the test tone type and the
speaker you want to adjust.
You can select “FIX xxx” or
“AUTO xxx”. For details, see “TEST TONE
(Test tone)” (page 50).
Tips
• To adjust the level of all speakers at the same
time, press MASTER VOL +/–. You can also
use MASTER VOLUME on the receiver.
• The adjusted value are shown on the display
during adjustment.
5 Repeat steps 1 to 4 to select
“OFF”.
You can also press any input buttons.
The test tone turns off.
When a test tone is not output
from the speakers
• The speaker cords may not be connected
securely.
• The speaker cords may have the short-circuit
problem.
When a test tone is output from
a different speaker than the
speaker indicator showed in the
front panel display
The speaker pattern to the connected speaker
is not set up correctly. Make sure the speaker
connection and the speaker pattern match.
1 2 3
4 5 6
7 8 9
-/-- 0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
CLEAR
/
>10
SHIFT
TUNING – TUNING +
DISC SKIP D.TUNING
AUTO CAL
.
mM
>
Xx
MUTING
VIDEO 1 VIDEO 2 BD
SAT TV
HDMI 3HDMI 2HDMI 1
HDMI 4
SA-CD/
CD
DMPORTTUNER
TV VOL
MASTER VOL
TV CH
PRESET
<
<
MENU
F1 F2TOP MENU MENU
BD/DVD
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
TV AMP
– CATEGORY +
CATEGORY MODE
AMP
MENU
MASTER
VOL +/–
,
V/v/B/b
Input
buttons
41
US
Playback
Selecting a component
1
Press one of the input buttons
to select the component you
want.
You can also use INPUT SELECTOR on
the receiver.
The selected input appears on the display.
* “SA-CD/CD/CD-R” scrolls across the
display, then “SA-CD/CD” appears.
2 Turn on the component and
start playback.
3 Press MASTER VOL +/– to
adjust the volume.
You can also use MASTER VOLUME on
the receiver.
Playback
1 2 3
4 5 6
7 8 9
-/-- 0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
CLEAR
/
>10
SHIFT
TUNING – TUNING +
DISC SKIP D.TUNING
AUTO CAL
.
mM
>
Xx
MUTING
VIDEO 1 VIDEO 2 BD
SAT TV
HDMI 3HDMI 2HDMI 1
HDMI 4
SA-CD/
CD
DMPORTTUNER
TV VOL
MASTER VOL
TV CH
PRESET
<
<
MENU
F1 F2
TV INPUT
TOP MENU MENU
BD/DVD
WIDE
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
TV AMP
– CATEGORY +
CATEGORY MODE
Input
buttons
MASTER
VOL +/–
MUTING
,
V/v/B/b
AMP
MENU
Selected input
[Display]
Components that can
be played back
VIDEO 1
[VIDEO 1]
VCR, etc., connected to the
VIDEO 1 jack
VIDEO 2
[VIDEO 2]
Camcorder, video game,
etc., connected to the
VIDEO 2/PORTABLE AV
IN jack
BD
[BD]
Blu-ray disc player, etc.,
connected to the BD jack
DVD
[DVD]
DVD player, etc.,
connected to DVD jack
SAT
[SAT]
Satellite tuner, set-top box,
etc., connected to SAT jack
TV
[TV]
TV, etc., connected to TV
jack
SA-CD/CD
[SA-CD/CD/
CD-R]*
Super Audio CD player,
CD player, etc., connected
to the SA-CD/CD/CD-R
jack
TUNER
[FM TUNER/
AM TUNER]
Built-in radio tuner
TUNER
[SIRIUS]
SiriusConnect Home tuner
connected to the SIRIUS
jack.
DMPORT
[DMPORT]
DIGITAL MEDIA PORT
adapter connected to
DMPORT jack
HDMI 1, 2, 3, 4
[HDMI 1/
HDMI 2/
HDMI 3/
HDMI 4]
HDMI components
connected to HDMI IN
1–4 jack
continued
42
US
To activate the muting function
Press MUTING on the remote.
The muting function will be canceled when
you do the following.
• Press MUTING again.
• Increase the volume.
• Turn off the receiver.
To avoid damaging your
speakers
Before you turn off the receiver, be sure to turn
down the volume level.
You can enter a name of up to 8 characters for
inputs and display it on the receiver’s display.
This is convenient for labeling the jacks with
the names of the connected components.
1 Press one of the input buttons
to select the input you want to
create an index name for.
You can also use INPUT SELECTOR on
the receiver.
2 Press AMP MENU.
3 Press V/v repeatedly to select
“SYSTEM”.
4 Press or b to enter the
menu.
5 Press V/v repeatedly to select
“NAME IN”.
6 Press or b to enter the
parameter.
The cursor flashes and you can select a
character.
7 Press V/v to select a character,
then press B/b to move the
cursor to the next position.
If you made a mistake
Press B/b until the character you want to
change flashes, then press V/v to select
the correct character.
Tips
•You can select the character type as follows
by pressing V/v.
Alphabet (upper case) t Numbers t
Symbols
•To enter a blank space, press b without
selecting a character.
8 Press .
The name you entered is registered.
Naming inputs
43
US
Playback

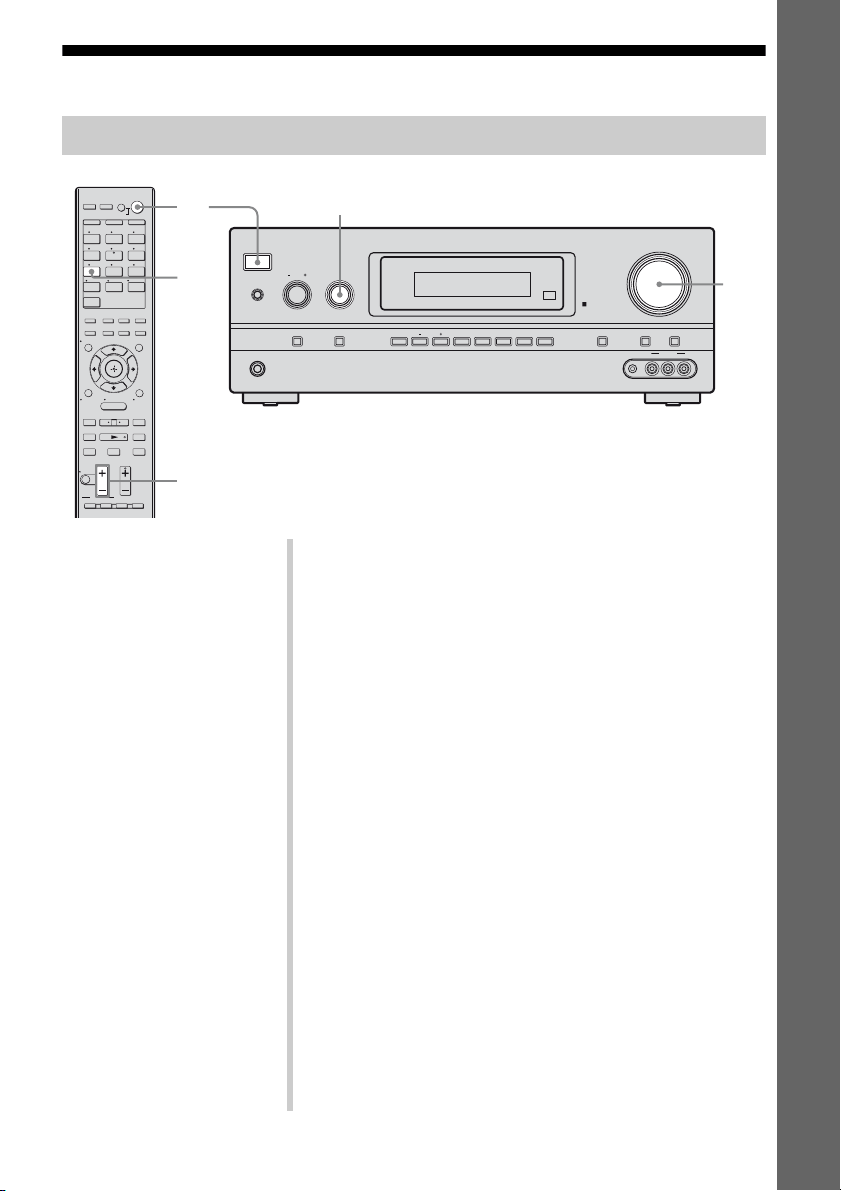

Listening/Watching a component
Listening to a Super Audio CD/CD
?/1
PHONES
SPEAKERS
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
TONE MODE DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
TONE
VIDEO 2 IN
VIDEO L AUDIO R
AUTO CAL MIC
1 2 3
4 5 6
7 8 9
-/-- 0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
THEATER
SYSTEM STANDBY
RM SET UP
?/1
CLEAR
/
>10
SHIFT
TUNING – TUNING +
DISC SKIP D.TUNING
AUTO CAL
.
mM
>
Xx
MUTING
VIDEO 1 VIDEO 2 BD
SAT TV
HDMI 3HDMI 2HDMI 1
HDMI 4
SA-CD/
CD
DMPORTTUNER
TV VOL
MASTER VOL
TV CH
PRESET
<
<
MENU
AV
?/1
F1 F2
TV INPUT
TOP MENU MENU
BD/DVD
WIDE
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
TV AMP
– CATEGORY +
CATEGORY MODE
5
5
3
2
3
Notes
• The operation is described for a
Sony Super Audio CD player.
• Refer to the operating
instructions supplied with the
Super Audio CD player or CD
player.
Tips
• You can select the sound field to
suit the music. See page 63 for
details.
Recommended sound fields:
Classical: HALL
Jazz: JAZZ
Live concert: CONCERT
• You can listen to the sound that
was recorded in the 2 channel
format from all speakers (multi
channel). See page 60 for
details.
1 Turn on the Super Audio CD player or CD
player, then place the disc on the tray.
2 Turn on the receiver.
3 Press SA-CD/CD.
You can also use INPUT SELECTOR on the receiver to
select “SA-CD/CD/CD-R”.
4 Play back the disc.
5 Adjust to a suitable volume.
6 After you have finished listening to the
Super Audio CD/CD, eject the disc and turn
off the receiver and Super Audio CD player
or CD player.
44
US

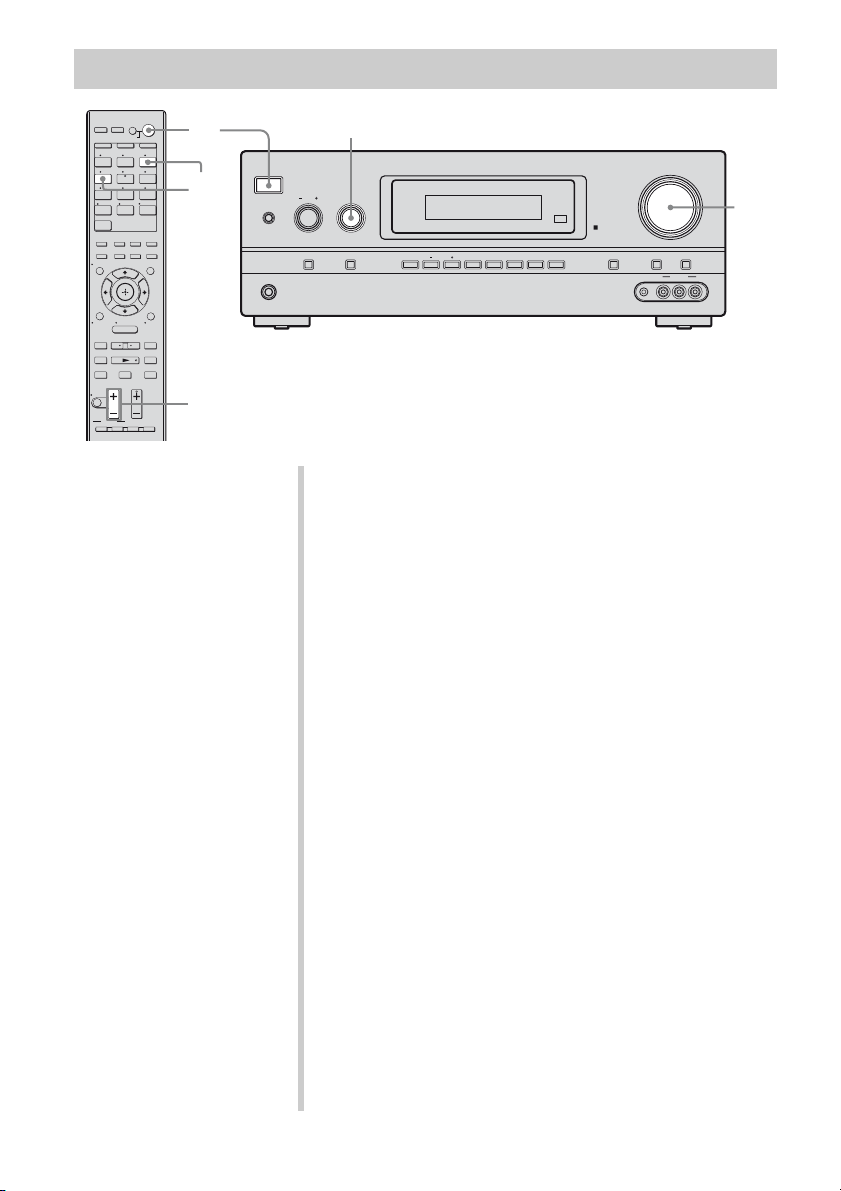

Watching a DVD/Blu-ray Disc
?/1
PHONES
SPEAKERS
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
TONE MODE DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
TONE
VIDEO 2 IN
VIDEO L AUDIO R
AUTO CAL MIC
1 2 3
4 5 6
7 8 9
-/-- 0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
THEATER
SYSTEM STANDBY
RM SET UP
?/1
CLEAR
/
>10
SHIFT
TUNING – TUNING +
DISC SKIP D.TUNING
AUTO CAL
.
mM
>
Xx
MUTING
VIDEO 1 VIDEO 2 BD
SAT TV
HDMI 3HDMI 2HDMI 1
HDMI 4
SA-CD/
CD
DMPORTTUNER
TV VOL
MASTER VOL
TV CH
PRESET
<
<
MENU
AV
?/1
F1 F2
TV INPUT
TOP MENU MENU
BD/DVD
WIDE
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
TV AMP
– CATEGORY +
CATEGORY MODE
6
6
3
2
3
Notes
• Refer to the operating
instructions supplied with the
TV and DVD player/Blu-ray
disc player.
• Check the following if you
cannot listen to multi channel
sound.
– Be sure this receiver is
connected to the DVD player/
Blu-ray disc player via a
digital connection.
– Be sure the digital audio
output of the DVD player/
Blu-ray disc player is set up
properly.
Tips
• Select the audio format of the
disc to be played back, if
necessary.
• You can select the sound field to
suit the movie or music. See
page 60 for details.
Recommended sound fields:
Movie: C.ST.EX
Music: CONCERT
1 Turn on the TV and DVD player/Blu-ray disc
player.
2 Turn on the receiver.
3 Press DVD to watch a DVD or press BD to
watch a Blu-ray disc.
You can also use INPUT SELECTOR on the receiver to
select “DVD” or “BD”.
4 Switch the input of the TV so that an image
of the DVD/Blu-ray disc is displayed.
5 Play back the disc.
6 Adjust to a suitable volume.
7 After you have finished watching the DVD/
Blu-ray disc, eject the disc and turn off the
receiver, TV and DVD player/Blu-ray disc
player.
45
US
Amplifier Operations
Navigating through
menus
By using the amplifier menus, you can make
various adjustments to customize the receiver.
1 Press AMP MENU.
2 Press V/v repeatedly to select
the menu you want.
3 Press or b to enter the
menu.
4 Press V/v repeatedly to select
the parameter you want to
adjust.
5 Press or b to enter the
parameter.
6 Press V/v repeatedly to select
the setting you want.
The setting is entered automatically.
To return to the previous
display
Press B or RETURN/EXIT O.
To exit the menu
Press MENU/HOME or AMP MENU.
Note
Some parameters and settings may appear dimmed
on the display. This means that they are either
unavailable or fixed and unchangeable.
Amplifier Operations
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
AUTO CAL
.
>
<
<
MENU
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
INPUT
MODE
SLEEP
NIGHT
MODE
– CATEGORY +
,
V/v/B/b
AMP
MENU
RETURN/
EXIT O
MENU/
HOME
46
US
The following options are available in each
menu. For details on navigating through
menus, see page 45.
Overview of the menus
Menu
[Display]
Parameters
[Display]
Settings Initial
setting
AUTO CAL
[AUTO CAL]
(page 38)
Auto calibration
[A.CAL START]
Calibration type
a)
[CAL TYPE]
FULL FLAT, ENGINEER
FRONT REF, OFF
FULL FLAT
Position
a)
[POSITION]
POS. 1, POS. 2, POS. 3 POS. 1
Naming inputs
a)
[NAME IN]
For details, see “To name the
position” (page 39).
LEVEL
[LEVEL]
(page 50)
Test tone
a)c)
[TEST TONE]
OFF, FIX xxx
b)
, AUTO xxx
b)
OFF
Phase noise
a)c)
[P. NOISE]
OFF, FL/SR, SL/FL, SB/SL, SBL/SL,
SBR/SBL, SR/SB, SR/SBR, SR/SL,
FR/SR, FR/SL, FL/FR, CNT/FR,
FL/CNT
OFF
Phase audio
a)c)
[P. AUDIO]
OFF, FL/SR, SL/FL, SB/SL, SBL/SL,
SBR/SBL, SR/SB, SR/SBR, SR/SL,
FR/SR, FR/SL, FL/FR, CNT/FR,
FL/CNT
OFF
Front left speaker level
c)
[FL LEVEL]
FL –10 dB to FL +10 dB
(0.5 dB per step)
0 dB
Front right speaker level
c)
[FR LEVEL]
FR –10 dB to FR +10 dB
(0.5 dB per step)
0 dB
Center speaker level
c)
[CNT LEVEL]
CNT –20 dB to CNT +10 dB
(0.5 dB per step)
0 dB
Surround left speaker level
c)
[SL LEVEL]
SL –20 dB to SL +10 dB
(0.5 dB per step)
0 dB
Surround right speaker level
c)
[SR LEVEL]
SR –20 dB to SR +10 dB
(0.5 dB per step)
0 dB
Surround back speaker level
c)
[SB LEVEL]
SB –20 dB to SB +10 dB
(0.5 dB per step)
0 dB
Surround back left speaker
level
c)
[SBL LEVEL]
SBL –20 dB to SBL +10 dB
(0.5 dB per step)
0 dB
Surround back right speaker
level
c)
[SBR LEVEL]
SBR –20 dB to SBR +10 dB
(0.5 dB per step)
0 dB
Subwoofer level
c)
[SW LEVEL]
SW –20 dB to SW +10 dB
(0.5 dB per step)
0 dB
Dynamic range compressor
a)
[D. RANGE]
COMP. MAX, COMP. STD,
COMP. AUTO, COMP. OFF
COMP. AUTO
47
US
Amplifier Operations
SPEAKER
[SPEAKER]
(page 51)
Speaker pattern
a)
[SP PATTERN]
3/4.1, 3/4, 3/3.1, 3/3, 2/4.1, 2/4, 3/2.1,
3/2, 2/3.1, 2/3, 2/2.1, 2/2, 3/0.1, 3/0,
2/0.1, 2/0
3/4.1
Front speakers
a)
[FRT SP]
LARGE, SMALL LARGE
Center speaker
a)
[CNT SP]
LARGE, SMALL LARGE
Surround speakers
a)
[SUR SP]
LARGE, SMALL LARGE
Surround back speaker assign
a)d)
[SB ASSIGN]
SPK B, BI-AMP, OFF OFF
Front left speaker distance
a)c)
[FL DIST.]
FL 3’3” to FL 32’9”
(1 inch step)
FL 9’10”
Front right speaker distance
a)c)
[FR DIST.]
FR 3’3” to FR 32’9”
(1 inch step)
FR 9’10”
Center speaker distance
a)c)
[CNT DIST.]
CNT 3’3” to CNT 32’9”
(1 inch step)
CNT 9’10”
Surround left speaker distance
a)c)
[SL DIST.]
SL 3’3” to SL 32’9”
(1 inch step)
SL 9’10”
Surround right speaker
distance
a)c)
[SR DIST.]
SR 3’3” to SR 32’9”
(1 inch step)
SR 9’10”
Surround back speaker
distance
a)c)
[SB DIST.]
SB 3’3” to SB 32’9”
(1 inch step)
SB 9’10”
Surround back left speaker
distance
a)c)
[SBL DIST.]
SBL 3’3” to SBL 32’9”
(1 inch step)
SBL 9’10”
Surround back right speaker
distance
a)c)
[SBR DIST.]
SBR 3’3” to SBR 32’9”
(1 inch step)
SBR 9’10”
Subwoofer distance
a)c)
[SW DIST.]
SW 3’3” to SW 32’9”
(1 inch step)
SW 9’10”
Distance unit
a)
[DIST. UNIT]
FEET, METER FEET
Front speaker crossover
frequency
a)e)
[FRT CROSS]
CROSS 40 Hz to CROSS 200 Hz
(10 Hz step)
CROSS 120 Hz
Center speaker crossover
frequency
a)e)
[CNT CROSS]
CROSS 40 Hz to CROSS 200 Hz
(10 Hz step)
CROSS 120 Hz
Surround speaker crossover
frequency
a)e)
[SUR CROSS]
CROSS 40 Hz to CROSS 200 Hz
(10 Hz step)
CROSS 120 Hz
Menu
[Display]
Parameters
[Display]
Settings Initial
setting
continued
48
US
SURROUND
[SURROUND]
(page 54)
Sound field selection
[S.F. SELECT]
For details, see “Enjoying Surround
Sound” (page 60).
A.F.D. AUTO
Enhanced surround mode
[E.SUR MODE]
PLII
f)
, PLIIx
f)
, NEO6 CIN, NEO6
MUS, NEURAL-THX
PLIIx
Effect level
a)
[EFFECT]
EFCT. 50%, EFCT. 80%, EFCT.
100%, EFCT. 150%
EFCT. 100%
EQ
[EQ]
(page 55)
Front speakers bass level
[BASS]
BASS –10 dB to BASS +10 dB
(1dB per step)
BASS 0 dB
Front speakers treble level
[TREBLE]
TREBLE –10 dB to TREBLE +10 dB
(1dB per step)
TREBLE 0 dB
TUNER
[TUNER]
(page 55)
FM station receiving mode
a)
[FM MODE]
STEREO, MONO STEREO
Naming preset stations
a)
[NAME IN]
For details, see “Naming preset
stations” (page 71).
Parental lock
a)g)
[PARENTAL]
LOCK OFF, LOCK ON LOCK OFF
Lock code edit
a)g)
[CODE EDIT]
For details, see “To change the lock
code” (page 78).
SIRIUS antenna aiming mode
a)g)
[SR ANT AIM]
For details, see “Checking receiving
conditions (SIRIUS Antenna
Aiming)” (page 73).
SIRIUS radio ID
a)g)
[SIRIUS ID]
For details, see “Checking the
SIRIUS ID” (page 73).
AUDIO
[AUDIO]
(page 56)
Synchronizes audio with video
output
a)
[A/V SYNC]
0 ms to 300 ms
(10 ms per step)
0 ms
Digital broadcast language
selection
a)
[DUAL MONO]
MAIN/SUB, MAIN, SUB MAIN
Digital audio input decoding
priority
a)
[DEC. PRIO.]
DEC. AUTO, DEC. PCM DEC. AUTO
Digital audio input assignment
a)
[A. ASSIGN]
For details, see “Enjoying the sound/
images from other inputs” (page 94).
VIDEO
[VIDEO]
(page 57)
Video input assignment
a)
[V. ASSIGN]
For details, see “Enjoying the sound/
images from other inputs” (page 94).
Menu
[Display]
Parameters
[Display]
Settings Initial
setting
49
US
Amplifier Operations
a)
For details, see the page in the parentheses.
b)
xxx represent a speaker channel (FL, FR, CNT, SL, SR, SB, SBL, SBR, SW).
c)
Depends on the speaker pattern setting, some parameters may not be available.
d)
You can only select this parameter if “SP PATTERN” is not set to a setting with surround back speakers (page
51).
e)
You cannot select this setting if your speaker is set to “LARGE”.
f)
Depends on the speaker pattern setting, some settings may not be available.
g)
This parameter is only available if the SiriusConnect Home tuner is connected to the SIRIUS jack on the
receiver.
h)
This parameter is only available when HDMI input signals is detected.
i)
This parameter is only available if the S-AIR transmitter (not supplied) is inserted to the EZW-T100 slot on
the receiver.
Menu
[Display]
Parameters
[Display]
Settings Initial
setting
HDMI
[HDMI]
(page 58)
Control for HDMI
a)
[CTRL:HDMI]
CTRL ON, CTRL OFF CTRL OFF
Setting HDMI audio input
a)
[AUDIO OUT]
AMP, TV+AMP AMP
Subwoofer level for HDMI
a)h)
[SW LEVEL]
SW AUTO, SW 0 dB, SW +10 dB SW AUTO
SYSTEM
[SYSTEM]
(page 59)
Naming inputs
[NAME IN]
For details, see “Naming inputs”
(page 42).
Brightness of the display
a)
[DIMMER]
70% DOWN, 40% DOWN,
0% DOWN
0% DOWN
S-AIR
[S-AIR]
(page 59)
S-AIR ID
a)i)
[S-AIR ID]
ID: A, ID: B, ID: C ID: A
Pairing
a)i)
[PAIRING]
START, CONDITION START
S-AIR mode
a)i)
[S-AIR MODE]
PARTY, SEPARATE PARTY
RF Change
a)i)
[RF CHANGE]
RF AUTO, RF ON, RF OFF RF AUTO
S-AIR Standby
a)i)
[S-AIR STBY]
STBY ON, STBY OFF STBY OFF
50
US
Adjusting the level
(LEVEL menu)
You can use the LEVEL menu to adjust the
balance and level of each speaker. These
settings are applied to all sound fields.
Select “LEVEL” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 45) and
“Overview of the menus” (page 46).
LEVEL menu parameters
x TEST TONE (Test tone)
Lets you adjust the speaker levels and balance
while listening to the test tone from your
listening position.
•OFF
The test tone is turned off.
•FIX xxx
*
The test tone is output from the speaker you
have selected.
• AUTO xxx
*
The test tone is output from each speaker in
sequence.
* xxx
represent a speaker channel.
x P. NOISE (Phase noise)
•OFF
The phase noise is turned off.
•
FL/SR, SL/FL, SB/SL, SBL/SL, SBR/SBL,
SR/SB, SR/SBR, SR/SL, FR/SR, FR/SL,
FL/FR, CNT/FR, FL/CNT
Lets you output the test tone sequentially
from adjacent speakers.
Some items may not be displayed,
depending on the setting of the speaker
pattern.
x P. AUDIO (Phase Audio)
•OFF
•
FL/SR, SL/FL, SB/SL, SBL/SL, SBR/SBL,
SR/SB, SR/SBR, SR/SL, FR/SR, FR/SL,
FL/FR, CNT/FR, FL/CNT
Lets you output front 2 channel source sound
(instead of the test tone) sequentially from
adjacent speakers.
Some items may not be displayed,
depending on the setting of the speaker
pattern.
x FL LEVEL (Front left speaker
level)
x FR LEVEL (Front right speaker
level)
x CNT LEVEL (Center speaker
level)
x SL LEVEL (Surround left speaker
level)
x SR LEVEL (Surround right
speaker level)
x SB LEVEL (Surround back
speaker level)
x SBL LEVEL (Surround back left
speaker level)
x SBR LEVEL (Surround back
right speaker level)
x SW LEVEL (Subwoofer level)
Note
Depends on the speaker pattern setting, some
parameters may not be available.
51
US
Amplifier Operations
x D. RANGE (Dynamic range
compressor)
Lets you compress the dynamic range of the
sound track. This may be useful when you
want to watch movies at low volumes late at
night. Dynamic range compression is possible
with Dolby Digital sources only.
•COMP. MAX
The dynamic range is compressed
dramatically.
•COMP. STD
The dynamic range is compressed as
intended by the recording engineer.
•COMP. AUTO
The dynamic range is compressed
automatically.
• COMP. OFF
The dynamic range is not compressed.
Tip
Dynamic range compressor lets you compress the
dynamic range of the soundtrack based on the
dynamic range information included in the Dolby
Digital signal.
“COMP. STD” is the standard setting, but it only
enacts light compression. Therefore, we recommend
using the “COMP. MAX” setting. This greatly
compresses the dynamic range and lets you view
movies late at night at low volumes. Unlike analog
limiters, the levels are predetermined and provide a
very natural compression.
Settings for the speakers
(SPEAKER menu)
You can use the SPEAKER menu to set the
size and distance of the speakers connected to
this receiver.
Select “SPEAKER” in the amplifier menus.
For details on adjusting the parameters, see
“Navigating through menus” (page 45) and
“Overview of the menus” (page 46).
SPEAKER menu parameters
x SP PATTERN (Speaker pattern)
Lets you set the number of the speakers
connected to this receiver. It should be
synchronize with the subwoofer, front
speakers, center speaker, surround speakers
and surround back speakers settings. For
details, see “Selecting a speaker pattern” (page
20).
x FRT SP (Front speakers)
• LARGE
If you connect large speakers that will
effectively reproduce bass frequencies,
select “LARGE”. Normally, select
“LARGE”. However, if you have selected a
speaker pattern without subwoofer, the front
speakers are automatically set to “LARGE”.
•SMALL
If the sound is distorted, or you feel a lack of
surround effects when using multi channel
surround sound, select “SMALL” to activate
the bass redirection circuitry and output the
front channel bass frequencies from the
subwoofer. When the front speakers are set
to “SMALL”, the center and surround
speakers are also automatically set to
“SMALL”.
continued
52
US
x CNT SP (Center speaker)
• LARGE
If you connect a large speaker that will
effectively reproduce bass frequencies,
select “LARGE”. Normally, select
“LARGE”. However, if the front speakers
are set to “SMALL”, you cannot set the
center speaker to “LARGE”.
•SMALL
If the sound is distorted, or you feel a lack of
surround effects when using multi channel
surround sound, select “SMALL” to activate
the bass redirection circuitry and output the
center channel bass frequencies from the
front speakers (if set to “LARGE”) or
subwoofer.
x SUR SP (Surround speakers)
The surround back speakers will be set to the
same setting.
• LARGE
If you connect large speakers that will
effectively reproduce bass frequencies,
select “LARGE”. Normally, select
“LARGE”. However, if the front speakers
are set to “SMALL”, you cannot set the
surround speakers to “LARGE”.
•SMALL
If the sound is distorted, or you feel a lack of
surround effects when using multi channel
surround sound, select “SMALL” to activate
the bass redirection circuitry and output the
surround channel bass frequencies from the
subwoofer or other speaker that is set to
“LARGE”.
Tip
The “LARGE” and “SMALL” settings for each
speaker determine whether the internal sound
processor will cut the bass signal from that channel.
When the bass is cut from a channel, the bass
redirection circuitry sends the corresponding bass
frequencies to the subwoofer or other “LARGE”
speakers.
However, since bass sounds have a certain amount of
directionality, it is best not to cut them, if possible.
Therefore, even when using small speakers, you can
set them to “LARGE” if you want to output the bass
frequencies from that speaker. On the other hand, if
you are using a large speaker, but prefer not to have
bass frequencies output from that speaker, set it to
“SMALL”.
If the overall sound level is lower than you prefer, set
all speakers to “LARGE”. If there is not enough
bass, you can use the equalizer to boost the bass
levels. For details, see page 55.
x SB ASSIGN (Surround back
speaker assign)
• SPK B
If you connect an additional front speaker
system to the SPEAKERS SURROUND
BACK/BI-AMP/FRONT B terminals, select
“SPK B”.
•BI-AMP
If you connect front speakers to the
SPEAKERS SURROUND BACK/BI-AMP/
FRONT B terminals using a bi-amplifier
connection, select “BI-AMP”.
•OFF
If you connect surround back speakers to the
SPEAKERS SURROUND BACK/BI-AMP/
FRONT B terminals, select “OFF”.
Note
Set “SB ASSIGN” to “OFF”, then connect the
surround back speakers to this receiver when you
want to change the connection from a bi-amplifier
connection or speakers front B connection to a
surround back speakers connection. Re-set up the
speakers after you connect the surround back
speakers. See “8: Calibrating the appropriate
settings automatically (AUTO CALIBRATION)”
(page 33).
53
US
Amplifier Operations
x FL DIST. (Front left speaker
distance)
x FR DIST. (Front right speaker
distance)
Lets you set the distance from your listening
position to the front speakers (A).
If both front speakers are not placed an equal
distance from your listening position, set the
distance to the closest speaker.

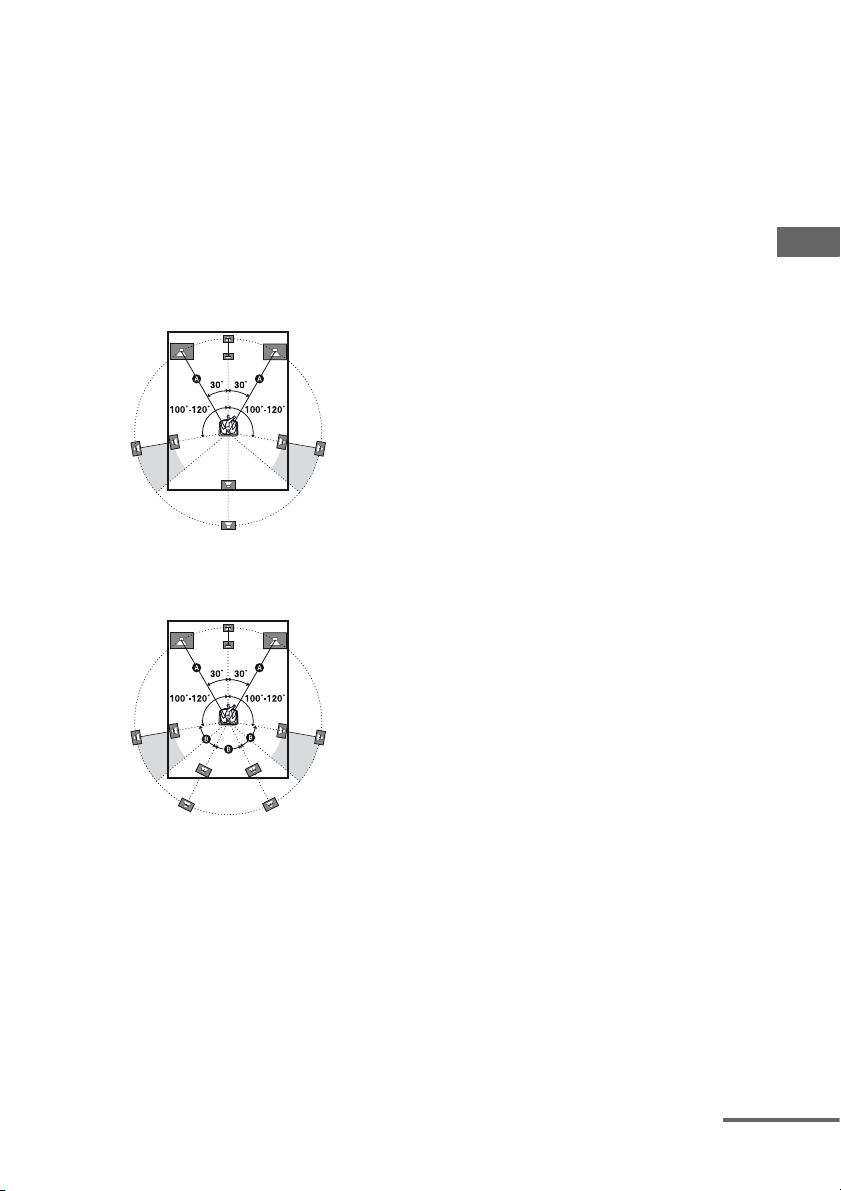

With only one surround back
speaker
With two surround back speakers
(The angle B should be the same)
x CNT DIST. (Center speaker
distance)
Lets you set the distance from your listening
position to the center speaker.
x SL DIST. (Surround left speaker
distance)
x SR DIST. (Surround right
speaker distance)
Lets you set the distance from your listening
position to the surround speakers.
x SB DIST. (Surround back
speaker distance)
x SBL DIST. (Surround back left
speaker distance)
x SBR DIST. (Surround back right
speaker distance)
Lets you set the distance from your listening
position to the surround back speakers.
x SW DIST. (Subwoofer distance)
Lets you set the distance from your listening
position to the subwoofer.
Note
Depends on the speaker pattern setting. Some
parameters may not be available.
Tip
The distance between the center speaker and the
listening position B cannot be more than 5 feet
closer than the one between the listening position
and the front speaker A. Place the speakers so that
the difference in the length of B in the following
diagram is no more than 5 feet closer than the length
of A.
Example: Adjust the distance B to 15 feet or more
when the distance A is 20 feet.
Also, the distance between the surround speakers/
surround back speakers and the listening position
C cannot be more than 15 feet closer than the
distance between the listening position and the front
speakers A. Place the speakers so that the
difference in the length of C in the following
diagram is no more than 15 feet closer than the
length of A.
Example: Adjust the distance C to 5 feet or more
when the distance A is 20 feet.
This is important because incorrect speaker
placement is not conductive to the enjoyment of
surround sound. Please note that placing the
speakers closer than the required will cause a delay
in the output of the sound from that speaker. In other
words, the speaker will sound like it is farther away.
Adjusting these parameter while listening to the
sound often results in much better surround sound.
Give it a try!
continued
54
US
x DIST. UNIT (Distance unit)
Lets you select the unit of measure for setting
distances.
•FEET
The distance is displayed in feet.
• METER
The distance is displayed in meters.
x FRT CROSS (Front speaker
crossover frequency)
Lets you set the bass crossover frequency of
the front speakers that have been set to
“SMALL” in the SPEAKER menu.
x CNT CROSS (Center speaker
crossover frequency)
Lets you set the bass crossover frequency of
the center speaker that have been set to
“SMALL” in the SPEAKER menu.
x SUR CROSS (Surround speaker
crossover frequency)
Lets you set the bass crossover frequency of
the surround speakers that have been set to
“SMALL” in the SPEAKER menu.
Settings for the surround
sound
(SURROUND menu)
You can use the SURROUND menu to select
the sound field you want for your listening
pleasure.
Select “SURROUND” in the amplifier menus.
For details on adjusting the parameters, see
“Navigating through menus” (page 45) and
“Overview of the menus” (page 46).
SURROUND menu parameters
x S.F. SELECT (Sound field
selection)
Lets you select the sound field you want. For
details, see “Enjoying Surround Sound” (page
60).
Note
The receiver lets you apply the last selected sound
field to an input whenever it is selected (Sound Field
Link). For example, if you select “HALL” for the
DVD input, then change to a different input and then
return to DVD, “HALL” will automatically be
applied again.
x E.SUR MODE (Enhanced
surround mode)
Lets you select the surround mode you want.
For details, see “Selecting enhanced surround
mode” (page 62).
x EFFECT (Effect level)
Lets you adjust the “presence” of the surround
effect for the Cinema Studio EX A/B/C sound
fields.
55
US
Amplifier Operations
Adjusting the equalizer
(EQ menu)
You can use the EQ menu to adjust the tonal
quality (bass/treble level) of the front
speakers.
Select “EQ” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 45) and
“Overview of the menus” (page 46).
EQ menu parameters
x BASS (Front speakers bass
level)*
x TREBLE (Front speakers treble
level)*
* You can also adjust the front speaker bass and
treble level with TONE MODE and TONE +/– on
the receiver (page 7).
Note
This function does not work in the following cases.
– Dolby TrueHD signals with a sampling frequency
of more than 96 kHz are being received.
– PCM signals with a sampling frequency of more
than 96 kHz are being received.
Settings for the tuner
(TUNER menu)
You can use the TUNER menu to set the FM
station receiving mode, name preset stations
and check SIRIUS Satellite Radio status.
Select “TUNER” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 45) and
“Overview of the menus” (page 46).
TUNER menu parameters
x FM MODE (FM station receiving
mode)
•STEREO
This receiver will decode the signal as stereo
signal when the radio station is broadcast in
stereo.
• MONO
This receiver will decode the signal as mono
signal regardless of the broadcast signal.
x NAME IN (Naming preset
stations)
Lets you set the name of preset stations. For
details, see “Naming preset stations” (page
71).
x PARENTAL (Parental lock)
Lets you restrict access to certain channels
using your own lock code. For details, see
“Restricting access to specific channels
(Parental Lock)” (page 77).
x CODE EDIT (Lock code edit)
Lets you change the lock code. For details, see
“To change the lock code” (page 78).
continued
56
US
x SR ANT AIM (SIRIUS antenna
aiming mode)
This parameter helps you to aim the SIRIUS
antenna for optimal signal reception. For
details, see “Checking receiving conditions
(SIRIUS Antenna Aiming)” (page 73).
x SIRIUS ID (SIRIUS radio ID)
Lets you check the SIRIUS Radio ID. For
details, see “Checking the Sirius Radio ID”
(page 73).
Settings for the audio
(AUDIO menu)
You can use the AUDIO menu to make
settings for the audio to suit your preference.
Select “AUDIO” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 45) and
“Overview of the menus” (page 46).
AUDIO menu parameters
x A/V SYNC (Synchronizes audio
with video output)
Lets you delay the output of audio to minimize
the time gap between audio output and visual
display. You can adjust from 0 ms to 300 ms
in 10 ms steps.
Notes
• This parameter is useful when you use a large LCD
or plasma monitor or a projector.
• This parameter is not valid when ANALOG
DIRECT is selected (page 66).
x DUAL MONO (Digital broadcast
language selection)
Lets you select the language you want to listen
to during digital broadcast. This feature only
functions for Dolby Digital sources.
• MAIN/SUB
Sound of the main language will be output
through the front left speaker and sound of
the sub language will be output through the
front right speaker simultaneously.
•MAIN
Sound of the main language will be output.
•SUB
Sound of the sub language will be output.
57
US
Amplifier Operations
x DEC. PRIO. (Digital audio input
decoding priority)
Lets you specify the input mode for the digital
signal input to the HDMI IN jacks.
•DEC. AUTO
Automatically switches the input mode
between DTS, Dolby Digital, or PCM.
•DEC. PCM
PCM signals are output from the connected
player. To prevent interruption when
playback starts, set to “DEC. PCM”. When
signals other than PCM signals are received,
set this item to “DEC. AUTO”.
Note
Even when “DEC. PRIO.” is set to “DEC. PCM”,
the sound may be interrupted at the very
beginning of the first track depending on the CD
being played back.
x A. ASSIGN (Digital audio input
assignment)
Lets you assign the digital audio input to other
input source. For details, see “Enjoying the
sound/images from other inputs” (page 94).
Settings for the video
(VIDEO menu)
You can use the VIDEO menu to assign the
video input to other input source.
Select “VIDEO” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 45) and
“Overview of the menus” (page 46).
VIDEO menu parameters
x V. ASSIGN (Video input
assignment)
Lets you assign the video input to other input
source. For details, see “Enjoying the sound/
images from other inputs” (page 94).
58
US
Settings for the HDMI
(HDMI menu)
You can use the HDMI menu to make various
adjustments for HDMI settings.
Select “HDMI” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 45) and
“Overview of the menus” (page 46).
HDMI menu parameters
x CTRL:HDMI (Control for HDMI)
Lets you turn the Control for HDMI function
on or off. For details, see ““BRAVIA” Sync
Features” (page 81).
x AUDIO OUT (Setting HDMI audio
input)
Lets you set the HDMI audio output from the
playback component connected to the receiver
via an HDMI connection.
•AMP
The HDMI audio signals from the playback
component are only output to the speakers
connected to the receiver. Multi channel
sound can be played back as it is.
Note
Audio signals are not output from the TV’s
speakers when “AUDIO OUT” is set to “AMP”.
• TV+AMP
The sound is output from TV’s speaker and
the speakers connected to the receiver.
Notes
• The sound quality of the playback component
depends on the TV’s sound quality, such as the
number of channels, and the sampling frequency,
etc. When the TV has stereo speakers, the sound
output from the receiver is also stereo as that of
the TV, even if you play back multi channel
software.
• When you connect the receiver to an image
display component (projector, etc.), sound may
not be output from the receiver. In this case,
select “AMP”.
x SW LEVEL (Subwoofer level for
HDMI)
Lets you set the level of the subwoofer to 0 dB
or +10 dB when PCM signals are input via an
HDMI connection. You can set the level for
each HDMI input independently.
•SW AUTO
Automatically sets the level to 0 dB or +10
dB depending on the frequency.
• SW 0 dB
• SW +10 dB
Note
This parameter is only available when HDMI input
signals are detected.
59
US
Amplifier Operations
Settings for the system
(SYSTEM menu)
You can use the SYSTEM menu to name
inputs and change the brightness of the
display.
Select “SYSTEM” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 45) and
“Overview of the menus” (page 46).
SYSTEM menu parameters
x NAME IN (Naming inputs)
Lets you set the name of inputs. For details,
see “Naming inputs” (page 42).
x DIMMER (Brightness of the
display)
Lets you adjust the brightness in 3 steps.
Settings for the S-AIR
(S-AIR menu)
For details on S-AIR, see “S-AIR Operations”
(page 85).
60
US
Enjoying a pre-programmed sound field
This receiver supports the following audio formats.
a)
Audio signals are output in another format if the playback component does not correspond to the format. For
details, refer to the operating instructions of the playback component.
b)
Signals with a sampling frequency of more than 96 kHz are played back at 96 kHz or 88.2 kHz.
Enjoying Surround Sound
When connecting Blu-ray disc players and other next generation HD
players
Audio format
Maximum number
of channels
Connection of the playback component and
the receiver
COAXIAL/OPTICAL HDMI
Dolby Digital 5.1ch aa
Dolby Digital EX 6.1ch aa
Dolby Digital Plus
a)
7.1ch
× a
Dolby TrueHD
a)
7.1ch × a
DTS 5.1ch aa
DTS-ES 6.1ch aa
DTS 96/24 5.1ch aa
DTS-HD
High Resolution Audio
a)
7.1ch
× a
DTS-HD
Master Audio
a) b)
7.1ch
× a
Multi channel Linear PCM
a)
7.1ch × a
61
US
Enjoying Surround Sound
The Auto Format Direct (A.F.D.) mode allows
you to listen to higher fidelity sound and select
the decoding mode for listening to a 2 channel
stereo sound as multi channel sound.
Press A.F.D. repeatedly to select
the sound field you want.
For details, see “Types of A.F.D. mode” (page
61).
Types of A.F.D. mode
Selecting Auto Format Direct
(A.F.D.) mode
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
CLEAR
/
>10
AUTO CAL
HDMI 4
INPUT
MODE
SLEEP
NIGHT
MODE
A.F.D.
A.F.D. mode
[Display]
Multi channel
audio after
decoding
Effect
A.F.D. Auto
[A.F.D. AUTO]
(Detecting
automatically)
Presents the sound as it was recorded/encoded without adding
any surround effects. However, this receiver will generate a
low frequency signal for output to the subwoofer when there
is no LFE signals.
Enhanced surround mode
[E.SURROUND]
(Depends on selected
enhanced surround
mode)
For details, see “Selecting enhanced surround mode” (page
62).
Multi Stereo
[MULTI ST.]
(Multi Stereo) Outputs 2 channel left/right signals from all speakers.
However, sound may not be output from certain speakers
depending on the speaker settings.
62
US
The enhanced surround mode allows you to
listen to higher fidelity sound and select the
decoding mode for listening to a 2 channel
stereo sound as multi channel sound.
1 Press AMP MENU.
2 Press V/v repeatedly to select
“SURROUND”, then press
or b.
3 Press V/v repeatedly to select
“E.SUR MODE” then press
or b.
4 Press V/v repeatedly to select
the enhanced surround mode
you want, then press .
5 Press MENU/HOME or AMP
MENU to exit the menu.
6 Press A.F.D. repeatedly to
select “E.SURROUND”.
The enhanced surround mode you have
selected in “E.SUR MODE” menu will be
applied.
Selecting enhanced surround
mode
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
AUTO CAL
.
>
<
<
MENU
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
INPUT
MODE
SLEEP
NIGHT
MODE
– CATEGORY +
,
V/v/B/b
AMP
MENU
MENU/
HOME
A.F.D.
63
US
Enjoying Surround Sound
Types of enhanced surround mode
* Depends on the speaker pattern setting, some enhanced surround mode may not be available.
If you connect a subwoofer
This receiver will generate a low frequency
signal for output to the subwoofer when there
is no LFE signal, which is a low-pass sound
effect output from a subwoofer to a 2 channel
signal. However, the low frequency signal is
not generated for “NEO6 CIN” or “NEO6
MUS” when all speakers are set to “LARGE”.
In order to take full advantage of the Dolby
Digital bass redirection circuitry, we
recommend setting the subwoofer’s cut off
frequency as high as possible.
Notes
• This function does not work in the following cases.
– PCM signals with a sampling frequency of more
than 96 kHz are being received.
– DTS 96/24 signals are being received.
– DTS-HD signals with a sampling frequency of
more than 48 kHz are being received.
– Dolby TrueHD signals with a sampling frequency
of more than 48 kHz are being received.
• The beginning of the sound stream may be dropped
out when Neural-THX processing is turned on or off.
Tips
• You can identify the encoding format of DVD
software, etc., by looking at the logo on the
package.
• Dolby Pro Logic IIx decoding is effective, when a
multi-channel signal is input.
You can take advantage of surround sound
simply by selecting one of the receiver’s pre-
programmed sound fields. They bring the
exciting and powerful sound of movie theaters
and concert halls into your home.
Press MOVIE repeatedly to select a
sound field for movies or press
MUSIC repeatedly to select a sound
field for music.
For details, see “Types of movie/music mode”
(page 64).
Enhanced surround
mode
[Display]
Multi channel
audio after
decoding
Effect
Pro Logic II*
[PLII]
5 channel Performs Dolby Pro Logic II decoding.
Pro Logic IIx*
[PLIIx]
7 channel Performs Dolby Pro Logic IIx decoding.
Neo:6 Cinema
[NEO6 CIN]
7 channel Performs DTS Neo:6 Cinema mode decoding.
Neo:6 Music
[NEO6 MUS]
7 channel Performs DTS Neo:6 Music mode decoding. This setting is
ideal for normal stereo sources such as CDs.
Neural-THX
[NEURAL-THX]
7 channel Next generation of Neural-THX
®
Surround. In addition to
stereo enhancement processing and pure discrete 5.1
surround sound, now capable of full 360° 7.1 surround sound
playback from Neural-THX
®
surround encoded content.
Selecting movie/music mode
2CH/
A. DIRECT
A.F.D.
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
CLEAR
/
>10
AUTO CAL
HDMI 4
DISPLAY
AMP MENU
INPUT
MODE
SLEEP
NIGHT
MODE
MUSIC
MOVIE
continued
64
US
Types of movie/music mode
* You can only select this sound field if the headphones are connected to the receiver.
Sound field
for
Sound field
[Display]
Effect
Movie Cinema Studio EX A
DCS [C.ST.EX A]
Reproduces the sound characteristics of the Sony Pictures
Entertainment “Cary Grant Theater” cinema production
studio. This is a standard mode, great for watching almost any
type of movie.
Cinema Studio EX B
DCS [C.ST.EX B]
Reproduces the sound characteristics of the Sony Pictures
Entertainment “Kim Novak Theater” cinema production
studio. This mode is ideal for watching science-fiction or
action movies with lots of sound effects.
Cinema Studio EX C
DCS [C.ST.EX C]
Reproduces the sound characteristics of the Sony Pictures
Entertainment scoring stage. This mode is ideal for watching
musicals or films where orchestra music is featured in the
soundtrack.
V.Multi Dimension
DCS [V.MULTI DIM.]
Creates many virtual speakers from a single pair of actual
surround speakers.
Music Hall [HALL] Reproduces the acoustics of a classical concert hall.
Jazz Club [JAZZ] Reproduces the acoustics of a jazz club.
Live concert [CONCERT] Reproduces the acoustics of a 300-seat live house.
Stadium [STADIUM] Reproduces the feeling of a large open-air stadium.
Sports [SPORTS] Reproduces the feeling of sports broadcasting.
Portable Audio Enhancer
[PORTABLE]
Reproduces a clear enhanced sound image from your portable
audio device. This mode is ideal for MP3 and other
compressed music.
Headphone* Headphone 2CH
[HP 2CH]
This mode is selected automatically if you use headphones
when 2CH STEREO mode (page 66)/A.F.D. mode (page 61)
is selected. Standard 2 channel stereo sources completely
bypass the sound field processing and multi channel surround
formats are downmixed to 2 channels except LFE signals.
Headphone Direct
[HP DIRECT]
Outputs the analog signals without processing by the
equalizer, sound field, etc.
65
US
Enjoying Surround Sound
Notes
• The sound fields for music and movies do not work
in the following cases.
– PCM signals with a sampling frequency of more
than 48 kHz are being received.
– DTS 96/24 signals are being received.
– DTS-HD signals with a sampling frequency of
more than 48 kHz are being received.
– Dolby TrueHD signals with a sampling
frequency of more than 48 kHz are being
received.
• The effects provided by the virtual speakers may
cause increased noise in the playback signal.
• When listening with sound fields that employ the
virtual speakers, you will not be able to hear any
sound coming directly from the surround speakers.
• When one of the sound fields for music is selected,
no sound is output from the subwoofer if all the
speakers are set to “LARGE” in the SPEAKER
menu. However, the sound will be output from the
subwoofer if the digital input signal contains LFE
signals, or if the front or surround speakers are set
to “SMALL,” the sound field for movie is selected,
or “PORTABLE” is selected.
Tip
Sound fields with DCS marks use DCS
technology. For details on Digital Cinema Sound
(DCS), see “Glossary” (page 108).
To turn off the surround effect
for movie/music mode
Press 2CH/A.DIRECT repeatedly to select
“2CH ST.” or press A.F.D. repeatedly to select
“A.F.D. AUTO”.
Enjoying the surround
effect at low volume
levels
(NIGHT MODE)
This function allows you to retain a theater like
environment at low volume levels. This
function can be used with other sound fields.
When watching a movie late at night, you will
be able to hear the dialog clearly even at a low
volume level.
Press NIGHT MODE.
The NIGHT MODE function is activated. The
NIGHT MODE is set to on and off as you
press NIGHT MODE.
Note
This function does not work in the following cases.
– Dolby TrueHD signals with a sampling frequency
of more than 96 kHz are being received.
– PCM signals with a sampling frequency of more
than 96 kHz are being received.
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
AUTO CAL
DISPLAY
AMP MENU
INPUT
MODE
SLEEP
NIGHT
MODE
NIGHT
MODE
66
US
Using only the front
speakers
(2CH STEREO)
In this mode, the receiver outputs the sound
from the front left/right speakers only. There is
no sound from the subwoofer.
Standard 2 channel stereo sources completely
bypass the sound field processing and multi
channel surround formats are downmixed to 2
channel except LFE signals.
Press 2CH/A.DIRECT repeatedly to
select “2CH ST.”.
Note
No sound is output from the subwoofer in the 2CH
STEREO mode. To listen to 2 channel stereo
sources using the front left/right speakers and a
subwoofer, select “A.F.D. AUTO” (page 61).
Listening to the sound
without any adjustment
(ANALOG DIRECT)
You can switch the audio of the selected input to
2 channel analog input. This function enables
you to enjoy high quality analog sources.
When using this function, only the volume and
front speaker balance can be adjusted.
1 Press one of the input buttons
to select the input you want to
listen to in analog audio.
You can also use the INPUT SELECTOR
on the receiver.
2 Press 2CH/A.DIRECT
repeatedly to select
“A.DIRECT”.
The analog audio is output.
To cancel ANALOG DIRECT
Press 2CH/A.DIRECT again.
You can also press any sound field buttons.
Notes
• When headphones are connected, “HP DIRECT”
appears on the display.
• You cannot select ANALOG DIRECT when you
select DVD, DMPORT and HDMI 1–4 as input.
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
CLEAR
/
>10
AUTO CAL
HDMI 4
DISPLAY
AMP MENU
INPUT
MODE
SLEEP
NIGHT
MODE
2CH/
A.DIRECT
1 2 3
4 5 6
7 8 9
-/-- 0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
CLEAR
/
>10
SHIFT
AUTO CAL
VIDEO 1 VIDEO 2 BD
SAT TV
HDMI 3HDMI 2HDMI 1
HDMI 4
SA-CD/
CD
DMPORTTUNER
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
TV AMP
Input
buttons
2CH/
A.DIRECT
Sound
field
buttons
67
US
Tuner Operations

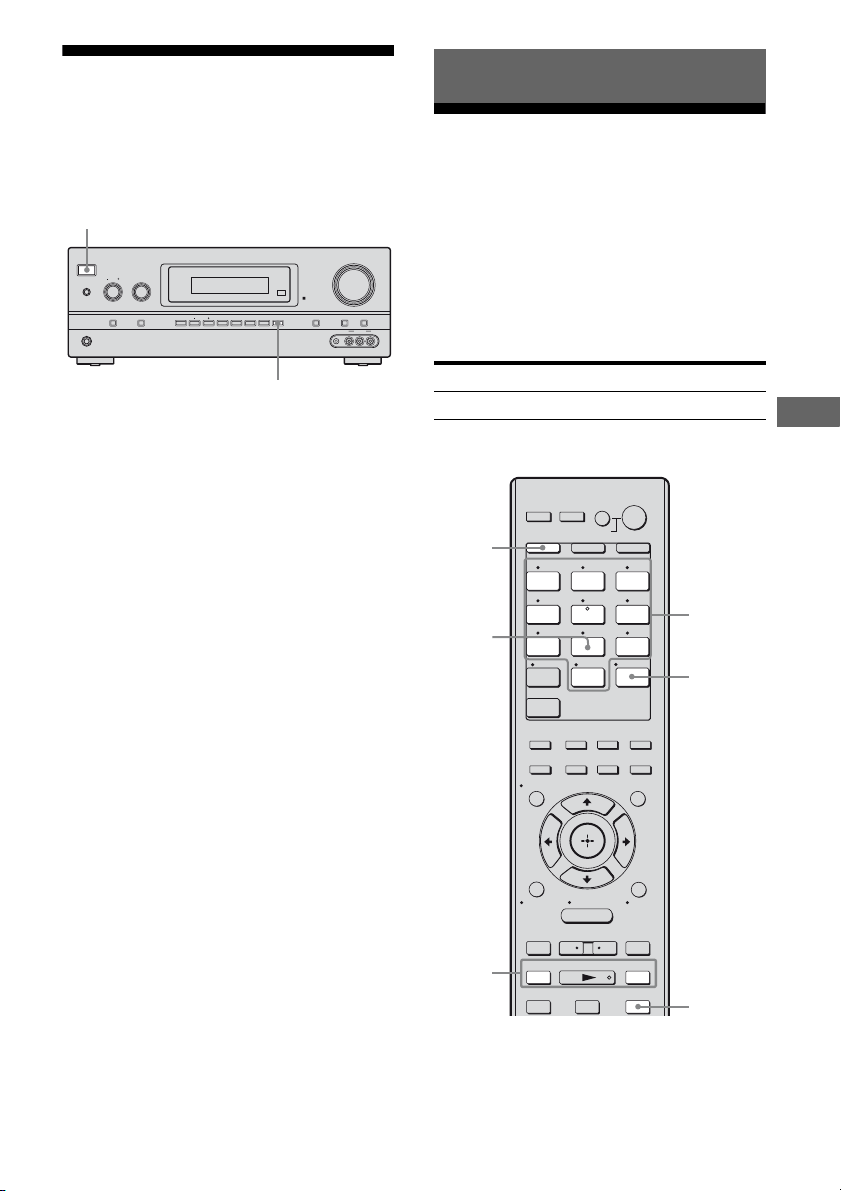

Resetting sound fields to
the initial settings
Be sure to use the buttons on the receiver for
this operation.
1 Press ?/1 to turn off the
receiver.
2 While holding down MUSIC,
press ?/1.
“S.F. CLEAR” appears on the display and
all sound fields are reset to their initial
setting.
Listening to FM/AM radio
You can listen to FM and AM broadcasts
through the built-in tuner. Before operation,
make sure you have connected the FM and
AM antennas to the receiver (page 31).
Tip
The tuning scale for direct tuning differs depending
on the area code as shown in the following table. For
details on area codes, see page 4.
* The AM tuning scale can be changed (page 69).
?/1
PHONES
SPEAKERS
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
TONE MODE DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
TONE
VIDEO 2 IN
VIDEO L AUDIO R
AUTO CAL MIC
?/1
MUSIC
Tuner Operations
Area code FM AM
U, CA 100 kHz 10 kHz*
1 2 3
4 5 6
7 8 9
-/-- 0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
THEATER
SYSTEM STANDBY
RM SET UP
?/1
CLEAR
/
>10
SHIFT
TUNING – TUNING +
DISC SKIP D.TUNING
AUTO CAL
.
mM
>
Xx
VIDEO 1 VIDEO 2 BD
SAT TV
HDMI 3HDMI 2HDMI 1
HDMI 4
SA-CD/
CD
DMPORTTUNER
<
<
MENU
AV
?/1
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
TV AMP
– CATEGORY +
CATEGORY MODE
TUNING
+/–
TUNER
D.TUN ING
Numeric
buttons
ENT/
MEM
SHIFT
68
US
1 Press TUNER repeatedly to
select the FM or AM band.
2 Press TUNING + or TUNING –.
Press TUNING + to scan from low to
high; press TUNING – to scan from high
to low.
The receiver stops scanning whenever a
station is received.
Using the controls on the
receiver
1 Turn INPUT SELECTOR to select the FM
or AM band.
2 Press TUNING MODE repeatedly to select
“AUTO”.
3 Press TUNING + or TUNING –.
In case of poor FM stereo
reception
If the FM stereo reception is poor and “ST”
flashes on the display, select monaural audio
so that the sound will be less distorted.
• To select monaural audio, set “FM MODE”
in TUNER menu to “MONO” (page 55).
• To return to stereo mode, set “FM MODE”
in TUNER menu to “STEREO” (page 55).
You can enter the frequency of a station
directly by using the numeric buttons.
1 Press TUNER repeatedly to
select the FM or AM band.
You can also use INPUT SELECTOR on
the receiver.
2 Press D.TUNING.
3 Press SHIFT.
4 Press the numeric buttons to
enter the frequency.
Example 1: FM 102.50 MHz
Select 1 b 0 b 2 b 5
Example 2: AM 1,350 kHz
Select 1 b 3 b 5 b 0
5 Press ENT/MEM.
You can also use MEMORY/ENTER on
the receiver.
Tip
If you have tuned in an AM station, adjust the
direction of the AM loop antenna for optimum
reception.
If you cannot tune in a station
Make sure you have entered the right
frequency. If not, repeat steps 2 to 5. If you
still cannot tune in a station, the frequency is
not used in your area.
Tuning into a station
automatically (Automatic
Tuning)
Tuning into a station directly
(Direct Tuning)
69
US
Tuner Operations

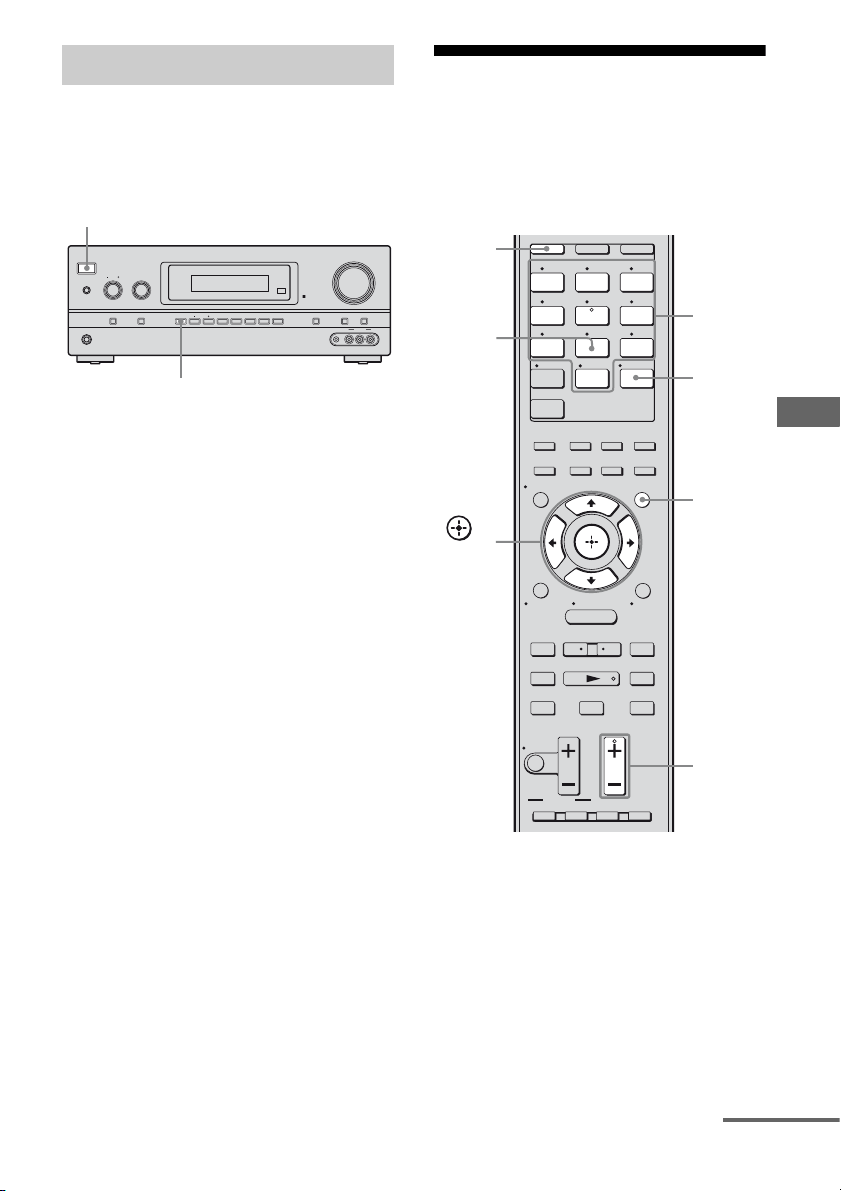

(Models of area code U, CA only)
You can change the AM tuning scale to either
9 kHz or 10 kHz using the buttons on the
receiver.
1 Press ?/1 to turn off the
receiver.
2 While holding down TUNING
MODE, press ?/1.
3 Change the current AM tuning
scale to 9 kHz (or 10 kHz).
To reset the scale to 10 kHz (or 9 kHz),
repeat the procedure above.
Note
All preset stations will be erased when you change
the tuning scale.
Presetting FM/AM radio
stations
You can preset up to 30 FM stations and 30
AM stations. Then you can easily tune in the
stations you often listen to.
1 Press TUNER repeatedly to
select the FM or AM band.
You can also use INPUT SELECTOR on
the receiver.
Changing the AM tuning scale
?/1
PHONES
SPEAKERS
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
TONE MODE DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
TONE
VIDEO 2 IN
VIDEO L AUDIO R
AUTO CAL MIC
?/1
TUNING MODE
1 2 3
4 5 6
7 8 9
-/-- 0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
CLEAR
/
>10
SHIFT
TUNING – TUNING +
DISC SKIP D.TUNING
AUTO CAL
.
mM
>
Xx
MUTING
VIDEO 1 VIDEO 2 BD
SAT TV
HDMI 3HDMI 2HDMI 1
HDMI 4
SA-CD/
CD
DMPORTTUNER
TV VOL
MASTER VOL
TV CH
PRESET
<
<
MENU
F1 F2
TV INPUT
TOP MENU MENU
BD/DVD
WIDE
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
TV AMP
– CATEGORY +
CATEGORY MODE
TUNER
PRESET
+/–
Numeric
buttons
ENT/
MEM
SHIFT
AMP
MENU
,
V/v/B/b
continued
70
US
2 Tune in the station that you
want to preset using Automatic
Tuning (page 68) or Direct
Tuning (page 68).
Switch the FM reception mode, if
necessary (page 68).
3 Press SHIFT.
4 Press ENT/MEM.
You can also use MEMORY/ENTER on
the receiver.
“MEM” lights up for a few seconds.
Perform steps 5 and 6 before “MEM”
goes out.
5 Press the numeric buttons to
select a preset number.
You can also press PRESET + or
PRESET – to select a preset number.
If “MEM” goes out before you select the
preset number, start again from step 3.
6 Press ENT/MEM.
You can also use MEMORY/ENTER on
the receiver.
“MEM” lights off.
The station is stored as the selected preset
number.
7 Repeat steps 1 to 6 to preset
another station.
1 Press TUNER repeatedly to
select the FM or AM band.
2 Press PRESET + or PRESET –
repeatedly to select the preset
station you want.
Each time you press the button, you can
select a preset station as follows:
You can also press SHIFT and then press
the numeric buttons to select the preset
station you want. Then, press ENT/MEM
to enter the selection.
Using the controls on the
receiver
1 Turn INPUT SELECTOR to select the FM
or AM band.
2 Press TUNING MODE repeatedly to select
“PRESET”.
3 Press TUNING + or TUNING – to select the
preset station you want.
Tuning to preset stations
1 2 345 27...
30 29 28
71
US
Tuner Operations
1 Press TUNER repeatedly to
select the FM or AM band.
You can also use INPUT SELECTOR on
the receiver.
2 Tune in the preset station you
want to create an index name
for (page 70).
3 Press AMP MENU.
4 Press V/v repeatedly to select
“TUNER”.
5 Press or b to enter the
menu.
6 Press V/v repeatedly to select
“NAME IN”.
7 Press or b to enter the
parameter.
The cursor flashes and you can select a
character.
8 Press V/v to select a character,
then press B/b to move the
cursor to the next position.
If you made a mistake
Press B/b until the character you want to
change flashes, then press V/v to select
the correct character.
Tips
• You can select the character type as follows
by pressing V/v.
Alphabet (upper case) t Numbers t
Symbols
• To enter a blank space, press b without
selecting a character.
9 Press .
The name you entered is registered.
Listening to Satellite
Radio
To listen to Satellite Radio, you’ll need to
connect a SIRIUS Satellite Radio tuner (sold
separately) to your Sirius-Ready receiver.
SIRIUS Satellite Radio is available to
residents of the US (except Alaska and
Hawaii) and Canada.
Satellite Radio delivers a variety of
commercial-free music from categories
ranging from Pop, Rock, Country, R&B,
Dance, Jazz, Classical and many more plus
coverage of all the top professional and
college sports including play by play games
from select leagues and teams. Additional
programming includes expert sports talk,
uncensored entertainment, comedy, family
programming, local traffic and weather and
news from your most trusted sources.
Once you’ve purchased a SIRIUS tuner you’ll
need to activate it and subscribe to begin
enjoying the service. Easy to follow
installation and setup instructions are provided
with the SIRIUS tuner. There are a variety of
programming packages available, including
the option of adding “The Best of XM”
programming to the SIRIUS service. The
“Best of XM” service is not available to
SIRIUS Canada subscribers at this time.
Please check with SIRIUS Canada for any
updates using the numbers and web address
below.
Family friendly packages are also available to
restrict channels featuring content that may be
inappropriate for children.
To subscribe to SIRIUS, U.S. and Canadian
customers can call 1-888-539-SIRI (1-888-
539-7474) or visit sirius.com (US) or
siriuscanada.ca (Canada).
Naming preset stations
continued
72
US
SIRIUS and all related marks and logos are
trademarks of Sirius XM Radio Inc. and its
subsidiaries. All other marks and logos are the
property of their respective owners. All rights
reserved. SIRIUS subscription sold separately.
Taxes and a one-time activation fee may apply.
SIRIUS tuner required (sold separately) to receive
the SIRIUS service. All programming and fees
subject to change. It is prohibited to copy,
decompile, disassemble, reverse engineer, hack,
manipulate or otherwise make available any
technology or software incorporated in receivers
compatible with the SIRIUS Satellite Radio System.
Service not available in Alaska or Hawaii.

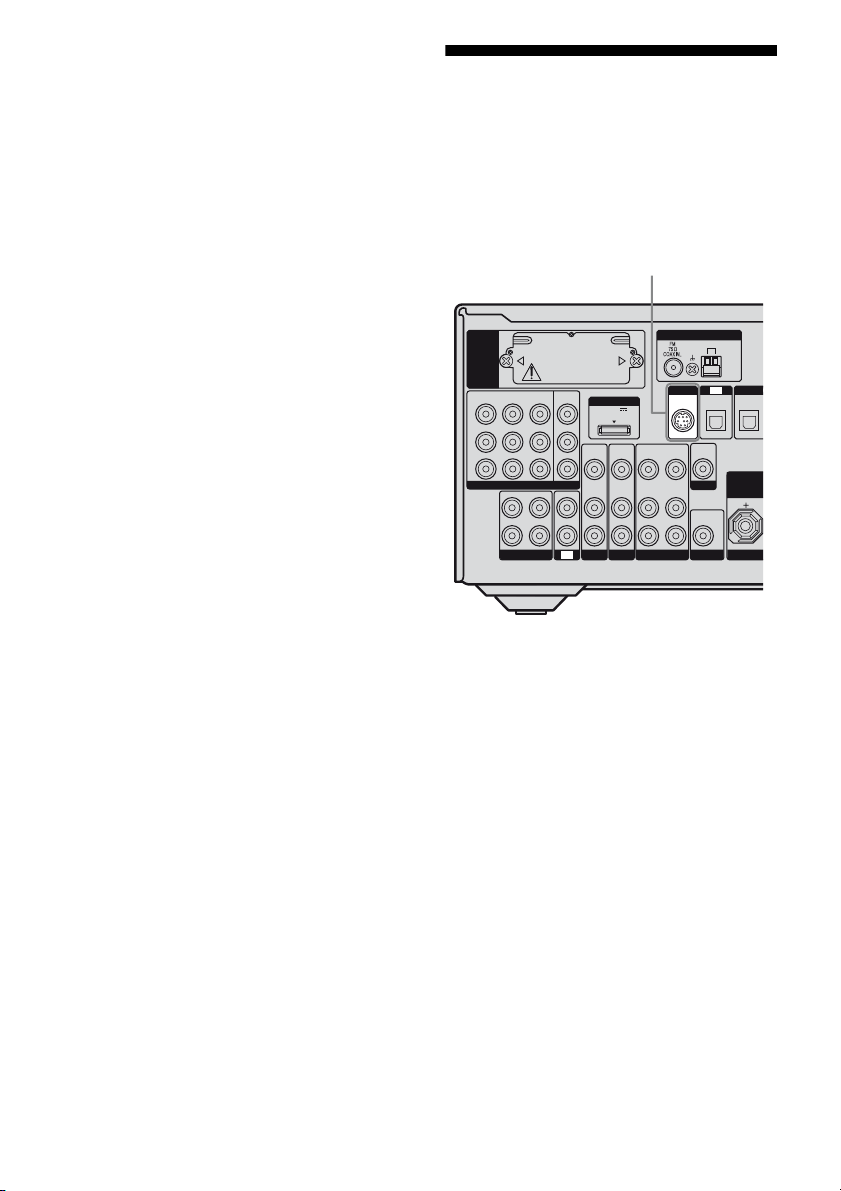

Connecting the SIRIUS
Satellite Radio
Connect the SiriusConnect Home tuner. When
you use the SiriusConnect Home tuner with
this receiver, be sure to connect the AC power
adaptor supplied with the tuner to a wall outlet.
Note
Keep the SiriusConnect Home tuner, antenna, and
AC power adaptor away from the speaker cords and
the power cord to avoid picking up noise.
DI
G
DC5V
0.7A MAX
ANTENNA
DMPORT
AM
IN 2
IN 1
MONITOR
OUT
VIDEO 1
IN
TV
AUDIO
IN
VIDEO
IN
SAT
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
IN
OPTICAL
AUDIO
IN
VIDEO
IN
SUBWOOFER
MONITOR
AUDIO
IN
VIDEO
IN
BD
R
S
I
O
P
SURROU
N
BI-
A
FRO
N
TV
EZW-T100
R
SA-CD/CD/CD-R
IN 3
Y
P
B
/
C
B
P
R
/
C
R
COMPONENT VIDEO
ASSIGNABLE (INPUT ONLY)
OUT
IN
L
SIRIUS
SIRIUS jack
73
US
Tuner Operations
Preparing to listen to the
SIRIUS Satellite Radio
1
Press TUNER repeatedly to
select “SIRIUS”.
2 Press AMP MENU.
3 Press V/v repeatedly to select
“TUNER”.
4 Press or b to enter the
menu.
5 Press V/v repeatedly to select
“SIRIUS ID”.
6 Check the SIRIUS ID on the
display and write it in the space
provided here.
SIRIUS ID:_______________________
Using the controls on the
receiver
1 Turn INPUT SELECTOR to select
“SIRIUS”.
2 Press TUNING MODE repeatedly to select
“AUTO”, and then press TUNING + or
TUNING – to select channel 0.
3 Check the SIRIUS ID on the display and
write it in the space provided here.
SIRIUS ID:_________________________
1 Press TUNER repeatedly to
select “SIRIUS”.
You can also use INPUT SELECTOR on
the receiver.
2 Press AMP MENU.
3 Press V/v repeatedly to select
“TUNER”.
4 Press or b to enter the
menu.
5 Press V/v repeatedly to select
“SR ANT AIM”.
6 Press or b to enter the
parameter.
7 While checking the parameter,
aim your antenna to where the
best reception will be received.
For details on the parameter, see “SIRIUS
Signal strength” below.
Checking the Sirius Radio ID
1 2 3
4 5 6
7 8 9
-/-- 0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
CLEAR
/
>10
TUNING – TUNING +
DISC SKIP D.TUNING
AUTO CAL
.
mM
>
Xx
VIDEO 1 VIDEO 2 BD
SAT TV
HDMI 3HDMI 2HDMI 1
HDMI 4
SA-CD/
CD
DMPORTTUNER
<
<
MENU
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
– CATEGORY +
CATEGORY MODE
TUNER
AMP
MENU
TUNING
+/–
,
V/v/B/b
MENU/
HOME
Checking receiving conditions
(SIRIUS Antenna Aiming)
continued
74
US
SIRIUS Signal strength
When you have finished
Press MENU/HOME or AMP MENU.
1 Press TUNER repeatedly to
select “SIRIUS”.
You can also use INPUT SELECTOR on
the receiver.
2 Press TUNING + or TUNING – to
select a channel.
You can also press TUNING MODE on
the receiver to select “AUTO”, and then
press TUNING + or TUNING – to select
a channel.
Selecting a channel of the
SIRIUS Satellite Radio
You can select a channel from one category or
all the categories by changing the category
mode.
1 Press TUNER repeatedly to
select “SIRIUS”.
You can also use INPUT SELECTOR on
the receiver.
Signal
strength
Signal type
Satellite Terrestrial
EXC (excellent) S : 3 T : 3
GOOD S : 2 T : 2
WEAK S : 1 T : 1
NONE S : 0 T : 0
Receiving SIRIUS Satellite Radio
broadcasts
Selecting channels from a
category (CATEGORY TUNING)
1 2 3
4 5 6
7 8 9
-/-- 0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
THEATER
SYSTEM STANDBY
RM SET UP
?/1
CLEAR
/
>10
SHIFT
TUNING – TUNING +
DISC SKIP D.TUNING
AUTO CAL
.
mM
>
Xx
VIDEO 1 VIDEO 2 BD
SAT TV
HDMI 3HDMI 2HDMI 1
HDMI 4
SA-CD/
CD
DMPORTTUNER
TV VOL
MASTER VOL
TV CH
PRESET
<
<
MENU
AV
?/1
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
TV AMP
– CATEGORY +
CATEGORY MODE
TUNER
D.TUNING
TUNING
+/–
Numeric
buttons
ENT/MEM
CATEGORY
+/–
CATEGORY
MODE
SHIFT
75
US
Tuner Operations
2 Press CATEGORY MODE
repeatedly to select the “ONE
CAT”.
• ALL CAT: You can select a channel
from all the categories. The initial
setting is “ALL CAT”.
• ONE CAT: You can select a channel
from one category. “CAT” is displayed
on the display when you set to “ONE
CAT” mode.
3 Press CATEGORY + or
CATEGORY – to select the
category you want.
The category is selected and the channel
with the lowest number in the specified
category is selected.
4 Press TUNING + or TUNING – to
select the channel.
You can also press TUNING MODE on
the receiver to select “AUTO”, and then
press TUNING + or TUNING – to select
a channel.
Notes
• When you select a channel in the “ONE CAT”
mode, the channel you selected may not be the one
in the category you want. This is because one
channel may belong to more than one category.
• If you press CATEGORY + or CATEGORY – in
the “ALL CAT” mode, the first channel of the next
or previous category is selected (CATEGORY
SKIP).
1 Press TUNER repeatedly to
select “SIRIUS”.
You can also use INPUT SELECTOR on
the receiver.
2 Press D.TUNING.
3 Press SHIFT.
4 Press the numeric buttons to
enter the channel number.
5 Press ENT/MEM.
You can also use MEMORY/ENTER on
the receiver.
The selected channel is tune in.
Press DISPLAY on the receiver
repeatedly.
Each time you press DISPLAY while tuning in
the channel, the display changes cyclically as
follows:
Channel name t Channel number t
Category name t Artist name/Feature t
Song/Program title t Composer name t
Signal strength t Sound field type t
Volume level
Selecting channels by inputting
the channel number directly
(DIRECT TUNING)
Displaying the SIRIUS Satellite
Radio information on the front
panel display
?/1
PHONES
SPEAKERS
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
TONE MODE DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
TONE
VIDEO 2 IN
VIDEO L AUDIO RAUTO CAL MIC
DISPLAY
76
US
Presetting SIRIUS
Satellite Radio channels
You can select the channels you want directly
by presetting them using the preset numbers.
You can preset up to 30 SIRIUS Satellite
Radio channels.
1 Press TUNER repeatedly to
select “SIRIUS”.
You can also use INPUT SELECTOR on
the receiver.
2 Select a channel you want to
preset using Category Tuning
(page 74) or Direct Tuning
(page 75).
3 Press SHIFT.
4 Press ENT/MEM.
You can also use MEMORY/ENTER on
the receiver.
5 Press the numeric buttons to
select a preset number you
want to use as the preset
channel.
You can also select the number by
pressing PRESET + or PRESET –.
You can also press TUNING + or
TUNING – on the receiver.
Preset channels from 1 to 30 are available,
and channel 184 is preset for all the preset
channels when you purchase the receiver.
6 Press ENT/MEM.
You can also use MEMORY/ENTER on
the receiver.
“MEM” lights off.
The selected channel is registered as the
preset channel you selected in step 2.
7 Repeat steps 2 to 6 to preset
another channel.
You can store channels from 1 to 30.
1 2 3
4 5 6
7 8 9
-/-- 0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
THEATER
SYSTEM STANDBY
RM SET UP
?/1
CLEAR
/
>10
SHIFT
TUNING – TUNING +
DISC SKIP D.TUNING
AUTO CAL
.
mM
>
Xx
MUTING
VIDEO 1 VIDEO 2 BD
SAT TV
HDMI 3HDMI 2HDMI 1
HDMI 4
SA-CD/
CD
DMPORTTUNER
TV VOL
MASTER VOL
TV CH
PRESET
<
<
MENU
AV
?/1
F1 F2
TV INPUT
TOP MENU MENU
BD/DVD
WIDE
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
TV AMP
– CATEGORY +
CATEGORY MODE
TUNER
PRESET
+/–
Numeric
buttons
ENT/MEM
SHIFT
Presetting channels using the
preset numbers
77
US
Tuner Operations
1 Press TUNER repeatedly to
select “SIRIUS”.
You can also use INPUT SELECTOR on
the receiver.
2 Press PRESET + or PRESET –
repeatedly to select the preset
channel you want.
You can also press SHIFT and then press
the numeric buttons to select the preset
channel you want. Then press ENT/MEM
to enter the selection.
You can also press TUNING MODE on
the receiver to select “PRESET”, and then
press TUNING + or TUNING –.
You can select preset channels from 1 to
30.
Note
The channel information you have preset may be
changed if Sirius XM Radio Inc. change their
channel programming.
Restricting access to
specific channels
(Parental Lock) (SIRIUS
only)
You can restrict access to certain channels
using your own lock code. The lock code is set
to “0000” as the default.
Change the lock code before you use this
function for the first time. See “To change the
lock code” (page 78).
1 Press TUNER repeatedly to
select “SIRIUS”.
You can also use INPUT SELECTOR on
the receiver.
2 Select a channel you want to
lock using Category Tuning
(page 74) or Direct Tuning
(page 75).
3 Press AMP MENU.
Selecting the channel by using
the preset numbers
1 2 3
4 5 6
7 8 9
-/-- 0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
THEATER
SYSTEM STANDBY
RM SET UP
?/1
CLEAR
/
>10
SHIFT
AUTO CAL
VIDEO 1 VIDEO 2 BD
SAT TV
HDMI 3HDMI 2HDMI 1
HDMI 4
SA-CD/
CD
DMPORTTUNER
MENU
AV
?/1
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
TV AMP
TUNER
AMP
MENU
,
V/v/B/b
SHIFT
Numeric
buttons
continued
78
US
4 Press V/v repeatedly to select
“TUNER”.
5 Press or b to enter the
menu.
6 Press V/v repeatedly to select
“PARENTAL”.
7 Press or b to enter the
parameter.
8 Press V/v repeatedly to select
“LOCK ON” then press .
“CODE x” appears on the display.
9 Press SHIFT.
10Enter your 4-digit lock code
using the numeric buttons.
“LOCKED” appears on the display and
the Parental Lock is set.
To delete the numbers you have entered,
repeat the procedure above from step 3.
Select “LOCK OFF” in step 8.
To change the lock code
1
Press TUNER repeatedly to select
“SIRIUS”.
You can also use INPUT SELECTOR on
the receiver.
2 Press AMP MENU.
3 Press V/v repeatedly to select
“TUNER”.
4 Press or b to enter the menu.
5 Press V/v repeatedly to select “CODE
EDIT”.
6 Press or b to enter the parameter.
“CODE x” appears on the display.
7 Press SHIFT.
8 Enter your 4-digit lock code using the
numeric buttons.
“NEW x” appears on the display.
9 Enter a new 4-digit lock code using the
numeric buttons.
“CONF. x” appears on the display.
10Reenter the new lock code with the
numeric buttons.
“CHANGED” appears on the display.
To listen to the locked channels
1
Press TUNER repeatedly to select
“SIRIUS”.
You can also use INPUT SELECTOR on
the receiver.
2 Select a locked channel you want to
listen to using Direct Tuning (page 75).
“LOCKED CH” appears on the display.
3 Press SHIFT.
4 Enter your 4-digit lock code using the
numeric buttons.
The channel is tuned in.
To cancel the Parental Lock
1
Press TUNER repeatedly to select
“SIRIUS”.
You can also use INPUT SELECTOR on
the receiver.
2 Select a channel you want to unlock
using Direct Tuning (page 75).
“LOCKED CH” appears on the display.
3 Press SHIFT.
4 Enter your 4-digit lock code using the
numeric buttons.
The channel is tuned in.
5 Press AMP MENU.
6 Press V/v repeatedly to select
“TUNER”.
7 Press or b to enter the menu.
8 Press V/v repeatedly to select
“PARENTAL”.
9 Press or b to enter the parameter.
79
US
Tuner Operations
10Press V/v repeatedly to select “LOCK
OFF”, then press .
“CODE x” appears on the display.
11Press SHIFT.
12Enter your 4-digit lock code using the
numeric buttons.
“UNLOCKED” appears on the display.
Notes
• When you select a channel using Category Tuning,
locked channels are skipped.
• When the receiver is reset to the factory settings,
the lock code returns to the default (0000), but the
Parental Lock settings are not removed.
• You cannot preset locked channels. If you set the
Parental Lock for a preset channel, the preset
information for that channel returns to the default.
• You cannot set the Parental Lock for channel 0 or
channel 184.
continued
80
US
SIRIUS Satellite Radio message list
Message
appears
Explanation Remedies
ANTENNA The antenna is not connected
properly.
Check the connection between the SiriusConnect
Home tuner and the antenna.
ACQUIRING The receiving condition is not
good.
Try moving the antenna to another location.
For details about the antenna location, refer to the
instructions supplied with the SiriusConnect Home
tuner.
CALL 888,
539-SIRI
You have not subscribed for the
selected channel.
—
SR TUNER The SiriusConnect Home tuner is
not connected properly.
Check all the connections, and then turn the system on
again. Also make sure if the AC adaptor supplied with
the SiriusConnect Home tuner is connected to a wall
socket.
INVALID
CHANNEL
You have entered an invalid
channel number.
The channel to be tuned-in is void due to the change
by the broadcast service, or the receiving condition is
not good.
LOCKED CH The selected channel is locked. —
SUB UPDT The subscription information has
been updated.
—
UPDATING Channel information is being
updated.
—
FW UPDT The SiriusConnect Home tuner
firmware is being updated.
—
– – – – There is no text information in the
channel.
This is not an error. The text information may not be
displayed depending on the system condition, for
example, right after the system has received a channel.
81
US
“BRAVIA” Sync Features
What is “BRAVIA” Sync?
“BRAVIA” Sync is compatible with Sony TV,
Blu-ray Disc/DVD player, AV amplifier, etc.,
that is equipped with the Control for HDMI
function.
By connecting Sony components that are
compatible with the “BRAVIA” Sync with an
HDMI cable (not supplied), operation is
simplified as follows:
• One-Touch Play: When you play back a
component such as a DVD/Blu-ray disc
player, the receiver and the TV will switch to
the appropriate HDMI input automatically.
In case the receiver or/and the TV is in
standby mode, they will be turned on
automatically.
• System Audio Control: While watching TV,
you can select to output the sound from the
TV speaker or the speakers connected to the
receiver.
• System Power Off: When you turn off the
TV, the receiver and connected components
are also turned off simultaneously.
Control for HDMI is a mutual control function
standard used by HDMI CEC (Consumer
Electronics Control) for HDMI (High-
Definition Multimedia Interface).
The Control for HDMI function
does not work in the following
cases:
• When you connect the receiver to a
component which does not correspond with
Sony Control for HDMI function.
• When you connect the receiver and
components using other than HDMI
connection.
We recommend that you connect the receiver
to products featuring “BRAVIA” Sync.
Note
Depending on the connected component, the
Control for HDMI function may not work. Refer to
the operating instructions of the component.
“BRAVIA” Sync Features
82
US
Preparing for the
“BRAVIA” Sync
To use the “BRAVIA” Sync, turn the Control
for HDMI function on for both the receiver
and the connected component. The receiver is
compatible with the “Control for HDMI-Easy
Setting” function.
When your TV is compatible
with the “Control for HDMI-Easy
Setting” function
When you connect a Sony TV with the
“Control for HDMI-Easy Setting” function,
the Control for HDMI function of the receiver
can be turned on simultaneously by turning the
Control for HDMI function of the TV on.
1 Make sure that the receiver, TV, and
playback components are connected
using an HDMI cable (not supplied).
(The respective components must be
compatible with the Control for HDMI
function.)
2 Turn on the receiver, TV and playback
components.
3 Turn the Control for HDMI function of
the TV on.
The Control for HDMI function of the
receiver and all the connected components
are simultaneously turned on. During
setup, “SCANNING” flashes in the display
and once setting is completed,
“COMPLETE” will appear. Wait until the
setup is complete.
For details on setting the TV, refer to the
operating instructions supplied with the TV.
When your TV is not compatible
with the “Control for HDMI-Easy
Setting” function
Turn the Control for HDMI function of the
receiver and the connected component on
individually.
1 Perform the steps given in “When your
TV is compatible with the “Control for
HDMI-Easy Setting” function”
(page 82).
2 Press AMP MENU.
3 Press V/v repeatedly to select “HDMI”.
4 Press or b to enter the menu.
5 Press V/v repeatedly to select
“CTRL:HDMI”.
6 Press or b to enter the parameter.
7 Press V/v repeatedly to select “CTRL
ON”.
Control for HDMI function is activated.
8 Select the HDMI input of the receiver
and TV to match the HDMI input of the
connected component, so that the
image from the connected component
is displayed.
9 Set the Control for HDMI function for
the connected component to on.
If the Control for HDMI function for the
connected component is already set to on,
you do not need to change the setting.
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
AUTO CAL
MENU
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
INPUT
MODE
SLEEP
NIGHT
MODE
AMP
MENU
,
V/v/B/b
83
US
“BRAVIA” Sync Features
10Repeat steps 8 and 9 for other
components that you want to use the
Control for HDMI function.
For details on setting the TV and connected
components, refer to the operating instructions
of the respective components.
Notes
• When you unplug the HDMI cable or change the
connection, perform the steps given in “When your
TV is compatible with the “Control for HDMI-
Easy Setting” function” (page 82) or “When your
TV is not compatible with the “Control for HDMI-
Easy Setting” function” (page 82).
• You cannot perform One-Touch Play and System
Audio Control during the Control for HDMI-Easy
Setting operation.
• Before you do the Control for HDMI-Easy Setting
from the TV, be sure to turn on the TV, connected
components and receiver.
• If the playback components cannot function after
you have made the settings for Control for HDMI-
Easy Setting, check the Control for HDMI setting
on your TV.
• If the connected components do not support
Control for HDMI-Easy Setting, you need to set
the Control for HDMI function for the connected
components to on before you perform the Control
for HDMI-Easy Setting from the TV.
Watching a DVD/Blu-ray
disc
(One-Touch Play)
You can enjoy sound and image from the
components connected to the receiver via
HDMI connections by a simple operation.
Play back a connected component.
The receiver and the TV will switch to the
appropriate HDMI input automatically.
In case the receiver or/and the TV is in standby
mode, they will be turned on automatically.
Watching a DVD/Blu-ray disc by
simple operation
You can also select a connected component,
such as a DVD/Blu-ray disc player using the
TV menu. In this case, the receiver and the TV
switch to the appropriate HDMI input.
Note
Depending on the TV, the start of the content may
not be output.
84
US
Enjoying the TV sound
from the speakers
connected to the receiver
(System Audio Control)
You can enjoy the TV sound from the speakers
connected to the receiver by a simple
operation.
You can operate System Audio Control
function using the TV menu. For details, refer
to the operating instructions of the TV.
When System Audio Control function is
turned on, the receiver will turns on and
switches to the appropriate input
automatically.
TV sound is output from the speakers
connected to the receiver, and the volume of
the TV is minimized simultaneously.
You can also use the System Audio Control
function as follows.
• If you turn on the receiver while the TV is
turned on, the System Audio Control
function will automatically be set to on and
the TV sound will output from the speakers
connected to the receiver. However, if you
turn off the receiver, the sound will output
from the TV speakers.
• You can adjust the receiver’s volume when
you adjust the TV volume.
Notes
• If System Audio Control does not function
according to your TV setting, refer to the operating
instructions of the TV.
• When “CTRL:HDMI” is set to “CTRL ON”, the
“AUDIO OUT” settings in the HDMI menu will
set automatically depending on the System Audio
Control settings.
• When you connect a TV that does not have System
Audio Control function, the System Audio Control
function does not work.
• If the TV is turned on before turning on the
receiver, the TV sound will not be output for a
moment.
• When you switch to an input other than HDMI or
TV, the System Audio Control function will
automatically be set to off.
Turning off the receiver
with the TV
(System Power Off)
When you turn the TV off by using the
POWER button on the TV’s remote, the
receiver and the connected components turn
off automatically.
You can also use the receiver’s remote to turn
off the TV.
Press TV, then press AV ?/1.
The TV, receiver and the components
connected via HDMI are turned off.
Notes
• Set the TV Standby Synchro to “ON” before using
the System Power Off function. For details, refer to
the operating instructions of the TV.
• Depending on the status, the connected
components may not be turned off. For details,
refer to the operating instructions of the connected
components.
1 2 3
4 5 6
7 8 9
THEATER
SYSTEM STANDBY
RM SET UP
?/1
SHIFT
VIDEO 1 VIDEO 2 BD
SAT TV
SA-CD/
CD
DMPORTTUNER
AV
?/1
DVD
TV AMP
TV
AV ?/1
85
US
S-AIR Operations
About S-AIR products
This receiver is compatible with the S-AIR
function (page 111), which allows wireless
sound transmission between S-AIR products.
When you purchase the S-AIR product, you
need to establish sound transmission (page
87).
There are two types of S-AIR product.
• S-AIR main unit (this receiver):
The S-AIR main unit is for transmitting
sound.
You can use up to 3 S-AIR main units. (The
number of usable S-AIR main unit depends
on the use environment.)
• S-AIR sub unit (not supplied): The S-AIR
sub unit is for receiving sound.
– Surround amplifier: You can enjoy
surround and surround back speaker sound
wirelessly. For details, refer to the
operating instructions supplied with the
surround amplifier.
– S-AIR receiver: You can enjoy system
sound in another room.
These S-AIR products can be purchased as an
option (the S-AIR product lineup differs
depending on the area).
Notes or instructions for the surround
amplifier or S-AIR receiver in this operating
instructions refer only to when the surround
amplifier or S-AIR receiver is used.
S-AIR Operations
?/1
PHONES
SPEAKERS
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
TONE MODE DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
TONE
VIDEO 2 IN
VIDEO L AUDIO R
AUTO CAL MIC
S-AIR sub unit
(S-AIR receiver)
S-AIR main unit
(this receiver)
S-AIR sub unit
(surround amplifier)
Room B
Room A
86
US
Setting up an S-AIR
product
Before using an S-AIR product, be sure to
perform the following settings to establish the
sound transmission.
To make use of the S-AIR function, you need
to insert the wireless transmitter (not supplied)
into the S-AIR main unit and the wireless
transceiver (not supplied) into the S-AIR sub
unit.
Notes
• Before inserting the wireless transmitter/
transceiver, be sure to disconnect the AC power
cord (mains lead).
• Do not touch the terminals of the wireless
transmitter/transceiver.
To insert the wireless
transmitter into the S-AIR main
unit
1
Remove the screws and detach the slot
cover.
Notes
• Remove the screws from the slot cover bearing the
caution mark. Do not remove other screws.
• The slot cover is no longer necessary. However,
keep it after detaching.
2 Insert the wireless transmitter.
Inserting the wireless
transmitter/transceiver
DIGITAL
(ASSIG
DC5V
0.7A MAX
ANTENNA
DMPORT
AM
IN 2
IN 1
MONITOR
OUT
VIDEO 1
IN
TV
AUDIO
IN
VIDEO
IN
SAT
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
IN
OPTICAL
AUDIO
IN
VIDEO
IN
SUBWOOFER
MONITOR
AUDIO
IN
VIDEO
IN
BD
R
SAT
IN
BD
IN
OPTICAL
SURROUND BACK/
BI-AMP/
FRONT B
TV
EZW-T100
R
SA-CD/CD/CD-R
IN 3
Y
P
B
/
C
B
P
R
/
C
R
COMPONENT VIDEO
ASSIGNABLE (INPUT ONLY)
OUT
IN
L
IN 4
ASSIG
N
SIRIUS
E
Z
W
-T
1
00
Slot cover
E
Z
W
-T
1
0
0
Wireless transmitter
87
US
S-AIR Operations

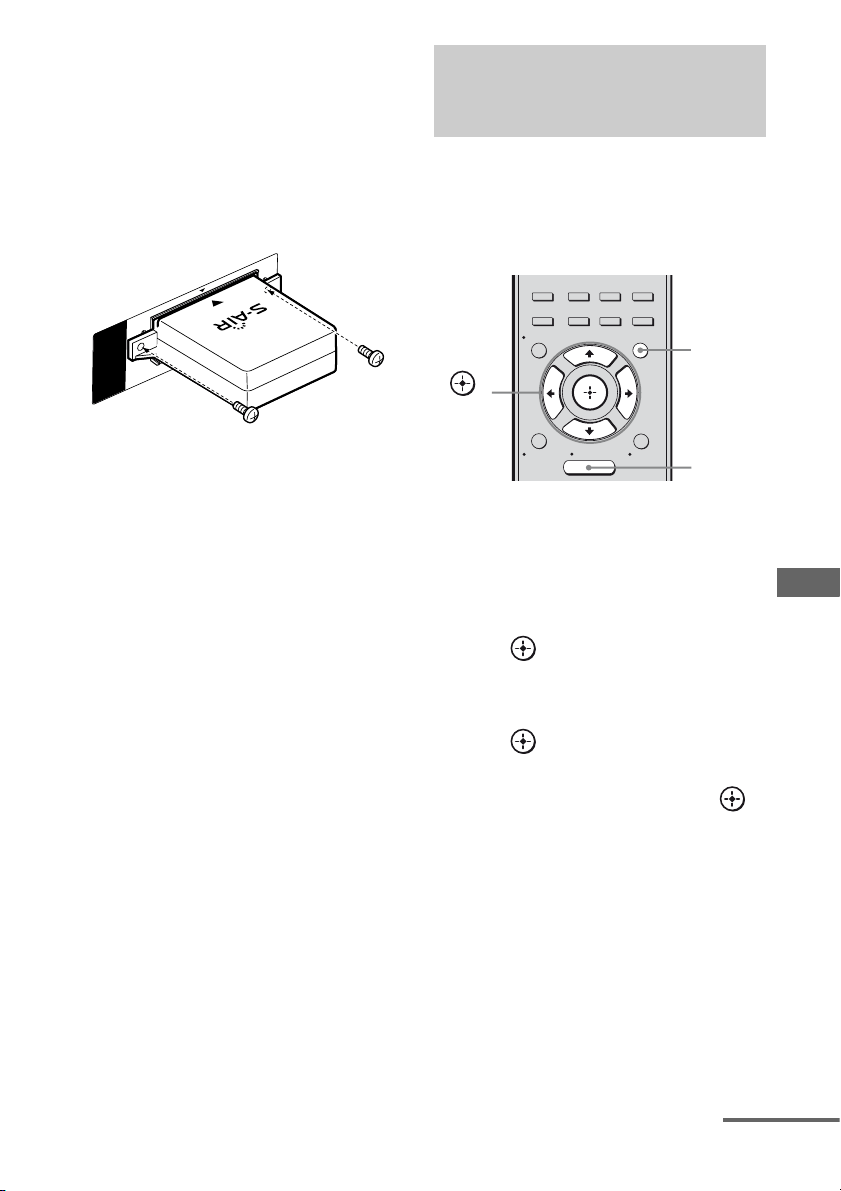

Notes
• Insert the wireless transmitter with the S-AIR logo
facing up.
• Insert the wireless transmitter so that the V marks
are aligned.
• Do not insert other than the wireless transmitter
into the EZW-T100 slot.
3 Use the screws that you removed from
step 1 to fasten the wireless transmitter.
Note
Do not use other screws to fasten the wireless
transmitter.
To insert the wireless
transceiver into the S-AIR sub
unit
For details on installing the wireless
transceiver into surround amplifier and S-AIR
receiver, refer to the operating instructions
supplied with the surround amplifier and
S-AIR receiver.
When you match the ID of the S-AIR main
unit and the S-AIR sub unit, you can establish
sound transmission. You can use multiple
S-AIR main unit by setting a different ID for
each unit.
To set the ID of the S-AIR main
unit
1
Press AMP MENU.
2 Press V/v repeatedly to select “S-AIR”.
3 Press or b to enter the menu.
4 Press V/v repeatedly to select “S-AIR
ID”.
5 Press or b to enter the parameter.
6 Press V/v repeatedly to select the ID
(A, B or C) you want, then press .
To exit the menu
Press MENU/HOME or AMP MENU.
To set the ID of the S-AIR sub
unit
Be sure to match the ID on S-AIR sub unit you
want to the S-AIR main unit.
For details on setting the ID of the surround
amplifier and S-AIR receiver, refer to the
operating instructions supplied with the
surround amplifier and S-AIR receiver.
E
Z
W
-
T
1
0
0
Establishing sound transmission
between the S-AIR main unit and
S-AIR sub unit (ID setting)
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
AUTO CAL
MENU
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
INPUT
MODE
SLEEP
NIGHT
MODE
AMP
MENU
,
V/v/B/b
MENU/
HOME
continued
88
US
Sound transmission is established as
follows (example):
Notes
• Sources with copyright protection may not be
playable on S-AIR sub unit.
• When sound transmission is established
– sound can only be output from the S-AIR
receiver if you connect the components to this
receiver via the analog jacks. The sound cannot
be output if the components are connected to the
COAXIAL, OPTICAL or HDMI jacks on this
receiver.
– the headphones function on the surround
amplifier is not available.
To establish sound transmission, you need to
set the same ID for your S-AIR main unit and
S-AIR sub unit.
However, if your neighbors have S-AIR
products and their IDs are the same as yours,
your neighbors could receive the sound of
your S-AIR main unit or vice versa.
To prevent this, you can pair the S-AIR main
unit with a specific S-AIR sub unit by
performing the pairing operation.
x Before pairing
Sound transmission is established by the ID
(example).
ID A ID A ID B
ID A ID B
?/1
PHONES
SPEAKERS
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
TONE MODE DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
TONE
VIDEO 2 IN
VIDEO L AUDIO R
AUTO CAL MIC
S-AIR main unit
Other S-AIR
main unit
S-AIR
sub unit
S-AIR
sub unit
S-AIR sub unit
Pairing the S-AIR main unit with
a specific S-AIR sub unit
(Pairing operation)
ID A
ID A
ID A
?/1
PHONES
SPEAKERS
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
TONE MODE DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
TONE
VIDEO 2 IN
VIDEO L AUDIO R
AUTO CAL MIC
Your room
S-AIR main unit
S-AIR sub unit S-AIR sub unit
Neighbor
89
US
S-AIR Operations
x After pairing
Sound transmission is established between the
paired S-AIR main unit and S-AIR sub unit(s)
only.
1 Place the S-AIR sub unit that
you want to pair near the S-AIR
main unit.
2 Match the IDs of the S-AIR main
unit and the S-AIR sub unit.
• To set the ID of the S-AIR main unit,
see “To set the ID of the S-AIR main
unit” (page 87).
• To set the ID of the S-AIR sub unit,
refer to the operating instructions
supplied with the S-AIR sub unit.
3 Press AMP MENU.
4 Press V/v repeatedly to select
“S-AIR”.
5 Press or b to enter the
menu.
6 Press V/v repeatedly to select
“PAIRING”.
7 Press or b to enter the
parameter.
8 Press V/v repeatedly to select
the setting you want, then
press .
• START: The S-AIR main unit starts
pairing. “SEARCHING” flashes on the
display.
• CONDITION: You can check the
current ID. When the pairing setting is
not made, “NO PAIRING” appears on
the display.
9 Start pairing of the S-AIR sub
unit.
xFor the surround amplifier
Refer to the operating instructions
supplied with the surround amplifier.
xFor the S-AIR receiver
Refer to the operating instructions
supplied with the S-AIR receiver.
10Pairing completed.
“COMPLETE” appears on the display.
To exit the menu
Press MENU/HOME or AMP MENU.
Note
Perform the pairing within several minutes after step
8. Otherwise, the pairing is canceled automatically
and “INCOMPLETE” appears on the display.
To cancel pairing
Reset the ID of the S-AIR main unit.
For details, see “To set the ID of the S-AIR
main unit” (page 87). You can select the same
ID as before.
ID A
ID A
ID A
?/1
PHONES
SPEAKERS
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
TONE MODE DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
TONE
VIDEO 2 IN
VIDEO L AUDIO R
AUTO CAL MIC
Your room
S-AIR main unit
S-AIR sub unit S-AIR sub unit
Neighbor
No transmission
Pairing
90
US
Enjoying the system’s
sound in another room
(For the S-AIR receiver only (not
supplied))
You can enjoy the system’s sound in another
room by using the S-AIR receiver. The S-AIR
receiver can be placed in another room for
enjoying the system’s sound there.
For details of the S-AIR receiver, refer to the
operating instructions supplied with the S-AIR
receiver.
1 Set the ID of the S-AIR receiver
to match the ID of the S-AIR
main unit.
• To set the ID of the S-AIR main unit,
see “To set the ID of the S-AIR main
unit” (page 87).
• To set the ID of the S-AIR receiver,
refer to the operating instructions
supplied with the S-AIR receiver.
Notes
• When you are using another S-AIR sub unit,
such as a surround amplifier, do not change
the ID of the S-AIR main unit. Set the ID of
the S-AIR receiver to match the ID of the
S-AIR main unit.
• When you pair the S-AIR main unit and
another S-AIR sub unit, such as a surround
amplifier, you also need to pair the S-AIR
main unit and the S-AIR receiver. For details,
see “Pairing the S-AIR main unit with a
specific S-AIR sub unit (Pairing operation)”
(page 88).
2 Press AMP MENU.
3 Press V/v repeatedly to select
“S-AIR”.
4 Press or b to enter the
menu.
5 Press V/v repeatedly to select
“S-AIR MODE”.
6 Press or b to enter the
parameter.
7 Press V/v repeatedly to select
the setting you want.
• PARTY: The S-AIR receiver outputs
sound according to the input selected on
the S-AIR main unit. However, if DVD
and HDMI 1–4 is selected on S-AIR
main unit, S-AIR receiver remains as
the last selected input.
• SEPARATE: You can select the input
you want for the S-AIR receiver while
the input of the S-AIR main unit remain
unchanged.
Note
When TUNER (FM/AM band) is selected on
the S-AIR main unit, you can only select the
same band for the tuner on the S-AIR
receiver. However, you can select input other
than TUNER on the S-AIR receiver.
1 2 3
4 5 6
7 8 9
-/-- 0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
CLEAR
/
>10
SHIFT
AUTO CAL
VIDEO 1 VIDEO 2 BD
SAT TV
HDMI 3HDMI 2HDMI 1
HDMI 4
SA-CD/
CD
DMPORTTUNER
MENU
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
TV AMP
AMP
MENU
,
V/v/B/b
Input
buttons
91
US
S-AIR Operations
8 Adjust the volume on the
S-AIR receiver.
Note
The sound of the S-AIR receiver may be cut off by
operation of the S-AIR main unit.
Changing the channel
for better sound
transmission
If you use multiple wireless systems which
sharing the 2.4 GHz band, such as wireless
LAN or Bluetooth, the transmission of S-AIR
products or other wireless systems may be
unstable. In this case, the transmission may be
improved by changing the following “RF
CHANGE” setting.
1 Press AMP MENU.
2 Press V/v repeatedly to select
“S-AIR”.
3 Press or b to enter the
menu.
4 Press V/v repeatedly to select
“RF CHANGE”.
5 Press or b to enter the
parameter.
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
AUTO CAL
MENU
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
INPUT
MODE
SLEEP
NIGHT
MODE
AMP
MENU
,
V/v/B/b
MENU/
HOME
continued
92
US
6 Press V/v repeatedly to select
the setting you want, then
press .
• RF AUTO: Normally select this. The
system changes “RF CHANGE” to “RF
ON” or “RF OFF” automatically.
• RF ON: The system transmits sound by
searching the better channel for
transmitting.
• RF OFF: The system transmits sound by
fixing the channel for transmitting.
To exit the menu
Press MENU/HOME or AMP MENU
Notes
• When the wireless transmitter is not inserted in the
S-AIR main unit, you cannot set “RF CHANGE”.
• In most cases, you will not need to change this
setting.
• If “RF CHANGE” is set to “RF OFF,”
transmission between the S-AIR main unit and
S-AIR sub unit can be performed using one of the
following channels.
– S-AIR ID A: equivalent channel for IEEE
802.11b/g channel 1
– S-AIR ID B: equivalent channel for IEEE
802.11b/g channel 6
– S-AIR ID C: equivalent channel for IEEE
802.11b/g channel 11
• The transmission may be improved by changing
the transmission channel (frequency) of the other
wireless system(s). For details, refer to the
operating instructions of the other wireless
system(s).
Enjoying the S-AIR
receiver while the S-AIR
main unit is in standby
mode
(For the S-AIR receiver only (not
supplied))
You can enjoy the S-AIR receiver while the
S-AIR main unit is in standby mode by setting
“S-AIR STBY” to “STBY ON”.
1 Press AMP MENU.
2 Press V/v repeatedly to select
“S-AIR”.
3 Press or b to enter the
menu.
4 Press V/v repeatedly to select
“S-AIR STBY”.
5 Press or b to enter the
parameter.
1 2 3
4 5 6
7 8 9
-/-- 0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
CLEAR
/
>10
SHIFT
AUTO CAL
VIDEO 1 VIDEO 2 BD
SAT TV
HDMI 3HDMI 2HDMI 1
HDMI 4
SA-CD/
CD
DMPORTTUNER
MENU
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
TV AMP
AMP
MENU
,
V/v/B/b
Input
buttons
MENU/
HOME
93
US
Other Operations
6 Press V/v repeatedly to select
the setting you want.
• STBY OFF: You cannot enjoy the S-
AIR receiver while the S-AIR main unit
is in standby mode.
• STBY ON: You can enjoy the S-AIR
receiver while the S-AIR main unit is in
standby mode or turned on.
To exit the menu
Press MENU/HOME or AMP MENU.
Notes
• When you set “S-AIR STBY” to “STBY ON”, the
power consumption increases during the standby
mode.
• When the wireless transmitter is not inserted in the
S-AIR main unit, you cannot set “S-AIR STBY”.
• When the wireless transmitter is removed from the
S-AIR main unit, “S-AIR STBY” is set to “STBY
OFF” automatically.
• If you have selected TUNER (FM/AM band) on
the S-AIR main unit before you turn it off and
“S-AIR STBY” is set to “STBY ON”, you can only
select the same band for the tuner on the S-AIR
receiver. However, you can select input other than
TUNER on the S-AIR receiver.
• The sound of the S-AIR receiver may be cut off by
operation of the S-AIR main unit.
Switching between
digital and analog audio
(INPUT MODE)
When you connect components to both digital
and analog input jacks on the receiver, you can
fix the audio input mode to either of them, or
switch from one to the other, depending on the
type of material you intend to watch.
1 Turn INPUT SELECTOR on the
receiver to select the input.
You can also use the input buttons on the
remote.
2 Press INPUT MODE repeatedly
on the receiver to select the
audio input mode.
The selected audio input mode appears on
the display.
Audio input modes
x AUTO
Gives priority to digital audio signals when
there are both digital and analog connections.
If there are no digital audio signals, analog
audio signals are selected.
x ANALOG
Specifies the analog audio signals input to the
AUDIO IN (L/R) jacks.
Notes
• Some audio input modes may not be set up
depending on the input.
• When the ANALOG DIRECT function is selected,
audio input is set to “ANALOG” automatically and
you cannot select other modes.
• When SIRIUS, HDMI 1–4 or DMPORT input is
selected, “------” appears on the display, and you
cannot select other modes. Select an input mode
other than the SIRIUS, HDMI 1–4 and DMPORT
input, then set the audio input mode.
Other Operations
94
US
Enjoying the sound/
images from other inputs
You can reassign audio and/or video signals to
another input when they are not currently
being used.
For example, connect the OPTICAL OUT jack
of the DVD player to the OPTICAL BD IN
jack of this receiver when you want to input
the digital optical audio signals from the DVD
player.
Connect the component video jack of the DVD
player to the COMPONENT VIDEO IN 1 jack
of this receiver when you want to input the
video signals from the DVD player.
Assign audio and/or video signals to the DVD
input jack using “A. ASSIGN” and/or
“V. ASSIGN” in the AUDIO and/or VIDEO
menu respectively.
1 Press AMP MENU.
2 Press V/v repeatedly to select
“AUDIO” or “VIDEO”.
3 Press or b to enter the
menu.
4 Press V/v repeatedly to select
“A. ASSIGN” or “V. ASSIGN”.
5 Press or b to enter the
parameter.
6 Press V/v repeatedly to select
the input name you want to
assign (for example, “DVD”).
7 Press or b to enter your
selection.
8 Press V/v repeatedly to select
the input jack you want to
assign to the input which you
selected in step 6.
95
US
Other Operations
To return to the previous display
Press B.
* Initial setting
Notes
• You cannot assign optical signals from an input
source to the optical input jacks on the receiver, and
you cannot assign coaxial signals from the input
source to the coaxial input jacks on the receiver.
• When you assign the digital audio input, the
INPUT MODE setting may change automatically
(page 93).
• You cannot reassign more than one HDMI input to
the same input.
• You cannot reassign more than one digital audio
input to the same input.
• You cannot reassign more than one component
video input to the same input.
Input name VIDEO1 VIDEO2 BD DVD SAT SA-CD/
CD
Assignable video
input jacks
COMPONENT1 aaa* aaa
COMPONENT2 aaaa* aa
COMPONENT3 aaaaa* a
HDMI1 aaaaaa
HDMI2 aaaaaa
HDMI3 aaaaaa
HDMI4 aaaaaa
COMPOSITE a* a* a – a –
NONE – – – a – a*
Assignable audio
input jacks
SAT OPT aa– aa* a
BD OPT aaa* a – a
DVD COAX aaaa* aa
ANALOG a* a* a – aa*
96
US
Enjoying the DIGITAL
MEDIA PORT
(DMPORT)
The DIGITAL MEDIA PORT (DMPORT)
allows you to enjoy sound from a network
system such as a portable audio source or
computer.
By connecting a DIGITAL MEDIA PORT
adapter (not supplied), you can enjoy sound
from the connected component on the
receiver.
For details, refer to the operating instructions
supplied with the DIGITAL MEDIA PORT
adapter.
Notes
• Do not connect an adapter other than the DIGITAL
MEDIA PORT adapter.
• Before connecting cords, be sure to disconnect the
AC power cord.
• Do not connect or disconnect the DIGITAL
MEDIA PORT adapter while the receiver is turned
on.
• Depending on the DIGITAL MEDIA PORT
adapter, video output may not be possible.
• The DIGITAL MEDIA PORT adapters are
available for purchase depending on the area.
97
US
Other Operations
You can listen to the sound and view the
images from the component connected
through the DIGITAL MEDIA PORT adapter
to the DMPORT jack on the receiver.
To detach the DIGITAL MEDIA
PORT adapter from DMPORT
jack
Press and hold both sides of the connector and
then pull out the connector.
Notes
• When connecting the DIGITAL MEDIA PORT
adapter, be sure the connector is inserted with the
arrow mark facing towards the arrow mark on the
DMPORT jack.
• Be sure to make DMPORT connections firmly,
insert the connector straight in.
• As the connector of the DIGITAL MEDIA PORT
adapter is fragile, be sure to handle with care when
placing or moving the receiver.

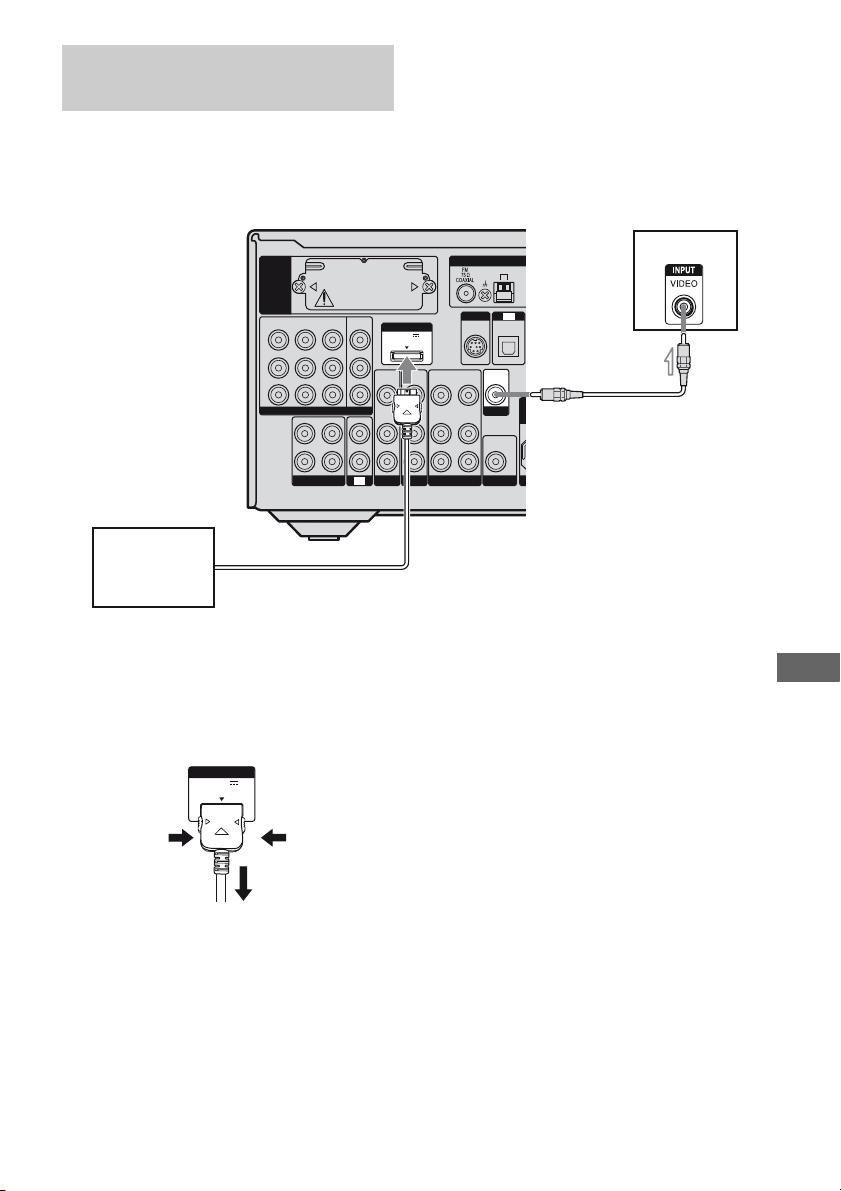

Connecting the DIGITAL MEDIA
PORT adapter
ANTENNA
AM
IN 2
IN 1
MONITOR
OUT
VIDEO 1
IN
TV
AUDIO
IN
VIDEO
IN
SAT
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
IN
OPTICAL
AUDIO
IN
VIDEO
IN
SUBWOOFER
AUDIO
IN
VIDEO
IN
BD
TV
EZW-T100
R
SA-CD/CD/CD-R
IN 3
Y
P
B
/
C
B
P
R
/
C
R
COMPONENT VIDEO
ASSIGNABLE (INPUT ONLY)
OUT
IN
L
SIRIUS
DC5V
0.7A MAX
DMPORT
VIDEO
OUT
MONITOR
A
TV
DIGITAL MEDIA
PORT adapter
A Video cord (not supplied)
DC5V
0.7A MAX
DMPORT
2
1
98
US
1 Press DMPORT.
You can also use the INPUT SELECTOR
on the receiver to select “DMPORT”.
2 Start playback of the connected
component.
The sound is played back on the receiver
and the image appears on the TV.
For details, refer to the operating
instructions supplied with the DIGITAL
MEDIA PORT adapter.
Notes
• Depending on the type of DIGITAL MEDIA
PORT adapter, you can operate the connected
component by using the remote. For details on
remote button operation, see page 12.
• Be sure you have connected the MONITOR OUT
jack of the receiver to the TV (page 97).
Tip
When listening to MP3 or other compressed music
using a portable audio source, you can enhance the
sound. Press MUSIC repeatedly to select
“PORTABLE” (page 64).
Changing the display
You can check the sound field, etc., by
changing the information on the display.
Be sure to use the buttons on the receiver for
this operation.
Press DISPLAY repeatedly.
Each time you press the button, the display
changes cyclically as follows:
All inputs except the FM and AM
band
Index name of the input* t Selected input t
Sound field currently applied t Volume level
t Stream info
FM and AM band
Preset station name* t Frequency t Sound
field currently applied t Volume level
SIRIUS Satellite Radio
Channel name t Channel number t
Category name t Artist name/Feature t
Song/program title t Composer name t
Signal strength t Sound field type t
Volume level
* Index name appears only when you have assigned
one to the input or preset station (page 42, 71).
Index name does not appear when only blank
spaces have been entered, or it is the same as the
input name.
Note
Character or marks may not be displayed for some
languages.
Listening/watching a connected
component through DMPORT
connection
99
US
Other Operations
Using the Sleep Timer
You can set the receiver to turn off
automatically at a specified time.
Press SLEEP repeatedly while the
power is on.
“SLEEP” lights up in the display.
Each time you press SLEEP, the display
changes cyclically as follows:
0-30-00 t 1-00-00 t 1-30-00 t
2-00-00
t OFF
Tip
To check the remaining time before the receiver
turns off, press SLEEP. The remaining time appears
on the display. If you press SLEEP again, the sleep
timer will be canceled.
Recording using the
receiver
You can record from a video/audio component
using the receiver. Refer to the operating
instructions supplied with your recording
component.
You can record onto a CD-R using the
receiver. See the operating instructions
supplied with your CD recorder.
1 Press one of the input buttons
to select the playback
component.
You can also use INPUT SELECTOR on
the receiver.
2 Prepare the playback
component for playing.
For example, tune to the radio station you
want to record (page 67).
3 Prepare the recording
component.
Insert a blank CD-R into the CD recorder
and adjust the recording level.
4 Start recording on the
recording component, then
start playback on the playback
component.
Note
Sound adjustments do not affect the signal output
from the SA-CD/CD/CD-R OUT jacks.
Recording onto a CD-R
100
US
1 Press one of the input buttons
to select the playback
component.
You can also use INPUT SELECTOR on
the receiver.
2 Prepare the playback
component for playing.
For example, insert the video tape you
want to copy into the VCR.
3 Prepare the recording
component.
Insert a blank video tape, etc. into the
recording component (VIDEO 1) for
recording.
4 Start recording on the
recording component, then
start playback on the playback
component.
Note
Some sources contain copy guards to prevent
recording. In this case, you may not be able to record
from the source.
Using a bi-amplifier
connection
If you are not using surround back speakers,
you can connect the front speakers to the
SPEAKERS SURROUND BACK/BI-AMP/
FRONT B terminals using a bi-amplifier
connection.
To connect speakers
Connect the jacks on the Lo (or Hi) side of the
front speakers to the SPEAKERS FRONT A
terminals, and connect the jacks on the Hi (or
Lo) side of the front speakers to the
SPEAKERS SURROUND BACK/BI-AMP/
FRONT B terminals.
Make sure that metal fittings of Hi/Lo attached
to the speakers have been removed from the
speakers. Not doing so may cause a
malfunction of the receiver.
Recording onto a recording
media
LR
LR
LR
CENTER
SURROUND
FRONT A
SURROUND BACK/
BI-AMP/
FRONT B
DIGITAL
(ASSIGNABLE)
DC5V
0.7A MAX
ANTENNA
DMPORT
AM
IN 2
IN 1
MONITOR
OUT
VIDEO 1
IN
TV
AUDIO
IN
VIDEO
IN
SAT
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
IN
OPTICAL
AUDIO
IN
VIDEO
IN
SUBWOOFER
MONITOR
AUDIO
IN
VIDEO
IN
BD
SAT
IN
BD
IN
DVD
IN
OPTICAL
COAXIAL
TV
EZW-T100
R
SA-CD/CD/CD-R
IN 3
Y
P
B
/
C
B
P
R
/
C
R
COMPONENT VIDEO
ASSIGNABLE (INPUT ONLY)
OUT
IN
L
HDMI
IN 4
ASSIGNABLE (INPUT ONLY)
(for AUDIO)
IN 2
IN 3
IN 1 OUT
SIRIUS
LR
LR
LR
SPEAKERS
CENTER
SURROUND
FRONT A
SURROUND BACK/
BI-AMP/
FRONT B
Hi
Lo
Hi
Lo
SPEAKERS
Front speaker
(R)
Front speaker
(L)
101
US
Other Operations
To set up speakers
1 Press AMP MENU.
2 Press V/v repeatedly to select
“SPEAKER”.
3 Press or b to enter the
menu.
4 Press V/v repeatedly to select
“SP PATTERN”.
5 Press or b to enter the
parameter.
6 Press V/v select the
appropriate speaker pattern so
that there are no surround back
speakers.
7 Press or B.
8 Press V/v repeatedly to select
“SB ASSIGN”.
9 Press or b to enter the
parameter.
10Press V/v repeatedly to select
“BI-AMP”.
The same signals output from the
SPEAKERS FRONT A terminals can be
output from the SPEAKERS
SURROUND BACK/BI-AMP/
FRONT B terminals.
To exit the menu
Press MENU/HOME or AMP MENU.
Notes
• Set “SB ASSIGN” to “BI-AMP” before you
perform auto calibration.
• If you set “SB ASSIGN” to “BI-AMP”, the speaker
level and distance settings of the surround back
speakers become invalid, and those of the front
speakers are used.
• If you set “SP PATTERN” to a setting with
surround back speakers, you cannot set “SB
ASSIGN” to “BI-AMP”.
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
AUTO CAL
MENU
RETURN/
EXIT
TOOLS/
OPTIONS
HOME
DISPLAY
AMP MENU
O
INPUT
MODE
SLEEP
NIGHT
MODE
AMP
MENU
,
V/v/B/b
MENU/
HOME
102
US
Operating each
component using the
remote
You can control Sony or non-Sony
components you are using with the remote
supplied with the receiver.
The remote is initially set to control Sony
components.
When you change the settings of the remote
according to the components you are using,
you can control non-Sony and other Sony
components that the remote is initially unable
control (page 104).
1 Press the input button that
matches the connected
component that you want to
operate.
2 Press the appropriated buttons
to use the function listed in the
table below.
Note
You may not be able to operate some functions for
the components you are using.
Using the Remote
Operating the components
connected to the receiver
103
US
Using the Remote
*1
LD player only.
*2
VIDEO CD only.
*3
DECK B only.
Table of buttons used to control each component (Main remote
commander)
Component
Button
TV VCR DVD
player,
DVD/
VHS
combo
Blu-ray
Disc
Player
HDD
Recorder
PSX Video CD
player,
LD
player
Digital
CATV
terminal
(UC)
DSS
(UC)
Ta pe
deck
A/B
DAT
deck
CD
player,
MD
deck
DIGITAL
MEDIA
PORT
device
AV ?/1aaaaaaaaa– aa –
Numeric
buttons
aaa a a a a a aaaa a
TV INPUT,
WIDE
a –– – – –– ––– –– –
-/--,
CLEAR/>10
aa a a a a a a a a – a –
ENT/MEM aa a a a a a
*1
a aaaa –
DISPLAY aa a a a a a a a ––a –
RETURN/
EXIT
a – aa aaa aa––– a
TOOLS/
OPTIONS
a – aa aa– aa––– –
V/v/B/b, ,
MENU,
HOME
aa a a a a – aa––– a
., >aaa a a aa a – a
*3
aa a
, a – aa aa– a –– – – a
m/
TUNING –,
M/
TUNING +
aa a a a a a a – aaa a
DISC SKIP – – aa ––a
*2
––– –a –
N, X, xaaa a aaa a– aaa a
MUTING,
MASTER
VOL +/–,
TV VOL +/–
a –– – – –– ––– –– –
PRESET +/–,
TV CH +/–
aa a a a – a
*1
aa––– –
BD/DVD TOP
MENU, BD/
DVD MENU
–– aa – a –––––––
F1, F2 – – aa ––– ––––– –
<
<
104
US
Programming the remote
You can program the remote to control non-
Sony components by changing the code. Once
the control signals have been memorized, you
can use those components as part of your
system.
Furthermore, you can also program the remote
for Sony components that the remote is unable
to control. Note that the remote can only
control components that accept infrared
wireless control signals.
1 Press AV ?/1 while pressing
RM SET UP.
The RM SET UP button slowly flashes.
2 Press the input button for the
component you want to control.
For example, if you are going to control a
CD player, press SA-CD/CD.
The RM SET UP and the SHIFT button
indicator light up.
3 Press the numeric buttons to
enter the numeric code (or one
of the codes if more than one
code exists) corresponding to
the component and the maker
of the component you want to
control (except TV).
See the tables on page 105–108 for
information on the numeric code(s)
corresponding to the component and the
maker of the component (the first digit
and the last two digits of the numeric code
correspond to the category and the
maker’s code respectively).
4 Press ENT/MEM.
Once the numeric code has been verified,
the RM SET UP indicator slowly flashes
twice and the remote automatically exits
the programming mode.
5 Repeat steps 1 to 4 to control
other components.
Notes
• The indicator turns off while a valid button is
pressed.
• In step 2, if you want to change to other input, press
SHIFT and then press the new input buttons you
want.
• In step 2, if you press TUNER, you can only
program the button to control a tuner (page 105).
• For the numeric codes, only the last three numbers
entered are valid.
To program the remote to
control a TV
1 Press AV ?/1 while pressing RM SET UP.
The RM SET UP indicator slowly flashes.
2 Press TV.
The RM SET UP and the SHIFT button
indicator light up.
3 Press the numeric buttons to enter the
numeric code (or one of the codes if more
than one code exists) for TV. For details, see
page 106.
4 Press ENT/MEM.
Once the numeric code has been verified,
the RM SET UP indicator slowly flashes
twice and the remote automatically exits the
programming mode.
To cancel programming
Press RM SET UP during any step. The RM
SET UP indicator flashes 5 times in quick
succession. The remote automatically exits the
programming mode.
To activate the input after
programming
Press the programmed button to activate the
input you want.
105
US
Using the Remote
If programming is
unsuccessful, check the
following:
• If the indicator does not light up in step 1, the
batteries are weak. Replace both batteries.
• If the indicator flashes 5 times in quick
succession while entering the numeric code,
an error has occurred. Start again from step
1.
To clear the memory of the
remote
To clear all programmes, do the following to
reset the remote to factory settings.
While holding down MASTER
VOL –, press and hold ?/1 and then
press AV ?/1.
The indicator flashes 3 times, then goes off.
The numeric codes
corresponding to the
component and the maker of
the component
Use the numeric codes in the tables below to
control non-Sony components and also Sony
components that the remote is normally unable
to control. Since the remote signal that a
component accepts differs depending on the
model and year of the component, more than
one numeric code may be assigned to a
component. If you fail to program your remote
using one of the codes, try using other codes.
Notes
• The numeric codes are based on the latest
information available for each brand. There is a
chance, however, that your component will not
respond to some or all of the codes.
• All of the input buttons on this remote may not be
available when used with your particular
component.
To control a tuner
To control a CD player
To control a DAT deck
To control a tape deck
Maker Code(s)
SONY 002, 005
Maker Code(s)
SONY 101, 102, 103
DENON 104, 123
JVC 105, 106, 107
KENWOOD 108, 109, 110
MAGNAVOX 111, 116
MARANTZ 116
ONKYO 112, 113, 114
PANASONIC 115
PHILIPS 116
PIONEER 117
TECHNICS 115, 118, 119
YAMAHA 120, 121, 122
Maker Code(s)
SONY 203
PIONEER 219
Maker Code(s)
SONY 201, 202
DENON 204, 205
KENWOOD 206, 207, 208, 209
NAKAMICHI 210
PANASONIC 216
PHILIPS 211, 212
PIONEER 213, 214
TECHNICS 215, 216
YA MA H A 2 1 7 , 2 18
continued
106
US
To control an MD deck
To control an HDD recorder
To control a Blu-ray disc player/
recorder
To control a PSX
To control a DVD player
To control a DVD recorder
To control a DVD/VHS COMBO
To control a DVD/HDD COMBO
To control a TV
Maker Code(s)
SONY 301
DENON 302
JVC 303
KENWOOD 304
Maker Code(s)
SONY 307, 308, 309
Maker Code(s)
SONY 310, 311, 312
Maker Code(s)
SONY 313, 314, 315
Maker Code(s)
SONY 401, 402, 403
BROKSONIC 424
DENON 405
HITACHI 416
JVC 415, 423
MITSUBISHI 419
ORITRON 417
PANASONIC 406, 408, 425
PHILIPS 407
PIONEER 409, 410
RCA 414
SAMSUNG 416, 422
TOSHIBA 404, 421
ZENITH 418, 420
Maker Code(s)
SONY 401, 402, 403
Maker Code(s)
SONY 411
Maker Code(s)
SONY 401, 402, 403
Maker Code(s)
SONY 501, 502
AIWA 501, 536, 539
AKAI 503
AOC 503
CENTURION 566
CORONADO 517
CURTIS-MATHES 503, 551, 566, 567
DAYTRON 517, 566
DAEWOO 504, 505, 506, 507,
515, 544
FISHER 508, 545
FUNAI 548
FUJITSU 528
GOLDSTAR/LG 503, 512, 515, 517,
534, 544, 556, 568
GRUNDIG 511, 533, 534
HITACHI 503, 513, 514, 515,
517, 519, 544, 557,
571
ITT/NOKIA 521, 522
J.C.PENNY 503, 510, 566
JVC 516, 552
KMC 517
MAGNAVOX 503, 515, 517, 518,
544, 566
MARANTZ 527
MITSUBISHI/MGA 503, 519, 527, 544,
566, 568
NEC 503, 517, 520, 540,
544, 554, 566
NORDMENDE 530, 558
NOKIA 521, 522, 573, 575
PANASONIC 509, 524, 553, 559,
572
107
US
Using the Remote
To control an LD player
To control a video CD player
To control a VCR
* If an AIWA VCR does not work even though you
enter the code for AIWA, enter the code for Sony
instead.
PHILIPS 515, 518, 557, 570,
571
PHILCO 503, 504, 514, 517,
518
PIONEER 509, 525, 526, 540,
551, 555
PORTLAND 503
QUASAR 509, 535
RADIO SHACK 503, 510, 527, 565,
567
RCA/PROSCAN 503, 510, 523, 529,
544
SAMSUNG 503, 515, 517, 531,
532, 534, 544, 556,
557, 562, 563, 566,
569
SAMPO 566
SABA 530, 537, 547, 549,
558
SANYO 508, 545, 546, 560,
567
SCOTT 503, 566
SEARS 503, 508, 510, 517,
518, 551
SHARP 517, 535, 550, 561,
565
SYLVANIA 503, 518, 566
THOMSON 530, 537, 547, 549
TOSHIBA 535, 539, 540, 541,
551
TELEFUNKEN 530, 537, 538, 547,
549, 558
TEKNIKA 517, 518, 567
WARDS 503, 517, 566
YORK 566
ZENITH 542, 543, 567
GE 503, 509, 510, 544
LOEWE 515, 534, 556
Maker Code(s)
Maker Code(s)
SONY 601, 602, 603
PIONEER 606
Maker Code(s)
SONY 605
Maker Code(s)
SONY 701, 702, 703, 704,
705, 706
AIWA* 710, 750, 757, 758
AKAI 707, 708, 709, 759
BLAUPUNKT 740
EMERSON 711, 712, 713, 714,
715, 716, 750
FISHER 717, 718, 719, 720
GENERAL ELECTRIC
(GE)
721, 722, 730
GOLDSTAR/LG 723, 753
GRUNDIG 724
HITACHI 722, 725, 729, 741
ITT/NOKIA 717
JVC 726, 727, 728, 736
MAGNAVOX 730, 731, 738
MITSUBISHI/MGA 732, 733, 734, 735
NEC 736
PANASONIC 729, 730, 737, 738,
739, 740
PHILIPS 729, 730, 731
PIONEER 729
RCA/PROSCAN 722, 729, 730, 731,
741, 747
SAMSUNG 742, 743, 744, 745
SANYO 717, 720, 746
SHARP 748, 749
TELEFUNKEN 751, 752
TOSHIBA 747, 756
ZENITH 754
continued
108
US
To control a satellite tuner (box)
To control a cable box
Glossary
x Cinema Studio EX
A surround sound mode that can be regarded
as the compilation of Digital Cinema Sound
technology, delivers the sound of a dubbing
theater using three technologies: “Virtual
Multi Dimensions,” “Screen Depth Matching,”
and “Cinema Studio Reverberation.”
“Virtual Multi Dimensions,” the virtual
speaker technology, creates a virtual multi-
surround environment with actual speakers up
to 7.1 channels, and brings the surround sound
experience of a theater with the latest facilities
into your home.
“Screen Depth Matching” reproduces treble
attenuation, fullness, and depth of sound
usually created in a theater using sound
emission from behind the screen. This is then
added to the front and center channels.
“Cinema Studio Reverberation” reproduces
the sound characteristics of state-of-the-art
dubbing theaters and recording studios,
including Sony Pictures Entertainment’s
dubbing studios. There are three modes, A/B/
C, available according to the studio type.
x Component video
A format for transmitting video signal
information consisting of three separate
signals: luminance Y, chrominance Pb, and
chrominance Pr. High quality pictures, such as
DVD video or HDTV pictures, are transmitted
more faithfully. The three jacks are color -
coded green, blue and red.
x Composite video
A standard format for transmitting video
signal information. The luminance signal Y
and chrominance signal C are combined and
transmitted together.
Maker Code(s)
SONY 801, 802, 803, 804,
824, 825, 865
AMSTRAD 845, 846
BskyB 862
GENERAL ELECTRIC
(GE)
866
GRUNDIG 859, 860
HUMAX 846, 847
THOMSON 857, 861, 864, 876
PACE 848, 849, 850, 852,
862, 863, 864
PANASONIC 818, 855
PHILIPS 856, 857, 858, 859,
860, 864, 874
NOKIA 851, 853, 854, 864
RCA/PROSCAN 866, 871
BITA/HITACHI 868
HUGHES 867
JVC/Echostar/Dish
Network
873
MITSUBISHI 872
SAMSUNG 875
TOSHIBA 869, 870
Maker Code(s)
SONY 821, 822, 823
HAMLIN/REGAL 836, 837, 838, 839,
840
JERROLD/G.I./
MOTOROLA
806, 807, 808, 809,
810, 811, 812, 813,
814, 819
JERROLD 830, 831
OAK 841, 842, 843
PANASONIC 816, 826, 832, 833,
834, 835
PHILIPS 830, 831
PIONEER 828, 829
RCA 805
SCIENTIFIC ATLANTA 815, 816, 817, 844
TOCOM/PHILIPS 830, 831
ZENITH 826, 827
Additional Information
109
US
Additional Information
x Deep Color
Video signals for which the color depth of
signals passing through an HDMI jack have
been raised.
The number of colors that could be expressed
by 1 pixel was 24 bits (16,777,216 colors) with
the current HDMI jack. However, the number
of colors which can be expressed by 1 pixel
will be 36 bits, etc., when the receiver
corresponds to Deep Color.
Since the gradation of the depth of a color can
be expressed more finely with more bits,
continuous color changes can be more
smoothly expressed.
x Digital Cinema Sound (DCS)
A unique sound reproduction technology for
home theater developed by Sony, in
cooperation with Sony Pictures Entertainment,
for enjoying the exciting and powerful sound
of movie theaters at home. With this “Digital
Cinema Sound” developed by integrating a
DSP (Digital Signal Processor) and measured
data, the ideal sound field intended by
filmmakers can be experienced at home.
x Dolby Digital
Digital audio encoding/decoding technology
developed by Dolby Laboratories, Inc. It
consists of front (left/right), center, surround
(left/right) and subwoofer channels. It is a
designated audio standard for DVD video and
also known as 5.1 channel surround. Since
surround information is recorded and
reproduced in stereo, more realistic sound with
fuller presence is delivered than with Dolby
surround.
x Dolby Digital Plus
Dolby Digital Plus provides the flexibility and
efficiency to deliver more channels of
compelling surround sound for high-definition
video media. Its superior coding efficiencies
enable up to 7.1ch of high-quality
multichannel audio without negatively
impacting bit budgets allocated for video
performance or additional feature sets.
x Dolby Digital Surround EX
Acoustic technology developed by Dolby
Laboratories, Inc. Surround back information
is matrixed into regular left and right surround
channels so that the sound can be reproduced
in 6.1 channel. Active scenes, especially, are
recreated with a more dynamic and realistic
sound field.
x Dolby Pro Logic II
This technology converts 2 channel stereo
recorded audio into 5.1 channel for playback.
There is a MOVIE mode for movies and
MUSIC mode for stereo sources such as
music. Old movies encoded in the traditional
stereo format can be enhanced with 5.1
channel surround sound.
The GAME mode is suitable for video games.
x Dolby Pro Logic IIx
Technology for 7.1 channel (or 6.1 channel)
playback. Along with audio encoded in Dolby
Digital Surround EX, 5.1 channel Dolby
Digital encoded audio can be reproduced in
7.1 channel (or 6.1 channel). Furthermore,
existing stereo recorded content can also be
reproduced in 7.1 channel (or 6.1 channel).
x Dolby Surround (Dolby Pro
Logic)
Audio processing technology developed by
Dolby Laboratories, Inc. Center and mono
surround information is matrixed into two
stereo channels. When reproduced, audio is
decoded and output in 4 channel surround
sound. This is the most common audio
processing method for DVD video.
x Dolby TrueHD
Dolby TrueHD is Dolby’s lossless audio
technology developed for high-definition
optical discs. Dolby TrueHD audio is bit-for-
bit identical to the original studio masters and
provides supreme-quality audio up to 8
channel at 96 kHz/24 bit and up to 6ch at
192 kHz/24 bit. Together with high-definition
video, it offers an unprecedented home theater
experience.
continued
110
US
x DTS 96/24
A high sound quality digital signal format. It
records audio at a sampling frequency and bit
rate of 96 kHz/24bit which is the highest
possible for DVD video. The number of
playback channels varies depending on the
software.
x DTS Digital Surround
Digital audio encoding/decoding technology
for theaters developed by DTS, Inc. It
compresses audio less than Dolby Digital,
delivering a higher quality sound
reproduction.
x DTS-ES
Format for 6.1 channel playback with
surround back information. There are two
modes, “Discrete 6.1” which records all
channels independently, and “Matrix 6.1”
which matrixes surround back channel into
surround left and surround right channels. It is
ideal for playback of motion picture
soundtracks.
x DTS-HD
Audio format which extends the conventional
DTS Digital Surround format.
This format consists of a core and an
extension, and the core part has DTS Digital
Surround compatibility. There are two kinds of
DTS-HD, DTS-HD High Resolution Audio
and DTS-HD Master Audio. DTS-HD High
Resolution Audio has a maximum
transmission rate of 6 Mbps, with lossy
compression (Lossy), and DTS-HD High
Resolution Audio corresponds to a maximum
sampling frequency of 96 kHz, and a
maximum of 7.1 channel. DTS-HD Master
Audio has a maximum transmission rate of
24.5 Mbps, and uses lossless compression
(Lossless), and DTS-HD Master Audio
corresponds to a maximum sampling
frequency of 192 kHz, and a maximum of
7.1 channel.
x DTS Neo:6
This technology converts 2 channel stereo
recorded audio for 6.1 channel playback.
There are two modes to select according to the
playback source or your preference, CINEMA
for movies, and MUSIC for stereo sources
such as music.
x HDMI (High-Definition
Multimedia Interface)
HDMI (High-Definition Multimedia
Interface) is an interface that supports both
video and audio on a single digital connection,
allowing you to enjoy high quality digital
picture and sound. The HDMI specification
supports HDCP (High-bandwidth Digital
Contents Protection), a copy protection
technology that incorporates coding
technology for digital video signals.
x Neutral THX
Neural-THX Surround is taking surround
sound to the next level. This revolutionary new
technology delivers the rich envelopment and
discrete image detail of surround sound in a
format that is fully compatible with stereo.
Neural-THX Surround reduces the bandwidth
needed for broadcasters to deliver true, multi-
channel surround presentations, and enables
7.1-channel support for gaming and movies.
By unmasking the audio details, typically lost
by other playback systems, audiences will
experience the deep ambience and subtle
details of movies, music and games. And with
this technology being used by sound designers
during content creation, as well as embedded
into playback devices, Neural-THX Surround
promises a listening experience that is true to
the original mix.
Neural-THX Surround has been chosen as the
official surround sound broadcast format for
XM Satellite Radio’s “XM HD Surround”, as
well as other leading FM/HD radio stations
worldwide.
111
US
Additional Information
x S-AIR (Sony Audio Interactive
Radio frequency)
Recent times have seen the rapid spread of
DVD media, Digital Broadcasting, and other
high quality media.
To ensure that the subtle nuances of these high
quality media are transmitted with no
deterioration, Sony has developed a
technology called “S-AIR” for the radio
transmission of digital audio signals with no
compression, and has incorporated this
technology into the EZW-RT10/EZW-T100.
This technology transfers digital audio signals
with no compression using the 2.4 GHz band
range of ISM band (Industrial, Scientific, and
Medical band), such as wireless LANs and
Bluetooth applications.
x Sampling frequency
To convert analog audio to digital, analog data
should be quantified. This process is called
sampling, and the number of times per second
the analog data is quantified is called the
sampling frequency. A standard music CD
stores data quantified at 44,100 times per
second, which is expressed as a sampling
frequency of 44.1 kHz. Generally speaking, a
higher sampling frequency means better sound
quality.
x x.v.Colour
x.v.Colour is a more familiar term for the
xvYCC standard proposed by Sony, and is a
trademark of Sony. xvYCC is an international
standard for color space in video.
This standard can express a wider colour range
than the currently used broadcast standard.
Precautions
On safety
Should any solid object or liquid fall into the
cabinet, unplug the receiver and have it
checked by qualified personnel before
operating it any further.
On power sources
• Before operating the receiver, check that the
operating voltage is identical with your local
power supply.
The operating voltage is indicated on the
nameplate on the back of the receiver.
• The unit is not disconnected from the AC
power source (mains) as long as it is
connected to the wall outlet, even if the unit
itself has been turned off.
• If you are not going to use the receiver for a
long time, be sure to disconnect the receiver
from the wall outlet. To disconnect the AC
power cord (mains lead), grasp the plug
itself; never pull the cord.
• One blade of the plug is wider than the other
for the purpose of safety and will fit into the
wall outlet only one way. If you are unable to
insert the plug fully into the outlet, contact
your dealer.
• The AC power cord (mains lead) must be
changed only at a qualified service shop.
On heat buildup
Although the receiver heats up during
operation, this is not a malfunction. If you
continuously use this receiver at a large
volume, the cabinet temperature of the top,
side and bottom rises considerably. To avoid
burning yourself, do not touch the cabinet.
continued
112
US
On placement
• Place the receiver in a location with adequate
ventilation to prevent heat buildup and
prolong the life of the receiver.
• Do not place the receiver near heat sources,
or in a place subject to direct sunlight,
excessive dust, or mechanical shock.
• Do not place anything on top of the cabinet
that might block the ventilation holes and
cause malfunctions.
• Do not place the receiver near equipment
such as a TV, VCR, or tape deck. (If the
receiver is being used in combination with a
TV, VCR, or tape deck, and is placed too
close to that equipment, noise may result,
and picture quality may suffer. This is
especially likely when using an indoor
antenna (aerial). Therefore, we recommend
using an outdoor antenna (aerial).)
• Use caution when placing the receiver on
surfaces that have been specially treated
(with wax, oil, polish, etc.) as staining or
discoloration of the surface may result.
On operation
Before connecting other components, be sure
to turn off and unplug the receiver.
On cleaning
Clean the cabinet, panel, and controls with a
soft cloth slightly moistened with a mild
detergent solution. Do not use any type of
abrasive pad, scouring powder, or solvent,
such as alcohol or benzine.
If you have any questions or problems
concerning your receiver, please consult your
nearest Sony dealer.
About S-AIR function
• As the S-AIR function transmits sound by
radio waves, sound may skip when radio
waves are obstructed. This is a characteristic
of radio waves and is not malfunction.
• As the S-AIR function transmits sound by
radio waves, equipment that generates
electromagnetic energy, such as a
microwave oven, may interfere with sound
transmission.
• As the S-AIR function uses the radio waves
that share the same frequency as other
wireless systems, such as wireless LAN or
Bluetooth, interference or poor transmission
may result. In this case, take the following
steps:
– Do not install the system near other
wireless systems.
– Do not use the system and the other
wireless systems at the same time.
• The transmission distance differs depending
on the usage environment. Find a location
where transmission between the S-AIR main
unit and sub unit is most effective, and
install the S-AIR main unit and sub unit
there.
113
US
Additional Information
Troubleshooting
If you experience any of the following
difficulties while using the receiver, use this
troubleshooting guide to help you remedy the
problem.
There is no sound, no matter which
component is selected, or only a very
low-level sound is heard.
• Check that the speakers and components
are connected correctly and securely.
• Check that all speaker cords are connected
correctly.
• Check that both the receiver and all
components are turned on.
• Check that MASTER VOLUME is not set
to “VOL MIN”.
• Check that the SPEAKERS is not set to off
(page 33).
• Check that headphones are not connected.
• Press MUTING on the remote to cancel
the muting function.
• Check that you have selected the correct
component with the input buttons (page
41).
• When only a very low-level sound is
heard, check to see if NIGHT MODE is
activated (page 65).
• The protective device on the receiver has
been activated. Turn off the receiver,
eliminate the short-circuit problem, and
turn on the power again.
There is no sound from a specific
component.
• Check that the component is connected
correctly to the audio input jacks for that
component.
• Check that the cord(s) used for the
connection is (are) fully inserted into the
jacks on both the receiver and the
component.
There is no sound from one of the front
speakers.
• Connect a pair of headphones to the
PHONES jack to verify that sound is
output from the headphones. If only one
channel is output from the headphones, the
component may not be connected to the
receiver correctly. Check that all the cords
are fully inserted into the jacks on both the
receiver and the component. If both
channels are output from the headphones,
the front speaker may not be connected to
the receiver correctly. Check the
connection of the front speaker which is
not outputting any sound.
• Make sure you have connected to both the
L and R jacks of an analog component, and
not only to either the L or R jack. Use an
audio cord (not supplied).
There is no sound from analog 2
channel sources.
• Check that the INPUT MODE is not set to
“AUTO” (page 93) and the DIGITAL
connection is not made for the selected
input.
• Check that the INPUT MODE is not set to
“AUTO” (page 93) and the “A. ASSIGN”
function is not used to reassign the audio
input of another source to the selected
input (page 94).
There is no sound from digital sources
(from COAXIAL or OPTICAL input jack).
• Check that the INPUT MODE is not set to
“ANALOG” (page 93).
• Check that the ANALOG DIRECT
function is not selected.
The left and right sounds are
unbalanced or reversed.
• Check that the speakers and components
are connected correctly and securely.
• Adjust the level parameters using the
LEVEL menu.
Audio
continued
114
US
There is severe hum or noise.
• Check that the speakers and components
are connected securely.
• Check that the connecting cords are away
from a transformer or motor, and at least
3 meters away from a TV set or fluorescent
light.
• Move your audio components away from
the TV.
• The plugs and jacks are dirty. Wipe them
with a cloth slightly moistened with
alcohol.
There is no sound, or only a very low-
level sound is heard from the center/
surround/surround back speakers.
• Select a CINEMA STUDIO EX mode
(page 64).
• Adjust the speaker level (page 40).
• Check “SP PATTERN” setting (page 51).
There is no sound from the subwoofer.
• Check that the subwoofer is connected
correctly and securely.
• Make sure you have turned on your
subwoofer.
• Depending on the selected sound field, no
sound output from the subwoofer.
• When all speakers are set to “LARGE”
and “NEO6 CIN” or “NEO6 MUS” is
selected, there is no sound from the
subwoofer.
• Check “SP PATTERN” setting (page 51).
The surround effect cannot be
obtained.
• Make sure the sound field function is on
(press MOVIE or MUSIC).
• Sound fields do not function for signals
with a sampling frequency of more than
48 kHz.
Dolby Digital or DTS multi channel
sound is not reproduced.
• Check that the DVD, etc. you are playing
is recorded in Dolby Digital or DTS
format.
• When connecting the DVD player, etc., to
the digital input jacks of this receiver,
check the audio setting (the settings for the
audio output) of the connected component.
Recording cannot be carried out.
• Check that the components are connected
correctly.
• Select the source component using the
input buttons (page 41).
There is no sound from the component
connected to the DIGITAL MEDIA PORT
adapter.
• Adjust the volume of this receiver.
• The DIGITAL MEDIA PORT adapter
and/or component is not connected
correctly. Turn off the receiver, then
reconnect the DIGITAL MEDIA PORT
adapter and/or component.
• Check the DIGITAL MEDIA PORT
adapter and/or component device to make
sure it supports this receiver.
115
US
Additional Information
There is no picture or an unclear
picture appears on the TV screen or
monitor.
• Select the appropriate input using the input
buttons.
• Set your TV to the appropriate input mode.
• Move your audio components away from
the TV.
• Depending on the DIGITAL MEDIA
PORT adapter, video output may not be
possible.
The image of the COMPONENT VIDEO
OUT is corrupted.
• Video input signals other than 480p
component are not received when signals
are output from the VIDEO jack. Input
480i component video signals.
Recording cannot be carried out.
• Check that the components are connected
correctly.
• Select the source component using the
input buttons (page 41).
The FM reception is poor.
• Use a 75-ohm coaxial cable (not supplied)
to connect the receiver to an outdoor FM
antenna (aerial) as shown below. If you
connect the receiver to an outdoor antenna
(aerial), ground it against lightning. To
prevent a gas explosion, do not connect the
ground (earth) wire to a gas pipe.
Radio stations cannot be tuned in.
• Check that the antennas (aerials) are
connected securely. Adjust the antennas
(aerials) and connect an external antenna
(aerial), if necessary.
• The signal strength of the stations is too
weak (when tuning in with automatic
tuning). Use direct tuning.
• Make sure you set the tuning interval
correctly (when tuning in AM stations
with direct tuning).
• No stations have been preset or the preset
stations have been cleared (when tuning by
scanning preset stations). Preset the
stations (page 69).
• Press DISPLAY repeatedly on the receiver
so that the frequency appears on the
display.
• Keep the satellite radio antenna (aerial)
away from the speaker cords and the
power cord to avoid picking up noise.
Video Tuner
ANTENNA
AM
Receiver
To ground
Ground (earth)
wire (not
supplied)
Outdoor FM antenna (aerial)
116
US
The source sound input to the HDMI
jack is not output from the receiver or
the TV speaker.
• Check the HDMI connection (page 25).
• You cannot listen to the Super Audio CD
by connecting HDMI.
• Depending on the playback component,
you may need to set up the component.
Refer to the operating instructions
supplied with each component.
• Be sure to use a connecting cable for the
HDMI jack corresponding to high speed
(an HDMI version 1.3, category 2 cable)
when you view images or listen to sound
during a Deep Color transmission.
The source image input to the HDMI
jack is not output from the TV.
• Check the HDMI connection (page 25).
• Depending on the playback component,
you may need to set up the component.
Refer to the operating instructions
supplied with each component.
• Be sure to use a connecting cable for the
HDMI jack corresponding to high speed
(an HDMI version 1.3, category 2 cable)
when you view images or listen to sound
during a Deep Color transmission.
The Control for HDMI function does not
work.
• Check the HDMI connection (page 25).
• Make sure “CTRL:HDMI” is set to
“CTRL ON” in the HDMI menu.
• Make sure the connected component is
compatible with the Control for HDMI
function.
• Check the Control for HDMI settings on
the connected component. Refer to the
operating instructions of the connected
component.
• Repeat the procedures of “Preparing for
the “BRAVIA” Sync” if you change the
HDMI connection, connect/disconnect the
AC power cord, or when there is a power
failure (page 82).
No sound is output from the receiver
and TV speaker while using the System
Audio Control function.
• Make sure the TV is compatible with the
System Audio Control function.
• If the TV does not have System Audio
Control function, set the “AUDIO OUT”
settings in HDMI menu to
– “TV+AMP” if you want to listen to the
sound from the TV speaker and
receiver.
– “AMP” if you want to listen to the
sound from the receiver.
• If you cannot listen to the sound of a
component connected to the receiver
– Change the input of the receiver to
HDMI when you want to watch a
program on a component connected via
HDMI connection to the receiver.
– Change the TV channel when you want
to watch a TV broadcast.
– Select the component or input you want
to watch when you watch a program on
the component connected to the TV.
Refer to the operating instructions of the
TV on this operation.
HDMI
117
US
Additional Information
S-AIR connection is not established
(sound transmission is not
established), e.g., the indicator of the
S-AIR sub unit turns off, flashes, or
turns red.
• If you use another S-AIR main unit, place
it more than 26 1/4 feet (8 m) away from
this S-AIR main unit.
• Confirm the S-AIR IDs of the S-AIR main
unit and S-AIR sub unit (page 87).
• Another S-AIR sub unit is paired to the
S-AIR main unit. Pair the desired S-AIR
sub unit with the S-AIR main unit (page
88).
• The S-AIR main unit is paired to another
S-AIR sub unit. Cancel pairing.
• Place the S-AIR main unit and S-AIR sub
unit separately from other wireless
devices.
• Avoid using any other wireless devices.
• The S-AIR sub unit is turned off. Make
sure the AC power cord (mains lead) is
connected and turn on the S-AIR sub unit.
No sound is heard from the S-AIR
receiver.
• Check that the components are connected
to analog jack of this receiver.
No sound is heard from the S-AIR
product.
• If you use another S-AIR main unit, place
it more than 26 1/4 feet (8 m) away from
this S-AIR main unit.
• Confirm the S-AIR IDs of the S-AIR main
unit and S-AIR sub unit (page 87).
• Confirm the pairing setting (page 88).
• Place the S-AIR main unit and S-AIR sub
unit closer to each other.
• Avoid use of equipment that generates
electromagnetic energy, such as a
microwave oven.
• Place the S-AIR main unit and S-AIR sub
unit separately from other wireless
devices.
• Avoid using any other wireless devices.
• Change the “RF CHANGE” setting (page
91).
• Change the S-AIR ID settings of the
S-AIR main unit and S-AIR sub unit.
• Turn off the system and S-AIR sub unit,
then turn on them.
• Check that headphones are not connected
to the S-AIR sub unit.
There is noise or the sound skips.
• If you use another S-AIR main unit, place
it more than 26 1/4 feet (8 m) away from
this S-AIR main unit.
• Place the S-AIR main unit and S-AIR sub
unit closer to each other.
• Avoid use of equipment that generates
electromagnetic energy, such as a
microwave oven.
• Place the S-AIR main unit and S-AIR sub
unit separately from other wireless
devices.
• Avoid using any other wireless devices.
• Change the “RF CHANGE” setting (page
91).
• Change the S-AIR ID settings of the
S-AIR main unit and S-AIR sub unit.
S-AIR function
118
US
The remote does not function.
• Point the remote at the remote sensor on
the receiver.
• Remove any obstacles in the path between
the remote and the receiver.
• Replace all the batteries in the remote with
new ones, if they are weak.
• Make sure you select the correct input on
the remote.
• When you operate a programmed non-
Sony component, the remote may not
function properly depending on the model
and the maker of the component.
If there is a malfunction, the display shows a
message. You can check the condition of the
system by the message. See the following table
to solve the problem. If any problem persists,
consult your nearest Sony dealer.
If an error message appears while you perform
Auto Calibration, see “When error codes
appear” (page 37) to solve the problem.
For other messages, see “SIRIUS Satellite
Radio message list” (page 80).
PROTECTOR
Irregular current is output to the speakers, or
the upper panel of the receiver is covered
with something. The receiver will
automatically turn off after a few seconds.
Check the speaker connection and turn on
the power again.
Clearing the receiver’s memory may remedy
the problem (page 32). However, note that all
memorized settings will be reset to their
factory settings and you will have to readjust
all settings on the receiver.
Consult your nearest Sony dealer. Note that if
service personnel changes some parts during
repair, these parts may be retained.
In the event of a problem with S-AIR function,
have a Sony dealer check the entire system
together (S-AIR main unit and S-AIR sub
unit).
Remote commander
Error messages
If you are unable to remedy the
problem using the
troubleshooting guide
If the problem persist
Reference sections for clearing
the receiver’s memory
To clear See
All memorized settings page 32
Customized sound fields page 67
119
US
Additional Information
Specifications
AUDIO POWER
SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
With 8 ohm loads, both channels driven, from
20 Hz – 20,000 Hz; rated 100 watts per
channel minimum RMS power, with no more
than 0.09% total harmonic distortion from 250
milliwatts to rated output.
Amplifier section
Power Output
1)
Minimum RMS Output Power
(8 ohms, 20 Hz – 20 kHz, THD 0.09%)
100 W + 100 W
Stereo Mode Output Power
(8 ohms, 1 kHz, THD 1%)
110 W + 110 W
Surround Mode Output Power
2)
(8 ohms, 1 kHz, THD 10%)
150 W per channel
1)
Measured under the following conditions:
120 V AC, 60 Hz
2)
Reference power output for front, center, surround
and surround back speakers. Depending on the
sound field settings and the source, there may be
no sound output.
Frequency response
Analog 10 Hz – 70 kHz,
+0.5/–2 dB (with sound
field and equalizer
bypassed)
Input
Analog Sensitivity: 500 mV/
50 kohms
S/N
3)
: 96 dB
(A, 500 mV
4)
)
Digital (Coaxial) Impedance: 75 ohms
S/N: 100 dB
(A, 20 kHz LPF)
Digital (Optical) S/N: 100 dB
(A, 20 kHz LPF)
Output (analog)
AUDIO OUT Voltage: 500 mV/
10 kohms
SUBWOOFER Voltage: 2 V/1 kohm
Equalizer
Gain levels ±10 dB, 1 dB step
3)
INPUT SHORT (with sound field and equalizer
bypassed).
4)
Weighted network, input level.
FM tuner section
Tuning range 87.5 MHz – 108.0 MHz
Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals
75 ohms, unbalanced
Intermediate frequency
10.7 MHz
AM tuner section
Tuning range
With 10-kHz tuning scale:
530 kHz – 1,710 kHz
With 9-kHz tuning scale:
531 kHz – 1,710 kHz
Antenna (aerial) Loop antenna
Intermediate frequency
450 kHz
Video section
Inputs/Outputs
Video: 1 Vp-p, 75 ohms
COMPONENT VIDEO:
Y: 1 Vp-p, 75 ohms
P
B/CB: 0.7 Vp-p, 75 ohms
P
R/CR: 0.7 Vp-p, 75 ohms
80 MHz HD Pass Through
continued
120
US
General
Power requirements 120 V AC, 60 Hz
Power output (DIGITAL MEDIA PORT)
DC OUT: 5V, 0.7 A MAX
Power consumption
Power consumption (during standby mode)
0.9 W
(When “CTRL:HDMI” in
HDMI menu is set to
“CTRL OFF” and “S-AIR
STBY” in S-AIR menu is
set to “STBY OFF)
Dimensions (width/height/depth) (Approx.)
17 × 6 1/4 × 12 3/4 inches
(430 × 157.5 × 322 mm)
including projecting parts
and controls
Mass (Approx.) 18 lb 5 oz (8.3 kg)
Supplied accessories
Operating instructions (this manual)
Quick Setup Guide (1)
FM wire antenna (aerial) (1)
AM loop antenna (aerial) (1)
Remote commander (RM-AAP043) (1)
R6 (size-AA) batteries (2)
Optimizer microphone (ECM-AC2) (1)
Design and specifications are subject to
change without notice.
Area code Power consumption
U, CA 240 W
For details on the area code of the
component you are using, see page 4.
Halogenated flame retardants are not used in
the certain printed wiring boards.
121
