1
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed.
Read all instructions before using this treadmill.
DANGER– To reduce the risk of electric shock:
1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:
1. The treadmill should never be left unattended when plugged in. Unplug the treadmill from the outlet
when not in use and before putting on or taking off parts.
2. Use this treadmill only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
3. Never operate this treadmill if it has a damaged cord or plug, if it is not working properly, if it has been
dropped or damaged, or dropped into water. Return this treadmill to a service for examination and
repair.
4. Keep the cord away from heated surfaces.
5. Never operate the treadmill with the air openings blocked. Keep the air openings free of lint, hair, and
alike items.
6. Never drop or insert any object into any opening.
7. Do not use outdoors.
8. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
9. To disconnect, turn the treadmill off, then remove the plug from the outlet.

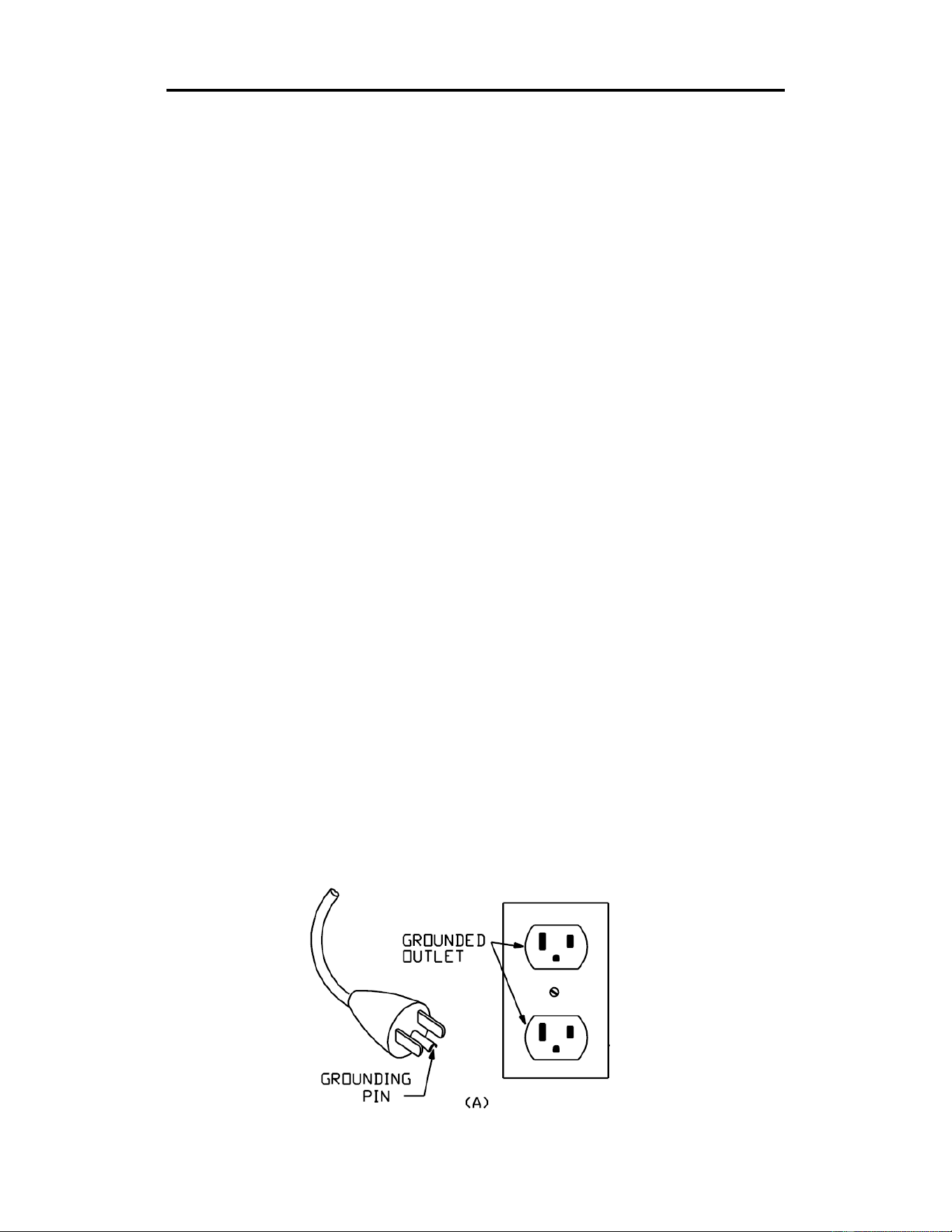

10. Connect this treadmill to a properly grounded outlet only. See grounding instructions.
CAUTION:
To avoid injury, use extreme caution when stepping onto or off of a moving belt. Read instruction manual
before using.
SAVE THESE INSTRUCTIONS!
2
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you from
using the equipment properly. Your physician’s advice is essential if you are taking medication that
affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 8 feet (240CM) of free space behind it and 2 feet
(60CM) on each side. Do not place the treadmill on any surface that blocks air openings. To protect
the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has been
rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 pounds (135 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving is
required.
12. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme cold,
hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial use!
3
IMPORTANT OPERATING INSTRUCTIONS
1. Insert the power plug directly into the socket.
2. Read the manual before operating the equipment.
3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on
the main console. The speed will increase gradually.
4. While on the treadmill, move with caution as distractions may cause you to lose balance and stray
from walking in the center of the belt. This may result in serious injury.
5. This unit starts at a very low speed. To begin use, hold onto the handrails and stand on the side rails
while it starts up, then step onto the belt once it’s in motion.
6. Always hold the handrail when changing the settings.
7. A safety key is provided for emergency use. The treadmill will function only if the safety key is
inserted into the computer console. In case of emergency, remove the safety key to immediately
stop the belt and shut off the treadmill. The display screen will reset once the safety key is
reinserted.
8. The console control keys are precisely set and require very little finger pressure to use. To avoid
damaging these keys, do not use excessive pressure when operating these controls.
9. This equipment is designed for adult use only! Children should not be allowed to use or play near
this equipment. When present, children should be supervised at all times by an adult.
10. Women who are pregnant or nursing should consult a physician before attempting to begin any
exercise program.
11. Always stay hydrated during and after exercise.
IMPORTANT NOTE:
The belt must be lubricated before the first use! Please see Page 19 for instructions on how to
properly apply lubricant.
4

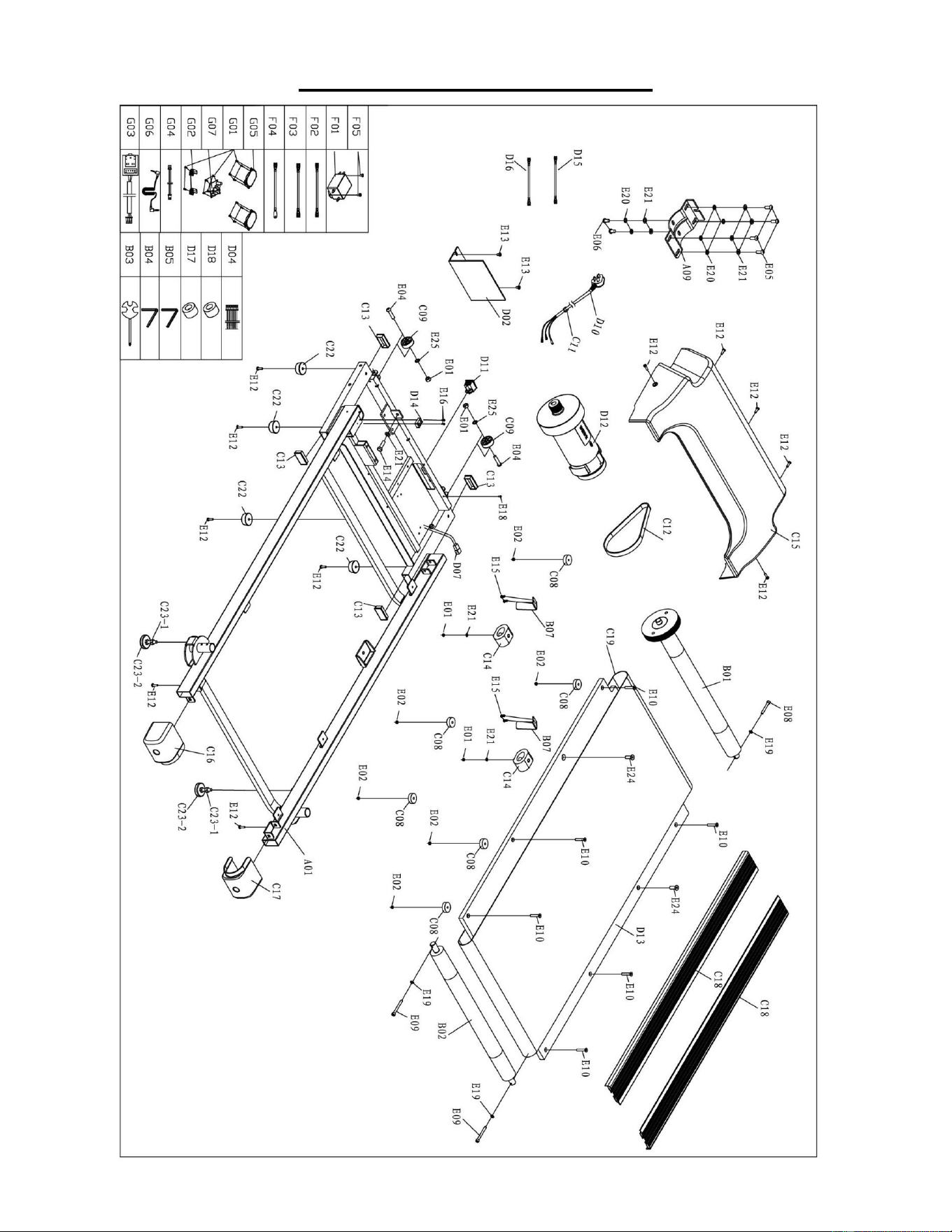

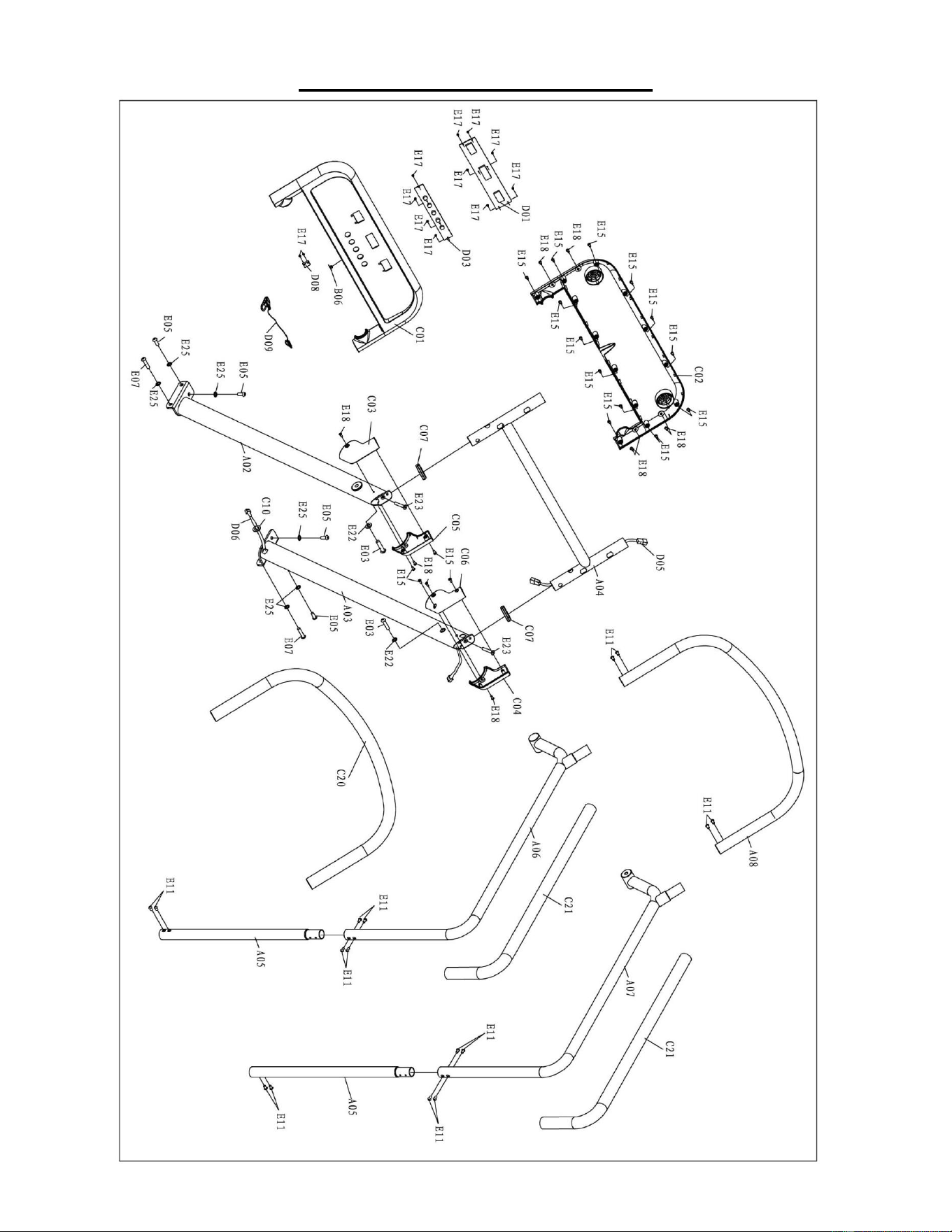

EXPLODED DIAGRAM 1
5
EXPLODED DIAGRAM 2
PARTS LIST
6
PARTS LIST
No.
Description
Specification
Qty
No.
Description
Specification
Qty
A01 Main Frame 1
D04
Ribbon Cable on Key
Board
1
A02 Left Upright 1
D05 Upper Signal Wire 1
A03 Right Upright 1
D06 Middle Signal Wire 1
A04
Console Bracket
1
D07
Bottom Signal Wire
1
A05 Support Tube 2
D08 Safety Key Sensor 1
A06 Left Side Handlebar 1
D09 Safety Key 1
A07 Right Side Handlebar
1
D10 Power Wire 1
A08 Front Handlebar 1
D11 Power Switch 1
A09 Motor Frame 1
D12 DC Motor 1
B01 Front Roller 1
D13 Running Board 1
B02 Rear Roller 1
D14 Speed Sensor 1
B03 Spanner w/ Screwdriver
S=13,14,15
1
D15 AC Single Line 350mmBlue 1
B04 Allen Wrench S5 1
D16 AC Single Line 350mmBrown 1
B05
Allen Wrench
S6
1
D17
Magnetic Ring
1
B06 Safety Key Plate 1
D18 Magnetic Core 1
B07 Belt Hook 2
E01 Nut M8 4
C01 Console Top Cover 1
E02 Nut M6 6
C02 Console Bottom Cover 1
E03 Bolt M10*55 2
C03 Left Upright Tube Cover 1
E04 Bolt M8*35 2
C04 Right Upright Tube Cover 1
E05
Bolt
M8*20 8
C05 Left Upright Tube Inside Cover 1
E06
Bolt
M8*15 2
C06
Right Upright Tube Inside
Cover
1
E07
Bolt
M8*65 2
C07 Handle Bar Decoration Ring 2
E08
Bolt
M6*45 1
C08 Blue Cushion 6
E09
Bolt
M6*55 2
C09 Transport Wheel 2
E10
Bolt
M6*35 6
C10 Ring Protecting Wire Plug 1
E11
Bolt
M6*15 16
C11 Power Wire Buckle 1
E12
Bolt
M5*16 11
C12 Motor Belt 1
E13
Bolt
M5*8 2
C13 Inner Cap 4
E14 Bolt M8*30 1
C14 Cushion 2
E15
Screw
ST4.2*12 21
C15 Motor Cover 1
E16
Screw
ST2.9*8 2
C16 Left Rear Cover 1
E17 Screw ST2.9*6.0 12
C17 Right Rear Cover 1
E18 Screw ST4.2*12 9
C18 Side Rail 2
E19 Washer 6 3
C19 Running Belt 1
E20
Spring Washer
8
6
C20 Front Handlebar Foam 1
E21
Flat Washer C
8
9
C21 Side Handlebar Foam 2
E22
Flat Washer C
10
2
C22 Flat Foot Pad 4
E23
Bolt M8*48 2
C23-1 Nut 2
E24
Bolt M8*25 2
C23-2 Adjustable Foot Pad 2
E25
Washer 8 8
D01 Console Display 1
F01 Filter Optional 1
D02 Control Board 1
F02 AC Single Line
350mmBlue
Optional
1
D03 Keyboard 1
F03 AC Single Line
350mmBrown
Optional
1
7
No.
Description
Specification
Qty
No.
Description
Specification
Qty
F04 Grounding Wire Optional 1
G04 Audio Jack Wire
Optional
1
F05 Bolt
M5*8
Optional
2
G05 Speaker
Optional
2
G01 Screw
ST2.9*6.0
Optional
14
G06
MP3 Connecting
Wire
Optional
1
G02 Audio Module Fixing Cap Optional 2
G07 Amplifier Board
Optional
1
G03
Amplifier Wire
Optional
1
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front of
the manual)
Please contact us at support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
8

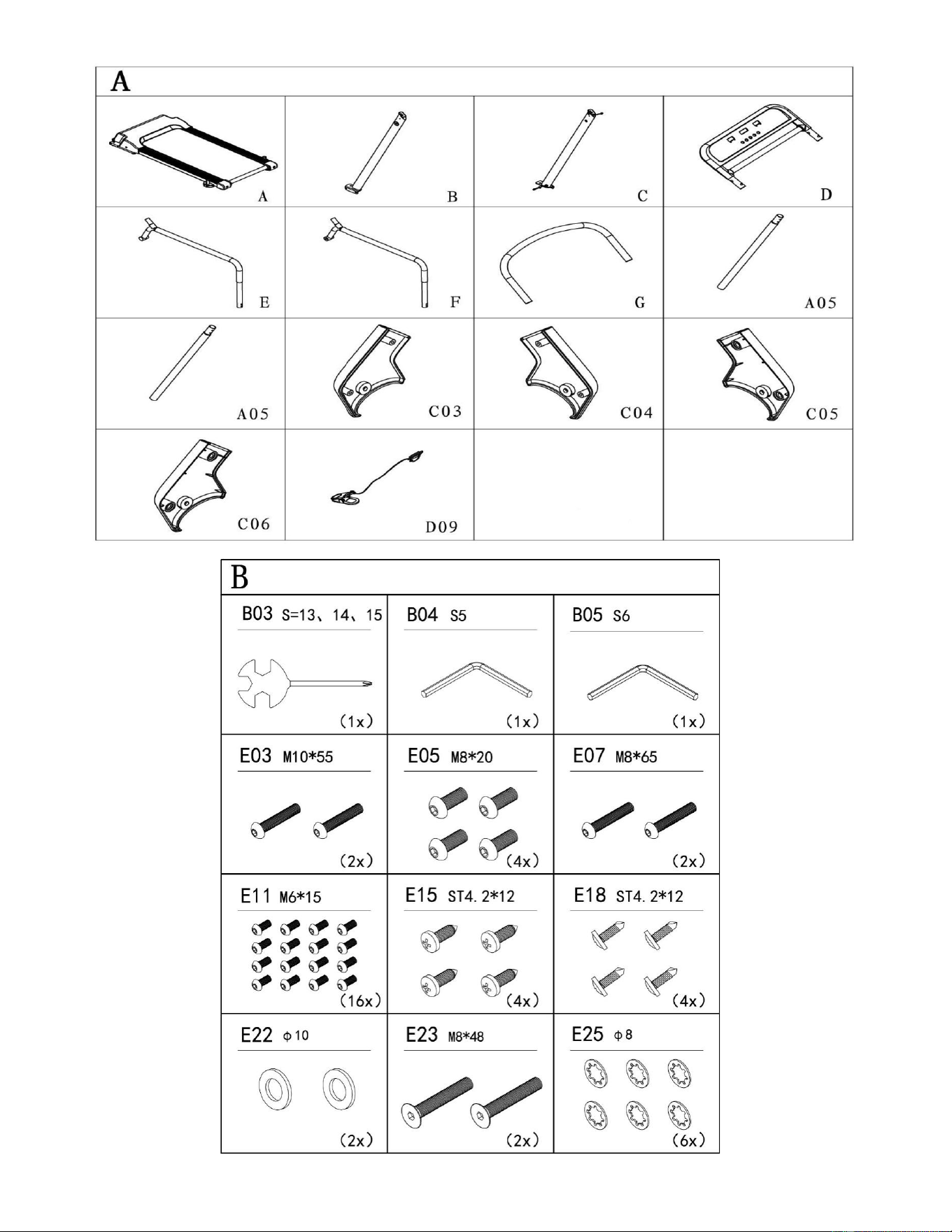

9

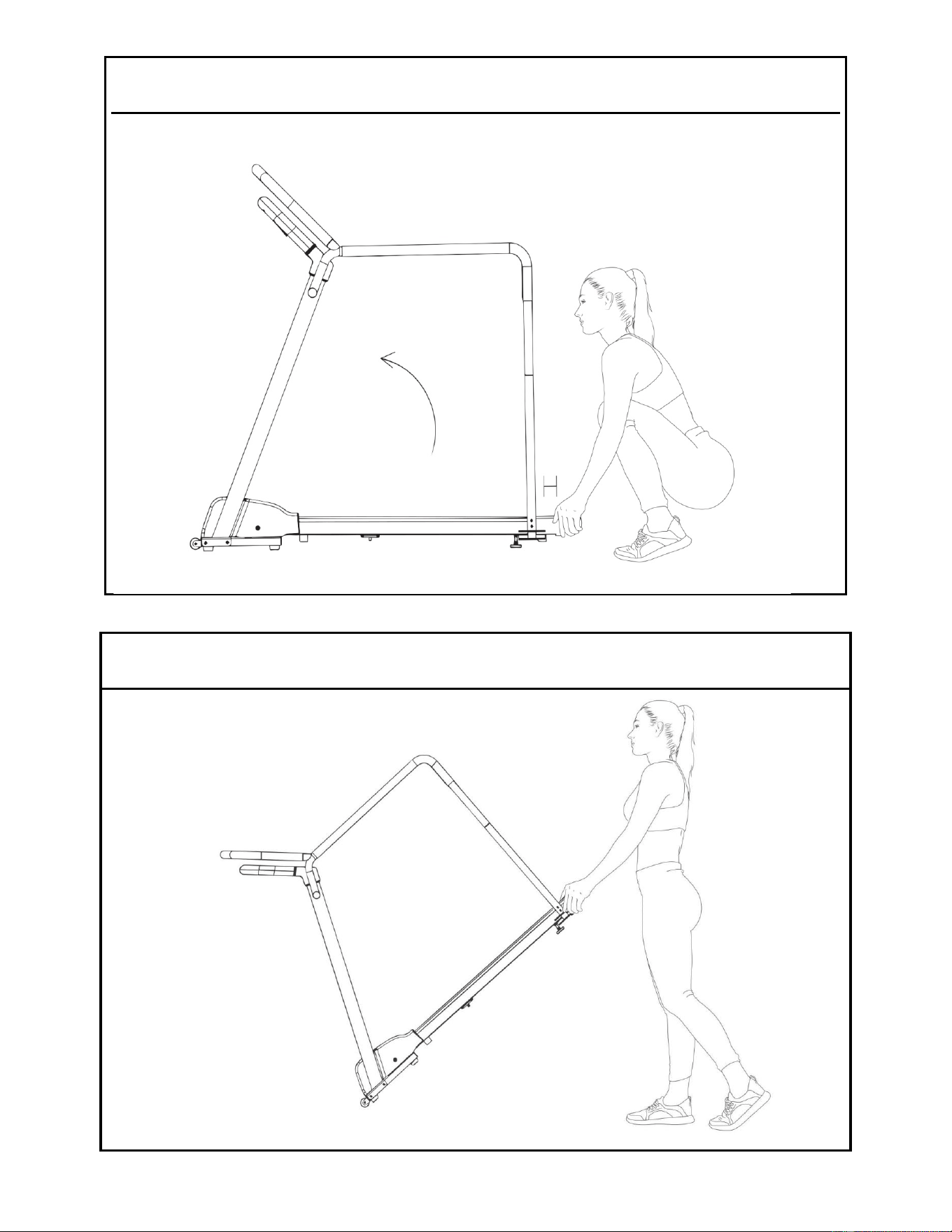

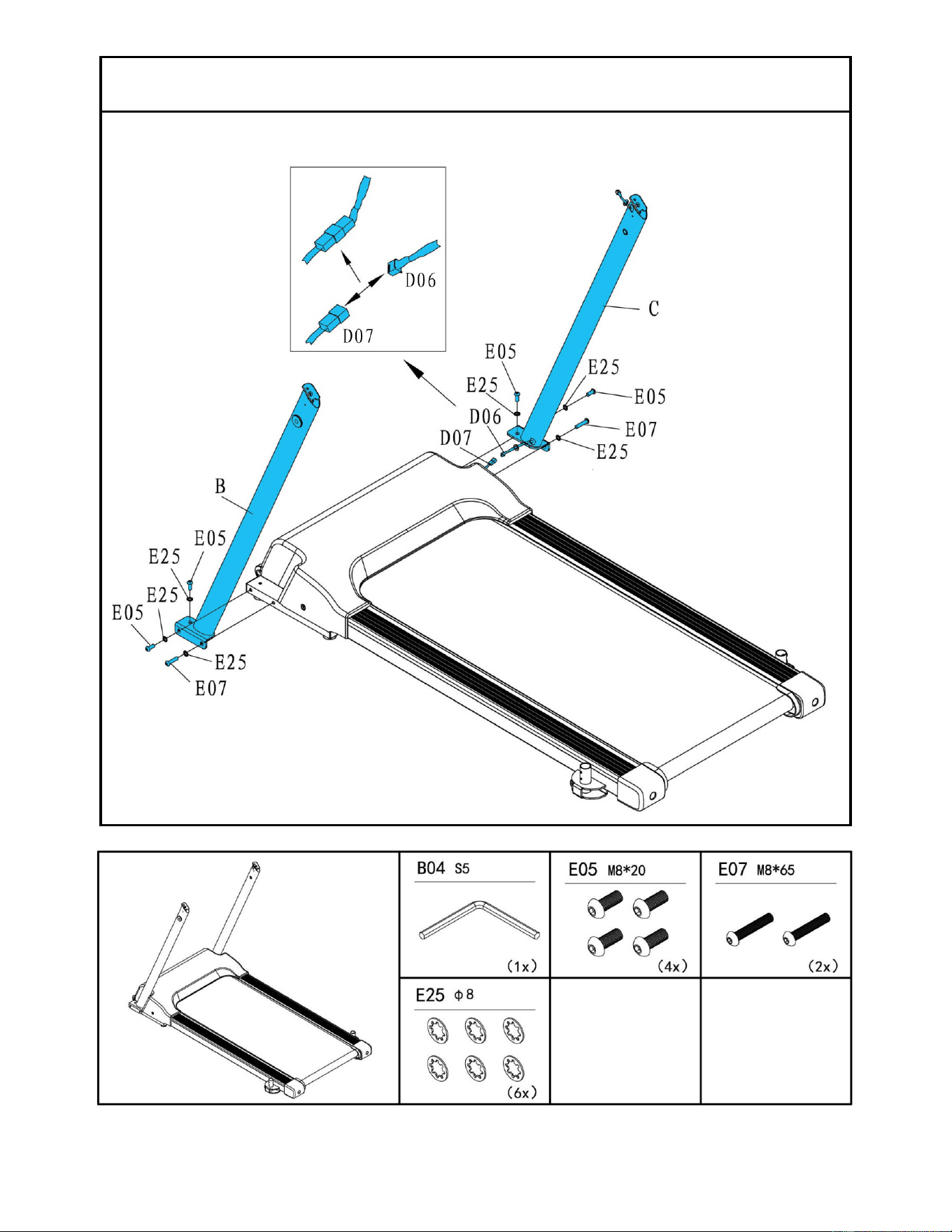

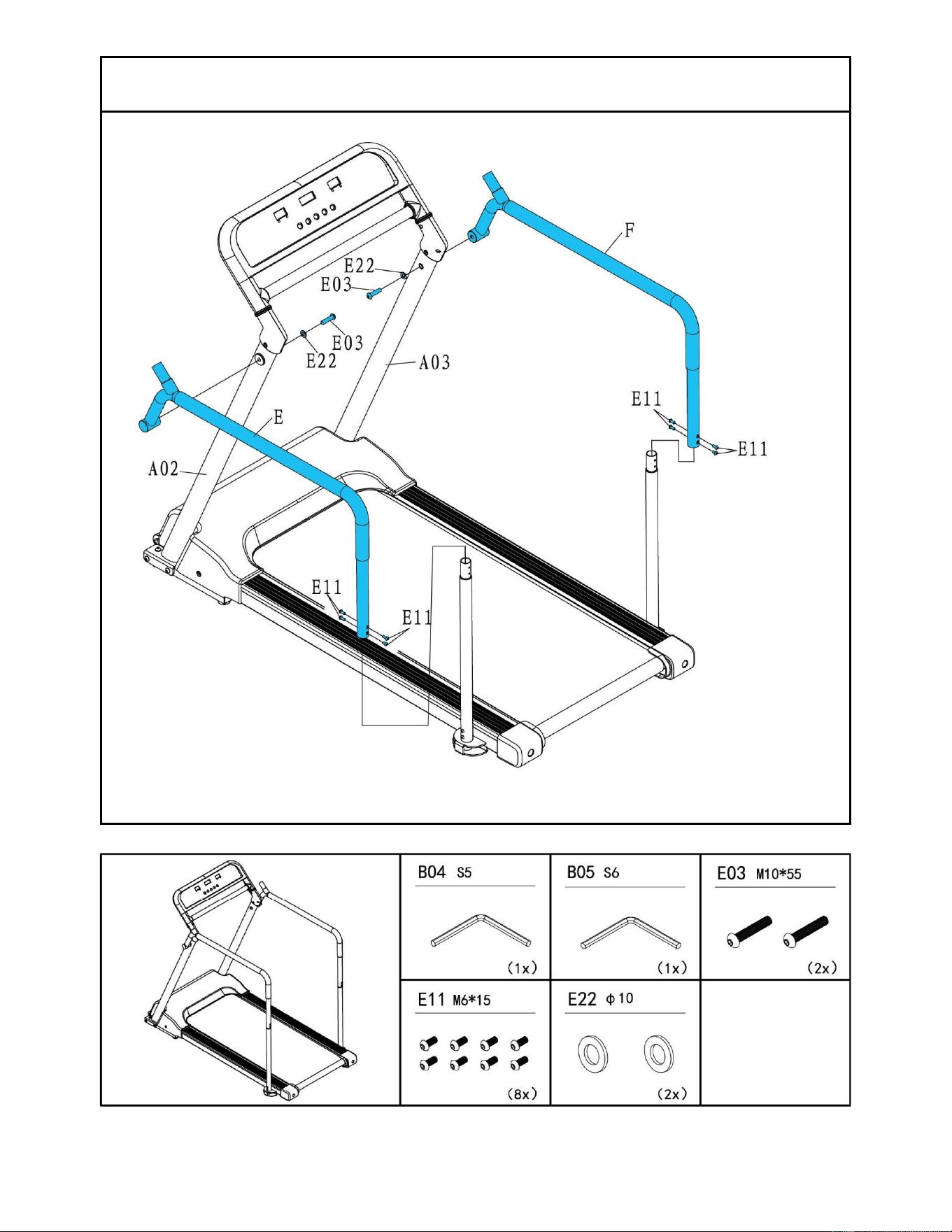

C-1
10

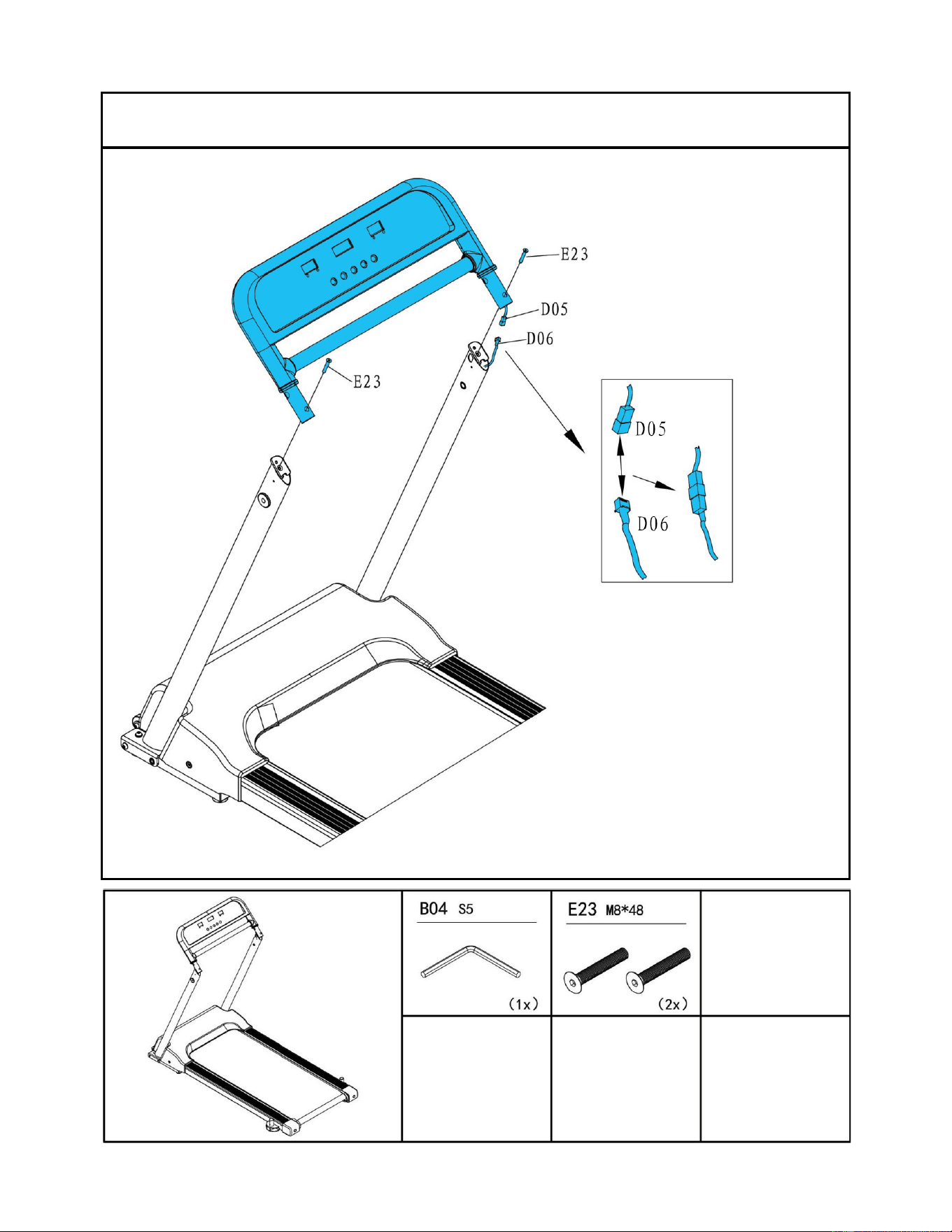

C-2
11

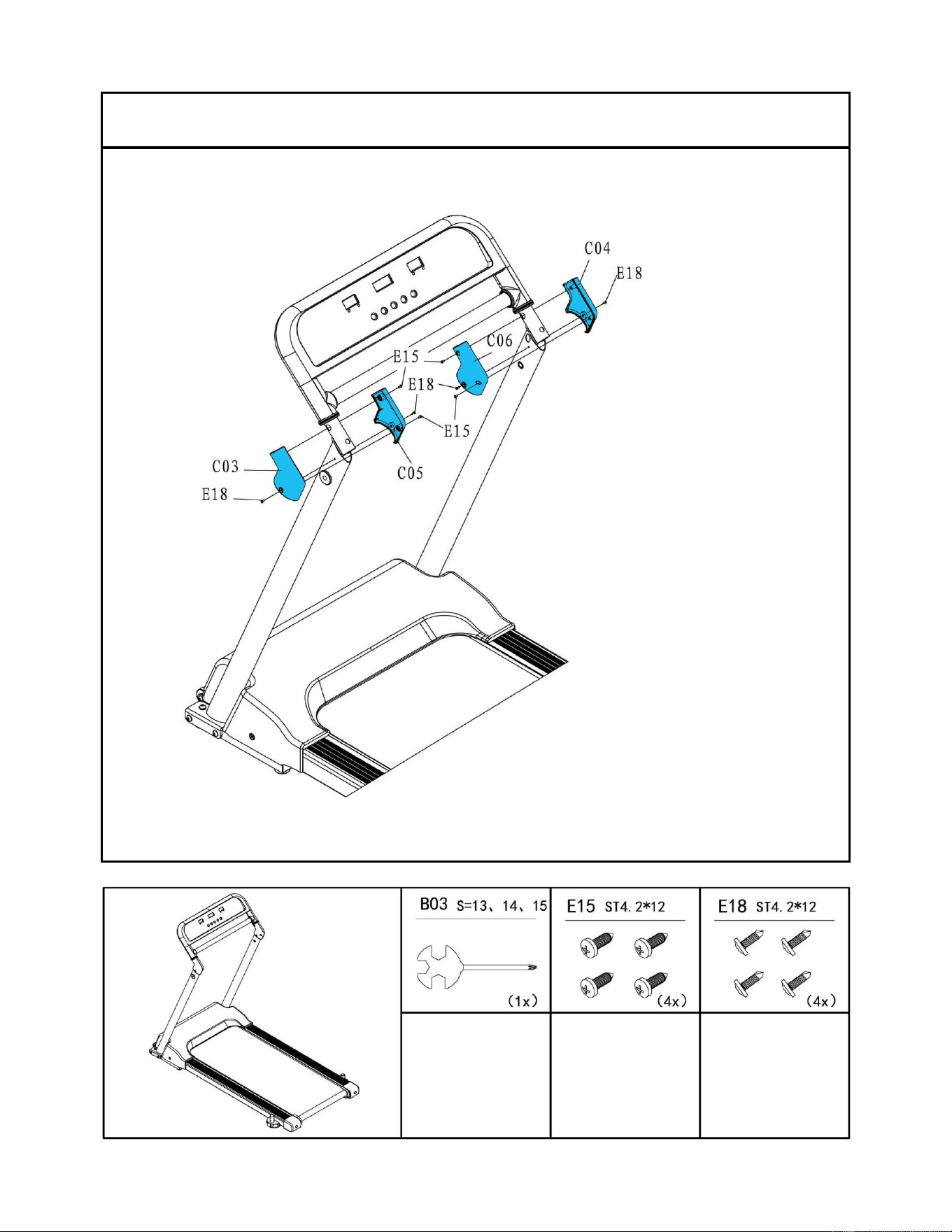

C-3
12

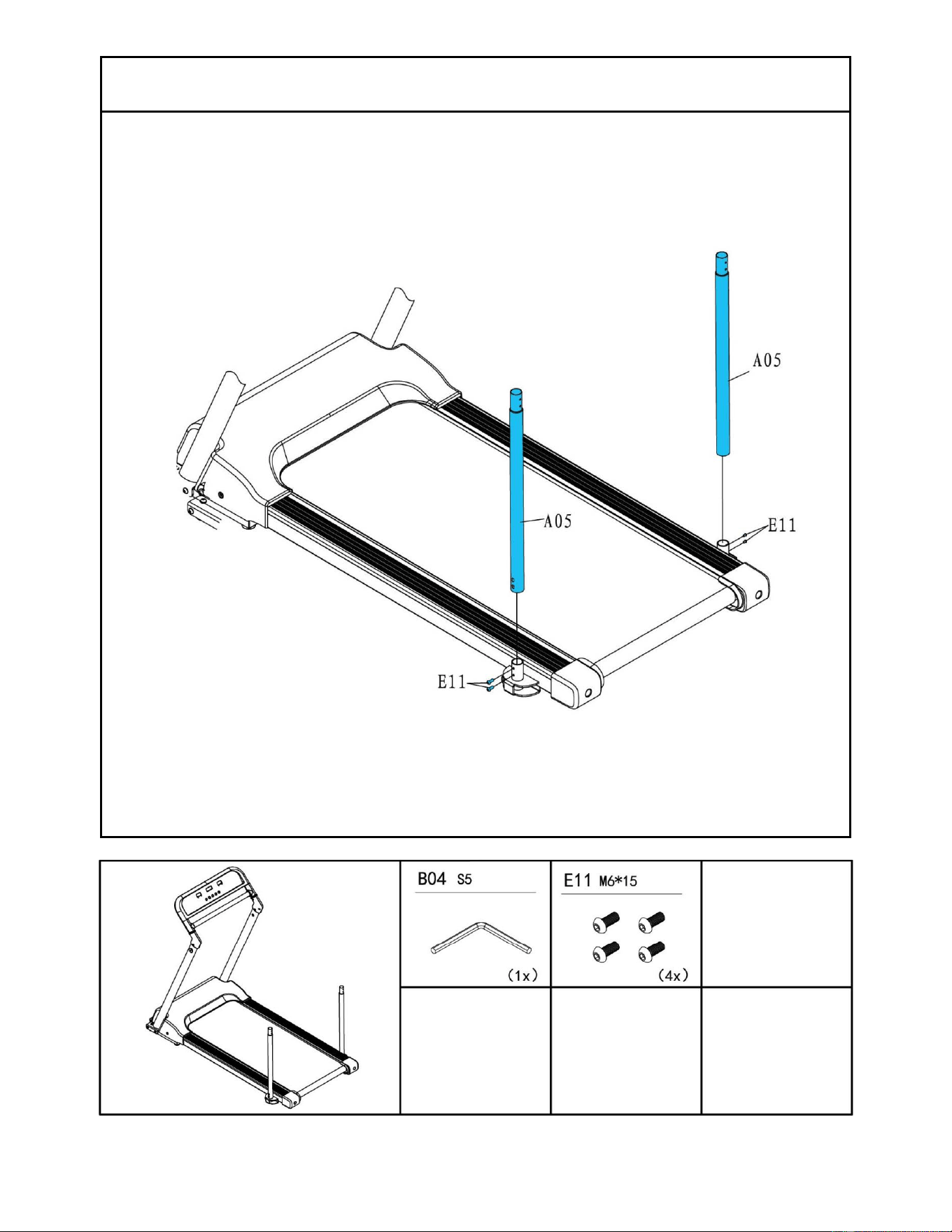

C-4
13
C-5
14

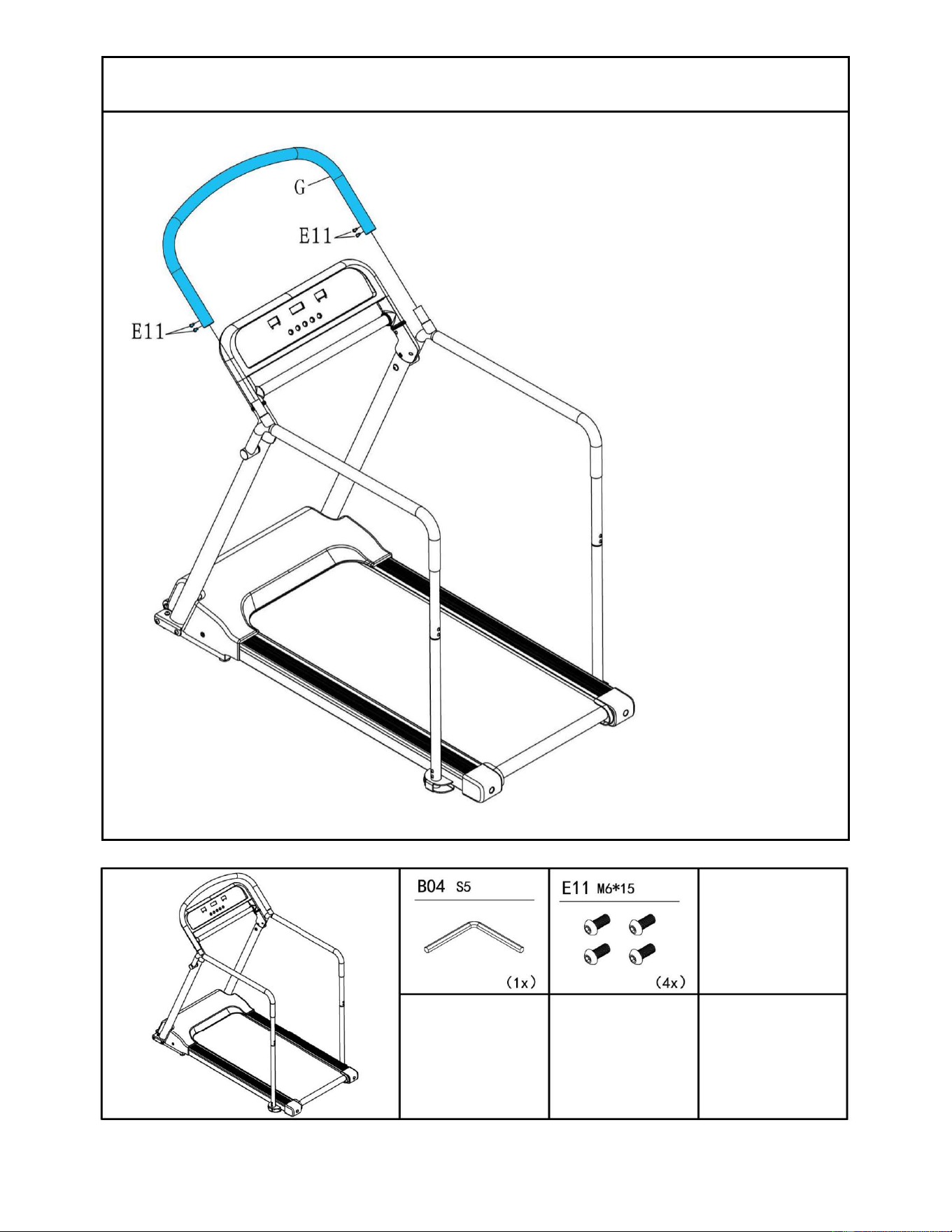

C-6

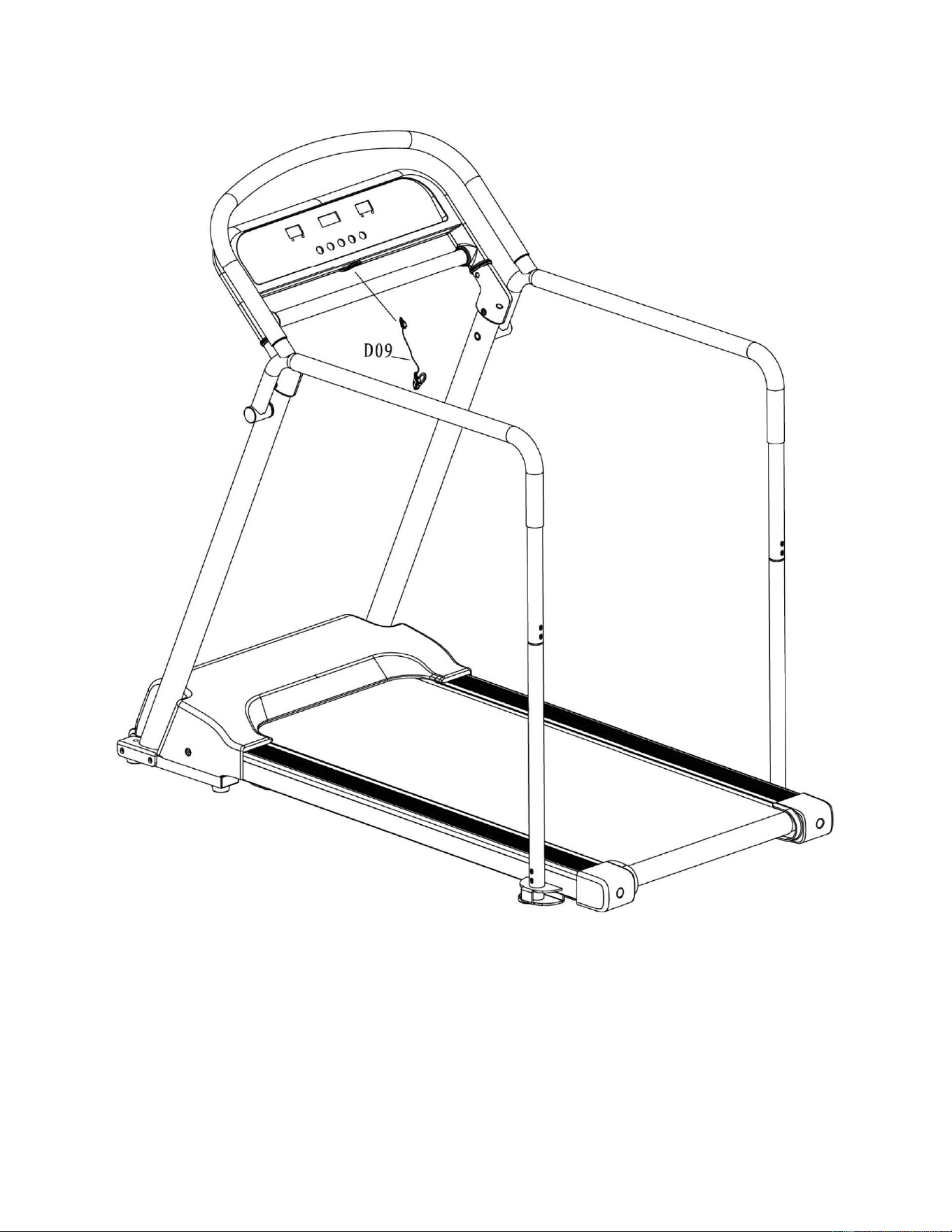

15
D-1
D-2
16
17

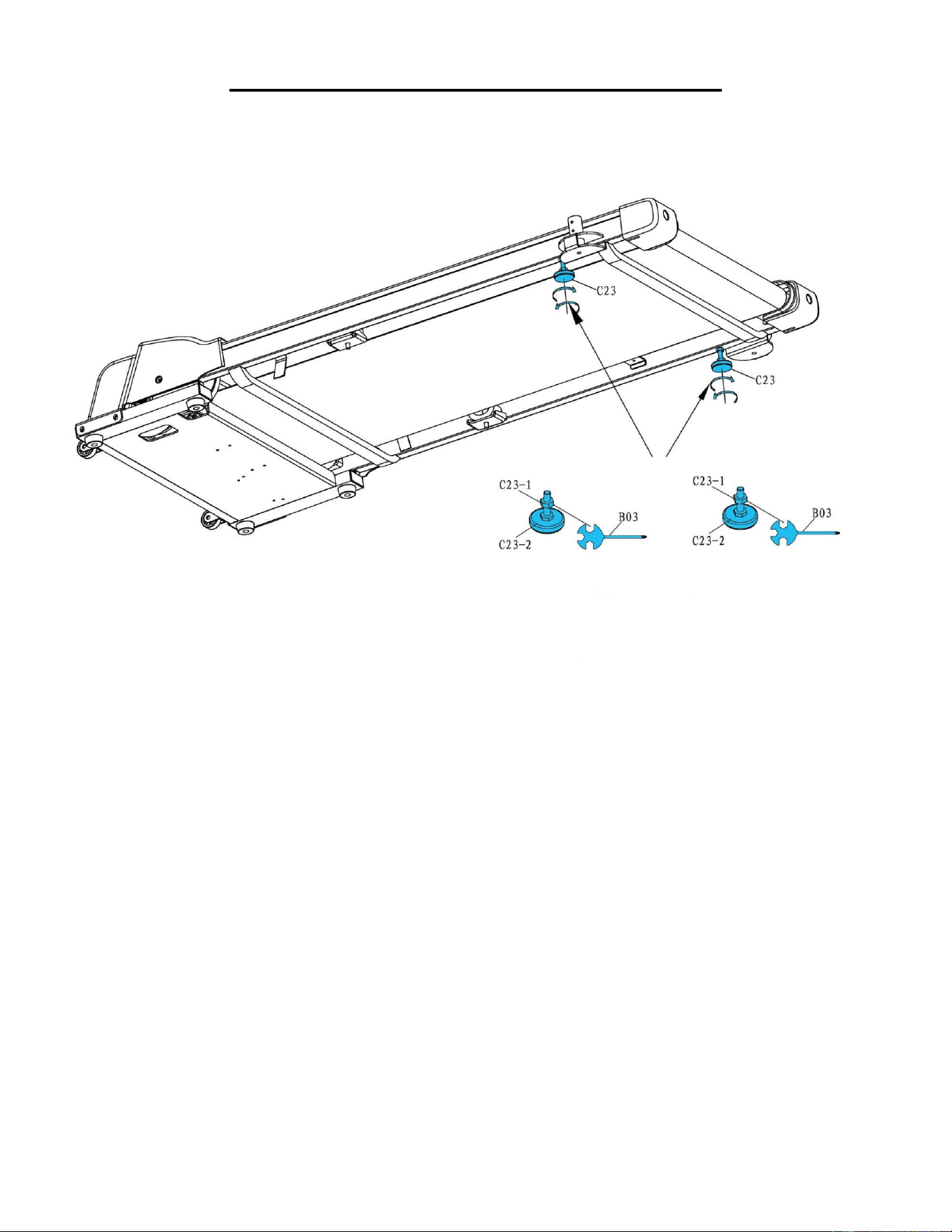

HOW TO ADJUST THE BALANCE
To achieve a smooth and comfortable experience, you must ensure that the treadmill is stable. If you
notice that the treadmill is unbalanced during use, you should adjust the Adjustable Foot Pads (No.
C23-2). To do so, use Spanner w/ Screwdriver (No. B03) to loosen Nut (No. C23-1) by turning it
clockwise. With the Nut (No. C23-1) loosened, rotate the Adjustable Foot Pads (No. C23-2) until it
sits level with the surface that the treadmill is on. When you have finished adjusting the Adjustable
Foot Pads (No. C23-2), use Spanner w/ Screwdriver (No. B03) to re-tighten the Nut (No. C23-1) by
turning it counter-clockwise. If required, repeat this process to adjust the remaining feet.
18
MAINTENANCE & CARE
General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and
maintained by dusting the components on a regular basis. Clean both sides of the Running Belt (No.
C19) to prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from
your shoes does not wear out the Running Board (No. D13) and Running Belt (No. C19). Clean the
surface of the Running Belt (No. C19) with a clean, damp cloth.
To better maintain the treadmill and prolong its life, it is suggested that the treadmill be powered off
for 10 minutes every 2 hours and fully powered off whenever not in use.

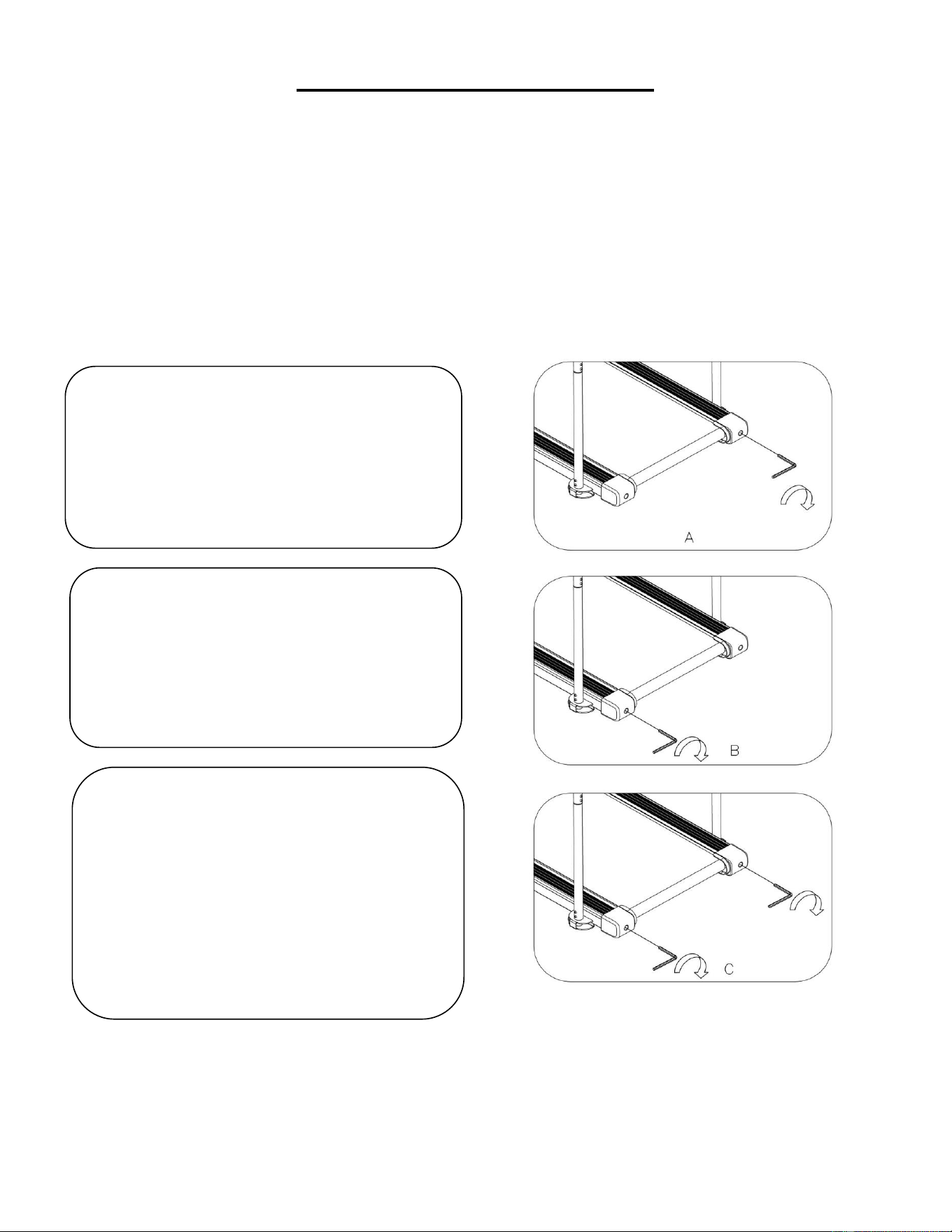

CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 4-5MPH to check if the Running Belt (No. C19) drifts.
If the Running Belt (No. C19) moves to
the right, turn the adjusting bolt on the right
side ¼ turn clockwise, then turn the left
adjustment bolt ¼ turn counter-clockwise.
If the Running Belt (No. C19) does not
move, repeat this step until it centers.
Refer to Figure A.
If the Running Belt (No. C19) moves to
the left, turn the adjusting bolts on the left
side ¼ clockwise,
then turn the right
adjustment bolt ¼ turn counterclockwise. If
the Running Belt (No. C19)
does not
move,
repeat this step until it centers.
Refer to Figure B.
Over time, the Running Belt (No. C19)
will loosen. To tighten the Running Belt
(No. C19), turn the Left & Right side
adjustment bolts one full turn clockwise.
Check the tension of the Running Belt
(No. C19). Continue this process until
Running Belt (No. C19) is at the correct
tension. Make sure to adjust both sides
equally to ensure correct belt alignment.
Refer to Figure C.
19
LUBRICATING THE TREADMILL
IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use.
RUNNING BELTS & TREADMILL LUBRICANT:
Lubricating the Running Board (No. D13) and Running Belt (No. C19) is essential as the friction
between the two affects the life span and function of the treadmill. It is suggested that the Running
Board (No. D13) and Running Belt (No. C19) be inspected regularly. Should you find any wear on
the Running Board (No. D13), please contact us at:support@sunnyhealthfitness.com.
WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating or
repairing the unit.

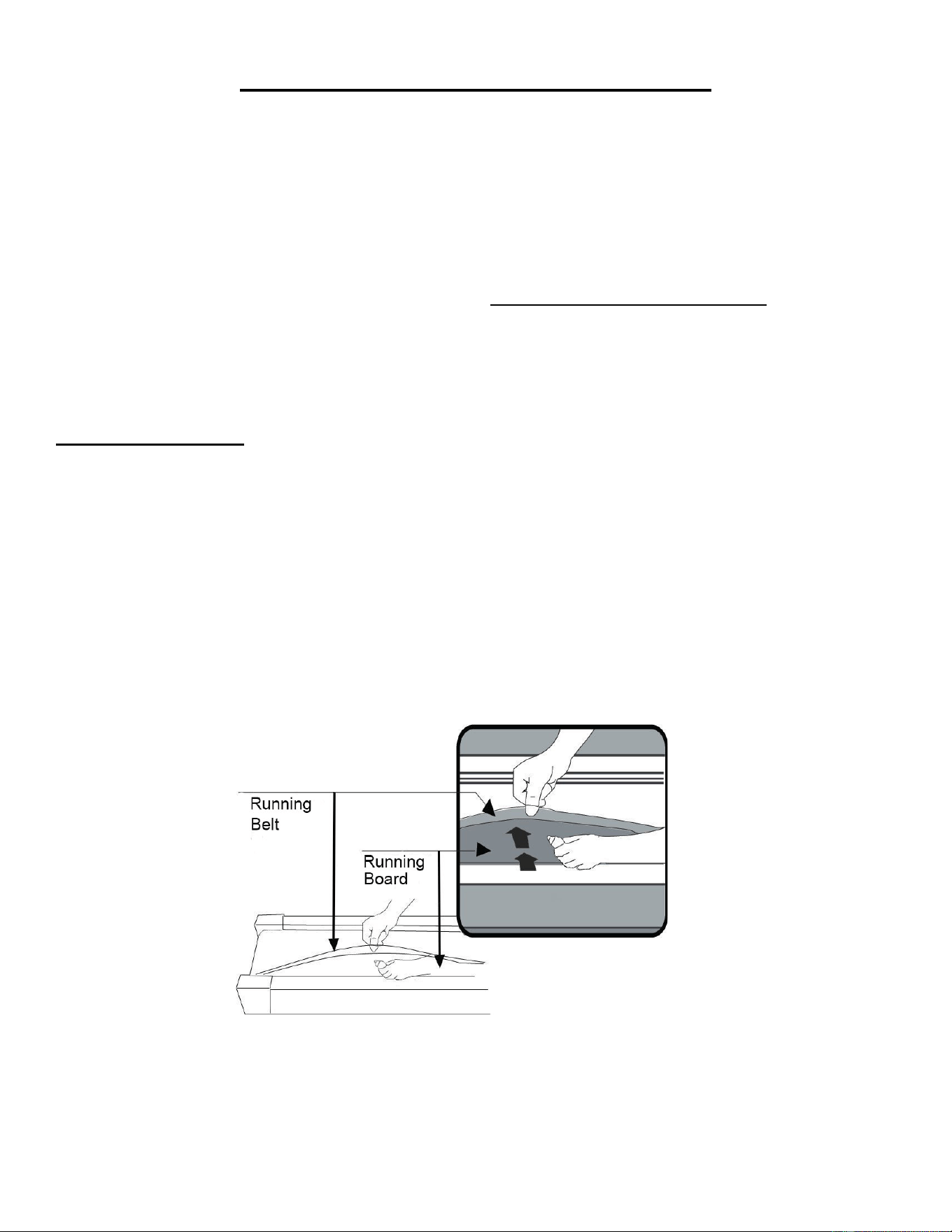

HOW TO LUBRICATE:
1. Raise the Running Belt (No. C19) up on one side and apply lubricant to the Running Board (No.
D13). Use a rag to thoroughly wipe the lubricant over the Running Board (No. D13). Repeat this
process for the other side.
2. The moving parts should turn freely and quietly. Abnormal moving parts will affect the safety of the
equipment. Inspect and tighten bolts regularly.
3. To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be done
on a regular basis.
4. DO NOT LOOSEN OR MAKE ANY ADJUSTMENTS TO THE RUNNING BELT WHILE APPLYING LUBRICANT. A
loose Running Belt (No. C19) will result in the runner sliding off during use, while too tight of a
Running Belt (No. C19) will negatively affect the motor’s performance and create more friction
between the roller and Running Belt (No. C19). The most suitable tightness for the Running Belt
(No. C19) is when it is pulled out 50-75mm from the Running Board (No. D13).
The following time table is recommended:
Light user (less than 3 hours/ week) every six months
Medium user (3-5 hours/ week) every three months
Heavy user (more than 5 hours/ week) every two months
20
IMPORTANT ELECTRICAL INFORMATION
WARNING: This treadmill requires a correct power source in order to properly operate. For your
safety, as well as the safety of others, please verify that the power source is correct before plugging in
the equipment. Any power source above or below this level could cause significant damage to the
equipment and/or user.
GROUNDING METHODS:
This product must be grounded. Grounding provides the least resistance for electrical current and will
reduce the risk of electric shock. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances. Ensure that the product is
connected to an outlet which contains the same configuration as the plug. Do not use an adapter for
this product.
This product is for use on a correct circuit and has a grounding plug that looks like the plug illustrated
in sketch A. Make sure that the product is connected to an outlet having the same configuration as the
plug. No adapter should be used with this product.
DANGER:
Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check
with a certified electrician if you are not sure as to whether the product is properly grounded. Do not
modify the plug provided with the product. If it will not fit the outlet, have a proper outlet installed by an
electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power
cord away from any moving part of the treadmill including the elevation mechanism and transport
wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover without first disconnecting AC power.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for use outdoors,
near pools, or in any other high humidity environment.
GROUNDING METHOD
21

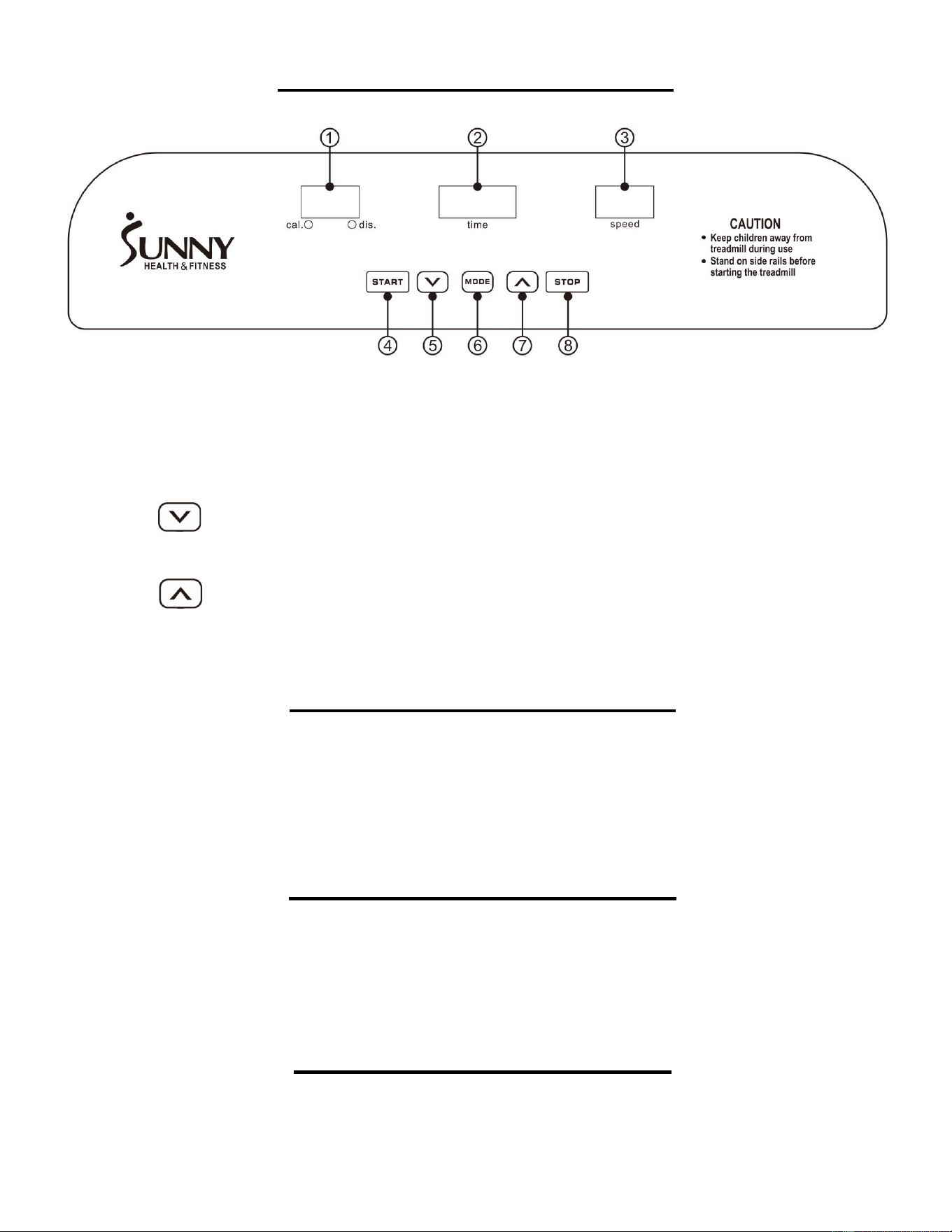

CONSOLE INSTRUCTIONS
DISPLAY AND BUTTON FUNCTIONS
1. CAL. / DIS: Displays calories and distance.
2. TIME: Displays running time.
3. SPEED: Displays current speed.
4. START: Press this button at any time to start the treadmill.
5. SPEED – : Press this button to decrease the speed.
6. MODE: Press this button to choose between time, distance, or calories workout targets. You can
press SPEED +/- to set the value, and press START to begin.
7. SPEED + : Press this button to increase the speed.
8. STOP: Press this button to either pause or stop the treadmill.
LUBRICATION REMINDER
Your treadmill needs lubrication maintenance every 188 miles. The system will release a beeping
sound every 10 seconds and display an “OIL” icon on your console display to remind you when it’s
time. Please read LUBRICATING THE TREADMILL on Page 19 to learn the proper steps to lubricating
your treadmill. Apply the lubricant to the middle of the running board on both sides. After application,
press and hold the STOP button for 3 seconds to clear the “OIL” reminder.
SAFETY LOCK FUNCTION
Remove the Safety Key (No. D09) from the computer console while the treadmill is running, and the
treadmill will stop immediately. Once the treadmill reaches a full stop, the display will show “- - -” and
the buzzer will beep 3 times. To start the treadmill again, insert the magnet end of the Safety Key (No.
D09) into the computer console and press the START button.
POWER SAVE FUNCTION
When the treadmill has been inactive for 10 minutes, it will enter Power Saving Mode. While the
treadmill is in this mode, the display will be turned off. To turn it back on, press any button.
22
POWER ON & POWER OFF
POWER ON:
Flick the power switch to this symbol to turn on the treadmill.
POWER OFF:
Flick the power switch to this symbol to turn the treadmill off at any time, including while the treadmill is
in use.
EXERCISE INSTRUCTIONS
GETTING STARTED:
Get to know your treadmill. Before attempting to use the treadmill, take some time to familiarize
yourself with the controls. Once you get on, stand with your feet on the side rails and stabilize yourself
by holding onto the handrails.
Next, attach the clip end of the Safety Key (No. D09) to your clothes and insert the magnetic end of
the Safety Key (No. D09) into the computer console. Press the START button to start the treadmill.
The treadmill will start at the system default setting speed. Step onto the belt. When you feel
comfortable, slowly increase this speed. When you are finished with your workout, press the STOP
button to stop the treadmill or you can remove the magnetic end of the Safety Key (No. D09) to stop
the treadmill.
SAFETY NOTE:
1. We recommend that you maintain a slow speed at the beginning of a session and hold the handrails
until you become familiar with the treadmill.
2. Insert the magnet end of the Safety Key (No. D09) into the computer console and clip the safety clip
to your clothing before starting your workout. To end your workout, press the STOP button or remove
the Safety Key (No. D09) and the treadmill will stop immediately.
23
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SUGGESTED ACTION
Treadmill will not start
Not plugged in.
Plug cord into the outlet.
Safety Key not inserted. Insert Safety Key.
Running belt is not
centered
Running belt tension is not
correct on the
left or right
side of the running board.
Tighten the adjustment bolts
on the left and right side of the
rear roller.
Computer is not working
Wires from the computer
and bottom control board
are not properly
connected.
Check wire connections
from the
computer to the
control board.
Transformer is damaged.
If the transformer is damaged,
contact customer service.
E01 or E13
: Message
failure
Wires from the computer
and bottom control board
are not properly
connected.
Check wire connections from
the
computer to the control
board.
If the wire has been
punctured or damaged, you
will need to replace it. If the
problem is not rectified, you
may need to replace the
control board.
E02: Burst clash protection
Incoming voltage is lower
than 50% of the required
voltage.
Check that the incoming
power supply is the correct
voltage.
E03: No speed sensor
signal
Speed
sensor signal
cannot be received by the
control board.
Check that the sensor wire is
properly connected. If
damaged, replace the wire.
Check to see if the magnetic
sensor is damaged, replace if
necessary.
E05: Current overload
protection (Self Protecting
System)
The incoming voltage is
too low or too high. The
control board is damaged.
Restart the treadmill. Check
the
incoming voltage to
ensure its correct. Check the
control board and replace if
damaged.
A moving part of the
treadmill is stuck and
therefore, the motor is
unable to rotate properly.
Inspect moving parts of the
treadmill to ensure that they
are operating correctly. Check
the motor.
Listen for strange
noise and check for a burning
smell. Replace the motor if
necessary.
24
NOTE: If you are unable to resolve an issue using the troubleshooting guide above, please
contact Customer Service at [email protected]om
Version 1.4
E06: Motor Abnormality
The motor wire
is not
connected, or the motor is
damaged.
Check motor
wires to see if
the motor
is connected. If the
wire has been punctured or
damaged, you will need to
replace it. If the problem is not
rectified, you may need to
replace the motor.
E08: Control Board
Abnormality
The
control board is not
connected.
Check the upper and middle
wires to see if the control
board is connected. If the wire
has been punctured or
damaged, you will need to
replace it. If the problem is not
rectified, you may need to
replace the control board.
E10: Motor Abnormality
The motor is damaged, or
a
moving part of the
treadmill is stuck, and
therefore the motor is
unable to rotate properly.
Inspect moving parts of the
treadmill to ensure that they
are operating correctly.
Replace the motor if
necessary.
