IMPORTANT SAFETY INSTRUCTION
When using an electrical appliance, basic precautions should always be followed, including the
following:
Read all instructions before using (this appliance).
DANGER –To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after using and before
cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:
1. An appliance should never be left unattended when plugged in. Unplug from outlet when not in use,
and before putting on or taking off parts.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Keep children
under the age of 13 away from this machine.
3. Use this appliance only for its intended use as described in this manual. Do not use attachments
not recommended by the manufacturer.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return the appliance to a service center for
examination and repair.
5. Do not carry this appliance by supply cord or use cord as a handle.
6. Keep the cord away from heated surfaces.
7. Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair,
and the like.
8. Never drop or insert any object into any opening.
9. Do not use outdoors. Household use only.
10. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
11. To disconnect, turn all controls to the off position, then remove plug from outlet.
12. CAUTION: Risk of Injury to Persons – To Avoid Injury, use extreme caution when stepping onto or
off of a moving belt. Read Instruction Manual Before Using.

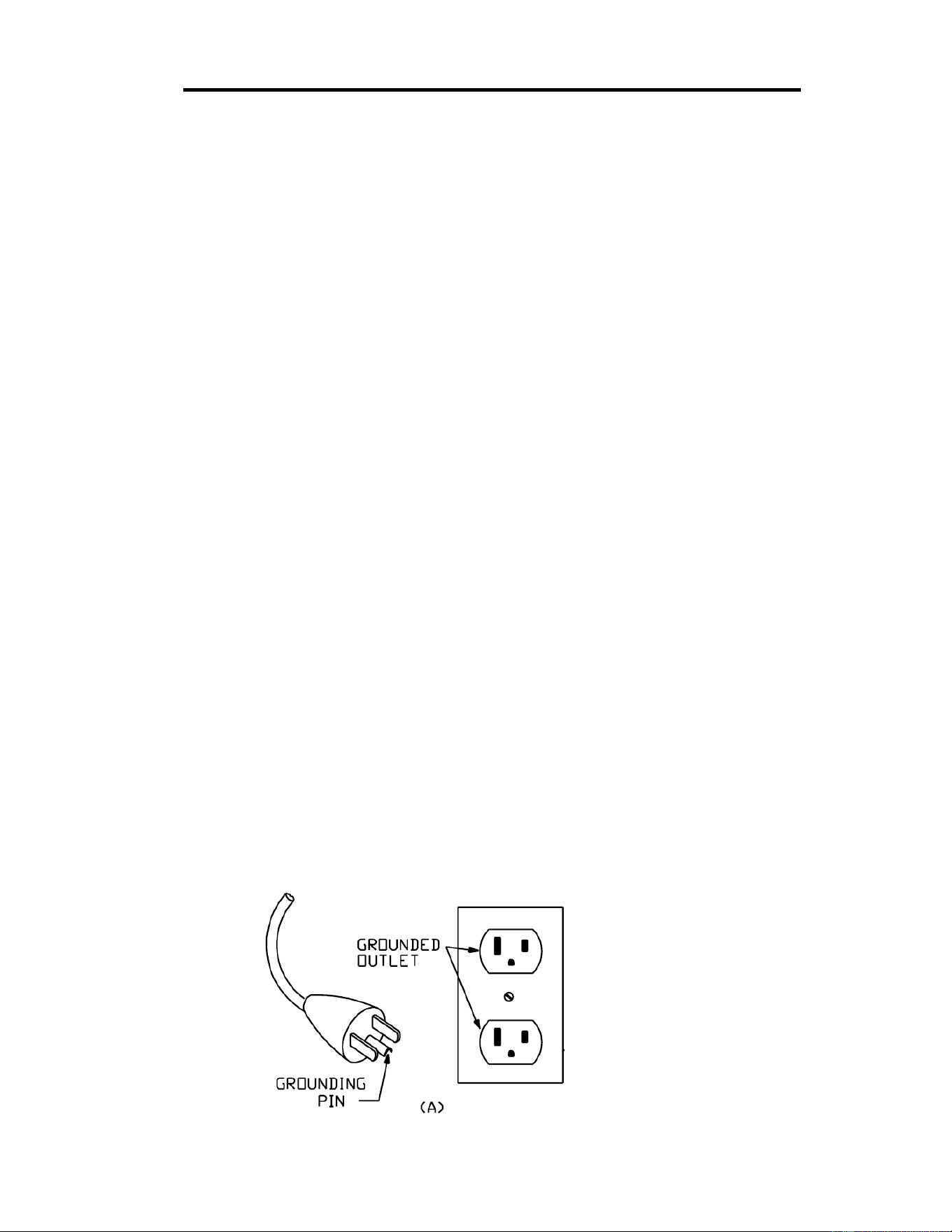

13. Connect this appliance to a properly grounded outlet only. See Grounding Instructions.
14. REMOVE CONTROL BOX (OR KEY, OR SAFETY PIN, AS APPLICABLE) WHEN NOT IN USE,
AND STORE OUT OF REACH OF CHILDREN.
SAVE THESE INSTRUCTIONS
2
Caution: The user is cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science
and Economic Development Canada’s license-exempt RSS(s) and Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause interference.
2) This device must accept any interference, including interference that may cause undesired
operation of the device.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC & IC Radiation Exposure Statement:
This equipment complies with FCC and Canada radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
3
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you from
using the equipment properly. Your physician’s advice is essential if you are taking medication that
affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 8 feet (240CM) of free space behind it and 2 feet
(60 CM) on each side. Do not place the treadmill on any surface that blocks air openings. To
protect the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has been
rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 245 pounds (110 kgs).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving is
required.
12. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme cold,
hot, or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only. It is not intended for commercial use!
4
IMPORTANT OPERATING INSTRUCTIONS
1. Insert the power plug directly into the socket.
2. Read the manual before operating the equipment.
3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on
the remote control. The speed will increase gradually.
4. While on the treadmill, move with caution as distractions may cause you to lose balance and stray
from walking in the center of the belt. This may result in serious injury.
5. This unit starts at a very low speed. To begin use, stand on the side rails while it starts up, then step
onto the belt once it’s in motion.

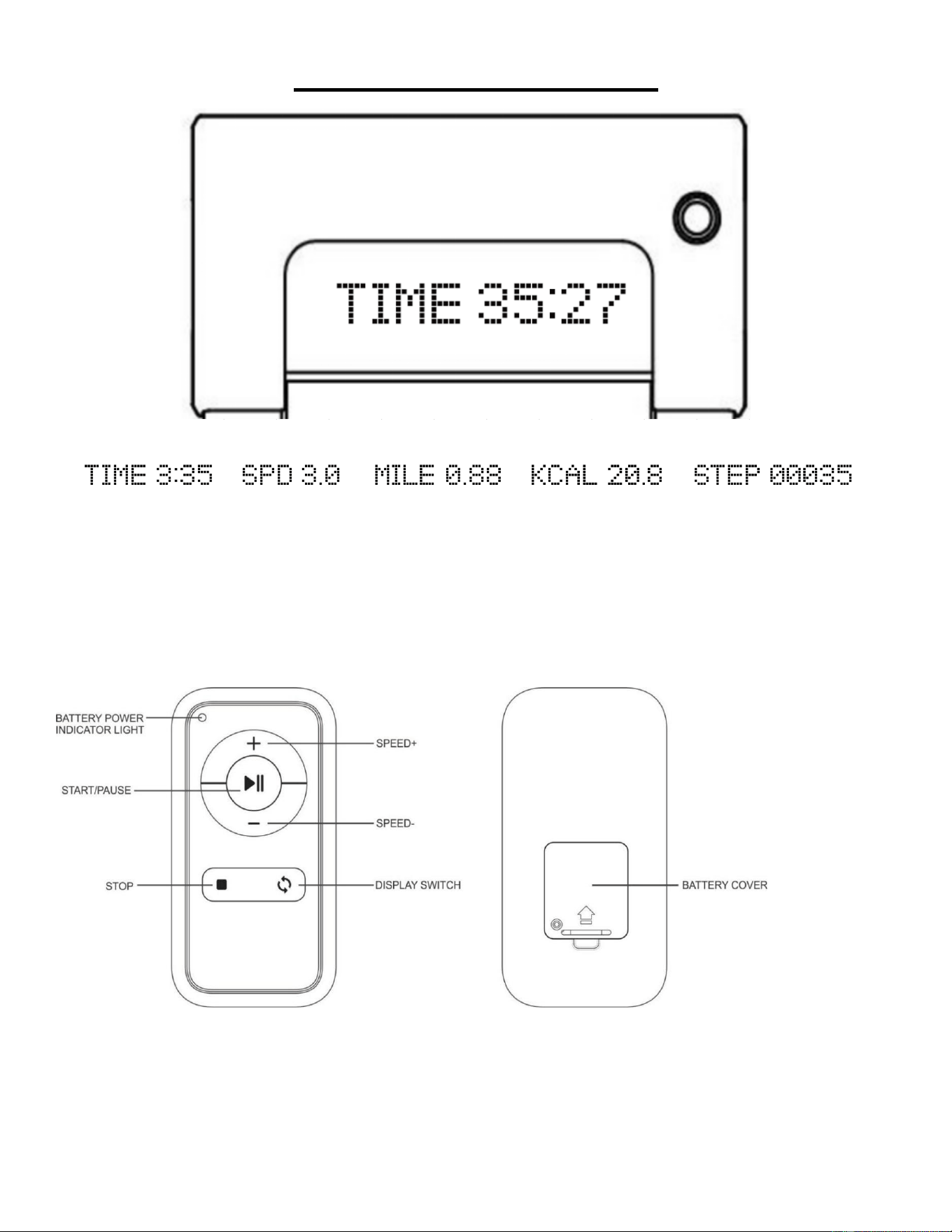

6. A safety key is provided for emergency use. The treadmill will function only if the safety key is
inserted into the console. In case of emergency, remove the safety key to immediately stop the belt
and shut off the treadmill. The display screen will reset once the safety key is reinserted.
7. This equipment is designed for adult use only! Children should not be allowed to use or play near
this equipment. When present, children should always be supervised by an adult.
8. Women who are pregnant or nursing should consult a physician before attempting to begin any
exercise program.
9. Always stay hydrated during and after exercise.
10. Do not lift the treadmill.
11. The machine will stop automatically after 15 minutes, if not in use.
IMPORTANT NOTE:
The belt must be lubricated before the first use! Please see Page 8 for instructions on how to
properly apply lubricant.
5

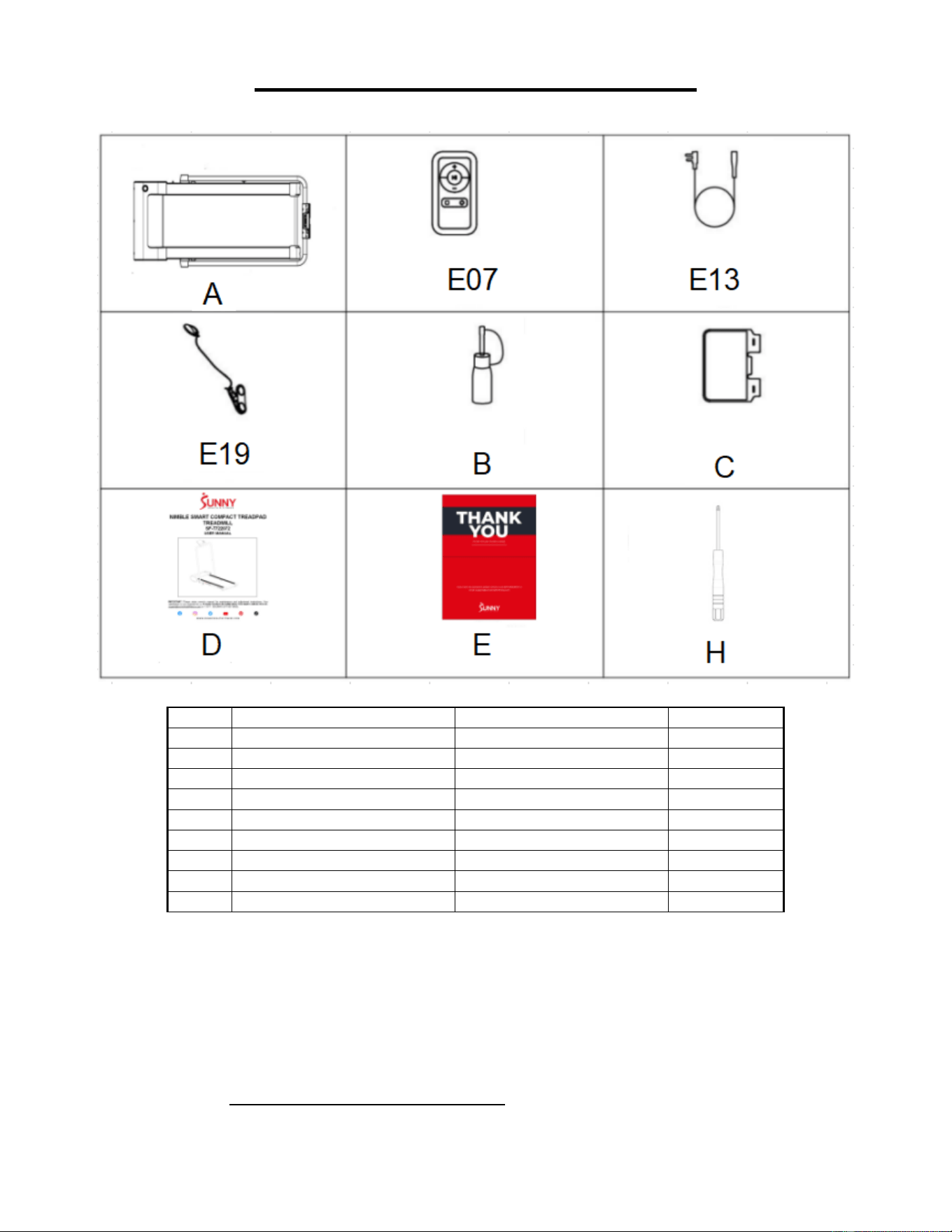

PRE-ASSEMBLY CHECK LIST
Before you start to assemble, please make sure all parts are included.
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓ The model number (found on cover of manual)
✓ The product name (found on cover of manual)

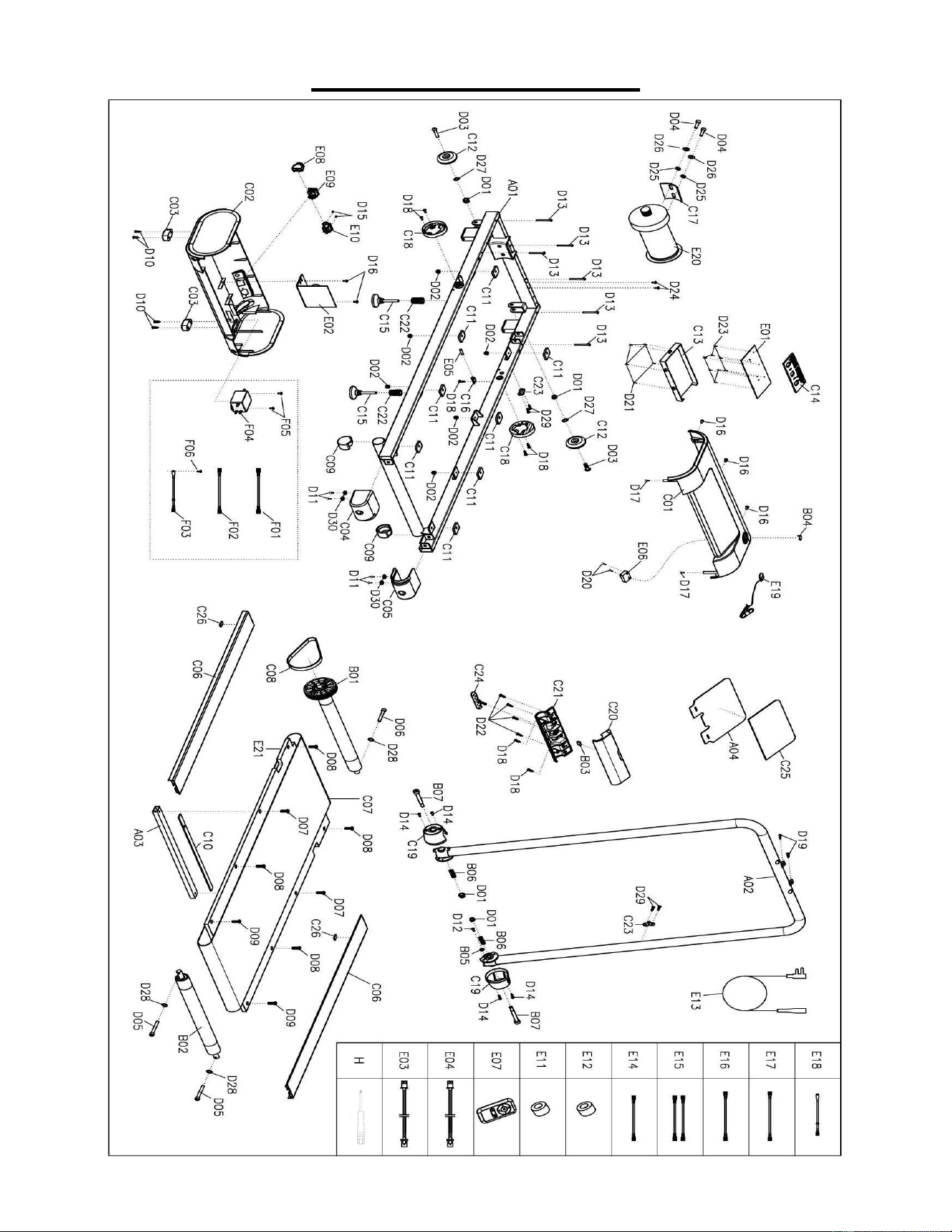

✓ The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the end of
the manual)
No.
Description
Spec.
Qty.
A
Main Frame
1
E07
Remote Control
1
E13
Power Cord
1
E19
Safety Key
1
B
Lubricant
20ml/bottle
1
C
Tablet Holder
1
D
Manual
1
E
Thank You Card
1
H
Screwdriver
1
6
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).

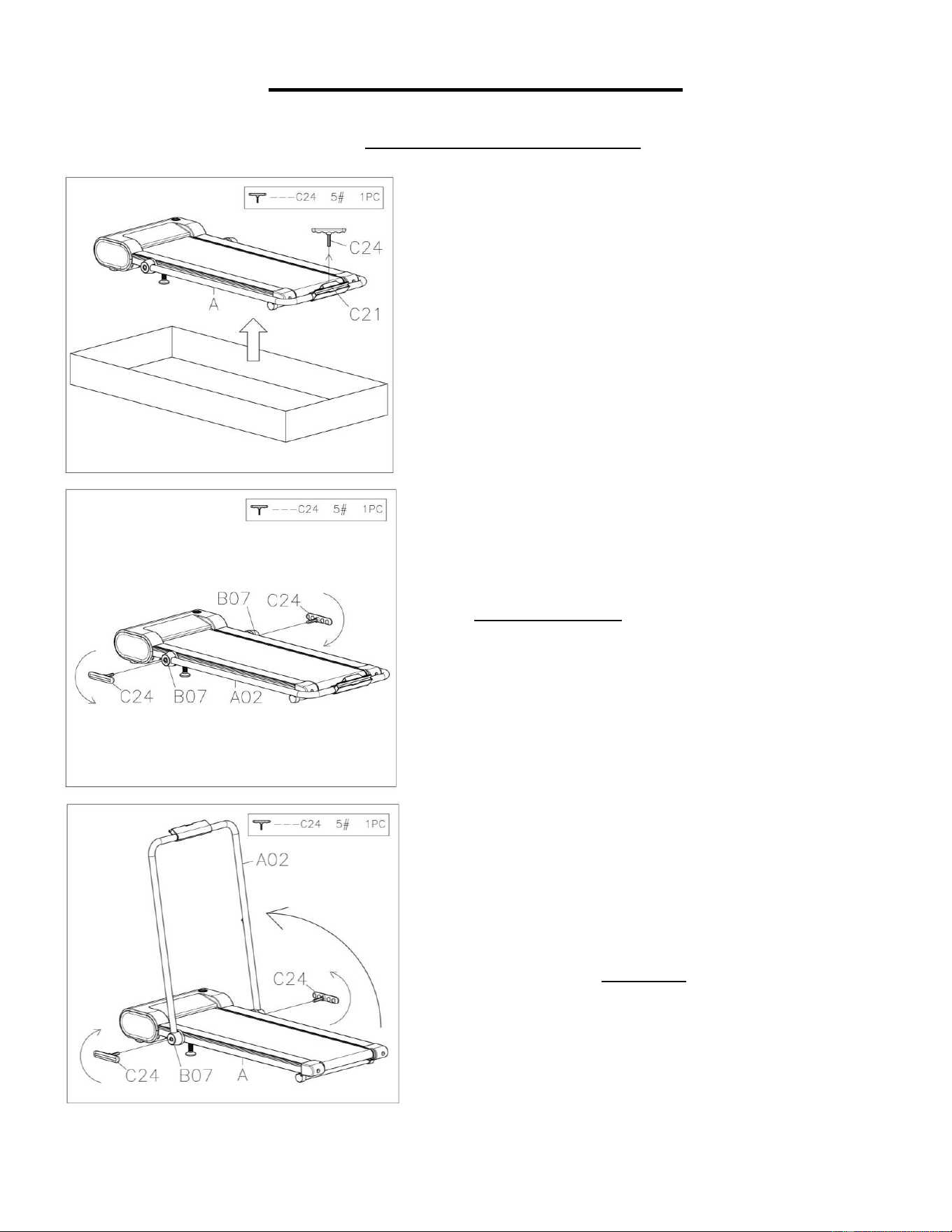

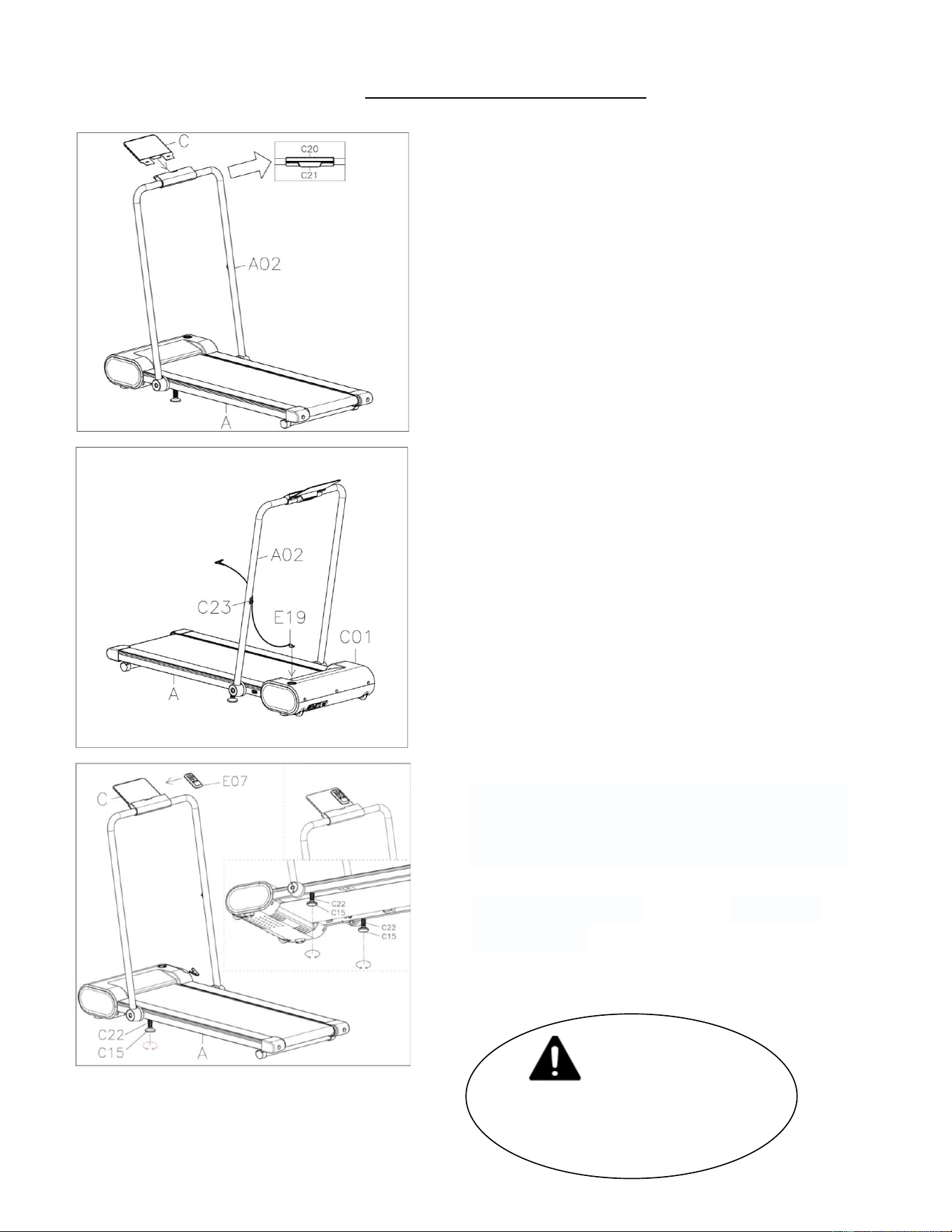

STEP 1:
Open the carton and remove contents. Place
the Main Frame (No. A) on level ground,
ensure that you have a work area that is clean
and has adequate space.
Take the T-Shape Wrench (No. C24) out from
the Tablet Holder Bottom Cover (No. C21).
STEP 2:
Loosen the 2 Screws (No. B07) on the
Handlebar Tube (No. A02) by turning
counter-clockwise using the T-Shape
Wrench (No. C24).
STEP 3:
Support the Handlebar Tube (No. A02) with
your hands to prevent it from falling.
Attach Handlebar Tube (No. A02) to the
Main Frame (No. A) with 2 Screws (No.
B07) by turning clockwise using the T-Shape
Wrench (No. C24).
7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 4:

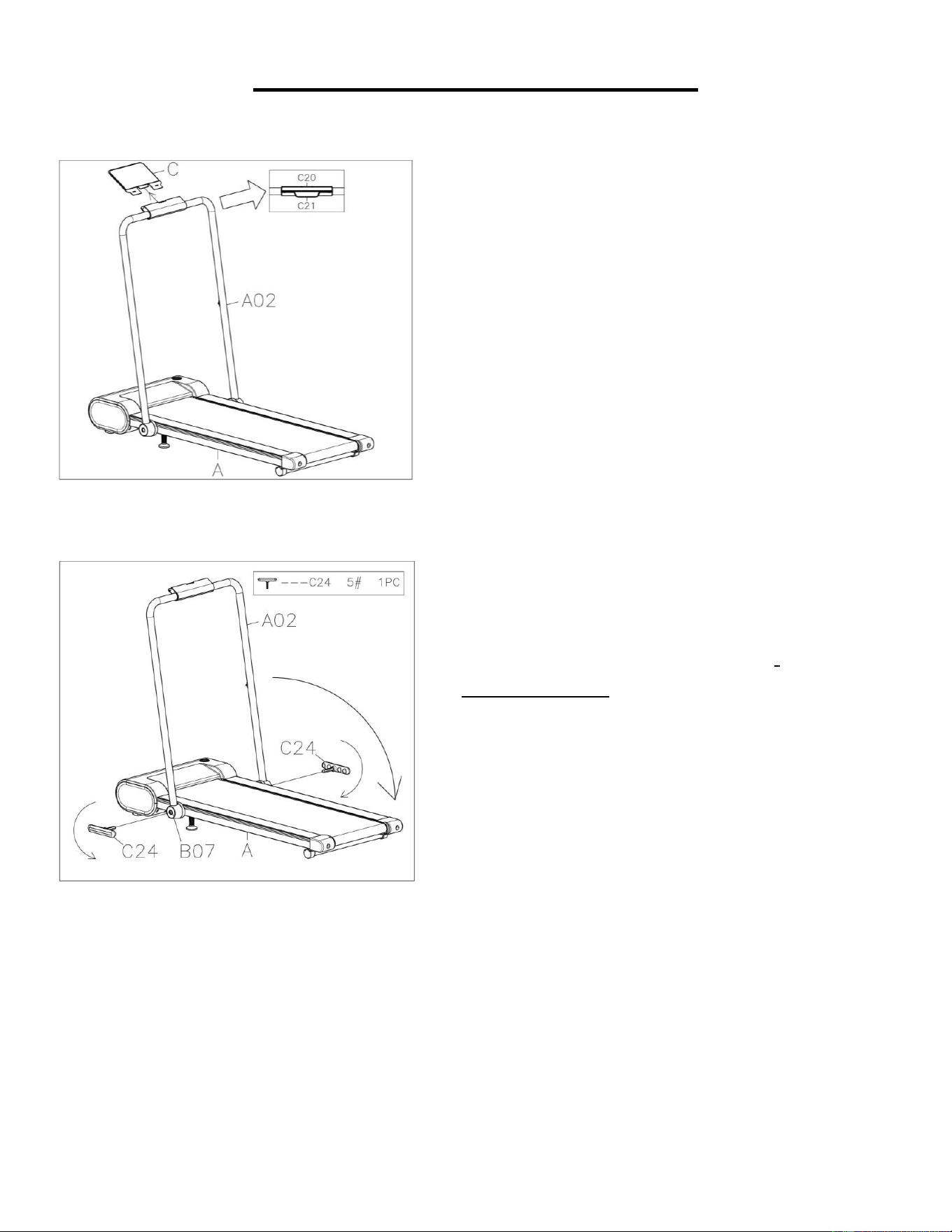

Insert the Tablet Holder (No. C) into the
Tablet Holder Top and Bottom Covers (No.
C20 & C21).
STEP 5:

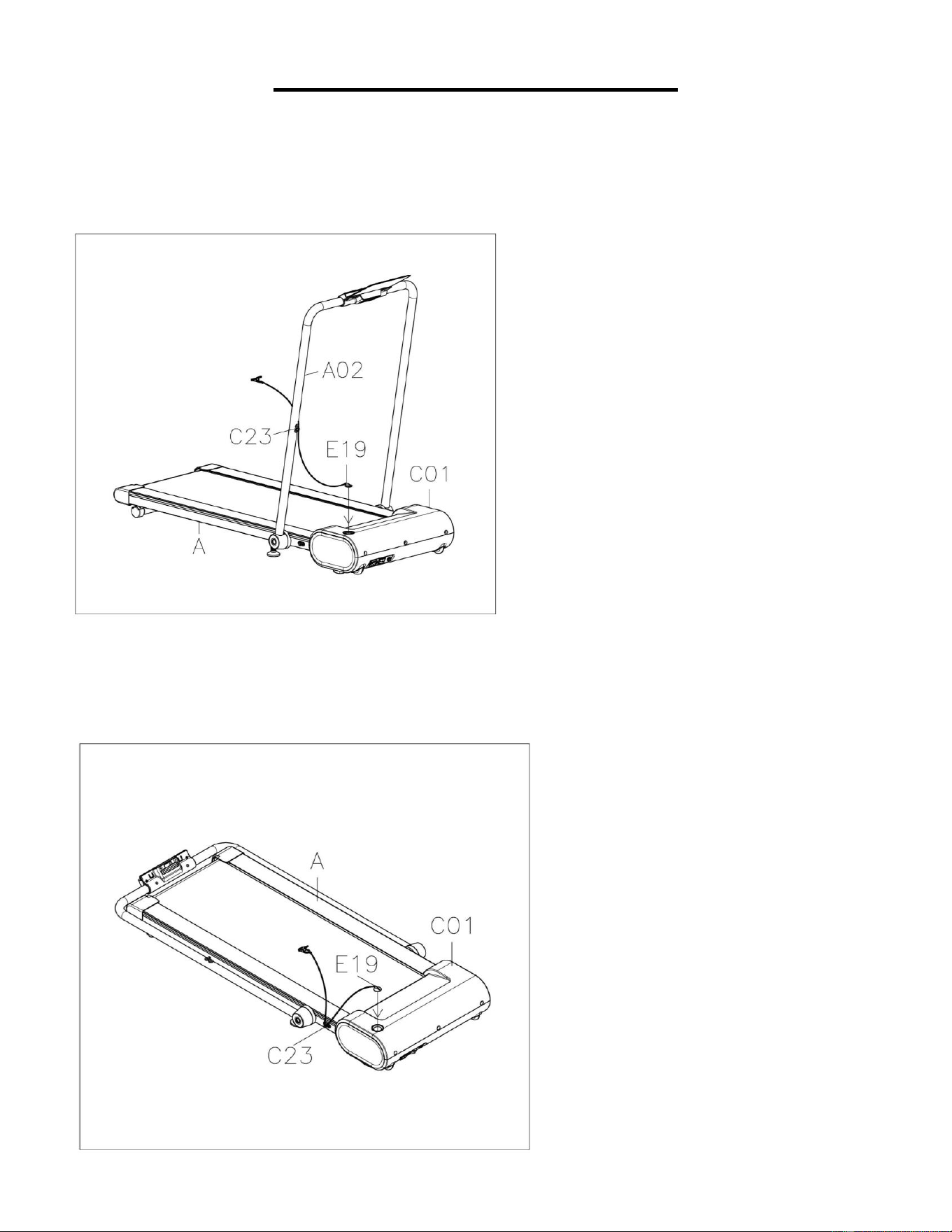

Put the magnet end of Safety Key (No. E19)
onto the Motor Top Cover (No. C01).
When you are running, you can put the wire
of Safety Key (No. E19) through Lead Wire
Buckle (No. C23) on the Handlebar Tube
(No. A02) and clip onto your clothes.
IMPORTANT NOTE!
You will need to lubricate your
treadmill before the first use.
See Page 8.
STEP 6:
Adjust the height of Foot Pad Sleeve (No.
C22) to level the machine if it is not even on
the ground.
The Remote Control (No. E07) can attach
directly to the Tablet Holder (No. C).
The assembly is complete!
8
LUBRICATING THE TREADMILL
IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use.
RUNNING BELT & TREADMILL LUBRICANT:
Lubricating the Running Board (No. E21) and Running Belt (No. C07) is essential as the friction
affects the life span and operations of the treadmill. Inspect the Running Belt (No. C07) and Running
Board (No. E21) regularly. If you find any wear on the Running Board (No. E21), please contact us at:
WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating, or
repairing the unit.
HOW TO LUBRICATE:

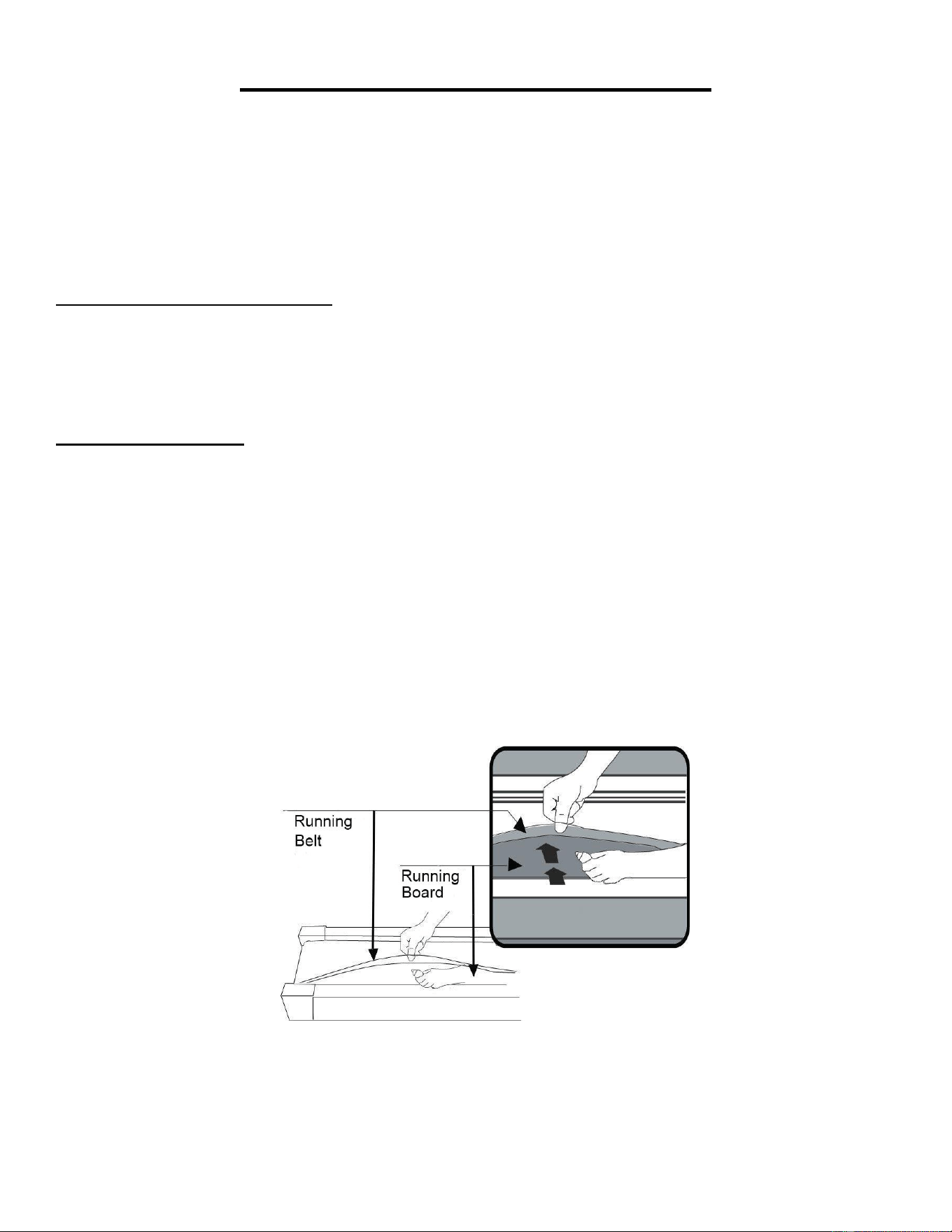

1. To apply lubricant, lift one side of the Running Belt (No. C07) and apply oil to the middle of the
Running Board (No. E21). Next, start the treadmill and place it at the lowest speed setting and
allow the oil to spread over the Running Board (No. E21). Repeat this process for the other side.
2. The moving parts should turn freely and quietly. Abnormal moving parts will affect the safety of the
equipment. Inspect and tighten bolts regularly.
3. To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be done
on a regular basis.
4. DO NOT LOOSEN OR MAKE ANY ADJUSTMENTS TO THE RUNNING BELT WHILE APPLYING
LUBRICANT. A loose Running Belt (No. C07) will result in the runner sliding off during use, while
too tight of a Running Belt (No. C07) will negatively affect the motor’s performance and create
more friction between the roller and Running Belt (No. C07). The most suitable tightness for the
Running Belt (No. C07) is when it is pulled out 50-75mm from the Running Board (No. E21).
The following timetable is recommended:
Light user (less than 3 hours/ week) every six months
Medium user (3-5 hours/ week) every three months
Heavy user (more than 5 hours/ week) every two months
9
HOW TO FOLD THE MACHINE
STEP 1:
Pull out the Tablet Holder (No. C) from Tablet
Holder Top and Bottom Cover (No. C20 &
C21).
STEP 2:
Loosen the 2 Screws (No. B07) of the
Handlebar Tube (No. A02) by turning
counter-clockwise using the T-Shape Wrench
(No. C24).
Pull the Handlebar Tube (No. A02)
downward (in the direction, as shown in the
diagram).
10
STEP 3:

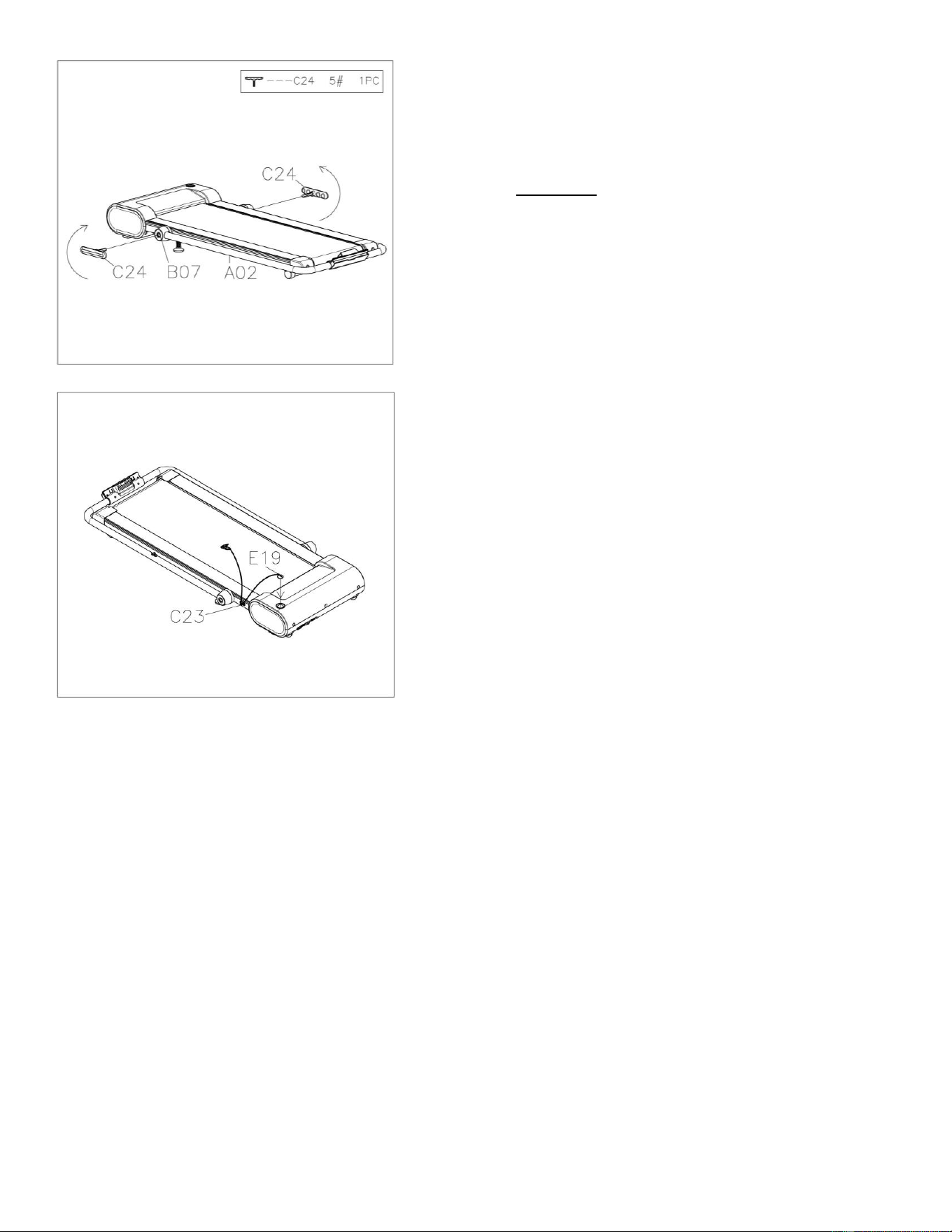

Attach the 2 Screws (No. B07) on Handlebar
Tube (No. A02) to the Main Frame (No. A) by
turning clockwise using the T-Shape Wrench
(No. C24).
STEP 4:
Put the magnet end of Safety Key (No. E19)
onto the Motor Top Cover (No. C01).
When you are running, you can put the wire of
Safety Key (No. E19) through Lead Wire
Buckle (No. C23) on the Main Frame (No. A)
and clip onto your clothes.
11

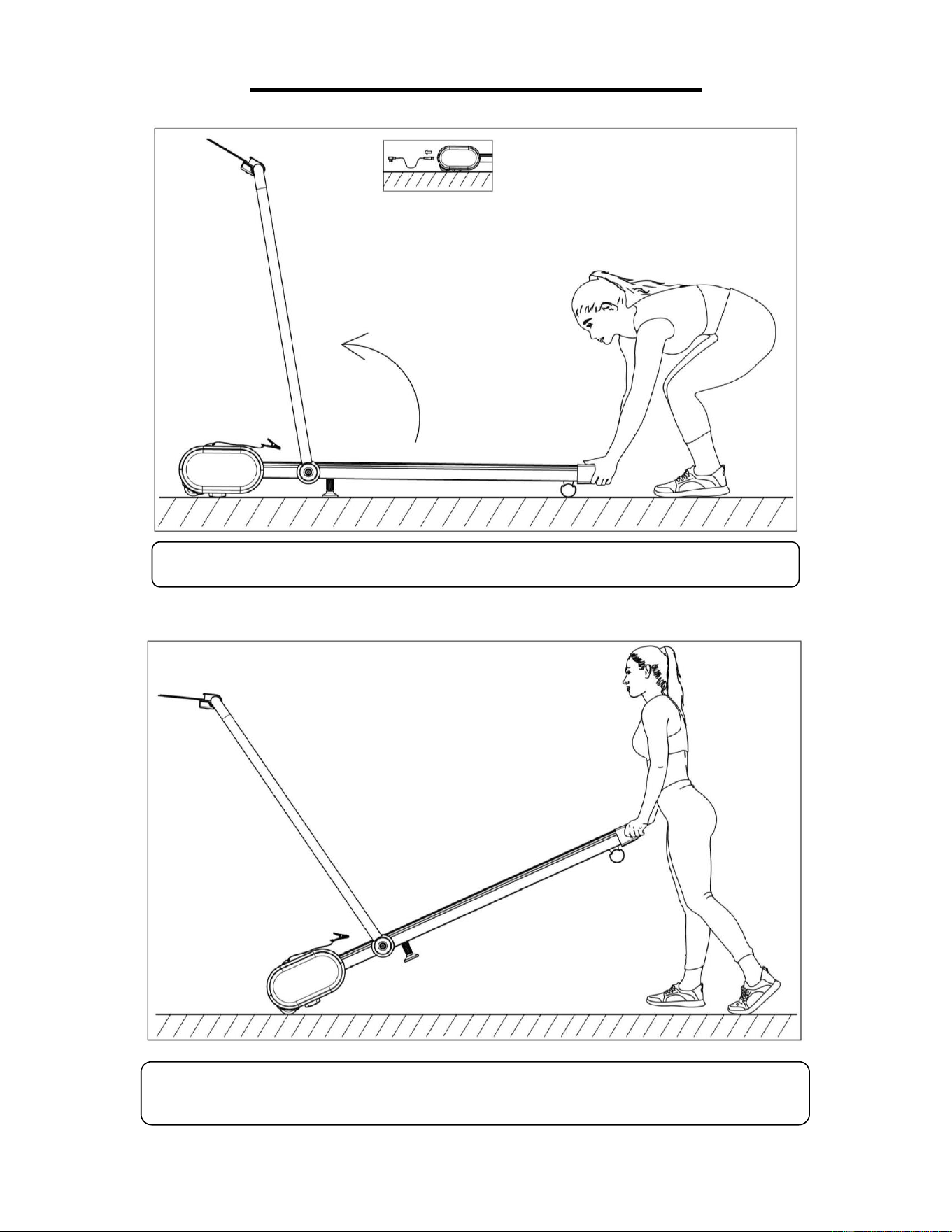

HOW TO MOVE THE MACHINE
Hold the treadmill at position as above with your hand. Lift the treadmill and
then you can move the treadmill to any place.
Note: Please unplug the power cord from the treadmill before moving.
12
HOW TO USE SAFETY KEY
When the handrails stand up, the treadmill is in running mode. When you are running, you can put the
wire of Safety Key (No. E19) through Lead Wire Buckle (No. C23) on the Handlebar Tube (No. A02)
and clip onto your clothes.
When the handrails lie down, the treadmill is in walking mode. When you are walking, you can put the
wire of Safety Key (No. E19) through Lead Wire Buckle (No. C23) on the Main Frame (No. A) and
clip onto your clothes.
13
MAINTENANCE & CARE
General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and
maintained by dusting the components on a regular basis. Clean both sides of the running belt to
prevent dust from accumulating underneath the belt. Keep your running shoes clean so that dirt from
your shoes does not wear out the Running Board (No. E21) and Running Belt (No. C07). Clean the
surface of the Running Belt (No. C07) with a clean damp cloth.
To better maintain the treadmill and prolong its life, it is suggested that the treadmill be powered off
for 10 minutes every 2 hours and fully powered off whenever not in use.
CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 2MPH to check if the Running Belt (No. C07) drifts
from the center.
If the Running Belt (No. C07) moves to
the right, turn the right adjusting bolt ¼ turn
clockwise, then turn the left adjustment bolt
¼ turn counter-clockwise. If the Running
Belt (No. C07) does not move, repeat this
step until it centers. Refer to Figure A.
If the Running Belt (No. C07) moves to the
left, turn the left adjusting bolt ¼ turn
clockwise, then turn the right adjustment bolt
¼ turn counter-clockwise. If the Running
Belt (No. C07) does not move, repeat this
step until it centers. Refer to Figure B.
Over time, the Running Belt (No. C07) will
loosen. To tighten the Running Belt (No.
C07), turn the left & right adjusting bolts
one full turn clockwise, check the tension of
the Running Belt (No. C07). Continue this
process until Running Belt (No. C07) is at
the correct tension. Make sure to adjust
both sides equally to ensure correct belt
alignment. Refer to Figure C.
14
IMPORTANT ELECTRICAL INFORMATION
WARNING: This treadmill requires a power source of 8 amps (100-120V) in order to properly
operate. For your safety, as well as the safety of others, verify that the power source is correct before
plugging in the equipment. Any power source above or below this level could cause significant
damage to the equipment and/or user.
GROUNDING METHODS:
This product must be grounded. Grounding provides the least resistance for electrical current and will
reduce the risk of electric shock. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances. Ensure that the product is
connected to an outlet which contains the same configuration as the plug. Do not use an adaptor for
this product.
This product is for use on a nominal 100-120V circuit and has a grounding plug that looks like the plug
illustrated in sketch A. Make sure that the product is connected to an outlet having the same
configuration as the plug. No adapter should be used with this product.
DANGER:
Improper connection of the equipment-grounding conductor can result in a risk of electrical shock.
Check with a certified electrician if you are in doubt as to whether the product is properly grounded. Do
not modify the plug provided with the product. If it will not fit the outlet, have a proper outlet installed by
an electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power
cord away from any moving part of the treadmill including the elevation mechanism and
transportation wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover without first disconnecting AC power.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for use outdoors,
near pools, or in any other high humidity environment.
GROUNDING METHOD
15

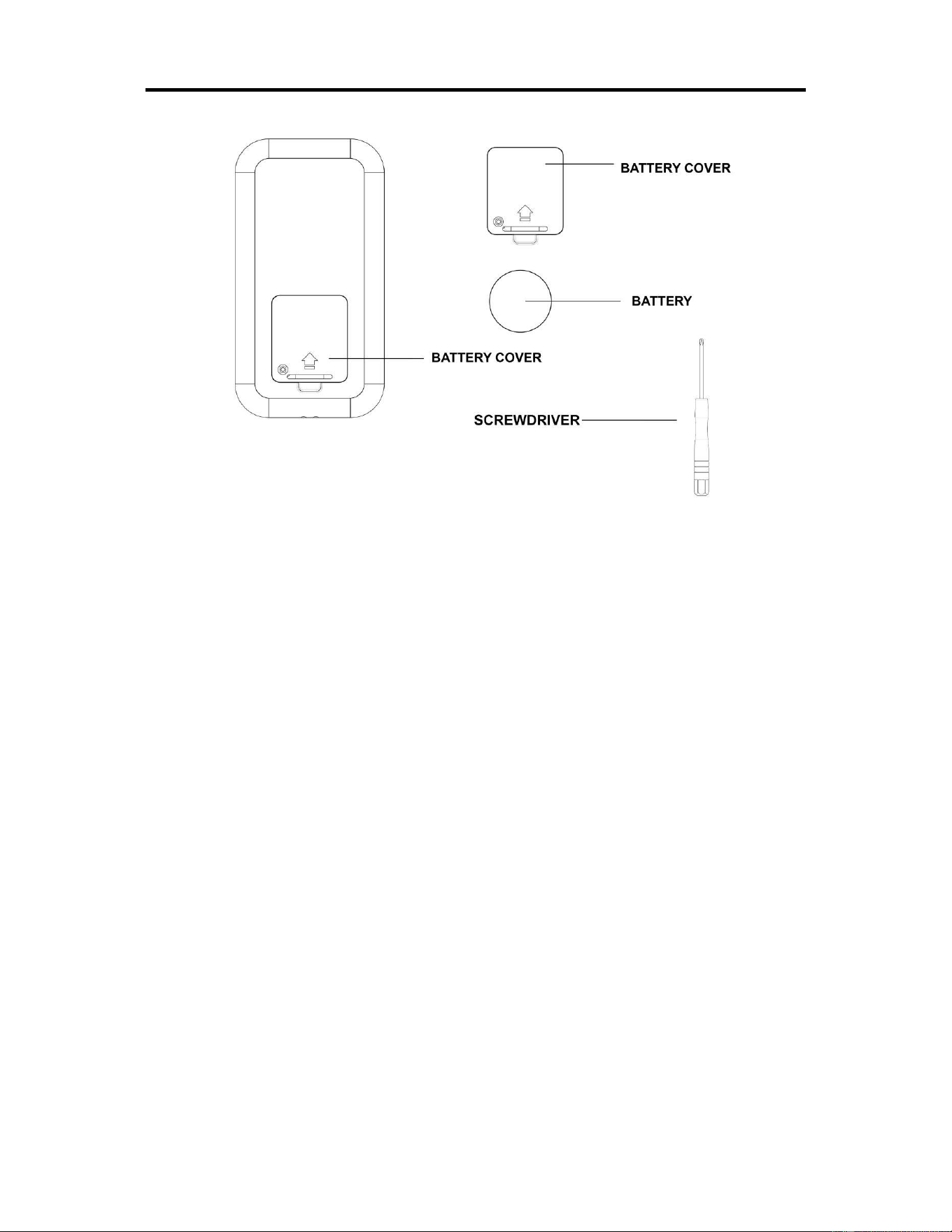

BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION:
1. Use a Screwdriver (No. H) to loosen and remove the screw from the battery cover.
2. Take out the CR2032 battery that is included inside the remote control box.
3. Install the battery into the battery holder with the positive end facing up.
4. Put the battery cover back on to the battery holder and lock the screw into the battery cover.
BATTERY REPLACEMENT:
1. Use a Screwdriver (No. H) to loosen and remove the screw from the battery cover.
2. Remove the old battery and install the new battery into the battery holder with the positive pole
facing up.
3. Put the battery cover back on to the battery holder and lock the screw into the battery cover.
Dispose of the old battery according to your regional guidelines.
Model: CR2301
Product Name: REMOTE CONTROL CR2301
FCC& IC Radiation Exposure Statement:
This equipment complies with FCC and Canada radiation exposure limits set forth for an uncontrolled
environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
16
THE DISPLAY CONSOLE
WINDOW DISPLAY:
Displays time, distance, calories, steps, and speed value in turn every 5 seconds.
REMOTE CONTROL FUNCTIONS:
START/PAUSE: Press this button, so that treadmill begins running. 0.5 MPH is the default start speed.
During exercise, you also can press this button to pause the machine.
SPEED +/–: Press the +/- buttons to increase or decrease the speed in increments of 0.1 MPH (Miles
per hour). Pressing and holding either of these buttons for a duration of over ½ second will increase or
decrease the speed continuously.
17
STOP: When in use, press the STOP button to terminate your workout session completely. All data will
be deleted and reset to the initial setting.
DISPLAY SWITCH: When in use, you can press this button to switch the display between Time,
Distance, Calories, Steps and Speed value.
BATTERY POWER INDICATOR LIGHT: When you press any button on the remote, the light will blink
three times if the battery is low. Please proceed to change the battery. If it does not blink, then the
battery is not low.
Note: If the treadmill does not respond to the remote control, you will need to resync the
treadmill and remote control. Please take the following steps to resync:
1. Hold the remote right next to the screen the entire time while resyncing
2. Plug in the treadmill (do not turn it on)
3. Press and hold the start/pause button
4. While keeping the button pressed, turn on the treadmill
5. Continue to hold the button pressed for additional 5-10 seconds
6. Release the button and try to control the treadmill functions using the remote
WINDOW DISPLAY:
Displays calories, time, steps, distance, and speed value in turn every 5 seconds.
CALORIES: Displays the number of calories burned from 0.0 to 99999 KCAL. When the count
reaches 99999 KCAL, it will reset and start back from 0.
TIME: Displays the time elapsed (0:00-99:59 MINS). If the time reaches 99:59, the treadmill will stop
smoothly and display “End” then automatically reset to 0:00 after 5 seconds.
STEPS: Displays the number of steps from 0 to 99999. When the count reaches 99999, it will reset
and start back from 0.
DISTANCE: Displays the distance traveled (0.00-99.99). When the distance reaches 99.99 MILE, it
will reset to 0.00 and begin counting again from 0.00.
SPEED: When the handrails are down, the treadmill is in walking mode. The speed range is 0.5-3.7
MPH. When the handrails are up, the treadmill is running mode. The speed range is 0.5-6.0 MPH.
0.5MPH is the default running speed.
Note: When no person walks or runs on the machine, distance and calories will not count.
PROGRAMS
Initial
Default Value
Set Range
Display Range
TIME (MIN:SECOND)
0:00
N/A
N/A
0:00－99:59
SPEED (MPH)
0.0
0.5
0.5-3.7(WALKING)
0.5-6.0(RUNNING)
0.5-3.7(WALKING)
0.5-6.0(RUNNING)
DISTANCE (MILE)
0.00
N/A
N/A
0.00-99.99
STEP
0
N/A
N/A
0-99999
CALORIE (KCAL)
0.0
N/A
N/A
0.0-99999
18
LUBRICATION REMINDER:
Your treadmill needs lubrication maintenance every 188 miles. The system will release a beeping
sound every 10 seconds and display an “OIL” icon on your display to remind you when it’s time.
Please read the LUBRICATING THE TREADMILL instructions on Page 8 to learn the proper steps to
lubricate your treadmill. Apply the lubricant to the middle of the running deck on both sides. After
application, press and hold the STOP button for 3 seconds to clear the reminder.
POWER SAVE FUNCTION:
When the treadmill has been idle for 10 minutes, it will enter Power Saving Mode. While the treadmill is
in this mode, the window display of the console will be turned off. To turn it back on, press any button.
Note: The machine will stop automatically after 15 minutes, if not in use.
POWER ON:
Flick the power switch to this symbol to turn on the treadmill.
POWER OFF:
Flick the power switch to this symbol to turn the treadmill off at any time. This includes during exercise.
19
EXERCISE INSTRUCTIONS
GETTING STARTED:
Before starting any exercise program, you should consult your physician to determine if you have any
medical or physical conditions that could put your health and safety at risk or prevent you from using
the equipment properly.
Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising immediately if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea.
Get to know your treadmill. Before attempting to use the treadmill take some time to stand alongside
and familiarize yourself with the controls.
1. Once you get on, you can stand with your feet on the Side Rails (No. C06) and stabilize yourself by
holding onto the handrails.
2. Next, attach the pin end of the Safety Key (No. E19) to your clothes and insert the pin end of the
Safety Key (No. E19) into the Motor Top Cover (No. C01).
3. Press the START button to start the treadmill.
4. The treadmill will start at the system default setting speed of 0.5MPH. When you feel comfortable,
you may slowly increase this speed.
5. When you are finished with your exercise, press the STOP button to stop the treadmill or you can
remove the pin end of the Motor Top Cover (No. C01) to stop the treadmill.
APP CONNECTION:
Connect Smart Equipment to SunnyFit App:
1. Scan to download SunnyFit from the app store:
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free
SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the onscreen prompts to
search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your course/session, and
recorded in your account profile!
20
TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSE
SUGGESTED ACTION
Treadmill will not start
Not plugged in.
Plug cord into outlet
Safety Key not inserted.
Insert Safety Key
Running belt not centered
Running belt tension not
correct on the left or right
sides of the running board.
Tighten the adjustment bolts
on the left and right side of the
rear roller.
Console not working
Wires from the console
and bottom control board
are not properly
connected.
Check wire connections from
the console to the control
board.
Transformer is damaged.
If the transformer is damaged,
contact customer service.
E01 ERROR: Message
failure
Wires from the console
and bottom control board
are not properly
connected.
Check wire connections from
the console to the control
board. If the wire has been
punctured or damaged, you
will need to replace it. If the
problem is not rectified, you
may need to replace the
control board.
E02 ERROR: Burst clash
protection
Incoming voltage is lower
than 50% of the required
voltage.
Check that the incoming
power supply is the correct
voltage.
E05 ERROR: Current
overload protection (Self
Protecting System)
The incoming voltage is
too low or too high. The
control board is damaged.
Restart the treadmill. Check
the incoming voltage to
ensure it is correct. Check the
control board, replace if
damaged.
A moving part of the
treadmill is stuck and
therefore the motor is
unable to rotate properly.
Inspect moving parts of the
treadmill to ensure that they
are operating correctly. Check
the motor, listen for any
strange noises and check for
a burning smell. Replace the
motor if necessary.
21
NOTE:
1. If you are having trouble connecting your smart equipment, visit www.sunnyfit.com/guide
or scan the QR code below:
2. If you require additional support, please contact [email protected].
E06 ERROR: Motor
abnormality
The motor wire is not
connected, or the motor is
damaged.
Check motor wires to see if
the motor is connected. If the
wire has been punctured or
damaged, you will need to
replace it. If the problem is not
rectified, you may need to
replace the motor.
E08 ERROR: Control
board abnormality
The control board is not
connected.
Check the upper and middle
wires to see if the control
board is connected. If the wire
has been punctured or
damaged, you will need to
replace it. If the problem is not
rectified, you may need to
replace the control board.
E09 ERROR: Inversion
error
The treadmill sets upright
or not placed horizontally.
Adjust the treadmill and place
it horizontally.
If the wires of the control
board are not connected well,
replace with a new control
board.
E10 ERROR: Motor
abnormality
The motor is damaged, or
a moving part of the
treadmill is stuck and
therefore the motor is
unable to rotate properly.
Inspect moving parts of the
treadmill to ensure that they
are operating correctly.
Replace the motor if
necessary.
22
EXPLODED DIAGRAM
23
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
A01
Main Frame
1
D04
Bolt
M8*15
2
A02
Handlebar Tube
1
D05
Bolt
M6*55
2
A03
Running Board
Strengthen Tube
1
D06
Bolt
M6*45
1
A04
Tablet Holder Base
1
D07
Bolt
M6*46
2
B01
Front Roller
1
D08
Bolt
M6*28
4
B02
Rear Roller
1
D09
Bolt
M6*25
2
B03
Magnet
1
D10
Bolt
M5*16
4
B04
Safety Key Plate
1
D11
Bolt
M5*12
4
B05
Round Magnet
1
D12
Bolt
M3*8
1
B06
Spring
2
D13
Screw
ST4.2*50
6
B07
Screw
2
D14
Bolt
M4*10
4
C01
Motor Top Cover
1
D15
Screw
ST2.9*8.0
2
C02
Motor Bottom Cover
1
D16
Screw
ST4.2*12
5
C03
Foot Pad
2
D17
Screw
ST4.2*20
2
C04
Left End Cap
1
D18
Screw
ST4.2*12
7
C05
Right End Cap
1
D19
Screw
ST4.2*10
2
C06
Side Rail
2
D20
Screw
ST2.9*8
2
C07
Running Belt
1
D21
Screw
ST2.9*6
5
C08
Motor Belt
1
D22
Screw
ST2.9*12
4
C09
C-shape Foot Pad
2
D23
Screw
ST2.5*6
8
C10
Rubber Pad
1
D24
Screw
ST4.2*12
2
C11
Rubber Cushion
8
D25
Spring Washer
Φ8
2
C12
Adjustable Wheel
2
D26
Flat Washer
Φ8
2
C13
Console Board Cover
1
D27
Locked Washer
Φ8
2
C14
Optical Grating
1
D28
Locked Washer
Φ6
3
C15
Adjustable Pad
2
D29
Screw
ST4.2*12
4
C16
Sensor Fixed Base
1
D30
Big Washer
Φ5*Φ15*1
4
C17
Eva Pad
1
E01
Console
1
C18
Bottom Inner Cover
2
E02
Control Board
1
C19
Bottom Outer Cover
2
E03
Console Communication
Wire
1
C20
Tablet Holder Top
Cover
1
E04
Console Connecting Wire
1
C21
Tablet Holder Bottom
Cover
1
E05
Magnetic Sensor
1
C22
Foot Pad Sleeve
2
E06
Safety Key Magnetic
Sensor
1
C23
Lead Wire Buckle
2
E07
Remote Control
1
C24
T-shape Wrench
5#
1
E08
Overload Protector
1
C25
Eva Pad
1
E09
Square Switch
1
C26
Rubber Blanket
1
E10
Power Socket
1
D01
Nut
M8
4
E11
Magnet Ring
1
D02
Nut
M6
6
E12
Magnet Core
1
D03
Bolt
M8*40
2
E13
Power Cord
1
24
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
E14
AC Single Line
L200 Blue
1
F01
AC Single Line
Brown
1
E15
AC Single Line
L200
Brown
2
F02
AC Single Line
Blue
1
E16
AC Single Line
L350
Brown
1
F03
Grounding Wire
Green and
Yellow
1
E17
AC Single Line
L350 Blue
1
F04
Filter
1
E18
AC Single Line
L350
Yellow
1
F05
Screw
ST4.2*12
2
E19
Safety Key
1
F06
Screw
ST4.2*12
1
E20
Motor
1
H
Screwdriver
1
E21
Running Board
1
Version 2.2
