Instruction Leaflet
Directives
Hoja de instrucciones
RCA900N Transformer • Transformateur • Transformador
Input 120V AC 60Hz, Output 16V AC 10VA
entrée 120 V c.a., 60 Hz, sortie 16 V c.a., 10 VA
Entrada 120V AC 60Hz, Salida 16V AC 10VA
69-2145EFS-01
SAFETY
For safety reasons, always turn off the mains electricity supply
before wiring the transformer to a junction box!
Make sure that all connections are correct and terminals are fully
tightened. Do not stress the cables.
The main supply to the transformer should be installed in accor-
dance with this instruction and in compliance with local wiring
codes.
WIRING TO LINE VOLT SUPPLY
Mount the transformer to an appropriate junction box or circuit
breaker box. Connect line voltage white and black wires to the
white and black transformer wires, connect the green wire to
ground. See Fig. 1.
This transformer can be used to replace any 16V 10VA trans-
former from any manufacturer, which is mounted within electrical
cable management housing.
For connection to chime and push, please refer to its manual.
DISPOSAL & RECYCLING
Waste electrical products should not be disposed of with house-
hold waste. Please recycle where these facilities exist. Check
with your local authority or retailer for recycling advice.
DECLARATION
Honeywell hereby declares that this product is in compliance to
the relevant standards in C UL and UL1585 safety requirements.
GUARANTEE
Honeywell guarantees this product for 1 year from the date of
purchase. Proof of purchase is required; this does not affect your
statutory rights. If you require further information about your
product, call the Honeywell helpline on 1-800-468-1502.
M27185
16V, 10VA
OUTPUT
120 VAC
120V
GROUND

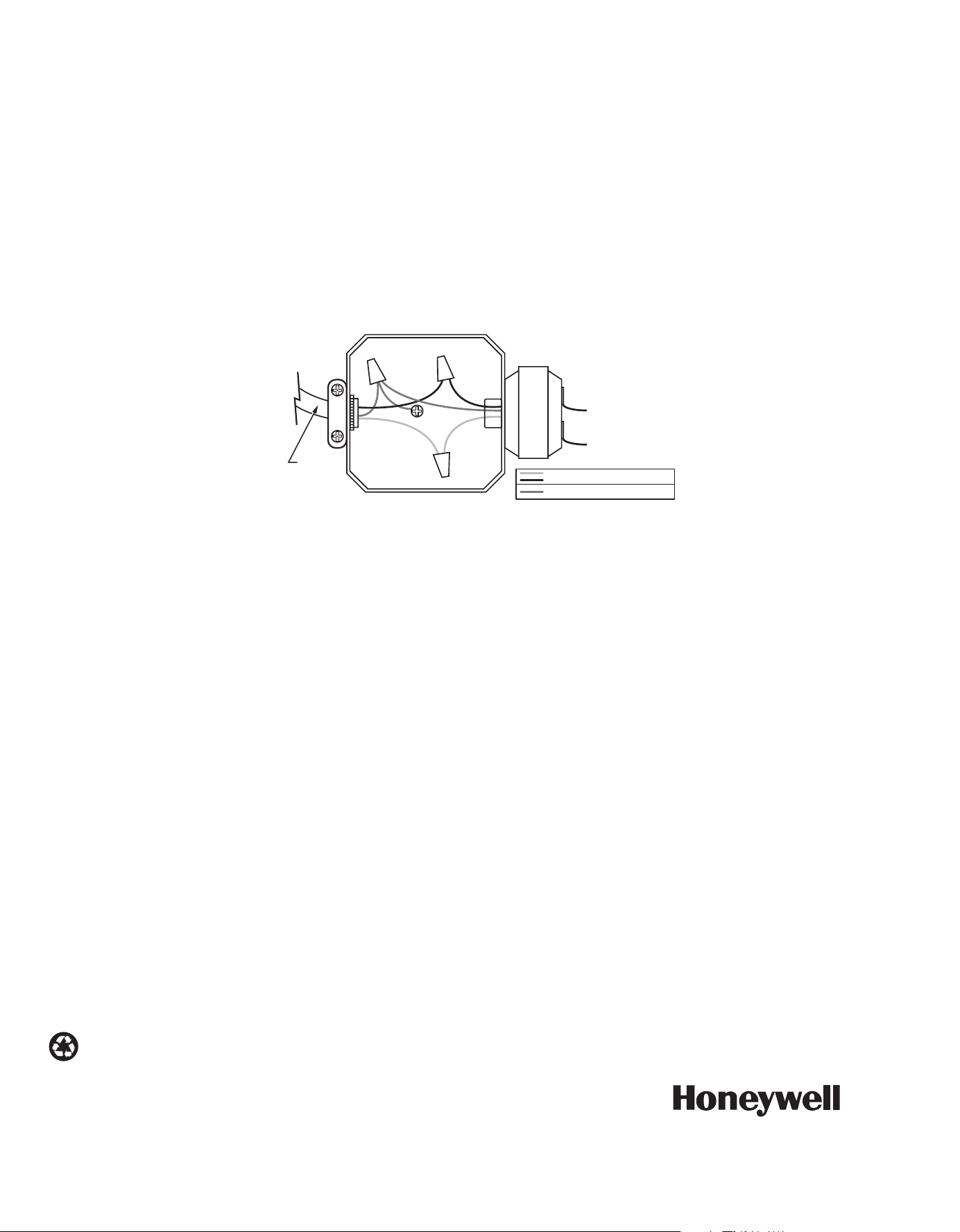

Fig. 1: Mains connection.
