Ion Series Single and Dual Stations
Owner's Manual
Part Number
1018401-0001 AA
Corporate Headquarters
Columbia Centre III, 9525 Bryn Mawr Avenue, Rosemont, Illinois 60018 • U.S.A.
847.288.3300 • FAX: 847.288.3703
Service phone number: 800.351.3737 (toll-free within U.S.A., Canada)
Global Website: www.lifefitness.com
International Oices
AMERICAS
North America
Life Fitness, LLC
Columbia Centre III
9525 Bryn Mawr Avenue
Rosemont, IL 60018 U.S.A.
Telephone: (847) 288 3300
Service Email: [email protected]om
Sales/Marketing Email:
commercialsales@lifefitness.com
United Kingdom
Life Fitness UK LTD
Queen Adelaide
Ely, Cambs, CB7 4UB
Telephone: General (+44) 1353.666017
Customer Support (+44) 1353.665507
Service Email: [email protected]
Sales/Marketing Email: lif[email protected]
All Other EMEA Countries and Distributor Business
EMEA*
Bijdorpplein 25-31
2992 LB Barendrecht
THE NETHERLANDS
Telephone: (+31) 180 646 644
Service Email:
Brazil
Life Fitness Brasil
Av. Rebouças, 2315
Pinheiros
São Paulo, SP 05401-300
BRAZIL
SAC: 0800 773 8282 option 2
Telephone: +55 (11) 3095 5200 option 2
Service Email: [email protected]om
Sales/Marketing Email: vendasbr@lifefitness.com
Germany, Austria, and Switzerland
Life Fitness Europe GMBH
Neuhofweg 9
85716 Unterschleißheim
GERMANY
Telephone:
+49 (0) 89 / 31775166 Germany
+43 (0) 1 / 6157198 Austria
+41 (0) 848 / 000901 Switzerland
Service Email: [email protected]om
Sales/Marketing Email: vertrieb@lifefitness.com
ASIA PACIFIC (AP)
Japan
Life Fitness Japan, Ltd
4-17-33 Minami Aoyama 1F/B1F
Minato-ku - Tokyo 107-0062
Japan
Telephone: (+81) 0120.114.482
Fax: (+81) 03-5770-5059
Service Email: service.lfj@lifefitness.com
Sales/Marketing Email:
sales@lifefitnessjapan.com
Latin America and Caribbean*
Life Fitness, LLC
Columbia Centre III
9525 Bryn Mawr Avenue
Rosemont, IL 60018 U.S.A.
Telephone: (847) 288 3300
Service Email: [email protected]om
Sales/Marketing Email:
commercialsales@lifefitness.com
Spain
Life Fitness IBERIA
C/Frederic Mompou 5,1º1ª
08960 Sant Just Desvern Barcelona
SPAIN
Telephone: (+34) 93.672.4660
Service Email: servicio.tecnico@lifefitness.com
Sales/Marketing Email:
info.iberia@lifefitness.com
Hong Kong
Life Fitness Asia Pacific LTD
32/F, Global Trade Square
21 Wong Chuk Hang Road
Hong Kong
Telephone: (+852) 2575.6262
Service Email: Service.HK@lifefitness.com
Sales/Marketing Email:
hongkong.sales@lifefitness.com
EUROPE, MIDDLE EAST, and AFRICA (EMEA)
Netherlands and Luxemburg
Life Fitness Atlantic BV
Bijdorpplein 25-31
2992 LB Barendrecht
THE NETHERLANDS
Telephone: (+31) 180 646 666
Service Email: service.benelux@lifefitness.com
Sales/Marketing Email:
marketing.benelux@lifefitness.com
Belgium
Life Fitness Benelux NV
Parc Industrial de Petit-Rechain
4800 Verviers
BELGIUM
Telephone: (+32) 87 300 942
Service Email: service.benelux@lifefitness.com
Sales/Marketing Email:
marketing.benelux@lifefitness.com
All Other Asia Pacific countries and distributor
business Asia Pacific*
32/F, Global Trade Square
21 Wong Chuk Hang Road
Hong Kong
Telephone: (+852) 2575.6262
Fax: (+852) 2575.6894
Service Email: Service.AP@lifefitness.com
Sales/Marketing Email:
Marketing.HK.Asia@lifefitness.com
*Also check
www.lifefitness.com for local representation or distributor/dealer
Page 1 of 68
User and Service Documents Link
https://lifefitness9512.zendesk.com/hc/en-us
Additional information is available online using the links above.
.
点击上面的链接可在线获取更多信息。
Flere oplysninger er tilgængelige online gennem linket ovenfor.
Bijkomende informatie is online beschikbaar via bovenstaande link.
Vous trouverez plus d'informations en ligne à l'aide du lien ci-dessus.
Zusätzliche Informationen finden Sie online über den oben angegebenen Link.
Ulteriori informazioni sono disponibili online utilizzando il link sopra riportato.
追加情報は上記リンクを使用してオンラインで利用可能です。
상기 링크를 통해 온라인에서 추가 정보를 볼 수 있습니다.
Informações adicionais estão disponíveis on-line, através do link acima.
Дополнительная информация до ступна в интернете по ссылке, указанной выше.
Mediante el enlace anterior podrá acceder a información adicional en línea.
Ytterligare information finns online genom att använda länken ovan.
İnternet daha fazla bağlantıyı
.
Informazio osagarria eskuragarri dago goiko estekaren bidez.
Допълнителна информация можете да намерите онлайн, като използвате връзката по-горе.
Mitjançant l'enllaç anterior podreu accedir a informació addicional en línia.
使用上面的連結線上提供額外資訊。
Dodatne informacije možete pronaći na internetu sljedeći vezu iznad.
ከላይ የተቀመጠውን አገናኝ(ሊንክ) በመጠቀም መረጃዎች ኦንላይን ያገኛሉ
Lisätietoja on saatavissa verkosta käyttämällä yllä olevaa linkkiä.
Wubetumi anya nsɛm afoforo aka ho wɔ wɛbsait so denam asɛm a ɛwɔ atifi hɔ a wubemia so so.
Πρόσθετες πληροφορίες είναι διαθέσιμες ονλάιν χρησιμοποιώντας το σύνδεσμο παραπάνω.
. עדימ ףסונ רשפא לבקל טנרטניאב תועצמאב רושיקה ליעל
További információ elérhető online, a fenti hivatkozás segítségével.
Viðbótarupplýsingar eru fáanlegar á netinu með því að smella á tengilinn hér fyrir ofan.
Plus indicium per superum situm potes invenire.
.
Ytterligere informasjon er tilgjengelig på nettet via linken ovenfor.
Dodatkowe informacje są dostępne online pod powyższym odnośnikiem.
Informações adicionais estão disponíveis online a usar o link acima.
Informații suplimentare sunt disponibile online, utilizând link-ul de mai sus.
Dodatne informacije dostupne su na mreži putem gornjeg linka.
Ďalšie informácie sú dostupné online na vyššie uvedenom odkaze.
Page 2 of 68
Table of Contents
Safety
Safety Information.........................................................................................................................................................................................................4

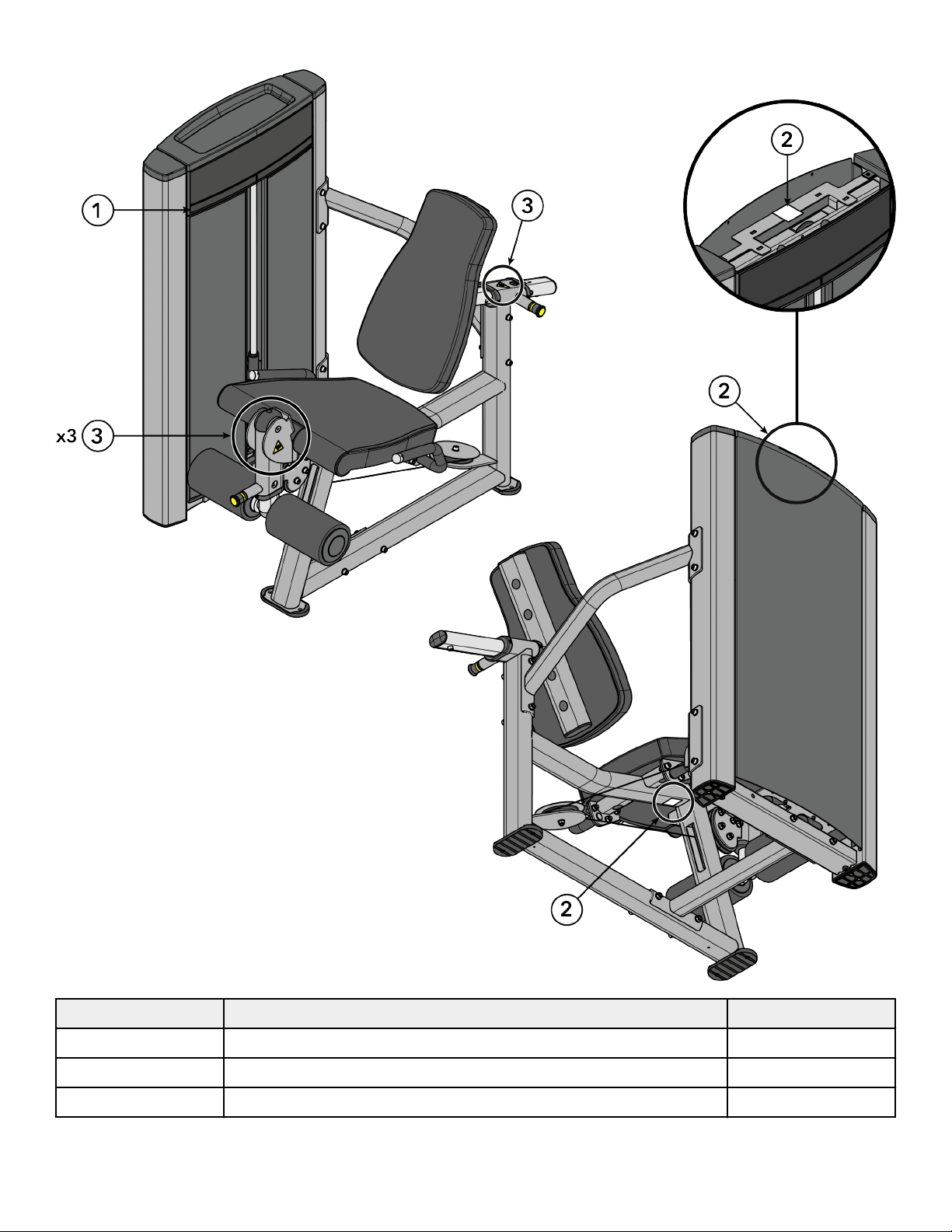

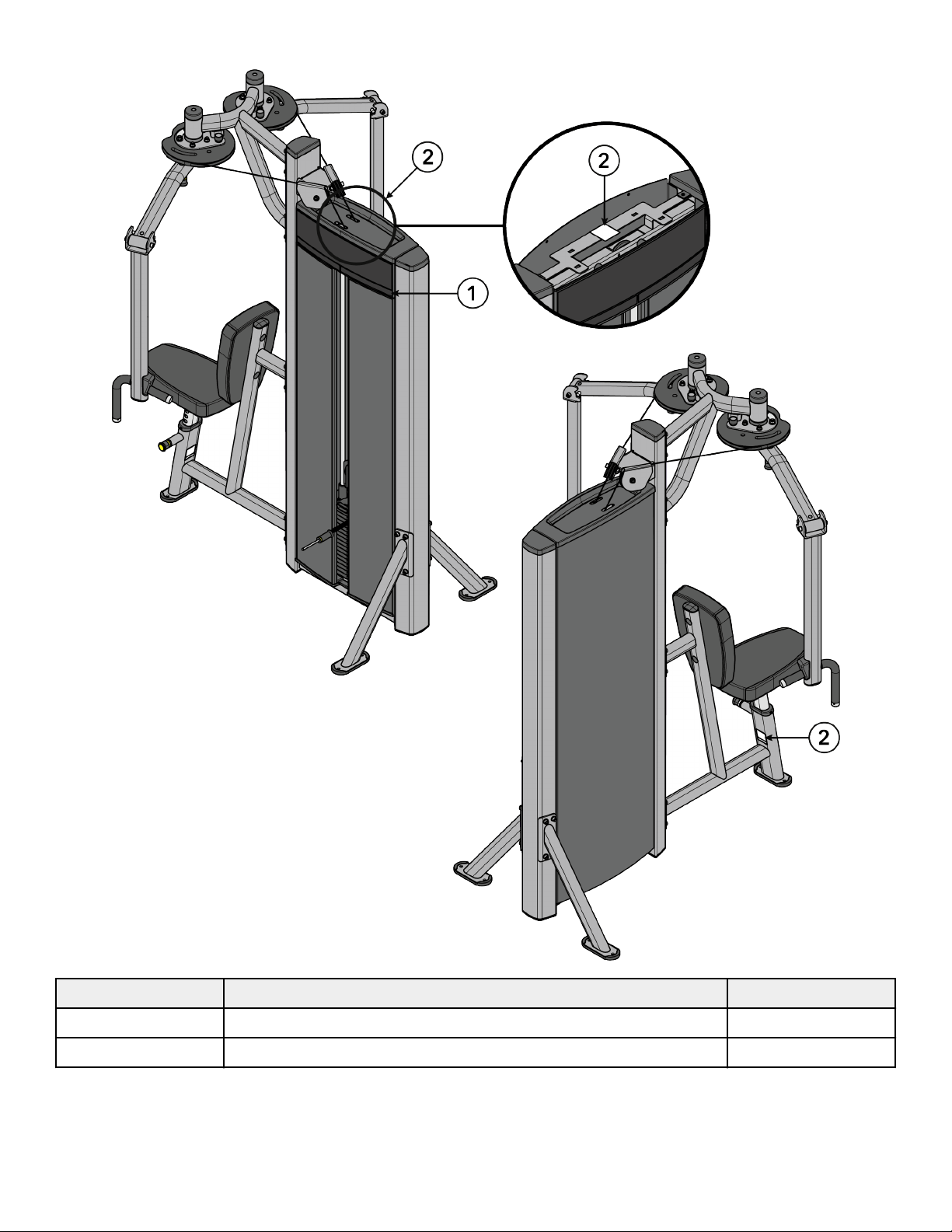

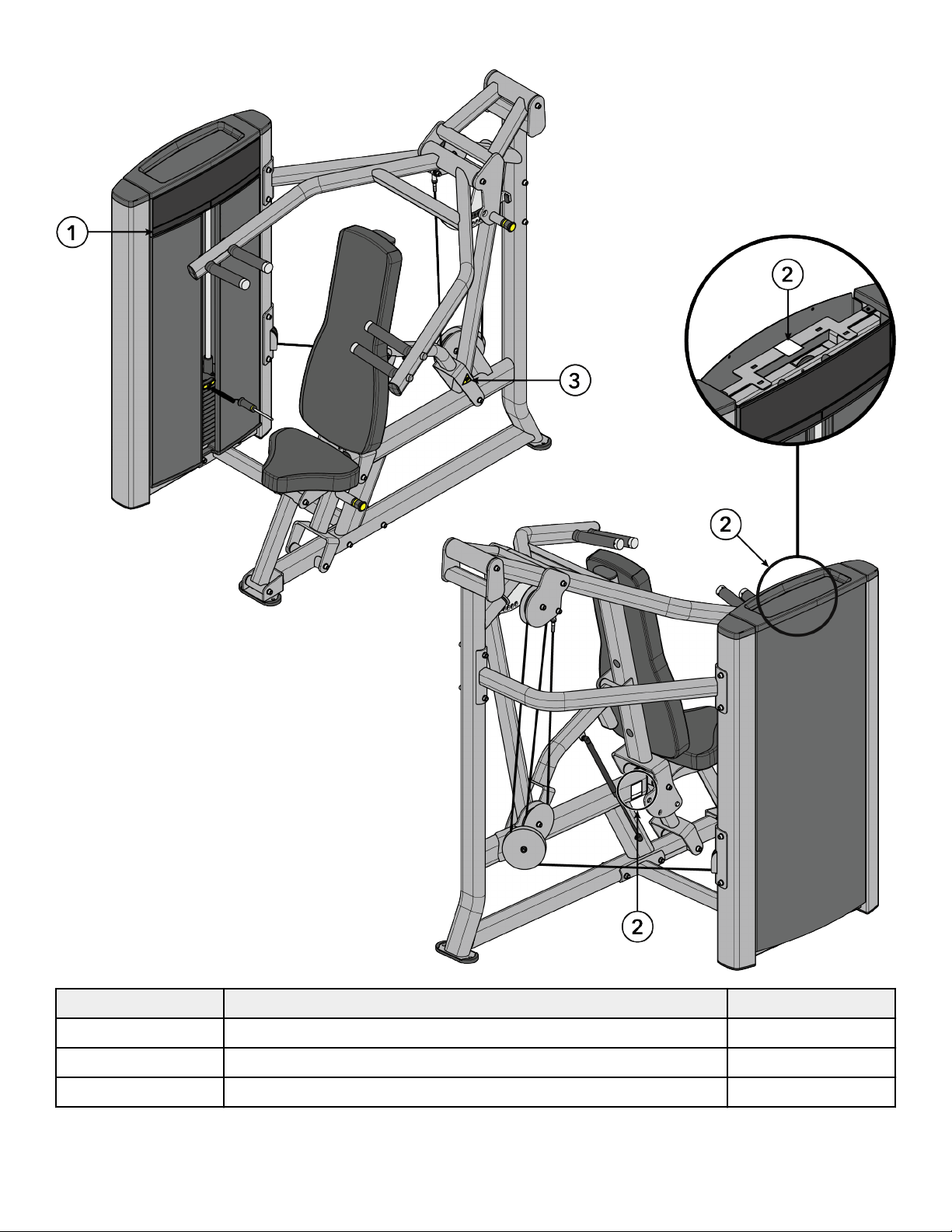

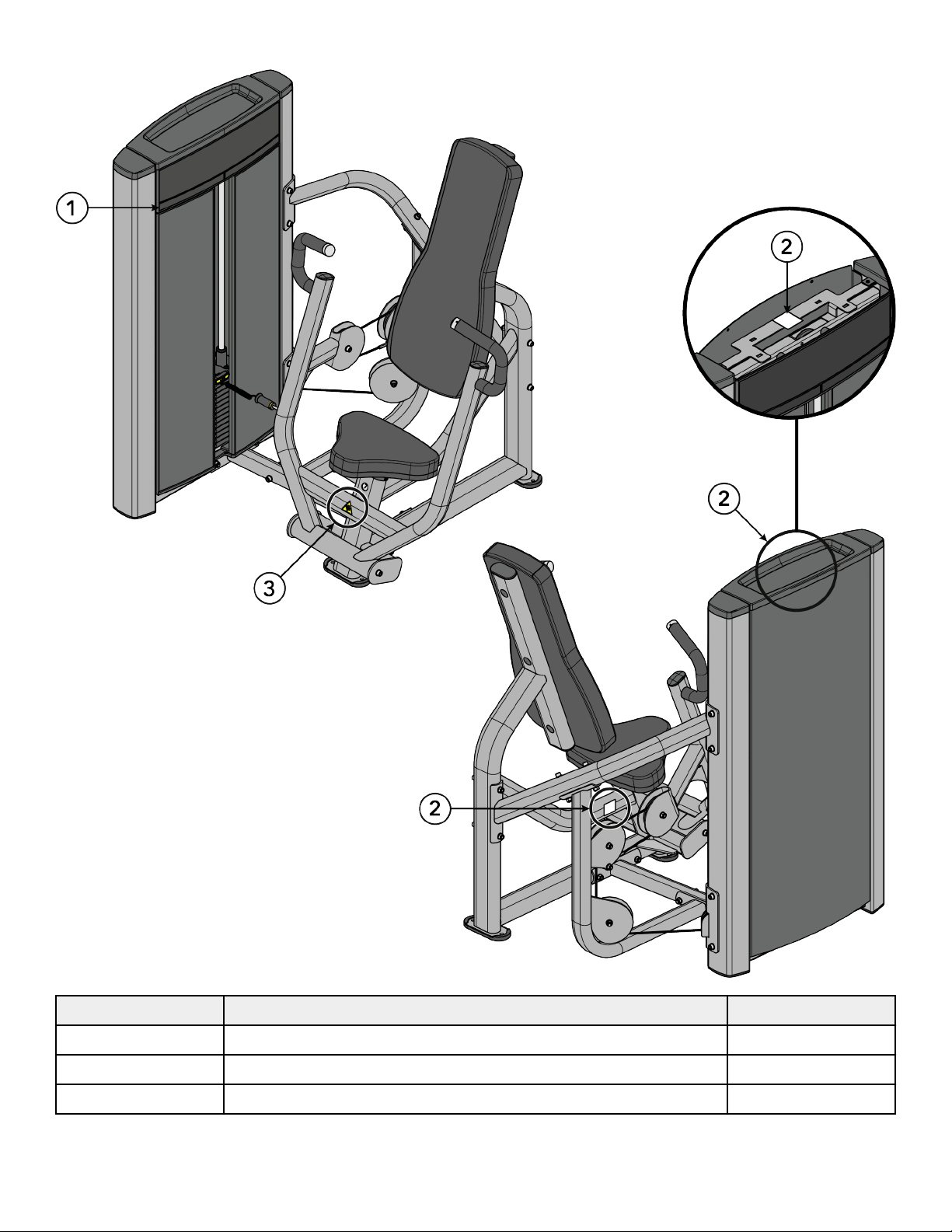

Product Labels...............................................................................................................................................................................................................5
Label Locations..............................................................................................................................................................................................................6
Single Stations............................................................................................................................................................................................................... 6
Dual Stations................................................................................................................................................................................................................16
Product Information
Single Stations.............................................................................................................................................................................................................24
Dual Stations................................................................................................................................................................................................................34
Exercise
General Exercise Information....................................................................................................................................................................................42
Single Stations.............................................................................................................................................................................................................43
Dual Stations................................................................................................................................................................................................................53
Maintenance Procedures
Maintenance Schedule...............................................................................................................................................................................................61
Warranty
What is Covered...........................................................................................................................................................................................................63
Who is Covered............................................................................................................................................................................................................ 63
Who Pays Transportation and Insurance For Service.......................................................................................................................................... 63
What We Will Do To Correct Covered Defects........................................................................................................................................................63
What is Not Covered................................................................................................................................................................................................... 63
Owner's Manual...........................................................................................................................................................................................................63
Exclusive Warranty...................................................................................................................................................................................................... 63
Changes in Warranty Not Authorized...................................................................................................................................................................... 63
of State Laws...................................................................................................................................................................................................63
Warranty Coverage......................................................................................................................................................................................................63
Cable Handling Guide
Cable Terminations, Tensioning and Wear Guide................................................................................................................................................ 65
Cable Terminations.....................................................................................................................................................................................................65
Tensioning Cable.........................................................................................................................................................................................................66
Strength Cable Wear Guide.......................................................................................................................................................................................67
Life Fitness
®
is a registered trademark.
Gym Wipes
®
is a registered trademark of the 2XL Corporation. PureGreen 24 is a trademark of Pure Green.
©
Copyright 2021, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness,
LLC and its ailiated companies and subsidiaries. Brunswick and related trademarks used under license from Brunswick Corporation. Disclaimer: Images
and specifications are current as of the date of publication and are subject to change.
Columbia Center III - 9525 Bryn Mawr Ave, Rosemont, IL 60018 • 800-351-3737 • 847-288-3700 • FAX 800-216-8893
www.cybexintl.com • 1018401-0001 AA • 2021
Page 3 of 68
Safety
Safety Information
It is the sole responsibility of the purchaser of Life Fitness Family of Brands products to read the owner’s manual and warning labels
and instruct all individuals, whether they are the end user or supervising personnel, on proper usage of the equipment.
UNDERSTANDING EACH AND EVERY WARNING TO THE FULLEST IS IMPORTANT. IF ANY OF THESE WARNINGS ARE UNCLEAR, CONTACT
Life Fitness Family of Brands CUSTOMER SERVICE IMMEDIATELY AT 1-800-351-3737.
This equipment is categorized as class S per EN ISO 20957-1. As such this equipment is only intended for commercial, institutional
and/or studio facilities. It is not intended for home use. Contact Life Fitness Family of Brands with any questions regarding this
classification.
It is recommended that all users of Life Fitness Family of Brands exercise equipment be informed of the following information prior to
use.
Operating Warnings
WARNING: This product can expose you to chemicals including Di-isobutyl Phthalate, which is known to the State of
California to cause birth defects or other reproductive harm, and Antimony Trioxide, which is known to the State of California
to cause cancer. For more information go to http://www.P65Warnings.ca.gov
• It is the purchaser’s sole responsibility to properly instruct its end users and supervising personnel as to the proper operating
procedures of all equipment.
• This equipment is not intended for use by children. Keep children under the age of 13 away from the machine.
• Do not allow users to wear loose fitting clothing or jewelry while using equipment. It is also recommended to have users secure
long hair back and up to avoid contact with moving parts.
• All bystanders must stay clear of all users, moving parts and attached accessories and components while machine is in operation.
Access Control
• Life Fitness Family of Brands recommends that all commercial fitness equipment be used in a supervised area. It is recommended
that the equipment be located in an access controlled area. Control is the responsibility of the facility owner.
Installation
• Life Fitness Family of Brands recommends that all equipment be secured to a solid, level surface to stabilize it and eliminate
rocking or tipping over. This must be performed by a licensed contractor. See Bolt to Floor Guide for installation procedure.
Proper Usage
• Do not use any equipment in any way other than as designed or intended by the manufacturer. It is imperative that Life Fitness
Family of Brands equipment is used properly to avoid injury.
• Injuries may result if exercising improperly or excessively. It is recommended that all individuals consult a physician prior to
commencing an exercise program. If at any time during exercise you feel faint, dizzy or experience pain, STOP EXERCISING and
consult your physician.
• Keep body parts (hands, feet, hair, etc.), clothing and jewelry away from moving parts to avoid injury.
• When adjusting any seat, knee hold down pad, range of motion limiter, foothold pad, pulley or any other type of adjuster, make
certain that the adjusting pin is fully engaged in the hole to avoid injury.
Inspection
• DO NOT attempt to use or repair any accessory approved for use with the equipment which appears to be damaged or worn.
• DO NOT use or permit use of any equipment that is damaged and/or has worn or broken parts. For all Life Fitness Family of Brands
equipment, use only replacement parts supplied by Life Fitness Family of Brands.
• Cables and belts pose an extreme liability if used when damaged. Always replace any cable at first sign of wear (consult Life Fitness
Family of Brands if uncertain).
• Maintain labels and name plates - Do not remove labels for any reason. They contain important information. If unreadable or
missing, contact Life Fitness Family of Brands customer service for a replacement.
• Equipment Maintenance - Preventative maintenance is the key to smooth operating equipment as well as to keep your liability to a
minimum. Equipment needs to be inspected at regular intervals.
• Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so. Life Fitness
Family of Brands will provide service and maintenance training at our corporate facility upon request or in the field if proper
arrangements are made.
Page 4 of 68
• Before use, examine all accessories approved for use with the Life Fitness Family of Brands equipment for damage or wear.
Selectorized

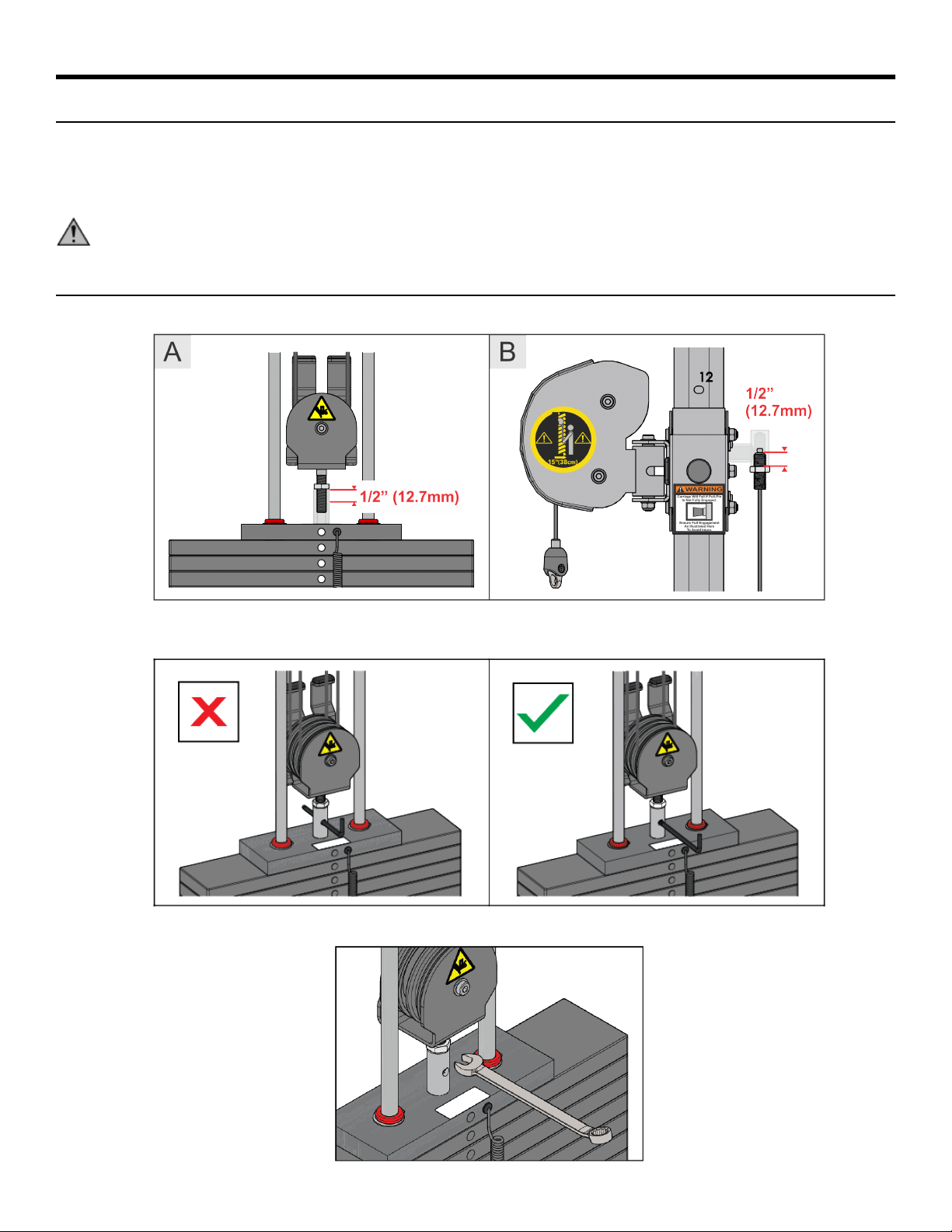

• Use only weight selector pins supplied by seller on weight stacks. Substitutes are forbidden.
• Fully insert weight selector pins. Partial insertion can cause weights to fall unexpectedly.
• Never pin the weight stack in an elevated position.
• Never remove selector pin if any weights are suspended.
• Never attempt to release jammed weights or parts.
• Never use dumbbells or other means to incrementally increase the weight resistance. Use only those means provided by seller.
Warnings and Cautions
• Warning labels indicate a potentially hazardous situation that could result in serious injury or death if the precautions are not
observed.
• Caution labels indicate a potentially hazardous situation that could result in serious injury or damage to machine if the
precautions are not observed.
• Contact Customer Support Services to replace any worn or damaged labels.
Product Labels
Serial Number Pinch Hazard Row Handle
Multilingual Label with General Warning
Page 5 of 68
Label Locations
Single Stations
Abdominal (CI-AB)
Item Description Qty.
1 Multilingual Label with General Warning 1
2 Serial Number 2
3 Pinch Hazard 2
Page 6 of 68
Biceps Curl (CI-BC)
Item Description Qty.
1 Multilingual Label with General Warning 1
2 Serial Number 2
3 Pinch Hazard 3
Page 7 of 68
Chest Press (CI-CP)
Item Description Qty.
1 Multilingual Label with General Warning 1
2 Serial Number 2
3 Pinch Hazard 1
Page 8 of 68
Leg Curl (CI-LC)
Item Description Qty.
1 Multilingual Label with General Warning 1
2 Serial Number 2
3 Pinch Hazard 2
Page 9 of 68
Leg Extension (CI-LE)
Item Description Qty.
1 Multilingual Label with General Warning 1
2 Serial Number 2
3 Pinch Hazard 4
Page 10 of 68
Leg Press (CI-LP)
Item Description Qty.
1 Multilingual Label with General Warning 1
2 Serial Number 2
Page 11 of 68

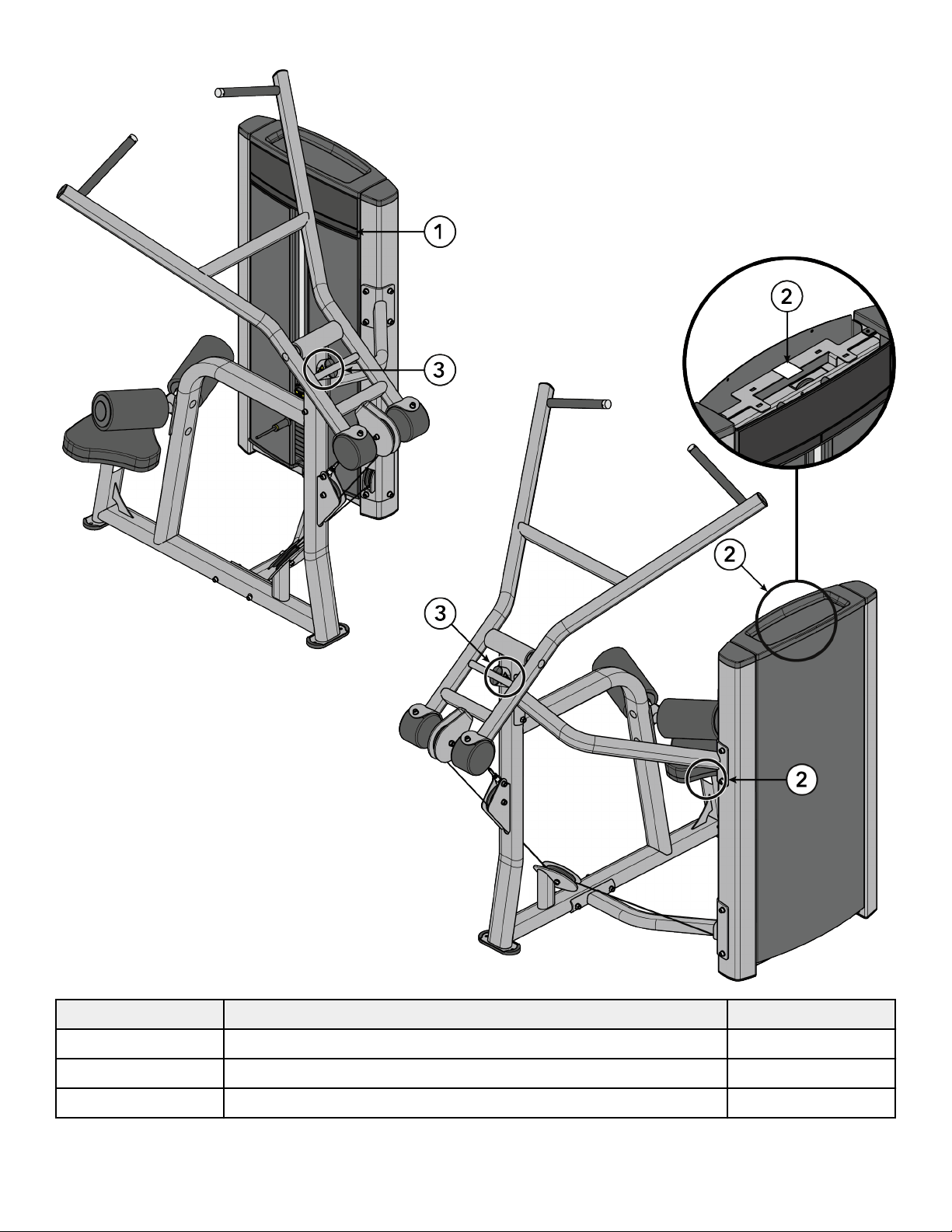

Pulldown (CI-PD)
Item Description Qty.
1 Multilingual Label with General Warning 1
2 Serial Number 2
3 Pinch Hazard 2
Page 12 of 68
Row (CI-RW)
Item Description Qty.
1 Multilingual Label with General Warning 1
2 Serial Number 2
3 Pinch Hazard 1
4 Row Handle 1
Page 13 of 68

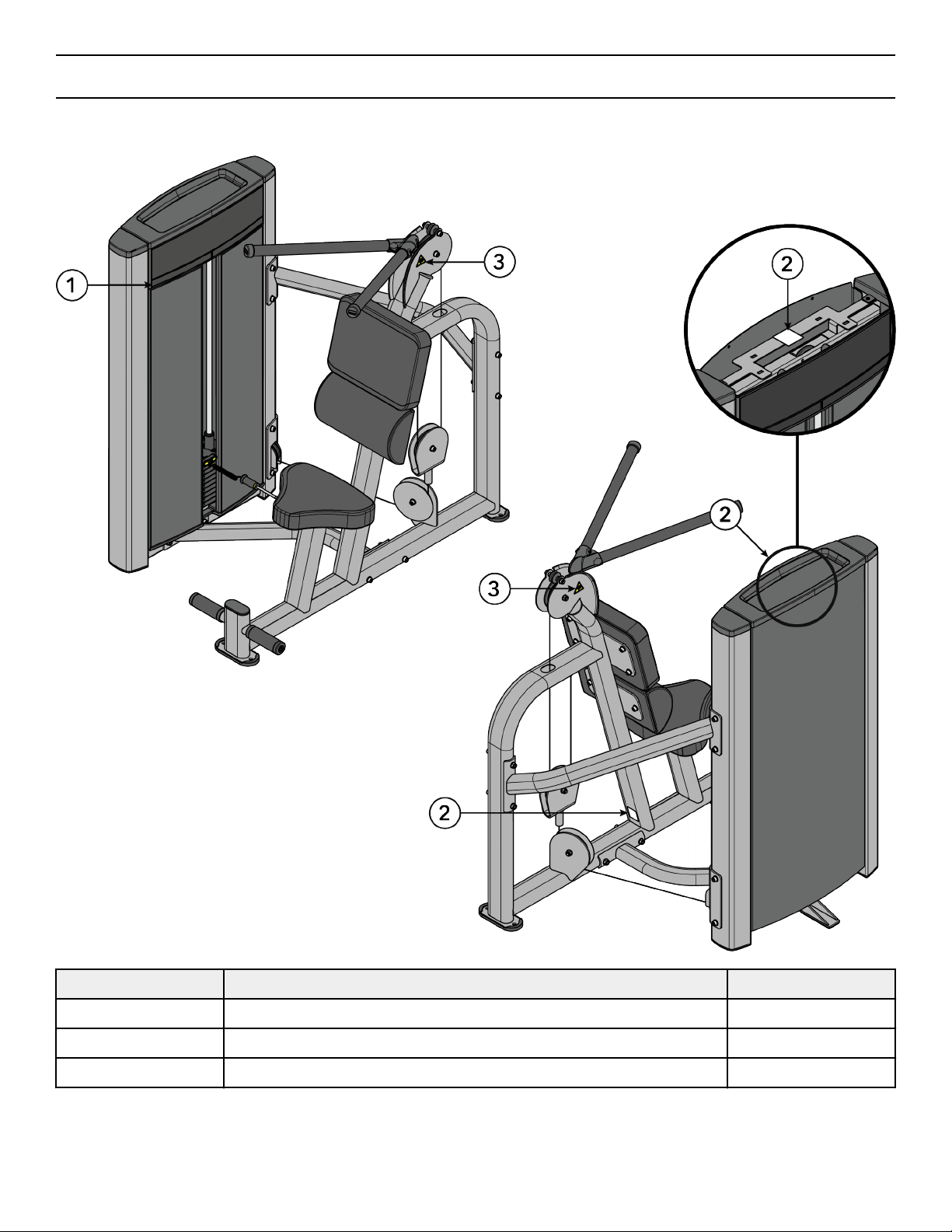

Shoulder Press (CI-SP)
Item Description Qty.
1 Multilingual Label with General Warning 1
2 Serial Number 2
3 Pinch Hazard 1
Page 14 of 68
Triceps Extension (CI-TE)
Item Description Qty.
1 Multilingual Label with General Warning 1
2 Serial Number 2
3 Pinch Hazard 3
Page 15 of 68
Dual Stations
Abdominal / Back Extension (CI-ABBA)
Item Description Qty.
1 Multilingual Label with General Warning 1
2 Serial Number 2
Page 16 of 68

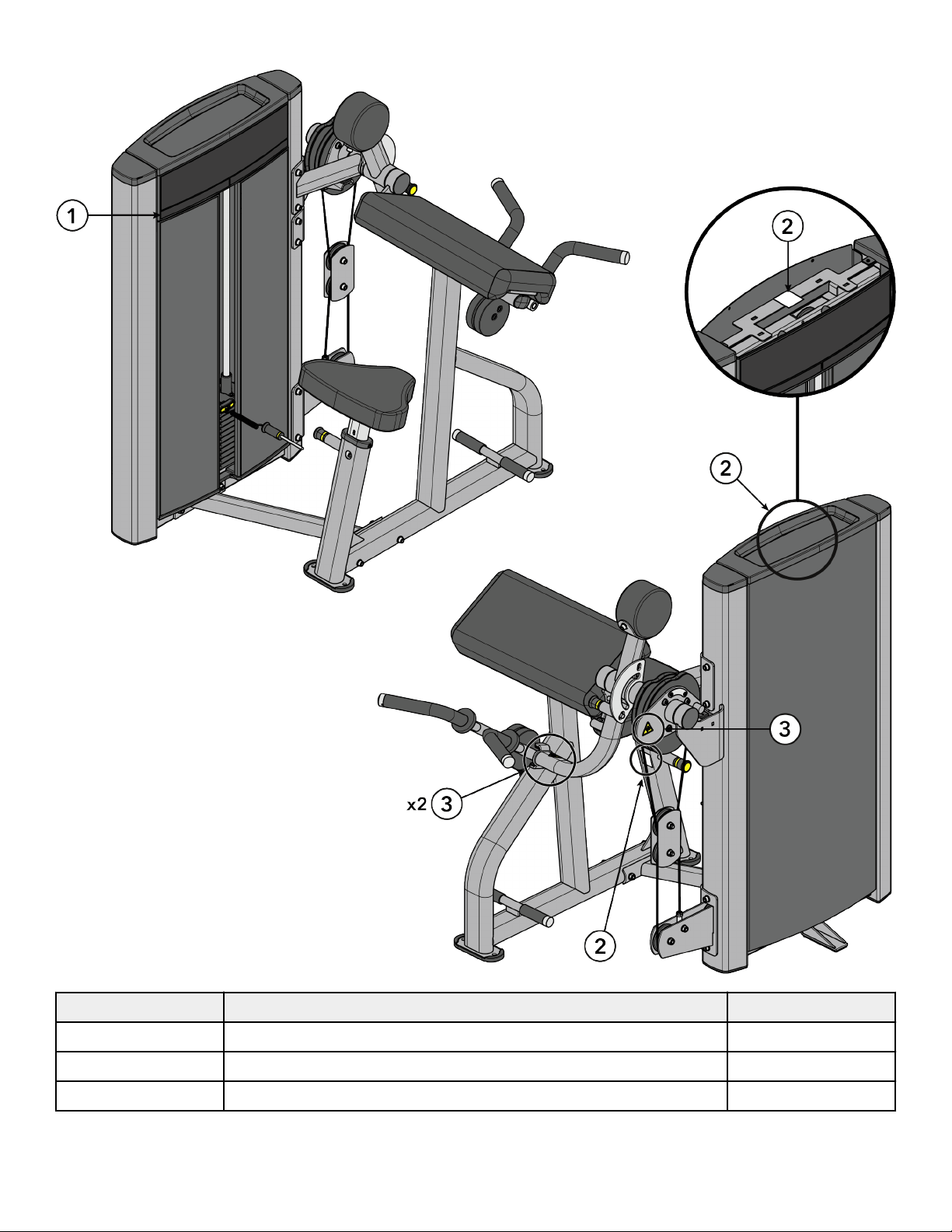

Biceps Curl / Triceps Extension (CI-BT)
Item Description Qty.
1 Multilingual Label with General Warning 1
2 Serial Number 2
3 Pinch Hazard 3
Page 17 of 68

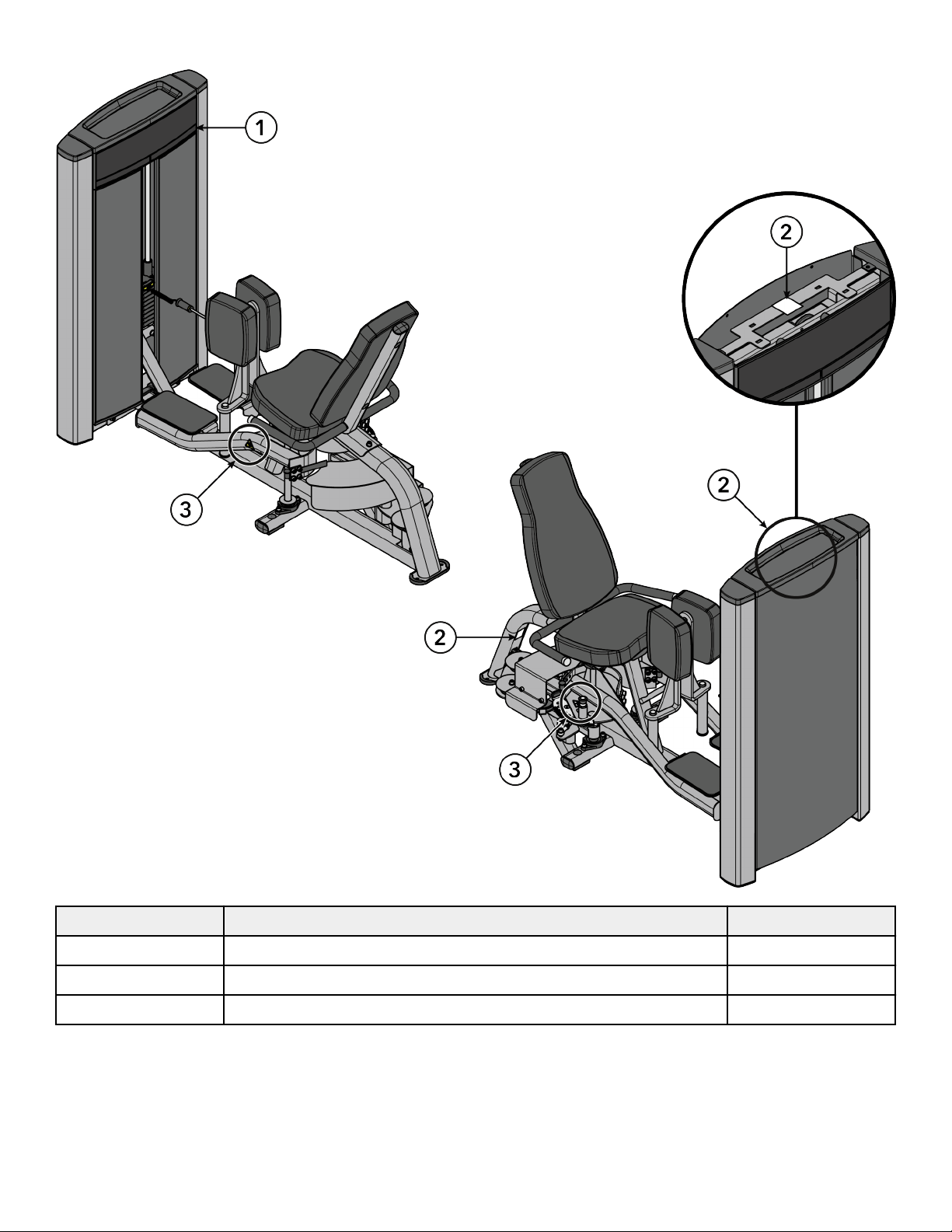

Hip Abductor / Adductor (CI-HAA)
Item Description Qty.
1 Multilingual Label with General Warning 1
2 Serial Number 2
3 Pinch Hazard 2
Page 18 of 68

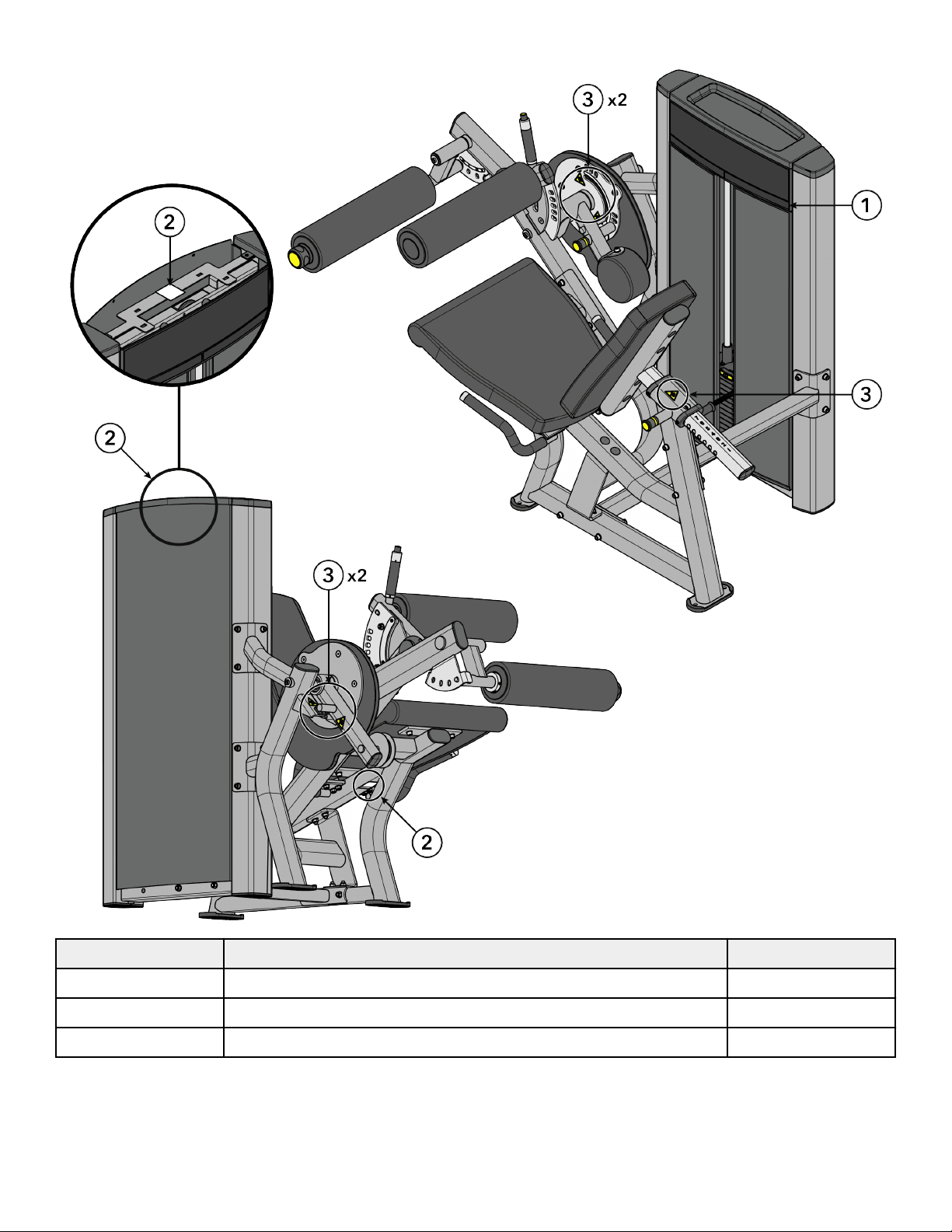

Leg Curl / Extension (CI-LCE)
Item Description Qty.
1 Multilingual Label with General Warning 1
2 Serial Number 2
3 Pinch Hazard 4
Page 19 of 68
Multi-Press (CI-MP)
Item Description Qty.
1 Multilingual Label with General Warning 1
2 Serial Number 2
3 Pinch Hazard 1
Page 20 of 68
Pectoral Fly / Rear Deltoid (CI-FLY)
Item Description Qty.
1 Multilingual Label with General Warning 1
2 Serial Number 2
Page 21 of 68

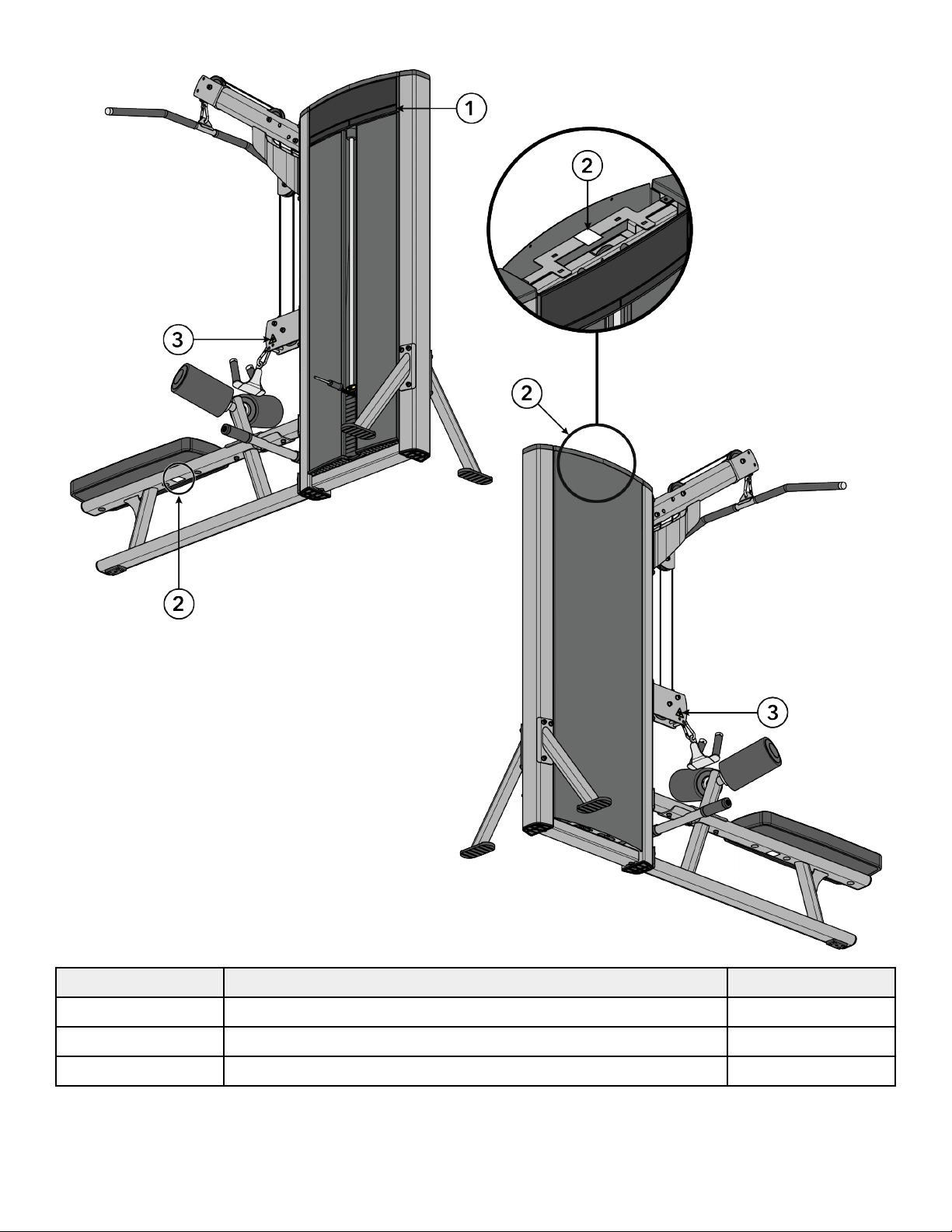

Pulldown / Row (CI-LR)
Item Description Qty.
1 Multilingual Label with General Warning 1
2 Serial Number 2
3 Pinch Hazard 2
Page 22 of 68

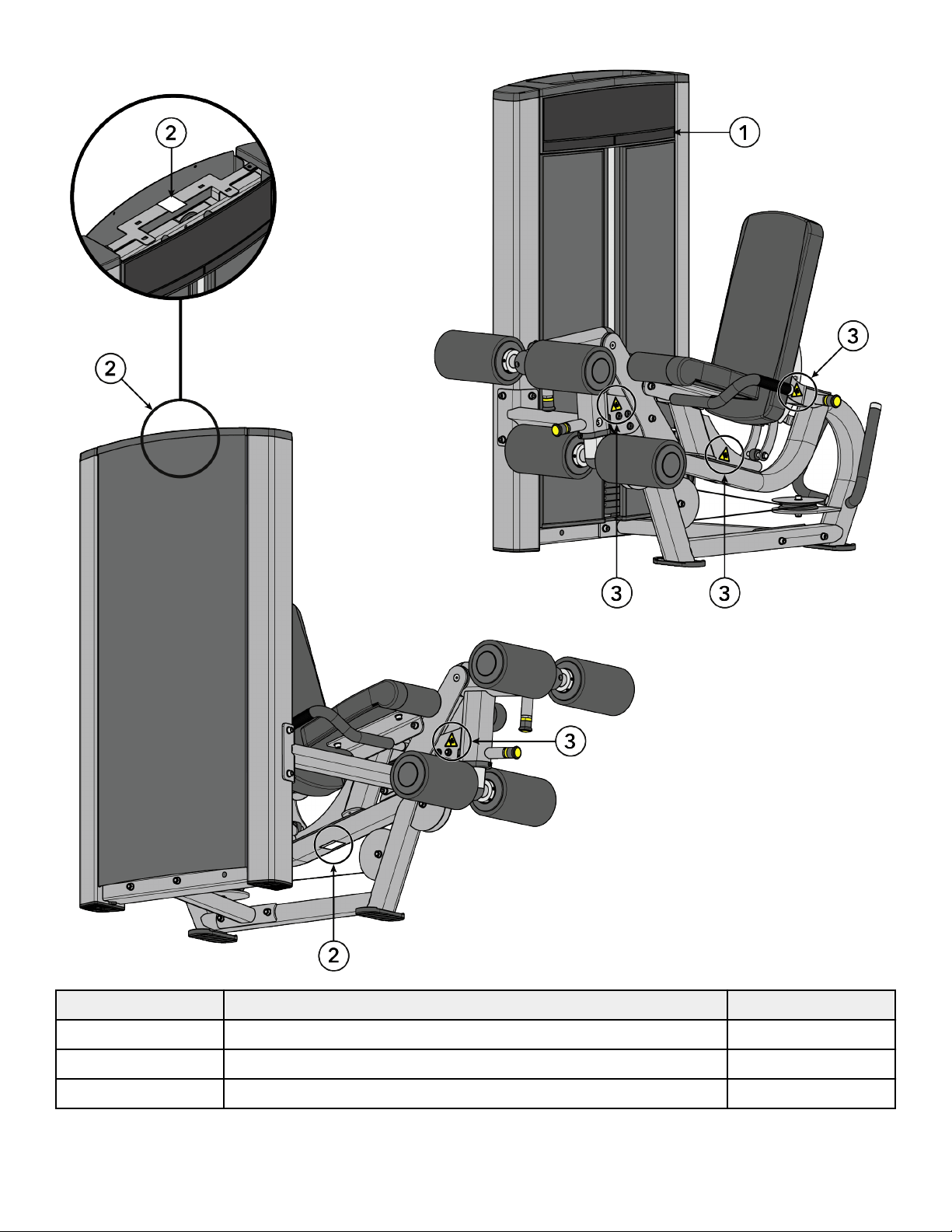

Seated Leg Curl / Extension (CI-SLCE)
Item Description Qty.
1 Multilingual Label with General Warning 1
2 Serial Number 2
3 Pinch Hazard 5
Page 23 of 68
Product Information
Single Stations

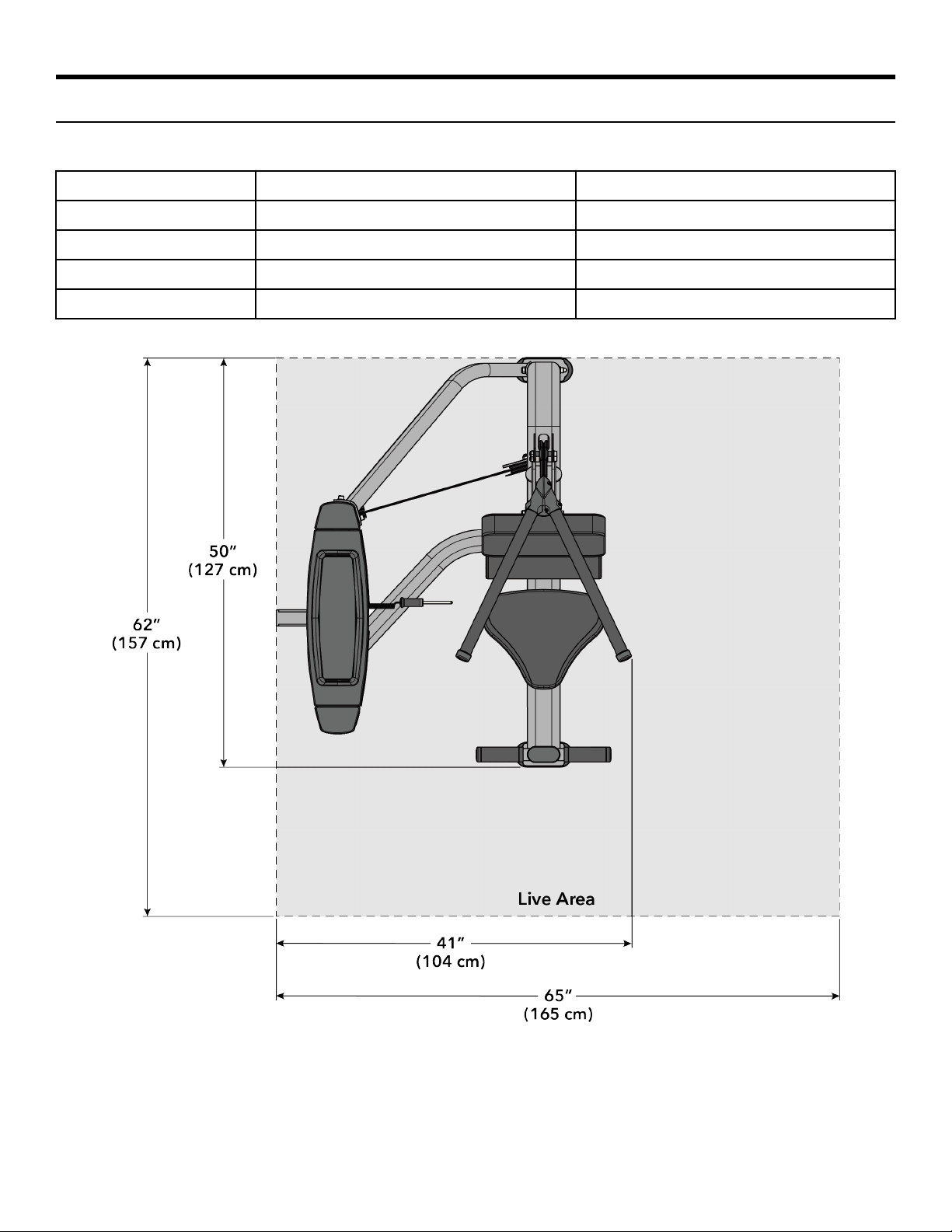

Abdominal (CI-AB)
Machine Weight: 384 lbs. 174 kg.
Size (L x W x H): in. = 50 x 41 x 53 cm = 127 x 104 x 135
Live Area (L x W x H): in. = 62 x 65 x 77 cm = 157 x 165 x 196
Max User Weight: 300 lbs. 136 kg.
Weight Stack: 142.5 lbs. 71.25 kg.
NOTE: Weight Stack weight includes increment weight (7.5 lbs / 3.75 kg).
Page 24 of 68

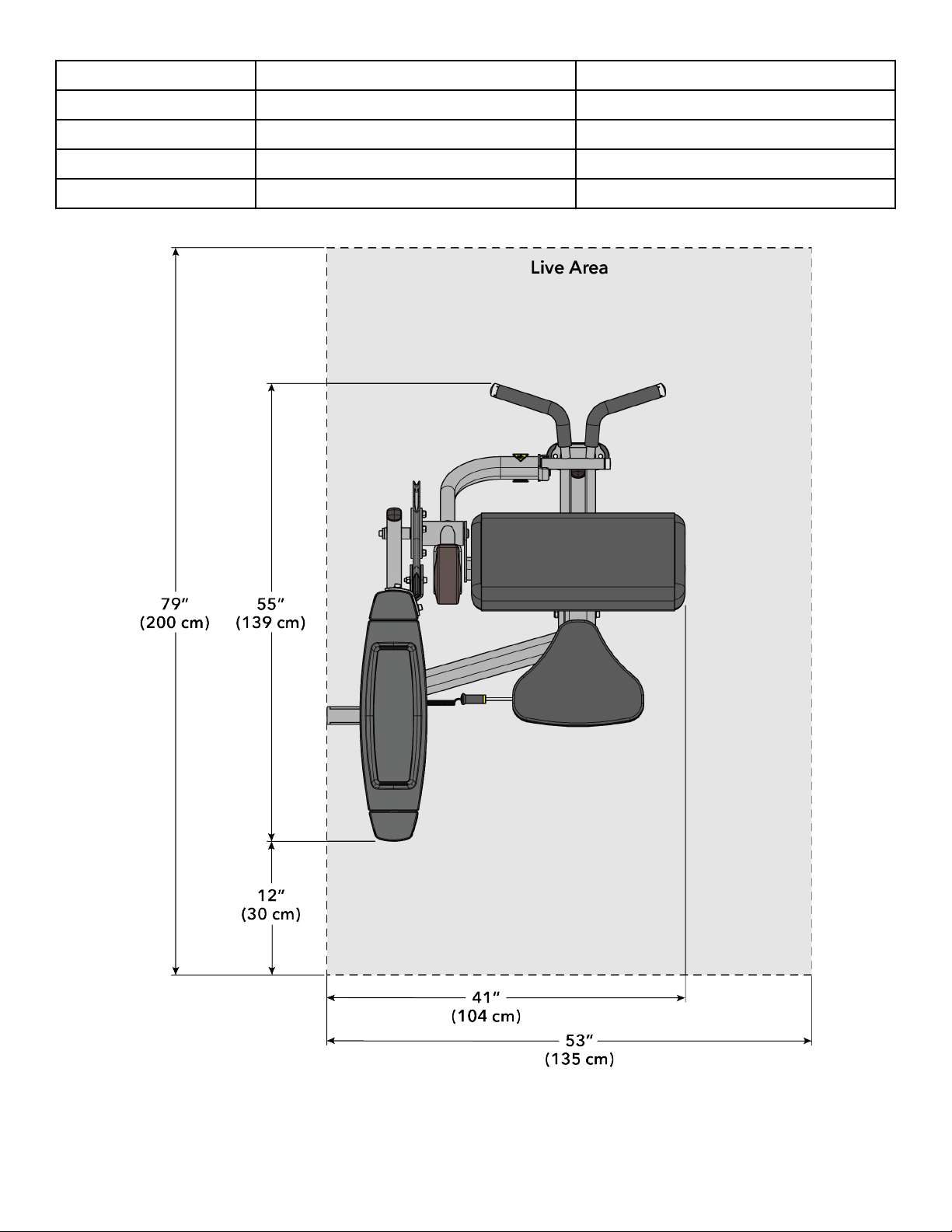

Biceps Curl (CI-BC)
Machine Weight: 403 lbs. 183 kg.
Size (L x W x H): in. = 55 x 41 x 53 cm = 139 x 104 x 135
Live Area (L x W x H): in. = 79 x 53 x 77 cm = 200 x 135 x 196
Max User Weight: 300 lbs. 136 kg.
Weight Stack: 172.5 lbs. 86.25 kg.
NOTE: Weight Stack weight includes increment weight (7.5 lbs / 3.75 kg).
Page 25 of 68
Chest Press (CI-CP)
Machine Weight: 462 lbs. 210 kg.
Size (L x W x H): in. = 44 x 51 x 53 cm = 112 x 129 x 135
Live Area (L x W x H): in. = 62 x 63 x 77 cm = 157 x 160 x 196
Max User Weight: 300 lbs. 136 kg.
Weight Stack: 202.5 lbs. 101.25 kg.
NOTE: Weight Stack weight includes increment weight (7.5 lbs / 3.75 kg).
Page 26 of 68
Leg Curl (CI-LC)
Machine Weight: 405 lbs. 184 kg.
Size (L x W x H): in. = 65 x 43 x 53 cm = 165 x 109 x 135
Live Area (L x W x H): in. = 101 x 67 x 77 cm = 257 x 170 x 196
Max User Weight: 300 lbs. 136 kg.
Weight Stack: 202.5 lbs. 101.25 kg.
NOTE: Weight Stack weight includes increment weight (7.5 lbs / 3.75 kg).
Page 27 of 68

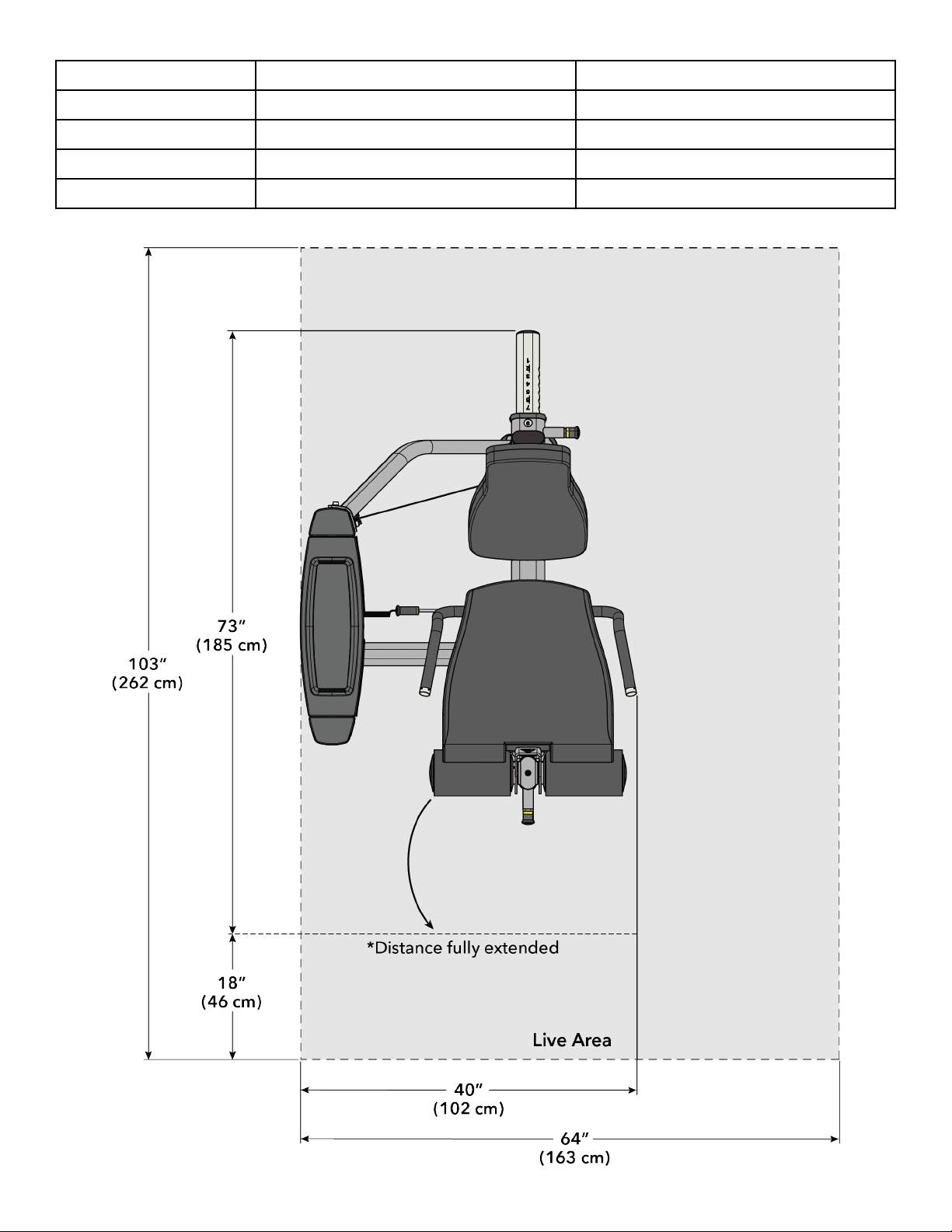

Leg Extension (CI-LE)
Machine Weight: 435 lbs. 197 kg.
Size (L x W x H): in. = 73 x 40 x 53 cm = 185 x 102 x 135
Live Area (L x W x H): in. = 103 x 64 x 77 cm = 262 x 163 x 196
Max User Weight: 300 lbs. 136 kg.
Weight Stack: 202.5 lbs. 101.25 kg.
NOTE: Weight Stack weight includes increment weight (7.5 lbs / 3.75 kg).
Page 28 of 68

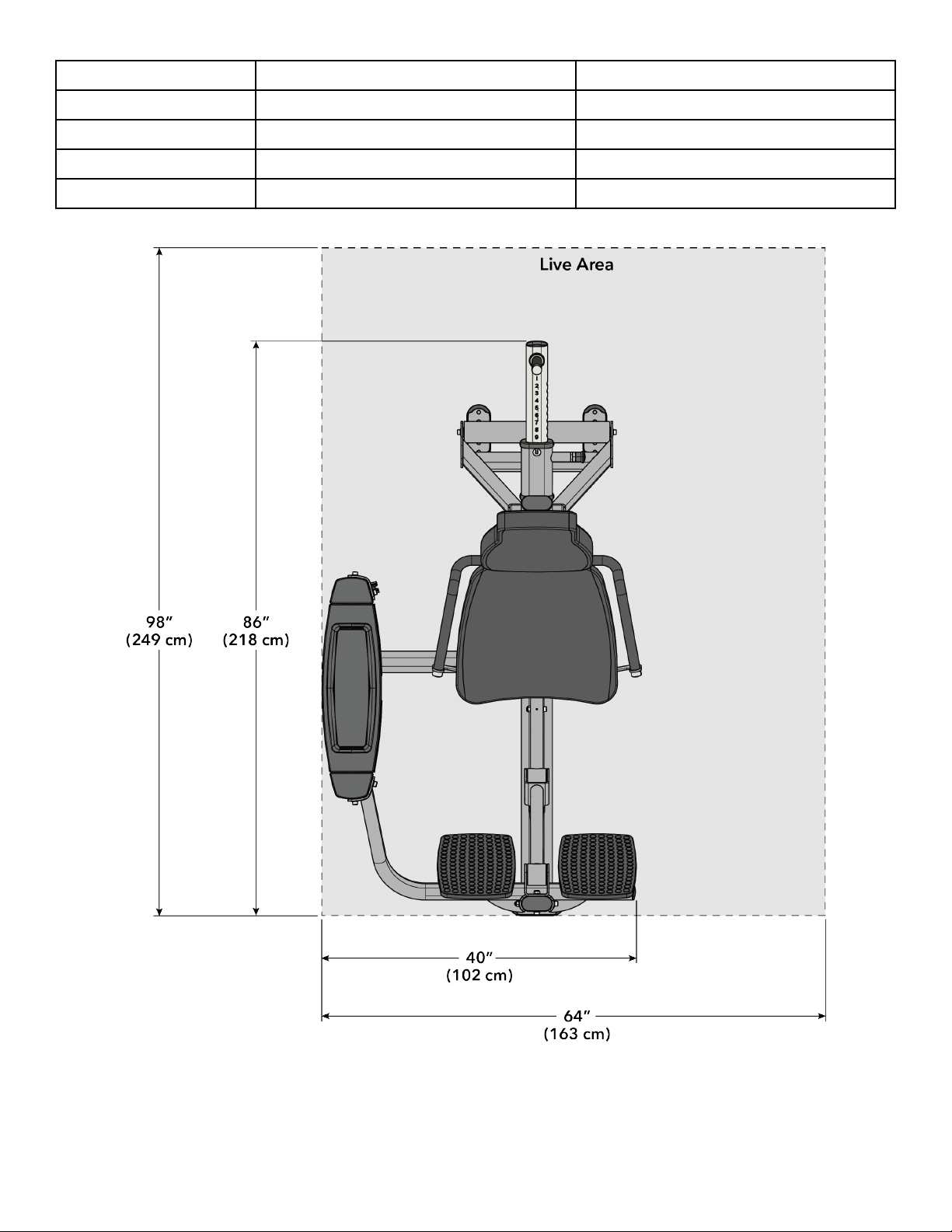

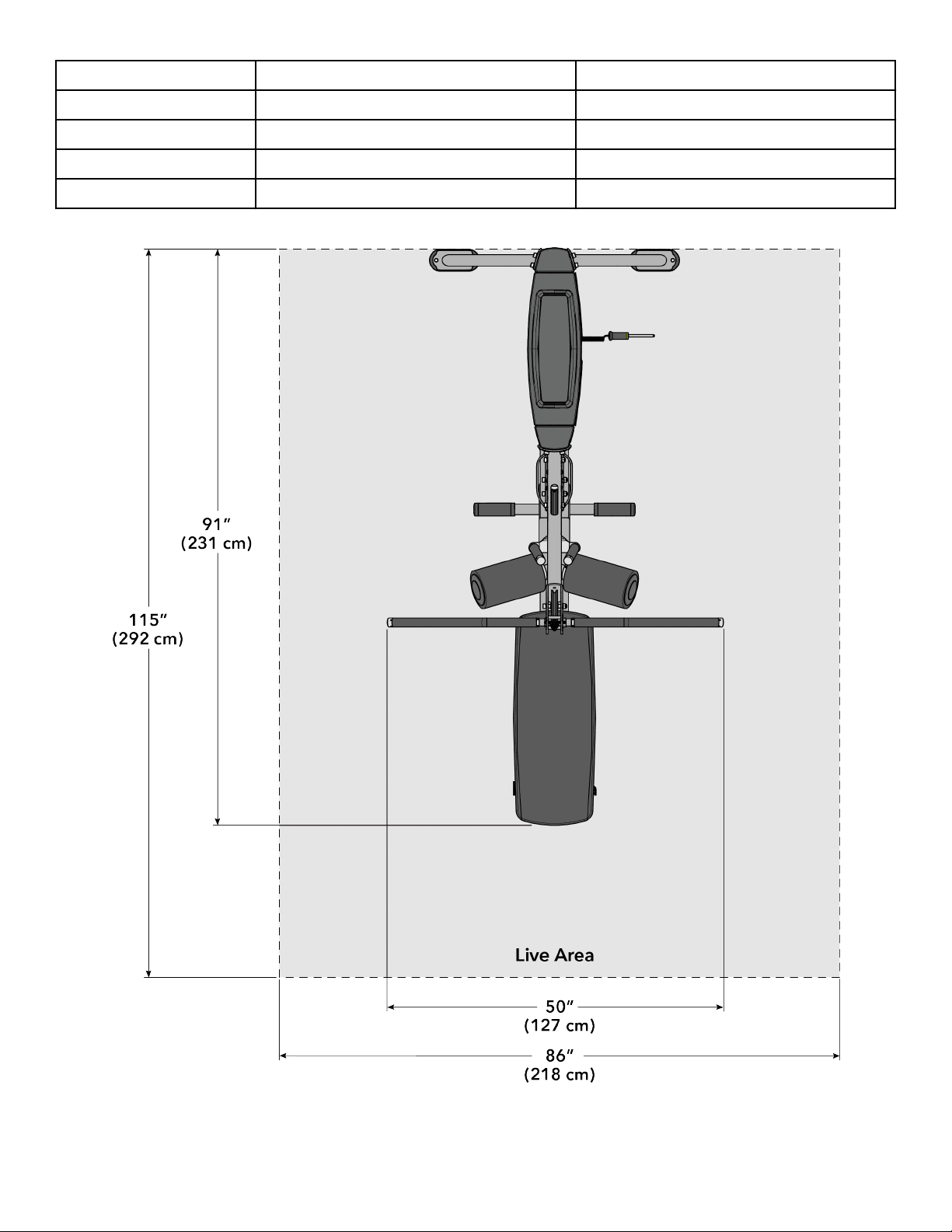

Leg Press (CI-LP)
Machine Weight: 592 lbs. 269 kg.
Size (L x W x H): in. = 86 x 40 x 53 cm = 218 x 102 x 135
Live Area (L x W x H): in. = 98 x 64 x 77 cm = 249 x 163 x 196
Max User Weight: 300 lbs. 136 kg.
Weight Stack: 262.5 lbs. 131.25 kg.
NOTE: Weight Stack weight includes increment weight (7.5 lbs / 3.75 kg).
Page 29 of 68

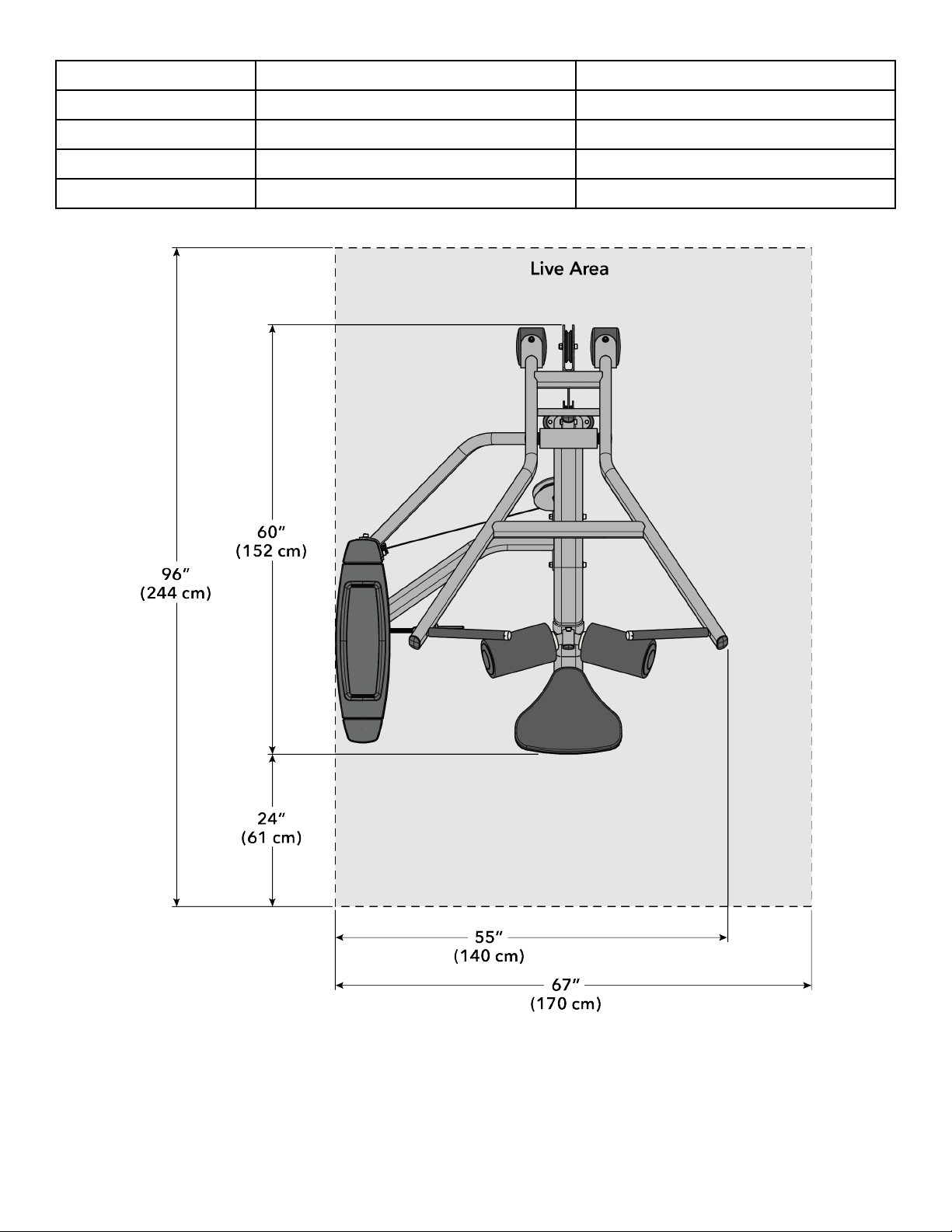

Pulldown (CI-PD)
Machine Weight: 459 lbs. 208 kg.
Size (L x W x H): in. = 60 x 55 x 73 cm = 152 x 140 x 185
Live Area (L x W x H): in. = 96 x 67 x 85 cm = 244 x 170 x 216
Max User Weight: 300 lbs. 136 kg.
Weight Stack: 202.5 lbs. 101.25 kg.
NOTE: Weight Stack weight includes increment weight (7.5 lbs / 3.75 kg).
Page 30 of 68

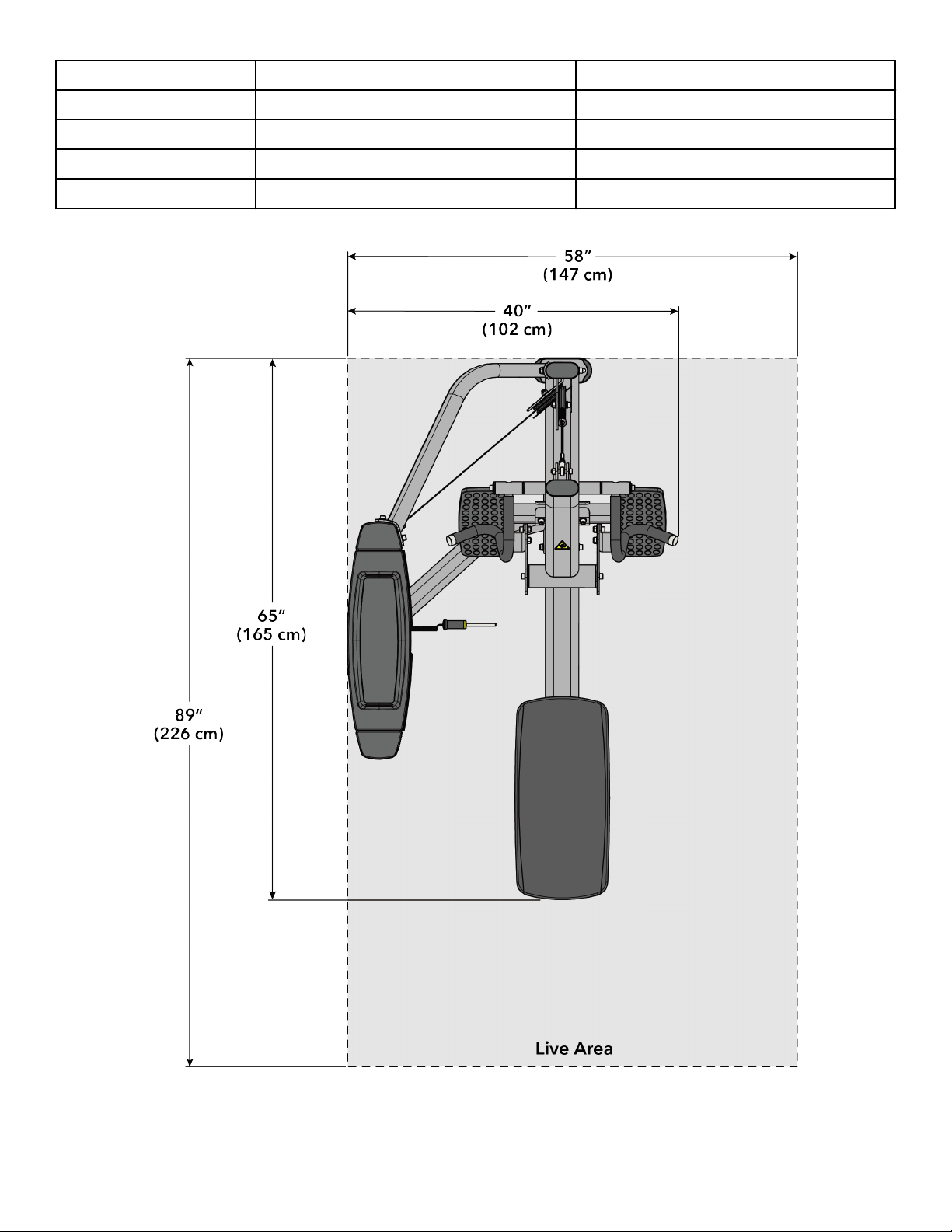

Row (CI-RW)
Machine Weight: 459 lbs. 208 kg.
Size (L x W x H): in. = 65 x 40 x 53 cm = 165 x 102 x 135
Live Area (L x W): in. = 89 x 58 x 77 cm = 226 x 147 x 196
Max User Weight: 300 lbs. 136 kg.
Weight Stack: 202.5 lbs. 101.25 kg.
NOTE: Weight Stack weight includes increment weight (7.5 lbs / 3.75 kg).
Page 31 of 68
Shoulder Press (CI-SP)
Machine Weight: 484 lbs. 220 kg.
Size (L x W x H): in. = 61 x 55 x 53 cm = 155 x 140 x 135
Live Area (L x W x H): in. = 97 x 67 x 77 cm = 246 x 170 x 196
Max User Weight: 300 lbs. 136 kg.
Weight Stack: 172.5 lbs. 86.25 kg.
NOTE: Weight Stack weight includes increment weight (7.5 lbs / 3.75 kg).
Page 32 of 68

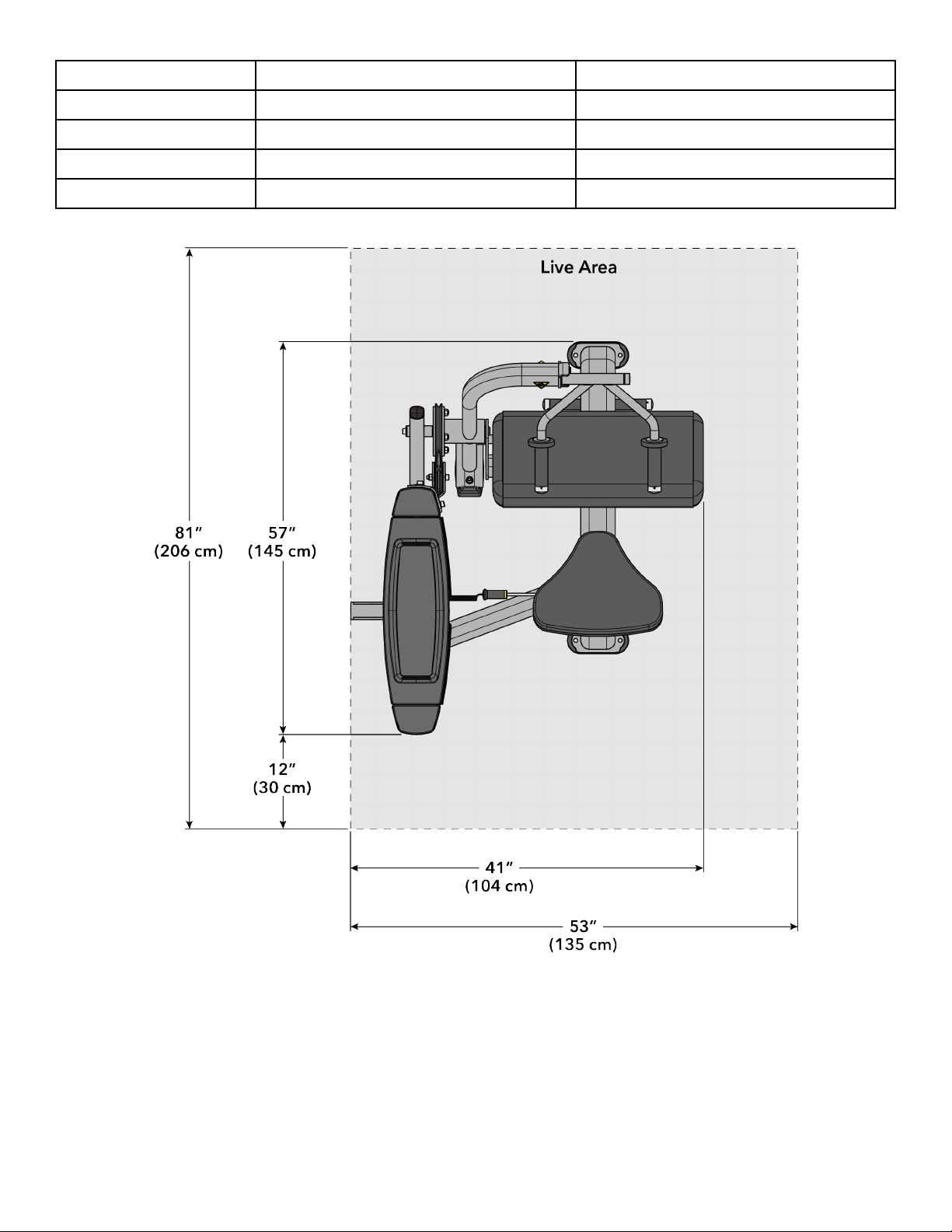

Triceps Extension (CI-TE)
Machine Weight: 379 lbs. 172 kg.
Size (L x W x H): in. = 57 x 41 x 53 cm = 145 x 104 x 135
Live Area (L x W x H): in. = 81 x 53 x 77 cm = 206 x 135 x 196
Max User Weight: 300 lbs. 136 kg.
Weight Stack: 142.5 lbs. 71.25 kg.
NOTE: Weight Stack weight includes increment weight (7.5 lbs / 3.75 kg).
Page 33 of 68
Dual Stations
Abdominal / Back Extension (CI-ABBA)
Machine Weight: 519 lbs. 235 kg.
Size (L x W x H): in. = 58 x 45 x 53 cm = 147 x 114 x 135
Live Area (L x W x H): in. = 94 x 69 x 77 cm = 239 x 175 x 196
Max User Weight: 300 lbs. 136 kg.
Weight Stack: 202.5 lbs. 101.25 kg.
NOTE: Weight Stack weight includes increment weight (7.5 lbs / 3.75 kg).
Page 34 of 68

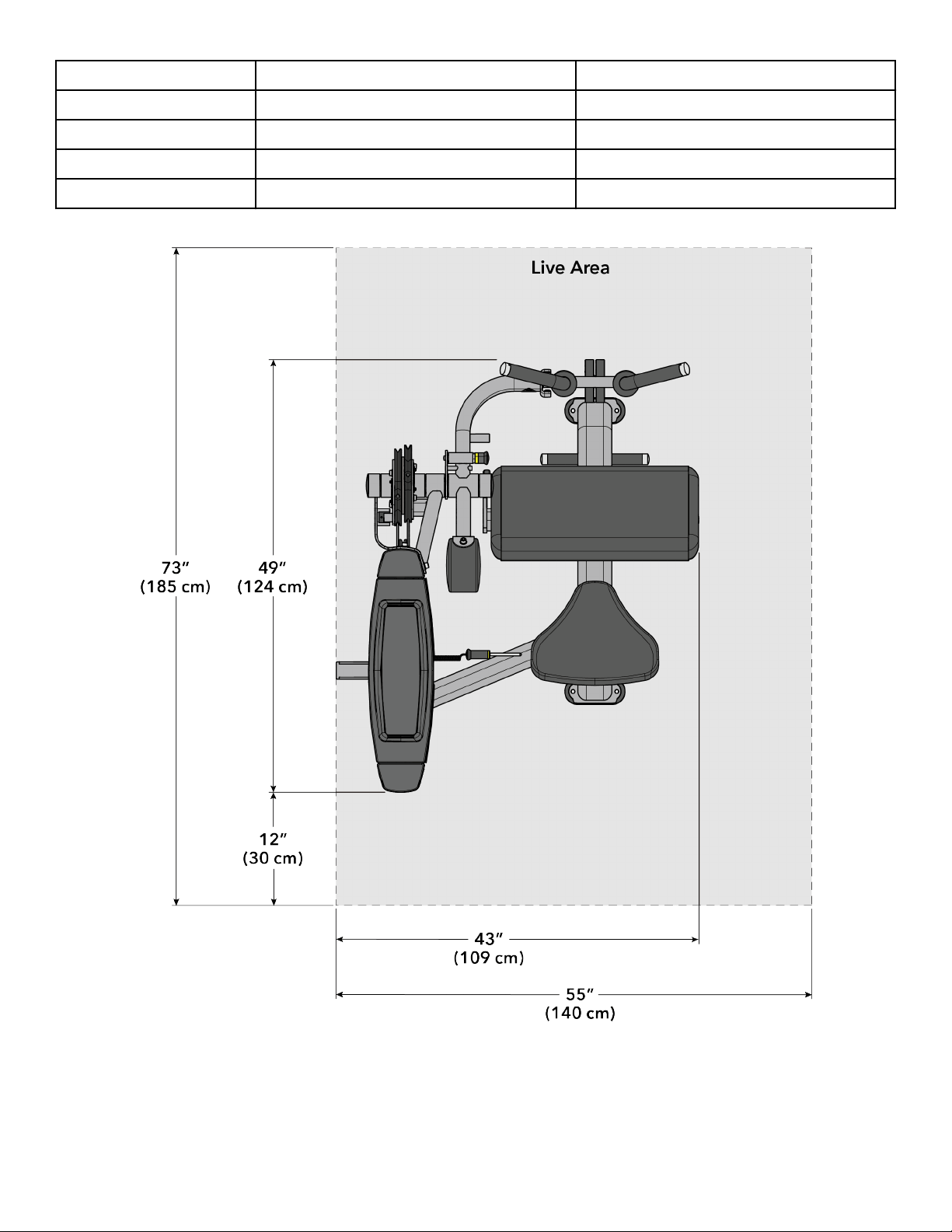

Biceps Curl / Triceps Extension (CI-BT)
Machine Weight: 463 lbs. 210 kg.
Size (L x W x H): in. = 49 x 43 x 53 cm = 124 x 109 x 135
Live Area (L x W x H): in. = 73 x 55 x 77 cm = 185 x 140 x 196
Max User Weight: 300 lbs. 136 kg.
Weight Stack: 172.5 lbs. 85.25 kg.
NOTE: Weight Stack weight includes increment weight (7.5 lbs / 3.75 kg).
Page 35 of 68

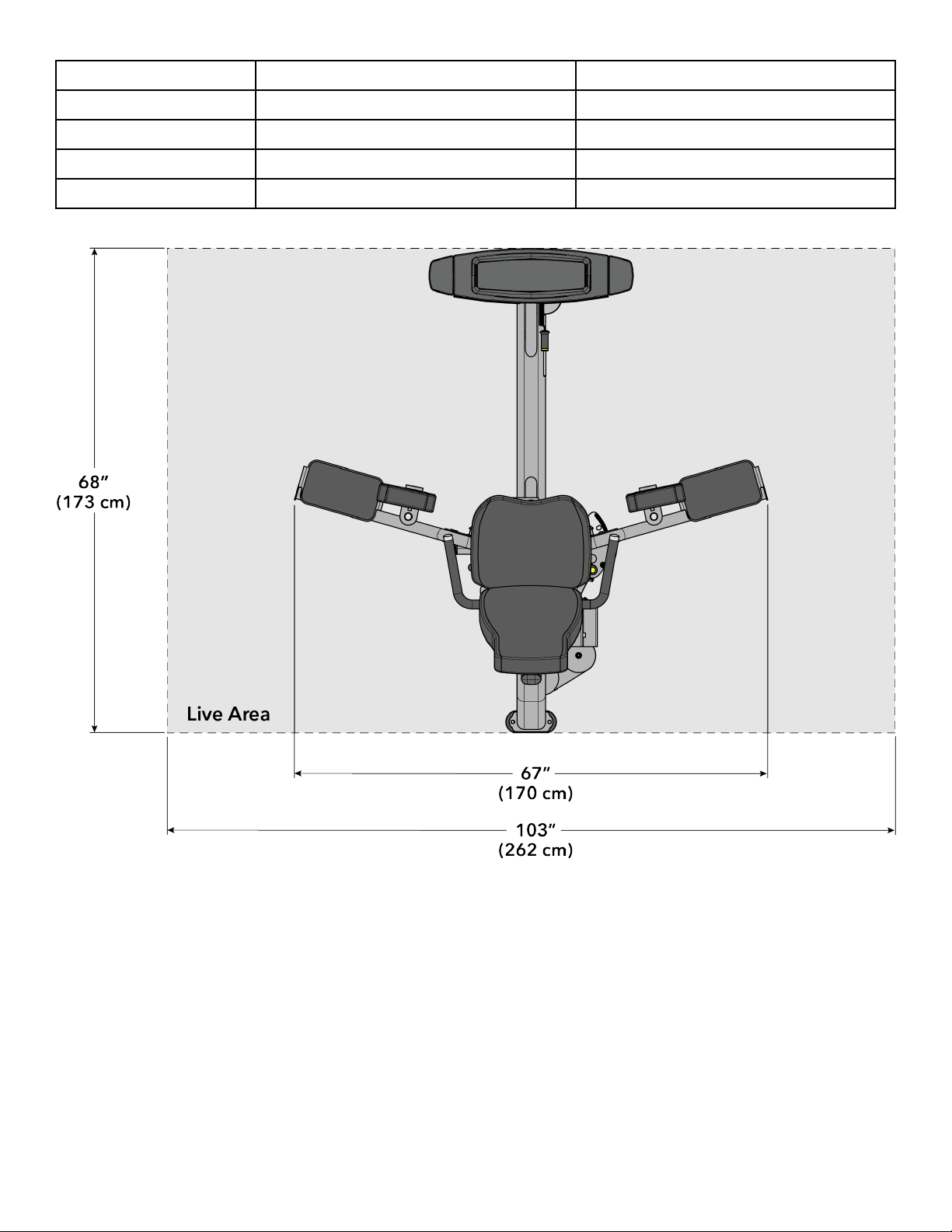

Hip Abductor / Adductor (CI-HAA)
Machine Weight: 432 lbs. 196 kg.
Size (L x W x H): in. = 68 x 67 x 53 cm = 173 x 170 x 135
Live Area (L x W x H): in. = 68 x 103 x 77 cm = 173 x 262 x 196
Max User Weight: 300 lbs. 136 kg.
Weight Stack: 142.5 lbs. 71.25 kg.
NOTE: Weight Stack weight includes increment weight (7.5 lbs / 3.75 kg).
Page 36 of 68
Leg Curl / Extension (CI-LCE)
Machine Weight: 450 lbs. 204 kg.
Size (L x W x H): in. = 63 x 40 x 53 cm = 160 x 102 x 135
Live Area (L x W x H): in. = 105 x 64 x 77 cm = 267 x 163 x 196
Max User Weight: 300 lbs. 136 kg.
Weight Stack: 202.5 lbs. 101.25 kg.
NOTE: Weight Stack weight includes increment weight (7.5 lbs / 3.75 kg).
Page 37 of 68

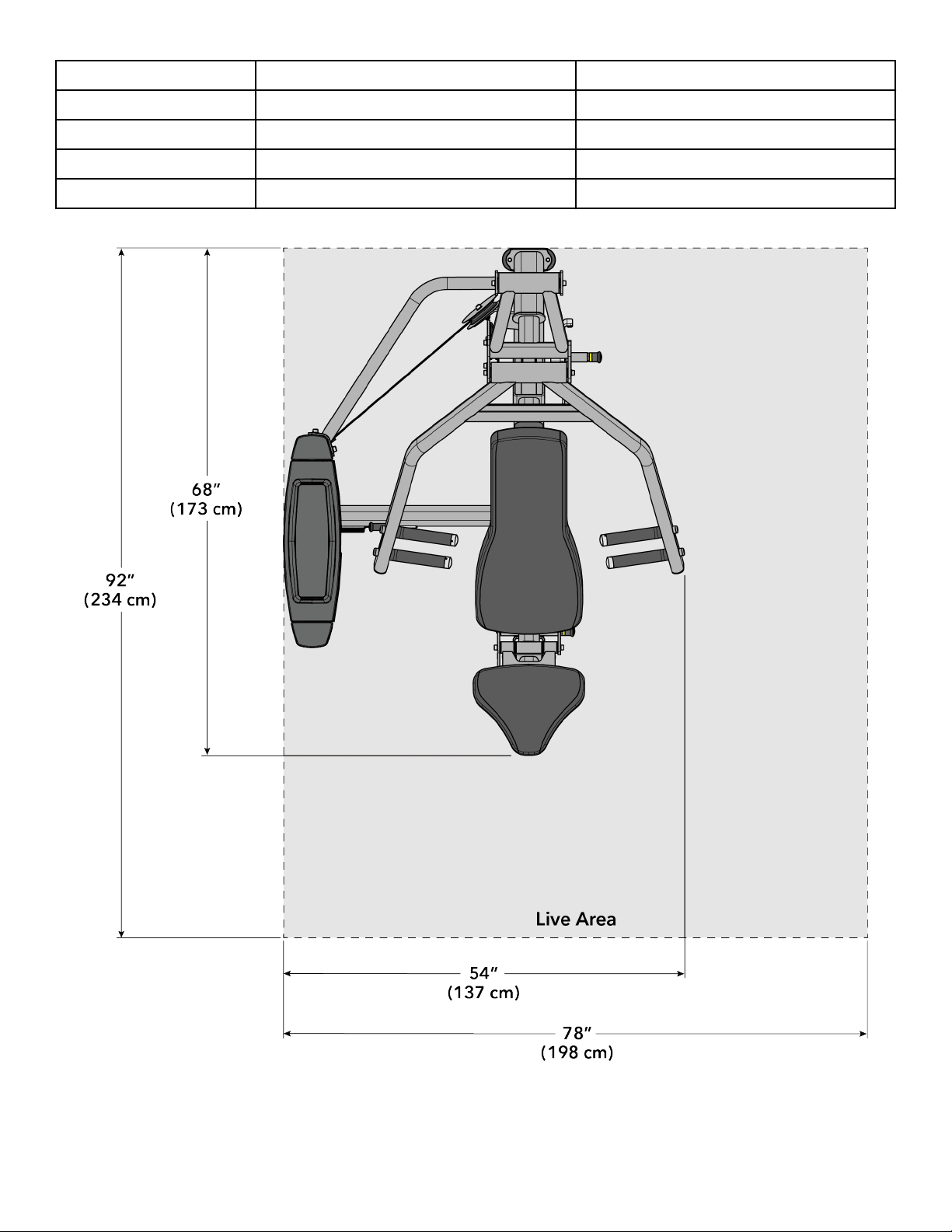

Multi-Press (CI-MP)
Machine Weight: 539 lbs. 245 kg.
Size (L x W x H): in. = 68 x 54 x 62 cm = 173 x 137 x 157
Live Area (L x W x H): in. = 92 x 78 x 86 cm = 234 x 198 x 218
Max User Weight: 300 lbs. 136 kg.
Weight Stack: 202.5 lbs. 101.25 kg.
NOTE: Weight Stack weight includes increment weight (7.5 lbs / 3.75 kg).
Page 38 of 68

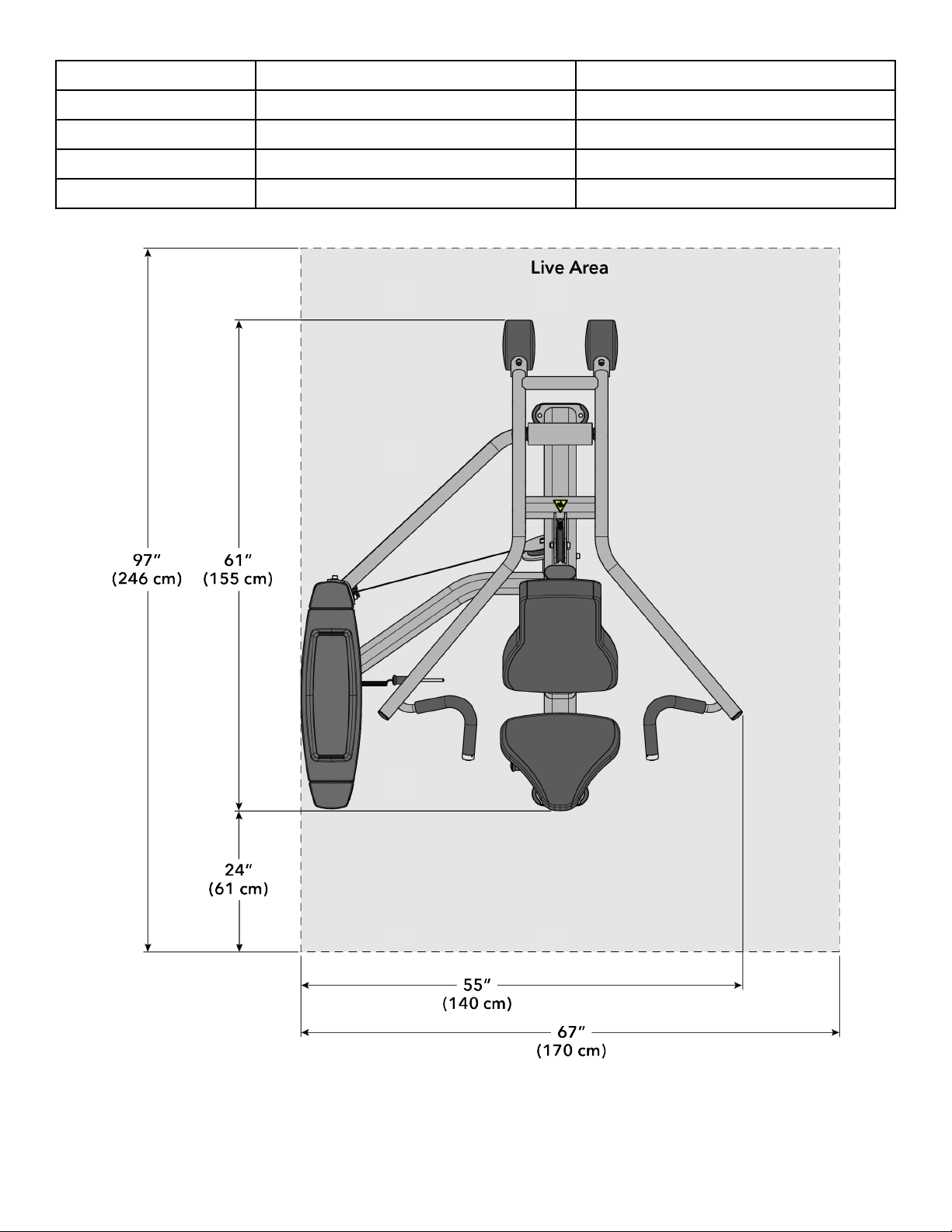

Pectoral Fly / Rear Deltoid (CI-FLY)
Machine Weight: 543 lbs. 246 kg.
Size (L x W x H): in. = 61 x 75 x 81 cm = 155 x 191 x 206
Live Area (L x W x H): in. = 97 x 99 x 93 cm = 246 x 251 x 236
Max User Weight: 300 lbs. 136 kg.
Weight Stack: 262.5 lbs. 131.25 kg.
NOTE: Weight Stack weight includes increment weight (7.5 lbs / 3.75 kg).
Page 39 of 68
Pulldown / Row (CI-LR)
Machine Weight: 452 lbs. 205 kg.
Size (L x W x H): in. = 91 x 50 x 85 cm = 231 x 127 x 216
Live Area (L x W x H): in. = 115 x 86 x 97 cm = 292 x 218 x 246
Max User Weight: 300 lbs. 136 kg.
Weight Stack: 202.5 lbs. 101.25 kg.
NOTE: Weight Stack weight includes increment weight (7.5 lbs / 3.75 kg).
Page 40 of 68
Seated Leg Curl / Extension (CI-SLCE)
Machine Weight: 601 lbs. 273 kg.
Size (L x W x H): in. = 70 x 46 x 53 cm = 178 x 117 x 135
Live Area (L x W x H): in. = 100 x 70 x 77 cm = 254 x 178 x 196
Max User Weight: 300 lbs. 136 kg.
Weight Stack: 202.5 lbs. 101.25 kg.
NOTE: Weight Stack weight includes increment weight (7.5 lbs / 3.75 kg).
Page 41 of 68
Exercise
General Exercise Information
Intended Use
The intended commercial use of this machine is to aid exercise and improve general physical fitness.
Prior to Exercise
Prior to starting a training program, get a complete physical exam to make sure your physician agrees that you are ready. Always
warm-up your muscles before a workout. A cardio warm-up followed by stretching is typically recommended.
Start Your Program Conservatively
Choose weights you can easily in the first several weeks. Typically, a full range of motion is recommended, but consult a qualified
professional if you have questions about whether a full range of motion is appropriate for you due to existing limitations, injury or
discomfort. Injuries to health may result from incorrect or excessive training.
A “repetition” (rep) is defined as one complete movement through an exercise, returning to the start position. A “set” is a continuous
series of reps, usually between 6-15. During your workout the number of reps you perform in a set depends on your goal. To build
muscle and strength, fewer reps (6 - 8) with heavier weight is recommended in each set. To build endurance, more reps (12-15)
with lighter weight is typically recommended.
At the end of your workout, cool down in a similar way to your warm-up.
Page 42 of 68
Single Stations
Abdominal (CI-AB)
Muscles Used: Abdominals
Setup: Sit on the seat with your feet placed under the foot supports and lower back pressed against the lumbar
pad. Check the weight stack to ensure appropriate resistance. Place the handles over your shoulders.
Grasp the handles and place your hands against your chest with your elbows tight to your sides.
Movement: With a controlled motion, contract torso by shortening the distance between your lower rib cage and your
hips. Emphasize the use of your abdominal muscles. Avoid your hands your chest. Maintaining
control, return to the start position and repeat the motion. Concentrate on contracting your abdominal
muscles throughout the exercise. Do not return the handles to the rest position until you are finished with
the exercise.
Page 43 of 68
Biceps Curl (CI-BC)
Muscles Used: Biceps
Setup: Adjust the seat height so the backs of the arms rest fully on the arm pad. Align elbows with the machine’s
pivot. Check the weight stack to ensure appropriate resistance. Rotate the handles forward. Grip firmly.
Position body with chest up and shoulders back. Lean slightly forward to increase stability.
Movement: With a controlled motion, curl the handles up until the arms are fully flexed. Return to the start position
while maintaining resistance on the stack. Repeat the motion, while maintaining proper body positioning.
Page 44 of 68
Chest Press (CI-CP)
Muscles Used: Pectoralis Major, Anterior Deltoid, and Triceps
Setup: Adjust the seat height so the handles are aligned with mid-chest. Check the weight stack to ensure
appropriate resistance. Grip the handles. Position elbows slightly below shoulders. Position body with
chest up, head up and shoulders against the back pad.
Movement: With a controlled motion, extend the handles out until the arms are fully extended. Return to the start
position while maintaining resistance on the stack. Repeat the motion, while maintaining proper body
positioning.
Page 45 of 68
Leg Curl (CI-LC)
Muscles Used: Hamstrings
Setup: Lie face down on the pads. Position knees just the pad. Align knees with the machine’s pivot. Position
the lower leg pad comfortably above the back of the ankles. Adjust as needed. Check the weight stack to
ensure appropriate resistance. Grip the handles located under the chest pad at the head of the machine.
Movement: Keep the hips in contact with the pad. With a controlled motion, curl the legs up until fully flexed. Do not
let the hips lose contact with the pad. Return the legs to the start position while maintaining resistance on
the stack. Repeat the motion, while maintaining proper body positioning.
NOTE: Excessively the hips the pad during the exercise can place unwanted stress on the lower
back. One method to prevent this is to slightly the thighs the pad and hold while performing the
exercise. This action forces the hips downward.
Page 46 of 68
Leg Extension (CI-LE)
Muscles Used: Quadriceps
Setup: Adjust the back pad to align the knee joint with the machine pivot (axis of rotation). Adjust the lower leg
pad to a comfortable position above the ankle. Check the weight stack to ensure appropriate resistance.
Grip the handles located on the sides of the seat. Position body with chest up and with shoulders back
and against the back pad.
Movement: Position thighs so the knees are pointing upwards. With a controlled motion extend the legs to nearly full
extension without locking out knees. Return the legs to the start position without letting the resistance
rest on the stack. Repeat the motion while maintaining proper body positioning.
Page 47 of 68
Leg Press (CI-LP)
Muscles Used: Quadriceps, Hamstrings, and Gluteus
Setup: Adjust the start position located behind the back pad to the desired range of motion. Position feet on the
foot plate, hip width apart, with feet turned out slightly. Check the weight stack to ensure appropriate
resistance. Grip the handles on the sides of the seat and position the body with chest up, shoulders and
head back against back pad.
NOTE: When positioning the feet on the foot plate, ensure that the feet are placed so that the knees do
not move above the toes, as this places excessive stress on the knee joints.
Movement: With a controlled motion, extend the legs until the knees are slightly bent. DO NOT LOCK THE KNEES.
Return to the start position while maintaining resistance on the stack. Repeat the motion, while
maintaining proper body positioning.
Page 48 of 68
Pulldown (CI-PD)
Muscles Used: Latissimus Dorsi and Biceps
Setup: Check the weight stack to ensure appropriate resistance. Stand and grip the bar in the desired position,
then pull down and sit with thighs under the pads. Position upper body by leaning slightly forward from
the hips and pulling directly over the shoulders.
Movement: With a controlled motion, pull down the handles directly over the shoulders until hands reach shoulder
height. Maintain control while the handles return to the start position and repeat the motion while
maintaining proper body positioning.
TIP: While performing the exercise, keep the back straight and lower elbows towards lower back to
reinforce the correct exercise position.
Page 49 of 68
Row (CI-RW)
Muscles Used: Latissimus Dorsi, Trapezius, Rhomboids, Teres Major and Minor, Posterior Deltoids and Biceps
Setup: Position body so knees are slightly bent, keeping feet firmly on the foot plates. Check the weight stack to
ensure appropriate resistance. Grip the handles and position the body with head and chest up and back
straight.
Movement: Stabilize the body in position, pressing feet firmly into the foot plates. With a controlled motion, draw back
the arms as far as can be controlled. Return the handles to the start position while maintaining resistance.
Repeat the motion while maintaining proper body positioning.
TIP: While performing the exercise, keep the back straight and draw the elbows back beyond the body.
Page 50 of 68
Shoulder Press (CI-SP)
Muscles Used: Deltoids and Triceps
Setup: Adjust the seat height so the handles are aligned with, or slightly above shoulder height. Check the weight
stack to ensure appropriate resistance. Grip either set of handles. Position body with head up, chest up,
and shoulders against the back pad.
NOTE: The neutral grip position is ideal for persons with limited shoulder flexibility or orthopedic
limitations.
Movement: With a controlled motion, extend the handles up until the arms are fully extended. Return the handles to
the start position while maintaining resistance on the stack. Repeat the motion while maintaining proper
body positioning.
TIP: Focus on extending elbows as opposed to pressing arms up.
Page 51 of 68
Triceps Extension (CI-TE)
Muscles Used: Triceps
Setup: Adjust the seat height so the backs of the arms rest fully on the arm pad. Align elbows with the machine’s
pivot. Check the weight stack to ensure appropriate resistance. Rotate the handles backward. Grip firmly.
Position feet under the foot supports for stability. Position body with hips in contact with the lower back
pad. Lean forward from hips, while keeping the back straight.
Movement: With a controlled motion, extend the handles out until the arms are fully flexed. Return to the start
position while maintaining resistance on the stack. Repeat the motion, while maintaining proper body
positioning.
Page 52 of 68
Dual Stations
Abdominal / Back Extension (CI-ABBA)
Abdominal
Muscles Used: Abdominals
Setup: Sit on the seat with your feet placed on the foot supports and lower back pressed against the lumbar pad.
Extend legs to keep back firmly against the lumbar pad while keeping a slight bend at the knees. Check
the weight stack to ensure appropriate resistance. Adjust the handles, so that your upper body is leaning
back slightly while your arms are extended.
Movement: With a controlled motion, contract torso by shortening the distance between your lower rib cage and your
hips. Emphasize the use of your abdominal muscles. Repeat the motion while maintaining proper body
positioning. Concentrate on contracting your abdominal muscles throughout the exercise. Do not return
the handles to the rest position until you are finished with the exercise.
Back Extension
Muscles Used: Erector Spinae, Gluteus
Setup: Sit on the seat with your feet placed on the foot supports. Check the weight stack to ensure appropriate
resistance. Adjust the handles, so that your upper body is rotated forward with the spine bent slightly
while your arms are extended.
Movement: With chest up, grip handles and extend back straightening your spine. Hold the position briefly and return
weight with controlled movement to starting position. Repeat the motion while maintaining proper body
positioning. Do not return the handles to the rest position until you are finished with the exercise.
Page 53 of 68
Biceps Curl / Triceps Extension (CI-BT)
Biceps Curl
Muscles Used: Biceps
Setup: Adjust the handles to the forward position. Adjust the seat height so the backs of the arms rest fully on the
arm pad. Align elbows with the machine’s pivot. Check the weight stack to ensure appropriate resistance.
Position body with chest up and shoulders back. Lean slightly forward to increase stability. Grip handles
firmly.
Movement: With a controlled motion, curl the handles up until the arms are fully flexed. Return to the start position
while maintaining resistance on the stack. Repeat the motion, while maintaining proper body positioning.
Triceps Extension
Muscles Used: Triceps
Setup: Adjust the handles to the up position. Adjust the seat height so the backs of the arms rest fully on the arm
pad. Align elbows with the machine’s pivot. Check the weight stack to ensure appropriate resistance.
Position feet under the foot supports for stability. Position body with hips in contact with the lower back
pad. Lean forward from hips, while keeping the back straight. Grip handles firmly.
Movement: With a controlled motion, extend the handles out until the arms are fully extended. Return to the start
position while maintaining resistance on the stack. Repeat the motion, while maintaining proper body
positioning.
Page 54 of 68
Hip Abductor / Adductor (CI-HAA)
Hip Abductor
Muscles Used: Hip Abductors
Setup: Rotate the knee pads outward. Sit down. Position feet on foot platform so knees are bent 90 degrees.
Adjust the start position to be as narrow as comfort allows.
Movement: Holding the handles, slowly move the pads outward by pushing with the knees. Hold the outward extreme
position briefly. Slowly return to the start position.
Hip Adductor
Muscles Used: Hip Adductors
Setup: Rotate the knee pads inward. Sit down. Position feet on foot platform so knees are bent 90 degrees. Adjust
the start position to be as wide as comfort allows.
Movement: Hold the handles. Slowly move the pads inward by pushing with the knees. Hold the inward extreme
position briefly. Slowly return to the start position. When finished, pull the adjustment knob to release the
weight pads to exit the machine.
Page 55 of 68
Leg Curl / Extension (CI-LCE)
Leg Curl
Muscles Used: Hamstrings
Setup: Adjust the back pad to the horizontal position. Lie face down on the pads. Position knees just the pad,
aligned with the machine’s pivot. Position the lower leg pad comfortably above the back of the ankles.
Adjust as needed. Grip the handles located under the chest pad at the head of the machine.
Movement: Keep the hips in contact with the pad. With a controlled motion curl the legs up until fully flexed. Do not
let the hips lose contact with the pad. Return the legs to the start position while maintaining proper body
positioning.
Leg Extension
Muscles Used: Quadriceps
Setup: Adjust the back pad to the vertical position. Sit down and align knee joint with the machine pivot (axis of
rotation). Adjust the lower leg pad to a comfortable position above the ankle. Grip the handles located on
the sides of the seat. Position body with chest up and with shoulders back and against the back pad.
Movement: With a controlled motion extend the legs to nearly full extension without locking knees. Return legs to the
start position without letting the resistance rest on the weight stack. Repeat the motion while maintaining
proper body positioning.
Page 56 of 68
Multi-Press (CI-MP)
Chest Press
Muscles Used: Pectoralis Major, Anterior Deltoid, Triceps
Setup: Adjust the press arm to the vertical position labeled #1. Adjust the Seat/Back pad to be in the most flat
(slightly angled) position. Position your body on the back pad and select the handles that aligned with the
middle of your chest. Grip the handles and position elbows slightly below the shoulders. Position the
body with shoulders and head back.
Incline Press
Muscles Used: Pectoralis Major, Anterior Deltoid, Triceps
Setup: Adjust the press arm to the angled position labeled #2-4. Adjust the Seat/Back pad to be in the middle
position. Select the handles that aligned with the middle of your chest. Grip the handles and position
elbows slightly below the shoulders. Position the body with shoulders and head back.
Shoulder Press
Muscles Used: Deltoids, Triceps
Setup: Adjust the press arm to the horizontal position labeled #5-7. Adjust the Seat/Back pad to be in the vertical
position. Select the handles that are slightly forward of your shoulder. Grip the handles and position
elbows slightly below the shoulders. Position the body with shoulders and head back.
Movement:
With a controlled motion extend the handles out until the arms are fully extended. Return the handles to the start position without
letting the resistance rest on the stack. Repeat the motion while maintaining proper body positioning.
Page 57 of 68
Pectoral Fly / Rear Deltoid (CI-FLY)
Pectoral Fly
Muscles Used: Pectoralis, Anterior Deltoid
Setup: Sit with back against the vertical pad. The overhead selector pin and handles should be positioned in a
wide starting location at the user’s sides. Grab the handles keeping hands slightly below shoulder height.
Movement: With a controlled motion and elbows bent, bring hands together. Return the handles to the start position
without letting the resistance rest on the weight stack. Repeat the motion while maintaining proper body
positioning.
Rear Deltoid
Muscles Used: Posterior Deltoid, Rhomboids, Trapezius, Infraspinatus
Setup: Sit with chest against the vertical pad. The overhead selector pin and handles should be positioned in the
narrow starting location in front of the user. Grab the horizontal, or overhand, handles keeping hands
slightly below shoulder height.
Movement: With a controlled motion and elbows bent, move hands away from each other. Squeeze shoulder blades
together at the end of the movement. Return the handles to the start position without letting the
resistance rest on the weight stack. Repeat the motion while maintaining proper body positioning.
Page 58 of 68
Pulldown / Row (CI-LR)
Lat Pulldown
Muscles Used: Latissimus Dorsi, Biceps
Setup: Stand and grip the bar in the desired position. Pull the bar down. Sit with thighs under the thigh pads.
Position body to lean back slightly.
TIP: For the ideal grip position, locate the hands as far apart as possible while still allowing the elbows to
contact the sides of the body in the down position during the exercise. This ensures a full range of motion.
Movement: With a controlled motion, draw the bar down in front of the chest until it nearly makes contact with the
chest. Return the handles to the start position. Repeat the motion while maintaining proper body
positioning.
Row
Muscles Used: Latissimus Dorsi, Trapezius, Rhomboids, Posterior Deltoids, Biceps
Setup: Sit down in arms reach of the handles. Grip the handles. Position body with the feet on the foot pegs and
head and chest up.
Movement: Stabilize the body in position with feet firmly on foot pegs. With a controlled motion, pull the handle back
until elbows are alongside the body. Return the handles to the start position without letting the resistance
rest on the weight stack. Repeat the motion while maintaining proper body positioning.
Page 59 of 68
Seated Leg Curl / Extension (CI-SLCE)
Seated Leg Curl
Muscles Used: Hamstrings
Setup: Adjust the back pad to align the knee joint with the machine pivot (axis of rotation). Adjust the ankle pad
so it’s positioned just under the ankles. Check the weight stack to ensure appropriate resistance. Grip the
handles located on the sides of the seat. Position body with chest up and with shoulders back and against
the back pad.
Movement: Curl the pad down and back slowly. Hold the pad at the back position for a moment. Return the legs to
the start position without letting the resistance rest on the stack. Repeat the motion while maintaining
proper body positioning.
Seated Leg Extension
Muscles Used: Quadriceps
Setup: Adjust the back pad to align the knee joint with the machine pivot (axis of rotation). Adjust the lower leg
pad to a comfortable position above and in front the ankle. Check the weight stack to ensure appropriate
resistance. Grip the handles located on the sides of the seat. Position body with chest up and with
shoulders back and against the back pad.
Movement: With a controlled motion extend the legs to nearly full extension without locking out knees. Return the
legs to the start position without letting the resistance rest on the stack. Repeat the motion while
maintaining proper body positioning.
Page 60 of 68
Maintenance Procedures
Maintenance Schedule
ACTION DAILY WEEKLY MONTHLY AS NEEDED
CLEAN
Upholstery X
Guide Rods X
Shrouds X
Hand Grips X
WAX
Frames X
INSPECT
Paint X
Cable X
Hardware X
Frame X
Hand Grips X
Shrouds X
LUBRICATE
Guide Rods X
Clean
• Upholstery with an approved or compatible cleaner.
• Guide rods with a cotton cloth.
• Hand grips with an approved or compatible cleaner.
Wax
• Frames with a standard, non-abrasive, wax finish.
Inspect
• Cables. Look for wear or damage and proper tension. Pay close attention at bends and attachment points.
• Hardware. Check for loosening. Tighten as required.
• Frames. Inspect for wear and damage.
• Hand grips. Check for wear and damage.
• For paint chips. Fill in immediately with manufacturers touch-up paint.
• Jam nut at top of weight stack for tightness.
Lubricate
• Lubricate guide rods with Break-Free® brand lubricant (part number SK50-P0005-0000). Apply the lubricant to a cotton cloth, and
then run the cotton cloth up and down the guide rods as needed.
NOTE: Only a few drops of lubricant are required for each guide rod.
Once a Day
• Wipe down upholstery with a mild soap and water or comparable all purpose cleaner.
• Visually inspect cables for wear at and around connections and along the entire length of the cable. Always replace at first sign of
wear.
Page 61 of 68
Once a Week
• Visually inspect all hardware for loosening, tampering or wear.
• Check jam nut at top of weight stack for tightness.
• Check condition of hand grips.
• Check cables for stretch and adjust as necessary by loosening the large Jam Nut on top of the weight stack and by screwing in the
Threaded Plug until cable is tight and the weight stack pin goes in all holes easily. Securely tighten the large Jam Nut when
finished.
• Inspect shrouds for damage and clean as necessary.
Once a Month
• Clean guide rods with Break-Free® brand lubricant (part number SK50-P0005-0000). Clean tops of bearings at stack and inspect for
heavy buildup on rods below the head plate. half of stack and do a visual inspection, then clean as necessary.
• Inspect hardware on all machines and tighten any bolts or nuts that may have loosened over the life of the product.
Notes
• Use polishing compound (such as car wax) and remove shoe from powder coated surfaces as necessary.
Cleaning the Shrouds
• Adherence to regular and proper cleaning procedures is recommended to preserve the appearance.
NOTE: Spray the approved cleaner on a towel, and then wipe down the shrouds to avoid saturation of shroud inlays.
Minimize Scratches
• Wash the shrouds with an approved or compatible cleaner. Do not scrub brushes on the shrouds. Fresh paint splashes, grease and
smeared glazing compounds can be removed easily before drying by rubbing lightly with isopropyl alcohol. a warm final
wash should be made.
Approved and Compatible Cleaners
Two preferred cleaners have been approved by reliability experts: PureGreen 24 and Gym Wipes. Both cleaners will safely and
remove dirt, grime and sweat from equipment. PureGreen 24 and the Antibacterial Force formula of Gym Wipes are both
disinfectants that are against MRSA and H1N1.
PureGreen 24 is available in a spray which is convenient to use. Apply the spray to a microfiber cloth and wipe down the equipment.
Use PureGreen 24 on the equipment for at least 2 minutes for general disinfection purposes and at least 10 minutes for fungus and
viral control.
Gym Wipes are large, durable pre-moistened wipes to use on the equipment before and workouts. Use Gym Wipes on the
equipment for at least 2 minutes for general disinfection purposes.
Contact Customer Support Services to order these cleaners (1-800-351-3737 or email: customersupport@lifefitness.com).
Mild soap and water or a mild non-abrasive household cleaner can also be used to clean the display and all exterior surfaces. Use a
microfiber cloth only. Apply the cleaner to the microfiber cloth before cleaning. DO NOT use ammonia or acid based cleaners. DO
NOT use abrasive cleaners. DO NOT use paper towels. DO NOT apply cleaners directly to the equipment surfaces.
Removal of Paint, Marking Pens, or Labels
• Butyl cellosolve works well for removal of paints, marking pen inks, lipstick, etc.
• Labels, stickers, etc. may be removed using kerosene. When the solvent will not penetrate sticker material, apply heat (hair dryer)
to the adhesive and promote removal. GASOLINE SHOULD NOT BE USED.
Important Hazards
• DO NOT use abrasive or highly alkaline cleaners on the shrouds.
• NEVER scrape shrouds with squeegees, razor blades or other sharp instruments.
• DO NOT clean shrouds in hot sun or at elevated temperatures.
• NEVER use benzene, gasoline, acetone or carbon tetrachloride on the shrouds.
• Manufacturer recommends that cables be inspected daily installation and replaced annually.
Page 62 of 68
Warranty
What is Covered
This Life Fitness Family of Brands commercial exercise equipment product is warranted to be free of all defects in material and
workmanship.
Who is Covered
The original purchaser or any person receiving the product as a from the original purchaser.
Who Pays Transportation and Insurance For Service
If the Product or any covered part must be returned to a service facility for repairs, We, Life Fitness Family of Brands, will pay all
transportation and insurance charges for the first year. You are responsible for transportation and insurance charge the first year.
What We Will Do To Correct Covered Defects
We will ship to you any new or rebuilt replacement part or component, or at our option, replace the Product. Such replacement parts
are warranted for the remaining portion of the original warranty period.
What is Not Covered
Any failures or damage caused by unauthorized service, misuse, accident, negligence, improper assembly or installation, debris
resulting from any construction activities in the Product’s environment, rust or corrosion as a result of the Product’s location,
alterations or modifications without our written authorization, or by failure on your part to use, operate and maintain the Product as
set out in your Operation Manual.
All terms of this warranty are void if this product is moved beyond the continental borders of the United States of America (excluding
Alaska, Hawaii and Canada) and are then subject to the terms provided by that country’s local authorized Life Fitness Family of Brands
representative.
Owner's Manual
It is VERY IMPORTANT THAT YOU READ THIS MANUAL before operating the Product. Remember to perform the periodic maintenance
requirements specified in the Manual to assure proper operation and your continued satisfaction.
Exclusive Warranty
THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND ALL OTHER
OBLIGATIONS OR LIABILITIES ON OUR PART. We neither assume nor authorize any person to assure for us any other obligation or
liability concerning the sale of this Product. Under no circumstances shall we be liable under this warranty, or otherwise, of any
damage to any person or property, including any lost profits or lost savings, for any special, indirect, secondary, incidental or
consequential damages of any nature arising out of the use of or inability to use this Product. Some states do not allow the exclusion
or limitation of implied warranties or of liability for incidental or consequential damages, so the above limitations or exclusions may
not apply to you. Warranty coverages and terms may outside the United States. Please contact the Life Fitness servicing
your country (contact information found at the front of this manual) or visit the applicable local Life Fitness website to receive the
specific warranty information for your country.
Changes in Warranty Not Authorized
No one is authorized to change, modify or extend the terms of this limited warranty.
Eects of State Laws
This warranty gives you specific legal rights, and you may have other rights which vary from state to state and country by country.
Warranty Coverage
NOTE: There is no warranty coverage for labor on Strength Products.
Page 63 of 68
Item 10 Years 5 Years 1 Year 90 Days
Frame X
Pulleys X
Weight Plates X
Guide Rods X
Cables X
Grips X
Bearings X
Upholstery X
Hardware / Mechanical X
Items Not Specified X
Page 64 of 68
Cable Handling Guide
Cable Terminations, Tensioning and Wear Guide
Cable Connections with threaded cable ends are required to be installed and maintained following the specifications identified below.
Failure to follow these specifications can lead to the dislocation of the threaded cable during use and can cause serious injury. Along
with securing the threaded cable end and jam nut, it is important to check the entire unit and ensure that all hardware is securely
fastened and not loose upon completion of cable installation.
WARNING: Use of non certified “techs” note: Service warranties may be void if a non-Cybex-certified technician performs
service work. Replacement of any strength cables should be performed by a Cybex certified technician.
Cable Terminations
1. Cable must be threaded at least ½ inch (12.7mm) into termination points; at headplate (A) and frame/carriage (B).
2. Certain models are now equipped with a bayonet portal to assist checking proper thread engagement. To do so, attempt to pass a
7mm Allen wrench through the portal, if it goes through, more threads are needed to meet the minimum requirement.
3. When proper thread engagement is reached, tighten jam nut to 20-25 FT-LBS (27.2 - 34.0 Nm) using a 24mm wrench.
Page 65 of 68

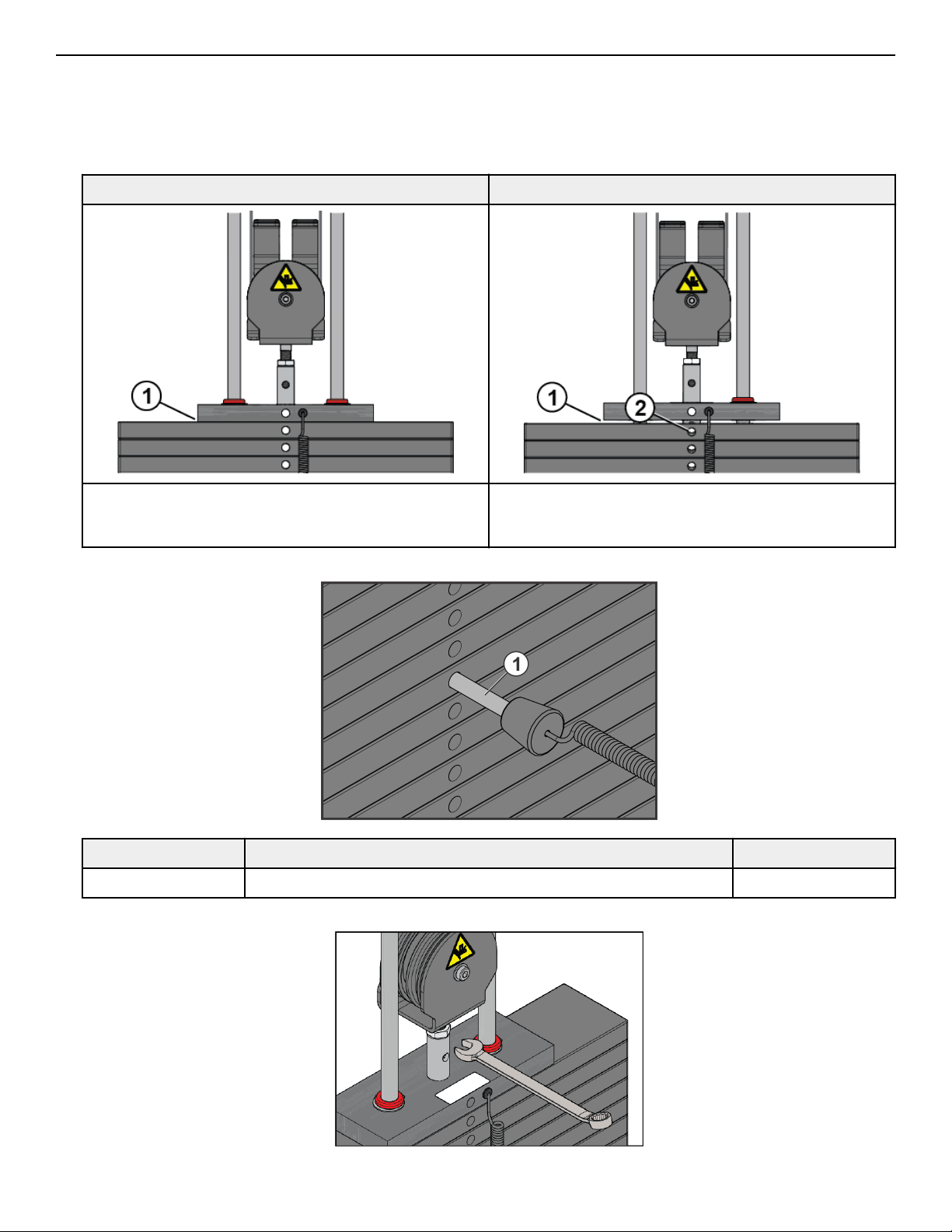

Tensioning Cable
Cable should have enough tension so it stays seated into the pulley but not so tight that it pulls the head plate the weight plate
below it.
1. If the head plate has loosen the jam nuts at the terminations and loosen the threaded plugs a half turn until the head plate
comes to rest on the weight plate below. Check that the cable's threaded plugs are engaged at least 1/2” (12.7mm) at each
termination point.
SEATED HEAD PLATE SUSPENDED HEAD PLATE
1. No gap 1. Gap
2. Bayonet obstructing weight stack pin
2. Ensure that the weight stack selector pin can fully engage into each weight plate.
Item Description Qty.
1 Weight Stack Selector Pin 1
3. When proper thread engagement is reached, tighten jam nut to 20-25 FT-LBS (27.2 - 34.0 Nm) using a 24mm wrench.
Page 66 of 68
Strength Cable Wear Guide
Replace cable at first sign of any of the following:
FRACTURES:
Casing can crack or fracture under strains during use. Any crack in
the casing merits cable replacement even if no wire rope is
exposed.
Be especially observant for fractures near the components on the
cable assembly - IE. Nylon Ball, Nico Loop, Threaded Plug, etc.
TWISTING/BINDING:
Inspect casing to ensure wire rope is not twisting within its
casing. Any sign of the cable twisting should be replaced
immediately.
BULGING:
Internal wire rope strands can break within and coil causing a
bulge to appear. Cable should retain same outside diameter
throughout.
FRAYED/EXPOSED WIRE ROPE:
Any exposed wire rope protruding through the casing or at either
end.
FLATTENED:
Section of cable is compressed and will not retain its shape
(outside diameter).
PERMANENTLY BENT:
Cable has ‘kink’ and prohibits cable from laying straight. Wire
rope may be unraveling beneath casing and is compromised
warranting replacement.
ENDS SEPARATING:
Watch for component end of cable to pull away from cable
assembly - look for exposed wire rope.
Page 67 of 68
