FOR COMPETITION USE ONLY
This Motorcycle is designed, manufactured and sold for closed-course competition use only. It does not conform to
Federal Motor Vehicle Safety Standards or U.S. EPA Noise and Emission Standards. Operation on public streets,
roads, highways or for off-road recreation is illegal.
State and federal laws prohibit operation of this vehicle except in an organized racing or competitive event on a
closed course, or by permit issued by the local governmental jurisdiction. This vehicle is sold “as is” with no
warranties.
FOR EXPERIENCED RIDERS, NO PASSENGERS
This motorcycle is designed as an operator-only vehicle and for use by experienced riders only. The load limit and
seating configuration do not safely permit the carrying of a passenger.
This manual should be considered a permanent part of the motorcycle and should remain with the motorcycle when it is resold.
All information in this publication is based on the latest product information available at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right to make changes at any time without notice and without incurring any obligation.
No part of this publication may be reproduced without written permission.
This vehicle pictured in this owner’s manual may not match your actual vehicle.
© Honda Motor Co., Ltd., 2017
IMPORTANT NOTICES
CRF250R_31K95600.book 2 ページ ２０１７年８月８日 火曜日 午後８時２６分
2018
Honda CRF250R
OWNER’S MANUAL & COMPETITION HANDBOOK
CRF250R_31K95600.book 3 ページ ２０１７年８月８日 火曜日 午後８時２６分
Introduction
Introduction
Introduction
Congratulations on choosing your Honda CRF
motocross motorcycle.
When you own a Honda, you’re part of a
worldwide family of satisfied customers – people
who appreciate Honda’s reputation for building
quality into every product.
Your CRF is a high performance racing
motorcycle that utilizes the latest motocross
technology and is intended for competition use in
sanctioned, closed-course events by experienced
riders only.
Be aware that motocross is a physically demanding
sport that requires more than just a fine
motorcycle. To do well, you must be in excellent
physical condition and be a skillful rider. For the
best results, work diligently on your physical
conditioning and practice frequently.
Before riding, take time to get acquainted with
your CRF and how it works. To protect your
investment, we urge you to take responsibility for
keeping your CRF well maintained. Scheduled
service is a must, of course. But it’s just as
important to observe the break-in guidelines, and
perform all the pre-ride and other periodic checks
detailed in this manual.
You should also read the owner’s manual before
you ride. It’s full of facts, instructions, safety
information, and helpful tips. To make it easy to
use, the manual contains a table of contents, a
detailed list of topics at the beginning of each
section, and an index at the back of the book.
As you read this manual, you will find information
that is preceded by a symbol. This
information is intended to help you avoid damage
to your CRF, other property, or the environment.
Unless you are mechanically qualified and have
the proper tools, you should see your dealer for the
service and adjustment procedures discussed in
this manual.
An official Honda Service Manual for your CRF is
available (page 166). It is the same manual your
dealer uses. If you plan to do any service on your
CRF beyond the standard maintenance procedures
in this manual, you will find an official Honda
Service Manual a valuable reference.
If you have any questions, or if you ever need a
special service or repairs, remember that your
Honda dealer knows your CRF best and is
dedicated to your complete satisfaction.
Please report any change of address or ownership
to your dealer so we will be able to contact you
concerning important product information.
You may also want to visit our website at
USA: www.powersports.honda.com.
Canada: www.honda.ca.
Happy riding!
ABBREVIATION
Throughout this manual, the following
abbreviations are used to identify the respective
parts or system.
Abbrev. term Full term
CKP sensor Crankshaft Position sensor
DLC Data Link Connector
DTC Diagnostic Trouble Code
ECM Engine Control Module
ECT sensor Engine Coolant Temperature
sensor
IAT sensor Intake Air Temperature sensor
MAP sensor Manifold Absolute Pressure sensor
MIL Malfunction Indicator Lamp
PGM-FI Programmed Fuel Injection
TDC Top Dead Center
TP sensor Throttle Position sensor
CRF250R_31K95600.book 4 ページ ２０１７年８月８日 火曜日 午後８時２６分
Safety Messages
A Few Words About Safety
A Few Words About Safety
Your safety, and the safety of others, is very important. And operating this motorcycle safely is an important responsibility.
To help you make informed decisions about safety, this manual contains a section devoted to Motorcycle Safety, as well as a number of Safety Messages throughout
the manual.
Safety Messages are preceded by a safety alert symbol and one of three signal words: DANGER, WARNING, or CAUTION.
These signal words mean:
Of course, it is not practical or possible to warn you about all hazards associated with operating or maintaining a motorcycle. You must use your own good
judgment.
You WILL be KILLED or SERIOUSLY HURT if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY HURT if you don’t follow instructions.
You CAN be HURT if you don’t follow instructions.
DANGER
WARNING
CAUTION
CRF250R_31K95600.book 5 ページ ２０１７年８月８日 火曜日 午後８時２６分
Contents
Contents
MOTORCYCLE SAFETY............................. 1
Important Safety Information ........................... 2
Important Safety Precautions........................ 2
Accessories & Modifications ........................... 3

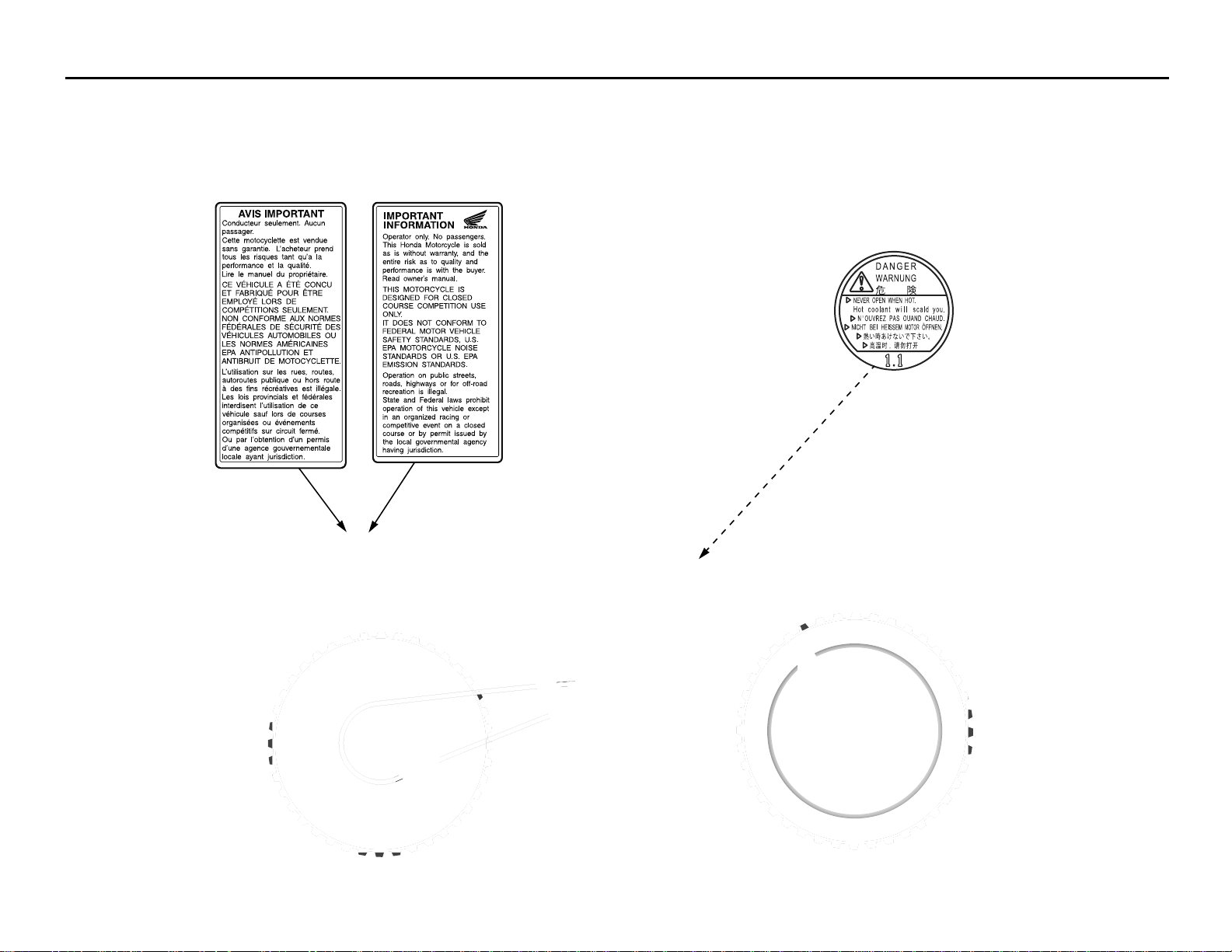

Safety Labels .................................................... 4
INSTRUMENTS & CONTROLS.................. 5

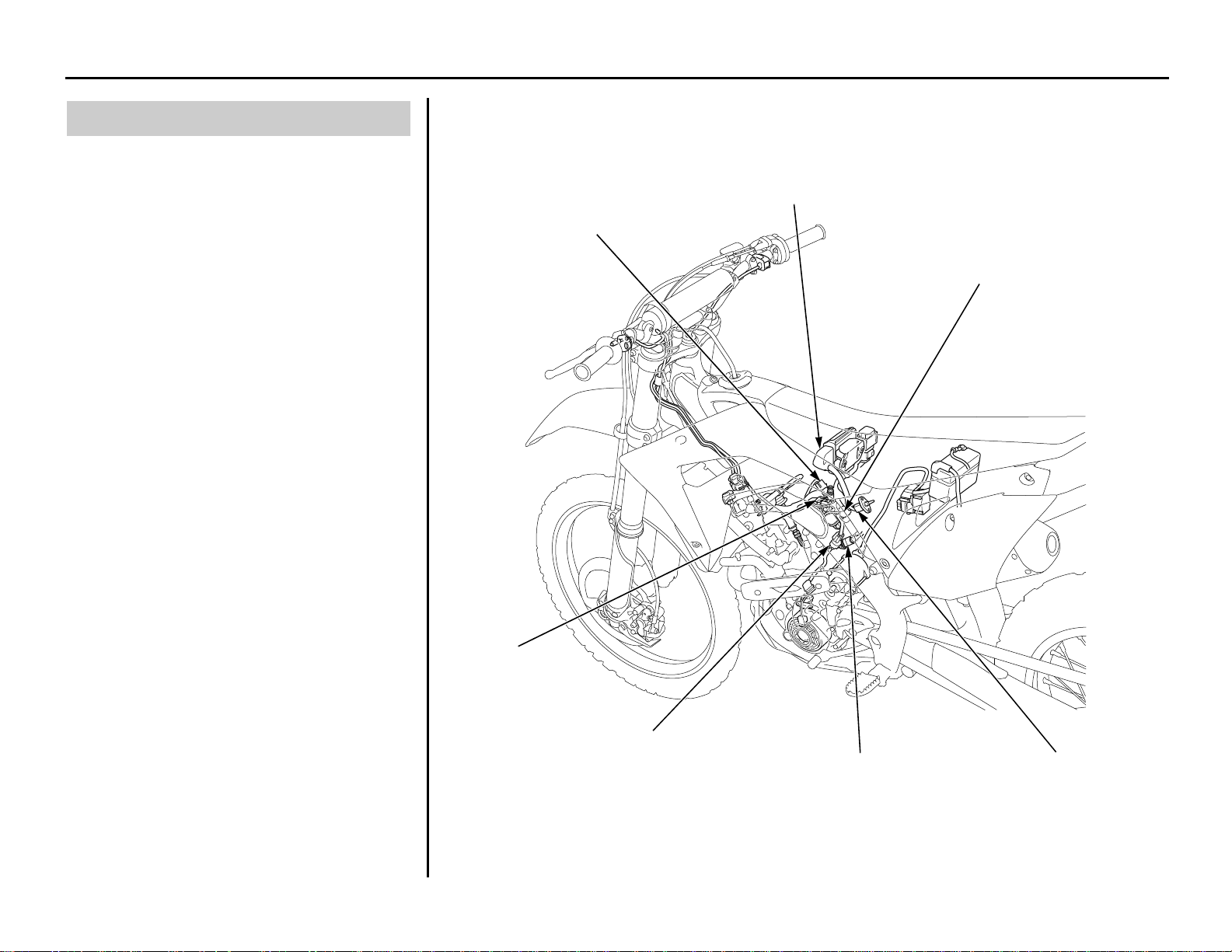

Operation Component Locations ...................... 6
MIL (Malfunction Indicator Lamp) ................. 7
MIL Blink Pattern ......................................... 7
Current DTC/Freeze DTC............................. 7
Circuit Inspection.......................................... 8
DTC Index..................................................... 9
Mode Indicator ............................................... 10
BEFORE RIDING......................................... 11
Are You Ready to Ride? ................................ 12
Is Your Motorcycle Ready to Ride? ............... 13
Pre-ride Inspection ...................................... 13
BASIC OPERATING INSTRUCTIONS.... 15
Safe Riding Precautions.............................. 16
Starting & Stopping the Engine ...................... 17
Fast Idle Knob............................................. 17
Preparation .................................................. 17
Starting Procedure....................................... 17
How to Stop the Engine .............................. 18
Break-in Guidelines ........................................ 19
SERVICING YOUR HONDA......................21
Before You Service Your Honda
The Importance of Maintenance .....................22
Maintenance Safety .........................................23
Important Safety Precautions.......................23
Maintenance Schedule ....................................24
General Competition Maintenance .................26
Before & After Competition Maintenance .....30
Between Motos & Practice Maintenance.....30
After Competition Maintenance ..................31
Service Preparations
Maintenance Component Locations ...............32
Seat ..................................................................33
Fuel Tank ........................................................34
Subframe .........................................................37
Service Procedures
Fluids & Filters

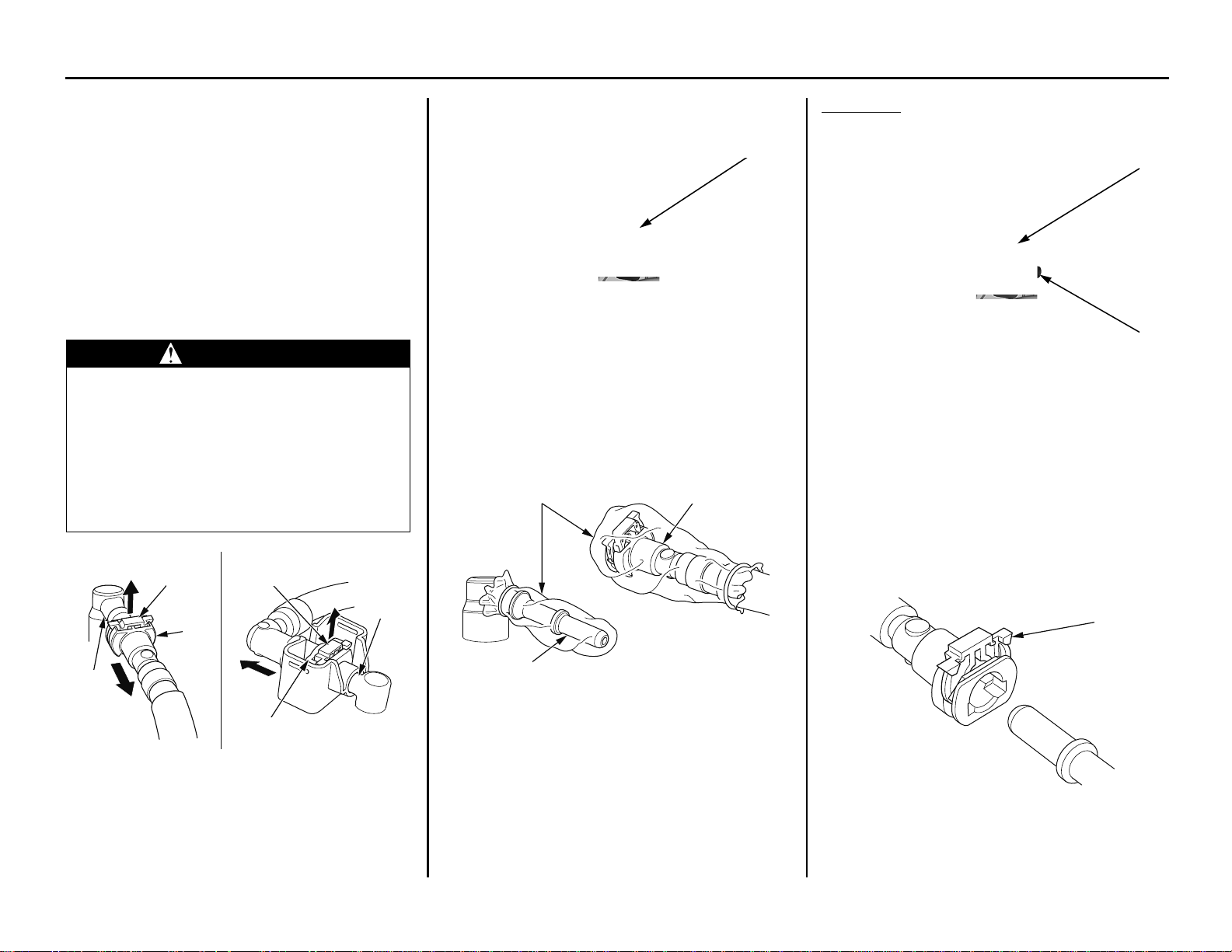

Fuel System .....................................................41
Engine Oil .......................................................51
Coolant ............................................................54
Air Cleaner ......................................................56
Crankcase Breather .........................................58
Engine
Throttle ............................................................59
Engine Idle Speed ...........................................61
Clutch System .................................................62
Spark Plug .......................................................67
Valve Clearance ..............................................68

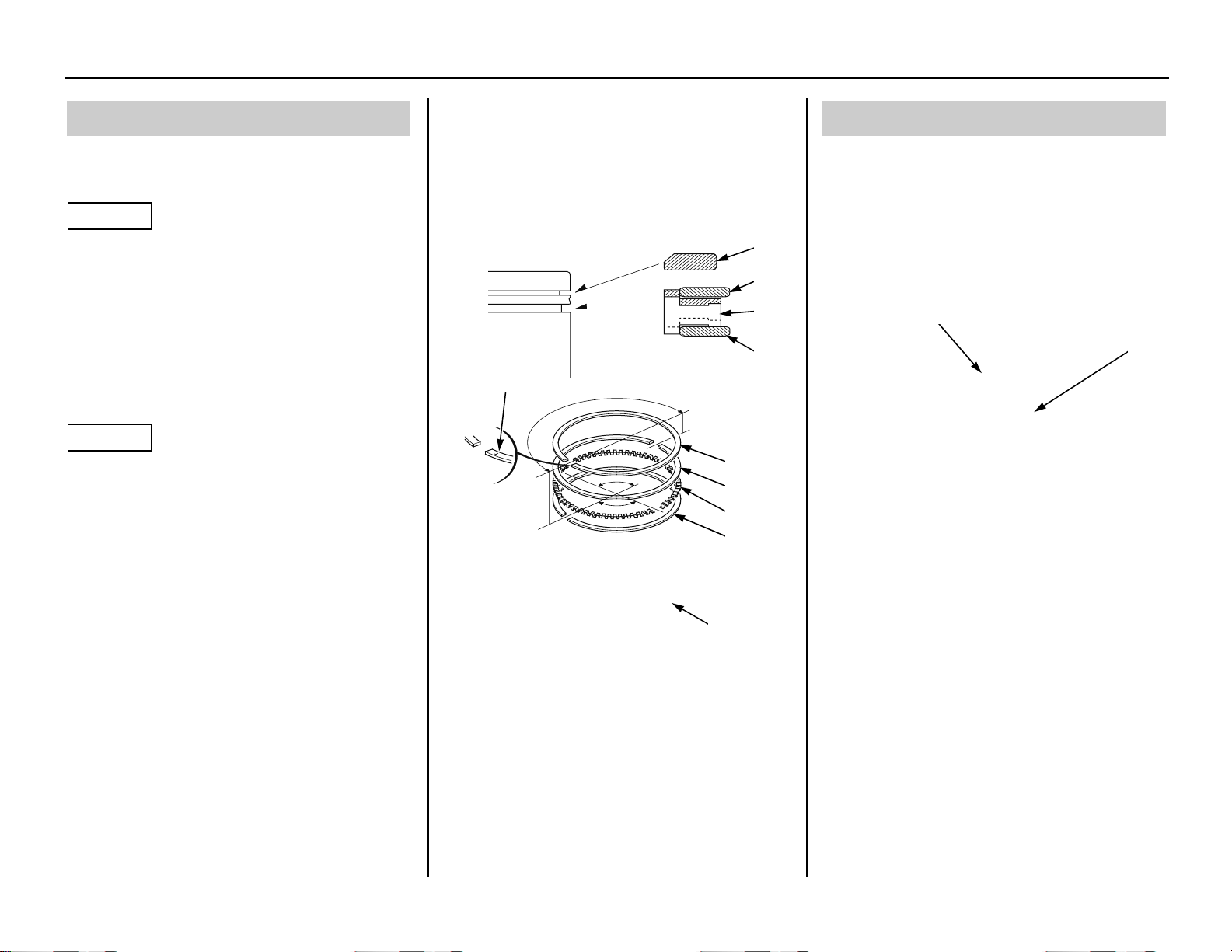

Piston/Piston Rings/Piston Pin ........................79
Chassis
Suspension ...................................................... 88

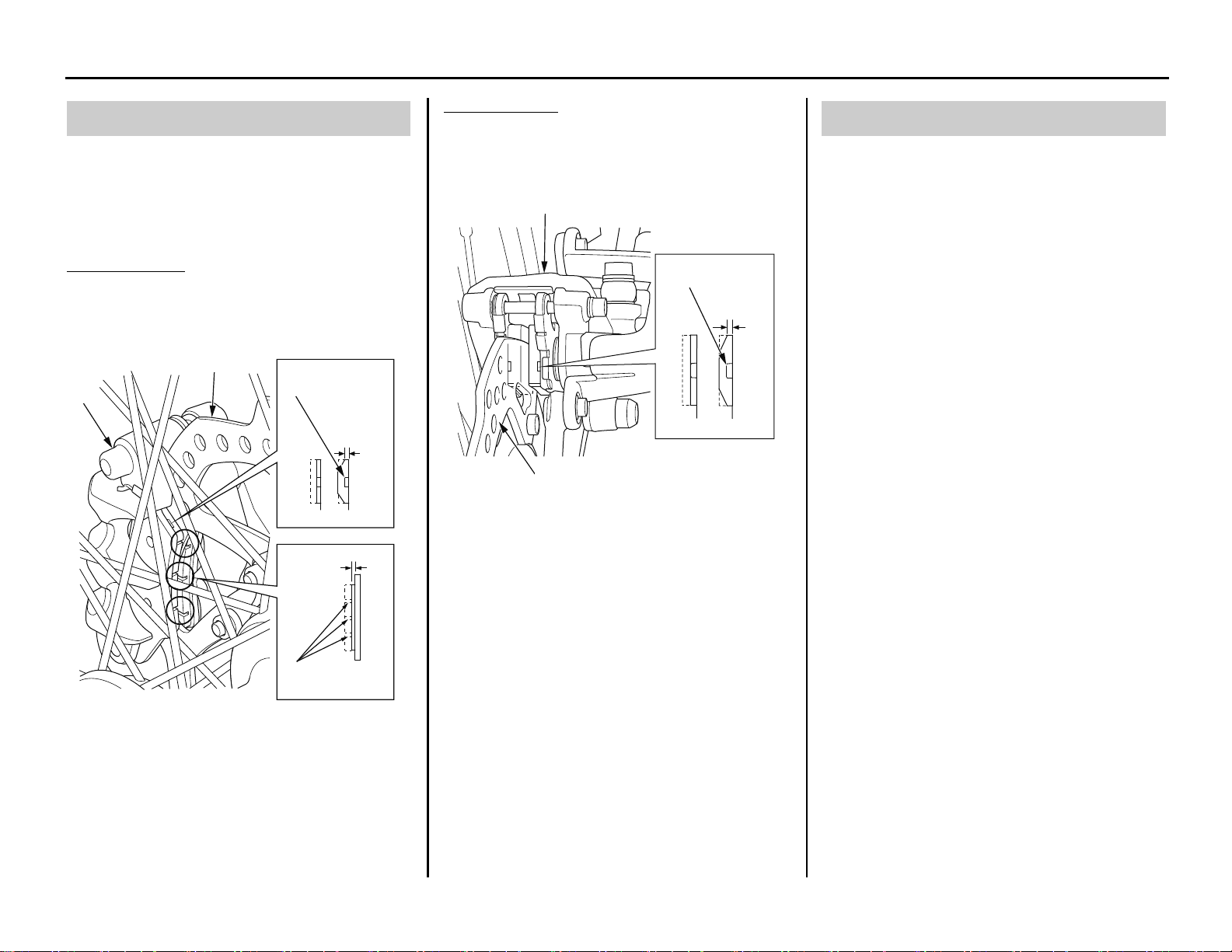

Brakes ........................................................... 105
Wheels .......................................................... 109
Tires & Tubes ............................................... 110

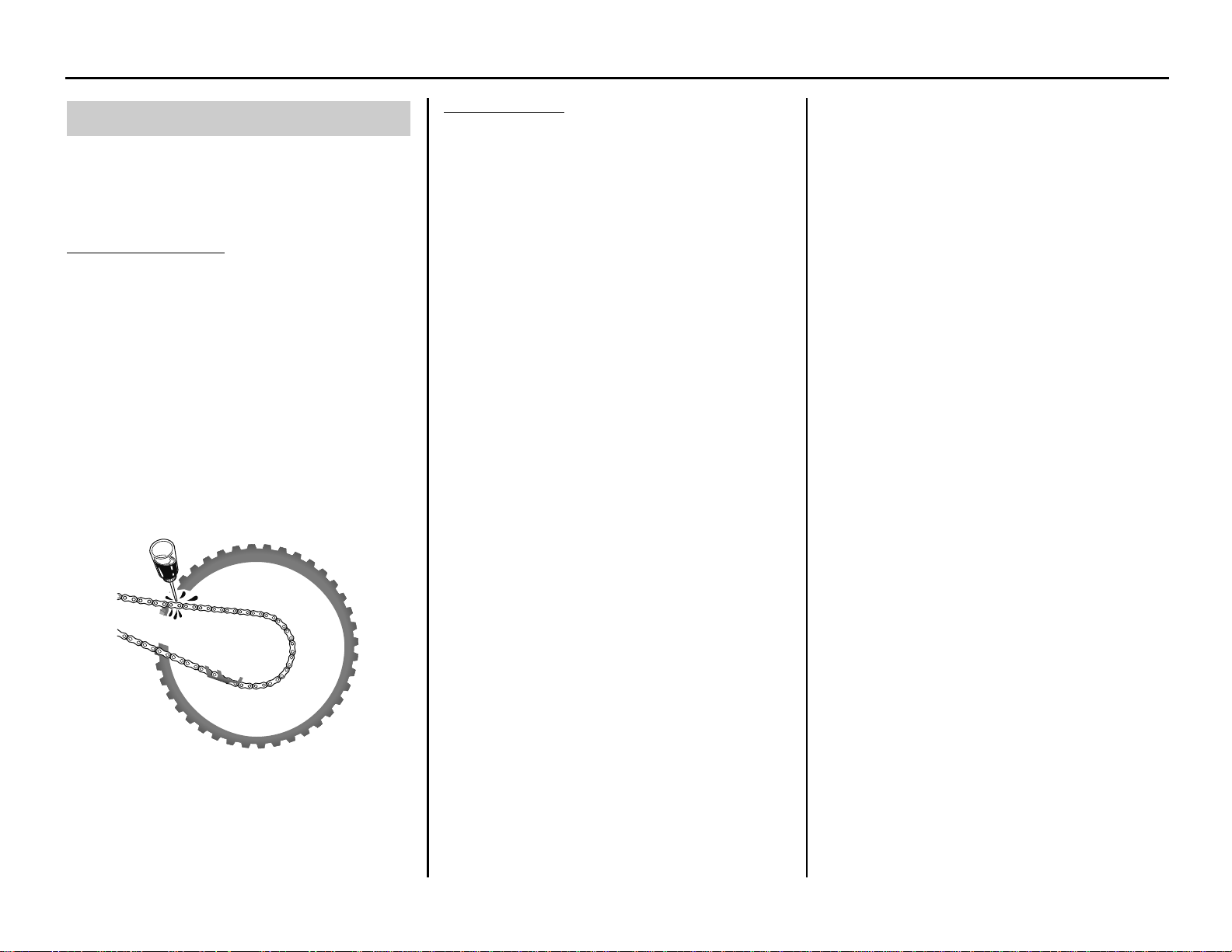

Drive Chain ..................................................112
Exhaust Pipe/Muffler .................................... 115
Additional Maintenance Procedures ............. 119
Electrical
Battery .......................................................... 121
Appearance Care .......................................... 123
CRF250R_31K95600.book 1 ページ ２０１７年８月８日 火曜日 午後８時２６分
Contents
Contents
ADJUSTMENTS FOR COMPETITION.. 125
Engine Mode Select Button .......................... 126
Current Mode ............................................ 126
Mode Selection.......................................... 126
Front Suspension Adjustments ..................... 127
Front Suspension Air Pressure.................. 127
Front Suspension Damping....................... 128
Fork Springs.............................................. 128
Fork Oil Adjustment.................................. 129
Rear Suspension Adjustments ...................... 130
Rear Suspension Spring Pre-Load............. 130
Rear Suspension Damping........................ 131
Rear Suspension Race Sag........................ 132
Suspension Adjustments for Track
Conditions .................................................. 134
Suspension Adjustment Guidelines .............. 135
Tuning Tips .................................................. 138
Spark Plug Reading................................... 138
Chassis Adjustments ..................................... 139
Rear End.................................................... 139
Fork Height/Angle..................................... 139
Wheelbase ................................................. 139
Gearing ......................................................... 140
Tire Selection for Track Conditions ............. 141
Personal Fit Adjustments .............................. 142
Control Positioning ................................... 142
Handlebar Position, Width & Shape......... 142
TIPS...............................................................143

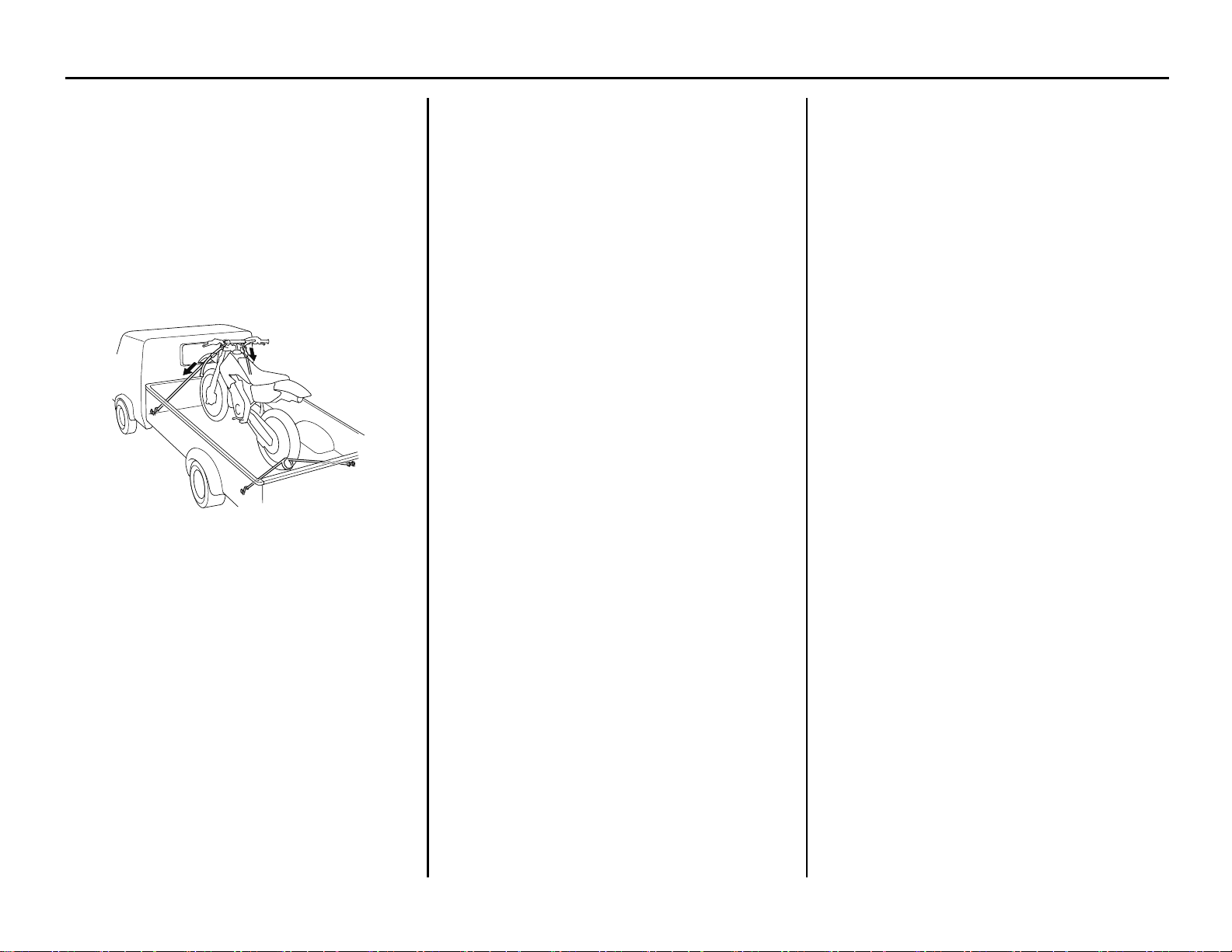

Transporting Your Motorcycle .....................144
Storing Your Honda ......................................145
Preparation for Storage..............................145
Removal from Storage...............................145
You & the Environment ................................146
Troubleshooting ............................................147
TAKING CARE OF THE UNEXPECTED..149

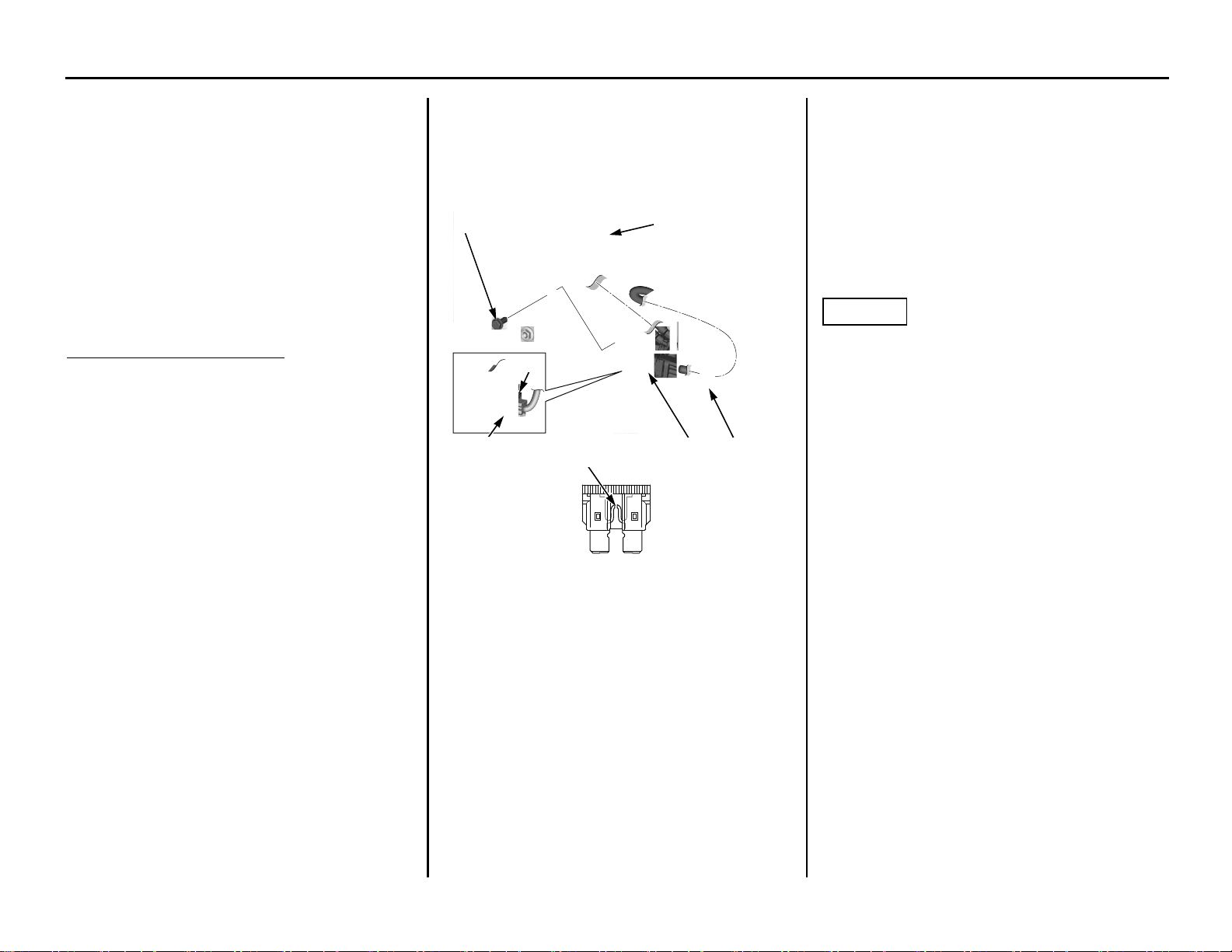

If a Fuse Blows .............................................150
If Your Battery Is Low (or Dead) .................151
TECHNICAL INFORMATION.................153
Vehicle Identification ....................................154
Serial Numbers ..........................................154
Specifications ................................................155
Torque Specifications ...................................156
Nuts, Bolts, Fasteners................................156
Oxygenated Fuels ..........................................159
Competition Logbook ...................................160
Optional Parts List ........................................162
Spare Parts & Equipment ..............................163
Spare Parts .................................................163
General Tools.............................................163
Honda Special Tools..................................163
Chemical Products.....................................163
Other Products ...........................................163

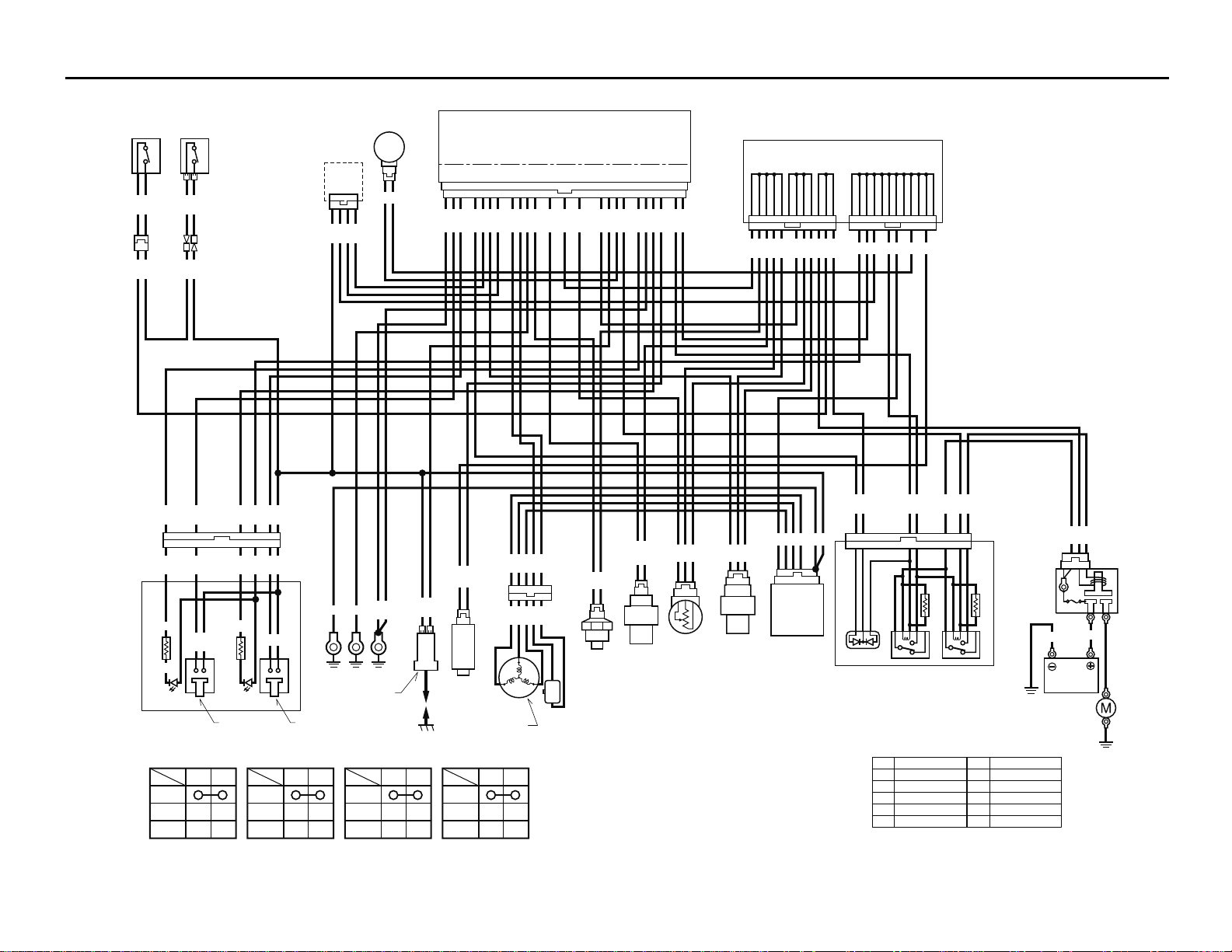

Wiring Diagram ............................................164
CONSUMER INFORMATION .................165
Authorized Manuals ......................................166
Contacting Honda .........................................167
Your Honda Dealer .......................................168
The Honda Rider’s Club (USA only) ...........169
INDEX.......................................................... 170
QUICK REFERENCE
CRF250R_31K95600.book 2 ページ ２０１７年８月８日 火曜日 午後８時２６分
CRF250R_31K95600.book 3 ページ ２０１７年８月８日 火曜日 午後８時２６分
Motorcycle Safety
Motorcycle Safety 1
Motorcycle Safety
This section presents some of the most important
information and recommendations to help you ride
your CRF safely. Please take a few moments to
read these pages. This section also includes
information about the location of safety labels on
your CRF.
Important Safety Information ............................2
Important Safety Precautions.........................2
Accessories & Modifications.............................3
Safety Labels......................................................4
CRF250R_31K95600.book 1 ページ ２０１７年８月８日 火曜日 午後８時２６分
Important Safety Information
2 Motorcycle Safety
Important Safety Information
Your CRF can provide many years of pleasure, if
you take responsibility for your own safety and
understand the challenges you can meet in
competitive racing.
As an experienced rider, you know there is much
you can do to protect yourself when you ride.
The following are a few precautions we consider to
be most important.
Never Carry a Passenger.
Your CRF is designed for one operator only.
Carrying a passenger can cause a crash in which
you and others can be hurt.
Wear Protective Gear.
Whether you’re practicing to improve your skills,
or riding in competition, always wear an approved
helmet, eye protection, and proper protective gear.
Take Time to Get to Know Your CRF.
Because every motorcycle is unique, take time to
become thoroughly familiar with how this one
operates and responds to your commands before
placing your machine, and yourself, in
competition.
Learn and Respect Your Limits.
Never ride beyond your personal abilities or faster
than conditions warrant. Remember that alcohol,
drugs, illness and fatigue can reduce your ability to
perform well and ride safely.
Don’t Drink and Ride.
Alcohol and riding don’t mix. Even one drink can
reduce your ability to respond to changing
conditions, and your reaction time gets worse with
every additional drink. So don’t drink and ride, and
don’t let your friends drink and ride either.
Keep your Honda in Safe Condition.
Maintaining your CRF properly is critical to your
safety. A loose bolt, for example, can cause a
breakdown in which you can be seriously injured.
Lithium-Ion (Li-Ion) Battery.
If you smell an unusual odor coming from the
lithium-ion (li-ion) battery, park your CRF in a
safe place outside and away from flammable
objects, then stop the engine. Have your CRF
inspected by your dealer immediately.
Important Safety Precautions
CRF250R_31K95600.book 2 ページ ２０１７年８月８日 火曜日 午後８時２６分
Accessories & Modifications
Motorcycle Safety 3
Accessories & Modifications
Installing non-Honda accessories, removing
original equipment, or modifying your CRF in any
way that would change its design or operation,
could seriously impair your CRF’s handling,
stability, and braking, making it unsafe to ride.
Accessories & Modifications
WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner’s
manual regarding modifications and
accessories.
CRF250R_31K95600.book 3 ページ ２０１７年８月８日 火曜日 午後８時２６分
Safety Labels
4 Motorcycle Safety
Read these labels carefully and don’t remove them.
If a label comes off or becomes hard to read, contact your dealer for replacement.
(For Canada)
Safety Labels
CRF250R_31K95600.book 4 ページ ２０１７年８月８日 火曜日 午後８時２６分
Instruments & Controls
Instruments & Controls 5
Instruments & Controls
Read this section carefully before you ride. It
presents the location of the basic controls on your
CRF.
Operation Component Locations.......................6
MIL (Malfunction Indicator Lamp)...................7
MIL Blink Pattern..........................................7
Current DTC/Freeze DTC .............................7
Circuit Inspection...........................................8
DTC Index .....................................................9
Mode Indicator.................................................10
CRF250R_31K95600.book 5 ページ ２０１７年８月８日 火曜日 午後８時２６分
Operation Component Locations
6 Instruments & Controls
Operation Component Locations
clutch lever
engine stop button
front brake lever
throttle grip
MIL/mode indicator
engine mode select button
start button
fast idle knob
(engine idle speed)
shift lever
rear brake pedal
CRF250R_31K95600.book 6 ページ ２０１７年８月８日 火曜日 午後８時２６分
MIL (Malfunction Indicator Lamp)
Instruments & Controls 7
MIL (Malfunction Indicator Lamp)
The MIL (1) on your CRF keeps you informed,
alerts you to possible problems, and makes your
riding safer and more enjoyable. Refer to the MIL
frequently.
When starting the engine, the MIL (amber) will
stays on for 2 seconds and then go off.
This is normal.
The MIL blinks when there is any abnormality in
the PGM-FI system.
If the MIL comes on at any other time, reduce
speed and refer to an official Honda Service
Manual available for purchase from your dealer
(page 168).
If the MIL does not come on when the engine is
started, have your dealer check it for problems.
The MIL will blink the appropriate DTC number if
the ECM detects an active problem while the
engine is running at less than 4,000 rpm.
The MIL will stay on when engine speed is over
4,000 rpm.
The MIL has two types of blinks: a long blink and
short blink. The long blinking lasts for 1.2 seconds,
the short blinking lasts for 0.4 seconds.
One long blink is the equivalent of ten short blinks.
For example, when one long blink is followed by
two short blinks, the MIL is 12 (one long blink =
10 blinks, plus two short blinks).
When the ECM stores more than one DTC, the
MIL will indicate them by blinking in the order
from the lowest number to highest number.
The DTC is indicated in two ways according to the
failure status.
– When the engine starts, the MIL stays on for 2
seconds, then goes off.
If the ECM detects a DTC, the MIL starts
blinking (indicating the DTC number by the
number of blinks in amber).
Even when the MIL is blinking, you can change
the engine modes. However, you cannot change
the engine modes when the indicator is blinking
DTC 1, 2 or 8.
After an engine mode is selected, the MIL
restarts blinking the current DTC number.
– In the case that the ECM does not detect an
active problem but has recorded a previous
problem in its memory, the MIL will not come
on. If it is necessary to retrieve any past
problems stored in the memory, refer to an
official Honda Service Manual.
(1) MIL (amber)
(1)
MIL Blink Pattern Current DTC/Freeze DTC
CRF250R_31K95600.book 7 ページ ２０１７年８月８日 火曜日 午後８時２６分
8 Instruments & Controls
MIL (Malfunction Indicator Lamp)
Always clean around the ECM and keep debris
away from the connectors before disconnecting
them.
A faulty PGM-FI system is often related to poorly
connected or corroded connections. Check the
following connections.
Remember, circuit inspection is not a “cure-all” for
other problems in your engine’s PGM-FI system.
Circuit Inspection
(1) MAP sensor connector
(2) ECT sensor connector
(3) TP sensor connector
(4) IAT sensor connector
(5) Injector connector
(6) CKP sensor connector
(7) ECM connector
(4)
(5)
(7)
(2)
(6)
(1)
(3)
CRF250R_31K95600.book 8 ページ ２０１７年８月８日 火曜日 午後８時２６分
Instruments & Controls 9
MIL (Malfunction Indicator Lamp)
Refer to MIL Blink Pattern on page 7.
Should be serviced by your dealer, unless the owner has proper tools and is technically qualified.
The series of 12 MIL blinks cannot be checked because the engine cannot be started.
If the engine does not start, check all connector connections and/or refer to an official Honda Service
Manual (page 166) for troubleshooting of the PGM-FI symptom.
DTC Index
MIL blinks
Function Failure Symptom/Fail-safe function
1 MAP sensor circuit malfunction Poor performance (drivability)
2 MAP sensor performance problem Poor performance (drivability)
7 ECT sensor circuit malfunction Hard start at a low temperature
8 TP sensor circuit malfunction Poor engine acceleration
9 IAT sensor circuit malfunction Engine operates normally
12 Injector circuit malfunction
• Engine does not start
• Injector, fuel pump and ignition shut down
CRF250R_31K95600.book 9 ページ ２０１７年８月８日 火曜日 午後８時２６分
Mode Indicator
10 Instruments & Controls
Mode Indicator
The mode indicator (blue) (1) is located under the
engine mode select button (2).
The mode indicator indicates the currently selected
mode by blinking the mode number once when the
engine is started.
The mode indicator indicates a selected mode
when you operate the engine mode select button
(page 126).
If the mode indicator stays on or does not come on
when it should, have your dealer check it for
problems.
(1) mode indicator (blue)
(2) engine mode select button
(2)
(1)
CRF250R_31K95600.book 10 ページ ２０１７年８月８日 火曜日 午後８時２６分
Before Riding
Before Riding 11
Before Riding
Before each ride, you need to make sure you and
your CRF are both ready to ride. To help get you
prepared, this section discusses how to evaluate
your riding readiness, and what items you should
check on your CRF.
For information about suspension and other
adjustments, see page 125.
Are You Ready to Ride?..................................12
Is Your Motorcycle Ready to Ride? ................13
Pre-ride Inspection.......................................13
CRF250R_31K95600.book 11 ページ ２０１７年８月８日 火曜日 午後８時２６分
Are You Ready to Ride?
12 Before Riding
Are You Ready to Ride?
Before riding your CRF for the first time, we
strongly recommend that you read this owner’s
manual, make sure you understand the safety
messages, and know how to operate the controls.
Before each ride, it’s also important to make sure
you and your CRF are both ready to ride.
For information about suspension and other
adjustments, see page 125.
Whether you’re preparing for competition or for
practice, always make sure you are:
• In good physical and mental condition
• Free of alcohol and drugs
• Wearing an approved helmet, eye protection,
and other appropriate riding gear
Although complete protection is not possible,
wearing the proper gear can reduce the chance or
severity of injury when you ride.
WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Be sure you always wear a helmet, eye
protection and other protective apparel
when you ride.
CRF250R_31K95600.book 12 ページ ２０１７年８月８日 火曜日 午後８時２６分
Is Your Motorcycle Ready to Ride?
Before Riding 13
Is Your Motorcycle Ready to Ride?
Competitive riding can be tough on a motorcycle,
so it’s important to inspect your CRF and correct
any problems you find before each ride. Check the
following items (page numbers are at the right):
Check the following before each ride:
• Engine oil level........................................... 52
• Fuel line for condition ................................ 41
• Coolant for proper level.............................. 54
• Cooling system and hoses for condition..... 55
• Spark plug for proper heat range, carbon
fouling and spark plug wire terminal for
looseness..................................................... 67
• Air cleaner for condition and
contamination ............................................. 56
• Clutch lever freeplay................................... 62
• Breather drain for cleaning ......................... 58
• Steering head bearing and related parts for
condition ................................................... 119
• Throttle operation ....................................... 59
• Tires for damage or improper inflation
pressure..................................................... 110
• Spokes for looseness................................. 109
• Rim locks for looseness............................ 109
• Front and rear suspension for proper
operation ............................................. 88, 104
• Front and rear brakes, check operation..... 105
• Drive chain for correct slack and adequate
lubrication......................................... 112, 113
• Drive chain sliders and drive chain rollers
for damage or wear........................... 112, 113
• Exhaust pipe/Muffler for looseness.......... 115
• Every possible part for looseness (such as
cylinder head bolts, engine mounting bolts/
nuts, axle nuts, handlebar holder bolts/nuts,
fork bridge pinch bolts, drive chain adjuster
lock nuts, drive chain roller bolt/nut, wire
harness connectors)............................156-158
• MIL operation............................................... 7
WARNING
Improperly maintaining this motorcycle or
failing to correct a problem before riding
can cause a crash in which you can be
seriously hurt or killed.
Always perform a pre-ride inspection
before every ride and correct any
problems.
Pre-ride Inspection
CRF250R_31K95600.book 13 ページ ２０１７年８月８日 火曜日 午後８時２６分
14 Before Riding
CRF250R_31K95600.book 14 ページ ２０１７年８月８日 火曜日 午後８時２６分
Basic Operating Instructions
Basic Operating Instructions 15
Basic Operating Instructions
This section gives basic information on how to
start and stop your engine as well as break-in
guidelines.
Safe Riding Precautions...............................16
Starting & Stopping the Engine.......................17
Fast Idle Knob..............................................17
Preparation...................................................17
Starting Procedure........................................17
How to Stop the Engine...............................18
Break-in Guidelines .........................................19
CRF250R_31K95600.book 15 ページ ２０１７年８月８日 火曜日 午後８時２６分
Basic Operating Instructions
16 Basic Operating Instructions
Basic Operating Instructions
Before riding your CRF for the first time, please
review the Important Safety Precautions
beginning on page 2 and the previous section,
titled Before Riding.
For your safety, avoid starting or operating the
engine in an enclosed area such as a garage.
Your CRF’s exhaust contains poisonous carbon
monoxide gas which can collect rapidly in an
enclosed area and cause illness or death.
Safe Riding Precautions
WARNING
Running the engine of your vehicle while
in an enclosed or even partially enclosed
area can cause a rapid build-up of toxic
carbon monoxide gas.
Breathing this colorless, odorless gas can
quickly cause unconsciousness and lead
to death.
Only run your vehicle's engine when it is
located in a well ventilated area outdoors.
CRF250R_31K95600.book 16 ページ ２０１７年８月８日 火曜日 午後８時２６分
Starting & Stopping the Engine
(cont’d)
Basic Operating Instructions 17
Starting & Stopping the Engine
Always follow the proper starting procedure
described below.
Your CRF can be started with the transmission in
gear by pulling in the clutch lever before operating
the start button.
The fast idle knob has two functions:
• When pulled out, the fast idle knob assists in
first-time start-up for cold weather starting.
• When pushed in, it acts like an idle adjustment
screw. Refer to Idle Speed Adjustment on
page 61.
Make sure that the transmission is in neutral.
Always follow the proper starting procedure
described as follows.
Check the engine oil and coolant levels before
starting the engine (pages 52, 54).
Cold Engine Starting
1. Shift the transmission into neutral.
2. If the temperature is 50°F (10°C) or below,
pull the fast idle knob (1) fully out.
3. With the throttle closed.
Pull the clutch lever all the way in, and depress
the start button (2).
4. About a minute after the engine starts, push the
fast idle knob back all the way to fully OFF.
If idling is unstable, open the throttle slightly.
Fast Idle Knob
Preparation
Starting Procedure
(1) fast idle knob
(1)
(2) start button
(2)
CRF250R_31K95600.book 17 ページ ２０１７年８月８日 火曜日 午後８時２６分
18 Basic Operating Instructions
Starting & Stopping the Engine
Warm Engine Starting
1. Shift the transmission into neutral.
2. Pull the clutch lever all the way in, and depress
the start button. (Do not open the throttle.)
Starting the engine excessively charged with fuel
by throttle blipping or other reasons
1. Shift the transmission into neutral.
2. With the throttle fully opened, pull the clutch
lever all the way in, and depress the start button
for 5 seconds to discharge excessive fuel from
the engine.
3. Pull the clutch lever all the way in, and depress
the start button. (Do not open the throttle.)
Snapping the throttle or fast idling for more than
about 5 minutes may cause exhaust pipe and
muffler discolorations.
When starting the engine, the MIL (amber) will
stay on for 2 seconds, then go off. And then the
mode indicator (blue) indicates the current engine
mode for 0.8 seconds, then goes off. If the MIL/
mode indicator (1) does not come on or go off
when it should, have your dealer check it for
problems.
Normal Engine Stop
1. Shift the transmission into neutral.
2. Push and hold the engine stop button (1) until
the engine stops completely.
Emergency Engine Stop
To stop the engine in an emergency, push and hold
the engine stop button.
(1) MIL (amber) / mode indicator (blue)
(1)
How to Stop the Engine
(1) engine stop button
(1)
CRF250R_31K95600.book 18 ページ ２０１７年８月８日 火曜日 午後８時２６分
Break-in Guidelines
Basic Operating Instructions 19
Break-in Guidelines
Help assure your CRF’s future reliability and
performance by paying extra attention to how you
ride during the first operating day or 15 miles (25
km).
During this period, avoid full-throttle starts and
rapid acceleration.
This same procedure should be followed each time
when:
• piston is replaced
• piston rings are replaced
• cylinder is replaced
• crankshaft or crank bearings are replaced
CRF250R_31K95600.book 19 ページ ２０１７年８月８日 火曜日 午後８時２６分
20 Basic Operating Instructions
CRF250R_31K95600.book 20 ページ ２０１７年８月８日 火曜日 午後８時２６分
Servicing Your Honda
Servicing Your Honda 21
Servicing Your Honda
Keeping your CRF well maintained is absolutely
essential to your safety. It’s also a good way to
protect your investment, get maximum
performance, avoid breakdowns, and have more
fun.
To help keep your CRF in good shape, this section
includes a Maintenance Schedule for required
servicing and step-by-step instructions for specific
maintenance tasks. You’ll also find important
safety precautions, information on oils, and tips for
keeping your CRF looking good.
An ECM system is used on this motorcycle;
consequently, routine ignition timing adjustment is
unnecessary. If you want to check the ignition
timing, refer to an official Honda Service Manual
(page 166).
An optional tool kit may be available. Check with
your dealer’s parts department.
Before You Service Your Honda
The Importance of Maintenance......................22
Maintenance Safety..........................................23
Important Safety Precautions.......................23
Maintenance Schedule.....................................24
General Competition Maintenance..................26
Before & After Competition Maintenance ......30
Between Motos & Practice Maintenance.....30
After Competition Maintenance ..................31
Service Preparations
Maintenance Component Locations ................32
Seat...................................................................33
Fuel Tank.........................................................34
Subframe..........................................................37
Service Procedures
Fluids & Filters
Fuel System......................................................41
Engine Oil........................................................51
Coolant.............................................................54
Air Cleaner.......................................................56
Crankcase Breather..........................................58
Engine
Throttle.............................................................59
Engine Idle Speed............................................61
Clutch System..................................................62
Spark Plug........................................................67
Valve Clearance...............................................68
Piston/Piston Rings/Piston Pin.........................79
Chassis
Suspension....................................................... 88
Brakes............................................................ 105
Wheels........................................................... 109
Tires & Tubes................................................ 110
Drive Chain ................................................... 112
Exhaust Pipe/Muffler..................................... 115
Additional Maintenance Procedures.............. 119
Electrical
Battery ........................................................... 121
Appearance Care ........................................... 123
CRF250R_31K95600.book 21 ページ ２０１７年８月８日 火曜日 午後８時２６分
The Importance of Maintenance
22 Servicing Your Honda
The Importance of Maintenance
Keeping your CRF well-maintained is absolutely
essential to your safety. It’s also a good way to get
maximum performance during each moto.
Careful pre-ride inspections and good maintenance
are especially important because your CRF is
designed to be ridden in off-road competition.
Remember, proper maintenance is your
responsibility. Be sure to inspect your CRF before
each ride and follow the Maintenance Schedule in
this section.
WARNING
Improperly maintaining this motorcycle or
failing to correct a problem before you ride
can cause a crash in which you can be
seriously hurt or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner’s manual.
CRF250R_31K95600.book 22 ページ ２０１７年８月８日 火曜日 午後８時２６分
Maintenance Safety
Servicing Your Honda 23
Maintenance Safety
This section includes instructions on how to
perform some important maintenance tasks.
Some of the most important safety precautions
follow. However, we cannot warn you of every
conceivable hazard that can arise in performing
maintenance. Only you can decide whether or not
you should perform a given task.
• Make sure the engine is off before you begin
any maintenance or repairs.
This will help eliminate several potential
hazards:
Carbon monoxide poisoning from engine
exhaust. Be sure there is adequate ventilation
whenever you operate the engine.
Burns from hot motorcycle parts. Let the
engine and exhaust system cool before
touching.
Injury from moving parts. Do not run the
engine unless instructed to do so.
• Read the instructions before you begin, and
make sure you have the tools and skills
required.
• To help prevent the motorcycle from falling
over, park it on a firm, level surface, using an
optional workstand or a maintenance stand to
provide support.
• To reduce the possibility of a fire or explosion,
be careful when working around gasoline. Use
only a non-flammable (high flash point)
solvent such as kerosene – not gasoline – to
clean parts. Keep cigarettes, sparks, and flames
away from all fuel-related parts.
WARNING
Failure to properly follow maintenance
instructions and precautions can cause
you to be seriously hurt or killed.
Always follow the procedures and
precautions in this owner’s manual.
Important Safety Precautions
CRF250R_31K95600.book 23 ページ ２０１７年８月８日 火曜日 午後８時２６分
Maintenance Schedule
24 Servicing Your Honda
Maintenance Schedule
To maintain the safety and reliability of your CRF,
regular inspection and service is required as shown
in the Maintenance Schedule that follows.
The Maintenance Schedule lists items that can be
performed with basic mechanical skills and hand
tools. Procedures for these items are provided in
this manual.
The Maintenance Schedule also includes items that
involve more extensive procedures and may
require special training, tools, and equipment.
Therefore, we recommend that you have your
dealer perform these tasks unless you have
advanced mechanical skills and the required tools.
Procedures for items in this schedule are provided
in an official Honda Service Manual available for
purchase from your dealer (page 166).
Service intervals in the maintenance schedule are
expressed in terms of races and riding hours. To
avoid overlooking required service, we urge you to
develop a convenient way to record the number of
races and/or hours you ride.
If you do not feel capable of performing a given
task or need assistance, remember that your Honda
dealer knows your CRF best and is fully equipped
to maintain and repair it. If you decide to do your
own maintenance, use only Honda Genuine Parts
or their equivalents for repair or replacement to
ensure the best quality and reliability.
Perform the pre-ride inspection (page 13) at each
scheduled maintenance period.
Summary of Maintenance Schedule Notes and
Procedures:
Notes:
1. Clean after every moto for dusty riding
condition.
2. Replace every 2 years. Replacement requires
mechanical skill.
3. Replace after the first break-in ride.
4. Inspect after the first break-in ride.
5. Replace the engine oil, if the clutch discs and
plates are replaced.
6. Replace every year.
Maintenance Procedures:
I : inspect and clean, adjust, lubricate or replace if
necessary
C: clean
R:replace
A: adjust
L: lubricate
CRF250R_31K95600.book 24 ページ ２０１７年８月８日 火曜日 午後８時２６分
Maintenance Schedule
Servicing Your Honda 25
Perform the Pre-ride Inspection (page 13) at each scheduled maintenance period.
I: Inspect and Clean, Adjust, Lubricate or Replace if necessary. C: Clean. R: Replace. A: Adjust. L: Lubricate.
WE RECOMMEND THESE ITEMS BE SERVICED BY REFERRING TO AN OFFICIAL HONDA SERVICE MANUAL.
This maintenance schedule is based upon average riding condition. Machine subjected to severe use require more frequent servicing.
NOTE: 1.Clean after every moto for dusty riding condition.
2.Replace every 2 years. Replacement requires mechanical skill.
3.Replace after the first break-in ride.
4.Inspect after the first break-in ride.
5.Replace the engine oil, if the clutch discs and plates are replaced.
6.Replace every year.
FREQUENCY
ITEMS
NOTE
Each race or
about
2.5 hours
Every 3 races or
about
7.5 hours
Every 6 races or
about
15.0 hours
Every 9 races or
about
22.5 hours
Every 12 races
or about
30.0 hours
Ref. Page
FUEL LINE (NOTE 6) I R41
FUEL PUMP FILTER (NOTE 6) R 45 – 49
THROTTLE OPERATION I 60
AIR FILTER (NOTE 1) C 56
CRANKCASE BREATHER I 58
SPARK PLUG I 67
VALVE CLEARANCE/DECOMPRESSOR SYSTEM (NOTE 4) I 68 – 78
ENGINE OIL
(NOTE 3)
(NOTE 5)
IR
51
ENGINE OIL FILTER (NOTE 3) R 52
ENGINE IDLE SPEED I 61
PISTON AND PISTON RINGS R79
PISTON PIN R82
RADIATOR COOLANT (NOTE 2) I 54
COOLING SYSTEM I 55
DRIVE CHAIN I, L R 112
DRIVE CHAIN SLIDER I 112
DRIVE CHAIN ROLLER I 113
DRIVE SPROCKET I 114
DRIVEN SPROCKET I 114
BRAKE FLUID (NOTE 2) I 106
BRAKE PADS WEAR I 108
BRAKE SYSTEM I 105
CLUTCH SYSTEM (NOTE 5) I 62
CONTROL CABLES I, L 119
EXHAUST PIPE/MUFFLER I 115
SUSPENSION I 88, 104
SWINGARM/SHOCK LINKAGE L
29, 104
FORK OI
L EXCEP
T DAMPER (NOTE 3) R 91, 92, 129
FORK OIL DAMPER R 98 – 101
NUTS, BOLTS, FASTENERS I 120, 156 – 158
WHEELS/TIRES I 109 – 111
STEERING HEAD BEARINGS I 119
CRF250R_31K95600.book 25 ページ ２０１７年８月８日 火曜日 午後８時２６分
General Competition Maintenance
26 Servicing Your Honda
General Competition Maintenance
Perform maintenance on firm, level ground using
an optional workstand, or equivalent support.
When tightening bolts, nuts or screws, start with
the larger diameter or inner fasteners, and tighten
them to the specified torque using a crisscross
pattern.
Use Honda Genuine Parts or their equivalents
when servicing your CRF.
Clean parts in non-flammable (high flash point)
cleaning solvent (such as kerosene) when
disassembling. Lubricate any sliding surfaces,
O-rings, and seals before reassembling. Grease
parts by coating or filling where specified.
After any engine disassembly, always install new
gaskets, O-rings, cotter pins, piston pin clips, snap
rings, etc. when reassembling. After reassembly,
check all parts for proper installation and
operation.
All Pre-ride Inspection Items
Refer to Pre-ride Inspection on page 13.
CRF250R_31K95600.book 26 ページ ２０１７年８月８日 火曜日 午後８時２６分
General Competition Maintenance
Servicing Your Honda 27
(cont’d)
Spark Plug
Some non-resistor plugs may cause ignition problems. Refer
to the recommendations elsewhere in this manual for specific
types so you will be sure to use the proper reach and heat
range. Replace periodically as specified in the Maintenance
Schedule (page 25).
Spark Plug Cap
Install a small plastic wire band around the spark plug cap to
reduce any possibility of it loosening or of water penetration.
Air Cleaner
Clean and oil your air cleaner regularly because the volume
of air able to pass through it has a great effect on
performance. Both engine performance and long term
durability may be affected by an air cleaner that has
deteriorated and allows dirt to pass. Inspect the air cleaner
closely each time it’s serviced for evidence of small tears or
seam separation. Keep a spare air cleaner oiled and ready to
install, sealed in a plastic bag. Riding in dusty conditions
may require servicing the air cleaner or replacing it with a
pre-serviced air cleaner between motos. Be careful not to
over oil the air cleaner. While it is important to oil the air
cleaner thoroughly, over oiling will cause an overall rich
running condition, probably more noticeable off idle and in
low rpm performance. Follow the servicing instructions in
the Maintenance section. Use Pro Honda Foam Air Filter Oil
or an equivalent. Be sure to grease the air cleaner flange
where it contacts the air cleaner housing. Pro Honda Foam
Air Filter Sealer, or an equivalent, is handy for this because
any dirt that penetrates this sealing area will show up clearly
(page 56).
Use the Honda Genuine air cleaner or an equivalent air
cleaner specified for your model.
Using the wrong Honda air cleaner or a non-Honda air
cleaner which is not of equivalent quality may cause
premature engine wear or performance problems.
Footpegs
Worn footpeg teeth can be repaired by filing the grooves between
the teeth with a triangular shaped file.
Be aware that filing them too sharp will reduce boot sole lifespan.
Sharpen only the points of the teeth. Filing the grooves deeper will
weaken the footpegs. Be sure the pegs are free to pivot freely and
that the pivot pin retaining cotter pins are in good condition.
CRF250R_31K95600.book 27 ページ ２０１７年８月８日 火曜日 午後８時２６分
General Competition Maintenance
28 Servicing Your Honda
Fuel Line
Refer to Fuel Line Inspection on page 41.
Check the fuel line for deterioration, damage, or
leakage.
Replace the fuel line every year.
Engine Mounting Bolts and Nuts
Make sure the engine mounting bolts and nuts
are tightened to the proper torque specification.
Electrical Connectors
Clean electrical connectors and wrap them with electrical tape
to reduce the possibility of unwanted disconnections, water
shorts or corrosion.
Frame
Because your CRF is a high-performance machine,
the frame should not be overlooked as part of your
overall competition maintenance program.
Periodically inspect the frame closely for possible
cracking or other damage. It makes good racing
sense.
Spokes
Check spoke tension frequently between the first few rides.
As the spokes, spoke nuts and rim contact points seat-in, the spokes
may need to be retightened. Once past this initial seating-in period,
the spokes should hold their tension. Still, be sure your race
maintenance program includes checking spoke tension and overall
wheel condition on a regular basis (page 109).
Nuts, Bolts, Etc.
Application of a thread locking agent to essential fasteners offers
added assurance and security. Remove the nuts, clean the threads
of both the nuts and bolts, apply Pro Honda Hondalock or an
equivalent and tighten to the specified torque.
Fork Oil/Performance
Disassemble, clean and inspect the fork and replace the oil
regularly. Contamination due to the tiny metal particles
produced from the normal action of the fork, as well as
normal oil breakdown, will deteriorate the performance of
the suspension. Refer to an official Honda Service Manual
(page 166). Use only Pro Honda HP Fork Oil, SS-19 or an
equivalent which contains special additives to assure
maximum performance of your CRF’s front suspension.

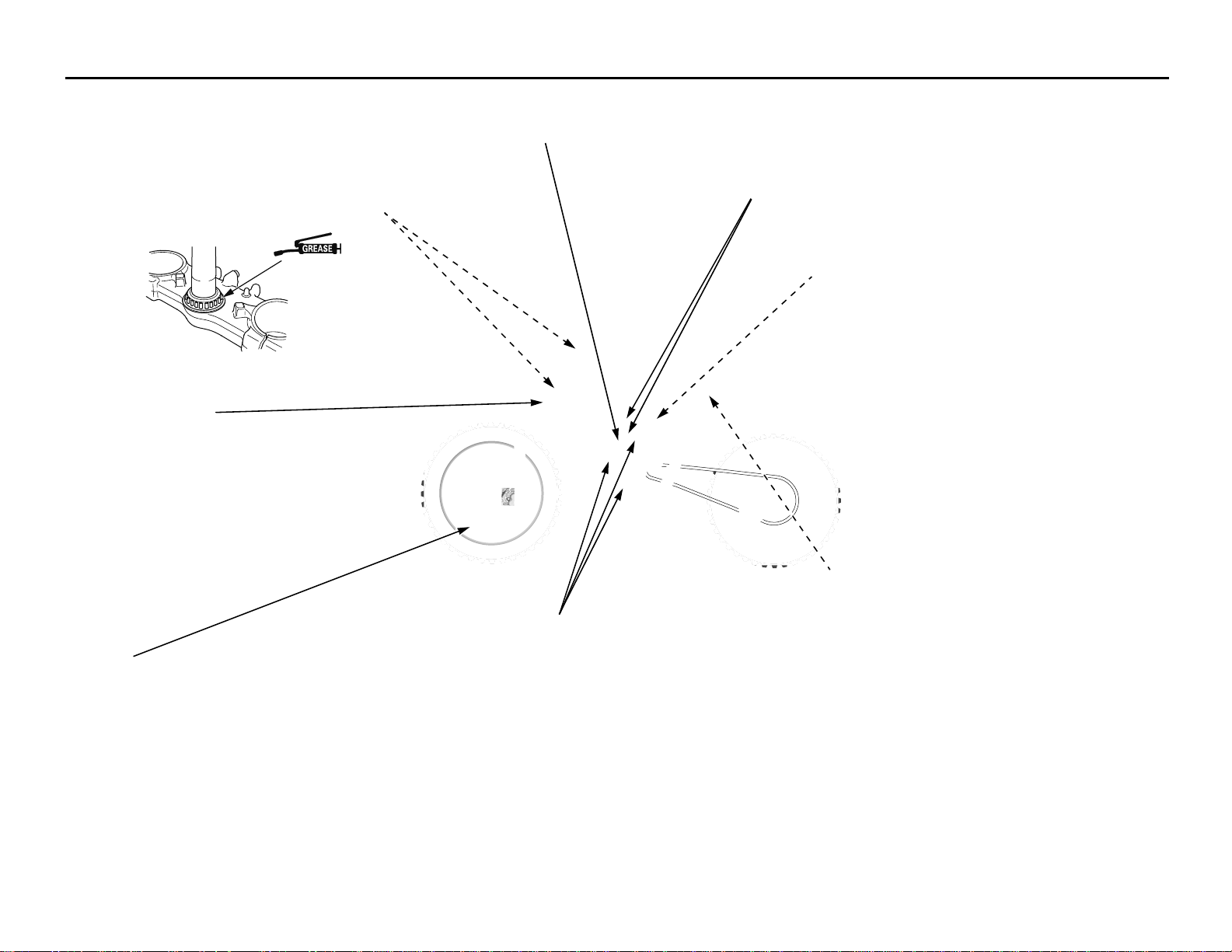

Steering Head Bearings
Periodically clean, inspect and regrease the steering head
bearings — especially if wet, muddy or extremely dusty
courses are encountered often.
Use urea based multi-purpose grease designed for high
temperature, high pressure performance (example:
EXCELITE EP2 manufactured by KYODO YUSHI, Japan).
Battery
The start button uses current from the battery.
Limited operation also allows the battery to discharge. If you
do not ride frequently, we recommend that you charge the
battery frequently (see Battery Charging on page 122).
If you do not expect to ride your CRF for at least 2 weeks, we
recommend you remove the battery – or at least disconnect the
battery cables (negative cable first).
Gaskets
Always use new gaskets when reassembling
components.
Cylinder head/Cylinder
Put a little grease on the dowel pins of the cylinder head
and cylinder to prevent corrosion from dissimilar metals.
The tolerances are quite tight, so it’s important to keep
these dowels absolutely clean (pages 79, 81).
CRF250R_31K95600.book 28 ページ ２０１７年８月８日 火曜日 午後８時２６分
General Competition Maintenance
Servicing Your Honda 29
Brake Fluid Replacement
Refer to Brake Pad Wear on page 108.
Brake Caliper Inspection: Be sure both the front and rear
calipers are able to move freely on the caliper pin and caliper
bracket pins. Check pad thickness periodically and replace the
pads when minimum thickness is reached. If the brakes fade
when they are hot, inspect the pads for glazing or damage, and
replace if necessary.
Brake Fluid Replacement: Refer to an official Honda Service
Manual (page 166) for brake fluid replacement instructions.
Replace the brake fluid in the brake system every 2 years.
Replace the fluid more frequently if you subject your brakes to
severe use. Heavy braking heats the brake fluid and it may
deteriorate sooner than expected. Any type of riding, that
requires frequent use of the brakes, such as in tight woods, can
shorten the service life of brake fluid.
Bleed Hole
After every race, check the bleed hole below the water pump
cover for leakage. Clean away any clogged dirt or sand, if
necessary. Check the bleed hole of the water pump for signs of
seal leakage. If water leaks through the bleed hole, replace the
mechanical seal. If oil leaks through the bleed hole, replace the
oil seal. Make sure that there is no continuous coolant leakage
from the bleed hole while operating the engine. A small amount
of coolant weeping from the bleed hole is normal. See an
official Honda Service Manual or consult your dealer for
replacing the mechanical seal or oil seal. Both seals should be
replaced at the same time.

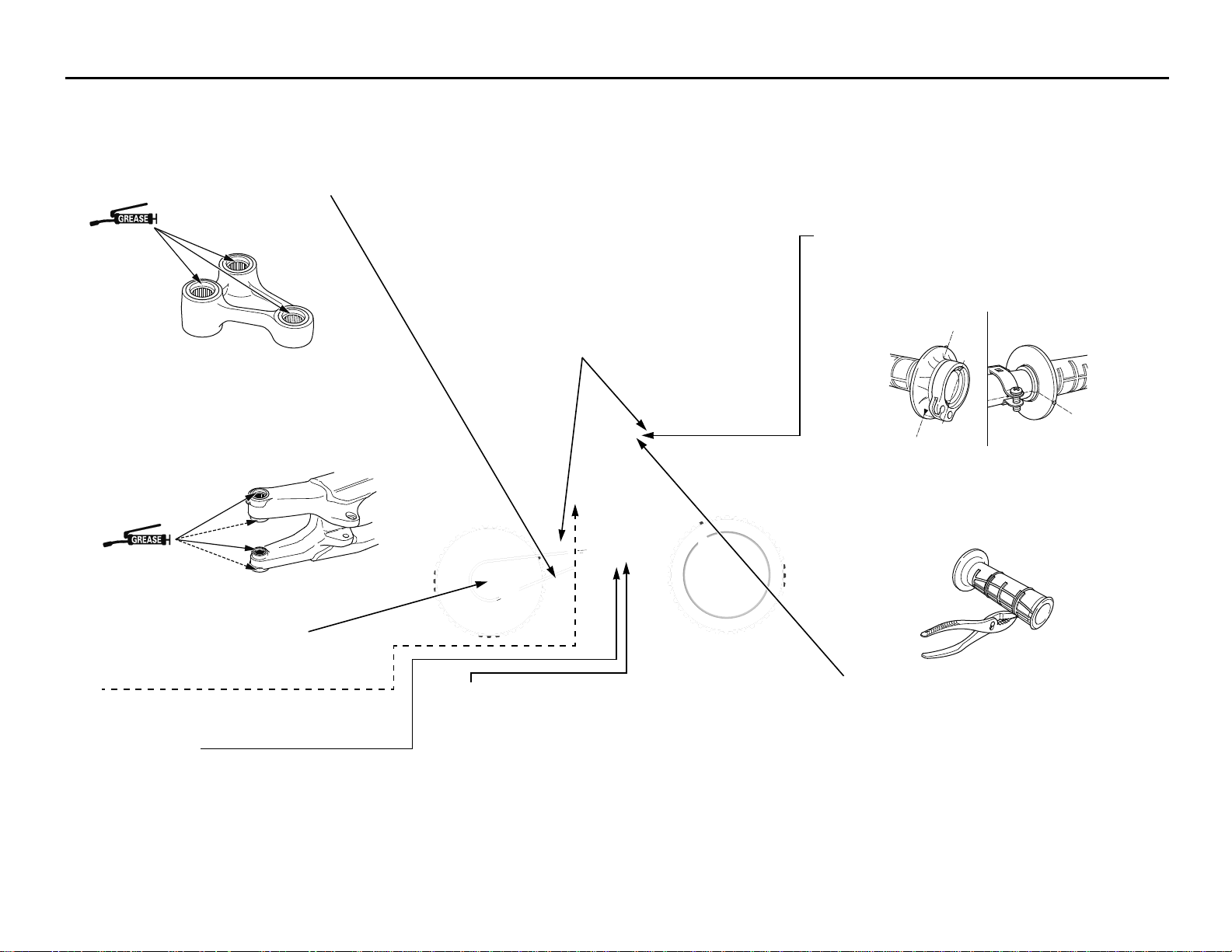

Suspension Linkage Lubrication
Disassemble, clean, inspect and lubricate all suspension linkage
pivot bearings with molybdenum disulfide grease (containing
more than 3% molybdenum disulfide additive Moly Paste 77)
after each 7.5 hours of running time in order to maintain proper
suspension performance and minimize component wear.
Swingarm
Do not attempt to weld or otherwise repair a damaged
swingarm. Welding will weaken the swingarm.
Swingarm Pivot Lubrication
Clean, inspect and lubricate the swingarm and suspension
linkage pivots with molybdenum disulfide grease (containing
more than 3% molybdenum disulfide additive Moly Paste 77)
after each 7.5 hours of running time in order to maintain
proper suspension performance and minimize component
wear. Be sure all of the dust seals are in good condition.
Handgrips
Always use Pro Honda Handgrip Cement or an equivalent
when replacing handgrips.
Refer to an official Honda Service Manual (page 166) for
installation instructions.
Throttle Grip/Handlebar Grip
Right throttle grip: Align the index mark on the throttle grip
with the index mark of the throttle pipe.
Left handlebar grip: Align the index mark on the left
handlebar grip with the paint mark on the handlebar.
For added security, you may choose to bind the handgrips to
the handlebar and throttle pipe with safety wires to prevent the
possibility of them loosening. Position the twisted wire ends
away from your palms and be sure to bend the wire ends well
into the handgrip rubber so they will not snag your glove.
Throttle Control
Remove the throttle control every few rides, clean the inside
of the throttle pipe and handlebar thoroughly. Inspect the cable
carefully for kinks or other damage that may restrict throttle
control in anyway. Move the handlebar from lock to lock to be
sure there is no cable interference. Make certain the throttle
operation is perfect after servicing and inspecting.
Fuse
Check the fuse before looking elsewhere for the cause of
an electrical problem.
Engine Oil and Filter
Drain and replace engine oil often to ensure the greatest
service life of the piston, cylinder, crankshaft,
transmission and clutch.
Also replace engine oil filter often to ensure the greatest
service life. Frequent changes will also assure consistent
performance of power, response, both shifting and
clutch action (page 52).
CRF250R_31K95600.book 29 ページ ２０１７年８月８日 火曜日 午後８時２６分
Before & After Competition Maintenance
30 Servicing Your Honda
Before & After Competition Maintenance
After practice or between motos you have a chance
to make additional checks and adjustments.
• Clean accumulated dirt from under the fenders
and off the wheels, suspension components,
handgrips, controls, and footpegs. A stiff,
nylon parts cleaning brush works well.
• Check tire air pressure.
• Check spoke tension, and make sure the rim
locks are secure.
• Check to make sure the sprocket bolts and nuts
are secure.
• Clean the sides of the drive chain with a stiff,
nylon parts-cleaning brush. Lubricate and
adjust the chain as necessary.
Do not perform maintenance while engine is
running. Injury to your fingers or hands may result.
• After adjustment, check that the chain adjuster
index marks (1) are in the same position on
each side. This will ensure that the rear wheel
is in proper alignment and allow maximum
performance from the rear disc brake.
Maintaining proper wheel alignment will also
extend brake pad wear.
• Suspend the front wheel above the ground and
use the air pressure release screws (2) to
release the built-up pressure in the forks. This
pressure is caused by normal fork action while
riding.
Between Motos & Practice Maintenance
(1) chain adjuster index marks
(1)
(2) air pressure release screw
(2)
CRF250R_31K95600.book 30 ページ ２０１７年８月８日 火曜日 午後８時２６分
Servicing Your Honda 31
Before & After Competition Maintenance
It is important to the long term performance of
your CRF to practice a consistent maintenance
program. Right after the event is a good time to
begin your next maintenance cycle.
After
Race Lubrication
Apply a light coating of rust-inhibiting oil to the
drive sprocket and any steel portions of the chassis
or engine where the paint has worn away.
This will prevent rusting of the exposed metal.
Apply rust-inhibiting oil more heavily if the event
was particularly wet or muddy. Take care to avoid
spraying any oil near the brake pads or the brake
discs.
Take care to prevent catching your fingers between
the chain and sprocket.
Remove the drive chain, clean and lubricate it
(pages 113, 114). Be sure the chain is wiped clean
and is dry before lubricating the chain.
Routine Cleaning
If your CRF is only slightly dirty, it is best to clean
it by hand with the aid of a stiff bristled nylon
brush and some clean rags.
Take care to prevent catching your fingers between
the chain and sprocket.
A variety of reasonably priced cleaning brushes
are available from variety, drug, food, and
hardware stores. Some of these brushes are
extremely useful in removing dirt from the many
tight contours of the metal pieces of your CRF.
Avoid using stiff, abrasive brushes on the plastic or
rubber parts.
If your CRF was exposed to sea air or salt water,
rinse it as soon as possible after the event, dry it,
and apply a spray lubricant to all metal parts.
If you decide to wash your CRF or use cleaners,
refer to Appearance Care (page 123).
After Competition Maintenance
CRF250R_31K95600.book 31 ページ ２０１７年８月８日 火曜日 午後８時２６分

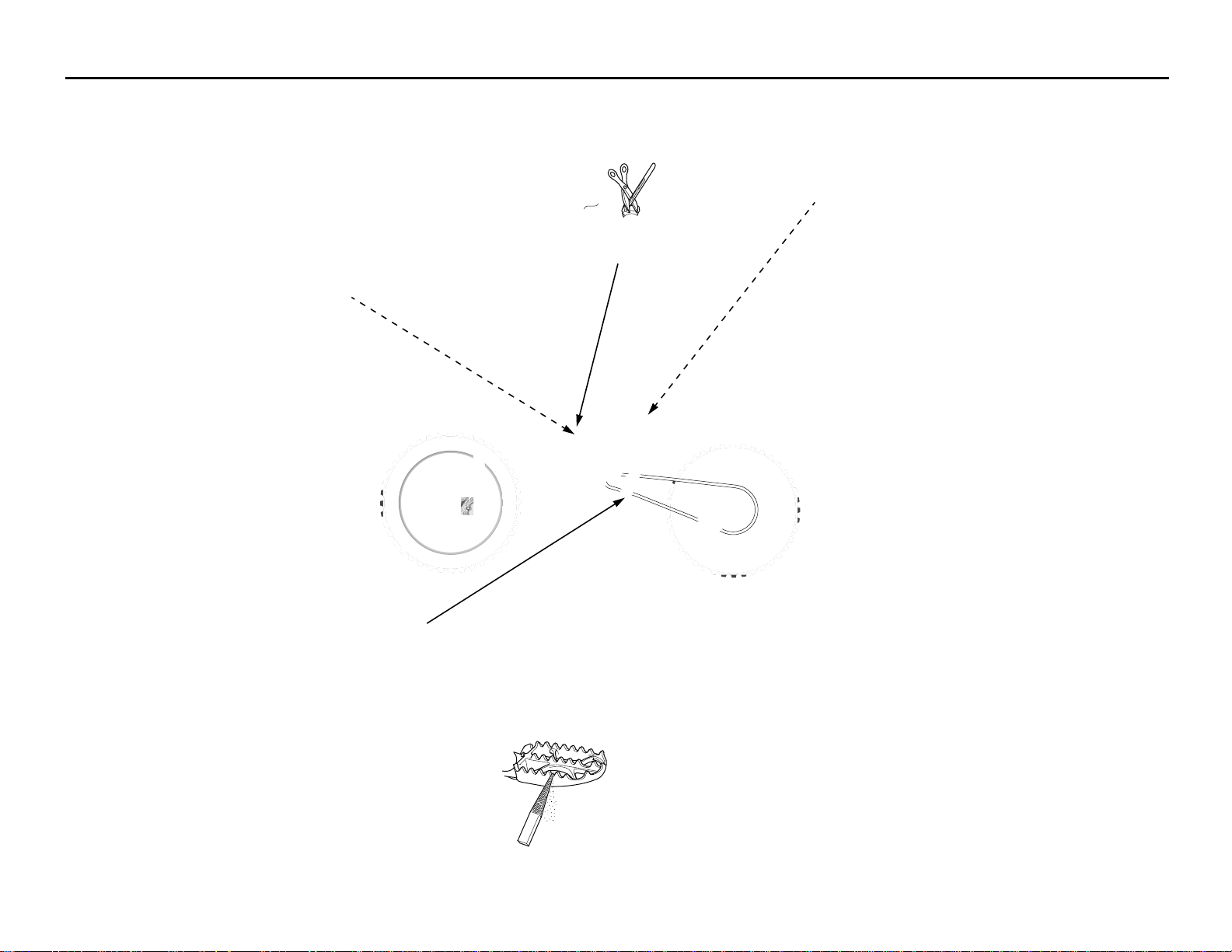

Maintenance Component Locations
32 Servicing Your Honda
Maintenance Component Locations
clutch lever
front brake fluid reservoir
front brake lever
throttle grip
radiator cap
fuel fill cap
spark plug
fast idle knob
(engine idle speed)
air cleaner
crankcase
breather tube
drive chain
front brake caliper
front suspension
compression damping
adjuster (both left and
right)
rear suspension rebound damping adjuster
• rear suspension high speed
compression damping adjuster
• rear suspension low speed
compression damping adjuster
engine oil fill cap
front suspension rebound
damping adjuster (both
left and right)
engine oil filter
rear brake pedal
rear brake fluid reservoir
battery
engine oil drain bolt
rear suspension spring
pre-load adjuster
oil level inspection window
CRF250R_31K95600.book 32 ページ ２０１７年８月８日 火曜日 午後８時２６分
Seat
Servicing Your Honda 33
Seat
Refer to Important Safety Precautions on page 23.
Removal
1. Remove the seat mounting bolts (1).
2. Remove the seat (2) by sliding it backward.
Installation
1. Install the seat while aligning the seat front
prong (1) with the slot (2) of the fuel tank and
seat center prongs (3) with the seat support
base slots (4).
2. Install and tighten the seat mounting bolts (5)
to the specified torque:
19 lbf·ft (26 N·m, 2.7 kgf·m)
(1) seat mounting bolts (2) seat
(2)
(1)
(1)
(1) seat front prong (4) seat support base slots
(2) slot (5) seat mounting bolts
(3) seat center prongs
(1)
(3)
(2)
(4) (5)
(5)
CRF250R_31K95600.book 33 ページ ２０１７年８月８日 火曜日 午後８時２６分
Fuel Tank
34 Servicing Your Honda
Fuel Tank
Refer to Important Safety Precautions on page 23.
Removal
1. Remove the seat (page 33).
2. Remove the shroud A bolt (1), shroud B bolt
(2) and shroud C bolt (3).
3. Slide the shroud (4) toward the up to separate
from the air cleaner housing cover (5), and
then remove the shroud.
The right and left shrouds can be removed in the
same manner.
4. Disconnect the overflow hose (6) from the
clamp (7).
5. Install a hose clamp (8) to the breather tube (9)
and set the hose clamp securely.
6. Pull the breather tube (9) out of steering stem
nut (10).
7. Remove the fuel tank A bolt (11), B bolts (12)
and washers (13).
8. Lift the fuel tank (14) out of the frame and
hang it to the left of the frame.
Check the fuel tank stopper cable (15) for
deterioration, kinks or other damage.
Do not support the fuel tank by the fuel feed
hose (16).
NOTICE
The fuel tank is made of titanium material. Since
the fuel tank has not been painted, it might be
discolored with mud and dust.
To remove mud or dust, use a sponge or soft cloth
and a stainless steel kitchen detergent, then rinse
well clean water.
After washing, rinse with plenty of water and dry
with a clean cloth.
(1) shroud A bolt (4) shroud
(2) shroud B bolt (5) air cleaner housing cover
(3) shroud C bolt
(6) overflow hose (7) clamp
(4)
(3)
(2)
(1)
(5)
(6)
(7)
(8) hose clamp (10) steering stem nut
(9) breather tube
(11) fuel tank A bolt (13) washers
(12) fuel tank B bolts
(9)
(8)
(10)
(13)
(11)
(12)
WARNING
Gasoline is highly flammable and
explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine and keep heat, sparks
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
(14) fuel tank
(15) fuel tank stopper cable
(16) fuel feed hose
(14)
(15)
(16)
CRF250R_31K95600.book 34 ページ ２０１７年８月８日 火曜日 午後８時２６分
Fuel Tank
(cont’d)
Servicing Your Honda 35

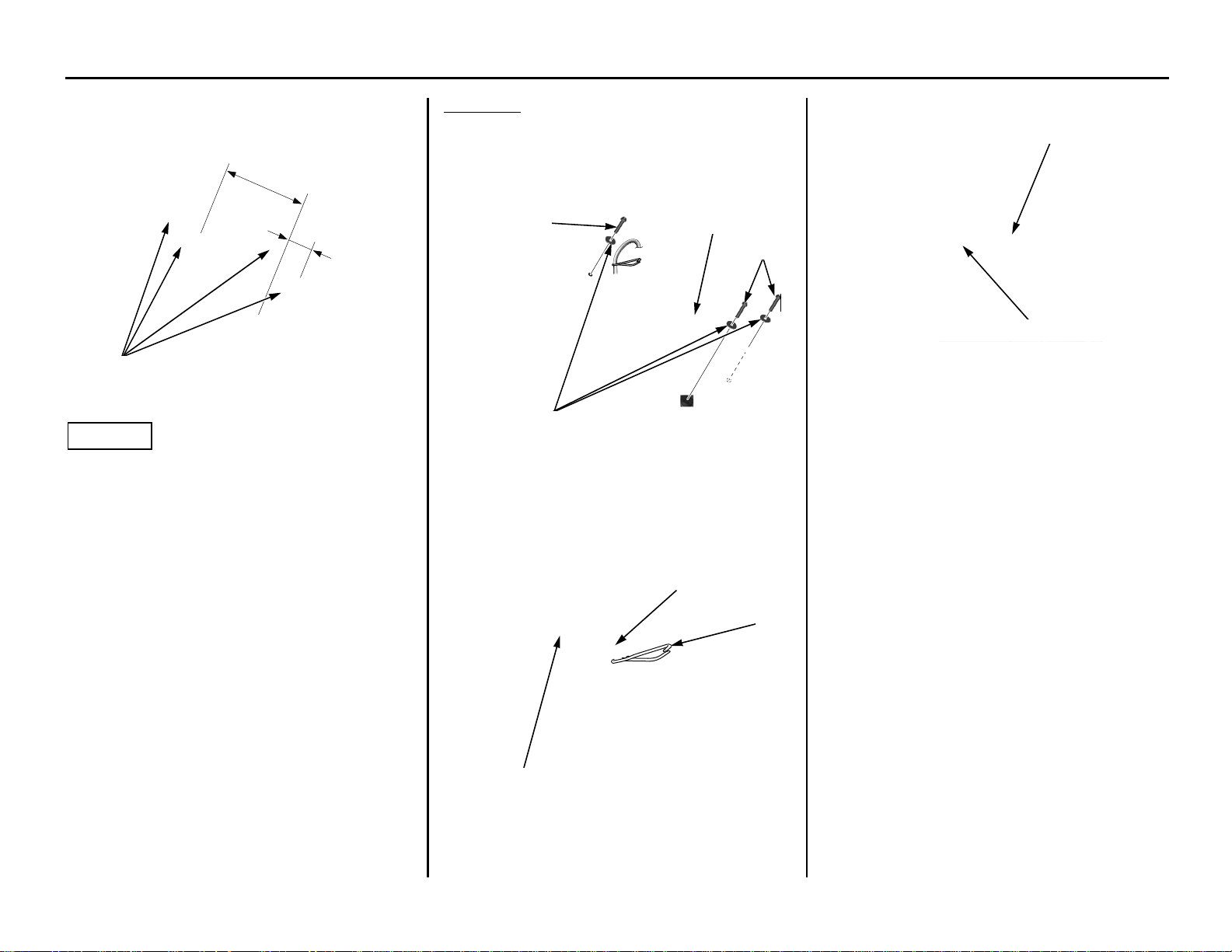

9. Check for interference between the frame and
tank, and adjust the cushion rubbers (17) on the
both sides of the frame if necessary.
NOTICE
Do not ride your CRF in state which the cushion
rubbers have been removed.
It may cause the fuel tank cracking.
Installation
1. Install the fuel tank (1) on the frame.
2. Install the washers (2), fuel tank A bolt (3) and
B bolts (4), and then tighten the fuel tank A
bolt and B bolts to the specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
3. Put the breather tube (5) in the steering stem
nut (6).
4. Remove the hose clamp (7) from the breather
tube.
5. Connect the overflow hose (8) to the clamp (9).
(17) cushion rubbers
3.35 ± 0.10 in
(85.0 ± 2.5 mm)
1.10 ± 0.10 in
(28.0 ± 2.5 mm)
(17)
(1) fuel tank (3) fuel tank A bolt
(2) washers (4) fuel tank B bolts
(5) breather tube (7) hose clamp
(6) steering stem nut
(4)
(2)
(1)
(3)
(5)
(7)
(6)
(8) overflow hose
(9) clamp
(8)
(9)
CRF250R_31K95600.book 35 ページ ２０１７年８月８日 火曜日 午後８時２６分
36 Servicing Your Honda
Fuel Tank
6. Slide the shroud (10) toward the down so that
the shroud tab (11) and the slot (12) on the air
cleaner housing cover (13) is aligned.
7. Install the shroud C bolt (14), B bolt (15) and
shroud A bolt (16).
Tighten the shroud A and B bolts to the
specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
Tighten the shroud C bolt to the specified
torque:
3.8 lbf·ft (5.2 N·m, 0.5 kgf·m)
The right and left shrouds can be installed in
the same manner.
8. Install the seat (page 33).
(10) shroud (14) shroud C bolt
(11) shroud tab (15) shroud B bolt
(12) slot (16) shroud A bolt
(13) air cleaner housing cover
(10)
(14)
(15)
(16)
(13)
(11)
(12)
CRF250R_31K95600.book 36 ページ ２０１７年８月８日 火曜日 午後８時２６分

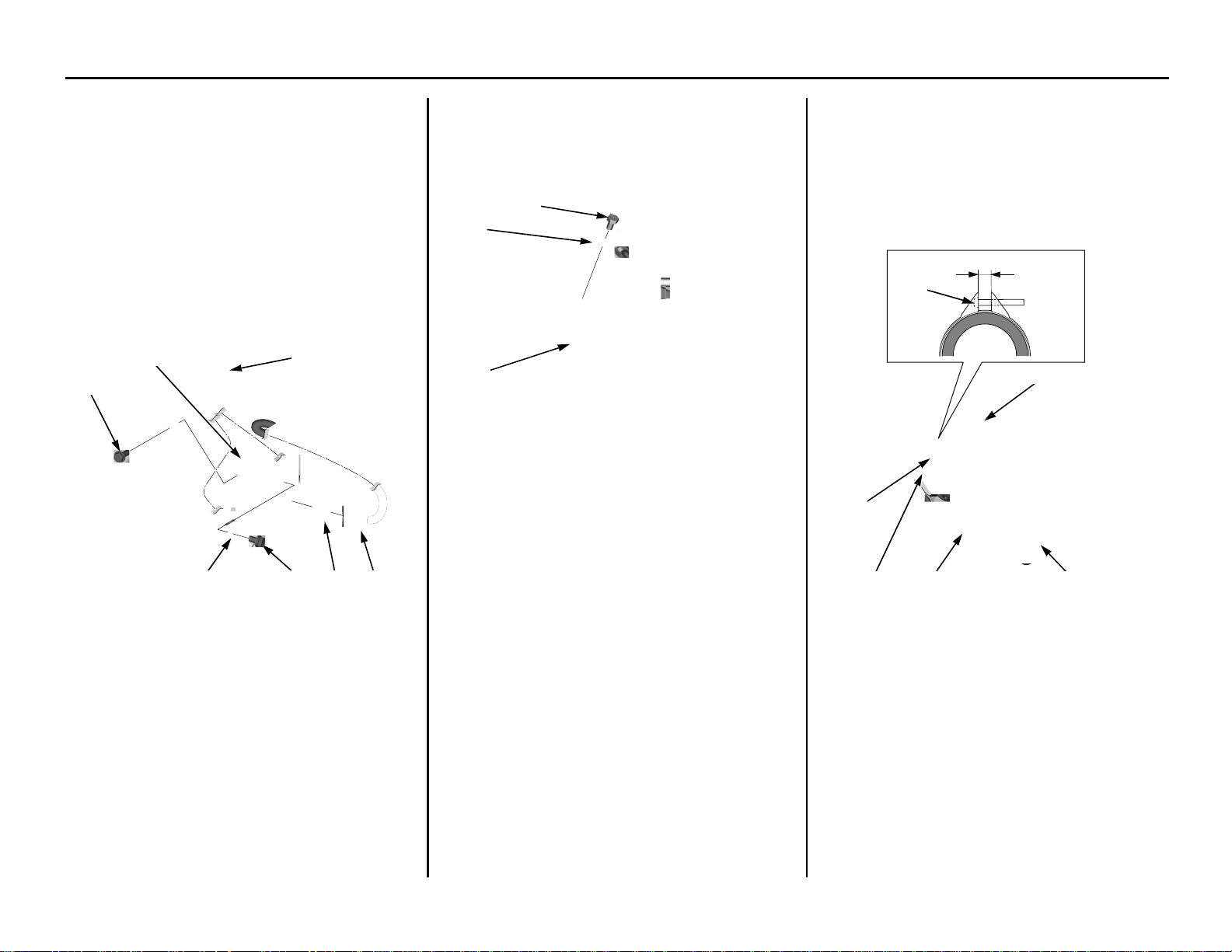

Subframe
(cont’d)
Servicing Your Honda 37
Subframe
Refer to Important Safety Precautions on page 23.
Removal
1. Remove the seat (page 33).
2. Remove the shroud A bolt (1), shroud B bolt
(2) and shroud C bolt (3).
3. Slide the shroud (4) toward the up to separate
from the air cleaner housing cover (5), and
then remove the shroud.
The right and left shrouds can be removed in the
same manner.
4. Remove the right and left mufflers (page 115).
5. Remove the seat support base mounting bolts
(6), and collars (7).
6. Disconnect the starter/ignition relay connector
(8) and remove the seat support base (9).
7. Lift the seat support base (9) and hang it to the
left of the subframe (10).
8. Disconnect the breather tube (11) and IAT
sensor connector (12).
9. Loosen the air cleaner connecting tube clamp
screw (13).
10. Disconnect the negative (–) terminal (14) from
the battery (15).
(1) shroud A bolt
(2) shroud B bolt
(3) shroud C bolt
(4) shroud
(5) air cleaner housing cover
(4)
(3)
(2)
(1)
(5)
(6) seat support base mounting bolts
(7) collars
(8) starter/ignition relay connector
(9) seat support base
(9) seat support base
(10) subframe
(7)
(6)
(7)
(9)
(8)
(10)
(9)
(11) breather tube
(12) IAT sensor connector
(13) air cleaner connecting tube clamp screw
(14) negative (–) terminal
(15) battery
(11)
(12)
(13)
(14)
(15)
CRF250R_31K95600.book 37 ページ ２０１７年８月８日 火曜日 午後８時２６分
38 Servicing Your Honda
Subframe
11. Remove the starter relay switch stay bolt (16)
and plastic wire band (17).
Pull out the starter relay switch (18).
Remove the starter relay switch cover (19) and
then disconnect the starter relay switch
connector (20).
Remove the starter motor terminal bolt (21)
and disconnect the starter motor terminal (22)
from the starter relay switch.
12. Remove the subframe lower bolts (23) and
upper bolts (24).
Remove the subframe (10) while
disconnecting the air cleaner box (25).
Installation
1. Loosely attach the upper and lower ends of the
subframe to the main frame and loosely install
all subframe bolts.
2. Tighten the subframe upper bolts (1) first and
then tighten the lower bolts (2) to the specified
torque:
subframe upper bolts:
24 lbf·ft (32 N·m, 3.3 kgf·m)
subframe lower bolts:
36 lbf·ft (49 N·m, 5.0 kgf·m)
(16) starter relay switch stay bolt
(17) plastic wire band
(18) starter relay switch
(19) starter relay switch cover
(20) starter relay switch connector
(21) starter motor terminal bolt
(22) starter motor terminal
(16)
(17)
(20)
(18)
(19)(21)(22)
(10) subframe
(23) subframe lower bolts
(24) subframe upper bolts
(25) air cleaner box
(10)
(23)
(24)
(25)
(24)
(23)
(1) subframe upper bolts
(2) subframe lower bolts
Left side: Right side:
(1)
(2) (2)
(1)
CRF250R_31K95600.book 38 ページ ２０１７年８月８日 火曜日 午後８時２６分
Subframe
(cont’d)
Servicing Your Honda 39
3. Connect the starter motor terminal (3) to the
starter relay switch (4).
Install and tighten the starter motor terminal
bolt (5) to the specified torque:
5.2 lbf·ft (7 N·m, 0.7 kgf·m)
Connect the starter relay switch connector (6)
and then install the starter relay switch cover
(7).
Install the starter relay switch.
Install and tighten the starter relay switch stay
bolt (8) to the specified torque:
9 lbf·ft (12 N·m, 1.2 kgf·m)
Install the plastic wire band (9).
4. Connect the negative (–) terminal (10) to the
battery (11).
Tighten the negative (–) terminal bolt (12) to
the specified torque:
1.5 lbf·ft (2.0 N·m, 0.2 kgf·m)
5. Connect the air cleaner box (13) to the air
cleaner connecting tube (14) and tighten the air
cleaner connecting tube clamp screw (15) so
the distance between the clamp ends is 0.30 ±
0.06 in (7.5 ± 1.5 mm).
6. Connect the breather tube (16) and IAT sensor
connector (17).
(3) starter motor terminal
(4) starter relay switch
(5) starter motor terminal bolt
(6) starter relay switch connector
(7) starter relay switch cover
(8) starter relay switch stay bolt
(9) plastic wire band
(8)
(9)
(6)
(4)
(7)(5)(3)
(10) negative (–) terminal
(11) battery
(12) negative (–) terminal bolt
(10)
(11)
(12)
(13) air cleaner box
(14) air cleaner connecting tube
(15) air cleaner connecting tube clamp screw
(16) breather tube
(17) IAT sensor connector
(14) (17)
(15)
(16)
(15)
0.30 ± 0.06 in (7.5 ± 1.5 mm)
(13)
CRF250R_31K95600.book 39 ページ ２０１７年８月８日 火曜日 午後８時２６分
40 Servicing Your Honda
Subframe
7. Connect the starter/ignition relay connector
(18) and install the seat support base (19).
8. Install and tighten the collars (20), and seat
support base mounting bolts (21) to the
specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
9. Install the left and right mufflers (page 116).
10. Slide the shroud (22) toward the down so that
the shroud tab (23) and the slot (24) on the air
cleaner housing cover (25) is aligned.
11. Install the shroud C bolt (26), B bolt (27) and
shroud A bolt (28).
Tighten the shroud A and B bolts to the
specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
Tighten the shroud C bolt to the specified
torque:
3.8 lbf·ft (5.2 N·m, 0.5 kgf·m)
The right and left shrouds can be installed in
the same manner.
12. Install the seat (page 33).
(18) starter/ignition relay connector
(19) seat support base
(20) collars
(21) seat support base mounting bolts
(19)
(21)
(20)
(18)
(20)
(22) shroud (26) shroud C bolt
(23) shroud tab (27) shroud B bolt
(24) slot (28) shroud A bolt
(25) air cleaner housing cover
(22)
(26)
(27)
(28)
(25)
(24)
(23)
CRF250R_31K95600.book 40 ページ ２０１７年８月８日 火曜日 午後８時２６分
Fuel System
Servicing Your Honda 41
Fuel System
Refer to Important Safety Precautions on page 23.
Use only unleaded fuel in your CRF. If you ride
your CRF in a country where leaded fuel might be
available, take precautions to use only unleaded
fuel.
Your engine is designed to use any unleaded
gasoline that has a pump octane number of 91 or
higher. Gasoline pumps at service stations
normally display the pump octane number.
For information on the use of Oxygenated Fuels,
see page 159.
Use of lower octane gasoline can cause persistent
“pinging” or “spark knock” (a louder rapping
noise) which, if severe, can lead to engine damage.
(Light pinging experienced while operating under
a heavy load, such as climbing a hill, is no cause
for concern.)
If pinging or spark knock occurs at a steady engine
speed under normal load, change brands of
gasoline. If pinging or spark knock persists,
consult your dealer.
Never use stale or contaminated gasoline. Avoid
getting dirt, dust or water in the fuel tank.
1. To open the fuel fill cap (1), pull the breather
tube (2) out of the steering stem nut (3). Turn
the fuel fill cap counterclockwise and remove
it.
2. Add fuel until the level reaches the bottom of
the filler neck (4).
Fuel Tank Capacity: 1.66 US gal (6.3 ℓ)
• Be careful not to damage the fuel pump while
filling the fuel tank.
• Avoid overfilling the tank. There should be no
fuel in the filler neck.
3. Close the fuel fill cap and insert the breather
tube in the steering stem nut.
1. Hang the fuel tank to the left side of the frame
(page 34).
2. Remove the fuel quick connect fitting cover
(1).
3. Check the fuel line (2) for cracks,
deterioration, damage or leakage. Replace the
fuel line, if necessary.
4. Install the fuel quick connect fitting cover.
5. Install the fuel tank (page 35).
Fuel
Type Unleaded
Pump Octane Number 91 (or higher)
Refueling Procedure
(1) fuel fill cap (3) steering stem nut
(2) breather tube (4) filler neck bottom
(3)
(4)
(2)
(1)
WARNING
Gasoline is highly flammable and
explosive. You can be burned or seriously
injured when handling fuel.
• Stop the engine and keep heat, sparks
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Fuel Line Inspection
(1) fuel quick connect fitting cover
(2) fuel line
(2)
(1)
CRF250R_31K95600.book 41 ページ ２０１７年８月８日 火曜日 午後８時２６分
42 Servicing Your Honda
Fuel System
1. Hang the fuel tank to the left side of the frame
(page 34).
2. Disconnect the fuel pump connector (1).
3. Reposition the fuel tank and start the engine
and let it idle until the engine stalls.
Disconnection
1. Relieve the fuel pressure (this page).
2. Hang the fuel tank to the left side of the frame
(page 34).
3. Remove the fuel quick connect fitting cover
(1) from the fuel pump (2).
4. Check the fuel quick connect fitting (3) for
dirt, and clean if necessary.
5. Remove the bolt (4), clamp (5) and setting
rubber (6).
6. Place a shop towels (7) over the each fuel quick
connect fitting.
Fuel Pressure Relieving
(1) fuel pump connector
(1)
Fuel Line Replacement
(1) fuel quick connect fitting cover
(2) fuel pump
(3) fuel quick connect fitting
(1)
(3)
Fuel pump side:Injector side:
(2) (3)
(4) bolt (6) setting rubber
(5) clamp
(7) shop towels
(4)
(5)
(6)
Injector side:
Fuel pump side:
(7)
CRF250R_31K95600.book 42 ページ ２０１７年８月８日 火曜日 午後８時２６分
Fuel System
(cont’d)
Servicing Your Honda 43
7. Unlock the slide retainer (8) of the quick
connect fitting by completely pulling it up.
Release the fuel quick connect fitting from the
fuel joint (9) while holding the connector
housing (10).
• Use a shop towel to absorb the remaining
fuel in the fuel feed hose.
• Be careful not to damage the hose or other
parts.
• Do not use tools.
• Dirt intruding into the connector housing
may cause slide retainer sticking.
8. Remove the rubber cover (11) from the fuel
joint of the fuel pump.
9. To prevent damage and keep foreign matter
out, cover the disconnected connector (12) and
fuel joint (9) with plastic bags (13).
Connection
1. Install the rubber cover (1) onto the fuel joint
(2) of the fuel pump as shown.
2. Be sure that the slide retainer (3) is completely
pulled up before connecting the quick connect
fitting.
• Do not bend or twist the fuel feed hose.
• Do not reuse the kinked or damaged fuel
hose.
• Do not use gloves or a shop towel while
installing the quick connect fitting.
WARNING
Gasoline is highly flammable and
explosive. You can be burned or seriously
injured when handling fuel.
• Stop the engine and keep heat, sparks
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
(8) slide retainer
(9) fuel joint
(10) connector housing
Injector side: Fuel pump side:
(8)
(10)
(9)
(8)
(9)
(10)
(11) rubber cover
(9) fuel joint
(12) disconnected connector
(13) plastic bags
(11)
(13)
(12)
(9)
(1) rubber cover
(2) fuel joint
(3) slide retainer
(1)
(2)
(3)
CRF250R_31K95600.book 43 ページ ２０１７年８月８日 火曜日 午後８時２６分
44 Servicing Your Honda
Fuel System
3. Connect the quick connect fitting to the fuel
joint (2) until you hear the “click” while
holding the connector housing (4). Lock the
slide retainer (3) by pushing it until you hear
the “click”.
If it is hard to connect, put a small amount of
engine oil on the pipe end of the fuel joint.
4. Make sure the connection is secure and that the
slide retainer is firmly locked into place; check
visually and by pulling the connector housing.
5. Install the setting rubber (5) toward the recess
(6) of the setting rubber to the fuel joint (2).
6. Install the clamp (7) and bolt (8) by aligning
the clamp tab (9) with the groove (10) of the
stay.
Tighten the bolt securely.
7. Install the fuel quick connect fitting cover (11).
Be sure the rubber cover (1) is properly installed
between the fuel quick connect fitting cover and
fuel pump.
8. Increase the fuel pressure (page 50).
9. Install the fuel tank (page 35).
(2) fuel joint
(3) slide retainer
(4) connector housing
(2) fuel joint (6) recess
(5) setting rubber
Injector side:
Fuel pump side:
(3)
(4)
(2)
(4)
(3)
(2)
(6)
(5)
(2)
(7) clamp (9) clamp tab
(8) bolt (10) groove
(7)
(8)
(10)
(9)
(1) rubber cover
(11) fuel quick connect fitting cover
(11)
(1)
CRF250R_31K95600.book 44 ページ ２０１７年８月８日 火曜日 午後８時２６分
Fuel System
(cont’d)
Servicing Your Honda 45
Empty the fuel tank into an approved gasoline
container using a commercially available hand
siphon or an equivalent method.
Be careful not to damage the fuel pump while
draining the fuel in the fuel tank.
Removal
1. Relieve the fuel pressure (page 42).
2. Disconnect the fuel line from the fuel pump
(page 42).
3. Remove the fuel tank (1) by releasing the
stopper cable (2) from the frame hook (3) of
the frame.
4. Pull the harness band clip (4) while pressing
both side of the anchor and disconnect it.
5. Remove the fuel pump mounting nuts (5), fuel
pump mounting cap nut (6), stopper cable
guide (7), stopper cable (2), washer (8), collars
(9), conical spring washers (10) and fuel pump
plate (11) while holding the fuel tank.
Fuel Pump Filter Replacement
WARNING
Gasoline is highly flammable and
explosive. You can be burned or seriously
injured when handling fuel.
• Stop the engine and keep heat, sparks
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
(1) fuel tank (3) frame hook
(2) stopper cable (4) harness band clip
(2)
(3)
(1)
(4)
(2) stopper cable
(5) fuel pump mounting nuts
(6) fuel pump mounting cap nut
(7) stopper cable guide
(8) washer
(9) collars
(10) conical spring washers
(11) fuel pump plate
(6)
(5)
(2)
(7)
(8)
(9)
(10)
(11)
CRF250R_31K95600.book 45 ページ ２０１７年８月８日 火曜日 午後８時２６分
46 Servicing Your Honda
Fuel System
6. Remove the fuel pump unit (12), dust seal (13)
and O-ring (14).
Be careful not to damage the fuel pump unit.
7. Disconnect the fuel pump wire terminals (15)
from the fuel pump base (16).
Be careful not to damage the wires when
disconnecting the fuel pump wire terminals.
8. Check the hooks (17) of the fuel pump unit
holder and tabs (18) on the fuel pump base for
damage or discoloration.
If the hooks and tabs are damaged or
discolored, replace the fuel pump unit as an
assembly.
9. Release the hooks of the fuel pump unit holder
from the grooves (19) in the fuel pump base
tabs while pushing the holder against the base
and slightly spreading the base tabs.
Be careful not to damage the hooks and tabs.
10. Remove the fuel pump unit holder assembly
(20) from the fuel pump base (16) and remove
the O-ring (21).
Wipe the spilled out fuel immediately.
11. Remove the fuel pump stopper (22) and
damper rubber (23).
(12) fuel pump unit (14) O-ring
(13) dust seal
(15) fuel pump wire terminals
(16) fuel pump base
(13)
(12)
(14)
(16)
(15)
(17) hooks (19) grooves
(18) tabs
(18)
(19)
(18)
(17)
(17) (19)
(16) fuel pump base
(20) fuel pump unit holder assembly
(21) O-ring
(22) fuel pump stopper
(23) damper rubber
(20)
(21)
(16)
(22)
(23)
CRF250R_31K95600.book 46 ページ ２０１７年８月８日 火曜日 午後８時２６分
Fuel System
(cont’d)
Servicing Your Honda 47
12. Remove the fuel pump assembly (24) from the
fuel pump unit holder (25).
13. Remove the O-ring (26) from the fuel pump
assembly (24).
14. Remove the fuel pump filter (27) from the fuel
pump assembly (24).
15. Check the fuel pump filter for clog, damage or
deterioration and replace it if necessary.
Installation
1. Install the fuel pump filter (1) onto the fuel
pump assembly (2) aligning its hook (3) with
the joint boss (4) completely.
Be careful not to damage the hook.
2. Apply small amount of engine oil to a new
O-ring (5).
Install the new O-ring to the fuel pump
assembly (2).
3. Install the fuel pump assembly with fuel pump
filter into the fuel pump unit holder (6) while
routing the fuel pump yellow (7) and green (8)
wires through the holder grooves (9) as shown.
4. Install a new damper rubber (10) to the fuel
pump filter as shown.
Install fuel pump stopper (11).
(24) fuel pump assembly
(25) fuel pump unit holder
(26) O-ring
(24) fuel pump assembly
(27) fuel pump filter
(26)
(24)(25)
(24)
(27)
(1) fuel pump filter (3) hook
(2) fuel pump assembly (4) joint boss
(2)
(3)
(4)
(1)
(2) fuel pump assembly (7) yellow wire
(5) O-ring (new) (8) green wire
(6) fuel pump unit holder (9) grooves
(10) damper rubber (new)
(11) fuel pump stopper
(9)
(8)(6)
(7) (5)
(9)
(7)
(8)
(2)
(11)
(10)
CRF250R_31K95600.book 47 ページ ２０１７年８月８日 火曜日 午後８時２６分
48 Servicing Your Honda
Fuel System
5. Apply small amount of engine oil to a new
O-ring (12).
Install the new O-ring to the fuel pump base
(13).
6. Install the fuel pump unit holder assembly (14)
into the fuel pump base while aligning its
hooks (15) with the grooves (16) in the fuel
pump base tabs (17).
If the gap between the hooks and tabs is more
than 0.04 in (1.0 mm), replace the fuel pump
unit.
Be sure that the hooks are completely seated.
7. Connect the fuel pump yellow (18) and green
(19) wire terminals to the fuel pump base
terminals (20). Push the wire terminals until
they stop as shown.
Be careful not to damage the wires.
8. Install a new dust seal (21) by aligning its tabs
(22) with the fuel pump unit grooves (23).
Check the dust seal lug (24) which is located the
index mark (25) of the fuel pump base (13).
9. Apply small amount of engine oil to a new
O-ring (26).
Install the new O-ring into the between the
collar A (27) and collar B (28) of the fuel pump
unit (29).
10. Install the fuel pump unit (29) into the fuel tank
(30) with its hose joint (31) facing forward.
Be careful not to damage the fuel pump unit.
(12) O-ring (new)
(13) fuel pump base
(14) fuel pump unit holder assembly
(15) hooks
(16) grooves
(17) tabs
(13)
(16) (17)
(12)
(17)(16)
(14)
(15)
(18) yellow wire terminal
(19) green wire terminal
(20) fuel pump base terminals
(13) fuel pump base (23) grooves
(21) dust seal (new) (24) dust seal lug
(22) tabs (25) index mark
(18)
(19)
(20)
(18)
(20)
(19)
(13)
(21)
(24)
(25)
(24)
(23)(22)
(26) O-ring (new) (28) collar B
(27) collar A (29) fuel pump unit
(29) fuel pump unit
(30) fuel tank
(31) hose joint
(28)
(29)
(26)
(27)
(29)
(30)
(31)
CRF250R_31K95600.book 48 ページ ２０１７年８月８日 火曜日 午後８時２６分
Servicing Your Honda 49
Fuel System
11. Install the fuel pump plate (32) by aligning
with its groove (33) with fuel pump unit lug
(34).
Check the dust seal lug (24) is in position as
shown.
12. Install the conical spring washers (35), collars
(36), washer (37), stopper cable (38), stopper
cable guide (39), fuel pump mounting nuts (40)
and fuel pump mounting cap nut (41).
Make sure that the convex surfaces of the conical
spring washers are upside.
Make sure that the cap nut is in position of the
identification mark (42) on the fuel pump plate
(32).
13. Tighten the fuel pump mounting nuts (40) and
cap nut (41) to the specified torque in the
specified sequence as shown:
8 lbf·ft (11 N·m, 1.1 kgf·m)
14. Install the harness band clip (43) to the stopper
cable guide (39).
15. Install the stopper cable (38) to the frame hook
(44) of the frame while holding the fuel tank
(30).
16. Connect the fuel line (page 43).
17. Increase the fuel pressure (page 50).
18. Install the fuel tank (page 35).
(24) dust seal lug
(32) fuel pump plate
(33) groove
(34) fuel pump unit lug
(24) (33)
(34)
(32)
(32) fuel pump plate
(35) conical spring washers
(36) collars
(37) washer
(38) stopper cable
(39) stopper cable guide
(40) fuel pump mounting nuts
(41) fuel pump mounting cap nut
(42) identification mark
(36)
(37)
(35)
(40)
(32)(42)
(35)
Upside
(39)
(38)
(41)
(40) fuel pump mounting nuts
(41) fuel pump mounting cap nut
(30) fuel tank (43) harness band clip
(38) stopper cable (44) frame hook
(39) stopper cable guide
1
2
3
4
5
6
(40)
(41)
(44)
(30)
(39)
(38)
(43)
CRF250R_31K95600.book 49 ページ ２０１７年８月８日 火曜日 午後８時２６分
50 Servicing Your Honda
Fuel System
Make sure the fuel remains enough (0.3 US gal
(1.0 ℓ) minimum) in the fuel tank and add fuel if
necessary before increasing fuel pressure.
With the throttle closed.
Pull the clutch lever all the way in, and depress the
start button.
The engine will start up by increasing the fuel
pressure.
If the engine does not start, check all connector
connections and/or refer to an official Honda
Service Manual (page 166) for troubleshooting of
the PGM-FI symptom.
Fuel Pressure Increasing
CRF250R_31K95600.book 50 ページ ２０１７年８月８日 火曜日 午後８時２６分
Engine Oil
Servicing Your Honda 51
Engine Oil
Refer to Important Safety Precautions on page 23.
Using the proper oil, and regularly checking,
adding, and changing oil will help extend the
service life of the engine. Even the best oil wears
out. Changing oil helps get rid of dirt and deposits.
Operating the engine with old or dirty oil can
damage your engine. Running the engine with
insufficient oil can cause serious damage to the
engine.
* Suggested 4-stroke engine oils are equal performance
to SJ oils that are not labeled as energy conserving or
resource conserving on the circular API service label.
• Your CRF does not need oil additives.
Use the recommended oil.
• Do not use API SH or higher 4-stroke engine oils
displaying a circular API “energy conserving” or
“resource conserving” service label on the
container. They may affect lubrication.
Other viscosities shown in the following chart may
be used when the average temperature in your
riding area is within the indicated range.
JASO T 903 standard
The JASO T 903 standard is an index for engine
oils for 4-stroke motorcycle engines.
There are two classes: MA and MB.
Oil conforming to the standard is labeled on the oil
container. For example, the following label shows
the MA classification.
Oil Recommendation
API
classification
SG or higher except oils
labeled as energy
conserving or resource
conserving on the circular
API service label
Viscosity
(weight)
SAE 10W-30
JASO T 903 standard MA
Suggested oil* Pro Honda GN4 4-stroke
Oil (USA & Canada), or
Honda 4-stroke oil, or an
equivalent motorcycle oil
NOT RECOMMENDED RECOMMENDED
(1) oil code
(2) oil classification
(1)
(2)
CRF250R_31K95600.book 51 ページ ２０１７年８月８日 火曜日 午後８時２６分
52 Servicing Your Honda
Engine Oil
1. Run the engine at idle for 3 minutes, then shut
it off.
2. Wait 3 minutes after shutting off the engine to
allow the oil to properly distribute itself in the
engine.
3. Support the CRF in an upright position on a
level surface.
4. Check that the oil level is between the upper
(1) and lower (2) level marks in the oil level
inspection window (3).
• If the oil is at or near the upper level mark,
you do not have to add oil.
• If the oil is below or near the lower level
mark, remove the oil fill cap (4) and add the
recommended oil until it reaches the upper
level mark. (Do not overfill.)
5. Check that the O-ring (5) is in good condition
and replace it if necessary.
6. Reinstall the engine oil fill cap (4).
7. Check for oil leaks.
1. Remove the engine guard A bolts/washers (1),
B bolt/washer (2) and engine guard (3).
2. Run the engine at idle for 3 minutes, then shut
it off.
3. Support the CRF in an upright position on a
level surface.
Checking & Adding Oil
(1) upper level mark
(2) lower level mark
(3) inspection window
(4) engine oil fill cap
(1)
(2)
(3)
(4)
(4) engine oil fill cap
(5) O-ring
(4)(5)
Changing Engine Oil & Filter
(1) engine guard A bolts/washers
(2) engine guard B bolt/washer
(3) engine guard
(1)
(2)
(3)
CRF250R_31K95600.book 52 ページ ２０１７年８月８日 火曜日 午後８時２６分
Servicing Your Honda 53
Engine Oil
4. Remove the engine oil fill cap (4) from the
right crankcase cover.
5. Place an oil drain pan under the engine to catch
the oil. Then remove the engine oil drain bolt
(5) and sealing washer (6).
Note that more engine oil may splatter than the
2017 year model CRF250R.
6. With the engine stop button pushed, pull the
clutch lever all the way in, and depress the start
button to drain the engine oil completely.
7. After the oil has drained, apply engine oil to
the drain bolt threads, seating surface and a
new sealing washer, then tighten the drain bolt
with the sealing washer installed to the
specified torque:
12 lbf·ft (16 N·m, 1.6 kgf·m)
Pour the drained oil into a suitable container and
dispose of it in an approved manner (page 146).
NOTICE
Improper disposal of drained fluids is harmful to
the environment.
8. It is recommended to replace the oil and filter
every 6 races or about every 15.0 hours.
However, if you replace only the oil before the
recommended interval, see page 25.
9. Remove the oil filter cover bolts (7) and oil
filter cover (8).
10. Remove the oil filter (9) and O-ring (10) from
the oil filter cover.
11. Remove the spring (11).
NOTICE
Using the wrong oil filter may result in leaks or
engine damage.
12. Apply grease to the filter side of the spring end,
then install the spring into a new oil filter.
13. Position the spring against the engine
crankcase and install a new oil filter with the
rubber seal (12) facing out, away from the
engine. You should see the “OUT-SIDE” mark
(13) on the filter body, near the seal.
Use a new Honda Genuine oil filter or a filter
of equal quality specified for your model.
NOTICE
If the oil filter is not installed properly, it will
cause serious engine damage.
14. Apply engine oil to a new O-ring and install it
to the oil filter cover.
15. Install the oil filter cover being careful not to
damage the new O-ring, then tighten the oil
filter cover bolts to the specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
16. Install the engine guard, then tighten the
engine guard A bolts/washers and B bolt/
washer to the specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
17. Fill the crankcase with the recommended oil.
Capacity:
1.18 US qt (1.12 ℓ) after draining and filter
change
1.14 US qt (1.08 ℓ) after draining
18. Install the engine oil fill cap.
19. Check the engine oil level by following the
steps in Checking & Adding Oil (page 52).
Pour the drained oil into a suitable container and
dispose of it in an approved manner (page 146).
NOTICE
Improper disposal of drained fluids is harmful to
the environment.
(4) engine oil fill cap
(5) engine oil drain bolt
(6) sealing washer (new)
(4)
(6)
(5)
(7) oil filter cover bolts
(8) oil filter cover
(9) oil filter (new)
(10) O-ring (new)
(11) spring
(12) rubber seal
(13) “OUT-SIDE” mark
(11)
(8)
(7)
(12)
(9)
(13) (10)
CRF250R_31K95600.book 53 ページ ２０１７年８月８日 火曜日 午後８時２６分
Coolant
54 Servicing Your Honda
Coolant
Refer to Important Safety Precautions on page 23.
Your CRF’s liquid cooling system dissipates
engine heat through the coolant jacket that
surrounds the cylinder and cylinder head.
Maintaining the coolant will allow the cooling
system to work properly and prevent freezing,
overheating, and corrosion.
Use Pro Honda HP Coolant or an equivalent high
quality ethylene glycol antifreeze containing
corrosion protection inhibitors specifically
recommended for use in aluminum engines. Check
the antifreeze container label.
Use only distilled water as a part of the coolant
solution. Water that is high in mineral content or
salt may be harmful to the aluminum engine.
NOTICE
Using coolant with silicate inhibitors may cause
premature wear of the mechanical seal or
blockage of the radiator passages. Using tap
water may cause engine damage.
The factory provides a 50/50 solution of antifreeze
and water in this motorcycle. This coolant solution
is recommended for most operating temperatures
and provides good corrosion protection.
Decreasing the concentration of antifreeze to less
than 40% will not provide proper corrosion
protection.
Increasing the concentration of antifreeze is not
recommended because it decreases cooling system
performance. Higher concentrations of antifreeze
(up to 60%) should only be used to provide
additional protection against freezing.
Check the cooling system frequently during
freezing weather.
Refer to Important Safety Precautions on page 23.
1. Position your CRF on an optional workstand or
equivalent support so that it is securely held in
place in an upright position.
2. With the engine cold, remove the radiator cap
(1) and check coolant level. The coolant level
is correct when it is at the bottom of the
radiator filler neck (2).
3. If the coolant level is low, add the coolant up to
the filler neck.
Inspect the coolant level before each outing.
A coolant loss of 0.7 – 2.0 US oz (20 – 60 cm
3
)
through the overflow hose (3) is normal. If
coolant loss is more than this, inspect the
cooling system.
Capacity:
1.14 US qt (1.08 ℓ) after disassembly
0.99 US qt (0.94 ℓ) after draining
4. Install the radiator cap securely.
NOTICE
If the radiator cap is not installed properly, it will
cause excessive coolant loss and may result in
overheating and engine damage.
Coolant Recommendation
Checking & Adding Coolant
WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to
spray out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
(1) radiator cap (3) overflow hose
(2) radiator filler neck
(2)
(1)
(3)
CRF250R_31K95600.book 54 ページ ２０１７年８月８日 火曜日 午後８時２６分
Servicing Your Honda 55
Coolant
1. Check the cooling system for leaks (see an
official Honda Service Manual for
troubleshooting of leaks).
2. Check the radiator hoses (1) for cracks,
deterioration, and radiator hose clamps for
looseness.
3. Check the radiator mount for looseness.
4. Make sure the overflow hose (2) is connected
and not clogged.
5. Check the radiator fins (3) for clogging.
6. Check the bleed hole (4) below the water pump
cover (5) for leakage. Clean away any clogged
dirt or sand, if necessary. Check the bleed hole
of the water pump for signs of seal leakage. If
water leaks through the bleed hole, replace the
mechanical seal. If oil leaks through the bleed
hole, replace the oil seal. Make sure that there
is no continuous coolant leakage from the
bleed hole while operating the engine.
A small amount of coolant weeping from the
bleed hole is normal. See an official Honda
Service Manual or consult your dealer for
replacing the mechanical seal or oil seal.
Both seals should be replaced at the same time.
7. Check the radiator air passages for clogging or
damage.
Straighten bent fins (6), and remove insects,
mud or other obstructions with compressed air
or low water pressure.
Replace the radiator if the air flow is restricted
over more than 20% of the radiating surface.
Radiator should be replaced by your dealer, unless
you have the proper tools and service data and are
mechanically qualified. Refer to an official Honda
Service Manual (page 166).
Refer to Important Safety Precautions on page 23.
Coolant should be replaced by your dealer, unless
you have the proper tools and service data and are
mechanically qualified. Refer to an official Honda
Service Manual (page 166).
To properly dispose of drained coolant, refer to
You & the Environment on page 146.
NOTICE
Improper disposal of drained fluids is harmful to
the environment.
Cooling System Inspection
(1) radiator hoses (3) radiator fins
(2) overflow hose
(2)
(3)
(3)
(1)
(1)
(4) bleed hole
(5) water pump cover
(4)
(5)
(6) fins
Coolant Replacement
WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to
spray out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
(6)
CRF250R_31K95600.book 55 ページ ２０１７年８月８日 火曜日 午後８時２６分
Air Cleaner
56 Servicing Your Honda
Air Cleaner
Refer to Important Safety Precautions on page 23.
The air cleaner uses polyurethane inner and outer
pieces which can’t be separated.
A dirty air cleaner will reduce engine power.
Proper air cleaner maintenance is very important
for off-road vehicles. A dirty, water-soaked, worn-
out, or defective air cleaner will allow dirt, dust,
mud, and other impurities to pass into the engine.
Service the air cleaner more frequently if you ride
in unusually wet or dusty areas. Your dealer can
help you determine the correct service interval for
your riding conditions.
Your CRF’s air cleaner has very specific
performance requirements. Use a new Honda
Genuine air cleaner specified for your model or an
air cleaner of equal quality.
NOTICE
Using the wrong air cleaner may result in
premature engine wear.
Proper air cleaner maintenance can prevent
premature engine wear or damage, expensive
repairs, low engine power, poor gas mileage, and
spark plug fouling.
NOTICE
Improper or lack of proper air cleaner
maintenance can cause poor performance and
premature engine wear.
1. Remove the seat (page 33).
2. Remove the air cleaner retaining bolt (1) and
air cleaner assembly (2).
3. Remove the air cleaner element (3) from the air
cleaner holder (4) by releasing the hole (5) of
the air cleaner element from the holder tab (6).
Cleaning
(1) air cleaner retaining bolt
(2) air cleaner assembly
(3) air cleaner element (5) hole
(4) air cleaner holder (6) holder tab
(1)
(2)
(5)
(4)
(6)
(3)
CRF250R_31K95600.book 56 ページ ２０１７年８月８日 火曜日 午後８時２６分
Servicing Your Honda 57
Air Cleaner
4. Wash the air cleaner in clean non-flammable
cleaning solvent such as Pro Honda Foam Air
Filter Cleaner. Then wash in hot, soapy water,
rinse well, and allow to dry thoroughly. The air
cleaner element is made in two pieces: inner
and outer, which cannot be separated.
5. Clean the inside of the air cleaner housing.
6. Allow the air cleaner to dry thoroughly. After
drying, apply 1.4 US oz (40 cm
3
) of clean Pro
Honda Foam Air Filter Oil or an equivalent air
cleaner oil from the inside of the element.
Place the element into a plastic bag (7) and
spread the oil evenly by hand.
7. Assemble the air cleaner element and holder.
Install the holder tab in the hole of the air
cleaner element.
8. Apply 0.05 – 0.19 oz (1.5 – 5.5 g) of Pro Honda
Foam Air Filter Sealer or equivalent to the air
cleaner element contact area of the air cleaner
housing.
9. Install the air cleaner assembly (2) into the air
cleaner housing stay (8) with the “UP” mark
tab (9) facing up.
10. Carefully position the sealing flange of the
element to prevent dirt intrusion.
11. Install and tighten the air cleaner retaining bolt
(1) to the specified torque:
1.8 lbf·ft (2.4 N·m, 0.2 kgf·m)
NOTICE
Improper installation of the air cleaner assembly
may allow dirt and dust to enter the engine and
cause rapid wear of the piston rings and cylinder.
12. Install the seat (page 33).
(7) plastic bag
(7)
(2) air cleaner assembly
(8) air cleaner housing stay
(9) “UP” mark tab
(8)
(9)
(2)
(1) air cleaner retaining bolt
(1)
CRF250R_31K95600.book 57 ページ ２０１７年８月８日 火曜日 午後８時２６分
Crankcase Breather
58 Servicing Your Honda
Crankcase Breather
Refer to Important Safety Precautions on page 23.
Service more frequently if your CRF is ridden in
the rain or often at full throttle.
Service the breather if you can see deposits in the
transparent section of the crankcase breather tubes.
If the drain tube overflows, the air filter may
become contaminated with engine oil causing poor
engine performance.
1. Remove the crankcase breather tube plug (1)
from the crankcase breather tube (2) and drain
deposits into a suitable container.
2. Reinstall the crankcase breather tube plug.
Draining
(1) crankcase breather tube plug
(2) crankcase breather tube
(1)
(2)
CRF250R_31K95600.book 58 ページ ２０１７年８月８日 火曜日 午後８時２６分
Throttle
Servicing Your Honda 59
Throttle
Refer to Important Safety Precautions on page 23.
Inspection
Check freeplay (1).
Freeplay: 1/16 – 1/4 in (2 – 6 mm)
If necessary, adjust to the specified range.
Upper Adjustment
Minor adjustments are generally made with the
upper adjuster.
1. Loosen the lock nut (1).
2. Turn the adjuster (2).
Turning the adjuster in direction (–) will
decrease freeplay and turning it in direction (+)
will increase freeplay.
3. Tighten the lock nut securely.
4. After adjustment, check for smooth rotation of
the throttle grip from fully closed to fully open
in all steering positions.
If the adjuster is threaded out near its limit or
the correct freeplay cannot be reached, turn the
adjuster all the way in and back out one turn.
Tighten the lock nut securely.
Make the adjustment with the lower adjuster.
Lower Adjustment
The lower adjuster is used for major freeplay
adjustment, such as after replacing the throttle
cables or removing the throttle body. It is also used
if you cannot get the proper adjustment with the
upper adjuster.
1. Loosen the lock nut (1).
2. Turn the adjuster (2) in direction (–) to
decrease freeplay, and in direction (+) to
increase freeplay.
3. Tighten the lock nut to the specified torque:
3.0 lbf·ft (4.0 N·m, 0.4 kgf·m)
4. Operate the throttle grip to ensure that it
functions smoothly and returns completely.
If you can’t get the freeplay within the specified
range, contact your dealer.
Throttle Freeplay
(1) freeplay
(1)
(1) lock nut (+) increase freeplay
(2) adjuster (–) decrease freeplay
(1)
(–)
(+)
(2)
(1) lock nut (+) increase freeplay
(2) adjuster (–) decrease freeplay
(–)
(+)
(2)
(1)
CRF250R_31K95600.book 59 ページ ２０１７年８月８日 火曜日 午後８時２６分
60 Servicing Your Honda
Throttle
1. Check that the throttle assembly is positioned
properly (the end of the throttle housing (1) is
aligned with the paint mark (2) on the
handlebar) and the housing bolts (3) are tight.
2. Check for smooth rotation of the throttle (4)
from fully open to fully closed in all steering
positions. If there is a problem, see your dealer.
3. Inspect the condition of the throttle cables
from the throttle grip down to the throttle body.
If the cable is kinked or chafed, have it
replaced.
4. Check the cables for tension or stress in all
steering positions.
5. Lubricate the cables with a commercially
available cable lubricant.
Check for smooth rotation of the throttle. If
necessary, apply multi-purpose grease to sliding
surface of the throttle cable ends.
1. Slide the dust cover (1).
2. Remove the throttle housing bolts (2).
3. Remove the throttle housing (3) from the
throttle pipe (4).
4. Thoroughly lubricate the throttle cable ends (5)
with multi-purpose grease.
5. Install the throttle housing to the throttle pipe.
Check that the throttle assembly is positioned
properly (the end of the throttle housing is
aligned with the paint mark (6) on the
handlebar) and tighten the throttle housing
bolts to the specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
NOTICE
Align the lugs (7) of the wire guide with the
grooves (8) of the throttle housing.
6. Install the dust cover reverse order.
If the throttle operation is not smooth, replace the
throttle cable.
Be sure the throttle returns freely from fully open
to fully closed automatically, in all steering
positions.
Throttle Inspection
(1) throttle housing (3) housing bolts
(2) paint mark
(4) throttle
(2)
(1)
(3)
(4)

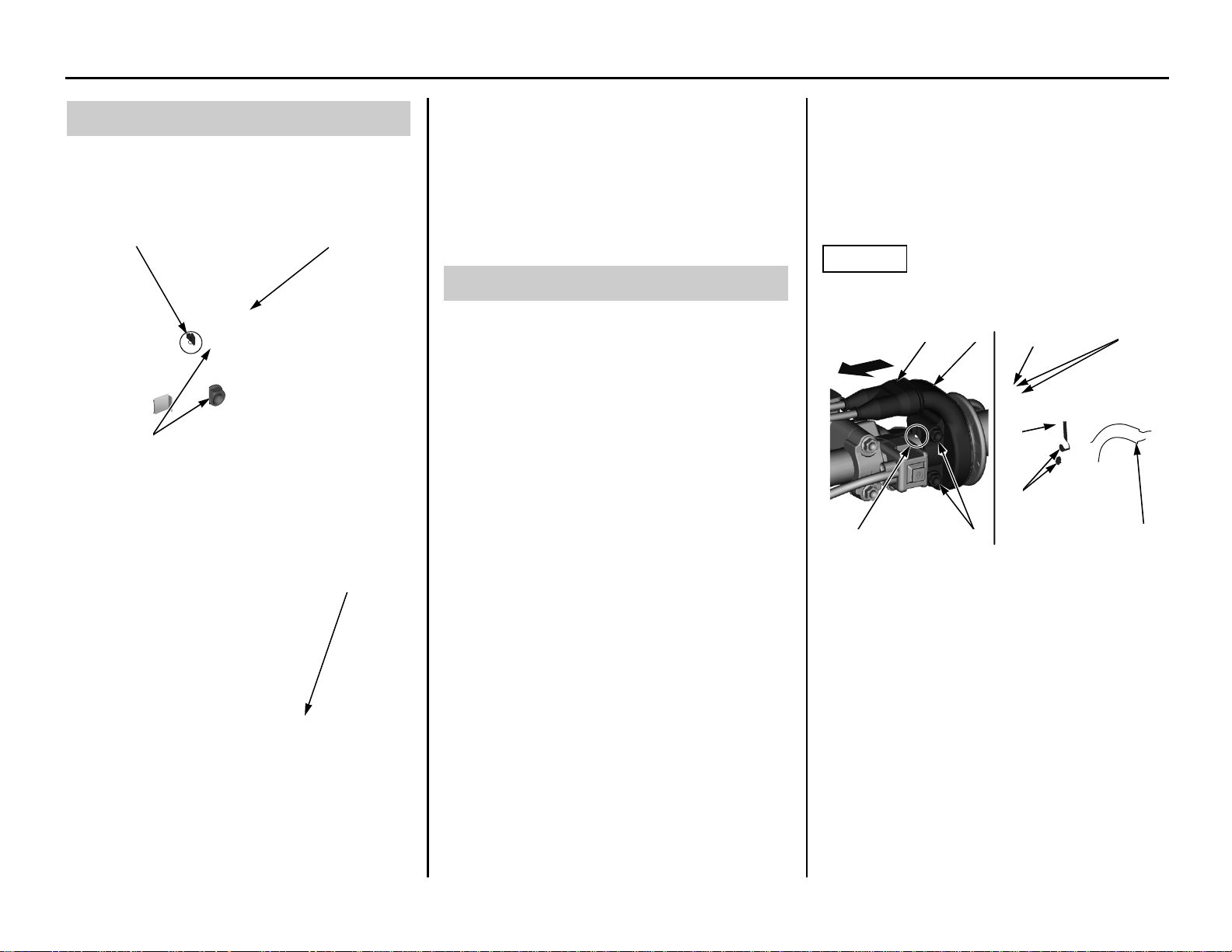

Throttle Cable Lubrication
(1) dust cover (5) throttle cable ends
(2) housing bolts (6) paint mark
(3) throttle housing (7) lugs
(4) throttle pipe (8) grooves
(1) (3)
(7)(8)
(4)
(5)
(8)
(2)(6)
CRF250R_31K95600.book 60 ページ ２０１７年８月８日 火曜日 午後８時２６分
Engine Idle Speed
Servicing Your Honda 61
Engine Idle Speed
Refer to Important Safety Precautions on page 23.
Remember, idle speed adjustment is not a “cure
-
all” for other problems in your engine’s PGM-FI
system. Adjusting the idle speed will not
compensate for a fault elsewhere.
The engine must be at normal operating
temperature for accurate idle speed adjustment.
When pushed in, the fast idle knob acts as the idle
adjustment screw.
Turning it counterclockwise results in a faster/
higher idle speed.
Turning it clockwise results in a slower/lower idle
speed.
1. If the engine is cold, start it and warm it up 3
minutes. Then shut it off.
2. Connect a tachometer to the engine.
3. Shift the transmission into neutral. Start the
engine.
4. Adjust idle speed with the fast idle knob (1).
Idle speed: 2,000 ± 100 rpm
Idle Speed Adjustment
(1) fast idle knob
(+) increase
(–) decrease
(–)
(+)
(1)
CRF250R_31K95600.book 61 ページ ２０１７年８月８日 火曜日 午後８時２６分
Clutch System
62 Servicing Your Honda
Clutch System
Refer to Important Safety Precautions on page 23.
Inspection
Check freeplay (1).
Freeplay: 3/8 – 13/16 in (10 – 20 mm)
If necessary, adjust to the specified range.
Improper freeplay adjustment can cause premature
clutch wear.
Make sure to adjust the clutch lever freeplay after
the clutch cable is disconnected.
Cable End Adjustment
Minor adjustments are generally made with the
clutch cable end adjuster.
Turning the clutch cable end adjuster (1) in
direction (+) will increase freeplay and turning it in
direction (–) will decrease freeplay.
If the adjuster is threaded out near its limit or the
correct freeplay cannot be reached, turn the
adjuster all the way in and back out five turns and
make the adjustment with the integral cable
adjuster.
Integral Cable Adjustment
The integral cable adjuster is used if the cable end
adjuster is threaded out near its limit — or the
correct freeplay cannot be obtained.
1. Turn the cable end adjuster in direction (+)
until it seats lightly and then turn it out five
turns.
2. Loosen the lock nut (1).
3. Turn the integral cable adjuster (2) to obtain
the specified freeplay.
4. Tighten the lock nut. Check the freeplay.
5. Start the engine, pull the clutch lever in, and
shift into gear. Make sure the engine does not
stall and the motorcycle does not creep.
Gradually release the clutch lever and open the
throttle. Your CRF should move smoothly and
accelerate gradually.
If you can’t get proper adjustment, or the clutch
does not work properly, the cable may be kinked or
worn, or the clutch discs may be worn.
Inspect the clutch discs and plates (page 65).
Clutch Lever Freeplay
(1) freeplay
(1)
(1) clutch cable end adjuster
(+) increase freeplay
(–) decrease freeplay
(1)
(–)
(+)
(1) lock nut (+) increase freeplay
(2) integral cable adjuster (–) decrease freeplay
(1)
(–)
(+)
(2)
CRF250R_31K95600.book 62 ページ ２０１７年８月８日 火曜日 午後８時２６分
Servicing Your Honda 63
Clutch System
• Check that the clutch lever assembly is
positioned properly (the end of the holder (1) is
aligned with the paint mark (2) on the
handlebar) and the securing bolts (3) are tight.
• Check the clutch cable for kinks or signs of
wear. If necessary, have it replaced.
1. Check for smooth clutch lever operation. If
necessary, lubricate the clutch lever pivot bolt
sliding surface with grease and/or clutch cable
with commercially available cable lubricant.
2. Check the clutch cable for deterioration, kinks,
or damage.
Check for smooth clutch lever operation. If
necessary, apply multi-purpose grease to sliding
surface of the clutch cable ends.
1. Release the dust cover (1).
2. Turn the adjuster (2) and remove the clutch
cable (3).
3. Disconnect the clutch cable end (4) from the
clutch lever (5).
4. Thoroughly lubricate the clutch cable end (4)
with multi-purpose grease.
5. Connect the clutch cable end to the lever.
6. Install the clutch cable and turn the adjuster.
7. Remove the clutch cable end adjuster (6).
8. Apply multi-purpose grease to the clutch cable
end adjuster inside surface.
9. Recheck clutch lever freeplay and adjust as
necessary (page 62).
If the clutch lever operation is not smooth, replace
the clutch cable.
Other Inspections
(1) holder (3) bolts
(2) paint mark
Clutch Operation
(1)(2)
(3)
Clutch Cable Lubrication
(1) dust cover (4) clutch cable end
(2) adjuster (5) clutch lever
(3) clutch cable
(1) (2)
(3) (4) (5)
(6) clutch cable end adjuster
(6)
CRF250R_31K95600.book 63 ページ ２０１７年８月８日 火曜日 午後８時２６分
64 Servicing Your Honda
Clutch System
1. Drain the engine oil (page 52).
2. Remove the clutch cover A bolts (1), washer
(2) clutch cover B bolts (3) and clutch cover
(4).
3. Remove the five clutch spring bolts and
springs (5).
Loosen the bolts in a crisscross pattern in two or
three progressive steps.
4. Remove the clutch pressure plate (6).
5. Check the operation of the bearing (7) with
your finger. The bearing should turn smoothly
and quietly.
If the operation is not smooth, refer to an official
Honda Service Manual (page 166) for bearing
disassembly or see your dealer.
6. Remove the clutch lifter (8) first, then remove
the clutch lifter rod (9).
7. Remove the eight clutch discs, seven clutch
plates, judder spring and spring seat (10).
Clutch Disc/Plate Removal
(1) clutch cover A bolts (3) clutch cover B bolts
(2) washer (4) clutch cover
(2)
(3)(4)
(1)
(5) clutch spring bolts and springs
(6) clutch pressure plate
(7) bearing
(6)
(5)
(7)
(8) clutch lifter (9) clutch lifter rod
(10) clutch discs, clutch plates, judder spring and spring
seat
(9)
(8)
(10)
CRF250R_31K95600.book 64 ページ ２０１７年８月８日 火曜日 午後８時２６分

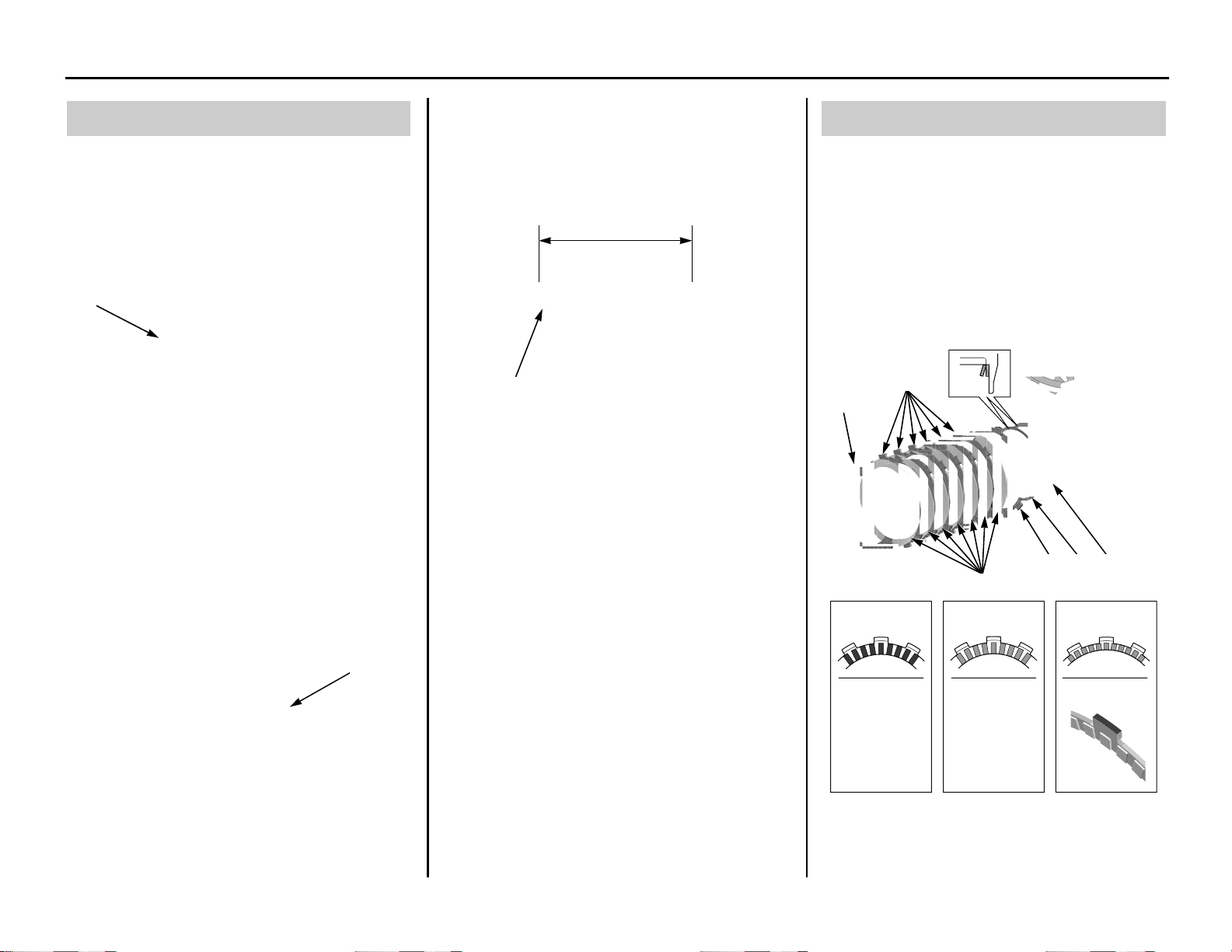

Clutch System
(cont’d)
Servicing Your Honda 65
• Replace the clutch discs (1) if they show signs of
scoring or discoloration.
Measure the thickness of each clutch disc.
Service Limit: 0.112 in (2.85 mm)
Replace the clutch discs and clutch plates as a
set.
• Check the clutch plates (2) for excessive
warpage or discoloration.
Check the plate warpage on a surface plate using
a feeler gauge.
Service Limit: 0.004 in (0.10 mm)
Replace the clutch discs and plates as a set.
• Check the clutch springs (3) for wear or damage.
Measure the free length of each clutch spring.
Service Limit: 1.967 in (49.96 mm)
Replace the clutch springs as a set.
• If you feel the clutch slippage when replacing the
clutch discs and plates, replace the clutch
springs.
1. Install the spring seat (1) and judder spring (2)
onto the clutch center as shown.
Coat the clutch discs with engine oil.
2. Install the clutch disc A (larger I.D. disc and
green painted to the clutch disc lug surface) (3)
onto the clutch outer.
Stack the seven clutch plates (4), six clutch
discs B (5) alternately as shown.
Install the clutch disc C (6) (black painted to
the clutch disc lug surface).
Clutch Disc/Plate/Spring Inspection
(1) clutch disc
(2) clutch plate
(1)
(2)
(3) clutch spring
(3)
Clutch Disc/Plate Installation
(1) spring seat (4) clutch plates
(2) judder spring (5) clutch discs B
(3) clutch disc A (6) clutch disc C
(6)
paint: black
paint: none
disc A
(3) (2) (1)
(5)
(4)
disc Bdisc C
paint: green
(6) (5) (3)
CRF250R_31K95600.book 65 ページ ２０１７年８月８日 火曜日 午後８時２６分
66 Servicing Your Honda
Clutch System
3. Insert the clutch lifter rod (7) into the
mainshaft.
4. Apply engine oil to the clutch lifter (8), install
the clutch lifter onto the clutch lifter rod.
5. Install the clutch pressure plate (9).
6. Install the five clutch springs and bolts (10).
7. Tighten the bolts in a crisscross pattern in two
or three steps to the specified torque:
9 lbf·ft (12 N·m, 1.2 kgf·m)
8. Apply engine oil to a new O-ring (11) and
install it in the groove of the clutch cover (12).
9. Install the cover by tightening a new washer
(13), four clutch cover A bolts (14) and two
clutch cover B bolts (15) in a crisscross pattern
in two or three steps to the specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
10. Fill the crankcase with the recommended
engine oil. (page 52).
(7) clutch lifter rod (8) clutch lifter
(9) clutch pressure plate
(10) clutch springs and bolts
(7)
(8)
(9)
(10)
(11) O-ring (new)
(12) clutch cover
(13) washer (new)
(14) clutch cover A bolts
(15) clutch cover B bolts
(11)
(12)
(14)
(13)
(15)
CRF250R_31K95600.book 66 ページ ２０１７年８月８日 火曜日 午後８時２６分
Spark Plug
Servicing Your Honda 67
Spark Plug
Refer to Important Safety Precautions on page 23.
The recommended standard spark plug is
satisfactory for most racing conditions.
Use only the recommended type of spark plugs in
the recommended heat range.
NOTICE
Using a spark plug with an improper heat range or
incorrect reach can cause engine damage.
Using a non-resistor spark plug may cause
ignition problems.
This motorcycle uses a spark plug that has an
iridium tip in the center electrode and a platinum
tip in the side electrode.
Be sure to observe the following when servicing
the spark plug.
• Do not clean the spark plug. If an electrode is
contaminated with accumulated objects or dirt,
replace the spark plug with a new one.
• To check the spark plug gap, use only a “wire-
type feeler gauge.” To prevent damaging the
iridium tip of the center electrode and platinum
tip of the side electrode, never use a “leaf-type
feeler gauge.”
• Do not adjust the spark plug gap. If the gap is out
of specification, replace the spark plug with a
new one.
1. Remove the seat and hang the fuel tank to the
left of the frame (pages 33, 34).
2. Disconnect the spark plug cap (1).
3. Clean any dirt from around the spark plug
base.
4. Remove the spark plug (2).
5. Check the electrodes for wear or deposits, the
sealing gasket (3) for damage, and the insulator
for cracks. Replace if you detect them.
6. Check the spark plug gap (4), using a wire-type
feeler gauge. If the gap is out of specifications,
replace the plug with a new one.
The recommended spark plug gap is:
0.024 – 0.028 in (0.60 – 0.70 mm)
7. To obtain accurate spark plug readings,
accelerate up to speed on a straightaway.
Press and hold the engine stop button and
disengage the clutch by pulling the lever in.
Coast to a stop, then remove and inspect the
spark plug. The porcelain insulator around the
center electrode should appear tan or medium
gray.
If you’re using a new plug, ride for at least 10
minutes before taking a plug reading; a brand-new
plug will not color initially.
If the electrodes appear burnt, or the insulator is
white or light gray (lean) or the electrodes and
insulator are black or fouled (rich), there is a
problem elsewhere (page 138).
Check the PGM-FI system and ignition timing.
8. With the sealing gasket attached, thread the
spark plug in by hand to prevent cross-
threading.
9. Tighten the spark plug.
• If the old plug is good:
1/8 turn after it seats.
• If installing a new plug, tighten it twice to
prevent loosening:
a) First, tighten the plug:
1/2 turn after it seats.
b) Then loosen the plug.
c) Next, tighten the plug again:
1/8 turn after it seats.
NOTICE
An improperly tightened spark plug can damage
the engine. If a plug is too loose, the piston may be
damaged. If a plug is too tight, the threads may be
damaged.
10. Connect the spark plug cap. Take care to avoid
pinching any cables or wires.
11. Install the fuel tank and seat (pages 33, 35).
Spark Plug Recommendation
Standard R0451B-8 (NGK)
Spark Plug Inspection & Replacement
(1) spark plug cap (2) spark plug
(3) sealing gasket
(4) spark plug gap
(1)
(2)
(4)
(3)
CRF250R_31K95600.book 67 ページ ２０１７年８月８日 火曜日 午後８時２６分
Valve Clearance
68 Servicing Your Honda
Valve Clearance
Refer to Important Safety Precautions on page 23.
Excessive valve clearance will cause noise and
eventual engine damage. Little or no clearance will
prevent the valve from closing and cause valve
damage and power loss. Check valve clearance
when the engine is cold at the intervals specified in
the Maintenance Schedule (page 25).
The checking or adjusting of the valve clearance
should be performed while the engine is cold.
The valve clearance will change as engine
temperature rises.
Before inspection, clean the engine thoroughly to
keep dirt from entering the engine.
1. Remove the seat and hang the fuel tank to the
left of the frame (pages 33, 34).
2. Disconnect the breather tube (1) and spark
plug cap (2).
3. Disconnect the ignition coil A connector (3)
and B connector (4).
Remove the ignition coil (5) by removing the
ignition coil bolts (6).
4. Remove the cylinder head cover socket bolts,
rubber seals (7), cylinder head cover packing
(8) and cylinder head cover (9).
Cylinder Head Cover Removal
(1) breather tube (2) spark plug cap
(2)
(1)
(3) ignition coil A connector (5) ignition coil
(4) ignition coil B connector (6) ignition coil bolts
(7) cylinder head cover socket bolts, rubber seals
(8) cylinder head cover packing
(9) cylinder head cover
(3)
(6)
(4)
(5)
(9)
(7)
(8)
CRF250R_31K95600.book 68 ページ ２０１７年８月８日 火曜日 午後８時２６分

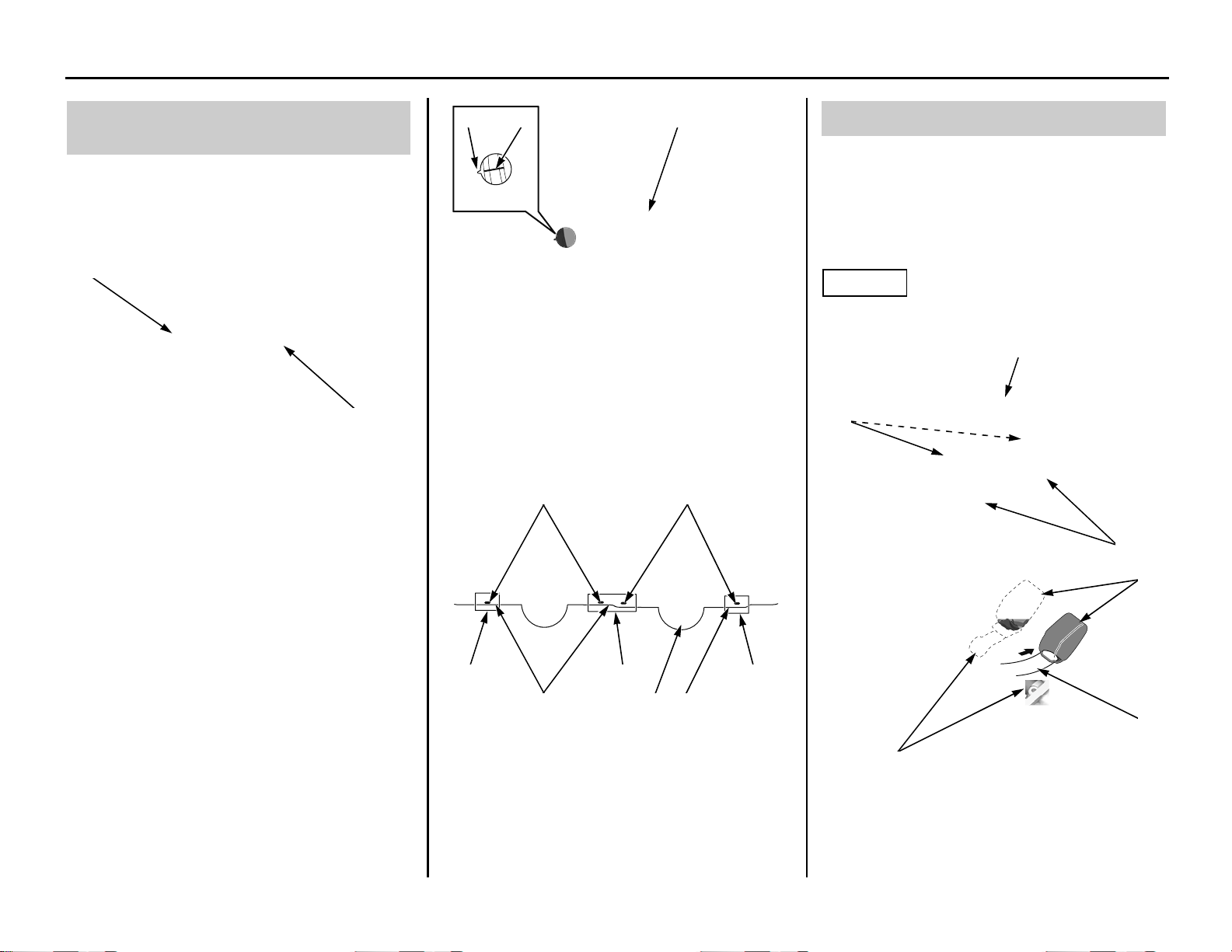

Valve Clearance
(cont’d)
Servicing Your Honda 69
1. Remove the timing hole cap (1) and crankshaft
hole cap (2).
2. Remove the spark plug (page 67).
3. Remove the cylinder head cover (page 68).
4. Rotate the crankshaft by turning the flywheel
(3) counterclockwise until the matching mark
(4) on the flywheel aligns with the index mark
(5) on the left crankcase cover. In this position,
the piston may either be on the compression or
exhaust stroke at TDC.
If the crankshaft passed the matching mark,
rotate the flywheel counterclockwise again and
align the matching mark with the index mark.
5. Make sure that the decompressor weight (6) is
in the lower position.
Check the timing marks (7) on each cam
sprocket are aligned with the cylinder head
mating surface (8).
1. Set the piston at TDC on the compression
stroke (this page).
2. Measure the valve clearances of each intake
valve by inserting a feeler gauge (1) between
the intake rocker arms (2) slipper surface and
camshaft cam lobes (3).
NOTICE
Be careful not to damage the intake rocker arms.
Valve Clearance:
Positioning At TDC On The
Compression Stroke
(1) timing hole cap (2) crankshaft hole cap
(2)
(1)
(3) flywheel (5) index mark
(4) matching mark
(6) decompressor weight
(7) timing marks
(8) cylinder head mating surface
(5)
(4)
(3)
(7)(7)
(8)
Align
(8)
Align Align
(6)

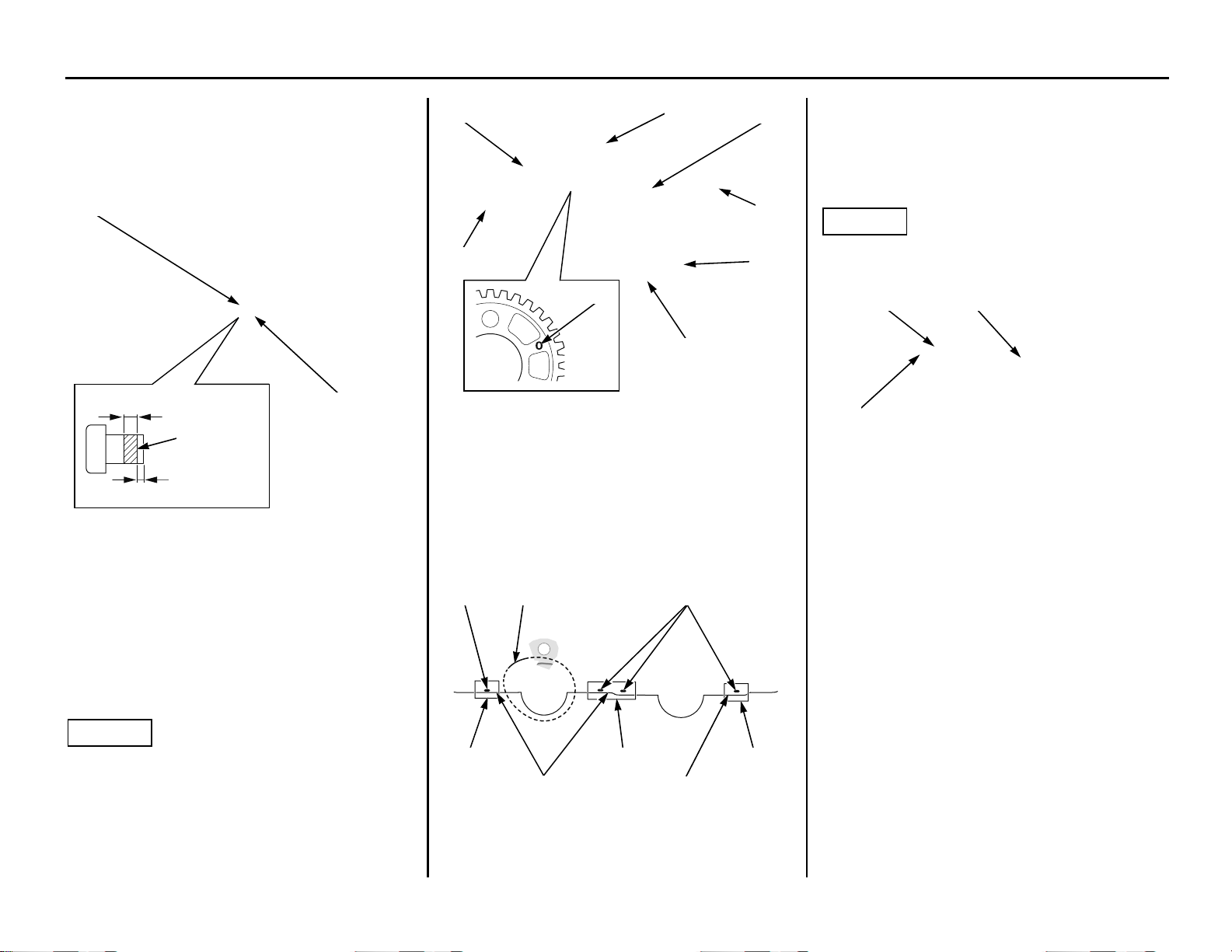

Valve Clearance Inspection
(1) feeler gauge (3) camshaft cam lobes
(2) intake rocker arms
IN: 0.004 ± 0.001 in (0.11 ± 0.03 mm)
(1)
(2)
(3)
(3)
(1)
(2)
CRF250R_31K95600.book 69 ページ ２０１７年８月８日 火曜日 午後８時２６分
70 Servicing Your Honda
Valve Clearance
3. Measure the valve clearances of each exhaust
valve by inserting a feeler gauge (1) between
the exhaust rocker arms (4) slipper surface and
camshaft cam lobes (3).
NOTICE
Be careful not to damage the exhaust rocker arms.
Valve Clearance:
If intake valve clearance and exhaust valve
clearance need adjustment, see Camshaft Removal
(this page) and select the correct shim for each
valve.
1. Remove the cam chain guide bolts (1) and cam
chain guide (2).
NOTICE
Do not let the cam chain guide bolts fall into the
crankcase.
2. Rotate the crankshaft by turning the flywheel
(3) counterclockwise until the decompressor
weight (4) faces up as illustrated below.
3. Remove the cam sprocket bolt (5) of the intake
camshaft.
NOTICE
Do not let the cam sprocket bolt fall into the
crankcase.
4. Rotate the camshaft by turning the flywheel
and make sure the piston is at TDC on the
compression stroke (page 69).
5. Remove the cam chain tensioner lifter cover
bolt (6) and sealing washer (7).
(1) feeler gauge (4) exhaust rocker arms
(3) camshaft cam lobes
EX: 0.007 ± 0.001 in (0.19 ± 0.03 mm)
(1)
(4)
(3)
(3)
(1)(4)
Camshaft Removal
(1) cam chain guide bolts (2) cam chain guide
(3) flywheel (4) decompressor weight
(1)
(2)
(4)
(3)
(5) cam sprocket bolt
(6) cam chain tensioner lifter cover bolt
(7) sealing washer
(5)
(6)
(7)
CRF250R_31K95600.book 70 ページ ２０１７年８月８日 火曜日 午後８時２６分
Valve Clearance
(cont’d)
Servicing Your Honda 71
6. Insert the tensioner stopper (8) into the cam
chain tensioner lifter (9).
Turn the tensioner stopper clockwise and lock
the cam chain tensioner lifter by pushing the
handle (10) to the cam chain tensioner lifter.
• Tensioner stopper 07AMG-001A100
7. Loosen the camshaft holder A bolts (11) and B
bolts (12) in a crisscross pattern in two or three
steps.
Remove the camshaft holder A bolts, B bolts,
washers (13), rocker arm shaft stopper bolt
(14) and camshaft holder (15).
NOTICE
Do not let the camshaft holder bolts washer and
rocker arm shaft stopper bolt fall into the
crankcase.
8. Remove the cam sprocket bolt (5) of the intake
camshaft.
NOTICE
Do not let the cam sprocket bolt fall into the
crankcase.
9. Remove the intake camshaft (16) from the
intake cam sprocket (17).
Remove the intake cam sprocket and exhaust
camshaft (18) by removing the cam chain (19).
Suspend the cam chain with a piece of wire to
prevent the chain from falling into the crankcase.
NOTICE
Do not let the cam chain and intake cam sprocket
fall into the crankcase.
(8) tensioner stopper
(9) cam chain tensioner lifter
(10) handle
(10)
(9)
(8)

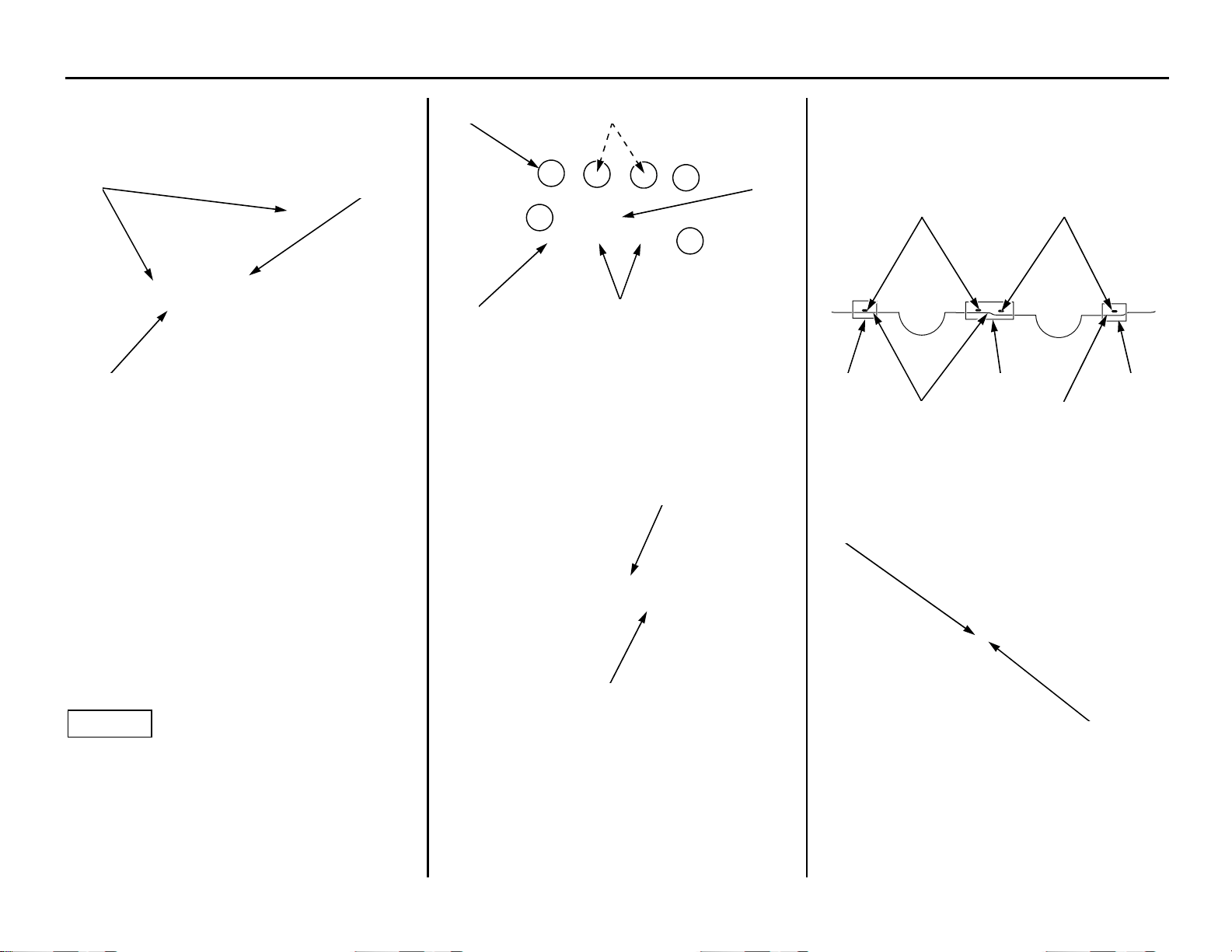

(11) camshaft holder A bolts
(12) camshaft holder B bolts
(13) washers
(14) rocker arm shaft stopper bolt
(15) camshaft holder
(15)
(14)
(11) (13)
(12)
(5) cam sprocket bolt
(16) intake camshaft
(17) intake cam sprocket
(18) exhaust camshaft
(19) cam chain
(5)
(18)
(16)
(19)
(17)
CRF250R_31K95600.book 71 ページ ２０１７年８月８日 火曜日 午後８時２６分
72 Servicing Your Honda
Valve Clearance
10. Lift the rocker arms (20) up and remove the
shims (21).
Record the original position of each shim.
NOTICE
Be careful not to damage the rocker arms.
Do not clean the rocker arms using a
commercially available compound cleaner.
1. Measure the shim thickness with a micrometer
and record it.
Seventy-three different shims (1) are available
in 0.025 mm thickness intervals, from 1.200
mm (the thinnest) to 3.000 mm (the thickest).
2. Calculate the new shim thickness using the
equation below.
A = (B – C) + D
A: New shim thickness
B: Recorded valve clearance
C: Specified valve clearance
D: Old shim thickness
• Make sure of the correct shim thickness by
measuring the shim with a micrometer.
• Reface the exhaust valve seat if carbon deposits
result in a calculated dimension of over 3.000
mm.
NOTICE
Do not lap the valves. They are titanium and have
a thin oxide coating. Lapping will damage this
coating.
If required shim size is outside the available range,
have your motorcycle inspected by your dealer.
(20) rocker arms
(21) shims
(20)
(21)
(20)
(21)
Shim Selection
(1) shim
(1)
1.80 mm 1.825 mm 1.85 mm
1.875 mm
CRF250R_31K95600.book 72 ページ ２０１７年８月８日 火曜日 午後８時２６分
Valve Clearance
(cont’d)
Servicing Your Honda 73
1. Lift the rocker arms (1) up and install the
newly selected valve shims (2) on the valve
spring retainers (3).
NOTICE
Do not let the valve shims fall into the crankcase.
2. Check the operation of the plunger (4) by
moving the decompressor weight (5) of the
exhaust camshaft (6) with your finger. The
plunger should be retracted and protruded
smoothly.
If the operation is not smooth, refer to an official
Honda Service Manual (page 166) for
decompressor disassembly or see your dealer.
3. Make sure the piston is at TDC on the
compression stroke (page 69).
4. Apply molybdenum disulfide oil (a mixture of
1/2 engine oil and 1/2 molybdenum disulfide
grease containing more than 3% molybdenum
disulfide additive Moly Paste 77) to the
following parts.
– camshaft cam lobes (7)
– journal surfaces (8)
– decompressor weight (5)
–plunger (4)
5. Remove the sealing bolt (9) and sealing washer
(10).
6. Insert the rocker arm shaft stopper bolt (11)
aligning the cut-out of the rocker arm shaft
(12) with the rocker arm shaft stopper bolt by
rotating a suitable 4 mm bolt (13).
NOTICE
Do not let the rocker arm shaft stopper bolt fall
into the crankcase.
Camshaft Installation
(1) rocker arms (3) valve spring retainers
(2) valve shims
(4) plunger (6) exhaust camshaft
(5) decompressor weight
(1)
(1)
(2)
(3) (1)
(3)
(2)
(1)
(3)
(5)
(6)
(4)
(4) plunger
(5) decompressor weight
(7) camshaft cam lobes
(8) journal surfaces
(5)
(7)
(8)
(8)
(8)
(7)
(4)
(9) sealing bolt
(10) sealing washer
(11) rocker arm shaft stopper bolt
(12) rocker arm shaft
(13) 4 mm bolt
(10)
(9)
(11)
(13)
(12)
CRF250R_31K95600.book 73 ページ ２０１７年８月８日 火曜日 午後８時２６分
74 Servicing Your Honda
Valve Clearance
7. Clean the threads of the sealing bolt (9).
Apply locking agent to the bolt threads.
Install a new sealing washer (14) and tighten
sealing bolt to the specified torque:
13 lbf·ft (18 N·m, 1.8 kgf·m)
8. Install the exhaust camshaft (6) onto the
cylinder head (15) with the decompressor
weight (5) facing down as illustrated below .
9. Install the cam chain (16) to the intake (17) and
exhaust (18) cam sprockets while the “O”
mark (19) of the intake cam sprocket is facing
outside as shown.
NOTICE
Do not let the cam chain and intake cam sprocket
fall into the crankcase.
10. Insert the intake camshaft (20) into the intake
cam sprocket (17).
11. Make sure that the timing marks (21) on the
cam sprockets align with the cylinder head
mating surface (22).
Make sure that the intake camshaft cam lobe
(7) is in position as shown.
12. Clean the threads of the cam sprocket bolt (23)
and intake cam sprocket (17) thoroughly.
Install and temporarily tighten the cam
sprocket bolt.
13. Remove the rocker arm shaft stopper bolt (11).
NOTICE
Do not let the cam sprocket bolt and rocker arm
shaft stopper bolt fall into the crankcase.
(9) sealing bolt
(14) sealing washer (new)
(14)
(9)
0.18 ± 0.03 in (4.5 ± 1.0 mm)
0.03 - 0.12 in (1.0 - 3.0 mm)
locking agent
(5) decompressor weight (17) intake cam sprocket
(6) exhaust camshaft (18) exhaust cam sprocket
(15) cylinder head (19) “O” mark
(16) cam chain (20) intake camshaft
(7) camshaft cam lobe
(21) timing marks
(22) cylinder head mating surface
(5)
(18)
(6)
(16)
(20)
(17)
(15)
(19)
(21)
(22)
Align
(22)
Align Align
(21)(7)
(11) rocker arm shaft stopper bolt
(17) intake cam sprocket
(23) cam sprocket bolt
(17)
(23) (11)
CRF250R_31K95600.book 74 ページ ２０１７年８月８日 火曜日 午後８時２６分
Valve Clearance
(cont’d)
Servicing Your Honda 75
14. Make sure that the dowel pins (24) are installed
into the camshaft holder (25).
Coat a new O-ring (26) with engine oil and
install it onto the camshaft holder.
15. Apply engine oil to the camshaft holder A bolts
(27) and B bolts (28) threads and seating
surfaces.
Install the camshaft holder (25).
Install a new washers (29), the camshaft holder
A bolts and B bolts, and tighten the camshaft
holder A bolts and B bolts to the specified
torque:
10 lbf·ft (13 N·m, 1.3 kgf·m)
Install and tighten the rocker arm shaft stopper
bolt (11) to the specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
NOTICE
Do not let the camshaft holder A bolts, B bolts,
washers and rocker arm shaft stopper bolt fall into
the crankcase.
16. Remove the tensioner stopper (30) from the
cam chain tensioner lifter (31).
• Tensioner stopper 07AMG-001A100
17. Make sure that the piston is at TDC on the
compression stroke (page 69).
Check that the timing marks (21) on the cam
sprockets aligns with the cylinder head mating
surface (22).
18. Install a new sealing washer (32) and the cam
chain tensioner lifter cover bolt (33) securely.
(24) dowel pins
(25) camshaft holder
(26) O-ring (new)
(24)
(26)
(25)
(11) rocker arm shaft stopper bolt
(25) camshaft holder
(27) camshaft holder A bolts
(28) camshaft holder B bolts
(29) washers (new)
(30) tensioner stopper
(31) cam chain tensioner lifter
(25)
(11)
(27) (29)
(28)
(30)
(31)
(21) timing marks
(22) cylinder head mating surface
(32) sealing washer (new)
(33) cam chain tensioner lifter cover bolt
(21)(21)
(22)
Align
(22)
Align Align
(33)
(32)
CRF250R_31K95600.book 75 ページ ２０１７年８月８日 火曜日 午後８時２６分
76 Servicing Your Honda
Valve Clearance
19. Remove the cam sprocket bolt (23).
Apply locking agent to the bolt threads.
Install the cam sprocket bolt to the intake cam
sprocket (17), and tighten the cam sprocket
bolt to the specified torque:
15 lbf·ft (20 N·m, 2.0 kgf·m)
NOTICE
Do not let the cam sprocket bolt fall into the
crankcase.
20. Rotate the crankshaft by turning the flywheel
(34) counterclockwise until the decompressor
weight (5) faces up as illustrated below.
21. Clean the threads of the cam sprocket bolt (23)
and intake cam sprocket (17) thoroughly.
Apply locking agent to the bolt threads.
Install and tighten the cam sprocket bolt to the
specified torque:
15 lbf·ft (20 N·m, 2.0 kgf·m)
NOTICE
Do not let the cam sprocket bolt fall into the
crankcase.
22. Install the cam chain guide (35) with the “ ”
mark (36) facing forward.
Install and tighten the cam chain guide bolts
(37) to the specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
NOTICE
Do not let the cam chain guide bolts fall into the
crankcase.
23. Rotate the camshaft by rotating the flywheel
counterclockwise several times.
24. Measure the intake and exhaust valve
clearances (page 69).
(17) intake cam sprocket (23) cam sprocket bolt
(5) decompressor weight (34) flywheel
(23)
0.14 ± 0.03 in (3.5 ± 1.0 mm)
0.02 - 0.06 in (0.5 - 1.5 mm)
locking agent
(17)
(5)(34)
(17) intake cam sprocket
(23) cam sprocket bolt
(23)
0.14 ± 0.03 in (3.5 ± 1.0 mm)
0.02 - 0.06 in (0.5 - 1.5 mm)
(17)
locking agent
(35) cam chain guide (37) cam chain guide bolts
(36) “ ” mark
(35)
(36)
(37)
CRF250R_31K95600.book 76 ページ ２０１７年８月８日 火曜日 午後８時２６分
Valve Clearance
(cont’d)
Servicing Your Honda 77
1. Coat a new O-rings (1) with engine oil and
install them onto the crankshaft hole cap (2)
and timing hole cap (3).
Apply grease to the crankshaft hole cap and
timing hole cap threads. Install and tighten the
crankshaft hole cap to the specified torque:
11 lbf·ft (15 N·m, 1.5 kgf·m)
Install and tighten the timing hole cap to the
specified torque:
4.4 lbf·ft (6.0 N·m, 0.6 kgf·m)
1. Apply liquid sealant (TB1207B or equivalent)
to the cylinder head semi-circular cut-outs (1)
as shown after cleaning these area.
2. Apply liquid sealant (TB5211B or equivalent)
to the cylinder head cover groove (2) as shown
after degreasing the groove, and install the
cylinder head cover packing (3) into it.
Crankshaft/Timing Hole Cap
Installation
(1) O-rings (new) (3) timing hole cap
(2) crankshaft hole cap
(1)
(2)
(3)
Cylinder Head Cover Installation
(1) cylinder head semi-circular cut-outs
(1)(1)
(2) cylinder head cover groove
(3) cylinder head cover packing
(3)
(2)
CRF250R_31K95600.book 77 ページ ２０１７年８月８日 火曜日 午後８時２６分
78 Servicing Your Honda
Valve Clearance
3. Check that the rubber seals (4) are in good
condition, replace them if necessary.
Install the rubber seals onto the cylinder head
cover with the “UP” marks (5) facing up.
4. Install the cylinder head cover (6) and tighten
the cylinder head cover socket bolts (7) with
the rubber seals (4) to the specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
5. Install the ignition coil (8) and tighten the
ignition coil bolts (9) to the specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
Connect the ignition coil A connector (10) to
the blue terminal (11).
Connect the ignition coil B connector (12) to
the black terminal (13).
6. Install the spark plug (page 67).
7. Connect the spark plug cap (14) and breather
tube (15).
8. Install the fuel tank and seat (page 33, 35).
(4) rubber seals
(5) “UP” marks
(4) rubber seals
(6) cylinder head cover
(7) cylinder head cover socket bolts
(4)
(5)
(5)
(4)
(6)
(7)
(8) ignition coil
(9) ignition coil bolts
(10) ignition coil A connector
(11) blue terminal
(12) ignition coil B connector
(13) black terminal
(10)
(9)
(12)
(8)(11)
(9) (13)
(14) spark plug cap
(15) breather tube
(14)
(15)
CRF250R_31K95600.book 78 ページ ２０１７年８月８日 火曜日 午後８時２６分
Piston/Piston Rings/Piston Pin
(cont’d)
Servicing Your Honda 79
Piston/Piston Rings/Piston Pin
Refer to Important Safety Precautions on page 23.
1. Clean the area above the engine before
disassembly to prevent dirt falling into the
engine.
2. Drain the radiator coolant after cooling the
motorcycle (page 145).
3. Remove the seat and hang the fuel tank (pages
33, 34).
4. Remove the left and right mufflers (page 115).
5. Remove the left and right exhaust pipes
(page 118).
6. Remove the subframe (page 37).
7. Remove the spark plug (page 67).
8. Remove the cylinder head cover (page 68).
9. Set the piston at TDC on the compression
stroke (page 69).
10. Remove the cam chain guide, camshaft holder,
intake cam sprocket, camshafts and shims
(page 70).
11. Disconnect the ECT sensor connector (1).
12. Pull the harness band clip (2) while pressing
both side of the anchor and disconnect it.
13. Loosen the left radiator hose clamp screw (3)
and disconnect the left radiator hose (4).
14. Loosen the right radiator hose clamp screw (5)
and disconnect the right radiator hose (6).
15. Loosen the insulator band screw (7) and pull
the throttle body (8) out from the insulator (9).
Do not hang the throttle body. Support it with a
suitable strap.
Cylinder Head Removal
(1) ECT sensor connector
(2) harness band clip
(3) left radiator hose clamp screw
(4) left radiator hose
(5) right radiator hose clamp screw
(6) right radiator hose
(1)
(4)
(3)
(2)
(6)
(5)
(7) insulator band screw
(8) throttle body
(9) insulator
(7)
(8)
(9)
CRF250R_31K95600.book 79 ページ ２０１７年８月８日 火曜日 午後８時２６分
80 Servicing Your Honda
Piston/Piston Rings/Piston Pin
16. Remove the cylinder head hanger bolts (10).
Remove the cylinder head hanger plate bolts
(11), left cylinder head hanger plate (12) and
right cylinder head hanger plate (13).
17. Remove the cylinder head A bolts (14).
18. Loosen the cylinder bolt (15).
19. Remove the cylinder head B bolts (16),
washers (17) and the cylinder head (18).
Loosen the bolts in a crisscross pattern in two or
three steps.
NOTICE
Do not let the washers and cam chain fall into the
crankcase.
20. Remove the dowel pins (19) and cylinder head
gasket (20).
NOTICE
Do not let the dowel pins and cam chain fall into
the crankcase.
(10) cylinder head hanger bolts
(11) cylinder head hanger plate bolts
(12) left cylinder head hanger plate
(13) right cylinder head hanger plate
Left side:
(11)
(12)(10)
Right side:
(11)
(10)
(13)
(14) cylinder head A bolts
(15) cylinder bolt
(16) cylinder head B bolts
(17) washers
(18) cylinder head
(14)
(15)
(16) (17)
(18)
(19) dowel pins
(20) cylinder head gasket
(19)
(20)
CRF250R_31K95600.book 80 ページ ２０１７年８月８日 火曜日 午後８時２６分
Servicing Your Honda 81
Piston/Piston Rings/Piston Pin
1. Remove the cylinder bolt (1) and sealing
washer (2).
2. Remove the cylinder (3) while holding the
piston (4)
NOTICE
Do not let the cam chain fall into the crankcase.
Do not pry on or strike the cylinder.
3. Remove the dowel pins (5) and cylinder gasket
(6).
NOTICE
Do not let the cam chain and dowel pins fall into
the crankcase.
Cylinder Removal
(1) cylinder bolt (2) sealing washer
(2)
(1)
(3) cylinder (4) piston
(4)
(3)
(5) dowel pins (6) cylinder gasket
(6)
(5)
CRF250R_31K95600.book 81 ページ ２０１７年８月８日 火曜日 午後８時２６分
82 Servicing Your Honda
Piston/Piston Rings/Piston Pin
1. Place a clean shop towel (1) in the crankcase to
keep the piston pin clips, or other parts, from
falling into the crankcase.
2. Remove the piston pin clips (2) using a pair of
needle-nose pliers.
3. Press the piston pin (3) out of the piston (4),
and remove the piston.
Under racing conditions, the piston, rings and
piston pin should be replaced every 6 races or
about every 15.0 hours of running.
NOTICE
Be careful not to damage or give a shock to the
piston pin.
Do not clean the piston pin using a commercially
available compound cleaner.
Spread each piston ring (1) and remove by lifting it
up at a point just opposite the gap.
NOTICE
Do not damage the piston ring by spreading the
ends too far.
We recommend you consult an official Honda
Service Manual or your dealer for correct Service
Limit measurements.
Piston Removal
(1) shop towel (3) piston pin
(2) piston pin clips (4) piston
(3)
(1)
(4)
(2)
Piston Ring Removal
(1) piston ring
(1)
Piston/Piston Pin/Piston Ring Inspection
CRF250R_31K95600.book 82 ページ ２０１７年８月８日 火曜日 午後８時２６分
Piston/Piston Rings/Piston Pin
(cont’d)
Servicing Your Honda 83
1. Remove the carbon deposits from the piston
head and piston ring grooves.
NOTICE
Do not damage the piston when removing the
carbon deposit.
2. Apply engine oil to each piston ring whole
surface.
3. Install the spacer (1) first, then install the side
rails (2) to the piston (3).
4. Install the top ring (4) to the piston with “T”
mark (5) side facing up.
NOTICE
Do not damage the piston ring by spreading the
ends too far.
Do not damage the piston during piston ring
installation.
5. After installing the piston rings they should
rotate freely, without sticking.
Space the ring end gaps 180 degrees apart
between top ring and upper side rail.
Space the ring end gaps 90 degrees apart
between upper side rail, spacer and lower side
rail.
1. Place a clean shop towel (1) over the crankcase
opening to keep the piston pin clips from
falling into the crankcase.
2. Apply molybdenum disulfide oil (a mixture of
1/2 engine oil and 1/2 molybdenum disulfide
grease containing more than 3% molybdenum
disulfide additive Moly Paste 77) to the
connecting rod small end (2) inner surface.
Piston Ring Installation
(1) spacer (4) top ring
(2) side rails (5) “T” mark
(3) piston
(4)
(2)
(1)
(2)
(5)
(4)
(2)
(1)
(2)
(3)
Piston Installation
(1) shop towel
(2) connecting rod small end
(1)
(2)
CRF250R_31K95600.book 83 ページ ２０１７年８月８日 火曜日 午後８時２６分
84 Servicing Your Honda
Piston/Piston Rings/Piston Pin
3. Install the piston (3) with the “○” mark (4) and/
or the large valve recesses (5) facing the intake
side of the engine.
Apply molybdenum disulfide oil (a mixture of
1/2 engine oil and 1/2 molybdenum disulfide
grease containing more than 3% molybdenum
disulfide additive Moly Paste 77) to the piston
pin (6) outer surface. Apply engine oil to the
piston pin hole inner surface. Install the piston
pin and new piston pin clips (7).
NOTICE
Be careful not to damage or give a shock to the
piston pin.
Use new pin clips. Never reuse old clips.
Do not let the clips fall into the crankcase.
Do not align the piston pin clip end gap with the
piston cutout (8).
1. Clean the cylinder mating surfaces (1) of the
crankcase, being careful not to let any material
fall into the crankcase.
2. Remove the shop towels.
3. Install the dowel pins (2) and a new cylinder
gasket (3).
NOTICE
Do not let the dowel pins fall into the crankcase.
(3) piston (5) large valve recesses
(4) “ ” mark
(4)
(5)(3)
(6) piston pin (8) piston cutout
(7) piston pin clips (new)
(7)
(8)
(7)
(6)
(7)
Cylinder Installation
(1) crankcase mating surface
(2) dowel pins (3) cylinder gasket (new)
(1)
(3)
(2)
CRF250R_31K95600.book 84 ページ ２０１７年８月８日 火曜日 午後８時２６分
Piston/Piston Rings/Piston Pin
(cont’d)
Servicing Your Honda 85
4. Apply engine oil to the cylinder bore (4),
piston outer surface and piston rings (5). Route
the cam chain (6) through the cylinder. Install
the cylinder over the piston rings by hand
while compressing the piston rings.
NOTICE
Do not damage the piston rings and cylinder bore.
Do not let the cam chain fall into the crankcase.
5. Temporarily tighten the cylinder bolt (7) with
a new sealing washer (8).
1. Clean any gasket material off cylinder head.
2. Install the dowel pins (1) and a new cylinder
head gasket (2).
NOTICE
Do not let the dowel pins fall into the crankcase.
3. Route the cam chain (3) through the cylinder
head and install the cylinder head (4).
NOTICE
Do not damage mating surfaces when installing
the cylinder head.
Do not let the cam chain fall into the crankcase.
4. Apply engine oil to all cylinder head B bolt
threads and seating surface.
Install the washers (5) and cylinder head B
bolts (6) and tighten them to the specified
torque in a crisscross pattern in two or three
steps:
35 lbf·ft (48 N·m, 4.9 kgf·m)
NOTICE
Do not let the washers fall into the crankcase.
(4) cylinder bore
(5) piston outer surface and piston rings
(6) cam chain
(7) cylinder bolt (8) sealing washer (new)
(6)
(5)
(4)
(7)
(8)
Cylinder Head Installation
(1) dowel pins
(2) cylinder head gasket (new)
(1)
(2)
(3) cam chain
(4) cylinder head
(5) washers
(6) cylinder head B bolts
(5) (6)
(4)
(3)
CRF250R_31K95600.book 85 ページ ２０１７年８月８日 火曜日 午後８時２６分
86 Servicing Your Honda
Piston/Piston Rings/Piston Pin
5. Install the cylinder head A bolts (7) and
tighten it to the specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
6. Tighten the cylinder bolt (8) to the specified
torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
7. Install the left cylinder head hanger plate (9)
and right cylinder head hanger plate (10), then
loosely install the cylinder head hanger plate
bolts (11) and cylinder head hanger bolts (12).
Tighten the cylinder head hanger bolts and
cylinder head hanger plate bolts to the
specified torque:
cylinder head hanger bolts:
40 lbf·ft (54 N·m, 5.5 kgf·m)
cylinder head hanger plate bolts:
24 lbf·ft (32 N·m, 3.3 kgf·m)
8. Install the throttle body (13) to the insulator
(14) by aligning the tab of the throttle body
with the groove of the insulator and tighten the
insulator band screw (15) so the distance
between the band ends is 0.43 ± 0.04 in (11.0 ±
1.0 mm).
(7) cylinder head A bolts
(8) cylinder bolt
(7)
(8)
(9) left cylinder head hanger plate
(10) right cylinder head hanger plate
(11) cylinder head hanger plate bolts
(12) cylinder head hanger bolts
(11)
(9)(12)
Left side:
(11)
(12)
(10)
Right side:
(13) throttle body (15) insulator band screw
(14) insulator
(14)
(15)
(13)
Align
0.43 ± 0.04 in
(11.0 ± 1.0 mm)
CRF250R_31K95600.book 86 ページ ２０１７年８月８日 火曜日 午後８時２６分
Servicing Your Honda 87
Piston/Piston Rings/Piston Pin
9. Connect the right radiator hose (16) to the right
radiator hose joint (17) as shown.
10. Tighten the radiator hose clamp screw (18) as
illustrated below.
11. Connect the left radiator hose (19) to the left
water hose joint (20) of the cylinder head as
shown.
12. Connect the ECT sensor connector (21).
13. Install the harness band clip (22).
14. Tighten the radiator hose clamp screw (18) as
illustrated below.
15. Install the valve shims, intake cam sprocket,
camshafts, camshaft holder and cam chain
guide (page 73).
16. Install the crankshaft hole cap and timing hole
cap (page 77).
17. Install the cylinder head cover (page 77).
18. Install the spark plug (page 67).
19. Install the left and right exhaust pipes
(page 118).
20. Install the subframe (page 38) and left and
right mufflers (page 116).
21. Install the fuel tank and seat (pages 33, 35).
22. Fill and bleed the cooling system (page 145).
Check for the following:
– compression leaks
– abnormal engine noise
– secondary air leaks
– exhaust gas leaks
– coolant leaks
– oil leaks
(16) right radiator hose
(17) right radiator hose joint
(18) radiator hose clamp screw
(16)
(17)
(18)
0 – 0.02 in
(0 – 0.5 mm)
(19) left radiator hose
(20) left water hose joint
(21) ECT sensor connector
(22) harness band clip
(18) radiator hose clamp screw
(19)
(20) (21)
(22)
(18)
0 – 0.02 in
(0 – 0.5 mm)
CRF250R_31K95600.book 87 ページ ２０１７年８月８日 火曜日 午後８時２６分
Suspension
88 Servicing Your Honda
Suspension
Refer to Important Safety Precautions on page 23.
Loose, worn, or damaged suspension components
may adversely affect the handling and stability of
your CRF. If any suspension components appear
worn or damaged, see your dealer for further
inspection. Your dealer is qualified to determine
whether or not replacement parts or repairs are
needed.
• When your CRF is new, break it in for
approximately 1 hour with the standard setting
to ensure that the suspension has broken-in
(page 19).
• After break-in, test run your CRF with the
front suspension at the standard setting before
attempting any adjustments.
• For optimum fork performance, we
recommend that you disassemble and clean the
fork after riding your CRF for 3 hours.
See page 89 for front suspension removal.
• Replace the fork oil every 3 races or 7.5 hours
of running. See page 92 for oil capacity
adjustment after changing the fork oil.
• Replace the damper oil every 9 races or 22.5
hours of running. See page 98 for damper fork
oil replacement.
• Use Pro Honda HP Fork Oil, SS-19 or an
equivalent which contains special additives to
assure maximum performance of your CRF’s
front suspension.
Periodically check and clean all front
suspension parts to assure top performance.
Check the dust seals for dust, dirt, and foreign
materials. Check the oil for any contamination.
•Refer to Suspension Adjustment Guidelines
(page 135) Make all rebound and compression
damping adjustments in one-click increments.
(Adjusting two or more clicks at a time may
cause you to pass over the best adjustment.)
Test ride after each adjustment.
• If you become confused about adjustment
settings, return to the standard position and
start over.
• If the fork is still too stiff/soft after adjusting
compression damping, determine which
portion of the travel is still too stiff/soft. This is
an important step that will help you solve
suspension problems.
1. Make sure that the fork protectors (1) and dust
seals (2) are clean and not packed with mud
and dirt.
2. Check for signs of oil leakage. Damaged or
leaking fork seals should be replaced before
your CRF is ridden.
3. Inspect the wear rings (3) for wear or damage.
Replace the wear ring if it is 0.06 in (1.5 mm)
or flush with the outer tube (4). Remove the
fork leg when replacing the wear ring.
Install the wear ring with its end gap (5) facing
rearward.
Front Suspension Inspection
(1) fork protector (2) dust seal
(1)
(2)
(3) wear ring (4) outer tube
(3) wear rings (5) end gaps
0.06 in (1.5 mm)
(4)
(3)
(3)
(5)
(3)
CRF250R_31K95600.book 88 ページ ２０１７年８月８日 火曜日 午後８時２６分
Suspension
(cont’d)
Servicing Your Honda 89
4. Make a quick check of fork operation by
locking the front brake and pushing down on
the handlebar several times.
• When disassembling the fork, turn the
compression damping (1) and rebound
damping (2) adjusters counterclockwise to the
softest position to prevent damaging the
adjustment needle (be sure to record the
number of turns from the starting position).
1. Unlock the number plate tab (3) from the
handlebar pad. Remove the number plate bolts
(4) and number plate (5).
2. Place your CRF on an optional workstand or
equivalent support with the front wheel off the
ground.
3. Remove the handlebar lower holder nuts,
washers, mounting rubbers (6) and handlebar
(7).
NOTICE
Keep the master cylinder upright to prevent air
from entering system.
Front Suspension Removal
(1) compression damping adjuster
(2) rebound damping adjuster
(3) number plate tab (5) number plate
(4) number plate bolts
(1)
(2)
(5)
(4)
(3)
(6) handlebar lower holder nuts, washers and mounting
rubbers
(7) handlebar
(7)
(6)
CRF250R_31K95600.book 89 ページ ２０１７年８月８日 火曜日 午後８時２６分
90 Servicing Your Honda
Suspension
4. Loosen the fork bridge upper pinch bolts (8).
5. Loosen the fork bolt assembly (9), but do not
remove it yet.
6. Loosen the fork damper assembly (10) using
the lock nut wrench (11), but do not remove it
yet.
• Lock nut wrench 07WMA-KZ30100
The procedure is the same for the both right and
left fork legs.
NOTICE
Do not use an adjustable wrench to loosen the fork
damper: it may damage the fork damper.
7. Remove the disc cover (12) by removing disc
cover socket bolts (13).
8. Remove the front axle nut (14) and loosen the
axle pinch bolts (15) on both forks.
Pull the front axle shaft (16) out of the wheel
hub and remove the front wheel with collars
(17).
9. Remove the brake hose clamp bolts (18), stay
A (19) and stay B (20).
10. Remove the front brake caliper mounting bolts
(21) and brake caliper (22).
• Do not support the brake caliper by the brake
hose.
• Do not operate the brake lever after the front
wheel is removed. To do so will cause
difficulty in fitting the brake disc between
the brake pads.
11. Remove the fork protector socket bolts (23)
and fork protectors (24).
(8) fork bridge upper pinch bolts
(9) fork bolt assembly
(10) fork damper assembly
(11) lock nut wrench
(10)
(8)
(11)
(9)
(12) disc cover (13) disc cover socket bolts
(14) front axle nut (16) front axle shaft
(15) axle pinch bolts (17) collars
(12)
(13)
(15)
(16) (17)
(15)
(14)(17)
(18) brake hose clamp bolts
(19) stay A
(20) stay B
(21) front brake caliper mounting bolts
(22) brake caliper
(23) fork protector socket bolts
(24) fork protectors
(21)
(22)
(18)
(19)
(20)
(24)
(23)
(23)
CRF250R_31K95600.book 90 ページ ２０１７年８月８日 火曜日 午後８時２６分
Suspension
(cont’d)
Servicing Your Honda 91
12. Loosen the fork bridge lower pinch bolts (25),
then pull the both fork legs down and out.
13. Clean the fork assembly, especially the sliding
surface (26) of the slider and fork dust seal
(27).
14. Measure the length (28) between the axle
holder and outer tube and record it before
disassembling the fork.
Refer to Front Suspension Removal on page 89.
1. Clean the fork assembly, especially the sliding
surface of the slider and dust seal.
2. Hold the outer tube (1), then remove the fork
damper assembly (2) from the outer tube using
the lock nut wrench (3). Gently slide the outer
tube down onto the lower end (axle holder) (4).
• Lock nut wrench 07WMA-KZ30100
NOTICE
The outer tube (1) can drop on the axle holder (4)
and damage the fork dust seal (5). To avoid
damage, hold both the outer tube and slider when
removing the fork damper.
3. Drain the fork oil from the outer tube (1) and
oil holes (6) of the fork damper assembly (2).
Remove the O-ring (7) from the fork damper
assembly.
(25) fork bridge lower pinch bolts
(26) sliding surface (28) length
(27) fork dust seal
(25)
(28)
(27)
(26)
Recommended Fork Oil
suggested oil Pro Honda HP Fork Oil, SS-19
Fork Outer Tube Disassembly
(1) outer tube (3) lock nut wrench
(2) fork damper assembly (4) axle holder
(1)
(4)
(2)
(1)
(3)
(1) outer tube (5) fork dust seal
(4) axle holder
(1) outer tube (6) oil holes
(2) fork damper assembly (7) O-ring
(1)
(5)
(4)
(1)
(2)
(7)
(6)
CRF250R_31K95600.book 91 ページ ２０１７年８月８日 火曜日 午後８時２６分
92 Servicing Your Honda
Suspension
4. Drain the fork oil by turning the outer tube (1)
upside down. (About 0.46 US oz (13.7 cm
3
) of
fork oil will be left in the outer tube when it is
left inverted for about 20 minutes at 68°F/
20°C.)
Pour the drained oil into a suitable container and
dispose of it in an approved manner (page 146).
NOTICE
Improper disposal of drained oil is harmful to the
environment.
1. Pour the recommended fork oil into the outer
tube (1).
Be sure the oil capacity is the same in both fork
legs.
Recommended Oil:
Pro Honda HP Fork Oil, SS-19
Recommended Standard Amount:
12.0 US oz (356 cm
3
)
Fill the fork oil which is obtained by docking off
the amount of the remaining oil in the fork from the
recommended standard fork oil capacity.
Refer to Front Suspension Air Pressure on
page 127.
2. Apply the recommended fork oil to a new O-ring
(2). Install the O-ring on the fork damper
assembly (3).
3. Pull up the outer tube (1) slowly and
temporarily tighten the fork damper assembly
(3) using the lock nut wrench (4).
• Lock nut wrench 07WMA-KZ30100
(1) outer tube
Amount of fork oil left in the fork
(within damper and spring) unit: cm
3
minute
°F/°C
5 1020355585145
86/30 16.5 14.1 12.7 11.8 11 10.1 8.6
68/20 17.4 15 13.7 12.6 11.5 10.5 9.1
50/10 18.9 16.5 14.8 13.7 12.5 11.4 9.8
32/0 20 18.4 15.9 14.5 13.7 13 11.7
(1)
Inverted time
32°F/0°C
50°F/10°C
68°F/20°C
86°F/30°C
Amount of fork oil
(minutes)
Fork Oil Refilling
(1) outer tube
(1)
(2) O-ring (new) (3) fork damper assembly
(1) outer tube (4) lock nut wrench
(3) fork damper assembly
(2)
(3)
(4)
(3)
(1)
CRF250R_31K95600.book 92 ページ ２０１７年８月８日 火曜日 午後８時２６分
Suspension
(cont’d)
Servicing Your Honda 93
1. Insert both fork legs into the fork clamps.
Tighten the fork bridge lower pinch bolts (1) to
the specified torque:
15 lbf·ft (20 N·m, 2.0 kgf·m)
2. Tighten the fork damper assembly (2) to the
specified torque using the lock nut wrench (3):
Actual:
56 lbf·ft (76 N·m, 7.7 kgf·m)
Torque wrench scale reading:
51 lbf·ft (69 N·m, 7.0 kgf·m), using a 20 in
(500 mm) long deflecting beam type torque
wrench.
• Lock nut wrench 07WMA-KZ30100
When using the lock nut wrench, use a 20 in (500
mm) long deflecting beam type torque wrench.
The lock nut wrench increases the torque wrench’s
leverage, so the torque wrench reading will be less
than the torque actually applied to the fork damper
assembly.
3. Tighten the fork bolt assembly (4) to the
specified torque:
22 lbf·ft (30 N·m, 3.1 kgf·m)
4. For ease of releasing air pressure after the fork
legs are installed, loosen the fork bridge lower
pinch bolts (1) and position the outer tubes so
that the fork air pressure release screw (5) is in
front of the compression damping adjuster (6).
5. Align the groove (7) in the outer tube with the
top surface of the upper fork bridge (8).
Front Suspension Installation
(1) fork bridge lower pinch bolts
(1)
(2) fork damper assembly
(3) lock nut wrench
(4) fork bolt assembly
(4)
(2)
(3)
(1) fork bridge lower pinch bolts
(5) air pressure release screw
(6) compression damping adjuster
(7) groove (8) upper fork bridge
(6)
(5)
(1)
Align
(7)
(8)
CRF250R_31K95600.book 93 ページ ２０１７年８月８日 火曜日 午後８時２６分
94 Servicing Your Honda
Suspension
6. Tighten the fork bridge lower pinch bolts (1) to
the specified torque:
15 lbf·ft (20 N·m, 2.0 kgf·m)
7. Tighten the fork bridge upper pinch bolts (9) to
the specified torque:
16 lbf·ft (22 N·m, 2.2 kgf·m)
The procedure is the same for the both right and
left fork legs.
NOTICE
Over-tightening the pinch bolts can deform the
outer tubes. Deformed outer tubes must be
replaced.
8. Clean the threads of the fork protector socket
bolts (10) and axle holder thoroughly.
Apply locking agent to the bolt threads.
Install the fork protectors (11), fork protector
socket bolts.
Tighten the fork protector socket bolts to the
specified torque:
5.2 lbf·ft (7 N·m, 0.7 kgf·m)
9. Align the brake caliper (12) and brake hose
(13) with the left fork leg, making sure that the
brake hose is not twisted. An improperly
routed brake hose may rupture and cause a loss
of braking efficiency.
10. Align the lower surface of the brake hose
protector (14), stay A (15) and stay B (16), and
assemble them. Install and tighten them to the
left fork protector securely using the brake
hose clamp bolts (17).
11. Clean the threads of the front brake caliper
mounting bolts (18) and brake caliper
thoroughly.
Apply locking agent to the bolt threads.
Install the brake caliper (12) on the slider and
tighten the front brake caliper mounting bolts
to the specified torque:
22 lbf·ft (30 N·m, 3.1 kgf·m)
(1) fork bridge lower pinch bolts
(9) fork bridge upper pinch bolts
(1)
(9)
(10) fork protector socket bolts
(11) fork protectors
(10) (10)
(11)
(12) brake caliper
(13) brake hose
(14) brake hose protector
(15) stay A
(16) stay B
(17) brake hose clamp bolts
(18) front brake caliper mounting bolts
(17) (12)
(18)(14)
(15)
Align
(16)
(13)
CRF250R_31K95600.book 94 ページ ２０１７年８月８日 火曜日 午後８時２６分
Suspension
(cont’d)
Servicing Your Honda 95
12. Clean the surfaces where the axle and axle
clamps contact each other.
Apply grease to each dust seal lips of the front
wheel.
Install the left side collar (19) and right side
collar (20) into the wheel hub.
13. Install the front wheel between the fork legs
while inserting the disc between the pads,
being careful not to damage the pads.
14. Insert the front axle shaft through the forks and
wheel hub from the right side. Make sure that
the front axle shaft is seated firmly onto the left
fork leg clamp inner surface. Tighten the front
axle nut (21) to the specified torque:
65 lbf·ft (88 N·m, 9.0 kgf·m)
Tighten the left axle pinch bolts (22) to the
specified torque:
15 lbf·ft (20 N·m, 2.0 kgf·m)
15. Install the handlebar (23), mounting rubbers,
washers and handlebar lower holder nuts (24)
and tighten the handlebar lower holder nuts to
the specified torque:
32 lbf·ft (44 N·m, 4.5 kgf·m)
16. Install the number plate (25) by aligning its tab
(26) with the slit (27) on the front fender.
Install the number plate bolts (28), then tighten
the number plate bolts to the specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
Route the number plate tab (29) around the
handlebar pad (30) as shown. Make sure that
the brake hose (13) is routed properly in front
of the number plate.
17. With the front brake applied, pump the fork up
and down several times to seat the axle and
check front brake operation.
(19) left side collar (20) right side collar
(19)
(20)
(21) front axle nut
(22) left axle pinch bolts
(23) handlebar
(24) mounting rubbers, washers and handlebar lower
holder nuts
(21)
(22)
(24)
(23)
(13) brake hose (28) number plate bolts
(25) number plate (29) number plate tab
(26) tab (30) handlebar pad
(27) slit
(29)(13) (30)
(25)
(26)(27)
(28)
CRF250R_31K95600.book 95 ページ ２０１７年８月８日 火曜日 午後８時２６分
96 Servicing Your Honda
Suspension
18. While keeping the forks parallel, alternately
tighten the right axle pinch bolts (31) to the
specified torque:
15 lbf·ft (20 N·m, 2.0 kgf·m)
NOTICE
To avoid damage when torquing the axle pinch
bolts, be sure the axle is seated firmly onto the left
fork leg clamp inner surface.
19. Install the disc cover (32) and tighten the disc
cover socket bolts (33) to the specified torque:
10 lbf·ft (13 N·m, 1.3 kgf·m)
20. Turn the compression damping (34) and
rebound damping (35) adjuster screws back to
their original settings.
The procedure is the same for the both right and
left fork legs.
Refer to Front Suspension Damping on page 128.
1. Remove the front suspension (page 89).
2. Disassemble the fork outer tube (page 91).
3. Place the lower end (axle holder) (1) of the
slider in a vise with a piece of wood or soft
jaws to avoid damage.
NOTICE
Over-tightening the vise can damage the axle
holder.
4. Loosen the fork center bolt (2).
5. Pull up the fork outer tube slowly and
temporarily tighten the fork damper assembly
(page 92). Push the outer tube until the fork
center bolt lock nut (3) is fully exposed and
install the piston base (4) or mechanic’s
stopper tool between the axle holder (1) and
fork center bolt lock nut.
• Piston base 07958-2500001
(31) right axle pinch bolts
(32) disc cover (33) disc cover socket bolts
(31)
(32)
(33)
(34) compression damping adjuster
(35) rebound damping adjuster
(34)
(35)
Fork Damper Disassembly
(1) axle holder (2) fork center bolt
(1)
(2)
CRF250R_31K95600.book 96 ページ ２０１７年８月８日 火曜日 午後８時２６分
Servicing Your Honda 97
Suspension
6. Make the mechanic’s stopper tool out of a thin
piece of steel (0.08 in (2.0 mm) thick) as shown
if you do not have a special tool.
7. Hold the fork center bolt lock nut (3) and
remove the fork center bolt (2) from the fork
damper.
NOTICE
Do not remove the lock nut from the fork damper
piston rod. If the lock nut is removed, the piston
rod will fall in the fork damper and you may not
reassemble the fork damper.
8. Remove the push rod (5) from the fork damper.
9. Remove the piston base (4) or mechanic’s
stopper tool between the axle holder (1) and
fork center bolt lock nut (3) while pushing the
fork outer tube.
NOTICE
Be careful not to damage the lock nut and fork
center bolt hole.
10. Remove the fork damper assembly (6) from
the fork assembly (7).
Remove the fork from the vise.
Remove the fork spring (8), spring seat collar
(9) and back-up ring/seat stopper (10) from the
fork assembly.
NOTICE
Do not attempt to separate the fork assembly and
drop the axle holder out from the outer tube, which
can damage the guide bushings (11).
To avoid damage, hold both the outer tube and
slider.
(1) axle holder (3) fork center bolt lock nut
(2) fork center bolt (4) piston base
2.2 in (55 mm)
1.0 in
(25 mm)
0.30 in
(7.5 mm)
0.6 in
(15 mm)
1.5 in (39 mm)
(1)
(3)
(4)
(2)
(1) axle holder (4) piston base
(3) fork center bolt lock nut (5) push rod
(1)
(4)
(5)
(3)
(6) fork damper assembly
(7) fork assembly
(8) fork spring
(9) spring seat collar
(10) back-up ring/seat stopper
(11) guide bushing
(9)
(6)
(7)
(8)
(10)
(11)
CRF250R_31K95600.book 97 ページ ２０１７年８月８日 火曜日 午後８時２６分
98 Servicing Your Honda
Suspension
1. Check the fork center bolt lock nut (1) is
installed on the fork damper piston rod (2)
properly.
NOTICE
If the lock nut was removed, the piston rod will fall
into the fork damper and you will not be able to
reassemble the fork damper.
2. Loosen the fork bolt assembly (3) while
holding the fork damper assembly (4).
3. Remove the fork bolt assembly (3) from the
fork damper threads and then pop it out by
pumping the fork damper piston rod (2)
slowly.
4. Remove the fork bolt assembly (3).
Be careful not to damage the fork bolt bushings.
Do not disassemble the fork bolt assembly.
Replace the fork bolt as an assembly if it is
damaged.
5. Empty the fork oil from the fork damper
assembly (4) by pumping the damper rod
several times.
6. Clean the fork bolt and fork damper assembly
threads (5).
7. Extend the fork damper piston rod to
maximum length.
Pour the recommended fork oil into the fork
damper assembly (4).
Recommended Oil:
Pro Honda HP Fork Oil, SS-19
Recommended Amount:
8.4 US oz (248 cm
3
)
Damper Oil Change
(1) fork center bolt lock nut
(2) fork damper piston rod
(3) fork bolt assembly (4) fork damper assembly
(1)
(2)
(3)
(4)
(2) fork damper piston rod (3) fork bolt assembly
(4) fork damper assembly
(2)
(3)
(4)
(5) fork bolt and fork damper assembly threads
(4) fork damper assembly
(5)
(4)
CRF250R_31K95600.book 98 ページ ２０１７年８月８日 火曜日 午後８時２６分
Suspension
(cont’d)
Servicing Your Honda 99
8. Pump the fork damper piston rod (2) slowly
several times to bleed the air from the fork
damper assembly (4).
9. Apply fork oil to the fork bolt bushings (6),
new O-rings (7) and new piston ring (8) on the
fork bolt assembly (3).
10. Cover the oil holes (9) of the fork damper
assembly with a shop towel and compress the
piston rod (2) all the way.
Pull the piston rod out 0.8 in (20 mm) and
install the fork bolt assembly (3) into the fork
damper assembly (4).
Push the fork bolt assembly in slowly while
pulling the piston rod out.
NOTICE
Be careful not to damage the fork bolt piston ring.
11. Temporarily tighten the fork bolt assembly (3)
to the fork damper assembly (4).
12. Completely screw in the fork center bolt lock
nut (1) to the fork damper piston rod (2).
13. Check the fork damper piston rod sliding
surface and threads for damage.
(2) fork damper piston rod
(4) fork damper assembly
(3) fork bolt assembly (7) O-rings (new)
(6) fork bolt bushings (8) piston ring (new)
(4)
(2)
(7)
(7) (8)(7)
(3)(6)
(2) fork damper piston rod (4) fork damper assembly
(3) fork bolt assembly (9) oil holes
(3)
(4)
(2)
(9)
(3) fork bolt assembly (4) fork damper assembly
(1) fork center bolt lock nut
(2) fork damper piston rod
(4)
(3)
(1)
(2)
CRF250R_31K95600.book 99 ページ ２０１７年８月８日 火曜日 午後８時２６分
100 Servicing Your Honda
Suspension
14. Hold the fork damper assembly (4) in an
upright position and pump the fork damper
piston rod (2) 3.9 in (100 mm) slowly, several
times.
NOTICE
Be careful not to bend or damage the fork damper
piston rod when the piston rod is stroked.
15. Cover the fork damper piston rod end with
shop towels (10) to prevent fork damage.
Cover the oil holes with shop towel to prevent
blow out of fork oil.
Blow the extra oil off from the fork damper
assembly (4) by pumping the fork damper
piston rod to full stroke.
16. Drain the extra oil from the oil holes (9) of the
fork damper assembly (4).
By doing above procedure, about 0.2 US oz (5
cm
3
) of fork oil will be drained from the fork
damper through the oil hole and cause 8.2 US oz
(243 cm
3
) of fork oil to be left in the fork damper
assembly.
Pour the drained oil into a suitable container and
dispose of it in an approved manner (page 146).
NOTICE
Improper disposal of drained fluids is harmful to
the environment.
(2) fork damper piston rod (4) fork damper assembly
(4)
(2)
(4) fork damper assembly (10) shop towels
(10)
(10)
(4)
(4) fork damper assembly (9) oil holes
(4)
(9)
CRF250R_31K95600.book 100 ページ ２０１７年８月８日 火曜日 午後８時２６分
Suspension
(cont’d)
Servicing Your Honda 101
17. Blow out any oil from the oil hole (9) of the
fork damper assembly (4) using compressed
air.
Wipe off the oil completely from the fork
damper.
If your cannot use compressed air, remove the
fork air pressure release screws (11) from the
fork bolt assembly.
Hold the fork damper upside down for 20
minutes and drain the fork oil.
18. Apply recommended fork oil to a new O-ring
(12), and then install the new O-rings on the air
pressure release screws (11).
Tighten the air pressure release screws to the
specified torque:
1.0 lbf·ft (1.3 N·m, 0.1 kgf·m)
19. Fully stroke the piston rod (2) by pushing
down the fork damper assembly (4).
Check the piston rod for smooth operation.
If the piston rod operation is not smooth, check
the piston rod for bends or damage.
1. Turn the fork assembly (1) by placing it upside
down.
(About (0.2 US oz (5.4 cm
3
) of fork oil will be
left in the outer tube/slider when it is left
inverted for about 20 minutes at 68 °F/20 °C)
To properly dispose of drained fluids, refer to You
& the Environment on page 146.
NOTICE
Improper disposal of drained fluids is harmful to
the environment.
(4) fork damper assembly
(9) oil hole
(11) air pressure release screws
(12) O-rings (new)
(4)
(9) (11) (12)
(2) fork damper piston rod
(4) fork damper assembly
(4)
(2)
Fork Damper Installation
(1) fork assembly
Amount of fork oil left in the fork
(within damper and spring) unit: cm
3
minute
°F/°C
5 1020355585145
86/30 6.5 5.7 5.2 4.5 4.1 3.7 3.3
68/20 6.7 6.2 5.4 4.7 4.4 3.8 3.5
50/10 7.3 6.4 5.6 5 4.6 4.2 3.8
32/0 8.6 8.2 7.9 7.6 7.3 6.8 6
(1)
CRF250R_31K95600.book 101 ページ ２０１７年８月８日 火曜日 午後８時２６分
102 Servicing Your Honda
Suspension

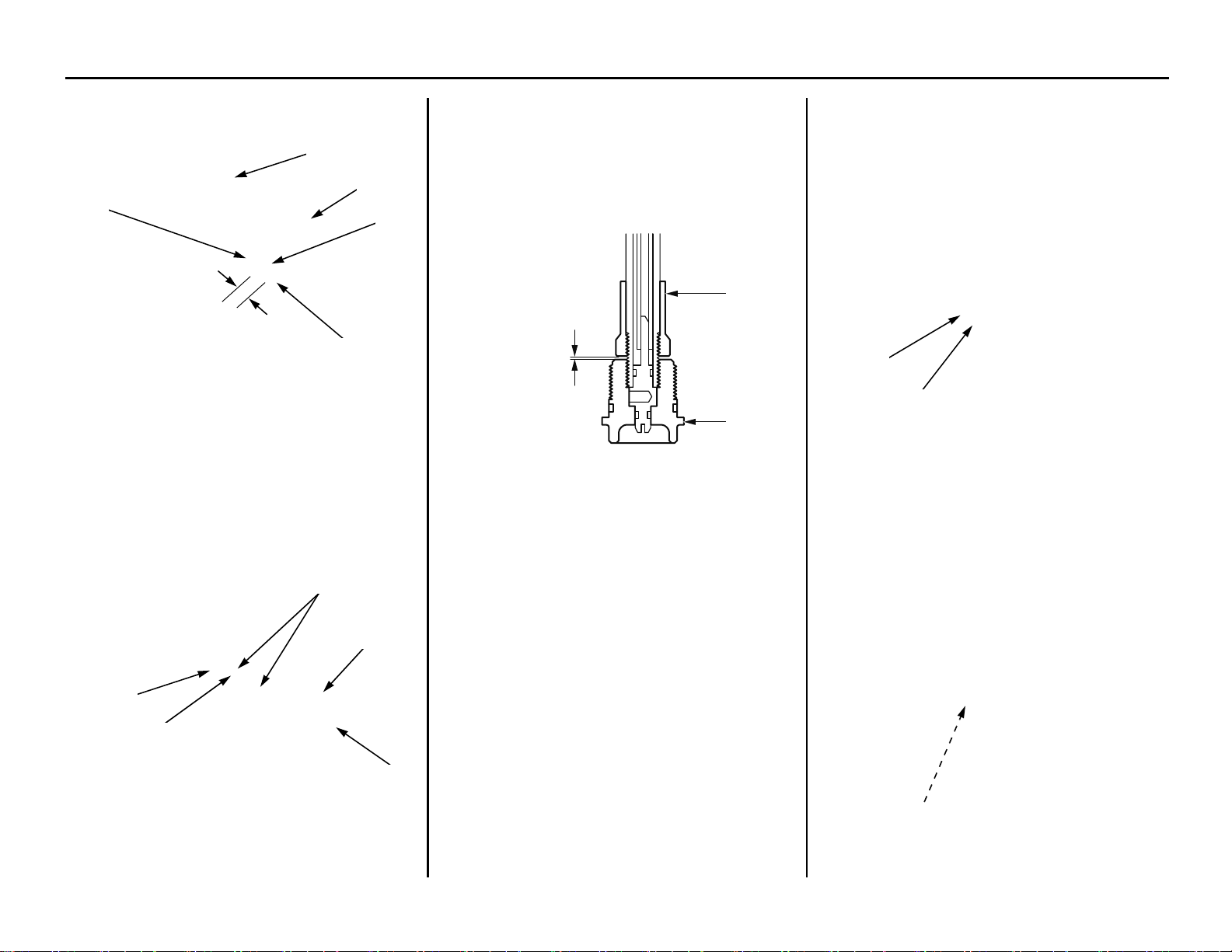

2. Tighten the fork center bolt lock nut (2) fully
and measure the thread length (A) as shown.
Standard: 0.35 – 0.43 in (9 – 11 mm)
Wipe the oil completely off the fork damper.
3. Apply recommended fork oil to the slider
bushing (3).
Install the seat stopper (4), back-up ring (5)
and spring seat collar (6) to the fork damper
(7).
Make sure the black side of the back-up ring is
seated on the seat stopper side.
4. Blow out the oil completely off the fork spring
(8).
Put the fork spring on the fork damper
assembly (9).
Install the spring/fork damper assembly into
the fork assembly (1).
5. Temporarily tighten the fork damper assembly
(9) to the outer tube (10) using the lock nut
wrench (11).
• Lock nut wrench 07WMA-KZ30100
6. Place the lower end (axle holder) (12) of the
slider in a vise with a piece of wood or soft
jaws to avoid to damage.
NOTICE
Over-tightening the vise can damage the axle
holder.
7. Push the outer tube until the fork center bolt
lock nut (2) is fully exposed and install the
piston base (13) or mechanic’s stopper tool
between the axle holder (12) and fork center
bolt lock nut.
Measure the thread length again.
Standard: 0.35 – 0.43 in (9 – 11 mm)
• Piston base 07958-2500001
(2) fork center bolt lock nut (A) thread length
(3) slider bushing (6) spring seat collar
(4) seat stopper (7) fork damper
(5) back-up ring
(A)
(2)
(4)
(5)
(7)
(4)
(5)
(6) (3)
(1) fork assembly (9) fork damper assembly
(8) fork spring
(9)
(8)
(1)
(9) fork damper assembly (11) lock nut wrench
(10) outer tube
(9)
(10)
(11)
CRF250R_31K95600.book 102 ページ ２０１７年８月８日 火曜日 午後８時２６分
Suspension
(cont’d)
Servicing Your Honda 103
8. Install the push rod (14) into the piston rod (15)
until it stops.
9. Apply fork oil to a new O-ring (16) and install
it to the fork center bolt (17).
Install the fork center bolt to the fork damper
piston rod (15) by aligning the each flat-side of
the fork center bolt adjusting piston rod and
push rod (14).
Tighten the fork center bolt fully by hand.
10. Measure the clearance between the fork center
bolt lock nut (2) and fork center bolt (17).
Standard: 0.06 – 0.08 in (1.5 – 2.0 mm)
If the clearance is out of specification, check the
fork center bolt lock nut and fork center bolt
installation.
11. Tighten the fork center bolt lock nut (2) to the
fork center bolt (17) closely by hand. Tighten
the fork center bolt lock nut to the specified
torque:
21 lbf·ft (28 N·m, 2.9 kgf·m)
12. Apply locking agent to the fork center bolt
threads.
Remove the piston base or mechanic’s stopper
tool while pushing the fork damper.
Install the fork center bolt (17) to the axle
holder and tighten it to the specified torque:
51 lbf·ft (69 N·m, 7.0 kgf·m)
(2) fork center bolt lock nut (14) push rod
(12) axle holder (15) piston rod
(13) piston base
(14) push rod (16) O-ring (new)
(15) piston rod (17) fork center bolt
(12)
(2)
(13)
(15)
(14)
0.35 – 0.43 in
(9 – 11 mm)
(15)
(14)
(17)
(16)
Align
(2) fork center bolt lock nut (17) fork center bolt
(2)
(17)
0.06 – 0.08 in
(1.5 – 2.0 mm)
(2) fork center bolt lock nut
(17) fork center bolt
(17) fork center bolt
(2)
(17)
(17)
CRF250R_31K95600.book 103 ページ ２０１７年８月８日 火曜日 午後８時２６分
104 Servicing Your Honda
Suspension
13. Remove the fork from the vice.
14. Measure the length between the axle holder
and outer tube.
Standard: 12.2 ± 0.1 in (311 ± 2 mm)
15. Compare the length (18) at assembly and at
disassembly. They should be the same length.
If the length at assembly is longer than at
disassembly, check the fork center bolt and fork
center bolt lock nut installation.
16. Refilling the fork oil (page 92).
17. Install the front suspension (page 93).
The swingarm is controlled by one hydraulic shock
absorber with an aluminum reservoir for oil and
nitrogen gas pressure. The gas pressure in the
reservoir is contained within a rubber bladder.
The rear suspension’s spring pre-load and damping
adjustments (compression and rebound) should be
adjusted for the rider’s weight and track conditions
(pages 132, 134, 137).
Do not attempt to disassemble, service, or dispose
of the damper; see your dealer.
The instructions found in this owner’s manual are
limited to adjustments of the shock assembly only.
• When your CRF is new, break it in for
approximately 1 hour with the standard
suspension settings before attempting to adjust
the rear suspension.
•Refer to Suspension Adjustment Guidelines
(page 137) for making all rebound and
compression damping adjustments in one click
or 1/12 turn increments. (Adjusting two or
more clicks or turns at a time may cause you to
pass over the best adjustment.)
Test ride after each adjustment.
• If the rear suspension is too stiff/soft, adjust it
by turning all the compression and rebound
damping adjusters according to the procedures
described in page 137. After adjusting the
adjusters simultaneously, suspension may be
fine-tuned by turning one of the compression
and rebound damping adjusters in one click or
in 1/12 turn increments.
• If you have a problem finding an acceptable
adjustment, return to the standard position and
begin again.
1. Bounce the rear of the motorcycle up and down
and check for smooth suspension action.
2. Remove the right and left mufflers (page 115),
and subframe (page 37).
3. Check for a broken or collapsed spring.
4. Check the rear shock absorber (1) for a bent
rod or oil leaks.
5. Push the rear wheel sideways to check for
worn or loose swingarm bearings. There
should be no movement. If there is, have the
bearings replaced by your dealer.
(18) length
(18)
Rear Suspension Inspection
(1) rear shock absorber
(1)
CRF250R_31K95600.book 104 ページ ２０１７年８月８日 火曜日 午後８時２６分
Brakes
Servicing Your Honda 105
Brakes
Refer to Important Safety Precautions on page 23.
Both the front and rear brakes are the hydraulic
disc type. As the brake pads wear, the brake fluid
level will drop. A leak in the system will also cause
the level to drop.
Frequently inspect the system to ensure there are
no fluid leaks. Periodically inspect the brake fluid
level and the brake pads for wear.
If the braking response of the front brake lever or
rear brake pedal feels unusual, check the brake
pads. If the brake pads are not worn beyond the
recommended limit (page 108), there is probably
air in the brake system.
Refer to an official Honda Service Manual or see
your dealer to have the air bled from the system.
1. Slide the front brake lever cover (1).
2. Loosen the lock nut (2).
3. To position the front brake lever farther away
from the handgrip, turn the adjuster (3)
clockwise.
To position the front brake lever closer to the
handgrip, turn the adjuster counterclockwise.
4. While holding the adjuster, tighten the lock nut
to the specified torque:
4.4 lbf·ft (5.9 N·m, 0.6 kgf·m)
5. Apply silicone grease to the contacting areas of
the adjuster and knocker arm (4).
6. Install the front brake lever cover reverse
order.
The rear brake pedal height should be
approximately level with the right footpeg.
1. Loosen the lock nut (1) and turn the push rod
(2) in direction (+) to raise the rear brake pedal
(3) or in direction (–) to lower it.
2. Tighten the push rod lock nut to the specified
torque at the desired pedal height.
4.4 lbf·ft (5.9 N·m, 0.6 kgf·m)
Front Brake Lever Adjustment
(1) brake lever cover
(2) lock nut (4) knocker arm
(3) adjuster
(1)
(3)
(2)
(4)
Rear Brake Pedal Height
(1) lock nut (+) raise the pedal height
(2) push rod (–) lower the pedal height
(3) rear brake pedal
(1)
(3)
(2)
(–)
(+)
CRF250R_31K95600.book 105 ページ ２０１７年８月８日 火曜日 午後８時２６分
106 Servicing Your Honda
Brakes
Front Brake Fluid Level Check
With the motorcycle in an upright position, check
the fluid level.
It should be above the LWR mark (1). If the level
is at or below the LWR mark, check the brake pads
for wear (page 108).
Worn brake pads should be replaced. If the pads
are not worn, have your brake system inspected for
leaks.
If the pulling distance for the front brake lever
feels excessive, there is probably air in the brake
system and it must be bled. Refer to an official
Honda Service Manual or see your dealer for brake
bleeding.
Honda recommends using Honda DOT 4 Brake
Fluid from a sealed container, or an equivalent.
Other Checks:
Make sure there are no fluid leaks. Check for
deterioration or cracks in the hoses and fittings.
Rear Brake Fluid Level Check
With the motorcycle in an upright position, check
the fluid level.
It should be above the LOWER mark (1). If the
level is at or below the LOWER mark, check the
brake pads for wear (page 108).
Worn brake pads should be replaced. If the pads
are not worn, have your brake system inspected for
leaks.
If the travel for the rear brake pedal feels
excessive, there is probably air in the brake system
and it must be bled. Refer to an official Honda
Service Manual or see your dealer for brake
bleeding.
Honda recommends using Honda DOT 4 Brake
Fluid from a sealed container, or an equivalent.
Other Checks:
Make sure there are no fluid leaks. Check for
deterioration or cracks in the hoses and fittings.
Fluid Level Inspection
(1) LWR mark
(1)
(1) LOWER mark
(1)
CRF250R_31K95600.book 106 ページ ２０１７年８月８日 火曜日 午後８時２６分
Servicing Your Honda 107
Brakes
Adding Front Brake Fluid
NOTICE
Spilled brake fluid will severely damage painted
surfaces. It is also harmful to some rubber parts.
Be careful whenever you remove the reservoir
cap; make sure the reservoir is horizontal first.
• Always use fresh DOT 4 brake fluid from a
sealed container when servicing the system. Do
not mix different types of fluid, they may not be
compatible.
• The recommended brake fluid is Honda DOT 4
Brake Fluid or an equivalent.
1. Remove the front brake reservoir cap screws
(1), reservoir cap (2) and diaphragm (3).
2. Fill the reservoir with DOT 4 brake fluid to the
upper level mark (4). Do not overfill.
3. Install the diaphragm and reservoir cap.
4. Tighten the front brake reservoir cap screws to
the specified torque:
0.7 lbf·ft (1.0 N·m, 0.1 kgf·m)
Adding Rear Brake Fluid
NOTICE
Spilled brake fluid will severely damage painted
surfaces. It is also harmful to some rubber parts.
Be careful whenever you remove the reservoir
cap; make sure the reservoir is horizontal first.
• Always use fresh DOT 4 brake fluid from a
sealed container when servicing the system. Do
not mix different types of fluid, they may not be
compatible.
• The recommended brake fluid is Honda DOT 4
Brake Fluid or an equivalent.
1. Remove the rear brake reservoir cap bolts (1),
reservoir cap (2), set plate (3) and diaphragm
(4).
2. Fill the reservoir with DOT 4 brake fluid to the
upper level mark (5). Do not overfill.
3. Install the diaphragm, set plate and reservoir cap.
4. Tighten the rear brake reservoir cap bolts to the
specified torque:
0.7 lbf·ft (1.0 N·m, 0.1 kgf·m)
(1) front brake reservoir cap screws
(2) reservoir cap
(3) diaphragm
(4) upper level mark
(4)
(2)
(3)
(1)
(1) rear brake reservoir cap bolts
(2) reservoir cap
(3) set plate
(4) diaphragm
(5) upper level mark
(1)
(5)
(4)
(3)
(2)
CRF250R_31K95600.book 107 ページ ２０１７年８月８日 火曜日 午後８時２６分
108 Servicing Your Honda
Brakes
Brake pad wear depends on the severity of usage
and track conditions. (Generally, the pads will
wear faster with wet and dirty track conditions.)
Inspect the brake pads at each regular maintenance
interval (page 25).
Front Brake Pads
Inspect the brake pads (1) through the front wheel
to determine the brake pad wear. If either brake
pad is worn anywhere to a thickness of 0.04 in (1.0
mm), both brake pads must be replaced.
Rear Brake Pads
Inspect the brake pads (1) from the rear side of the
caliper to determine the brake pad wear. If either
brake pad is worn anywhere to a thickness of 0.04
in (1.0 mm), both brake pads must be replaced.
Check that the front brake lever and rear brake
pedal assemblies are positioned properly
(page 105) and the securing bolts are tight.
Make sure there are no fluid leaks. Check for
deterioration or cracks in the hoses and fittings.
Brake Pad Wear
(1) brake pads (3) brake disc
(2) front brake caliper
minimum
thickness indicator
0.04 in
(1.0 mm)
0.04 in (1.0 mm)
replace
wear indicator
grooves
(1)
(1)
(2)
(3)
(1) brake pads (3) brake disc
(2) rear brake caliper
minimum thickness
indicator
0.04 in
(1.0 mm)
replace
(2)
(3)
(1)
Other Inspections
CRF250R_31K95600.book 108 ページ ２０１７年８月８日 火曜日 午後８時２６分
Wheels
Servicing Your Honda 109
Wheels
Refer to Important Safety Precautions on page 23.
Keeping the wheels true (round) and maintaining
correct spoke tension are critical to safe
motorcycle operation. During the first few rides,
spokes will loosen more rapidly due to the initial
seating of the parts. Excessively loose spokes may
result in instability at high speeds and the possible
loss of control. It’s also important that the rim
locks are secure to prevent tire slippage.
1. Inspect the wheel rim (1) and spokes (2) for
damage.
2. Tighten, any loose spokes and rim lock (3) to
the specified torque:
Spokes: 2.7 lbf·ft (3.7 N·m, 0.4 kgf·m)
Rim Lock: 9 lbf·ft (12 N·m, 1.2 kgf·m)
3. Check wheel rim runout. If runout is
noticeable, see an official Honda Service
Manual for inspection instructions.
See an official Honda Service Manual for
inspection information:
1. Check the axle shaft for runout.
2. Check the condition of the wheel bearings.
Wheel Rims & Spokes
(1) wheel rim (3) rim lock
(2) spokes
(3)
(2)
(1)
Axles & Wheel Bearings
CRF250R_31K95600.book 109 ページ ２０１７年８月８日 火曜日 午後８時２６分
Tires & Tubes
110 Servicing Your Honda
Tires & Tubes
Refer to Important Safety Precautions on page 23.
To safely operate your CRF, the tires must be the
proper type (off-road) and size, in good condition
with adequate tread, and correctly inflated.
The following pages give detailed information on
how and when to check your air pressure, how to
inspect your tires for wear and damage, and our
recommendations on tire repair and replacement.
Properly inflated tires provide the best
combination of handling, tread life, and riding
comfort. Generally, underinflated tires wear
unevenly, adversely affect handling, and are more
likely to fail from being overheated.
Underinflated tires can also cause wheel damage
on hard terrain. Overinflated tires make your CRF
ride harshly, are more prone to damage from
surface hazards, and wear unevenly.
Make sure the valve stem caps are secure. If
necessary, install new caps.
Always check air pressure when your tires are
“cold.” If you check air pressure when your tires
are “warm” — even if your CRF has only been
ridden for a few miles — the readings will be
higher. If you let air out of warm tires to match the
recommended cold pressures, the tires will be
underinflated.
The correct “cold” tire pressures are:
If you decide to adjust tire pressures for a
particular riding condition, make changes a little at
a time.
Take time to inspect your tires and wheels before
you ride.
• Inspect carefully for bumps or bulges in the
side of the tire or the tread. Replace any tire
that has a bump or bulge.
• Look closely for cuts, slits, or cracks in the
tires. Replace a tire if you can see fabric or
cord.
• Check for rocks or other objects embedded in
the tire or tread. Remove any objects.
• Check the position of both valve stems. A
tilted valve stem indicates the tube is slipping
inside the tire or the tire is slipping on the rim.
If a tube is punctured or damaged, you should
replace it as soon as possible. A repaired tube may
not have the same reliability as a new one, and it
may fail while you are riding.
Use a replacement tube equivalent to the original.
WARNING
Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instructions in this owner’s
manual regarding tire inflation and
maintenance.
Air Pressure
Front 15 psi (100 kPa, 1.0 kgf/cm
2
)
Rear 15 psi (100 kPa, 1.0 kgf/cm
2
)
Inspection
Tube Replacement
CRF250R_31K95600.book 110 ページ ２０１７年８月８日 火曜日 午後８時２６分
Servicing Your Honda 111
Tires & Tubes
The tires that came on your CRF were designed to
provide a good combination of handling, braking,
durability, and comfort across a broad range of
riding conditions.
• When replacing, use the original equipment
tires or equivalent tires of the same size,
construction, speed rating, and load range as
the original.
• Replace the tube any time you replace a tire.
The old tube will probably be stretched and, if
installed in a new tire, could fail.
Tire Replacement
WARNING
Installing improper tires on your
motorcycle can affect handling and
stability. This can cause a crash in which
you can be seriously hurt or killed.
Always use the size and type of tires
recommended in this owner’s manual.
Front
80/100-21 51M
DUNLOP MX3SF
Rear
100/90-19 57M
DUNLOP MX3S
Type bias-ply, tube
CRF250R_31K95600.book 111 ページ ２０１７年８月８日 火曜日 午後８時２６分
Drive Chain
112 Servicing Your Honda
Drive Chain
Refer to Important Safety Precautions on page 23.
The service life of the chain depends on proper
lubrication and adjustment. Poor maintenance can
cause premature wear or damage to the drive chain
or sprockets.
When the motorcycle is ridden on unusually dusty
or muddy tracks, more frequent maintenance will
be necessary.
Before servicing your drive chain, turn the engine
OFF and check that your transmission is in neutral.
1. Turn the engine off, raise the rear wheel off the
ground by placing an optional workstand or
equivalent support under the engine and shift
the transmission into neutral.
2. Check the drive chain slack (1) in the upper
drive chain run midway between the drive
sprocket (2) and driven sprocket (3). Drive
chain slack should allow the following vertical
movement by hand:
1 3/8 – 1 3/4 in (35 – 45 mm)
3. Check drive chain slack at several points along
the chain. The slack should remain constant. If
it isn’t, some links may be kinked and binding.
Lubricating the chain will often eliminate
binding and kinking.
NOTICE
Excessive chain slack may allow the drive chain to
damage the engine cases.
4. Inspect the drive chain for:
• damaged rollers
• loose pins
• dry or rusted links
• kinked or binding links
• excessive wear
Replace the drive chain (page 114) if it has
damaged rollers, loose pins, or kinks that cannot be
free. Lubricate the drive chain (page 113) if it
appears dry or shows signs of rust. Lubricate any
kinked or binding links and work them free.
Adjust chain slack if needed (page 113).
1. Check the chain slider (1) for wear.
Replace it if above the service limit.
SERVICE LIMIT:
upper side: 0.2 in (5 mm)
lower side: 0.10 in (2.5 mm)
2. Check the chain guide slider (2) for wear.
Replace the guide slider if it is worn to the
bottom of the wear limit (3).
Inspection
(1) drive chain slack (3) driven sprocket
(2) drive sprocket
(2) (3)
(1) 1 3/8 – 1 3/4 in (35 – 45 mm)
Drive Chain Sliders
(1) chain slider
(2) chain guide slider (3) wear limit
0.2 in
(5 mm)
0.10 in
(2.5 mm)
(1)
(1)
(2)
(3)
(3)
CRF250R_31K95600.book 112 ページ ２０１７年８月８日 火曜日 午後８時２６分
Servicing Your Honda 113
Drive Chain
Check the upper drive chain roller (1) and lower
drive chain roller (2) for wear or damage.
Measure the diameter of the drive chain rollers and
replace them if below the service limit.
Service Limit:
Upper roller: 1.2 in (31 mm)
Lower roller: 1.2 in (31 mm)
Replace the roller if necessary as follows.
Install the upper drive chain roller (Green) with the
“ ” mark (3) facing toward the bracket and lower
drive chain roller (Black) with the “ ” mark facing
toward outside.
Clean the threads of the drive chain roller bolt (4)
thoroughly.
Apply locking agent to the drive chain roller bolt
threads.
Install the drive chain roller bolt and nut (5).
Tighten the drive chain roller bolt and nut to the
specified torque:
9 lbf·ft (12 N·m, 1.2 kgf·m)
1. Loosen the rear axle nut (1).
2. Loosen the chain adjuster lock nuts (2) and
turn the adjusting bolts (3) counterclockwise to
decrease slack or clockwise to increase slack.
Align the index marks (4) of the axle plates (5)
with the same reference marks (6) on both
sides of the swingarm.
3. Tighten the rear axle nut to the specified
torque:
94 lbf·ft (128 N·m, 13.1 kgf·m)
4. Recheck chain slack and adjust as necessary.
5. Turn the adjusting bolt counterclockwise until
it touches the axle plates lightly. Then tighten
the chain adjuster lock nuts to the specified
torque while holding the adjusting bolts with a
wrench:
20 lbf·ft (27 N·m, 2.8 kgf·m)
Commercially prepared drive chain lubricants may
be purchased at most motorcycle shops and should
be used in preference to motor oil. Pro Honda HP
Chain Lube or an equivalent is recommended.
Saturate each chain joint so that the lubricant
penetrates the space between adjacent surfaces of
the link plates and rollers.
Drive Chain Rollers
(1) upper drive chain roller (Green)
(2) lower drive chain roller (Black)
(3) “ ” marks
(4) drive chain roller bolt
(5) drive chain roller nut
(3)
(4)
(5)
(1)
(2)
(3)
Adjustment
(1) rear axle nut (4) index mark
(2) chain adjuster lock nut (5) axle plate
(3) adjusting bolt (6) reference marks
(2)
(3)
(6)
(1) (6)
(5)
(4)
Lubrication
CRF250R_31K95600.book 113 ページ ２０１７年８月８日 火曜日 午後８時２６分
114 Servicing Your Honda
Drive Chain
For maximum service life, the drive chain should
be cleaned, lubricated, and adjusted before each
outing.
1. Remove the master link retaining clip (1) with
pliers.
Do not bend or twist the clip.
2. Remove the master link (2) and link plate (3).
Remove the drive chain.
3. Clean the drive chain in high flash-point
solvent and allow it to dry.
4. Inspect the drive chain for possible wear or
damage. Replace the drive chain if it has
damaged rollers, loose fitting links, or
otherwise appears unserviceable.
Chain:
5. Inspect the sprocket teeth for wear or damage.
We recommend replacing the sprocket
whenever a new chain is installed.
Both chain and sprockets must be in good
condition, or the new replacement chain or
sprocket (s) will wear rapidly.
Excessively worn sprocket teeth have a
hooked, worn appearance. Replace any
sprocket which is damaged or excessively
worn.
NOTICE
Use of a new chain with worn sprockets will cause
rapid chain wear.
6. Install the chain.
7. Measure a section of the drive chain to
determine whether the chain is worn beyond its
service limit. Put the transmission in gear, and
then turn the rear wheel forward until the lower
section of the chain is pulled taut. With the
chain held taut and any kinked joints
straightened, measure the distance between a
span of 17 pins, from pin center to pin center.
If the measurement exceeds the service limit,
replace the chain. After the chain is measured, shift
the transmission into neutral again before
proceeding with inspection and service.
8. Lubricate the drive chain (page 113).
9. Pass the chain over the sprockets and join the
ends of the chain with the master link. For ease
of assembly, hold the chain ends against
adjacent driven sprocket teeth while inserting
the master link. Install link plate, and then the
master link retaining clip so that the closed end
of the clip will face the direction of forward
wheel rotation.
10. Recheck chain slack and adjust as necessary.
• The master link is the most critical element of
drive chain security. Master links are reusable,
as long as they remain in excellent condition.
We recommend installing a new master link
retaining clip when the drive chain is
reassembled.
• You may find it easier to install a new chain by
connecting it to the old chain with a master link
and pulling the old chain to position the new
chain on the sprockets.
Removal, Cleaning & Replacement
(1) master link retaining clip (3) link plate
(2) master link
Size/link:
D.I.D 520DMA4K/114RB
(2)
(1) (3)
Normal Sprocket Teeth
Damaged Sprocket
Teeth
Worn Sprocket
Teeth
REPLACEREPLACE
GOOD
Service limit: 10.20 in (259.0 mm)
More About Drive Chain
MEASURE A SPAN OF 17 PINS (16 PITCHES)
CRF250R_31K95600.book 114 ページ ２０１７年８月８日 火曜日 午後８時２６分
Exhaust Pipe/Muffler
(cont’d)
Servicing Your Honda 115
Exhaust Pipe/Muffler
Refer to Important Safety Precautions on page 23.
Check the mounting bolts and exhaust pipe joint
nuts for tightness.
Check the exhaust pipes and mufflers for cracks or
deformation.
A damaged exhaust pipes and mufflers may reduce
engine performance.
1. Remove the seat (page 33).
2. Remove the side cover (1) and air cleaner
housing cover (2) by removing the side cover/
air cleaner housing cover bolts (3).
The procedure is the same for the both right and
left side.
3. Loosen the right muffler clamp bolt (4) and
washer (5).
4. Remove the right muffler mounting A bolt (6),
B bolt (7), washer (8), and right muffler (9).
Exhaust Pipe/Muffler Inspection
Muffler Removal
(1) side cover
(2) air cleaner housing cover
(3) side cover/air cleaner housing cover bolts
(4) right muffler clamp bolt (5) washer
(2) (3)
(1)
(5)
(4)
(6) right muffler mounting A bolt
(7) right muffler mounting B bolt
(8) washer
(9) right muffler
(8)
(7) (9) (6)
CRF250R_31K95600.book 115 ページ ２０１７年８月８日 火曜日 午後８時２６分
116 Servicing Your Honda
Exhaust Pipe/Muffler
5. Loosen the left muffler clamp bolt (10) and
washer (11).
6. Remove the left muffler mounting A bolt (12),
B bolt (13), washer (14) and left muffler (15).
1. Remove the gasket (1).
2. Install a new gasket onto the exhaust pipe (2).
3. Align the cutout (3) of the left muffler (4) with
the tab (5) of the left muffler clamp (6).
4. Install the left muffler.
5. Install the washer (7), left muffler mounting B
bolt (8) and A bolt (9).
6. Tighten the left muffler clamp bolt (10) and
washer (11) to the specified torque:
15 lbf·ft (20 N·m, 2.0 kgf·m)
7. Remove the gasket (1).
8. Install a new gasket onto the exhaust pipe (2).
9. Align the cutout (3) of the right muffler (12)
with the tab (5) of the right muffler clamp (13).
10. Install the right muffler (12).
(10) left muffler clamp bolt (11) washer
(12) left muffler mounting A bolt
(13) left muffler mounting B bolt
(14) washer
(15) left muffler
(10)
(11)
(13)(14)(12)
(15)
Muffler Installation
(1) gasket (4) left muffler
(2) exhaust pipe (5) tab
(3) cutout (6) left muffler clamp
(7) washer
(8) left muffler mounting B bolt
(9) left muffler mounting A bolt
(4)
(6)
(2)
(5)
(3)
(1)
(7)
(8)
(9)
(10) left muffler clamp bolt (11) washer
(1) gasket (5) tab
(2) exhaust pipe (12) right muffler
(3) cutout (13) right muffler clamp
(11)
(10)
(13) (2)
(5)
(3)
(1)
(12)
CRF250R_31K95600.book 116 ページ ２０１７年８月８日 火曜日 午後８時２６分
Servicing Your Honda 117
Exhaust Pipe/Muffler
11. Install the washer (14), right muffler mounting
B bolt (15) and A bolt (16).
12. Tighten the right muffler clamp bolt (17) and
washer (18) to the specified torque:
15 lbf·ft (20 N·m, 2.0 kgf·m)
13. Tighten the right muffler mounting B bolt (15)
and A bolt (16) to the specified torque:
19 lbf·ft (26 N·m, 2.7 kgf·m)
14. Tighten the left muffler mounting B bolt (8)
and left muffler mounting A bolt (9) to the
specified torque:
19 lbf·ft (26 N·m, 2.7 kgf·m)
15. Install the air cleaner housing cover (19) and
side cover (20) while air cleaner housing cover
tab (21) insert to the seat support base slot (22),
and then tighten the side cover/air cleaner
housing cover bolts (23) to the specified
torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
The procedure is the same for the both right and
left side
16. Install the seat (page 33).
(14) washer
(15) right muffler mounting B bolt
(16) right muffler mounting A bolt
(17) right muffler clamp bolt
(18) washer
(15)
(14)
(16)
(17)
(18)
(15) right muffler mounting B bolt
(16) right muffler mounting A bolt
(8) left muffler mounting B bolt
(9) left muffler mounting A bolt
(16)
(15)
(8)
(9)
(19) air cleaner housing cover
(20) side cover
(21) air cleaner housing cover tab
(22) seat support base slot
(23) bolts
(19)
(20)
(23)
(21)
(22)
CRF250R_31K95600.book 117 ページ ２０１７年８月８日 火曜日 午後８時２６分
118 Servicing Your Honda
Exhaust Pipe/Muffler
1. Remove the right and left mufflers (page 115).
2. Remove the exhaust pipe joint nuts (1), left
exhaust pipe (2), right exhaust pipe (3) and
exhaust pipe gaskets (4).
1. Install new exhaust pipe gaskets (1).
2. Install the left exhaust pipe (2), right exhaust
pipe (3) and exhaust pipe joint nuts (4) but do
not tighten the nuts yet.
3. Install the left and right mufflers (page 116)
but do not tighten the bolts yet.
4. Tighten the exhaust pipe joint nuts to the
specified torque:
15 lbf·ft (21 N·m, 2.1 kgf·m)
5. Tighten the left muffler clamp bolt, left muffler
mounting A bolt and B bolt (page 116).
6. Tighten the right muffler clamp bolt, right
muffler mounting A bolt and B bolt
(page 117).
Exhaust Pipe Removal
(1) exhaust pipe joint nuts
(2) left exhaust pipe
(3) right exhaust pipe
(4) exhaust pipe gaskets
Right side
(4)
(2)
Left side
(1)(1)(3)
(4)
Exhaust Pipe Installation
(1) exhaust pipe gaskets (new)
(2) left exhaust pipe
(3) right exhaust pipe
(4) exhaust pipe joint nuts
(1)
(1)
(4)
Right side Left side
(4)(3)
(2)
CRF250R_31K95600.book 118 ページ ２０１７年８月８日 火曜日 午後８時２６分
Additional Maintenance Procedures
Servicing Your Honda 119
Additional Maintenance Procedures
Refer to Important Safety Precautions on page 23.
1. With your CRF on an optional workstand or
equivalent support (front wheel elevated), turn
the handlebar to the right and left to check for
roughness in the steering head bearings.
2. Stand in front of your CRF, grab the fork (at
the axle), look at the steering head, and push
the fork in and out (toward the engine) to check
for play in the steering head bearings.
If any roughness or play is felt, but you do not see
any movement in the steering head, the fork
bushings may be worn.
Refer to an official Honda Service Manual for
replacement or adjustment procedures, or see your
dealer.
1. Check the handlebar (1) for bends or cracks.
2. Check that the handlebar has not moved from
its original position where the end of the right
handlebar holders (2) is aligned with the paint
mark (3).
3. Check the torque of the handlebar upper holder
bolts (4):
16 lbf·ft (22 N·m, 2.2 kgf·m)
Tighten the front bolts first.
Periodically, disconnect the throttle and clutch
cables at their upper ends. Thoroughly lubricate
the cable pivot points with a commercially
available cable lubricant. If the clutch lever and
throttle operation is not smooth, replace the cable.
Be sure the throttle returns freely from fully open
to fully closed automatically, in all steering
positions.
Steering Head Bearing Inspection
Handlebar Inspection
(1) handlebar
(2) right handlebar holders
(3) paint mark
(4) handlebar upper holder bolts
(4) (4)
(1) (2) (3)
Control Cables
CRF250R_31K95600.book 119 ページ ２０１７年８月８日 火曜日 午後８時２６分
120 Servicing Your Honda
Additional Maintenance Procedures
Check and tighten nuts, bolts, and fasteners before
every outing.

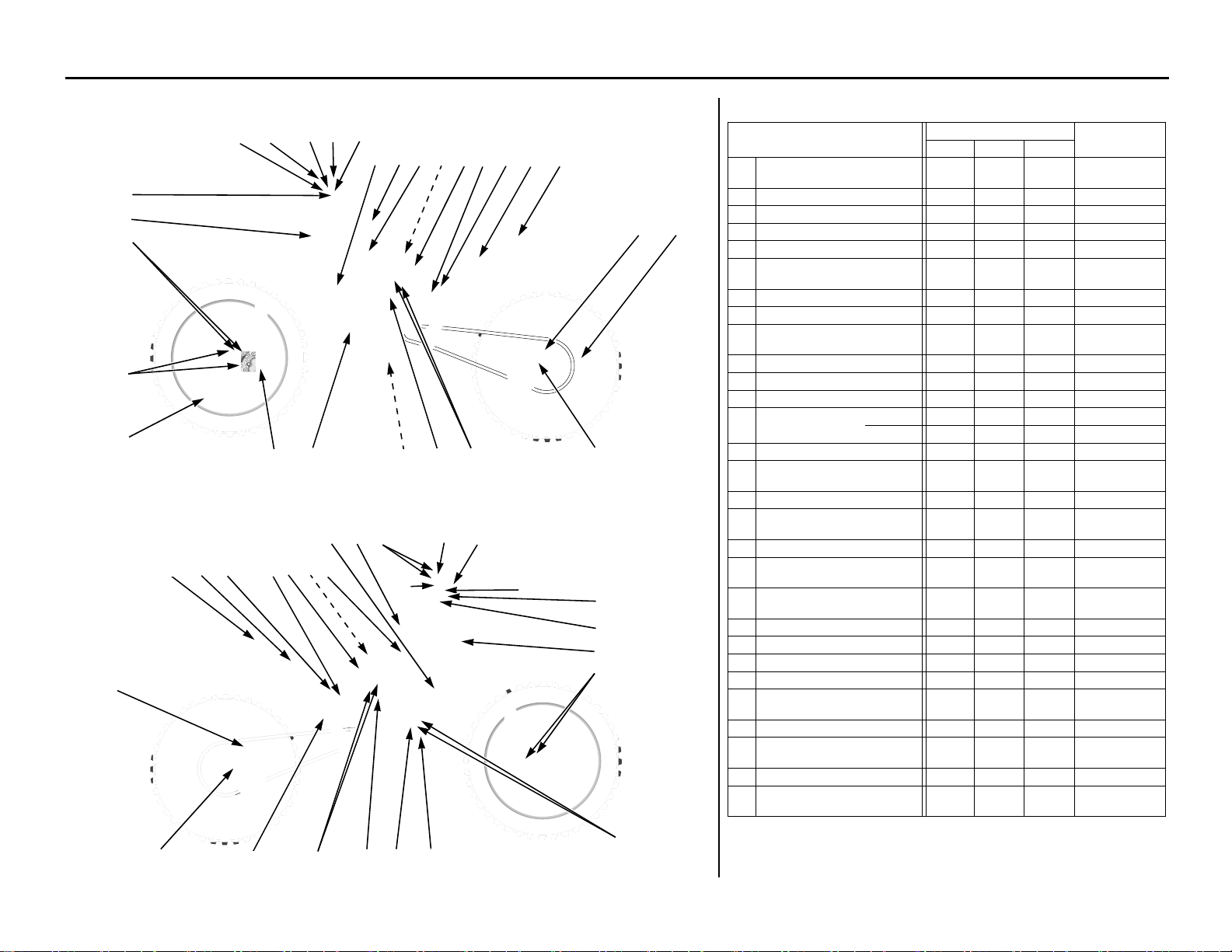

RIGHT SIDE LEFT SIDE
Nuts, Bolts, Fasteners
ENGINE
Item
Torque
lbf·ft N·m kgf·m
1 Cylinder head cover
socket bolts 7 10 1.0
2 Exhaust pipe joint nuts 15 21 2.1
3 Water pump cover bolts 7 10 1.0
4 Coolant drain bolt 7 10 1.0
5 Oil filter cover bolts 7 10 1.0
6 Engine oil drain bolt 12 16 1.6
7 Clutch cover A bolts 7 10 1.0
8 Clutch cover B bolts 7 10 1.0
9 Cylinder bolt 7 10 1.0
10 Cylinder head A bolts 7 10 1.0
11 Cylinder head B bolts 35 48 4.9
12 Drive sprocket bolt 23 31 3.2
13 Crankshaft hole cap 11 15 1.5
14 Timing hole cap 4.4 6 0.6
(1) cylinder head cover socket bolts
(2) exhaust pipe joint nuts
(3) water pump cover bolts
(4) coolant drain bolt
(5) oil filter cover bolts
(6) engine oil drain bolt
(7) clutch cover A bolts
(8) clutch cover B bolts
(9) cylinder bolt
(10) cylinder head A bolts
(11) cylinder head B bolts
(1)
(2)
(3)
(4)
(5)
(6)(8)
(7)
(11)
(10)
(9)
(12) drive sprocket bolt
(13) crankshaft hole cap
(14) timinghole cap
(11)
(12)(14) (13)
(2)
CRF250R_31K95600.book 120 ページ ２０１７年８月８日 火曜日 午後８時２６分
Battery
(cont’d)
Servicing Your Honda 121
Battery
Refer to Important Safety Precautions on page 23.
Your CRF has a lithium-ion (li-ion) battery.
Clean the battery terminals if they become dirty or
corroded.
NOTICE
An improperly disposed of battery can be harmful
to the environment and human health.
Always confirm local regulations for proper
battery disposal instruction.
Power of the start button uses current from the
battery.
Limited operation also allows the battery to
discharge. If you do not ride frequently, we
recommend that you charge the battery frequently
(see Battery Charging on page 122).
If you plan to store your CRF, see Battery Storage
(this page).
If your battery seems weak and/or is leaking
electrolyte (cause slow starting), see your dealer.
If you smell an unusual odor coming from the
lithium-ion (li-ion) battery, park your CRF in a
safe place outside and away from flammable
objects, then push and hold the engine stop button
until the engine stops completely.
The battery has a limited life span.
Consult your dealer about when you should
replace the battery. Always replace the battery
with another lithium-ion (li-ion) battery of the
same type.
The lithium-ion (li-ion) battery contains a fuse
inside.
If the fuse blows, the battery needs replacement.
The voltage may read above 12V even with a
blown battery fuse when the battery is unmounted
(page 151).
Before you remove the battery, be sure to read all
the information that follows, as well as the
information on the battery label.
If you do not remove the battery, we recommend
disconnecting the battery cables (negative cable
first).
The battery is located under the seat.
Removal
1. Remove the seat (page 33).
2. Remove the battery band (1).
3. Uncover the positive terminal cover (2).
4. Disconnect the negative (–) terminal (3).
5. Remove the positive (+) terminal (4) and
remove the battery (5).
6. Unless you have been riding regularly, charge
the battery (page 122).
7. Store your battery in an easy-to-reach location
off the floor, in an area protected from freezing
temperatures and direct sunlight.
8. Clean the battery box after removing the
battery for storage. Dry the battery box.
9. Slow charge the battery (page 122) once every
30 days.
Battery Storage
WARNING
The battery contains flammable organic
solvent as electrolyte.
You can be burned or seriously injured if
the battery is handled improperly.
• Keep the battery away from heat,
sparks, and flame.
• Keep the battery out of the reach of
children.
• Do not disassemble or modify the
battery or battery terminals.
• Do not short-circuit the battery with
metal tools or other metal objects.
• Do not subject the battery to impacts.
(1) battery band (4) positive (+) terminal
(2) positive terminal cover (5) battery
(3) negative (–) terminal
(5)
(3)
(2)
(1)
(4)
CRF250R_31K95600.book 121 ページ ２０１７年８月８日 火曜日 午後８時２６分
122 Servicing Your Honda
Battery
Installation
1. Reinstall the battery (1) in the reverse order of
removal. Be sure to connect the positive (+)
terminal (2) first, then the negative (–) terminal
(3).
2. Tighten the positive (+) and negative (–)
terminal bolts (4) to the specified torque:
1.5 lbf·ft (2.0 N·m, 0.2 kgf·m)
3. Install the battery band (5).
Be sure to read the information that came with
your battery charger and follow the instructions on
the battery. Improper charging may damage the
battery.
We recommend using a charger recommended by
your lithium-ion (li-ion) battery manufacturer
which can be purchased from your dealer. These
units can be left connected for long periods without
risking damage to the battery. However, the
lithium-ion (li-ion) battery may degrade if stored
with a charger connected. Do not intentionally
leave the charger connected longer than the time
period recommended in the charger’s instructions.
Using a battery charger that is not recommended
can cause permanent damage to your battery.
(1) battery
(4) terminal bolts
(2) positive (+) terminal
(5) battery band
(3) negative (–) terminal
(1)
(3) (4)
(2)
(5)
Battery Charging
CRF250R_31K95600.book 122 ページ ２０１７年８月８日 火曜日 午後８時２６分
Appearance Care
Servicing Your Honda 123
Appearance Care
Refer to Important Safety Precautions on page 23.
Frequent cleaning and polishing will keep your
CRF looking newer longer. Frequent cleaning also
identifies you as an owner who values his
motorcycle. A clean CRF is also easier to inspect
and service.
While you’re cleaning, be sure to look for damage,
wear, and gasoline or oil leaks.
• To clean your CRF you may use:
–water
– Hondabrite
– a mild, neutral detergent and water
– a mild spray and wipe cleaner/polisher
– a mild spray and rinse cleaner/degreaser and
water
• Avoid products that contain harsh detergents
or chemical solvents that could damage the
metal, paint, and plastic on your CRF or
discolor the seat and decals.
• If your CRF is still warm from recent
operation, give the engine and exhaust system
time to cool off.
• We recommend the use of a low pressure
garden hose to wash your CRF. High pressure
washers (like those at coin-operated car
washes) can damage certain parts of your CRF.
The force of water under extreme pressure can
penetrate the dust seals of the suspension pivot
points and steering head bearings-driving dirt
inside and needed lubrication out.
If you use a high pressure washer, avoid spraying
the following areas:
brake master cylinders
drive chain
electrical circuit
engine stop button
start button
muffler outlet
steering head bearings
suspension pivot points
throttle body
under fuel tank
under seat
NOTICE
High pressure water (or air) can damage certain
parts of your CRF.
You may use Pro Honda Hondabrite, a multi-
surface cleaner/degreaser, to remove both dirt and
petroleum-based grime from paint, alloy, plastic,
and rubber surfaces. Wet any heavy deposits with
water first. Then spray on Pro Honda Hondabrite
and rinse with a low pressure garden hose at full
pressure. Stubborn deposits may require a quick
wipe with a sponge.
Allow the engine, muffler, brakes, and other high-
temperature parts to cool before washing.
1. Rinse your CRF thoroughly using a low
pressure garden hose to remove loose dirt.
2. Fill a bucket with cool water. Mix in a mild,
neutral detergent, such as dish washing liquid
or a product made especially for washing
motorcycles or automobiles.
3. Wash your CRF with a sponge or a soft towel.
As you wash, check for heavy grime. If
necessary, use a mild cleaner/degreaser to
remove the grime.
NOTICE
Do not use steel wool to clean the frame as it could
damage or discolor the frame surface.
Scotch Brite Hand Pad #7447-maroon is for
removing stains on the non-coated aluminum
frame only.
4. After washing, rinse your CRF thoroughly
with plenty of clean water to remove any
residue.
Detergent residue can corrode alloy parts.
5. Dry your CRF with a chamois or a soft towel.
Leaving water on the surface to air dry can
cause dulling and water spots. As you dry,
inspect for chips and scratches.
6. Lubricate the drive chain to prevent rusting.
7. Start the engine and let it idle for several
minutes. The engine heat will help dry moist
areas.
8. As a precaution, ride at a slow speed and apply
the brakes several times. This will help dry the
brakes and restore normal braking
performance.
General Recommendations
(1) steering head bearings
(2) suspension pivot points
(1)
(2)
Washing Your Motorcycle with a Mild
Detergent
CRF250R_31K95600.book 123 ページ ２０１７年８月８日 火曜日 午後８時２６分
124 Servicing Your Honda
Appearance Care
There are some things you should do just after
washing your CRF to help prevent rust and
corrosion.
Once your CRF is clean and dry, you should
protect any bare steel from rusting by applying a
light coating of a rust-inhibitor. Lubricate the drive
chain and drive sprocket after removing and
thoroughly cleaning in solvent. Be sure the chain is
wiped clean and is dry before applying the chain
lube.
Follow the suggestions given in the pages of this
manual for lubricating items such as the brake and
clutch lever pivot points and footpeg pivot pins.
Aluminum corrodes when it comes in contact with
dust, mud and road salt.
To remove stains, use Scotch Brite Hand Pad
#7447 - maroon or an equivalent.
Wet the pad and polish the surface using strokes
parallel to the length of the frame.
Clean the frame using a wet sponge and a mild
detergent, then rinse well with clean water. Dry the
frame with a soft clean cloth, using strokes parallel
to the length of the frame.
NOTICE
Do not use steel wool to clean the frame as it could
damage or discolor the frame surface.
Scotch Brite Hand Pad #7447 - maroon is for
removing stains on the non-coated aluminum
frame only.
The fuel tank is made of titanium material.
To remove mud or dust, use a sponge or soft cloth
and a stainless steel kitchen detergent, then rinse
well with clean water.
After washing, rinse with plenty of water and dry
with a clean cloth.
The exhaust pipe and muffler are stainless steel but
may became stained by mud or dust.
To remove mud or dust, use a wet sponge and a
liquid kitchen abrasive, then rinse well with clean
water. Dry with chamois or a soft towel.
If necessary, remove heat stains by using a
commercially available fine texture compound.
Then rinse by the same manner as removing mud
or dust.
After Cleaning Lubrication Aluminum Frame Maintenance
Titanium Fuel Tank Maintenance
Exhaust Pipe and Muffler Maintenance
CRF250R_31K95600.book 124 ページ ２０１７年８月８日 火曜日 午後８時２６分
Adjustments for Competition
Adjustments for Competition 125
Adjustments for Competition
This section tells you how to fine tune your CRF
for maximum competition performance.
Initial suspension adjustments should be
performed after a minimum of 2 hour of easy
break-in time.
Optional front and rear suspension springs are
available in order to tailor your CRF specifically
for your weight, riding style and course conditions.
Follow the instructions given in the rear
suspension sag setting section of Rear Suspension
Adjustments to determine if your combined rider
and sprung machine weight (rider fully dressed for
competition and machine coolant, oil and fuel
levels ready for competition) requires an optional
stiffer or softer rear spring. The need for either
optional rear spring may need to be balanced by
installing the optional fork springs of a similar rate.
Engine Mode Select Button ..........................126
Current Mode ............................................126
Mode Selection .........................................126
Front Suspension Adjustments .....................127
Front Suspension Air Pressure ..................127
Front Suspension Damping .......................128
Fork Springs ..............................................128
Fork Oil Adjustment .................................129
Rear Suspension Adjustments .......................130
Rear Suspension Spring Pre-Load ............130
Rear Suspension Damping ........................131
Rear Suspension Race Sag ........................132
Suspension Adjustments for
Track Conditions............................................134
Suspension Adjustment Guidelines ..............135
Tuning Tips ...................................................138
Spark Plug Reading ..................................138
Chassis Adjustments .....................................139
Rear End ...................................................139
Fork Height/Angle ....................................139
Wheelbase .................................................139
Gearing ..........................................................140
Tire Selection for Track Conditions .............141
Personal Fit Adjustments ..............................142
Control Positioning ...................................142
Handlebar Position, Width & Shape .........142
CRF250R_31K95600.book 125 ページ ２０１７年８月８日 火曜日 午後８時２６分
Engine Mode Select Button
126 Adjustments for Competition
Engine Mode Select Button
You can change engine output characteristic
depending on track conditions by using the engine
mode select button (1).
• PGM-FI mode 1: standard setting
• PGM-FI mode 2: smooth setting (reduce throttle
response from the standard setting)
• PGM-FI mode 3: aggressive setting (increase
throttle response from the standard setting)
Start the engine and push the engine mode select
button (1) with your CRF stopped. The mode
indicator (2) under the engine mode select button
indicates the selected mode by blinking the mode
number in blue 3 times.
1. Start the engine.
2. With your CRF stopped and the throttle closed,
push and hold the engine mode select button
for 1 or more second.
Make sure that the fast idle knob is pushed in
(page 17). If the fast idle knob is pulled out, the
engine mode will not change.
3. Release the engine mode select button. The
mode indicator will indicate a selected mode
by the number of times the indicator blue
blinks.
4. Repeat steps 2 – 3 until the desired mode is
indicated.
(1) engine mode select button
(1)
Current Mode
(1) engine mode select button
(2) mode indicator (blue)
(2)
(1)
PGM-FI mode 1:
The indicator blue
blinks once and
repeats it 3 times.
PGM-FI mode 2:
The indicator blue
blinks 2 times and
repeats it 3 times.
PGM-FI mode 3:
The indicator blue
blinks 3 times and
repeats it 3 times.
Mode Selection
PGM-FI mode 1
PGM-FI mode 2
PGM-FI mode 3
CRF250R_31K95600.book 126 ページ ２０１７年８月８日 火曜日 午後８時２６分
Front Suspension Adjustments
Adjustments for Competition 127
Front Suspension Adjustments
The front suspension can be adjusted for the rider's
weight and riding conditions by using one or more
of the following methods:
• Oil volume — The effects of higher or lower
fork oil capacity are only felt during the final
3.9 in (100 mm) of fork travel.
• Compression damping — Turning the
compression damping adjuster (1) adjusts how
quickly the fork compresses.
• Rebound damping — Turning the rebound
damping adjuster (2) adjusts how quickly the
fork extends.
• Fork springs — Optional springs are
available in soft and stiff types than the
standard rate. (page 162)
The inverted fork on your CRF features sealed
damper cartridges with dual (separate air and oil)
chambers to prevent aeration. The design also
isolates the oil in each fork/damper, which may
contain air bubbles and/or metal particles, from the
sealed cartridge to provide more consistent
damping.
Air is an unstable gas which builds up pressure as it
is worked (such as in a fork). Air pressure acts as a
progressive spring and affects the entire range of
fork travel. This means the fork action on your CRF
will get stiffer during a race. For this reason, release
built-up air pressure in the fork legs between motos.
Be sure the fork is fully extended with the front tire
off the ground when you release the pressure.
The standard air pressure is 0 psi (0 kPa, 0 kgf/cm
2
).
You may relieve accumulated air pressure in the fork
legs by using the air pressure release screws. The
front wheel should be off the ground before you
release the pressure. The air pressure should be
adjusted according to the altitude and outside
temperature.
1. Place an optional workstand under the engine,
so that the front wheel is off the ground.
Do not adjust air pressure with the front wheel
on the ground as this will give false pressure
readings.
2. Remove the air pressure release screw (1).
3. Apply recommended fork oil to a new O-ring
(2), and then install the new O-ring.
4. Install and tighten the air pressure release
screw to the specified torque:
1.0 lbf·ft (1.3 N·m, 0.1 kgf·m)
The procedure is the same for the both right and
left fork legs.
(1) compression damping adjuster
(2) rebound damping adjuster
(1)
(2)
Front Suspension Air Pressure
(1) air pressure release screw (2) O-ring (new)
(2)
(1)
CRF250R_31K95600.book 127 ページ ２０１７年８月８日 火曜日 午後８時２６分
128 Adjustments for Competition
Front Suspension Adjustments
Compression Damping Adjustment
This adjustment affects how quickly the fork
compresses. The fork compression damping
adjuster has 16 clicks or more. Turning the
compression damping adjuster screw (1) one full
turn changes the adjuster 4 clicks. To adjust the
adjuster to the standard position, proceed as
follows:
Turn the adjuster clockwise (harder) until it will no
longer turn (lightly seats). Turn the adjuster
counterclockwise (softer) until it clicks. This click
is position 1.
The standard position is 9 clicks.
Make sure that both fork legs are adjusted to the
same position.
Rebound Damping Adjustment
The fork rebound damping adjuster has 16 clicks
or more. Turning the rebound damping adjuster
screw (2) one full turn clockwise advances the
adjuster 4 clicks. To adjust the rebound damping to
the standard setting, proceed as follows:
Turn the adjuster clockwise (harder) until it will no
longer turn (lightly seats). Turn the adjuster
counterclockwise (softer) until it clicks. This click
is position 1.
The standard position is 14 clicks.
Make sure that both fork legs are adjusted to the
same position.
NOTICE
Always start with full hard when adjusting
damping.
Do not turn the adjuster screw more than the given
positions or the adjuster may be damaged.
Be sure that the compression and rebound
damping adjusters are firmly located in a detent,
and not between positions.
Both compression and rebound damping can be
increased by turning the adjuster clockwise.
The fork springs in CRF’s are about right for riders
weighing between 170 lb (77 kg) and 200 lb (91
kg) (less riding gear). So if you’re a heavier rider,
you have to go up on the oil capacity or get a stiff
spring. Do not use less oil than the minimum
specified for each spring or there will be a loss of
rebound damping control near full extension. If the
fork is too stiff on big bumps, turn the damping
adjuster counterclockwise 1-click and lower the oil
capacity in increments of 0.2 US oz (5 cm
3
) in both
fork legs until the desired performance is obtained.
Do not, however, lower the oil capacity below the
minimum oil capacity.
Minimum oil capacity:
When adjusting oil capacity, bear in mind that the
air in the fork will increase in pressure while
riding; therefore, the higher the oil capacity, the
higher the eventual pressure of any air in the fork.
Front Suspension Damping
(1) compression damping adjuster screw
(2) rebound damping adjuster screw
(1)
(2)
Fork Springs
Standard spring: 10.4 US oz (307 cm
3
)
Soft spring: 10.6 US oz (312 cm
3
)
Stiff spring: 10.4 US oz (308 cm
3
)
CRF250R_31K95600.book 128 ページ ２０１７年８月８日 火曜日 午後８時２６分
Adjustments for Competition 129
Front Suspension Adjustments
1. Remove the front suspension (page 89).
2. Disassemble the fork outer tube (page 91).
3. Disassemble the fork damper (page 96).
Fork Oil Capacity:
Example: Front fork characteristics when a
standard spring
4. Assemble the fork damper (page 101).
5. Refilling the fork oil (page 92).
6. Install the front suspension (page 93).
Fork Oil Adjustment
Standard
oil capacity
12.0 US oz
(356 cm
3
)
Maximum
oil capacity
13.3 US oz
(392 cm
3
)
Slightly stiffer as it
nears full
compression.
Minimum
oil capacity
10.4 US oz
(307 cm
3
)
Slightly softer as it
nears full
compression.
Standard 26.3 lbf/in (4.6 N/mm) Fork Spring
1 scribe mark
Force (N)
Stroke (mm)
Oil capacity 13.3 US oz (392 cm
3
)
(MAX)
Oil capacity 12.0 US oz (356 cm
3
)
(STANDARD)
Oil capacity 10.4 US oz (307 cm
3
)
(MIN)
Standard
oil capacity
12.2 US oz
(361 cm
3
)
Maximum
oil capacity
13.4 US oz
(397 cm
3
)
Slightly stiffer as it
nears full
compression.
Minimum
oil capacity
10.6 US oz
(312 cm
3
)
Slightly softer as it
nears full
compression.
Optional Soft 25.1 lbf/in (4.4 N/mm) Fork Spring
2 scribe marks
Standard
oil capacity
12.1 US oz
(357 cm
3
)
Maximum
oil capacity
13.3 US oz
(393 cm
3
)
Slightly stiffer as it
nears full
compression.
Minimum
oil capacity
10.4 US oz
(308 cm
3
)
Slightly softer as it
nears full
compression.
Optional Stiff 27.4 lbf/in (4.8 N/mm) Fork Spring
No mark
CRF250R_31K95600.book 129 ページ ２０１７年８月８日 火曜日 午後８時２６分
Rear Suspension Adjustments
130 Adjustments for Competition
Rear Suspension Adjustments
The rear suspension can be adjusted for the rider’s
weight and riding conditions by changing the
spring pre-load and the rebound and compression
damping.
The rear suspension assembly includes a damper
unit that contains high pressure nitrogen gas. Do
not attempt to disassemble, service, or dispose of
the damper; see your dealer. The instructions
found in this owner’s manual are limited to
adjustments of the shock assembly only.
Puncture or exposure to flame may also result in an
explosion, causing serious injury.
Service or disposal should only be done by your
dealer or a qualified mechanic, equipped with the
proper tools, safety equipment and an official
Honda Service Manual.
If your CRF is new, put enough part-throttle break-
in time (about 1 hour) on it to ensure that the
suspension has worked in.
Pre-load should be adjusted when the engine is
cold because it is necessary to remove the muffler.
An optional pin spanner is available for turning the
shock spring lock nut and adjusting nut to adjust
spring pre-load.
1. Place your CRF on an optional workstand or
equivalent support with the rear wheel off the
ground.
2. Remove the subframe (page 37).
3. Check that the spring pre-load is adjusted to
the standard length. Adjust as necessary by
loosening the shock spring lock nut (1) and
turning the adjusting nut (2).
Each complete turn of the adjusting nut
changes the spring length by 0.06 in (1.5 mm).
After adjustment, hold the adjusting nut and
tighten the shock spring lock nut to the
specified torque:
32 lbf·ft (44 N·m, 4.5 kgf·m)
Refer to the following pages for the installation
procedure of the removed parts:
• subframe: page 38
To increase spring pre-load
Loosen the shock spring lock nut with the optional
pin spanners (3) and turn the adjusting nut to
shorten the spring length (4). Do not shorten to less
than:
Standard spring (297 lbf/in (52 N/mm)):
8.88 in (225.5 mm)
Optional Soft spring (286 lbf/in (50 N/mm)):
8.86 in (225.0 mm)
Optional Stiff spring (308 lbf/in (54 N/mm)):
9.04 in (229.5 mm)
To decrease spring pre-load
Loosen the shock spring lock nut with the optional
pin spanners (3) and turn the adjusting nut to
increase the spring length (4). Do not increase to
more than:
Standard spring (297 lbf/in (52 N/mm)):
9.41 in (239.0 mm)
Optional Soft spring (286 lbf/in (50 N/mm)):
9.21 in (234.0 mm)
Optional Stiff spring (308 lbf/in (54 N/mm)):
9.41 in (239.0 mm)
Each turn of the adjusting nut changes spring
length and spring pre-load. One turn equals: spring
length/spring pre-load:
Standard: 0.06 in (1.5 mm)/18 lbf (78 N)
Pin spanners should be used for turning the shock
spring lock nut and adjusting nut. See page 162 for
optional pin spanners.
Spring pre-load length (Standard spring)
Rear Suspension Spring Pre-Load
(1) shock spring lock nut (3) pin spanners
(2) adjusting nut (4) spring length
(1)
(4)
(2)
(3)
Standard: 9.27 in (235.4 mm)
Max. : 9.41 in (239.0 mm)
Min. : 8.88 in (225.5 mm)
CRF250R_31K95600.book 130 ページ ２０１７年８月８日 火曜日 午後８時２６分
Rear Suspension Adjustments
(cont’d)
Adjustments for Competition 131
Compression Damping
Compression damping may be adjusted in two
stages with separate adjusters.
The high speed compression damping adjuster (1)
is effective when damping adjustment is desired
for high speed operation. The low speed
compression damping adjuster (2) should be used
when damping adjustment is desired at relatively
low speeds.
• When adjusting the compression damping
adjusters, make sure to use the proper size tool
to avoid damage.
• Both the high and low speed compression
damping can be increased by turning the
appropriate adjuster clockwise.
• Adjust the high speed compression damping
adjuster in 1/4 turn increments.
• Be sure the low speed compression damping
adjuster is firmly located in a detent, and not
between positions.
High Speed Damping:
The high speed damping can be adjusted by
turning the hexagonal portion of the compression
damping adjuster.
The high speed compression damping has 3 1/2
turn or more.
To adjust to the standard position:
1. Turn the adjuster clockwise (harder) until it
will no longer turn (lightly seats).
2. Turn the adjuster counterclockwise (softer)
3 1/4 – 3 3/4 turns and adjust it until the
punch mark (3) on the adjuster and the punch
mark (4) on the adjuster body are aligned.
Low Speed Damping:
The low speed damping can be adjusted by turning
the center screw of the compression damping
adjuster.
The low speed compression damping adjuster has
13 clicks or more.
Turning the adjuster one full turn clockwise
advances the adjuster 4 clicks.
To adjust to the standard position:
1. Turn the adjuster clockwise (harder) until it
will no longer turn (lightly seat). Turn the
adjuster counterclockwise (softer) until it
clicks. This click is position 1.
2. Set the adjuster position 11 clicks and adjust it
until the punch mark (5) on the adjuster and the
punch mark (4) on the adjuster body are
aligned.
Rear Suspension Damping
(1) high speed compression damping adjuster
(2) low speed compression damping adjuster
(1)
(2)
(3) high speed compression damping adjuster punch
mark
(4) adjuster body punch mark
(3)
(4)
(4) adjuster body punch mark
(5) low speed compression damping adjuster punch
mark
(5)
(4)
CRF250R_31K95600.book 131 ページ ２０１７年８月８日 火曜日 午後８時２６分
132 Adjustments for Competition
Rear Suspension Adjustments
Rebound Damping
The rebound damping adjuster (6) is located at the
lower end of the rear shock absorber.
It has 17 clicks or more. Turning the adjuster one
full turn advances the adjuster 8 clicks.
• When adjusting the rebound damping adjuster,
make sure to use the proper size tool to avoid
damage.
• Rebound damping can be increased by turning
the adjuster clockwise.
• Be sure that the rebound damping adjuster is
firmly located in a detent, and not between
positions.
To adjust to the standard position:
1. Turn the adjuster clockwise (harder) until it
will no longer turn (lightly seat). Turn the
adjuster counterclockwise (softer) until it
clicks. This click is position 1.
2. Set the adjuster position 8 to 11 clicks and
adjust it until the punch marks (7) on the
adjuster and the rear shock absorber are
aligned.
Setting the proper race sag (ride height) is very
important for competition use.
Race sag refers to the amount of rear wheel travel
used by your CRF at rest, ready to ride, with you
on the seat. As a general rule of thumb, the race sag
dimension should be about one-third of the
maximum travel.
On your CRF, ride height is changed by adjusting
the rear suspension spring pre-load.
Spring Pre-load & Race Sag Adjustment
The following adjustment procedure establishes
the correct starting point for any suspension tuning
— the proper rear suspension spring preload
adjustment for your specific needs.
Your CRF should be at normal racing weight,
including fuel, oil and coolant. You should be
wearing all your normal protective apparel. You
will need two helpers.
To calculate the proper adjustment, it is necessary
to measure between two fixed points — from the
center of the seat mounting bolt to the center of the
chain adjuster lock nut as illustrated here — for
two different situations:
unloaded: motorcycle on an optional workstand
with rear suspension fully extended, no rider.
loaded with rider: motorcycle on ground, with
rider.
1. Support your CRF on an optional workstand
with the rear wheel off the ground.
2. Measure the unloaded dimension.
(6) rebound damping adjuster (7) punch marks
(6)
(7)
Rear Suspension Race Sag
UNLOADED MEASUREMENT
(without rider)
EXAMPLE: 24.6 in (625 mm)
SEAT MOUNTING BOLT
CHAIN ADJUSTER LOCK NUT
CRF250R_31K95600.book 132 ページ ２０１７年８月８日 火曜日 午後８時２６分
Adjustments for Competition 133
Rear Suspension Adjustments
3. Measure the loaded with rider dimension.
Remove the workstand. With two helpers
available, sit as far forward as possible on your
CRF’s seat, wearing your riding apparel.
Ask one helper to steady your CRF perfectly
upright so you can put both feet on the pegs.
Bounce your weight on the seat a couple of
times to help the suspension overcome any
situation and settle to a good reference point.
Ask the other helper to measure the loaded
with rider dimension.
Example:
4. Calculate the race sag dimension.
To do this, subtract the loaded with rider
dimension (step 3) from the unloaded
dimension (step 2).
Standard Race Sag: 4.1 in (105 mm)
Adjust spring pre-load as necessary to obtain
the desired handling results.
Decreasing the race sag dimension (example:
3.7 in, 95 mm) improves turning ability for
tight terrain at the cost of slightly reduced
straight line stability.
Increasing the race sag dimension (example:
4.5 in, 115 mm) may improve stability on
faster terrain with less turns, but will reduce
turning performance slightly and may upset the
balance between the front and rear suspension,
producing a harsher ride. This will happen if
the adjustment shifts the effective wheel travel
toward the more progressive end of its range.
Spring Rates
If you are lighter or heavier than the average rider
and cannot set the proper ride height without
altering the correct spring pre-load, consider an
aftermarket rear shock spring.
A spring that is too soft for your weight forces you
to add excessive spring pre-load to get the right
race sag and, as a result, the rear end of the
motorcycle is raised. This can cause the rear wheel
to unload too much in the air and top out as travel
rebounds. The rear end may top out from light
braking, or kick sideways over lips and square-
edged terrain. It may even top-out when you
dismount your CRF.
Because of the great absorption quality of the
shock bumper rubber, it may be difficult for you to
notice when your CRF’s suspension is bottoming.
Some riders may think the damping or perhaps the
leverage ratio is too harsh. In reality, the problem
is most likely insufficient spring pre-load or a
spring that is too soft. Either situation prevents
utilizing the full travel.
Keep in mind that a properly adjusted suspension
system may bottom slightly every few minutes at
full speed. Adjusting the suspension to avoid this
occasional bottoming may cost more in overall
suspension performance than it is worth.
A spring that is too stiff for your weight will not
allow the rear tire to hook up under acceleration
and will pass more bumps on to you.
Unloaded = 24.6 in (625 mm)
– Loaded = 20.7 in (525 mm)
Race Sag = 3.9 in (100 mm)
LOADED MEASUREMENT
(with rider)
EXAMPLE: 20.7 in (525 mm)
SEAT MOUNTING BOLT
CHAIN ADJUSTER LOCK NUT
CRF250R_31K95600.book 133 ページ ２０１７年８月８日 火曜日 午後８時２６分
Suspension Adjustments for Track Conditions
134 Adjustments for Competition
Suspension Adjustments for Track Conditions
Soft Surface
On soft ground, sand, and especially mud, consider
increasing compression damping front and rear.
Sand often requires a bit more rebound damping to
minimize rear end kick. Although sand bumps are
usually larger, there’s more distance between
them, giving the shock more time to recover.
You may want a little bit stiffer front suspension
for sand tracks to help keep the front end up and
improve straight-line stability.
In a muddy event, stiffer optional springs front and
rear may help, especially if you are heavier than
the average rider. Your CRF may be under-sprung
because of the added weight of the clinging mud.
This additional weight may compress the
suspension too much and affect traction.
Hard Surface
For a fast, hard track with no large jumps, you can
probably run the same setting as normal, but run
softer damping both ways-compression and
rebound. If you run softer rebound damping, the
wheel will follow the rough ground and small
bumps much better, and you will hook up better.
With a lot of rebound damping, the wheel returns
very slowly and doesn’t contact the ground quickly
enough after each bump. The result is a loss of
traction and slower lap times.
CRF250R_31K95600.book 134 ページ ２０１７年８月８日 火曜日 午後８時２６分
Suspension Adjustment Guidelines
Adjustments for Competition 135
(cont’d)
Suspension Adjustment Guidelines
Follow the procedures described below to accurately adjust your CRF, using the methods described on pages 127 – 134. Remember to make all adjustments in
one-click or 1/12 turn increments. Test ride after each adjustment.
Front Suspension Adjustment
Adjustments for Type of Track
Hard-surfaced track Begin with the standard setting. If the suspension is too stiff/soft, adjust according to the chart below.
Sand track Adjust to a stiffer position.
Example: – Turn the compression damping adjuster to a stiffer position.
– Install the optional stiffer spring. (Adjust compression damping to a softer position and rebound damping to a stiffer position at
this time.)
Mud track Adjust to a stiffer position because mud build-up increases your CRF’s weight.
Example: – Turn the compression damping adjuster to a stiffer setting.
– Install the optional stiffer spring.
Adjustments for Too Soft/Stiff Damping
Symptom Action
Soft
suspension
Initial travel too soft:
• Steering is too quick.
• Front end darts while cornering or riding in a straight line.
– Test stiffer compression damping adjustments in one-click increments.
– Test stiffer rebound damping in one-click increments.
Middle travel too soft:
• Front end dives when cornering.
If suspension isn’t stiff in initial travel:
– Test stiffer compression damping adjustments in one-click increments.
If initial travel becomes stiff because of the above adjustment:
– Reduce the rebound damping in one-click increments.
– Test softer compression damping adjustments in one-click increments.
If that doesn’t solve the problem, install the optional stiff spring.
Final travel too soft:
• Bottoms on landings.
• Bottoms on large bumps, especially downhill bumps.
If initial and middle travel aren’t stiff:
– Test stiffer compression damping adjustments in one-click increments.
If initial and middle travel are stiff:
– Install the optional stiff spring.
If initial travel is stiff after installing the optional stiff spring:
– Test softer compression damping adjustments in one-click increments.
If initial travel is still soft after installing the optional stiff spring:
– Test stiffer compression damping adjustments in one-click increments.
If final travel is still soft after installing the optional stiff spring:
– Increase the fork oil capacity in increments of 0.2 US oz (5 cm
3
).
Entire travel too soft:
• Front end shakes.
• Fork bottoms over any type of terrain.
Install the optional stiff spring.
– Test stiffer compression damping adjustments in one-click increments.
– Increase rebound damping adjustment in one-click increments.
CRF250R_31K95600.book 135 ページ ２０１７年８月８日 火曜日 午後８時２６分
Suspension Adjustment Guidelines
136 Adjustments for Competition
Symptom Action
Stiff
suspension
Initial travel too stiff:
• Stiff on small bumps while riding at full throttle in a straight line.
• Stiff on small cornering bumps.
• Front end wanders while riding at full throttle in a straight line.
– Test softer compression damping adjustments in one-click increments.
– Reduce the rebound damping adjustments in one-click increments.
– Check for dirt in the dust seals. Check the fork oil for any contamination.
If the front end dives while cornering after the above adjustment:
Reduce the rebound damping adjustment in one-click increments. If that doesn’t
solve the problem, install the optional stiff spring.
If the stiff spring makes the suspension too stiff over the full range of travel:
test softer compression damping adjustments in one-click increments until the
desired compression damping for initial travel is obtained.
Middle travel too stiff:
• Stiff on bumps when cornering.
• Front end wanders when cornering.
• Stiff suspension on bumps, especially downhill bumps.
• While braking, front end dives during initial travel, then feels stiff.
If initial travel isn’t stiff:
– Test stiffer compression damping adjustments in one-click increments. (This should
produce smooth fork action from initial to middle travel.)
If initial and middle travel is stiff:
– Test softer compression damping adjustments in one-click increments.
– Reduce the rebound damping adjustment in one-click increments.
Final travel too stiff:
• Doesn’t bottom on landings, but feels stiff.
• Stiff on large bumps, especially downhill bumps.
• Stiff on large bumps when cornering.
If initial and middle travel aren’t stiff:
– Test stiffer compression damping adjustments in one-click increments. (This should
produce smooth fork action from initial to middle travel.)
If final travel is still stiff after the above adjustment, or
If initial and middle travel becomes stiff:
– Install the optional soft spring.
– Test softer compression damping adjustments in one-click increments.
If the entire travel feels stiff after the above adjustment:
– Test softer compression damping adjustments in one-click increments until the
desired initial travel compression damping is obtained.
– Lower the oil capacity by 0.2 US oz (5 cm
3
).
Entire travel too stiff:
• Stiff suspension on any type of terrain.
– Test softer compression damping adjustments in one-click increments.
– Reduce the rebound damping adjustment in one-click increments.
– Lower the oil capacity by 0.2 US oz (5 cm
3
).
CRF250R_31K95600.book 136 ページ ２０１７年８月８日 火曜日 午後８時２６分
Suspension Adjustment Guidelines
Adjustments for Competition 137
Rear Suspension Adjustment
Adjustments for Type of Track
Hard-surfaced track Begin with the standard settings. If the suspension is too stiff/soft, adjust according to the chart below.
Sand track Lower the rear end (to improve front wheel stability) by increasing Race Sag (reduce spring pre-load).
Example: – Turn the compression damping adjuster and, especially, rebound damping adjuster to a stiffer setting.
– Increase standard Race Sag (+0.2 to 0.4 in/5 to 10 mm).
Mud track Adjust to a stiffer position because mud build-up increases your CRF’s weight.
Example: – Adjust the compression and rebound damping adjusters to stiffer settings.
– Install an optional stiff spring.
– Reduce standard Race Sag (–0.2 to 0.4 in/5 to 10 mm).
Symptoms and Adjustment
• Always begin with the standard settings.
• Turn the low speed compression and rebound damping adjusters in one-click increments, and the high speed compression damping adjuster in 1/12 turn increments at a time.
Adjusting two or more clicks or turns at a time may cause you to pass over the best adjustment. Test ride after each adjustment.
• If, after setting, the suspension feels unusual, find the corresponding symptom in the table and test stiffer or softer compression and/or rebound damping adjustments until the
correct settings are obtained as described.
Symptom Action
Stiff suspension Suspension feels stiff on small bumps 1. Test softer low speed compression damping adjustment.
2. If it still feels stiff, further test softer low and high speed compression damping adjustments simultaneously.
Suspension feels stiff on large bumps 1. Test softer high speed compression damping adjustment.
2. If it still feels stiff, further test softer low and high speed compression damping adjustments simultaneously.
Entire travel too stiff 1. Test softer high and low speed compression damping adjustments and rebound damping adjustment
simultaneously.
2. If it still feels stiff, replace the spring with a softer spring (optional) and begin with the standard settings to softer
settings.
Soft suspension Entire travel too soft 1. Test stiffer high and low speed compression damping adjustments simultaneously.
2. If it still feels soft, replace the spring with a stiffer spring (optional) and begin with the standard settings to stiffer
setting.
Rear end sways 1. Test stiffer high and low speed compression damping adjustments and rebound damping adjustment to stiffer
settings simultaneously.
Suspension
bottoms
Suspension bottoms at landing after
jumping
1. Test stiffer high speed compression damping adjustment.
2. If it still bottoms, test stiffer high and low speed compression damping adjustments, and replace the spring with
a stiffer spring (optional) if necessary.
Suspension bottoms after landing 1. Test stiffer low speed compression damping adjustment.
2. If it still bottoms, test stiffer high and low speed compression damping adjustments, and replace the spring with
a stiffer spring (optional) if necessary.
Suspension bottoms after end of
continuous bumps
1. Test softer rebound dumping adjustment.
2. If it still bottoms, test stiffer high and low speed compression damping adjustments and softer rebound
damping adjustment, and replace the spring with a stiffer spring (optional) if necessary.
CRF250R_31K95600.book 137 ページ ２０１７年８月８日 火曜日 午後８時２６分
Tuning Tips
138 Adjustments for Competition
Tuning Tips
Refer to Spark Plug on page 67.
The following procedure is recommended.
You may not get an accurate reading if you simply
turn off the engine and pull the plug for inspection.
Use a new spark plug. Inspect the plug before
installing it.
NOTICE
Using spark plugs with an improper heat range or
incorrect reach can cause engine damage.
Ride for 10 – 15 minutes before taking a plug
reading. A new plug will not color immediately.
Before removing the spark plug, clean the spark
plug area thoroughly to prevent dirt from entering
the cylinder.
To obtain an accurate reading of a new spark plug:
1. Accelerate at full throttle on a straight.
2. Depress and hold the engine stop button and
pull the clutch lever in.
3. Coast to a stop.
4. Remove the spark plug.
5. Use a magnifying glass to inspect the spark
plug. The porcelain insulator (1) around the
center electrode (2) should appear clean and
colorless with a gray ring around the center
electrode where it exits the porcelain.
Light gray or white color streaks the porcelain
insulator and center electrode indicate lean air-
fuel mixture. Wet or black sooty streaks on the
porcelain indicate rich air-fuel mixture.
NOTICE
An improperly tightened spark plug can damage
the engine. If a plug is too loose, the piston may be
damaged. If a plug is too tight, the threads may be
damaged.
Spark Plug Coloring Guidelines
Remember that in addition to improper air-fuel
mixture:
• A lean condition can be caused by air leaks in
the inlet tract or exhaust system, the passage of
too much air because of the use of the wrong
air cleaner, or use of a less-restrictive
aftermarket exhaust system.
• A rich condition can be caused by a plugged or
dirty air cleaner, use of a more-restrictive
aftermarket exhaust system, or excessive oil on
the air cleaner.
Excessive smoking will occur.
Spark Plug Reading
(1) porcelain insulator (2) center electrode
Condition Spark Plug Appearance Mixture
Normal Dark brown to light tan
color with dry electrode
correct
Overheating
(Lean)
Light gray or white color lean
Wet (Rich) Wet or sooty rich
(1)
(2)
CRF250R_31K95600.book 138 ページ ２０１７年８月８日 火曜日 午後８時２６分
Chassis Adjustments
Adjustments for Competition 139
Chassis Adjustments
The following suggestions may improve a specific
concern. Subtle changes in overall handling may
also be noted.
If you have a problem with rear wheel traction,
raise the rear end of your CRF by increasing the
rear suspension spring pre-load. Instead of running
4.1 in (105 mm) of sag, you can run 3.7 in (95 mm)
so the rear of the motorcycle will sit a little higher.
This should produce more traction because of the
change to the swingarm and location of your
CRF’s center of gravity.
If you have a problem with the steering head
shaking when you use the front brake hard or if
your CRF wants to turn too quickly, lower the rear
of the motorcycle by reducing the rear suspension
spring pre-load. This will increase fork rake and
trail and should improve stability in a straight line.
The effective suspension travel will be transferred
toward the firmer end of wheel travel.
Keep the race sag adjustment (page 132) in the
3.7 – 4.5 in (95 – 115 mm) range.
The position of the fork in the clamp is not
adjustable.
Standard Position
The groove (1) in the outer tube is aligned with the
top surface of the upper fork bridge (2).
Adjusting your CRF’s wheelbase can offer subtle
changes in overall handling. You may adjust
wheelbase by adding or removing links on the
drive chain. If you change the wheelbase, be sure
to recheck race sag and adjust, if necessary.
In the past, a general rule was lengthen the
wheelbase to add straight line stability, shorten the
wheelbase to improve turning. However, we
suggest you do not lengthen the wheelbase of your
CRF unless you are racing on a track with more
fast sections than normal.
As a general recommendation, keep the wheelbase
as short as possible. This positions the wheels
closer together, improves turning response,
increases weighting (traction) on the rear wheel,
and lightens weighting on the front wheel.
With your CRF, you will probably find that the
standard setting or a shorter wheelbase will offer
more overall benefits.
Rear End
Fork Height/Angle
(1) groove
(2) upper fork bridge
(1)
(2)
Wheelbase
CRF250R_31K95600.book 139 ページ ２０１７年８月８日 火曜日 午後８時２６分
Gearing
140 Adjustments for Competition
Gearing
You can “adjust” the power delivery of the
standard engine to suit track conditions by
changing gearing. This allows you to utilize a
different portion of the engine’s power range at a
given throttle setting. New gearing may provide
the change you are looking for without the need to
consider further modifications.
The portion of your engine’s power range you use
can be adjusted by changing the final drive ratio
with different sized driven sprockets. Gearing
changes allow you to more closely match the type
of terrain and the available traction.
Normally, a change of one tooth on the driven
sprocket will be sufficient.
There is a choice of lower final drive ratio with
optional driven sprocket.
Like the optional springs, this sprocket is listed in
the Optional Parts List section of this manual
(page 162).
Unless you have the required mechanical know-
how, tools, and an official Honda Service Manual,
sprocket changing should be done by your dealer.
Lower Gearing (more driven sprocket teeth)
• decreases top speed in each gear
• increases frequency of shifting (narrower gear
ratios)
• increases engine rpm at a given throttle setting
or ground speed (which may provide more
power-to-the-ground on good traction
surfaces)
However:
• spacing between gears may be too narrow
• engine rpm may be too high
Some tracks may be watered heavily prior to the
first race, then lightly or not at all during the day.
This results in a track surface that is slippery
during the first few races, then changes from good
to great and back to good and possibly ends the day
with a slick rock-hard consistency.
Ideally, your gearing should be adjusted to suit all
these conditions.
• Wet and slippery or sandy conditions: use a
higher gear (less teeth) to keep engine rpm
down, and avoid unwanted wheelspin. The
engine may bog in certain corners so you’ll
need to slip the clutch to compensate;
downshifting may be too drastic a change in
speed.
• Average conditions: use the standard sprocket.
• Hard (but not slippery) track conditions: use
lower gearing (more teeth) to keep the engine
rpm high where the engine produces the most
power. This may require an extra upshift on
certain sections or perhaps you can just rev it
out a bit longer.
For tight tracks, consider lower gearing to avoid
having to slip the clutch frequently. Repeated
fanning or pulling of the clutch lever in a turn to
raise engine rpm may eventually damage the
clutch system.
A gearing change may help for riding in sand,
where you want to keep the front end light so it can
float from the peak of one sand whoop to the next.
Generally, with higher gearing, it is easier to
maintain that perfect attitude (maximum rear
wheel traction and a light front end) because you
remain in the powerband longer in each gear.
The higher gearing allows you to steer more
efficiently with throttle control and body English.
If you are riding a track with sections where you
choose to over-rev the engine temporarily rather
than shifting up, higher gearing might help.
Sometimes you have to sacrifice performance on
one section of the track to gain a better overall
time. Your goal is the fastest overall lap time, even
if the cost is some sections where the gearing feels
wrong.
If you decide to try a gearing change, have
someone check your times with a stopwatch
(before and after the change) to get an accurate
appraisal of the change. “Seat-of-the-pants”
feelings can’t be trusted. Eliminating wheelspin
with a gearing change can make you feel like
you’re going slower when, in reality, you’ve
decreased your time by increasing your speed with
better traction.
These gearing recommendations should be
evaluated by considering your ability, your riding
style, and the track.
CRF250R_31K95600.book 140 ページ ２０１７年８月８日 火曜日 午後８時２６分
Tire Selection for Track Conditions
Adjustments for Competition 141
Tire Selection for Track Conditions
Choosing the correct tire tread pattern and rubber
compound can affect your placing in competition.
The tires on your CRF offer a “happy medium” for
the variety of soil conditions the majority of riders
are likely to encounter.
Experienced competitors often switch to tires
developed for specific terrain conditions. If you do
switch, stay with the factory recommended sizes.
Other tires may affect handling or acceleration.
Be aware that tire sizes (width and aspect ratio) do
vary from manufacturer to manufacturer or even
among tires made by the same manufacturer.
Variations in tires, especially the sidewall profile,
can change the attitude of your CRF and its
handling. Tire variations that raise or lower the
rear of your CRF have a more significant effect on
handling than variations in front tires which,
generally, don’t vary as much.
Often, you can see or feel the change in tire size.
Another way to check is to measure the rolling
circumference of the old and new tires. A higher
profile tire will have a larger rolling
circumference.
If you do switch to tires designed for special terrain
use, remember they will be less acceptable in other
circumstances. For example, an aggressive mud
tire will give excellent grip on wet, loamy terrain,
but less impressive grip on a hard surface.
If you choose a tire with a sticky compound for
added traction, remember that it may transfer
additional loads to the transmission because it
grips so well, especially when riding in situations
that normally place unusual demands on the
transmission.
Complete consumer information can be obtained
from the various tire manufacturer representatives
and dealers.
Some general recommendations for specific
terrain follow:
Hard, Slick Soil
Use tires with many relatively short knobs that are
close together in order to obtain the largest
possible contact patch on the surface. The rubber
compound needs to be softer for hard ground in
order to hook up, but not so soft that the knobs roll
over easily and affect holding a straight line.
These tires tend to wear more quickly than
standard tires because of the combination of soft
rubber and hard terrain.
Muddy Soil
Use a more open tread pattern to avoid clogging.
For these conditions, the relatively long knobs will
probably be made from a harder rubber compound
to reduce any tendency to bend back under
acceleration or wear quickly.
Loose, Sandy Soil
Use a tire that is similar in construction to those
needed for tacky soil and mud, but with a few more
knobs.
CRF250R_31K95600.book 141 ページ ２０１７年８月８日 火曜日 午後８時２６分
Personal Fit Adjustments
142 Adjustments for Competition
Personal Fit Adjustments
The following suggestions may make your ride
both more comfortable and more responsive to
your control input.
• Position the control levers so that you can use
them comfortably when seated and standing.
• Adjust the mounting bolt (1) torque of the
clutch and front brake lever assemblies so that
they can rotate on the handlebar in a fall. If an
assembly does not rotate, it may bend or break
a control lever. Make sure that the bolts are
torqued securely enough to prevent slippage
during normal operation.
Apply Pro Honda Hondalock or an equivalent to
the threads of these bolts prior to adjustment to
help ensure the correct torque is retained.
Tighten the top bolts first.
As an alternative, consider wrapping the handlebar
area under the control assemblies with Teflon tape.
Then tighten the assemblies to their normal torque.
Upon impact, the fully-tightened assemblies
should rotate on the Teflon tape.
• Position the shift lever and rear brake pedal so
they are close to your boot for rapid access, but
not so close that either is depressed when
sitting or standing comfortably on your CRF.
• Position the handlebar so that both gripping the
bar and operating the controls are comfortable
while both seated and standing, while riding
straight ahead and turning.
Tighten the forward handlebar upper holder
bolts first.
• The handlebar position may be moved
rearward either 0.1 in (3 mm) (using optional
handlebar lower holders) or 0.2 in (6 mm) (by
rotating the standard holders 180 degrees).
Refer to an official Honda Service Manual for
installation instructions. Be sure to check
control cable and wiring harness routing after
the adjustment.
• Handlebar width can be trimmed with a
hacksaw to better suit your particular shoulder
width and riding preference. Think this
through carefully and cut off just a small
amount at a time from both sides equally. It is
obviously much easier to make the handlebar
narrower than it is to add material.
• Chamfer the edges to remove burrs and other
irregularities or roughness after sawing the
handlebar.
• An alternate handlebar shape, through varying
rise or rearward sweep dimensions, will
provide further adjustment to riding position
and may better suit your particular body size or
riding style. Each of the ergonomic dimensions
of the machine were determined to suit the
greatest possible number of riders based on an
average size rider.
Control Positioning
(1) control lever mounting bolts
(1)(1)
Handlebar Position, Width & Shape
CRF250R_31K95600.book 142 ページ ２０１７年８月８日 火曜日 午後８時２６分
Tips
Tips 143
Tips
Here’s helpful advice on how to transport and store
your CRF, as well as three troubleshooting flow
charts.
Transporting Your Motorcycle...................... 144
Storing Your Honda ...................................... 145
Preparation for Storage.............................. 145
Removal from Storage .............................. 145
You & the Environment................................ 146
Troubleshooting............................................. 147
CRF250R_31K95600.book 143 ページ ２０１７年８月８日 火曜日 午後８時２６分
Transporting Your Motorcycle
144 Tips
Transporting Your Motorcycle
If you use a truck or motorcycle trailer to transport
your CRF, we recommend that you follow these
guidelines:
• Use a loading ramp.
• Relieve the fuel pressure (page 42) and drain
the fuel from the fuel tank into an approved
gasoline container.
• Secure the motorcycle in an upright position,
using motorcycle tie-down straps. Avoid using
rope, which can loosen and allow the
motorcycle to fall over.
To secure your CRF, brace the front wheel against
the front of the truck bed or trailer rail.
Attach the lower ends of two straps to the tie-down
hooks on truck bed or trailer rail. Attach the upper
ends of the straps to the handlebar (one on the right
side, the other on the left), close to the fork.
Check that the tie-down straps do not contact any
control cables or electrical wiring.
Tighten both straps until the front suspension is
compressed about half-way. Too much pressure is
unnecessary and could damage the fork seals.
Use another tie-down strap to keep the rear of the
motorcycle from moving.
We recommend that you do not transport your
CRF on its side. This can damage the motorcycle,
and leaking gasoline could be a hazard.
CRF250R_31K95600.book 144 ページ ２０１７年８月８日 火曜日 午後８時２６分
Storing Your Honda
Tips 145
Storing Your Honda
If you won’t be riding for an extended period, such
as during the winter, thoroughly inspect your CRF
and correct any problem before storing it. That
way, needed repairs won’t be forgotten and it will
be easier to get your CRF running again.
To reduce or prevent deterioration that can occur
during storage, also follow the following
procedures.
1. Completely clean all parts of your CRF. If your
CRF has been exposed to sea air or salt water,
wash it down with fresh water and wipe dry.
2. Change the engine oil and filter (page 52).
3. Remove the engine guard A bolts/washers (1),
B bolt/washer (2) and engine guard (3).
4. Remove the radiator cap, coolant drain bolt (4)
and sealing washer (5) at the water pump cover
(6) to drain coolant.
After the coolant has been completely drained,
reinstall the drain bolt with a new sealing
washer.
Tighten the drain bolt to the specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
Reinstall the radiator cap.
5. Install the engine guard (3), then tighten the
engine guard A bolts/washers (1) and B bolt/
washer (2) to the specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
6. Lubricate the drive chain.
7. Relieve the fuel pressure (page 42) and drain
the fuel from the fuel tank into an approved
gasoline container.
8. Remove the battery.
Store in an area protected from freezing
temperatures and direct sunlight. Slow charge
the battery (page 122) once a month.
9. Inflate the tires to their recommended
pressures.
10. Place your CRF on an optional workstand or
equivalent to raise both tires off the ground.
11. Stuff a rags into the muffler outlets. Then tie a
plastic bags over the ends of the mufflers to
prevent moisture from entering.
12. Store your CRF in an unheated area, free of
dampness, away from sunlight, with a
minimum of daily temperature variation.
13. Cover your CRF with a porous material. Avoid
using plastic or similar non-breathing, coated
materials that restrict air flow and allow heat
and moisture to accumulate.
1. Uncover and clean your CRF.
Change the engine oil if more than 4 months
have passed since the start of storage.
2. Uncover the ends of the mufflers and remove
the rags from the muffler outlets.
3. Fill the fuel tank with the recommended fuel
(page 41).
4. Charge the battery (page 122) as required.
Install the battery.
5. Pour a fresh recommended coolant mixture
slowly into the radiator fill hole up to the filler
neck (page 54).
Capacity:
1.14 US qt (1.08 ℓ) after disassembly
0.99 US qt (0.94 ℓ) after draining
Lean your CRF slightly right and left several
times to bleed trapped air in the cooling
system.
If the coolant level lowers, add coolant and
repeat the above procedure.
Install the radiator cap securely.
6. Increase the fuel pressure (page 50).
7. Perform all maintenance checks (page 13).
Preparation for Storage
(1) engine guard A bolts/washers
(2) engine guard B bolt/washer
(3) engine guard
(1)
(3)(2)
(4) coolant drain bolt
(5) sealing washer (new)
(6) water pump cover
(4) (5)
(6)
Removal from Storage
CRF250R_31K95600.book 145 ページ ２０１７年８月８日 火曜日 午後８時２６分
You & the Environment
146 Tips
You & the Environment
Owning and riding a motorcycle can be enjoyable,
but you must do your part to protect nature. When
you show respect for the land, wildlife, and other
people, you also help preserve the sport of off-road
riding.
Following are tips on how you can be an
environmentally responsible motorcycle owner.
• Choose Sensible Cleaners. Use a
biodegradable detergent when you wash your
CRF. Avoid aerosol spray cleaners that contain
chlorofluorocarbons (CFCs) which damage the
atmosphere’s protective ozone layer. Don’t
throw cleaning solvents away; see the following
guidelines for proper disposal.
• Recycle Wastes. It’s illegal and thoughtless to
put used engine oil in the trash, down a drain, or
on the ground. Used oil, gasoline, coolant, and
cleaning solvents contain poisons that can hurt
refuse workers and contaminate our drinking
water, lakes, rivers, and oceans.
Before changing your oil, make sure you have
the proper containers. Put oil and other toxic
wastes in separate sealed containers and take
them to a recycling center. Call your local or
state office of public works or environmental
services to find a recycling center in your area
and get instructions on how to dispose of non
recyclable wastes.
NOTICE
Improper disposal of drained fluids is harmful to
the environment.
CRF250R_31K95600.book 146 ページ ２０１７年８月８日 火曜日 午後８時２６分
Troubleshooting
(cont’d)
Tips 147
Troubleshooting
The items that are serviceable using this Manual
are followed by the page number reference in
parenthesis. The items that require use of an
official Honda Service Manual are followed by an
asterisk (*).
ENGINE DOES NOT START OR IS HARD TO START
CHECK POSSIBLE CAUSES
Operate the start button with the throttle grip in
fully closed position (page 17).
1. Check the starter
motor*
• Loose or disconnected
battery terminals (P.121)
• Blown main fuse (P.150)
• Weak battery (P.122,151)
• Faulty start button*
• Faulty clutch switch
• Faulty CKP sensor*
• Faulty register*
• Faulty diode*
• Faulty main relay*
• Faulty starter relay*
• Faulty starter motor*
• Faulty starter relay switch*
• Faulty ECM*
2. Check the spark
plug condition
(P.67)
• Incorrect spark plug heat
range
• Incorrect spark plug gap
• Dirty air cleaner element
3. Try spark test* • Faulty spark plug (P.67)
• Fouled spark plug (P.67)
• Faulty ECM*
• Broken or shorted spark
plug wire
• Faulty alternator*
• Faulty ignition coil*
• Faulty engine stop
button*
• Loose or disconnected
ignition system wires
• Faulty CKP sensor*
• Faulty regulator/rectifier*
4. Check the PGM-FI
system (P.7)
• Faulty PGM-FI system
(P.9)
5. Check the fuel
pump operation
and inspect the fuel
flow*
• Faulty fuel pump*
• Clogged fuel pump filter
(P.45)
TURN
DOES NOT
TURN
CORRECT
INCORRECT
GOOD SPARK
WEAK OR
NO SPARK
CORRECT
INCORRECT
CORRECT
INCORRECT
6. Check the fuel
injector operating
sound
• Faulty PGM-FI system
(P.9)
• Faulty fuel injector
7. Test cylinder
compression*
• Valve clearance too small
• Valve stuck open
• Worn cylinder and piston
ring*
• Damaged cylinder head
gasket
• Improper valve timing*
• Seized valve
8. Start by following
normal starting
procedure
• Insulator leaking
• Improper ignition timing
(Faulty ECM or CKP
sensor)*
• Fast idle knob stuck open
or damaged
• Fuel contaminated
ENGINE LACKS POWER
CHECK POSSIBLE CAUSES
1. Check the wheel
spin smoothness
• Brake dragging
• Worn or damaged wheel
bearings
• Bent axle shaft
• Drive chain too tight
2. Check the tire
pressure (P.110)
• Faulty valve core
• Punctured tire
3. Check the engine
speed change
accordingly when
clutch is engaged*
• Clutch slipping
• Improperly adjusted
clutch lever freeplay
(P.62)
• Worn clutch discs/plates
(P.65)
• Warped clutch discs/
plates (P.65)
• Weak clutch springs*
• Sticking clutch lifter
• Additive in engine oil
4. Check the engine
speed increase
• Dirty air cleaner element
• Clogged mufflers
• Fast idle knob stuck open
or damaged
• Restricted fuel fill cap
breather tube
• Restricted fuel flow
CORRECT
INCORRECT
CORRECT
LOW
ENGINE
STARTS BUT
SOON STOPS
CORRECT
INCORRECT
CORRECT
INCORRECT
GOOD
NO GOOD
GOOD
NO GOOD
5. Check the engine
knocking when
accelerate or run
the engine at high
speed
• Worn piston and cylinder*
• Use of poor quality fuel
• Excessive carbon buildup
in combustion chamber
• Ignition timing too
advance (Faulty ECM)*
• Lean fuel mixture
6. Check the ignition
timing*
• Faulty ECM*
• Faulty CKP sensor*
7. Test cylinder
compression*
• Valve clearance too small
• Valve stuck open
• Worn cylinder and piston
ring*
• Damaged cylinder head
gasket
• Improper valve timing*
• Faulty decompressor
system*
8. Check the PGM-FI
system (P.7)
• Faulty PGM-FI system
(P.9)
9. Check the fuel
pump operation
and inspect the fuel
flow*
• Faulty fuel pump unit*
• Clogged fuel pump filter
(P.45)
10.Check the spark
plug condition
(P.67)
• Incorrect spark plug
• Incorrect spark plug gap
• Dirty air cleaner element
11.Check the engine
oil level and
condition (P.52)
• Engine oil level too high
• Engine oil level too low
• Contaminated engine oil
12.Remove the
cylinder head cover
and inspect
lubrication
• Faulty oil pump*
• Faulty pressure relief
valve*
• Clogged oil passage*
• Clogged oil strainer
screen*
NO
YES
CORRECT
INCORRECT
CORRECT
LOW
CORRECT
INCORRECT
CORRECT
INCORRECT
CORRECT
INCORRECT
CORRECT
INCORRECT
INCORRECT
CRF250R_31K95600.book 147 ページ ２０１７年８月８日 火曜日 午後８時２６分
148 Tips
Troubleshooting
POOR HANDLING
Steering is heavy
• Steering stem adjusting nut too tight*
• Damaged steering head bearings
Either wheel is wobbling
• Excessive wheel bearing play
•Bent rim
• Improperly installed wheel hub
• Excessively worn swingarm pivot bearings
• Bent frame
The motorcycle pulls to one side
• Front and rear wheels not aligned
• Bent fork
• Bent swingarm
• Bent axle shaft
• Bent frame
POOR PERFORMANCE AT LOW AND IDLE SPEED
CHECK POSSIBLE CAUSES
1. Check the spark
plug condition
(P.67)
• Incorrect spark plug heat
range
• Incorrect spark plug gap
• Plug not serviced
frequently enough
2. Check the ignition
timing*
• Faulty ECM*
• Faulty CKP sensor*
3. Check the PGM-FI
system (P.7)
• Faulty PGM-FI system
(P.9)
4. Check the fuel
pump operation
and inspect the fuel
flow*
• Faulty fuel pump unit*
• Clogged fuel pump filter
(P.45)
5. Check the insulator
for leaks
• Loose insulator
• Damaged insulator
6. Check the valve
clearance (P.68)
• Faulty valve clearance
• Faulty valve*
• Faulty valve seat*
• Faulty camshaft(s)*
• Faulty rocker arm(s)*
7. Try spark test* • Faulty, carbon or wet
fouled spark plug (P.67)
• Faulty ECM*
• Faulty alternator*
• Faulty ignition coil*
• Broken or shorted spark
plug wire.
• Faulty CKP sensor*
• Loose or disconnected
ignition system wires
• Faulty engine stop
button*
• Faulty regulator/rectifier*
• Faulty battery
CORRECT
INCORRECT
CORRECT
INCORRECT
CORRECT
INCORRECT
CORRECT
INCORRECT
CORRECT
INCORRECT
CORRECT
INCORRECT
WEAK OR
INTERMITTENT
SPARK
POOR PERFORMANCE AT HIGH SPEED
CHECK POSSIBLE CAUSES
1. Check the ignition
timing*
• Faulty ECM*
• Faulty CKP sensor*
2. Check the air
cleaner (P.56)
• Not cleaned frequently
enough
3. Check the PGM-FI
system (P.7)
• Faulty PGM-FI system
(P.9)
4. Check the fuel pump
operation and
inspect the fuel flow*
• Faulty fuel pump unit*
• Clogged fuel pump filter
(P.45)
5. Check the valve
timing
• Camshaft not installed
properly (P.73)
6. Check the valve
clearance (P.68)
• Faulty valve clearance
• Faulty valve*
• Faulty valve seat*
• Faulty camshaft*
• Faulty rocker arm(s)*
7. Check the valve
springs*
• Faulty valve springs*
8. Try spark test* • Faulty, carbon or wet
fouled spark plug (P.67)
• Faulty ECM*
• Faulty alternator*
• Faulty ignition coil*
• Broken or shorted spark
plug wire.
• Faulty CKP sensor*
• Loose or disconnected
ignition system wires
• Faulty engine stop
button*
• Faulty regulator/rectifier*
9. Remove and
inspect the cam
lobe height*
• Faulty camshaft*
CORRECT
INCORRECT
AIR CLEANER
NOT DIRTY
DIRTY
CORRECT
INCORRECT
CORRECT
INCORRECT
CORRECT
INCORRECT
CORRECT
INCORRECT
GOOD
WEAR
GOOD SPARK
WEAK OR
INTERMITTENT
SPARK
WORN
CRF250R_31K95600.book 148 ページ ２０１７年８月８日 火曜日 午後８時２６分
Taking Care of the Unexpected
Taking Care of the Unexpected 149
Taking Care of the Unexpected
This section gives practical advice to help you
solve problems.
If a Fuse Blows ..............................................150
If Your Battery Is Low (or Dead)..................151
CRF250R_31K95600.book 149 ページ ２０１７年８月８日 火曜日 午後８時２６分
If a Fuse Blows
150 Taking Care of the Unexpected
If a Fuse Blows
All of the electrical circuits on your CRF have a
fuse to protect them from damage caused by excess
current flow (short circuit or overload).
If something electrical on your CRF stops
working, the first thing you should check for is a
blown fuse. Check the fuse before looking
elsewhere for another possible cause of the
problem. Replace a blown fuse and check
component operation.
• The main fuse (and spare) are located on the
starter relay switch behind the right side cover.
Recommended Main Fuse: 10A
1. To prevent an accidental short circuit, stop the
engine.
2. Remove the seat (page 33).
3. Remove the right side cover and right air
cleaner housing cover (page 115).
4. Remove the starter relay switch stay bolt (1)
and plastic wire band (2).
5. Pull out the starter relay switch (3).
6. Remove the starter relay switch cover (4).
7. Pull out the main fuse (5). If it is blown (6),
install the spare main fuse (7).
8. Install the starter relay switch cover (4).
9. Install the starter relay switch (3).
Install and tighten the starter relay switch stay
bolt (1) to the specified torque:
9 lbf·ft (12 N·m, 1.2 kgf·m)
10. Install the plastic wire band (2).
If you do not have a replacement fuse with the
proper rating for the circuit, install one with a
lower rating.
NOTICE
Replacing a fuse with one that has a higher rating
greatly increases the chance of damage to the
electrical system.
If you replace a blown fuse with a spare fuse that
has a lower rating, replace the fuse with the correct
rating as soon as you can. Also remember to
replace the spare fuse that was installed.
If the replacement fuse of the same rating burns out
in a short time, there is probably a serious electrical
problem on your CRF.
Leave the blown fuse in that circuit and have your
CRF checked by your dealer.
11. Install the right side cover, right air cleaner
housing cover and bolts.
12. Install the seat (page 33).
(1) starter relay switch stay bolt
(2) wire band
(3) starter relay switch
(4) starter relay switch cover
(5) main fuse
(6) blown fuse
(7) spare main fuse
(2)
(5)
(4)(3)
(7)
(1)
(6)
CRF250R_31K95600.book 150 ページ ２０１７年８月８日 火曜日 午後８時２６分
If Your Battery Is Low (or Dead)
Taking Care of the Unexpected 151
If Your Battery Is Low (or Dead)
If an overvoltage, overcurrent, or short circuit is
applied, the battery fuse may blow.
Do not jump-start as this can damage your CRF’s
electrical system and battery.
Bump starting is not recommended.
Check the battery voltage using a digital multi
meter with the cable connected.
Below 1V: The battery has failed; replace the
battery.
Between1V and 8V: The battery may have
failed; charge the battery and then recheck. If
you can’t charge the battery or it appears
unable to hold a charge, see your dealer.
CRF250R_31K95600.book 151 ページ ２０１７年８月８日 火曜日 午後８時２６分
152 Taking Care of the Unexpected
CRF250R_31K95600.book 152 ページ ２０１７年８月８日 火曜日 午後８時２６分
Technical Information
Technical Information 153
Technical Information
This section contains dimensions, capacities, and
other technical data.
Vehicle Identification.....................................154
Serial Numbers ..........................................154
Specifications.................................................155
Torque Specifications ....................................156
Nuts, Bolts, Fasteners................................156
Oxygenated Fuels...........................................159
Competition Logbook....................................160
Optional Parts List .........................................162
Spare Parts & Equipment...............................163
Spare Parts .................................................163
General Tools.............................................163
Honda Special Tools..................................163
Chemical Products.....................................163
Other Products ...........................................163
Wiring Diagram .............................................164
CRF250R_31K95600.book 153 ページ ２０１７年８月８日 火曜日 午後８時２６分
Vehicle Identification
154 Technical Information
Vehicle Identification
The VIN and engine serial number are required
when you register your CRF. They may also be
required when ordering replacement parts. You
may record these numbers in the Quick Reference
section at the rear of this manual.
The VIN (vehicle identification number) (1) is
stamped on the right side of the steering head.
The engine number (2) is stamped on the left
crankcase.
Serial Numbers
(1) VIN
(1)
(2) engine number
(2)
CRF250R_31K95600.book 154 ページ ２０１７年８月８日 火曜日 午後８時２６分
Specifications
Technical Information 155
Specifications
Item English Metric
Dimension
Overall length 85.9 in 2,181 mm
Overall width 32.6 in 827 mm
Overall height 50.1 in 1,273 mm
Wheelbase 58.5 in 1,486 mm
Seat height 37.7 in 957 mm
Footpeg height 16.4 in 416 mm
Ground clearance 12.9 in 327 mm
Frame
Type Twin tube
F. suspension
Telescopic fork,
travel 10.6 in (268 mm)
stroke 12.0 in (305 mm)
R. suspension
Pro-link
travel 12.5 in (317 mm)
Tire size, front
80/100-21 51M
DUNLOP MX3SF
Tire size, rear
100/90-19 57M
DUNLOP MX3S
Tire type bias-ply, tube
Tire pressure, front (cold)
15 psi (100 kPa, 1.0 kgf/cm
2
)
Tire pressure, rear (cold)
15 psi (100 kPa, 1.0 kgf/cm
2
)
F. brake, swept area
Single disc brake
56.0 in
2
(361.0 cm
2
)
R. brake, swept area
Single disc brake
60.5 in
2
(390.3 cm
2
)
Fuel
unleaded gasoline, pump
octane number of 91 or higher
Fuel tank capacity
1.66 US gal
6.3 ℓ
Caster angle 27°29’
Trail length 4.6 in 116 mm
Fork oil capacity
(except damper)
12.0 US oz 356 cm
3
Fork oil capacity
(damper)
8.2 US oz 243 cm
3
Item English Metric
Engine
Type Liquid cooled, 4-stroke
Cylinder arrangement
Single 9° inclined from
vertical
Bore and stroke 3.1102 x
2.003 in
79.000 x
50.887 mm
Displacement 15.215 cu-in 249.43 cm
3
Compression ratio 13.9 : 1
Valve clearance (cold)
Intake: 0.004 ± 0.001 in
(0.11 ± 0.03 mm)
Exhaust:0.007 ± 0.001 in
(0.19 ± 0.03 mm)
Engine oil capacity
1.14 US qt 1.08 ℓafter draining
after draining and oil
filter change 1.18 US qt 1.12 ℓ
after disassembly 1.43 US qt 1.35 ℓ
Throttle body
Identification number GQ2GA
Idle speed 2,000 ± 100 rpm
Item English Metric
Cooling system
Cooling capacity
0.99 US qt 0.94 ℓafter draining
after disassembly 1.14 US qt 1.08 ℓ
Drive train
Clutch type Wet, multi-plate type
Transmission 5-speed, constant mesh
Primary reduction 3.473
Gear ratio I 2.230
Gear ratio II 1.800
Gear ratio III 1.470
Gear ratio IV 1.227
Gear ratio V 1.043
Final reduction 3.692
Gear shift pattern
Left foot-operated return
system 1-N-2-3-4-5
Electrical
Battery HY85S lithium-ion (li-ion)
12V-2.0 Ah (20HR)
Ignition ECM
Starting system Electric
Spark plug
NGK R0451B-8
Standard
Spark plug gap
0.024 – 0.028 in
(0.60 – 0.70 mm)
Fuse
Main fuse 10 A
CRF250R_31K95600.book 155 ページ ２０１７年８月８日 火曜日 午後８時２６分
Torque Specifications
156 Technical Information
Torque Specifications
Check and tighten nuts, bolts, and fasteners before every outing.
Nuts, Bolts, Fasteners
RIGHT SIDE
(6)(8)
(4)
(5)
(7)
(3)
(2)
(1)(11)
(10)
(9)
LEFT SIDE
(11)
(14) (13) (12)
(2)
ENGINE
Item
Torque
Remarks
lbf·ft N·m kgf·m
1 Cylinder head cover
socket bolts 7 10 1.0
2 Exhaust pipe joint nuts 15 21 2.1
3 Water pump cover bolts 7 10 1.0
4 Coolant drain bolt 7 10 1.0
5 Oil filter cover bolts 7 10 1.0
6 Engine oil drain bolt 12 16 1.6 NOTE 1
7 Clutch cover A bolts 7 10 1.0
8 Clutch cover B bolts 7 10 1.0
9 Cylinder bolt 7 10 1.0
10 Cylinder head A bolts 7 10 1.0
11 Cylinder head B bolts 35 48 4.9 NOTE 1
12 Drive sprocket bolt 23 31 3.2
13 Crankshaft hole cap 11 15 1.5 NOTE 2
14 Timing hole cap 4.4 6 0.6 NOTE 2
NOTES: 1. Apply engine oil to the threads.
2. Apply grease to the threads.
CRF250R_31K95600.book 156 ページ ２０１７年８月８日 火曜日 午後８時２６分
Torque Specifications
Technical Information 157
(cont’d)
LEFT SIDE
(1) (2)
(3) (4) (6) (8) (10)
(12)
(14)(16)
(5) (7) (9) (11)
(13)
(15)(17)
(13)
(22)
(24)
(19)
(21)
(23)
(25) (26) (27)
(28)
(8)
RIGHT SIDE
(3)
(10)
(5)
(1)
(4)(6)(7)
(9)(11)
(29) (28) (26)
(27)
(25)
(24)
(23)
(22)
(20)
(15) (16) (18) (19)
(14)
(28)
(28)
FRAME
Item
Torque
Remarks
lbf·ft N·m kgf·m
1 Handlebar upper holder
bolts 16 22 2.2
2 Steering stem nut 80 108 11.0
3 Shroud A bolts 7 10 1.0
4 Shroud B bolts 7 10 1.0
5 Shroud C bolts 3.8 5.2 0.5
6 Seat support base
mounting bolts 7 10 1.0
7 Subframe bolts (upper) 24 32 3.3
8 Subframe bolts (lower) 36 49 5.0
9 Air cleaner housing cover
bolts 7 10 1.0
10 Side cover bolts 7 10 1.0
11 Seat mounting bolts 19 26 2.7
12 Driven sprocket nuts 24 32 3.3 NOTE 1
13 Spokes (front) 2.7 3.7 0.4
(rear) 2.7 3.7 0.4
14 Chain adjuster lock nuts 20 27 2.8 NOTE 2
15 Cylinder head hanger
plate bolts 24 32 3.3
16
Cylinder head hanger bolts
40 54 5.5
17 Engine guard B bolt/
washer 7 10 1.0
18 Front engine hanger nut 40 54 5.5
19 Engine guard A bolts/
washers 7 10 1.0
20 Front engine hanger plate
nuts 19 26 2.7
21 Disc cover socket bolts 10 13 1.3
22
Fork protector socket bolts
5.2 7 0.7 NOTE 3
23
Fork bridge lower pinch bolts
15 20 2.0
24
Fork bridge upper pinch bolts
16 22 2.2
25 Handlebar lower holder
nuts 32 44 4.5 NOTE 1
26 Number plate bolts 7 10 1.0
27
Fork air pressure release
screw
1.0 1.3 0.1
28 Brake hose oil bolts 25 34 3.5
29 Front brake master
cylinder holder bolts 7.3 9.9 1.0
NOTES: 1. U-nut
2. UBS nut
3. Apply a locking agent to the threads.
CRF250R_31K95600.book 157 ページ ２０１７年８月８日 火曜日 午後８時２６分
Torque Specifications
158 Technical Information
LEFT SIDE
(61)
(62) (63) (64) (34) (38) (39)
(41)
(42)
(43)
(48)(49)(54)(57)
(58)
(59)
(60)
RIGHT SIDE
(41)
(40)
(37)
(36) (35) (34) (33) (32) (31) (30) (65) (63) (64)
(61)
(60)
(46)(57)(56)(55)(54)(53)(52)(49)(51)(47)(50)
(46)
(45)
(44)
FRAME
Item
Torque
Remarks
lbf·ft N·m kgf·m
30
Front brake reservoir cap screws
0.7 1.0 0.1
31 Throttle housing bolts 7 10 1.0
32 Fuel tank A bolt 7 10 1.0
33 Fuel pump mounting nuts 8 11 1.1
Fuel pump mounting cap nut
8111.1
34 Fuel tank B bolt 7 10 1.0
35 Starter motor terminal bolt 5.2 7 0.7
36
Starter relay switch stay bolt
9121.2
37 Air cleaner retaining bolt 1.8 2.4 0.2
38 Rear suspension nut (upper) 32 44 4.5 NOTE 1
39 Rear shock spring lock nut 32 44 4.5
40 Battery terminal bolts 1.5 2.0 0.2
41
Left/right muffler mounting A bolts
19 26 2.7
Left/right muffler mounting B bolts
19 26 2.7
42
Drive chain roller bolt (upper)
9 12 1.2 NOTE 3
Drive chain roller nut (lower)
9 12 1.2 NOTE 1
43 Rear shock arm nut
(swingarm side) 38 52 5.3 NOTE 1, 4
44 Rear axle nut 94 128 13.1 NOTE 1
45 Rear brake disc nuts 12 16 1.6 NOTE 1
46 Rim locks 9 12 1.2
47 Rear shock arm nut (shock
link side) 38 52 5.3 NOTE 1, 4
48 Rear suspension nut (lower) 32 44 4.5 NOTE 1
49 Rear shock link nuts 27 37 3.8 NOTE 1, 4
50
Rear brake reservoir cap bolts
0.7 1.0 0.1
51 Rear master cylinder push
rod lock nut 4.4 5.9 0.6
52 Brake pedal pivot bolt 27 36 3.7 NOTE 3
53 Swingarm pivot nut 65 88 9.0 NOTE 1
54 Left/right muffler clamp bolt 15 20 2.0
55 Lower engine hanger nut 40 54 5.5
56
Throttle cable adjuster lock nut
3.0 4.0 0.4
57 Fork center bolts 51 69 7.0
58 Front axle nut 65 88 9.0
59 Front brake disc nuts 12 16 1.6 NOTE 1
60 Axle pinch bolts 15 20 2.0
61 Fork center bolt lock nuts 21 28 2.9
62 Front brake caliper
mounting bolts 22 30 3.1 NOTE 3
63 Fork
(fork damper assembly)
56 76 7.7
(fork bolt assembly) 22 30 3.1
64 Ignition coil bolts 7 10 1.0
65 Front brake lever adjuster
lock nut 4.4 5.9 0.6
NOTES: 1. U-nut
2. UBS nut
3. Apply a locking agent to the threads.
4. Apply molybdenum oil to the threads and flange surface.
CRF250R_31K95600.book 158 ページ ２０１７年８月８日 火曜日 午後８時２６分
Oxygenated Fuels
Technical Information 159
Oxygenated Fuels
Some conventional gasolines are being blended
with alcohol or an ether compound. These
gasolines are collectively referred to as oxygenated
fuels. To meet clean air standards, some areas of
the United States and Canada use oxygenated fuels
to help reduce emissions.
If you use an oxygenated fuel, be sure it is
unleaded and meets the minimum octane rating
requirement.
Before using an oxygenated fuel, try to confirm the
fuel’s contents. Some states/province require this
information to be posted on the pump.
The following fuel blends are EPA-approved and
have been approved for use in your motorcycle:
ETHANOL (ethyl or grain alcohol) up to 10% by
Volume
You may use gasoline containing up to 10%
ethanol by volume. Gasoline containing ethanol
may be marketed under the name “Gasohol”.
METHANOL (methyl or wood alcohol) up to 5%
by Volume
You may use gasoline containing up to 5%
methanol by volume as long as it also contains
cosolvents and corrosion inhibitors to protect the
fuel system. Gasoline containing more than 5%
methanol by volume may cause starting and/or
performance problems.
It may also damage metal, rubber, and plastic parts
of your fuel system.
If you notice any undesirable operating symptoms,
try another service station or switch to another
brand of gasoline.
Fuel system damage or performance problems
resulting from the use of an oxygenated fuel
containing more than the percentages of
oxygenates mentioned above are not covered
under warranty.
Oxygenated fuels can damage paint and plastic.
Be careful not to spill fuel when filling the fuel
tank. Wipe up any spills immediately.
NOTICE
Oxygenated fuels can damage paint and plastic.
CRF250R_31K95600.book 159 ページ ２０１７年８月８日 火曜日 午後８時２６分
Competition Logbook
160 Technical Information
Competition Logbook
Any serious competition effort relies heavily on
the knowledge gained and compiled from previous
racing events. The best way to organize the many
bits of information is to record them in a logbook.
Your logbook can include such information as
suspension adjustments, engine mode, gearing,
and tire selection. This detailed information, along
with your comments, can prove valuable when you
compete at the same track or on similar terrain.
Your logbook can also tell you when maintenance
was performed and when it will be necessary
again. Your logbook also lets you record any
repairs and lets you keep track of the running time
on the engine and suspension components.
If you choose to sell your CRF, the accurate
maintenance records in your logbook might be the
deciding deal-maker for a potential buyer.
Consider using different color pens or pencils to
record important information on specific subjects.
For example, record results in black,
suspension/chassis settings in blue, and gearing
selections in green.
Color codes will help you identify the information
you want with a glance.
Tuning & Adjustment Records
Keep track of the settings and adjustments that
worked best at a particular location. These items
include:
• PGM-FI mode
• basic track conditions, altitude, and
temperature
• suspension settings
• chassis adjustments tested and selected
•gearing
• tire selection
• air pressure
Competition Records
• your placings
• thoughts to improve performance next time:
both yours and your CRF’s
• strategy notes
Maintenance Records
• regular interval maintenance
• repairs
• running time on engine
• running time on suspension components
Timekeeping
This Manual lists maintenance intervals for every-
so-many races or every-so-many hours of running.
Because all races are not the same, the most
effective way to schedule maintenance is by the
hours you have run your CRF.
An official “guesstimate” is close enough for our
timekeeping purposes. You may choose to record
your time the same way aircraft operators do (but
without the benefit of an electrical hourmeter).
All running time is broken down into hours and
tenths of an hour (each 6 minutes represents one
tenth of an hour).
Racing Records
Information worth recording for this section of
your logbook may include:
• Your placing in each moto and overall
finishing position.
• Thoughts on what you could do to improve
your performance next time.
• Notes on any patterns noted in choice of
starting gate positions or in riding portions of
the course as the day progressed that may
prove helpful in future events.
• Any places on the course where you chose the
wrong line and were passed too easily.
• Notes on strategy used by your competition or
by riders in another event that are worth
remembering.
Maintenance Records
Regular maintenance items you’ll want to record
in your logbook should include:
• Dates and results of cylinder, piston and ring
examinations
• Patterns for frequency of need for
decarbonization with a particular oil
• When you last performed shock linkage and
swingarm pivot bearing maintenance
• Engine, and suspension oil changes
• Chain, sprocket, chain roller and slider
replacements
• Coolant changes and related component
replacements
• Spark plug, brake pad and control cable
replacements
In addition, you should record any irregularities
noted in component wear so you’ll remember to
keep a close eye on these areas in the future.
CRF250R_31K95600.book 160 ページ ２０１７年８月８日 火曜日 午後８時２６分
Competition Logbook
Technical Information 161
Date Running
Time
Location/Event Comments (Suspension Settings, Engine mode, Gearing, Chassis Adjustments, Maintenance
Performed, etc.)
(Make several photocopies of this page for future use)
CRF250R_31K95600.book 161 ページ ２０１７年８月８日 火曜日 午後８時２６分
Optional Parts List
162 Technical Information
Optional Parts List
These parts and tools may be ordered from your
authorized dealer.
The standard fork spring and shock spring
mounted on the motorcycle when it leaves the
factory are not marked. Before replacing the
springs, be sure to mark them so they can be
distinguished other optional springs.
FRAME Remarks
Driven sprocket < >: Drive chain links
48 Teeth, Aluminum
<114>
Standard
Optional 49 Teeth, Aluminum
Drive chain
size/link
D.I.D 520 DMA4K/120RB
Handlebar
lower holder
Standard 0.1 in (3 mm) offset
Optional no offset
TOOLS Remarks
Pin spanner A To adjust spring preload.
(two spanners required)
Workstand For maintenance
Air gauge For checking tire air pressure
FRAME Remarks
Fork spring
Standard 26.3 lbf/in (4.6 N/mm)
Optional
Soft 25.1 lbf/in (4.4 N/mm)
Stiff 27.4 lbf/in (4.8 N/mm)
Shock spring 297 lbf/in (52 N/mm)
Standard
Optional 286 lbf/in (50 N/mm)
Softer
Stiffer 308 lbf/in (54 N/mm)
1 scribe mark
2 scribe marks
No mark
Red paint
Pink paint
White paint
CRF250R_31K95600.book 162 ページ ２０１７年８月８日 火曜日 午後８時２６分
Spare Parts & Equipment
Technical Information 163
Spare Parts & Equipment
There are numerous spare parts you can take to an
event to help ensure you get in a full day of riding.
In addition to the usual nuts and bolts, consider the
following:
spark plugs
air cleaner (clean & oiled, sealed in a plastic bag)
chain & masterlinks
chain guide slider
chain slider
chain rollers
tire tubes (front & rear)
fenders
footpegs
fuel pump filter
number plate & side covers
handlebar
grips
levers (brake & clutch)
clutch lever handlebar mount
clutch cable
throttle assembly
throttle cable
shift lever
brake pedal
spokes (front & rear, each side)
sprockets (larger than standard)
assorted nuts, bolts, washers, screws, cotter pins
Additional Spares
fuel pump
front brake master cylinder
rear brake assembly
wheels & tires (front & rear, mounted)
clutch discs and plates
engine oil
seat
ignition components
radiator hoses
radiator shrouds (L & R)
brake hoses (front & rear)
sockets (3/8 in drive)
screwdrivers: blade & Phillips No. 1, 2, 3
wrench, large adjustable
wrenches: open end & box
wrenches: hex (Allen)
wrench, spoke
torque wrench (metric scale, click-stop style)
pliers: standard, needle-nose, channel-lock set
hammer, plastic head
syringe with adjustable stop
air pressure gauge
tire irons
tire pump or air tank
feeler gauge set
Vernier caliper (metric)
pressure/vacuum testing equipment
Any special tools for your CRF purchased from
your dealer.
• Tensioner Stopper 07AMG-001A100
• Lock Nut Wrench 07WMA-KZ30100
• Spoke Wrench 07JMA-MR60100
• Spoke Wrench 070MA-KZ30100
• Piston Base 07958-2500001
• Fork Rod Holder 07AMB-KZ3A100
(USA only)
Pro Honda GN4 4-stroke Oil (Engine Oil)
Pro Honda HP Fork Oil, SS-19
Honda DOT 4 Brake Fluid
Pro Honda HP Chain Lube
Pro Honda Foam Air Filter Oil
Pro Honda Hondabrite
Pro Honda Dielectric Grease
Pro Honda Handgrip Cement
Pro Honda Hondalock
Molybdenum disulfide grease (containing more
than 3% molybdenum disulfide additive Moly
Paste 77)
Pro Honda Foam Air Filter Sealer
Multi-Purpose Grease
Rust-inhibiting oil
Cable lubricant
Pro Honda HP Coolant
Urea based multi-purpose grease designed for high
temperature, high pressure performance
(example: EXCELITE EP2 manufactured by
KYODO YUSHI, Japan)
pliers-safety wire
safety wire
mechanic’s wire
duct tape
plastic tie-wraps
hose clamps
drop light
electrical tape
Scotch-Brite Hand Pad #7447 - maroon
Teflon tape
Spare Parts
General Tools
Honda Special Tools
Chemical Products
Other Products
CRF250R_31K95600.book 163 ページ ２０１７年８月８日 火曜日 午後８時２６分
Wiring Diagram
164 Technical Information
Wiring Diagram
A-33
A-32
A-31
A-30
A-29
A-28
A-27
A-26
A-25
A-24
A-23
A-22
A-21
A-20
A-19
A-18
A-17
A-16
A-15
A-14
A-13
A-12
A-11
A-10
A-9
A-8
A-7
A-6
A-5
A-4
A-3
A-2
A-1
LG
SCS
PCP
VCC
GND
V OUT
CHARGE
CHARGE
CHARGE
PCM
PG2
TW
TA
SG
TH
VCC
IG
FLP
STARTER RLY
START SW
PG
MODE LED
INJ MAIN
IGP
PRC
WARN
PB
K-LINE
ENG STOP
MODE SW
FREE
EIG
PUSH
COLOR Bl/R Bl/Y
FREE
EIG
PUSH
COLOR G Bl/R
FREE
EIG
PUSH
COLOR Bl/W G
FREE
EIG
PUSH
COLOR Lg G
-
+
+-
WPC
2P
Bl
WPC
5P
WPC
33P
Bl
WPC
24P
W
WPC
24P
W
WPC
4P
Bl
10A
6P
WPC
4P
R
WPC
3P
Bu
WPC
2P
Bl
WPC
3P
Bl
WPC
2P
Bl
WPC
6P
Bl
WPC
6P
Bl
WPC
2P
Gr
E
IG
E
IG
EIG
EIG
WPC
8P
Gr
Bl Black
Y Yellow
Bu Blue
G Green
R Red
WhiteW
COLOR COMB : GROUND/MARKING
Br Brown
O
Orange
Lg Light Green
P Pink
Gr Gray
Bl/Y
Bl/R
G
Bl/Y
Bl/R Bl/R
Bl/R
G
O
Bu
Bl
G
Lg
Bl/W
OO
G
Bl
Bl
G
G
G/W
Y/Bu
G
G/R
P
G/R
R/Y
Y/G
G/R
R/Y
G/Y
Bl/G
Y/Bl
G/Bl
R/W
W/Bl
Bl/Y
R/W
Bl/G
Bl/Y
Y
Y
Y
G
G
Bl
Bl
G/R
Gr/Bu
Y
Y
Y
Bu/Y
W/Y
Y
Y
Y
Bu/Y
W/Y
Bl/Bu
Bl
G
W
Bu
Lg
G
Bu
Bl
G
Lg
Bl/WBl/W
G
Bl
O/Bl
G/W
Bl/W
W/Bl
Lg
Br
G
P
W
O
G
Bu
Bl
G/Y
G/R
G/R
G/R
G/R
G/R
G/R
R/Y
R/Y
R/Y
Bl/Y
Bl/Y
Bl/Y
Y/G
Y/Bu
Bl/Bu
R/Y
O/Bl
G/Bl
W/Y
Y/Bl
Bu/Y
Gr/Bu
Br
Bl
Bl
Bl
Bl
Bl
Bl
Bl
W
Bl
ENGINE MODE
SELECT SWITCH
ENGINE MODE
SELECT SWITCH
ENGINE STOP
SWITCH
ENGINE STOP
SWITCH
STARTER
SWITCH
STARTER SWITCH
CLUTCH
SWITCH
CLUTCH SWITCH
RESISTOR
RESISTOR
RESISTOR
RESISTOR
DLC
FUEL
PUMP
ECM
LED
ORANGE
LED
BLUE
FUEL
INJECTOR
GROUND
JUNCTION CONNECTOR
IGNITION COIL
SPARK PLUG
ALTERNATOR
CKP SENSOR
ECT
SENSOR
IAT
SENSOR
MAP
SENSOR
TP
SENSOR
REGULATOR/
RECTIFIER
STARTER
RELAY
SWITCH
BATTERY
STARTER MOTOR
STARTER
RELAY
DIODE
MAIN
RELAY
CRF250R_31K95600.book 164 ページ ２０１７年８月８日 火曜日 午後８時２６分
Consumer Information
Consumer Information 165
Consumer Information
This section contains information about contacting
Honda and how to get an official Honda Service
Manual.
Authorized Manuals.......................................166
Contacting Honda ..........................................167
Your Honda Dealer........................................168
The Honda Rider’s Club (USA only) ............169
CRF250R_31K95600.book 165 ページ ２０１７年８月８日 火曜日 午後８時２６分
Authorized Manuals
166 Consumer Information
Authorized Manuals
The Service Manual used by your authorized dealer is available from your
Honda dealer or Helm, Inc. (USA only, Canada: See your dealer to order
authorized manuals.)
Also available but not necessary to service your model is the Honda Common
Service Manual which explains theory of operation and basic service
information for various systems on Honda motorcycles, scooters, ATVs,
SxSs, and PWCs.
The Winter Storage Guide in conjunction with the Owner's Manual and
Service Manual can help you prepare your Honda motorcycle, scooter, ATV,
and SxS for winter storage.
These Honda manuals are written for the professional technician, but most
mechanically-capable owners should find them helpful if they have the proper
tools and skills. Special Honda tools are necessary for some procedures.
Order On-Line: www.helminc.com
Order Toll Free: 1-888-CYCLE93 (1-888-292-5393)
(NOTE: For Credit Card Orders Only)
Monday - Friday 8:00 AM - 6:00 PM EST
Publication Item No. Description
61K9500 2018 CRF250R Service Manual
61CSM00 Common Service Manual
S9507 Winter Storage Guide
31K95600 2018 CRF250R Owner’s Manual
CRF250R_31K95600.book 166 ページ ２０１７年８月８日 火曜日 午後８時２６分
Contacting Honda
Consumer Information 167
Contacting Honda
Your owner’s manual was written to cover most of
the questions you might ask about your CRF.
Any questions not answered in the owner’s manual
can be answered by your dealer. If your dealer
doesn’t have the answer right away, they will get it
for you.
If you have a difference of opinion with your
dealer, please remember that each dealership is
independently owned and operated. That’s why
it’s important to work to resolve any differences at
the dealership level.
If you wish to comment on your experiences with
your CRF or with your dealer, please send your
comments to the following address:
Motorcycle Division, American Honda Motor Co.,
Inc., P.O. Box 2200, Torrance CA 90509- 2200,
Mailstop: 100-4C-7B,
Telephone: (866) 784-1870.
Canada: Honda Canada Inc., Customer Relations
Dept, 180 Honda Boulevard, Markham, Ontario
L6C 0H9, telephone: (888) 946 – 6329,
facsimile: (877) 939 – 0909.
E-mail: [email protected]
Please include the following information in your
letter:
• name, address, and telephone number
• product model, year, and VIN
• date of purchase
• dealer name and address
We will likely ask your dealer to respond, or
possibly acknowledge your comments directly.
CRF250R_31K95600.book 167 ページ ２０１７年８月８日 火曜日 午後８時２６分
Your Honda Dealer
168 Consumer Information
Your Honda Dealer
Once you purchase your new Honda, get familiar
with the organization of your Honda dealer so you
can utilize the full range of services available.
The service department is there to perform regular
maintenance and unexpected repairs. It has the
latest available service information from Honda.
The parts department offers Honda Genuine Parts,
Pro Honda products, Honda Genuine Accessories
(USA only), and Honda accessories and products
(Canada only). The same quality that went into
your Honda can be found in Honda Genuine
replacement parts. You’ll also find comparable
quality in the accessories and products available
from the parts department.
Your Honda dealer can inform you about
competition events in your area. You’ll also find
that your dealer is a source of information on the
Honda Rider’s Club of America (USA only).
We’re sure you’ll be as pleased with the service
your Honda dealer continues to provide after the
sale as you are with the quality and dependability
of your Honda.
CRF250R_31K95600.book 168 ページ ２０１７年８月８日 火曜日 午後８時２６分
The Honda Rider’s Club (USA only)
Consumer Information 169
The Honda Rider’s Club (USA only)
The Honda Rider’s Club of America (HRCA)
sponsors local riding chapters at Authorized
Honda Dealerships across the country.
CRF250R_31K95600.book 169 ページ ２０１７年８月８日 火曜日 午後８時２６分
Index
170 Index
Index
accessories......................................................... 3
adjustments,
chassis....................................................... 139
control freeplay ....................................59
, 62
for competition......................................... 125
gearing...................................................... 140
personal fit................................................ 142
suspension, front....................................... 127
suspension, rear........................................ 130
suspension, track conditions..................... 134
tire selection, track condition................... 141
after competition maintenance ........................ 31
air cleaner ........................................................ 56
air pressure,
front suspension........................................ 127
tires........................................................... 110
apparel, protective ............................................. 2
appearance care ............................................. 123
authorized manuals........................................ 166
basic operation................................................. 15
battery............................................................ 121
before riding.................................................... 11
between motos & practice maintenance.......... 30
brakes,
fluid level.................................................. 106
lever, front adjustment.............................. 105
pad wear ................................................... 108
pedal height.............................................. 105
break-in guidelines .......................................... 19
capacity, fuel....................................................41
care, appearance.............................................123
chain, drive.....................................................112
chassis adjustments........................................139
cleaner, air........................................................56
cleaning, appearance care ..............................123
clutch system, adjustment................................62
competition logbook ......................................160
consumer information....................................165
contacting Honda ...........................................167
controls...............................................................5
coolant..............................................................54
customer service.............................................165
cylinder system ................................................81
damping adjustments,
front...........................................................127
rear............................................................131
dealer, your Honda.........................................168
diagram, wiring..............................................164
drive chain......................................................112
R
engine,
does not start............................................. 147
idle speed....................................................61
lacks power............................................... 147
mode select button.................................... 126
number...................................................... 154
oil................................................................ 51
pinging........................................................41
starting........................................................17
stop button..................................................18
stopping......................................................18
environment, protecting................................. 146
filter,
air................................................................ 56
fuel pump....................................................45
oil................................................................ 52
fork,
front suspension adjustments.................... 127
front suspension inspection........................ 88
oil recommendation.................................... 91
front brake lever adjustment.......................... 105
front suspension maintenance........................ 127
fuel................................................................... 41
fuel,
line inspection............................................. 41
line replacement ......................................... 42
oxygenated................................................ 159
pump filter.................................................. 45
refueling...................................................... 41
system......................................................... 41
tank capacity............................................... 41
A
B
C
D
E
F
CRF250R_31K95600.book 170 ページ ２０１７年８月８日 火曜日 午後８時２６分
Index
(cont’d)
Index 171
gap, spark plug ................................................ 67
gasohol........................................................... 159
gasoline............................................................ 41
gearing........................................................... 140
guidelines,
suspension adjustment.............................. 135
handlebar inspection...................................... 119
Honda,
contacting................................................. 167
Rider’s Club ............................................. 169
service manual.......................................... 166
your dealer................................................ 168
identification, vehicle.................................... 154
idle knob, fast ............................................17
, 61
idle speed, engine............................................ 61
indicator,
circuit inspection.......................................... 8
DTC index.................................................... 9
MIL blink ..................................................... 7
mode...................................................10
, 126
inspection, pre-ride.......................................... 13
instruments ........................................................ 5
labels, safety...................................................... 4
logbook, competition..................................... 160
maintenance,
after competition.........................................31
before & after competition..........................30
between motos & practice...........................30
component locations...................................32
general competition.....................................26
importance ..................................................22
safety...........................................................23
schedule ......................................................24
manual, service ..............................................166
mode indicator .........................................10
, 126
modifications......................................................3
oil,
engine..........................................................51
fork..............................................................91
operating instructions.......................................15
operation component locations..........................6
optional,
parts list.....................................................162
sprockets ...................................................140
oxygenated fuels ............................................159
pads, brake .....................................................108
parts, optional.................................................162
personal fit adjustments .................................142
pinging, engine.................................................41
piston, piston rings, piston pin.........................79
plug, spark........................................................67
pre-load, rear suspension ...............................130
pre-ride inspection ...........................................13
protective apparel...............................................2
rear suspension adjustment............................ 130
Rider’s Club, Honda (USA only).................. 169
riding,
apparel..........................................................2
basic operation............................................ 15
before.......................................................... 11
important safety information........................ 2
safety precautions......................................... 2
safety,
a few words about.................Safety Messages
important information................................... 2
important precautions................................... 2
labels............................................................. 4
maintenance................................................ 23
riding precautions....................................... 16
schedule, maintenance..................................... 24
seat................................................................... 33
serial numbers................................................ 154
service,
customer ................................................... 165
manuals..................................................... 166
spare parts...................................................... 163
spark knock...................................................... 41
spark plug,
maintenance................................................ 67
reading......................................................138
specifications................................................. 155
spring pre-load, rear suspension.................... 130
starting,
engine ......................................................... 17
troubleshooting......................................... 147
steering stem inspection ................................ 119
stopping engine................................................ 18
storage............................................................ 145
subframe .......................................................... 37
G
H
I
L
M
O
P
R
S
CRF250R_31K95600.book 171 ページ ２０１７年８月８日 火曜日 午後８時２６分
172 Index
Index
suspension adjustment,
for track conditions................................... 134
front.......................................................... 127
guidelines ................................................. 135
rear............................................................ 130
suspension,
front............................................................ 88
rear............................................................ 104
throttle,
freeplay....................................................... 59
inspection ................................................... 60
lubrication................................................... 60
tires,
air pressure ............................................... 110
flat............................................................. 110
selection.................................................... 111
tools ............................................................... 163
torque specifications
engine....................................................... 156
frame.................................................157
, 158
transporting.................................................... 144
troubleshooting.............................................. 147
tubes, replacing.............................................. 110
tuning tips...................................................... 138
valve clearance ................................................ 68
vehicle identification no. (VIN) .................... 154
washing your motorcycle...............................123
wheels ............................................................109
wiring diagram...............................................164
T
V
W
CRF250R_31K95600.book 172 ページ ２０１７年８月８日 火曜日 午後８時２６分
Memo 173
CRF250R_31K95600.book 173 ページ ２０１７年８月８日 火曜日 午後８時２６分
Quick Reference
Quick Reference
Quick Reference
The following is a brief, but important collection
of information you need to know about your CRF.
You'll also find space to record important notes.
The engine of your CRF can be the most expensive
component to repair. Proper maintenance,
especially the use of the recommended fluids and
filters, prevents premature wear and damage.
Frequent causes of costly engine repairs are:
• Engine oil: insufficient quantity, improper oil.
• Air cleaner: dirty, leaking because of improper
installation (poor seal)
How To Avoid Costly Repairs
Record important information here:
VIN
Engine No.
Owner's:
Name
Address
City/State
Phone
Dealer's:
Name
Address
City/State
Phone
Service Mgr.
Maintenance The maintenance schedule (page 25) lists service frequencies for:
each race or about 2.5 hours,
every 3 races or about 7.5 hours, every 6 races or about 15.0 hours,
every 9 races or about 22.5 hours and every 12 races or about 30.0 hours
Pre-ride Inspection Check the items listed on the Pre-ride Inspection checklist each time before you ride
(page 13):
Fuel/Tank Capacity unleaded gasoline, pump octane number of 91 or higher
tank: 1.66 US gal (6.3 ℓ)
Engine Oil/Capacity Pro Honda GN4 4-stroke Oil or an equivalent motorcycle oil.
1.18 US qt (1.12 ℓ ) after draining and filter change
1.14 US qt (1.08 ℓ ) after draining
Tires Front 80/100 – 21 51M Rear 100/90 – 19 57M
DUNLOP MX3SF DUNLOP MX3S
Type bias-ply, tube
Tire Pressure (cold)
Front: 15 psi (100 kPa, 1.0 kgf/cm
2
)
Rear: 15 psi (100 kPa, 1.0 kgf/cm
2
)
Spark Plug standard: R0451B-8 (NGK)
Coolant Pro Honda HP Coolant or an equivalent high quality ethylene glycol antifreeze (silicate-free)
containing corrosion protection inhibitors (50:50 mixture with distilled water).
Fuse main: 10 A
Drive Chain Size/Link D.I.D 520DMA4K/114RB
