HTS3541
Register your product and get support at
www.philips.com/welcome
EN User manual
3
7 Update software 24
Check software version 24
Update software through the Internet 24
Update software through USB 25
8 Productspecications 26
9 Troubleshooting 29
10 Index 30
Contents
1 Notice 4
Copyright 4
Compliance 4
Mains fuse (UK only) 4
Open source software 4
Trademarks 4
2 Important 5
Safety 5
Care for your product 6
Care for the environment 6
3 Your home theatre 7
Main unit 7
Remote control 7
4 Connect your home theatre 9
Speakers 9
Connectors 10
Connect to TV 10
Connect audio from TV and other devices 12
Internet 13
5 Use your home theatre 14
Choose sound 14
Discs 15
USB storage devices 16
DivX 17
Audio, video and picture options 18
Radio 19
MP3 player 20
EasyLink 20
6 Change settings 21
Picture 21
Sound 22

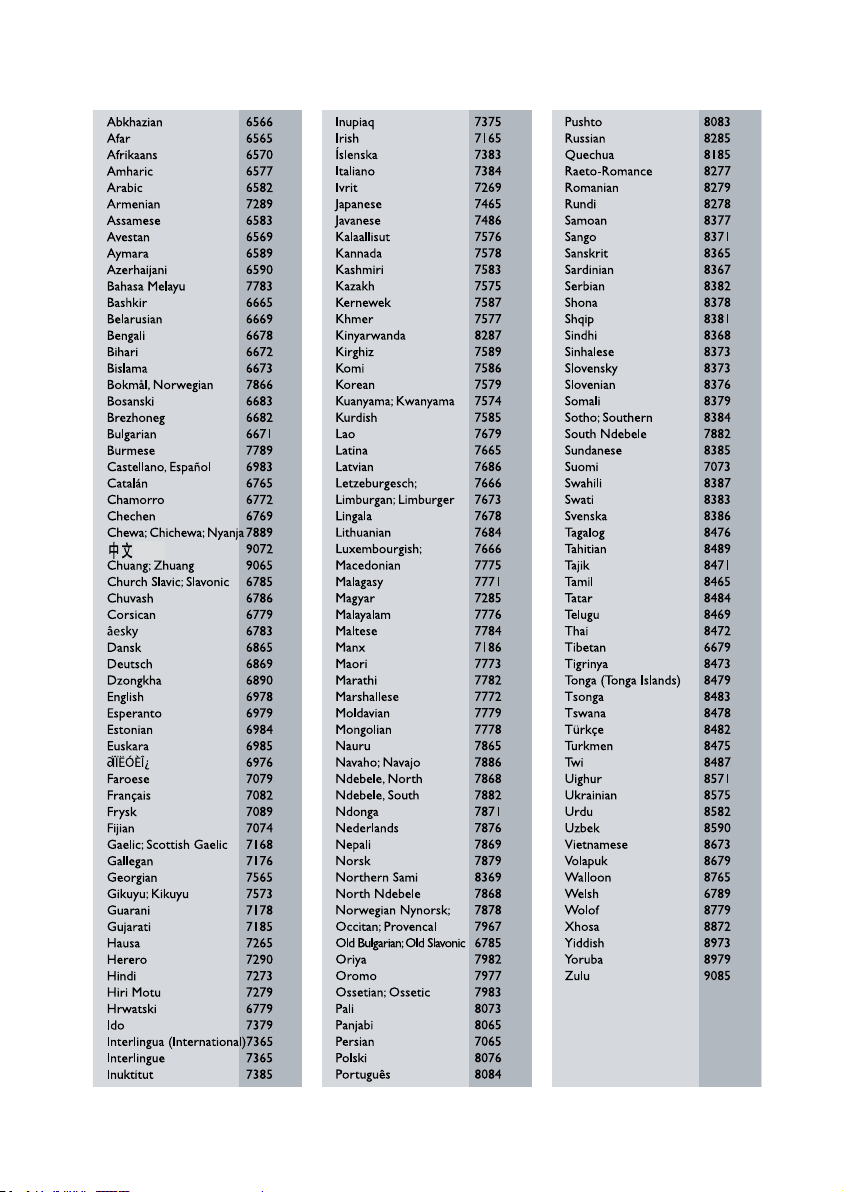

Language 22
Parental control 23
Energy saving 23
Apply factory settings 24
EN
4
Open source software
Philips Electronics Singapore Pte Ltd hereby
offers to deliver, upon request, a copy of the
complete corresponding source code for the
copyrighted open source software packages used
in this product for which such offer is requested
by the respective licences. This offer is valid up to
three years after product purchase to anyone in
receipt of this information. To obtain the source
code, please contact open.[email protected].
If you prefer not to use email, or if you do not
receive a conrmation receipt within a week of
mailing this email address, please write to “Open
Source Team, Philips Intellectual Property &
Standards, P.O. Box 220, 5600 AE Eindhoven,
The Netherlands”. If you do not receive timely
conrmation of your letter, please send an email
to the email address above. The texts of the
licences and acknowledgements for open source
software used in this product are included on a
separate leaet.
Trademarks
“Blu-ray Disc”, “Blu-ray” and “Blu-ray Disc” logo
are trademarks of Blu-ray Disc Association.
Java and all other Java trademarks and logos are
trademarks or registered trademarks of Sun
Microsystems, Inc. in the United States and/or
other countries.
Manufactured under licence under U.S. Patent
#s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,226,616; 6,487,535; 7,392,195; 7,272,567;
7,333,929; 7,212,872 & other U.S. and worldwide
patents issued & pending. DTS and the Symbol
are registered trademarks and DTS-HD and
1 Notice
This section contains the legal and trademark
notices.
Copyright
This item incorporates copy protection technology
that is protected by U.S. patents and other
intellectual property rights of Rovi Corporation.
Reverse engineering and disassembly are
prohibited.
Copyright in the UK
Recording and playback of material may require
consent. See Copyright Act 1956 and The
Performers’ Protection Acts 1958 to 1972.
Compliance
This product is in compliance with the essential
requirements and other relevant provisions
of Directives 2006/95/EC (Low Voltage) and
2004/108/EC (EMC).
Mains fuse (UK only)
This information applies only to products with a
UK mains plug.
This product is tted with an approved moulded
plug. If you replace the fuse, use one with:
• the ratings shown on the plug,
• a BS 1362 approval, and
• the ASTA approval mark.
Contact your dealer if you are not sure about
what type of fuse to use.
Caution: To comply with the EMC directive
(2004/108/EC), do not detach the plug from the
power cord.
EN
5
2 Important
Read and understand all instructions before you
use your home theatre. If damage is caused by
failure to follow instructions, the warranty does
not apply.
Safety
Riskofelectricshockorre!
• Never expose the product and accessories
to rain or water. Never place liquid
containers, such as vases, near the product.
If liquids are spilt on or into the product,
disconnect it from the power socket
immediately. Contact Philips Consumer
Care to have the product checked before
use.
• Never place the product and accessories
near naked ames or other heat sources,
including direct sunlight.
• Never insert objects into the ventilation
slots or other openings on the product.
• Where the mains plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
• Disconnect the product from the power
socket before lightning storms.
• When you disconnect the power cord,
always pull the plug, never the cable.
Riskofshortcircuitorre!
• Before you connect the product to the
power socket, ensure that the power
voltage matches the value printed on the
back or bottom of the product. Never
connect the product to the power socket if
the voltage is different.
Riskofinjuryordamagetothehometheatre!
• For wall-mountable products, use only the
supplied wall mount bracket. Secure the
wall mount to a wall that can support the
combined weight of the product and the
wall mount. Koninklijke Philips Electronics
N.V. bears no responsibility for improper
wall mounting that result in accident, injury
or damage.
• For speakers with stands, use only the
supplied stands. Secure the stands to the
speakers tightly. Place the assembled stands
on at, level surfaces that can support the
combined weight of the speaker and stand.
DTS-HD Master Audio | Essential and the DTS
logos are trademarks of DTS, Inc. Product
includes software.
DTS, Inc. All Rights
Reserved.
Manufactured under licence from Dolby
Laboratories. Dolby, Pro Logic and the double-D
symbol are trademarks of Dolby Laboratories.
DivX , DivX Certied , DivX Plus™ HD and
associated logos are trademarks of DivX, Inc. and
are used under licence.
ABOUT DIVX VIDEO: DivX
is a digital
video format created by DivX, Inc. This is an
ofcial DivX Certied
device that plays DivX
video. Visit divx.com for more information and
software tools to convert your les into DivX
video.
ABOUT DIVX VIDEO-ON-DEMAND: This
DivX Certied
device must be registered
in order to play purchased DivX Video-on-
Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD section
in your device setup menu. Go to vod.divx.com
for more information on how to complete your
registration.
HDMI, the HDMI logo and High-Denition
Multimedia Interface are trademarks or
registered trademarks of HDMI licensing LLC in
the United States and other countries.
CLASS 1
LASER PRODUCT
EN
6
Care for the environment
Your product is designed and manufactured with
high quality materials and components, which
can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC. Please inform yourself about the local
separate collection system for electrical and
electronic products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste.
Correct disposal of your old product helps to
prevent potential negative consequences for the
environment and human health.
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries because correct
disposal helps to prevent negative consequences
for the environment and human health.
• Never place the product or any objects
on power cords or on other electrical
equipment.
• If the product is transported in
temperatures below 5°C, unpack the
product and wait until its temperature
matches room temperature before
connecting it to the power socket.
• Visible and invisible laser radiation when
open. Avoid exposure to the beam.
• Do not touch the disc optical lens inside the
disc compartment.
• Parts of this product may be made of
glass. Handle with care to avoid injury and
damage.
Riskofoverheating!
• Never install this product in a conned
space. Always leave a space of at least four
inches around the product for ventilation.
Ensure curtains or other objects never
cover the ventilation slots on the product.
Riskofcontamination!
• Do not mix batteries (old and new or
carbon and alkaline etc.).
• Remove batteries if they are exhausted or
if the remote control is not to be used for a
long time.
• Batteries contain chemical substances; they
should be disposed of properly.
Riskofswallowingbatteries!
• The product/remote control may contain a
coin-type battery, which can be swallowed.
Keep the battery out of reach of children at
all times!
Care for your product
• Do not insert any objects other than discs
into the disc compartment.
• Do not insert warped or cracked discs into
the disc compartment.
• Remove discs from the disc compartment
if you are not using the product for an
extended period of time.
• Use only microbre cloth to clean the
product.
EN
7
Remote control
This section includes an overview of the remote
control.
1
2
7
3
4
5
9
11
12
19
20
21
13
6
16
17
18
8
10
15
14
3 Your home theatre
Congratulations on your purchase, and welcome
to Philips! To fully benet from the support that
Philips offers, register your home theatre at www.
philips.com/welcome.
Main unit
a Disc compartment
b Display panel
c (Open/Close)
Open or close the disc compartment, or
eject the disc.
d (Play/Pause)
Start, pause or resume play.
e SOURCE
Select an audio or video source for the
home theatre.
f (Standby-On)
Switch the home theatre on or to standby.
EN
8
m REPE AT
Select or turn off repeat mode.
n TOP MENU
Access the main menu of a disc.
o OPTIONS
• Access more play options while playing
a disc or a USB storage device.
• In radio mode, set a radio station.
p (Play)
Start or resume play.
q (Pause)
Pause play.
r (Mute)
Mute or restore volume.
s AUDIO
Select an audio language or channel.
t SUBTITLE
Select subtitle language for video.
u Colour buttons
Select tasks or options for Blu-ray discs.
EasyLink controls
With Easylink, you can control your home
theatre and the TV with the following buttons
on your home theatre remote control (see
‘EasyLink’ on page 20).
• (Standby-On): Press and hold to switch
your home theatre, TV and the connected
devices to standby.
• (Play): When a video disc is in the disc
compartment, wake up the TV from
standby, and then play a disc.
a (Standby-On)
• Switch the home theatre on or to
standby.
• When EasyLink is enabled, press
and hold for at least three seconds
to switch all connected HDMI CEC
compliant devices to standby.
b (Home)
Access the home menu.
c Source buttons
• DISC/POP-UP MENU : Switch to disc
source.Access or exit the disc menu
when you play a disc.
• RADIO : Switch to FM radio.
• AUDIO SOURCE : Select an audio
input source.
d BACK
• Return to a previous menu screen.
• In radio mode, press and hold to erase
the current preset radio stations.
e Navigation buttons
• Navigate menus.
• In radio mode, press left or right to
start auto search.
• In radio mode, press up or down to
tune the radio frequency.
f OK
Conrm an entry or selection.
g / (Previous/Next)
• Skip to the previous or next track,
chapter or le.
• In radio mode, select a preset radio
station.
h (Stop) / (Eject/Open/Close)
• Stop play.
• Press and hold for three seconds to
open or close the disc compartment,
or eject the disc.
i / (Fast Backward / Fast Forward)
Search backwards or forwards. Press
repeatedly to change the search speed.
j +/- (Volume)
Increase or decrease volume.
k SOUND SETTINGS
Access or exit sound options.
l Alphanumeric buttons
Enter values or letters (using SMS-style
entry).
EN
9
Note
•
Surround sound depends on factors such as
room shape and size, type of wall and ceiling,
windows and reective surfaces, and speaker
acoustics. Experiment with the speaker
positions to nd the optimum setting for you.
Follow these general guidelines, and then set up
your speakers.
1 Seating position:
This is the centre of your listening area.
2 FRONT CENTER (front centre) speaker:
Place the centre speaker directly in front of
the seating position, either above or below
your TV. Make sure that it is close to your
ear height when you are seated.
3 FRONT LEFT (front left) and FRONT
RIGHT (front right) speakers:
Place the left and right speakers in the front,
and equidistant from the centre speaker
in an arc, so that all three speakers are the
same distance from your seating position.
For the best effect, point the speakers
towards the seating position and place the
speakers close to ear level (when seated).
4 REAR LEFT (rear left) and REAR RIGHT
(rear right) speakers:
Place the rear surround speakers to the
left and right side of your seating position,
either in line with it or slightly behind it. For
the best effect, point the speakers towards
the seating position and place the speakers
just above ear level (when seated).
5 SUBWOOFER (subwoofer):
Place the subwoofer at least one metre to
the left or right of the TV. Leave about ten
centimetres’ clearance from the wall.
Connect
Connect your speakers and the subwoofer to
your home theatre as described in the quick
start guide.
4 Connect your home
theatre
This section helps you connect your home theatre
to a TV and other devices.
For information about the basic connections of
your home theatre and accessories, see the quick
start guide. For a comprehensive interactive guide,
see www.connectivityguide.philips.com.
Note
•
For identication and supply ratings, refer to
the type plate at the back or bottom of the
product.
• Before you make or change any connections,
make sure that all devices are disconnected
from the socket.
Speakers
Position, connect and set up your speakers for the
best surround sound.
Position
Speaker position plays a critical role in setting up
a surround sound effect.
For best results, place your speakers and the
subwoofer as shown below.
EN
10
c ANTENNA FM 75
Signal input from an antenna, cable or
satellite.
d AUDIO IN-AUX
Connect to an analogue audio output on
the TV or an analogue device.
e VIDEO OUT
Connect to the composite video input on
the T V.
f HDMI OUT (ARC)
Connect to the HDMI input on the TV.
g LAN
Connect to the LAN input on a broadband
modem or router.
h DIGITAL IN-OPTICAL
Connect to an optical audio output on the
TV or a digital device.
i DIGITAL IN-COAXIAL
Connect to a coaxial audio output on the
TV or a digital device.
Connect to TV
Connect your home theatre to a TV to
watch videos. You can listen to audio from TV
programmes through your home theatre speakers.
Use the best quality connection available on your
home theatre and TV.
Option 1: Connect to TV through HDMI
(ARC)
Best quality video
Your home theatre supports HDMI version
1.4 - Audio Return Channel (ARC). If your TV
is HDMI ARC-compliant, connect your home
theatre to the TV through the HDMI ARC
connection for easy and quick setup.
With HDMI ARC, you do not need an additional
audio cable to play audio from TV through your
home theatre.
1 Using a High-Speed HDMI cable, connect
the HDMI OUT (ARC) connector on your
home theatre to the HDMI ARC connector
on the TV.
The HDMI ARC connector on the TV
might be labelled HDMI IN or HDMI. For
details on TV connectors, see the TV user
manual.
Setup
Set up your speakers through the speaker setup
menu.
1 Connect your speakers and subwoofer as
described in the Quick start guide.
2 Press (Home) on your home theatre
remote control, and select [Setup] >
[Audio] > [Speaker Setup].
3 Enter the distance for each speaker, and
then listen to the test tones and change the
volume. Experiment a little with the speaker
positions to nd the ideal setting.
Connectors
Connect other devices to your home theatre.
Front
a (USB)
Audio, video or picture input from a USB
storage device.
b MUSIC iLINK
Audio input from an MP3 player.
Back connectors
a AC MAINS
Connect to the power supply.
b SPEAKERS
Connect to the supplied speakers and
subwoofer.
EN
11
2 On your TV, turn on HDMI-CEC. For
details, see the TV user manual.
» When you play a disc on your home
theatre, the video is automatically
displayed on TV and the audio is
automatically played on the home
theatre.
3 To play audio from TV programmes through
your home theatre, connect an additional
audio cable (see ‘Connect audio from TV
and other devices’ on page 12).
4 If audio from the TV does not play
automatically on your home theatre, set up
the audio manually (see ‘Set up audio for
connected devices’ on page 12).
Note
•
If your TV has a DVI connector, you can use an
HDMI/DVI adapter to connect to TV.
Option 3: Connect to the TV through
composite video
Basic quality video
If your TV does not have HDMI connectors,
connect your home theatre to the TV through a
composite connection. A composite connection
does not support high-denition video.
With a composite connection, you need an
additional audio cable to play the audio from the
TV through your home theatre (see ‘Connect
audio from TV and other devices’ on page 12).
1 Using a composite video cable, connect the
VIDEO connector on your home theatre to
the composite video connector on the TV.
The composite video connector might be
labelled AV IN, VIDEO IN, COMPOSITE
or BASEBAND.
2 On your TV, switch to the correct video
input.
TV
2 On your TV, turn on HDMI-CEC. For
details, see the TV user manual.
» When you play a disc on your home
theatre, the video is automatically
displayed on TV and the audio is
automatically played on the home
theatre.
3 If audio from the TV does not play
automatically on your home theatre, set up
the audio manually (see ‘Set up audio for
connected devices’ on page 12).
Option 2: Connect to TV through HDMI
Best quality video
If your TV is not HDMI ARC-compliant, connect
your home theatre to the TV through a standard
HDMI connection.
With a standard HDMI connection, you need an
additional audio cable to play the audio from the
TV through your home theatre (see ‘Connect
audio from TV and other devices’ on page 12).
1 Using a High-Speed HDMI cable, connect
the HDMI OUT (ARC) connector on your
home theatre to the HDMI connector on
the T V.
The HDMI connector on the TV might be
labelled HDMI IN.
TV
TV
EN
12
Option 2: Connect audio through a digital
coaxial cable
Good quality audio
Using a coaxial cable, connect the COAXIAL
connector on your home theatre to the
COAXIAL/DIGITAL OUT connector on the TV
or other device.
The digital coaxial connector might be labelled
DIGITAL AUDIO OUT.
Option 3: Connect audio through
analogue audio cables
Basic quality audio
Using an analogue cable, connect the AUX
connectors on your home theatre to the
AUDIO OUT connectors on the TV or other
device.
Set up audio for connected devices
When you connect a device to your home
theatre, check the audio settings.
1 On your TV and other devices, turn on
HDMI-CEC. For details, see the user
manual of the TV and the other device.
2 Select ‘Amplier’ from the TV speakers
menu. For details, see the TV user manual.
VCR
3 To play audio from TV programmes through
your home theatre, connect an additional
audio cable (see ‘Connect audio from TV
and other devices’ on page 12).
On your home theatre, press SOURCE
repeatedly to select the correct audio input.
Connect audio from TV and
other devices
Play audio from TV or other devices through
your home theatre.
Use the best quality connection available on your
TV, home theatre and other devices.
Note
•
The audio connections in this user manual are
only recommendations. You can use other
connections too.
• When your home theatre and TV are
connected through HDMI ARC, an audio
connection is not required.
Option 1: Connect audio through a digital
optical cable
Best quality audio
Using an optical cable, connect the OPTICAL
connector on your home theatre to the
OPTICAL OUT connector on the TV or other
device.
The digital optical connector might be labelled
SPDIF, SPDIF OUT or OPTICAL.
TV
EN
13
Set up the wired network
Connect your home theatre to your router as
shown below, and then switch on the devices.
1 Connect the home theatre to a network
router through a wired connection (see
‘Wired connection’ on page 13).
2 Turn on your TV, and switch to the correct
source for the home theatre.
3 Press (Home).
4 Select [Setup], and then press OK.
5 Select [Network] > [Network Installation]
> [Wired (Ethernet)], and then press OK.
6 Follow the instructions on the TV to
complete the setup.
» The home theatre connects to the
Internet. If connection fails, select [Retry],
and then press OK.
7 Select [Finish], and then press OK to exit.
Check wired network settings
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Network] > [View Network
Settings], and then press OK.
» The current network settings are
displayed.
LAN
www
3 On your home theatre, turn on System
Audio Control and then map the audio
of the connected device to the correct
connectors on your home theatre (see ‘Play
audio from home theatre’ on page 20).
If the connected device is not HDMI-CEC-
compliant, press SOURCE repeatedly on
your home theatre to select the correct
audio input.
Internet
Connect your home theatre to the Internet and
enjoy:
• BD-Live applications: Access exclusive
services from the BD-Live-enabled Blu-ray
discs (see ‘BD-Live on Blu-ray’ on page 16).
• Software update: update the home theatre
software through the network (see ‘Update
software through the Internet’ on page 24).
Caution
•
Before you try to connect the home theatre
to a computer network, familiarise yourself
with the network router and networking
principles. If necessary, read documentation
that accompanies the network components.
Philips is not responsible for lost, damaged or
corrupt data.
Wired connection
Connect your home theatre to your router
through a network cable.
What you need
• A network router (with DHCP enabled).
• A network cable (RJ45 straight cable).
• For the BD-Live application and software
updates, make sure that the network router
has access to the Internet and the rewall is
disabled.
EN
14
• MOVIE: Enjoy a cinematic audio
experience, specially enhanced for
movies.
• MUSIC: Recreate the original recording
environment of your music, in the
studio or at a concert.
• ORIGINAL: Experience the original
sound of your movies and music,
without added sound effects.
• NEWS: Hear every word with
optimised speech and clear vocals.
• GAMING: Enjoy thrilling arcade
sounds, ideal for action-packed video
games or loud parties.
4 Press OK to conrm.
Surround sound mode
Experience an immersive audio experience with
surround sound modes.
1 Press SOUND SETTINGS.
2 Select SURROUND, and then press OK.
3 Press the Navigation buttons (up/down) to
select a setting from your display:
• AUTO: Surround sound based on the
audio stream.
• 5CH STER: Enhanced stereo sound.
Ideal for party music.
• MULTI-CH: Immersive multi-channel
sound for an enhanced movie
experience.
• STEREO: Two-channel stereo sound.
Ideal for listening to music.
4 Press OK to conrm.
Equalizer
Change the high frequency (treble), mid
frequency (mid) and low frequency (bass)
settings of the home theatre.
1 Press SOUND SETTINGS.
2 Select TREBLE, MID or BASS, and then
press OK.
3 Press the Navigation buttons (up/down) to
change the frequency.
4 Press OK to conrm.
5 Use your home
theatre
This section helps you use the home theatre to
play media from a wide range of sources.
Before you start
• Make the necessary connections described
in the Quick start guide and the user
manual.
• Switch the TV to the correct source for the
home theatre.
Choose sound
This section helps you choose the ideal sound for
your video or music.
1 Press SOUND SETTINGS.
2 Press the Navigation buttons (left/right) to
access the sound options on the display.
Sound settings Description
SOUND Select a sound mode.
SURROUND Select surround sound or
stereo sound.
TREBLE Change the high frequency
output.
MID Change the middle frequency
output.
BASS Change the low frequency
output.
AUD SYNC Delay the audio to match the
video.
3 Select an option, and then press OK.
4 Press BACK to exit.
If you do not press a button within a minute, the
menu exits automatically.
Sound mode
Select predened sound modes to suit your
video or music.
1 Press SOUND SETTINGS.
2 Select SOUND, and then press OK.
3 Press the Navigation buttons (up/down) to
select a setting on the display:
EN
15
Button Action
OPTIONS
Access the advanced options
when you play your audio,
video or media les (see ‘Audio,
video and picture options’ on
page 18).
For video formats such as DivX:
• To stop play, press .
• To resume the video from where you
stopped, press
(Play).
• To play the video from the start, press OK.
Display menu for VCD and SVCD
Display the content menu on VCD and SVCD
discs.
1 Press (Home).
2 Select [Setup] > [Preference], and then
press OK.
3 Select [VCD PBC] > [On], and then press
OK.
Note
•
To skip the content menu, select [Off].
Synchronise picture and sound
If the audio and video are not synchronised,
delay the audio to match the video.
1 Press SOUND SETTINGS.
2 Select AUD SYNC, and then press OK.
3 Press the Navigation buttons (up/down) to
synchronise the audio with the video.
4 Press OK to conrm.
Bonus View on Blu-ray
On Blu-ray discs that support the Bonus
View, enjoy extra content, such as a director’s
commentary, while you watch the main feature.
Bonus View is also known as picture-in-picture.
1 Enable Bonus View (picture-in-picture) in
the Blu-ray disc menu.
2 While the main feature is playing, press
OPTIONS.
» The options menu is displayed.
Discs
Your home theatre can play DVDs, VCDs, CDs
and Blu-ray discs. It can also play discs that you’ve
made at home, such as CD-R discs of photos and
music.
What you need
• Audio and video connection between your
home theatre and the TV.
• An audio or a video disc.
Play discs
1 Insert a disc into the home theatre.
» Your TV switches to the correct source
and the disc plays automatically.
2 If the disc does not play automatically, press
DISC or select [play Disc] in the home
menu, and then press OK.
3 Press the play buttons to control play (see
‘Play buttons’ on page 15).
Play buttons
Button Action
Navigation
buttons
Navigate menus.
OK Conrm an entry or selection.
(Play)
Start or resume play.
Pause play.
Stop play.
/
Skip to the previous or next
track, chapter or le.
/
Fast backwards or fast
forwards. Press repeatedly to
change the search speed.
Navigation
buttons (up/
down)
Rotate the picture clockwise or
anti-clockwise.
SUBTITLE Select subtitle language for
video.
DISC Access or exit the disc menu.
AUDIO Select an audio language or
channel.
REPE AT Select or turn off repeat mode.
EN
16
3 Select the BD-Live icon in the disc menu,
and then press OK.
» BD-Live starts to load. The loading time
depends on the disc and your Internet
connection.
4 Press the Navigation buttons to navigate
BD-Live, and then press OK to select an
item.
Clear memory
If your storage device does not have enough
memory for the BD-Live content, clear the
memory on the storage device.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Advanced] > [Clear memory], and
then press OK.
» This clears the local memory and
deletes the BD-Live les that you have
downloaded onto your storage device.
Disable BD-Live
To restrict access to BD-Live, turn on the BD-
Live security.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Advanced] > [BD-Live security] >
[On], and then press OK.
» BD-Live access is restricted.
Note
•
You cannot restrict Internet access on
commercial Blu-ray discs.
USB storage devices
Enjoy pictures, audio and video on a USB storage
device.
What you need
• A USB storage device that is formatted for
FAT or NTFS le systems and complies with
the Mass Storage Class.
• A USB extension cable, if the USB storage
device does not t into the connector.
3 Select [PIP Selection] > [PIP], and then
press OK.
» Depending on the video, PIP option [1]
or [2] is displayed.
» The picture-in-picture video is displayed
in a small window.
4 Select [2nd Audio Language] or [2nd
Subtitle Language], and then press OK.
5 Select the language, and then press OK.
Note
•
To turn off Bonus View, press OPTIONS,
select [PIP Selection] > [Off], and then press
OK.
BD-Live on Blu-ray
On Blu-ray discs with BD-Live content, access
additional features, such as Internet chats with
the director, the latest movie trailers, games,
wallpaper and ringtones.
What you need
• a Blu-ray disc with BD-Live content
• an Internet connection
• a USB storage device with at least 1 GB of
memory
Note
•
BD-Live services vary from country to country,
and depend on the disc.
• When you use BD-Live, data on the disc and
home theatre are accessed by the content
provider.
Access BD-Live with a USB storage
device
1 Connect your home theatre to the home
network and Internet (see ‘Internet’ on
page 13).
2 Connect the USB storage device to the
home theatre.
• The USB storage device is used
to store the downloaded BD-Live
content.
EN
17
Subtitles
If your video has subtitles in multiple languages,
select a subtitle language.
1 While playing video, press SUBTITLE to
select a language.
Note
•
Make sure that the subtitle le has the same
name as the video le. For example, if the
video le is called ‘movie.avi’, save the subtitle
le as ‘movie.srt’ or ‘movie.sub’.
• Your home theatre can play subtitle les in the
following formats: .srt, .sub, .txt, .ssa, .ass, smi
and .sami. These les do not appear in the le
navigation menu.
• If the subtitles do not appear correctly, change
the character set.
Subtitle character set
If the subtitles do not appear correctly, change
the character set that supports the DivX subtitle.
1 Press OPTIONS.
» The options menu is displayed.
2 Press the Navigation buttons to select
[Character Set], and then press OK.
3 Select a character set.
Europe, India and Russia
Character
Set
Language
[Standard] English, Albanian, Danish, Dutch,
Finnish, French, Gaelic, German,
Italian, Kurdish (Latin), Norwegian,
Portuguese, Spanish, Swedish and
Turkish
[Central
Europe]
Albanian, Croat, Czech, Dutch,
English, German, Hungarian, Irish,
Polish, Romanian, Slovak, Slovene
and Sorbian
[Cyrillic] Bulgarian, Belorussian, English,
Macedonian, Moldavian, Russian,
Serbian and Ukrainian
[Greek] Greek
Note
•
You can use digital cameras connected by USB
if they can play the les without using a special
computer program.
• To play DivX DRM - protected les from
a USB storage device, connect your home
theatre to a TV through an HDMI cable.
Playles
1 Connect the USB storage device to the
home theatre.
2 Press (Home).
» The home menu is displayed.
3 Select [browse USB], and then press OK.
» A content browser is displayed.
4 Select a le, and then press OK.
5 Press the playback buttons to control play
(see ‘Play buttons’ on page 15).
DivX
Play DivX videos from :
• a disc (see ‘Discs’ on page 15),
• a USB storage device (see ‘USB storage
devices’ on page 16).
Note
•
To play DivX DRM-protected les from a disc
or a USB storage device, connect your home
theatre to a TV using an HDMI cable.
VOD code for DivX
Before you purchase DivX videos and play them
on your home theatre, register the home theatre
on www.divx.com using the DivX VOD code.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Advanced] > [DivX® VOD Code],
and then press OK.
» The DivX VOD registration code for
your home theatre is displayed.
EN
18
• [Angle List]: Select a different camera
angle.
• [Menus]: Display the disc menu.
• [PIP Selection]: Display Picture-in-
Picture window when playing a Blu-ray
disc that supports the Bonus View.
• [Zoom]: Zoom into a video scene or
picture. Press the Navigation buttons
(left/right) to select a zoom factor.
• [Repeat]: Repeat a chapter or title.
• [Repeat A-B]: Mark two points within
a chapter or track to repeat play, or
turn off the repeat mode.
• [Picture Settings]: Select a predened
colour setting.
Picture options
While viewing a picture, zoom into the picture,
rotate it, add animation to a slideshow and
change the picture settings.
1 Press OPTIONS.
» The picture options menu appears.
2 Press the Navigation buttons and OK to
select and change the following settings:
• [Rotate +90]: Rotate the picture 90
degrees clockwise.
• [Rotate -90]: Rotate the picture 90
degrees anti-clockwise.
• [Zoom]: Zoom into a video scene or
picture. Press the Navigation buttons
(left/right) to select a zoom factor.
• [Info]: Display picture information.
• [Duration per slide]: Select the display
speed for each picture in a slide show.
• [Slide Animation]: Select animation for
the slideshow.
• [Picture Settings]: Select a predened
colour setting.
• [Repeat]: Repeat a selected folder.
Audio, video and picture
options
Use advanced features when you play audio, video
or media les from a disc or a USB storage device.
Audio options
While playing audio, repeat an audio track, a disc
or a folder.
1 Press OPTIONS repeatedly to cycle
through the following functions:
• RPT TRACK / RPT FILE: Repeat the
current track or le.
• RPT DISC / RPT FOLDER: Repeat all
the tracks on the disc or the folder.
• RPT RANDOM: Play audio tracks in
random order.
• RPT OFF: Turn off the repeat mode.
Video options
While watching video, select options such as
subtitles, audio language, time search and picture
settings. Depending on the video source, some
options are not available.
1 Press OPTIONS.
» The video options menu is displayed.
2 Press the Navigation buttons and OK to
select and change:
• [Audio Language]: Select audio
language for video.
• [Subtitle Language]: Select subtitle
language for video.
• [Subtitle Shift]: Change the subtitle
position on the screen.
• [Info]: Display information about what
is playing.
• [Character Set]: Select a character set
that supports the DivX subtitle.
• [Time Search]: Skip to a specic part
of the video by entering the time of
the scene.
• [2nd Audio Language]: Select the
second audio language for Blu-ray
video.
• [2nd Subtitle Language]: Select the
second subtitle language for Blu-ray
video.
• [Titles]: Select a specic title.
• [Chapters]: Select a specic chapter.
EN
19
Tune stations
1 Connect the FM antenna as described in the
Quick start guide.
2 Press RADIO.
» If you have already installed the radio
stations, the last channel that you listened
to is played.
» If you have not installed any radio
stations, the message AUTO INSTALL...
PRESS PLAY appears on the display
panel. Press
(Play).
3 Press the following buttons to listen or to
change radio stations:
Button Action
/ or
Alphanumeric
buttons
Select a preset radio station.
Navigation
buttons (left/
right)
Search for a radio station.
Navigation
buttons (up/
down)
Fine tune a radio frequency.
Press to stop the installation of
radio stations.
BACK
Press and hold to erase the
preset radio station.
OPTIONS
Manual: Press once to access
programme mode, and press
again to store the radio
station.
Automatic: Press and hold for
three seconds to reinstall the
radio stations.
Listen to radio
1 Press RADIO.
• To listen to a preset station, press
or
.
• To search for a radio station, and then
listen, press Navigation buttons (left/
right).
2 Press +/- (Volume) to change the volume.
Slideshows
While playing audio, access fun features such as
picture and musical slideshows.
Picture slideshows
View a slideshow of your pictures stored in your
disc or a USB storage device.
1 Select a picture from a disc or USB storage
device, and then press
(Play).
2 Press OPTIONS.
3 Press Navigation buttons and OK to select
the following settings:
• [Slide Animation]: Select an animation
for the slideshow.
• [Duration per slide]: Select a display
speed for each picture in a slideshow.
4 Press to stop the slideshow.
Musical slideshows
Create a musical slideshow to play music and
pictures at the same time.
1 Select a music track, and then press OK.
2 Press BACK, and go to the picture
folder.
3 Select a picture, and then press (Play) to
start the slideshow.
4 Press to stop slideshow.
5 Press again to stop music.
Radio
Listen to FM radio on your home theatre, and
store up to 40 radio stations.
What you need
• FM antenna.
Note
•
AM and digital radio are not supported.
• If no stereo signal is detected, you are
prompted to install the radio stations again.
• For the best reception, place the antenna away
from the TV or other sources of radiation.
EN
20
One-touch play
If you enable One-touch play, the TV
automatically switches to the correct channel
when you play a disc in your home theatre.
One-touch standby
When you press and hold
(Standby) on the
remote control, the home theatre and all the
connected HDMI-CEC devices (that support
one-touch standby) switch to the standby
mode.
If one-touch standby is enabled on your home
theatre, you can switch to standby with the
remote control of the TV or other HDMI-CEC
devices.
System Audio Control
When you play a device that has its audio
output routed to the home theatre, the home
theatre switches to the corresponding audio
source automatically.
To use one-touch audio, turn on System Audio
Control and follow the instructions on the TV
to map connected devices to the audio input
connectors of the home theatre.
Audio Input Mapping
When you connect a new device to your home
theatre, map the device to the audio input
connector (see ‘Play audio from home theatre’
on page 20).
Play audio from home theatre
Play the audio from a connected device through
your home theatre.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [EasyLink] > [System Audio
Control] > [On], and then press OK.
• To play the audio from the TV
speakers, select [Off] and skip the
following steps.
4 Select [EasyLink] > [Audio Input Mapping],
and then press OK.
5 Follow the instructions on the TV to map
the audio of the connected device to the
audio inputs on your home theatre.
Note
•
If you connect your home theatre to the TV
through an HDMI ARC connection, make sure
that the TV audio is mapped to the ARC input
on your home theatre.
MP3 player
Connect your MP3 player to play your audio les
or music.
What you need
• An MP3 player.
• A 3.5-mm stereo audio cable.
Play music
1 Connect the MP3 player to the home
theatre as described in the Quick start
guide.
2 Press AUDIO SOURCE repeatedly until
‘MUSIC I-LINK’ appears on the display
panel.
3 Press the buttons on the MP3 player to
select and play audio les or music.
EasyLink
The home theatre supports Philips EasyLink, which
uses the HDMI-CEC (Consumer Electronics
Control) protocol. EasyLink-compliant devices that
are connected through HDMI can be controlled
by a single remote control.
Philips does not guarantee 100% interoperability
with all HDMI-CEC devices.
What you need
• HDMI-CEC compliant devices.
• An HDMI connection between the
connected devices.
Switch on
1 On the TV and other connected devices,
turn on the HDMI-CEC operations. For
details, see the manual of the TV or other
devices.
2 Press (Home).
3 Select [Setup], and then press OK.
4 Select [EasyLink] > [EasyLink], and then
press OK.
5 Select [On], and then press OK.
Control devices
Control the home theatre and the other
connected HDMI-CEC compliant devices with a
single remote control.
EN
21
Picture colour
Deep Colour recreates the natural world on
your TV screen and displays vivid images in over
a billion colours.
If your TV supports Deep Colour and is
connected to your home theatre via an HDMI
cable, you can change the Deep Colour.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Video] > [HDMI Deep Colour],
and then press OK.
4 Select the following options and then press
OK:
• [Auto]: Automatically select HDMI
Deep Color.
• [On]: View vivid images.
• [Off]: Display standard 24-bit colour.
Picture resolution
For HDMI video settings, connect your home
theatre to the TV through an HDMI cable.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Video] > [HDMI Video], and then
press OK.
4 Change the HDMI resolution setting, and
then press OK.
Subtitle position
Automatically change the position of the subtitles
to t your TV screen.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Auto Subtitle Shift]
> [On], and then press OK.
6 Change settings
This section helps you to change the settings of
your home theatre.
Caution
•
Most of the settings are already congured
with the best value for your home theatre.
Unless you have a reason to change a setting, it
is best to leave it at the default value.
Note
•
You cannot change a setting that is greyed out.
• To return to the previous menu, press
BACK. To exit the menu, press
(Home).
Change the picture settings to suit your
preferences.
Note
•
The best setting is automatically selected for
the TV. If you change the setting, make sure
that the TV supports the new settings.
Picture settings and format
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Video], and then press OK.
4 Change the following settings, and then
press OK:
• [TV Display]: Picture format.
• [Picture Settings]: Predened colour
settings.
EN
22
Restore sound mode settings
Restore the equalizer settings of all the sound
modes to the default values.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Audio] > [Default sound settings],
and then press OK.
Language
Select a language for the home menu, audio and
subtitles.
Home menu
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Menu language], and
then press OK.
4 Select a menu language, and then press OK.
Disc audio
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Audio], and then
press OK.
4 Select an audio language for discs, and then
press OK.
Note
•
If your preferred disc language is not available,
select [Others] from the list and enter the
4-digit language code found at the end of this
user manual.
• If you select a language that is not available
on a disc, the home theatre uses the default
language of the disc.
Sound
Change the sound settings to suit your preference.
HDMI audio
To hear HDMI audio output from your TV,
connect your home theatre to the TV using an
HDMI cable.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Audio] > [HDMI Audio], and then
press OK.
4 Select the following options and then press
OK:
• [Bitstream]: Enable bitstream output
over HDMI.
• [Auto]: Automatically select the best
supported audio format.
• [Off]: Disable audio from the TV.
Audio post processing
To select a predened sound mode, enable
audio post processing at the speaker (see ‘Sound
mode’ on page 14).
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Advanced] > [Enhanced Audio] >
[On], and then press OK.
Note
•
To play the original audio of the disc, select
[Off].
Night mode
For quiet listening, decrease the volume of loud
sounds when you play discs. Night mode is only
available for Dolby-encoded DVD and Blu-ray
discs.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Audio] > [Night Mode] > [On], and
then press OK.
EN
23
Ratings
Some discs are recorded with ratings according
to age. You can set up your home theatre to play
only discs with an age rating lower than your
child’s age.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Parental Control],
and then press OK.
» A message prompts you to enter the
password.
4 Enter the password with the Numeric
buttons.
5 Select an age rating, and then press OK.
• To play all discs irrespective of the
rating, select level 8 or [Off].
Energy saving
Save energy by changing the following settings.
Auto standby
When playing a disc or a USB storage device,
automatically switch your home theatre to
standby if:
• it is in pause or stop mode, and
• no button is pressed for 30 minutes.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Auto Standby] >
[On], and then press OK.
Sleep timer
Set timers to switch the home theatre to
standby after a specied time.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Sleep Timer], and
then press OK.
4 Select the duration of the sleep timer.
» The sleep timer can be set up to 60
minutes. If the sleep timer is set to [Off],
it switches off.
5 Press OK to activate.
» The home theatre switches to standby
after the specied time.
Disc subtitle
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Subtitle], and then
press OK.
4 Select a subtitle language for discs, and then
press OK.
Disc menu
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Disc Menu], and
then press OK.
4 Select a menu language for discs, and then
press OK.
Note
•
If your preferred disc language is not available,
select [Others] from the list and enter the
4-digit language code found at the end of this
user manual.
• If you select a language that is not available
on a disc, the home theatre uses the default
language of the disc.
Parental control
Restrict access to discs that are recorded with
ratings.
Password
You can set or change your password to play a
restricted disc.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Change Password],
and then press OK.
» A change password menu is displayed.
4 Follow the instructions on the TV to set or
change password.
• If you do not have a password or you
have forgotten, enter 0000.
5 Press OK.
EN
24
7 Update software
To continue to get the best features and support
for your home theatre, update the software
regularly. Compare the version of your current
software with the latest version on www.philips.
com/support.
Check software version
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Advanced] > [Version Info.], and
then press OK.
» The software version is displayed.
Update software through the
Internet
1 Connect your home theatre to the network
through a wired connection (see ‘Set up the
wired network’ on page 13).
2 Press (Home).
3 Select [Setup], and then press OK.
4 Select [Advanced] > [Software Update] >
[Network].
» If upgrade media is detected, you are
prompted to start or cancel the update.
5 Follow the instruction on the TV to conrm
the update.
» When the software update is complete,
the home theatre automatically switches
off and restarts. If it does not, disconnect
the power cord for a few seconds and
then reconnect it.
Note
•
If the home theatre cannot connect to the
Philips server, press
(Home).
• Select [Setup] > [Network] > [Network
Installation] to set up the network.
Screen saver
Automatically switch your home theatre to
screen saver mode if:
• it is in pause or stop mode, and
• no button is pressed for 10 minutes.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Screen Saver] >
[On], and then press OK.
Display panel
Change the brightness of the home theatre
display panel.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Display Panel], and
then press OK.
4 Select the brightness, and then press OK.
Apply factory settings
Reset your home theatre to the default settings.
You cannot reset the parental control settings.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Advanced] > [Restore default
settings], and then press OK.
4 Select [OK], and then press OK.
EN
25
5 Follow the instructions on the TV to
conrm the update.
» When the software update is complete,
the home theatre automatically switches
off and restarts. If it does not, disconnect
the power cord for a few seconds, and
then reconnect it.
Note
•
When the software update is in progress, do
not turn off the power or remove the USB
ash drive.
Update software through USB
What you need
• A USB ash drive with at least 75 MB of
memory. The USB ash drive must be FAT
or NTFS formatted. Do not use a USB hard
drive.
• A computer with Internet access.
• An archive utility that supports the ZIP
le format (for example, WinZip® for
Microsoft® Windows® or Stuft® for
Macintosh®).
Step 1: Download the latest software
1 Connect a USB ash drive to your
computer.
2 In your web browser, go to www.philips.
com/support.
3 At the Philips Support website, nd your
product and locate the Software and
drivers.
» The software update is available as a zip
le.
4 Save the zip le in the root directory of
your USB ash drive.
5 Use the archive utility to extract the
software update le in the root directory of
the USB ash drive.
» The les are extracted in the UPG_ALL
folder on your USB ash drive.
6 Disconnect the USB ash drive from your
computer.
Step 2: Update the software
Caution
•
Before you connect the USB ash drive to
your home theatre, make sure that there is
no disc in the disc compartment and the disc
compartment is closed.
1 Connect the USB ash drive to your home
theatre.
2 Switch your TV to the correct source for
your home theatre.
3 Press (Home) and then select [Setup].
4 Select [Advanced] > [Software Update] >
[USB].
EN
26
Audio formats
Your home theatre supports the following audio
les.
Extension Container Audio
codec
Bit rate
.mp3 MP3 MP3 32 kbps ~
320 kbps
.wma ASF WMA 64 kbps ~
160 kbps
.aac AAC AAC, HE-
AAC
192 kbps
.wav WAV PCM 1.4 Mbps
.m4a MKV AAC 192 kbps
.mka MKA PCM 27.648
Mbps
.mka MKA Dolby
Digital
640 kbps
.mka MKA DTS core 1.54 Mbps
.mka MKA MPEG 912 kbps
.mka MKA MP3 32 kbps ~
320 kbps
.mka MKA WMA 64 kbps ~
160 kbps
.mka MKA AAC, HE-
AAC
192 kbps
Video formats
If you have a high denition TV, your home
theatre allows you to play your video les with:
• Resolution: 1920 x 1080 pixels at
• Frame rate: 6–30 frames per second.
8 Product
specifications
Note
•
Specications and design are subject to change
without notice.
Region codes
The type plate on the back or bottom of the
home theatre shows which regions it supports.
Media formats
• AVCHD, BD, BD-R/ BD-RE, BD-Video,
DVD-Video, DVD+R/+RW, DVD-R/-RW,
DVD+R/-R DL, CD-R/CD-RW, Audio CD,
Video CD/SVCD, Picture les, MP3 media,
WMA media, DivX Plus HD media, USB
storage device
File formats
• Audio: .aac, .mka, .mp3, .wma, .wav
• Video: .avi, .divx, .mp4, .mkv, .asf, .mpg,
.mpeg
• Picture: .jpg, .jpeg, .gif, .png
Country
DVD BD
Europe,
United Kingdom
Korea
Latin America
Australia,
New Zealand
Russia, India
China
AA
AA
CC
CC
Asia Pacific, Taiwan,
EN
27
.mkvlesinMKVcontainer
Audio codec Video codec Bit rate
PCM, Dolby
Digital, DTS
core, MPEG,
MP3, WMA,
AAC, HE-
AAC
MPEG 1, MPEG
2
20 Mbps
(peak
40 Mbps)
MPEG 4 ASP 10 Mbps max
H.264/AVC
HP@4.1/4.0;
[email protected]/3.1/3.0
20 Mbps
(peak
40 Mbps)
Amplier
• Total output power: 300 W RMS (30%
THD)
• Frequency response: 20 Hz-20 kHz / ±3 dB
• Signal-to-noise ratio: > 65 dB (CCIR)/
(A-weighted)
• Input sensitivity:
• AUX: 2 V
• Music iLink: 1 V
Video
• Signal system: PAL/NTSC
• HDMI output: 480i/576i, 480p/576p, 720p,
1080i, 1080p, 1080p24
Audio
• S/PDIF Digital audio input:
• Coaxial: IEC 60958-3
• Optical: TOSLINK
• Sampling frequency:
• MP3: 32 kHz, 44.1 kHz, 48 kHz
• WMA: 44.1 kHz, 48 kHz
• Constant bit rate:
• MP3: 32 kbps - 320 kbps
• WMA: 48 kbps - 192 kbps
Radio
• Tuning range:
• Europe/Russia/China: FM 87.5-
108 MHz (50 kHz)
• Asia Pacic/Latin America: FM 87.5-
108 MHz (50/100 kHz)
• Signal-to-noise ratio: FM 50 dB
• Frequency response: FM 200 Hz-12.5 kHz
/ ±6 dB
.avilesinAVIcontainer
Audio
codec
Video codec Bit rate
PCM,
Dolby
Digital,
DTS
core,
MP3,
WMA
DivX 3.11, DivX4.x,
DivX5.x, DivX6.x
10 Mbps max
MPEG 1, MPEG 2 20 Mbps
(peak
40 Mbps)
MPEG 4 ASP 10 Mbps max
H.264/AVC
HP@4.1/4.0;
[email protected]/3.1/3.0
20 Mbps
(peak
40 Mbps)
.divxlesinAVIcontainer
Audio
codec
Video codec Bit rate
PCM,
Dolby
Digital,
MP3,
WMA
DivX 3.11, DivX4.x,
DivX5.x, DivX6.x
10 Mbps
max
MPEG 1, MPEG 2 20 Mbps
(peak
40 Mbps)
MPEG 4 ASP 10 Mbps
max
.mp4or.m4vlesinMP4container
Audio
codec
Video codec Bit rate
Dolby
Digital,
MPEG,
MP3,
AAC, HE-
AAC
MPEG 1, MPEG 2 20 Mbps (peak
40 Mbps)
MPEG 4 ASP 10 Mbps max
H.264/AVC
HP@4.1/4.0;
[email protected]/3.1/3.0
20 Mbps (peak
40 Mbps)
EN
28
Laser
• Laser Type (Diode): InGaN/AlGaN (BD),
AlGaInP (DVD/CD)
• Wave length: 405 +7 nm/-7 nm (BD), 655
+10 nm/-10 nm (DVD), 790 +10 nm/-20
nm (CD)
• Output power (Max. ratings): 20 mW (BD),
6 mW (DVD), 7 mW (CD)
USB
• Compatibility: Hi-Speed USB (2.0)
• Class support: USB Mass Storage Class
(MSC)
• File system: FAT16, FAT32, NTFS
• Maximum memory support: < 160 GB
Main unit
• Power supply:
• Europe/China/Russia/India: 220-
240 V~, 50 Hz
• Latin America/Asia Pacic: 110-240 V~,
50-60 Hz
• Power consumption: 60 W
• Standby power consumption: ≤ 0.9 W
• Dimensions (WxHxD): 360 x 58 x 325 mm
• Weight: 2.40 kg
Subwoofer
• Output power: 50 W RMS (30% THD)
• Impedance: 4 ohm
• Speaker drivers: 133 mm (5.25”) woofer
• Dimensions (W x H x D): 160 x 265 x
265 mm
• Weight: 2.50 kg
• Cable length: 3 m
Speakers
Centre speaker:
• Output power: 50 W RMS (30% THD)
• Speaker impedance: 4 ohm
• Speaker drivers: 1 x 63.5 mm (2.5”) woofer
• Dimensions (W x H x D): 159 x 84.5 x
80 mm
• Weight: 0.35 kg
• Cable length: 2 m
Front/Rear speaker:
• Output power: 4 x 50 W RMS (30% THD)
• Speaker impedance: 4 ohm
• Speaker drivers: 1 x 63.5 mm (2.5”) woofer
• Dimensions (WxHxD): 84.5 x159 x 80 mm
• Weight (front speakers): 0.35 kg/each
• Weight (rear speakers): 0.35 kg/each
• Cable length (front speakers): 3 m
• Cable length (rear speakers): 7 m
Remote control batteries
• 2 x AAA-R03-1.5 V
EN
29
Sound
No sound from home theatre speakers.
• Connect the audio cable from your home
theatre to your TV or other devices. You do
not need a separate audio connection when
the home theatre and TV are connected
through an HDMI ARC connection.
• Set up the audio for the connected device
(see ‘Set up audio for connected devices’ on
page 12).
• Reset your home theatre to its factory
settings (see ‘Apply factory settings’ on page
24), then switch it off and switch on again.
• On your home theatre, press SOURCE
repeatedly to select the correct audio input.
Distorted sound or echo.
• If you play audio from the TV through the
home theatre, make sure that the TV is
muted.
Audio and video are not synchronised.
• 1) Press SOUND SETTINGS. 2) Press
the Navigation buttons (left/right) to select
AUD SYNC, and then press OK. 3) Press
the Navigation buttons (up/down) to
synchronise the audio with the video.
Play
Cannot play a disc.
• Clean the disc.
• Make sure that the home theatre supports
the type of disc (see ‘Media formats’ on
page 26).
• Make sure that the home theatre supports
the region code of the disc (see ‘Region
codes’ on page 26).
• If the disc is a DVD±RW or DVD±R disc,
make sure that it is nalised.
CannotplayaDivXle.
• Make sure that the DivX le is encoded
according to the ‘Home Theatre Prole’
with the DivX encoder.
• Make sure that the DivX le is complete.
DivX or RMVB/RM subtitles do not display
correctly.
• Make sure that the subtitle le name is the
same as the movie le name (see ‘Subtitles’
on page 17).
• Select the correct character set: 1) Press
OPTIONS. 2) Select [Character Set].
3) Select the supported character set.
4) Press OK.
9 Troubleshooting
Warning
•
Risk of electric shock. Never remove the
casing of the product.
To keep the warranty valid, never try to repair the
product yourself.
If you have problems using this product, check the
following points before you request service. If you
still have a problem, register your product and get
support at www.philips.com/welcome.
Main unit
The buttons on the home theatre do not work.
• Disconnect the home theatre from the
power supply for a few minutes, then
reconnect.
No picture.
• Make sure that the TV is switched to the
correct source for the home theatre.
No picture on a TV connected through HDMI.
• Make sure that the HDMI cable is not faulty.
If it is faulty, replace it with a new cable.
• Press (Home) and then 731 on the
remote control to restore the default
picture resolution.
• Change the HDMI video setting, or wait for
10 seconds for auto recovery (see ‘Picture
resolution’ on page 21).
Discdoesnotplayhigh-denitionvideo.
• Make sure that the disc contains high-
denition video.
• Make sure that the TV supports high-
denition video.
• Use an HDMI cable to connect to the TV.
EN
30
10 Index
A
advanced
BD-Live security 16
enhanced audio 22
restore default settings 24
software update 24
software version 24
amplier 27
audio
HDMI audio 22
night mode 22
post processing 22
predened modes 14
quality 12
settings 22
source 12
speaker setup 10
specications 27
audio formats 26
audio input mapping 20
audio language 22
audio options 18
auto standby 23
B
bass 14
BD-Live
BD-Live (USB) 16
clear memory 16
disable 16
Blu-ray 15
Bonus View 15
brightness 24
browse
disc 15
USB storage device 16
C
care
environment 6
product 6
character set 17
close disc compartment 7
compliance 4
computer
connect to 13
Cannot read the contents of a USB storage
device.
• Make sure that the format of the USB
storage device is compatible with the home
theatre.
• Make sure that the le system on the USB
storage device is supported by the home
theatre.
‘No entry’ or ‘x’ sign appears on the TV.
• The operation is not possible.
EasyLink does not work.
• Make sure that the home theatre is
connected to a Philips brand EasyLink TV,
and the EasyLink option is on (see ‘EasyLink’
on page 20).
When you switch on the TV, the home theatre
automatically switches on.
• This behaviour is normal when you are using
Philips EasyLink (HDMI-CEC). To make the
home theatre work independently, switch
off EasyLink.
Cannot access BD-Live features.
• Make sure that the home theatre is
connected to the network (see ‘Set up the
wired network’ on page 13).
• Make sure that the network is set up (see
‘Set up the wired network’ on page 13).
• Make sure that the Blu-ray disc supports
BD-Live features.
• Clear memory storage (see ‘Clear memory’
on page 16).
TV screen is black when you play a Blu-ray video
or a DivX copy protected video.
• Make sure that the home theatre is
connected to the TV through an HDMI
cable.
• Switch to the correct HDMI source on the
TV.
EN
31
E
EasyLink (HDMI-CEC)
audio input mapping 20
control buttons 8
one-touch play 20
one-touch standby 20
system audio control 20
eject disc 7
enable
auto standby 23
auto subtitle shift 21
BD-Live 16
HDMI-CEC 20
predened sound mode 22
screen saver 24
energy
auto standby 23
brightness 24
screen saver 24
sleep timer 23
F
factory settings 24
FM antenna 10
FM antenna 10
front connectors 10
H
HDMI
audio 22
Deep colour 21
TV (HDMI ARC) 10
video 21
HDMI-CEC 20
I
Internet
BD-Live 16
connect to 13
update home theatre software 24
L
language
2nd audio language 15
2nd subtitle language 15
audio 22
disc menu 23
on-screen menu 22
subtitle 23
legal notices 4
connect
audio (analogue cable) 12
audio (coaxial cable - digital) 12
audio (optical cable - digital) 12
audio from TV and other devices 12
home network 13
speakers 9
TV (Composite) 11
TV (HDMI ARC) 10
TV (HDMI) 11
connectors
back connectors 10
front connectors 10
control
disc play 15
Easylink (HDMI-CEC) 8
main unit 7
parental control 23
radio 19
copyright protection 4
D
disable
audio post processing 22
BD-Live 16
HDMI-CEC 20
discs
audio 18
audio language 22
BD-Live 16
Bonus View 15
control buttons 15
DivX 17
menu language 23
options 18
picture 19
picture-in-picture 15
play 15
subtitle 23
synchronise picture and sound 15
time search 18
titles 18
display panel 7
DivX
character set 17
subtitles 17
VOD code 17
EN
32
options 18
rotate 18
settings 21
slideshows 19
troubleshooting 29
zoom 18
picture options 18
picture-in-picture
2nd audio language 15
2nd subtitle language 15
play
discs 15
DivX 17
MP3 20
radio 27
slideshows 19
troubleshooting 29
USB 16
position
connectors 10
position 9
subtitle 21
power options
auto standby 23
brightness 24
screen saver 24
sleep timer 23
preference
audio 22
auto standby 23
auto subtitle shift 21
change password 23
disc menu 23
display panel 24
menu language 22
parental control 23
screen saver 24
sleep timer 23
subtitle 23
productspecications 26
M
main unit
overview 7
specications 28
troubleshooting 29
manually set up speakers 10
media formats 26
MP3
connector 10
play 20
multimedia content
from disc 15
from USB storage device 16
N
network
home network 13
set tings 13
update home theatre software 24
wired connection 13
night mode 22
O
one-touch play 20
one-touch standby 20
open disc compartment 7
open source software 4
options
audio 18
picture 18
video 18
overview
connectors 10
HDMI-CEC 20
main unit 7
remote control 7
settings 21
speaker setup 10
P
parental control
password 23
ratings 23
password 23
PC
connect to 13
Philips Easylink 20
EN
33
sound
bass 14
default sound mode 22
equalizer 14
predened sound mode 14
surround sound 14
synchronise picture and sound 15
treble 14
troubleshooting 29
speakers
connect 9
manual setup 10
position 9
setup 10
specications 28
surround sound 14
specications 26
subtitle
character set 17
language 23
position 21
subwoofer
specications 28
synchronise picture and sound 15
system audio control 20
T
time search 18
titles 18
trademarks 4
treble 14
troubleshooting
connection 29
main unit 29
picture 29
play 29
sound 29
U
update software
check current version 24
from a USB storage device 25
from network 24
USB
format 28
USB storage device
options 18
play 17
specications 28
update home theatre software 25
R
radio
control buttons 19
FM antenna 10
listen to radio 19
specications 27
tune stations 19
ratings 23
recycling 6
region codes 26
remote control
batteries 28
overview 7
repeat 18
S
safety
disposal 6
use of the product 5
screen saver 24
set up speakers
manually 10
settings
audio 22
auto standby 23
auto subtitle shift 21
default 24
disc language 23
HDMI audio 22
HDMI video 21
HDMI-CEC 20
menu language 22
parental rating 23
password 23
picture 21
power 23
resolution 21
restore 24
screen saver 24
sleep timer 23
subtitle language 23
video 21
sleep timer 23
slideshows
animation 19
duration 19
musical 19
picture 19
software
check current version 24
update 24
EN
Language Code
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
sgpjp_1127/05_v1
