Welcome
Congratulations on your purchase of a new
Honda motorcycle. Your selection of a
Honda makes you part of a worldwide family
of satisfied customers who appreciate
Honda’s reputation for building quality into
every product.
To ensure your safety and riding pleasure:
● Read this owner’s manual carefully.
● Follow all recommendations and
procedures contained in this manual.
● Pay close attention to safety messages
contained in this manual and on the
motorcycle.
To protect your investment, we urge you to
take responsibility for keeping your
motorcycle well serviced and maintained.
Also, observe the break-in guidelines, and
always perform the pre-ride inspection and
other periodic checks in this manual.
When service is required, remember that
your Honda dealer knows your motorcycle
best. If you have the required mechanical
“know-how” and tools, you can purchase an
official Honda Service Manual to help you
perform many maintenance and repair tasks.
2 P. 116
Read the warranty information thoroughly so
that you understand the warranty coverage
and that you are aware of your rights and
responsibilities.
2 P. 117
You may also want to visit our website at
www.powersports.honda.com.
www.honda.ca.
Happy riding!
California Proposition 65 Warning
WARNING: This product contains or emits
chemicals known to the State of California to
cause cancer and birth defects or other
reproductive harm.
Canada
13 CB1100-31MGC6000.book 2 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
A Few Words About Safety
Your safety, and the safety of others, is very
important. Operating this motorcycle safely is
an important responsibility.
To help you make informed decisions about
safety, we have provided operating
procedures and other information on safety
labels and in this manual. This information
alerts you to potential hazards that could
hurt you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a motorcycle. You
must use your own good judgement.
You will find important safety information in
a variety of forms, including:
● Safety labels on the motorcycle
● Safety Messages preceded by a safety alert
symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:
3
DANGER
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3
WARNING
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3
CAUTION
You CAN be HURT if you don’t follow
instructions.
Other important information is
provided under the following titles:
NOTICE
Information to help you avoid
damage to your motorcycle,
other property, or the
environment.
13 CB1100-31MGC6000.book 3 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Motorcycle Safety
This section contains important information for safe riding of your motorcycle.
Please read this section carefully.
Safety Guidelines .........................................P. 3
Safety Labels ................................................P. 7
Safety Precautions .......................................P. 9
Riding Precautions .....................................P. 10
Accessories & Modifications......................P. 14
Loading .......................................................P. 15
13 CB1100-31MGC6000.book 2 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Safety Guidelines
3
continued
Motorcycle Safety
Safety Guidelines
Follow these guidelines to enhance your safety:
● Perform all routine and regular inspections
specified in this manual.
● Stop the engine and keep sparks and flame
away before filling the fuel tank.
● Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in exhaust
gases is toxic and can kill you.
It’s a proven fact: helmets and protective
apparel significantly reduce the number and
severity of head and other injuries. So always
wear an approved motorcycle helmet and
protective apparel.
2 P. 9
Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check
that you and your passenger are both wearing
an approved motorcycle helmet and protective
apparel. Instruct your passenger on holding
onto the seat strap or your waist, leaning with
you in turns, and keeping their feet on the
footpegs, even when the motorcycle is stopped.
Even if you have ridden other motorcycles,
practice riding in a safe area to become familiar
with how this motorcycle works and handles,
and to become accustomed to the motorcycle’s
size and weight.
Always Wear a Helmet
Before Riding
Take Time to Learn & Practice
13 CB1100-31MGC6000.book 3 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Safety Guidelines
4
Motorcycle Safety
We recommend that all riders take a certified
course approved by the Motorcycle Safety
Foundation (MSF). New riders should start with
the basic course, and even experienced riders
will find the advanced course beneficial.
For information about the MSF training course
nearest you, call the national toll-free number:
(800) 446-9227.
Other riding tips can be found in the You
and Your Motorcycle Riding Tips booklet that
came with your motorcycle.
Always pay attention to other vehicles around
you, and do not assume that other drivers see
you. Be prepared to stop quickly or perform an
evasive maneuver.
Make yourself more visible, especially at night,
by wearing bright reflective clothing,
positioning yourself so other drivers can see
you, signaling before turning or changing lanes,
and using your horn when necessary.
Never ride beyond your personal abilities or
faster than conditions warrant. Fatigue and
inattention can impair your ability to use good
judgement and ride safely.
Alcohol and riding don’t mix. Even one
alcoholic drink can reduce your ability to
respond to changing conditions, and your
reaction time gets worse with every additional
drink. Don’t drink and ride, and don’t let your
friends drink and ride either.
Ride Defensively
USA
Make Yourself Easy to See
Ride within Your Limits
Don’t Drink and Ride
13 CB1100-31MGC6000.book 4 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Safety Guidelines
5
continued
Motorcycle Safety
It’s important to keep your motorcycle properly
maintained and in safe riding condition.
Inspect your motorcycle before every ride and
perform all recommended maintenance. Never
exceed load limits (
2 P. 15), and do not modify
your motorcycle or install accessories that
would make your motorcycle unsafe (
2 P. 14).
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether it
is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable
laws and regulations if another person or
vehicle is involved in the crash.
If you decide to continue riding, first evaluate
the condition of your motorcycle. If the engine
is still running, turn it off. Inspect for fluid leaks,
check the tightness of critical nuts and bolts,
and check the handlebar, control levers, brakes,
and wheels. Ride slowly and cautiously.
Your motorcycle may have suffered damage
that is not immediately apparent. Have your
motorcycle thoroughly checked at a qualified
service facility as soon as possible.
Keep Your Honda in Safe Condition
If You are Involved in a Crash
13 CB1100-31MGC6000.book 5 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Safety Guidelines
6
Motorcycle Safety
Exhaust contains poisonous carbon monoxide,
a colorless, odorless gas. Breathing carbon
monoxide can cause loss of consciousness and
may lead to death.
If you run the engine in confined or even partly
enclosed area, the air you breathe could contain
a dangerous amount of carbon monoxide.
Never run your motorcycle inside a garage or
other enclosure.
Carbon Monoxide Hazard
3
WARNING
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill you.
Avoid any areas or activities that
expose you to carbon monoxide.
13 CB1100-31MGC6000.book 6 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Safety Labels
7
continued
Motorcycle Safety

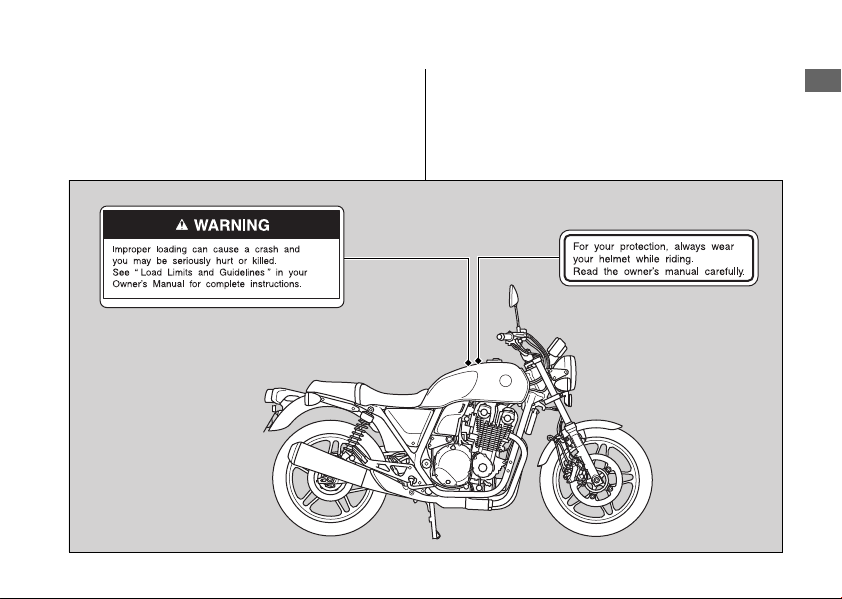

Safety Labels
Safety and information labels on your
motorcycle provide important safety
information and may warn you of potential
hazards that could cause serious injury. Read
these labels carefully and don’t remove them.
If a label comes off or becomes hard to read,
contact your dealer for a replacement.
13 CB1100-31MGC6000.book 7 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Safety Labels
8
Motorcycle Safety
13 CB1100-31MGC6000.book 8 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Safety Precautions
9
continued
Motorcycle Safety
Safety Precautions
● Ride cautiously and keep your hands on the
handlebars and feet on the footpegs.
● Keep passenger’s hands on the seat strap,
passenger’s feet on the footpegs while
riding.
● Always consider the safety of your passenger,
as well as other drivers and riders.
Make sure that you and any passenger are
wearing an approved motorcycle helmet, eye
protection, and high-visibility protective
clothing. Ride defensively in response to
weather and road conditions.
❙
Helmet
Should be safety-standard certified, high-
visibility, and correct size for your head.
● Must fit comfortably but securely, with the
chin strap fastened.
● Face shield with unobstructed field of vision
or other approved eye protection.
Look for a DOT (Department of
Transportation) certification label on any helmet
you buy.
❙
Gloves
Full-finger leather gloves with high abrasion
resistance
Protective Apparel
3
WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Make sure that you and any passenger
always wear an approved helmet and
protective apparel.
USA
13 CB1100-31MGC6000.book 9 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Riding Precautions
10
Motorcycle Safety
❙
Boots or Riding Shoes
Sturdy boots with non-slip soles and ankle
protection
❙
Jacket and Pants
Protective, highly visible, long-sleeved jacket
and durable long pants for riding (or a
protective suit).
Riding Precautions
During the first 300 miles (500 km) of running,
follow these guidelines to ensure your
motorcycle’s future reliability and performance.
● Avoid full-throttle starts and rapid
acceleration.
● Avoid hard braking.
● Ride conservatively.
Observe the following guidelines:
● Avoid excessively hard braking and sudden
shifting to a lower gear.
u Sudden braking can reduce the
motorcycle’s stability.
u Where possible, reduce speed before
turning; otherwise you risk wheel slippage.
Break-in Period
Brakes
13 CB1100-31MGC6000.book 10 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Riding Precautions
11
continued
Motorcycle Safety
● Exercise caution on low traction surfaces.
u The wheels lock more easily on such
surfaces, and braking distances are longer.
● Avoid continuous braking.
u Repeated braking can overheat the brakes,
reducing their effectiveness.
❙
Combined ABS (CB1100A only)
Your motorcycle’s rear brake system is linked to
the front brake. This means that operating the
rear brake pedal applies the rear brake and a
portion of the front brake. Operating the front
brake lever applies only the front brake.
For full braking effectiveness, operate both the
lever and pedal together.
This model is also equipped with an Anti-lock
Brake System (ABS) designed to help prevent
the brakes from locking up during hard braking.
● ABS does not reduce braking distance. In
certain circumstances, ABS may actually
result in a longer stopping distance.
● ABS does not function at speeds below 6
mph (10 km/h).
● The brake lever and pedal may recoil slightly
when applying the brakes. This is normal.
● Always use the recommended tires to ensure
correct ABS operation.
❙
Engine Braking
Engine braking helps slow your motorcycle
down when you release the throttle. For further
slowing action, downshift to a lower gear. Use
engine braking with intermittent use of the
brakes to reduce speed when descending long,
steep slopes.
13 CB1100-31MGC6000.book 11 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Riding Precautions
12
Motorcycle Safety
❙
Wet or Rainy Conditions
Road surfaces are slippery when wet, and wet
brakes further reduce braking efficiency.
Exercise extra caution when braking in wet
conditions.
If the brakes get wet, apply the brakes while
riding at low speed to help them dry.
● Park on a firm, level paved surface.
● If you must park on a slight incline or loose
surface, park so that the motorcycle cannot
move or fall over.
● Make sure that high-temperature parts
cannot come into contact with flammable
materials.
● Do not touch the engine, muffler, brakes and
other high-temperature parts until they cool
down.
● To reduce the likelihood of theft, always lock
the handlebars and remove the key when
leaving the motorcycle unattended.
Use of an anti-theft device is also
recommended.
❙
Parking with the Side Stand or Center Stand
1.
Stop the engine.
2.
Using the side stand
Push the side stand down.
Slowly lean the motorcycle to the left until its
weight rests on the side stand.
Using the center stand
Let down the center stand, stand on the left
side of the motorcycle. Hold the left handle
grip and the left grab rail. Press down on the
tip of the stand with your right foot and,
simultaneously, pull up and back.
3.
Turn the handlebar fully to the left.
u Turning the handlebars to the right
reduces stability and may cause the
motorcycle to fall.
Parking
13 CB1100-31MGC6000.book 12 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Riding Precautions
13
Motorcycle Safety
4.
Turn the ignition switch to the LOCK position
and remove the key.
2 P. 27
Follow these guidelines to protect the engine
and catalytic converter:
● Use only unleaded gasoline.
● Use recommended octane number. Using
lower octane gasoline will result in decreased
engine performance.
● Do not use fuels containing a high
concentration of alcohol.
2 P. 115
● Do not use stale or contaminated gasoline or
an oil/gasoline mixture.
● Avoid getting dirt or water in the fuel tank.
Refueling and Fuel Guidelines
13 CB1100-31MGC6000.book 13 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Accessories & Modifications
14
Motorcycle Safety
Accessories &
Modifications
We strongly advise that you do not add any
accessories that were not specifically designed
or approved for your motorcycle by Honda or
make modifications to your motorcycle from its
original design. Doing so can make it unsafe.
Modifying your motorcycle may also void your
warranty and make your motorcycle illegal to
operate on public roads and highways. Before
deciding to install accessories on your
motorcycle be certain the modification is safe
and legal.
Do not pull a trailer with, or attach a sidecar to,
your motorcycle. Your motorcycle was not
designed for these attachments, and their use
can seriously impair your motorcycle’s handling.
3
WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner’s
manual regarding accessories and
modifications.
13 CB1100-31MGC6000.book 14 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Loading
15
Motorcycle Safety
Loading
● Carrying extra weight affects your
motorcycle’s handling, braking and stability.
Always ride at a safe speed for the load you
are carrying.
● Avoid carrying an excessive load and keep
within specified load limits.
2 Maximum weight capacity P. 121
● Tie all luggage securely, evenly balanced and
close to the center of the motorcycle.
● Do not place objects near the lights or the
muffler.
3
WARNING
Overloading or improper loading can
cause a crash and you can be seriously
hurt or killed.
Follow all load limits and other
loading guidelines in this manual.
13 CB1100-31MGC6000.book 15 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
16
Operation Guide
Operation Guide
Parts Location

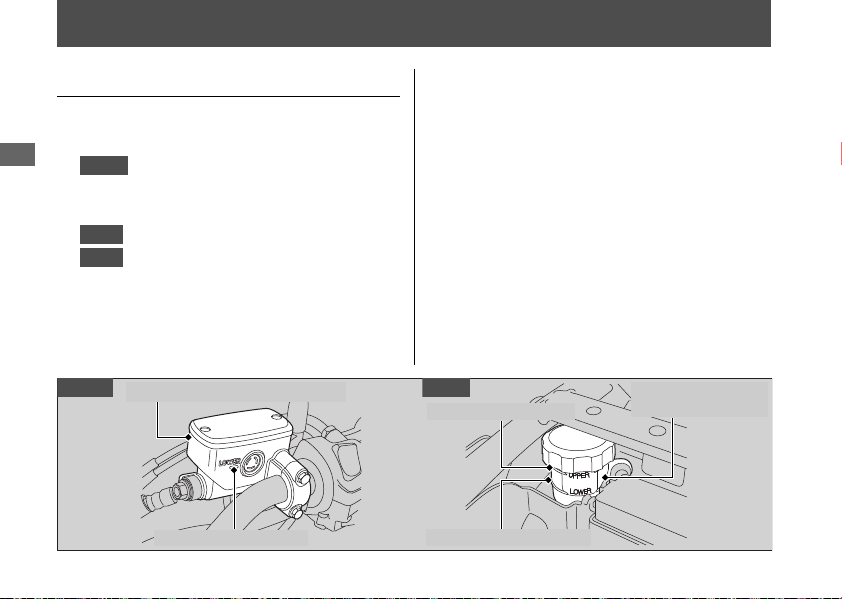

Front brake fluid reservoir
(P66)

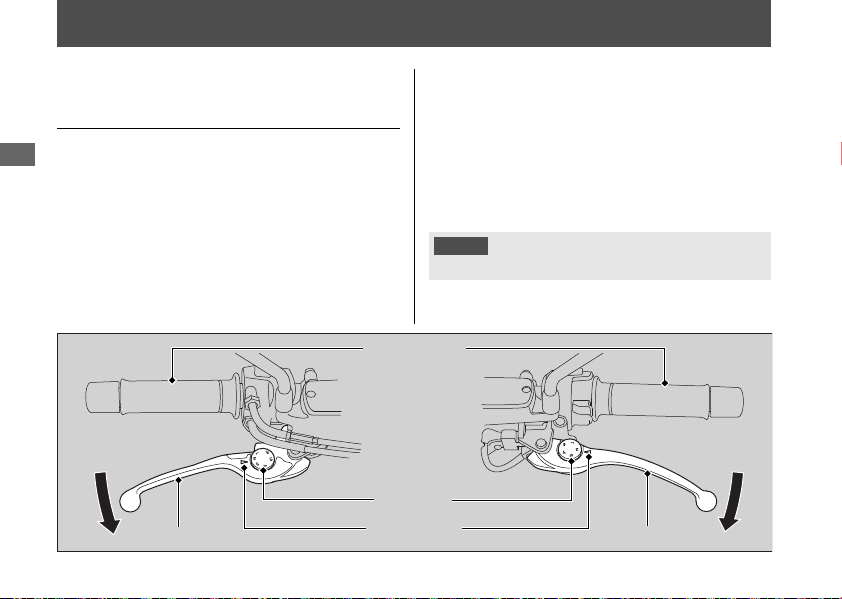

Front brake lever (P76 )

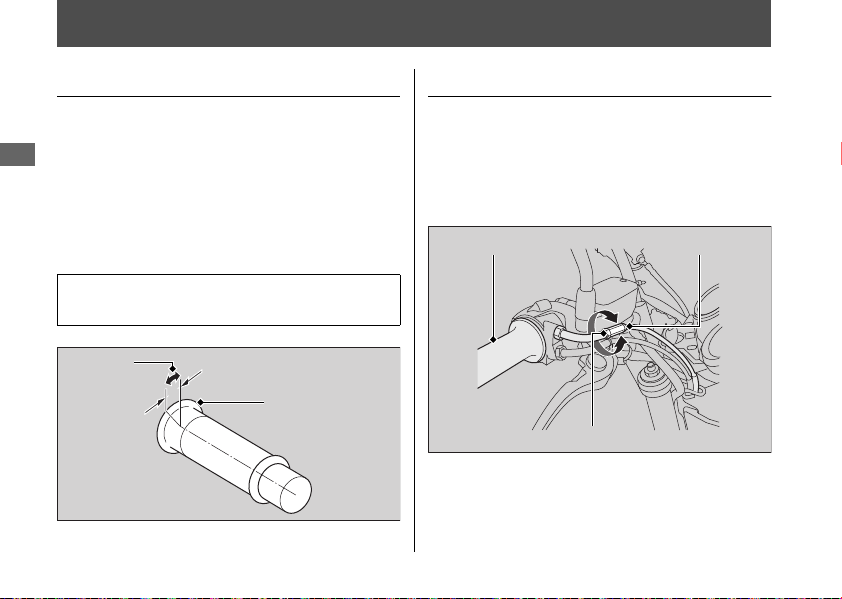

Throttle grip (P74 )
Engine oil fill cap (P60)
Rear brake fluid reservoir (P66 )
Battery (P56)
Air cleaner (P64)

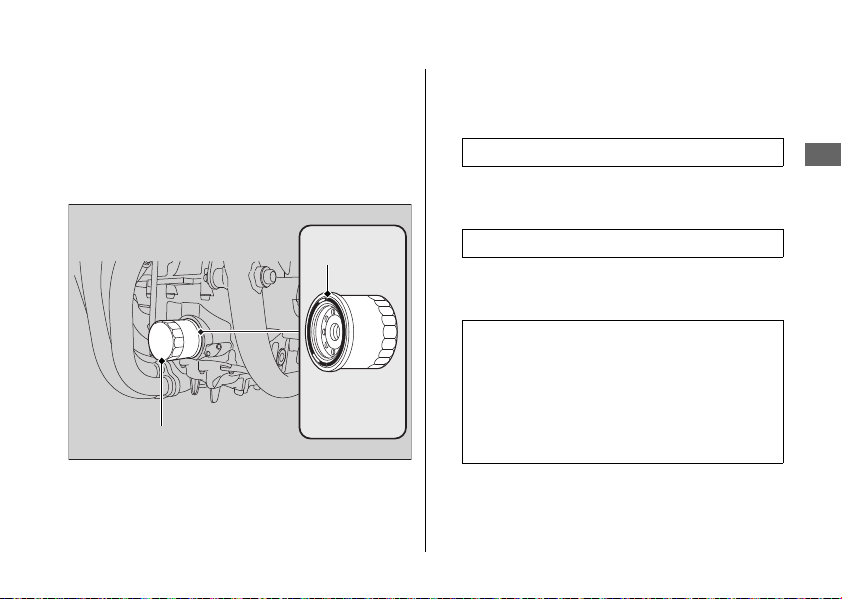

Engine oil filter (P62 )
Engine oil inspection window
(P60)
Rear brake pedal
Rear suspension spring
preload adjuster
(P78)
13 CB1100-31MGC6000.book 16 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
17
Operation Guide
Clutch lever (P76 )
Side stand (P69)
Shift lever (P29)

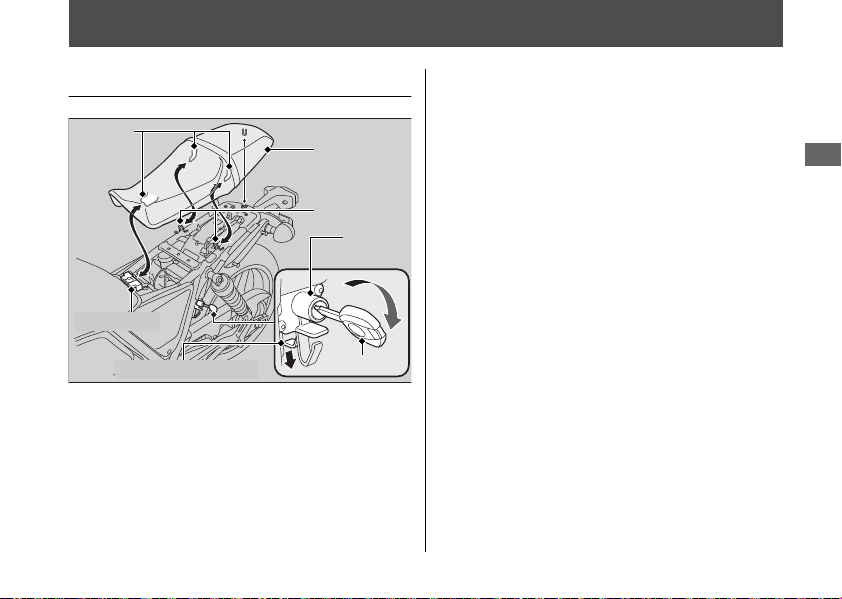

Seat (P53 )

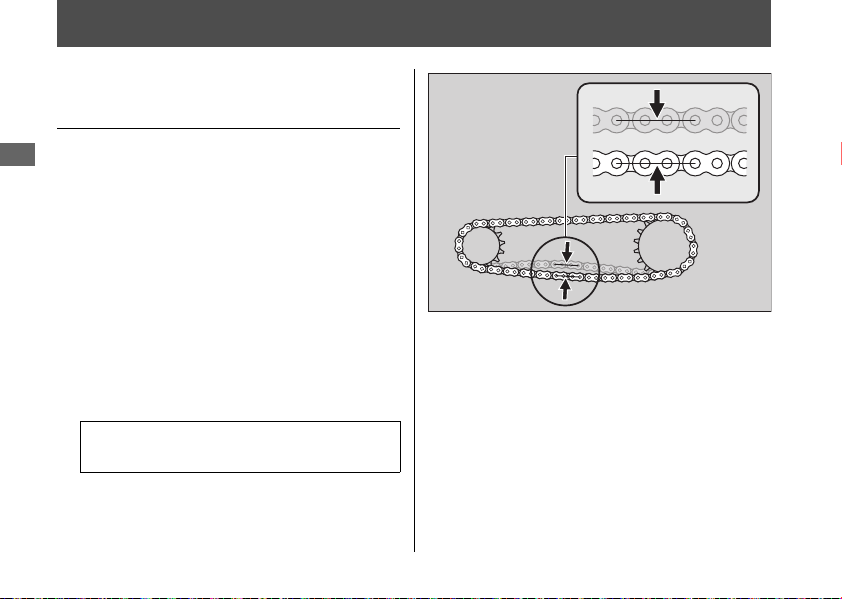

Drive chain (P70 )
Main fuse (P98)
Fuse box (P97 )
FI fuse (P98 )
Engine oil drain bolt (P62)
Fuel fill cap (P30 )
Front suspension spring
preload adjuster
(P77)
Clutch fluid reservoir (P68)
Rear suspension spring
preload adjuster
(P78)
Center stand
13 CB1100-31MGC6000.book 17 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
18
Operation Guide

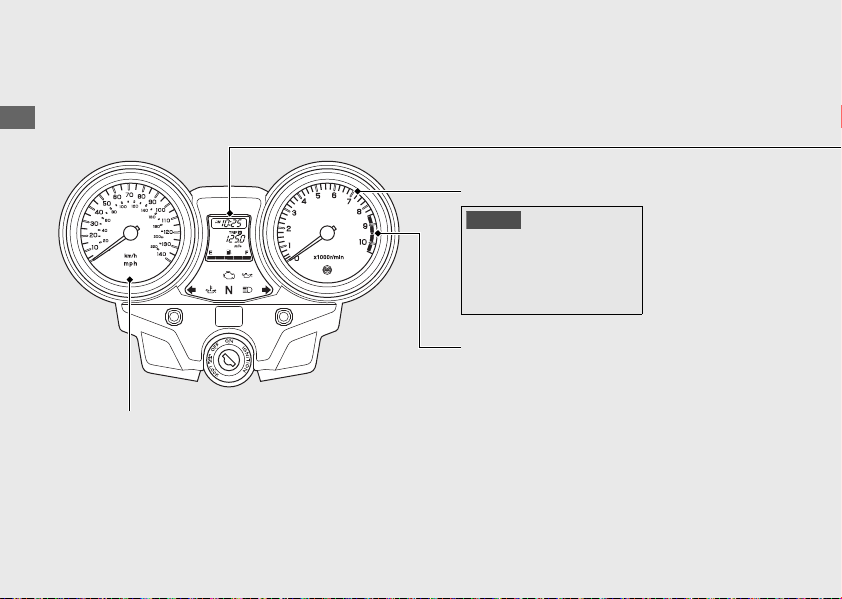

Instruments
Speedometer
This is shows your speed in miles per hour
(mph) and/or kilometer per hour (km/h)
depend on type.
Tachometer
NOTICE
Do not operate the engine in
the tachometer red zone.
Excessive engine speed can
adversely affect engine life.
Tachometer red zone
(excessive engine rpm range)
13 CB1100-31MGC6000.book 18 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
19
continued
Operation Guide
Fuel gauge
Remaining fuel when only 1st
(E) segment starts flashing:
approximately 0.92 US gal (3.5
liters).
Fuel Gauge Failure Indication
If the fuel system has an error, the fuel gauge indicators will continue flashing or turn off
completely. If this occurs, see your dealer as soon as possible.
Display Check
When the ignition switch is turned on, all the mode and digital segments will show. If any
part of the display does not come on when it should, see your dealer.
13 CB1100-31MGC6000.book 19 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
20
Instruments (Continued)
Operation Guide
Odometer [ODO] & Tripmeter [TRIP A/B]
button switches between odometer and
tripmeters.
• Odometer: Total distance ridden.
• Tripmeter: Distance ridden since tripmeter
was reset (press and hold button to reset
to 0.0 mile/km).
A
B
Clock
button
A
button
B
13 CB1100-31MGC6000.book 20 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
21
continued
Operation Guide
Display Setting
You can adjust the two settings.
• Clock setting
• Changing of mileage unit
To set the clock:
!a Turn the ignition switch on.
!b Press and hold and buttons until the
hour digits start flashing.
!c Press button until the desired hour and
AM/PM are displayed.
u Press and hold to advance the hour fast.
!d Press button. The minute digits start
flashing.
Ordinary display
Display setting
Clock setting
Changing of mileage unit
Press and hold button and button
A
B
Press button
A
A
B
B
A
13 CB1100-31MGC6000.book 21 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
22
Operation Guide
!e Press button until the desired minute is
displayed.
u Press and hold to advance the minute
fast.
B
!f Press button. The clock is set, and then
the display moves to the changing of the
mileage unit.
u The setting can also be set by turning the
ignition switch off.
u The display will stop flashing
automatically and the setting will be
cancelled if the button is not pressed for
about 30 seconds.
A
13 CB1100-31MGC6000.book 22 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
23
Operation Guide
Changing the mileage unit:
!a After clock setting, the mileage unit start
flashing.
!b Press button to select either km or mile.
!c Press and hold and buttons until the
display stops flashing. The mileage unit is
set.
u The setting can also be set by turning the
ignition switch off.
u The display will stop flashing
automatically and the setting will be
cancelled if the button is not pressed for
about 30 seconds.
B
A
B
13 CB1100-31MGC6000.book 23 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
24
Operation Guide
Indicators
Low oil pressure indicator
Comes on when the ignition switch is turned on.
Goes off when the engine starts.
If it comes on while engine is running:
(P83)
PGM-FI (Programmed Fuel
Injection) malfunction indicator
lamp (MIL)
High oil temperature
indicator
Comes on briefly when the ignition
switch is turned on with the engine
stop switch in the (Run) position.
If it comes on while engine
running: (P82)
Comes on briefly when the ignition switch is
turned on with the engine stop switch in the
(Run) position.
If it comes on while engine is running:
(P83)
ABS (Anti-lock Brake System)
indicator (CB1100A only)
Comes on when the ignition switch is
turned on. Goes off when your speed
reaches approximately 6 mph (10 km/h).
If it comes on while riding:
(P84)
13 CB1100-31MGC6000.book 24 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
25
Operation Guide
High beam indicator
Neutral indicator
Comes on when the transmission is in Neutral.
Left turn signal indicator
Right turn signal indicator
13 CB1100-31MGC6000.book 25 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
26
Operation Guide
Switches
Engine stop switch
Should normally remain in the
(Run) position.
u In an emergency, switch to
the (Off) position (the
starter motor will not
operate) to stop the engine.
Headlight dimmer switch
• : High beam
• : Low beam
Horn button
Turn signal switch
u Pressing the switch turns the
turn signal off.
Start button
Headlight turns off when
operating the starter motor.
Passing light control switch
Flashes the high beam headlight.
Hazard switch
Switchable when the ignition
switch is on. Can be turned to off
regardless of the ignition switch
position.
u The signals continue flashing with
the ignition switch in OFF or LOCK
after the hazard switch is on.
13 CB1100-31MGC6000.book 26 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
27
Operation Guide
Steering Lock
Locks the steering when parking to help
prevent theft.
A U-shaped wheel lock or similar device is
also recommended.
❙
Locking
!a Turn the handlebar all the way to the left.
!b Push the key down, and turn the ignition
switch to the LOCK position.
u Jiggle the handlebar if the lock is difficult
to engage.
!c Remove the key.
❙
Unlocking
Insert the key, push it in, and turn the
ignition switch to the OFF position.
Ignition Switch
Switches the electrical system on/off, locks the
steering.
u Key can be removed when in the OFF or LOCK
position.
ON
Turns electrical
system on for
starting/riding.
OFF
Turns engine off.
LOCK
Locks steering.
Push
Ignition key
!a
!b
Turn
13 CB1100-31MGC6000.book 27 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
28
Operation Guide
Starting the Engine
Start your engine using the following
procedure, regardless of whether the engine
is cold or warm.
!a Make sure the engine stop switch is in the
(Run) position.
!b Turn the ignition switch to the ON position.
!c Shift the transmission to Neutral (
indicator comes on). Alternatively, pull in
the clutch lever to start your motorcycle
with the transmission in gear so long as the
side stand is raised.
!d Press the start button with the throttle
completely closed.
If the engine does not start:
!a Open the throttle fully and press the start
button for 5 seconds.
!b Repeat the normal starting procedure.
!c If the engine starts, open the throttle slightly
if idling is unstable.
!d If the engine does not start, wait 10 seconds
before trying steps !a & !b again.
❙
If Engine Will Not Start (P81)
!b !c
!a
!d
N
NOTICE
• If the engine does not start within 5 seconds, turn the
ignition off and wait 10 seconds before trying to start
the engine again for recovery of battery voltage.
• Extended fast idling and revving the engine can
damage the engine, and the exhaust system.
• Snapping the throttle or fast idling for more than about
5 minutes may cause exhaust pipe discolouration.
• Do not “BLIP” the throttle (open and close rapidly) or
idle for a long time, as the engine may be damaged by
overheating.
• Do not leave the motorcycle unattended while the
engine is running.
13 CB1100-31MGC6000.book 28 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
29
Operation Guide
Shifting Gears
Your motorcycle transmission has five
forward gears in a one-down, four-up shift
pattern.
If you put the motorcycle in gear with the
side stand down, the engine will shut off.
❙
Recommended Shift Points
Shifting Up
From 1st to 2nd 16 mph (25 km/h)
From 2nd to 3rd 22 mph (35 km/h)
From 3rd to 4th 25 mph (40 km/h)
From 4th to 5th 28 mph (45 km/h)
Shifting Down
From 5th to 4th 28 mph (45 km/h)
From 4th to 3rd 22 mph (35 km/h)
NOTICE
Improper shifting can damage the engine, transmission,
and drive train. Also, coasting or towing the motorcycle
for long distances with the engine off can damage the
transmission.
13 CB1100-31MGC6000.book 29 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
30
Operation Guide
Refueling
Do not fill with fuel above the plate.
Fuel type: Unleaded gasoline only
Recommended fuel octane number:
Pump Octane Number (PON) 86 or higher.
Tank capacity: 3.86 US gal (14.6 liters)
❙
Refueling and Fuel Guidelines (P13)
Opening the Fuel Fill Cap
Open the lock cover, insert the ignition key,
and turn it clockwise to open the cap.
Closing the Fuel Fill Cap
!a After refueling, push the fuel fill cap closed
until it locks.
!b Remove the key and close the cover.
u The key cannot be removed if the cap is
not locked.
Fuel fill cap
Ignition key
Lock cover
Filler neck
Fuel level (max)
Fuel filler
opening
3
WARNING
Gasoline is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.
• Stop the engine, and keep heat,
sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
13 CB1100-31MGC6000.book 30 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
31
continued
Operation Guide
Storage Equipment
Helmet holder
Helmet holders are located on the left side
below the seat and under the seat. Use the
helmet holders only when parked.
u Insert the ignition key and turn it clockwise
to unlock. Hang your helmet on the holder
hook. Turn the key counterclockwise to lock
the holder hook and then remove the key.
❙
Removing the Seat (P53)
Helmet holder
Ignition key
Holder hook
3
WARNING
Riding with a helmet attached to the
holder can interfere with the rear
wheel or suspension and could cause a
crash in which you can be seriously
hurt or killed.
Use the helmet holder only while
parked. Do not ride with a helmet
secured by the holder.
Helmet holder
13 CB1100-31MGC6000.book 31 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
32
Operation Guide

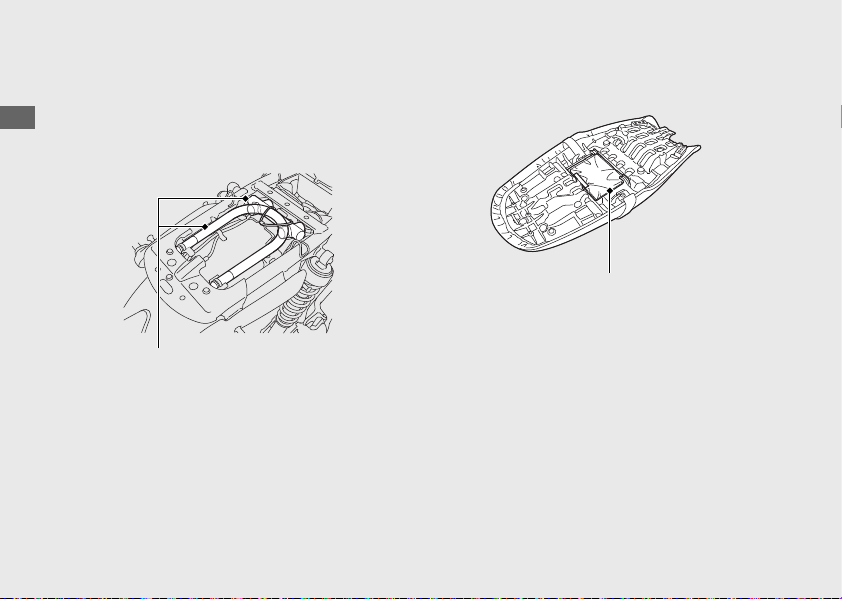

U-shaped lock/Document bag
Space to store a U-shaped lock is located
under the seat. A document bag is located
on the underside of the seat.
u The U-shaped lock is held in place above the
rear fender by a rubber strap.
u Some U-shaped locks may not fit in the
compartment due to their size or design.
❙
Removing the Seat (P53)
U-shaped lock
Tool kit
A tool kit is located under the seat. There is
also space to store light weight items.
Under side of
the seat
Document bag
13 CB1100-31MGC6000.book 32 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
33
Operation Guide
❙
Removing the Seat (P53)

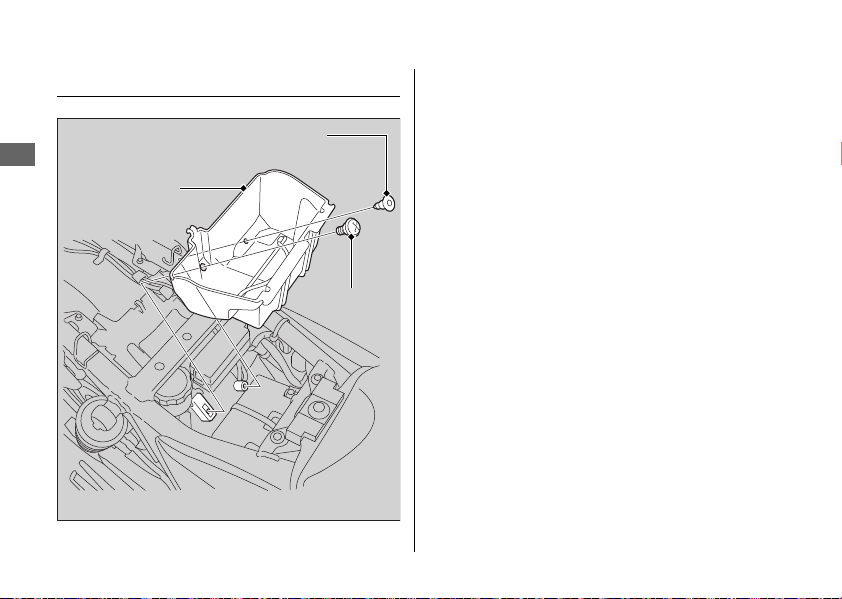

Tool kit
u The tool kit is held in the
center compartment by a
rubber strap.
Center compartment
Never exceed the maximum
weight limit.
Maximum Weight: 6.6 lb (3.0 kg)
u Do not store any items that are
flammable or susceptible to heat
damage.
13 CB1100-31MGC6000.book 33 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Maintenance
Please read “Importance of Maintenance” and “Maintenance Fundamentals”
carefully before attempting any maintenance. Refer to “Specifications” for service
data.
An optional larger tool kit may be available. Check with your Honda dealer’s parts
department.
Importance of Maintenance ......................P. 35
Maintenance Schedule...............................P. 37
Maintenance Fundamentals ......................P. 40
Removing & Installing Body Components ...
P. 53
Seat...........................................................P. 53
Side Cover.................................................P. 54
Clip ...........................................................P. 55
Battery ......................................................P. 56
Spark Plugs .................................................P. 58
Engine Oil ...................................................P. 60
Air Cleaner ..................................................P. 64
Brakes/Clutch..............................................P. 66
Side Stand .................................................. P. 69
Drive Chain................................................. P. 70
Throttle....................................................... P. 74
Crankcase Breather.................................... P. 75
Other Adjustments .................................... P. 76
Clutch and Brake Levers............................ P. 76
Front Suspension ...................................... P. 77
Rear Suspension........................................ P. 78
Headlight Aim........................................... P. 79
Brake Light Switch .................................... P. 79
13 CB1100-31MGC6000.book 34 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
35
continued
Maintenance
Importance of Maintenance
Keeping your motorcycle well-maintained is
absolutely essential to your safety and to
protect your investment, obtain maximum
performance, avoid breakdowns, and reduce air
pollution. Maintenance is the owner’s
responsibility. Be sure to inspect your
motorcycle before each ride, and perform the
periodic checks specified in the Maintenance
Schedule.
2 P. 37
Importance of Maintenance
3
WARNING
Improperly maintaining your
motorcycle or failing to correct a
problem before you ride can cause a
crash in which you can be seriously
hurt or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner’s manual.
13 CB1100-31MGC6000.book 35 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Importance of Maintenance
36
Maintenance
For information about the exhaust emission and
noise emission requirements of the U.S.
Environmental Protection Agency (EPA), the
California Air Resources Board (CARB), and
Environment Canada (EC).
2 P. 108
Maintenance, replacement or repair of the
emission control devices and systems may
be performed by any motorcycle repair
establishment or individual using parts
that are “certified“ to EPA standards.
Always read the maintenance instructions
before you begin each task, and make sure that
you have the tools, parts, and skills required.
We cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide whether or
not you should perform a given task.
Follow these guidelines when performing
maintenance.
● Stop the engine and remove the key.
● Park your motorcycle on a firm, level surface
using the side stand, center stand or a
maintenance stand to provide support.
● Allow the engine, muffler, brakes, and other
high-temperature parts to cool before
servicing as you can get burned.
● Run the engine only when instructed, and do
so in a well-ventilated area.
USA
Maintenance Safety
13 CB1100-31MGC6000.book 36 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
37
continued
Maintenance
Maintenance Schedule
The maintenance schedule specifies the
maintenance requirements necessary to
ensure safe, dependable performance, and
proper emission control.
Maintenance work should be performed in
accordance with Honda’s standards and
specifications by properly trained and
equipped technicians. Your dealer meets all
of these requirements. Keep an accurate
record of maintenance to help ensure that
your motorcycle is properly maintained.
Make sure that whomever performs the
maintenance completes this record.
All scheduled maintenance is considered a
normal owner operating cost and will be
charged for by your dealer. Retain all
receipts. If you sell the motorcycle, these
receipts should be transferred with the
motorcycle to the new owner.
13 CB1100-31MGC6000.book 37 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Maintenance Schedule
38
Maintenance
Maintenance Level
: Intermediate. We recommend service by your dealer, unless you
have the necessary tools and are mechanically skilled.
Procedures are provided in an official Honda Service Manual
(
2 P. 116).
: Technical. In the interest of safety, have your motorcycle
serviced by your dealer.
Frequency Odometer Reading
*1
× 1,000 mi 0.6 4 8 12 16 20 24
Refer to
page
Items × 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Emission-related Items
Fuel Line –
Throttle Operation 74
Air Cleaner
*2
64
Crankcase Breather
*3
75
Spark Plug 58
Valve Clearance –
Engine Oil 60
Engine Oil Filter 62
Engine Idle Speed –
Secondary Air Supply System –
Evaporative Emission Control System
*4
–
I
I
I
I
I
I
I
I
I
R
I
R
I
R
I
I
I
R
R
R
R
R
R
R
R R R R
I
I
I
I
I
I
I
I
I
13 CB1100-31MGC6000.book 38 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Maintenance Schedule
39
Maintenance
Maintenance Legend
: Inspect (clean, adjust, lubricate, or replace, if necessary)
: Clean
: Lubricate
: Replace
Notes:
*1 : At higher odometer readings, repeat at the frequency interval established here.
*2 : Service more frequently when riding in unusually wet or dusty areas.
*3 : Service more frequently when riding in rain or at full throttle.
*4 : 50 STATE type (meets California)
*5 : Replace every 2 years, or at indicated odometer intervals, whichever
comes first. Replacement requires mechanical skill.
Frequency Odometer Reading
*1
× 1,000 mi 0.6 4 8 12 16 20 24
Refer to
page
Items × 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Non-Emission-Related Items
Drive Chain Every 500 mi (800 km) 70
Drive Chain Slider 73
Brake Fluid
*5
66
Brake Pads Wear 67
Brake System 66
Brake Light Switch 79
Headlight Aim 79
Clutch System 76
Clutch Fluid
*5
68
Side Stand 69
Suspension 77
Nuts, Bolts, Fasteners –
Wheels/Tires 49
Steering Head Bearings –
I
I
I
I
I
I
I
I
I
R
I
I
R
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
R
I
I
R
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
R
13 CB1100-31MGC6000.book 39 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
40
Maintenance
Maintenance Fundamentals
To ensure safety, it is your responsibility to
perform a pre-ride inspection and make sure
that any problem you find is corrected. A pre-
ride inspection is a must, not only for safety,
but because having a breakdown, or even a
flat tire, can be a major inconvenience.
Check the following items before you ride
your motorcycle:
● Fuel level-Fill fuel tank when necessary.
2 P. 30
● Throttle-Check for smooth opening and
full closing in all steering positions.
2 P. 74
● Engine oil level-Add engine oil if necessary.
Check for leaks. 2 P. 60
● Drive chain-Check condition and slack,
adjust and lubricate if necessary. 2 P. 70
● Brakes-Check operation;
Front and Rear: Check brake fluid level and
pads wear.
2 P. 66, 67
● Lights and horn-Check that lights,
indicators and horn function properly.
● Engine stop switch-Check for proper
function. 2 P. 26
● Clutch-Check clutch fluid level. 2 P. 68
● Side stand ignition cut-off system-Check
for proper function. 2 P. 69
● Wheels and tires-Check condition, air
pressure and adjust if necessary. 2 P. 49
Pre-ride Inspection
13 CB1100-31MGC6000.book 40 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Maintenance Fundamentals
41
Maintenance
You should also perform other periodic
maintenance checks at least once a month
regardless of how often you ride, or more often
if you ride frequently.
Also, check the odometer reading against the
Maintenance Schedule and perform all
maintenance that is due.
2 P. 38
Periodic Checks

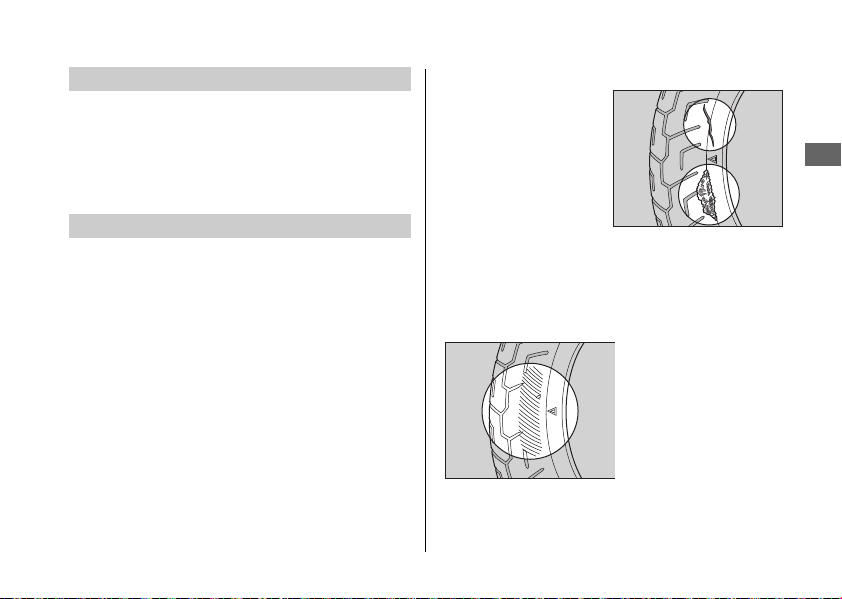

Tires and wheels
Check the air pressure (2 P. 49), examine tread for wear and
damage (
2 P. 49, 50), and check the wheels for damage.
Fluid levels Check the engine oil level (
2 P. 60) and brake fluid level (2 P. 66).
Lights
Check that the headlight, brake light, taillight, turn signals and
license plate light are working properly.
Controls
Check the freeplay of the clutch lever (
2 P. 76), and throttle grip
(
2 P. 74).
Drive chain
Check the slack (2 P. 70), adjust the slack (2 P. 71), and lubricate
(
2 P. 48) as needed.
Fuses Check that you have a full supply of spare fuses.
Nuts & bolts Check the major nuts and bolts, and tighten as needed.
13 CB1100-31MGC6000.book 41 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Maintenance Fundamentals
42
Maintenance
Always use Honda Genuine Parts or their
equivalents to ensure reliability and safety.
When ordering colored components, specify
the model name, color, and code mentioned on
the color label. The color label is attached to the
frame under the seat.
2 P. 53
Replacing Parts
3
WARNING
Installing non-Honda parts may make
your motorcycle unsafe and cause a
crash in which you can be seriously
hurt or killed.
Always use Honda Genuine Parts or
equivalents that have been designed
and approved for your motorcycle.
Color label
13 CB1100-31MGC6000.book 42 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Maintenance Fundamentals
43
continued
Maintenance
Your motorcycle has a maintenance-free type
battery. You do not have to check the battery
electrolyte level or add distilled water. Clean the
battery terminals if they become dirty or
corroded.
Do not remove the battery cap seals. There is no
need to remove the cap when charging.
❙
What to do in an emergency
If any of the following occur, immediately see
your doctor.
● Electrolyte splashes into your eyes:
u Wash your eyes repeatedly with cool water
for at least 15 minutes. Using water under
pressure can damage your eyes.
● Electrolyte splashes onto your skin:
u Remove affected clothing and wash your
skin thoroughly using water.
● Electrolyte splashes into your mouth:
u Rinse mouth thoroughly with water, and
do not swallow.
WARNING: Battery posts, terminals, and
related accessories contain lead and lead
compounds.
Wash your hands after handling.
Battery
3
WARNING
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the battery
to explode with enough force to kill or
seriously hurt you.
Wear protective clothing and a face
shield, or have a skilled mechanic do
the battery servicing.
13 CB1100-31MGC6000.book 43 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Maintenance Fundamentals
44
Maintenance
❙
Cleaning the Battery Terminals
1.
Remove the battery. 2 P. 56
2.
If the terminals are starting to corrode and
are coated with a white substance, wash with
warm water and wipe clean.
3.
If the terminals are heavily corroded, clean
the terminals with a wire brush or sandpaper.
Wear safety glasses.
4.
After cleaning, reinstall the battery.
The battery has a limited life span. Consult your
dealer about when you should replace the
battery. Always replace the battery with
another maintenance-free battery of the same
type.
❙
Charging
If you use electrical accessories that drain the
battery or you do not ride frequently, we
recommend that you charge the battery every
30 days using a charger designed specifically for
your Honda, which can be purchased from your
dealer. Read the information that came with
your battery charger and follow the instructions
on the battery. Avoid using an automobile-type
battery charger, as these can overheat a
motorcycle battery and cause permanent
damage.
Make sure the ignition switch is in the OFF
position before charging the battery.
NOTICE
Improper charging can damage the battery. If you can’t
charge the battery or it appears unable to hold a charge,
contact your dealer.
13 CB1100-31MGC6000.book 44 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Maintenance Fundamentals
45
Maintenance
Fuses protect the electrical circuits on your
motorcycle. If something electrical on your
motorcycle stops working, check for and
replace any blown fuses.
2 P. 97
❙
Inspecting and Replacing Fuses
Turn off the ignition switch to remove and
inspect fuses. If a fuse is blown, replace with a
fuse of the same rating. For fuse ratings, see
“Specifications.”
2 P. 123
If a fuse fails repeatedly, you likely have an
electrical fault. Have your motorcycle inspected
by your dealer.
NOTICE
Jump starting using an automobile battery can damage
your motorcycle’s electrical system and is not
recommended. Bump starting is also not recommended.
NOTICE
Installing non-Honda electrical accessories can overload
the electrical system, discharging the battery and possibly
damaging the system.
Fuses
NOTICE
Replacing a fuse with one that has a higher rating greatly
increases the chance of damage to the electrical system.
Blown fuse
13 CB1100-31MGC6000.book 45 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Maintenance Fundamentals
46
Maintenance
Engine oil consumption varies and oil quality
deteriorates according to riding conditions and
time elapsed.
Check the engine oil level regularly, and add the
recommended engine oil if necessary. Dirty oil
or old oil should be changed as soon as
possible.
❙
Selecting the Engine Oil
For recommended engine oil, see
“Specifications.”
2 P. 122
If you use non-Honda engine oil, check the label
to make sure that the oil satisfies all of the
following standards:
● JASO T 903 standard
*1
: MA
● SAE standard
*2
: 10W-30
● API classification
*3
: SG or higher
*1.
The JASO T 903 standard is an index for engine
oils for 4-stroke motorcycle engines. There are
two classes: MA and MB. For example, the
following label shows the MA classification.
*2.
The SAE standard grades oils by their viscosity.
*3.
The API classification specifies the quality and
performance rating of engine oils. Use SG or
higher oils, excluding oils marked as “Energy
Conserving” or “Resource Conserving” on the
circular API service symbol.
Engine Oil
Oil code
Oil classification
Not recommended Recommended
13 CB1100-31MGC6000.book 46 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Maintenance Fundamentals
47
continued
Maintenance
Do not add or replace brake fluid, except in an
emergency. Use only fresh brake fluid from a
sealed container. If you do add fluid, have the
brake system serviced by your dealer as soon as
possible.
The drive chain must be inspected and
lubricated regularly. Inspect the chain more
frequently if you often ride on bad roads, ride at
high speed, or ride with repeated fast
acceleration.
If the chain does not move smoothly, makes
strange noises, has damaged rollers or loose
pins or missing O-rings, or kinks, have the chain
inspected by your dealer.
Also inspect the engine sprocket and rear wheel
sprocket. If either has worn or damaged teeth,
have the sprocket replaced by your dealer.
Brake Fluid (Clutch Fluid)
NOTICE
Brake fluid can damage plastic and painted surfaces.
Wipe up spills immediately and wash thoroughly.
Recommended brake fluid:
Honda DOT 4 Brake Fluid or equivalent
3
WARNING
Clean filler cap before removing. Use
only DOT 4 fluid from a sealed
container.
Drive Chain
Worn
(REPLACE)
Damaged
(REPLACE)
Normal
(GOOD)
13 CB1100-31MGC6000.book 47 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Maintenance Fundamentals
48
Maintenance
❙
Cleaning and Lubricating
After inspecting the slack, clean the chain and
sprockets while rotating the rear wheel. Use dry
cloth with chain cleaner designed specifically
for O-ring chains, or neutral detergent. Use a
soft brush if the chain is dirty.
After cleaning, wipe dry and lubricate with a
lubricant designed specifically for use on O-ring
chains.
Do not use a steam cleaner, a high pressure
cleaner, a wire brush, volatile solvent such as
gasoline and benzene, abrasive cleaner, chain
cleaner or lubricant NOT designed specifically
for O-ring chains as these can damage the
rubber O-ring seals.
Avoid getting lubricant on the brakes or tires.
Avoid applying excess chain lubricant to prevent
spray onto your clothes and the motorcycle.
NOTICE
Use of a new chain with worn sprockets will cause rapid
chain wear.
Recommended lubricant:
Pro Honda HP Chain Lube or equivalent
chain lube
13 CB1100-31MGC6000.book 48 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Maintenance Fundamentals
49
continued
Maintenance
Service more frequently when riding in rain, at full
throttle, or after the motorcycle is washed or
overturned. Service if the deposit level can be seen in
the transparent section of the drain tube.
2 P. 75
❙
Checking the Air Pressure
Visually inspect your tires and use an air
pressure gauge to measure the air pressure at
least once a month or any time you think the
tires look low. Always check air pressure when
your tires are cold.
❙
Inspecting for Damage
Inspect the tires for
cuts, slits, or cracks
that exposes fabric or
cords, or nails or
other foreign objects
embedded in the side
of the tire or the
tread. Also inspect
for bumps or bulges in the side walls of the
tires.
❙
Inspecting for Abnormal Wear
Inspect the tires for
signs of abnormal
wear on the contact
surface.
Crankcase Breather
Tires (Inspecting/Replacing)
13 CB1100-31MGC6000.book 49 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Maintenance Fundamentals
50
Maintenance
❙
Inspecting Tread Depth
Inspect the tread wear indicators. If they
become visible, replace the tires immediately.
For your safety, you should replace the tires
when the minimum tread depth is reached.
Wear indicator
location mark
3
WARNING
Riding on tires that are excessively
worn or improperly inflated can cause
a crash in which you can be seriously
hurt or killed.
Follow all instructions in this owner’s
manual regarding tire inflation and
maintenance.
13 CB1100-31MGC6000.book 50 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Maintenance Fundamentals
51
Maintenance
Have your tires replaced by your dealer.
For recommended tires, air pressure and
minimum tread depth, see “Specifications.”
2 P. 122
Follow these guidelines whenever you replace
tires.
● Use the recommended tires or equivalents of
the same size, construction, speed rating,
and load range.
● Have the wheel balanced with Honda
Genuine balance weights or equivalent after
the tire is installed.
● Do not install a tube inside a tubeless tire on
this motorcycle. Excessive heat build-up can
cause the tube to burst.
● Use only tubeless tires on this motorcycle.
The rims are designed for tubeless tires, and
during hard acceleration or braking, a tube-
type tire could slip on the rim and cause the
tire to rapidly deflate.
3
WARNING
Installing improper tires on your
motorcycle can adversely affect
handling and stability, and can cause a
crash in which you can be seriously
hurt or killed.
Always use the size and type of tires
recommended in this owner’s manual.
13 CB1100-31MGC6000.book 51 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Maintenance Fundamentals
52
Maintenance
The service life of your tires is dependent on
many factors, including, but not limited to,
riding habits, road conditions, vehicle loading,
tire air pressure, maintenance history, speed,
and environmental conditions (even when the
tires are not in use).
In addition to your regular inspections and
maintenance, it is recommended that you have
annual inspections performed once the tires
reach 5 years old. It is also recommended that
all tires be removed from service after 10 years
from the date of manufacture, regardless of
their condition or state of wear.
The last four digits of the TIN (tire identification
number) indicate the date of manufacture.
❙
Tire Identification Number (TIN)
The tire identification number (TIN) is a group of
numbers and letters located on the sidewall of
the tire.
Tire Service Life
DOT XXXX XXXX 22 09
DOT: This indicates that the tire meets
all requirements of the U.S.
Department of Transportation.
!
a XXXX: Factory code
!
b XXXX: Tire type code
!
c 22 09:
Date of manufacture (week & year).
Example: week 22 in year 09.
!a !b !c
Tire Labeling Example
Tire identification
number (TIN)
13 CB1100-31MGC6000.book 52 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
53
Maintenance
Removing & Installing Body Components
Seat
❙
Removal
1.
Insert the ignition key into the helmet
holder, and turn it clockwise.
2.
Pull the seat unlock lever downward to
unlock the seat.
3.
Pull the seat back and up.
❙
Installation
1.
Insert the front and rear prongs into the
front and rear stays on the frame.
2.
Push forward and down on the rear of the
seat until it locks in place. Make sure that
the seat is locked securely in position to
pull it up lightly.
The seat locks automatically when closed.
Take care not to lock your key in the
underseat compartment.
Seat
Helmet
holder
Rear stays
Prongs
Front stay
Seat unlock lever
Ignition key
13 CB1100-31MGC6000.book 53 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Removing & Installing Body Components u Side Cover
54
Maintenance
Side Cover
The right side cover must be removed for the
air cleaner maintenance.
The left side cover must be removed for the
fuse maintenance.
The right and left side covers can be removed
in the same way.
❙
Removal
1.
Remove the bolt.
2.
Remove the prongs from the grommets.
3.
Remove the side cover.
❙
Installation
Install the parts in the reverse order of
removal.
Side cover
Grommet
Prongs
Bolt
Grommet
Right side
13 CB1100-31MGC6000.book 54 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Removing & Installing Body Components u Clip
55
Maintenance
Clip
The clip must be removed to remove the
battery.
❙
Removal
1.
Press down on the center pin to release
the lock.
2.
Pull the clip out of the hole.
❙
Installation
1.
Push the bottom of the center pin.
2.
Insert the clip into the hole.
3.
Press down on the center pin to lock the
clip.
!a
!b
!a
!b
!c
13 CB1100-31MGC6000.book 55 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Removing & Installing Body Components u Battery
56
Maintenance
Battery
❙
Removal
Make sure the ignition switch is off.
1.
Remove the seat. 2 P. 53
2.
Remove the tool kit.
3.
Remove the screw and clip. 2 P. 55
4.
Remove the battery cover.
Battery cover
Screw
Clip
13 CB1100-31MGC6000.book 56 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Removing & Installing Body Components u Battery
57
Maintenance
5.
Disconnect the negative - terminal lead
from the battery.
6.
Disconnect the positive + terminal lead
from the battery.
7.
Remove the battery taking care not to
drop the terminal nuts.
❙
Installation
Install the parts in the reverse order of
removal. Always connect the positive
+
terminal first. Make sure that bolts and nuts
are tight.
The clock will be reset to AM 1:00 if the
battery is disconnected.
For proper handling of the battery, see
“Maintenance Fundamentals.”
2 P. 43
“Battery Goes Dead.”
2 P. 93
Battery
Negative
terminal
Positive
terminal
Terminal
nut
Terminal
nut
13 CB1100-31MGC6000.book 57 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
58
Maintenance
Spark Plugs
Checking Spark Plugs
For the recommended spark plugs, see
“Specifications.” 2 P. 122
Use only the recommended type of spark
plugs in the recommended heat range.
1.
Disconnect the spark plug caps from the
spark plugs.
2.
Clean any dirt from around the spark plug
bases.
3.
Remove the spark plugs using a spark
plug wrench.
4.
Inspect the electrodes and center
porcelain for deposits, erosion or carbon
fouling.
u If the erosion or deposit is heavy,
replace the plug.
u Clean a carbon or wet-fouled plug with
a plug cleaner, otherwise use a wire
brush.
NOTICE
Using spark plugs with an improper heat range can cause
engine damage.
Spark plug cap
Spark plug wrench
13 CB1100-31MGC6000.book 58 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Spark Plugs u Checking Spark Plugs
59
Maintenance
5.
Check the spark plug gap using a wire-
type feeler gauge.
u If adjustment is necessary, bend the
side electrode carefully.
6.
Make sure the plug washer is in good
condition.
7.
With the plug washer attached, thread
the spark plug in by hand to prevent
cross-threading.
8.
Tighten the spark plug:
● If the old plug is good:
1/5 turn after it seats
● If installing a new plug, tighten it twice
to prevent loosening:
9.
Reinstall the spark plug caps. Take care
avoid pinching any cables or wires.
The gap should be:
0.031 to 0.035 in (0.80 to 0.90 mm)
Spark plug gap
Side electrode
a) First, tighten the plug:
NGK: 1/4 turn after it seats.
b) Then loosen the plug.
c) Next, tighten the plug again:
1/5 turn after it seats.
NOTICE
Improperly tightened spark plugs can damage the engine.
If a plug is too lose, a piston may be damaged. If a plug is
too tight, the threads may be damaged.
13 CB1100-31MGC6000.book 59 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
60
Maintenance
Engine Oil
Checking the Engine Oil
1.
Park your motorcycle on its center stand
on a firm, level surface.
2.
If the engine is cold, idle the engine for 3
to 5 minutes.
3.
Turn the ignition switch off, stop the
engine and wait 2 to 3 minutes.
4.
Check that the oil level is between the
upper and lower level marks in the oil
inspection window.
u If required, clean the inspection
window by turning the wiper.
Oil level
inspection
window
Upper level
Lower level
Wiper
Oil fill cap
13 CB1100-31MGC6000.book 60 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Engine Oil u Adding Engine Oil
61
Maintenance
Adding Engine Oil
If the engine oil is below or near the lower
level mark, add the recommended engine oil.
2 P. 46
1.
Remove the oil fill cap. Add the
recommended oil until it reaches the
upper level mark.
u Place your motorcycle on its centre
stand on a firm, level surface when
checking the oil level.
u Do not overfill above the upper level
mark.
u Make sure no foreign objects enter the
oil filler opening.
u Wipe up any spills immediately.
2.
Securely reinstall the oil fill cap.
For the recommended oil and oil selection
guidelines, see “Maintenance
Fundamentals.”
2 P. 46
NOTICE
Overfilling with oil or operating with insufficient oil can
cause damage to your engine. Do not mix different brands
and grades of oil. They may affect lubrication and clutch
operation.
13 CB1100-31MGC6000.book 61 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Engine Oil u Changing Engine Oil & Filter
62
Maintenance
Changing Engine Oil & Filter
Changing the oil and filter requires special
tools. We recommend that you have your
motorcycle serviced by your dealer.
Use a new Honda Genuine oil filter or
equivalent specified for your model.
1.
Park your motorcycle on its center stand
on a firm, level surface.
2.
If the engine is cold, idle the engine for 3
to 5 minutes.
3.
Turn the ignition switch off, stop the
engine and wait for 2 to 3 minutes.
4.
Place a drain pan under the drain bolt.
5.
Remove the oil fill cap, drain bolt, and
sealing washer to drain the oil.
NOTICE
Using the wrong oil filter can result in serious damage to
the engine.
Drain bolt
Sealing washer
13 CB1100-31MGC6000.book 62 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Engine Oil u Changing Engine Oil & Filter
63
Maintenance
6.
Remove the oil filter with a filter wrench
and let the remaining oil drain out. Make
sure the prior seal is not stuck to the
engine.
u Discard the oil and oil filter at an
approved recycling center.
7.
Apply a thin coat of engine oil to the
rubber seal of a new oil filter.
8.
Install a new oil filter and tighten.
9.
Install a new sealing washer onto the
drain bolt. Tighten the drain bolt.
10.
Fill the crankcase with the recommended
oil (2 P. 46) and install the oil fill cap.
11.
Check the oil level. 2 P. 60
12.
Check that there are no oil leaks.
Rubber
seal
Oil filter
Torque: 19 lbf·ft (26 N·m, 2.7 kgf·m).
Torque: 22 lbf·ft (30 N·m, 3.1 kgf·m).
Required oil
When changing oil &
engine oil filter:
4.1 US qt (3.9 liters)
When changing oil only:
4.0 US qt (3.8 liters)
13 CB1100-31MGC6000.book 63 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
64
Maintenance
Air Cleaner
Changing/Cleaning Air Cleaner
Element
Use a new Honda Genuine air cleaner
element or an equivalent specified for your
motorcycle.
1.
Remove the right side cover. 2 P. 54
2.
Remove the attaching screws and air
cleaner housing cover.
3.
Pull out the air cleaner element and check
it for any damage.
u Blow away the remaining dust by
applying compressed air from the
outside of the air cleaner element.
u Replace the air cleaner element if it is
excessively dirty, torn or damaged.
NOTICE
Using the wrong air cleaner element can result in serious
damage to the engine.
Attaching screws
Air cleaner
housing cover
Air cleaner housing
Air cleaner element
13 CB1100-31MGC6000.book 64 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Air Cleaner u Changing/Cleaning Air Cleaner Element
65
Maintenance
4.
Thoroughly clean the inside of the air
cleaner housing.
5.
Install the air cleaner element.
6.
Install the parts in the reverse order of
removal.
13 CB1100-31MGC6000.book 65 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
66
Maintenance
Brakes/Clutch
Checking Brake Fluid
1.
Park your motorcycle on its center stand
on a firm, level surface.
2.
Check that the brake fluid reservoir
is horizontal and that the fluid level is
above the LOWER level mark.
3.
Remove the seat. 2 P. 53
4.
Check that the brake fluid reservoir
is horizontal and that the fluid level is
between the LOWER level and UPPER level
marks.
If the brake fluid level in either reservoir is
below the LOWER level mark or the brake
lever and pedal freeplay becomes excessive,
inspect the brake pads for wear. If the brake
pads are not worn, you most likely have a
leak. Have your motorcycle inspected by your
dealer.
Front
Rear
Rear
Front
Rear
Front brake fluid reservoir
LOWER level mark
Rear brake fluid
reservoir
LOWER level mark
UPPER level mark
13 CB1100-31MGC6000.book 66 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Brakes/Clutch u Inspecting the Brake Pads
67
continued
Maintenance
Inspecting the Brake Pads
Check the condition of the brake pad groove
wear indicators.
(CB1100)
The pads need to be replaced if a brake pad
is worn to the bottom of the groove.
(CB1100A)
The pads need to be replaced if a brake pad
is worn to the groove.
The pads need to be replaced if a
brake pad is worn to the groove.
1.
(CB1100)
Inspect the brake pads from in front of the
brake caliper.
(CB1100A)
Inspect the brake pads from the bottom
of the brake caliper.
u Always inspect both left and right
calipers.
Front
Rear
Front
Wear indicator
Disc
Brake pad
Front
(CB1100)
(CB1100A)
Brake pad
Disc
Wear indicator
13 CB1100-31MGC6000.book 67 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Brakes/Clutch u Checking the Clutch Fluid
68
Maintenance
2.
Inspect the brake pads from the
rear right of the motorcycle.
If necessary have the pads replaced by your
dealer.
Always replace both left and right brake pads
at the same time.
Checking the Clutch Fluid
1.
Park your motorcycle on its center stand
on a firm, level surface.
2.
Check that the clutch fluid reservoir cap is
horizontal and that the fluid level is above
the LOWER level mark.
If the fluid level is low or if you find fluid
leaks, or deterioration or cracks in the hoses
and fittings, have the clutch system serviced
by your dealer.
Rear
Disc
Brake pad
Rear
Wear indicator
Clutch fluid reservoir
LOWER level mark
13 CB1100-31MGC6000.book 68 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
69
Maintenance
Side Stand
1.
Park your motorcycle on its center stand
on a firm, level surface.
2.
Check that the side stand operates
smoothly. If the side stand is stiff or
squeaky, clean the pivot area and
lubricate the pivot bolt with clean grease.
3.
Check the spring for damage or loss of
tension.
4.
Sit on the motorcycle, put the
transmission in Neutral, and raise the side
stand.
5.
Start the engine, pull the clutch lever in,
and shift the transmission into gear.
6.
Lower the side stand all the way. The
engine should stop as you lower the side
stand. If the engine doesn’t stop, have
your motorcycle inspected by your dealer.
Side stand spring
13 CB1100-31MGC6000.book 69 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
70
Maintenance
Drive Chain
Inspecting the Drive Chain
Slack
Check the drive chain slack at several points
along the chain. If the slack is not constant at
all points, some links may be kinked and
binding.
Have the chain inspected by your dealer.
1.
Park your motorcycle on its center stand
on a firm, level surface.
2.
Stop the engine. Place the transmission in
Neutral.
3.
Check the slack in the lower half of the
drive chain midway between the
sprockets.
u Do not ride your motorcycle if the slack
exceeds 2.0 in (50 mm).
4.
Rotate the rear wheel and check that the
chain moves smoothly.
5.
Inspect the sprockets. 2 P. 47
6.
Clean and lubricate the drive chain.
2 P. 48
Drive chain slack:
1.0 to 1.4 in (25 to 35 mm)
13 CB1100-31MGC6000.book 70 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分

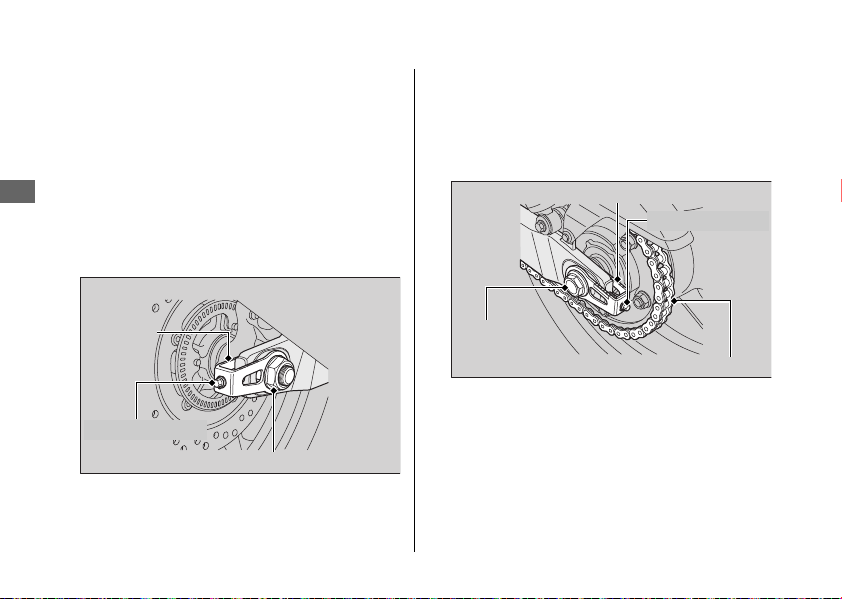

Drive Chain u Adjusting the Drive Chain Slack
71
continued
Maintenance
Adjusting the Drive Chain Slack
Adjusting the chain requires special tools.
Have the drive chain slack adjusted by your
dealer.
1.
Park your motorcycle on its center stand
on a firm, level surface.
2.
Stop the engine. Place the transmission
in Neutral.
3.
Loosen the rear axle nut.
Scale
Adjusting bolt
Rear axle nut/washer
Rear end of the
swingarm
Adjuster
13 CB1100-31MGC6000.book 71 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Drive Chain u Adjusting the Drive Chain Slack
72
Maintenance
4.
Turn both adjusting bolts an equal
number of turns until the correct drive
chain slack is obtained. Turn the
adjusting bolts counterclockwise to
tighten the chain, or clockwise to
provided more slack.
Adjust the chain slack at a point midway
between the drive sprocket and the rear
wheel sprocket.
Check the drive chain slack.
2 P. 70
5.
Check rear axle alignment by making
sure the rear end of the swingarm aligns
with the corresponding scale on the
adjuster.
Both left and right swingarm ends should
align with the same mark on the
corresponding scale. If the axle is
misaligned, turn the left or right
adjusting bolt until the marks
correspond.
6.
Tighten the rear axle nut.
7.
Tighten the adjusting bolts lightly.
8.
Recheck drive chain slack.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
Torque: 83 lbf·ft (113 N·m, 11.5 kgf·m).
13 CB1100-31MGC6000.book 72 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分

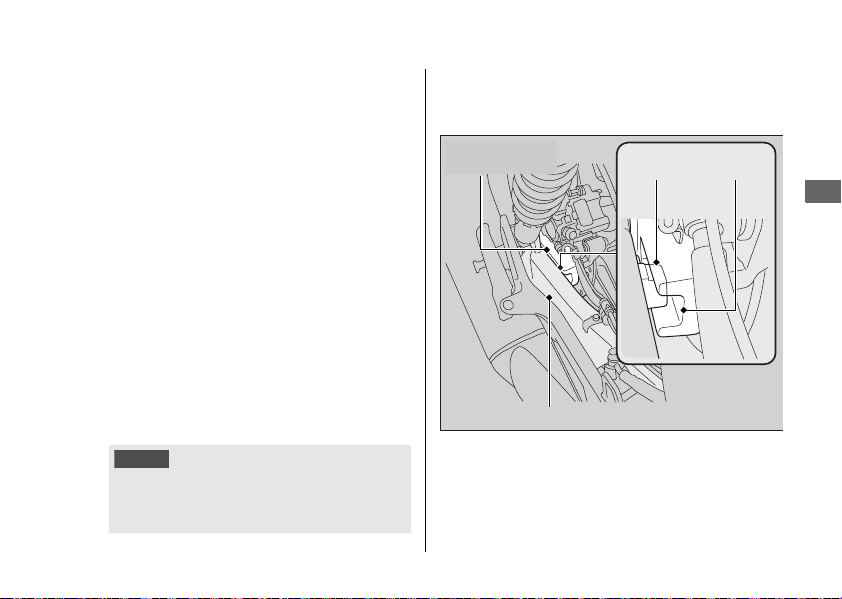

Drive Chain u Checking the Drive Chain Slider
73
Maintenance
❙
Checking the Drive Chain Wear
Check the chain wear label when adjusting
the drive chain. If the red zone on the label
aligns with the rear end of the swingarm
after the chain has been adjusted to the
proper slack, the chain is excessively worn
and must be replaced.
If necessary have the drive chain replaced by
your dealer.
Checking the Drive Chain Slider
Check the condition of the drive chain slider.
The drive chain slider need to be replaced if a
chain slider is worn to the wear limit line. If
necessary have the drive chain slider replaced
by your dealer.
Chain: DID50ZVM2 or RK50LFOZ2
Rear end
of the
swingarm
Red zone
Drive chain slider
Wear limit line
13 CB1100-31MGC6000.book 73 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
74
Maintenance
Throttle
Checking the Throttle
With the engine off, check that the throttle
rotates smoothly from fully closed to fully
open in all steering positions and throttle
freeplay is correct. If the throttle does not
move smoothly, close automatically, or if the
cable is damaged, have the motorcycle
inspected by your dealer.
Adjusting the Throttle Freeplay
1.
Loosen the lock nut.
2.
Turn the adjuster until the freeplay is 1/16
to 1/4 in (2 to 6 mm).
3.
Tighten the lock nut and inspect the
throttle action again.
Freeplay at the throttle grip flange:
1/16 to 1/4 in (2 to 6 mm).
Freeplay
Flange
Throttle grip
Adjuster
Lock nut
13 CB1100-31MGC6000.book 74 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
75
Maintenance
Crankcase Breather
1.
Place a drain pan under the crankcase
breather tube.
2.
Remove the crankcase breather tube plug
and drain deposits.
3.
Reinstall the plug.
Crankcase breather tube plug
Front
Rear
Crankcase breather tube plug
13 CB1100-31MGC6000.book 75 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
76
Maintenance
Other Adjustments
Adjusting the Clutch and Brake
Levers
You can adjust the distances between the tip
of the clutch lever and handle grip, and
between the tip of the brake lever and
handle grip.
❙
Adjustment method
Turn the adjuster until the numbers align
with the index mark while pushing the lever
forward in the desired position.
After adjustment, check that the levers
operate correctly before riding.
NOTICE
Do not turn the adjuster beyond its natural limit.
Clutch lever
Forward
Brake lever
Forward
Index mark
Adjuster
Handle grip
13 CB1100-31MGC6000.book 76 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Other Adjustments u Adjusting the Front Suspension
77
Maintenance

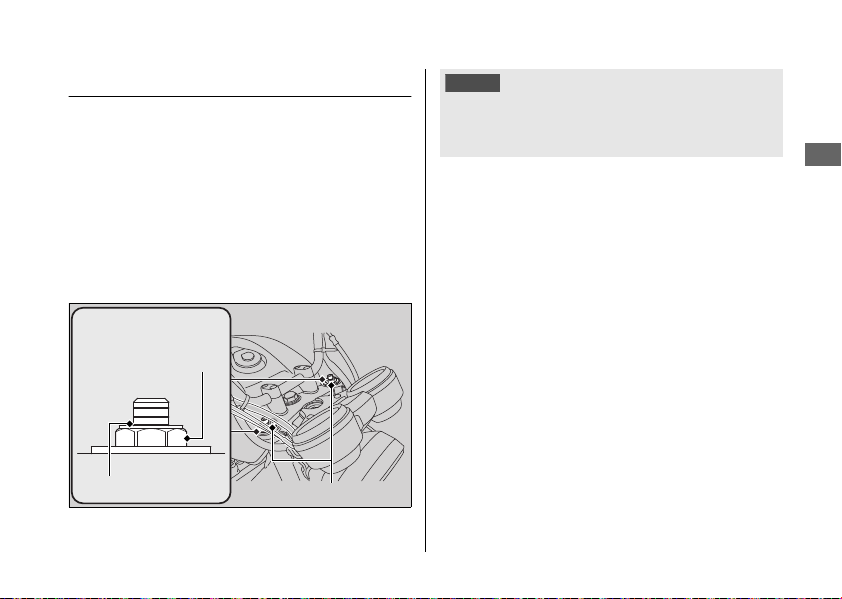

Adjusting the Front Suspension
❙
Spring Preload
You can adjust the spring preload by the
adjuster to suit the load or the road surface.
Turn clockwise to increase spring preload
(hard), or turn counterclockwise to decrease
spring preload (soft). The standard position is
the 3rd groove from the top aligning with the
top surface of the fork bolts.
Fork bolt
3rd groove
Adjuster
NOTICE
Do not turn the adjuster beyond its limits.
Adjust both left and right forks to the same spring
preload.
13 CB1100-31MGC6000.book 77 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Other Adjustments u Adjusting the Rear Suspension
78
Maintenance
Adjusting the Rear Suspension
❙
Spring Preload
You can adjust the spring preload by the
adjuster to suit the load or the road surface.
Use the pin spanner and extension bar to
turn the adjuster. Position 1 is for a
decreased spring preload (soft), or turn to the
position 3 to 5 for a increased spring preload
(hard). The standard position is 2.
Pin spanner
1
2
3
4
5
Adjuster
Extension bar
NOTICE
Do not turn the adjuster beyond its limits.
Adjust both left and right shock absorbers to the same
spring preload.
13 CB1100-31MGC6000.book 78 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Other Adjustments u Adjusting the Headlight Aim
79
Maintenance
Adjusting the Headlight Aim
You can adjust vertical aim of the headlight
for proper alignment. Loosen the bolts and
move the headlight case as necessary.
Tighten the bolts after adjustment.
Obey local laws and regulations.
Adjusting the Brakelight
Switch
Check the operation of the brakelight switch.
Turn the adjusting nut in the direction A if
the switch operates too late, or turn the nut
in the direction B if the switch operates too
soon.
Bolt
Lower
Raise
Brakelight
switch
A
B
Adjusting nut
13 CB1100-31MGC6000.book 79 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Troubleshooting
Engine Will Not Start .................................P. 81
Overheating (High oil temperature indicator
is on)..........................................................P. 82
Warning Indicators on or Flashing............P. 83
Low Oil Pressure Indicator..........................P. 83
PGM-FI (Programmed Fuel Injection)
Malfunction Indicator Lamp (MIL) ............P. 83
ABS (Anti-lock Brake System) Indicator
(CB1100A only) .......................................P. 84
Tire Puncture ..............................................P. 85
Electrical Trouble........................................P. 93
Battery Goes Dead.....................................P. 93
Burned-out Light Bulb............................... P. 93
Blown Fuse ............................................... P. 97
13 CB1100-31MGC6000.book 80 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
81
Troubleshooting
Engine Will Not Start
❙
Starter Motor Operates But Engine
Does Not Start
Check the following items:
● Check the correct engine starting
sequence 2 P. 28
● Check that there is gasoline in the fuel
tank
● Check if the PGM-FI malfunction indicator
lamp (MIL) is on
u If the indicator light is on, contact your
dealer as soon as possible.
❙
Starter Motor Does Not Operate
Check the following items:
● Make sure engine stop switch is (Run)
position
2 P. 28
● Check for a blown fuse 2 P. 97
● Check for a loose battery connection or
battery terminal corrosion
2 P. 44
● Check the condition of the battery 2 P. 93
If the problem continues, have your
motorcycle inspected by your dealer.
13 CB1100-31MGC6000.book 81 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
82
Troubleshooting
Overheating (High oil temperature indicator is on)
The high oil temperature indicator may come
on when idling or riding at very low speeds
for a long time at high air temperature.
If the indicator comes on while idling or
riding, stop the engine and let it cool down.
If the indicator remains on or lights again,
take the motorcycle to your dealer as soon as
possible.
NOTICE
Idling or riding with the indicator on may cause serious
engine damage.
13 CB1100-31MGC6000.book 82 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
83
Troubleshooting
Warning Indicators on or Flashing
Low Oil Pressure Indicator
If the low oil pressure indicator comes on,
pull safely to the side of the road and stop
the engine.
1.
Check the engine oil level, and add oil as
necessary. 2 P. 60
2.
Start the engine.
u Only continue riding if the low oil
pressure indicator goes off.
Rapid acceleration may momentarily cause
the low oil pressure indicator to come on,
especially if the oil is at or near the low level.
If the low oil pressure indicator stays on
when the oil level is at the proper level, stop
the engine and contact your dealer.
If the engine oil level goes down rapidly, your
motorcycle may have a leak or another
serious problem. Have your motorcycle
inspected by your dealer.
PGM-FI (Programmed Fuel
Injection) Malfunction Indicator
Lamp (MIL)
If the indicator comes on while riding, you
may have a serious problem with the PGM-FI
system. Reduce speed and have your
motorcycle inspected by your dealer as soon
as possible.
NOTICE
Continuing to ride with low oil pressure can cause serious
damage to the engine.
13 CB1100-31MGC6000.book 83 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Warning Indicators on or Flashing u ABS (Anti-lock Brake System) Indicator (CB1100A only)
84
Troubleshooting
ABS (Anti-lock Brake System)
Indicator (CB1100A only)
If the indicator operates in one of the
following ways, you may have a serious
problem with the brake system. Reduce your
speed and have your motorcycle inspected by
your dealer as soon as possible.
● Indicator comes on or starts flashing while
riding.
● Indicator does not come on when the
ignition switch is in the ON position.
● Indicator does not go off at speeds above
6 mph (10 km/h).
If the ABS indicator stays on, your brakes will
continue to work as a conventional system,
but without the anti-locking function.
The ABS indicator may flash if you turn the
rear wheel while your motorcycle is lifted off
the ground. In this case, turn the ignition
switch off and then on again. The ABS
indicator will go off after your speed reaches
19 mph (30 km/h).
13 CB1100-31MGC6000.book 84 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
85
continued
Troubleshooting
Tire Puncture
Repairing a puncture or removing a wheel
requires special tools and technical expertise.
We recommend you have this type of service
performed by your dealer.
After an emergency repair, always have the
tire inspected/replaced by your dealer.
Emergency Repair Using a Tire
Repair Kit
If your tire has a minor puncture, you can
make an emergency repair using a tubeless
tire repair kit.
Follow the instructions provided with the
emergency tire repair kit.
Riding your motorcycle with a temporary tire
repair is very risky. Do not exceed 30 mph
(50 km/h). Have the tire replaced by your
dealer as soon as possible.
Removing Wheels
Follow these procedures if you need to
remove a wheel in order to repair a puncture.
3
WARNING
Riding your motorcycle with a
temporary tire repair can be risky. If
the temporary repair fails, you can
crash and be seriously injured or
killed.
If you must ride with a temporary tire
repair, ride slowly and carefully and
do not exceed 30 mph (50 km/h) until
the tire is permanently repaired or
replaced.
13 CB1100-31MGC6000.book 85 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Tire Puncture u Removing Wheels
86
Troubleshooting
(CB1100A)
When removing and installing the wheel, be
careful not to damage the wheel speed
sensor and pulser ring.
❙
Front Wheel
Removal
1.
Park your motorcycle on its center stand
on a firm, level surface.
2.
Cover both sides of the front wheel and
brake caliper with protective tape or cloth.
3.
On the right side, remove the mounting
bolts and remove the brake caliper.
4.
On the left side, remove the mounting
bolts and remove the brake caliper.
u Support the brake caliper assembly so
that it doesn’t hang from the brake
hose. Do not twist the brake hose.
u Avoid getting grease, oil, or dirt on
the disc or pad surfaces.
u Do not pull the brake lever (CB1100A:
the brake lever and brake pedal) while
the brake caliper is removed.
u Take care to prevent the brake caliper
from scratching the wheel during
removal.
Mounting
bolts
Wheel speed
sensor
Pulser ring
Brake
caliper
Protective
tape
13 CB1100-31MGC6000.book 86 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Tire Puncture u Removing Wheels
87
continued
Troubleshooting
5.
Remove the front axle bolt.
6.
Loosen the right axle pinch bolts.
7.
Support your motorcycle securely and
raise the front wheel off the ground
using a maintenance stand or a hoist.
8.
Loosen the left axle pinch bolts.
9.
On the left side, withdraw the front axle
shaft, and remove the side collars and
wheel.
Front axle bolt
Axle pinch bolts
Front axle shaft
Axle pinch bolts
13 CB1100-31MGC6000.book 87 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Tire Puncture u Removing Wheels
88
Troubleshooting
Installation
1.
Attach the side collars to the wheel.
2.
On the left side, place the wheel
between the fork legs and insert the
lightly greased front axle shaft to the
end, through the left fork leg and wheel
hub.
3.
Align the end of the front axle shaft with
the surface of the fork leg.
4.
Tighten the left axle pinch bolts to hold
the axle.
5.
Tighten the axle bolt.
6.
Loosen the left axle pinch bolts.
7.
Tighten the right axle pinch bolts.
8.
Install the right brake caliper and tighten
the mounting bolts.
End of front
axle shaft
Surface of
fork leg
Torque: 43 lbf·ft (59 N·m, 6.0 kgf·m).
Torque: 19 lbf·ft (26 N·m, 2.7 kgf·m).
Torque: 23 lbf·ft (31 N·m, 3.2 kgf·m).
13 CB1100-31MGC6000.book 88 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Tire Puncture u Removing Wheels
89
continued
Troubleshooting
9.
Install the left brake caliper and tighten
the mounting bolts.
u Take care to prevent the brake caliper
from scratching the wheel during
installation.
u Use new mounting bolts when
installing the brake caliper.
10.
Lower the front wheel on the ground.
11.
Apply the brake lever (CB1100A: the
brake lever and brake pedal) several
times. Then, pump the fork several times.
12.
Retighten the left axle pinch bolts.
13.
Remove the protective tape or cloth.
14.
Raise the front wheel off the ground
again, and check that the wheel rotates
freely after you release the brake.
If a torque wrench is not used for installation,
see your dealer as soon as possible to verify
proper assembly.
Improper assembly may lead to loss of
braking capacity.
Torque: 23 lbf·ft (31 N·m, 3.2 kgf·m).
NOTICE
When installing the brake calipers into position on
the fork legs, carefully fit the brake disc between
the pads to avoid scratching them.
Torque: 19 lbf·ft (26 N·m, 2.7 kgf·m).
13 CB1100-31MGC6000.book 89 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Tire Puncture u Removing Wheels
90
Troubleshooting
❙
Rear Wheel
Removal
1.
Park your motorcycle on its center stand
on a firm, level surface.
2.
Loosen the rear axle nut and adjusting
bolts so the rear wheel can be moved all
the way forward for maximum drive
chain slack.
3.
Remove the rear axle nut/washer.
4.
Remove the drive chain from the rear
wheel sprocket by pushing the rear
wheel forward.
5.
Remove the rear axle shaft, adjusters,
and adjusting bolts.
Adjuster
Adjusting bolt
Rear axle nut/washer
Adjusting bolt
Adjuster
Drive chain
Rear axle
shaft
13 CB1100-31MGC6000.book 90 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Tire Puncture u Removing Wheels
91
continued
Troubleshooting
6.
Remove the brake caliper bracket and
rear wheel, side collars.
u Support the brake caliper assembly so
that it doesn’t hang from the brake
hose. Do not twist the brake hose.
u Avoid getting grease, oil, or dirt on
the disc or pad surfaces.
u Do not push the brake pedal while the
brake caliper is removed.
Installation
1.
To install the rear wheel, reverse the
removal procedure.
u Take care to prevent the brake caliper
from scratching the wheel during
installation.
2.
Make sure that the lug on the swingarm is
located in the slot on the brake caliper
bracket.
NOTICE
When installing the brake calipers into position,
carefully fit the brake disc between the pads to
avoid scratching them.
Brake caliper
bracket
Swingarm
Lug
Slot
13 CB1100-31MGC6000.book 91 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Tire Puncture u Removing Wheels
92
Troubleshooting
3.
Adjust the drive chain. 2 P. 71
4.
Install the rear axle nut/washer and
tighten the rear axle nut.
5.
After installing the wheel, apply the brake
pedal several times, then recheck the disc
for caliper holder to disc clearance. Do not
operate the motorcycle without adequate
clearance.
If a torque wrench is not used for installation,
see your dealer as soon as possible to verify
proper assembly.
Improper assembly may lead to loss of
braking capacity.
Torque: 83 lbf·ft (113 N·m, 11.5 kgf·m).
13 CB1100-31MGC6000.book 92 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
93
continued
Troubleshooting
Electrical Trouble
Battery Goes Dead
Charge the battery using a motorcycle
battery charger.
Remove the battery from the motorcycle
while charging.
Do not use an automobile-type battery
charger, as these can overheat a motorcycle
battery and cause permanent damage.
If the battery does not recover after
recharging, contact your dealer.
Burned-out Light Bulb
Follow the procedure below to replace a
burned-out light bulb.
Turn the ignition switch to the OFF or LOCK
position.
Allow the bulb to cool before replacing it. Do
not use bulbs other than those specified.
Check the replacement bulb for correct
operation before riding.
For the light bulb wattage, see
“Specifications.“
2 P. 123
NOTICE
Jump starting using an automobile battery is not
recommended, as this can damage your motorcycle’s
electrical system.
13 CB1100-31MGC6000.book 93 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Electrical Trouble u Burned-out Light Bulb
94
Troubleshooting
❙

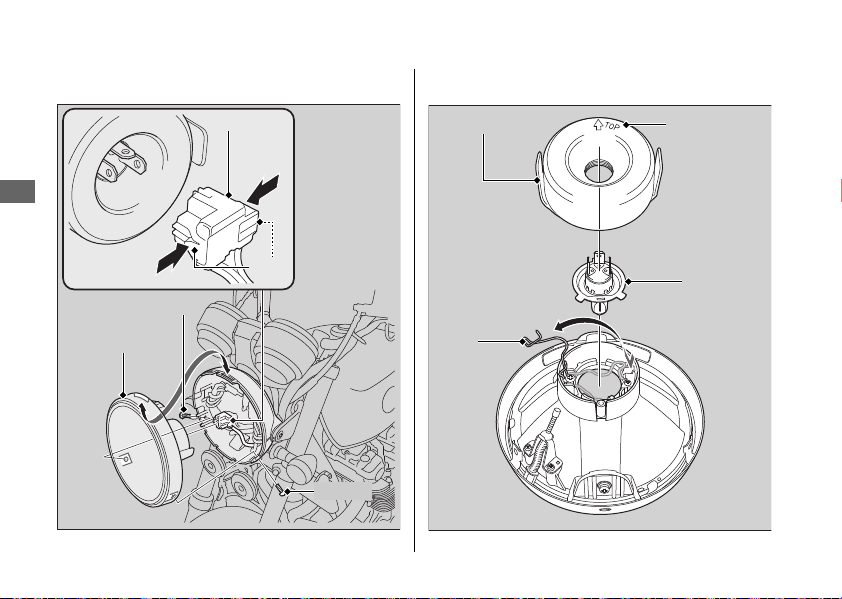

Headlight Bulb
Screw
Headlight
Connector
Tabs
Screw
Bulb
Seat rubber
Bulb
retainer
TOP mark
13 CB1100-31MGC6000.book 94 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Electrical Trouble u Burned-out Light Bulb
95
continued
Troubleshooting
1.
Remove the screws from the headlight
case.
2.
Gently pull the lower end of the headlight
forward and remove the headlight.
3.
Disconnect the connector by pressing
tabs.
4.
Remove the seat rubber.
5.
Press the bulb retainer down and pull out
the bulb without turning it.
6.
Install a new bulb and parts in the reverse
order of removal.
u Install the seat rubber with its “TOP”
mark facing up.
Do not touch the glass surface with your
fingers. If you touch the bulb with your bare
hands, clean it with a cloth moistened with
alcohol.
❙
Brake/Tail Light Bulb
1.
Remove the taillight lens by removing the
bolts.
2.
Turn the socket counterclockwise, then
pull it out.
Taillight lens
Bolt
Bolt
Socket
13 CB1100-31MGC6000.book 95 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Electrical Trouble u Burned-out Light Bulb
96
Troubleshooting
3.
Slightly press the bulb and turn it
counterclockwise.
4.
Install a new bulb and parts in the reverse
order of removal.
❙
Front/Rear Turn Signal Bulb
1.
Remove the screw.
2.
Remove the turn signal lens and lens
packing.
3.
Slightly press the bulb and turn it
counterclockwise.
4.
Install a new bulb and parts in the reverse
order of removal.
Bulb
Socket
Turn signal lens
Screw
Bulb
Lens packing
13 CB1100-31MGC6000.book 96 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Electrical Trouble u Blown Fuse
97
continued
Troubleshooting
Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses.” 2 P. 45
❙
Fuse Box Fuses
1.
Remove the seat. 2 P. 53
2.
Remove the fuse box cover.
3.
Using the fuse puller provided in the tool
kit (2 P. 32), pull the fuses out one by one
and check for a blown fuse. Always
replace a blown fuse with a spare of the
same rating.
4.
Reinstall the fuse box cover.
5.
Reinstall the seat.
Fuse box cover
Spare fuses
13 CB1100-31MGC6000.book 97 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Electrical Trouble u Blown Fuse
98
Troubleshooting
❙
Main Fuse & FI Fuse
1.
Remove the left side cover. 2 P. 54
2.
Remove the starter magnetic switch
cover.
3.
Using the fuse puller provided in the tool
kit (
2 P. 32), pull the main fuse and FI fuse
out one by one and check for a blown
fuse. Always replace a blown fuse with a
spare of the same rating.
u Spare fuses are provided in the fuse
box.
2 P. 97
4.
Reinstall parts in the reverse order of
removal.
Starter magnetic switch cover
Main fuse
FI fuse
NOTICE
If a fuse fails repeatedly, you likely have an electrical
problem. Have your motorcycle inspected by your dealer.
13 CB1100-31MGC6000.book 98 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Information
Keys .......................................................... P. 100
Instruments, Controls, & Other Features ...
P. 101
Caring for Your Motorcycle .................... P. 102
Storing Your Motorcycle......................... P. 104
Transporting Your Motorcycle ............... P. 105
You & the Environment .......................... P. 106
Vehicle Identification Number................ P. 107
Emission Control Systems ....................... P. 108
Catalytic Converter.................................. P. 114
Oxygenated Fuels.................................... P. 115
Authorized Manuals................................ P. 116
Warranty Coverage and Service............. P. 117
Honda Contacts ........................................P. 118
Reporting Safety Defects ..............P. 120
USA
13 CB1100-31MGC6000.book 99 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Keys
100
Information
Keys
Be sure to record the key number provided with
the key number plate. Store the spare key and
recorded key number in a safe location.
To make a duplicate, take the spare key or the
key number to a locksmith.
If you lose all keys and the key number, the
ignition switch assembly will probably have to
be removed by your dealer to determine the key
number.
A metal key holder may cause damage to the
area surrounding the ignition switch.
Ignition key
13 CB1100-31MGC6000.book 100 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Instruments, Controls, & Other Features
101
Information
Instruments, Controls, &
Other Features
The headlight is always on when the ignition
switch is on. Leaving the ignition switch on with
the engine stopped will drain the battery.
Do not turn the key while riding.
Do not use the engine stop switch except in an
emergency. Doing so when riding will cause the
engine to suddenly turn off, making riding unsafe.
If you stop the engine using the engine stop
switch, turn the ignition switch off. Failing to do
so will drain the battery.
The display locks at 999,999 when the readout
exceeds 999,999.
The tripmeter A and B return to 0.0 when the
readout exceeds 999.9.
The owner’s manual, registration, and
insurance information can be stored in the
plastic document bag located under the seat.
2 P. 32
A banking (lean angle) sensor automatically stops
the engine and fuel pump if the motorcycle falls
over. To reset the sensor, you must turn the
ignition switch to OFF and back to the ON position
before the engine can be restarted.
Ignition Switch
Engine Stop Switch
Odometer
Tripmeter
Document Bag
Ignition Cut-off System
13 CB1100-31MGC6000.book 101 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Caring for Your Motorcycle
102
Information
Caring for Your Motorcycle
Frequent cleaning and polishing is important to
ensure the life of your Honda. A clean
motorcycle makes it easier to spot potential
problems.
In particular, seawater and salts used to prevent
ice on roads promote the formation of
corrosion. Always wash your motorcycle
thoroughly after riding on coastal or treated
roads.
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before washing.
1.
Rinse your motorcycle thoroughly using a
garden hose to remove loose dirt.
2.
If necessary, use a sponge or a soft towel
with mild cleaner to remove road grime.
u Clean the headlight lens, panels, and other
plastic components with extra care to
avoid scratching them.
Avoid directing water into the air cleaner,
muffler, and electrical parts.
3.
Thoroughly rinse your motorcycle with plenty
of clean water and dry with a soft, clean
cloth.
4.
After the motorcycle dries, lubricate any
moving parts.
u Make sure that no lubricant spills onto the
brakes or tires. Brake discs or pads
contaminated with oil will suffer greatly
reduced braking effectiveness and can
lead to a crash.
5.
Lubricate the drive chain immediately after
washing and drying the motorcycle.
6.
Apply a coat of wax to prevent corrosion.
u Avoid products that contain harsh
detergents or chemical solvents. These can
damage the metal, paint, and plastic on
your motorcycle.
Keep the wax clear of the tires and brakes.
Washing
13 CB1100-31MGC6000.book 102 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Caring for Your Motorcycle
103
continued
Information
❙
Washing Precautions
Follow these guidelines when washing:
● Do not use high-pressure washers:
u High-pressure water cleaners can damage
moving parts and electrical parts,
rendering them inoperable.
● Do not direct water at the muffler:
u Water in the muffler can prevent starting
and causes rust in the muffler.
● Dry the brakes:
u Water adversely affects braking
effectiveness. After washing, apply the
brakes intermittently at low speed to help
dry them.
● Do not direct water under the seat:
u Water in the under seat compartment can
damage your documents and other
belongings.
● Do not direct water at the air cleaner:
u Water in the air cleaner can prevent the
engine from starting.
● Do not direct water near the headlight:
u Any condensation inside the headlight
should dissipate after a few minutes of
running the engine.
Aluminum will corrode from contact with dirt,
mud, or road salt. Clean aluminum parts
regularly and follow these guidelines to avoid
scratches:
● Do not use stiff brushes, steel wool, or
cleaners containing abrasives.
● Avoid riding over or scraping against curbs.
Follow these guidelines to prevent scratches
and blemishes:
● Wash gently using a soft sponge and plenty
of water.
● To remove stubborn stains, use diluted
detergent and rinse thoroughly with plenty of
water.
Aluminum Components
Panels
13 CB1100-31MGC6000.book 103 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Storing Your Motorcycle
104
Information
● Avoid getting gasoline, brake fluid, or
detergents on the instruments, panels, or
headlight.
The exhaust pipe and muffler are stainless steel
but may become stained by mud or dust. To
remove mud or dust, use a wet sponge and a
liquid kitchen abrasive, then rinse well with
clean water. Dry with chamois or a soft towel. If
necessary, remove heat stains by using a
commercially available fine texture compound.
Then rinse by the same manner as removing
mud or dust.
Storing Your Motorcycle
If you store your motorcycle outdoors, you
should consider using a full-body motorcycle
cover.
If you won’t be riding for an extended period,
follow these guidelines:
● Wash your motorcycle and wax all painted
surfaces (except matte painted surfaces).
Coat chrome pieces with rust-inhibiting oil.
● Lubricate the drive chain. 2 P. 48
● Place your motorcycle on a its center stand
and position a block so that both tires are off
the ground.
● After rain, remove the body cover and allow
the motorcycle to dry.
● Remove the battery (2 P. 56) to prevent
discharge. Charge the battery in a shaded,
well-ventilated area.
u If you leave the battery in place,
disconnect the negative
- terminal to
prevent discharge.
Exhaust Pipe and Muffler
NOTICE
Even though the exhaust is made of stainless steel, it can
become stained. Remove all marks and blemishes as soon
as they are noticed.
13 CB1100-31MGC6000.book 104 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Transporting Your Motorcycle
105
Information
After removing your motorcycle from storage,
inspect all maintenance items required by the
Maintenance Schedule.
For more information about storage,
refer to the Honda Winter Storage Guide,
available from your dealer.
Transporting Your
Motorcycle
If your motorcycle needs to be transported, it
should be carried on a motorcycle trailer or a
flatbed truck or trailer that has a loading ramp
or lifting platform, and motorcycle tie-down
straps. Never try to tow your motorcycle with a
wheel or wheels on the ground.
USA
NOTICE
Towing your motorcycle can cause serious damage to the
transmission.
13 CB1100-31MGC6000.book 105 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
You & the Environment
106
Information
You & the Environment
Owning and riding a motorcycle can be
enjoyable, but you must do your part to protect
the environment.
Use a biodegradable detergent when you wash
your motorcycle. Avoid aerosol spray cleaners
that contain chlorofluorocarbons (CFCs) which
damage the atmosphere’s protective ozone
layer.
Put oil and other toxic wastes in approved
containers and take them to a recycling center.
Call your local or state office of public works or
environmental services to find a recycling center
in your area, and to get instructions on how to
dispose of non-recyclable wastes. Do not place
used engine oil in the trash, or pour it down a
drain or on the ground. Used oil, gasoline, and
cleaning solvents contain poisons that can hurt
refuse workers and contaminate drinking
water, lakes, rivers, and oceans.
Choose Sensible Cleaners
Recycle Wastes
13 CB1100-31MGC6000.book 106 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Vehicle Identification Number
107
continued
Information
Vehicle Identification
Number
The VIN and engine serial numbers uniquely
identify your motorcycle and are required in
order to register your motorcycle. They may also
be required when ordering replacement parts.

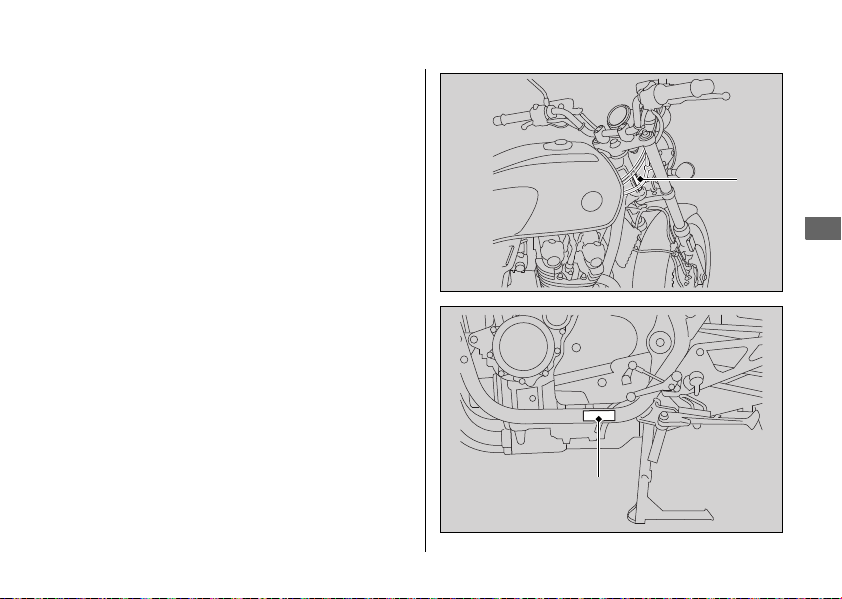

The VIN is stamped on the right side of the
steering head and also appears on the Safety
Certification Label attached to the left side of
the frame.
The engine number is stamped on top of the
crankcase.
You should record these numbers and keep
them in a safe place.
VIN
VIN
13 CB1100-31MGC6000.book 107 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Emission Control Systems
108
Information
Emission Control Systems
Your motorcycle engine emits combustion
byproducts, including carbon monoxide (CO),
oxides of nitrogen (NOx), and hydrocarbons
(HC). Gasoline evaporation also emits
hydrocarbons. Controlling the production of
NOx, CO, and HC is important for the
environment.
Engine
number
13 CB1100-31MGC6000.book 108 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Emission Control Systems
109
continued
Information
The U.S. Environmental Protection Agency
(EPA), the California Air Resources Board
(CARB), and Environment Canada (EC) require
that your motorcycle comply with applicable
exhaust, crankcase, and fuel permeation
emission standards during its useful life, when
operated and maintained according to the
instructions provided.
CARB also requires that your motorcycle comply
with applicable evaporative emission
requirements during its useful life, when
operated and maintained according to the
instructions provided.
Compliance with the terms of the Distributor’s
Warranties for Honda Motorcycle Emission
Control Systems is necessary in order to
maintain a valid emissions system warranty
(USA only). The Vehicle Emission Control
Information label is located under the seat.
2 P. 53
Exhaust Emission Requirements
Vehicle emission control information label
USA
Vehicle emission control information label
Canada
13 CB1100-31MGC6000.book 109 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Emission Control Systems
110
Information
The EPA requires that motorcycles built after
January 1, 1983 comply with applicable noise
emission standards for one year or 3,730 miles
(6,000 km) after the time of purchase when
operated and maintained according to the
instructions provided.
The exhaust emission control system includes
the following components that should not need
adjustment, although periodic inspection by
your Honda dealer is recommended.
❙
PGM-FI System
The PGM-FI (programmed fuel injection) system
uses sequential multiport fuel injection, and is
comprised of air intake, engine control, fuel
control, and exhaust control subsystems.
The engine control module (ECM) uses sensors
to determine how much air enters the engine,
and then controls how much fuel to inject.
❙
Ignition Timing Control System
The ignition timing control system adjusts the
ignition timing to reduce the amount of HC,
CO, and NOx produced.
Noise Emission Requirements Exhaust Emission Control System
13 CB1100-31MGC6000.book 110 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Emission Control Systems
111
continued
Information
❙
Secondary Air Injection System
The secondary air injection system adds filtered
air into the exhaust gas to help improve
emission control performance.
❙
Catalytic Converter
The exhaust system contains a catalytic
converter. Catalytic converter uses a catalyst to
convert most of the harmful exhaust gas
compounds into harmless compounds.
An evaporative emissions control system uses a
canister filled with charcoal to absorb fuel vapor
from the fuel tank while the engine is off. The
vapor is drawn into the engine and burned
while riding.
Evaporative Emission Control System
50 STATE type (meets California)
13 CB1100-31MGC6000.book 111 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Emission Control Systems
112
Information
The positive crankcase ventilation system
prevents gases that build up in the engine’s
crankcase from being released into the
atmosphere. The gases are drawn into the
engine and burned while riding.
The fuel tank, fuel hoses, and fuel vapor charge
hoses use fuel permeation control technologies
to prevent fuel vapor emissions.
Tampering with these components to reduce or
defeat the effectiveness of the fuel permeation
technologies is prohibited.
❙
TAMPERING WITH THE NOISE CONTROL
SYSTEM IS PROHIBITED:
U. S. federal law prohibits, and Canadian
provincial laws may prohibit, the following acts
or the causing thereof: (1) The removal or
rendering inoperative by any person, other than
for purposes of maintenance, repair or
replacement, of any device or element of design
incorporated into any new vehicle for the
purpose of noise control prior to its sale or
delivery to the ultimate purchaser or while it is
in use; or (2) the use of the vehicle after such
device or element of design has been removed
or rendered inoperative by any person.
Crankcase Emissions Control System
Fuel Permeation Emission Control
Noise Emission Control System
13 CB1100-31MGC6000.book 112 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Emission Control Systems
113
Information
❙
AMONG THOSE ACTS PRESUMED TO
CONSTITUTE TAMPERING ARE THE
FOLLOWING ACTS:
1.
Removal of, or puncturing the muffler,
baffles, header pipes or any other component
which conducts exhaust gases.
2.
Removal of, or puncturing of any part of the
intake system.
3.
Lack of proper maintenance.
4.
Replacing any moving parts of the vehicle, or
parts of the exhaust or intake system, with
parts other than those specified by the
manufacturer.
Have your motorcycle inspected and repaired by
your dealer if you experience any of the
following symptoms:
● Hard starting or stalling after starting
● Rough idling
● Misfiring or backfiring during acceleration
● Poor engine performance and poor fuel
economy
Problems Affecting Motorcycle Exhaust
Emissions
13 CB1100-31MGC6000.book 113 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Catalytic Converter
114
Information
Catalytic Converter
This motorcycle is equipped with an three-way
catalytic converter. The catalytic converter
contain precious metals that serve as catalysts in
high temperature chemical reactions that
convert hydrocarbons (HC), carbon monoxide
(CO), and oxides of nitrogen (NOx) in the
exhaust gasses into safe compounds.
A defective catalytic converter contributes to air
pollution and can impair your engine’s
performance. A replacement unit must be an
original Honda part or equivalent.
Follow these guidelines to protect your
motorcycle’s catalytic converter.
● Always use unleaded gasoline. Leaded
gasoline will damage the catalytic converter.
● Keep the engine in good running condition.
A poorly running engine can cause the
catalytic converter to overheat causing
damage to the converter or the motorcycle.
● If your engine is misfiring, backfiring, stalling,
or otherwise not running properly, stop
riding and turn off the engine. Have your
motorcycle serviced as soon as possible.
13 CB1100-31MGC6000.book 114 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Oxygenated Fuels
115
Information
Oxygenated Fuels
Some conventional fuels blended with alcohol
or an ether compound are available in some
locales to help reduce emissions to meet clean
air standards. These gasolines are collectively
referred to as oxygenated fuels. If you plan to
use oxygenated fuel, check that it is unleaded
and meets the minimum octane rating and
blend requirement.
The following fuel blends are EPA-approved
and have been approved for use in your
motorcycle:
● Ethanol (ethyl alcohol) 10% by volume (max).
Gasoline containing ethanol may be
marketed under the name “Gasohol.”
● MTBE (Methyl Tertiary Butyl Ether) 15% by
volume (max)
● Methanol (methyl alcohol) 5% by volume
(max) that contain cosolvents and corrosion
inhibitors to protect the fuel system. Never
use a blend containing more than 5%.
If you accidentally fill your fuel tank with an
oxygenated fuel containing higher percentages,
you may experience performance problems. To
resolve the problem, have your dealer drain the
fuel tank and replace with the correct fuel. Fuel
system or performance problems resulting from
the use of an oxygenated fuel containing higher
percentages are not covered by your warranty.
If you notice any undesirable operating
symptoms or performance problems, try a
different brand of gasoline.
NOTICE
Improper use of oxygenated fuels can damage metal,
rubber, and plastic parts of your fuel system.
Oxygenated fuel can also damage paint. Damage caused
by spilled fuel is not covered by warranty.
13 CB1100-31MGC6000.book 115 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Authorized Manuals
116
Information
Authorized Manuals
The Service Manual used by your authorized
Honda dealer is available from your Honda
dealer or Helm, Inc.
(USA only, Canada: See your Honda dealer to
order authorized manuals.)
Also available, but not necessary to service your
model, is the Honda Common Service Manual,
which explains basic service information for
various systems on Honda motorcycles,
scooters, ATV’s, MUVs, and PWCs.
These Honda manuals are written for the
professional technician. However, if you possess
the proper tools, observe the safety standards,
and are mechanically capable, you should find
them easy to use.
Special Honda tools are necessary for some
procedures.
Order On-Line: www.helminc.com
Order Toll Free: 1-888-CYCLE93
(1-888-292-5393)
(NOTE: For Credit Card Orders Only)
Monday – Friday 8:00 AM – 6:00 PM EST
Publication Item No. Description
61MGC00 2013 CB1100/A Service Manual
61CM002 Common Service Manual
31MGC600 2013 CB1100/A Owner’s Manual
13 CB1100-31MGC6000.book 116 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Warranty Coverage and Service
117
continued
Information
Warranty Coverage and
Service
Your new Honda is covered by the following
warranties:
● Motorcycle Limited Warranty
● Emission Control System Warranty
● Noise Control Warranty
The responsibilities, restrictions, and exclusions
that apply to these warranties are explained in
the Warranties Booklet given to you by your
Honda dealer at the time of purchase. Always
keep your Honda owner’s card with your
Warranties Booklet.
Please refer to the Warranty Booklet
posted on our web site at www.honda.ca.
It is important to realize that your warranty
applies only to defects in material or
workmanship of your Honda. Your warranty
coverage does not apply to the normal wear
and deterioration associated with use of the
motorcycle.
Your warranty coverage is not voided if you
perform your own maintenance. However,
failures that occur due directly to improper
maintenance are not covered by these
warranties.
You can extend almost all of your warranty
coverage through the Honda Protection Plan
(USA only). For more information, see your
Honda dealer.
Please remember that maintenance
recommended in the Maintenance Schedule is
not included in your warranty coverage.
Coverage
Canada
Service
13 CB1100-31MGC6000.book 117 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Honda Contacts
118
Information
If you believe you have a problem with your
motorcycle, call the service department of your
Honda dealer. Make an appointment for an
inspection and diagnosis. You will be asked to
authorize that inspection, and your dealer will
return the results of the inspection. If a problem
exists and is covered under warranty, your
dealer will perform the warranty repairs.
If you have any questions about your warranty
coverage or the nature of the repair, talk to the
Service Manager of your Honda dealer.
If a misunderstanding occurs and you aren’t
satisfied with your dealer’s handling of the
situation, we suggest you discuss your problem
with the appropriate member of the
dealership’s management team. If you are still
not satisfied, contact the owner of the
dealership or their designated representative.
Honda Contacts
If you wish to contact Honda directly to
comment on your experiences with your
motorcycle or with your dealer, please send
your comments to the following address:
Honda Canada Inc., Customer
Relation Dept, 180 Honda Boulevard,
Markham, Ontario L6C 0H9, telephone: (888)
946-6329, facsimile: (877) 939-0909
Please include the following information in your
letter:
● Name, address, and telephone number
American Honda Motor Co., Inc.
Motorcycle Division,
American Honda Motor Co., Inc.,
P.O. Box 2200, Torrance,
CA 90509-2200
Mailstop: 100-4C-7B,
Telephone: (866) 784-1870.
Canada
13 CB1100-31MGC6000.book 118 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Honda Contacts
119
Information
● Product model, year, and VIN
● Date of purchase
● Dealer name and address
We will likely ask your Honda dealer to respond,
or possibly acknowledge your comments
directly.
The service department of your Honda dealer
offers trained personnel to perform regular
maintenance and most repairs. It has the latest
available service information from Honda and
also handles warranty inspections and repairs.
The parts department offers Honda Genuine
Parts, Pro Honda products, Honda Genuine
Accessories (USA only), and Honda accessories
and products (Canada only) that provide the
same quality that went into your motorcycle.
The sales department offers the Honda
Protection Plan to extend almost all of your
warranty coverage (USA only)
Your Honda dealer can also supply information
about, riding events, and information about
safety training available in your local area, and
the Honda Rider’s Club of America (USA only).
The Honda Rider’s Club of America (HRCA)
sponsors local riding chapters at Authorized
Honda Dealerships across the country. You can
log on to the HRCA Clubhouse website for
more information at www.hrca.honda.com.
Your Honda Dealer
Honda Rider’s Club of America (HRCA)
13 CB1100-31MGC6000.book 119 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Reporting Safety Defects
120
Information
Reporting Safety
Defects
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National
Highway Traffic Safety Administration
(NHTSA) in addition to notifying
American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your dealer, or
American Honda Motor Co., Inc.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at:
1-888-327-4236
(TTY: 1-800-424-9153); go to
http://www.safercar.gov;
or write to:
Administrator, NHTSA,
1200 New Jersey Avenue, SE.,
Washington, DC 20590.
You can also obtain other information
about motor vehicle safety from:
http://www.safercar.gov.
USA
13 CB1100-31MGC6000.book 120 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
121
Specifications
Specifications
Specifications
■ Main Components
*1 Including rider, passenger, all luggage, and accessories
Type SC65
Overall length 87.0 in (2,210 mm)
Overall width 32.9 in (835 mm)
Overall height 44.5 in (1,130 mm)
Wheelbase 58.7 in (1,490 mm)
Minimum ground
clearance
4.92 in (125 mm)
Caster angle 27º 00’
Trail 4.5 in (114 mm)
Curb weight
CB1100
CB1100A
540 lb (245 kg)
549 lb (249 kg)
Maximum weight
capacity
*1
351 lb (159 kg)
Passenger capacity Rider and 1 passenger
Minimum turning radius 8.86 ft (2.70 m)
Displacement 69.5 cu-in (1,140 cm
3
)
Bore x stroke 2.89 × 2.65 in (73.5 x 67.2 mm)
Compression
ratio
9.5:1
Fuel
Unleaded gasoline
Recommended fuel octane number:
Pump Octane Number (PON) 86 or higher.
Tank capacity 3.86 US gal (14.6 liters)
Battery
YTZ14S
12V-11.2Ah (10 HR)
Gear ratios
1st 3.166
2nd 2.062
3rd 1.545
4th 1.250
5th 1.111
Reduction ratios
(primary / final)
1.652 / 2.166
13 CB1100-31MGC6000.book 121 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Specifications
122
Specifications
■ Service Data
Tire size
Front 110/80R18M/C 58V
Rear 140/70R18M/C 67V
Tire type Radial, tubeless
Recommended
Tires
Front
BRIDGESTONE BT-54F RADIAL G
DUNLOP D205F
Rear
BRIDGESTONE BT-54R RADIAL G
DUNLOP D205
Tire air pressure
Front 36 psi (250 kPa, 2.50 kgf/cm
2
)
Rear 42 psi (290 kPa, 2.90 kgf/cm
2
)
Minimum tread
depth
Front 0.06 in (1.5 mm)
Rear 0.08 in (2.0 mm)
Spark plugs (standard) LMAR8A-9S (NGK)
Spark plug gap
0.031 to 0.035 in
(0.80 to 0.90 mm)
Idle speed 1,100 ± 100 rpm
Recommended
engine oil
API Service Classification SG or higher except
oils labeled as energy conserving or resource
conserving on the circular API service label,
SAE 10W-30, JASO T 903 standard MA, Pro
Honda GN4 4-stroke oil (USA & Canada) or
Honda 4-stroke oil, or an equivalent
motorcycle oil
Engine oil
capacity
After draining 4.0 US qt (3.8 liters)
After draining &
engine oil filter
change
4.1 US qt (3.9 liters)
After disassembly 5.2 US qt (4.9 liters)
Recommended
brake (clutch)
fluid
Honda DOT 4 Brake Fluid
13 CB1100-31MGC6000.book 122 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
Specifications
123
Specifications
■ Bulbs
■ Fuses
■ Torque Specifications
Recommended
drive chain
lubricant
Pro Honda HP Chain Lube
Drive chain slack 1.0 to 1.4 in (25 to 35 mm)
Standard drive
chain
DID50ZVM2 or RK50LF0Z2
No. of links 110
Standard
sprocket sizes
Engine sprocket 18T
Rear wheel
sprocket
39T
Headlight 12V-60/55W
Brake/Tail light 12V-21/5W
Front turn signal lights 12V-21W x 2
Rear turn signal lights 12V-21W x 2
Main fuse 30A
Other fuses
CB1100
20A, 10A
CB1100A
30A, 20A, 10A
Engine oil drain bolt 22 lbf·ft (30 N·m, 3.1 kgf·m)
Oil filter 19 lbf·ft (26 N·m, 2.7 kgf·m)
Front wheel axle bolt 43 lbf·ft (59 N·m, 6.0 kgf·m)
Front wheel brake caliper
mounting bolts
23 lbf·ft (31 N·m, 3.2 kgf·m)
Front wheel axle pinch bolts 19 lbf·ft (26 N·m, 2.7 kgf·m)
Rear wheel axle nut 83 lbf·ft (113 N·m, 11.5 kgf·m)
13 CB1100-31MGC6000.book 123 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
124
Information Record
VIN
Engine No.
Color Label & Code
Owner’s Name
Address
City/State
Phone
Dealer’s Name
Address
City/State
Phone
Service Manager
13 CB1100-31MGC6000.book 124 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
125
Index
Index
Index
A
ABS (Anti-lock Brake System)
Indicator ............................................ 24, 84
Accessories................................................. 14
Air Cleaner ................................................ 64
Authorized Manuals ............................... 116
B
Battery ................................................. 43, 56
Brakelight Switch...................................... 79
Brakes
Fluid................................................... 47, 66
Pad Wear ................................................. 67
Braking ...................................................... 10
Bulb
Brake/Tail Light ........................................ 95
Front Turn Signal...................................... 96
Headlight ................................................. 94
Rear Turn Signal....................................... 96
C
Caring for Your Motorcycle ................... 102
Clock .......................................................... 20
Clutch
Fluid ......................................................... 68
Color Label................................................. 42
Combined ABS........................................... 11
Crankcase Breather ................................... 75
D
Digital Clock Adjustment.......................... 21
Drive Chain .......................................... 47, 70
Drive Chain Slider...................................... 73
E
Electrical Trouble....................................... 93
Emission Control Systems........................ 108
Engine
Number.................................................. 107
Oil ...................................................... 46, 60
Oil Filter.................................................... 62
Overheats................................................. 82
Starting .................................................... 28
Stop Switch ...................................... 26, 101
Stopping ................................................ 101
Environment ............................................ 106
13 CB1100-31MGC6000.book 125 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
126
Index
F
Flooded Engine ......................................... 28
Front Brake Lever Adjustment ................. 76
Front Suspension ....................................... 77
Fuel
Recommended ......................................... 30
Remaining ................................................ 19
Tank Capacity........................................... 30
Fuel Gauge................................................. 19
Fuses..................................................... 45, 97
G
Gasohol .................................................... 115
Gasoline ............................................. 30, 115
H
Hazard Switch............................................ 26
Headlight Aim ........................................... 79
Headlight Dimmer Switch......................... 26
Helmet Holder ........................................... 31
High Beam Indicator ................................. 25
High Oil Temperature Indicator ......... 24, 82
Honda Contacts ....................................... 118
Horn Button ...............................................26
I
Ignition Cut-off System
Banking Sensor .......................................101
Side Stand ................................................69
Ignition Key..............................................100
Ignition Switch...........................................27
Indicators....................................................24
Information Record .................................124
Instruments ................................................18
L
Labels............................................................7
Load Limits .................................................15
Loading Guidelines....................................15
Low Oil Pressure Indicator ..................24, 83
M
Maintenance
Fundamentals ...........................................40
Importance ...............................................35
Safety .......................................................36
13 CB1100-31MGC6000.book 126 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
127
Index
Schedule .................................................. 37
Maximum Weight Limit............................ 15
Modifications ............................................ 14
N
Neutral Indicator....................................... 25
O
Odometer .......................................... 20, 101
Oil
Engine ............................................... 46, 60
Overheating .............................................. 82
Oxygenated Fuels ................................... 115
P
Parking ...................................................... 12
Parts Location............................................ 16
Passing light control switch...................... 26
PGM-FI (Programmed Fuel Injection)
malfunction indicator lamp (MIL) .... 24, 83
Protective Apparel ...................................... 9
R
Recommended
Fuel .......................................................... 30
Oil ............................................................ 46
Refueling ................................................... 30
Removal
Clip .......................................................... 55
Seat.......................................................... 53
Side Cover................................................ 54
Repair Kit ................................................... 85
Reporting Safety Defects (U.S.) .............. 120
Riding Precautions .................................... 10
S
Safety Labels................................................ 7
Safety Precautions....................................... 9
Seat ............................................................ 53
Shifting Gears ............................................ 29
Side Stand .................................................. 69
Side Stand Ignition Cut-off System .......... 69
Specifications........................................... 121
Speedometer ............................................. 18
Start Button ............................................... 26
13 CB1100-31MGC6000.book 127 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
128
Index
Starting the Engine ................................... 28
Steering Lock ............................................. 27
Stopping Engine...................................... 101
Storage
Equipment................................................ 31
Owner’s Manual............................... 32, 101
Storing Your Motorcycle......................... 104
Switches ..................................................... 26
T
Tachometer................................................ 18
Throttle ...................................................... 74
Tires
Air Pressure .............................................. 49
Puncture................................................... 85
Replacing ................................................. 49
Transporting Your Motorcycle ............... 105
Tripmeter........................................... 20, 101
Troubleshooting........................................ 80
Turn signal indicators................................ 25
Turn Signal Switch..................................... 26
V
Vehicle Identification Number................107
W
Warning Indicators ON..............................83
Warranty Coverage and Service .............117
Washing Your Motorcycle.......................102
Weight Limit ......................................15, 121
Wheels
Front removal ...........................................86
Rear removal.............................................90
13 CB1100-31MGC6000.book 128 ページ ２０１２年１１月１６日 金曜日 午後１０時１１分
