Safety Instructions . . . . . . . . 2–5
Operating Instructions
Control Panels . . . . . . . . . . . . . . . . 6–8
Cycle Options . . . . . . . . . . . . . . . . . 9-10
Dryer Features . . . . . . . . . . . . . . . . . . 10
Reversing the Door Swing . . . .11-14
Loading and Using
the Dryer . . . . . . . . . . . . . . . . . . . . . 15-16
Venting the Dryer . . . . . . . . . . . . . . . 17
Connecting Inlet Hoses . . . . . . . . . . 18
Stacking . . . . . . . . . . . . . . . . . . . . .19-22
Troubleshooting Tips . . . . 23-26
Consumer Support
Warranty . . . . . . . . . . . . . . . . . . . 28, 29
Consumer Support . . . . . . . . . . . . . . 30
29-5808 05/12 ATS
www.GEAppliances.ca
GFDN110
GFDN120
GFDN130
GFDS140
GFDS145
GFDS150
GFDS155
GFMN110
GMMN120
GFMN120
GFMS140
GFMS145
GFMS150
GFMS155
Owner’s Manual
Dryers
Write the model and serial
numbers here:
Model # _____________
Serial # ______________
They are on the label on
the front of the dryer behind
the door.
2
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
California Safe Drinking Water and Toxic Enforcement Act
This act requires the governor of California to publish a list of substances known to the state to cause cancer,
birth defects or other reproductive harm and requires businesses to warn customers of potential exposure to
such substances.
Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide,
formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.
Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be minimized
further by properly venting the dryer to the outdoors.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk
of fire or explosion, electric shock, or to prevent property damage, personal injury, or
death.
WHAT TO DO IF YOU SMELL GAS:
1
Do not try to light a match, or cigarette,
or turn on any gas or electrical
appliance.
2
Do not touch any electrical switch; do
not use any phone in your building.
3
Clear the room, building or area of all
occupants.
4
Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions carefully.
5
If you cannot reach your gas supplier,
call the fire department.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
3
Properly ground dryer to conform with all
governing codes and ordinances. Follow details in
Installation Instructions.
Install or store where it will not be exposed to
temperatures below freezing or exposed to the
weather.
Connect to a properly rated, protected and sized
power supply circuit to avoid electrical overload.
Remove the colored protective film from both the
control panel and the door.
Remove all sharp packing items and dispose of all
shipping materials properly.
Exhaust/Ducting:
1
All dryers MUST be exhausted to the outside to
prevent large amounts of moisture and lint from
being blown into the room.
2
Use only rigid metal 4 diameter ductwork inside
the dryer cabinet and use only UL approved
transition ducting between the dryer and the
home duct. USE OF PLASTIC OR OTHER
COMBUSTIBLE DUCTWORK CAN CAUSE A FIRE.
PUNCTURED DUCTWORK CAN CAUSE A FIRE IF
IT COLLAPSES OR BECOMES OTHERWISE
RESTRICTED IN USE OR DURING INSTALLATION.
For complete details, follow the Installation
Instructions.
PROPER INSTALLATION
This dryer must be properly installed and located in accordance with the Installation Instructions
before it is used. If you did not receive an Installation Instructions sheet, you can receive one by
visiting www.GEAppliances.ca, or call 1-800-561-3344.
www.GEAppliances.ca
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
4
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
YOUR LAUNDRY AREA
Keep the area underneath and around your
appliances free of combustible materials (lint,
paper, rags, etc.), gasoline, chemicals and other
flammable vapors and liquids.
Keep the floor around your appliances clean and
dry to reduce the possibility of slipping.
Close supervision is necessary if this appliance is
used by or near children. Do not allow children to
play on, with or inside this or any other appliance.
Keep all laundry aids (such as detergents, bleaches,
etc.) out of the reach of children, preferably in a
locked cabinet. Observe all warnings on container
labels to avoid injury.
Never climb on or stand on the dryer top.
Keep the area around the exhaust opening
and adjacent surrounding areas free from the
accumulation of lint, dust and dirt.
If you see water on the floor around the dryer, call
for service.
Do not spray any type of aerosol into, on or near
dryer at any time.
WHEN USING YOUR DRYER
Never reach into the dryer while the drum is
moving. Before loading, unloading or adding
clothes, wait until the drum has completely
stopped.
Clean the lint filter before each load to prevent lint
accumulation inside the dryer or in the room.
DO NOT OPERATE THE DRYER WITHOUT THE LINT
FILTER IN PLACE.
Do not wash or dry articles that have been
cleaned in, washed in, soaked in or spotted with
combustible or explosive substances (such as
wax, oil, paint, gasoline, degreasers, dry-cleaning
solvents, kerosene, etc.) which may ignite or
explode. Do not add these substances to the
wash water. Do not use or place these substances
around your washer or dryer during operation.
Do not place items exposed to cooking oils in your
dryer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause
a clothes load to catch fire
.
Any article on which you have used a cleaning
solvent or that contains flammable materials (such
as cleaning cloths, mops, towels used in beauty
salons, restaurants or barber shops, etc.) must
not be placed in or near the dryer until solvents or
flammable materials have been removed. There
are many highly flammable items used in homes
such as acetone, denatured alcohol, gasoline,
kerosene, some household cleaners, some spot
removers, turpentines, waxes, wax removers and
products containing petroleum distillates.
The laundry process can reduce the flame
retardancy of fabrics. To avoid such a result,
carefully follow the garment manufacturer’s care
instructions.
Do not dry articles containing rubber, plastic, foam
or similar materials such as padded bras, tennis
shoes, galoshes, bath mats, rugs, bibs, baby pants,
plastic bags, pillows, etc., that may melt or burn.
Some rubber materials, when heated, can under
certain circumstances produce fire by spontaneous
combustion.
Do not store plastic, paper or clothing that may
burn or melt on top of the dryer during operation.
Garments labeled Dry Away from Heat or Do Not
Tumble Dry (such as life jackets containing kapok)
must not be put in your dryer.
Do not dry fiberglass articles in your dryer.
Skin irritation could result from the remaining
particles that may be picked up by clothing during
subsequent dryer uses.
To minimize the possibility of electric shock, unplug
this appliance from the power supply or disconnect
the dryer at the building’s distribution panel by
removing the fuse or switching off the circuit
breaker before attempting any maintenance or
cleaning (except the removal and cleaning of the
lint filter). NOTE: Pressing Power, Start or Lock
does NOT disconnect the appliance from the
power supply.
5
WHEN NOT USING YOUR DRYER
Grasp the plug firmly when disconnecting this
appliance to avoid damage to the cord while
pulling. Place the cord away from traffic areas
so it will not be stepped on, tripped over or
subjected to damage.
Do not attempt to repair or replace any part
of this appliance or attempt any servicing unless
specifically recommended in this Owner’s Manual
or in published user-repair instructions that you
understand and have the skills to carry out.
Before discarding a dryer, or removing it from
service, remove the dryer door to prevent children
from hiding inside.
Do not tamper with controls.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
www.GEAppliances.ca
WHEN USING YOUR DRYER (cont.)
Never attempt to operate this appliance if it is
damaged, malfunctioning, partially disassembled,
or has missing or broken parts, including a
damaged cord or plug.
The interior of the machine and the exhaust duct
connection inside the dryer should be cleaned at
least once a year by a qualified technician.
See the Loading and Using the Dryer section.
If yours is a gas dryer, it is equipped with an
automatic electric ignition and does not have a
pilot light. DO NOT ATTEMPT TO LIGHT WITH A
MATCH. Burns may result from having your hand
in the vicinity of the burner when the automatic
ignition turns on.
You may wish to soften your laundered fabrics
or reduce the static electricity in them by using
a dryer-applied fabric softener or an anti-static
conditioner. We recommend you use either a
fabric softener in the wash cycle, according
to the manufacturer’s instructions for those
products, or try a dryer-added product for which
the manufacturer gives written assurance on
the package that their product can be safely
used in your dryer. Service or performance
problems caused by use of these products are
the responsibility of the manufacturers of those
products and are not covered under the warranty
to this appliance.
Never attempt to use the Steam DeWrinkle cycle
without clothes in the drum.
6
About the dryer control panel.
WARNING!
To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS
before operating this appliance.
Throughout this manual, features and appearance may vary from your model.
You can locate your model number at the top inside of the door opening.
Models GFDN110/120/130, GFMN110/120/130, and GMMN120
Models GFDS140/145/150/155 and GFMS140/145/150/155
1
2
3
6
4
5
8
1
6
2
3
4
5
7
8
7
About the dryer control panel.
Power
Press to “wake up” the display. If the display is active, press to put the dryer in the standby mode.
NOTE: Pressing Power does not disconnect the appliance from the power supply.
Dry Cycles
The dry cycle controls the length and tumble speed of the drying process. The chart below will help you match the dry
setting with the loads.
Sensor Cycles Description
Normal Mixed Load
For loads consisting of cottons and poly-blends.
Cottons
For cottons and most linens.
Bulky Bedding
(on some models)
For large coats, bed spreads, mattress covers, sleeping bags and similar large and bulky
items. Large items such as blankets, comforters, jackets and small rugs.
Easy Care
(on some models)
For wrinkle-free and permanent press items.
Delicates
For lingerie and special-care fabrics
Speed Dry
For small loads that are needed in a hurry, such as sports or school uniforms. Can also be
used if the previous cycle left some items damp, such as collars or waistbands.
1
2
Timed Dry Cycles Description
Warm Up
(on some models)
Provides 10 minutes of warming time to warm up clothes.
Air Fluff/No Heat
Use this feature to tumble items without heat.
DeWrinkle/Full Loads
(on some models)
For removing wrinkles from items that are dry or slightly damp. This cycle is not
recommended for delicate fabrics.
Steam DeWrinkle/
Full Loads
(on some models)
For slightly wrinkled dry garments. Significantly reduces wrinkles on garments. After this
cycle, the unit will beep and display “0:00.” If the unit is not turned off or if the door is not
opened, the dryer will continue to tumble for 30 minutes. At the end of 30 minutes, it will
display “0:00” and the cycle will be complete.
Note: A single extremely light fabric item may need to have an additional item included in
the cycle to achieve optimum results.
My Cycle Description
My Cycle
(on some models)
Press to use, create or modify custom dry cycles. (See the My Cycle section for more details)
Time Dry
Use to set your own dry time. Time Dry is also recommended for small loads
To use Time Dry:
1. Turn dry cycle dial to Time Dry.
2. Increase the drying time by pressing the Time Dry button.
Note: This button only increases the time. When max time is reached, pressing the button again will reset the counter to
the lowest setting.
3. Select the Temp.
4. Close the door.
5. Press Start.
3
www.GEAppliances.ca
8
High
For regular to heavy cottons.
Medium
For synthetics, blends and items labeled permanent press.
Low
For delicates, synthetics and items labeled Tumble Dry Low.
Extra Low
For lingerie and special-care fabrics.
4
Sensor Dry “Level”
The sensor continuously monitors the amount of moisture in the load. When the moisture in your clothes reaches your
selected dry level, the dryer will stop.
Note: Sensor dry “Level” only works for Normal Mixed Load, Cottons, Bulky Bedding, Easy Care, Delicates and
Speed Dry.
5
Dry “Temp”
You can change the temperature of your dry cycle.
6
Start
Press to start a dry cycle. If the dryer is running, press it once and it will pause the dryer.
Press it again to resume the dry cycle.
My Cycle
Set up your favorite combination of settings and save them here for one touch recall.
These custom settings can be set while a cycle is in progress.
To store a My Cycle combination of settings:
1. Select your drying cycle.
2. Change DRY “Temp”, and SENSOR DRY “Level” settings to fit your needs.
3. Select any drying OPTIONS you want.
4. Press and hold the My Cycle button pad for three seconds to store your selection. A beep will sound and
the pad light will light up.
To recall your stored MY CYCLE combination:
Press the MY CYCLE button before drying a load.
To change your stored My Cycle combination:
Follow steps 1–4 in “To store a My Cycle combination of settings”.
8
“CLEAN LINT FILTER” (message)
(This message represents only a reminder and does not always appear when filter needs cleaning. The filter should be
cleaned after every drying cycle is complete.)
This message will disappear after the Start button is pressed. Even though you may have already cleaned the filter
(before or after the Power button has been pressed), the “CLEAN LINT FILTER” message will still be displayed until the
Start button is activated.
7
9
About cycle options.
NOTE: Not all features are available on all dryer models. www.GEAppliances.ca
Extended Tumble
Minimizes wrinkles by adding approximately
60 minutes of no-heat tumbling after clothes
are dry. The beeper will sound every two
minutes as a reminder to remove the clothes.
The ESTIMATED TIME REMAINING display will
show 0:00.
The extended tumble time does not get
added to the cycle time on the display
Delay Dry (on some models)
Use to delay the start of your dryer.
1. Choose your dry cycle and any options.
2. Press Delay Dry. You can increase the
delay time in 1 hour increments using the
Delay Dry button.
3. Press the Start pad to start the
countdown.
NOTES:
If the door is opened while the dryer is
in Delay Dry, the countdown time will
not restart unless the door is closed and
Start has been pressed again.
e-DRY
Reduces the total energy consumption of
specific dryer cycles by adjusting certain
heat settings.
Note: Cycle times will change when e-DRY is
selected.
This feature can be used with Delicates, Easy
Care, Normal Mixed Loads and Cottons.
Signal
Alerts you that the cycle is complete.
The beeper will continue to sound every
minute for the next 5 minutes, until the
clothes have been removed. The clothes
should be removed when the beeper goes off
so wrinkles don’t set in.
Press Signal to select low, medium or high
volume, or to turn the beeper off.
10
About cycle options. NOTE: Not all features are available on all dryer models.
My Cycle (on some models)
To save a favorite cycle, set the desired settings
and hold down the My Cycle button for 3
seconds. A beep will sound to indicate the cycle
has been saved.
To use your custom cycle, press the My Cycle
button before drying a load.
To change the saved cycle, set the desired
settings and hold down the My Cycle button for
3 seconds.
Estimated Time Remaining
Displays the approximate time remaining until
the end of the cycle.
As the cycle begins, you will see an initial
approximate total cycle time in the display.
Then lights will “race” in the display. This means
the dryer is continuously monitoring
the amount of moisture in the load.
The lights will continue until the dryer senses a
low level of moisture in the load. At that point,
the dryer will calculate and display
the approximate time remaining.
About dryer features.
Drum Lamp
The drum lamp comes on automatically when the door is opened.
Before replacing the light bulb, be sure to unplug the dryer power cord or
disconnect the dryer at the household distribution panel by removing the fuse or
switching off the circuit breaker. Reach above dryer
opening from inside the drum.
Remove the
bulb and replace with the same size bulb.
Lock
You can lock the controls to prevent any
selections from being made. You can also lock
the controls after you have started a cycle.
Children cannot accidentally start the dryer
by touching pads with this option selected.
To lock the dryer, press and hold the lock icon
for 3 seconds. To unlock the dryer, press and
hold the lock icon for 3 seconds.
The Lock icon next to the timer will light up
when the controls are locked.
11
Reversing the door swing. www.GEAppliances.ca
IMPORTANT NOTES:
Read the instructions all the way
through before starting.
Handle parts carefully to avoid
scratching paint.
Set screws down by their related parts
to avoid using them in the wrong places.
Provide a non-scratching work surface
for the door.
Normal completion time to reverse the
door swing is 30–60 minutes.
IMPORTANT: Once you begin, do not move
the cabinet until door-swing reversal is
completed.
These instructions are for changing the
hinges from the right side to the left
side―if you ever want to switch them
back to the right side, follow these same
instructions and reverse all references to
the left and right.
TOOLS YOU WILL NEED
Phillips Head Screwdriver
Putty Knife
or Thin-Blade
Screwdriver
DOOR PARTS
Hinge Cover
Plastic Cover
STEP-BY-STEP INSTRUCTIONS
5 - # 8 Screws
(door asm and front panel)
8 - # 10 Screws
(inner door, outer ring & hinge cover)
4 - # 8 Screws
(strike plate)
4 - # 8 Machine Screws
(inner door & hinge)
5 - Beauty Buttons
Hinge Assembly
Before You Start
1. Unplug the dryer from its electrical outlet.
12
Reversing the door swing.
STEP-BY-STEP INSTRUCTIONS (cont.)
Remove Door Assembly
2. Open the door to approximately 130 degrees.
3. Remove the 4 screws starting from the bottom to the top. Make sure the door
is supported while removing the screws.
4. Loosen the top screw as shown. Unhook the door by lifting and pulling.
5. Place the door on a soft protected flat surface so the inner door faces upward
(door resting on handle side). Remove the 8 tapping screws located around the
perimeter of the door outlining the gasket. Remove the 4 machine screws.
Remove
Top Screw
8-#10 Tapping Screws
4-# 8 Machine Tapping Screws
4 Beauty Buttons
Outer Door Assembly
Hinge Assembly
Hinge Cover
Remove Hinge and Cover
IMPORTANT: Note the location of the hinge (left or right) before removing.
6. With the screws removed, turn the door over and separate the outer door assembly
and hinge cover of the door from the door frame and set aside.
13
www.GEAppliances.ca
STEP-BY-STEP INSTRUCTIONS (cont.)

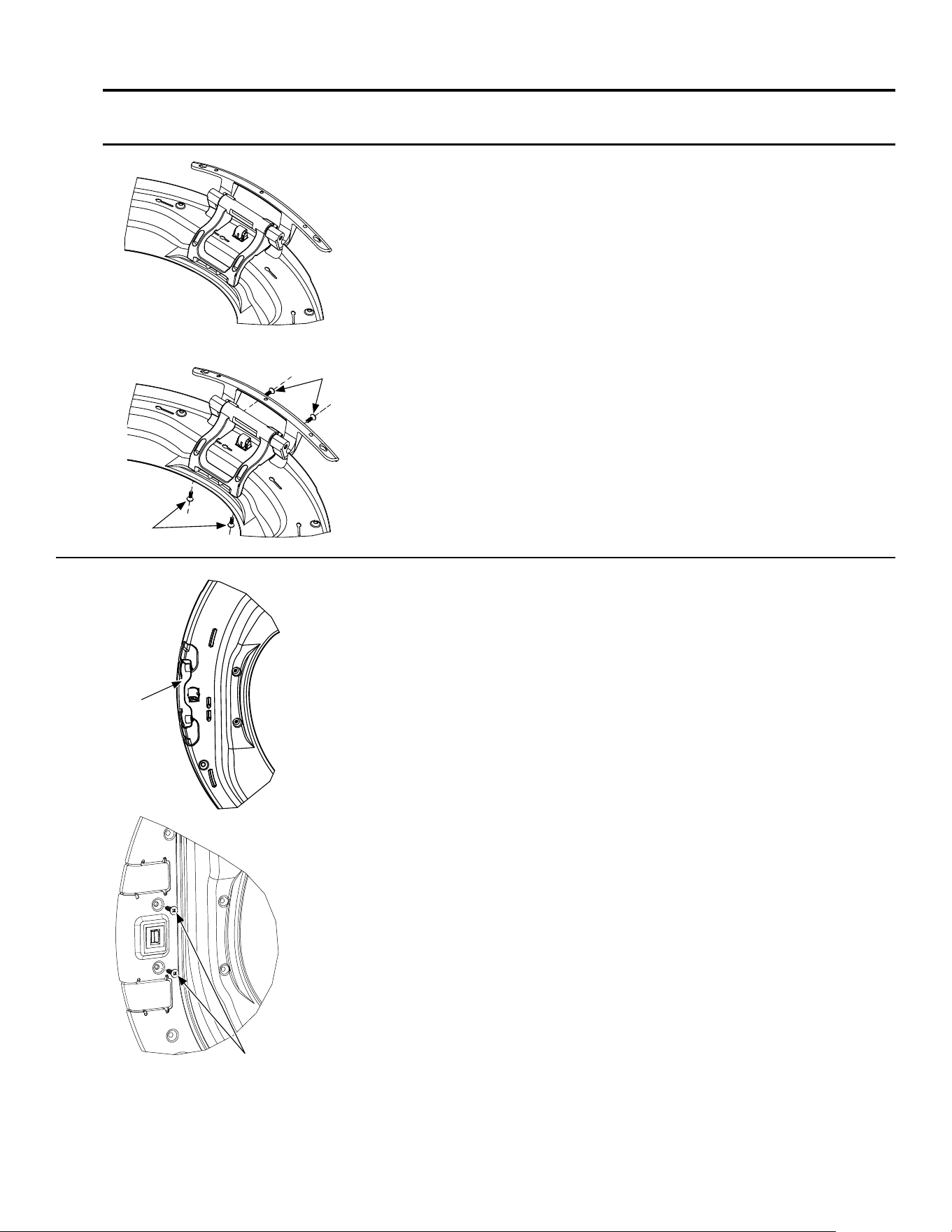

Reinstall Hinge Assembly
7. Install the hinge assembly in the opposite side of the door as shown.
Push the hinge assembly in place until the hinge holes align with
the door holes.
8. Hold the hinge and door on their side with one hand and fasten the
4 machine screws as shown.
Reinstall Hinge Cover
9. Insert the hinge cover. Align the hinge cover holes with the holes
in the door.
10. Secure the hinge cover with 2 taping screws.
Machine
screws
Machine
screws
Hinge
Cover
Tapping
Screws
14
STEP-BY-STEP INSTRUCTIONS (cont.)
Reassemble Door Assembly
IMPORTANT: Make sure there is no dirt or any other foreign material in between
the window panes.
11. Place the plastic outer door onto the inner door. Make sure that the handle
part of the outer door is opposite the hinge as shown.
12. Turn the door over and fasten the outer door to the inner door using
the 6 tapping screws.
Reversing the door swing.
Move Strike Bracket
13. Using a putty knife or any other flat tool, remove the 5 beauty buttons located
on the dryer where the door will be installed and install them on the opposite side.
14. Switch the strike bracket and its cover to the opposite side by removing the screws.
Reinstall both on the opposite side.
Beauty Buttons
Tapping
Screws
Reinstall Door Assembly
15. The door is now ready to be installed on the dryer. To ease this step, the hinge
has keyholes that allow a partially fastened screw to be used as a hook.
Partially fasten a screw to the uppermost screw hole. Hook the door on the
partially fastened screw.
Fasten the hinge by installing the other 4 screws and tightening the partially
fastened screw above.
Partially
Inserted
Screw
Tighten All
Screws
Inner Door
Outer Door
15

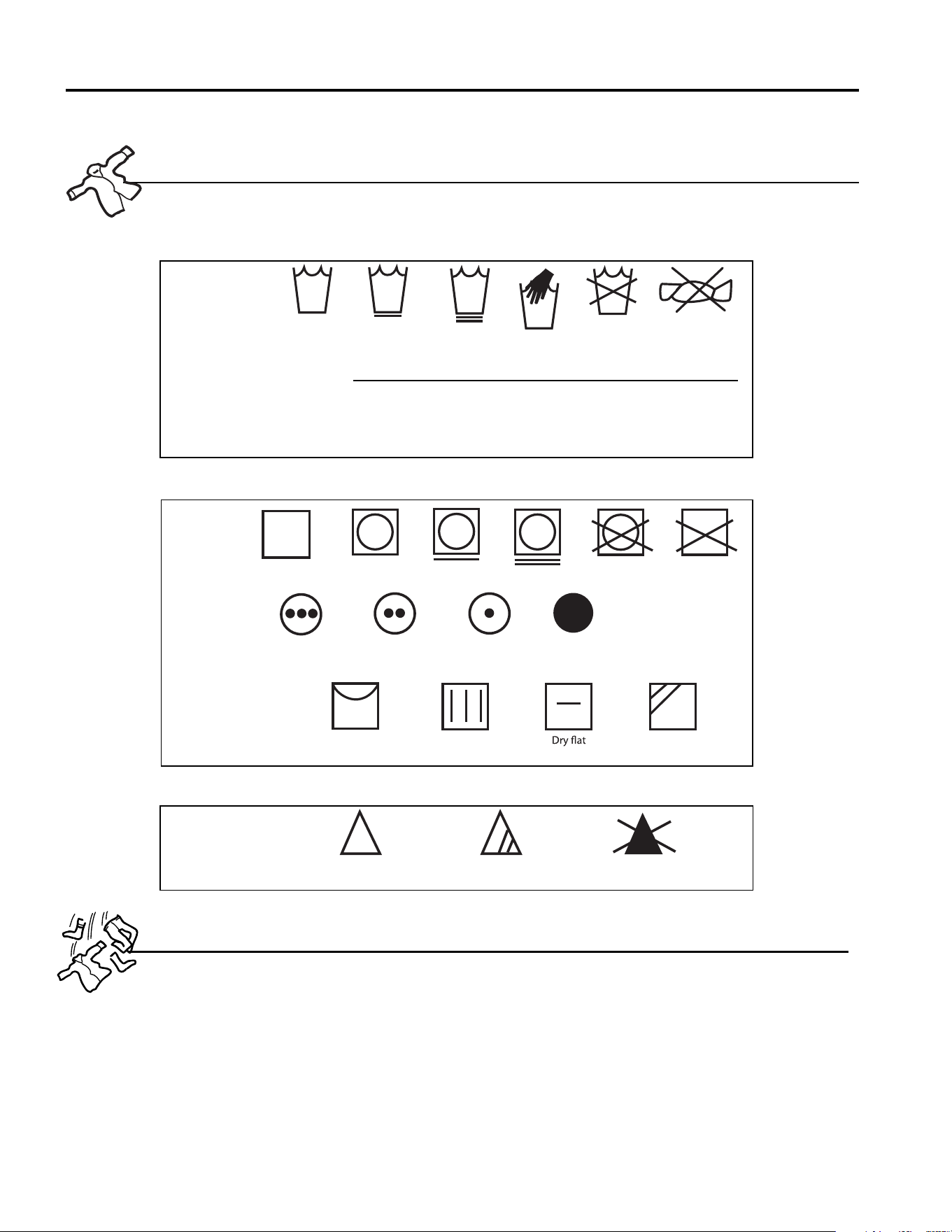

Fabric Care Labels
Below are fabric care label “symbols” that affect the clothing you will be laundering.
Always follow the fabric manufacturer’s care label when laundering.
Loading and using the dryer.
Sorting and Loading Hints
As a general rule, if clothes are sorted properly for
the washer, they are sorted properly for the dryer.
Try also to sort items according to size.
For example, do not dry a sheet with socks or other
small items.
Do not add fabric softener sheets once the load
has become warm. They may cause fabric softener
stains. Bounce
®
Fabric Conditioner Dryer Sheets
have been approved for use in all GE Dryers when
used in accordance with the manufacturer’s
instructions.
Do not overload. This wastes energy and causes
wrinkling.
Do not dry the following items: fiberglass items,
woolens, rubber-coated items, plastics, items with
plastic trim and foam-filled items.
Machine
wash
cycle
Normal
Permanent Press/
wrinkle resistant
Gentle/
delicate
Hand wash
Do not wash Do not wring
Tumble
dry
Dry
Normal
Permanent Press/
wrinkle resistant
Gentle/
delicate
Do not tumble dry
Do not dry
(used with
do not wash)
Heat
setting
High
Medium
Low
No heat/air
Special
instructions
Line dry/
hang to dry
Drip dry
In the shade
WASH LABELS
DRY LABELS
Bleach
symbols
Any bleach
(when needed)
Only non-chlorine bleach
(when needed)
Do not bleach
BLEACH LABELS
Front load
target water
temperature
Target Automatic
Category Water Temperature Temperature Control
Tap Cold Inlet Water Temperature Not used
Cold 27°C/80°F Used
Warm 40°C/105°F Used
Hot 50°C/120°F Used
Sanitize 70°C/160°F Used
www.GEAppliances.ca
16
Care and Cleaning of the Dryer
The Exterior: Wipe or dust any spills or washing
compounds with a damp cloth. Dryer control panel
and finishes may be damaged by some laundry
pretreatment soil and stain remover products.
Apply these products away from the dryer. The
fabric may then be washed and dried normally.
Damage to your dryer caused by these products is
not covered by your warranty.
The Lint Filter: Clean the lint
filter before each use.
Pull out the lint filter.
Moisten your fingers and
remove the captured lint.
Once clean, slide the filter
back into position. Have a
qualified technician vacuum
the lint from the dryer once
a year.
NEVER OPERATE THE DRYER WITHOUT ITS FILTER
IN PLACE.
Stainless Steel: To clean stainless steel surfaces
use a damp cloth with a mild, non-abrasive cleaner
suitable for stainless steel surfaces. Remove the
cleaner residue and then dry with a clean cloth.
The stainless steel used to make the dryer drum
provides the highest reliability available in a GE
dryer. If the dryer drum should be scratched or
dented during normal use, the drum will not rust or
corrode. These surface blemishes will not affect the
function or durability of the drum.
Dryer Interior and Duct: The interior of the
appliance and exhaust duct should be cleaned
once a year by qualified service personnel.
The Exhaust Duct: Inspect and clean the exhaust
ducting at least once a year to prevent clogging.
A partially clogged exhaust can lengthen the
drying time.
Follow these steps:
1
Turn off electrical supply by disconnecting the
plug from the wall socket.
2
Disconnect the duct from the dryer.
3
Vacuum the duct with the hose attachment
and reconnect the duct.
The Exhaust Hood: Check with a mirror that the
inside flaps of the hood move freely when operating.
Make sure that there is no wildlife (birds, insects, etc.)
nesting inside the duct or hood.
Always follow the fabric manufacturer’s care label when laundering.
Loading and using the dryer.
17
Venting the dryer. www.GEAppliances.ca

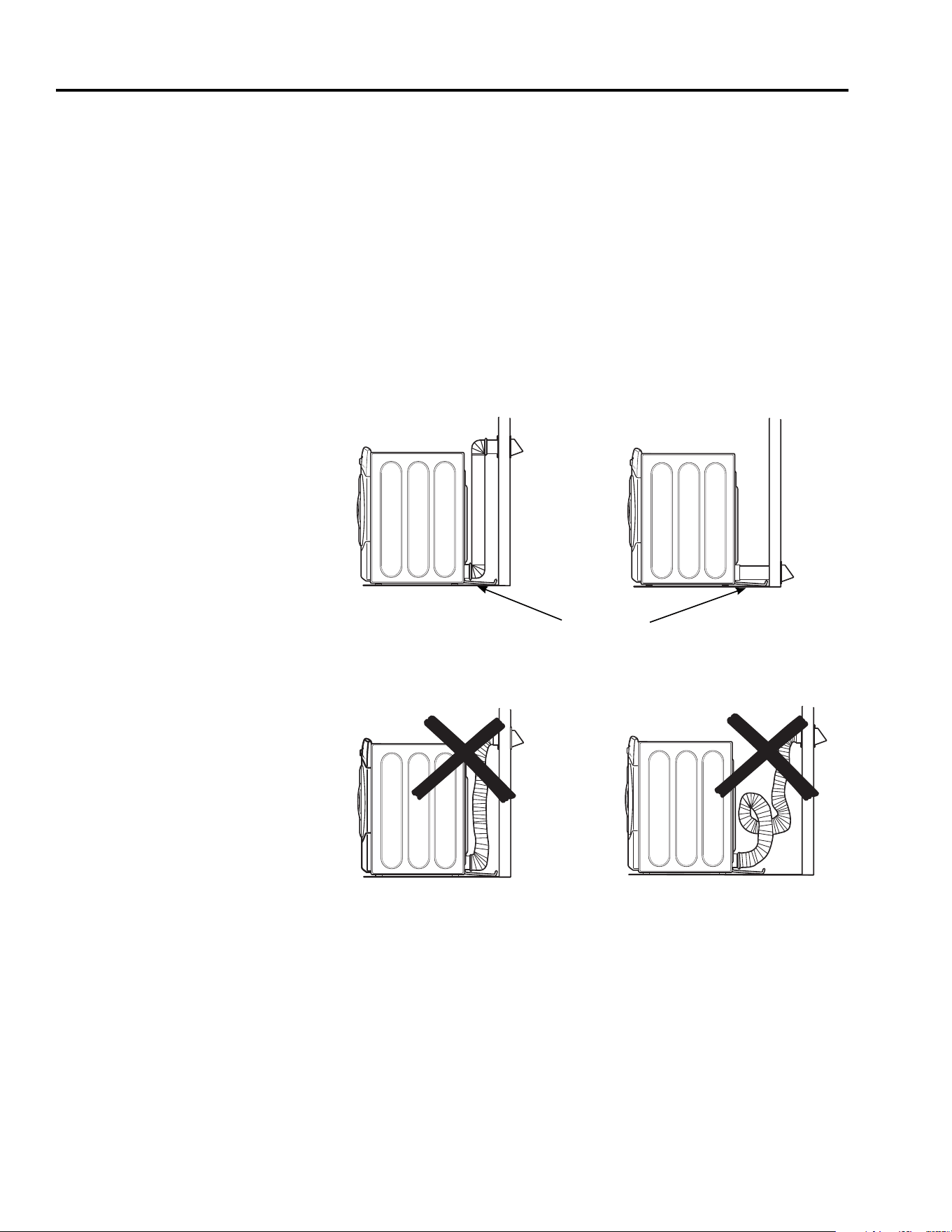

Correct
Venting
Incorrect
Venting
For the best drying performance, the dryer needs to be properly vented. The dryer will use
more energy and run longer if it is not vented to the below specifications. Carefully follow
the details on Exhausting in the Installation Instructions.
Use only rigid metal 4 diameter ductwork inside the dryer cabinet and use only UL
approved transition ducting between the dryer and the home duct.
Do not use plastic or other combustible ductwork.
Use the shortest length possible.
Do not crush, kink or collapse the duct.
Avoid resting the duct on sharp objects.
Venting must conform to local building codes.
Vent protector in
place (on some
models)
18
Connecting Inlet Hoses.
To produce steam, the dryer must connect to the cold water supply. Since the washer
must also connect to the cold water, a “Y” connector is inserted to allow both inlet hoses
to make that connection at the same time.
NOTE: Use the new inlet hoses provided; never use old hoses.
Connect to Cold Water Supply (on some models)
1. Turn the cold water faucet off. Remove the washer inlet hose from the washer fill
valve connector (cold).
2. Ensure the rubber flat washer is in place and screw the female coupling of the short
hose onto the washer fill valve connector. Tighten by hand until firmly seated.
3. Attach the female end of the ‘’Y’’ connector to the male coupling of the short hose.
Ensure the rubber flat washer is in place. Tighten by hand until firmly seated.
4. Insert the filter screen in the coupling of the washer’s inlet hose. If a rubber flat
washer is already in place remove it before installing the filter screen. Attach this
coupling to one male end of the ‘’Y’’ connector. Tighten by hand until firmly seated.
5. Ensure the rubber flat washer is in place and attach the dryer’s long inlet hose
to the other male end of the ‘’Y’’ connector. Tighten by hand until firmly seated.
6. Ensure the rubber flat washer is in place and attach the other end of the dryer’s
long inlet hose to the fill valve connector at the bottom of the dryer back panel.
Tighten by hand until firmly seated.
7. Using pliers, tighten all the couplings with an additional two–thirds turn.
NOTE: Do not overtighten. Damage to the couplings may result.
8. Turn the water faucet on.
9. Check for leaks around the ‘’Y’’ connector, faucet and hose couplings.
“Y” Connector
19
Stacking. www.GEAppliances.ca
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT: Save these instructions for local
electrical inspector’s use.
IMPORTANT: Observe all governing codes and
ordinances.
Note to Installer – Be sure to leave these
instructions with the Consumer.
Note to Consumer – Keep these instructions for
future reference.
Installation must be performed by a qualified
installer.
Proper installation is the responsibility of the
installer.
FOR YOUR SAFETY
WARNING!
Electric Shock Hazard. Disconnect power before
installing. Failure to do so could result in serious
injury or death.
Potential Personal Injury. When stacking the
dryer, more than two people are recommended
to lift the dryer into position because of its
weight and size. Failure to do so could result in
personal injury or death.
When stacking the dryer,
avoid tipping and
rupture of utility services. Dryer must be
securely attached to the washer. DO NOT place
the washer on top of the dryer. Failure to do so
could result in personal injury/death or property
damage.
Mobile Home or Manufactured Home Installation
– Stacking of a gas dryer is not permitted in a
mobile home or manufactured home.
MINIMUM CLEARANCE OTHER THAN ALCOVE OR CLOSET
INSTALLATION
Minimum clearance to combustible surfaces and
for air opening are: 0 both sides, 1 front, and
3 rear. Consideration must be given to provide
adequate clearance for installation and service.
ALCOVE OR CLOSET INSTALLATION
If your dryer is approved for installation in an
alcove or closet, it will be stated on a label on
the dryer back.
The dryer MUST be vented to the outdoors. Refer
to dryer Installation Instructions for details.
Minimum clearance between dryer cabinet and
adjacent walls or other surfaces is:
0 either side
3 front
4 rear
Minimum vertical space from floor to overhead
cabinets, ceiling, etc. is 43 without pedestal,
55 with pedestal and 84 stacked.
Closet doors must be louvered or otherwise
ventilated and must contain a minimum of
60 square inches of open area equally
distributed. If the closet contains both a
washer and a dryer, doors must contain a
minimum of 120 square inches of open area
equally distributed.
20
Stacking.
KIT CONTENTS (optional kit GE FL STACK)
Right Hand Bracket
Left Hand Bracket
4 Rubber Pads
4 #12 x 1” Screws
4 #8 x 1/2” Screws
TOOLS YOU WILL NEED
Phillips Screwdriver
Open-Ended Wrench
Pliers
Gloves
Level
INSTALLATION PREPARATION
Remove the packaging.
Flatten the product carton to use as a pad to lay
the dryer down on its side. Continue using the
carton to protect the finished floor in front of the
installation location.
21
1. Remove the Dryer Leveling
Legs
A. Carefully lay the dryer on its side.
Use the packing material so you
don’t scratch the finish on the dryer.
B. Use an open-end wrench or pliers to
remove the dryer leveling legs.
INSTALLING THE STACK BRACKET KIT
Back out and remove
all 4 leveling legs
2. Install Rubber Pads to Dryer
Base
Locate the 4 rubber pads in the parts
package. Remove the adhesive backing
and firmly place over on the bracket
where you removed the leveling legs.
3. Install Bracket to Dryer
A. Align the holes in the left bracket
with the holes in the bottom left
corner of the dryer. Use a Phillips
screwdriver to install the 2 #12 x 1
tapping screws.
B. Repeat the above step with the right
bracket on the bottom right corner
of the dryer.
C. Set the dryer upright.
NOTE: Make sure to set the dryer on
a piece of packing material so the
brackets that are attached to the
bottom of the dryer do not damage
the floor.
www.GEAppliances.ca
22
Stacking.
4. Prepare the Washer and
Dryer
A. Place the washer in the approximate
location.
B. Make sure the washer is level.
Refer to washer Installation
Instructions for details.
C. Reverse dryer door swing if desired.
See dryer Installation Instructions
for details.
NOTE: The washer door swing is not
reversible.
INSTALLING THE STACK BRACKET KIT (cont.)
5. Install Dryer and Bracket on
Washer
A. Lift the dryer on top of the washer.
Be careful not to scratch the top
of the washer with the brackets.
Protect the washer control panel
with cardboard or other protection.
Be sure to lift the dryer high enough
to clear the washer control panel.
WARNING!
Potential Personal Injury. More than
two people are recommended to lift
the dryer into position because of its
weight and size. Failure to do so could
result in personal injury or death.
B. Align the holes in the bracket with
the holes in the back of the washer.
Using a Phillips screwdriver, attach
the 2 #8 x 1/2 tapping screws.
Repeat on both sides of the washer.
6. Finalize the Installation
A. Refer to the washer Installation
Instructions to complete the washer
installation.
B. Refer to the dryer Installation
Instructions to complete the dryer
installation.
C. Carefully slide or walk the stacked
washer and dryer into place. Use felt
pads or other sliding device to assist
moving and to protect flooring.
WARNING!
Potential Personal Injury. Do not push
on the dryer once installed to top of
the washer. Pushing on the dryer may
result in pinched fingers.
Place
hands
here
Place
hands
here
23
Troubleshooting Tips
Save time and money! Review the charts on the following pages, or visit www.GEAppliances.ca.
You may not need to call for service.
PROBLEM Possible Causes What To Do
Dryer shakes or Some shaking/noise is normal. • Move dryer to an even floor space, or adjust leveling legs
makes noise Dryer may be sitting unevenly as necessary until even.
Clothes take too long Improper or obstructed ducting • Check the Installation Instructions to make sure
to dry the dryer venting is correct.
• Make sure ducting is clean, free of kinks and unobstructed.
• Check to see if outside wall damper operates easily.
Improper sorting • Separate heavy items from lightweight items (generally,
a well-sorted washer load is a well-sorted dryer load).
Large loads of heavy fabrics • Large, heavy fabrics contain more moisture and take
(like beach towels) longer to dry. Separate large, heavy fabrics into smaller
loads to speed drying time.
Controls improperly set • Match control settings to the load you are drying.
Lint filter is full • Clean lint filter before every load.
Blown fuses or tripped circuit • Replace fuses or reset circuit breakers. Since most
breaker dryers use 2 fuses/breakers, make sure both are
operating.
Overloading/combining loads • Do not put more than one washer load in the dryer at
a time.
Underloading • If you are drying only one or two items, add a few items
to ensure proper tumbling.
The DRY dryness level Load consists of a mixture • When combining heavy and light fabrics in a load,
was chosen but load is of heavy and light fabrics choose More Dry if you are using a sensor cycle.
still damp
Exhaust system is blocked • Inspect and clean exhaust system.
Control pads not Controls accidentally put in • Press Power.
responding service mode
Controls accidentally put in • Hold the Lock button for 3 seconds to unlock the dryer.
lock mode
Controls performed an • Reset the in-house breaker.
incorrect operation
Dryer doesn’t start Control panel is “asleep” • This is normal. Press Power to activate the control panel.
Dryer is unplugged • Make sure the dryer plug is pushed completely into
the outlet.
Fuse is blown/circuit breaker • Check the building’s fuse/circuit breaker box and
is tripped replace fuse or reset breaker. NOTE: Electric dryers
use two fuses or breakers.
Dryer was accidentally paused • If the light on the Delay Dry pad is flashing, the
when starting Delay Dry dryer is paused. Press Start to restart the countdown.
No numbers displayed Dryer is continuously • This is normal. When the dryer senses a low level of
during cycle, only lights monitoring the amount of moisture in the load, the dryer will display the dry time
moisture in the clothes remaining.
Before you call for service… www.GEAppliances.ca
24
PROBLEM Possible Causes What To Do
Time Remaining The estimated time may change • This is normal.
jumped to a when a smaller load than usual
lower number is drying
Cannot make a The DRYNESS Level, TEMP • This is normal.
selection and the or OPTION that you are
dryer beeps twice trying to select is incompatible
with the chosen dry cycle
Dryer is running but The Extended Tumble • This is normal. During extended tumble, the time
0:00 is displayed in option was chosen remaining is not displayed. The Extended Tumble
Time Remaining option lasts approximately 60 minutes.
Clean Lint Filter (message) Power button was activated • Press Start to begin a dry cycle and the message will
disappear.
Dryer doesn’t heat Fuse is blown/circuit breaker • Check the building’s fuse/circuit breaker box and
is tripped; the dryer may tumble replace both fuses or reset both breakers. Your dryer
but not heat may tumble if only one fuse is blown or one breaker
tripped.
Gas service is off • Make sure gas shutoff at dryer and main shutoff are
fully open.
LP gas supply tank is empty • Refill or replace tank. Dryer should heat when utility
or there has been a utility service is restored.
interruption of natural gas
(gas models)
Inconsistent drying times Type of heat • Drying time will vary according to the type of heat used.
If you recently changed from an electric to a gas
(natural or LP) dryer, or vice versa, the drying time
could be different.
Type of load and • The load size, types of fabric, wetness of clothes and the
drying conditions length and condition of the exhaust system will affect
drying times.
Glow at the rear Heaters behind the drum • This is normal. Under certain drying conditions and
of the drum room ambient lighting, the glow of the heaters may be
visible at the rear of the drum.
Clothes are still wet The door was opened mid-cycle. • A dry cycle must be reselected each time a new load
and dryer shut off The load was then removed from is put in.
after a short time the dryer and a new load put in
without selecting a new cycle
Small load • When drying 3 items or less, choose Speed Dry or
Tiem Dry.
Load was already dry except • Choose Speed Dry or Time Dry to dry damp collars
for collars and waistbands and waistbands. In the future, when drying a load with
collars and waistbands, choose More Dry.
Dryer is not level • Move dryer to an even floor space or adjust leveling legs
as necessary until even.
Clothes are wrinkled Overdrying • Select a shorter drying time.
• Remove items while they still hold a slight amount
of moisture. Select a Less Dry or Damp setting.
Letting items sit in dryer after • Remove items when cycle ends and fold or hang
cycle ends immediately, or use the Extended Tumble option.
Overloading • Separate large loads into smaller ones.
Before you call for service…
25
www.GEAppliances.ca
PROBLEM Possible Causes What To Do
Clothes shrink Some fabrics will naturally shrink • To avoid shrinkage, follow garment care labels exactly.
when washed. Others can be
safely washed, but will shrink
• Some items may be pressed back into shape after drying.
in the dryer
• If you are concerned about shrinkage in a particular
item, do not machine wash or tumble dry it.
Greasy spots on clothes Improper use of fabric softener • Follow directions on fabric softener package.
Drying dirty items • Use your dryer to dry only clean items. Dirty items can
with clean ones stain clean items and the dryer.
Clothes were not • Sometimes stains which cannot be seen when the
completely clean clothes are wet appear after drying. Use proper washing
procedures before drying.
Lint on clothes Lint filter is full • Clean lint screen before each load.
Improper sorting • Sort lint producers (like chenille) from lint collectors
(like corduroy).
Static electricity can attract lint • See suggestions in this section under STATIC.
Overloading • Separate large loads into smaller ones.
Paper, tissue, etc., left in pockets • Empty all pockets before laundering clothes.
Static occurs No fabric softener was used • Try a fabric softener.
• Bounce
®
Fabric Conditioner Dryer Sheets have been
approved for use in all GE Dryers when used in
accordance with the manufacturer’s instructions.
Overdrying • Try a fabric softener.
• Adjust setting to Less Dry or Damp.
Synthetics, permanent press • Try a fabric softener.
and blends can cause static
Collars and waistbands The dryness monitor senses • Choose Speed Dry or Time Dry to dry damp collars
still wet at end of cycle that the body of the clothes and waistbands. In the future, when drying a load with
is dry collars and waistbands, choose More Dry.
Slight variation This is normal • Due to the metallic properties of paint used for this unique
in metallic color product, slight variations of color may occur due to
viewing angles and lighting conditions.
Door is too foggy to see Steam condenses on inner door • This is normal.
clothes during a steam
cycle
Water seen on inside of Steam condenses on these • This is normal.
door and top of lint filter surfaces
when opening door after
steam cycle
Small areas on clothes are Steam condenses on inner drum • If using the Steam DeWrinkle cycle, manually reduce the
damp after steam cycle cycle time.
26
Before you call for service…
PROBLEM Possible Causes What To Do
Small amount of water Inadequate load size for steam • If using the Steam DeWrinkle cycle, manually reduce cycle
on floor in front of dryer cycle selected, excess steam time.
condenses inside cabinet and
leaks out
Water on floor in back Loose water hose connection to • Tighten connection.
of dryer valve
Hose missing rubber washer at • Install rubber washer provided with hose.
connection with valve
Water drips from door Steam condenses on inner door • This is normal.
when opened after
a Steam Cycle
Cannot see steam at Steam released at different • This is normal.
beginning of cycle time in cycle
Cannot see steam at any The steam nozzle might be • Call 1.800.561.3344 to order nozzle replacement kit WE25M71
time during the cycle clogged with debris from your or to request a service technician to replace this for you.
water supply
Garments still wrinkled Too many garments • Load fewer garments; manually increase time.
after steam cycle
Dryer continues to Extended Tumble option • Ensure Extended Tumble option is not selected.
tumble after display was selected
says 0:00
27
Notes. www.GEAppliances.ca
28
Service trips to your home to teach you how to use
the product.
Improper installation, delivery or maintenance.
Failure of the product if it is abused, misused or used for
other than the intended purpose or used commercially.
Replacement of house fuses or resetting of circuit breakers.
Damage to the product caused by accident, fire, floods
or acts of God.
Incidental or consequential damage caused by possible
defects with this appliance.
Damage caused after delivery.
Product not accessible to provide required service.
Replacement of the light bulb after its expected useful life.
Defects or damage due to operation in freezing
temperatures.
Products which are not defective or broken, or which are
working as described in the Owner’s Manual.
What Is Not Covered:
This warranty is extended to the original purchaser and any succeeding owner for products purchased
for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer
is not available, you may be responsible for a trip charge or you may be required to bring the product to an
Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service
calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care
®
technician. To schedule
service, on-line, visit us at GEAppliances.com, or call 800.
GE.CARES (800.432.2737).
Please have serial number and model number available when
calling for service.
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
For The Period Of: We Will Replace:
One Year Any part of the dryer which fails due to a defect in materials or workmanship. During this
From the date of the limited one-year warranty, GE will also provide, free of charge, all labor and related service costs
original purchase to replace the defective part.
GE Dryer Warranty.
EXCLUSION OF IMPLIED WARRANTIES―Your sole and exclusive remedy is product repair as provided in
this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or
fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
29
Service trips to your home to teach you how to use the
product.
Improper installation, delivery or maintenance.
Failure of the product if it is abused, misused or used for
other than the intended purpose or used commercially.
Replacement of the light bulb after its expected
useful life.
Replacement of house fuses or resetting of circuit
breakers.
Damage to the product caused by accident, fire, floods or
acts of God.
Incidental or consequential damage caused by possible
defects with this appliance.
Damage caused after delivery.
Product not accessible to provide required service.
What Is Not Covered (in Canada):
This warranty is extended to the original purchaser and any succeeding owner for products purchased in
Canada for home use within Canada. In-home warranty service will be provided in areas where it is available
and deemed reasonable by Mabe to provide.
All warranty service provided by our Factory Service Centres or an authorized technician.
For service, call 1.800.561.3344.
Please have serial number and model number available when calling for service.
For The Period Of: We Will Replace:
One Year Any part of the dryer which fails due to a defect in materials or workmanship. During this
From the date of the limited one-year warranty, GE will also provide, free of charge, all labor and related service costs
original purchase to replace the defective part.
GE Dryer Warranty. (For customers in Canada)
EXCLUSION OF IMPLIED WARRANTIES―Your sole and exclusive remedy is product repair as provided in
this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or
fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
Warrantor: MC COMMERCIAL INC.
WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.
Printed in Mexico
Consumer Support.
GE Appliances Website
In the U.S.: www.GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of
the year! For greater convenience and faster service, you can now download Owner’s Manuals, order parts or even
schedule service on-line. In Canada: www.GEAppliances.ca.
Schedule Service In the U.S.: www.GEAppliances.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your
convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.
In Canada, call 1.800.561.3344.
Real Life Design Studio In the U.S.: www.GEAppliances.com
GE supports the Universal Design concept―products, services and environments that can be used by people of
all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities
and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with
disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).
In Canada, contact: Manager, Consumer Relations, Mabe Canada Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3
Extended Warranties In the U.S.: www.GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in
effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home
Services will still be there after your warranty expires. In Canada, please visit our Website or contact your local
extended warranty provider.
Parts and Accessories In the U.S.: www.GEAppliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA,
MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002
during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally
should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause
unsafe operation.
Customers in Canada should consult the yellow pages for the nearest Mabe service center, or call 1.800.661.1616.
Contact Us In the U.S.: www.GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including
your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
In Canada: www.GEAppliances.ca, or write to: Director, Consumer Relations, Mabe Canada Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3
Register Your Appliance In the U.S.: www.GEAppliances.com
Register your new appliance on-line―at your convenience! Timely product registration will allow for enhanced
communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the
pre-printed registration card included in the packing material. In Canada: www.GEAppliances.ca
