User Mânual

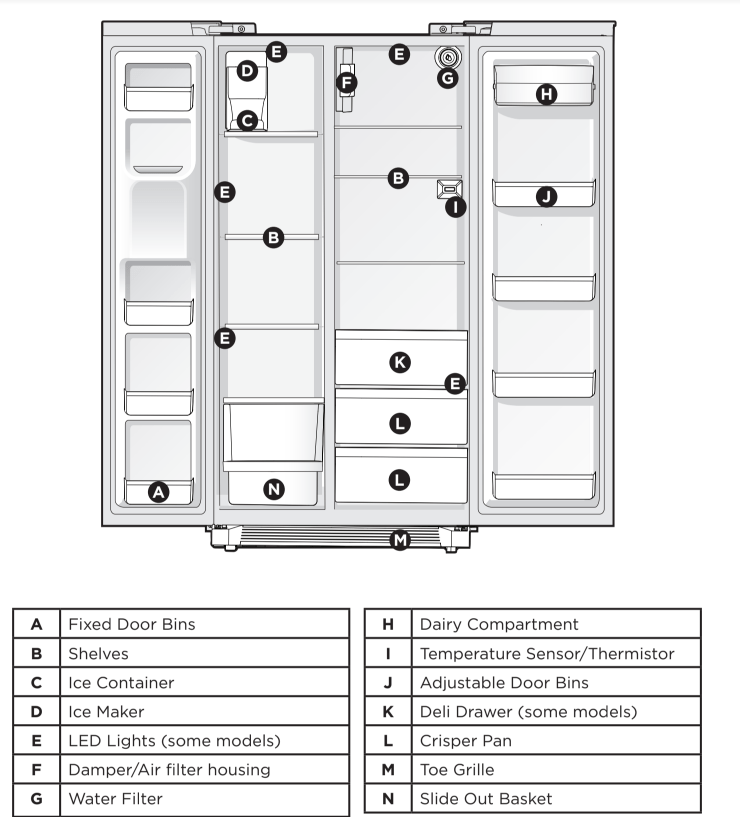

FEATURES

*Features may vary according to model

IMPORTANT: Accessories are available for your appliance and may be purchased at Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in (Canada) or from an authorized seller.

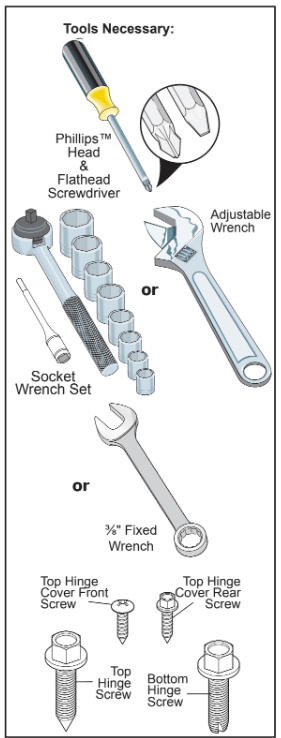

DOOR REMOVAL

To prepare for removing the doors:

1. Make sure the electrical power cord is unplugged from the wall outlet.
2. Open both doors and remove the toe grille (as explained in the Instal- lation Instructions that came with your appliance).
3. Remove any food from the door shelves.
4. Close the doors.

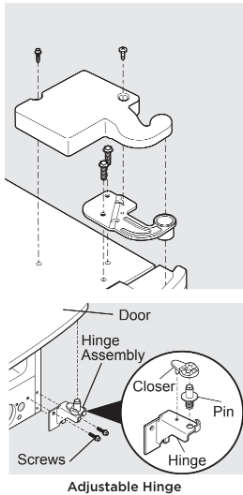

To remove the refrigerator top hinge/cover:

1. Remove the 2 screws from the cover over the top door hinge.
2. Lift hinge cover straight up and off.
3. Trace lightly around the door’s top hinge with a pencil. This makes reinstallation easier.
4. Remove the 2 screws from the top hinge and lift the hinge straight up. Lift the door off of the bottom hinge and set it aside.
5. Remove the 2 bottom hinge screws and hinge if necessary.

To reinstall the refrigerator door, reverse the above steps.

To remove the freezer top hinge cover:

1. Remove the 2 screws from the cover over the top door hinge.
2. Lift hinge cover straight up and off.

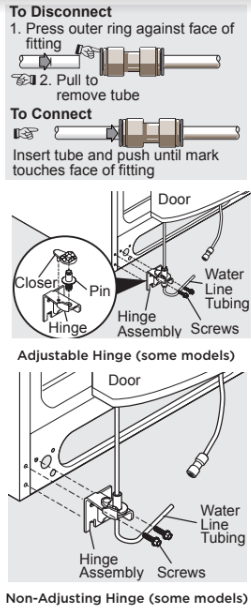

To remove the freezer door:

To reinstall the freezer door, reverse the above steps.

CAUTION: Be sure doors are set aside in a secure position where they cannot fall and cause personal injury.

WATER SUPPLY CONNECTION

WARNING: To avoid electric shock, which can cause death or severe personal injury, disconnect the unit from electrical pow- er source before connecting a water supply line to the appliance.

CAUTION

To Avoid Property Damage:

• Use Copper or Stainless Steel braid- ed tubing for the water supply line. Frigidaire does not recommend wa- ter supply tubing made of 1⁄4" plastic. Plastic tubing greatly increases the potential for water leaks, and the manufacturer will not be responsible for any damage if plastic tubing is used for the supply line.
• DO NOT install water supply tubing in areas where temperatures fall below freezing.
• Chemicals from a malfunctioning softener can damage the ice maker. If the ice maker is connected to soft water, ensure that the softener is maintained and working properly.

IMPORTANT: Ensure that your water supply line connec- tions comply with all local plumbing codes.

Before Installing The Water Supply Line, You Will Need:

• Basic Tools: adjustable wrench, flat-blade screwdriver, and PhillipsTM screwdriver
• Access to a household cold water line with water pressure between 30 and 100 psi.
• A water supply line made of 1⁄4" (6.4 mm) OD, copper or stainless steel tubing. To determine the length of tubing needed, measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water pipe. Then add approximately 7 (2.1 m), so the refrigerator can be moved out for cleaning.
• A shutoff valve to connect the water supply line to your household water system. DO NOT use a self-piercing type shutoff valve.
• Do not reuse compression fitting or use thread seal tape.
• A compression nut and ferrule sleeve) for connecting a copper water supply line to the ice maker inlet valve.

NOTE

Check with your local building authori- ty for recommendations on water lines and associated materials prior to in- stalling your new refrigerator. Depend- ing on your local/state building codes, Frigidaire recommends for homes with existing valves its Smart Choice® water line kit 5304490728 (with a 6Stain- less Steel Water Line) and for homes without an existing valve, Frigidaire recommends its Smart Choice® water line kit 5304490717 (with a 20copper water line with self-tapping saddle valve). Please refer to Frigidaire.com for more information.

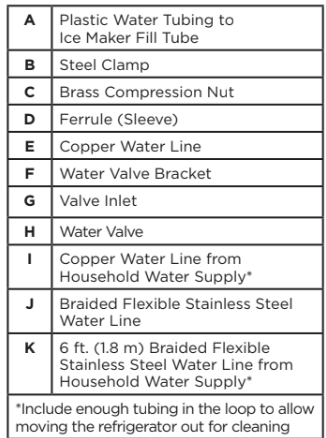

To Connect Water Supply Line To Ice Maker Inlet Valve

1. Disconnect the refrigerator from electrical power source.
2. Place the end of the water supply line into a sink or bucket. Turn ON the water supply and flush the supply line until the water is clear. Turn OFF the water supply at the shutoff valve.
3. Remove the plastic cap from the wa- ter valve inlet and discard the cap.

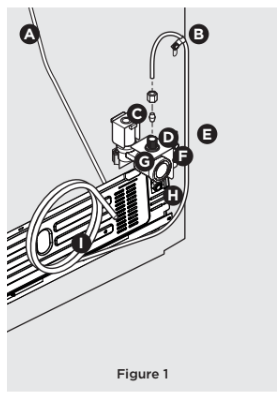

4. If you use copper tubing - Slide the brass compression nut, and then the ferrule (sleeve) onto the water supply line. Push the water supply line into the water valve inlet as far as it will go (1⁄4"/6.4 mm). Slide the ferrule (sleeve) into the valve inlet and finger tighten the compression nut onto the valve. Tighten another half turn with a wrench; DO NOT overtighten. See Figure 1.

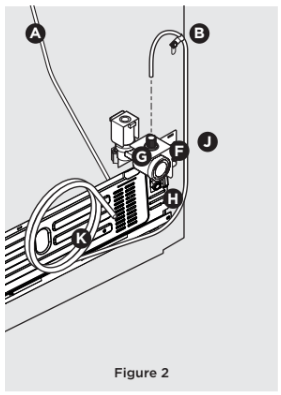

If you use braided flexible stainless steel tubing - The nut is already assembled on the tubing. Slide the nut onto the valve inlet and finger tighten the nut onto valve. Tighten another half turn with a wrench; DO NOT overtighten. See Figure 2.

IMPORTANT: After connecting the water supply, refer to “Priming the Water Supply System” for important information about prim- ing an empty water supply system. Your refrigerator’s water supply system includes several tubing lines, a water filter, and a water valve. To ensure that your water dispenser works properly, completely fill this system with water when you first connect your refrigerator to the household water supply line.

CONTROLS AND SETTINGS

NOTE

Your appliance may have some or all of the features listed below. Become familiar with these features and their use and care.

*Only on some models

Alarms

In-Door User Interface

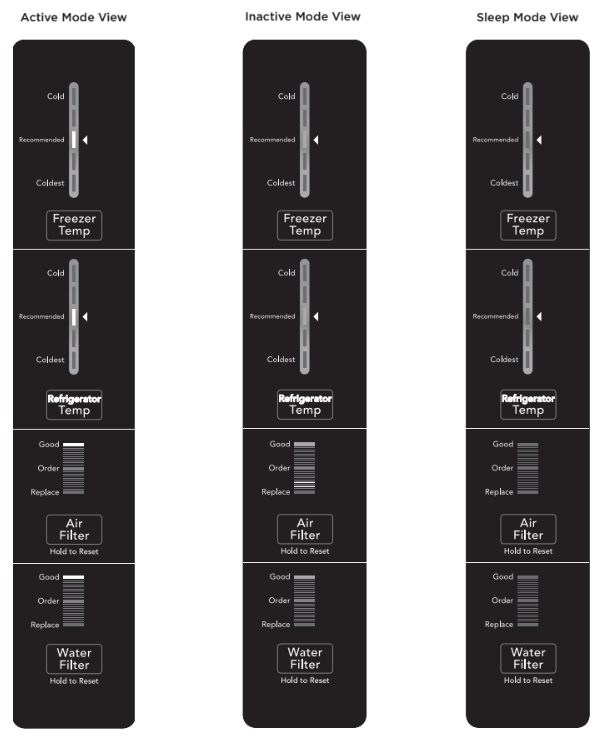

In-Door Control Display Mode Views

Your display is equipped with a sleep and inactive mode to prevent accidental changes to the unit settings during opening and closing of the doors. When both doors are closed, the display will be in sleep mode. When either door is first opened, the display will be in inactive mode where all the current settings are visible but dimmed.

Pressing any button on the display will activate the display and a tone will be played. All settings will then be fully lit. Touch the display again to change any setting.

If there is no button pressed for 10 seconds while any door is open, the display will default back to inactive mode.

*Only on some models

AUTOMATIC ICE AND WATER DISPENSER

Priming the water supply system

CAUTION: For proper dispenser operation, the recommended water supply pressure should fall between 30 psi and 100 psi. Excessive pressure may cause the sys- tem to malfunction.

NOTE: Dispensed water is not chilled. For colder water, add ice to cup or contain- er before dispensing water.

Ice maker operation & care

After you properly install the refrigerator and it has cooled for several hours, the ice maker can produce ice within 24 hours. The ice maker will fill the ice bin from the rear. You must dispense some ice to force the ice forward in the bin. This will allow the bin to fill completely.

Turning the ice maker on

Ice production is controlled by the ice maker's on/off feature on the control panel. Press and hold the Ice Maker button for 3 seconds to turn the ice maker on/off.

IMPORTANT: Turning off the ice maker simply dis- ables ice making. You will still be able to dispense existing ice, and you will still be able to dispense water.

NOTE: The ice maker also has a built-in plastic signal arm that automatically stops ice production when the ice bin is full. Do not use this signal arm to manually stop the ice maker.

NOTE: The water dispenser has a built-in de- vice that shuts off the water flow after minutes of continuous use. To reset this shutoff device, simply release the dispenser paddle.

Ice Maker/Dispenser Tips

• Ice cubes stored too long may develop an odd flavor. Empty the ice container as explained in Cleaning the Ice Storage Bin.
• Occasionally shake the ice container to keep ice separated.
• If your refrigerator is not connected to a water supply or the water supply is turned off, turn Off the ice maker.
• If you need a large quantity of ice at one time, it is best to get cubes directly from the ice container.
• The following sounds are normal when the ice maker is operating:

• When dispensing ice, you will hear a snapping or clicking sound when the ice chute opens and closes.
• Turn Off the ice maker when cleaning the freezer and during vacations. If you turn Off the ice maker for a long period of time, you should also turn off the water supply valve.

CAUTION: Chemicals from a malfunctioning water softener can damage the ice maker. If the water supply to your refrigerator is softened, be sure the softener is main- tained to work properly.

Cleaning the Ice Storage Bin

Clean the ice storage bin at regular intervals, particularly before you take a vacation or move.

To clean the ice storage bin:

1. Turn Off the ice maker.
2. Remove the ice storage bin by lifting up and out.
3. Empty and carefully clean the ice storage bin with mild detergent. Rinse with clear water. Do not use harsh or abrasive cleaners.
4. Allow the ice storage bin to dry com- pletely before replacing it in the freezer.
5. Remove ice chips and clean the ice storage bin, shelf and the freezer door chute.
6. Replace the ice storage bin. Turn On the ice maker to resume ice production.

Remove and empty the ice storage bin if:

• An extended power failure (1 hour or longer) causes ice cubes in the ice storage bin to melt and freeze togeth- er, jamming the dispenser mechanism.
• You do not use the ice dispenser frequently. Ice cubes will freeze together in the bin, jamming the dispenser mechanism.

Remove the ice storage bin and shake to loosen the cubes or clean as explained above.

CAUTION: NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice storage bin and dispenser mechanism.

IMPORTANT: When removing or replacing the ice stor- age bin, avoid rotating the auger in the ice storage bin. If the auger is accidental- ly rotated, you must realign the auger by turning it in 45 degree turns (see below) until the ice storage bin fits into place with the drive mechanism If the auger is not properly aligned when replacing the ice storage bin, the refrigerator will not dispense ice. The freezer door also may not close properly causing warm air to leak into the freezer compartment.

STORAGE FEATURES

Glass shelves

Shelves are easily adjusted to suit individ- ual needs. Before adjusting the shelves, remove all food. Shelves are supported by side rails. See "Glass Shelves" in CARE AND CLEANING for proper shelf removal.

Door storage

Door bins and shelves are provided for convenient storage of jars, bottles, and cans. You can quickly select frequently used items.

Some models have door bins that can accommodate gallon-sized plastic drink containers and economy-sized jars and containers. Some bins are adjustable for maximum storage capacity.

The dairy compartment, which is warmer than the general food storage section, is intended for short term storage of cheese, spreads, or butter.

Crispers

Crispers allow you the flexibility to store any manner of items including fruits, veg- etables, nuts, etc. Crispers do not feature humidity controls.

Deli Drawer (some models)

Some models are equipped with a Deli Drawer for storing luncheon meats, spreads, cheeses and other deli items. This drawer does not have a separate temperature control.

NORMAL OPERATING SOUNDS

Understanding the Sounds you may Hear

Your new, high-efficiency unit may intro- duce unfamiliar sounds. These sounds normally indicate your appliance is oper- ating correctly. Some surfaces on floors, walls, and kitchen cabinets may make these sounds more noticeable.

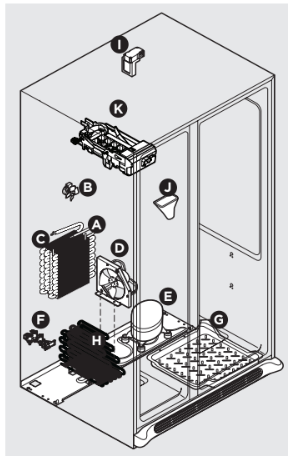

Following is a list of major components in your unit and the sounds they can cause:

NOTE: Energy efficient foam in your refrigera- tor is not a sound insulator.

NOTE: During automatic defrost cycle, a red glow in the back wall vents of your freezer compartment is normal.

FILTER REPLACEMENT

PurePour^TM Water Filter

Keep safe, great-tasting water flowing with a PurePour^TM water filter. Using a PurePour^TM water filter:

• Makes Safe Water Second Nature PurePour^TM water filters are certified to reduce contaminates* and keep great-tasting water flowing for you and your family.
• Produces Purity You Can Trust Know for certain your PurePourTM wa- ter filter is a protector. Counterfeits and knockoffs put your refrigerator and health at risk. Frigidaire Genuine Filters are the smarter, safer choice.
• Every Drop Gives Back Partnered on sustainability efforts, the use of a PurePourTM water filter helps cut back on the cost and use of plastic used to produce and package bottled water

Replacing the Water Filter

The water filter is located at the top right side of the re- frigerator compart- ment. In general, you should change the water filter every 6 months to ensure the highest possible water quality. Water Filter Status on the user interface prompts you to replace the filter after a standard amount of water (125 gal/453 L for PurePourTM) has flowed through the system.

If you have not used your refrigerator for a period of time (during moving for exam- ple), change the filter before reinstalling the refrigerator.

Ordering Replacement Filters

To order your replacement filters, please visit our online store at Frigidaire.com, by calling toll-free at 1 (800) 372-4432, or by visiting the dealer where you purchased your refrigerator. Frigidaire recommends that you order extra filters when you first in- stall your refrigerator, and that you replace your filters at least once every 6 months.

NOTE: When you order your replacement filter, please reorder the same filter type currently in your refrigerator.

More about your Advanced Water Filter

Do not use with water that is microbiologi- cally unsafe or of unknown quality without adequate disinfection before or after the system. Use systems certified for cyst reduction on disinfected waters that may contain filterable cysts.

Test & certification results:

• Rated Capacity - 125 gal/453 L for PurePour^TM and ice and water filter
• Rated service flow - .50 gal/min.
• Operating Temp.: Min. 33°F, Max. 100°F
• Maximum Rated Pressure - 100 lbs/in.2
• Recommended Minimum Operating Pressure: 30 lbs/in2

To replace your PurePour^TM water filter:

It is not necessary to turn the water supply off to change the filter. Be ready to wipe up any small amounts of water re- leased during the filter replacement.

1. Turn Off the ice maker.
2. Remove the filter by pushing on the end/face of the filter.
3. Slide the old water filter cartridge straight out of the housing and discard it.
4. Unpackage the new filter cartridge. Using the alignment guide, slide it gently into the filter housing until it stops against the snap-in connector at the back of the housing.
5. Push firmly until the cartridge snaps into place (you should hear a click as the cartridge engages the snap-in connector).
6. Press a drinking glass against the water dispenser while checking for any leaks at the filter housing. Any spurts and sputters that occur as the system purges air out of the dispenser system are normal.
7. After filling one glass of water, con- tinue flushing the system for about minutes.
8. Turn On the ice maker.
9. Press and hold the Water Filter reset button on the Ice & Water Dispenser control panel for 3 seconds. When the display changes from red to green, the status has been reset.

Air Filter (some models)

Some models are pre-loaded with an air filter located at the top of the fresh food compartment, next to the water filter.

Replacing the Air Filter

You should change your air filter every months (the filter status light on the control panel prompts you to replace the filter after 6 months) to optimize the reduction of refrigerator odors. Different foods will emit various levels of odor. To install your new FRGPAAF1 PureAirTM AF-1 air filter:

1. Pull the air filter housing straight out.
2. Remove the old filter and discard it if applicable).
3. Unpack the new filter and place it inside the housing.
4. Slide the housing back into position.
5. Activate or reset the Air Filter status light on the control panel.

Damper/Air Filter Housing

In humid regions certain products stored too close to the damper/air filter housing may freeze. If this scenario occurs, adjust the fresh food temperature settings and reconfigure the top shelf storage to allow for proper air diffusion.

CARE AND CLEANING

Protecting your investment

Keeping your appliance clean maintains appearance and prevents odor build-up. Wipe up any spills immediately and clean the freezer and refrigerator compart- ments at least twice a year. When clean- ing, take the following precautions:

• Never use CHLORIDE or cleaners with bleach to clean stainless steel.
• Do not wash any removable parts in a dishwasher.
• Always unplug the electrical power cord from the wall outlet before cleaning.
• Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can scratch the appliance surface.
• Do not remove the serial plate.

Do not use abrasive cleaners such as win- dow sprays, scouring cleansers, brushes, flammable fluids, cleaning waxes, concen- trated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior doors, gaskets or cabinet liners. Do not use paper towels, metallic scouring pads, or other abrasive cleaning materials or strong alkaline solutions.

NOTE: If you set your temperature controls to turn off cooling, power to lights and other electrical components will con- tinue until you unplug the power cord from the wall outlet.

CAUTION:

• Pull the unit straight out to move it. Shifting it from side to side may damage flooring. Be careful not to move the appliance beyond the plumbing connections.
• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.
• Sudden temperature changes can cause glass breakage.

IMPORTANT: If you store or move your unit in freez- ing temperatures, be sure to completely drain the water supply system. Failure to do so could result in water leaks when you put the unit back into service. Con- tact a service representative to perform this operation.

Glass Shelves

CAUTION: To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break sudden- ly if nicked, scratched, or exposed to sudden temperature change. Allow the glass shelves to stabilize to room tem- perature before cleaning. Do not wash in the dishwasher.

Refrigerator: Shelves are easily adjusted to suit individual needs. Before adjusting the shelves, remove all food. Shelves are supported by side rails.

To adjust, lift up on the back of the shelf and pull forward.

Replace the shelf by sliding it on top of the formed rails on the side walls of the cabinet until the rear plastic hooks of the shelf lock into the rear of the cabinet liner.

CAUTION: To avoid personal injury or property damage, handle the freezer glass shelves carefully. These shelves are fixed and are not to be used as sliding shelves.

Freezer: You can remove the glass freezer shelf for cleaning. Remove all food from the glass shelf. Rotate the front trim down to remove front trim (Figure 1).

Remove both the rear trim and glass by pulling up on the rear tab and sliding the shelf forward (Figure 2)

CAUTION: Allow the glass shelves to stabilize to room temperature before cleaning. Do not wash in the dishwasher.

To reassemble the freezer shelf, slide the glass and rear trim along the shelf rails while pressing the shelf downward until it is fully locked into place in the rear (Figure 3).

Finally, rotate the front trim upward on the front edge of the glass shelf (Figure 4).

Care & Cleaning Tips

Interior & Door Liners

• Soap and water
• Baking soda and water

Use 2 Tbsp of baking soda in 1 qt of warm water. Be sure to wring excess water out of sponge or cloth before cleaning around controls, light bulb or any electrical part.

Door Gaskets

• Soap and water

Wipe gaskets with a clean soft cloth.

Drawers & Bins

• Soap and water

Use a soft cloth to clean drawer runners and tracks.

Glass Shelves

• Soap and water
• Glass cleaner
• Mild liquid sprays

See "Glass shelves" in CARE AND CLEANING before cleaning. Allow glass to warm to room temperature before immersing in warm water.

Toe Grille

• Soap and water
• Mild liquid sprays
• Vacuum attachment

Vacuum dust from front of toe grille. Remove toe grille (see Installation Instructions). Vacuum backside, wipe with sudsy cloth or sponge. Rinse and dry.

Exterior & Handles

• Soap and water
• Non Abrasive Glass Cleaner

Do not use commercial household cleaners containing ammonia, bleach or alcohol to clean handles. Use a soft cloth to clean smooth handles. DO NOT use a dry cloth to clean smooth doors.

Exterior & Handles (Stainless Steel Models Only)

• Soap and water
• Stainless Steel Cleaners

Never use CHLORIDE or cleaners with bleach to clean stainless steel. Clean stainless steel front and handles with non-abrasive soapy water and a dishcloth. Rinse with clean water and a soft cloth. Use a non-abrasive stainless steel cleaner. These cleaners can be purchased at most home improvement or major department stores. Always follow manufacturer’s instructions. Do not use household cleaners containing ammonia or bleach.

NOTE: Always clean, wipe and dry with the grain to prevent scratch- ing. Wash the rest of the cabinet with warm water and mild liquid detergent. Rinse well, and wipe dry with a clean soft cloth.

TROUBLESHOOTING

Let us help you troubleshoot your concern! This section will help you with common issues. If you need us, visit our website, chat with an agent, or call us. We may be able to help you avoid a service visit. If you do need service, we can get that started for you!

AUTOMATIC ICE MAKER

Ice maker is not making any ice.

• The ice maker is not on.
  • Turn the ice maker on. Press and hold the Ice Maker button for 3 seconds until the indicator light is on.

Ice maker is not making enough ice.

• Check to see if water dispenser is dispensing slower than normal.
  • If it is, replace the ice and water filter cartridge.
• Freezer control is set too warm.
  • Set freezer control to colder setting to improve performance of the ice maker. Allow 24 hours for tempera- ture to stabilize.

Ice cubes are freezing together.

• Ice cubes are not being used frequently enough.
  • Remove ice container and discard ice from container. Ice maker will produce fresh supply.
• Ice cubes are hollow partially frozen cubes with water inside).
  • The ice and water filter cartridge may be clogged. Replace filter cartridge.
• Freezer control is set too warm.
  • Set freezer control to colder setting. Al- low 24 hours for temperature to stabilize.

DISPENSER (Ice & Water)

Dispenser will not dispense ice.

• There is no ice in the bin to be dispensed.
  • See the “Ice maker is not making any ice” section above.
• The refrigerator doors are not com- pletely closed.
  • Be sure to close the refrigerator completely.
• Dispenser paddle has been pressed too long and the dispenser mo- tor has overheated.
  • The motor overload protector will reset in about 3 minutes and then ice can be dispensed.
• Not dispensing ice regularly may melt and refreeze ice causing ice clumping. Dispens- ing clumps could dam- age the ice bucket.
  • Empty the ice bucket monthly or regularly dispense ice. For longer periods of time (vacation or vacant homes) see Ice Maker/Dispenser Tips in the AUTOMATIC ICE AND WATER DISPENSER section to turn off the ice maker.

Ice dispenser is jammed.

• Ice has melted and frozen around auger due to infrequent use, temperature fluctuations, and/or power outages.
  • Remove ice container, thaw, and emp- ty the contents. Clean container, wipe dry, and replace in proper position.When new ice is made, dispenser should operate. See Cleaning the Ice Storage Bin in the AUTOMATIC ICE AND WATER DISPENSER section.
• Ice cubes are jammed between ice maker and back of ice container.
  • Remove ice cubes that are jamming the dispenser.

Dispenser will not dispense water.

• Water filter not seated properly.
  • Remove and reinstall the water filter.Be sure to push the filter firmly so that you hear it lock solidly into position.
• Water filter is clogged.
  • Replace filter cartridge. Be sure to remove protective caps and push the filter firmly so that you hear it lock solidly into position.
• Household water line valve is not open.
  • Open the household water line valve.

Water has an odd taste and/ or odor.

• Water has not been dispensed for an ex- tended period of time.
  • Draw and discard 10-12 glasses of water to freshen the supply.
• Unit not properly connected to cold water line.
  • Connect unit to cold water line that supplies water to the kitchen faucet.

Water pressure is extremely low.

• Cut-off and cut-on pressures are too low well systems only).
  • Have someone turn up the cut-off and cut-on pressure on the water pump system (well systems only).
• Reverse osmosis system is in regenerative phase.
  • It is normal for a reverse osmosis system to be below 20 psi during the regenerative phase.
  • See the WATER SUPPLY CONNEC- TION section.

Water not cold enough.

• As warmer tap water goes through the filter and enters the water tank the chilled water is pushed through to the dispenser. Once the chilled water is used up it will take several hours to bring the freshly replaced water to a cooler temperature.
  • Add ice to cup or container before dispensing water.
• Some models are de- signed without a wa- ter tank, these water dispensing systems are not designed to chill water.
  • Add ice to cup or container before dispensing water

OPENING/CLOSING OF DOORS/DRAWERS

Door(s) will not close.

• Door was closed too hard, causing other door to open slightly.
  • Close both doors gently.
• Refrigerator is not lev- el. It rocks on the floor when moved slightly.
  • Ensure floor is level and solid, and can adequately support the refriger- ator. Contact a carpenter to correct a sagging or sloping floor.
• Refrigerator is touch- ing a wall or cabinet.
  • Ensure floor is level and solid, and can adequately support the refriger- ator. Contact a carpenter to correct a sagging or sloping floor.

Drawers are difficult to move.

• Food is touching shelf on top of drawer.
  • Remove top layer of items in drawer.v
• Track that drawers slide on is dirty.
  • Ensure drawer is properly installed on track.
  • Clean drawer, rollers, and track. See CARE & CLEANING.

RUNNING OF REFRIGERATOR

Compressor does not run.

• Freezer control is set to “OF” or “0”.
  • Set freezer control.
• Refrigerator is in defrost cycle.
  • This is normal for a fully automatic defrost refrigerator. The defrost cy- cle occurs periodically, lasting about minutes.
• Plug at electrical out- let is disconnected.
  • Ensure plug is tightly pushed into outlet.
• House fuse blown or tripped circuit breaker.
  • Check/replace fuse with a 15 amp time-delay fuse. Reset circuit breaker.
• Power outage.
  • Check house lights. Call local electric company.

Refrigerator runs too much or too long.

• Room or outside weather is hot.
  • It’s normal for the refrigerator to work longer under these conditions.
• Doors are opened too frequently or too long.
  • Warm air entering the refrigerator causes it to run more. Open doors less often.
• Refrigerator/freezer door may be slightly open.
  • Ensure refrigerator is level. Keep food and contains from blocking door. See PROBLEM column OPENING/CLOS- ING OF DOORS/DRAWERS.
• Freezer control is set too cold.
  • Set Refrigerator control to warmer setting until refrigerator temperature is satisfactory. Allow 24 hours for temperature to stabilize.
• Refrigerator/freezer gasket is dirty, worn, cracked, or poorly fitted.
  • Clean or change gasket. Leaks in door seal will cause refrigerator to run longer in order to maintain desired temperatures.
• Condenser is dirty.
  • Clean condenser. See CARE & CLEANING.

Compressor goes off and on frequently.

• Thermostat keeps the refrigerator at a con- stant temperature.
  • This is normal. Refrigerator goes on and off to keep temperature constant.

Appliance seems to run continuously.

• The appliance is equipped with an energy-efficient variable speed compressor. It actual- ly saves energy run- ning more frequently.
  • This is normal.

DIGITAL TEMPERATURE DISPLAY

Digital tempera- ture displays are flashing.

• Electronic control system has detected a performance problem.
  • Call your Frigidaire service represen- tative, who can interpret any messag- es or number codes flashing on the digital displays.

WATER/MOISTURE/FROST INSIDE REFRIGERATOR

Moisture collects on inside of re- frigerator walls.

• Weather is hot and humid.
  • The rate of frost buildup and internal sweating increases.
• Door is slightly open.
  • See PROBLEM column OPENING/ CLOSING OF DOORS/DRAWERS.

Water collects on bottom side of drawer cover.

• Vegetables contain and give off moisture.
  • It is not unusual to have moisture on the bottom side of the cover.
  • Move humidity control (some mod- els) to lower setting.

Water collects in bottom of drawer.

• Washed vegetables and fruit drain while in the drawer.
  • Dry items before putting them in the drawer. Water collecting in bottom of drawer is normal.

Stored products on top shelf freeze.

• Fresh food tempera- ture setting too cold.
  • Adjust fresh food temperature settings.
• Certain products stored too close to damper / air filter housing.
  • Reconfigure top shelf storage to allow proper diffusion of air. See Damper/Air Filter Housing in the FILTER REPLACEMENT section.

WATER/MOISTURE/FROST OUTSIDE REFRIGERATOR

Moisture collects on outside of refrigerator or between doors.

• This is normal in humid weather.When humidity is lower, the moisture should disappear.
  • Weather is humid.
• Door is slightly open, causing cold air from in- side refrigerator to meet warm air from outside.
  • See PROBLEM column OPENING/ CLOSING OF DOORS/DRAWERS.

LED LIGHTING

LED is not on

• LED needs to be replaced.
  • Call a qualified service technician to replace the LED.

See other models: FRSS2323AW FRSS2323AB FRSS2323AD GRSC2352AF FRSS2323AS
