Introduction 3
Safety and warnings 4
Installation instructions 7
Control panel 12
Drying cycles 14
Sorting and loading 16
Getting started quickly 19
Customising drying cycle 20
Customising dryer settings 22
Caring for your dryer 23
Before you call for service 26
Fault codes 27
Troubleshooting 28
Manufacturer’s Warranty 34
Customer care 36
3
INTRODUCTION
Welcome to your new heat pump clothes dryer
Thank you for purchasing a Fisher & Paykel clothes dryer. We are proud of this dryer
andtrust it will serve you well for many years.
At Fisher & Paykel we aim to provide innovative products that are simple to use,
ergonomic, energy efficient and kind to the environment. Thousands of tonnes of
laundry and 80 years of experience have been programmed into your dryer tohelp
giveyou the best possible performance.
Your dryer has the benefit of heat pump technology, which allows clothes to be dried
atlower temperatures, improving clothes care while saving energy. This dryer also
hasthe advantage of not needing to be vented outside, instead it condenses the
moisture from the clothes and collects this in a water tank, or for convenience, can
pump it directly into a drain.
Your new dryer gives you the convenience of tumble drying and your clothes the
advantage of not being subjected to the harsh over drying effects of the sun.
Yourclothes will feel softer, retain their shape and require less ironing. This dryer has
been specifically designed to complement our front loading Fisher&Paykel washers.
Your heat pump dryer has numerous cycles and options so you can perform every
drying task (including flat drying) with ease, allowing you to spend less time in the
laundry. With the ability to automatically sense when your clothes are dry, your dryer
ismore efficient, making it kinder on your wallet and the environment.
Please take the time to read these instructions carefully before you begin using your
dryer. Following the advice in this User guide will ensure you get the performance
you expect from your dryer and that you get the best possible results. Keep these
instructions for future reference and pass them on with your dryer, if it changes hands.
We hope you enjoy your new dryer. We have certainly enjoyed designing it for you.
4
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using this appliance always exercise basic safety precautions including
the following:
Dryer use
The tumble dryer is intended only for drying textile material washed in water.
Undergarments that contain metal reinforcements should not be placed in the dryer.
Damage to the dryer can result if the metal reinforcements come loose during drying.
If you wish to dry these items use a drying rack or place in a garment bag.
Check and remove all objects from pockets, eg lighters and matches.
The maximum mass of dry textile material is 8 or 9 kilograms, depending on the model.
Do not overload yourdryer.
Never dry rubber articles, or any plastic items or film, eg plastic lined tablecloths
andbaby bibs.
Clothes should go through the cool down/airing phase in the final part of thecycle.
This ensures items are left at a temperature where they will not be damaged.
Ifforanyreason the dryer is stopped before the cycle has finished, dry clothes should
be removed immediately and not left in the dryer. Clothes should be quickly spread
out flat to cool so heat can dissipate, not left bunched up, eg in a clothes basket.
This dryer has been designed for domestic use only, not for commercial applications,
such as massage/beauty clinics where there may be increased lint accumulation or
flammable materials in the atmosphere or load.
Meaning of symbols on the dryer
Warning: Risk of fire/Flammable materials
Read the instructions
!
WARNING!
Fire Hazard
Only dry fabrics that have been washed with water.
Do not use heat to dry articles containing foam rubber or similarly
textured rubber—like materials, dry on ‘Cool Air’.
Do not stop a tumble clothes dryer before the end of the drying cycle
unless all items are removed and spread out in order to dissipate the heat.
A clothes dryer produces combustible lint; the lint filter must be
cleaned before each drying cycle.
Failure to follow the warnings outlined in these user instructions can
cause a fire hazard.
Failure to follow these instructions can result in death or personal injury.
5
SAFETY AND WARNINGS
Do not operate this product without the lint filters in place or allow lint to accumulate
in or around the dryer.
This dryer is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless given supervision or instruction concerning the use of the dryer by a person
responsible for their safety.
Children should be supervised to ensure they do not play with the dryer.
Unplug the machine from the power supply when it is not in use.
Do not swing or put weight on the door.
Your dryer is designed to stop operating in the event of power outage.
Whenpowerisresumed, the machine will remain off until the ‘POWER’ button is
pressed. To restart the dryer, press ‘POWER’, select your drying cycle and touch .
Never attempt to repair the dryer yourself.
The only user-removable parts of the dryer are the drain hose, lint filter, drying rack,
condenser filter and the water tank. No other parts are designed to be removed by
anyone other than a Fisher & Paykel trained and supported service technician.
For problems that cannot be solved from information in this User guide, turn off and
unplug your dryer and contact a Fisher & Paykel trained and supported service technician.
When disposing of the dryer, it is recommended that the door is removed to avoid
children getting trapped inside, and that the electrical cable is cut off close to
thedryer.
IMPORTANT!
We do not recommend the use of extension cords or portable electrical outlet
devicesfor safety reasons. If you are using an extension cord or portable electrical
outlet device (eg multi-socket outlet box) ensure that it is positioned so that it
doesnot come into contact with water or moisture.
Lint
Accumulated lint in the dryer can become a fire hazard; it also reduces the efficiency
of the dryer by causing longer drying times and increased power consumption.
Clean the lint filters before every load.
Ensure the area around the dryer is clear of lint.
At regular intervals have the interior of the dryer cleaned of any accumulated lint.
Thismust be done by a Fisher & Paykel trained and supported service technician.
6
SAFETY AND WARNINGS
Spontaneous combustion
IMPORTANT!
To reduce the risk of fire in a tumble dryer the following should be observed:
Items that have been spotted or soaked with vegetable oil or cooking oil are
afirehazard and should not be placed in a tumble dryer.
Oil-affected items can ignite spontaneously, especially when exposed to heat
sourcessuch as a tumble dryer. The items become warm causing an oxidation
reactionin the oil. This oxidation creates heat. If the heat cannot escape the items
canbecome hot enough to catch fire. Piling, stacking or storing oil-affected items
canprevent heat from escaping creating a fire hazard.
If it is unavoidable that fabrics that contain vegetable oil, cooking oil or have been
contaminated by hair care products be placed in a tumble dryer, they should first
bewashed in hot water with extra detergent—this will reduce, but not eliminate
the fire hazard. The cool down cycle of the dryer should be used to reduce the
temperature of these items. They should not be removed from the tumble dryer
andpiled or stacked while hot.
Items that have previously been cleaned in, washed in, soaked in or spotted with
flammable liquids or solids, eg petrol/gasoline, kerosene, dry cleaning solvents,
vegetable or cooking oil, acetone, denatured alcohol, some brands of spot removers,
turpentine, waxes and wax removers or other flammable or explosive substances
should not be placed in a tumble dryer.
Do not dry unwashed items in the tumble dryer.
The dryer is not to be used if industrial chemicals have been used for cleaning.
Fabric softeners or similar products should not be used in a tumble dryer to
eliminatethe effects of static electricity, unless this practice is specifically
recommended by the manufacturer of the fabric softener product.
Rubber backed articles, foam rubber (latex foam), clothes or pillows fitted with
foamrubber pads, fibreglass, shoes containing rubber, shower caps, babies
waterproof napkin covers and waterproof textiles should not be dried in the dryer.
These materials can when heated produce fire by spontaneous combustion.
Disposal
Extreme care must be taken when disposing of your old appliance to avoid hazards.
7
Read and follow the ‘Safety and warnings’ and ‘Installation instructions’ sections
carefully before using your dryer!
Moving your appliance
When moving your dryer only tip towards the right hand side (when viewed from
thefront). If the dryer has not been transported as described, leave it standing
uprightfor at least one hour before turning on.
Accessories
Please check you received the following accessories with your Fisher & Paykel dryer.
You will find them inside the drum:
1 x Drying rack
1 x Drain hose
1 x Installation guide / User guide.
Unpacking
To ensure the best performance from your new dryer please follow the instructions below.
Removing the packaging
1 Remove the outer packaging (including the polystyrene packer and plastic wrapping).
All packaging must be removed prior to use.
2 Tilt the machine backwards and ‘walk’ it off the base one foot at a time.
Notdoingsomay cause damage to your floor and dryer.
3 Remove all packaging and accessories from inside the drum and ensure you
removeprotective covers from door and console.
IMPORTANT
Ensure packaging materials are kept out of reach of children.
Please help protect the environment and dispose of the packaging from around
thedryer in an environmentally friendly manner.
Location
IMPORTANT!
The dryer must be installed in a well-ventilated,
dust-free environment.
The dryer must not be installed on any textured floor
coverings (eg carpet, rugs) to ensure that openings
atthe base of the machine are not obstructed.
Do not install the dryer behind a lockable door,
slidingdoor, or behind a door where the hinge is
onthe opposite side to that of the dryer in such
awaythat the full opening of the door is inhibited.
Ensure the dryer door can always be opened fully.
Note: this dryer CANNOT BE INVERTED AND
MOUNTED ON THE WALL.
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
8
Installation options
Your dryer can be installed one of two ways, either freestanding, or stacked on top
ofaFisher & Paykel front loading washer.
1
Free standing

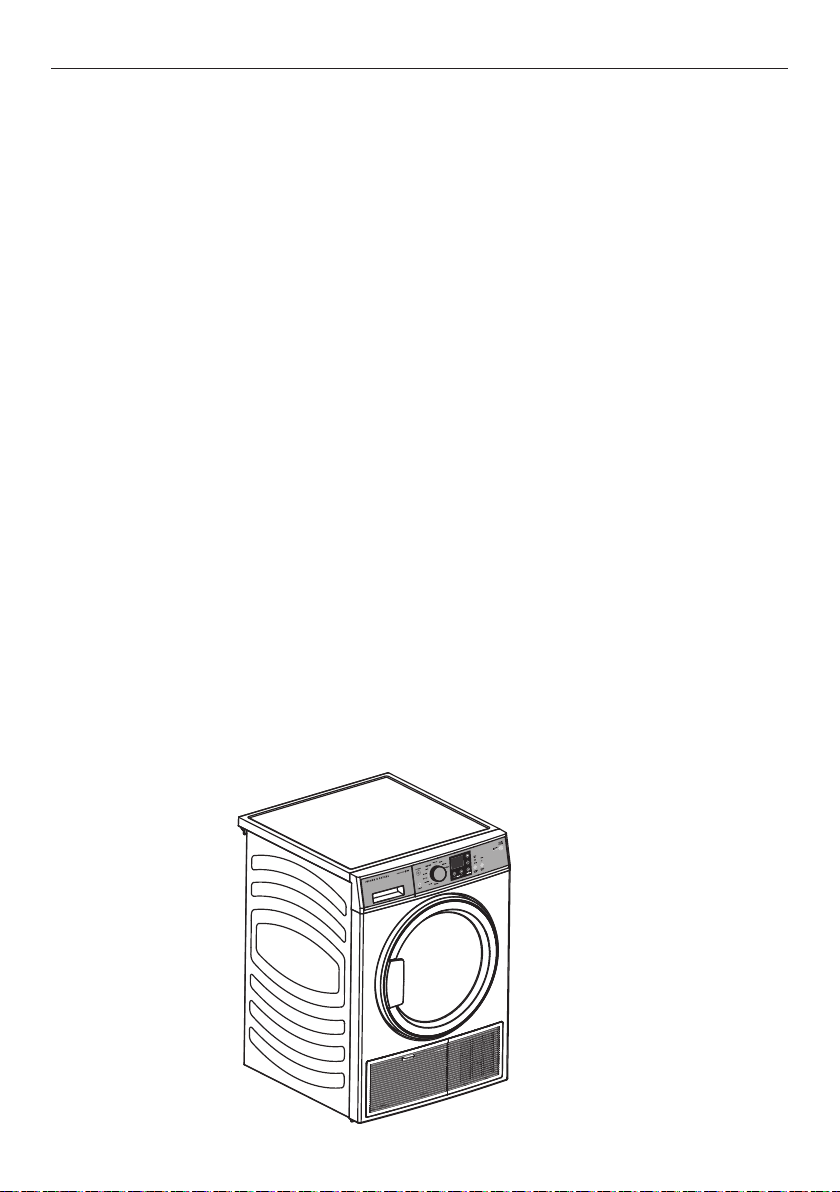

The dryer stands on the floor and can easily be moved into position.
2
Stacking
Your dryer has been designed to be able to be stacked on top of any Fisher & Paykel
frontloading washer. A stacking kit MUST BE USED between the products and fitted
correctly to the washing machine and dryer, as per the stacking kit instructions.
– Stacking Kit White: Part No. 428159. This Stacking kit is available from your
Fisher&Paykel dealer, online or from a Fisher & Paykel service technician.
1 Move the machine into the desired position. Do not lift the dryer by the top panel.
2 Have a minimum clearance on all sides of at least 20mm.
3 Install the machine on a stable and level floor (if not stacking on top of a front
loadingwasher).
Do not install your dryer in such a way that the dryer door cannot be opened fully.
Do not install the dryer outside, in a damp place, where there is a risk of freezing,
whereit may be rained on, in direct sunlight or close to a source of heat.
Do not place your machine on top of its power cable.
Levelling the machine
It is IMPORTANT to level the machine to ensure the machine runs efficiently with minimal
noise. The dryer should be levelled in as close to its final position as possible so it stands
balanced evenly on all four feet. Ensure the dryer does not rock in any direction.
The dryer comes with four adjustable feet. Wind
all four feet up or down until the dryer is correctly
level. A spirit level can assist with this process.
The machine is considered level when the bubble
sits in the centre (ie within the two lines or the
circle), when the spirit level is placed flat on top
of your dryer, in the directions from:
1 left to right
2 back to front, and
3 corner to corner.
Never unscrew the feet completely from their housings.
Note: After levelling, the corners of the dryer cabinet should be clear of the floor
andthemachine must not rock in any direction.
Levelling the feet
INSTALLATION INSTRUCTIONS
9
Draining
The dryer is equipped with a condenser unit which accumulates water during the drying
cycle. This water is collected in the removable water tank located at the top left of the
dryer. The accumulated water must be emptied after each drying cycle. However you
can also set up your dryer to drain automatically using the drain hose provided.
Connecting the drain hose:
1 Remove the black hose from the connection at the back of the dryer (A).
2 Uncoil the drain hose (included with your dryer) and connect it to the black hose(B).
3 Place the other end of the drain hose into a tub or standpipe.
IMPORTANT!
If you connect the drain hose onto your dryer, the other end must be secured in a
drain to prevent water draining onto the floor. Ensure the drain hose is securely fixed
in place to an appropriate drain and is leak-free at the connection to the machine.
Check the connection and drain hose regularly.
Maximum standpipe height is 1m from ground level.
Regularly check that your standpipe or tub is free from lint and other obstructions,
which may affect drainage and cause flooding.
The drain hose should be checked from time to time and replaced if any damage,
egwear, cuts, bulges, kinks, leaks, etc are found. Do not bend the drain hose sharply,
asthismay cause it to split.
The extended length of the provided drain hose is 1.3m.
In multi-storey apartments or any upper floor, the machine should be installed on
afloorequipped with a drain.
Draining must comply with local by-laws.
A
B
INSTALLATION INSTRUCTIONS
10
Electrical connection
1 This appliance must be connected to a 220V – 240V,50Hz, sinusoidal, 10Aelectricalsupply.
2 Uncoil the power cord, remove and discard the plastic pin cover and plug into a powersocket.
3 Connect the appliance to an earthed outlet protected by a fuse of suitable capacity.
Check the power cord for damage and make sure it is not squashed or twisted
wheninstallingthe dryer.
Always remove the power cord from the power socket by the plug, not by the cord.
IMPORTANT!
Do not touch or operate the machine with wet hands or with bare-feet.
A damaged power cord must be replaced by a Fisher & Paykel trained and supported
service technician, its service agent or similarly qualified persons inorderto avoid a hazard.
The appliance must not be operated until it is repaired, asthere is risk of electric shock.
Do not operate this machine if it has been damaged during transport. Contact your
Fisher&Paykel dealer or Fisher & Paykel trained and supported servicetechnician.
WARNING!
The appliance must not be supplied through an external switching device, such as
atimer, or connected to a circuit that is regularly switched on and off by a utility.
Completing the installation
Installation test cycle
IMPORTANT!
Ensure the installation test cycle is completed before you dry any items in your dryer.
This is to check that your dryer is installed correctly and that it is functioning properly
prior to use.
1 Turn your dryer on by pressing the ‘POWER’ button.
2 Select the ‘Time Dry’ cycle for 30 minutes. Ensure the drum is empty and the door
isclosed (you will hear it click shut).
3 Touch the button. The drum will start rotating.
– Observe the machine for any problems.
– The dryer will beep and display any faults on the screen if there are any problems.
Refer to ‘User Prompts’ and ‘User warnings’.
4 At the completion of the cycle, open the door and check that there is warmth inside
thedryer. This indicates the dryer is operating normally.
IMPORTANT!
If there are any problems, you must address these before proceeding with normal use.
The dryer will automatically turn off at the end of the cycle if there are no problems.
Before you start, it is a good idea to go through the following checklist:
1 Has the packaging been removed?
2 Is the machine correctly levelled, and the cabinet corners clear of the floor and walls?
3 Are the water tank, condenser filter and lint filter correctly in place?
4 Has the power cord been connected to an appropriate power supply and the power turnedon?
5 Have you performed the installation test cycle?
6 If external draining is preferred, is the drain hose attached to the correct outlet and hooked
into a standpipe or tub?
INSTALLATION INSTRUCTIONS
11
Machine specifications
DH8060C
Capacity (kg)* 8
DIMENSIONS (mm)
Width 595
Depth 665
Height** 850
Length of drain hose 1300
ELECTRICAL
Volts 220 – 240
Hz 50
Amps (maximum) 10
Power consumption (W) 550
* Capacity refers to the maximum dry weight of items the machine can dry at any one time.
Note:somecycleshavealower maximum capacity (see the ‘Drying cycles’ section).
** The exact height of your dryer is dependent on how far the feet are extended from the base of the machine.
Machine specifications
DH9060C
Capacity (kg)* 9
DIMENSIONS (mm)
Width 595
Depth 665
Height** 850
Length of drain hose 1300
ELECTRICAL
Volts 220 – 240
Hz 50
Amps (maximum) 10
Power consumption (W) 550
* Capacity refers to the maximum dry weight of items the machine can dry at any one time.
Note:somecycleshavealower maximum capacity (see the ‘Drying cycles’ section).
** The exact height of your dryer is dependent on how far the feet are extended from the base of the machine.
12
CONTROL PANEL
1
POWER Press to turn the dryer on/off.
2
Keylock Touch and hold for three seconds to disable all buttons on the
displaypanel, except ‘POWER’ button. This prevents accidental
button presses.
3
SmartTouch™
control dial
Rotate to select your desired drying cycle.
Red LED illuminates to indicate the selected drying cycle.
Selected dry cycle information is shown on the main display screen.
4
Digital display
screen
Shows the following:
Drying cycle options and information based on the dial selection.
Dryer settings.
Drying progress.
Delayed start time of the drying cycle.
Notifications if an error is detected or a warning is necessary.
5
Adjust Touch to navigate through the drying cycle options and settings,
andto increase or decrease the delay start time.
6
Options Touch to access drying cycle options and dryer settings.
7
Select Touch to accept the selected option or any changes made to a cycle,
and return to the main screen.
8
Back Touch to exit current display and return to the main screen.
Changeswillnot be saved if the button is not selected first.
9
Dryness Level Allows you to select the level of dryness for your load.
!0
Wrinkle Free Allows you to select a wrinkle free option for your cycle.
!1
START/PAUSE Touch to start or pause the selected drying cycle.
WIFI is not available on this product.
No Delay
Everyday
Auto
2
1
3 9
!1
!06
4
5
7 8
13
Timed cycles (Time Dry, Rack Dry, Wool, Cool Air and Freshen)
When a timed cycle is selected the machine dries for the selected time
regardless of the level of moisture in the load. It is important to check
the items throughout the timed programmes to avoidover drying.
To adjust the length of timed cycles:
Select the desired cycle.
Use the buttons to adjust the time up or down.
Touch the button to confirm.
Extra Care cycles
This machine has 5 ‘Extra Care’ cycles that allow you to further tailor your drying selection.
To select an ‘Extra Care’ cycle:
Select ‘Extra Care’
Use the buttons to adjust to the desired cycle.
Touch the button to confirm.
Airing/Cool down (Cool)
When the dryer has sensed that the load is dry, it will automatically
gointoa‘Cooling’ cycle. During ‘Cooling’, the drum tumbles and
coolairisblown through the items. This cools the load to reduce
creasing if the items are left in the dryer.
Dry progress
For all cycles, the display will show the phase of the cycle that
iscurrentlyunderway.
For timed cycles, the display will also show approximately how
manyminutesthecycle has remaining.
For automatic cycles, the word ‘Auto’ will appear on the screen
until the cycle reaches the cool down phase, at which time
thedryerwilldisplayhowlongthecyclehas left to go.
Keylock
This option enables you to deactivate the buttons on the display panel, except for
the‘POWER’ and
buttons. This option helps prevent accidental button touches.
To turn Keylock ON or OFF, at any time when the dryer is powered on:
Touch the button for three seconds.
Note: When activated the button is illuminated.
If Keylock is activated and the dryer is off:
Press the ‘POWER’ button, then touch the button for three seconds to turn Keylock off.
Select your drying cycle, any options and then touch to start the cycle.
Time Dry
Set Time
50min
CONTROL PANEL
10
min
Everyday
Cooling
Auto
Everyday
Drying
14
DRYING CYCLES
Your dryer has a number of drying cycles to suit your laundry needs. Selecting the most
appropriate cycle for each particular load will help ensure you get the best result.
CYCLE DESIGNED FOR DESCRIPTION
MAX.
LOAD
SIZE
(KG)
DEFAULT
DRYNESS
LEVEL*
Everyday** Everyday clothing
egt-shirts,trousers.
Auto sensing cycle for
everydayclothes.
8/9*** Dry
Heavy Heavy durable garments,
egwork sweatshirts/jerseys,
rugby shorts, jeans, tea towels.
Auto sensing cycle for
heavyfabrics. 8
Dry/
Extra Dry
Delicate Delicate clothing items,
egsynthetics and fine fabrics.
Auto sensing cycle for delicate
and heat sensitive fabrics.
4 Dry
Easy Iron Business shirts and clothing
that creases easily.
Auto sensing cycle with the
wrinkle free option on.
4
Damp/
Dry
Bulky Large volume items
egsleeping bags, duvets/
doonas and blankets.
Auto sensing cycle for the
special care of bulky items. 2
Dry/
Extra Dry
Sheets Sheets, pillowcases. Auto sensing cycle with reverse
tumble for large items.
4
Dry/
Extra Dry
Wool Woollen garments. Timed cycle for use with the drying
rack, with options from 30 to
150minutes for washable woollen
items that cannot be tumbled.
3 –
Freshen Items that have been in storage
or have not been worn/used
for some time.
A timed short burst of heat
followed by cool air to freshen
fabrics.
2 –
Towels Towels. Auto sensing cycle for thick,
absorbent items.
6 Dry
Rack Dry Items that cannot be tumbled,
eg shoes, hats, delicate
garments.
Timed cycle for use with the
drying rack, with options from
30 to 150minutes for items that
cannotbe tumbled.
3 –
Time Dry Drying items for a selected
time period.
Timed cycle with options
from30 to 150 minutes.
8/9*** –
Cool Air Tumble items for a specific
time period, without heat.
40 minute cool air cycle.
4 –
Sports Sports clothing Auto sensing cycle designed
tocare for sports clothing.
4 Dry
Note: ‘Freshen’ or ‘Cool Air’ cycles are not designed for drying garments, only to freshen items already dry.
* Dryness level is only an option on automatic sensing cycles. On ‘Time Dry’, ‘Rack Dry’ and ‘Wool’ cycles,
dryness will vary depending on the load and its initial moisture content.
** ‘Everyday’ cycle and ‘Dry’ dryness level is the recommend cycle for everyday cottons DH8060C.
‘Sheets’ cycle and ‘Dry’ dryness level is the recommend cycle for everyday cottons DH9060C
*** Maximum load size is 8kg for DH8060C and 9kg for DH9060C.
15
DRYING CYCLES
CYCLE DESIGNED FOR DESCRIPTION
MAX.
LOAD
SIZE
(KG)
DEFAULT
DRYNESS
LEVEL*
Extra Care Ultra
Delicate
Ultra delicate
clothing,
egsynthetics and
fine fabrics.
Auto sensing cycle for hand
washed items.
1
Dry/
Extra
dry
Soft Toys Soft toys. Timed cycle to warm blow dry
soft toys. Do not dry toys with
plastic, metallic or electrical parts.
1
–
Warm Up** Items that you
wish to warm
prior to use.
Short timed cycle that heats up
the clothes until they are warm
to the touch. Ideal to warm up
pyjamas before bed or towels
before a shower.
2
–
Jeans Denim clothing. Auto sensing cycle designed
to dry jeans that deserve
specialcare.
2 Dry
Outdoor Outdoor jackets. Auto sensing cycle ideal for
drying high performance fabrics
and outdoor jackets.
2 Dry
Note: Options cannot be changed for ‘Extra Care’ cycles.
* Dryness level is only an option on automatic sensing cycles. On ‘Time Dry’, ‘Rack Dry’ and ‘Soft Toy’ cycles,
dryness will vary depending on the load and its initial moisture content.
** ‘Warm Up’ cycle is not designed to dry damp items, only for making them warm to the touch.
16
SORTING AND LOADING
When preparing your load there are some important things to consider:
Sorting
We recommend sorting your garments before placing them into the dryer.
Sortintoloads of similar items, and loads that will likely take similar times to dry.
Heavier items (egtowels, and flannelette sheets) are best dried separately from
lightweight items (egsynthetics, polyester-cotton sheets and shirts). This prevents
thepossibility of some items becoming over-dried whilst others are still damp.
Itwillalso help to extend the lifeofyour clothing and linen.
Care labels on garments provide valuable information about the fabric type and
howthegarment should be dried. Always follow the advice on garment labels.
Onlydryitems in this dryer that have a care label stating tumble drying is suitable.
Drying your clothes as soon as you remove them from the washer will decrease
thechance of wrinkles forming, and dye transfer from coloured items to white items
fromoccurring.
Separate coloured items from white/light items where possible, especially when new.
Colour run may be an issue, especially if you intend to delay the start of the drying cycle.
We recommend that articles of clothing with screen-printing are turned inside out
toprevent damage to the print. Garments with hooks or zippers should be fastened
andwhere possible, turned inside out.
SPECIFIC ITEM/DRYING
REQUIREMENTS
SUGGESTED
CYCLE AND
OPTIONS
COMMENTS
Towels Towels Towels produce a lot of lint and are best dried on
their own.
Sheets, pillowcases Sheets Ensure openings are buttoned/domed before
placing in the dryer.
Bulky items — doonas/
duvets, sleeping bags
andblankets
Bulky Dry only one bulky item at a time.
Business shirts, trousers,
other creasables
Easy Iron Wrinkle Free is automatically selected to help
minimise creasing once the drying cycle has finished.
Woollens Wool Designed for items that could be damaged if they
aretumbled, eg woollens. Use the drying rack.
Delicates, fine fabrics Delicate,
Ultra delicate
or Rack Dry
You can further reduce the dryness level to damp
or useRack Dry for very delicate items.
Jeans Heavy or Extra
Care - Jeans
Turn jeans inside out to help maintain their
appearance. Dry separately from other items.
Shoes, hats, soft toys or
other odd shaped items
Rack Dry Check on the item regularly throughout the drying
cycle. Ensure the rack has been correctly fitted.
Jackets Extra Care -
Outdoors
Turn jackets inside out to help maintain their
appearance. Dry separately from other items.
17
SORTING AND LOADING
Before you load
Check pockets for items that could damage your clothes or get caught in the dryer.
Close zippers, hooks and eyes, and other fastenings (ie fasten the openings of duvet/
doona covers), and remove loose bra wires. These may damage both your dryer and
your clothes.
Check the lint filter is clean and the water tank is empty (if the dryer is not set up
todrain automatically).
Loading
Garments need to be loaded correctly to minimise creasing and wrinkling, and to
ensurethe load is dried evenly.
Allow enough room in the dryer for clothes to tumble freely. (Hint: load the dryer in
terms of the space the garments take up when dry, rather than when they are wet).
Shake clothes out and load individually to help items dry evenly and reduce tangling.
Only dry a sheet load up to a maximum of 4kg in the dryer at one time.
Dry permanent press garments (business shirts) together on the ‘Easy Iron’ cyclewith
the ‘Wrinkle Free’ option on. This will help reduce wrinkling and the need forironing.
Hang garments as soon as the drying cycle is complete to reduce the need for ironing.
IMPORTANT!
Never put dripping wet clothes in or on top of the dryer as excess water may cause
anelectrical hazard.
Do not place an item in your dryer unless the care label specifically states it is safe
todo so.
Do not dry curtains in your dryer. Sunlight makes them brittle and they may
disintegrate during drying.
Do not overload your dryer beyond its rated capacity (eight or nine kilograms of dry
clothes, depending on the model).
Do not under any circumstances dry an electric blanket or any other electrical,
plasticor rubber items in your dryer.
18
Drying times
Drying very small loads is inefficient. Try to dry medium to large loads.
Heavier items (towels, flannelette sheets) will take longer to dry than light items
(synthetics and polyester cotton sheets and shirts).
Drying times can be reduced by spinning the wash load at the highest spin speed
suitable for the load type in your washing machine.
Check bulky items during the cycle to ensure even drying, pause the dryer and
reposition the item if necessary.
Lint
Some items are lint givers, while others are lint collectors. Always dry lint givers
and collectors separately.
LINT GIVERS LINT COLLECTORS
Towels Synthetics, eg polar fleece
Flannelette sheets Corduroy
Polyester cottons
Delicate or easily damaged items (eg woollen, nylon stockings, fine fabrics, delicate
embroidered fabrics) should be dried separately, using the ‘Delicate’or ‘Ultra Delicate’
cycle, or if you do not want them tumbled use the ‘Wool’ or ‘Rack Dry’ cycle. Sleeping
bags and other down items should be dried on the ‘Bulky’ cycle.
Drying rack
There are many items that would benefit from being dried on a
dryingrack. For example items such as sport shoes, soft toys, hats
andwoollen items that may be damaged if they are tumbled.
A drying rack is installed in your dryer when it leaves the factory.
Toremove it, tilt the top of the rack towards you to detach the legs
fromthe slots in the lint filter, and gently remove from the drum.
When you are using the drying rack you must select the ‘Rack Dry’ or
‘Wool’ cycle.
If the Rack is not properly installed or if a garment has fallen from it, a user prompt
will appear on the digital display screen. Replace the Rack and touch the to
resumethecycle.
SORTING AND LOADING
No Delay
Rack Dry
50min
19
GETTING STARTED QUICKLY
Check if the lint filter is clean and the water tank is empty before every load.
Ensureboth are replaced correctly before using your dryer.
Sort and load items into the dryer drum, ensuring no items are in the way of the door.
Close the door (you will hear it click shut).
1 Press ‘POWER’ to activate your dryer.
2 Your dryer will default to the ‘Everyday’ cycle. Select your desired drying cycle
byturning the control dial.
3 To change the default settings for the cycle, select your preferred drying option
usingthe digital display panel.
4 Touch the button to start the cycle.
If you make an invalid selection, the dryer will beep to alert you.
When the cycle finishes, your dryer will beep and then turn off automatically.
Ifthe‘Wrinkle Free’ option has been selected the machine will rotate the drum
periodically blowing cool air into the drum to help minimise wrinkling and creasing
ofyour load. Remove the items from the dryer at the earliest opportunity.
If you wish to change a cycle or select a different option once a drying cycle has
started, touch to pause the cycle, then select the new cycle or option.
Touch to restartthe dryer with the new cycle and/or settings.
IMPORTANT!
If you wish to stop the dryer before the cycle has finished, you MUST remove
theclothes IMMEDIATELY and spread them out to cool. DO NOT leave the clothes
in thedryer or bunched up in a clothes basket. Take extreme care as the drum
andtheload items may be hot.
Failure to follow the advice in this guide may result in damage to your garments
andyour expectations of drying performance may not be met.
20
Delay Start
The ‘Delay Start’ option enables you to delay the start of the drying
cycle from between 15minutes and 12hours. Delayed start options are
15minutes, 30minutes, 1hour, then hourly up to 12hours. This can be
useful to time your drying to finish when you arrive home from work,
or to start when power rates are lower.
To ‘Delay Start’ your cycle:
1 Select the cycle using the control dial.
2 Use the buttons to increase and decrease the ‘Delay Start’ time.
3 Touch the button to confirm.
4 Touch the to start the cycle.
5 The display will indicate the time until the cycle will start.
IMPORTANT!
We suggest that you avoid using ‘Delay Start’ for damp, non-colourfast items as
thismay cause dye run to occur.
Favourite
After using your dryer a few times you may discover there are some drying options
youprefer for some cycles. You can programme your dryer to remember the drying
options you prefer for each drying cycle. There are two options for making a drying
cycle a favourite.
At the end of a cycle:
1 The display will show the cycle used and the status as complete
withaquestion ‘Save as favourite?’.
2 To accept touch the button.
3 The display will show the setting has been saved.
4 The cycle will now show with a indicating the cycle has been
savedas a favourite.
From ‘Options’:
1 Select the cycle using the control dial.
2 Select start time (‘No Delay’ or ‘Delayed Start’ time of your choice).
3 Scroll through the ‘Options’ using the buttons until ‘Favourite’,
touchthe button to select.
4 Touch the again to save as a favourite.
5 The cycle will now show with a indicating the cycle has been
savedas a favourite.
Note: Favourites can only be removed by using ‘reset defaults’ in the settings menu.
When ‘reset defaults’ is selected all favourites saved for all cycles will be removed.
CUSTOMISING DRYING CYCLE
Start in 2hrs
Everyday
Auto
Everyday
Complete
Save as Favourite ?
Favourite
Option
Save?
21
Drying Cycle Options
All drying cycles default to the recommended options based on the average expected
load to be dried. You can vary the options (eg‘Dryness Level’, ‘Wrinkle Free’) to create
your desired cycle.
Note: Some options are not available on some cycles for clothes care reasons, or
because the option is not appropriate for the cycle.
To change a drying cycle option:
1 Touch on the control panel.
2 Touch or to scroll the options.
3 Touch to select the option and enable editing.
4 Touch or to select the option and then touch to confirm.
To change an option or options you have selected after a cycle has started:
Turn the dryer off and on again using the POWER button, then select your new setting
through the options menu, touch to restart the cycle with the new setting or settings.
Note: Some options may not be available for selection under certain conditions and
after particular stages of the drying cycle have passed.
DESCRIPTION OPTIONS
Dryness Level
When your dryer senses that the clothes have
dried
to the dryness level selected, the dryer
will
automatically finish the cycle.
Note: Two lights are used to show some dryness
levels, eg to achieve the ‘Damp Dry’ setting
both
the ‘Dry’ and the ‘Damp’ dry lights will
be
illuminated.
Five dryness levels from
‘Damp’
through to ‘Extra Dry’.
If
you wish to change from
the
default dryness, you can
choose the dryness level to
suit
your load depending on
how dry you wish for your
itemsto be.
Damp Dry
Signal
ON
Options
Wrinkle Free
To minimise wrinkling, select one of the ‘WrinkleFree’
options. At the end of the cycle, the drum will
rotate
periodically and cool air will be circulated
through the load to minimise wrinkling and creasing.
This is particularly useful if you cannot remove the
items immediately after the cycle ends.
‘ON’ provides ‘Wrinkle Free’
operation for 1 hour.
‘Extra’ provides ‘Wrinkle Free’
operation for 24 hours.
No Delay
Everyday
Auto
Damp Dry Signal
Use this option if you want your dryer to alert you to
remove items once your load reaches the damp stage.
The dryer will beep to alert you to remove your items,
then it will continue drying until the remaining load
reaches the dryness level you selected.
Note: If ‘Beeps’ have been set to OFF in the ‘Settings’
menu — this option will not be available.
ON
OFF
Damp Dry
Signal
O
Option
CUSTOMISING DRYING CYCLE
22
CUSTOMISING DRYER SETTINGS
Editing your ‘Settings’
The settings can be used to adjust user preferences for beeps
(keytonesandalarms), drum light, screen brightness, user prompts,
reset defaultsand cycle information.
To change a setting:
Touch on the display panel.
Go to ‘Settings’, and then touch to edit.
Touch or to scroll through the list of settings, and touch to select and edit.
Touch or to select and to confirm.
DESCRIPTION SETTINGS
Cycle information
Displays details of the maximum load capacity, suitable fabric types
and cycle tips for the selected cycle.
ON (default)
OFF
Beeps
This setting is for turning on/off:
The sound when pressing the buttons.
The series of beeps that sound at the end of a cycle to alert you
that the dryer has finished.
ON (default)
OFF
Drum Light
Allows you to turn on/off the drum light.
AUTO (default)
OFF
Screen Brightness
The brightness of the control panel screen can be adjusted to
your
preference.
LOW
MEDIUM (default)
HIGH
User Prompts
Your dryer will display prompts for actions you need to undertake,
eg
Reset defaults.
ON (default)
OFF
Reset Defaults
You can reset your dryer to the default settings it left the factory with:
1 From any cycle, touch the button, select ‘Settings’ using the buttons
and the toconfirm.
2 Scroll through the ‘Settings’ using the buttons to locate ‘Reset Defaults’,
confirmbytouching the button.
3 Your dryer will now be reset to the default settings it left the factory with.
WARNING!
Selecting ‘Reset Default’ will reset all ‘Favourites’ and any saved settings back
toitsdefault settings.
Settings
Options
23
CARING FOR YOUR DRYER
When you have finished using your dryer
Unplug the machine from the power socket.
Wipe around the door to remove any remaining condensation and foreign matter.
Clear the lint filter and empty the water tank (if not set up to automatically drain).
Cleaning your dryer
Before you start cleaning your dryer, ensure that it is disconnected from the power
(ieunplug the machine from the power socket).
Cleaning the control panel and outer surfaces of the dryer
Use a soft damp cloth to wipe all surfaces, then wipe dry. Avoid using chemical or
scouring cleaners, as these will damage the paint and plastic surfaces of your dryer.
Cleaning the inside of your dryer
It is important that you occasionally clean the inside of your dryer. If the drum has
anyresidual dirt or lint stuck to it, remove this and wipe it clean with a damp cloth.
Donot leave any metal objects in the drum, as these may cause rust.
Cleaning the filters
Cleaning the door lint filter
Lint is generally formed during wearing and washing. Fibres (eglint) released
fromtheclothes during the drying cycle are collected in the lint filter.
It is important to clean the door lint filter after every load, as the lint produced
in the drying process can become a fire hazard if it is allowed to accumulate in or
around yourdryer.
A warning light will flash at the start of every cycle to
remind you to clean the door lint filter, then turns off
once you touch
to start your cycle.
The warning light will flash on and off during the
cycle if the door lint filter becomes blocked. When
this occurs the door lint filter should be cleaned
immediately.
The door lint filter is located in the door opening
(atthe bottom).
To clean the door lint filter:
1 Open the dryer door.
2 Remove the filter by pulling it up and out of the filter
slot. Open it out and wipe the surfaces clean with
your hand.
3 Close the filter and place it back in the opening.
Ensurethe filter is fitted correctly back in place
before operating the dryer.
IMPORTANT!
The door lint filter must be cleaned at the beginning of each cycle. Lint becomes
afire hazard if left to build up, and will reduce the efficiency of your dryer.
If the door lint filter becomes damaged, contact your Fisher & Paykel trained
andsupported service technician to arrange getting a new filter.
Donotoperate your dryer with a damaged door lint filteror without the
filter in place, as this will causedamage to your dryer and is a firehazard.
24
Cleaning the condenser filter and evaporator grid
To maintain optimum performance of your dryer the condenser filter andevaporator
grid must be cleaned. A notification will appear on the display panel when the
condenser filter requires cleaning.
The condenser filter is located below the door on the left-hand side.
The evaporator grid is located behind the condenser filter.
To clean the condenser filter:
1 Switch off the power supply and remove
thepower plug.
2 Open the condenser filter cover.
3 Turn the four condenser lock levers 90°
thenpull out the condenser filter.
4 Remove rear filter and wipe the surface
cleanwith your hand.
IMPORTANT!
If you have stacked your dryer using a Fisher
& Paykel stacking kit, slide the stacking kit
tray out prior to opening the condenser
filter cover.
To clean the evaporator grid:
With the condenser filter removed you
will be able to see the evaporator grid.
Ifthesurface of the evaporator grid is dirty,
clean it carefully with a vacuum cleaner
using a dusting brush or a narrow crevice
nozzle. Begentle and do not bend the
finemetalfins.
WARNING
Cut Hazard. The surface of the evaporator has sharp edges and contact may result in
injury. Handle with care when cleaning the grid and always keep blades away from
fingers and body.
5 Replace the condenser filter.
6 Turn the four condenser filter lock levers to lock the condenser filter back inplace again.
Make sure that these locksare engaged securely.
7 Close the condenser filter cover.
CARING FOR YOUR DRYER
Turning the condenser
filter locking levers
Pulling out the
condenser filter
25
Emptying the water collection tank
During the drying cycle, steam condenses into water
andis collected in the water tank, located at the top
left of the dryer. It is important to empty the water
tank after every load.
Ifthewater tank becomes full during operation,
thedryer will pause, display a user prompt and beep
to alert you. You must emptythe tank before the
dryer can continue drying. Empty the tank, replace it
in the housing then touch
to resume the cycle.
Note: You do not need to empty the water tank
ifyou have set up the drain hose to drain the
waterautomatically.
To empty the water tank:
1 Remove the water tank by holding onto the
handleand pulling outwards gently to remove it.
Ensurethat you keep the tank level when it is being
removed to prevent the water collected from spilling.
2 Pour the water down the sink or into a bucket,
andthen put the tank back in place.
IMPORTANT!
Do not use the water collected in the water tank for
drinking or food processing.
Never run the dryer without the water tank in place unless
thedrainhosehasbeeninstalled.
Cleaning the sensors
There are sensors in your dryer that detect whether the laundry is dry or not.
Thesesensors need to be cleaned periodically (we recommend approximately
fourtimes a year).
To clean the sensors:
1 Open the door of your machine.
2 Allow the machine to cool if drying hasbeen
carried out.
3 Locate the metal sensors just behind thelint filter.
4 Wipe the sensors with a soft cloth, dampened
withvinegar.
Dry the sensors with a soft dry cloth.
CARING FOR YOUR DRYER
Location of the sensors
Removing the
water collection tank
Tipping out the water
from the condensing tank
26
BEFORE YOU CALL FOR SERVICE
User warnings
Your dryer is capable of diagnosing a number of its own problems. It will sound a
continuous series of beeps and display a user prompt when it has a problem that you
can correct yourself. To stop the beeps sounding, touch any button on the control panel.
Donot try to continue your drying cycle once you stop the noise. You must address
theproblem the dryer is alerting you to.
Check the below table before you call for service.
NOTIFICATION WHAT TO DO
KEYLOCK ON
Touch and hold the
button for threeseconds to deactivate
theKeylock.
CLEAN FILTERS
AND EVAPORATOR
GRID
Clean lint and condenser filters and carefully vacuum the evaporatorgrid.
Check the lint filter or condenser filter are not damaged.
Check there is nothing else stuck in the filters or evaporator grid,
whichmay be blocking the air flow.
Check the filters are correctly in place in your dryer.
WATER TANK Check if the water tank is full.
Empty the water tank.
If using the drain hose, check whether the water tank or drainhose
isblocked.
Check the drain hose is still attached at the back of the machine,
andisnot kinked or squashed.
DOOR OPEN
Close the door fully and touch
.
Try opening and closing the door again.
Reposition the load, make sure the load is correctly in the drum
andthatprotruding items are not preventing the door fromclosing.
THE LAUNDRY
ENVIRONMENT IS
TOO COLD FOR
THE DRYER TO
FUNCTION
The room temperature is too low for the heat pump system to work
effectively. Ensure that the room temperature is above 5 degrees to
avoidloss of efficiency.
MAXIMUM CYCLE
TIME HAS BEEN
REACHED
There are a number of reasons the maximum cycle has been reached,
referto ‘Troubleshooting’, ‘Dryer is taking toolong’ for possible causes
and solutions.
Once you have addressed the issue the user prompt was alerting you to, try using your
dryer as per usual. If the issue persists, call your Fisher & Paykel trained and supported
service technician.
27
When a continuous series of beeps sounds, all the lights
turn off onthe control panel and a number appears on the
display, a fault hasoccurred. The dryer will automatically
enter this mode if a fault occurs. The word ‘Fault’ will be
shown in the control panel display followed by a number,
refer to example. To stop the beeps, touch any button then
perform the following steps:
1 Turn your machine off at the power point.
2 Wait one minute and turn it back on.
3 Check your machine is installed correctly
(refer to ‘Installation instructions’ section).
4 Remove your load from the dryer and retry.
5 Perform a ‘Time Dry’ cycle, eg Time Dry for 30 minutes.
6 If the fault re-occurs repeat steps
1
and
2
.
7 If the machine still will not work call a Fisher & Paykel
trained and supported service technician to arrange service
(referto‘Customer care’ section). Record the fault code
number displayed and the serial number of your dryer
(locatedon the rear of the machine, or on the insideof the
door below the glass) before calling. The fault code will
indicateto the service technician what the problem could
potentially be.
If a fault code is being displayed, you can still turn your dryer off by pressing ‘POWER’.
FAULT CODES
FAULT
E2
Contact the F&P
Customer Care Centre
Time Dry
Set Time
30min
28
TROUBLESHOOTING
The following is a list of problems you may encounter when using this appliance and
some suggestions that may help to correct the problem. If you still have problems,
contact your Fisher & Paykel trained and supported service technician.
PROBLEM POSSIBLE CAUSES WHAT TO DO
Pressing ‘POWER’
does not turn on
thedryer
Fault with household
power supply.
Try plugging in and turning on another
electrical device.
Dryer does
notheat
Dryer set to ‘Cool Air’ cycle. Check what cycle the dryer is setto
(refer‘Drying cycles’). Changeto
preferredcycle.
Full water tank. Refer to ‘Emptying the water collection tank’.
The dryer has progressed
to ‘Cool’.
Check the progress — are ‘Cool’ or ‘End’
shown onthe display? Refer to ‘Dry progress’.
Touching
does not start
thedrying cycle
Dryer door not closed properly. Open and reclose the door. Checkthat
the lint filter is correctly in place and not
obstructing the door.
Is the dryer displaying a user
prompt or fault code?
Refer to ‘User Prompts’ and ‘Fault codes’.
Water tank full or not properly
in place.
Refer to ‘Emptying the water collection tank’.
Ensure the water tank is properly in place.
Lint filter needs to be emptied. Empty the lint filter and ensure it is
correctly in place.
Dryer is overloaded. Remove some items from the dryer.
‘Delay Start’ function is set. Refer to ‘Delay Start’ for more information.
Keylock is ON.
To disable touch and hold
button
forthreeseconds.
Dryer keeps
stopping
andstarting
The ‘Wrinkle Free’ option
hasbeen selected.
Refer to ‘Wrinkle Free’ for more
information.
Dryer stops
working
mid-cycle
Power failure. Press ‘POWER’ and restart the desired cycle.
Dryer has been paused.
Touch the
button to restart thecycle.
Dryer door is open. Ensure the door is firmly shut.
Water tank full or not properly
in place.
Refer to ‘Emptying the water collection tank’.
Ensure the water tank is properly inplace.
Items fell off the rack
whenusing ‘Rack Dry’ or
‘Wool’cycles.
Ensure the rack is installed correctly
(refer to ‘Sorting and loading’,
‘Drying rack’) and replace garments
thatmay have fallen from it.
Environmental conditions may
be affecting dryer operation.
In particularly cold conditions, the
roomtemperature may be too cold for
thedryer to run efficiently.
29
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES WHAT TO DO
Dryer is taking
toolong
/results were
notsatisfactory
Drying cycle selected not
appropriate for the load.
Select an appropriate cycle for the
load. Refer to ‘Drying cycles’.
Dryness level selected not
appropriate for the load.
Select a higher dryness level.
Refer to ‘Dryness Level’.
Dryer overloaded for
thecycle.
Some cycles have a lower max load
size. Refer to ‘Drying cycles’.
Try dividing the load in half and
dryhalf at a time.
Lint and/or condenser filter
isblocked.
Clean the lint/condenser filter.
Water tank is full. Refer to ‘Emptying the water
collection tank’.
Environmental conditions may
be affecting dryer operation.
In particularly hot or cold conditions
the dryer will take longer to dry a load
and beless efficient.
Ensure the dryer is installed in a
well-ventilated, dust-free environment.
Donot operate this dryer behind
closeddoors (ie inside a cupboard).
Load overly wet at the
start of cycle.
Remove more water from the
load before placing it in the dryer,
egselecta faster spin speed on your
washer, if appropriate for your load.
Load was damp dry at the
start of cycle.
If the load had been partially air dried,
eg has been washed and placed on
the line, use a ‘Time Dry’ cycle and
monitor the dryness of your clothes.
Dryer not draining water
out properly.
Check the drain hose (if connected)
forblockages or damage.
Youmayneed to call for service
referto ‘Customer care’ section.
Items got tangled. Try separating items and drying
similar items together. Refer to
‘Loading’ forfurther tips.
Dryer is not
draining
Drain hose not connected
tothe water tank.
Ensure the drain hose is connected
correctly. Refer to ‘Draining’ in the
installation section of this guide.
Water tank not in place
correctly.
Ensure water tank is properly inplace.
Drain hose or drain blocked
ordamaged.
Check drain hose (if connected)
anddrain for blockages or damage.
30
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES WHAT TO DO
Clothes getting too
hot or damaged
Cycle selected not
appropriate for the load.
Ensure the cycle selected is
appropriatefor items in the load.
Referto ‘Drying cycles’.
Items removed from dryer
before the end of cycle cool
down had finished.
Removing items before cool down
maydamage clothing if it is not
spread out and exposed to air to
coolonce removed from the dryer.
Dryer is beeping
and displaying
acode on the
digital display
Dryer has a fault. Try turning the dryer off and waiting
30seconds before turning it back on.
Refer to ‘Fault codes’.
Small puddle
ofwater coming
from under
themachine
Water tank not correctly
inplace.
Ensure the water tank is correctly
in place.
Water tank may need
tobeemptied.
Refer to ‘Emptying the water
collection tank’.
Water tank may be damaged. Check the water tank for any signs
ofdamage.
Drain hose may not be
attached properly at the
machine end.
Ensure the drain hose is attached
properly. Refer to ‘Draining’ in the
installation section of this guide.
Drain hose could be damaged. Check the drain hose for damage.
Drain hose has slipped
outofthe drain.
Ensure the drain hose is securely fixed
in place. Sometimes drain hoses can
move or get displaced, which may
lead to water draining onto the floor.
Drain may be blocked. Check the drain for any blockages.
Dryer door not closing
properly, affecting the seal.
Ensure the dryer door is closed
properly and there is nothing
obstructing the door opening.
Small amount
ofwater in
thedrum at
endofcycle
Water tank needs to be
emptied.
Refer to ‘Emptying the water
collection tank’.
Environmental conditions may
be affecting dryer operation.
If conditions are particularly hot,
humidor cold, it is possible vaporised
water may re-condense in the drum or
on the inside of the door.
31
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES WHAT TO DO
Noises Dryer is overloaded. Remove some items from the dryer.
Dryer has a fault. Continuous beeping or a musical
seriesof beeps with a message
displayed on the display.
Referto‘Fault codes’.
Beeps signalling the end
ofadrying cycle.
End of cycle beeps can be turned off
refer to ‘Customising dryer settings’.
Dryer has not been levelled
properly.
Refer to ‘Levelling the machine’ in the
installation section of this guide.
Dryer makes unfamiliar noises. At the start of the cycle the dryer may
make some unfamiliar noises when the
compressor turns on. Thisis normal.
Vibration Dryer is not installed on
astable surface.
Ensure the dryer is installed on a flat,
stable surface. Refer to ‘Levelling the
machine’ in the installation section of
this guide.
Dryer is not level. Ensure the dryer is correctly levelled.
Refer to ‘Levelling the machine’ in the
installation section of this guide.
Dryer is overloaded. Remove some items from the dryer.
Creasing Cycle selection not
appropriate for the load.
Select the ‘Easy Iron’ cycle to
minimisecreasing.
Dryer is overloaded. Remove some items from the dryer.
‘Dryness Level’ selected
toohigh for load type.
Try selecting a lower ‘Dryness Level’.
‘Wrinkle Free’ option not
selected.
Select the ‘Wrinkle Free’ option to
rotate the load at the end of the
drying cycle. Refer to ‘Wrinkle Free’
section of this guide for details.
32
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES WHAT TO DO
Linting Lint filter not cleaned or
replaced.
Ensure the lint filter is cleaned after
every cycle and replaced correctly.
Refer to ‘Cleaning the filters’.
Loads not sorted correctly. Dry lint givers separately from lint
receivers. Also, dry similar colours
together eg light coloured items
withlight coloured items, dark items
with dark items. Refer to ‘Sorting and
loading’, ‘Lint’.
Clothes over dried. Over drying clothes in the dryer
cancause them to attract lint.
Useanauto sensing cycle or ensure
you check your load if using the
time dry cycles to avoid over drying.
Referto ‘Drying cycles’.
New items have been dried
inthe dryer recently.
Clean the lint filter and use
‘Cool Air’cycle to clear any
remaininglintfrom the dryer.
New towels or flannelette
sheets can leave lint in the
dryer, which may be picked
up by subsequent loads.
Fabric damage Instructions on care label
notfollowed.
Follow the instructions on the
carelabel of the items.
‘Dryness Level’ selected
notappropriate for the
fabrictype.
Ensure the ‘Dryness Level’ selected
is appropriate for the fabric type.
Referto the items care label.
Refertopages ‘Drying cycles’
Metal parts on the items or
inthe load.
Fasten zips and other clasps
beforeplacing items in the dryer.
Items not separated or
driedon an appropriate
cyclefor the fabric type.
Dry similar items together.
Ensureanappropriate cycle is selected.
Refer to ‘Drying cycles’.
Items fell off the rack when
using ‘Rack Dry’.
Ensure the rack is installed correctly
(refer to ‘Sorting and loading’, ‘Drying
rack’) and only one or twogarments
are placed on the rackata time.
Used a ‘Time Dry’ cycle
anddid not monitor the
dryness of clothes during
the cycle.
Ensure that clothes are
checked fordryness during the
cycle whenusing the timed
programmes to avoid over drying.
Referto‘Customising drying cycle’.
33
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES WHAT TO DO
Dye transfer White/light and coloured
items not separated
beforedrying.
Remember to separate white/light
and coloured items before placing
them in the dryer.
Wet items left sitting in
thedryer for long periods
oftime before drying.
Refer to ‘Sorting’ for tips to prevent
dye transfer.
Tangling Loads not separated
duringloading.
Try separating out larger items
fromsmaller items.
Items loaded into the
dryerincorrectly.
Load items individually into the dryer.
Do not place folded items inthe dryer.
Incorrect cycle selection. Try using the ‘Easy Iron’ cycle to
dryshirts and the ‘Sheets’ cycle to
drysheets. Refer to ‘Drying cycles’.
Load size too large. Try drying smaller load sizes.
Somecycles have a lower maximum
load size. Refer to ‘Drying cycles’.
Delicate items not dried
on‘Rack dry’.
Dry pantyhose, bras, stockings
andany other delicate items prone
totangling on the ‘Rack Dry’ cycle.
Sheets and duvet/doona
covers due to their size,
areprone to tangling.
Dry sheets and duvet/doona covers
separately from other laundry,
apartfrom towels. Ensure duvet/
doona covers are buttoned or
fastened closed before drying.
Tryadding a knotted towel to sheets
loads if you are experiencing a lot
oftangling.
34
MANUFACTURER’S WARRANTY
For New Zealand and Australia only. You automatically receive a 2 year Manufacturer’s
Warranty with the purchase of this Heat pump clothes dryer covering parts and labour
for servicing within the country ofpurchase.
Fisher & Paykel undertakes to:
Repair or, at its option, replace without cost to the owner either for material or
labourany part of the product, the serial number of which appears on the product,
which is found to be defective within TWO YEARS of the date of purchase.
This product has been designed for use in a normal personal, family or household
purposes. This product is not designed for any commercial use. Any commercial use by
the customer will affect this products manufacturer’s warranty.
This Manufacturer’s Warranty is an extra benefit and does not affect your legalrights.
This Manufacturer’s Warranty DOES NOT cover
A
Service calls which are not related to any defect in the product. The cost of a service
call will be charged if the problem is not found to be a product fault. For example:
1
Correcting the installation of the product.
2
Instructing you how to use the product.
3
Replacing house fuses or correcting house wiring or plumbing.
4
Correcting fault(s) caused by the user.
5
Noise or vibration that is considered normal, egdrain/fan sounds, machine noises
oruser warning beeps.
6
Correcting damage caused by pests, egrats, cockroaches, etc.
7
Poor drying performance due to incorrect installation and maintenance
egblockedlint filter, blocked condenser or full water tank.
8
Poor drying performance due to incorrect loading, egoverloading or underloading.
9
Damage from articles in the drum, eg bra wires, pens, crayons, dye transfer or
flammable material.
B
Defects caused by factors other than:
1
Normal personal, family or household purposes;
2
Use in accordance with the product’s User guide.
C
Defects to the product caused by accident, neglect, misuse or ‘act of God’.
D
The cost of repairing defects or damage caused by service performed other
than by a Fisher & Paykel trained and supported service technician.
E
Normal recommended maintenance as set out in the product’s User guide.
F
Pick-up and delivery.
G
Transportation or travelling costs involved in the repair when the product is installed
outside the Fisher & Paykel trained and supported service technician’s normal
servicearea.
Nothing in this Manufacturer’s Warranty is intended to, or does, limit any rights you
mayhave under law to recover the costs of inspecting or returning the goods to us.
35
MANUFACTURER’S WARRANTY
Service under this manufacturer’s warranty must be provided by Fisher & Paykel trained
and supported service technician. Such service shall be provided during normal business
hours. This warranty certificate should be shown when making any claim.
For Australian Customers
This Manufacturer’s Warranty is an extra benefit and does not affect your legal rights.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
for compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
Please keep this User guide in a safe place.
36
CUSTOMER CARE
Before you call for service or assistance...
Check the things you can do yourself. Refer to your User guide and check:
1
Your product is correctly installed.
2
You are familiar with its normal operation.
3
You have read the ‘Before you call for service or assistance...’, ‘Fault codes’ and
‘Troubleshooting’ sections at the back of the book.
If after checking these points you still need assistance or parts, please refer to your
nearest Fisher&Paykel trained and supported service technician, Customer Care, or
contact us through our website fisherpaykel.com.
In New Zealand if you need assistance…*
Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer
CareConsultants.
Toll Free: 0800 FP CARE or 0800 372 273
Fax: (09) 273 0656
Website: fisherpaykel.com
Postal address: Fisher & Paykel Appliances Ltd, PO Box 58550, Botany, Auckland 2163
If you need service…*
Fisher & Paykel has a network of Fisher & Paykel trained and supported service technicians
that can carry out any service necessary on your appliance. Our Customer Care Centre
can recommend a Fisher & Paykel trained and supported service technician in your area.
In Australia if you need assistance…*
Call the Fisher & Paykel Customer Care Centre and talk to one of our
CustomerCareConsultants.
Toll Free: 1300 650 590
Fax: (07) 3826 9298
Website: fisherpaykel.com
Postal address: Fisher & Paykel Appliances Australia Pty Ltd, PO Box 798,
ClevelandQLD4163
If you need service…*
Fisher & Paykel has a network of Fisher & Paykel trained and supported service technicians
that can carry out any service necessary on your appliance. Our Customer Care Centre
canrecommend a Fisher & Paykel trained and supported service technician in your area.
*If you call, write or contact us via our website please provide:
your name and address, model number, serial number, date of purchase and a complete
description of the problem. This information is needed in order to better respond to
yourrequest for assistance.
Product details can be found on the rear of the machine, and/or on the inside of the
door below the glass (when the door is open).
37
CUSTOMER CARE
Registration
Register your product with us so we can provide you with the best service possible.
To register your product visit our website: fisherpaykel.com
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer
Suburb
Town
Country
NZ AU
428174C0.19
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2019. All rights reserved.
The product specifications in this document apply to the specific
products and models described at the date of issue. Under our policy
of continuous product improvement, these specifications may change
at any time. You should therefore check with your Dealer to ensure this
document correctly describes the product currently available.
