Instruction Manual
DIGITAL CAMERA
Thank you for purchasing an Olympus digital camera. Before you start to use your new camera,
please read these instructions carefully to enjoy optimum performance and a longer service life.
Keep this manual in a safe place for future reference.
We recommend that you take test shots to get accustomed to your camera before taking important
photographs.
The screen and camera illustrations shown in this manual were produced during the development
stages and may differ from the actual product.
If there are additions and/or modifications of functions due to firmware update for the camera, the
contents will differ. For the latest information, please visit the Olympus website.
Table of Contents
Quick task index
1. Preparation
2. Shooting
3. Playback
4. Menu functions
5.
Connecting the camera to a
smartphone
6.
Connecting the camera to a
computer and a printer
7. Cautions
8. Information
9. SAFETY PRECAUTIONS
Model No. : IM006
2
EN
Indications used in this manual
The following symbols are used throughout this manual.
$
Notes
Points to note when using the camera.
%
Tips
Useful information and hints that will help you get the most out of
your camera.
g
Reference pages describing details or related information.
Table of Contents
3
EN
Quick task index 7

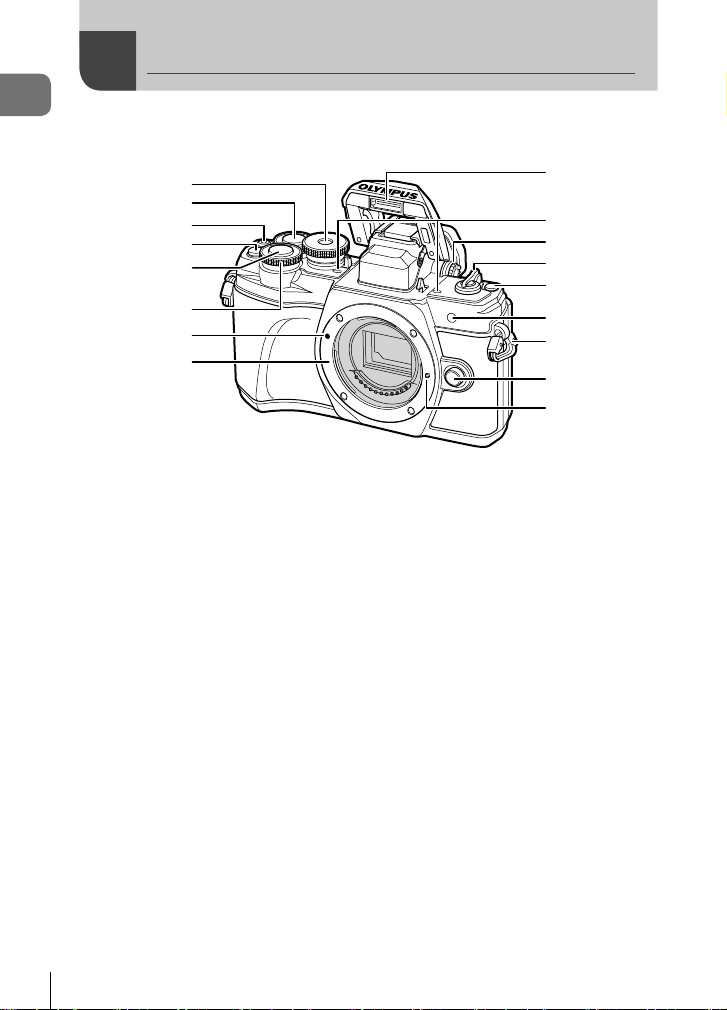

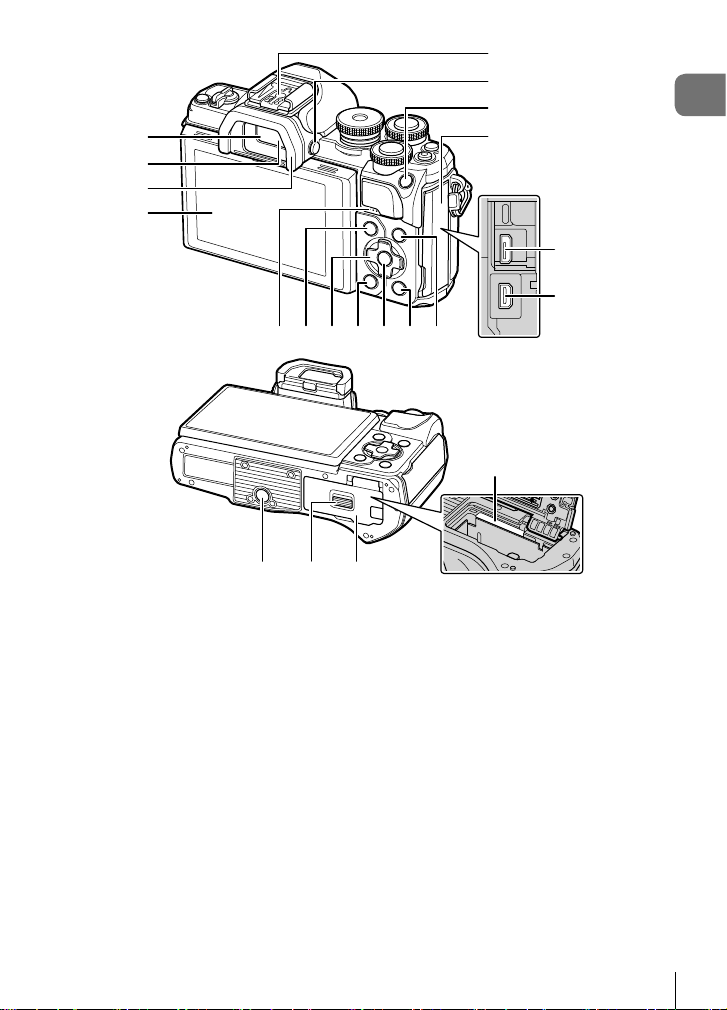

Names of parts 10
Preparation 12

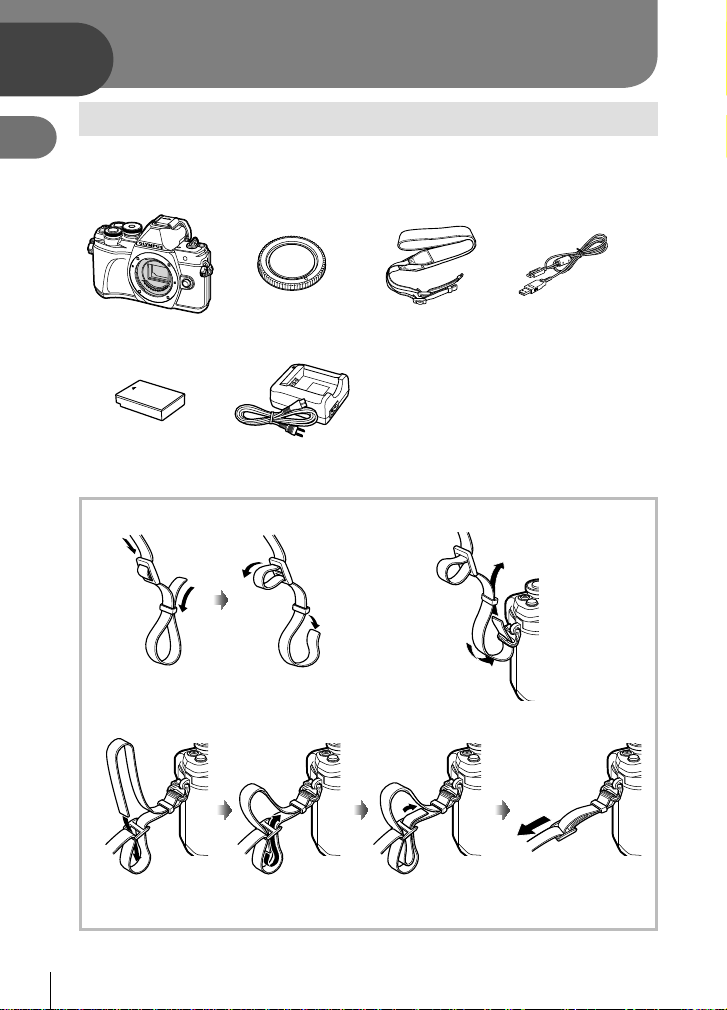

Unpacking the box contents .....12

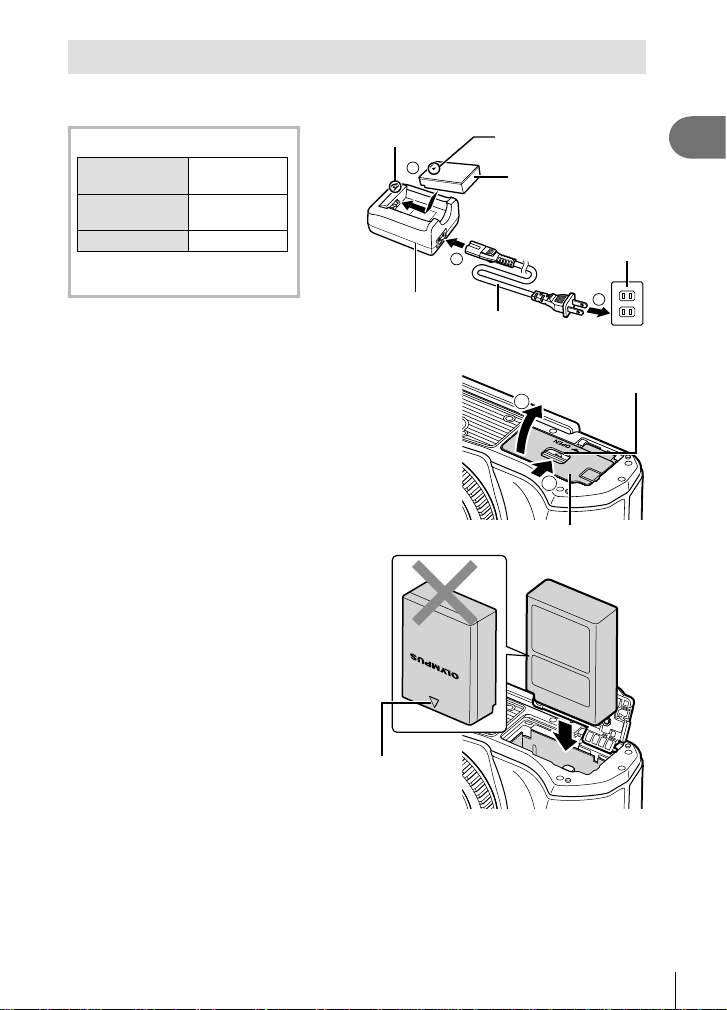

Charging and inserting the
battery .........................................13

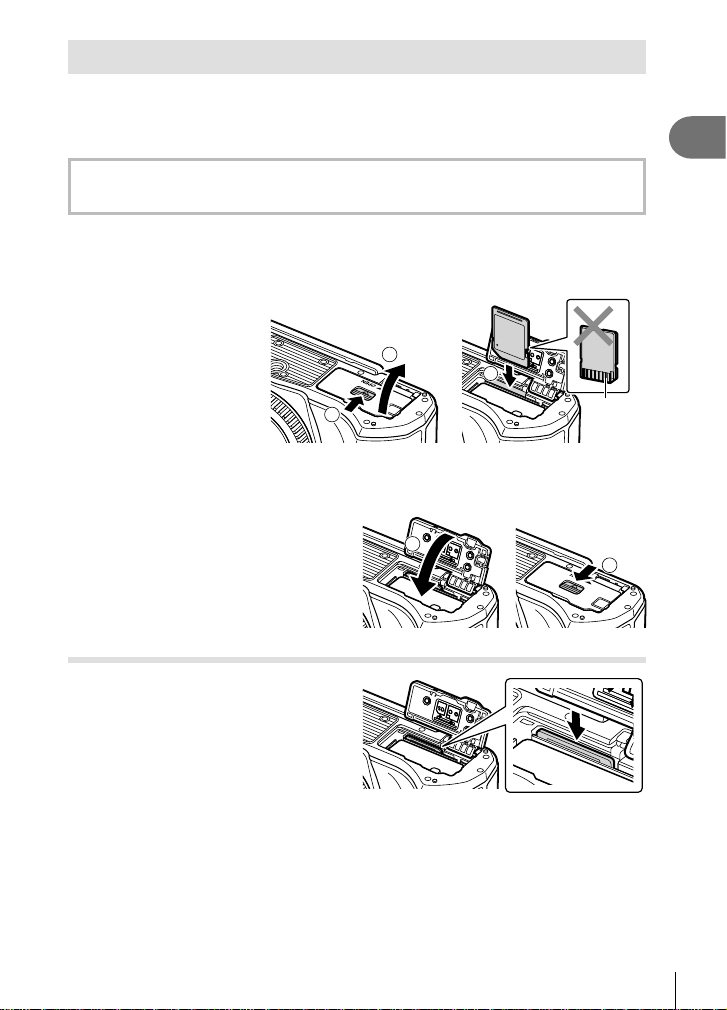

Inserting the card .......................15

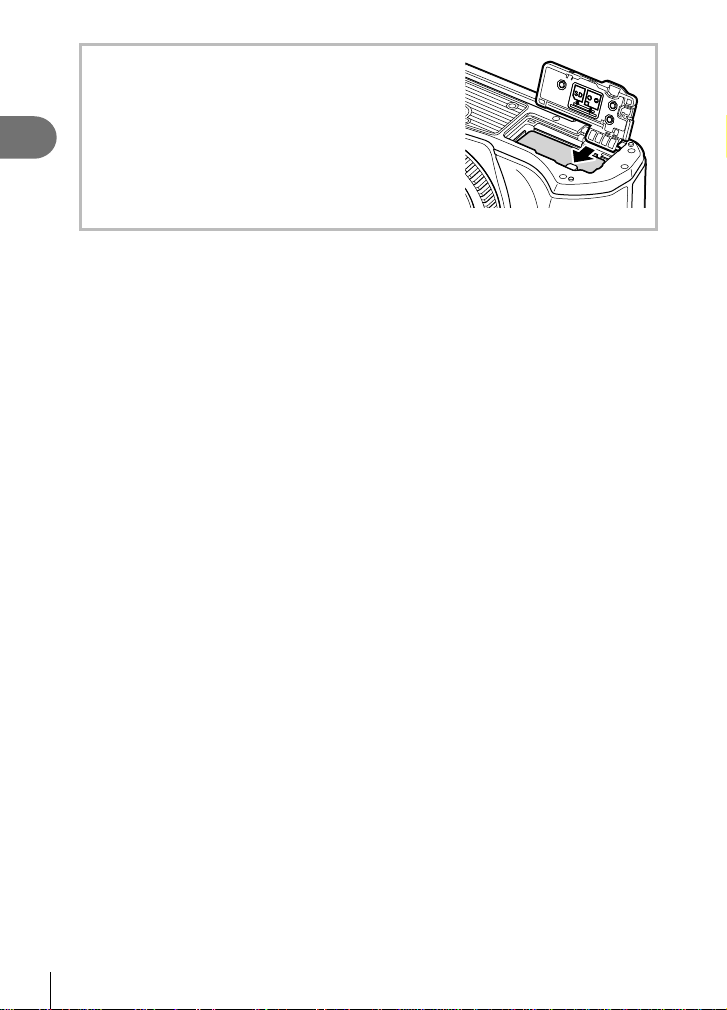

Removing the card ...................15

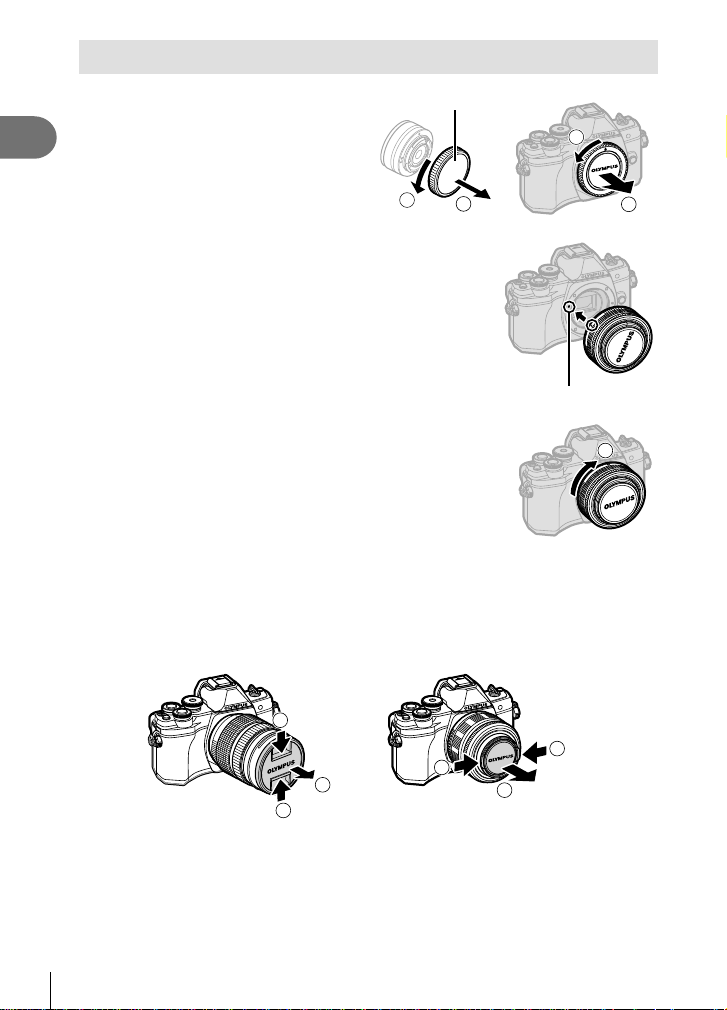

Attaching a lens to
the camera ..................................16

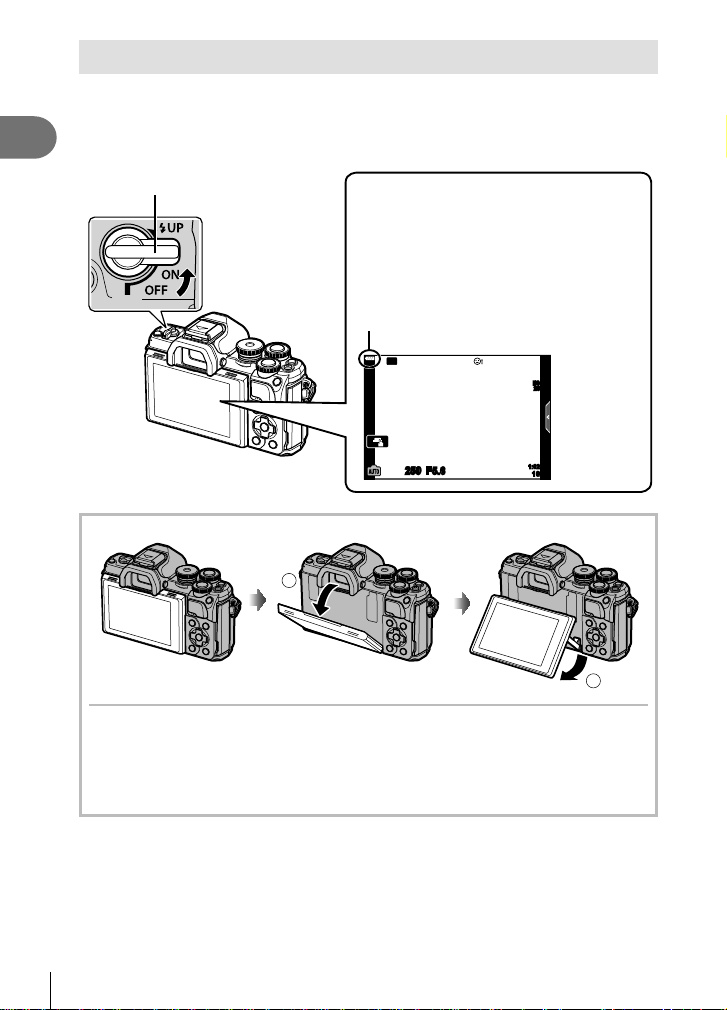

Turning the camera on ...............18
Setting the date/time ..................19
Shooting 20
Information displays while
shooting ......................................20

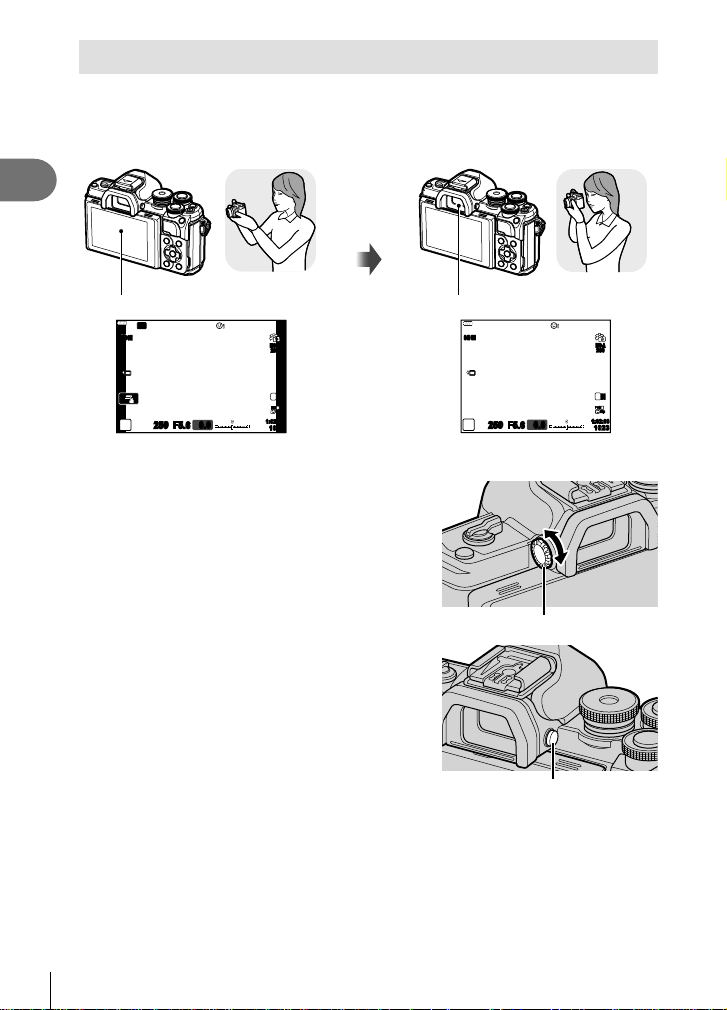

Switching between displays ......22
Switching the information
display ......................................23

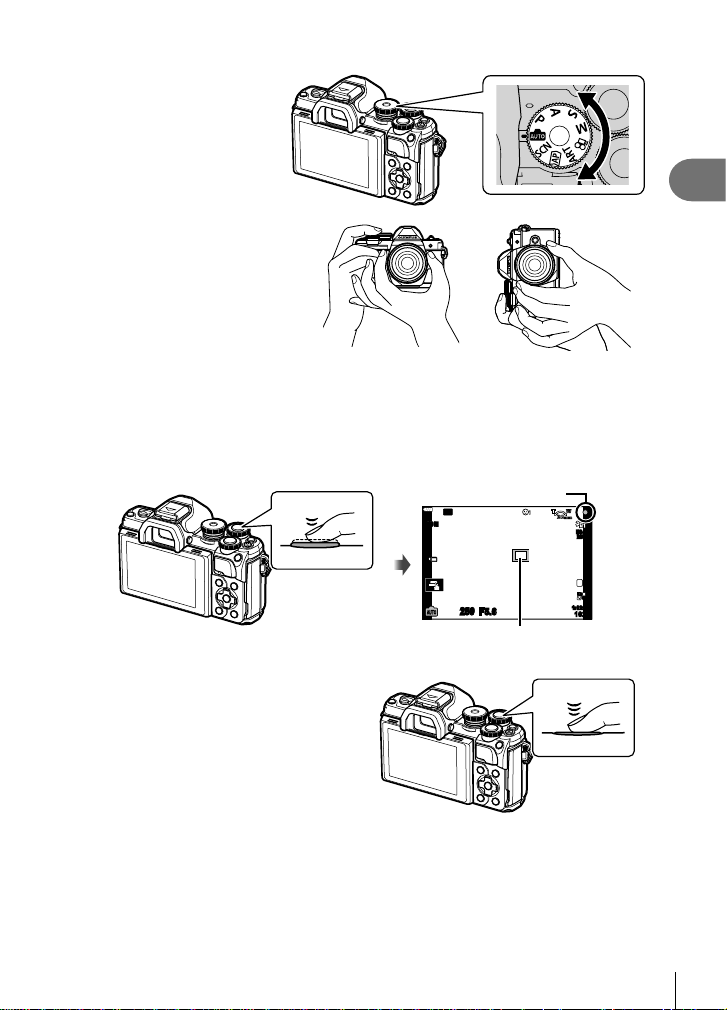

Shooting still pictures ................24
Switching Displays with
the u (Shortcut) Button...........26
Letting the camera choose
the settings (AUTO mode) ........27
Shooting in scene mode
(SCN mode) .............................29
Shooting in advanced photo mode
(Z mode) ...............................32
Using art fi lters (ART mode) .....42

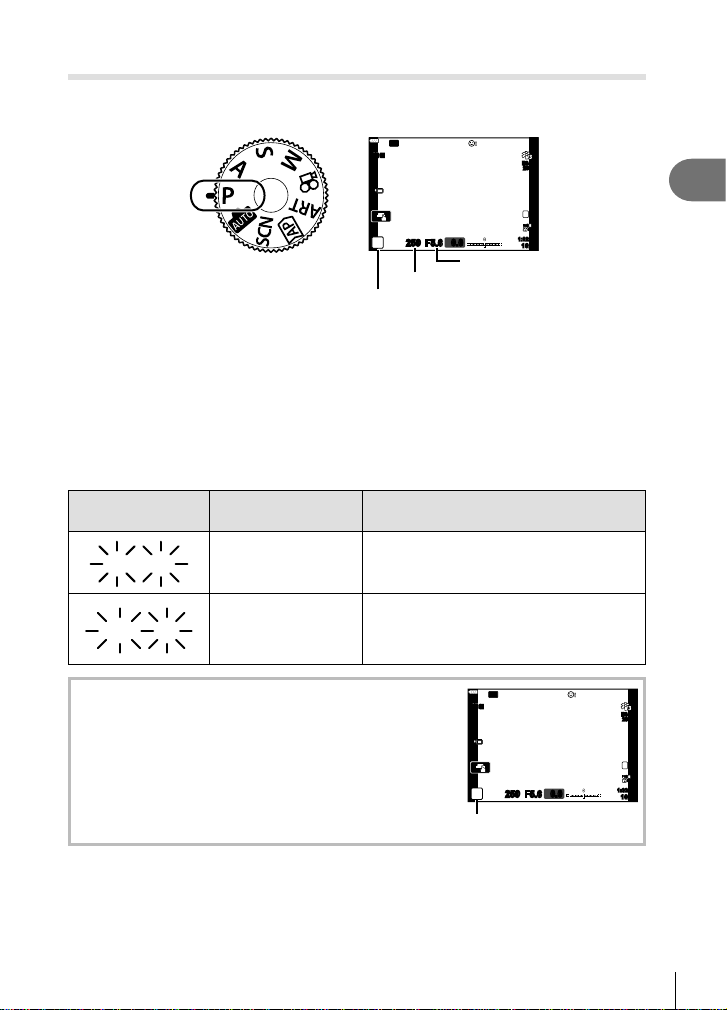

Letting the camera choose
aperture and shutter speed
(Program mode) .......................45

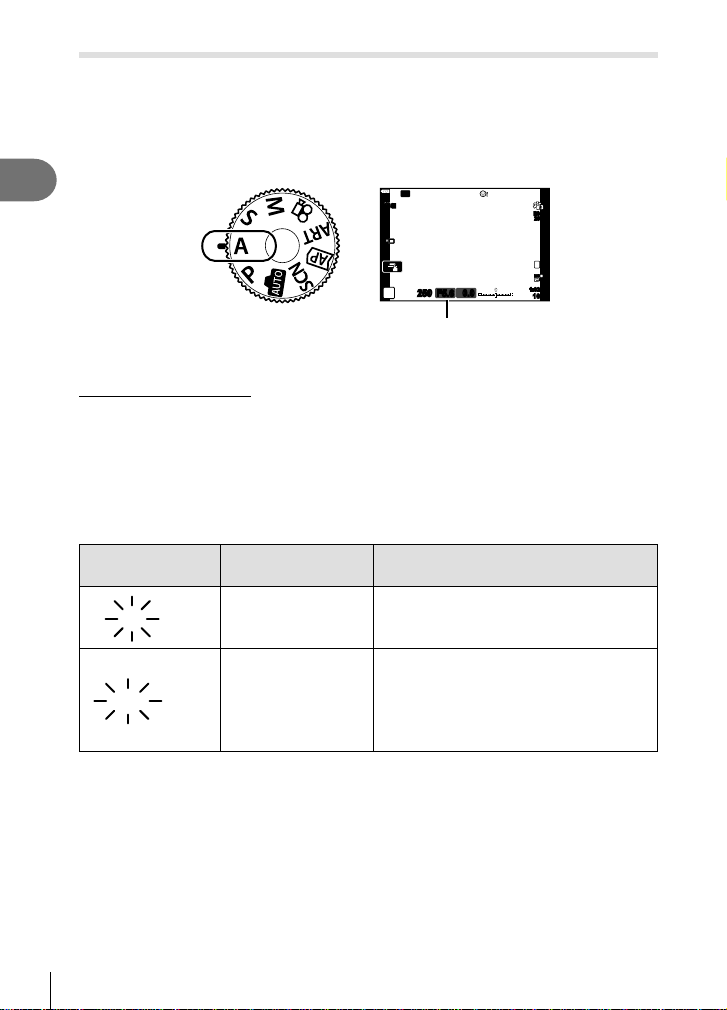

Choosing aperture
(Aperture Priority mode) ...........46
Choosing shutter speed
(Shutter Priority mode) .............47

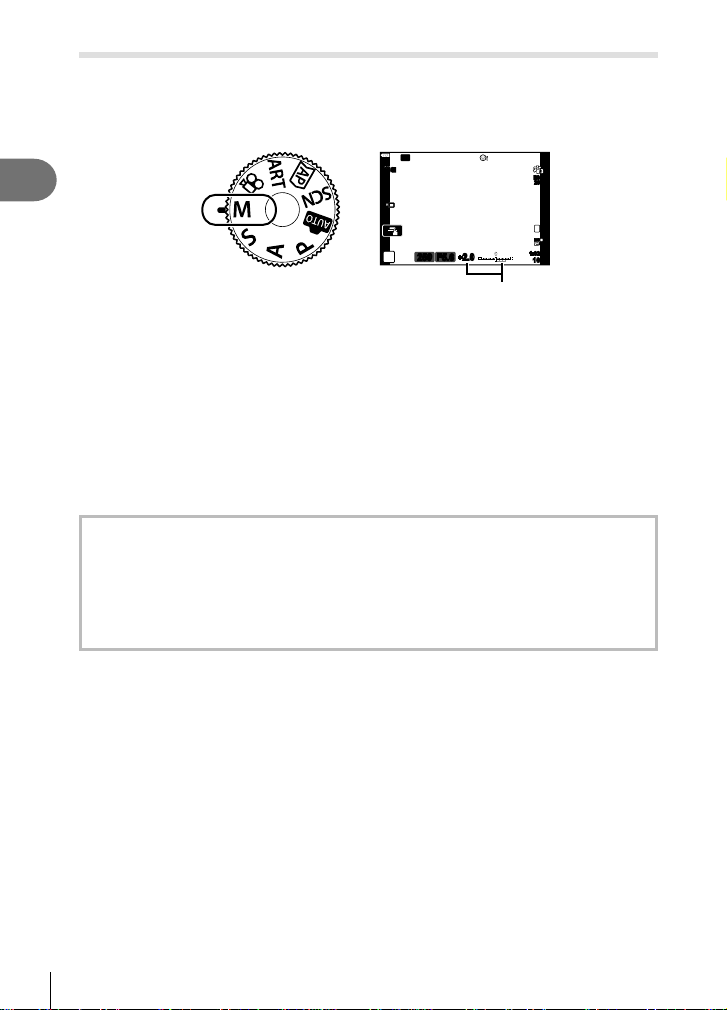

Choosing aperture and
shutter speed (Manual mode)...48
Shooting with long exposure time
(BULB/LIVE TIME) ...................49
Live composite photography
(dark and light fi eld
composite) ................................50

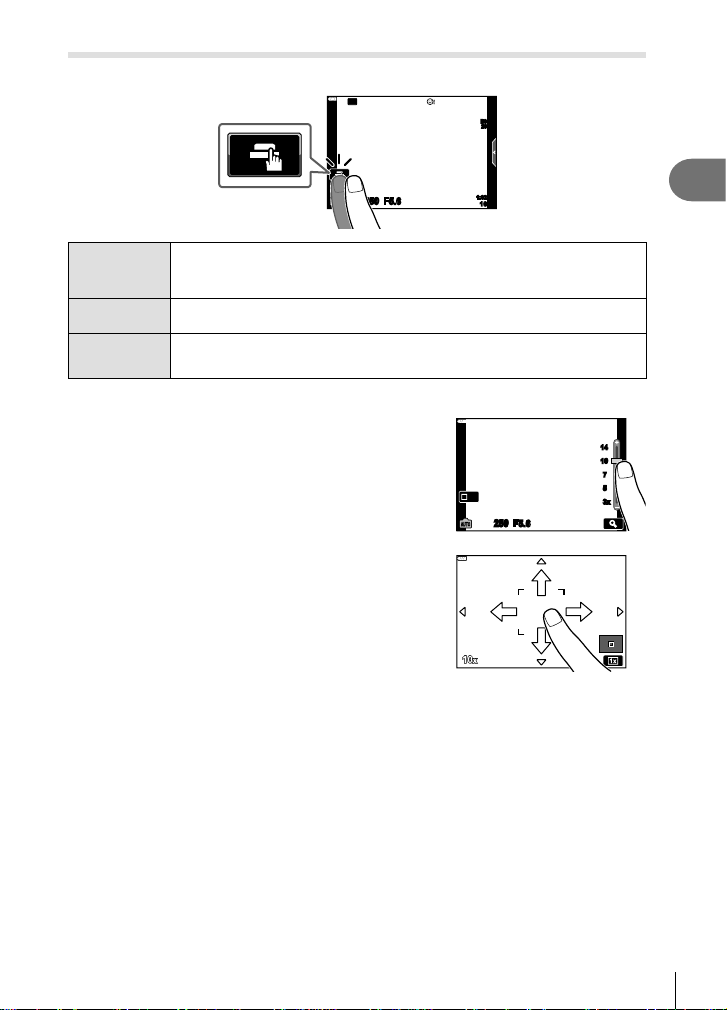

Shooting with touch screen
operations ................................. 51
Recording movies ......................52
Recording movies in photo
shooting modes ........................52

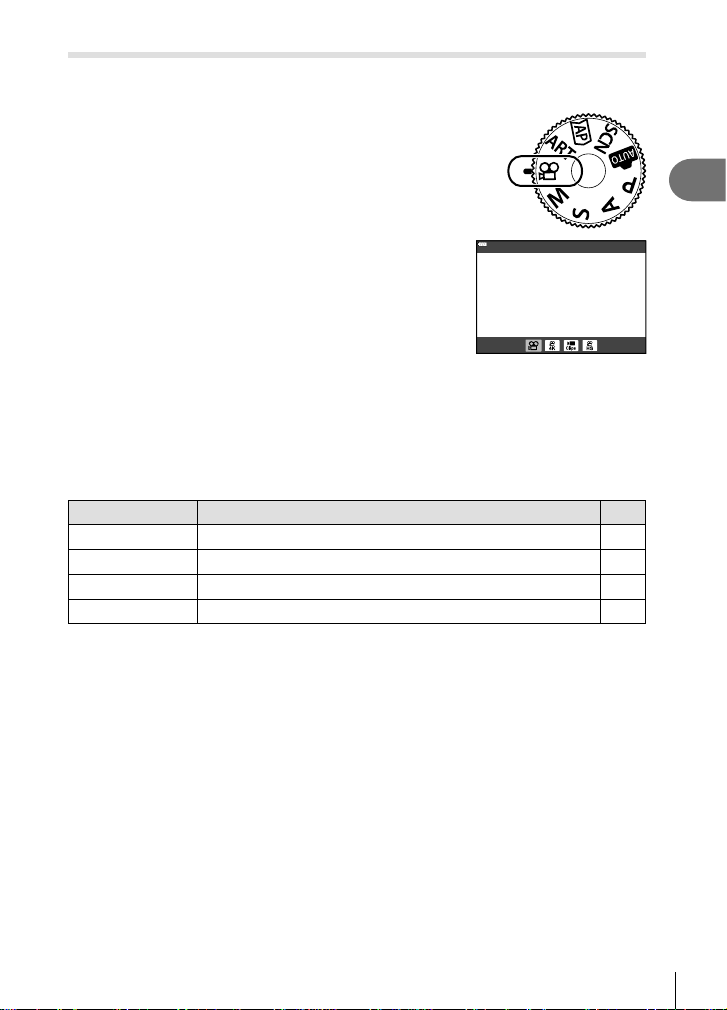

Recording movies in movie
mode.........................................53
Using the silencing function
when shooting a movie .............59
Using various settings ...............60
Controlling exposure
(Exposure F) ...........................60
Locking the exposure
(AE Lock) ..................................60
Digital Zoom
(Digital Tele-converter) .............60
Selecting the AF target mode
(AF target settings) ...................61
Setting the AF target .................61
Face priority AF/
Eye priority AF ..........................62
Changing ISO sensitivity
(ISO) .........................................63
Using a fl ash
(Flash photography) .................64
Performing the sequential/
self-timer shooting ....................66
Table of Contents
Table of Contents
4
EN
Calling shooting options ...........67
Processing options
(Picture Mode) ..........................69
Adjusting color
(WB (white balance)) ................70
Choosing a focus mode
(AF Mode).................................72
Setting the image aspect ..........73
Selecting image quality
(Still image quality, KK) ......73
Selecting image quality
(Movie quality, nK) ..............74
Adding effects to a movie .........76
Adjusting fl ash output
(Flash intensity control) ............77
Reducing camera shake
(Image Stabilizer) .....................78
Making fi ne adjustments
to white balance
(WB Compensation) .................79
Choosing how the
camera measures brightness
(Metering) .................................80
Making fi ne adjustments to
sharpness (Sharpness) ............80
Making fi ne adjustments to
contrast (Contrast) ....................81
Making fi ne adjustments to
saturation (Saturation) ..............81
Making fi ne adjustments to tone
(Gradation) ...............................82
Applying fi lter effects to
monochrome pictures
(Color Filter)..............................82
Adjusting the tone of a
monochrome image
(Monochrome Color).................83
Adjusting i-Enhance effects
(Effect) ......................................83
Setting the color reproduction
format (Color Space) ................84
Changing the brightness of
highlights and shadows
(Highlight&Shadow Control) .....84
Assigning functions to
buttons (Button Function) .........85
Playback 88
Information display during
playback ......................................88
Playback image information .....88
Switching the information
display ......................................89
Viewing photographs and
movies .........................................90
Index display/
Calendar display .......................91
Viewing still images ..................91
Watching movies ......................93
Protecting images .....................93
Erasing an image......................94
Selecting images
(0, Erase Selected,
Share Order Selected)..............94
Setting a transfer order on
images (Share Order) ...............94
Audio recording ........................95
Audio Playback .........................95
Adding still pictures to My Clips
(Add to My Clips) ......................95
Using the touch screen ..............96
Selecting and protecting
images ......................................96
Table of Contents
5
EN
Menu functions 97
Basic menu operations ..............97
Using Shooting Menu 1/
Shooting Menu 2 ........................98
Returning to default settings
(Reset) ...................................... 98
Processing options
(Picture Mode) ..........................99
Digital Zoom
(Digital Tele-converter) .............99
Improving Focus in
Dark Surroundings
(AF Illuminator) .........................99
Choosing a Zoom Speed
(K Elec. Zoom Speed) .........100
Shooting automatically
with a fi xed interval
(Intrvl. Sh./Time Lapse) ..........100
Using the Video Menu ..............102
Using the Playback Menu ........103
Displaying images rotated
(R) ........................................ 103
Editing still images (Edit) ........103
Saving a still image from a movie
(In-Movie Image Capture).......105
Trimming movies
(Movie Trimming) ....................106
Canceling all protections ........106
Using the setup menu ..............107
Formatting the card
(Card Setup) ...........................108
Deleting all images
(Card Setup) ...........................108
Using the custom menus .........109
a AF/MF................................109
M Button/Dial.........................109
N Disp/8/PC ......................110
O Disp/8/PC ....................... 110
P Exp/ISO/BULB ..................111
Q Exp/ISO/BULB ..................111
b # Custom .........................112
W K/WB/Color .................... 112
X Record...............................113
c EVF ...................................114
a
K
Utility ...........................114
AEL/AFL .................................115
MF Assist ................................115
Adding information displays....116
Viewing camera images on
TV ........................................... 118
Shutter speeds when
the fl ash fi res ..........................119
Combinations of JPEG image
sizes and compression
rates........................................119
Connecting the camera to
a smartphone 120
Connecting to a smartphone ...121
Transferring images to
a smartphone ............................122
Shooting remotely with
a smartphone ............................122
Adding position information to
images .......................................123
Changing the connection
method ......................................123
Changing the password ...........124
Cancelling a share order .........124
Initializing wireless LAN
settings ......................................124
Table of Contents
6
EN
Connecting the camera to
a computer and a printer 125

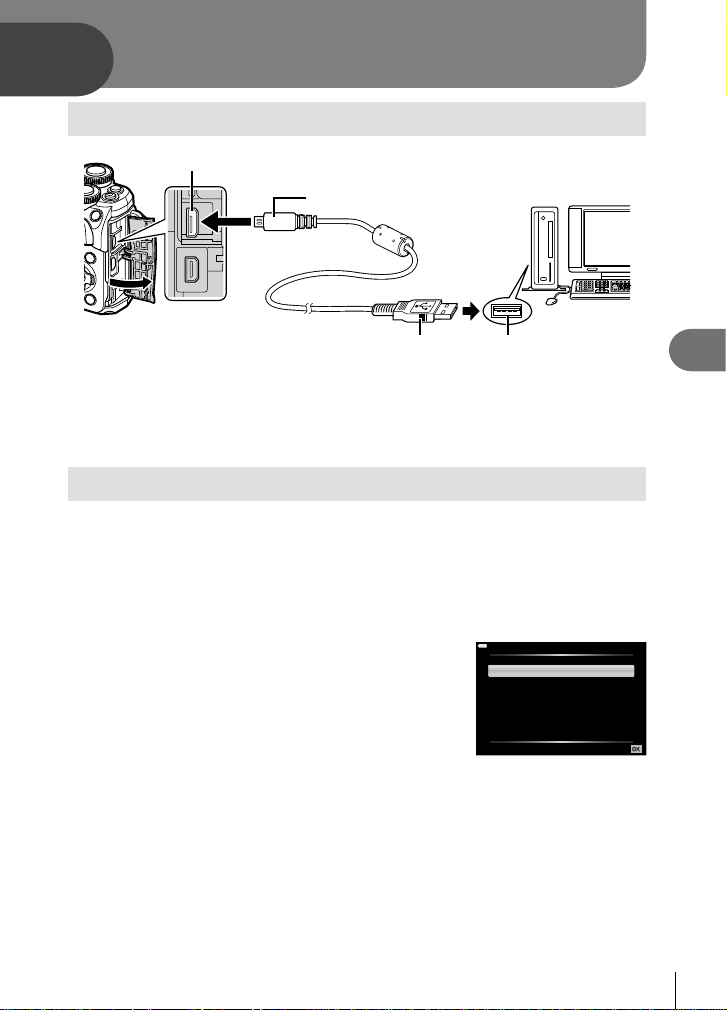

Connecting the camera to
a computer ................................125
Copying pictures to
a computer ................................125
Installing the PC software .......126
Installing the OLYMPUS
Digital Camera Updater ............126
User Registration .....................126
Direct printing (PictBridge) .....127
Easy printing ...........................128
Custom printing ......................128
Print order (DPOF) ....................130
Creating a print order..............130
Removing all or selected
pictures from the print order ...131
Cautions 132
Battery and charger .................132
Using your charger abroad .....133
Usable cards .............................133
Record mode and fi le size/
number of storable still
pictures .....................................134
Interchangeable lenses ............135
External fl ash units designated
for use with this camera ..........136
Other external fl ash units ........137
Principal Accessories ..............137

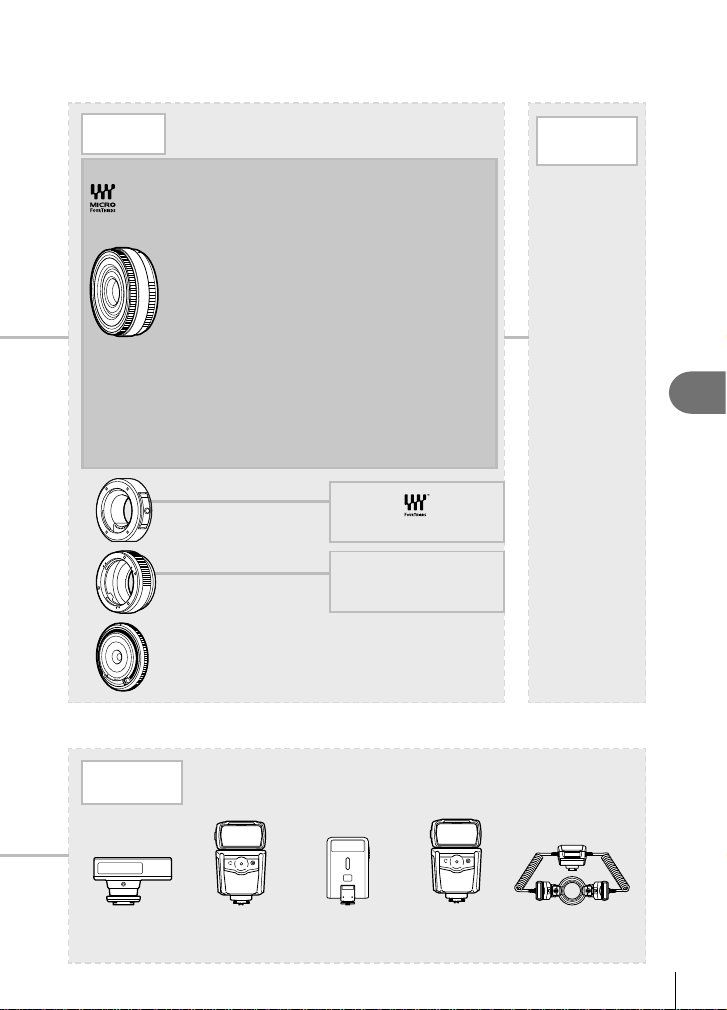

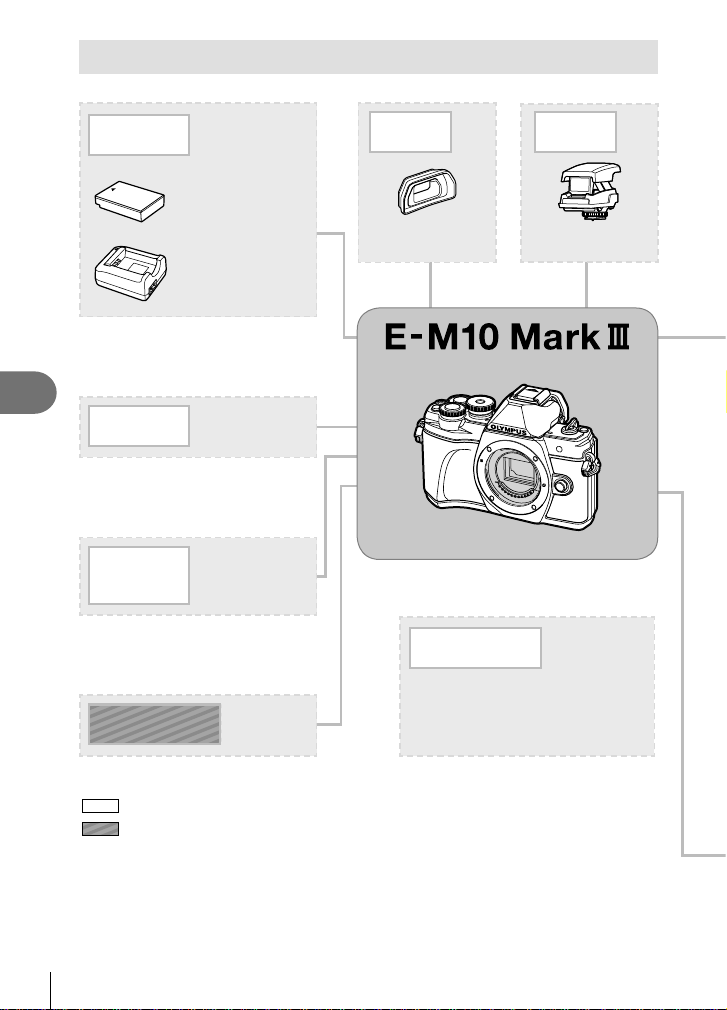

System chart .............................138
Cleaning and storing
the camera ................................140
Cleaning the camera ..............140
Storage ...................................140
Cleaning and checking
the image pickup device .........140
Pixel Mapping - Checking the
image processing functions ....141
Information 142

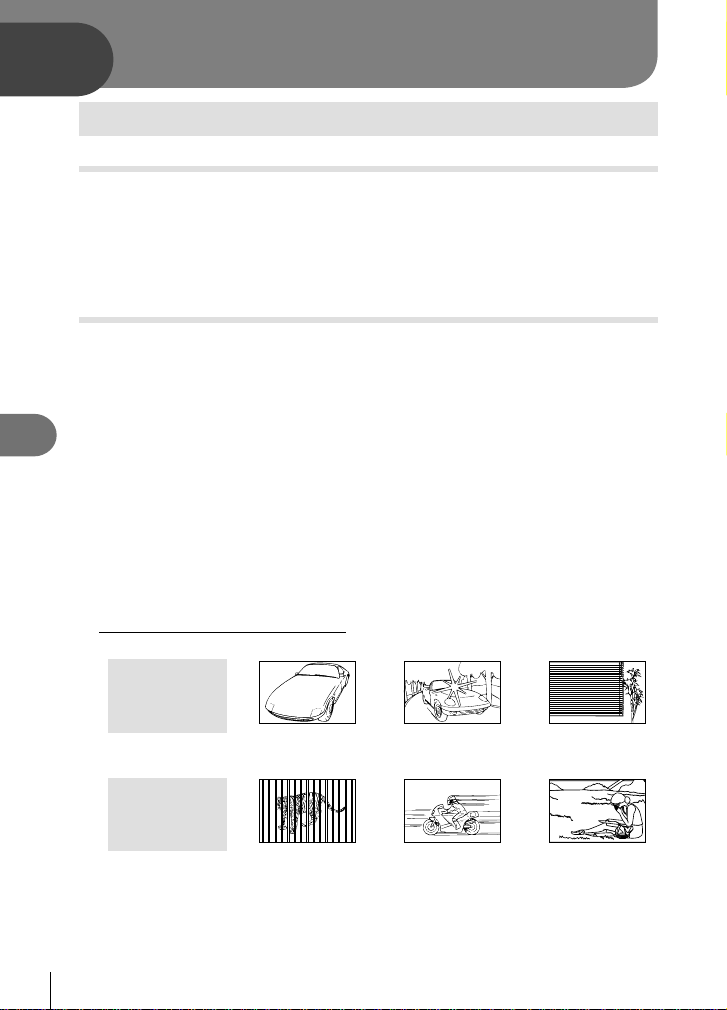

Shooting tips and
information ................................142
Error codes ...............................145
Defaults .....................................148
Specifi cations ...........................152
SAFETY PRECAUTIONS 155
SAFETY PRECAUTIONS ..........155
Index 165
Quick task index
7
EN
Shooting
g
Choosing an aspect ratio Aspect ratio 73
Correcting the effects of perspective
Keystone Compensation 39
Automatically adjusting exposure over
a series of photos
AE Bracketing 40
Automatically shifting the focus
position over a series of photos
Multi focus shot (SCN)29
Focus bracketing (Z)
41
Making photos brighter or darker
Exposure compensation 60
Photographing light trails
Light Trails (SCN) 29
Live Time (Z)
34
Live Composite (Z)
33
Live Composite (M)
50
Bulb/time photography (M)
49
Taking pictures with a blurred
background
Aperture priority shooting 46
Taking pictures that stop the subject in
motion or convey a sense of motion
Shutter priority shooting 47
Scene mode (SCN)29
Getting the desired colors
White balance 70
Processing pictures to match the
subject/Taking monotone pictures
Picture Mode 69
Art fi lter (ART)42
When the camera will not focus on
your subject/Focusing on one area
Using the touch screen 51
AF target settings 61
Zoom frame AF/zoom AF 87
Focusing on a small spot in the frame/
confi rming focus before shooting
Zoom frame AF/zoom AF 87
Keeping a moving subject in focus
C-AF+TR (AF tracking) 72
Taking pictures of a subject against
backlight
Flash shooting 64
Backlight HDR (SCN)29
Gradation (Picture Mode) 82
Quick task index
Quick task index
8
EN
Optimizing the monitor/
adjusting monitor hue
Monitor brightness adjustment 107
Live View Boost 110
Photographing fi reworks
Fireworks (SCN)29
Live Time (Z)
34
Live Composite (Z)
33
Live Composite (M)
50
Bulb/time photography (M)
49
Checking horizontal or vertical
orientation before shooting
Level gauge 23
Shooting with deliberate composition
Displayed Grid 110
Sequential shooting
Sequential shooting 66
Using a remote control
Shooting remotely with a
smartphone
122
Shooting without the shutter sound
Silent [♥] (SCN)29
Silent [♥] (Z)
37
Creating commercial-style movies
My Clips 56
Playback/Retouch
g
Viewing images on a TV
HDMI 110
Playback on TV 118
Viewing slideshows with background
music
Slideshow 92
Brightening shadows
Shadow Adj (JPEG Edit) 104
Dealing with red-eye
Redeye Fix (JPEG Edit) 104
Printing made easy

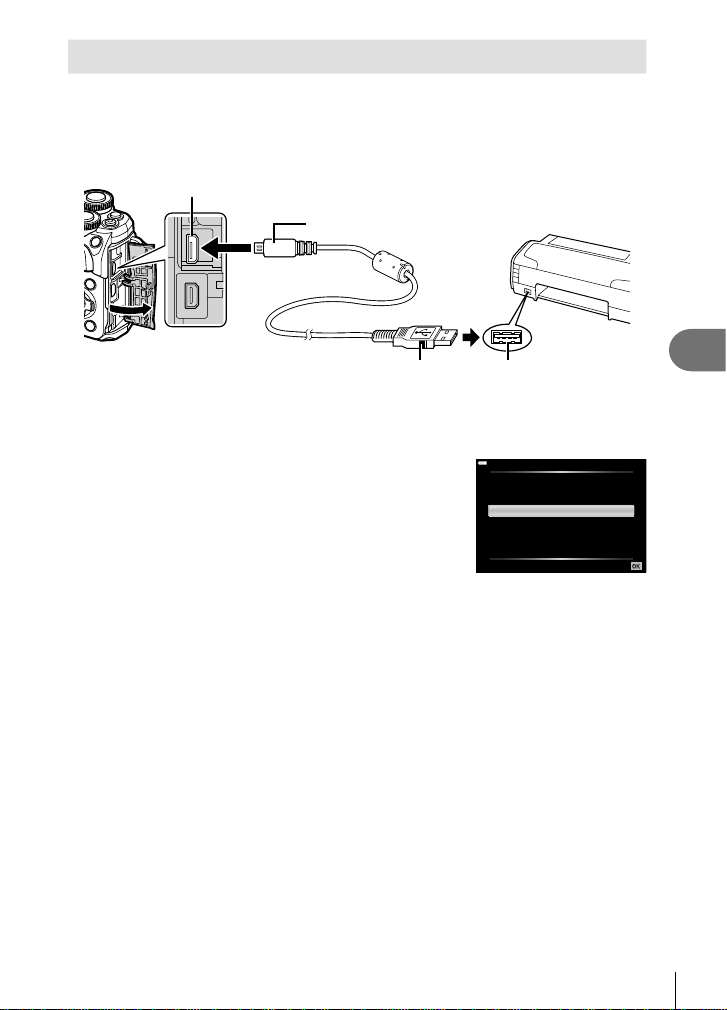

Direct printing 127
Viewing pictures on a smartphone
Transferring images to a
smartphone
122
Adding location data to images
Adding location data to images
123
Quick task index
9
EN
Camera Settings
g
Synchronizing the date and time Setting the date/time 19
Restoring default settings
Reset 98
Preventing automatic display switching
EVF Auto Switch 22, 114
Changing the menu display language
W
107
Turning off the auto focus sound
8 (Beep sound)
110
Silent [♥] (SCN)29
Silent [♥] (Z)
37
Names of parts
10
EN
Names of parts
1
2
3
4
5
6
7
8
0
a
9
b
c
d
f
e
g
1 Mode dial ........................................P. 24
2 Rear dial* (o)
...........................................P. 45 – 48, 90
3 R (Movie)/H button ..............P. 52/P. 94
4 b (Digital Tele-converter)/Fn2 button
.........................................P. 60/P. 85, 90
5 Shutter button .................................P. 25
6 Front dial* (r)
...............................P. 45 – 48, 60, 64, 90
7 Lens attachment mark ....................P. 16
8 Mount (Remove the body cap before
attaching the lens.)
9 Internal fl ash ...................................P. 64
0 Stereo microphone .........P. 95, 102, 104
a Diopter adjustment dial ...................P. 22
b ON/OFF lever ................................P. 18
c u (Shortcut) button .......................P. 26
d Self-timer lamp/AF illuminator
...............................................P. 66/P. 99
e Strap eyelet.....................................P. 12
f Lens release button ........................P. 17
g Lens lock pin
* In this manual, the r and o icons represent operations performed using the front dial
and rear dial.
Names of parts
11
EN
1
2
3
4
gabcedf
5
6
7
8
9
0
jik
h
1 Viewfi nder .......................................P. 22
2 Eye sensor ..............................P. 22, 144
3 Eyecup ..........................................P. 137
4 Monitor (Touch screen)
..........................P. 20, 22, 51, 67, 88, 96
5 Hot shoe .......................................P. 136
6 u (Monitor) button .......................P. 22
7 AEL/AFL / Fn1 button
.......................................P. 60, 115/P. 85
8 Connector cover
9 Micro-USB connector............P. 125, 127
0 HDMI micro connector ..................P. 118
a INFO button .....................P. 23, 89, 116
b q (Playback) button ......................P. 90
c Q button ............................P. 67, 90, 97
d (Erase) button ............................P. 94
e Arrow pad* (FGHI)
.................................P. 19, 61 – 66, P. 90
f MENU button .................................P. 97
g Speaker
h Card slot .........................................P. 15
i Battery/card compartment cover
..................................................P. 13, 15
j Battery/card compartment lock
..................................................P. 13, 15
k Tripod socket
* In this manual, the FGHI icons represent operations performed using the arrow pad.
Preparation
1
12
EN
1
Preparation
Unpacking the box contents
The following items are included with the camera.
If anything is missing or damaged, contact the dealer from whom you purchased the
camera.
Camera Body cap Strap USB cable
CB-USB12
• Basic Manual
• Warranty card
Lithium-ion battery
BLS-50
Lithium-ion charger
BCS-5
Attaching the strap
1
2
3
• Attach the strap on the other side in the same way.
• Lastly, pull the strap fi rmly, making sure that it is fastened securely.
Preparation
1
13
EN
Charging and inserting the battery
1
Charging the battery.
Charging indicator
Charging in
progress
Lights orange
Charging
complete
Off
Charging error Blinks orange
(Charging time: Up to
approximately 3 hours 30 minutes)
1
2
3
AC wall outlet
Lithium ion battery
Charging
indicator
AC cable
Direction indicating
mark (C)
Lithium ion
charger
• Unplug the charger when charging is complete.
2
Opening the battery/card
compartment cover.
1
2
Battery/card
compartment lock
Battery/card compartment cover
3
Loading the battery.
• Use only BLS-50 batteries
(P. 12, 154).
Direction indicating
mark
Preparation
1
14
EN
Removing the battery
Turn off the camera before opening or closing the
battery/card compartment cover. To remove the
battery, fi rst push the battery lock knob in the direction
of the arrow and then remove.
• Do not remove the battery while the card write
indicator is displayed (P. 20).
• Contact an authorized distributor or service center
if you are unable to remove the battery. Do not use
force.
$ Notes
• It is recommended to set aside a backup battery for prolonged shooting in case the
battery in use drains.
• The camera is not equipped with a built-in charger and cannot be recharged via a USB
connection.
• Also read “Battery and charger” (P. 132).
Preparation
1
15
EN
Inserting the card
In this manual, all storage devices are referred to as “cards.”
The following types of SD memory card (commercially available) can be used with this
camera: SD, SDHC, SDXC, and Eye-Fi.
Eye-Fi cards
Read “Usable cards” (P. 133) before use.
1
Loading the card.
• Open the battery/card compartment cover.
• Slide the card in until it is locked into place.
g “Usable cards” (P. 133)
3
Terminal
area
2
1
• Turn off the camera before loading or removing the battery or card.
• Do not forcibly insert a damaged or deformed card. Doing so may damage the card
slot.
2
Closing the battery/card
compartment cover.
• Be sure the battery/card compartment
cover is closed before using the camera.
2
1
Removing the card
Press the inserted card lightly and it will be
ejected. Pull out the card.
• Do not remove the card while the card
write indicator is displayed (P. 20).
Preparation
1
16
EN
Attaching a lens to the camera
1
Remove the rear cap of the lens
and the body cap of the camera.
1
2
1
2
Rear cap
2
Align the lens attachment mark (red) on
the camera with the alignment mark (red)
on the lens, then insert the lens into the
camera’s body.
Lens attachment mark
3
Rotate the lens clockwise until you hear it
click (direction indicated by arrow 3).
3
• Make sure the camera is turned off when attaching or removing the lens.
• Do not press the lens release button.
• Do not touch internal portions of the camera.
Removing the lens cap
1
1
2
1
1
2
Preparation
1
17
EN

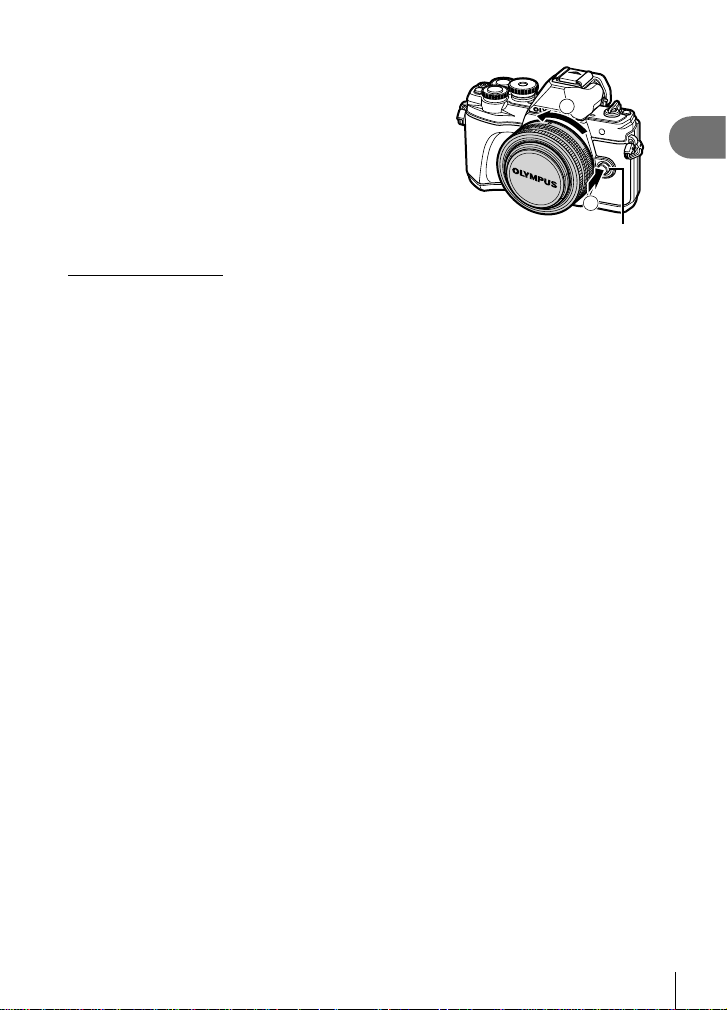

Removing the lens from the camera
Make sure the camera is turned off when removing the
lens. While pressing the lens release button, rotate the
lens in the direction of the arrow.
1
2
Lens release button
Interchangeable lenses
Read “Interchangeable lenses” (P. 135).
Preparation
1
18
EN
Turning the camera on
1
Set the ON/OFF lever to the ON position.
• When the camera is turned on, the monitor will turn on.
• To turn the camera off, return the lever to the OFF position.
ON/OFF lever
250250 F5.6
ISO-A
200
1023
1:02:03
Wi-Fi
Monitor
Battery level
The battery level icon will be displayed.
j
(green): The camera is ready to shoot.
k
(green): The battery is not full.
l
(green): The battery is low.
m
(blinks red): Charge the battery.
Using the monitor
2
1
You can adjust the angle of the monitor.
Camera sleep operation
If no operations are performed for a minute, the camera enters “sleep” (stand-by) mode to
turn off the monitor and to cancel all actions. The camera activates again when you touch
any button (the shutter button, q button, etc.). The camera will turn off automatically if
left in sleep mode for 4 hours. Turn the camera on again before use. You can choose how
long the camera remains idle before entering sleep mode. g [Sleep] (P. 114)
Preparation
1
19
EN
Setting the date/time
Date and time information is recorded on the card together with the images. The fi le
name is also included with the date and time information. Be sure to set the correct
date and time before using the camera. Some functions cannot be used if the date and
time have not been set.
1
Display the menus.
• Press the MENU button to display the menus.
• A guide is displayed in 2 seconds after you select an option.
• Press the INFO button to view or hide guides.
MENU button
2
1
1
Shooting Menu 1
Picture Mode
Digital Tele-converter
Metering
Off
p
Reset
Back Set
2
Select
[X]
in the
[d] (setup) tab.
• Use FG on the arrow pad to select [d]
and press I.
• Select [X] and press I.
2
1
Setup Menu
X
English
s
Firmware
Wi-Fi Settings
Rec View
j±0 k±0
’--.--.-- --:--:--
Card Setup
Back Set
W
0.5 sec
[d] tab
3
Set the date, time, and date format.
• Use HI to select items.
• Use FG to change the selected item.
• Press the Q button to set the camera
clock.
4
Select [W] (changing the display
language) in the [d] (setup) tab.
• You can change the language used for
the on-screen display and error messages
from English to another language.
X
YMD Time
2017
Y/M/D
Cancel
The time is displayed using
a 24-hour clock.
• Use FGHI to highlight a language and press the Q button to select the
highlighted language.
5
Press the MENU button to exit the menus.
• If the battery is removed from the camera and the camera is left for a while, the date and
time may be reset to the factory default setting.
Shooting
2
20
EN
2
Information displays while shooting
Monitor display during still photography
250250 F5.6
L
N
4:3
AEL
HDR
+
2.0
+
2.0
P
off
Wi-Fi
FP
+7+7-3-3
+2+2
S-AF
WB
AUTO
-
2.0
28
mm
S-IS ONS-IS ON
F
FHD
30p
ISO-A
200
1023
1:02:03
N
B
TO
-
A
0
3
A
F
321 54 789 0 a6
n
w
v
x
y
z
A
B
u
e
f
g
h
i
d
c
j
qtponmrlks
C
b
1 Card write indicator ...................P. 14, 15
2 Wireless LAN connection.....P. 120 – 124
3 Super FP fl ash ..............................P. 136
4 HDR ................................................P. 36
AE Bracketing .................................P. 40
Focus Bracketing ............................P. 41
5 Multiple exposure............................P. 35
D Keystone compensation ...........P. 39
6 Digital Tele-converter ......................P. 99
7 Time lapse shooting ......................P. 100
8 Face priority/Eye priority .................P. 62
9 Movie sound ...........................P. 52, 102
0 Zoom operation direction/
Focal length/Internal temperature
warning m ...........................P. 146
a Flash ...............................................P. 64
(blinks: charging in progress, lights up:
charging completed)
b AF confi rmation mark......................P. 25
c Picture mode.............................P. 69, 99
d ISO sensitivity .................................P. 63
e White balance .................................P. 70
f AF mode .........................................P. 72
g Aspect ratio .....................................P. 73
h Image quality (still images) .............P. 73
i Record mode (movies) ...................P. 74
j Available recording time ...............P. 134
k Number of storable still pictures ...P. 134
l Highlight & shadow control .............P. 84
m Top: Flash intensity control .............P. 77
Bottom: Exposure compensation ....P. 60
n Level gauge ....................................P. 23
o Exposure compensation value........P. 60
p Aperture value .........................P. 45 – 48
q Shutter speed ..........................P. 45 – 48
r Histogram .......................................P. 23
s Preview ...........................................P. 86
t AE lock....................................P. 60, 115
u Shooting mode.........................P. 24 – 53
v Touch operation ..............................P. 51
w Metering mode ................................P. 80
x Sequential shooting/Self-timer ........P. 66
Silent shooting ................................P. 37
y Flash intensity control .....................P. 77
z Flash mode .....................................P. 64
A Image stabilizer...............................P. 78
B Battery level ....................................P. 18
C Live guide recall ..............................P. 27
Shooting
Shooting
2
21
EN
Monitor display during movie mode
Wi-Fi
28
mm
n
M-ISM-IS
1
L
R
L
R
ISO
AUTO
C-AF
P
F
FHD
30p
1:02:03
WB
AUTO
L
N
D
G
F
E
D Recording level meter ...................P. 102
E Silent shooting tab ..........................P. 59
F Movie (exposure) mode ..................P. 76
G Movie effect ....................................P. 54
Shooting
2
22
EN
Switching between displays
The camera is equipped with an eye sensor, which turns the viewfi nder on when you
put your eye to the viewfi nder. When you take your eye away, the sensor turns the
viewfi nder off and turns the monitor on.
Monitor
Put your
eye to the
viewfi nder
Viewfi nder
250250 F5.6
P
Wi-Fi
S-IS ONS-IS ON
ISO-A
200
1023
1:02:03
L
N
F
FHD
30p
0.0
250250 F5.6
P
1:02:03
1023
S-IS ONS-IS ON
ISO-A
200
L
N
F
FHD
30p
0.0
View through lens shown in monitor View through lens shown in viewfi nder
• If the viewfi nder is not in focus, put your eye to the
viewfi nder and focus the display by rotating the
diopter adjustment dial.
Diopter adjustment dial
• You can display the EVF Auto Switch setting menu
if you press and hold the u button. g [EVF
Auto Switch] (P. 114)
• When [OFF] is selected for [EVF Auto Switch], you
can switch displays by pressing the u button.
u button
$ Notes
• Tilting the monitor disables the eye sensor.
Shooting
2
23
EN
Switching the information display
You can switch the information displayed in
the monitor during shooting using the INFO
button.
INFO button
INFO
INFO
Level Gauge display
(Custom2)
250250 F5.6
P
Wi-Fi
S-IS ONS-IS ON
ISO-A
200
1023
1:02:03
0.0
INFO
INFO
Image Only
Histogram display
(Custom1)
Basic Information*
250250 F5.6
P
Wi-Fi
S-IS ONS-IS ON
ISO-A
200
1023
1:02:03
0.0
250250 F5.6
P
Wi-Fi
L
N
S-IS ONS-IS ON
ISO-A
200
F
FHD
30p
1023
1:02:03
0.0
INFO
INFO
INFO
INFO
* Not displayed in n mode (movie mode) unless recording is in progress.
• You can change Custom1 and Custom2 settings. g [G/Info Settings] > [LV-Info]
(P. 110)
• The information display screens can be switched in either direction by rotating the dial
while pressing the INFO button.
Histogram display
A histogram showing the distribution of brightness
in the image is displayed. The horizontal axis
gives the brightness, the vertical axis the number
of pixels of each brightness in the image. During
shooting, overexposure is indicated in red,
underexposure in blue, and the range metered
using spot metering in green.
More
Less
Dark Bright
Level gauge display
The orientation of the camera is indicated. The “tilt” direction is indicated on the vertical bar
and the “horizon” direction on the horizontal bar. The camera is level and plumb when the
bars turn green.
• Use the indicators on the level gauge as a guide.
• Error in the display can be corrected via calibration (P. 114).
Shooting
2
24
EN
Shooting still pictures

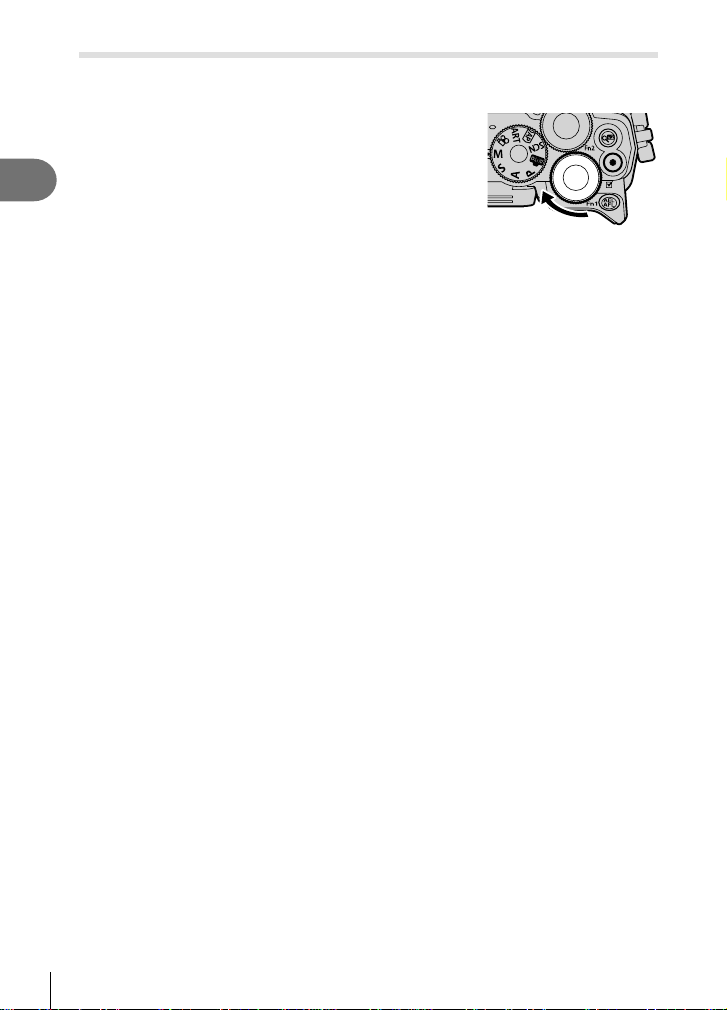

Use the mode dial to select the shooting mode,
and then shoot the image.
Indicator Mode icon
Types of shooting modes
For how to use the various shooting modes, see the following.
Shooting mode Description
g
B
The camera automatically selects the most appropriate shooting
mode.
27
SCN
The camera automatically optimizes settings for the subject or
scene.
29
Z
Use for quick access to advanced shooting settings. 32
ART You can shoot with the effect of artistic expression added. 42
P
The camera meters subject brightness and automatically adjusts
shutter speed and aperture for optimal results.
45
A
You choose the aperture and the camera automatically adjusts
shutter speed for optimal results.
46
S
You choose the shutter speed and the camera automatically
adjusts aperture for optimal results.
47
M
You choose both the aperture and shutter speed. 48
n
Shoot movies of various types. 53
Functions that cannot be selected from menus
Some items may not be selectable from the menus when using the arrow pad.
• Items that cannot be set with the current shooting mode.
• Items that cannot be set because of an item that has already been set:
Settings such as picture mode are unavailable when the mode dial is rotated to B.
Shooting
2
25
EN
1

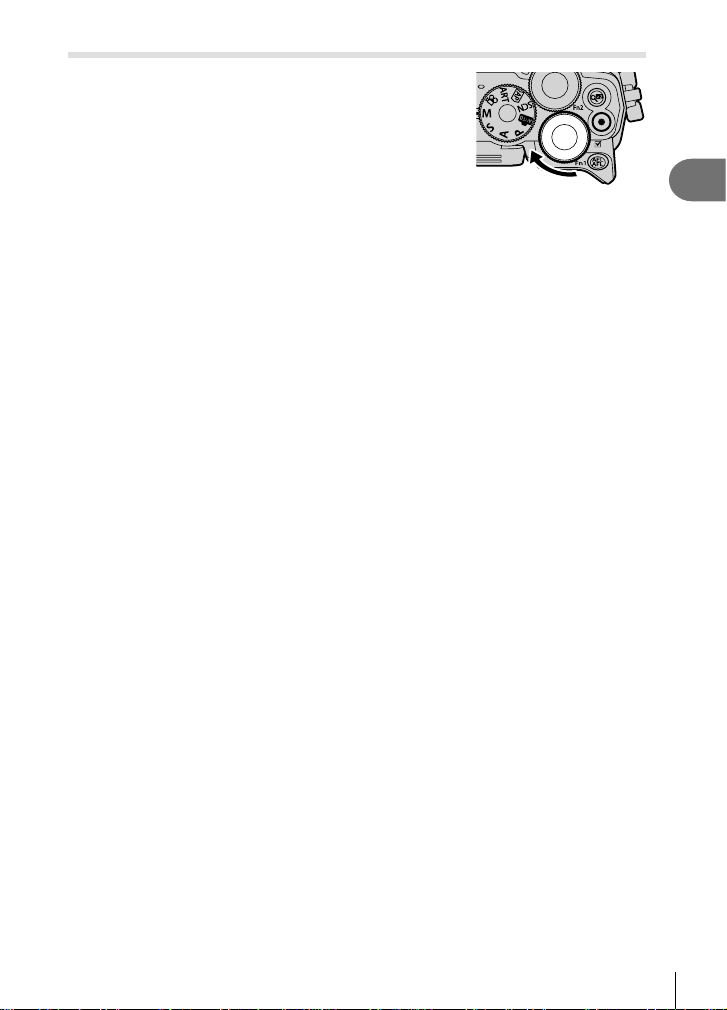

Rotate the mode dial to choose a mode.
2
Frame the shot.
• Be careful that your fi ngers
or the camera strap do
not obstruct the lens or AF
illuminator.
Landscape position Portrait position
3
Adjust the focus.
• Display the subject in the center of the monitor, and lightly press the shutter button
down to the fi rst position (press the shutter button halfway).
The AF confi rmation mark (() will be displayed, and a green frame (AF target) will
be displayed in the focus location.
250250 F5.6
1023
1:02:03
28
mm
ISO-A
200
Wi-Fi
S-IS ONS-IS ON
L
N
F
FHD
30p
AF confi rmation mark
AF target
Press the shutter
button halfway.
• If the AF confi rmation mark blinks, the subject is not in focus. (P. 142)
4
Release the shutter.
• Press the shutter button all the way
(fully).
• The camera will release the shutter
and take a picture.
• The shot image will be displayed on
the monitor.
Press the shutter
button all the way.
$ Notes
• You can focus and take pictures using touch controls. g “Shooting with touch screen
operations” (P. 51)
• To exit to shooting mode from menus or playback, press the shutter button halfway.
Shooting
2
26
EN

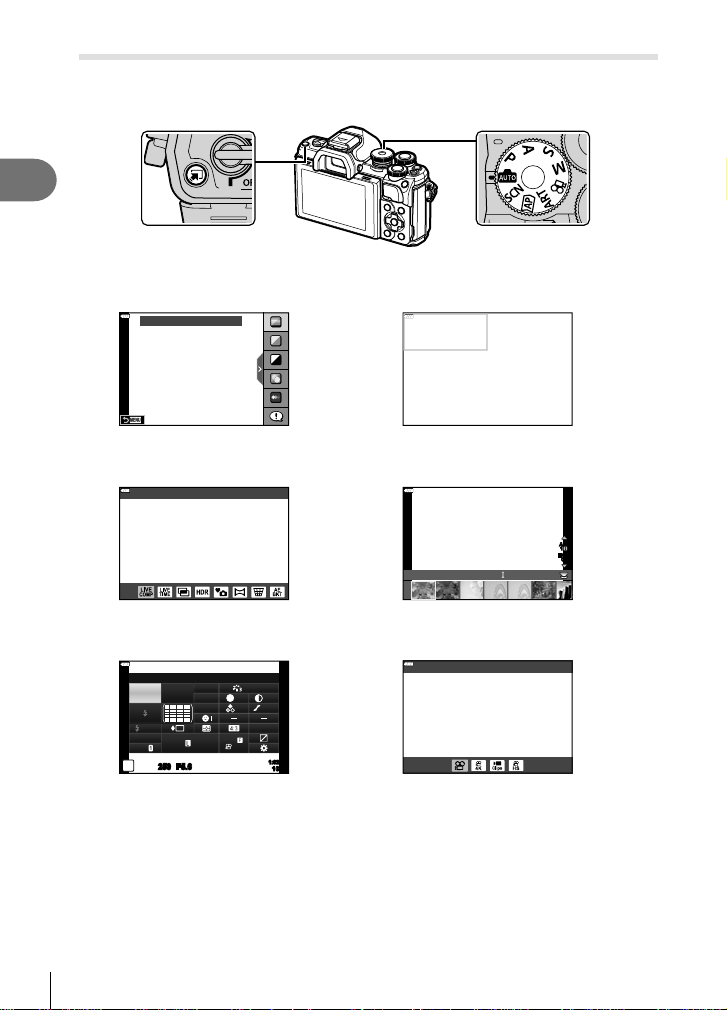

Switching Displays with the u (Shortcut) Button
Press the u button to switch to each screen of the selected shooting mode between
shots.
u (Shortcut) button
Mode dial
B
Live guide (P. 27)
SCN
Scene mode (P. 29)
Change Color Saturation
Motion Scenery
Nightscapes
Indoors Close-ups
People
Z
Advanced photo mode (P. 32)
ART
Art fi lter mode (P. 42)
Live Composite
Pop Art
Effect
Off
ART
1
ART
1
P/A/S/M
LV super control panel (P. 68)
n
Movie mode (P. 53)
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
N
FHD
60p
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
±
0
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
Recommended ISO
Standard
Shooting
2
27
EN
Letting the camera choose the settings ( AUTO mode)
The camera adjusts settings to suit the scene; all you have to do is press the shutter
button. Set the mode dial to B.
Using live guides
Use live guides to easily adjust such parameters as color, brightness, and background
blurring.
1
Press the u button to display live guides.
• Use FG to highlight an item in the live guide and
press Q to display a slider.
Change Color Saturation
Guide item
2
Use FG to position the slider and choose a
level.
• Press the Q button to save changes.
• To exit, press the MENU button.
• When [Shooting Tips] is selected, use FG to
highlight the item and press the Q button to display
the detail.
• The effect of the selected level is visible in the
display.
If [Blur Background] or [Express Motions] is selected,
the display will return to normal, but the selected
effect will be visible in the fi nal photograph.
0
Clear & Vivid
Flat & Muted
Slider
3
To set multiple live guides, repeat Steps 1 and 2.
• A check is displayed on the guide item for live guides
that are already set.
• [Blur Background] and [Express Motions] cannot be
set at the same time.
Change Color Saturation
4
Shoot.
• To clear the live guides from the display, press the MENU button.
Shooting
2
28
EN
• If [RAW] is currently selected for image quality, image quality will automatically be set to
[YN+RAW].
• Live guide settings are not applied to the RAW copy.
• Pictures may appear grainy at some live guide setting levels.
• Changes to live guide setting levels may not be visible in the monitor.
• Frame rates drop when [Blurred Motion] is selected.
• The fl ash cannot be used when a live guide is set.
• Choosing live guide settings that exceed the limits of the camera exposure meters may
result in pictures that are overexposed or underexposed.
$ Notes
• Touch controls can also be used.
Shooting
2
29
EN
Shooting in scene mode (SCN mode)
The camera automatically optimizes settings for the subject or scene.
1
Rotate the mode dial to SCN.
2
Use FGHI to highlight a scene and press the
Q button.
Motion Scenery
Nightscapes
Indoors Close-ups
People
3
Use HI to highlight a scene mode and press the
Q button.
• Press the u button to choose a different scene.
Portrait
4
Shoot.
$ Notes
• Touch controls can also be used.
Types of scene modes
Subject type Scene mode Description
People
B
Portrait
Suitable for portrait shooting.
Brings out skin texture.
e
e-Portrait
Smooths out skin tones and texture. This mode is
suitable when viewing images on a high-defi nition TV.
The camera records two pictures: one with the effect
applied and one without.
D
Portrait +
Landscape
Suitable for portraits featuring a landscape in the
background.
Blues, greens, and skin tones are captured beautifully.
U
Portrait +
Nightscape
Suitable for portrait shooting against a background of
night view.
Use of a tripod and remote control via OI.Share is
recommended (P. 122).
m
Children
Suitable for photographs of children and other active
subjects.
Shooting
2
30
EN
Subject type Scene mode Description
Nightscapes
G
Nightscape
Suitable for tripod shooting of night scenes.
Use of a tripod and remote control via OI.Share is
recommended (P. 122).
U
Portrait +
Nightscape
Suitable for portrait shooting against a background of
night view.
Raise the fl ash (P. 64).
Use of a tripod and remote control via OI.Share is
recommended (P. 122).
H
Handheld
Starlight
Suitable for shooting night scenes without a tripod.
Reduces blur when shooting low light/illuminated
scenes.
The camera makes eight exposures and combines
them into a single photograph.
X
Fireworks
Suitable for shooting fi reworks at night.
Use of a tripod and remote control via OI.Share is
recommended (P. 122).
d
Light Trails
The camera automatically shoots multiple images,
takes newly bright areas only, and composites them
into a single image.
With normal long exposure, an image of light trace such
as star trails with bright buildings tends to get too bright.
You can capture them without over exposure while
checking the progress.
Press the shutter button to start shooting, then view the
changing result in the monitor and press the shutter
button again to end shooting once the desired result is
achieved (maximum 3 hours).
Use of a tripod and remote control via OI.Share is
recommended (P. 122).
• Advanced settings can be accessed via live
composite photography (dark and light fi eld
composite) in M mode (P. 50).
Motion
C
Sport
Suitable for fast action shooting.
The camera will take photos while the shutter button is
pressed.
m
Children
Suitable for photographs of children and other active
subjects.
J
Panning
Choose to blur the background behind moving objects.
The camera chooses the optimal shutter speed for
panning shots based on camera motion.
Scenery
F
Landscape Suitable for landscape shooting.
`
Sunset Suitable for shooting the sunset.
g
Beach & Snow
Suitable for shooting at snow-capped mountains,
seascapes in the sun, and other whitish scenes.
E
Backlight HDR
Suitable for contrasting scenes. This mode captures
multiple images and merges them into one, properly
exposed image (P. 36).
Shooting
2
31
EN
Subject type Scene mode Description
Indoors
W
Candlelight
Suitable for shots of candlelit scenes. Warm colors are
preserved.
k
Silent [♥]
Disable camera sounds and lights in situations in which
they may be unwelcome (P. 37).
B
Portrait
Suitable for portrait shooting.
Brings out skin texture.
e
e-Portrait
Smooths out skin tones and texture. This mode is
suitable when viewing images on a high-defi nition TV.
The camera records two pictures: one with the effect
applied and one without.
m
Children
Suitable for photographs of children and other active
subjects.
E
Backlight HDR
Suitable for contrasting scenes. This mode captures
multiple images and merges them into one, properly
exposed image (P. 36).
Close-ups
i
Macro Suitable for close-ups.
j
Nature Macro Suitable for vivid close-ups of fl owers or insects.
d
Documents
Suitable for photos of timetables or other documents.
The camera heightens the contrast between the text
and background.
t
Multi Focus
Shot
The camera takes eight photos, varying the focus
distance with each shot (P. 41).
• To maximize the benefi ts of the scene modes, some of the shooting function settings are
disabled.
• Some time may be needed to record pictures taken using [e-Portrait]. In addition, when
the image quality mode is [RAW], the image is recorded in RAW+JPEG.
• Movies cannot be recorded using [e-Portrait], [Handheld Starlight], or [Backlight HDR].
• [Handheld Starlight] pictures taken with [RAW] selected for image quality will be recorded
in RAW+JPEG format, with the fi rst frame recorded as a RAW image and the fi nal
composite as a JPEG image.
• [Backlight HDR] records HDR-processed images in JPEG format. When the image quality
mode is set to [RAW], the image is recorded in RAW+JPEG.
• In [Panning], J is displayed during panning detection, and I is displayed when nothing
is detected.
• When using a lens with an image stabilizer switch in [Panning], turn the image stabilizer
switch off.
Suffi cient panning effects may not be obtained in bright conditions. Use a commercially
available ND fi lter to obtain effects more easily.
Shooting
2
32
EN
Shooting in advanced photo mode ( Z mode)
Use for quick access to advanced shooting settings.
1
Rotate the mode dial to Z.
2
Use HI to highlight an AP mode.
• Some modes offer additional options that can be
accessed using G.
Live Composite
3
Press the Q button to select the highlighted mode.
• Press the u button to choose a different mode. If additional options are displayed,
press F.
$ Notes
• In some modes, the front dial can be used for exposure compensation (P. 60) and the
rear dial for program shift (P. 45).
• Touch controls can also be used.
AP Mode Options
AP mode Description
g
Live Composite
Record light trails from stars and other objects while
keeping exposure constant overall.
33
Live Time
Choose for photos of fi reworks and night scenery. Make
long time exposures at selected shutter speeds.
34
Multiple Exposure Combine two different images on top of one another. 35
HDR Capture details in both highlights and shadows. 36
Silent [♥]
Disable camera sounds and lights in situations in which
they may be unwelcome.
37
Panorama
Take photos that can afterwards be joined on a computer
to create a panorama.
38
Keystone
Compensation
Correct the effects of perspective in photos of buildings or
landscapes.
39
AE Bracketing
Each time the shutter button is pressed, the camera takes
a series of photos, varying exposure with each shot.
40
Focus Bracketing
Each time the shutter button is pressed, the camera takes
a series of eight photos, varying the focus distance with
each shot.
41
Shooting
2
33
EN
[Live Composite]: Live Composite Photography
Create photos that record light trails from stars and other objects without changing the
brightness of the background; during shooting, the changing results can be viewed
in the monitor. You can adjust white balance or picture mode and other settings not
available with the SCN mode “Light Trails” option.
1
Highlight [Live Composite] in the AP mode menu (P. 32) and press the Q
button.
2
Press the shutter button halfway down to focus.
• To reduce blur caused by camera shake, fi x the camera securely to a tripod and use
a remote shutter release controlled via OI.Share (P. 122) in wireless remote mode.
• If the focus indicator blinks, the camera is not in focus.
3
Press the shutter button all the way down to shoot.
• The camera confi gures the proper settings automatically and starts shooting.
• After pressing the shutter button, there is a time lag until shooting starts.
• The composite image will be displayed at regular intervals.
4
Press the shutter button again to stop shooting.
• View the changing result in the monitor and press the shutter button to end shooting
once the desired result is achieved.
• The recording length in one shooting is up to 3 hours.
$ Notes
• Advanced settings can be accessed via live composite photography (dark and light fi eld
composite) in M mode (P. 50).
Shooting
2
34
EN
[ Live Time]: Live Time Photography
You can make long exposures without having to keep the shutter button pressed. The
changing result can be viewed in the monitor during shooting.
1
Highlight [Live Time] in the AP mode menu (P. 32).
2
Press G, use HI to choose the maximum
exposure time, and press the Q button.
• The display refresh rate may change automatically
depending on the maximum exposure time selected.
• The shorter the maximum exposure time, the faster the
display refresh rate.
Live Time
2
min
2
min
2
min
1
min
4
min
3
Press the shutter button halfway down to focus.
• To reduce blur caused by camera shake, fi x the camera securely to a tripod and use
a remote shutter release controlled via OI.Share (P. 122) in wireless remote mode.
• If the focus indicator blinks, the camera is not in focus.
4
Press the shutter button all the way down to start live time photography.
• The camera adjusts settings automatically and begins shooting.
• The changing result can be viewed in the monitor.
5
Press the shutter button again to stop shooting.
• View the changing result in the monitor and press the shutter button to end shooting
once the desired result is achieved.
• Shooting ends automatically when the selected exposure time is reached.
$ Notes
• The long exposure (bulb/time) options in M mode offer more advanced settings (P. 49).
Shooting
2
35
EN
[ Multiple Exposure]: Shooting Multiple Exposures
Combine two different images on top of one another.
1
Highlight [Multiple Exposure] in the AP mode menu (P. 32) and press the
Q button.
2
Press the shutter button halfway down to focus.
• If the focus indicator blinks, the camera is not in focus.
3
Press the shutter button all the way down for the fi rst shot.
• a is displayed in green if shooting starts.
• The image is shown superimposed on the monitor.
• Press to delete the last shot.
4
Take the second shot.
• Use the fi rst image as a guide to compose the second shot.
• The camera will not go to sleep while multiple exposure is in effect.
• Performing any of the following actions automatically deletes the second shot:
The camera is turned off, the q button is pressed, the MENU button is pressed,
pressing the u button, rotating the mode dial, the battery power runs out, or any cable
is connected to the camera.
% Tips
• For more information on creating image overlays: g “Image overlay” (P. 105)
Shooting
2
36
EN
[ HDR]: Taking Composite Photos with HDR
Capture details in both highlights and shadows. The camera varies exposure over a
series of four shots and combines them into a single image.
1
Highlight [HDR] in the AP mode menu (P. 32).
2
Press G, use HI to choose [HDR1] or [HDR2],
and press the Q button.
HDR1
Four shots are taken, each with a different
exposure, and the shots are combined into one
HDR image inside the camera. HDR2 provides a
more impressive image than HDR1. ISO sensitivity
is fi xed to 200.
HDR2
HDR
HDR
1
HDR
2
HDR
1
3
Press the shutter button halfway down to focus.
• If the focus indicator blinks, the camera is not in focus.
4
Press the shutter button all the way down to start HDR photography.
• The camera automatically takes four shots when the shutter button is pressed.
• Noise may be more noticeable in photos taken in conditions associated with slow shutter
speeds.
• For best results, secure the camera by, for example, mounting it on a tripod.
• The image displayed on the monitor or in the viewfi nder while shooting will differ from the
HDR-processed image.
• The HDR-processed image will be saved as a JPEG fi le. When the image quality mode is
set to [RAW], the image is recorded in RAW+JPEG.
• The picture mode is fi xed to [Natural] and the color space is fi xed to [sRGB].
Shooting
2
37
EN
[ Silent [♥]] Mode
Disable camera sounds and lights in situations in which they may be unwelcome.
1
Highlight [Silent [♥]] in the AP mode menu (P. 32) and press the Q button.
2
Press the shutter button halfway down to focus.
• If the focus indicator blinks, the camera is not in focus.
3
Press the shutter button all the way down to shoot.
• When the shutter is released, the monitor screen will go dark for a moment. No
shutter sound will be emitted.
• The desired results may not be achieved under fl ickering light sources such as fl uorescent
or LED lamps or if the subject moves abruptly during shooting.
• In [Silent [♥]] mode, the following measures are undertaken to reduce the sound and light
produced by the camera.
- Electronic shutter: Enabled
- 8: Off
- AF Illuminator: Off
- Flash mode: Off
• Note that due to the electronic shutter, the subject may appear to be distorted in
photographs if camera moves quickly during shooting or when shooting fast-moving
subjects.
• Long exposure noise reduction is not available in [Silent [♥]] mode.
$ Notes
• Press G for sequential/self-timer photography (P. 66).
Shooting
2
38
EN
[ Panorama]: Taking Pictures for a Panorama
Pictures taken using this option can be joined together to form a panorama. You will
need to install the latest version of OLYMPUS Viewer 3 on your computer to join
pictures together to form a panorama.
g “Connecting the camera to a computer and a
printer” (P. 125)
1
Highlight [Panorama] in the AP mode menu (P. 32) and press the Q
button.
2
Use FGHI to choose a pan direction.
3
Take a picture, using the guides to frame the shot.
• Focus, exposure, and other settings are fi xed at the
values for the fi rst shot.
250250 F5.6 38
4
Take the remaining images, framing each shot so that the guides overlap with
the previous picture.
[
2
]
250250 F5.6 38
[
3
]
Exit Exit
• A panorama may include up to 10 images. A warning indicator (g) is displayed after
the tenth shot.
• During panorama shooting, the image previously taken for position alignment will not
be displayed. With the frames or other markers for display in the images as a guide,
set the composition such that the edges of the overlapping images overlap within the
frames.
5
After taking the last shot, press Q to end the series.
Shooting
2
39
EN
[ Keystone Compensation]
Correct the effects of perspective in photos of buildings or landscapes.
1
Highlight [Keystone Compensation] in the AP mode menu (P. 32) and press
the Q button.
2
Adjust the effect in the display and frame the shot.
• Use the front dial and rear dial for keystone correction.
• Use FGHI to choose the area to be recorded. The
area cannot be changed depending on the amount of
correction.
• Press and hold the Q button to cancel any changes.
• To adjust exposure compensation and other shooting
options while keystone compensation is in effect, press
the INFO button to view a display other than keystone
compensation adjustment. To resume keystone
compensation, press the INFO button until keystone
compensation adjustment is displayed.
Wi-Fi
250250 F5.6
• The following may occur as the correction amount increases.
- The image will be coarse.
- The magnifi cation ratio for image cropping will be large.
- The crop position will not be able to move.
3
Press the shutter button halfway down to focus.
• If the focus indicator blinks, the camera is not in focus.
4
Press the shutter button all the way down to shoot.
• Photos are recorded in RAW+JPEG format when [RAW] is selected for image quality.
• The desired results may not be obtained with converter lenses.
• Depending on the amount of correction, some AF targets may be outside the display area.
An icon (g, h, i or j) is displayed when the camera focuses on an AF target outside
the display area.
• If a focus distance is selected for [Image Stabilizer], the correction will be adjusted for
the selected focus distance. Except when using a Micro Four Thirds or Four Thirds lens,
choose a focal length using the [Image Stabilizer] option (P. 78).
Shooting
2
40
EN
[ AE Bracketing]: Varying Exposure over a Series of Shots
Take a series of photos, varying exposure with each shot.
1
Highlight [AE Bracketing] in the AP mode menu (P. 32).
2
Press G, use HI to choose the number of shots,
and press the Q button.
3f
Take 3 shots, the fi rst at optimal exposure (±0.0 EV),
the second at −1.0 EV, and the third at +1.0 EV.
5f
Take 5 shots, the fi rst at optimal exposure (±0.0 EV),
the second at −1.3 EV, the third at −0.7 EV, the fourth
at +0.7 EV, and the fi fth at +1.3 EV.
AE Bracketing
5
f
3
f
5
f
3
Press the shutter button halfway down to focus.
• If the focus indicator blinks, the camera is not in focus.
4
Press the shutter button all the way down to shoot.
• Take the set number of shots.
• The t indicator turns green during bracketing.
• The camera brackets the value currently selected for exposure compensation.
Shooting
2
41
EN
[ Focus Bracketing]: Varying Focus Distance over a Series of Shots
Each time the shutter button is pressed, the camera takes a series of eight photos,
varying the focus distance with each shot.
1
Highlight [Focus Bracketing] in the AP mode menu (P. 32).
2
Press G, use HI to choose the amount focus
distance changes with each shot, and press the Q
button.
The focus distance changes by a small amount with
each shot.
The focus distance changes by a large amount with
each shot.
Focus Bracketing
3
Press the shutter button halfway down to focus.
• If the focus indicator blinks, the camera is not in focus.
4
Press the shutter button all the way down to shoot.
• The camera takes eight photos, varying the focus distance with each shot. The camera
will take pictures at, and at distances in front of and behind, the focus distance chosen
when the shutter button is pressed halfway.
• The t indicator turns green during bracketing.
• Focus bracketing ends if zoom is adjusted during shooting.
• Shooting ends when focus reaches infi nity.
• Focus bracketing uses the electronic shutter.
• Focus bracketing is not available with lenses that have mounts conforming to the Four-
Thirds or some Micro Four-Thirds standards.
Shooting
2
42
EN
Using art fi lters (ART mode)
Using art fi lters, you can easily have fun with artistic effects.
1
Rotate the mode dial to ART.
2
Use HI to highlight a fi lter.
Pop Art
Effect
Off
ART
1
ART
1
3
Press G, highlight an effect using HI, and press
the Q button.
• Press the u button to choose a different art fi lter. If
effects are displayed, press F.
• The effects available vary with the selected fi lter (Soft
Focus Effect, Pin Hole Effect, Frame Effect, White Edge
Effect, Star Light Effect, Color Filter, Monochrome Color,
Blur Effect, or Shade Effect).
O
ff
Frame Effect
ART
1
ART
1
4
Shoot.
$ Notes
• [Color Filter] (P. 82) and [Monochrome Color] (P. 83) options are available with some
art fi lters.
• The front dial can be used for exposure compensation (P. 60).
• The rear dial can be used for program shift (P. 45).
• Touch controls can also be used.
Shooting
2
43
EN
Types of art fi lters
Pop Art I/II Creates an image that emphasizes the beauty of color.
Soft Focus Creates an image that expresses a soft tone atmosphere.
Pale&Light Color I/II
Creates an image that expresses warm light by scattering overall
light and slightly overexposing the image.
Light Tone
Creates a high-quality image by softening both shadows and
highlights.
Grainy Film I/II
Creates an image that expresses the roughness of black and
white images.
Pin Hole I/II/III
Creates an image that looks as if it was taken using an old or toy
camera by dimming the image perimeter.
Diorama I/II
Creates a miniature-like image by emphasizing saturation and
contrast, and blurring unfocused areas.
Cross Process I/II
Creates an image that expresses a surreal atmosphere. Cross
Process II creates an image that emphasizes magenta.
Gentle Sepia
Creates a high-quality image by drawing out shadows and
softening the overall image.
Dramatic Tone I/II
Creates an image that emphasizes the difference between
brightness and darkness by partially increasing contrast.
Key Line I/II
Creates an image that emphasizes edges and adds an illustrative
style.
Watercolor I/II
Creates a soft, bright image by removing dark areas, blending
pale colors on a white canvas, and further softening contours.
Vintage I/II/III
Expresses an everyday shot in a nostalgic, vintage tone using
printed fi lm discoloration and fading.
Partial Color I/II/III
Impressively expresses a subject by extracting colors you want to
emphasize and keeping everything else monotone.
Bleach Bypass I/II
The “bleach bypass” effect, which you may recognize from motion
pictures and the like, can be used to great effect in shots of
streetscapes or metal objects.
II and III are altered versions of the original (I).
Shooting
2
44
EN
• To maximize the benefi ts of the art fi lters, some of the shooting function settings are
disabled.
• If [RAW] is currently selected for image quality (P. 73), image quality will automatically
be set to [YN+RAW]. The art fi lter will be applied to the JPEG copy only.
• Depending on the subject, tone transitions may be ragged, the effect may be less
noticeable, or the image may become more “grainy.”
• Some effects may not be visible in live view or during movie recording.
• Your choice of fi lters, effects, and movie quality when recording movies may affect
playback speed and smoothness.
Using [ Partial Color]
Record only selected hues in color.
1
Select [Partial Color I/II/III] in the art fi lter menu
(P. 42).
2
Highlight an effect and press the Q button.
• A color ring appears in the display.
ColorColor
3
Rotate the front dial or rear dial to select a color.
• The effect is visible in the display.
4
Shoot.
• If you want to change the extracted color after shooting, rotate the front dial (r) or rear
dial (o) to display the color ring.
Shooting
2
45
EN
Letting the camera choose aperture and shutter speed
( Program mode)
P mode is a shooting mode where the camera automatically sets the optimal aperture
and shutter speed according to subject brightness. Set the mode dial to P.
250250 F5.6
P
Wi-Fi
L
N
S-IS ONS-IS ON
F
FHD
30p
ISO-A
200
1023
1:02:03
0.0
Shooting mode
Shutter speed
Aperture value
• The shutter speed and aperture selected by the camera are displayed.
• You can use the front dial to select exposure compensation.
• You can use the rear dial to select program shift.
• The shutter speed and aperture value displays will blink if the camera is unable to achieve
correct exposure.
The aperture value at the moment when its indication blinks varies with the lens type and
focal length of the lens.
When using a fi xed [ISO] setting, change the setting. g “Changing ISO sensitivity
(ISO)” (P. 63)
Warning display
example (blinking)
Status Action
60"
60"
F2.8
F2.8
The subject is too
dark.
• Use the fl ash.
F22
F22
4000
4000
The subject is too
bright.
• The metered range of the camera is
exceeded. A commercially available ND
fi lter (for adjusting the amount of light) is
required.
Program shift (%)
250250 F5.6
Wi-Fi
L
N
P
s
S-IS ONS-IS ON
ISO-A
200
F
FHD
30p
1023
1:02:03
0.0
Program shift
In P mode, ART mode, and some Z modes, you can
choose other combinations of aperture and shutter speed
that will produce the same exposure. Turn the rear dial to
program shift so that “s” appears next to the shooting mode.
To cancel program shift, turn the rear dial until “s” is no
longer displayed.
• Program shift is not available in other modes or when the
fl ash is used.
Shooting
2
46
EN
Choosing aperture ( Aperture Priority mode)
A mode is a shooting mode where you choose the aperture and let the camera
automatically adjust to the appropriate shutter speed. Rotate the mode dial to A and
then use the rear dial to select an aperture value.
Larger apertures (lower F-numbers) decrease depth of fi eld (the area in front of or
behind the focus point that appears to be in focus), softening background details.
Smaller apertures (higher F-numbers) increase depth of fi eld.
Aperture value
250250 F5.6
Wi-Fi
L
N
A
S-IS ONS-IS ON
ISO-A
200
F
FHD
30p
1023
1:02:03
0.0
• You can use the front dial to select exposure compensation.
Setting the aperture value
Decreasing aperture value Increasing aperture value
F2.8 F4.0 F5.6 F8.0 F11
(Decreasing depth of fi eld) (Increasing depth of fi eld)
• The shutter speed display will blink if the camera is unable to achieve correct exposure.
• When using a fi xed [ISO] setting, change the setting. g “Changing ISO sensitivity
(ISO)” (P. 63)
Warning display
example (blinking)
Status Action
60"
60"
F5.6
F5.6
The subject is
underexposed.
• Decrease the aperture value.
4000
4000
F5.6
F5.6
The subject is
overexposed.
• Increase the aperture value.
• If the warning display does not disappear,
the metered range of the camera is
exceeded. A commercially available ND
fi lter (for adjusting the amount of light) is
required.
Shooting
2
47
EN

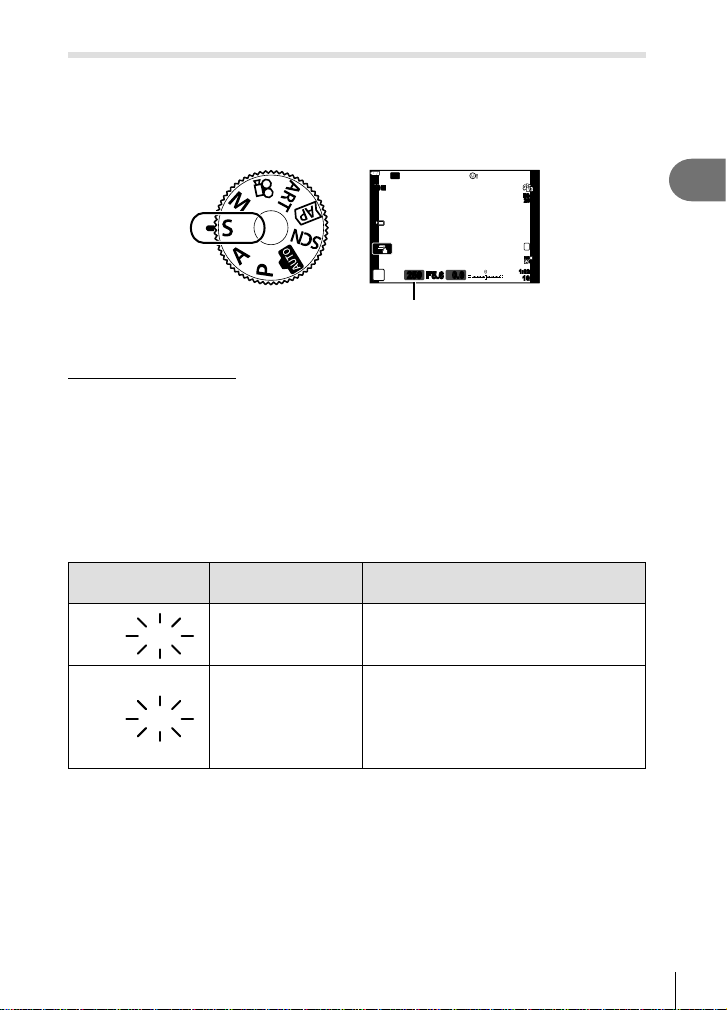

Choosing shutter speed ( Shutter Priority mode)
S mode is a shooting mode where you choose the shutter speed and let the camera
automatically adjust to the appropriate aperture value. Rotate the mode dial to S and
then use the rear dial to select shutter speed.
Fast shutter speeds freeze motion of fast-moving subjects. Slow shutter speeds add
motion by blurring moving subjects.
Shutter speed
250250 F5.6
Wi-Fi
L
N
S
S-IS ONS-IS ON
ISO-A
200
F
FHD
30p
1023
1:02:03
0.0
• You can use the front dial to select exposure compensation.
Setting the shutter speed
Slower shutter speed Faster shutter speed
60" 15 30 60 125 250 4000
(Add motion) (Freeze motion)
• The aperture value display will blink if the camera is unable to achieve correct exposure.
• The aperture value at the moment when its indication blinks varies with the lens type and
focal length of the lens.
• When using a fi xed [ISO] setting, change the setting. g “Changing ISO sensitivity
(ISO)” (P. 63)
Warning display
example (blinking)
Status Action
2000
2000
F2.8
F2.8
The subject is
underexposed.
• Set the shutter speed slower.
125
125
F22
F22
The subject is
overexposed.
• Set the shutter speed faster.
• If the warning display does not disappear,
the metered range of the camera is
exceeded. A commercially available ND
fi lter (for adjusting the amount of light) is
required.
Shooting
2
48
EN
Choosing aperture and shutter speed ( Manual mode)
M mode is a shooting mode where you choose both the aperture value and shutter
speed. Bulb, time, and live composite photography are also available. Rotate the mode
dial to M, and then use the front dial to select aperture value and the rear dial to select
shutter speed.
Difference from correct exposure
250250 F5.6
Wi-Fi
L
N
M
+
2.0
+
2.0
S-IS ONS-IS ON
ISO-A
200
F
FHD
30p
1023
1:02:03
• The exposure determined by the aperture value and shutter speed you have set and
the difference from the suitable exposure measured by the camera are displayed on the
monitor.
• Shutter speed can be set to values between 1/4000 and 60 seconds or to [BULB], [LIVE
TIME], or [LIVECOMP].
• The brightness of the image displayed in the monitor (or viewfi nder) will change with
changes in aperture and shutter speed. You can fi x the brightness of the display so that
you can keep the subject in view while shooting. g [Live View Boost] (P. 110)
• Even when you have set [Noise Reduct.], noise and/or light spots may still be noticeable
in the image displayed on the monitor and shot images under certain environmental
conditions (temperature etc.) and camera settings.
Noise in images
While shooting at slow shutter speeds, noise may appear on screen. These phenomena
occur when the temperature rises in the image pickup device or image pickup device
internal drive circuit, causing current to be generated in those sections of the image pickup
device that are not normally exposed to light. This can also occur when shooting with a
high ISO setting in a high-temperature environment. To reduce this noise, the camera
activates the noise reduction function. g [Noise Reduct.] (P. 111)
Shooting
2
49
EN
Shooting with long exposure time ( BULB/ LIVE TIME)
Use for photos such as fi reworks or night scenery. In M
mode, rotate the rear dial in the direction shown until
[BULB] or [LIVE TIME] is displayed in the monitor.
Bulb photography
(BULB):
The shutter remains open while the shutter button is pressed.
The exposure ends when the shutter button is released. The view
through the lens is not displayed while exposure is in progress.
Time photography
(LIVE TIME):
The exposure begins when the shutter button is pressed all the
way down. To end the exposure, press the shutter button all the
way down again. The view through the lens is displayed while
exposure is in progress.
• To display the view through the lens in the monitor during bulb photography, select an
option other than [Off] for [Live Bulb].
• Press the MENU button to choose the display interval for [Live Bulb] or [Live Time]
photography. Select [Off] to disable the display while exposure is in progress.
• To refresh the display while exposure is in progress, tap the monitor or press the shutter
button halfway.
• [BULB] and [LIVE TIME] are not available at some ISO sensitivity settings.
• To reduce blur caused by camera shake, fi x the camera securely to a tripod and use a
remote shutter release controlled via OI.Share (P. 122).
• During shooting, there are limits on the settings for the following functions.
Sequential shooting, self-timer shooting, time lapse shooting, image stabilizer, etc.
Shooting
2
50
EN
Live composite photography (dark and light fi eld composite)
Combine several exposures to create a photo that records light trails from stars or
fi reworks and other objects without changing the brightness of the background.
1
In M mode, set the shutter speed to [LIVECOMP].
• In M mode, rotate the rear dial in the direction shown
until [LIVECOMP] is displayed in the monitor.
2
Press the MENU button to display [Composite Settings] and press FG to
choose the exposure time for the individual exposures.
3
Press the shutter button to ready the camera.
• The camera will shoot a frame as a reference for noise reduction.
• The camera is ready when [Ready for composite shooting] is displayed in the monitor.
4
Press the shutter button halfway down to focus.
• If the focus indicator blinks, the camera is not in focus.
5
Press the shutter button all with way down to start live composite
photography.
• The combined image will be displayed in the monitor with each exposure.
6
Press the shutter button again to stop shooting.
• View the changing result in the monitor and press the shutter button to end shooting
once the desired result is achieved.
• The maximum length of composite shooting is 3 hours. However, the available
shooting time will vary depending on shooting conditions, and charging state of the
camera.
• There are limits on the available ISO sensitivity settings.
• To reduce blur caused by camera shake, fi x the camera securely to a tripod and use a
remote shutter release controlled via OI.Share (P. 122).
• During shooting, there are limits on the settings for the following functions.
Sequential shooting, self-timer shooting, time lapse shooting, image stabilizer, etc.
Shooting
2
51
EN
Shooting with touch screen operations
Tap T to cycle through touch screen settings.
250250 F5.6
Wi-Fi
ISO-A
200
1023
1:02:03
T
Tap a subject to focus and automatically release the shutter.
This feature is not available in movie mode and during bulb, time, or
composite photography.
U
Touch screen operations are disabled.
V
Tap to display an AF target and focus on the subject in the selected area.
Photographs can be taken by pressing the shutter button.
Previewing the subject (V)
1
Tap the subject in the display.
• An AF target will be displayed.
• Use the slider to choose the size of the frame.
• Tap S to turn off the display of the AF target.
1414
1010
7
7
5
5
3x
3x
Off
250250 F5.6
2
Tap Y to zoom in at the frame position.
• Use your fi nger to scroll the display when the
picture is zoomed in.
• Tap Z to cancel the zoom display.
• You cannot resize or zoom in on the target in movie
mode.
• The situations in which touch screen operations are not available include the following.
Panorama, one touch WB, while buttons or dials are in use, etc.
• Do not touch the display with your fi ngernails or other sharp objects.
• Gloves or monitor covers may interfere with touch screen operation.
• You can disable the touch screen operation. g [Touchscreen Settings] (P. 114)
Shooting
2
52
EN

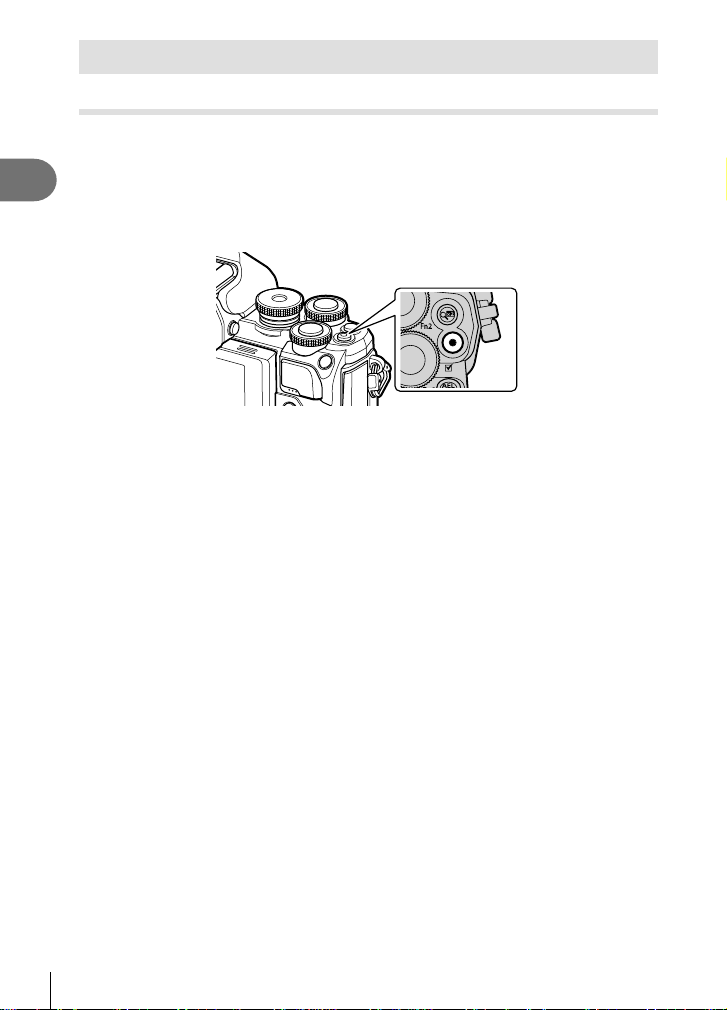

Recording movies
Recording movies in photo shooting modes
Use the R button to record movies.
1
Press the R button to begin recording.
• Movie you are recording will be displayed on the monitor.
• If you put your eye to the viewfi nder, movie you are recording will be displayed in the
viewfi nder.
• You can change the focus location by tapping the screen while recording.
R button
2
Press the R button again to end recording.
• When using a camera with a CMOS image sensor, moving objects may appear distorted
due to the rolling shutter phenomenon. This is a physical phenomenon whereby distortion
occurs in the fi lmed image when shooting a fast-moving subject or due to camera shaking.
In particular, this phenomenon becomes more noticeable when using a long focal length.
• If the size of the movie fi le being recorded exceeds 4 GB, the fi le will be split
automatically. (Depending on shooting conditions, movies under 4 GB in size may be split
into multiple fi les.)
• When recording movies, use an SD card that supports an SD speed class of 10 or higher.
• If the camera is used for extended periods, the temperature of the image pickup device
will rise and noise and colored fog may appear in images. Turn off the camera for a short
time. Noise and colored fog may also appear in images recorded at high ISO sensitivity
settings. If the temperature rises further, the camera will turn off automatically.
• When using a Four Thirds system lens, the AF will not operate while recording movies.
• The R button cannot be used to record movies in the following instances:
While shutter the button is pressed halfway; during bulb, time, composite, sequential
or time lapse photography; or when e-portrait, handheld starlight, or backlight HDR
is selected in SCN mode or keystone compensation, panorama, live time, multiple
exposure, or HDR is selected in Z mode
Shooting
2
53
EN
Recording movies in movie mode
Movie mode can be used to create movies that take advantage of the effects available
in photo shooting modes.
1
Rotate the mode dial to n.
2
Use HI to highlight movie mode.
• Some modes offer additional options that can be
accessed using G.
3
Press the Q button to select the highlighted mode.
• Press the u button to choose a different movie mode.
If additional options are displayed, press F.
Standard
4
Press the R button to begin recording.
• Press the R button again to end recording.
$ Notes
• Touch controls can also be used.
Movie Mode Options
Movie mode Description
g
n
Standard Shoot standard movies, or shoot movies with selected effects. 54
o
4K Shoot 4K movies. ―
q
Clips Create a single movie fi le including multiple short movies. 56
p
High-speed Record slow-motion movies. Sound will not be recorded. 59
• The picture mode art fi lter options are not available in [4K] mode.
• Use UHS-I or UHS-II memory card with a UHS Speed Class of 3 or better when shooting
in [4K] mode.
Shooting
2
54
EN
Movie Effects
1
Highlight [Standard] in the movie mode option (P. 53) and press the Q
button.
2
Press the R button to begin recording.
3
Tap the on-screen icon of the effect you wish to use.
• Tap the display to add effects during shooting.
• Some effects can be added by tapping the display
before starting recording.
n
L
R
L
R
28
mm
●
REC 00:12
1:02:03
M-ISM-IS
1
ISO
AUTO
C-AF
F
FHD
30p
Movie effect
Movie effect Description
W
Art Fade
Films with the selected picture mode effect. The fade effect is
applied to the transition between scenes.
M
Old Film
Randomly applies damage and dust-like noise similar to old
movies.
U
Multi Echo
Applies an after-image effect. After-images will appear behind
moving objects.
T
One Shot Echo
Applies an after-image for a short time after you tap the icon. The
after-image will disappear automatically after a while.
X
Movie
Tele-converter
Zooms in on an area of the image without using the lens zoom.
The selected position of the image can be zoomed in even while
the camera is kept fi xed.
4
Press the R button again to end recording.
• The INFO button also controls the display of shooting information during movie recording.
Note, however, that pressing the INFO button during recording cancels all movie effects
except movie tele-converter.
Shooting
2
55
EN
Art Fade
Tap the icon. The effect will be applied gradually when you tap the icon of a picture mode.
• Movies shot in partial color use the color selected in ART mode.
Old Film
Tap the icon for the effect to be applied. Tap again to cancel the effect.
Multi Echo
Tap the icon for the effect to be applied. Tap again to cancel the effect.
One Shot Echo
Each tap of the icon adds the effect.
Movie Tele-converter
1
Tap the icon to display the zoom frame.
• You can change the position of the zoom frame by
tapping the screen or using FGHI.
• Press and hold the Q button to return the zoom frame
to a central position.
n
L
R
L
R
28
mm
1:02:03
●
REC 00:12
M-ISM-IS
1
ISO
AUTO
C-AF
F
FHD
30p
2
Tap M to zoom in on the area in the zoom frame.
• Tap N to return to the zoom frame display.
3
Tap O or press the Q button to cancel the zoom frame and exit Movie
Tele-converter mode.
• The 2 effects cannot be applied simultaneously.
• Some effects may not be available depending on the picture mode.
• The sound of touch operations and button operations may be recorded.
• The frame rate may drop if an art fi lter or a movie effect is used.
Shooting
2
56
EN

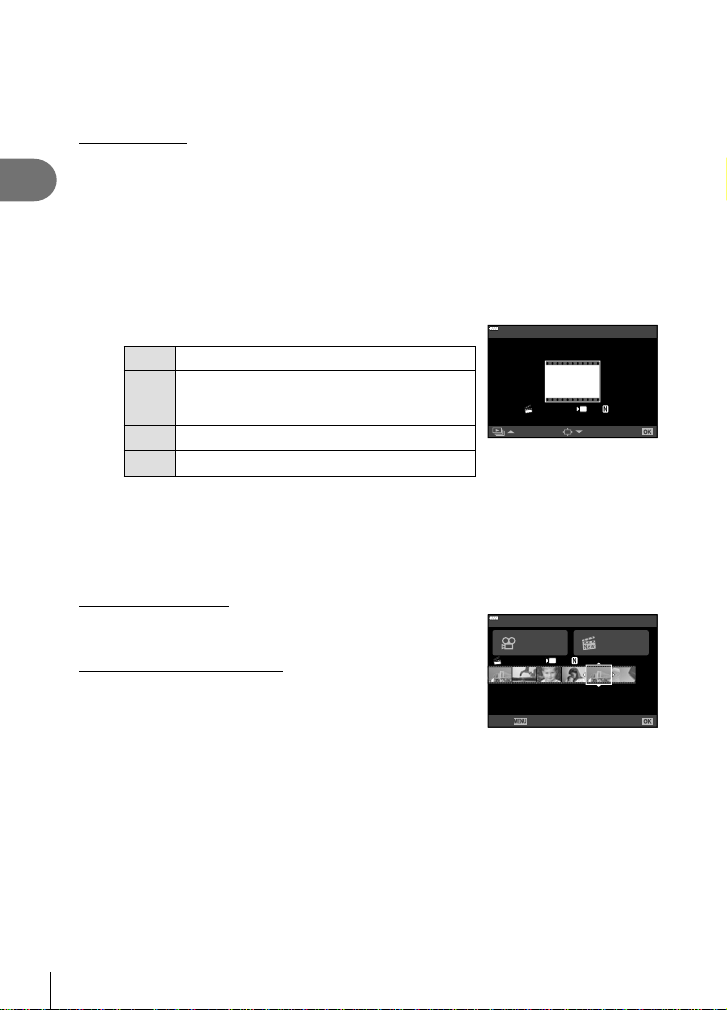

Creating Movies from Clips
You can create a single movie fi le including multiple short movies (clips). Clips can be
split into multiple groups (“My Clips”). You can also add still pictures to the My Clips
movie.
Recording Clips
1
Highlight [Clips] in the movie mode option (P. 53).
2
Press G, use HI to choose the clip length, and press the Q button.
• Three movie quality (frame size and rate) options are available via live controls
(P. 75).
3
Press the R button to start shooting.
• Shooting ends automatically when the selected recording time is reached.
• If you press the R button during shooting, movie recording will continue for the
length of time the button was pressed (maximum 16 seconds).
• The new clip is added to My Clips.
F
Plays back My Clips from the beginning.
G
Changes My Clips to save the clip to and the
position to add the clip to. Use HI to change
the position to add the clip to in the My Clips.
Q
Prepare to record the next clip.
Deletes the shot clip.
Set
1
MOV00:04 FHD 30p
Added to My Clips.
4
Press the R button to shoot the next clip.
• The confi rmation screen will disappear and shooting of the next clip will start.
• The new clip is added to the same My Clips group as the previous clip.
• Movies recorded at different frame sizes or rates are saved to different My Clips
groups.
Creating new My Clips
Press G in Step 3.
Use FG to move the clip to v and press the Q button.
Removing a clip from My Clips
Press G in Step 3.
Move a clip to n using FGHI, and press the Q
button.
• The clip removed from My Clips will be a normal movie fi le.
1
MOV11:24 FHD 30p
Back Set
Move a clip within a My Clips folder.
Shooting
2
57
EN

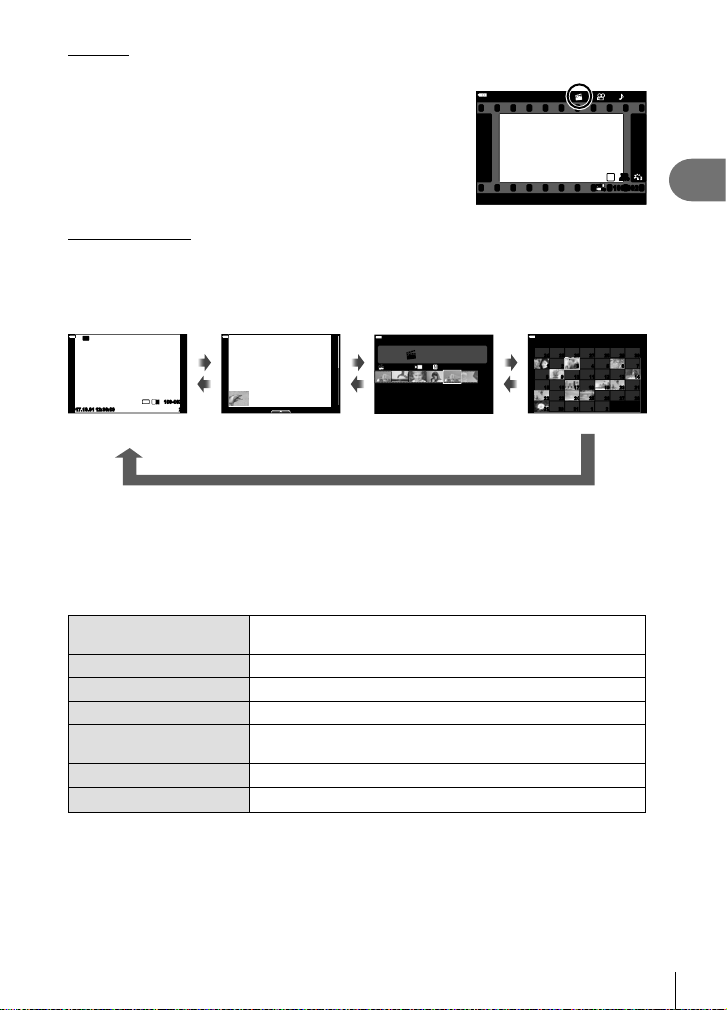

Playback
You can play back the fi les in My Clips consecutively.
1
Press the q button and select an image marked
c.
2
Press the Q button and select [Play My Clips]
using FG. Then press the Q button again.
• The fi les in My Clips will play back consecutively.
• Press the Q button to end the consecutive playback.
12:30:002017.10.01 20
100-0020
Wi-Fi
FHD
30p
N
WB
AUTO
WBWBWB
AUTOAUTOAUTO
WB
AUTO
1
P
Editing “My Clips”
You can create a single movie fi le from My Clips.
The shot clips are stored in My Clips. You can add movie clips and still pictures to My
Clips (P. 95). You can also add screen transition effects and art fi lter effects.
1
Press the q button and then rotate the rear dial to play back My Clips.
Q
Index display Calendar displaySingle-frame
playback
20
100-0020
L
N
Wi-Fi
12:30:002017.10.01
4
:
3
202017.10.01 12:30:00
2017.10
Sun Mon Tue Wed Thu Fri Sat
7
14131211109
8
21201918
171615
28272625242322
2
1
31
30
29
30292827262524
6
1 2
3
4
5
My Clips
1
MOV11:2 4 FHD 30p
12:30:002017.10.01
q
p
q
p
q
p
My Clips playback*
* After pressing the q button, you can also view the My Clips playback display by
highlighting an item marked with c, pressing the Q button, and selecting [See all My
Clips] from the menu that appears.
2
Use FG to select My Clips and HI to select a clip, and press the Q
button.
• The clip menu will be displayed.
Play My Clips Plays back the fi les in My Clips in order, starting from the
beginning.
Play Movie Plays back the selected clips as movie.
Export My Clips Exports the fi les in My Clips as a movie fi le.
Rearrange Order Moves or adds fi les in My Clips.
Preset Destination From the next time you shoot, movies shot in the same
settings will be added to this c My Clips.
Delete My Clips Deletes all unprotected fi les from My Clips.
Erase
Select [Yes] and press the Q button to delete the clip.
Shooting
2
58
EN
3
With the My Clips you want for the movie selected, highlight [Export My Clips]
and press the Q button.
4
Select an item using FG and press the Q button.
Clip Effects You can apply 6 types of art effects.
Transition Effect You can apply fade effects.
BGM You can set [Happy Days] or [Off].
Recorded Clip Volume When [BGM] is set to [Happy Days], you can set a volume for
sounds recorded in the movie.
Recorded Clip Sound By setting to [On], you can create a movie with the recorded
sound. This setting is only available when [BGM] is set to
[Off].
Preview You can preview the fi les of the edited My Clips in order,
starting from the fi rst fi le.
5
When you have fi nished the editing, select [Begin Export] and press the Q
button.
• The combined album is saved as a single movie.
• Exporting a movie may take some time.
• The maximum length for My Clips is 15 minutes and the maximum fi le size is 4 GB.
• It may take a while for My Clips to display after taking out, inserting, erasing, or protecting
the card.
• You can record a maximum of 99 My Clips and a maximum of 99 cuts per clip. The
maximum values may vary depending on the fi le size and length of My Clips.
• You cannot add movies other than clips to My Clips.
BGM other than [Happy Days]
To use BGM other than [Happy Days], record data that you have downloaded from the
Olympus website onto the card and select it as [ BGM] in Step 4. Visit the following website
for the download.
http://support.olympus-imaging.com/bgmdownload/
Shooting
2
59
EN
[Hi-Speed]: Recording Slow Motion Movies
Record slow-motion movies. Footage shot at 120 fps plays back at 30 fps; quality is
equivalent to [HD].
1
Highlight [Hi-Speed] in the movie mode option (P. 53) and press the Q
button.
2
Press the R button to start shooting.
• Press the R button again to end shooting.
• Focus and exposure are fi xed at the start of recording.
• Recording can continue for up to 20 seconds.
• Sound will not be recorded.
Using the silencing function when shooting a movie
You can prevent the camera from recording operating sounds that occur due to camera
operations while shooting.
Tap the silent shooting tab to display the function items.
After tapping an item, tap the displayed arrows to select
the settings.
• Electronic zoom*, recording volume, aperture, shutter
speed, exposure compensation, ISO sensitivity
* Only available with power zoom lenses
• The options available vary with the shooting mode.
Silent shooting tab
n
L
R
L
R
28
mm
●
REC 00:12
1:02:03
M-ISM-IS
1
ISO
AUTO
C-AF
F
FHD
30p
Shooting
2
60
EN
Using various settings
Controlling exposure ( Exposure F)
Rotate the front dial to choose exposure compensation. Choose positive (“+”) values to
make pictures brighter, negative (“–”) values to make pictures darker. Exposure can be
adjusted by ±5.0 EV.
Negative (–) No compensation (0) Positive (+)
• Exposure compensation is not available in B, M, or SCN mode or when Live Time or
panorama is selected in Z mode.
• Only values of up to ±3 EV are refl ected in the live view display in the monitor or
viewfi nder. If the exposure exceeds ±3.0 EV, the exposure bar will begin fl ashing.
• Movies can be corrected in a range up to ±3.0 EV.
Locking the exposure ( AE Lock)
You can lock the exposure by pressing the AEL/AFL button. Use this when you want
to adjust the focus and exposure separately or when you want to shoot several images
at the same exposure.
• If you press the AEL/AFL button once, the exposure is locked and u is displayed.
g “AEL/AFL” (P. 115)
• Press the AEL/AFL button once again to release the AE Lock.
• The lock will be released if you operate the mode dial, MENU button, or Q button.
• If another role is assigned to the Fn1 button, choose [t] (P. 85).
Digital Zoom ( Digital Tele-converter)
Press the b button to zoom in beyond the current zoom ratio. The display zoom ratio
will double and any photographs taken will show the area visible in the monitor.
• H is displayed on the monitor.
• To exit digital zoom, press the b button again.
• Digital zoom is not available when multiple exposure, panorama, or keystone
compensation is selected in Z mode or when [Standard] is selected in movie mode.
• When a RAW image is displayed, the area visible in the monitor is indicated by a frame.
• AF target drops.
• If another role is assigned to the Fn2 button, choose [b] (P. 85).
Shooting
2
61
EN

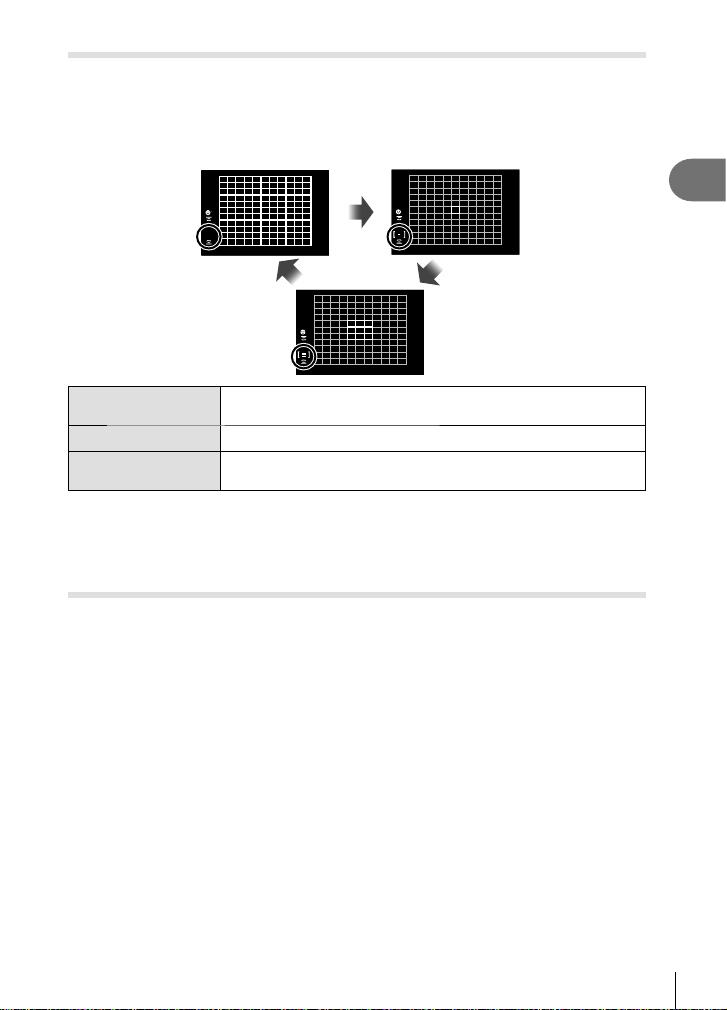

Selecting the AF target mode ( AF target settings)
You can choose the position and size of the focus area for autofocus. You can also
select Face priority AF (P. 62).
1
Press H.
2
Select [I (Single Target)] or [J (9-Target Group)] using the front dial.
ii
o
ii
ii
o
All Targets
The camera automatically chooses from the full set of focus
targets.
I
Single Target
You can choose a single AF target.
J
9-Target Group
The camera automatically chooses from the targets in the selected
nine-target group.
• The single target mode is automatically applied in movie shooting if the group target mode
is set.
• When using a Four Thirds system lens, the camera automatically switches to single target
mode.
Setting the AF target
Select the single target or group target position.
1
Press H.
• If [o (All Targets)] is selected, select [I (Single Target)] or [J (9-Target Group)]
using the front dial.
2
Use FGHI to choose a focus area.
• The size and number of the AF targets changes with the aspect ratio (P. 73) and the
option selected for [Digital Tele-converter] (P. 99).
$ Notes
• Touch controls can also be used.
Shooting
2
63
EN
Changing ISO sensitivity (ISO)
Increasing ISO sensitivity increases noise (graininess) but allows photographs to be
taken when lighting is poor. The setting recommended in most situations is [AUTO],
which starts at ISO 200—a value that balances noise and dynamic range—and then
adjusts ISO sensitivity according to shooting conditions.
1
Press F.
2
Rotate the front dial to choose an option.
AUTO
The sensitivity is set automatically according to the shooting
conditions. The maximum ISO sensitivity value and other auto ISO
settings can be adjusted using the [ISO-Auto Set] option in custom
menus (P. 111).
LOW, 200–25600 The sensitivity is set to the selected value.
Shooting
2
64
EN

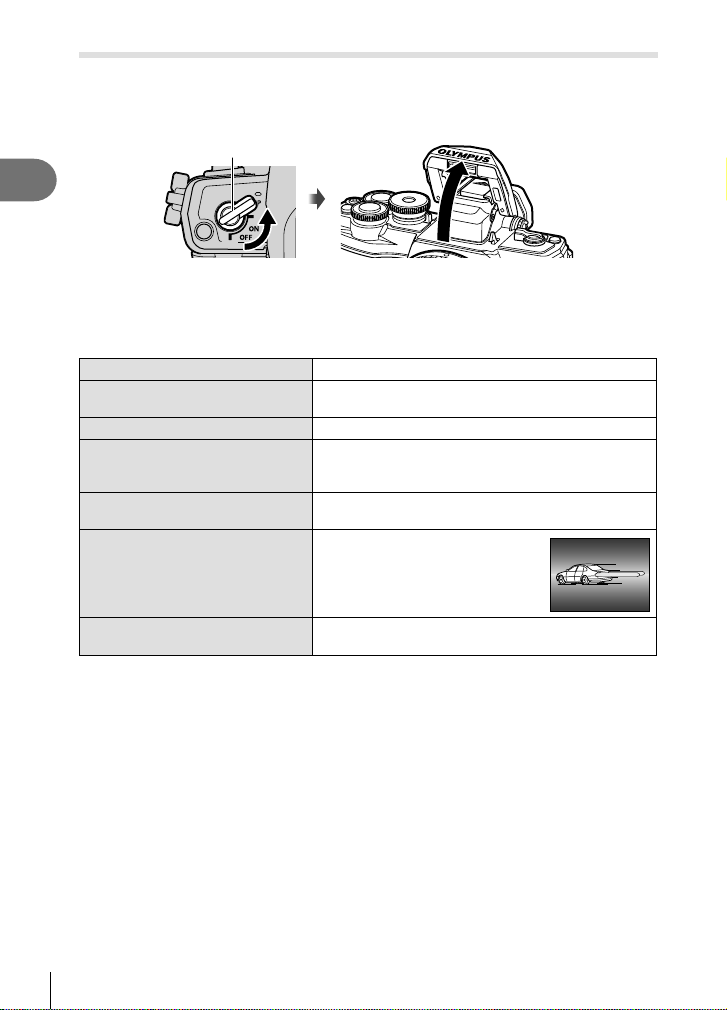

Using a fl ash ( Flash photography)
The fl ash can be set manually as required. The fl ash can be used for fl ash
photography in a variety of shooting conditions.
1
Rotate the ON/OFF lever to #UP to raise the fl ash.
ON/OFF lever
2
Press I.
3
Select an item using the front dial and press the Q button.
• The options available and the order in which they are displayed vary depending on
the shooting mode. g “Flash modes that can be set by shooting mode” (P. 65)
#
Flash The fl ash fi res regardless of the light conditions.
0
Red-eye reduction fl ash
The fl ash fi res so that the red-eye phenomenon is
reduced.
$
Flash off The fl ash does not fi re.
1
Slow synchronization
(1st curtain)/Red-eye
reduction fl ash
The slow synchronization is combined with the red-
eye reduction fl ash.
2
Slow synchronization
(1st curtain)
The fl ash fi res with slow shutter speeds to brighten
dimly-lit backgrounds.
M
Slow synchronization
(2nd curtain)
The fl ash fi res immediately before
the shutter closes to create trails of
light behind moving light sources.
3
,
4
etc.
Manual fl ash
For users who prefer manual operation. Press the
INFO button and use FG to adjust fl ash output.
• In [0 (Red-eye reduction fl ash)], after the pre-fl ashes, it takes about 1 second before the
shutter is released. Do not move the camera until shooting is complete.
• [0 (Red-eye reduction fl ash)] may not work effectively under some shooting conditions.
• When the fl ash fi res, the shutter speed is set to 1/250 seconds or slower. When shooting a
subject against a bright background with the fl ash, the background may be overexposed.
Shooting
2
65
EN
Flash modes that can be set by shooting mode
Shooting
mode
Monitor Flash mode
Flash
timing
Conditions for
fi ring the fl ash
Shutter speed limit
P/A
#
Flash
1st
curtain
Always fi res
30 sec. – 1/250 sec.*
0
Red-eye
reduction
1/30 sec. –
1/250 sec.*
$
Flash off — — —
1
Slow
synchronization
(red-eye reduction
fl ash)
1st
curtain
Always fi res 60 sec. – 1/250 sec.*
2
Slow
Synchronization
(1st curtain)
M
Slow
synchronization
(2nd curtain)
2nd
curtain
S/M
#
Flash
1st
curtain
Always fi res 60 sec. – 1/250 sec.*
0
Red-eye
reduction fl ash
$
Flash off — — —
M
Slow
synchronization
(2nd curtain)
2nd
curtain
Always fi res 60 sec. – 1/250 sec.*
• Only # and $ can be set in B mode.
* The shutter speed is 1/200 seconds when using a separately sold external fl ash.
Minimum range
The lens may cast shadows over
objects close to the camera,
causing vignetting, or the fl ash
may be too bright even at
minimum output.
Lens
Approximate distance at
which vignetting occurs
14-42mm F3.5-5.6 II R 1 m
ED 14-42mm F3.5-5.6 EZ 0.5 m
ED 40-150mm F4.0-5.6 R 0.9 m
ED 14-150mm F4.0-5.6 II 0.5 m
• External fl ash units can be used to prevent vignetting. To prevent photographs from being
overexposed, select A or M mode, and choose a high aperture value or reduce ISO
sensitivity.
Shooting
2
66
EN
Performing the sequential/ self-timer shooting
You can take a series of pictures by keeping the shutter button pressed all the way
down. Alternatively, you can take pictures using the self-timer.
1
Press G.
2
Highlight one of the following options using HI.
o/
o
Single 1 frame is taken at a time when the shutter button is pressed.
T
Sequential High
Pictures are taken at up to about 8.6 frames per second (fps)
while the shutter button is pressed all the way down. Focus,
exposure, and white balance are fi xed at the values for the fi rst
shot in each series.
S/
S
Sequential Low
Pictures are taken at up to about 4.8 frames per second (fps)
while the shutter button is pressed all the way down. Focus
and exposure are fi xed according to the options selected for
[AF Mode] (P. 72) and [AEL/AFL] (P. 115).
Y12s/
Y12s
Y 12 sec
Press the shutter button halfway to focus, the rest of the way
down to start the timer. First, the self-timer lamp lights up for
approximately 10 seconds, then it blinks for approximately
2 seconds and the picture is taken.
Y2s/
Y2s
Y 2 sec
Press the shutter button halfway to focus, the rest of the
way down to start the timer. The self-timer lamp blinks for
approximately 2 seconds, and then the picture is taken.
YC/
YC
Custom
Self-timer
Press the INFO button to set [Y Timer], [Number of Frames],
and [Interval Length].
Use HI to highlight items and FG to choose a value.
* Items marked with use the electronic shutter to control the small amount of camera blur
caused by operation of the shutter.
3
Press the Q button.
• Fix the camera securely on a tripod for self-timer shooting.
• If you stand in front of the camera to press the shutter button when using the self-timer,
the picture may be out of focus.
• When you are using S or S, live view is displayed. In T, the display shows the last
photograph taken during the sequential shooting.
• The speed of sequential shooting varies depending on the lens you are using and the
focus of the zoom lens.
• During sequential shooting, if the battery level icon blinks due to low battery, the camera
stops shooting and starts saving the pictures you have taken on the card. The camera
may not save all of the pictures depending on how much battery power remains.
$ Notes
• To cancel the activated self-timer, press G.
• Sequential/self-timer shooting is available in silent mode (P. 37).
Shooting
2
67
EN
Calling shooting options
Live control
You can use live control to select the shooting function while checking the effect on the
screen.
AUTOAUTO
AUTOAUTO
4:3
S-AFS-AF
ISO
AUTO
WB
AUTO
WB
AUTO
L
F
P
WB Auto
Functions
Live control screen
Settings
Available settings
Picture mode*
1
......................................P. 69
ISO sensitivity*
1
....................................P. 63
White balance*
1
....................................P. 70
AF mode*
1
............................................P. 72
Aspect ratio...........................................P. 73
KK*
1
................................................P. 73
nK*
1
.................................................P. 74
Movie (exposure) mode*
1
.....................P. 76
Scene mode*
2
.......................................P. 29
Art fi lter mode*
3
.....................................P. 42
*1 Available in movie mode.
*2 Available in SCN mode.
*3 Available in ART mode.
1
Press Q to display the live control.
• To hide the live control, press Q again.
2
Use FG to highlight the desired
function and HI to highlight a
setting, and then press the Q
button.
• The selected settings take effect
automatically if no operations are
performed for about 8 seconds.
AUTOAUTO
AUTOAUTO
4:3
S-AFS-AF
ISO
AUTO
WB
AUTO
WB
AUTO
L
F
P
WB Auto
Cursor
Displays
the selected
function
name
Cursor
HI or r
F
G
or
o
• Some items are not available in some shooting modes.
$ Notes
• For the default settings of each option, refer to “Defaults” (P. 148).
Shooting
2
68
EN
LV super control panel
Other shooting options can be accessed via the LV super control panel, which lists the
options selected for the following shooting settings.
250250 F5.6
sRGB
Natural
S
-
AF
N
FHD
60p
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
P
1023
1:02:03
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
Recommended ISO
1
2
4
5
6
c
d
e
f
g
h
ab
3
8097
Settings that can be modifi ed using LV super control panel
1 Currently selected option
2 ISO sensitivity .................................P. 63
3
K
AF mode ...................................P. 72
AF target .........................................P. 61
4 Flash mode .....................................P. 64
5 Flash intensity control .....................P. 77
6 Image stabilizer...............................P. 78
7 Sequential shooting/Self-timer ........P. 66
8 KK .............................................P. 73
9 Metering mode ................................P. 80
0 Face priority ....................................P. 62
a nK..............................................P. 74
b Aspect ratio .....................................P. 73
c White balance .................................P. 70
White balance compensation..........P. 79
d Picture mode...................................P. 69
e Sharpness
S
*
1
................................P. 80
Contrast u*
1
...................................P. 81
Saturation t*
1
................................P. 81
Gradation z*
1
................................P. 82
Color fi lter
F
*
1
................................P. 82
Monochrome color
T
*
1
...................P. 83
Effect
E
*
1
........................................P. 83
Color
*
1
*
2
......................................P. 44
Color/Vivid
*
1
*
3
.............................P. 69
f Color space.....................................P. 84
g Highlight & shadow control .............P. 84
h Button function assignment ............P. 85
*1 The display may differ when Art Filter is selected for picture mode.
*2 Displayed when Partial Color is set.
*3 Displayed when Color Creator is set.
1
Press the u button in P/A/S/M modes.
• The LV super control panel will be displayed.
• In B, ART, SCN, and Z modes, the
display of the LV super control panel is
controlled via [K Control Settings] (P. 110).
• The LV super control panel is not displayed in
movie mode.
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
N
FHD
60p
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
±
0
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
Recommended ISO
Cursor
2
Highlight an item using FGHI and press the Q button.
3
Use HI to highlight an option.
$ Notes
• Settings can also be adjusted using the dials or touch controls.
• For the default settings of each option, refer to “Defaults” (P. 148).
Shooting
2
69
EN
Processing options ( Picture Mode)
You can select a picture mode and make individual adjustments to contrast, sharpness,
and other parameters (P. 80–83). Changes to each picture mode are stored
separately.
1
Press the Q button and use FG to highlight
Picture Mode.
2
Highlight an option using HI and press the Q
button.
AUTOAUTO
JJ KK
Natural
4:3
WB
AUTO
WB
AUTO
S-AFS-AF
ISO
AUTO
L
F
P
Picture Mode
Picture mode options
A
i-Enhance Produces more impressive-looking results suited to the scene.
B
Vivid Produces vivid colors.
C
Natural Produces natural colors.
D
Muted Produces fl at tones.
E
Portrait Produces beautiful skin tones.
J
Monochrome Produces black and white tone.
K
Custom
Use to select one picture mode, set the parameters, and
register the setting.
v
e-Portrait
Produces smooth skin textures. This mode cannot be used with
bracket photography or when shooting movies.
c
Color Creator*
1
Provides a color fi nish set in Color Creator.
e
Pop Art
Uses Art Filter settings. Art effects can also be used.
f
Soft Focus
g
Pale&Light Color
h
Light Tone
i
Grainy Film
j
Pin Hole
k
Diorama
l
Cross Process
m
Gentle Sepia
n
Dramatic Tone
o
Key Line
p
Watercolor
q
Vintage
r
Partial Color*
2
v
Bleach Bypass
*1 After choosing Color Creator using the HI buttons, press the INFO button and use the
front dial to adjust hue and the rear dial to adjust saturation.
*2 After choosing Partial Color using HI, press the INFO button to display the color ring
(P. 44).
Shooting
2
70
EN
Adjusting color ( WB (white balance))
White balance (WB) ensures that white objects in images recorded by the camera
appear white. [AUTO] is suitable in most circumstances, but other values can be
selected according to the light source when [AUTO] fails to produce the desired results
or you wish to introduce a deliberate color cast into your images.
1
Press the Q button and use FG to highlight
White Balance.
2
Highlight an option using HI and press the Q
button.
AUTOAUTO
AUTOAUTO
4:3
S-AFS-AF
ISO
AUTO
WB
AUTO
WB
AUTO
L
F
P
WB Auto
White Balance
WB mode Color temperature Light conditions
Auto white
balance
AUTO —
For most light conditions (when there is a
white portion framed on the monitor). Use
this mode for general use.
Preset white
balance
5
5300 K
For shooting outdoors on a clear day, or to
capture the reds in a sunset or the colors in
a fi reworks display
N
7500 K
For shooting outdoors in the shadows on a
clear day
O
6000 K For shooting outdoors on a cloudy day
1
3000 K For shooting under a tungsten light
>
4000 K For shooting under a fl uorescent light
n
5500 K For fl ash shooting
One-touch
white balance
P/
Q/
W/
X
Color temperature
set by one-touch
WB
Press the INFO button to measure white
balance using a white or gray target when
using a fl ash or other light source of an
unknown type or when shooting under
mixed lighting. g “One-touch white
balance” (P. 71)
Custom white
balance
CWB 2000 K – 14000 K
After pressing the INFO button, use
FGHI to select a color temperature and
then press the Q button.
Shooting
2
71
EN
One-touch white balance
Measure white balance by framing a piece of paper or other white object under the lighting
that will be used in the fi nal photograph. This is useful when shooting a subject under natural
light, as well as under various light sources with different color temperatures.
1
Select [P], [Q], [W], or [X] (one-touch white balance 1, 2, 3, or 4) and
press the INFO button.
2
Photograph a piece of colorless (white or gray) paper.
• Frame the paper so that it fi lls the display and no shadows fall it.
• The one-touch white balance screen appears.
3
Select [Yes] and press the Q button.
• The new value is saved as a preset white balance option.
• The new value is stored until one-touch white balance is measured again. Turning the
power off does not erase the data.
Shooting
2
72
EN
Choosing a focus mode ( AF Mode)
You can select a focusing method (focus mode). You can choose separate focusing
methods for still photography mode and movie mode.
1
Press the Q button and use FG to highlight
AF Mode.
Single AF
S-AFS-AF
C-AFC-AF
MFMF
S-AFS-AF
MF
C-AFC-AF
TR
S-AFS-AF
4:3
WB
AUTO
WB
AUTO
ISO
AUTO
L
F
P
AF Mode
2
Highlight an option using HI and press the Q button.
S-AF
( Single AF)
The camera focuses once when the shutter button is pressed
halfway. When the focus is locked, a beep sounds, and the AF
confi rmation mark and the AF target mark light up. This mode
is suitable for taking pictures of still subjects or subjects with
limited movement.
C-AF
( Continuous AF)
The camera repeats focusing while the shutter button remains
pressed halfway. When the subject is in focus, the AF
confi rmation mark lights up on the monitor and the beep sounds
when the focus is locked at the fi rst time.
Even if the subject moves or you change the composition of the
picture, the camera continues trying to focus.
MF
( Manual focus)
This function allows you
to manually focus on any
position by operating the
focus ring on the lens.
Near
Focus ring
)
S-AF+MF
(Simultaneous use of
S-AF mode and MF
mode)
After pressing the shutter button halfway to focus in [S-AF]
mode, you can turn the focus ring to fi ne-adjust focus manually.
C-AF+TR
( AF tracking)
Press the shutter button halfway to focus; the camera then
tracks and maintains focus on the current subject while the
shutter button is held in this position.
• The AF target is displayed in red if the camera can no longer
track the subject. Release the shutter button and then frame
the subject again and press the shutter button halfway.
• Tracking range will be narrow when using a Four Thirds system
lens. Autofocus does not work while the AF target is displayed in
red even if the camera is tracking the subject.
• The camera may be unable to focus if the subject is poorly lit, obscured by mist or smoke,
or lacks contrast.
• When using a Four Thirds system lens, AF will not be available during movie recording.
• AF mode is unavailable when the lens MF focus clutch is set to MF.
Shooting
2
73
EN
Setting the image aspect
You can change the aspect ratio (horizontal-to-vertical ratio) when taking pictures.
Depending on your preference, you can set the aspect ratio to [4:3] (standard), [16:9],
[3:2], [1:1], or [3:4].
1
Press the Q button and use FG to highlight
Image Aspect.
2
Use HI to choose a value and press the Q
button.
4:3
16
:9
3:2 1:1 3:4
4608x3456
4:3
WB
AUTO
WB
AUTO
S-AFS-AF
ISO
AUTO
L
F
P
Image Aspect
• Image aspect can only be set for still images.
• JPEG images cropped to the selected aspect ratio are saved. RAW images are not
cropped and are saved with the selected aspect ratio information.
• When RAW images are played back, the selected aspect ratio is shown by a frame.
Selecting image quality (Still image quality, KK)
You can set an image quality mode for still images. Select a quality suitable for the
application (such as for processing on PC, use on website etc.).
1
Press the Q button and use FG to highlight
(Still image quality, KK).
4608x3456
4:3
S-AFS-AF
ISO
AUTO
WB
AUTO
WB
AUTO
L
F
L
F
RAW N
L
N
M
N
S
1023
1:02:03
FF
+RAW+RAW
L
P
Still Image Quality
2
Highlight an option using HI and press the Q button.
• Choose from JPEG (YF, YN, XN, and WN) and RAW modes. Choose a JPEG+RAW
option to record both a JPEG and a RAW image with each shot. JPEG modes
combine image size (Y, X, and W) and compression ratio (SF, F, N, and B).
• When you want to select a combination other than YF, YN, XN, and WN, change the
[K Set] (P. 112) settings in Custom Menu.
RAW image data
This format (extension “.ORF”) stores unprocessed image data for later processing. RAW
image data cannot be viewed using other cameras or software, and RAW images cannot
be selected for printing. JPEG copies of RAW images can be created using this camera.
g “Editing still images (Edit)” (P. 103)
Shooting
2
74
EN
Selecting image quality (Movie quality, nK)
You can set a movie record mode suitable for the desired use.
1
Press the Q button and use FG to highlight
(Movie quality, nK).
2
Use HI to choose a value and press the Q
button.
1920×1080 Fine 30p
4:3
WB
AUTO
WB
AUTO
S-AFS-AF
ISO
AUTO
L
F
1023
1:02:03
P
Movie Quality
Available Movie Quality Options
The options available for movie quality vary with the movie mode (P. 53) and the
options selected for [Video Frame Rate] and [Video Bit Rate] in the video menu
(P. 102).
The following options are available when [Standard] is selected for movie mode
or the mode dial is rotated to a position other than n:
Video Frame Rate Video Bit Rate Movie quality
30p Super Fine
1920×1080 Super Fine 60p
1920×1080 Super Fine 30p
1280×720 Super Fine 30p
Fine
1920×1080 Fine 60p
1920×1080 Fine 30p
1280×720 Fine 30p
Normal
1920×1080 Normal 60p
1920×1080 Normal 30p
1280×720 Normal 30p
25p Super Fine
1920×1080 Super Fine 50p
1920×1080 Super Fine 25p
1280×720 Super Fine 25p
Fine
1920×1080 Fine 50p
1920×1080 Fine 25p
1280×720 Fine 25p
Normal
1920×1080 Normal 50p
1920×1080 Normal 25p
1280×720 Normal 25p
Shooting
2
75
EN
Video Frame Rate Video Bit Rate Movie quality
24p Super Fine
1920×1080 Super Fine 24p
1280×720 Super Fine 24p
Fine
1920×1080 Fine 24p
1280×720 Fine 24p
Normal
1920×1080 Normal 24p
1280×720 Normal 24p
The following options are available when [4K] is selected for movie mode:
Video Frame Rate Video Bit Rate Movie quality
30p
Not selectable
3840×2160 30p
25p
3840×2160 25p
24p
3840×2160 24p
The following options are available when [Clips] is selected for movie mode:
Video Frame Rate Video Bit Rate Movie quality
30p
Not selectable
1920×1080 Normal 60p
1920×1080 Normal 30p
1280×720 Normal 30p
25p
1920×1080 Normal 50p
1920×1080 Normal 25p
1280×720 Normal 25p
24p
1920×1080 Normal 24p
1280×720 Normal 24p
The following option is available when [High-speed] is selected for movie mode:
Video Frame Rate Video Bit Rate Movie quality
Not selectable
1280×720 HighSpeed 120fps
• Movies are stored in MPEG-4 AVC/H.264 format. The maximum size of individual fi le is
limited to 4 GB. The maximum recording time of individual movie is limited to 29 minutes.
• Depending on the type of card used, recording may end before the maximum length is
reached.
Shooting
2
76
EN
Adding effects to a movie
You can create movies that take advantage of the effects available in still photography
mode.
1
Rotate the mode dial to n.
2
Press the Q button and use FG to highlight
movie (exposure) mode.
3
Use HI to choose a value and press the Q
button.
Program Auto
1023
1:02:03
n P A S M
WB
AUTO
WB
AUTO
C-AFC-AF
ISO
AUTO
P
L
F
Movie (exposure) mode
P
Optimal aperture is set automatically according to the brightness of the subject.
Use the front dial (r) or rear dial (o) to adjust exposure compensation.
A
Depiction of background is changed by setting the aperture.
Use the front dial (r) to adjust exposure compensation and rear dial (o) to adjust
aperture.
S
Shutter speed affects how the subject appears. Use the front dial (r) to adjust
exposure compensation and rear dial (o) to adjust shutter speed.
Shutter speed can be set to values between 1/24 s and 1/4000 s.
M
Aperture and shutter speed can be manually set.
Use the front dial (r) to select aperture value and the rear dial (o) to select
shutter speed.
Shutter speed can be set to values between 1/24 s and 1/4000 s.
ISO sensitivity can only be set manually to values between 200 and 6400.
• Blurred frames caused by such factors as the subject moving while the shutter is open
can be reduced by selecting the fastest available shutter speed.
• The low end of the shutter speed changes according to the frame rate of the movie record
mode.
• Excessive camera shake may not be compensated enough.
• When the inside of the camera becomes hot, shooting is automatically stopped to protect
the camera.
• With some art fi lters, [C-AF] function is limited.
Shooting
2
77
EN
Adjusting fl ash output ( Flash intensity control)
Flash output can be adjusted if you fi nd that your subject to appears overexposed, or is
underexposed even though the exposure in the rest of the frame is just right.
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 110).
2
Use FGHI to select [x], then press the Q
button.
3
Use HI to choose a value and press the Q
button.
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
N
FHD
60p
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
±
0
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
Flash intensity control
• This setting has no effect when the fl ash control mode for the external fl ash unit is set to
MANUAL.
• Changes to fl ash intensity made with the external fl ash unit are added to those made with
the camera.
Shooting
2
78
EN
Reducing camera shake ( Image Stabilizer)
You can reduce the amount of camera shake that can occur when shooting in low light
situations or shooting with high magnifi cation.
The image stabilizer starts when you press the shutter button halfway.
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 110).
2
Use FGHI to select [Image Stabilizer], then
press the Q button.
3
Highlight an option using HI and press the Q
button.
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
N
FHD
60p
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
±
0
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
K
Image Stabilizer
n
Stabilizer
K
Stabilizer
Still picture
(S-IS)
S-IS Off Image stabilizer is off.
S-IS On
The camera detects the panning direction and applies the
appropriate image stabilization.
Movie
(M-IS)
M-IS Off Image stabilizer is off.
M-IS
The camera uses both sensor shift (VCM) and electronic
correction.
M-IS
The camera uses sensor shift (VCM) correction only.
Electronic correction is not used.
• The image stabilizer cannot correct excessive camera shake or camera shake that occurs
when the shutter speed is set to the slowest speed. In these cases, it is recommended
that you use a tripod.
• When using a tripod, set [Image Stabilizer] to [S-IS Off]/[M-IS Off].
• When using a lens with an image stabilization function switch, priority is given to the lens
side setting.
• You may notice an operating sound or vibration when the image stabilizer is activated.
Using lenses other than Micro Four Thirds/Four Thirds System lenses
You can use focal length information to reduce camera shake when shooting with lenses that
are not Micro Four Thirds or Four Thirds system lenses.
• Press the INFO button while [Image Stabilizer] is selected, use FGHI to highlight a
focal length, and press the Q button.
• Choose a focal length between 0.1 mm and 1000.0 mm.
• Choose the value that matches the one printed on the lens.
• Selecting [Reset] (basic) in Shooting Menu 1 does not reset the focal length.
Shooting
2
79
EN
Making fi ne adjustments to white balance ( WB Compensation)
You can set and fi nely adjust the compensation values for both auto white balance and
preset white balance.
Before proceeding, choose a white balance option to which to make fi ne adjustments.
g “Adjusting color (WB (white balance))” (P. 70)
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 110).
2
Highlight white balance compensation using
FGHI and press the Q button.
3
Use HI to choose an axis.
4
Choose a value using FG and press the Q
button.
WB
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
N
FHD
60p
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
±
0
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
Auto x
White balance compensation
For compensation on the A axis (Red-Blue)
Move the bar in the + direction to emphasize red tones and in the – direction to
emphasize blue tones.
For compensation on the G axis (Green-Magenta)
Move the bar in the + direction to emphasize green tones and in the – direction to
emphasize magenta tones.
• Selecting [Reset] (basic) in Shooting Menu 1 does not reset the values selected.
Shooting
2
80
EN
Choosing how the camera measures brightness ( Metering)
You can choose how the camera meters subject brightness.
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 110).
2
Use FGHI to select [Metering], then press the
Q button.
3
Highlight an option using HI and press the Q
button.
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
N
FHD
60p
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
Metering
Metering
p
Digital ESP
metering
Meters exposure in 324 areas of the frame and optimizes
exposure for the current scene or portrait subject (if an
option other than [OFF] is selected for [I Face Priority]).
This mode is recommended for general use.
H
Center weighted
averaging metering
Provides the average metering between the
subject and the background lighting, placing
more weight on the subject at the center.
I
Spot metering
Meters a small area (about 2% of the frame)
with the camera pointed at the object you
wish to meter. Exposure will be adjusted
according to the brightness at the metered
point.
IHI
Spot metering
(highlight)
Increases spot metering exposure. Ensures bright subjects
appear bright.
ISH
Spot metering
(shadow)
Lowers spot metering exposure. Ensures dark subjects
appear dark.
Making fi ne adjustments to sharpness ( Sharpness)
In the picture mode (P. 69) settings, you can make fi ne adjustments to sharpness
and store the changes.
• Adjustments may not be available depending on the shooting mode (P. 24).
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 110).
2
Use FGHI to select [Sharpness], then press
the Q button.
3
Adjust sharpness using HI and press the Q
button.
Sharpness
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
N
FHD
60p
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
Sharpness
Shooting
2
81
EN
Making fi ne adjustments to contrast ( Contrast)
In the picture mode (P. 69) settings, you can make fi ne adjustments to contrast and
store the changes.
• Adjustments may not be available depending on the shooting mode (P. 24).
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 110).
2
Use FGHI to select [Contrast], then press the
Q button.
3
Adjust contrast using HI and press the Q button.
Contrast
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
N
FHD
60p
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
Contrast
Making fi ne adjustments to saturation ( Saturation)
In the picture mode (P. 69) settings, you can make fi ne adjustments to saturation
and store the changes.
• Adjustments may not be available depending on the shooting mode (P. 24).
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 110).
2
Use FGHI to select [Saturation], then press the
Q button.
3
Adjust saturation using HI and press the Q
button.
Saturation
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
N
FHD
60p
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
Saturation
Shooting
2
82
EN
Making fi ne adjustments to tone ( Gradation)
In the picture mode (P. 69) settings, you can make fi ne adjustments to tone and
store the changes.
• Adjustments may not be available depending on the shooting mode (P. 24).
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 110).
2
Use FGHI to select [Gradation], then press the
Q button.
3
Adjust tone using HI and press the Q button.
Gradation
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
N
FHD
60p
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
Gradation
AUTO: Auto
Divides the image into detailed regions and adjusts the brightness
separately for each region. This is effective for images with areas
of large contrast in which the whites appear too bright or the blacks
appear too dark.
NORM: Normal Use the normal mode for general uses.
HIGH: High Key Uses a tone suitable for a bright subject.
LOW: Low Key Uses a tone suitable for a dark subject.
Applying fi lter effects to monochrome pictures ( Color Filter)
In the monochrome setting of picture mode (P. 69) settings, you can add and store a
fi lter effect in advance. This creates a monochrome image in which the color matching
the fi lter color is brightened and the complementary color is darkened.
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 110).
2
Use FGHI to select [Color Filter], then press
the Q button.
3
Highlight an option using HI and press the Q
button.
Picture Mode
N
F
250250 F5.6
Normal
P
1023
1:02:03
N
T
S
-
AF
N
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
S
±
0
±
0
sRGB
FHD
60p
G
±
0
Monochrome
Color Filter
Color Filter
N:None Creates a normal black and white image.
Ye:Yellow Reproduces clearly defi ned white cloud with natural blue sky.
Or:Orange Slightly emphasizes colors in blue skies and sunsets.
R:Red
Strongly emphasizes colors in blue skies and brightness of crimson
foliage.
G:Green Strongly emphasizes colors in red lips and green leaves.
Shooting
2
83
EN
Adjusting the tone of a monochrome image ( Monochrome Color)
In the monochrome setting of picture mode (P. 69) settings, you can add and store a
color tint in advance.
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 110).
2
Use FGHI to select [Monochrome Color], then
press the Q button.
3
Use HI to choose a value and press the Q
button.
Picture Mode
N
F
250250 F5.6
Normal
P
1023
1:02:03
N
T
S
-
AF
N
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
sRGB
FHD
60p
S
±
0
±
0
G
±
0
Monochrome Color
Monochrome
Monochrome Color
N:None Creates a normal black and white image.
S:Sepia Creates a sepia image.
B:Blue Creates a bluish image.
P:Purple Creates a purplish image.
G:Green Creates a greenish image.
Adjusting i-Enhance effects ( Effect)
You can set the i-Enhance effect strength in picture mode (P. 69).
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 110).
2
Use FGHI to select [Effect], then press the Q
button.
3
Adjust the effect using HI and press the Q
button.
Picture Mode
Standard
250250 F5.6
P
1023
1:02:03
S
-
AF
N
WB
Auto
ISO
Auto
M-IS
S-IS On
sRGB
FHD
60p
S
Normal
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
Effect
i-Enhance
Effect
r (Effect: Low)
Adds a low i-Enhance effect to images.
s (Effect: Standard)
Adds an i-Enhance effect between “low” and “high” to images.
t (Effect: High)
Adds a high i-Enhance effect to images.
Shooting
2
84
EN
Setting the color reproduction format ( Color Space)
You can select a format to ensure that colors are correctly reproduced when shot
images are regenerated on a monitor or using a printer. This option is equivalent to the
[Color Space] (P. 112) in Custom Menu.
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 110).
2
Use FGHI to select [Color Space], then press
the Q button.
3
Select a color format using HI and press the Q
button.
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
N
FHD
60p
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
Color Space
Color Space
sRGB
This is the RGB color space standard stipulated by the International
Electrotechnical Commission (IEC).
Normally, use [sRGB] as the standard setting.
AdobeRGB
This is a standard provided by Adobe Systems.
Compatible software and hardware such as a display, printer etc.
are required for a correct output of images.
• [Adobe RGB] is not available in ART (P. 42) or movie mode (P. 53) or when
Backlight HDR is selected in SCN mode (P. 29) or HDR is selected in Z mode
(P. 36).
Changing the brightness of highlights and shadows
( Highlight&Shadow Control)
Use [Highlight&Shadow Control] to adjust the brightness of highlights and shadows.
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 110).
2
Use FGHI to select [Highlight&Shadow
Control], then press the Q button.
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
N
FHD
60p
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
Highlight&Shadow Control
Highlight&Shadow Control
3
Adjust brightness in shadows with HI and in
highlights with FG.
• Settings can be reset by pressing and holding the
Q
button.
• Press the
INFO
button to view the mid-tone adjustment
display.
4
Press the Q button to save settings.
RESETRESET
Midtone
HighLight+5
Shadow
-
5
Shooting
2
85
EN
Assigning functions to buttons ( Button Function)
At default settings, the following functions are assigned to the buttons:
Button Default
U Function
t (AEL/AFL)
V Function
b (Digital Tele-converter)
To change the function assigned to a button, follow the steps below.
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 110).
2
Use FGHI to select [Button Function], then
press the Q button.
• The custom menu [Button Function] item will be
displayed.
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
N
FHD
60p
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
Button Function
Button Function
3
Use FG to highlight the desired button and press I.
4
Use FG to highlight the desired function and press the Q button.
5
Press the Q button again to exit.
$ Notes
• The functions assigned to the buttons may be unavailable in some modes.
• The options available vary with the current mode.
Shooting
2
86
EN
t (AEL/AFL)
Press the button to use AE lock or AF lock. The function
changes according to the [AEL/AFL] (P. 115) setting.
When AEL is selected, press the button once to lock the
exposure and display u on the monitor. Press the button
again to cancel the lock.
z (Preview)
Aperture is stopped down to the selected value while the
button is pressed.
k (One-touch white
balance)
Press the shutter button while the button is pressed to
acquire a white balance value (P. 71). Highlight the
desired number and press the Q button to save the value.
N (AF Area Select)
Press the button to choose the AF target (P. 61).
MF Press the button to select [MF] mode. Press the button
again to restore the previously selected AF mode. Hold the
button and rotate the front or rear dial to choose a focus
mode.
F (Exposure
compensation)
Press the button to adjust exposure compensation.
In P, A, S, ART, Z, and movie modes, you can adjust
exposure compensation by pressing the button and using
HI or the front or rear dial to choose the desired value.
In M mode, you can adjust shutter speed or aperture by
pressing the button and using FGHI or the front or rear
dial to choose the desired values.
b (Digital Tele-converter)
Press the button to turn digital zoom [On] or [Off] (P. 99).
U (Magnify)
Press the button to display the magnifi cation frame and
press it again to magnify the image. Press and hold the
button to cancel magnifi ed display.
Peaking Press the button to turn on and off the peaking display.
When peaking is displayed, histogram and highlight/
shadow display are not available (P. 115).
G (Switch G Lock)
Press and hold the button to enable and disable touch
screen operation.
Shooting
2
87
EN
Zoom frame AF/Zoom AF ( Super Spot AF)
You can zoom in on a portion of the frame when adjusting focus. Choosing a high
zoom ratio allows you to use autofocus to focus on a smaller area than is normally
covered by the AF target. You can also position the focus target more precisely.
Press and hold the button to which [U] has been assigned to cycle through the
displays as follows:
250250 F5.6
P
Wi-Fi
L
N
S-IS ONS-IS ON
ISO-A
200
F
FHD
30p
1023
1:02:03
0.0
Shooting display
250250 F5.6
P
Wi-Fi
L
N
S-IS ONS-IS ON
ISO-A
200
F
FHD
30p
1023
1:02:03
Off
0.0
Zoom frame AF display Zoom AF display
Press and hold / Q
1
Assign [U] to the Fn1 or Fn2 button.
• To use Super Spot AF, you must fi rst assign [U] to the Fn1 or Fn2 button (P. 85).
2
Press the button to which [U] has been assigned to display the zoom frame.
• If the subject has been focused using autofocus immediately before the button is
pressed, the zoom frame will be displayed at the current focus position.
• Use FGHI to position the zoom frame.
• Press the INFO button and use FG to choose the zoom ratio. (×3, ×5, ×7, ×10,
×14)
3
Press the assigned button again to zoom in on the zoom frame.
• Use FGHI to position the zoom frame.
• You can change the zoom ratio by rotating the front dial (r) or rear dial (o).
4
Press the shutter button halfway to initiate autofocus.
• The camera will focus using the subject in the frame at the center of the screen. Use
FGHI to choose a different focus position.
• Zoom is visible only in the monitor and has no effect on the resulting photographs.
• Press and hold the assigned button or press the Q button to end zoom and exit the zoom
frame AF display.
• When you are using a Four Thirds system lens, the AF will not operate with during zoom
display.
• While zoomed in, a sound is made by the IS (Image Stabilizer).
$ Notes
• Touch controls can also be used.
Playback
3
88
EN
3
Information display during playback
Playback image information
Simplifi ed display
15
100-0015
4
:
3
Wi-Fi
×10
2017.10.01 12:30:00
e
0
a
4
157 89
bcd
2 3 6
Overall display
F5.6F5.6
+1.0+1.0
G+4G+4A+4A+4
NaturalNatural
ISO 400ISO 400
45mm45mm
1/84608×3456
4
:
3
15
100-0015
WB
AUTO
P
Wi-Fi
×10×10
2017.10.01 12:30:00
250
+2.0
sRGB
gf h
n
k
l
m
o
q
p
rst
u
v
ji
Playback
Playback
3
89
EN
1 Battery level ....................................P. 18
2 Wireless LAN connection......P. 120–124
3 Including GPS information ............P. 123
4 Eye-Fi upload complete ................P. 114
5 Print order
Number of prints ...........................P. 130
6 Share order .....................................P. 94
7 Sound record ..........................P. 95, 104
8 Protect ............................................P. 93
9 Image selected ...............................P. 94
0 File number ...................................P. 113
a Frame number
b Image quality ..................................P. 73
c Aspect ratio .....................................P. 73
d HDR image .....................................P. 36
e Date and time .................................P. 19
f Aspect border .................................P. 73
g AF area pointer ...............................P. 61
h Shooting mode..........................P. 24–48
i Shutter speed ...........................P. 45–48
j Exposure compensation .................P. 60
k Aperture value ..........................P. 45–48
l Focal length
m Flash intensity control .....................P. 77
n White balance compensation..........P. 79
o Color space.....................................P. 84
p Picture mode.............................P. 69, 99
q Compression rate .........................P. 119
r Pixel count ....................................P. 119
s ISO sensitivity .................................P. 63
t White balance .................................P. 70
u Metering mode ................................P. 80
v Histogram .......................................P. 23
Switching the information display
You can switch the information displayed during playback
by pressing the INFO button.
INFO button
15
100-0015
Wi-Fi
12:30:00
P
F5.6F5.6
+1.0+1.0
G+4G+4A+4A+4
NaturalNatural
ISO 400ISO 400
45mm45mm
1/8
4608×3456
15
100-0015
WB
AUTO
Wi-Fi
2017.10.01 12:30:00
×10×10
×10×10
4
:
3
4
:
3
2017.10.01
250
+2.0
sRGB
Image only Overall display
Simplifi ed display
INFO
INFO
INFO
• You can add histogram, highlight & shadow, and Light Box to the information displayed
during playback. g [q Info] (P. 116)
Playback
3
90
EN

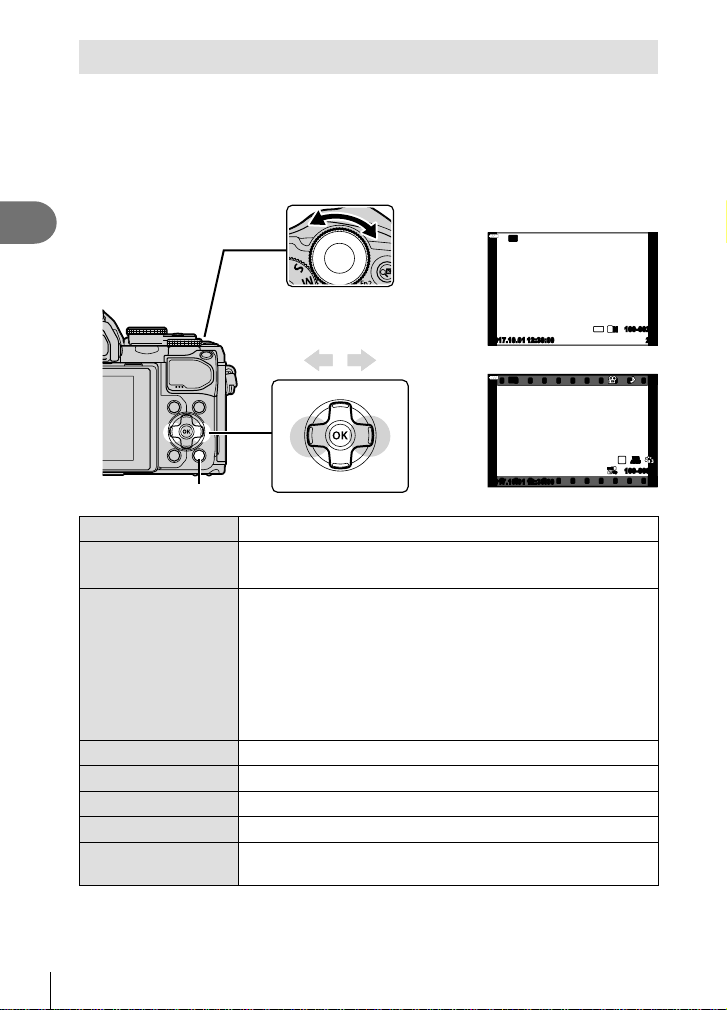

Viewing photographs and movies
1
Press the q button.
• A photograph or movie will be displayed.
• Select the desired photograph or movie using the front dial (r) or arrow pad.
• To return to shooting mode, press the shutter button halfway or press the q button.
Front dial
Displays
the previous
frame
Displays
the next
frame
q button
20
100-0020
L
N
Wi-Fi
12:30:002017.10.01
4
:
3
F
FHD
60p
100-0004
WB
AUTO
WBWBWB
AUTOAUTOAUTO
P
Wi-Fi
42017.10.01 12:30:00
Still image
Movie
Rear dial (o) Zoom in (p)/Index (q)
Front dial (r)
Previous (t)/Next (s)
Operation also available during close-up playback.
Arrow pad (FGHI)
Single-frame playback: display the next frame (I)/display the
previous frame (H)/jump ahead 10 frames (G)/jump back
10 frames (F)
Close-up playback: Changing the close-up position
You can display the next frame (I) or the previous frame (H)
during close-up playback by pressing the INFO button.
Press the INFO button again to display a zoom frame and use
FGHI to change its position.
Index/My Clips/calendar playback: Highlight image
INFO button
View image info
H button
Select picture (P. 94)
Fn2 button
Protect picture (P. 93)
button
Delete picture (P. 94)
Q button
View menus (in calendar playback, press this button to exit to single-
frame playback)
Playback
3
91
EN

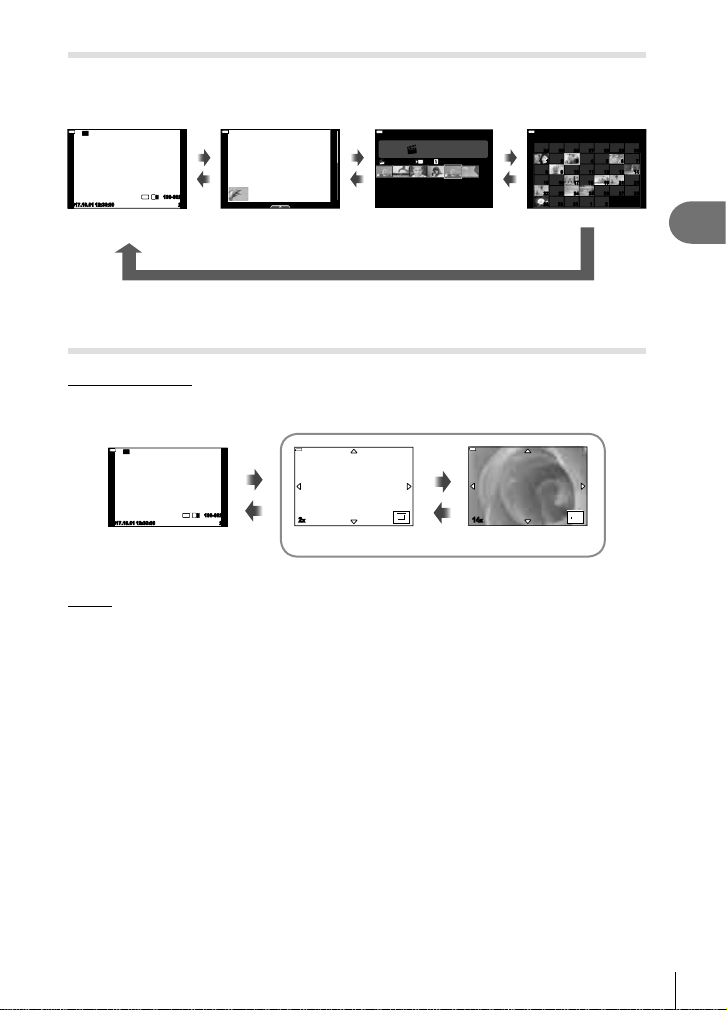

Index display/ Calendar display
• In single-frame playback, rotate the rear dial to G for index playback. Rotate further for
My Clips playback and further still for calendar playback.
• Turn the rear dial to U to return to single-frame playback.
Q
Index display Calendar displaySingle-frame
playback
20
100-0020
L
N
Wi-Fi
12:30:002017.10.01
4
:
3
202017.10.01 12:30:00
2017.10
Sun Mon Tue Wed Thu Fri Sat
7
14131211109
8
21201918
171615
28272625242322
2
1
31
30
29
30292827262524
6
1 2
3
4
5
My Clips
1
MOV11:2 4 FHD 30p
12:30:002017.10.01
q
p
q
p
q
p
My Clips playback*
1
*1 If one or more My Clips have been created, it will be displayed here (P. 56).
• You can change the number of frames for index display. g [G Settings] (P. 117)
Viewing still images
Close-up playback
In single-frame playback, turn the rear dial to U to zoom in. Turn to G to return to single-
frame playback.
2× zoom
Close-up playback
Single-frame
playback
14× zoom
2x
q
q
p
p
20
100-0020
L
N
Wi-Fi
12:30:002017.10.01
4
:
3
14x
Rotate
Choose whether to rotate photographs.
1
Play the photograph back and press the Q button.
2
Select [Rotate] and press the Q button.
3
Press F to rotate the image counterclockwise, G to rotate it clockwise; the
image rotates each time the button is pressed.
• Press the Q button to save settings and exit.
• The rotated image is saved in its current orientation.
• Movies and protected images cannot be rotated.
Playback
3
92
EN
Slideshow
This function displays images stored on the card one after another.
1
Press the Q button in the playback display.
2
Select [L] and press the Q button.
L
<
Erase
JPEG
Back Set
3
Adjust settings.
Start
Start the slideshow. Images are displayed in order, starting with the
current picture.
BGM
Set [Happy Days] or [Off].
Slide
Set the type of data to be played back.
Slide Interval
Choose the length of time each slide is displayed from 2 to 10 seconds.
Movie Interval
Select [Full] to play back full length of each movie clip in the slideshow or
[Short] to play back only the opening portion of each movie clip.
4
Select [Start] and press the Q button.
• The slideshow will start.
• Press FG during the slideshow to adjust the overall volume of the camera speaker.
Press HI while the volume adjustment indicator is displayed to adjust the balance
between the sound recorded with the image or movie and background music.
• Press the Q button to stop the slideshow.
BGM other than [Happy Days]
To use BGM other than [Happy Days], record data that you have downloaded from the
Olympus website onto the card and select it as [ BGM] in Step 3. Visit the following website
for the download.
http://support.olympus-imaging.com/bgmdownload/
Playback
3
93
EN
Watching movies
Select a movie and press the Q button to display the
playback menu. Select [Play Movie] and press the Q
button to begin playback. Fast-forward and rewind using
H/I. Press the Q button again to pause playback. While
playback is paused, use F to view the fi rst frame and G
to view the last frame. Use HI or the front dial (r) to
view previous or next frame. Press the MENU button to
end playback.
Movie
Share Order
Movie Edit
Play Movie
0
L
Erase
Back Set
• Use FG to adjust the volume during movie playback.
For movies of 4 GB or larger
If the movie was automatically split into multiple fi les, pressing Q will display a menu
containing the following options:
[Play from Beginning]: Plays back a split movie all the way through
[Play Movie]: Plays back fi les separately
[Delete entire n]: Deletes all parts of a split movie
[Erase]: Deletes fi les separately
• We recommend using the latest version of OLYMPUS Viewer 3 to play back movies on
a computer. Before launching the software for the fi rst time, connect the camera to the
computer.
Protecting images
Protect images from accidental deletion. Display an image
you wish to protect and press Q to display the playback
menu. Select [0] and press Q, and then press F or G
to protect the image. Protected images are shown by a 0
(protect) icon. Press F or G to remove protection.
You can also protect multiple selected images.
g “Selecting images (0, Erase Selected, Share Order
Selected)” (P. 94)
0 (protect) icon
20
100-0020
L
N
4
:
3
Wi-Fi
12:30:002017.10.01
• Formatting the card erases all data including protected images.
$ Notes
• You can also protect the current picture by pressing the Fn2 button. The Fn2 button
cannot be used to protect pictures when assigned the [U] role. Choose a role other than
[U] before attempting to protect pictures (P. 85).
Playback
3
94
EN
Erasing an image
Display an image you want to delete and press
the button. Select [Yes] and press the Q
button.
button
Erase
Yes
No
Back Set
Selecting images (0, Erase Selected, Share Order Selected)
You can select multiple images for [0], [Erase Selected]
or [Share Order Selected].
Press the R (H) button on the index display screen
(P. 91) to select an image; a v icon will appear on
the image. Press the R (H) button again to cancel the
selection.
Press the Q button to display the menu, and then select
from [0], [Erase Selected] or [Share Order Selected].
21
2017.10.01 12:30:00
Setting a transfer order on images ( Share Order)
You can select images you want to transfer to a smartphone in advance. You can also
browse the images included in the share order. When playing back images you want
to transfer, press the Q button to display the playback menu. After selecting [Share
Order] and pressing the Q button, press F or G to set a share order on an image
and display h. To cancel a share order, press F or G.
You can select images you want to transfer in advance and set a share order all at
once. g “Selecting images (0, Erase Selected, Share Order Selected)” (P. 94),
“Transferring images to a smartphone” (P. 122)
• You can set a share order on 200 frames.
• Share orders cannot include RAW images.
Playback
3
95
EN
Audio recording
Audio can be added to still images (up to 30 sec. long).
1
Display the image to which you want to add audio and press the Q button.
• Audio recording is not available with protected images.
• Audio recording is also available in the playback menu.
2
Select [R] and press the Q button.
• To exit without adding audio, select [No].
JPEG
JPEG Edit
Add to My Clips
Share Order
0
R
Rotate
Back Set
3
Select [R Start] and press the Q button to begin
recording.
4
Press the Q button to end recording.
• Images recorded with audio are indicated by a H icon.
• To delete recorded audio, select [Erase] in Step 3.
R
R Start
No
Erase
Back Set
Audio Playback
If an audio recording is available for the current picture, pressing the Q button will
display audio playback options. Highlight [Play ] and press the Q button to begin
playback. To end playback, press the Q or MENU button. During playback, you can
press FG to raise or lower the volume.
Adding still pictures to My Clips (Add to My Clips)
You can also select still pictures and add them to My Clips.
Display the still picture you wish to add and press the Q button to display the menu.
Select [Add to My Clips] and press the Q button. Using FGHI, select My Clips
and the order in which you wish to add the pictures, then press the Q button.
• RAW pictures are added to My Clips as low-resolution preview images.
Playback
3
96
EN
Using the touch screen
You can use the touch screen to manipulate images.
Full-frame playback
Displaying the previous or next image
• Slide your fi nger to the left to view the next image, and
right to view the previous image.
Wi-Fi
Magnify
• Lightly tap the screen to display the slider and P.
• Slide the bar up or down to zoom in or out.
• Slide your fi nger to scroll the display when the picture is
zoomed in.
• Tap P to display index playback.
Tap Q for calendar playback and My Clips playback.
Wi-Fi
Index/My Clips/Calendar playback
Displaying the previous or next page
• Slide your fi nger up to view the next page, and down to
view the previous page.
• Tap Q or R to switch the number of images
displayed. g [G Settings] (P. 110)
• Tap R several times to return to single-frame
playback.
S
Viewing images
• Tap an image to view it full frame.
Selecting and protecting images
In single-frame playback, lightly tap the screen to display the touch menu. You can
then perform the desired operation by tapping the icons in the touch menu.
H
Select an image. You can select multiple images and delete them collectively.
h
Images you want to share with a smartphone can be set. g “Setting a
transfer order on images (Share Order)” (P. 94)
0
Protects an image.
• Do not tap the display with your fi ngernails or other sharp objects.
• Gloves or monitor covers may interfere with touch screen operation.
Menu functions (Basic operations)
4
97
EN
4
Basic menu operations
The menus can be used to customize the camera for ease of use and include shooting
and playback options not accessible via the live control, LV super control panel, or the
like.
W
Shooting setup and shooting settings (P. 98)
X
n
Movie mode settings (P. 102)
q
Playback and retouch options (P. 103)
G
Customizing camera settings (P. 109)
d
Camera setup (e.g., date and language) (P. 107)
Functions that cannot be selected from menus
Some items may not be selectable from the menus when using the arrow pad.
• Items that cannot be set with the current shooting mode.
• Items that cannot be set because of an item that has already been set:
Settings such as picture mode are unavailable when the mode dial is rotated to B.
1
Press the MENU button to display the menus.
2
1
1
Shooting Menu 1
Picture Mode
Digital Tele-converter
Metering
Off
p
Reset
Back Set
Press the Q button to confi rm
the setting
Operation guide
Press the MENU button
to go back one screen
Tab
• A guide is displayed in 2 seconds after you select an option.
• Press the INFO button to view or hide guides.
2
Use FG to select a tab and press the Q button.
• The menu group tab appears when the G Custom
Menu is selected. Use FG to select the menu group
and press the Q button.
2
1
A. AF/MF
AEL/AFL
Reset Lens
S1/C2/M1
On
MF Assist
A
B
C1
C2
D1
D2
E
F
Back
AF Targeting Pad Off
Face Priority
Set
A
Menu group
Menu functions
Menu functions (Shooting menu)
4
98
EN
3
Select an item using FG and press the Q button to display options for the
selected item.
2
1
Shooting Menu 2
AF Illuminator
K
Elec. Zoom Speed Normal
On
S-IS On
±0.0
K
Image Stabilizer
Intrvl. Sh./Time Lapse Off
Back Set
2
1
AF Illuminator
Shooting Menu 2
K
Elec. Zoom Speed
K
Image Stabilizer
Intrvl. Sh./Time Lapse
Back Set
Normal
On
S-IS On
±0.0
Off
Off
On
The current
setting is
displayed
Function
Q
4
Use FG to highlight an option and press the Q button to select.
• Press the MENU button repeatedly to exit the menu.
$ Notes
• For the default settings of each option, refer to “Defaults” (P. 148).
Using Shooting Menu 1/Shooting Menu 2
2
1
1
Shooting Menu 1
Picture Mode
Digital Tele-converter
Metering
Off
p
Reset
Back Set
Shooting Menu 1 Shooting Menu 2
W
Reset (P. 98)
Picture Mode (P. 69, 99)
Digital Tele-converter (P. 99)
Metering (P. 80)
X K Image Stabilizer (P. 78)
AF Illuminator (P. 99)
K Elec. Zoom Speed (P. 100)
x (P. 77)
Intrvl. Sh./Time Lapse (P. 100)
Returning to default settings ( Reset)
Camera settings can be easily restored to default settings.
1
Select [Reset] in W Shooting Menu 1 and press the Q button.
2
Highlight a reset option ([Full] or [Basic]) and press the Q button.
• To reset all settings except the time, date, and a few others, highlight [Full] and press
the Q button.
g “Defaults” (P. 148)
3
Select [Yes] and press the Q button.
Menu functions (Shooting menu)
4
99
EN
Processing options ( Picture Mode)
You can make individual adjustments to contrast, sharpness and other parameters in
[Picture Mode] (P. 69) settings. Changes to parameters are stored for each picture
mode separately.
1
Select [Picture Mode] in W Shooting Menu 1 and
press the Q button.
• The camera will display the picture mode available in the
current shooting mode.
2
1
Shooting Menu 1
p
Picture Mode
Digital Tele-converter
Metering
Reset
Back Set
Off
2
Select an option with FG and press the Q button.
• Press I to set the detailed options for the selected picture mode. Detailed options are not
available for some picture modes.
• Changes to contrast have no effect at settings other than [Normal].
Digital Zoom ( Digital Tele-converter)
Digital Tele-converter is used to zoom in beyond the current zoom ratio. The camera
saves the center crop. The subject is nearly doubled in size.
1
Select [On] for [Digital Tele-converter] in W Shooting Menu 1.
2
The view in the monitor will be enlarged by a factor of two.
• The subject will be recorded as it appears in the monitor.
• Digital zoom is not available when multiple exposure, panorama, or keystone
compensation is selected in Z mode or when [Standard] is selected in movie mode.
• When a RAW image is displayed, the area visible in the monitor is indicated by a frame.
• AF target drops.
• H is displayed on the monitor.
Improving Focus in Dark Surroundings ( AF Illuminator)
The AF illuminator (AF assist lamp) lights to assist the focus operation in dark
environments. Select [Off] to disable AF illuminator.
Menu functions (Shooting menu)
4
100
EN
Choosing a Zoom Speed ( K Elec. Zoom Speed)
Choose the speed at which electronic zoom lenses can be zoomed in or out using the
zoom ring during still photography.
1
Highlight [K Elec. Zoom Speed] in X Shooting Menu 2 and press the Q
button.
2
Select an option with FG and press the Q button.
Shooting automatically with a fi xed interval ( Intrvl. Sh./Time Lapse)
You can set the camera to shoot automatically with a set time lapse. The shot frames
can also be recorded as into a single movie. This setting is only available in P/A/S/M
modes.
1
Highlight [Intrvl. Sh./Time Lapse] in X Shooting
Menu 2 and press the Q button.
2
1
Shooting Menu 2
AF Illuminator
K
Elec. Zoom Speed
Normal
On
S-IS On
±0.0
K
Image Stabilizer
Intrvl. Sh./Time Lapse Off
Back Set
2
Select [On] and press the I.
3
Adjust the following settings and press the Q button.
Number of Frames Sets the number of frames to be shot.
Start Waiting Time Sets waiting time before starting to shoot.
Interval Length Sets interval between shots after shooting starts.
Time Lapse Movie
Sets recording format of frame sequence.
[Off]: Records each frame as a still picture.
[On]: Records each frame as a still picture and generates a single
movie from the frame sequence.
Movie Settings
[Movie Resolution]: Choose a size for time lapse movies.
[Frame Rate]: Choose a frame rate for time lapse movies.
• The starting and ending times shown in the display are intended as a guide only. The
actual times may vary with shooting conditions.
4
The [Off]/[On] options will be displayed once more; confi rm that [On] is
highlighted and press the Q button again.
5
Shoot.
Menu functions (Shooting menu)
4
101
EN
• Frames are shot even if the image is not in focus after AF. If you wish to fi x the focus
position, shoot in MF.
• [Rec View] (P. 107) operates for 0.5 seconds.
• If either of the time before shooting, or shooting interval is set to 1 minute 31 seconds
or longer, the monitor and camera power will turn off after 1 minute. 10 seconds before
shooting, the power will automatically turn on again. When the monitor is off, press the
shutter button to turn it on again.
• If the AF mode (P. 72) is set to [C-AF] or [C-AF+TR], it is automatically changed to
[S-AF].
• Touch operations are disabled during time lapse shooting.
• Bulb, time, and composite photography are not available during time lapse photography.
• The fl ash will not work if the fl ash charging time is longer than the interval between shots.
• If any of still pictures are not recorded correctly, the time lapse movie will not be
generated.
• If there is insuffi cient space on the card, the time lapse movie will not be recorded.
• Time lapse shooting will be canceled if any of the following is operated:
Mode dial, MENU button, q button, lens release button, or connecting the USB cable.
• If you turn off the camera, time lapse shooting will be canceled.
• If there is not enough charge left on the battery, the shooting may end partway through.
Make sure the battery is charged enough before shooting.
• Movies recorded with [4K] selected for [Movie Settings] > [Movie Resolution] may not
display on some computer systems. More information is available on the OLYMPUS
website.
Menu functions (Video menu)
4
102
EN
Using the Video Menu
Movie recording functions are set in the Video Menu.
2
1
Video Menu
nImage Stabilizer
nElec. Zoom Speed
C-AF
30p
Fine
nAF Mode
Video Frame Rate
Video Bit Rate
Normal
On
±0Recording Volume
Movie R
M-IS
1
Back Set
Option Description
g
Movie R
[Off]: Record movies without sound.
[On]: Record movies with sound.
[On e]: Record movies with sound; wind noise reduction
enabled.
52
Recording Volume Adjust the sensitivity of the built-in microphone. Adjust
the sensitivity using FG while checking the peak sound
level picked up by the microphone over the previous few
seconds.
―
n AF Mode
Choose the AF mode for movie recording.
72
n Image Stabilizer
Sets image stabilization for movie recording.
78
n Elec. Zoom Speed
Choose the speed at which electronic zoom lenses can
be zoomed in or out using the zoom ring during movie
recording.
―
Video Frame Rate Choose the frame rate for movie recording. 74
Video Bit Rate Choose the compression ratio for movie recording. 74
• Operation sounds of the lens and camera may be recorded in a movie. To prevent it from
recording, reduce the operation sounds by setting [AF Mode] to [S-AF] or [MF], or by
minimizing the button operations of the camera.
• Sound cannot be recorded in k (Diorama) mode.
• When [Movie R] is set to [Off], O is displayed.
Menu functions (Playback menu)
4
103
EN
Using the Playback Menu
Playback Menu
y (P. 92)
2
1
Playback Menu
R
Edit
On
L
Reset Protect
Connection to Smartphone
Print Order
Back Set
R (P. 103)
Edit (P. 103)
Print Order (P. 130)
Reset Protect (P. 106)
Connection to Smartphone (P. 121)
Displaying images rotated ( R)
If set to [On], images in portrait orientation are automatically rotated to be displayed in
the correct orientation on the playback display.
Editing still images (Edit)
Recorded images can be edited and saved as separate images.
1
Select [Edit] in the q Playback Menu and press the Q button.
2
Use FG to select [Sel. Image] and press the Q button.
3
Use HI to select the image to be edited and press the Q button.
• [RAW Data Edit] is displayed if a RAW image is selected, and [JPEG Edit] if a JPEG
image is selected. For images recorded in RAW+JPEG format, both [RAW Data Edit]
and [JPEG Edit] are displayed. Select the desired option from them.
4
Select [RAW Data Edit] or [JPEG Edit] and press the Q button.
RAW Data
Edit
Creates a JPEG copy of a RAW image according to the selected settings.
Current The JPEG copy is processed using the current camera
settings. Adjust the camera settings before choosing this
option. Some settings such as exposure compensation are
not applied.
ART BKT The image is edited using settings for the selected art fi lter.
Menu functions (Playback menu)
4
104
EN
JPEG Edit
Choose from the following options:
[Shadow Adj]: Brightens a dark backlit subject.
[Redeye Fix]: Reduces the red-eye phenomenon due to fl ash shooting.
[ P]: Trims an image. Use the front dial
(
r
) or rear dial (
o
) to choose the size of
the trimming and FGHI to specify the
trimming position.
O
Set
[Aspect]: Changes the aspect ratio of images from 4:3 (standard) to [3:2],
[16:9], [1:1], or [3:4]. After changing the aspect ratio, use FGHI to
specify the trimming position.
[Black & White]: Creates black and white images.
[Sepia]: Creates sepia-toned images.
[Saturation]: Increases the vividness of images. Adjust the color saturation
checking the image on the screen.
[Q]: Converts the image size to 1280 × 960, 640 × 480, or 320 × 240.
Images with an aspect ratio other than 4:3 (standard) are converted to the
closest image size.
[e-Portrait]: Compensates the skin look for smoothness.
Compensation cannot be applied in such a case that a face cannot be
detected.
5
When the settings are complete, press the Q button.
• The settings are applied to the image.
6
Select [Yes] and press the Q button.
• The edited image is stored in the card.
• Red-eye correction may not work depending on the image.
• Editing of a JPEG image is not possible in the following cases:
When an image is processed on a PC, when there is not enough space in the card
memory, or when an image is recorded on another camera.
• The image cannot be resized (Q) to the larger size than the original size.
• [P] (trimming) and [Aspect] can only be used to edit images with an aspect ratio of 4:3
(standard).
Audio recording
Audio can be added to still images (up to 30 sec. long).
This is the same function as [R] during playback (P. 95).
Menu functions (Playback menu)
4
105
EN
Image overlay
Up to 3 frames of RAW images taken with the camera can be overlaid and saved as a
separate image.
The image is saved with the record mode set at the time the image is saved. (If [RAW] is
selected, the copy will be saved in [YN+RAW] format.)
1
Select [Edit] in the q Playback Menu and press the Q button.
2
Use FG to select [Image Overlay] and press the Q button.
3
Select the number of images to be overlaid and press the Q button.
4
Use FGHI to select the RAW images and press
the Q button to add them to the overlay.
• The overlaid image will be displayed if images of the
number specifi ed in step 3 are selected.
5
Adjust the gain for each image to be overlaid.
• Use HI to select an image and FG to adjust gain.
• Gain can be adjusted in the range 0.1 – 2.0. Check the
results in the monitor.
6
Press the Q button to display the confi rmation
dialog. Select [Yes] and press the Q button.
RAW RAW RAW
RAW
RAW RAW RAW
Image Overlay
Back Set
×1.5×1.5×0.3 ×0.5
Image Overlay
Back Set
$ Notes
• To overlay 4 or more frames, save the overlay image as a RAW fi le and use [Image
Overlay] repeatedly.
Saving a still image from a movie ( In-Movie Image Capture)
Save selected frames from 4K movies as still images.
1
Select [Edit] in the q Playback Menu and press the Q button.
2
Use FG to select [Sel. Image] and press the Q button.
3
Use HI to select a movie and press the Q button.
4
Select [Movie Edit] and press the Q button.
5
Use FG to select [In-Movie Image Capture] and press the Q button.
6
Use HI to select a frame to be saved as a still image and press the Q
button.
• Use FG or to skip multiple frames.
Menu functions (Playback menu)
4
106
EN
Trimming movies (Movie Trimming)
1
Select [Edit] in the q Playback Menu and press the Q button.
2
Use FG to select [Sel. Image] and press the Q button.
3
Use HI to select a movie and press the Q button.
4
Select [Movie Edit] and press the Q button.
5
Use FG to select [Movie Trimming] and press the Q button.
6
Select [Overwrite] or [New File] and press the Q button.
• If the image is protected, you cannot select [Overwrite].
7
Choose whether the section to be deleted begins with the fi rst frame or ends
with the last frame, using HI to highlight the desired option and pressing
the Q button to select.
8
Use HI to choose the section to be deleted.
• The section to be deleted is shown in red.
9
Press the Q button.
• Editing is available with movies recorded using this camera.
Canceling all protections
Protections of multiple images can be canceled at a time.
1
Select [Reset Protect] in the q Playback Menu and press the Q button.
2
Select [Yes] and press the Q button.
Menu functions (Setup menu)
4
107
EN
Using the setup menu
Use the d Setup Menu to set the basic camera functions.
2
1
Setup Menu
X
W English
s
Firmware
Wi-Fi Settings
Rec View
j±0 k±0
’--.--.-- --:--:--
Card Setup
Back Set
0.5 sec
Option Description
g
Card Setup Format the card and delete all images. 108
X (Date/time setting)
Set the camera clock.
19
W (Changing the
display language)
You can change the language used for the on-screen
display and error messages.
—
s ( Monitor
brightness adjustment)
You can adjust the
brightness and color
temperature of the
monitor. Color temperature
adjustment is only
applied to the monitor
display during playback.
Use HI to highlight j
(color temperature) or k
(brightness) and FG to
adjust the value.
s
Back Set
Vivid Natural
-
2
j
+1
k
—
Press the INFO button to switch the saturation of the
monitor between [Natural] and [Vivid] settings.
Rec View Sets whether to display the captured image on the
monitor after shooting, and the length of time for the
display. This is useful for a brief check of the picture you
have taken. You can shoot the next shot by pressing the
shutter button halfway even while the captured image is
displayed on the monitor.
[0.3sec] – [20sec]: Sets the length of time (seconds) to
display the captured image on the monitor.
[Off]: The captured image is not displayed on the monitor.
[Auto q]: Displays the captured image, and then
switches to playback mode. This is useful for erasing a
picture after checking it.
—
Wi-Fi Settings Sets the wireless connection method for the camera to
connect with smartphones that support wireless LAN
connections.
123
Firmware Displays the fi rmware versions of the camera and
connected accessories.
Check the versions when you inquire about the camera
or accessories or when you download the software.
—
Menu functions (Setup menu)
4
108
EN
Formatting the card ( Card Setup)
Cards must be formatted with this camera before fi rst use or after being used with
other cameras or computers.
All data stored on the card, including protected images, is erased when the card is
formatted.
When formatting a used card, confi rm there are no images that you still want to keep
on the card. g “Usable cards” (P. 133)
1
Select [Card Setup] in the d Setup Menu and press
the Q button.
• If there is data on the card, menu items appear. Select
[Format] and press the Q button.
2
Select [Yes] and press the Q button.
• Formatting is performed.
Card Setup
All Erase
Format
Back Set
Deleting all images (Card Setup)
All images on a card can be deleted at a time. Protected images are not deleted.
1
Select [Card Setup] in the d Setup Menu and press
the Q button.
2
Select [All Erase] and press the Q button.
3
Select [Yes] and press the Q button.
• All images are deleted.
Card Setup
All Erase
Format
Back Set
Menu functions (Custom menus)
4
109
EN
Using the custom menus
Camera settings can be customized using the G Custom Menu.
Custom Menu
a
AF/MF (P. 109)
2
1
A. AF/MF
AEL/AFL
Reset Lens
S1/C2/M1
On
MF Assist
A
B
C1
C2
D1
D2
E
F
Back
AF Targeting Pad Off
Face Priority
Set
A
M
Button/Dial (P. 109)
N/O Disp/8/PC (P. 110)
P/Q
Exp/ISO/BULB (P. 111)
b
# Custom (P. 112)
W K/WB/Color (P. 112)
X
Record (P. 113)
c
EVF (P. 114)
a K Utility (P. 114)
a AF/MF
Option Description
g
AEL/AFL Customize AF and AE lock. 115
AF Targeting Pad If [On] is selected, the AF target can be positioned by
tapping the monitor during viewfi nder photography. Tap the
monitor and slide your fi nger to position the AF target.
• When set to [On], drag operation can be disabled or
enabled by double-tapping the monitor.
• [AF Targeting Pad] can also be used with zoom frame AF
(P. 87).
—
I Face Priority
You can select the face priority or eye priority AF mode.
62
MF Assist When set to [On], you can automatically switch to zoom or
peaking in manual focus mode by rotating the focus ring.
115
Reset Lens When set to [Off], the focus position of the lens is not reset
even when the power is turned off. When set to [On], the
focus of power zoom lenses is also reset.
—
M Button/Dial
Option Description
g
Button Function Choose the function assigned to the selected button. 85
Dial Function You can change the function of the front dial and rear dial. —
MENU
G a
MENU
G M
Menu functions (Custom menus)
4
110
EN
N Disp/8/PC
Option Description
g
K Control
Settings
For each shooting mode except movie, choose whether
pressing the Q button displays live controls or LV super
controls.
67, 68
G/Info Settings
Choose the information displayed when the INFO button
is pressed.
[ q Info]: Choose the information displayed in full frame
playback.
[ LV-Info]: Choose the information displayed when the
camera is in shooting mode.
[ G Settings]: Choose the information displayed in index,
“My Clips”, and calendar playback.
116,
117
Live View Boost Selecting [On] makes it easier to see poorly-lit subjects in
the display.
[Off]: Changes to settings such as exposure compensation
are refl ected in the display in the monitor.
[On]: Changes to settings such as exposure compensation
are not refl ected in the display in the monitor; instead,
brightness is adjusted to bring the display as close as
possible to optimal exposure.
—
Flicker reduction Reduce the effects of fl icker under some kinds of lighting,
including fl uorescent lamps. When fl icker is not reduced by
the [Auto] setting, set to [50Hz] or [60Hz] in accordance with
the commercial power frequency of the region where the
camera is used.
—
Displayed Grid
Select [w], [x], [1], [y], [X] or [x] to display a grid on
the monitor.
—
Peaking Color Choose the color of the outlines (red, yellow, white, or
black) in the focus peaking display.
115
O Disp/8/PC
Option Description
g
8 ( Beep sound)
When set to [Off], you can turn off the beep sound that is
emitted when the focus locks by pressing the shutter button.
—
HDMI [Output Size]: Selecting the digital video signal format for
connecting to a TV via an HDMI cable.
[HDMI Control]: Select [On] to allow the camera to be
operated using remotes for TVs that support HDMI control.
This option takes effect when pictures are displayed on a
TV.
118
USB Mode Choose a mode for connecting the camera to a computer or
printer. Choose [Auto] to display USB mode options every
time the camera is connected.
—
MENU
G N
MENU
G O
Menu functions (Custom menus)
4
111
EN
P Exp/ISO/BULB
Option Description
g
Exposure Shift Adjust correct exposure separately for each metering mode.
• This reduces the number of exposure compensation
options available in the selected direction.
• The effects are not visible in the monitor. To make
normal adjustments to the exposure, perform exposure
compensation (P. 60).
—
ISO-Auto Set Choose the upper limit and default value used for ISO
sensitivity when [Auto] is selected for ISO.
[High Limit]: Choose the upper limit for auto ISO sensitivity
selection.
[Default]: Choose the default value for auto ISO sensitivity
selection.
—
Noise Filter Choose the amount of noise reduction performed at high
ISO sensitivities.
—
Noise Reduct. This function reduces the noise that is generated during
long exposures.
[Auto]: Noise reduction is performed at slow shutter speeds,
or when the internal temperature of the camera has risen.
[On]: Noise reduction is performed with every shot.
[Off]: Noise reduction off.
• The time required for noise reduction is shown in the
display.
• [Off] is selected automatically during sequential shooting.
• This function may not work effectively with some shooting
conditions or subjects.
48
Q Exp/ISO/BULB
Option Description
g
Bulb/Time Timer Choose the maximum exposure for bulb and time
photography.
49
Live Bulb Choose the display interval during shooting. The number
of update times is limited. The frequency drops at high ISO
sensitivities. Choose [Off] to disable the display. Tap the
monitor or press the shutter button halfway to refresh the
display.
Live Time
Composite
Settings
Set an exposure time to be the reference in composite
photography.
50
MENU
G P
MENU
G Q
Menu functions (Custom menus)
4
112
EN
b # Custom
Option Description
g
# X-Sync.
Choose the shutter speed used when the fl ash fi res.
119
# Slow Limit
Choose the slowest shutter speed available when a fl ash
is used.
119
w+F
When set to [On], the exposure compensation value is
added to the fl ash compensation value.
60, 77
#+WB
Adjust white balance for use with a fl ash.
—
W K/WB/Color
Option Description
g
K Set
You can select the JPEG image quality mode from
combinations of three image sizes and four compression
rates.
1) Use HI to select a
combination ([K1] –
[K4]) and use FG to
change.
2) Press the Q button.
4608x3456
1
F
Y
2
N
Y
3
N
X
4
N
W
K Set
Pixel Count
Back Set
Compression
rate
Image size
73, 119
WB Set the white balance. You can also fi ne-tune the white
balance for each mode.
70, 79
W Keep Warm
Color
Select [On] to preserve “warm” colors in pictures taken
under incandescent lighting.
—
Color Space You can select a format to ensure that colors are correctly
reproduced when shot images are regenerated on a monitor
or using a printer.
84
MENU
G b
MENU
G W
Menu functions (Custom menus)
4
113
EN
X Record
Option Description
g
File Name [Auto]: Even when a new card is inserted, the fi le numbers
are retained from the previous card. File numbering
continues from the last number used or from the highest
number available on the card.
[Reset]: When you insert a new card, the folder numbers
starts at 100 and the fi le name starts at 0001. If a card
containing images is inserted, the fi le numbers start at the
number following the highest fi le number on the card.
—
Edit Filename Choose how image fi les are named by editing the portion of
the fi lename highlighted below in gray.
sRGB: Pmdd0000.jpg Pmdd
Adobe RGB: _mdd0000.jpg mdd
—
Copyright
Settings*
Add the names of the photographer and copyright holder to
new photographs. Names can be up to 63 characters long.
[Copyright Info.]: Select [On] to include the names of the
photographer and copyright holder in the Exif data for new
photographs.
[Artist Name]: Enter the name of the photographer.
[Copyright Name]: Enter the name of the copyright holder.
1) Select characters from 1 and press the Q button.
The selected characters appear in 2.
2) Repeat Step 1 to complete the name, then highlight
[END] and press the Q button.
• To delete a character, press the INFO button to
place the cursor in the name area 2, highlight
the character, and press .
!”#$%&
()
*+,-./
01234567
’
89: ;<=>?
@
ABCDEFGH I JKLMNO
PQRSTUVWX Y Z
[]_
abcdefghi j k lmnEND
opqrstuvwxyz
{}
ABCDE
05/63
Delete
Copyright Name
Cancel Set
2
1
* OLYMPUS does not accept liability for damages arising
from disputes involving the use of [Copyright Settings].
Use at your own risk.
—
MENU
G X
Menu functions (Custom menus)
4
114
EN
c EVF
Option Description
g
EVF Auto Switch If [Off] is selected, the viewfi nder will not turn on when you
put your eye to the viewfi nder. Use the
u
button to choose
the display.
—
EVF Adjust Adjust viewfi nder brightness and hue.
Brightness is automatically adjusted when [EVF Auto
Luminance] is set to [On]. The contrast of the information
display is also adjusted automatically.
—
a
K
Utility
Option Description
g
Pixel Mapping The pixel mapping feature allows the camera to check
and adjust the image pickup device and image processing
functions.
141
Level Adjust You can calibrate the angle of the level gauge.
[Reset]: Resets adjusted values to the default settings.
[Adjust]: Sets the current camera orientation as the 0
position.
—
Touchscreen
Settings
Activate the touch screen. Choose [Off] to disable the touch
screen.
—
Sleep The camera will enter sleep (energy saving) mode if no
operations are performed for the selected period. The
camera can be reactivated by pressing the shutter button
halfway.
—
Eye-Fi* Enable or disable upload when using an Eye-Fi card. The
setting can be changed when an Eye-Fi card is inserted.
—
Certifi cation Display certifi cation icons. —
* Use the Eye-Fi card in compliance with the laws and regulations of the country where the
camera is used. Onboard airplanes and in other locations in which the use of wireless
devices is prohibited, remove the Eye-Fi card from the camera, or select [Off] for [Eye-Fi].
The camera does not support the “endless” Eye-Fi mode.
MENU
G c
MENU
G a
Menu functions (Custom menus)
4
115
EN
AEL/AFL
MENU G a [AEL/AFL]
Autofocus and metering can be performed by pressing the
button to which AEL/AFL has been assigned. Choose a
mode for each focus mode.
AEL/S-AF
AEL
AEL
AFL
mode1
S-AF AEL/AFL
ExposureFully
Half Way
Back Set
Assignments of AEL/AFL function
Mode
Shutter button function
AEL/AFL Button
function
Half-press Full press
When holding down
AEL/AFL
Focus Exposure Focus Exposure Focus Exposure
S-AF
mode1 S-AF Locked – – – Locked
mode2 S-AF – – Locked – Locked
mode3 – Locked – – S-AF –
C-AF
mode1 C-AF start Locked Locked – – Locked
mode2 C-AF start – Locked Locked – Locked
mode3 – Locked Locked – C-AF start –
mode4 – – Locked Locked C-AF start –
MF
mode1 – Locked – – – Locked
mode2 – – – Locked – Locked
mode3 – Locked – – S-AF –
MF Assist
MENU G a [MF Assist]
This is a focus assist function for MF. When the focus ring is rotated, the edge of the
subject is enhanced or a portion of the screen display is magnifi ed. When you stop
operating the focus ring, the screen returns to the original display.
Magnify Magnifi es a portion of the screen. The portion to be magnifi ed can be
set in advance using AF target. g “Setting the AF target” (P. 61)
Peaking Displays clearly defi ned outlines with edge enhancement. You can
choose the color of the outlines. g [Peaking Color] (P. 110)
• When Peaking is in use, the edges of small subjects tend to be enhanced more strongly.
This is no guarantee of accurate focusing.
$ Notes
• [Peaking] can be displayed using button operations. The display is switched every time
the button is pressed. Assign the switching function to one of the buttons in advance using
Button Function (P. 85).
Menu functions (Custom menus)
4
116
EN
Adding information displays
MENU G N [ G /Info Settings]
q Info (Playback information displays)
Use [q Info] to add the following playback information displays. The added displays are
displayed by repeatedly pressing the INFO button during playback. You can also choose to
not show displays that appear at the default setting.
Highlight & Shadow display Light box displayHistogram display
15
16
1x
Shadow
Highlight
15
Wi-Fi
15
Wi-Fi
• The Highlight & Shadow display shows overexposed areas in red, underexposed areas in
blue.
• Use the light box display to compare two images side-by-side. Press the Q button to
switch from one picture to the other.
• The base image is displayed on the right. Use the front dial to select an image and press
the Q to move the image to the left. The image to be compared to the image on the left
can be selected on the right. To choose a different base image, highlight the right frame
and press the Q.
• To change the zoom ratio, turn the rear dial. Press the Fn1 button and then FGHI to
scroll the zoomed-in area, and rotate the front dial to select between images.
2x
2x
53 54
2x
Fn1 Fn1 Fn1
LV-Info (Shooting information displays)
The histogram, Highlight & Shadow, and level gauge displays can be added to [LV-Info].
Choose [Custom 1] or [Custom 2] and select the displays you wish to add.
The added displays
are displayed by repeatedly pressing the
INFO
button during shooting.
You can also choose to
not show displays that appear at the default setting.
Menu functions (Custom menus)
4
117
EN
G Settings ( Index/ calendar display)
You can change the number of frames to be displayed on the index display and set to not
display the screens that are set to be displayed by default with [G Settings]. Screens with a
check can be selected on the playback screen using the rear dial.
12:30:00 202017.10.01
2012:30:002017.10.01
12:30:00 20
2017.10.01
20
100-0020
L
N
Wi-Fi
12:30:002017.10.01
4
:
3
My Clips
1
MOV11:24 FHD 30p
12:30:002017.10.01
2017.10
Sun Mon Tue Wed Thu Fri Sat
7
14131211109
8
21201918
171615
28272625242322
2
1
31
30
29
30292827262524
6
1 2
3
4
5
Q
Q
q
p
Index display
q
p
q
p
4 frames 9, 25, or 100
frames
Single-frame
playback
My Clips playback*Calendar display
q
p
* If one or more My Clips have been created, it will be displayed here (P. 56).
Menu functions (Custom menus)
4
118
EN
Viewing camera images on TV
MENU G O [ HDMI]
Use the separately sold cable with the camera to playback recorded images on your
TV. This function is available during shooting. Connect the camera to an HD TV using
an HDMI cable to view high-quality images on a TV screen.
Type A
HDMI cable
(Connect to the HDMI connector on
the TV.)
HDMI micro connector
Connect the TV and camera and switch the input source of the TV.
• The camera monitor turns off when an HDMI cable is connected.
• For details on changing the input source of the TV, refer to the TV’s instruction manual.
• Depending on the TV’s settings, the displayed images and information may become
cropped.
• If the camera is connected via an HDMI cable, you will be able to choose the digital video
signal type. Choose a format that matches the input format selected with the TV.
4K Priority is given to 4K HDMI output.
1080p Priority is given to 1080p HDMI output.
720p Priority is given to 720p HDMI output.
480p/576p 480p/576p HDMI output.
• Do not connect the camera to other HDMI output devices. Doing so may damage the
camera.
• HDMI output is not performed while connected via USB to a computer or printer.
• When [4K] is selected, video output in shooting mode is [1080p].
Using the TV remote control
The camera can be operated by a TV remote control when connected to a TV that
supports HDMI control. Select [On] for [HDMI Control]. When [On] is selected,
camera controls can be used for playback only.
• You can operate the camera by following the operation guide displayed on the TV.
• During single-frame playback, you can display or hide the information display by
pressing the “Red” button, and display or hide the index display by pressing the
“Green” button.
• Some televisions may not support all features.
Menu functions (Custom menus)
4
119
EN
Shutter speeds when the fl ash fi res
MENU G b [ # X-Sync.]/[ # Slow Limit]
You can set shutter speed conditions for when the fl ash fi res.
Shooting
mode
Flash fi ring shutter speed Upper limit Lower limit
P
The camera automatically sets the
shutter speed.
[# X-Sync.]
setting*
1
[# Slow Limit]
setting*
2
A
S
The set shutter speed No lower limit
M
*1 1/200 seconds when using a separately sold external fl ash.
*2 Extends up to 60 seconds when slow synchronization is set.
Combinations of JPEG image sizes and compression rates
MENU G W [K Set]
You can set the JPEG image quality by combining image size and compression rate.
Image size Compression rate
Application
Name Pixel Count
SF
(Super Fine)
F
(Fine)
N
(Normal)
B
(Basic)
Y(Large)
4608×3456
YSF
Y
F
Y
N YB
Select for the
print size
X
(Middle)
3200×2400
XSF XF
X
N XB
W
(Small)
1280×960
WSF WF
W
N WB
For small prints
and use on a
website
Connecting the camera to a smartphone
5
120
EN
5
By connecting to a smartphone through this camera’s wireless LAN function and using
the specifi ed app, you can enjoy even more features during and after shooting.
Things you can do with the specifi ed app, OLYMPUS Image Share ( OI.Share)
• Camera image transfer to a smartphone
You can load images in the camera to a smartphone.
• Remote shooting from a smartphone
You can remotely operate the camera and shoot using a smartphone.
• Beautiful image processing
You can apply art fi lters and add stamps on images loaded to a smartphone.
• Addition of GPS tags to camera images
You can add GPS tags to images simply by transferring the GPS log saved on the
smartphone to the camera.
For details, visit the address below:
http://app.olympus-imaging.com/oishare/
• Before using the wireless LAN function, read “Using the wireless LAN function” (P. 158).
• If using the wireless LAN function in a country outside the region where the camera was
purchased, there is a risk that the camera will not conform to the wireless communication
regulations of that country. Olympus will not be held responsible for any failure to meet
such regulations.
• As with any wireless communication, there is always a risk of interception by a third party.
• The wireless LAN function on the camera cannot be used to connect to a home or public
access point.
• The transmitting antenna is located inside the grip. Keep the antenna away from metal
objects whenever possible.
• During wireless LAN connection, the battery will run down faster. If the battery is running
low, the connection may be lost during a transfer.
• Connection may be diffi cult or slow in proximity to devices that generate magnetic fi elds,
static electricity or radio waves, such as near microwaves, cordless telephone.
Connecting the camera to a
smartphone
Connecting the camera to a smartphone
5
121
EN
Connecting to a smartphone
Connect to a smartphone. Start the OI.Share App installed on your smartphone.
1
Select [Connection to Smartphone] in the q Playback Menu and press the
Q button.
• You can also connect by tapping w in the monitor.
2
Following the guide displayed on the monitor, proceed with the Wi-Fi settings.
• The SSID, password and QR code are displayed on the monitor.
QR code
SSID
Password
Preparing Wi-Fi Connection
Connecting to your
smartphone.
Read QR code by
'OLYMPUS Image Share'.
3/3
SSID :
X-XXXXX-X-XXXXXXXX
Password : 00000000
End Wi-Fi
3
Start OI.Share on your smartphone, and read the QR code displayed on the
camera monitor.
• Connection will be performed automatically.
• Some smartphones will need to be confi gured manually after reading the QR code.
If the smartphone is connected to another Wi-Fi network or device, you may need to
change the network selected in the smartphone’s Setting app to the camera SSID.
• If you are unable to read the QR code, enter the SSID and password in the Wi-Fi
settings of your smartphone to connect. For how to access the Wi-Fi settings on your
smartphone, please see your smartphone operating instructions.
4
To end the connection, press MENU on the camera or tap [End Wi-Fi] on the
monitor screen.
• You can also end the connection with OI.Share or by turning off your camera.
Connecting the camera to a smartphone
5
122
EN
Transferring images to a smartphone
You can select images in the camera and load them to a smartphone. You can also
use the camera to select images you want to share in advance. g “Setting a transfer
order on images (Share Order)” (P. 94)
1
Connect the camera to a smartphone
(P. 121).
• You can also connect by tapping w in the
monitor.
250250 F5.6
Wi-Fi
1023
1:02:03
S-IS ONS-IS ON
ISO-A
200
2
Launch OI.Share and tap the Image Transfer button.
• The images in the camera are displayed in a list.
3
Select the pictures you want to transfer and tap the Save button.
• When saving is completed, you can turn off the camera from the smartphone.
Shooting remotely with a smartphone
You can shoot remotely by operating the camera with a smartphone.
This is available only in [Private] (P. 123).
1
Start [Connection to Smartphone] on the camera.
• You can also connect by tapping w in the monitor.
2
Launch OI.Share and tap the Remote button.
3
Tap the shutter button to shoot.
• The image taken is saved on the memory card in the camera.
• Available shooting options are partially limited.
Connecting the camera to a smartphone
5
123
EN
Adding position information to images
You can add GPS tags to images that were taken while the GPS log was saving by
transferring the GPS log saved on the smartphone to the camera.
This is available only in [Private].
1
Before beginning to shoot, launch OI.Share and turn on the switch on the Add
Location button to begin saving the GPS log.
• Before beginning to save the GPS log, the camera must be connected to OI.Share
once to synchronize the time.
• You can use the phone or other apps while the GPS log is saving. Do not terminate
OI.Share.
2
When shooting is complete, turn off the switch on the Add Location button.
Saving the GPS log is complete.
3
Start [Connection to Smartphone] on the camera.
• You can also connect by tapping w in the monitor.
4
Transfer the saved GPS log to the camera using OI.Share.
• GPS tags are added to the images in the memory card based on the transferred GPS
log.
• g is displayed on images to which position information has been added.
• Addition of location information can only be used with smartphones that have a GPS
function.
• Position information cannot be added to movies.
Changing the connection method
There are two ways to connect to a smartphone. With [Private] the same settings are
used to connect every time. With [One-Time] different settings are used each time. You
may fi nd it convenient to use [Private] when connecting to your own smartphone and
[One-Time] when transferring images to a friend’s smartphone etc.
The default setting is [Private].
1
Select [ Wi-Fi Settings] in the d Setup Menu and press the Q button.
2
Select [Wi-Fi Connect Settings] and press I.
3
Select the wireless LAN connection method and press the Q button.
• [Private]: Connect to one smartphone (connects automatically using the settings after
the initial connection). All OI.Share functions are available.
• [One-Time]: Connect to multiple smartphones (connects using different connection
settings each time). Only OI.Share’s image transfer function is available. You can
view only images that are set for share order using the camera.
• [Select]: Select which method to use each time.
• [Off]: The Wi-Fi function is turned off.
Connecting the camera to a smartphone
5
124
EN
Changing the password
Change the password used for [Private].
1
Select [Wi-Fi Settings] in the d Setup Menu and press the Q button.
2
Select [Private Password] and press I.
3
Follow the operation guide and press the R button.
• A new password will be set.
Cancelling a share order
Cancel share orders that are set on images.
1
Select [Wi-Fi Settings] in the d Setup Menu and press the Q button.
2
Select [Reset share Order] and press I.
3
Select [Yes] and press the Q button.
Initializing wireless LAN settings
Initializes content of [Wi-Fi Connect Settings].
1
Select [Wi-Fi Settings] in the d Setup Menu and press the Q button.
2
Select [Reset Wi-Fi Settings] and press I.
3
Select [Yes] and press the Q button.
Connecting the camera to a computer and a printer
6
125
EN
6
Connecting the camera to a computer
Micro-USB connector
Smaller terminal
USB cable USB port
• When the camera is turned on, a dialog should be displayed in the monitor prompting you
to choose a host. If it is not, select [Auto] for [USB Mode] (P. 110) in the camera custom
menus.
• If nothing is displayed on the camera screen even after connecting the camera to the
computer, the battery may be exhausted. Use a full-charged battery.
Copying pictures to a computer
The following operating systems are compatible with the USB connection:
Windows: Windows 7 SP1/Windows 8/Windows 8.1/Windows 10
Mac: OS X v10.8-v10.11/macOS v10.12
1
Turn the camera off and connect it to the computer.
• The location of the USB port varies with the computer. For details, refer to your
computer’s manual.
2
Turn on the camera.
• The selection screen for the USB connection is
displayed.
3
Press FG to select [ Storage]. Press the Q
button.
Storage
Exit
Print
MTP
USB
Set
Connecting the camera to a computer
and a printer
Connecting the camera to a computer and a printer
6
126
EN
4
The computer recognizes the camera as a new device.
• If you are using Windows Photo Gallery, choose [MTP] in Step 3.
• Data transfer is not guaranteed in the following environments, even if your computer is
equipped with a USB port.
Computers with a USB port added by means of an extension card, etc., computers
without a factory-installed OS, or home-built computers
• Camera controls cannot be used while the camera is connected to a computer.
• If the dialog shown in Step 2 is not displayed when the camera is connected to a
computer, select [Auto] for [USB Mode] (P. 110) in the camera custom menus.
Installing the PC software
The photographs and movies you have shot with your camera can be transferred to a
computer and viewed, edited, and organized using the OLYMPUS Viewer 3 offered by
OLYMPUS.
• To install OLYMPUS Viewer 3, download it from http://support.olympus-imaging.com/
ov3download/ and follow the on-screen instructions.
• Visit the website above for system requirements and installation instructions.
• You will be required to enter the product serial number prior to download.
Installing the OLYMPUS Digital Camera Updater
Camera fi rmware updates can only be performed using the OLYMPUS Digital Camera
Updater. Download the updater from the website below and install it according to the
on-screen instructions.
http://oup.olympus-imaging.com/ou1download/index/
User Registration
Visit the OLYMPUS website for information on registering your OLYMPUS products.
Connecting the camera to a computer and a printer
6
127
EN
Direct printing ( PictBridge)
By connecting the camera to a PictBridge-compatible printer with the USB cable, you
can print out recorded pictures directly.
1
Connect the camera to the printer using the supplied USB cable and turn the
camera on.
Micro-USB connector
Smaller terminal
USB cable USB port
• Use a fully charged battery for printing.
• When the camera is turned on, a dialog should be displayed in the monitor prompting
you to choose a host. If it is not, select [Auto] for [USB Mode] (P. 110) in the camera
custom menus.
2
Use FG to select [Print].
• [One Moment] will be displayed, followed by a print-
mode selection dialog.
• If the screen is not displayed after a few minutes,
disconnect the USB cable and start again from Step 1.
Storage
Exit
Print
MTP
USB
Set
Proceed to “Custom printing” (P. 128)
• RAW images and movies cannot be printed.
Connecting the camera to a computer and a printer
6
128
EN
Easy printing
Use the camera to display the picture you wish to print before connecting the printer
via the USB cable.
1
Use HI to display the pictures you want to print
on the camera.
2
Press I.
• The picture selection screen appears when printing is
completed. To print another picture, use HI to select
the image and press the Q button.
PC/Custom Print
Easy Print Start
• To exit, unplug the USB cable from the camera while the picture selection screen is
displayed.
Custom printing
1
Connect the camera to the printer using the supplied USB cable and turn the
camera on.
• When the camera is turned on, a dialog should be displayed in the monitor prompting
you to choose a host. If it is not, select [Auto] for [USB Mode] (P. 110) in the camera
custom menus.
2
Follow the operation guide to set a print option.
Selecting the print mode
Select the type of printing (print mode). The available print modes are as shown below.
Print Prints selected pictures.
All Print
Prints all the pictures stored in the card and makes one print for
each picture.
Multi Print
Prints multiple copies of one image in separate frames on a single
sheet.
All Index Prints an index of all the pictures stored in the card.
Print Order
Prints according to the print reservation you made. If there is no
picture with print reservation, this is not available.
Setting the print paper items
This setting varies with the type of printer. If only the printer’s STANDARD setting is
available, you cannot change the setting.
Size Sets the paper size that the printer supports.
Borderless
Selects whether the picture is printed on the entire page or inside a
blank frame.
Pics/Sheet
Selects the number of pictures per sheet. Displayed when you have
selected [Multi Print].
Connecting the camera to a computer and a printer
6
129
EN
Selecting pictures you want to print
Select pictures you want to print. The selected pictures can
be printed later (single-frame reservation) or the picture
you are displaying can be printed right away.
15
123-3456
12:30:002017.10.01
More
Print
Single Print
Select
Print f
Prints the currently displayed picture. If there is a picture that [Single
Print C] reservation has already been applied to, only that reserved
picture will be printed.
Single Print C
Applies print reservation to the currently displayed picture. If you
want to apply reservation to other pictures after applying [Single
Print C], use HI to select them.
More E
Sets the number of prints and other items for the currently displayed
picture, and whether or not to print it. For operation, refer to “Setting
printing data” in the next section.
Setting printing data
Select whether to print printing data such as the date and time or fi le name on the picture
when printing. When the print mode is set to [All Print], select [Option Set].
<×
Sets the number of prints.
Date Prints the date and time recorded on the picture.
File Name Prints the fi le name recorded on the picture.
P
Trims the picture for printing. Use the front dial (r) to choose the
crop size and FGHI to specify the crop position.
3
Once you have set the pictures for printing and printing data, select [Print],
then press the Q button.
• To stop and cancel printing, press the Q button. To resume printing, select
[Continue].
Cancelling printing
To cancel printing, highlight [Cancel] and press the Q button. Note that any changes to the
print order will be lost; to cancel printing and return to the previous step, where you can make
changes to the current print order, press MENU.
Connecting the camera to a computer and a printer
6
130
EN
Print order ( DPOF)
You can save digital “print orders” to the memory card listing the pictures to be printed
and the number of copies of each print. You can then have the pictures printed at a
print shop that supports DPOF or print the pictures yourself by connecting the camera
directly to a DPOF printer. A memory card is required when creating a print order.
Creating a print order
1
Press the Q button during playback and select [< (Print Order)].
2
Select [<] or [<ALL] and press the Q button.
Individual picture
Press HI to select the frame that you want to set as print
reservation, then press FG to set the number of prints.
• To set print reservation for several pictures, repeat this
step. Press the Q button when all the desired pictures
have been selected.
All pictures
Select [<ALL] and press the Q button.
<
Print Order
Back Set
ALL
3
Select the date and time format and press the Q
button.
No
The pictures are printed without the date and
time.
Date
The pictures are printed with the shooting
date.
Time
The pictures are printed with the shooting
time.
• When printing images, the setting cannot be changed
between the images.
No
Date
Time
X
Back Set
4
Select [Set] and press the Q button.
• The camera cannot be used to modify print orders created with other devices. Creating a
new print order deletes any existing print orders created with other devices.
• Print orders cannot include RAW images or movies.
Connecting the camera to a computer and a printer
6
131
EN
Removing all or selected pictures from the print order
You can reset all print reservation data or just the data for selected pictures.
1
Press the Q button during playback and select [< (Print Order)].
2
Select [<] and press the Q button.
• To remove all pictures from the print order, select [Reset] and press the Q button. To
exit without removing all pictures, select [Keep] and press the Q button.
3
Press HI to select images you wish to remove from the print order.
• Use G to set the number of prints to 0. Press the Q button once you have removed
all the desired pictures from the print order.
4
Select the date and time format and press the Q button.
• This setting is applied to all frames with print reservation data.
5
Select [Set] and press the Q button.
Cautions
7
132
EN
7
Battery and charger
• The camera uses a single Olympus lithium-ion battery. Never use any battery other than
genuine OLYMPUS batteries.
• The camera’s power consumption varies widely with usage and other conditions.
• As the following consume a lot of power even without shooting, the battery will be drained
quickly.
• Performing auto focus repeatedly by pressing the shutter button halfway in shooting
mode.
• Displaying images on the monitor for a prolonged period.
• When connected to a computer or printer.
• When using a drained battery, the camera may turn off without the low battery warning
being displayed.
• The battery will not be fully charged at the time of purchase. Charge the battery using the
provided charger before use.
• The normal charging time using the provided charger is approximately 3 hours 30 minutes
(estimated).
• Do not attempt to use chargers not specifi cally designated for use with the supplied
battery, or to use batteries not specifi cally designated for use with the supplied charger.
• There is a risk of explosion if the battery is replaced with the incorrect battery type.
• Dispose of the used battery following the instructions “CAUTION” (P. 157) in the
instruction manual.
Cautions
Cautions
7
133
EN
Using your charger abroad
• The charger can be used in most home electrical sources within the range of 100 V to
240 V AC (50/60 Hz) around the world. However, depending on the country or area you
are in, the AC wall outlet may be shaped differently and the charger may require a plug
adapter to match the wall outlet.
• Do not use commercially available travel adapters as the charger may malfunction.
Usable cards
In this manual, all storage devices are referred to as “cards.” The
following types of SD memory card (commercially available) can be
used with this camera: SD, SDHC, SDXC, and Eye-Fi. For the latest
information, please visit the Olympus website.
SD card write protect switch
The SD card body has a write protect switch. Setting the switch to
“LOCK” prevents data being written to the card. Return the switch to
the unlock position enable writing.
LOCK
• The data in the card will not be erased completely even after formatting the card or
deleting the data. When discarding, destroy the card to prevent leakage of personal
information.
• Use the Eye-Fi card in compliance with the laws and regulations of the country where the
camera is used. Remove the Eye-Fi card from the camera or disable the card functions in
airplanes and other locations where use is prohibited. g [Eye-Fi] (P. 114)
• The Eye-Fi card may become hot during use.
• When using an Eye-Fi card, the battery may run out faster.
• When using an Eye-Fi card, the camera may function more slowly.
• Using an Eye-Fi card may interfere with clip recording. Please turn off the card function in
this case.
Cautions
7
134
EN
Record mode and fi le size/ number of storable still pictures
The fi le size in the table is approximate for fi les with a 4:3 aspect ratio.
Record mode
Image size
( Pixel Count)
Compression
File
format
File size (MB)
Number of
storable still
pictures*
RAW
4608×3456
Loss-less
compression
ORF Approx. 17.3 426
YSF
1/2.7
JPEG
Approx. 10.8 663
YF
1/4 Approx. 7.5 972
YN
1/8 Approx. 3.5 1891
YB
1/12 Approx. 2.4 2741
XSF
3200×2400
1/2.7 Approx. 5.6 1348
XF
1/4 Approx. 3.4 1951
XN
1/8 Approx. 1.7 3696
XB
1/12 Approx. 1.2 5191
WSF
1280×960
1/2.7 Approx. 0.9 6777
WF
1/4 Approx. 0.6 9036
WN
1/8 Approx. 0.4 14352
WB
1/12 Approx. 0.3 17428
* Assumes a 8GB SD card.
• The number of storable still pictures may change according to the subject, whether or not
print reservations have been made, and other factors. In certain instances, the number
of storable still pictures displayed on the monitor will not change even when you take
pictures or erase stored images.
• The actual fi le size varies according to the subject.
• The maximum number of storable still pictures displayed on the monitor is 9999.
• For the available recording time for movies, see the Olympus website.
Cautions
7
135
EN
Interchangeable lenses
Choose a lens according to the scene and your creative intent. Use
lenses designed exclusively for the Micro Four Thirds system and
bearing the M.ZUIKO DIGITAL label or the symbol shown at right.
With an adapter, you can also use Four Thirds System and OM System
lenses. The optional adapter is required.
• When you attach or remove the body cap and lens from the camera, keep the lens mount
on the camera pointed downward. This helps prevent dust and other foreign matter from
getting inside the camera.
• Do not remove the body cap or attach the lens in dusty places.
• Do not point the lens attached to the camera toward the sun. This may cause the camera
to malfunction or even ignite due to the magnifying effect of sunlight focusing through the
lens.
• Be careful not to lose the body cap and rear cap.
• Attach the body cap to the camera to prevent dust from getting inside when no lens is
attached.
Lens and camera combinations
Lens Camera Attachment AF Metering
Micro Four Thirds system
lens
Micro Four Thirds system
camera
Yes Yes Yes
Four Thirds system lens
Attachment
possible
with mount
adapter
Yes*
1
Yes
OM System lenses No Yes*
2
Micro Four Thirds system
lens
Four Thirds System
Camera
No No No
*1 AF is not operational when recording movies.
*2 Accurate metering is not possible.
Cautions
7
136
EN
External fl ash units designated for use with this camera
With this camera, you can use one of the separately sold external fl ash units to
achieve a fl ash suited to your needs. The external fl ashes communicate with the
camera, allowing you to control the camera’s fl ash modes with various available fl ash
control modes, such as TTL-AUTO and Super FP fl ash. An external fl ash unit specifi ed
for use with this camera can be mounted on the camera by attaching it to the camera’s
hot shoe. You can also attach the fl ash to the fl ash bracket on the camera using the
bracket cable (optional). Refer to the documentation provided with the external fl ash
units as well.
The upper limit of the shutter speed is 1/200 sec. when using a fl ash.
Functions available with external fl ash units
Optional fl ash Flash control mode GN (Guide number) (ISO100)
FL-900R
TTL-AUTO, AUTO, MANUAL,
FP TTL AUTO, FP MANUAL,
MULTI, RC, SL AUTO, SL MANUAL
GN58 (200 mm*
1
)
FL-600R
TTL-AUTO, AUTO, MANUAL,
FP TTL AUTO, FP MANUAL
GN36 (85 mm*
1
) GN20 (24 mm*
1
)
FL-300R TTL-AUTO, MANUAL GN20 (28 mm*
1
)
FL-14 TTL-AUTO, AUTO, MANUAL GN14 (28 mm*
1
)
STF-8 TTL-AUTO, MANUAL GN8.5
*1 The focal length of the lens that can be used (Calculated based on 35 mm fi lm camera).
Cautions
7
137
EN
Other external fl ash units
Note the following when using a third-party fl ash unit mounted on the camera hot shoe:
• Using obsolete fl ash units that apply currents of more than about 250 V to the X-contact
will damage the camera.
• Connecting fl ash units with signal contacts that do not conform to Olympus specifi cations
may damage the camera.
• Set the Shooting mode to M, set the shutter speed to a value no higher than fl ash
synchronous speed, and set ISO sensitivity to a setting other than [AUTO].
• Flash control can only be performed by manually setting the fl ash to the ISO sensitivity
and aperture values selected with the camera. Flash brightness can be adjusted by
adjusting either ISO sensitivity or aperture.
• Use a fl ash with an angle of illumination suited to the lens. Angle of illumination is usually
expressed using 35-mm format equivalent focal lengths.
Principal Accessories
Converter lenses
Converter lenses attach to the camera lens for quick and easy fi sh-eye or macro
photography. See the OLYMPUS website for information on the lenses that can be
used.
Eyecup (EP-16)
You can switch to a large-size eyecup.
Removal
1
2
Cautions
7
138
EN
*1 Not all lenses can be used with adapter. For details, refer to the Olympus Official Web Site. Also, please
note that manufacture of OM System Lenses has been discontinued.
*2 For compatible lens, refer to the Olympus Official Web Site.
*3 Use the Eye-Fi card in compliance with the laws and regulations of the country where the camera is used.
Viewfinder
EP-16
Eyecup
System chart
SD/SDHC/
SDXC/Eye-Fi
Memory Card
*3
Lighting
Device
EE-1
Lighting Device
Case / Strap
Shoulder Strap /
Camera Case /
Body Jacket
Connection
Cable
USB Cable /
HDMI Cable
For the latest information, please visit the Olympus website.
: E-M10 Mark III compatible products
: Commercially available products
Power Supply
BLS-50
Lithium-ion battery
BCS-5
Lithium-ion Charger
Software
OLYMPUS Viewer 3
Digital Photo Managing Software
OLYMPUS Image Share (OI.Share)
Smartphone App
Cautions
7
139
EN
Lens
Flash
MMF-2/MMF-3
*1
Four Thirds Adapter
Four Thirds System Lenses
M.ZUIKO DIGITAL ED 8mm f1.8 Fisheye PRO
M.ZUIKO DIGITAL ED 12mm f2.0
M.ZUIKO DIGITAL 17mm f1.8
M.ZUIKO DIGITAL 17mm f2.8
M.ZUIKO DIGITAL 25mm f1.8
M.ZUIKO DIGITAL 45mm f1.8
M.ZUIKO DIGITAL ED 25mm f1.2 PRO
M.ZUIKO DIGITAL ED 30mm f3.5 Macro
M.ZUIKO DIGITAL ED 60mm f2.8 Macro
M.ZUIKO DIGITAL ED 75mm f1.8
M.ZUIKO DIGITAL ED 7-14mm f2.8 PRO
M.ZUIKO DIGITAL ED 9-18mm f4.0-5.6
M.ZUIKO DIGITAL ED 12-40mm f2.8 PRO
M.ZUIKO DIGITAL ED 12-50mm f3.5-6.3 EZ
M.ZUIKO DIGITAL ED 12-100mm f4.0 IS PRO
M.ZUIKO DIGITAL ED 14-42mm f3.5-5.6 EZ
M.ZUIKO DIGITAL 14-42mm f3.5-5.6 II R
M.ZUIKO DIGITAL ED 14-150mm f4.0-5.6 II
M.ZUIKO DIGITAL ED 40-150mm f4.0-5.6 R
M.ZUIKO DIGITAL ED 40-150mm f2.8 PRO
M.ZUIKO DIGITAL ED 75-300mm f4.8-6.7 II
M.ZUIKO DIGITAL ED 300mm f4.0 IS PRO
Converter
Lens*
2
FCON-P01
Fisheye
WCON-P01
Wide
MCON-P01
Macro
MCON-P02
Macro
MC-14
Teleconverter
FL-14
Electronic Flash
FL-900R
Electronic Flash
FL-300R
Electronic Flash
FL-600R
Electronic Flash
STF-8
Macro Flash
MF-2
*1
OM Adapter 2
OM System Lenses
BCL-1580/BCL-0980
Body Cap Lens
Cautions
7
140
EN
Cleaning and storing the camera
Cleaning the camera
Turn off the camera and remove the battery before cleaning the camera.
• Do not use strong solvents such as benzene or alcohol, or a chemically treated cloth.
Exterior:
• Wipe gently with a soft cloth. If the camera is very dirty, soak the cloth in mild soapy water
and wring well. Wipe the camera with the damp cloth and then dry it with a dry cloth. If you
have used the camera at the beach, use a cloth soaked in clean water and well wrung.
Monitor:
• Wipe gently with a soft cloth.
Lens:
• Blow dust off the lens with a commercially available blower. For the lens, wipe gently with
a lens cleaning paper.
Storage
• When not using the camera for a prolonged period, remove the battery and card. Store
the camera in a cool, dry place that is well ventilated.
• Insert the battery periodically and test the camera’s functions.
• Remove dust and other foreign matter from the body and rear caps before attaching them.
• Attach the body cap to the camera to prevent dust from getting inside when no lens is
attached. Be sure to replace the front and rear lens caps before putting the lens away.
• Clean the camera after use.
• Do not store with insect repellent.
• Avoid storing the camera in places where chemicals are treated, in order to protect the
camera from corrosion.
• Mold may form on the lens surface if the lens is left dirty.
• Check each part of the camera before use if it has not been used for a long time. Before
taking important pictures, be sure to take a test shot and check that the camera works
properly.
Cleaning and checking the image pickup device
This camera incorporates a dust reduction function to keep dust from getting on the
image pickup device and to remove any dust or dirt from the image pickup device
surface with ultrasonic vibrations. The dust reduction function operates when the
camera is turned on.
The dust reduction function operates at the same time as the pixel mapping, which
checks the image pickup device and image processing circuitry. Since dust reduction
is activated every time the camera’s power is turned on, the camera should be held
upright for the dust reduction function to be effective.
Cautions
7
141
EN
Pixel Mapping - Checking the image processing functions
The pixel mapping feature allows the camera to check and adjust the image pickup
device and image processing functions. Before using the pixel mapping function to
ensure that it operates correctly, wait for 1 minute or longer immediately after shooting
or playback.
1
In Custom Menu a, select [Pixel Mapping] (P. 114).
2
Press I, then press the Q button.
• The [Busy] bar is displayed when pixel mapping is in progress. When pixel mapping
is fi nished, the menu is restored.
• If you accidentally turn the camera off during pixel mapping, start again from Step 1.
Information
8
142
EN
8
Shooting tips and information
The camera does not turn on even when a battery is loaded
The battery is not fully charged
• Charge the battery with the charger.
The battery is temporarily unable to function because of the cold
• Battery performance drops at low temperatures. Remove the battery and warm it by
putting it in your pocket for a while.
No picture is taken when the shutter button is pressed
The camera has turned off automatically
• The camera automatically enters sleep mode to reduce the drain on the battery if no
operations are performed for a set period of time. g [Sleep] (P. 114)
Press the shutter button halfway to exit the sleep mode.
The camera will turn off automatically if no operations are performed for an additional
4 hours.
The fl ash is charging
• On the monitor, the # mark blinks when charging is in progress. Wait for the blinking to
stop, then press the shutter button.
Unable to focus
• The camera cannot focus on subjects that are too close to the camera or that are not
suited to autofocus (the AF confi rmation mark will blink in the monitor). Increase the
distance to the subject or focus on a high contrast object at the same distance from the
camera as your main subject, compose the shot, and shoot.
Subjects that are diffi cult to focus on
It may be diffi cult to focus with auto focus in the following situations.
Subject with low
contrast
Excessively bright
light in center of frame
Subject containing
no vertical lines
AF confi rmation
mark is blinking.
These subjects
are not focused.
Subjects at different
distances
Fast-moving subject Subject not inside
AF area
AF confi rmation
mark lights up but
the subject is not
focused.
Information
Information
8
143
EN
Noise reduction is activated
• When shooting night scenes, shutter speeds are slower and noise tends to appear in
images. The camera activates the noise-reduction process after shooting at slow shutter
speeds. During which, shooting is not allowed. You can set [Noise Reduct.] to [Off].
g [Noise Reduct.] (P. 111)
The number of AF targets is reduced
The size and number of the AF targets changes with the aspect ratio (P. 73), the AF target
mode (P. 61), and the option selected for [Digital Tele-converter] (P. 99).
The date and time has not been set
The camera is used with the settings at the time of purchase
• The date and time of the camera is not set when purchased. Set the date and time before
using the camera. g “Setting the date/time” (P. 19)
The battery has been removed from the camera
• The date and time settings will be returned to the factory default settings if the camera is
left without the battery for approximately 1 day. The settings will be canceled more quickly
if the battery was only loaded in the camera for a short time before being removed. Before
taking important pictures, check that the date and time settings are correct.
Set functions are restored to their factory default settings
When you rotate the mode dial or turn off the power in a shooting mode other than P, A,
S, or M, functions with changes made to their settings are restored to the factory default
settings.
Image taken appears whitish
This may occur when the picture is taken in backlight or semi-backlight conditions. This is
due to a phenomenon called fl are or ghosting. As far as possible, consider a composition
where strong light source is not taken in the picture. Flare may occur even when a light
source is not present in the picture. Use a lens hood to shade the lens from the light
source. If a lens hood does not have effect, use your hand to shade the lens from the light.
g “Interchangeable lenses” (P. 135)
Unknown bright dot(s) appear on the subject in the picture taken
This may be due to stuck pixel(s) on the image pickup device. Perform [Pixel Mapping].
If the problem persists, repeat pixel mapping a few times. g “Pixel Mapping - Checking the
image processing functions” (P. 141)
Information
8
144
EN
The subject appears distorted
The following functions use an electronic shutter:
movie recording (P. 52)/the SCN mode “silent” (P. 29) and “multi-focus shot” (P. 29)
options/the Z mode “silent” (P. 37) and “focus bracketing” (P. 41) options
This may cause distortion if the subject is moving rapidly or the camera is moved abruptly.
Avoid moving the camera abruptly during shooting or use standard sequential shooting.
Lines appear in photographs
The following functions use an electronic shutter, which may result in lines due to fl icker and
other phenomena associated with fl uorescent and LED lighting, an effect that can sometimes
be reduced by choosing slower shutter speeds:
movie recording (P. 52)/the SCN mode “silent” (P. 29) and “multi-focus shot” (P. 29)
options/the Z mode “silent” (P. 37) and “focus bracketing” (P. 41) options
I want to turn the eye sensor off
Press the u button and select [Off] for [EVF Auto Switch]. g “Switching between
displays” (P. 22), [EVF Auto Switch] (P. 114)
The monitor or EVF will not turn on
Hold the u button to cycle through the displays.
[EVF Auto Switch] may be off. Hold the u button and select [On] for [EVF Auto Switch].
g “Switching between displays” (P. 22)
The camera is stuck in manual focus (MF) mode
Some lenses are equipped with a manual focus clutch that engages manual focus when the
focus ring is slid back. Check the lens. More information can be found in the lens manual.
Information
8
145
EN
Error codes
Monitor indication Possible cause Corrective action
No Card
The card is not inserted, or it
cannot be recognized.
Insert a card or insert a different
card.
Card Error
There is a problem with the card.
Insert the card again. If the
problem persists, format the card.
If the card cannot be formatted, it
cannot be used.
Write Protect
Writing to the card is prohibited.
The card write-protect switch is set
to the “LOCK” side. Release the
switch. (P. 133)
Card Full
• The card is full. No more
pictures can be taken or no
more information such as print
reservation can be recorded.
• There is no space in the card
and print reservation or new
images cannot be recorded.
Replace the card or erase
unwanted pictures.
Before erasing, download
important images to a PC.
Clean the contact area of
the card with a dry cloth.
Clean Card
Format
Card Setup
Set
Card cannot be read. Card may
not have been formatted.
• Select [Clean Card], press the
Q and turn off the camera.
Remove the card and wipe the
metallic surface with a soft, dry
cloth.
• Select [Format][Yes], and then
press the Q to format the card.
Formatting the card erases all
data on the card.
No Picture
There are no pictures on the
card.
The card contains no pictures.
Record pictures and play back.
Picture Error
The selected picture cannot be
displayed for playback due to
a problem with this picture. Or
the picture cannot be used for
playback on this camera.
Use image processing software to
view the picture on a PC.
If that cannot be done, the image
fi le is damaged.
The Image Cannot
Be Edited
Pictures taken with another
camera cannot be edited on this
camera.
Use image processing software to
edit the picture.
Information
8
146
EN
Monitor indication Possible cause Corrective action
m
The internal temperature of
the camera has risen due to
sequential shooting.
Turn off the camera and wait for
the internal temperature to cool.
Internal camera
temperature is too
high.
Please wait for
cooling before
camera use.
Wait a moment for the camera to
turn off automatically.
Allow the internal temperature
of the camera to cool before
resuming operations.
Battery Empty
The battery is drained. Charge the battery.
No Connection
The camera is not correctly
connected to a computer, printer,
HDMI display, or other device.
Reconnect the camera.
No Paper
There is no paper in the printer. Load some paper in the printer.
No Ink
The printer has run out of ink.
Replace the ink cartridge in the
printer.
Jammed
The paper is jammed. Remove the jammed paper.
Settings Changed
The printer’s paper cassette has
been removed or the printer has
been manipulated while making
settings on the camera.
Do not manipulate the printer
while making settings on the
camera.
Print Error
There is a problem with the
printer and/or camera.
Turn off camera and printer.
Check the printer and remedy any
problems before turning the power
on again.
Cannot Print
Pictures recorded on other
cameras may not be printed on
this camera.
Use a personal computer to print.
Information
8
147
EN
Monitor indication Possible cause Corrective action
The lens is locked.
Please extend the
lens.
The lens of the retractable lens
stays retracted.
Extend the lens.
Please check the
status of a lens.
An abnormality has occurred
between the camera and the
lens.
Turn off the camera, check the
connection with the lens, and turn
the power on again.
This lens is not
supported.
The lens does not support the
selected shooting mode.
Choose a lens that does or
choose a different shooting mode.
Information
8
148
EN
Defaults
*1: Default can be restored by selecting [Full] for [Reset].
*2: Default can be restored by selecting [Basic] for [Reset].
Button Functions/Live Control/LV Super Control
Function Default *1 *2
g
ISO AUTO
63
Sequential shooting/Self-timer
o
66
AF target settings
o
61
Flash photography
#
64
K AF mode
S-AF
72
n AF mode
C-AF
72
Aspect ratio 4:3
73
KK YN
73
nK (Standard)
1920×1080 Fine 60p
74
nK (4K)
3840×2160 30p ―― 75
nK (Clips)
1920×1080 Normal 60p 4s
75
nK (High-speed)
1280×720 HighSpeed
120fps
―― 75
Movie (exposure) mode
P
― 76
K
Shooting Menu
Tab Function Default *1 *2
g
W
Reset Basic ―― 98
Picture Mode
C Natural
69, 99
Digital Tele-converter Off
99
Metering
p
80
X
K Image Stabilizer
S-IS On
78
AF Illuminator On
99
K Elec. Zoom Speed
Normal
― 100
x
±0.0
77
Intrvl. Sh./Time Lapse Off
100
n Video Menu
Tab Function Default *1 *2
g
n
Movie R
On
102
Recording Volume ±0
― 102
n AF Mode
C-AF
102
n Image Stabilizer
M-IS
78
n Elec. Zoom Speed
Normal
― 102
Video Frame Rate 30p
― 74, 102
Video Bit Rate Fine
― 74, 102
Information
8
149
EN
q
Playback Menu
Tab Function Default *1 *2
g
q
y
Start ―――
92
BGM Happy Days
Slide All
Slide Interval 3 sec
―
Movie Interval Short
―
R
On
103
Edit
Sel. Image
RAW Data Edit ―
――
103
JPEG Edit ― 104
Movie Edit ―
105,
106
R
― 95, 104
Image Overlay ― 105
Print Order ―――130
Reset Protect ―――106
Connection to Smartphone ―――121
G Custom Menu
Tab Function Default *1 *2
g
G
AF/MF
a
AEL/AFL
S-AF mode1
109,
115
C-AF mode2
MF mode1
AF Targeting Pad Off
109
IFace Priority
K
― 62, 109
MF Assist
Magnify Off
―
109,
115
Peaking Off
―
Reset Lens On
109
Button/Dial
M
Button
Function
U Function
AEL/AFL
―
85, 109
V Function
Digital Tele-converter
―
Dial Function
P
Front dial: F
Rear dial: Ps
― 109
A
Front dial: F
Rear dial: FNo.
S
Front dial: F
Rear dial: Shutter
M
Front dial: FNo.
Rear dial: Shutter
Information
8
150
EN
Tab Function Default *1 *2
g
G
Disp/8/PC
N
K Control
Settings
B
LV-C
―
67, 110
P/A/S/M
LV-C
―
ART
LV-C
―
SCN/Z
LV-C
―
G/Info
Settings
q Info
Image Only, Overall
110,
116
LV-Info
Custom1 (u), Custom2
(Level Gauge)
―
G Settings
25, My Clips, Calendar
―
Live View Boost Off
110
Flicker reduction Auto
― 110
Displayed Grid Off
― 110
Peaking Color White
― 110
O 8
On
110
HDMI
Output Size 1080p
―
110,
118
HDMI Control Off
―
USB Mode Auto
110
Exp/ISO/BULB
P
Exposure Shift
p
±0
―
111
J
5
ISO-Auto Set
High Limit 6400
Default 200
Noise Filter Standard
111
Noise Reduct. Auto
111
Q
Bulb/Time Timer 8min
111
Live Bulb Off
― 111
Live Time 0.5 sec
― 111
Composite Settings 1 sec
― 50, 111
# Custom
b
#X-Sync.
1/250
1
12,
119
#Slow Limit
1/60
112,
119
w+F
Off
112
#+WB
W
― 112
Information
8
151
EN
Tab Function Default *1 *2
g
G
K/WB/Color
W
K Set
K1 YF, K2 YN,
K3 XN, K4 WN
112,
119
WB Auto
70, 112
W Keep Warm Color
On
112
Color Space sRGB
84, 112
Record
X
File Name Reset
― 113
Edit Filename ―
― 113
Copyright
Settings
Copyright Info. Off
―
113Artist Name ―――
Copyright Name ―――
EVF
c
EVF Auto Switch On
―
114,
144
EVF Adjust
EVF Auto
Luminance
On
― 114
EVF Adjust
j ±0, k ±0
K
Utility
a
Pixel Mapping ―――
114,
141
Level Adjust ―
― 114
Touchscreen Settings On
― 114
Sleep 1 min
18, 11
4
Eye-Fi
On
― 114
Certifi cation ―――114
d Setup Menu
Tab Function Default *1 *2
g
d
Card Setup ―――108
X
―――19
W
―――107
s
j ±0, k ±0, Natural
― 107
Rec View 0.5 sec
― 107
Wi-Fi Settings
Wi-Fi Connect
Settings
Private
―
123
Private Password ―――
Reset share Order ―――
124
Reset Wi-Fi Settings ―――
Firmware ―――107
Information
8
152
EN
Specifi cations
Camera
Product type
Product type Digital camera with interchangeable Micro Four Thirds Standard lens
system
Lens M.Zuiko Digital, Micro Four Thirds System Lens
Lens mount Micro Four Thirds mount
Equivalent focal length on
a 35 mm fi lm camera
Approx. twice the focal length of the lens
Image pickup device
Product type 4/3” Live MOS sensor
Total no. of pixels Approx. 17.20 million pixels
No. of effective pixels Approx. 16.05 million pixels
Screen size 17.3 mm (H) × 13.0 mm (V)
Aspect ratio 1.33 (4:3)
Viewfi nder
Type Electronic viewfi nder with eye sensor
No. of pixels Approx. 2.36 million dots
Magnifi cation 100%
Eye point Approx. 19.2 mm (–1 m
-1
)
Live view
Sensor Uses Live MOS sensor
Magnifi cation 100%
Monitor
Product type 3.0" TFT color LCD, Vari-angle, touch screen
Total no. of pixels Approx. 1.04 million dots (aspect ratio 3:2)
Shutter
Product type Computerized focal-plane shutter
Shutter speed 1/4000 - 60 sec., bulb photography, time photography
Auto focus
Product type Hi-Speed Imager AF
Focusing points 121 points
Selection of focusing point Auto, Optional
Exposure control
Metering system TTL metering system (imager metering)
Digital ESP metering/Center weighted averaging metering/Spot metering
Metered range EV –2 - 20 (Equivalent to M.ZUIKO DIGITAL 17mm f2.8, ISO100)
Shooting modes
B: AUTO/P: Program AE (Program shift can be performed)/
A: Aperture priority AE/S: Shutter priority AE/M: Manual/
n
: Movie/ART: Art Filter/SCN: Scene/Z: Advanced Photo
ISO sensitivity LOW, 200 - 25600 (1/3 EV step)
Exposure compensation ±5.0EV (1/3 EV step)
Information
8
153
EN
White balance
Product type Image pickup device
Mode setting Auto/Preset WB (6 settings)/Customized WB/One-touch WB (camera can
store up to 4 settings)
Recording
Memory SD, SDHC, SDXC and Eye-Fi
UHS-II compatible
Recording system Digital recording, JPEG (DCF2.0), RAW Data
Applicable standards Exif 2.3, Digital Print Order Format (DPOF), PictBridge
Sound with still pictures Wave format
Movie MPEG-4 AVC/H.264
Audio Stereo, PCM 48kHz
Playback
Display format Single-frame playback/Close-up playback/Index display/Calendar display
Drive
Drive mode Single-frame shooting/Sequential shooting/Self-timer
Sequential shooting
Up to approximately 8.6 fps (
T
)
Self-timer Operation time: 12 sec./2 sec./Customized
Energy saving function Switch to sleep mode: 1 minute (This function can be customized.)
Power OFF: 4 hours
Flash
Guide number 5.8 (ISO100•m)/8.2 (ISO200•m)
Firing angle Covers the angle of view of a 14 mm lens (28 mm in 35 mm format)
Flash control mode TTL-AUTO (TTL pre-fl ash mode)/MANUAL
Sync speed 1/250 s or slower
Wireless LAN
Compatible standard IEEE 802.11b/g/n
External connector
Micro-USB connector/HDMI micro connector (type D)
Power supply
Battery Lithium-ion Battery ×1
Dimensions/weight
Dimensions 121.5 mm (W) × 83.6 mm (H) × 49.5 mm (D) (4.8" × 3.3" × 1.9")
(excluding protrusions)
Weight Approx. 410 g (0.9 Ib.) (including battery and memory card)
Operating environment
Temperature
0 °C - 40 °C (32 °F - 104 °F) (operation)/
–20 °C - 60 °C (–4 °F - 140 °F) (storage)
Humidity 30% - 90% (operation)/10% - 90% (storage)
HDMI, the HDMI logo and High-Defi nition
Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
Information
8
154
EN
Lithium-ion battery
MODEL NO. BLS-50
Product type Rechargeable Lithium ion battery
Nominal voltage DC 7.2 V
Nominal capacity 1210 mAh
No. of charge and discharge times Approx. 500 times (varies with usage conditions)
Ambient temperature 0 °C - 40 °C (32 °F - 104 °F) (charging)
Dimensions
Approx. 35.5 mm (W) × 12.8 mm (H) × 55 mm (D) (1.4" × 0.5" × 2.2")
Weight Approx. 46 g (0.1 Ib.)
Lithium-ion charger
MODEL NO. BCS-5
Rated input AC 100 V - 240 V (50/60 Hz)
Rated output DC 8.35 V, 400 mA
Charging time Approx. 3 hours 30 minutes (room temperature)
Ambient temperature 0 °C - 40 °C (32 °F - 104 °F) (operation)/
–20 °C - 60 °C (–4 °F - 140 °F) (storage)
Dimensions Approx. 62 mm (W) × 38 mm (H) × 83 mm (D) (2.4" × 1.5" × 3.3")
Weight (without AC cable) Approx. 70 g (0.15 Ib.)
• The AC cable supplied with this device is for use only with this device and should not be
used with other devices. Do not use cables for other devices with this device.
• SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE OR
OBLIGATION ON THE PART OF THE MANUFACTURER.
• Visit our website for the latest specifi cations.
SAFETY PRECAUTIONS
9
155
EN
9
SAFETY PRECAUTIONS
SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL.
An exclamation mark enclosed in a triangle alerts you to important operating
and maintenance instructions in the documentation provided with the
product.
WARNING
If the product is used without observing the information given under this
symbol, serious injury or death may result.
CAUTION
If the product is used without observing the information given under this
symbol, injury may result.
NOTICE
If the product is used without observing the information given under this
symbol, damage to the equipment may result.
WARNING!
TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE
THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.
General Precautions
Read All Instructions — Before you use the
product, read all operating instructions. Save all
manuals and documentation for future reference.
Power Source — Connect this product only to
the power source described on the product label.
Foreign Objects — To avoid personal injury,
never insert a metal object into the product.
Cleaning — Always unplug this product from
the wall outlet before cleaning. Use only a damp
cloth for cleaning. Never use any type of liquid or
aerosol cleaner, or any type of organic solvent to
clean this product.
Heat — Never use or store this product near
any heat source such as a radiator, heat register,
stove, or any type of equipment or appliance that
generates heat, including stereo amplifi ers.
Attachments — For your safety, and to avoid
damaging the product, use only accessories
recommended by Olympus.
Location — To avoid damage to the product,
mount the product securely on a stable tripod,
stand, or bracket.
WARNING
• Do not use the camera near fl ammable or
explosive gases.
• Rest your eyes periodically when using
the viewfi nder.
Failure to observe this precaution could result
in eyestrain, nausea, or sensations similar to
motion sickness. The length and frequency
of the required rest varies with the individual;
use your own judgement. If you feel tired
or unwell, avoid using the viewfi nder and if
necessary consult a physician.
• Do not use the fl ash and LED (including
AF illuminator) on people (infants, small
children, etc.) at close range.
• You must be at least 1 m (3 ft.) away
from the faces of your subjects. Firing the
fl ash too close to the subject’s eyes could
cause a momentary loss of vision.
• Do not look at the sun or strong lights
with the camera.
SAFETY PRECAUTIONS
9
156
EN
• Keep young children, infants away from
the camera.
• Always use and store the camera out of
the reach of young children and infants to
prevent the following dangerous situations
which could cause serious injury:
• Becoming entangled in the camera
strap, causing strangulation.
• Accidentally swallowing the battery,
cards or other small parts.
• Accidentally fi ring the fl ash into their
own eyes or those of another child.
• Accidentally being injured by the
moving parts of the camera.
• Should you notice that the charger is
emitting smoke, heat, or an unusual noise
or smell, immediately cease use and
unplug the charger from the power outlet,
and then contact an authorized distributor
or service center.
• Stop using the camera immediately if
you notice any unusual odors, noise, or
smoke around it.
• Never remove the batteries with bare
hands, which may cause a fi re or burn
your hands.
• Never hold or operate the camera with wet
hands.
This may cause overheating, exploding,
burning, electrical shocks, or malfunctions.
• Do not leave the camera in places where
it may be subject to extremely high
temperatures.
• Doing so may cause parts to deteriorate
and, in some circumstances, cause
the camera to catch fi re. Do not use
the charger if it is covered (such as a
blanket). This could cause overheating,
resulting in fi re.
• Handle the camera with care to avoid
getting a low temperature burn.
• When the camera contains metal
parts, overheating can result in a low-
temperature burn. Pay attention to the
following:
• When used for a long period, the
camera will get hot. If you hold on
to the camera in this state, a low-
temperature burn may be caused.
• In places subject to extremely cold
temperatures, the temperature of the
camera’s body may be lower than the
environmental temperature. If possible,
wear gloves when handling the camera
in cold temperatures.
• To protect the high-precision technology
contained in this product, never leave the
camera in the places listed below, no matter if
in use or storage:
• Places where temperatures and/or
humidity are high or go through extreme
changes. Direct sunlight, beaches, locked
cars, or near other heat sources (stove,
radiator, etc.) or humidifi ers.
• In sandy or dusty environments.
• Near fl ammable items or explosives.
• In wet places, such as bathrooms or in
the rain.
• In places prone to strong vibrations.
• The camera uses a lithium-ion battery
specifi ed by Olympus. Charge the battery
with the specifi ed charger. Do not use any
other chargers.
• Never incinerate or heat batteries in
microwaves, on hot plates, or in pressure
vessels, etc.
• Never leave the camera on or near
electromagnetic devices.
This may cause overheating, burning, or
exploding.
• Do not connect terminals with any metallic
objects.
• Take precautions when carrying or storing
batteries to prevent them from coming into
contact with any metal objects such as
jewelry, pins, fasteners, keys, etc.
The short circuit may cause overheating,
exploding, or burning, which burn or damage
you.
• To prevent causing battery leaks or damaging
their terminals, carefully follow all instructions
regarding the use of batteries. Never attempt
to disassemble a battery or modify it in any
way, solder, etc.
• If battery fl uid gets into your eyes, fl ush
your eyes immediately with clear, cold
running water and seek medical attention
immediately.
• If you cannot remove the battery from the
camera, contact an authorized distributor
or service center. Do not try to remove the
battery by force.
Damage to the battery exterior (scratches,
etc.) may produce heat or an explosion.
• Always store batteries out of the reach of
small children and pets. If they accidentally
swallow a battery, seek medical attention
immediately.
• To prevent batteries from leaking,
overheating, or causing a fi re or explosion,
use only batteries recommended for use with
this product.
• If rechargeable batteries have not been
recharged within the specifi ed time, stop
charging them and do not use them.
• Do not use batteries with scratches or
damage to the casing, and do not scratch
the battery.
SAFETY PRECAUTIONS
9
157
EN
• Never subject batteries to strong shocks or
continuous vibration by dropping or hitting.
This may cause exploding, overheating, or
burning.
• If a battery leaks, has unusual odor, becomes
discolored or deformed, or becomes
abnormal in any other way during operation,
stop using the camera, and keep away from
fi re immediately.
• If a battery leaks fl uid onto your clothing
or skin, remove the clothing and fl ush the
affected area with clean, running cold water
immediately. If the fl uid burns your skin, seek
medical attention immediately.
• The Olympus lithium-ion battery is designed
to be used only for the Olympus digital
camera. Do not use the battery to other
devices.
• Do not allow children or animals/pets to
handle or transport batteries (prevent
dangerous behaviour such as licking,
putting in mouth or chewing).
Use Only Dedicated Rechargeable
Battery and Battery Charger
We strongly recommend that you use only the
genuine Olympus dedicated rechargeable battery
and battery charger with this camera.
Using a non-genuine rechargeable battery and/
or battery charger may result in fi re or personal
injury due to leakage, heating, ignition or damage
to the battery. Olympus does not assume any
liability for accidents or damage that may result
from the use of a battery and/or battery charger
that are not genuine Olympus accessories.
CAUTION
• Do not cover the fl ash with a hand while
fi ring.
• Never store batteries where they will be
exposed to direct sunlight, or subjected to
high temperatures in a hot vehicle, near a
heat source, etc.
• Keep batteries dry at all times.
• The battery may become hot during
prolonged use. To avoid minor burns, do not
remove it immediately after using the camera.
• This camera uses one Olympus lithium-ion
battery. Use the specifi ed genuine battery.
There is a risk of explosion if the battery is
replaced with the incorrect battery type.
• Please recycle batteries to help save our
planet’s resources. When you throw away
dead batteries, be sure to cover their
terminals and always observe local laws and
regulations.
NOTICE
• Do not use or store the camera in dusty or
humid places.
• Use SD/SDHC/SDXC memory cards or
Eye-Fi cards only. Never use other types
of cards.
If you accidently insert another type of card
into the camera, contact an authorized
distributor or service center. Do not try to
remove the card by force.
• Regularly back up important data to a
computer or other storage device to prevent
accidental loss.
• OLYMPUS accepts no liability for any loss of
data associated with this device.
• Be careful with the strap when you carry the
camera. It could easily catch on stray objects
and cause serious damage.
• Before transporting the camera, remove
a tripod and all other non-OLYMPUS
accessories.
• Never drop the camera or subject it to severe
shocks or vibrations.
• When attaching the camera to or removing
it from a tripod, rotate the tripod screw, not
the camera.
• Do not touch electric contacts on cameras.
• Do not leave the camera pointed directly
at the sun. This may cause lens or shutter
curtain damage, color failure, ghosting on
the image pickup device, or may possibly
cause fi res.
• Do not leave the viewfi nder exposed to a
strong light source or direct sunlight. The
heat may damage the viewfi nder.
• Do not push or pull severely on the lens.
• Be sure to remove any water droplets or
other moisture from the product before
replacing the battery or opening or closing
covers.
• Before storing the camera for a long period,
remove the batteries. Select a cool, dry
location for storage to prevent condensation
or mold from forming inside the camera. After
storage, test the camera by turning it on and
pressing the shutter button to make sure that
it is operating normally.
• The camera may malfunction if it is used in
a location where it is subject to a magnetic/
electromagnetic fi eld, radio waves, or high
voltage, such as near a TV set, microwave,
video game, loud speakers, large monitor
unit, TV/radio tower, or transmission towers.
In such cases, turn the camera off and on
again before further operation.
• Always observe the operating environment
restrictions described in the camera’s
manual.
SAFETY PRECAUTIONS
9
158
EN
• Insert the battery carefully as described in the
operating instructions.
• Before loading, always inspect the battery
carefully for leaks, discoloration, warping, or
any other abnormality.
• Always unload the battery from the camera
before storing the camera for a long period.
• When storing the battery for a long period,
select a cool location for storage.
• Power consumption by the camera varies
depending on which functions are used.
• During the conditions described below, power
is consumed continuously and the battery
becomes exhausted quickly.
• The zoom is used repeatedly.
• The shutter button is pressed halfway
repeatedly in shooting mode, activating
the auto focus.
• A picture is displayed on the monitor for
an extended period of time.
• The camera is connected to a printer.
• Using an exhausted battery may cause the
camera to turn off without displaying the
battery level warning.
• If the battery’s terminals get wet or greasy,
camera contact failure may result. Wipe the
battery well with a dry cloth before use.
• Always charge a battery when using it for
the fi rst time, or if it has not been used for a
long period.
• When operating the camera with battery
power at low temperatures, try to keep
the camera and spare battery as warm as
possible. A battery that has run down at
low temperatures may be restored after it is
warmed at room temperature.
• Before going on a long trip, and especially
before traveling abroad, purchase extra
batteries. A recommended battery may be
diffi cult to obtain while traveling.
Using the wireless LAN function
• Turn off the camera in hospitals and other
locations where medical equipment is
present.
The radio waves from the camera may
adversely affect medical equipment, causing
a malfunction that results in an accident.
• Turn off the camera when onboard
aircraft.
Using wireless devices onboard may hinder
safe operation of the aircraft.
Monitor
• Do not push the monitor forcibly; otherwise
the image may become vague, resulting in
a playback mode failure or damage to the
monitor.
• A strip of light may appear on the top/bottom
of the monitor, but this is not a malfunction.
• When a subject is viewed diagonally in the
camera, the edges may appear zigzagged on
the monitor. This is not a malfunction; it will
be less noticeable in playback mode.
• In places subject to low temperatures, the
monitor may take a long time to turn on or its
color may change temporarily.
When using the camera in extremely cold
places, it is a good idea to occasionally place
it in a warm place. The monitor exhibiting
poor performance due to low temperatures
will recover in normal temperatures.
• The monitor of this product is manufactured
with high-quality accuracy, however, there
may be a stuck or dead pixel on the monitor.
These pixels do not have any infl uence
on the image to be saved. Because of the
characteristics, the unevenness of the color
or brightness may also be found depending
on the angle, but this is due to the structure
of the monitor. This is not a malfunction.
Legal and Other Notices
• Olympus makes no representations or
warranties regarding any damages, or
benefi t expected by using this unit lawfully,
or any request from a third person, which
are caused by the inappropriate use of this
product.
• Olympus makes no representations or
warranties regarding any damages or any
benefi t expected by using this unit lawfully
which are caused by erasing picture data.
Disclaimer of Warranty
• Olympus makes no representations or
warranties, either expressed or implied, by
or concerning any content of these written
materials or software, and in no event
shall be liable for any implied warranty of
merchantability or fi tness for any particular
purpose or for any consequential, incidental
or indirect damages (including but not limited
to damages for loss of business profi ts,
business interruption and loss of business
information) arising from the use or inability
to use these written materials or software
or equipment. Some countries do not allow
the exclusion or limitation of liability for
consequential or incidental damages or of
the implied warranty, so the above limitations
may not apply to you.
• Olympus reserves all rights to this manual.
SAFETY PRECAUTIONS
9
159
EN
Warning
Unauthorized photographing or use of
copyrighted material may violate applicable
copyright laws. Olympus assumes no
responsibility for unauthorized photographing,
use or other acts that infringe upon the rights of
copyright owners.
Copyright Notice
All rights reserved. No part of these written
materials or this software may be reproduced
or used in any form or by any means, electronic
or mechanical, including photocopying and
recording or the use of any type of information
storage and retrieval system, without the prior
written permission of Olympus. No liability
is assumed with respect to the use of the
information contained in these written materials
or software, or for damages resulting from
the use of the information contained therein.
Olympus reserves the right to alter the features
and contents of this publication or software
without obligation or advance notice.
FCC Notice
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in
a residential installation. This equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/
TV technician for help.
• Only the OLYMPUS-supplied USB cable
should be used to connect the camera to
USB enabled personal computers.
FCC/IC Caution
Changes or modifi cations not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
This transmitter must not be co-located or
operated in conjunction with any other antenna
or transmitter.
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency
(RF) Exposure Guidelines. This equipment has
very low levels of RF energy that are deemed
to comply without testing of specifi c absorption
rate (SAR).
The available scientifi c evidence does not show
that any health problems are associated with
using low power wireless devices. There is no
proof, however, that these low power wireless
devices are absolutely safe. Low power Wireless
devices emit low levels of radio frequency energy
(RF) in the microwave range while being used.
Whereas high levels of RF can produce health
effects (by heating tissue), exposure of low-level
RF that does not produce heating effects causes
no known adverse health effects. Many studies
of low-level RF exposures have not found any
biological effects. Some studies have suggested
that some biological effects might occur, but such
fi ndings have not been confi rmed by additional
research. IM006 has been tested and found to
comply with IC radiation exposure limits set forth
for an uncontrolled environment and meets RSS-
102 of the IC radio frequency (RF) Exposure
rules.
SAFETY PRECAUTIONS
9
160
EN
For customers in North America, Central America, South America
and the Caribbean
Declaration of Conformity
Model Number : IM006
Trade Name : OLYMPUS
Responsible Party :
Address : 3500 Corporate Parkway, P. O. Box 610, Center Valley, PA 18034-0610, USA
Telephone Number : 484-896-5000
Tested To Comply With FCC Standards
FOR HOME OR OFFICE USE
This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
CAN ICES-3(B)/NMB-3(B)
OLYMPUS AMERICAS LIMITED WARRANTY -
OLYMPUS AMERICA INC. PRODUCTS
Olympus warrants that the enclosed Olympus®
imaging product(s) and related Olympus®
accessories (individually a “Product” and
collectively the “Products”) will be free from
defects in materials and workmanship under
normal use and service for a period of one (1)
year from the date of purchase.
If any Product proves to be defective within the
one-year warranty period, the customer must
return the defective Product to the authorized
Olympus Repair Service Center designated
by Olympus, following the procedure set forth
below (See “WHAT TO DO WHEN SERVICE IS
NEEDED”).
Olympus, at its sole discretion, will repair,
replace, or adjust the defective Product at
Olympus’s cost, provided that an Olympus
investigation and factory inspection disclose that
(a) such defect developed under normal and
proper use and (b) the Product is covered under
this limited warranty.
Repair, replacement, or adjustment of defective
Products shall be Olympus’s sole obligation and
the customer’s sole remedy hereunder. Repair
or replacement of a Product shall not extend the
warranty period provided herein, unless required
by law.
Except where prohibited by law, the customer
is liable and shall pay for shipment of the
Products to the designated Olympus Repair
Service Center. Olympus shall not be obligated
to perform preventive maintenance, installation,
deinstallation, or maintenance.
Olympus reserves the right to (i) use
reconditioned, refurbished, and/or serviceable
used parts (that meet Olympus’s quality
assurance standards) for warranty or any other
repairs and (ii) make any internal or external
design and/or feature changes on or to its
products without any liability to incorporate such
changes on or to the Products.
WHAT IS NOT COVERED BY THIS LIMITED
WARRANTY
Excluded from this limited warranty and not
warranted by Olympus in any fashion, either
express, implied, or by statute, are:
(a) products and accessories not manufactured
by Olympus and/or not bearing the
“OLYMPUS” brand label (the warranty
coverage for products and accessories
of other manufacturers, which may be
distributed by Olympus, is the responsibility
of the respective manufacturer of such
products and accessories in accordance
with the terms and duration of such
manufacturers’ warranties);
(b) any Product which has been disassembled,
repaired, tampered with, altered, changed,
or modifi ed by persons other than Olympus’s
own authorized service personnel unless
repair by others is made with the written
consent of Olympus;
(c) defects or damage to the Products resulting
from wear, tear, misuse, abuse, negligence,
sand, liquids, impact, improper storage,
nonperformance of scheduled operator
and maintenance items, battery leakage,
use of non-“OLYMPUS” brand accessories,
consumables, or supplies, or use of the
Products in combination with non-compatible
devices;
(d) software programs;
(e) supplies and consumables (including but
not limited to lamps, ink, paper, fi lm, prints,
negatives, cables and batteries); and/or
SAFETY PRECAUTIONS
9
161
EN
(f) Products which do not contain a validly
placed and recorded Olympus serial number,
unless they are a model on which Olympus
does not place and record serial numbers.
(g) Products shipped, delivered, purchased, or
sold from dealers located outside of North
America, Central America, South America
and the Caribbean; and/or
(h) Products that are not intended or authorized
to be sold in North America, South America,
Central America, or the Caribbean (ie. Gray
Market Goods).
WARRANTY DISCLAIMER; LIMITATION
OF DAMAGES; AFFIRMATION OF ENTIRE
WARRANTY AGREEMENT; INTENDED
BENEFICIALLY
EXCEPT FOR THE LIMITED WARRANTY SET
FORTH ABOVE, OLYMPUS MAKES NO AND
DISCLAIMS ALL OTHER REPRESENTATIONS,
GUARANTIES, CONDITIONS, AND
WARRANTIES CONCERNING THE
PRODUCTS, WHETHER DIRECT OR
INDIRECT, EXPRESS OR IMPLIED, OR
ARISING UNDER ANY STATUTE, ORDINANCE,
COMMERCIAL USAGE OR OTHERWISE,
INCLUDING BUT NOT LIMITED TO ANY
WARRANTY OR REPRESENTATION AS TO
THE SUITABILITY, DURABILITY, DESIGN,
OPERATION, OR CONDITION OF THE
PRODUCTS (OR ANY PART THEREOF)
OR THE MERCHANTABILITY OF THE
PRODUCTS OR THEIR FITNESS FOR A
PARTICULAR PURPOSE, OR RELATING
TO THE INFRINGEMENT OF ANY PATENT,
COPYRIGHT, OR OTHER PROPRIETARY
RIGHT USED OR INCLUDED THEREIN.
IF ANY IMPLIED WARRANTIES APPLY AS
A MATTER OF LAW, THEY ARE LIMITED IN
DURATION TO THE LENGTH OF THIS LIMITED
WARRANTY.
SOME STATES MAY NOT RECOGNIZE
A DISCLAIMER OR LIMITATION OF
WARRANTIES AND/OR LIMITATION OF
LIABILITY SO THE ABOVE DISCLAIMERS AND
EXCLUSIONS MAY NOT APPLY.
THE CUSTOMER MAY ALSO HAVE
DIFFERENT AND/OR ADDITIONAL RIGHTS
AND REMEDIES THAT VARY FROM STATE
TO STATE.
THE CUSTOMER ACKNOWLEDGES AND
AGREES THAT OLYMPUS SHALL NOT BE
RESPONSIBLE FOR ANY DAMAGES THAT
THE CUSTOMER MAY INCUR FROM DELAYED
SHIPMENT, PRODUCT FAILURE, PRODUCT
DESIGN, SELECTION, OR PRODUCTION,
IMAGE OR DATA LOSS OR IMPAIRMENT
OR FROM ANY OTHER CAUSE, WHETHER
LIABILITY IS ASSERTED IN CONTRACT, TORT
(INCLUDING NEGLIGENCE AND STRICT
PRODUCT LIABILITY) OR OTHERWISE. IN NO
EVENT SHALL OLYMPUS BE LIABLE FOR ANY
INDIRECT, INCIDENTAL, CONSEQUENTIAL
OR SPECIAL DAMAGES OF ANY KIND
(INCLUDING WITHOUT LIMITATION LOSS
OF PROFITS OR LOSS OF USE), WHETHER
OR NOT OLYMPUS SHALL BE OR SHOULD
BE AWARE OF THE POSSIBILITY OF SUCH
POTENTIAL LOSS OR DAMAGE.
Representations and warranties made by any
person, including but not limited to dealers,
representatives, salespersons, or agents of
Olympus, which are inconsistent or in confl ict
with or in addition to the terms of this limited
warranty, shall not be binding upon Olympus
unless reduced to writing and approved by an
expressly authorized offi cer of Olympus.
This limited warranty is the complete and
exclusive statement of warranty which
Olympus agrees to provide with respect to the
Products and it shall supersede all prior and
contemporaneous oral or written agreements,
understandings, proposals, and communications
pertaining to the subject matter hereof.
This limited warranty is exclusively for the
benefi t of the original customer and cannot be
transferred or assigned.
WHAT TO DO WHEN SERVICE IS NEEDED
The customer must contact the designated
Olympus Consumer Support Team for your
region to coordinate the submission of your
Product for repair service. To contact your
Olympus Consumer Support Team in your region
please visit or call the following:
Canada:
www.olympuscanada.com/repair /
1-800-622-6372
United States:
www.olympusamerica.com/repair /
1-800-622-6372
Latin America:
www.olympusamericalatina.com
The customer must copy or transfer any image or
other data saved on a Product to another image
or data storage medium prior to sending the
Product to Olympus for for repair service.
IN NO EVENT SHALL OLYMPUS BE
RESPONSIBLE FOR SAVING, KEEPING OR
MAINTAINING ANY IMAGE OR DATA SAVED
ON A PRODUCT RECEIVED BY IT FOR
SERVICE, OR ON ANY FILM CONTAINED
WITHIN A PRODUCT RECEIVED BY IT
FOR SERVICE, NOR SHALL OLYMPUS BE
RESPONSIBLE FOR ANY DAMAGES IN
THE EVENT ANY IMAGE OR DATA IS LOST
OR IMPAIRED WHILE SERVICE IS BEING
PERFORMED (INCLUDING, WITHOUT
SAFETY PRECAUTIONS
9
162
EN
LIMITATION, DIRECT, INDIRECT, INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES,
LOSS OF PROFITS OR LOSS OF USE),
WHETHER OR NOT OLYMPUS SHALL BE OR
SHOULD BE AWARE OF THE POSSIBILITY OF
SUCH POTENTIAL LOSS OR IMPAIRMENT.
The customer should package the Product
carefully using ample padding material to prevent
damage in transit. Once the Product is properly
packaged, ship the package to Olympus or the
Olympus Authorized Repair Service Center
location as instructed by the respective Olympus
Consumer Support Team.
When sending Products for repair service, your
package should include the following:
1) Sales receipt showing date and place of
purchase. Handwritten receipts will not be
accepted;
2) Copy of this limited warranty bearing the
Product serial number corresponding to
the serial number on the Product (unless it
is a model on which Olympus does not place
and record serial numbers);
3) A detailed description of the problem; and
4) Sample prints, negatives, digital prints (or
fi les on disk) if available and related to the
problem.
KEEP COPIES OF ALL DOCUMENTS. Neither
Olympus nor an Olympus Authorized Repair
Service Center will be responsible for documents
that are lost or destroyed in transit.
When service is completed, the Product will be
returned to you postage prepaid.
PRIVACY
Any information provided by you to process your
warranty claim shall be kept confi dential and
will only be used and disclosed for the purposes
of processing and performing warranty repair
services.
For customers in Europe
Simple Declaration of Conformity
Hereby, OLYMPUS CORPORATION declares that
the radio equipment type IM006 is in compliance
with Directive 2014/53/EU.
The full text of the EU declaration of conformity is
available at the following internet address:
http://www.olympus-europa.com/
This symbol [crossed-out
wheeled bin WEEE Annex IV]
indicates separate collection of
waste electrical and electronic
equipment in the EU countries.
Please do not throw the
equipment into the domestic
refuse.
Please use the return and
collection systems available in
your country for the disposal of
this product.
This symbol [crossed-out wheeled
bin Directive 2006/66/EC Annex
II] indicates separate collection
of waste batteries in the EU
countries.
Please do not throw the batteries
into the domestic refuse.
Please use the return and
collection systems available in
your country for the disposal of
the waste batteries.
SAFETY PRECAUTIONS
9
163
EN
Provisions of warranty
In the unlikely event that your product proves
to be defective, although it has been used
properly (in accordance with the written
Instruction Manual supplied with it), during the
applicable national warranty period and has
been purchased from an authorized Olympus
distributor within the business area of OLYMPUS
EUROPA SE & Co. KG as stipulated on the
website: http://www.olympus-europa.com, it will
be repaired, or at Olympus’s option replaced,
free of charge. In order to enable Olympus to
provide you with the requested warranty services
to your full satisfaction and as fast as possible,
please note the information and instructions
listed below:
1. To claim under this warranty please follow
the instructions on http://consumer-service.
olympus-europa.com for registration and
tracking (this service is not available in
all countries) or take the product, the
corresponding original invoice or purchase
receipt and the completed Warranty
Certifi cate to the dealer where it was
purchased or any other Olympus service
station within the business area of OLYMPUS
EUROPA SE & Co. KG as stipulated on the
website: http://www.olympus-europa.com,
before the end of the applicable national
warranty period.
2. Please make sure your Warranty Certifi cate is
duly completed by Olympus or an authorized
dealer or Service center. Therefore, please
make sure that your name, the name of the
dealer, the serial number and the year, month
and date of purchase are all completed or the
original invoice or the sales receipt (indicating
the dealer’s name, the date of purchase and
product type) is attached to your Warranty
Certifi cate.
3. Since this Warranty Certifi cate will not be
re-issued, keep it in a safe place.
4. Please note that Olympus will not assume
any risks or bear any costs incurred in
transporting the product to the dealer or
Olympus authorized service station.
5. This Warranty does not cover the following
and you will be required to pay a repair
charge, even for defects occurring within the
warranty period referred to above.
a. Any defect that occurs due to mishandling
(such as an operation performed that is
not mentioned in the Instruction Manual,
etc.)
b. Any defect that occurs due to repair,
modifi cation, cleaning, etc. performed
by anyone other than Olympus or an
Olympus authorized service station.
c. Any defect or damage that occurs due to
transport, a fall, shock, etc. after purchase
of the product.
d. Any defect or damage that occurs due
to fi re, earthquake, fl ood damage,
thunderbolt, other natural disasters,
environmental pollution and irregular
voltage sources.
e. Any defect that occurs due to careless
or improper storage (such as keeping
the product under conditions of high
temperature and humidity, near insect
repellents such as naphthalene or harmful
drugs, etc.), improper maintenance, etc.
f. Any defect that occurs due to exhausted
batteries, etc.
g. Any defect that occurs due to sand,
mud, water etc. entering the inside of the
product casing.
6. Olympus’s sole liability under this Warranty
shall be limited to repairing or replacing the
product. Any liability under the Warranty for
indirect or consequential loss or damage of
any kind incurred or suffered by the customer
due to a defect of the product, and in
particular any loss or damage caused to any
lenses, fi lms, other equipment or accessories
used with the product or for any loss resulting
from a delay in repair or loss of data, is
excluded. Compelling regulations by law
remain unaffected by this.
For customers in Thailand
This telecommunication equipment is in
compliance with NTC requirements.
For customers in Mexico
The operation of this equipment is subject to the
following two conditions:
(1) it is possible that this equipment or device
may not cause harmful interference, and (2)
this equipment or device must accept any
interference, including interference that may
cause undesired operation.
For customer in Singapore
Complies with
IMDA Standards
DB104634
SAFETY PRECAUTIONS
9
164
EN
Trademarks
• Microsoft and Windows are registered
trademarks of Microsoft Corporation.
• Mac is a trademark of Apple Inc.
• SDXC Logo is a trademark of SD-3C, LLC.
• Eye-Fi is a trademark of Eye-Fi,
Inc.
• “Shadow Adjustment
Technology” function contains
patented technologies from
Apical Limited.
• Micro Four Thirds, Four Thirds,
and the Micro Four Thirds and
Four Thirds logos are trademarks or registered
trademarks of the OLYMPUS CORPORATION
in Japan, the United States, the countries of
the European Union, and other countries.
• Wi-Fi is a registered trademark of the Wi-Fi
Alliance.
• The Wi-Fi CERTIFIED
logo is a certifi cation mark
of the Wi-Fi Alliance.
• The standards for camera
fi le systems referred to in this manual are the
“Design Rule for Camera File System/DCF”
standards stipulated by the Japan Electronics
and Information Technology Industries
Association (JEITA).
• All other company and product names are
registered trademarks and/or trademarks of
their respective owners.
THIS PRODUCT IS LICENSED UNDER THE
AVC PATENT PORTFOLIO LICENSE FOR
THE PERSONAL AND NONCOMMERCIAL
USE OF A CONSUMER TO (i) ENCODE
VIDEO IN COMPLIANCE WITH THE AVC
STANDARD (“AVC VIDEO”) AND/OR (ii)
DECODE AVC VIDEO THAT WAS ENCODED
BY A CONSUMER ENGAGED IN A PERSONAL
AND NON-COMMERCIAL ACTIVITY AND/OR
WAS OBTAINED FROM A VIDEO PROVIDER
LICENSED TO PROVIDE AVC VIDEO. NO
LICENSE IS GRANTED OR SHALL BE
IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION MAY BE OBTAINED FROM
MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.
COM
The software in this camera may include third
party software. Any third party software is subject
to the terms and conditions, imposed by the
owners or licensors of that software, under which
software is provided to you.
Those terms and other third party software
notices, if any, may be found in the software
notice PDF fi le stored at
http://www.olympus.co.jp/en/support/imsg/
digicamera/download/notice/notice.cfm
165
EN
Index
Symbols
8 (Beep sound) ...............................110
0 (Protect) .......................................93
# Slow Limit.............................. 112, 119
#+WB ............................................... 112
# X-Sync. ................................. 112, 119
U (Close-up playback) .......................91
s (Monitor brightness
adjustment) ....................................107
G (Index display) .................91, 96, 117
G/Info Settings ........................ 110, 116
w+F ...............................................112
j/Y ..................................................66
(Single-frame erase) .......................94
W (language) ..................................107
k (One-touch white balance) ............86
v (Image selection) ...........................94
I (Face priority AF) ............................62
R (Image rotation) ...........................103
W Keep Warm Color .......................112
z (Preview) .........................................86
S (Sequential Low) ...........................66
T (Sequential High) ..........................66
q Info ..............................................110
G Settings .......................................110
K Control Settings ...........................110
#UP .....................................................64
u (Shortcut) Button............................26
A
A (Aperture priority mode) ..................46
Accessories .......................................137
AdobeRGB ..........................................84
Advanced photo mode.........................32
AE Bracketing ......................................40
AEL/AFL ............................................ 115
AE lock ..................................60, 86, 115
AF Area................................................61
AF illuminator.................................25, 99
AF Mode ..............................................72
Movie ..............................................102
AF Targeting Pad ...............................109
AF target settings ................................61
AF tracking ..........................................72
ART (Art fi lter) .....................................42
Art fade ................................................54
Aspect ratio..........................................73
Audio recording
Still image .........................................95
AUTO mode (B) ................................27
B
Backlight HDR .........................29, 30, 31
Battery charge .....................................13
Battery level .........................................18
Beep sound .......................................110
BGM ..............................................58, 92
Bleach Bypass .....................................43
BULB ...................................................49
Bulb photography ................................49
Bulb/Time Timer ................................ 111
Button Function ...................................85
C
C-AF (Continuous AF) .........................72
C-AF+TR (AF tracking) ........................72
Calendar display ..........................91, 117
Card ............................................. 15, 133
Card Setup ........................................108
Certifi cation........................................114
Clips.....................................................56
Close-up playback ...............................91
Color Filter ...........................................82
Color Space .................................84, 112
Composite Settings ........................... 111
Compression rate ................73, 119, 134
Connection
Computer ........................................125
Printer .............................................127
Smartphone ....................................120
Continuous AF .....................................72
Contrast ............................................... 81
166
EN
Control Settings .................................110
Copyright Settings .............................113
Custom Menu ............................109, 149
D
Date/time setting (X) ..........................19
Dial Function......................................109
Digital Tele-converter .....................60, 99
Diopter adjustment dial ........................22
Displayed Grid ...................................110
DPOF .................................................130
E
Edit Filename.....................................113
Effect (i-Enhance) ................................83
Elec. Zoom Speed
Movie ..............................................102
Still image .......................................100
Erase
All images .......................................108
Selected images ...............................94
Single-frame .....................................94
EVF Adjust .........................................114
EVF Auto Switch ................................114
Exif data.............................................113
Exposure compensation ......................60
Exposure Shift ................................... 111
External fl ash units ............................136
Eye-Fi ................................................ 114
Eye priority AF .....................................62
F
Face priority AF ...................................62
File format..........................................134
File Name ..........................................113
File size .............................................134
Firmware ............................................107
Flash .................................................... 64
Flash intensity control ..........................77
Flicker reduction ................................110
Fn1 button .....................................60, 87
Fn2 button .....................................60, 87
Focus Bracketing .................................41
Focus mode .........................................72
Focus ring ............................................72
Format ...............................................108
G
GPS log .............................................123
Gradation ............................................. 82
H
HDMI ......................................... 110, 118
HDR ..................................................... 36
Highlight&Shadow Control...................84
High-speed movie................................59
Histogram display ................................23
I
Image aspect .......................................73
Image Overlay ...................................105
Image quality
Movie (nK) ...................................74
Still image (KK) ........................... 73
Image quality settings
Movie ................................................74
Still image ................. 73, 112, 119, 134
Image selection ...................................94
Image size
Movie ................................................74
Still image ....................... 112, 119, 134
Image Stabilizer ...................................78
Movie ..............................................102
Image transfer to smartphone ...........122
Index display................................91, 117
INFO button ..................................23, 89
Information display ..............................20
Playback ...........................................88
In-movie image capture .....................105
Installation .........................................126
Interchangeable lenses .....................135
ISO-Auto Set ..................................... 111
ISO sensitivity ......................................63
J
JPEG Edit ..........................................104
K
Keystone Compensation .....................39
167
EN
L
Language setting (W) .....................107
Level Adjust .......................................114
Level gauge .........................................23
Light box display ................................116
Light Trails .....................................29, 30
Live Bulb ............................................ 111
Live composite photography................50
Live control ..........................................67
Live guide ............................................27
LIVE TIME .....................................34, 49
Live View Boost .................................110
Long time exposure
(BULB/LIVE TIME) ..........................49
LV-Info ....................................... 110, 116
LV super control panel .........................68
M
M (Manual mode) ................................48
Manual focus .......................................72
Menu............................................97, 148
Metering...............................................80
MF .......................................................86
MF Assist ...................................109, 115
MF (Manual focus)...............................72
Mode dial .............................................24
Monitor brightness adjustment ..........107
Monochrome Color ..............................83
Movie R .............................................102
Movie Effects .......................................54
Movie mode ...................................53, 76
Movie shooting ....................................52
Movie Tele-converter ...........................54
Multi echo ............................................54
Multiple Exposure ................................35
My Clips .........................................56, 95
N
Noise Filter ........................................ 111
Noise Reduct. .................................... 111
Number of storable still pictures ........134
O
OI.Share ............................................120
Old fi lm ................................................54
OLYMPUS Viewer 3 ..........................126
One shot echo .....................................54
One-touch white balance (k) ......71, 86
P
P (Program mode) ..............................45
Panorama ............................................ 38
Partial Color .........................................44
PC software .......................................126
Peaking........................................86, 115
Peaking Color ....................................110
PictBridge ..........................................127
Picture Mode .................................69, 99
Pixel Count ................................119, 134
Pixel mapping ............................114, 141
Playback
Movie ................................................93
Playback Menu ..........................103, 149
Position information ...........................123
Preview (z) .........................................86
Printing ..............................................127
Program shift (%) ...............................45
Protect .................................................93
Protect reset ......................................106
R
RAW Data Edit ..................................103
RAW image .........................................73
Recording Volume .............................102
Rec View ...........................................107
Registration .......................................126
Remote shooting ...............................122
Reset ...................................................98
Reset Lens ........................................109
Rotation .......................................91, 103
S
S (Shutter priority mode) .....................47
S-AF+MF (Single AF and
Manual focus) ..................................72
S-AF (Single AF)..................................72
Saturation ............................................81
SCN (Scene).......................................29
168
EN
SD card..............................................133
Formatting the card .........................108
Self-timer .............................................66
Sequential shooting .............................66
Setup Menu ...............................107, 151
Share Order .........................................94
Sharpness ...........................................80
Shooting Menu ............................98, 148
Shooting Menu 1 ...............................98
Shooting Menu 2 ...............................98
Shooting modes...................................24
Silent [♥] ..............................................37
Single AF .............................................72
Sleep ...........................................18, 114
Slideshow ............................................92
sRGB ................................................... 84
Storage .............................................. 125
Super Spot AF .....................................87
T
Time Lapse Movie .............................100
Time lapse shooting ..........................100
Time photography ................................49
Touch AF..............................................51
Touch screen operations ...............51, 96
Touchscreen Settings ........................114
Trimming
JPEG image ....................................104
Movie ..............................................106
TV ......................................................118
U
USB connection .................................125
USB Mode .........................................110
V
Video Bit Rate ..............................74, 102
Video Frame Rate .......................74, 102
Video Menu ...............................102, 148
Volume adjustment ..............................93
W
WB .....................................................112
White balance ......................................70
White balance compensation ..............79
Wi-Fi connection method ...................123
Wi-Fi Settings ............................107, 123
Z
Zoom frame AF ....................................87
WD271301
date of issue 2017.08.
