User Manual

This is the main product document for model T624.

The file format is pdf, 50 pages, you can download this manual here .

background
ASSEMBLY MANUAL / OWNER’S MANUAL
This product is compliant with the
applicable CE requirements.
™
background
2
TABLE OF CONTENTS
Important Safety Instructions 3
Safety Warning Labels / Serial Number 6
Earthing Instructions 7
Emergency Stop Procedure 7
Specications 8
BeforeAssembly 8
Parts 9
Hardware 10
Tools 10
Assembly 11
Moving the Machine 21
Unfolding the Machine 22
Leveling the Machine 23
Features 24
Console Features 25
Operations 31
Getting Started 31
Power Up / Idle Mode 32
Quick Start Program 32
UserProles 33
ProlePrograms 35
Pausing or Stopping 39
Results / Cool Down Mode 39
GOAL TRACK Statistics 39
Console Setup Mode 41
Maintenance 42
Cleaning 42
Adjusting the Belt Tension 43
Aligning the Walking Belt 43
Lubricating the Walking Belt 44
Maintenance Parts 46
Troubleshooting 48
To validate warranty support, keep the original proof of purchase and record the following information:
Serial Number __________________________
Date of Purchase ____________________
To register your product warranty, contact your local distributor.
For details regarding product warranty or if you have questions or problems with your product, please contact
yourlocalNautilusdistributor.Tondyourlocaldistributor,goto:www.nautilusinternational.com
Nautilus,Inc.,5415CenterpointParkway,Groveport,OH43125USA,www.NautilusInc.com-CustomerService:NorthAmerica(800)
605-3369, [email protected] | outside U.S. www.nautilusinternational.com | Printed in China | © 2014 Nautilus, Inc. | Nautilus, the
Camlogo,NautilusT624,Bowex,Schwinn,andUniversalaretrademarksownedorlicensedbyNautilus,Inc.,whichareregistered
or otherwise protected by common law in the United States and other countries. Polar
®
, OwnCode
®
, WD-40
®
, and Lube-N-Walk
®
are
trademarks of their respective owners.
ORIGINAL MANUAL - ENGLISH VERSION ONLY
background
3
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious
injury.
Obey the following warnings:
Read and understand all warnings on this machine.
Carefully read and understand the Assembly instructions. Read and understand the complete
Manual. Keep the Manual for future reference.
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug this
machine from the electrical outlet immediately after using and before cleaning.
To decrease the risk of burns, electric shock, or injury to persons, read and understand the com-
plete Owner’s Manual. Failure to follow these guidelines can cause a serious or possibly fatal electrical shock or
other serious injury.
• Keep bystanders and children away from the product you are assembling at all times.
• Do not connect power supply to the machine until instructed to do so.
• The machine should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting
on or taking off parts.
• Beforeeachuse,examinethemachinefordamagetopowercord,loosepartsorsignsofwear.Donotuseiffoundin
this condition. Contact your local distributor for repair information.
• Not intended for use by persons with medical conditions where those conditions may impact the safe operation of the
treadmill or pose a risk of injury to the user.
• Do not drop or put objects into any opening of the machine.
• Never operate this treadmill with the air openings blocked. Keep the air openings free of lint, hair and the like.
• Do not assemble this machine outdoors or in a wet or moist location.
• Makesureassemblyisdoneinanappropriateworkspaceawayfromfoottrafcandexposuretobystanders.
• Some components of the machine can be heavy or awkward. Use a second person when doing the assembly steps
involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own.
• Set up this machine on a solid, level, horizontal surface.
• Do not try to change the design or functionality of this machine. This could compromise the safety of this machine and
will void the warranty.
• If replacement parts are necessary, use only genuine Nautilus replacement parts and hardware. Failure to use
genuine replacement parts can cause a risk to users, keep the machine from operating correctly and void the
warranty.
• Do not use until the machine has been fully assembled and inspected for correct performance in accordance with the
Manual.
• Use this machine only for its intended use as described in this manual. Do not use attachments not recommended by
the manufacturer.
• Do all assembly steps in the sequence given. Incorrect assembly can lead to injury or incorrect function.
• Connectthismachinetoaproperlyearthedoutletonly(seeEarthingInstructions).
• Keep the power cord away from heat sources and hot surfaces.
• Do not operate where aerosol products are being used.
• To disconnect, turn all controls to the off position, then remove plug from outlet.
• SAVE THESE INSTRUCTIONS.
background
4
Before using this equipment, obey the following warnings:
Read and understand the complete Manual. Keep the Manual for future reference.
Read and understand all warnings on this machine. If at any time the Warning labels become loose,
unreadable or dislodged, contact your local distributor for replacement labels.
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the
power cord from the wall outlet and the machine and wait 5 minutes before cleaning, maintaining or repairing the
machine. Place the power cord in a secure location.
• Children must not be let on or near to this machine. Moving parts and other features of the machine can be dangerous
to children.
• Not intended for use by anyone under 14 years of age.
• Consultaphysicianbeforeyoustartanexerciseprogram.Stopexercisingifyoufeelpainortightnessinyour
chest, become short of breath, or feel faint. Contact your doctor before you use the machine again. Use the values
calculated or measured by the machine’s computer for reference purposes only.
• Beforeeachuse,examinethismachinefordamagetopowercord,powerreceptacle,loosepartsorsignsofwear.Do
not use if found in this condition. Contact your local distributor for repair information.
• Maximumuserweightlimit:136kg(300lbs.).Donotuseifyouareoverthisweight.
• This machine is for home use only.
• Donotwearlooseclothingorjewelry.Thismachinecontainsmovingparts.Donotputngersorotherobjectsinto
movingpartsoftheexerciseequipment.
• Always wear rubber soled athletic shoes when you use this machine. Do not use the machine with bare feet or only
wearing socks.
• Set up and operate this machine on a solid, level, horizontal surface.
• Use caution when you step on and off the machine. Use the supplied foot support platforms for stability before walking
on the moving belt.

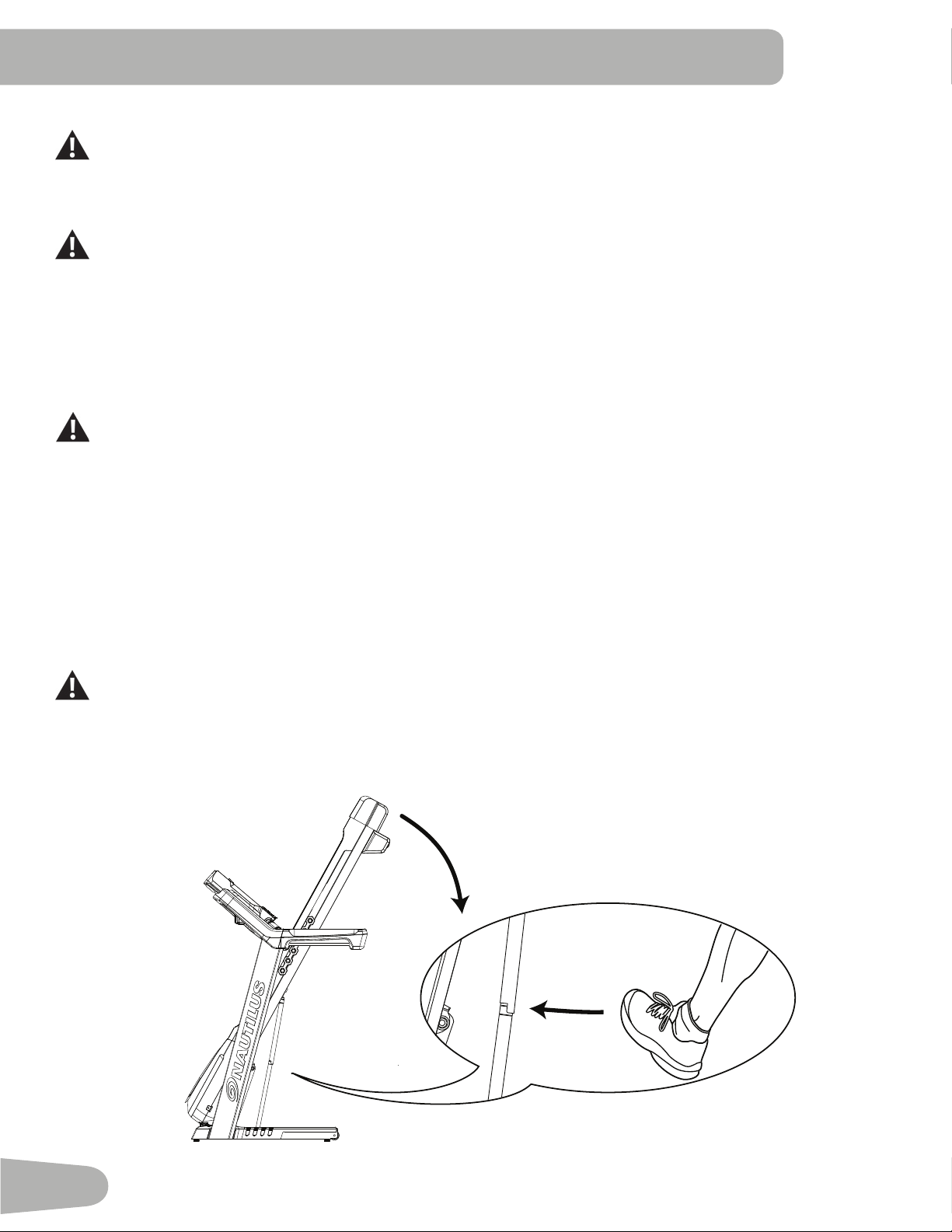

• To prevent injury, stand on the foot support platforms before you start the machine or end a workout. Do not dismount
themachinebystandingonthemovingWalkingBeltsandexitingofftherearofthemachine.
• Disconnect all power before servicing this machine.
• Do not operate this machine outdoors or in moist or wet locations.
• Keepatleast0.6m(24”)oneachsideofthemachineand2m(79”)behindthemachineclear.Thisisthe
recommended safe distance for access and passage around and emergency dismounts from the machine. Keep third
parties out of this space when machine is in use.
• Donotoverexertyourselfduringexercise.Operatethemachineinthemannerdescribedinthismanual.
• Perform all regular and periodic maintenance procedures recommended in the Owner’s Manual.
• Read, understand, and test the Emergency Stop Procedure before use
• Keep the walking belt clean and dry.
• Do not drop or put objects into any opening of the machine.
• Do not stand on machine motor cover or front trim cover.
• Keep power cord away from heat source and hot surfaces.
• This machine must be connected to an appropriate, dedicated electrical circuit. Nothing else must be connected to the
circuit.
• Always connect the power cord to a circuit capable of handling at least 10 amperes with no other loads applied.
• Connect this machine to a correctly earthed outlet; consult a licensed electrician for assistance.
• Do not operate where aerosol products are being used.
• Do not let liquids touch the electronic controller. If it does, the controller must be inspected and tested for safety by an
approved technician before it can be used again.
• Do not remove the machine motor cover, dangerous voltages are present. The components are serviceable only by
approved service personnel.
background
5
• The electrical wiring for the residence in which the machine will be used must obey the applicable local and provincial
requirements.
• Exerciseonthismachinerequirescoordinationandbalance.Besuretoanticipatethatchangesinbeltspeedand
incline angle of deck can occur during workouts, and be attentive in order to avoid loss of balance and possible injury
• A machine should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting
on or taking off parts.
• Use this machine only for its intended use as described in this manual. Do not use attachments not recommended by
the manufacturer.
• Thisapplianceisnotintendedforusebypersons(includingchildren)withreducedphysical,sensoryormental
capabilities,orlackofexperienceandknowledge,unlesstheyhavebeengivensupervisionorinstructionconcerning
use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
background
6

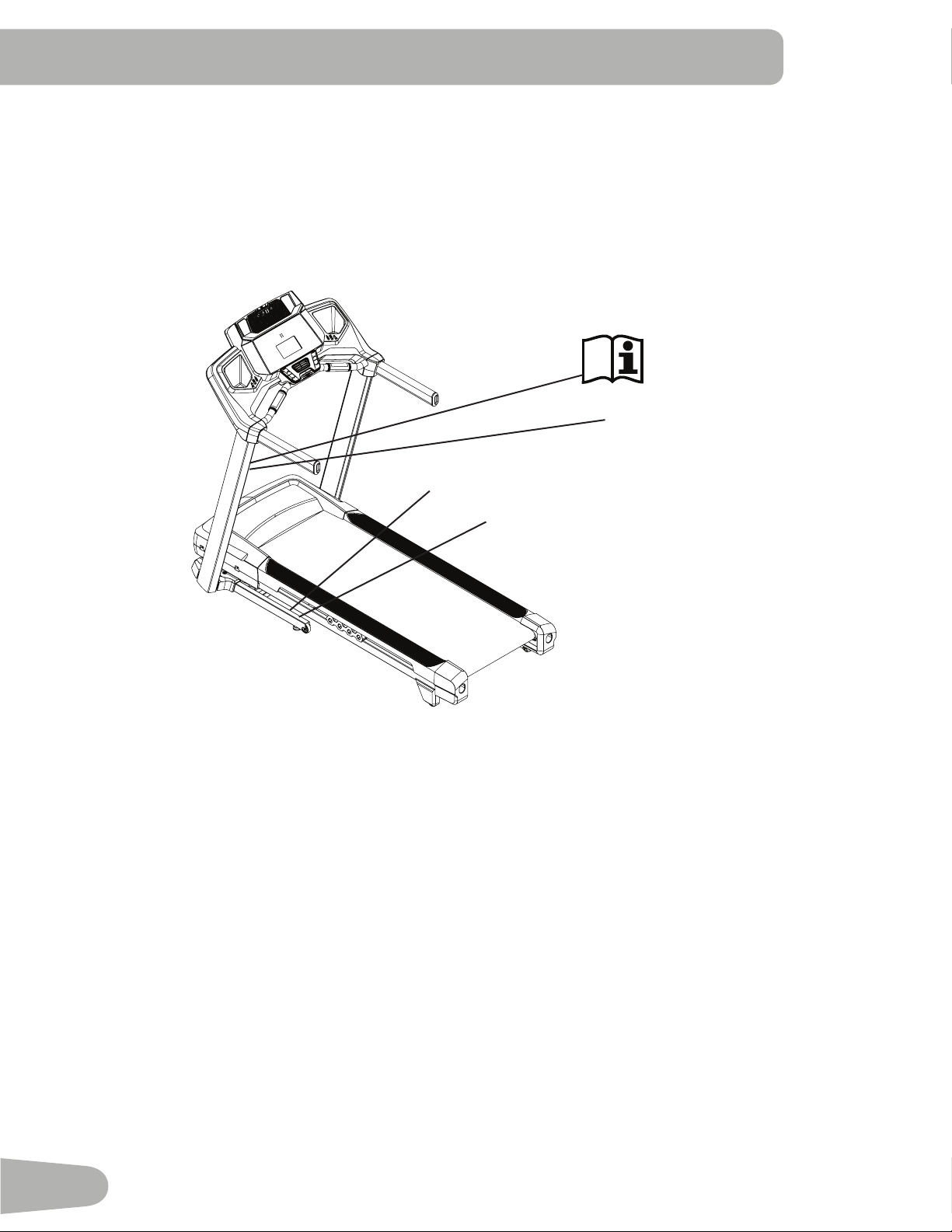

SAFETY WARNING LABELS AND SERIAL
NUMBER
Serial Number
ProductSpecication
WARNING: keep young
children away from this
machine at all times.
Contact with the moving
surface may result in
severe friction burns.
background
7
Earthing Instructions
This product must be electrically earthed. If a malfunction occurs, correct earthing decreases the risk of electric shock.
The power cord is equipped with an equipment-earthing conductor, and must be connected to an outlet that is properly
installed and earthed.
The electrical wiring must comply with all applicable local and provincial standards and
requirements. Incorrect connection of the equipment-earthing conductor can result in a risk of
electric shock. Consult a licensed electrician if you are not sure that the machine is correctly
earthed. Do not change the plug on the machine – if it does not t the outlet, have a correct outlet
installed by a licensed electrician.
IfyouconnectthemachinetoanoutletwithRCBO(Residual-CurrentcircuitBreakerwithOverloadprotection),machine
operation can cause the circuit to trip. A Surge Protector Device is recommended to protect the machine.
!
If a Surge Protector Device (SPD) is used with this machine, be sure that it matches the power rating of
this equipment (220-240V AC). Do not connect other appliances or devices to the surge protector in
combination with this machine.
Make sure that the product is connected to an outlet having the same conguration as the plug. No
adapter should be used with this product.
Emergency Stop Procedure
The Treadmill machine is equipped with a Safety Key that can prevent serious injury, as well as prevent children from
playing with and/or being injured on the machine. If the Safety Key is not correctly inserted into the Safety Key Port, the
belt will not operate.
!
Always attach the Safety Key Clip to your clothing during your workout.
When you use the machine, only remove the Safety Key in an emergency. When the key is removed while
the machine is in operation, it will stop quickly, which could cause the loss of balance and possible injury.
For safe storage of the machine, and to prevent unsupervised operation of the machine, always remove
the Safety Key and disconnect the power cord from the wall outlet and the AC input. Place the power cord
in a secure location.
The Console will display “ + SAFETY KEY ”, or add Safety Key, for a Safety Key fault. The Treadmill machine will not start
a Workout, or will end and clear an active Workout, when the Safety Key is removed. Inspect the Safety Key and be sure
it is connected to the Console correctly.
background
8
SPECIFICATIONS / BEFORE ASSEMBLY
Maximum User Weight: 136kg(300lbs)
Total Surface Area (footprint) of equipment:16387cm
2
Power Requirements:
Operational Voltage: 220V - 240V AC, 50Hz
OperatingCurrent: 8A
Maximum Inclined Deck Height: 38.4cm(15.1inches)
Assembled Weight: Approx.90.7kgs(200lbs)
Sound Emission: Less than 70 db average without
load. Noise emission under load is higher than without load.
Before Assembly
Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a
hard,levelsurface.Allowaworkoutareaofaminimum211.3cmx384cm(83.2”x151.2”).Besurethattheworkout
spaceyouareutilizinghasadequateheightclearance,takingintoconsiderationtheheightoftheuserandthemaximum
incline of the machine.
Basic Assembly Tips
Follow these basic points when you as-
semble your machine:
• Read and understand the “Important
Safety Instructions” before assembly.
• Collect all the pieces necessary for each
assembly step.
• Using the recommended wrenches, turn
the bolts and nuts to the right (clock-
wise)totighten,andtheleft(counter-
clockwise)toloosen,unlessinstructed
otherwise.
• When attaching 2 pieces, lightly lift and
look through the bolt holes to help insert
the bolt through the holes.
• The assembly can require 2 people.

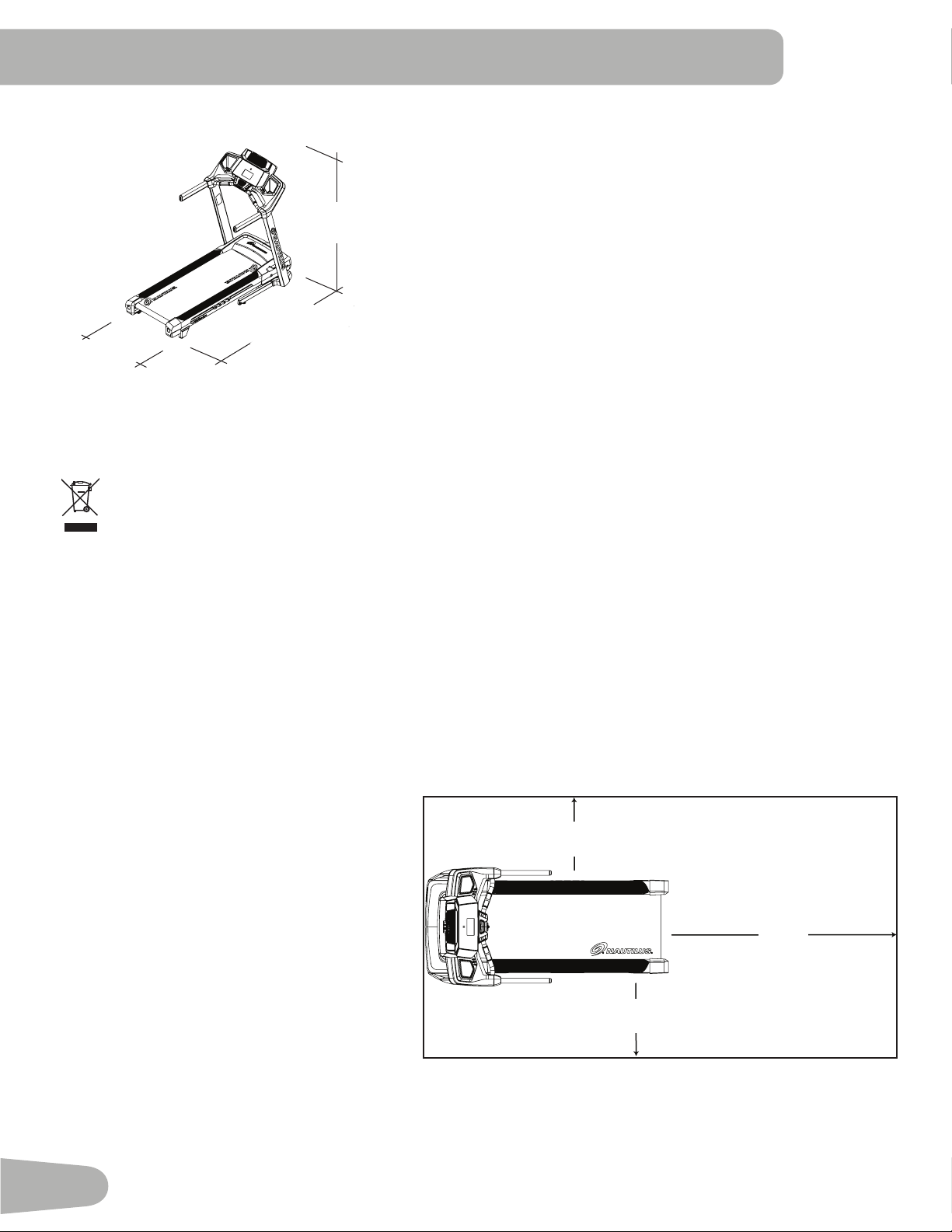

146.3 cm
57.6”
89.4 cm
( 35.2” )
183.3 cm
72.2”
2.11m
( 83.2
” )
0.6m
( 24” )
2m
( 79” )
0.6m
( 24” )
3.84m ( 151.2” )
DO NOT dispose of this product as refuse. This product is to be recycled. For proper disposal of this product,
please follow the prescribed methods at an approved waste center.
background
9

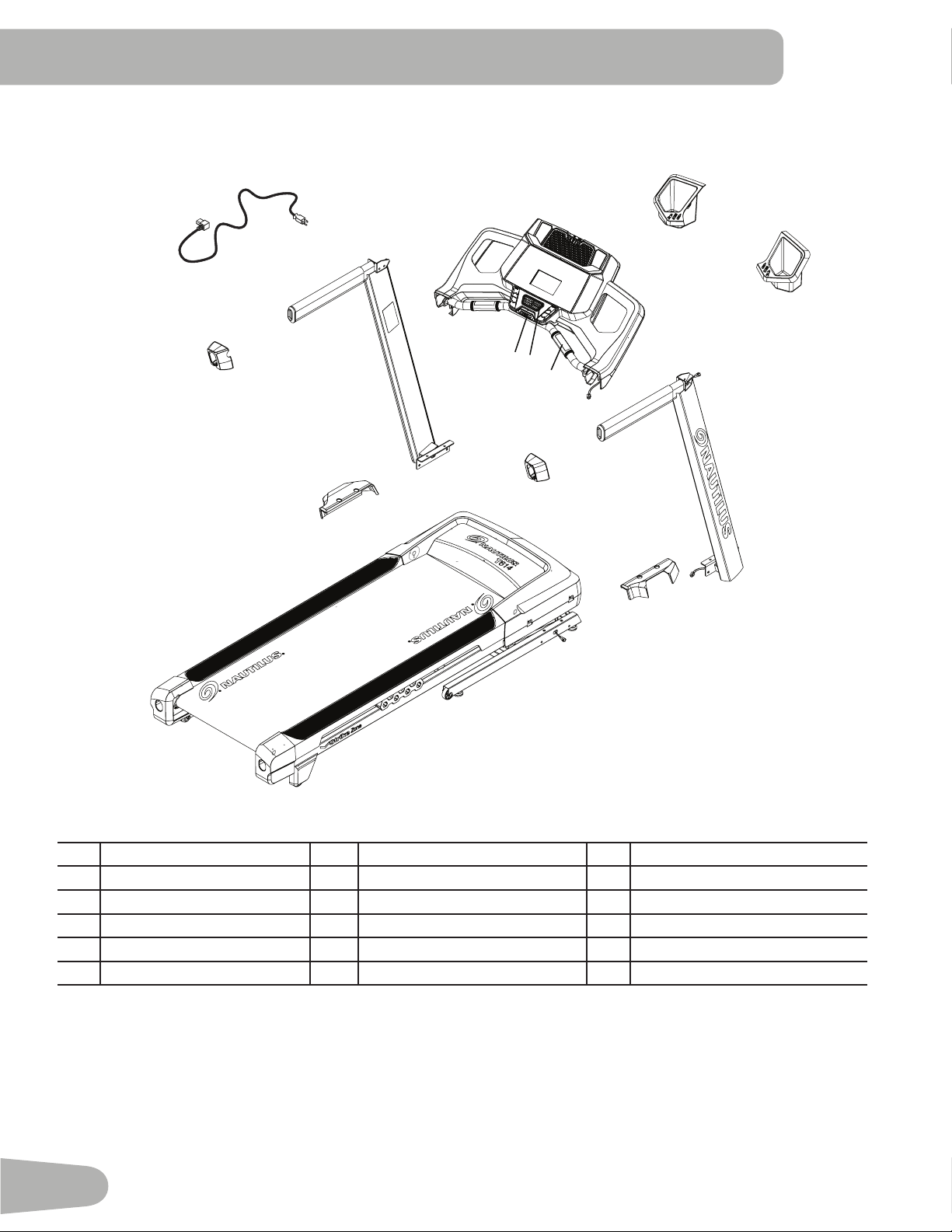

PARTS
Item Qty Description Item Qty Description
1 1 Console Assembly 8 1
Base Assembly ( *)
2 1 Console Backing 9 1 Base Shroud, Left
3 1 Tray, Left 10 1 Upright, Left
4 1 Tray, Right 11 1 Handlebar Shroud, Left
5 1 Upright, Right 12 1 Power Cord
6 1 Handlebar Shroud, Right 13 1 Safety Key
7 1 Base Shroud, Right 14 1 MediaCable(notshown)
DO NOT CUT the Shipping Strap on the Base Assembly until it has been placed face up as
shown in the appropriate work space ( * ).
1
3
4
5
6
7
12
9
8
11
10
2
13
*
background
10
Tools
Included
Item Qty Description Item Qty Description
A 4 SocketHeadHexScrew,M8x50 D
10
SelfTappingScrew,M3.9x16
B 8 SocketHeadHexScrew,M8x16 E
12
LockWasher,M8
C
2
PhillipsHeadScrew,M5x14 F
12
FlatWasher,M8
Note: Select pieces of Hardware have been provided as spares on the Hardware Card. Be aware that there may be remain-
ing Hardware after the proper assembly of your machine.
A B D
C E F
HARDWARE / TOOLS
#2
6 mm
6 mm
background
11
ASSEMBLY
DO NOT CUT the Shipping Strap on the Base Assembly until it has been placed face up as
shown in the appropriate work space.
1. Fold the Walking Deck on the Base Assembly
Cut the Shipping Strap on the Base Assembly. Make sure that there is safe clearance around, on and above your tread-
mill. Make sure there is no object to spill or cause blockage from the fully folded position. Be sure there is adequate height
clearance for the raised deck.
Using the support bar found below the rear of the walking belt, lift the walking deck fully upward and engage the hydraulic
lift. Be sure that the hydraulic lift is correctly locked in place.
Use proper safety precautions and lifting techniques. Bend your knees and elbows, keep your back straight
and pull up equally with both arms. Make sure that your own physical strength is capable of lifting the
walking deck until it engages the locking mechanism. Use a second person if necessary.
Do not use the walking belt or rear roller to lift the treadmill. These parts do not lock in place and can
abruptly move. Injury to you or damage to the machine can occur.
Make sure that the locking mechanism is engaged. Carefully pull back on the Walking Deck and make sure that it does
not move. When you do this, keep clear of movement path in case the treadmill lock is not engaged.
Do not lean against the treadmill when it is folded. Do not put items on it that could cause it to become
unstable or fall.
8
8
background
12

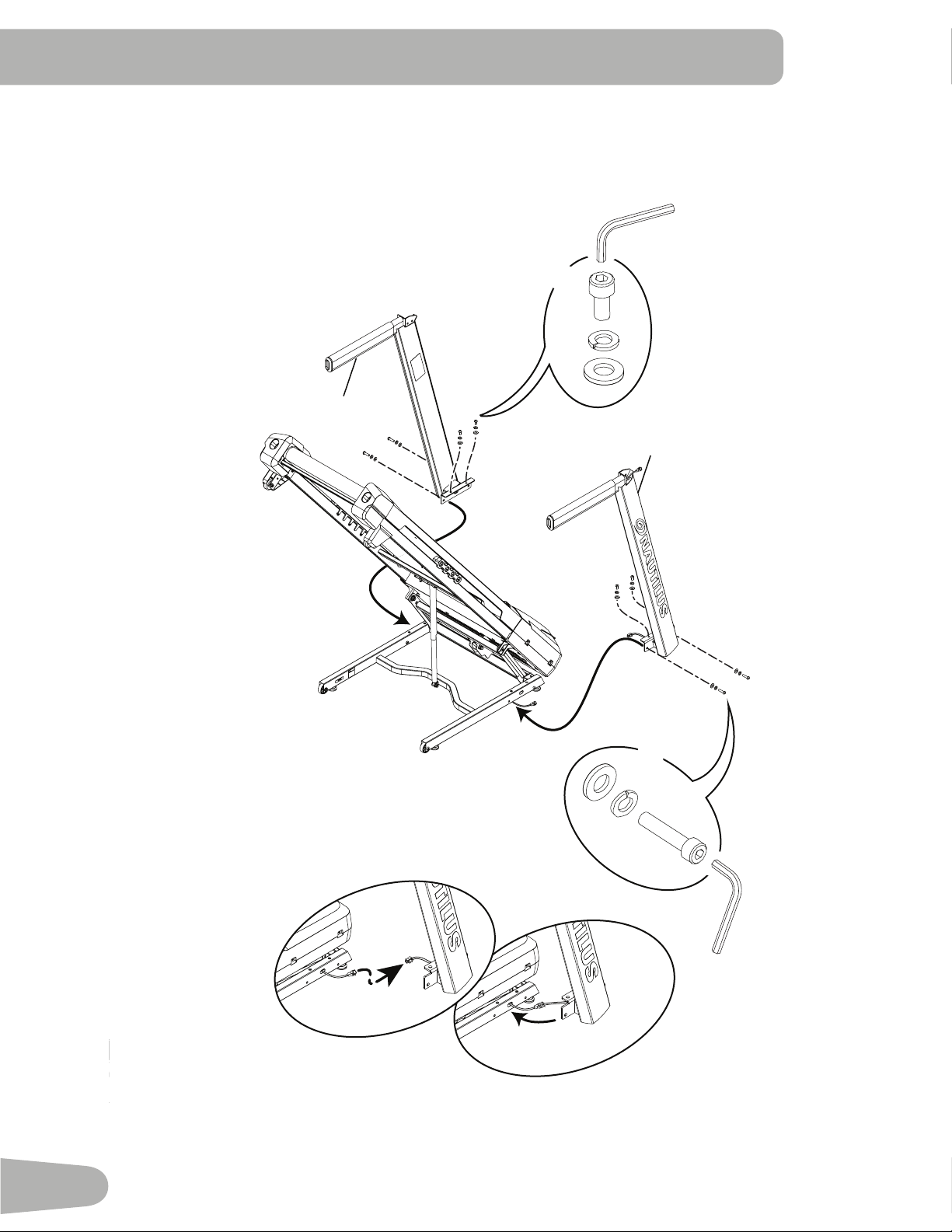

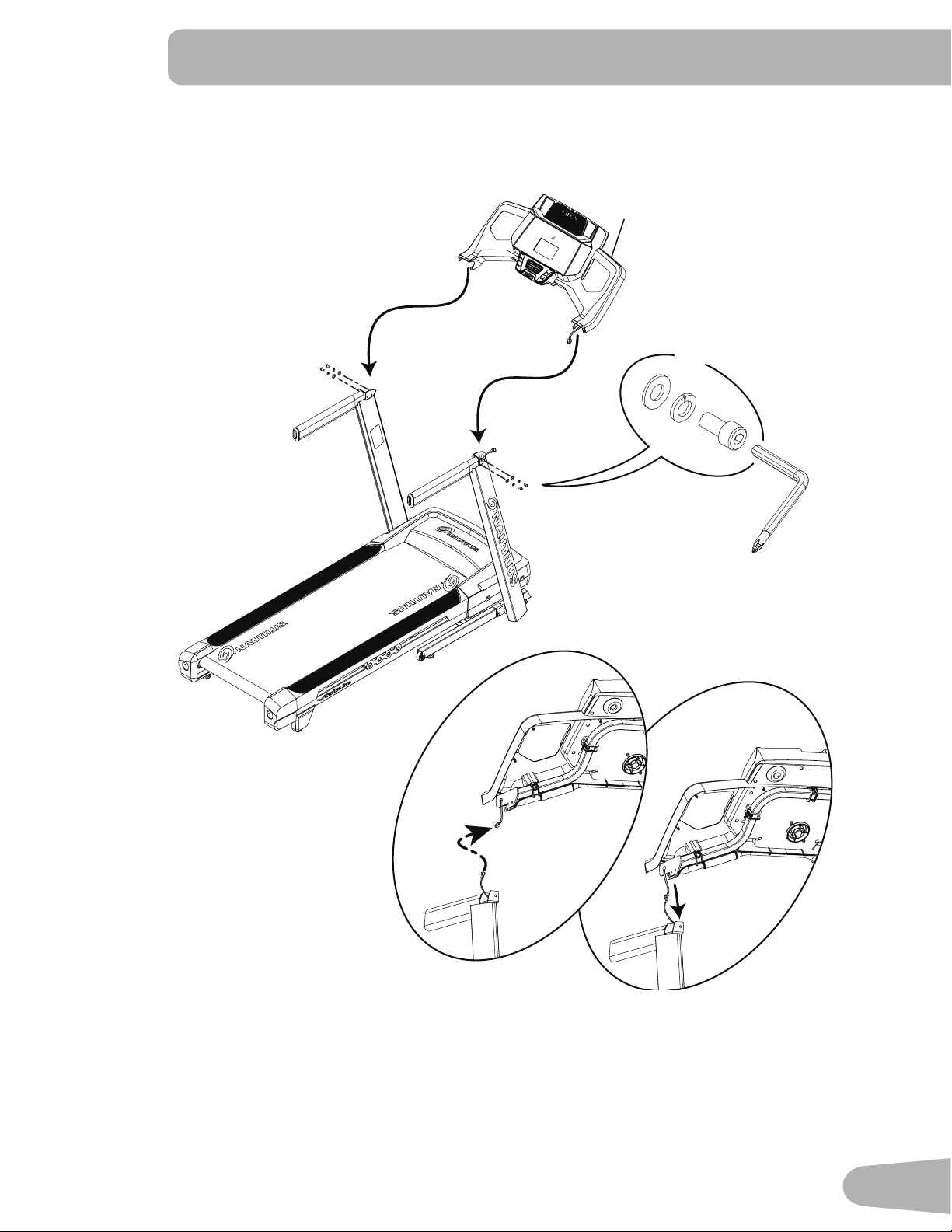

2. Connect the Input/Output (I/O) Cables and Attach the Uprights to Frame
Note: Do not crimp cables. Do not fully tighten Hardware until instructed.
5
A
F
X4
E
10
B
F
E
X4
background
13
3. Unfold the Walking Deck
Slightly push the walking deck forward toward the front of the machine. With your left foot lightly push the top part of
the hydraulic lift forward until the locking tube releases and you can pull the walking deck slightly toward the rear of the
machine. Hold up the rear of the walking deck, and move to the side of the machine.
Keep clear of the movement path of the walking deck.
Thehydraulicliftissetuptodroplightly.Holdontothewalkingdeckuntilapproximately2/3ofthemovementdown.Make
sure that you use proper lifting technique; bend your knees and keep your back straight. The walking deck can possibly
drop quickly in the last part of the movement.
background
14
4. Remove the Console Backing from the Console Assembly
Note: Dispose of the pre-installed hardware.
2
*
#2
1
X4
background
15
5. Connect the I/O Cables and Attach the Console to Frame Assembly
Note: Do not crimp the Cables.
1
6mm
F
B
X4
E
background
16
9
7

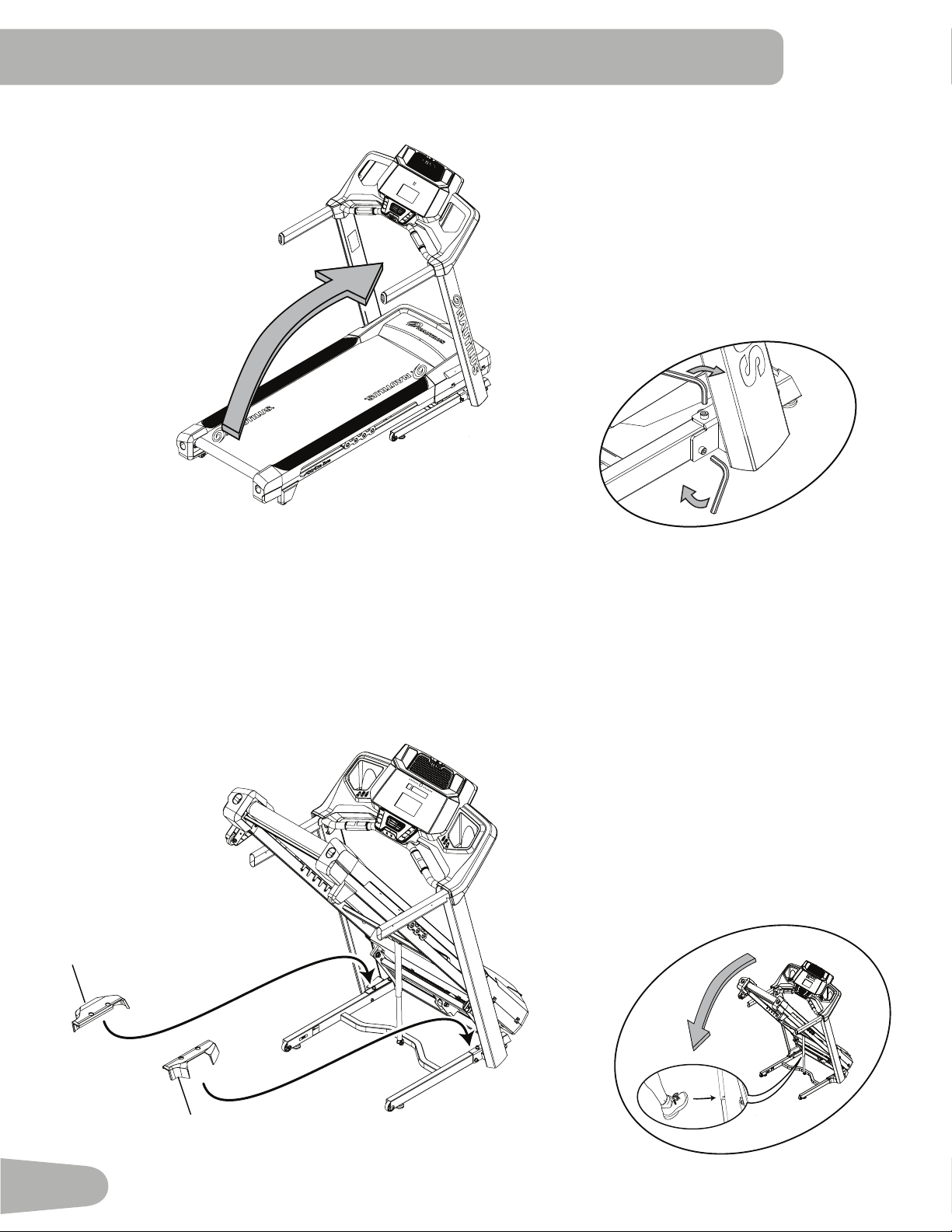

6. Fold the Walking Deck and tighten ALL Hardware from previous steps
7. Place the Base Shrouds onto the Frame Assembly, and then unfold the Walking Deck
Note: Unfold the Walking Deck after the Base Shrouds have been placed onto the Frame Assembly. The Base
Shrouds do not use hardware or snap onto the Frame Assembly.
9
7
background
17
9
7

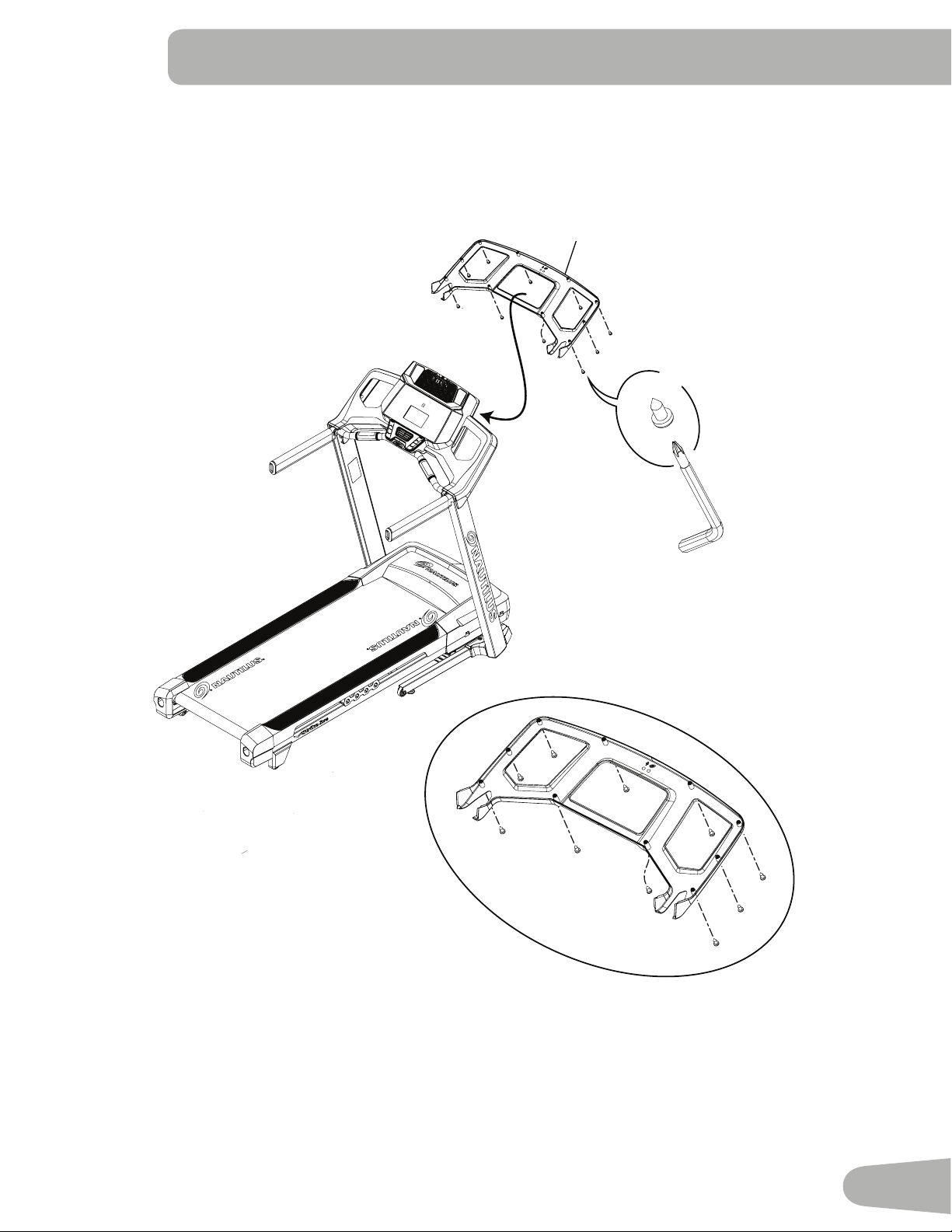

8. Attach the Console Backing to the Frame Assembly
NOTICE : Attach the hardware marked below with the ( *)first,thenthehardwarewiththe(**),followedbythe
remaining hardware.
D
X10
#2
2
*
*
**
**
background
18
9. Attach the Handlebar Shrouds to the Frame Assembly
NOTICE : Thepartshavearight(“R”)andleft(“L”)marktoassistwithassembly.
C
X2
#2
11
6
background
19

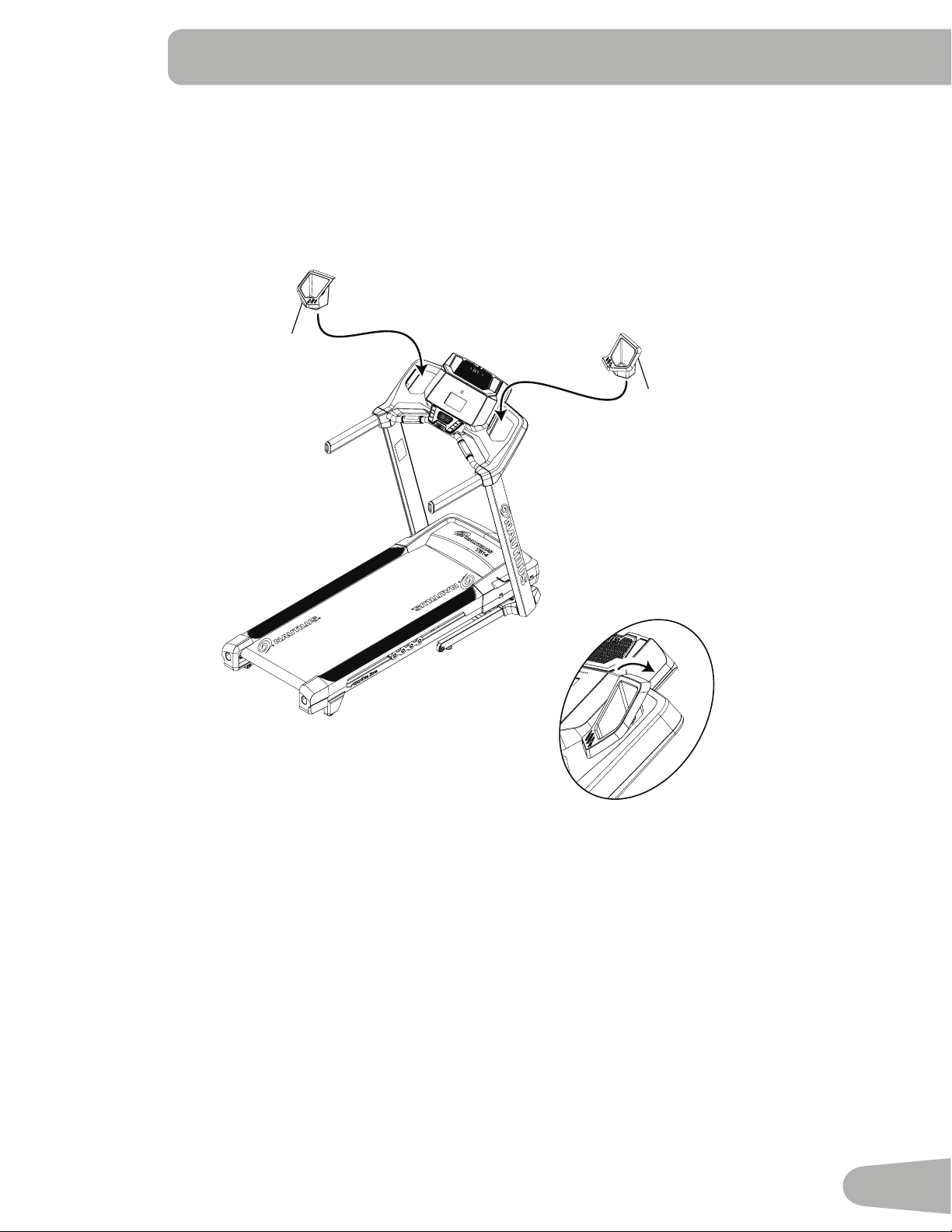

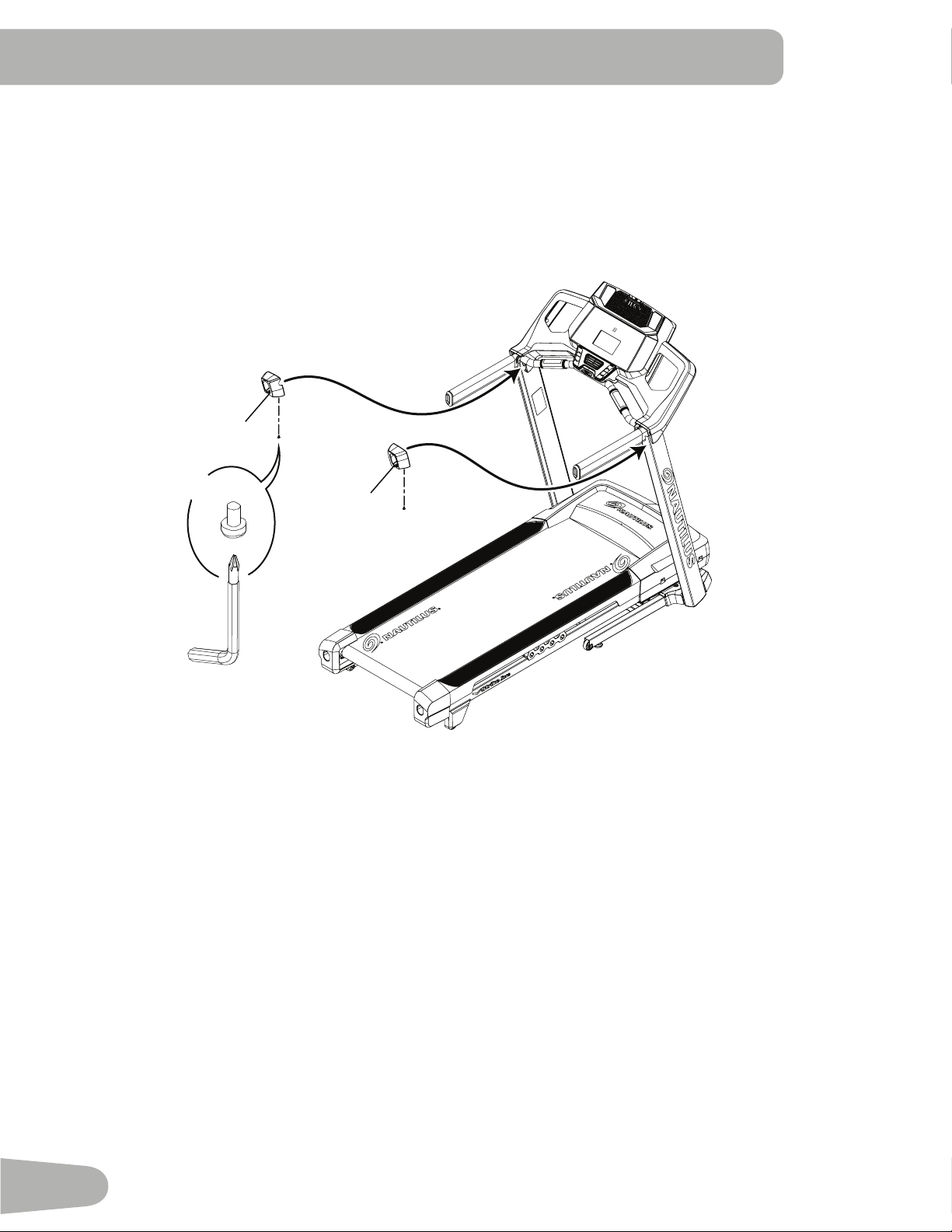

10. Snap the Trays into the Console Assembly
NOTICE : Tray edges should be flush with the face of Console.
4
3
background
20
11. Connect the Power Cord and Safety Key to the Frame Assembly
Connect this machine to a properly earthed outlet only (see Earthing Instructions).
12. Final Inspection
Inspect your machine to ensure that all hardware is tight and components are properly assembled.
Besuretorecordtheserialnumberintheeldprovidedatthefrontofthismanual.
Do not use until the machine has been fully assembled and inspected for correct performance in accor-
dance with the Owner’s Manual.
12
13
background
21

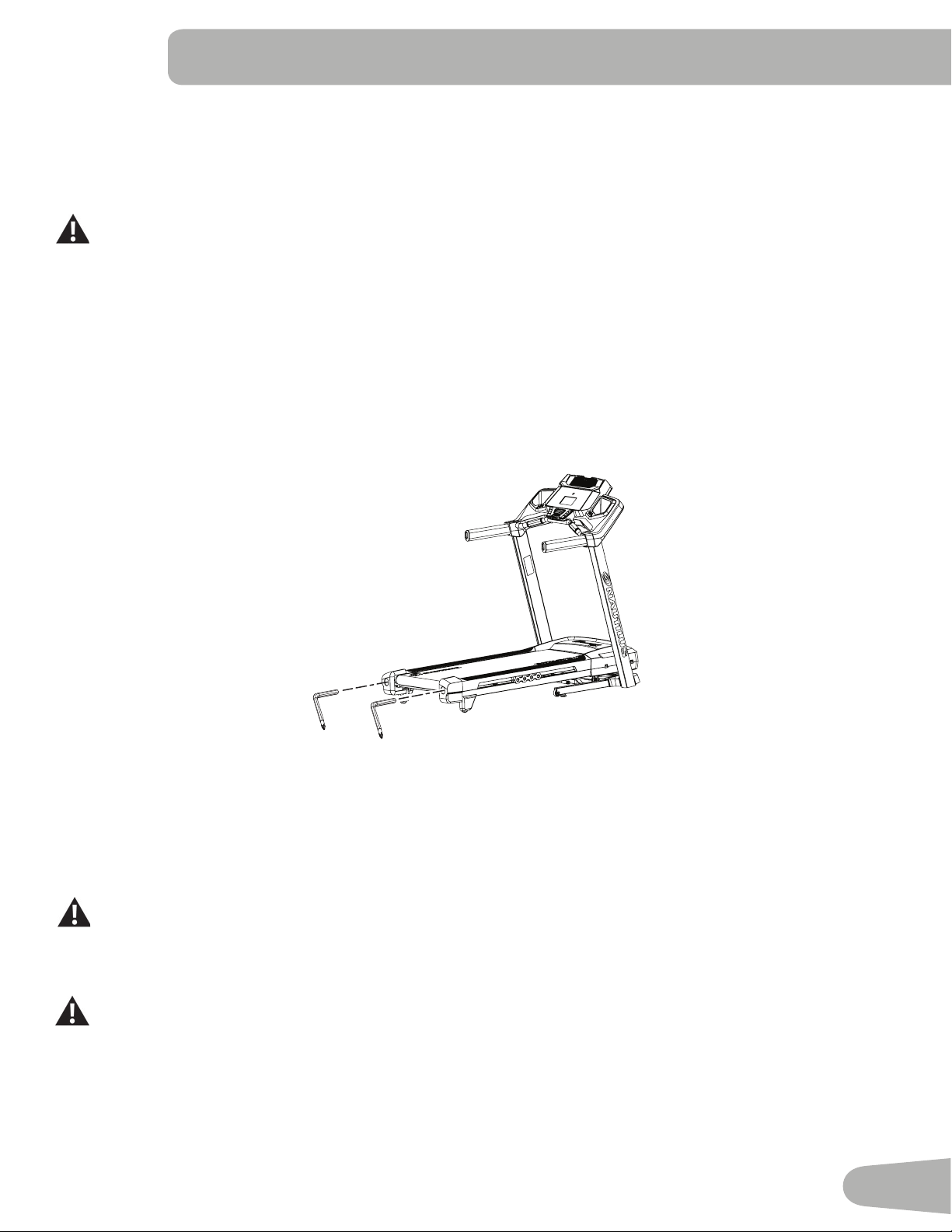

Moving the Machine
The machine can be moved by one or more persons. Use caution when you move the machine. The
treadmill is heavy and can be awkward. Make sure that your own physical strength is capable of moving the
machine. Use a second person if necessary.
1. Remove the Safety Key.
WARNING! When this machine is not in operation, remove the Safety Key and keep out of the reach of children.
2. Make sure that the power switch is turned Off, and the power cord is disconnected.
Never lift the front of the machine for moving or transport. Rotating or moving parts can pinch, resulting in
personal injury.

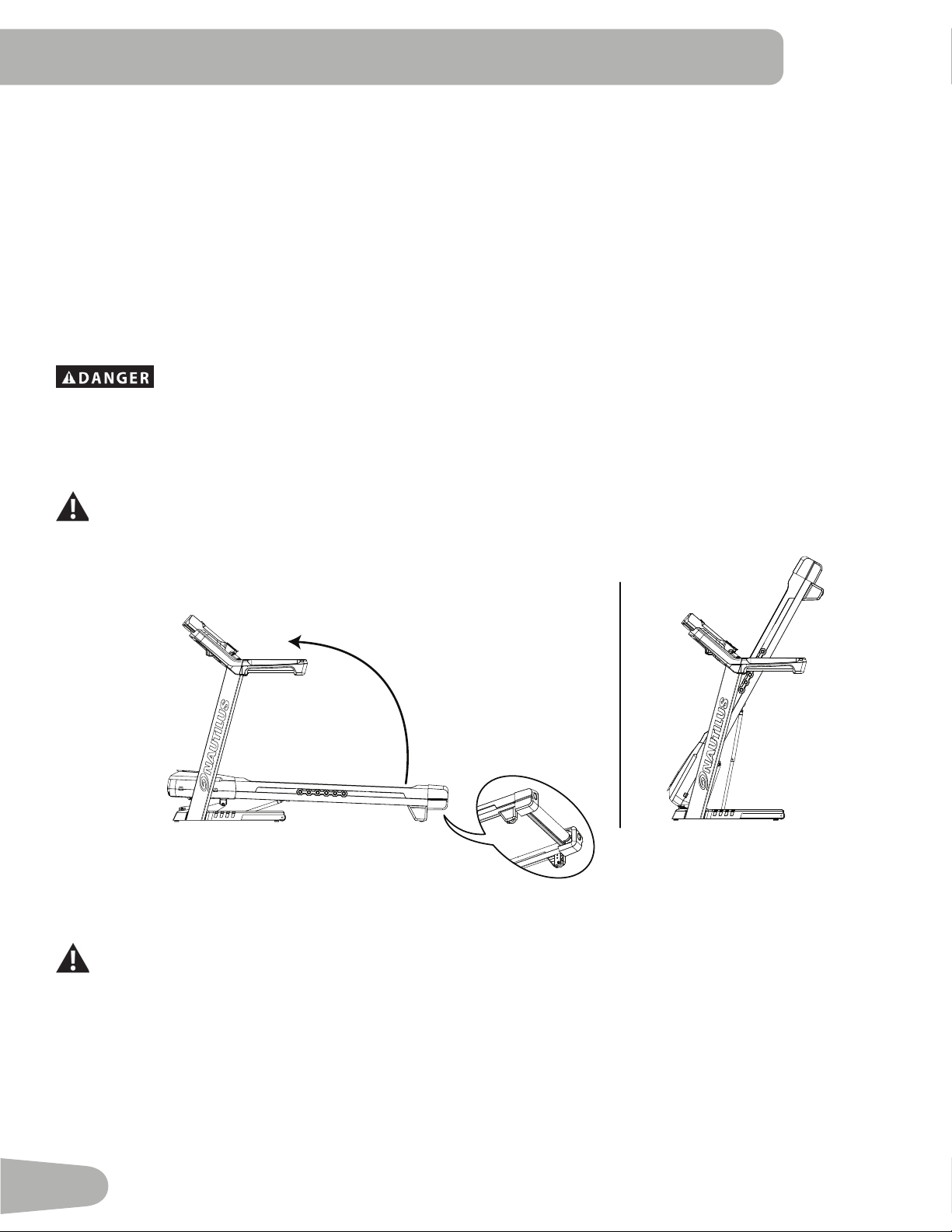

3. You must fold the treadmill before you move it. Never move the treadmill if it is not folded.
4. Make sure that there is safe clearance around, on and above your treadmill. Make sure there is no object to spill or
cause blockage from the fully folded position.
Be sure there is adequate height clearance for the raised deck.
5. Using the support bar found below the rear of the walking belt, lift the walking deck fully upward and engage the
hydraulic lift. Be sure that the hydraulic lift is correctly locked in place
Use proper safety precautions and lifting techniques. Bend your knees and elbows, keep your back straight
and pull up equally with both arms. Make sure that your own physical strength is capable of lifting the
walking deck until it engages the locking mechanism. Use a second person if necessary.
Do not use the walking belt or rear roller to lift the treadmill. These parts do not lock in place and can
abruptly move. Injury to you or damage to the machine can occur.
6. Make sure that the locking mechanism is engaged. Carefully pull back on the walking deck and make sure that it does
not move. When you do this, keep clear of movement path in case the treadmill lock is not engaged.
Do not lean against the treadmill when it is folded. Do not put items on it that could cause it to become
unstable or fall.
Do not connect the power cord or try to operate the treadmill in the folded position.
7. Carefully tilt the base frame of the folded treadmill a small distance back on the transport wheels while grasping the
support bar.
BEFORE YOU START
background
22
Do not use the Console, handlebars, or lifted walking deck to lift or move the treadmill. Damage to the
treadmill can occur.
Keep clear of the movement path of the lifted walking deck.
8. Rollthemachineonthetransportwheelstoitsnewlocation.
Do not put objects where the walking deck would be if lowered.
NOTICE: Move the machine carefully so that it does not hit other objects. This can damage the Console operation.
9. Prior to use, refer to the “Unfolding the Machine” procedure in this manual.
Unfolding the Machine
1. Makesurethereissufcientspacetolowerthewalkingdeck.
Keep a minimum clearance behind the machine of 79” (2 m) and 24” (0.6 m) on each side. This is the
recommended safe distance for access, movement and emergency dismounts from the machine.
Place the machine on a clean, hard, level surface, free from unwanted material or other objects that may
hamper your ability to move freely with a sufcient clear workout area. A rubber mat below the machine is
recommended to prevent electrostatic discharge and protect your oor.
Be sure that the workout space you are utilizing has adequate height clearance, taking into consideration
the height of the user and the maximum incline of the deck.
2. Make sure there is no object on or around the treadmill to spill or cause blockage from the fully unfolded position.
3. Slightly push the walking deck forward toward the console. With your left foot lightly push the top part of the hydraulic
lift forward until the locking tube releases and you can pull the walking deck away from the console. Hold up the rear
of the walking deck, and move to the side of the machine.
Keep clear of the movement path of the walking deck.
4. Thehydraulicliftissetuptodroplightly.Holdontothewalkingdeckuntilapproximately2/3ofthemovementdown.
Make sure that you use proper lifting technique; bend your knees and keep your back straight. The walking deck can
possibly drop quickly in the last part of the movement.
background
23

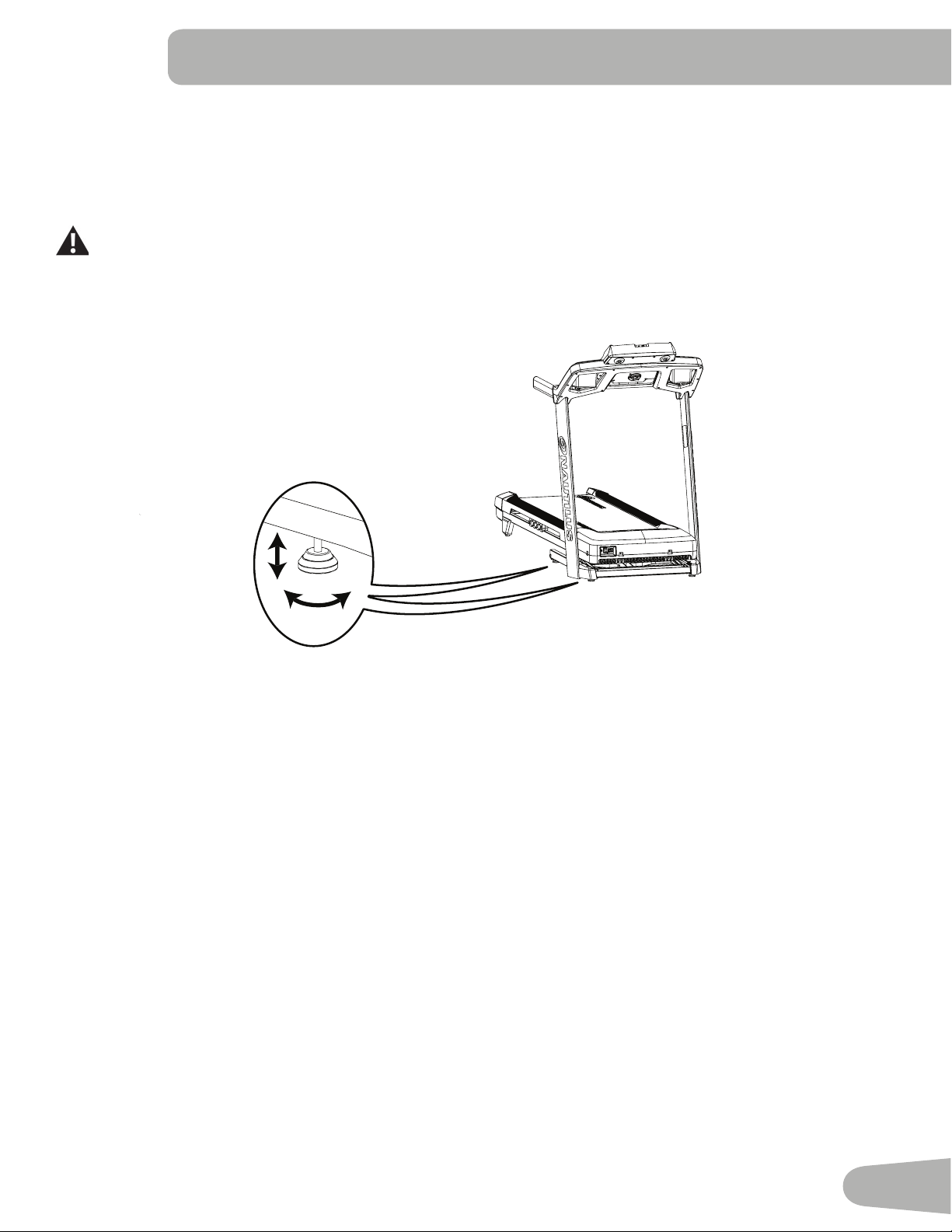

Leveling the Machine
The machine needs to be leveled if your workout area is uneven. To adjust:
1. Place the machine in your workout area.
2. Adjustthelevelersuntiltheyallcontacttheoor.
Do not adjust the levelers to such a height that they detach or unscrew from the machine. Injury to you or
damage to the machine can occur.
3. Adjust until the machine is level.
Makesurethemachineislevelandstablebeforeyouexercise.
Treadmill Belt
Your treadmill comes equipped with a durable, high quality walking belt designed to provide many hours of reliable ser-
vice. The walking belt on a treadmill that has not been operated for a length of time, either in factory packaging or after
assembly,canexhibita“thumping”noisewhenstarted.Thisisduetothebelttakingonthecurveofthefrontandrearroll-
ers. This is a common occurrence and does not indicate a problem with your machine. After the treadmill has been used
for a short period of time the thumping noise will discontinue. The amount of time will vary depending on the temperature
and humidity of the environment where the treadmill is placed.
background
24

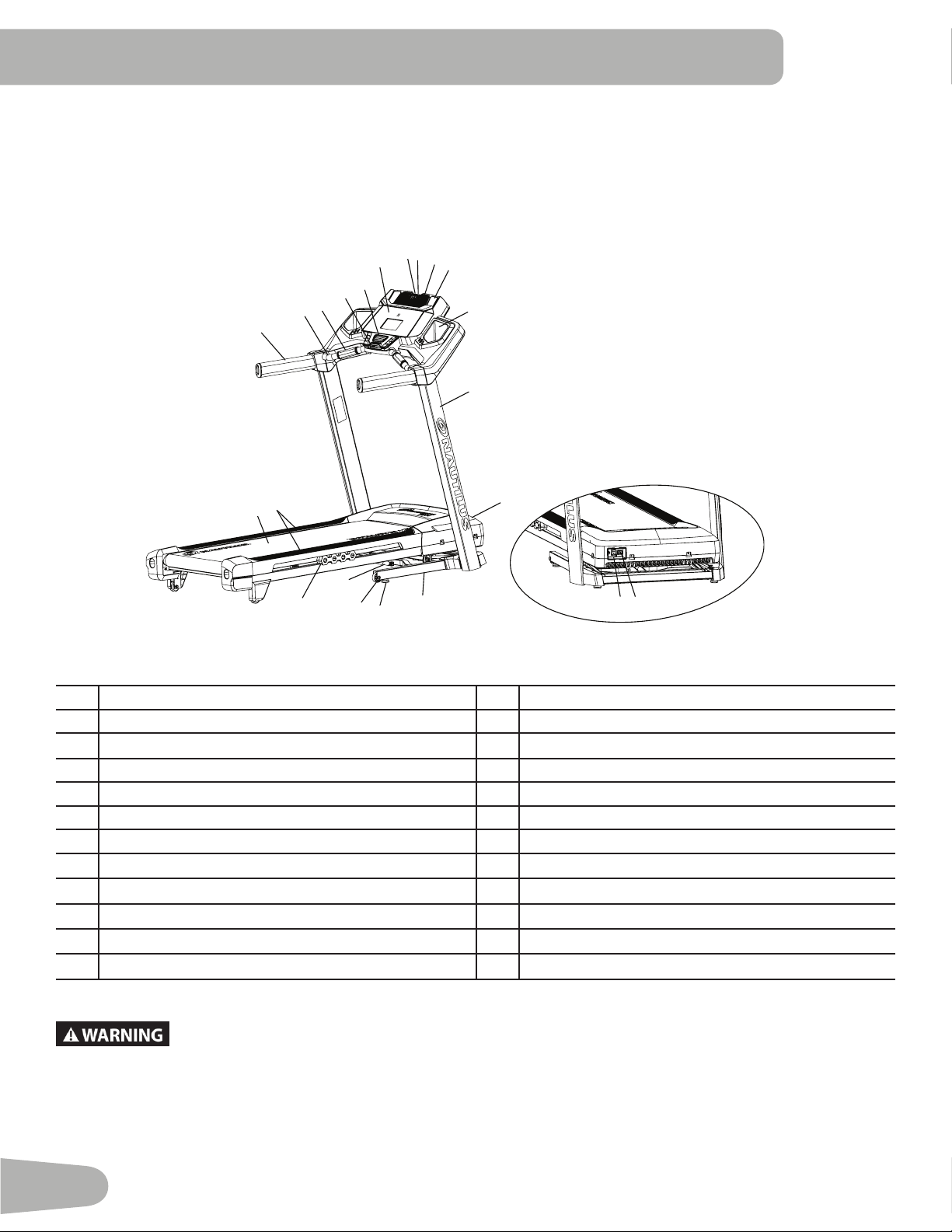

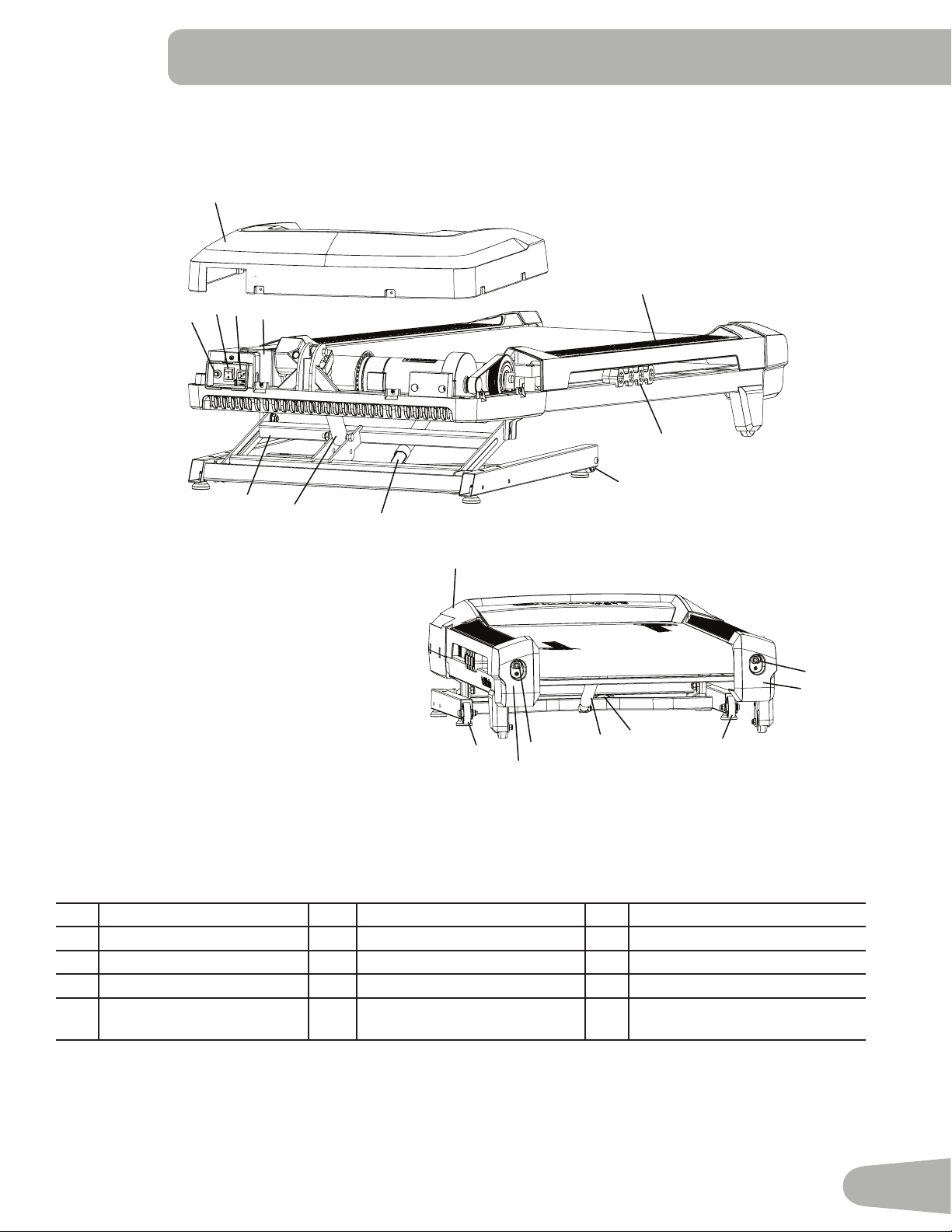

FEATURES
A Handlebar M Motor Cover
B Ergo Bar N Base
C ContactHeartRate(CHR)Sensors O Leveler
D Emergency Safety Key Port P Transport Wheel
E Fan Q Hydraulic Lift
F Console R Dampener
G USB Port S Side Foot Support Rails
H MP3 Input T Walking Belt and Deck
I Media Tray U Power Switch
J Speaker V AC Inlet
K Storage Tray W TelemetryHeartRate(HR)Receiver(notshown)
L Upright X MediaCable(notshown)
Use the values calculated or measured by the machine’s computer for reference purposes only.
The heart rate displayed is an approximation and should be used for reference only. Over
exercising may result in serious injury or death. If you feel faint stop exercising immediately.
U
V
G
H
J
I
K
C
B
A
L
M
Q
P
O
T
S
E
D
F
R
N
background
25
INCLINE SPEED

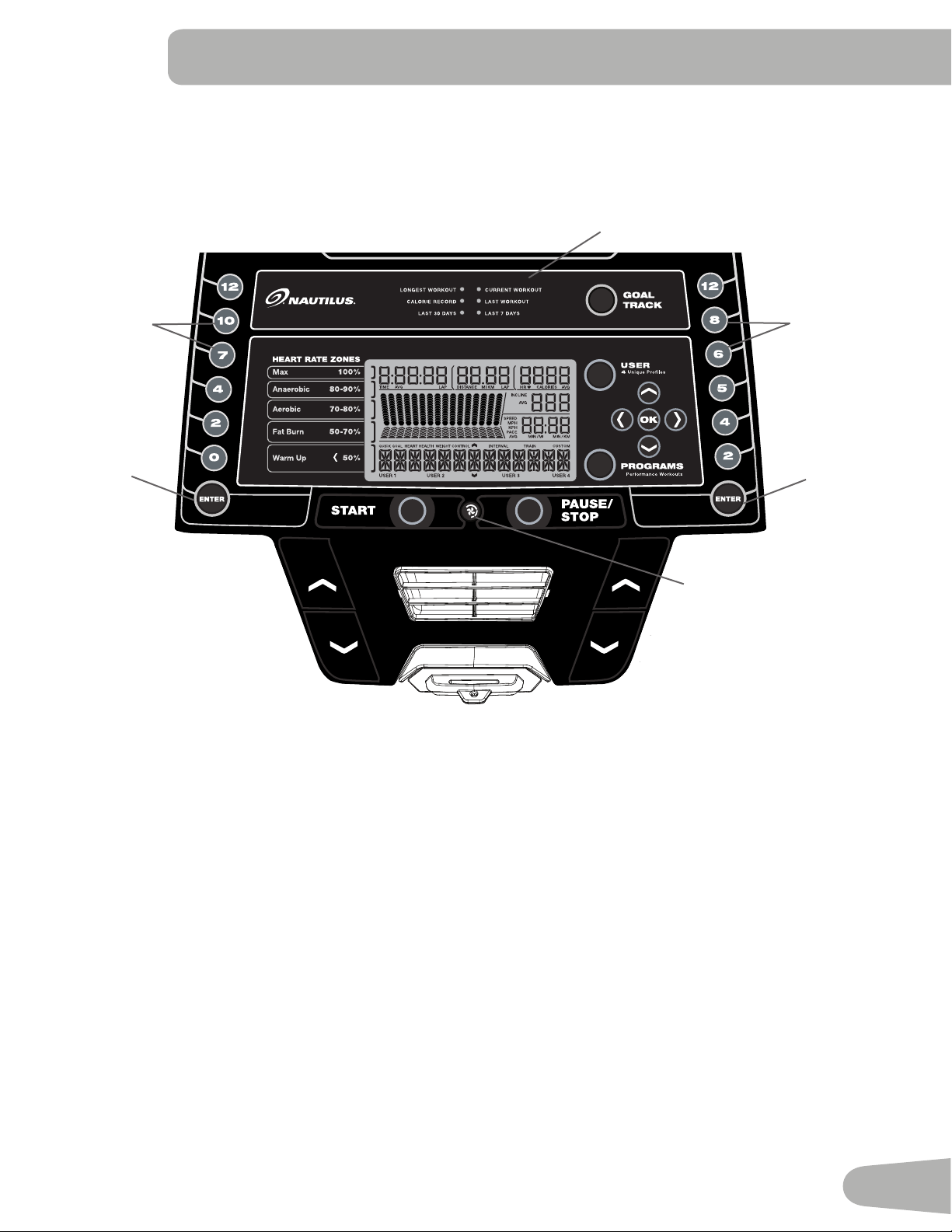

Console Features
The Console provides important information about your workout and lets you control the resistance levels while you
exercise.TheConsolefeaturestouchcontrolbuttonstonavigateyouthroughtheexerciseprograms.
Console Display
Goal Track Achievement Lights- when an achievement level is reached or a result is reviewed, the achievement indicator
light will activate.
GOALTRACKbutton-DisplaystheWorkoutTotalsandAchievementsfortheselectedUserProle
USERbutton-PushtoselectthedesiredUserProle.TheActiveUserDisplaywilladjust
Increase ()button- Increasesthecurrentvalueormovesthroughtheoptionsavailable
Left ()button-Shiftsthecurrentlyactivesegment,andmovesthroughoptions
OKbutton-Conrmsinformationoraselection
Decrease ()button-Decreasesthecurrentvalue,ormovesthroughtheoptionsavailable
Right ()button-Shiftsthecurrentlyactivesegment,andmovesthroughoptions
PROGRAMS button- Selects a category of workout programs
Pre-Set Incline buttons- Selects an incline value for the Walking Deck. After pushing a Pre-Set Incline button, push the
Incline Enter button within 12 seconds for the Walking Deck to be adjusted to the desired incline.
Fan Button
Pre-Set
Incline
Buttons
Incline
Enter
Button
Pre-Set
Speed
Buttons
Speed Enter
Button
Goal Track Achievement
Lights
background
26
INCLINE SPEED
Incline Enter button- Activates the incline motor to adjust the Walking Deck to the selected Pre-Set Incline value.
START button- Begins a Quick Start workout, begins a Program Workout after customized for the User, or resumes a
paused workout.
FAN button- Controls 3-speed fan
PAUSE / STOP button- Pauses an active workout, ends a paused workout, or exitstothepreviousmenu
Pre-Set Speed buttons- Selects a speed value for the Walking Belt. After pushing a Pre-Set Speed button, push the
Speed Enter button within 12 seconds for the Walking Belt to be adjusted to the desired speed.
Speed Enter button- Adjusts the speed of the Walking Belt to the selected Pre-Set Speed value.

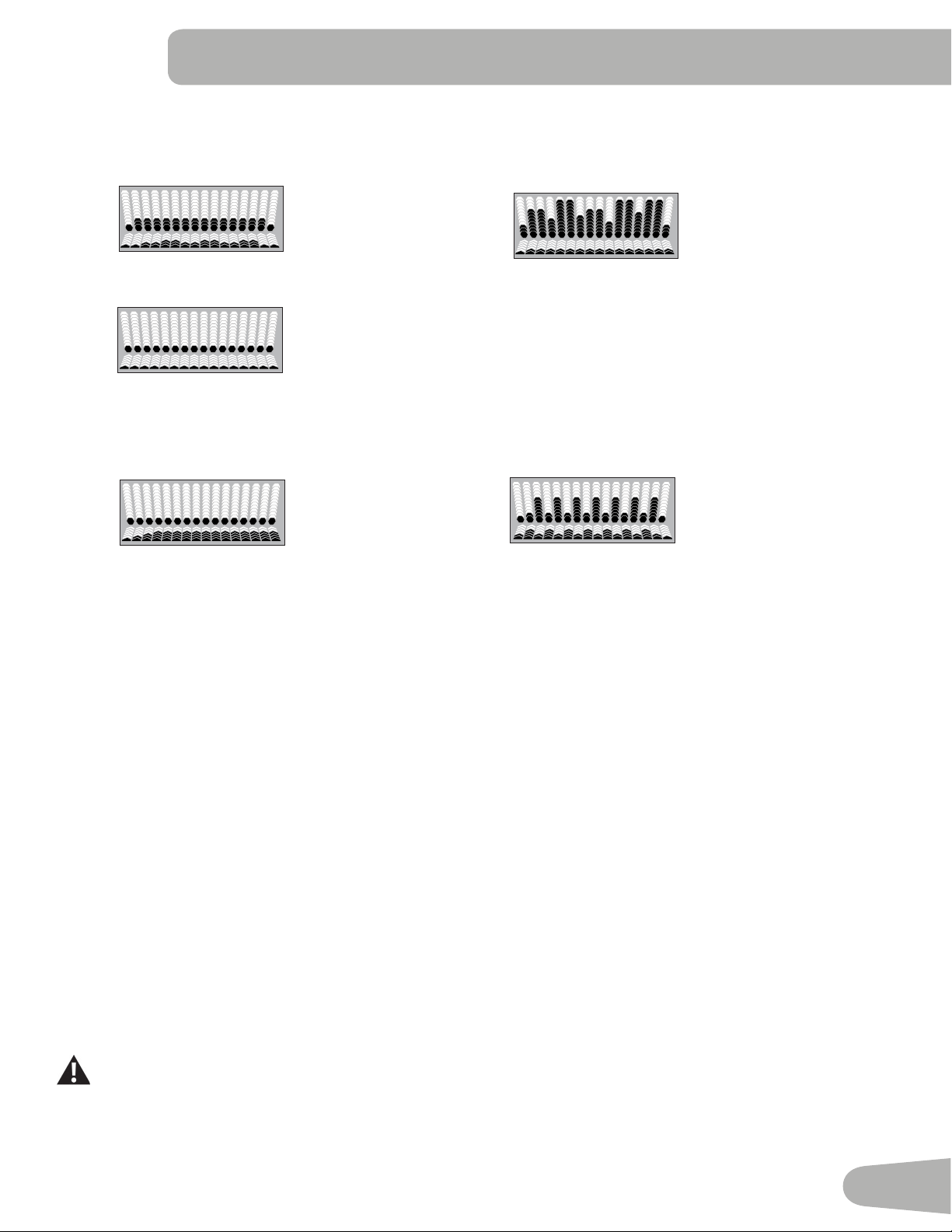

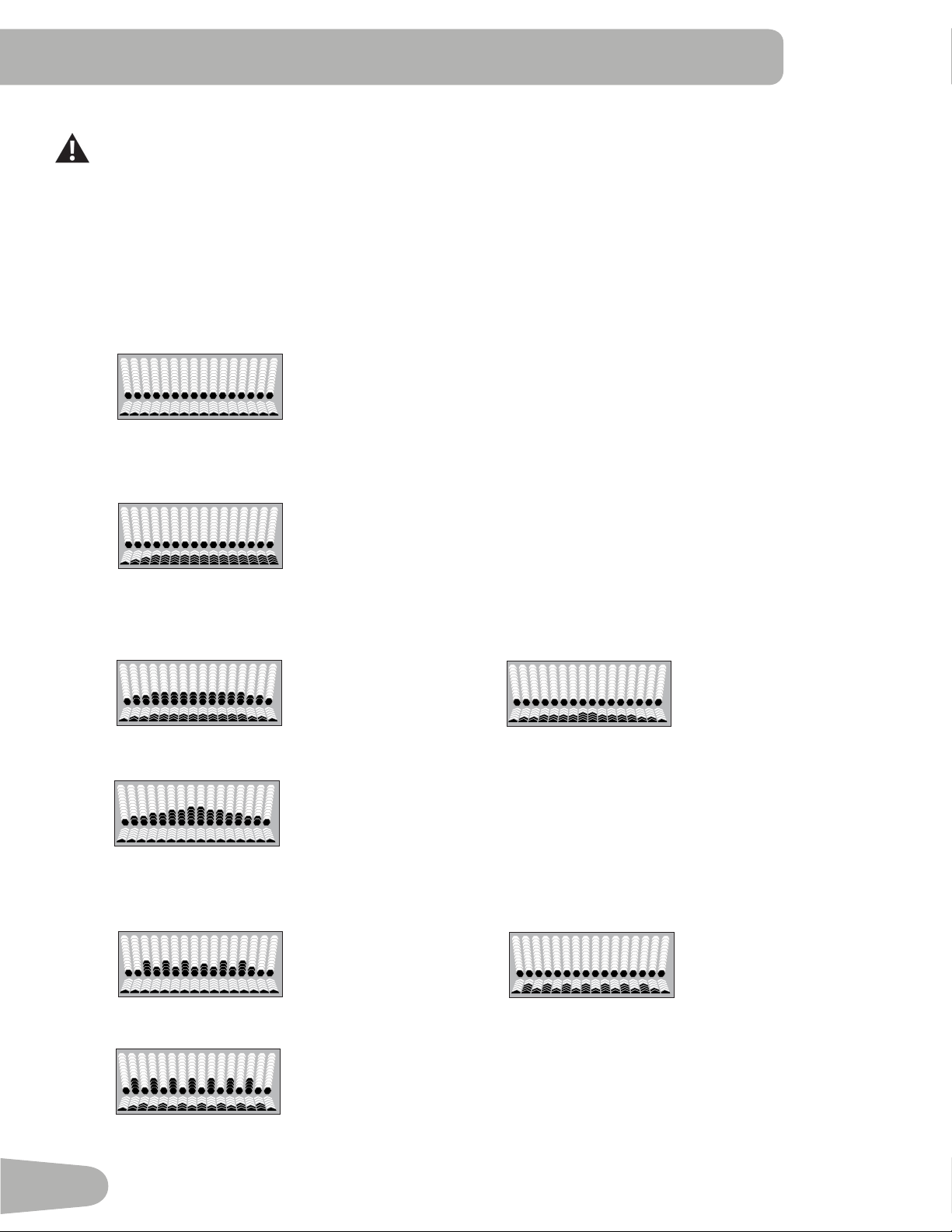

LCD Display Data
Program Display
TheProgramDisplayshowsthecourseprolefortheworkoutprogram.Acourseprolehas16columns,orsegments.
Thecourseprolehastwovariablesforeachsegment:incline(hexagons,upper)andspeed(arrows,lower).
Themoreintensetheinclineorspeedsetting,thehigherthelevelforthatsegment.Theashingsegmentshowsyour
current interval.
Heart Rate Zone Display
The Heart Rate Zone shows which zone the current heart rate value falls into for the current User. These Heart Rate
Zonescanbeusedasaworkoutguideforacertaintargetzone(max,anaerobic,aerobic,fatburn,andwarmup).
Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in
your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.
Use the values calculated or measured by the machine’s computer for reference purposes only. The heart
rate displayed on the console is an approximation and should be used for reference only.
Note: If no heart rate is detected, the Heart Rate Zone display will be blank.
Active User Display
Option Guides
Workout Category
Programprole
Display
Heart Rate
Zone Display
background
27
Option Guides
The Option Guides inform the User where they are in a list of options with the MORE and PREVIOUS Options.
IftheMOREOptions(decreasearrow)isactive,thenthereareadditionaloptionsthatcanbeviewedbypushingthe
Decrease ()button.TheMOREOptions(decreasearrow)isactiveuntiltheUserreachestheendofthelist.Whenthe
Userisattheendoftheoptionslist,theMOREOptions(decreasearrow)willdeactivateandtheDecrease()buttonwill
not provide further options.
ThePREVIOUSOptions(increasearrow)isactiveassoonastheUserbeginsmovingthroughthelist.UsetheIncrease
()buttontoseethepreviousoptions.
Active User Display
TheActiveUserDisplayshowswhichUserProleiscurrentlyselected.
Time / Lap (Time)
TheTIMEdisplayeldshowsthetotaltimecountoftheworkout,theaverageTimefortheUserProle,orthetotalopera-
tional time of the machine.
Note: ThemaximumtimeforaQuickStartworkoutis9hours,59minutesand59seconds(9:59:59).
TheLap(Time)displayshowsthetimecountforthejustcompletedLap.Duringaworkout,thisworkoutvalueisonlydis-
played when a Lap is completed.
Distance / Lap (Count)
TheDistancedisplayshowsthedistancecount(milesorkm)intheworkout.
TheLap(Count)displayshowsthetotalnumberofLapscompletedduringtheworkout.Duringaworkout,thisworkout
value is only displayed when a Lap is completed, or during the Workout Results mode (completed Laps only, no deci-
mals).
Note:ThedistanceofaLapcanbecustomizedforeachUserintheEditUserProlemode.Thedefaultis0.25miles
(0.4km).
Heart Rate (HR) / Calories
TheHeartRatedisplayshowsthebeatsperminute(BPM)fromtheheartratemonitor.Whenaheartratesignalisre-
ceivedbytheConsole,theiconwillash.
Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in
your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.
The heart rate displayed is an approximation and should be used for reference only.
Calories
TheCaloriesdisplayeldshowstheestimatedcaloriesthatyouhaveburnedduringtheworkout.
Incline
The Incline display shows the current percent of Incline for the Walking Deck.
Speed / Pace
TheSpeeddisplayeldshowsthebeltspeedinmilesperhour(mph)orkilometersperhour(km/h).
ThePacedisplayeldshowsthecurrenttimetocompleteamile(orkm)atthecurrentSpeedvalue.
Note:ThemaximumvalueforthePaceeldis99:59.
background
28
USB Charging
If a USB Device is attached to the USB Port, the Port will attempt to charge the Device.
Note: Depending on the amperage of device, the power supplied from the USB Port may not be enough to operate
the Device and charge it at the same time.
background
29
Remote Heart Rate Monitor
MonitoringyourHeartRateisoneofthebestprocedurestocontroltheintensityofyourexercise.ContactHeartRate
(CHR)sensorsareinstalledtosendyourheartratesignalstotheConsole.TheConsolecanalsoreadtelemetryHRsig-
nals from a Heart Rate Chest Strap Transmitter that operates in the 4.5kHz - 5.5kHz range.
Note: The heart rate chest strap must be an uncoded heart rate strap from Polar Electro or an uncoded POLAR
®
com-
patible model. (Coded POLAR
®
heart rate straps such as POLAR
®
OwnCode
®
chest straps will not work with this
equipment.)
If you have a pacemaker or other implanted electronic device, consult your doctor before using a wireless
chest strap or other telemetric heart rate monitor.
Contact Heart Rate Sensors
ContactHeartRate(CHR)sensorssendyourheartratesignalstotheConsole.TheCHRsensorsarethestainlesssteel
parts of the Handlebars. To use, put your hands comfortably around the sensors. Be sure that your hands touch both the
topandthebottomofthesensors.Holdrm,butnottootightorloose.Bothhandsmustmakecontactwiththesensorsfor
the Console to detect a pulse. After the Console detects four stable pulse signals, your initial pulse rate will be shown.
Once the Console has your initial heart rate, do not move or shift your hands for 10 to 15 seconds. The Console will now
validatetheheartrate.Manyfactorsinuencetheabilityofthesensorstodetectyourheartratesignal:
• Movementoftheupperbodymuscles(includingarms)producesanelectricalsignal(muscleartifact)thatcaninterfere
with pulse detection. Slight hand movement while in contact with the sensors can also produce interference.
• Calluses and hand lotion may act as an insulating layer to reduce the signal strength.
• SomeElectrocardiogram(EKG)signalsgeneratedbyindividualsarenotstrongenoughtobedetectedbythesensors.
• Theproximityofotherelectronicmachinescangenerateinterference.
If your heart rate signal ever seems erratic after validation, wipe off your hands and the sensors and try again.
background
30
20-24
FAT-BURNING TARGET HEART RATE
Heart Rate BPM
(beats per minute)
Age
25-29
0
50
100
150
200
250
30-34 35-39 40-44 45-49 50-54 55-59 60-64 65-69 70+
196
191
186
181
176
171
166
161
156
151
146
167
162
158
154
150
145
141
137
133
128
126
Maximum Heart Rate
Target Heart Rate Zone
(keep within this range
for optimum fat-burning)
118
115
112
109
106
103
100
97
94
91
88
Heart Rate Calculations
Yourmaximumheartrateusuallydecreasesfrom220BeatsPerMinute(BPM)inchildhoodtoapproximately160BPMby
age60.Thisfallinheartrateisusuallylinear,decreasingbyapproximatelyoneBPMforeachyear.Thereisnoindication
thattraininginuencesthedecreaseinmaximumheartrate.Individualsofthesameagecouldhavedifferentmaximum
heartrates.Itismoreaccuratetondthisvaluebycompletingastresstestthanbyusinganagerelatedformula.
Yourat-restheartrateisinuencedbyendurancetraining.Thetypicaladulthasanatrestheartrateofapproximately72
BPM, whereas highly trained runners may have readings of 40 BPM or lower.
TheHeartRatetableisanestimateofwhatHeartRateZone(HRZ)iseffectivetoburnfatandimproveyourcardiovas-
cular system. Physical conditions vary, therefore your individual HRZ could be several beats higher or lower than what is
shown.
Themostefcientproceduretoburnfatduringexerciseistostartataslowpaceandgraduallyincreaseyourintensityun-
tilyourheartratereachesbetween50–70%ofyourmaximumheartrate.Continueatthatpace,keepingyourheartrate
in that target zone for over 20 minutes. The longer you maintain your target heart rate, the more fat your body will burn.
The graph is a brief guideline, describing the generally suggested target heart rates based on age. As noted above, your
optimal target rate may be higher or lower. Consult your physician for your individual target heart rate zone.
Note:Aswithallexercisesandtnessregimens,alwaysuseyourbestjudgmentwhenyouincreaseyourexercisetime
or intensity.
background
31
OPERATIONS
What to Wear
Wearrubber-soledathleticshoes.Youwillneedtheappropriateclothesforexercisethatallowyoutomovefreely.
How Often Should You Exercise
Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in
your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.
Use the values calculated or measured by the machine’s computer for reference purposes only. The heart
rate displayed on the console is an approximation and should be used for reference only.
• 3 times a week for 30 minutes each day.
• Schedule workouts in advance and try to follow the schedule.
• Consider doing some warm-up stretches, which will help prepare your body, before your workouts.
Getting Started
Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in
your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.
Use the values calculated or measured by the machine’s computer for reference purposes only.
Place the machine on a clean, hard, level surface, free from unwanted material or other objects that may
hamper your ability to move freely with a sufcient clear workout area. A rubber mat below the machine is
recommended to prevent electrostatic discharge and protect your oor.
Be sure that the workout space you are utilizing has adequate height clearance, taking into consideration
the height of the user and the maximum incline of the deck.
1. Withthetnessmachineinyourworkoutarea,inspectthewalkingbelttomakesureitiscenteredandaligned.If
necessary, refer to the “Aligning the Walking Belt” Procedure in the Maintenance section of this manual.
The edges of the Walking Belt should be under the Side Foot Support Rails. If an edge of the Walking Belt
can be viewed do not operate the machine. Adjust the Walking Belt until the edges are not viewable and are
below the Side Foot Support Rails. Refer to the Aligning the Walking Belt Procedure.
Note: This machine is for home use only.
2. Examinebelowthewalkingbeltforanyobjects.Besureitisclearbelowthemachine.
3. Connect the Power Cord to a correctly earthed AC wall outlet.
Do not step on the power cord and plug.
Note: The machine is designed to plug directly into a properly wired and earthed 220V outlet.
4. If you use the Remote Heart Rate Monitor, follow the Chest Strap directions supplied with it.
5. Switch on the power. Power is now supplied to the machine.
6. Straddle the walking belt and stand on the Side Foot Support Platforms. Put the Safety Key into the Safety Key Port
and clip the Safety Key cord to your clothing.
Care should be used when mounting or dismounting the machine.
To prevent injury, stand on the Foot Platforms before you start the machine or end a workout. Do not
dismount the machine by standing on the moving Walking Belts and exiting off the rear of the unit (or
machine).
•ExaminetheSafetyKeyandbesureitisconnectedtotheConsolecorrectly.
Note: iftheSafetyKeyisnotinstalled,themachinewillallowtheUsertoperformallactivitiesexcepttoactivatethe
WalkingBelts.TheConsolewilldisplaytheremindertoinserttheSafetyKey(“+SAFETYKEY”).
• Always attach the Safety Key Clip to your clothing during workouts.
background
32
• If there is an emergency, pull out the Safety Key to shut off the power to the Belt and Incline Motors. This will quickly
stopthebelt(braceyourself-thisisanabruptstop)andcleartheworkout.PushthePAUSE/STOPbuttontostopthe
belt and pause the program.
7. Push the USER button to select the desired User for the workout.
8. SelectyourworkoutusingthePROGRAMSbuttonandtheDecrease/Increasebuttons.
9. With your desired workout shown, push the OK button.
10. The Console will ask a series of questions to customize the workout. When the Console displays the “READY ?”
prompt, push the START button. The Console will display “RAMPING UP” as the Walking Belt gets up to speed. Be
sure to carefully step onto the walking belt.
The belt will only move after a 3 second, audible beep countdown.
Always use the handlebars to step on or off the treadmill, or when the incline or speed change.
If the Sound has been muted, the Console will display the “AUDIO OFF” prompt for a few seconds.
To perform an emergency dismount, grab onto the Front or Side Handlebars and safely step onto the Side
Foot Platforms. Bring the Walking Belt to a stop and carefully step off the machine.
Note: Your treadmill comes equipped with a durable, high quality walking belt designed to provide many hours of
reliable service. The walking belt on a treadmill that has not been operated for a length of time, either in factory
packagingorafterassembly,canexhibita“thumping”noisewhenstarted.Thisisduetothebelttakingonthecurve
of the front and rear rollers. This is a common occurrence and does not indicate a problem with your machine. After
the treadmill has been used for a short period of time the thumping noise will discontinue. The amount of time will vary
depending on the temperature and humidity of the environment where the treadmill is placed.
Power-Up / Idle Mode
The Console will enter Power-Up / Idle Mode if it is plugged into a power source, the Power Switch turned on, and the
Safety Key is properly installed.
Note: iftheSafetyKeyisnotinstalled,themachinewillallowtheUsertoperformallactivitiesexcepttoactivatethe
WalkingBelt.TheConsolewilldisplaytheremindertoinserttheSafetyKey(“+SAFETYKEY”).OncetheSafetykey
is installed, the START button will need to be pushed again to begin the selected Workout.
Auto Shut-Off (Sleep Mode)
IftheConsoledoesnotreceiveanyinputinapproximately5minutes,itwillautomaticallyshutoff.TheLCDdisplayisoff
while in Sleep Mode.
To disconnect, turn all controls to the off position, then remove plug from outlet.
Initial Setup
Duringtherstpower-up,theConsoleshouldbesetupwiththedate,time,andthepreferredunitsofmeasurement.
1. Date:PushtheIncrease/Decreasebuttonstoadjustthecurrentlyactivevalue(ashing).PushtheLeft/Rightbuttons
tochangewhichsegmentisthecurrentlyactivevalue(month/day/year).
2. Push OK to set.
3. Time:PushtheIncrease/Decreasebuttonstoadjustthecurrentlyactivevalue(ashing).PushtheLeft/Rightbuttons
tochangewhichsegmentisthecurrentlyactivevalue(AMorPM/hour/minute).
4. Push OK to set.
5. UnitsofMeasurement:PushtheIncrease/Decreasebuttonstoadjustbetween“MILES”(ImperialEnglish)or“KM”
(metric).
background
33
6. Push OK to set. The Console goes to the Power-Up Mode screen.
Note: To adjust these selections, consult the “Console Set-Up Mode” section.
Quick Start ( Manual ) Program
TheQuickStart(Manual)programletsyoustartaworkoutwithoutenteringanyinformation.
During a Manual Workout, each column represents a 2 minute time period. The active column will advance across the
screenevery2minutes.Iftheworkoutlastsformorethan32minutes,theactivecolumnisxedonthefarthestcolumnon
the right and pushes the previous columns off the display.
1. Stand on the Side Foot Support Platforms.
2. PushtheUserbuttontoselectthecorrectUserprole.IfyoudonothaveaUserprolesetup,youcanselectaUser
prolethathasnocustomizeddata(defaultvaluesonly).
3. Push the START button to start the Manual program.
Note: The Safety Key must be installed for a workout to begin. if not installed, the Console will display ,” + SAFETY
KEY “. The Console will display “RAMPING UP” as the Walking Belt gets up to speed.
4. To change the Incline or Speed level, push the appropriate Increase or Decrease buttons. The time will count up from
00:00.
Note: ThemaximumtimeforaQuickStartworkoutis9hours,59minutesand59seconds(9:59:59).
5. When done with your workout, push PAUSE/STOP to pause the workout. Push PAUSE/STOP again to end the work-
out.
Note: The workout results are recorded to the current User Profile.
User Profiles
The Console lets you store and use 4 User profiles. The User profiles automatically record the workout results for each
workout, and allow the workout data to be reviewed.
The User profile stores the following data:
• Name—up to 13 characters
• Weight
• Height
• Age
• Gender
• Lap Distance
• Scan
• Value(CustomizedWorkoutDisplay)
Select a User Profile
EveryworkoutissavedtoaUserProle.BesuretoselecttheproperUserProlebeforestartingaworkout.ThelastUser
that completed a workout will be the default user.
UserProlesareassignedthedefaultvaluesuntiltheyarecustomizedbyediting.BesuretoedittheUserProleformore
accurate calorie and heart rate information.
Edit User Profile
1. From the Power-Up Mode screen, push theUserbuttonstoselectoneoftheUserProles.
2. Push the OK button to select the User Profile.
background
34
3. The Console display shows the EDIT prompt and the current User Profile name. Push OK to start the Edit User Prole
option.
ToexittheUserProleoptions,pushthePAUSE/STOPbuttonandtheconsolewillgobacktothePower-Up Mode
screen.
4. The Console display shows the NAME prompt and the current User Profile name.
Note: The User name will be blank if this is the first edit. The name of a User Profile is limited to 13 characters.
The currently active segment will flash. Use the Increase/Decrease buttons to move through the alphabet and blank
space(foundbetweenAandZ).Toseteachsegment,usetheLeft()orRight()buttonstoshiftbetweensegments.
Push the OK button to accept the displayed User name.
5. ToedittheotherUserdata(WEIGHT,HEIGHT,AGE,GENDER),usetheIncrease/Decreasebuttonstoadjust,and
push OK to set each entry.
Note: The User BMI is displayed on the HEIGHT prompt in the TIME display field.
The BMI Measurement is a useful tool that shows the relationship between weight and height that is associated with body
fat and health risk. The table below gives a general rating for the BMI score:
Underweight Below18.5
Normal 18.5–24.9
Overweight 25.0 – 29.9
Obesity 30.0 and above
Note: The rating may overestimate body fat in athletes and others who have a muscular build. It may also underesti-
mate body fat in older persons and others who have lost muscle mass.
ContactyourdoctorformoreinformationaboutBodyMassIndex(BMI)andtheweightthatisappropriateforyou.
Use the values calculated or measured by the machine’s computer for reference purposes only.
6. The Console display shows the LAP DISTANCE prompt. This option controls the length of distance for a LAP during a
workout.UsetheIncrease/DecreasebuttonstoadjusttheLAPdistancevalue.Thedefaultis“0.25”miles(or0.4km).
Push the OK button to set the LAP distance value.
7. The Console display shows the SCAN prompt. This option controls how the workout values are displayed during a
workout. The “ON” setting allows the Console to automatically display, or scan, between the workout values every 4
seconds. The “OFF” setting allows the user to push the RIGHT or LEFT buttons to view the other workout values when
desired.
The default is “ON”.
Push the OK button to set how the workout values are displayed.
8. TheConsoleshowstheworkoutdisplayVALUEprompt.Thisoptioncontrolsifaworkoutvalueisdisplayedduringa
workout. The “ON” setting allows the Console to display the workout value, an “OFF” setting disables the workout value
during a workout.
TheConsoleflashestheactiveworkoutvalue(eitherTime,Lap(Time),Distance,Lap(Count),HeartRate,Calories,or
Pace)andstatesthecurrentsetting:“VALUE-ON”or“VALUE-OFF”.PushtheIncrease()orDecrease()buttons
to change the current setting, and push the Left()orRight()buttonstoshifttheactiveworkoutvalue.
Note: The Incline and Speed workout values cannot be disabled.
The default is “VALUE - ON” for all workout values. When done with modifying which workout values are displayed,
push the OK button to set the Console.
9. The Console display shows the WIRELESS HR prompt. If you are using the Console speakers at their higher settings
and / or using a larger sized personal electronic device, the Console may show Heart Rate interference. This option
allows the Telemetry Heart Rate Receiver to be deactivated blocking the interference.
background
35
The Upper Display shows the current value setting: “ON” or “OFF”. Push the Increase()orDecrease()buttonsto
change the value. The default is “ON”.
Push the OK button to set the Telemetry Heart Rate Receiver to active.
10. The Console will go to the Power-Up Mode screen with the user selected.
Reset a User Profile
1. From the Power-Up Mode screen, push theUserbuttontoselectoneoftheUserProles.
2. Push the OK button to select the User Profile.
3. The Console display shows the EDIT prompt. Push the Decrease ()button to change the prompt.
Note: ToexittheUserProleoptions,pushthePAUSE/STOPbuttonandtheconsolewillgobacktothePower-Up
Mode screen.
4. The Console display shows the RESET prompt and the current User Profile name. Push OK to start the Reset User
Proleoption.
5. TheConsolewillnowconfirmtherequesttoresettheUserprofile(thedefaultselectionis‘RESET-NO’).Pushthe
Increase()orDecrease()buttonstoadjusttheselection.
6. Push OK to make your selection.
7. The Console will go to the Power-Up Mode screen.
Changing Incline Levels
Push the Incline Level Increase()orDecrease()buttonstochangetheinclineangle
of the Deck at any time with the Safety Key installed. To rapidly change the incline level
push the desired Pre-Set Incline Button, and then the Incline Enter Button. The Deck will
adjust to the selected incline level.
Note: After a Pre-Set Incline Button is pushed, the Incline Enter Button must be
pushed within 12 seconds.
Be sure the area below the machine is clear before lowering the Deck. Fully
lower the Deck after each workout.
Exercise on this machine requires coordination and balance. Be sure to
anticipate that changes in belt speed and incline angle of deck can occur
during workouts, and be attentive in order to avoid loss of balance and
possible injury.
Be sure that the workout space you are utilizing has adequate height clearance, taking into consideration the height of the
userandthemaximumheightofthefullyinclinedDeck.
Changing Speed Levels
Push the Speed Level Increase()orDecrease()buttonstochangetheBeltSpeedatanytimeinaworkoutprogram.
To rapidly change the Speed level push the desired Pre-Set Speed Button, and then the Speed Enter Button. The Walking
Belt will adjust to the desired speed.
Note: After a Pre-Set Speed Button is pushed, the Speed Enter Button must be pushed within 12 seconds.
Profile Programs
Theseprogramsfeaturedifferentinclineanglesofthedeckandbeltspeedsbasedonthemaximumandminimumspeed
supplied by the user. The user can also manually adjust the incline and speed values at any time during a workout. The
ProleProgramsareorganizedintoCategories(QuickGoal,HeartHealth,WeightControl,Interval,Train,andCustom).
EachProleProgramhas16segmentsallowingforavarietyofworkouts.
INCLINE SPEED
Pre-Set Incline
Buttons
Incline
Enter
Button
background
36
During a Prole Program, the Console will make an audio beep if the next segment of the workout has a
change in Incline or Speed. Be prepared for changes in Incline and Speed with each segment change.
The currently selected Category will be active on the Console, with the first Profile Program Workout within that Category
displayed. Use the Increase()orDecrease()buttonstoselectthedesiredProleProgramWorkoutfromtheCategory
of Workouts. At the end of the available Workouts for that Category, the More OptionsGuide(decreasearrow)will
deactivate, telling the User they have reached the end of the Category.
QUICK GOAL
DISTANCE, TIME, CALORIES
Use Case 4: Programs and Their Brickyards
REVED : 021514
RELEASE: C
QUICKSTART (press and hold to customize
program)
QUICK GOAL
Distance
Time
Calories
TRAIN
1 MILE PACER
5K PACER
10K PACER
Endurance 1
Endurance 2
Performance 1
Performance 2
CHALLENGE
1 MILE BEST
5K BEST
10K BEST
WEIGHT CONTROL
Fat Burn 1
Fat Burn 2
CALORIE BURN
(SCH) (NLS)
150 SPEED
200 INCLINE
300 BOTH
HEART HEALTH
Healthy 55%
Fat Burn 65%
Aerobic 75%
Anaerobic85%
INTERVAL
LOW IMPACT
HIIT/SPEED
HIIT+INCLINE
CUSTOM
HR TARGET
CUSTOM
INTERVAL-SPD
INTERVAL-INC
CUSTOM PLUS
WARM UP
COOL DOWN
PERFORMANCE 1:
ENDURANCE 1:
FAT BURN 2:
Fast Burn – steady pace with high intensity
(moderate incline / moderate speed)
Default MAX SPEED : 5 mph
CALORIE BURN (NLS):
(use brickyard for each
option)
FAT BURN 1:
Slow Burn – steady pace with low intensity
(low incline / low speed)
Default MAX SPEED : 5 mph
PERSONAL BEST:
COMPARE:BEST is automatically selected with
this program, Console uses BEST pace from
previous workout if this distance has not been
previously done.
TRAIN/PACER:
COMPARE:AVERAGE is automatically selected by
this program, Console uses AVG pace from
previous workout if this distance has not been
previously done.
ENDURANCE 2:
[ 1299 machine ]
HEART HEALTH:
Default MAX SPEED : 7 mph
LOW IMPACT/INCLINE:
HIIT/SPEED:
SPEED + INCLINE:
HEART RATE TARGET:
CUSTOM PROFILE:
(will use the default
brickyard from next
two Workouts)
SPEED INTERVAL:
INCLINE INTERVAL:
CUSTOM INTERVAL:
CUSTOM WARM UP
/ COOLDOWN:
CALORIE BURN (SCH):
Incline. Speed is preset.
Default MAX SPEED : 1 mph
Default MAX SPEED : 3 mph
Default MAX SPEED : 2 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 1 mph
Default MAX SPEED : 5 mph
Default MAX SPEED : 1 mph
QUICK GOAL and PACER brickyard (s):
Default MAX SPEED : 9 mph
Default MAX SPEED : 1 mph
Default MAX SPEED : 9 mph
C
C
C
C
Boot Camp:
HEART HEALTH
RECOVERYTEST,HEALTHY-55%,FATBURN-65%,AEROBIC-75%,ANAEROBIC-85%
Use Case 4: Programs and Their Brickyards
REVED : 021514
RELEASE: C
QUICKSTART (press and hold to customize
program)
QUICK GOAL
Distance
Time
Calories
TRAIN
1 MILE PACER
5K PACER
10K PACER
Endurance 1
Endurance 2
Performance 1
Performance 2
CHALLENGE
1 MILE BEST
5K BEST
10K BEST
WEIGHT CONTROL
Fat Burn 1
Fat Burn 2
CALORIE BURN
(SCH) (NLS)
150 SPEED
200 INCLINE
300 BOTH
HEART HEALTH
Healthy 55%
Fat Burn 65%
Aerobic 75%
Anaerobic85%
INTERVAL
LOW IMPACT
HIIT/SPEED
HIIT+INCLINE
CUSTOM
HR TARGET
CUSTOM
INTERVAL-SPD
INTERVAL-INC
CUSTOM PLUS
WARM UP
COOL DOWN
PERFORMANCE 1:
ENDURANCE 1:
FAT BURN 2:
Fast Burn – steady pace with high intensity
(moderate incline / moderate speed)
Default MAX SPEED : 5 mph
CALORIE BURN (NLS):
(use brickyard for each
option)
FAT BURN 1:
Slow Burn – steady pace with low intensity
(low incline / low speed)
Default MAX SPEED : 5 mph
PERSONAL BEST:
COMPARE:BEST is automatically selected with
this program, Console uses BEST pace from
previous workout if this distance has not been
previously done.
TRAIN/PACER:
COMPARE:AVERAGE is automatically selected by
this program, Console uses AVG pace from
previous workout if this distance has not been
previously done.
ENDURANCE 2:
[ 1299 machine ]
HEART HEALTH:
Default MAX SPEED : 7 mph
LOW IMPACT/INCLINE:
HIIT/SPEED:
SPEED + INCLINE:
HEART RATE TARGET:
CUSTOM PROFILE:
(will use the default
brickyard from next
two Workouts)
SPEED INTERVAL:
INCLINE INTERVAL:
CUSTOM INTERVAL:
CUSTOM WARM UP
/ COOLDOWN:
CALORIE BURN (SCH):
Incline. Speed is preset.
Default MAX SPEED : 1 mph
Default MAX SPEED : 3 mph
Default MAX SPEED : 2 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 1 mph
Default MAX SPEED : 5 mph
Default MAX SPEED : 1 mph
QUICK GOAL and PACER brickyard (s):
Default MAX SPEED : 9 mph
Default MAX SPEED : 1 mph
Default MAX SPEED : 9 mph
C
C
C
C
Boot Camp:
WEIGHT CONTROL
FAT BURN 1 SPEED BURN
Use Case 4: Programs and Their Brickyards
REVED : 021514
RELEASE: C
QUICKSTART (press and hold to customize
program)
QUICK GOAL
Distance
Time
Calories
TRAIN
1 MILE PACER
5K PACER
10K PACER
Endurance 1
Endurance 2
Performance 1
Performance 2
CHALLENGE
1 MILE BEST
5K BEST
10K BEST
WEIGHT CONTROL
Fat Burn 1
Fat Burn 2
CALORIE BURN
(SCH) (NLS)
150 SPEED
200 INCLINE
300 BOTH
HEART HEALTH
Healthy 55%
Fat Burn 65%
Aerobic 75%
Anaerobic85%
INTERVAL
LOW IMPACT
HIIT/SPEED
HIIT+INCLINE
CUSTOM
HR TARGET
CUSTOM
INTERVAL-SPD
INTERVAL-INC
CUSTOM PLUS
WARM UP
COOL DOWN
PERFORMANCE 1:
ENDURANCE 1:
FAT BURN 2:
Fast Burn – steady pace with high intensity
(moderate incline / moderate speed)
Default MAX SPEED : 5 mph
CALORIE BURN (NLS):
(use brickyard for each
option)
FAT BURN 1:
Slow Burn – steady pace with low intensity
(low incline / low speed)
Default MAX SPEED : 5 mph
PERSONAL BEST:
COMPARE:BEST is automatically selected with
this program, Console uses BEST pace from
previous workout if this distance has not been
previously done.
TRAIN/PACER:
COMPARE:AVERAGE is automatically selected by
this program, Console uses AVG pace from
previous workout if this distance has not been
previously done.
ENDURANCE 2:
[ 1299 machine ]
HEART HEALTH:
Default MAX SPEED : 7 mph
LOW IMPACT/INCLINE:
HIIT/SPEED:
SPEED + INCLINE:
HEART RATE TARGET:
CUSTOM PROFILE:
(will use the default
brickyard from next
two Workouts)
SPEED INTERVAL:
INCLINE INTERVAL:
CUSTOM INTERVAL:
CUSTOM WARM UP
/ COOLDOWN:
CALORIE BURN (SCH):
Incline. Speed is preset.
Default MAX SPEED : 1 mph
Default MAX SPEED : 3 mph
Default MAX SPEED : 2 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 1 mph
Default MAX SPEED : 5 mph
Default MAX SPEED : 1 mph
QUICK GOAL and PACER brickyard (s):
Default MAX SPEED : 9 mph
Default MAX SPEED : 1 mph
Default MAX SPEED : 9 mph
C
C
C
C
Boot Camp:
Use Case 4: Programs and Their Brickyards
REVED : 021514
RELEASE: C
QUICKSTART (press and hold to customize
program)
QUICK GOAL
Distance
Time
Calories
TRAIN
1 MILE PACER
5K PACER
10K PACER
Endurance 1
Endurance 2
Performance 1
Performance 2
CHALLENGE
1 MILE BEST
5K BEST
10K BEST
WEIGHT CONTROL
Fat Burn 1
Fat Burn 2
CALORIE BURN
(SCH) (NLS)
150 SPEED
200 INCLINE
300 BOTH
HEART HEALTH
Healthy 55%
Fat Burn 65%
Aerobic 75%
Anaerobic85%
INTERVAL
LOW IMPACT
HIIT/SPEED
HIIT+INCLINE
CUSTOM
HR TARGET
CUSTOM
INTERVAL-SPD
INTERVAL-INC
CUSTOM PLUS
WARM UP
COOL DOWN
PERFORMANCE 1:
ENDURANCE 1:
FAT BURN 2:
Fast Burn – steady pace with high intensity
(moderate incline / moderate speed)
Default MAX SPEED : 5 mph
CALORIE BURN (NLS):
(use brickyard for each
option)
FAT BURN 1:
Slow Burn – steady pace with low intensity
(low incline / low speed)
Default MAX SPEED : 5 mph
PERSONAL BEST:
COMPARE:BEST is automatically selected with
this program, Console uses BEST pace from
previous workout if this distance has not been
previously done.
TRAIN/PACER:
COMPARE:AVERAGE is automatically selected by
this program, Console uses AVG pace from
previous workout if this distance has not been
previously done.
ENDURANCE 2:
[ 1299 machine ]
HEART HEALTH:
Default MAX SPEED : 7 mph
LOW IMPACT/INCLINE:
HIIT/SPEED:
SPEED + INCLINE:
HEART RATE TARGET:
CUSTOM PROFILE:
(will use the default
brickyard from next
two Workouts)
SPEED INTERVAL:
INCLINE INTERVAL:
CUSTOM INTERVAL:
CUSTOM WARM UP
/ COOLDOWN:
CALORIE BURN (SCH):
Incline. Speed is preset.
Default MAX SPEED : 1 mph
Default MAX SPEED : 3 mph
Default MAX SPEED : 2 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 1 mph
Default MAX SPEED : 5 mph
Default MAX SPEED : 1 mph
QUICK GOAL and PACER brickyard (s):
Default MAX SPEED : 9 mph
Default MAX SPEED : 1 mph
Default MAX SPEED : 9 mph
C
C
C
C
Boot Camp:
INCLINE BURN
Use Case 4: Programs and Their Brickyards
REVED : 021514
RELEASE: C
QUICKSTART (press and hold to customize
program)
QUICK GOAL
Distance
Time
Calories
TRAIN
1 MILE PACER
5K PACER
10K PACER
Endurance 1
Endurance 2
Performance 1
Performance 2
CHALLENGE
1 MILE BEST
5K BEST
10K BEST
WEIGHT CONTROL
Fat Burn 1
Fat Burn 2
CALORIE BURN
(SCH) (NLS)
150 SPEED
200 INCLINE
300 BOTH
HEART HEALTH
Healthy 55%
Fat Burn 65%
Aerobic 75%
Anaerobic85%
INTERVAL
LOW IMPACT
HIIT/SPEED
HIIT+INCLINE
CUSTOM
HR TARGET
CUSTOM
INTERVAL-SPD
INTERVAL-INC
CUSTOM PLUS
WARM UP
COOL DOWN
PERFORMANCE 1:
ENDURANCE 1:
FAT BURN 2:
Fast Burn – steady pace with high intensity
(moderate incline / moderate speed)
Default MAX SPEED : 5 mph
CALORIE BURN (NLS):
(use brickyard for each
option)
FAT BURN 1:
Slow Burn – steady pace with low intensity
(low incline / low speed)
Default MAX SPEED : 5 mph
PERSONAL BEST:
COMPARE:BEST is automatically selected with
this program, Console uses BEST pace from
previous workout if this distance has not been
previously done.
TRAIN/PACER:
COMPARE:AVERAGE is automatically selected by
this program, Console uses AVG pace from
previous workout if this distance has not been
previously done.
ENDURANCE 2:
[ 1299 machine ]
HEART HEALTH:
Default MAX SPEED : 7 mph
LOW IMPACT/INCLINE:
HIIT/SPEED:
SPEED + INCLINE:
HEART RATE TARGET:
CUSTOM PROFILE:
(will use the default
brickyard from next
two Workouts)
SPEED INTERVAL:
INCLINE INTERVAL:
CUSTOM INTERVAL:
CUSTOM WARM UP
/ COOLDOWN:
CALORIE BURN (SCH):
Incline. Speed is preset.
Default MAX SPEED : 1 mph
Default MAX SPEED : 3 mph
Default MAX SPEED : 2 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 1 mph
Default MAX SPEED : 5 mph
Default MAX SPEED : 1 mph
QUICK GOAL and PACER brickyard (s):
Default MAX SPEED : 9 mph
Default MAX SPEED : 1 mph
Default MAX SPEED : 9 mph
C
C
C
C
Boot Camp:
INTERVAL
LOWIMPACT(Incline) HIIT(High-IntensityInterval-Training)/SPEED
Use Case 4: Programs and Their Brickyards
REVED : 021514
RELEASE: C
QUICKSTART (press and hold to customize
program)
QUICK GOAL
Distance
Time
Calories
TRAIN
1 MILE PACER
5K PACER
10K PACER
Endurance 1
Endurance 2
Performance 1
Performance 2
CHALLENGE
1 MILE BEST
5K BEST
10K BEST
WEIGHT CONTROL
Fat Burn 1
Fat Burn 2
CALORIE BURN
(SCH) (NLS)
150 SPEED
200 INCLINE
300 BOTH
HEART HEALTH
Healthy 55%
Fat Burn 65%
Aerobic 75%
Anaerobic85%
INTERVAL
LOW IMPACT
HIIT/SPEED
HIIT+INCLINE
CUSTOM
HR TARGET
CUSTOM
INTERVAL-SPD
INTERVAL-INC
CUSTOM PLUS
WARM UP
COOL DOWN
PERFORMANCE 1:
ENDURANCE 1:
FAT BURN 2:
Fast Burn – steady pace with high intensity
(moderate incline / moderate speed)
Default MAX SPEED : 5 mph
CALORIE BURN (NLS):
(use brickyard for each
option)
FAT BURN 1:
Slow Burn – steady pace with low intensity
(low incline / low speed)
Default MAX SPEED : 5 mph
PERSONAL BEST:
COMPARE:BEST is automatically selected with
this program, Console uses BEST pace from
previous workout if this distance has not been
previously done.
TRAIN/PACER:
COMPARE:AVERAGE is automatically selected by
this program, Console uses AVG pace from
previous workout if this distance has not been
previously done.
ENDURANCE 2:
[ 1299 machine ]
HEART HEALTH:
Default MAX SPEED : 7 mph
LOW IMPACT/INCLINE:
HIIT/SPEED:
SPEED + INCLINE:
HEART RATE TARGET:
CUSTOM PROFILE:
(will use the default
brickyard from next
two Workouts)
SPEED INTERVAL:
INCLINE INTERVAL:
CUSTOM INTERVAL:
CUSTOM WARM UP
/ COOLDOWN:
CALORIE BURN (SCH):
Incline. Speed is preset.
Default MAX SPEED : 1 mph
Default MAX SPEED : 3 mph
Default MAX SPEED : 2 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 1 mph
Default MAX SPEED : 5 mph
Default MAX SPEED : 1 mph
QUICK GOAL and PACER brickyard (s):
Default MAX SPEED : 9 mph
Default MAX SPEED : 1 mph
Default MAX SPEED : 9 mph
C
C
C
C
Boot Camp:
INCLINE+SPEED
background
37
TRAIN
ENDURANCE PERFORMANCE
1 MILE PACER, 5K PACER, 10K PACER
Use Case 4: Programs and Their Brickyards
REVED : 021514
RELEASE: C
QUICKSTART (press and hold to customize
program)
QUICK GOAL
Distance
Time
Calories
TRAIN
1 MILE PACER
5K PACER
10K PACER
Endurance 1
Endurance 2
Performance 1
Performance 2
CHALLENGE
1 MILE BEST
5K BEST
10K BEST
WEIGHT CONTROL
Fat Burn 1
Fat Burn 2
CALORIE BURN
(SCH) (NLS)
150 SPEED
200 INCLINE
300 BOTH
HEART HEALTH
Healthy 55%
Fat Burn 65%
Aerobic 75%
Anaerobic85%
INTERVAL
LOW IMPACT
HIIT/SPEED
HIIT+INCLINE
CUSTOM
HR TARGET
CUSTOM
INTERVAL-SPD
INTERVAL-INC
CUSTOM PLUS
WARM UP
COOL DOWN
PERFORMANCE 1:
ENDURANCE 1:
FAT BURN 2:
Fast Burn – steady pace with high intensity
(moderate incline / moderate speed)
Default MAX SPEED : 5 mph
CALORIE BURN (NLS):
(use brickyard for each
option)
FAT BURN 1:
Slow Burn – steady pace with low intensity
(low incline / low speed)
Default MAX SPEED : 5 mph
PERSONAL BEST:
COMPARE:BEST is automatically selected with
this program, Console uses BEST pace from
previous workout if this distance has not been
previously done.
TRAIN/PACER:
COMPARE:AVERAGE is automatically selected by
this program, Console uses AVG pace from
previous workout if this distance has not been
previously done.
ENDURANCE 2:
[ 1299 machine ]
HEART HEALTH:
Default MAX SPEED : 7 mph
LOW IMPACT/INCLINE:
HIIT/SPEED:
SPEED + INCLINE:
HEART RATE TARGET:
CUSTOM PROFILE:
(will use the default
brickyard from next
two Workouts)
SPEED INTERVAL:
INCLINE INTERVAL:
CUSTOM INTERVAL:
CUSTOM WARM UP
/ COOLDOWN:
CALORIE BURN (SCH):
Incline. Speed is preset.
Default MAX SPEED : 1 mph
Default MAX SPEED : 3 mph
Default MAX SPEED : 2 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 7 mph
Default MAX SPEED : 1 mph
Default MAX SPEED : 5 mph
Default MAX SPEED : 1 mph
QUICK GOAL and PACER brickyard (s):
Default MAX SPEED : 9 mph
Default MAX SPEED : 1 mph
Default MAX SPEED : 9 mph
C
C
C
C
Boot Camp:
CUSTOM
HR(HeartRate)TARGET USERDEFINED
Workout Profile and Goal Program
TheConsoleletsyouselecttheProleProgramandtypeofGoalforyourworkout(Distance,TimeorCalories),andset
the Goal value.
Note:ForcertainProfilePrograms,theGoalcannotbeadjusted(example:the5KPacerworkouthasaDistanceGoal
of5K).
1. Stand on the Side Foot Support Platforms.
2. PushtheUserbuttontoselectthedesiredUserprole.
3. Push the Programs buttons to select a Category of Workout.
4. Push the Increase()orDecrease()buttonstoselect a Profile Workout, and push OK.
IftheselectedWorkoutisHeartRateTarget,theConsolewillrequestthedesiredBeatsPerMinute(BPM)forthe
Workout. Use the Increase()orDecrease()buttonstoadjust, and push OK.
IftheselectedWorkoutProgramhasInclineand/orSpeedProlecustomization,theConsolewillprompt,“EDIT
INCLINE” screen. Push the Increase()orDecrease()buttonstochangethecurrentsetting,andpushtheLeft()or
Right()buttonstoshifttheactiveProfilesegment.PushOKtoaccepttheInclineProle.
Note: The “EDIT SPEED” screen operates the same way.
5. Use the Increase()orDecrease()buttons to adjust the Minimum Speed of the Belt, and push OK. The Profile
Program will adjust so the Minimum Speed value is the lowest Speed of the Profile Program when accepted.
6. Use the Increase()orDecrease()buttonstoadjusttheMaximumSpeedoftheBelt,andpushOK.TheProfile
ProgramwilladjustsotheMaximumSpeedvalueisthehighestSpeedoftheProfileProgramwhenaccepted.
During a Workout, the User can directly adjust the speed of the belt above the Maximum Speed setting if
desired.
7. Use the Increase()orDecrease()buttons to select a typeofGoal(Distance,TimeorCalories), and push OK.
background
38
8. Use the Increase()orDecrease()buttons to adjust the workout value, and push OK.
9. The Console will display the “READY ?” prompt.
10. Push START to begin the goal-oriented workout. The workout will begin after a three second, audible countdown.
Note: The Console will display “RAMPING UP” as the Walking Belt gets up to speed.
Heart Rate Control Workout Programs
The Heart Rate Control programs let you set a heart rate goal for your workout. The program monitors your heart rate in
beatsperminute(BPM)fromtheContactHeartRate(CHR)sensorsonthemachineorfromaHeartRateMonitor(HRM)
chest strap, and adjusts the incline during a workout to keep your heart rate in the selected zone.
Note: The console must be able to read the heart rate information from the CHR sensors or HRM for the Heart Rate
Control program to work correctly.
The Target Heart Rate programs use your age and other User information to set the Heart Rate Zone values for your
workout. The console display then gives prompts for you to set up your workout:
1. Push the PROGRAMS button until the HEART HEALTH Category is selected.
2. Push the Increase()orDecrease()buttonstoselectthepercentageofmaximumheartrate:HEALTHY55%,FAT
BURN65%,AEROBIC75%,ANAEROBIC85%.
Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in
your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.
Use the values calculated or measured by the machine’s computer for reference purposes only. The heart
rate displayed on the console is an approximation and should be used for reference only.
3. Push the Increase()orDecrease()buttonstosettheMinimumSpeed,andpushOK.
4. Push the Increase()orDecrease()buttonstosettheMaximumSpeed,andpushOK.
5. Push the Increase()orDecrease()buttonstoselecttheGoaltype,andpushOK.
6. Push the Increase()orDecrease()buttonstosetthegoalvaluefortheworkout,andpushOK.
Note: Be sure to allow time for your heart rate to reach the desired heart rate zone when setting the goal. The Console
will display the heart rate value based on the current User settings.
7. Push START to begin the workout.
A User can also set a Heart Rate Target value by selecting the HR TARGET program in the CUSTOM Category. The Con-
sole will adjust the incline during a workout to keep the User in the desired Heart Rate zone.
1. Push the PROGRAMS button until the CUSTOM Category is selected.
2. The Console shows the HR TARGET workout. Push OK.
Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in
your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.
Use the values calculated or measured by the machine’s computer for reference purposes only. The heart
rate displayed on the console is an approximation and should be used for reference only.
3. Push the Increase()orDecrease()buttonstosettheHeartRate(HR)valuefortheworkout,andpushOK.
4. Push the Increase()orDecrease()buttonstosettheMinimumSpeed,andpushOK.
5. Push the Increase()orDecrease()buttonstosettheMaximumSpeed,andpushOK.
6. Push the Increase()orDecrease()buttonstoselecttheGoaltype,andpushOK.
7. Push the Increase()orDecrease()buttonstosetthegoalvaluefortheworkout,andpushOK.
Note: Be sure to allow time for your heart rate to reach the desired heart rate zone when setting the goal. The Console
will display the heart rate value based on the current User settings.
8. PushSTARTtobegintheworkout.
background
39
The RECOVERY TEST program uses your age and other User information to see how your heart rate adjusts from a
selected heart rate zone to a casual pace. The program supplies a score that can be used to track how your heart adjusts to
physical conditions.
1. Push the PROGRAMS button until the HEART HEALTH Category is selected.
2. The Console shows the RECOVERY TEST workout. Push OK.
Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in
your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.
Use the values calculated or measured by the machine’s computer for reference purposes only. The heart
rate displayed on the console is an approximation and should be used for reference only.
3. Push the Increase()orDecrease()buttonstoselecttheHeartRateZone(HRZone),andpushOK.
4. The program begins with a 2 minute period at a causal pace. The Console will display the selected zone and the heart
rate value to start the test.
5. After two minutes, the Console will request the heart rate, “GRASP SENSORS”, if one is not detected.
If the heart rate is not in the zone, the Incline of the walking deck will be increased and the heart rate will be checked
again in one minute. This will continue until the heart rate is in the zone.
6. With the heart rate in the selected zone, the User must continue at this workout setting for three minutes.
7. After three minutes, the Incline will adjust to zero. The Console will begin a one minute cool down. The Recovery Test
valuewillbepresentedafterthenalheartratereadingattheendofthecooldownperiod.
Note: Recovery Test values should only be compared to your previous values and not to other User Profiles.
Pausing or Stopping
The Console will go into Pause Mode if the user pushes PAUSE/STOP during a workout.
1. Push the PAUSE/STOP button to pause your workout. The Console will display “ PAUSED “.
2. To continue your workout, push the START button.
To stop the workout, push the PAUSE/STOP button. The Console will go into Results / Cool Down mode.
Results / Cool Down Mode
AllworkoutsexceptQuickStartandtheHeartRateControlprogramshavea3-minuteCoolDownperiod.DuringthisCool
Down period, the Console shows the Workout Results. The Console will cycle through the workout results every 4 sec-
onds.
DuringtheCoolDownperiod,thespeedofthewalkingbeltwilladjustto3.2km/h(2mph)andtheinclinesettingwillad-
just to zero. The User can adjust the belt speed and deck incline during the Cool Down period.
Push PAUSE/STOP to end the Results / Cool Down period and go back to Power-Up Mode. If there is no input to the
Console for 5 minutes, the Console automatically goes into Sleep Mode.
GOAL TRACK Statistics (and Achievements)
ThestatisticsfromeveryworkoutarerecordedtoaUserProle.
ToviewtheGOALTRACKstatisticsofaUserProle:
1. From the Power-Up screen, push the User button to select a User Profile.
2. Push the Goal Track button to enter the Goal Track mode.
background
40
Note: ToexittheGoalTrackmode,pushtheGoalTrackbuttonandtheconsolewillgobacktothePower-Up Mode
screen.
3. The Console will display the “LONGEST WORKOUT”, the workout values and activate the corresponding Achievement
light. After4seconds,theConsolewilldisplaythenameoftheworkout,andthenthedateitwasperformed(except
for“LAST7DAYS”and“LAST30DAYS”).
Note: ToexittheGOALTRACKstatistics,pushthePAUSE/STOPbuttonandtheconsolewillgobacktothePower-Up
Mode screen.
4. Push the Decrease()buttontomovetothenextGOALTRACKstatistic,“CALORIERECORD”.TheConsolewill
display the workout results with the most Calories value. The Console will cycle between the workout results, the name
oftheworkoutprole,andthedateoftheworkoutevery4seconds.Use the Left()orRight()buttonstoforcethe
cycle between the workout results.
5. Push the Decrease()button to move to “LAST 30 DAYS”. The Console will display the total values for the previous
thirty days. The Console will cycle between the workout results every 4 seconds. Use the Left()orRight()buttons
to force the cycle between the workout results.
6. Push the Decrease()button to move to the “LAST 7 DAYS”. The Console will display the calories burned on the dis-
play(50caloriespersegment)fortheprevioussevendays,alongwiththeworkoutvaluetotals.The Console will cycle
between the workout results every 4 seconds. Use the Left()orRight()buttonstoforcethecyclebetweenthe
workout results.
7. Push the Decrease()button to move to the “LAST WORKOUT”. The Console will display the workout values from the
last workout. TheConsolewillcyclebetweentheworkoutresults,thenameoftheworkoutprole,andthedateofthe
workout every 4 seconds. Use the Left()orRight()buttonstoforcethecyclebetweentheworkoutresults.
8.. Whendoneviewingworkoutstatistics,push the PAUSE/STOP button. The Console will display the Power-Up Mode
screen.
When a User performs a workout that surpasses the “LONGEST WORKOUT” or “CALORIE RECORD” of the previous
workouts, the Console will congratulate with an audible sound and tell the User the new achievement. The corresponding
Achievement Indicator Light will also be active.
background
41
CONSOLE SETUP MODE
TheConsoleSetupModeletsyoucontrolthesoundsettings(on/off),adjustthedateandtime,orseemaintenance
statistics(TotalRunHoursandSoftwareVersion–forservicetechnicianuseonly).
1. Hold down the PAUSE/STOP button and Right button together for 3 seconds while in the Power-Up Mode to go into
the Console Setup Mode.
Note:PushPAUSE/STOPtoexittheConsoleSetupModeandreturntothePower-UpModescreen.
2. The Console display shows the Date prompt with the current setting. To change, push the Increase/Decrease buttons
toadjustthecurrentlyactivevalue(ashing).PushtheLeft/Rightbuttonstochangewhichsegmentisthecurrently
activevalue(month/day/year).
3. Push OK to set.
4. The Console display shows the Time prompt with the current setting. Push the Increase/Decrease buttons to adjust
thecurrentlyactivevalue(ashing).PushtheLeft/Rightbuttonstochangewhichsegmentisthecurrentlyactivevalue
(AMorPM/hour/minute).
5. Push OK to set.
6. The Console display shows the UNITS prompt with the current setting. Push the Increase/Decrease buttons to
change between “MILES” and “KM”.
7. Push OK to set.
8. TheConsoledisplayshowstheSoundSettingspromptwiththecurrentsetting.PushtheIncrease/Decreasebuttons
to change between “ON” and “OFF”.
If the Sound has been muted, the Console will display the “AUDIO OFF” prompt before a Workout starts as
a reminder.
9. Push OK to set.
10. The Console display shows the TOTAL RUN HOURS for the machine.
11. Forthenextprompt,pushtheOKbutton.
12. The Console display shows the Software Version code.
13. Forthenextprompt,pushtheOKbutton.
14. The Console display shows the LOG prompt.
15. Forthenextprompt,pushtheOKbutton.
16. The Console will display the Power-Up Mode screen.
background
42
MAINTENANCE
Read all maintenance instructions fully before you start any repair work. In some conditions, an assistant is required to do
the necessary tasks.
Equipment must be regularly examined for damage and repairs. The owner is responsible to make sure that
regular maintenance is done. Worn or damaged components must be repaired or replaced immediately.
Only manufacturer supplied components can be used to maintain and repair the equipment.
If at any time the Warning labels become loose, unreadable or dislodged, contact your local distributor for
replacement labels.
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the
power cord from the wall outlet and the machine and wait 5 minutes before cleaning, maintaining or repairing the
machine. Place the power cord in a secure location.
Daily:
Beforeeachuse,examinetheexercisemachineforloose,broken,damaged,orwornparts.Do
notuseiffoundinthiscondition.Repairorreplaceallpartsattherstsignofwearordamage,
exceptfortheWalkingDeck.TheWalkingDeckisdesignedforwearonbothsidesofit.Ifonly
one side of the Walking Deck is worn, a replacement Deck is not required. It is recommended
thataqualiedservicetechnicianisusedtoiptheWalkingDeck.Aftereachworkout,usea
damp cloth to wipe your machine and Console free of moisture.
With the Walking Deck lowered, if an edge of the Walking Belt can be seen adjust it
until the edge is not viewable.
Note:AvoidexcessivemoistureontheConsole.
Weekly:
Check for smooth roller operation. Wipe the machine to remove dust, dirt, or grime.
Do not remove the Motor Control Board (MCB) Cover. Dangerous voltages and
moving parts are present. The components are serviceable only by approved
service personnel or by following service procedures supplied by Nautilus, Inc.
Note: Do not use petroleum based products.
Monthly
or after 20 hours:
Make sure all bolts and screws are tight. Tighten as necessary.
Quarterly:
Or after 25 hours—Lubricate the walking belt with a 100% silicone lubricant.
Silicone lubricant is not intended for human consumption. Keep out of reach of
children. Store in a safe place.
NOTICE: Do not clean with a petroleum based solvent or an automotive cleaner. Be sure to keep the Console free
of moisture.
Cleaning
To reduce the risk of electrical shock, always unplug the power cord and wait 5 minutes before
cleaning, maintaining or repairing this machine.
Wipe the treadmill down after each use to keep the treadmill clean and dry. It may be necessary to use a mild detergent at
times to remove all dirt and salt from the belt, painted parts and the display.
NOTICE:TopreventdamagetothenishofthemachineorConsole,donotcleanwithapetroleumbasedsolvent.
Do not apply too much moisture to the Console.
background
43
Adjusting the Belt Tension
If the walking belt starts to slip during use, it is necessary to adjust the tension. Your treadmill has tension bolts at the rear
of
the treadmill.
1. Before you adjust the belt tension, start the treadmill by pushing the START button.
Be sure not to touch the walking belt or step on the power cord. Keep bystanders and children away from
the product you are servicing at all times.
2. Usea6mmhexkeytoturntherightandleftbeltadjustmentboltsclockwisea1/2turn,rstoneboltandthenthe
other bolt until the belt does not slip.
3. After you adjust each side the 1/2 turn, do a test to see if the belt stopped slipping. If the belt still slips, do steps 2 and
3 again.
If you turn one side more than the other, the belt will move away from that side of the treadmill and may need realignment.
NOTICE: Too much tension on the belt causes unnecessary friction and wears the belt, motor and electronics.
4. Push PAUSE/STOP twice to stop the walking belt and end the Quick Start workout.
6mm
6mm
Aligning the Walking Belt
The walking belt should be centered on your treadmill at all times. Running style and a non-level surface can cause the
belt to move off center. Minor adjustments to the 2 bolts at the rear of the treadmill are necessary when the belt is off
center.
The edges of the Walking Belt should be under the Side Foot Support Rails. If an edge of the Walking Belt
can be viewed, be sure to adjust the Walking Belt until the edges are not viewable and are below the Side
Foot Support Rails.
1. Push the START button to start the walking belt.
Be sure not to touch the walking belt or step on the power cord. Keep bystanders and children away from
the product you are servicing at all times.
2. Stand at the rear of the treadmill to see which direction the belt moves.
3. If the belt moves to the left, turn the left belt adjustment bolt 1/4 turn clockwise and the right belt adjustment bolt 1/4
turn counterclockwise.
If the belt moves to the right, turn the left adjustment bolt 1/4 turn counterclockwise and the right adjustment bolt 1/4
turn clockwise.
background
44
4. Monitorthepathofthebeltforapproximately2minutes.Continuetoadjusttheboltsuntilthewalkingbeltiscentered.
5. Push PAUSE/STOP twice to stop the walking belt and end the Quick Start workout.
Lubricating the Walking Belt
Your treadmill is equipped with a low maintenance deck and belt system. The Walking Belt is pre-lubricated. Belt friction
can affect the function and life of the machine. Lubricate the belt every 3 months or every 25 hours of use, whichever
comesrst.Evenifthetreadmillisnotinuse,siliconewilldissipateandthebeltwilldryout.Forthebestresultslubricate
the deck periodically with 100% silicone lubricant, using the following instructions:
1. Turn off the power to the machine with the power switch.
2. Unplug the treadmill fully from the wall outlet, and remove the power cord from the machine.
To reduce the risk of electrical shock, always unplug the power cord and wait 5 minutes before
cleaning, maintaining or repairing this machine. Place the power cord in a secure location.
Note: Make sure the treadmill is located on a surface that is easy to clean.
3. Fold the treadmill. Refer to the “Moving the Machine” procedure in this manual. Be sure that the hydraulic lift is cor-
rectly locked in place
Use proper safety precautions and lifting techniques. Use a second person if necessary.
Do not use the walking belt or rear roller to lift the treadmill. These parts do not lock in place and can
abruptly move. Injury to you or damage to the machine can occur.
4. Make sure that the locking mechanism is engaged. Carefully pull back on the walking deck and make sure that it does
not move. When you do this, keep clear of movement path in case the treadmill lock is not engaged.
Do not lean against the treadmill when it is folded. Do not put items on it that could cause it to become
unstable or fall.
Do not connect the power cord or try to operate the treadmill in the folded position.
5. Apply a few drops of the lubricant to the inner surface of the belt for the entire width of the belt. A very thin layer of
silicone lubricant on the entire deck below the belt is desired.
NOTICE: Always use a 100% silicone lubricant. Do not use a degreaser like WD-40
®
as this could seriously impact per-
formance. We can recommend that you use the following:
•8300SiliconeSpray,availableatmostHardwareandAutoPartsstores.
• Lube-N-Walk
®
TreadmillLubricationKit,availablefromyourlocaldistributororyourlocalspecialtytnessdealer.
background
45
Store silicone lubricant in a safe place. Keep out of reach of children. Silicone lubricant is not intended for
human consumption.
6. Manually rotate the belt 1/2 of the length of the belt and apply lubricant again.
7. Unfold the machine. Refer to the “Unfolding the Machine” procedure in this manual.
Keep clear of the movement path of the walking deck. Hold onto the walking deck until approximately 2/3 of
the movement down. The walking deck can possibly drop quickly in the last part of the movement.
If you used spray lubricant, wait 5 minutes before turning on power to the machine to allow the aerosol to
dissipate.
8. Connectthepowercordbackintothemachineandthenintothewalloutlet.
9. Turn on the power to the machine with the power switch.
10. Staytoonesideofyourmachineandstartthebeltattheslowestspeed.Letthebeltoperateforapproximately15
seconds.
Be sure not to touch the walking belt or step on the power cord. Keep bystanders and children away from
the product you are servicing at all times.
11. Switch off your machine.
12. Takecaretocleanupanyexcesslubricantfromthedeck.
To decrease the possibility of slipping, be sure the deck area is free from grease or oil. Clean off any excess
oil from the machine surfaces.
background
46
Maintenance Parts
A Console Assembly G Tray, Right M Handlebar Shroud, Right
B Safety Key Port H Right Upright Cable N Upright, Left
C Fan I Upright, Right O Base Shroud, Left
D Contact Heart Rate Sensor J Base Shroud, Right P Handlebar Shroud, Left
E Console Cable K Base Cable Q Power Cord
F Tray, Left L Base Assembly
Q
P
B
G
F
I
M
N
J
K
O
A
C
E
D
L
H
H
background
47
Maintenance Parts ( Frame )
Front
Back
S Fuse X Base Support CC Incline Adjuster
T Power Switch Y Deck Cushioners DD Pivot Assembly
U Power Input Z Transport Wheel EE Belt Tensioner
V Motor Cover AA Leveler FF Rear Roller Cover
W Side Foot Support Rails BB Lifting Cylinder GG MotorControlBoard(MCB)
Cover
EE
BB
EE
Z
Z
X
CC
FF
FF
GG
V
V
W
Y
AA
X
Z
BB
AA
CC
DD
AA
S
T
U
background
48
Condition/Problem Things to Check Solution
No display/partial display/
unit will not turn on
Checkelectrical(wall)
outlet
Make sure unit is plugged into a functioning wall outlet. Test the
outlet with a known functioning device such as a lamp.
Check connection at front
of unit
Connection should be secure and undamaged. Replace power
cord or connection at unit if either are damaged.
Check data cable integrity All wires in cable should be intact. If any are visibly crimped or
cut, replace cable.
Check data cable
connections/orientation
Be sure cable is connected securely and oriented properly.
Small latch on connector should line up and snap into place.
Check console display for
damage
Check for visual sign that console display is cracked or other-
wise damaged. Replace Console if damaged.
Console Display IfConsoleonlyhaspartialdisplayandallconnectionsarene,
replace the Console.
If the above steps do not resolve the problem, contact your lo-
cal distributor for further assistance.
Unit operates but Contact
HR not displayed
Sensor grip Be sure hands are centered on HR sensors. Hands must be
kept still with relatively equal pressure applied to each side.
Dry or calloused hands Sensorsmayhavedifcultywithdriedoutorcallousedhands.
Aconductiveelectrodecream(heartratecream)canhelp
make better conduct. These are available on the web or at
medicalorsomelargertnessstores.
If tests reveal no other issues, contact your local distributor for
further assistance.
Unit operates but Telemet-
ric HR not displayed
ChestStrap(optional)
Strap should be “POLAR
®
” compatible and uncoded. Make
sure strap is directly against skin and contact area is wet.
CheckUserProle SelecttheEditUserProleoptionfortheUserProle.Goto
the WIRELESS HR setting and make sure that the current
value is set to ON.
Interference Try moving unit away from sources of interference (TV, Micro-
wave,etc).
Replace Chest Strap If interference is eliminated and HR does not function, replace
strap.
Replace Console If HR still does not function, contact your local distributor for
further assistance.
Unit operates but Telemet-
ric HR displayed incor-
rectly
Interference Make sure that the HR receiver is not blocked by a personal
electronic device in the left side of the media tray.
Speed display is not ac-
curate
Display set to wrong unit
of measure. (English/
Metric)
Change display to show correct units.
TROUBLESHOOTING
background
49
Condition/Problem Things to Check Solution
Console shuts off (enters
sleepmode)whileinuse
Checkelectrical(wall)
outlet
Make sure unit is plugged into a functioning wall outlet. Test the
outlet with a known functioning device such as a lamp.
Check connection at front
of unit
Connection should be secure and undamaged. Replace
adapter or connection at unit if either are damaged.
Check data cable integrity All wires in the cable should be intact. If any are cut or crimped,
replace cable.
Check data cable
connections/orientation
Be sure cable is connected securely and oriented properly.
Small latch on connector should line up and snap into place.
Reset machine Unplug unit from electrical outlet for 3 minutes. Reconnect to
outlet.
If the above steps do not resolve the problem, contact your lo-
cal distributor for further assistance.
Fan will not turn on or will
not turn off
Reset machine Unplug unit from electrical outlet for 5 minutes. Reconnect to
outlet.
Fan will not turn on, but
Console operates
Check for blockage of fan Unplug unit from electrical outlet for 5 minutes. Remove mate-
rial from fan. If necessary, detach the Console to help with
removal. Replace the Console if unable to remove blockage.
Thumping sound when
belt operates
Walking belt Walking belt needs to be used for wear in period. Sound will go
away after the wear in period.
Unit rocks/does not sit
level
Check leveler adjustment Adjust levelers until machine is level.
Check surface under unit Adjustmentmaynotbeabletocompensateforextremelyun-
even surfaces. Move machine to level area.
Walking belt not aligned Machine leveling Make sure the machine is level. Refer to the procedure for
leveling the machine in this manual.
Walking belt tension and
alignment
Make sure the walking belt is centered and tension is correct.
Refer to the procedures for adjusting tension and aligning the
belt in this manual.
Motor sounds strained Silicone lubrication on
walking belt
Apply silicone to the inner surface of the walking belt. Refer to
the belt lubrication procedure in this manual.
Hesitation or walking belt
slips when in use
Belt tension Adjust the belt tension at the rear of the machine. Refer to the
procedure for adjusting belt tension in this manual.
Belt stops moving while
in use
Safety key Plug Safety Key into Console. (See Emergency Stop Proce-
dureintheImportantSafetyInstructionssection.)
Motor overload Unit may be overloaded and draw too much current, which
causes power to turn off to protect motor. Refer to maintenance
schedule for belt lubrication. Make sure the walking belt tension
is correct, and start unit again.
If the above steps do not resolve the problem, contact your lo-
cal distributor for further assistance.
background
™
Nautilus
™
Bowex
™
Schwinn
™
Universal
™
™
8004420.121518.C
EN

Specifications

Indexed Terms: Treadmill

Nautilus T624 Questions and Answers

Find answers or ask new question.
Questions and Answers

Related Products

No image
Nautilus 100496 treadmill
2022-05-29 1 docs
Product Nautilus T618 image
Nautilus T618 Treadmill Machine
2021-10-12 2 docs
No image
Nautilus T686 Treadmill
2021-04-22 1 docs
No image
Nautilus T684 Treadmill
2021-04-22 1 docs
Product Nautilus T628 image
Nautilus T628 Treadmill
2021-04-22 1 docs
Product Nautilus T626 image
Nautilus T626 Treadmill
2021-04-22 1 docs
