OPERATOR’S MANUAL
ELECTRIC SNOW THROWER
21-INCH | 14-AMP
R
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Any electrical appliance can be dangerous if used incorrectly.
Some of the safety precautions given in this manual apply
generally to many appliances. Other warnings are specic
to the use of this snow thrower. Keep this manual for
future reference.
General Safety WARNINGS!
You and any other operator of this snow thrower must read,
understand and follow these instructions in their entirety, and
should reread them at the start of each snow season. Failure
to follow these instructions may result in ELECTRIC SHOCK,
FIRE and/or serious PERSONAL INJURY.
Notice the personal safety alert symbol m used in this
manual to draw your attention to a WARNING given
along with the particular operating instruction. This
means that the operation requires special ATTENTION,
CAUTION and AWARENESS.
1. Keep work area clean and well lit. Cluttered, dark areas
invite accidents.
2. Do not operate the snow thrower in an explosive
atmosphere, such as in the presence of ammable
liquids, gases or dust. Electrical appliances create sparks
that may ignite the dust or fumes.
3. Keep children, pets and bystanders away from the
work area. Be aware that the normal noise of the
machine when turned on may make it dicult for you to
hear approaching people. Spectators should wear safety
glasses and be kept a safe distance away from the work
area. Do not let spectators touch the snow thrower or the
extension cord.
4. Electrical plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
grounded appliances. Unmodied plugs and matching
outlets will reduce the risk of electric shock.
5. Avoid body contact with earthed or grounded surfaces
(i.e. upper and lower water pipes, radiators, ranges,
refrigerators, microwave ovens and outer frames of
heating equipment). Take necessary precautions to avoid
electric shock. There is an increased risk of electric shock
if your body is earthed or grounded.
6. Do not abuse the cord. Keep the cord away from heat,
oil, sharp edges or moving parts. Never carry the snow
thrower by its cord or yank the cord to disconnect it from
the electrical outlet. Damaged or entangled cords increase
the risk of electric shock.
7. Replace or properly repair damaged cords. If the cord
becomes damaged in any manner while plugged into the
wall receptacle, immediately pull the extension cord plug
from the receptacle.
8. Contact with water while operating the snow thrower
can result in electric shock and serious bodily injury.
Do not use the snow thrower in damp or wet locations or
expose to rain. Do not handle the plug or the appliance
with wet hands or while standing in water.
9. mWARNING! Use outdoor extension cords marked
SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJTW-A or
SJTOWA. These cords are rated for outdoor use and
reduce the risk of electric shock.
10.Turnothepowerswitchanddisconnectthepower
cable before making any adjustments to the unit and
before inspecting, servicing, changing accessories or
cleaning the snow thrower. Follow the same procedure
if any other dangerous conditions are present during
operation. Any adjustments to the unit should be
performed after revolving parts inside the snow thrower
stop completely. Such preventative safety measures
reduce the risk of starting the power tool accidentally.
11.Ifyoundthemainpowercableortheextensioncable
damaged, please pull out the plug from the socket and
disconnect the power immediately. Repair the cable or
replace it if necessary.
12. When replacing any parts, you must strictly observe
the instructions and procedures described in this
operator's manual. Special care should be paid to any
rubber parts, since these parts may increase the engine
load and decrease its mechanical power if damaged.
13. Do not move or transport the snow thrower when the
plug is connected to the power socket and the switch
is turned on.
14. If you notice that the unit is not running properly or
you hear abnormal sounds from the engine, stop
the machine, disconnect the power immediately and
contact an authorized Snow Joe
®
+ Sun Joe
®
dealer or
the Snow Joe
®
+ Sun Joe
®
customer service center at
1-866-SNOWJOE (1-866-766-9563).
1
Electrical Safety
1. Ground fault circuit interrupter (GFCI) protection should
be provided on the circuit(s) or outlet(s) to be used for
the snow thrower. Receptacles are available having
built-in GFCI protection and may be used for this
measure of safety.
2. To prevent electric shock, use only with an extension cord
suitable for outdoor use, such as SW-A, SOW-A, STW-A,
STOW-A, SJW-A, SJOW-A, SJTW-A, or SJTOW-A.
Before use, check that the extension cord is in good
condition. When using an extension cord, make sure to
use one heavy enough to carry the current your product
will draw. For lengths less than 50 ft (15 m), a No.14 AWG
(or greater) extension cord should be used. An undersized
cord will cause a drop in line voltage resulting in loss of
power and overheating.
3. To reduce the risk of electric shock, this appliance has
a polarized plug (i.e. one blade is wider than the other).
Use this appliance only with a polarized UL-, CSA- or ETL-
rated extension cord for outdoor, all-weather use.
The appliance plug will t into a polarized extension
cord only one way.
If the appliance plug does not t fully into the extension
cord, reverse the plug. If the plug still does not t, obtain
a correct polarized extension cord. A polarized extension
cord will require the use of a polarized wall outlet. The
extension cord plug will t into the polarized wall outlet
only one way. If the plug does not t fully into the wall
outlet, reverse the plug. If the plug still does not t,
contact a qualied electrician to install the proper wall
outlet. Do not modify the appliance plug, extension cord
receptacle or extension cord plug in any way.
4. To prevent the appliance cord from disconnecting from the
extension cord during operation, make a knot with the two
cords as shown in Table 1.
5. Do not abuse the cord. Never pull the snow thrower by the
cord or yank the cord to disconnect it from the receptacle.
Keep the cord away from heat, oil, and sharp edges.
Personal Safety
1. Stay alert – Watch what you are doing and use common
sense when operating the snow thrower. Do not use the
machine when tired, ill or under the inuence of drugs,
alcohol or medication. A moment of inattention may result
in serious personal injury.
2. Wear proper clothing – Wearing rubber boots oers
additional protection from electric shock. Do not wear
loose clothing or jewelry that may become caught in the
machine. Wear protective headgear to keep hair away
from revolving parts of the machine. Safety glasses oer
better protection than everyday eyeglasses.
3. Moving parts present risks – Keep your face, hair,
clothing, hands and feet away from moving parts. All
guards and safety attachments must be installed properly
before using the unit. Shut o and disconnect the cord
before touching any parts other than the handles and
the switch.
4. Surfaces – This snow thrower is intended for use on
paved surfaces. Do not use on gravel, stone or other
unpaved surfaces unless the snow thrower is adjusted for
such surfaces according to the instructions given in this
operator’s manual.
5. Avoid accidental starting – Make sure the switch is in the
o position before plugging in the unit. Do not carry the
snow thrower with your nger on the switch.
6. Body position – Maintain proper footing and balance
at all times. Place heels rmly on the ground and tightly
grasp the handle bar. Watch for uneven surfaces and do
not overreach. In case you fall or collide with the snow
thrower, inspect the unit for any damages or cracks.
m WARNING! m
Electric shock may cause SEVERE INJURY or
DEATH. Heed these warnings:
• Do not allow any part of the electric snow thrower to
make contact with water while it is in operation. If the
appliance becomes wet while turned o, wipe dry
before starting.
• Use only a UL-, CSA- or ETL-rated extension cord for
outdoor, all-weather use.
• Do not use an extension cord over 100 ft (30 m).
• Do not touch the appliance or its plug with wet hands
or while standing in water. Wearing rubber boots
oers some protection.
EXTENSION CORD CHART
Cord Length:
Min. Wire Gauge (A.W.G.):
Up to 50 ft
(15 m)
14
+50 ft - 100 ft
(+15 m - 30 m)
12
(B) Connect plug and receptacle
Cord set
Appliance
cord
(A) Tie cord as shown
Table 1. Method of Securing Extension Cord
2
3
When stepping backwards, be careful to avoid obstacles
beneath your feet or behind you to avoid falling.
7. If the snow thrower strikes any object, immediately
stop the snow thrower, then inspect for damage –
Repair any damage before restarting and operating the
snow thrower.
Safety Instructions for Walk-Behind
Snow Throwers
• Readtheoperator’smanualcarefully–Learn your snow
thrower’s applications and limitations as well as the specic
potential hazards related to this machine. Do not use this
machine for any purpose other than the one for which it
was designed. Otherwise, it may cause mechanical defects,
serious damage or personal injury.
• Preliminaryunitinspection–Thoroughly inspect the unit
before use. Make sure all the parts are secure and installed
correctly. If you notice any abnormalities, do not use the
machine until it has been properly repaired. Always perform
a test run the rst time you use the snow thrower or after
replacing parts to ensure that the unit is
functioning properly.
• Preliminaryareainspection–Clear the area to be plowed
before each use. Remove all objects, such as rocks, broken
glass, nails, wire or string, which can be thrown by or
become entangled in the snow thrower. Keep the area of
operation clear of all spectators, particularly children
and pets.
• Excessiveforce–The snow thrower was designed to
respond at a certain rate for various snow conditions for
optimum safety and performance. Do not force it; keep
pressure constant.
• Malfunctioningswitch–Do not use the snow thrower
if the switch does not turn it on and o. Any electrical
appliance that cannot be controlled by the switch is not
safe to use and must be repaired.
• Hittinganobject–If the snow thrower accidentally strikes
an object, follow these steps:
i) Stop the snow thrower and unplug the unit;
ii) Inspect for damage;
iii) Repair or replace any damaged part before restarting
and operating the snow thrower.
• Discharge chute safety – Never direct the snow discharge
chute at the operator, at bystanders, at vehicles or at
windows. The discharged snow stream and foreign objects
accidentally picked up by the snow thrower can cause
serious damage and personal injury. Do not use your hands
to unclog the discharge chute. Stop the motor before
removing debris.
• Hand-heldoperatingposition–Operation of the snow
thrower in the hand-held position is unsafe.
• Abnormaloperation–If you notice the snow thrower
running in an unstable state or hear abnormal sounds from
the engine, immediately stop the machine, disconnect the
power and contact an authorized Snow Joe
®
+ Sun Joe
®
service center.
• Noisecontrol–When using the snow thrower, you must
respect local laws and regulations regarding noise control
and environmental protection. To avoid noise disturbance,
you should carefully decide upon an appropriate operation
time and consider the surrounding conditions.
• Whenworkiscompleted–Disconnect the snow
thrower from the power source when not in use, when
changing accessories and before performing any
maintenance function.
• Storesafely–Store the snow thrower indoors in a dry area
between uses. Keep it in a locked area, where children and
unauthorized users cannot gain access. Do not store the
machine while it is still connected to the power source as
this may result in damage and injury.
• Maintainforsafetyandlongevity–Check for
misalignment or binding of moving parts, breakage of
parts and any other conditions that may aect the unit’s
operation. If damaged, repair or replace the damaged part
before use. Use only original replacement parts designed
specically for your model. When replacing any parts,
you must strictly observe the instructions and procedures
described in this manual. Special care should be paid to
any rubber parts, since these parts may increase the engine
load and decrease its mechanical power if damaged.
Always check that all bolts, nuts and knobs are tight before
using the snow thrower!
4

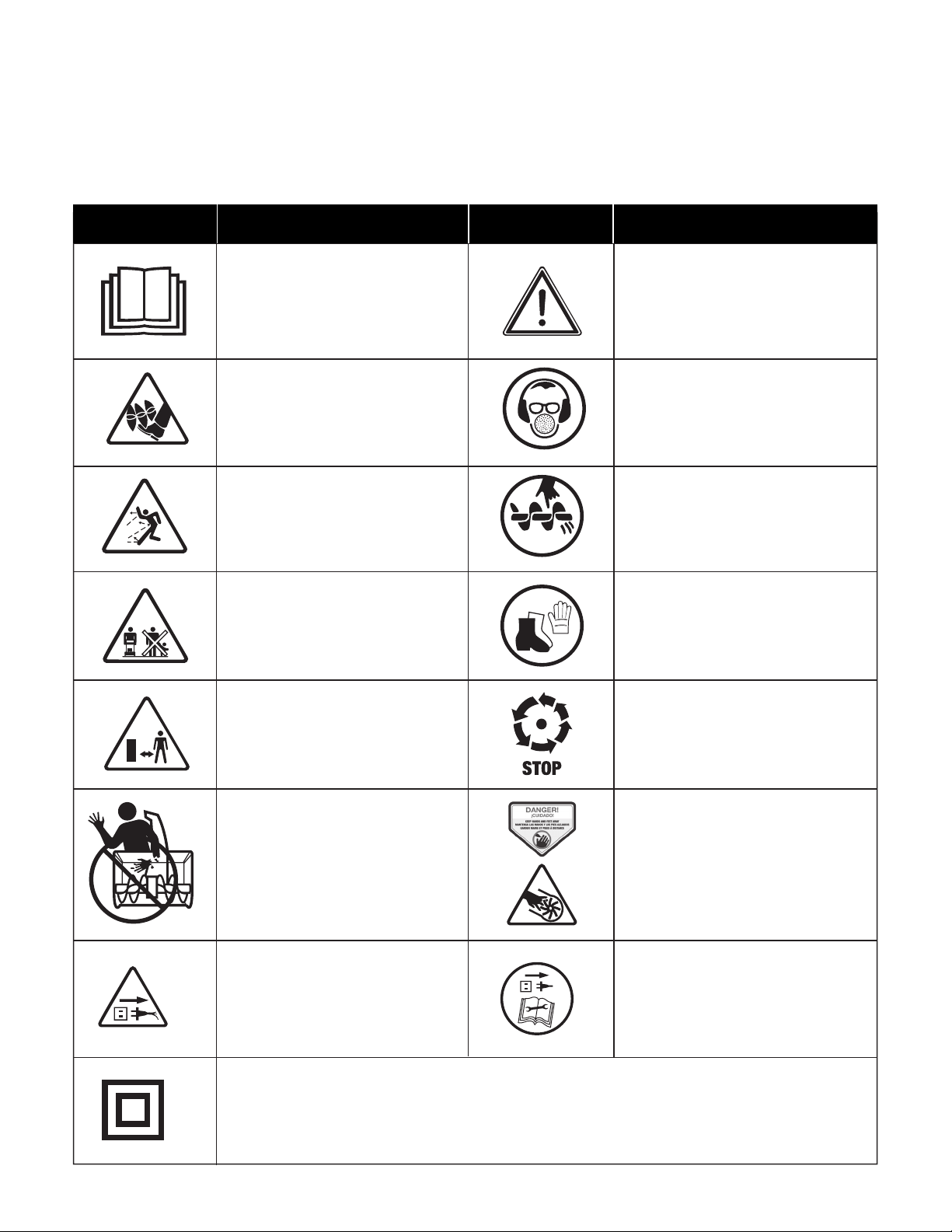

Safety Symbols
The following table describes safety symbols that may appear on this product. Read, understand and follow all instructions on
the machine before attempting to assemble and operate.
Double insulation.
Always keep the power cable away
from heat sources, oils or sharp
edges. Immediately remove plug from
the mains if the cable is damaged or
entangled.
The rotating part will continuously
run for several seconds after you
turn o the machine.
READ THE OPERATOR'S
MANUAL(S) – Read, understand
and follow all instructions in the
user manual(s) before attempting
to assemble and operate.
SAFETY ALERT – Indicates a
precaution, a warning or a danger.
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
CAUTION! Beware of stones and
other foreign objects that could
be thrown from the appliance.
DANGER! Cutting/dismemberment
hazard – Keep hands away from the
rotating auger. Do not use hands to
unclog rotor housing. Stop motor
before removing debris.
DANGER! Cutting/dismemberment
hazard - Keep feet away from the
rotating auger.
Symbols Symbols
Descriptions
Descriptions
Do not use hands to unclog chute.
Keep hands, feet and clothing
away from the rotating auger to
avoid injury.
Keep bystanders and children a
safe distance (at least 33 ft/10 m)
away from the work area.
WARNING! Turn the machine OFF
and disconnect it from the power
supply before inspecting, cleaning,
changing accessories or conducting
any other maintenance task.
Wear protective gloves and non-slip
footwear when using the machine
and handling debris.
Keep bystanders and children a safe
distance away.
Know Your Electric Snow Thrower
Read the owner’s manual and safety rules carefully before operating your electric snow thrower. Compare the illustration
below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this
manual for future reference.
5

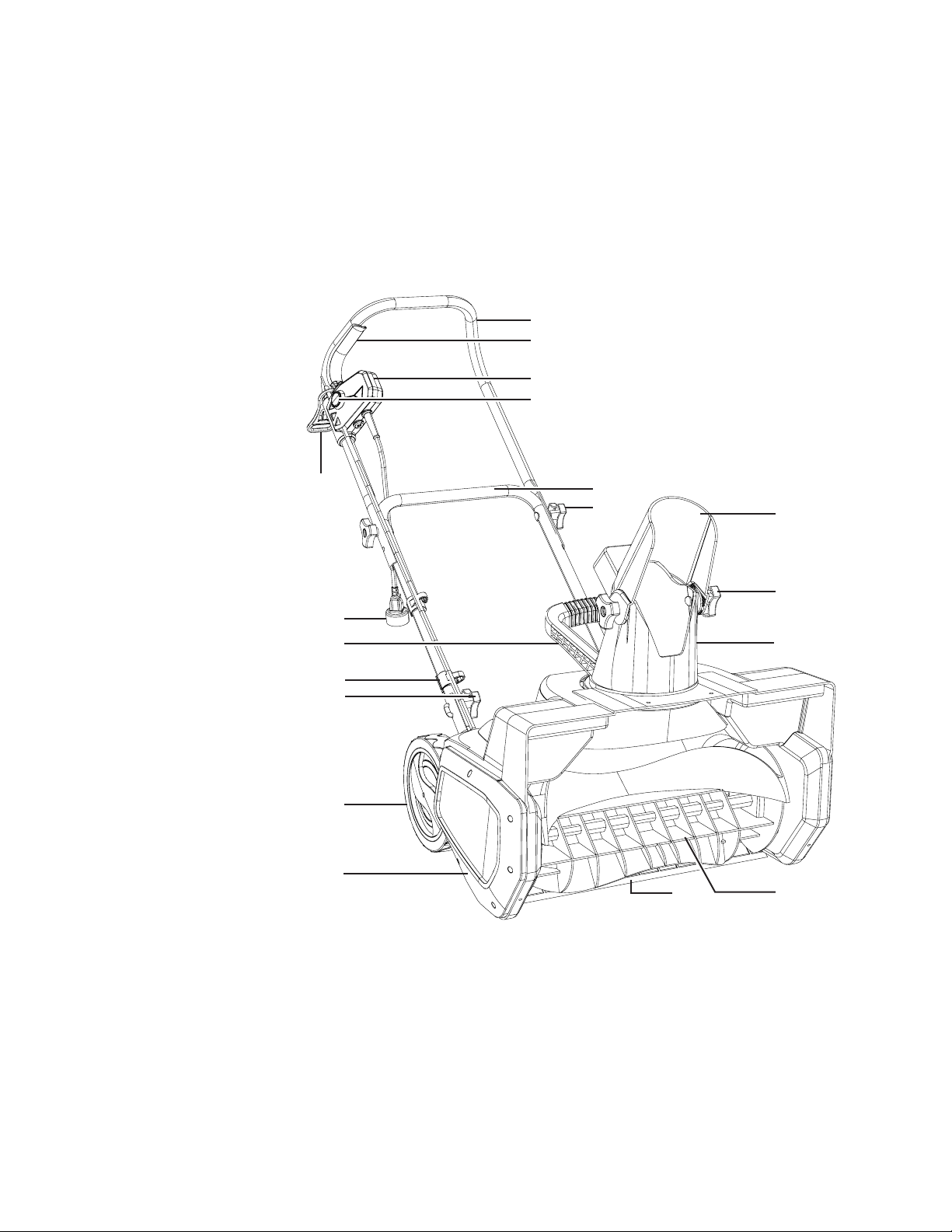

1. Upper handle frame
2. Switch bar lever
3. Switch box
4. Safety button
5. Lower handle frame
6. Upper handle
knobs and bolts (2)
7. Chute deector
8. Chute deector knobs
and bolts (2)
9. Discharge chute
10. Auger
11. Scraper bar
12. Side cover
13. Wheels (2)
14. Lower handle knobs + J-bolts (2)
15. Cable clips (2)
16. Auxiliary handle
17. Appliance cord
18. Extension cord restraint hook
Technical Data
Rated Voltage .........................120 V ~ 60 Hz
Power .....................................14 A
No Load Speed ......................1750 ± 10% rpm
Rotor .......................................Steel auger with 1 plastic blade
Clearing Width ........................21 in. (53 cm)
Depth of Snow Cut ............................ 12 in. (30 cm)
Throw Distance Max .......................... 20 ft (6 m)
Plowing Capacity Max ....................... 770 lbs/min (349 kg/min)
Directional Control ............................. 180º adjustable chute
Weight ............................................... 33.9 lbs (15.4 kg)
3
1
4
5
6
9
13
10
7
11
12
2
8
14
15
17
16
18
6
Unpacking
Carton Contents:
• Electric snow blower
• Lower handle frame
• Upper handle frame
• Chute deector
• Handle knobs/deector knobs (6)
• Square J-bolts (2)
• Carriage bolts (4)
• Rubber washers (2)
• Manuals with registration card
1. Carefully remove the electric snow thrower and check to
see that all of the above items are supplied.
2. Inspect the product carefully to make sure no breakage or
damage occurred during shipping. If you nd damaged or
missing parts, DO NOT return the unit to the store. Please
call the Snow Joe
®
+ Sun Joe
®
customer service center at
1-866-SNOWJOE (1-866-766-9563).
NOTE: Do not discard the shipping carton and packaging
material until you are ready to use your new electric snow
thrower. The packaging is made of recyclable materials.
Properly dispose of these materials in accordance with
local regulations.
IMPORTANT! The equipment and packaging material are
not toys. Do not let children play with plastic bags, foils
or small parts. These items can be swallowed and pose a
suocation risk!
Assembly
Handle Frame Assembly
1. Align the holes in the end of the lower handle frame with
those in the handle brackets (Fig. 1).
2. Secure the lower handle frame to the handle brackets with
the 2 sets of knob and J-bolt, like shown (Fig. 2). Make
sure the knobs are tightened.
3. Align the holes in the end of the upper handle frame with
those in the top of the lower handle frame (Fig. 3).
m CAUTION m
Inspect wiring, which, if damaged during shipping,
may cause serious bodily injury during equipment use.
If any damage is seen or suspected, do not assemble.
Instead, contact the Snow Joe
®
+ Sun Joe
®
customer
service center at 1-866-SNOWJOE (1-866-766-9563)
for assistance.
Handle with care during assembly so that electrical
wiring does not become damaged.

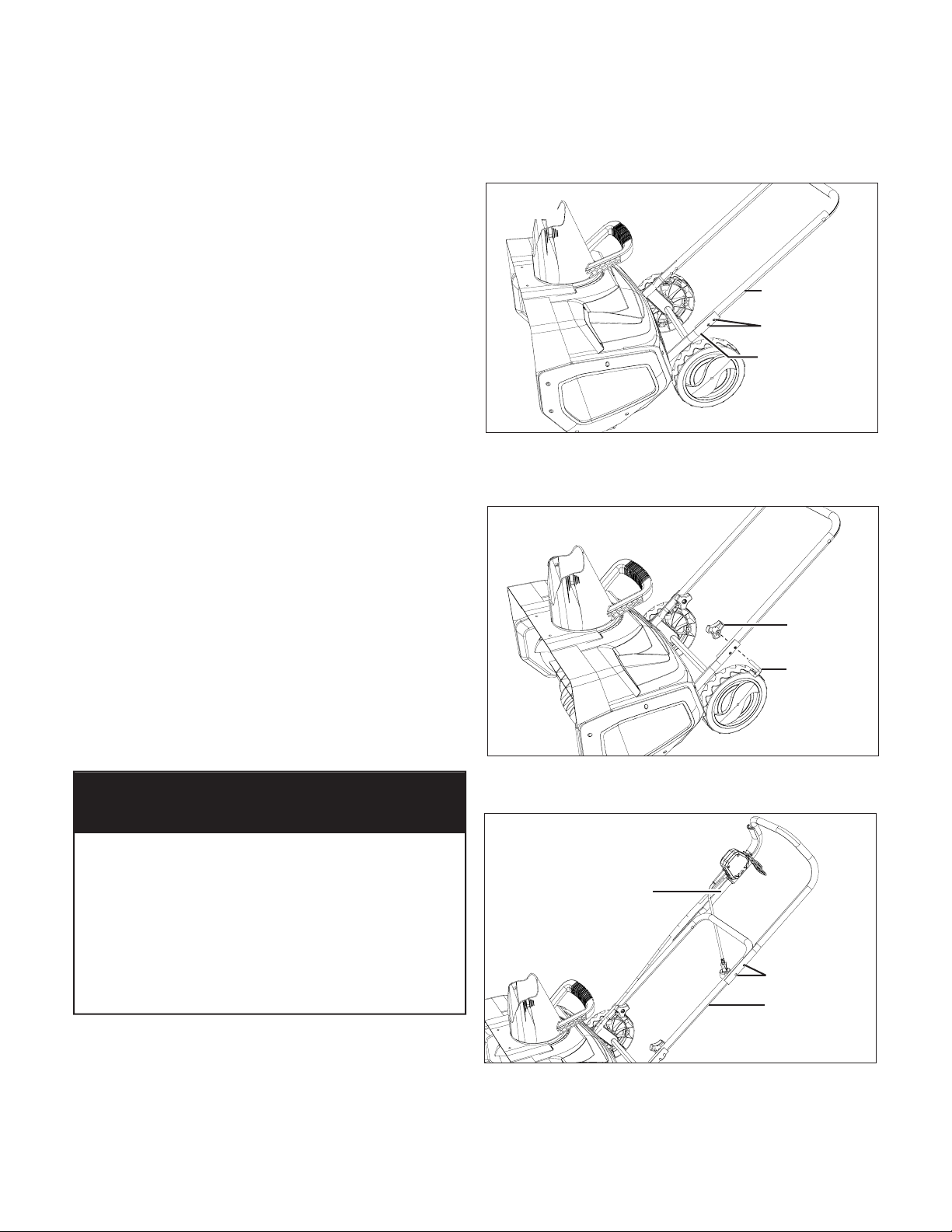

Fig. 1
Lower
handle frame
Handle
bracket
Align the holes
Fig. 2
J-bolt
Lower
handle
knob
Fig. 3
Align the holes
Lower handle
frame
Upper handle
frame
7
4. Secure the upper handle frame to the lower handle frame
with 2 sets of knob and carriage bolt like shown (Fig. 4).
Make sure the knobs are tightened.
NOTE: There are two holes on the upper handle frame
that are used for adjusting the pole length. If longer pole
is preferred, align with the lower hole; If shorter pole is
preferred, align with the upper hole.
5. Clip the cable in the cable clips on the lower handle to
secure the cable.
Discharge Chute Assembly
1. Position the chute deector over the discharge chute and
align the holes (Fig. 5). Place the washers between the
deector and the chute (Fig. 6).
2. Tighten the knobs to secure the assembly (Fig. 7).
Operation
NOTE: Before using this machine, make sure that the power
source you will use complies with the specications detailed
in this manual. Before inserting the plug into the socket, verify
that the snow thrower’s auger and plate are rmly secured
with screws, and that the plate is facing the correct direction.
Perform a test run to ensure that the rotor turns freely.
Fig. 4
Upper
handle frame
Lower
handle
frame
Lower handle
knob
Carriage bolt
Fig. 5
Discharge
chute
Chute
deector
Fig. 6
DeectorknobWasher
Bolt
Fig. 7
Securing the Extension Cord
1. For safe and ecient use of your snow thrower, use only a
UL-, CSA- or ETL- rated extension cord recommended for
outdoor use. Refer to the Extension Cord Chart on
page 2.
2. Form a loop with the extension cord and push the loop
through the slot on the extension cord restraint hook.
Position the loop over the hook and pull the cable back
through the slot (Fig. 8). Securing the extension cord in
this manner will prevent it from accidentally disconnecting
from the power supply during operation.
3. Insert the female end of the extension cord into the
appliance's polarized male plug (Fig. 9).
4. Note that the snow thrower has a polarized male plug –
one prong in the plug is slightly longer and wider than the
other (Fig. 10). The extension cord female end should be
likewise polarized so that the extension cord ts snugly
into the appliance plug.
PoweringOnandO
mWARNING! The auger starts rotating immediately
after the snow thrower is switched on. Keep hands
and feet away from the auger.
1. To switch the snow thrower ON, press the safety button,
then squeeze the switch bar lever (Fig. 11).
2. Once the snow thrower starts, release the safety button
and proceed with operation.
3. To power OFF, release the switch bar lever.
Fig. 8
Extension
cord restraint
hook
Extension cord
Fig. 9
Extension cord
Appliance cord
Fig. 10
m WARNING m
Damagedelectricalcordspresentriskofre,
electrical shock and serious bodily injury.
Before operating the snow thrower, carefully examine
the electrical cord. If the cord is damaged, do not use
the snow thrower. Replace or repair the damaged
cord immediately. If you need assistance, contact an
authorized Snow Joe
®
+ Sun Joe
®
dealer or call the
Snow Joe
®
+ Sun Joe
®
customer service center at
1-866-SNOWJOE (1-866-766-9563).
Fig. 11
Press the
safety
button
Squeeze
the switch
bar lever
8
9
Moving the Machine and Plowing
the Snow
1. Keep the area of operation free of foreign objects that can
become thrown by the rotor blades. Perform a thorough
inspection of the area since some objects may be hidden
from view by surrounding snow. If the snow thrower hits an
obstruction or picks up a foreign object during use, stop
the snow thrower, disconnect the extension cord, remove
the obstruction and inspect the unit for damage. Repair or
replace any damaged part before restarting and operating
the unit.
2. Keep children, pets and bystanders away from the area of
operation. Be aware that the normal noise of the machine
when turned on may make it dicult for you to hear
approaching people.
3. When moving the snow thrower, use the wheels on one
side as the pivot point. Slightly tilt the snow thrower on
this pivot point to move it forward or backward.

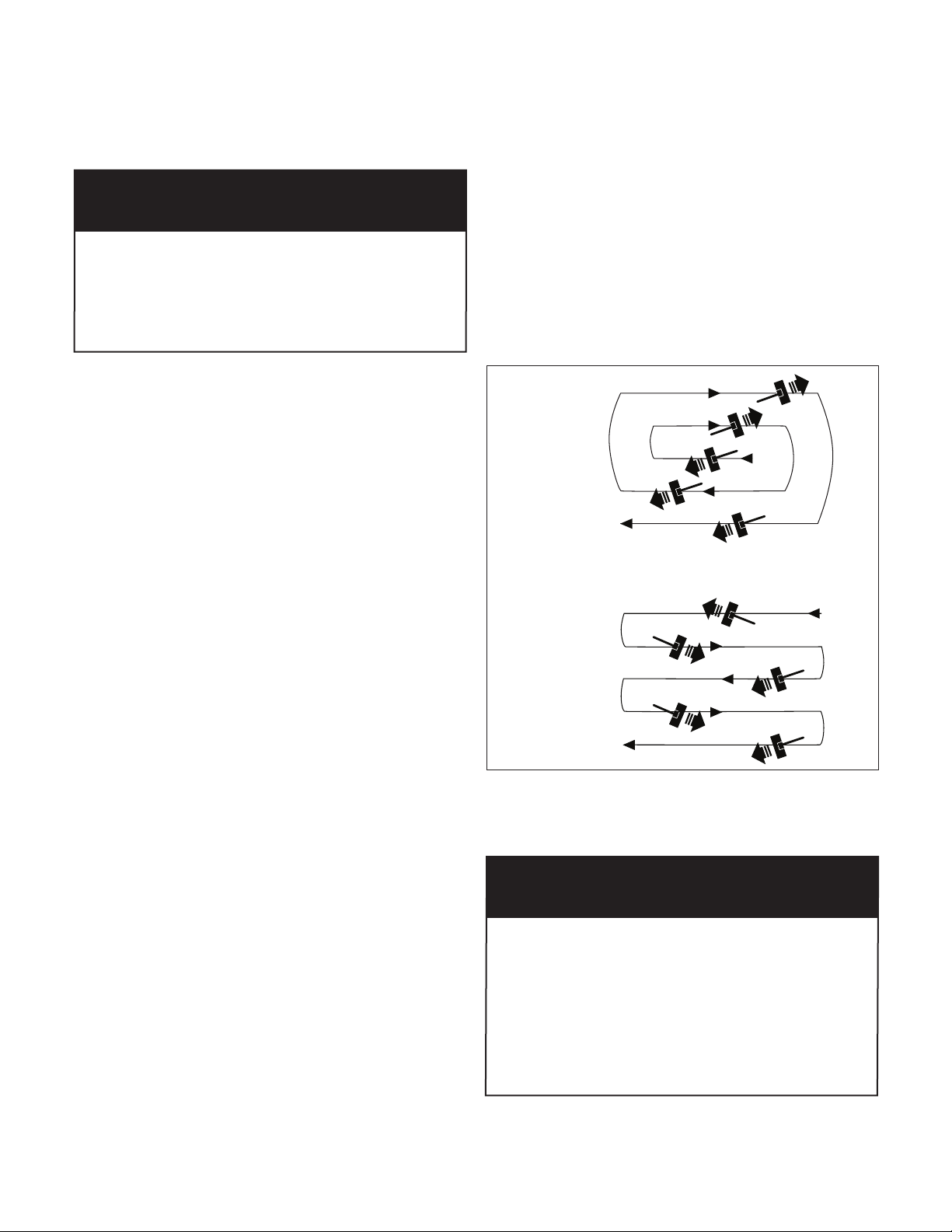

4. Start your clearing path near the electrical outlet and work
outward, throwing snow in a back and forth motion. To
clear in the opposite direction, step over the cord and
pivot the snow thrower on its wheels. Make sure to overlap
clearing paths.
5. Note the wind direction. If possible, move in the same
direction as the wind so that the snow is not thrown
against the wind (and thus back into your face and onto
the just cleared path).
6. While moving the snow thrower, do not drag the power
cable violently or roughly. The snow thrower should move
within the range that the cable can safely reach.
7. Do not push the snow thrower with excessive force. You
should push the machine gently and evenly in accordance
with the unit’s throw rate.
8. Do not apply additional man-made load to the engine
since this may cause engine damage.
9. Some parts of the snow thrower may freeze under extreme
temperature conditions. Do not attempt to operate the
snow thrower with frozen parts. If the parts freeze while
the snow thrower is in use, stop the snow thrower, unplug
the extension cord and inspect for frozen parts. Free all
parts before restarting or operating the snow thrower.
Never force controls that have frozen.
10. When working on pebbles, gravel or unpaved surfaces,
avoid throwing loose surface material along with the snow
by pushing down on the handle to raise the scraper bar at
the base of the unit above the pebbles or gravel.
11. For larger areas, a denite pattern of operation is required
to thoroughly clean an area of snow. These patterns will
not only avoid throwing snow in unwanted places, but will
also eliminate the need for a second removal of snow
(Fig. 12).
Pattern A: Throw the snow to the right of left side
where possible. For areas such as a long driveway, it is
advantageous to start in the middle. Plow from one end to
the other, throwing snow to both sides.
Pattern B: If the snow can only be thrown to one side of
the area to be cleared, start on the opposite side.
Changing Throw Direction and
Throw Height
m WARNING m
Foreign objects, such as rocks, broken glass, nails, wire,
or string, can be picked up and thrown by the snow
thrower, causing serious personal injury.
Remove all foreign objects from the area to be plowed
before operating the snow thrower.
Fig. 12
Pattern A
Pattern B
m WARNING m
Never direct the snow discharge chute at the
operator, at bystanders, at vehicles or at nearby
windows. The discharged snow and foreign objects
accidentally picked up by the snow thrower can
cause serious damage and personal injury.
Always orient the discharge chute in the opposite
direction from where you, bystanders, surrounding
vehicles or windows are located.
10
1. The discharge chute can be adjusted 180 degrees. Simply
grab the auxiliary handle and turn the discharge chute
towards the desired direction (Fig. 13).
2. The chute deector on the top of the discharge chute
controls the height of the snow stream. Loosen the knobs
to raise or lower the deector to the desired height of
snow you wish to throw. Tighten the knobs to secure the
deector (Fig. 14).
Maintenance
Lifetime Lubrication (Motor and Auger)
Lubrication is not necessary and may damage the unit. The
snow thrower is lubricated for lifetime use at the factory
before shipment.
General Maintenance Tips
1. Do not attempt to repair the machine unless you have the
proper tools and instructions for disassembly and repair of
the machine.
2. Check bolts and screws at frequent intervals for proper
tightness to ensure that the equipment is in safe working
condition.
3. After each snow removal session, run the snow thrower
for a few minutes to prevent the collector/impeller from
freezing. Shut o the motor, wait for all revolving parts to
stop completely and wipe residual ice and snow o the
unit. Rotate the discharge chute several times to remove
any excess snow.
4. Only use a cloth soaked with hot water and a soft brush
to clean the snow thrower; never wet or spray water on
the machine!
5. Do not use detergent or solvents as these could cause
irreparable damage to the snow thrower. Chemicals can
Fig. 13
Auxiliary handle
Deectorknob
Fig. 14
m WARNING m
Makesurethatthechutedeectorsnapsandlocks
completely onto the discharge chute. An opening
betweenthedischargechuteandthechutedeector
may allow foreign objects to be picked up by the
snow thrower and thrown in the direction of the
operator causing serious bodily injury.
• Donotadvancethechutedeectortoofar
forward causing an opening to appear between
the deectoranddischargechute.
• Do not overtighten the knobs on the
chutedeector.
m WARNING m
Makesuretoturnotheswitchanddisconnectthe
extension cord before performing any maintenance
task on your snow thrower.
11
destroy the plastic parts.
6. To protect the snow thrower from corrosion when storing
for long periods, lightly oil the metal parts.
7. Store the appliance in a dry and high or locked area out of
the reach of children.
8. For the user's safety, worn or damaged parts must be
replaced. Replace with original replacement parts only.
Parts from another snow thrower may not t properly
causing an unsafe situation.
Replacing the Plastic Auger
NOTE: When replacing worn plastic plates, pay close attention
to any dierent types of bolts and nuts and where they are
positioned. This will ensure that the new plastic plates are
installed properly and securely.
1. Open the two side covers by removing the 7 screws on
each side (Figs. 15 – 16).
2. Remove the belt from the pulley on the left side
(Fig. 17).
3. Remove the screws and the nuts from the pulley (Fig. 18).
4. Remove the auger axle set (Fig. 19).
5. Remove the old auger from the housing (Fig. 20).
6. Install the replacement auger by following the above steps
in reverse order.
Fig. 15
Remove the
7 screws
Fig. 16
Side covers
Fig. 17
Belt
Fig. 18
Screws
Nuts
Fig. 19
Auger axle set
Fig. 20
Auger
12
Replacing the Scraper Bar
1. The scraper bar is located at the base of the snow thrower
beneath the rotor housing (Fig. 21).
2. Remove the 3 screws that secure the scraper bar to the
snow thrower (Fig. 22). Remove the old scraper bar.
3. Install the new scraper bar and fasten it securely to the
snow thrower with the 3 screws.
Replacing the Belt
NOTE: Under normal operating conditions it should not be
necessary to replace the auger belt. However, should the auger
jam or malfunction, the belt could be damaged. To replace the
belt follow the instructions.
NOTE: Determine the left and right hand side of the
snow thrower by standing behind the unit in the normal
operating position.
1. Open the left side plate by removing the seven screws
(Fig. 23).
2. Use your right hand to turn the rib side of the belt
up and pull upwards while turning the auger pulley
counterclockwise with your left hand. The belt can be
easily removed from the pulley (Fig. 24).
3. Put the belt on the drive pulley rst and then place the
belt at the lower end of the auger pulley (Fig. 25).
Fig. 21
Scraper
bar
Fig. 22
The screws that secure the scraper bar
Fig. 23
Remove the
7 screws
Fig. 24
Auger pulley
Fig. 25
Auger pulley
Drive pulley
13
4. Use your right hand to press the belt with ribbed side
down. While holding the belt down with your right hand,
use your left hand to turn the auger forward so that the
auger pulley rotates in a clockwise direction. The belt will
be gradually pushed down onto the pulley. When the belt
is seated on the pulley, adjust it so that the ribs of the belt
match the grooves on the pulley (Fig. 26).
5. After belt is installed, replace the side plate and secure it
with the screws (Fig. 23).
NOTE: Heavy wet snow puts a load on belts, thus
requiring more frequent belt replacement.
Replacing the Pulley
1. Open the left side plate by removing 7 screws (Fig. 23).
Remove the belt following the directions above.
2. Secure the auger. Using an 18 mm hex socket, loosen the
pulley nut and remove the pulley (Fig. 27).
3. Follow the directions above in reverse order to install the
new pulley.
Storage
1. Allow the motor to cool completely before cleaning,
storing or transporting the snow thrower. Be
sure to secure the unit while transporting.
2. Disconnect the extension cord from the snow thrower.
Inspect the extension cord closely for signs of wear or
damage. Replace it if it is worn or damaged.
3. Inspect the snow thrower carefully for worn, loose or
damaged parts. Check connections and screws and
tighten if necessary. For repairing or replacing parts,
contact your authorized Snow Joe
®
+ Sun Joe
®
dealer
or the Snow Joe
®
+ Sun Joe
®
customer service center at
1-866-SNOWJOE (1-866-766-9563).
4. Store the unit, along with the disconnected extension
cord, in a locked, dry place out of the reach of children to
prevent unauthorized use or damage. Cover loosely with a
tarp for added protection.
Service and Support
If your Snow Joe
®
SJ624E-ES electric snow thrower requires
service or maintenance, please call 1-866-SNOWJOE
(1-866-766-9563) for assistance.
Model and Serial Numbers
When contacting the company, reordering parts or arranging
service from an authorized dealer, you will need to provide the
model and serial numbers, which can be found on the decal
on the main cover of the unit to the left of the discharge chute.
Copy these numbers into the space provided below.
Record the following numbers from the housing or handle of your
new product:
Model #:
Serial #:
S J 6 2 4 E - E S

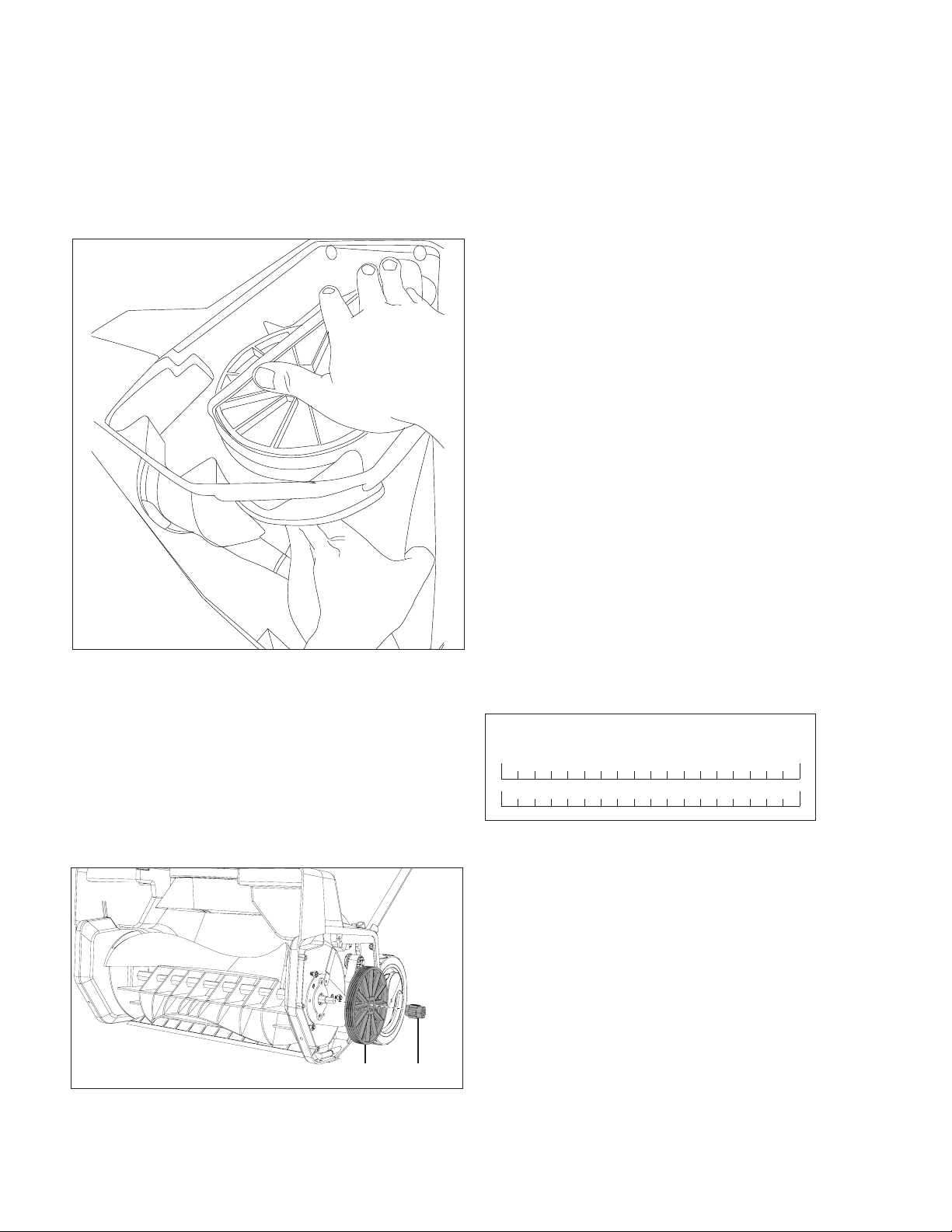

Fig. 26
Fig. 27
Pulley nutPulley
14

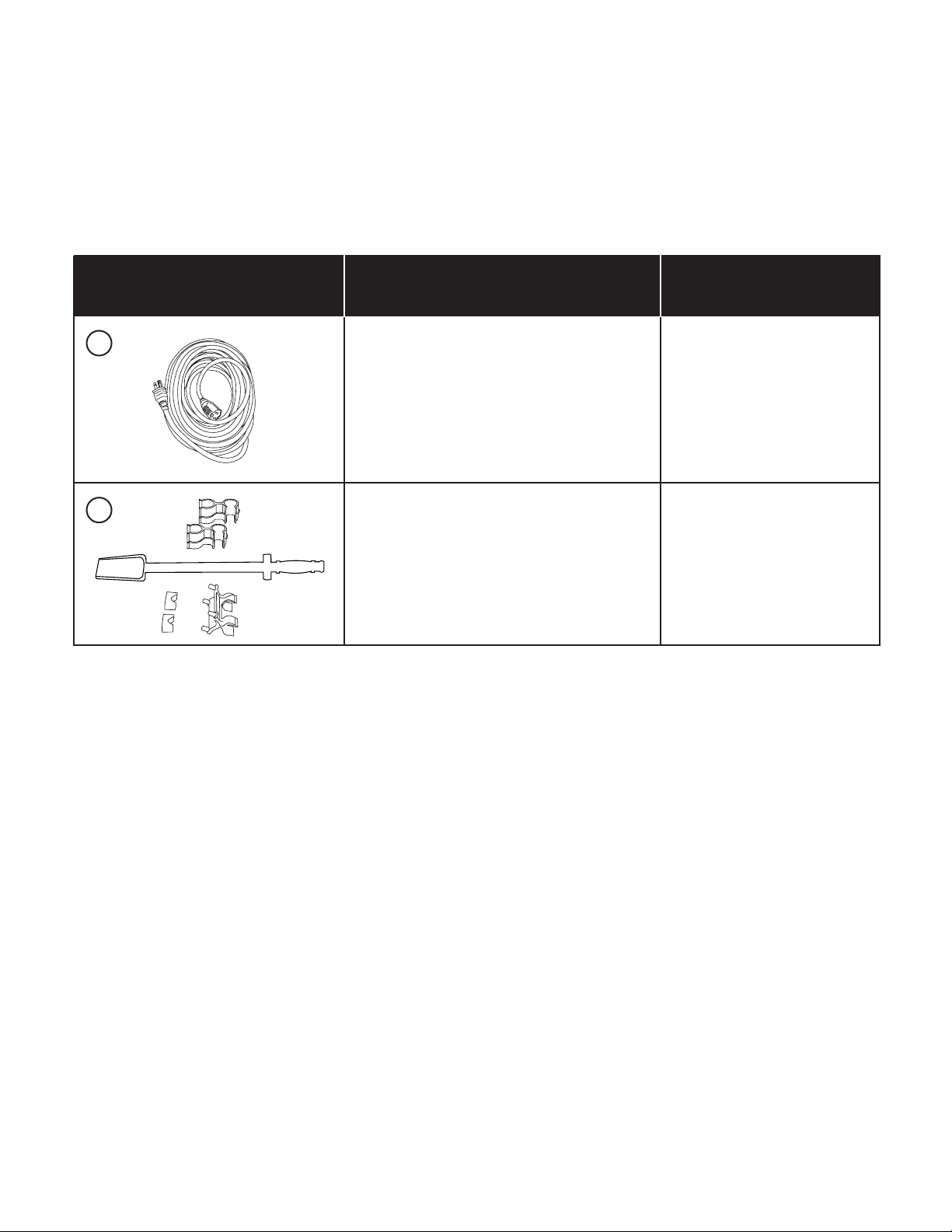

Optional Accessories
mWARNING! ALWAYS use only authorized Snow Joe
®
+ Sun Joe
®
replacement parts and accessories. NEVER use
replacement parts or accessories that are not intended for use with this electric snow thrower. Contact Snow Joe
®
+ Sun Joe
®
if you are unsure whether it is safe to use a particular replacement part or accessory with your electric snow thrower. The use of
any other attachment or accessory can be dangerous and could cause injury or mechanical damage.
Snow Joe
®
+ Sun Joe
®
SJTW-A 14-gauge
50-foot extension cord with lighted end
PJEXT50-B
ModelAccessories Item
1
2
Universal Snow Thrower Chute
Clean Out Tool
SJCOT
15
SNOW JOE
®
+ SUN JOE
®
CUSTOMER PROMISE
PRODUCT REGISTRATION:
Snow Joe
®
, LLC (“Snow Joe
®
+ Sun Joe
®
”) strongly encourages
you to register your purchase. You can register online at
snowjoe.com/ProductRegistration, or by printing and mailing
in a registration card available online from our website, or
calling our Customer Service Department at 1-866-SNOWJOE
Failure to register your product purchase will not diminish your
warranty rights. However, registering your purchase will allow
Snow Joe
®
+ Sun Joe
®
to better serve you with any of your
customer service needs.
WHO CAN SEEK WARRANTY COVERAGE?
This Warranty is extended by Snow Joe
®
+ Sun Joe
®
to the owner
of this Machine (a “Machine” consists of a product powered by
a motor) for residential and personal household use only. This
Warranty does not apply to products used for commercial, rental
or re-sale purposes. Should ownership of this machine change
during the 2-year period, please update the Machine’s owner
information at snowjoe.com/ProductRegistration.
WHAT IS COVERED?
Snow Joe
®
+ Sun Joe
®
warrants to the owner that if this Machine
fails within 2 years from the date of purchase due to a defect in
material or workmanship or as a result of normal wear and tear
from ordinary household use, Snow Joe
®
+ Sun Joe
®
will send a
replacement part or product, as needed, free of charge and with
free shipping to the original purchaser.
If, in Snow Joe
®
+ Sun Joe
®
’s sole discretion, the failed Machine
cannot be repaired with a part, Snow Joe
®
+ Sun Joe
®
will elect to
either (A) send a new Machine at no charge and with free shipping
or (B) refund the full purchase price to the owner.
WHAT IS NOT COVERED?
This Warranty does not apply to the Machines that have been used
commercially or in non-household applications. This Warranty
does not cover cosmetic changes that do not aect performance.
This Warranty is only valid if the Machine is used and maintained
in accordance with the instructions, warnings and safeguards
contained in the owner’s manual. Snow Joe
®
+ Sun Joe
®
will not
be responsible for the cost of any unauthorized warranty repairs.
This warranty does not cover any cost or expense incurred by
the purchaser in providing substitute equipment or service during
reasonable periods of malfunction or non-use of this product
while waiting for a replacement part or unit under this warranty.
Wearing parts like belts, augers, chains and tines are not covered
under this warranty, and can be purchased at snowjoe.com or
by calling 1-866-SNOWJOE (1-866-766-9563). Batteries are
covered in full for 90-days from the date of purchase.
Repair, replacement or refund of the purchase price are the
exclusive remedies of purchaser and the sole liability of Snow Joe
®
+ Sun Joe
®
under this warranty. No employee or representative
of Snow Joe
®
+ Sun Joe
®
is authorized to make any additional
warranty or any modication to this warranty which may be
binding upon Snow Joe
®
+ Sun Joe
®
. Accordingly, purchaser
should not rely upon any additional statements made by any
employee or representative of Snow Joe
®
+ Sun Joe
®
. In no event,
whether based on contract, indemnity, warranty, tort (including
negligence), strict liability or otherwise, shall Snow Joe
®
+
Sun Joe
®
be liable for any special, indirect, incidental, or
consequential damages, including, without limitation, loss of
prot or revenue.
Some states do not allow limits on warranties. In such states, the
above limitations may not apply to you.
Outside the USA, other warranties may apply.
ABOVE ALL ELSE, Snow Joe
®
+ Sun Joe
®
are dedicated to you, our customer. We strive to make your experience as pleasant
as possible. Unfortunately, there are times when a product does not work or breaks under normal operating conditions. We
think it’s important that you know what you can expect from us. That’s why we created the Snow Joe
®
+ Sun Joe
®
promise.
OUR PROMISE: Snow Joe
®
+ Sun Joe
®
warrant new products for two years from the date of purchase. If your product does
not work, or there’s an issue with a specic part, we will x this by either sending you a free replacement part or by sending
you a new or comparable product at no charge. How cool is that! Before you know it, you’ll be back in action cutting,
sawing, mowing, washing and…?
snowjoe.com
