en User manual
Fridge-freezer
KI84F.... / KI87F....
en Table of contents
en User manual
( Safety instructions 4
8 Intended use 6
7 Environmental protection 6
5 Installation and connection 7
* Getting to know your appliance 10
1 Operating the appliance 12
M Alarm 14
o Home Connect 14
U Refrigerator compartment 19
T Cool-fresh compartment 20
W Freezer compartment 21
= Defrosting 24
D Cleaning 24
l Odours 25
9 Lighting 25
> Noises 26
3 Faults â what to do? 26
4 Customer service 28
( Safety instructions
Safety instructions
About these instructions
Risk of explosion
Risk of electric shock
Risk of cold burns
Risk of injury
Fire hazard/Danger due to refrigerants
Fire hazard
Avoiding placing children and vulnerable people at risk
Risk of suffocation
Damage
Weight
8 Intended use
Intended use
7 Environmental protection
Environmental protection
Packaging
Old appliances
: Warning
Children may become locked in the appliance and suffocate!
Caution!
Refrigerant and harmful gases may escape.
1. Remove the mains plug.
2. Sever the power cord.
3. Have the appliance disposed of professionally.
5 Installation and connection
Installation and connection
Scope of supply
Technical specifications
Installing the appliance
Installation location
Permitted room temperature
Climatic category
Permitted room temperature
Cavity dimensions
Cavity depth
Cavity width
Side by-side installation
Tips for saving energy
If you follow the instructions below, your appliance will use less power.
Note:
The arrangement of the features does not affect the energy consumption of the appliance.
Installing the appliance
Note:
Caution!
Risk of burns!
Using the appliance
--------
Before using your appliance for the first time
1. Remove information material, adhesive tape and protective film.
2. Clean the appliance. ~ "Cleaning" on page 24
Electrical connection
Caution!
Note:
1. After installing the appliance, wait at least 1 hour before connecting it to prevent damaging the compressor.
2. Connect the appliance via a correctly installed socket.
3. Connect the appliance to a socket near the appliance.
: Warning
Risk of electric shock!
* Getting to know your appliance
Getting to know your appliance

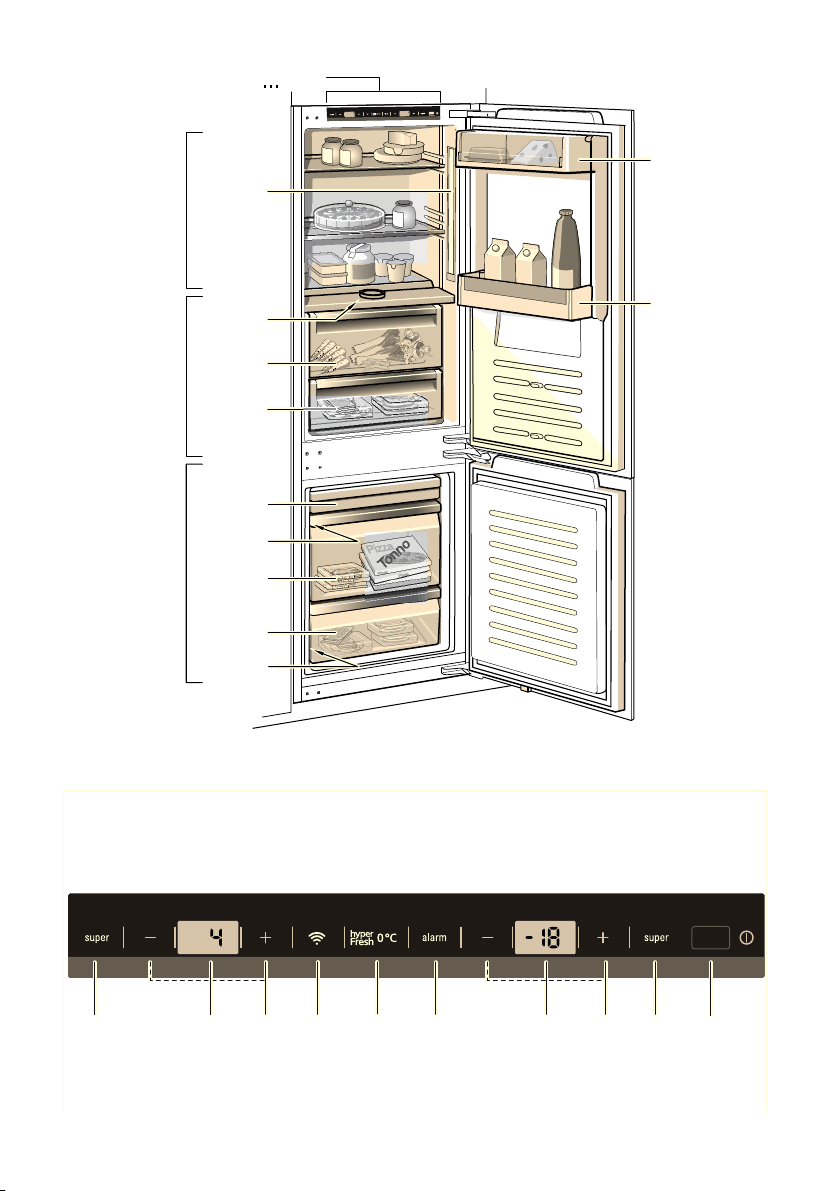

Appliance
Controls

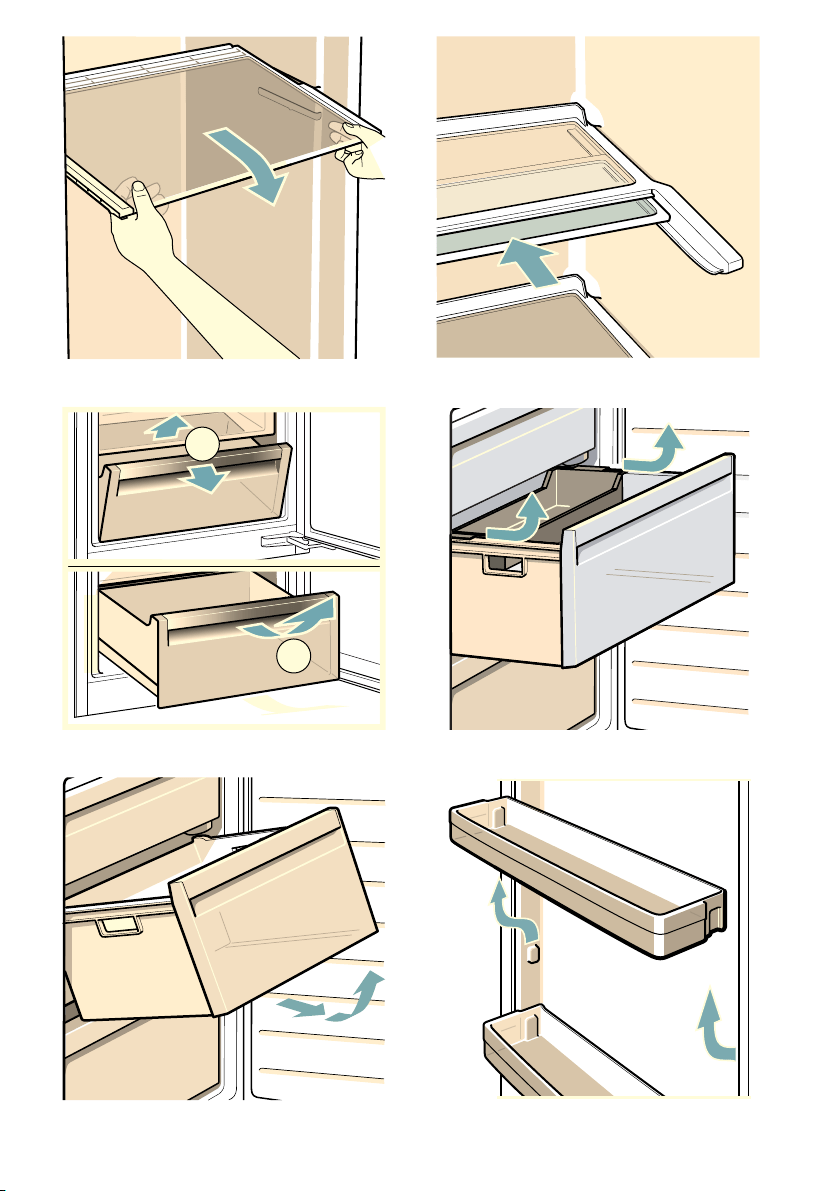

Interior fittings
Shelf
Vario shelf
Vegetable container
Freezer tray
1. Pull the container out all the way.
2. Lift tray and remove.
Frozen food container
Storage compartment
Bottle holder
Ice cube tray
1. Fill the ice cube tray 3/4 full with water and place in the freezer compartment.
Note:
2. To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water.
Ice pack
Note:
1 Operating the appliance
Operating the appliance
Switching on the appliance
1. Press the # button.
2. Press the alarm button.
3. Setting the required temperature. ~ "Setting the temperature" on page 12
Operating tips
Switching off and disconnecting the appliance
Switching off the appliance
Disconnecting the appliance
1. Press the # button.
2. Pull out the mains plug or switch off the fuse.
3. Clean the appliance.
4. Leave the appliance open.
Setting the temperature
Recommended temperature
Refrigerator compartment
Cool-fresh compartment
Note:
Freezer compartment
Super cooling
Note:
Super freezing
Automatic super freezing
Note:
Manual super freezing
Note:
Holiday mode
M Alarm
Alarm
Door alarm
Temperature alarm
Caution!
Bacteria may develop during the thawing process and spoil the frozen food
Note:
Note:
o Home Connect
Home Connect
Note:
Note:
Setting up Home Connect
Notes
Automatic connection with the home network (WLAN)
1. Press the | button.
2. Press button +/- refrigerator compartment until the refrigerator compartment temperature display shows AC and the freezer compartment temperature display shows OF.
3. Press button +/- freezer compartment.
4. Within those 2 minutes, activate the WPS function on the home network router (e.g. using the WPS/WLAN button; observe information on this topic in the router documentation).
Note:
1. Check whether the refrigerator is located within the range of the home network (WLAN).
2. Repeat the process or establish the connection manually.
Manual connection with the home network (WLAN)
1. Press the | button.
2. Press button +/- refrigerator compartment until the refrigerator compartment temperature display shows SA and the freezer compartment temperature display shows OF.
3. Press button +/- freezer compartment.
4. The refrigerator has now set up its own WLAN network with the network name HomeConnect.
5. Call up the WLAN settings in the settings menu of the mobile device.
6. Connect the mobile device with the WLAN network HomeConnect.
7. After successfully connecting, open the Home Connect app on the mobile device.
8. As soon as the refrigerator has been found, enter the network name (SSID) and the password (Key) of your own home network (WLAN) into the corresponding fields.
9. Confirm with the button Transmit to domestic appliances.
Connecting the refrigerator to the Home Connect app
1. Press | button.
2. Keep pressing +/- button refrigerator compartment until the refrigerator compartment temperature display shows PA and the freezer compartment temperature display shows OF.
3. Press +/- button freezer compartment to connect the appliance to the app.
4. Open the app and wait until the refrigerator is displayed. Use Add to confirm the connection between the app and the refrigerator.
5. Follow the instructions in the app until the process is complete.
Note:
Verify signal strength
1. Press the | button.
2. Press button +/- refrigerator compartment until the refrigerator compartment temperature display shows SI. In the freezer compartment temperature display a value appears between 0 (no signal) and 3 (full signal).
Resetting Home Connect settings
1. Press the | button.
2. Press button +/- refrigerator compartment until the refrigerator compartment temperature display shows rE and the freezer compartment temperature display shows OF.
3. Press button +/- freezer compartment.
Installing updates for the Home Connect software
1. Press the | button.
2. Press button +/- refrigerator compartment until the refrigerator compartment temperature display shows UP and the freezer compartment temperature display shows OF.
3. Press button +/- freezer compartment.
Information on data protection
Note:
Declaration of conformity
U Refrigerator compartment
Refrigerator compartment
Note when storing food
Note the chill zones in the refrigerator compartment
Coldest zone
Warmest zone
Notes
T Cool-fresh compartment
Cool-fresh compartment
Vegetable container
Notes
Cool-fresh container
Storage times at 0 °C
W Freezer compartment
Freezer compartment
Freezing small amounts of food
Maximum freezing capacity
Prerequisites for max. freezing capacity
1. Approx. 24 hours before inserting fresh produce: switch on super freezing.
2. Take the container out of the freezer compartment and stack the food directly on the shelves and on the floor of the freezer compartment.
3. First fill the upper compartment with food. This is where the food will freeze most quickly.
4. If the top compartment is inadequate, store the remaining quantity in the compartment underneath starting at the front right side.
5. Freeze fresh food as close as possible to the side panels.
Fully utilising the freezer volume
Purchasing frozen food
Note when loading products
Freezing fresh food
Suitable for freezing
Not suitable for freezing
Packing frozen food
1. Place food in packaging.
2. Remove air.
3. Pack food airtight to prevent it from losing flavour and drying out.
4. Label packaging with contents and date of freezing.
Shelf life of frozen food at â18 °C
Freezer calendar
Thawing frozen food
Caution!
= Defrosting
Defrosting
Refrigerator compartment
Freezer compartment
Caution!
Avoid any damage to the pipes of the refrigeration circuit.
1. Switch on the super freezing approx. 4 hours before defrosting.
2. Remove the frozen food and place temporarily in a cool location.
3. Switch off the appliance.
4. Pull out the mains plug or switch off the fuse.
5. To accelerate the defrosting process: place a pan of hot water on a trivet in the freezer compartment.
6. Wipe up the condensation water with a cloth or sponge.
7. Wipe the freezer compartment dry.
8. Switch on the appliance.
9. Put the frozen food back into the appliance.
D Cleaning
Cleaning
Caution!
Avoid damaging the appliance and the fittings.
1. Switch off the appliance.
2. Pull out the mains plug or switch off the fuse.
3. Take out the food and store in a cool location.
4. If present: wait until the layer of frost has thawed.
5. Clean the appliance with a soft cloth, lukewarm water and a little pH-neutral washing-up liquid.
Caution!
6. Wipe door seal with clear water and dry thoroughly with a cloth.
7. Reconnect and switch on appliance and put in food.

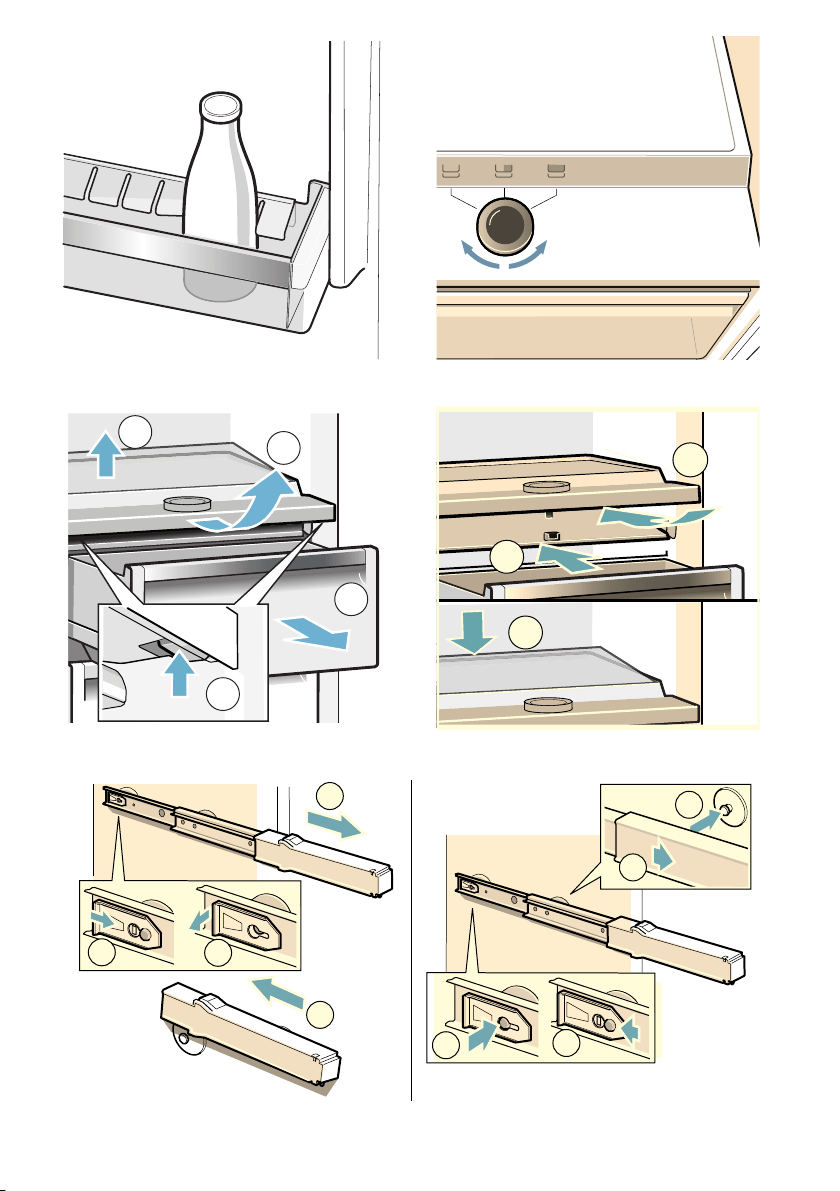

Cleaning the equipment
Partition and vegetable container cover
Taking out the partition
Taking out the vegetable container cover
Inserting vegetable container cover and partition
1. Insert vegetable container cover.
2. Insert partition.
3. Insert glass plate.
Telescopic rails
Removing telescopic rails
1. Pull out telescopic rail.
2. Push lock in the direction of the arrow.
3. Detach telescopic rail from the rear pin.
4. Push telescopic rail together, push backwards above the rear pin and disengage.
Installing telescopic rails
1. Place the extended telescopic rail on the front pin.
2. Pull the telescopic rail forwards slightly until it engages.
3. Insert telescopic rail on the rear pin.
4. Push lock backwards.
l Odours
Odours
1. Switch off the appliance with the On/Off button #.
2. Take all food out of the appliance.
3. Clean the inside.~ "Cleaning" on page 24
4. Clean all packages.
5. Seal strong smelling food in order to avoid odours from forming.
6. Switch the appliance on again.
7. Store food in the appliance.
8. Check whether the formation of odours is still occurring after 24 hours.
9 Lighting
Lighting
> Noises
Noise
Normal noises
Note:
Preventing noises
3 Faults â what to do?
Faults â what to do?
Before you call customer service, use this table to check whether you can rectify the fault yourself.
Temperature differs greatly from the set value.
Displays do not illuminate.
Display shows E....
A warning signal sounds and the alarm button is lit.
Display flashes, warning signal sounds and button alarm is lit.
Display flashes.
Appliance is not cooling, display and lighting are lit.
Automatic super freezing does not switch on.
It is too warm or too cold in the cool-fresh compartment.
1. Press and hold the refrigerator compartment super button until the display temperature refrigerator compartment flashes.
2. Press +/- button to change the setting.
--------
4 Customer service
Customer service
Appliance self-test
1. Switch off the appliance and wait 5 minutes.
2. Switch on the appliance.
3. Within the first 10 seconds, press and hold the freezer compartment super button for 3 ... 5 seconds until an audible signal sounds.
Repair order and advice on faults
Guarantee
-
Page 1/34
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Contents
Table of Contents
Search
Previous
Next
Troubleshooting
Bookmarks
en
User manual
)ULGJHIUHH]HU
KI84F.... / KI87F....
Loading ...
Loading ...
Loading ...
File type: PDF
File name: 58602569_ki87fhd40.pdf
File size: 1.36 MB
File Language: English
Pages: 34
Author: Siemens
File created: 2018-09-28
Published:
2021-08-10
Updated: 2023-06-10
Download File
Other documents for Siemens KI87FHD40
The following documents are available:
User Manual
User Manual - (English)
Read Online
|
Download pdf
Other Documents
Installation instructions - (English)
Download
Supplemental - (English)
Download
Further installation information - (English)
Download
EU Declaration of Conformity - (English)
Download
EU Declaration of Conformity - (English)
Download
Product specification sheet - (English)
Download
EU energy label - (English)
Download
EU datasheet - (English)
Download
Free and Open Source Software Licence - (English)
Download
Home Connect leaflet - (English)
Download
Photos
Photos:
View Photos
Specifications
Brand:
Siemens
Model: KI87FHD40
Category:
Refrigeration
View in the file:
Full Specifications
See other models:
KI86FPF30G
KI86FHD40
TI351209GB
TI303203RW
TI305206RW
Related Products
Siemens KI86FHD40
Siemens KI81FHD40
Siemens KI87FPF30
Siemens KI81FHDD0
Siemens KI86NHDF0
Siemens KI86NHD30
Siemens KI84FPF30
Siemens KI87SAFE0G
Siemens KI87SAF30G
Siemens KI87VVSF0G
Siemens KI87VVSE0G
Siemens KI87VVS30G
Siemens KI87VVFF0G
Siemens KI87VVFE0G
Siemens KI87VVF30G
Table of Contents
×
en User manual
1
Fridge-freezer
1
KI84F.... / KI87F....
1
en Table of contents
2
en User manual
2
( Safety instructions 4
2
8 Intended use 6
2
7 Environmental protection 6
2
5 Installation and connection 7
2
* Getting to know your appliance 10
2
1 Operating the appliance 12
2
M Alarm 14
2
o Home Connect 14
2
U Refrigerator compartment 19
2
T Cool-fresh compartment 20
2
W Freezer compartment 21
2
= Defrosting 24
3
D Cleaning 24
3
l Odours 25
3
9 Lighting 25
3
> Noises 26
3
3 Faults â what to do? 26
3
4 Customer service 28
3
( Safety instructions
4
Safety instructions
4
About these instructions
4
Risk of explosion
4
Risk of electric shock
4
Risk of cold burns
5
Risk of injury
5
Fire hazard/Danger due to refrigerants
5
Fire hazard
5
Avoiding placing children and vulnerable people at risk
5
Risk of suffocation
6
Damage
6
Weight
6
8 Intended use
6
Intended use
6
7 Environmental protection
6
Environmental protection
6
Packaging
6
Old appliances
6
: Warning
6
Children may become locked in the appliance and suffocate!
6
Caution!
6
Refrigerant and harmful gases may escape.
6
1. Remove the mains plug.
6
2. Sever the power cord.
6
3. Have the appliance disposed of professionally.
6
5 Installation and connection
7
Installation and connection
7
Scope of supply
7
Technical specifications
7
Installing the appliance
7
Installation location
7
Permitted room temperature
7
Climatic category
7
Permitted room temperature
7
Cavity dimensions
7
Cavity depth
7
Cavity width
7
Side by-side installation
7
Tips for saving energy
8
If you follow the instructions below, your appliance will use less power.
8
Note:
8
The arrangement of the features does not affect the energy consumption of the appliance.
8
Installing the appliance
8
Note:
8
Caution!
8
Risk of burns!
8
Using the appliance
8
--------
9
Before using your appliance for the first time
9
1. Remove information material, adhesive tape and protective film.
9
2. Clean the appliance. ~ "Cleaning" on page 24
9
Electrical connection
9
Caution!
9
Note:
9
1. After installing the appliance, wait at least 1 hour before connecting it to prevent damaging the compressor.
9
2. Connect the appliance via a correctly installed socket.
9
3. Connect the appliance to a socket near the appliance.
9
: Warning
9
Risk of electric shock!
9
* Getting to know your appliance
10
Getting to know your appliance
10
Appliance
10
Controls
10
Interior fittings
11
Shelf
11
Vario shelf
11
Vegetable container
11
Freezer tray
11
1. Pull the container out all the way.
11
2. Lift tray and remove.
11
Frozen food container
11
Storage compartment
11
Bottle holder
11
Ice cube tray
11
1. Fill the ice cube tray 3/4 full with water and place in the freezer compartment.
11
Note:
11
2. To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water.
11
Ice pack
11
Note:
11
1 Operating the appliance
12
Operating the appliance
12
Switching on the appliance
12
1. Press the # button.
12
2. Press the alarm button.
12
3. Setting the required temperature. ~ "Setting the temperature" on page 12
12
Operating tips
12
Switching off and disconnecting the appliance
12
Switching off the appliance
12
Disconnecting the appliance
12
1. Press the # button.
12
2. Pull out the mains plug or switch off the fuse.
12
3. Clean the appliance.
12
4. Leave the appliance open.
12
Setting the temperature
12
Recommended temperature
12
Refrigerator compartment
12
Cool-fresh compartment
12
Note:
12
Freezer compartment
12
Super cooling
13
Note:
13
Super freezing
13
Automatic super freezing
13
Note:
13
Manual super freezing
13
Note:
13
Holiday mode
13
M Alarm
14
Alarm
14
Door alarm
14
Temperature alarm
14
Caution!
14
Bacteria may develop during the thawing process and spoil the frozen food
14
Note:
14
Note:
14
o Home Connect
14
Home Connect
14
Note:
14
Note:
14
Setting up Home Connect
15
Notes
15
Automatic connection with the home network (WLAN)
15
1. Press the | button.
15
2. Press button +/- refrigerator compartment until the refrigerator compartment temperature display shows AC and the freezer compartment temperature display shows OF.
15
3. Press button +/- freezer compartment.
15
4. Within those 2 minutes, activate the WPS function on the home network router (e.g. using the WPS/WLAN button; observe information on this topic in the router documentation).
15
Note:
15
1. Check whether the refrigerator is located within the range of the home network (WLAN).
15
2. Repeat the process or establish the connection manually.
15
Manual connection with the home network (WLAN)
15
1. Press the | button.
15
2. Press button +/- refrigerator compartment until the refrigerator compartment temperature display shows SA and the freezer compartment temperature display shows OF.
15
3. Press button +/- freezer compartment.
16
4. The refrigerator has now set up its own WLAN network with the network name HomeConnect.
16
5. Call up the WLAN settings in the settings menu of the mobile device.
16
6. Connect the mobile device with the WLAN network HomeConnect.
16
7. After successfully connecting, open the Home Connect app on the mobile device.
16
8. As soon as the refrigerator has been found, enter the network name (SSID) and the password (Key) of your own home network (WLAN) into the corresponding fields.
16
9. Confirm with the button Transmit to domestic appliances.
16
Connecting the refrigerator to the Home Connect app
16
1. Press | button.
16
2. Keep pressing +/- button refrigerator compartment until the refrigerator compartment temperature display shows PA and the freezer compartment temperature display shows OF.
16
3. Press +/- button freezer compartment to connect the appliance to the app.
16
4. Open the app and wait until the refrigerator is displayed. Use Add to confirm the connection between the app and the refrigerator.
16
5. Follow the instructions in the app until the process is complete.
16
Note:
16
Verify signal strength
17
1. Press the | button.
17
2. Press button +/- refrigerator compartment until the refrigerator compartment temperature display shows SI. In the freezer compartment temperature display a value appears between 0 (no signal) and 3 (full signal).
17
Resetting Home Connect settings
17
1. Press the | button.
17
2. Press button +/- refrigerator compartment until the refrigerator compartment temperature display shows rE and the freezer compartment temperature display shows OF.
17
3. Press button +/- freezer compartment.
17
Installing updates for the Home Connect software
17
1. Press the | button.
17
2. Press button +/- refrigerator compartment until the refrigerator compartment temperature display shows UP and the freezer compartment temperature display shows OF.
17
3. Press button +/- freezer compartment.
17
Information on data protection
18
Note:
18
Declaration of conformity
18
U Refrigerator compartment
19
Refrigerator compartment
19
Note when storing food
19
Note the chill zones in the refrigerator compartment
19
Coldest zone
19
Warmest zone
19
Notes
19
T Cool-fresh compartment
20
Cool-fresh compartment
20
Vegetable container
20
Notes
20
Cool-fresh container
20
Storage times at 0 °C
20
W Freezer compartment
21
Freezer compartment
21
Freezing small amounts of food
21
Maximum freezing capacity
21
Prerequisites for max. freezing capacity
21
1. Approx. 24 hours before inserting fresh produce: switch on super freezing.
21
2. Take the container out of the freezer compartment and stack the food directly on the shelves and on the floor of the freezer compartment.
21
3. First fill the upper compartment with food. This is where the food will freeze most quickly.
21
4. If the top compartment is inadequate, store the remaining quantity in the compartment underneath starting at the front right side.
21
5. Freeze fresh food as close as possible to the side panels.
21
Fully utilising the freezer volume
22
Purchasing frozen food
22
Note when loading products
22
Freezing fresh food
22
Suitable for freezing
22
Not suitable for freezing
22
Packing frozen food
23
1. Place food in packaging.
23
2. Remove air.
23
3. Pack food airtight to prevent it from losing flavour and drying out.
23
4. Label packaging with contents and date of freezing.
23
Shelf life of frozen food at â18 °C
23
Freezer calendar
23
Thawing frozen food
23
Caution!
23
= Defrosting
24
Defrosting
24
Refrigerator compartment
24
Freezer compartment
24
Caution!
24
Avoid any damage to the pipes of the refrigeration circuit.
24
1. Switch on the super freezing approx. 4 hours before defrosting.
24
2. Remove the frozen food and place temporarily in a cool location.
24
3. Switch off the appliance.
24
4. Pull out the mains plug or switch off the fuse.
24
5. To accelerate the defrosting process: place a pan of hot water on a trivet in the freezer compartment.
24
6. Wipe up the condensation water with a cloth or sponge.
24
7. Wipe the freezer compartment dry.
24
8. Switch on the appliance.
24
9. Put the frozen food back into the appliance.
24
D Cleaning
24
Cleaning
24
Caution!
24
Avoid damaging the appliance and the fittings.
24
1. Switch off the appliance.
24
2. Pull out the mains plug or switch off the fuse.
24
3. Take out the food and store in a cool location.
24
4. If present: wait until the layer of frost has thawed.
24
5. Clean the appliance with a soft cloth, lukewarm water and a little pH-neutral washing-up liquid.
24
Caution!
24
6. Wipe door seal with clear water and dry thoroughly with a cloth.
24
7. Reconnect and switch on appliance and put in food.
24
Cleaning the equipment
25
Partition and vegetable container cover
25
Taking out the partition
25
Taking out the vegetable container cover
25
Inserting vegetable container cover and partition
25
1. Insert vegetable container cover.
25
2. Insert partition.
25
3. Insert glass plate.
25
Telescopic rails
25
Removing telescopic rails
25
1. Pull out telescopic rail.
25
2. Push lock in the direction of the arrow.
25
3. Detach telescopic rail from the rear pin.
25
4. Push telescopic rail together, push backwards above the rear pin and disengage.
25
Installing telescopic rails
25
1. Place the extended telescopic rail on the front pin.
25
2. Pull the telescopic rail forwards slightly until it engages.
25
3. Insert telescopic rail on the rear pin.
25
4. Push lock backwards.
25
l Odours
25
Odours
25
1. Switch off the appliance with the On/Off button #.
25
2. Take all food out of the appliance.
25
3. Clean the inside.~ "Cleaning" on page 24
25
4. Clean all packages.
25
5. Seal strong smelling food in order to avoid odours from forming.
25
6. Switch the appliance on again.
25
7. Store food in the appliance.
25
8. Check whether the formation of odours is still occurring after 24 hours.
25
9 Lighting
25
Lighting
25
> Noises
26
Noise
26
Normal noises
26
Note:
26
Preventing noises
26
3 Faults â what to do?
26
Faults â what to do?
26
Before you call customer service, use this table to check whether you can rectify the fault yourself.
26
Temperature differs greatly from the set value.
26
Displays do not illuminate.
26
Display shows E....
26
A warning signal sounds and the alarm button is lit.
27
Display flashes, warning signal sounds and button alarm is lit.
27
Display flashes.
27
Appliance is not cooling, display and lighting are lit.
27
Automatic super freezing does not switch on.
27
It is too warm or too cold in the cool-fresh compartment.
28
1. Press and hold the refrigerator compartment super button until the display temperature refrigerator compartment flashes.
28
2. Press +/- button to change the setting.
28
--------
28
4 Customer service
28
Customer service
28
Appliance self-test
28
1. Switch off the appliance and wait 5 minutes.
28
2. Switch on the appliance.
28
3. Within the first 10 seconds, press and hold the freezer compartment super button for 3 ... 5 seconds until an audible signal sounds.
28
Repair order and advice on faults
29
Guarantee
29
-
33
Search:
×
Search
