Contents
............................................................................................Motorcycle Safety .
..................................................................................Instruments & Controls .
....................................................................................Servicing Your Honda .
..................................................................................................Audio Systems .
..............................................................................Basic Operation & Riding .
...................................................................................................Before Riding .
1
11
43
69
95
149
Contents
These pages give an overview of the contents of your owner’s manual. The first
page of each section lists the topics covered in that section.
Important safety information you should know, plus a look at the safety-
related labels on your motorcycle.

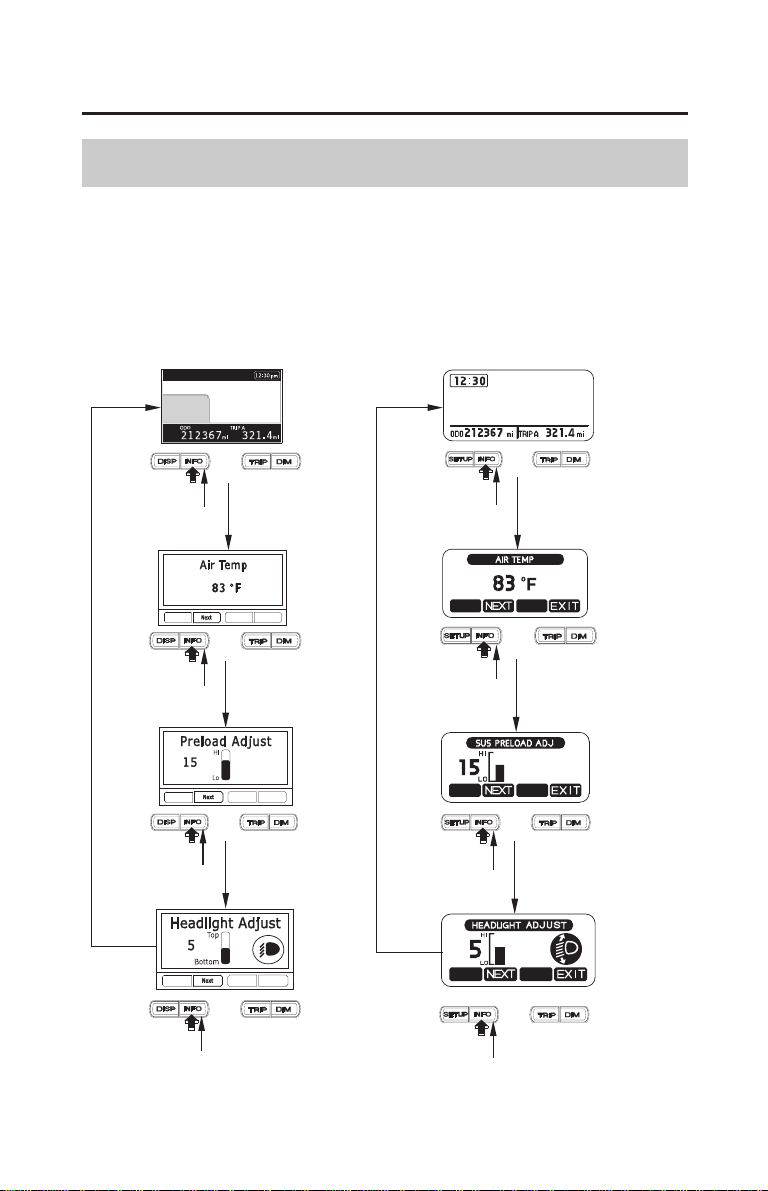

The location and function of gauges, indicators, controls, and the Multi
Information Display on your motorcycle and operating instructions for
various controls and features.
Why your motorcycle needs regular maintenance, what you need to know
before servicing your Honda, an owner maintenance schedule, and
instructions for specific maintenance and adjustment items.
The location, function, and operation of the audio components on your
motorcycle.
How to start and stop the engine, shift gears, and brake. Also, riding
precautions and important information about riding with a passenger or cargo.
The importance of wearing a helmet and other protective gear, how to make
sure you and your motorcycle are ready to ride, and important information
about loading.
１１／０１／１９ １１：４８：２３ ３１ＭＣＡ７００ ０００６
....................................................................................................................Tips .
.....................................................................Taking Care of the Unexpected .
....................................................................................Technical Information .
...................................................................................Consumer Information .
..................................................................‘‘Reporting Safety Defects’’ .
..................................................................................................................Index .
Quick Reference
219
225
251
269
278
280
Contents
Contents
How to store and transport your motorcycle and how to be an environmentally
responsible rider.
What to do if you have a flat tire, your engine won’t start, etc.
ID numbers, technical specifications, and other technical facts.
Information on warranties, emission controls, how to get Honda service
manuals, and...
Handy facts about fuel, engine oil, tire sizes, and air pressures.
１１／０１／１９ １１：４８：３２ ３１ＭＣＡ７００ ０００７
2012
Honda GL1800
GOLDWING
OWNER’S MANUAL
１１／０１／１９ １１：４７：５５ ３１ＭＣＡ７００ ０００２
−
Introduction
Introduction
When you own a Honda, you’re part of a worldwide family of satisfied
customers people who appreciate Honda’s reputation for building quality into
every product.
Congratulations on choosing a GL1800 GOLDWING motorcycle.
As you read this manual, you will find information that is preceded by a
symbol. This information is intended to help you avoid damage to your
Honda, other property, or the environment.
We also recommend that you read this owner’s manual before you ride. It’s full
of facts, instructions, safety information, and helpful tips. To make it easy to use,
the manual contains a detailed list of topics at the beginning of each section and
an index at the back of the book.
Before riding, take time to get acquainted with your motorcycle and how it
works. To protect your investment, we urge you to take responsibility for
keeping your motorcycle well maintained. Scheduled service is a must, of
course. But it’s just as important to observe the break-in guidelines, and perform
all pre-ride and other periodic checks detailed in this manual.
Your GOLDWING has earned its reputation as the ultimate luxury touring
motorcycle. It comes loaded with power, unequaled cargo space, a sophisticated

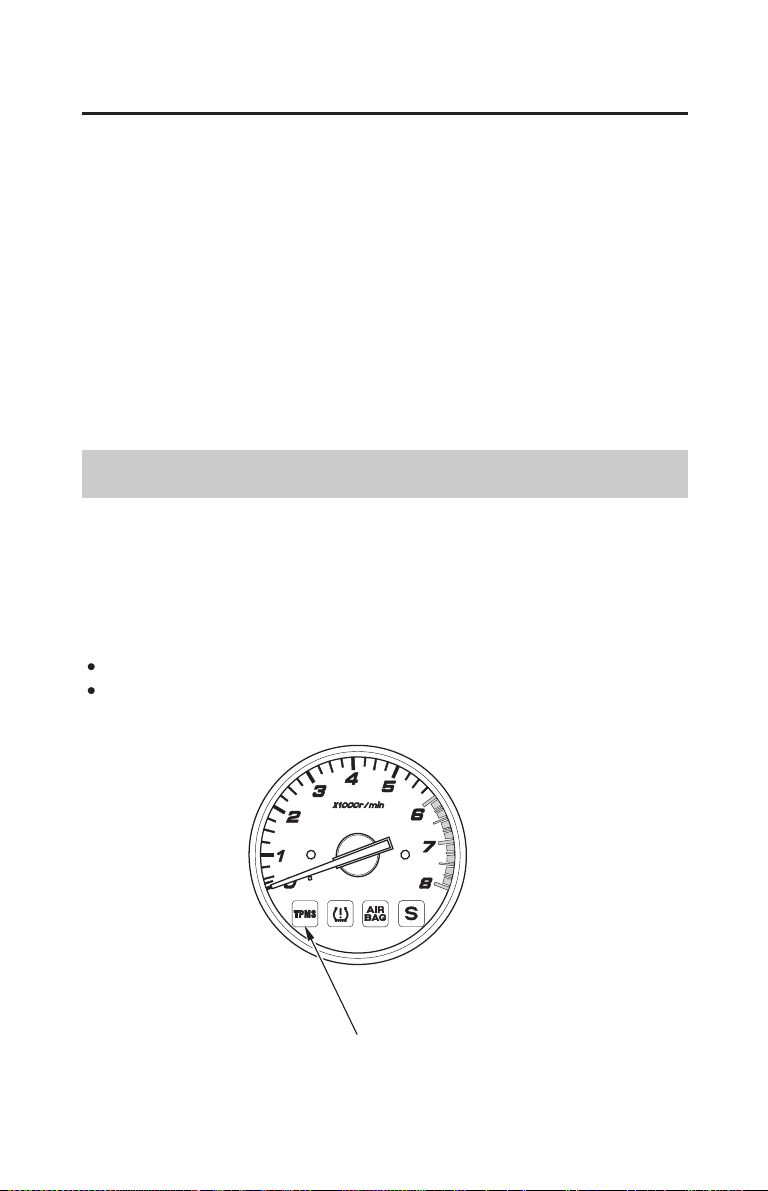

audio system, adjustable windscreen, suspension, a Tire Pressure Monitoring
System (TPMS), ventilation, and other unique features to provide maximum
convenience and comfort. Additionally, there are special packages available:
Anti-Lock Brake System (ABS), Navigation System with optional XM Radio
and Airbag.
１１／０１／１９ １１：４８：０１ ３１ＭＣＡ７００ ０００３
Introduction
Introduction
WARNING:
Read the Warranties Booklet (page ) thoroughly so you understand the
coverages that protect your new Honda and are aware of your rights and
responsibilities.
If you have any questions, or if you ever need special service or repairs,
remember that your Honda dealer knows your motorcycle best and is dedicated
to your complete satisfaction.
Please report any change of address or ownership to your dealer so we will be
able to contact you concerning important product information.
This product contains or emits chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
California Proposition 65 Warning
You may also want to visit our website at www.honda.com.
Happy riding!
273
１１／０１／１９ １１：４８：０６ ３１ＭＣＡ７００ ０００４
You WILL be KILLED or SERIOUSLY HURT
if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY HURT
if you don’t follow instructions.
You CAN be HURT if you don’t follow
instructions.
Safety Messages
Safety Labels
Safety Messages
DANGER, WARNING, CAUTION
Safety Headings
Safety Section
Instructions
A Few Words About Safety
Your safety, and the safety of others, is very important. And operating this
motorcycle safely is an important responsibility.
To help you make informed decisions about safety, we have provided operating
procedures and other information on labels and in this manual. This information
alerts you to potential hazards that could hurt you or others.
Of course, it is not practical or possible to warn you about all hazards associated
with operating or maintaining a motorcycle. You must use your own good
judgment.
You will find important safety information in a variety of forms, including:
–– on the motorcycle.
–– preceded by a safety alert symbol and one of three
signal words: or .
These signal words mean:
–– such as Important Safety Reminders or Important Safety
Precautions.
–– such as Motorcycle Safety.
–– how to use this motorcycle correctly and safely.
This entire manual is filled with important safety information –– please read it
carefully.
１１／０１／１９ １１：４８：１２ ３１ＭＣＡ７００ ０００５
1
Motorcycle Safety
Motorcycle Safety
This section presents some of the most important information and
recommendations to help you ride your motorcycle safely. Please take a few
moments to read these pages. This section also includes information about the

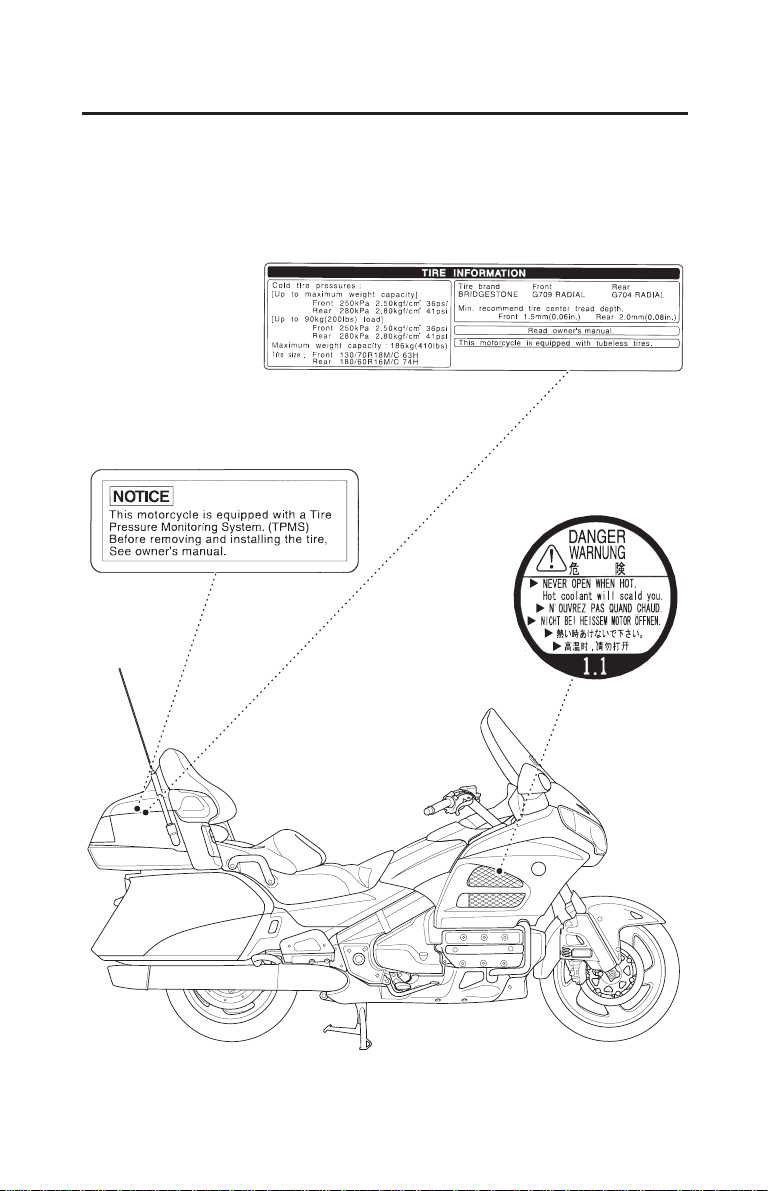

location of safety labels on your motorcycle.
..............................................................................Important Safety Information .
...............................................................................Accessories & Modifications .
........................................................................................................Safety Labels .
2
4
6
１１／０１／１９ １１：４８：３７ ３１ＭＣＡ７００ ０００８
−
2
Take Time to Learn & Practice
Ride Defensively
Always Wear a Helmet
Motorcycle Safety
Important Safety Information
You and Your Motorcycle Riding Tips,
Your motorcycle can provide many years of service and pleasure if you take
responsibility for your own safety and understand the challenges you can meet
while riding.
There is much that you can do to protect yourself when you ride. You’ll find
many helpful recommendations throughout this manual. The following are a
few that we consider to be most important.
Even if you have ridden other motorcycles, take time to become familiar with
how this motorcycle works and handles. Practice in a safe area until you build
your skills and get accustomed to the motorcycle’s size and weight.
Because many crashes involve inexperienced or untrained riders, we urge all
riders to take a motorcycle operator course approved by the Motorcycle Safety
Foundation (MSF). See page .
The most frequent motorcycle collision happens when a car turns left in front of
a motorcycle. Another common situation is a car moving suddenly into your
lane.
Always pay attention to other vehicles around you, and do not assume that other
drivers see you. Be prepared to stop quickly or make an evasive maneuver. For
other riding tips, see the booklet, which
came with your new motorcycle (USA only).
It’s a proven fact: helmets significantly reduce the number and severity of head
injuries. So always wear an approved motorcycle helmet and make sure your
passenger does the same. We also recommend that you wear eye protection,
sturdy boots, gloves, and other protective gear (page ).44
46
１１／０１／１９ １１：４８：４３ ３１ＭＣＡ７００ ０００９
3
Motorcycle Safety
Make Yourself Easy to See
Ride within Your Limits
Don’t Drink and Ride
Keep Your Honda in Safe Condition
Important Safety Information
Some drivers do not see motorcycles because they are not looking for them. To
make yourself more visible, wear bright reflective clothing, position yourself so
other drivers can see you, signal before turning or changing lanes, and use your
horn when it will help others notice you.
Pushing limits is another major cause of motorcycle crashes. Never ride beyond
your personal abilities or faster than conditions warrant. Remember that alcohol,
drugs, fatigue, and inattention can significantly reduce your ability to make
good judgments and ride safely.
Alcohol and riding don’t mix. Even one drink can reduce your ability to respond
to changing conditions, and your reaction time gets worse with every additional
drink. So don’t drink and ride, and don’t let your friends drink and ride either.
It’s important to keep your motorcycle properly maintained and in safe riding
condition. To help avoid problems, inspect your motorcycle before every ride
and perform all recommended maintenance. Never exceed load limits (page ),
and do not modify your motorcycle (page ) or install accessories that would
make your motorcycle unsafe (page ).
50
5
4
１１／０１／１９ １１：４８：４９ ３１ＭＣＡ７００ ００１０
Improper accessories or
modifications can cause a crash
in which you can be seriously
hurt or killed.
Follow all instructions in this
owner’s manual regarding
accessories and modifications.
4
Accessories
Motorcycle Safety
Accessories & Modifications
Load Limits,
Modifying your motorcycle or using non-Honda accessories can make your
motorcycle unsafe. Before you consider making any modifications or adding an
accessory, be sure to read the following information.
Carefully consider the weight of any accessories and any cargo stored in
those accessories to avoid exceeding the maximum weight limits.
For more information, see page .
Do not pull a trailer or sidecar with your motorcycle. This motorcycle was not
designed for these attachments, and their use can seriously impair your
motorcycle’s handling.
Do not add any electrical equipment that will exceed the motorcycle’s
electrical system capacity (page ). A blown fuse can cause a loss of lights
or engine power (page ).
Make sure the accessory does not obscure any lights, reduce ground clearance
and lean angle, limit suspension travel or steering travel, alter your riding
position, or interfere with operating any controls.
We strongly recommend that you use only Honda Genuine Accessories that
have been specifically designed and tested for your motorcycle. Because Honda
cannot test all other accessories, you must be personally responsible for proper
selection, installation, and use of non-Honda accessories.
Check with your dealer for assistance and always follow these guidelines:
Modifying the tire pressure monitoring system (TPMS) or any other part of
your motorcycle’s safety systems could make the systems ineffective
(page ).
50
83
257
244
１１／０１／１９ １１：４８：５７ ３１ＭＣＡ７００ ００１１
5
Modifications
Motorcycle Safety
Accessories & Modifications
We strongly advise you not to remove any original equipment or modify your
motorcycle in any way that would change its design or operation. Such changes
could seriously impair your motorcycle’s handling, stability, and braking,
making it unsafe to ride.
Removing or modifying your lights, exhaust system, emission control system, or
other equipment can also make your motorcycle illegal.
１１／０１／１９ １１：４９：０１ ３１ＭＣＡ７００ ００１２
(Models not equipped with Airbag)
6

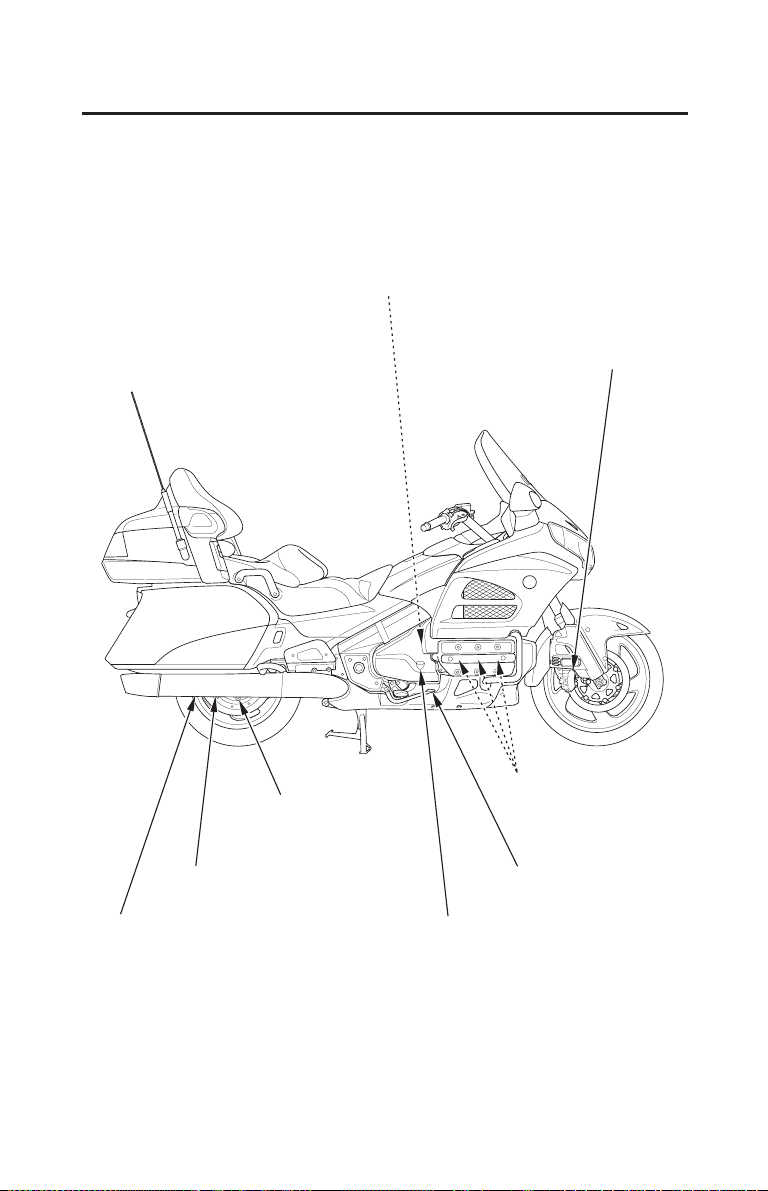

Safety Labels
Motorcycle Safety
Safety labels on your motorcycle either warn you of potential hazards that could
cause serious injury or they provide important safety information. Read these
labels carefully and don’t remove them.
If a label comes off or becomes hard to read, contact your dealer for a
replacement.
１１／０１／１９ １１：４９：０９ ３１ＭＣＡ７００ ００１３
7
Safety Labels
Motorcycle Safety
１１／０１／１９ １１：４９：１６ ３１ＭＣＡ７００ ００１４
8
Motorcycle Safety
Safety Labels
１１／０１／１９ １１：４９：２１ ３１ＭＣＡ７００ ００１５
9
Motorcycle Safety
Safety Labels
１１／０１／１９ １１：４９：３０ ３１ＭＣＡ７００ ００１６
10
Motorcycle Safety
１１／０１／１９ １１：４９：３３ ３１ＭＣＡ７００ ００１７
11
Instruments & Controls
Instruments & Controls
This section shows the location of all gauges, indicators, and controls you would
normally use before or while riding your motorcycle.
The items listed on this page are described in this section. Instructions for other
components are presented in other sections of this manual where they will be
most useful.
.........................................................................Operation Component Locations .
.............................................................................................Gauges & Indicators .
...................................................................................Multi Information Display .
.............................................................................Opening/Ending Ceremony .
................................................................On/Off-Opening/Ending Ceremony .
...........................................Special Message for Opening/Ending Ceremony .
.........................................................................................Odometer/Tripmeter .
................................Switch the Day Mode Display and Night Mode Display .
....................................................................................................Digital Clock .
.....................................................................Display Illumination Adjustment .
....................................................................................Air Temperature Meter .
...................................................Travel Trunk & Saddlebags Open Indicator .
....................................................................................Display Type Selection .
..................................................................Changing the Information Display .
..............................................................................................Controls & Features .
.................................................................................................Ignition Switch .
.....................................................................................Reverse (RVS) Switch .
...................................................................................Cruise Control Switches .
...............................................................................Headlight Dimmer Switch .
...........................................................................................Turn Signal Switch .
......................................................................................................Horn Button .
...................................................................................Audio Control Switches .
..................................................................................................Hazard Switch .
....................................Rear Suspension Spring Pre-load Adjustment Switch .
.........................................................................................Ventilation Controls .
.......................................................................Windscreen Height Adjustment .
..........................................................................................Engine Stop Switch .
........................................................................................Start/Reverse Button .
...............................................................Headlight Beam Adjustment Switch .
12
15
21
22
23
24
26
27
28
30
31
32
33
34
35
35
36
37
37
37
38
38
38
38
39
40
41
41
41
１１／０１／１９ １１：４９：５２ ３１ＭＣＡ７００ ００１８
clutch lever

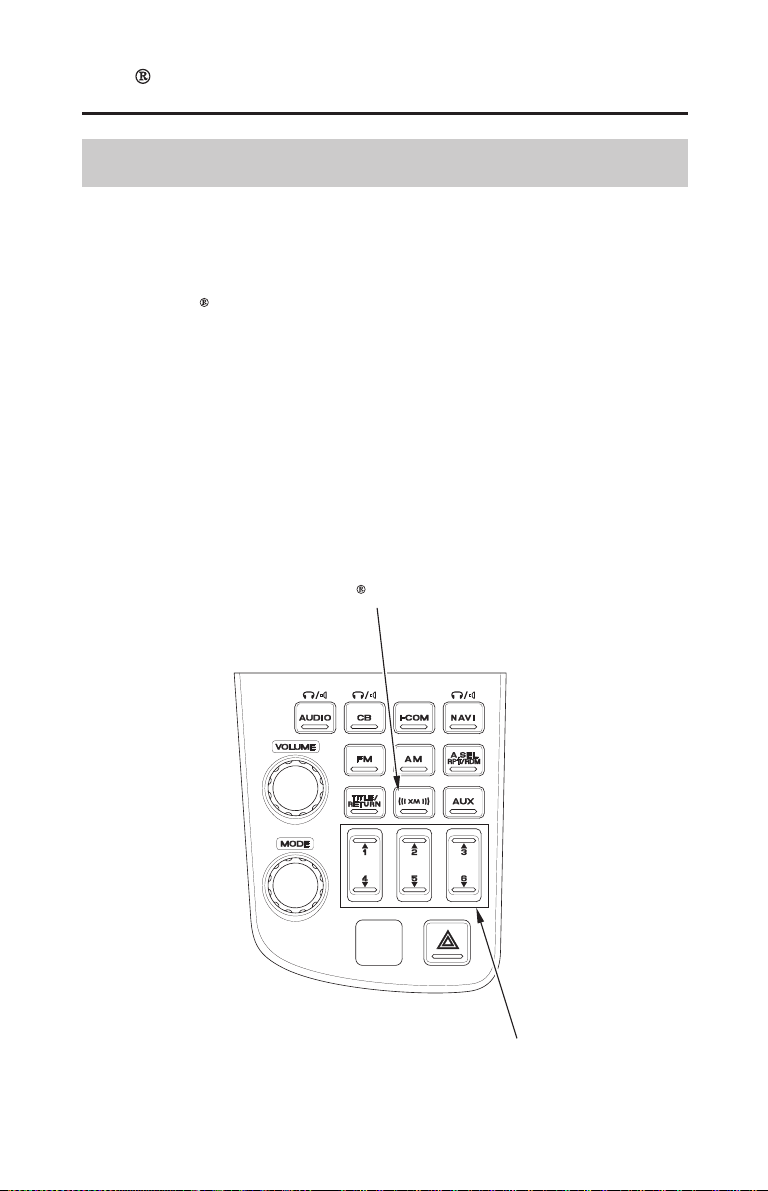

audio system controls
throttle grip
front seat heater
switch
front brake
lever

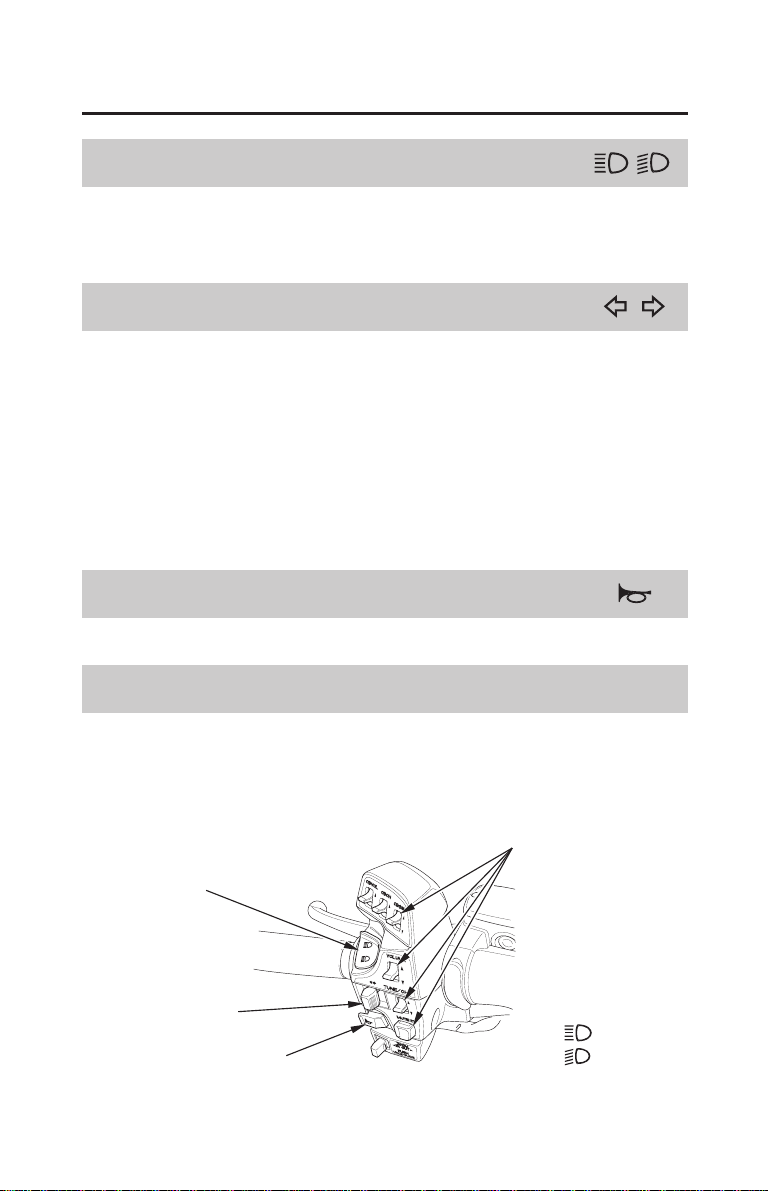

left handlebar controls
handgrip heater
switch
windscreen ventilation louver
shelter case
(Models not equipped with Airbag)
audio system
controls
fairing pocket
windscreen height lever
ignition switch
windscreen
height lever
right handlebar
controls
right fairing panel controls
shelter case lock
(Models not equipped with Airbag)
12
Instruments & Controls
Operation Component Locations
１１／０１／１９ １１：４９：５８ ３１ＭＣＡ７００ ００１９
trunk side pocket
saddlebag
helmet holder

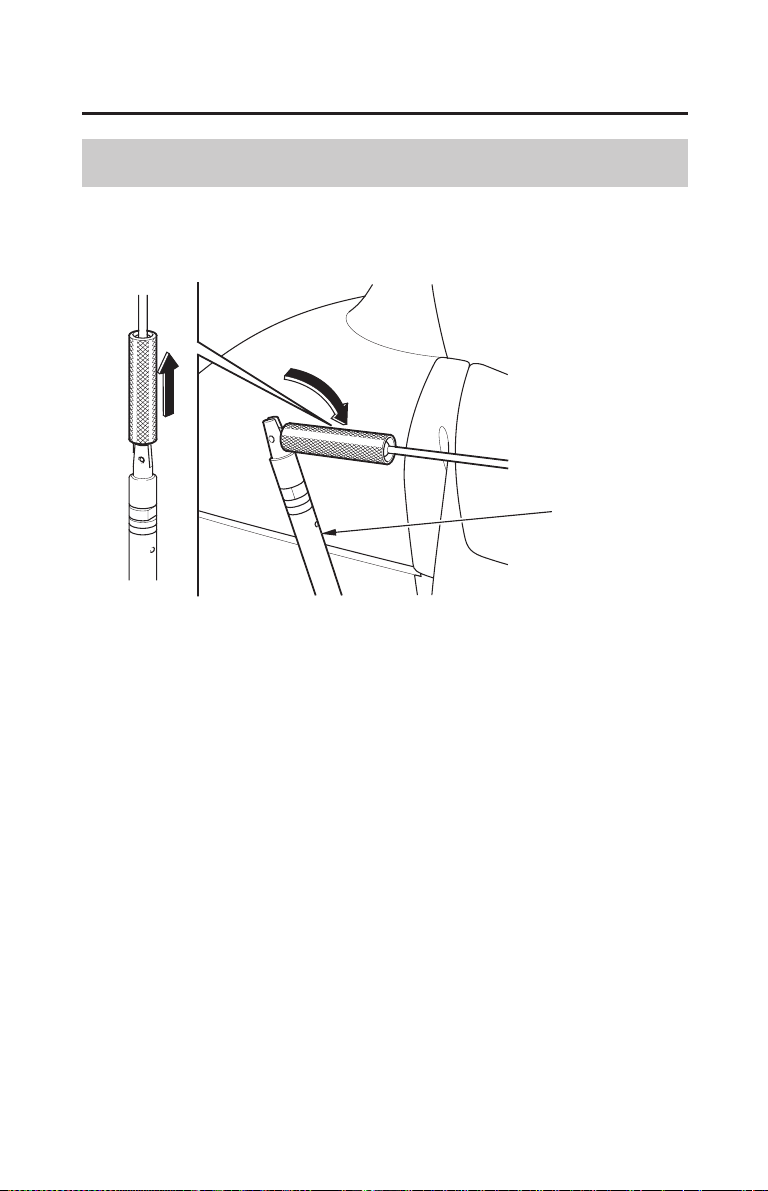

radio antenna
rear brake pedal
foot warmer ventilation louver
13
Operation Component Locations
Instruments & Controls
１１／０１／１９ １１：５０：０２ ３１ＭＣＡ７００ ００２０
front headset terminal

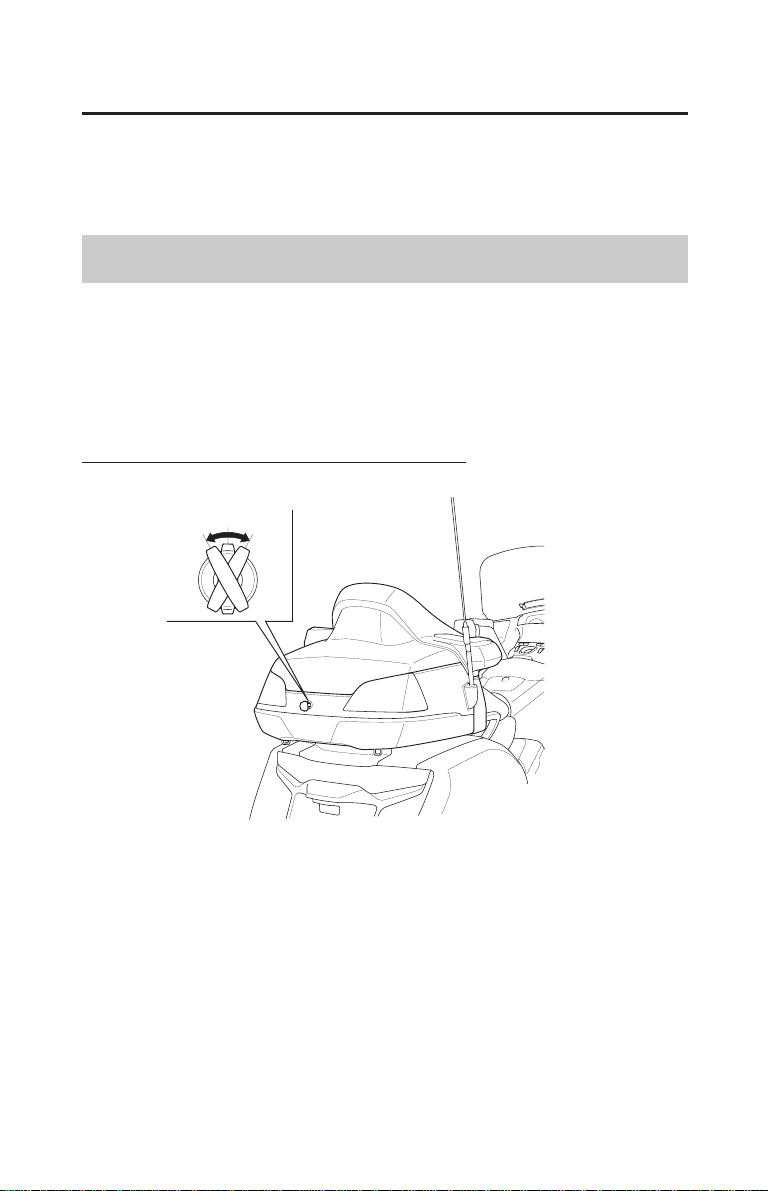

trunk
rear headset terminal
trunk side pocket
saddlebagshift lever
helmet holder
foot warmer ventilation louver lever
rear seat heater switch
foot warmer ventilation louver
14
Operation Component Locations
Instruments & Controls
１１／０１／１９ １１：５０：０７ ３１ＭＣＡ７００ ００２１
right turn signal indicator
speedometer
tachometer red zone
tachometer
reverse system indicator
neutral indicator
overdrive indicator
CRUISE ON indicator
CRUISE SET indicator high beam indicator
fuel gauge
low fuel indicator
low oil pressure indicator
PGM-FI malfunction
indicator lamp (MIL)
coolant
temperature
gauge
left turn signal indicator
anti-lock brake system
(ABS) indicator
(Models equipped
with ABS)
low tire pressure indicator
side stand indicator
tire pressure
monitoring system
(TPMS) indicator
15
Gauges & Indicators
Instruments & Controls
The gauges and indicators on your motorcycle keep you informed, alert you to
possible problems, and make your riding safer and more enjoyable. Refer to the
gauges and indicators frequently. Their functions are described on the following
pages.
USA: Speedometer, odometer & tripmeter read in miles.
Canada: Speedometer, odometer & tripmeter read in kilometers.
１１／０１／１９ １１：５０：１４ ３１ＭＣＡ７００ ００２２
16
Gauges & Indicators
Instruments & Controls
Lamp Check.
Lamp Check
When applicable, the high beam and neutral indicators come on when you turn
the ignition switch ON and remain on until you select the low beam or shift out
of neutral.
If one of these indicators does not come on when it should, have your dealer
check for problems.
Most of the indicator lights come on when you turn the ignition switch ON so
you can check that they are working. Some indicators turn off after a few
seconds; others remain on until or after the engine is started. The ABS indicator
goes off after you ride the motorcycle at a speed above 6 mph (10 km/h).
All indicators are identified on the following pages with the words:
speedometer
Shows riding speed in miles (USA) or kilometers (Canada) per hour.
tachometer
Shows engine speed in revolutions per minute (rpm).
tachometer red zone
Shows excessive engine rpm range (indicated from the beginning of the
tachometer red zone) in which operation may damage the engine. Do not let the
tachometer needle enter the red zone.
１１／０１／１９ １１：５０：２５ ３１ＭＣＡ７００ ００２３
17
Gauges & Indicators
Instruments & Controls
Lamp Check
Flashes when either turn signal operates.
Lights when the reverse system is engaged.
neutral indicator (green)
Lights when the transmission is in neutral.
Lights when the transmission is in overdrive (5th gear).
low oil pressure indicator (red)
Lights when engine oil pressure is low enough to cause engine damage. If the
low oil pressure indicator lights during operation, pull safely to the side of the
road. See page for instructions and cautions. .
turn signal indicator (green)
reverse system indicator (amber)
overdrive indicator (amber)
241
１１／０１／１９ １１：５０：３５ ３１ＭＣＡ７００ ００２４
18
Gauges & Indicators
Instruments & Controls
Lamp Check.
Lamp Check
Lamp Check
Lights when there is any abnormality in the PGM-FI (Programmed Fuel
Injection) system. Should also light for a few seconds and then go off when the
ignition switch is turned ON and the engine stop switch is at RUN. If the
indicator comes on at any other time, reduce speed and take your motorcycle to
your dealer as soon as possible.
tire pressure monitoring system (TPMS) indicator
(amber)
Lights when there is any abnormality in the tire pressure monitoring system
(TPMS). Should also light for a few seconds and then go off when the ignition
switch is turned ON. See page for instructions and cautions. .
If the indicator turns on and stays on at any other time, there is a problem with
the TPMS, and the indicator will remain on until the problem is solved.
Or if the TPMS indicator does not turn on when you turn the ignition switch to
ON, it is possible there is a problem and it will not turn on until the problem is
solved.
With this indicator on, the low tire pressure indicator will not come on when a
tire loses pressure, take the motorcycle to your Honda dealer to have the system
checked.
low tire pressure indicator (amber)
Flashes or lights when one or more of your motorcycle tires are significantly
low on pressure. Should also light for a few seconds and then go off when the
ignition switch is turned ON. If the indicator comes on while riding, stop the
motorcycle in a safe place and check the front and rear tires for inflation.
See page for instructions and cautions. .
PGM-FI malfunction indicator lamp (MIL) (amber)
83
83
１１／０１／１９ １１：５０：４３ ３１ＭＣＡ７００ ００２５
−
(Models equipped with ABS)
19
Gauges & Indicators
Instruments & Controls
ABS Indicator
Lamp Check.
Lights when there is any abnormality in the anti-lock brake system (ABS).
Normally, this indicator comes on when the ignition switch is turned ON, and
goes off after you ride the motorcycle at a speed above 6 mph (10 km/h). If the
indicator comes on while riding, stop the motorcycle in a safe place and turn off
the engine. Refer to , page . For information about ABS, see
page .
Lights when the side stand is put down to indicate that the side stand ignition
cut-off system (page ) is activated.
side stand indicator (amber)
Lights when the headlight is on high beam.
high beam indicator (blue)

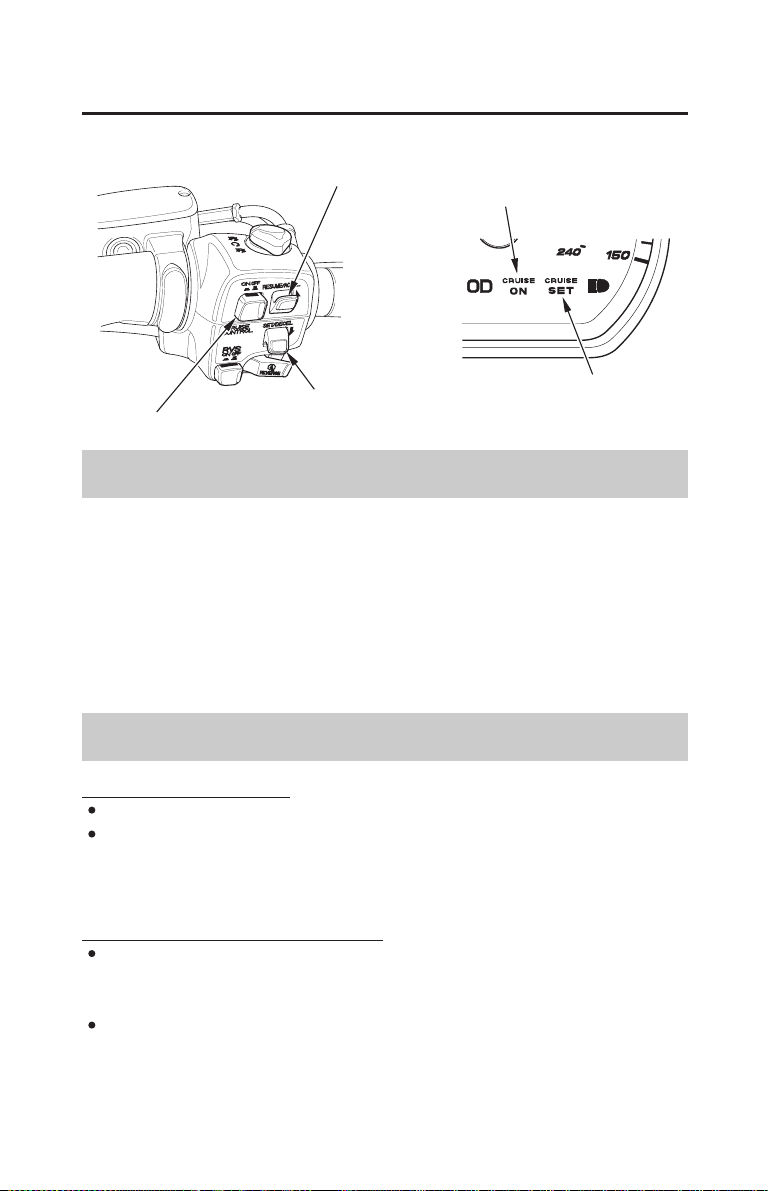

Lights when the cruise control SET/DECEL switch is on.
Lights when the CRUISE CONTROL master switch is on.
Anti-Lock Brake System indicator (ABS) (amber)
CRUISE ON indicator (amber)
CRUISE SET indicator (green)
81
80
71
１１／０１／１９ １１：５０：５４ ３１ＭＣＡ７００ ００２６
20
Gauges & Indicators
Instruments & Controls
Lamp Check.
coolant temperature gauge
fuel gauge
Shows the approximate fuel supply available, if your motorcycle is on a level
surface.
At F (Full) there are 6.6 US gal (25 liters), including reserve supply. When the
gauge needle enters the red band, fuel will be low and you should refill the tank
as soon as possible. The amount of fuel left in the tank when the needle enters
the red band is approximately 0.79 US gal (3.0 liters).
Shows engine coolant temperature. When the needle moves above the C (cold)
mark, the engine is warm enough to start riding. If the needle approaches the H
(hot) mark, pull safely to the side of the road. See page for instructions and
cautions.
Lights as a reminder to refuel soon. The indicator comes on when there is about
1.16 US gal (4.4 liters) left in the fuel tank.
low fuel indicator (amber)
242
１１／０１／１９ １１：５１：０１ ３１ＭＣＡ７００ ００２７
INFO button DIM button
DISP button
TRIP button
DIM buttonINFO button
(Models not equipped with Navigation System)
(Models equipped with Navigation System)
SETUP button
TRIP button
21
Multi Information Display
Instruments & Controls
Your motorcycle is equipped with a Multi Information Display that presents
various displays. This section explains display functions and operations.
The Opening/Ending Ceremony and Clock can be set with the Setup/Info
Menu of the Navigation System. Refer to the Navigation System Manual for
further information.
１１／０１／１９ １１：５１：０７ ３１ＭＣＡ７００ ００２８
(Models not equipped with Navigation System)
22
Opening/Ending Ceremony
Multi Information Display
Instruments & Controls
When the ignition switch is turned OFF, the display presents an ‘‘ending
ceremony.’’
When the ignition switch is turned ON or ACC, the display presents an
‘‘opening ceremony.’’
１１／０１／１９ １１：５１：１５ ３１ＭＣＡ７００ ００２９
(Models not equipped with Navigation System)
23
On/Off-Opening/Ending Ceremony
Multi Information Display
Instruments & Controls
The opening/ending ceremony can be turned off.
Push the DIM button to show the OPENING/ENDING CEREMONY display.
Push the TRIP or INFO button to switch ON/OFF.
Push the SETUP button to fix the setting.
Push the SETUP button to show the CLOCK ADJUST display (page ).
When approximately 5 seconds pass without operating a button on the
OPENING/ENDING CEREMONY display, the display automatically returns to
the previous display.
ceremony display ON
ceremony display OFF
1.
2.
3.
4.
30
１１／０１／１９ １１：５１：２５ ３１ＭＣＡ７００ ００３０
(Models not equipped with Navigation System)
INFO button TRIP button
TRIP button
SETUP button
SETUP button
24
Special Message for Opening/Ending Ceremony
Multi Information Display
Instruments & Controls
Push and hold the TRIP button. Push and hold the INFO button. Then push
the SETUP button.
Select ‘‘ON’’ on the OPENING/ENDING CEREMONY display (page ).
Use the TRIP button to select the ‘‘SPL’’ function.
The display should now show ‘‘SPECIAL!’’ in the middle line.
The display should now show ‘‘STANDARD’’ in the middle line.
Push the SETUP button to select the ‘‘YES’’ function.
Push the SETUP button to select the ‘‘SET’’ function.
The display should now show ‘‘CHANGE OK?’’ in the middle line.
1.
2.
3.
4.
5.
6.
23
１１／０１／１９ １１：５１：３６ ３１ＭＣＡ７００ ００３１
！＃ ＊＋ − ＞ ＜？
TRIP buttonINFO button
25
Multi Information Display
Instruments & Controls
Use the INFO and TRIP buttons to cycle through the alphabet, number and
symbol selection.
When you have completed your message, push the SETUP button to select
the ‘‘SET’’ function which will lock in your special message to be used for
the opening and ending ceremony.
When approximately 5 seconds pass without operating a button, the display
automatically returns to the previous display.
7.
8.
Capital Letters
ABCDEFGHIJKLMNOPQRSTUVWXYZ
Numbers
0123456789
Symbols
$%& () , ./ =
１１／０１／１９ １１：５１：４２ ３１ＭＣＡ７００ ００３２
tripmeter
tripmeter
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
odometer
odometer
TRIP button
TRIP button
26
Odometer/Tripmeter
Multi Information Display
Instruments & Controls
ODO (Odometer)
TRIP (Tripmeter)
shows the total miles (USA) or kilometers (Canada)
ridden.
shows the number of miles (USA) or kilometers
(Canada) ridden since you last reset the meter.
The tripmeter will show mileage in two sub modes, ‘‘TRIP A’’ and ‘‘TRIP B.’’
Push the TRIP button to select the ‘‘TRIP A’’ or ‘‘TRIP B’’ mode.
To reset the tripmeter, push and hold the TRIP button with the display in the
‘‘TRIP A’’ or ‘‘TRIP B’’ mode.
１１／０１／１９ １１：５１：５４ ３１ＭＣＡ７００ ００３３
(Models equipped with Navigation System)
DIM button DIM button
27
Switch the Day Mode Display and Night Mode Display
Multi Information Display
Instruments & Controls
The display automatically switches to the Day mode or Night mode in
accordance with the time. To switch the display manually, push and hold the
DIM button.
Refer to the Navigation System Manual for further information.
１１／０１／１９ １１：５２：００ ３１ＭＣＡ７００ ００３４
＋
−
(Models not equipped with Navigation System)
INFO button
SETUP button TRIP button
DIM button
28
Display Illumination Adjustment
Multi Information Display
Instruments & Controls
To adjust the brightness of the display:
Push the DIM button once. ‘‘DIMMER’’ will display.
To brighten the display push the TRIP button ( ).
push the INFO button ( ).To darken the display
(The brighter and darker ranges each have six steps.)
To set the selected step push the SETUP button.
１１／０１／１９ １１：５２：０９ ３１ＭＣＡ７００ ００３５
−
＋
(Models equipped with Navigation System)
DISP button
DIM button
TRIP button
INFO button
29
Multi Information Display
Instruments & Controls
To adjust the brightness of the display:
Push the DIM button once. The display shows ‘‘Dimmer/Day’’ at Day mode,
while it shows ‘‘Dimmer/Night’’ at Night mode.
To switch the display between ‘‘Dimmer/Day’’ and ‘‘Dimmer/Night’’, select
the display between Day mode and Night mode (page ) and push the DIM
button.
To set the selected step push the DISP button.
(The brighter and darker ranges each have six steps.)
push the INFO button ( ).To darken the display
To brighten the display push the TRIP button ( ).
The display can become dark when the display is very hot. If it does not restore
the original brightness, consult your dealer.
When approximately 5 seconds pass without operating a button, the display
automatically returns to the previous display.
27
１１／０１／１９ １１：５２：２１ ３１ＭＣＡ７００ ００３６
(Models not equipped with Navigation System)
INFO button TRIP button
(Models equipped with Navigation System)
SETUP button
30
Digital Clock
Multi Information Display
Instruments & Controls
Push the SETUP button once. ‘‘CLOCK ADJUST’’ will display.
Turn the ignition switch to ON or ACC.
The display shows the hour and minute.
To adjust the time:
To set the hour, press and release the INFO button until the desired hour
appears.
Quick setting push and hold the INFO button until the desired hour
appears.
To set the minute, press and release the TRIP button until the desired minute
appears.
Quick setting push and hold the TRIP button until the desired minute
appears.
Once the time is selected, push the SETUP button to enter the time.
When approximately 5 seconds pass without operating a button on the CLOCK
ADJUST display, the display automatically returns to the previous display.
Be sure to push the SETUP button to enter your adjusted time in the system.
The navigation system receives signals from the Global Positioning System
(GPS) and automatically sets the time display based on the time zone you select.
You may also set the time manually using the ‘‘Other’’ option. Refer to the
Navigation System Manual.
1.
2.
3.
4.
5.
１１／０１／１９ １１：５２：３３ ３１ＭＣＡ７００ ００３７
−
−−−
−
−−−
INFO button
INFO button
(Models not equipped with Navigation System)
(Models equipped with Navigation System)
(Models not equipped with Navigation System)
(Models equipped with Navigation System)
For USA
For Canada
31
Air Temperature Meter
Multi Information Display
Instruments & Controls
Push the INFO button once to display the air temperature.
After 5 seconds, the previous display returns.
USA: Fahrenheit (°F)
Canada: Centigrade (°C)
Temperature Display
‘‘- -’’ is displayed
actual air temperature is indicated.
The display will remain and blink
‘‘122°F (50°C)’’
The temperature sensor is located in the upper fairing. Therefore, the
temperature reading can be affected by heat reflection from the road surface,
engine heat, and the exhaust from the surrounding traffic. This can cause an
error in the temperature reading when your speed is under 19 mph (30 km/h).
Below 13°F ( 11°C)
Between:
14°F 158°F ( 10°C 70°C)
Above 158°F (70°C)
‘‘- -’’ is displayed
actual air temperature is indicated.
The display will remain
‘‘158°F (70°C)’’
Below 13°F ( 11°C)
Between:
14°F 122°F ( 10°C 50°C)
Above 122°F (50°C)
１１／０１／１９ １１：５２：４４ ３１ＭＣＡ７００ ００３８
open indicator open indicator
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
32
Travel Trunk & Saddlebags Open Indicator
Multi Information Display
Instruments & Controls
This indicator turns on when the ignition switch is ON and your motorcycle’s
travel trunk or saddlebags are open.
If all compartments are not fully closed, the display will blink OPEN and
indicate the open compartment(s).
Travel Trunk open
Saddlebag open
１１／０１／１９ １１：５２：５３ ３１ＭＣＡ７００ ００３９
(Models equipped with Navigation System)
DISP button
33
Display Type Selection
Multi Information Display
Instruments & Controls
Press the DISP button to toggle between:
The Multi Information Display (time, odometer, and tripmeter)
A Navi full screen map with the time
A split screen with the Multi information condensed in a bar below the map.
１１／０１／１９ １１：５２：５９ ３１ＭＣＡ７００ ００４０
INFO button
INFO button
INFO button
INFO button
INFO button INFO button
INFO button
INFO button
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
34
Changing the Information Display
Multi Information Display
Instruments & Controls
The display changes as follows each time the INFO button is pushed.
When approximately 5 seconds pass without operating a button, the display
automatically returns to the previous display.
１１／０１／１９ １１：５３：１３ ３１ＭＣＡ７００ ００４１
ACC
ON
OFF
LOCK
(steering lock)
No electricalcircuits function.
Locks the steering head.
No electricalcircuits function.
Electrical circuits on.
Only the accessory circuits
function.
cannot be
removed
cannot be
removed
can be
removed
can be
removed
ON
ACC
LOCK
OFF
Key Position Function Key Removal
35
Ignition Switch
Controls & Features
Instruments & Controls
The ignition switch is used for starting and stopping the engine (page ) and to
lock the steering for theft prevention (page ). Insert the key and turn it to the
right for the ON and ACC (accessory) positions.
Push down on the key and turn it to the left to the LOCK (steering lock) position.
To unlock the steering lock, insert and push down on the key and turn it to the
right to the OFF position.
71
87
１１／０１／１９ １１：５３：２６ ３１ＭＣＡ７００ ００４２

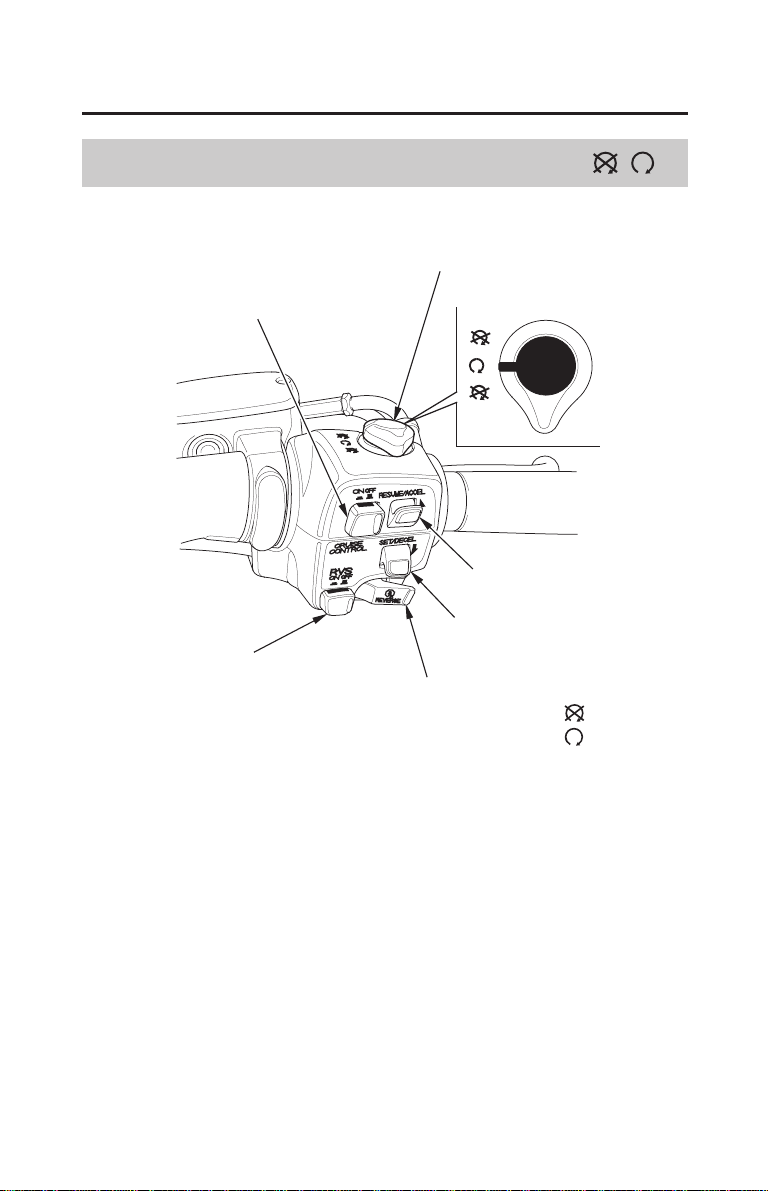

CRUISE CONTROL master switch
reverse (RVS) switch
OFF
RUN
RESUME/ACCEL switch
SET/DECEL switch
start/reverse button
engine stop switch
RIGHT HANDLEBAR
36
Engine Stop Switch
Controls & Features
Instruments & Controls
The engine stop switch is used to stop the engine in an emergency. To operate,
turn the switch to the OFF position. The switch must be in the RUN position to
start the engine, and it should normally remain in the RUN position even when
the engine is OFF.
If your motorcycle is stopped with the ignition switch ON and the engine stop
switch OFF, the headlight and taillight will remain on, resulting in battery
discharge.
１１／０１／１９ １１：５３：３３ ３１ＭＣＡ７００ ００４３
37
Start/Reverse Button
Reverse (RVS) Switch
Cruise Control Switches
Controls & Features
Instruments & Controls
Starting Procedure,
Riding in Reverse,
Riding in Reverse,
Riding with Cruise
Control,
The start/reverse button is used for starting the engine. Pushing the start/reverse
button in starts the engine. See page .
When the start/reverse button is pushed, the starter motor will crank the engine;
the headlight will automatically go out, but the taillight will stay on.
The starter motor will not operate if the engine stop switch is in the OFF
position when the start/reverse button is pushed.
The start/reverse button is also used for reverse riding. See
page .
The reverse switch is used to shift into reverse gear so you may back up your
motorcycle. For instructions, see page .
Three switches are used to activate, adjust, and de-activate the cruise control
system: a CRUISE CONTROL master switch, a SET/DECEL switch, and a
RESUME/ACCEL switch. For operating instructions, see
page .
78
72
76
91
１１／０１／１９ １１：５３：４１ ３１ＭＣＡ７００ ００４４
LEFT HANDLEBAR
headlight dimmer switch
audio control switches
turn signal switch
horn button
HI
LO
38
Headlight Dimmer Switch
Turn Signal Switch
Horn Button
Audio Control Switches
Controls & Features
Instruments & Controls
Audio Systems,
The headlight dimmer switch is used to change between the high and low
headlight beams. To operate, push the button to HI for high beam, LO for low
beam.
The turn signal switch is used to signal a turn. To operate, move the switch all
the way to the left or right and release it.
The appropriate turn signal lights will start blinking. The lights will
automatically stop when you complete the turn. (You can manually cancel the
lights by pushing the switch in.)
To signal a lane change, move the switch all the way to the left or right and
release it. The turn signal lights will automatically stop in 7 seconds or after
riding 110 yards (120 m).
The horn is used to alert other motorists. To operate, push the button.

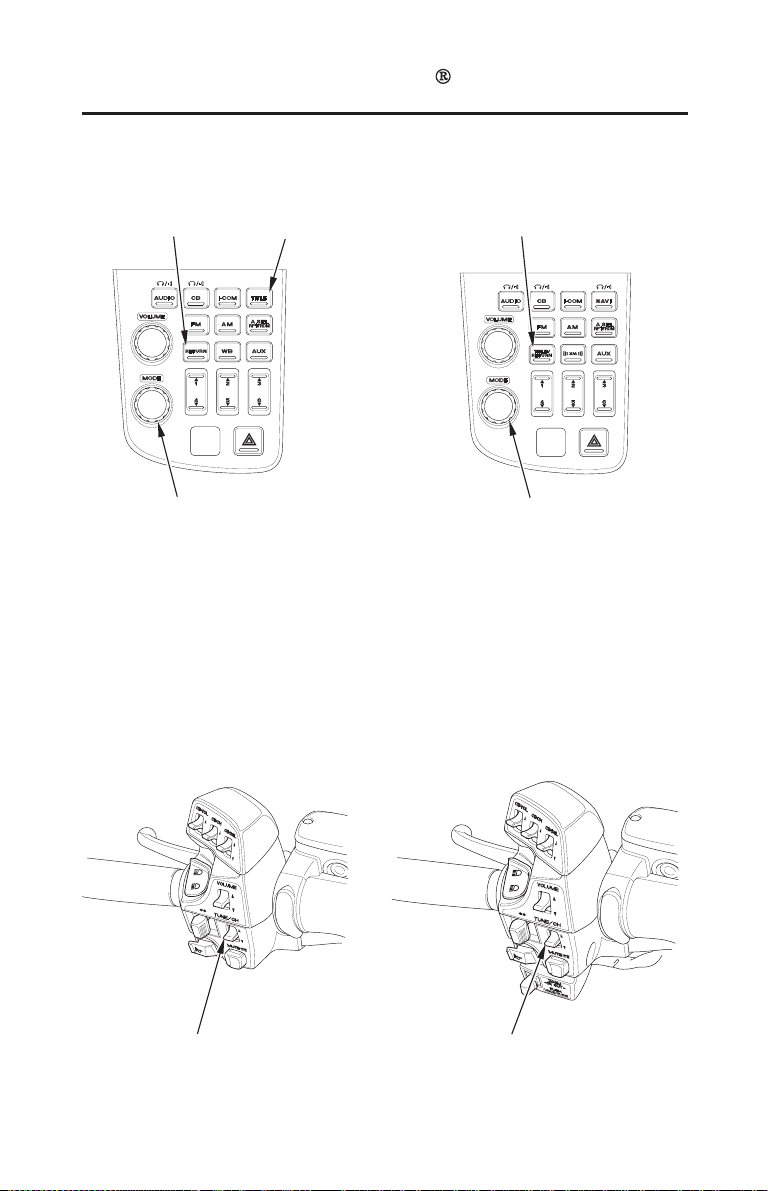

The audio control switches mounted on the left handlebar and above the fuel fill
compartment are used to operate the radio. For specific features and operation
instructions, see page .95
１１／０１／１９ １１：５３：５０ ３１ＭＣＡ７００ ００４５
LEFT SIDE
hazard switch hazard switch
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
39
Hazard Switch
Controls & Features
Instruments & Controls
The hazard switch is used to activate the hazard lights on your motorcycle if you
need to stop near heavy traffic or if your motorcycle is disabled.
To operate, turn the ignition key to the ON or ACC position, and push the
hazard switch. The front and rear turn signals will blink simultaneously until
you push the switch again.
If you anticipate using the hazard system for an extended time, use the ACC
position and turn off all unnecessary accessories to conserve battery capacity.
Be sure to turn the switch off when the hazard warning is no longer required, or
the turn signals will not work properly and may confuse other drivers.
１１／０１／１９ １１：５３：５７ ３１ＭＣＡ７００ ００４６
headlight beam
adjustment switch
rear suspension spring pre-load
adjustment switch
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
40
Headlight Beam Adjustment Switch
Controls & Features
Instruments & Controls
The adjustment switch is used to raise or lower the height of the headlight beam.
You can confirm the headlight beam position by referring to the multi
information display.
If you carry a heavier or lighter than normal load, you may need to adjust your
headlight beam so you can better see the road ahead and don’t blind oncoming
drivers. Obey local laws and regulations concerning headlight adjustment.
To operate, adjust the Headlight Beam Adjustment Switch when the engine is
started and your motorcycle is stopped.
The headlight beam adjustment has 11 positions (from 0 to 10) for different
riding conditions. (Standard position is 10.)
When approximately 5 seconds pass without operating the Headlight Beam
Adjustment Switch, the display automatically returns to the previous display.
To lower the beam, push the Headlight Beam Adjustment Switch down ( ).
To raise the beam, push the Headlight Beam Adjustment Switch up ( ).
To Lower
To Raise
１１／０１／１９ １１：５４：０８ ３１ＭＣＡ７００ ００４７
41
Rear Suspension Spring Pre-load Adjustment Switch
Ventilation Controls
Windscreen Height Adjustment
Controls & Features
Instruments & Controls
Rear Suspension Spring Pre-load
Adjustment,
The rear suspension spring pre-load adjustment switch is used to adjust the rear
suspension to suit your load and riding conditions. For instructions on when and
how to adjust the rear suspension, see
page .

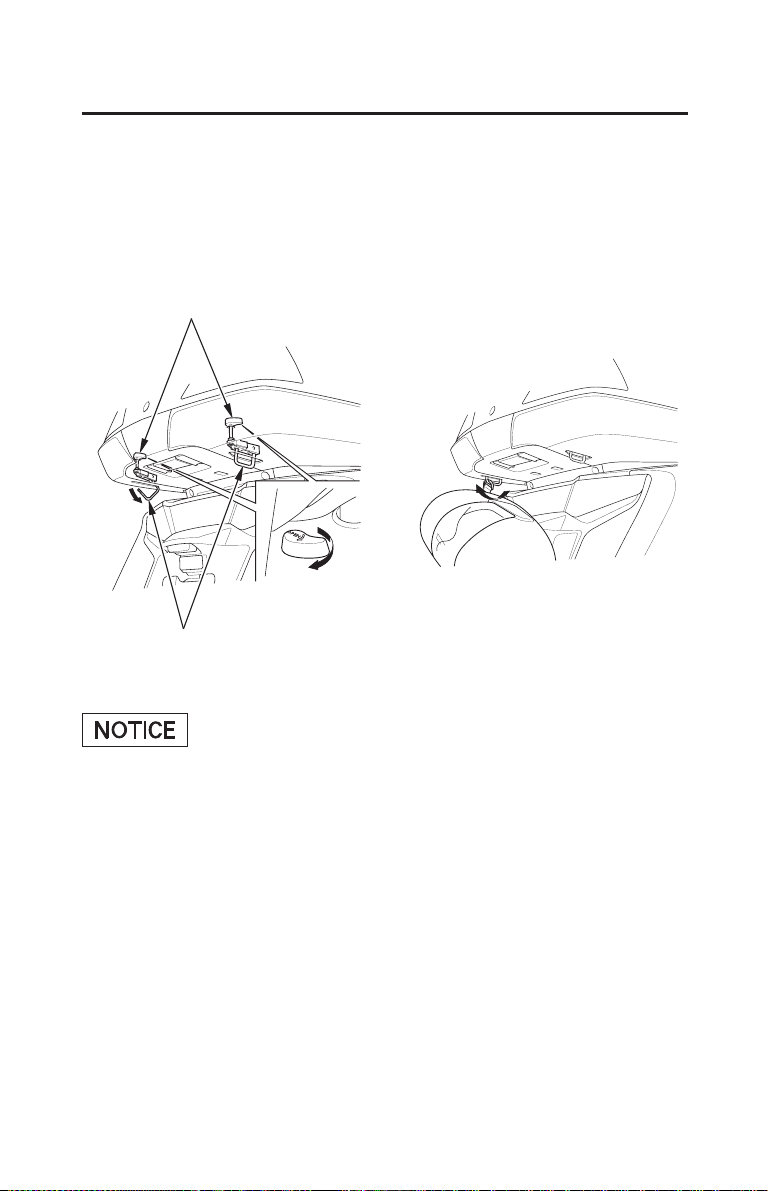

The windscreen height adjustment levers are used to raise or lower your
windscreen to suit your riding preference. For instructions, see page .
The windscreen ventilation louver is used to direct the flow of fresh air
(page ).
The foot warmer ventilation louvers are used to direct the flow of warm air
(page ).64
63
62
193
１１／０１／１９ １１：５４：１５ ３１ＭＣＡ７００ ００４８
42
Instruments & Controls
１１／０１／１９ １１：５４：１７ ３１ＭＣＡ７００ ００４９
43
Before Riding
Before Riding
Before each ride, you need to make sure you and your Honda are both ready to
ride. To help get you prepared, this section discusses how to evaluate your riding
readiness, what items you should check on your motorcycle, and adjustments to
make for your comfort, convenience, or safety. This section also includes
important information about loading.
For information about adjusting the suspension on your Honda, see page .
......................................................................................Are You Ready to Ride? .
....................................................................Is Your Motorcycle Ready to Ride? .
....................................................................................Load Limits & Guidelines .
.............................................................................................Cargo Compartment .
..................................................................Comfort & Convenience Adjustment .
............................................................................................Protective Apparel .
..................................................................................................Rider Training .
...........................................................................................Pre-ride Inspection .
.............................................................................................................Loading .
......................................................................................................Load Limits .
..........................................................................................Loading Guidelines .
.............................................................................Travel Trunk & Saddlebags .
..........................................................................................Remote Transmitter .
..........................................................................................Trunk Side Pockets .
.......................................................................Windscreen Height Adjustment .
.......................................................................Windscreen Ventilation Louver .
...................................................................Foot Warmer Ventilation Louvers .
...............................................................................................Handgrip Heater .
.......................................................................................................Seat Heater .
...........................................................................................................Accessories .
.............................................................................Accessory (ACC) Terminal .
...........................................................................Fairing Pocket / Shelter Case .
44
44
46
47
47
49
49
50
51
52
52
55
59
60
61
62
63
64
65
66
67
67
193
１１／０１／１９ １１：５４：３３ ３１ＭＣＡ７００ ００５０
44
Protective Apparel
Are You Ready to Ride?
Before Riding
Before you ride your motorcycle for the first time, we urge you to:
Before each ride, be sure:
Make sure your passenger is ready to ride, too, and is wearing proper gear
including a helmet.
Read this owner’s manual.
Make sure you understand all the safety messages.
Know how to operate all the controls.
You feel well and are in good physical and mental condition.
You don’t have any alcohol or drugs in your system.
You are wearing an approved motorcycle helmet (with chin strap tightened
securely), eye protection, and other protective clothing.
If you are not riding with a passenger and want to carry an extra helmet, use a
commercially-available elastic cord, strap, or net to secure the helmet to the seat.
Thetraveltrunkmayalsobeusedtostoreanextrahelmet.
For your safety, we strongly recommend that you always wear an approved
motorcycle helmet, eye protection, boots, gloves, long pants, and a long-sleeved
shirt or jacket whenever you ride.
Although complete protection is not possible, wearing proper gear can reduce
the chance of injury when you ride.
Following are suggestions to help you choose the proper gear.
１１／０１／１９ １１：５４：４２ ３１ＭＣＡ７００ ００５１
Not wearing a helmet increases
the chance of serious injury or
death in a crash.
Be sure you and your
passenger always wear a
helmet, eye protection, and
other protective apparel when
you ride.
45
Are You Ready to Ride?
Before Riding
Helmet and Eye Protection
Your helmet is your most important piece of riding gear because it offers the
best protection against head injuries. A helmet should fit your head comfortably
and securely. A bright-colored helmet and reflective strips can make you more
noticeable in traffic.
An open-face helmet offers some protection, but a full-face helmet offers more.
Regardless of the style, look for a DOT (Department of Transportation) sticker
on any helmet you buy (USA only). Always wear a face shield or goggles to
protect your eyes and help your vision.
Additional Riding Gear
In addition to a helmet and eye protection, we also recommend:
Sturdy boots with non-slip soles to help protect your feet and ankles.
Leather gloves to help protect your hands.
A motorcycle riding suit or jacket for comfort as well as protection.
Bright-colored and reflective clothing can help make you more noticeable in
traffic. Avoid loose clothes that could get caught on any part of your
motorcycle.
１１／０１／１９ １１：５４：５０ ３１ＭＣＡ７００ ００５２
46
Rider Training
Are You Ready to Ride?
Before Riding
Riding Tips
Developing your riding skills is an on-going process. Even if you have ridden
other motorcycles, take time to become familiar with how this motorcycle works
and handles. Practice riding the motorcycle in a safe area to build your skills. Do
not ride in traffic until you get accustomed to the motorcycle’s controls, and feel
comfortable with its size and weight.
We urge all riders to take a motorcycle operator course approved by the
Motorcycle Safety Foundation (MSF). New riders should start with the basic
course, and even experienced riders will find the advanced course beneficial.
For information about the MSF training course nearest you, call the national
toll-free number: (800) 446-9227.
Other riding tips can be found in the booklet that came with your
motorcycle (USA only).
１１／０１／１９ １１：５４：５５ ３１ＭＣＡ７００ ００５３
Improperly maintaining this
motorcycle or failing to correct a
problem before riding can cause
acrashinwhichyoucanbe
seriously hurt or killed.
Always perform a pre-ride
inspection before every ride and
correct any problems.
47
Pre-ride Inspection
Is Your Motorcycle Ready to Ride?
Before Riding
Leaks,
Loose
Parts
Lights
Tires
&
Wheels
Before each ride, it’s important to inspect your motorcycle and make sure any
problem you find is corrected. A pre-ride inspection is a must, not only for
safety, but because having a breakdown, or even a flat tire, can be a major
inconvenience.
Check the following items before you get on the motorcycle:
Walk around your motorcycle and look for anything that appears
unusual, such as a leak or loose cable.
Make sure the headlight, brakelight, taillight, and turn signals are
working properly.
Look at the tires. If a tire appears low, use an air pressure gauge
to check its pressure. Also look for signs of excessive wear
(page ) or damage to the tires and wheels.203
１１／０１／１９ １１：５５：０３ ３１ＭＣＡ７００ ００５４
48
Is Your Motorcycle Ready to Ride?
Before Riding
Load Limits
Cargo
Adjustments
Throttle
Brakes
Indicators
Gauges
Periodic Maintenance
If you are carrying a passenger or cargo, also check the following:
Make sure you do not exceed the load limits (page ).
Check that all cargo is secure.
Adjust the rear suspension (page ) according to your load.
Check these items after you get on the motorcycle:
Rotate the throttle to check it moves smoothly without binding.
Pull the brake lever and press on the brake pedal to check that
they operate normally.
Turn the ignition on and check for normal operation of the
indicators (page ).
Check the fuel level and other gauges (page ).
If you haven’t ridden the motorcycle in over a week, you should also check
other items, such as the oil level and other fluids. See
(page ). Periodic maintenance should also be done at least once a month, no
matter how often you ride.
Remember, be sure to take care of any problem you find, or have your dealer
correct it before you ride.
50
15
15
192
155
１１／０１／１９ １１：５５：１５ ３１ＭＣＡ７００ ００５５
Overloading or improper loading
can cause a crash and you can
be seriously hurt or killed.
Follow all load limits and other
loading guidelines in this
manual.
49
Loading
Load Limits & Guidelines
Before Riding
Your motorcycle has been designed to carry you and one passenger. When you
carry a passenger, you may feel some difference during acceleration and
braking. But so long as you keep your motorcycle well-maintained, with good
tires and brakes, you can safely carry loads within the given limits and
guidelines.
However, exceeding the weight limit or carrying an unbalanced load can
seriously impair your motorcycle’s handling, braking, and stability. Non-Honda
accessories, improper modifications, and poor maintenance can also reduce your
safety margin.
How much weight you put on your motorcycle, and how you load it, are
important to your safety. Anytime you ride with a passenger or cargo, you
should be aware of the following information.
１１／０１／１９ １１：５５：２１ ３１ＭＣＡ７００ ００５６
410 lb (186 kg)
72 lb (33 kg)
20.0 lb (9.0 kg)
20.0 lb (9.0 kg)
4.5 lb (2.0 kg)
1.0 lb (0.5 kg)
6.6 lb (3.0 kg)
66 lb (30 kg)
=
=
=
=
=
=
=
=
(Models not equipped
with Airbag)
(Models equipped
with Airbag)
50
Load Limits
maximum weight capacity:
maximum cargo weight:
travel trunk
each saddlebag
fairing pocket
each trunk side pocket
shelter case
(Models not equipped with Airbag)
Load Limits & Guidelines
Before Riding
Following are the load limits for your motorcycle:
includes following maximum compartment
weights:
The weight of added accessories will reduce the maximum cargo weight you can
carry.
includes the weight of the rider,
passenger, all cargo, and all accessories.
１１／０１／２６ １１：４４：４６ ３１ＭＣＡ７００ ００５７
51
Loading Guidelines
Load Limits & Guidelines
Before Riding
Improperly loading your motorcycle can affect its stability and handling. Even
if your motorcycle is properly loaded, you should ride at reduced speeds and
never exceed 80 mph (130 km/h) when carrying cargo.
Follow these guidelines whenever you carry a passenger or cargo:
Check that both tires are properly inflated (page ).
To prevent loose items from creating a hazard, make sure that all cargo is tied
down securely before you ride.
Place cargo weight as low and close to the center of your motorcycle as
possible.
Balance cargo weight evenly on both sides.
If you change your normal load, you may need to adjust the rear suspension
(page ).
Do not attach large or heavy items (such as a sleeping bag or tent) to the
handlebar, forks, or fender.
Make sure all cargo compartments are securely closed.
Check the headlight beam adjustment if you change your normal load.
202
192
１１／０１／１９ １１：５５：３９ ３１ＭＣＡ７００ ００５８
20.0 lb (9.0 kg) each
LOCK UUNNLLOOCCKK
52
Travel Trunk & Saddlebags
Cargo Compartment
Before Riding
The travel trunk and saddlebags can be locked and unlocked with the ignition
key or remote transmitter.
To use the remote transmitter, see page .
To lock:
Insert the ignition key and turn it counterclockwise.
To unlock:
Insert the ignition key and turn it clockwise.
The travel trunk and saddlebags are for lightweight items.
Cargo in the travel trunk and both saddlebags should not exceed:
Your motorcycle comes with a lockable travel trunk and dual saddlebags, plus
two trunk side pockets, front fairing pocket and shelter case (models not
equipped with airbag).
Instructions on how to open, close, and lock these compartments follow.
However, regardless of compartment capacity, be sure you do not exceed the
maximum load and cargo weight limits (page ).
To Lock & Unlock the Travel Trunk & Saddlebags
55
50
１１／０１／１９ １１：５５：４８ ３１ＭＣＡ７００ ００５９
latch levers
TO CLOSE:
right saddlebag
travel trunk
left saddlebag
OPEN
53
Cargo Compartment
Before Riding
To Open & Shut the Travel Trunk & Saddlebags
To open the travel trunk, pull the middle latch lever down.
To open the right or left saddlebag, pull the right or left latch lever down.
To shut each compartment, place your hands flat on the edges of its lid and press
down until it is firmly closed and check the travel trunk & saddlebags open
indicator is not displayed.
To lock the all compartments, use the ignition key or transmitter.
１１／０１／１９ １１：５５：５５ ３１ＭＣＡ７００ ００６０
plug
PUSH
REAR
rod
54
Cargo Compartment
Before Riding
If a Saddlebag Won’t Open
Open the travel trunk and remove the plug from the right or left access hole in
the floor of the trunk.
Put your finger through the access hole and push the rod.
The saddlebag should open.
1.
2.
１１／０１／１９ １１：５６：００ ３１ＭＣＡ７００ ００６１
−
−
unlock button
lock button
55
Remote Transmitter
Cargo Compartment
Before Riding
You can lock and unlock your motorcycle’s trunk and saddlebags with the
remote transmitter.
You cannot lock the compartments with the remote transmitter if any
compartment is not fully closed. (The front and rear turn signal lights will blink
ten times.)
If you unlock the compartments with the transmitter, but do not open any of the
compartments within thirty seconds, the compartments automatically relock.
If the ignition switch is left off for more than one month, the remote transmitter
will no longer operate the remote control system. To reset the system, turn the
ignition switch ON.
To lock the compartments push the lock button.
(The front and rear turn signal lights will blink once.)
To unlock the compartments push the unlock button.
(The front and rear turn signal lights will blink twice.)
１１／０１／１９ １１：５６：０８ ３１ＭＣＡ７００ ００６２
CALL button
trunk release button
56
Cargo Compartment
Before Riding
Call Mode
To open the trunk, push and hold the trunk release button for approximately
one second.
The call mode is provided to let you locate your motorcycle when it is parked in
a large lot.
Push and hold the CALL button, the horn will sound and the turn signal lights
will blink two times.
When the ignition switch is in the ON or ACC position:
You can lock and unlock the compartments.
The trunk release button will not operate.
The call mode will not operate.
１１／０１／１９ １１：５６：１５ ３１ＭＣＡ７００ ００６３
＋

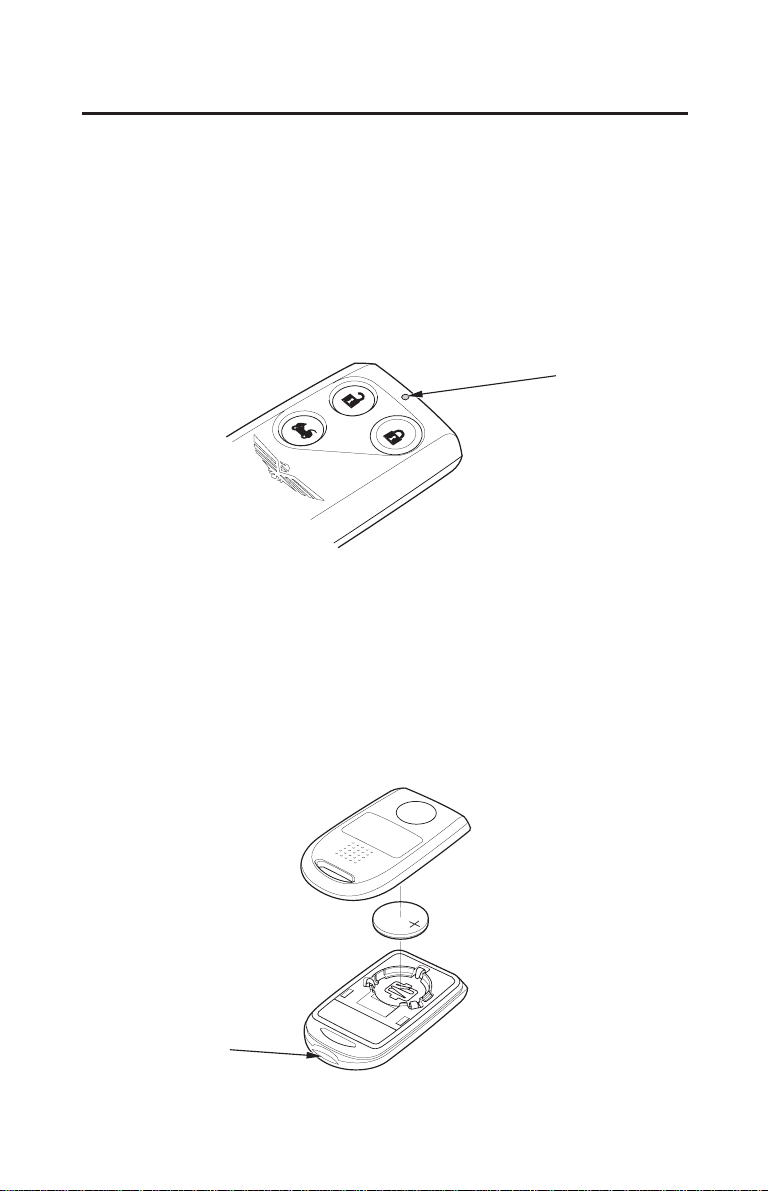

LED
slit
57
Cargo Compartment
Before Riding
Replacing the Battery
When the remote transmitter’s battery begins to get weak, it may take several
pushes on the button to lock or unlock the compartments, and the LED will get
dim. Replace the battery as soon as possible.
Battery type: CR2025
Recycle or dispose of batteries properly, according to local regulations.
Improper battery disposal can harm the environment.
Dismantle by inserting a coin or a flat head screwdriver covered with a
protective cloth into the slit of the transmitter.
Remove the old battery and note the polarity. Make sure the polarity of the
new battery is the same ( side facing up), then insert it in the transmitter.
Put the two halves of the transmitter back together.
1.
2.
3.
１１／０１／１９ １１：５６：２２ ３１ＭＣＡ７００ ００６４
58
Before Riding
Cargo Compartment
Transmitter Care
As required by the FCC (USA only):
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device also complies with Industry Canada Standard RSS-210.
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference that may
cause undesired operation of the device.
Avoid severe shock to the transmitter, such as dropping or throwing it. Also,
protect it from extreme hot or cold temperatures.
Clean the transmitter case with a soft cloth. Do not use strong cleaners or
solvents that could harm the case. Immersing the transmitter in any liquid will
harm the transmitter and cause it to not function properly.
If you lose a transmitter, you will need to have the replacement programmed to
your motorcycle’s system by your Honda dealer. Any other transmitters you
have will also need to be reprogrammed.
１１／０１／２５ １０：３２：３９ ３１ＭＣＡ７００ ００６５

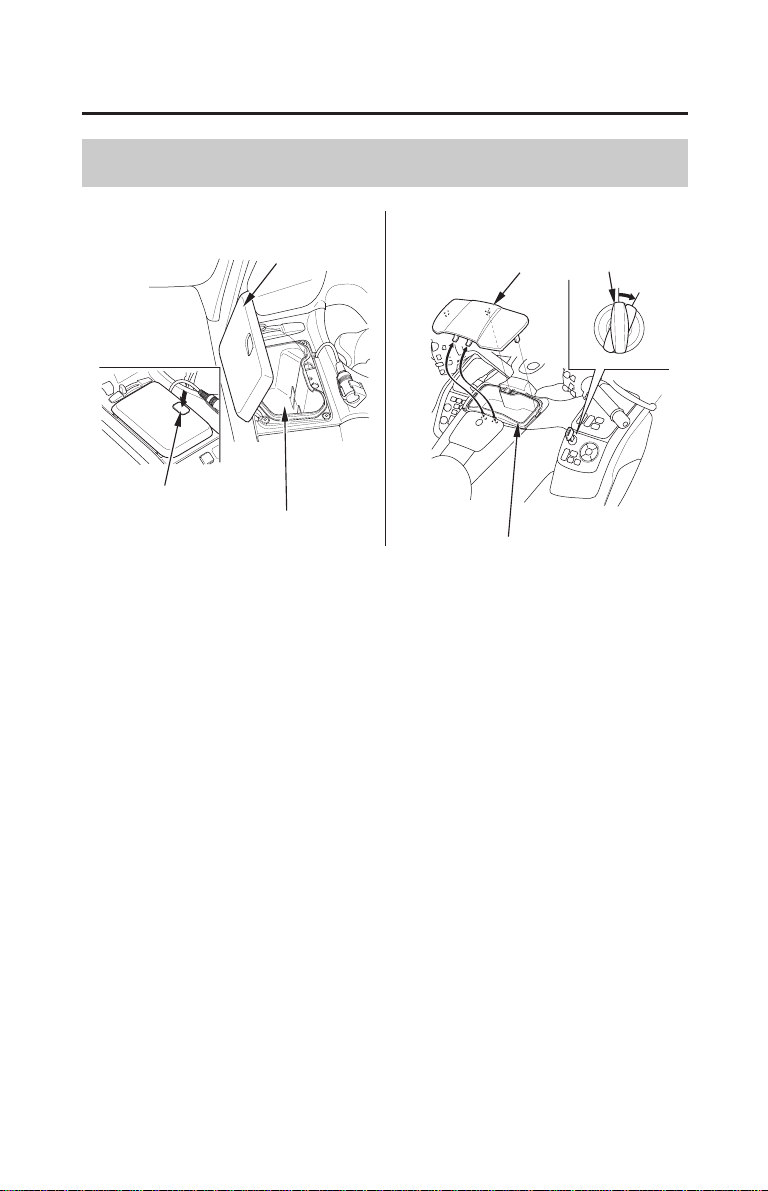

4.5 lb (2.0 kg)
6.6 lb (3.0 kg)
LEFT SIDE
RIGHT SIDE
button
PPUUSSHH
(Models not
equipped with Airbag)
fairing pocket
lid
ignition key
lid
shelter case
(Models not equipped with Airbag)
in fairing pocket
in shelter case
59
Fairing Pocket / Shelter Case
Cargo Compartment
Before Riding
To close the fairing pocket and/or shelter case, place your hands flat on the
edges of its lid and press down until it is firmly closed.
Make sure the fairing pocket and shelter case are closed before riding.
The fairing pocket and shelter case are for lightweight items.
Cargo should not exceed:
Be careful not to flood this area when washing your motorcycle.
To open the fairing pocket, push the button.
To open the shelter case, insert the ignition key, turn it clockwise.
Take care to keep gasoline, brake fluid, or other chemical solvents off the lids.
They will damage the surface of the lids.
Do not store valuables in the fairing pocket and shelter case.
１１／０１／１９ １１：５６：３８ ３１ＭＣＡ７００ ００６６
1.0 lb (0.5 kg)
trunk side pockets
lid lever
60
Trunk Side Pockets
Cargo Compartment
Before Riding
The trunk side pockets are for soft, lightweight items.
Cargo in each trunk side pocket should not exceed:
Do not put sharp or hard objects in the trunk side pockets. Such objects could
interfere with opening the lids or damage the pockets.
To open the lid, pull the lever up.
Be careful not to flood this area when washing your motorcycle.
Make sure the trunk side pockets are closed before riding.
To close the lid, pull the lid up. Check that latch is secure.
１１／０１／１９ １１：５６：４５ ３１ＭＣＡ７００ ００６７
−
61
Comfort & Convenience Adjustment
Before Riding
Suspension
Windscreen
Height
Ventilation
Louvers
Handgrip
Heater
Seat
Heater
Your motorcycle has many features you can adjust to suit your personal
preference and increase your comfort and convenience, and your passenger’s as
well.
We recommend that you take time to check the following items and make any
desired adjustments before each ride:
The rear suspension spring pre-load (page ) can be adjusted
for a softer or firmer ride using an electrical adjustment
system. You may want to adjust your suspension whenever
you change your normal load.
Your windscreen height can be adjusted slightly higher or
lower (page ).
If you need to adjust the ventilation louvers (pages ),
do it before you ride.
The range of the handgrips heater can be adjusted higher or
lower (page ).
Make sure the handgrip heater switch moves easily over the
full adjustment range.
Select the heat level you want before your ride (with the
engine running).
The range of the seat heater can be adjusted higher or lower
(page ).
Make sure the seat heater switch moves easily over the full
adjustment range.
Select the heat level you want before your ride (with the
engine running).
62
63 64
65
66
193
１１／０１／１９ １１：５６：５５ ３１ＭＣＡ７００ ００６８
FRONT
upper mark
lever
RREELLEEAASSEE
upper edge
SSEECCUURREE
62
Windscreen Height Adjustment
Comfort & Convenience Adjustment
Before Riding
The windscreen adjuster has 6 positions.
You can adjust your windscreen height slightly higher or lower.
If possible, we recommend you adjust your windscreen height to below eye
level for better visibility.
To Adjust Windscreen Height
Pull both levers up to release the windscreen.
To raise:
Move the windscreen up to the desired position.
On both sides, align the mark on the windscreen with the upper edge of the
instrument panel.
Push the levers down to secure the windscreen.
To lower:
Move the windscreen up to the upper mark ( ), lower it all the way (to
reset the ratchet mechanism), then raise it to the desired position.
1.
2.
3.
4.
１１／０１／１９ １１：５７：０３ ３１ＭＣＡ７００ ００６９
OOPPEENN
CCLLOOSSEE
lever
windscreen
ventilation louver
63
Windscreen Ventilation Louver
Comfort & Convenience Adjustment
Before Riding
You can adjust the windscreen ventilation louver with the lever to control and
direct the flow of fresh air.
１１／０１／１９ １１：５７：０９ ３１ＭＣＡ７００ ００７０
LEFT UPPER
CCLLOOSSEE
OOPPEENN
RRIIGGHHTT SSIIDDEE
LLEEFFTT SSIIDDEE
lleevveerr
64
Foot Warmer Ventilation Louvers
Comfort & Convenience Adjustment
Before Riding
You can adjust the foot warmer ventilation louvers with the lever to control and
direct the flow of warm air.
１１／０１／１９ １１：５７：１４ ３１ＭＣＡ７００ ００７１
RIGHT SIDE OF THE IGNITION SWITCH
handgrip heater switch
65
Handgrip Heater
Comfort & Convenience Adjustment
Before Riding
The handgrip heater warms up the right and left handgrips of the handlebar for
comfortable riding on a cold day.
The handgrip heater switch is located on the right side of the ignition switch.
To operate, adjust the handgrip heater switch with the engine started. The
handgrip heater switch has 6 positions (OFF, 1, 2, 3, 4, MAX).
To warm up the handgrip heaters, turn the handgrip heater switch toward the
MAX position.
To cool down the handgrip heaters, turn the handgrip heater switch toward the
OFF position.
Do not leave the handgrip heater in the high position for a long time on a warm
day.
Wear gloves to protect your hands from the heated grips.
Do not use the handgrip heater with the engine at idle for a long time. It may
result in a low (or dead) battery.
１１／０１／１９ １１：５７：２２ ３１ＭＣＡ７００ ００７２

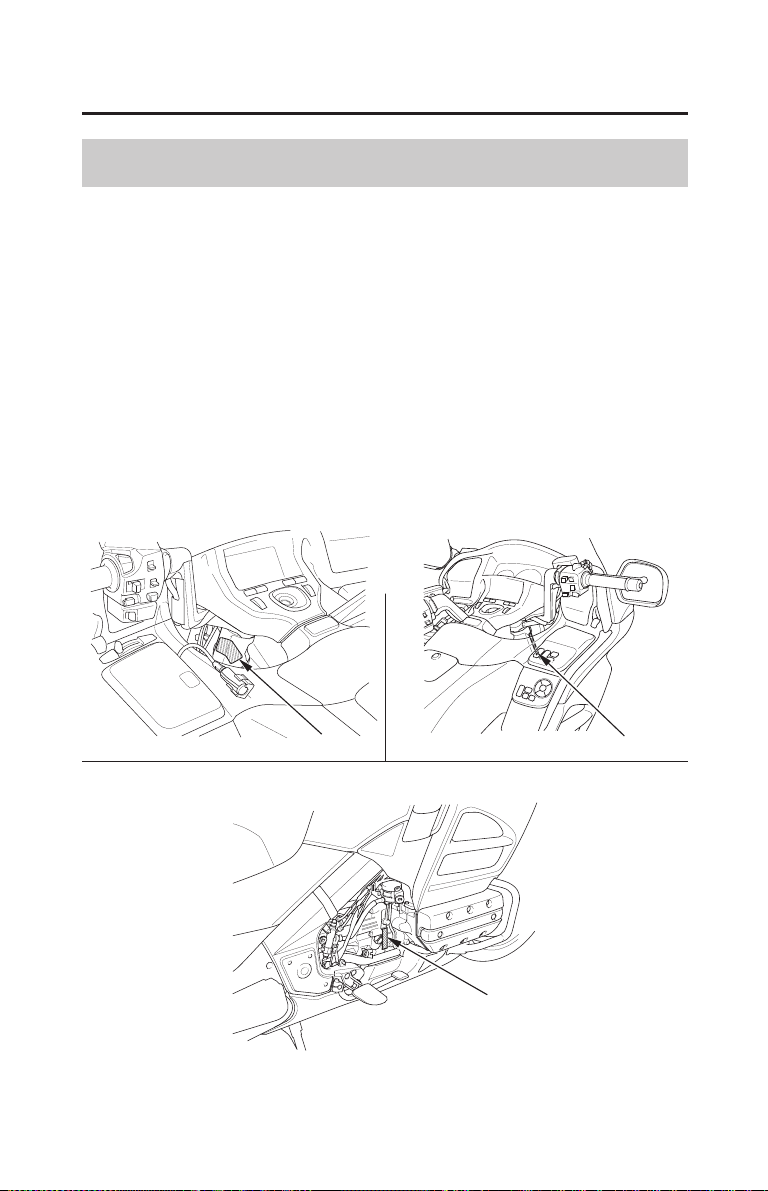

LEFT SIDE OF THE IGNITION SWITCH
UNDER THE LEFT TRUNK SIDE POCKET
front seat heater switch
rear seat heater switch
66
Seat Heater
Comfort & Convenience Adjustment
Before Riding
Do not apply excessive stress to the seat, e.g. by securing articles to it with tie-
down straps during transportation.
Do not use the seat heater when the seat is torn, cut or damaged as you can get
burned.
To warm up the seat heater, turn the seat heater switch toward the MAX position.
To cool down the seat heater, turn the seat heater switch toward the OFF
position.
Do not leave the seat heater in the high position for a long time on a warm day.
Do not use the seat heater with the engine at idle for a long time. It may result in
alow(ordead)battery.
The seat heater warms up the driver’s seat (and the passenger’s seat) for
comfortable riding on a cold day.
The front seat heater switch is located on the left side of the ignition switch.
The rear seat heater switch is located under the left trunk side pocket.
To operate, adjust the seat heater switch with the engine started.
The front and rear seat heater switches have 6 positions (OFF, 1, 2, 3, 4, MAX).
１１／０１／１９ １１：５７：３１ ３１ＭＣＡ７００ ００７３
fuse box
accessory (ACC)
terminal
67
Accessory (ACC) Terminal
Accessories
Before Riding
Accessories and Modifications,
Battery, If a Fuse Blows,
For your convenience, your motorcycle is equipped with an accessory (ACC)
terminal and optional accessory socket. The terminal and socket provide 12V
DC power for electrical accessories. When both terminal and socket are being
used, the combined power rating of each accessory should be 60 watts (5 amps)
or less. Before installing any accessories, read
page .
If you install any accessories, check the battery frequently to determine the state
of charge. Higher current demands may blow a fuse or discharge the battery. For
more information, see page , and page .
Connect accessory electrical leads securely, and keep them insulated, away from
hot parts and sharp edges.
4
209 244
１１／０１／１９ １１：５７：３７ ３１ＭＣＡ７００ ００７４
68
Before Riding
１１／０１／１９ １１：５７：３９ ３１ＭＣＡ７００ ００７５
69
Basic Operation & Riding
Basic Operation & Riding
To protect your new engine and enjoy optimum performance and service life,
refer to Break-in Guidelines (page ).
This section gives basic riding instructions, including how to start and stop your
engine, and how to use the throttle, clutch, and brakes. It also provides important
information on riding with a passenger or cargo, and operating your cruise
control.
To protect the catalytic converters in your motorcycle’s exhaust system, avoid
extended idling and the use of leaded gasoline.
.......................................................................................Safe Riding Precautions .
...........................................................................Starting & Stopping the Engine .
.......................................................................................................Shifting Gears .
.................................................................................................Riding in Reverse .
.................................................................................................................Braking .
..........................................................Tire Pressure Monitoring System (TPMS) .
..................................................................................................................Parking .
........................................................................Riding with a Passenger or Cargo .
..................................................................................Riding with Cruise Control .
.........................................................................................Riding in Bad Weather .
..................................................Bank Angle Sensor Ignition Cut-off System .
................................................................................................Flooded Engine .
............................................................................................Starting Procedure .
........................................................................................................Preparation .
...................................................................................How to Stop the Engine .
.....................................................................................While You Are Riding .
.........................................................................................ABS Indicator Light .
.............................................................................Low Tire Pressure Indicator .
......................................Tire Pressure Monitoring System (TPMS) Indicator .
............................................................................Changing a Tire with TPMS .
......................................................................................Theft-prevention Tips .
..................................................................................................Cruise Control .
.......................................................................................To Set Cruise Control .
.................................................................................To Change the Set Speed .
................................................................................To Cancel Cruise Control .
................................................................................................Combined ABS .
70
71
71
72
72
73
73
74
75
76
78
80
81
83
84
85
86
87
89
90
91
91
92
92
93
94
260
１１／０１／１９ １１：５７：５７ ３１ＭＣＡ７００ ００７６
70
Safe Riding Precautions
Basic Operation & Riding
Motorcycle
Safety Before Riding
Before riding your motorcycle for the first time, please review the
section beginning on page 1, and the section beginning on
page .
Even if you have ridden other motorcycles, take time to become familiar with
how this motorcycle works and handles. Practice in a safe area until you build
your skills and get accustomed to the motorcycle’s size and weight.
Make sure flammable materials such as dry grass or leaves do not come in
contact with the exhaust system when riding, idling, or parking your motorcycle.
43
１１／０１／１９ １１：５８：０２ ３１ＭＣＡ７００ ００７７
71
Preparation
Starting & Stopping the Engine
Basic Operation & Riding
Always follow the proper starting procedure described below.
For your safety, avoid starting or operating the engine in an enclosed area such
as a garage. Your motorcycle’s exhaust contains poisonous carbon monoxide
gas which can collect rapidly in an enclosed area and cause illness or death.
Your motorcycle is equipped with a side stand ignition cut-off system. If the
side stand is down –– the engine cannot be started unless the transmission is in
neutral. If the side stand is up –– the engine can be started in neutral, or in gear
with the clutch lever pulled in. After starting with the side stand down, the
engine will stop if the transmission is put in gear before raising the side stand.
Your motorcycle can be started with the transmission in gear by pulling in the
clutch lever before operating the starter.
Before starting, insert the key, turn the ignition switch ON, and confirm the
following:
The transmission is in neutral (neutral indicator is ON).
The engine stop switch is set to RUN.
The low oil pressure indicator is ON.
The ABS indicator light is ON (models equipped with ABS).
The PGM-FI malfunction indicator lamp (MIL) is OFF.
The airbag indicator is OFF (models equipped with Airbag).
The low oil pressure indicator and airbag indicator (models equipped with
Airbag) should go off a few seconds after the engine starts. If the low oil
pressure indicator lights during operation, stop the engine immediately and
check the engine oil level.
If the airbag indicator stays on or lights during operation, have your motorcycle
inspected as soon as possible by an authorized Honda dealer (models equipped
with Airbag).
１１／０１／１９ １１：５８：１２ ３１ＭＣＡ７００ ００７８
−
72
Starting Procedure
Flooded Engine
Starting & Stopping the Engine
Basic Operation & Riding
If Your Engine Quits or Won’t Start,
This motorcycle has a fuel-injected engine with an automatic fast idle. Follow
the procedure indicated below.
Any Air Temperature
Press the start button with the throttle completely closed.
The engine will not start if the throttle is fully open (because the electronic
control module cuts off the fuel supply).
If the engine still won’t start, refer to
page .
If the engine does not start, wait 10 seconds, then follow steps again.
If the engine starts, open the throttle slightly if idling is unstable.
Follow the normal starting procedure.
Press the start button for 5 seconds.
Open the throttle fully.
Leave the engine stop switch set to RUN.
If the engine fails to start after repeated attempts, it may be flooded with excess
fuel. To clear a flooded engine:
Snapping the throttle or fast idling for more than about 5 minutes at normal air
temperature may cause exhaust pipe discoloration.
1.
2.
3.
4.
5.
14
227
１１／０１／１９ １１：５８：２４ ３１ＭＣＡ７００ ００７９
73
Bank Angle Sensor Ignition Cut-off System
How to Stop the Engine
Starting & Stopping the Engine
Basic Operation & Riding
Your motorcycle’s banking (lean angle) sensor system is designed to
automatically stop the engine and fuel pump if the motorcycle is overturned.
Before restarting the engine, you must turn the ignition switch to the OFF
position and then back to ON. The engine will not restart until you perform this
procedure.
Normal Engine Stop
To stop the engine, shift into neutral and turn the ignition switch OFF.
The engine stop switch should normally remain in the RUN position even when
the engine is OFF.
Emergency Engine Stop
To stop the engine in an emergency, use the engine stop switch. To operate, turn
the switch to the OFF position.
If your motorcycle is stopped with the ignition switch ON and the engine stop
switch OFF, the headlight and taillight will remain on, resulting in battery
discharge.
１１／０１／１９ １１：５８：３１ ３１ＭＣＡ７００ ００８０
74
Shifting Gears
Basic Operation & Riding
Your motorcycle has five forward gears in a one-down, four-up shift pattern
which is coordinated with a hydraulically actuated clutch system.
Learning when to shift gears comes with experience. Keep the following tips in
mind:
As a general rule, shift while moving in a straight line.
Close the throttle and pull the clutch lever in completely before shifting.
Improper shifting may damage the engine, transmission, and drive train.
Learn to recognize the engagement point as you release the clutch lever. It is
at this point the transmission of power to the rear wheel resumes.
Upshift to a higher gear or reduce throttle before engine rpm (speed) gets too
high. Learn the relationship between engine sound and the normal shifting
points.
Downshift to a lower gear before you feel the engine laboring (lugging) at
low rpm.
Avoid downshifting to help slow your motorcycle when engine rpm is near its
allowable maximum (near the tachometer red zone). In this situation, the rev
limiter in the engine ignition control module may not prevent excessive
engine speed which could damage the engine.
To prevent transmission damage, do not coast or tow the motorcycle for long
distances with the engine off.
１１／０１／１９ １１：５８：３９ ３１ＭＣＡ７００ ００８１
75
While You Are Riding
Shifting Gears
Basic Operation & Riding
Shifting Up:
Shifting Down:
Recommended Shift Points
Ride in the highest gear that lets the engine run and accelerate smoothly. This
will give you good fuel economy and effective emissions control. When
changing gears under normal conditions, use these recommended shift points:
12 mph (20 km/h)
19 mph (30 km/h)
25 mph (40 km/h)
31 mph (50 km/h)
22 mph (35 km/h)
16 mph (25 km/h)
Pull the clutch lever in when speed drops below 12 mph (20 km/h), when engine
roughness is evident, or when engine stalling is imminent; and shift down to 1st
gear for acceleration.
While you are riding, occasionally check your gauges and indicators. Continuing
to ride with the low oil pressure indicator (red) on or the coolant temperature
gauge needle at the H (hot) mark can cause serious engine damage. Also keep an
eye on the fuel gauge and the low fuel indicator.
From OD to 4th:
From 4th to 3rd:
From 1st to 2nd:
From 2nd to 3rd:
From 3rd to 4th:
From 4th to OD:
１１／０１／１９ １１：５８：４７ ３１ＭＣＡ７００ ００８２
RIGHT HANDLEBAR
reverse (RVS) switch
start/reverse button
76
Riding in Reverse
Basic Operation & Riding
Your motorcycle’s reverse system allows you to back out of a parking position
at slow speed.
Make sure there are no obstacles or people in the area. Avoid steep or uneven
surfaces. Carrying a passenger while reversing is not recommended because it
makes balance and control more difficult to maintain.
Sit astride the motorcycle, in your normal riding position, with both feet on
the ground.
Make sure the transmission is in neutral (neutral indicator is ON) and the side
stand is up.
Start the engine. (Make sure the RVS switch is OFF.)
Push the RVS switch to ON, then make sure the reverse system indicator
comes on.
When you are ready to back up, push the start/reverse button and hold it in.
The motorcycle will move in reverse as long as you hold the button in.
To prevent battery discharge, do not push the start/reverse button more than a
minute.
Guide the motorcycle backward cautiously, using your legs to maintain
balance.
Use extreme care to maintain balance while reversing on loose surfaces (sand,
dirt, gravel) or grease-covered pavement.
1.
2.
3.
4.
5.
6.
１１／０１／１９ １１：５８：５５ ３１ＭＣＡ７００ ００８３
77
Riding in Reverse
Basic Operation & Riding
To avoid damaging the reverse system, do not engage or disengage reverse
when the motorcycle is moving.
Release the start/reverse button, and the motorcycle will stop.
After your motorcycle is stopped, push the RVS switch to OFF. Make sure
the reverse gear indicator goes off and the neutral indicator comes on.
If the reverse switch is in the ON position with the engine off, the engine cannot
be started.
Reverse System Overload
The reverse system is designed to move the motorcycle at a constant slow speed.
If the motorcycle begins moving slower or faster than this speed, because of
obstacles or a steep pavement angle, the system will shut off and the reverse
system indicator will turn OFF.
To resume reverse operation or normal forward operation, push the RVS switch
to the OFF position and carefully roll the motorcycle to a more level,
unobstructed surface, then start again.
7.
8.
１１／０１／１９ １１：５９：０２ ３１ＭＣＡ７００ ００８４
78
Braking
Basic Operation & Riding
To slow or stop, apply the brake lever and brake pedal smoothly, while
downshifting to match your speed.
Gradually increase braking as you feel the brakes slowing your speed. The
increase in engine compression from downshifting will help slow your
motorcycle.
To prevent stalling the engine, pull the clutch lever in before coming to a
complete stop. For support, put your left foot down first, then your right foot
when you have finished braking.
When possible, reduce your speed or complete braking before entering a turn.
Avoid braking or closing the throttle quickly while turning. Either action may
cause one or both wheels to slip and reduce your control of your motorcycle.
Your ability to brake in a turn and to brake hard in an emergency situation are
important riding skills. We suggest attending a Motorcycle Safety Foundation
experienced rider training course (page ) to retain these skills.
When descending a long, steep grade, use engine compression braking by
downshifting, with intermittent use of both brakes. Continuous brake application
can overheat the brakes and reduce their effectiveness.
When riding in wet or rainy conditions, or on loose surfaces, the ability to
maneuver and stop will be reduced. All of your actions should be smooth under
these conditions. Rapid acceleration, braking or turning may cause loss of
control.
For your safety, exercise extreme caution when braking, accelerating or turning.
Your motorcycle is equipped with Dual CBS (Linked Braking System).
Operating the front brake lever applies the front brake and a portion of the rear
brake. Operating the rear brake pedal applies the rear brake and a portion of the
front brake. For full braking effectiveness, use both the lever and pedal
simultaneously, as you would with a conventional motorcycle braking system.
46
１１／０１／１９ １１：５９：０９ ３１ＭＣＡ７００ ００８５
(Models not equipped with ABS)
79
Braking
Basic Operation & Riding
Riding with your foot resting on the brake pedal or your hand on the brake lever
may actuate the brakelight, giving a false indication to other drivers. It may also
overheat the brakes, reducing effectiveness.
Applying the brakes too hard may cause the wheels to lock and slide, reducing
control of your motorcycle. If this happens, release the brake controls, steer
straight ahead until you regain control, then reapply the brakes more gently.
As with a conventional motorcycle braking system, excessively hard application
of the brake controls may cause wheel lock, reducing control of the motorcycle.
１１／０１／１９ １１：５９：１４ ３１ＭＣＡ７００ ００８６
−
(Models equipped with ABS)
80
Combined ABS
Braking
Basic Operation & Riding
ABS may also be activated by braking while riding over a sharp drop or rise in
the road level.
ABS is self-checking and is always on.
ABS cannot make up for road conditions, bad judgment, or improper operation
of the brakes. It is still your responsibility to ride at reasonable speeds for
weather, road surface, and traffic conditions, and to leave a margin of safety.
In some situations, a motorcycle with ABS may require a longer stopping
distance to stop on loose or uneven surfaces than an equivalent motorcycle
without ABS.
This model is also equipped with an Anti-lock Brake System (ABS) designed to
help prevent wheel lock up during hard braking on uneven or other poor
surfaces while running straight. Although the wheel may not lock up if you are
braking too hard in a turn the motorcycle can still lose traction, causing a loss of
control.
１１／０１／１９ １１：５９：２０ ３１ＭＣＡ７００ ００８７
(Models equipped with ABS)
ABS indicator light
81
ABS Indicator Light
Braking
Basic Operation & Riding
ABS does not function if the battery is discharged.
It is important to follow the tire recommendations (see page ). The ABS
computer works by comparing wheel speed.
Non-recommended tires can affect wheel speed and may confuse the ABS
computer.
ABS does not function at very low speeds (approximately 5 mph (8 km/h) or
below).
Normally, this light comes on when the ignition is turned ON and goes off after
starting to ride. If there is an ABS problem, the indicator light comes on and
remains on or blinks. The ABS system does not operate when the ABS indicator
light is on or blinking.
207
１１／０１／１９ １１：５９：２７ ３１ＭＣＡ７００ ００８８
82
Braking
Basic Operation & Riding
If the ABS indicator light blinks while riding, stop the motorcycle in a safe
place and turn off the engine. Turn the ignition ON again. The light should
come on, and then go off after starting to ride. If it does not go off or if it blinks
again, ABS is not functioning.
However, Dual CBS (Linked Braking System) will still provide normal stopping
ability, but you should have the ABS system checked by your dealer as soon as
possible.
A red LED is used for the ABS indicator light. Be sure that the LED lights when
the ignition is ON. If the LED fails to light, see your dealer.
The ABS indicator may blink if you place the motorcycle on its center stand and
turn the rear wheel. This is normal. Turn the ignition OFF to stop the blinking.
１１／０１／１９ １１：５９：３１ ３１ＭＣＡ７００ ００８９
83
Tire Pressure Monitoring System (TPMS)
Basic Operation & Riding
As required by the FCC (USA only):
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device also complies with Industry Canada Standard RSS-210.
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference that may
cause undesired operation of the device.
Your motorcycle is equipped with a tire pressure monitoring system (TPMS)
that turns on every time you start the engine and it monitors the pressure in your
tires while riding.
Each tire has its own pressure sensor. If the air pressure of a tire becomes
significantly low while riding, the sensor in that tire sends a signal that causes
the low tire pressure indicator to turn on.
１１／０１／２５ １０：３２：４５ ３１ＭＣＡ７００ ００９０
low tire pressure indicator
84
Low Tire Pressure Indicator
Tire Pressure Monitoring System (TPMS)
Basic Operation & Riding
If You Have a Flat Tire
If the low tire pressure indicator flashes, check your tires as soon as possible.
If the low tire pressure indicator lights constantly, one or more of your tires is
significantly underinflated. You should stop and check your tires as soon as
possible. For more information on temporary repair, see
on page .
Check the air pressure when the tires are cold. This means the motorcycle has
been parked for at least 3 hours. Add or release air, if needed, to match the
recommended cold tire pressures on page .
When the low tire pressure indicator flashes or lights, but you continue to ride,
the low tire pressure indicator will go off in some cases. It is still necessary to
check the air pressures of both tires after the tires cool. Air in the tires is
expanded with heat.
If the low tire pressure indicator does not turn off after inflating the tires to the
specified values, have your Honda dealer to check the system as soon as
possible.
Riding on a underinflated tire causes the tire to overheat and can lead to tire
failure.
Under-inflation also reduces fuel efficiency and tire tread life, and may affect
the motorcycle’s handling and stopping ability.
230
202
１１／０１／１９ １１：５９：４１ ３１ＭＣＡ７００ ００９１
tire pressure monitoring system (TPMS) indicator
85
Tire Pressure Monitoring System (TPMS) Indicator
Tire Pressure Monitoring System (TPMS)
Basic Operation & Riding
Because tire pressure varies by temperature and other conditions, the low tire
pressure indicator may turn on unexpectedly.
Please note that the TPMS is not a substitute for proper tire maintenance, and it
is the rider’s responsibility to maintain correct tire pressure, even if under-
inflation has not reached the level of turning on the low tire pressure indicator.
For example, if you check and fill your tires in a warm area, then ride in
extremely cold weather, the tire pressure will be lower than measured and could
be underinflated and cause the low tire pressure indicator to turn on. Or, if you
check and adjust your tire pressure in cooler conditions, and ride into extremely
hot conditions, the tire may become overinflated. However, the low tire pressure
indicator will not turn on if the tires are overinflated.
The tire pressure monitoring system (TPMS) indicator comes on and stays on if
there is a problem with the tire pressure monitoring system.
If this happens, the system will shut off and no longer monitor tire pressure.
Have the system checked by your Honda dealer as soon as possible.
Also the TPMS indicator may light for the following reasons:
Interference of other electronic devices by using the same radio frequency.
Using replacement wheels not equipped with tire pressure sensors.
１１／０１／１９ １１：５９：４７ ３１ＭＣＡ７００ ００９２
tire pressure sensor
valve stem
86
Changing a Tire with TPMS
Tire Pressure Monitoring System (TPMS)
Basic Operation & Riding
Using a puncture-repairing agent can damage the TPMS sensors, causing the
TPMS indicator to turn on. Have you motorcycle checked by your Honda
dealer as soon as possible.
Use caution to not damage the TPMS sensor if an internal plug patch must be
used to repair the tire. If you have a tire professionally repaired at a non-
Honda facility, we recommend that you have the work checked by your Honda
dealer. TPMS wheels require special handling when changing the tire. Failure
to follow the proper tire replacement procedure can result in damage to the
TPMS sensor.
Each wheel is equipped with a tire pressure sensor mounted inside the tire
behind the valve stem. You must use TPMS specific wheels. Always have your
tires serviced by your Honda dealer.
１１／０１／１９ １１：５９：５２ ３１ＭＣＡ７００ ００９３
ignition key
TO LOCK
PUSH IN
TURN TO LOCK
TURN TO OFF
PUSH IN
TO UNLOCK
87
Parking
Basic Operation & Riding
Catalytic Converters
Look for a level parking area. If you can’t park on a paved surface, make sure
the ground surface is firm.
Make sure flammable materials such as dry grass or leaves do not come in
contact with the exhaust system when parking your motorcycle. Refer to
,page .
If you must park on a hill, leave the transmission in gear and position the rear
tire against the curb at a 45 degree angle.
Use the side or center stand to support the motorcycle while parked.
To lower the side stand, use your foot to guide it down. Remember that
lowering the side stand with the transmission in gear will stop the engine,
even if the clutch lever is pulled in. That is a function of the side stand
ignition cut-off system.
Check that the side stand is down all the way. The side stand indicator only
indicates that the side stand ignition cut-off system (page ) is activated.
To lower the center stand, stand on the left side of the motorcycle. Hold the
passenger handgrip attached to the seat. Press down on the tip of the stand
with your right foot and, simultaneously, pull up and back on the passenger
handgrip.
Use the steering lock, which locks the handlebar in place. Turn the handlebar
all the way to the left or right. Push in on the ignition key and turn it to LOCK.
Remove the key.
(To unlock the steering lock, insert and push the key in and turn it to the right
to the OFF position.)
(cont’d)
1.
2.
3.
71
267
１１／０１／１９ １２：００：０２ ３１ＭＣＡ７００ ００９４

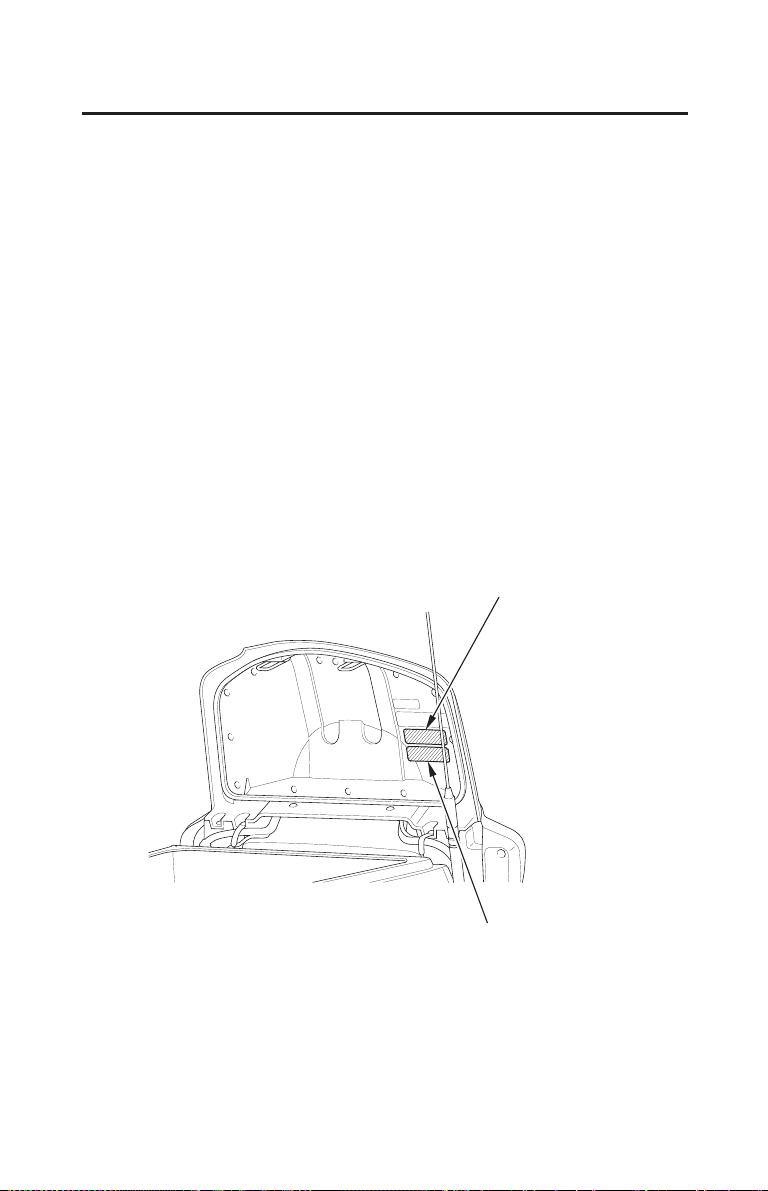

helmet holders
knobs
OPEN
LLOOCCKK
88
Parking
Basic Operation & Riding
Riding with a helmet attached to the helmet holder can cause damage to the
helmet, or damage to the paint or finish of your motorcycle.
Use the helmet holder(s) to secure your helmet(s) with your motorcycle:
Open the travel trunk (page ).
Turn the knob in the trunk to unlock the helmet holders.
Hang your helmet(s), using the D-ring on the helmet strap.
Push the holder in to lock it.
4.
52
１１／０１／１９ １２：００：０９ ３１ＭＣＡ７００ ００９５
89
Theft-prevention Tips
Parking
Basic Operation & Riding
Park your motorcycle in a locked garage whenever possible. If a garage isn’t
available, park in a concealed area or in a well-lit area with enough pedestrian
traffic to discourage a thief.
Always take the ignition key with you.
Always use the steering lock (page ), even if you’re parking for just a
minute or two. A thief can easily push an unlocked motorcycle to a waiting
truck.
In addition to the steering lock, use a good quality anti-theft device made
specifically to lock a motorcycle to a secure object.
If you decide to use an anti-theft device, select one of good quality and be
sure to follow the manufacturer’s instructions.
Keep your owner’s manual, current registration, and insurance information
with your motorcycle. This will make it easier for the authorities to find you
if your motorcycle is stolen and recovered.
87
１１／０１／１９ １２：００：１５ ３１ＭＣＡ７００ ００９６
90
Riding with a Passenger or Cargo
Basic Operation & Riding
Load Limits,
Loading Guidelines,
Your motorcycle is designed to carry you and one passenger. Whenever you add
a passenger or cargo, you must be careful not to exceed the total load limits for
this vehicle ( page ). Make sure your cargo is properly secured
(page).
Also consider adjusting the suspension (page ) for the extra load.
Be aware that carrying a passenger or heavy cargo can affect acceleration,
braking, and handling.
Before riding with a passenger, make sure your passenger is wearing the proper
protective apparel (page ).
Tell your passenger to hold the passenger handgrip, lean with you in the turns,
and keep their feet on the passenger footrests at all times, even when the
motorcycle is stopped at a traffic light.
50
51
44
192
１１／０１／１９ １２：００：２１ ３１ＭＣＡ７００ ００９７
−−
Improper use of the cruise
control can lead to a crash.
Use the cruise control only
when traveling on open
highways in good weather.
91
Cruise Control
Riding with Cruise Control
Basic Operation & Riding
The cruise control system allows you to maintain a steady speed between
30 100 mph (48 161 km/h). When cruise control is on, your speed will still
vary slightly, particularly going up and down hills.
Cruise control is intended for use only on straight, uncongested highways. Do
not use cruise control on city streets, winding roads, during bad weather, or at
any other time when you need total control of the throttle.
１１／０１／１９ １２：００：２６ ３１ＭＣＡ７００ ００９８
−
−
−
−
RIGHT HANDLEBAR
CRUISE CONTROL master switch
SET/DECEL switch
RESUME/ACCEL switch CRUISE ON
indicator
indicator
CRUISE SET
92
To Change the Set Speed
To Set Cruise Control
Riding with Cruise Control
Basic Operation & Riding
To decrease speed hold the SEL/DECEL switch in. The system will
automatically slow your motorcycle. When you reach the desired speed,
release the switch.
To increase the set speed hold the RESUME/ACCEL switch in. The
system will accelerate your motorcycle automatically. When you reach the
desired speed, release the switch.
To Automatically Change the Set Speed
To decrease the set speed tap the SET/DECEL switch.
Each quick tap (brief push and release) on either switch will change your
speed by approximately 1 mph (1.6 km/h).
To increase the set speed tap the RESUME/ACCEL switch.
To Fine Tune the Set Speed
Make sure you are in 4th gear or OD (5th gear), and that your speed is
between 30 and 100 mph (48 and 161 km/h).
Any speed above 100 mph (161 km/h) will be memorized as 100 mph (161
km/h).
Accelerate to the desired speed.
Push the SET/DECEL switch. (The CRUISE SET indicator will come on.)
Push the CRUISE CONTROL master switch. (The CRUISE ON indicator
will come on.)
1.
2.
3.
4.
１１／０１／１９ １２：００：３７ ３１ＭＣＡ７００ ００９９
−
−
93
To Cancel Cruise Control
Riding with Cruise Control
Basic Operation & Riding
To Manually Increase the Set Speed
To Manually Increase Vehicle Speed
Use the throttle to accelerate until you reach the desired speed.
Push and release the SET/DECEL switch.
Use the throttle in the normal manner to accelerate.
To return to the set speed, close the throttle and coast without applying the
brakes. The cruise system will maintain the speed you previously set.
To Disengage the System
To Temporarily Disengage the System
To resume cruise control:
If you are still over 30 mph (48 km/h) push the RESUME/ACCEL
switch.
If you are under 30 mph (48 km/h) use the throttle to increase road
speed above 30 mph (48 km/h) and then push the RESUME/ACCEL
switch.
Push the CRUISE CONTROL master switch until the CRUISE ON indicator
goes off. (The set speed will be erased from memory.)
Pull the brake lever or clutch lever slightly, or step on the brake pedal slightly,
or close the throttle. (The set speed will remain in memory.)
2.
1.
1.
2.
1.
1.
2.
１１／０１／１９ １２：００：４６ ３１ＭＣＡ７００ ０１００
94
Riding in Bad Weather
Basic Operation & Riding
If you decide to ride your motorcycle in the rain, fog, or other bad-weather
conditions, ride carefully. Wet road surfaces reduce traction, especially in turns,
and increase stopping distances when you brake.
If the weather turns bad while you are riding, take extra care and do not use
cruise control.
When riding in the rain, we recommend you adjust your windscreen height
below eye level, if possible, for better visibility (page ).
Avoid using any kind of water-dispersing product on the windscreen. It will
damage the plastic.
62
１１／０１／１９ １２：００：５１ ３１ＭＣＡ７００ ０１０１
−
−
95
Audio Systems
Audio Systems
This section gives information about the controls and displays that make up your
audio system. All essential controls are within easy reach.
As required by the FCC (USA only):
This device complies with Part 15 of the FCC Rules for Radio Receiver.
Operation is subject to the condition that this device may not cause harmful
interference. Any unauthorized changes or modifications to this equipment
would void the user’s authority to operate this device.
(cont’d)
Trade Name:
Model No:
Responsible Party:
......................................................................................................Audio Systems .
........................................................................MODE Knob/Button Function .
.......................................................................................Controls Locations .
.......................................................................Audio Component Locations .
.............................................................................................System Control .
...............................................................................................Switch Output .
.......................................................................................VOLUME Control .
................................................................................................Tone Control .
................................................................................................Fader Control .
........................................................................................................Beep Set .
......................................................................Auto Volume Control (AVC) .
..........................................................................................................Muting .
..............................................................................................Radio Antenna .
...................................................................................................Select Band .
................................................................................................Select Station .
..............................................................................................Preset Stations .
...................................................................................................Auto Select .
..................................................................................................AM/FM Radio .
Panasonic
For USA CR LH01E0AJ
For Canada CR LH01E1AJ
Panasonic Corporation of North America
One Panasonic Way, Secaucus, NJ 07094
...............................................................................................................SRS .
...................................................................VOLUME Knob/Button Function .
.............................................................................................Display Locations .
97
97
98
99
101
103
104
105
106
107
109
110
111
112
113
114
114
115
116
117
118
１１／０１／１９ １２：０１：０８ ３１ＭＣＡ７００ ０１０２
96
Audio Systems
Audio Systems
........................................................................................Weather Information .
...........................................................................................Auxiliary Function .
....................................................................Receiving XM Radio Service .
..............................................................................................Select Channel .
..............................................................................................Preset Channel .
....................................................................................Weather Band (WB) .
................................................................................Auxiliary (AUX) Input .
...........................................................................................Input Jack Setup .
.....................................................................................Playable music files .
..........................................................................................PlayinganiPod .
...................................................................................Navi Volume Control .
...............................................................................................Switch Output .
.............................................................................................System Control .
...........................................................................................Navigation System .
...........................................................................................Intercom Muting .
.......................................................................................VOLUME Control .
.............................................................................................System Control .
...............................................................................Intercom (I-COM) System .
....................................................................................USB Error Messages .
..........................................................................Playing a USB Flash Drive .
................................................................Playable iPod /USB Flash Drive .
....................................................................................iPod /USB Flash Drive .
....................................................................................................USB Cable .
....................................................................XM Radio Display Messages .
...................................................................................XM Radio (USA only) .
...........................................................................Operating the XM Radio .
119
119
122
122
123
124
125
125
127
127
128
130
130
132
134
135
140
143
144
144
145
146
147
147
147
148
１１／０１／１９ １２：０１：２５ ３１ＭＣＡ７００ ０１０３
When the speaker
is used
When the headset
is used
Push the MODE Knob/Button
When USB flash drive
is used
When iPod is used
(Models equipped with
Navigation System)
(Models not equipped with
Navigation System)
97
MODE Knob/Button Function
Audio Systems
Audio Systems
When
audio is
OFF
When
audio is
OFF
INITIAL
DISPLAY
WWhheenn aauuddiioo iiss OONN
‘‘BE
EP’’
‘‘FADE
R’’
‘‘TREBLE’’
‘‘BASS’’
‘‘USB MENU’’
‘‘iPod MENU’’
INITIAL
DISPLAY
‘‘USB Menu
Selection’’
‘‘iPod Menu
Selection’’
‘‘Beep’’
‘‘SRS
Headphone’’
‘‘Fader’’
‘‘Treble’’
‘‘Bass’’
WWhheenn aauuddiioo iiss OONN
‘‘SRS
Headphone’’
‘‘SRS CS Auto’’
‘‘SRS CS Auto’’
１１／０１／２７ １０：５８：３４ ３１ＭＣＡ７００ ０１０４
‘‘AUDIO’’
‘‘Audio’’
‘‘INTERCOM VOL’’
‘‘Intercom’’
‘‘INTERCOM
MUTE’’
‘‘AUTO VOL SPK’’
‘‘Auto VOL SPK’’
‘‘Auto VOL HS’’
‘‘AUTO VOL HS’’
‘‘NAVI VOL’’
‘‘Intercom Mute’’
Push the VOLUME Knob/Button
When INT. COM
is ON
When the headset
is used
When the speaker
is used
Vehicle equipped
with Navigation
System
(Models equipped with
Navigation System)
(Models not equipped with
Navigation System)
98
VOLUME Knob/Button Function
Audio Systems
Audio Systems
１１／０１／１９ １２：０１：４３ ３１ＭＣＡ７００ ０１０５
audio mode
indicator
NAVI mode
indicator
intercom mode
indicator
auto volume indicator
mute indicator
audio mode
indicator
intercom mode
indicator
clock display
radio preset
channel
radio station
stereo indicator
(Models equipped with Navigation System)
(Models not equipped with Navigation System)
auto volume indicator
mute indicator
stereo
indicator
radio band
radio station
radio band
SRS indicator
auto select
indicator
radio preset channel
SRS indicator
clock display
USB indicator
auto select indicator
99
Display Locations
Audio Systems
Audio Systems
１１／０１／１９ １２：０１：５０ ３１ＭＣＡ７００ ０１０６
(Models equipped with Navigation System)
DISP button
100
Audio Systems
Audio Systems
Press the DISP button to toggle between the Multi Information Display (time,
audio, odo and trip), a Navi full screen map with the time, and a split screen
with the Multi information condensed in a bar below the map.
If you are not in the Navigation System when you turn the ignition switch OFF,
you will see the audio display when you turn the ignition switch ON again. If
you were in the system, you will see the system disclaimer with ENT
highlighted.
１１／０１／１９ １２：０１：５７ ３１ＭＣＡ７００ ０１０７
LEFT HANDLEBAR
CB radio levers
(for accessory CB radio)
VOLUME lever
MUTE button
AUDIO button
AM button
MODE
knob/button
(Models not equipped with Navigation System)
TUNE/CH lever
TALK lever
(for accessory CB radio)
TITLE button
VOLUME
knob/button
FM button
CB button (for accessory CB radio)
I-COM button
AUX button
preset buttons
RETURN button
A.SEL
RPT/RDM button
WB button
101
Controls Locations
Audio Systems
Audio Systems
The CB lever and button function when the Honda accessory CB radio is
installed. For CB operating instructions, refer to the accessory manual.
１１／０１／１９ １２：０２：０４ ３１ＭＣＡ７００ ０１０８
LEFT HANDLEBAR
MUTE button
CB radio levers
(for accessory CB radio)
AUDIO button
I-COM button
VOLUME lever
CB button (for accessory CB radio)
VOLUME
knob/button
TALK lever
(for accessory
CB radio)
(Models equipped with Navigation System)
MODE
knob/button
AUX button
FM button
TUNE/CH lever
TITLE/
RETURN button
NAVI button
AM button
WB button
(For Canada only)
A.SEL
RPT/RDM button
preset buttons
XM button
102
Audio Systems
Audio Systems
For navigation system operating instructions, refer to the Navigation System
Manual.
The CB lever and button function when the Honda accessory CB radio is
installed. For CB operating instructions, refer to the accessory manual.
１１／０１／１９ １２：０２：１１ ３１ＭＣＡ７００ ０１０９
audio
system
controls
front headset
terminal
tweeters
rear speakers
front speaker
audio system controls
front speaker
radio antenna
external amplifier
rear headset
terminal
103
Audio Component Locations
Audio Systems
Audio Systems
１１／０１／１９ １２：０２：１６ ３１ＭＣＡ７００ ０１１０
−
−
AUDIO button AUDIO button
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
104
System Control
Audio Systems
Audio Systems
To turn the audio system on push the AUDIO button.
To turn the audio system off push and hold the AUDIO button.
CB is optional equipment. It is only indicated if installed.
１１／０１／１９ １２：０２：２５ ３１ＭＣＡ７００ ０１１１
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
105
Switch Output
Audio Systems
Audio Systems
When the audio system is turned on, you can switch its output between Speaker
and Headset. (Headset is optional equipment.)
Pushing the AUDIO button switches the output.
１１／０１／１９ １２：０２：３２ ３１ＭＣＡ７００ ０１１２
−
VOLUME lever
VOLUME knob/button
VOLUME lever
VOLUME knob/button
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
106
VOLUME Control
Audio Systems
Audio Systems
To increase the volume push the VOLUME lever up or turn the
VOLUME knob/button clockwise.
push the VOLUME lever down or turn the
VOLUME knob/button counterclockwise.
To decrease the volume
To increase or decrease the volume rapidly push the VOLUME lever up or
down and hold it down.
(VOLUME level range: from 0 to 30)
１１／０１／１９ １２：０２：４２ ３１ＭＣＡ７００ ０１１３
−
−
MODE knob/button
MODE knob/button
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
107
Tone Control
Audio Systems
Audio Systems
The tone (Bass Treble) is automatically adjusted in accordance with the
vehicle speed.
To reduce bass
To emphasize bass
turn the MODE knob/button counterclockwise (Bass
control ranges from 6 down to 6.)
turn the MODE knob/button clockwise.
To select the Bass control, push the MODE knob/button until ‘‘BASS’’
(‘‘Bass’’) is displayed (page ). Then, within 5 seconds, change the bass
control.
Bass:
97
１１／０１／１９ １２：０２：５２ ３１ＭＣＡ７００ ０１１４
−
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
108
Audio Systems
Audio Systems
Treble:
To select the Treble control, push the MODE knob/button until ‘‘TREBLE’’
(‘‘Treble’’) is displayed (page ). Then, within 5 seconds, change the treble
control.
To emphasize treble
To reduce treble turn the MODE knob/button counterclockwise.
(Treble level ranges from 6 down to 6.)
turn the MODE knob/button clockwise.
97
１１／０１／１９ １２：０２：５９ ３１ＭＣＡ７００ ０１１５
−
MODE knob/button MODE knob/button
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
109

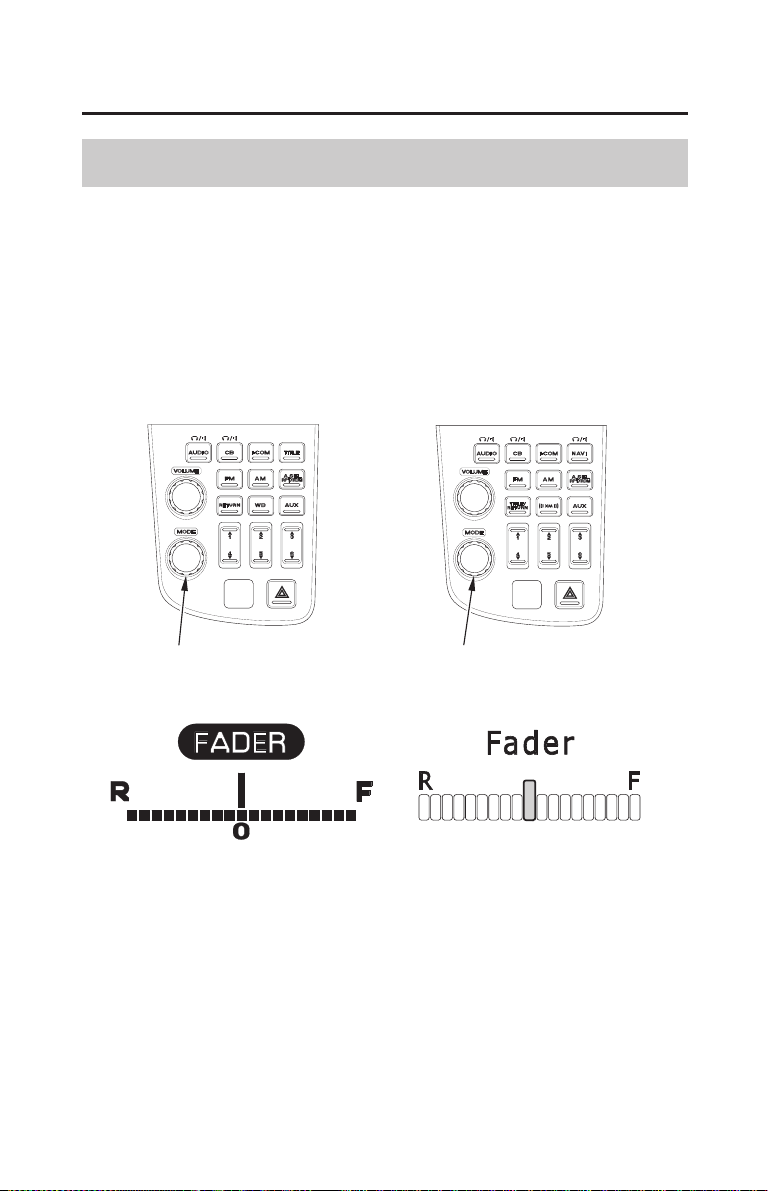

Fader Control
Audio Systems
Audio Systems
To balance the sound between the front and rear speakers push the MODE
knob/button until ‘‘FADER’’ (‘‘Fader’’) is displayed (page ). Then, within 5
seconds, change the fader control. (The control range: F (front) and R (rear)
each have 9 segments.)
97
１１／０１／１９ １２：０３：０６ ３１ＭＣＡ７００ ０１１６
−
−
TM
TM
MODE knob/button MODE knob/button
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
110

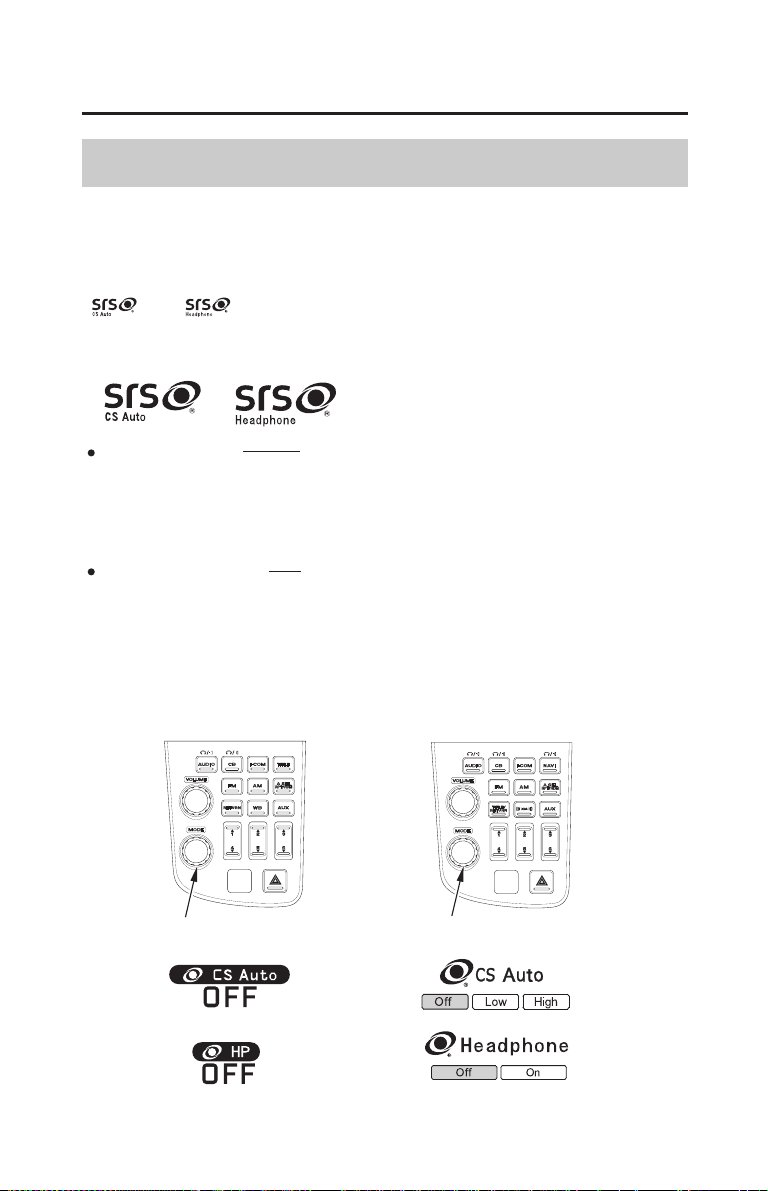

SRS
Audio Systems
Audio Systems
SRS CS Auto creates a surround sound experience in the car and provides rich
bass and an elevated audio image.
SRS Headphone creates a realistic and immersive 3D stereo headphone
listening experience.
and are trademarks of SRS Labs, Inc.
CS Auto and Headphone technologies are incorporated under license from SRS
Labs, Inc.
turn the MODE knob/button.
SRS CS Auto has three settings HI (High),
LOW (Low), OFF (Off).
SRS HP has two settings ON (On), OFF (Off).
To change the setting
push the MODE knob/button until ‘‘SRS CS
Auto’’ is displayed (page ). To select the SRS
of headset, push the MODE knob/button until
‘‘SRS HP’’ is displayed. Then, within 5 seconds,
change the SRS setting.
To use the circuit
99
１１／０１／１９ １２：０３：１８ ３１ＭＣＡ７００ ０１１７
(Models equipped with Navigation System)
MODE knob/buttonMODE knob/button
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
111
Beep Set
Audio Systems
Audio Systems
To use the circuit push the MODE knob/button until ‘‘BEEP’’
(‘‘Beep’’) is displayed (page ). Then, within 5
seconds, change the beep setting.
turn the MODE knob/button. (ON (On) or OFF
(Off))
To change the setting
At the same time, the Beep function of the Navigation System is also set.
97
１１／０１／１９ １２：０３：２７ ３１ＭＣＡ７００ ０１１８
−
−
VOLUME knob/button VOLUME knob/button
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
112
Auto Volume Control (AVC)
Audio Systems
Audio Systems
AUTO VOL HS has three settings HI (High), LO (Low), and OFF (Off).
AUTO VOL SPK has four settings HI (High), MID (Mid), LO (Low), and
OFF (Off).
To automatically increase volume as the speed of the motorcycle increases. Push
the VOLUME knob/button until ‘‘AUTO VOL SPK’’ (‘‘Auto Speaker Vol’’) is
displayed (page ). To select the volume control of headset, push the
VOLUME knob/button until ‘‘AUTO VOL HS’’ (‘‘Auto Headset Vol’’) is
displayed (page ). Then, within 5 seconds, change the AVC setting.98
98
１１／０１／１９ １２：０３：３７ ３１ＭＣＡ７００ ０１１９
−
−
LEFT HANDLEBAR
MUTE button
MUTE indicator MUTE indicator
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
113
Muting
Audio Systems
Audio Systems
To mute the audio and navi volume push the MUTE button.
The display will indicate ‘‘MUTE’’.
To restore the original volume push the MUTE button again to restore the
original volume.
１１／０１／１９ １２：０３：４３ ３１ＭＣＡ７００ ０１２０
radio antenna
114
Radio Antenna
AM/FM Radio
Audio Systems
To fold the AM/FM radio antenna, pull up on the knurled coupling.
１１／０１／１９ １２：０３：４８ ３１ＭＣＡ７００ ０１２１
STEREO indicator
FM button
(Models not equipped with Navigation System)
(Models equipped with Navigation System)
AM buttonFM button AM button
STEREO indicator
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
115
Select Band
AM/FM Radio
Audio Systems
Push the FM button to switch to FM1/FM2.
Push the AM button to switch to AM/WB (USA only).
Push the AM button to listen to AM (Canada only).
Reception of a stereo signal is indicated when the STEREO indicator appears in
the display. (Stereo reception is available only for FM stereo broadcasts.) As FM
stereo reception becomes weaker, special circuits in the radio gradually blend
the sound toward mono to maintain some sound quality, even though the
STEREO indicator remains ON.
Push the FM button to switch to FM1/FM2.
Push the AM button to listen to AM.
１１／０１／１９ １２：０３：５６ ３１ＭＣＡ７００ ０１２２
−
−
−
LEFT HANDLEBAR
TUNE/CH lever
116
Select Station
AM/FM Radio
Audio Systems
To raise the radio frequency push the TUNE/CH lever up.
To lower the radio frequency push the TUNE/CH lever down.
The SEEK function searches the band for a station with a strong signal. To
activate it, push the TUNE/CH lever up or down and release it. The frequency
display will begin moving. Depending on which way you push the switch, the
system scans upward or downward from the current frequency.
It stops when it finds a station with a strong signal.
When the frequency display reaches either end, it transitions to the other end of
the band and continues in the same direction.
To reach a known frequency rapidly push the TUNE/CH lever up or down
and continue to hold it down until you see the desired frequency.
To move up or down the radio frequencies in sequence, move the lever one click
at a time. The AM frequency display moves in 10 kHz steps. The FM frequency
moves in 0.2 MHz steps.
１１／０１／１９ １２：０４：０３ ３１ＭＣＡ７００ ０１２３
preset buttons
FM button AM button FM button AM button
preset buttons
A.SEL
RPT/RDM
button
A.SEL
RPT/RDM
button
(Models equipped with
Navigation System)
(Models not equipped with
Navigation System)
117
Preset Stations
AM/FM Radio
Audio Systems
You can store the frequencies of your favorite radio stations in the six preset
buttons. Each button will store one frequency on the AM band, and two
frequencies on the FM band.
Pick the Preset button you want for that station. Press the button and hold it.
Once a station’s frequency is stored, simply press and release the proper Preset
button to tune to it. The preset frequencies will be lost if your motorcycle’s
battery goes low (or dead) or is disconnected, or if the radio fuse is removed.
Check that A.SEL RPT/RDM is not turned on. If it is on, push the A.SEL
RPT/RDMbuttontoturnitoff.
Select the desired band, AM or FM. FM1 and FM2 let you store two
frequencies with each Preset button.
Use the TUNE or SEEK function to tune the radio to a desired station.
Repeatsteps1to3tostoreatotalofsixstationsonAMandtwelveonFM.
1.
2.
3.
4.
5.
１１／０１／１９ １２：０４：１２ ３１ＭＣＡ７００ ０１２４

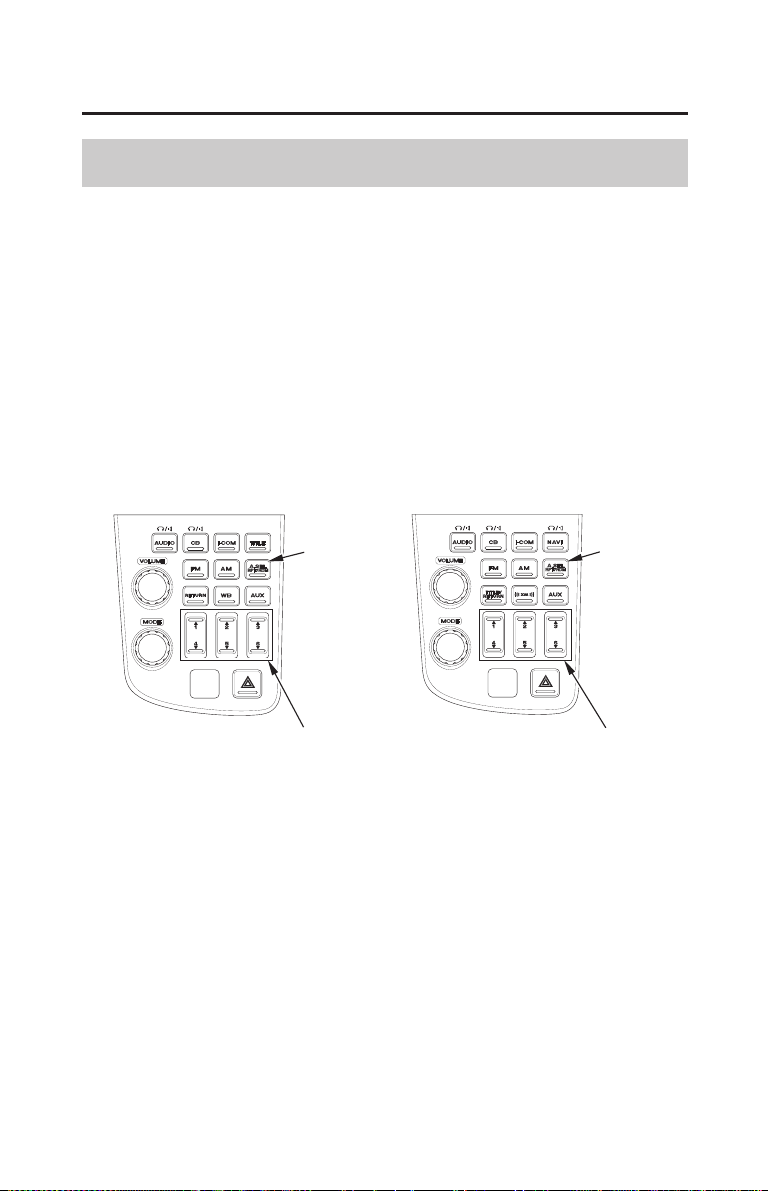

preset buttons preset buttons
A.SEL
RPT/RDM
button
A.SEL
RPT/RDM
button
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
118
Auto Select
AM/FM Radio
Audio Systems
If you are traveling far from home and can no longer receive the stations you
preset, you can use the Auto Select feature to find stations in the local area.
With Auto Select on, you cannot manually store any frequencies in the preset
buttons. If you do not like the stations found by Auto Select, you can use the
TUNE and SEEK functions to find other stations.
If you are in a remote area, Auto Select may not find six strong AM stations or
twelve strong FM stations. If this happens, you will see a ‘‘0’’ displayed when
you push any preset button that does not have a station stored.
To activate Auto Select, push the A.SEL RPT/RDM button. A.SEL RPT/RDM
will appear in the display, and the system will go into scan mode for several
seconds.
It automatically scans both bands, looking for stations with strong signals. It
stores the frequencies of six AM stations and twelve FM stations in the preset
buttons (page ). You can then use the preset buttons to select those stations.
Auto Select does not erase the frequencies that you preset previously. When you
return home, turn off Auto Select by pressing the A.SEL RPT/RDM button. The
preset buttons will then select the frequencies you originally set.
117
１１／０１／１９ １２：０４：２０ ３１ＭＣＡ７００ ０１２５
(Models equipped with Navigation System)
XM button
119
Receiving XM Radio Service
Audio Systems
XM Radio (USA only)
www.xmradio.com
If your XM Radio service has expired or you purchased your motorcycle from
a previous owner, you can listen to a sampling of the broadcasts available on
XM Radio. With the ignition switch in the ACCESSORY or the ON position,
press the XM button. A variety of music types and styles will play.
Your motorcycle is capable of receiving XM Radio anywhere in the United
States, except Hawaii, Alaska and Puerto Rico. XM is a registered trade mark
of Sirius XM Radio , Inc.
XM Radio receives signals from two satellites to produce clear, high-quality
digital reception. It offers many channels in several categories. Along with a
large selection of different types of music, XM Radio also allows you to view
channel and category selections in the audio display.
If you decide to purchase XM Radio service, contact XM Radio at
, or at 1-800-967-2346 (1-800-XM-RADIO). You will need
to give them your Radio ID number, which may be found on XM Channel 0,
and your credit card number.
１１／０１／１９ １２：０４：２６ ３１ＭＣＡ７００ ０１２６
Radio ID number Radio ID number
120
Audio Systems
XM Radio (USA only)
www.xmradio.com
www.xmradio.com
After you’ve registered with XM Radio, keep your audio system in the XM
Radio mode while you wait for activation. This should take about 30 minutes.
While waiting for activation, make sure your vehicle remains in an open area
with good reception. XM Radio will continue to send an activation signal to
your motorcycle for at least 3 hours from the activation request. If you miss that
window, simply log onto refresh with your Radio ID and
follow the steps to refresh the signal.
Contact XM Radio at , or at 1-800-967-2346 (1-800-XM-
RADIO).
To get your Radio ID number, push the TUNE/CH lever until CH 0 appears in
the display under channel mode (Display channel 0 at only ALL Category
search mode) (page ) or choose Menu screen on the Setup/info menu,
highlight XM Info and press ENT.
123
１１／０１／１９ １２：０４：３９ ３１ＭＣＡ７００ ０１２７
SSaatteelllliittee
SSiiggnnaall mmaayy bbee bblloocckkeedd bbyy
mmoouunnttaaiinnss oorr llaarrggee
oobbssttaacclleess ttoo tthhee ssoouutthh..
GGrroouunndd rreeppeeaatteerr
Si
gnal is
weaker in these areas.
XM radio antenna
121
Audio Systems
XM Radio (USA only)
As required by the FCC:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
There may be other geographic situations, parking conditions, and also installing
metallic or metalized accessories near the windscreen could affect XM Radio
reception.
Riding on the north side of an east/west mountain road.
Riding on the north side of a large commercial truck on an east/west road.
Riding in tunnels.
Riding on a road beside a vertical wall, steep cliff, or hill to the south of you.
Riding on the lower level of a multi-tiered road.
Riding on a single-lane road alongside dense trees taller than 50 ft. (15 m) to
the south of you.
The XM satellites are in orbit over the equator; therefore, objects south of the
vehicle may cause satellite reception interruptions. To help compensate for this,
ground-based repeaters are placed in major metropolitan areas.
Satellite signals are more likely to be blocked by tall buildings and mountains
the farther north you travel from the equator. Carrying large items on a travel
trunk can also block the signal.
Depending on where you ride, you may experience reception problems.
Interference can be caused by any of these conditions:
１１／０１／１９ １２：０４：４６ ３１ＭＣＡ７００ ０１２８
−−−−
XM button
122
Operating the XM Radio
XM Radio Display Messages
Audio Systems
StatusDisplay Message
XM Radio (USA only)
‘LOADING’
‘OFF AIR’
‘UPDATING’ The encryption code is being updated.
Wait until the encryption code is fully
updated. Channels 0 and 1 should still
work normally.
The signal is currently too weak. Move the
vehicle to an area away from tall buildings,
and with an unobstructed view of the
southern horizon.
The selected channel number does not
exist, or is not part of your subscription, or
this channel has no artist or title
information at this time.
‘CHECK XM ANTENNA’
‘’
‘NO XM SIGNAL’
The channel currently selected is no longer
broadcasting.
To listen to XM Radio, turn the ignition switch to the ON or ACCESSORY
position, and push the XM button. The last channel you listened to will show in
the display.
Push the XM button to switch to XM1/XM2/XM3.
XM is loading the audio or program
information.
There is a problem with the XM antenna.
Please consult your dealer.
１１／０１／１９ １２：０４：５８ ３１ＭＣＡ７００ ０１２９
TUNE/CH lever
XM Channel XM Category
123
Select Channel
Audio Systems
XM Radio (USA only)
To select channel from XM Channel, push the TUNE/CH lever.
To select channel from XM Category, push and hold the TUNE/CH lever then
select the category while XM Category is displaying.
Push the TUNE/CH lever up or down and continue to hold it down until you see
the desired channel.
In the channel mode, you can select all of the available channels. In the category
mode, such as Jazz, Rock, Classical, etc., you can select all of the channels
within that category.
You may experience periods when XM Radio does not transmit the artist’s
name and song title information. If this happens, there is nothing wrong with
your system.
１１／０１／１９ １２：０５：０５ ３１ＭＣＡ７００ ０１３０
preset buttons
XM button
124
Preset Channel
Audio Systems
XM Radio (USA only)
Once a channel is stored, simply press and release the proper preset button to
tune to it. The preset channels will be lost if your motorcycle’s battery goes low
(or dead) or is disconnected, or if the radio fuse is removed.
You can store the channels of your favorite up to 18 preset channels using the
six preset buttons. Each button stores one channel from the XM1 band, one
channel from the XM2 band and one channel from the XM3 band.
PushtheXM buttontoselectXM1,XM2orXM3.
Select the channel (page ).
Pick the Preset button you want for that channels. Press and hold the preset
button until you hear a beep.
Repeat steps 2 and 3 to store a total of six channels on each XM1, XM2
and XM3.
1.
2.
3.
4.
123
１１／０１／１９ １２：０５：１１ ３１ＭＣＡ７００ ０１３１
−
−−
−
−

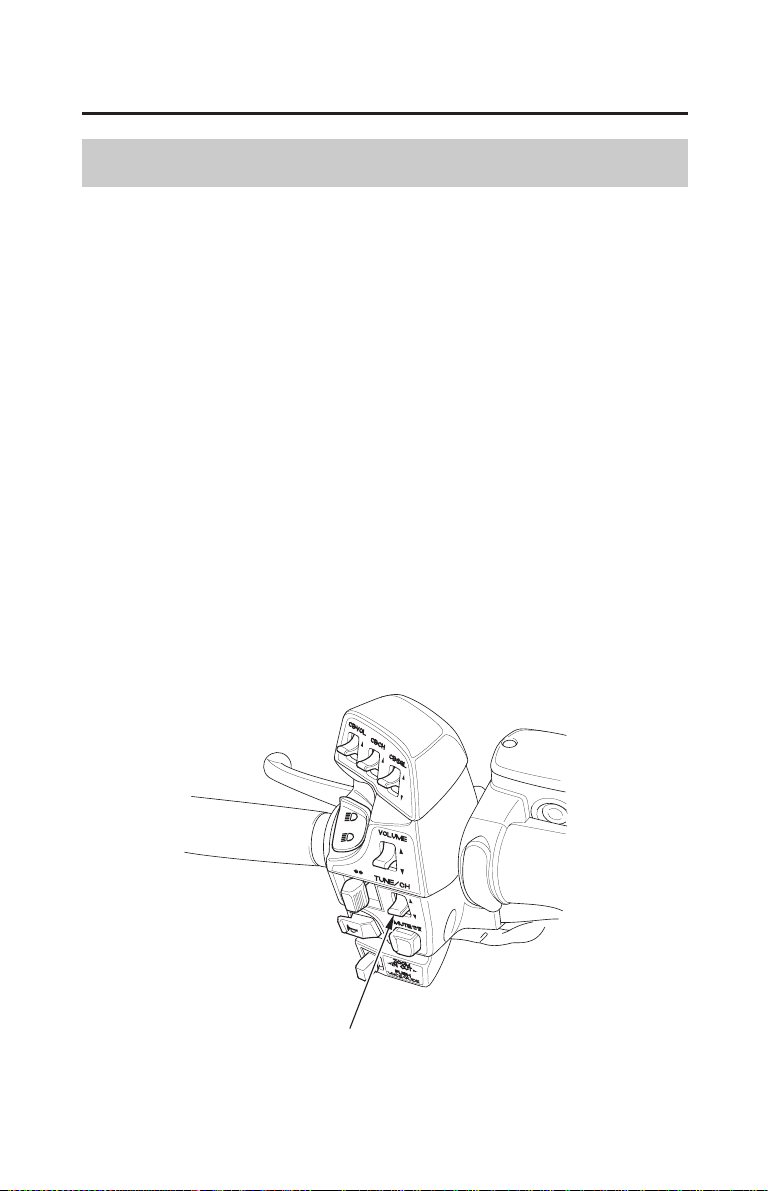

LEFT HANDLEBAR
WB button
TUNE/CH lever preset buttons
(Models not equipped with Navigation System)
125

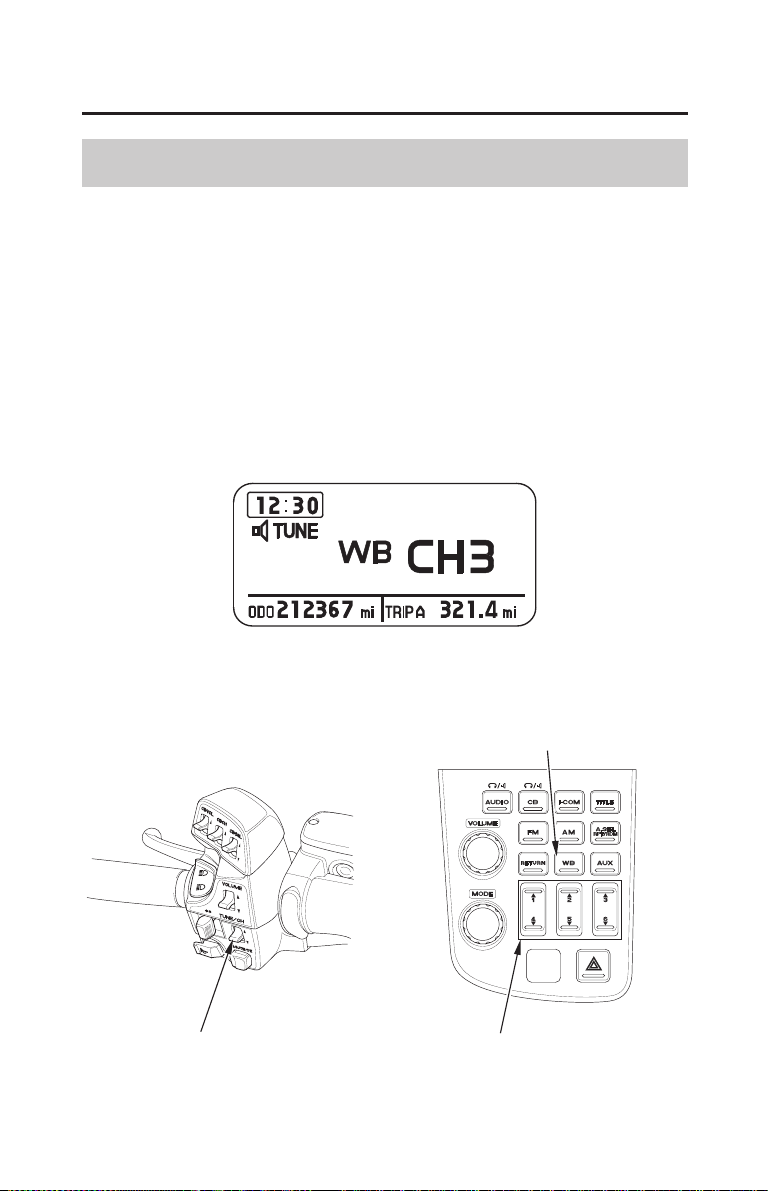

Weather Band (WB)
Weather Information
Audio Systems
To listen to the Weather Band push the WB button.
To select channels 1 6 push the desired preset button.
To select channel 7 push the TUNE/CH lever up or down until channel 7 is
selected.
(The TUNE/CH lever may be used to select any of the 7 channels. The lever
must be used to select channel 7.)
To cancel the Weather Band push another button (AM, FM or AUX).
１１／０１／１９ １２：０５：１８ ３１ＭＣＡ７００ ０１３２
−
−−
−
−
−
−
LEFT HANDLEBAR
(Models equipped with Navigation System)
For Canada
For USA
preset buttons
AM button
TUNE/CH lever
WB button
(For Canada only)
126
Weather Information
Audio Systems
TolistentotheWeatherBand pushtheAMbuttontoswitchAM/WB.
To select channels 1 6 push the desired preset button.
To listen to the Weather Band push the WB button.
To select channel 7 push the TUNE/CH lever up or down until channel 7 is
selected.
(The TUNE/CH lever may be used to select any of the 7 channels. The lever
must be used to select channel 7.)
To cancel the Weather Band push another button (AM, FM or AUX).
To cancel the Weather Band push the AM button again or another button
(FM, XM or AUX).
１１／０１／１９ １２：０５：２７ ３１ＭＣＡ７００ ０１３３
AUX button AUX button
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
127
Auxiliary (AUX) Input
Auxiliary Function
Audio Systems
The following functions operate the same as they do with the AM/FM radio:
Switch output, Tone control, Fader control, SRS, AVC, BEEP, Muting.
To turn the function on
To turn the function off
The display changes as follows each time the AUX button is pushed.
push the AUX button once. (AUX appears
on the display.)
push the AUX button twice when connecting
a USB device with USB cable (see page ).
(iPod or USB appears on the display.)
(When connecting a iPod or USB flash drive with USB cable)
Use this function to listen to other audio:
Connect the input jack connector to listen to other audios.
Connect the iPod /USB flash drive to the USB cable to operate and listen to it
(see page ).
push the AM, FM, XM or WB button.
130
134
or
１１／０１／１９ １２：０５：３８ ３１ＭＣＡ７００ ０１３４
grommet A
auxiliary input patch cord
fairing pocket
clips
clips
cover
wire harness connector
(Models equipped with Navigation System)
128
Input Jack Setup
Auxiliary Function
Audio Systems
Remove the auxiliary input patch cord from the owner’s manual pouch.
Plug the auxiliary input patch cord into the wire harness connector.
Open the left fairing pocket cover and remove the clips and grommet A.
Lift out the fairing pocket.
Attach a cloth to the cover and remove the cover with care using a flat-tip
screwdriver.
The auxiliary input jack connector is located under the left fairing pocket. To
use it:
1.
2.
3.
4.
5.
１１／０１／１９ １２：０５：４６ ３１ＭＣＡ７００ ０１３５
grommet B
auxiliary input
patch cord
129
Auxiliary Function
Audio Systems
Some portable audio systems may pick up noise from the ignition.
Adjust the volume of the portable audio system so that it is about the same
level as the GL’s radio volume. If the volume of the portable audio system is
set too high, the sound coming out from the speakers or headset may be
distorted.
Install the grommet B to left fairing pocket.
Do not pull on the auxiliary cord as the wires could be damaged.
Route the auxiliary input patch cord through the hole in the bottom of the
fairing pocket.
6.
7.
１１／０１／１９ １２：０５：５２ ３１ＭＣＡ７００ ０１３６
Device Support Requirements
Hard disk drive
Card reader/Memory reader
CD/DVD/FD drive
USB hub
265 M bytes or more
Not support
Not support
Not support
Not support
iPod nano 1st generation
iPod nano 2nd generation
iPod nano 3rd generation
iPod nano 4th generation
iPod nano 5th generation
iPod nano 6th generation
iPod touch 1st generation
iPod touch 2nd generation
iPod touch 3rd generation
F/W Ver. 1.2.0 or later
F/W Ver. 1.1.2 or later
F/W Ver. 1.0.0 or later
F/W Ver. 1.0.0 or later
F/W Ver. 1.0.0 or later
F/W Ver. 1.0.0 or later
F/W Ver. 1.2.0 or later
F/W Ver. 1.0.0 or later
F/W Ver. 4.2.0 or later
USB flash drive
130
Playable iPod /USB Flash Drive
Audio Systems
iPod /USB Flash Drive
This audio system can play the audio files on the iPod and a USB flash drive.
To play an iPod or a USB flash drive, connect it to the USB cable in the trunk
(page ).
Use any USB flash drive and iPod at your own risk.
In no event shall Honda be liable for any damages or troubles in use.
Compatible Devices
iPods and USB flash drives compatible with your audio system are:
134
１１／０１／２５ １７：３１：５９ ３１ＭＣＡ７００ ０１３７

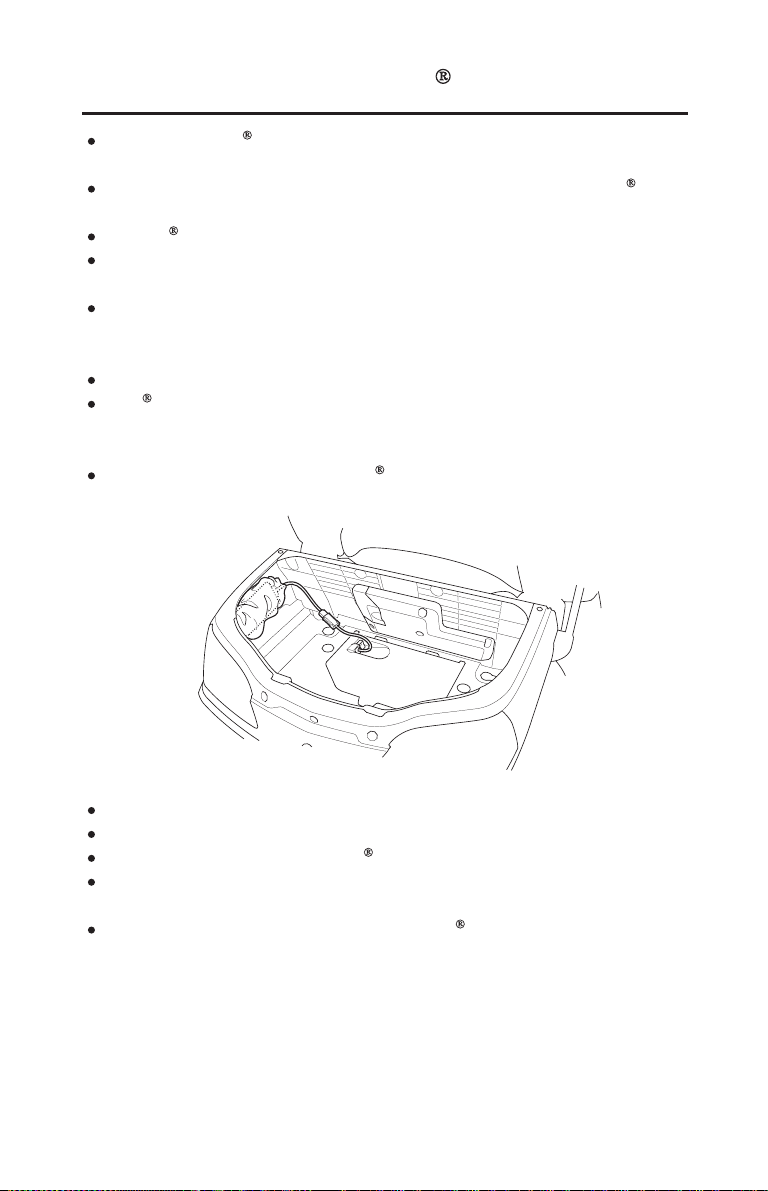

131
Audio Systems
iPod /USB Flash Drive
Use iPod with the latest version of firmware.
Be careful not to get wet to the USB connector.
Do not connect with a hub.
Music information may not be displayed. If the character code in use is not
supported, ‘‘ .’’ will be displayed.
If the audio system does not recognize the iPod , try reconnecting it a few
times or reboot the device.
We recommend backing up your data before playing it.
Do not use hard disks, card readers, and memory readers which may damage
the device and data. If you faultily connect the one of them, turn the ignition
switch OFF and remove it.
Do not leave iPods /USB flash drives in the vehicle (trunk). High heat will
damage it.
Read precaution statements on the provided instructions of your iPods /
USB flash drives.
Some USB flash drives (such as devices with security lockout features, etc.)
may not be used or restricted to its function.
iPods or some of USB flash drives can be charged with the USB cable when
the ignition switch is in the ON or ACC position.
The charging time may be longer than usual.
We recommend covering your iPods /USB flash drives with soft fabric or
cover to protect from damage.
Do not connect incompatible iPods /USB flash drives.
１１／０１／１９ １２：０６：２３ ３１ＭＣＡ７００ ０１３８
Items Contents
Standards MPEG1 Audio Layer 2,3
MPEG2 Audio Layer 2,3
MPEG2.5 Audio Layer 2,3
MPEG1 32/44.1/48 kHz
MPEG2 16/22.05/24 kHz
MPEG2.5 8/11.025/12 kHz
Sampling periodicity
(kHz)
Bit rates (kbit/s)
ID3v1(v1.0/v1.1), ID3v2(v2.2/v2.3/v2.4)
65025 files (255 files in one folder)
999 folders
FAT12/16/32
Available number of
characters
Available tags
Maximum files
Maximum folders
Maximum hierarchies
Channel modes
File systems
If the files are low bit rate and/or small
data size, you may not be played the files.
MPEG1 Audio Layer 2: 32-384/VBR/CBR
MPEG1 Audio Layer 3: 32-320/VBR/CBR
MPEG2 Audio Layer 2: 8-160/VBR/CBR
MPEG2 Audio Layer 3: 8-160/VBR/CBR
MPEG2.5 Audio Layer 3: 8-160/VBR/CBR
Models not equipped with Navigation System
max: 16 characters
Models equipped with Navigation System
max: 32 characters
(According to the character code or the
number of songs, the maximum number of
characters may not be displayed.)
8 hierarchies (including the root directory)
Stereo/Joint stereo/Dual channel/Monaural
132
Playable music files
Audio Systems
iPod /USB Flash Drive
In the audio function, MP3/WMA music files in USB flash drives can be played.
Read the followings before recording files in your USB flash drives which may
have restrictions.
Do not edit other type of extension. Playing USB flash drives containing
these kind of files can cause troubles such as the device or speakers failure.
MP3/WMA files in your USB flash drives can be played on the following
specifications.
MP3
１１／０１／１９ １２：０６：４４ ３１ＭＣＡ７００ ０１３９
Items Contents
Standards Windows Media Audio Version 7/8/9
32/44.1/48
Channel modes Stereo/Monaural
File systems FAT 12/16/32
Bit rates (kbit/s) 48-320/VBR
Sampling periodicity
(kHz)
Maximum hierarchies 8 hierarchies
(including the root directory)
Maximum folders 900 folders
Maximum files 65025 files
(455 files in one folder)
Available tags WMA: ASF TOP-LEVEL HEADER
OBJECT
Only songs, artists and albums available.
(The albums registered by Windows
Media Player is only available.)
Available number of
characters
Models not equipped with Navigation
System
max: 16 characters
Models equipped with Navigation System
max: 32 characters
(According to the character code or the
number of songs, the maximum number
of characters may not be displayed.)
133
Audio Systems
iPod /USB Flash Drive
Windows Media is registered trademarks of Microsoft Corporation. in the U.S.
and other countries.
WMA
１１／０１／１９ １２：０６：５９ ３１ＭＣＡ７００ ０１４０

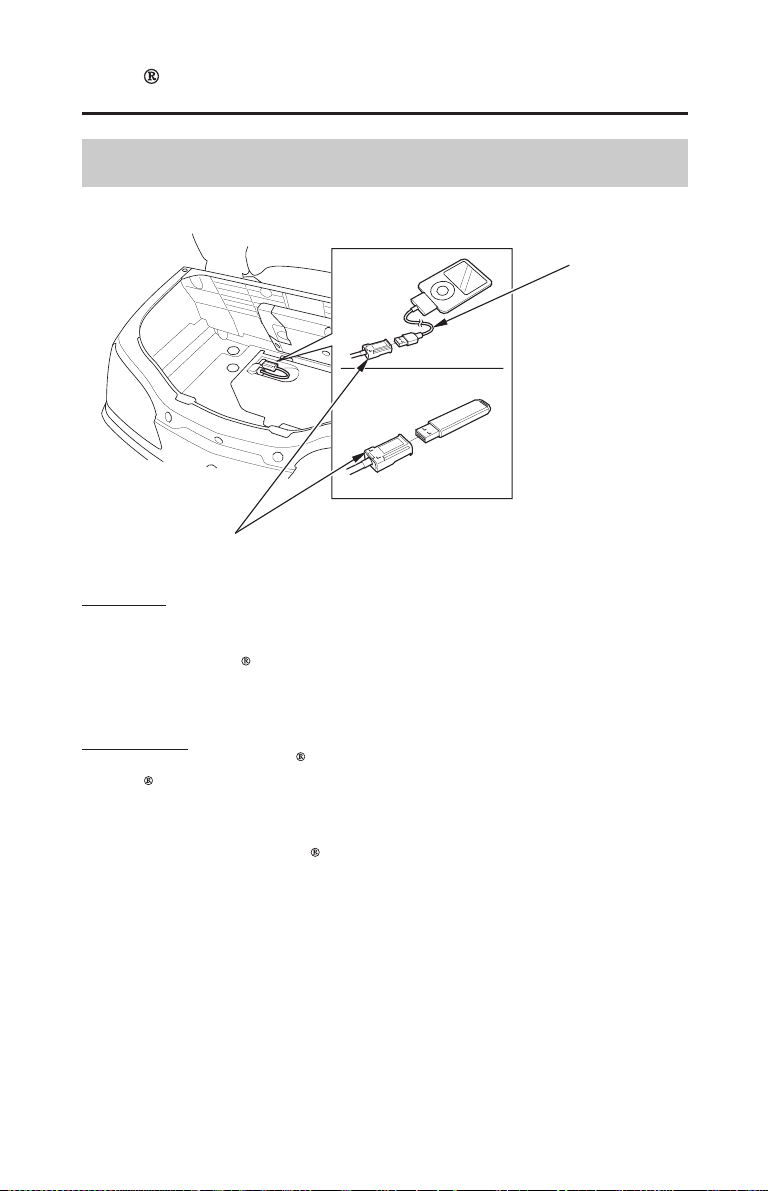

USB connector
dock
connector
134
USB Cable
Audio Systems
iPod /USB Flash Drive
To connect
To disconnect
Unclip the USB connector.
Open the trunk (see page ).
Connect your iPod with dock connector or the USB flash drive to the USB
connector.
You can disconnect the iPod /USB flash drive at any time. Make sure to follow
the iPod ’s instructions on how to disconnect the dock connector from the USB
cable.
When you disconnect the iPod /USB flash drive, the USB indicator will
disappear.
531.
2.
3.
１１／０１／１９ １２：０７：０７ ３１ＭＣＡ７００ ０１４１
(Models equipped with
Navigation System)
(Models not equipped with
Navigation System)
135
Playing an iPod
Audio Systems
iPod /USB Flash Drive
Connect the iPod using your dock connector to the USB cable (see page ),
then push the AUX button twice and iPod indicator will be displayed.
If you see an error message in the display, see page .
134
143
１１／０１／１９ １２：０７：１３ ３１ＭＣＡ７００ ０１４２
(Models not equipped with Navigation System)
(Models equipped with Navigation System)
MODE knob/button MODE knob/button
RETURN button TITLE button TITLE/RETURN button
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
136
Audio Systems
iPod /USB Flash Drive
Push the TITLE button to change the title display of albums, songs and artists.
Push and hold the TITLE button to display the text data of albums, songs and
artists from first 8 characters to next 8 characters.
Push the RETURN button to go back to the previous menu while selecting a
playlist, artist, album and song.
Push the TITLE/RETURN button to change the title display of albums, songs
and artists.
Push and hold the TITLE/RETURN button to display the text data of albums,
songs and artists from first 16 characters to next 16 characters.
Push the TITLE/RETURN button to go back to the previous menu while
selecting a playlist, artist, album and song.
Select a playlist, artist, album and song by using the MODE knob/button. Push
the MODE knob/button until iPod menu is displayed, then turn the
MODE knob/button until the desired list. Push the MODE knob/button to set
your selection.
The display shows items on the selected list. Turn the MODE knob/button to
select an item, then push the MODE knob/button to set your selection.
If you select ‘‘ALL’’, all available files on the selected list are played.
Selecting ‘‘RETURN’’ goes back to the previous display.
１１／０１／１９ １２：０７：１９ ３１ＭＣＡ７００ ０１４３
TUNE/CH lever TUNE/CH lever
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
137
Audio Systems
iPod /USB Flash Drive
You can also change or select playlists, artists and albums on the iPod menu,
use the TUNE/CH lever (see page ).
Use the TUNE/CH lever while an iPod is playing to change files.
Push the TUNE/CH lever up to change to the next file.
Push the TUNE/CH lever down to change to the previous file.
138
１１／０１／１９ １２：０７：２５ ３１ＭＣＡ７００ ０１４４
138
iPod /USB Flash Drive
Audio Systems
Illustrations are models equipped with Navigation System. Functions and flows
of models not equipped with Navigation System are same as models equipped
with Navigation System.
Push the TUNE/CH lever:
Push and hold the TUNE/CH lever:
Push the TUNE/CH lever up:
Push the TUNE/CH lever down:
Play 1st
track of
selected
playlist
Play 1st track
of selected
album
１１／０１／１９ １２：０７：３１ ３１ＭＣＡ７００ ０１４５
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
AT.RPT
RT.RPT
T.RPT
T.RDM
A.RDM
RPT
SHU
A.SHU
SHU RPT
A.SHU
RPT
RPT
SHU
A.SHU
SHU RPT
A.SHU
RPT
T.RPT
T.RDM
A.RDM
RT.RPT
AT.RPT
139
Audio Systems
iPod /USB Flash Drive
Repeats the current track.
Plays all available albums in
random order.
Plays all available files in a
selected list (playlists, artists,
albums or songs) in random order.
You can select repeat and random play modes when playing a file.
To select a play mode
Push the A.SEL RPT/RDM button until the desired play mode is displayed.
The display changes as follows each time the A.SEL RPT/RDM button is
pushed.
Repeats current file in T.RDM/
SHU play mode.
Repeats current file in A.RDM/
A.SHU play mode.
Play Mode Menu Items
Push the A.SEL RPT/RDM button:
Push and hold the A.SEL RPT/RDM button:
Not equipped
with Navigation
Equipped
with Navigation
Function
NO DISPLAY
NO DISPLAY
１１／０１／２７ １０：５８：４５ ３１ＭＣＡ７００ ０１４６
(Models equipped with Navigation System)
(Models not equipped with Navigation System)
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
140
Playing a USB Flash Drive
Audio Systems
iPod /USB Flash Drive
Push the TITLE/RETURN button to change the title display of folders, files,
artists, albums and songs.
Push and hold the TITLE/RETURN button to display the text data of folders
from first 16 characters to next 16 characters.
Push the TITLE/RETURN button to go back to the previous menu while
selecting a folder, file, artist, album and song.
Push the TITLE button to change the title display of folders, files, artists,
albums and songs.
Push and hold the TITLE button to display the text data of from first 8
characters to next 8 characters.
Push the RETURN button to go back to the previous menu while selecting a
folder, file, artist, album and song.
Connect your USB flash drive to the USB cable (see page ), then push the
AUX button twice and USB indicator will be displayed.
If you see an error message in the display, see page .
Files on the USB flash drive are played in their stored order. This order may be
different from the order displayed on your PC or device.
Select a folder or file by using the MODE knob/button. Push the MODE knob/
button until USB menu is displayed, then turn the MODE knob/button until the
desired folder or file list. Push the MODE knob/button to set your selection.
The display shows items on the selected list. Turn the MODE knob/button to
select an item, then push the MODE knob/button to set your selection.
Selecting ‘‘RETURN’’ goes back to the previous display.
134
143
１１／０１／２７ １９：４０：２１ ３１ＭＣＡ７００ ０１４７
MODE knob/button MODE knob/button
RETURN button TITLE button TITLE/RETURN button
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
TUNE/CH lever
TUNE/CH lever
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
141
Audio Systems
iPod /USB Flash Drive
You can also change or select files and folders by using TUNE/CH lever while a
USB flash drive is playing files.
Push the TUNE/CH lever up to change to the next file.
Push the TUNE/CH lever down to change to the previous file.
To change the folders, push and hold the TUNE/CH lever up or down.
１１／０１／１９ １２：０７：５５ ３１ＭＣＡ７００ ０１４８
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
F.RPT
T.RPT
F.RDM
A.RDM
F.RPT
F.RPT
T.RPT
F.RDM
A.RDM
RPT
F.RPT
F.RDM
RPT
RDM
FT.RPT
RT.RPT
F.RDM
RPT
RDM RPT
FT.RPT
RT.RPT
RDM
F.RDM
F.RDM
RPT
RDM RPT
142
iPod /USB Flash Drive
Audio Systems
Repeats the current file.
Repeats all files in the current
folder.
Plays all files in the current folder
in random order.
Plays all files in random order.
Repeats current file in F.RDM
play mode.
Repeats current file in A.RDM/
RDM play mode.
You can select repeat and random play modes when playing a file.
To select a play mode
Push the A.SEL RPT/RDM button until the desired play mode is displayed.
The display changes as follows each time the A.SEL RPT/RDM button is
pushed.
Play Mode Menu Items
Push the A.SEL RPT/RDM button:
Push and hold the A.SEL RPT/RDM button:
Not equipped
with Navigation
Equipped
with Navigation
Function
NO DISPLAY
NO DISPLAY
１１／０１／１９ １２：０８：０３ ３１ＭＣＡ７００ ０１４９
BAD USB DEVICE
CHECK USB
USB ERROR
NO SONG
UNSUPPORTED
UNPLAYABLE
(Models not equipped with Navigation System)
(Models equipped with Navigation System)
143
USB Error Messages
Audio Systems
iPod /USB Flash Drive
If an error occurs while playing an iPod or USB flash drive, you may see the
following error messages. If you cannot clear the error message, contact a dealer.
Error Message Cause Solution
Problem with the
device or USB
cable.
Turn the ignition switch off
once and turn it on again.
Reconnect the device.
Do not reconnect the device
that caused the error.
Problem with the
device or USB
cable.
Turn the ignition switch off
once and turn it on again.
Reconnect the device.
Do not reconnect the device
that caused the error.
Problem with the
device or USB
cable.
Turn the ignition switch off
once and turn it on again.
Reconnect the device.
Do not reconnect the device
that caused the error.
No files in device. Check the files in device.
Use of
unsupported
device.
Problem with the
audio unit or
device.
Turn the ignition switch off
once and turn it on again.
Reconnect the device.
If an error occurs while playing an iPod or USB flash drive, you may see the
error message. To clear the error message, turn the ignition switch off once and
turn it on again, and/or reconnect the device.
If you cannot clear the error message, contact a dealer.
Update the firmware.
Use supported device.
１１／０１／１９ １２：０８：１９ ３１ＭＣＡ７００ ０１５０
front headset terminal rear headset terminal
I-COM mode indicator
I-COM button I-COM button
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
144
System Control
Intercom (I-COM) System
Audio Systems
Some local governments prohibit the use of a headset by the operator of a motor
vehicle. Always obey applicable laws and regulations.
The intercom system may be used to communicate with your passenger. (If you
want to use this system, you must have headsets.)
push the I-COM button. (I-COM appears on the
display.)
push and hold the I-COM button. (I-COM
disappears.)
To turn the system on
To turn the system off
１１／０１／１９ １２：０８：２９ ３１ＭＣＡ７００ ０１５１
−
VOLUME leverVOLUME lever
VOLUME knob/button VOLUME knob/button
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
145
VOLUME Control
Intercom (I-COM) System
Audio Systems
To increase the volume
To decrease the volume
push the VOLUME lever up or turn the
VOLUME knob/button clockwise.
push the VOLUME lever down or turn the
VOLUME knob/button counterclockwise.
To increase or decrease the volume rapidly push the VOLUME lever up or
down and hold it down.
(VOLUME level range : from 0 to 20)
To select the Volume control, push the VOLUME knob/button until
‘‘INTERCOM VOL’’ (‘‘Intercom’’) is displayed (page ). Then, within 5
seconds, change the volume control.
98
１１／０１／１９ １２：０８：４０ ３１ＭＣＡ７００ ０１５２
−

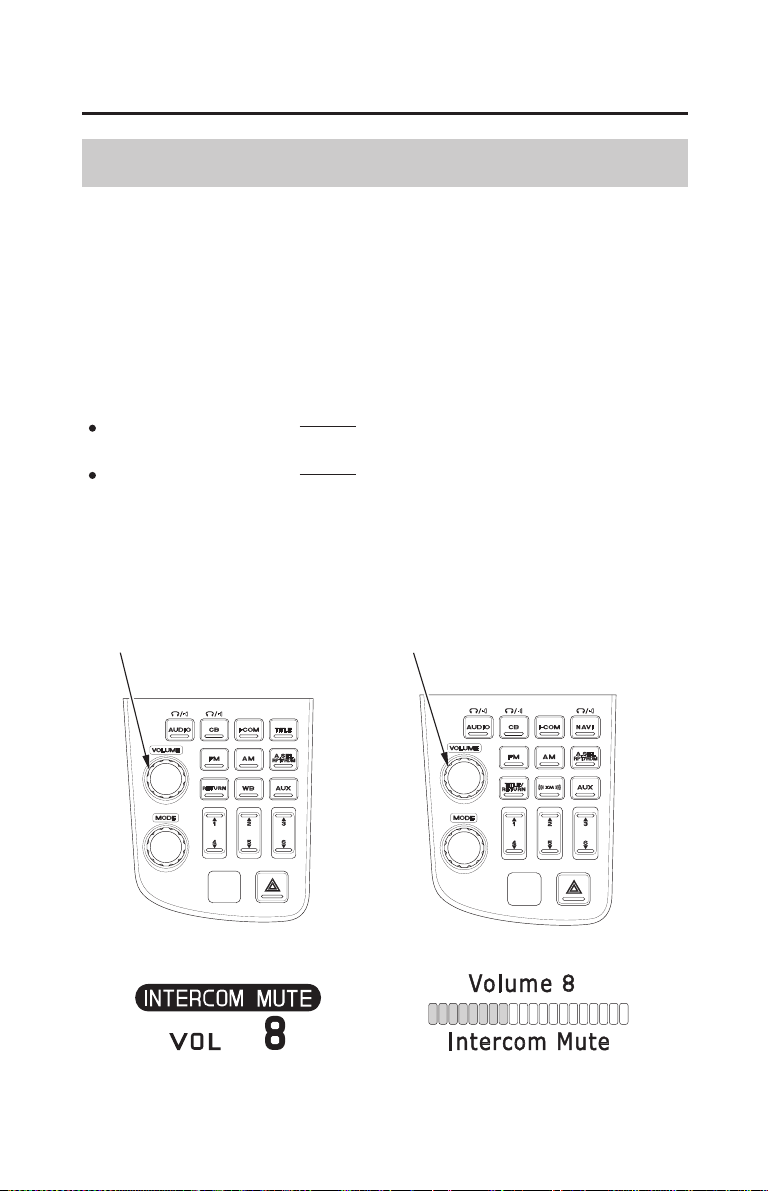

(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
VOLUME knob/button VOLUME knob/button
146
Intercom Muting
Intercom (I-COM) System
Audio Systems
The intercom mute system automatically lowers (does not silence) the music/
program volume when you speak through the intercom.
The sensitivity of the intercom microphone to your voice or ambient sound sets
the level at which the intercom system mutes the music/program volume.
To adjust this system push the VOLUME knob/button until ‘‘INTERCOM
MUTE’’ (‘‘Intercom Mute’’) is displayed (page ).
To increase microphone
sensitivity
turn the VOLUME knob/button clockwise.
To decrease microphone
sensitivity
turn the VOLUME knob/button
counterclockwise. (Intercom Mute control
range: from 0 to 20)
98
１１／０１／１９ １２：０８：５１ ３１ＭＣＡ７００ ０１５３
−
−
NAVI button
147
System Control
Switch Output
Navigation System
Audio Systems
To turn the Navi voice on with the Navigation System turned off push the
NAVI button.
To turn the Navi voice off with the Navigation System turned on push and
hold the NAVI button.
Push the NAVI button switches output.
When the navigation voice guidance is turned on, you can switch its output
between Speaker and Headset (optional equipment).
１１／０１／１９ １２：０９：００ ３１ＭＣＡ７００ ０１５４
−
−
−
−
VOLUME lever
VOLUME knob/button
MODE knob/button
148
Navi Volume Control
Navigation System
Audio Systems
To select the volume control, push the VOLUME knob/button until ‘‘NAVI
VOL’’ is displayed (page ). Then, within the 5 seconds, change the navigation
volume control.
To make the Navi volume louder than the audio volume push the VOLUME
lever up or turn the VOLUME knob/button clockwise.
To make the Navi volume quieter than the audio volume push the VOLUME
lever down or turn the VOLUME knob/button counterclockwise.
To increase or decrease the volume rapidly push the VOLUME lever up or
down and hold it down.
(NAVI VOLUME level ranges: from 5 down to 5)
98
１１／０１／１９ １２：０９：０８ ３１ＭＣＡ７００ ０１５５
149
Servicing Your Honda
Servicing Your Honda
Maintenance, replacement or repair of the emission control devices and
systems may be performed by any motorcycle repair establishment or
individual using parts that are ‘‘certified’’ to EPA standards.
Before You Service Your Honda
To help keep your motorcycle in good shape, this section includes a
Maintenance Schedule for required service, a list of periodic checks you should
perform at least once a month, and step-by-step instructions for specific
maintenance tasks. You’ll also find important safety precautions, information on
fuels and oils, and tips for keeping your Honda looking great.
(cont’d)
For information about the exhaust emission and noise emission requirements of
the U.S. Environmental Protection Agency (EPA), the California Air Resources
Board (CARB), and Environment Canada (EC), see page .
For information about replacing fuses, see page .
USA only
......................................................................The Importance of Maintenance .
..........................................................................................Maintenance Safety .
.......................................................................................Periodic Maintenance .
.....................................................................................Maintenance Schedule .
........................................................................................Maintenance Record .
.......................................................................Important Safety Precautions .
263
244
152
153
154
155
156
160
１１／０１／１９ １２：０９：１８ ３１ＭＣＡ７００ ０１５６
150
Servicing Your Honda
Servicing Your Honda
Service Preparations
Service Procedures
Fluids & Filters
Electrical
Chassis
Engine
................................................................Maintenance Component Locations .
.................................................................................Owner’s Manual Storage .
.................................................................................................Cover Removal .
....................................................................................................Clip Removal .
...................................................................................................................Fuel .
...........................................................................................Engine Oil & Filter .
.............................................................................................................Coolant .
..........................................................................................Crankcase Breather .
..................................................................................................Final Drive Oil .
...................................................................................................Clutch System .
.......................................................................................................Spark Plugs .
........................................................................................................Suspension .
...............................................................................................................Brakes .
..................................................................................................................Tires .
.........................................................................................................Side Stand .
..............................................................................................................Battery .
..............................................................................................Appearance Care .
....................................................................................Tool Kit (Canada only) .
161
164
165
166
171
172
175
182
185
186
188
190
192
196
201
208
209
213
１１／０１／２７ １０：５９：０４ ３１ＭＣＡ７００ ０１５７
＊
＊＊
151
Servicing Your Honda
Servicing Your Honda
The following table summarizes the three types of inspections and servicing
recommendations for your motorcycle. Both the pre-ride inspection and the
scheduled maintenance at the recommended intervals are necessary to assure
safe and dependable performance. The periodic checks provide additional
confidence in your motorcycle’s performance.
more often if you ride frequently or long distances; or anytime you clean your
motorcycle
unless you have the proper tools and service data and are mechanically
qualified
An optional tool kit may be available. Check with your dealer’s parts department.
47
155
156
USA only
Type of Inspection/
Service
Who Performs
Pre-ride Inspection
Periodic Maintenance
Maintenance Schedule
Refer to
page:
you
When Performed
before every ride
monthly
interval on schedule
you
your dealer
１１／０１／１９ １２：０９：４６ ３１ＭＣＡ７００ ０１５８
Improperly maintaining this
motorcycle or failing to correct a
problem before you ride can
causeacrashinwhichyoucan
be seriously hurt or killed.
Always follow the inspection
and maintenance
recommendations and
schedules in this owner’s
manual.
152
Servicing Your Honda
The Importance of Maintenance
Keeping your motorcycle well-maintained is absolutely essential to your safety.
It’s also a good way to protect your investment, get maximum performance,
avoid breakdowns, and have more fun. A properly maintained motorcycle will
also help to reduce air pollution.
Remember, proper maintenance is the owner’s responsibility. Be sure to inspect
your motorcycle before each ride, perform the periodic checks, and follow the
Maintenance Schedule in this section.
If your motorcycle overturns or is involved in a crash, be sure your dealer
inspects all major parts, even if you are able to make some of the repairs
yourself.
１１／０１／１９ １２：０９：５１ ３１ＭＣＡ７００ ０１５９
Failure to properly follow
maintenance instructions and
precautions can cause you to
be seriously hurt or killed.
Always follow the procedures
and precautions in this owner’s
manual.
153
Servicing Your Honda
Maintenance Safety
This section includes instructions on how to perform some important
maintenance tasks. If you have basic mechanical skills, you can perform many
of these tasks with the tools provided with your motorcycle.
Other tasks that are more difficult and require special tools are best performed
by professionals. Wheel removal should normally be handled only by a Honda
technician or other qualified mechanic. Instructions are included in this manual
only to assist in emergency service.
Some of the most important safety precautions follow. However, we cannot
warn you of every conceivable hazard that can arise in performing maintenance.
Only you can decide whether or not you should perform a given task.
１１／０１／１９ １２：０９：５６ ３１ＭＣＡ７００ ０１６０
154
Important Safety Precautions
Carbon monoxide poisoning from engine exhaust.
Burns from hot motorcycle parts.
Injury from moving parts.
Servicing Your Honda
Maintenance Safety
Make sure the engine is off before you begin any maintenance or repairs.
This will help eliminate several potential hazards:
Be sure there is
adequate ventilation whenever you operate the engine.
Let the engine and exhaust system cool
before touching.
Do not run the engine unless instructed to do so.
Read the instructions before you begin, and make sure you have the tools and
skills required.
To reduce the possibility of a fire or explosion, be careful when working
around gasoline. Use only non-flammable solvent, not gasoline, to clean parts.
Keep cigarettes, sparks, and flames away from all fuel-related parts.
To help prevent the motorcycle from falling over, park it on a firm, level
surface, using the center stand.
Remember that your Honda dealer knows your motorcycle best and is fully
equipped to maintain and repair it. To ensure the best quality and reliability, use
only new Honda Genuine Parts or their equivalents for repair and replacement.
If you have the tools and skills required for additional maintenance jobs, you
can purchase an official Honda Service Manual (page ).270
１１／０１／１９ １２：１０：０２ ３１ＭＣＡ７００ ０１６１
155
Servicing Your Honda
Periodic Maintenance
Check the odometer reading and perform any scheduled maintenance checks
that are needed (page ). Remember, more frequent checks may be needed for
riding in severe conditions.
Fluids
Make sure the headlight, brakelight, taillight, and turn
signals are working properly.
In addition to the regularly scheduled maintenance (page ) and daily pre-ride
inspection (page ), consider performing the periodic checks on the following
page at least once a month, even if you haven’t ridden your motorcycle, or as
often as once a week if you ride frequently or for long distances. It’s a good idea
to perform this maintenance any time you clean your motorcycle.
Check the levels of the engine oil (page ), coolant
(page ), brake fluid (page ), clutch fluid
(page ), and final drive oil (page ). Add the
correct fluid as necessary, and investigate the cause of
any low fluid level.
Lights
Check the air pressure with a gauge and add air if needed
(page ).
Examine the tread for wear (page ).
Look closely for nails, embedded objects, cuts, and other
types of damage (page ). Rotate the rear wheel so
you can inspect the entire surface.
Check the condition of the wheels.
Fuses Make sure you have a full supply of spare fuses.
Nuts & Bolts Check the major fasteners and tighten as needed.
Tires
&
Wheels
47
156
156
202
203
203
178
183 197
189 186
１１／０１／１９ １２：１０：１２ ３１ＭＣＡ７００ ０１６２
156
Servicing Your Honda
Maintenance Schedule
The required Maintenance Schedule that follows specifies how often you should
have your motorcycle serviced, and what things need attention. It is essential to
have your motorcycle serviced as scheduled to maintain safe, dependable
performance and proper emission control.
The service intervals in this Maintenance Schedule are based on average riding
conditions. Some items will need more frequent service if you ride in unusually
wet or dusty areas or at full throttle. Consult your dealer for recommendations
applicable to your individual needs and use.
Some items in the Maintenance Schedule can be performed with basic
mechanical skills and hand tools. Procedures for these items are provided in this
manual. Other items involve more extensive procedures and may require special
training, tools, and equipment. We recommend that you have your dealer
perform these tasks unless you have advanced mechanical skills and the required
tools and equipment. Procedures for such items in this schedule are provided in
an official Honda Service Manual available for purchase (page ).270
１１／０１／１９ １２：１０：１７ ３１ＭＣＡ７００ ０１６３
＊＊＊
157
Servicing Your Honda
Maintenance Schedule
Summary of Maintenance Schedule Notes
& Procedures:
If you do not feel capable of performing a given task or need assistance,
remember that your Honda dealer knows your motorcycle best and is fully
equipped to maintain and repair it. If you decide to do your own maintenance,
use only Honda Genuine Parts or their equivalents for repair or replacement to
ensure the best quality and reliability.
Perform the pre-ride inspection (page ) and owner maintenance (page ) at
each scheduled maintenance period.
Service more frequently if the motorcycle is ridden in unusually wet or dusty
areas.
Service more frequently if the motorcycle is ridden often at full throttle or in
the rain.
Service more frequently if noisy.
At higher odometer readings, repeat at the frequency interval established here.
Should be serviced by your dealer, unless you have the proper tools and
service data and are mechanically qualified. Refer to the official Honda
Service Manual (page ).
In the interest of safety, we recommend these items be serviced only by your
dealer.
Replace every 2 years, or at indicated odometer interval, whichever comes
first. Replacement requires mechanical skill.
The following items require some mechanical knowledge. Certain items
(particularly those marked and ) may require more technical information
and tools. Consult your dealer.
Replace at 4,000 mi (6,400 km) or 6 months, then every 8,000 mi (12,800 km)
or 12 months.
I: inspect and clean, adjust, lubricate,
or replace, if necessary
C: clean
A: adjust
L: lubricate
R: replace
Maintenance Procedures:
1.
2.
3.
4.
5.
NOTES:
47
6.
158
270
１１／０１／１９ １２：１０：２８ ３１ＭＣＡ７００ ０１６４
×
×
−
−
−
−
−
−
−
−
1,000 mi
1,000 km
24
38.4
I
I
R
C
R
I
I
I
20
32.0
C
R
R
I
16
25.6
I
I
C
I
I
I
12
19.2
R
C
R
R
I
I
8
12.8
I
I
C
I
I
I
4
6.4
C
R
R
I
NOTE
2
3
4
6
5
FUEL LINE
THROTTLE OPERATION
AIR CLEANER
CRANKCASEBREATHER
SPARK PLUGS
VALVE CLEARANCE
ENGINE OIL
ENGINE OIL FILTER
ENGINE IDLE SPEED
RADIATOR COOLANT
COOLING SYSTEM
SECONDARYAIR SUPPLY
SYSTEM
EVAPORATIVE EMISSION
CONTROL SYSTEM
Refer to
page
185
190
175
179
182
FREQUENCY
ITEM
EVERY 16,000 mi (25,600 km) R
EVERY 32,000 mi (51,200 km) I
ODOMETER READING (Note 1)
EMISSIONS-RELATEDITEMS
158
Servicing Your Honda
Maintenance Schedule
Should be serviced by your dealer, unless you have the proper tools and service data and are
mechanically qualified. Refer to the official Honda Service Manual (page ).270
１１／０１／１９ １２：１０：３８ ３１ＭＣＡ７００ ０１６５
×
×
−
−
−
−
−
−
−
1,000 mi
1,000 km
NOTE
5
5
4
6.4
I
I
I
8
12.8
I
I
I
I
I
I
I
I
I
I
I
I
I
I
12
19.2
R
I
R
16
25.6
I
I
I
I
I
I
I
I
I
I
I
I
I
I
20
32.0
I
I
I
24
38.4
R
R
I
I
I
I
I
R
I
I
I
I
I
I
FINAL DRIVE OIL
BRAKE FLUID
BRAKE PADS WEAR
BRAKE SYSTEM
BRAKELIGHT SWITCH
HEADLIGHTAIM
CLUTCHSYSTEM
CLUTCH FLUID
REVERSE OPERATION
SIDE STAND
SUSPENSION
NUTS, BOLTS,
FASTENERS
WHEELS/TIRES
STEERING HEAD
BEARINGS
Refer to
page
186
197
199
200
188
189
208
FREQUENCY
ITEM
ODOMETER READING (Note 1)
NON-EMISSIONS-RELATED ITEMS
159
Servicing Your Honda
Maintenance Schedule
In the interest of safety, we recommend these items be serviced only by your dealer.
Should be serviced by your dealer, unless you have the proper tools and service data and
are mechanically qualified. Refer to the official Honda Service Manual (page ).270
１１／０１／１９ １２：１０：４７ ３１ＭＣＡ７００ ０１６６
160
Servicing Your Honda
Maintenance Record
Miles
(km)
Odometer Date Performed By: Notes
Keeping an accurate maintenance record will help ensure that your motorcycle
is properly maintained. Retain detailed receipts to verify the maintenance was
performed. If the motorcycle is sold, these receipts should be transferred with
the motorcycle to the new owner. Make sure whoever performs the maintenance
completes this record. All scheduled maintenance is considered a normal owner
operating cost and will be charged for by your dealer. Use the space under Notes
to record anything you want to remind yourself about or mention to your dealer.
4,000
(6,400)
8,000
(12,000)
12,000
(19,200)
16,000
(25,600)
20,000
(32,000)
24,000
(38,400)
28,000
(44,800)
32,000
(51,200)
36,000
(57,600)
40,000
(64,000)
44,000
(70,400)
48,000
(76,800)
52,000
(83,200)
１１／０１／１９ １２：１０：５３ ３１ＭＣＡ７００ ０１６７
clutch fluid reservoir front brake fluid reservoir
clutch lever
fuel fill cap
front brake lever
throttle grip
rear suspension spring pre-load adjustment switch
161
Servicing Your Honda
Maintenance Component Locations
１１／０１／１９ １２：１０：５８ ３１ＭＣＡ７００ ０１６８
rear brake fluid reservoir
rear brake caliper
front brake caliper
final drive gear
oil drain bolt
rear brake pedal
spark plugs
final drive gear oil fill cap
engine oil fill cap/dipstick
162
Servicing Your Honda
Maintenance Component Locations
１１／０１／１９ １２：１１：０２ ３１ＭＣＡ７００ ０１６９
front brake caliper
fuse box
battery
crankcase breather tube
spark plugs
engine oil filter
engine oil drain bolt
main fuse (A, B)
owner’s manual
coolant reserve tank cap
tool kit (Canada only)
163
Servicing Your Honda
Maintenance Component Locations
１１／０１／１９ １２：１１：０８ ３１ＭＣＡ７００ ０１７０

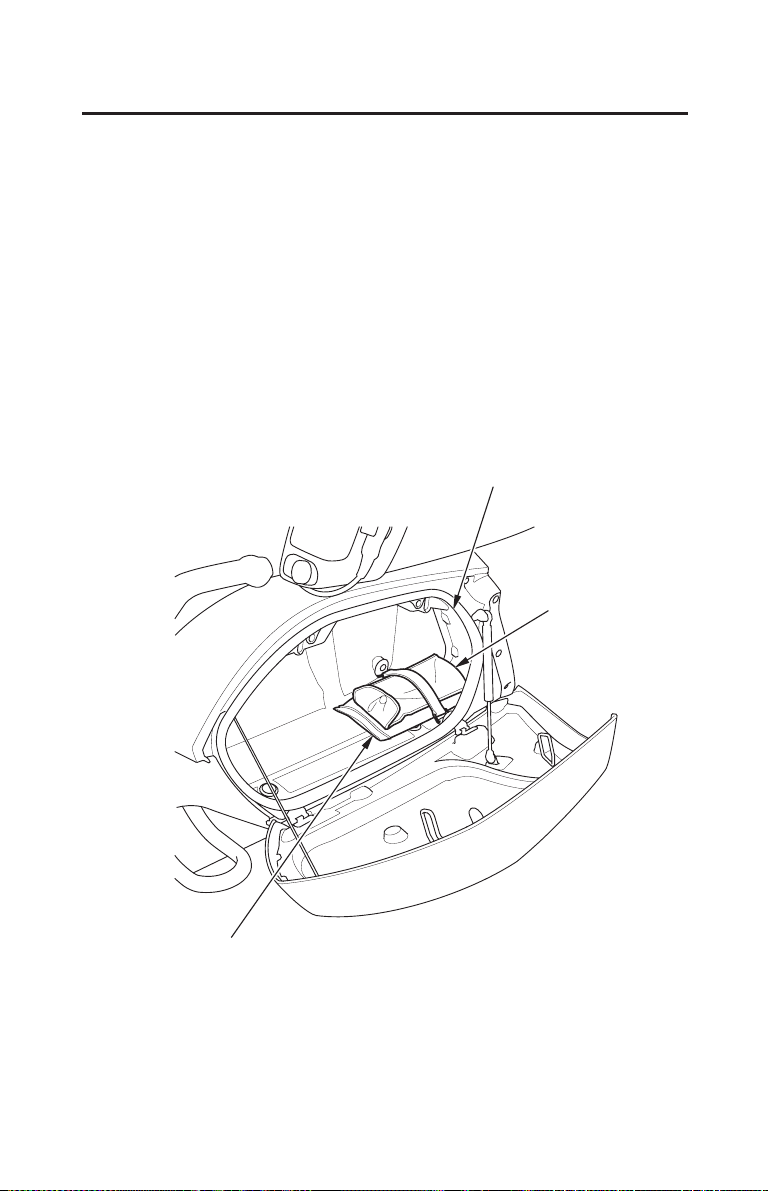

LEFT SIDE
tool band
tool kit
left saddlebag
164
Servicing Your Honda
Tool Kit (Canada only)
The tool kit is located in the left saddlebag (page ).
An optional, larger tool kit may be available. Check with your dealer’s parts
department.
52
１１／０１／１９ １２：１１：１３ ３１ＭＣＡ７００ ０１７１
LEFT SIDE
owner’s manual
left saddlebag
tool kit
(Canada only)
165
Servicing Your Honda
Owner’s Manual Storage
Your motorcycle provides storage for the owner’s manual so you’ll have it with
you for easy reference. Store your owner’s manual (and other documents) in the
plastic storage bag in the left saddlebag (page ).
For models equipped with Navigation System:
Store your Navigation System Manual with your owner’s manual.
For models equipped with Airbag:
Store your Owner’s Manual Airbag Supplement and Navigation System Manual
with your owner’s manual.
Be careful not to flood this area when washing your motorcycle.
52
１１／０１／１９ １２：１１：１９ ３１ＭＣＡ７００ ０１７２
front lower cover
side cover
engine side cover
cylinder head side cover
166
Servicing Your Honda
Cover Removal
Safety PrecautionsRefer to on page .
Left side shown; right side similar
154
１１／０１／１９ １２：１１：２４ ３１ＭＣＡ７００ ０１７３
LEFT SIDE
grommets
side cover
grommets
prongs A
prongs B
167
Side Cover Removal
Servicing Your Honda
Cover Removal
Safety Precautions
Failure to use extreme care removing or installing the side covers may damage
the side cover prongs.
Refer to on page .
The left side cover must be removed for battery and fuse maintenance.
Removal
Pull the side cover out until the prongs A are clear of the frame grommets.
Carefully pull the side cover out until the prongs B are clear of the frame
grommets.
Carefully remove the side cover.
Installation
Open the saddlebag (page ).
Insert the top edge of the side cover under the seat.
Position the side cover so the prongs on the inside of the cover are lined up
above their securing grommets.
Push the cover in place.
Close the saddlebag.
1.
2.
1.
2.
3.
4.
4.
3.
53
154
１１／０１／１９ １２：１１：３５ ３１ＭＣＡ７００ ０１７４

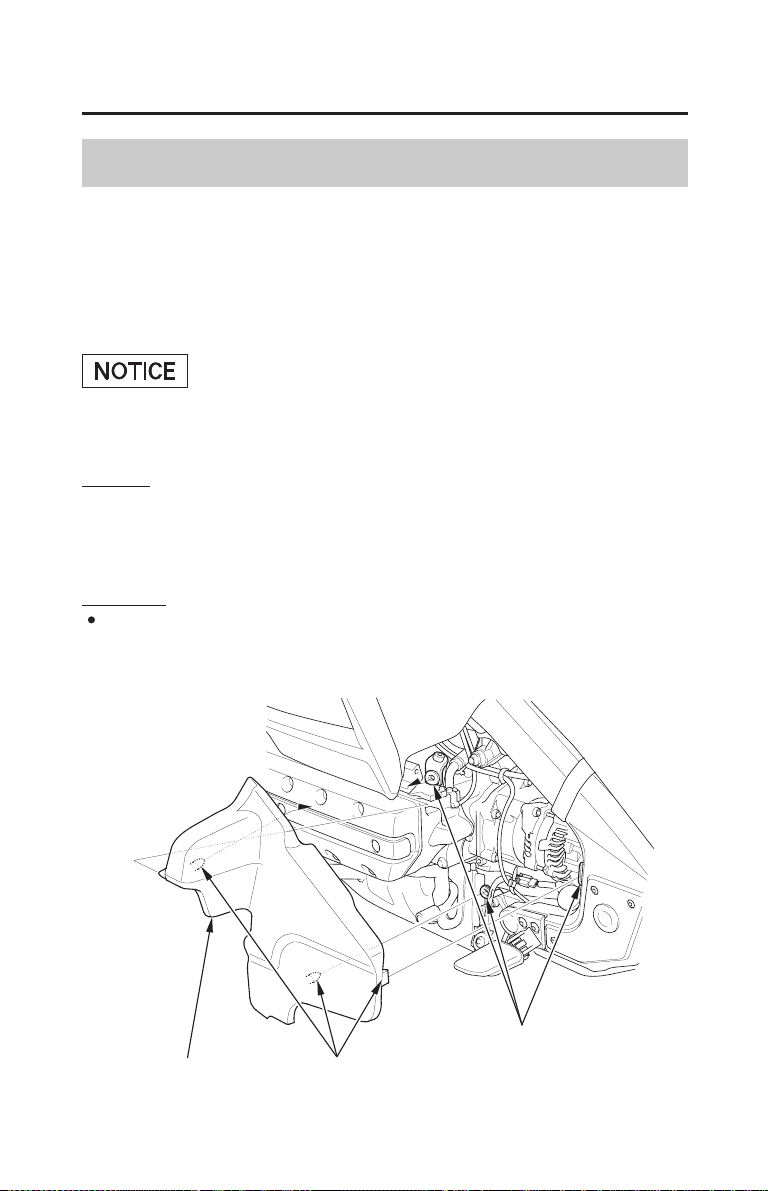

LEFT SIDE
engine side cover
grommets
prongs
168
Engine Side Cover Removal
Servicing Your Honda
Cover Removal
Safety Precautions
Failure to use extreme care removing or installing the side covers may damage
the side cover prongs.
Refer to on page .
The left engine side cover must be removed for coolant maintenance.
The right engine side cover must be removed for engine oil and rear brake fluid
maintenance.
Removal
Carefully pull the rear of the engine side cover out until the prongs are clear
of their securing grommets.
Remove the engine side cover backward.
Installation
Installation can be done in the reverse order of removal.
1.
2.
154
１１／０１／１９ １２：１１：４３ ３１ＭＣＡ７００ ０１７５
LEFT SIDE
bolt
rubber plug
cylinder head side cover
169
Cylinder Head Side Cover Removal
Servicing Your Honda
Cover Removal
Safety PrecautionsRefer to on page .
Both cylinder head side covers must be removed for spark plug maintenance.
The left cylinder head side cover must be removed for crankcase breather
maintenance.
Removal
Installation
Installation can be done in the reverse order of removal.
Remove the rubber plugs.
Remove the bolts.
1.
2.
154
１１／０１／１９ １２：１１：５１ ３１ＭＣＡ７００ ０１７６

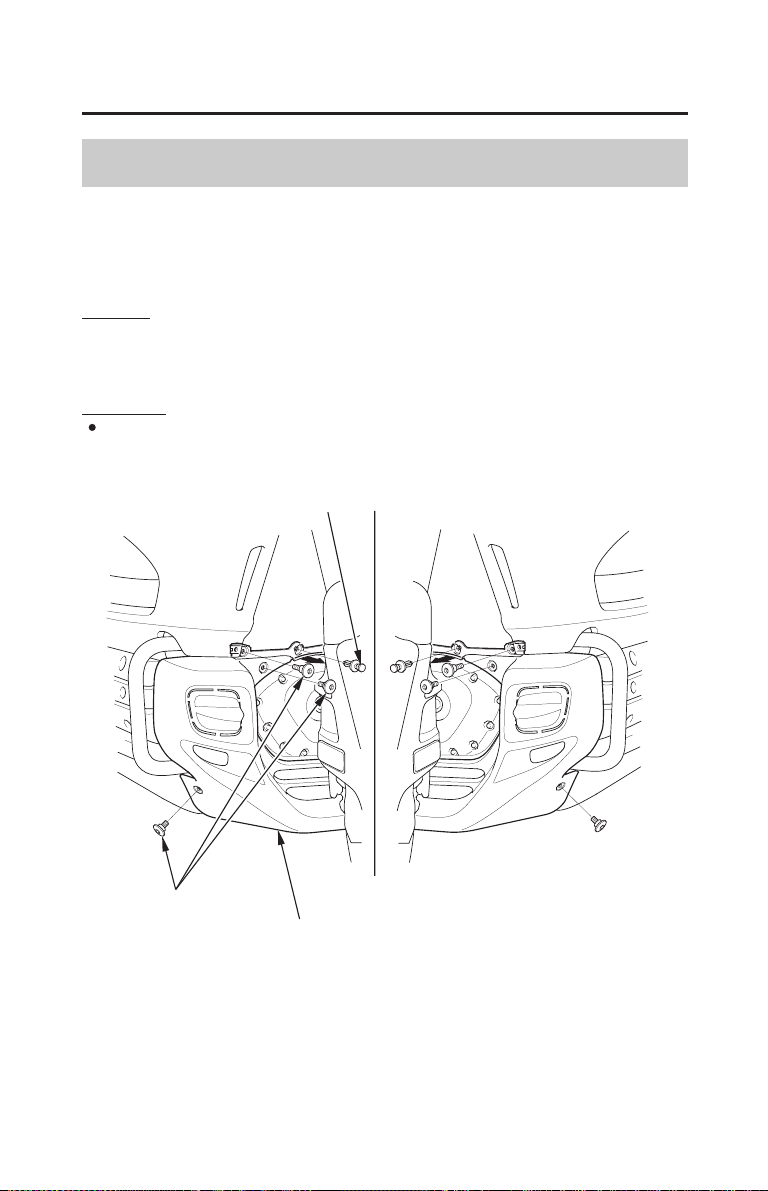

clip
FRONT
front lower cover
bolts
170
Front Lower Cover Removal
Servicing Your Honda
Cover Removal
Safety PrecautionsRefer to on page .
Installation can be done in the reverse order of removal.
Installation
The front lower cover must be removed for engine oil maintenance.
Remove the clips.
Remove the bolts.
Removal
1.
2.
154
１１／０１／１９ １２：１１：５９ ３１ＭＣＡ７００ ０１７７

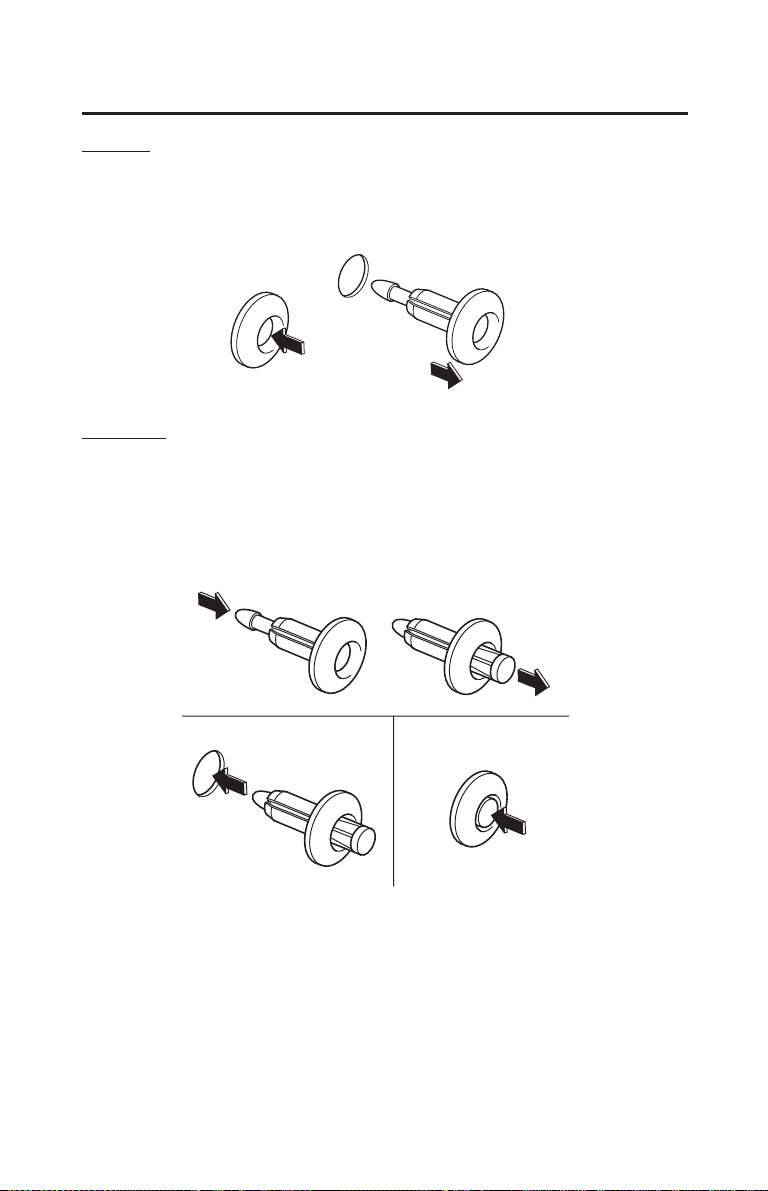

171
Clip Removal
Servicing Your Honda
Removal
Press down on the center pin to release the lock.
Pull the clip out of the hole.
Installation
Push the bottom of the pin.
Insert the clip into the hole.
Lightly press down on the center pin to lock the clip.
1.
2.
1.
2.
3.
1. 2.
1.
2. 3.
１１／０１／１９ １２：１２：０５ ３１ＭＣＡ７００ ０１７８
unleaded
86 (or higher)
type
pump octane number
172
Fuel Recommendation
Fuel
Servicing Your Honda
Safety PrecautionsRefer to on page .
Use only unleaded fuel in your Honda. Use of leaded fuel will damage the
catalytic converter(s). If you ride your Honda in a country where leaded fuel
might be available, use precautions to use only unleaded fuel.
Your engine is designed to use any unleaded gasoline that has a pump octane
number of 86 or higher. Gasoline pumps at service stations normally display the
pump octane number. For information on the use of oxygenated fuels,
see page .
Use of lower octane gasoline can cause persistent ‘‘pinging’’ or ‘‘spark knock’’
(a loud rapping noise) which, if severe, can lead to engine damage. Light
pinging experienced while operating under a heavy load, such as climbing a hill,
is no cause for concern.
If pinging or spark knock occurs at a steady engine speed under normal load,
change brands of gasoline. If pinging or spark knock persists, consult your
dealer.
154
268
１１／０１／１９ １２：１２：１３ ３１ＭＣＡ７００ ０１７９

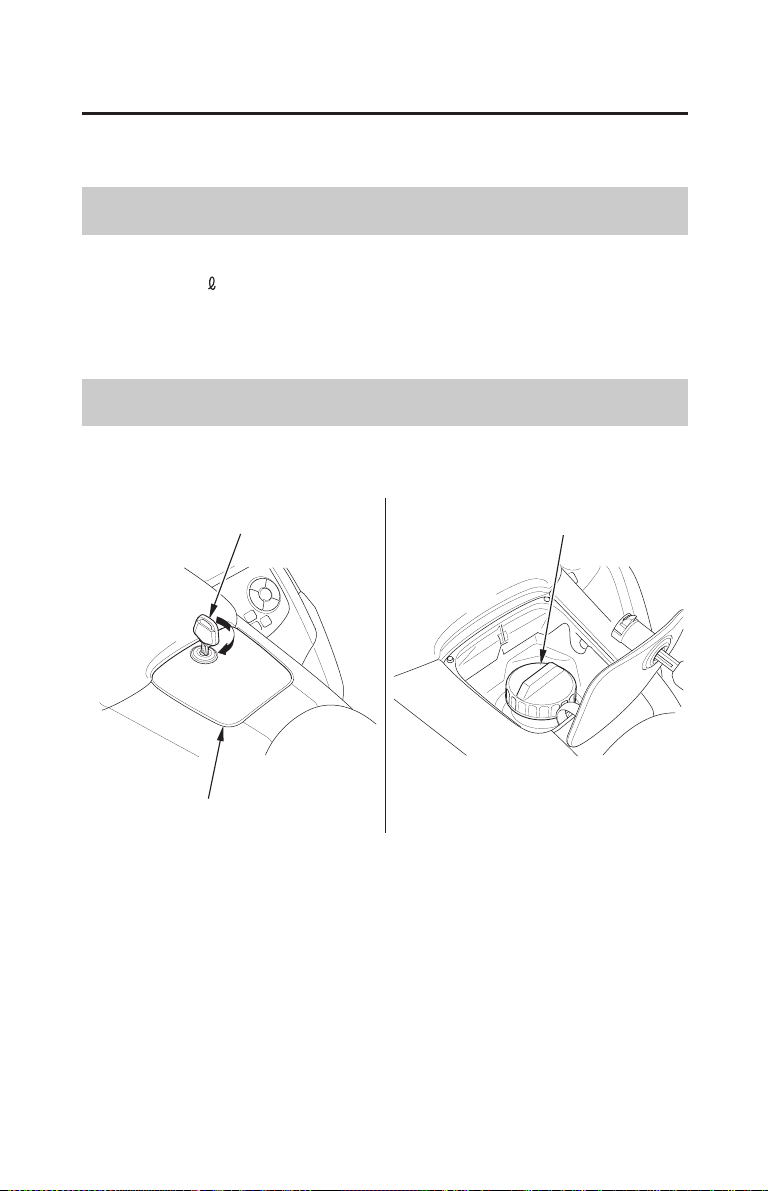

6.6 US gal (25 )
ignition key
fuel fill compartment
fuel fill cap
173
Fuel Capacity
Refueling Procedure
Fuel
Servicing Your Honda
Safety Precautions
Never use stale or contaminated gasoline or an oil/gasoline mixture. Avoid
getting dirt, dust, or water in the fuel tank.
Fuel tank capacity, including reserve:
Refer to on page .
The tank should be refilled as soon as possible when the fuel gauge needle
enters the red band.
Insert the ignition key in the fuel fill compartment and turn it clockwise.
Open the fuel fill compartment.
Turn the fuel fill cap counterclockwise and remove it.
(cont’d)
1.
2.
3.
154
１１／０１／１９ １２：１２：２２ ３１ＭＣＡ７００ ０１８０
Gasoline is highly flammable
and explosive. You can be
burned or seriously injured
when handling fuel.
Stop the engine and keep
heat, sparks and flame away.
Handle fuel only outdoors.
Wipe up spills immediately.
filler neck
174
Fuel
Servicing Your Honda
Add fuel until the level reaches the bottom of the filler neck.
Avoid overfilling the tank. There should be no fuel in the filler neck.
After refueling, be sure to tighten the fuel fill cap firmly by turning it
clockwise until it clicks.
Close the fuel fill compartment.
Remove the key from the fuel fill compartment.
4.
5.
6.
7.
１１／０１／１９ １２：１２：２７ ３１ＭＣＡ７００ ０１８１
175
Engine Oil & Filter
Servicing Your Honda
Engine oil quality is a major factor that affects both the performance and the
service life of the engine.
Using the proper oil (page ) and filter, and regularly checking, adding, and
changing oil will help extend your engine’s life. Even the best oil wears out.
Changing oil helps get rid of dirt and deposits in the engine. Operating the
engine with old or dirty oil can damage your engine. Running the engine with
insufficient oil can cause serious damage to the engine and transmission.
Change the engine oil as specified in the maintenance schedule on page .
When running in very dusty conditions, oil changes should be performed more
frequently than specified in the maintenance schedule.
176
158
１１／０１／１９ １２：１２：３２ ３１ＭＣＡ７００ ０１８２
＊
＊
SG or higher except oils labeled as energy
conserving on the circular API service label
MA
Pro Honda GN4 4-stroke oil (USA &
Canada), or Honda 4-stroke oil (Canada
only), or an equivalent motorcycle oil.
SAE 10W-30
suggested oil
OKNOT RECOMMENDED
API classification
viscosity (weight)
JASO T 903 standard
176
Oil Recommendation
Engine Oil & Filter
Servicing Your Honda
Your motorcycle does not need oil additives. Use the recommended oil.
Do not use oils with graphite or molybdenum additives. They may
adversely affect clutch operation.
Do not use API SH or higher oils displaying a circular API ‘‘energy
conserving’’ service label on the container. They may affect lubrication
and clutch performance.
Do not use non-detergent, vegetable, or castor based racing oils.
Suggested oils are equal in performance to SJ oils that are not labeled as
energy conserving on the circular API service label.
１１／０１／１９ １２：１２：４４ ３１ＭＣＡ７００ ０１８３
oil classification
oil code
177
Engine Oil & Filter
Servicing Your Honda
Other viscosities shown in the following chart may be used when the average
temperature in your riding area is within the indicated range.
JASO T 903 standard
The JASO T 903 standard is an index for engine oils for 4-stroke motorcycle
engines.
There are two classes: MA and MB.
Oil conforming to the standard is labeled on the oil container. For example, the
following label shows the MA classification.
１１／０１／１９ １２：１２：５０ ３１ＭＣＡ７００ ０１８４
−
−
−
−

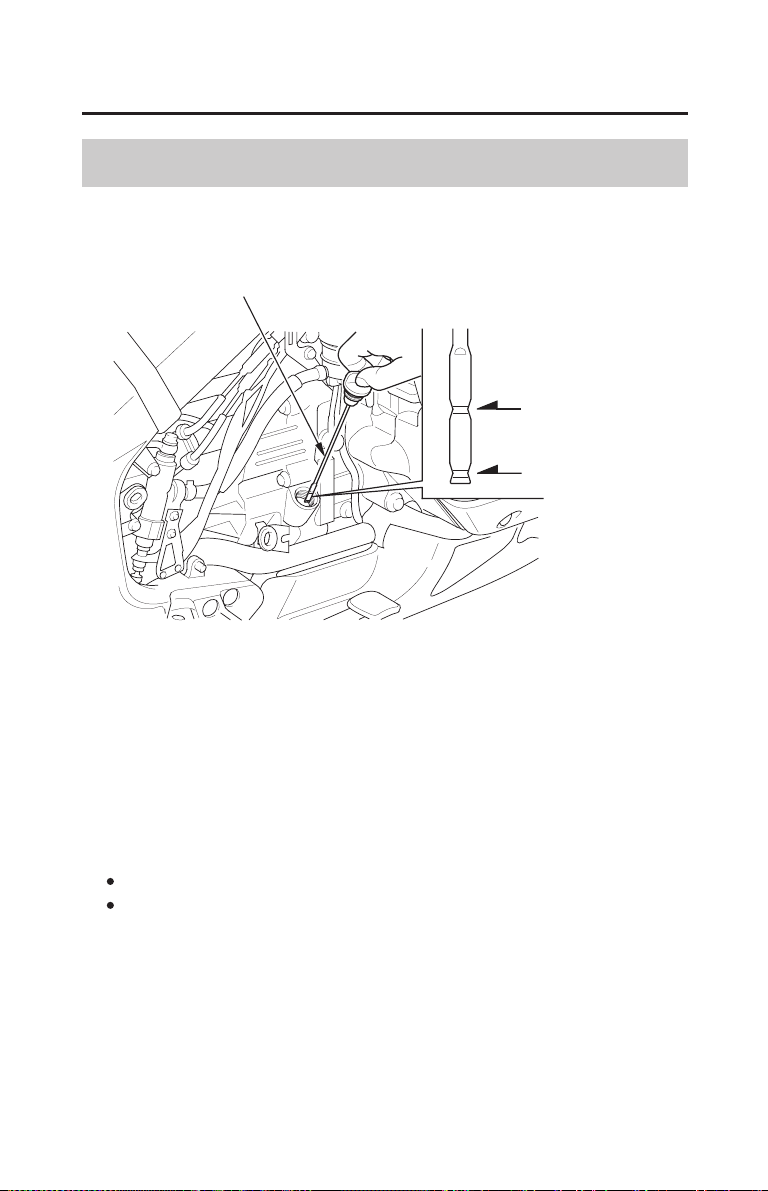

RIGHT SIDE
lower level mark
upper level mark
oil fill cap/dipstick
178
Checking & Adding Oil
Engine Oil & Filter
Servicing Your Honda
Safety PrecautionsRefer to on page .
Remove the right engine side cover (page ).
Start the engine and let it idle for 3 5 minutes. Make sure the low oil
pressure indicator goes off. If the indicator remains on, stop the engine
immediately.
Stop the engine and wait 2 3 minutes.
Remove the oil fill cap/dipstick and wipe it clean.
If the oil is at or near the upper level mark you do not have to add oil.
If the oil is below or near the lower level mark add the recommended oil
until it reaches the upper level mark. (Do not overfill.)
Reinstall the oil fill cap/dipstick.
Reinstall the right engine side cover.
Check for oil leaks.
Park your motorcycle on its center stand on a firm, level surface.
Insert the oil fill cap/dipstick until it seats, but don’t screw it in.
Remove the oil fill cap/dipstick and check the oil level.
9.
8.
7.
6.
5.
4.
3.
2.
1.
10.
154
168
１１／０１／１９ １２：１３：０２ ３１ＭＣＡ７００ ０１８５
−
−
FRONT, UNDER ENGINE
sealing washer
engine oil drain bolt
179
Changing Engine Oil & Filter
Engine Oil & Filter
Servicing Your Honda
Safety Precautions
Using the wrong oil filter may result in leaks or engine damage.
Drain the Engine Oil:
Refer to on page .
Your motorcycle’s oil filter has very specific performance requirements. Use a
new Honda Genuine oil filter or a filter of equal quality specified for your
model.
This procedure requires mechanical skill and professional tools such as a torque
wrench and oil filter wrench, as well as a means for disposing of the drained
fluid (page ). If you do not have the skills or the tools, see your dealer.
(cont’d)
Park your motorcycle on its center stand on a firm, level surface.
If the engine is cold, start it and let it idle for 3 5 minutes. Turn the engine
off. Wait 2 3 minutes for the oil to settle.
Remove the front lower cover (page ).
To drain the oil, remove the oil fill cap/dipstick, engine oil drain bolt, and
sealing washer.
Place a drain pan under the engine oil drain bolt.
1.
2.
3.
4.
5.
154
213
170
１１／０１／１９ １２：１３：１３ ３１ＭＣＡ７００ ０１８６
19 lbf·ft (26 N·m , 2.7 kgf·m)
25 lbf·ft (34 N·m , 3.5 kgf·m)
LEFT FRONT, UNDER ENGINE
oil filter oil filterrubber seal
180
Engine Oil & Filter
Servicing Your Honda
Install a New Oil Filter:
Improper disposal of drained fluids is harmful to the environment.
Pour the drained oil into a suitable container and dispose of it in an approved
manner (page ).
Apply a thin coat of engine oil to the rubber seal of a new oil filter.
Remove the oil filter with a filter wrench and let the remaining oil drain out.
Discard the oil filter in an approved manner (page ).
Install the new oil filter and tighten it by hand.
Using an oil filter wrench attachment and a torque wrench, tighten the new oil
filter to the specified torque:
Check the condition of the sealing washer on the engine oil drain bolt.
Replace the washer every other time the oil is changed.
Install the engine oil drain bolt and tighten it to the specified torque:
6.
7.
8.
9.
10.
11.
223
223
１１／０１／１９ １２：１３：２３ ３１ＭＣＡ７００ ０１８７
−
−
3.9 US qt (3.7
)
181
Engine Oil & Filter
Servicing Your Honda
Add Engine Oil:
Fill the crankcase with the recommended oil (page ), approximately:
Install the oil fill cap/dipstick securely.
Check that there are no oil leaks.
If a torque wrench is not used for installation, see your dealer as soon as
possible to verify proper assembly.
Check that the oil level is at upper level mark on the dipstick (page ).
Start the engine and let it idle for 3 5 minutes.
Stop the engine and wait 2 3 minutes.
12.
13.
14.
15.
16.
17.
176
180
１１／０１／１９ １２：１３：３１ ３１ＭＣＡ７００ ０１８８
182
Coolant Recommendation
Coolant
Servicing Your Honda
Using coolant with silicate inhibitors may cause premature wear of water pump
seals or blockage of radiator passages. Using tap water may cause engine
damage.
Your motorcycle’s liquid cooling system dissipates engine heat through the
coolant jacket that surrounds the cylinder and cylinder head.
Maintaining the coolant will allow the cooling system to work properly and
prevent freezing, overheating, and corrosion.
Use Pro Honda HP coolant or an equivalent high quality ethylene glycol
antifreeze containing corrosion protection inhibitors specifically recommended
for use in aluminum engines. Check the antifreeze container label.
Use only distilled water as a part of the coolant solution. Water that is high in
mineral content or salt may be harmful to the aluminum engine.
The factory provides a 50/50 solution of antifreeze and water in this motorcycle.
This coolant solution is recommended for most operating temperatures and
provides good corrosion protection.
Decreasing the concentration of antifreeze to less than 40% will not provide
proper corrosion protection.
Increasing the concentration of antifreeze is not recommended because it
decreases cooling system performance. Higher concentrations of antifreeze (up
to 60%) should only be used to provide additional protection against freezing.
Check the cooling system frequently during freezing weather.
１１／０１／１９ １２：１３：３８ ３１ＭＣＡ７００ ０１８９
LEFT SIDE
upper level
lower level
reserve tank cap/dipstick
183
Checking & Adding Coolant
Coolant
Servicing Your Honda
Safety PrecautionsRefer to on page .
If the reserve tank is empty, or if coolant loss is excessive, check for leaks
and see your dealer for repair.
Remove the left engine side cover (page ).
Reinstall the left engine side cover.
Always add coolant to the reserve tank. Do not attempt to add coolant by
removing the radiator cap.
With the engine at normal operating temperature, remove the reserve tank
cap/dipstick and check the coolant level.
Add coolant to the reserve tank as required to bring the coolant level to the
upper level mark.
1.
2.
3.
4.
154
168
１１／０１／１９ １２：１３：４７ ３１ＭＣＡ７００ ０１９０
Removing the radiator cap while
the engine is hot can cause the
coolant to spray out, seriously
scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
184
Coolant Replacement
Coolant
Servicing Your Honda
Safety Precautions
You & the Environment,
Improper disposal of drained fluids is harmful to the environment.
Refer to on page .
Coolant should be replaced by your dealer, unless you have the proper tools and
service data and are mechanically qualified. Refer to the official Honda Service
Manual (page ).
To properly dispose of drained coolant, refer to
page .223
154
270
１１／０１／１９ １２：１３：５３ ３１ＭＣＡ７００ ０１９１
LEFT SIDE
crankcase breather tube plug
185
Draining
Crankcase Breather
Servicing Your Honda
Safety PrecautionsRefer to on page .
Service the crankcase breather more frequently if your motorcycle is ridden in
the rain or often at full throttle. Service the breather if you can see deposits in
the transparent section of the drain tube.
Remove the left cylinder head side cover (page ).
Place a drain pan under the crankcase breather tube plug.
Remove the plug to drain the deposits in the tube.
Reinstall the crankcase breather tube plug.
Reinstall the left cylinder head side cover.
1.
2.
3.
4.
5.
154
169
１１／０１／１９ １２：１３：５９ ３１ＭＣＡ７００ ０１９２
type
viscosity (weight) SAE 80
hypoid gear oil
lower edge
RIGHT REAR
oil fill cap
186
Checking & Adding Oil
Oil Recommendation
Final Drive Oil
Servicing Your Honda
Safety Precautions
Place the motorcycle on its center stand on a firm, level surface.
Remove the oil fill cap.
Check the oil level. It should be flush with the lower edge of the oil fill hole.
If the level is low, check for oil leaks. Add the recommended oil through the
oil fill hole until it reaches the lower edge of the opening.
Install the oil fill cap.
Refer to on page .
1.
2.
3.
4.
5.
154
１１／０１／１９ １２：１４：０８ ３１ＭＣＡ７００ ０１９３
4.1 US oz (120 cm )
15 lbf·ft (20 N·m , 2.0 kgf·m)
RIGHT REAR
drain bolt
lower edge
sealing washer
oil fill cap
187
Changing Oil
Final Drive Oil
Servicing Your Honda
Safety Precautions
Improper disposal of drained fluids is harmful to the environment.
Refer to on page .
Install the oil fill cap.
Make sure the final drive oil level is at the lower edge of the oil fill inspection
hole.
Fill the final drive with the recommended oil:
Change the oil with the final drive at normal operating temperature to assure
complete and rapid draining.
Place the motorcycle on its center stand on a firm, level surface.
Place a drain pan under the drain bolt.
Remove the oil fill cap, drain bolt and sealing washer.
After the oil has completely drained, check that the sealing washer is in good
condition. Reinstall the drain bolt with its sealing washer (or a new washer, if
necessary) and tighten it to the specified torque:
Pour the drained oil into a suitable container and dispose of it in an approved
manner (page ).
1.
2.
3.
4.
5.
6.
7.
154
223
１１／０１／１９ １２：１４：２１ ３１ＭＣＡ７００ ０１９４
LEFT HANDLEBAR
adjuster dial
index mark
clutch lever
188
Clutch Lever Adjustment
Clutch System
Servicing Your Honda
Safety Precautions
Your motorcycle has a hydraulically-actuated clutch. There are no adjustments
to perform, but the clutch system must be inspected periodically for fluid level
and leakage.
Turn the adjuster dial while pushing the clutch lever forward.
Align the index mark on the clutch lever with the numbers on the adjuster dial.
Start the engine, pull the clutch lever in, and shift into gear. Make sure the
engine does not stall and the motorcycle does not creep. Gradually release the
clutch lever and open the throttle. Your motorcycle should move smoothly
and accelerate gradually.
If the motorcycle creeps or stalls when shifted into gear, or if the clutch slips,
causing acceleration to lag behind engine speed, there is probably air in the
clutch system. See your dealer to have the air bled out of the system.
Refer to on page .
The distance between the tip of the clutch lever and the grip may be adjusted.
1.
2.
3.
154
１１／０１／１９ １２：１４：２９ ３１ＭＣＡ７００ ０１９５
LEFT HANDLEBAR
LOWER level mark
189
Fluid Level Inspection
Other Inspections
Clutch System
Servicing Your Honda
Safety PrecautionsRefer to on page .
Check that the fluid level is above the LOWER level mark. If the fluid level is
below the LOWER level mark, it indicates fluid leakage. See your dealer for
repair.
Make sure there are no fluid leaks.
Check for deterioration or cracks in the hose and fittings.
Check that the clutch lever assembly is positioned properly and the securing
bolts are tight.
154
１１／０１／１９ １２：１４：３７ ３１ＭＣＡ７００ ０１９６
BKR6E-11 (NGK)
BKR5E-11 (NGK)
BKR7E-11 (NGK)
K20PR-U11 (DENSO)
K16PR-U11 (DENSO)
K22PR-U11 (DENSO)
or
or
or
standard spark
plug
for cold climate
(below 5°C, 41°F)
for extended high
speed riding
spark plug wrench
spark plug cap
190
Spark Plug Recommendation
Spark Plug Inspection & Replacement
Spark Plugs
Servicing Your Honda
Using spark plugs with an improper heat range can cause engine damage.
Safety Precautions
Use only the recommended type of spark plugs in the recommended heat range.
Refer to on page .
Remove the left and right cylinder head side cover (page ).
Clean any dirt from around the spark plug bases.
Using a spark plug wrench provided in the tool kit, remove the spark plugs.
Disconnect the spark plug caps. Take care to avoid damaging the spark plug
wire when disconnecting the caps.
1.
2.
3.
4.
154
169
１１／０１／１９ １２：１４：４９ ３１ＭＣＡ７００ ０１９７
−−0.039 0.043 in (1.00 1.10 mm)
spark plug gap
side electrode
191
Spark Plugs
Servicing Your Honda
An improperly tightened spark plug can damage the engine. If a plug is too
loose, a piston may be damaged. If a plug is too tight, the threads may be
damaged.
Inspect the electrodes and center porcelain for deposits, corrosion, or carbon
fouling. If the corrosion or deposits are heavy, replace the plug. Clean a
carbon or wet-fouled plug with a plug cleaner, if available, or a wire brush.
Check the spark plug gap using a wire-type feeler gauge. If adjustment is
necessary, bend the side electrode carefully.
The gap should be:
First, tighten the plug:
NGK: turn after it seats.
DENSO: turn after it seats.
Then loosen the plug.
Next, tighten the plug again:
1/8 turn after it seats.
If installing a new plug, tighten it twice to prevent loosening:
If the old plug is good:
1/8 turn after it seats.
Reinstall the left and right cylinder head side covers.
Reinstall the spark plug caps. Take care to avoid pinching any cables or wires.
Tighten each spark plug:
With the plug washers attached, install the spark plugs in by hand to prevent
cross-threading.
1/2
3/4
a)
c)
b)
9.
10.
8.
7.
6.
5.
１１／０１／１９ １２：１５：００ ３１ＭＣＡ７００ ０１９８
192
Rear Suspension Adjustment
Rear Suspension Spring Pre-load Adjustment
Suspension
Servicing Your Honda
Your front and rear suspension systems use springs and hydraulic damping
devices that suspend your weight and most of the weight of your motorcycle.
The spring pre-load for your rear suspension system adjusts the amount of force
required to begin compression of the spring.
The oil damper systems hydraulically control the natural compression and
rebound of the suspension springs so that traction and comfort are maintained as
the wheels ride over road surfaces.
Lower spring pre-load provides a softer ride and is usually preferred for light
loads and smooth roads. Higher spring pre-load provides a firmer ride and is
recommended for heavy loads, rough road conditions, and faster, more
challenging riding.
The rear suspension can be adjusted for rider (and passenger) weight and riding
conditions by changing the spring pre-load.
Do not attempt to disassemble, service, or dispose of the damper; see your
dealer. The instructions found in this owner’s manual are limited to adjustments
of the shock assembly only.
Consider adjusting your rear suspension pre-load whenever you change your
normal load, when adding or subtracting a passenger, cargo, or accessories, or
when the road or riding conditions change.
The way you ride your motorcycle and the type of ride you want to experience
can also influence your suspension needs.
This rear suspension spring pre-load adjustment system functions only when the
ignition switch is ON or ACC, your motorcycle is stopped, and the transmission
is in neutral. (When the reverse indicator is ON, the system will not function.)
Rear suspension spring pre-load can be easily increased or decreased using the
rear suspension spring pre-load adjustment switch on the right fairing panel.
Then you can confirm the pre-load position with the multi information display.
１１／０１／１９ １２：１５：０９ ３１ＭＣＡ７００ ０１９９
rear suspension spring pre-load
adjustment switch
MEMO button
(Models equipped with
Navigation System)
(Models not equipped with
Navigation System)
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
193
Suspension
Servicing Your Honda
Adjustment
The rear suspension spring pre-load adjustment system has 26 positions (from
0 to 25) for different road or riding conditions. (Standard position is 0.)
Place the motorcycle on its center stand on a firm, level surface. To prevent
discharging the battery, make sure the audio system and other electrical
accessories are off.
Turn the ignition switch to ON or ACC.
Push the DOWN or UP side of rear suspension spring pre-load adjustment
switch until the desired pre-load is reached.
To increase (HIGH)
To decrease (LOW)
1.
2.
3.
１１／０１／２４ ０９：２９：３３ ３１ＭＣＡ７００ ０２００
(Models not equipped with Navigation System)
(Models equipped with Navigation System)
(Models not equipped with Navigation System)
(Models equipped with Navigation System)
194
Suspension
Servicing Your Honda
Storing Pre-load Into the Memory
Selecting the Memorized Position
You may store two selected adjustments in ‘‘MEMO 1’’ or ‘‘MEMO 2’’.
Adjust the pre-load to the desired position.
Push and hold the MEMO 1 or MEMO 2 button until ‘‘STORE MEMO 1’’ or
‘‘STORE MEMO 2’’ blinks in the multi information display. When the
blinking stops, the current position is stored in memory.
Storing Stored
Push the MEMO (1 or 2) button to select the memorized position. ‘‘CALL
MEMO 1’’ or ‘‘CALL MEMO 2’’ will blink. When the position is selected,
‘‘MEMO 1’’ or ‘‘MEMO 2’’ will turn on.
Calling Called
Pushing the rear suspension spring pre-load adjustment switch or the MEMO
(1 or 2) button while selecting a memorized position will cancel the calling
procedure.
1.
2.
１１／０１／１９ １２：１５：３１ ３１ＭＣＡ７００ ０２０１
(Models not equipped with
Navigation System)
(Models equipped with
Navigation System)
195
Suspension
Servicing Your Honda
Each MEMO button stores only one pre-load position. Storing a new position
erases the previous setting stored in that button’s memory. If you want to add a
new position while retaining the current one, use the other memory button.
All stored pre-load positions will be lost if your motorcycle’s battery goes low
(or dead) or is disconnected.
If ‘‘ERROR’’ blinks on the display, contact your dealer.
１１／０１／１９ １２：１５：３８ ３１ＭＣＡ７００ ０２０２

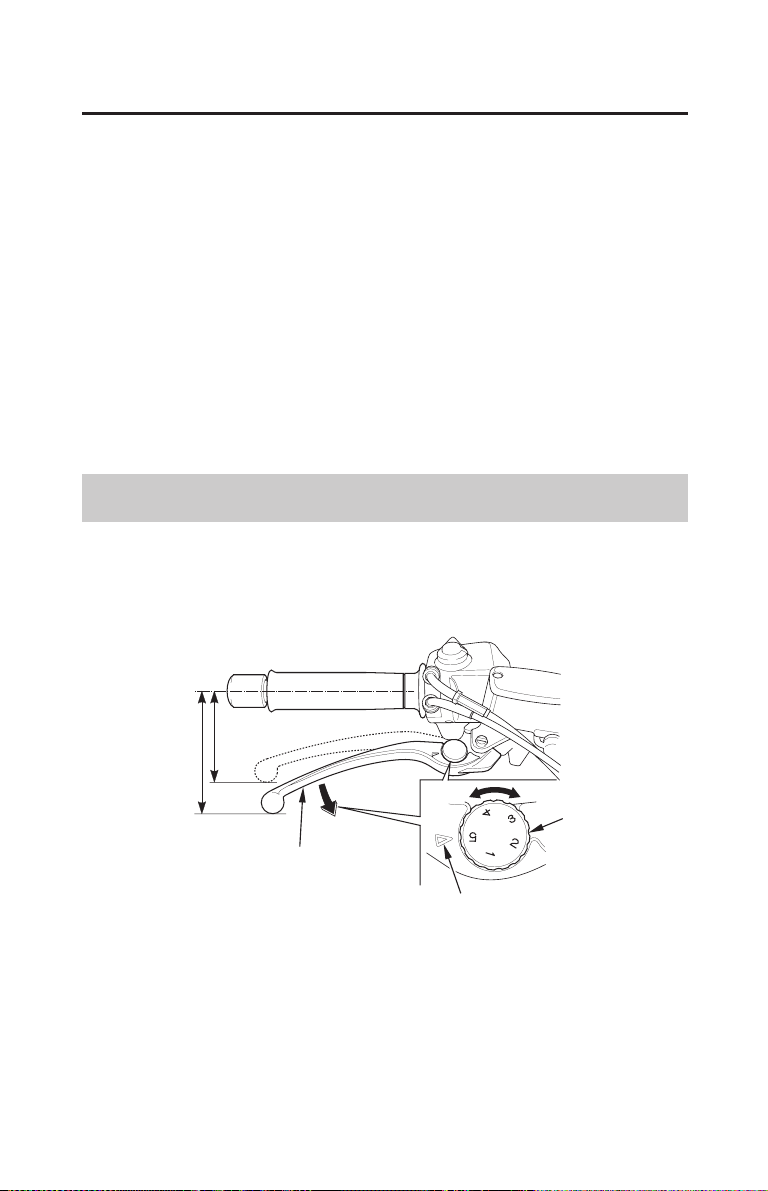

RIGHT HANDLEBAR
brake lever
index mark
adjuster dial
196
Front Brake Lever Adjustment
Brakes
Servicing Your Honda
Safety Precautions
The hydraulic braking systems on your motorcycle dissipate the heat generated
by the friction of the brake pads on the brake discs as the wheels are slowed.
As the brake pads wear, the brake fluid level will drop. A leak in the system will
also cause the level to drop.
Frequently inspect the system to ensure there are no fluid leaks. Periodically
inspect the brake fluid level and the brake pads for wear.
If the brake lever or brake pedal freeplay does not feel within the normal range
while riding, check the brake pads for wear (page ). Worn pads should be
replaced. If the pads are not worn beyond the recommended limit, there is
probably air in the brake system. See your dealer to have the air bled from the
system.
Refer to on page .
The distance between the tip of the brake lever and the grip may be adjusted.
Turn the adjuster dial while pushing the brake lever forward.
Align the index mark on the brake lever with the numbers on the adjuster dial.
Apply the brake, release it, then spin the wheel and check that it rotates freely.
Repeat this procedure several times.
1.
2.
3.
199
154
１１／０１／１９ １２：１５：４８ ３１ＭＣＡ７００ ０２０３
Honda DOT 4 Brake Fluid
brake fluid
197
Brake Fluid Recommendation
Fluid Level Inspection
Brakes
Servicing Your Honda
Safety Precautions
Brake fluid can damage plastic and painted surfaces. Handle with care.
The recommended brake fluid is Honda DOT 4 Brake Fluid, or any brake fluid
of equal quality and performance. Use fresh brake fluid from a sealed container.
Be sure to read the label before opening the sealed container. An opened
container may be contaminated or may have absorbed moisture from the air.
Refer to on page .
If your inspection indicates a low fluid level, have your dealer add the
recommended brake fluid.
Do not add or replace brake fluid, except in an emergency. If you do add fluid,
have your dealer check the system as soon as possible.
Wipe up spills immediately. Avoid brake fluid contact with skin or eyes. If it
comes in contact with your eyes, wash them out with clean water and
immediately call a doctor. If it comes in contact with your skin, wash with clean
water and, if necessary, call a doctor.
154
１１／０１／１９ １２：１５：５６ ３１ＭＣＡ７００ ０２０４
RIGHT HANDLEBAR
(Front Brake)
RIGHT SIDE
(Rear Brake)
LOWER level mark UPPER level mark
LOWER level mark
198
Brakes
Servicing Your Honda
Place your motorcycle in an upright position on a firm, level surface.
Check the fluid level.
Front: It should be above the LOWER level mark.
Rear: It should be between the UPPER and LOWER level marks.
If the level is at or below the LOWER level mark, check the brake pads for
wear.
Worn pads should be replaced. If the pads are not worn beyond the
recommended limit, have your brake system inspected for leaks.
Check for deterioration or cracks in the hoses and fittings.
Make sure there are no fluid leaks.
Other Inspections
1.
2.
１１／０１／１９ １２：１６：０３ ３１ＭＣＡ７００ ０２０５

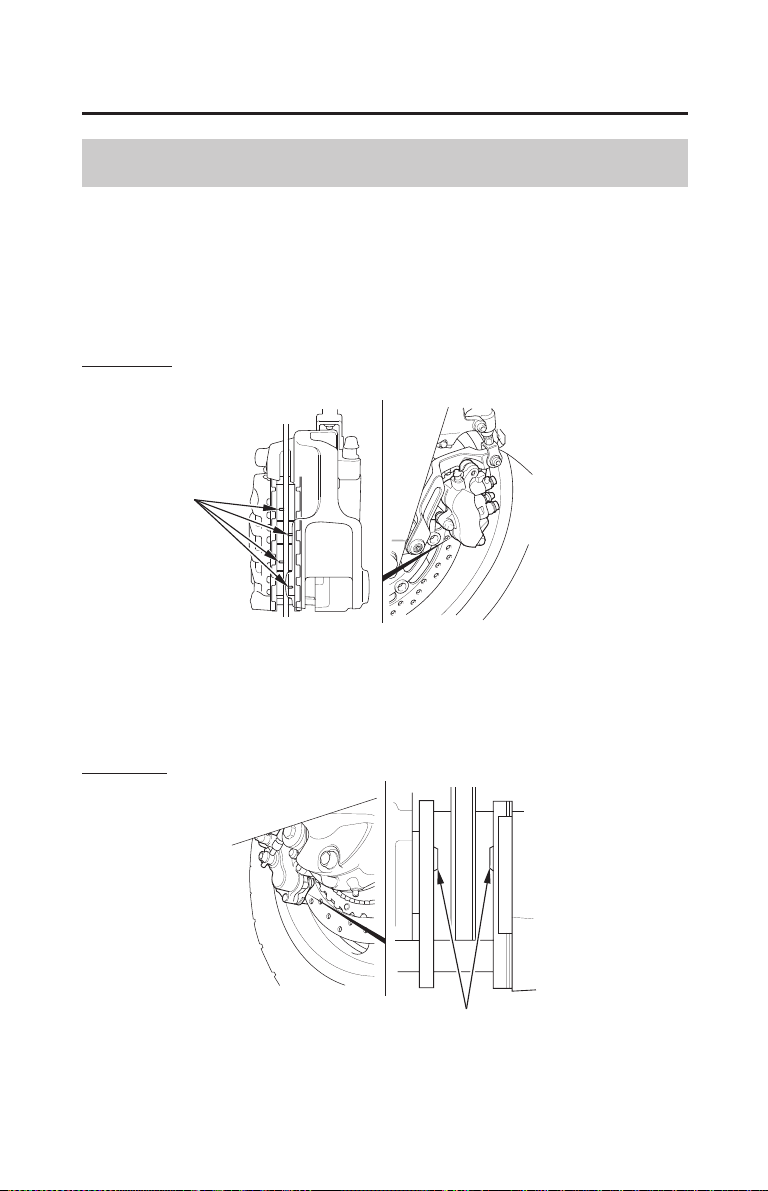

LEFT FRONT (right side similar)
RIGHT REAR
grooves
cutouts
199
Brake Pad Wear
Brakes
Servicing Your Honda
Safety PrecautionsRefer to on page .
Front Brake
Always inspect both pads in both the right and left front brake calipers.
Rear Brake
Check the grooves in each pad. If either pad is worn to the bottom of the
grooves, replace both pads as a set. See your dealer for this service.
Brake pad wear depends upon the severity of usage, the type of riding, and road
conditions. Generally, the pads will wear faster on wet and dirty roads. Inspect
the pads at each regular maintenance interval (page ).
Check the cutouts in each pad. If either pad is worn to the cutout, replace both
pads as a set. See your dealer for this service.
154
159
１１／０１／１９ １２：１６：１２ ３１ＭＣＡ７００ ０２０６

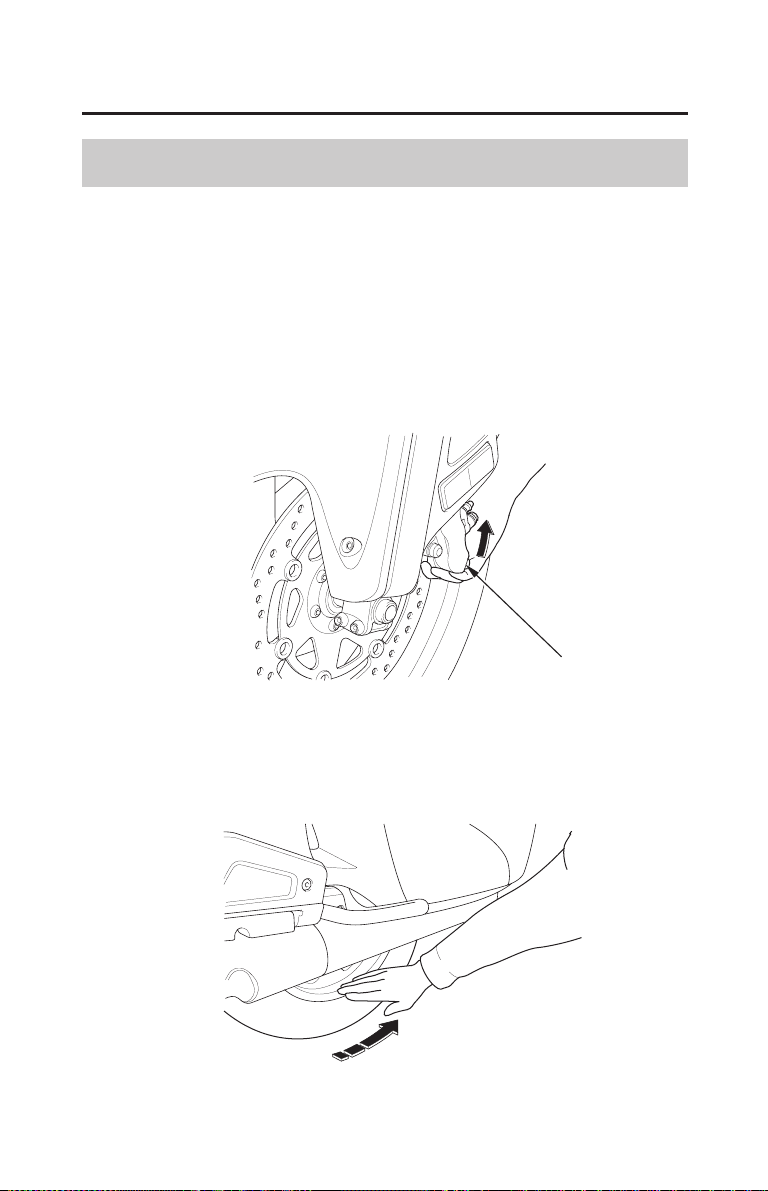

LEFT FRONT
LEFT REAR
brake caliper
200
Brake System Inspection
Brakes
Servicing Your Honda
Safety PrecautionsRefer to on page .
Place the motorcycle on its center stand, stop the engine, and place the
transmission in neutral.
Move the left caliper assembly upward while slowly rotating the rear wheel.
The brake system is normal if the rear wheel stops. If the rear wheel does not
stop, see your dealer.
1.
2.
154
１１／０１／１９ １２：１６：１９ ３１ＭＣＡ７００ ０２０７
Using tires that are excessively
worn or improperly inflated
cancauseacrashinwhichyou
can be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
201
Tires
Servicing Your Honda
To safely operate your motorcycle, your tires must be the proper type and size,
in good condition with adequate tread, and correctly inflated for the load you are
carrying.
The following pages give detailed information on how and when to check your
air pressure, how to inspect your tires for wear and damage, and our
recommendations for tire repair and replacement.
１１／０１／１９ １２：１６：２４ ３１ＭＣＡ７００ ０２０８
36 psi (250 kPa , 2.50 kgf/cm )
41 psi (280 kPa , 2.80 kgf/cm
)
front
rear
202
Air Pressure
Tires
Servicing Your Honda
Safety PrecautionsRefer to on page .
Properly inflated tires provide the best combination of handling, tread life, and
riding comfort. Generally, underinflated tires wear unevenly, adversely affect
handling, and are more likely to fail from being overheated. Overinflated tires
make your motorcycle ride harshly, are more prone to damage from road
hazards, and wear unevenly.
Even though your motorcycle is equipped with tire pressure monitoring system
(TPMS), we recommend that you visually check your tires before every ride and
use an air pressure gauge to measure the air pressure at least once a month or
any time you think the tires might be low. Even tires that are in good condition
may lose one to two psi per month if not checked and adjusted regularly.
See page for more information.
Tubeless tires have some degree of self-sealing ability if they are punctured.
However, because leakage is often very slow, you should look closely for
punctures whenever a tire is not fully inflated.
Always check air pressure when your tires are ‘‘cold’’, after the motorcycle has
been parked for at least three hours. If you check air pressure when your tires
are ‘‘warm’’ –– even if your motorcycle has only been ridden for a few miles ––
the readings will be higher. If you let air out of warm tires to match the
recommended cold pressures, the tires will be underinflated.
The recommended ‘‘cold’’ tire pressures are:
83
154
１１／０１／１９ １２：１６：３２ ３１ＭＣＡ７００ ０２０９
0.06 in (1.5 mm)
0.08 in (2.0 mm)
front
rear
wear indicator
wear indicator location
mark
203
Inspection
Tires
Servicing Your Honda
Safety PrecautionsRefer to on page .
Whenever you check the tire pressures, you should also look for:
Also, if you hit a pothole or hard object while riding, pull to the side of the road
as soon as you safely can and carefully inspect the tires for damage.
For the best performance, you should replace a tire before the tread depth at the
center reaches the following limits:
If the wear indicators are visible, replace the tire immediately as it is no longer
safe.
Bumps or bulges in the side of the tire or the tread. Replace any tire that has a
bump or bulge.
Cuts, slits, or cracks in the tires.
Replace the tire if you can see fabric or cord.
Nails or other foreign objects embedded in the side of the tire or tread.
Excessive tread wear.
154
１１／０１／１９ １２：１６：４２ ３１ＭＣＡ７００ ０２１０
×××× −
×××× −
−
−
×××× ××××
TIRE LABELING EXAMPLE
(1)
(1) tire identification number (TIN)
204
Tire Service Life
Tires
Servicing Your Honda
Factory code
Tire type code
22 07 Date of manufacture
DOT This indicates that the tire meets all requirements of the U.S.
Department of Transportation.
DOT 22 07
The tire identification number
(TIN) is a group of numbers and letters that look like the following example.
The TIN is located on the sidewall of the tire.
Tire Identification Number (TIN)
The service life of your tires is dependent on many factors, including, but not
limited to, riding habits, road conditions, vehicle loading, tire pressure,
maintenance history, speed, and environmental conditions (even when the tires
are not in use).
In addition to your regular inspections and tire pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach 5
years old. It is also recommended that all tires be removed from service after 10
years from the date of manufacture, regardless of their condition or state of
wear.
The last four digits of the TIN (tire identification number) ( ) are found on the
sidewall of the tire, and indicate the date of manufacture.
(2)
(3)
(4)
Year
Week
(3)(2) (4)
1
１１／０１／１９ １２：１６：５１ ３１ＭＣＡ７００ ０２１１
205
Tire Repair
Tires
Servicing Your Honda
Safety Precautions
If You Have a Flat Tire,
Using a puncture-repairing agent can damage the TPMS sensors, causing the
TPMS indicator to turn on. Have you motorcycle checked by your Honda
dealer as soon as possible.
Use caution to not damage the TPMS sensor if an internal plug patch must be
used to repair the tire. If you have a tire professionally repaired at a non-
Honda facility, we recommend that you have the work checked by your Honda
dealer. TPMS wheels require special handling when changing the tire. Failure
to follow the proper tire replacement procedure can result in damage to the
TPMS sensor.
Refer to on page .
We strongly recommend that you replace, not repair, any tire that is punctured or
damaged. As discussed below, a tire that is repaired, either temporarily or
permanently, will have lower speed and performance limits than a new or
undamaged tire.
A temporary repair can sometimes be made in an emergency situation.
However, since a temporary repair may not hold, you must ride very slowly,
preferably without any cargo or passenger, and have the tire replaced or
permanently repaired as soon as possible.
(For more information on temporary repairs, see
page .)
154
230
１１／０１／１９ １２：１６：５７ ３１ＭＣＡ７００ ０２１２
Installing improper tires on your
motorcycle can affect handling
and stability. This can cause a
crash in which you can be
seriously hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.
206
Tire Replacement
Tires
Servicing Your Honda
Safety Precautions
A permanent repair, such as an internal plug patch, can be made if a tire has only
a small puncture in the tread area. With such a repair, you should not exceed
50 mph (80 km/h) for the first 24 hours, or 80 mph (130 km/h) at any time
thereafter. In addition, you may not be able to safely carry as much weight. If
you choose to have a tire repaired, be sure the repair work is performed by a
professional and that the wheel is balanced before you ride.
Refer to on page .
The tires that came on your motorcycle were designed to match the performance
capabilities of your motorcycle and provide the best combination of handling,
braking, durability, and comfort.
If you have a tire professionally repaired at a non-Honda facility, we
recommend that you have the work checked by your Honda dealer.
When replacing, use the original equipment tires or equivalent tires of the same
size, construction, speed rating, and load range as the originals.
154
１１／０１／１９ １２：１７：０３ ３１ＭＣＡ７００ ０２１３
130/70R18M/C 63HBRIDGESTONE G709 RADIAL
BRIDGESTONE G704 RADIAL 180/60R16M/C 74H
radial, tubeless
front
rear
type
207
Tires
Servicing Your Honda
The recommended tires for your motorcycle are:
Whenever you replace a tire, remember:
Have the wheel balanced after the tire is installed.
Have the tire replaced by your dealer.
Important Safety Reminders
Do not install a tube inside a tubeless tire on this motorcycle. Excessive heat
build-up can cause the tube to burst.
Use only tubeless tires on this motorcycle. The rims are designed for tubeless
tires, and during hard acceleration or braking, a tube-type tire could slip on
the rim and cause the tire to rapidly deflate.
Do not install car tires on this motorcycle. During installation the tire may
separate from the rim with enough force to cause serious injury or death.
When replacing tires, use only the recommended tires as shown above and on
the tire information label. Use of other tires on the model equipped with ABS
may impair proper ABS function. The ABS computer works by comparing
wheel speed.
Non-recommended tires can affect wheel speed and may confuse the ABS
computer.
If you ever replace a wheel, make sure that the wheel’s specifications match
those of the original wheels.
Be sure you use only TPMS-specific wheels. Not using TPMS-specific
wheels can cause an air leak, a tire pressure monitoring system failure, or both.
Replacement wheels are available at your dealer.
１１／０１／１９ １２：１７：１４ ３１ＭＣＡ７００ ０２１４
LEFT SIDE
stand spring
208
Side Stand
Servicing Your Honda
Safety PrecautionsRefer to on page .
Check that the side stand assembly is working properly. If the side stand is
stiff or squeaky, clean the pivot area and lubricate the pivot bolt with clean
grease.
Check the side stand ignition cut-off system:
Sit on the motorcycle and put the transmission in neutral.
Raise the side stand.
Shift the transmission into gear.
Lower the side stand all the way.
Start the engine.
Pull the clutch lever in.
The engine should stop as you lower the side stand. If the engine doesn’t stop,
see your dealer for service.
Check the side stand spring for damage or loss of tension.
1.
2.
3.
4.
5.
6.
154
１１／０１／１９ １２：１７：２５ ３１ＭＣＡ７００ ０２１５
209
WARNING:
Wash your hands after handling.
Battery
Servicing Your Honda
Your battery is a maintenance-free type and can be permanently damaged if
the cap strip is removed.
Battery Charging,
Battery Storage,
Your motorcycle has a maintenance-free type battery. You do not have to check
the battery electrolyte level or add distilled water as you would with a
conventional-type battery.
Electrical accessories use current from the battery, even when the ignition is
OFF. Limited operation also allows the battery to discharge. If you have
electrical accessories on your motorcycle or do not ride frequently, we
recommend that you charge the battery frequently (see
page ).
If you do not expect to ride your motorcycle for at least two weeks, we
recommend you remove the battery, or at least disconnect the battery cables
(negative cable first).
If you plan to store your motorcycle, see page .
If your battery seems weak and/or is leaking electrolyte (causing slow starting or
other electrical problems), see your dealer.
Battery posts, terminals and related accessories contain lead and
lead compounds.
212
210
１１／０１／１９ １２：１７：３２ ３１ＭＣＡ７００ ０２１６
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
mechanic do the battery
maintenance.
210
Battery Storage
Battery
Servicing Your Honda
Safety Precautions
Battery Charging,
Refer to on page .
If you plan to store your motorcycle, we recommend you remove the battery and
store it where it can be charged at least every 30 days to maintain its service life.
If you do not remove the battery, we recommend disconnecting the battery
cables (negative cable first).
You will get the best storage results from removing the battery and slow
charging it every 30 days (see page ).
Before you remove the battery, be sure to read all the information that follows,
as well as the information on the battery label.
154
212
１１／０１／１９ １２：１７：３８ ３１ＭＣＡ７００ ０２１７
＋
−
＋
−
＋
−
LEFT SIDE
positive ( ) terminal lead
clip
battery plate
negative ( ) terminal lead
battery box cover battery holder bolt
211
Battery
Servicing Your Honda
The battery is located in the battery box behind the left side cover.
Check all bolts and other fasteners are secure.
Reinstall in the reverse order of removal. Be sure to connect the positive ( )
terminal first, then the negative ( ) terminal.
Installation
Slow charge the battery (see following section) once every 30 days.
Clean the battery box after removing the battery for storage. Dry the battery
box and, if paint is missing, re-paint the area.
Store your battery in an easy-to-reach location off the floor, in an area
protected from freezing temperatures and direct sunlight.
Charge the battery (see following section), unless you have been riding
regularly.
Be careful to avoid damaging the cover under the battery box when you
remove the battery.
Pull the battery out of the battery box.
Disconnect the positive ( ) terminal lead.
Remove the bolt and open the battery holder.
Disconnect the negative ( ) terminal lead from the battery first.
Remove the left side cover (page ).
Make sure the ignition switch is OFF.
Removal
Pull the clip and remove the battery plate.
1.
2.
11.
10.
1.
4.
3.
2.
5.
6.
7.
8.
9.
167
１１／０１／１９ １２：１７：５３ ３１ＭＣＡ７００ ０２１８

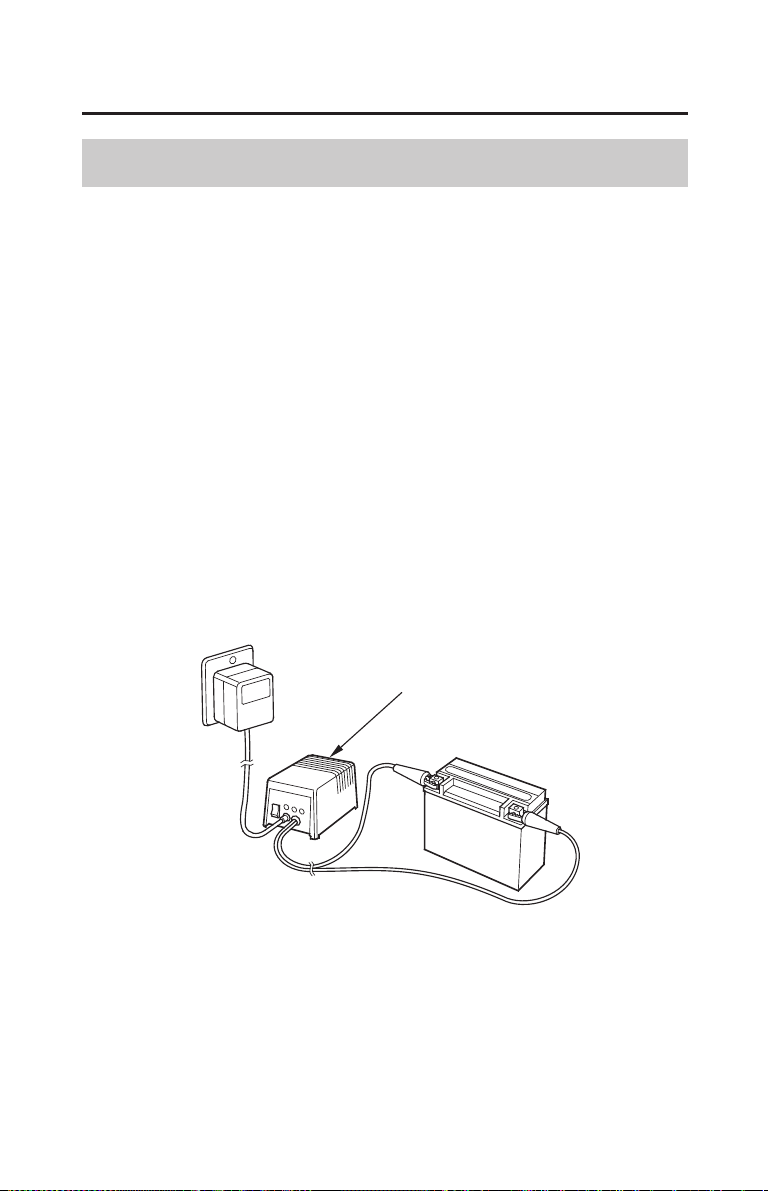

charger
212
Battery Charging
Battery
Servicing Your Honda
Safety PrecautionsRefer to on page .
Be sure to read the information that came with your battery charger and follow
the instructions on the battery. Improper charging may damage the battery.
We recommend using a charger designed specifically for your Honda, which
can be purchased from your dealer. These units can be left connected for long
periods without risking damage to the battery. However, do not intentionally
leave the charger connected longer than the time period recommended in the
charger’s instructions.
Avoid using an automotive-type battery charger. An automotive charger can
overheat a motorcycle battery and cause permanent damage.
154
１１／０１／１９ １２：１７：５９ ３１ＭＣＡ７００ ０２１９
−
−
−
−
213
General Recommendations
Appearance Care
Servicing Your Honda
Safety Precautions
High pressure water (or air) can damage certain parts of your motorcycle.
Frequent cleaning and polishing will keep your Honda looking newer longer.
Frequent cleaning also identifies you as an owner who values your motorcycle.
A clean motorcycle is also easier to inspect and service.
Refer to on page .
To clean your motorcycle, you may use:
Avoid products that contain harsh detergents or chemical solvents that could
damage the metal, paint, and plastic on your motorcycle.
If your motorcycle is still warm from recent operation, give the engine and
exhaust system time to cool off.
Park in a shady area. Washing your motorcycle in bright sunlight may cause
the finish to fade because water droplets intensify the sun’s brightness.
Spotting is also more likely because surface water can dry before you have
time to wipe it off.
Clean your motorcycle regularly to protect surface finishes.
After cleaning, inspect for damage, wear, and leaks (fuel, oil, coolant, brake,
and clutch fluid).
The audio system is designed to be weatherproof unless it is sprayed directly
with hose.
We recommend the use of a garden hose to wash your motorcycle. High
pressure washers (like those at coin-operated car washes) can damage certain
parts of your motorcycle.
water
a mild, neutral detergent and water
a mild spray and wipe cleaner/polisher
a mild spray and rinse cleaner/degreaser and water
154
１１／０１／１９ １２：１８：１０ ３１ＭＣＡ７００ ０２２０
214
Washing Your Motorcycle with a Mild Detergent
Appearance Care
Servicing Your Honda
Safety PrecautionsRefer to on page .
Rinse your motorcycle thoroughly with cool water to remove loose dirt.
Fill a bucket with cool water. Mix in a mild, neutral detergent, such as dish
washing liquid or a product made especially for washing motorcycles or
automobiles.
Wash your motorcycle with a sponge or a soft towel. As you wash, check for
heavy grime. If necessary, use a mild cleaner/degreaser to remove the grime.
If the inside of the headlight lens appears clouded immediately after washing,
it should clear after a few minutes of riding.
After washing, rinse your motorcycle thoroughly with plenty of clean water
to remove any residue. Detergent residue can corrode alloy parts.
Dry your motorcycle with a chamois or a soft towel. Leaving water on the
surface to air dry can cause dulling and water spots. As you dry, inspect for
chips and scratches.
Start the engine and let it idle for several minutes. The engine heat will help
dry moist areas.
As a precaution, ride your motorcycle at a slow speed and apply the brakes
several times. This will help dry the brakes and restore normal braking
performance.
1.
3.
2.
4.
5.
6.
7.
154
１１／０１／１９ １２：１８：１９ ３１ＭＣＡ７００ ０２２１
215
Cleaning the Windscreen
Cleaning the Display and Light Lens
Appearance Care
Servicing Your Honda
Safety Precautions
To avoid possible scratching or other damage, use only water and a soft cloth
or sponge to clean the windscreen.
To avoid possible scratching or other damage, use only water and a soft cloth
or sponge to clean the display and light lens.
Refer to on page .
Using plenty of water, clean the windscreen with a soft cloth or sponge. (Avoid
using detergents or any kind of chemical cleaner on the windscreen.) Dry with a
soft, clean cloth.
For a dirtier windscreen, use a diluted neutral detergent with a sponge and plenty
of water. Make sure to wash off all the detergent. (Detergent residue may cause
windscreen cracks.)
Replace the windscreen if scratches cannot be removed and they obstruct clear
vision.
Take care to keep battery electrolyte, brake fluid, or other chemical solvents off
the windscreen and screen garnish. They will damage the plastic.
Clean the display and light lens with a soft, damp cloth. You may use a mild
cleaner intended for eyeglasses or computer displays.
Harsher chemicals may damage the display and light lens.
Take care to keep battery electrolyte, brake fluid, or other chemical solvents off
the display and light lens. They will damage the display and light lens.
154
１１／０１／１９ １２：１８：２７ ３１ＭＣＡ７００ ０２２２
Apply a spray cleaner/polish and wipe
with a non-abrasive cloth.
General cleaning.
Polishing paint,
chrome, glass, and
clear plastic. Dust.
Fingerprint smudges.
Light road grime. Spray any difficult-to-reach or very dirty
areas with a spray cleaner/degreaser.
Rinse and dry.
Apply a spray cleaner/polish and wipe
with a non-abrasive cloth.
Use a spray cleaner/degreaser.
If necessary, rub with a sponge. Rinse
and dry.
Apply a spray cleaner/polish and wipe
with a non-abrasive cloth.
Apply a high quality chrome/aluminum
polish and wipe with a non-abrasive cloth.
Heavy grime. Oil leaks.
Brake dust.
Dull, corroded chrome
or aluminum.
Motorcycle Condition Recommended Cleaning
216
Spray Cleaning Your Motorcycle
Appearance Care
Servicing Your Honda
Safety PrecautionsRefer to on page .
Avoid using spray cleaner products on the tires or suspension components.
Suggestions for using spray cleaner(s) follow:
154
１１／０１／１９ １２：１８：３７ ３１ＭＣＡ７００ ０２２３
217
Aluminum Wheel Maintenance
Clean the Matte Painted Surface
Appearance Care
Servicing Your Honda
Safety Precautions
Safety Precautions
Refer to on page .
Aluminum may corrode from contact with dirt, mud, or road salt. Clean the
wheels after riding through any of these substances. Use a wet sponge and mild
detergent, or a commercially-available spray cleaner/degreaser designed for use
on aluminum. Avoid stiff brushes, steel wool, or cleaners containing abrasives
or harsh chemical compounds.
After washing, rinse with plenty of water and dry with a clean cloth. Then apply
a mild, commercially-available spray cleaner/polish or wax.
For stained or dull-looking wheels, use a quality chrome/aluminum polish to
restore the finish.
After you finish cleaning the wheels, it’s important to check for and remove any
cleaner or polish residue found on the brake discs or pads. Use Honda Contact/
Brake Cleaner or an equivalent brake degreasing agent.
Refer to on page .
Use a soft cloth or sponge, plenty of water, and a mild detergent to clean the
matte paint. Dry with a soft, clean cloth.
Do not use polishing compounds or wax containing polishing compounds. These
can damage or discolor the paint.
To keep your Honda looking new, clean and polish it frequently.
154
154
１１／０１／１９ １２：１８：４４ ３１ＭＣＡ７００ ０２２４
218
Exhaust Pipe And Muffler Maintenance
Finishing Touches
Appearance Care
Servicing Your Honda
Safety Precautions
Safety Precautions
Refer to on page .
The exhaust pipe and muffler are stainless steel but may become stained by mud
or dust.
To remove mud or dust, use a wet sponge and a liquid kitchen abrasive, then
rinse well with clean water. Dry with chamois or a soft towel.
If necessary, remove heat stains by using a commercially available fine texture
compound. Then rinse by the same manner as removing mud or dust.
Refer to on page .
After washing your motorcycle, consider using a commercially available spray
cleaner/polish or quality liquid or paste wax to finish the job. Use only a non-
abrasive polish or wax made specifically for motorcycles or automobiles. Apply
the polish or wax according to the instructions on the container.
If a surface on your motorcycle is chipped or scratched, your dealer has touch-
up paint to match your motorcycle’s color. Be sure to use your motorcycle’s
color code (page ) when you buy touch-up paint.
If the frame has a chip that exposes the metal, first apply primer (to prevent
corrosion) and then apply the touch-up paint. Several thin layers of touch-up
paint are better than one thick coat.
154
154
253
１１／０１／１９ １２：１８：５３ ３１ＭＣＡ７００ ０２２５
219
Tips
Tips
Here’s a few helpful tips on how to store and transport your Honda, and how to
be an environmentally responsible motorcycle owner.
.........................................................................................Storing Your Honda .
........................................................................Transporting Your Motorcycle .
...................................................................................You & the Environment .
220
222
223
１１／０１／１９ １２：１８：５８ ３１ＭＣＡ７００ ０２２６
220
Preparation for Storage
Tips
Storing Your Honda
Honda Winter Storage Guide,
Safety Precautions
If you won’t be riding for an extended period, such as during the winter,
thoroughly inspect your motorcycle and correct any problem before storing it.
That way, needed repairs won’t be forgotten and it will be easier to get your
motorcycle running again.
For more information about storage, refer to the
available from your dealer (USA only).
We suggest you perform the following procedures to keep your motorcycle in
top condition. These storage procedures will reduce the deterioration that can
occur during storage.
Change the engine oil and filter (page ).
Make sure the cooling system is filled with a 50/50% antifreeze solution
(page ).
Fill the fuel tank. Make sure the fuel fill cap is properly installed.
To prevent rusting in the cylinders, perform the following:
Remove the spark plug caps from the spark plugs. Using tape or string,
secure the caps to any convenient plastic body part so that they are
positioned away from the spark plugs.
Remove the spark plugs from the engine and store them in a safe place. Do
not connect the spark plugs to the spark plug caps.
This procedure requires a means for draining and disposing of drained fuel
(page ).
Refer to on page .
1.
2.
3.
4.
154
223
179
182
１１／０１／１９ １２：１９：０７ ３１ＭＣＡ７００ ０２２７
−
221
Removal from Storage
Tips
Storing Your Honda
Safety Precautions
Pour a tablespoon (15 20 cc) of clean engine oil into each cylinder and
cover the spark plug holes with a piece of cloth.
With the engine stop switch in the RUN position, press the start button
several times to crank the engine and distribute the oil.
Reinstall the spark plugs and spark plug caps.
Remove the battery and charge it fully. Store it in an area protected from
freezing temperatures and direct sunlight. Slow charge the battery
(page ) once a month.
Wash and dry your motorcycle. Wax all painted surfaces. Apply rust-
inhibiting oil to the chrome pieces.
Inflate the tires to their recommended pressures (page ).
Store your motorcycle in an unheated area, free of dampness, away from
sunlight, with a minimum of daily temperature variation.
Cover your motorcycle with a porous material. Avoid using plastic or similar
non-breathing, coated materials that restrict air flow and allow heat and
moisture to accumulate.
Refer to on page .
Uncover and clean your motorcycle.
If your motorcycle has been stored for more than four months –– change the
engine oil (page ).
If your motorcycle has been stored for more than two months –– ask your
dealer to drain and replace the fuel.
Charge the battery (page ) as required. Install the battery.
Perform a pre-ride inspection (page ), then test-ride your motorcycle at
low speeds.
1.
2.
3.
4.
5.
5.
6.
7.
8.
9.
47
212
212
154
179
212
１１／０１／１９ １２：１９：２０ ３１ＭＣＡ７００ ０２２８
222
Tips
Transporting Your Motorcycle
If your motorcycle needs to be transported, it should be carried on a motorcycle
trailer, or a truck or trailer with a flatbed area. Do not tow your motorcycle, as
towing can seriously damage the transmission.
When contacting a towing or transporting service, be sure to ask if they have a
flatbed area, a loading ramp or power ramp to safely lift the motorcycle, and
motorcycle tie-down straps.
１１／０１／１９ １２：１９：２４ ３１ＭＣＡ７００ ０２２９
223
Tips
Recycle Wastes.
Choose Sensible Cleaners.
You & the Environment
Owning and riding a motorcycle can be enjoyable, but you must do your part to
protect nature.
Following are tips on how you can be an environmentally responsible
motorcycle owner.
It’s illegal and thoughtless to put used engine oil in the trash,
down a drain, or on the ground. Used oil, gasoline, coolant, and cleaning
solvents contain poisons that can hurt refuse workers and contaminate our
drinking water, lakes, rivers, and oceans. Before changing your oil, make sure
you have the proper containers. Put oil and other toxic wastes in separate
sealed containers and take them to a recycling center. Call your local or state
office of public works or environmental services to find a recycling center in
your area, and to get instructions on how to dispose of non-recyclable wastes.
Use a biodegradable detergent when you wash
your motorcycle. Avoid aerosol spray cleaners that contain
chlorofluorocarbons (CFCs) which damage the atmosphere’s protective ozone
layer. Don’t throw cleaning solvents away; see the following guidelines for
proper disposal.
１１／０１／１９ １２：１９：２９ ３１ＭＣＡ７００ ０２３０
224
Tips
１１／０１／１９ １２：１９：３１ ３１ＭＣＡ７００ ０２３１
225
Taking Care of the Unexpected
Taking Care of the Unexpected
This section discusses the more common problems that can occur with your
motorcycle while you’re riding. It tells you how to evaluate each problem and
what actions you can take to try to resume riding. If the problem cannot be
safely solved, this section also gives instructions on the proper way to have your
motorcycle transported.
For information about transporting your motorcycle, see page .
...........................................................................................General Guidelines .
...............................................................If Your Engine Quits or Won’t Start .
....................................................................................If You Have a Flat Tire .
................................................................................If Your Engine Overheats .
.........................................................If the Low Oil Pressure Indicator Lights .
.................................................................................................IfaFuseBlows .
.....................................................................................................If You Crash .
.....................................................................................If You Lose Your Key .
....................................................................If Your Battery Is Low (or Dead) .
222
226
227
230
241
243
244
247
248
249
１１／０１／１９ １２：１９：４０ ３１ＭＣＡ７００ ０２３２
226
General Guidelines
Taking Care of the Unexpected
Taking Care of the Unexpected
Keeping your motorcycle well-maintained is the best way to reduce the
possibility of having a problem on the road.
Should you ever have a problem while riding, please follow these guidelines:
Always put personal safety first.
Take time to assess the situation and your options before deciding what to do.
If the problem is relatively minor and you have the tools, supplies, and skills
to make a temporary repair, be sure to have permanent repairs made as soon
as possible.
Do not continue riding if you are hurt or your motorcycle is not in safe riding
condition.
Additional recommendations for specific problems follow.
Remember to take along your owner’s manual, the tool kit that came with your
motorcycle, and any other items (such as tire repair supplies and additional
tools) that might help you solve a problem on your own.
１１／０１／１９ １２：１９：４７ ３１ＭＣＡ７００ ０２３３
−
−
SYMPTOM:
transmission not in neutral
WHAT TO DO
Turn the ignition switch ON.
Turn the engine stop switch to RUN.engine stop switch OFF
ignition switch OFF
POSSIBLE CAUSE
Shift into neutral.
reverse (RVS)switch ON Push the reverse (RVS) switch to the
OFF position.
side stand down (when
transmission not in neutral)
Put the transmission in neutral or raise
the side stand and pull the clutch lever in.
blown fuse Replace with a new fuse of the same
rating (page ).
battery lead loose Tighten the battery lead.
low (or dead) battery Charge the battery (page ). If
charging doesn’t help, see your dealer.
faulty starter motor If all possible causes are negative, the
starter motor may be faulty. See your
dealer.
246
212
Starter motor doesn’t operate.
227
Taking Care of the Unexpected
If Your Engine Quits or Won’t Start
Starter motor doesn’t operate
Starter motor works, but the engine won’t start
Proper operation and maintenance can prevent starting and engine performance
problems. In many cases, the cause of the problem may be a simple operational
oversight.
If you have a problem starting the engine or experience poor engine
performance the following information may help you. If you can’t correct the
problem, see your dealer.
If your motorcycle won’t start, listen as you press the start button. If you don’t
hear the starter motor turning, refer to the
symptom. If you can hear the starter motor working normally, refer to the
symptom.
１１／０１／１９ １２：２０：０３ ３１ＭＣＡ７００ ０２３４
weak battery
SYMPTOM:
POSSIBLE CAUSE WHAT TO DO
Fill the fueltank.
See (page ).
out of fuel
flooded engine
loose or unconnected
spark plug caps
Install the spark plug caps securely. If
the engine still won’t start, see your
dealer.
loose battery cables Tighten the battery terminal bolts.
Charge the battery (page ). If
charging doesn’t help, see your dealer.
SYMPTOM:
POSSIBLE CAUSE
side stand down
WHAT TO DO
Raise the side stand. Start again.
72
212
Starter motor works, but the engine won’t start.
Engine starts, but stalls as you shift into gear.
Flooded Engine
228
Taking Care of the Unexpected
If Your Engine Quits or Won’t Start
１１／０１／１９ １２：２０：１５ ３１ＭＣＡ７００ ０２３５
WHAT TO DOPOSSIBLE CAUSE
SYMPTOM:
idles roughly, too fast,
stalls
overheating
low oil pressure
runs erratically, misfires
See your dealer.
Check the coolant temperature gauge.
Refer to
page .
Check the low oil pressure indicator.
Refer to
page .
See your dealer.
See your dealer.
May damage catalytic converters.
See your dealer.
May damage catalytic converters.
May damage catalytic converters.
If applicable, switch to the recommended
octane gasoline (page ) or change
your brand of gasoline. If the problem
persists, see your dealer.
See your dealer.
pre-ignition (runs on after
ignition switched OFF)
afterfires (backfires)
detonates or pings under
load
sooty exhaust (rich fuel
mixture)
blubbers (rich fuel
mixture)
See your dealer.
241
243
172
Engine starts, but runs poorly.
If Your Engine Overheats,
If theLow OilPressure
Indicator Lights,
229
Taking Care of the Unexpected
If Your Engine Quits or Won’t Start
１１／０１／１９ １２：２０：３１ ３１ＭＣＡ７００ ０２３６
Riding your motorcycle with a
temporary tire repair can be
risky. If the temporary repair
fails, you can crash and be
seriously injured or killed.
Ifyoumustridewitha
temporary tire repair, ride slowly
and carefully and do not exceed
30 mph (50 km/h) until the tire is
permanently repaired or
replaced.
230
Taking Care of the Unexpected
If You Have a Flat Tire
A flat tire is always unwelcome, especially if you are far from help. If you think
you are losing air, or you hit a pothole or hard object, pull safely to the side of
the road so you can inspect the tires and assess the situation. (Be sure to park on
a firm, level surface and use the center stand for support.) You should examine
the tire treads and sidewalls for foreign objects or damage. If you find a tire that
has been punctured or damaged, you have two options.
Option 1:
Have Your Motorcycle Transported
If a tire has a major puncture or a cut in the tread or sidewall, or the bead has
come loose from the rim, there is probably not much you can do except have
your motorcycle transported to your dealer or other qualified service facility.
Even with a simple puncture, this may be the safest and least troublesome
solution. For transporting instructions, see page .
Option 2:
Make a Temporary Roadside Repair
If a tire has only a minor nail puncture and is not completely flat, you may be
able to make an emergency repair that could allow you to continue riding to
where you can get the tire replaced or permanently repaired.
222
１１／０１／１９ １２：２０：３８ ３１ＭＣＡ７００ ０２３７
231
Types of Temporary Repairs
Taking Care of the Unexpected
If You Have a Flat Tire
Plug the hole:
Inflate the tire:
Using a puncture-repairing agent can damage the TPMS sensors, causing the
TPMS indicator to turn on. Have you motorcycle checked by your Honda
dealer as soon as possible.
Use caution to not damage the TPMS sensor if an internal plug patch must be
used to repair the tire. If you have a tire professionally repaired at a non-
Honda facility, we recommend that you have the work checked by your Honda
dealer. TPMS wheels require special handling when changing the tire. Failure
to follow the proper tire replacement procedure can result in damage to the
TPMS sensor.
Due to the uncertainty of any temporary repair, you should ride slowly (not over
30 mph, 50 km/h) and carefully (preferably without a passenger or cargo) until
the tire is replaced or permanently repaired. Stop frequently and check the air
pressure. If the tire is losing pressure, it may be unsafe to continue riding. As the
tire gets low, it will affect the handling of your motorcycle (especially with a
passenger and cargo), and it may overheat and blow out.
The following types of temporary repairs generally require a source of air to
inflate the tire. Possible sources include CO cartridges or cans of compressed
air designed to inflate a tire.
The idea here is to do something to temporarily stop the leak.
If you have a tubeless tire repair kit, you can pull out the nail and try inserting
an external plug in the puncture. Follow the instructions that came with the
repair kit and be sure to inflate the tire to the correct pressure.
Tubeless tires have some self-sealing ability if they are
punctured and the result is usually just a slow leak. If this is the case, you can
try inflating the tire to see if it will hold air pressure. If you can see a nail or
other object embedded in the tire tread, do not remove it at this time.
For more information on tire repair, see page .205
2
１１／０１／１９ １２：２０：４５ ３１ＭＣＡ７００ ０２３８
232
Emergency Front Wheel Removal/Installation
Should You Repair or Replace a Tire?
Taking Care of the Unexpected
If You Have a Flat Tire
Safety Precautions
Avoid depressing the brake lever and brake pedal when the wheel is off the
motorcycle. This will force the caliper pistons out of the cylinders. The
result will be a loss of brake fluid. If this occurs, the brake system will
require service.
See your dealer for this service.
Avoid getting grease, oil, or dirt on the disc or pad surfaces. Any
contamination can cause poor brake performance or rapid pad wear after
reassembly.
To avoid damage to the brake hose during removal, support the caliper
assembly so that it doesn’t hang from the hose. Do not twist the brake hose.
When removing and installing the wheel, be careful not to damage the
sensor and pulser ring.
Remove the parts in sequence, according to the order in the illustration.
Raise the front wheel off the ground by placing a support block under the
engine, being careful to avoid contact with the exhaust pipe and front lower
cover.
Park your motorcycle on a firm, level surface.
Removal
We recommend wheel removal be done only by your dealer or another qualified
mechanic. Do not attempt to remove the wheel on your own. Wheel removal
requires mechanical skill and professional tools.
Refer to on page .
We strongly recommend that you replace, not permanently repair, any tire that is
punctured or damaged, even if the tire has only a minor puncture. For a full
discussion of repairs and replacement, see page .
1.
2.
3.
(Models equipped with ABS)
205
154
１１／０１／１９ １２：２０：５５ ３１ＭＣＡ７００ ０２３９
protective tape
233
Taking Care of the Unexpected
If You Have a Flat Tire
For related torque specifications, see page . Cover both sides of the front
wheel with protective tape or an equivalent.
The numbers indicate the disassembly sequence.
235
１１／０１／１９ １２：２１：０１ ３１ＭＣＡ７００ ０２４０
(Models equipped with ABS)
234
Taking Care of the Unexpected
If You Have a Flat Tire
１１／０１／１９ １２：２１：０７ ３１ＭＣＡ７００ ０２４１
23 lbf·ft (31 N·m , 3.2 kgf·m)
44 lbf·ft (59 N·m , 6.0 kgf·m)
16 lbf·ft (22 N·m , 2.2 kgf·m)
recessed surface
front axle shaft
index line
235
If You Have a Flat Tire
Taking Care of the Unexpected
Installation
Tighten the front axle pinch bolts on the left fork leg to the specified torque:
Install the side collars in the wheel and position it between the fork legs.
Insert the front axle shaft from the left side, through the left fork leg and
wheel hub.
Tighten the front axle bolt to the specified torque:
Install the brake caliper assembly onto the fork leg.
To avoid damaging the brake pads while installing the brake caliper assembly,
carefully fit the brake disc between the pads.
(cont’d)
Align the index line of the front axle shaft with the recessed surface of the
fork leg.
Install the right caliper fixing bolts and left caliper socket bolt and tighten to
the specified torque:
1.
2.
3.
4.
5.
6.
１１／０１／１９ １２：２１：１７ ３１ＭＣＡ７００ ０２４２
16 lbf·ft (22 N·m , 2.2 kgf·m)
brake bracket brake bracket
brake disc
236
If You Have a Flat Tire
Taking Care of the Unexpected
Operate the front brake and pump the fork several times. Check for free
wheel rotation after the brake is released. Recheck the wheel if the brake
drags or the wheel does not rotate freely.
If the clearances between each surface of the brake disc and the brake bracket
(not the brake pads) are symmetrical, follow the next step.
If the clearances are not symmetrical, loosen the left axle pinch bolts and pull
the left fork outward or push inward to adjust the clearance. Then follow the
next step.
Tighten the front axle pinch bolts on the right fork leg to the specified torque:
Visually check that the clearances between each surface of the brake disc
and the brake bracket (not the brake pads) are symmetrical.
7.
8.
9.
１１／０１／１９ １２：２１：２４ ３１ＭＣＡ７００ ０２４３
237
Taking Care of the Unexpected
If You Have a Flat Tire
After installing the wheel, apply the brake lever AND brake pedal several
times, then recheck both discs for caliper holder to disc clearance. Do not
operate the motorcycle without adequate clearance.
Check for free wheel rotation after the brake lever and brake pedal are
released. Recheck the wheel if the brake drags or if the wheel does not
rotate freely.
Verify proper brake operation before riding.
Remove the protective tapes from the front wheel.
Reassemble the removed parts in the reverse order of removal.
If a torque wrench is not used for installation, see your dealer as soon as
possible to verify proper assembly. Improper assembly may lead to loss of
braking capability.
After installing the wheel, operate the brake lever AND brake pedal several
times until you feel pressure. You must restore pressure from BOTH the
lever AND the pedal because this motorcycle is equipped with Dual CBS
(Linked Braking System).
10.
11.
12.
１１／０１／１９ １２：２１：３１ ３１ＭＣＡ７００ ０２４４
238
Emergency Rear Wheel Removal/Installation
Taking Care of the Unexpected
If You Have a Flat Tire
Safety PrecautionsRefer to on page .
Park your motorcycle on its center stand on a firm, level surface.
Remove the parts in sequence, according to the order in the illustration.
Avoid getting grease, oil, or dirt on the disc or pad surfaces. Any
contamination can cause poor brake performance or rapid pad wear after
reassembly.
Removal
We recommend wheel removal be done only by your dealer or another qualified
mechanic. Do not attempt to remove the wheel on your own. Wheel removal
requires mechanical skill and professional tools.
When removing and installing the wheel, be careful not to damage the
sensor and pulser ring.
1.
2.
(Models equipped with ABS)
154
１１／０１／１９ １２：２１：３８ ３１ＭＣＡ７００ ０２４５
239
If You Have a Flat Tire
Taking Care of the Unexpected
１１／０１／１９ １２：２１：４４ ３１ＭＣＡ７００ ０２４６
80 lbf·ft (108 N·m , 11.0 kgf·m)
240
If You Have a Flat Tire
Taking Care of the Unexpected
Installation
Reassemble the removed parts in the reverse order of removal.
Tighten the rear wheel nuts to the specified torque:
After installing the wheel, apply the brake several times and then check if the
wheel rotates freely. Recheck the wheel if the brake drags or if the wheel
does not rotate freely.
If a torque wrench is not used for installation, see your dealer as soon as
possible to verify proper assembly. Improper assembly may lead to loss of
braking capability.
1.
2.
3.
１１／０１／１９ １２：２１：５１ ３１ＭＣＡ７００ ０２４７
241
If Your Engine Overheats
Taking Care of the Unexpected
Continuing to ride with an overheated engine can cause serious engine damage.
A steaming engine indicates a coolant leak. Shut the engine off and wait until
the steaming stops. Look for a leak, but don’t touch the engine or radiator
system. Let everything cool off first.
If there’s no obvious problem, leave the engine on so the fan and coolant
circulating system can continue working. Monitor the temperature gauge. The
needle may drop to the normal range after a brief stop with no load on the
engine.
Check the radiator fan.
If the fan is not working, turn the engine off. Open the fuse box (page )
and check the radiator fan fuse. If the fuse is blown, replace it with the proper
(same rating) spare fuse. Start the engine. If the needle climbs to the red zone
and stays there, turn the engine off.
If the radiator fan is working, visually check the coolant level in the reserve
tank, located behind the left engine side cover. It isn’t necessary to touch the
radiator system.
Normally, the needle on your temperature gauge will rise to a point about
midway between C (cold) and H (hot) and then level off. Hot weather may
cause the needle to rise higher than normal. So will temporary stress such as
climbing a hill. If you’re stuck in stop-and-go traffic, the needle may climb
some, but the radiator fan is designed to prevent overheating. Be aware of these
variations as you monitor the gauge.
If your vehicle is operated at sustained speeds between 10 and 15 miles per
hour in high ambient temperature conditions, you may experience high
temperature gauge readings.
If the temperature gauge rises, shifting to second gear or altering your speed
(either faster or slower) may reduce the temperature reading. If the indicator
reaches the red zone, as soon as it is safe to do so, pull over and let the engine
idle until the indicator drops.
(cont’d)
244
１１／０１／１９ １２：２１：５８ ３１ＭＣＡ７００ ０２４８
242
If Your Engine Overheats
Taking Care of the Unexpected
If the reserve tank is low or empty, don’t ride without adding coolant
(page ). After adding coolant, turn the engine on and check the
temperature gauge.
If the needle doesn’t drop, do not ride. The engine needs repair. Transport
your motorcycle to a dealer (page ).
If the temperature drops to normal, check the coolant level. If it has gone
down, add more coolant.
If you are able to resume riding, continue to monitor the gauge frequently.
If there’s a mild leak, you can ride for awhile, carefully watching the gauge. Be
prepared to stop and add more coolant or water. If the leak is bad, transport your
motorcycle to your dealer (page ).
183
222
222
１１／０１／１９ １２：２２：０３ ３１ＭＣＡ７００ ０２４９
243
If the Low Oil Pressure Indicator Lights
Taking Care of the Unexpected
Continuing to ride with low oil pressure can cause serious engine damage.
If you check your engine oil level regularly, you should never see the low
oil pressure indicator comes on while riding. Normally, it will only light
momentarily when you turn the ignition switch ON. Occasionally, it may
flicker at or near idling speed.
Low oil pressure may be caused by an oil leak, a low oil level, or some problem
in the engine’s lubrication system.
If the indicator comes on while you’re riding, don’t ignore it. Pull safely to the
side of the road. If possible, pull the clutch lever in and coast to a stop. Stop the
engine as soon as it’s safe to do so.
Check for an oil leak.
Then check the oil level. If necessary, add the recommended oil (page )
to the upper level mark. If you must leave your motorcycle to get oil, secure it
as much as possible.
After adding oil, start the engine, and check that the low oil pressure indicator
goes off. Check for a possible leak.
If the indicator goes off and there is no leak –– resume riding. If there is a
leak –– do not ride the motorcycle until the leak is repaired by your dealer.
178
１１／０１／１９ １２：２２：０９ ３１ＭＣＡ７００ ０２５０
30 A
120 A
60 A
40 A
30 A, 20 A, 15 A, 10 A, 5 A
main fuse A
main fuse B
speed limiterfuse
external amplifier fuse
other fuses
LEFT SIDE
fuse box
fuse box cover
244
If a Fuse Blows
Taking Care of the Unexpected
If something electrical on your motorcycle stops working, the first thing you
should check for is a blown fuse.
Determine from the chart on the circuit fuse box cover which fuse or fuses
control that component. Check those fuses first, but check all the fuses before
looking elsewhere for another possible cause of the problem. Replace any blown
fuses and check component operation.
All of the electrical circuits on your motorcycle have fuses to protect them from
damage caused by excess current flow (short circuit or overload).
Recommended Fuses
The circuit fuse box (including spare fuses) is located behind the left side
cover.
The main fuse is located in the fuse box.
To prevent an accidental short circuit, turn the ignition switch OFF before
checking or replacing the fuses.
Remove the left side cover (page ).
Remove the fuse box cover.
1.
2.
3.
167
１１／０１／１９ １２：２２：２３ ３１ＭＣＡ７００ ０２５１
245
If a Fuse Blows
Taking Care of the Unexpected
Main Fuse Access:
Speed Limiter Fuse Access:
Circuit Fuses Access:
Replacing a fuse with one that has a higher rating greatly increases the chance
of damage to the electrical system.
External Amplifier Fuse Access:
Check the two main fuses (A & B) to see if they are blown.
(cont’d)
To replace main fuses (A & B), see your dealer for this service.
Check the speed limiter (reverse system) fuse to see if it’s blown, see your
dealer for this service.
To check or replace a circuit fuse, pull the old fuse out of its retaining clips
with the fuse remover. Look for a burned wire inside the fuse. If the fuse is
blown, replace it with a spare fuse of the same rating.
If you do not have a replacement fuse with the proper rating for the circuit,
install one with a lower rating.
To replace the external amplifier fuse, see your dealer for this service.
4.
5.
6.
7.
１１／０１／１９ １２：２２：３２ ３１ＭＣＡ７００ ０２５２
fuse remover
LEFT SIDE
circuit fuses
main fuse A
speed limiter fuse
fuse remover
spare fuses
blown fuse
main fuse B/external amplifier fuse
246
If a Fuse Blows
Taking Care of the Unexpected
If the replacement fuse of the same rating burns out in a short time, there is
probably a serious electrical problem on your motorcycle. Leave the blown fuse
in that circuit and have your motorcycle checked by your dealer.
If you replace a blown fuse with a spare fuse that has a lower rating, replace the
fuse with the correct rating as soon as you can. Also remember to replace any
spare fuses that were installed.
If you do not have a spare fuse and you cannot ride the motorcycle without
fixing the problem, take a fuse of the same rating or a lower rating from one of
the other circuits that you can do without temporarily.
Install the left side cover.
Close the fuse box cover.8.
9.
１１／０１／１９ １２：２２：４１ ３１ＭＣＡ７００ ０２５３
247
If You Crash
Taking Care of the Unexpected
Transporting Your Motorcycle,
Personal safety is your first priority after a crash. If you or anyone else has
been injured, take time to assess the severity of the injuries and whether it
is safe to continue riding. Call for emergency assistance if needed. Also
follow applicable laws and regulations if another person or vehicle is
involved in the crash.
If you decide that you are capable of riding safely, first evaluate the condition
of your motorcycle. If the engine is still running, turn it off and look it over
carefully; inspect it for fluid leaks, check the tightness of critical nuts and bolts,
and secure such parts as the handlebar, control levers, brakes, and wheels.
If there is minor damage, or you are unsure about possible damage, ride slowly
and cautiously. Sometimes, crash damage is hidden or not immediately apparent,
so you should have your motorcycle thoroughly checked at a qualified service
facility as soon as possible. Also, be sure to have your dealer check the frame
and suspension after any serious crash.
If your motorcycle cannot be ridden, see
page .222
１１／０１／１９ １２：２２：４７ ３１ＭＣＡ７００ ０２５４
key number plate
248
If You Lose Your Key
Taking Care of the Unexpected
Be sure to record your key number in the Quick Reference section at the rear of
the manual. You’ll need this number to have a duplicate key made.
A lost key won’t be a problem if you take preventative action. Store one
duplicate key in a safe place at home and carry a second duplicate in your wallet.
If you lose your key and aren’t carrying a duplicate, either get your spare or
have one made. If you don’t know your key number, call the dealer where you
purchased your Honda. They may have it listed in their records. If they don’t,
transport your motorcycle to them or the nearest dealer. The dealer will probably
have to remove the ignition switch assembly to find the key number so they can
make a key for you.
You should receive a key number plate with your keys. Store this plate in a safe
place.
１１／０１／１９ １２：２２：５２ ３１ＭＣＡ７００ ０２５５
249
If Your Battery Is Low (or Dead)
Taking Care of the Unexpected
Jump starting is not recommended, especially if you use an automobile
battery. The greater amperage of an automobile battery when the car
engine is running can damage your motorcycle’s electrical system.
Bump starting is also not recommended.
If you can’t charge the battery or it appears unable to hold a charge, contact your
dealer.
１１／０１／１９ １２：２２：５６ ３１ＭＣＡ７００ ０２５６
250
Taking Care of the Unexpected
１１／０１／１９ １２：２２：５８ ３１ＭＣＡ７００ ０２５７
251
Technical Information
Technical Information
This section contains dimensions, capacities, and other technical data, plus
information on government requirements and how to break-in your
motorcycle.
.................................Tire Pressure Monitoring System (TPMS) Explanation .
......................................................................................Vehicle Identification .
...................................................................................................Specifications .
.........................................................................................Break-in Guidelines .
...............................................................................Emission Control Systems .
.........................................................................................Catalytic Converters .
.............................................................................................Oxygenated Fuels .
252
254
260
261
263
267
268
１１／０１／１９ １２：２３：０５ ３１ＭＣＡ７００ ０２５８
LEFT SIDE RIGHT SIDE
RIGHT SIDE
VIN
engine number
VIN
252
Serial Numbers
Technical Information
Vehicle Identification
The VIN and engine serial number are required when you register your
motorcycle. They may also be required when ordering replacement parts. You
may record these numbers in the Quick Reference section at the rear of this
manual.
The VIN (vehicle identification number) is stamped on the right side of the
steering head and also appears on the Safety Certification Label attached to the
left side of the steering head.
The engine number is stamped on the right side of the crankcase.
１１／０１／１９ １２：２３：１３ ３１ＭＣＡ７００ ０２５９
color label
253
Color Label & Code
Technical Information
Vehicle Identification
The color code is helpful when ordering replacement parts. You may record the
color and code in the Quick Reference section at the rear of this manual.
The color label is attached inside the fuel filler compartment lid.
１１／０１／１９ １２：２３：１８ ３１ＭＣＡ７００ ０２６０
57.3 in (1,455 mm)
37.2 in (945 mm)
103.5 in (2,630 mm)
66.5 in (1,690 mm)
4.9 in (125 mm)
unleaded gasoline, pump octane number of
86 or higher
6.6 US gal (25
)
4.9 US qt (4.6
)
3.8 US qt (3.6
)
3.9 US qt (3.7
)
API Service Classification SG or higher
except oils labeled as energy conserving on
the circular API service label, SAE 10W-30,
JASO T 903 standard MA,
Pro Honda GN4 4-stroke oil (USA & Canada)
or Honda 4-stroke oil (Canada only), or an
equivalent motorcycle oil
after disassembly:
after draining:
after draining & oil filter change:
overall length
overall width
overall height
wheelbase
ground clearance
fuel
recommendation
fuel tank capacity
engine oil capacity
engine oil
recommendation
Dimensions
Fuel & Lubricants
254
Technical Information
Specifications
１１／０１／１９ １２：２３：３１ ３１ＭＣＡ７００ ０２６１
4.1 US oz (120 cm )
4.06 US qt (3.84
)
Operator and one passenger
410 lb (186 kg)
rider, passenger, all cargo and accessories
20.0 lb (9.0 kg)
20.0 lb (9.0 kg)
4.5 lb (2.0 kg)
1.0 lb (0.5 kg)
6.6 lb (3.0 kg)
72 lb (33 kg)
66 lb (30 kg)
cooling system,
recommendation
Pro Honda HP Coolant or an equivalent high
quality ethylene glycol antifreeze containing
corrosion protection inhibitors specifically
recommended for use in aluminum engines
cooling system,
capacity
passenger
capacity
maximum weight
capacity
final drive oil
capacity
cargo capacity
after draining:
shelter case (Models not equipped
with Airbag):
travel trunk:
each saddlebag:
fairing pocket:
each trunk side pocket:
total of all cargo (Models not equipped
with Airbag):
total of all cargo (Models equipped with
Airbag):
Fuel & Lubricants (Cont’d)
Capacities
255
Technical Information
Specifications
１１／０１／１９ １２：２３：４３ ３１ＭＣＡ７００ ０２６２
××
−−
±
111.8 cu-in (1,832 cm
)
2.91 2.80 in (74.0 mm 71.0 mm)
9.8 : 1
BKR6E-11 (NGK)
K20PR-U11 (DENSO)
BKR5E-11 (NGK)
K16PR-U11 (DENSO)
BKR7E-11 (NGK)
K22PR-U11 (DENSO)
0.006 in (0.15 mm)
0.009 in (0.22 mm)
0.039 0.043 in (1.00 1.10 mm)
700 70 rpm
1.591
shaft
0.685
0.843
1.068
1.454
2.375
2.750
1.028
or
or
or
(No adjustment)
displacement
bore & stroke
compression ratio
spark plug
(standard)
spark plug
(cold climate)
spark plug (high
speed riding)
valve clearance
(cold)
intake
exhaust
spark plug gap
idle speed
primary reduction
secondary reduction
final reduction
gear ratio, 1st
2nd
3rd
4th
OD
final drive
Engine Specifications
Power Transmission
256
Technical Information
Specifications
１１／０１／１９ １２：２４：０５ ３１ＭＣＡ７００ ０２６３
−
29°15’
4.3 in (109 mm)
130/70R18M/C 63H
BRIDGESTONE G709 RADIAL
180/60R16M/C 74H
BRIDGESTONE G704 RADIAL
36 psi (250 kPa , 2.50 kgf/cm
)
41 psi (280 kPa , 2.80 kgf/cm
)
GYZ20L 12 V 20 Ah (10HR)
1.2 kW/5,000 rpm
radial, tubeless
tire size, front
trail
caster
tire size, rear
tire type
tire pressure, front
(cold)
tire pressure, rear
(cold)
battery
generator
Chassis & Suspension
Electrical
257
Technical Information
Specifications
１１／０１／１９ １２：２４：１７ ３１ＭＣＡ７００ ０２６４
−×
−×
−×
−×
−×
−
12 V 21/5 W 4
12 V 21/5 W 2
12 V 21 W 2
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
12 V 55 W 2
12 V 55 W 2
12 V 5 W
LED
LED
LED
LED
(rear)
(front)
(high)
(low)
turn signal lights
brake/tail light
headlight
CRUISE ON
indicator
overdrive indicator
reverse indicator
PGM-FI indicator
low fuel indicator
side stand indicator
low oil pressure
indicator
high beam indicator
turn signal indicator
neutral indicator
instrument light
license light
AIRBAG indicator
ABS indicator
CRUISE SET
indicator
low tire pressure
indicator
tire pressure
monitoring system
(TPMS) indicator
(models equipped
with ABS)
(models equipped
with Airbag)
Lights
258
Technical Information
Specifications
１１／０１／１９ １２：２４：３９ ３１ＭＣＡ７００ ０２６５
120 A
30 A
60 A
40 A
30 A, 20 A, 15 A, 10 A, 5 A
25 lbf·ft (34 N·m , 3.5 kgf·m)
19 lbf·ft (26 N·m , 2.7 kgf·m)
44 lbf·ft (59 N·m , 6.0 kgf·m)
23 lbf·ft (31 N·m , 3.2 kgf·m)
23 lbf·ft (31 N·m , 3.2 kgf·m)
16 lbf·ft (22 N·m , 2.2 kgf·m)
80 lbf·ft (108 N·m , 11.0 kgf·m)
15 lbf·ft (20 N·m , 2.0 kgf·m)
main A
main B
external amplifier
fuse
speed limit fuse
other fuses
engine oil drain bolt
engine oil filter
front wheel axle bolt
right front wheel
caliper fixing bolts
left front wheel
caliper socket bolt
front wheel axle
pinch bolts
rear wheel nuts
final drive oil drain
bolt
Fuses
Torque Specifications
259
Technical Information
Specifications
１１／０１／１９ １２：２４：５４ ３１ＭＣＡ７００ ０２６６
260
Technical Information
Break-in Guidelines
Help assure your motorcycle’s future reliability and performance by paying
extra attention to how you ride during the first 300 miles (500 km).
During this period, avoid full-throttle starts and rapid acceleration.
１１／０１／１９ １２：２４：５８ ３１ＭＣＡ７００ ０２６７
low tire pressure indicator
261
Technical Information
low tire pressure
indicator
Tire Pressure Monitoring System
(TPMS) Explanation
Both tires should be checked monthly when cold, and inflated to the
inflation pressure recommended by the vehicle manufacturer on the tire
information label.
(If your vehicle has different tires than those indicated on the vehicle tire
information label, you should determine the proper tire inflation pressure
for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS) that illuminates a
when one or more of your tires significantly under-inflated.
Accordingly, when the low tire pressure indicator illuminates, you should
stop and check your tires as soon as possible, and inflate them to the proper
pressure.
Riding on a significantly under-inflated tire causes the tire to overheat and
can lead to tire failure. Under-inflation also reduces fuel efficiency and tire
tread life, and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire maintenance,
and it is the rider’s responsibility to maintain correct tire pressure, even if
under-inflation has not reached the level to trigger illumination of the
TPMS low tire pressure indicator.
１１／０１／１９ １２：２５：０２ ３１ＭＣＡ７００ ０２６８
TPMS indicator
262
Tire Pressure Monitoring System
(TPMS) Explanation
Technical Information
Your vehicle has also been equipped with a TPMS indicator to indicate
when the system is not operating properly. The TPMS indicator displays the
symbol ‘‘TPMS’’ when illuminated.
When the TPMS indicator is illuminated, the system may not be able to
detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including the
installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS from functioning properly.
Always check the TPMS indicator after replacing one or more tires or
wheels on your vehicle to ensure that the replacement or alternate tires and
wheels allow the TPMS to continue to function properly.
１１／０１／１９ １２：２５：０６ ３１ＭＣＡ７００ ０２６９
vehicle emission control
information label
vehicle emission control
information label (Canada only)
263
Exhaust Emission Requirements
Warranty Compliance
Noise Emission Requirements
Technical Information
Emission Control Systems
The U.S. Environmental Protection Agency (EPA), the California Air Resources
Board (CARB), and Environment Canada (EC) require that your motorcycle
comply with applicable exhaust emissions standards during its useful life, when
operated and maintained according to the instructions provided.
Compliance with the terms of the Distributor’s Warranties for Honda
Motorcycle Emission Control Systems is necessary in order to keep the
emissions system warranty in effect. (USA only)
The Vehicle Emission Control Information label is attached inside the trunk lid.
The EPA also requires that motorcycles built after January 1, 1983 comply with
applicable noise emission standards for one year or 3,730 miles (6,000 km) after
the time of sale to the ultimate purchaser, when operated and maintained
according to the instructions provided.
１１／０１／１９ １２：２５：１３ ３１ＭＣＡ７００ ０２７０
264
Technical Information
Emission Control Systems
PGM-FI System
Ignition Timing Control System
Secondary Air Injection System
Three-Way Catalytic Converters
Source of Exhaust Emissions
Exhaust Emission Control System
The PGM-FI system has four subsystems: Air Intake, Engine Control, Fuel
Control, and Exhaust Control.
The Engine Control Module (ECM) uses various sensors to determine how
much air is going into the engine. It then controls how much fuel is injected
under all operating conditions.
The system constantly adjusts the ignition timing, reducing the amount of HC,
CO and NOx produced.
The secondary air injection system introduces filtered air into the exhaust gases
in the exhaust port. The secondary air injection system helps improve emission
control performance.
The three-way catalytic converters are in the exhaust system. Through chemical
reactions, they convert HC, CO, and NOx in the engine’s exhaust to carbon
dioxide (CO ), nitrogen (N), and water vapor.
The combustion process produces carbon monoxide (CO), oxides of nitrogen
(NOx) and hydrocarbons (HC). Control of hydrocarbons and oxides of nitrogen
is very important because, under certain conditions, they react to form
photochemical smog when subjected to sunlight. Carbon monoxide does not
react in the same way, but it is toxic.
Honda Motor Co., Ltd. utilizes various systems to reduce carbon monoxide,
oxides of nitrogen and hydrocarbons.
The exhaust emission control system includes a PGM-FI system, two three-way
catalytic converters, a secondary air injection system, an ignition timing control
system, and two heated oxygen sensors or two air fuel ratio sensors.
No adjustment to these systems should be made although periodic inspection of
the components is recommended.
2
１１／０１／１９ １２：２５：１９ ３１ＭＣＡ７００ ０２７１
265
Technical Information
Emission Control Systems
Evaporative Emission Control System
Crankcase Emission Control System
This motorcycle complies with the requirements of the California Air Resources
Board (CARB) evaporative emission regulations. Fuel vapor from the fuel tank
is directed into the charcoal canister and air cleaner where it is adsorbed and
stored while the engine is stopped. When the engine is running and the purge
control solenoid valve is open, fuel vapor in the charcoal canister and air cleaner
is drawn into the engine through the throttle body.
The engine is equipped with a closed crankcase system to prevent discharging
crankcase emissions into the atmosphere. Blow-by gas is returned to the
combustion chamber through the air cleaner and the intake manifold.
１１／０１／１９ １２：２５：２３ ３１ＭＣＡ７００ ０２７２
266
Technical Information
Problems That May Affect Motorcycle Exhaust Emissions
Noise Emission Control System
Fuel Permeation Emission Control System
Emission Control Systems
If you are aware of any of the following symptoms, have the vehicle inspected
and repaired by your authorized Honda motorcycle dealer.
Symptoms:
Hard starting or stalling after starting
Rough idle
Misfiring or backfiring during acceleration
After-burning (backfiring)
Poor performance (driveability) and poor fuel economy
TAMPERING WITH THE NOISE CONTROL SYSTEM IS PROHIBITED:
U. S. federal law prohibits, or Canadian provincial laws may prohibit the
following acts or the causing thereof: ( ) The removal or rendering inoperative
by any person, other than for purposes of maintenance, repair or replacement, of
any device or element of design incorporated into any new vehicle for the
purpose of noise control prior to its sale or delivery to the ultimate purchaser or
while it is in use; or ( ) the use of the vehicle after such device or element of
design has been removed or rendered inoperative by any person.
AMONG THOSE ACTS PRESUMED TO CONSTITUTE TAMPERING ARE
THE FOLLOWING ACTS:
Removal of, or puncturing the muffler, baffles, header pipes or any other
component which conducts exhaust gases.
Removal of, or puncturing of any part of the intake system.
Lack of proper maintenance.
Replacing any moving parts of the vehicle, or parts of the exhaust or intake
system, with parts other than those specified by the manufacturer.
This vehicle complies with the Fuel Permeation Emission Control regulations of
the U.S. Environmental Protection Agency (EPA), the California Air Resources
Board (CARB), and Environment Canada (EC). The fuel tank, fuel hoses, and
fuel vapor charge hoses used on this vehicle incorporate fuel permeation control
technologies. Tampering with the fuel tank, fuel hoses, or fuel vapor charge
hoses to reduce or defeat the effectiveness of the fuel permeation technologies
is prohibited by federal regulations.
1.
2.
3.
4.
1.
2.
3.
4.
5.
1
2
１１／０１／１９ １２：２５：３０ ３１ＭＣＡ７００ ０２７３
267
Catalytic Converters
Technical Information
This motorcycle is equipped with two three-way catalytic converters. Each
catalytic converter contains precious metals that serve as catalysts, promoting
chemical reactions to convert the exhaust gasses without affecting the metals.
The catalytic converters act on HC, CO, and NOx. Replacement parts must be
original Honda parts or equivalents.
The catalytic converters must operate at high temperature for the chemical
reactions to take place. They can set fire to any combustible materials that come
near them. Park your motorcycle away from high grasses, dry leaves, or other
flammables.
Defective catalytic converters contribute to air pollution, and can impair your
engine’s performance. Follow these guidelines to protect your motorcycle’s
catalytic converters.
Always use unleaded gasoline. Even a small amount of leaded gasoline can
contaminate the catalyst metals, making the catalytic converters ineffective.
Keep the engine in good running condition.
A poorly running engine can cause the catalytic converter to overheat causing
damage to the converter or the motorcycle.
If your engine is misfiring, backfiring, stalling, or otherwise not running
properly, stop riding and turn off the engine. Have your motorcycle serviced
as soon as possible.
１１／０１／１９ １２：２５：３４ ３１ＭＣＡ７００ ０２７４
268
Oxygenated Fuels
Technical Information
Oxygenated fuels can damage paint and plastic. Damage caused by spilled fuel
is not covered by warranty.
Some conventional gasolines are being blended with alcohol or an ether
compound. These gasolines are collectively referred to as oxygenated fuels. To
meet clean air standards, some areas of the United States and Canada use
oxygenated fuels to help reduce emissions.
If you use an oxygenated fuel, be sure it is unleaded and meets the minimum
octane rating requirement.
Before using an oxygenated fuel, try to confirm the fuel’s contents. Some states/
provinces require this information to be posted on the pump.
The following are the EPA-approved percentages of oxygenates:
ETHANOL (ethyl or grain alcohol) 10% by Volume
You may use gasoline containing up to 10% ethanol by volume. Gasoline
containing ethanol may be marketed under the name ‘‘Gasohol’’.
MTBE (Methyl Tertiary Butyl Ether) 15% by Volume
You may use gasoline containing up to 15% MTBE by volume.
METHANOL (methyl or wood alcohol) 5% by Volume
You may use gasoline containing methanol containing up to 5% methanol by
volume as long as it also contains cosolvents and corrosion inhibitors to
protect the fuel system. Gasoline containing more than 5% methanol by
volume may cause starting and/or performance problems. It may also damage
metal, rubber, and plastic parts of your fuel system.
If you notice any undesirable operating symptoms, try another service station or
switch to another brand of gasoline.
Fuel system damage or performance problems resulting from the use of an
oxygenated fuel containing more than the percentages of oxygenates mentioned
above are not covered under warranty.
Oxygenated fuels can damage paint and plastic. Be careful not to spill fuel when
filling the fuel tank. Wipe up any spills immediately.
１１／０１／１９ １２：２５：４３ ３１ＭＣＡ７００ ０２７５
269
Consumer Information
Consumer Information
This section contains information on your warranty and how to get an official
Honda Service Manual.
.........................................................................................Authorized Manuals .
..........................................................................................Warranty Coverage .
..............................................................................................Warranty Service .
.............................................................................................Contacting Honda .
..........................................................................................Your Honda Dealer .
..............................................................The Honda Rider’s Club (USA only) .
.............................................................Reporting Safety Defects (USA only) .
270
273
274
275
276
277
278
１１／０１／１９ １２：２５：５０ ３１ＭＣＡ７００ ０２７６
＊
＊
＊
＊
2012 GL1800 Service Manual/ETM
Common Service Manual
2012 GL1800 Owner’s Manual
2012 GL1800Navigation System Manual
61MCA60
61CM002
31MCA700
31MCAT50
31MCAU50 2012 GL1800 Owner’s Manual Airbag
Supplement
$79.95
$49.95
$16.95
$16.95
$16.95
(Also available for Models equipped with Airbag)
Publication Item No. Description Price Each
Publication Item No. Description Price Each
Prices are subject to change without notice and without incurring obligation.
Prices are subject to change without notice and without incurring obligation.
270
Authorized Manuals
Consumer Information
The Service Manual used by your authorized dealer is available from Helm, Inc.
(USA only, Canada: See your dealer to order authorized manuals.)
Also available but not necessary to service your model is the Honda Common
Service Manual which explains theory of operation and basic service
information for various systems common to all Honda motorcycles, motor
scooters and ATVs.
These Honda manuals are written for the professional technician, but most
mechanically capable owners should find them easy to use if they have the
proper tools and observe proper safety standards. Special Honda tools are
necessary for some procedures.
１１／０１／１９ １２：２６：０１ ３１ＭＣＡ７００ ０２７７
−−
＊
＊
Orders are mailed within 10 days. Please allow adequate time
for delivery.
Prices are subject to change without notice and without incurring
obligation.
Publication
Item No.
Item Description Qty. Price Each
$3.75
Grand Total
Handling Charge
Purchaser’s Sales Tax
Mich. add 6 %
Calif. add 8.25 %
Sub Total
Total
Price
271
Consumer Information
Order On-Line: www.helminc.com
Order Toll Free: 1-888-CYCLE93
OR
Authorized Manuals
(NOTE: For Credit Card Orders Only)
(1-888-292-5393)
Monday Friday 8:00 AM 6:00 PM EST
By completing this form you can order the materials desired. You can pay by
check or money order, or charge to your credit card. Mail to Helm, Inc. at the
address shown on the back of this order form (USA only).
Canada: See your dealer to order authorized manuals.
１１／０１／１９ １２：２６：１０ ３１ＭＣＡ７００ ０２７８
−
NOTE: Dealers and Companies pleaseprovide dealer orcompany name, and also the name ofthe person to
whose attention the shipment should be sent.
Daytime Telephone Number
City
Street address/P. O. BOX
State Zip Code
Apartment Number
Attention
Customer Name
Customer Signature Date
Check ormoney order enclosed payable toHelm Inc. U.S. funds only. Do not send cash.
Check hereif your billing address is different from the shipping address shown above.
MasterCard
Account Number
VISA Discover
Expiration: Mo. Yr.
These Publications cannot be returnedfor credit without receiving advance authorization within 14 days of delivery. For returns, a
restocking fee may be applied against theoriginal order.
Security Code
()
P.O. BOX 07280, DETROIT, MICHIGAN 48207
HELM
P
A
Y
M
E
N
T
S
H
I
P
T
O
272
Consumer Information
１１／０１／１９ １２：２６：２４ ３１ＭＣＡ７００ ０２７９
273
Warranty Coverage
Consumer Information
Your new Honda is covered by these warranties:
Motorcycle Limited Warranty
Emission Control System Warranty
Noise Control Warranty
There are responsibilities, restrictions, and exclusions which apply to these
warranties. Please read the Warranties Booklet given to you by your Honda
dealer at the time of purchase. Be sure to keep your Honda owner’s card with
your Warranties Booklet (USA only).
It is important to realize that your warranty applies to defects in material or
workmanship of your Honda. Your warranty coverage does not apply to normal
wear or deterioration associated with using the motorcycle.
Your warranty coverage will not be voided if you choose to perform your own
maintenance. However, you should have the proper tools and service
information and be mechanically qualified. Failures that occur due directly to
improper maintenance are not covered.
Almost all of your warranty coverage can be extended through the Honda
Protection Plan (USA only). For more information, see your Honda dealer.
１１／０１／１９ １２：２６：３１ ３１ＭＣＡ７００ ０２８０
274
Warranty Service
Consumer Information
Please remember that recommended maintenance interval servicing is not
included in your warranty coverage. Additionally, your warranty does not apply
to the normal wear of items (such as brakes, tires, etc.).
If you believe you have a problem with your motorcycle, call the service
department of your Honda dealer. Make an appointment for an inspection and
diagnosis. Remember, as the owner of the motorcycle, you will be asked to
authorize that inspection. Your dealer will give you the results of the inspection.
If the problem is covered under warranty, your dealer will perform the warranty
repairs for you.
If you have questions about warranty coverage or the nature of the repair, it is
best to talk to the Service Manager of your Honda dealer.
Sometimes, in spite of the best intentions of all concerned, a misunderstanding
may occur. If you aren’t satisfied with your dealer’s handling of the situation,
we suggest you discuss your problem with the appropriate member of the
dealership’s management team. If the problem has already been reviewed with
the Service Manager, Parts Manager, Sales Manager, etc., contact the Owner of
the dealership or their designated representative.
１１／０１／１９ １２：２６：３６ ３１ＭＣＡ７００ ０２８１
275
Contacting Honda
Consumer Information
Your owner’s manual was written to cover most of the questions you might ask
about your Honda. Any questions not answered in the owner’s manual can be
answered by your dealer. If your dealer doesn’t have the answer right away, they
will get it for you.
If you have a difference of opinion with your dealer, please remember that each
dealership is independently owned and operated. That’s why it’s important to
work to resolve any differences at the dealership level.
If you wish to comment on your experiences with your Honda or with your
dealer, please send your comments to the following address (USA only):
Motorcycle Division, American Honda Motor Co., Inc., P.O. Box 2200,
Torrance, CA 90509-2200, Mailstop: 100-4C-7B, Telephone: (866) 784-1870.
Canada: Refer to the Warranties Booklet that was supplied with your vehicle.
Please include the following information in your letter:
name, address, and telephone number
product model, year, and VIN
date of purchase
dealer name and address
We will likely ask your dealer to respond, or possibly acknowledge your
comments directly.
１１／０１／１９ １２：２６：４２ ３１ＭＣＡ７００ ０２８２
276
Your Honda Dealer
Consumer Information
Once you purchase your new Honda, get familiar with the organization of your
Honda dealer so you can utilize the full range of services available.
The service department is there to perform regular maintenance and unexpected
repairs. It has the latest available service information from Honda. The service
department will also handle warranty inspections and repairs.
The parts department offers Honda Genuine Parts, Pro Honda products, Honda
Genuine Accessories (USA only), and Honda accessories and products (Canada
only). The same quality that went into your Honda can be found in Honda
Genuine replacement parts. You’ll also find comparable quality in the
accessories and products available from the parts department.
We’re sure you’ll be as pleased with the service your Honda dealer continues to
provide after the sale as you are with the quality and dependability of your
Honda.
The sales department offers the Honda Protection Plan to extend almost all of
your warranty coverage (USA only).
Your Honda dealer can inform you about competition and other riding events in
your area. You’ll also find that your dealer is a source of information about
safety training available in your local area and the Honda Rider’s Club of
America (USA only).
１１／０１／１９ １２：２６：４８ ３１ＭＣＡ７００ ０２８３
277
The Honda Rider’s Club (USA only)
Consumer Information
www.hrca.honda.com.
You may be eligible for a Honda Rider’s Club of America (HRCA) membership
with the purchase of your new Honda. You can log on to the HRCA Clubhouse
website for details at
１１／０１／１９ １２：２６：５２ ３１ＭＣＡ７００ ０２８４
278
Reporting Safety Defects (USA only)
Consumer Information
http://www.safercar.gov
http://www.safercar.gov.
If you believe that your vehicle has a defect which could cause a crash or
could cause injury or death, you should immediately inform the National
Highway Traffic Safety Administration (NHTSA) in addition to notifying
American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an investigation, and if
it finds that a safety defect exists in a group of vehicles, it may order a
recall and remedy campaign. However, NHTSA cannot become involved in
individual problems between you, your dealer, or American Honda Motor
Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to ; or
write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590.
You can also obtain other information about motor vehicle safety from
１１／０１／１９ １２：２６：５６ ３１ＭＣＡ７００ ０２８５
279
Consumer Information
１１／０１／１９ １２：２６：５８ ３１ＭＣＡ７００ ０２８６
280
Index
Index
A
B
C
................................................................................................................battery . 209
brakes,
................................................................................................................fluid . 197
.........................................................................................................pad wear . 199
.................................................................................................................braking . 78
............................................................................................break-in guidelines . 260
........................................................................................ABS indicator light . 19, 83
.............................................................................................................accessories . 4
...................................................................................accessory (ACC) terminal . 67
................................................................................................air pressure, tires . 202
..........................................................................................air temperature meter . 31
............................................................................American Honda, contacting . 275
....................................................................................................antenna, radio . 114
.........................................................................Anti-Lock Brake System (ABS) . 80
...............................................................................................apparel, protective . 44
.................................................................................................appearance care . 213
.......................................................................................................audio systems . 95
............................................................................................authorized manuals . 270
.....................................................................................................capacity, fuel . 173
................................................................................................care, appearance . 213
............................................................................................catalytic converters . 267
.................................................................................cleaning, appearance care . 213
.....................................................................................................clutch system . 188
..........................................................................................................color label . 253
.....................................................................................................combined ABS . 80
.................................................................comfort and convenience adjustment . 61
compartment,
.............................................................................................owner’s manual . 165
............................................................................................................tool kit . 164
１１／０１／１９ １２：２７：０４ ３１ＭＣＡ７００ ０２８７
281
Index
Index
D
E
F
(cont’d)
.......................................................................................consumer information . 269
..............................................................................................controls & features . 35
................................................................................................................coolant . 182
............................................................................coolant temperature gauge . 15, 20
.............................................................................................crankcase breather . 185
.......................................................................................................cruise control . 91
................................................................................................customer service . 275
....................................................................................defects, reporting safety . 278
......................................................................................digital clock adjustment . 30
.........................................................................................................drive, final . 186
.......................................................................................................fairing pocket . 59
.....................................................................................................final drive oil . 186
...............................................................................................................flat tire . 230
.....................................................................................................flooded engine . 72
...................................................................................emission control systems . 263
engine,
.............................................................................................................flooded . 72
.............................................................................................low oil pressure . 243
...........................................................................................................number . 252
...................................................................................................................oil . 175
........................................................................................................overheats . 241
...........................................................................................................pinging . 172
.............................................................................................................starting . 71
.......................................................................................................stop switch . 36
...........................................................................................................stopping . 73
......................................................................................................won’t start . 227
.......................................................................................................environment . 223
１１／０１／１９ １２：２７：１０ ３１ＭＣＡ７００ ０２８８
282
Index
Index
G
H
I
fuel,
..........................................................................................................gauge . 15, 20
.....................................................................................................oxygenated . 268
............................................................................................recommendation . 172
..................................................................................................tank capacity . 173
...................................................................................................................fuses . 244
...............................................................................................................gasohol . 268
..............................................................................................................gasoline . 172
.............................................................................................gauges & indicators . 15
.......................................................................................................hazard switch . 39
..................................................................................headlight beam adjustment . 40
.....................................................................................headlight dimmer switch . 38
heater,
...........................................................................................................handgrip . 65
...................................................................................................................seat . 66
.......................................................................................................helmet holder . 88
.......................................................................................high beam indicator . 15, 19
Honda,
......................................................................................................contacting . 275
.............................................................................................................dealer . 276
...................................................................................................Rider’s Club . 277
......................................................................................Honda Service Manual . 270
...........................................................................................................horn button . 38
........................................................................................identification, vehicle . 252
ignition cut-off system,
............................................................................................bank angle sensor . 73
.........................................................................................................side stand . 71
.....................................................................................................ignition switch . 35
..............................................................................................................indicators . 15
..............................................................................................inspection, pre-ride . 47
..................................................................................................................iPod . 135
１１／０１／１９ １２：２７：１６ ３１ＭＣＡ７００ ０２８９
283
Index
Index
K
L
M
N
..........................................................................................................labels, safety . 6
...........................................................................................................lamp check . 16
.........................................................................................................limit, weight . 50
............................................................................................................load limits . 50
................................................................................................loading guidelines . 51
........................................................................................................lock, steering . 87
...................................................................................low tire pressure indicator . 84
..............................................................................................................key, lost . 248
...............................................................................................................kit, tool . 164
maintenance,
......................................................................................component locations . 161
.....................................................................................................importance . 152
..........................................................................................................periodic . 155
.............................................................................................................record . 160
..............................................................................................................safety . 153
.........................................................................................................schedule . 156
............................................................................................manual, authorized . 270
..................................................................................................manual, service . 270
........................................................................................maximum weight limit . 50
.........................................................................................................modifications . 5
....................................................................................multi information display . 21
...................................................................................................numbers, serial . 252
１１／０１／１９ １２：２７：２２ ３１ＭＣＡ７００ ０２９０
284
Index
Index
O
P
R
.................................................................................................................parking . 87
..................................................................................................pinging, engine . 172
........................................................................................................plugs, spark . 190
pocket,
..............................................................................................................fairing . 59
pockets,
.........................................................................................................trunk side . 60
........................................................................pre-load, rear suspension spring . 193
...............................................................................................pre-ride inspection . 47
........................................................................................problems, unexpected . 225
................................................................................................protective apparel . 44
..............................................................................................................odometer . 26
oil,
.............................................................................................................engine . 175
......................................................................................................final drive . 186
...................................................................................................low pressure . 243
...........................................................................operation component locations . 12
........................................................................................overdrive indicator . 15, 17
.................................................................................................overheat, engine . 241
.....................................................................................owner’s manual storage . 165
................................................................................................oxygenated fuels . 268
.....................................................................................................radio antenna . 114
radio,
..........................................................................................................AM/FM . 115
...............................................................................................................XM . 119
................................................................................................remote transmitter . 55
１１／０１／１９ １２：２７：２７ ３１ＭＣＡ７００ ０２９１
285
Index
Index
S
(cont’d)
removal,
.................................................................................................................clip . 171
................................................................................cylinder head side cover . 169
...........................................................................................engine side cover . 168
...........................................................................................front lower cover . 170
.......................................................................................................side cover . 167
reverse,
...............................................................................................................button . 35
............................................................................................................riding in . 76
.........................................................................................system indicator . 15, 17
.....................................................................................reporting safety defects . 278
....................................................................................................rider training . 2, 46
..........................................................................................Rider’s Club, Honda . 277
riding,
......................................................................................................bad weather . 94
.................................................................................................basic operation . 69
............................................................................................................clothing . 44
..................................................................................................................safety . 2
............................................................................................safety precautions . 70
...........................................................................................with cruise control . 91
...................................................................................with passenger or cargo . 90
.............................................................................................................saddlebag . 52
safety,
....................................................................................important precautions . 154
..................................................................................................................lables . 6
............................................................................................reporting defects . 278
............................................................................................riding precautions . 70
.......................................................................................schedule, maintenance . 156
....................................................................................................serial numbers . 252
service,
.........................................................................................................customer . 275
..........................................................................................................manuals . 270
.........................................................................................................warranty . 274
.......................................................................................................shifting gears . 74
...........................................................................................................side stand . 208
.......................................................................side stand ignition cut-off system . 71
１１／０１／１９ １２：２７：３３ ３１ＭＣＡ７００ ０２９２
286
Index
Index
T
........................................................................................side stand indicator . 15, 19
........................................................................................................spark knock . 172
.........................................................................................................spark plugs . 190
.....................................................................................................specifications . 254
...................................................................................................speedometer . 15, 16
..........................................................................................................stand, side . 208
..............................................................................................start/reverse button . 37
starting,
...............................................................................................................engine . 72
..............................................................................................troubleshooting . 227
.........................................................................................................steering lock . 87
..............................................................................................stop switch, engine . 36
....................................................................................................stopping engine . 73
storage,
.....................................................................................................motorcycle . 220
.............................................................................................owner’s manual . 165
suspension,
.......................................................................................rear spring pre-load . 193
switch,
............................................................................................audio control . 38, 101
.............................................................................................cruise control . 37, 92
.......................................................................................................engine stop . 36
...............................................................................................................hazard . 39
.............................................................................................headlight dimmer . 38
.............................................................................................................ignition . 35
...........................................rear suspension spring pre-load adjustment . 41, 193
........................................................................................................reverse . 37, 76
........................................................................................................turn signal . 38
.....................................................................................................tachometer . 15, 16
............................................................................................theft-prevention tips . 89
tires,
.....................................................................................................air pressure . 202
..................................................................................................................flat . 230
........................................................................................................replacing . 206
............................................................tire pressure monitoring system (TPMS) . 83
......................................tire pressure monitoring system (TPMS) explanation . 261
............................................tire pressure monitoring system (TPMS) indicator . 85
１１／０１／１９ １２：２７：３７ ３１ＭＣＡ７００ ０２９３
287
Index
Index
W
V
U
.................................................................................................USB flash drive . 140
................................................................................................................tool kit . 164
...................................................................................................training, rider . 2, 46
............................................................................transporting your motorcycle . 222
...........................................................................................................travel trunk . 52
...............................................................................................................tripmeter . 26
...........................................................................................trouble, unexpected . 225
....................................................................................troubleshooting, starting . 227
................................................................................................trunk side pockets . 60
..........................................................................................................trunk, travel . 52
.....................................................................................turn signal indicators . 15, 17
........................................................................vehicle identification no. (VIN) . 252
......................................................................................................ventilation . 63, 64
warranty,
.........................................................................................................coverage . 273
.........................................................................................................extended . 273
............................................................................................................service . 274
..................................................................................washing your motorcycle . 214
..........................................................................................................weight limit . 50
wheels,
.................................................................................................front removal . 232
...................................................................................................rear removal . 238
..................................................................windscreen height adjustment levers . 62
１１／０１／１９ １２：２７：４３ ３１ＭＣＡ７００ ０２９４
Quick Reference
Quick Reference
The following is a brief, but important collection of information you need to
know about your Honda. You’ll also find space to record important notes.
The engine of your Honda can be the most expensive component to repair.
Proper maintenance, especially the use of the recommended fluids and filters,
prevents premature wear and damage.
Frequent causes of costly repairs are:
Engine oil –– insufficient quantity, improper oil.
Air cleaner –– dirty, leaking because of improper installation (poor seal).
Record important information on the following page:
VIN
Engine No.
Ignition Key No.
Color Label
Owner’s Name
Address
City/State
Phone
Dealer’s Name
Address
City/State
Phone
Service Mgr.
１１／０１／１９ １２：２７：５６ ３１ＭＣＡ７００ ０２９８
6.6 US gal (25 )
410 lb (186 kg)
BRIDGESTONE G704 RADIAL
180/60R16M/C 74H
36 psi (250 kPa , 2.50 kgf/cm
)
41 psi (280 kPa , 2.80 kgf/cm
)
BRIDGESTONE G709 RADIAL
130/70R18M/C 63H
72 lb (33 kg)
66 lb (30 kg)
radial, tubeless
Quick Reference
Quick Reference
Pre-ride
Inspection
Scheduled
Maintenance
Periodic Checks
Fuel/Capacity
Engine Oil
unleaded gasoline, pump octane number 86 or higher
Regular: every 4,000 miles (6,400 km)
Check the following items monthly (page ): tires
& wheels, fluids, lights, fuses, nuts & bolts.
Check the following items each time before you ride
(page ): tires & wheels, leaks, loose parts, lights, throttle,
brakes, indicators, gauges.
API Service Classification SG or higher except oils labeled
as energy conserving on the circular API service label,
SAE 10W-30, JASO T 903 standard MA,
Pro Honda GN4 4-stroke oil or equivalent
Maximum Weight
Capacity
Tire Pressure
(cold)
rider, passenger, all cargo and accessories
Tires
front:
rear:
front:
rear:
type:
maximum of all cargo (Models not equipped
with Airbag):
maximum of all cargo (Models equipped with
Airbag):
47
155
１１／０１／１９ １２：２８：１２ ３１ＭＣＡ７００ ０２９９
BKR6E-11 (NGK) K20PR-U11 (DENSO)
BKR5E-11 (NGK) K16PR-U11 (DENSO)
BKR7E-11 (NGK)
30 A 120 A 60 A
K22PR-U11 (DENSO)
40 A
30 A, 20 A, 15 A, 10 A, 5 A
Quick Reference
Quick Reference
Spark Plugs
Coolant
ethylene glycol antifreeze (silicate-free) for aluminum
engines in 50/50 solution with Pro Honda HP Coolant or
an equivalent distilled water
Fuses
Hypoid Gear Oil SAE 80Final Drive Oil
standard:
cold climat (below 5°C, 41°F):
high speed riding:
or
or
or
speed limiter:main B:
other:
main A:
external amplifier:
１１／０１／１９ １２：２８：２３ ３１ＭＣＡ７００ ０３００
−
−
−
−
Quick Reference
Quick Reference
These symbols are used in Controls & Features section:
SYMBOL COMPONENT
HI headlight dimmer switch
LO headlight dimmer switch
SEE PAGE
turn signal switch
horn button
hazard switch
RUN engine stop switch
OFF engine stop switch
START/REVERSE button
handgrip heater switch
seat heater switch
36
36
37
38
38
38
38
39
65
66
１１／０１／１９ １２：２８：３４ ３１ＭＣＡ７００ ０３０１
