Ricoh GR Ricoh Cameras User Manual

Before You Begin

Read this section before use.

It covers the names of the parts and how to prepare the camera for use.

First Steps

Read this section before using your camera for the first time.

It covers the basic operations for using your camera for the first time, includ-

ing how to turn on the camera, take pictures, and play back images.

Advanced Operations

Read this section when you want to learn more about the different

camera functions.

It covers all shooting and playback functions and describes how to customize

the camera settings and use it with a computer.

Instruction Manual

The serial number may be found on the bottom of the camera.

Please complete the user registration

Thank you for purchasing a PENTAX RICOH IMAGING product.

In order to provide you with the best customer support and service experi-

ence for the product you have purchased, we ask you to complete the user

registration.

Visit the following Web site to complete the user registration.

https://login.pentax.jp/customer/menu.aspx

Registered users will be notified by e-mail about important customer sup-

port information, such as firmware version updates, etc.

Checking the Package Contents

Before using your digital camera, confirm that the package contains the

items listed below.

GR Hot shoe cover

(attached to camera)

Rechargeable

battery

(DB-65)

USB power

adapter

(AC-U1)

g USB cable

g Hand strap

g CD

g Instruction manual (this manual)

Power plug

Introduction

This instruction manual provides information on how to use the shooting and playback

functions of this camera and related precautions.

Thoroughly read this instruction manual to make the best use of the functions available

with this camera unit. Be sure to keep this instruction manual for future reference.

PENTAX RICOH IMAGING CO., LTD.

Safety precautions Read all safety precautions thoroughly to ensure safe use.

Test shots Take test shots to ensure that the camera is working properly be-

fore taking photos on important occasions.

and other materials, other than for personal, home, or other simi-

larly limited purposes, without the consent of the copyright holder,

is prohibited.

Exemption from liability PENTAX RICOH IMAGING CO., LTD. assumes no liability for failure to

record or display images as a result of product malfunction.

Warranty This camera is manufactured to local specifications. The warranty

supplied with this product is valid within Japan. Should the prod-

uct fail or malfunction while outside of the country, the manufac-

turer assumes no responsibility for servicing the product locally or

bearing any expenditure incurred thereby.

Radio interference Operating this product in the vicinity of other electronic equip-

ment may adversely affect both the camera and the other device.

Interference is particularly likely if the camera is used in close

proximity to a radio/TV receiver. In such case, take the following

measures.

• Keepthe cameraasfar awayaspossible fromtheradio/TV re-

ceiver

• Reorienttheantennaoftheradio/TVreceiver

• Useadifferentwalloutlet

This publication may not be reproduced in whole or in part without PENTAX RICOH IMAGING’s express written

permission.

PENTAX RICOH IMAGING reserves the right to change the contents of this document at any time without prior

notice.

Every effort has been made to ensure the accuracy of the information in this document. Should you nevertheless

notice any errors or omissions, we would be grateful if you would notify us at the address listed on the back cover

of this booklet.

Microsoft, Windows, Windows 7®, Windows 8®, and Internet Explorer are registered trademarks of Microsoft Corpo-

rationintheUnitedStatesofAmericaandothercountries.

MacintoshandMacOSareregisteredtrademarksofAppleInc.intheUnitedStatesofAmericaandothercountries.

Adobe, the Adobe logo, and Adobe Reader are trademarks of Adobe Systems Incorporated.

The SDXC logo is a trademark of SD-3C, LLC.

This product incorporates DNG technology with the permission of Adobe Systems Incorporated.

The DNG logo is a trademark or registered trademark of Adobe Systems Incorporated.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI

licensing,LLCintheUnitedStatesand/orothercountries.

SILKYPIXisaregisteredtrademarkofIchikawaSoftLaboratory.

Eye-Fi, Eye-Fi connected, and the Eye-Fi logo are registered trademarks of Eye-Fi, Inc.

All other trade names mentioned in this document are the property of their respective owners.

AVC Patent Portfolio License

This product is licensed under the AVC Patent Portfolio License for the personal use of a consumer or other uses in

which it does not receive remuneration to:

(i) Encode video in compliance with the AVC standard (“AVC video”) and/or

(ii) Decode AVC video that was encoded by a consumer engaged in a personal activity and/or was obtained from

a video provider licensed to provide AVC video.

No license is granted or shall be implied for any other use.

Additional information may be obtained from MPEG LA, LLC.

See http://www.mpegla.com.

Announcement on the Use of BSD-Licensed Software

This product includes software licensed under the BSD License. BSD license is a form of license which permits the

redistribution of the software provided that it is clearly stated that use is unwarranted, and a copyright notice and

a list of licensing conditions are provided. The following contents are displayed based on the abovementioned

licensing conditions and are not for the purpose of restricting your use of the product, etc.

Tera Term

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the

following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following

disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the follow-

ing disclaimer in the documentation and/or other materials provided with the distribution.

3. The name of the author may not be used to endorse or promote products derived from this software without

specific prior written permission.

THISSOFTWAREISPROVIDEDBYTHEAUTHOR“ASIS”ANDANYEXPRESSORIMPLIEDWARRANTIES,INCLUDING,

BUTNOTLIMITEDTO,THEIMPLIEDWARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSE

AREDISCLAIMED.INNOEVENTSHALLTHEAUTHORBELIABLEFORANYDIRECT,INDIRECT,INCIDENTAL,SPECIAL,

EXEMPLARY,ORCONSEQUENTIALDAMAGES(INCLUDING,BUTNOTLIMITEDTO,PROCUREMENTOFSUBSTITUTE

GOODS OR SERVICES;LOSSOF USE, DATA,OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVERCAUSED AND

ONANYTHEORYOFLIABILITY,WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDINGNEGLIGENCEOR

OTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOFTHISSOFTWARE,EVENIFADVISEDOFTHEPOSSIBILITYOF

SUCHDAMAGE.

Safety Precautions

Warning Symbols

Various symbols are used throughout this instruction manual and on the product to

prevent physical harm to you or other people and damage to property. The symbols

and their meanings are explained below.

Danger

This symbol indicates matters that may lead to imminent risk of

death or serious injury if ignored or incorrectly handled.

Warning

This symbol indicates matters that may lead to death or serious injury

if ignored or incorrectly handled.

Caution

This symbol indicates matters that may lead to injury or physical

damage if ignored or incorrectly handled.

Sample Warnings

The symbol alerts you to actions that must be performed.

The symbol alerts you to prohibited actions.

The

symbol may be combined with other symbols to indicate that

a specific action is prohibited.

Sample Warnings

Do not touch Do not disassemble

Observe the following precautions to ensure safe use of this unit.

Danger

Do not attempt to disassemble, repair or alter the equipment

yourself. The high-voltage circuitry in the equipment poses sig-

nificant electrical hazard.

Do not attempt to disassemble, alter or directly solder the battery.

Do not put the battery in a fire, attempt to heat it, use it in a high

temperature environment such as next to a fire or inside a car, or

abandon it. Do not put it into water or the sea or allow it to get

wet.

Do not attempt to pierce, hit, compress, drop, or subject the bat-

tery to any other severe impact or force.

Do not use a battery that is significantly damaged or deformed.

Do not connect the positive (+) and negative (-) poles of the bat-

tery with a wire or other metallic item. Also, do not carry or store

together with metal objects such as ballpoint pens and necklaces.

Do not charge the battery with a charger from another manu-

facturer. Also, do not use the battery with any camera except the

cameras compatible with the DB-65.

Discontinue use immediately in the event of abnormalities

such as smoke, unusual odors, or excessive heat being emitted.

Contact your nearest dealer or service center for repair.

If the battery fluid leaks and gets into your eyes, immediately wash

your eyes thoroughly with tap water or other clean water without

rubbing, and seek medical attention immediately.

Warning

Turn off the power immediately in the event of abnormalities such as

smoke or unusual odors being emitted. Remove the battery as soon as

possible, being careful to avoid electric shocks or burns. If you are drawing

power from a household electrical outlet, be sure to unplug the power

cord from the outlet to avoid fire or electrical hazards. Contact the nearest

service center at your earliest convenience. Discontinue use of the equip-

ment immediately if it is malfunctioning.

Turn off the power immediately if any metallic object, water, liquid or oth-

er foreign object gets into the camera. Remove the battery and memory

card as soon as possible, being careful to avoid electric shocks or burns.

If you are drawing power from a household electrical outlet, be sure to

unplug the power cord from the outlet to avoid fire or electrical hazards.

Contact the nearest service center at your earliest convenience. Discon-

tinue use of the equipment immediately if it is malfunctioning.

Avoid any contact with the liquid crystal inside the picture display, should

the monitor be damaged. Follow the appropriate emergency measures be-

low.

• SKIN:Ifanyoftheliquidcrystalgetsonyourskin,wipeitoffandrinsethe

affected area thoroughly with water, then wash well with soap.

• EYES:Ifitgetsinyoureyes,washyoureyeswithcleanwaterforatleast15

minutes and seek medical advice immediately.

• INGESTION: If any of the liquid crystal is ingested, rinse the mouth out

thoroughly with water. Have the person drink a large amount of water and

induce vomiting. Seek medical assistance immediately.

Follow these precautions to prevent the battery from leaking, overheat-

ing, igniting or exploding.

• Do not use a battery other than those specifically recommended for the

equipment.

• Do not carry or store together with metal objects such as ballpoint pens,

necklaces, coins, hairpins, etc.

• Do not put the battery into a microwave or high pressure container.

• If leakage of battery fluid or a strange odor, color change, etc. is noticed

during use or during charging, remove the battery from the camera or bat-

tery charger immediately and keep it away from fire.

Please observe the following in order to prevent fire, electrical shock or

cracking of the battery while charging.

• Useonlytheindicatedpowersupplyvoltage.Alsoavoidtheuseofmulti-

socket adapters and extension cords.

• Do not damage, bundle or alter power cords. Also, do not place heavy ob-

jects on, stretch or bend power cords.

• Do not connect or disconnect the power plug with wet hands. Always grip

the plug section when disconnecting a power cord.

• Do not cover equipment while charging.

 KeepthebatteryandSDmemorycardusedinthisequipmentoutofthe

reach of children to prevent accidental ingestion. Consumption is harmful

to human beings. If swallowed, seek medical assistance immediately.

 Keeptheequipmentoutofthereachofchildren.

Do not touch the internal components of the equipment if they become

exposed as a result of being dropped or damaged. The high-voltage cir-

cuitry in the equipment could lead to an electric shock. Remove the bat-

tery as soon as possible, being careful to avoid electric shocks or burns.

Take the equipment to your nearest dealer or service center if it is dam-

aged.

Do not use the equipment in wet areas as this could result in fire or electric

shock.

Do not use the equipment near flammable gases, gasoline, benzene, thin-

ner or similar substances to avoid the risk of explosion, fire or burns.

Do not use the equipment in locations where usage is restricted or prohib-

ited as this may lead to disasters or accidents.

Wipe off any dust that accumulates on the electrical plug as this may lead

to fire.

To avoid the risk of fire, electric shock or injury, do not use the battery

charger with commercially available electronic transformers when travel-

ing abroad.

To avoid the risk of fire or electric shock, use only the indicated power sup-

ply voltage.

Do not damage, bundle or alter power cords. Also, to avoid damaging

power cords and the risk of fire or electric shock, do not place heavy ob-

jects on, stretch or bend power cords.

Do not connect or disconnect the power plug with wet hands. Both opera-

tions pose the risk of electric shock.

Always grip the plug section when disconnecting a power cord. Do not

pull the power cord. This can damage the power cord and result in fire or

electric shock.

If any metallic object, water, liquid or other foreign object gets into the

camera, immediately remove the power cord from the outlet and contact

a service center for repair. Failure to observe these precautions could re-

sult in fire or electric shock.

If an abnormality such as an unusual sound or smoke is emitted from the

equipment, immediately remove the power cord from the outlet and con-

tact your nearest dealer or service center for repair. Discontinue use of the

equipment immediately if it is malfunctioning.

Do not attempt to disassemble the equipment yourself. The high-voltage

circuitry in the equipment could lead to an electric shock.

Do not use in bathrooms or similar areas, as this can result in fire or electric

shock.

Do not touch the power cords during a lightning storm. This poses a risk of

electric shock.

 Keepthebatteryoutofthereachofchildren.

If the battery does not finish charging after the prescribed charging time,

discontinue charging.

Do not put the battery into a microwave or high pressure container.

If the battery leaks or emits an unusual odor, immediately move it away

from any sources of fire.

Caution

Contact with fluid leaking from a battery can lead to burns. If part of your

body comes in contact with a damaged battery, rinse the area with water

immediately. (Do not use soap.)

If a battery starts to leak, remove it immediately from the equipment and

wipe the battery chamber thoroughly before replacing it with a new bat-

tery.

Plug the power cords securely into the electrical outlets. Loose cords pose

a fire hazard.

Do not allow the camera to get wet. In addition, do not operate it with wet

hands. Both situations pose the risk of electric shock.

Do not fire the flash at drivers of vehicles, as this may cause the driver to

lose control and result in a traffic accident.

Remove the power cords from the outlets before cleaning the equipment.

Remove the power cords from the outlets when not in use.

Do not cover equipment while charging, as this can result in fire.

Do not short the terminals or metal contacts on the power cords, as this

can result in fire.

Do not use the equipment in wet areas or areas subject to oil smoke as this

could result in fire or electric shock.

Safety Precau-

tions for Acces-

sories

When using optional products, carefully read the instructions provided with

the product before using that product.

Table of Contents

Introduction ............................................................................................................................ 1

Table of Contents .................................................................................................................. 8

Before You Begin 13

Parts of the Camera ............................................................................................................14

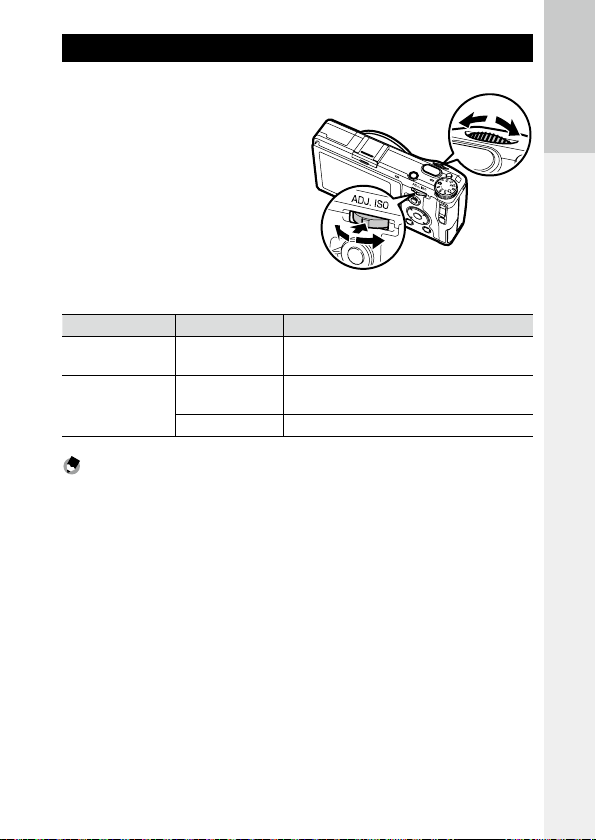

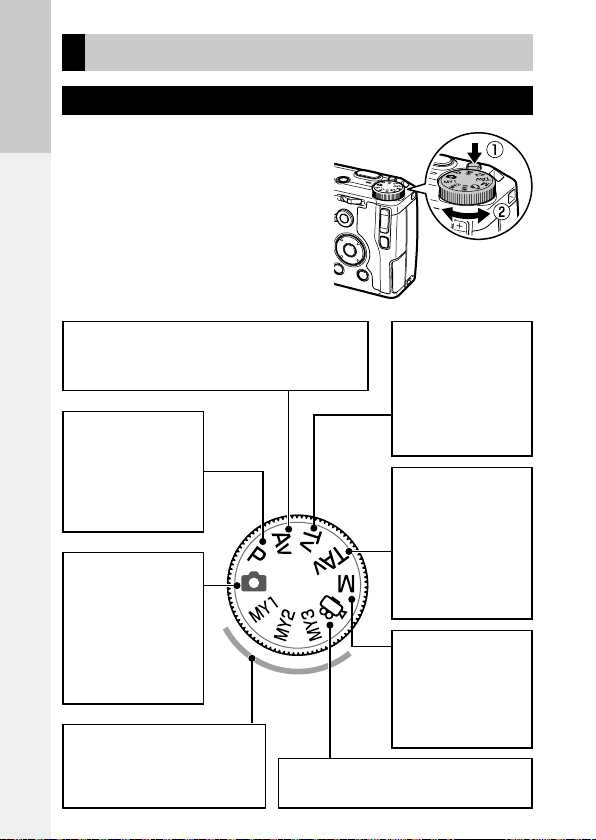

UsingtheDialandLever ..................................................................................................16

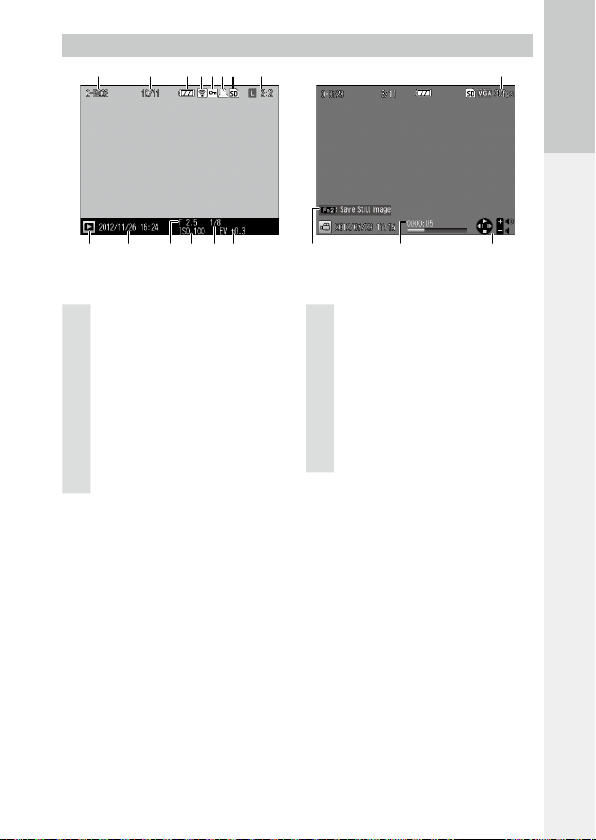

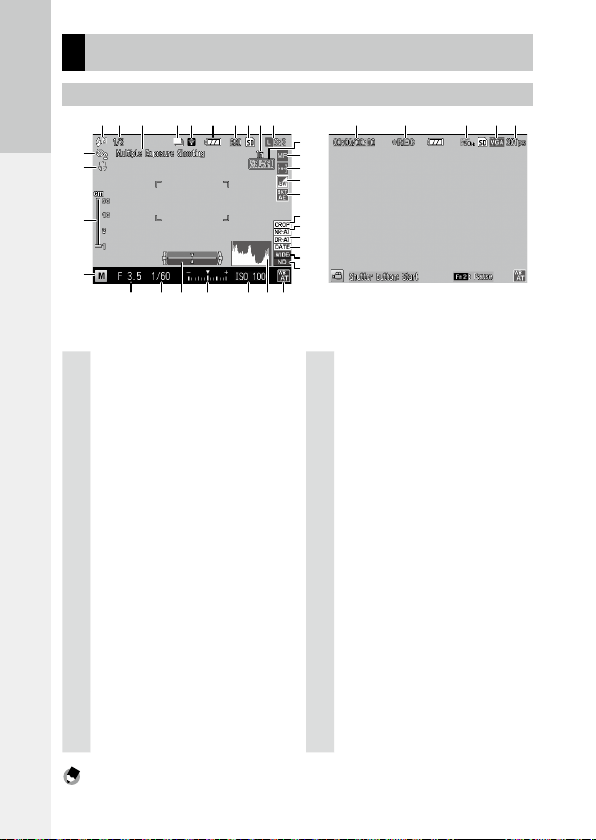

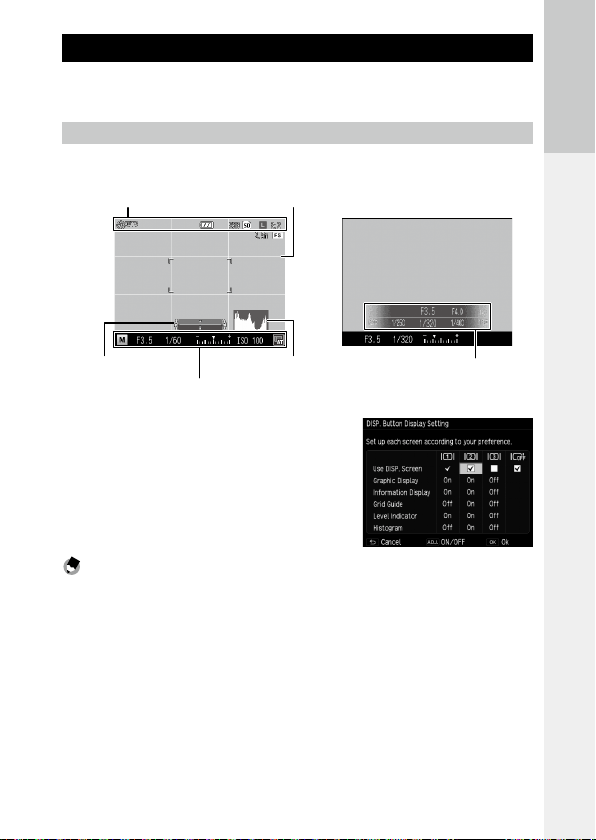

Picture Display .....................................................................................................................18

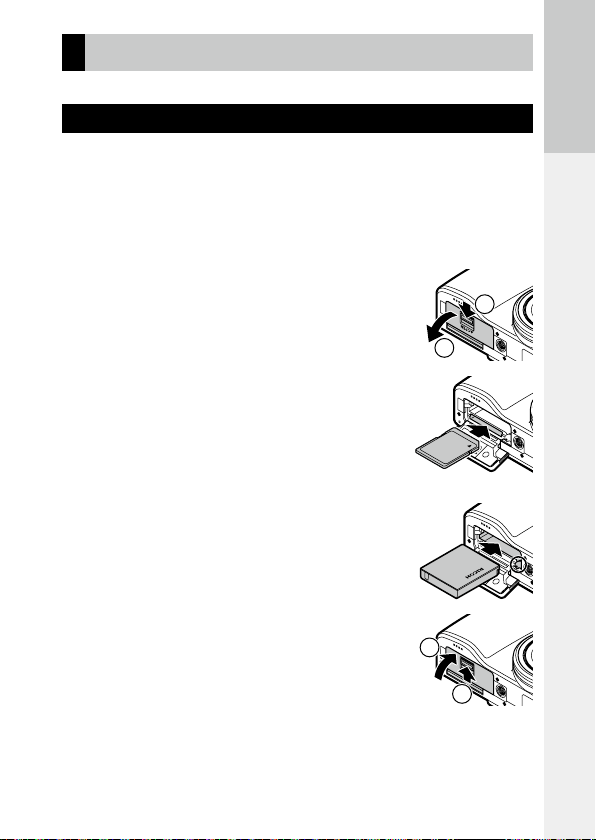

Getting Ready ......................................................................................................................23

First Steps 31

Basic Shooting .....................................................................................................................32

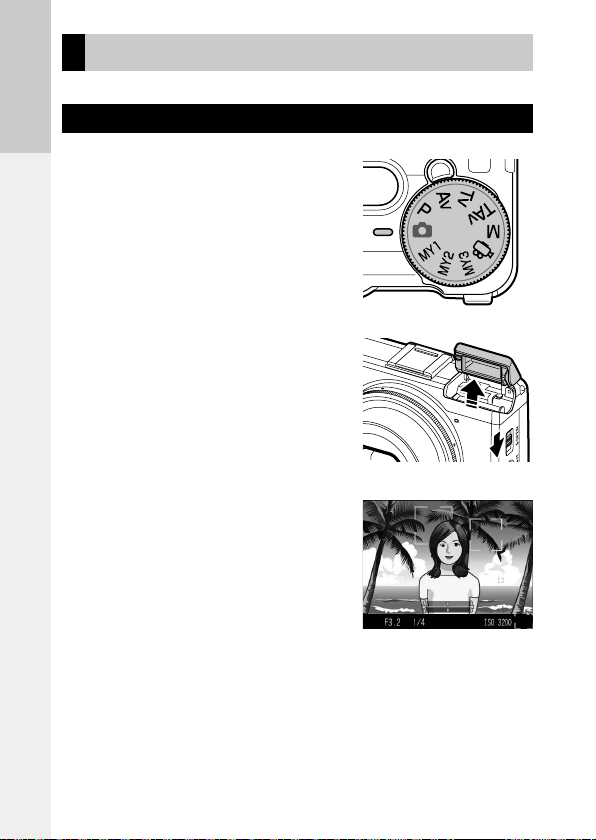

Taking Photographs with Auto Settings ...........................................................32

Self-Timer .....................................................................................................................34

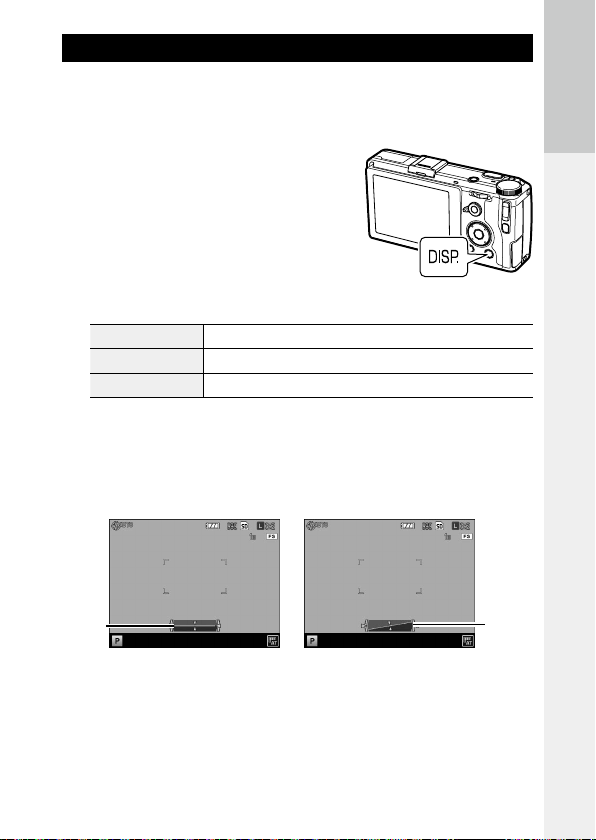

Checking the Camera Level and Tilt ................................................................... 35

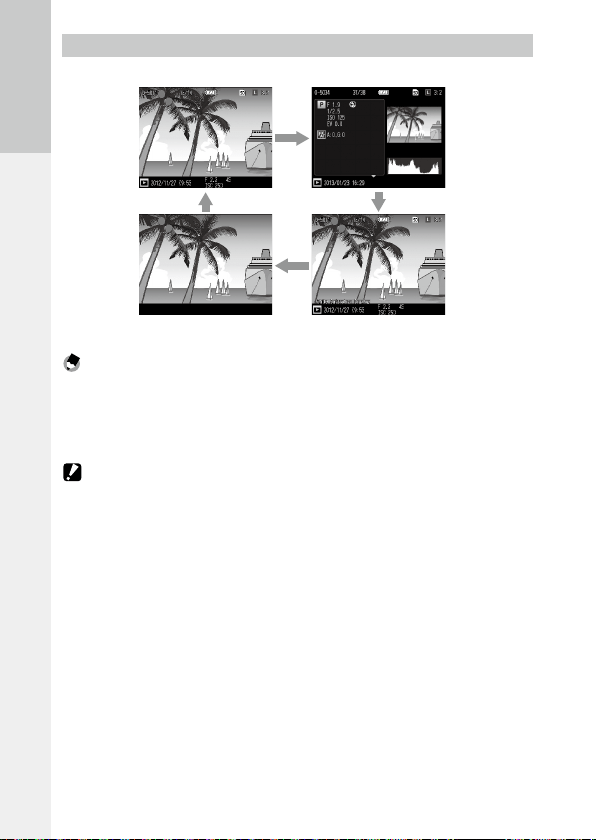

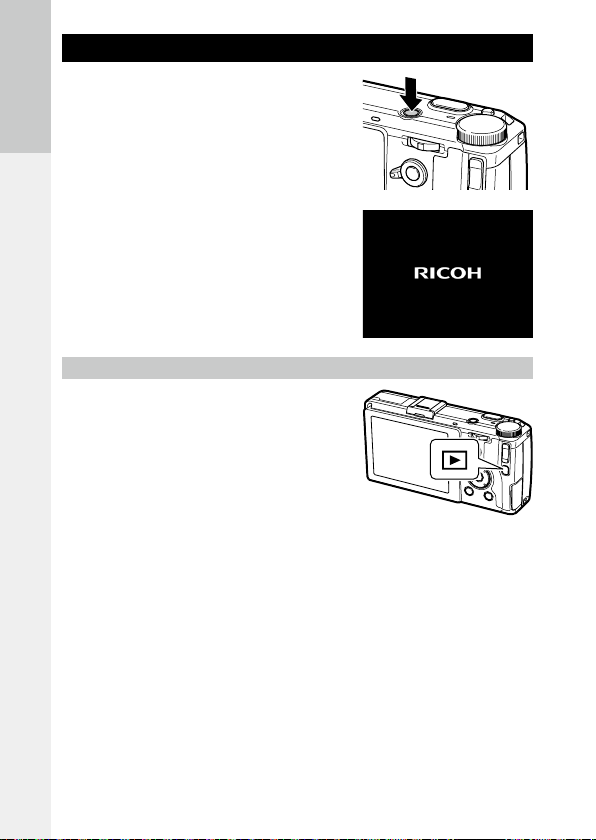

Playing Back Images .......................................................................................................... 37

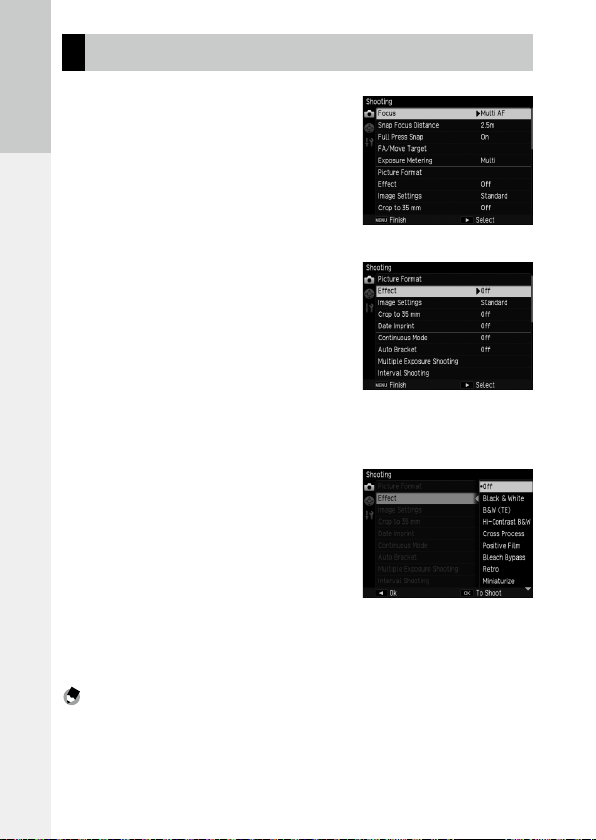

UsingtheMenu ................................................................................................................... 38

Advanced Operations 39

Various Shooting Functions 40

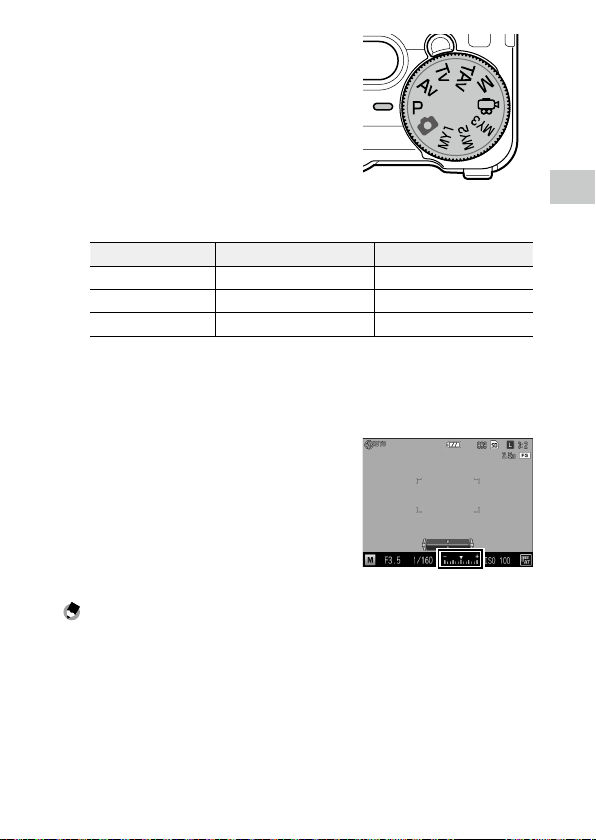

Shooting with a set aperture value and shutter speed ........................................40

UsingAperturePreview .......................................................................................... 44

UsingtheNDFilter ...................................................................................................44

Exposure settings ...............................................................................................................45

Usingexposurecompensation ............................................................................45

Setting the ISO speed ..............................................................................................46

Dynamic range correction ..................................................................................... 48

Selecting a metering method ..............................................................................49

Setting a still image format ............................................................................................. 50

Setting the focus ................................................................................................................. 51

Selecting a focusing method ................................................................................51

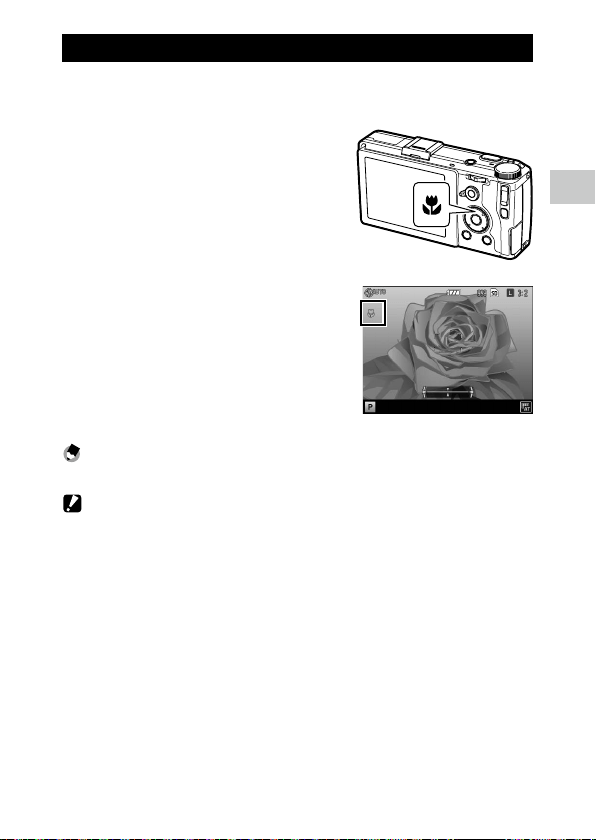

Shooting close-ups (Macro Mode) .....................................................................53

UsingtheAFbutton .................................................................................................54

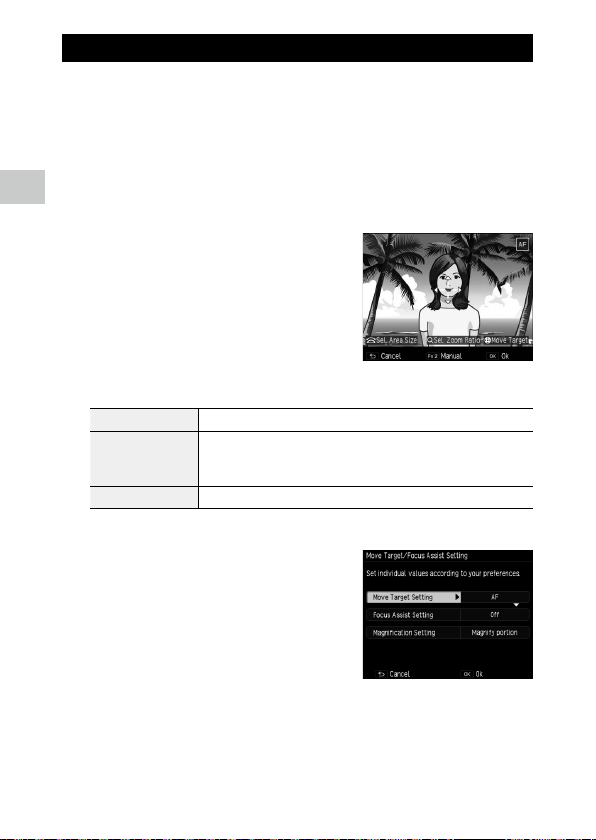

Setting Focus Assist and AE/AF Target .............................................................. 56

Shooting with a single press of the shutter release button

(Full Press Snap) ....................................................................................................58

Setting the White Balance ..............................................................................................59

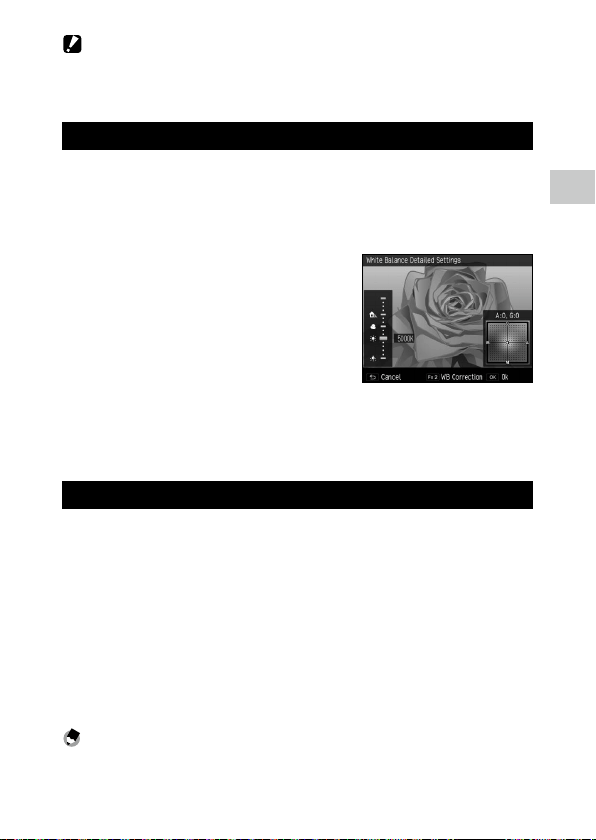

Setting the Color Temperature .............................................................................61

Setting the White Balance ......................................................................................61

Shooting Continuously .....................................................................................................62

Shooting Continuously ........................................................................................... 62

Shooting Consecutively with Different Settings (Auto Bracket) .............. 63

Shooting While Merging Images Together

(Multiple Exposure Shooting) .......................................................................... 64

Shooting Pictures Automatically at Set Intervals (Interval Shooting) ....66

Shooting Star Trails (Interval Composite) .........................................................67

UsingtheFlash ....................................................................................................................69

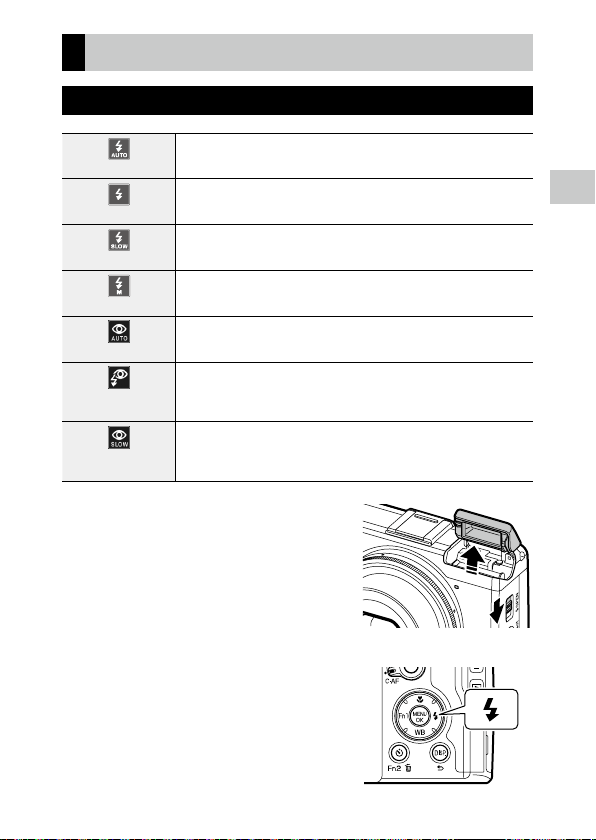

Setting the Flash Mode ........................................................................................... 69

Adjusting the Intensity of the Flash ...................................................................70

Setting the Flash Intensity for Manual Flash ...................................................71

Setting the Timing for Firing the Flash .............................................................. 71

ShootingPhotoswithUniqueAtmosphere .............................................................. 72

Effect .............................................................................................................................. 72

Image Settings ........................................................................................................... 73

Other Shooting Functions ............................................................................................... 76

Adding the Date to Still Images ........................................................................... 76

Shooting Movies ................................................................................................................. 76

Setting the Movie Format ......................................................................................76

Shooting Movies .......................................................................................................78

Playing Back Movies .................................................................................................79

Clipping Movies ......................................................................................................... 80

Playback Functions 81

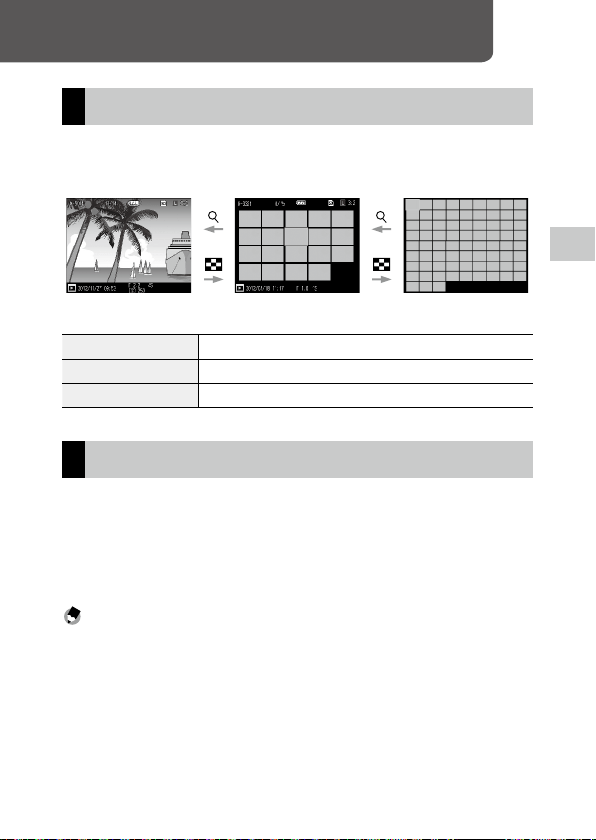

Displaying Images in Thumbnail View ........................................................................ 81

Displaying Images in a Slide Show ...............................................................................81

Displaying Images in Enlarged View ............................................................................82

Organizing Files ................................................................................................................... 83

Deleting Files ..............................................................................................................83

Setting Protection .....................................................................................................85

Copying the Images in Internal Memory to a Card.......................................87

Correcting and Processing Images ...............................................................................87

Reducing the Size of Images .................................................................................87

Trimming Images ...................................................................................................... 88

Correcting Skewed Images ....................................................................................89

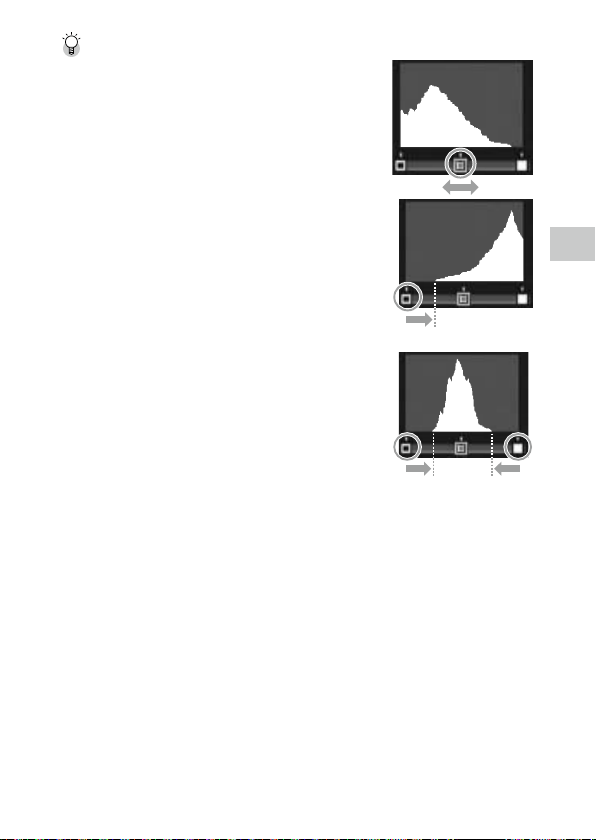

Correcting Brightness and Contrast (Level Compensation) ...................... 90

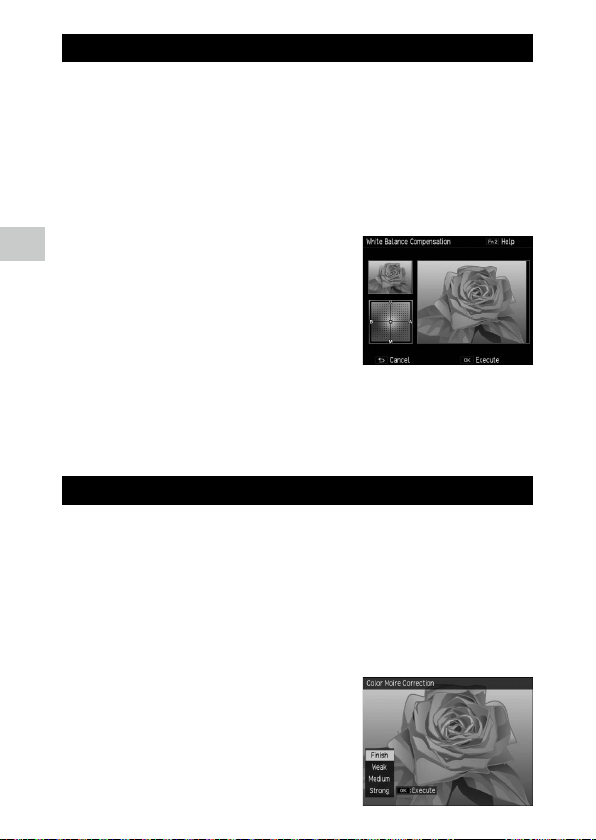

Correcting the White Balance ............................................................................... 92

Correcting Color Moire ...........................................................................................92

Developing RAW Files .......................................................................................................93

Viewing Images with an AV Device .............................................................................. 94

Setting DPOF ........................................................................................................................ 95

Setting DPOF for Multiple Still Images ..............................................................96

Selecting the Images to Transfer ................................................................................... 97

Changing Camera Settings 99

Customizing the Camera .................................................................................................99

Registering Shooting Settings (My Settings) .................................................. 99

Shooting Images in My Settings Mode ...........................................................102

Editing My Settings ................................................................................................103

Registering Functions to the ADJ. Lever .........................................................105

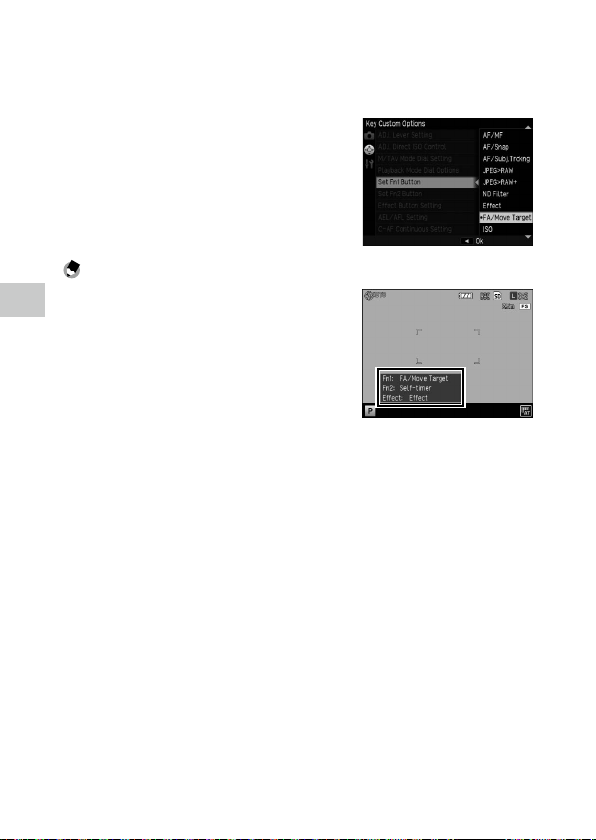

Registering Functions to the Fn1/Fn2/Effect Buttons ...............................107

Changing Other Settings ...............................................................................................109

Adjusting the Brightness of the Picture Display ..........................................109

Setting the Information Displayed in Shooting Mode ..............................110

Setting the Operation Sounds ...........................................................................111

Changing File Names .............................................................................................111

Resetting the File Numbers .................................................................................112

Setting the Copyright Notice ..............................................................................113

Checking the Firmware Version .........................................................................113

Menus 114

Shooting Menu ..................................................................................................................114

Playback Menu ..................................................................................................................117

KeyCustomOptionsMenu ...........................................................................................118

Setup Menu ........................................................................................................................120

Downloading Images to Your Computer 122

UsingImagesonaComputer .......................................................................................122

Windows .....................................................................................................................122

Macintosh ..................................................................................................................122

Saving Images to PC ........................................................................................................123

Installing the Software ....................................................................................................124

Appendices 125

Trouble Shooting ..............................................................................................................125

Error messages .........................................................................................................125

Camera Troubleshooting ......................................................................................126

Specifications .....................................................................................................................130

Storage Capacity .....................................................................................................133

Optional Accessories .......................................................................................................134

Conversion lens, hood, and adapter ................................................................134

External Flash ...........................................................................................................135

UsingtheCameraAbroad .............................................................................................137

PrecautionsforUse ..........................................................................................................138

Camera Care and Storage ..............................................................................................140

Warranty Policy ..................................................................................................................141

NOTICES ...............................................................................................................................142

Index ......................................................................................................................................144

Before You

Begin

This covers the names

of parts and how to

prepare the camera for

use.

Parts of the Camera .......................14

Using the Dial and Lever .............. 16

Picture Display ...............................18

Getting Ready ................................ 23

Before You Begin

Parts of the Camera

5 6 78

31 32

252420

21 22

Before You Begin

Up-down dial .........................................P. 17

Mode dial lock release button ................P. 16

Mode dial ...............................................P. 16

Shutter release button ...........................P. 32

POWER button .......................................P. 28

Hot shoe ...............................................P. 135

Flash cover .............................................P. 69

Strap eyelet

..............................................—

AF auxiliary light ............................ P. 34, 120

Microphone ..............................................—

Lens .........................................................—

F OPEN Switch ......................................P. 32

p (aperture preview)/Effect button

.......................................................P. 44, 107

Ring cap ...............................................P. 134

Flash ......................................................P. 32

Auto focus/flash lamp ......................P. 32, 33

Picture display........................................P. 18

USB/AV OUT terminal ................ P. 26, 94 123

HDMI cable Terminal (Type D) ..................P. 94

Terminal cover ................................ P. 26, 123

DC power cable cover ...............................—

Speaker ....................................................—

Release lever ..........................................P. 23

Battery/card cover ..................................P. 23

Tripod screw hole .....................................—

AF function switching lever ....................P. 54

AF button ...............................................P. 54

ADJ./ISO lever.................................P. 17, 105

Fn1 (function 1)/# button ..................P. 107

t (self-timer)/Fn2 (function 2)/

D(delete) button .................... P. 34, 83, 107

WB (white balance)/" button ..............P. 59

DISP./r button ..................... P. 21, 35, 110

button

..................................P. 81, 82

6 (playback) button ...........................P. 37

N (macro)/! button ...........................P. 53

F (flash)/$ button...............................P. 69

MENU/OK button....................................P. 38

Before You Begin

Using the Dial and Lever

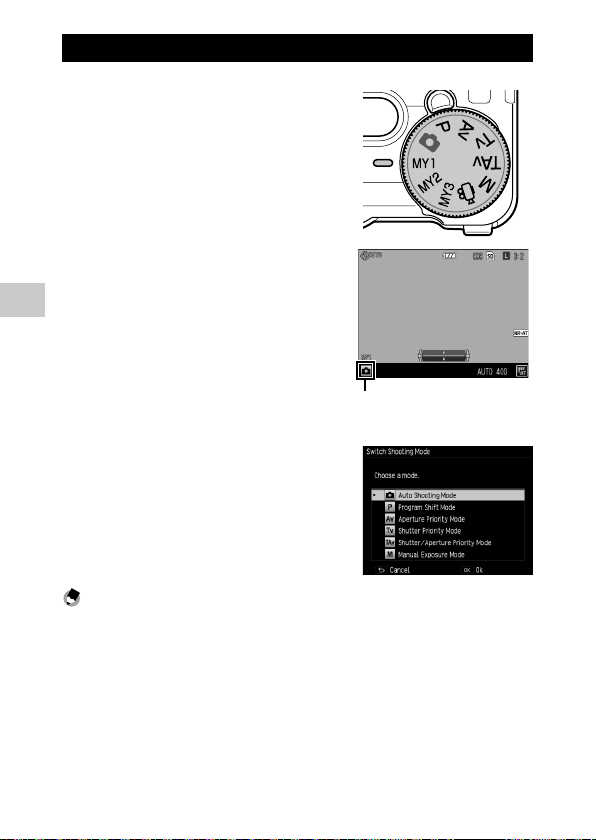

Mode Dial

Youcanchangetheshootingmodewith

the mode dial.

Press the mode dial lock release button

(1) and rotate the mode dial (2).

Av: Aperture priority mode (P. 40)

Yousettheaperture,andthecameraadjuststhe

shutter speed automatically.

5: Auto shooting

mode (P. 32)

Automatically

sets the optimal

aperture and

shutter speed

depending on the

subject.

MY1/MY2/MY3: My Settings

mode (P. 102)

Youcanshootwiththesettings

registered to [Reg. My Settings].

3: Movies (P. 76)

Youcanrecordmovies.

M: Manual expo-

sure mode (P. 40)

Allows you to

manually set the

aperture value and

shutter speed.

TAv: Shutter/

aperture priority

mode (P. 40)

You set the shutter

speed and aperture,

and the camera ad-

justs the ISO Setting

automatically.

Tv: Shutter prior-

ity mode (P. 40)

Yousettheshutter

speed, and the

camera adjusts the

aperture automati-

cally.

P: Program shift

mode (P. 40)

Youcanchoose

from combinations

of aperture and

shutter speed.

Before You Begin

Up-down dial/ADJ. lever

Usetheup-downdialandADJ.leverin

place of the !"#$ buttons and to

set the exposure. (GP. 41)

Operation Description

Up-down dial Rotate left or right

Replaces the !" buttons.

Changes the aperture/shutter speed.

ADJ. lever

Press left or right

Replaces the #$ buttons.

Changes the aperture/shutter speed/ISO Setting.

Push in the middle

Calls assigned function (GP. 106)

Note -----------------------------------------------------------------------------------------------------------

• Youcanchangethefunctionsoftheup-downdialandADJ.lever.(GP. 41, P. 82)

ADJ. lever

Up-downdial

Before You Begin

Picture Display

Shooting display

1 2 3 4 5 6 7 8 10 33 34 35 10 369

26 27 28 29 30 31 32

Still image mode Movie mode

Flash mode.............................................P. 69

Flash compensation/manual flash amount

.........................................................P. 70, 71

Multiple exposure shooting/Interval shoot-

ing/Interval composite ...............P. 64, 66, 67

Continuous ..............................................P. 62

Eye-Fi connection ...................................P. 20

Battery level ...........................................P. 20

Number of exposures remaining ..........P. 133

Data storage location .............................P. 25

Snap focus distance ................................P. 52

Format/size, Aspect ratio .................P. 50, 77

Self-timer ...............................................P. 34

Macro mode ...........................................P. 53

Focus bar/Depth of field .........................P. 52

Shooting mode ......................................P. 40

Auto exposure lock/Auto focus lock ........P. 54

Focus mode ............................................P. 51

Metering ................................................P. 49

Image setting/Effect ..............................P. 72

Auto bracket

...........................................P. 63

Crop to 35 mm .......................................P. 50

Noise reduction ......................................P. 47

Dynamic range compensation ................

P. 48

Date imprint ...........................................P. 76

Conversion lens ....................................P. 114

ND filter..................................................P. 44

Aperture.................................................P. 41

Shutter speed .........................................P. 41

Level indicator

...................................P. 21, 35

Exposure indicator/Exposure compensation

.........................................................P. 41, 45

ISO Setting .............................................P. 46

Histogram ......................................P. 21, 110

White balance mode ...............................

P. 59

Recording time/Remaining recording time

.............................................................P. 133

Recording ...............................................P. 78

Reduce fluorescent flicker ......................P. 77

Frame rate ..............................................P. 77

Note -----------------------------------------------------------------------------------------------------------

• Themaximumnumberthatcanbedisplayedforthenumberofexposuresremainingis“9999”.

Before You Begin

Playback display

12345678

9 10 11 171612 13 14 16

Still image mode

Movie mode

Folder-file number ...............................P. 111

Current frame/Total frames ......................—

Battery level ...........................................P. 20

Eye-Fi connection ...................................P. 20

Protected image .....................................P. 85

DPOF print indicator ...............................P. 95

Data source ............................................P. 25

Format/size, Aspect ratio .......................P. 50

File type ...................................................—

Date of recording ......................................—

Aperture.................................................P. 41

ISO Setting .............................................P. 46

Shutter speed

.........................................P. 41

Exposure compensation .........................P. 45

Frame rate ..............................................P. 77

Operation guide .......................................—

Length:elapsed time ..............................P. 79

Before You Begin

Battery Level Indicator

Icon Status

Battery fully charged.

Battery partially charged. Recharging the battery is recommended.

Low battery. Recharge the battery.

Eye-Fi Connection

When using an Eye-Fi card (GP. 24), the connection status is displayed in

the shooting and playback modes.

Icon Status

Not connected

Connecting

Waiting for data transfer

Transferring

Connection terminated

Transferred images

Eye-Fi card information acquisition error

• Turnthecameraoffandon.Iftheissuestillpersists,theremaybesomethingwrongwiththe

card.

Before You Begin

Changing the Display

Use the DISP. button to change the informationdisplayed on the picture

display.

Shooting Mode

Select from the following displays in shooting mode:

Information display Grid guide

Level

Information display

Histogram

Graphic display

Youcanspecifytheinformationdisplayed

each time the DISP. button is pressed in [DISP.

Button Display Setting] on the [Setup] menu.

(GP. 110)

Note -----------------------------------------------------------------------------------------------------------

• When[InformationDisplayMode]onthe[Setup]menuissetto[On],informationisdisplayedon

the picture display in the following cases even when the picture display is turned off. After the infor-

mation is displayed and operations are performed for several seconds, or when the shutter release

button is half-pressed, the information display disappears.

• WhentheFn1button,N button, t button, or Effect button is pressed

• Whenthemodedialorup-downdialisrotated

• WhentheADJ.leverispressed

• When the F OPEN switch is pressed to raise the flash, or the flash cover is closed

Before You Begin

Playback Mode

Normal indicator display Detailed information display

No indicator display White saturation display

Note -----------------------------------------------------------------------------------------------------------

• If[On]isselectedfor[WhiteSaturationDisplay]inthe[Setup]menu,thewhitesaturationareasof

theimageflashinblackintheHighlightsdisplay.Whenthisissetto[Off](defaultsetting),thewhite

saturation display is not shown.

• Thepagesofthedetailed information display can be switched using the !" buttons.

Caution -------------------------------------------------------------------------------------------------------

• Thedetailedinformationdisplayandwhitesaturationdisplayarenotshownwhenrecordingmovies.

• ThewhitesaturationdisplayisnotshownwhenconnectedwithanHDMIcable.

Before You Begin

Getting Ready

Prepare the camera for use.

Inserting the Battery and a Memory Card

Be sure the camera is off before inserting or removing the battery and mem-

ory card.

SD memory cards, SDHC memory cards, and SDXC memory cards can be

used with this camera. (“Memory card” refers to these memory cards in this

guide.)

1 Slide the release lever on the bottom of the

camera toward OPEN to open the battery/

card cover.

2 Make sure the memory card is facing the

right way and then push the card all the

way in until it clicks.

To remove it, press in the memory card and then re-

lease your hand.

3 Insert the battery.

Usethe batterytopressthe latchandinsertthebat-

tery all the way into the battery compartment.

To remove the battery, press and slide the latch.

4 Close the battery/card cover and slide the

release lever in the opposite direction of

OPEN to lock it in place.

Before You Begin

Eye-Fi Cards --------------------------------------------------------------------------------------------------

• ThiscameraiscompatiblewithEye-Ficards(X2Series),SDmemorycardswithbuilt-inwireless LAN

functionality. For more information on Eye-Fi cards, visit the Eye-Fi Website (http://www.eyefi.co.jp).

• WhenusinganEye-Ficard,thefollowingsettingsaredisplayedinthe[Setup]menu.

Eye-Fi Connection Settings [Off]:DisablesthewirelessLANfunctionforoperationasanormal

SD memory card.

[On(Auto)]:Transfersallunsentimages.

[On(Selected)]:Transfersonlyselectedimages.Specifytheimages

tosend(upto20images)with[Eye-FiTransferSelectedImages]in

the[Playback]menu.Youcanalsoreducethesizeofimagesand

transferthem.Youcaneasilyaccessthe[Eye-FiTransferSelected

Images] screen by pressing the Effect button in the playback mode.

(GP. 98)

Eye-Fi Connection Display Displays the SSID for the wireless LAN.

• Moviescannotbetransferred.

• Cannottransfertheimageswhilerechargingthebattery.

• Iftheselectedimagescannotbeproperlytransferred,the“EYERICOH”foldermayremainonthecam-

era. This folder will be deleted the next time the camera is turned on.

• Whenusingacardfromadifferentmanufacturerwithasimilarfunction,theabovemenuitemsand

status icons may not be displayed. Operations cannot be guaranteed for cards that are not supported.

• ThisproductisnotguaranteedtoworkwithallEye-Ficardfeatures(includingwirelesstransfer).If

any issues arise with an Eye-Fi card, contact the card manufacturer. Eye-Fi cards are approved for use

in the country of purchase only. To confirm whether the use of the card is approved in a given country,

contact the card manufacturer.

Before You Begin

Data Storage Location

Pictures taken with this camera can be recorded to the internal memory or a

memory card. When a memory card is not set in the camera, data is recorded

to the internal memory.

Caution -------------------------------------------------------------------------------------------------------

• Pictureswillnotberecordedtotheinternalmemorywhenamemorycardisinserted,evenifthe

memory card is full.

• Ifthenumberoffilesstoredinamemorycardexceeds10000,fileswithasmallfolder/filenumber

cannot be played back. However, they are not deleted or lost.

Note -----------------------------------------------------------------------------------------------------------

• Youcancopyalldatastoredintheinternalmemorytoamemorycard.(GP. 87)

• Movierecordingtimeandthestoragecapacityvariesdependingonthememorycard.(GP. 133)

• Whenusinganewmemorycardoramemorycardusedwithanotherdevice,besuretoformatthe

memorycardwiththiscamera.Formatmemorycardswith[Format[Card]inthe[Setup]menu.

Before You Begin

Charging the Battery

Charge the rechargeable battery (DB-65) using the included USBcableand

USBpoweradapter(AC-U1)withincludedPower plug before use.

1 Insert the Power plug to the USB

power adapter.

Insert it until it clicks into place.

2 Open the terminal cover, and

connect the USB cable to the USB/

AV OUT terminal.

3 Connect the USB cable to the USB

power adapter.

4 Plug the USB power adapter into a power outlet.

The auto focus/flash lamp turns on and charging starts.

Depending on the battery level, the charging time differs. An exhausted bat-

tery will be fully recharged in about three hours (at 25°C).

The auto focus/flash lamp turns off and charging stops. Unplug the USB

power adapter from the power outlet.

Before You Begin

Storage capacity --------------------------------------------------------------------------------------------

• Approximately290shotscanbetakenwhenthebatteryisfullycharged.

• ThisisbasedontestsconductedaccordingtoCIPAstandardsunderthefollowingconditions:tem-

perature 23°C (73°F); picture display on; 10 shots taken with 30 seconds between shots and the flash

fired with every other shot; and the cycle repeated after the camera has been turned off and then on

again.

• Thestoragecapacityisforreference.Forlongperiodsofuse,itisrecommendedthatyoucarryspare

batteries.

Caution -------------------------------------------------------------------------------------------------------

• Useonlygenuinerechargeablebatteries(DB-65).

• Iftheautofocus/flashlampblinksduringcharging,theUSBpoweradapterorbatteryhasaproblem.

Unplug the USB power adapter from the power outlet and remove the battery.

• Thebatterymaybecomeveryhotimmediatelyafteroperation.Turnthecameraoffandleaveitto

cool down sufficiently before removing the battery.

Note -----------------------------------------------------------------------------------------------------------

• YoucanalsochargethebatterybyconnectingthecameratoacomputerusingtheUSBcable.An

exhausted battery will be fully recharged in about 5 hours. (GP. 123)

• DB-65canberechargedwiththeoptionalbatterycharger(BJ-6).(Rechargingtime:2.5hours)

Before You Begin

Turning the Camera On and Off

Press the POWER button to turn the camera on.

The POWER button lights, and then the auto fo-

cus/flash lamp blinks for several seconds.

When the POWER button is pressed again, the

power turns off. (If the date is not set, [0] is dis-

played.)

Using the Camera in Playback Mode

Press and hold the 6 button for at least one

second to turn the camera on in playback

mode.

Press the 6 button again to turn the camera

off.

Before You Begin

Note -----------------------------------------------------------------------------------------------------------

• Tosavebatterypower,youcansetthefollowingfunctionsinthe[Setup]menu.

Operation When the setting is disabled

Auto Power Off

The camera will turn off automatically

if no operations are performed during

the set time.You can set this to [Off]

or a certain number of minutes up to

30 minutes.

To resume operation, turn the camera

on again.

• Whenrecordingmoviesordur-

ing continuous shooting

• Duringmultipleexposure

shooting, interval shooting, or

interval composite

• Duringplaybackmoviesorslide

show

• Duringprocessing

• Duringimagetransferwithan

Eye-Fi card

• Whenconnectedtoacomputer

Sleep

The camera dims the display automati-

cally if no operations are performed dur-

ingthesettime.Youcansetthisto[Off]

or a certain number of minutes up to 30

minutes.

• Whenrecordingmoviesordur-

ing continuous shooting

• Duringmultipleexposure

shooting, interval shooting, or

interval composite

• Duringplayback

• WhenconnectedtoanAVor

HDMI cable

LCD Auto Dim

The camera dims the display automati-

cally if the camera is not moved within

fiveseconds.Youcanselect[On]or[Off].

• Thepowerindicatorlampcanbesetto[On]or[Off]in[PowerButtonLamp]inthe[Setup]menu.

Before You Begin

Setting the Date and Time

When the power is turned on for the first time, the [Date Settings] screen

appears.

1 Set the year, month, day, hour,

minute, and date format.

Press #$ to select an item, and press !" to

change the value.

To cancel the setting press the r button.

2 Press MENU/OK.

A confirmation screen appears.

3 Press MENU/OK.

The date is set.

Note -----------------------------------------------------------------------------------------------------------

• Ifthebatteryisremovedforaboutfivedays,thedateandtimesettingswillbelost.Toretainthedate

and time settings, insert a battery with sufficient power for at least two hours, and then remove the

battery.

• Thesetdateandtimecanbechangedin[DateSettings]inthe[Setup]menu.

• Thelanguagedisplayedforthemenusandmessagescanbechangedin[Language/N].

First Steps

Read this section before

using your camera for

the first time.

Basic Shooting................................32

Playing Back Images ..................... 37

Using the Menu ..............................38

First Steps

Basic Shooting

Now you are ready.

Taking Photographs with Auto Settings

1 Turn the mode dial to 5.

Press the mode dial lock button and rotate

the mode dial.

2 To use the flash, slide the FOPEN

switch down.

The flash opens.

The auto focus/flash lamp blinks while the

flash charges. Once the flash is charged, the

lamp turns off and the camera is ready to

shoot.

The flash will not fire when the flash cover is closed.

3 Half-press the shutter release

button.

Frame your subject in the center of the pic-

ture display and press the shutter release but-

ton halfway to set focus and exposure.

If the camera is able to focus, the focus frames

(up to nine) that contain objects that are in

focus are shown in green.

4 Full-press the shutter release button.

The photograph you have just taken will be displayed in the picture display

and recorded.

First Steps

Focus ----------------------------------------------------------------------------------------------------------

• Theautofocus/flashlampandtheframecolorshowwhether

the subject is in focus.

Focus status Frame Color Auto focus/flash lamp

Camera has not yet focused. White Off

Subject in focus Green On (green)

Camera unable to focus. Red (blinks) Blinks (green)

• Thecameracannotfocusorasubjectmaynotbeinfocuseveniffocusframesaredisplayedingreen

in the following cases.

• Objectsthatlackcontrast(thesky,awhitewall,thehoodofacar,etc.)

• Flatobjectswithonlyhorizontallines

• Fast-movingobjects

• Objectsthatarepoorlylit

• Objectswithbrightreflectionsorbacklighting

• Flickeringobjects,suchasfluorescentlights.

• Pointlightsources(lightbulbs,spotlights,orLEDs)

If the camera is unable to focus, lock focus on another object at the same distance from the camera

as your subject, then recompose the photograph and take the picture.

Note -----------------------------------------------------------------------------------------------------------

• In5 mode, pictures are taken with the following settings:

• ISOSetting[AUTO-HI]

• Noisereduction[AUTO]

• Exposuremetering[Multi]

• Focus[FacerecognitionpriorityAF]

• AutoMacro

• Whitebalance[Multi-patternAUTO]

• Flash[Auto]

The settings cannot be changed for the above functions.

• Choosehowlongapictureisdisplayedinthepicturedisplayaftershooting.Select[OFF],[0.5s],[1s],

[2s],[3s],or[HOLD]in[LCDConfirm.]inthe[Setup]menu.Whensetto[Hold],theimageremains

displayed until the next time you half-press the shutter release button.

• Keeptheshutterreleasebuttonhalf-pressedaftershooting,holdsthefocus,aperture,shutterspeed,

Auto focus/flash lamp

Frame

First Steps

ISO, and white balance settings. The shooting conditions are not held in the following cases:

• Self-timer

• Intervaltimershooting

• Intervalcomposite

• 3 mode

Self-Timer

The self-timer can be set to two seconds or a custom setting. A setting of two

seconds is useful for preventing camera shake. With [Custom Self-Timer], you

can set the storage capacity and the shooting interval.

1 Press the t button.

The Self-timer setting screen appears.

Pressing the t button switches between [Self-Timer 2 Sec], [Custom Self-

Timer], and [Self-Timer Off].

2 Take a picture.

The AF auxiliary light lights when the self-

timer starts.

Note -----------------------------------------------------------------------------------------------------------

• Thecameraremainsinself-timermodeevenaftertheimageisshot.Tocanceltheself-timer,change

theself-timersettingto[Self-TimerOff].

• Whentheself-timerissetto[Self-Timer2Sec],theAFauxiliarylightdoesnotlight.

• When[CustomSelf-Timer]isset,thefollowingitemsaresetin[CustomSelf-Timer]inthe[Shooting]

menu.

Number of shots 1 to 10 (Default is 2.)

Shooting interval 5 to 10 sec. (Default is 5 sec.)

• Whenthenumberofshotsistwoormore,thefocusisfixedatthepositionofthefirstshot.

• Thet button is used as the Fn2 button. The self-timer cannot be used when a function other than

the self-timer is registeredwith [Fn2Button Setting](GP. 107)in the[Key Custom Options]

menu.

• [CustomSelf-Timer]cannotbeselectedwhenthefocusissetto[Subj.Tracking].

First Steps

Checking the Camera Level and Tilt

This camera has a built-in level indicator that can be used to indicate the

levelandtiltofthecameraonthepicturedisplay.Youcancheckforthehori-

zontal level and tilt in the forward-backward direction.

1 Press and hold the DISP. button.

The menu is displayed.

2 Press the !" buttons to select a setting.

Off Indicators are not displayed.

Level + Tilt Displays the level and tilt indicators. (Default setting)

Level Displays only the level indicator.

3 Press MENU/OK.

The indicator is displayed on the shooting screen.

The level is indicated with a vertical line, and the tilt is indicated with a hori-

zontalline.Yellowindicatesthecameraisnotleveloristilted,andgreenindi-

cates that the camera is level or is not tilted.

Camera is level.

Green

When tilted to the right

Yellow

First Steps

Camera is rotated too far for-

ward or backward or unable

to measure tilt.

Red

When tilted forward

Yellow

Note -----------------------------------------------------------------------------------------------------------

• Theindicatorsaredisplayedonlywhen[LevelIndicator]issetto[On]inthe[DISP.ButtonDisplay

Setting]inthe[Setup]menu.(GP. 110)

• Theindicatorscanalsobesetin[LevelSetting]inthe[Setup]menu.Youcanuse[Level (Tilt) Calibra-

tion]inthe[Setup]menutosetthecurrentcameratiltasthereferencesetting.

Caution -------------------------------------------------------------------------------------------------------

• Thelevelindicatordoesnotoperatewhenthecameraisupsidedown,moviesarebeingrecorded,or

during interval shooting.

• Thelevelfunctionbecomeslessaccuratewhenthecameraismovingorwhenshootinginanenviron-

ment subject to movement, such as on a amusement ride.

• Usethisfunctionasreferencetoseeifimagesarelevelwhenshooting.Theaccuracycannotbeguar-

anteed when using the camera as a level.

First Steps

Playing Back Images

Images can be viewed in the picture display.

1 Press the 6 button.

The camera switches to playback mode and

the last still image you took is displayed.

2 Press the #$ buttons to change the

displayed image.

Youcanperformthefollowingoperations:

# button Back one photo

$ button Ahead one photo

Press and hold #$ buttons Fast Forward

To switch the camera back to shooting mode, press the 6 button again.

Note -----------------------------------------------------------------------------------------------------------

• Youcanselectthedisplayorderfrom[FileNumbers]or[Sht.Date/Time]in[Playback Order Options]

inthe[Setup]menu.

• WhenusinganEye-Ficard,if[Eye-FiConnectionSettings]inthe[Setup]menuissetto[On(Se-

lected)], you can transfer the images by pressing the Effect button in the playback mode.

(GP. 98)

Auto Rotate --------------------------------------------------------------------------------------------------

• When[AutoRotate]issetto[On]inthe[Setup]menu,imagesarerotatedautomaticallyaccordingto

the camera orientation.

• Imagesshotwith[ContinuousMode]and[AutoBracket]arerotatedautomaticallyaccordingtothe

orientation of the first image.

• AutoRotatedoesnotworkinthefollowingcases:

• Whenplayingbackmovies

• InGridView

• Whenplayingbackimagesshotwiththecameratiltedtoofarforwardorbackward

• During[SkewCorrectMode]

• Duringenlargingimages

• During[Slideshow]playback

• WhenplayingbackimagesonAVequipment

First Steps

Using the Menu

1 Press MENU/OK.

The menu is displayed.

The menu that is displayed first varies de-

pending on the mode when the button is

pressed.

To change the menu, press the # button, use

the !" buttons to select a tab, and then

press the $ button.

2 Press the !" buttons to select an

item.

Pressing the X/Y button moves the cursor

to the head of the menu delimiter (horizontal

line).

3 Press the $ button.

The options are displayed.

4 Press the !" buttons to select an

option.

5 Press the MENU/OK button, or press the # button and then the

MENU/OK button.

The setting is set.

Note -----------------------------------------------------------------------------------------------------------

• Fordetailsofthemenus,see“Menus”(GP. 114).

Advanced

Operations

Read this section when

you want to learn more

about the different

camera functions.

1 Various Shooting Functions .... 40

2 Playback Functions ...................81

3 Changing Camera Settings ..... 99

4 Menus ........................................ 114

5 Downloading Images to

Your Computer ........................122

6 Appendices ..............................125

Various Shooting Functions

1 Various Shooting Functions

Select a shooting mode to match the scene.

Mode Purpose Page

5 For easy shooting P. 32

P/Av/Tv/TAv/M For shooting with a set aperture value and shutter speed P. 40

3 For shooting movies P. 78

MY1/MY2/MY3 For registering favorite settings P. 102

Shooting with a set aperture value and

shutter speed

Set an aperture value or shutter speed when shooting. The following values

can be set. The exposure is automatically adjusted in all modes except for

M mode.

Yes:CanbesetNo: Automatically set by camera

Mode Aperture value Shutter speed ISO Setting

Program Shift

*1 Yes

Aperture Priority

Yes

No Yes

Shutter Priority

Yes Yes

TAv

Shutter/Aperture Priority

Mode

Yes Yes No

Manual Exposure

Yes Yes Yes

*1 Allows you to select the combination of aperture value and shutter speed.

Various Shooting Functions

1 Set the mode dial to P/Av/Tv/TAv/M.

The symbol for the selected shooting mode

and the set value will be displayed on the

shooting screen.

In M mode, the exposure indicator will be

displayed.

2 Rotate the up-down dial to change a

value.

The following values will be changed.

Mode Up-down Dial ADJ. Lever

Av Aperture value

—

Tv Shutter speed

—

TAv/M

Aperture value Shutter speed

When in M mode, the exposure is correct when the indicator is in the cen-

ter. When the exposure value is in the range of -2EV to +2EV, the indicator

changes according to the exposure value. The indicator will turn orange

when the values are outside this range.

3 Shoot.

Note -----------------------------------------------------------------------------------------------------------

• Thefunctionsfortheup-downdialandADJ.leverwheninTAv/Mmodescanbeswitchedin[M/TAv

ModeDialSetting]withinthe[KeyCustomOptions]menu.

• Whenaslowshutterspeedhasbeenset,imageswillnotbedisplayedonthepicturedisplayduring

shooting.

Various Shooting Functions

• Ifthefollowingfunctionshavebeensetinthe[Shooting]menu,andthecorrectexposurecannotbe

obtained for the aperture value/shutter speed set in Av/Tv/TAv modes, the camera will automatically

adjust the settings to obtain the correct exposure.

• Av [Auto Aperture Shift]

• Tv [Auto Shutter Speed Shift]

• TAv [Shutter/Aperture Auto Shift]

(Selectsfrom[AprtrPriority]or[ShttrPriority)

• InMmode,theX/Y button cannot be used for exposure compensation. When the X/Y button

ispressed,theexposurewillbeautomaticallyadjustedtoapproachthecorrectexposure.Inthe[Key

CustomOptions]menu,youcanselectthepriorityvaluein[One Press M Mode].

Aperture Priority

For locking the aperture value and adjusting the shutter speed

Shutter Priority

For locking the shutter speed and adjusting the aperture value

Program

For adjusting both the aperture value and shutter speed

• TheISOspeedwillbelockedto[AUTO]wheninTAvmode.

• ISOspeeds[AUTO]and[AUTO-HI]cannotbesetinMmode.

Caution -------------------------------------------------------------------------------------------------------

• Whenthepicturedisplayissettooff,theaperturevalueandshutterspeedcannotbechanged.If

[InformationDisplay]issetto[ON]inthe[Setup]menu,thesevaluescanbechanged.

• Usingalongshutterspeedwillresultinanoisyimage.When[Slow Shutter Speed NR] is set in the

[Shooting]menu,noisereductionprocessingwillbecarriedoutdependingonthecombinationofthe

ISO speed and shutter speed settings. However, it will take some time to record the processed image.

ISO Setting Shutter speed at the start of processing

ISO 100 – ISO 3200 8 seconds or more

ISO 3201 – ISO 25600

4 seconds or more

Various Shooting Functions

Program diagram ------------------------------------------------------------------------------------------

• TheprogramdiagraminPmodeisshownbelow.Theguideforpossibleshiftinaparticularaperture

value and shutter speed combination will change depending on the exposure value (Ev). (The ex-

ampleshowswhentheISOspeedhasbeensetto[ISO100].)

Lv0

Lv1

Lv2

Lv3

Lv4

Lv5

Lv6

Lv7Lv8 Lv9Lv10Lv11Lv12Lv13Lv14Lv15Lv16Lv17Lv18Lv19Lv20

-1

-2-3

0123456

789

10 11

1 1/2 1/4 1/8 1/15 1/30 1/60

1/125 1/250 1/500

1/1000 1/2000

1/4000

F16

F2.8

F11

F16

F8.0

F5.6

F4.0

F2.8

F2.0

F1.4

F1.0

Bulb/Time ----------------------------------------------------------------------------------------------------

• YoucanselectbetweenB(Bulb)andT(Time)fortheshutterspeedwheninMmode.WhenusingB,

the image will continue to be exposed while the shutter release button is pressed, and will end when

the shutter release button is released. When using T, the exposure will begin once the shutter release

button is pressed, and will end when it is pressed a second time.

• Ineithermode,thecameraautomaticallystopsshootingoncethelimithasbeenreached.

ISO Setting

Longest Shutter Speed

ISO 100–ISO 3200

320 sec.

ISO 3201–ISO 25600 32 sec.

• Operationisalsopossibleusingtheoptionalcableswitch(CA-2).

• Thefollowingfunctionsarenotavailable:

• SelfTimer • IntervalShooting

• ContinuousShooting • IntervalComposite

• AutoBracket • OnePressMMode

• WhenusingB/T,and[Continuous]issetinthe[Shooting]menu,B/Twillbecanceled,andthe

shutterspeedlimitwillbesetforcontinuousshooting.If[Continuous]issetfirst,B/Tcannotbe

set.

Various Shooting Functions

Using Aperture Preview

Press and hold the p button during the shutter release button is pressed

halfway or using the AE lock, the camera will switch to Aperture Preview. The

aperture value set when shooting will operate, and you can check the depth

of field. When you release the p button, Aperture Preview will be canceled.

Caution -------------------------------------------------------------------------------------------------------

• InAperturePreview,theshutterreleasebuttoncannotbepressedalltheway,andtheaperturevalue

cannot be changed.

• Whenusingtheflash,theactualaperturevaluemaydifferfromtheaperturepreview.

• Thisfunctionisnotavailablein3 mode.

Note -----------------------------------------------------------------------------------------------------------

• When[AutoBracket]hasbeensetinTvmode,theAperturePreviewwillbedisplayedaccordingtothe

set exposure compensation requirements.

• [AutoBracket]settings[AE-BKT1/3EV]and[AE-BKT1/2EV]willnotbereflected.

• BecauseAperturePreviewisusedforcheckingthedepthoffield,itmaynotfunctionproperlywith

AE.

Using the ND Filter

In the [Shooting] menu, you can choose whether or not to always use the

camera’s internal ND filter in [ND Filter].

Off

Operationsdifferfrom[NDFilterSettings]inthe[Setup]menu.

[AUTO]:TheNDFilterisusedwhentheexposureisoutsidethelinkedrange.TheNDFilterfilter

is also used if an icon is displayed on the shooting screen when the shutter release button is

pressed halfway.

[MANUAL]:NDFilterisnotused.

ND Filter is always used. An icon will be displayed on the shooting screen.

Note -----------------------------------------------------------------------------------------------------------

• When[NDFilterSettings]hasbeensetto[AUTO],theNDFilterwillnotbeusedinP/Mmodes.

• Inthe[KeyCustomOptions]menu,if[NDFilter]issetin[SetFnButton],theNDFiltercanbeswitched

ON/OFF using a button only. (GP. 107)

Various Shooting Functions

Exposure settings

Using exposure compensation

1 Set a value using the X/Y button.

Settings can be made in the range from –4.0

EV to +4.0 EV.

You can also shoot without making further

adjustments.

2 Press the MENU/OK button.

The shooting screen will reappear, and the

setting appears on the screen.

Caution -------------------------------------------------------------------------------------------------------

• ThisfunctionisnotavailableinMor3 modes.

Note -----------------------------------------------------------------------------------------------------------

• Inthe[Shooting]menu,settingscanalsobemadein[ExposureCompensation].

Various Shooting Functions

Setting the ISO speed

In the [Shooting] menu, the ISO speed can be set in [ISO Setting/NR].

AUTO In ISO 100 – ISO 800, the camera automatically adjusts sensitivity accord-

ing to brightness, the distance to the subject, macro settings, and the

format.

Auto-Hi

(high sensitivity auto)

Thesensitivitycanbesethigherthanin[AUTO].

•

Inthe[Setup]menu,themaximumISOspeed,andtheISOspeedfor

switchingshutterspeedscanbesetin[ISO AUTO-HI Settings] .

ISO 100 – ISO 25600 Sensitivity is set to the selected ISO value.

Note -----------------------------------------------------------------------------------------------------------

• Inthe[Setup]menu,ISOspeedsettingstepscanbeselectedfrom[1EV]and[1/3EV]in[ISOSpeed

Step Settings]. Depending on settings, the following ISO speeds can be selected.

ISO Speed Step Settings Selectable ISO speeds

1EV ISO 100/ISO 200/ISO 400/ISO 800/ISO 1600/ISO 3200/ISO 6400/ISO

12800/ISO 25600

1/3EV ISO 100/ISO 125/ISO 160/ISO 200/ISO 250/ISO 320/ISO 400/ISO 500/ISO

640/ISO 800/ISO 1000/ISO 1250/ISO 1600/ISO 2000/ISO 2500/ISO 3200/

ISO 4000/ISO 5000/ISO 6400/ISO 8000/ISO 10000/ISO 12800/ISO 16000/

ISO 20000/ISO 25600

• In[AUTO]and[Auto-Hi],theISOspeedwillbedisplayedonthescreenwhentheshutterreleasebut-

ton is pressed halfway. The displayed ISO speed may differ from the actual setting when the flash is

used.

• Imagesshotwithahighersensitivitymayappeargrainy.

• Iftheflashisusedin[AUTO],thetopISOspeedwillbeincreaseduptotheequivalentofISO1600.

• If[DynamicRangeCorrection]issetinthe[Shooting]menu,theISOspeedsthatcanbesetarelim-

ited. (GP. 48)

• Inthe[KeyCustomOptions]menu,[ISO]canberegisteredtousein[ADJ.LeverSetting]or[SetFn

Button]. (GP.105,P.107)[ADJ.LeverSetting1]isregisteredasthedefaultsetting.

• Inthe[KeyCustomOptions]menu,if[ADJ.DirectISOControl]issetto[On],youcanchangetheISO

speed simply by moving the ADJ. lever left or right in P/Av/Tv modes.

Various Shooting Functions

Reducing noise

Youcanreducetheamountofnoiseinstillimages.

1 In the [Shooting] menu, select [ISO Setting/NR], and then press

the $ button.

The [ISO Setting/Noise Reduction] screen will appear.

2 Press the !" button to select [Noise Reduction] and then press

the $ button.

3 Press the !" button to select [Off], [Auto], or [Manual].

When [Off] or [Auto] have been selected, proceed to step 5.

4 Press the !"#$ button to specify

the ISO speed to apply from

[Strong], [Medium], or [Weak].

5 Press the MENU/OK button.

The [Shooting] menu will reappear.

The symbol appears on the shooting screen.

Caution -------------------------------------------------------------------------------------------------------

• Whennoisereductionisset,itmaytakelongerthannormaltorecordimages.

Various Shooting Functions

Dynamic range correction

In the [Shooting] menu, you can use [Dynamic Range Correction] to expand

an images gradation, making sure the bright and dark portions of an image

areclearlyvisible.Youcanselectfrom[Off],[Auto],[Weak],[Medium],and

[Strong].

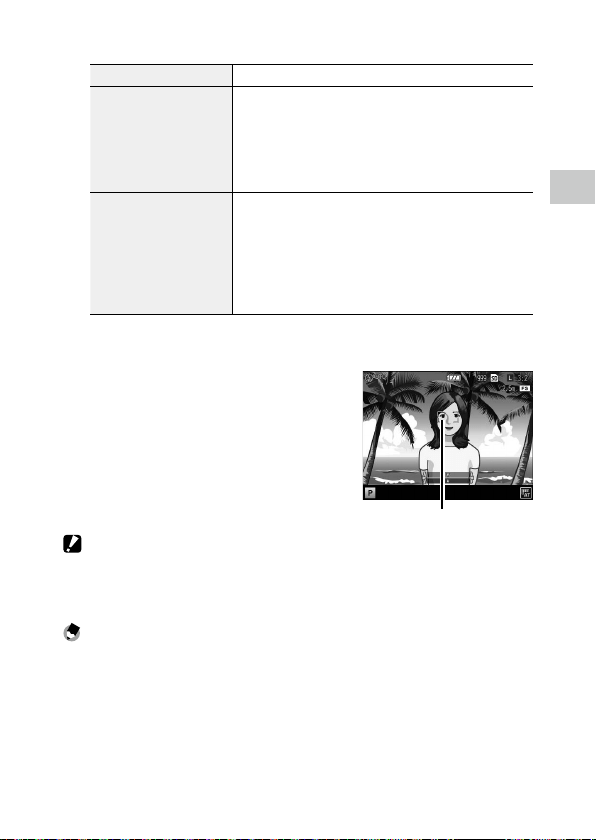

A symbol will appear on the screen when dy-

namic range correction has been set.

Caution -------------------------------------------------------------------------------------------------------

• Whendynamicrangecorrectionhasbeenset,availableISOspeedswillbelimited.

Setting ISOSpeedStepSettings[1EV] ISOSpeedStepSettings[1/3EV]

Min. Max. Min. Max.

AUTO ISO 200 ISO 6400 ISO 320 ISO 8000

Weak ISO 200 ISO 12800 ISO 160 ISO 16000

Medium ISO 200 ISO 12800 ISO 200 ISO 12800

Strong ISO 200 ISO 6400 ISO 320 ISO 8000

• Whendynamicrangecorrectionisset,theISOsensitivitywillworkin[Auto]whenitissetto[AUTO-

HI].

• Whensetto[Strong],noisetendstooccurmoreeasilyinimages.

• Inthefollowingsituations,DynamicRangeCorrectioncannotbeset.

• Continuous

• MultipleExposureShooting

• IntervalShooting

• IntervalComposite

• Whentheshootinglocationistoobrightortoodark,dynamicrangecorrectionmaynotbeeffective.

Note -----------------------------------------------------------------------------------------------------------

• Whenusingdynamicrangecorrection,itisrecommendedtosetmeteringto[Multi].(GP. 49)

• Inthe[KeyCustomOptions]menu,[DRangeCorrection]canberegisteredtousein[ADJ.LeverSet-

ting]or[SetFnButton].(GP. 105, P. 107)

Various Shooting Functions

Selecting a metering method

In the [Shooting] menu, set [Exposure Metering].

Multi Thecamerametersexposurein484areasoftheframe.[DefaultSetting]

Center

The entire image is metered, with emphasis on the center, to determine the exposure value.

Use this when the brightness of the center and surroundings are different.

Spot

The center of the image is metered to determine the exposure value. Use this setting when

you want to use the brightness at the center. This is useful if there is a marked difference in

contrast or backlighting.

If you select the setting [Center] or [Spot], a

symbol appears on the shooting screen.

Note -----------------------------------------------------------------------------------------------------------

• Meteringislockedto[Multi]inthefollowingsituations.

• Whenthefocusissetto[Subject-trackingAF]

• In3 mode

• WhentheAE/EF/AEtargetmoves,meteringislockedto[Spot].

• Inthe[KeyCustomOptions]menu,[Expo.Metering]canberegisteredtousein[ADJ.LeverSetting]or

[SetFnButton].(GP.105,P.107)[ADJ.LeverSetting5]isregisteredasthedefaultsetting.

Various Shooting Functions

Setting a still image format

In the [Shooting] menu, the still image format, size, and aspect ratio can be

selected in [Still Image Format].

Format/Size o :

Records a q sized RAW file (DNG format).

p :

Records a RAW file simultaneously with a q sized JPEG file.

q :

16M (3:2)

r :

10M (3:2)

s :

5M (3:2)

u :

1M (3:2)

Aspect ratio 3:2/4:3/1:1

Note -----------------------------------------------------------------------------------------------------------

• Whentheaspectratioissetto[3:2]or[1:1],blackbandsmayappearatthelowersideorrightandleft

sides of the picture display.

• Inthe[KeyCustomOptions]menu,[ImageSize]and[AspectRatio]canberegisteredtousein[ADJ.

LeverSetting]or[SetFnButton].(GP.105,P.107)Atdefaultsettings,[ImageSize]isregistered

to[ADJ.LeverSetting2],and[AspectRatio]isregisteredto[ADJ.LeverSetting3].

 Inthe[KeyCustomOptions]menu,if[JPEG> RAW]and[JPEG> RAW+]aresetin[SetFnButton],

the file format can be switched using a button only.

• Inthe[Shooting]menu,if[Cropto35mm]issetto[On],thenormal28mmangleofviewwillchange

to 35mm, and the screen display will also change. In this case, q cannot be selected, and RAW

files will be recorded as r.Inthe[KeyCustomOptions]menuif[Cropto35mm]issetin[SetFn

Button], 28mm/35mm can be switched using a button only. (GP. 107)

Shooting RAW images -------------------------------------------------------------------------------------

• Inthe[Playback]menu,RAWfilescanbemanipulatedin[RAWDevelopment]orusingtheincluded

software:SILKYPIXDeveloperStudio3.0LEforPENTAXRICOHIMAGING.(GP. 93, P. 122)

• ThefollowingfunctionswillnotbereflectedinRAWfiles.Inthe[Playback]menu,[Effect]and[Dy-

namicRangeCorrection]canbeconvertedtoJPEGformattoreflecteffectsin[RAWDevelopment].

• Effect

• DynamicRangeCorrection

• DateImprint

When p is set, the functions mentioned above will only be reflected in JPEG files.

Various Shooting Functions

Setting the focus

Selecting a focusing method

In the [Shooting] menu, set [Focus].

Multi AF

Measures the distances from 9 AF areas and focuses to the nearest AF area. This

prevents the center of the picture display from becoming out of focus and enables

youtoshootwithaminimumnumberofout-of-focuspictures.[DefaultSetting]

Spot AF Focuses on the area in the center of the frame.

Pinpoint AF Focuses on a smaller area than Spot AF.

Subject-tracking AF

Tracks the subject and continually focuses.

When the shutter release button is pressed halfway, the subject inside the frame

in the center of the picture display is set as the target to be tracked, and a green

target symbol appears. When a tracking target cannot be found, the frame flashes

red.

Automatic tracking will be canceled after shooting, or in the following cases.

• Whenthetrackingtargetmovesoutoftheframe

• Whentheshutterisreleased

MF (Manual Focus)

Focuses manually. (GP. 52)

Snap

Fixes the focus to the set distance. (GP. 52)

∞ (Infinity)

Fixes the focus distance at infinity. This is useful for shooting distant scenes.

Note -----------------------------------------------------------------------------------------------------------

• Inthe[KeyCustomOptions]menu,[Focus]canberegisteredtousein[ADJ.LeverSetting]or[SetFn

Button]. (GP.105,P.107)[ADJ.LeverSetting4]isregisteredasthedefaultsetting.

 Whenthefollowingfunctionsaresetto[SetFnButton],thefocuscanbeswitchedusingabutton

only.

• Multi AF/Spot AF

• Multi AF/Pinpoint AF

• AF/MF

• AF/Snap

• AF/Subject Tracking

Various Shooting Functions

• In[SubjectTrackingAF],thefollowingfunctionsarenotavailable.

• Self-Timer[CustomSelf]

• Intervaltimershooting

• Interval Composite

• FA/MoveTarget

Focusing manually

If the camera fails to focus automatically, you can focus manually.

Manual focus enables shooting at a fixed distance.

1 In the [Shooting] menu, select [MF] in [Focus].

A symbol and the focus bar will appear in

the shooting screen.

In P/Av/TAv/M modes, and when using In-

terval Composite, a depth of field approxi-

mation will appear.

2 While holding the ! button, adjust the focus with the Up-down

Dial.

Fixing the focus to the set distance (Snap)

1 In the [Shooting] menu, select [Snap Focus Distance], and then

press the $ button.

2 Press the !" button to select a distance, and then press the #

button.

Distances can be selected from [1m], [1.5m], [2m], [2.5m], [5m], and [∞].

3 Press the MENU/OK button.

4 In the [Shooting] menu, select [Snap] in [Focus].

The camera will focus on the set distance.

To change the distance, hold the !button and turn the Up-down Dial.

Note -----------------------------------------------------------------------------------------------------------

• Inthe[KeyCustomOptions]menu,[SnapFocusDistance]canberegisteredtousein[ADJ.LeverSet-

ting]or[SetFnButton].(GP. 105, P. 107)

Various Shooting Functions

Shooting close-ups (Macro Mode)

Youcanapproachthesubjectupto10cm(shootingrange:approx.12x8

cm) away from the end of the lens to shoot.

1 Press the

N (!) button in shooting

mode.

N appears on the shooting screen.

2 Shoot.

To cancel macro mode, press the N button

again.

Note -----------------------------------------------------------------------------------------------------------

•

Thefocuswilloperateas[SpotAF]or[PinpointAF].

Caution -------------------------------------------------------------------------------------------------------

•

Whenthefocusissetto[MF],theN button is deactivated, and macro mode is not available.

•

In 5 mode Auto Macro is set, and the N button is deactivated.

Various Shooting Functions

Using the AF button

When the AF button is used, AE Lock or AF Lock are available in place of

pressing the shutter release button halfway.

YoucanusetheAFFunctionSwitchingLeverto

switch the AF button’s function.

Using AEL/AFL with the AF Function Switching Lever

These functions operate following the [AEL/AFLSetting]inthe[KeyCustom

Options] menu.

[AEL/AFLSetting] [Focus]setting AF button lock operation

AFL Multi AF/Spot AF/Pinpoint

Followsthe[Focus]settingtofocus andthenlocks

the focus

Subject Tracking AF/MF/

Snap/∞

Focusesusing[MultiAF]andthenlocksthefocus

AEL/AFL Multi AF/Spot AF/Pinpoint

SetsAELock,andfollowsthe[Focus]settingtofocus

and then locks the focus

Subject Tracking AF/MF/

Snap/∞

SetsAELock,andfocusesusing[MultiAF]andthen

locks the focus

AEL Sets AE Lock

Inthe[KeyCustomOptions]menu,youcansetwhetherornottomaintain

the lock even when you release the button in [AEL/AFL Lock Setting].

Off Locks only while the button is pressed

On Press the button to lock the focus, then press it again to cancel

AF Function Switch-

ing Lever

AF button

Various Shooting Functions

Note -----------------------------------------------------------------------------------------------------------

• WhenAFLockcannotbeset,orwhenAFLockiscanceled,thefocuswillmovetothepositionsetin

[Focus].

• When the focus is locked with the AF button, the AE/AF lock position will not change even when the

shutter release button is pressed halfway.

Using C-AF with the AF Function Switching Lever

While the AF button is pressed, Continuous AF will be active, continuously

focusing on the subject, regardless of the [Focus] setting.

If the shutter release button is pressed all the way while pressing the AF but-

ton, continuous shooting will be carried out following the [C-AF Continuous

Setting]inthe[KeyCustomOptions]menu.Continuousshootingwillend

once the AF button is released.

Off Continuous shooting will only be available when [Continous] is set in the

[Shooting]menu.

AF Priority While the shutter release button is held, the camera will shoot continuously

while focusing for each shot.

Frame Speed Priority Pictures continue to be taken for as long as you hold down the shutter release

button. The focus is fixed. (GP. 62)

Caution -------------------------------------------------------------------------------------------------------

• Continuous AF is not available while shooting movies.

Note -----------------------------------------------------------------------------------------------------------

• Agreenframewillappearwhenthecamerahasfinishedfocusing.Thefocussoundwillnotbeplayed.

• Ifthe[Focus]issetto[MF],thefocuscanbelockedwhentheAFbuttonisreleased.Itiseasierto

operate when placing your index finger on the shutter release button, and using your thumb for the

AF button.

Various Shooting Functions

Setting Focus Assist and AE/AF Target

Without moving the camera you can meter a specific spot on the subject

using buttons only, and activate the focus lock. This function is useful for

shooting on a tripod.

Youcanenlargepartofthescreenandemphasizeoutlinesandcontrastto

make it easier to focus.

1 In the [Shooting] menu, select [FA/Move Target], and then press

the $ button.

The target setting screen will appear.

2 Set the target position and size.

The following operations are available.

!"#$ buttons

Moves the target.

Up-down Dial Portion is magnified: Changes the display area.

Whole is magnified: Changes the size of the focus assist area when the mag-

nification is the same ratio.

X/Y button

Changes the magnification factor: 2x/4x/8x

3 For detailed settings, press the Fn2

button.

Various Shooting Functions

The following settings are available.

Move Target Setting Specifies the target to move from AE/AF, AF, and AE.

Focus Assist Setting Intensifies the outlines and contrast inside the area, making it easier

to adjust the focus.

[MODE1]Emphasizescontrastandoutlines

[MODE2]Emphasizesoutlines

[MODE3]BlackandwhitereversalofMODE1

[MODE4]BlackandwhitereversalofMODE2

Magnification Setting Specifies the magnification area.

[Magnifyportion]:Magnifiesthetargetareaandoverlaysthedisplay

on thebackground.You can check the focus while looking atthe

overall composition.

[Magnifywhole]:Thetargetareaismagnifiedfull-screen,andthe

target can be moved while magnified. This function allows you to

checkthefocusmorecloselythanwith[Magnifyportion].

If you press the OK button, the screen in step 2 will reappear.

4 Press the MENU/OK button.

The shooting screen reappears.

Caution -------------------------------------------------------------------------------------------------------

• Inthefollowingsituations,FocusAssist/MoveTargetcannotbeset.

• Whenthefocusissetto[Subject-trackingAF]

• In 5 mode and 3 mode

Note -----------------------------------------------------------------------------------------------------------

• If[Focus]ischangedto[SubjectTrackingAF],thetargetpositionwillbereset.

• Whenthefocusissetto[MF],[MoveTargetSetting]willworkinAE/MF,MF,orAE.

• When[MagnificationSetting]issetto[Magnifywhole],thetargetcanbemovedwhilemagnified.

YoucanchangethemagnificationfactorwiththeX/Y button.

• Inthe[KeyCustomOptions]menu,[FA/MoveTarget]canberegisteredtousewith[SetFnButton].

(GP. 107) This function is registered to Fn1 button as the default setting.

Target

Various Shooting Functions

Shooting with a single press of the shutter release but-

ton (Full Press Snap)

When pressing the shutter release button halfway AF operates, however,

pressing the shutter release button all the way will quickly capture an image

at the set focal distance. This function is called Full Press Snap. The camera

will focus at the distance set in [Snap Focus Distance] in the [Shooting] menu

(GP. 52).

In the [Shooting] menu, this is set in [Full Press Snap].

Off Operates the same way as AF.

On WhenusingFullPressSnap,thecamerawillfocusatthedistancesetin[SnapFocusDistance].

Auto-Hi ISO WhenusingFullPressSnap,thecamerawillfocusatthedistancesetin[SnapFocusDistance]

andshootwiththeISOsensitivitysetto[Auto-Hi].

Caution -------------------------------------------------------------------------------------------------------

• FullPressSnapisnotavailableinthefollowingmodes.

• Macro

• Self-Timer

• In3 mode

Note -----------------------------------------------------------------------------------------------------------

• Evenwhen[FullPressSnap]issetto[ON],thecamerawillfocusatthesettingin[Focus]whenthe

shutter release button is pressed halfway.

Various Shooting Functions

Setting the White Balance

Make adjustments to the white balance so that white subjects will appear

white under any kind of light.

[Multi-PAUTO]issetbydefault.Ifthewhitebalanceisnothowyouthought

it would be when shooting an object of a single color or when shooting un-

der multiple light sources, you can change the setting.

AUTO

The camera adjusts white balance automatically.

Multi-P AUTO

When multiple light sources are mixed together, such as sunlight/shade and

flash, the camera automatically optimizes the white balance to match each of the

separateareasoflight.[Defaultsetting]

Outdoors

Use when shooting in daylight under clear skies.

Shade

Use when shooting in shade.

Cloudy

Use when shooting in daylight under cloudy skies.

Incandescent 1

Use with incandescent lighting.

Incandescent 2

Incandescent 2 leaves a shots a little redder than Incandescent 1.

Daylight Fl.

Use with fluorescent daylight.

Neutral White Fl.

Use with fluorescent neutral white.

Cool White Fl.

Use with fluorescent cool white.

Warm White Fl.

Use with fluorescent warm white.

Various Shooting Functions

Detail

Specifies the color temperature. (GP. 61)

Manual

Adjust the white balance manually. (GP. 61)

1 Press the WB (") button in shooting mode.

The [White Balance] screen appears.

2 Select the setting with the !"

button.

If no corrections are required, proceed to

step 6.

See P. 61 for [Details] [Manual].

3 Press the Fn2 button.

The [White Balance Compensation] screen appears.

Make point adjustments with the

!"#$ buttons

Press the r button to reset. If the r but-

ton is pressed, the correction will be can-

celed.

5 Press the MENU/OK button.

The screen in step 2 returns.

6 Press the MENU/OK button.

The shooting screen returns, and a mark

appears.

Note -----------------------------------------------------------------------------------------------------------

• Youcansetthewhitebalancefrom[WhiteBalance]inthe[Shooting]menu.

Various Shooting Functions

Caution -------------------------------------------------------------------------------------------------------

• Thewhitebalancemaynotbeadjustedcorrectlyforasubjectthatismostlydark.

• Whenshootingwiththeflash,thewhitebalancemaynotbeadjustedcorrectlyif[Auto]or[Multi-P

AUTO] is not selected.

Setting the Color Temperature

1 Select [Detail] under White Balance, and then press the Fn2

button.

The [White Balance Detailed Settings] screen appears.

2 Set the value with the !" buttons.

Values from 2500 K to 10000 K can be set.

If the Fn2 button is pressed, the white bal-

ance can be corrected. If the Fn2 button is

pressed again, the screen returns to the

color temperature settings.

3 Press the MENU/OK button.

The [White Balance] screen returns.

4 Press the MENU/OK button.

The shooting screen returns.

Setting the White Balance

1 Select [Manual] for white balance.

2 Aim the camera at a white subject, such as a sheet of paper,

under the light where you will be shooting.

3 Press the Fn2 button.

The white balance will be measured.

4 Press the MENU/OK button.

The shooting screen returns.

Note -----------------------------------------------------------------------------------------------------------

• IftheFn2buttonispressedwhiletheflashisbeingfired,thewhitebalancecanbemeasuredwhen

the flash fires.

Various Shooting Functions

Shooting Continuously

The continuous shooting functions are as follows.

Continuous Continues to take pictures for as long as you hold down the shutter

release button.

P. 62

Auto Bracket Takes three images with varying exposure, white balance, effects,

dynamic range, or contrast.

P. 63

Multiple Exposure Merges multiple images together. P. 64

Interval Shoots automatically at a fixed interval. P. 66

Interval Composite Merges a series of continuous images in such a way that the bright

areas remain.

P. 67

Caution -------------------------------------------------------------------------------------------------------

• Ofthefunctionsdescribedabove,onlyAutoBracketingandIntervalcanbeusedincombination.The

other functions cannot be set at the same time.

Shooting Continuously

Set [Continuous] in the [Shooting] menu.

Pictures continue to be taken for as long as you hold down the shutter re-

lease button. The autofocus is fixed in the first frame.

When Continuous is set, a mark will appear on

the shooting screen.

Set [Continuous] to [Off ] when you wish to re-

turn to normal shooting.

Caution -------------------------------------------------------------------------------------------------------

• Theflashcannotbeusedwiththisfunction.

• Ifthe[Effect]inthe [Shooting] menu issetto[HighContrastB&W], [Miniaturize],or[HighKey],

continuous shooting is not possible.

Note -----------------------------------------------------------------------------------------------------------

• Ifthewhitebalanceissetto[Multi-PAUTO],thewhitebalancewillworkin[Auto].

• ContinuousshootingcanalsobedonebyholdingtheAFbuttondownwhilefullypressingtheshutter

releasebutton.See“UsingtheAFbutton”(GP. 54).

• Themaximumnumberofshotsthatcanbetakeninasingleburstis999.

Various Shooting Functions

• Ifthelastfourdigitsofthefilenumbertakenduringcontinuousshootingexceed[9999],aseparate

folder is created in the SD memory card and successive pictures taken are stored in this folder.

• Ifthenumberoffilesstoredinamemorycardexceeds10000,fileswithasmallfolder/filenumber

cannot be played back. However, they are not deleted or lost.

• [Continuous]canberegisteredandusedinthe[KeyCustomOptions]menuunder[ADJ.LeverSetting]

orin[SetFnButton].(GP. 105, P. 107)

Shooting Consecutively with Different Settings (Auto

Bracket)

In the [Auto Bracket] settings in the [Shooting] menu, three shots will be

taken with differing values for things like exposure or white balance.

AE-BKT 1/3EV

AE-BKT 1/2EV

Takes images at different exposures in 1/3-EV or 1/2-EV steps from -2.0 EV to +2.0

EV.

WB-BKT

Three images (an image with more red than the currently set white balance, an

image at the current white balance, and a more bluish image) are automatically

recorded.

WB-BKT

Preset

Takes three images with different white balance. Selects the white balance for the

second and third shots, respectively.

Effect-BKT

Takes three images with different effects. Selects the effects for the second and

third shots, respectively.

DR-BKT

Takes images with the Dynamic Range Compensation set to Off, Weak, and Strong.

CONTRAST-BKT

Takes images with different contrasts.

Caution -------------------------------------------------------------------------------------------------------

• Theflashcannotbeusedwiththisfunction.

• [AE-BKT1/2EV]cannotbeselectedinTvmode.

• WhenEffectsettinginthe[Shooting]menuissetto[Miniaturize],[AE-BKT1/3EV],[AE-BKT1/2EV],

and[DR-BKT]cannotbeused.

Various Shooting Functions

Note -----------------------------------------------------------------------------------------------------------

• When[AE-BKT1/3EV],[AE-BKT1/2EV],or[DR-BKT]isselectedandthewhitebalanceissetto[Multi-

PAUTO],thewhitebalancewillworkin[Auto].

• [AutoBracket]canberegisteredandusedinthe[KeyCustomOptions]menuunder[ADJ.LeverSet-

ting]orin[SetFnButton].(GP. 105, P. 107)

Shooting Continuously with Varied Exposure Values

1 In the [Shooting] menu, under [Auto Bracket], select either [AE-

BKT 1/3EV] or [AE-BKT 1/2EV], and then press the $ button.

The [AE Bracketing Settings] screen appears.

2 Select from the first through third

shot with the #$ buttons, and then

set the exposure value with the !"

buttons.

3 Press the MENU/OK button.

The [Shooting] menu returns.

Shooting While Merging Images Together (Multiple Ex-

posure Shooting)

Shootsimagesandmergesthemtogether.Uptoamaximumoffiveimages

can be merged.

1 In the [Shooting] menu, select [Multiple Exposure Shooting],

and then press the $ button.

The [Multiple Exposure Shooting] screen appears.

2 Select items with the !" buttons,

and then set the selected item to

[On] or [Off].

Various Shooting Functions

Automatic Exposure

[Off]:Theexposurevalueisnotadjusted.

[On]:The exposure value is adjusted to match the number of shots to be

merged.

Save Each Shot

[Off]:Savesonlythefinalmergedimage.

[On]:Savesalloftheunmergedimages.

Save Images In Prog-

ress

[Off]:Savesonlythefinalmergedimage.

[On]:Savestheimagewitheachmerge.

3 Press the MENU/OK button.

[Multiple Exposure Shooting] appears on the shooting screen.

4 Shoot the first image.

5 To shoot the next image, select

[Next shot >], and then press the

MENU/OK button.

To retake the shot, select [Retake shot].

6 Shoot the next image.

Repeat steps 5 through 6.

To return to the previous merged image, select [Retake shot]. To end mul-

tiple exposure shooting, select [Complete].

When shooting ends after the fifth image is taken or when [Complete] is

selected, the merged image is saved.

Note -----------------------------------------------------------------------------------------------------------

• If[MultiExposure]issetinthe[Set FnButton]inthe[KeyCustomOptions]menu,youcanstart

multiple exposure shooting simply by using the buttons. (GP. 107)

Caution -------------------------------------------------------------------------------------------------------

• [Cropto35mm]isnotavailableduringthemultipleexposureshooting.

Various Shooting Functions

Shooting Pictures Automatically at Set Intervals (Inter-

val Shooting)

Shoots pictures automatically at fixed intervals.

1 In the [Shooting] menu, select [Interval Shooting], and then

press the $ button.

The [Interval Shooting] screen appears.

2 Select minutes/seconds with the #$

buttons, and then set the interval

value with the !" buttons.

You can set the shooting interval from

among 1 second, 2 seconds, or between

5 seconds and 1 hour (in 5-second incre-

ments).

3 Select the number of shots with the #$ buttons, and then set

the value with the !" buttons.

Values from 1 to 99 or A can be set.

4 Press the MENU/OK button.

[Interval Shooting] appears on the screen.

5 Press the shutter release button to shoot the picture.

A picture is taken every time the fixed interval elapses.

6 Press MENU/OK to end shooting when all the desired

photographs have been taken.

Caution -------------------------------------------------------------------------------------------------------

• Dependingonthe[Shooting]menusettings,thetimeuntilthenextpicturecanbetakenmaybe

longer than the time set for interval shooting.

• Theself-timercannotbeusedwithintervalshooting.

• IntervalShootingcannotbesetwhenthefocusissetto[Subject-trackingAF].

Note -----------------------------------------------------------------------------------------------------------

• IntervalShootingiscanceledifthepoweristurnedoff.

• Chargethebatterybeforeshooting.

• Acardwithsufficientavailablememoryorahighspeedmemorycardisrecommended.

Various Shooting Functions

Shooting Star Trails (Interval Composite)

Merges a series of continuous images taken at fixed intervals in such a way

thatthebrightareasremain.Usewhenyouwanttorecordthetrailsoflight

formed by stars or the moon by shooting a fixed position in nightscapes.

1 Mount the camera on a tripod.

2 Set the mode dial to Av/Tv/TAv/M, and then try taking a shot.

Set the aperture value/shutter speed/focus/ISO sensitivity/white balance,

and then check the composition. This exposure will be maintained as

shots are merged.

3 On the [Shooting] menu, select [Interval Composite].

The settings from step 2 will be carried over.

4 Select items with the !" buttons,

and then change their settings.

Interval Sets the shooting interval from the shortest value up to 60 minutes.

Save Interval Com-

posite Img.

Sets how the images are saved.

[Off]:Savesonlythemergedimage.

[SaveEachShot]:Savesalloftheunmergedimages.

[SaveImagesInProgress]:Saveseachimageatthepointitismerged.

5 Press the MENU/OK button.

[Interval Composite] appears on the shooting screen.

6 Full-press the shutter release button.

The first shot will be taken, and additional shots will be taken continuously

at the interval specified.

To check the images being merged, half-press the shutter release button.

If the shutter release button is pressed all the way, the images merged up

to that point will be saved as is, and Interval Composite shooting will con-

tinue with a new image.

Various Shooting Functions

7 Press MENU/OK to end shooting when all the desired

photographs have been taken.

The merged image will be saved.

Caution -------------------------------------------------------------------------------------------------------

• IfpressingtheMENU/OKbuttonwhiletakingashot,theshotwillnotbemerged.

• Theflashcannotbeusedwiththisfunction.

• TheISOsensitivitycannotbesettohigherthan[ISO1600].

• Theshutterspeedcannotbesettolongerthan60seconds.

• IntervalCompositecannotbeusedwhenthefocusissetto[Subj.Tracking].

• If[SlowShutterSpeedNR]issetto[On]inthe[Shooting]menu,andnoisereductionisbeingapplied

(GP. 42), light trails will not be continuously connected.

Note -----------------------------------------------------------------------------------------------------------

• Thevaluesofthefollowingsettingswillbefixedwhenthefirstimageistaken.

• ISOsensitivitywhensetto[AUTO]or[AUTO-HI]

• Whitebalancevaluewhensetto[Auto].

• AFoperationswillonlybedoneforthefirstshot.

• Theself-timercanonlybeusedforthefirstshot.

• Ifshootingthelighttrailsofstars,settingthefocusto[A]andthe[Interval]to[Min.]willyield

clear shots. Also, when taking test shots, check that the stars appear as points of light. Those points of

light will be recorded as light trails when merged.

• Ifshootinginadarklocation,theoptionalexternalviewfinder(GV-1/GV-2)canbeconvenient.

Various Shooting Functions

Using the Flash

Setting the Flash Mode

Auto

Theflashfiresautomaticallywhenthesubjectispoorlylitorbacklit.[Defaultset-

ting]

Flash On

The flash always fires.

Flash Synchro.

The flash fires with the shutter speed slowed. Use when taking nightscape shots

that include people. Use of a tripod is recommended to prevent blur.

Manual Flash

Theflash outputis setunder [ManualFlash Amount]in the [Shooting] menu.

(GP. 71)

Red-Eye Flash AUTO

Reduces“red-eye”inportraitstakenwiththeflash.

Red-Eye

Flash On

Forces the flash to fire while reducing the red-eye phenomenon.

Red Eye

Flash Synchro.

The flash fires in slow synchro while reducing the red-eye phenomenon.

1 Slide the F Open switch downward.

The flash pops up.

2 Press the F ($) button.

The flash mode settings screen appears.

3 The display can be changed with the

#$ buttons.

A symbol appears on the shooting screen.

Various Shooting Functions

Note -----------------------------------------------------------------------------------------------------------

• Theflashmodecannotbechangedwhentheflashcoverisclosed.

• IftheISOsensitivityissetto[AUTO],therangethelightfromtheflashwillreachisfromapproxi-

mately 20 cm to 3.0 m from the end of the lens.

• Theflashfiresapre-flashtoincreasetheAEaccuracy.Thepre-flashdoesnotfirewhensetto[Manual

Flash].

• Theflashintensitycanbeadjustedunderthe[FlashExposureCompensation]settingsinthe[Shoot-

ing] menu. (GP. 70)

Caution -------------------------------------------------------------------------------------------------------

• Theflashdoesnotfireinthefollowingsituations:

• ContinuousShooting

• AutoBracketing

• IntervalComposite

• 3 mode

• Donotraisetheflashifusinganexternalflash,conversionlens,orhood.

Adjusting the Intensity of the Flash

Adjusts the intensity of the flash.

1 In the [Shooting] menu, select [Flash Exposure Compensation],

and then press the $ button.

The [Flash Exposure Compensation] screen appears.

2 Set the value with the X/Y button.

You can set the intensity from -2.0 EV to +2.0

EV in increments of 1/3 EV.

3 Press the MENU/OK button.

The value that was set appears on the

screen.

Various Shooting Functions

Note ---------------------------------------------------------------------------------------------------------

• Whentheflashmodeissetto[ManualFlash],thevaluesetfor[Flash Exposure Compensation] is

invalid.

• [FlashComp.]canberegisteredandusedinthe[KeyCustomOptions]menuunder[ADJ.LeverSet-

ting]orin[SetFnButton].(GP. 105, P. 107)

Setting the Flash Intensity for Manual Flash

Sets the intensity of the internal flash if the flash mode is set to [Manual

Flash].

1 In the [Shooting] menu, select [Manual Flash Amount], and then

press the $ button.

2 Select the value with the !" buttons.

You can select from among the following fractions of the maximum flash

intensity: [Full], [1/1.4], [1/2], [1/2.8], [1/4], [1/5.6], [1/8], [1/11], [1/16],

[1/22], [1/32], and [1/64].

3 Press the MENU/OK button.

If the flash is set to [Manual Flash], the value

set is shown on the shooting screen.

Note -----------------------------------------------------------------------------------------------------------

• [FlashAmount]canberegisteredandusedinthe[KeyCustomOptions]menuunder[ADJ.LeverSet-

ting]orin[SetFnButton].(GP. 105, P. 107)

Setting the Timing for Firing the Flash

Youcanselectthetimingatwhichtheflashfiresinthe[Shooting]menu’s

[Flash Synchro Settings].

1st Curtain Theflashfiresimmediatelyaftertheexposurestarts.[Defaultsetting]

2nd Curtain The flash fires just before the exposure ends. When shooting a subject in motion at a low shut-

ter speed, this makes it possible to express the subject’s motion as a trail of light.

Various Shooting Functions

Shooting Photos with Unique Atmosphere

Takes images with varied saturation and contrast.

Effect

Changes things like the hue for distinctive images.

Black&White

Creates a black and white picture.

The[Contrast],[Sharpness],and[Vignetting]canbeset.

B&W(TE)

Adds tint to black-and-white images.

The[ToningEffect],[Saturation],[Contrast],[Sharpness],and[Vignetting]can

be set.

HighContrastB&W

Takesshotswithstrongercontrastthan[Black&White].Makesitpossibleto

take images with a grainy feel, such as that created by using ultra-high-sensi-

tivity film in a film camera or by push processing film at the development stage.

The[Contrast],[Sharpness],and[Vignetting]canbeset.

Cross Process

Takes images with tones that differ from the actual colors.

The[Hue],[Saturation],[Contrast],[Sharpness],and[Vignetting]canbeset.

Positive Film

Takes highly saturated images like those taken with positive film.

The[Saturation],[Contrast],[Sharpness],and[Vignetting]canbeset.

Bleach Bypass

Takes images with low saturation and high contrast.

The[Hue],[Saturation],[Contrast],[Sharpness],and[Vignetting]canbeset.

Retro

Takes images that look like old photos.

The[Saturation],[Contrast],[Sharpness],and[Vignetting]canbeset.

Miniaturize

Takes pictures that make the landscape look as if it has been miniaturized.

The[ToningEffect],[Saturation],[Contrast]and[Sharpness]canbeset,ascan

the position and range of blurring in the image. (GP. 75)

High Key

Takes images with a bright atmosphere.

[Saturation]canbeset.

Various Shooting Functions

Image Settings

Takes images with modulated saturation, contrast, sharpness, and vignett-

ing.

Vivid

Increasesthecontrast,sharpness,andsaturationbeyond[Standard]foranim-

age quality that feels solid.

Standard

Normal image quality. This is selected when the image settings are turned off.

[Defaultsetting]

Setting 1/2

Setsthe[Saturation],[Contrast],[Sharpness],and[Vignetting].

1 In the [Shooting] menu, select [Effect] [Image Settings], and

then press the $ button.

2 Select the setting with the !" buttons.

If selecting [Vivid] or [Standard], proceed to step 5.

3 Press the $ button.

4 Select the item with the !" buttons, and then set the value

with the #$ buttons.

Image Settings [Setting 1]Effect [Black & White]

5 Press the MENU/OK button.

The [Shooting] menu returns.

A symbol appears on the shooting screen.

Various Shooting Functions

Caution -------------------------------------------------------------------------------------------------------

• Ifan[Effect]isset,the[ImageSettings]areinvalidated.

• [Vignetting]cannotbesetin3 mode.

• Settingsmadein[Effect]and[ImageSettings]arenotappliedtoRAWimages.

• [Effect]cannotbeusedwiththefollowingfunctions.

Function Effect

Movie HighContrastB&W/Miniaturize/HighKey

Multiple Exposure Shooting/

Interval Composite

Miniaturize

• Dependingontheeffectsthathavebeenset,thefollowingfunctionsmaybedisabled.

Effect Disabled Function

HighContrastB&W Continuous

HighContrastB&W/

Cross Process/

Positive Film/

Bleach Bypass/

Retro/

Miniaturize

Focus:[Subject-trackingAF]

Miniaturize Continuous/AutoBracket[AE-BKT1/3EV],[AE-BKT1/2EV],and

[DR-BKT]

Note -----------------------------------------------------------------------------------------------------------

• [Effect][ImageSettings]canberegisteredandusedinthe[KeyCustomOptions]menuunder[ADJ.

LeverSetting] orin [Set FnButton].(GP. 105,P. 107) By default,[Effect] isregisteredto the

Effect button.

Various Shooting Functions

Shooting with Miniaturize

Takes images that give the impression that they are close-ups of a miniature.

This mode is effective when shooting from a high vantage point while look-

ing down at a diagonal angle.

1 In the [Shooting] menu, select [Effect] > [Miniaturize], and then

press the $ button.

The [Effect] > [Miniaturize] screen appears.

2 Press the !"#$ buttons to change the settings, and then

press the MENU/OK button.

3 Press the MENU/OK button.

The Miniaturize shooting screen appears.

The areas outside of the unblurred focus area are shown in a semi-trans-

parent gray.

4 Press the Fn2 button.

The screen for setting the position and range of blurring appears.

5 Move the position of the focus area

with the !" buttons.

Change the vertical/horizontal orientation

of the focus area by pressing the Fn2 button

while this screen is shown.

6 Set the width of the focus area with

the #$ buttons.

7 Press the MENU/OK button.

The shooting screen returns.

Note -----------------------------------------------------------------------------------------------------------

• Theamountofblurringintheimageshownontheconfirmationscreenimmediatelyaftertheshotis

taken will differ slightly from that of the actual image.

Various Shooting Functions

Other Shooting Functions

Adding the Date to Still Images

If [Date] or [Time] is selected in the [Date Imprint] area of the [Shooting]

menu,eitherthedate(Year/Month/Day)orthedateandtime(Year/Month/

Day Hour:Minute) will be imprinted on the lower-right corner of still images.

An indicator is displayed in the bottom right

corner of the shooting screen when date im-

print is on.

Caution -------------------------------------------------------------------------------------------------------

• Dateimprintisnotavailableifthedateandtimehavenotbeenset.Pleasesetthedateandtime

beforehand. (GP. 30)

• ThedatecannotbeimprintedonRAWfilesormovies.

• Thedateimprintedinanimagecannotbedeleted.

Shooting Movies

Allows you to shoot movies with sound.

Movies are recorded as MOV files.

Setting the Movie Format

1 Turn the mode dial to 3.

The camera goes into movie mode.

2 Press the MENU/OK button.

The movie mode [Shooting] menu is displayed.

3 Select [Movie Format], and then press the $ button.

Various Shooting Functions

4 Use the !"#$ buttons to select

[Still Image Size] and [Frame Rate].

The following settings can be made. The frame rates that can be selected

depend on the still image size.

Still Image Size

Frame Rate (frames/second)

60 50 30 25 24

w (1920×1080) N N Y Y Y

x (1280×720) Y Y Y Y Y

n (640×480) N N Y Y Y

5 Press the MENU/OK button.

The [Shooting] menu returns.

Note -----------------------------------------------------------------------------------------------------------

• [FrameRate]canberegisteredandusedinthe[KeyCustomOptions]menuunder[SetFnButton].

(GP. 107)

• Thescreenmayflickerifshootingunderfluorescentlighting.Theamountofflickeringcanbemini-

mizedbysettingthepowerfrequencyforyourregioninthe[Reduce Fluorescent Flicker] area of the

[Shooting]menushowninmoviemode.

Various Shooting Functions

Shooting Movies

1 Turn the mode dial to 3.

2 Press the shutter release button.

Movie shooting starts.

While shooting, the “REC” indicator blinks,

and the recording time and time remaining

are shown.

3 Press the shutter release button again.

Shooting ends.

Caution -------------------------------------------------------------------------------------------------------

• Ifthecameraisoperatedwhileshooting,theoperationsoundswillalsoberecorded.

• Thefollowingfunctionscannotbeusedin3 mode.

• Flash

• FA/MoveTarget

Note -----------------------------------------------------------------------------------------------------------

• IftheFn2buttonispressedwhileshooting,recordingwillbepaused.IftheFn2buttonispressed

again, recording will resume.

• Eachmoviecanbeamaximumof25minuteslongorupto4GBinsize.

• ThemaximumrecordingtimepershootingdependsonthesizeofyourSDmemorycard

(GP. 133). Shooting may also end even before this length of time is reached.

• Theamountoftimeremainingiscalculatedbasedontheamountofmemoryavailableandmaynot

diminish at an even rate.

• PleaseuseanSDmemorycardofSpeedClass6orhigherforshootingmovies.

• Chargethebatterybeforeshooting.

Various Shooting Functions

Playing Back Movies

1 Press the 6 button.

The camera goes into playback mode.

2 Select a movie with the #$

buttons.

Movies are indicated by a 3 icon.

The first frame of the movie is displayed as

a still image.

3 Press the ! button.

Playback starts.

A progress indicator and the elapsed time

are shown.

The following operations can be performed.

Pause/resume ! button

Stop " button

Adjust Volume X/Y button

Slow Playback/Slow Rewind #$ buttons while playback is paused

Fast Forward/Rewind #$ buttons during playback

Save Still Image Fn2 button while playback is paused

Note -----------------------------------------------------------------------------------------------------------

• IftheFn2buttonispressedwhileplaybackispaused,thestillimagebeingshowncanbesavedasa

JPEG file.

• TheFastForward/Rewindspeedswitcheseachtimethebuttonispressed.

• QuickTimeisrequiredtoplaybackmoviesthathavebeentransferredtoacomputer.

Various Shooting Functions

Clipping Movies

The unnecessary parts at the beginning or end of a movie can be deleted,

and the movie can be saved as a new file.

1 Bring up the movie to be edited in playback mode, and then

press the MENU/OK button.

The [Playback] menu appears.

2 Select [Clip Movie File], and then press the $ button.

The [Clip Movie File] screen appears.

3 Press the ADJ. lever to select either

the beginning or the end.

The point highlighted in yellow indicates

which has been specified.

If the Fn2 button is pressed while this screen

is shown, an explanation of the operations

appears. Pressing the Fn2 button again

brings back the previous screen.

4 Use the #$ buttons or press the ADJ. lever to move the point to

be deleted.

The yellow point moves. You can specify 1-second units.

5 Press the MENU/OK button.

A new movie file is saved with the unnecessary parts deleted.

Playback Functions

2 Playback Functions

Displaying Images in Thumbnail View

Pressing the 8 (X)/9 (Y) button in playback mode displays multiple im-

ages in thumbnail view.

20-frame view 81-frame view

The following operations are possible.

!"#$ button Selects an image.

ADJ. Lever Displays the selected image in single image view.

DISP. button Changes between single image selection and page selection.

Displaying Images in a Slide Show

Youcandisplayshotimagessequentially.

Select [Slide Show] in the [Playback] menu and then press the $ button to

start a slide show.

If you want to stop the slide show in progress, press any button. The slide

show is displayed repeatedly until stopped.

Note -----------------------------------------------------------------------------------------------------------

• Eachstillimageisdisplayedforthreeseconds.

• Inthecaseofamovie,alloftheframesofthemovieareplayedbackandthenthenextimageis

displayed.

Playback Functions

Displaying Images in Enlarged View

Youcandisplaystillimagesenlarged.

The following operations are possible.

8 (X) button/

Turn the up-down dial right

Enlarges the image.

9 (Y) button/

Turn the up-down dial left

Reduces the image.

!"#$ buttons Moves the area to display enlarged.

ADJ. Lever

Press: The image is enlarged in one go to the magnification (4x, 8x, or 16x) set

in[OnePressZoomRatio]inthe[Setup]menu.

Push down left or right: Displays the previous or next image in enlarged view

(returns to actual size in the case of a movie).

MENU/OK Button

Inenlargedview:Enlargestheimagetothemagnificationsetin[OnePress

ZoomRatio].

DISP. button Information display on " information display off

Note -----------------------------------------------------------------------------------------------------------

• Ifyouset[TargetZoomPlay]inthe[Setup]menuto[On],theimageisenlargedcenteringonthe

position the target shifted to during shooting.

• Themaximummagnificationofenlargedviewdiffersdependingonthesizeoftheimage.

• Moviescannotbeenlarged.

• Thefunctionsoftheup-downdialandADJ.leverduringplaybackmodecanbechangedin[Play Mode

DialOptions]inthe[KeyCustomOptions]menu.

Up-down Dial ADJ. Lever

Setting1[defaultsetting] Enlarged view Next/previous enlarged frame

Setting 2 Moves enlarge position up/down Moves enlarge position left/right

Playback Functions

Organizing Files

Deleting Files

Deleting One File

1 Display the image to delete in playback mode.

2 Press the D button.

3 Use the !" buttons to select [Delete

One].

Youcanchangethefilewiththe#$ buttons.

4 Press the MENU/OK button.

The file is deleted.

To delete another file, repeat steps 3 to 4.

To end the process, select [Cancel].

Deleting All Files

1 Press the D button in playback mode.

2 Use the !" buttons to select [Delete All] and then press the

MENU/OK button.

The deletion confirmation screen appears.

3 Use the $ button to select [Yes] and then press the MENU/OK

button.

Deleting Multiple Files Simultaneously

1 Press the D button in playback mode.

When in 20-frame or 81-frame view, go to step 3.

Playback Functions

2 Select [Delete Multi] and then press the MENU/OK button.

3 Select [Sel. Indiv.] or [Sel. Range] and then press the MENU/OK

button.

4 Use the !"#$ buttons to select files and then press the

MENU/OK button.

If you selected [Sel. Range], select only the file that is the starting point of the

range.

The trash symbol is displayed in the upper left

corner of the file.

Pressing the ADJ. lever switches between [Sel.

Indiv.] and [Sel. Range].

If you selected [Sel. Indiv.], go to step 6.

5 Use the !"#$ buttons to select the

file that is the ending point of the

range and then press the MENU/OK

button.

Repeat steps 4 to 5 to specify all of the ranges.

If you selected a file by mistake, you can de-

select it by pressing the ADJ. lever to return

to the screen for deleting one file at a time,

selectingthefile,andpressingtheMENU/OKbutton.

6 Press the D button.

The deletion confirmation screen appears.

7 Use the $ button to select [Yes] and

then press the MENU/OK button.

A message appears to indicate processing is

being performed, and then the thumbnail

view screen reappears when deleting is com-

plete.

Note -----------------------------------------------------------------------------------------------------------

• Afoldercannotbedeleted.

Playback Functions

Setting Protection

Youcanprotectfilestopreventthemfrombeingdeletedaccidentally.

Caution -------------------------------------------------------------------------------------------------------

• Ifyouselect[Format]inthe[Setup]menu,protectedimageswillalsobedeleted.

Setting Protection for One File

1 Display the image to protect in playback mode and then press

the MENU/OK button.

The [Playback] menu appears.

2 Select [Protect] and then press the $ button.

3 Use the !" buttons to select [1 File].

Youcanchangethefilewiththe#$ buttons.

4 Press the MENU/OK button.

Protection is set and the symbol appears on

the playback screen.

Performing the same operation for the pro-

tected image will cancel protection.

Playback Functions

Setting/Canceling Protection for All Files

1 Select [Protect] in the [Playback] menu and then press the $

button.

2 Select [Select All] or [Cancel All] and then press the MENU/OK

button.

Setting Protection for Multiple Files Simultaneously

1 Select [Protect] in the [Playback] menu and then press the $

button.

When in 20-frame or 81-frame view, go to step 3.

2 Select [Sel. Multiple] and then press the MENU/OK button.

3 Select [Sel. Indiv.] or [Sel. Range] and then press the MENU/OK

button.

4 Use the

!"#$ buttons to select files and then press the MENU/

OK button.

If you selected [Sel. Range], select only the file that is the starting point of

the range.

Whencancelingprotection,presstheMENU/OKbuttonagain.

Pressing the ADJ. lever switches between [Sel. Indiv.] and [Sel. Range].

If you selected [Sel. Indiv.], go to step 6.

5 Use the !"#$ buttons to select

the file that is the ending point of

the range and then press the MENU/

OK button.

Repeat steps 4 to 5 to specify all of the ranges.

If you select files with protection already set,

protection will be canceled.

6 Press the Fn2 button.

A message appears to indicate processing is being performed, and then the

thumbnail view screen reappears when the setting is complete.

7 Press the MENU/OK button.

The [Playback] menu reappears.

Playback Functions

Copying the Images in Internal Memory to a Card

You can copythe stillimages and moviesstored ininternal memory to a

memory card.

1 Insert a memory card.

2 Select [Copy to Card from Internal Memory] in the [Playback]

menu and then press the $ button.

A message appears to indicate processing is being performed, and then the

thumbnail view screen reappears when copying is complete.

Caution -------------------------------------------------------------------------------------------------------

• Ifthereisnotenoughspaceavailableonthecopydestinationmemorycard,amessageindicatingthat

there is insufficient space appears.

• Copyingfromamemorycardtointernalmemoryisnotpossible.

Correcting and Processing Images

Youcancorrectandprocessshotimagesandthensavethemasnewimages.

Caution -------------------------------------------------------------------------------------------------------

• OnlyJPEGfilesthatwereshotwiththiscameracanbecorrectedandprocessed.Rawfiles,movies,and

still images saved from movies cannot be corrected and processed.

• Ifyoucorrectandprocessimagesrepeatedly,imagequalitywilldeteriorate.

Reducing the Size of Images

[Resize] in the [Playback] menu reduces still images to s or u.

Playback Functions

Trimming Images

Youcantrimtheedgesofimagesandthensavetheimages.

1 Display the image to trim in playback mode and then press the

MENU/OK button.

The [Playback] menu appears.

2 Select [Trim] and then press the $ button.

3 Specify the range to trim.

The following operations are possible.

X/Y button Changes the trimming size.

!"#$ button Moves the trimming frame.

ADJ. Lever Changes the aspect ratio of the trimming frame (4:3/3:2/1:1).

Fn2 button Displays the operating procedure.

4 Press the MENU/OK button.

The trimmed image is saved as a new image.

Note -----------------------------------------------------------------------------------------------------------

• Theimagesizeaftertrimmingdiffersdependingonthesizeoftheoriginalimageandthesizeofthe

trimming frame.

Playback Functions

Correcting Skewed Images

Correct images of rectangular objects such as message boards and business

cards shot at an angle so that the images appear as if they were shot from

the front.

1 Display the image to correct in playback mode and then press

the MENU/OK button.

The [Playback] menu appears.

2 Select [Skew Correct Mode] and then press the $ button.

A message appears to indicate processing is being performed, and then up

to five areas recognized as correction targets are indicated by orange frames.

If an area could not be detected, an error message appears.

3 Use the #$ buttons to select a

correction area.

To cancel correction, press the r button.

4 Press the MENU/OK button.

Screw correction is performed for the selected area and then the portions

outside the frame are trimmed.

Note -----------------------------------------------------------------------------------------------------------

• Thetimeforskewcorrectionincreaseswithimagesize.

Playback Functions

Correcting Brightness and Contrast (Level Compensa-

tion)

Youcancorrectthebrightnessandcontrastofshotstillimages.

1 Display the image to correct in playback mode and then press

the MENU/OK button.

The [Playback] menu appears.

2 Select [Level Compensation] and then press the $ button.

3 Select [AUTO] or [MANUAL] and then press the $ button.

The original image is displayed on the top left, and the corrected image on

the right.

If you select a file that cannot be corrected, an error message appears and

then the [Playback] menu reappears.

Ifyouselected[AUTO],gotostep6.

4 Use the ADJ. lever to switch the

histogram points.

The points at the left side, center, and right

side are switched.

The histogram indicates the number of pixels

on the vertical axis, and the shadows, mid-

tones, and highlights from left to right on the

horizontal axis.

If you press the Fn2 button while this screen is

displayed, the operating procedure appears.

Pressing the Fn2 button again redisplays the original screen.

5 Use the #$ buttons to adjust the positions of the points.

6 Press the MENU/OK button.

A message appears to indicate processing is being performed, and then the

corrected image is saved as a new image.

Points

Playback Functions

Examples of Correction ------------------------------------------------------------------------------------

Adjusting the Overall Brightness

• Movethemid-pointtothelefttoincreasetheoverallbrightness,

and move it to the right to increase the overall darkness.

Correcting an Overexposed or Underexposed Image

• Iftheimageisoverexposed,movetheleftsidepointtotheright

until it lines up with the left edge of the histogram.

• Iftheimageisunderexposed,movetherightsidepointtotheleft

until it lines up with the right edge of the histogram.

• Inthisstate,youcanmovethemid-pointleftorrighttoadjustthe

overall brightness.

Increasing the Contrast

• Inanimagelackingincontrast,thehistogrampeakswillbecon-

centrated at the center. Move the left and right points until they

line up with both edges of the histogram respectively to make the

bright and dark areas of the image stand out.

• Inthisstate,youcanmovethemid-pointleftorrighttoadjustthe

overall brightness.

When overexposed

Playback Functions

Correcting the White Balance

Youcancorrectthecolortonesofstillimages.

1 Display the image to correct in playback mode and then press

the MENU/OK button.

The [Playback] menu appears.

2 Select [White Balance Compensation] and then press the $ button.

The [White Balance Compensation] screen appears.

3 Use the !"#$ buttons to adjust the

positions of the points.

To reset the white balance, press the r but-

ton. Pressing the r button again cancels

correction.

If you press the Fn2 button while this screen is

displayed, the operating procedure appears.

Pressing the Fn2 button again redisplays the

original screen.

4 Press the MENU/OK button.

A message appears to indicate processing is being performed, and then the

corrected image is saved as a new image.

Correcting Color Moire

Youcan reducecolor interferencecaused byregularoverlappingpatterns

in still images.

1 Display the image to correct in playback mode and then press

the MENU/OK button.

The [Playback] menu appears.

2 Select [Color Moire Correction] and then press the $ button.

3 Use the !" buttons to select [Weak],

[Medium], or [Strong] and then press

the MENU/OK button.

A message appears to indicate processing is

being performed, and then the corrected im-

age is saved as a new image.

Playback Functions

Caution -------------------------------------------------------------------------------------------------------

• Someimagesmaynotbeabletobecorrectedproperly.

• Ifyouperformcolormoirecorrection,colorlossorcolorbleedingmayoccur.

Developing RAW Files

Convert RAW filesinto JPEGformat and thensavethemas newfiles.You

can configure settings such as the white balance and effect, and then save

the files.

1 Display a RAW image in playback mode and then press the

MENU/OK button.

The [Playback] menu appears.

2 Select [RAW development] and then press the $ button.

The [RAW development] screen appears.

3 Use the !" buttons to select a

parameter and then press the $

button.

Youcanconfigurethefollowingsettings.

• Picturesize • Dynamicrangecorrection

• Whitebalance • Colormoirecorrection

• Brightness correction • Noisereduction

• Effect • Colorspacesettings

• Imagesettings

4 Use the !" buttons to select a setting and then press the #

button.

With [White Balance], you can perform white balance correction by pressing

the $ button.

With [Effect] and [Image Settings], press the $ button to set the advanced

settings.

5 When you have finished configuring all of the settings, press the

MENU/OK button.

A new JPEG file is saved.

Playback Functions

Note -----------------------------------------------------------------------------------------------------------

• Thesettingsthatweresetatthetimeofshootingareinitiallyselected.

• [Multi-PAUTO]or[Manual]of[WhiteBalance]canonlybeselectedifitwassetatthetimeofshoot-

ing.

• For[DynamicRangeCompensation]and[NoiseReduction],selectfrom[Off],[Weak],[Medium],and

[Strong].

Viewing Images with an AV Device

YoucanconnectthecameratoaTVorotherAVdevicetoplaybackimages

on the device.

Purchase an optional cable that is compatible with the video input terminal(s)

of the device to be connected.

AV Device Terminal(s) Cable Camera Terminal

Video terminals AV cable (AV-1)

USB and AV OUT terminal

HDMI terminal HDMI cable (HC-1)

HDMI micro output terminal

1 Connect the cable to the video input terminal of the AV device.

2 Make sure that the camera power is off.

3 Open the camera terminal cover and

connect the cable.

ConnectthecabletoeithertheUSBandAVOUTtermi-

nal or the HDMI micro output terminal.

4 Switch the input of the AV device to the input with the camera

connected.

For details, refer to the user guide for the AV device.

5 Press the POWER button on the camera.

USBandAVOUT

terminal

HDMI micro output

terminal

Playback Functions

Caution -------------------------------------------------------------------------------------------------------

• ThepicturedisplayisoffwhilethecameraisconnectedwithanAVcableorHDMIcable.

• TheaudioofthevideoisoutputfromtheAVdevice.AdjustthevolumeontheAVdevice.

• ThewhitesaturationdisplayisoffwhilethecameraisconnectedwithanHDMIcable.

Note -----------------------------------------------------------------------------------------------------------

• WhenconnectingwithanAVcable,confirmthevideoformatoftheAVdevice.AVdevicesinJapanare

set to the NTSC format (used in Japan and elsewhere). If the device you want to connect to uses the

PALformat(usedinEuropeandelsewhere),thenyoumayneedtoset[PAL]in[Video Out Mode] of

the[Setup]menubeforeconnectingthedevice.Thedefaultsettingvariesdependingonthecountry

or region where you purchased the camera.

• TheviewswitchestosingleframeviewwhenanHDMIcableisconnectedordisconnected.

• Theresolutionissetto[AUTO]duringHDMIoutput.IftheresolutionoftheimagesdisplayedontheAV

deviceislow,changethesettingin[HDMIOutput]ofthe[Setup]menu.

Setting DPOF

Youcanorderprintsofthestillimagesstoredinthememorycardatastore

with a print service.

1 Display the image to set in playback mode and then press the

MENU/OK button.

The [Playback] menu appears.

Select [DPOF] and then press the

$ button.

3 Select [1 File] or [Select All].

If you selected [1 File], use the #$ buttons to select a file.

Selecting [Cancel All] cancels the DPOF setting for all files.

4 Press the MENU/OK button.

DPOF is set and the symbol appears on the playback screen.

Caution -------------------------------------------------------------------------------------------------------

• DPOFcannotbesetinthefollowingcases.

• RAWfiles

• Moviefiles

• Imagesstoredininternalmemory

• Memorycardislocked.

Playback Functions

Setting DPOF for Multiple Still Images

Specify multiple images and the number of copies from thumbnail view.

1 Press the Y button in playback mode.

The screen changes to 20-frame view.

2 Select [DPOF] in the [Playback] menu and then press the $

button.

3 Use the #$ buttons to select a still

image to print and then use the !"

buttons to specify the number of

copies.

A symbol indicating the DPOF setting ap-

pears.

To cancel the setting, specify [0] for the num-

ber of copies.

4 Press the MENU/OK button.

A message appears to indicate processing is being performed, and then

20-frame view reappears when the setting is complete.

Playback Functions

Selecting the Images to Transfer

When using an Eye-Fi card, you can transfer just selected images.

1 Set [Eye-Fi Connection Settings] in the [Setup] menu to [On

(Selected)].

2 Turn the power off and then back on.

3 Select [Eye-Fi Transfer Selected Images] in the [Playback] menu

and then press the $ button.

The screen changes to 20-frame view.

4 Use the #$ buttons to select an

image to transfer and then press the

MENU/OK button.

5 Press the Fn2 button.

The [Select Image Size] screen appears.

6 To change the size, press the $ button

and select a size.

Youcanselectu or s.

7 Press the MENU/OK button.

The selected image is transferred.

Caution -------------------------------------------------------------------------------------------------------

• Thefollowingfilescannotbetransferred.

 •Moviefiles

 • ImagesfilesinformatswhicharenotsupportedbyEye-Ficards

 • Imagefileswithafoldernumberofover200

Playback Functions

Note -----------------------------------------------------------------------------------------------------------

• Youcanaccessthescreeninstep6bypressingthe Effectbuttoninthesingle-frameview of the

playback mode, and transfer the displayed image.

Changing Camera Settings

3 Changing Camera Settings

Customizing the Camera

YoucanchangethefunctionsoftheFnbuttonsandADJ.lever,andregister

settingstoMY1/MY2/MY3ofthemodedial.

Registering Shooting Settings (My Settings)

YoucanregisterthecurrentcamerasettingsasMySettingssothatyoucan

easily recall and shoot with the desired settings.

Settings can be registered to the following.

MY1/MY2/MY3 Register settings to MY1/MY2/MY3 of the mode dial.

MySettingsBOX Six sets of settings can be registered to the camera.

Touse thesettings,assign them to[MY1],[MY2],and [MY3] in [RecallMy Settings]

(GP. 101). A name came can be assigned to registered settings. (GP. 104)

The following items can be registered.

Camera settings

• Shootingmode

• AperturevalueandshutterspeedwhenAv/Tv/TAv/M mode

• Self-timer

• FocuspositionforMF

• Macro

• Flash

[Shooting] menu

• Other than [Multiple Exposure Shooting], [Interval Shooting], [Interval Compos-

ite], [Aperture Auto Shift], [Shutter Auto Shift], [Shutter/Aperture Auto Shift],

[Switch Shooting Mode], and [Restore Defaults]

[Key Custom Options] menu

• SetFn1Button/SetFn2Button/EffectButtonSetting

[Setup] menu

• ISOStepSetting • LevelSetting

• ISOAuto-HighSettings • GridGuideDisplayOptions

Changing Camera Settings

100

1 Set the functions to register.

2 Select [Reg. My Settings] in the [Key Custom Options] menu and

then press the $ button.

The Reg. My Settings screen appears.

3 Select the location to register the

settings and then press the MENU/OK

button.

If youselect[MY1], [MY2],or [MY3],the set-

tings are registered to the mode dial.

To save the settings to My Settings BOX, se-

lect [My Settings BOX], press the $ button,

and select the number to which to register

the settings.

If you select an unregistered location, the set-

tings are registered with the current date and

time as the name.

If you select a location that already has a name, the name setting screen ap-

pears.Ifyouselect[Yes],thesettingsareregisteredunderthecurrentname.

If you select [No], the settings are registered with the current date and time

as the name.

Thesettingsareregistered,andthenthe[KeyCustomOptions]menureap-

pears.

Changing Camera Settings

101

Recalling Settings Registered as My Settings

Thesettingsregisteredto[MySettingsBOX]canbeassignedtoMY1/MY2/

MY3ofthemodedial.

1 Select [Recall My Settings] in the [Key Custom Options] menu

and then press the $ button.

The [Recall My Settings] screen appears.

2 Use the !" buttons to select the

location on the dial to assign the

settings and then press the $

button.

3 Select the My Settings BOX number

with the My Settings registered and

then press the MENU/OK button.

The selected My Settings item is registered to

themodedialandthenthe[KeyCustomOp-

tions] menu reappears.

Caution -------------------------------------------------------------------------------------------------------

• Thesettingsregisteredto[MySettingsBOX]arenotclearedwhentheinternalmemoryisformatted.

Changing Camera Settings

102

Shooting Images in My Settings Mode

1 Turn the mode dial to MY1/MY2/MY3.

Shooting becomes possible with the set-

tings of My Settings.

2 To temporarily change the shooting

mode, select [Switch Shooting

Mode] in the [Shooting] menu.

Note -----------------------------------------------------------------------------------------------------------

• ThesettingschangedinMySettingsModearerestoredtothesettingsregisteredfortheoriginalMY1/

MY2/MY3ifthemodeischangedorthepoweristurnedoff.

• WhentheshootingmoderegisteredtoMYSettingsismode3, step 2 cannot be performed.

Symbol for registered shooting

mode

Changing Camera Settings

103

Editing My Settings

YoucaneditthesettingsregisteredasMySettings.

1 Select [Edit My Settings] in the [Key Custom Options] menu and

then press the $ button.

The [Edit My Settings] screen appears.

2 Select the My Settings item you want

to edit and then press the $ button.

To edit a My Settings item saved to My Settings BOX, go to My Settings Box,

press the $ button and select a number.

A list of settings appears.

3 Use the !" buttons to select a

setting you want to edit and then

press the $ button.

Usethe!" buttons to change the setting.

4 Press the # button to confirm the setting.

Repeat steps 3 and 4.

5 Press the MENU/OK button.

Thechangesaresavedandthe[KeyCustomOptions]menureappears.

Changing Camera Settings

104

Changing the Name of a My Settings Item

1 Select [Name] in the screen of step 3 on P. 103 and then press

the $ button.

The [Name] screen appears and the current

name is displayed in the text input area.

If you want to specify a new name, go to step

2 Use the #$ buttons to move the cursor to the position you

want to edit.

3 Press the " button.

The cursor moves to the character selection area.

4 Use the !"#$ buttons to select a character and then press

the MENU/OK button.

The character is inserted at the position of the cursor in the text input area.

Select [Delete] to delete a character, and [Space] to insert a space.

Youcanenterupto16fullwidthkatakanaandupto32halfwidthalphanu-

meric characters. The character type can be changed with the Fn2 button.

5 Press the ADJ. lever.

The name is registered.

Text input area

Character selection area

Changing Camera Settings

105

Note -----------------------------------------------------------------------------------------------------------

• Ifthesettingsof[MY1],[MY2],and[MY3]areassignedin[RecallMySettings]andthesettingsofMy

SettingsBOXareedited,thechangesarealsoappliedtothesettingsof[MY1],[MY2],and[MY3].

 Ifthesettingsof[MY1],[MY2],and[MY3]aredirectlyedited,thechangesarenotappliedtotheset-

tingsofMySettingsBOX.Furthermore,ifthesettingsofMySettingsBOXaresubsequentlyedited,the

changesarenotappliedtothesettingsof[MY1],[MY2],and[MY3].

• ThenameoftheMySettingsitemisdisplayedwhenthe

modedialisturnedtoMY1/MY2/MY3.

• YoucandeleteMySettingsregistrationswith[Delete My

Settings]ofthe[KeyCustomOptions]menu.

Registering Functions to the ADJ. Lever

YoucanregistershootingfunctionstotheADJ.leversothatyoucaneasily

recall them by ADJ. lever operation (ADJ. mode).

The following functions can be registered.

Function Page

Off —

ISO *[Default setting for ADJ. Lever Setting 1] P. 46

PictureSize *[DefaultsettingforADJ.LeverSetting2] P. 50

AspectRatio *[DefaultsettingforADJ.LeverSetting3] P. 50

Focus *[DefaultsettingforADJ.LeverSetting4] P. 51

Image P. 73

Expo.Metering *[DefaultsettingforADJ.LeverSetting5] P. 49

Cont. Mode P. 62

Auto Bracket P. 63

Flash Comp. P. 70

Flash Amount P. 71

Dyn Range Comp P. 48

SnapFocusDist. P. 52

Effect

P. 72

Changing Camera Settings

106

1 Select [ADJ. Lever Setting] in the [Key Custom Options] menu

and then press the $ button.

The [ADJ. Lever Setting] screen appears.

2 Use the !" buttons to select any of [ADJ. Lever Setting 1] to

[ADJ. Lever Setting 5] and then press the $ button.

3 Use the !" buttons to select the

function to register and then press

the # button.

Repeat steps 2 and 3.

4 Press the MENU/OK button.

The[KeyCustomOptions]menureappears.

Using ADJ. Mode

1 Press the ADJ. lever in shooting mode.

The mode becomes ADJ. mode.

2 Use the #$ buttons to select the

function you want to set.

Any of ADJ. Lever Setting 1 to ADJ. Lever Set-

ting 5 can be selected.

3 Use the !" buttons to select a value.

4 Press the MENU/OK button.

The selected function is set.

Changing Camera Settings

107

Registering Functions to the Fn1/Fn2/Effect Buttons

You can register functions to the Fn1/Fn2/Effect buttons so that you can

change settings or display a function settings screen by simply pressing a

button.

Any of the following functions can be registered to each of the Fn1/Fn2/Ef-

fect buttons.

Function Page

Off

—

35 mm Crop P. 50

MultiAF/SpotAF P. 51

MultiAF/PinpointAF P. 51

AF/MF P. 51

AF/Snap P. 51

AF/Subj.Trckng P. 51

JPEG > RAW P. 50

JPEG > RAW+ P. 50

ND Filter P. 44

Effect *[DefaultsettingforEffectbutton]

P. 72

FA/Move Target *[DefaultsettingforFn1button]

P. 56

ISO P. 46

Picture Size P. 50

Aspect Ratio P. 50

Focus P. 51

SnapFocusDist. P. 52

Image P. 73

Expo. Metering P. 49

Cont. Mode P. 62

Multi Exposure P. 64

Auto Bracket P. 63

Flash Comp. P. 70

Flash Amount P. 71

Dyn Range Comp P. 48

Self-timer *[DefaultsettingforFn2button

P. 34

Frame Rate (Movies) P. 76

Changing Camera Settings

108

1 Select [Set Fn1 Button], [Set Fn2 Button], or [Effect Button

Setting] in the [Key Custom Options] menu and then press the

$ button.

2 Use the !" buttons to select the

function to register and then press

the # button.

Thefunctionis registered andthe [KeyCus-

tom Options] menu reappears.

Note -----------------------------------------------------------------------------------------------------------

• Whenthepoweristurnedonorthemodedialisturned,

the current Fn1/Fn2/Effect button functions are displayed.

If[FnButtonSettings]inthe[Setup]menuissetto[Off],

the functions are not displayed.

Changing Camera Settings

109

Changing Other Settings

Adjusting the Brightness of the Picture Display

Youcanadjustthebrightnessofthepicturedisplay.

1 Select [LCD Brightness] in the [Setup] menu and then press the

$ button.

2 Select [Auto] or [Manual].

If you selected [Auto], the [Setup] menu reappears.

3 Press the $ button.

The [LCD Brightness] screen appears.

4 Use the !" buttons to adjust the

brightness.

5 Press the MENU/OK button.

The [Setup] menu reappears.

Changing Camera Settings

110

Setting the Information Displayed in Shooting Mode

You can set the information displayed for each numberof presses of the

DISP. button in shooting mode.

1 Select [DISP. Button Display Setting] in the [Setup] menu and

then press the $ button.

The [DISP. Button Display Setting] screen appears.

2 Use the #$ buttons to set [Use DISP.

Screen].

O1 to O3 to indicate the number of but-

ton presses, and OOff indicates the picture

display is off.

3 Use the ADJ. lever to enable or disable

a setting.

A setting without a check mark is disabled (the information is not displayed).

For the setting in the diagram, there are three display patterns for when the

DISP. button is pressed. O1 cannot be disabled.

4 Use the !"#$ buttons to select a display item and then use

the ADJ. lever to turn it ON/OFF.

Graphic Display Displays the values that can be set at the bottom of the screen while the aper-

ture and shutter speed are being changed.

Information Display Displays symbols for the shooting mode, settings, etc.

Grid Guide Displays guidelines for shooting.

Selectthetypeofgridin[GridGuideDisplayOptions]ofthe[Setup]menu.

Level Indicator Displays an indicator for confirming camera tilt.

Histogram Displays a histogram.

5 Press the MENU/OK button.

The [Setup] menu reappears.

Changing Camera Settings

111

Setting the Operation Sounds

Youcansetthecameraoperationsoundsin[OperationsSounds]and[Vol-

ume Settings] of the [Setup] menu.

There are the following three camera operations sounds.

Shutter sound The sound played when the shutter release button is pressed.

Focus sound The sound played when the shutter release button is half-pressed and the camera is

focused on the subject.

Warning sound

The sound played when an attempt is made to perform an operation that cannot be

performed.

Youcanselect[All]or[ShutterSounds]in[Operation Sounds].

The camera operation sounds can be set to OFF/¢££ (Low volume)/

¢¢£(Medium volume)/¢¢¢ (High volume) in [Volume Settings].

Changing File Names

Youcanchangethefirsttwocharactersoffilenames.

1 Select [Change File Name] in the [Setup] menu and then press

the $ button.

The [Change File Name] screen appears.

2 Use the !" buttons to select a

character.

Youcanenterahalfwidthalphanumericchar-

acter (uppercase only).

3 Press the $ button and then select

the second character in the same way.

4 Press the MENU/OK button.

The file name is registered, and then the [Setup] menu reappears.

Note -----------------------------------------------------------------------------------------------------------

• When[ColorSpaceSet]inthe[Setup]menuissetto[AdobeRGB],onlytheveryfirstcharacterisap-

plied.

Changing Camera Settings

112

Resetting the File Numbers

A file name of “R0” and a 6-digit sequential number (010001 to 999999) is

assigned to each shot image automatically (R0010001.JPG to R0999999.

JPG). Even if you insert a new memory card, the sequential numbering of file

names is continued from the last card.

To reset the sequential numbers, select [Reset File Number] in the [Setup]

menu.

Note -----------------------------------------------------------------------------------------------------------

• When[ColorSpaceSet]inthe[Setup]menuissetto[AdobeRGB],anunderbarisusedatthebegin-

ning of the file name.

• Thefoldernumbersare100to999,andtherecordingoffilesbeginsfromthemaximumfoldernum-

ber. When the file number exceeds R0**9999, the next folder is created and the file number becomes

R0**0001. When the folder number is 999, no more files can be stored if R0**9999 is exceeded.

• Ifamemorycardisnotinserted,thefilenumbersoftheinternalmemoryarereset.

Changing Camera Settings

113

Setting the Copyright Notice

YoucansetacopyrightnoticetobewrittenasExif data when images are

shot.

1 Select [Copyright notice] in the [Setup] menu and then press the

$ button.

The [Copyright notice] screen appears.

2 Press the " button.

The cursor moves to the character selection

area.

3 Use the !"#$ buttons to select a

character and then press the MENU/

OK button.

You can enter up to 46 half width alphanu-

meric characters and symbols. The character type can be changed with the

Fn2 button.

4 Press the ADJ. lever.

The copyright notice is registered, and then the [Setup] menu reappears.

Note -----------------------------------------------------------------------------------------------------------

• Acopyrightnoticethathasbeenwrittentoanimagecanbecheckedinthedetailedinformation

displayed in the playback screen.

Checking the Firmware Version

Youcanviewthecamerafirmwareversionin[Confirm Firmware Version] of

the [Setup] menu. When there is a firmware file in the memory card, you can

update the firmware.

For information on version updates, check the PENTAX RICOH IMAGING web-

site (http://www.ricoh.com/r_dc/support/).

Menus

114

4 Menus

The camera functions are mainly set with the menus.

The following menus are available. (The underlined settings are the default

settings.)

Shooting Menu

Usethismenutosettheshootingsettings.This

menu is displayed in shooting mode. The op-

tions that can be selected vary depending on

the position of the mode dial.

Menu option Settings Page

Focus

Multi AF, Spot AF, Pinpoint AF, Subj. Tracking AF, MF,

Snap, ∞ (Infinity)

P. 51

Snap focus distance

1 m, 1.5 m, 2 m, 2.5 m, 5 m, ∞ (Infinity) P. 52

Full Press Snap

Off, On, Auto-Hi ISO P. 58

FA/Move Target

Move Target Setting: AE/AF, AF, AE

Focus Assist Setting: Off, MODE1, MODE2, MODE3,

MODE4

Magnification Setting: Magnify portion, Magnify

whole

P. 56

Exposure Metering

Multi, Center, Spot P. 49

Picture Format

Format/Size:o, p, q, r, s,

Aspect ratio:3:2, 4:3, 1:1

P. 50

Movie Format

Still Image Size: w, x, n

Frame Rate: 60Frames/sec., 50Frames/sec.,

30Frames/sec., 25Frames/sec., 24Frames/sec.

P. 76

Effect

Off,B&W,B&W(TE),HighContrastB&W,CrossPro-

cess, Positive Film, Bleach Bypass, Retro, Miniaturize,

High Key

P. 72

Menus

115

Menu option Settings Page

Image Settings

Vivid, Standard, Setting 1, Setting 2 P. 73

Crop to 35 mm

Off, On P. 50

Date Imprint

Off, Date, Time P. 76

Continuous Mode

Off, Continuous P. 62

Auto Bracket

Off, AE-BKT 1/3EV, AE-BKT 1/2EV, WB-BKT, WB-BKT

Preset, Effect-BKT, DR-BKT, CONTRAST-BKT

P. 63

Multiple Exposure Shooting

Automatic Exposure: Off, On

Save Each Image: Off, On

Saving Image: Off, On

P. 64

Interval Shooting

00 Min. 01 Sec. to 60 Min. 00 Sec.

1 to ∞ (Infinity)

P. 66

Interval Composite

Interval: 00 Min. 01 Sec to 60 Min.

Save Interval Composite Img.: Off, Save Each Image,

Saving Image

P. 67

Custom

pictures: 1 to 10 (2)

Interval: 5 to 10 Sec. (5 Sec.)

P. 34

White Balance

Auto, Multi-P AUTO, Outdoors, Shade, Cloudy,

Incandescent 1, Incandescent 2, Daylight Fl., Neutral

White Fl., Cool White Fl., Warm White Fl., Detail,

Manual

P. 59

ISO Setting/NR

ISO Setting:Auto, Auto-Hi, ISO 100 to ISO 25600

Noise Reduction: Off, Auto, Manual

P. 46

Exposure Compensation

+4.0, +3.7, +3.3, +3.0, +2.7, +2.3, +2.0, +1.7,

+1.3, +1.0, +0.7, +0.3, 0.0, -0.3, -0.7, -1.0, -1.3,

-1.7, -2.0, -2.3, -2.7, -3.0, -3.3, -3.7, -4.0

P. 45

ND Filter

Off, On P. 44

Dynamic Range Compensation

Off, Auto, Weak, Medium, Strong P. 48

Slow Shutter Speed NR

Off, On P. 42

Auto Aperture Shift

Off, On P. 42

Shutter Speed Auto Shift

Off, On P. 42

Shutter/Aperture Auto Shift

Off, Aperture Priority, Shutter Priority P. 42

Menus

116

Menu option Settings Page

Flash Exposure Compensation

+2.0, +1.7, +1.3, +1.0, +0.7, +0.3, 0.0, -0.3, -0.7,

-1.0, -1.3, -1.7, -2.0

P. 70

Manual Flash Amount

Full, 1/1.4, 1/2, 1/2.8, 1/4, 1/5.6, 1/8, 1/11, 1/16,

1/22, 1/32, 1/64

P. 71

Flash Synchro Settings

1st Curtain, 2nd Curtain P. 71

Reduce Fluorescent Flicker

Off, 50 Hz, 60 Hz P. 77

Switch Shooting Mode

5, P, Av, Tv, TAv, M P. 102

Restore Defaults — P. 121

*1 This setting can be displayed only when the mode dial is set to 3.

*2 This setting can be displayed only when the mode dial is set to Av, Tv, TAv, or M.

*3 This setting can be displayed only when the mode dial is set to Av.

*4 This setting can be displayed only when the mode dial is set to Tv.

*5 This setting can be displayed only when the mode dial is set to TAv.

*6 ThissettingcanbedisplayedonlywhenthemodedialissettoMY1,MY2,orMY3.

Menus

117

Playback Menu

Thismenuisdisplayedinplaybackmode.Use

this menu to manage and correct images.

Menu option Page

RAW Development P. 93

Level Compensation P. 90

White Balance Compensation P. 92

Color Moire Correction P. 92

Trim P. 88

Resize P. 87

Skew Correction P. 89

Clip Movie File P. 80

Slide Show P. 81

Protect P. 85

DPOF P. 95

Copy to Card from Internal Memory P. 87

Eye-Fi Transfer Selected Images

P. 97

*1 ThisisdisplayedonlywhenusinganEye-Ficardand[Eye-FiConnectionSettings]issetto[On(Selected)]in

the[Setup]menu.

Menus

118

Key Custom Options Menu

Use this menu to register frequently used

shooting settings and change the functions

of buttons and levers.

Menu option Settings Page

Reg. My Settings MY1/MY2/MY3:MySettingsBox(1to6) P. 99

Recall My Settings — P. 101

Edit My Settings — P. 103

Delete My Settings — P. 105

ADJ. Lever Setting

Off, ISO [ADJ.LeverSetting1],Picture Size [ADJ.Lever

Setting 2], Aspect Ratio [ADJ.LeverSetting3],Focus,

[ADJ.LeverSetting4],Image,Expo. Metering [ADJ.

Lever Setting 5], Cont.Mode, Auto Bracket, Flash Comp.,

Flash Amount, Dyn Range Comp, SnapFocusDist., Effect

P. 105

ADJ. Direct ISO Control

On, Off P. 46

M/TAv Mode Dial Settings

Setting1, Setting2 P. 41

Playback Mode Dial Settings

Setting1, Setting2 P. 82

Set Fn1 Button

Set Fn2 Button

Effect Button Setting

Off, 35 mm Crop, MultiAF/SpotAF, MultiAF/PinpointAF,

AF/MF, AF/Snap, AF/Subject Trckng, JPEG>RAW,

JPEG>RAW+, ND Filter, Effect [EffectButtonSetting],

FA/Move Target [Fn1ButtonSetting],ISO,PictureSize,

Aspect Ratio, Focus, SnapFocusDist., Image, Expo. Me-

tering, Cont. mode, Multi Exposure, Auto Bracket, Flash

Comp., Flash Amount., Dyn Range Comp, Self-timer

[Fn2ButtonSetting],FrameRate

P. 107

AEL/AFL Setting

AFL, AEL/AFL, AEL P. 54

Menus

119

Menu option Settings Page

C-AF Continuous Setting

Off, AF Priority, Shutter Priority P. 54

AEL/AFL Lock Keep Setting

Off, On P. 54

One Press M Mode

Aperture Priority, Shttr Priority, Program P. 42

RestoreDefaults[KeyCustomOptions] — P. 121

Menus

120

Setup Menu

Usethismenutosetthegeneraloperationsof

the camera.

Menu option Settings Page

Format[Card] — P. 25

Format[InternalMemory] — —

Reset File Number — P. 112

Change File Name R0 P. 111

LCD Brightness

Auto, Manual P. 109

Operation sounds

All, Shutter Sounds P. 111

Volume Settings

Off, Low, Medium, High P. 111

Auto Power Off

Off, 1 to 30 Min. (5 Min.) P. 29

Sleep Mode

Off, 1 to 30 Min. P. 29

LCD Auto Dim

On, Off P. 29

Power Button Lamp

On, Off P. 29

ISO Step Setting

1EV, 1/3 EV P. 46

ISO Auto-High Settings

Max. ISO: AUTO 200, AUTO 400, AUTO 800, AUTO 1600,

AUTO 3200, AUTO 6400, AUTO 12800, AUTO 25600

Change Shutter Speed: Auto, 1/2, 1/4, 1/8, 1/15, 1/30,

1/60, 1/125, 1/250

P. 46

ND Filter

Auto, Manual P. 44

AF Auxiliary Light

On, Off —

Level Setting

Off, Level + Tilt, Level P. 36

Level (Tilt) Calibration Restore Defaults, Calibration P. 36

Conversion Lens

Off, Wide —

Color Space Setting

sRGB, AdobeRGB —

Menus

121

Menu option Settings Page

LCD Confirmation Time

Off, 0.5 Sec., 1 Sec., 2 Sec., 3 Sec., Hold P. 33

Grid Guide Display Options

Grid 1, Grid 2, Grid 3 P. 110

DISP. Button Display Setting Use DISP. Screen, Graphic Display, Information Display,

Grid Guide, Level Indicator, Histogram

P. 110

Information Display Mode

On, Off P. 42

Fn Button Settings

On, Off P. 108

Auto Rotate

On, Off P. 37

White Saturation Display

On, Off P. 22

OnePressZoomRatio

4×, 8×, 16× P. 82

TargetZoomPlay

On, Off P. 82

Playback Order Options

File Numbers, Sht. Date/Time P. 37

Date Settings — P. 30

Language/N

English, Japanese P. 30

Video Out Mode

NTSC, PAL P. 95

HDMI Output

Auto, 1080i, 720P, 480P P. 95

Store Menu Cursor Position

On, Off P. 121

Confirm Firmware Version — P. 113

Eye-Fi Connection Settings

Off, On (Auto), On (Selected) P. 24

Eye-Fi Connection Display

— P. 24

*1 The default setting varies depending on the country or region.

*2 This is displayed only when using an Eye-Fi card.

Note -----------------------------------------------------------------------------------------------------------

• The[intervalshooting]and[CustomSelf-Timer]settingsareresettotheirdefaultswhenthecamera

is turned off. The settings are retained for all other functions.

• Theoptionssetinthe[Shooting]menucanberestoredtothedefaultsettingsbyusing[RestoreDe-

faults]inthe[Shooting]menu.

• Theoptionssetinthe[KeyCustomOptions]menucanberestoredtothedefaultsettingsbyusing

[RestoreDefaults].Thesettingsregisteredwith[Reg.MySettings]arenot restoredtothedefault

settings.

• When[StoreMenuCursorPosition]issetto[On]inthe[Setup]menu,thecursorpositionoftheoption

last selected is remembered, and that option is displayed first when the menu is next displayed.

Downloading Images to Your Computer

122

5 Downloading Images to Your Computer

Using Images on a Computer

You can transferrecordedstill images andmovies to acomputer bycon-

nectingthecameratothecomputerwithaUSBcable.Youcanalsousethe

SILKYPIXDeveloperStudio3.0LEforPENTAXRICOHIMAGINGsoftwaresup-

plied with the camera to convert RAW files.

The following are the computer system requirements for connecting the

camera to the computer and using the supplied software.

Windows

Operating systems Windows 8 (32- and 64-bit), Windows 7 (32- and 64-bit), Windows Vista (32- and 64-bit),

WindowsXPHomeEditionServicePack3/Professional32-bit

• Musthaveadministratorprivilegestoinstall.

• Canbeoperatedasa32-bitapplicationon64-bitsystems.

CPU

IntelPentiumcompatibleprocessor(PentiumIVorAthlonXPorfasterrecommended)

• Supportedmulti-coreprocessors:IntelCorei7/i5,Core2Quad/Duo,AMDPhenomIIX6/X4,

AthlonIIX4/X2

RAM

1 GB or more (2 GB or more recommended)

Free disk space

For installation and startup: 100 MB or more

Image file size: Approx. 10 MB per file

Display resolution

1024 × 768 pixels, 24-bit full color or greater

Macintosh

Operating systems MacOSX10.8/10.7/10.6/10.5

CPU

Intel or PowerPC processor

RAM

1 GB or more (2 GB or more recommended)

Free disk space

For installation and startup: 100 MB or more

Image file size: Approx. 10 MB per file

Display resolution

1024 × 768 pixels, 24-bit full color or greater

Downloading Images to Your Computer

123

Saving Images to PC

UsethesuppliedUSBcabletoconnectthecameratoacomputer.

1 Turn off the camera.

2 Open the terminal cover, and connect

one end of the USB cable to the USB/

AV OUT terminal on the camera and

the other end to the computer.

The camera turns on and “Connecting to

PC…..” appears on the monitor for 10 sec.

The camera is recognized by the computer as

a removable disk.

The file of the memory card is displayed when the memory card is set.

When the card is not set, the file of the internal memory is displayed.

3 Copy and save images to PC.

4 Disconnect the USB cable from the computer when saving is

complete.

5 Disconnect the USB cable from the camera.

The camera will turn off automatically.

Note -----------------------------------------------------------------------------------------------------------

• The battery is charged when the camera is connected to the computer.

• If the battery level is low, it may take some time until the camera is recognized by the computer.

Caution -------------------------------------------------------------------------------------------------------

• DonotdisconnecttheUSBcableduringimagetransfer.

Downloading Images to Your Computer

124

Installing the Software

The supplied CD contains the SILKYPIXDeveloperStudio3.0LEforPENTAX

RICOHIMAGINGsoftware.YoucanuseSILKYPIXDeveloperStudiotoconvert

and adjust the color of RAW files and save the file in JPEG or TIFF format.

Note -----------------------------------------------------------------------------------------------------------

• If the operating system of the computer has multiple user accounts, log in with administrator privi-

leges before installing the software.

1 Turn the computer on and insert the supplied CD into the CD/

DVD drive on the computer.

The [Software Installer] screen is displayed.

2 Click [SILKYPIX Developer Studio 3.0 LE for PENTAX RICOH

IMAGING].

For Macintosh, follow the on-screen instructions for the next steps.

3 Select a language on the language selection screen, and click

[OK].

4 When the InstallShield Wizard screen appears, click [Next].

Follow the on-screen instructions for the next steps.

Note -----------------------------------------------------------------------------------------------------------

• Fordetailedoperationsofthesoftware,seeHelpinSILKYPIXDeveloperStudio.

Appendices

125

6 Appendices

Trouble Shooting

Error messages

If an error message is displayed, take the steps listed below.

Error message Solution Page

Insert card No memory card inserted. Insert card. P. 23

Set camera clock. Camera clock not set. Set camera clock. P. 30

File Number Over Limit The file number limit has been exceeded. Reset the file numbers or use an-

other card.

P. 112

Unmatched File The camera cannot display this file. Check the file contents on your computer,

and then delete the file.

—

Protected Youaretryingtodeleteaprotectedfile. P. 85

Card Is Write- Protected. Card is locked. Unlock card. —

Print settings cannot be set for

this file.

Print settings cannot be set for this file. P. 95

Insufficient Memory/

Capacity short

Insufficient memory to store additional files. Delete existing files or use a new

card.

P. 83

Maximum number of images selected for printing. —

Format internal memory. Youmustformat theinternalmemory.Select[Format[Internal Memory] in

the[Setup]menu.

—

Format card. The card is not formatted. Format card in camera. P. 25

Card Error Format card. If, after doing so, the error message still appears, the card may be

faulty. Do not use the card.

P. 25

Writing Data Writing file to memory. Wait until writing finishes. —

No File No files available for playback. —

Cannot Record Memory is full. Use another card or remove card and use internal memory. —

The file cannot be sent. The file cannot be transferred using an Eye-Fi card. P. 97

Appendices

126

Camera Troubleshooting

Power Supply

Problem Cause Solution Page

The camera does not turn on. Battery is exhausted or not inserted. Correctly insert the battery or charge

the battery.

P. 23

P. 26

Battery is incompatible. Use a compatible battery. —

Battery is not inserted in correct ori-

entation.

Insert in correct orientation. P. 23

The camera turns off

during use.

Camera has turned off automatically to

save power.

Turn the camera back on. P. 28

Battery is exhausted. Charge the battery. P. 26

Battery is incompatible. Use a compatible battery. —

The camera does not turn off. Camera malfunction. Remove and reinsert the battery. P. 23

Low battery indicator

displayed or camera turns

off when battery has charge

remaining.

Battery is incompatible. Use a compatible battery. —

Battery cannot be charged. Battery has reached end of charging life. Replace with a new battery. —

Battery is quickly exhausted. Ambient temperature is very high or

very low.

— —

Poor lighting requires extensive use

of flash.

— —

Appendices

127

Shooting

Problem Cause Solution Page

No picture is taken when shut-

ter release button is pressed.

Battery is exhausted. Charge the battery. P. 26

Camera is off or not in shooting mode. Press POWER button to turn camera on,

or press 6 to select shooting mode.

P. 28

Memory card is not formatted. Format card. P. 25

Memory card is full. Load a new card, or delete unwanted

files.

P. 83

Memory card has reached end of work-

ing life.

Insert new card. —

Flash is charging. Wait until the Auto Focus/Flash lamp

stops blinking.

—

Card is locked. Unlock card. —

Memory card contacts are dirty. Clean with soft, dry cloth. —

Cannot view photos after

shooting.

Display time is too short. Choose longer display time. P. 33

Picture display is blank. Picture display is dark. Adjust picture display brightness. P. 109

Picture display is off. Press DISP. to turn picture display on. P. 21

AV or HDMI cable is connected. Disconnect the cable. P. 94

Camera unable to focus in au-

tofocus mode.

Lens is dirty. Clean with soft, dry cloth. —

Subject is not at center of frame. Use focus lock. —

Subject not suitable for autofocus. Use focus lock or manual focus. P. 52

Subject is too close. Use macro mode or move away from

the subject.

P. 53

Pictures are blurred. Camera moved during shooting. Hold the camera with your elbows

pressed against your body. Use a tripod.

—

When shooting in a dark place, the

shutter speed slows down and pictures

become easily blurred.

Use the flash.

Raise the ISO setting.

P. 69

P. 46

Flash does not fire.

Flash will not charge.

Flash is not raised.

Slide FOPEN switch down to raise flash.

P. 69

Flash cover is not fully open. Do not obstruct flash cover. P. 69

One of the following functions is pre-

venting flash operation:

• Movierecording

• Continuousshooting

• AutoBracket

• Interval composite

To shoot with the flash, change the set-

tings or mode.

P. 69

Battery is exhausted. Charge the battery. P. 26

Flash does not illuminate

subject.

Subject is more than 3.0 m/9.8 ft. from

camera.

Move closer to subject. —

The subject is dark. Increase flash output. P. 70

Flash output is too low. Increase flash output. P. 70

Flash cover is not fully open. Do not obstruct flash cover. P. 69

Photos are too bright. Flash output is too high. Adjust the light intensity of the flash.

Move away from subject.

Use different light source.

P. 70

Picture display is too bright. Adjust picture display brightness. P. 109

Appendices

128

Problem Cause Solution Page

Photos are too dark. Subject is poorly lit. Open the flash. P. 69

Picture display is too dark. Adjust picture display brightness. P. 109

Colors are unnatural. Camera unable to adjust white balance

for shooting conditions using auto white

balance.

Include white object in photo or choose

another white balance option.

P. 59

Picture display brightness

changes during focusing.

Ambient lighting is poor or differs from

that used for autofocus.

This is normal and does not indicate a

malfunction.

—

Vertical streaks (“smear”) ap-

pear in photos.

Subject is bright. This is normal and does not indicate a

malfunction.

—

Level indicators are not dis-

played.

[LevelSetting]issetto[Off]. Change [Level Setting] to enable level

indicator display.

P. 35

Level indicators are hidden. Use [DISP. Button Display Setting] to

change the display setting.

P. 110

Camera is upside down. Hold the camera in the correct orienta-

tion.

—

Photo is not level although

level indicator showed that

camera was level.

Camera was moving when photo was

taken.

Do not take pictures from moving

objects.

—

Subject is not level. Straighten subject. —

Playback/Deletion

Problem Cause Solution Page

Photo information not

displayed.

Indicators are hidden. Press DISP. to display indicators. P. 22

Cannot play pictures back, or

picture screen is not displayed

on an AV device.

AV or HDMI cable incorrectly connected. Reconnect cable. P. 94

The[Video Out Mode] settingis incor-

rect.

Choose another video mode. P. 95

Cannot view pictures on

memory card, or picture screen

is not displayed.

Card was not formatted in camera.

Insert a card that has been formatted in

camera and contains pictures recorded

with camera.

—

Memory card contains pictures that

were not recorded normally.

Insert a card with pictures that were

recorded normally.

—

Memory card contacts are dirty. Clean with soft, dry cloth. —

Card malfunction. Insert another card. If there is no prob-

lem, the camera is okay. There may be

something wrong with the card, so do

not use it.

—

The picture display turned off. Battery is exhausted. Charge the battery. P. 26

Camera has turned off automatically to

save power.

Turn the camera back on. P. 28

Cannot delete file. File is protected. Remove protection. P. 85

Card is locked. Unlock card. —

Cannot format card. Card is locked. Unlock card. —

Appendices

129

Miscellaneous

Problem Cause Solution Page

Cannot insert memory card. Card is not in correct orientation. Insert in correct orientation. P. 23

Camera controls have no effect. Battery is exhausted. Charge the battery. P. 26

Camera malfunction. Turn camera off and then on again. P. 28

Remove and reinsert the battery. P. 23

Date is incorrect. Clock is not set correctly. Set clock to correct date and time. P. 30

Date has been reset. Battery was removed. If the battery is removed for more than

about five days, the date setting will be

lost. Make the settings again.

P. 30

Pictures are not displayed on

AV device.

The[Video Out Mode] settingis incor-

rect.

Choose another video mode. P. 95

AV or HDMI cable incorrectly connected. Reconnect cable. P. 94

AV device is not tuned to VIDEO IN

channel.

Tune AV device to VIDEO IN channel. —

Appendices

130

Specifications

Camera

Effective pixels Approximately 16.2 million pixels

Image sensor APS-C CMOS (approximately 16.9 million total pixels)

Lens Focal length 18.3mm (equivalent to 28 mm on a 35-mm camera)

Aperture (f-number) f/2.8 - f/16

Focus range (from

lens)

Approx. 30 cm to ∞ (from the front edge of the lens)

Approx. 10cm to ∞ (Macro shooting, from the front edge of the lens)

Construction 7 elements in 5 groups (2 aspherical lens elements with 2 surfaces)

Focus modes Multi AF (Contrast AF method), Spot AF (Contrast AF method), Subject tracking AF, MF,

Snap, ∞ (focus lock, with AF auxiliary light), Face recognition priority (only in Auto

mode), Continuous

Shutter speed Still images B (Bulb), T (Time), 300, 240, 120, 60, 30, 25, 20, 15, 13, 10, 8, 6, 5, 4, 3.2, 2.5, 2,

1.6, 1.3, and 1 – 1/4000 s (upper and lower limits vary according to shooting and

flash modes)

Movies 1/60 – 1/2000 s

Exposure control Metering TTL metering in multi (484-segment), center-weighted, and spot modes with auto-

exposure lock

Mode Program AE, Aperture priority AE, Shutter priority AE, Shutter/Aperture priority AE,

Manual exposure

Exposure compensa-

tion

Manual (+4.0 to -4.0EV in increments of 1/3EV); Auto Bracket (-2.0EV to +2.0EV,

1/3EV or 1/2 step)

Exposure link range 1.8 EV to 17.8 EV (link range for automatic ISO converted based on the EV for ISO 100;

Auto shooting mode, Center-weighted light metering)

ISO sensitivity (Standard Output Sen-

sitivity)

Auto, AUTO-HI, ISO 100 - 25600

White balance Auto, Multi-P AUTO, Outdoors, Shade, Cloudy, Incandescent 1, Incandescent 2, Day-

light Fl., Neutral White Fl., Cool White Fl., Warm White Fl., Manual, Details, White

Balance Bracket Function

Flash Mode Flash On, Auto, AUTO Red-Eye Flash, Slow Synchro, Red-Eye Flash On, Red-Eye Slow

Synchro, Manual Flash

Guide number 5.4 (ISO 100 equivalent)

Flash Range (built-in flash) Approx. 20 cm – 3.0 m (ISO Auto)

Flash Compensation ±2.0 EV, 1/3 EV steps

Charging time Approx. 5 seconds when using a rechargeable battery

Picture display 3.0" transparent LCD, approx. 1,230,000 pixels (640 × 4 × 480 = 1,228,800), with

protective cover

Shooting mode Auto shooting mode, Program shift mode, Aperture priority mode, Shutter priority

mode, Shutter/Aperture priority mode, Manual exposure mode, Movie, My Settings

Mode

Appendices

131

Image size

(pixels)

Still images q (16 MB equivalent) 4928 × 3264, 4352 × 3264,

3264 × 3264

r (10 MB equivalent) 3936 × 2608, 3488 × 2608,

2608 × 2608

s (5 MB equivalent) 2912 × 1936, 2592 × 1936,

1936 × 1936

u (1 MB equivalent) 1280 × 864, 1152 × 864,

864 × 864

Clip movie file 1920 × 1080, 1280 × 720,

640 × 480

Movies 1920 × 1080, 1280 × 720, 640 × 480

Recording Media SD/SDHCmemorycard,SDXCmemorycard(UHS-I),Eye-Ficard(X2series),internal

memory (approx. 54 MB)

File format Still images JPEG (Exif ver. 2.3)*

, RAW (DNG)

Movies MOV (Video: MPEG-4 AVC/H.264, Audio: LinearPCM)

Other Major Shooting Functions Continuous shooting, Self-timer (shutter release delay of approx. 2 s or Custom),

Interval shooting (1 s, 2 s, and intervals of 5 s to 1 h in increments of 5 s)*

, Effect

bracket, Dynamic range bracket, Contrast bracket, Color space setting, FA/Move Target,

Dynamic range compensation, Multiple exposure shooting, Interval composite, Noise

reduction, Histogram, Grid Guide, Depth-of-field indicator, Electronic level indicator

Other Major Playback Functions Auto Rotate, Grid View, Enlarged Display (up to 16×), Slideshow, Resize, Skew Correct

Mode, Level Compensation, White Balance Compensation, Trim, DPOF Setting, Color

Moire Correction, RAW Development, Clip Movie File, Save still image from movie

External Interface AV/USB output terminal (High-Speed USB, video output, audio output (monaural)),

HDMI output terminal

Video Signal Format NTSC, PAL switchable

Power Supply One DB-65 rechargeable battery (3.7V)

Battery life*

Based on CIPA standard: Approx. 290 pictures

Dimensions (W × H × D) 117 mm (W) × 61 mm (H) × 34.7 mm (D) (excluding projecting parts)

Weight Camera (excluding battery, memory card, and strap): approx. 215 g

Battery and strap: approx. 30 g

Tripod screw hole 1/4-20UNC

Date storage time Approx. 5 days

Operating temperature 0°C to 40°C

Operating humidity 90% or less

Storage temperature -20°C to 60°C

*1 Compatible with DCF and DPOF. DCF (Design rule for Camera File system) is a JEITA standard. (Full compatibility with other

devices is not guaranteed.)

*2 Flash off.

*3 Mass Storageis supportedunder 64-bit versions ofWindowsXP,WindowsVista,Windows7,Windows8, and Mac OS X

10.1.2–10.8.

*4 The number of remaining shots is based on the CIPA standard and may vary depending on usage conditions.

Appendices

132

AC-U1 USB power adapter

Power Supply AC 100 - 240 V (50/60 Hz), 0.2 A

Output voltage DC 5.0 V, 1000 mA

Operating temperature 10°C to 40°C

Dimensions (W × H × D) 42.5 mm × 22 mm × 66.5 mm (excluding Power plug)

Weight Approx. 40 g (excluding Power plug)

DB-65 rechargeable battery (Lithium-Ion battery)

Nominal voltage 3.6V

Rated capacity 1250 mAh (Min.), 1275 mAh, (Typ.)

Operating temperature 0°C to 40°C

Dimensions (W × H × D) 35.3 × 40.3 × 9.4 mm

Weight Approx. 27 g

Appendices

133

Storage Capacity

The following table shows the approximate number of images and record-

ing time (in seconds) that can be recorded in the internal memory and onto

a memory card in various formats.

Format Internal

memory

1 GB 2 GB 4 GB 8 GB 16 GB 32 GB

Still

images

o 3:2 2 39 79 155 317 624 1257

4:3 2 39 79 155 317 624 1257

1:1 2 39 79 155 317 624 1257

q 3:2 6 121 246 481 982 1935 3899

4:3 7 137 278 544 1111 2188 4408

1:1 10 181 368 719 1468 2892 5825

r 3:2 10 187 382 746 1522 2999 6041

4:3 11 211 429 839 1712 3374 6796

1:1 15 279 567 1109 2263 4457 8978

s 3:2 18 334 680 1329 2710 5339 10754

4:3 21 373 754 1475 3008 5925 11934

1:1 27 486 982 1919 3915 7712 15534

u 3:2 78 1383 2813 5498 11212 22086 44484

4:3 85 1484 2947 5759 11746 23138 46602

1:1 105 1844 3641 7115 14509 28582 57567

Movies w 30

frames/sec.

36 318 638 1277 2555 5112 10226

frames/sec.

43 384 770 1542 3086 6174 12349

frames/sec.

44 400 802 1606 3213 6428 12857

x 60

frames/sec.

40 332 665 1331 2664 5330 10661

frames/sec.

45 381 763 1527 3056 6113 12228

frames/sec.

61 528 1058 2118 4239 8479 16959

frames/sec.

71 627 1255 2511 5023 10048 20098

frames/sec.

74 653 1307 2616 5234 10469 20939

n 30

frames/sec.

78 801 1603 3207 6417 12835 25671

frames/sec.

95 947 1895 3793 7587 15175 30353

frames/sec.

95 983 1967 3936 7873 15748 31497

Note -----------------------------------------------------------------------------------------------------------

• Thefiguresformoviesarethetotallengththatcanberecorded.Themaximumrecordingtimeper

shooting is 25 minutes or the equivalent of 4 GB.

• Dependingonthesubject,thenumberofpicturesthatcanbetakenmaydifferfromthenumberof

exposures remaining.

• Capacityvarieswithshootingconditionsandthemakeofmemorycard.

• Thequalityofimagesrecordedtotheinternalmemoryislowerthanthatofimagesrecordedtoa

memory card.

Appendices

134

Optional Accessories

Conversion lens, hood, and adapter

Remove the ring cap before attaching a conversion lens (GW-3) or the lens

hood and adapter (GH-3).

Removal

Turn the camera off and rotate the cap counterclockwise until it can be re-

moved.

Attachment

With the camera turned off, align the mark-

ing on the ring cap () with the marking on

the camera body (), and turn the ring cap

clockwise until it clicks.

Note -----------------------------------------------------------------------------------------------------------

• Set[ConversionLens]to[Wide]in[Setup]menuwhenusingtheconversionlens.

Appendices

135

External Flash

An optional GF-1 TTL flash unit can be connected to the camera hot shoe

and used as a TTL auto exposure flash.

1 Close the flash cover.

2 Remove the hot shoe cover from the

hot shoe of the camera.

3 Turn the camera and the optional flash

unit off and attach the flash to the

camera hot shoe.

4 Turn the flash and camera on.

Caution -------------------------------------------------------------------------------------------------------

• Donotraisethebuilt-inflashwhenusingtheexternalflashasthiscanresultininjuryordamage.

• Turntheexternalflashoffbeforeremovingitfromthecamera.

• Usetheexternalflashatrangesthatexceedtherangeofthebuilt-inflash.Shootingatashortdis-

tance with an external flash may result in over-exposure of the subject.

Note -----------------------------------------------------------------------------------------------------------

• Iftheoptionalflashuniticonisnotdisplayed,turntheGF-1andcameraoffandthenremoveand

reattach flash.

• PresstheF($) button to change the flash mode. (GP. 69) To fire the flash manually, do so from

theGF-1.Theflashfireswitheveryshot;flashoutputisfixedatthelevelselectedfor[ManualFlash

Amount]inthe[Shooting]menu.(GP. 71)

Hot Shoe

Appendices

136

Other Flash Units

1 Attach the flash unit to the hot shoe.

2 Turn on the camera, turn the mode dial to Av, TAv, or M, and set

the aperture.

3 Set the ISO sensitivity to a value other than [Auto] or [AUTO-HI].

4 Turn on the external flash, set it to Auto, and set the aperture

and ISO sensitivity to the same values on the camera.

Caution -------------------------------------------------------------------------------------------------------

• Useonlyflashunitswithonesignalterminal,whichmustbeanX-contactwithapositivevoltageof

no more than 20 V.

• AflashsignalisoutputtotheX-contactofthehotshoeregardlessoftheflashsetting.Stopoperation

of the flash unit from the flash unit itself.

• ExposuremaynotbeappropriateevenwhentheapertureandISOsensitivityoftheexternalflashare

the same as those of the camera. If so, change the aperture and ISO sensitivity of the flash.

• Useanexternalflashwithalightinganglethatcoverstheangleofviewoftheshootinglens.

Appendices

137

Using the Camera Abroad

Using the AC-U1 USB Power Adapter and BJ-6 Battery Charger

These products are for use with currents of 100–240 V and 50 or 60 Hz. Before

travelling, purchase a travel adapter for connection to the type of outlets

used at your destination. Do not use these products with electrical trans-

formers, as this could damage the camera.

Warranty

This product was manufactured for use in the country of purchase, and the

warranty is not valid in other countries. Should the product fail or malfunc-

tion while out of the country, the manufacturer assumes no responsibility for

servicing the product locally or bearing any expenditure incurred thereby.

Television Playback

An AV cable can be used to connect the camera to televisions and monitors

equipped with a video input terminal. The camera supports the NTSC and

PAL video formats. Before connecting the camera to a video device, select

the appropriate video output mode.

Appendices

138

Precautions for Use

Camera

• Thisproduct was manufacturedforuse in the countryof purchase,thewarranty is

not valid in other countries. Should the product fail or malfunction while out of the

country, the manufacturer assumes no responsibility for servicing the product locally

or bearing any expenditure incurred thereby.

• Donotdropthecameraorsubjectittophysicalshocks.Whencarryingthecamera,be

careful that it does not strike other objects. Particular care is required to protect the

lens and picture display.

• Theflashmayoverheatiffiredmanytimesinsuccession.Donotusetheflashmore

than necessary. Do not use the flash in close contact with your body or other objects.

Failure to observe these precautions could result in burns or fire.

• Usingtheflashunitincloseproximitytoyoursubject’seyescouldcausetemporary

visual impairment. Particular care should be observed when photographing infants.

Do not direct the flash at the operator of a motor vehicle.

• Batteriesmaybecomehotwithextendeduse.Waitforbatteriestocoolbeforeremov-

ing them from the camera.

• Thepicturedisplaymaybedifficulttoreadindirectsunlight.

• Youmaynoticethatpicturedisplayvariesinbrightnessorcontainspixelsthatdonot

light or that are always lit. This is common to all LCD monitors and does not indicate a

malfunction.

• Donotapplyforcetothepicturedisplay.

• Abruptchangesintemperaturemaycausecondensation,resultinginvisibleconden-

sation inside the lens or camera malfunction. This can be avoided by placing the cam-

era in a plastic bag to slow the temperature change, and removing it only after the air

in the bag has reached the same temperature of its surroundings.

• Topreventdamagetotheproduct,donotinsertobjectsintotheholesinthemicro-

phone and speaker coverings.

• Keepthecameradryandavoidhandlingitwithwethands.Failuretoobservethese

precautions could result in product malfunction or electric shock.

• Takeatestshottoensurethatthecameraisfunctioningproperlybeforeusingiton

important occasions such as travel or weddings. We recommend that you keep this

manual and spare batteries at hand.

Avoiding Condensation ------------------------------------------------------------------------------------

• Condensationisparticularlylikelytooccurifyoumovetoanareawithasharplydifferenttempera-

ture, if humidity is high, in a cold room after the heater has come on, or where the camera is exposed

to cold air from an air conditioner or other device.

Appendices

139

AC-U1 USB Power Adapter

• UsetheUSBcablecontainedinthepackage.

• Donotsubjectthepoweradaptertosevereimpactorforce.

• Donotuseinextremehighorlowtemperaturesorareassubjecttovibration.

• Donotuseinanareasubjecttodirectsunlightorhightemperature.

• Unplugthepowercordfromthepoweroutletaftercharging,Otherwise,firecanre-

sult.

• Donotallowothermetallicobjectstocomeincontactwiththeconnectorsor

contacts of the rechargeable battery as this can result in a short.

• Theoperatingtemperaturerangeis10°Cto40°C.Chargingtakeslongerattempera-

tures below 10°C.

Caution -------------------------------------------------------------------------------------------------------

• Useofotherbatteriescandamagethepoweradapter.

• Recycleusedbatteriesinarecycleboxatyourlocalelectronicsstoreorsupermarket.

DB-65 Rechargeable Battery

• Thisisalithium-ionbattery.

• Thebatteryisnotfullychargedatthetimeofpurchase,sobesuretochargethebat-

tery before use.

• Donotopenordamagethebatteryasthiscanresultinfireorinjury.Inaddition,do

not heat the battery above 60°C or subject the battery to fire.

• Duetothe batterycharacteristics,thebattery usagetimemaybeshortened when

used in a cold environment, even if the battery is fully charged.Keep the battery

warm by placing it in a pocket or have a backup battery ready.

• Whennotinuse,besuretoremovethebatteryfromthecameraorthebatterychar-

ger. A small amount of current can leak from the battery even when the power is

off, creating excessive discharge and making the battery unusable. If the battery is

removed for more than five days, the date and time settings will be lost. In this case,

reset the date and time.

• Ifthebatterywillnotbeusedforalongtime,chargethebatteryfor15minutesonce

a year before storing.

• Storeinadry,coolplacewithanambienttemperaturebetween15°Cand25°C.Avoid

storing in extreme high or low temperatures.

• Afterchargingthebattery,donotimmediatelychargeitagain.

• Chargethebatteryatanambienttemperaturebetween10°Cand40°C.Chargingthe

battery at a high temperature can deteriorate the battery. Charging at a low tempera-

ture may prevent full charging.

• Ifthebatteryusagetimebecomesveryshortevenwhenfullycharged,thebattery

has reached the end of its useful life. Replace with a new battery. Be sure to use a

replacement battery recommended by PENTAX RICOH IMAGING.

• TherechargetimewiththeAC-U1isapproximately3hours(at25°C).

Appendices

140

Camera Care and Storage

Caring for the Camera

• Photographscanbeaffectedbyfingerprintsandotherforeignmatteronthe

lens. Avoid touching the lens with your fingers. Remove dust or lint with a blow-

er from a camera supply store, or gently clean the lens with a soft, dry cloth.

Clean the picture display by wiping it with a soft cloth dampened with a small

amount of any monitor cleaner that does not contain organic solvents.

• Cleanthecamerathoroughlyafterusingitatthebeachorhandlingcosmet-

ics. Do not expose the camera to volatile substances such as thinner, benzene,

or pesticides. Failure to observe this precaution could result in damage to the

camera or its finish.

• Intheunlikelyeventofmalfunction,visitaPENTAXRICOHIMAGINGRepairCen-

ter.

• Thecameracontainshigh-voltagecircuits.Donotdisassemble.

• Thepicturedisplayiseasilyscratched,avoidtouchingitwithhardobjects.

Storage

• Donotstorethecamerawhereitwillbeexposedto:extremeheatorhumidity,

large changes in temperature or humidity, dust, dirt, or sand, severe vibration,

prolonged contact with chemicals, including mothballs and other insect repel-

lent, or with vinyl or rubber products, strong magnetic fields (for example, in

the vicinity of a monitor, transformer, or magnet).

• Removethebatteriesiftheproductwillbeleftunusedforalongperiodoftime.

Before Cleaning

• Turnthecameraoffandremovethebattery.

Appendices

141

Warranty Policy

All PENTAX RICOH IMAGING cameras purchased through authorized bona fide photographic

distribution channels are guaranteed against defects of material or workmanship for a period

of twelve months from date of purchase. Service will be rendered, and defective parts will be

replaced without cost to you within that period, provided the equipment does not show evi-

dence of impact, sand or liquid damage, mishandling, tampering, battery or chemical corrosion,

operation contrary to operating instructions, or modification by an unauthorized repair shop.

The manufacturer or its authorized representatives shall not be liable for any repair or altera-

tions except those made with its written consent and shall not be liable for damages from delay

or loss of use or from other indirect or consequential damages of any kind, whether caused by

defective material or workmanship or otherwise; and it is expressly agreed that the liability of

the manufacturer or its representatives under all guarantees or warranties, whether expressed

or implied, is strictly limited to the replacement of parts as hereinbefore provided. No refunds

will be made on repairs by nonauthorized PENTAX RICOH IMAGING service facilities.

Procedure During 12-month Warranty Period

Any PENTAX RICOH IMAGING which proves defective during the 12-month warranty period

should be returned to the dealer from whom you purchased the equipment or to the manufac-

turer. If there are no representatives of the manufacturer in your country, send the equipment

to the manufacturer, with postage prepaid. In this case, it will take a considerable length of time

before the equipment can be returned to you owing to the complicated customs procedures re-

quired. If the equipment is covered by warranty, repairs will be made and parts replaced free of

charge, and the equipment will be returned to you upon completion of servicing. If the equip-

ment is not covered by warranty, regular charges of the manufacturer or of its representatives

will apply. Shipping charges are to be borne by the owner.

If your PENTAX RICOH IMAGING was purchased outside of the country where you wish to have

it serviced during the warranty period, regular handling and servicing fees may be charged by

the manufacturer’s representatives in that country. Notwithstanding this, your PENTAX RICOH

IMAGING returned to the manufacturer will be serviced free of charge according to this proce-

dure and warranty policy. In any case, however, shipping charges and customs clearance fees

to be borne by the sender. To prove the date of your purchase when required, please keep the

receipt or bills covering the purchase of your equipment for at least a year. Before sending your

equipment for servicing, please make sure that you are sending it to the manufacturer’s autho-

rized representatives or their approved repair shops, unless you are sending it directly to the

manufacturer. Always obtain a quotation for the service charge, and only after you accept the

quoted service charge, instruct the service station to proceed with the servicing.

• Thiswarrantypolicydoesnotaffectthecustomer’sstatutoryrights.

• ThelocalwarrantypoliciesavailablefromPENTAXRICOHIMAGINGdistrib-

utorsinsomecountriescansupersedethiswarrantypolicy.Therefore,we

recommend that you review the warranty card supplied with your product

atthetimeofpurchase,orcontactthePENTAXRICOHIMAGINGdistributor

in your country for more information and to receive a copy of the warranty

policy.

Appendices

142

The CE Mark is a Directive conformity mark of the European

Union.

NOTICES

INFORMATION TO THE USER

USA FCC Part 15 Class B

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential instal-

lation. This equipment generates, uses and can radiate radio frequency energy

and if not installed and used in accordance with the instructions, may cause harm-

ful interference to radio communications. However, there is no guarantee that in-

terference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorientorrelocatethereceivingantenna.

• Increasetheseparationbetweentheequipmentandreceiver.

• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhich

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. (FCC

15.105B)

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment. (FCC 15.21)

Properly shielded and grounded cables and connectors must be used for connec-

tions to host computer in order to comply with FCC emission limits. (FCC 15.27)

Appendices

143

COMPLIANCE INFORMATION STATEMENT

Product Name: DIGITAL CAMERA

Model Number: GR

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that

may cause undesired operation.

PENTAX RICOH IMAGING AMERICAS CORPORATION

Locatedat:63317thStreet,Suite2600Denver,Colorado80202U.S.A.

Phone: 800-877-0155 FAX: 303-790-1131

Note to Users in Canada / Remarque Concernant les Utilisateurs

au Canada

CAN ICES-3 (B) / NMB-3 (B)

IMPORTANTSAFETYINSTRUCTIONS–SAVETHESEINSTRUCTIONS

DANGER–TOREDUCETHERISKOFFIREORELECTRICSHOCK,CAREFULLYFOLLOW

THESEINSTRUCTIONS.

144

Index

Numbers

1st Curtain (Flash) ........................................ 71

2nd Curtain (Flash) ...................................... 71

ADJ. ISO direct change .............................. 46

ADJ. Lever ....................................................... 17

ADJ Lever Setting ..................................... 105

ADJ. Mode ................................................... 106

AE/AF Target .................................................. 56

AEL/AFL Lock Setting ................................. 54

AEL/AFL Setting ........................................... 54

AE Lock ............................................................ 54

AF Auxiliary Light .............................. 15.120

AF Button ....................................................... 54

AF Function Switching Lever................... 54

Aperture Auto Shift .................................... 42

Aperture Preview Mode ............................ 44

Aperture Priority Mode ............................. 42

Aperture Value .............................................. 40

Aspect Ratio .................................................. 50

Auto Bracket .................................................. 63

Auto Focus/Flash Lamp ................. 26.32.33

Auto-Hi ............................................................ 46

Auto Power Off ............................................. 29

Auto Rotate .................................................... 37

Auto Shooting Mode.................................. 32

Auto Shutter Speed Shift .......................... 42

AV Device ....................................................... 94

Av Mode .......................................................... 40

Battery ....................................................... 23.26

Battery/Card cover ...................................... 23

Battery Level Indicator............................... 20

Black and White (Effect) ............................ 72

Bleach Bypass (Effect) ................................ 72

Brightness ...................................................... 90

Bulb .................................................................. 43

C-AF Continuous Setting .......................... 55

Camera Care ............................................... 140

Change File Name .................................... 111

Charge ............................................................. 26

Clip Movie File .............................................. 80

Close-Ups ....................................................... 53

Cloudy (White Balance) ............................. 59

Color Moire Correction .............................. 92

Color Space Setting ................................. 120

Color Temperature ...................................... 61

Confirm Firmware Version ..................... 113

Connecting the Camera to PC ............ 123

Continuous AF .............................................. 55

Continuous Mode ....................................... 62

Contrast..................................................... 72.90

Contrast Bracketing .................................... 63

Conversion Lens ........................................ 134

Copy Notice ................................................ 113

Correction ...................................................... 87

Crop to 35 mm.............................................. 50

Cross Process (Effect).................................. 72

Customize ...................................................... 99

Custom Self-Timer ....................................... 34

Date and Time Setting ............................... 30

Date Imprint .................................................. 76

DC Power Cable Cover ............................... 15

Default Settings ........................................ 114

Delete .............................................................. 83

Delete My Settings ................................... 105

Depth of Field ............................................... 52

Detailed Information Display .................. 22

DISP. Button ................................................... 21

DISP. Button Display Setting ................. 110

Display My Settings Name .................... 104

DNG .................................................................. 50

DPOF ................................................................ 95

Dynamic Range Bracketing ..................... 63

Dynamic Range Expansion Effect .......... 49

Edit My Settings ........................................ 103

Effect ................................................................ 72

Effect Bracketing .......................................... 63

Effect Button .............................................. 108

Enlarged View ............................................... 82

Error Messages .......................................... 125

Exif Data ....................................................... 113

Exposure Bracketing................................... 64

Exposure Compensation .......................... 45

External Flash ............................................. 135

Eye-Fi Cards ................................................... 24

Eye-Fi Connection ....................................... 20

145

FA/Move Target ............................................ 56

Flash ................................................................. 69

Flash Exposure Compensation ............... 71

Flash On (Flash) ............................................ 69

Flash Synchro Settings .............................. 71

Fluorescent (White Balance) .................... 59

Fn1/Fn2/Effect Buttons .......................... 107

Fn Button Setting Display...................... 108

Focus ................................................................ 51

Focus Assist.................................................... 56

Focus Bar ........................................................ 52

Format ............................................................. 25

Format/Size.................................................... 50

Forward-Backward Direction .................. 35

Frame Rate ..................................................... 77

Full Press Snap .............................................. 58

Graphic Display ................................... 21.110

Grid Guide ............................................. 21.110

HDMI Micro Output Terminal ............ 15.94

HDMI Output................................................. 95

High Contrast B&W (Effect) ...................... 72

HighKey(Effect) .......................................... 72

Histogram........................................ 21.90.110

Hot Shoe ................................................ 15.135

Image Settings ............................................. 73

Incandescent (White Balance) ................ 59

Infinity (Focus) .............................................. 51

Information Display ........................... 21.110

Information Display Mode ....................... 21

Installation .................................................. 124

Internal Memory .................................... 25.87

Interval Composite ..................................... 67

Interval Shooting ......................................... 66

ISO Setting .................................................... 46

ISO Speed ....................................................... 46

ISO Speed Step Setting ............................. 46

KeyCustomOptionsMenu ................... 118

Language/N ................................................... 30

LCD Auto Dim ............................................... 29

LCD Confirm. ................................................. 33

LED Brightness .......................................... 109

Level .................................................. 21.35.110

Level Compensation................................... 90

Level Indicator Calibration ....................... 36

Level Setting.................................................. 36

Level (Tilt) Calibration ................................ 36

Lock Release button ................................... 16

Macintosh.................................................... 122

Macro ............................................................... 53

Manual Exposure Mode ............................ 40

Manual Flash Amount ................................ 71

Manual Flash (Flash) ............................. 69.71

Manual Focus ................................................ 52

Manual White Balance ............................... 61

Memory Card ................................................ 23

Menu ....................................................... 38.114

MENU/OKbutton ........................................ 38

Metering ......................................................... 49

MF ..................................................................... 52

Micro HDMI Output Terminal ............ 15.94

Microphone ................................................... 15

Miniaturize (Effect) ...................................... 75

M Mode ........................................................... 41

Mode Dial ....................................................... 16

Movies ............................................................. 76

M/TAv Mode Dial Setting .......................... 41

Multi AF (Focus) ........................................... 51

Multi Exposure Shooting .......................... 64

Multi-PAUTO(WhiteBalance) ................ 59

MY1/MY2/MY3 ............................................. 99

My Settings .................................................... 99

My Settings Mode .................................... 102

ND Filter .......................................................... 44

Noise Reduction........................................... 47

Normal Indicator Display .......................... 22

NR ...................................................................... 47

146

One Press M Mode ...................................... 42

Operation Sounds .................................... 111

Optional Accessories ............................... 134

Outdoors (White Balance) ........................ 59

Parts of the Camera .................................... 14

Picture Display .............................................. 18

Pinpoint AF .................................................... 51

Playback .................................................... 37.81

Playback Menu .......................................... 117

Playback Mode ............................................. 28

Playback Mode Dial Setting ..................... 82

Playback Order Options ............................ 37

P Mode ............................................................ 40

Positive Film (Effect) ................................... 72

Power ............................................................... 28

POWER button .............................................. 28

Power Indicator Lamp................................ 29

Power Plug ..................................................... 26

Preview ............................................................ 44

Processing ...................................................... 87

Program Diagram ........................................ 43

Program Shift ................................................ 40

Program Shift Mode ................................... 40

Protect ............................................................. 85

RAW .................................................................. 50

RAW Development...................................... 93

Recall My Settings .................................... 101

Rechargeable Battery........................... 23.26

Red-eye Reduction (Flash) ....................... 69

Reduce Fluorescent Flicker ...................... 77

Reg. My Settings ....................................... 100

Release Lever ................................................ 23

Reset File Number .................................... 112

Resize ............................................................... 87

Restore Defaults ........................................ 121

Retro (Effect) .................................................. 72

Ring Cap....................................................... 134

Saturation ....................................................... 72

Save Still Image ............................................ 79

SD Memory Card .......................................... 23

Self-Timer ....................................................... 34

Setup Menu ................................................ 120

Shade (White Balance) .............................. 59

Sharpness ....................................................... 73

Shooting Menu ......................................... 114

Shooting Mode ............................................ 40

Shutter/Aperture Auto Shift .................... 42

Shutter/Aperture Priority Mode ............. 40

Shutter Speed ............................................... 40

Shutter Speed Priority Mode (S)............. 40

SILKYPIXDeveloperStudio ................... 124

Skew Correction ........................................... 89

Sleep ................................................................ 29

Slide Show...................................................... 81

Slow Shutter Speed NR ............................. 42

Slow Synchro (Flash) .................................. 69

Snap (focus) ................................................... 52

Snap Focus Distance .................................. 52

Software ....................................................... 124

Speaker ........................................................... 15

Specifications ............................................. 130

Spot AF (Focus) ............................................ 51

Still Image Format ....................................... 50

Still Image Size.............................................. 77

Storage ......................................................... 140

Storage Capacity................................. 27.133

Store Menu Cursor Position .................. 121

Strap Eyelet .................................................... 15

Subject Tracking AF (focus) ...................... 51

Switch Shooting Mode ........................... 102

Target ............................................................... 56

Target Zoom Play ......................................... 82

TAV Mode ....................................................... 40

Terminal Cover........................................ 26.94

Thumbnail View ........................................... 81

Tilt ..................................................................... 35

Time .................................................................. 43

Tracking AF (Focus) ..................................... 51

Trimming ........................................................ 88

Tripod Screw Hole ....................................... 15

TV ...................................................................... 94

Tv Mode .......................................................... 40

Up-downDial ................................................ 17

USB/AVOUTterminal ............ 15.26.94.123

USBCable .............................................. 26.123

USBPowerAdapter..................................... 26

147

Video Format ................................................. 95

Vignetting ...................................................... 73

Vivid (Image Settings) ................................ 73

Volume Settings ........................................ 111

Warranty ...................................................... 137

White Balance ............................................... 59

White Balance Bracketing......................... 63

White Balance Correction ......................... 92

White Saturation Display .......................... 22

Windows ...................................................... 122

Wireless LAN .................................................. 24

*L766 2971*

PENTAXRICOHIMAGINGCO.,LTD.

2-35-7, Maeno-cho, Itabashi-ku, Tokyo 174-8639,

JAPAN

(http://www.pentax.jp)

PENTAXRICOHIMAGING

FRANCES.A.S.

(EuropeanHeadquarters)

112QuaideBezons,B.P.204,95106Argenteuil

Cedex, FRANCE

(HQ-http://www.pentax.eu)

(France - http://www.pentax.fr)

PENTAXRICOHIMAGING

DEUTSCHLANDGmbH

Julius-Vosseler-Strasse 104, 22527 Hamburg,

GERMANY

(http://www.pentax.de)

PENTAXRICOHIMAGING

UKLTD.

PENTAX House, Heron Drive, Langley, Slough, Berks

SL38PN,U.K.

(http://www.pentax.co.uk)

PENTAXRICOHIMAGING

AMERICASCORPORATION

633 17th Street, Suite 2600, Denver, Colorado 80202,

U.S.A.

(http://www.pentaximaging.com)

PENTAXRICOHIMAGING

CANADAINC.

1770 Argentia Road Mississauga, Ontario L5N 3S7,

CANADA

(http://www.pentax.ca)

PENTAXRICOHIMAGING

CHINACO.,LTD.

23D,JunYaoInternationalPlaza,789Zhaojiabang

Road, Xu Hui District, Shanghai, 200032, CHINA

(http://www.pentax.com.cn)

http://www.pentax.jp/english

PENTAX RICOH IMAGING CO., LTD.

March, 2013

EN USA GB GB AE AE

Printed in China
