USER MANUAL
Thermoelectric refrigerator
Super cooling model No:
BCH-48-SS BCH-48G BCH-70B
Thermoelectric refrigerator
CONTENTS
• INDICATION OF PARTS..............................................2
• TEMPERATURE CONTROL...........................................3
• ELECTRIC DIAGRAM....................................................3
• INSTRUCTION FOR USES..............................................4
• VENTILATION ..................................................................5
• TROUBLE SHOOTING GUILDS....................................6
• TECHNICAL DATA ..........................................................7
_ _ __
Thank you very much for buying this product. Before using your new
refrigerator, please read this operation manual to ensure that you gain
the maximum benefit from it.
2

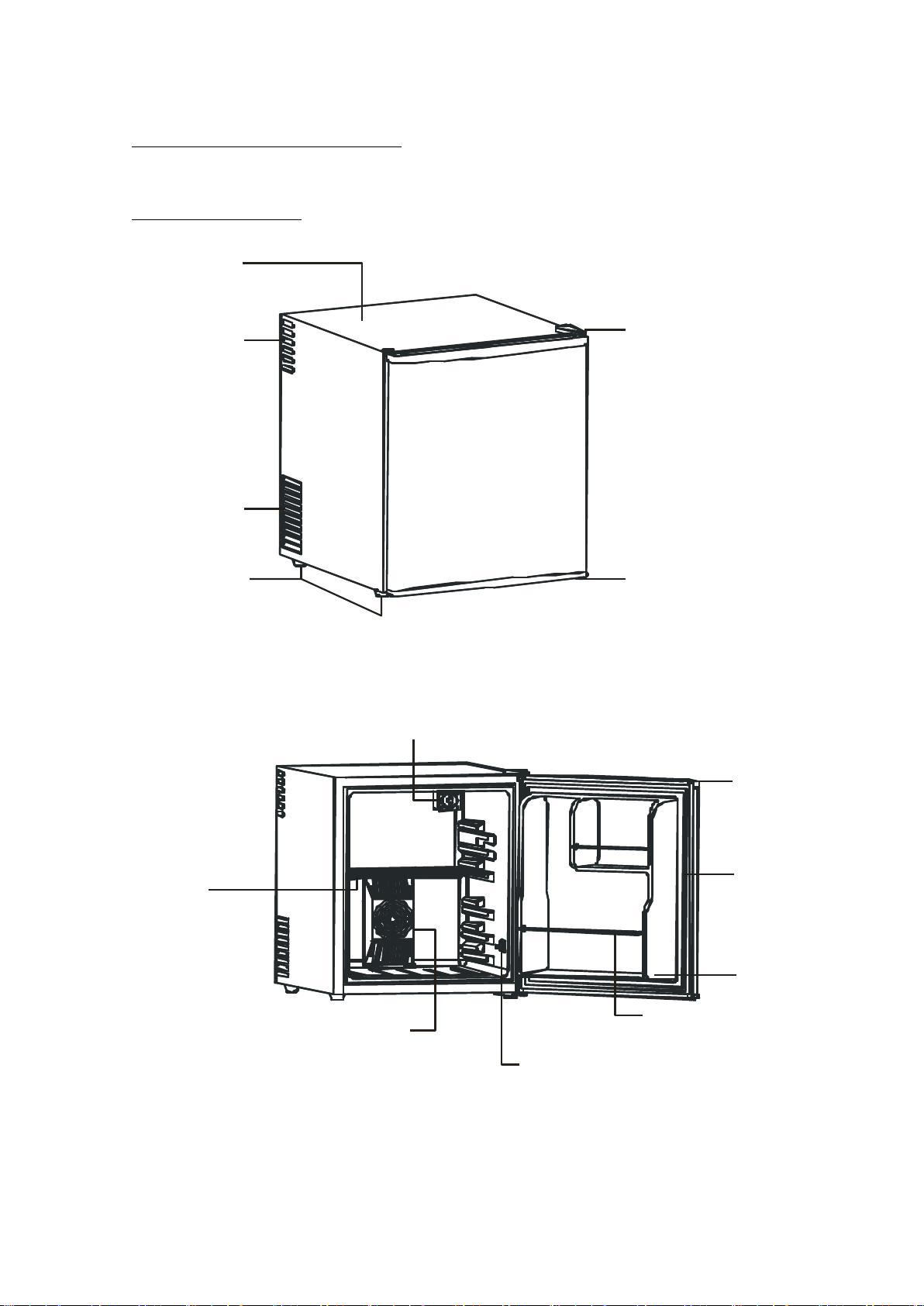

·INDICATION OF PARTS
BCH-48, BCH-70
Cabinet
Heat pump
Foot
Up hinge
Door
Low hinge
Heat pump
Shelf
Handle
Door gasket
Door inner
Door rack fix bar
light on/off switch
fan cover
Temperature control
button
3
4

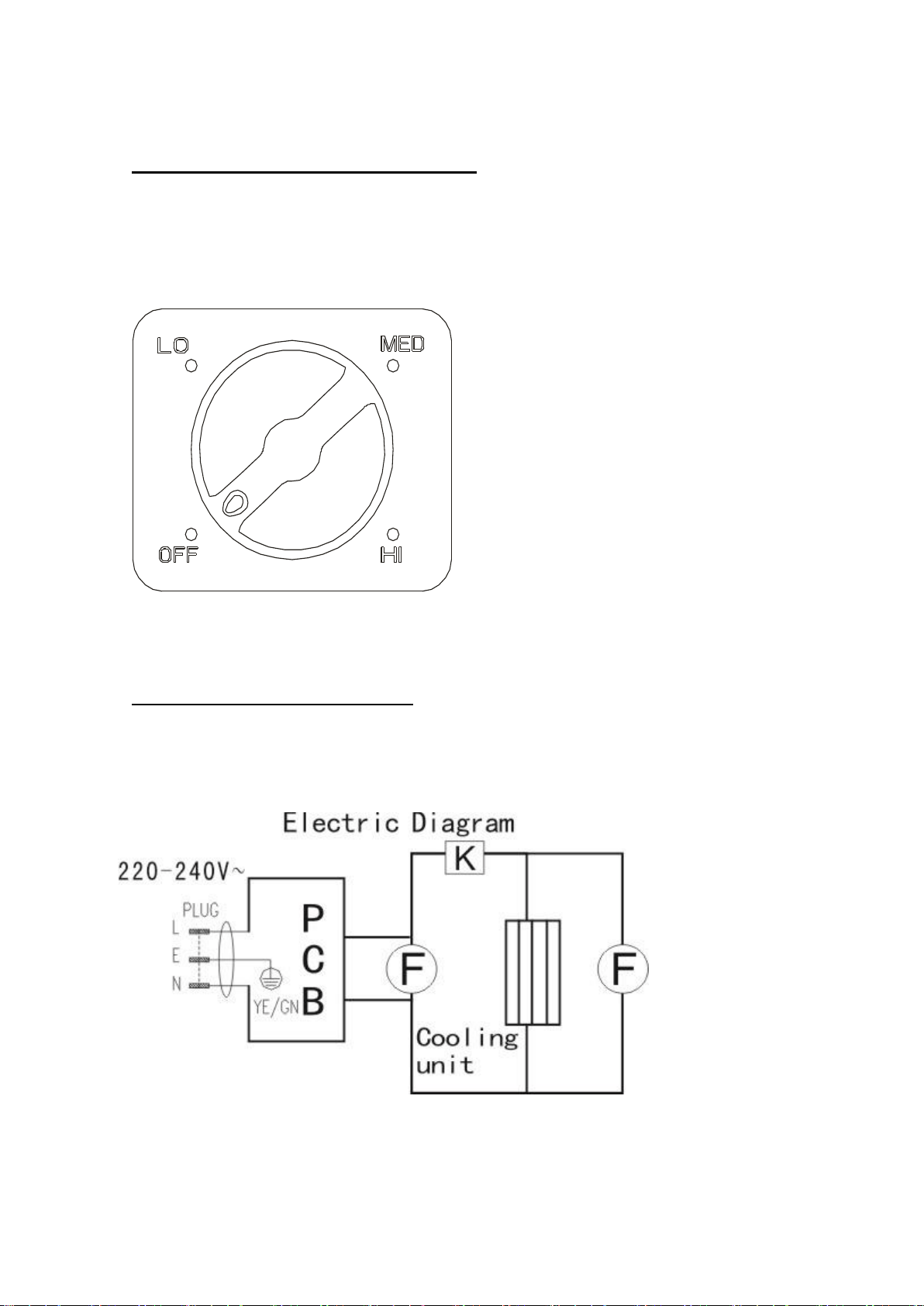

·TEMPERATURE CONTROL
Temperature arrange 0°~3℃ (ambient temp. 28℃)
·ELECTRIC DIAGRAM
5
·INSTRUCTION FOR USES
1,Note
1, 1: Position your refrigerator so that the plug is accessible.
1, 2: Keep your refrigerator out of direct sunlight.
1, 3: Do not place next to heat generating appliance.
1, 4: Do not place directly on the ground. Provide suitable stand.
2, Very important:
2, 1: The minibar will have better performance at ambient of 20-25 degree; We suggest
the minibar be powered off if the ambient temperature is lower than 10 degree.
2, 2: After plugging the appliance, allow the unit to cool down for 2-3 hours before
placing beverage into the refrigerator compartment.
2, 3: Ventilation is very important for this kind thermoelectric refrigerator; The inside
PCB will be broken easily if the ventilation is bad; It will also reduce the life of the
refrigerator.
2, 4: If leakage occurs (which can be easily detected due to the unpleasant smell), please
A: Switch off the minibar immediately
B: Ventilate the room thoroughly
C: Call for the after sales service department
2, 5:This model uses a thermoelectric cooling system with automatic defrosting system,
so there is no need to defrost it manually.
2, 6: This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
3, Power supply:
3, 1: The refrigerator must be connected to a properly earthed socket in line with
relevant valid country regulations before operating;
3, 2: Check the data label (which is on the side of the refrigerator) for voltage and
frequency corresponds to your local one; If not, don’t plug your cable into the socket;
6
·VENTILATION
When install a TE minibar, ventilation should be considered seriously, please refer to
the following:
1, there should be left at least 200 cm³ for ventilation
2, the distance between wall and minibar side should be at least 20mm
3, the bottom should be left at least 50mm for air flowing
4, air passing through must not be preheated
5, entire cooling system should be considered in the ventilation
6, the following four pictures show four installation ways:
7
·TROUBLE SHOOTING GUILDS
Failure: no cooling
Possible reason
Action
No power
Check the electricity supply, or change a new plug
PCB broken
Replace a new PCB
Fan broken
Replace a new fan
Leakage
Replace a new heat pump
Cooling module broken
Replace a new cooling module with silicone
Failure: poor cooling performance
Possible reason
Action
High ambient temperature
The room temperature is hotter than normal
Poor instruction
The door is opened too often
Poor ventilation
Install minibar according to our ventilation instruction
Poor gasket
Replace a new door gasket
Poor silicone
Change the silicone on the surface of the cooling module
Failure: noisy
Possible reason
Action
Dust
Clean the dust from the fan
Fan broken
Change to a new fan
Poor heat pump
Replace a new heat pump
Failure: frost or ice inside minibar
Possible reason
Action
No defrost
Stop minibar working for at least one hour, then restart it
Low ambient temperature
Adjust the air-conditioner to be around 25degree
8
·TECHNICAL DATA
Model No.
BCH-48,BCH-48G
BCH-70
Net Capacity (liters)
48
70
Voltage (V)
220-240V
Frequency (Hz)
50
Rated Power (W)
83
Dimension (mm)
430x480x510
430X520X740
Packing (mm)
460x510x535
460X550X770
Net Weight (kg)
12.5
15.5
Gross Weight (kg)
13.5
17.5
Approval
CCC/ CB/ CE/ ROHS/ETL
Remarks
Super cooling,high efficiency,can arrive 0℃(Ambient
25℃)
