Operation and Installation Manual
SK BEVERAGE and WINE FRIDGE Range
Includes ALL variants:
B / B-HD / SS / HD / SD of the following models, in both Left and Right Hinge.
Single Zone Models
SK86 / SK92 / SK116 / SK126 / SK146 / SK156 / SK206 / SK245 / SK246 / SK386
Dual Zone Models
SK198D / SK228D / SK248D
Mid-sized Upright Model
SK220
Upright Models
SK422 / SK668
This appliance is intended to be used in household and similar applications including use in commercial
settings. Such as staff kitchen areas in shops, offices and other working enviroments; by clients in hotels,
motels and other residential type enviroments, such as bed and breakfasts, catering and similar non-retail
applications.
1 | Page
Congratulations on the purchase of your new SCHMICK beverage fridge.
Before using your new appliance, please read this manual thoroughly to ensure that you know how
to operate and install your new appliance safely and efficiently.
Warnings and general safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when
installing, maintaining, and operating your appliance.
Because these following operating instructions cover various models, the features of your appliance
may differ slightly from those described in this manual, and as such not all warnings in this manual
will be applicable to your appliance.
WARRANTY – This unit comes with Australia wide 24 Month comprehensive warranty.
Full warranty statement can be found online at:
https://bar-fridges-australia.com.au/pages/warranty-statement
If you have any queries, please contact Bar Fridges Australia’s
service department on
1300 376 849 (Ext2) or email vicservice@bar-fridges-australia.com.au with your Fridge
Model details, your Serial Number, and Invoice Number ready for all warranty queries.
Or complete the online form, found at the link below:
https://www.bar-fridges-australia.com.au/making-a-warranty-claim.html
Important Recycling Information
Bar Fridges Australia now has deleted over 75% of EPS (Expanded Poly Styrene) and replaced
with recyclable cardboard. Please note:
• The outer carton, inner padding and base can all be recycled in your local kerbside
recycling bin.
• The strap/s is rubbish.
• The plastic bag, may be recycled depending on your local council, however, most still
classify as rubbish. Material is LDPE (100%) if you decide to find out locally.
2 | Page
GENERAL SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Read this manual thoroughly before first use, even if you are familiar with this type of product.
The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when
correctly adhered to. Keep this manual in a safe place for future reference. If applicable, pass
these instructions on to the next owner of the appliance.
Pay particular attention to messages that follow this safety alert symbol or the
words DANGER, WARNING or CAUTION. These words are used to alert you
to a potential hazard that can seriously injure you and others.
The instructions will tell you how to reduce the chance of injury and let you know
what can happen if the instructions are not followed.
This symbol alerts you to take care as the appliance contains flammable
materials: isobutane as refrigerant and cyclopentane as insulation blowing gas.
While isobutane (R600a) is a gas with a high level of environmental
compatibility, it is nevertheless flammable.
Do not expose the appliance to high heat, sparks and open flames.
During transport and installation, ensure that none of the components of the
refrigerant circuit become damaged.
REFRIGERANT MATTERS
WARNING! Do not damage the refrigerant circuit!
Never use an appliance with a damaged refrigerant circuit!
If the refrigerant circuit becomes damaged, avoid proximity to open fires and all types of heat
and ignition sources. Thoroughly ventilate the room in which the appliance is located. The room
for installing the appliance must be at least 1m³ per 8g of refrigerant. The amount and type of
refrigerant in the appliance can be found in the Technical Specifications on the ‘Basic
Instructions Page’ and on the appliance rating plate.
It is hazardous for anyone other than an authorised
service person to service this appliance. In Queensland,
the authorised service person MUST hold a Gas Work
Authorisation for hydrocarbon refrigerants to carry out
servicing or repairs which involve the removal of covers
and the opening of refrigeration piping system.
RESPONSIBLE DISPOSAL
At the end of its working life, do not throw this appliance out with your household rubbish.
Electrical and electronic products contain substances that can have a detrimental effect on the
environment and human health if disposed of inappropriately. Observe any local regulations
regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling
and recovery of the refrigerant and blowing agent. Contact your municipal authorities for advice
on recycling facilities in your area.
WARNING! This refrigeration appliance contains flammable refrigerants and insulation blowing
gases, which must be removed before disposal. Contact your municipal authorities for any codes
or regulations concerning the disposal of such materials.
DANGER! Risk of child entrapment: When discarding this or another refrigerator, make sure to
take off the door and leave the shelves/racks/drawers in place so that children cannot easily
climb in and get trapped inside.
3 | Page
ELECTRICAL SAFETY
VOLTAGE
Plug the appliance in a 220-240V, 50Hz, properly earthed power outlet, which must be in good
working order. Make sure your outlet voltage and circuit frequency correspond to the voltage
stated on the appliance rating label
FLUCTUATIONS
If voltage fluctuates in your area, especially Perth and WA which is more common, you are best
to invest in a voltage regulator, this can be purchased on our website, model AVS-1000.
POWER CONNECTION
Do not use an adaptor; do not use an extension cord. Plug the power plug directly into a
separate power point that cannot easily be turned off accidentally, and that is easily accessible
so you can switch it off when required.
POWER CORD
Do not kink or damage the power supply cord. Do not leave it exposed or dangling. Secure it
behind the appliance so no one steps on or places anything on the power supply cord or against
it. A squashed or damaged power plug may overheat and cause a fire.
DAMAGED CORD
Do not use a cord that shows cracks or abrasion damage along its length or at either end. Any
damage to the cord may cause a short circuit, fire and/or electric shock. If the power cord is
damaged, it must be replaced by the manufacturer or its service agent. To arrange a
replacement, please contact the service department on 1300 376849 (Ext2) or email
vicservice@bar-fridges-australia.com.au
DISCONNECTION
Never unplug the unit by pulling the cord. Always grip the plug firmly and pull straight out from
the power point.
ELECTRICAL WORK
If the installation of this appliance requires any electrical work (ie: if a new power point is
required), make sure it is carried out by a qualified electrician.
USAGE CONDITIONS AND RESTRICTIONS
INDOOR DOMESTIC AND/OR COMMERCIAL USE
This appliance is intended for indoor domestic use or industrial / commercial only.
INTENDED PURPOSE
Do not use this appliance for anything other than its intended purpose, and only use it as
described in this manual.
Do not attempt to alter or modify this appliance in any way.
USAGE RESTRICTIONS
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the appliance by a person responsible for
their safety.
WARNING! Do not use any electrical appliances (such as ice cream makers) inside refrigeration
appliances, unless they are approved for this purpose, by the manufacturer.
4 | Page
USAGE CONDITIONS AND RESTRICTIONS (Con’t)
CHILDREN
Supervise children to ensure they do not play with the appliance.
Close supervision is necessary when any appliance is used by or near children.
Never allow children to operate, play with or crawl inside the appliance.
NO USE FOR LONG PERIODS
If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and
leave the door open to prevent mould, condensation and/or odors developing within the
appliance.
IMPORTANT
Store wine in sealed bottles
Do not overload the cabinet – this will prevent air circulation and efficiency
• Do not open the door/s unless necessary - Opening the door for long periods can cause a
significant increase of the temperature in the compartments of the appliance.
Do not cover the shelving with aluminum foil or any other materials that may prevent air
circulation
CONDENSATION
Condensation is a reaction that is caused when warm, humid air makes contact with a cold
surface, which makes glass door bar fridges the perfect condenser in areas of high humidity.
This is not a fault of the product itself.
Due to this we always recommend Heated Door models for the more tropical and humid states
like NSW, QLD, the top end of WA, and the NT. Occasionally, we’ll see this in the southern
states.
For further information/explanations regarding our bar fridge door configurations, please see
our “Condensation PDF”, which can be found on our website.
5 | Page
CLEANING AND MAINTENANCE
WARNING!
Do not use sharp objects or metal instruments to remove frost or clean the appliance.
Do not use mechanical devices or other means to accelerate the defrosting process.
Do not use hairdryers or any electrical heaters to accelerate the defrosting process.
Do not use high pressure water to clean the appliance.
Use a plastic scraper, if absolutely necessary.
DISCONNECT
Unplug the appliance before cleaning or servicing. Failure to do so can result in electric shock,
injury or death. Do not connect or disconnect the plug when your hands are wet.
FLAMES
Do not let open flames or ignition sources enter the appliance.
FLAMMABLE/EXPLOSIVE SUBSTANCES
Never clean this appliance with flammable fluids. Do not store or use volatile, flammable or
explosive substances such as aerosol cans with a flammable propellant in or close to this or any
other appliance. The fumes can create a fire hazard or explosion.
SOLVENTS
Clean the inside cabinet of fridge with a clean damp cloth, with neutral soap/detergent.
Avoid damage by never using abrasive or flammable cleaning products.
Do not use solvent based cleaning agents or abrasives on the interior as these may damage or
discolor the surfaces of the appliances.
DOOR SEAL
Use eucalyptus oil twice a year with clean cloth to wipe and clean the ‘door seal’.
STAINLESS STEEL
If you have purchased a stainless steel model, please see stainless steel care guide supplied
with purchase. Alternatively, find the guide here:
https://bar-fridges-australia.com.au/pages/stainless-steel-care-guide
CONDENSOR
Clean the condensor every 12 months with a vacuum cleaner and/or brush to eliminate any dust
accumulating. The condensor is located at rear/bottom section of unit so it may require a
technician to assist. In most cases in normal installations the build up of dust and particles will
be very minimal, but is recommended to prolong the life of your appliance.
SERVICE AND REPAIRS
Do not attempt to repair, modify or replace any part of the appliance unless specifically
recommended in this manual. Refer all other servicing to a qualified technician, or contact the
sales support line for advice on examination or repair of the appliance on 1300 376849 (Ext2),
or you can also email us vicservice@bar-fridges-australia.com.au
ITEMS STORAGED INSIDE THE CABINET
This appliance is intended to be used exclusively for the storage of wine or beverages.
It is 100% not recommended to store blood, biological or special pharmaceuticals in the
fridge.
Keep items/drinks at least 1-2cm away from walls to allow better air flow and to stop drinks
freezing over.
Warranty does not cover ‘contents’ in any circumstance
6 | Page
INSTALLATION BASICS
HEAVY
This appliance is heavy, take care when moving it. To avoid back or other injury, consider a two
person lift or mechanical aid when installing it. Failure to do so can result in back or other injury.
BUILT-IN DESIGN
This appliance can be ‘built into’ cabinetry, however, the appropriate clearance needs to be
provided on installation. See specifications found in this manual.
KEEP IT UPRIGHT
Do not tilt the fridge more than 45º from upright when moving it. Otherwise leave standing
upright for 24hours before switching on again.
HANDLE WITH CARE
Do not apply force to any part such as the condenser or door
Do not carry the fridge by carrying the door.
VENTILATION
Ensure proper ventilation by keeping any ventilation openings, in the appliance enclosure or in
the built-in structure, free and clear of obstructions. Ensure adequate air circulation around the
appliance to prevent overheating. Exact clearance measurements can be found further in this
manual.
POSITIONING
WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING! Do not locate multiple portable socket outlets or portable power supplies at the
rear of the appliance.
LEVEL
Install the appliance level in order to ensure proper operation. If necessary, adjust the levelling
legs at the bottom of the unit.
LOCATION
Install the appliance in an area that meets the following requirements:
Avoid area’s where the appliance would be exposed to direct sunlight, and/or sources of
heat, (stove, heater, radiator, etc.) – This will void your warranty
The ambient temperatures must correspond to the climate class (T) indicated on the rating
plate of the appliance: (ie: (T) Rated is 16°C to 43°C) (SEE TABLE BELOW)
The floor must be sturdy, level and strong enough to support the unit when fully loaded.
Avoid area’s where the appliance would be exposed to extreme cold ambient temperatures
or excessive moisture and high humidity (such as outdoors or exposed to wind, rain water
spray or drips).
Avoid positioning anywhere where water can penetrate ‘under’ or on ‘top’ of the fridge. It
could cause damage to the internal workings and is potentially dangerous.
Once into position: Allow at least 30minutes before turning the appliance “ON”.
AMBIENT ROOM TEMPERATURE
This appliance is designed to operate in ambient temperatures specified by its temperature class
marked on the rating plate.
Class
Symbol
Ambient Temperatures range(℃)
Extended Temperate
SN
﹢
10 to
﹢
32
Temperate
N
﹢
16 to
﹢
32
Subtropical
ST
﹢
16 to
﹢
38
Tropical
T
﹢
16 to
﹢
43
INSTALLATION TIP: Installing it in the coolest area of the room will save energy consumption
and running costs.
7 | Page
SUNLIGHT, HEAT SOURCES and EXTREME COLD
The fridge must not be exposed to direct sunlight.
Heat sources may increase electrical consumption.
Extreme cold ambient temperatures may also cause the unit not to perform properly.
POWER FAILURE
• If the unit is unplugged, power is lost, or turned off, you must wait at least 3 to 5 minutes
before restarting the unit.
• Most power failures are corrected within a few hours and should not affect the temperature
of your appliance if you minimize the number of times the door is opened.
• If the power is going to be off for a long period of time, you need to take the proper steps
to protect your contents.
MOVING YOUR BEVERAGE FRIDGE
If you need to move your fridge after use, please follow these steps.
• Remove all items.
• Take out the loose items inside the beverage fridge (such as shelf), or fix the loose items
with the foam.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut (We do not recommend packing tape, or cheap masking tape).
• Be sure the appliance stays secure in the upright position during transportation. Also protect
outside of appliance with a blanket or similar items.
The importer is not responsible for damages or accidents arising from the misuse or
disregard of electrical laws relevant to the country where this product is used.
8 | Page
SETTING UP YOUR NEW SCHMICK BAR FRIDGE (BASICS)
REMOVE PACKAGING
Unbox your unit, and remove all packaging materials, including the base.
CHECK YOUR PARTS
Check the parts and accessories inside the packaging, against the components list (see below).
If you are missing any parts, please call 1300 376849 (Ext2), or you can also email us
vicservice@bar-fridges-australia.com.au
INSTALL INTO LOCATION
Once delivered and shifted into location, let the appliance stand upright for approximately
12 hours before connecting it to the power source, which helps to reduce the possibility of
a cooling-system malfunction from handling during transportation.
CLEAN BEFORE USE
Before use, please clean the inside cabinet of the fridge with a clean damp cloth with a neutral
soap/detergent.
SHELF RATING
Each SK fridge shelf is rated for UP TO 24kg of product. Do not exceed this.

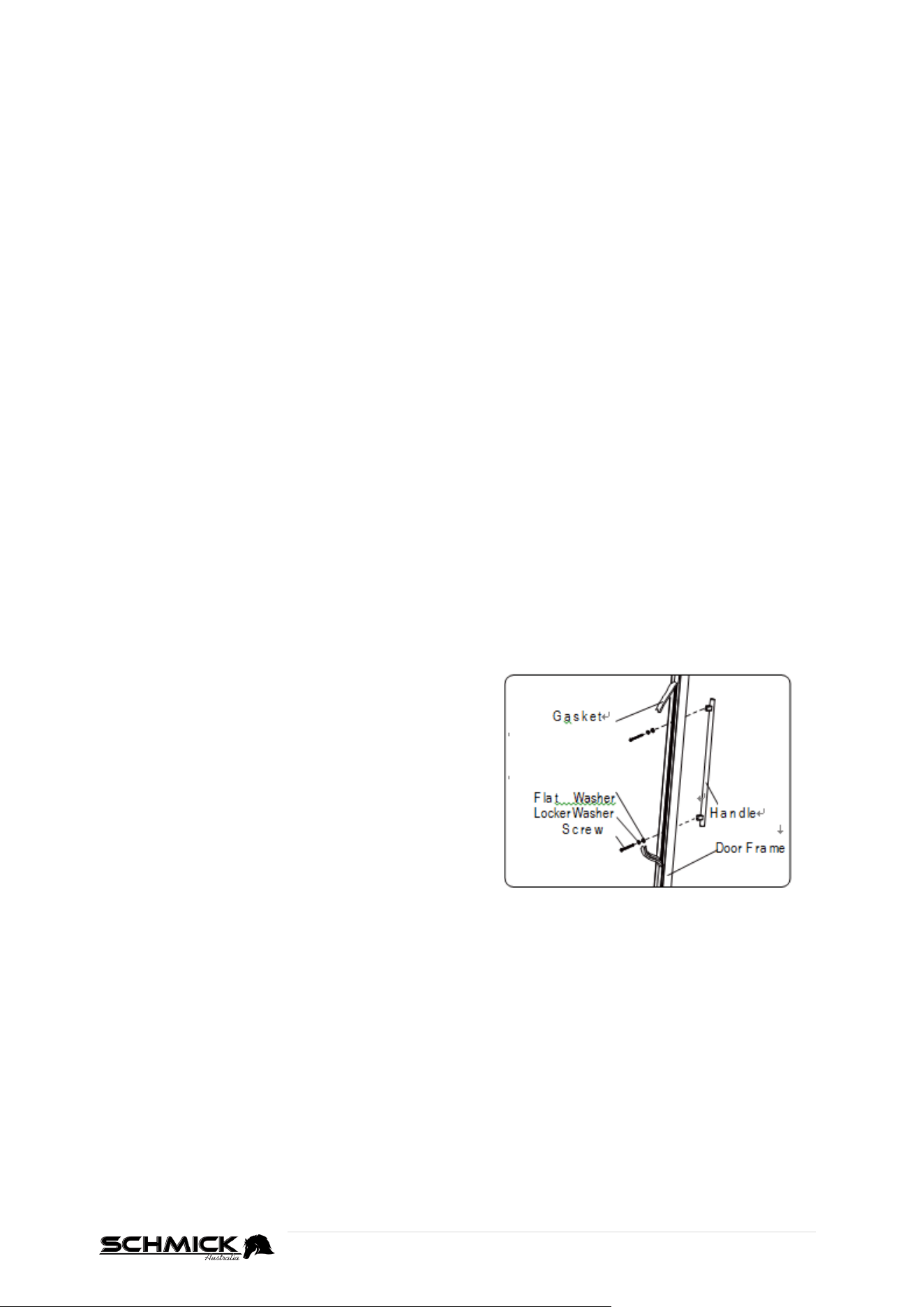

INSTALLATION OF DOOR HANDLE
Some models require the door handle to be installed.
To do this, install the handle provided with the appliance by following these steps:
Step 1
Remove the door seal at the inner side of the door
to expose the two screw holes, pinching as close as
possible to frame to lift out slowly
Step 2
Install the handle tightly with the screws and
washers provided.
Step 3
Tidy and restore the door seal.
LOCK & UNLOCK THE DOOR
• Lock is an optional function. If your Wine/Beverage fridge has such function, a key
should be attached inside the packing of this Manual.
• Insert the key into the lock and turn it counter-clockwise to unlock the door.
• To lock it, please follow the reversed operation.
• Please ensure to keep key in a safe place.
9 | Page
INSTALLATION OF YOUR SCHMICK “SK” BEVERAGE FRIDGE
IMPORTANT INFORMATION
This appliance is designed to be used in a free standing installation or built-in/underbench
(ie: fully recessed)
This appliance must be placed into position in accordance with these instructions.
The applicance must be installed on a smooth flat surface.
There are four (4) (or more depending on the model) front and rear (and middle) feet that
can be adjusted (clockwise and anti-clockwise) as required, to ensure the appliance is level
and square.
Correct adjustment of the feet avoids excessive noise and vibration.
DIMENSIONS
Measurements for your applicance can be found in the table below.
UNIT MEASUREMENTS
Model
WIDTH
DEPTH
HEIGHT
SK86
495mm
570mm
650mm
SK92
395mm
586mm
840mm
SK116
495mm
570mm
800mm
SK126
495mm
586mm
840mm
SK146
550mm
586mm
875mm
SK156
595mm
586mm
840mm
SK198D
750mm
590mm
840mm
SK206
895mm
570mm
800mm
SK228D
895mm
590mm
800mm
SK245
870mm
586mm
875mm
SK246
895mm
586mm
840mm
SK248D
895mm
590mm
840mm
SK386
1345mm
586mm
840mm
Uprights
SK220
595mm
586mm
1220mm
SK422
595mm
586mm
1996mm
SK668
895mm
586mm
2080mm
10 | Page
VENTILATION AND CABINET SIZE REQUIREMENTS
Please follow this table guide below, to ensure your fridge has enough ventilation. It is very
important that these ventilation requirements are met, to not void warranty.
VENTILATION REQUIRED
(minimum’s)
CABINET SIZE REQUIREMENTS
(if building-in to cabinetry)
INTERNAL MEASUREMENTS –
Minimums)
Model
TOP
SIDES
REAR
Width
Depth
Height
SK86
10mm
10mm
50mm
515mm
620mm
660mm
SK92
10mm
10mm
50mm
415mm
636mm
850mm
SK116
10mm
10mm
50mm
515mm
620mm
810mm
SK126
10mm
10mm
50mm
515mm
636mm
850mm
SK146
10mm
10mm
50mm
570mm
636mm
885mm
SK156
10mm
10mm
50mm
615mm
636mm
850mm
SK198D
10mm
10mm
50mm
770mm
640mm
850mm
SK206
10mm
10mm
50mm
915mm
625mm
810mm
SK228D
10mm
10mm
50mm
915mm
640mm
810mm
SK245
10mm
10mm
50mm
890mm
636mm
885mm
SK246
10mm
10mm
50mm
915mm
640mm
850mm
SK248D
10mm
10mm
50mm
915mm
640mm
850mm
SK386
10mm
10mm
50mm
1365mm
640mm
850mm
Uprights
SK220
40mm
40mm
150mm
675mm
740mm
1260mm
SK422
40mm
40mm
150mm
675mm
736mm
2036mm
SK668
40mm
40mm
150mm
975mm
736mm
2120mm
Warning: You cannot compromise on these ventilation requirements, failure to comply by
these requirements can cause issues with the fridge operation and will result in the fridges
warranty being voided.
As the fridge is front venting, you cannot cover the front grille/vent in any way.
This must always be 100% exposed to allow the fridge to operate correctly and without issue.
Failure to comply with this requirement will result in the warranty being voided.
NOTE: To avoid any loss in performance, air suction channels must not be obstructed.
If you are going to place the fridge in a cabinet behind a door, please call us on 1300 376 849
or email Sales@bar-fridges-australia.com.au for assistance.
11 | Page

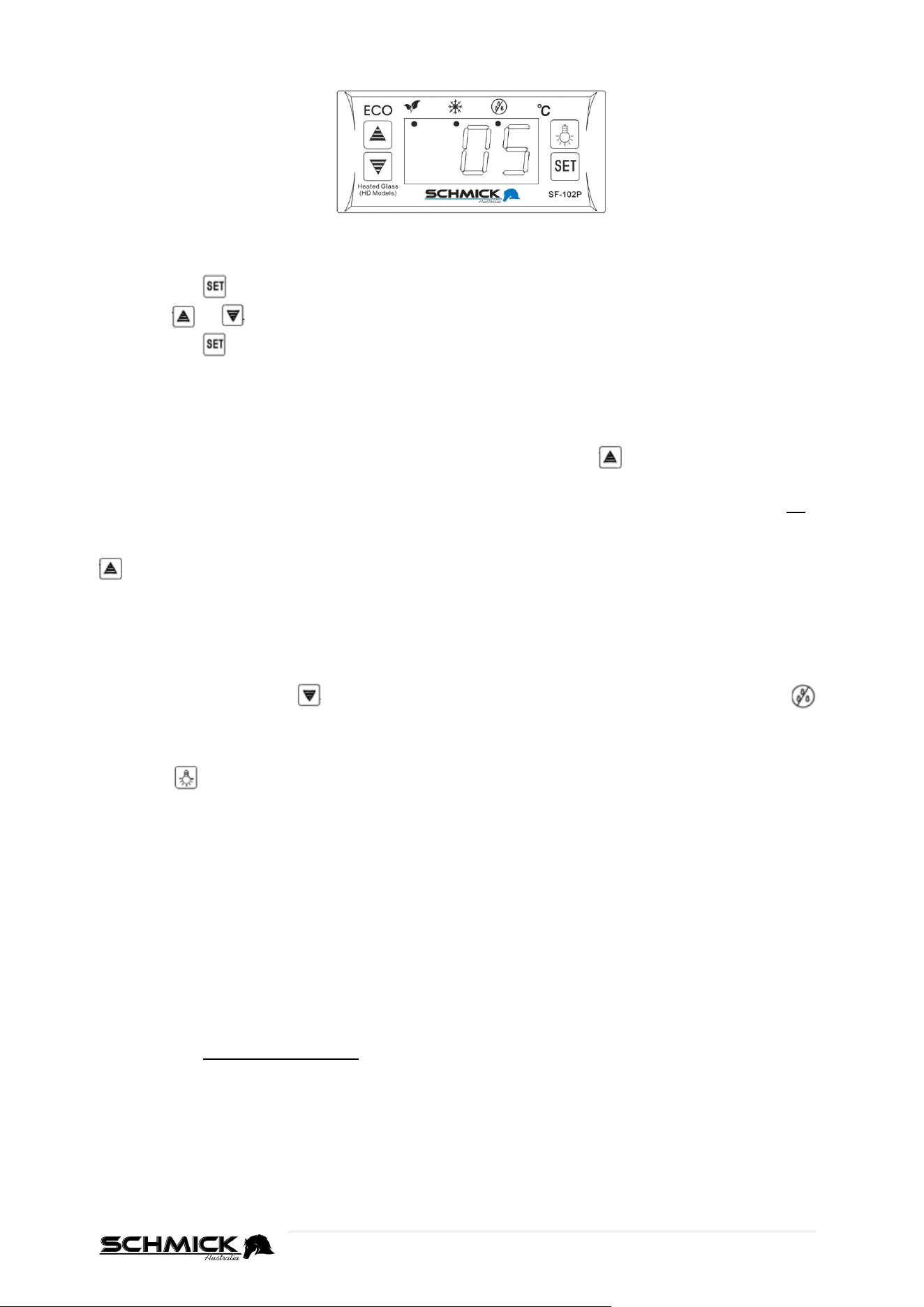

OPERATION AND TEMPERATURE CONTROL (SF-102P)
– SINGLE ZONE ONLY
SET TEMPERATURE ADJUSTMENT
(Compressor stop temperature)
• Press the button to display the set temperature.
• Press or buttons to modify and store the displayed value.
• Press the button again to exit the adjustment and display the current fridge
temperature.
If no more button is pressed within 6 seconds, the fridge temperature will be displayed.
ECO MODE (HOLIDAY MODE)
To enable/disable ECO (energy saving) mode, press and hold the button for 5 seconds. A
light will display below the ECO leaf symbol on the left top of the display. ECO mode will make
the fridge operate at 4°C warmer than the set point. If set at 0°C and ECO mode is turned on
the fridge will cycle between 4°C and 8°C - Not 0°C and 4°C as it would with ECO mode was
turned off.
(Please note: This could be enabled on older controller versions, by simply pressing the
button)
HEATED DOOR (HD MODELS ONLY)
The heated-door feature is designed to prevent condensation from forming on the glass doors.
If you have purchased a HD or B-HD single zone variant of an SK bar fridge, you can
enable/disable the HEATED DOOR mode easily.
Simply press and hold the button for 5 seconds. A light will display below the Raindrop
symbol in top centre-right of the display to indicate it is enabled.
LIGHTING
Press the button to turn the fridge lighting on/off.
WHITE/BLUE LED
Our SK models have both white and blue LED light strips. To switch between the 2 colours,
press the big silver button that is located next to the controller.
COMPRESSOR ON
The
Refrigeration LED will display as solid when the fridge is actively cooling and will display
as nothing when the compressor is not engaged.
The LED will flash when the fridge is in its ‘delay’ phase. This is a safety feature which delays
the starting of the compressor by roughly 5 minutes.
DEFROST
The display will show dEF when the fridge is actively defrosting. You can manually start/stop
defrosting by pressing and holding the ‘light’ button for 6 seconds.
LOCK CONTROLLER
• To lock the parameters, press and hold the ‘down’ button for 6 seconds, if ‘OFF’
is displayed, the parameters are locked and cannot be adjusted.
• To unlock the parameters, press and hold the ‘down’ button for 6 seconds, if
‘ON’ is displayed, the parameters are unlocked and can be adjusted.
12 | Page

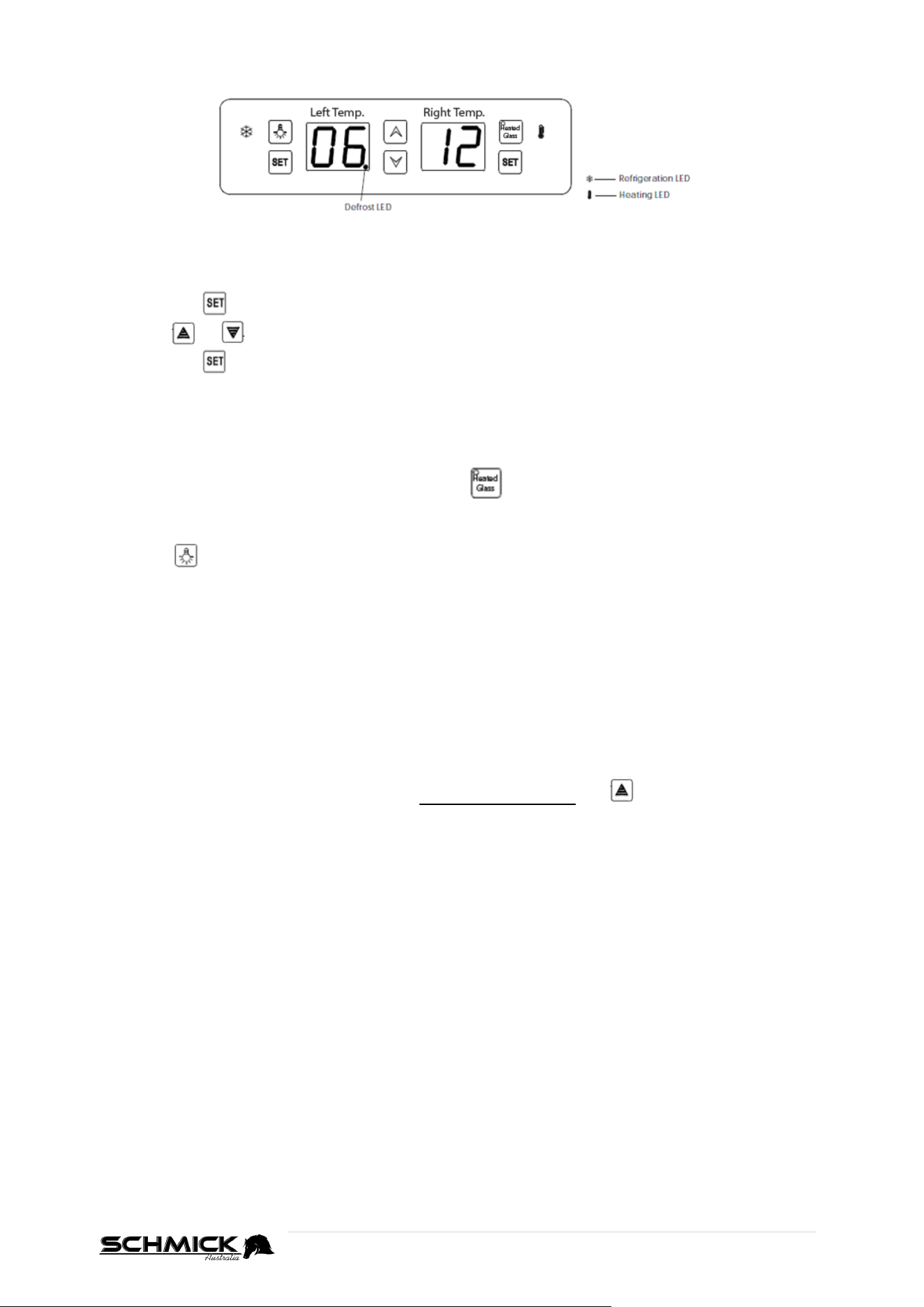

OPERATION AND TEMPERATURE CONTROL (SF-304P-1)
– DUAL ZONE ONLY
SET TEMPERATURE ADJUSTMENT
(Compressor stop temperature)
• Press the button to display the set temperature.
• Press or buttons to modify and store the displayed value.
• Press the button again to exit the adjustment and display the current fridge
temperature.
If no more button is pressed within 6 seconds, the fridge temperature will be displayed.
HEATED DOOR MODELS
To turn the heated door feature on/off press the (Heated Glass) button.
LIGHTING
Press the button to turn the fridge lighting on/off.
COMPRESSOR ON
The
Refrigeration LED will light up when the fridge is actively cooling and will not light up
when the compressor is not engaged.
The LED will flash when the fridge is in its ‘delay’ phase. This is a safety feature which delays
the starting of the compressor by roughly 5 minutes.
DEFROST
The
Defrost LED will display as solid when the fridge is actively defrosting.
You can manually start/stop defrosting by pressing and holding the button for 6 seconds.
TIP: After changing the temperature setting, it will take some time before the fridge
reachs a balance across the whole compartment. How long this takes will depend on
the ambinent temperature, the amount of drink/s stored inside, and how often the
door is opened.
13 | Page
HEATED BODY SWITCH
All model variants of an SK bar fridge (from 2025 ) will have a switch at the rear of the fridge
that controls the heated body.
Occasionally, condensation may form around the front edge of the fridge body. This is a
reaction that is caused when warm, humid air makes contact a cold surface, which makes bar
fridges the perfect condenser in areas of high humidity. The heated-body feature is designed
to prevent the condensation from forming on front edges of the bar fridge.
This can be controlled by switching the heated body on/off when requried.
For further information/explanations regarding our bar fridge door configurations, please see
our “Condensation PDF”, which can be found on our website.
VERSATILE SHELVING / ACCESSORIES
SK fridges have a wide range of versatile shelving available that allows you to;
• Adjust shelving height up or down.
WINE SHELVES
• Swap the standard flat beer shelving with special wine shelving, which has low-vibration
rubber saddles that “cradle” the bottles, stopping them from rolling on the shelves.
ROLLER SHELVES
• Swap to roller shelves, that keep your fridge organised with these specially designed
rollers! With fully adjustable dividers these can be setout to suit cans and stubbies/bottles
of different sizes.
PULL OUT/SLIDE OUT SHELVING
• Swap to slide-out shelving, that can also be purchased to allow you to reach contents on
the rear of the shelf easily. These can be found on our website.
(12v or
24 v)
(dependant on model)
14 | Page
HOW TO ADJUST / CHANGE SHELF CONFIGURATION

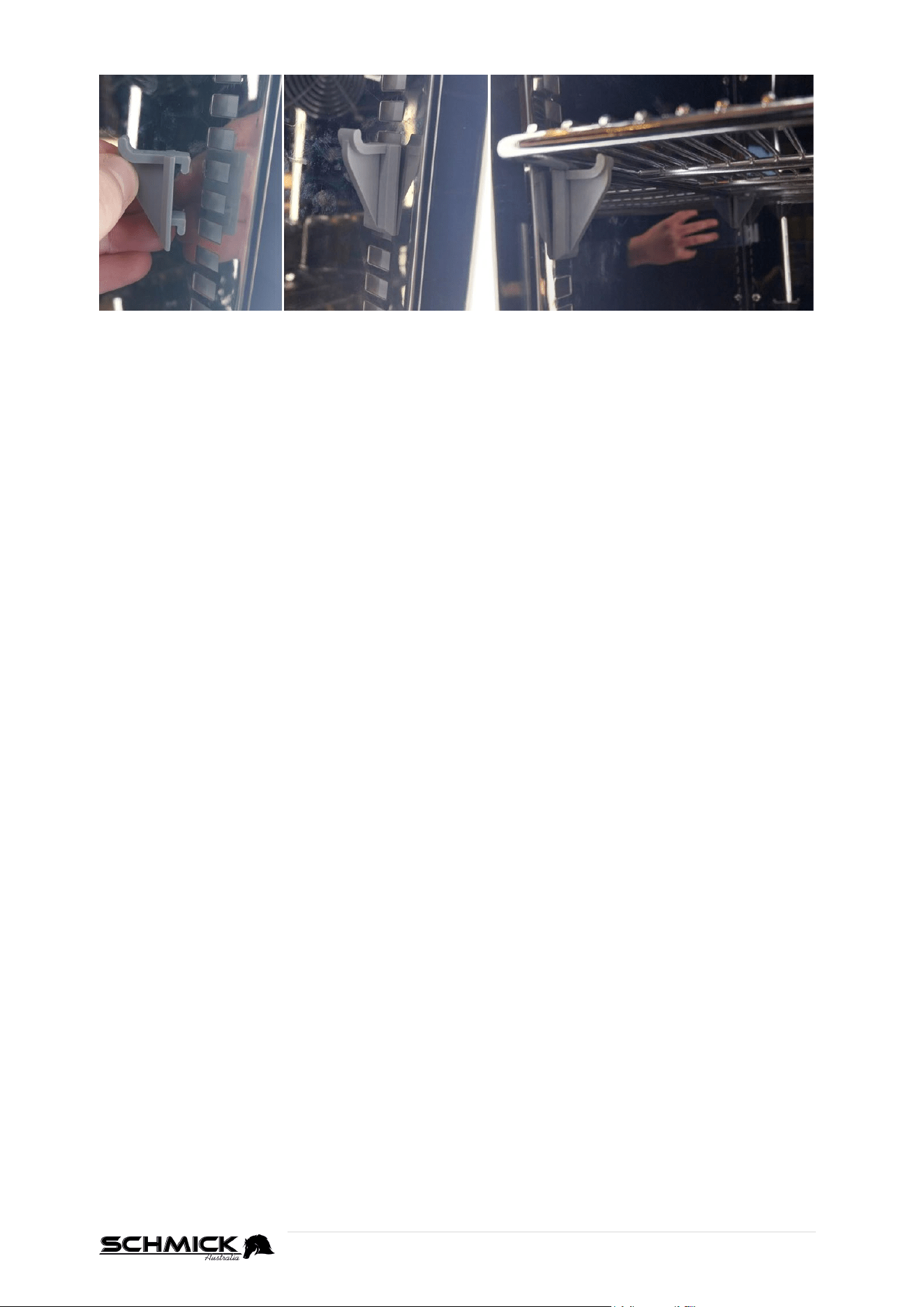

• Remove the shelf and place the 4x clips at your desired height, one in each corner,
ensuring they are all in level with each other.
Once all 4x clips are in position, place the shelf ontop of the clips.
WINE SHELVES (Optional Extra)
The wine shelving has patented movable rubber saddles to rest wine bottles on. These allow
you to place the bottles in any position, so you do not have bottles touching each other and
clanking.
PULL OUT/SLIDE OUT SHELVES (Optional Extra, or Where Installed)
• Make sure the door is opened all the way, to prevent damaging a door seal/gasket, before
pulling the shelves out of their track.
• For easy access to the storage content, you must pull the shelves approximately 1/3 out of
the track.
• This unit was designed with a notch on each sides of the shelf tracks, to prevent bottles
from falling.
• Avoid overcrowding the shelves, as this will reduce air flow, and therefore efficiency.
15 | Page

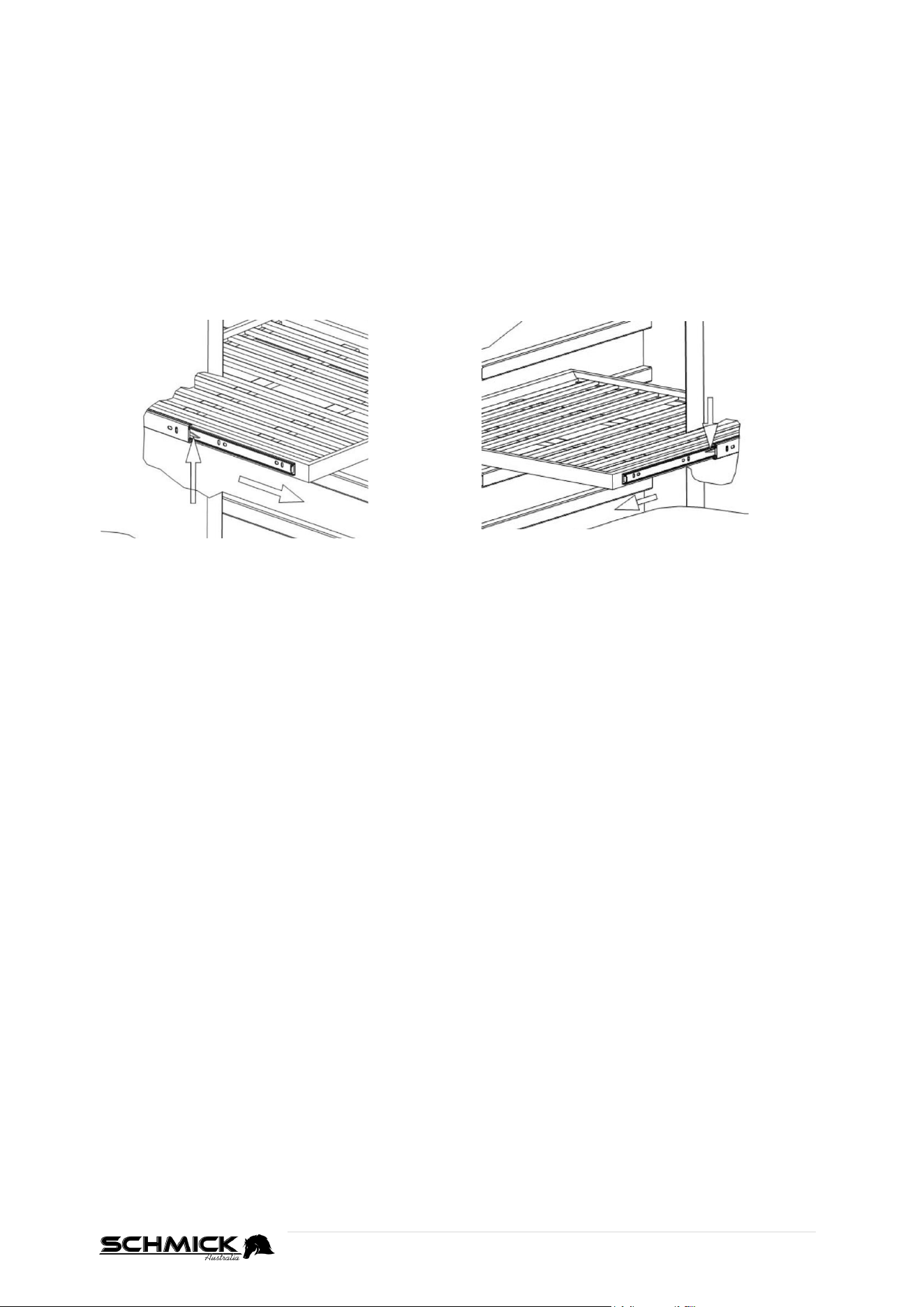

TO REMOVE A SLIDE OUT SHELF
Slide out shelving is unique with the beer and wine matching units, you can interchange beer
for wine and wine for beer.
Please refer to the following directions to replace a shelf with a different option.
• First, slide the shelf out to the furthest point, ensuring the door is WIDE open.
You will notice 2x flippers located on either side of the shelf on the rail.
• Position both hands on either side of the shelf so that your fingers can rest on both
flippers.
• On the RIGHT-HAND side, push the flipper DOWN.
• On the LEFT-HAND side, pull the flipper UP.
• While holding the flippers like this, you can pull the shelf all the way out and remove it
from the fridge.
TIPS
• Don’t be scared to pull hard, sometimes it seems tight.
• Push and Pull the flippers like explained as tight as you can.
• Make sure door is fully open at least 90°, or it’s hard to get fingers in right position.
TO RE-INSERT A SHELF (AT SAME HEIGHT)
• The support rail inside the fridge & silver bracket the shelf sits inside are both ‘C’ shaped.
• Make sure both sides of the shelf sit inside this correctly.
• You can use your finger to slide the silver bracket to the front of the support rail.
• You must also make sure that the sides of the shelf sit inside the silver bracket.
• Once the shelf is inside both the black railing & silver bracket, you can push the shelf into
the fridge, locking it into the railing.
ROLLER SHELF INSTALL TIPS
Our optional roller shelves, available for some models only, can be installed on the existing grey
plastic shelf clips. However, they do require a slight incline for them to work as intended. It is
recommended that the front clip is 2 spaces lower than the rear clip.

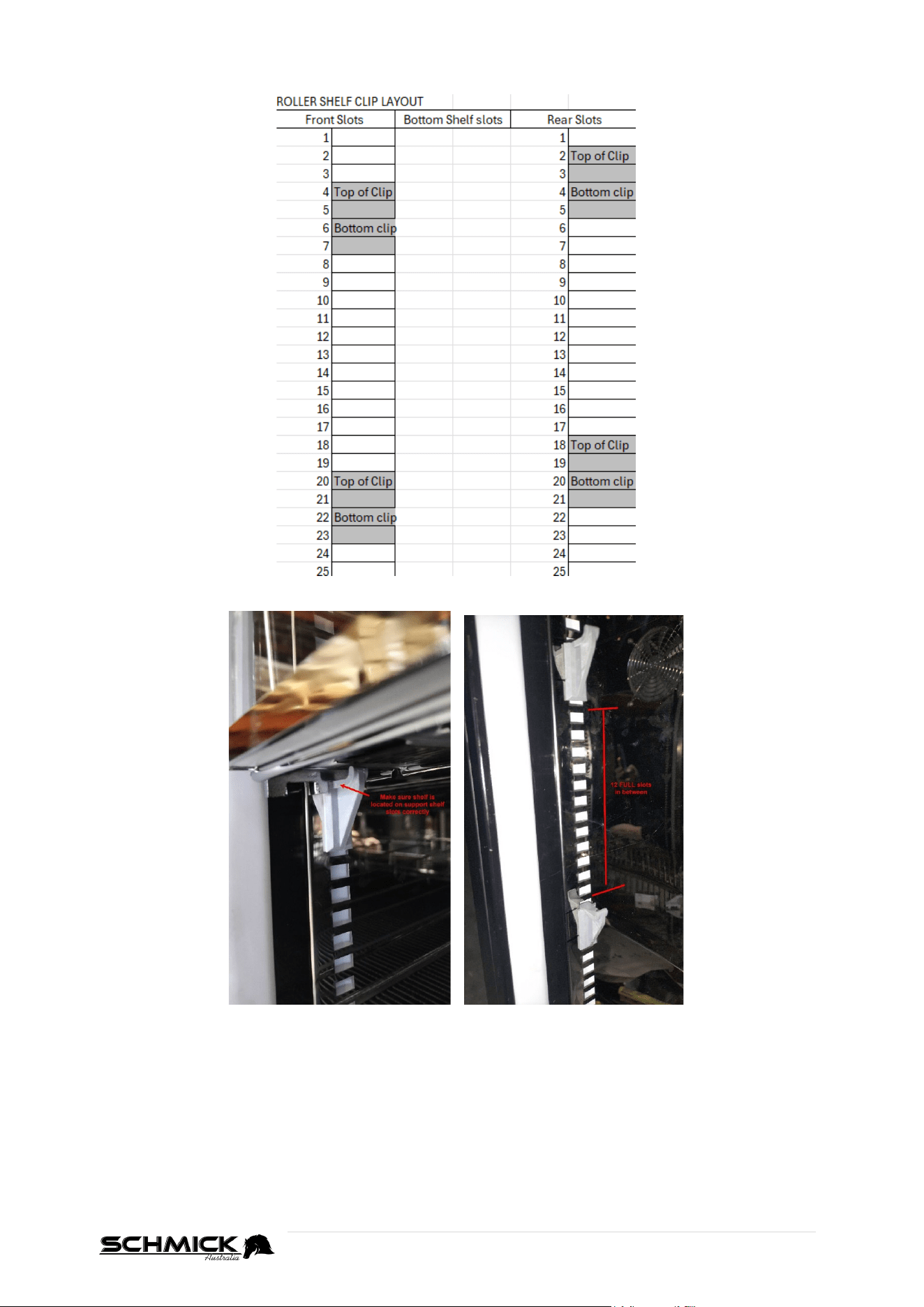

To fit a standard 375ml can between each shelf, allow 12 empty adjustment holes, as per the
picture below.
16 | Page
Use the following table as a guide. As each fridge model is different, different layouts may be
requried to maximise capacity.
Ensure the metal support shelf, is located correctly on the grey shelf clip.
Allow 12 empty spaces between clips, to fit a standard 375ml can between each shelf
17 | Page
LOADING YOUR FRIDGE – ENSURE AIR FLOW
OPTIUM COOLING PERFORMANCE AND ENERGY EFFICIENCY

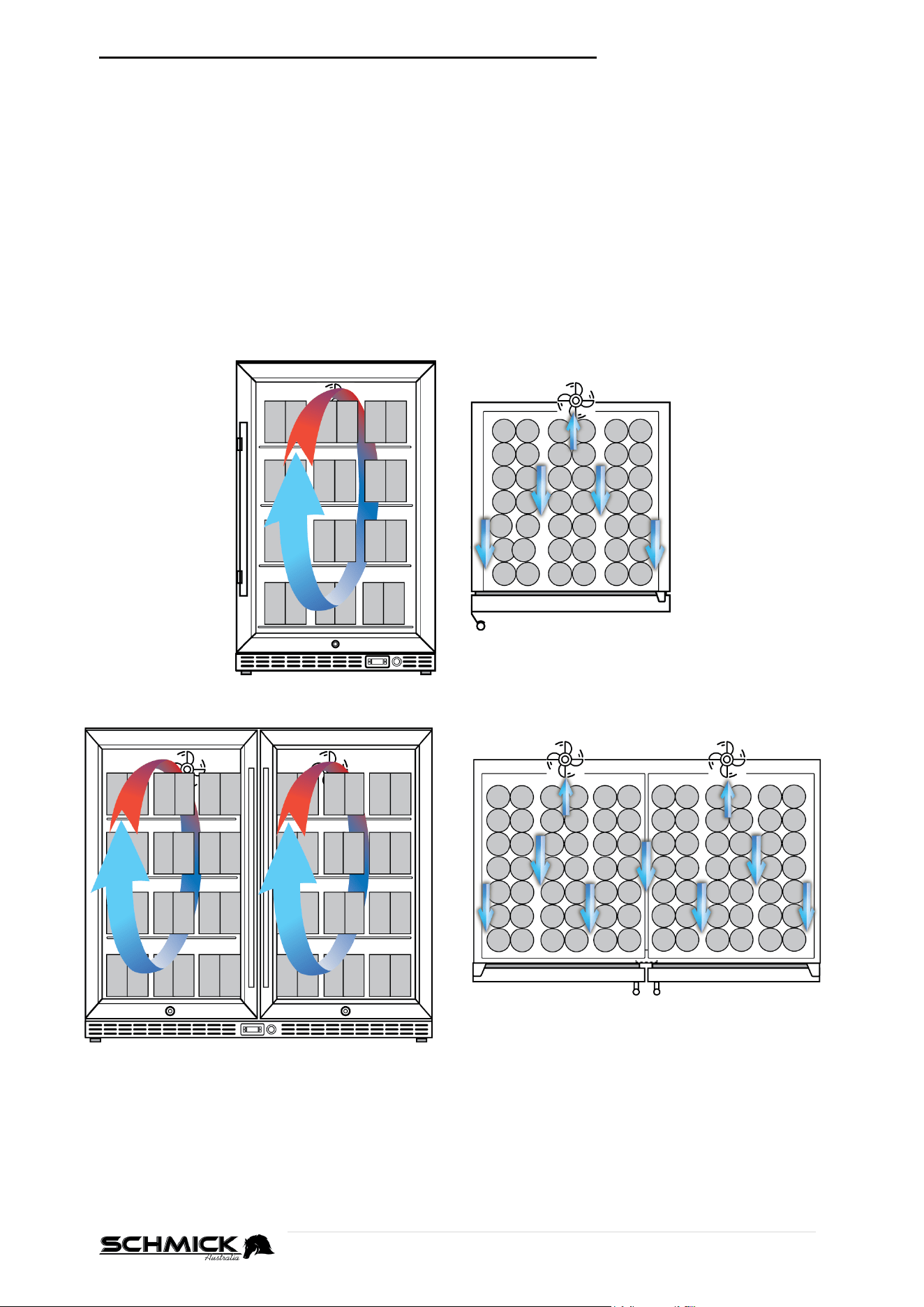

To achieve the optium cooling performance we recommend leaving a small air gap between the
fridge walls, and your drinks. Further, we encourage an additional 10mm gap for every 2
cans/bottles, to ensure the cool air from the inner fan, can circulate efficiently through out.
Additionally, make sure no drinks are touching or blocking the rear fan and vents on the rear
wall.
Not overloading your fridge, by ensuring these small air gaps, allows your fridge to cool more
efficiently, which leads to reduced energy consumption throughout the cooling cycle.
DO NOT OVERLOAD YOUR DRINKS FRIDGE.
THIS WILL MAKE THE FRIDGE WORK HARDER, AND ULTIMATELY REDUCE THE LIFESPAN OF
THE WORKING PARTS .
18 | Page
PROBLEMS WITH YOUR SCHMICK SK BEVERAGE FRIDGE
TROUBLE SHOOTING / BASIC INFO
There are basic things you need to look and check before trying to initiate a technician call out
for warranty circumstances.
KNOWLEDGE BASE
This link to our Knowledge Base may be able to assist you with troubleshooting.
https://www.bar-fridges-australia.com.au/knowledgebase
TEMPERATURE FLUCTUATIONS ON THE DIGITAL DISPLAY.
Don’t worry, this is most likely normal cycling operation of your bar fridge. The temp should
cycle with a 4-5°C variance.
Meaning, if you have your fridge set at 0°C, the temperature will cycle between 4/5°C and 0°C.
(ie: the compressor will turn on at 4/5°C, and pull down to 0°C (the set temp) before turning
off)
There are parameters set in the controller, including set off/non-running times, to protect the
compressor. Please do not change from factory settings.
NOISE
If your unit has become noisy, please check the following;
Can you ascertain exactly where the noise is coming from? It may be a loose screw or part
of the fridge that is now vibrating and is easy to fix.
Is the compressor / fridge level, a compressor not level will make a ‘clunking’ noise on start-
up and shut down.
Does the fan sound noisy? It may be as simple as needing slight adjustment or you may see
ice build up near the fan inside.
A slight sound may be heard when the liquid refrigerant circulates - This is normal.
A slight sound may be heard when defrosted water drops into the drip tray.
NOTE: The compressor and fans will run for longer periods if excessive quantities of food / drink
are stored or the ambient temperature is high.
NOT COOLING
All of a sudden unit has stopped cooling.
Have you got the controller set correctly? Or has it been altered or changed.
Is ECO Mode enabled? ECO mode will make the fridge operate at 4°C warmer than the set
point.
If set at 0°C and ECO mode is turned on the fridge will cycle between 4°C and 8°C.
Not 0°C and 4°C as it would with ECO mode was turned off.
Is your door sealing properly, check all the way around door seal to make sure it is seating
correctly on fridge body, small gaps won’t affect cooling.
Check inner and rear fans are going
– If you can NOT see the individual blades stationary, the fans will be running
Does the compressor run? Make sure compressor is running. If it is running and still not
cooling and you have a warm fridge, please turn off your fridge, and call our service
department, as you may need a technician - 1300 376 849 (1300 FROTHY).
19 | Page
TROUBLESHOOTING GUIDE
You can solve many common beverage fridge problems easily, saving you the cost of a
possible service call. If you can, try the following suggestions to see if you solve the problem
before calling.
PROBLEM
POSSIBLE CAUSE
REMEDY
Beverage fridge
does not power
on
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown
fuse.
Connect the appliance.
Switch on the appliance.
Replace the broken fuse in your fuse box
or reset the breaker. Make sure the
outlet has sufficient amperage.
Beverage fridge
is not cold
enough
Check the temperature control
setting.
External environment may require a
higher setting.
The door is open too often.
The door is not closed completely.
The door seal does not seal properly.
Check the set temperature.
Set to a lower temperature.
Do not open door more often than
necessary.
Close door properly.
Check the seal and clean or replace.
Clean the condenser when necessary.
Clear the obstructions and wipe off the
dust.
Turns on and off
frequently
The room temperature is hotter than
normal.
Overload of the cabinet.
The door is open too often.
The door is not closed completely.
The temperature control is not set
correctly.
The door seal does not seal properly.
Put the appliance in a cooler place.
Leave the appliance to work for a while
until the set temperature has been
reached.
Do not open the appliance more often
than necessary.
Close the door properly.
Check the all door seals are clean, seal
correctly or replace it.
The light does
not work
Not plugged in.
The circuit breaker tripped or a blown
fuse.
The bulb has burned out.
The light button is “OFF”
Connect the appliance.
Switch on circuit breaker or replace fuse.
Switch on the light.
Vibrations
Check to ensure that the fridge is
level.
Level the appliance with the
adjustable feet.
Too much noise
The rattling noise may come from the flow of the refrigerant, which is normal.
As each cycle ends, you may hear gurgling.
Contraction and expansion of the inside walls may cause popping and crackling
noises.
The Beverage fridge is not level.
Check to make sure that the refrigerator
is level, and that it is not in contact with
another appliance or furniture.
The door will not
close properly
The door was reversed and not
properly installed.
The door seal is dirty.
The shelves are out of position.
Level the appliance with the adjustable
feet.
Clean the door seals.
Check the shelving is positioned flat and
correctly.
20 | Page
ERROR CODES
SINGLE ZONE MODELS – SF-102P Controller
Error Code
Error
HHH
Temp is too high (outside parameters)
LLL
Temp is too low (outside parameters)
DUAL ZONE MODELS – SF-304P-1 Controller
Error Code
Error
C1
Temp is too high (outside parameters)
C2
Temp is too low (outside parameters)
C4
Temp has been outside high low parameters for 60min +
HH
Inner Sensor ‘Short’ Circuit Or Temp Over 99o
LL
Inner Sensor ‘Open’ Circuit Or Temp Under -19o
COMPLIANCE
This product has been fully tested and meets all requirements as set out by electrical and
safety standards AS/NZS 60335.1 and AS/NZS 60335.2.24 or 60335.2.89.
All units have been MEPS tested and registered to ISO 23953-2 and F2020L01014 (2020)
The RCM Mark (Regulatory Compliance Mark) indicates that the product
complies with the relevant guidelines of the ACMA as well as corresponding
government requirements for the safety of electrical devices.
