Welcome
Congratulations on your purchase of a new
Honda motorcycle. Your selection of a
Honda makes you part of a worldwide family
of satisfied customers who appreciate
Honda's reputation for building quality into
every product.
To ensure your safety and riding pleasure:
● Read this owner's manual carefully.
● Follow all recommendations and
procedures contained in this manual.
● Pay close attention to safety messages
contained in this manual and on the
motorcycle.
To protect your investment, we urge you to
take responsibility for keeping your
motorcycle well serviced and maintained.
Also, observe the break-in guidelines, and
always perform the pre-ride inspection and
other periodic checks in this manual.
When service is required, remember that
your Honda dealer knows your motorcycle
best. If you have the required mechanical
“know-how” and tools, you can purchase an
official Honda Service Manual to help you
perform many maintenance and repair tasks.
2 P. 141
Read the warranty information thoroughly so
that you understand the warranty coverage
and that you are aware of your rights and
responsibilities. 2 P. 142
You may also want to visit our website at
www.powersports.honda.com.
Canada
www.honda.ca.
Happy riding!
20180222155238_31K0AA000_enu_BOOK Page 2 Thursday, February 22 2018 16:01:26 JST
A Few Words About Safety
Your safety, and the safety of others, is very
important. Operating this motorcycle safely is
an important responsibility.
To help you make informed decisions about
safety, we have provided operating
procedures and other information on safety
labels and in this manual. This information
alerts you to potential hazards that could
hurt you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a motorcycle. You
must use your own good judgment.
You will find important safety information in a
variety of forms, including:
● Safety labels on the motorcycle
●
Safety Messages preceded by a safety alert
symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:
3DANGER
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3WARNING
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3CAUTION
You CAN be HURT if you don’t follow
instructions.
Other important information is
provided under the following titles:
NOTICE
Information to help you avoid
damage to your motorcycle,
other property, or the
environment.
20180222155238_31K0AA000_enu_BOOK Page 3 Thursday, February 22 2018 16:01:26 JST
Safety Guidelines................................................. P. 3
Safety Labels.........................................................P. 7
Safety Precautions
............................................... P. 9
Riding Precautions ............................................ P. 10
Accessories & Modifications........................... P. 14
Loading ................................................................ P. 15
20180222155238_31K0AA000_enu_BOOK Page 5 Thursday, February 22 2018 16:01:26 JST
This section contains important information for safe riding of your motorcycle.
Please read this section carefully.
Motorcycle Safety
Safety Guidelines
Follow these guidelines to enhance your safety:
● Perform all routine and regular inspections
specified in this manual.
● Stop the engine and keep sparks and flame
away before filling the fuel tank.
● Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in
exhaust gases is toxic and can kill you.
Always Wear a Helmet
It's a proven fact: helmets and protective
apparel significantly reduce the number and
severity of head and other injuries. So always
wear an approved motorcycle helmet and
protective apparel. 2 P. 9
Before Riding
Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check
that you and your passenger are both wearing
an approved motorcycle helmet and protective
apparel. Instruct your passenger on holding
onto the seat strap or your waist, leaning with
you in turns, and keeping their feet on the
footpegs, even when the motorcycle is stopped.
Take Time to Learn & Practice
Even if you have ridden other motorcycles,
practice riding in a safe area to become familiar
with how this motorcycle works and handles,
and to become accustomed to the motorcycle's
size and weight.
20180222155238_31K0AA000_enu_BOOK Page 6 Thursday, February 22 2018 16:01:26 JST
Safety Guidelines
Motorcycle Safety
3
Continued
We recommend that all riders take a certified
course approved by the Motorcycle Safety
Foundation (MSF). New riders should start with
the basic course, and even experienced riders
will find the advanced course beneficial.
For information about the MSF training course
nearest you, call the national toll-free number:
(800) 446-9227.
USA
Other riding tips can be found in the You
and Your Motorcycle Riding Tips booklet that
came with your motorcycle.
Ride Defensively
Always pay attention to other vehicles around
you, and do not assume that other drivers see
you. Be prepared to stop quickly or perform an
evasive maneuver.
Make Yourself Easy to See
Make yourself more visible, especially at night,
by wearing bright reflective clothing, positioning
yourself so other drivers can see you, signaling
before turning or changing lanes, and using
your horn when necessary.
Ride within Your Limits
Never ride beyond your personal abilities or
faster than conditions warrant. Fatigue and
inattention can impair your ability to use good
judgment and ride safely.
Don't Drink and Ride
Alcohol and riding don't mix. Even one alcoholic
drink can reduce your ability to respond to
changing conditions, and your reaction time
gets worse with every additional drink. Don't
drink and ride, and don't let your friends drink
and ride either.
20180222155238_31K0AA000_enu_BOOK Page 7 Thursday, February 22 2018 16:01:26 JST
Safety Guidelines
Motorcycle Safety
4
Keep Your Honda in Safe Condition
It's important to keep your motorcycle properly
maintained and in safe riding condition.
Inspect your motorcycle before every ride and
perform all recommended maintenance. Never
exceed load limits (2 P. 15), and do not modify
your motorcycle or install accessories that
would make your motorcycle unsafe (2 P. 14).
If You are Involved in a Crash
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether it
is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable laws
and regulations if another person or vehicle is
involved in the crash.
If you decide to continue riding, first turn the
ignition switch to the OFF position, and evaluate
the condition of your motorcycle. Inspect for
fluid leaks, check the tightness of critical nuts
and bolts, and check the handlebar, control
levers, brakes, and wheels. Ride slowly and
cautiously.
Your motorcycle may have suffered damage
that is not immediately apparent. Have your
motorcycle thoroughly checked at a qualified
service facility as soon as possible.
20180222155238_31K0AA000_enu_BOOK Page 8 Thursday, February 22 2018 16:01:26 JST
Safety Guidelines
Motorcycle Safety
5
Continued
Carbon Monoxide Hazard
Exhaust contains poisonous carbon monoxide, a
colorless, odorless gas. Breathing carbon
monoxide can cause loss of consciousness and
may lead to death.
If you run the engine in confined or even partly
enclosed area, the air you breathe could
contain a dangerous amount of carbon
monoxide.
Never run your motorcycle inside a garage or
other enclosure.
3WARNING
Running the engine of your motorcycle
while in an enclosed or even partially
enclosed area can cause a rapid build-
up of toxic carbon monoxide gas.
Breathing this colorless, odorless gas
can quickly cause unconsciousness and
lead to death.
Only run your motorcycle's engine
when it is located in a well ventilated
area outdoors.
20180222155238_31K0AA000_enu_BOOK Page 9 Thursday, February 22 2018 16:01:26 JST
Safety Guidelines
Motorcycle Safety
6

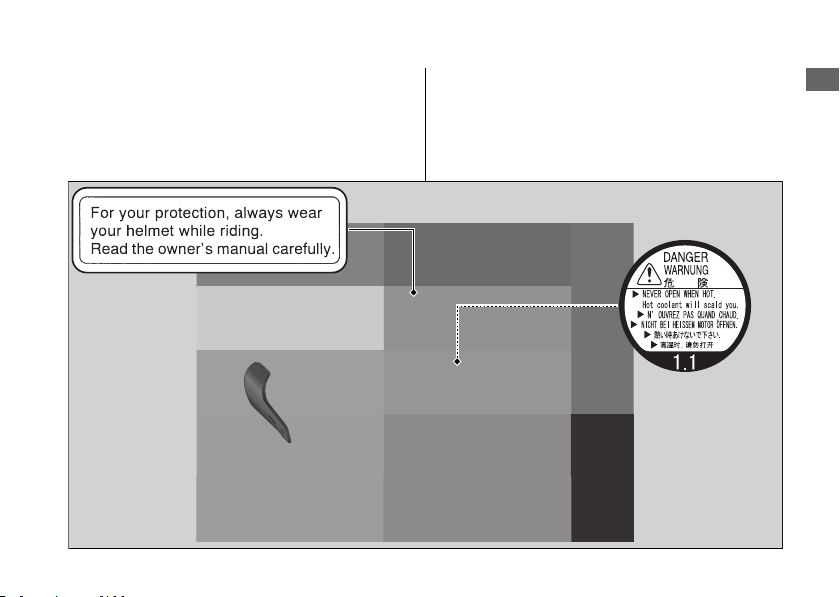

Safety Labels
Safety and information labels on your
motorcycle provide important safety
information and may warn you of potential
hazards that could cause serious injury. Read
these labels carefully and don't remove them.
If a label comes off or becomes hard to read,
contact your dealer for a replacement.
20180222155238_31K0AA000_enu_BOOK Page 10 Thursday, February 22 2018 16:01:26 JST
Safety Labels
Motorcycle Safety
7
Continued
20180222155238_31K0AA000_enu_BOOK Page 11 Thursday, February 22 2018 16:01:26 JST
Safety Labels
Motorcycle Safety
8
Safety Precautions
● Ride cautiously and keep your hands on the
handlebar and feet on the footpegs.
● Keep passenger's hands onto the seat strap
or your waist, passenger's feet on the
footpegs while riding.
● Always consider the safety of your
passenger, as well as other drivers and
riders.
Protective Apparel
Make sure that you and any passenger are
wearing an approved motorcycle helmet, eye
protection, and high-visibility protective
clothing. Ride defensively in response to
weather and road conditions.
#
Helmet
Should be safety-standard certified, high-
visibility, and correct size for your head
● Must fit comfortably but securely, with the
chin strap fastened.
● Face shield with unobstructed field of vision
or other approved eye protection
USA
Look for a DOT (Department of
Transportation) certification label on any helmet
you buy.
3WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Make sure that you and any passenger
always wear an approved helmet and
protective apparel.
#
Gloves
Full-finger leather gloves with high abrasion
resistance
20180222155238_31K0AA000_enu_BOOK Page 12 Thursday, February 22 2018 16:01:26 JST
Safety Precautions
Motorcycle Safety
9
Continued
#
Boots or Riding Shoes
Sturdy boots with non-slip soles and ankle
protection
#
Jacket and Pants
Protective, highly visible, long-sleeved jacket
and durable long pants for riding (or a
protective suit)
Riding Precautions
Break-in Period
During the first 300 miles (500 km) of running,
follow these guidelines to ensure your
motorcycle's future reliability and performance.
● Avoid full-throttle starts and rapid
acceleration.
● Avoid hard braking and rapid down-shifts.
● Ride conservatively.
Brakes
Observe the following guidelines:
● Avoid excessively hard braking and
downshifting.
u Sudden braking can reduce the
motorcycle's stability.
u Where possible, reduce speed before
turning; otherwise you risk sliding out.
20180222155238_31K0AA000_enu_BOOK Page 13 Thursday, February 22 2018 16:01:26 JST
Riding Precautions
Motorcycle Safety
10
● Exercise caution on low traction surfaces.
u The tires slip more easily on such
surfaces and braking distances are
longer.
● Avoid continuous braking.
u Repeated braking, such as when
descending long, steep slopes can
seriously overheat the brakes, reducing
their effectiveness. Use engine braking
with intermittent use of the brakes to
reduce speed.
● For full braking effectiveness, operate both
the front and rear brakes together.
#
Anti-lock Brake System (ABS)
CB300RA only
This model is equipped with an Anti-lock Brake
System (ABS) designed to help prevent the
brakes from locking up during hard braking.
The ABS functions with information provided by
the IMU (Inertia Measurement Unit).
● ABS does not reduce braking distance. In
certain circumstances, ABS may result in a
longer stopping distance.
● ABS does not function at speeds below 6
mph (10 km/h).
● The brake lever and pedal may recoil slightly
when applying the brakes. This is normal.
● Always use the recommended front/rear
tires and sprockets to ensure correct ABS
operation.
20180222155238_31K0AA000_enu_BOOK Page 14 Thursday, February 22 2018 16:01:26 JST
Riding Precautions
Motorcycle Safety
11
Continued
#
Engine Braking
Engine braking helps slow your motorcycle
down when you release the throttle. For further
slowing action, downshift to a lower gear. Use
engine braking with intermittent use of the
brakes to reduce speed when descending long,
steep slopes.
#
Wet or Rainy Conditions
Road surfaces are slippery when wet, and wet
brakes further reduce braking efficiency.
Exercise extra caution when braking in wet
conditions.
If the brakes get wet, apply the brakes while
riding at low speed to help them dry.
Parking
● Park on a firm, level surface.
● If you must park on a slight incline or loose
surface, park so that the motorcycle cannot
move or fall over.
● Make sure that high-temperature parts
cannot come into contact with flammable
materials.
● Do not touch the engine, muffler, brakes
and other high-temperature parts until they
cool down.
● To reduce the likelihood of theft, always lock
the handlebar and remove the key when
leaving the motorcycle unattended.
Use of an anti-theft device is also
recommended.
#
Parking with the Side Stand
1.
Stop the engine.
2.
Push the side stand down.
3.
Slowly lean the motorcycle to the left until its
weight rests on the side stand.
20180222155238_31K0AA000_enu_BOOK Page 15 Thursday, February 22 2018 16:01:26 JST
Riding Precautions
Motorcycle Safety
12
4.
Turn the handlebar fully to the left.
u Turning the handlebar to the right
reduces stability and may cause the
motorcycle to fall.
5.
Turn the ignition switch to the LOCK
position and remove the key. 2 P. 43
Refueling and Fuel Guidelines
Follow these guidelines to protect the engine,
fuel system and catalytic converter:
● Use only unleaded gasoline.
● Use recommended octane number. Using
lower octane gasoline will result in
decreased engine performance.
● Do not use fuels containing a high
concentration of alcohol. 2 P. 140
● Do not use stale or contaminated gasoline
or an oil/gasoline mixture.
● Avoid getting dirt or water in the fuel tank.
20180222155238_31K0AA000_enu_BOOK Page 16 Thursday, February 22 2018 16:01:26 JST
Riding Precautions
Motorcycle Safety
13
Accessories &
Modifications
We strongly advise that you do not add any
accessories that were not specifically designed
or approved for your motorcycle by Honda or
make modifications to your motorcycle from its
original design. Doing so can make it unsafe.
Modifying your motorcycle may also void your
warranty and make your motorcycle illegal to
operate on public roads and highways. Before
deciding to install accessories on your
motorcycle be certain the modification is safe
and legal.
3WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner's
manual regarding accessories and
modifications.
Do not pull a trailer with, or attach a sidecar to,
your motorcycle. Your motorcycle was not
designed for these attachments, and their use
can seriously impair your
motorcycle's handling.
20180222155238_31K0AA000_enu_BOOK
Page 17 Thursday, February 22 2018 16:01:26 JST
Accessories & Modifications
Motorcycle Safety
14
Loading
● Carrying extra weight affects your
motorcycle's handling, braking and stability.
Always ride at a safe speed for the load you
are carrying.
● Avoid carrying an excessive load and keep
within specified load limits.
Maximum weight capacity 2 P. 147
● Tie all luggage securely, evenly balanced
and close to the center of the motorcycle.
● Do not place objects near the lights or the
muffler.
3WARNING
Overloading or improper loading can
cause a crash and you can be seriously
hurt or killed.
Follow all load limits and other loading
guidelines in this manual.
20180222155238_31K0AA000_enu_BOOK Page 18 Thursday, February 22 2018 16:01:26 JST
Loading
Motorcycle Safety
15
Parts Location
20180222155238_31K0AA000_enu_BOOK Page 19 Thursday, February 22 2018 16:01:26 JST
Operation Guide
16
Engine oil level inspection
window
(P.84)
Throttle grip (P.101)
Coolant reserve tank cap/
dipstick (P.88)
Rear brake fluid reservoir
(P.90)
Engine oil fill cap (P.84)
Front brake fluid reservoir
(P.90)
Document bag (P.50)
Clutch lever (P.98)
Engine oil filter (P.86)
Right shroud (P.82)
Brake light switch (P.92)
Rear brake pedal
20180222155238_31K0AA000_enu_BOOK Page 20 Thursday, February 22 2018 16:01:26 JST
Operation Guide
17
Crankcase breather
(P.102)
Fuel fill cap (P.48)
Drive chain (P.94)
Side stand (P.93)
Shift lever (P.47)
Front seat (P.76)
Rear seat (P.81)
Engine oil drain bolt (P.86)
Battery (P.73)
Fuse boxes (P.121)
Helmet holders (P.49)
Drive chain slider (P.97)
Fuel tank cover (P.77)
Left shroud (P.82)
Rear suspension spring
preload adjuster (P.104)
Instruments
20180222155238_31K0AA000_enu_BOOK Page 21 Thursday, February 22 2018 16:01:26 JST
Operation Guide
18

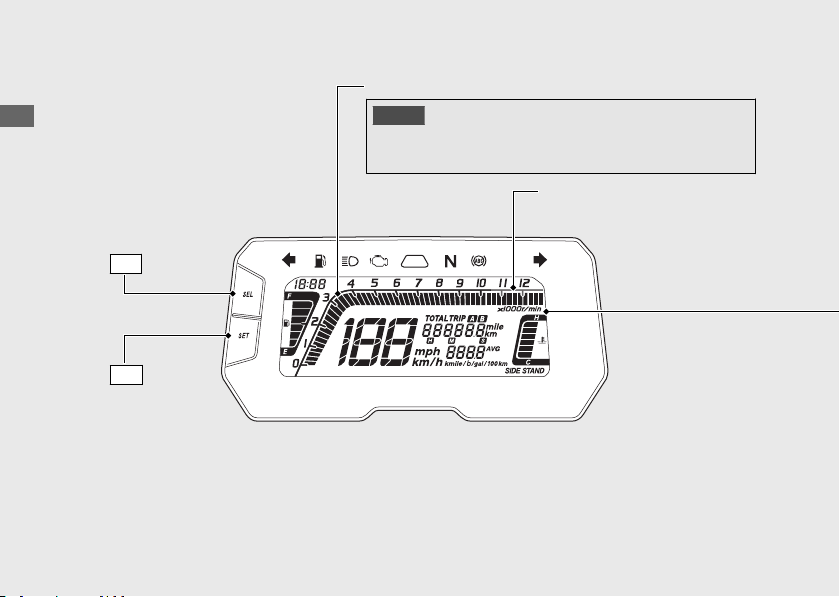

Tachometer
NOTICE
Do not operate the engine in the tachometer red zone.
Excessive engine speed can adversely affect engine life.
Tachometer red zone
(excessive engine rpm range)
SET
button
Display Check
When the ignition switch is turned to the ON position, all the mode and digital
segments will show. If any part of these displays does not come on when it should,
have your dealer check for problems.
SEL
button
20180222155238_31K0AA000_enu_BOOK Page 22 Thursday, February 22 2018 16:01:26 JST
Operation Guide
19
Continued

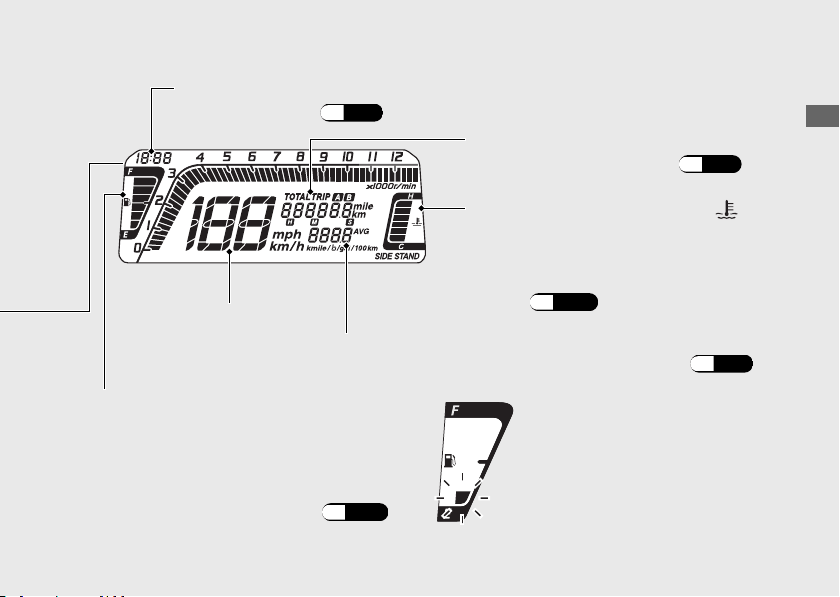

Remaining fuel when only 1st (E)
segment starts flashing: approximately
0.50 US gal (1.9 L)
Fuel gauge

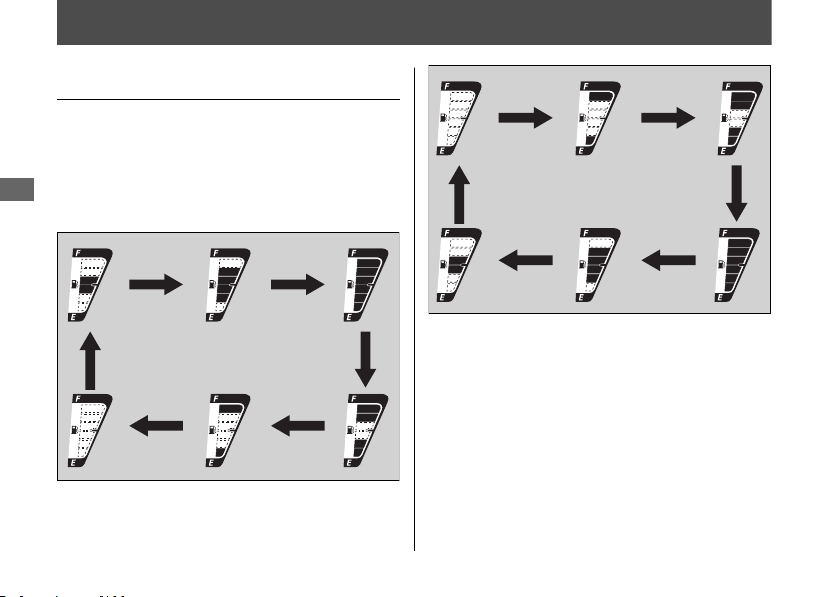

If the fuel gauge indicator flashes in a
repeat pattern or turns off:
(P.110)
Clock (12-hour display)
Speedometer
Coolant temperature gauge ( )
When the coolant is over specified
temperature, the segment H flashes.
To set the clock: (P.29)
Current fuel mileage, Average fuel mileage [AVG],
Fuel consumption, and Average speed [AVG] (P.24)
Odometer [TOTAL] & Tripmeter
[TRIP A/B] & Stopwatch (P.20)
If the segment H flashes while
riding: (P.107)
Odometer [TOTAL] & Tripmeter [TRIP A/B] & Stopwatch
The
SEL
button switches between the odometer, tripmeter A, tripmeter B, and stopwatch.
20180222155238_31K0AA000_enu_BOOK Page 23 Thursday, February 22 2018 16:01:26 JST
Operation Guide
20
Instruments (Continued)
Odometer Tripmeter A Tripmeter B
Stopwatch
#
Odometer [TOTAL]
Total distance ridden. When “
” is
displayed, go to your dealer for service.
#
Tripmeter [TRIP A/B]
Distance ridden since tripmeter was reset.
When “
” is displayed, go to your
dealer for service.
To reset the tripmeter: (P.22)
#
Stopwatch
Shows elapsed time since the
SET
button
was pushed to start the measurement.
Display range:
0H00M00.0S - 9H59M59.9S
• Above 9H59M59.9S back to 0H00M00.0S
To use the stopwatch:
(P.
23)
20180222155238_31K0AA000_enu_BOOK
Page
24 Thursday, February 22 2018 16:01:26 JST
Operation Guide
21
Continued
#
To reset the tripmeter [TRIP A/B],
average fuel mileage [AVG], fuel
consumption and average speed [AVG]
To reset the tripmeter A, average fuel
mileage A, fuel consumption A and average
speed A (these are based on tripmeter A)
together, press and hold the
SEL
button
while tripmeter A is displayed.
When they are reset, reset display appears at
each indication. Then, the display returns to
the last selected indication.
To reset the tripmeter B, average fuel
mileage B, fuel consumption B and average
speed B
(these are based on tripmeter B)
together, press and hold the
SEL
button
while tripmeter B is displayed.
When they are reset, reset display appears at
each indication. Then, the display returns to
the last selected indication.
20180222155238_31K0AA000_enu_BOOK Page 25 Thursday, February 22 2018 16:01:26 JST
Operation Guide
22
Instruments (Continued)
Current fuel
mile
age
or or
Fuel
consumption A
Average
speed A
Tripmeter A
or
Average fuel
m
ileage A
Current fuel
m
i
l
e
age
or or
Fuel
consumption B
Average
speed B
Tripmeter B
or
Average fuel
m
ileage B
Stopwatch
#
To Measure the Time
a
Select the stopwatch.
(P.20)
b
To start measurement, press the
SET
button.
u The measurement keeps going, if you
change an item while measuring.
c
To finish measurement, press the
SET
button.
u The measurement can also be finished
by turning the ignition switch to the OFF
position.
#
To Restart the Measurement
Press the
SET
button again. The stopwatch
restarts measurement.
#
To Reset the Measured Value
Press and hold the
SEL
button when the
stopwatch is displayed and also the
measurement is finished.
20180222155238_31K0AA000_enu_BOOK Page 26 Thursday, February 22 2018 16:01:26 JST
Operation Guide
23
Continued
Stopwatch
SET
button
SEL
button
Current fuel mileage, Average fuel mileage [AVG], Fuel consumption, and Average
speed [AVG]
The
SET
button switches between the current fuel mileage, average fuel mileage, fuel
consumption and average speed.
u The items cannot be switched by the
SET
button if the stopwatch is displayed.
20180222155238_31K0AA000_enu_BOOK Page 27 Thursday, February 22 2018 16:01:26 JST
Operation Guide
24
Instruments (Continued)
Current fuel
mileage
Average fuel
mileage
Fuel
consumption
Average
speed
#
Current fuel mileage
Displays the current instant fuel mileage.
Display range:
USA model
0.0 to 299.9 mile/gal (L/100km or
km/L)
Canada model
0.0 to 299.9 L/100km (km/L,
mile/gal or mile/L)
•
USA model
More than 299.9 mile/gal
(L/100km or km/L): “299.9” is displayed.
•
Canada model
More than 299.9 L/100km
(km/L, mile/gal or mile/L): “299.9” is
displayed.
• When your speed is less than 4 mph (6
km/h): “
” is displayed.
When “ ” is displayed except for the
above-mentioned cases, go to your dealer
for service.
#
Average fuel mileage [AVG]
Displays the average fuel mileage since the
selected tripmeter was reset.
The average fuel mileage will be calculated
based on value displayed on the tripmeter (A
or B) selected.
Also, the average fuel mileage for tripmeter
A will be displayed when the odometer,
tripmeter A, and stopwatch are selected.
Display range:
USA model
0.0 to 299.9 mile/gal (L/100km or
km/L)
Canada model
0.0 to 299.9 L/100km (km/L,
mile/gal or mile/L)
•
USA model
More than 299.9 mile/gal
(L/100km or km/L): “299.9” is displayed.
•
Canada model
More than 299.9 L/100km
(km/L, mile/gal or mile/L): “299.9” is
displayed.
20180222155238_31K0AA000_enu_BOOK Page 28 Thursday, February 22 2018 16:01:26 JST
Operation Guide
25
Continued
• When the tripmeter A or B is reset: “ ”
is displayed.
When “ ” is displayed except for the
above-mentioned cases, go to your dealer
for service.
To reset the average fuel mileage:
(P.22)
#
Fuel consumption
Displays the fuel consumption since the
selected tripmeter was reset.
The fuel consumption will be calculated
based on value displayed on the tripmeter (A
or B) selected.
Also, the fuel consumption for tripmeter A
will be displayed when the odometer,
tripmeter A, and stopwatch are selected.
Display range: 0.0 to 299.9 gal (gallon) or 0.0
to 299.9 L (liters)
• More than 299.9 gal (gallon) or 299.9 L
(liters): “299.9” is displayed.
When “
” is displayed, go to your dealer
for service.
To reset the fuel consumption: (P.
22)
20180222155238_31K0AA000_enu_BOOK
Page 29 Thursday, February 22 2018 16:01:26 JST
Operation Guide
26
Instruments (Continued)
#
Average speed
Displays the average speed since the selected
tripmeter was reset.
The average speed will be calculated based
on value displayed on the tripmeter (A or B)
selected.
Also, the average speed for tripmeter A will
be displayed when the odometer, tripmeter
A, and stopwatch are selected.
Display range: 0 to 124 mile/h (0 to 199 km/h)
• Initial display: “---” is displayed.
• When your motorcycle has traveled less
than 0.12 mile (0.2 km) since the engine
was started: “---” is displayed.
• When your motorcycle operating time is
less than 30 seconds since the engine was
started: “---” is displayed.
When “---” is displayed except for the above-
mentioned cases, go to your dealer for
service.
To reset the average speed:
(P.22)
20180222155238_31K0AA000_enu_BOOK Page 30 Thursday, February 22 2018 16:01:26 JST
Operation Guide
27
Continued
Display Setting
Setting Mode A
Following items can be changed sequentially. (P.29)
• Clock setting
• Backlight brightness adjustment
• Changing the speed and mileage unit
• Changing the fuel mileage meter unit
Setting Mode B
Following items can be changed sequentially. (P.33)
• Setting of REV indicator
(lighting RPM setting, lighting interval RPM setting, and brightness adjustment)
• Changing of tachometer display mode
20180222155238_31K0AA000_enu_BOOK Page 31 Thursday, February 22 2018 16:01:26 JST
Operation Guide
28
Instruments (Continued)
Setting Mode A
If the buttons are not pressed for about 30
seconds, the control is automatically switched
from the setting mode to the ordinary
display.
If the buttons are not pressed for about 30
seconds, items in the process of being set will
be discarded and only items that were set
and finalized will be applied. Only if the
ignition switch is turned to the OFF position,
items in the process of being set and those
that are finalized will be applied.
1 Clock setting:
a
Turn the ignition switch to the ON position.
b
Select the odometer, tripmeter A or
tripmeter B. (P.20)
c
Press and hold
SEL
and
SET
buttons until
the hour digits start flashing.
d
Press
SEL
button until the desired hour is
displayed.
u Press and hold
SEL
button to advance
the hour quickly.
20180222155238_31K0AA000_enu_BOOK Page 32 Thursday, February 22 2018 16:01:26 JST
Operation Guide
29
Continued
e
Press
SET
button. The minute digits start
flashing.
f
Press
SEL
button until the desired minute is
displayed.
u Press and hold
SEL
button to advance
the minute quickly.
g
Press
SET
button. The clock is set, and then
the display moves to the backlight
brightness adjustment.
2 Backlight brightness adjustment:
You can adjust the brightness to one of five
levels.
a
Press
SEL
button. The brightness is
switched.
b
Press
SET
button. The backlight is set, and
then the display moves to the changing the
speed and mileage unit. The speed and
mileage unit will start flashing.
20180222155238_31K0AA000_enu_BOOK Page 33 Thursday, February 22 2018 16:01:26 JST
Operation Guide
30
Instruments (Continued)
3 Changing the speed and mileage unit:
a
Press
SEL
button to select either "mph" and
"mile" or "km/h" and "km".
USA model
When selecting the “mph” and “mile”, the
fuel mileage unit shows only “mile/gal”
and the unit of the fuel consumption is
changed to "gal".
Canada model
When selecting the “mph” and “mile”, the
fuel mileage unit can be selected “mile/L”
or “mile/gal”.
b
When selecting the “mph” and “mile” in USA
model
Press
SET
button. The speed and mileage
unit is set, and then the display moves to
the ordinary display.
When selecting the “km/h” and “km” in all
models or “mph” and “mile” in Canada
model
Press
SET
button. The speed and mileage
unit is set, and then the display moves to
the changing the fuel mileage meter unit.
20180222155238_31K0AA000_enu_BOOK Page 34 Thursday, February 22 2018 16:01:26 JST
Operation Guide
31
Continued
4 Changing the fuel mileage meter unit:
a
When the “mph” for speed and “mile” for
mileage are selected
Press
SEL
button to select “mile/L” or
“mile/gal”.
u When "mile/gal" is selected, the unit of
the fuel consumption is changed to "gal".
When the “km/h” for speed and “km” for
mileage are selected
Press
SEL
button to select “km/L” or
“L/100km”.
b
Press
SET
button. The fuel mileage meter
unit is set, and then the display moves to the
ordinary display.
20180222155238_31K0AA000_enu_BOOK Page 35 Thursday, February 22 2018 16:01:26 JST
Operation Guide
32
Instruments (Continued)
Setting Mode B
If the buttons are not pressed for about 30
seconds, the control is automatically switched
from the setting mode to the ordinary
display.
If the buttons are not pressed for about 30
seconds, items in the process of being set will
be discarded and only items that were set
and finalized will be applied. Only if the
ignition switch is turned to the OFF position,
items in the process of being set and those
that are finalized will be applied.
1 Setting of REV indicator:
You can change the setting of the REV
indicator.
REV indicator blinks when setting.
20180222155238_31K0AA000_enu_BOOK Page 36 Thursday, February 22 2018 16:01:26 JST
Operation Guide
33
Continued
SET
button
SEL
button
Tachometer
REV indicator
Numerical
tachometer display
a
To change the setting mode B, turn the
ignition switch to the ON position while
pressing
SEL
button until the display check
is finished. The blinking bar segments in the
tachometer shows the current REV indicator
lighting RPM and the current numerical
tachometer setting is displayed.
u Tachometer bar segment is displayed as
a conventional display, regardless of set
up display method.
b
Each time
SEL
button is pressed, the
lighting RPM set value increase by
250 r/min (rpm) (one segment). When the
lighting RPM set value exceeds the allowable
range, the lighting RPM set value
automatically returns to 4,000 r/min (rpm).
u Press and hold
SEL
button to advance
the lighting RPM set value quickly.
Available Setting Range
4,000 -to- 10,500 r/min (rpm)
20180222155238_31K0AA000_enu_BOOK Page 37 Thursday, February 22 2018 16:01:26 JST
Operation Guide
34
Instruments (Continued)
c
Press
SET
button. The REV indicator lighting
RPM is set, and the display moves to the
setting of REV indicator lighting interval
RPM.
At the same time, the blinking bar
segment shows the current settings of the
REV indicator lighting RPM and the
numerical tachometer display shows the
current REV indicator lighting interval
RPM.
d
Each time
SEL
button is pressed, the
numbers of the REV indicator lighting
interval RPM advances in this order: 0 r/min
(rpm), 250 r/min (rpm), and 500 r/min (rpm).
20180222155238_31K0AA000_enu_BOOK Page 38 Thursday, February 22 2018 16:01:26 JST
Operation Guide
35
Continued
Tachometer
Numerical tachometer
display
Example: When REV indicator lighting RPM
setting is 10,000 r/min (rpm) and
REV indicator lighting interval RPM
is 250 r/min (rpm).
REV indicator r/min (rpm)
Blinks
(2 times/second)
9,250 r/min (rpm)
Blinks
(5 times/second)
9,500 r/min (rpm)
Blinks
(10 times/second)
9,750 r/min (rpm)
Solid light 10,000 r/min (rpm)
If the REV indicator lighting interval RPM is
set to 0, the REV indicator comes on when
reaching the lighting RPM set value.
e
Press
SET
button. The REV indicator lighting
interval RPM is set, and the display moves to
the brightness adjustment of the REV
indicator.
The REV indicator switches from blinking
light to a solid light.
f
Press
SEL
button. The brightness is
switched.
u You can adjust the brightness to one of
five levels.
g
Press
SET
button. The brightness of the REV
indicator is set, and the display moves to the
display setting of the tachometer.
20180222155238_31K0AA000_enu_BOOK Page 39 Thursday, February 22 2018 16:01:26 JST
Operation Guide
36
Instruments (Continued)
2 Changing of tachometer display
mode:
You can change the display mode of the
tachometer.
a
Press
SEL
button to switch the display
mode of tachometer.
b
Press
SET
button. The currently selected
display mode is set, and then the display
moves to the ordinary display.
Conventional display
Shows the engine RPM on the tachometer
bar segment.
Peak hold display
Shows the engine RPM on the tachometer
bar segment and peak hold segment.
The peak hold segment keeps to show the
maximum engine RPM temporarily.
Ex Engine revolutions per minutes
10,500 r/min (rpm)
20180222155238_31K0AA000_enu_BOOK Page 40 Thursday, February 22 2018 16:01:26 JST
Operation Guide
37
Conventional
display
Peak hold
display
Tachometer bar
segment
Peak hold
segment
Tachometer bar
segment

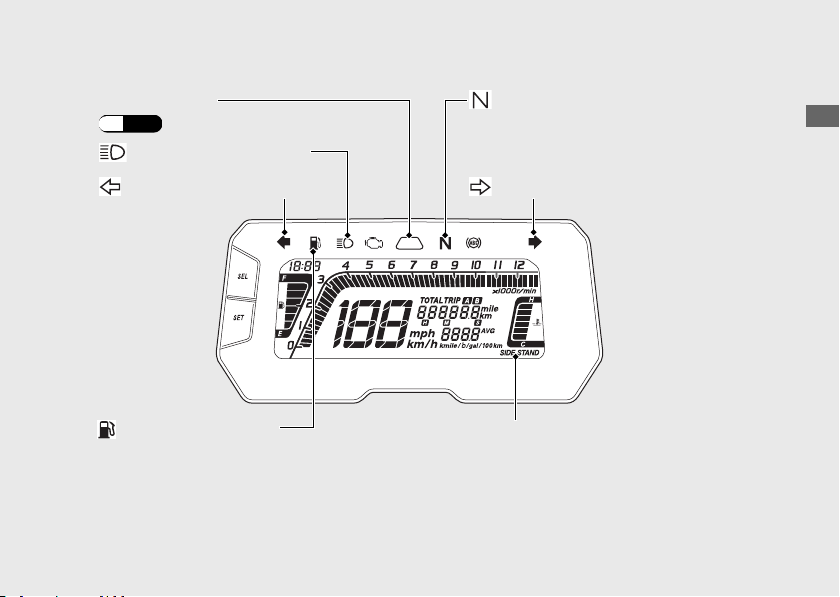

Indicators
20180222155238_31K0AA000_enu_BOOK Page 41 Thursday, February 22 2018 16:01:26 JST
Operation Guide
38
Comes on briefly when the ignition switch is
turned to the ON position with the engine stop
switch in the (Run) position.
If it comes on while engine is running:
(P.108)
PGM-FI (Programmed Fuel Injection)
malfunction indicator lamp (MIL)
If one of these indicators does not come on when it should, have your dealer check for
problems.
ABS (Anti-lock Brake System)
indicator
CB300RA only
Comes on when the ignition switch
is turned to the ON position.
Goes off when your speed reaches
approximately 6 mph (10 km/h).
If it comes on while riding:
(P.109)
20180222155238_31K0AA000_enu_BOOK Page 42 Thursday, February 22 2018 16:01:26 JST
Operation Guide
39
Continued
Right turn signal indicator Left turn signal indicator
High beam indicator
Neutral indicator
Comes on when the transmission is in
Neutral.
Low fuel indicator
Comes on when there is only reserve fuel left in
the fuel tank. Remaining fuel when low fuel
indicator comes on:
0.50 US gal (1.9 L)
REV indicator
(P.40)
SIDE STAND indicator
Comes on when the side stand
is lowered.
REV Indicator
• Comes on briefly when the ignition switch
is turned to the ON position.
Initial setting
Lighting RPM: 8,000 r/min (rpm)
Interval RPM: 250 r/min (rpm)
REV indicator r/min (rpm)
Blinks
(2 times/second)
7,250 r/min (rpm)
Blinks
(5 times/second)
7,500 r/min (rpm)
Blinks
(10 times/second)
7,750 r/min (rpm)
Solid light 8,000 r/min (rpm)
u Setting of REV indicator: (P.33)
20180222155238_31K0AA000_enu_BOOK Page 43 Thursday, February 22 2018 16:01:26 JST
Operation Guide
40
Indicators (Continued)
20180222155238_31K0AA000_enu_BOOK Page 44 Thursday, February 22 2018 16:01:26 JST
Operation Guide
41
BLANK PAGE
Switches
20180222155238_31K0AA000_enu_BOOK Page 45 Thursday, February 22 2018 16:01:26 JST
Operation Guide
42
Passing light control switch
Flashes the high beam headlight.
Headlight dimmer switch
• : High beam
• : Low beam
u Pressing the switch turns the
turn signal off.
Turn signal switch
Start button Horn button
Engine stop switch
Should normally remain in the
(Run) position.
u In an emergency, switch to the
(Stop) position (the starter
motor will not operate) to stop
the engine.
20180222155238_31K0AA000_enu_BOOK Page 46 Thursday, February 22 2018 16:01:26 JST
Operation Guide
43
Continued
Ignition switch
Switches the electrical system on/off,
locks the steering.
u Key can be removed when in the OFF or
LOCK position.
ON
Turns electrical system
on for starting/riding.
OFF
Turns engine off.
LOCK
Locks steering.
Steering Lock
Lock the steering when parking to help
prevent theft.
A U-shaped wheel lock or similar device is
also recommended.
#
Locking
a
Turn the handlebar all the way to the left.
b
Push the ignition key down, and turn the
ignition switch to the LOCK position.
u Jiggle the handlebar if the lock is difficult
to engage.
c
Remove the ignition key.
#
Unlocking
Insert the key, push it in, and turn the ignition
switch to the OFF position.
20180222155238_31K0AA000_enu_BOOK Page 47 Thursday, February 22 2018 16:01:26 JST
Operation Guide
44
Switches (Continued)
Push
Turn
Ignition key
Starting the Engine
Start your engine using the following
procedure, regardless of whether the engine
is cold or warm.
NOTICE
• If the engine does not start within 5 seconds,
turn the ignition switch to the OFF
position
and wait 10 seconds before trying to start
the engine again to recover battery voltage.
• Extended fast idling and revving the engine
can damage the engine, and the exhaust
system.
a
Make sure the engine stop switch is in the
(Run) position.
b
Turn the ignition switch to the ON position.
c
Shift the transmission to Neutral (
N
indicator to come on). Alternatively, pull in
the clutch lever to start your motorcycle with
the transmission in gear so long as the side
stand is raised.
d
With the throttle completely closed, press
the start button.
u
If you cannot start the engine, open the
throttle slightly (about 1/8 in (3 mm),
without freeplay) and press the start button.
20180222155238_31K0AA000_enu_BOOK Page 48 Thursday, February 22 2018 16:01:26 JST
Operation Guide
45
Continued
About 1/8 in (3 mm), without freeplay
If the engine does not start:
a
Open the throttle fully and press the start
button for 5 seconds.
b
Repeat the normal starting procedure.
c
If the engine starts, open the throttle slightly
if idling is unstable.
d
If the engine does not start, wait 10 seconds
before trying step a & b again.
#
If Engine Will Not Start
(P.106)
20180222155238_31K0AA000_enu_BOOK Page 49 Thursday, February 22 2018 16:01:26 JST
Operation Guide
46
Starting the Engine (Continued)
Shifting Gears
Your motorcycle transmission has 6 forward
gears in a one-down, five-up shift pattern.
If you put the motorcycle in gear with the
side stand down, the engine will shut off.
#
Recommended Shift Points
Shifting Up
From 1st to 2nd 12 mph (20 km/h)
From 2nd to 3rd 19 mph (30 km/h)
From 3rd to 4th 25 mph (40 km/h)
From 4th to 5th 31 mph (50 km/h)
From 5th to 6th 37 mph (60 km/h)
Shifting Down
From 6th to 5th 28 mph (45 km/h)
From 5th to 4th 22 mph (35 km/h)
From 4th to 3rd 16 mph (25 km/h)
NOTICE
Improper shifting can damage the engine,
transmission, and drive train. Also, coasting or
towing the motorcycle for long distances with
the engine off can damage the transmission.
20180222155238_31K0AA000_enu_BOOK Page 50 Thursday, February 22 2018 16:01:26 JST
Operation Guide
47
1
2
3
4
5
N
6
Refueling
Do not fill with fuel above the filler neck
plate.
Fuel type: Unleaded gasoline only
Recommended fuel octane number:
Pump Octane Number (PON) 86 or higher.
Tank capacity: 2.67 US gal (10.1 L)
#
Refueling and Fuel Guidelines
(P.13)
Opening the Fuel Fill Cap
Open the lock cover, insert the ignition key,
and turn it clockwise to open the fuel fill cap.
Closing the Fuel Fill Cap
a
After refueling, push the fuel fill cap closed
until it locks.
b
Remove the ignition key and close the lock
cover.
u The ignition key cannot be removed if
the fuel fill cap is not locked.
3WARNING
Gasoline is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.
• Stop the engine, and keep heat,
sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
20180222155238_31K0AA000_enu_BOOK Page 51 Thursday, February 22 2018 16:01:26 JST
Operation Guide
48
Ignition
key
Filler neck
plate
Fuel fill cap
Lock
cover
Storage Equipment
Helmet Holder
The helmet holders are located under the
rear seat.
u Use the helmet holder only when parked.
#
Removing the Rear Seat
(P.81)
3WARNING
Riding with a helmet attached to the
holder can interfere with your ability to
safely operate the motorcycle and
could lead to a crash in which you can
be seriously hurt or killed.
Use the helmet holder only while
parked. Do not ride with a helmet
secured by the holder.
20180222155238_31K0AA000_enu_BOOK Page 52 Thursday, February 22 2018 16:01:26 JST
Operation Guide
49
Continued
Helmet holders
Helmet D-ring
Document Bag
The document bag are located underside of
the rear seat by the rubber strap.
The 5 mm Hex wrench is stored in the
document bag.
#
Removing the Rear Seat
(P.81)
20180222155238_31K0AA000_enu_BOOK Page 53 Thursday, February 22 2018 16:01:26 JST
Operation Guide
50
Storage Equipment (Continued)
Document bag
Rubber strap 5 mm Hex wrench
Importance of Maintenance ........................... P. 52
Maintenance Schedule..................................... P. 54
Maintenance Record
......................................... P. 57
Maintenance Fundamentals ...........................P. 58
Removing & Installing Body Components..P. 73
Battery.................................................................... P. 73
Clip.......................................................................... P. 75
Front Seat.............................................................. P. 76
Fuel Tank Cover Assembly................................ P. 77
Fuel Tank Maintenance Position...................... P. 79
Rear Seat ...............................................................P. 81
Shroud....................................................................P. 82
Engine Oil ............................................................P. 84
Coolant.................................................................P. 88
Brakes................................................................... P. 90
Side Stand ...........................................................P. 93
Drive Chain..........................................................P. 94
Clutch ...................................................................P. 98
Throttle .............................................................. P. 101
Crankcase Breather......................................... P. 102
Other Adjustments.......................................... P. 103
Adjusting the Headlight Aim..........................P. 103
Adjusting the Rear Suspension...................... P. 104
20180222155238_31K0AA000_enu_BOOK Page 54 Thursday, February 22 2018 16:01:26 JST
Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully
before attempting any maintenance. Refer to “Specifications” for service data.
An optional larger tool kit may be available.
Check with your Honda dealer's parts department.
Maintenance
Importance of Maintenance
Importance of Maintenance
Keeping your motorcycle well-maintained is
absolutely essential to your safety and to
protect your investment, obtain maximum
performance, avoid breakdowns, and reduce air
pollution. Maintenance is the owner's
responsibility. Be sure to inspect your
motorcycle before each ride, and perform the
periodic checks specified in the Maintenance
Schedule. 2 P. 54
3WARNING
Improperly maintaining your
motorcycle or failing to correct a
problem before you ride can cause a
crash in which you can be seriously hurt
or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner's manual.
For information about the exhaust emission and
noise emission requirements of the U.S.
Environmental Protection Agency (EPA), the
California Air Resources Board (CARB), and the
Environment and Climate Change Canada
(ECCC). 2 P. 134
USA
Maintenance, replacement or repair of the
emission control devices and systems may
be performed by any motorcycle repair
establishment or individual using parts
that are “certified” to EPA standards.
20180222155238_31K0AA000_enu_BOOK Page 55 Thursday, February 22 2018 16:01:26 JST
Maintenance
52
Maintenance Safety
Always read the maintenance instructions
before you begin each task, and make sure that
you have the tools, parts, and skills required.
We cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide whether or
not you should perform a given task.
Follow these guidelines when performing
maintenance.
● Stop the engine and remove the key.
● Place your motorcycle on a firm, level
surface using the side stand or a
maintenance stand to provide support.
● Allow the engine, muffler, brakes, and other
high-temperature parts to cool before
servicing as you can get burned.
● Run the engine only when instructed, and
do so in a well-ventilated area.
20180222155238_31K0AA000_enu_BOOK Page 56 Thursday, February 22 2018 16:01:26 JST
Importance of Maintenance
Maintenance
53
Maintenance Schedule
The maintenance schedule specifies the
maintenance requirements necessary to
ensure safe, dependable performance, and
proper emission control.
Maintenance work should be performed in
accordance with Honda's standards and
specifications by properly trained and equipped
technicians. Your dealer meets all of these
requirements. All scheduled maintenance is
considered a normal owner operating cost and
will be charged to you by your dealer. Keeping
an accurate maintenance record will help
ensure your motorcycle is properly maintained.
2 P. 57
Make sure whoever performs the scheduled
maintenance completes the maintenance
record. Retain all service documents. If you sell
your motorcycle, these service documents
should be transferred with the motorcycle to
the new owner.
20180222155238_31K0AA000_enu_BOOK Page 57 Thursday, February 22 2018 16:01:26 JST
Maintenance
54
Items
Frequency
*1
× 1,000 mi 0.6 4 8 12 16 20 24
Regular
Replace
Refer to
page
× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Emission-Related Items
Fuel Line
–
Throttle Operation 101
Air Cleaner
*2
72
Crankcase Breather
*3
102
Spark Plug
Every 16,000 mi (25,600 km)
:
Every 32,000 mi (51,200 km)
:
–
Valve Clearance –
Engine Oil 1 Year 84
Engine Oil Filter 86
Engine Idle Speed –
Radiator Coolant
*5
3 Years 88
Cooling System –
Secondary Air Supply System –
Evaporative Emission Control System
*4
–
Maintenance Level Maintenance Legend
:
Intermediate. We recommend service by your dealer, unless
you have the necessary tools and are mechanically skilled.
Procedures are provided in an official Honda Service
Manual (2 P. 141).
:
:
:
:
Inspect (clean, adjust, lubricate, or replace, if necessary)
Clean
Replace
Lubricate
: Technical. In the interest of safety, have your
motorcycle serviced by your dealer.
20180222155238_31K0AA000_enu_BOOK Page 58 Thursday, February 22 2018 16:01:26 JST
Maintenance Schedule
Maintenance
55
Continued
Items
Frequency
*1
× 1,000 mi 0.6 4 8 12 16 20 24
Regular
Replace
Refer to
page
× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Non-Emission-Related Items
Drive Chain
Every 600 mi (1,000 km):
,
94
Brake Fluid
*5
2 Years 90
Brake Pads Wear 91
Brake System 58
Brake Light Switch 92
Headlight Aim 103
Clutch System 98
Side Stand 93
Suspension 104
Nuts, Bolts, Fasteners –
Wheels/Tires 68
Steering Head Bearings –
Notes:
*
1 : At higher odometer reading, repeat at the frequency interval established here.
*
2 : Service more frequently when riding in unusually wet or dusty areas.
*
3 : Service more frequently when riding in rain or at full throttle.
*
4 : 50 STATE (meets California).
*
5 : Replacement requires mechanical skill.
20180222155238_31K0AA000_enu_BOOK Page 59 Thursday, February 22 2018 16:01:26 JST
Maintenance Schedule
Maintenance
56
Maintenance Record
Distance Odometer Date Performed By: Notes
600 miles (1,000 km)
4,000 miles (6,400 km)
8,000 miles (12,800 km)
12,000 miles (19,200 km)
16,000 miles (25,600 km)
20,000 miles (32,000 km)
24,000 miles (38,400 km)
28,000 miles (44,800 km)
32,000 miles (51,200 km)
36,000 miles (57,600 km)
40,000 miles (64,000 km)
44,000 miles (70,400 km)
48,000 miles (76,800 km)
52,000 miles (83,200 km)
56,000 miles (89,600 km)
60,000 miles (96,000 km)
64,000 miles (102,400 km)
68,000 miles (108,800 km)
20180222155238_31K0AA000_enu_BOOK Page 60 Thursday, February 22 2018 16:01:26 JST
Maintenance
57
Maintenance Fundamentals
Pre-ride Inspection
To ensure safety, it is your responsibility to
perform a pre-ride inspection and make sure
that any problem you find is corrected. A pre-
ride inspection is a must, not only for safety, but
because having a breakdown, or even a flat tire,
can be a major inconvenience.
Check the following items before you get on
your motorcycle:
● Tire tread wear and air pressures are within
limits. 2 P. 68
● Lights, horn, and turn signals operate
normally.
● Check the condition of the drive chain.
Adjust slack and lubricate as needed. 2 P. 65
Check the following items if you are carrying a
passenger or cargo:
● Combined weight is within load limits.
2 P. 147
● Cargo is secured properly.
● Suspension is adjusted to suit load. 2 P. 104
Check the following items after you get on your
motorcycle:
● Throttle action moves smoothly without
binding. 2 P. 101
● Brake lever and pedal operate normally.
● Check the fuel level and refuel when
needed. 2 P. 13, 2 P. 48
● Engine stop switch functions properly.
2 P. 42
Check the following items at regular intervals:
● Oil level is between the upper and lower
level marks. 2 P. 84
● Brake fluid level is
Front: above the LWR level mark. 2 P. 90
Rear: between the UPPER and LOWER level
marks. 2 P. 90
● Engine coolant level is between the upper
and lower level marks. 2 P. 88
● Side stand functions properly. 2 P. 93
20180222155238_31K0AA000_enu_BOOK Page 61 Thursday, February 22 2018 16:01:26 JST
Maintenance
58
Tires and wheels
Check the air pressure (2 P. 68), examine tread for wear and damage
(2 P. 68), and check the wheels for damage.
Fluid levels
Check the engine oil level (2 P. 84), engine coolant level (2 P. 88),
and brake fluid level (2 P. 90).
Lights
Check that the headlight, brake light, taillight, turn signals and license
plate light are working properly.
Controls
Check the freeplay of the clutch lever (2 P. 98), and throttle grip
(
2 P. 101).
Drive chain
Check the slack (2 P. 94), adjust the slack (2 P. 95), and lubricate
(2 P. 66) as needed.
Fuses Check that you have a full supply of spare fuses.
Nuts & bolts Check the major nuts and bolts, and tighten as needed.
Periodic Checks
You should also perform other periodic
maintenance checks at least once a month
regardless of how often you ride, or more often
if you ride frequently.
Also, check the odometer reading against the
Maintenance Schedule and perform all
maintenance that is due. 2 P. 54
20180222155238_31K0AA000_enu_BOOK Page 62 Thursday, February 22 2018 16:01:26 JST
Maintenance Fundamentals
Maintenance
59
Replacing Parts
Always use Honda Genuine Parts or their
equivalents to ensure reliability and safety.
When ordering colored components, specify
the model name, color, and code mentioned on
the color label.
The color label is attached to the rear fender
under the rear seat. 2 P. 81
3WARNING
Installing non-Honda parts may make
your motorcycle unsafe and cause a
crash in which you can be seriously hurt
or killed.
Always use Honda Genuine Parts or
equivalents that have been designed
and approved for your motorcycle.
20180222155238_31K0AA000_enu_BOOK Page 63 Thursday, February 22 2018 16:01:26 JST
Maintenance Fundamentals
Maintenance
60
Color label
Battery
Your motorcycle has a maintenance-free type
battery. You do not have to check the battery
electrolyte level or add distilled water. Clean the
battery terminals if they become dirty or
corroded.
Do not remove the battery cap seals. There is
no need to remove the cap when charging.
NOTICE
An improperly disposed of battery can be
harmful to the environment and human health.
Always confirm local regulations for proper
battery disposal instruction.
#
What to do in an emergency
If any of the following occur, immediately see
your doctor.
● Electrolyte splashes into your eyes:
u Wash your eyes repeatedly with cool
water for at least 15 minutes. Using water
under pressure can damage your eyes.
● Electrolyte splashes onto your skin:
u Remove affected clothing and wash your
skin thoroughly using water.
● Electrolyte splashes into your mouth:
u Rinse mouth thoroughly with water, and
do not swallow.
3WARNING
The battery gives off explosive
hydrogen gas during normal operation.
A spark or flame can cause the battery
to explode with enough force to kill or
seriously hurt you.
Wear protective clothing and a face
shield, or have a skilled mechanic do
the battery servicing.
WARNING: Battery posts, terminals, and
related accessories contain lead and lead
compounds.
Wash your hands after handling.
20180222155238_31K0AA000_enu_BOOK Page 64 Thursday, February 22 2018 16:01:26 JST
Maintenance Fundamentals
Maintenance
61
Continued
#
Cleaning the Battery Terminals
1.
Remove the battery. 2 P. 73
2.
If the terminals are starting to corrode and
are coated with a white substance, wash
with warm water and wipe clean.
3.
If the terminals are heavily corroded, clean
and polish the terminals with a wire brush or
sandpaper. Wear safety glasses.
4.
After cleaning, reinstall the battery.
The battery has a limited life span. Consult your
dealer about when you should replace the
battery. Always replace the battery with another
maintenance-free battery of the same type.
#
Charging
If you use electrical accessories that drain the
battery or you do not ride frequently, we
recommend that you charge the battery every
30 days using a charger designed specifically for
your Honda, which can be purchased from your
dealer. Read the information that came with
your battery charger and follow the instructions
on the battery. Avoid using an automobile-type
battery charger, as these can overheat a
motorcycle battery and cause permanent
damage.
Make sure the ignition switch is in the OFF
position before charging the battery.
NOTICE
Improper charging can damage the battery. If
you can’t charge the battery or it appears unable
to hold a charge, contact your dealer.
20180222155238_31K0AA000_enu_BOOK Page 65 Thursday, February 22 2018 16:01:26 JST
Maintenance Fundamentals
Maintenance
62
NOTICE
Jump starting using an automobile battery can
damage your motorcycle's electrical system and
is not recommended. Bump starting is also not
recommended.
NOTICE
Installing non-Honda electrical accessories can
overload the electrical system, discharging the
battery and possibly damaging the system.
Fuses
Fuses protect the electrical circuits on your
motorcycle. If something electrical on your
motorcycle stops working, check for and
replace any blown fuses. 2 P. 121
#
Inspecting and Replacing Fuses
Turn the ignition switch to the OFF position to
remove and inspect fuses. If a fuse is blown,
replace with a fuse of the same rating. For fuse
ratings, see “Specifications.” 2 P. 149
NOTICE
Replacing a fuse with one that has a higher
rating greatly increases the chance of damage to
the electrical system.
If a fuse fails repeatedly, you likely have an
electrical fault. Have your motorcycle inspected
by your dealer.
20180222155238_31K0AA000_enu_BOOK Page 66 Thursday, February 22 2018 16:01:26 JST
Maintenance Fundamentals
Maintenance
63
Blown fuse
Engine Oil
Engine oil consumption varies and oil quality
deteriorates according to riding conditions and
time elapsed.
Check the engine oil level regularly, and add the
recommended engine oil if necessary. Dirty oil
or old oil should be changed as soon as
possible.
#
Selecting the Engine Oil
For recommended engine oil, see
“Specifications.” 2 P. 148
If you use non-Honda engine oil, check the
label to make sure that the oil satisfies all of the
following standards:
● JASO T 903 standard
*1
: MA
● SAE standard
*2
: 10W-30
● API classification
*3
: SG or higher
*1.
The JASO T 903 standard is an index for engine
oils for 4-stroke motorcycle engines. There are
two classes: MA and MB. For example, the
following label shows the MA classification.
*2.
The SAE standard grades oils by their viscosity.
*3.
The API classification specifies the quality and
performance rating of engine oils. Use SG or
higher oils, excluding oils marked as “Energy
Conserving” or “Resource Conserving” on the
circular API service symbol.
20180222155238_31K0AA000_enu_BOOK Page 67 Thursday, February 22 2018 16:01:26 JST
Maintenance Fundamentals
Maintenance
64
Oil code
Oil classification
Not recommended Recommended
Brake Fluid
Do not add or replace brake fluid, except in an
emergency. Use only fresh brake fluid from a
sealed container. If you do add fluid, have the
brake system serviced by your dealer as soon as
possible.
NOTICE
Brake fluid can damage plastic and painted surfaces.
Wipe up spills immediately and wash thoroughly.
Recommended brake fluid:
Honda DOT 3 or DOT 4 Brake Fluid or
equivalent
3WARNING
Clean filler cap before removing. Use
only DOT 3 or DOT 4 fluid from a
sealed container.
Drive Chain
The drive chain must be inspected and
lubricated regularly. Inspect the chain more
frequently if you often ride on bad roads, ride at
high speed, or ride with repeated fast
acceleration. 2 P. 94
If the chain does not move smoothly, makes
strange noises, has damaged rollers, has loose
pins, has missing O-rings, or kinks, have the
chain inspected by your dealer.
20180222155238_31K0AA000_enu_BOOK Page 68 Thursday, February 22 2018 16:01:26 JST
Maintenance Fundamentals
Maintenance
65
Continued
Also inspect the drive sprocket and driven
sprocket. If either has worn or damaged teeth,
have the sprocket replaced by your dealer.
NOTICE
Use of a new chain with worn sprockets will cause
rapid chain wear.
#
Cleaning and Lubricating
After inspecting the slack, clean the chain and
sprockets while rotating the rear wheel. Use a
dry cloth with chain cleaner designed
specifically for O-ring chains, or neutral
detergent. Use a soft brush if the chain is dirty.
After cleaning, wipe dry and lubricate with the
recommended lubricant.
Recommended lubricant:
Pro Honda HP Chain Lube or equivalent
20180222155238_31K0AA000_enu_BOOK Page 69 Thursday, February 22 2018 16:01:26 JST
Maintenance Fundamentals
Maintenance
66
Normal
(GOOD)
Worn
(REPLACE)
Damaged
(REPLACE)
Do not use a steam cleaner, a high pressure
cleaner, a wire brush, volatile solvent such as
gasoline and benzene, abrasive cleaner, chain
cleaner or lubricant NOT designed specifically
for O-ring chains as these can damage the
rubber O-ring seals.
Avoid getting lubricant on the brakes or tires.
Avoid applying excess chain lubricant to prevent
spray onto your clothes and the motorcycle.
Recommended Coolant
Pro Honda HP Coolant is a pre-mixed solution
of antifreeze and distilled water.
Concentration:
50% antifreeze and 50% distilled water
A concentration of antifreeze below 40% will
not provide proper corrosion and cold
temperature protection.
A concentration of up to 60% will provide better
protection in colder climates.
NOTICE
Using coolant not specified for aluminum
engines or tap/mineral water can cause
corrosion.
20180222155238_31K0AA000_enu_BOOK Page 70 Thursday, February 22 2018 16:01:26 JST
Maintenance Fundamentals
Maintenance
67
Crankcase Breather
Service more frequently when riding in rain, at
full throttle, or after the motorcycle is washed or
overturned. Service if the deposit level can be
seen in the transparent section of the drain
tube.
If the drain tube overflows, the air filter may
become contaminated with engine oil causing
poor engine performance. 2 P. 102
Tires (Inspecting/Replacing)
#
Checking the Air Pressure
Visually inspect your tires and use an air
pressure gauge to measure the air pressure at
least once a month or any time you think the
tires look low. Always check air pressure when
your tires are cold.
#
Inspecting for Damage
Inspect the tires for
cuts, slits, or cracks that
exposes fabric or
cords, or nails or other
foreign objects
embedded in the side
of the tire or the tread.
Also inspect for any unusual bumps or bulges in
the side walls of the tires.
#
Inspecting for Abnormal Wear
Inspect the tires for
signs of abnormal wear
on the contact surface.
20180222155238_31K0AA000_enu_BOOK Page 71 Thursday, February 22 2018 16:01:26 JST
Maintenance Fundamentals
Maintenance
68
#
Inspecting Tread Depth
Inspect the tread wear indicators. If they
become visible, replace the tires immediately.
For safe riding, you should replace the tires
when the minimum tread depth is reached.
3WARNING
Riding on tires that are excessively worn
or improperly inflated can cause a crash
in which you can be seriously hurt or
killed.
Follow all instructions in this owner's
manual regarding tire inflation and
maintenance.
20180222155238_31K0AA000_enu_BOOK Page 72 Thursday, February 22 2018 16:01:26 JST
Maintenance Fundamentals
Maintenance
69
Continued
Wear indicator
location mark
or TWI
Have your tires replaced by your dealer.
For recommended tires, air pressure and
minimum tread depth, see “Specifications.”
2 P. 148
Follow these guidelines whenever you replace
tires.
● Use the recommended tires or equivalents
of the same size, construction, speed rating,
and load range.
● Have the wheel balanced with Honda
Genuine balance weights or equivalent after
the tire is installed.
● Do not install a tube inside a tubeless tire on
this motorcycle. Excessive heat build-up can
cause the tube to burst.
● Use only tubeless tires on this motorcycle.
The rims are designed for tubeless tires, and
during hard acceleration or braking, a tube-
type tire could slip on the rim and cause the
tire to rapidly deflate.
3WARNING
Installing improper tires on your
motorcycle can adversely affect
handling and stability, and can cause a
crash in which you can be seriously hurt
or killed.
Always use the size and type of tires
recommended in this owner's manual.
20180222155238_31K0AA000_enu_BOOK Page 73 Thursday, February 22 2018 16:01:26 JST
Maintenance Fundamentals
Maintenance
70
Tire Service Life
The service life of your tires is dependent on
many factors, including, but not limited to,
riding habits, road conditions, vehicle loading,
tire air pressure, maintenance history, speed,
and environmental conditions (even when the
tires are not in use).
In addition to your regular inspections and
maintenance, it is recommended that you have
annual inspections performed once the tires
reach 5 years old. It is also recommended that
all tires be removed from service after 10 years
from the date of manufacture, regardless of
their condition or state of wear.
The last four digits of the TIN (tire identification
number) indicate the date of manufacture.
#
Tire Identification Number (TIN)
The tire identification number (TIN) is a group
of numbers and letters located on the sidewall
of the tire.
a b c
DOT XXXX XXXX 22 09
DOT: This indicates that the tire meets all
requirements of the U.S.
Department of Transportation.
a XXXX:
Factory code
b XXXX:
Tire type code
c 22 09: Date of manufacture (week & year).
Example: week 22 in year 09.
20180222155238_31K0AA000_enu_BOOK Page 74 Thursday, February 22 2018 16:01:26 JST
Maintenance Fundamentals
Maintenance
71
Tire Labeling Example
Tire identification
number (TIN)
Air Cleaner
This motorcycle is equipped with a viscous type
air cleaner element which cannot be cleaned
with compressed air or otherwise without
degrading its performance.
If the filter becomes dirty, replace it with a new
one.
20180222155238_31K0AA000_enu_BOOK Page 75 Thursday, February 22 2018 16:01:26 JST
Maintenance Fundamentals
Maintenance
72
Removing & Installing Body Components
Battery
#
Removal
Make sure the ignition switch is in the OFF
position.
1.
Raise the front of the fuel tank. 2 P. 79
2.
Disconnect the negative - terminal from
the battery.
3.
Remove the negative - cable from the
guide.
4.
Remove the bolt.
5.
Slide the battery band and remove it.
20180222155238_31K0AA000_enu_BOOK Page 76 Thursday, February 22 2018 16:01:26 JST
Maintenance
73
Continued

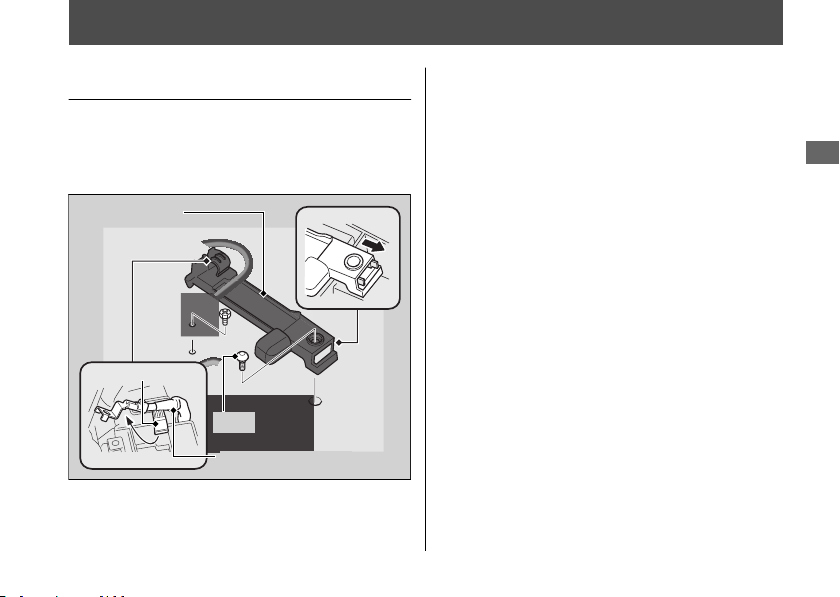

Bolt
Guide
Battery band
Negative cable
6.
Disconnect the positive + terminal from
the battery.
7.
Remove the battery taking care not to
drop the terminal nuts.
u Cover the handlebar holders with a
protective cloth to prevent the battery
terminals from scratching them.
#
Installation
Install the parts in the reverse order of
removal. Always connect the positive +
terminal first. Make sure that bolts and nuts
are tight.
Make sure the clock information is correct
after the battery is reconnected. 2 P. 29
For proper handling of the battery, see
“Maintenance Fundamentals.” 2 P. 61
“Battery Goes Dead.” 2 P. 118
20180222155238_31K0AA000_enu_BOOK Page 77 Thursday, February 22 2018 16:01:26 JST
Removing & Installing Body Components u Battery
Maintenance
74
Positive
terminal
Battery
Clip
#
Removal
1.
Press down on the center pin to release
the lock.
2.
Pull the clip out of the hole.
#
Installation
1.
Push the bottom of the center pin.
2.
Insert the clip into the hole.
3.
Press down on the center pin to lock the
clip.
20180222155238_31K0AA000_enu_BOOK Page 78 Thursday, February 22 2018 16:01:26 JST
Removing & Installing Body Components u Clip
Maintenance
75
Center pin
a b
a
b c
Front Seat
#
Removal
1.
Remove the rear seat. 2 P. 81
2.
Remove the mounting bolts and collars,
and then pull the front seat back and up.
#
Installation
1.
Insert the tab into the recess.
2.
Install the collars and mounting bolts.
3.
Tighten the mounting bolts securely.
Torque: 7 lbf·ft (10 N·m, 1.0 kgf·m)
u Make sure that the seat is locked
securely in position by pulling it up
lightly.
4.
Install the rear seat. 2 P. 81
20180222155238_31K0AA000_enu_BOOK Page 79 Thursday, February 22 2018 16:01:26 JST
Removing & Installing Body Components u Front Seat
Maintenance
76
Recess
Front seat Mounting bolts
Collars
Tab
Fuel Tank Cover Assembly
#
Removal
1.
Remove the front seat. 2 P. 76
2.
Remove the bolts A.
3.
Remove the bolts B, bolts C, collars,
bolt D and washer.
20180222155238_31K0AA000_enu_BOOK Page 80 Thursday, February 22 2018 16:01:26 JST
Removing & Installing Body Components u Fuel Tank Cover Assembly
Maintenance
77
Continued
Bolts A
Washer
Bolts C
Bolts B
Bolt D
Collars
4.
Remove the prongs from the grommets
and release the slots from the tabs.
5.
Carefully widen the both ends of the fuel
tank cover assembly and remove it.
u Be careful not to apply weight to the
fuel tank cover assembly.
#
Installation
1.
Install the fuel tank cover assembly in the
reverse order of removal.
2.
Tighten the bolts C and bolt D securely.
Torque: 7 lbf·ft (10 N·m, 1.0 kgf·m)
3.
Tighten the bolts A and bolts B securely.
Torque: 3.1 lbf·ft (4.2 N·m, 0.4 kgf·m)
4.
Install the front and rear seat. 2 P. 76
20180222155238_31K0AA000_enu_BOOK Page 81 Thursday, February 22 2018 16:01:26 JST
Removing & Installing Body Components u Fuel Tank Cover Assembly
Maintenance
78
Tabs
Prong
Slots
Fuel tank cover
assembly
Grommets
Prong
Fuel Tank Maintenance
Position
The front of the fuel tank can be tilted up for
maintenance.
The fuel tank does not require draining.
#
Raising The Fuel Tank
1.
Place the motorcycle on its side stand on
a firm, level surface with the transmission
in neutral and turn the ignition switch to
the OFF position.
Check that the fuel fill cap is closed.
2.
Settle the handlebar straight ahead.
3.
Remove the fuel tank cover assembly.
2 P. 77
4.
Remove the mounting bolts and collars
on both sides.
5.
Raise the front of the fuel tank.
20180222155238_31K0AA000_enu_BOOK Page 82 Thursday, February 22 2018 16:01:26 JST
Removing & Installing Body Components u Fuel Tank Maintenance Position
Maintenance
79
Continued
Mounting bolt
Collar
6.
Pull the tab of the battery cover and open
it.
u After the battery cover is opened,
push down the hinge part to lock it.
7.
Mount the fuel tank on the base of the
battery cover.
#
Installation
1.
Install the fuel tank in the reverse order of
removal.
2.
Install the collars and mounting bolts.
3.
Tighten the mounting bolts.
Torque: 9 lbf·ft (12 N·m, 1.2 kgf·m)
20180222155238_31K0AA000_enu_BOOK Page 83 Thursday, February 22 2018 16:01:26 JST
Removing & Installing Body Components u Fuel Tank Maintenance Position
Maintenance
80
Tab
Battery cover
Lock
Base of the
battery cover
Fuel tank
Rear Seat
#
Removal
1.
Insert the ignition key into the seat lock.
2.
Turn it clockwise, then pull the rear seat
up and back.
#
Installation
1.
Insert the prongs into the stays on the
frame.
2.
Push and down on the rear of the rear
seat until it locks in place.
u Make sure that the seat is locked
securely in position by pulling it up
lightly.
The seat locks automatically when closed.
Take care not to lock your key in the
compartment under the rear seat.
20180222155238_31K0AA000_enu_BOOK Page 84 Thursday, February 22 2018 16:01:26 JST
Removing & Installing Body Components u Rear Seat
Maintenance
81
Rear seat
Ignition key
Seat lock
Stays
Prongs
Shroud
The right and left shrouds can be removed in
the same manner.
#
Removal
1.
Remove the clip (2 P. 75) and outer
shroud bolt.
2.
Remove the outer shroud by releasing the
tab from the slot on the inner shroud.
20180222155238_31K0AA000_enu_BOOK Page 85 Thursday, February 22 2018 16:01:26 JST
Removing & Installing Body Components u Shroud
Maintenance
82
Outer shroudClip
Outer
shroud
bolt
Tab
Slot
3.
Remove the inner shroud bolt A, bolts B
and inner shroud.
#
Installation
1.
Install the inner shroud and tighten the
inner shroud bolts B.
Torque: 7 lbf·ft (10 N·m, 1.0 kgf·m)
2.
Install and tighten the inner shroud bolt A.
Torque: 3.1 lbf·ft (4.2 N·m, 0.4 kgf·m)
3.
Install the outer shroud by inserting its tab
into the slot on the inner shroud.
4.
Install and tighten the outer shroud bolt.
Torque: 3.1 lbf·ft (4.2 N·m, 0.4 kgf·m)
5.
Install the clip.
20180222155238_31K0AA000_enu_BOOK Page 86 Thursday, February 22 2018 16:01:26 JST
Removing & Installing Body Components u Shroud
Maintenance
83
Inner shroud
Bolts B
Bolt A
Engine Oil
Checking the Engine Oil
1.
If the engine is cold, idle the engine for 3
to 5 minutes.
2.
Turn the ignition switch to the OFF
position and wait for 2 to 3 minutes.
3.
Place your motorcycle in an upright
position on a firm, level surface.
4.
Check that the oil level is between the
upper level and lower level marks on the
oil level inspection window.
20180222155238_31K0AA000_enu_BOOK Page 87 Thursday, February 22 2018 16:01:26 JST
Maintenance
84
Oil fill cap
Lower level
Upper level
Oil level
inspection
window
Adding Engine Oil
If the engine oil is below or near the lower
level mark, add the recommended engine oil.
2 P. 64, 2 P. 148
1.
Remove the oil fill cap. Add the
recommended oil until it reaches the
upper level mark.
u Place your motorcycle in an upright
position on a firm, level surface when
checking the oil level.
u Do not overfill above the upper level
mark.
u Make sure no foreign objects enter the
oil filler opening.
u Wipe up any spills immediately.
2.
Securely reinstall the oil fill cap.
NOTICE
Overfilling with oil or operating with insufficient
oil can cause damage to your engine. Do not mix
different brands and grades of oil. They may
affect lubrication and clutch operation.
For the recommended oil and oil selection
guidelines, see “Maintenance Fundamentals.”
2 P. 64
20180222155238_31K0AA000_enu_BOOK Page 88 Thursday, February 22 2018 16:01:26 JST
Engine Oil u Adding Engine Oil
Maintenance
85
Changing Engine Oil & Filter
Changing the oil and filter requires special
tools. We recommend that you have your
motorcycle serviced by your dealer.
Use a new Honda Genuine oil filter or
equivalent specified for your model.
NOTICE
Using the wrong oil filter can result in serious
damage to the engine.
1.
If the engine is cold, idle the engine for 3
to 5 minutes.
2.
Turn the ignition switch to the OFF
position and wait for 2 to 3 minutes.
3.
Place your motorcycle on a firm, level
surface.
4.
Place a drain pan under the drain bolt.
5.
Remove the oil fill cap, drain bolt, and
sealing washer to drain the oil.
6.
Remove the oil filter cover, oil filter, spring
and gasket by removing the oil filter cover
bolts and let the remaining oil drain out.
u Discard the oil and oil filter at an
approved recycling center.
20180222155238_31K0AA000_enu_BOOK Page 89 Thursday, February 22 2018 16:01:26 JST
Engine Oil u Changing Engine Oil & Filter
Maintenance
86
Drain bolt
Sealing
washer
7.
Install a new oil filter with its "OUT-SIDE"
mark facing out.
8.
Install the oil filter spring into the oil filter
cover, and then install the oil filter cover
with a new gasket.
9.
Install and tighten the oil filter cover bolts.
Torque: 9 lbf·ft (12 N·m, 1.2 kgf·m)
10.
Install a new sealing washer onto the
drain bolt. Tighten the drain bolt.
Torque: 18 lbf·ft (24 N·m, 2.4 kgf·m)
11.
Fill the crankcase with the recommended
oil (2 P. 64, 2 P. 148) and install the oil fill
cap.
Required oil
When changing oil & engine oil
filter:
1.6 US qt (1.5 L)
When changing oil only:
1.5 US qt (1.4 L)
12.
Check the oil level. 2 P. 84
13.
Check that there are no oil leaks.
NOTICE
Improper installation of the oil filter can result in
serious damage to the engine.
20180222155238_31K0AA000_enu_BOOK Page 90 Thursday, February 22 2018 16:01:26 JST
Engine Oil u Changing Engine Oil & Filter
Maintenance
87
Oil filter cover
Oil filter cover bolts
Gasket
Oil filter
Spring
Oil filter
cover bolts
"OUT-SIDE"
mark
Coolant
Checking the Coolant
Check the coolant level in the reserve tank
while the engine is cold.
1.
Place your motorcycle on a firm, level
surface.
2.
Hold your motorcycle in an upright position
and turn the handlebar to the left.
3.
Remove the reserve tank cap/dipstick and
wipe it clean.
4.
Insert the reserve tank cap/dipstick until it
seats, but don't screw it in.
5.
Check that the coolant level is between
the upper level and lower level marks on
the gauge.
6.
Securely install the reserve tank cap/
dipstick.
If the coolant level is dropping noticeably or
the reserve tank is empty, you likely have a
serious leak. Have your motorcycle inspected
by your dealer.
Adding Coolant
If the coolant level is below the lower level
mark, add the recommended coolant
(2 P. 67) until the level reaches the upper
level mark.
Add fluid only from the reserve tank cap/
dipstick and do not remove the radiator cap.
20180222155238_31K0AA000_enu_BOOK Page 91 Thursday, February 22 2018 16:01:26 JST
Maintenance
88
Upper
level
Lower
level
Reserve tank cap/dipstick
1.
Remove the reserve tank cap/dipstick and
add fluid while monitoring the coolant
level.
u Do not overfill above the upper level
mark.
u Make sure no foreign objects enter the
reserve tank opening.
2.
Securely reinstall the reserve tank cap/
dipstick.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to
spray out, potentially scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Changing Coolant
Have your dealer change the coolant unless
you have the proper tools and are
mechanically qualified.
20180222155238_31K0AA000_enu_BOOK Page 92 Thursday, February 22 2018 16:01:26 JST
Coolant u Changing Coolant
Maintenance
89
Reserve tank cap/dipstick
Brakes
Checking Brake Fluid
1.
Place your motorcycle in an upright
position on a firm, level surface.
2.
Front
Check that the brake fluid reservoir
is horizontal and that the fluid level is
above the LWR mark.
Rear
Check that the brake fluid reservoir
is horizontal and that the fluid level is
between the LOWER level and UPPER
level marks.
If the brake fluid level in either reservoir is
below the LWR mark or LOWER level mark or
the brake lever and pedal freeplay becomes
excessive, inspect the brake pads for wear.
If the brake pads are not worn, you most
likely have a leak. Have your motorcycle
inspected by your dealer.
20180222155238_31K0AA000_enu_BOOK Page 93 Thursday, February 22 2018 16:01:26 JST
Maintenance
90
Front brake fluid reservoir
LWR mark
UPPER level mark
LOWER level mark
Rear brake fluid reservoir
Front Rear
Inspecting the Brake Pads
Check the condition of the brake pad wear
indicators.
Front
The pads need to be replaced if a
brake pad is worn to the bottom of the
indicator.
Rear
The pads need to be replaced if a brake
pad is worn to the indicator.
1.
Front
Inspect the brake pads from in front
of the brake caliper.
2.
Rear
Inspect the brake pads from the rear
right of the motorcycle.
If necessary have the pads replaced by your
dealer.
Always replace both left and right brake pads
at the same time.
20180222155238_31K0AA000_enu_BOOK Page 94 Thursday, February 22 2018 16:01:26 JST
Brakes u Inspecting the Brake Pads
Maintenance
91
Front Rear
Brake pads
Wear indicator
Disc
Wear indicators
Brake pads
Wear indicators
Disc
Adjusting the Brake Light
Switch
Check the operation of the brake light switch.
Hold the brake light switch and turn the
adjusting nut in the direction A if the switch
operates too late, or turn the nut in the
direction B if the switch operates too soon.
20180222155238_31K0AA000_enu_BOOK Page 95 Thursday, February 22 2018 16:01:26 JST
Brakes u Adjusting the Brake Light Switch
Maintenance
92
Brake light
switch
Adjusting nut
B
A
Side Stand
Checking the Side Stand
1.
Check that the side stand operates
smoothly. If the side stand is stiff or
squeaky, clean the pivot area and
lubricate the pivot bolt with clean grease.
2.
Check the spring for damage or loss of
tension.
3.
Sit on the motorcycle, shift the
transmission to Neutral, and raise the side
stand.
4.
Start the engine, pull the clutch lever in,
and shift the transmission into gear.
5.
Lower the side stand all the way. The
engine should stop as you lower the side
stand. If the engine doesn't stop, have
your motorcycle inspected by your dealer.
20180222155238_31K0AA000_enu_BOOK Page 96 Thursday, February 22 2018 16:01:26 JST
Maintenance
93
Side stand spring
Drive Chain
Inspecting the Drive Chain
Slack
Check the drive chain slack at several points
along the chain. If the slack is not constant at
all points, some links may be kinked and
binding.
Have the chain inspected by your dealer.
1.
Shift the transmission to Neutral. Stop the
engine.
2.
Place your motorcycle on its side stand on
a firm, level surface.
3.
Check the slack in the lower half of the
drive chain midway between the
sprockets.
Drive chain slack:
1 3/16 - 1 9/16 in (30 - 40 mm)
u Do not ride your motorcycle if the
slack exceeds 1 15/16 in (50 mm).
4.
Roll the motorcycle forward and check
that the chain moves smoothly.
5.
Inspect the sprockets. 2 P. 65
6.
Clean and lubricate the drive chain.
2 P. 66
20180222155238_31K0AA000_enu_BOOK Page 97 Thursday, February 22 2018 16:01:26 JST
Maintenance
94
Adjusting the Drive Chain Slack
Adjusting the chain requires special tools.
Have the drive chain slack adjusted by your
dealer.
CB300RA only
When adjusting the drive chain slack, be
careful not to damage the wheel speed
sensor and pulser ring.
1.
Shift the transmission to Neutral. Stop the
engine.
2.
Place your motorcycle on its side stand on
a firm, level surface.
3.
Loosen the rear axle nut.
4.
Loosen the lock nuts on both sides of the
swingarm.
20180222155238_31K0AA000_enu_BOOK Page 98 Thursday, February 22 2018 16:01:26 JST
Drive Chain u Adjusting the Drive Chain Slack
Maintenance
95
Continued
Rear axle nutLock nut
Adjusting
nut
Pulser ring
CB300RA only
Wheel speed
sensor
CB300RA only
Chain adjuster
index mark
Front edge of
adjusting slot
Adjusting
nut
Lock nut
5.
Turn both adjusting nuts an equal
number of turns until the correct drive
chain slack is obtained. Turn the adjusting
nuts clockwise to tighten the chain. Turn
the adjusting nuts counterclockwise and
push the rear wheel toward the front to
provide more slack.
Adjust the slack at a point midway
between the drive sprocket and the
driven sprocket.
Check the drive chain slack. 2 P. 94
6.
Check rear axle alignment by making sure
the chain adjuster index marks align with
the front edge of the adjusting slots.
Both marks should correspond. If the axle
is misaligned, turn the right or left
adjusting nuts until the marks are aligned
and recheck drive chain slack.
7.
Tighten the rear axle nut.
Torque: 65 lbf·ft (88 N·m, 9.0 kgf·m)
8.
Tighten the drive chain adjusting nuts
lightly, then hold the adjusting nuts and
tighten the lock nuts.
9.
Recheck drive chain slack.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
20180222155238_31K0AA000_enu_BOOK Page 99 Thursday, February 22 2018 16:01:26 JST
Drive Chain u Adjusting the Drive Chain Slack
Maintenance
96
#
Checking the Drive Chain Wear
Check the chain wear label when adjusting
the drive chain. If the arrow mark on the
drive chain adjuster enters the red zone on
the label after the chain has been adjusted to
the proper slack, the chain is excessively worn
and must be replaced.
Chain:
DID 520VF or RK 520KLO2
If necessary have the drive chain replaced by
your dealer.
Checking the Drive Chain Slider
Check the condition of the drive chain slider.
The drive chain slider will need to be
replaced if the chain slider is worn to the
bottom of any wear indicator.
If necessary have the drive chain slider
replaced by your dealer.
20180222155238_31K0AA000_enu_BOOK Page 100 Thursday, February 22 2018 16:01:26 JST
Drive Chain u Checking the Drive Chain Slider
Maintenance
97
Red zone
Arrow mark
Wear indicators
Drive chain slider
Wear indicator
Clutch
Checking the Clutch
#
Checking the Clutch Lever Freeplay
Check the clutch lever freeplay.
Freeplay at the clutch lever:
3/8 - 13/16 in (10 - 20 mm)
Check the clutch cable for kinks or signs of
wear. If necessary have it replaced by your
dealer.
Lubricate the clutch cable with a
commercially available cable lubricant to
prevent premature wear and corrosion.
NOTICE
Improper freeplay adjustment can cause
premature clutch wear.
20180222155238_31K0AA000_enu_BOOK Page 101 Thursday, February 22 2018 16:01:26 JST
Maintenance
98
Freeplay
Clutch lever
Adjusting the Clutch Lever
Freeplay
#
Upper Adjustment
Attempt adjustment with the upper clutch
cable adjuster first.
1.
Pull back the rubber dust cover.
2.
Loosen the upper lock nut.
3.
Turn the upper clutch cable adjuster until
the freeplay is 3/8 - 13/16 in (10 - 20 mm).
4.
Tighten the upper lock nut and check the
freeplay again.
5.
Install the rubber dust cover.
20180222155238_31K0AA000_enu_BOOK Page 102 Thursday, February 22 2018 16:01:26 JST
Clutch u Adjusting the Clutch Lever Freeplay
Maintenance
99
Continued
Upper clutch
cable adjuster
Upper lock nut
Rubber dust
cover
–
+
#
Lower Adjustment
If the upper clutch cable adjuster is threaded
out near its limit, or the correct freeplay
cannot be obtained, attempt adjustment with
the lower clutch cable adjusting nut.
1.
Loosen the upper lock nut and turn the
upper clutch cable adjuster all the way in
(to provide maximum freeplay).
Tighten the upper lock nut.
2.
Loosen the lower lock nut.
3.
Turn the lower adjusting nut until the
clutch lever freeplay is 3/8 - 13/16 in (10 -
20 mm).
4.
Tighten the lower lock nut and check the
clutch lever freeplay.
5.
Start the engine, pull the clutch lever in,
and shift into gear. Make sure the engine
does not stall and the motorcycle does
not creep. Gradually release the clutch
lever and open the throttle. Your
motorcycle should move smoothly and
accelerate gradually.
If proper adjustment cannot be obtained or
the clutch does not work correctly, see your
dealer.
20180222155238_31K0AA000_enu_BOOK Page 103 Thursday, February 22 2018 16:01:26 JST
Clutch u Adjusting the Clutch Lever Freeplay
Maintenance
100
Lower adjusting nut
Lower lock nut
+
–
Throttle
Checking the Throttle
With the engine off, check that the throttle
rotates smoothly from fully closed to fully
open in all steering positions and throttle
freeplay is correct. If the throttle does not
move smoothly, close automatically, or if the
cable is damaged, have the motorcycle
inspected by your dealer.
Freeplay at the throttle grip flange:
1/16 - 1/4 in (2 - 6 mm)
Adjusting the Throttle Freeplay
1.
Slide the cable boot.
2.
Loosen the lock nut.
3.
Turn the adjuster until the freeplay is
1/16 - 1/4 in (2 - 6 mm).
4.
Tighten the lock nut, return the cable
boot, and inspect the throttle action
again.
20180222155238_31K0AA000_enu_BOOK Page 104 Thursday, February 22 2018 16:01:26 JST
Maintenance
101
Freeplay
Flange
–
+
Cable boot
Adjuster
Throttle grip
Lock nut
Crankcase Breather
Cleaning the Crankcase
Breather
1.
Place a suitable container under the
crankcase breather tube.
2.
Remove the crankcase breather tube plug
from the tube.
3.
Drain deposits into a suitable container.
4.
Install the crankcase breather tube plug.
20180222155238_31K0AA000_enu_BOOK Page 105 Thursday, February 22 2018 16:01:26 JST
Maintenance
102
Crankcase breather tube plug
Other Adjustments
Adjusting the Headlight Aim
You can adjust vertical aim of the headlight
for proper alignment. Turn the pinion in or
out as necessary using a Phillips screwdriver.
Obey local laws and regulations.
20180222155238_31K0AA000_enu_BOOK Page 106 Thursday, February 22 2018 16:01:26 JST
Maintenance
103
Pinion
RaiseLower
Adjusting the Rear Suspension
Adjusting the suspension requires a pin
spanner. We recommend that you have your
motorcycle serviced by your dealer.
#
Spring Preload
You can adjust the spring preload by the
adjuster to suit the load or the road surface.
Use the pin spanner to turn the adjuster.
Position 1 is for a decrease spring preload
(soft), or turn the position 3 to 7 increase
spring preload (hard). The standard position
is 2.
NOTICE
Attempting to adjust directly from 1 to 7 or 7 to 1
may damage the shock absorber.
NOTICE
Do not turn the adjuster beyond its limits.
NOTICE
The rear shock absorber damper unit contains
high pressure nitrogen gas. Do not attempt to
disassemble, service, or improperly dispose of
the damper. See your dealer.
20180222155238_31K0AA000_enu_BOOK Page 107 Thursday, February 22 2018 16:01:26 JST
Other Adjustments u Adjusting the Rear Suspension
Maintenance
104
Pin spanner
1
2
3 4 5
6
7
Adjuster
Engine Will Not Start......................................P. 106
Overheating (Segment H flashes in coolant
temperature gauge) .....................................P. 107
Warning Indicators On or Flashing
............. P. 108
PGM-FI (Programmed Fuel Injection)
Malfunction Indicator Lamp (MIL)............... P. 108
ABS (Anti-lock Brake System) Indicator ....... P. 109
Other Warning Indications ...........................P. 110
Fuel Gauge Failure Indication......................... P. 110
Tire Puncture .................................................... P. 111
Electrical Trouble............................................. P. 118
Battery Goes Dead............................................ P. 118
Burned-out Light Bulb .....................................P. 118
Blown Fuse..........................................................P. 121
Unstable Engine Operation Occurs
Intermittently ................................................. P. 123
20180222155238_31K0AA000_enu_BOOK Page 108 Thursday, February 22 2018 16:01:26 JST
Troubleshooting
Engine Will Not Start
Starter Motor Operates But
Engine Does Not Start
Check the following items:
● Check the correct engine starting
sequence. 2 P. 45
● Check that there is gasoline in the fuel
tank.
● Check if the PGM-FI malfunction indicator
lamp (MIL) is on.
u If the indicator lamp is on, contact
your dealer as soon as possible.
Starter Motor Does Not
Operate
Check the following items:
● Check the correct engine starting
sequence. 2 P. 45
● Make sure engine stop switch is in the
(Run) position. 2 P. 42
● Check for a blown fuse. 2 P. 121
● Check for a loose battery connection
(2 P. 73) or battery terminal corrosion
(2 P. 61).
● Check the condition of the battery.
2 P. 118
If the problem continues, have your
motorcycle inspected by your dealer.
20180222155238_31K0AA000_enu_BOOK Page 109 Thursday, February 22 2018 16:01:26 JST
Troubleshooting
106
Overheating (Segment H flashes in coolant temperature gauge)
The engine is overheating when the following
occurs:
● The segment H flashes in the coolant
temperature gauge.
● Acceleration becomes sluggish.
If this occurs, pull safely to the side of the
road and perform the following
procedure.
Extended fast idling may cause the segment
H
to flash.
NOTICE
Continuing to ride with an overheated engine
can cause serious damage to the engine.
1.
Stop the engine using the ignition switch,
and then turn the ignition switch to the
ON position.
2.
Check that the radiator fan is operating,
and then turn the ignition switch to the
OFF position.
If the fan is not operating:
Suspect a fault. Do not start the engine.
Transport your motorcycle to your dealer.
If the fan is operating:
Allow the engine to cool with the ignition
switch in the OFF position.
3.
After the engine has cooled, inspect the
radiator hose and check if there is a leak.
2 P. 88
If there is a leak:
Do not start the engine. Transport your
motorcycle to your dealer.
4.
Check the coolant level in the reserve
tank. 2 P. 88
u Add coolant as necessary.
5.
If 1-4 check normal, you may continue
riding, but closely monitor the
temperature gauge.
20180222155238_31K0AA000_enu_BOOK Page 110 Thursday, February 22 2018 16:01:26 JST
Troubleshooting
107
Warning Indicators On or Flashing
PGM-FI (Programmed Fuel
Injection) Malfunction
Indicator Lamp (MIL)
If the indicator comes on while riding, you
may have a serious problem with the PGM-FI
system. Reduce speed and have your
motorcycle inspected by your dealer as soon
as possible.
20180222155238_31K0AA000_enu_BOOK Page 111 Thursday, February 22 2018 16:01:26 JST
Troubleshooting
108
ABS (Anti-lock Brake System)
Indicator
CB300RA only
If the indicator operates in one of the
following ways, you may have a serious
problem with the ABS. Reduce your speed
and have your motorcycle inspected by your
dealer as soon as possible.
● Indicator comes on or starts flashing while
riding.
● Indicator does not come on when the
ignition switch is in the ON position.
● Indicator does not go off at speeds above
6 mph (10 km/h).
If the ABS indicator stays on, your brakes will
continue to work as a conventional system,
but without the anti-locking function.
The ABS indicator may flash if you turn the
rear wheel while the rear wheel is lifted off
the ground. In this case, turn the ignition
switch to the OFF position, and then to the
ON position again. The ABS indicator will go
off after your speed reaches 19 mph (30
km/h).
20180222155238_31K0AA000_enu_BOOK Page 112 Thursday, February 22 2018 16:01:26 JST
Warning Indicators On or Flashing u ABS (Anti-lock Brake System) Indicator
Troubleshooting
109
Other Warning Indications
Fuel Gauge Failure Indication
If the fuel system has an error, the fuel gauge
indicators will be displayed as shown in the
illustration.
If this occurs, see your dealer as soon as
possible.
20180222155238_31K0AA000_enu_BOOK Page 113 Thursday, February 22 2018 16:01:26 JST
Troubleshooting
110
Tire Puncture
Repairing a puncture or removing a wheel
requires special tools and technical expertise.
We recommend you have this type of service
performed by your dealer.
After an emergency repair, always have the
tire inspected/replaced by your dealer.
Emergency Repair Using a Tire
Repair Kit
If your tire has a minor puncture, you can
make an emergency repair using a tubeless
tire repair kit.
Follow the instructions provided with the
emergency tire repair kit.
Riding your motorcycle with a temporary tire
repair is very risky. Do not exceed 30 mph
(50 km/h). Have the tire replaced by your
dealer as soon as possible.
3WARNING
Riding your motorcycle with a
temporary tire repair can be risky. If the
temporary repair fails, you can crash
and be seriously injured or killed.
If you must ride with a temporary tire
repair, ride slowly and carefully and do
not exceed 30 mph (50 km/h) until the
tire is replaced.
Removing Wheels
Follow these procedures if you need to
remove a wheel in order to repair a
puncture.
20180222155238_31K0AA000_enu_BOOK Page 114 Thursday, February 22 2018 16:01:26 JST
Troubleshooting
111
Continued
CB300RA only
When removing and installing the wheel, be
careful not to damage the wheel speed
sensor and pulser ring.
#
Front Wheel
Removal
1.
Place your motorcycle on a firm, level
surface.
2.
Cover right side of the front wheel and
brake caliper with protective tape or cloth.
3.
Loosen the front axle nut.
4.
Loosen the axle pinch bolt on both sides.
5.
Support your motorcycle securely and
raise the front wheel off the ground using
a maintenance stand or a hoist.
20180222155238_31K0AA000_enu_BOOK Page 115 Thursday, February 22 2018 16:01:26 JST
Tire Puncture u Removing Wheels
Troubleshooting
112
Front axle nut
Side collar
Wheel speed sensor
CB300RA only
Pulser ring
CB300RA only
Axle pinch
bolt
Tape or cloth
6.
Remove the front axle nut, front axle
shaft, front wheel and side collars.
u Avoid getting grease, oil, or dirt on the
disc or pad surfaces.
u Do not pull the brake lever while the
front wheel is removed.
Installation
1.
Attach the side collars to the front wheel.
2.
Position the front wheel between the fork
legs and insert the front axle shaft from
the left side, through the left fork leg and
wheel hub.
NOTICE
When installing a wheel or caliper into original
position, carefully fit the brake disc between the
pads to avoid scratching them.
3.
Install and tighten the front axle nut.
Torque: 44 lbf·ft (59 N·m, 6.0 kgf·m)
4.
Tighten the axle pinch bolt on both sides.
Torque: 18 lbf·ft (24 N·m, 2.4 kgf·m)
20180222155238_31K0AA000_enu_BOOK Page 116 Thursday, February 22 2018 16:01:26 JST
Tire Puncture u Removing Wheels
Troubleshooting
113
Continued
Side collar
Front axle shaftAxle pinch bolt
5.
After installing the wheel, apply the brake
lever several times, then check if the
wheel rotates freely. Recheck the wheel if
the brake drags or if the wheel dose not
rotate freely.
6.
Remove the protective tape or cloth.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
20180222155238_31K0AA000_enu_BOOK Page 117 Thursday, February 22 2018 16:01:26 JST
Tire Puncture u Removing Wheels
Troubleshooting
114
#
Rear Wheel
Removal
1.
Support your motorcycle securely and
raise the rear wheel off the ground using
a maintenance stand or a hoist.
2.
Loosen the rear axle nut, lock nuts and
turn the adjusting nuts so the rear wheel
can be moved all the way forward for
maximum drive chain slack.
3.
Remove the rear axle nut and axle
washer.
4.
Remove the drive chain from the driven
sprocket by pushing the rear wheel
forward.
20180222155238_31K0AA000_enu_BOOK Page 118 Thursday, February 22 2018 16:01:26 JST
Tire Puncture u Removing Wheels
Troubleshooting
115
Continued
Rear axle nut
Adjusting
nut
Lock nut
Pulser ring
CB300RA only
Axle washer
Wheel speed sensor
CB300RA only
Adjusting
nut
Drive chain
Rear axle
shaft
Lock nutAxle washer
5.
Remove the rear axle shaft, side collars,
axle washer and rear wheel.
u Support the brake caliper assembly so
that it doesn’t hang from the brake
hose. Do not twist the brake hose.
u Avoid getting grease, oil, or dirt on the
disc or pad surfaces.
u Do not push the brake pedal while the
brake caliper is removed.
Installation
1.
Attach the right and left side collars in
their original locations on the wheel.
2.
To install the rear wheel, reverse the
removal procedure.
u Take care to prevent the brake caliper
from scratching the wheel during
installation.
NOTICE
When installing a wheel or caliper into original
position, carefully fit the brake disc between the
pads to avoid scratching them.
20180222155238_31K0AA000_enu_BOOK Page 119 Thursday, February 22 2018 16:01:26 JST
Tire Puncture u Removing Wheels
Troubleshooting
116
3.
Make sure that the lug on the brake
caliper bracket is positioned in the slot on
the swingarm.
4.
Adjust the drive chain slack. 2 P. 95
5.
Install and tighten the rear axle nut.
Torque: 65 lbf·ft (88 N·m, 9.0 kgf·m)
6.
Tighten the drive chain adjusting nuts
lightly, then hold the adjusting nuts and
tighten the lock nuts.
7.
After installing the wheel, apply the brake
pedal several times, then check if the
wheel rotates freely. Recheck the wheel if
the brake drags or if the wheel does not
rotate freely.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
20180222155238_31K0AA000_enu_BOOK Page 120 Thursday, February 22 2018 16:01:26 JST
Tire Puncture u Removing Wheels
Troubleshooting
117
Brake caliper bracket
Lug Slot
Swingarm
Electrical Trouble
Battery Goes Dead
Charge the battery using a motorcycle
battery charger.
Remove the battery from the motorcycle
before charging.
Do not use an automobile-type battery
charger, as these can overheat a motorcycle
battery and cause permanent damage. If the
battery does not recover after recharging,
contact your dealer.
NOTICE
Jump starting using an automobile battery can
damage your motorcycle's electrical system and
is not recommended.
Bump starting is also not recommended.
Burned-out Light Bulb
All light bulbs on the motorcycle are LEDs. If
there is a LED which is not turned on, see
your dealer for servicing.
20180222155238_31K0AA000_enu_BOOK Page 121 Thursday, February 22 2018 16:01:26 JST
Troubleshooting
118
#
Headlight
The headlight uses several LEDs.
If there is a LED which is not turned on, see
your dealer for servicing.
#
Brake Light/Taillight
The brake light and taillight use several LEDs.
If there is a LED which is not turned on, see
your dealer for servicing.
20180222155238_31K0AA000_enu_BOOK Page 122 Thursday, February 22 2018 16:01:26 JST
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
119
Continued
Headlight
Brake light/taillight
#
Front and Rear Turn Signal Lights
The front and rear turn signal lights use
several LEDs.
If there is a LED which is not turned on, see
your dealer for servicing.
#
License Plate Light
The license plate light uses a LED.
If there is a LED which is not turned on, see
your dealer for servicing.
20180222155238_31K0AA000_enu_BOOK Page 123 Thursday, February 22 2018 16:01:26 JST
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
120
Turn signal lights
License plate light
Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses.” 2 P. 63
#
Fuse Box Fuses
1.
Remove the left shroud. 2 P. 82
2.
Pull out the fuse boxes from the battery
case.
3.
Open the fuse box covers.
4.
Pull out the fuses one by one with the
fuse puller and check for a blown fuse.
Always replace a blown fuse with a spare
fuse of the same rating.
5.
Close the fuse box covers.
6.
Reinstall parts in the reverse order of
removal.
CB300RA
20180222155238_31K0AA000_enu_BOOK Page 124 Thursday, February 22 2018 16:01:26 JST
Electrical Trouble u Blown Fuse
Troubleshooting
121
Continued

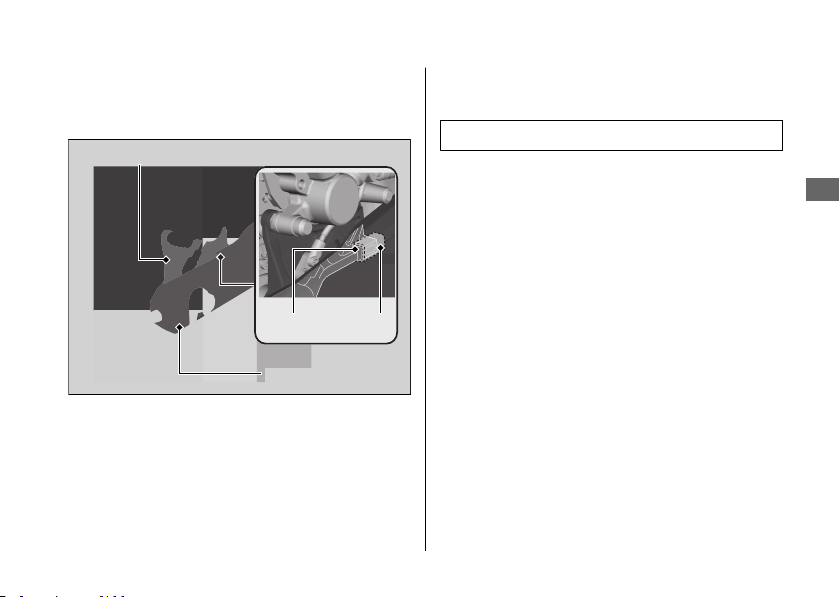

Fuse box
covers
Spare fuses Fuse puller
Spare fuses
Fuse boxes
Battery case
CB300R
NOTICE
If a fuse fails repeatedly, you likely have an
electrical problem. Have your motorcycle
inspected by your dealer.
20180222155238_31K0AA000_enu_BOOK Page 125 Thursday, February 22 2018 16:01:26 JST
Electrical Trouble u Blown Fuse
Troubleshooting
122
Fuse box
covers
Spare fuses Fuse puller
Spare fuse
Fuse boxes
Battery case
Unstable Engine Operation Occurs Intermittently
If the fuel pump filter is clogged, unstable
engine operation will occur intermittently
while riding.
Even if this symptom occurs, you can
continue to ride your motorcycle.
If unstable engine operation occurs even if
sufficient fuel is available, have your
motorcycle inspected by your dealer as soon
as possible.
20180222155238_31K0AA000_enu_BOOK Page 126 Thursday, February 22 2018 16:01:26 JST
Troubleshooting
123
Keys..................................................................... P. 125
Instruments, Controls, & Other Features...P. 126
Caring for Your Motorcycle ........................
.. P. 127
Storing Your Motorcycle ............................... P. 130
Transporting Your Motorcycle..................... P. 131
You & the Environment .................................P. 132
Vehicle Identification Number..................... P. 133
Emission Control Systems ............................. P. 134
Catalytic Converter .........................................P. 139
Oxygenated Fuels............................................P. 140
Authorized Manuals .......................................P. 141
Warranty Coverage and Service .................. P. 142
Honda Contacts ............................................... P. 144
USA
Reporting Safety Defects ..................... P. 146
20180222155238_31K0AA000_enu_BOOK Page 127 Thursday, February 22 2018 16:01:26 JST
Information
Keys
Ignition Key
This motorcycle has two ignition keys and a key
tag with a key number and a bar code. Store
the spare key and the key tag in a safe location.
To make a duplicate key, take the spare key and
the key tag to your dealer or a locksmith.
If you lose all ignition keys and the key tag, the
ignition switch assembly will probably have to
be removed by your dealer to determine the
key number.
A metal key holder may cause damage to the
area surrounding the ignition switch.
20180222155238_31K0AA000_enu_BOOK Page 128 Thursday, February 22 2018 16:01:26 JST
Keys
Information
125
Ignition key Key tag
Key number and bar code
Instruments, Controls, &
Other Features
Ignition Switch
Leaving the ignition switch in the ON position
with the engine stopped will drain the battery.
Do not turn the key while riding.
Engine Stop Switch
Do not use the engine stop switch except in an
emergency. Doing so when riding will cause the
engine to suddenly turn off, making riding unsafe.
If you stop the engine using the engine stop
switch, turn the ignition switch to the OFF
position. Failing to do so will drain the battery.
Odometer
The display locks at 999,999 when the read-out
exceeds 999,999.
Tripmeter
The tripmeters return to 0.0 when each read-
out exceeds 9,999.9.
Document Bag
The owner's manual, registration, and insurance
information can be stored in the plastic
document bag located underside of the rear
seat.
Ignition Cut-off System
A banking (lean angle) sensor automatically
stops the engine and fuel pump if the
motorcycle falls over. To reset the sensor, you
must turn the ignition switch to the OFF position
and back to the ON position before the engine
can be restarted.
20180222155238_31K0AA000_enu_BOOK Page 129 Thursday, February 22 2018 16:01:26 JST
Instruments, Controls, & Other Features
Information
126
Caring for Your Motorcycle
Frequent cleaning and polishing is important to
ensure the life of your Honda. A clean
motorcycle makes it easier to spot potential
problems.
In particular, seawater and salts used to prevent
ice on roads promote the formation of
corrosion. Always wash your motorcycle
thoroughly after riding on coastal or treated
roads.
Washing
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before washing.
1.
Rinse your motorcycle thoroughly using a low
pressure garden hose to remove loose dirt.
2.
If necessary, use a sponge or a soft towel
with mild cleaner to remove road grime.
u Clean the headlight lens, panels, and
other plastic components with extra care
to avoid scratching them.
Avoid directing water into the air cleaner,
muffler, and electrical parts.
3.
Thoroughly rinse your motorcycle with
plenty of clean water and dry with a soft,
clean cloth.
4.
After the motorcycle dries, lubricate any
moving parts.
u Make sure that no lubricant spills onto
the brakes or tires. Brake discs, pads,
drum or shoes contaminated with oil will
suffer greatly reduced braking
effectiveness and can lead to a crash.
5.
Lubricate the drive chain immediately after
washing and drying the motorcycle.
6.
Apply a coat of wax to prevent corrosion.
u Avoid products that contain harsh
detergents or chemical solvents. These
can damage the metal, paint, and plastic
on your motorcycle.
Keep the wax clear of the tires and
brakes.
u If your motorcycle has any matte painted
parts, do not apply a coat of wax to the
matte painted surface.
20180222155238_31K0AA000_enu_BOOK Page 130 Thursday, February 22 2018 16:01:26 JST
Caring for Your Motorcycle
Information
127
Continued
#
Washing Precautions
Follow these guidelines when washing:
● Do not use high-pressure washers:
u High-pressure water cleaners can
damage moving parts and electrical
parts, rendering them inoperable.
u Water in the air intake can be drawn into
the throttle body and/or enter the air
cleaner.
● Do not direct water at the muffler:
u Water in the muffler can prevent starting
and causes rust in the muffler.
● Dry the brakes:
u Water adversely affects braking
effectiveness. After washing, apply the
brakes intermittently at low speed to
help dry them.
● Do not direct water under the seat:
u Water in the under seat compartment
can damage your documents and other
belongings.
● Do not direct water at the air cleaner:
u Water in the air cleaner can prevent the
engine from starting.
● Do not direct water near the headlight:
u The headlight's inside lens may fog
temporarily after washing or while riding
in the rain. This does not impact the
headlight function.
However, if you see a large amount of
water or ice accumulated inside the
lens(es), have your vehicle inspected by
your dealer.
● Do not use wax or polishing compounds on
matte painted surface:
u Use a soft cloth or sponge, plenty of
water, and a mild detergent to clean
matte painted surfaces. Dry with a soft
clean cloth.
20180222155238_31K0AA000_enu_BOOK Page 131 Thursday, February 22 2018 16:01:26 JST
Caring for Your Motorcycle
Information
128
Aluminum Components
Aluminum will corrode from contact with dirt,
mud, or road salt. Clean aluminum parts
regularly and follow these guidelines to avoid
scratches:
● Do not use stiff brushes, steel wool, or
cleaners containing abrasives.
● Avoid riding over or scraping against curbs.
Panels
Follow these guidelines to prevent scratches
and blemishes:
● Wash gently using a soft sponge and plenty
of water.
● To remove stubborn stains, use diluted
detergent and rinse thoroughly with plenty
of water.
● Avoid getting gasoline, brake fluid, or
detergents on the instruments, panels, or
headlight.
Exhaust Pipe and Muffler
When the exhaust pipe and muffler are painted,
do not use a commercially available abrasive
kitchen cleaning compound. Use a neutral
detergent to clean the painted surface on the
exhaust pipe and muffler. If you are not sure if
your exhaust pipe and muffler are painted,
contact your dealer.
20180222155238_31K0AA000_enu_BOOK Page 132 Thursday, February 22 2018 16:01:26 JST
Caring for Your Motorcycle
Information
129
Storing Your Motorcycle
If you store your motorcycle outdoors, you
should consider using a full-body motorcycle
cover.
If you won't be riding for an extended period,
follow these guidelines:
● Wash your motorcycle and wax all painted
surfaces (except matte painted surfaces).
Coat chrome pieces with rust-inhibiting oil.
● Lubricate the drive chain. 2 P. 65
● Place your motorcycle on a maintenance
stand and position a block so that both tires
are off the ground.
● After rain, remove the body cover and allow
the motorcycle to dry.
● Remove the battery (2 P. 73) to prevent
discharge. Fully charge the battery and then
place it in a shaded, well-ventilated area.
u If you leave the battery in place,
disconnect the negative - terminal to
prevent discharge.
After removing your motorcycle from storage,
inspect all maintenance items required by the
Maintenance Schedule.
USA
For more information about storage, refer
to the Honda Winter Storage Guide, available
from your dealer.
Canada
For more information about storage,
visit our website at www.honda.ca and look up
“Storage Tips” under the “Honda Warranty” in
the Warranty tab for your Model.
20180222155238_31K0AA000_enu_BOOK Page 133 Thursday, February 22 2018 16:01:26 JST
Storing Your Motorcycle
Information
130
Transporting Your
Motorcycle
If your motorcycle needs to be transported, it
should be carried on a motorcycle trailer or a
flatbed truck or trailer that has a loading ramp
or lifting platform, and motorcycle tie-down
straps. Never try to tow your motorcycle with a
wheel or wheels on the ground.
NOTICE
Towing your motorcycle can cause serious
damage to the transmission.
20180222155238_31K0AA000_enu_BOOK Page 134 Thursday, February 22 2018 16:01:26 JST
Transporting Your Motorcycle
Information
131
You & the Environment
Owning and riding a motorcycle can be
enjoyable, but you must do your part to protect
the environment.
Choose Sensible Cleaners
Use a biodegradable detergent when you wash
your motorcycle. Avoid aerosol spray cleaners
that contain chlorofluorocarbons (CFCs) which
damage the atmosphere's protective ozone
layer.
Recycle Wastes
Put oil and other toxic wastes in approved
containers and take them to a recycling center.
Call your local or state office of public works or
environmental services to find a recycling center
in your area, and to get instructions on how to
dispose of non-recyclable wastes. Do not place
used engine oil in the trash, or pour it down a
drain or on the ground. Used oil, gasoline,
coolant, and cleaning solvents contain poisons
that can hurt refuse workers and contaminate
drinking water, lakes, rivers, and oceans.
20180222155238_31K0AA000_enu_BOOK Page 135 Thursday, February 22 2018 16:01:26 JST
You & the Environment
Information
132
Vehicle Identification
Number
The VIN and engine serial number uniquely
identify your motorcycle and are required in
order to register your motorcycle. They may
also be required when ordering replacement
parts.
You should record these numbers and keep
them in a safe place.
20180222155238_31K0AA000_enu_BOOK Page 136 Thursday, February 22 2018 16:01:26 JST
Vehicle Identification Number
Information
133
VIN
VIN
Engine number
Emission Control Systems
Your motorcycle engine emits combustion
byproducts, including carbon monoxide (CO),
oxides of nitrogen (NOx), and hydrocarbons
(HC). Gasoline evaporation also emits
hydrocarbons. Controlling the production of
NOx, CO, and HC is important for the
environment.
Exhaust Emission Requirements
The U.S. Environmental Protection Agency
(EPA), the California Air Resources Board
(CARB), and Environment and Climate Change
Canada (ECCC) require that your motorcycle
comply with applicable exhaust, crankcase, and
fuel permeation emission standards during its
useful life, when operated and maintained
according to the instructions provided.
CARB also requires that your motorcycle
comply with applicable evaporative emission
requirements during its useful life, when
operated and maintained according to the
instructions provided.
USA
Compliance with the terms of the
Distributor's Warranties for Honda Motorcycle
Emission Control Systems is necessary in order
to maintain a valid emissions system warranty.
The Vehicle Emission Control Information label
is located on the left side of the swingarm.
20180222155238_31K0AA000_enu_BOOK Page 137 Thursday, February 22 2018 16:01:26 JST
Emission Control Systems
Information
134
Vehicle emission control information label
Canada only
Vehicle emission control information label
Noise Emission Requirements
The EPA requires that motorcycles built after
January 1, 1983 comply with applicable noise
emission standards for one year or 3,730 miles
(6,000 km) after the time of purchase when
operated and maintained according to the
instructions provided.
Exhaust Emission Control System
The exhaust emission control system includes
the following components that should not need
adjustment, although periodic inspection by
your dealer is recommended.
#
PGM-FI System
The PGM-FI (programmed fuel injection) system
uses sequential multiport fuel injection, and is
comprised of air intake, engine control, fuel
control, and exhaust control subsystems. The
engine control module (ECM) uses sensors to
determine how much air enters the engine, and
then controls how much fuel to inject.
#
Ignition Timing Control System
The ignition timing control system adjusts the
ignition timing to reduce the amount of HC,
CO, and NOx produced.
#
Secondary Air Injection System
The secondary air injection system adds filtered
air into the exhaust gas to help improve
emission control performance.
#
Catalytic Converters
The exhaust system contains one or more
catalytic converters. Catalytic converters use a
catalyst to convert most of the harmful exhaust
gas compounds into harmless compounds.
20180222155238_31K0AA000_enu_BOOK Page 138 Thursday, February 22 2018 16:01:26 JST
Emission Control Systems
Information
135
Continued
Evaporative Emission Control System
50 STATE (meets California)
An evaporative emissions control system uses a
canister filled with charcoal to adsorb fuel vapor
from the fuel tank while the engine is off. The
vapor is drawn into the engine and burned
while riding.
Crankcase Emissions Control System
The engine is equipped with a closed crankcase
system to prevent discharging crankcase
emissions into the atmosphere.
Blow-by gas is returned to the combustion
chamber through the front cylinder head, air
cleaner housing and throttle body.
Fuel Permeation Emission Control
The fuel tank, fuel hoses, and fuel vapor charge
hoses use fuel permeation control technologies
to prevent fuel vapor emissions. Tampering with
these components to reduce or defeat the
effectiveness of the fuel permeation
technologies is prohibited.
20180222155238_31K0AA000_enu_BOOK Page 139 Thursday, February 22 2018 16:01:26 JST
Emission Control Systems
Information
136
Noise Emission Control System
#
TAMPERING WITH THE NOISE CONTROL
SYSTEM IS PROHIBITED:
U. S. federal law prohibits, and Canadian
provincial laws may prohibit, the following acts
or the causing thereof: (1) The removal or
rendering inoperative by any person, other than
for purposes of maintenance, repair or
replacement, of any device or element of
design incorporated into any new vehicle for
the purpose of noise control prior to its sale or
delivery to the ultimate purchaser or while it is
in use; or (2) the use of the vehicle after such
device or element of design has been removed
or rendered inoperative by any person.
#
AMONG THOSE ACTS PRESUMED TO
CONSTITUTE TAMPERING ARE THE
FOLLOWING ACTS:
● Removal of, or puncturing the muffler,
baffles, header pipes or any other
component which conducts exhaust gases.
● Removal of, or puncturing of any part of the
intake system.
● Lack of proper maintenance.
● Removing or disabling any emissions
compliance component, or replacing any
compliance component with a noncompliant
component.
20180222155238_31K0AA000_enu_BOOK Page 140 Thursday, February 22 2018 16:01:26 JST
Emission Control Systems
Information
137
Continued
Problems Affecting Motorcycle Exhaust
Emissions
Have your motorcycle inspected and repaired
by your dealer if you experience any of the
following symptoms:
● Hard starting or stalling after starting
● Rough idling
● Misfiring or backfiring during acceleration
● Poor engine performance and poor fuel
economy
20180222155238_31K0AA000_enu_BOOK Page 141 Thursday, February 22 2018 16:01:26 JST
Emission Control Systems
Information
138
Catalytic Converter
This motorcycle is equipped with a three-way
catalytic converter. The catalytic converter
contains precious metals that serve as catalysts
in high temperature chemical reactions that
convert hydrocarbons (HC), carbon monoxide
(CO), and oxides of nitrogen (NOx) in the
exhaust gasses into safe compounds.
A defective catalytic converter contributes to air
pollution and can impair your engine's
performance. A replacement unit must be an
original Honda part or equivalent.
Follow these guidelines to protect your
motorcycle's catalytic converter.
● Always use unleaded gasoline. Leaded
gasoline will damage the catalytic converter.
● Keep the engine in good running condition.
A poorly running engine can cause the
catalytic converter to overheat causing
damage to the converter or the motorcycle.
● If your engine is misfiring, backfiring, stalling,
or otherwise not running properly, stop
riding and turn off the engine. Have your
motorcycle serviced as soon as possible.
20180222155238_31K0AA000_enu_BOOK Page 142 Thursday, February 22 2018 16:01:26 JST
Catalytic Converter
Information
139
Oxygenated Fuels
Some conventional fuels blended with alcohol
or an ether compound are available in some
locales to help reduce emissions to meet clean
air standards. These gasolines are collectively
referred to as oxygenated fuels. If you plan to
use oxygenated fuel, check that it is unleaded
and meets the minimum octane rating and
blend requirement.
The following fuel blends are EPA-approved
and have been approved for use in your
motorcycle:
● Ethanol (ethyl alcohol) up to 10% by volume.
u Gasoline containing ethanol may be
marketed under the name Gasohol.
● Methanol (methyl alcohol) up to 5% by
volume that contain cosolvents and
corrosion inhibitors to protect the fuel
system. Never use a blend containing more
than 5%.
If you accidentally fill your fuel tank with an
oxygenated fuel containing higher percentages,
you may experience performance problems. To
resolve the problem, have your dealer drain the
fuel tank and replace with the correct fuel. Fuel
system or performance problems resulting from
the use of an oxygenated fuel containing higher
percentages are not covered by your warranty.
NOTICE
Improper use of oxygenated fuels can damage
metal, rubber, and plastic parts of your fuel
system.
Oxygenated fuel can also damage paint.
Damage caused by spilled fuel is not covered by
warranty.
If you notice any undesirable operating
symptoms or performance problems, try a
different brand of gasoline.
20180222155238_31K0AA000_enu_BOOK Page 143 Thursday, February 22 2018 16:01:26 JST
Oxygenated Fuels
Information
140
Publication Item No. Description
61K0A00 2019 CB300R/RA Service Manual
61CSM00 Common Service Manual
S9507
USA
Winter Storage Guide
31K0AA00 2019 CB300R/RA Owner’s Manual
Authorized Manuals
USA
The Service Manual used by your
authorized dealer is available from your Honda
dealer or Helm, Inc.
Canada
See your dealer to order authorized
manuals.
Also available, but not necessary to service your
model, is the Honda Common Service Manual,
which explains basic service information for
various systems on Honda motorcycles,
scooters, and ATV.
USA
The Winter Storage Guide in conjunction
with the Owner's Manual and Service Manual
can help you prepare your Honda motorcycle,
scooter, ATV, and SxS for winter storage.
These Honda manuals are written for the
professional technician. However, if you possess
the proper tools, observe the safety standards,
and are mechanically capable, you should find
them easy to use.
Special Honda tools are necessary for some
procedures.
USA
Order On-Line: www.helminc.com
Order Toll Free: 1-888-CYCLE93
(1-888-292-5393)
(NOTE: For Credit Card Orders Only)
Monday - Friday 8:00 AM - 6:00 PM EST
20180222155238_31K0AA000_enu_BOOK Page 144 Thursday, February 22 2018 16:01:26 JST
Authorized Manuals
Information
141
Warranty Coverage and
Service
Coverage
Your new Honda is covered by the following
warranties:
● Motorcycle Limited Warranty
● Emission Control System Warranty
●
USA
Noise Control Warranty
The responsibilities, restrictions, and exclusions
that apply to these warranties are explained in
the Warranties Booklet given to you by your
Honda dealer at the time of purchase. Always
keep your Honda owner's card with your
Warranties Booklet.
Canada
Please refer to the Warranty Booklet
posted on our website at www.honda.ca.
It is important to realize that your warranty
applies only to defects in material or
workmanship of your Honda. Your warranty
coverage does not apply to the normal wear
and deterioration associated with use of the
motorcycle.
Your warranty coverage is not voided if you
perform your own maintenance. However,
failures that occur due directly to improper
maintenance are not covered by these
warranties.
USA
You can extend almost all of your warranty
coverage through the Honda Protection Plan.
For more information, see your Honda dealer.
20180222155238_31K0AA000_enu_BOOK Page 145 Thursday, February 22 2018 16:01:26 JST
Warranty Coverage and Service
Information
142
Service
Please remember that maintenance
recommended in the Maintenance Schedule is
not included in your warranty coverage.
If you believe you have a problem with your
motorcycle, call the service department of your
Honda dealer. Make an appointment for an
inspection and diagnosis. You will be asked to
authorize that inspection, and your dealer will
return the results of the inspection. If a problem
exists and is covered under warranty, your
dealer will perform the warranty repairs. If you
have any questions about your warranty
coverage or the nature of the repair, talk to the
Service Manager of your Honda dealer.
If a misunderstanding occurs and you aren't
satisfied with your dealer's handling of the
situation, we suggest you discuss your problem
with the appropriate member of the
dealership's management team. If you are still
not satisfied, contact the owner of the
dealership or their designated representative.
20180222155238_31K0AA000_enu_BOOK Page 146 Thursday, February 22 2018 16:01:26 JST
Warranty Coverage and Service
Information
143
Honda Contacts
American Honda Motor Co., Inc.
If you wish to contact Honda directly to
comment on your experiences with your
motorcycle or with your dealer, please send
your comments to the following address:
Motorcycle Division,
American Honda Motor Co., Inc.,
P.O. Box 2200, Torrance,
CA 90509-2200
Mailstop: 100-4C-7B,
Telephone: (866) 784-1870.
Canada
Honda Canada Inc.
Customer Relations Department,
180 Honda Boulevard
Markham, Ontario
L6C 0H9
Telephone: (888) 946-6329
Fax: (877) 939-0909
E-mail: [email protected]
Please include the following information in your
letter:
● Name, address, and telephone number
● Product model, year, and VIN
● Date of purchase
● Dealer name and address
We will likely ask your Honda dealer to respond,
or possibly acknowledge your comments
directly.
20180222155238_31K0AA000_enu_BOOK Page 147 Thursday, February 22 2018 16:01:26 JST
Honda Contacts
Information
144
Your Honda Dealer
The service department of your Honda dealer
offers trained personnel to perform regular
maintenance and most repairs. It has the latest
available service information from Honda and
also handles warranty inspections and repairs.
The parts department offers Honda Genuine
Parts, Pro Honda products, Honda Genuine
Accessories (USA only), and Honda accessories
and products (Canada only) that provide the
same quality that went into your motorcycle.
USA
The sales department offers the Honda
Protection Plan to extend almost all of your
warranty coverage.
Your Honda dealer can also supply information
about, riding events, and information about
safety training available in your local area.
20180222155238_31K0AA000_enu_BOOK Page 148 Thursday, February 22 2018 16:01:26 JST
Honda Contacts
Information
145
USA
Reporting Safety
Defects
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National
Highway Traffic Safety Administration
(NHTSA) in addition to notifying
American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your dealer, or
American Honda Motor Co., Inc.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at:
1-888-327-4236
(TTY: 1-800-424-9153); go to
http://www.safercar.gov;
or write to:
Administrator, NHTSA,
1200 New Jersey Avenue, SE.,
Washington, DC 20590.
You can also obtain other information
about motor vehicle safety from:
http://www.safercar.gov.
20180222155238_31K0AA000_enu_BOOK Page 149 Thursday, February 22 2018 16:01:26 JST
Reporting Safety Defects
Information
146
Specifications
■ Main Components
Overall length 79.5 in (2,020 mm)
Overall width 31.7 in (805 mm)
Overall height 41.3 in (1,050 mm)
Wheelbase 53.3 in (1,355 mm)
Minimum ground clearance 5.9 in (150 mm)
Caster angle 24° 44´
Trail 3.7 in (93 mm)
Curb weight
CB300R 313 lb (142 kg)
CB300RA 317 lb (144 kg)
Maximum weight capacity
*1
331 lb (150 kg)
Passenger capacity Rider and 1 passenger
Minimum turning radius 7.5 ft (2.30 m)
*1 : Including rider, passenger, all luggage, and accessories
Displacement 17.4 cu-in (286 cm
3
)
Bore x stroke 2.99 x 2.48 in (76.0 x 63.0 mm)
Compression
ratio
10.7 : 1
Fuel
Unleaded gasoline
Recommended: 86 PON or higher
Tank capacity 2.67 US gal (10.1 L)
Battery
YTZ8V
12 V-7 Ah (10 HR)
Gear ratio
1st 3.416
2nd 2.250
3rd 1.650
4th 1.350
5th 1.166
6th 1.038
Reduction ratio
(primary / final)
2.807 / 2.571
20180222155238_31K0AA000_enu_BOOK Page 150 Thursday, February 22 2018 16:01:26 JST
Specifications
147
■ Service Data
Tire size
Front 110/70R17M/C 54H
Rear 150/60R17M/C 66H
Tire type Radial, tubeless
Recommended
Tire
Front DUNLOP GPR-300F M
Rear DUNLOP GPR-300 M
Tire air pressure
(Driver only)
Front 29 psi (200 kPa, 2.00 kgf/cm
2
)
Rear 33 psi (225 kPa, 2.25 kgf/cm
2
)
Tire air pressure
(Driver and
passenger)
Front 29 psi (200 kPa, 2.00 kgf/cm
2
)
Rear 33 psi (225 kPa, 2.25 kgf/cm
2
)
Minimum tread
depth
Front 0.06 in (1.5 mm)
Rear 0.08 in (2.0 mm)
Spark plug SIMR8A9 (NGK)
Spark plug gap 0.031 - 0.035 in (0.80 - 0.90 mm)
Idle speed 1,400 ± 100 rpm
Recommended
engine oil
API Service Classification SG or higher
except oils labeled as energy conserving or
resource conserving on the circular API
service label, SAE 10W-30, JASO T 903
standard MA, Pro Honda GN4 4-stroke oil
(USA & Canada) or Honda 4-stroke oil, or an
equivalent motorcycle oil
Engine oil capacity
After
draining
1.5 US qt (1.4 L)
After
draining &
engine oil
filter change
1.6 US qt (1.5 L)
After
disassembly
1.9 US qt (1.8 L)
Recommended
brake fluid
Honda DOT 3 or DOT 4 Brake Fluid
Cooling system
capacity
0.83 US qt (0.79 L)
Recommended
coolant
Pro Honda HP Coolant
Recommended
drive chain
lubricant
Pro Honda HP Chain Lube or equivalent
Drive chain slack 1 3/16 - 1 9/16 in (30 - 40 mm)
Standard drive
chain
DID 520VF or RK 520KLO2
No. of links 108
Standard sprocket
size
Drive
sprocket
14T
Driven
sprocket
36T
20180222155238_31K0AA000_enu_BOOK Page 151 Thursday, February 22 2018 16:01:26 JST
Specifications
Specifications
148
■ Bulbs
Headlight LED
Brake light/Taillight LED
Front turn signal light LED
Rear turn signal light LED
License plate light LED
■ Fuses
Main fuse 30 A
Other fuse
CB300R 10 A, 7.5 A
CB300RA 30 A, 20 A, 10 A, 7.5 A
■ Torque Specifications
Front seat mounting bolt 7 lbf·ft (10 N·m, 1.0 kgf·m)
Fuel tank cover bolt A 3.1 lbf·ft (4.2 N·m, 0.4 kgf·m)
Fuel tank cover bolt B 3.1 lbf·ft (4.2 N·m, 0.4 kgf·m)
Fuel tank cover bolt C 7 lbf·ft (10 N·m, 1.0 kgf·m)
Fuel tank cover bolt D 7 lbf·ft (10 N·m, 1.0 kgf·m)
Fuel tank mounting bolt 9 lbf·ft (12 N·m, 1.2 kgf·m)
Outer shroud bolt 3.1 lbf·ft (4.2 N·m, 0.4 kgf·m)
Inner shroud bolt A 3.1 lbf·ft (4.2 N·m, 0.4 kgf·m)
Inner shroud bolt B 7 lbf·ft (10 N·m, 1.0 kgf·m)
Engine oil drain bolt 18 lbf·ft (24 N·m, 2.4 kgf·m)
Engine oil filter cover bolt 9 lbf·ft (12 N·m, 1.2 kgf·m)
Rear axle nut 65 lbf·ft (88 N·m, 9.0 kgf·m)
Front axle nut 44 lbf·ft (59 N·m, 6.0 kgf·m)
Front axle pinch bolt 18 lbf·ft (24 N·m, 2.4 kgf·m)
20180222155238_31K0AA000_enu_BOOK Page 152 Thursday, February 22 2018 16:01:26 JST
Specifications
Specifications
149
Information Record
VIN
Engine No.
Color Label & Code
Owner's Name
Address
City/State
Phone
Dealer's Name
Address
City/State
Phone
Service Manager
20180222155238_31K0AA000_enu_BOOK Page 153 Thursday, February 22 2018 16:01:26 JST
150
Index
A
ABS (Anti-lock Brake System) .............. 11,
109
ABS (Anti-lock Brake System)
Indicator .................................................. 38, 109
Accessories........................................................ 14
Air Cleaner......................................................... 72
Average Speed Meter............................... 19, 27
B
Battery.......................................................... 61, 73
Brake Light Switch........................................... 92
Brake Light/Taillight ..................................... 119
Brakes
Fluid....................................................... 65, 90, 148
Pad Wear ............................................................. 91
Braking ............................................................... 10
Bulb
Brake Light/Taillight ........................................ 119
Front Turn Signal Light................................... 120
Headlight ........................................................... 119
License Plate Light........................................... 120
Rear Turn Signal Light .................................... 120
C
Caring for Your Motorcycle ........................ 127
Catalytic Converter........................................ 139
Clip ...................................................................... 75
Clock............................................................. 19, 29
Clutch
Freeplay......................................................... 98, 99
Clutch System................................................... 98
Coolant......................................................... 67, 88
Coolant Temperature Gauge ........................ 19
Crankcase Breather................................. 68, 102
Crash ..................................................................... 5
D
Digital Clock Adjustment............................... 29
Document Bag ......................................... 50, 126
Drive Chain.................................................. 65, 94
Drive Chain Slider ............................................ 97
E
Electrical Trouble ........................................... 118
Emission Control Systems ........................... 134
20180222155238_31K0AA000_enu_BOOK Page 154 Thursday, February 22 2018 16:01:26 JST
Index
151
Engine
Number..................................................... 133, 133
Oil
.................................................................... 64, 84
Oil Filter ................................................................ 86
Overheats .......................................................... 107
Starting ................................................................. 45
Stop Switch................................................. 42, 126
Stopping ............................................................ 126
Will Not Start .................................................... 106
Environment ................................................... 132
Equipment
Document Bag.................................................... 50
Helmet Holder .................................................... 49
Owner’s Manual............................................... 126
Tool ....................................................................... 50
F
Flooded Engine ................................................ 45
Front Seat .......................................................... 76
Front Turn Signal Light ................................ 120
Fuel
Average Fuel Mileage Meter.................... 19, 25
Consumption Meter ................................... 19, 26
Containing Alcohol.......................................... 147
Current Fuel Mileage Meter ..................... 19, 25
Gauge .......................................................... 19, 110
Recommended.......................................... 48, 147
Remaining............................................................ 19
Tank Capacity ............................................ 48, 147
Fuses........................................................... 63, 121
G
Gasohol ............................................................ 140
Gasoline ............................................................. 48
H
Headlight......................................................... 119
Headlight Aim ................................................ 103
Headlight Dimmer Switch ............................. 42
Helmet Holder.................................................. 49
High Beam Indicator....................................... 39
Honda Contacts ............................................. 144
Horn Button ...................................................... 42
I
Ignition Cut-off System
Banking Sensor................................................. 126
Side Stand............................................................ 93
20180222155238_31K0AA000_enu_BOOK Page 155 Thursday, February 22 2018 16:01:26 JST
Index
152
Ignition Key..................................................... 125
Ignition Switch................................... 43,
45, 126
Indicators........................................................... 38
Information Record....................................... 150
Instruments ....................................................... 18
Instruments, Controls, ＆Other
Features ......................................................... 126
K
Keys................................................................... 125
L
Labels.................................................................... 7
License Plate Light......................................... 120
Load Limits ........................................................ 15
Loading Guidelines.......................................... 15
M
Maintenance
Fundamentals ..................................................... 58
Importance .......................................................... 52
Record .................................................................. 57
Safety .................................................................... 53
Schedule............................................................... 54
Maximum Weight Limit ................................. 15
Modifications.................................................... 14
N
Neutral Indicator ............................................. 39
O
Odometer............................................ 19, 21, 126
Oil
Engine ............................................................ 64, 84
Overheating .................................................... 107
Oxygenated Fuels.......................................... 140
P
Parking ............................................................... 12
Parts Location................................................... 16
Passing Light Control Switch ........................ 42
PGM-FI (Programmed Fuel Injection)
Malfunction Indicator Lamp (MIL).... 38, 108
Protective Apparel............................................. 9
R
Rear Seat............................................................ 81
Rear Suspension ............................................ 104
20180222155238_31K0AA000_enu_BOOK Page 156 Thursday, February 22 2018 16:01:26 JST
Index
153
Rear Turn Signal Light.................................. 120
Recommended
Coolant........................................................ 67, 148
Engine Oil
................................................... 64, 148
Fuel........................................................................ 48
Refueling............................................................ 48
Removal
Battery................................................................... 73
Clip......................................................................... 75
Front Seat............................................................. 76
Fuel Tank Cover Assembly .............................. 77
Fuel Tank Maintenance Position .................... 79
Rear Seat.............................................................. 81
Shroud .................................................................. 82
Repair Kit ......................................................... 111
Reporting Safety Defects............................. 146
REV Indicator.............................................. 33, 39
Riding Precautions .......................................... 10
S
Safety Guidelines ............................................... 3
Safety Labels ....................................................... 7
Safety Precautions............................................. 9
SEL Button ......................................................... 18
SET Button......................................................... 18
Shifting Gears ................................................... 47
Side Stand.......................................................... 93
Side Stand Ignition Cut-off System ............ 93
SIDE STAND Indicator .................................... 39
Specifications.................................................. 147
Speedometer .................................................... 19
Start Button....................................................... 42
Starting the Engine ......................................... 45
Steering Lock .................................................... 44
Stopping Engine ............................................ 126
Stopwatch............................................. 19, 21, 23
Storage
Equipment ........................................................... 49
Owner’s Manual............................................... 126
Tool ....................................................................... 50
Storing.............................................................. 130
Switches ............................................................. 42
T
Tachometer ....................................................... 18
Tachometer Display ........................................ 37
Throttle ............................................................ 101
20180222155238_31K0AA000_enu_BOOK Page 157 Thursday, February 22 2018 16:01:26 JST
Index
154
Tires
Air Pressure ......................................................... 68
Puncture..........................................................
... 111
Replacing .................................................... 68, 111
Tool ..................................................................... 50
Transporting Your Motorcycle................... 131
Tripmeter ............................................ 19, 21, 126
Troubleshooting ............................................ 105
Turn Signal Indicator ...................................... 39
Turn Signal Switch........................................... 42
V
Vehicle Identification Number ................... 133
W
Warning Indicators On or Flashing ........... 108
Warranty Coverage and Service ................ 142
Washing Your Motorcycle........................... 127
Weight Limit............................................. 15, 147
Wheels
Front Removal .................................................. 112
Rear Removal.................................................... 115
20180222155238_31K0AA000_enu_BOOK Page 158 Thursday, February 22 2018 16:01:26 JST
Index
155
California Proposition 65 Warning
3WARNING
Operating, servicing and maintaining a passenger vehicle or off-
highway motor vehicle can expose you to chemicals including
engine exhaust, carbon monoxide, phthalates, and lead, which
are known to the State of California to cause cancer and birth
defects or other reproductive harm. To minimize exposure, avoid
breathing exhaust, do not idle the engine except as necessary,
service your vehicle in a well-ventilated area and wear gloves or
wash your hands frequently when servicing your vehicle. For
more information go to
www.P65Warnings.ca.gov/passenger-vehicle.
20180222155238_31K0AA000_enu_BOOK Page 160 Thursday, February 22 2018 16:01:26 JST
