INSTALLATION
DIFFICULTY:
INSTALLATION GUIDE
for the
SB-GM-TAHOCNSL/10W1v2
SB-GM-TAHOCNSL/10W1v2
2007 - Up
2007 - Up
Chevrolet / GMC Full-Size SUV’s & Truck
Chevrolet / GMC Full-Size SUV’s & Truck
Avalanche, Suburban, Tahoe, Yukon & Yukon XL
Avalanche, Suburban, Tahoe, Yukon & Yukon XL
with bucket seats and
with bucket seats and
factory console
factory console
Thank you for choosing a JL Audio Stealthbox
®
for your automotive sound system. With proper
installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
®
installed by your authorized JL Audio
dealer. The installation professionals employed by your dealer have the necessary tools and experience
to disassemble and reassemble your vehicle properly. Also, keep in mind that your warranty coverage
extends to 1 year if your system is installed or approved by your authorized JL Audio dealer. If you
prefer to perform your own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox
®
be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.

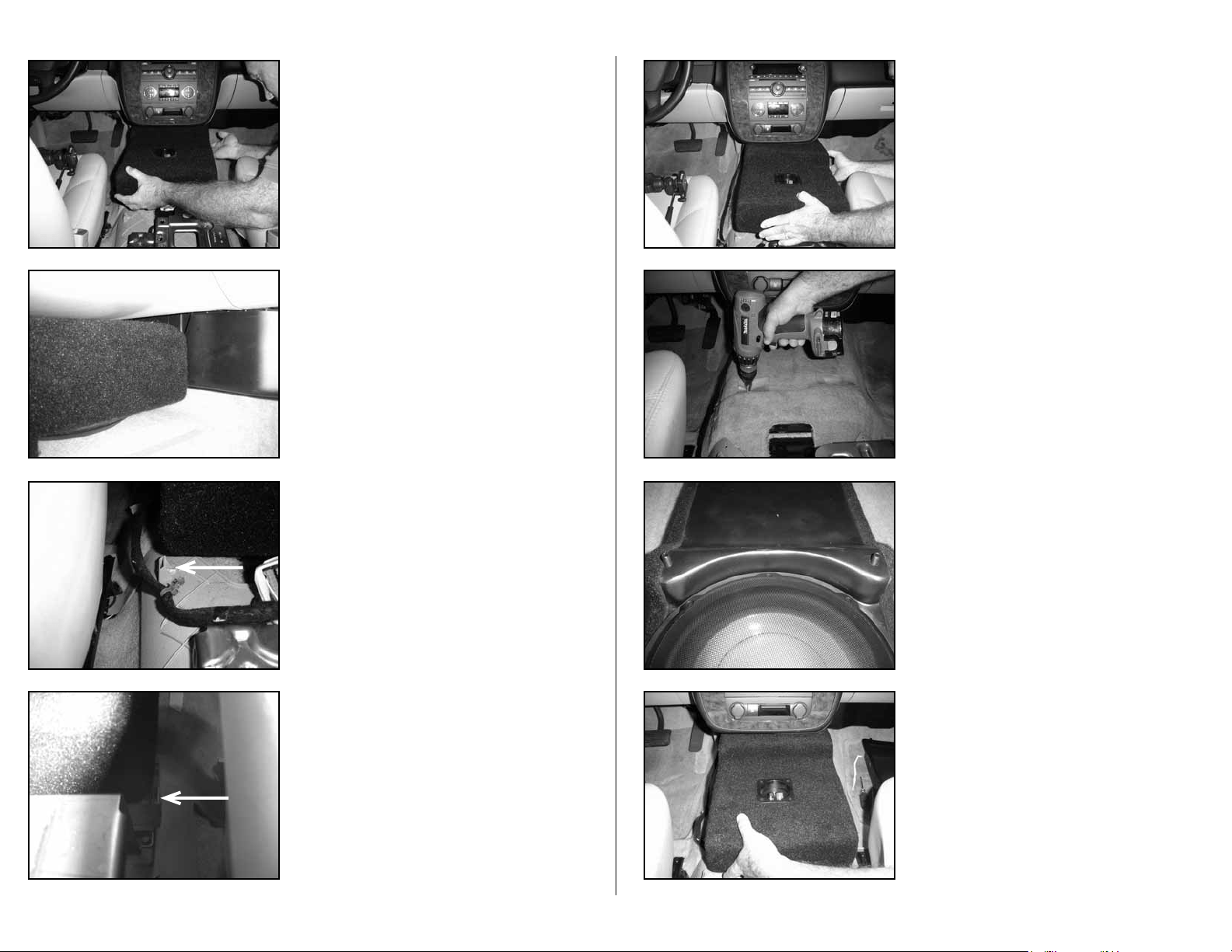

STEP 1
Using masking tape or similar, mark where the bottom
edge of the front center console meets the carpet on the
driver’s side.
Continued on Next Page
STEP 2
Using masking tape or similar, mark where the bottom
edge of the front center console meets the carpet on the
passenger’s side.
STEP 3
Open the storage lid of the center console. Remove the four
exposed screws.
SB-GM-TAHOSCNSL/10W3v2_INSTR_SKU#011220
SB-GM-TAHOSCNSL/10W3v2_INSTR_SKU#011220
3
5
OUT
OF
