USER’S MANUAL
Serial Number
Decal
Model No. NTEX89918NB.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
nordictrack.com
To register your product and
activate your warranty today,
go to my.nordictrack.com.
For service at any time, go to
support.nordictrack.com.
Or call 1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE
2
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

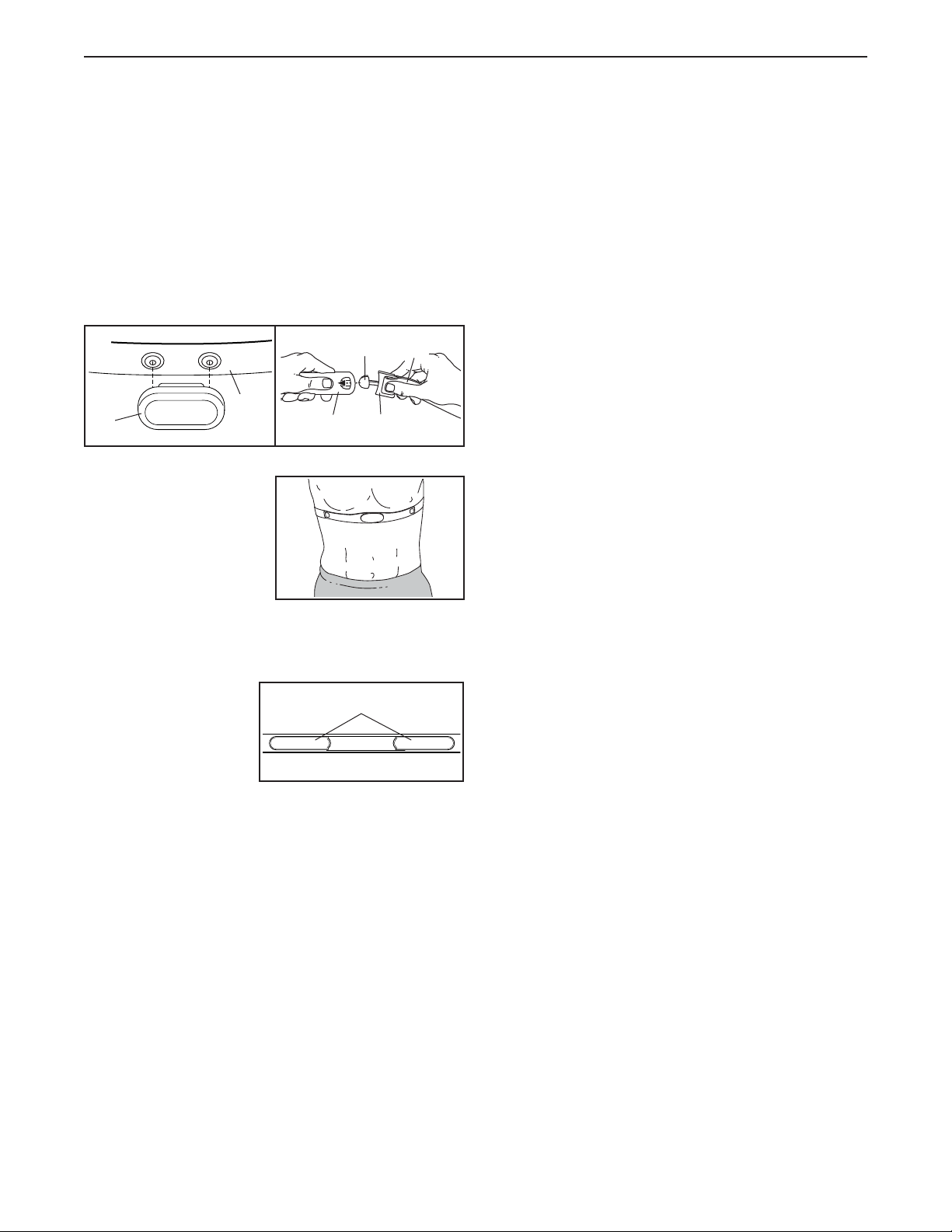

THE CHEST HEART RATE MONITOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

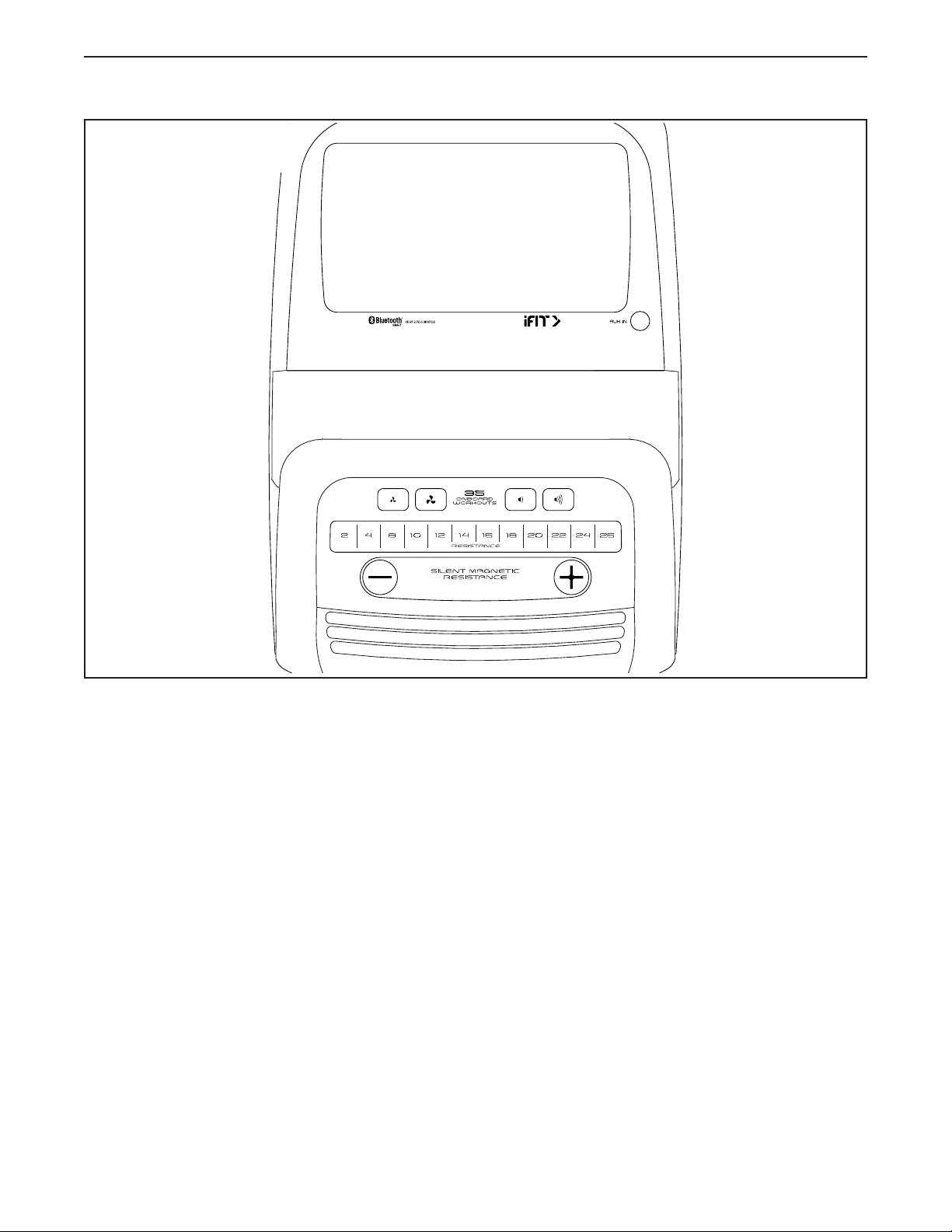

HOW TO USE THE CONSOLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
MAINTENANCE AND TROUBLESHOOTING .....................................................29
EXERCISE GUIDELINES ....................................................................31
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

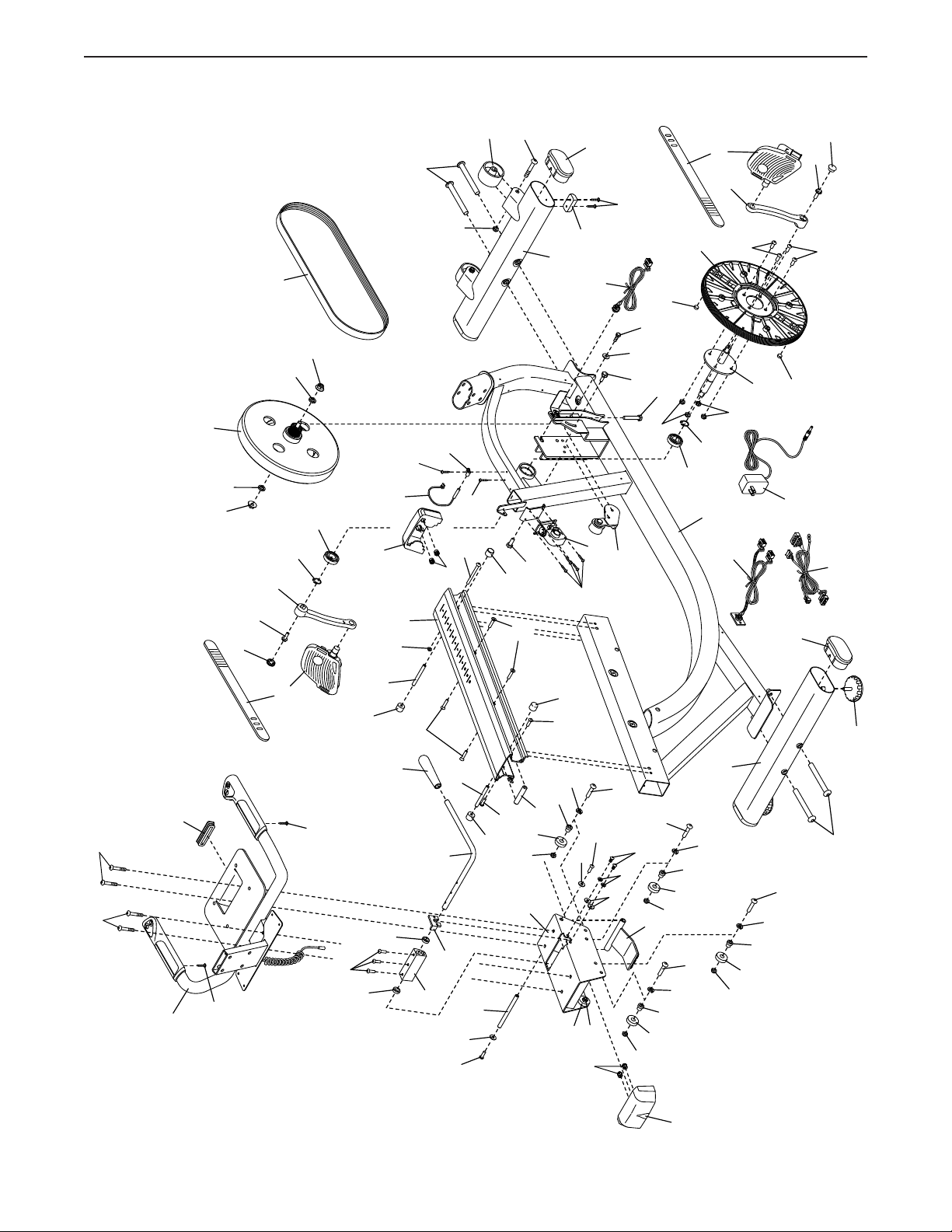

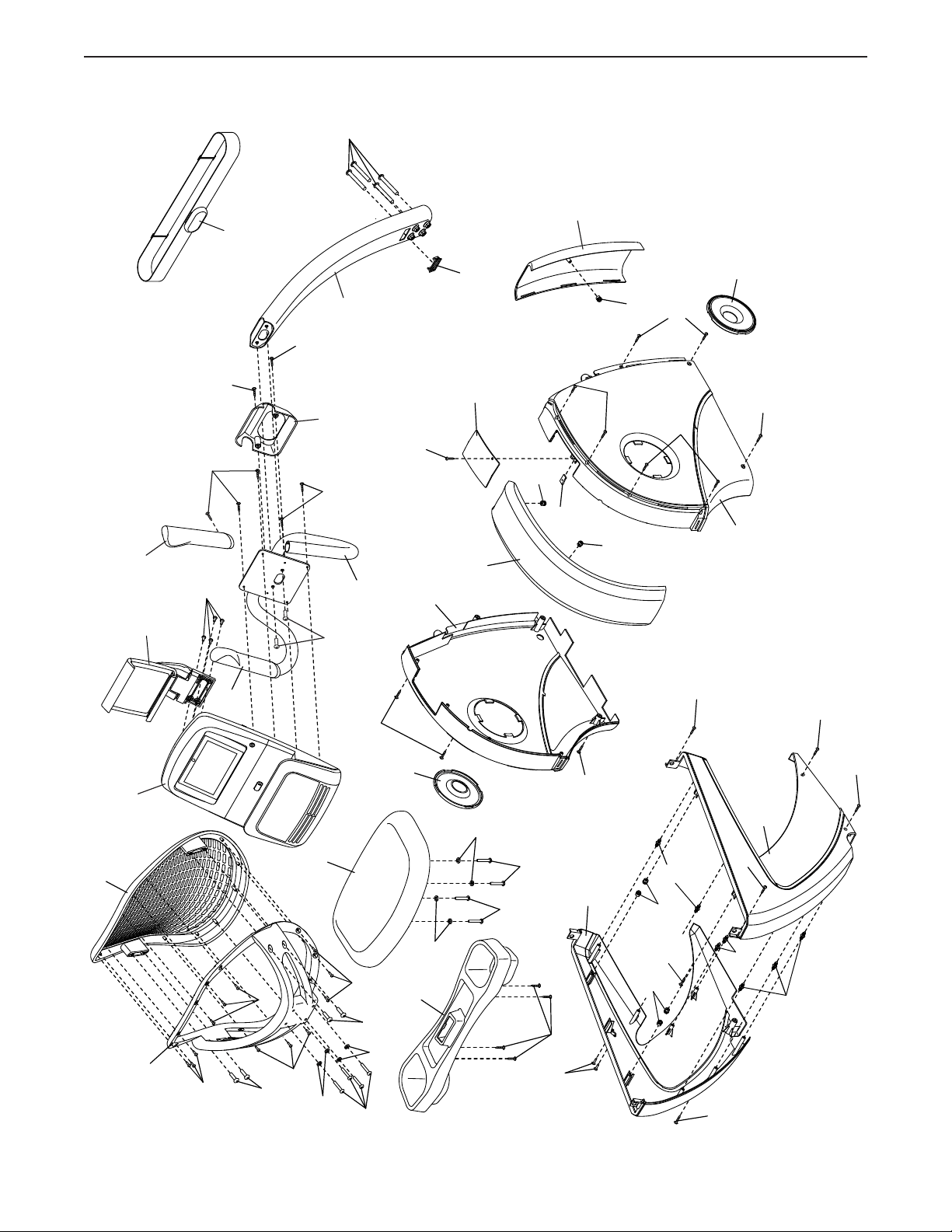

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
TABLE OF CONTENTS
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. The Bluetooth
®
word mark
and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. Google Maps is a trade-
mark of Google LLC. Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi
Alliance.

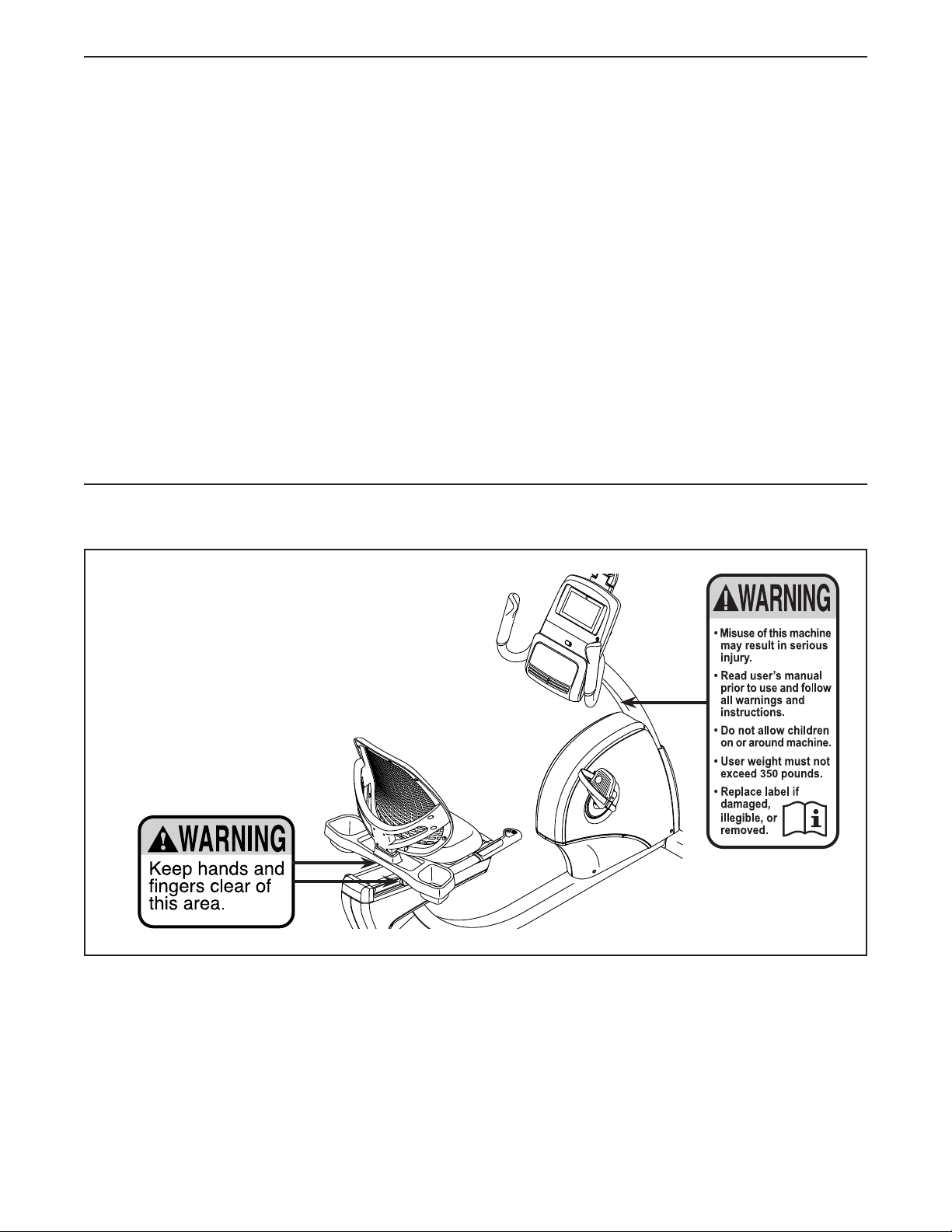

This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. The exercise bike is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the exercise
bike by someone responsible for their safety.
4. Use the exercise bike only as described in
this manual.
5. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
6. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
7. Place the exercise bike on a level surface
with at least 2 ft. (0.6 m) of clearance around
the exercise bike. To protect the floor or
carpet from damage, place a mat under the
exercise bike.
8. Inspect and properly tighten all parts each
time the exercise bike is used. Replace any
worn parts immediately.
9. Keep children under age 16 and pets away
from the exercise bike at all times.
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
11. The exercise bike should not be used
by persons weighing more than 350 lbs.
(159 kg).
12. Be careful when mounting and dismounting
the exercise bike.
13. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
14. Always keep your back straight while using
the exercise bike; do not arch your back.
15. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
4
all
STANDARD SERVICE PLANS
5

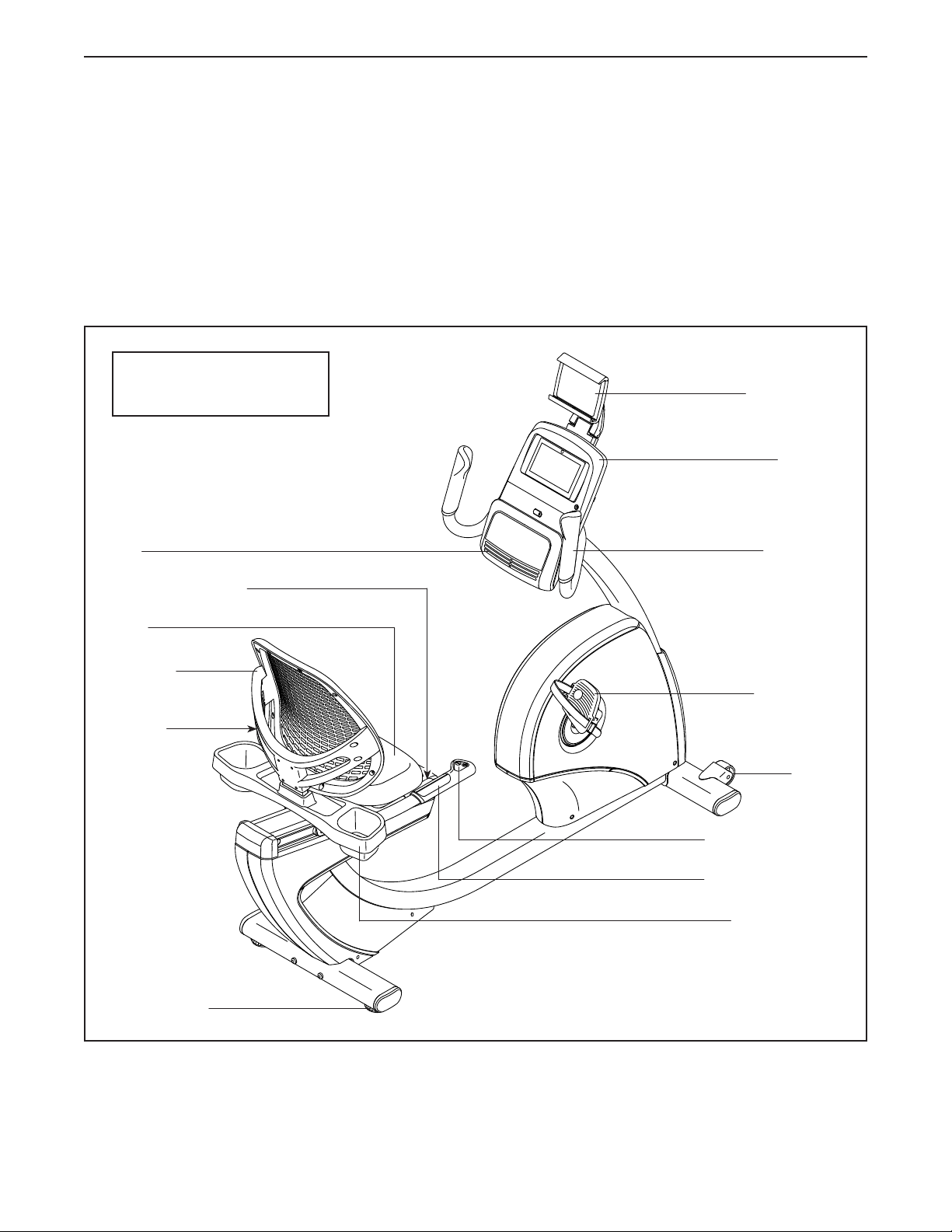

Console
Tablet Holder
Seat
Adjustment Handle
Volume
Control
Fan
Heart Rate Monitor
Resistance Control
Pedal/Strap
Wheel
Leveling Foot
Handlebar
Backrest
Accessory Tray
BEFORE YOU BEGIN
Thank you for selecting the revolutionary
NORDICTRACK
®
VR 25 exercise bike. Cycling is an
effective exercise for increasing cardiovascular tness,
building endurance, and toning the body. The VR 25
exercise bike provides an impressive selection of fea-
tures designed to make your workouts at home more
effective and enjoyable.
For your benet, read this manual carefully before
you use the exercise bike. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Length: 5 ft. 8 in. (173 cm)
Width: 1 ft. 10 in. (56 cm)
6
PART IDENTIFICATION CHART

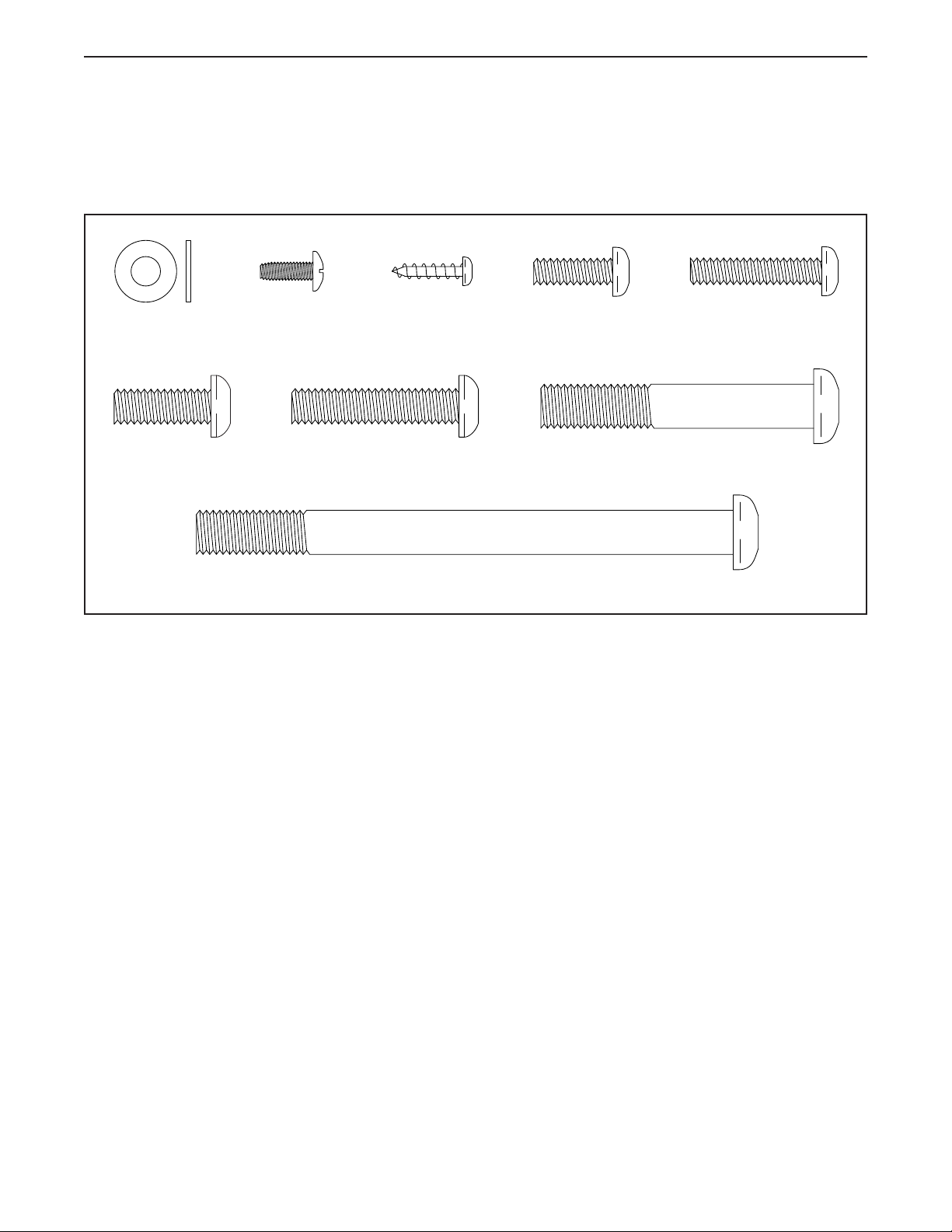

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M10 x 122mm Screw (65)–4
M10 x 62mm Screw (70)–4
M4 x 16mm
Screw (77)–10
M6 x 30mm
Screw (75)–4
M6 Washer
(88)–8
M8 x 22mm
Screw (69)–2
M8 x 38mm
Screw (67)–4
M6 x 18mm
Screw (25)–4
Tablet Holder
Screw (54)–4
7

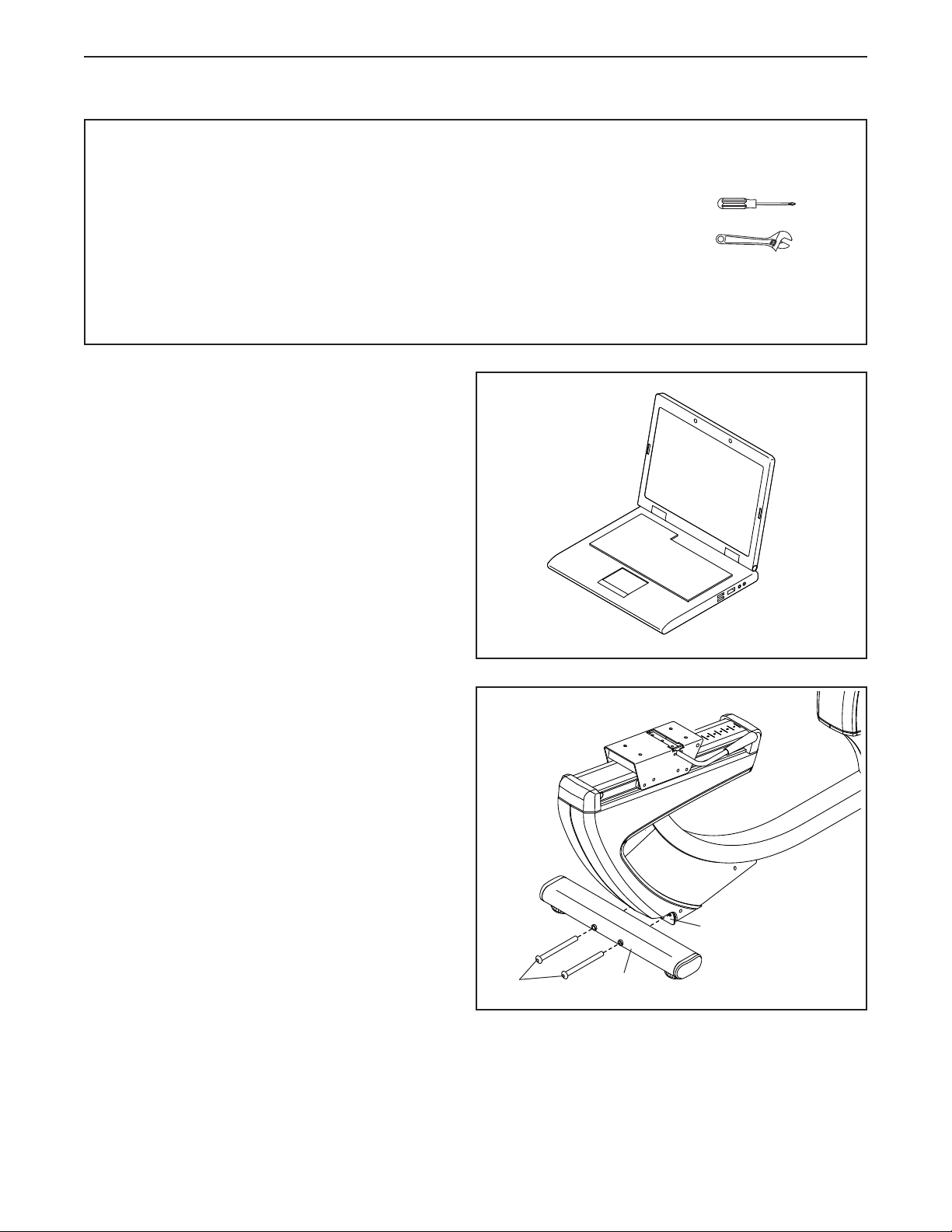

• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
2. Set a sturdy piece of packing material under the
rear of the Frame (1). Have a second person
hold the Frame to prevent it from tipping
while you complete this step.
Orient the Rear Stabilizer (16) as indicated by
the sticker. Attach the Rear Stabilizer to the
Frame (1) with two M10 x 122mm Screws (65).
Then, remove the packing material.
16
2
65
1
1. Go to my.nordictrack.com on your computer
and register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.
8

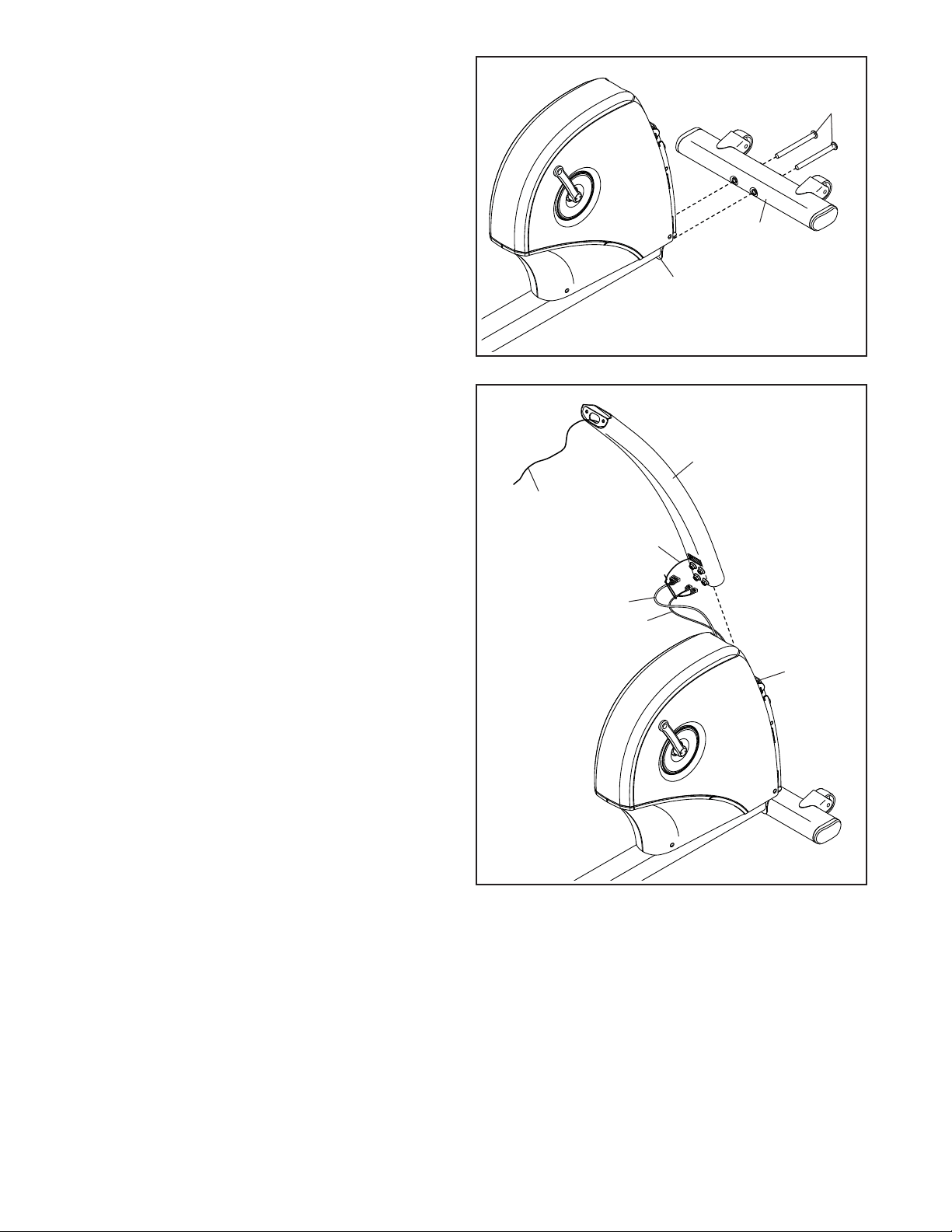

3. Set a sturdy piece of packing material under the
front of the Frame (1). Have a second person
hold the Frame to prevent it from tipping
while you complete this step.
Orient the Front Stabilizer (15) as shown. Attach
the Front Stabilizer to the Frame (1) with two
M10 x 122mm Screws (65).
Then, remove the packing material.
1
3
65
15
4
2
42
43
1
A
A
4. Orient the Upright (2) as shown. Have a second
person hold the Upright near the front of the
Frame (1).
Tie the lower end of the wire tie (A) in the Upright
(2) to the Main Wire (43) and to the Frame Pulse
Wire (42) in the Frame (1).
Then, pull the upper end of the wire tie (A)
until the Wires (42, 43) are routed through the
Upright (2).
9
70
2
Avoid pinching
the wires

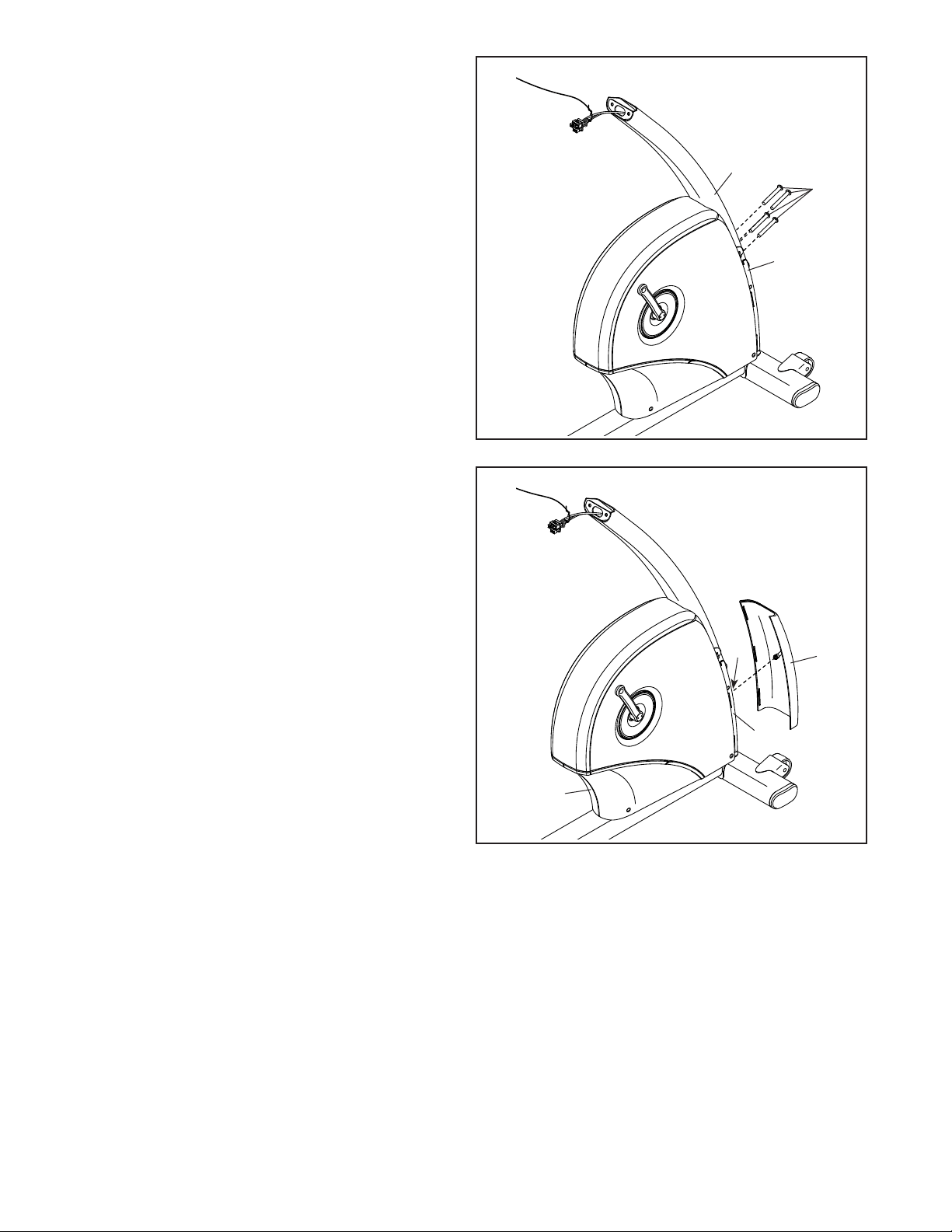

5. Tip: Avoid pinching the wires. Slide the
Upright (2) onto the Frame (1).
Attach the Upright (2) with four M10 x 62mm
Screws (70); start all the Screws, and then
tighten them.
1
58
13
14
6. Press the mount on the Front Shield (58) into the
Frame (1). Then, press the Front Shield onto the
Left and Right Front Shields (13, 14).
6
1
5
10
7
2
57
8
69
7
B
B
A
A

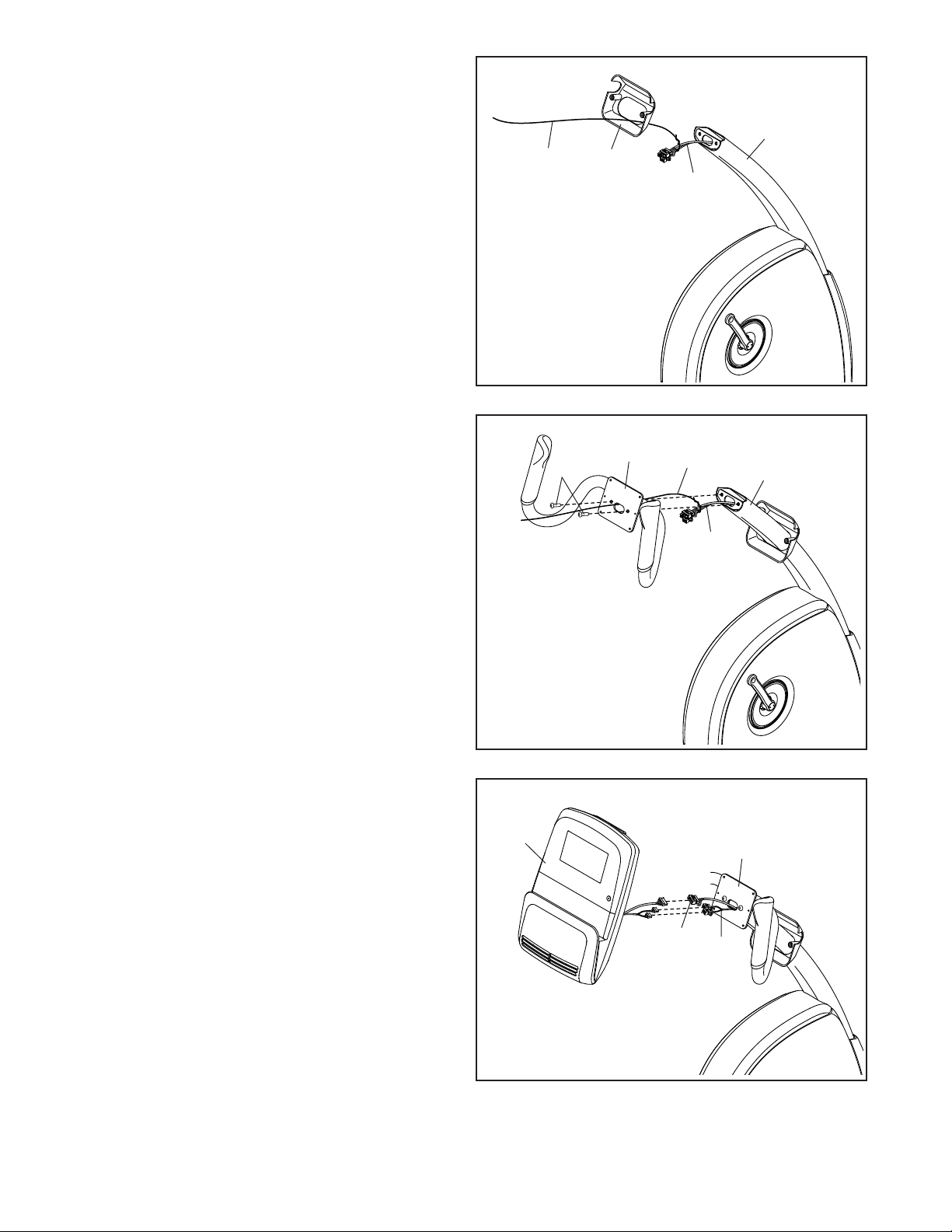

7. Orient the Upright Cover (57) as shown. Hold the
Upright Cover near the Upright (2), and insert
the wire tie (A) and the wires (B) upward through
the Upright Cover.
Then, slide the Upright Cover (57) onto the
Upright (2).
8. Orient the Handlebar (7) as shown. While a
second person holds the Handlebar near the
Upright (2), insert the wire tie (A) and the wires
(B) upward through the Handlebar.
Tip: Avoid pinching the wires. Attach the
Handlebar (7) to the Upright (2) with two
M8 x 22mm Screws (69).
2
Avoid pinching
the wires
9
4
7
42
43
9. Untie and discard the wire tie on the Main Wire
(43) and the Frame Pulse Wires (42).
While a second person holds the Console (4)
near the Handlebar (7), connect the wires on the
Console to the Main Wire (43) and the Frame
Pulse Wires (42).
Insert the excess wire into the Handlebar (7).
Tip: It may be helpful to insert the connectors
on the wires one at a time through the hole in
the Handlebar.
11
10
4
77
7
Avoid pinching
the wires

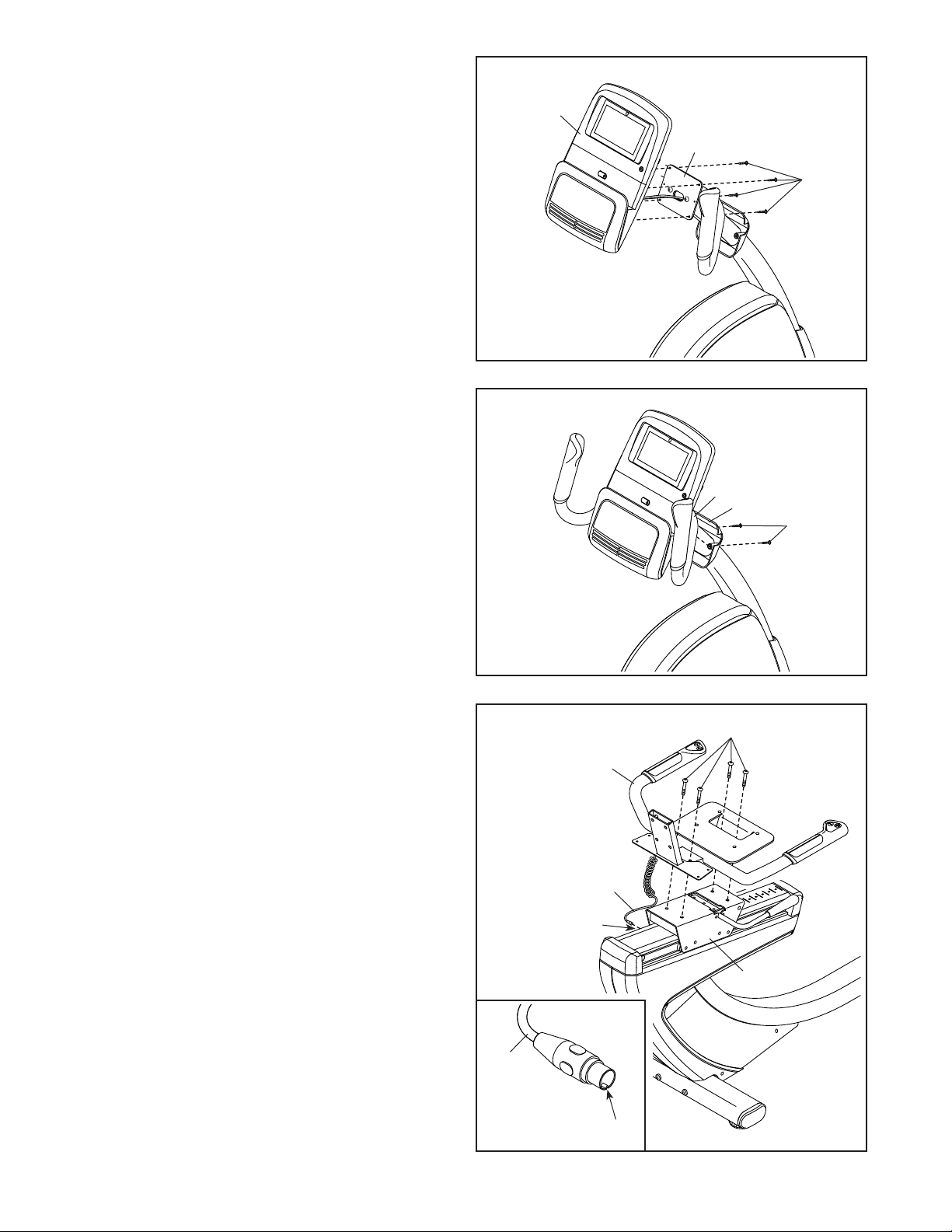

10. Tip: Avoid pinching the wires. Attach the
Console (4) to the Handlebar (7) with four
M4 x 16mm Screws (77); start all the Screws,
and then tighten them.
11. Attach the Upright Cover (57) to the Handlebar
(7) with two M4 x 16mm Screws (77).
11
57
7
77
12
41
42
C
10
67
12. Attach the Seat Handlebar (10) to the Seat
Carriage (41) with four M8 x 38mm Screws (67);
start all the Screws, and then tighten them.
Next, locate the wire (C) on the seat assembly.
See the inset drawing. Rotate the connector on
the wire (C) so that the “V”-shaped indentation
(D) is at the bottom.
Plug the wire (C) fully into the Frame Pulse
Receptacle (42) on the left side of the exercise
bike.
C
D
12
13
10
77
77

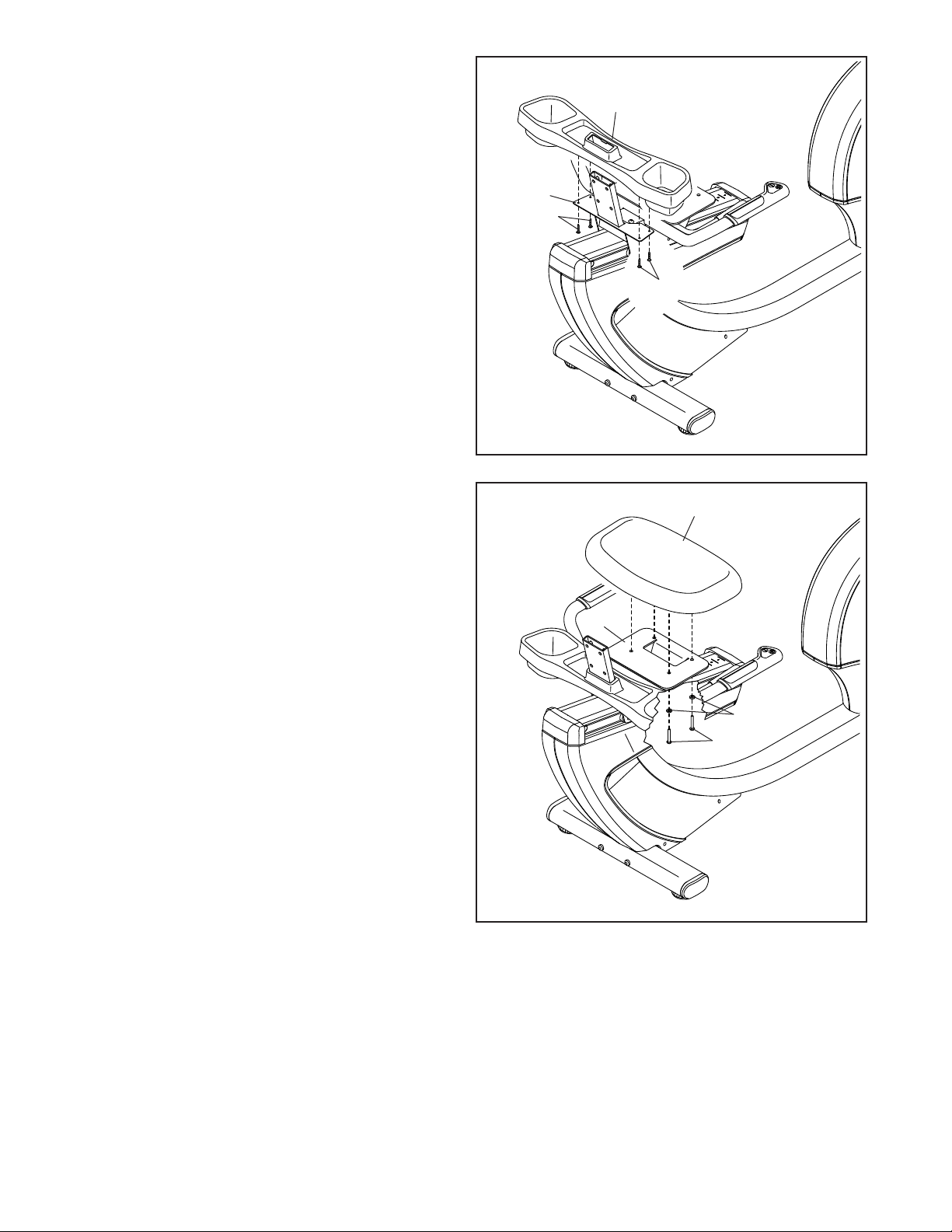

13. Slide the Accessory Tray (56) onto the Seat
Handlebar (10).
Attach the Accessory Tray (56) with four
M4 x 16mm Screws (77); start all the Screws,
and then tighten them.
88
10
9
25
14

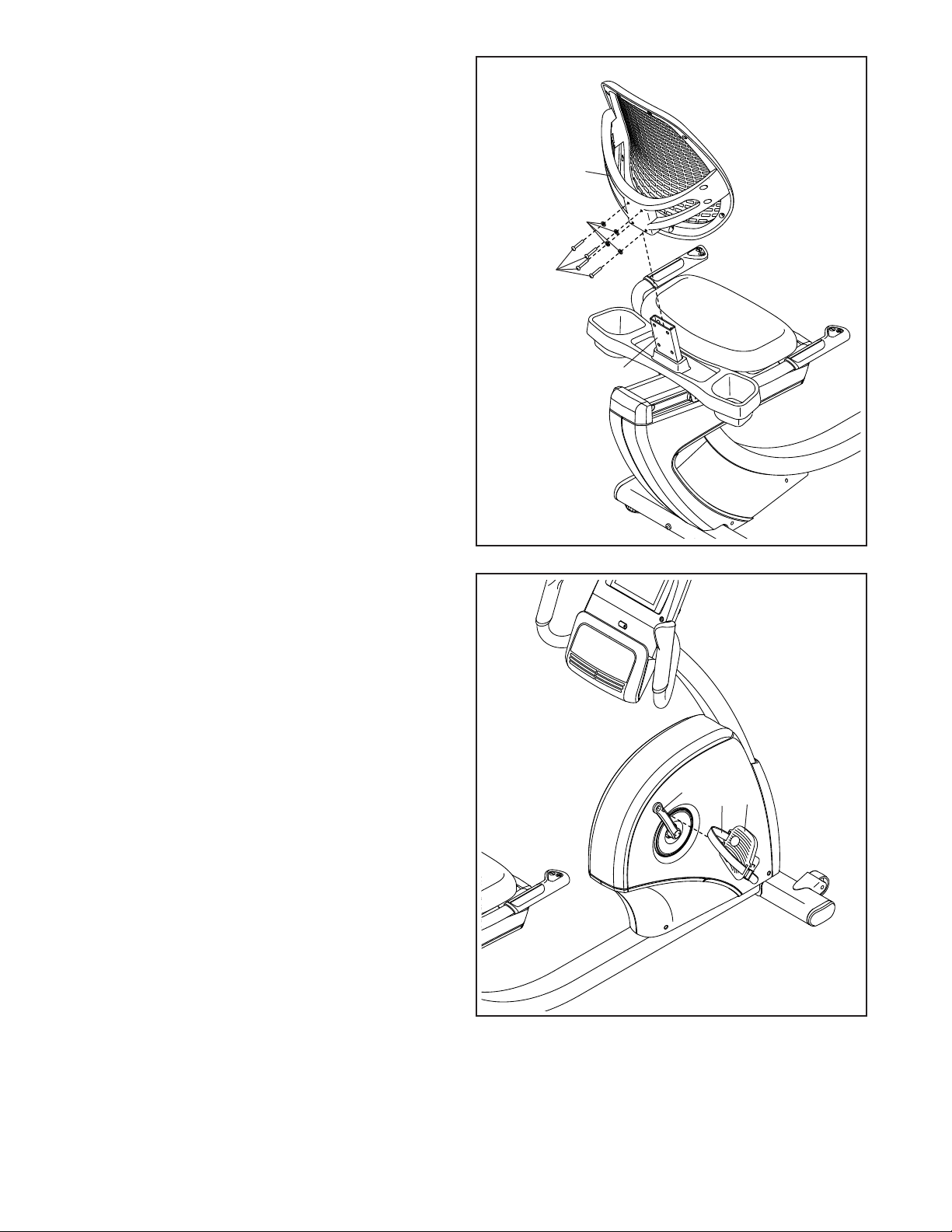

14. Orient the Seat (9) as indicated by the sticker.
Attach the Seat (9) to the Seat Handlebar (10)
with four M6 x 18mm Screws (25) and four M6
Washers (88) (only two of each are shown);
start all the Screws, and then tighten them.
56
13

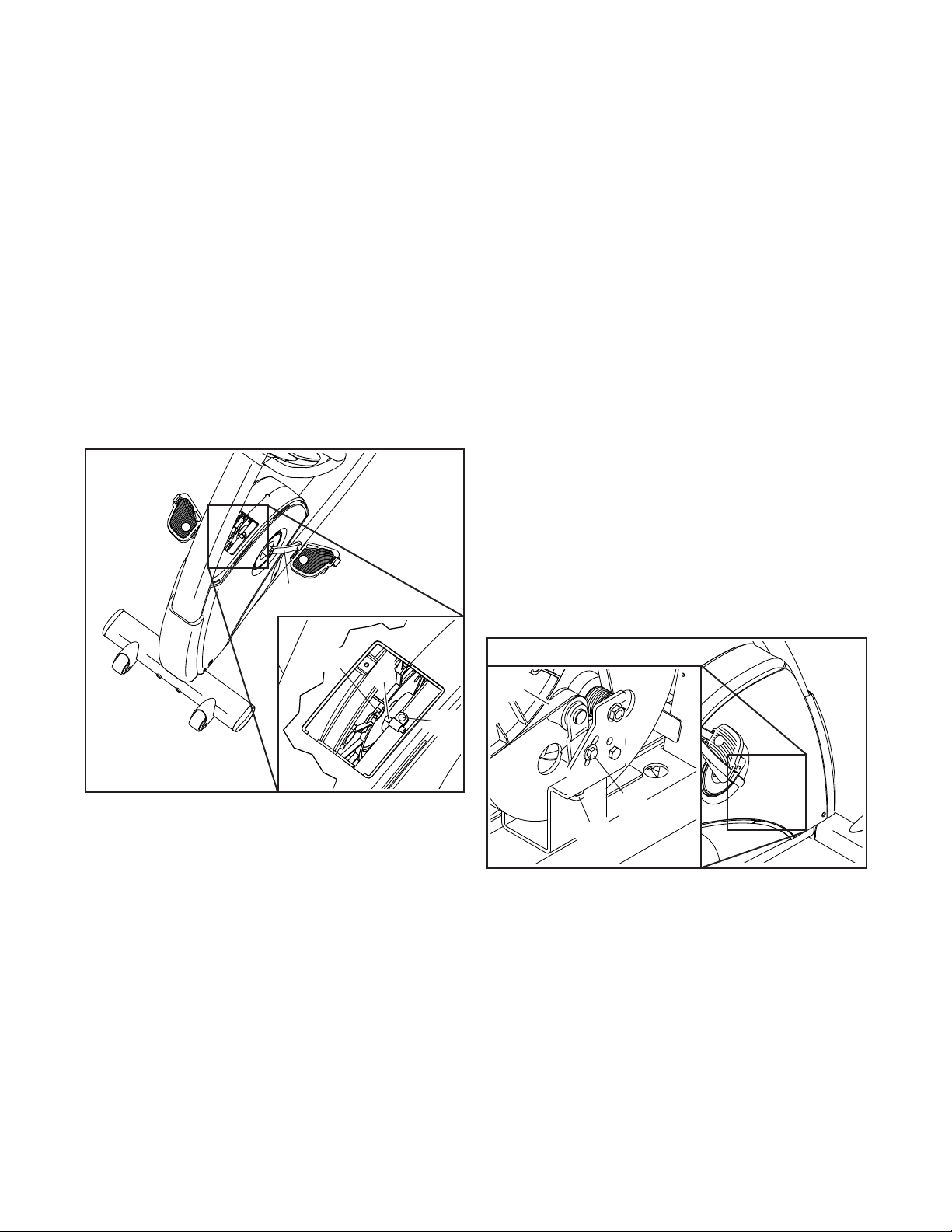

16. Identify the Right Pedal (21).
Using an adjustable wrench, firmly tighten the
Right Pedal (21) clockwise into the Right Crank
Arm (23).
Firmly tighten the Left Pedal (not shown)
counterclockwise into the Left Crank Arm
(not shown). IMPORTANT: You must turn the
Left Pedal counterclockwise to attach it.
To adjust the pedal straps (E), see HOW TO
ADJUST THE PEDAL STRAPS on page 16.
16
23
10
75
88
81
15
15. Slide the Backrest Back (81) onto the Seat
Handlebar (10).
Attach the Backrest Back (81) with four
M6 x 30mm Screws (75) and four M6
Washers (88); start all the Screws, and then
tighten them.
21
E
14
18. Plug the Power Adapter (51) into the receptacle
on the frame of the exercise bike.
Note: To plug the Power Adapter (51) into an
outlet, see HOW TO PLUG IN THE POWER
ADAPTER on page 16.
51
18
19. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it
functions properly. Make sure that all parts are properly tightened before you use the exercise bike.
Extra parts may be included. Place a mat beneath the exercise bike to protect the floor.
53
54
54
17

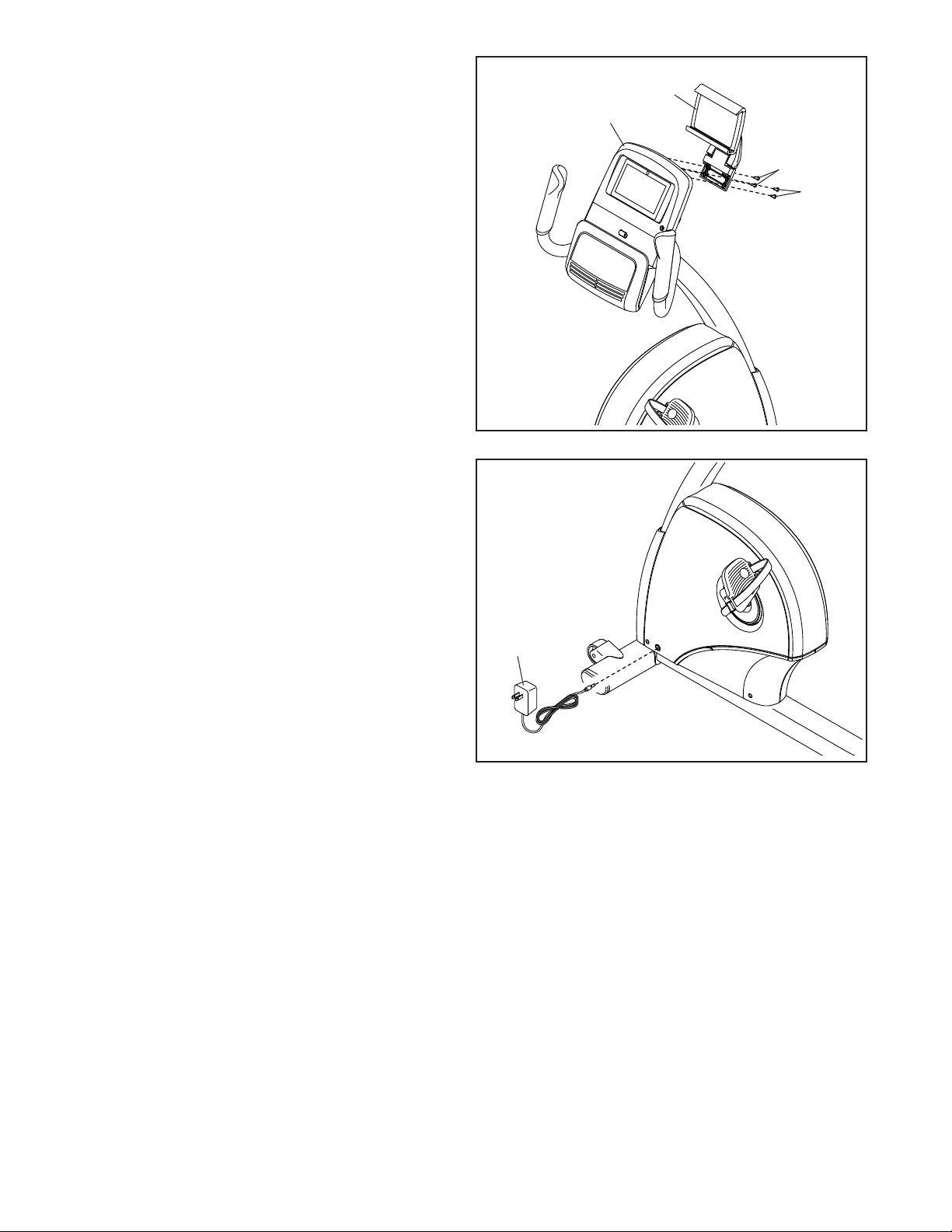

17. Attach the Tablet Holder (53) to the Console (4)
with four Tablet Holder Screws (54); start all the
Tablet Holder Screws, and then tighten them.
4
15
THE CHEST HEART RATE MONITOR
HOW TO PUT ON THE HEART RATE MONITOR
If the heart rate monitor looks like the one shown in
drawing 1, press the transmitter (A) onto the snap fas-
teners on the chest strap (B). If the heart rate monitor
looks like the one shown in drawing 2, insert the tab
(C) on one end of the chest strap (D) into one end of
the transmitter (E). Then, press the end of the trans-
mitter under the buckle (F) on the chest strap; the tab
should be flush with the transmitter.
Next, wrap the heart
rate monitor around
your chest in the loca-
tion shown; the heart
rate monitor must be
under your clothes,
tight against your skin.
Make sure that the logo
is right-side-up. Then, attach the other end of the chest
strap. Adjust the length of the chest strap, if necessary.
Next, pull the trans-
mitter and the chest
strap away from your
body a few inches
and locate the two
electrode areas (G).
Using saliva or con-
tact lens solution, wet the electrode areas. Then, return
the transmitter and the chest strap to a position against
your chest.
CARE AND MAINTENANCE
• Thoroughly dry the electrode areas with a soft towel
after each use. Moisture may keep the heart rate
monitor activated, shortening the life of the battery.
• Store the heart rate monitor in a warm, dry place. Do
not store the heart rate monitor in a plastic bag or
other container that may trap moisture.
• Do not expose the heart rate monitor to direct
sunlight for extended periods of time, and do not
expose it to temperatures above 122°F (50°C) or
below 14°F (-10°C).
• Do not excessively bend or stretch the heart rate
monitor when using or storing it.
• To clean the transmitter, use a damp cloth and a
small amount of mild soap. Then, wipe the transmit-
ter with a damp cloth and thoroughly dry it with a soft
towel. Never use alcohol, abrasives, or chemicals
to clean the transmitter. Hand wash and air dry the
chest strap.
TROUBLESHOOTING
• If the heart rate monitor does not function when
positioned as described at the left, move it slightly
lower or higher on your chest.
• If heart rate readings are not displayed until you
begin perspiring, re-wet the electrode areas.
• For the console to display heart rate readings, you
must be within arm’s length of the console.
• If there is a battery cover on the back of the trans-
mitter, replace the battery with a new battery of the
same type.
• The heart rate monitor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical condi-
tions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
• The operation of the heart rate monitor can be
affected by magnetic interference from high power
lines or other sources. If you suspect that magnetic
interference is causing a problem, try relocating the
fitness equipment.
1 2
A
B
E
F
C
D
G
16

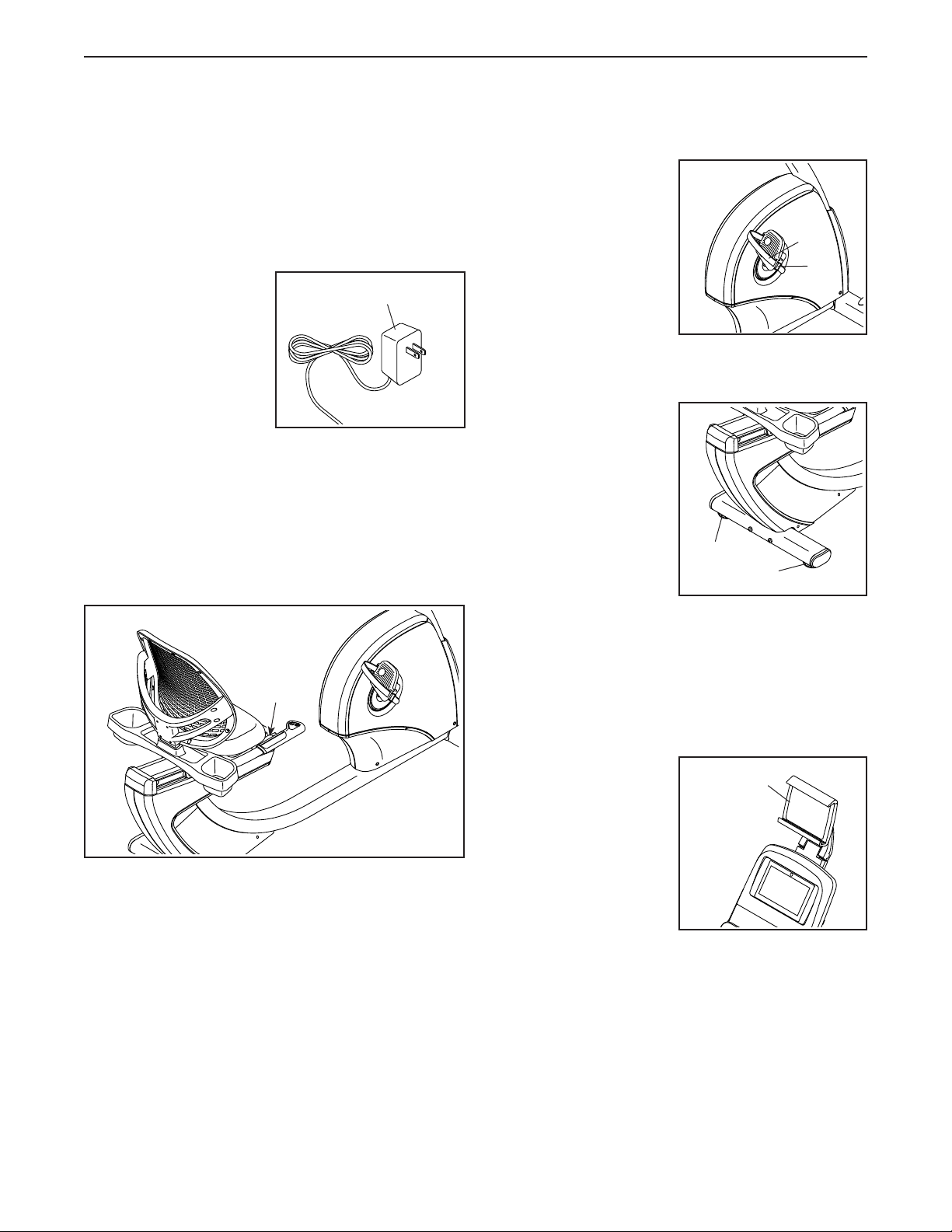

HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the exercise bike has been exposed
to cold temperatures, allow it to warm to room tem-
perature before you plug in the power adapter (A).
If you do not do this, you may damage the console
displays or other electronic components.
Plug the power adapter
(A) into the receptacle
on the frame of the
exercise bike. Then,
plug the power adapter
into an appropriate
outlet that is properly
installed in accordance
with all local codes and
ordinances.
HOW TO ADJUST THE SEAT
To adjust the seat, push downward on the seat handle
(B), slide the seat forward or backward to the desired
position, and then pull upward on the seat handle to
lock the seat in place.
HOW TO ADJUST THE PEDAL STRAPS
To tighten a pedal
strap (C), pull down-
ward on the end of
the strap. To loosen a
strap, press the tab (D)
and pull upward on the
strap.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise bike
rocks slightly on your
oor during use, turn
one or both of the level-
ing feet (E) beneath
the rear stabilizer until
the rocking motion is
eliminated.
HOW TO USE THE TABLET HOLDER
IMPORTANT: The tablet holder (F) is designed
for use with most full-size tablets. Do not place
any other electronic device or object in the tablet
holder.
To insert a tablet into
the tablet holder (F),
set the bottom edge of
the tablet in the tray.
Then, pull the clip over
the top edge of the
tablet. Make sure that
the tablet is firmly
secured in the tablet
holder. If applicable
to your tablet holder
model, rotate and/or pivot the tablet holder to the
desired position. Reverse these actions to remove the
tablet from the tablet holder.
A
C
D
E
E
F
HOW TO USE THE EXERCISE BIKE
B
17
Uranium
EBNT89918
NTEX89918
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
The console features wireless technology that enables
the console to connect to iFit. With iFit, you can access
a large and varied workout library, create your own
workouts, track your workout results, and access many
other features.
In addition, the console features a selection of onboard
workouts. Each workout automatically controls the
resistance of the pedals as it guides you through an
effective exercise session.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button.
While you exercise, the console will display continu-
ous exercise feedback. You can even measure your
heart rate using the handgrip heart rate monitor or the
included chest heart rate monitor.
You can also listen to your favorite workout music or
audio books with the console sound system while you
exercise.
To turn on and turn off the console, see page 18.
To learn how to use the touch screen, see
page 18. To set up the console, see page 19.
HOW TO USE THE CONSOLE
18
HOW TO TURN ON THE CONSOLE
The included power adapter must be used to oper-
ate the exercise bike. See HOW TO PLUG IN THE
POWER ADAPTER on page 16. When the power
adapter is plugged in, touch the screen or press any
button on the console to turn on the console.
HOW TO TURN OFF THE CONSOLE
If the pedals do not move for several seconds, the
console will pause.
If the pedals do not move for several minutes, the
screen is not touched, and the buttons are not pressed,
the console will turn off.
When you are finished exercising, unplug the power
adapter. IMPORTANT: If you do not do this, the
electrical components on the exercise bike may
wear prematurely.
HOW TO USE THE TOUCH SCREEN
The console features a tablet with a full-color touch
screen. The following information will help you use the
touch screen:
• The console functions similarly to other tablets. You
can slide or flick your finger against the screen to
move certain images on the screen, such as the
displays in a workout.
• To type information into a text box, first touch the text
box to view the keyboard. To use numbers or other
characters on the keyboard, touch ?123. To view
more characters, touch ~[<. Touch ?123 again to
return to the number keyboard. To return to the letter
keyboard, touch ABC. To use a capital character,
touch the shift button (upward-facing arrow symbol).
To use multiple capital characters, touch the shift
button again. To return to the lowercase keyboard,
touch the shift button a third time. To clear the last
character, touch the clear button (backward-facing
arrow with an X symbol).
19
HOW TO SET UP THE CONSOLE
Before you use the exercise bike for the first time, set
up the console.
1. Connect to your wireless network.
To use iFit workouts and to use several other
features of the console, the console must be con-
nected to a wireless network. Follow the prompts
on the screen to connect the console to your wire-
less network.
2. Customize settings.
Follow the prompts on the screen to set the desired
unit of measurement and your time zone.
Note: To change these settings later, see HOW TO
CHANGE CONSOLE SETTINGS on page 25.
3. Log into or create an iFit account.
Follow the prompts on the screen to log into your
iFit account or to create an iFit account.
4. Tour the console.
The first time you use the console, a tour
presentation will guide you through the features of
the console.
5. Check for firmware updates.
First, touch the menu button (three horizontal lines
symbol), touch Settings, touch Maintenance, and
then touch Update. The console will check for firm-
ware updates. For more information, see HOW TO
CHANGE CONSOLE SETTINGS on page 25.
The console is now ready for you to begin working out.
The following pages explain the workouts and other
features that the console offers.
To use the manual mode, see this page. To use
a featured workout or an onboard workout, see
page 21. To create a draw-your-own-map work-
out, see page 23. To use an iFit workout, see
page 24.
To change console settings, see page 25. To
connect to a wireless network, see page 26. To
use the sound system, see page 27. To connect
to the sound system with Bluetooth, see page 27.
To connect an HDMI cable, see page 27.
Note: If there is a sheet of plastic on the screen,
remove the plastic.
HOW TO USE THE MANUAL MODE
1. Touch the screen or press any button on the
console to turn on the console.
See HOW TO TURN ON THE CONSOLE on
page 18. Note: It may take a few moments for
the console to be ready for use.
2. Select the main menu.
When you turn on the console, the main menu will
appear on the screen after the console boots up.
If you are in a workout, touch the screen and follow
the prompts to end the workout and return to the
main menu. If you are in the settings menus, touch
the back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
3. Change the resistance of the pedals as desired.
Touch Manual Start and begin pedaling.
You can change the resistance of the pedals by
pressing one of the numbered Resistance buttons
on the console, by pressing the Silent Magnetic
Resistance increase and decrease buttons on the
console, or by pressing the Resistance increase
and decrease buttons on the right seat handlebar.
Note: After you press a button, it will take a
moment for the pedals to reach the selected
resistance level.
20
4. Follow your progress.
The console offers several display modes. The
display mode that you select will determine which
workout information is shown.
Drag upward on the screen to enter the fullscreen
display mode. Drag downward on the screen to
view the workout information displays.
Touch the various workout information displays
to view more options. Touch the more button
(+ symbol) to view statistics or charts. Touch the
center of the screen to view even more display
mode options.

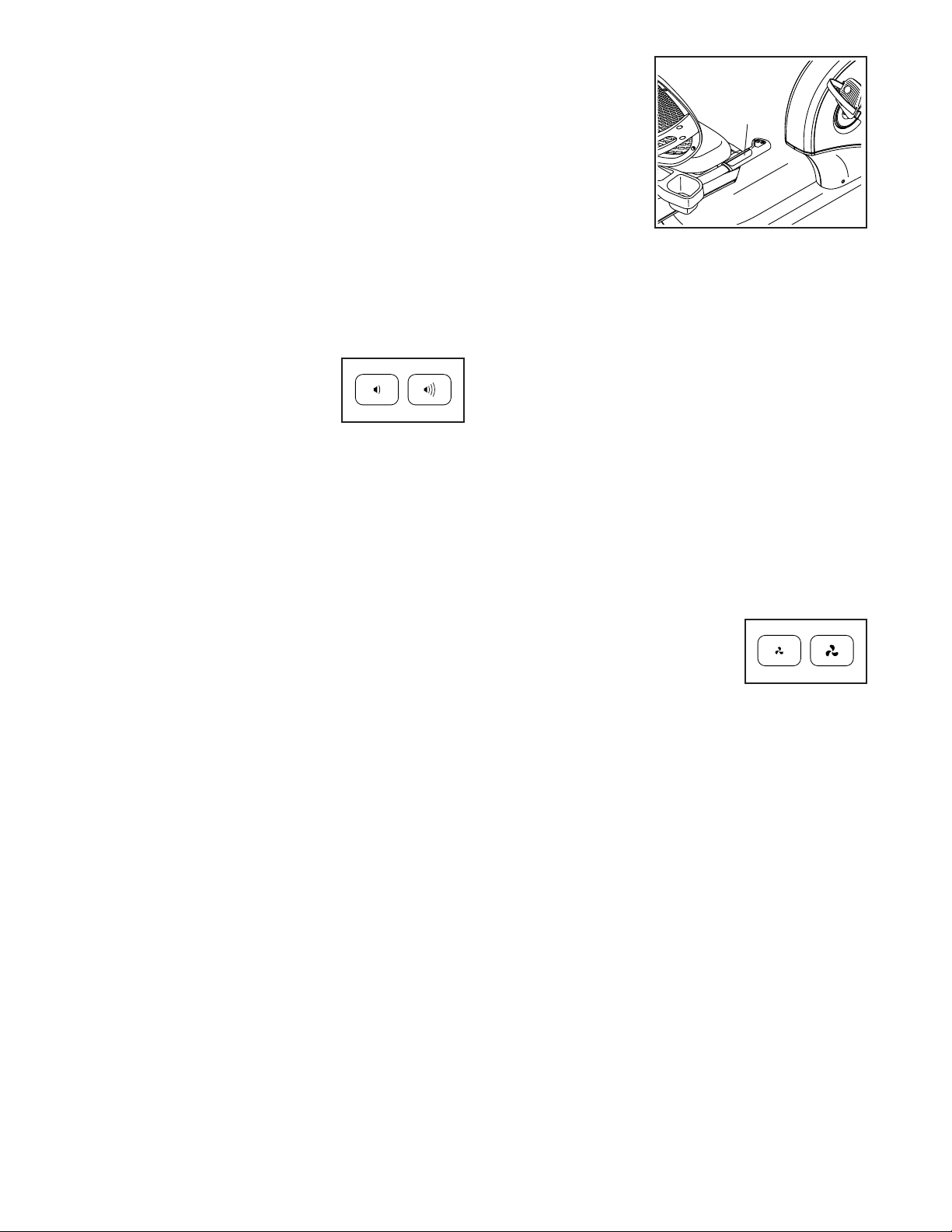

If desired, adjust the volume
level by pressing the vol-
ume increase and decrease
buttons on the console or
by pressing the Volume
increase and decrease buttons on the left seat
handlebar.
To pause the workout, simply touch the screen
or stop pedaling. To continue the workout, simply
resume pedaling.
To end the workout session, touch the screen to
pause the workout, and then follow the prompts
on the screen to end the workout and return to the
main menu.
5. Measure your heart rate if desired.
You can measure your heart rate using either the
handgrip heart rate monitor or the included chest
heart rate monitor. Note: The console is compatible
with all Bluetooth
®
Smart heart rate monitors.
To use the chest heart rate monitor, see
page 15. To use the handgrip heart rate monitor,
follow the instructions at the right. Note: If you use
both heart rate monitors at the same time, the
chest heart rate monitor will have priority.
If there are
sheets of
plastic on the
metal contacts
(A) on the
handgrip heart
rate monitor,
remove the
plastic. To
measure your
heart rate, hold
the handgrip heart rate monitor with your palms
resting against the contacts. Avoid moving your
hands or gripping the contacts tightly.
When your pulse is detected, your heart rate
will be shown. For the most accurate heart
rate reading, hold the contacts for at least 15
seconds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the contacts tightly. For optimal perfor-
mance, clean the contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
6. Turn on the fan if desired.
The fan has several speed
settings, including an auto
mode. While the auto mode
is selected, the speed of
the fan will automatically
increase or decrease as your pedaling speed
increases or decreases. Press the fan increase and
decrease buttons repeatedly to select a fan speed
or to turn off the fan.
Note: If the pedals are not moved for a while when
the main menu is selected, the fan will turn off
automatically.
7. When you are finished exercising, the console
will turn off automatically.
See HOW TO TURN OFF THE CONSOLE on
page 18.
A
21
HOW TO USE A FEATURED WORKOUT OR AN
ONBOARD WORKOUT
1. Touch the screen or press any button on the
console to turn on the console.
See HOW TO TURN ON THE CONSOLE on
page 18. Note: It may take a few moments for
the console to be ready for use.
2. Select the main menu or the workout library.
When you turn on the console, the main menu will
appear on the screen after the console boots up.
If you are in a workout, touch the screen and follow
the prompts to end the workout and return to the
main menu. If you are in the settings menus, touch
the back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
Touch the buttons at the bottom of the screen to
select either the main menu (Home button) or the
workout library (Browse button).
3. Select a workout.
To select a workout from the main menu or the
workout library, simply touch the desired workout
button on the screen. Slide or flick the screen to
scroll upward or downward if necessary.
Note: To use a featured workout, the console must
be connected to a wireless network (see HOW
TO CONNECT TO A WIRELESS NETWORK on
page 26).
The featured workouts on your console will change
periodically. To save one of the featured workouts
for future use, you can add it as a favorite by touch-
ing the favorites button (heart symbol). You must
be logged into your iFit account to save a featured
workout (see step 3 on page 19).
To draw your own map for a workout, see HOW TO
CREATE A DRAW-YOUR-OWN-MAP WORKOUT
on page 23.
When you select a workout, the screen will show
an overview of the workout that includes details
such as the duration and distance of the workout
and the approximate number of calories you will
burn during the workout.
4. Start the workout.
Touch Start Workout to start the workout.
The workout will function in the same way as the
manual mode (see page 19).
During some workouts, an iFit coach will guide you
through a video workout. Touch the sound button
(music notes symbol) to select music, trainer voice,
and volume options for the workout.
During some workouts, the screen will show a map
of the route and a marker indicating your prog-
ress. Touch the buttons on the screen to select the
desired map options.
During some workouts, the screen may show a
target speed. As you exercise, keep your pedaling
speed near the target speed shown on the screen.
A message may appear prompting you to increase,
decrease, or maintain your pedaling speed.
IMPORTANT: The target speed is intended only
to provide motivation. Your actual pedaling
speed may be slower than the target speed.
Make sure to pedal at a speed that is comfort-
able for you.
22
If the resistance level is too high or too low, you
can manually override the setting by pressing the
Resistance buttons. If you press a Resistance
button, you can then manually control the resis-
tance level (see step 3 on page 19). To return
to the programmed resistance settings of the
workout, touch Follow Workout.
Note: The calorie goal shown in the workout
description is an estimate of the number of
calories that you will burn during the workout.
The actual number of calories that you burn
will depend on various factors, such as your
weight. In addition, if you manually change the
resistance level during the workout, the number
of calories you burn will be affected.
To pause the workout, simply touch the screen
or stop pedaling. To continue the workout, simply
resume pedaling.
To end the workout, touch the screen to pause the
workout, and then follow the prompts on the screen
to end the workout and return to the main menu.
When the workout ends, a workout summary will
appear on the screen. If desired, you can select
options such as adding the workout to your sched-
ule (see HOW TO USE AN IFIT WORKOUT on
page 24) or adding the workout to your favorites
list. Then, touch Save Workout to return to the main
menu.
5. Follow your progress.
See step 4 on page 20.
6. Measure your heart rate if desired.
See step 5 on page 20.
7. Turn on the fan if desired.
See step 6 on page 20.
8. When you are finished exercising, the console
will turn off automatically.
See HOW TO TURN OFF THE CONSOLE on
page 18.
23
HOW TO CREATE A DRAW-YOUR-OWN-MAP
WORKOUT
1. Touch the screen or press any button on the
console to turn on the console.
See HOW TO TURN ON THE CONSOLE on
page 18. Note: It may take a few moments for
the console to be ready for use.
2. Select a draw-your-own-map workout.
When you turn on the console, the main menu will
appear on the screen after the console boots up.
If you are in a workout, touch the screen and follow
the prompts to end the workout and return to the
main menu. If you are in the settings menus, touch
the back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
To select a draw-your-own-map workout, touch the
Create button at the bottom of the screen.
3. Draw your map.
Navigate to the area on the map where you want
to draw your workout by typing in the search box
or by sliding your fingers on the screen. Touch
the screen to add the start point for your workout.
Then, touch the screen to add the end point for
your workout.
If you want to start and end your workout at the
same point, touch Close Loop or Out & Back in the
map options. You can also select whether you want
your workout to snap to the road.
If you make a mistake, touch Undo in the map
options.
The screen will display the elevation and distance
statistics for your workout.
4. Save your workout.
Touch Save New Workout to save your workout. If
desired, enter a title and description for your work-
out. Then, touch the continue button (> symbol).
5. Start the workout.
Touch Start Workout to start the workout. The
workout will function in the same way as a featured
workout or an onboard workout (see page 21).
6. Follow your progress.
See step 4 on page 20.
7. Measure your heart rate if desired.
See step 5 on page 20.
8. Turn on the fan if desired.
See step 6 on page 20.
9. When you are finished exercising, the console
will turn off automatically.
See HOW TO TURN OFF THE CONSOLE on
page 18.
24
HOW TO USE AN IFIT WORKOUT
To use an iFit workout, the console must be connected
to a wireless network (see HOW TO CONNECT TO A
WIRELESS NETWORK on page 26). An iFit account
is also required.
1. Add workouts to your schedule on iFit.com.
On your computer, smartphone, tablet, or other
device, open an internet browser, go to iFit.com,
and log in to your iFit account.
Next, navigate to Menu > Library on the website.
Browse the workout programs in the library and join
the desired workouts.
Then, navigate to Menu > Schedule to view your
schedule. All of the workouts that you have joined
will appear on your schedule; you can arrange or
delete the workouts on your schedule as desired.
Take time to explore the iFit.com website before
you log out.
2. Select the main menu.
When you turn on the console, the main menu will
appear on the screen after the console boots up.
If you are in a workout, touch the screen and follow
the prompts to end the workout and return to the
main menu. If you are in the settings menus, touch
the back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
3. Log in to your iFit account.
If you have not already done so, touch the menu
button (three horizontal lines symbol) on the screen
and then touch Log in to log in to your iFit account.
Follow the prompts on the screen to enter your
username and password.
To switch users within your iFit account, touch
the menu button, touch Settings, and then touch
Manage Accounts. If more than one user is associ-
ated with the account, a list of users will appear.
Touch the name of the desired user.
4. Select an iFit workout that you have previously
added to your schedule on iFit.com.
IMPORTANT: Before iFit workouts will load, you
must add them to your schedule on iFit.com
(see step 1).
To load an iFit workout from iFit.com to the
console, touch the Calendar button at the bottom of
the screen.
When you load a workout, the screen will show an
overview of the workout that includes details such
as the duration and distance of the workout and
the approximate number of calories you will burn
during the workout.
5. Start the workout.
Touch Start Workout to start the workout. The
workout will function in the same way as a featured
workout or an onboard workout (see page 21).
6. Follow your progress.
See step 4 on page 20.
7. Measure your heart rate if desired.
See step 5 on page 20.
8. Turn on the fan if desired.
See step 6 on page 20.
9. When you are finished exercising, the console
will turn off automatically.
See HOW TO TURN OFF THE CONSOLE on
page 18.
For more information about iFit, go to iFit.com.
25
HOW TO CHANGE CONSOLE SETTINGS
IMPORTANT: Some of the settings and features
described may not be enabled. Occasionally, a
firmware update may cause your console to function
slightly differently.
1. Select the settings main menu.
First, turn on the power (see HOW TO TURN ON
THE CONSOLE on page 18). Note: It may take
a few moments for the console to be ready for use.
Next, select the main menu (Home button). When
you turn on the console, the main menu will appear
on the screen after the console boots up. If you
are in a workout, touch the screen and follow the
prompts to end the workout and return to the main
menu. If you are in the settings menus, touch the
back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
Then, touch the menu button (three horizontal lines
symbol) on the screen, and then touch Settings.
The settings menu will appear on the screen.
2. Navigate the settings menus and change
settings as desired.
Slide or flick the screen to scroll upward or down-
ward if necessary. To view a settings menu, simply
touch the menu name. To exit a menu, touch the
back button (arrow symbol). You may be able to
view and change settings in the following settings
menus:
Account
• My Prole
• In Workout
• Manage Accounts
Equipment
• Equipment Info
• Equipment Settings
• Maintenance
• Wi-Fi
About
• Legal
3. Customize the unit of measurement and other
settings.
To customize the unit of measurement, the time
zone, or other settings, touch Equipment Info or
Equipment Settings, and then touch the desired
settings.
The console can display speed and distance in
either standard or metric units of measurement.
4. View machine information or console app
information.
Touch Equipment Info, and then touch Machine
Info or App Info to view information about your
exercise bike or about the console app.
5. Update the console firmware.
For the best results, regularly check for
firmware updates. Touch Maintenance, and then
touch Update to check for firmware updates using
your wireless network. The update will begin auto-
matically. IMPORTANT: To avoid damaging the
exercise bike, do not unplug the power adapter
while the firmware is being updated.
The screen will show the progress of the update.
When the update is complete, the exercise bike will
turn off and then turn back on. If it does not, unplug
the power adapter. Wait for several seconds, and
then plug in the power adapter. Note: It may take a
few minutes for the console to be ready for use.
Note: Occasionally, a firmware update may cause
the console to function slightly differently. These
updates are always designed to improve your
exercise experience.
6. Exit the settings main menu.
If you are in a settings menu, touch the back
button. Then, touch the close button (x symbol) to
exit the settings main menu.
26
HOW TO CONNECT TO A WIRELESS NETWORK
To use iFit workouts and to use several other features
of the console, the console must be connected to a
wireless network.
1. Select the main menu.
First, turn on the power (see HOW TO TURN ON
THE CONSOLE on page 18). Note: It may take
a few moments for the console to be ready for use.
Next, select the main menu (Home button). When
you turn on the console, the main menu will appear
on the screen after the console boots up. If you
are in a workout, touch the screen and follow the
prompts to end the workout and return to the main
menu. If you are in the settings menus, touch the
back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
2. Select the wireless network menu.
Touch the menu button (three horizontal lines
symbol), and then touch Wi-Fi to select the wire-
less network menu.
3. Enable Wi-Fi.
Make sure that Wi-Fi
®
is enabled. If it is not
enabled, touch the Wi-Fi toggle to enable it.
4. Set up and manage a wireless network
connection.
When Wi-Fi is enabled, the screen will show a
list of available networks. Note: It may take a few
moments for the list of wireless networks to appear.
Note: You must have your own wireless network
and an 802.11b/g/n router with SSID broadcast
enabled (hidden networks are not supported).
When a list of networks appears, touch the desired
network. Note: You will need to know your network
name (SSID). If your network has a password, you
will also need to know the password.
Follow the prompts on the screen to enter your
password and connect to the selected wireless
network. (To use the keyboard, see HOW TO USE
THE TOUCH SCREEN on page 18.)
When the console is connected to your wireless
network, a checkmark will appear next to the
wireless network name.
If you are having problems connecting to an
encrypted network, make sure that your password
is correct. Note: Passwords are case-sensitive.
Note: The console supports unsecured and
secured (WEP, WPA™, and WPA2™) encryption.
A broadband connection is recommended; perfor-
mance depends on connection speed.
Note: If you have questions after following
these instructions, go to support.iFit.com for
assistance.
5. Exit the wireless network menu.
To exit the wireless network menu, touch the back
button (arrow symbol).
27
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the
jack on the console and into a jack on your personal
audio player; make sure that the audio cable is fully
plugged in. Note: To purchase an audio cable, see
your local electronics store.
Next, press the play button on
your personal audio player.
Adjust the volume level using the
volume increase and decrease
buttons on the console, the
Volume increase and decrease buttons on the left seat
handlebar, or the volume control on your personal
audio player.
HOW TO CONNECT TO THE SOUND SYSTEM WITH
BLUETOOTH
If desired, you can connect your smart device to the
console sound system with Bluetooth.
First, make sure that the Bluetooth option is enabled
on your device.
Next, place or hold your device near the console. Then,
pair your device to the console as follows: Press and
hold the Bluetooth button on the console for 3 seconds;
the console will enter pairing mode.
When your device and the console pair successfully,
the audio from your device will play through the con-
sole sound system.
The console can save 8 devices in its memory. If you
have previously paired your device to the console, sim-
ply press the Bluetooth button to connect your device
to the console.
You can erase devices from the console memory if
necessary. To erase all the Bluetooth-enabled devices
saved in the console memory, press and hold the
Bluetooth button for 10 seconds.
HOW TO CONNECT AN HDMI CABLE
To show your console screen on a TV or monitor, plug
an HDMI cable (not included) into the port on the con-
sole and into a port on your TV or monitor; make sure
that the HDMI cable is fully plugged in. Note: To
purchase an HDMI cable, see your local electronics
store.
28
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate this equipment.
IMPORTANT: To satisfy exposure compliance requirements, the antenna and transmitter in the console
must be at least 8 in. (20 cm) from all persons and must not be near or connected to any other antenna or
transmitter.
Note: The console contains FCC ID: SMFOMC360526A.
29
MAINTENANCE
Regular maintenance is important for optimal
performance and to reduce wear. Inspect and properly
tighten all parts each time the exercise bike is used.
Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild soap. IMPORTANT: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
CONSOLE TROUBLESHOOTING
If the console does not turn on, make sure that the
power adapter is fully plugged in. If there are exterior
wires on the console, make sure that the connectors
on the wires are oriented correctly and are connected
firmly.
If the console does not display your heart rate when
you use the handgrip heart rate monitor, see step 5 on
page 20.
If the console does not display your heart rate
when you use the chest heart rate monitor, see
TROUBLESHOOTING on page 15.
If you are having problems connecting the console
to a wireless network or if you are having problems
with your iFit account or iFit workouts, go to
support.iFit.com.
If a replacement power adapter is needed, call the
telephone number on the cover of this manual.
IMPORTANT: To avoid damaging the console, use
only a manufacturer-supplied regulated power
adapter.
If the console does not boot
up properly, or if the con-
sole freezes and does not
respond, reset the console
to the factory default set-
tings. IMPORTANT: Doing
this will erase all custom settings you have made
to the console. Resetting the console requires two
people. First, unplug the power adapter. Next, locate
the small reset opening (A) on the side or on the back
of the console. Using a bent paper clip, press and hold
the reset button inside the opening, and have a second
person plug in the power adapter. Continue holding the
reset button until the console turns on. When the reset
operation is complete, the console will turn off and then
turn back on. If it does not, unplug and then plug in the
power adapter. Once the console turns on, check for
rmware updates (see step 5 on page 25). Note: It
may take a few minutes for the console to be ready for
use.
TABLET HOLDER TROUBLESHOOTING
If the tablet holder does
not stay in place, rotate
the tablet holder backward
and tighten the screw (B)
until the tablet holder stays
in place when it is rotated
to the desired position.
B
MAINTENANCE AND TROUBLESHOOTING
A
30
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, first unplug the power adapter.
See EXPLODED DRAWING A on page 34. Using
a standard screwdriver, gently release the tabs on the
Top Shield (44), and remove the Top Shield.
Next, identify the Access Cover (40). Remove the
M4 x 16mm Screw (77) from the Access Cover, and
then remove the Access Cover.
Next, locate the Reed Switch (46). Turn the Left Crank
Arm (24) until a Pulley Magnet (30) is aligned with
the Reed Switch. Then, slightly loosen the indicated
M4 x 16mm Screw (77), slide the Reed Switch slightly
closer to or away from the Pulley Magnet, and then
retighten the Screw.
Plug in the power adapter, and turn the Left Crank
Arm (24) for a moment. Repeat these actions until the
console displays correct feedback.
When the reed switch is correctly adjusted, unplug
the power adapter and reattach the parts that you
removed. Then, plug in the power adapter.
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even while the
resistance is adjusted to the highest setting, the drive
belt may need to be adjusted. To adjust the drive belt,
first unplug the power adapter.
See EXPLODED DRAWING B on page 35. Using
an adjustable wrench, turn the Right Pedal (21) coun-
terclockwise and remove it.
See EXPLODED DRAWING A on page 34. Using
a standard screwdriver, gently release the tabs on the
Front Shield (58) and the Top Shield (44). Remove the
Front Shield and the Top Shield.
Next, identify the Left and Right Front Shields (13, 14).
Remove all the Screws (77, 85) from the Left and Right
Front Shields; make sure to note the location of
each size of Screw.
Then, use a standard screwdriver to gently release the
tabs on the right Shield Disc (52). Rotate the Shield
Disc and remove it. Then, gently remove the Right
Front Shield (14).
Next, loosen the M6 x 20mm Hex Screw (84). Then,
tighten the M10 x 50mm Hex Screw (83) until the Drive
Belt (47) is tight. When the Drive Belt is tight, tighten
the M6 x 20mm Hex Screw.
When the drive belt is correctly adjusted, reattach
the parts that you removed. Then, plug in the power
adapter.
24
30
77
46
47
83
84
31
EXERCISE GUIDELINES
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only
after the first few minutes of exercise does your body
begin to use stored fat calories for energy. If your
goal is to burn fat, adjust the intensity of your exer-
cise until your heart rate is near the lowest number in
your training zone. For maximum fat burning, exercise
with your heart rate near the middle number in your
training zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise ; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete
three workouts each week, with at least one day of
rest between workouts. After a few months of regular
exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
32
1 1 Frame
2 1 Upright
3 2 Foot
4 1 Console
5 1 Rail
6 1 Adjustment Bar
7 1 Handlebar
8 1 Backrest
9 1 Seat
10 1 Seat Handlebar/Wire
11 1 Seat Handlebar Cap
12 1 Brake Block
13 1 Left Front Shield
14 1 Right Front Shield
15 1 Front Stabilizer
16 1 Rear Stabilizer
17 2 Wheel
18 1 Brake
19 2 Leveling Foot
20 1 Right Handlebar Grip
21 1 Right Pedal/Strap
22 1 Left Pedal/Strap
23 1 Right Crank Arm
24 1 Left Crank Arm
25 4 M6 x 18mm Screw
26 1 Adjustment Bar Handle
27 1 Handle Bracket
28 2 Large Snap Ring
29 1 Pulley
30 2 Pulley Magnet
31 1 Crank
32 1 Brake Axle
33 2 Crank Bearing
34 1 Eddy Mechanism
35 2 Mechanism Spacer
36 1 Front Rail Cover
37 1 Resistance Motor
38 11 Mushroom Fastener/Screw
39 1 Idler
40 1 Access Cover
41 1 Seat Carriage
42 1 Frame Pulse Wire/Receptacle
43 1 Main Wire
44 1 Top Shield
45 1 Clamp
46 1 Reed Switch/Wire
47 1 Drive Belt
48 4 Stabilizer Cap
49 1 Left Handlebar Grip
50 2 Flange Screw
51 1 Power Adapter
52 2 Shield Disc
53 1 Tablet Holder
54 4 Tablet Holder Screw
55 8 Carriage Bearing
56 1 Accessory Tray
57 1 Upright Cover
58 1 Front Shield
59 8 Carriage Bushing
60 2 Rail Rod
61 1 M6 x 20mm Shoulder Screw
62 4 Rod Cap
63 2 Brake Spacer
64 5 M6 x 15mm Screw
65 4 M10 x 122mm Screw
66 2 Wheel Bolt
67 4 M8 x 38mm Screw
68 1 M6 Large Washer
69 2 M8 x 22mm Screw
70 4 M10 x 62mm Screw
71 2 M6 x 15mm Bright Screw
72 1 Grommet
73 2 M6 x 14mm Screw
74 8 M8 x 30mm Bolt
75 8 M6 x 30mm Screw
76 1 M8 x 28mm Hex Screw
77 40 M4 x 16mm Screw
78 4 M8 x 18mm Screw
79 1 M4 x 16mm Bright Screw
80 4 Rail Screw
81 1 Backrest Back
82 4 M4 x 12mm Flange Screw
83 1 M10 x 50mm Hex Screw
84 1 M6 x 20mm Hex Screw
85 8 M4 x 25mm Screw
86 2 #6 x 12mm Screw
87 2 M10 Locknut
88 8 M6 Washer
89 12 M8 Jam Nut
90 1 Rear Rail Cover
Key No. Qty. Description Key No. Qty. Description
PART LIST
Model No. NTEX89918NB.0 R1019A
33
91 8 M8 Split Washer
92 2 Crank Cap
93 1 Barrel Nut
94 7 Tree Fastener
95 2 M10 Flange Nut
96 2 M6 Split Washer
97 1 Right Rear Shield
98 1 Left Rear Shield
99 4 M6 Small Washer
100 1 Clip Nut
101 1 M6 Locknut
102 1 M6 x 65mm Bolt
103 1 Power Receptacle/Wire
104 1 Chest Heart Rate Monitor
* – Assembly Tool
* – User’s Manual
Key No. Qty. Description Key No. Qty. Description
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
34
13
14
77
77
77
40
44
77
2
20
69
77
58
57
9
7
49
56
70
77
77
77
77
77
77
85
85
77
77
77
77
77
72
52
52
97
98
86
100
94
94
38
38
38
38
53
54
25
25
88
88
94
38
81
77
77
77
8
75
75
75
88
88
77
104
4
EXPLODED DRAWING A
Model No. NTEX89918NB.0 R1019A
35
55
11
1
15
21
23
29
30
30
31
33
33
35
35
36
38
38
90
34
37
39
43
45
46
47
3
50
51
61
68
77
78
78
79
92
84
83
82
6
12
27
26
41
55
55
55
55
59
89
89
89
74
59
89
89
59
18
89
64
99
32
89
59
74
74
99
73
64
74
63
63
64
91
91
91
91
96
99
10
5
60
62
93
71
71
62
80
80
60
62
62
28
28
95
95
22
24
50
92
16
19
48
103
48
65
85
65
66
87
67
67
17
42
76
77
77
101
102
EXPLODED DRAWING B
Model No. NTEX89918NB.0 R1019A
