Operator’s Manual
Manuel du Utilisateur
05175100 • 11/17
Printed in USA
ENGLISH
FRANÇAIS
E10
Model
921056 – Power Brush 28
(SN 000101 +)
Power Brush 28
WELCOME . . . . . . . . . . . . . . . . . . . . . . 1
SAFETY. . . . . . . . . . . . . . . . . . . . . . . . . 2
Practices & Laws . . . . . . . . . . . . . . . . . . 2
Emission Control System. . . . . . . . . . . . 2
Required Operator Training. . . . . . . . . . 2
Safety Alert Symbol. . . . . . . . . . . . . . . . 2
Signal Words . . . . . . . . . . . . . . . . . . . . . 2
Safety Decals. . . . . . . . . . . . . . . . . . . . . 3
Safety Rules. . . . . . . . . . . . . . . . . . . . . . 4

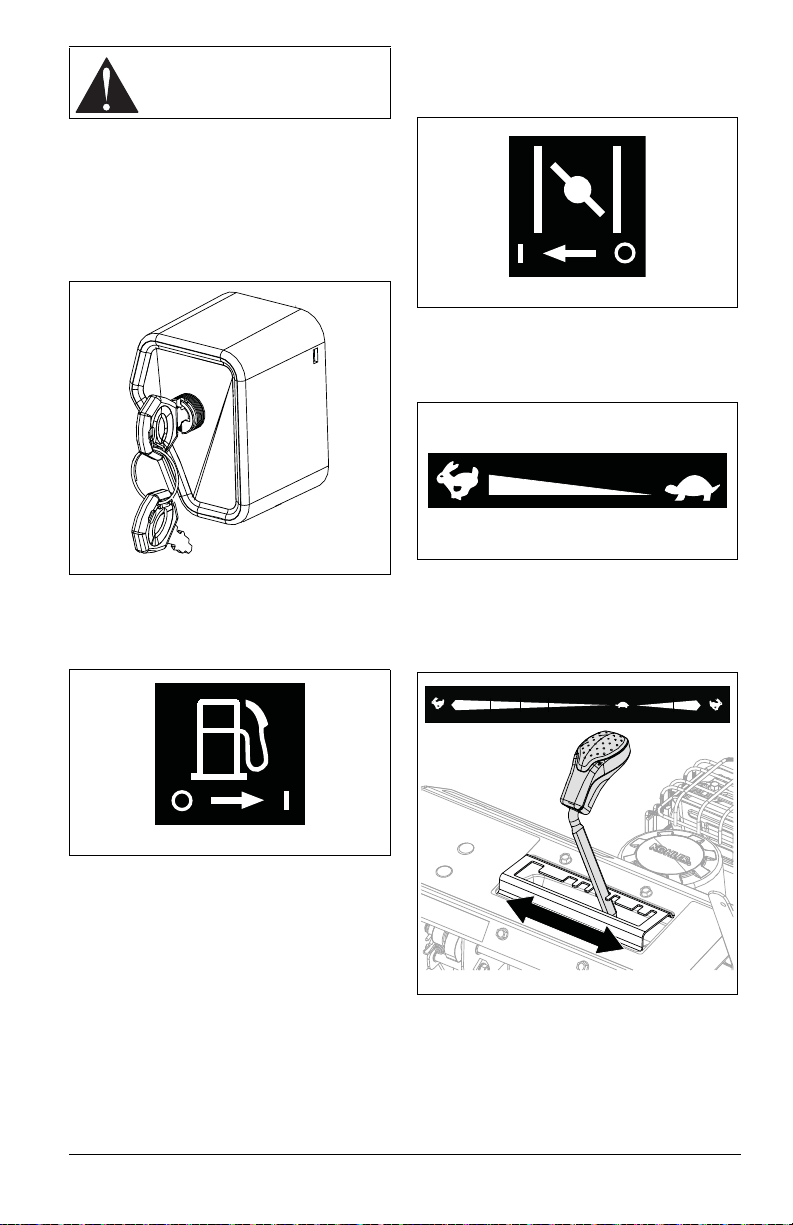

CONTROLS & FEATURES. . . . . . . . . . 8
Engine Key. . . . . . . . . . . . . . . . . . . . . . . 9
Fuel Valve . . . . . . . . . . . . . . . . . . . . . . . 9
Electric Start Button. . . . . . . . . . . . . . . . 9
Choke Control Lever . . . . . . . . . . . . . . . 9
Throttle Control Lever . . . . . . . . . . . . . . 9
Speed Selector Lever . . . . . . . . . . . . . . 9
Attachment Clutch Lever
(Right Side) . . . . . . . . . . . . . . . . . . . . . 9
Traction Drive Clutch Lever
(Left Side). . . . . . . . . . . . . . . . . . . . . . . 10
Brush Lock Trigger. . . . . . . . . . . . . . . . . 10
Dual Handle Interlock. . . . . . . . . . . . . . . 10
Auto-Turn™ Steering. . . . . . . . . . . . . . . 10
OPERATION . . . . . . . . . . . . . . . . . . . . . 10
Emergency Stopping . . . . . . . . . . . . . . . 10
Before Operating Unit . . . . . . . . . . . . . . 10
Start The Engine . . . . . . . . . . . . . . . . . . 10
Operate Unit. . . . . . . . . . . . . . . . . . . . . . 11
Stop the Engine . . . . . . . . . . . . . . . . . . . 11
Set Brush Height . . . . . . . . . . . . . . . . . . 11
Set Brush Angle. . . . . . . . . . . . . . . . . . . 12
Transport Unit . . . . . . . . . . . . . . . . . . . . 12

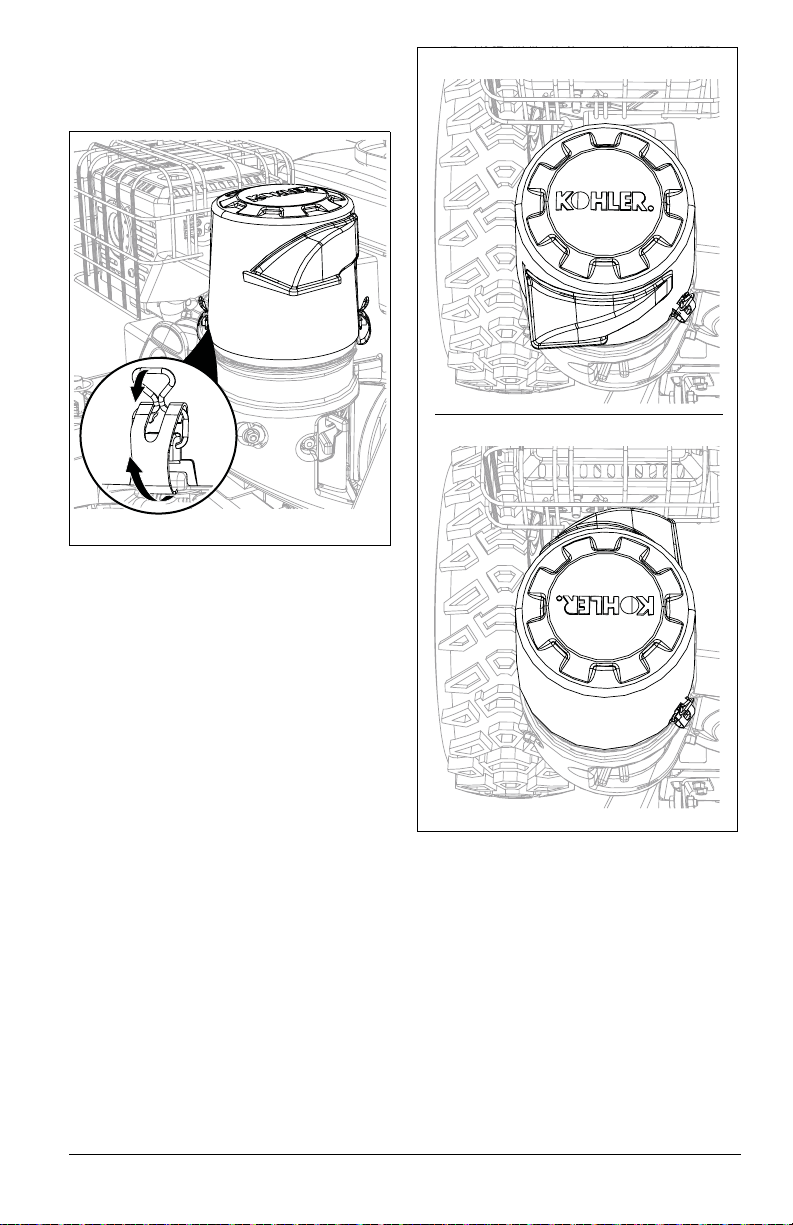

Adjust Engine Air Cleaner . . . . . . . . . . . 12
MAINTENANCE . . . . . . . . . . . . . . . . . . 13
Service Position. . . . . . . . . . . . . . . . . . . 13
Return Unit to Operating Position . . . . . 15
Maintenance Schedule . . . . . . . . . . . . . 16
Service Parts . . . . . . . . . . . . . . . . . . . . . 16
Check Dual Handle Interlock. . . . . . . . . 16
Check Fasteners . . . . . . . . . . . . . . . . . . 16
Check Clutch Cable Adjustments . . . . . 16
Check Tire Pressure . . . . . . . . . . . . . . . 16
Check Engine Oil. . . . . . . . . . . . . . . . . . 16
Change Engine Oil. . . . . . . . . . . . . . . . . 16
Clean Recoil Guard Foam Cover. . . . . . 16

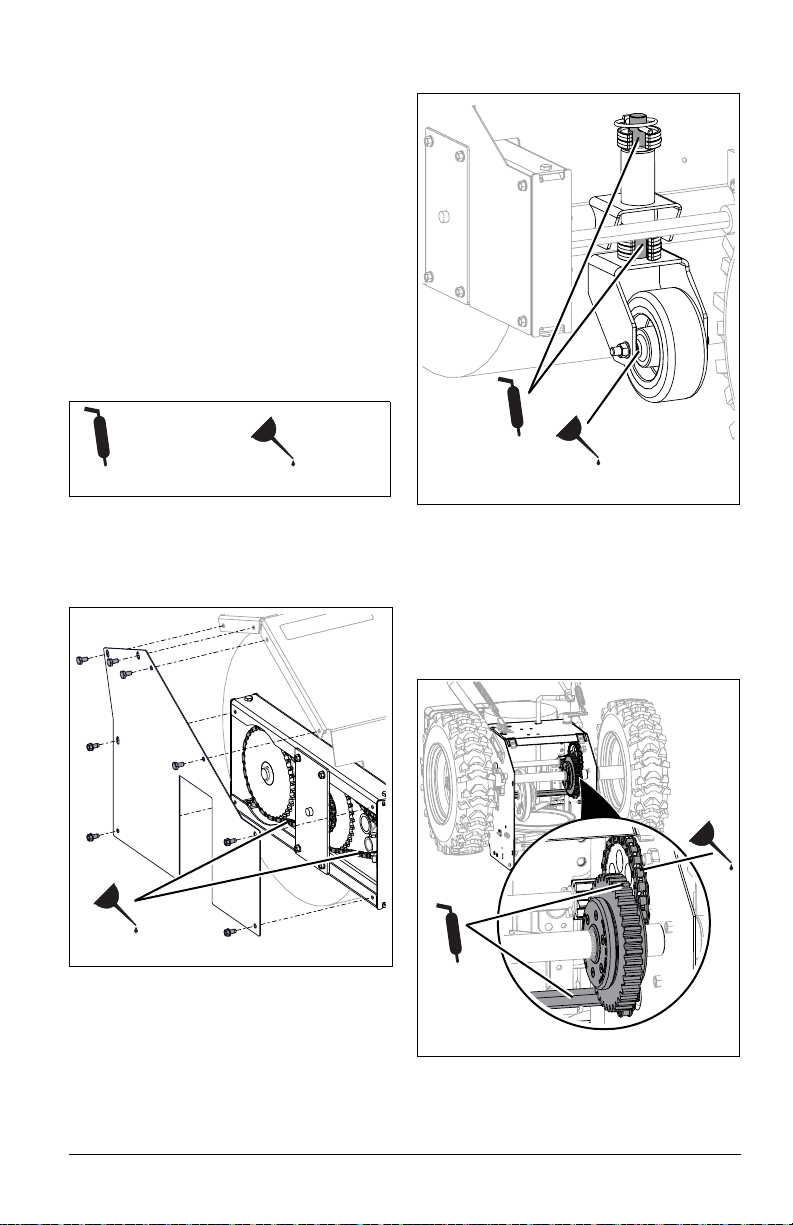

Lubricate Unit. . . . . . . . . . . . . . . . . . . . . 17
ADJUSTMENTS . . . . . . . . . . . . . . . . . . 18
Adjust Speed Selector Lever. . . . . . . . . 18

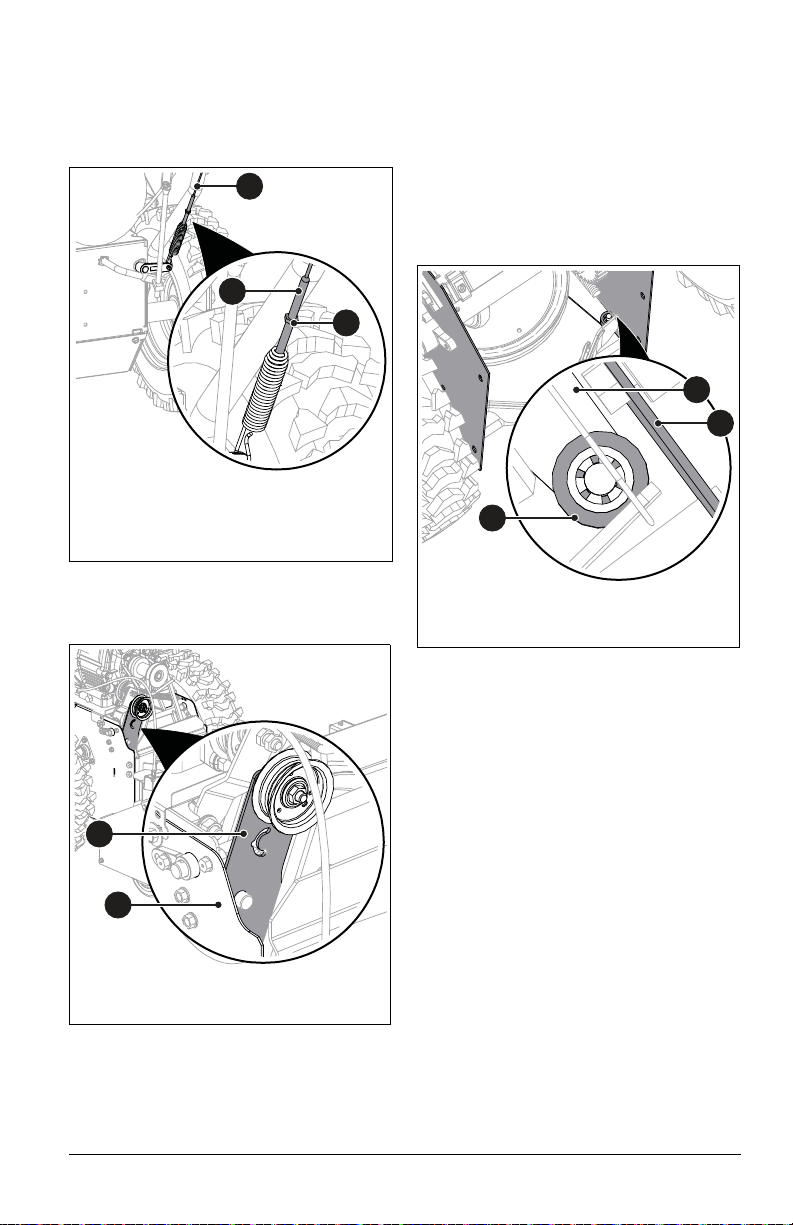

Adjust Attachment Clutch & Brake. . . . . 19
Adjust Traction Drive Clutch . . . . . . . . . 21
TROUBLESHOOTING . . . . . . . . . . . . . 22
STORAGE. . . . . . . . . . . . . . . . . . . . . . . 24
Short Term. . . . . . . . . . . . . . . . . . . . . . . 24
Long Term . . . . . . . . . . . . . . . . . . . . . . . 24
Start-of-Season Fuel Preparation . . . . . 24
ACCESSORIES. . . . . . . . . . . . . . . . . . . 24
SPECIFICATIONS. . . . . . . . . . . . . . . . . 25
WARRANTY . . . . . . . . . . . . . . . . . . . . . 26
TABLE OF CONTENTS
EN - 1
WELCOME
Congratulations on your purchase and welcome to the Ariens family! Every power brush in the
Ariens lineup is designed for long-lasting and unsurpassed performance. We are confident your
machine will be part of your family for many years to come.
PRODUCT REGISTRATION
You or the dealer you purchased the unit from
must register the product at the time of
purchase. Know the model and serial numbers
of your unit and register online at
www.ariens.com or return the registration card

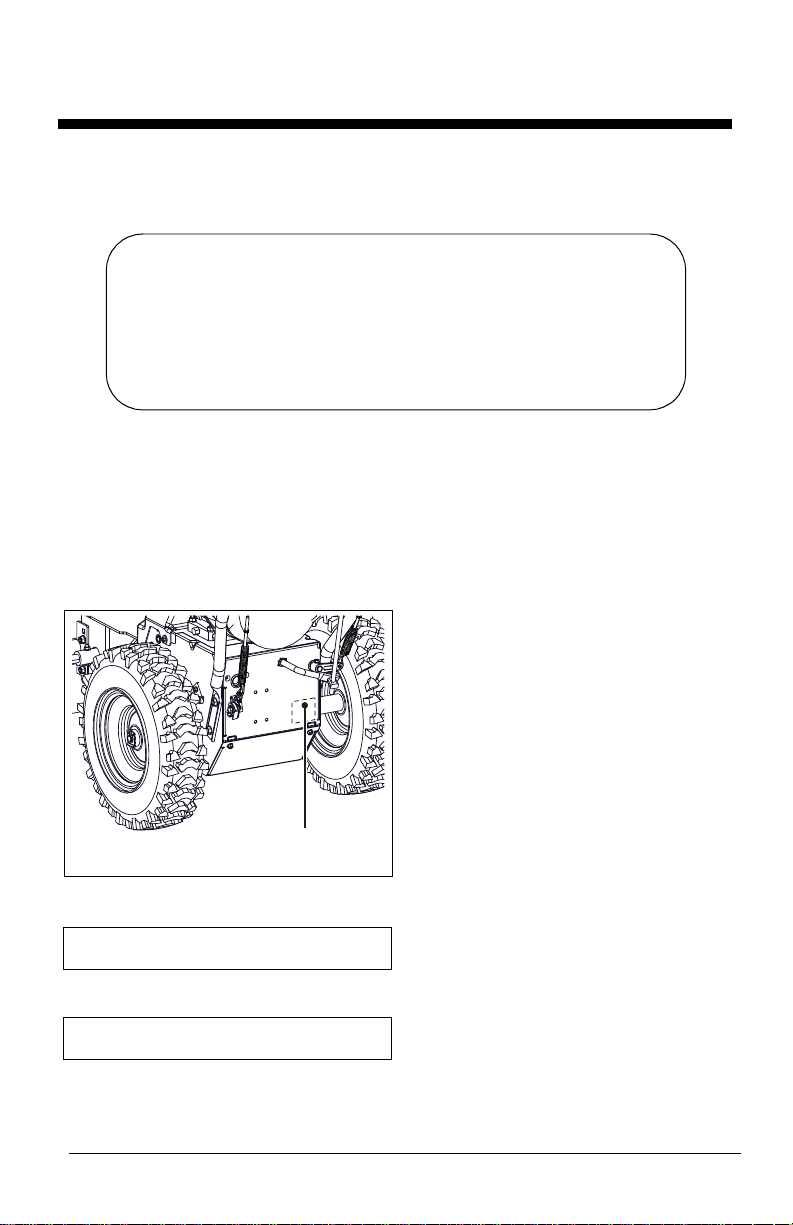

to Ariens Company. See Figure 1 for label
location.
Record model number here.
Record serial number here.
Figure 1
Model & Serial Number Label
MANUALS
Before operating or servicing the unit, carefully
and completely read the manuals provided with
the unit. They contain safety instructions and
important information about unit controls.
The engine on this unit is covered by a separate
manual. Refer to the engine manual for engine
service recommendations. Contact the engine
manufacturer for a replacement manual if
necessary.
It is your responsibility to read and understand
all safety precautions and instructions in the
manuals. If you do not understand or have
difficulty following the instructions, contact your
Ariens dealer for assistance. To locate your
nearest Ariens dealer, go to
www.ariensstore.com.
DISCLAIMER
Ariens reserves the right to discontinue, make
changes to, and add improvements upon its
products at any time without public notice or
obligation. The descriptions and specifications
contained in this manual were in effect at
printing. Equipment described in this manual
may be optional. Some illustrations may not be
applicable to your unit.
Have Questions or Need Assistance?
ariens.custhelp.com • ariensstore.com
A service guide and a parts manual for your unit are available for free download
or purchase at www.ariens.com.
EN - 2
Read these safety rules and follow them
closely. Failure to follow these rules could
lead to loss of control of unit, severe personal
injury or death to you or bystanders, or result
in damage to property or the unit.
PRACTICES & LAWS
Practice usual and customary safe working
precautions. Learn applicable rules and laws
in your area. ALWAYS follow the practices set
forth in this manual.
EMISSION CONTROL SYSTEM
This equipment and/or its engine may include
exhaust and evaporative emissions control
system components required to meet U.S.
Environmental Protection Agency (EPA)
and/or California Air Resources Board
(CARB) regulations. Tampering with emission
controls and components by unauthorized
personnel may result in severe fines or
penalties. Emission controls and components
can only be adjusted by an Ariens Company
dealer or an authorized engine
manufacturer's service center. Contact your
Ariens Company Equipment Retailer
concerning emission controls and component
questions.
REQUIRED OPERATOR
TRAINING
Read and understand the
Operator's Manual and decals
on the unit. This information is
for your safety and the proper
use of your equipment.
Failure to follow these
instructions and warnings may cause death
or serious injury. If you have purchased this
product from an Ariens dealer, the dealer can
provide you with training.
Familiarize yourself and any other operators
with all controls and the safe use of the
features of this unit. If you loan, rent or sell
this product to others, provide them with all
manuals.
If you have any questions, please call our
customer support line at 920-756-4688 or
contact us at www.ariens.com. Do not use
this equipment if, after reading the Operator's
Manual and the on-board decals, you have
any questions about the safe use of this
product.
SAFETY ALERT SYMBOL
SIGNAL WORDS
The safety alert symbol above and signal
words below are used on decals and in this
manual. Read and understand all safety
messages.
1. Danger
2. Warning
3. Caution
4. Notice
NOTICE: Indicates information or procedures
that are considered important but not hazard
related. If not followed, property damage
could result.
SAFETY
WARNING: AVOID INJURY.
This unit is capable of crushing
or amputating body parts.
Failure to observe the safety
instructions in the manuals and
on decals could result in serious
injury or death.
This is the safety alert symbol. It
means:
• ATTENTION!
• YOUR SAFETY IS
INVOLVED!
When you see this symbol:
• BECOME ALERT!
• OBEY THE MESSAGE!
DANGER: Indicates an
IMMINENTLY HAZARDOUS
SITUATION! If not avoided,
WILL RESULT in death or
serious injury.
WARNING: Indicates a
POTENTIALLY HAZARDOUS
SITUATION! If not avoided,
COULD RESULT in death or
serious injury.
CAUTION: Indicates a
POTENTIALLY HAZARDOUS
SITUATION! If not avoided, MAY
RESULT in minor or moderate
injury. It may also be used to
alert against unsafe practices.
EN - 3
5. Important
IMPORTANT: Indicates general reference
information worthy of special attention.

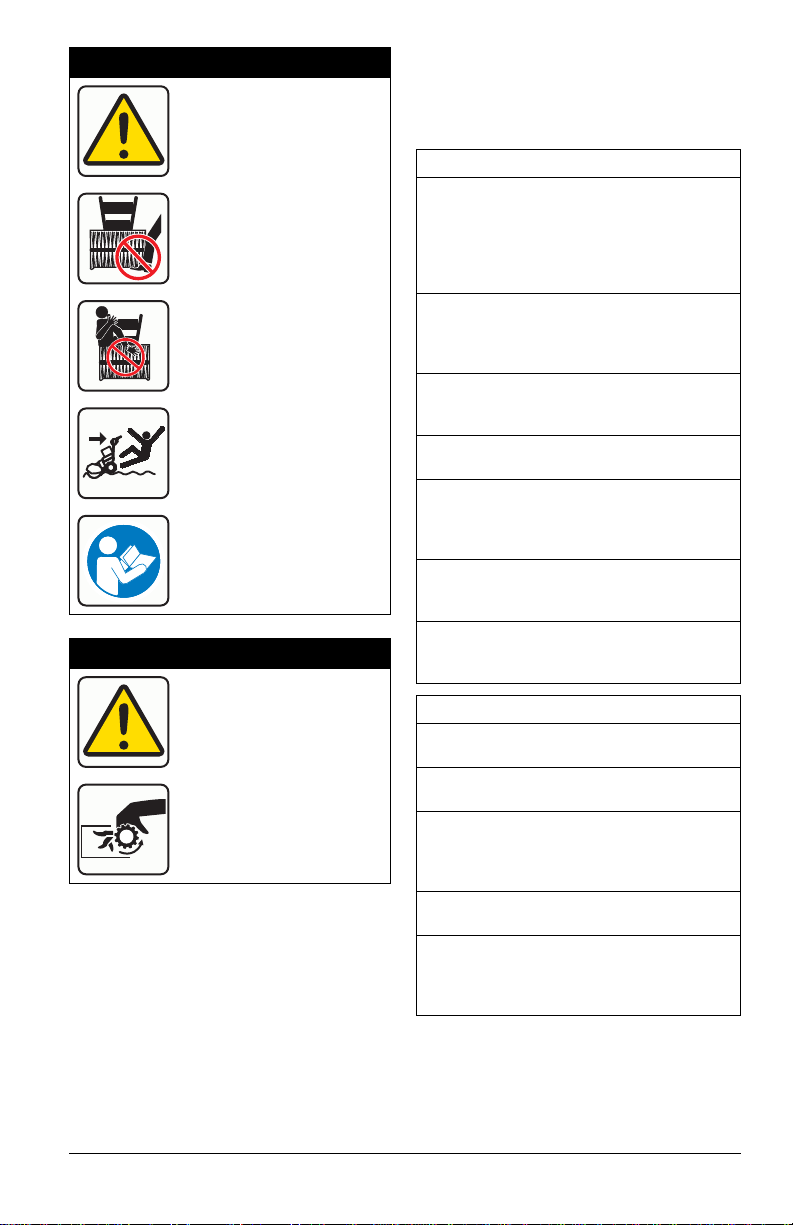

SAFETY DECALS
The safety decals on your unit are visual
reminders of the important safety information
in this manual. All messages on your unit
must be fully understood and carefully
followed. Safety decals on the unit are
explained below.
ALWAYS replace missing or damaged safety
decals. Replacement decal information is in
the parts manual for your unit. Decals can be
ordered from your dealer.

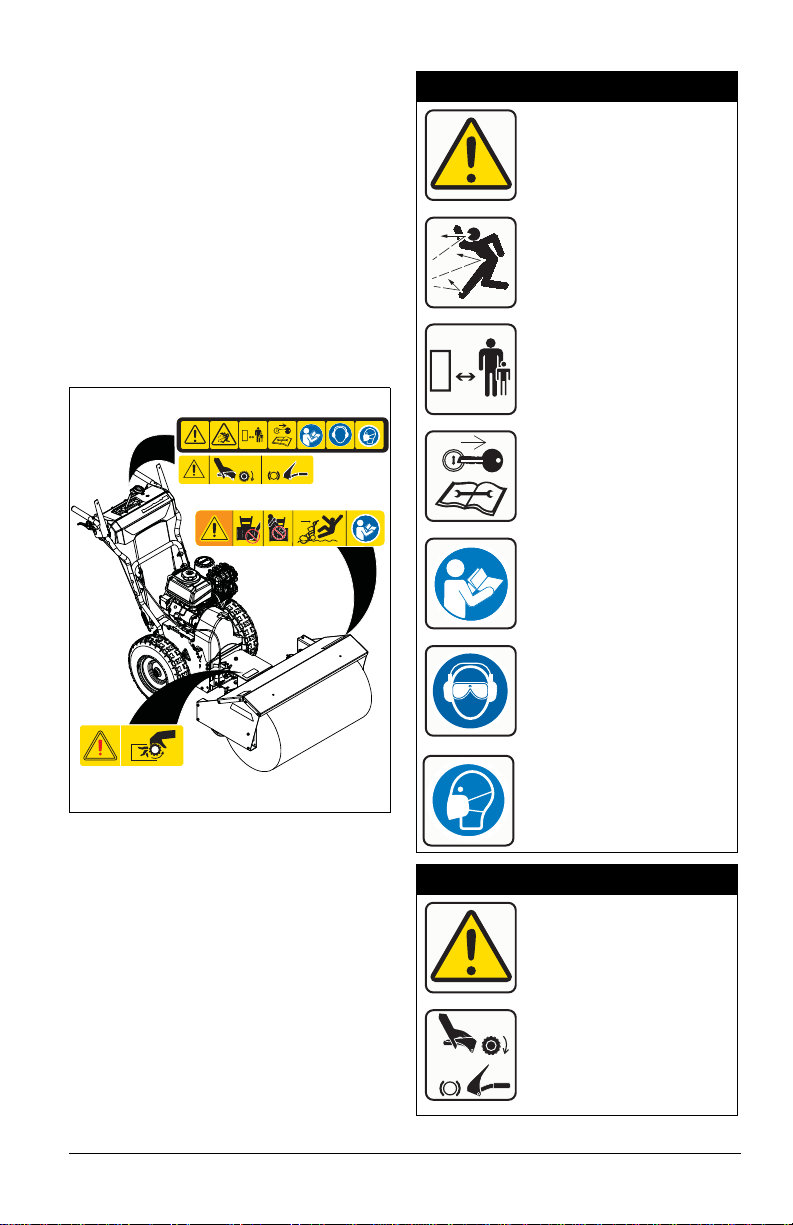

See Figure 2 for safety decal locations.
Safety Decal Locations
Safety Decal Descriptions
12
Figure 2
3
4
2
1
1. WARNING!
WARNING!
NEVER direct discharge
towards persons or property
that may be injured or
damaged by thrown objects.
Keep people away from unit
while operating. Keep
children out of work area
and under watchful care of a
responsible adult.
Stop engine, remove key,
and read manual before
making any repairs or
adjustments.
Read operator’s manual.
Wear appropriate hearing
and eye protection.
Wear a dust particle mask
while operating in dusty
conditions.
2. CAUTION!
CAUTION!
Be sure to engage the
traction drive clutch first.
Engaging the attachment
clutch before traction drive
clutch can cause the unit to
travel backwards.
1
2
EN - 4
SAFETY RULES
The following safety instructions are based
on the B71.3 specifications of the American
National Standards Institute in effect at the
time of production.
3. DANGER!
DANGER!
Keep clear of brush while
engine is running.
NEVER use your hands to
clear blockages.
Operating on irregular
terrain could cause the
brush to dig in and drive the
machine rearward.
Read operator’s manual.
4. DANGER!
DANGER!
Avoid injury - Stay clear of
rotating parts.
Training
Read, understand and follow all instructions
on the unit and in the manual(s) before
operating this unit. Be thoroughly familiar
with the controls and the proper use of the
equipment. Know how to stop the unit and
disengage the controls quickly.
NEVER allow children to operate or play on
or near the equipment. NEVER allow adults
to operate the equipment without proper
instruction.
Keep the area of operation clear of all
persons, particularly small children. Be alert
and shut off unit if children enter area.
Exercise caution to avoid slipping or falling,
especially when operating in reverse.
ALWAYS remove key and/or wire from spark
plug before assembly, maintenance or
service. Unintentional engine start up can
cause death or serious injury.
Complete a walk-around inspection of the
unit to understand the unit, your work area
and all safety decals.
Understand how to operate all controls, the
functions of all controls and how to STOP in
an emergency.
Preparation
ALWAYS check overhead and side
clearances carefully before operation.
ALWAYS be aware of traffic when operating
near streets or along curbs.
Thoroughly inspect the area where the
equipment is to be used and remove all
doormats, sleds, boards, toys, wires and
other foreign objects.
Disengage all clutches and shift into neutral
before starting the engine.
Use extension cords and receptacles as
specified by the manufacturer for all units
with electric drive motors or electric starting
motors.
EN - 5
Handle fuel with care; it is highly flammable.
• Use an approved fuel container.
• NEVER add fuel to a running engine or
hot engine.
• Fill fuel tank outdoors with extreme care.
NEVER fill fuel tank indoors.
• NEVER fill containers inside a vehicle or
on a truck or trailer bed with a plastic
liner. ALWAYS place containers on the
ground, away from your vehicle, before
filling.
• When practical, remove gas-powered
equipment from the truck or trailer and
refuel it on the ground. If this is not
possible, then refuel such equipment on
a trailer with a portable container, rather
than from a gasoline dispenser nozzle.
• Keep the nozzle in contact with the rim of
the fuel tank or container opening at all
times, until refueling is complete. DO
NOT use a nozzle lock-open device.
• Replace gasoline cap securely and wipe
up spilled fuel.
• If fuel is spilled on clothing, change
clothing immediately.
NEVER attempt to make any adjustments
while the engine is running (except when
specifically recommended by manufacturer).
ALWAYS allow unit and engine to adjust to
outdoor temperature before operating.
Operation
Disengage all controls before starting
engine.
Adjust brush height before operating.
Engage traction drive clutch before
attachment clutch. If brush is set too low or if
terrain is irregular, brush can drive machine
rearward.
NEVER leave a running unit unattended.
ALWAYS stop engine and remove key
before leaving unit to prevent unauthorized
use.
DO NOT put hands or feet near or under
rotating parts. Keep clear of the discharge
area at all times.
Moving and/or rotating parts can cut off body
parts such as fingers or a hand. NEVER
place your hands, other body part or clothing
near any moving parts while unit is running.
ALWAYS keep hands away from all pinch
points.
DO NOT touch parts which might be hot
from operation. Allow parts to cool before
attempting to maintain, adjust or service.
Thrown objects can cause injury. Check for
weak spots on docks, ramps or floors. Avoid
uneven work areas and rough terrain and
stay alert for hidden hazards.
Exercise extreme caution when operating on
or crossing gravel drives, walks or roads.
Stay alert for hidden hazards or traffic.
After striking a foreign object, stop the
engine, remove the wire from the spark plug,
disconnect the cord on electric motors,
thoroughly inspect the unit for any damage,
and repair the damage before restarting and
operating the unit.
If the unit should start to vibrate abnormally,
stop the engine and check immediately for
the cause. Vibration is generally a warning
of trouble.
Stop the engine whenever you leave the
operating position and when making any
repairs, adjustments or inspections.
When cleaning, repairing or inspecting the
unit, stop the engine and make certain that
all moving parts have stopped. Disconnect
the spark plug wire and keep the wire away
from the plug to prevent someone from
accidentally starting the engine.
DO NOT run the engine indoors, except
when starting the engine and for
transporting the unit in or out of the building.
Open the outside doors; exhaust fumes are
dangerous.
NEVER operate the unit without proper
guards, and other safety protective devices
in place and working.
ALWAYS stand clear of the discharge area
when operating this unit.
NEVER direct the discharge toward people
or areas where injury or property damage
can occur from thrown objects. Keep
children and others away.
DO NOT overload the unit capacity by
attempting to operate at too fast a rate.
NEVER operate the unit at high transport
speeds on slippery surfaces. Look behind
and use care when operating in reverse.
DO NOT operate in reverse unless
absolutely necessary. ALWAYS back up
slowly and look down and behind before and
while backing.
DO NOT carry passengers.
EN - 6
Disengage attachment when not in use and
when traveling from one work area to
another.
Disengage power to the attachment when
unit is transported or not in use.
Use only attachments and accessories
approved by the manufacturer of the unit
(such as wheel weights, counterweights or
cabs).
This product is equipped with an internal
combustion engine. DO NOT use unit on or
near any unimproved, forest-covered or
brush-covered land unless exhaust system
is equipped with a spark arrester meeting
applicable local, state or federal laws. A
spark arrester, if used, must be maintained
in effective working order by operator.
NEVER operate the unit without good
visibility or light. ALWAYS be sure of your
footing, and keep a firm hold on the handles.
Walk; NEVER run.
NEVER operate unit after or during the use
of medication, drugs or alcohol. Safe
operation requires complete and unimpaired
attention at all times.
NEVER allow anyone to operate this unit
when their alertness or coordination is
impaired.
NEVER touch a hot engine or muffler.
Avoid contact with sharp edges; sharp
edges can cut.
Maintenance and Storage
Secure unit so it will not tip over during
maintenance.
Before cleaning, removing obstructions or
making any inspections, repairs, etc.,
disengage clutch(es), stop engine, remove
key, allow moving parts to stop and hot parts
to cool.
Check hardware at frequent intervals for
proper tightness to be sure the unit is in safe
working condition.
Check clutch and brake operation
frequently.
DO NOT change engine governor settings
and DO NOT over-speed engine.
Adjust and service as required. Motion of
drive wheels and attachment must stop
quickly when clutch levers are released.
ALWAYS maintain unit in safe operating
condition. Damaged or worn out muffler can
cause fire or explosion.
Keep unit free of ice or other debris. Clean
up oil or fuel spills.
ALWAYS keep protective structures, guards,
and panels in good repair and secured in
place. NEVER modify or remove safety
devices.
NEVER store the unit with fuel in the fuel
tank inside a building where ignition sources
are present such as hot water heaters,
space heaters or clothes dryers. Close fuel
valve and allow the engine to cool
completely before storing in any enclosure
or covering the unit.
ALWAYS refer to operator's manual for
important details if the unit is to be stored for
an extended period.
Maintain or replace safety and instruction
labels as necessary.
Run the unit a few minutes after removing
snow to prevent freeze-up.
Personal Protection
DO NOT operate the equipment without
wearing adequate clothing. Avoid loose
fitting clothing that can get caught in moving
parts. Wear footwear that will improve
footing on slippery surfaces.
Wear adequate safety gear, including safety
glasses with side shields and protective
gloves.
DO NOT wear loose clothing or jewelry, and
tie back hair that may get caught in rotating
parts.
NEVER attempt to clear obstructions or
clean unit while engine is running. Rotating
attachments can cause serious injury.
Protect eyes, face and head from objects
that may be thrown from unit. Wear
appropriate hearing protection.
ALWAYS wear safety glasses or eye shields
during operation or while performing an
adjustment or repair to protect eyes from
foreign objects that may be thrown from the
unit.
Slope Operation
Exercise extreme caution when operating on
slopes. DO NOT operate on steep slopes.
DO NOT operate across the face of slopes;
go up and down. Keep all movement on
slopes slow and gradual.
EN - 7
Use a slow speed to avoid stops or shifts on
slopes. Avoid starting or stopping on a
slope. DO NOT park unit on a slope unless
absolutely necessary. When parking on a
slope ALWAYS block the wheels.
DO NOT operate near drop-offs, ditches, or
embankments. Unit can suddenly turn over if
a wheel is over the edge of a cliff or ditch, or
if an edge caves in.
Fuel
Remove fuel before separating brush
attachment from frame. Ensure unit is
secure and will not tip during maintenance.
DO NOT run engine in an enclosed area.
ALWAYS provide good ventilation. Fumes
from engine exhaust can cause injury or
death.
Fuel is highly flammable and its vapors are
explosive. Handle with care. Use only an
approved gasoline container with an
appropriately-sized dispensing spout.
No smoking, no sparks, no flames. ALWAYS
allow engine to cool before servicing.
NEVER fill fuel tank when engine is running
or hot from operation.
NEVER fill or drain fuel tank indoors.
Replace fuel cap securely and clean up
spilled fuel.
NEVER fill fuel containers inside a vehicle or
on a truck or trailer bed with a plastic liner.
ALWAYS place containers on the ground
away from your vehicle before filling.
When practical, remove gas-powered
equipment from the truck or trailer and refuel
it on the ground. If this is not possible, then
refuel on a trailer with a portable container,
rather than from a gasoline dispenser
nozzle.
Keep the nozzle in contact with the rim of
the fuel tank or container opening at all
times until fueling is complete. DO NOT use
a nozzle lock-open device.
If fuel is spilled on clothing, change clothing
immediately.
Properly remove fuel before tipping unit to
avoid spills.
Towing/Transporting
ALWAYS stop engine, remove key and close
fuel valve or drain fuel when transporting
unit on a truck or trailer.
Use extra care when loading or unloading
unit onto trailer or truck. Secure unit chassis
to transport vehicle. NEVER secure from
rods or linkages that could be damaged. DO
NOT transport unit while engine is running.
Accessories
Use only Ariens Company-recommended
attachments or accessories that are
designed for your unit and that are
appropriate to your use and can be used
safely in your application.
EN - 8

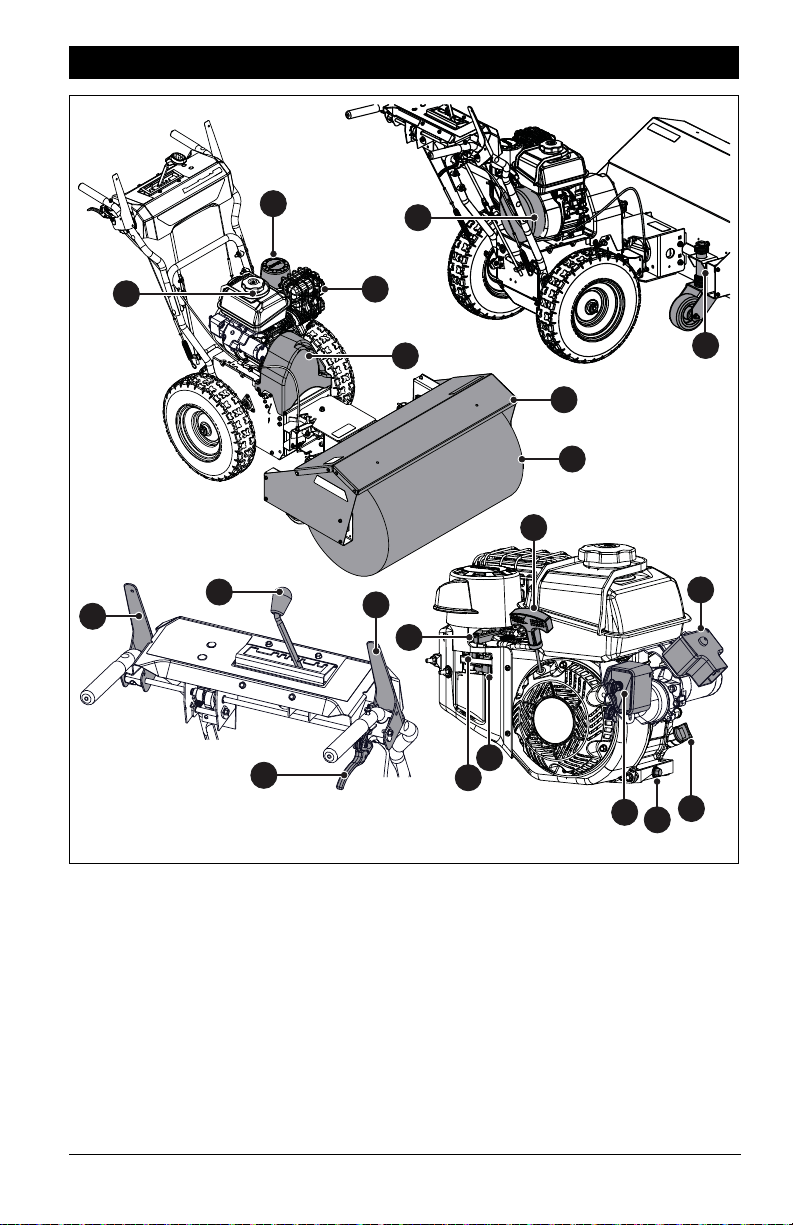

1. Traction Drive Clutch Lever
2. Attachment Clutch Lever
3. Speed Selector Lever
4. Brush Lock Trigger
5. Brush Guard
6. Brush
7. Caster Wheels & Height Adjustment
8. Fuel Tank and Cap
9. Muffler
10. Air Cleaner Assembly
11. Recoil Starter Handle
12. Choke Control Lever
13. Throttle Control Lever
14. Fuel Valve
15. Engine Key
16. Electric Start Button
17. Oil Fill / Dipstick
18. Oil Drain
19. Recoil Guard Foam Cover
20. Belt Cover
CONTROLS & FEATURES
1
3
4
2
13
11
14
18
17
6
5
20
8
19
7
12
Figure 3
10
9
15
16
EN - 9
See Figure 3 for all controls and features
locations.

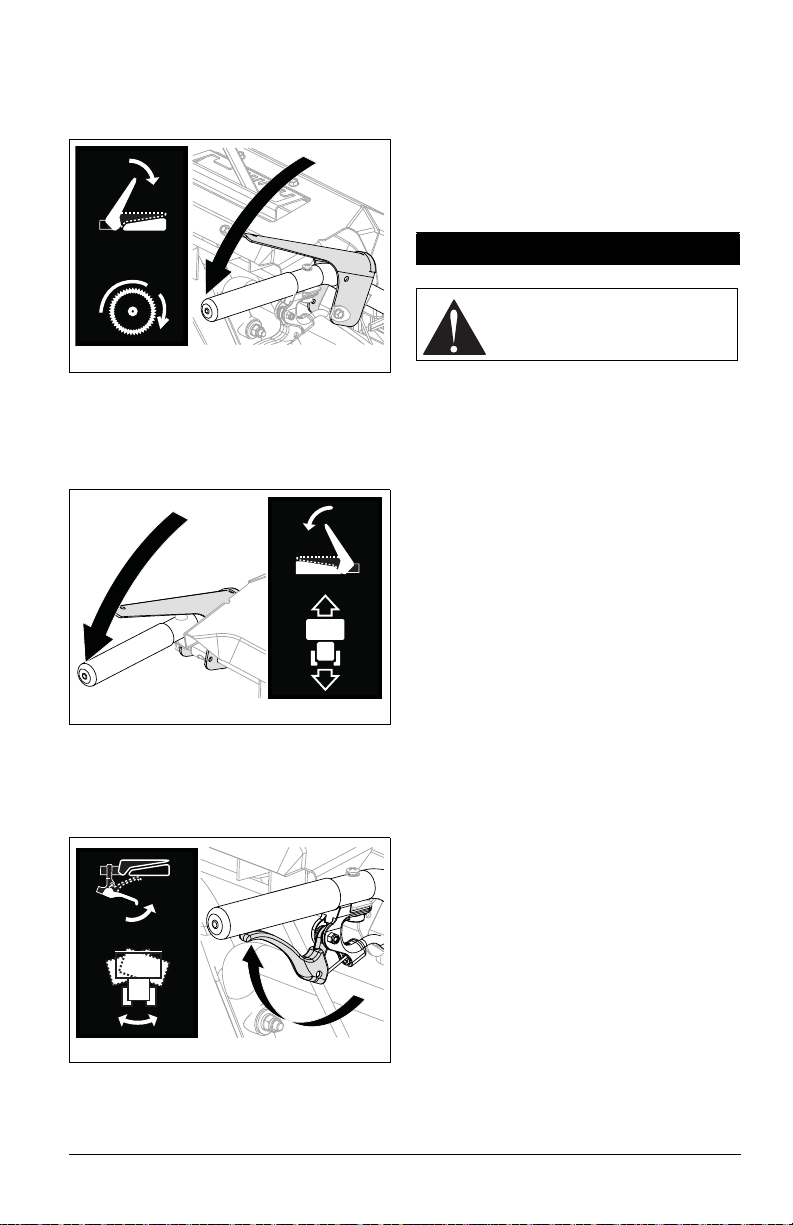

ENGINE KEY
See Figure 4.
Controls power to the engine. The key cannot
be removed when in run position.
FUEL VALVE
See Figure 5.
Controls fuel flow to the engine.
ELECTRIC START BUTTON
Starts a correctly choked engine.
CHOKE CONTROL LEVER
See Figure 6.
Controls airflow to the engine.
THROTTLE CONTROL LEVER
See Figure 7.
Controls engine speed.
SPEED SELECTOR LEVER
See Figure 8.
Controls the speed of forward and reverse
travel.
WARNING: Read and
understand the
Safety section
before proceeding.
Figure 4
Stop
Run
Figure 5
Off On
Figure 6
OffOn
Figure 7
Fast
Slow
Figure 8
EN - 10
ATTACHMENT CLUTCH LEVER
(RIGHT SIDE)
See Figure 9.
Controls brush rotation.
TRACTION DRIVE CLUTCH
LEVER (LEFT SIDE)
See Figure 10.
Allows unit to travel forward and in reverse.
BRUSH LOCK TRIGGER
See Figure 11.
Unlocks and locks brush to change cleaning
angle.
DUAL HANDLE INTERLOCK
Allows brush to rotate without holding
attachment clutch lever continuously. Brush
continues to turn until both clutch levers are
released.
AUTO-TURN™ STEERING
Automatically locks or unlocks wheels to
allow unit to turn more precisely.
IMPORTANT: All references to left, right, front
or rear are given from the perspective of
operator in operator’s position, facing the
direction of forward travel.
EMERGENCY STOPPING
1. Release both clutch levers.
2. Turn engine key to stop position and
remove key from unit.
3. Wait for all moving parts to stop before
leaving operator’s position.
BEFORE OPERATING UNIT
1. During Winter Operation: Check for
frozen components.
a. Remove key.
b. Engage attachment clutch lever and
pull recoil starter handle.
c. If handle does not pull, move unit to a
warm area to thaw.
2. Check fuel level and add fuel if needed.
IMPORTANT: Use fresh unleaded fuel with
an octane rating of at least 87. DO NOT use
E85 blended fuels; the engine is not E20 /
E30 / E85 compatible. The maximum
recommended ethanol content is 10%. Ariens
recommends using a quality fuel stabilizer in
all fuel.
See Short Term on page 25.
3. Check engine oil level and add oil if
needed. Refer to engine manual.
4. Check function of controls.
• Attachment Clutch Lever
• Traction Drive Clutch Lever
• Dual Handle Interlock
5. Know how to stop in an emergency. See
Emergency Stopping on page 10.
Figure 9
Figure 10
Figure 11
OPERATION
WARNING: AVOID INJURY.
Read and understand the
Safety
section before proceeding.
EN - 11
START THE ENGINE
1. Electric Start Models: Connect power
cord to starter and then into 120V 3-wire
grounded outlet.
IMPORTANT: Use a power cord that is UL
listed or CSA certified, rated for a minimum of
13 amps, grounded and labeled as suitable
for outdoor use.
All Models
2. Turn fuel valve to on position.
3. Insert engine key and turn to run position.
4. Move choke control lever to on position.
5. Move throttle control lever one-third of the
way toward full-throttle.
6. Electric Start: Press electric start button.
NOTICE: DO NOT run starter more than 10
times at intervals of 5 seconds on / 5 seconds
off or overheating and damage may occur.
7. Recoil Start: Pull recoil starter handle.
a. Grasp handle and pull rope out slowly
until it pulls harder.
b. Pull handle firmly and quickly with a
rapid, continuous full-arm stroke.
Repeat until engine starts. If engine
does not start,
see Troubleshooting
on page 23.
c. Let handle rewind slowly after engine
starts. DO NOT let handle snap
against engine.
8. Gradually turn choke off as engine
warms.
9. Electric Start: Disconnect power cord
from outlet and then from starter.
10. Move throttle control lever to fast.
OPERATE UNIT
1. Select desired speed.
2. Engage traction drive clutch.
3. Engage attachment clutch.
NOTICE: Stop brush when traveling between
work areas.
NOTICE: Release both clutch levers before
changing speed. When the unit is turned left
or right, the Auto-Turn™ differential
automatically unlocks wheels for easier
turning. On a straight path, the differential
locks both wheels in place for best traction.
STOP THE ENGINE
1. Release attachment drive clutch lever.
2. Release traction clutch lever.
3. Move throttle control lever to the idle
position.
4. Stop engine and remove key from unit.
5. Turn fuel valve to off position.
SET BRUSH HEIGHT
Check Brush Clearing Width
See Figure 12.
1. Move brush to a dusty, flat surface.
2. Start brush at slow speed and run in a
stationary position for 30 seconds.
3. Lift brush head and move unit backward.
4. Stop engine. See Stop the Engine on
page 11.
5. Check width of swept area. Brush pattern
should be 5 cm – 7.6 cm (2" – 3") wide
along brush length.
• If clearing width is too wide, raise brush.
• If clearing width is too narrow, lower
brush.
Adjust Brush Height
See Figure 13.
Adjust height so brush rests 3 mm – 6 mm
(1/8" – 1/4”) above delicate surfaces. For
hard surfaces, adjust height so brush lightly
touches surface.
IMPORTANT: Spacers on each caster wheel
must be adjusted equally.
1. Lower brush:
a. Remove lynch pins from caster shaft
tops.
b. Turn desired amount of height
adjuster clips to be removed so they
align with flat side of caster shafts and
remove clips.
c. Install spacers onto caster shaft tops
and reinstall lynch pins.
CAUTION: AVOID INJURY. If
brush height is too low, brush
can drive machine rearward
when attachment clutch is
engaged.
Figure 12
EN - 12
2. Raise brush:
a. Remove lynch pins from caster shaft
tops.
b. Remove desired amount of height
adjuster clips from caster shaft tops
and install onto lower caster shaft
ends.
c. Turn height adjuster clips so they DO
NOT align with flat side of caster
shafts.
d. Reinstall lynch pins.
SET BRUSH ANGLE
See Figure 14.
1. Squeeze brush lock trigger to unlock
brush position.
2. Move handlebars left or right until brush is
in desired position.
3. Release trigger to lock brush position.
TRANSPORT UNIT
1. Stop engine and close fuel valve.
2. Secure unit chassis to transport vehicle.
NOTICE: NEVER secure from rods or
linkages that could be damaged.
For Best Sweeping Results
• Run in an overlapping series of paths.
• Start in the middle of large areas and
sweep debris to each side.
• ALWAYS direct discharge with wind
direction.
• Snow is most easily removed as soon as
snow falls.
For Best De-Thatching Results
IMPORTANT: Front caster kit is required for
de-thatching.
See Accessories on page 25.
• De-thatch in spring to clear winter
undergrowth.
• Adjust brush height so it just touches the
grass.
• Set brush angle full left or right so thatch
gets cleared only once.
• De-thatch dry grass.
• Use a slow speed to clear thatch to avoid
damage to lawn.
Figure 13
1
2
3
1. Lynch Pin
2. Caster Shaft
3. Height Adjuster Clip
Figure 14
EN - 13
ADJUST ENGINE AIR CLEANER
1. Pull down latches and move tabs away
from base to release air cleaner cover.
See Figure 15.
2. Rotate cover to the winter/cold-weather
position or summer position.
See
Figure 16.
NOTICE: DO NOT run engine with air filter
cover in the winter/cold-weather position
while operating in normal temperatures.
3. Position latches under base and lift up on
latches until they lock to secure cover.
Figure 15
Figure 16
Normal Position
Winter/Cold Weather Position
EN - 14
Your Ariens dealer can provide service and
adjustments to keep your unit operating at
peak efficiency. Contact an authorized engine
manufacturer’s service center for engine
service.
SERVICE POSITION
IMPORTANT: DO NOT tip unit onto brush.
Remove brush attachment if maintenance
requires tipping unit forward. Ensure unit is
secure and will not tip.
Place Unit in Service Position
1. Move unit to a flat, level surface.
2. Stop engine and wait for moving parts to
stop and for hot parts to cool.
3. Loosen, but DO NOT remove hardware
securing belt cover and remove belt
cover.
See Figure 17.
4. Remove hardware securing belt finger
and remove belt finger.
5. Remove attachment drive belt from
attachment sheave.
6. Disconnect brush lock cable from J-clamp
on engine mount.
See Figure 18.
7. Remove hardware securing brush lock
trigger to handlebar and allow trigger to
rest on brush attachment.
See Figure 19.
MAINTENANCE
WARNING: Read and
understand the
Safety section
before proceeding.
WARNING: AVOID INJURY.
Before rotating unit, close fuel
valve and drain fuel from tank
and fuel system. (Refer to
engine manual for insturctions.)
Make sure unit is secure and will
not tip.

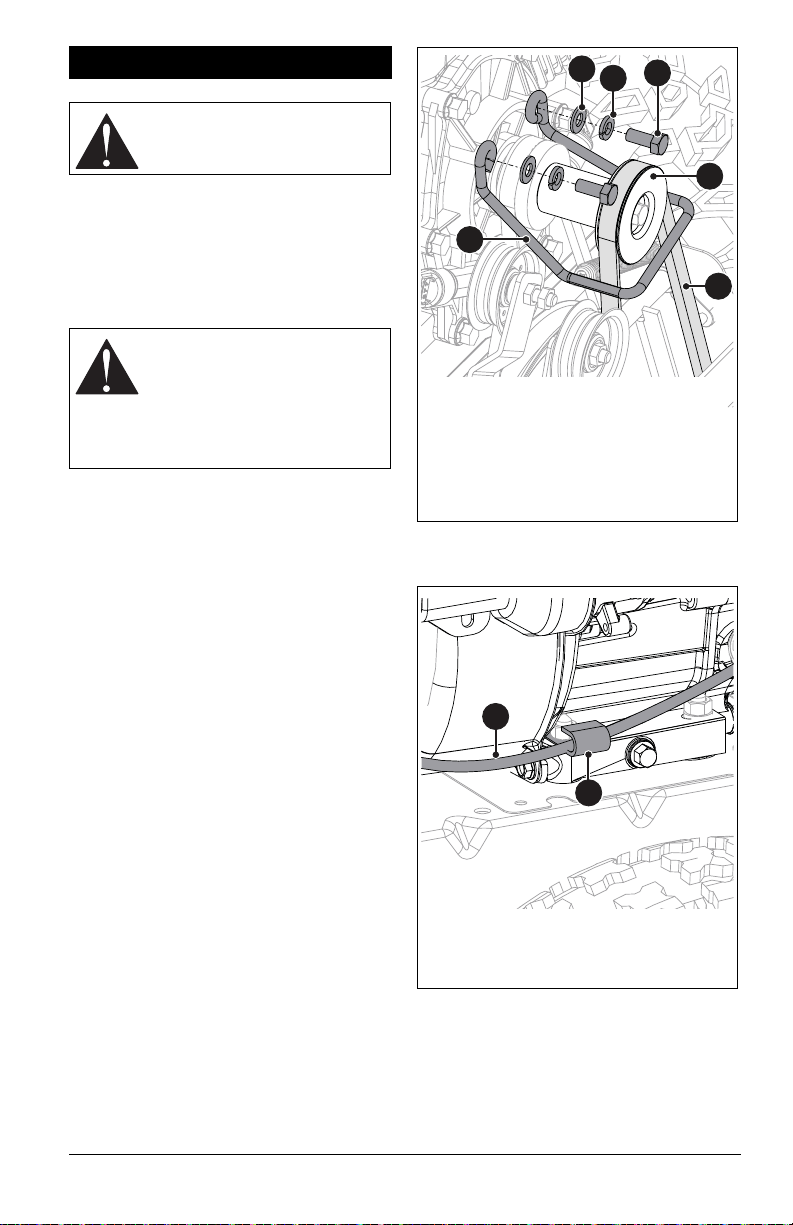

Figure 17
1
2
4
3
6
5
1. Belt Finger
2. Hex Bolt
3. Locking Washer
4. Flat Steel Washer
5. Attachment Drive Belt
6. Attachment Sheave
Figure 18
1. J-Clamp
2. Brush Lock Cable
1
2
EN - 15
IMPORTANT: Support tractor / frame so it will
not tip when disconnected from brush
attachment in next step.
See Figure 20.
8. Remove hardware securing brush
attachment to tractor / frame.
9. Rotate brush attachment apart from
tractor / frame on mount rod and remove
from frame.
See Figure 21.
10. Slowly rotate tractor / frame forward so it
rests on attachment sheave. Protect
attachment sheave so it does not incur
damage.
11. Remove hardware securing bottom cover
and remove bottom cover.
WARNING: ALWAYS support
unit frame and brush attachment
when loosening hardware
holding them together.

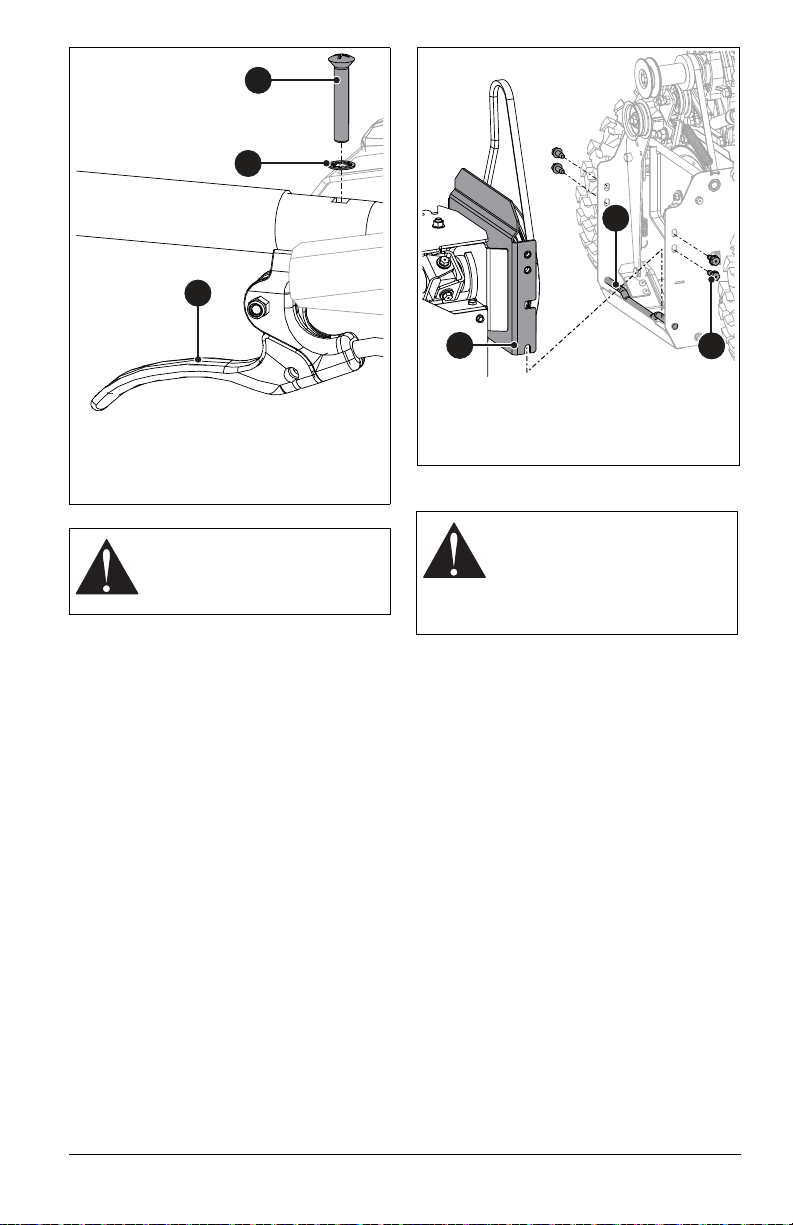

Figure 19
1
1. Machine Screw
2. Lock Washer
3. Brush Lock Trigger
2
3
CAUTION: AVOID ENGINE
DAMAGE. Do not leave unit in
service position for longer than
30 minutes. Allow 30 minutes for
oil to return to crankcase before
starting engine.
Figure 20
1. Tapping Screw
2. Mount Rod
3. Mount Bracket
1
2
3
EN - 16
RETURN UNIT TO OPERATING
POSITION
1. Reinstall bottom cover and secure with
six tapping screws.
2. Return tractor / frame to operating
position and onto a support.
3. Lift brush attachment rear and lower into
frame so mount brackets rest on mount
rod.
4. Secure brush attachment to frame with
four tapping screws, but DO NOT tighten
hardware.
5. Reinstall attachment belt onto attachment
sheave.
6. Reinstall belt finger and secure with two
flat steel washers, two locking washers
and two hex bolts. Tighten hardware.
7. Torque hardware installed in step 4 to
22.8 N•m – 34.1 N•m (16.8 lb-ft – 25.2 lb-
ft).

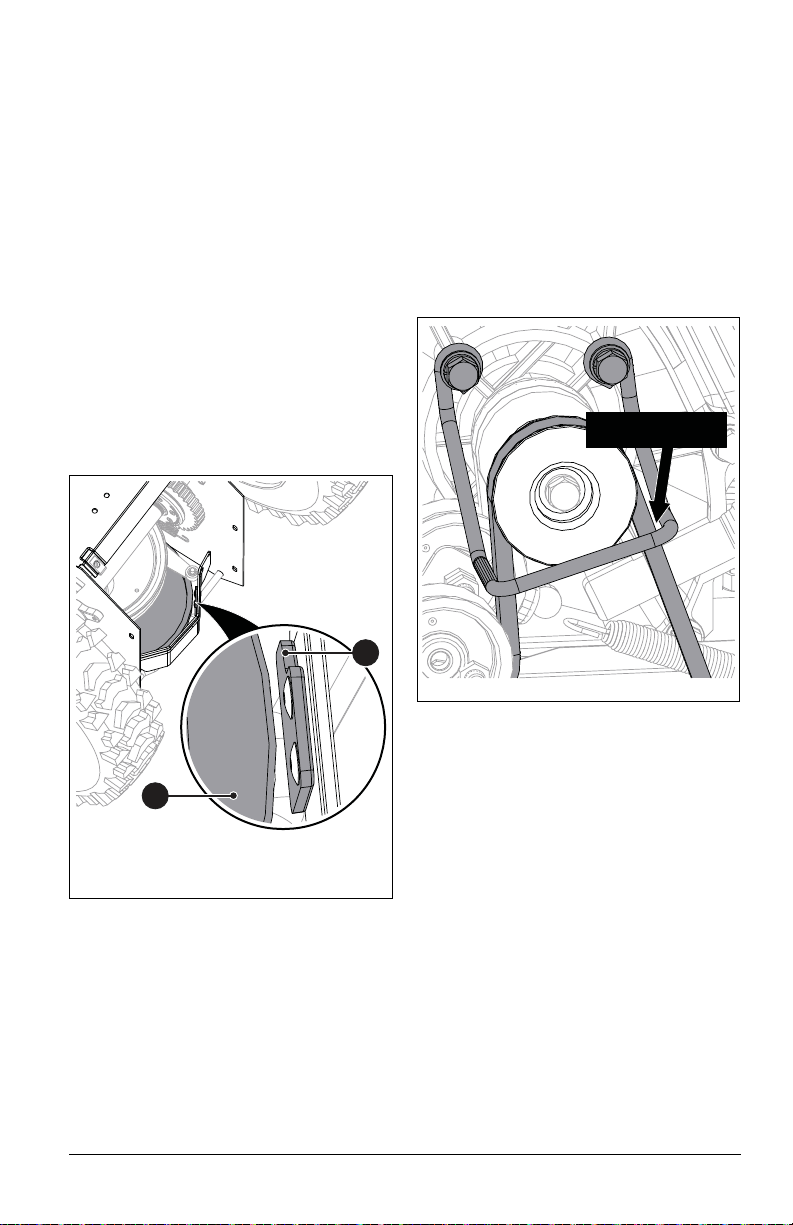

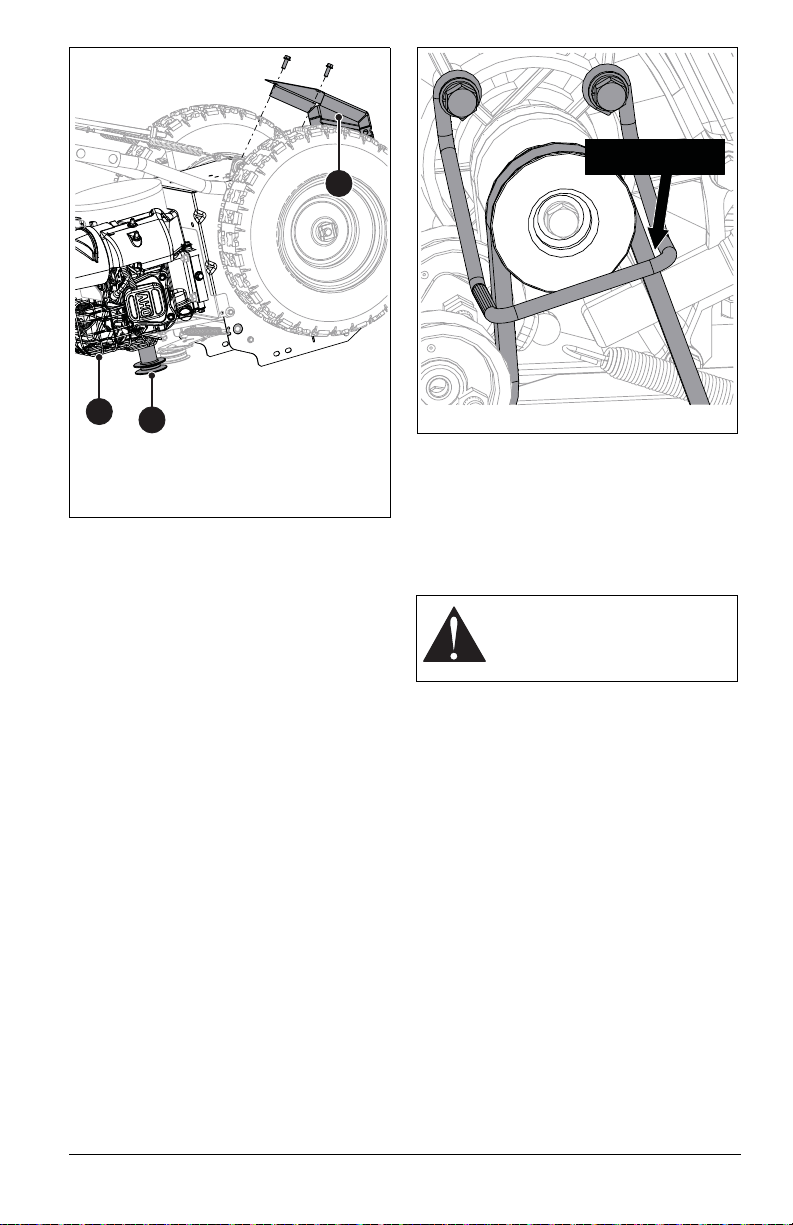

8. Check belt finger clearance:
• Engage attachment clutch lever and
make sure belt finger located opposite
belt idler is less than 3.2 mm (1/8") from
belt, but not touching the belt.
See
Figure 22.
• If needed, adjust clearance by
loosening hex bolts, repositioning belt
finger, and tightening bolts.
9. Reinstall belt cover and tighten hardware.
10. Reinstall brush lock trigger onto
handlebars and route brush lock cable
through J-clamp on engine mount.
11. Adjust attachment clutch / brake. See
Adjust Attachment Clutch & Brake on
page 19.
12. Reconnect spark plug wire and fill fuel
tank.
IMPORTANT: Check all adjustments after
first use.
1. Bottom Cover
2. Engine Sheave
3. Engine
1
2
3
Figure 21
CAUTION: AVOID ENGINE
DAMAGE. Allow unit to rest in
operating position for 30 minutes
before starting engine.
3.2 mm (1/8")
Figure 22
EN - 17
MAINTENANCE SCHEDULE
SERVICE PARTS
See your Ariens dealer to purchase service
parts for your unit.
CHECK DUAL HANDLE
INTERLOCK
1. Stop engine.
2. Engage traction drive clutch and then the
attachment drive clutch.
3. Release the attachment clutch lever. The
attachment clutch should stay engaged
until the traction drive clutch lever is
released.
IMPORTANT: If dual handle interlock does
not operate correctly, repair as directed in the
service guide for your unit.
CHECK FASTENERS
Check for loose or missing hardware.
CHECK CLUTCH CABLE
ADJUSTMENTS
Brush must stop within 5 seconds when
attachment clutch lever is released.
Wheels must stop quickly when traction drive
clutch lever is released.
If clutches do not engage or disengage
correctly,
see Adjust Attachment Clutch &
Brake on page 19 or See Adjust Traction
Drive Clutch on page 21.
CHECK TIRE PRESSURE
Keep tires inflated to pressure listed on tire
sidewall.
CHECK ENGINE OIL
NOTICE: Engine oil level must be maintained
at correct level or engine damage may occur.
Refer to engine manual.
CHANGE ENGINE OIL
Refer to engine manual.
CLEAN RECOIL GUARD FOAM
COVER
The recoil guard foam cover must be kept
clean and free of snow and debris.
If cover becomes clogged, remove and gently
vacuum or wash with warm water.
IMPORTANT: Cover MUST be installed when
using unit in winter conditions. The cover
prevents snow from entering the recoil guard
and freezing the recoil pawls. Cover is not
necessary for operation during non-winter
months.
Service Performed
Each Use
Every 5 hrs.
Every 25 hrs.
Annually
Check Clutch Lever
Operation
•
Check Dual Handle
Interlock
•
Check Fasteners •
Clean Recoil Guard Foam
Cover
•
Check Engine Oil •
Check Clutch Cable
Adjustments *
• •
Check Tire Pressure • •
Change Engine Oil **
General Lubrication • •
* After first use.
** Refer to engine manual for instructions.
Description Part No.
Ariens Hi-Temp Grease
•3 oz. cartridges (3)
• 14 oz. cartridge (1)
00036800
00036700
Fuel Stabilizer (4 oz.)
• Except Canada
• For Canada Only
04730400
04742500
Ariens 5W-30 Engine Oil
• 16 oz. 00091000
• 32 oz. 00067600
WARNING: AVOID INJURY.
Explosive separation of tire and
rim parts is possible.
• DO NOT inflate tires above
the recommended pressure.
• DO NOT inflate tires with a
compressor; use a hand
pump.
• DO NOT stand in front of tire
assembly when inflating. Use
a clip-on chuck and extension
hose long enough to allow you
to stand to one side.
• DO NOT mount a tire without
proper equipment and
experience.
EN - 18
IMPORTANT: If cover is clogged with snow,
remove it and allow foam to thaw or rinse with
warm water. Allow cover to dry before
reinstalling.
IMPORTANT: More frequent service may be
required in extreme conditions (heavy loads,
high ambient temperatures, dusty conditions
or airborne debris).
LUBRICATE UNIT
Ariens recommends using Ariens Hi-Temp
Grease or equivalent (
see Service Parts on
page 17) to lubricate fittings. Lubricate each
season or every 25 hours of operation.
IMPORTANT: Wipe each fitting clean before
and after lubrication.
Use the following key for all lubrication
procedures.
Drive Chains
1. Remove hardware retaining left brush
cover and remove cover.
See Figure 23.
2. Lubricate entire chain lengths.
3. Reinstall brush cover and secure with
four tapping screws and four hex bolts.
Casters
See Figure 24.
Traction Drive
1. Place unit in service position. See
Service Position on page 14.
2. Lubricate as shown in Figure 25 and
Figure 26.
IMPORTANT: DO NOT allow grease or oil to
contact friction disc, swing gate or belts.
* = Lubricate on Both Sides
Grease
Oil
Figure 23
Figure 24
*
*
Figure 25
EN - 19
3. Return unit to operating position. See
Return Unit to Operating Position on
page 16.
ADJUST SPEED SELECTOR
LEVER
See Figure 27.
1. Stop engine and wait for moving parts to
stop and for hot parts to cool.
2. Disconnect adjustment pivot pin from
speed selector arm. Save hardware for
reinstallation.
3. Position speed selector lever in fastest
forward position.
4. Turn speed selector arm down as far as it
will go.
5. Thread adjustment pivot pin along shift
rod until it aligns with the mating hole on
the speed selector arm, and then insert
the pivot pin in the hole.
6. Connect pivot pin to speed selector arm
with hardware removed in step
2 and
check forward and reverse speeds.
a. Start unit, position speed selector
lever in the first forward position and
engage traction drive clutch. Unit
should move forward.
b. Stop unit, position speed selector
lever in the first reverse position and
engage traction drive clutch. Unit
should move in reverse.
c. Stop unit. If unit does not travel
correctly, repeat adjustments.
ADJUST ATTACHMENT CLUTCH
& BRAKE
Remove Slack from Attachment
Cable
1. Stop engine and wait for moving parts to
stop and for hot parts to cool.
2. Disconnect spark plug wire.
3. Loosen hardware securing belt cover to
unit and remove belt cover.
ADJUSTMENTS
WARNING: AVOID INJURY.
Read and understand the entire
Safety section before
proceeding.

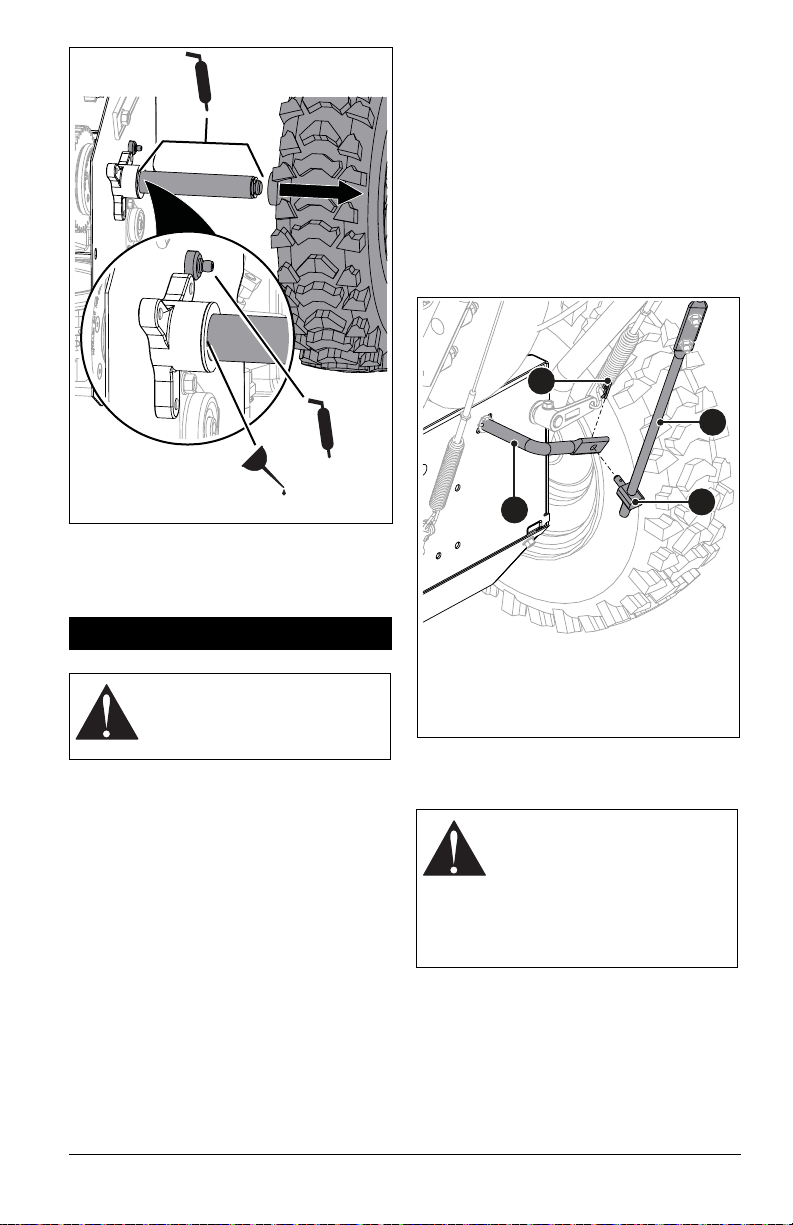

Figure 26
*
*
WARNING: AVOID INJURY.
Improper adjustment could
result in unexpected movement
of brush causing death or
serious injury. BRUSH MUST
STOP within 5 seconds when
attachment clutch lever is
released.
1. Speed Selector Arm
2. Hairpin
3. Adjustment Pivot Pin
4. Shift Rod
Figure 27
1
2
4
3
EN - 20
IMPORTANT: DO NOT completely remove
hardware from unit.
4. Loosen jam nut on cable adjustment
barrel, and then turn the adjustment
barrel down to shorten cable and remove
cable slack.
See Figure 28.
5. With the attachment clutch disengaged,
check that the attachment idler arm lightly
touches the frame.
See Figure 29.
6. Tighten jam nut on cable adjustment
barrel.
See Figure 28.
7. Reinstall belt cover and tighten hardware.
8. Reconnect spark plug wire.
Check Attachment Idler Arm Roller
Clearance
See Figure 30.
1. Place unit in service position and remove
bottom cover.
See Service Position on
page 14.
2. Engage attachment clutch and check the
clearance between the frame and plastic
roller on attachment idler arm. Roller
should be 12.7 mm – 22.2 mm (1/2" –
7/8") from frame.
• If roller is 12.7 mm – 22 mm (1/2" –
7/8") from frame, no further adjustment
is required.
• If roller is less than 12.7 mm (1/2") from
frame, loosen idler adjustment nut and
move idler closer to belt. Tighten
adjustment nut and recheck roller
clearance.
• If roller is more than 22.2 mm (7/8")
from frame, loosen idler adjustment nut
and move idler away from belt. Tighten
adjustment nut and recheck roller
clearance.
3. Return unit to operating position. See
Return Unit to Operating Position on
page 16.
Figure 28
1. Attachment Clutch Cable
2. Cable Adjustment Barrel
3. Jam Nut
1
2
3
Figure 29
1. Attachment Idler Arm
2. Frame
1
2
Figure 30
1. Plastic Roller
2. Frame
3. Attachment Idler Arm
1
2
3
EN - 21
Check Attachment Brake
See Figure 31.
1. Place unit in service position and remove
bottom cover.
See Service Position on
page 14.
With the attachment clutch disengaged,
brake pad must contact attachment belt or
pulley, whichever is closest. With attachment
clutch engaged, brake pad must be a
minimum of 1.6 mm (1/16") from belt or
pulley.
• If there is less than 1.6 mm (1/16") gap,
loosen idler adjustment nut and move
idler away from belt or pulley. Position
idler to achieve a 1.6 mm (1/16")
minimum brake pad gap and a
12.7 mm – 22.2 mm (1/2" – 7/8") gap
between the plastic roller and the
frame.
IMPORTANT: If adjustments cannot be
brought into specified ranges, see your
dealer for repair.
2. Return unit to operating position. See
Return Unit to Operating Position on
page 16.
Check Belt Finger Clearance
See Figure 32.
With the attachment clutch engaged, the belt
finger located opposite the belt idler must be
less than 3.2 mm (1/8") from belts, but must
not touch the belts.
To adjust belt finger:
1. Remove belt cover.
2. Loosen bolts and move belt finger to
correct position.
3. Tighten bolts and recheck belt finger
clearance.
4. Reinstall belt cover and tighten hardware.
ADJUST TRACTION DRIVE
CLUTCH
See Figure 33.
If unit does not drive correctly, adjust traction
clutch to compensate for friction disc wear.
1. Stop engine and wait for moving parts to
stop and for hot parts to cool.
2. Disconnect spark plug wire.
3. Loosen jam nut on traction cable
adjustment barrel, and then turn
adjustment barrel down to shorten cable
and remove cable slack.
Figure 31
1. Attachment Pulley
2. Brake Pad
1
2
3.2 mm (1/8")
Figure 32
EN - 22
See Figure 34.
4. With traction clutch disengaged, check
that swing gate tab touches the front edge
of stop hole.
IMPORTANT: Swing gate tab MUST touch
stop hole edge. Readjust cable as necessary
until tab touches stop hole edge.
5. Reconnect spark plug wire.

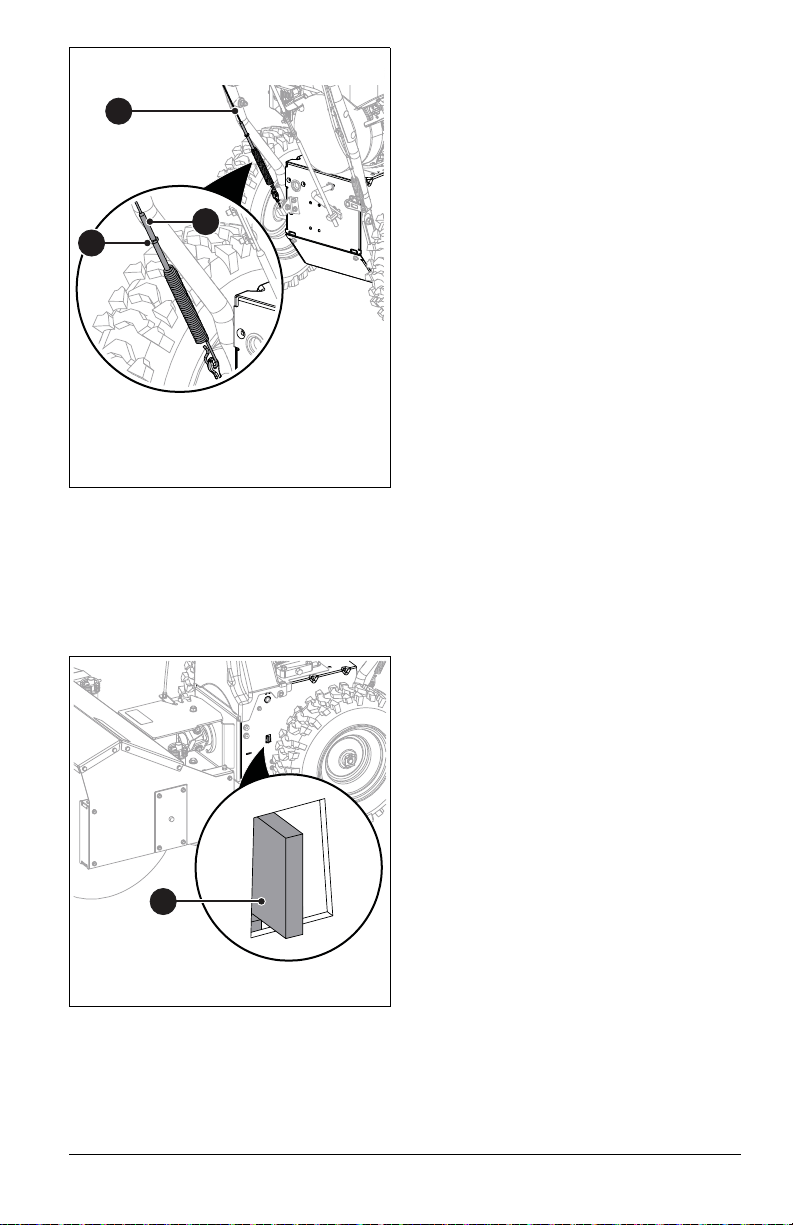

Figure 33
1. Traction Drive Clutch Cable
2. Cable Adjustment Barrel
3. Jam Nut
1
3
2
Figure 34
1
1. Swing Gate Tab
EN - 23
TROUBLESHOOTING
Problem Probable Cause Correction
Engine will not
start.
Engine key in stop position. Turn engine key to run position. See
Engine Key on page 9.
Choke is off. Turn choke control knob to on position.
See Choke Control Lever on page 9.
Fuel valve is closed. Open valve. See Fuel Valve on page 9.
Fuel tank is empty. Fill tank with fuel. See Before Operating
Unit on page 10.
Build up of dirt and residue
around governor / carburetor.
Clean area around governor / carburetor.
See your Ariens dealer.
Spark plug wire is disconnected. Connect spark plug. Refer to engine
manual.
Spark plug is faulty. Replace spark plug. Refer to engine
manual.
Excessive fuel in engine cylinder
(flooded).
Turn choke control knob to off position
and reattempt starting.
See Start The
Engine on page 11.
Engine is faulty. See your Ariens dealer or authorized
engine manufacturer’s service center.
Engine starts
hard or runs
poorly.
Fuel mixture is too rich. Turn choke control knob to off position.
See Choke Control Lever on page 9.
Spark plug is faulty, fouled or
incorrectly gapped.
Clean and correctly set spark plug gap
(refer to engine manual) or see your
Ariens dealer.
Fuel cap vent is blocked. Install new fuel cap.
Engine stops.
Fuel tank is empty. Fill tank with fuel. See Before Operating
Unit on page 10.
Fuel valve is closed. Open valve. See Fuel Valve on page 9.
Obstruction in brush. Stop engine and wait for moving parts to
stop and for hot parts to cool. Remove
obstruction before restarting.
Contaminated fuel supply. Replace with clean fuel.
Spark plug is faulty. Replace or clean spark plug. Refer to
engine manual.
Fuel cap vent is blocked. Install new fuel cap.
Unit runs
briefly then
stops.
A build up of fumes in the fuel
tank is creating too much
pressure in the fuel tank.
Slowly loosen the fuel tank cap.
Unit does not
drive forward or
in reverse.
Friction disc is worn. Replace friction disc. Refer to the service
guide for your unit.
Traction drive cable is not
adjusted correctly.
Remove slack from cable. See Adjust
Traction Drive Clutch on page 21.
Traction belt is not functioning. Repair or replace traction drive belt. Refer
to the service guide for your unit.
Speed selector is not adjusted
correctly.
Adjust speed selector. See Adjust Speed
Selector Lever on page 19.
EN - 24
Unit sweeps
poorly.
Attachment clutch / brake is not
adjusted correctly.
See Adjust Attachment Clutch & Brake on
page 19.
Debris is caught in brush. Stop engine and wait for all moving parts
to stop and for hot parts to cool. Remove
obstruction before restarting.
Attachment drive belt is slipping,
worn or damaged.
Adjust or replace attachment drive belt.
Refer to the service guide for your unit.
Attachment drive belt is loose or
damaged.
Replace belt or adjust attachment control
cable. Refer to the service guide for your
unit.
Belt squeals
continuously.
Attachment clutch needs
adjustment.
See Adjust Attachment Clutch & Brake on
page 19.
Small rubber
beads collect in
frame.
Friction disc wear. This is normal friction disc wear and no
correction is needed unless there are
chunks or large pieces of rubber collecting
in frame. Refer to the service guide for
your unit.
U-joint is noisy.
Worn U-joint. Replace worn parts. Refer to the service
guide for your unit.
Caster wheels
do not pivot as
designed.
Debris in casters. Clean debris from casters.
Excessive friction in casters. Lubricate casters. See Lubricate Unit on
page 18.
TROUBLESHOOTING
Problem Probable Cause Correction
EN - 25
SHORT TERM
1. Tighten all hardware to correct
specifications.
2. Inspect unit for visible signs of wear or
damage. Repair as needed.
3. Apply a light layer of oil or anti-rust
compound on bare metal areas.
4. Prepare fuel system for storage.
NOTICE: Ariens recommends using a quality
fuel stabilizer in all fuel. Gasoline left in the
fuel system without a stabilizer, even for short
periods of time, deteriorates and leaves
gummy deposits in the system that may
damage the carburetor and fuel hoses, filter
and tank. For the best effectiveness, add
stabilizer to all fuel containers whenever
purchasing fuel. Add the stabilizer to the
container before adding fuel.
a. Add Ariens fuel stabilizer (see Service
Parts on page 17) or equivalent
according to manufacturer's
instructions to the fuel tank and any
fuel containers with remaining fuel.
b. Run engine outdoors for at least
5
minutes to allow stabilizer to reach
the carburetor.
5. Close fuel valve and allow engine to stop
on its own.
6. Turn engine key to stop position and
remove key.
7. Store unit in a cool, dry, protected area.
Do not store unit outdoors.
LONG TERM
1. Perform all short-term storage items.
2. Clean unit thoroughly with mild soap and
low-pressure water.
IMPORTANT: Never spray unit with
high-pressure water.
3. Lubricate as directed in Maintenance on
page 14.
4. Touch up all scratched painted surfaces.
5. Remove weight from wheels by putting
blocks under frame or axle.
6. Store unit in a cool, dry, protected area.
Do not store unit outdoors.
START-OF-SEASON FUEL
PREPARATION
Before opening the fuel valve for the first time
after long-term storage, add fresh, stabilizer-
treated fuel to the fuel tank and any fuel
containers with remaining fuel.
See your Ariens dealer for a complete list of
compatible accessories and attachments for
your unit.
STORAGE
WARNING: AVOID INJURY.
Read and understand the
Safety
section before proceeding.
ACCESSORIES
Description Part No.
Snow Cab 72102600
Turf Caster Brush Kit 72101200
Tire Chain Set 72101600
EN - 26
SPECIFICATIONS
Model Number 921056
Engine
Engine Model Kohler CH255
Displacement – cm
3
(in
3
)
177 (10.8)
Maximum RPM – No Load 3750 ± 100
Starter 120V Electric and Recoil
Fuel See Engine Manual
Tank Capacity – L (qt) 2.9 (3.1)
Brush
Clearing Width – cm (in) 71.2 (28)
Brush Diameter – cm (in) 45.7 (18)
Brush Rotation Speed – RPM 200
Brush Rotation Angle Total 40° (20° left / right)
Drive
Drive Disc-O-Matic
Drive Speeds 6 Forward 2 Reverse
Pneumatic Tires – in 16 x 4.80-8
Axle Control Auto-Turn™
Size
Length – cm (in) 165.1 (65)
Height – cm (in) 111.8 (44)
Width – cm (in) 83.8 (33)
Weight – kg (lb) 108 (238)
Sno-Finishing_2017C
EN - 27
Sno-Thro
®
, Sno-Tek
®
and
Finishing Tool Equipment
Limited Warranty
Ariens Company (Ariens) warrants to the original purchaser that Ariens, Gravely, Parker, and Countax
brand chore-performing equipment (including Sno-Thro
®
and Sno-Tek
®
equipment) purchased on or after
1/1/2016 will be free from defects in material and workmanship for the time period noted in the chart below.
Equipment put to personal use around a single household or residence is considered “Consumer Use”;
equipment put to any business use (agricultural, commercial, or industrial) or used at multiple locations is
considered “Commercial Use.” If any product is rented or leased, then the duration of these warranties shall
be 90 days after the date of purchase.
An authorized Ariens dealer (Ariens brand products), Gravely dealer (Gravely brand products), Parker dealer
(Parker brand products), or Countax dealer (Countax brand products) will repair any defect in material or
workmanship, and repair or replace any defective part, subject to the conditions, limitations and exclusions
set forth herein. Such repair or replacement will be free of charge (labor and parts) to the original purchaser
except as noted below.
Special Extensions
The chart below details special extensions to this warranty:
Warranty
Code
Product Group
Warranty Period
Consumer Use
Warranty Period
Commercial Use
PA Log Splitters, Brushes, String Trimmers, Edgers 3 Years 90 Days
PB Professional Powered Brushes 3 Years 1 Year
PC Tillers 2 Years 90 Days
PD
Vacuums, Blowers, Sweepers, Truck Loaders,
Lawn Rakes, Sprayers, Aerators, etc.
1 Year 1 Year
PE Pressure Washer, Generators 3 Years 1 Year
SA
Professional Sno-Thro
®
, Professional 21
3 Years 1 Year
SB
Compact, Deluxe, Platinum, AMP™ Sno-Thro
®
,
Path-Pro
®
3 Years 90 Days
SC
Sno-Tek
®
2 Years 90 Days
SD
EFI Sno-Thro
®
3 Years 90 Days
UA Utility Vehicles 1 Year 1 Year
N/A Service (Replacement) Parts 90 Days (no labor) 90 Days (no labor)
SE
920-Series Classic
3 Years 90 Days
Warranty
Code
Warranty Exception
Warranty
Period
Use Detail
SA
Cast Iron Auger
Gear Case
5 Years All
5 Years for all users including
Commercial
SB, SD
Cast Iron Auger
Gear Case
5 Years Consumer
5 Years for Consumer use;
1 Year for Commercial Use
SB
Batteries for AMP™
Sno-Thro
®
2 Years Consumer 100% first year; prorated second year.
SE
Aluminum Auger
Gearcase
3 Years Consumer Commercial 90 Days
Warranty
Sno-Finishing_2017C
EN - 28
Exceptions and Limitations
The chart below details special exceptions to this warranty:
Customer Responsibilities
Register the product immediately at the time of sale. If the dealer does not register the product, the
customer must complete the product registration card in the literature package and return it to Ariens
Company, or register the unit online at www.ariens.com, www.gravely.com, www.countax.com or
www.parkersweeper.com.
To obtain warranty service, the original purchaser must:
• Perform the maintenance and adjustments explained in the Owner's Manual.
• Promptly notify Ariens or an authorized Ariens, Gravely, Parker or Countax service representative of
the need for warranty service.
• Transport the product to and from the place of warranty service at owner's expense.
• Have the warranty service performed by an authorized Ariens, Gravely, Parker or Countax service
representative.
To Find an Authorized Service Representative:
Warranty
Code
Warranty Exception
Warranty
Period
Use Detail
All
(Exc. SB)
Batteries 1 Year All Prorated
All Belts, Muffler, Tires None Commercial
These components are not covered
when used commercially.
All
Cloth, Plastic, and
Rubber Components
(Including Belts and
Cables)
Maximum
2 Years
All
Warranty is limited to 2 years for
consumer use. (1 year for warranty
code "PD".) Except as noted above,
these components are covered for
defect, not for wear.
SA, SB,
SC, SD,
SE
Idlers
Maximum
2 Years
All
Warranty is limited on idlers to
2 years for consumer use.
All Engines
See Engine
Manufacturer’s
Warranty
All
Engines are covered by engine
manufacturer’s warranty. Refer to
engine manufacturer’s warranty
statement.
In the U.S. and Canada:
Use the dealer locator on our websites: www.ariens.com • www.gravely.com
Or contact us by mail or by phone:
In the U.S., Canada, Mexico, Caribbean,
Central and South America:
In Europe, Asia, Africa or
the Middle East:
In Australia or New Zealand:
Ariens Company
655 W. Ryan Street
Brillion, WI 54110
Phone: (920) 756 - 4688
www.ariens.com
Ariens Company Limited
Great Haseley,
Oxford OX44 7PF
United Kingdom
Phone: +44 800 597 7777
www.countax.co.uk
Allpower Industries Pty Ltd
128 Bridge Rd
Keysborough VIC 3173
Australia
Phone: +61 1800 333 428
www.allpower.com.au
Sno-Finishing_2017C
EN - 29
Exclusions – Items Not Covered by This Warranty
• Parts that are not genuine Ariens, Gravely, Parker or Countax service parts are not covered by this
warranty and may void the warranty.
• Damages resulting from the installation or use of any part, accessory, or attachment which is not
approved by the Ariens Company for use with product(s) identified herein are not covered by this
warranty.
• The following maintenance, service and replacement items are not covered by this warranty unless
they are noted in the Limitations section above: lubricants, spark plugs, oil, oil filters, air filters, fuel
filters, brake linings, brake arms, brake shoes, skid shoes, scraper blades, shear bolts, mower
blades, mower vanes, brushes, headlights, light bulbs, knives, cutters, and single-stage impellers.
• Any misuse, alteration, improper assembly, improper adjustment, neglect, or accident which
requires repair is not covered by this warranty.
• Use of gasoline blends exceeding 10% ethanol voids any and all warranties.
• Products are designed to the specifications in the area that the product was originally distributed.
Different areas may have significantly different legal and design requirements. This warranty is lim-
ited to the requirements in the area in which the unit was originally distributed. Ariens Company
does not warrant this product to the requirements of any other area. Warranty service is limited to
service within the area originally distributed.
• In countries other than the United States and Canada, contact the Ariens Company dealer for war-
ranty policies that govern within your country. Rights may vary from country to country and within
any one country.
• Normal Wear: This warranty does not cover repair when normal use has exhausted the useful life of
a part such as a high pressure hose, spray wand, nozzles, trigger handle, supply hoses, quick cou-
plers, gaskets, valves, pistons, pump valve assemblies, o-rings, water and oil seals.
Special Exclusions on Utility Vehicles
The following uses void the warranty terms on Utility Vehicles (Warranty Code UA):
• Renting or leasing the utility vehicle.
• Using the utility vehicle to tow or carry loads in excess of the limits specified in the Owner/Operator
Manual.
• Modifying the utility vehicle with parts and accessories that are not genuine or authorized Ariens or
Gravely parts or accessories.
• Modifying the utility vehicle without express written authorization from Ariens Company.
• Operating the utility vehicle when it has not been completely and properly assembled and
pre-delivered by an authorized Gravely dealer.
Disclaimer
Ariens Company may from time to time change the design of its products. Nothing contained in this warranty
shall be construed as obligating Ariens Company to incorporate such design changes into previously
manufactured products, nor shall such changes be construed as an admission that previous designs were
defective.
LIMITATION OF REMEDY AND DAMAGES
Ariens Company's liability under this warranty, and under any implied warranty that may exist, is limited to
repair of any defect in workmanship, and repair or replacement of any defective part. Ariens Company shall
not be liable for incidental, special, or consequential damages (including lost profits). Some states do not
allow the exclusion of incidental or consequential damages, so the above limitation or exclusion may not
apply to you.
AUSTRALIAN CONSUMER LAW
The following applies solely to warranties subject to Subsection 102(1) of the Australian Consumer Law: Our
goods come with guarantees that cannot be excluded by the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and failure does not amount to a major failure.
DISCLAIMER OF FURTHER WARRANTY
Ariens Company makes no warranty, express or implied, other than what is expressly made in this
warranty. If the law of your state provides that an implied warranty of merchantability, or an implied
warranty of fitness for particular purpose, or any other implied warranty, applies to Ariens Company,
then any such implied warranty is limited to the duration of this warranty. Some states do not allow
limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from region to region.
655 West Ryan Street
Brillion, WI 54110
ariensstore.com
ariens.custhelp.com
parts.ariens.com
P
R
I
N
T
E
D
