E-MANUAL
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com
Model__________________ Serial No.__________________
To directly go to the page that provides
instructions on how to use the manual for visually
impaired users, select the Learn the Menu Screen
link below.
“Learn the Menu Screen” Link
English
Troubleshooting Internet Connectivity Issues
20 Troubleshooting Internet connectivity issues
Connecting Video Devices
22 Connecting with an HDMI cable
Audio Input and Output Connections
23 Connecting with a digital audio (optical) cable
23 Connecting through a wireless network
24 Connecting Bluetooth Devices
Connecting a Computer
24 Connecting through the HDMI port ― Screen sharing (HDMI)
Connecting Your Mobile Device
25 Connecting to the Evolution Kit via the SmartThings app
26 Bidirectionally mirroring your TV and mobile device using the
SmartThings app
27 Managing Mobile Devices
Switching between external devices connected to the
Evolution Kit
27 Changing the input signal
28 Editing the name and icon of an external device
29 Using additional functions
Connection Notes
29 Connection notes for HDMI
30 Connection notes for audio devices
31 Connection notes for computers
31 Connection notes for mobile devices
Quick Guides
Connecting the Samsung Smart Remote
Using Smart Hub
Using Bixby
10 Running Bixby
11 Learning about My Bixby
12 Read Before Using Bixby
Updating the Evolution Kit's Software
13 Updating the Evolution Kit's software to the latest version
13 Updating the Evolution Kit automatically
Getting Support
14 Getting support through Remote Management
15 Finding the contact information for service
15 Requesting service
Connections
Connection Guide
Connecting an Antenna
Connecting to the Internet
17 Connecting to your Internet network
19 Resetting Your Network
19 Turning on the TV with a mobile device
19 Connecting an IP control device to the Evolution Kit
19 Setting up an Internet connection over IPv6
19 Changing the name of the Evolution Kit on a network
Contents
2
Using the APPS Service
50 Installing and running an app
51 Managing purchased or installed apps
52 Rating apps
Using the Gallery App
Using the Universal Guide App
Using the SmartThings App
Using the e-Manual
56 Launching the e-Manual
57 Using the buttons in the e-Manual
Using the Internet
Playing pictures/video/music
59 Playing media content
Using Bixby
61 Running Bixby
62 Learning about My Bixby
63 Read Before Using Bixby
TV Viewing
Viewing Broadcast Information at a Glance
64 Using the guide
Recording Programs
66 Recording programs
67 Managing the schedule recording list
67 Viewing recorded programs
68 Setting up a schedule recording start
Remote Control and Peripherals
About the Samsung Smart Remote
Connecting to the Samsung Smart Remote
Controlling External Devices with the Samsung Smart Remote
- Using the Universal Remote
Using Anynet+ (HDMI-CEC)
36 Connecting an external device through Anynet+ and using
their menus
Controlling the TV with a Keyboard or Mouse
37 Connecting a USB keyboard or mouse
37 Connecting a Bluetooth keyboard or mouse
37 Using the keyboard and mouse
38 Setting up the input devices
Entering Text using the On-Screen Virtual Keyboard
40 Entering Text using the remote control's microphone and the
on-screen virtual keyboard
Smart Features
Smart Hub
42 Displaying the Home Screen
46 Launching Smart Hub automatically
46 Testing Smart Hub connections
46 Resetting Smart Hub
Using a Samsung account
46 Creating and managing your Samsung account
47 Signing in to a Samsung account
3
Picture and Sound
Configuring advanced picture settings
Setting the Viewing Environment for External Devices
78 Viewing UHD videos
79 Using HDMI black level
Changing the Picture Size and Position
79 Changing the picture size
79 Fitting the picture to the screen
79 Adjusting the picture size and/or position
Configuring advanced sound settings
Using the Sound Support Functions
80 Selecting speakers
80 Listening to the TV through Bluetooth devices
81 Listening to the TV through a Samsung audio device that
supports the Wi-Fi function
System and Support
Using the Time Functions and the Timers
82 Setting the current time
84 Using the timers
Using the Auto Protection Time
Updating the Evolution Kit's Software
85 Updating the Evolution Kit's software to the latest version
85 Updating the Evolution Kit automatically
Protecting the Evolution Kit from Hacking and Malicious Code
86 Scanning the Evolution Kit and connected storage for
malicious code
Setting Up a Schedule Viewing
68 Setting up a schedule viewing for a channel
69 Editing a schedule viewing
Using Timeshift
Buttons and functions available while recording a program or
Timeshift
Using the Channel List
Editing channels
73 Re-registering and deleting a channel
73 Changing a channel name
74 Using Program Rating Lock
Creating a Personal Favorites List
74 Registering channels as favorites
75 Viewing and selecting channels on Favorites lists only
Editing a Favorites List
75 Adding channels to a favorites list
75 Removing channels from a favorites list
75 Rearranging a favorites list
75 Renaming a favorites list
TV-Viewing Support Functions
76 Changing the broadcast signal
76 Scanning for available channels
77 Configuring advanced broadcasting audio settings
77 Checking digital channel signal info and strength
4
Anynet+ (HDMI-CEC) Isn't Working
I Have Trouble Launching/Using Apps
My File Won't Play
I Want to Reset the Evolution Kit
Other Issues
Precautions and Notes
Before Using the Recording and Timeshift Functions
103 Before using the recording and schedule recording functions
104 Before using the timeshift function
Read Before Using APPS
Read Before Using the Internet Function
107 Read before setting up a wireless Internet connection
Read Before Playing Photo, Video, or Music Files
108 Limitations to the use of photo, video, and music files
109 Supported external subtitles
109 Supported internal subtitles
110 Supported image formats and resolutions
110 Supported music formats and codecs
111 Supported video codecs
Picture sizes and input signals
Supported Resolutions for UHD Input Signals
114 If HDMI UHD Color is set to Off
114 If HDMI UHD Color is set to On
Read Before Connecting a Computer (Supported Resolutions)
115 IBM
115 MAC
116 VESA DMT
116 VESA CVT
117 CTA-861
Using Other Functions
87 Running the accessibility functions
87 Running Accessibility Shortcuts
87 Enabling voice guides for the visually impaired
88 Enabling audio for the video description function
88 White text on black background (high contrast)
88 Setting the screen to black and white
88 Inverting the screen color
89 Enlarging the font (for the visually impaired)
89 Learning about the remote control (for the visually impaired)
89 Learning about the TV menu
89 Showing captions
90 Listening to the TV through Bluetooth devices (for the hearing
impaired)
91 Configuring advanced system settings
91 Restoring the Evolution Kit to the factory settings
Troubleshooting
Getting Support
92 Getting support through Remote Management
93 Finding the contact information for service
93 Requesting service
Diagnosing Evolution Kit operational issues
There Is a Problem with the Picture
94 Testing the picture
I Can't Hear the Sound Clearly
96 Testing the sound
There Is a Problem with the Broadcast
My Computer / Game Console Won't Connect
The Evolution Kit Won't Connect to the Internet
The Schedule Recording/Timeshift Function Isn't Working
5
Using the guide
Setting Up a Schedule Viewing
139 Cancelling a scheduled viewing
Using the Channel List
141 Creating a Personal Favorites List
Recording
143 Using the instant and schedule recording options from the
guide screen:
144 Using the Instant and Schedule Recording options from the
program info window
144 Changing the recording time
145 Viewing recorded programs
145 Deleting a recorded program
Using Smart Hub
146 Smart Hub
147 Using the Home Screen in Smart Hub
Launching the e-Manual
Using Bixby
150 Running Bixby
Supported Resolutions for Video Signals
117 CTA-861
118 VESA CVT
Read Before Using Bluetooth Devices
119 Restrictions on using Bluetooth
Blocking programs based on their TV Rating
121 Blocking movies base on their Movie Rating (MPAA)
121 Blocking programs based on their Canadian English Rating
122 Blocking programs based on their Canadian French Rating
122 Blocking Programs based on their Downloadable U.S. Rating
Buttons and functions available while playing multimedia
content
License
Accessibility Guidance
Learn the Menu Screen
Using the Remote control
127 Orientation of the Samsung Smart Remote
127 Description of the Samsung Smart Remote
Using the accessibility menu
129 Accessibility Shortcuts menu
130 Step by Step instructions to run the options
132 Setting accessibility settings using Bixby
Using the TV with Voice Guide on
133 Watching TV
6
- 7 -
Quick Guides
You can learn quickly how to run and use the frequently used functions, such as Bixby, and Smart Hub.
Connecting the Samsung Smart Remote

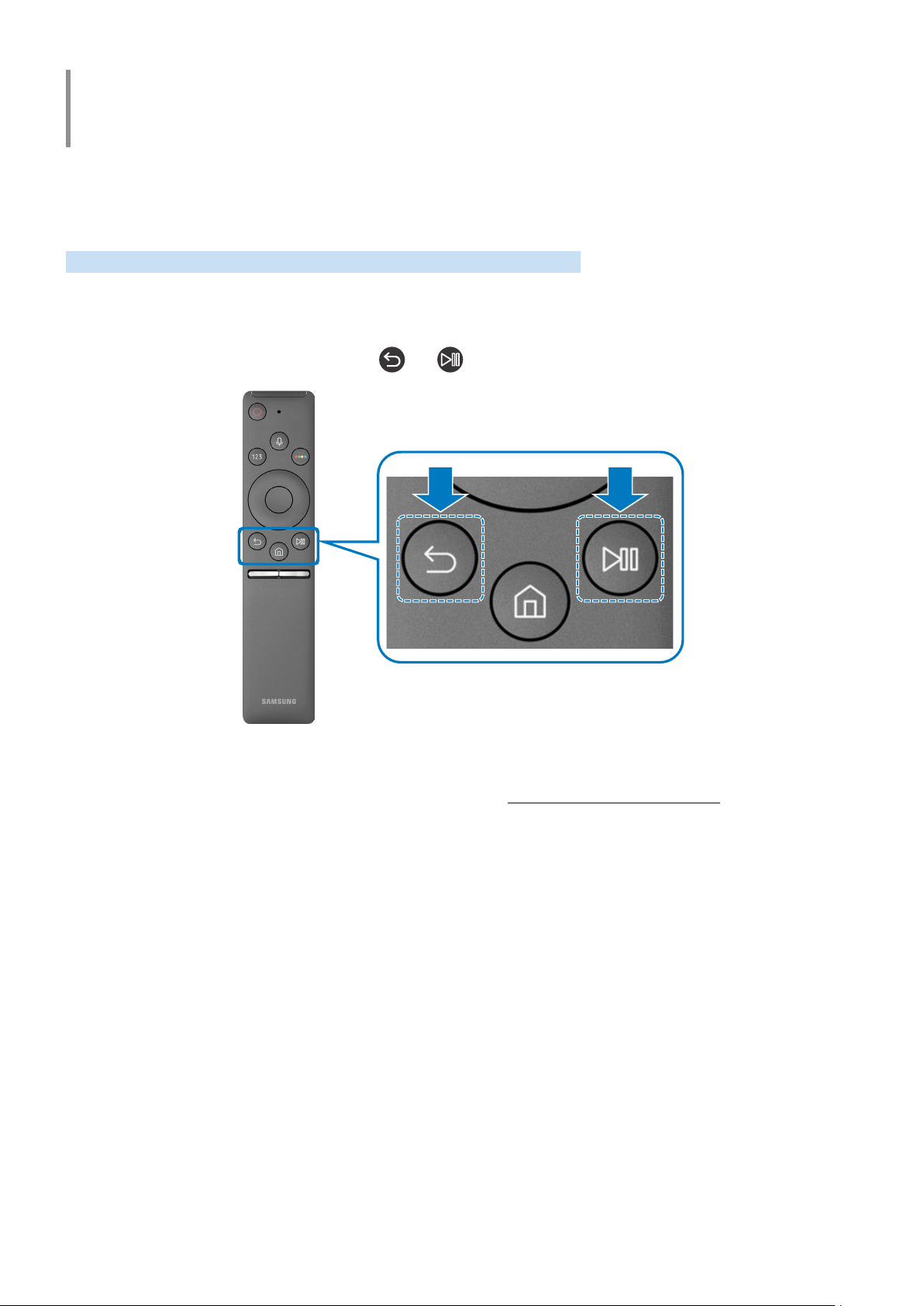

Connect the Samsung Smart Remote to your Evolution Kit to operate the TV.
When you turn on the Evolution Kit for the first time, the Samsung Smart Remote pairs to the Evolution Kit
automatically. If the Samsung Smart Remote does not pair to the Evolution Kit automatically, point it at the front of
the Evolution Kit, and then press and hold the and buttons simultaneously for 3 seconds or more.
" The images, buttons, and functions of the Samsung Smart Remote may differ with the model.
" For more information about the Samsung Smart Remote, refer to "About the Samsung Smart Remote."
- 8 -
Using Smart Hub
Connect to Smart Hub for apps, games, movies, and more.

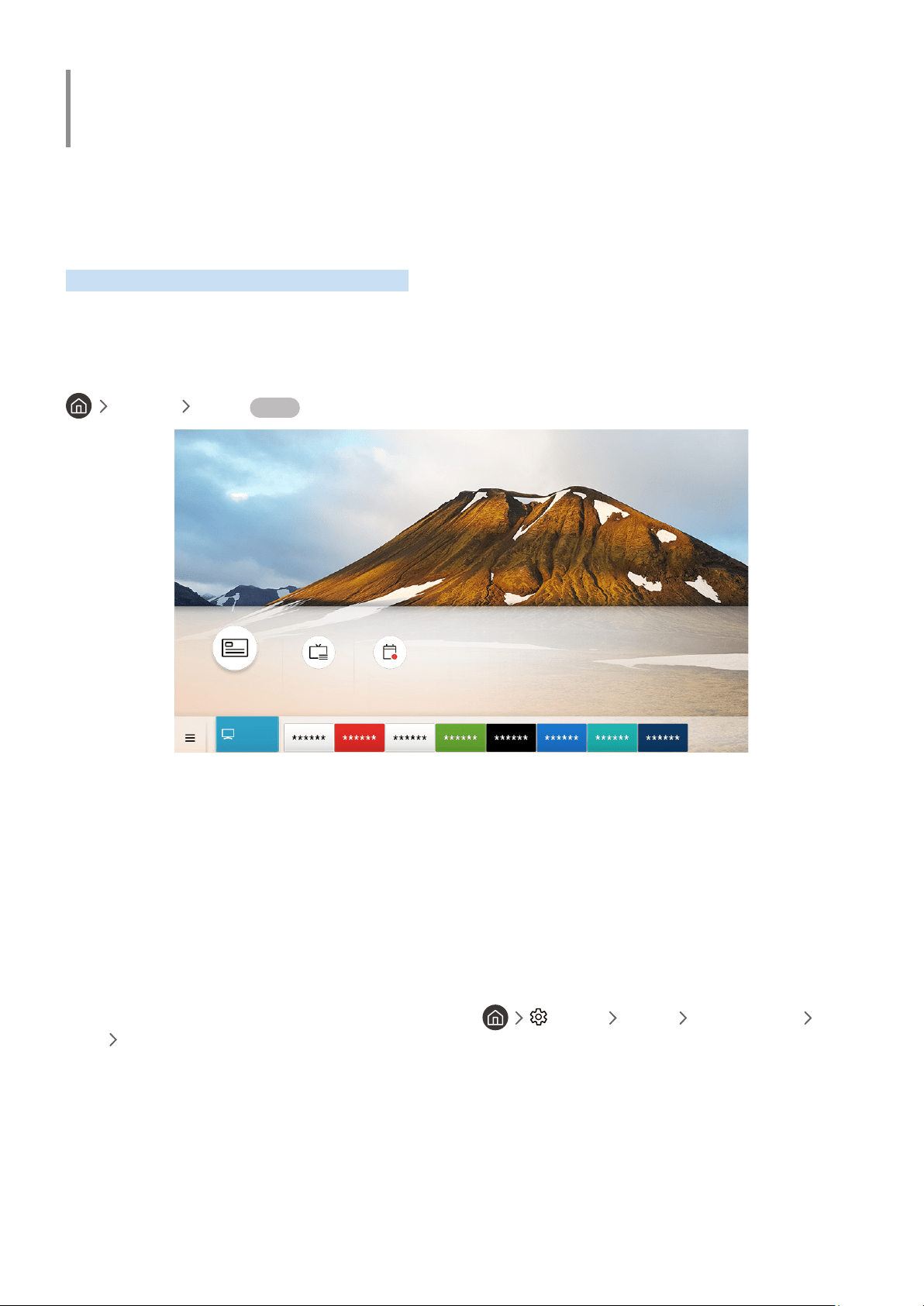

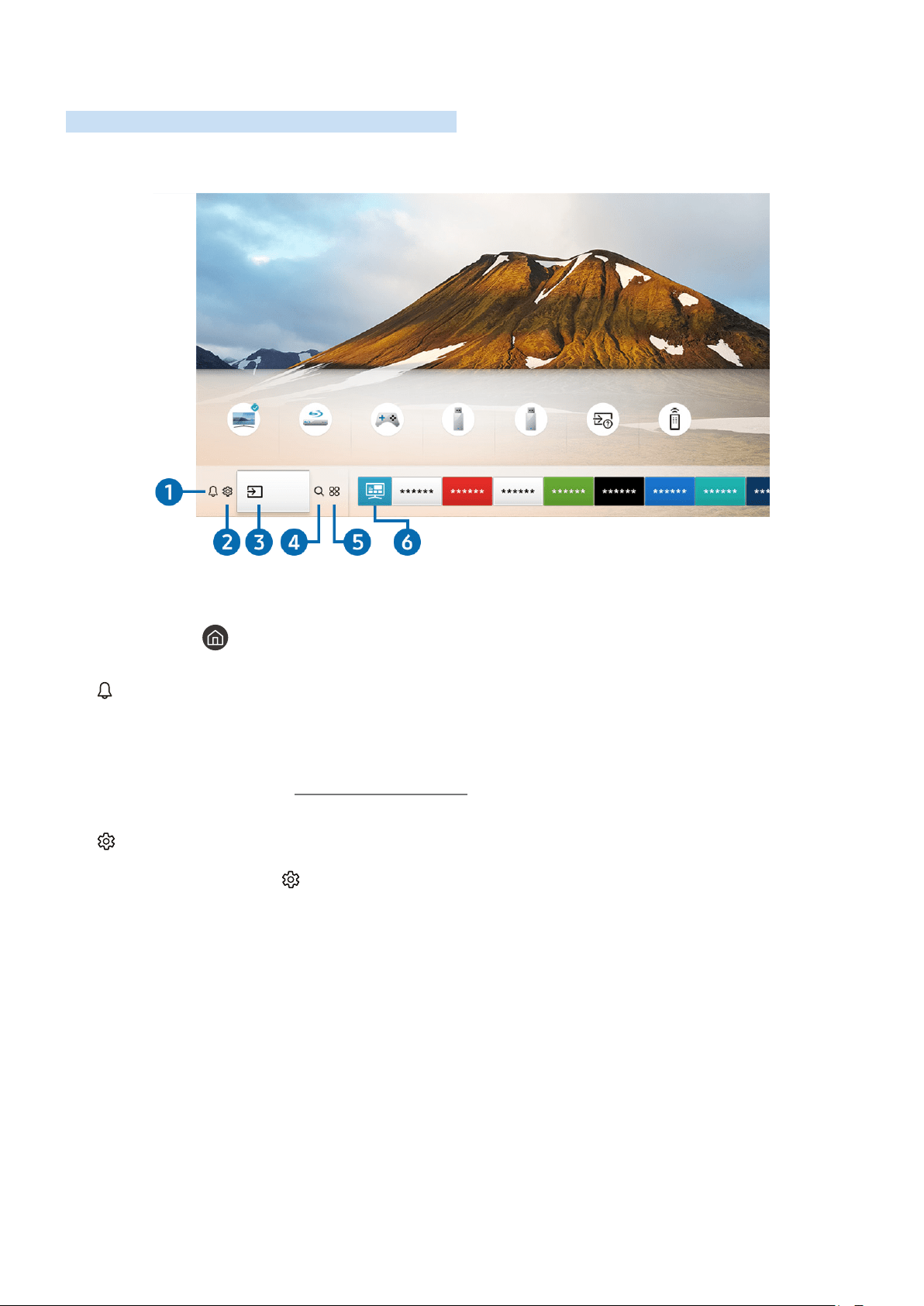

Enjoy the multiple functions provided by Smart Hub simultaneously on a single screen.
Sources
TV HDMI 1 HDMI 2 USB 1 USB 2
Connection
Guide
Universal
Remote
Source
" The image on your TV may differ from the image above depending on the model and geographical area.
When you press the button on your remote control, you can use the following functions and features.
1
Notification
You can view a list of notifications for all events that occur on your Evolution Kit. A notification appears on the screen
when it is time to broadcast a scheduled program or when an event occurs on a registered device.
" For more information, refer to "Displaying the Home Screen."
2
Settings
When the focus is moved to the icon, a list of quick settings icons appears above the top of the menu. You can
quickly set frequently used functions by clicking the icons.
- 9 -
3
Source
You can select an external device connected to the Evolution Kit.
" For more information, refer to "Switching between external devices connected to the Evolution Kit."
4
Search
You can search for channels, programs, movie titles, and apps from Smart Hub.
" To use this feature, the Evolution Kit must be connected to the Internet.
5
APPS
You can enjoy a wide range of content including news, sports, weather, and games by installing the corresponding
apps on your Evolution Kit.
" To use this feature, the Evolution Kit must be connected to the Internet.
" For more information, refer to "Using the APPS Service."
6
Universal Guide
Universal Guide is an app that allows you to search for and enjoy various content such as TV shows, dramas, and
movies in one place. Universal Guide can recommend content tailored to your preferences and notify you of new
drama series.
" For more information about the Universal Guide, refer to "Using the Universal Guide App."
" Images may look blurry depending on the service provider's circumstances.
" This function may not be supported depending on the model or geographical area.
- 10 -
Using Bixby
Speak into the microphone on your Samsung Smart Remote to control your TV.
" This function may not be supported depending on the model or geographical area.
" The supported language may differ depending on the geographical area.

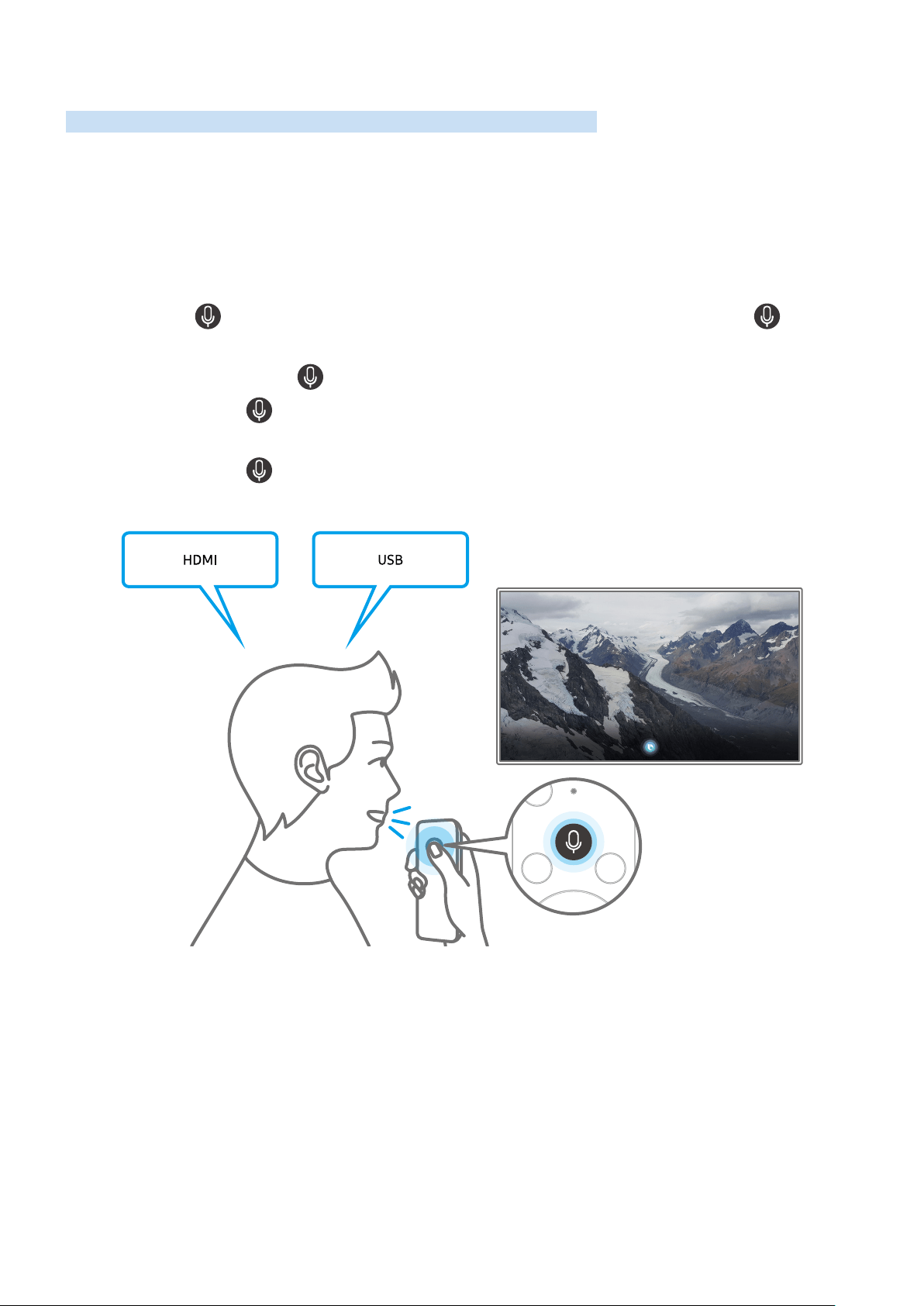

Running Bixby
Press and hold the button on your Samsung Smart Remote, say a command, and then release the button.
The Evolution Kit recognizes the voice command.
To view the Bixby guide, press the button once:
● When you press the button for the first time, the Using Bixby button appears at the bottom of the screen.
Press the Select button. The Using Bixby popup window appears and a tutorial on using Bixby is shown.
● When you press the button after the first time, the Explore Now button appears at the bottom of the
screen. Press the Select button to go to the My Bixby screen.
- 11 -
Learning about My Bixby
My Bixby
" The image on your TV may differ from the image above depending on the model and geographical area.

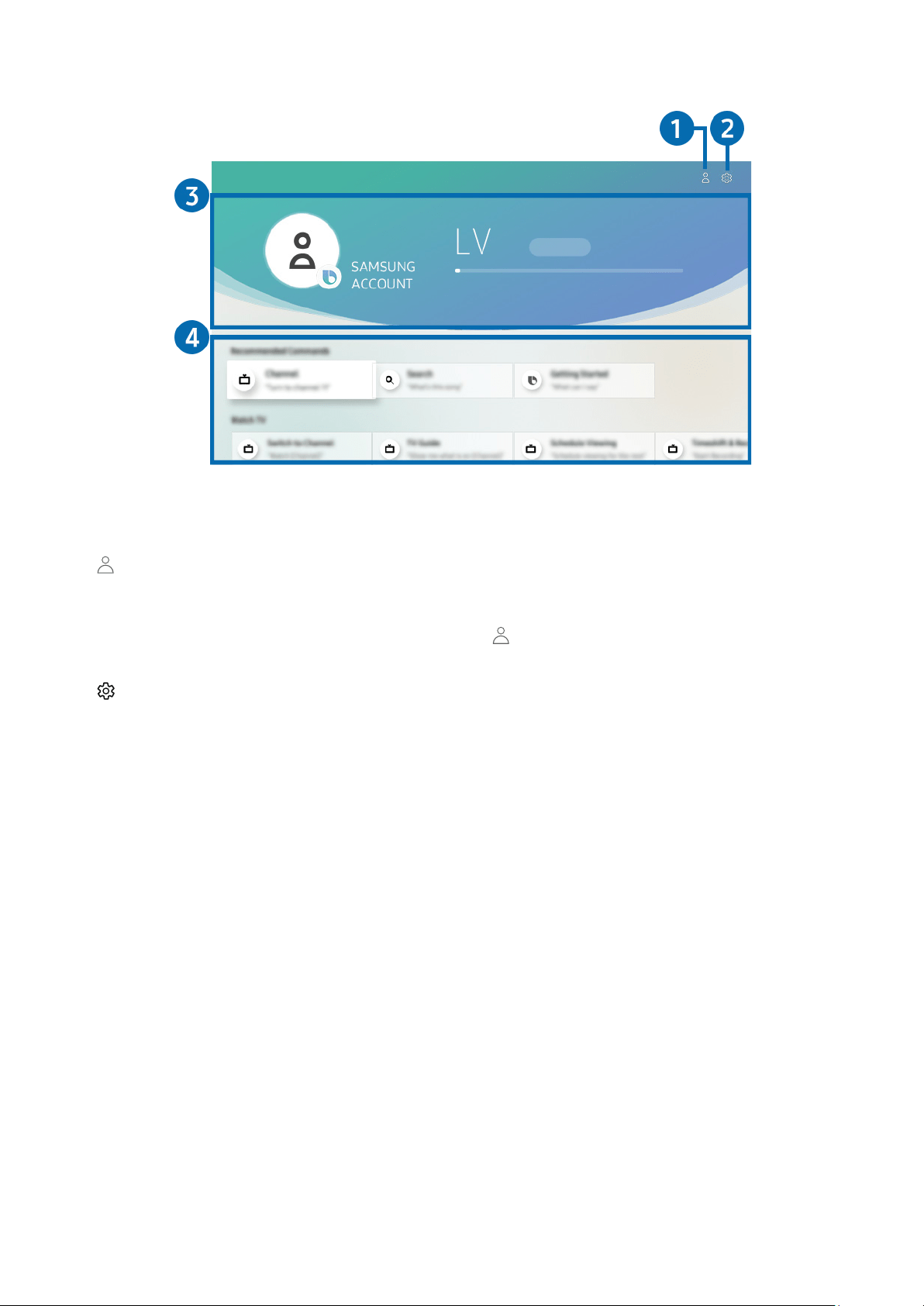

1
Samsung Account
Go to the Samsung Account screen for the Evolution Kit to create a new account or sign out of your account.
" If you are signed out of your Samsung account, select Sign In or to log in.
2
Settings
You can change the voice responses and the voice style of Bixby.
You can also select a music service provider in the Default music service provider tab.
" The Default music service provider tab may not be supported depending on the model or geographical area.
3
User information and the experience points (XP) guide
You can see user information and the experience points (XP) that you can get from using Bixby.
" You must be signed in to your Samsung account to view the user information and the experience points (XP).
" This function may not be supported depending on the model or geographical area.
4
Bixby guide
You can learn the voice commands that let you use Bixby in various situations. Use the directional buttons to move
to the desired command, and then press the Select button. You can operate the TV with various voice commands.
" To view a tutorial on Bixby, use the directional buttons to move to the bottom, and then select the View Tutorial item.
- 12 -
Read Before Using Bixby
Precautions for Bixby
● The supported voice interaction languages and features may differ depending on the geographical area.
● If the language set differs from the language of your country, some features are not available.
● Bixby is available only when the Evolution Kit is connected to the Internet.
● Even if the Evolution Kit is connected to the Internet, there may be no response due to a Bixby server error.
● The existing functional specifications may be changed if Bixby is updated.
● Bixby is available only on the Evolution Kit that support it and come with remote controls that have a
microphone.
● Symbols including "-" and special characters are not supported. Consequently, if a word or sentence contains
numeric values or symbols, the function may not operate properly.
● Searched results may not provide complete results.
● You may be required to pay for some apps. Consequently, you may encounter a service application or contract.
● To change the current channel by saying channel names as voice commands, you must finish Set Up Your
Service Provider. If Set Up Your Service Provider is not completed, you can complete it using the following
menu.
– Settings General Start Setup Try Now
● To use the voice text input function and Smart Search function, you must consent to provisions allowing third
parties to collect and use your voice data.
● To use the Bixby function, you must:
– Agree to Smart Hub's Terms of Use
– Agree to a guidance regarding the collection and use of personal information for the Smart Hub service.
– Consent to the collection and use of personal information for the voice interaction-based service.
Requirements for using Bixby
● The voice interaction rate differs with the volume/tone, pronunciation, and ambient sound environment (TV
sound and ambient noise).
● The optimal volume for voice commands is between 75 dB and 80 dB.
- 13 -
Updating the Evolution Kit's Software
View your Evolution Kit's software version and update it if necessary.
Settings Support Software Update Try Now
Updating the Evolution Kit's software to the latest version
[
DO NOT turn off the Evolution Kit's power until the update is complete. The Evolution Kit will turn off and on
automatically after completing the software update. Video and audio settings will be reset to their defaults
after a software update.
Updating through the Internet
Settings Support Software Update Update Now Try Now
" Updating from the Internet requires an active Internet connection.
Updating through a USB device
Settings Support Software Update Update Now
After downloading the update file from the Samsung website and storing it on a USB device, connect the USB device
to the Evolution Kit to update.
" To update using a USB flash drive, download the update package from Samsung.com to your computer. Then, save the
update package in the USB device's top-level folder. Otherwise, the Evolution Kit will not be able to locate the update
package.
Updating the Evolution Kit automatically
Settings Support Software Update Auto Update Try Now
If the Evolution Kit is connected to the Internet, you can have the Evolution Kit's software update itself automatically
while you are watching the TV. When the background update is completed, it is applied the next time the TV is turned
on.
If you agree to the Smart Hub terms and conditions, Auto Update is set to On automatically. If you want this function
disabled, use the Select button to turn it off.
" This function may take a longer time if another network function is running concurrently.
" This function requires an Internet connection.
- 14 -
Getting Support
Get help directly from Samsung if you have a problem with your Evolution Kit.
Getting support through Remote Management
Settings Support Remote Management Try Now
After consenting to our service agreement, you can use Remote Management to access Remote Support and have a
Samsung service technician diagnose your Evolution Kit, correct problems, and update your Evolution Kit's software
remotely via the web. You can also turn Remote Management on and off.
" You can also start this function by pressing and holding the button for 5 or more seconds.
" This function requires an Internet connection.
What is Remote Support?
Samsung Remote Support service offers you one-on-one support with a Samsung Technician who can remotely:
● Diagnose your Evolution Kit
● Adjust the Evolution Kit settings for you
● Perform a factory reset on your Evolution Kit
● Install recommended firmware updates
How does Remote Support Work?
You can easily get Samsung Remote Support service for your Evolution Kit:
1.
Call the Samsung Contact Center and ask for remote support.
2.
Open the menu on your Evolution Kit and go to the Support section. ( Settings Support)
3.
Select Remote Management, then read and agree to the service agreements. When the PIN screen appears,
provide the PIN number to the technician.
4.
The technician will then access your Evolution Kit.
- 15 -
Finding the contact information for service
Settings Support About This Evolution Kit Try Now
You can view the address of the Samsung website, the call center phone number, your Evolution Kit's model number,
your Evolution Kit's software version, Open Source License and other information you may need to get service
support from a Samsung call agent or the Samsung website.
" You can also view information by scanning the QR code of your Evolution Kit.
" You can also start this function by pressing and holding the button for 5 or more seconds. Continue holding the button
until the customer information pop-up window appears.
Requesting service
Settings Support Request Support Try Now
You can request service when you encounter a problem with the Evolution Kit. Select the item matching the
problem that you encountered, and then select Request Now or Schedule Appointment Request Send. Your
service request will be registered. The Samsung Contact Center will contact you to set up or confirm your service
appointment.
" You must agree to the terms and conditions for the service request.
" This function may not be supported depending on the geographical area.
" This function requires an Internet connection.
- 16 -
Connections
You can watch live broadcasts by connecting an antenna and antenna cable to your Evolution Kit and can get
access to the Internet by using a LAN cable or wireless router. Using various connectors, you can also connect
external devices.
Connection Guide
You can view detailed information about external devices that can be connected to the Evolution Kit.
Source Connection Guide
It shows you how to connect various external devices such as cable boxes, game consoles, and PCs using pictures. If
you select the connection method and an external device, the connection details appear.
Connection Guide

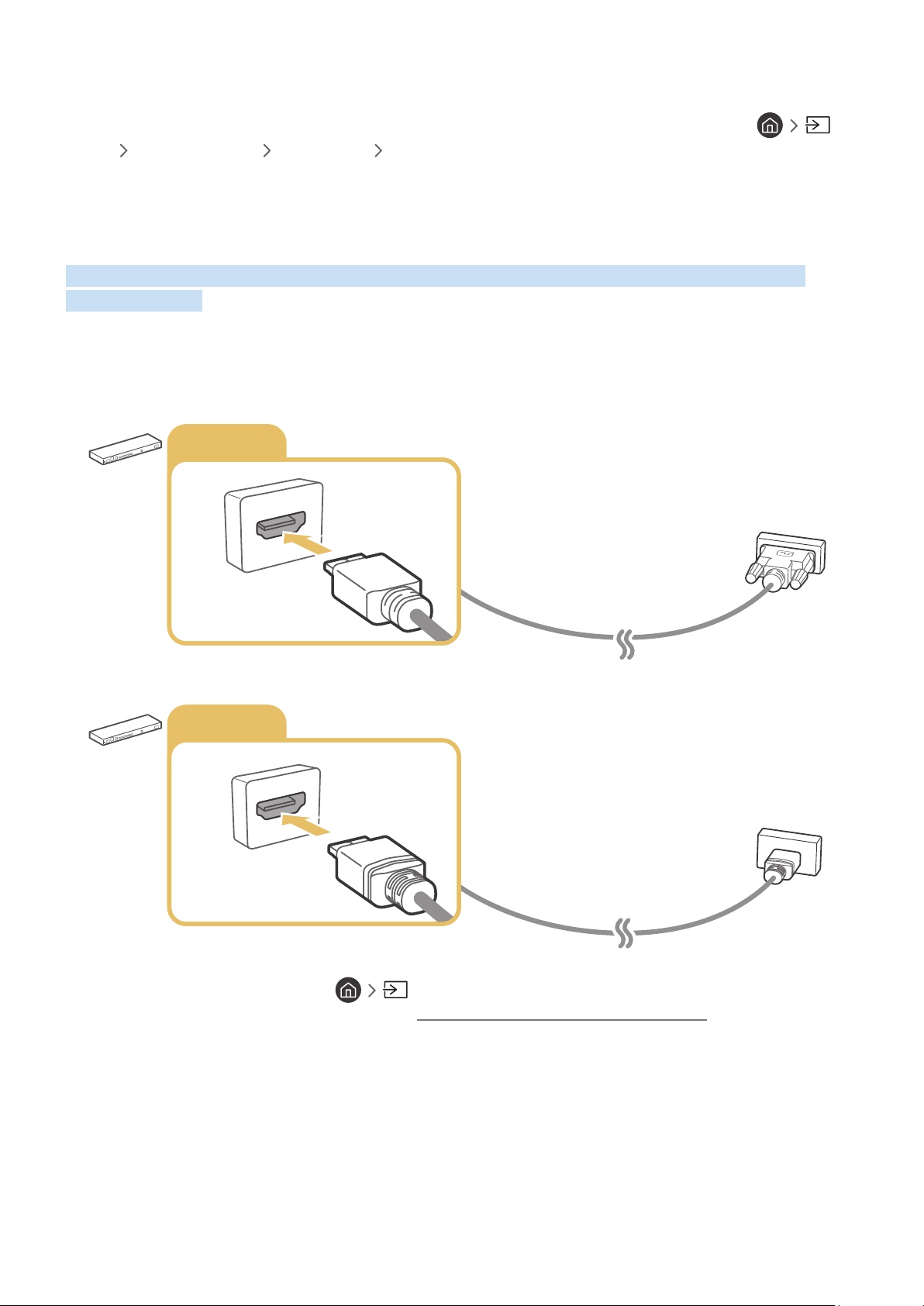

Cable Box/Disc Player HDMI
Game Console
PC
Audio Device
Mobile Device
External Storage
Accessory
" The image on your TV may differ from the image above depending on the model and geographical area.

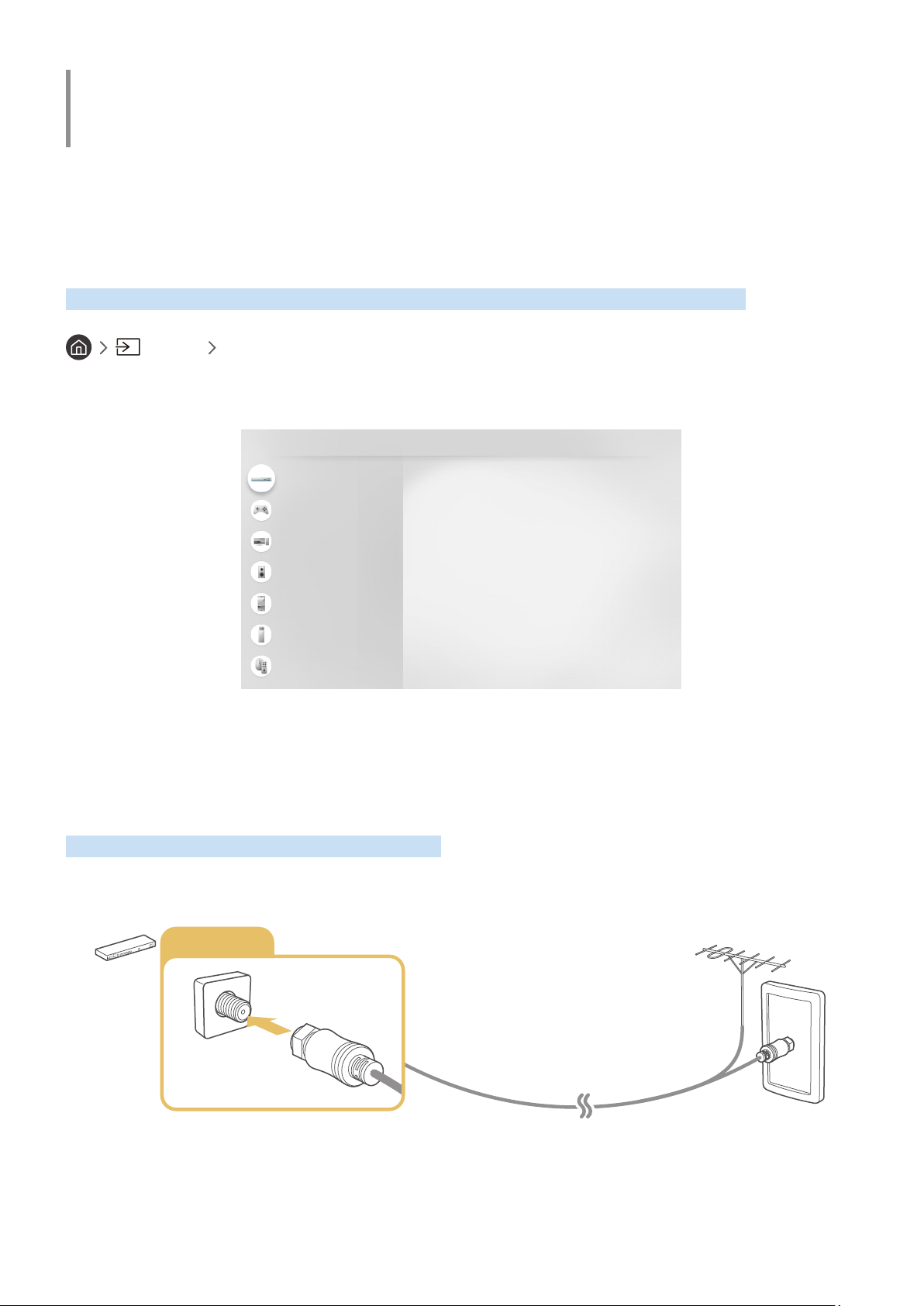

Connecting an Antenna
You can connect an antenna cable to your Evolution Kit.
" An antenna connection is not necessary if you connect a cable box or satellite box.
ANT IN
- 17 -
Connecting to the Internet
You can get access to the Internet through your Evolution Kit.
Connecting to your Internet network
Settings General Network Open Network Settings Try Now
Connect to an available network.

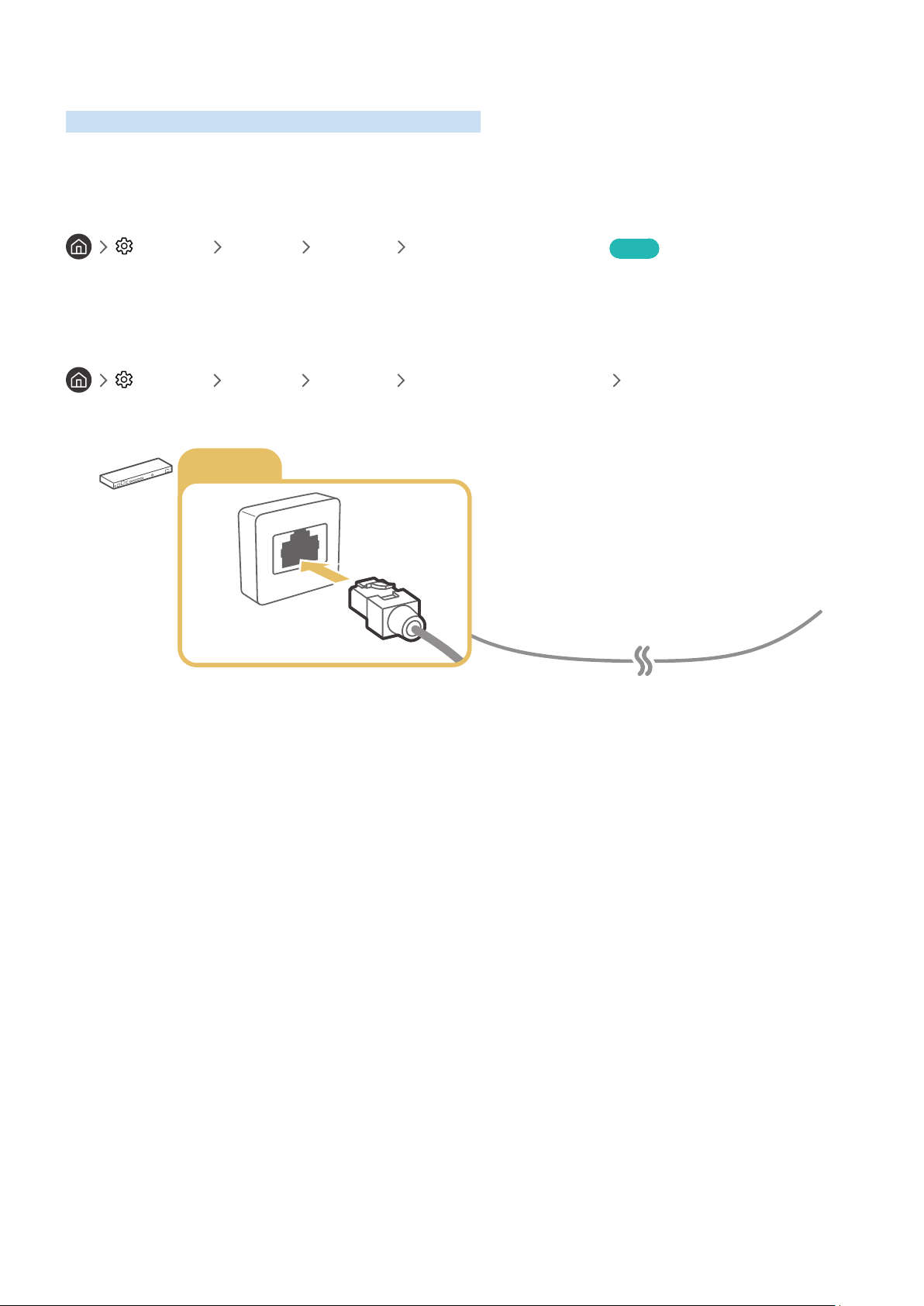

Establishing a wired Internet connection
Settings General Network Open Network Settings Wired
If you connect a LAN cable, the Evolution Kit automatically accesses the Internet.
LAN
" Use a CAT 7 (*STP type) cable for the connection.
* Shielded Twist Pair
" The Evolution Kit will not be able to connect to the Internet if your network speed is below 10 Mbps.
- 18 -

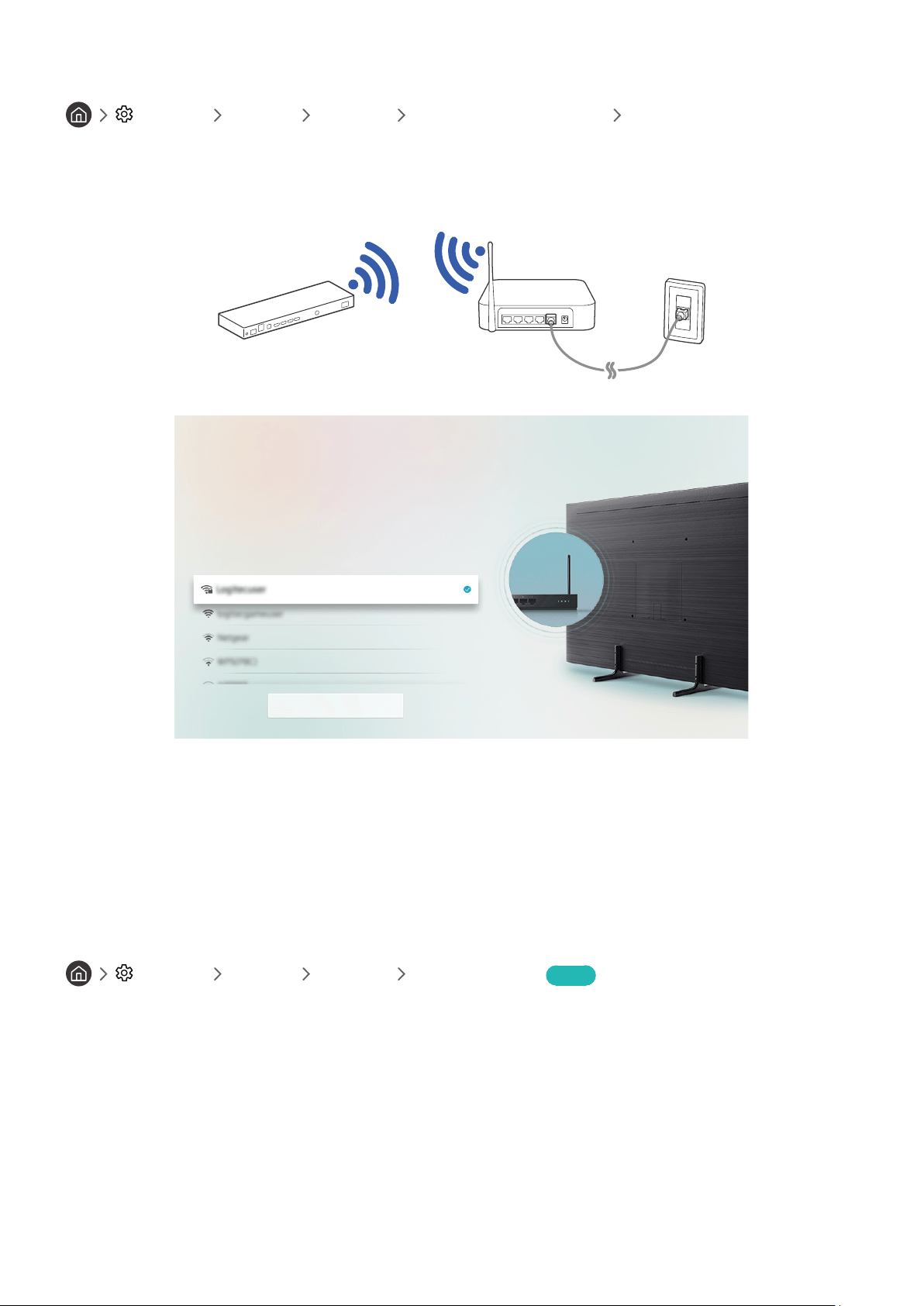

Establishing a wireless Internet connection
Settings General Network Open Network Settings Wireless
Make sure that you have the wireless router's SSID (name) and password settings before attempting to connect. The
network name (SSID) and security key are available on the wireless router's configuration screen. See the wireless
router's user manual for more information.
Wireless Connection
Select your wireless network.
Refresh
" The image on your TV may differ from the image above depending on the model and geographical area.
" If no wireless router is found, select Add Network at the bottom of the list and enter the network name (SSID).
" If your wireless router has a WPS or PBC button, select Use WPS at the bottom of the list, and then push the WPS or PBC
button on your router within 2 minutes. The Evolution Kit will connect automatically.
Checking the Internet connection status
Settings General Network Network Status Try Now
View the current network and Internet status.
- 19 -
Resetting Your Network
Settings General Network Reset Network Try Now
Restore the network settings to the factory default.
Turning on the TV with a mobile device
Settings General Network Expert Settings Power On with Mobile
You can turn on the TV using a mobile device connected to the same network as the Evolution Kit.
Connecting an IP control device to the Evolution Kit
Settings General Network Expert Settings IP Remote
You can connect an IP control device to the Evolution Kit remotely to manage your IP device.
" To use this function, Power On with Mobile must be turned on.
" Turning this feature on may allow other IP control devices to control your Evolution Kit. We recommend turning this feature
on only if an authorized third-party custom controller is installed and configured specifically for a Evolution Kit and if your
Wi-Fi network is password protected.
" This function may not be supported depending on the model or geographical area.
Setting up an Internet connection over IPv6
Configuring the IPv6 connection settings
Settings General Network Expert Settings IPv6
" This function may not be supported depending on the model or geographical area.
Checking the Internet connection set up over IPv6
Settings General Network Expert Settings IPv6 Status
" This function may not be supported depending on the model or geographical area.
Changing the name of the Evolution Kit on a network
Settings General System Manager Device Name Try Now
You can change the name of the Evolution Kit on the network. Select User Input at the bottom of the list and change
the name.
- 20 -
Troubleshooting Internet Connectivity Issues
If your Evolution Kit won't connect to the Internet, try the solutions below.
Troubleshooting Internet connectivity issues Try Now
After reading the following content, troubleshoot the Internet connection issue. If the problem persists, contact your
Internet Service Provider.
No network cable found
Make sure that the LAN cable is plugged in on both ends. If it is plugged in, make sure that the router is turned on. If
the router is on, try turning it off and then on.
Wireless network connection failed
If a selected wireless router is not found, go to Open Network Settings, and then select the correct router.
Settings General Network Open Network Settings
Unable to connect to a wireless router
1.
Check if the router is turned on. If it is, turn it off and then on.
2.
Enter the correct password if required.
- 21 -
IP auto setting failed
1.
Configure the settings in IP Settings.
– Settings General Network Network Status IP Settings
2.
Make sure that the DHCP server is enabled on the router, and then unplug the router and plug it back in.
3.
Reset the router if required.
– For wireless connection, enter the correct password if required.
Unable to connect to the network
1.
Check all IP Settings.
– Settings General Network Network Status IP Settings
2.
After checking the DHCP server status (must be active) on the router, remove the LAN cable, and then connect
it again.
– For wireless connection, enter the correct password if required.
Connected to a local network, but not to the Internet
1.
Make sure that the Internet LAN cable is connected to the router's external LAN port.
2.
Check the DNS values in IP Settings.
– Settings General Network Network Status IP Settings
Network setup is complete, but unable to connect to the Internet
If the problem persists, contact your Internet Service Provider.
- 22 -
Connecting Video Devices
Make the correct video connections between your Evolution Kit and your external devices.

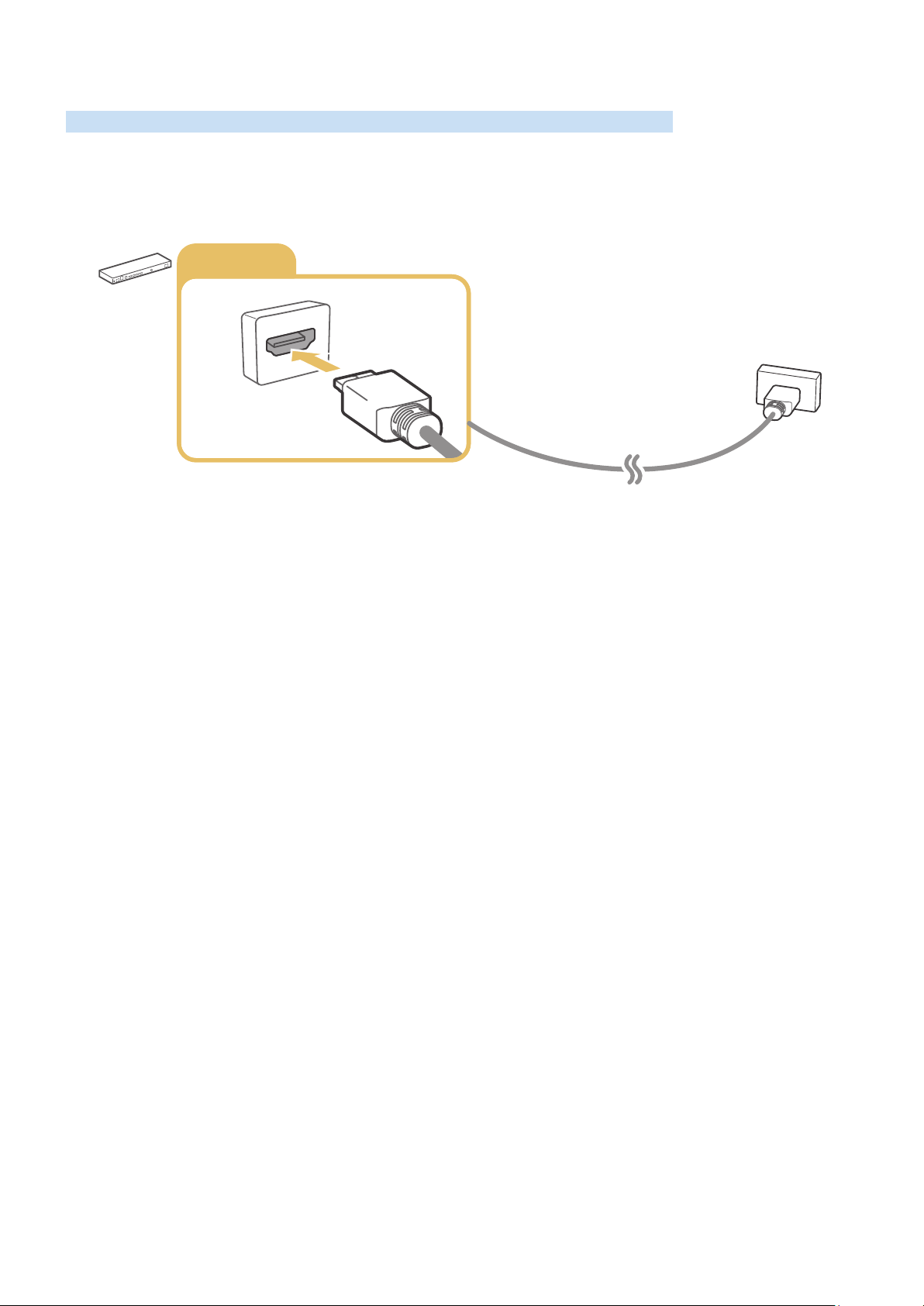

Connecting with an HDMI cable
HDMI IN
- 23 -
Audio Input and Output Connections
Make the correct audio connections between your Evolution Kit and your external devices.
" For more information about how to select external speakers, refer to "Selecting speakers."
Connecting with a digital audio (optical) cable
DIGITAL
AUDIO OUT
(OPTICAL)
Connecting through a wireless network
You can connect the Evolution Kit to a Samsung audio device that supports the Wi-Fi function through your wireless
network. The two devices must be connected to the same network. For more information about how to connect and
use a Samsung audio device that supports the Wi-Fi function, refer to its user manual.
- 24 -
Connecting Bluetooth Devices
For more information about how to connect and use external speakers, refer to the Connection Guide (
Source Connection Guide Audio Device Bluetooth) and to the speakers' user manuals.
Connecting a Computer
Use the TV as a computer monitor or connect the Evolution Kit to a computer via your network and access the
computer's content.
Connecting through the HDMI port ― Screen sharing (HDMI)
DVI
HDMI IN
HDMI
HDMI IN
" When you have connected a PC, go to Source, and then select the PC icon from the external device icon list. For
more information about the port settings, refer to "Editing the name and icon of an external device."
- 25 -
Connecting Your Mobile Device
Connect your mobile device to the Evolution Kit on the same network to control the TV with the mobile device or
enjoy the content of the mobile device on the TV.
Use the SmartThings app on your mobile device to quickly and easily connect to the TV and control its main settings.
In addition, you can remotely check and control the statuses of various devices such as Samsung smart devices,
home appliances, and speakers registered to the server.
" You can check this with the Supported Devices menu in the SmartThings app.
" To use the SmartThings app, you must be signed in to your Samsung account on the Evolution Kit.
" This function may not be supported depending on the mobile device.
" The supported functions may differ depending on the version of the SmartThings app.
You can install the SmartThings app from App Store or Google Play Store.
Connecting to the Evolution Kit via the SmartThings app
1.
Turn on the TV and Evolution Kit.
2.
Start the SmartThings app on your mobile device.
3.
Tap Add Device on the dashboard of the SmartThings app. Connectable the Evolution Kit is searched for.
4.
From the search results, select the Evolution Kit.
5.
Enter the PIN number displayed on the TV screen.
6.
Once the Evolution Kit is registered with your Samsung account, you can use the SmartThings app to control
the TV.
" If your Evolution Kit is not found on your mobile device, turn both of them off and on, and then try again.
" You can assign a different name to the Evolution Kit in Settings General System Manager Device
Name.
- 26 -
Bidirectionally mirroring your TV and mobile device using the SmartThings
app
Bidirectional mirroring refers to either outputting the screen and sound of a mobile device on a TV or outputting the
screen and sound of a TV on a mobile device. You can use the SmartThings app to enjoy the screen and sound of the
TV on your mobile device or to play the screen and sound of your mobile device on the TV.
Start the SmartThings app on your mobile device. Tap your Evolution Kit from the dashboard or device. You can use
the following functions:
● You can enjoy the screen and sound of the mobile device on your TV.
" After you connect a mobile device that supports screen mirroring to your TV, you can use screen mirroring to enjoy the
screen and sound of the mobile device on your TV wirelessly and play the video, audio, or photo files currently playing
on the mobile device on your TV.
● You can enjoy TV screen and sound on your mobile device.
● You can only listen to the TV sound on your mobile device.
" You can add a new device through the SmartThings app on your mobile phone. Please refer to the user guide in the
SmartThings app for more details.
" This function may not be supported depending on the mobile device.
" The supported functions may differ depending on the version of the SmartThings app.
" If your Evolution Kit is not found on your mobile device, turn both of them off and on, and then try again.
" You can assign a different name to the Evolution Kit in Settings General System Manager Device
Name.
- 27 -
Managing Mobile Devices
Settings General External Device Manager Device Connect Manager Try Now
● Access Notification
Set whether to display a notification when a mobile device attempts to connect to the Evolution Kit.
● Device List
View, edit, or remove a list of mobile devices registered to the Evolution Kit.
Switching between external devices connected to the Evolution
Kit
You can switch between TV programs and the content of external devices.
Changing the input signal
Source
When you select a connected external device on the Source screen, the output of the selected device is displayed on
the TV's screen.
" To control a device (Blu-ray player, game console, etc.) that supports universal remote control with the Samsung Smart
Remote, connect the device to an HDMI port on the Evolution Kit, and then turn on the device. You can switch to the output
of the device automatically or you can configure universal remote control for the device automatically. To configure the
device for universal remote control automatically, point the Samsung Smart Remote at the device.
" When a USB device is connected to the USB port, a pop-up message appears that lets you switch easily to the media
content listed on the device.
" This function may not be supported depending on the device and geographical area.
- 28 -
Editing the name and icon of an external device
Source
You can change the port name for a connected external device or add it to the Home Screen.
Universal Remote
Edit
Information
Sources
Add to Home
Source
" The image on your TV may differ from the image above depending on the model and geographical area.
1.
Move the focus to a connected external device.
2.
Press the up directional button. The following functions become available.
" Available functions may differ depending on the port type.
1
Universal Remote
You can control external devices connected to the Evolution Kit using the Samsung Smart Control. To control
external devices, register them by following the instructions on the screen.
" For more information, refer to "Controlling External Devices with the Samsung Smart Remote - Using the Universal
Remote."
2
Edit
You can rename the input ports and change the device icons.
3
Information
You can view detailed information about an external device.
4
Add to Home
You can add the port of an external device to the Home Screen for quick switching.
- 29 -
Using additional functions
You can use the following features on the Source screen.
● Connection Guide: Displays device connection instructions.
● Universal Remote: Lets you register external devices to your Samsung Smart Remote and control them using
the Remote.
" This function may not be supported depending on the model or geographical area.
" For more information, refer to "Controlling External Devices with the Samsung Smart Remote - Using the Universal
Remote."
Connection Notes
When connecting an external device, note the following.
" The number of connectors and their names and locations may differ with the model.
" Refer to the external device's operating manual when connecting it to the Evolution Kit. The number of external device
connectors and their names and locations may differ with the manufacturer.
Connection notes for HDMI
● The following types of HDMI cables are recommended:
– High-Speed HDMI Cable
– High-Speed HDMI Cable with Ethernet
● Use an HDMI cable with a thickness of 0.66 inches (17 mm) or less.
● Using a non-certified HDMI cable may result in a blank screen or a connection error.
● Some HDMI cables and devices may not be compatible with the Evolution Kit due to different HDMI
specifications.
● The Evolution Kit does not support HDMI Ethernet Channel. Ethernet is a Local Area Network (LAN) built with
coaxial cables standardized by the IEEE.
● Use a cable shorter than 10 feet (3 m) to get the best UHD viewing quality.
● The Evolution Kit does not support the ARC and MHL functions.
● Many computer graphics adaptors do not have HDMI ports, but have DVI ports instead. If your PC does not
support HDMI video out, connect your PC with an HDMI-DVI cable.
- 30 -
Connection notes for audio devices
● For better audio quality, it is a good idea to use an AV receiver to Samsung TV. However, the Evolution Kit does
not support receiver connection via HDMI (ARC).
● If you connect an external audio device using an optical cable, the Sound Output setting is automatically
changed to the connected device. However, to make this happen, you must turn on the external audio device
before connecting the optical cable. To manually change the Sound Output setting, do one of the following:
– Use the Quick Settings screen to change to the connected device:
Use the Select button to select Optical on the Sound Output menu. ( Settings up directional
button Sound Output).
– Use the Settings screen to change to the connected device:
Select Optical on the Sound Output menu. ( Settings Sound Sound Output).
● An unusual noise coming from a connected audio device while you are using it may indicate a problem with
the audio device itself. If this occurs, ask for assistance from the audio device's manufacturer.
● Digital audio is only available with 5.1 channel broadcasts.
- 31 -
Connection notes for computers
● For the resolutions supported by the Evolution Kit, refer to "Read Before Connecting a Computer (Supported
Resolutions)."
● As long as file sharing is activated, unauthorized access may occur. When you do not need to access data,
disable file sharing.
● If you want to connect your PC and the Evolution Kit wirelessly, both of them must be connected to each other
on the same network.
● When sharing content with other network-based devices such as those in an IP (Internet Protocol) storage
system, sharing may not be supported due to the network’s configuration, quality, or functionality, for
example, if the network has an NAS (Network-Attached Storage) device.
Connection notes for mobile devices
● To use the Smart View function, the mobile device must support a mirroring function such as Screen Mirroring
or Smart View. To check whether your mobile device supports the mirroring function, refer to the mobile
device's user manual.
● To use Wi-Fi Direct, the mobile device must support the Wi-Fi Direct function. To check whether your mobile
device supports Wi-Fi Direct function, refer to the mobile device's user manual.
● The mobile device and the Evolution Kit must be connected to each other on the same network.
● The video or audio may stop intermittently, depending on network conditions.
● When sharing content with other network-based devices such as those in an IP (Internet Protocol) storage
system, sharing may not be supported due to the network’s configuration, quality, or functionality, for
example, if the network has an NAS (Network-Attached Storage) device.
- 32 -
Remote Control and Peripherals
You can control TV operations with your Samsung Smart Remote. Pair external devices such as a keyboard for ease
of use.

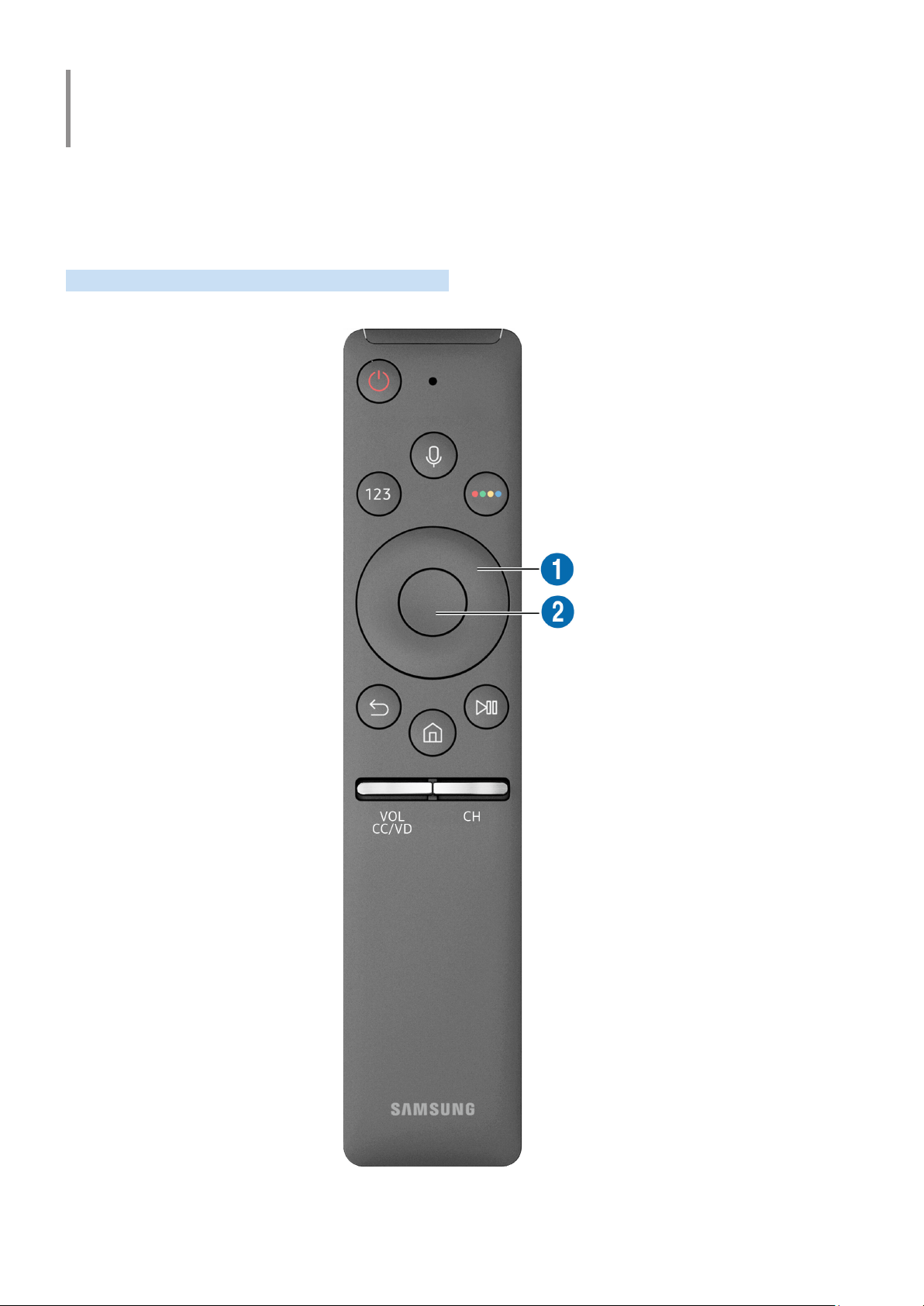

About the Samsung Smart Remote
Learn about the buttons on the Samsung Smart Remote.
- 33 -
Button Description
(Bixby)
Runs Bixby. Press and hold the button, say a command, and then release the button to run
Bixby.
When you press the button, the Explore Now menu appears at the bottom of the screen.
(Number button)
Press to bring up the virtual numeric pad on the screen. Use the numeric keypad to enter
numeric values.
Select numbers and then select Done to enter a numeric value. Use to change the channel, enter
a PIN, enter a ZIP code, etc.
(Color button)
When pressed, colored buttons appear on the screen. Use these colored buttons to access
additional options that are specific to the feature in use.
" These buttons are not available in the U.S.A. and Canada.
Directional pad (up/
down/left/right)
Moves the focus.
Select
Selects or runs a focused item. When pressed while you are watching content, detailed program
information appears.
(Return)
Press to return to the previous menu. When pressed for 1 second or more, the running function is
terminated. When pressed while you are watching a program, the previous channel appears.
(Smart Hub)
Press to return to the Home Screen.
(Play/pause)
When pressed, the playback controls appear. Using these controls, you can control the media
content that is playing.
VOL (Volume)
Point the Samsung Smart Remote at the remote control sensor of the TV, and then move the
button up or down to adjust the volume on the TV. To mute the sound, press the button. When
pressed for 1 second or more, the Accessibility Shortcuts appear.
CH (Channel)
Move the button up or down to change the channel. To see the Guide screen, press the button.
Press and hold the button up or down to quickly change the channel.
" Use the Samsung Smart Remote less than 20 feet from the Evolution Kit. The usable distance may vary with the wireless
environmental conditions.
" The images, buttons, and functions of the Samsung Smart Remote may differ with the model.
" To use the Samsung Smart Remote to control a compatible external device that does not support HDMI-CEC (Anynet+), you
must configure universal remote control for the device. For more information, refer to "Controlling External Devices with
the Samsung Smart Remote - Using the Universal Remote."
" To use the Samsung Smart Remote to control a compatible external device that does support HDMI-CEC (Anynet+),
connect the device to an HDMI port on the Evolution Kit using an HDMI cable. For more information, refer to "Using
Anynet+ (HDMI-CEC)."
- 34 -
Connecting to the Samsung Smart Remote
Connect the Samsung Smart Remote to your Evolution Kit to operate the TV.
When you turn on the Evolution Kit for the first time, the Samsung Smart Remote pairs to the Evolution Kit
automatically. If the Samsung Smart Remote does not pair to the Evolution Kit automatically, point it at the front of
the Evolution Kit, and then press and hold the and buttons simultaneously for 3 seconds or more.
" The images, buttons, and functions of the Samsung Smart Remote may differ with the model.
- 35 -
Controlling External Devices with the Samsung Smart Remote -
Using the Universal Remote
Control the TV and connected external devices with the Samsung Smart Remote.
Source Universal Remote
You can control external devices connected to the Evolution Kit using the Samsung Smart Remote. To control
external devices, register them by following the instructions on the screen.
" You can also use the Anynet+ (HDMI-CEC) function to operate external Samsung devices with the Samsung Smart Remote
without any additional setup. For more information, refer to "Using Anynet+ (HDMI-CEC)."
" Specific external devices connected to the Evolution Kit may not support the universal remote feature.
" Do not place any obstacles in front of an external device. It may cause signals from the remote control to be transmitted
improperly.
" The Evolution Kit memorizes both the external device and its connection port (HDMI 1, HDMI 2, etc.).
- 36 -
Using Anynet+ (HDMI-CEC)
Control an external device connected via Anynet+ (HDMI-CEC) with the Samsung Smart Remote.
You can use the Samsung Smart Remote to control external devices that are connected to the Evolution Kit by an
HDMI cable and that support Anynet+ (HDMI-CEC). Note that you can only set up and operate Anynet+ (HDMI-CEC)
with the Samsung Smart Remote.
Connecting an external device through Anynet+ and using their menus
Settings General External Device Manager Anynet+ (HDMI-CEC) Try Now
1.
Set Anynet+ (HDMI-CEC) to On.
2.
Connect an HDMI-CEC-compliant device to the Evolution Kit.
3.
Turn on the connected external device. The device is automatically connected to the Evolution Kit. After the
connection process is finished, you can access the menu of the connected device using the Samsung Smart
Remote and control the device.
" The connecting process can take up to 2 minutes to complete.
Read before connecting an Anynet+ (HDMI-CEC) device
" Anynet+ (HDMI-CEC)-enabled devices must be connected to the Evolution Kit with an HDMI cable. Note that some HDMI
cables may not support Anynet+ (HDMI-CEC).
" You can configure the Evolution Kit's Universal Remote to control third-party cable boxes, Blu-ray players, and home
theaters that do not support HDMI-CEC. For more information, refer to "Controlling External Devices with the Samsung
Smart Remote - Using the Universal Remote."
" Anynet+ cannot be used to control external devices that do not support HDMI-CEC.
" The Samsung Smart Remote may not work under certain circumstances. If this occurs, set up the device as an Anynet+
(HDMI-CEC)-enabled device again.
" Anynet+ (HDMI-CEC) works only with external devices that support HDMI-CEC and only when those devices are either in
standby mode or turned on.
" Anynet+ (HDMI-CEC) can control up to 12 compliant external devices (up to 3 of the same type) except for home theaters.
Anynet+ (HDMI-CEC) can control only one home theater system.
" To listen to 5.1 channel audio from an external device, connect the device to the Evolution Kit via an HDMI cable and
connect a 5.1 home theater system directly to the external device's digital audio output connector.
" If an external device has been set up for both Anynet+ and a universal remote control, the device can be controlled only
with the universal remote control.
- 37 -
Controlling the TV with a Keyboard or Mouse
Connecting a keyboard or mouse to make it easier to control the TV.
Settings General External Device Manager Input Device Manager Try Now
You can connect a keyboard or mouse to make it easier to control the TV.
Connecting a USB keyboard or mouse
Plug the keyboard or mouse cable into the USB port.
" If you connect a mouse, it is available only in the Internet app.
Connecting a Bluetooth keyboard or mouse
Settings General External Device Manager Input Device Manager Bluetooth
Device List
" If your device was not detected, position the keyboard close to the Evolution Kit, and then select Refresh. The Evolution Kit
scans for available devices again.
" If you connect a mouse, it is available only in the Internet app.
Using the keyboard and mouse
Button Description
Directional keys Moves the focus
Windows key Displays the Evolution Kit settings
Enter key Selects or runs a focused item
ESC key Returns to the previous screen
F1 / F2 / F3 / F4 key
Color buttons ― / / /
F5 key Displays the Home Screen
F6 key Displays the Source screen
F7 key Displays the Channel List
F8 key Mutes the sound
F9 / F10 key Adjusts the volume
F11 / F12 key Changes the channel
Page Up / Page Down Scrolls a web page displayed by the Internet app.
Left-click
Available only in the Internet app. You can click a menu or link to start a function as you do
on a PC.
- 38 -
Button Description
Right-click
Available only in the Internet app. You can use the following functions:
" The options displayed in the menu may differ depending on the selected item.
● Open
● Open Link in New Tab
● Enable Scroll Mode
" The key operations may differ on some apps.
Setting up the input devices
Setting up the keyboard
Settings General External Device Manager Input Device Manager Keyboard
Settings
You can set up the keyboard with the following functions:
● Keyboard Language
● Keyboard Type
Setting up the mouse
Settings General External Device Manager Input Device Manager Mouse
Settings
You can set up the mouse with the following functions:
● Primary Button
● Pointer Speed
- 39 -
Entering Text using the On-Screen Virtual Keyboard
Use the virtual keyboard to enter text on your TV.
Recommended text
Options Predict Next Character
" The image on your TV may differ from the image above depending on the model and geographical area.
1
Recommended text
When you type a word you want to use as a search term, this function displays related suggestions from which you
can choose one.
2
Options
Select on the virtual keyboard screen. The following options are available:
" The options available may differ depending on the function running currently.
● Recommended text
● Reset Recommended Text Memory
● Predict Next Character (when using direction buttons)
● Language
3
Predict Next Character
Each time you type a character on the virtual keyboard, the next characters predicted to be typed are displayed. You
can use the directional buttons on the remote control to select one.
- 40 -
Entering Text using the remote control's microphone and the on-screen
virtual keyboard
When the virtual keyboard is on the screen, press and hold the button on the Samsung Smart Remote, speak
into the microphone on the Samsung Smart Remote, and then release the button. What you say appears on the
screen as text.
" This function may not be supported depending on the model or geographical area.
- 41 -
Smart Features
You can enjoy various apps with Smart Hub.
Smart Hub
View descriptions of Smart Hub's basic functions.
From Smart Hub, you can use the Internet search function, install and use various apps, view photos and videos, or
listen to music stored on external storage devices, and perform more functions.
" Some Smart Hub services are paid services.
" To use Smart Hub, the Evolution Kit must be connected to the Internet.
" Some Smart Hub features may not be supported depending on the service provider, language, or geographical area.
" Smart Hub service outages can be caused by disruptions in your Internet service.
" To use Smart Hub, you must agree to the Smart Hub service agreement, and collection and use of personal information.
Without giving consent, you cannot use the additional features and services. You can view the entire text of the Terms &
Policy document by navigating to Settings Support Terms & Policy. Try Now
" If you want to stop using Smart Hub, you can cancel the agreement. To cancel the Smart Hub service agreement, select
Reset Smart Hub ( Settings Support Self Diagnosis Reset Smart Hub).
- 42 -
Displaying the Home Screen
Press the button.
Sources
TV HDMI 1 HDMI 2 USB 1 USB 2
Connection
Guide
Universal
Remote
Source
" The image on your TV may differ from the image above depending on the model and geographical area.
On the Home Screen, you can easily run the apps you have used previously or frequently. The apps can also be moved
or deleted from the screen.
1
Notification
You can view a list of notifications for all events that occur on your Evolution Kit. A notification appears on the screen
when it is time to view a scheduled program or when an event occurs on a registered device.
If you move the focus to Notification, and then press the Select button, a notification window appears on the right
and the following functions are available:
● Delete All
You can delete all your notifications.
● Settings
– You can select services you want to be notified about.
– When you select Allow sound, notifications are displayed with a notification sound.
- 43 -
2
Settings
When the focus is moved to the icon, a list of quick settings icons appears above the top of the menu. You can
quickly set frequently used functions by clicking the icons.
● Sound Output
You can select which speakers for audio output. To change the audio output, press the Select button. To
connect to a Bluetooth speaker, press the up directional button, and then select Speaker List.
● Caption
You can watch TV broadcasts with captions. To activate/deactivate the Caption function, press the Select
button. To run Accessibility Shortcuts, press the up directional button, and then select Accessibility Shortcuts.
● Sleep Timer
You can have the TV automatically turn off at a specific time. To change the sleep time, press the Select
button. To set the specific time at which the TV turns off automatically, press the up directional button, and
then select Set Up Off Timer.
● Network
You can view the current network and Internet status. Press the up directional button, and then select
Network Status or Network Settings.
" Pressing Settings displays all setting menus available.
" This function may not be supported depending on the model or geographical area.
- 44 -
3
Source
You can select an external device connected to the Evolution Kit.
" For more information, refer to "Switching between external devices connected to the Evolution Kit."
4
Search
You can search for channels, programs, movie titles, and apps from Smart Hub.
" To use this feature, the Evolution Kit must be connected to the Internet.
5
APPS
You can enjoy a wide range of content including news, sports, weather, and games by installing the corresponding
apps on your Evolution Kit.
" To use this feature, the Evolution Kit must be connected to the Internet.
" For more information, refer to "Using the APPS Service."
6
Universal Guide
Universal Guide is an app that allows you to search for and enjoy various content such as TV shows, dramas, and
movies in one place. Universal Guide can recommend content tailored to your preferences and notify you of new
drama series.
" For more information about the Universal Guide, refer to "Using the Universal Guide App."
" Images may look blurry depending on the service provider's circumstances.
" This function may not be supported depending on the model or geographical area.
- 45 -

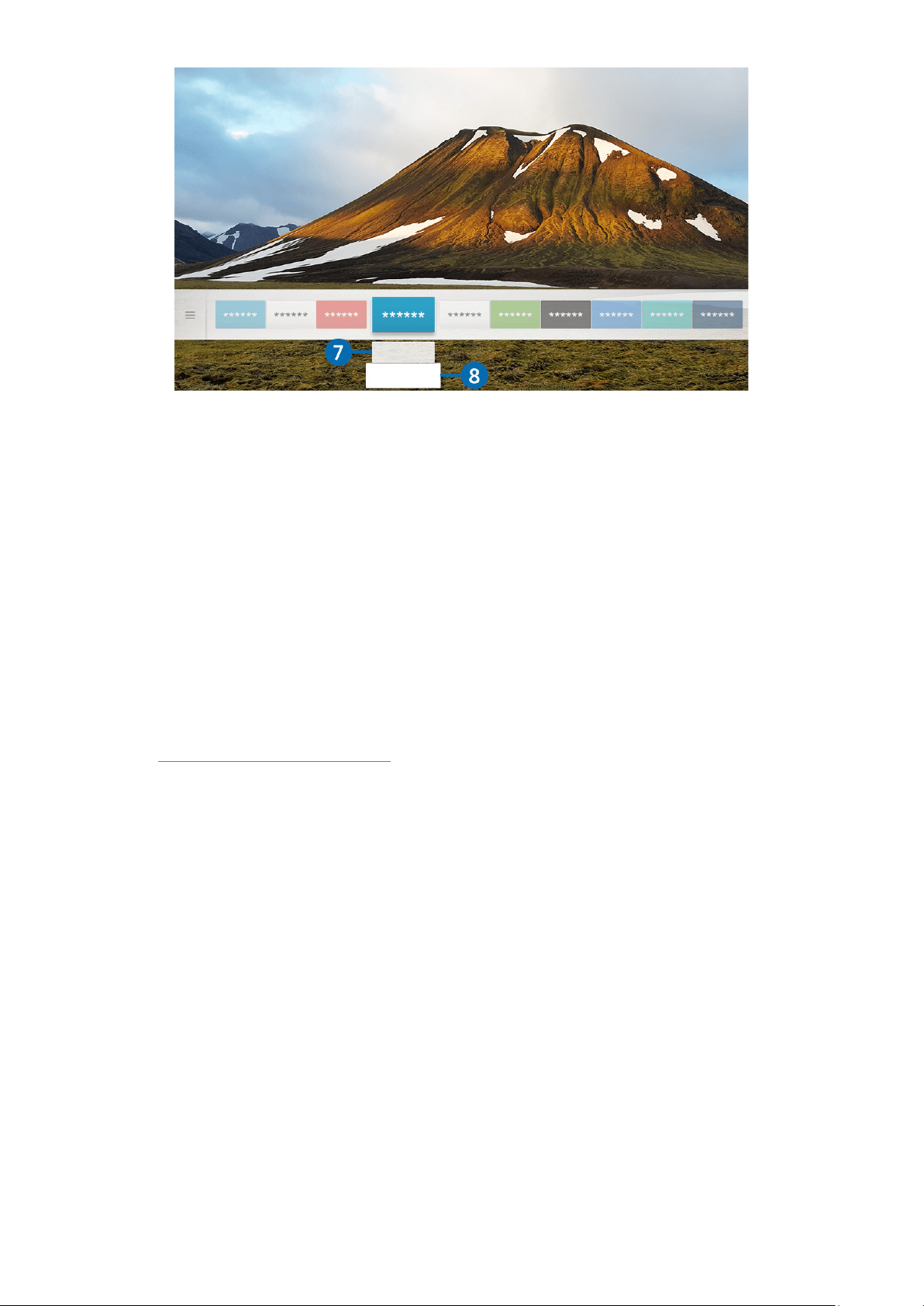

Move
Remove
" The image on your TV may differ from the image above depending on the model and geographical area.
7
Moving an item on the Home Screen
Move the focus to the app you want to move, press the down directional button on the remote control, and then
select Move. Move the app to the desired position by pressing the left or right directional button, and then press the
Select button. The selected app is moved on the Home screen.
8
Removing an item on the Home Screen
Move the focus to the app you want to delete, press the down directional button on the remote control, and then
select Remove. The selected app is deleted.
" You can add the apps you want to use often to the Home Screen using APPS. To add your favorite apps to the Home Screen,
refer to "Managing purchased or installed apps."
- 46 -
Launching Smart Hub automatically
Settings General Smart Features Autorun Smart Hub Try Now
When you set Autorun Smart Hub to On, the TV displays the Home Screen automatically when you turn the TV on.
You can also turn this function on or off: press the Select button at the current menu.
Testing Smart Hub connections
Settings Support Self Diagnosis Start Smart Hub Connection Test Try Now
Resetting Smart Hub
Settings Support Self Diagnosis Reset Smart Hub Try Now
" You can reset the Smart Hub settings. To reset Smart Hub, enter the PIN. The default PIN is "0000." You can set the PIN in
Settings General System Manager Change PIN.
Using a Samsung account
Create and manage your own Samsung account.
Settings General System Manager Samsung Account Try Now
Creating and managing your Samsung account
" You can view the entire text of the Terms & Policy in Settings General System Manager Samsung
Account My Account Terms & Conditions, Privacy Policy after logging in to your Samsung account.
" You can also create a Samsung account at http://account.samsung.com. Once you have an account, you can use the same
ID on both the TV and the Samsung website.
" Add Account appears or not, depending on whether you are logged in to your Samsung account.
- 47 -
Creating a new account
Settings General System Manager Samsung Account (Add Account) Create
Account
To create a new Samsung account, follow the instructions on the screen.
" For more information about the terms, select View Details.
" To protect personal information, select Profile image selection and password entry (High security) in the field below the
password entry bar.
" If you want the TV to log you into your account automatically whenever you turn on the TV, click Sign me in automatically.
Signing in to a Samsung account
Settings General System Manager Samsung Account Sign In
Changing and adding information to a Samsung account
Settings General System Manager Samsung Account My Account Edit
profile
" To change the account information, you must be logged in to your Samsung account.
Managing payment information
Settings General System Manager Samsung Account My Account Payment
Info
" To manage the payment information, you must be logged in to your Samsung account.
- 48 -
Configure the sync Internet settings
Settings General System Manager Samsung Account My Account Sync
Internet
Once you sign in to your Samsung account and configure the sync Internet settings, you can share the favorites that
you registered on other devices.
" To configure the sync Internet settings, you must be logged in to your Samsung account.
Deleting a Samsung account
Settings General System Manager Samsung Account My Account Remove
Account
" To remove account information, you must be logged in to your Samsung account.
" Although you have deleted your Samsung account, you are not unsubscribed. To unsubscribe from your Samsung Account,
visit the Samsung Accounts website (http://account.samsung.com).
Signing out of your Samsung account
To sign out of your Samsung account, move the focus to your account at Settings General System
Manager Samsung Account, and then press the Select button. Or move to My Account ( Settings
General System Manager Samsung Account My Account), and then select Sign Out.
Viewing the user agreement and privacy policy
Settings General System Manager Samsung Account My Account Terms &
Conditions, Privacy Policy
" To view the user agreement and privacy policy, you must be logged in to your Samsung account.
- 49 -

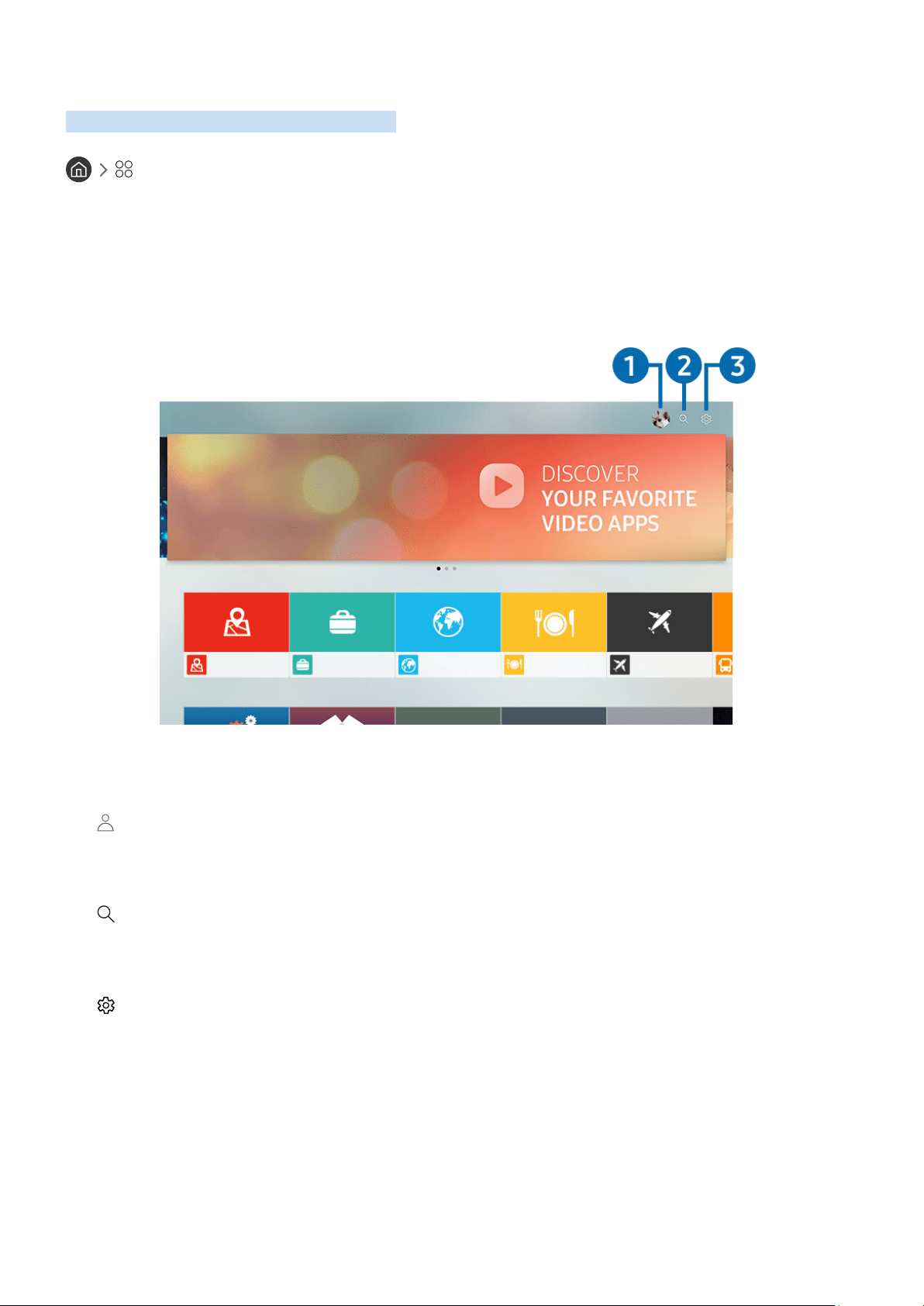

Using the APPS Service
Download and run various apps from Smart Hub.
APPS
You can enjoy a wide range of content including news, sports, weather, and games by installing the corresponding
apps on your Evolution Kit.
" To use this feature, the Evolution Kit must be connected to the Internet.
" When Smart Hub is launched for the first time, the default apps are automatically installed. The default apps may differ
depending on the geographical area.
APPS
Editor's Choice
Most Popular
" The image on your TV may differ from the image above depending on the model and geographical area.
1
Sign In
Go to the Samsung Account screen to create a new account or sign in to your account.
2
App Search
You can search for available apps.
3
Settings
You can manage the installed apps.
- 50 -
Installing and running an app
Installing an app
1.
Move to the app you want to install, and then press the Select button. The detailed information screen appears.
2.
Select Install. When the installation is complete, the Open menu appears.
3.
Select Open to run the app immediately.
" You can view installed apps on the Settings screen.
" If the Evolution Kit's internal memory is insufficient, you can install some specific apps on a USB device.
" You can run an app installed on a USB device only when the USB device is connected to the Evolution Kit. If the USB device
is disconnected while an app is running, the app is terminated.
" You cannot run an app installed on a USB device on a PC, TV, or another Evolution Kit.
Launching an app
You can run the app desired from Downloaded App.
The icons below appear within the selected app's icon and indicate the following:
● : The app is installed on a USB device.
● : The app has a password.
● : The app needs to be updated.
● : The app supports the mirroring function.
- 51 -

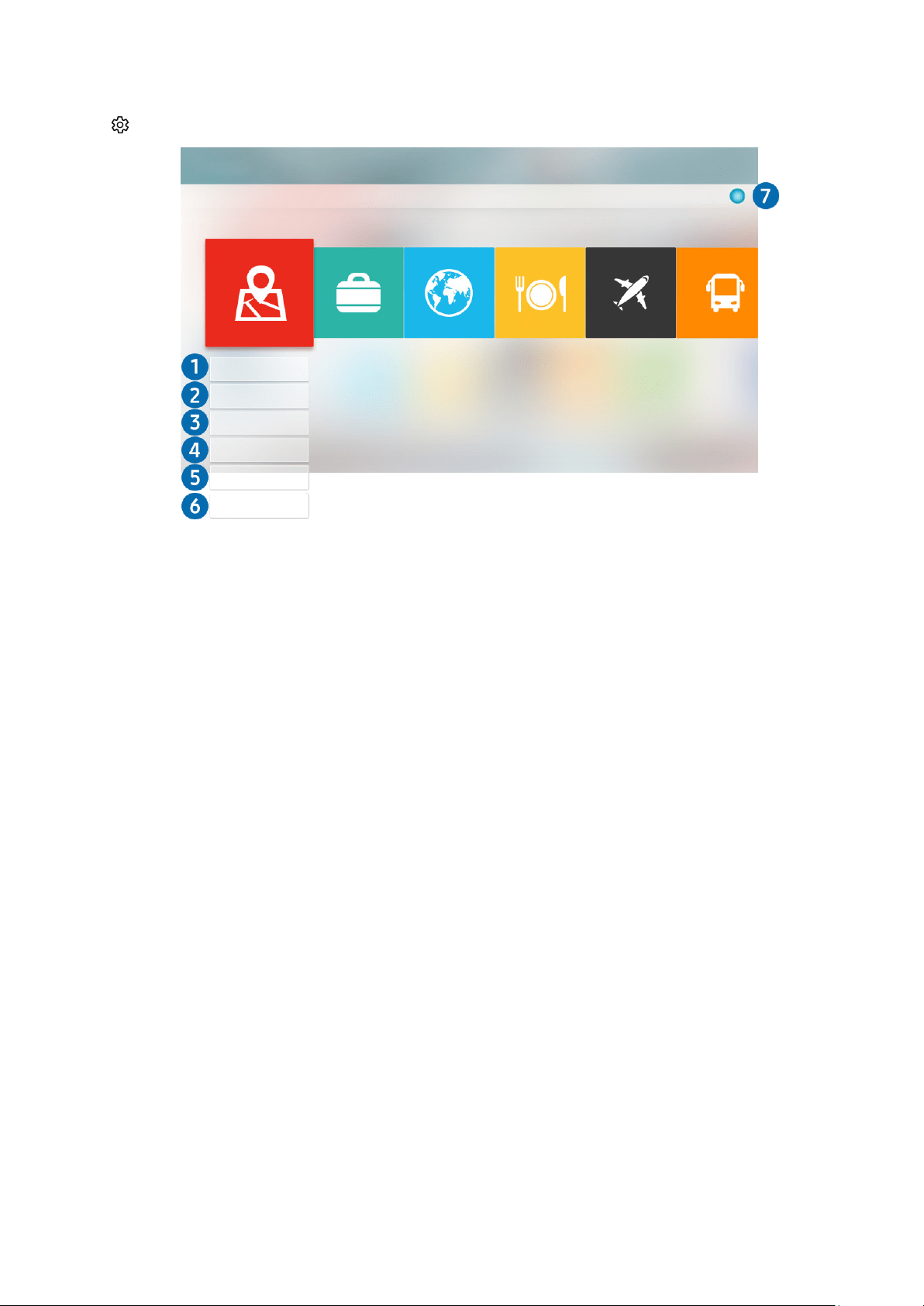

Managing purchased or installed apps
Select Settings on APPS. You can manage installed apps.
Settings
Auto Update : ON
Delete
Add to Home
Lock/Unlock
Move
Reinstall
View Details
" The image on your TV may differ from the image above depending on the model and geographical area.
1
Removing an app
1.
Select an app to delete.
2.
Select Delete.
3.
The selected app is deleted.
" Ensure that the related app data is also removed when you remove an app.
" Standard apps cannot be uninstalled.
2
Adding apps to the Home Screen
1.
Select an app to add.
2.
Select Add to Home.
3.
After the Home screen appears, move the selected app to the desired location.
4.
Press the Select button.
5.
The selected app is added to the Home Screen.
- 52 -
3
Locking and unlocking apps
1.
Select an app to lock or unlock.
2.
Select Lock/Unlock.
3.
The selected app is locked or unlocked.
" To lock or unlock an app, enter the PIN. The default PIN is "0000." You can set the PIN in Settings General
System Manager Change PIN.
4
Moving apps
1.
Select an app to move.
2.
Select Move.
3.
Move the app to the desired location.
4.
Press the Select button.
5.
The selected app is moved.
" This function may not be supported depending on the model or geographical area.
5
Reinstalling an app
1.
Select the app to install again.
2.
Select Reinstall.
3.
Reinstallation starts.
6
Checking the app information details
1.
Select the app to check.
2.
Select View Details.
3.
The app information screen appears.
7
Automatically updating apps
Installed apps can be automatically updated. If you do not want apps automatically updated, set Auto Update to OFF.
" Automatic update is enabled only when the Evolution Kit is connected to the Internet.
Rating apps
You can rate an app on the detailed information screen.
- 53 -
Using the Gallery App
View photos and videos synchronized with the Samsung Cloud.
Gallery
Gallery
View: Daily
" The image on your TV may differ from the image above depending on the model and geographical area.
You can enjoy various content synchronized with a mobile device that supports the Samsung cloud. The available
content types are photos, videos, stories, and other content shared through your groups.
If you have shared content from your groups, you can access them in notifications.
" To use the Gallery app, you must be signed in to your Samsung account on your Evolution Kit.
1
Open category
Move to at the top left of the screen using the directional buttons on the remote control to view by category the
content synchronized with the Samsung Cloud.
2
View: Daily / View: Monthly
Sort the content by day or month.
3
Sign In
Go to the Samsung Account screen to create a new account or sign in to your account.
4
Gallery Settings
Restrict access to the Gallery app to protect your privacy, or view the user agreement and privacy policy.
- 54 -
Using the Universal Guide App
Search for and enjoy content such as TV shows, dramas, movies, and sports broadcasts.
Universal Guide
For You TV Shows Movies Sports
On Now
" The image on your TV may differ from the image above depending on the model and geographical area.
Universal Guide is an app that allows you to search for and enjoy various content such as TV shows, dramas, and
movies in one place. Universal Guide can recommend content tailored to your preferences and notify you of new
drama series.
You can use this feature on your mobile with Samsung SmartThings app.
" To enjoy the content from these apps on your Evolution Kit, they must be installed on the Evolution Kit.
" When you watch some paid content, you may need to make a payment using their associated app.
" Some content may be restricted depending on your network conditions and your subscriptions to paid channels.
" Parental control is necessary when children use this service.
" Images may look blurry depending on the service provider's circumstances.
" This function may not be supported depending on the model or geographical area.
- 55 -

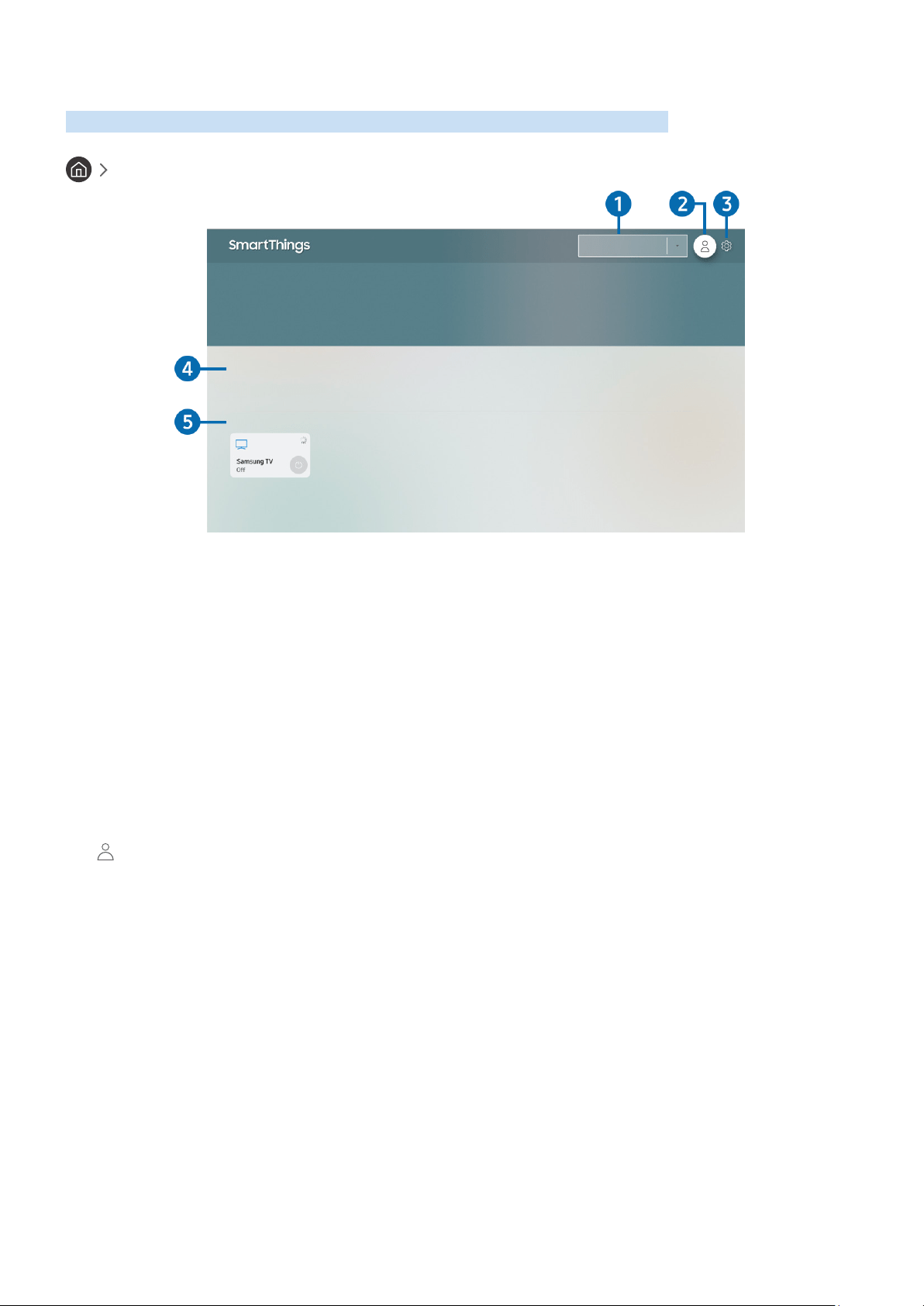

Using the SmartThings App
Monitor and configure the smart devices you have connected to the SmartThings service.
SmartThings
All Devices
Scenes
Devices
" The image on your TV may differ from the image above depending on the model and geographical area.
From your TV, you can monitor and configure smart devices you connected to the SmartThings service via the
SmartThings app installed on them. You can receive notifications about the statuses of your smart devices.
" To use this function, you must be logged in to your Samsung account.
" This function may not be supported depending on the model or geographical area.
1
Location selection list
Press the Select button to identify all connected devices or the devices specific to a location.
2
Sign In
Go to the Samsung Account screen to create a new account or sign in to your account.
- 56 -
3
Settings
Turn notifications on or off for the connected smart devices.
4
Scenes
Control multiple devices with one command after setting scenes via the SmartThings app on your mobile device.
" The Scenes function is only available on a connected smart device.
5
Device list
View a list of the connected smart devices and their statuses.
You can add a new device through the SmartThings app on your mobile device. Please refer to the user guide of the
SmartThings app on your mobile device for more details.
Using the e-Manual
Control and read the manual embedded in your Evolution Kit.
Launching the e-Manual
Settings Support Open e-Manual
You can view the embedded e-Manual that contains information about your Evolution Kit's key features.
" Alternatively, you can download a copy of the e-Manual from Samsung's website.
" Words in blue (e.g., Picture Size Settings) indicate a menu item.
- 57 -
Using the buttons in the e-Manual
● (Search): Select an item from the search results to load the corresponding page.
● (Index): Select a keyword to navigate to the relevant page.
● (Recently Viewed Topics): Select a topic from the list of recently viewed topics.
● (Try Now): Allows you to access the corresponding menu item and try out the feature right away.
● (Link): Access an underlined topic referred to on an e-Manual page immediately.
" Some menu screens cannot be accessed from the e-Manual.
Using the Internet
Surf the Internet on your TV.
Internet
When you run Internet, you can see recently viewed web sites or featured recommendations. When you select a
desired web site, you can get immediate access to it.
" You can use the Internet function more easily after connecting a keyboard and mouse.
" You can scroll web pages with the Directional Pad.
" The web pages may differ from those on a PC.
" Before using the Internet function, refer to "Read Before Using the Internet Function."
- 58 -

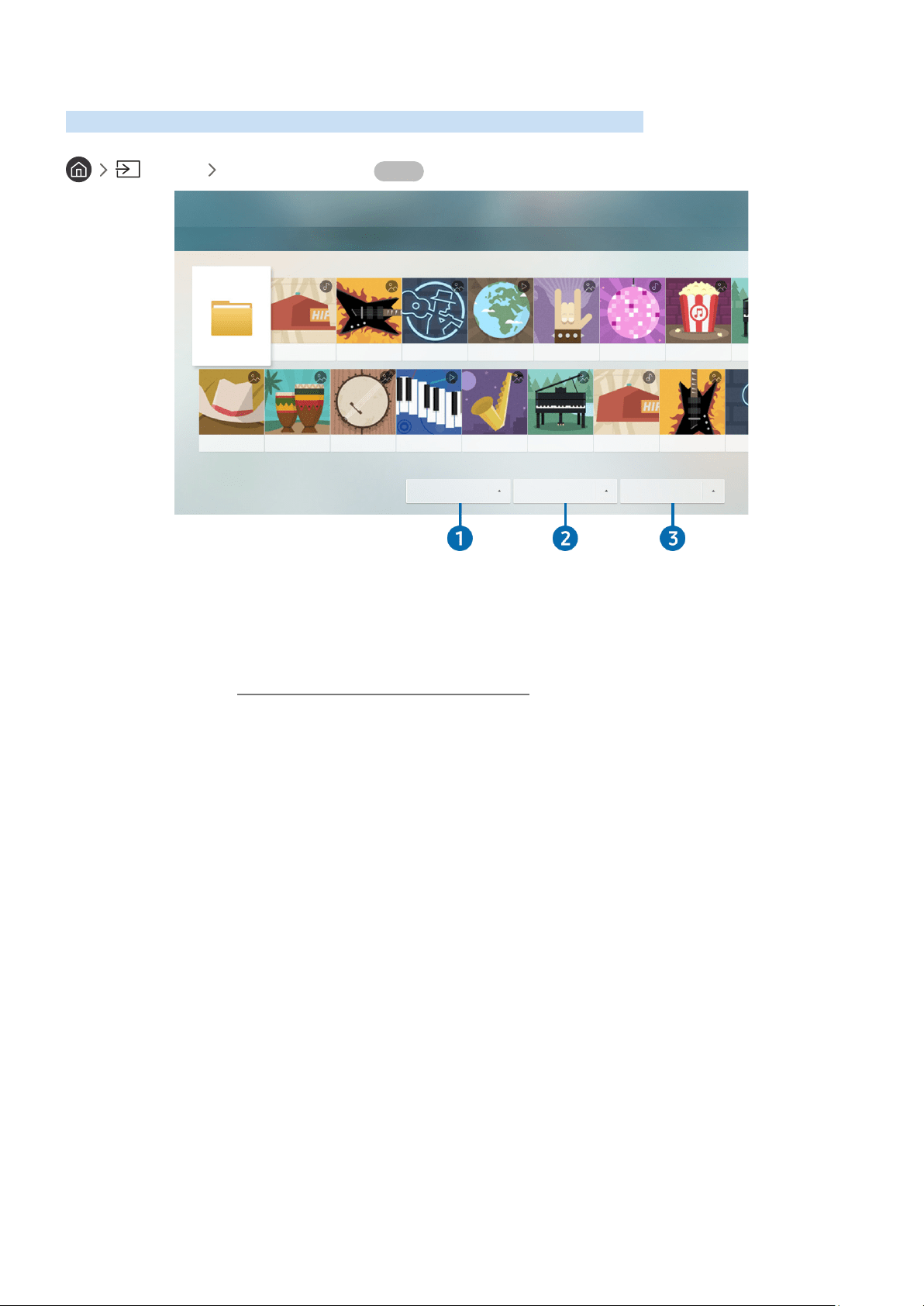

Playing pictures/video/music
Play media content stored on your TV, USB devices, mobile devices, cameras, PCs, etc.
Source Connected Device Try Now
Samsung USB
Samsung USB
Filter By : All Sort By : Title Options
" The image on your TV may differ from the image above depending on the model and geographical area.
You can play media content saved on storage devices, such as USB devices, mobile devices, and cameras on the TV.
" You cannot play media content if the content or the storage device is not supported by the Evolution Kit. For more
information, refer to "Read Before Playing Photo, Video, or Music Files."
" Backup important files before connecting a USB device. Samsung is not responsible for damaged or lost files.
You can use the following functions on the media content list screen of a storage device.
1
Filter By
Filters the media content by type of media.
- 59 -
2
Sort By
Sorts the content list by title or date.
" This function may not be supported depending on the type of external device.
3
Options
Deletes or plays the selected media content in the media content list. When you select Refresh, the content list is
reloaded.
" You can delete only the recorded content. To delete content, change the Filter By option to Recorded.
Playing media content
Playing multimedia content on a PC or mobile device
1.
Select a device with media content in Source. The media content list in the device appears.
2.
Select a media content item from the list.
3.
The content is played.
" For more information about buttons, refer to "Buttons and functions available while playing multimedia content."
" The content may not be played depending on the encoding method or file format. Furthermore, several functions may be
restricted.
" Content on devices connected to the Evolution Kit via your network may not play smoothly due to network communication
problems. If this occurs, use a USB device.
" For more information about connecting to mobile devices, refer to "Connecting Your Mobile Device."
- 60 -
Playing multimedia content on a USB device
1.
Connect a USB device to the USB port. When a pop up message appears on the screen, select Browse to easily
move to the list of multimedia content stored on the device.
2.
Select a content item to play from the list.
3.
The content is played.
Listening to your mobile device sound through the TV speaker using Sound Mirroring
1.
Search for and connect to your Evolution Kit from the Bluetooth ( ) device list on your mobile device.
2.
Play media content you want on your mobile device.
3.
Enjoy your mobile device sound through the TV speaker.
" If the Evolution Kit and the sound bar are connected wirelessly, the operation may be restricted.
- 61 -
Using Bixby
Speak into the microphone on your Samsung Smart Remote to control your TV.
" This function may not be supported depending on the model or geographical area.
" The supported language may differ depending on the geographical area.
Running Bixby
Press and hold the button on your Samsung Smart Remote, say a command, and then release the button.
The TV recognizes the voice command.
To view the Bixby guide, press the button once:
● When you press the button for the first time, the Using Bixby button appears at the bottom of the screen.
Press the Select button. The Using Bixby popup window appears and a tutorial on using Bixby is shown.
● When you press the button after the first time, the Explore Now button appears at the bottom of the
screen. Press the Select button to go to the My Bixby screen.
- 62 -
Learning about My Bixby
My Bixby
" The image on your TV may differ from the image above depending on the model and geographical area.
1
Samsung Account
Go to the Samsung Account screen for the Evolution Kit to create a new account or sign out of your account.
" If you are signed out of your Samsung account, select Sign In or to log in.
2
Settings
You can change the voice responses and the voice style of Bixby.
You can also select a music service provider in the Default music service provider tab.
" The Default music service provider tab may not be supported depending on the model or geographical area.
3
User information and the experience points (XP) guide
You can see user information and the experience points (XP) that you can get from using Bixby.
" You must be signed in to your Samsung account to view the user information and the experience points (XP).
" This function may not be supported depending on the model or geographical area.
4
Bixby guide
You can learn the voice commands to use the Bixby in various situations. Use the directional buttons to move to the
desired command, and then press the Select button. You can operate the TV with various voice commands.
" To view a tutorial on Bixby, use the directional buttons to move to the bottom, and then select the View Tutorial item.
- 63 -
Read Before Using Bixby
Precautions for Bixby
● The supported voice interaction languages and features may differ depending on the geographical area.
● If the language set differs from the language of your country, some features are not available.
● Bixby is available only when the Evolution Kit is connected to the Internet.
● Even if the Evolution Kit is connected to the Internet, there may be no response due to a Bixby server error.
● The existing functional specifications may be changed if Bixby is updated.
● Bixby is available only on the Evolution Kit that support it and come with remote controls that have a
microphone.
● Symbols including "-" and special characters are not supported. Consequently, if a word or sentence contains
numeric values or symbols, the function may not operate properly.
● Searched results may not provide complete results.
● You may be required to pay for some apps. Consequently, you may encounter a service application or contract.
● To change the current channel by saying channel names as voice commands, you must finish Set Up Your
Service Provider. If Set Up Your Service Provider is not completed, you can complete it using the following
menu.
– Settings General Start Setup Try Now
● To use the voice text input function and Smart Search function, you must consent to provisions allowing third
parties to collect and use your voice data.
● To use the Bixby function, you must:
– Agree to Smart Hub's Terms of Use
– Agree to a guidance regarding the collection and use of personal information for the Smart Hub service.
– Consent to the collection and use of personal information for the voice interaction-based service.
Requirements for using Bixby
● The voice interaction rate differs with the volume/tone, pronunciation, and ambient sound environment (TV
sound and ambient noise).
● The optimal volume for voice commands is between 75 dB and 80 dB.
- 64 -
TV Viewing
You can use convenient features while watching TV. Additionally, you can edit the channel list or create favorite
channel lists.
Viewing Broadcast Information at a Glance
See an overview of each channel's program lineup.
Using the guide
Live TV Guide Try Now
Guide
Channel List Recordings
Live TV
" The image on your TV may differ from the image above depending on the model and geographical area.
In the Guide, you can see the daily program schedules for each broadcaster, see program information, choose a
program to watch, and set up a schedule viewing or recording.
In the Guide, you can see only the TV programs scheduled after the current time.
" The Guide also appears when you press the CH button while watching TV.
" To see information about analog channels and use the analog channel functions of the Guide, you must finish the service
provider settings in initial setup.
" To view the Guide, you must first set the Evolution Kit's clock ( Settings General System Manager Time
Clock).
- 65 -
To start schedule viewing, schedule recording, and other function for a program listed in the Guide, first move the
cursor to it and then press and hold Select button on the remote control to use follows functions:
● Record: You can make a recording of a current program.
" This function is not available in the U.S.A. and Canada.
" This function may not be supported depending on the model or geographical area.
● Schedule Viewing: You can schedule viewing of a broadcast scheduled program.
" For more information about Schedule Viewing, refer to "Setting Up a Schedule Viewing."
● Schedule Recording: You can schedule recording of a broadcast scheduled program.
" This function is not available in the U.S.A. and Canada.
" This function may not be supported depending on the model or geographical area.
" For more information about recording or Schedule Recording, refer to "Recording Programs."
● Edit Recording Time: You can change the start and end times of scheduled program recordings.
" This function is not available in the U.S.A. and Canada.
" This function may not be supported depending on the model or geographical area.
● Stop: You can stop the recording function that is currently running.
● Cancel Scheduled Viewing / Cancel Scheduled Recording: You can cancel scheduled viewings or recordings.
" This function may not be supported depending on the model or geographical area.
● View Details: You can see detailed information about the selected program. The information may differ with
the broadcast signal. If information is not provided with the program, nothing appears.
To move to the Channel Filter or Antenna Type, Schedule Manager screen: Press the button.
● Channel Filter: You can view channels and programs categorized by the types defined in Channel List.
● Antenna Type: You can change the type of broadcast signals to receive.
" This function may not be supported depending on the incoming broadcast signal.
● Schedule Manager: You can see the Schedule Manager or Recording & Schedule Manager screen.
" This function may not be supported depending on the model or geographical area.
- 66 -
Recording Programs
Record a current or upcoming program using a USB device instead of a video recorder.
" This function is not available in the U.S.A. and Canada.
" This function may not be supported depending on the model or geographical area.
" Read all precautions before using the recording feature. Refer to "Before Using the Recording and Timeshift Functions" for
more information.
" You can record only the programs that are received through an antenna.
" The appears next to the programs and channels scheduled for recording.
" If you go to Live TV while no USB device is connected, the Schedule Manager screen appears in place of the
Recordings screen.
Recording programs
Using the instant and schedule recording options from the guide screen
● Instant Recording
Select a live program from the Guide, press and hold the Select button, and then select Record from the pop-
up menu to start recording immediately.
● Schedule Recording
Select a program scheduled to be broadcast, press the Select button, and then select Schedule Recording to
set up a scheduled recording of the scheduled program.
Using the instant and schedule recording options while watching a program
● Instant Recording
If you select Record after pressing the button while watching a broadcast, recording starts.
● Schedule Recording
Press the Select button while watching a program to display the program info window. Use the left or right
directional button to select a scheduled program. Press the Select button, and then select Schedule Recording
to set up a scheduled recording of the scheduled program.
- 67 -
Scheduling a video recording after entering the date and time
Live TV Recordings Schedules Add Recording
To schedule a recording, set the values for Antenna, Channel, Repeat, Date, Start Time, and End Time of the
broadcast program to record, and then select Save.
" Check the current time in Settings General System Manager Time Clock.
Managing the schedule recording list
Live TV Recordings Schedules
You can change scheduled recording information or cancel scheduled recordings.
" You can schedule up to 30 recordings or viewings at once using Schedule Recording and Schedule Viewing.
Setting the Schedule Recording Time
Live TV Recordings Schedules Edit
You can set the start and end times for a schedule recording. You can set the start time up to 10 minutes before the
program starts and the end time up to 10 minutes after the program ends.
Canceling a scheduled recording
Live TV Recordings Schedules Delete
Checking scheduled recordings
Live TV Recordings Schedules View Details
Viewing recorded programs
Live TV Recordings Recordings
Select a file containing a recording from the list. The file is played back.
" Buttons that appear may differ depending on the file being played. For more information about control buttons, refer to
"Buttons and functions available while recording a program or Timeshift."
- 68 -
Setting up a schedule recording start
Live TV Recordings Settings
● Start Recording Early: You can set the time to start the recording earlier than the broadcast start time in the
program guide.
● Continue Recording After: You can set the time to end the recording later than the broadcast end time in the
program guide.
Setting Up a Schedule Viewing
Configure the TV to show a specific channel or program at a specific time and date.
" The appears next to programs that have been configured for a schedule viewing.
" To set up a schedule viewing, you must first set the Evolution Kit's clock ( Settings General System
Manager Time Clock).
Setting up a schedule viewing for a channel
Using the schedule viewing options from the guide screen
On the Guide screen, select a program you would like to view, press and hold the Select button, and then select
Schedule Viewing in the pop-up menu that appears.
Using the schedule viewing options in the program info window
Press the Select button while watching TV. The Program Info window appears. Select a program that will be
broadcast using the left or right directional buttons. Press the Select button, and then select Schedule Viewing to
schedule viewing of that program.
Using schedule viewing to view programs at a specified time on a specified date
(U.S.A and Canada) Live TV Schedule Manager Add Viewing
(Other countries) Live TV Schedule Manager or Recordings Schedules Add Viewing
To schedule a viewing, set the values for Antenna, Channel, Repeat, Date and Start Time of the broadcast program to
view, and then select Save.
" Check the current time in Settings General System Manager Time Clock.
" This function may not be supported depending on the model or geographical area.
- 69 -
Editing a schedule viewing
(U.S.A and Canada) Live TV Schedule Manager
(Other countries) Live TV Schedule Manager or Recordings Schedules
" You can set up a maximum total of 30 Schedule Viewing and Schedule Recording entries.
Setting the schedule viewing time
(U.S.A and Canada) Live TV Schedule Manager Edit
(Other countries) Live TV Schedule Manager or Recordings Schedules Edit
You can set the start time of a schedule viewing. If you choose a program from the Guide, the Start Time can be set
up to 10 minutes before the program.
Canceling a scheduled viewing
(U.S.A and Canada) Live TV Schedule Manager Delete
(Other countries) Live TV Schedule Manager or Recordings Schedules Delete
Checking scheduled viewing
(U.S.A and Canada) Live TV Schedule Manager View Details
(Other countries) Live TV Schedule Manager or Recordings Schedules View Details
- 70 -
Using Timeshift
Play, pause, or rewind live TV.
You can pause and rewind live TV by using Timeshift. Activating this function disables the Broadcasting function.
Try Now
To activate the Timeshift function while watching TV, press the button and then select Timeshift, or press the
button.
" This function is not available in the U.S.A. and Canada.
" This function may not be supported depending on the model or geographical area.
" When the Timeshift function is running, some functions are not available in Settings Broadcasting.
" To use Timeshift, you must connect a USB device for recording.
" Read all precautions before using the Timeshift function. For more information, refer to "Before Using the Recording and
Timeshift Functions."
Buttons and functions available while recording a program or
Timeshift
Review available buttons and functions of how they are used while recording a program or Timeshift.
" This function is not available in the U.S.A. and Canada.
" This function may not be supported depending on the model or geographical area.
" The available buttons and functions may differ with the functions.
When you press the down directional button, the control bar appears and the following options are available:
● Edit Recording Time
You can set for what period of time the program will be recorded.
" This function is only available when a program is being recorded.
- 71 -
● Record
You can switch from the Timeshift function to the recording function. When switching to the recording
function, you can include the content recorded by the Timeshift function in the new recording.
" This function is only available when the Timeshift function is running.
● Go to Live TV
Select to return to the current scenes of the program when the recording or Timeshift function is playing its
past scenes.
● Stop Recording / Stop Timeshift
Ends the recording or Timeshift function.
● Info
Displays the program info window of the program you are recording or time-shifting.
● Pause / Play
You can use the following functions when the video is paused. Note that with the video paused, the TV does
not play audio.
– Slow Rewind or Slow Forward: Allows you to play the video slowly (1/8, 1/4, 1/2) backward or forward by
selecting the or option. To increase the rewind or forward speed in slow mode up to 3 times, select
the option repeatedly. To return to normal speed, select the option.
" When the Slow Rewind function is activated, you can view the difference between the current recording time
and the current rewind time.
● Jump Backward / Jump Forward
Press the up directional button to move the focus to the playback control bar, and then select the left or right
directional button in the playback control bar to move backward or forward by 10 seconds in the video.
" When the Jump Backward function is activated, you can view the difference between the current recording time and
the current rewind time.
● Rewind / Fast Forward
" This function is not available while you are watching a program that is currently being broadcast.
- 72 -
Using the Channel List
Change the channel or check programs on other digital channels.
Live TV Channel List
Using the Channel List, you can change the channel or check programs on other digital channels while watching TV.
The Channel List screen contains the following icons:
● : A favorite channel
● : A locked channel.
If you press the right directional button when viewing the Channel List screen, you can use the following functions:
● All Channels
Displays the channels that the TV found during the Auto Program channel search.
● Favorites
Displays Favorites 1 to Favorites 5.
● Air or Cable
To allow you to select Air or Cable as the DTV mode, move the focus to Air or Cable, and then press the Select
button. Air is suitable for homes equipped with separate, over-the-air antennas. Cable is suitable for homes
that subscribe to a local cable-service. You do not need to use this function if your Evolution Kit is connected
to a cable box or satellite box.
" This function may not be supported depending on the incoming broadcast signal.
● TV PLUS
While the Evolution Kit is connected to the Internet, you can watch popular programs or highlights for each
theme through a virtual channel at any time. As with regular channels, the TV provides the daily program
schedules for TV PLUS.
" This function may not be supported depending on the model or geographical area.
- 73 -
Editing channels
Edit the channels stored on your Evolution Kit.
Live TV Channel List All Channels Edit Channels
The Edit Channels screen contains the following icons:
● : A favorite channel
● : A locked channel.
Re-registering and deleting a channel
Removing registered channels
To remove a channel, select it from the Edit Channels screen, and then select Delete. Removed channels do not
appear in the Channel List.
Adding back removed channels
You can add back removed channels from the Edit Channels screen only. Removed channels are displayed in gray in
the Edit Channels screen. To add back a removed channel, select it, and then select Restore.
Changing a channel name
After selecting a channel to change in Edit Channels, select Rename Channel to change the channel name.
" This function is only available for selected channels.
" This function is available for analog channels only.
- 74 -
Using Program Rating Lock
Settings Broadcasting Program Rating Lock Settings Try Now
This function is useful for controlling what children watch on TV. Program Rating Lock Settings does not, however,
block programs originating from external sources, such as Blu-ray players, DVD players, or USB files.
Every time you access Program Rating Lock Settings, you must enter the security PIN. You must also enter this PIN
to watch a blocked program. The default PIN is "0000." To change the PIN, go to Settings General
System Manager Change PIN.
" Program Rating Lock Settings may not be supported depending on your input signal.
" For more information about how to set your password, refer to "Setting up a password."
" For more information about the rating system of different countries, refer to "Blocking programs based on their TV Rating."
Watching blocked / restricted programs
To watch a blocked program, enter the PIN when requested.
When initially showing a restricted program or movie, the screen is blank because the Program Rating Lock Settings
blocks it. Enter the PIN to unblock the program when a message appears requesting the code.
Creating a Personal Favorites List
Designate frequently watched channels as favorite channels.
Favorite channels are highlighted in the Edit Channels and Channel List screens with the symbol. You can create
up to five favorites lists so that your family members can create their own personal favorites list.
Registering channels as favorites
Live TV Channel List
1.
Press the right directional button on your remote control.
2.
Select Favorites.
3.
Select one of the five favorites lists.
4.
Move to Edit Favorites.
5.
Select a channel to add to the favorites list.
6.
Select icon.
The selected channel is registered in the favorites list.
- 75 -
Viewing and selecting channels on Favorites lists only
Live TV Channel List
1.
Press the right directional button on your remote control.
2.
Select Favorites.
3.
Select the desired list among the five favorites lists on the screen.
The channels in the selected favorites list appear.
" Only favorites lists that contain registered channels will display channels.
Editing a Favorites List
Edit a favorites channel list.
Live TV Channel List
After pressing the right directional button on your remote control, select Favorites Favorites 1 - Favorites 5 Edit
Favorites. The Edit Favorites screen appears.
Adding channels to a favorites list
Select channels to add, and then select the icon. The selected channels are added to the favorites list.
Removing channels from a favorites list
Select channels in a favorites list, and then select the icon.
Rearranging a favorites list
Select one or more channels, and then select Change order. The Change order highlight appears. Press the up/down
directional buttons to indicate the new location for the channels. Press the Select button to set the channels into
their new location.
Renaming a favorites list
Select the favorites list you want to rename, and then select Rename Favorites. Enter a new name using the on-
screen keyboard that appears, and then select Done.
- 76 -
TV-Viewing Support Functions
Use the functions that are available while watching TV.
Changing the broadcast signal
Live TV Channel List
Press the right directional button on your remote control, move the focus to Air or Cable, and then press the Select
button.
" You do not need to use this function if your Evolution Kit is connected to a cable box or satellite box.
Scanning for available channels
Settings Broadcasting Auto Program Try Now
" Do not use this function if your Evolution Kit is connected to a cable box or satellite box.
" If the Evolution Kit has saved channels, Auto Program deletes the existing list, and then saves the newly scanned channels.
- 77 -
Configuring advanced broadcasting audio settings
Settings Broadcasting Audio Options
Audio Options functions differently for analog and digital channels.
" This function may not be supported depending on the model or geographical area.
Selecting a Language
Settings Broadcasting Audio Options Preferred Language
This is the language you will hear while watching TV if the language is included in the broadcast signal.
Listening to Multi-Track Sound
Settings Broadcasting Audio Options Multi-Track Sound
Checking digital channel signal info and strength
Settings Support Self Diagnosis Signal Information Try Now
" If your Evolution Kit is attached to a separate, over-the-air antenna, you can use the signal strength information to adjust
the antenna for increased signal strength and improved HD channel reception.
" This function is only available for digital channels.
" This function may not be supported depending on the geographical area.
- 78 -
Picture and Sound
You can change the settings for the picture and the sound according to your preference.
Configuring advanced picture settings
Adjust the settings of the picture quality.
Settings Picture Expert Settings Try Now
Configure the screen settings to your taste by using the following functions:
" To configure the picture quality settings such as Picture Mode, Backlight, Brightness, Sharpness, Color, and Tint (G/R),
adjust them on the TV's menu using the TV remote control.
● Digital Clean View Try Now
● Film Mode Try Now
" This function is only available when the input signal is TV, or HDMI (1080i).
● Output Frame Rate
Set the frame rate of the HDMI video output signal. When you set a frame rate, the TV screen momentarily
turns off and then turns on to apply the selected frame.
● Reset Picture Try Now
Setting the Viewing Environment for External Devices
You can optimize the TV for viewing specific video formats.
Viewing UHD videos
Settings General External Device Manager HDMI UHD Color Try Now
If an external UHD player is connected to the Evolution Kit, use the HDMI UHD Color function to convert the
Evolution Kit's HDMI connector to a mode optimized for the UHD 50P/60P signals.
" When you select the HDMI connector you want to use for HDMI UHD Color, and then press the Select button to set the
HDMI UHD Color function to On, the TV screen flickers.
" The HDMI connection with HDMI UHD Color set to Off supports up to UHD 50P/60P 4:2:0 input signals, while the
HDMI connection with HDMI UHD Color set to On supports up to UHD 50P/60P 4:4:4 and 4:2:2 input signals. For more
information, refer to "Supported Resolutions for UHD Input Signals."
" When you connect the Evolution Kit to an external device that supports only the UHD 24 or 30 Hz frequency or any FHD
frequency, the HDMI UHD Color function may not be available. In this case, set HDMI UHD Color to Off.
- 79 -
Using HDMI black level
Settings General External Device Manager HDMI Black Level Try Now
Use HDMI Black Level to adjust the black level to compensate for low black levels, low contrast, or dull colors
generated by external devices connected to the Evolution Kit via an HDMI cable.
" This function is only available when the input signal connected to the Evolution Kit via an HDMI connector is set to RGB444.
Changing the Picture Size and Position
Change the picture size and position for your TV.
Changing the picture size
Settings Picture Picture Size Settings Picture Size Try Now
You can change the size of the picture displayed on the TV screen.
● 16:9 Standard
● Custom
● 4:3
" Supported picture sizes differ with the input signal. For more information about supported picture sizes, refer to "Picture
sizes and input signals."
Fitting the picture to the screen
Settings Picture Picture Size Settings Fit to Screen Try Now
" This function may not be supported depending on the Picture Size setting.
" This function may not be supported depending on the broadcast signals.
Adjusting the picture size and/or position
Settings Picture Picture Size Settings Zoom and Position Try Now
" This function is available only if Picture Size is set to Custom.
" To change the picture position on analog channels, first enlarge the picture and then change the position.
- 80 -
Configuring advanced sound settings
Adjust the settings of the sound.
Settings Sound Expert Settings Try Now
You can personalize the sound quality by adjusting the following settings.
" To configure the sound settings such as Sound Mode and Sound Effect, adjust them on the TV's menu using the TV remote
control.
● HDMI Input Audio Format Try Now
● Digital Output Audio Format Try Now
● Audio Delay Try Now
● Auto Volume
● Sound Feedback
● Reset Sound
Using the Sound Support Functions
Configure the sound settings for your TV.
Selecting speakers
Settings Sound Sound Output Try Now
You can select which speakers the TV uses for audio output.
" External speakers may not be controlled with the Samsung Smart Remote. When an external speaker is enabled, some
sound menus are not supported.
Listening to the TV through Bluetooth devices
Settings Sound Sound Output Speaker List
You can connect Bluetooth audio devices to the Evolution Kit. They must be paired using the Evolution Kit's
Bluetooth function. For more information on pairing, refer to the Bluetooth audio device's operating manual.
" If the Evolution Kit fails to find a Bluetooth audio device, place the device closer to the Evolution Kit, and then select
Refresh.
" When you turn on a paired Bluetooth audio device, the Evolution Kit detects it automatically, and then displays a pop-up
window. Use this pop-up window to activate/deactivate the Bluetooth audio device.
" The sound quality may be affected by the condition of the Bluetooth connection.
" Before using a Bluetooth audio device, refer to “Read Before Using Bluetooth Devices."
- 81 -
Listening to the TV through a Samsung audio device that supports the Wi-Fi
function
For more information about how to connect and use a Samsung audio device that supports the Wi-Fi function, refer
to its user manual.
Using Samsung audio devices that support the Wi-Fi function to create a surround sound
configuration
Settings Sound Wi-Fi Speaker Surround Setup Try Now
If you've connected one or more Samsung wireless audio devices that support the Wi-Fi function to the Evolution
Kit, you can create an optimal sound set up by configuring the surround effect settings. You can select any of the
surround sound configurations, with or without a sound bar.
A surround sound configuration can be used if all of the following conditions are met:
● Two or more Samsung wireless speakers of the same type must be connected to the same wireless network.
● The Samsung audio devices that support the Wi-Fi function must be connected to the same wireless network
as the Evolution Kit.
" Surround sound configurations with a sound bar may not be supported depending on the product.
" If you activate the Screen Mirroring function while using Samsung audio devices that support the Wi-Fi function, the Wi-Fi
connection is disconnected.
" Mismatched video and audio lip-syncing may occur depending on the device type.
- 82 -
System and Support
You can configure system and support settings such as clock, timers, energy usage and software updates.
Using the Time Functions and the Timers
Set the current time and use the timer function.
Setting the current time
Settings General System Manager Time Try Now
You can set the Clock manually or automatically. Once the Clock is set, you can view the current time on the
Evolution Kit anytime.
You must set the clock in the following cases:
● The power cable is disconnected and then connected.
● The Clock Mode is changed from Auto to Manual.
● The Evolution Kit is not connected to the Internet.
● No broadcast signals are received.
Setting the clock automatically
Settings General System Manager Time Clock Clock Mode Auto
" This function works only when the Evolution Kit is connected to the Internet or is receiving digital broadcasts through a
connected antenna.
" The accuracy of the time information received may differ with the channel and signal.
" If you get your Evolution Kit signal from a cable broadcast receiver/set-top box or a satellite receiver/satellite set-top box
connected to an HDMI port, you must set the current time manually.
- 83 -
Adjusting the clock for DST and time zone
Settings General System Manager Time Clock
Sets the right time by setting Daylight Savings Time (DST) and your local time zone.
● Time Zone
Selects your time zone.
" This function is only available when the Clock Mode is set to Auto.
● DST
Automatically adjusts for Daylight Saving Time (DST).
" This function is only available when the Clock Mode is set to Auto.
Changing the current time
Settings General System Manager Time Clock Time Offset
Time Offset adjusts the time through a network connection.
This function is available only when all the following conditions are met:
" Clock Mode is set to Auto, the Evolution Kit is connected to the Internet through a local area network, and the Evolution Kit
fails to receive time information through normal broadcast signals.
Setting the clock manually
Settings General System Manager Time Clock Clock Mode Manual
When Clock Mode is set to Manual, you can directly enter the current time. Select the Date and Time by using the
directional buttons on the remote control.
- 84 -
Using the timers
Using the sleep timer
Settings General System Manager Time Sleep Timer
You can use this function to automatically shut off the TV after a pre-set period of time. You can set the sleep timer
for up to 180 minutes after which it will turn off the TV.
Turning off the TV using the off timer
Settings General System Manager Time Off Timer
You can set Off Timer to shut off the TV automatically at a specific time. Off Timer is only available if the Clock has
been set.
Using the Auto Protection Time
Setting the Auto Protection Time.
Settings General System Manager Auto Protection Time Try Now
Activate a screensaver when your TV displays a still image for two hours or more.
- 85 -
Updating the Evolution Kit's Software
View your Evolution Kit's software version and update it if necessary.
Settings Support Software Update Try Now
Updating the Evolution Kit's software to the latest version
[
DO NOT turn off the Evolution Kit's power until the update is complete. The Evolution Kit will turn off and on
automatically after completing the software update. Video and audio settings will be reset to their defaults
after a software update.
Updating through the Internet
Settings Support Software Update Update Now Try Now
" Updating from the Internet requires an active Internet connection.
Updating through a USB device
Settings Support Software Update Update Now
After downloading the update file from the Samsung website and storing it on a USB device, connect the USB device
to the Evolution Kit to update.
" To update using a USB flash drive, download the update package from Samsung.com to your computer. Then, save the
update package in the USB device's top-level folder. Otherwise, the Evolution Kit will not be able to locate the update
package.
Updating the Evolution Kit automatically
Settings Support Software Update Auto Update Try Now
If the Evolution Kit is connected to the Internet, you can have the Evolution Kit's software update itself automatically
while you are watching the TV. When the background update is completed, it is applied the next time the TV is turned
on.
If you agree to the Smart Hub terms and conditions, Auto Update is set to On automatically. If you want this function
disabled, use the Select button to turn it off.
" This function may take a longer time if another network function is running concurrently.
" This function requires an Internet connection.
- 86 -
Protecting the Evolution Kit from Hacking and Malicious Code
Protect your Evolution Kit from hacking attempts and malicious code.
Settings General System Manager Smart Security Try Now
You can use Smart Security to protect the Evolution Kit from hacking and malicious code when it is connected to the
Internet.
Scanning the Evolution Kit and connected storage for malicious code
Settings General System Manager Smart Security Scan
If malicious code is found, the results of the scan will appear on the screen. This result window displays all malicious
code found. You can quarantine (isolate) the code. Quarantining prevents it from executing.
1.
Select all the malicious code to quarantine.
2.
Select Isolate.
The selected malicious code is relocated to the Isolated List.
" The Isolated List displays all quarantined malicious codes.
- 87 -
Using Other Functions
View other functions.
Running the accessibility functions
Settings General Accessibility Try Now
Running Accessibility Shortcuts
The Accessibility Shortcuts provide easy access to the accessibility functions. To display the Accessibility Shortcuts,
press and hold the Volume button for 1 second or more. You can easily turn on or turn off the functions such as Voice
Guide, Video Description, Caption, High Contrast, Enlarge, Grayscale, Color Inversion, Learn TV Remote, Learn Menu
Screen, Multi-output Audio, etc.
" Even if the Voice Guide is set to Off or muted, the voice guide for Accessibility Shortcuts is enabled.
" The menus may not appear depending on the model or geographical area.
Enabling voice guides for the visually impaired
Settings General Accessibility Voice Guide Settings Try Now
You can activate voice guides that describe the menu options aloud to aid the visually impaired. To activate this
function, set Voice Guide to On. With Voice Guide on, the TV provides voice guides for channel change, volume adjust,
information on current and upcoming programs, schedule viewing, other TV functions, and various content in the
Internet, and in Search.
You can go to Voice Guide, and then press the Select button to turn the function on or off.
" The Voice Guide is provided in the language that is specified on the Language screen. However, some languages are not
supported by Voice Guide even though they are listed in the Language screen. English is always supported.
" For more information about the Evolution Kit language settings, refer to "Changing the menu language."
Changing the volume, speed, and pitch of the Voice Guide
You can configure the volume, speed, and pitch of the voice guide.
- 88 -
Enabling audio for the video description function
Settings General Accessibility Video Description Try Now
You can activate an audio guide that provides an audio description of video scenes for the visually impaired. This
function is only available with broadcasts that provide this service.
White text on black background (high contrast)
Settings General Accessibility High Contrast Try Now
You can change Smart Hub and setting menu screens to white text on a black background or change the transparent
TV menus to opaque so that text can be more easily read. To activate this function, set High Contrast to On.
" If High Contrast is on, some Accessibility menus are not available.
Setting the screen to black and white
Settings General Accessibility Grayscale Try Now
You can change the color of the TV screen to black and white to sharpen blurred edges caused by colors.
" If Grayscale is on, some Accessibility menus are not available.
" This function may not be supported depending on the model or geographical area.
Inverting the screen color
Settings General Accessibility Color Inversion Try Now
You can invert the colors of the text and background displayed on the TV screen to make it easier to read them.
" If Color Inversion is on, some Accessibility menus are not available.
" This function may not be supported depending on the model or geographical area.
- 89 -
Enlarging the font (for the visually impaired)
Settings General Accessibility Enlarge Try Now
You can enlarge the size of the font on the screen. To activate, set Enlarge to On.
Learning about the remote control (for the visually impaired)
Settings General Accessibility Learn TV Remote Try Now
This function helps individuals with a visual impairment to learn the positions of the buttons on the remote control.
When this function is activated, you can press a button on the remote control and the TV will tell you its name. Press
the button twice to exit Learn TV Remote.
" This function is only available when Voice Guide is enabled.
Learning about the TV menu
Settings General Accessibility Learn Menu Screen Try Now
Learn the menus on the TV screen. Once enabled, your TV will tell you the structure and features of the menus you
select.
" This function is only available when Voice Guide is enabled.
Showing captions
Settings General Accessibility Caption Settings Try Now
Set Caption to On to watch programs with the captions displayed.
" Captions are not displayed by programs that do not support captions.
" The Evolution Kit cannot control or modify DVD or Blu-ray subtitles. To control DVD or Blu-ray subtitles, use the sub-title
feature of the DVD or Blu-ray player and the player's remote control.
- 90 -
Selecting the caption language
Settings General Accessibility Caption Settings Caption Mode
● Default / CC1 ~ CC4 / Text1 ~ Text4
(Analog channels only) Operates in either analog TV channel mode or when a signal is supplied from an
external device to the Evolution Kit. (Depending on the broadcast signal, the analog caption function may or
may not work with digital channels.)
● Default / Service1 ~ Service6 / CC1 ~ CC4 / Text1 ~ Text4
(Digital channels only) Works with digital channels. Service1 – Service6 may not be available in digital caption
mode depending on the broadcast.
Setting the digital caption related options
Settings General Accessibility Caption Settings Digital Caption Options
You can change the font color, background color, and size settings, etc.
" The foreground and background colors and opacity settings cannot be the same.
" The Position function is activated only for programs that support broadcast captions.
Listening to the TV through Bluetooth devices (for the hearing impaired)
Settings General Accessibility Multi-output Audio
You can turn on both the TV speaker and Bluetooth devices at the same time. When this function is active, you can
set the volume of the Bluetooth devices higher than the volume of the TV speaker.
" This function may not be supported depending on the model or geographical area.
" When you connect Bluetooth devices to the Evolution Kit, Multi-output Audio is activated. For more information about
connecting Bluetooth devices to the Evolution Kit, refer to "Listening to the TV through Bluetooth devices."
- 91 -
Configuring advanced system settings
Settings General System Manager Try Now
Changing the menu language
Settings General System Manager Language Try Now
Setting up a password
Settings General System Manager Change PIN Try Now
The PIN input window appears. Enter a PIN. Enter it again to confirm it. The default PIN is "0000."
" If you forget your PIN, you can reset it with your remote control. With the TV turned on, press the following buttons on the
remote control in the order shown to reset the PIN to "0000."
On the Samsung Smart Remote: Select VOL button. Volume Up Volume Down Volume Up .
Restoring the Evolution Kit to the factory settings
Settings Support Self Diagnosis Reset Try Now
You can restore all Evolution Kit settings (excluding the Internet and network settings) to the factory defaults.
1.
Select Reset. The security PIN entry window appears.
2.
Enter the security PIN, and then select Yes. All settings are then reset. The TV turns off and on again
automatically and displays the Start Setup screen.
" For more information on Start Setup, refer to the user manual that came with the Evolution Kit.
- 92 -
Troubleshooting
If you have a problem with your TV, you can access various solutions while watching TV. If your problem is not
addressed in the Troubleshooting section, contact the Samsung Call Center.
Getting Support
Get help directly from Samsung if you have a problem with your Evolution Kit.
Getting support through Remote Management
Settings Support Remote Management Try Now
After consenting to our service agreement, you can use Remote Management to access Remote Support and have a
Samsung service technician diagnose your Evolution Kit, correct problems, and update your Evolution Kit's software
remotely via the web. You can also turn Remote Management on and off.
" You can also start this function by pressing and holding the button for 5 or more seconds.
" This function requires an Internet connection.
What is Remote Support?
Samsung Remote Support service offers you one-on-one support with a Samsung Technician who can remotely:
● Diagnose your Evolution Kit
● Adjust the Evolution Kit settings for you
● Perform a factory reset on your Evolution Kit
● Install recommended firmware updates
How does Remote Support Work?
You can easily get Samsung Remote Support service for your Evolution Kit:
1.
Call the Samsung Contact Center and ask for remote support.
2.
Open the menu on your Evolution Kit and go to the Support section. ( Settings Support)
3.
Select Remote Management, then read and agree to the service agreements. When the PIN screen appears,
provide the PIN number to the technician.
4.
The technician will then access your Evolution Kit.
- 93 -
Finding the contact information for service
Settings Support About This Evolution Kit Try Now
You can view the address of the Samsung website, the call center phone number, your Evolution Kit's model number,
your Evolution Kit's software version, Open Source License and other information you may need to get service
support from a Samsung call agent or the Samsung website.
" You can also view information by scanning the QR code of your Evolution Kit.
" You can also start this function by pressing and holding the button for 5 or more seconds. Continue holding the button
until the customer information pop-up window appears.
Requesting service
Settings Support Request Support Try Now
You can request service when you encounter a problem with the Evolution Kit. Select the item matching the
problem that you encountered, and then select Request Now or Schedule Appointment Request Send. Your
service request will be registered. The Samsung Contact Center will contact you to set up or confirm your service
appointment.
" You must agree to the terms and conditions for the service request.
" This function may not be supported depending on the geographical area.
" This function requires an Internet connection.
Diagnosing Evolution Kit operational issues
You can diagnose issues with your Evolution Kit and Smart Hub and run reset functions.
Settings Support Self Diagnosis Try Now
You can use the Picture Test to help diagnose video issues and the Sound Test to diagnose sound issues. You can also
view signal strength information for over-the-air digital signals, test the Smart Hub Internet connection, and run the
Smart Hub and Evolution Kit factory reset functions.
● Start Picture Test
● Start Sound Test
● Signal Information
● Start Smart Hub Connection Test
● Reset Smart Hub
● Reset
- 94 -
There Is a Problem with the Picture
When the TV has trouble with the picture, these steps may help resolve the problem.
Testing the picture
Settings Support Self Diagnosis Start Picture Test Try Now
Before you review the list of problems and solutions below, use Start Picture Test to determine if the problem is
caused by the Evolution Kit. Start Picture Test displays a high definition picture you can examine for flaws or faults.
The problem Try this!
Screen Brightness
If the TV screen is too dark or bright, try resetting the TV's settings first using the TV remote
control.
Unwanted Powering Off
See if Sleep Timer has been enabled. The Sleep Timer automatically turns the TV off after a
specified period of time.
● Settings General System Manager Time Sleep Timer
If the Sleep Timer has not been enabled, see if Off Timer has been enabled and disable it.
● Settings General System Manager Time Off Timer
Problems Powering On
If you are having problems powering on your TV, there are a number of things to check before
calling the service department.
Confirm that the power cord of the TV and Evolution Kit is connected correctly at both ends
and that the remote control is operating normally.
Make sure that the antenna cable or cable TV cable is firmly connected.
If you have a cable box or satellite box, confirm that it is plugged in and turned on.
Unable to find a Channel
If your Evolution Kit is not connected to a cable box or satellite box, run Auto Program.
● Settings Broadcasting Auto Program
- 95 -
The problem Try this!
The TV image does not
look as good as it did in
the store.
Store displays are tuned to a digital HD channel.
If you have an analog cable box or satellite box, upgrade to a digital cable box or satellite box.
Use HDMI cables to deliver HD (high definition) picture quality.
Many HD channels are upscaled from SD (Standard Definition) content. Look for a channel that
is broadcasting HD content.
● Cable/Satellite Subscribers: Try HD channels from the channel lineup.
● Air/Cable Antenna Connection: Try HD channels after running the Auto Program function.
● Settings Broadcasting Auto Program
Adjust the cable box or satellite box's video output resolution to 1080i or 720p.
The picture is distorted.
The compression of video content may cause picture distortions, especially in fast moving
pictures from sports programs and action movies.
If the signal reception is weak or poor, screen distortion may be visible but it is not a
malfunction.
Mobile phones used close to the Evolution Kit (within 3.2 ft) may cause noise on analog and
digital channels.
The color is poor or the
picture is not bright
enough.
Try resetting the picture settings on the TV using the TV remote control.
There is a dotted line on
the edge of the screen.
Change Picture Size Settings to 16:9 Standard.
● Settings Picture Picture Size Settings 16:9 Standard
The picture is black and
white.
Check whether Grayscale is set to On.
● Settings General Accessibility Grayscale
" If the test picture does not appear or there is noise or distortion, the Evolution Kit may have a problem. Contact Samsung’s
Call Center for assistance.
" If the test picture is displayed properly, there may be a problem with an external device. Please check the connections.
" If the problem persists, check the signal strength or refer to the external device’s user manual.
- 96 -
I Can't Hear the Sound Clearly
When the TV has difficulties with sound, these steps may help resolve the problem.
Testing the sound
Settings Support Self Diagnosis Start Sound Test Try Now
If the TV plays the Start Sound Test melody without distortion, there may be a problem with an external device or the
broadcast signal's strength.
" The sound level shown in the sound test differs from the actual volume. Volume control is available in the normal
operating screens.
The problem Try this!
There is no sound or the
sound is too low at maximum
volume.
Check the volume control of your TV, and then check the volume control of the external
device (cable box or satellite box, DVD, Blu-ray, etc.) connected to your Evolution Kit.
The picture is good but there
is no sound.
Set Sound Output to TV Speaker.
● Settings Sound Sound Output
If you are using an external device, check the device’s audio output option.
For example, you may need to change your cable box’s audio option to HDMI if the box
connected to your Evolution Kit is using an HDMI cable.
To listen to computer sound, connect an external speaker to the computer’s audio output
connector.
Reboot the connected device by disconnecting and then reconnecting the device’s power
cable.
The speakers are making an
odd sound.
Run Start Sound Test.
● Settings Support Self Diagnosis Start Sound Test
Make sure that the audio cable is connected to the correct audio output connector on the
external device.
For antenna or cable connections, check the signal information. A low signal level may
cause sound distortions.
- 97 -
There Is a Problem with the Broadcast
When the Evolution Kit has difficulties receiving broadcasts, these steps may help resolve the problem.
The problem Try this!
“Weak or No Signal”
displayed in TV mode/
cannot find channel.
Make sure the antenna cable is connected securely to the Evolution Kit.
Select Source to confirm that the correct input source has been selected.
If the Evolution Kit is not connected to a cable box or satellite box, run Auto Program to
search for channels.
● Settings Broadcasting Auto Program
The Evolution Kit is not
receiving all channels.
Confirm that the coaxial cable is securely connected to the Evolution Kit.
Run Start Setup or Auto Program.
● Settings General Start Setup
● Settings Broadcasting Auto Program
There are no captions with
digital channels.
Go to Caption Settings and change the Caption Mode.
● Settings General Accessibility Caption Settings Caption Mode
Some channels may not have caption data.
The picture is distorted.
The compression of the video content may cause picture distortions.
This is especially true with fast moving pictures from sports programs and action movies.
A weak signal can cause picture distortions. This is not a problem with the Evolution Kit.
The picture quality is low. Select high definition (HD) channels or programs.
My Computer / Game Console Won't Connect
When the Evolution Kit has difficulties connecting to a PC or game console, these steps may help resolve the
problem.
The problem Try this!
The "Mode Not Supported"
message appears.
Set output resolution of your PC or game console so it matches a resolution supported by
the Evolution Kit.
The video is OK but there is
no audio.
If you are using an HDMI connection, check the audio output setting on your PC.
If you are using an HDMI-to-DVI cable, a separate audio cable is required.
Note that the HDMI-to-DVI connection is only supported by the HDMI (DVI) port and this
port does not transmit audio.
To listen to the computer sound, connect external speakers to the audio output connection
of the computer.
- 98 -
The Evolution Kit Won't Connect to the Internet
When the Evolution Kit has difficulties connecting to the Internet, these steps may help resolve the problem.
The problem Try this!
The Evolution Kit cannot
connect to your network
or apps (for Internet
compatible models only).
Make sure the Evolution Kit has a network connection.
● Settings General Network Network Status
Contact your Internet service provider.
The wireless network
connection failed.
Confirm your wireless modem/router is on and connected to the Internet.
The wireless network signal
is too weak.
Position your wireless router, modem router, or access point in a central location.
Avoid putting it in a corner.
Use a wireless repeater to get an instant boost in your wireless signal strength.
Place the repeater halfway between your wireless router and your Evolution Kit.
The Schedule Recording/Timeshift Function Isn't Working
When Timeshift or Schedule recording aren't working, these steps may help resolve the problem.
The problem Try this!
Schedule Recording cannot be
used.
Check if there is a USB device connected to the Evolution Kit.
Recording will automatically stop if the signal becomes too weak.
Check the free space on the USB device.
The function will not work if there isn't enough storage space on the USB device.
" This function is not available in the U.S.A. and Canada.
" This function may not be supported depending on the model or geographical area.
- 99 -
Anynet+ (HDMI-CEC) Isn't Working
When Anynet+ (HDMI-CEC) isn't working, these steps may help resolve the problem.
The problem Try this!
Anynet+ does not work.
Confirm that the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices
only.
Check if the power cord of the Anynet+ device is properly connected.
Check the cable connections of the Anynet+ device.
Go to Anynet+ (HDMI-CEC) and see if Anynet+ (HDMI-CEC) has been set to On.
● Settings General External Device Manager Anynet+ (HDMI-CEC)
Anynet+ may not function when some other functions are active, including Channel Search,
Smart Hub, Initial Setup, etc.
If you have disconnected and then reconnected the HDMI cable, scan for devices again or turn
your Evolution Kit off and on.
I want to start Anynet+.
Move the focus to the Anynet+ device at Source, and then press the up directional
button to move to Anynet+, and then press the Select button.
Check if the Anynet+ device is properly connected to the Evolution Kit, and then select Anynet+
(HDMI-CEC) menu to see if Anynet+ (HDMI-CEC) is set to On.
● Settings General External Device Manager Anynet+ (HDMI-CEC)
I want to exit Anynet+.
Set Anynet+ (HDMI-CEC) to Off.
● Settings General External Device Manager Anynet+ (HDMI-CEC)
The message "Connecting
to Anynet+ device..." or
"Disconnecting from
Anynet+ device" appears
on the screen.
You cannot use the remote control when the Evolution Kit is configuring Anynet+ or switching
to a viewing mode.
Use the remote control after the Evolution Kit has completed the Anynet+ configuration or has
switched to a viewing mode.
The Anynet+ device won't
play.
You cannot use the play function when Start Setup is in progress.
The connected device is
not displayed.
Check whether the device supports Anynet+.
Anynet+ devices must be connected to the Evolution Kit using an HDMI cable. Make sure the
device is connected to your Evolution Kit with an HDMI cable. Some HDMI cables may not
support Anynet+.
Check whether the HDMI cable is properly connected.
Go to Anynet+ (HDMI-CEC) and see if Anynet+ (HDMI-CEC) has been set to On.
● Settings General External Device Manager Anynet+ (HDMI-CEC)
Scan for Anynet+ devices again.
If the connection is terminated because there has been a power failure or the HDMI cable has
been disconnected, please scan for the device again.
The TV audio is not being
played through the AV
receiver.
Connect the Evolution Kit and receiver with an optical cable.
To use the ARC function, connect to the ARC-specific HDMI port on the TV.
The ARC function is available only if the receiver is HDMI (ARC) compatible.
- 100 -
I Have Trouble Launching/Using Apps
When apps aren't working, these steps may help resolve the problem.
The problem Try this!
I launched an app, but
it's in English. How can I
change the language?
Languages supported by the app may be different from the user interface language.
The ability to change the language depends on the service provider.
My application is not
working.
Check with the service provider.
Refer to the Help section on the application service provider's website.
My File Won't Play
When files don't play, this may help resolve the problem.
The problem Try this!
Some files can't be
played.
This problem may occur with high-bitrate files.
Most files can be played back, but you might experience problems with high-bitrate files.
I Want to Reset the Evolution Kit
Initialize the settings to factory defaults.
Reset Path Description
Reset Settings
Settings
Support Self Diagnosis
Reset
Resets Picture, Sound, Broadcasting, and all other settings, except
for the network settings, to the default settings.
Reset Smart Hub
Settings
Support Self Diagnosis
Reset Smart Hub
Resets all Smart Hub settings to their factory defaults and
deletes all information related to Samsung accounts, linked
service accounts, Smart Hub service agreements, and Smart Hub
applications.
Reset Picture
Settings
Picture Expert Settings
Reset Picture
Resets current picture settings to the default settings.
For the settings such as the brightness and color of the TV screen,
reset the TV's picture settings using the TV remote control.
Reset Sound
Settings Sound
Expert Settings Reset
Sound
Resets current sound settings to the default settings.
- 101 -
Other Issues
Use these procedures to resolve other issues that may occur.
The problem Try this!
The picture won’t display in
full screen.
HD channels will have black bars on either side of the screen when displaying upscaled SD
(4:3) content.
Black bars will appear at the top and bottom of the screen when you watch movies that have
aspect ratios different from your TV.
Adjust the picture size options on your external device or set the Evolution Kit to full screen.
● Settings Picture Picture Size Settings Picture Size
The "Mode Not Supported"
message appears.
The output resolution of the attached device is not supported by the Evolution Kit.
Check the Evolution Kit's supported resolutions and adjust the external device’s output
resolution accordingly.
The Captions item in the
Evolution Kit is grayed out.
You can use the Caption function when the Evolution Kit's source is set to TV or when a USB
device is connected to the Evolution Kit.
When an external device is connected with an HDMI cable, the Caption function is
unavailable.
Adjust the caption setting on the external device.
The Evolution Kit smells of
plastic.
This smell is normal and will dissipate over time.
Signal Information under
Self Diagnosis isn't
activated.
Verify that the current channel is a digital channel.
Signal Information is only available for digital channels.
● Settings Support Self Diagnosis Signal Information
The remote control and/or
voice control does not work.
The Evolution Kit ships with protective stickers covering some of the sensors. Make sure all
of the stickers have been removed.
- 102 -
The problem Try this!
The Broadcasting function
has been deactivated.
Broadcasting is only available when the Source is set to TV.
Broadcasting cannot be accessed while you watch TV using a cable box or satellite box.
Broadcasting cannot be accessed while a recording is in progress or the Timeshift function
is running.
The Evolution Kit is making
a popping noise.
The expansion and contraction of the Evolution Kit's outer casing may cause a popping
noise.
This does not indicate a product malfunction.
The Evolution Kit is safe to use.
The Evolution Kit is making
a humming noise.
Your Evolution Kit utilizes high-speed switching circuits and high levels of electrical current.
Depending on the TV's brightness level, the Evolution Kit may seem slightly noisier than a
conventional TV.
Your Evolution Kit has undergone strict quality control procedures that meet our demanding
performance and reliability requirements.
Some noise coming from the Evolution Kit is considered normal and is not an acceptable
cause for an exchange or refund.
The software update over
the Internet has failed.
Check the network connection status.
● Settings General Network Network Status
If the Evolution Kit is not connected to a network, connect it to a network.
The upgrade stops if you already have the latest software version.
- 103 -
Precautions and Notes
You can get instructions and information that you must read after installation.
Before Using the Recording and Timeshift Functions
Read these instructions before using Recording and Timeshift.
Before using the recording and schedule recording functions
" Recording and schedule recording are not supported in the U.S.A. and Canada.
" Recording may not be supported depending on the model or geographical area.
● To set up a Schedule Recording, you must first set the Evolution Kit's clock. Set the Clock.
– Settings General System Manager Time Clock
● You can set up a maximum total of 30 Schedule Viewing and Schedule Recording entries.
● Recordings are DRM-protected and therefore cannot be played back on a computer or on a different TV. In
addition, these files cannot be played back on your Evolution Kit if its video circuit has been replaced.
● A USB hard drive with a speed of 5,400 rpm or above is recommended. However, RAID-type USB hard drives
are not supported.
● USB memory sticks are not supported.
● The total recording capacity may differ with the amount of available hard drive space and the recording
quality level.
● Schedule Recording requires at least 100 MB of free space on the USB storage device. Recording will stop if
the available storage space falls below 50 MB while recording is in progress.
● If the available storage space falls below 500 MB while both the Schedule Recording and Timeshift functions
are in progress, only the recording will stop.
● The maximum recording time is 720 minutes.
● Videos are played according to the Evolution Kit settings.
● If the input signal is changed while recording is in progress, the screen will go blank until the change is made.
In this case, recording will resume, but will not be available.
- 104 -
● When using the Record or Schedule Recording function, the actual recording may start a second or two later
than the specified time.
● If the Schedule Recording function is operating while a recording is being made on an HDMI-CEC external
device, the priority is given to the Schedule Recording.
● Connecting a recording device to the Evolution Kit automatically deletes abnormally saved recorded files.
● If the Sleep Timer has been set, the Evolution Kit will override these settings, continue to record, and turn off
after the recording has ended.
– Settings General System Manager Time Sleep Timer
Before using the timeshift function
" Timeshift is not supported in the U.S.A. and Canada.
" Timeshift may not be supported depending on the model or geographical area.
● A USB hard drive with a speed of 5,400 rpm or above is recommended. However, RAID-type USB hard drives
are not supported.
● USB memory sticks or flash drives are not supported.
● The total recording capacity may differ with the amount of available hard drive space and the recording
quality level.
● If the available storage space falls below 500 MB while both the Schedule Recording and Timeshift functions
are in progress, only the recording will stop.
● The maximum amount of time available for the Timeshift function is 90 minutes.
● The Timeshift function is not available for locked channels.
● Time-shifted videos are played according to the Evolution Kit settings.
● The Timeshift function may be terminated automatically once it reaches its maximum capacity.
● The Timeshift function requires at least 1.5 GB of free space available on the USB storage device.
- 105 -
Read Before Using APPS
Read this information before using APPS.
● Due to the product characteristics featured on Samsung Smart Hub, as well as limitations in available content,
certain features, applications, and services may not be available on all devices or in all territories. Visit http://
www.samsung.com for more information on specific device information and content availability. Services and
content availability are subject to change without prior notice.
● Samsung Electronics takes no legal responsibility whatsoever for any interruption of app services caused by
the service provider for any reason.
● Application services may be provided in English only and available content may differ with the geographical
area.
● For more information about applications, visit the applicable service provider's website.
● An unstable Internet connection may cause delays or interruptions. In addition, applications may terminate
automatically depending on the network environment. If this occurs, check your Internet connection and try
again.
● Application services and updates may become unavailable.
● Application content is subject to change by the service provider without prior notice.
● Specific services may differ with the version of the application installed on the Evolution Kit.
● An application's functionality may change in future versions of the application. If this occurs, run the
application's tutorial or visit the service provider's website.
● Depending on the service provider's policies, certain applications may not support multitasking.
- 106 -
Read Before Using the Internet Function
Read this information before using the Internet function.
● The Internet function is not compatible with Java applications.
● File download is not supported.
● The Internet function may not be able to access certain websites.
● The Evolution Kit does not support playback of flash videos.
● E-commerce for online purchases is not supported.
● With websites that have scrollable windows, scrolling a window can result in corrupted characters.
● ActiveX is not supported.
● Only a limited number of fonts are supported. Certain symbols and characters may not be displayed properly.
● The response to remote commands and the resulting on-screen display may be delayed while a web page is
loading.
● Loading a web page may be delayed or suspended completely with certain operating systems.
● Copy and paste operations are not supported.
● When composing an email or a simple message, certain functions such as the font size and color selection may
not be available.
● There is a limit to the number of bookmarks and the size of the log file that can be saved.
● The number of windows that can be opened concurrently differs with the search conditions and the TV model.
● Web browsing speed will differ with the network environment.
● Embedded videos in a web page cannot be played at the same time the PIP (picture-in-picture) function is
operating.
" This function may not be supported depending on the model or geographical area.
● If the Clock has not been set, browsing history will not be saved.
– Settings General System Manager Time Clock
● Browsing history is saved from latest to oldest, with the oldest entries being overwritten first.
- 107 -
● Depending on the types of video/audio codecs supported, you may not be able to play certain HTML5 video
and audio files.
● Video sources from PC-optimized streaming service providers may not play properly on our proprietary
Internet browser.
Read before setting up a wireless Internet connection
Precautions for wireless Internet
● The Evolution Kit supports the IEEE 802.11 a /b /g /n /ac communication protocols. Samsung recommends
using IEEE 802.11n. Video files stored on a device connected to the Evolution Kit via a Home Network may not
play back smoothly.
" Some of the IEEE 802.11 communication protocols may not be supported depending on the model.
● To use wireless Internet, the Evolution Kit must be connected to a wireless router or modem. If the wireless
router supports DHCP, the Evolution Kit can use a DHCP or static IP address to connect to the wireless
network.
● Select a channel that is not currently being used by the wireless router. If the channel set is currently being
used by the wireless router to communicate with another device, the result is usually interference and/or a
communications failure.
● Most wireless networks have an optional security system. To enable a wireless network's security system,
you need to create a password using characters and numbers. This password is then needed to connect to a
security-enabled AP.
Wireless security protocols
The Evolution Kit only supports the following wireless network security protocols. The Evolution Kit cannot connect
to non-certified wireless routers.
– Authentication Modes: WEP, WPAPSK, WPA2PSK
– Encryption Types: WEP, TKIP, AES
In compliance with the newest Wi-Fi certification specifications, the Evolution Kit do not support WEP or TKIP
security encryption in networks running in the 802.11n mode. If the wireless router supports WPS (Wi-Fi Protected
Setup), you can connect the Evolution Kit to your network using PBC (Push Button Configuration) or a PIN (Personal
Identification Number). WPS automatically configures the SSID and WPA key settings.
- 108 -
Read Before Playing Photo, Video, or Music Files
Read this information before playing media content.
Limitations to the use of photo, video, and music files Try Now
● The Evolution Kit supports MSC (Mass Storage Class) USB devices only. MSC is a class designation for mass
storage devices. Types of MSC devices include external hard drives, flash card readers, and digital cameras.
(USB hubs are not supported.) These kinds of devices must be connected directly to the USB port. The
Evolution Kit may not be able to recognize a USB device or read the files on the device if it is connected with a
USB extension cable. Do not disconnect USB devices while they are transferring files.
● When connecting an external hard drive, use the USB (HDD) port. We recommend that you use an external
hard drive with its own power adapter.
● Certain digital cameras and audio devices may not be compatible with the Evolution Kit.
● If there are multiple USB devices connected to the Evolution Kit, the Evolution Kit might not be able to
recognize some or all the devices. USB devices that use high-power input should be connect to the USB [5V,
1A] port.
● The Evolution Kit supports the FAT, exFAT, and NTFS file systems.
● After sorting files in the Folder view mode, the Evolution Kit can display up to 1,000 files per folder. If the USB
device contains more than 8,000 files and folders, however, some files and folders might not be accessible.
● Certain files, depending on how they are encoded, may not play on the Evolution Kit.
● Certain files are not supported on all models.
● The Evolution Kit does not support UHD Video Pack content.
● The Evolution Kit does not support DivX and DTS codecs.
- 109 -
Supported external subtitles
Name Format
MPEG-4 Timed text .ttxt
SAMI .smi
SubRip .srt
SubViewer .sub
Micro DVD .sub or .txt
SubStation Alpha .ssa
Advanced SubStation Alpha .ass
SMPTE-TT Text .xml
Supported internal subtitles
Name Container
Xsub AVI
SubStation Alpha MKV
Advanced SubStation Alpha MKV
SubRip MKV
VobSub MKV
MPEG-4 Timed text MP4
TTML in smooth streaming MP4
SMPTE-TT TEXT MP4
SMPTE-TT PNG MP4
- 110 -
Supported image formats and resolutions
File extension Format Resolution
JPEG 15360 x 8640
*.png PNG 4096 x 4096
*.bmp BMP 4096 x 4096
*.mpo MPO 15360 x 8640
" The MPO format is supported partly.
Supported music formats and codecs
File extension Format Codec Note
*.mp3 MPEG MPEG1 Audio Layer 3
*.m4a
*.mpa
*.aac
MPEG4 AAC
*.flac FLAC FLAC
Supports up to 2 channels
*.ogg OGG Vorbis
Supports up to 2 channels
*.wma WMA WMA
WMA is supported up to 10 Pro 5.1 channels, M2 profile.
WMA1, WMA lossless / Voice are not supported.
*.wav wav wav
*.mid
*.midi
midi midi
Supports type 0 and type 1.
Seek is not supported.
Supports USB device only.
*.ape ape ape
*.aif
*.aiff
AIFF AIFF
*.m4a ALAC ALAC
- 111 -
Supported video codecs
File
format
Container Video codecs Resolution
Frame rate
(fps)
Bitrate
(Mbps)
Audio codecs
H.264 BP/MP/HP
4096 x 2160
4096 x 2160: 30
3840 x 2160: 60
60
HEVC (H.265 - Main, Main10) 60 80
*.avi
*.mkv
Motion JPEG 3840 x 2160 30 80
*.asf
*.wmv
MVC
Dolby Digital
LPCM
*.mp4
*.mov
AVI
MKV
MPEG4 SP/ASP
ADPCM(IMA, MS)
AAC
*.3gp
*.vro
ASF
MP4
Window Media Video v9 (VC1) 60
HE-AAC
WMA
*.mpg
*.mpeg
*.ts
3GP
MOV
FLV
MPEG2
Dolby Digital Plus
MPEG(MP3)
*.tp
*.trp
VRO
VOB
MPEG1
1920 x 1080 20
MPEG-H
AC-4
*.mov
*.flv
PS
TS
Microsoft MPEG-4 v1, v2, v3
G.711(A-Law,
μ-Law)
*.vob
*.svi
SVAF Window Media Video v7 (WMV1),
v8 (WMV2)
30
OPUS
*.m2ts
*.mts
H.263 Sorrenson
VP6
*.webm WebM
VP8 1920 x 1080 60 20
Vorbis
VP9 (Supported up to profile 0,
profile 2)
3840 x 2160 3840 x 2160: 60 80
*.rmvb RMVB RV8/9/10 (RV30/40) 1920 x 1080 60 20 RealAudio 6
- 112 -
Other restrictions
● Codecs may not function properly if there is a problem with the content.
● Video content does not play or does not play correctly if there is an error in the content or container.
● Sound or video may not work if they have standard bit rates/frame rates above the Evolution Kit's
compatibility ratings.
● If the Index Table is has an error, the Seek (Jump) function will not work.
● When playing video over a network connection, the video may not play smoothly because of data transmission
speeds.
● Some USB/digital camera devices may not be compatible with the Evolution Kit.
● HEVC codec is only available in MKV / MP4 / TS containers.
● The MVC codec is supported partly.
Video decoders
● H.264 UHD is supported up to Level 5.1, and H.264 FHD is supported up to Level 4.1. (The Evolution Kit does not
support FMO / ASO / RS)
● HEVC UHD is supported up to Level 5.1, and HEVC FHD is supported up to Level 4.1.
● VC1 AP L4 is not supported.
● GMC 2 or above is not supported.
Audio decoders
● WMA is supported up to 10 Pro 5.1 channels, M2 profile.
● WMA1, WMA lossless / Voice are not supported.
● QCELP and AMR NB/WB are not supported.
● Vorbis is supported for up to 5.1 channels.
● Dolby Digital Plus is supported for up to 5.1 channels.
● The supported sample rates are 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, and 48 KHz, and differ with the codec.
- 113 -
Picture sizes and input signals
Check the picture sizes that are applied to external devices according to their input signals.
The Picture Size settings are applied to the current source. The applied Picture Size Settings will remain in effect
whenever you select that source unless you change them.
Input signal Picture size
Digital channel (720p) 16:9 Standard, Custom, 4:3
Digital channel (1080i, 1080p) 16:9 Standard, Custom, 4:3
Digital channel (3840 x 2160p @ 24/30 Hz) 16:9 Standard, Custom
Digital channel (3840 x 2160p @ 50/60 Hz) 16:9 Standard, Custom
Digital channel (4096 x 2160p) 16:9 Standard, Custom
HDMI (720p) 16:9 Standard, Custom, 4:3
HDMI (1080i, 1080p) 16:9 Standard, Custom, 4:3
HDMI (3840 x 2160p) 16:9 Standard, Custom
HDMI (4096 x 2160p) 16:9 Standard, Custom
USB (720p) 16:9 Standard, Custom, 4:3
USB (1080i/p @ 60 Hz) 16:9 Standard, Custom, 4:3
USB (3840 x 2160p @ 24/30 Hz) 16:9 Standard, Custom
USB (3840 x 2160p @ 60 Hz)
USB (4096 x 2160p @ 24/30/60 Hz)
16:9 Standard, Custom
- 114 -
Supported Resolutions for UHD Input Signals
Check the supported resolution for UHD input signals.
● Resolution: 3840 x 2160p, 4096 x 2160p
" An HDMI connection with HDMI UHD Color set to Off supports up to UHD 50P/60P 4:2:0 input signals, while an HDMI
connection with HDMI UHD Color set to On supports up to UHD 50P/60P 4:4:4 and 4:2:2 input signals.
If HDMI UHD Color is set to Off
Frame rate (fps)
Color Depth /
Chroma Sampling
RGB 4:4:4 YCbCr 4:4:4 YCbCr 4:2:2 YCbCr 4:2:0
50 / 60 8 bit - - - O
If HDMI UHD Color is set to On
Frame rate (fps)
Color Depth /
Chroma Sampling
RGB 4:4:4 YCbCr 4:4:4 YCbCr 4:2:2 YCbCr 4:2:0
8 bit O O O O
50 / 60 10 bit - - O O
12 bit - - O O
- 115 -
Read Before Connecting a Computer (Supported Resolutions)
Check the resolutions supported for PC input signals.
When you connect your Evolution Kit to a computer, set the computer's video card to one of the standard resolutions
listed in the tables below or on the next page. The Evolution Kit will automatically adjust to the resolution you
choose. Note that the optimal and recommended resolution is 3840 x 2160 at 60 Hz. Choosing a resolution not
included in the tables can result in a blank screen or just the power indicator turning on. Refer to the user manual of
your graphics card for compatible resolutions.
" The native resolution is 3840 x 2160 at 60 Hz with the HDMI UHD Color set to On. The native resolution is 3840 x 2160 at 30
Hz with the HDMI UHD Color set to Off.
IBM
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
720 x 400 70 Hz 31.469 70.087 28.322 - / +
MAC
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
640 x 480 67 Hz 35.000 66.667 30.240 - / -
832 x 624 75 Hz 49.726 74.551 57.284 - / -
1152 x 870 75 Hz 68.681 75.062 100.000 - / -
- 116 -
VESA DMT
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
640 x 480 60 Hz 31.469 59.940 25.175 - / -
640 x 480 72 Hz 37.861 72.809 31.500 - / -
640 x 480 75 Hz 37.500 75.000 31.500 - / -
800 x 600 60 Hz 37.879 60.317 40.000 + / +
800 x 600 72 Hz 48.077 72.188 50.000 + / +
800 x 600 75 Hz 46.875 75.000 49.500 + / +
1024 x 768 60 Hz 48.363 60.004 65.000 - / -
1024 x 768 70 Hz 56.476 70.069 75.000 - / -
1024 x 768 75 Hz 60.023 75.029 78.750 + / +
1152 x 864 75 Hz 67.500 75.000 108.000 + / +
1280 x 720 60 Hz 45.000 60.000 74.250 + / +
1280 x 800 60 Hz 49.702 59.810 83.500 - / +
1280 x 1024 60 Hz 63.981 60.020 108.000 + / +
1280 x 1024 75 Hz 79.976 75.025 135.000 + / +
1440 x 900 60 Hz 55.935 59.887 106.500 - / +
1600 x 900 60 Hz 60.000 60.000 108.000 + / +
1680 x 1050 60 Hz 65.290 59.954 146.250 - / +
1920 x 1080 60 Hz 67.500 60.000 148.500 + / +
VESA CVT
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
2560 x 1440 120 Hz 182.996 119.998 497.750 + / -
" The resolution may not be supported depending on the model.
- 117 -
CTA-861
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
3840 x 2160 30 Hz 67.500 30.000 297.000 - / -
*3840 x 2160 60 Hz 135.000 60.000 594.000 - / -
**1920 x 1080 100 Hz 112.500 100.000 297.000 + / +
**1920 x 1080 120 Hz 135.000 120.003 297.000 + / +
" *: This resolution is only supported by HDMI 2.0 mode.
" **: The resolution may not be supported depending on the model.
Supported Resolutions for Video Signals
Check the resolutions supported for video signals.
CTA-861
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
720 (1440) x 576i 50 Hz 15.625 50.000 27.000 - / -
720 (1440) x 480i 60 Hz 15.734 59.940 27.000 - / -
720 x 576 50 Hz 31.250 50.000 27.000 - / -
720 x 480 60 Hz 31.469 59.940 27.000 - / -
1280 x 720 50 Hz 37.500 50.000 74.250 + / +
1280 x 720 60 Hz 45.000 60.000 74.250 + / +
1920 x 1080i 50 Hz 28.125 50.000 74.250 + / +
1920 x 1080i 60 Hz 33.750 60.000 74.250 + / +
1920 x 1080 24 Hz 27.000 24.000 74.250 + / +
1920 x 1080 25 Hz 28.125 25.000 74.250 + / +
1920 x 1080 30 Hz 33.750 30.000 74.250 + / +
1920 x 1080 50 Hz 56.250 50.000 148.500 + / +
1920 x 1080 60 Hz 67.500 60.000 148.500 + / +
- 118 -
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
3840 x 2160 24 Hz 54.000 24.000 297.000 + / +
3840 x 2160 25 Hz 56.250 25.000 297.000 + / +
3840 x 2160 30 Hz 67.500 30.000 297.000 + / +
*3840 x 2160 50 Hz 112.500 50.000 594.000 + / +
*3840 x 2160 60 Hz 135.000 60.000 594.000 + / +
4096 x 2160 24 Hz 54.000 24.000 297.000 + / +
4096 x 2160 25 Hz 56.250 25.000 297.000 + / +
4096 x 2160 30 Hz 67.500 30.000 297.000 + / +
*4096 x 2160 50 Hz 112.500 50.000 594.000 + / +
*4096 x 2160 60 Hz 135.000 60.000 594.000 + / +
**1920 x 1080 100 Hz 112.500 100.000 297.000 + / +
**1920 x 1080 120 Hz 135.000 120.003 297.000 + / +
" *: This resolution is only supported by HDMI 2.0 mode.
" **: The resolution may not be supported depending on the model.
VESA CVT
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
2560 x 1440 120 Hz 182.996 119.998 497.750 + / -
" The resolution may not be supported depending on the model.
- 119 -
Read Before Using Bluetooth Devices
Read this information before using a Bluetooth device.
Restrictions on using Bluetooth
● You can't use Bluetooth devices and the Wi-Fi Speaker Surround Setup feature simultaneously.
● Compatibility issues may occur, depending on the Bluetooth device. (A Mobile exclusive headphone may not
be available, depending on the environment.)
● Lip-sync errors may occur.
● The Evolution Kit and Bluetooth device may disconnect, depending on the distance between them.
● A Bluetooth device may hum or malfunction:
– When a part of your body is in contact with the receiving/transmitting system of the Bluetooth device or
the Evolution Kit.
– When the device is subject to electrical variation from obstructions caused by a wall, corner, or office
partitioning.
– When the device is exposed to electrical interference from same frequency-band devices including
medical equipment, microwave ovens, and wireless LANs.
● If the problem persists, we recommend you use a wired connection.
– DIGITAL AUDIO OUT (OPTICAL) port
- 120 -
Blocking programs based on their TV Rating
Read this information before viewing a blocking program.
To block content, select a rating category to lock. All programs at that level and higher are blocked and require the
PIN to watch. To unblock a category, select the lock icon. To unblock all the categories in a row, select the lock under
ALL.
" This function may not be supported depending on the model or geographical area.
Categories on the left:
● TV-Y: Young children
● TV-Y7: Children 7 and over
● TV-G: General audience
● TV-PG: Parental guidance
● TV-14: Viewers 14 and over
● TV-MA: Mature audience
Categories on the top:
● ALL: Lock all TV ratings.
● FV: Fantasy violence
● V: Violence
● S: Sexual situations
● L: Adult Language
● D: Sexually Suggestive Dialog
- 121 -
Blocking movies base on their Movie Rating (MPAA)
This rating system applies to all materials with supplied ratings in the U.S.A.
From the MPAA:
“The Motion Picture Association of America (MPAA) has implemented a rating system that provides parents or
guardians with advanced information on which films are appropriate for children.”
Select a lock beside one of the rating categories to block that category and all higher categories. To unblock a
category, select the lock icon.
● G: General audience (no restrictions).
● PG: Parental guidance suggested.
● PG-13: Parents strongly cautioned.
● R: Restricted. Children under 17 should be accompanied by an adult.
● NC-17: No children under age 17.
● X: Adults only.
● NR: Not rated.
Blocking programs based on their Canadian English Rating
This rating system applies to all rated material viewed on English-Canadian TV channels.
Select a lock beside one of the rating categories to block that category and all higher categories. To unblock a
category, select the lock icon.
● C: Programming intended for children under age 8
● C8+: Programming generally considered acceptable for children 8 years and over to watch on their own
● G: General programming, suitable for all audiences
● PG: Parental Guidance
● 14+: Programming containing themes or content that may not be suitable for viewers under the age of 14
● 18+: Adult programming
- 122 -
Blocking programs based on their Canadian French Rating
This rating system applies to all rated material viewed on French-Canadian TV channels.
Select a lock beside one of the rating categories to block that category and all higher categories. To unblock a
category, select the lock icon.
● G: General
● 8 ans+: Programming acceptable for children 8 years and over to watch on their own
● 13 ans+: Programming that may not be suitable for children under the age of 13
● 16 ans+: Programming not suitable for children under the age of 16
● 18 ans+: Programming restricted to adults
Blocking Programs based on their Downloadable U.S. Rating
This rating system only applies to material originating from US DTV channels.
Parental restriction information is automatically downloaded while you watch DTV channels. This download may
take several seconds. If the information is unavailable from the broadcasting station, the Downloadable U.S. Rating
menu is deactivated.
Parental restriction levels differ with the broadcasting station. The default menu name and the Downloadable U.S.
Rating name changes depending on the downloaded information.
Even when the on-screen display is set to another language, the Downloadable U.S. Rating menu appears only in
English.
Select a lock beside one of the rating categories to block that category and all higher categories. To unblock a
category, select the lock icon.
- 123 -
Buttons and functions available while playing multimedia
content
Review available media playback, control, and record buttons and descriptions of how they are used.
Press the Select button while playing any video, photo, or recorded content. The following buttons appear.
" The provided buttons and functions may not be supported depending on the model or geographical area.
" The available buttons and functions may differ with the content you are viewing or playing.
● Pause / Play
Pauses or plays the multimedia content. You can use the following functions when the video is paused. Note
that with the video paused, the TV does not play audio.
– Slow Rewind or Slow Forward: Allows you to play a video slowly backward or forward by selecting the
or option. There are 3 playback speeds. To change the playback speed, press the option repeatedly. To
return to normal speed, select the option or press the button.
● Jump Backward / Jump Forward
Press the up directional button to move the focus to the playback control bar, and then select the left or right
directional button in the playback control bar to move backward or forward by 10 seconds in the video.
● Move to a specific playback section, move up the focus on the playback bar, and then select one of the five
thumbnails.
" This function may not be supported depending on the file format.
● Previous / Next
Displays the previous or the next multimedia content file.
● Rewind / Fast Forward
Rewinds or fast forwards the multimedia content. To increase the rewind or fast forward speed up to 3 times
faster than normal, select the button repeatedly. To return to normal speed, select the option or press the
button.
- 124 -
● 360 Mode
Provides a 360-degree view for videos and photos.
" This function may not be supported depending on the file format.
" Video files using the mjpeg codec do not support a 360-degree view.
" When a video or photo does not support a 360-degree view, applying 360 rotation to it may cause the screen to look
distorted.
" Videos may be interrupted if 360 rotation is applied during double speed playback.
" Videos that support a 360-degree view may be interrupted if 360 rotation is simultaneously applied with other
functions during playback.
● Repeat
Plays the current multimedia content repeatedly or all multimedia content files in the same folder repeatedly.
● Shuffle
Plays music files in random order.
● Screen Fit
Fits a photo to the screen.
● Rotate left / Rotate right
Rotates a photo left or right.
● Zoom
Zooms in a photo.
● Background Music
During a slideshow, pauses or resumes the background music.
- 125 -
● Options
" The available options may differ with the content.
Function Description
Slideshow Speed Sets the slideshow speed.
Slideshow Effect Applies transition effects to the slide show.
Background Music
Plays background music while the TV displays photos.
" The music files must be saved in the same USB device as the photo files.
" To pause the background music, select Background Music on the playback screen bottom.
Subtitles
Controls video subtitles.
Subtitles: Turns the language of the subtitles on or off.
Sync: Adjusts the synchronization when the video and the subtitles are not synchronized.
Reset Sync: Resets the subtitle synchronization adjustment to 0.
Size: Changes the font size of the subtitles.
Encoding: Displays a list of encoding languages. Allows you to change the encoding language
when subtitles are displayed incorrectly.
Edge Type: Adjusts the position of text and subtitle edges.
Edge Color: Changes the color of subtitle edges.
Rotate Rotates the video.
Audio Language
Changes the audio language.
" This function is only available if the video supports multi-track sound.
Information Displays detailed information about the current multimedia content.
- 126 -
License
Check the license information and trademarks applied in your Evolution Kit.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarksof
Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
Open Source License Notice
Open Source used in this product can be found on the following webpage. (http://opensource.samsung.com) Open Source License
Notice is written only English.
" This license may not be supported depending on the model or geographical area.
- 127 -
Accessibility Guidance
Provides a menu and a remote control guide that aid the visually impaired.
Learn the Menu Screen
Learn the menus on the TV screen. Once enabled, your TV will tell you the structure and features of the menus you
select.
Using the Remote control
Guide for the Samsung Smart Remote.
" The Samsung Smart Remote is supplied as the standard remote control for the Evolution Kit.
Orientation of the Samsung Smart Remote
Hold the remote control with the buttons facing towards you. The remote is slightly thinner towards the top and
thicker towards the bottom.
Description of the Samsung Smart Remote
From top to bottom and left to right:
● The button is at the top left.
● There is a small LED to the right of the button, but it cannot be felt by hand.
● Below the LED is a round button which is the button.
● Of the two buttons below the button on the Samsung Smart Remote, the left one is the button and
the right one the button.
● Underneath these two buttons is the directional button which consists of a large outer circle with a round
button in the middle.
● Underneath the directional button are three buttons, one on the left, one on the right, and one in the center.
The one on the left is the button and the one on the right is the button. The round button in the
middle is the button.
- 128 -
● Underneath the button are two thin horizontal buttons. These buttons protrude higher above the surface
than the other buttons on the remote control. The one on the left is the volume button and the one on the
right is the channel button. Push up from beneath or down from above to use these as rocker buttons to
change the channel or volume.
– Briefly press the VOL button to mute the sound.
– Press and hold the VOL button to open the Accessibility Shortcuts menu.
– Briefly press the CH button to open the Guide.
" This function may not be supported depending on the model or geographical area.
The color buttons
If you press the button while viewing a program, the Record, Timeshift, Stop (when Record or Timeshift is
running), Info, red, green, yellow, blue, and Move to the top (or Move to the bottom) options appear.
" This function may not be supported depending on the geographical area.
The play/pause button
If you press the button while watching a TV program, the screen you are watching stops and a control bar
appears. You can select Rewind, Play, Pause, Fast Forward, Stop Timeshift, Record, Go to Live TV, or Info. You can
press the up directional button to go to the playback screen and check the time that the actual broadcast program is
running and the timeshift time.
" You can use the Slow Rewind or Slow Forward functions when select the Pause option.
" To use Record or Timeshift, you must connect a USB device.
" This function may not be supported depending on the model or geographical area.
- 129 -
Using the accessibility menu
View descriptions of accessibility menu functions.
" This function may not be supported depending on the model or geographical area.
Accessibility Shortcuts menu
Press and hold the VOL button to display the Accessibility Shortcuts menu.
The Accessibility Shortcuts menu allows you to turn Voice Guide and other Accessibility functions on or off. Voice
Guide speaks the names of the menu items displayed on the screen so that people who cannot see the screen can
easily use the TV.
The menu contains a number of items including:
● Voice Guide: This function works on every screen on the TV and when turned on speaks to identify items
displayed on screen. For example, it tells you the selected volume, the current channel and program
information. It also reads out the program information in the Electronic Program Guide (EPG).
● Caption: This function allows you to turn on captions in programs that provide broadcast captions.
" In programs that provide broadcast captions, the Position function is activated so that you can change the caption
position.
● High Contrast: This function allows you to display all menus with an opaque black background and a white
font, providing maximum contrast.
● Enlarge: This function enlarges important elements on the screen such as the names of programs.
● Learn TV Remote: Learn the names and functions of the buttons on remote control. On this screen, pressing
the power button (top left button) will turn off the TV, but when any other button is pressed the TV will say the
button name and briefly tell what that button does. This teaching mode helps you to learn the location and
operation of the buttons on the remote without affecting normal TV operation. Press the button twice to
exit Learn TV Remote.
● Learn Menu Screen: Learn the menus on the TV screen. Once enabled, your TV will tell you the structure and
features of the menus you select.
- 130 -
Opening the Accessibility Shortcuts menu
On the Samsung Smart Remote, there are two thin horizontal rocker buttons next to each other located slightly
below the middle of the remote. The one on the left is the volume rocker button. Press and hold the volume rocker
button to open the Accessibility Shortcuts menu.
If you press and hold the VOL button while Voice Guide is turned off, the Accessibility Shortcuts menu appears and
Voice Guide starts. You can turn on or turn off the functions such as Voice Guide, Video Description, Caption, High
Contrast, Enlarge, Grayscale, Color Inversion, Multi-output Audio, and you can move to the Learn TV Remote and
Learn Menu Screen pages.
" Learn TV Remote and Learn Menu Screen are only available when Voice Guide is enable.
Using the Accessibility Shortcuts menu
To use the Accessibility Shortcuts menu, you will need to locate the Directional and Select buttons. To learn where
the buttons are located, refer to the Learn TV Remote menu.
Use the up and down directional buttons to move between the menu items. Press the Select button to turn on or
turn off the function indicated by the menu where you are located. Again, use the up and down directional buttons to
move between options and press Select to choose an option. To close this menu, use the right directional button to
get to the Close option and select this, or press the button.
Step by Step instructions to run the options
Turning on Voice Guide
1.
Press and hold the VOL button on the remote. The Accessibility Shortcuts menu appears.
2.
Press the up or down directional buttons on the remote to move to and highlight the Voice Guide option.
3.
Press the Select button on the remote to turn Voice Guide on or off.
4.
Close the menu either by pressing on the remote or by pressing the right directional button to highlight
Close, and then pressing the Select button.
- 131 -
Turning on Video Description
1.
Press and hold the VOL button on the remote. The Accessibility Shortcuts menu appears.
2.
Press the up or down directional buttons on the remote to move to and highlight the Video Description option.
3.
Press the Select button on the remote to turn Video Description on or off.
4.
Close the menu either by pressing on the remote or by pressing the right directional button to highlight
Close, and then pressing the Select button.
" This function is only available when it is supported by the program that is currently broadcasting.
Learning TV Remote
1.
Press and hold the VOL button on the remote. The Accessibility Shortcuts menu appears.
2.
Press the up or down directional buttons on the remote to move to and highlight the Learn TV Remote option.
3.
Press the Select button on the remote. You are now in the e-Manual and specifically on the Learn TV Remote
page.
4.
Press a button on the remote. The name and function of the button are heard.
5.
When you have finished and want to exit the e-Manual, press the button twice to exit Learn TV Remote.
" This function is only available when Voice Guide is enabled.
Accessing the main accessibility menu to change Voice Guide settings
You can also go to an accessibility menu from the Evolution Kit settings menu. This provides more options, for
example, to change the speed of Voice Guide.
The TV will not verbalize this menu unless Voice Guide is already turned on.
1.
Press the button.
2.
Press the left directional button until you reach Settings.
3.
Press Select and a menu will open.
4.
Press the down directional button to reach General, and then press Select to open this menu.
5.
Use the directional buttons to go to the Accessibility menu, and then press Select to open this menu.
6.
The menu will appear with Voice Guide Settings being the first menu. Highlight Voice Guide Settings, and then
press Select.
7.
A menu appears with the options to change Voice Guide and Volume, Speed, Pitch.
8.
Select the menu using the directional buttons, and then press Select.
- 132 -
Setting accessibility settings using Bixby
Bixby lets you control your TV with voice commands spoken into the microphone built into the Samsung Smart
Remote. To use Bixby, the Evolution Kit must be set up and tuned and must be connected to the Internet. You can
connect the Evolution Kit to the Internet during the initial setup or do it later through the settings menu.
There are many commands you can say to control the TV. These can be used together with Voice Guide to give you
voice input and voice output.
To speak a command, press and hold the button (located near the top of the Samsung Smart Remote, directly
below the LED power indicator and above the directional button) and say the command, and then release the
button. The TV will confirm the command.
For example you can:
Turn Voice Guide on:
Press the button on the Samsung Smart Remote, and then say “Voice Guide on.”
Turn Video Description on:
Press the button on the Samsung Smart Remote, and then say “Video Description on.”
Turn High Contrast on:
Press the button on the Samsung Smart Remote, and then say “High Contrast on.”
- 133 -
Using the TV with Voice Guide on
You can turn on Voice Guide that describe the menu options aloud to aid the visually impaired.
Watching TV
Turning the TV on
Press the button to turn the TV on. Voice guide will speak the channel name.
Changing channel
You can change the channel in a number of ways. Every time you change channels, the new channel details will be
announced. The ways to change the channel are below.
● Channel List ( Live TV Channel List)
Press the button. The Home Screen appears. Use the left or right directional buttons to move to Live TV,
press the up directional button to move to the top row, press the right directional button to move to Channel
List, and then press the Select button. In the Channel List, use the up or down directional buttons to move to
the desired channel, and then press the Select button.
● CH button: Of the two buttons that protrude from the center of the Samsung Smart Remote, the right one is
the CH button. Push up or pull down the CH button to change the channel.
● Use the button on the Samsung Smart Remote to display the virtual numeric pad on the screen.
- 134 -
Using on-screen number entry via the Samsung Smart Remote:
Use the virtual numeric pad to enter numbers e.g. to enter a channel number or to enter a PIN.
Press the button on the Samsung Smart Remote and the virtual numeric pad with 2 rows appears on screen.
Voice Guide speaks “virtual numeric pad, 6” which indicates that the number strip is on screen and the focus is on the
number 6. This strip has the following buttons:
● On the bottom row: From the far left: 1 – 9, 0, -(dash), Delete, Move to the top (Move to the bottom)
● The top row has one option, Done.
" This function may not be supported depending on the model or geographical area.
Use the left and right directional buttons to move along the row, and then press Select to choose the numeric pad.
When you have finished selecting all the numbers you need (for example, 123), press the up directional button to
move to the Done option, and then press Select to finish.
When entering a channel number, you can enter the number, and then select the Done option on the top row or you
can enter the channel number and wait. After a short while, the channel will change and the virtual numeric pad will
disappear from the screen.
Changing volume
Point the Samsung Smart Remote at the remote control sensor of the TV, and then move the VOL button up or down
to adjust the volume on the TV. Every time you change the volume, the new volume level will be announced.
● VOL button: Of the two buttons that protrude from the center of the Samsung Smart Remote, the left one is
the VOL button. Push up or pull down the VOL button to change the volume.
Using program information
When watching TV, press the Select button to view program information which then appears at the top of the screen.
Voice Guide will say program subtitles or audio descriptions if they are available. To view more detailed program
information, press and hold the Select button. Voice Guide will say more details such as a synopsis of the program.
Press the left or right directional button to see what you can watch next on the same channel. Press the up or down
directional button to move to other channels and to see which programs are currently being broadcast on them.
Press to go back or close the program details.
" This function may not be supported depending on the geographical area.
- 135 -
Using the guide
See an overview of each channel's program lineup.
When you want to know the program information for each channel while watching a broadcast program, press the
CH button on the Samsung Smart Remote. Use the directional buttons to view the program information.
Live TV Guide
You can see the daily program schedules for each broadcaster and program information in the Guide. You can select
programs to schedule for viewing or recording.
You can also open the Guide using Bixby. Press and hold the button on your Samsung Smart Remote, and then
say the command “guide.”
" This function may not be supported depending on the model or geographical area.
" The information in the Guide is for digital channels only. Analog channels are not supported.
" If the Clock is not set, the Guide is not provided. Set the Clock first. ( Settings General System Manager
Time Clock)
If you need to set the clock again, follow the instructions below.
1.
Press the button to open Smart Hub.
2.
Press the left directional button to move to Settings.
3.
Press the Select button to display the Settings menu screen.
4.
Use the up and down directional buttons to move to the General menu, and then press the Select button.
5.
Use the up and down directional buttons to move to the System Manager menu, and then press the Select
button.
6.
Select the Time menu, and then press the Select button.
7.
Select the Clock menu, and then press the Select button.
8.
Select the Clock Mode menu, press the Select button, and then select Auto or Manual.
" If you select Manual, you can move to the Date or Time menu below to set the time.
- 136 -
When you open the Guide, a table grid of channels and programs is displayed. The top row displays Channel Filter
then the day and times. Each row has a channel name on the left and programs on that channel on the right.
In the Guide, use the up and down directional buttons to move between channels and use the left and right
directional buttons to move between programs within a channel. You can also use the button to enter a channel
number and go to that channel directly. You can use the button to go to the current time.
When you move the focus to a program, you will hear the detailed informations about the selected program. You will
also hear if the Video Description and Caption are available for the program. When you move the focus to a different
channel, you will hear the channel name and number, and the program details. If you move to a different day, you
will hear the day announced for the first program you reach on that day. The day is not repeated, so if you are not
sure what the day is, you can move forwards and backwards 24 hours and then the day will be announced.
To view a program on now
In the Guide, move to the program currently broadcasting, and then press the Select button to go to live TV on the
selected channel and program.
- 137 -
Other options in the guide
In the Guide, move to a broadcast scheduled program, and then press the Select button. A pop-up menu listing the
functions below appears. For the program you are currently watching, press and hold the Select button.
Use the up and down directional buttons to move within this menu, and then press Select to choose an item. Press
to close the menu and go back to the Guide.
● Record
You can record the program that you are currently watching or a program on another channel.
" This function is not available in the U.S.A. and Canada.
" This function may not be supported depending on the model or geographical area.
● Schedule Viewing
You can schedule viewing for a broadcast scheduled program.
● Schedule Recording
You can schedule recording for a broadcast scheduled program.
" This function is not available in the U.S.A. and Canada.
" This function may not be supported depending on the model or geographical area.
" For more information on Schedule Recording, refer to "Recording."
● Edit Recording Time
You can change the start and end times of scheduled program recordings.
" This function is not available in the U.S.A. and Canada.
" This function may not be supported depending on the model or geographical area.
● Stop
You can stop the recording function that is currently running.
● Cancel Scheduled Viewing / Cancel Scheduled Recording
You can cancel your scheduled viewings and recordings.
" This function may not be supported depending on the model or geographical area.
● View Details
You can see the detailed information on the selected program. The information may differ with the broadcast
signal. If the information is not provided with the program, nothing appears.
Press Select on the View Details option. This will open the details pop-up window for that program which
will display a synopsis. The details pop-up window consists of detailed information and the OK option. After
reading the detailed information, press the Select button on the remote control to close the pop-up window.
- 138 -
Displaying your favorite channels:
If you have set up favorite channels, you will be able to filter the Guide so that only those channels are shown. This
makes it easier to find channels you want.
To display your favorites list, move to the current time (press the button) and then press the left directional
button to move to the list of channels. Use the up directional button to move up the list until you reach the Filter By
: All option. Press Select to bring up a list of options. Use the up and down directional buttons to move between the
categories in the list. Highlight the option you want, for example, Favorites 1, and then press Select. The Guide will
then show the information for only those channels.
" When you have set a filter in the Guide, it will remain when you close and re-open the Guide. If you find that you don’t have
the channels you think you should, it is a good idea to check the category, and then select “Filter By : All” which will display
all tuned channels.
Setting Up a Schedule Viewing
Configure the Evolution Kit to show a specific channel or program at a specific time and date.
The icon appears next to programs that have been configured for a schedule viewing.
" To set up a schedule viewing, you must first set the Evolution Kit's clock ( Settings General System
Manager Time Clock).
Setting up a schedule viewing
● The Guide Screen
On the Guide screen, select a program you would like to view, and then press and hold the Select button.
Select Schedule Viewing on the pop-up menu that appears.
● The Program Info Screen
Press the Select button while watching the TV. The Program Info window appears. Select a broadcast
scheduled program by using the left or right directional buttons, and then press the Select button. You can
schedule watching the program by selecting Schedule Viewing.
- 139 -
Cancelling a scheduled viewing
You have two ways to cancel a scheduled viewing.
1. Cancelling a scheduled viewing from the Guide
Live TV Guide
Move to the program you want to cancel scheduled viewing for, and then press the Select button. Move to Cancel
Scheduled Viewing, and then press the Select button. When a pop-up message asking you to cancel the selected
scheduled viewing appears, select Yes. The selected scheduled viewing is canceled and the screen returns to the
Guide screen.
2. Cancelling a scheduled viewing from Smart Hub
Live TV Schedule Manager or Recordings Schedules Delete
1.
Press the button to open Smart Hub, and then press the left or right directional button to move to Live TV.
Press the up directional button to move to the top row, and then press the left or right directional button to
move to Schedule Manager or Recordings.
2.
Press Select to open Schedule Manager or Recordings.
3.
Press the up directional button to move to the Schedules menu.
4.
Use the down directional button to move to the list of programs scheduled to view.
5.
Use the right directional button to move to the Delete option, and then press the Select button to delete the
selected item.
" This function may not be supported depending on the model or geographical area.
- 140 -
Using the Channel List
See how to list the channels available on your TV.
Live TV Channel List
Using Channel List, you can change the channel or check programs on other digital channels while watching TV.
Press the button. The Home Screen appears. Use the left or right directional buttons to move to Live TV, press
the up directional button to move to the top row, press the right directional button to move to Channel List, and
then press the Select button. This shows a list of the channels and the program currently on. The focus will be on the
channel you are currently watching, showing channel name, channel number, and program title.
Use the up and down directional buttons to move within the channel list (or use the CH button to go up and down a
page at a time). You can also use the button to enter a channel number and go to that channel directly.
Press the right directional button in the Channel List to move to the Category List. Use the up and down directional
buttons to move within this list. Press the Select button to choose a category you want from the Category List. The
Category List contains All Channels and Favorites. Use the up and down directional buttons to move to a channel
you want to view, and then press the Select button.
● All Channels
Displays the channels that have been automatically searched.
● Favorites
Displays Favorites 1 to Favorites 5. Use the up and down directional buttons to move between the lists of
favorites. Highlight the one you want, and then press Select. The channel list will now show only the channels
in this list.
● Air or Cable
To allow you to select Air or Cable as the DTV mode, move the focus to Air or Cable, and then press the Select
button. Air is suitable for homes equipped with separate, over-the-air antennas. Cable is suitable for homes
that subscribe to a local cable-service. You do not need to use this function if your Evolution Kit is connected
to a cable box or satellite box.
" This function may not be supported depending on the incoming broadcast signal.
● TV PLUS
While the Evolution Kit is connected to the Internet, you can watch popular programs or highlights for each
theme through a virtual channel at any time. As with regular channels, the TV provides the daily program
schedules for TV PLUS.
" This function may not be supported depending on the model or geographical area.
- 141 -
Creating a Personal Favorites List
Designate frequently watched channels as favorite channels.
Favorite channels are highlighted in the Edit Channel and Channel List screens with the symbol .
Registering channels as favorites
Live TV Channel List
1.
Press the right directional button to move to the Category List.
2.
Select Favorites.
3.
Select a favorites list. When you select a favorites list, the Edit Favorites screen appears.
4.
Move to the channel you want to add, and then press the Select button.
5.
Repeat Step 4 to select all the channels you want to add.
6.
Press the right directional button to move to the icon, and then press the Select button. The selected
channels are added to the favorites list.
To add channels to a favorites list - Detail
1.
Open the Channel List.
2.
Press the right directional button to move to the Category List.
3.
Use the up and down directional buttons to move to Favorites, and then press Select. You will see Favorites 1 to
Favorites 5. Move to the list to which you want to add channels, and then press the Select button.
4.
Use the up directional button to move to Edit Favorites, and then press the Select button.
5.
In the Edit Favorites screen, move to a channel you want to add to the favorites list, and then press the Select
button.
6.
Repeat Step 5 to select all channels you want to add.
7.
Press the right directional button to move to the icon, then press the Select button. The selected channels
are added to the favorites list.
- 142 -
Deleting channels from a favorites list – Detail
1.
Open the Channel List.
2.
Press the right directional button to move to the Category List.
3.
Use the up and down directional buttons to move to Favorites, and then press Select. You will see Favorites 1 to
Favorites 5. Move to the list from which you want to delete channels, and then press the Select button.
4.
Use the up directional button to move to Edit Favorites, and then press the Select button.
5.
In the Edit Favorites screen, move to a channel you want to delete from the favorites list, and then press the
Select button.
6.
Repeat Step 5 to select all channels you want to delete.
7.
Press the left directional button to move to the icon, and then press the Select button. The selected
channels are deleted from the favorites list.
Viewing and selecting channels on favorites lists only
Live TV Channel List
1.
Open the Channel List.
2.
Press the right directional button to move to the Category List.
3.
Use the up and down directional buttons to move to Favorites, and press the Select button.
4.
The Favorites 1 to Favorites 5 appear. Move to the list you want, and then press the Select button. The channels
in the selected favorites list appear.
- 143 -
Recording
Recording a program to an external hard drive connected via USB.
" This function is not available in the U.S.A. and Canada.
" This function may not be supported depending on the model or geographical area.
" Read all precautions before using the recording feature. For more information, refer to "Before Using the Recording and
Timeshift Functions."
Using the instant and schedule recording options from the guide screen:
To record a program that is on now, open the program guide, move to the program, and then press and hold the
Select button. You will get a pop-up menu. Use the up and down directional buttons to move to Record. Press select
to record the program. You will be returned to the program guide. Recording automatically ends at the time when
the program ends.
To stop recording, move to Guide, and then press the Select button. The Stop Recording popup window appears.
Move the focus to Stop, and then press the Select button.
To record a program that is on later, move to the program in the Guide, and then press Select. You will get a pop-up
menu. Use the up and down directional button to move within this menu. Move to the Schedule Recording, and then
press Select. You will hear a message saying the program has been set to record and then you will be returned to the
program guide.
The icon is placed visually next to the program title to show it is set to record. To find out if a program is set to
record or to cancel a scheduled recording, press select on the program. If it is already set to record, then the option
on the menu will be Cancel Scheduled Recording. You can press the Select button to cancel the scheduled recording
or just press the button to go back to the program guide without cancelling the recording.
- 144 -
Using the Instant and Schedule Recording options from the program info
window
Recording the program you are watching
To display a menu for recording a program or starting the Timeshift function, press the button while watching
the program. You can select the following functions on the menu:
● Record: Immediately starts to record the program you are watching.
● Timeshift: Starts the Timeshift function.
● Stop: Stops the recording or the Timeshift function that is running.
● Info: Displays the details about the program you ware watching.
Scheduling viewing from the program info window
Press the Select button while viewing a program to display the program info window. In the program info window,
use the left and right directional buttons to select a broadcast scheduled program, and then press the Select button.
To schedule a recording for the program, select Schedule Recording.
Changing the recording time
When recording a live program you can specify how long you want to record for.
Press the down directional button to display the control bar at the bottom. Press the left or right directional buttons
to move to Edit Recording Time, and then press the Select button. A slider scale appears and you will hear the
recording time currently set. Use the left and right directional buttons to change the time, and then press the Select
button. You will hear a menu that gives information about the recording time. To return to the program you are
watching, press the button on the remote.
" The maximum recording time differs depending on the capacity of the USB device.
- 145 -
Viewing recorded programs
Live TV Schedule Manager or Recordings Record
Open Smart Hub by pressing the button on the remote control. Use the left or right directional button to move
the focus to Live TV. Press the up directional button to move to the top row, and then use the left or right directional
button to move to Guide.
Press the right directional button to move to Recordings, and then press Select. This will open the Recording &
Schedule Manager screen.
To play a program, use the up and down directional buttons to move between program titles. Press Select to play the
program or press the right directional button to move to a list of options. Use the up and down directional buttons to
move between the options in this list. You can play, remove, or delete the program, or view the program details.
Select the Play option to play the program. The program will start. If you have watched part of this program before,
you will get a pop-up menu on screen allowing you to Play (from start), Resume (from where you left off), or Cancel.
Use the left and right directional buttons to move to the required option, and then press Select.
" This function may not be supported depending on the model or geographical area.
Deleting a recorded program
To delete a recorded program, go to the list of Recordings. Use the up and down directional buttons to move to the
recording you want to delete.
Press the right directional button to move to a list of 3 options. Press the down directional button to move to the
Delete option, and then press Select.
You will be asked if you want to remove the selected item. Press the left directional button to move to the Delete
button, and then press Select to delete the program title. The program will be deleted and you will be returned to
the list of Recordings.
- 146 -
Using Smart Hub
Learn how to open Smart Hub to access apps, games, movies, and more.
Smart Hub
After pressing the button on your remote control, you can surf the web and download apps with Smart Hub.
" Some Smart Hub services are for pay services.
" To use Smart Hub, the Evolution Kit must be connected to the Internet.
" Some Smart Hub features may not be supported depending on the service provider, language, or geographical area.
" Smart Hub service outages can be caused by disruptions in your Internet service.
" To use Smart Hub, you must agree to the Smart Hub service agreement, and collection and use of personal information.
Without giving consent, you cannot use the additional features and services. You can view the entire text of the Terms &
Policy document by navigating to Settings Support Terms & Policy.
" If you want to stop using Smart Hub, you can cancel the agreement. To cancel the Smart Hub service agreement, select
Reset Smart Hub ( Settings Support Self Diagnosis Reset Smart Hub).
Press the button on your remote. This will bring up a display with 2 rows. Try moving the focus to Live TV or
another item on the bottom row. The options on the top row change depending on the item selected in the bottom
row.
The buttons to the right of Live TV provide quick access to apps such as Netflix and Amazon. Currently, many of
these apps are not accessible with Voice Guide.
Use the left and right directional buttons to move between a menu or apps on a row and the up and down directional
buttons to move between rows. Press Select to access a menu or apps.
When you open Smart Hub, move the focus to Live TV or TV PLUS. Press the up directional button to move to the top
row. You will be on the Guide item. The items in this row are:
● Guide: Select to go to the Program Guide where you can view the program schedules for multiple channels.
● Channel List: Select to open the channel list to view and move to programs that are being broadcast on other
channels.
● Schedule Manager or Recordings: You can go to the Schedule Manager or Recording & Schedule Manager
screen.
" This function may not be supported depending on the model or geographical area.
● To the right of Schedule Manager or Recordings, you can see the programs you viewed most recently and the
programs that are currently broadcasting on other channels. To go to one of those channels, move to it, and
then press the Select button.
- 147 -
Using the Home Screen in Smart Hub
On the leftmost part of the Home Screen in Smart Hub is the static menu listed below. You can quickly and easily use
the listed menu items to access the main Evolution Kit settings or external devices, search, and apps.
● Notification
You can view a list of notifications for all events that occur on your Evolution Kit. A notification appears on the
screen when it is time to broadcast a scheduled program or when an event occurs on a registered device.
If you move the focus to Notification, and then press the Select button, a notification window appears on the
right and the following functions are available:
– Delete All: You can delete all your notifications.
– Settings: You can select services you want to be notified about. When you select Allow sound,
notifications are displayed with a notification sound.
● Settings
When the focus is moved to the icon, a list of quick settings icons appears above the top of the menu. You
can quickly set frequently used functions by clicking the icons.
– Sound Output
You can select which speakers for audio output. To change the audio output, press the Select button. To
connect to a Bluetooth speaker, press the up directional button, and then select Speaker List.
– Caption
You can watch TV broadcasts with captions. To activate/deactivate the Caption function, press the Select
button. To run Accessibility Shortcuts, press the up directional button, and then select Accessibility
Shortcuts.
- 148 -
– Sleep Timer
You can have the TV automatically turn off at a specific time. To change the sleep time, press the Select
button. To set the specific time at which the TV turns off automatically, press the up directional button,
and then select Set Up Off Timer.
– Network
You can view the current network and Internet status. Press the up directional button, and then select
Network Status or Network Settings.
" This function may not be supported depending on the model or geographical area.
● Source
You can select an external device connected to the Evolution Kit.
" For more information, refer to "Switching between external devices connected to the Evolution Kit."
● Search
A virtual keyboard appears on the screen, and you can search for channels, programs, titles of movies, or apps
provided by the Smart Hub service.
" To use this feature, the Evolution Kit must be connected to the Internet.
● APPS
You can enjoy a wide range of content including news, sports, weather, and games by installing the
corresponding apps on your Evolution Kit.
" To use this feature, the Evolution Kit must be connected to the Internet.
" For more information, refer to "Using the APPS Service."
● Universal Guide
Universal Guide is an app that allows you to search for and enjoy various content such as TV shows, dramas,
and movies in one place. Universal Guide can recommend content tailored to your preferences and notify you
of new drama series.
" For more information about the Universal Guide, refer to "Using the Universal Guide App."
" Images may look blurry depending on the service provider's circumstances.
" This function may not be supported depending on the model or geographical area.
- 149 -
Launching the e-Manual
Open the user manual embedded in your Evolution Kit.
Press the button to open Smart Hub, press the left directional button to move to Settings, and then press the
Select button.
Use the up and down directional buttons to move to Support, and then select Open e-Manual to open the e-Manual.
Settings Support Open e-Manual
You can view the embedded e-Manual containing information about your Evolution Kit's key features.
" Alternatively, you can download a copy of the e-Manual from Samsung's website.
" Words in blue (e.g., Picture Size Settings) indicate a menu item.
The e-Manual contains 2 rows of menu icons. Use the up and down directional buttons to move between rows and
the left and right directional buttons to move within a row. Press Select to open the section you want to read.
The e-Manual contains a section called "Learn TV Remote" in "Accessibility Guidance" (at the right corner of the
screen). This is particularly useful for people who cannot easily see the buttons on the control or who are not clear
what each button does. When you are viewing this section of the e-Manual, pressing the buttons on the remote
control will not affect the TV. Note that the "Accessibility Guidance" item is only available when Voice Guide (
Settings General Accessibility Voice Guide Settings Voice Guide) is enabled.
- 150 -
Using Bixby
A guide to using Bixby to control your TV.
To use Bixby, your Evolution Kit must be connected to the Internet and you must use the microphone on your
Samsung Smart Remote.
To use Bixby, press and hold the button on the Samsung Smart Remote, say a command into the microphone on
the remote, and then release the button to run Bixby.
" The existing functional specifications may be changed if Bixby is updated.
Running Bixby
Press and hold the button on the Samsung Smart Remote. Bixby is activated in the listening mode, the Bixby
icon appears at the bottom of the TV screen, and the TV beeps. Say a command, and then release the button. The TV
provides feedback on how it understands the command, and then performs the commanded task.
" If the TV does not understand the command, try again with more precise pronunciation.
" This function may not be supported depending on the model or geographical area.
" The supported language may differ depending on the geographical area.
" You can find a detailed description of the voice commands at My Bixby. Press the button. The Explore Now button
appears at the bottom of the screen. Press the Select button to go to the My Bixby screen.
