HDBaseT Receiver
F1711-0SN29355998
*29355998*
Instruction Manual
HDB-RX1
1

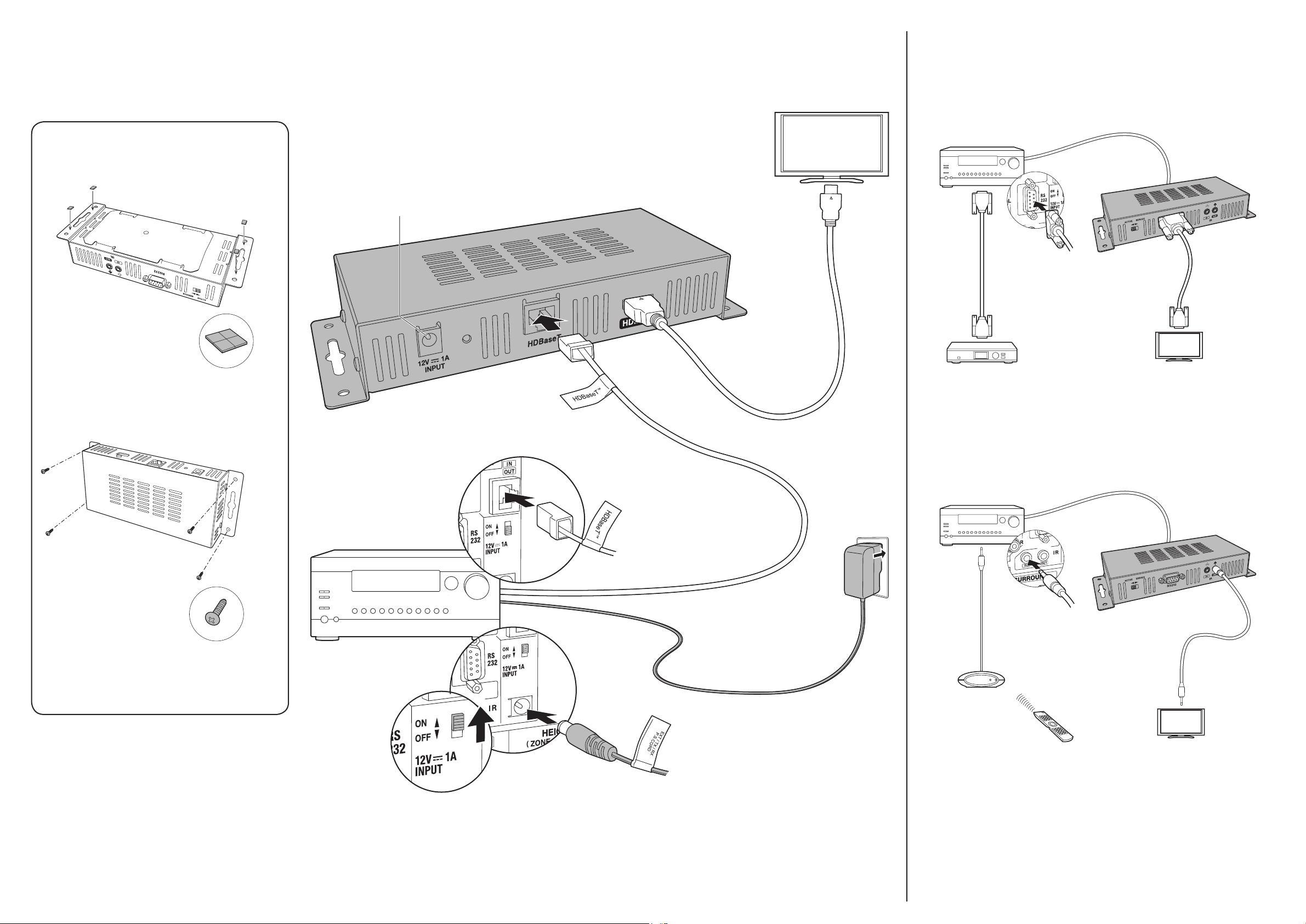

Screw hole for wall attachment: Fix with the supplied screw for wall
attachment when installing on a wall.
2
12V 1A INPUT jack:
When connecting to a device that does not
support Power over Cable
(PoC, refer to the back cover)
, connect the
supplied AC adapter.
3
Power indicator: Lights when the power of this unit is on.
4
HDBaseT jack: Use an Ethernet cable to connect to the HDBaseT
TM
OUT jack on one of our AV receivers to receive video signals, audio
signals, control signals, etc.
• As they are covered with a seal when shipped, remove it when you
use the jack.
• Use one of the following Ethernet cables to connect.
ｰ When using Power over Cable (PoC, refer to the back cover)
Cat6 (Category 6) cable: AWG23 cable or better, 50 m or less in
length
Cat5e (Category 5e) cable: AWG24 cable or better, 45 m or less in
length
ｰ When not using Power over Cable (PoC, refer to the back cover
Cat6 (Category 6) cable: AWG23 cable or better, 100 m or less in
length
Cat5e (Category 5e) cable: AWG24 cable or better, 90 m or less in
length
• It is recommended to use shielded single Ethernet cable.
• Do not connect this port to the Ethernet ports of network devices.
5
HDMI OUT jack: Transmit video signals and audio signals with a HDMI
cable connected to a monitor such as a TV or projector.
6
ACTIVE/SERVICE switch: Use in the "ACTIVE" position. ("SERVICE"
is for servicing)
7
RS232 port: Used when connecting to a home control system.
• Use a straight cable.
8
IR IN/OUT jacks: Used when connecting to a multiroom remote control
kit.
• Refer to the instruction manual of the IR receiver for the types of
cables required for connection.
Part Names
HDMI
Supported
Deep Color, x.v.Color™, LipSync, 3D, 4K 60 Hz, Extended
Colorimetry (sYCC601, Adobe RGB, Adobe YCC601),
Content Type, HDR
HDCP
Revision 1.4, 2.2
Maximum Video Resolution
4k 60 Hz (YCbCr 4:4:4)
Output jacks
HDMI OUT : 1
Other jacks
HDBaseT IN : 1
RS232 : 1 (Path through)
IR IN : 1 (Path through)
IR OUT : 1 (Path through)
General
Power Supply
AC 100 - 240 V, 50/60 Hz
Power Consumption
11.2 W (AC adaptor)
Dimensions (W × H × D)
205 mm × 35 mm × 89 mm
8-1/16" × 1-3/8" × 3-1/2"
Weight
0.45 kg (1 lb)
• Specifications and features are subject to change without
notice.
• We will not accept responsibility for damage arising from the
connection of equipment manufactured by other companies.
189
205
64
89
35
Unit : mm
What’s in the Box
Main unit (1)
AC adaptor (1)
Cushions (4)
Screws for wall attachment (4)
Label for HDBaseT
TM
cable (2)
Label for AC adaptor cord (2)
Instruction Manual (this document)
®
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of HDMI Licensing LLC in the United States
and other countries.
HDBaseT
TM
and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
A
ll other trademarks are the property of their respective owners.
En
SN29355998_HDB-RX1_IM_En_1711xx.indd 1 2017/11/06 16:15:41
