Instruction Manual and Installation Instructions
Washing machine
WAT28620AU
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch WAT28620AU:
en Instruction Manual and Installation Instructions
1
Washing machine
1
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 5
3
( Safety instructions 5
3
7 Environmental protection 11
3
5 Positioning and connecting 12
3
* Familiarising yourself with your appliance 20
3
Z Laundry 24
3
C Detergent 25
3
/ Programme overview 26
3
0 Programme default settings 29
3
\ Additional programme settings 30
3
1 Operating the appliance 32
3
a Intelligent dosing system 35
4
Q Appliance settings 41
4
H Sensors 42
4
2 Cleaning and maintenance 42
4
3 Faults and what to do about them. 45
4
[ Consumption values 50
4
J Technical data 52
4
4 After-sales service 52
4
r Aqua-Stop warranty 53
4
8 Intended use
5
Intended use
5
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
6
Risk of death!
6
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Risk of burns!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
8
Risk of injury!
8
Caution!
8
Material damage/damage to the appliance
8
Operation
9
: Warning
9
Risk of explosions/fire!
9
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
: Warning
9
Risk of scalding!
9
: Warning
9
Eye/skin irritation!
9
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
10
Risk of poisoning!
10
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
7 Environmental protection
11
Environmental protection
11
Packaging/used appliance
11
Tips on economical use
11
5 Positioning and connecting
12
Positioning and connecting
12
Included with the appliance
12
Note:
12
Safety instructions
13
: Warning
13
Risk of injury!
13
Caution!
13
Damage to the appliance
13
Caution!
13
Water damage
13
Notes
13
Installation surface
13
Note:
13
Installation on a base or a wooden joist floor
13
Caution!
13
Damage to the appliance
13
Note:
13
Installation on a platform with drawer
14
Installing the appliance in a kitchenette
14
: Warning
14
Danger of death!
14
Notes
14

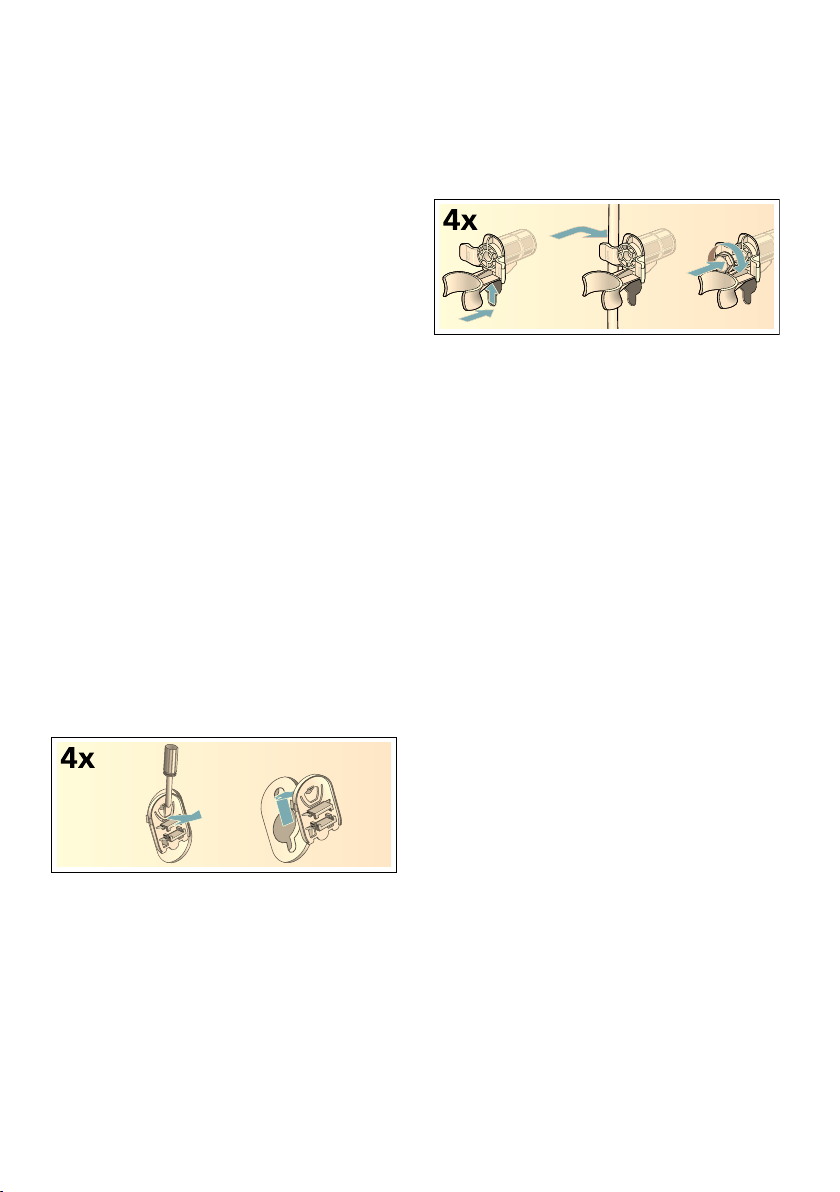

Removing the transport locks
14
Caution!
14
Damage to the appliance
14
Note:
14
1. Take the hoses out of the holders.
14
2. Unscrew and remove all four transport brace screws.
14
3. Fit the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
14
Hose and cable lengths
15
Tip:
15

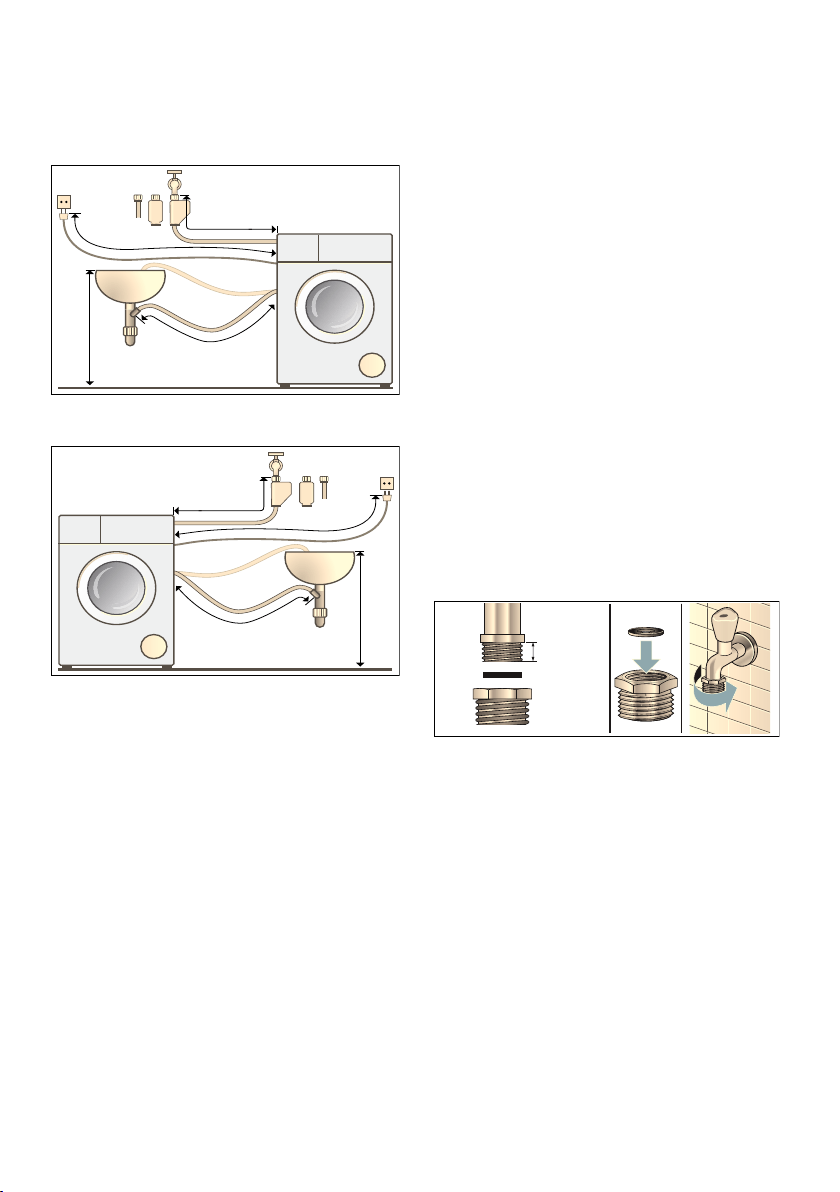

Water inlet
15
: Warning
15
Danger of death!
15
Notes
15
Connection
16
Note:
16

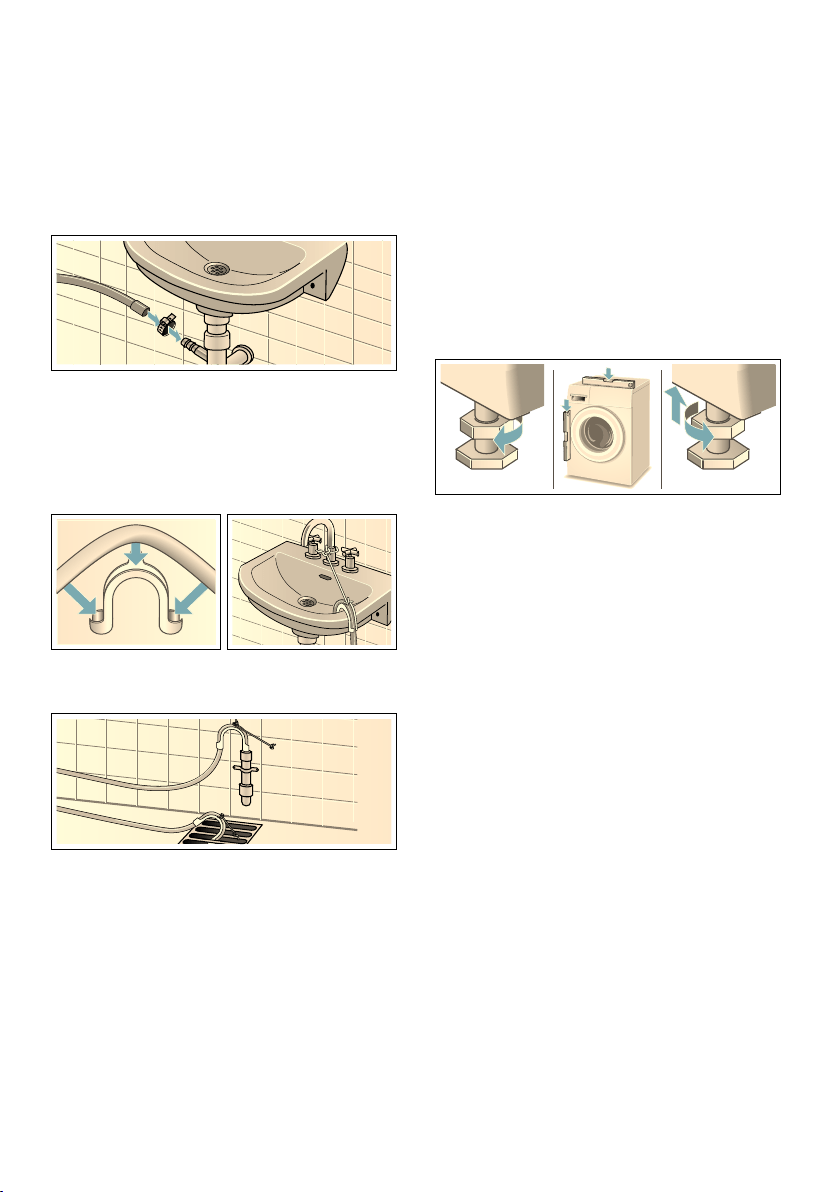

Water outlet
16
: Warning
16
Risk of scalding!
16
Caution!
16
Water damage
16
Caution!
16
Damage to the appliance/fabrics
16
Note:
16
Connection
17
Levelling
17
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
17
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
17
3. Tighten the lock nut against the housing.
17
Electrical connection
17
: Warning
17
Danger of death!
17
Notes
17
Before washing for the first time
18
Notes
18
Preparatory work:
18
1. Check the machine.
18
2. Fill the w and M dispensers. ~ Page 37
18
3. Remove the protective film from the control panel.
18
4. Plug in the mains plug.
18
5. Turn on the tap.
18
Run the program without laundry:
18
1. Switch on the appliance.
18
2. Close the door (do not load any laundry).
18
3. Set the Drum Clean Û 90 °C program.
18
4. Open the detergent drawer.
18
5. Pour approx. 1 litre of water into the manual dosing compartment.
18
6. Pour all-purpose detergent into the manual dosing compartment.
18
Note:
18
7. Close the detergent drawer.
18
8. Start the program.
18
9. Switch off the appliance once the program has finished.
18
Transportation
19
1. Turn off the tap.
19
2. Release the water pressure in the supply hose: ~ "Filter in the water supply blocked" on page 44
19
3. Disconnect the washing machine from the mains power supply.
19
4. Drain the remaining water: ~ "The drain pump is blocked, emergency draining" on page 43
19
5. Detach the hoses.
19
6. Empty the dispensers. ~ Page 39
19
Caution!
19
Risk of damage to the appliance caused by detergent/fabric softener leaking from the dispensers
19
Fitting the transportation securing means:
19
1. Remove the covers and keep them in a safe place.
19
2. Insert all four sleeves.
19
Notes
19
* Familiarising yourself with your appliance
20
Familiarising yourself with your appliance
20
Washing machine
20
Controls
21
Content of the touch display
21
Caution!
21
Material damage/damage to the appliance.
21
Indicators, symbols and buttons on the control panel
22
Indicators and symbols for setting values
22
Setting
22
Note:
23
Other indicators and symbols
23
Information on:
23
Z Laundry
24
Laundry
24
Prepare the laundry
24
Caution!
24
Damage to the appliance/fabrics
24
Sorting laundry
24
Note:
24
Note:
24
Starching
24
Note:
24
1. Switch on the appliance.
24
2. Select the Rinse program.
24
3. Pour liquid starch into the manual dosing compartment in accordance with the manufacturer's instructions.If necessary, clean this compartment beforehand.
24
4. Touch the A button.
24
Dyeing/bleaching
25
C Detergent
25
Detergent
25
Correct selection of detergent
25
Saving energy and detergent
25
Saving
25
Soiling/note
25
Note:
25
/ Programme overview
26
Programme overview
26
Programmes and fabrics
26
Maximum load size
26
Use softener?
26
Notes
26
Note:
26
Notes
26
Notes
27
Notes
27
Note:
27
Note:
27
Note:
28
Possible program settings
28
0 Programme default settings
29
Programme default settings
29
Temperature
29
Spin Speed
29
Ready in time
29
Note:
30
1. Touch the control panel A.
30
2. Touch N or M to change the time.
30
3. And touch A again.
30
Memory programme
30
To store:
30
1. Switch on the appliance.
30
2. Select a programme.
30
3. Change the settings and/or select additional settings.
30
4. Press and hold â on the control panel for approx. three seconds.
30
\ Additional programme settings
30
Additional programme settings
30
Aqua Plus
30
Adjustment values:
30
SpeedPerfect
30
Note:
30
Reduced Ironing
31
Note:
31
Prewash
31
Notes
31
Soaking
31
Notes
31
1. Select i-DOS or pour the detergent into the manual dosing compartment in accordance with the manufacturer's instructions.
31
2. Select the Cottons i 30 °C program and press the A button.
31
3. Press the A button after approx. 10 minutes.The laundry will soak in the water.
31
4. Leave the laundry to soak for as long as required, then either press the A button again to resume the program or change the program.
31
Note:
31
Rinse Stop
31
i-DOS
31
1 Operating the appliance
32
Operating the appliance
32
Preparing the washing machine
32
Note:
32
1. Connect the mains plug.
32
2. Turn on the water tap.
32
3. Open the door.
32
4. Check that the drum is completely drained. Drain if necessary.
32
Switching on the appliance/ selecting a programme
32
Notes
32
You can:
32
Change the programme default settings
32
Select additional programme settings
32
Placing laundry into the drum
33
: Warning
33
Danger of death!
33
Notes
33
1. Unfold presorted laundry items and place them in the drum.
33
2. Make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
33
Measure and add detergent and care products
33
Start the programme
33
The current programme information is displayed during the programme:
33
Note:
33
Child lock 3 sec./operation lock
34
Notes
34
Adding laundry
34
Notes
34
Changing the programme
34
1. Touch the control panel A.
34
2. Select another programme.
34
3. And touch A again.The new program starts from the beginning.
34
Cancel the programme
34
1. Touch the control panel A.
34
2. To cool the laundry: Select Rinse.
34
3. And touch A again.
34
1. Touch A.
34
2. Select Spin or Drain.
34
3. And touch A again.
34
Programme end during rinse hold
34
Programme end
35
Note:
35
Removing laundry/switching off the appliance
35
1. Open the loading door and remove the laundry.
35
2. Switch off the appliance.
35
3. Turn off the tap.
35
Note:
35
Notes
35
a Intelligent dosing system
35
Intelligent dosing system
35
Familiarising yourself with i- DOS
35
i-DOS Detergent drawer
35
Before setting up i-DOS
36
Notes
36
Automatic dosing
36
The automatic dosage operates as follows:
36
1. Switch on the appliance.
36
2. Select a programme with i-DOS settings.
36
3. Start the programme.
36
Tip:
36
Notes
36
i-DOSSetting the content of the M/w dispenser
36
Set the dispenser content as follows:
36
1. Press þ i-DOS M/w.
36
2. If you want to change the dispenser, press þ i-DOS M/w again.
36
3. To exit setting mode, press and hold þ i-DOS M/w for approx. 3 seconds or wait briefly.
36
Note:
37
i-DOS Setting the dosage
37
Check whether the preset basic dosages follow the manufacturer's recommendations in terms of:
37
Below is an example of detergent dosages on a packaging label:
37
For standard load 4 - 5 kg
37
Level of soiling
37
light
37
normal
37
heavy
37
Adjusting the basic dosage
37
1. Press and hold ý i-DOS w and/or þ i-DOS M/w for approx. 3 seconds.
37
2. Change the setting using: ˜/~
37
3. To exit setting mode, press and hold ý i-DOS w and/or þ i-DOS M/w for approx. 3 seconds or wait approx. 10 seconds.
37
Notes
37
Filling the dispensers
37
Notes
37

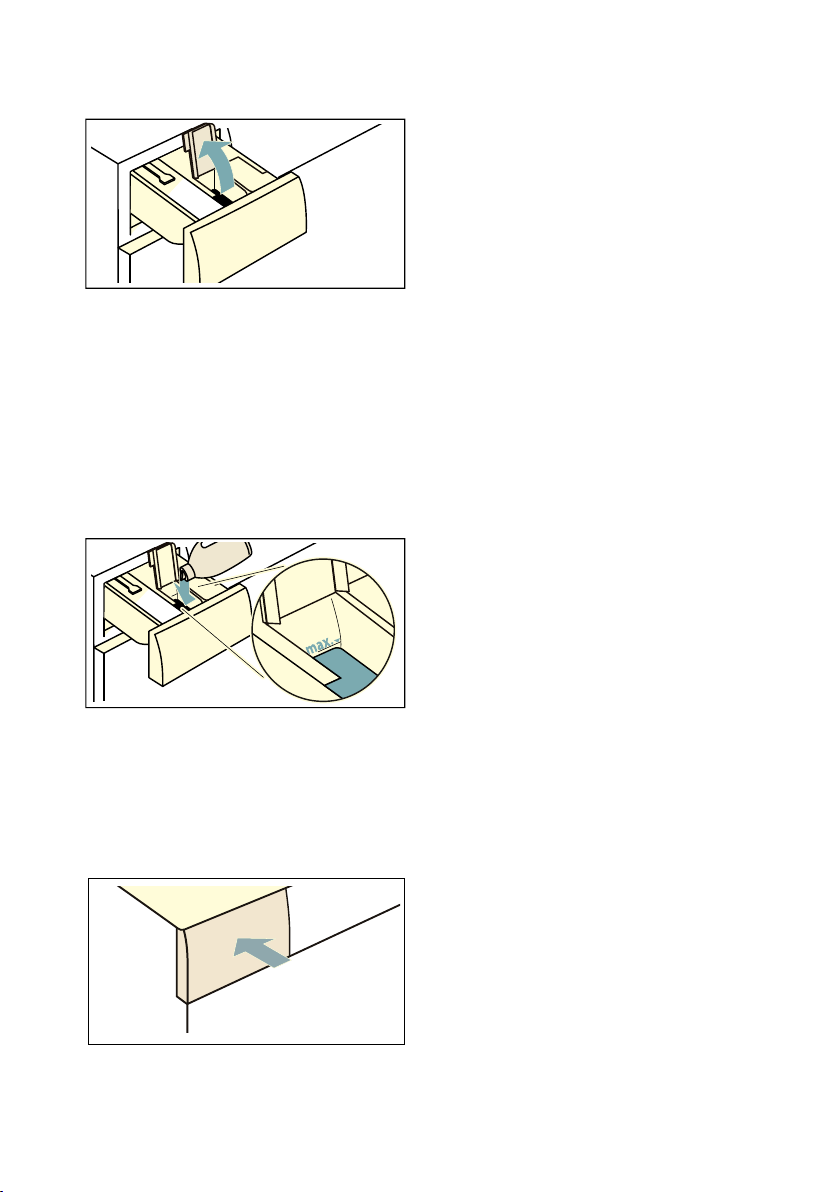

Fill the dispensers as follows:
37
1. Pull out the detergent drawer.
37
2. Open the dispenser lids.
38
3. Pour liquid detergent and fabric softener into the relevant dispensers.
38
Notes
38
4. Close the dispenser lids.
38
Note:
38
5. Push in the detergent drawer.
38
Note:
38
Manual dosing
38
Note:
38
Dosing and adding detergent
39
Note:
39
1. Pull out the detergent drawer.
39
2. Pour laundry detergent and/or care product into the manual dosing compartment.
39
3. Push in the detergent drawer.
39
Emptying the i-DOS detergent drawer, cleaning the i-DOS detergent drawer and its housing, cleaning the i-DOS pump unit
39
1. Switch off the appliance.
39
2. Pull out the detergent drawer.
39
3. Press down the insert and remove the drawer completely.
39
4. Press the pump unit insert and remove it.
39
5. Unclip the rear detergent drawer lid and remove it.
40
6. Empty the detergent drawer.
40
7. Clean the pump unit with a damp cloth.
40
Caution!
40
8. Clean the drawer, inside surface and lids with a soft, damp cloth or a hand shower.
40
9. Dry the drawer, lids and pump unit and put them back together.
40
10. Clean the inside of the detergent drawer housing.
40
11. Push in the detergent drawer.
41
Q Appliance settings
41
Appliance settings
41
Activating the setting mode
41
1. Switch on the appliance. The settings for the current programme are displayed.
41
2. Touch the control panel œ.
41
Changing the signal volume
41
Adjustment values:
41
Changing the brightness of the touch display
41
Adjustment values:
41
Select/deselect the memory function for drum care
41
Exiting setting mode
42
To exit and save the settings:
42
H Sensors
42
Sensors
42
Automatic load sensing
42
Unbalanced load detection system
42
Note:
42
VoltCheck
42
Note:
42
2 Cleaning and maintenance
42
Cleaning and maintenance
42
: Warning
42
Danger of death!
42
: Warning
42
Risk of poisoning!
42
Caution!
43
Damage to the appliance
43
Notes
43
Machine housing/control panel
43
Drum
43
Descaling
43
The drain pump is blocked, emergency draining
43
: Warning
43
Risk of scalding!
43
1. Turn off the tap so that no more water can flow in and it has to be drained via the drain pump.
43
2. Switch off the appliance.Pull out the mains plug.
43
3. Open and remove the service flap.
43
4. Take the drain hose out of the holder.
43
5. Carefully unscrew the pump cover, as residual water may leak out.
43
6. Reinsert the bottom of the service flap into the slot, clip it into place and close the flap.
44
Note:
44
The drain hose at the siphon is blocked
44
1. Switch off the appliance. Pull out the mains plug.
44
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
44
3. Clean the drain hose and siphon connecting piece.
44
4. Re-attach the drain hose and secure the connection point using the hose clamp.
44
Filter in the water supply blocked
44
1. Release water pressure in the supply hose:
44
a) Turn off the tap.
44
b) Select the Cottons programme.
44
c) Start the programme and leave it to run for approx. 70 seconds.
44
d) Switch off the appliance.
44
e) Pull out the mains plug.
44
2. Clean the filters:
44
a) Disconnect the hose from the water tap.
44
b) For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
44
c) Connect the hose and check for leaks.
44
3 Faults and what to do about them.
45
Faults and what to do about them.
45

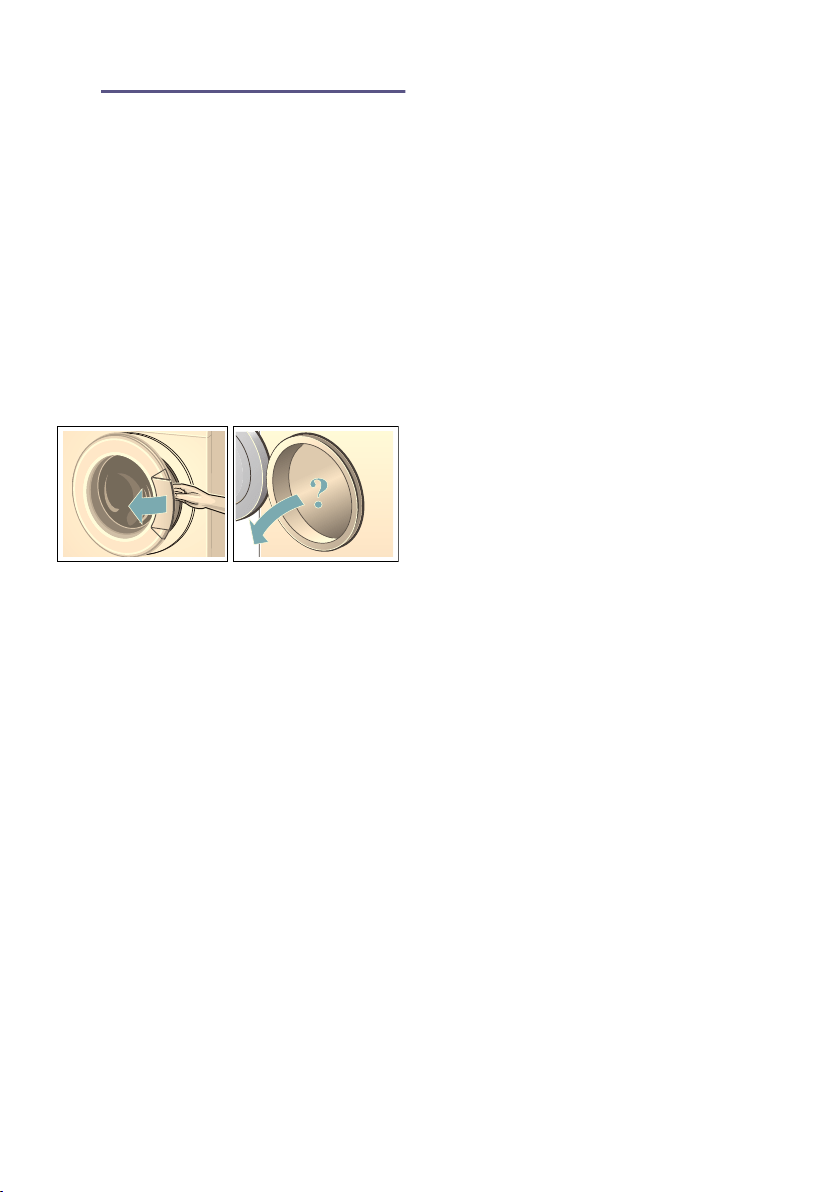

Emergency release
45
: Warning
45
Risk of scalding!
45
: Warning
45
Risk of injury!
45
Caution!
45
Water damage
45
1. Switch off the appliance. Pull out the mains plug.
45
2. Drain the water. ~ Page 43
45
3. Pull the emergency release downwards with a tool and release.
45
Information on the display panel
45
Display
45
Cause/remedy
45
Notes
46
Faults and what to do about them.
47
Faults
47
Cause/remedy
47
Note:
47
Note:
49
[ Consumption values
50
Consumption values
50
Programme
50
Load
50
Energy consumption*
50
Water consumption*
50
Programme duration*
50
Information for test institute
51
J Technical data
52
Technical data
52
4 After-sales service
52
After-sales service
52
r Aqua-Stop warranty
53
Aqua-Stop warranty
53
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
53
2. The liability guarantee is valid for the service life of the appliance.
53
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
53
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
53
*9001455690*
56
Thank you for buying a Bosch Home Appliance!
56
Looking for help? You´ll find it here.
56
File type: PDF
File name: 97445327_wat28620au.pdf
File size: 4.23 MB
File Language: English
Pages: 56
Author: Bosch
File created: 2019-04-05
Published: 2021-04-20
Updated: 2023-05-22
Verified by
Kailyn Rutherford
on 2023-05-22
Download File
Specifications
Brand:
Bosch
Model: WAT28620AU
View in the file:
Full Specifications
See other models:
WAW28440AU
WTR85T00AU
WVG28420AU
GSN33VI3A
HBE5453UC
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WAW28620AU
Bosch WAT24220AU
Bosch WAT286V0
Bosch WAT286F1
Bosch WAT28640
Bosch WAT286H0GB
Bosch WAW28640AU
Bosch WAW28420AU
Bosch WAT24440AU
Bosch WAT24261AU
Bosch WAN22120AU
Bosch WAN24120AU
Bosch WAW28620AUWTY877W0AU
Bosch WAT24220AUWTE84105AU
Bosch WAT287H0
Table of Contents
×
en Instruction Manual and Installation Instructions
1
Washing machine
1
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 5
3
( Safety instructions 5
3
7 Environmental protection 11
3
5 Positioning and connecting 12
3
* Familiarising yourself with your appliance 20
3
Z Laundry 24
3
C Detergent 25
3
/ Programme overview 26
3
0 Programme default settings 29
3
\ Additional programme settings 30
3
1 Operating the appliance 32
3
a Intelligent dosing system 35
4
Q Appliance settings 41
4
H Sensors 42
4
2 Cleaning and maintenance 42
4
3 Faults and what to do about them. 45
4
[ Consumption values 50
4
J Technical data 52
4
4 After-sales service 52
4
r Aqua-Stop warranty 53
4
8 Intended use
5
Intended use
5
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
6
Risk of death!
6
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Risk of burns!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
8
Risk of injury!
8
Caution!
8
Material damage/damage to the appliance
8
Operation
9
: Warning
9
Risk of explosions/fire!
9
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
: Warning
9
Risk of scalding!
9
: Warning
9
Eye/skin irritation!
9
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
10
Risk of poisoning!
10
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
7 Environmental protection
11
Environmental protection
11
Packaging/used appliance
11
Tips on economical use
11
5 Positioning and connecting
12
Positioning and connecting
12
Included with the appliance
12
Note:
12
Safety instructions
13
: Warning
13
Risk of injury!
13
Caution!
13
Damage to the appliance
13
Caution!
13
Water damage
13
Notes
13
Installation surface
13
Note:
13
Installation on a base or a wooden joist floor
13
Caution!
13
Damage to the appliance
13
Note:
13
Installation on a platform with drawer
14
Installing the appliance in a kitchenette
14
: Warning
14
Danger of death!
14
Notes
14
Removing the transport locks
14
Caution!
14
Damage to the appliance
14
Note:
14
1. Take the hoses out of the holders.
14
2. Unscrew and remove all four transport brace screws.
14
3. Fit the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
14
Hose and cable lengths
15
Tip:
15
Water inlet
15
: Warning
15
Danger of death!
15
Notes
15
Connection
16
Note:
16
Water outlet
16
: Warning
16
Risk of scalding!
16
Caution!
16
Water damage
16
Caution!
16
Damage to the appliance/fabrics
16
Note:
16
Connection
17
Levelling
17
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
17
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
17
3. Tighten the lock nut against the housing.
17
Electrical connection
17
: Warning
17
Danger of death!
17
Notes
17
Before washing for the first time
18
Notes
18
Preparatory work:
18
1. Check the machine.
18
2. Fill the w and M dispensers. ~ Page 37
18
3. Remove the protective film from the control panel.
18
4. Plug in the mains plug.
18
5. Turn on the tap.
18
Run the program without laundry:
18
1. Switch on the appliance.
18
2. Close the door (do not load any laundry).
18
3. Set the Drum Clean Û 90 °C program.
18
4. Open the detergent drawer.
18
5. Pour approx. 1 litre of water into the manual dosing compartment.
18
6. Pour all-purpose detergent into the manual dosing compartment.
18
Note:
18
7. Close the detergent drawer.
18
8. Start the program.
18
9. Switch off the appliance once the program has finished.
18
Transportation
19
1. Turn off the tap.
19
2. Release the water pressure in the supply hose: ~ "Filter in the water supply blocked" on page 44
19
3. Disconnect the washing machine from the mains power supply.
19
4. Drain the remaining water: ~ "The drain pump is blocked, emergency draining" on page 43
19
5. Detach the hoses.
19
6. Empty the dispensers. ~ Page 39
19
Caution!
19
Risk of damage to the appliance caused by detergent/fabric softener leaking from the dispensers
19
Fitting the transportation securing means:
19
1. Remove the covers and keep them in a safe place.
19
2. Insert all four sleeves.
19
Notes
19
* Familiarising yourself with your appliance
20
Familiarising yourself with your appliance
20
Washing machine
20
Controls
21
Content of the touch display
21
Caution!
21
Material damage/damage to the appliance.
21
Indicators, symbols and buttons on the control panel
22
Indicators and symbols for setting values
22
Setting
22
Note:
23
Other indicators and symbols
23
Information on:
23
Z Laundry
24
Laundry
24
Prepare the laundry
24
Caution!
24
Damage to the appliance/fabrics
24
Sorting laundry
24
Note:
24
Note:
24
Starching
24
Note:
24
1. Switch on the appliance.
24
2. Select the Rinse program.
24
3. Pour liquid starch into the manual dosing compartment in accordance with the manufacturer's instructions.If necessary, clean this compartment beforehand.
24
4. Touch the A button.
24
Dyeing/bleaching
25
C Detergent
25
Detergent
25
Correct selection of detergent
25
Saving energy and detergent
25
Saving
25
Soiling/note
25
Note:
25
/ Programme overview
26
Programme overview
26
Programmes and fabrics
26
Maximum load size
26
Use softener?
26
Notes
26
Note:
26
Notes
26
Notes
27
Notes
27
Note:
27
Note:
27
Note:
28
Possible program settings
28
0 Programme default settings
29
Programme default settings
29
Temperature
29
Spin Speed
29
Ready in time
29
Note:
30
1. Touch the control panel A.
30
2. Touch N or M to change the time.
30
3. And touch A again.
30
Memory programme
30
To store:
30
1. Switch on the appliance.
30
2. Select a programme.
30
3. Change the settings and/or select additional settings.
30
4. Press and hold â on the control panel for approx. three seconds.
30
\ Additional programme settings
30
Additional programme settings
30
Aqua Plus
30
Adjustment values:
30
SpeedPerfect
30
Note:
30
Reduced Ironing
31
Note:
31
Prewash
31
Notes
31
Soaking
31
Notes
31
1. Select i-DOS or pour the detergent into the manual dosing compartment in accordance with the manufacturer's instructions.
31
2. Select the Cottons i 30 °C program and press the A button.
31
3. Press the A button after approx. 10 minutes.The laundry will soak in the water.
31
4. Leave the laundry to soak for as long as required, then either press the A button again to resume the program or change the program.
31
Note:
31
Rinse Stop
31
i-DOS
31
1 Operating the appliance
32
Operating the appliance
32
Preparing the washing machine
32
Note:
32
1. Connect the mains plug.
32
2. Turn on the water tap.
32
3. Open the door.
32
4. Check that the drum is completely drained. Drain if necessary.
32
Switching on the appliance/ selecting a programme
32
Notes
32
You can:
32
Change the programme default settings
32
Select additional programme settings
32
Placing laundry into the drum
33
: Warning
33
Danger of death!
33
Notes
33
1. Unfold presorted laundry items and place them in the drum.
33
2. Make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
33
Measure and add detergent and care products
33
Start the programme
33
The current programme information is displayed during the programme:
33
Note:
33
Child lock 3 sec./operation lock
34
Notes
34
Adding laundry
34
Notes
34
Changing the programme
34
1. Touch the control panel A.
34
2. Select another programme.
34
3. And touch A again.The new program starts from the beginning.
34
Cancel the programme
34
1. Touch the control panel A.
34
2. To cool the laundry: Select Rinse.
34
3. And touch A again.
34
1. Touch A.
34
2. Select Spin or Drain.
34
3. And touch A again.
34
Programme end during rinse hold
34
Programme end
35
Note:
35
Removing laundry/switching off the appliance
35
1. Open the loading door and remove the laundry.
35
2. Switch off the appliance.
35
3. Turn off the tap.
35
Note:
35
Notes
35
a Intelligent dosing system
35
Intelligent dosing system
35
Familiarising yourself with i- DOS
35
i-DOS Detergent drawer
35
Before setting up i-DOS
36
Notes
36
Automatic dosing
36
The automatic dosage operates as follows:
36
1. Switch on the appliance.
36
2. Select a programme with i-DOS settings.
36
3. Start the programme.
36
Tip:
36
Notes
36
i-DOSSetting the content of the M/w dispenser
36
Set the dispenser content as follows:
36
1. Press þ i-DOS M/w.
36
2. If you want to change the dispenser, press þ i-DOS M/w again.
36
3. To exit setting mode, press and hold þ i-DOS M/w for approx. 3 seconds or wait briefly.
36
Note:
37
i-DOS Setting the dosage
37
Check whether the preset basic dosages follow the manufacturer's recommendations in terms of:
37
Below is an example of detergent dosages on a packaging label:
37
For standard load 4 - 5 kg
37
Level of soiling
37
light
37
normal
37
heavy
37
Adjusting the basic dosage
37
1. Press and hold ý i-DOS w and/or þ i-DOS M/w for approx. 3 seconds.
37
2. Change the setting using: ˜/~
37
3. To exit setting mode, press and hold ý i-DOS w and/or þ i-DOS M/w for approx. 3 seconds or wait approx. 10 seconds.
37
Notes
37
Filling the dispensers
37
Notes
37
Fill the dispensers as follows:
37
1. Pull out the detergent drawer.
37
2. Open the dispenser lids.
38
3. Pour liquid detergent and fabric softener into the relevant dispensers.
38
Notes
38
4. Close the dispenser lids.
38
Note:
38
5. Push in the detergent drawer.
38
Note:
38
Manual dosing
38
Note:
38
Dosing and adding detergent
39
Note:
39
1. Pull out the detergent drawer.
39
2. Pour laundry detergent and/or care product into the manual dosing compartment.
39
3. Push in the detergent drawer.
39
Emptying the i-DOS detergent drawer, cleaning the i-DOS detergent drawer and its housing, cleaning the i-DOS pump unit
39
1. Switch off the appliance.
39
2. Pull out the detergent drawer.
39
3. Press down the insert and remove the drawer completely.
39
4. Press the pump unit insert and remove it.
39
5. Unclip the rear detergent drawer lid and remove it.
40
6. Empty the detergent drawer.
40
7. Clean the pump unit with a damp cloth.
40
Caution!
40
8. Clean the drawer, inside surface and lids with a soft, damp cloth or a hand shower.
40
9. Dry the drawer, lids and pump unit and put them back together.
40
10. Clean the inside of the detergent drawer housing.
40
11. Push in the detergent drawer.
41
Q Appliance settings
41
Appliance settings
41
Activating the setting mode
41
1. Switch on the appliance. The settings for the current programme are displayed.
41
2. Touch the control panel œ.
41
Changing the signal volume
41
Adjustment values:
41
Changing the brightness of the touch display
41
Adjustment values:
41
Select/deselect the memory function for drum care
41
Exiting setting mode
42
To exit and save the settings:
42
H Sensors
42
Sensors
42
Automatic load sensing
42
Unbalanced load detection system
42
Note:
42
VoltCheck
42
Note:
42
2 Cleaning and maintenance
42
Cleaning and maintenance
42
: Warning
42
Danger of death!
42
: Warning
42
Risk of poisoning!
42
Caution!
43
Damage to the appliance
43
Notes
43
Machine housing/control panel
43
Drum
43
Descaling
43
The drain pump is blocked, emergency draining
43
: Warning
43
Risk of scalding!
43
1. Turn off the tap so that no more water can flow in and it has to be drained via the drain pump.
43
2. Switch off the appliance.Pull out the mains plug.
43
3. Open and remove the service flap.
43
4. Take the drain hose out of the holder.
43
5. Carefully unscrew the pump cover, as residual water may leak out.
43
6. Reinsert the bottom of the service flap into the slot, clip it into place and close the flap.
44
Note:
44
The drain hose at the siphon is blocked
44
1. Switch off the appliance. Pull out the mains plug.
44
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
44
3. Clean the drain hose and siphon connecting piece.
44
4. Re-attach the drain hose and secure the connection point using the hose clamp.
44
Filter in the water supply blocked
44
1. Release water pressure in the supply hose:
44
a) Turn off the tap.
44
b) Select the Cottons programme.
44
c) Start the programme and leave it to run for approx. 70 seconds.
44
d) Switch off the appliance.
44
e) Pull out the mains plug.
44
2. Clean the filters:
44
a) Disconnect the hose from the water tap.
44
b) For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
44
c) Connect the hose and check for leaks.
44
3 Faults and what to do about them.
45
Faults and what to do about them.
45
Emergency release
45
: Warning
45
Risk of scalding!
45
: Warning
45
Risk of injury!
45
Caution!
45
Water damage
45
1. Switch off the appliance. Pull out the mains plug.
45
2. Drain the water. ~ Page 43
45
3. Pull the emergency release downwards with a tool and release.
45
Information on the display panel
45
Display
45
Cause/remedy
45
Notes
46
Faults and what to do about them.
47
Faults
47
Cause/remedy
47
Note:
47
Note:
49
[ Consumption values
50
Consumption values
50
Programme
50
Load
50
Energy consumption*
50
Water consumption*
50
Programme duration*
50
Information for test institute
51
J Technical data
52
Technical data
52
4 After-sales service
52
After-sales service
52
r Aqua-Stop warranty
53
Aqua-Stop warranty
53
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
53
2. The liability guarantee is valid for the service life of the appliance.
53
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
53
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
53
*9001455690*
56
Thank you for buying a Bosch Home Appliance!
56
Looking for help? You´ll find it here.
56
Search:
×
Search
