USER MANUAL
STANMORE BLUETOOTH - STEREO LOUDSPEAKER
002.
IMPORTANT SAFETY INSTRUCTIONS
• Read these instructions – All the safety and operating instructions should be read before this product is operated.
• Keep these instructions – The safety and operating instructions should be retained for future reference.
• Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
• Follow all instructions – All operating and use instructions should be followed.
WARNING!
• WARNING – To reduce the risk of re or electric shock, do not expose this apparatus to rain or
moisture. The apparatus shall not be exposed to dripping or splashing and that objects lled with liquids, such as
vases, shall not be placed on apparatus.
• WARNING – do not cover.
• WARNING – only use attachments/accessories specied by the manufacturer (such as the exclusive supply adapter, battery etc).
• WARNING – the plug is the main disconnect device and should be used as such. The disconnect device should remain readily
accessible.
• WARNING – this active loudspeaker may emit high sound pressure levels.
• WARNING – do not listen too close to the active loudspeaker.
• WARNING – do not listen for an extended period of time at a high sound pressure level.
• WARNING – do not attempt to remove the active loudspeaker chassis, there are no user serviceable parts.
• WARNING – do not plug a guitar into the Stanmore Bluetooth.
• WARNING – do not insert body parts or objects into the bass port for risk of injury.
• DANGER – of dropping the product.
• DANGER – of sharp corners.
MOISTURE AND HUMIDITY
• The active loudspeaker should be located in a place free from moisture and water.
• Do not use this apparatus near water. Do not expose it to rain or dripping water. Do not splash water on it.
INSTALLATION
• Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including ampliers) that produce heat.
• No naked ame sources, such as lit candles, should be placed on the active loudspeaker.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
CONNECTION
• Connect the active loudspeaker according to the instructions in the manual.
• Connect the active loudspeaker only to the correct mains voltage as shown on the equipment.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they
exit the apparatus.
• Use only power cables of the type specied in the operating instructions or as marked on the active loudspeaker. Do not
substitute the separate power cable included with this active loudspeaker with any other power supply – use only the power cable
provided by the manufacturer.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the
other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Do not install in an area that impedes access to the power plug. Disconnecting the power plug is the only way to completely remove
power to the product and the plug must be readily accessible at all times.
CLEANING
• Clean only with dry cloth.
MAINTENANCE
• Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
• CAUTION: These servicing instructions are for use by qualied service personnel only. To reduce the risk of electric shock, do not
perform any servicing unless you are qualied to do so.
003.
COMPLIANCE MARKS
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
IC Statement
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
CAUTION: To prevent the risk of electric shock, do not remove cover (or
back plate). There are no user serviceable parts inside. Refer servicing to
qualied service personnel.
This appliance may not be treated as regular household waste.
Management of WEEE (Waste Electrical and Electronic Equipment) is
applicable in member states of the European Union and other European
countries with individual national policies on the management of WEEE. If
you need more information on the collection, reuse and recycling systems,
please contact your local or regional waste administration facility.
This product conforms to ANSI/UL Std. 60065 and is Certied to CAN/
CSA Std. C22.2 No. 60065.
The product complies with the following European directives: the
electromagnetic compatibility directive 2014/30/EU and the low voltage
directive 2014/35/EU.
This equipment is a Class II or a double-insulated electrical appliance. It
has been designed in such a way that it does not require a safety con-
nection to electrical earth.
5002720
The content of this document is for information purposes only. Zound Industries reserves the right to
change information without prior notifications and at any time.
Hereby, Zound Industries International AB, declares that this Portable Loudspeaker is in compliance with the essential re-
quirements and other relevant provisions of Directive 2014/35/EU (LVD), 2014/30/EU (EMC), 1999/5/EC (R&TTE), 2009/125/EC
(ErP), 2011/65/EU (RoHS). For the declaration of conformity, visit this website: www.zoundindustries.com
Zound Industries International AB, Centralplan 15, 111 20 Stockholm, Sweden
004.
ENGLISH
SECTIONS
PAGE
INDEX
005. BOX CONTENTS
007. GENERAL DESCRIPTION
009. PLUGGING IN THE STANMORE BLUETOOTH
010. TURNING THE POWER ON/OFF
011. USING THE STANMORE BLUETOOTH WITH YOUR DEVICES
012. CONNECTING VIA BLUETOOTH (PAIRING)
014. BLUETOOTH AUTO CONNECTION
015. CONNECTING SOUND SOURCE VIA CABLE
018. CHOOSING YOUR SOURCE
019. ADJUSTING THE SOUND
020. TECHNICAL INFORMATION
021. TROUBLE SHOOTING
005.

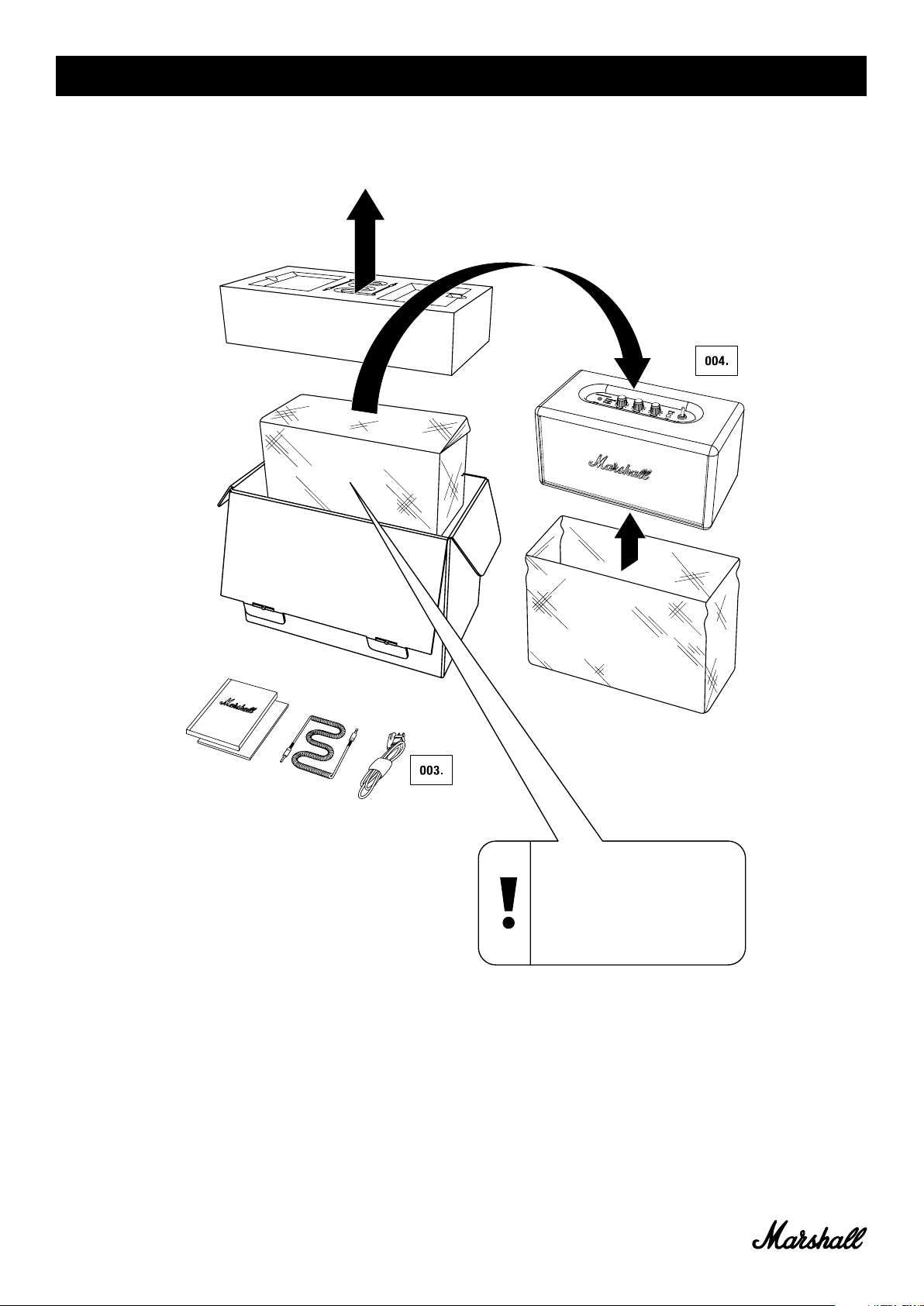

BOX CONTENTS
001. QUICKSTART MANUAL AND SAFETY INFORMATION
002. DOUBLE-ENDED COIL CORD WITH 3.5MM STEREO PLUGS TO CONNECT TO
YOUR MUSIC PLAYER
003. POWER CORD
004. MARSHALL STANMORE BLUETOOTH ACTIVE STEREO LOUDSPEAKER
NOTE: RCA CABLE NOT INCLUDED
WITH THE STANMORE BLUETOOTH
AND MUST BE PURCHASED
SEPARATELY.
006.
BOX CONTENTS CONTINUED
CAUTION: LIFT ACTIVE
LOUDSPEAKER FROM BOTTOM.
DO NOT LIFT BY PROTECTIVE
BAG FOR RISK OF DROPPING
THE PRODUCT.
007.
GENERAL DESCRIPTION
001. INPUT FOR 3.5MM STEREO PLUG
002. SOURCE INDICATORS
003. VOLUME KNOB
004. BASS KNOB
005. TREBLE KNOB
006. PAIR BUTTON
007. SOURCE BUTTON
008. POWER SWITCH
008.
GENERAL DESCRIPTION CONTINUED
009. RCA INPUT (LEFT & RIGHT)
010. BACKPLATE
011. BASS PORT
012. POWER JACK
013. POWER CORD
NOTE: DATE CODE
AND SERIAL NUM-
BER STICKER
LOCATED HERE.
012. 012.013. 013.
009.

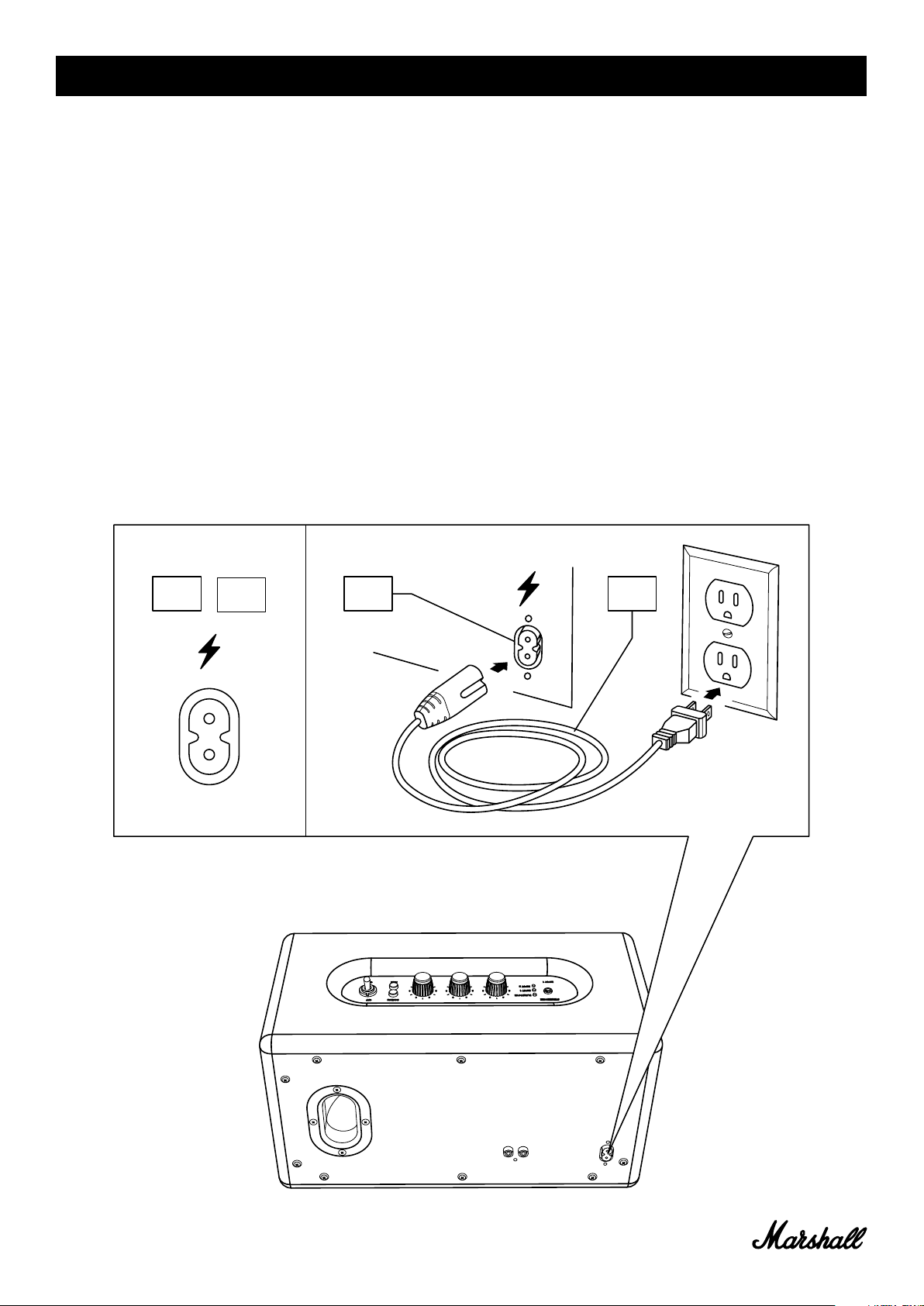

PLUGGING IN THE STANMORE BLUETOOTH
IMPORTANT: BEFORE PROCEEDING TO POINT 001 BELOW, CHECK THE
INCLUDED POWER CORD AND PLUG AND YOUR STANMORE BLUETOOTH
ACTIVE STEREO LOUDSPEAKER ARE COMPATIBLE WITH YOUR MAINS
ELECTRICITY SUPPLY AND ASSOCIATED WALL SOCKET.
001. INSERT THE POWER CORD INTO THE POWER JACK ON THE BACK OF
THE SPEAKER.
002. CONNECT THE POWER PLUG TO THE WALL SOCKET.
003. SWITCH THE ON/OFF SWITCH TO ‘ON’ TO TURN ON THE SPEAKER.
004. THE RED BLUETOOTH INDICATOR STARTS FLASHING AS THE
SPEAKER SEARCHES FOR A BLUETOOTH DEVICE.
005. TO TURN THE SPEAKER OFF, SWITCH THE ON/OFF SWITCH TO OFF.
006. ALL INDICATORS WILL TURN OFF.
002.
001.
001. 002.
010.
003.
PLUGGING IN THE STANMORE BLUETOOTH
005.
006.
004.
011.

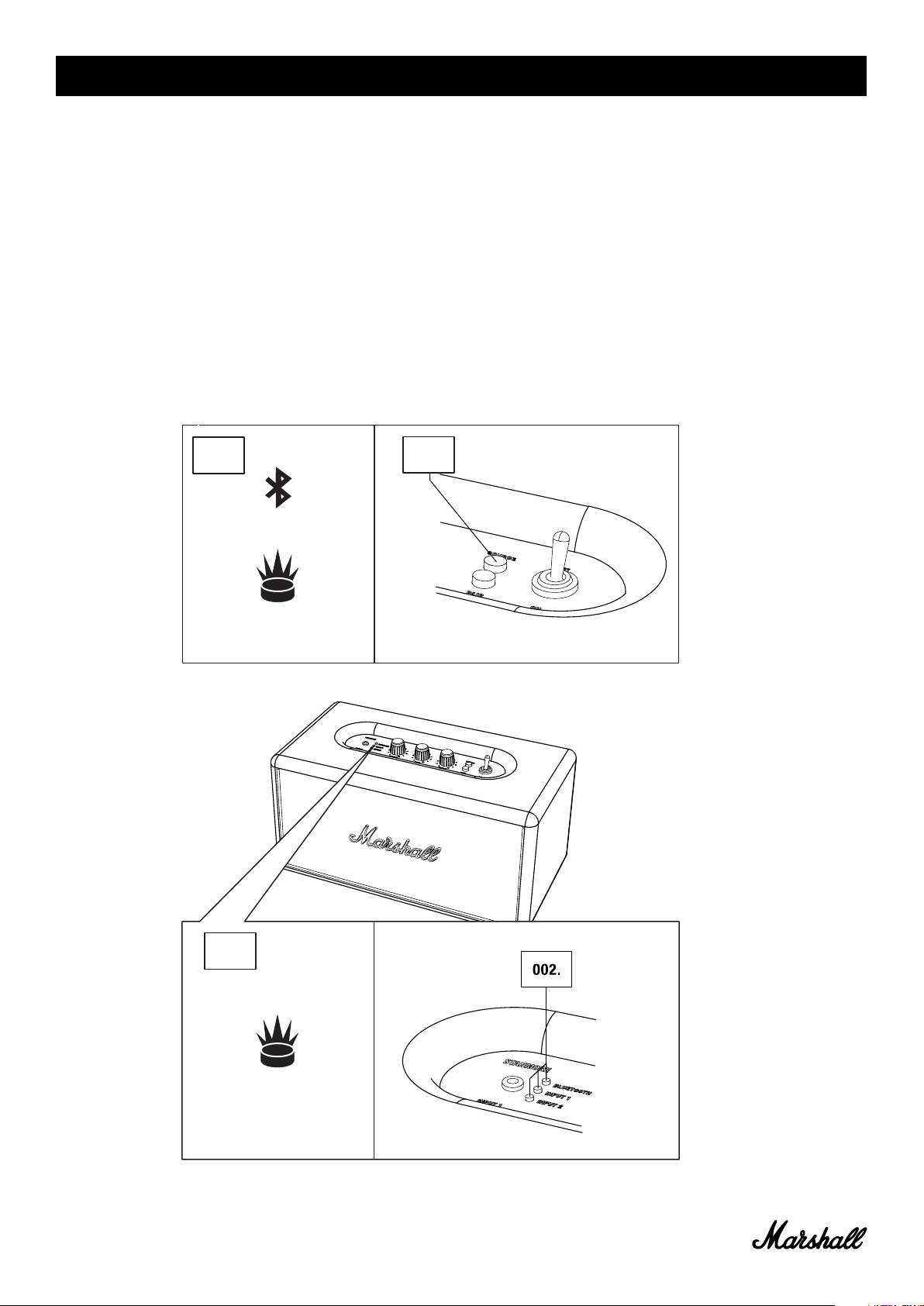

USING THE STANMORE BLUETOOTH
WITH YOUR DEVICES
THERE ARE LOADS OF WAYS TO CONNECT TO YOUR SPEAKER, WHETHER
VIA YOUR PHONE, TURNTABLES, TV OR WIRELESSLY VIA WIRELESS
BLUETOOTH®, FEATURING APTX® TECHNOLOGY. BELOW YOU WILL FIND
MORE DETAILS ABOUT THE CONNECTION SOURCES:
• WIRELESS CONNECTION VIA BLUETOOTH
• CONNECTION VIA CABLES, THE 3.5MM OR RCA
CAUTION: MAKE SURE THAT
THE VOLUME IS SET TO LOW
ON BOTH THE ACTIVE SPEAKER
AND THE MUSIC PLAYER WHEN
YOU START PLAYING MUSIC.
012.
0 0 3 . 0 0 3 .
CONNECTING VIA BLUETOOTH (PAIRING)
FOLLOW THESE STEPS TO PAIR THE STANMORE BLUETOOTH WIRELESSLY TO
YOUR BLUETOOTH DEVICE.
001. ENSURE THAT THE STANMORE BLUETOOTH IS POWERED ON.
002. PUSH THE PAIR BUTTON.
003. THE RED BLUETOOTH INDICATOR STARTS TO FLASH RAPIDLY.
001 .002 .
002 .
013.
004. ENABLE BLUETOOTH FUNCTIONALITY ON YOUR DEVICE.
(SMARTPHONE, TABLET, COMPUTER).
005. ON YOUR DEVICE, SELECT THE STANMORE BLUETOOTH FROM THE
BLUETOOTH LIST AND ACCEPT PAIRING.
006. THE BLUETOOTH INDICATOR ON THE SPEAKER TURNS TO A STEADY RED
AND THE UNITS ARE NOW CONNECTED.
CONNECTING VIA BLUETOOTH (PAIRING)
STANMORE BLUETOOTH
0 0 5 .
0 0 4 .
0 0 6 . 0 0 6 .
014.
BLUETOOTH AUTO CONNECTION
IF A BLUETOOTH CONNECTED DEVICE IS MOVED OUTSIDE THE RANGE OF THE
STANMORE BLUETOOTH (APPROXIMATELY 10 METRES WITHOUT OBSTACLES), IT
IS DISCONNECTED. THE DEVICE IS AUTOMATICALLY CONNECTED AGAIN WHEN IT
IS MOVED BACK WITHIN RANGE.
THE SPEAKER STORES UP TO SIX DEVICES AND TRIES TO CONNECT TO THE LAST
CONNECTED BLUETOOTH DEVICE FIRST. FOR EXAMPLE, IF THE SPEAKER HAS
BEEN CONNECTED TO THE DEVICES: A–B–C–D–E–F , DEVICE F IS GIVEN FIRST
PRIORITY, WHILE DEVICE A IS GIVEN LAST PRIORITY. EVERY TIME THE SPEAKER
STARTS UP, IT WILL DO AN AUTO CONNECTION OF DEVICES WITHIN ITS RANGE.
015.
CONNECTING SOUND SOURCE VIA CABLE
THERE ARE TWO WAYS TO CONNECT TO YOUR STANMORE BLUETOOTH THE
OLD FASHIONED WAY, USING A CABLE. USE ONE OF THE TWO AUDIO INPUTS
AVAILABLE: INPUT 1 - 3.5MM STEREO PLUG, INPUT 2 - RCA ANALOGUE INPUT.
• INPUT 1 - 3.5MM STEREO PLUG
USE THE DOUBLE-ENDED COIL CORD WITH 3.5MM PLUGS TO CONNECT TO
EXTERNAL AUDIO SOURCES.
• INPUT 2 - RCA ANALOGUE INPUT
USE THE RCA ANALOGUE INPUT TO CONNECT TO YOUR CD PLAYER,
TURNTABLE (WITH RIAA) OR SONOS UNIT.
NOTE: RCA CABLE NOT INCLUDED WITH
THE STANMORE BLUETOOTH AND MUST
BE PURCHASED SEPARATELY.
016.
INPUT 1 - 3.5MM STEREO PLUG
004.
003.
003.
001. ENSURE THAT THE STANMORE BLUETOOTH IS TURNED OFF.
002. CONNECT THE CORD WITH THE 3.5MM STEREO PLUG TO THE INPUT
LABELLED INPUT 1 ON THE SPEAKER.
003. CONNECT THE CORD WITH THE 3.5MM STEREO PLUG TO THE MUSIC
PLAYER AND TURN ON THE SPEAKER.
004. SELECT INPUT 1 AS SOURCE BY PUSHING THE SOURCE BUTTON
UNTIL THE INPUT 1 INDICATOR IS LIT (SEE PAGE 018.).
017.
INPUT 2 - RCA PORTS
001. ENSURE THAT THE STANMORE BLUETOOTH IS TURNED OFF.
002. CONNECT THE CORD WITH THE RCA PLUGS TO THE RCA INPUTS
(LEFT AND RIGHT) ON THE BACK OF THE SPEAKER.
003. CONNECT THE OTHER END OF THE CORD TO THE RCA OUTPUT ON
YOUR SOUND SOURCE AND TURN ON THE SPEAKER.
004. SELECT INPUT 2 AS SOURCE BY PUSHING THE SOURCE BUTTON
UNTIL THE INPUT 2 INDICATOR IS LIT (SEE PAGE 018.).
003.
NOTE: TURNTABLE MUST
HAVE A BUILT IN RIAA
PREAMPLIFIER, OTHERWISE
A SEPARATE PREAMPLIFIER
IS NEEDED.
003.
002.
002.
004.
018.
CHOOSING YOUR SOURCE
THE INPUT SOURCE THAT IS CURRENTLY SELECTED IS SHOWN BY A LIT
INDICATOR. TO SELECT A DIFFERENT SOUND SOURCE:
001. PUSH THE SOURCE BUTTON TO CHOOSE YOUR SOURCE AND/OR TO SWITCH
BETWEEN CONNECTED SOURCES.
002. A LIT INDICATOR SHOWS WHICH SOURCE YOU HAVE SELECTED.
• BLUETOOTH DEVICE
• INPUT 1 - 3.5MM STEREO PLUG
• INPUT 2 - RCA PORTS
0 0 1 .
0 0 1 .
0 0 2 .
019.
ADJUSTING THE VOLUME/BASS/TREBLE SOUND
THE STANMORE BLUETOOTH HAS THREE KNOBS FOR ADJUSTING THE SOUND:
001. VOLUME KNOB
002. BASS KNOB
003. TREBLE KNOB
020.
TECHNICAL INFORMATION
SOUND SPECIFICATION
• ACTIVE STEREO LOUDSPEAKER WITH BASS REFLEX SYSTEM
• DIGITAL CLASS D AMPLIFIER: 2X20W + 1X40W
• ¾” DOME TWEETERS: 2X
• 5 ¼” WOOFER: 1X
• BASS AND TREBLE TONE CONTROLS
• FREQUENCY RESPONSE: 45 - 22 000Hz +-3db
• CROSSOVER FREQUENCY: 2500Hz
• CONNECTIVITY:
- BLUETOOTH: STANDARD V4.0 + EDR APTX® CODEC
- INPUT 1 - 3.5MM: 1X
- INPUT 2 - RCA: 1X
- OPTICAL INPUT: 1X
• MAX POWER OUTPUT: 80W RMS
TECHNICAL INFORMATION
• MAINS INPUT VOLTAGE: 100-240V~ /200W
• NOMINAL RATING: 100-240V~
• ABSOLUTE MIN/MAX: 90-264V~
• MAINS FREQUENCY: 50-60Hz
• MAX PEAK POWER CONSUMPTION: 200W
• WEIGHT: 5.10kg
• SIZE: 350 X 185 X 185mm
NOTE: THE FRONT IS
NOT REMOVABLE. THIS
ILLUSTRATION INTENDS TO
SHOW THE INTERNAL SPEAKER
LAYOUT. DO NOT ATTEMPT
TO REMOVE THE FRONT FRET
FOR RISK OF DAMAGING YOUR
ACTIVE LOUDSPEAKER.
TROUBLE SHOOTING
021.
THE STANMORE
BLUETOOTH DOES
NOT TURN ON.
The speaker is not connected
to AC mains.
Ensure that the STANMORE
BLUETOOTH is plugged into
a working AC wall socket,
see page 009.
Change the selected sound
source, see page 018.
Connect the sound source to
the speaker, see 012 or 015.
Slightly increase the volume
on your sound source, then
slightly increase the volume
on the speaker, see 019.
Ensure that the audio cable
is properly connected, see
page 015.
Slightly increase the volume
on your sound source, then
slightly increase the volume
on the speaker, see 019.
Decrease the volume on your
sound source.
Lower the volume or bass
boost on the STANMORE
BLUETOOTH, see page 019.
PROBLEM CAUSE ACTION
THERE IS NO
SOUND
THE SOUND IS TO
LOW
THERE IS A
CRACKLING SOUND
Wrong input for audio source
is selected.
Sound source not connected
via Bluetooth or cable.
Volume is set too low on
either the sound source or the
STANMORE BLUETOOTH.
The audio cable is not properly
connected.
Volume is set too low on
either the sound source or the
STANMORE BLUETOOTH.
The amplifier is clipping if it
runs out of power.
TROUBLE SHOOTING
022.
PROBLEM CAUSE ACTION
Turn down the playback
volume on the sound source.
Try another sound file (mp3) or
music player.
Lower the volume on the
STANMORE BLUETOOTH, see
page 019.
Lower the bass/treble on the
STANMORE BLUETOOTH, see
page 019.
Move the STANMORE
BLUETOOTH to another spot.
Turn off or move the interfering
electronic device.
Move the devices closer so
that they are within10 metres,
and unobstructed by obstacles
such as walls or doors.
Ensure that Bluetooth is
enabled on your device.
When the pairing button is
pressed, the STANMORE
BLUETOOTH searches for
devices for 3 minutes, see
page 012.
THE SOUND IS
DISTORTED
ERRATIC
PERFORMANCE
CANNOT CONNECT
OR PAIR WITH A
BLUETOOTH DEVICE
Volume is set too high on the
sound source.
The sound file (mp3) is of poor
quality.
Volume is set too high on the
STANMORE BLUETOOTH.
Too much bass/treble boost on
the speaker.
Interference from another
electronic device.
The two Bluetooth devices are
too far apart.
Bluetooth is not enabled on
your device.
The pairing timed out.
PROBLEM CAUSE ACTION
TROUBLE SHOOTING
NOTES:
A BLUETOOTH DEVICE COULD CAUSE SOUND-RELATED OR TECHNICAL FAULTS, DEPENDING ON USE,
IN THE FOLLOWING CASES:
• WHEN SOME PART OF THE BODY IS IN CONTACT WITH THE RECEIVING/TRANSMITTING SYSTEM FOR
THE BLUETOOTH DEVICE OR THE STANMORE BLUETOOTH.
• ELECTRICAL VARIATIONS DUE TO OBSTACLES IN THE FORM OF WALLS, CORNERS, ETC.
• EXPOSURE TO ELECTRICAL DISRUPTIONS FROM DEVICES WITHIN THE SAME FREQUENCY BAND,
FOR EXAMPLE MEDICAL EQUIPMENT, MICROWAVE OVENS AND WIRELESS NETWORKS.
THIS WIRELESS DEVICE MAY CAUSE ELECTRICAL DISRUPTIONS DURING USE.
023.
In most cases, you do not
need to enter the pin code
when connecting the Bluetooth
device to the STANMORE
BLUETOOTH.
If the window for entering the
pin code is displayed, use the
STANMORE BLUETOOTH pin
code 0000.
The speaker cannot connect
using Bluetooth HF area
function. Try instead to
connect using the included coil
cord, see 015.
Move the devices closer so
that they are within10 metres,
and unobstructed by obstacles
such as walls or doors.
Items such as microwave
ovens, wireless network
adapters, fluorescent lights
and gas cookers use the
same frequency range as the
Bluetooth device. This may
lead to electrical disturbances.
CANNOT CONNECT
OR PAIR WITH A
BLUETOOTH DEVICE
BLUETOOTH
CONNECTION
DROPS OUT
Your device prompts you for a
pin code.
The two Bluetooth devices are
too far apart or the connection
is affected due to obstacles.
There is a strong electric field
surrounding the STANMORE
BLUETOOTH.
Your device only supports
Bluetooth HF (hands-free) area
function.
024.
WWW.MARSHALLHEADPHONES.COM
