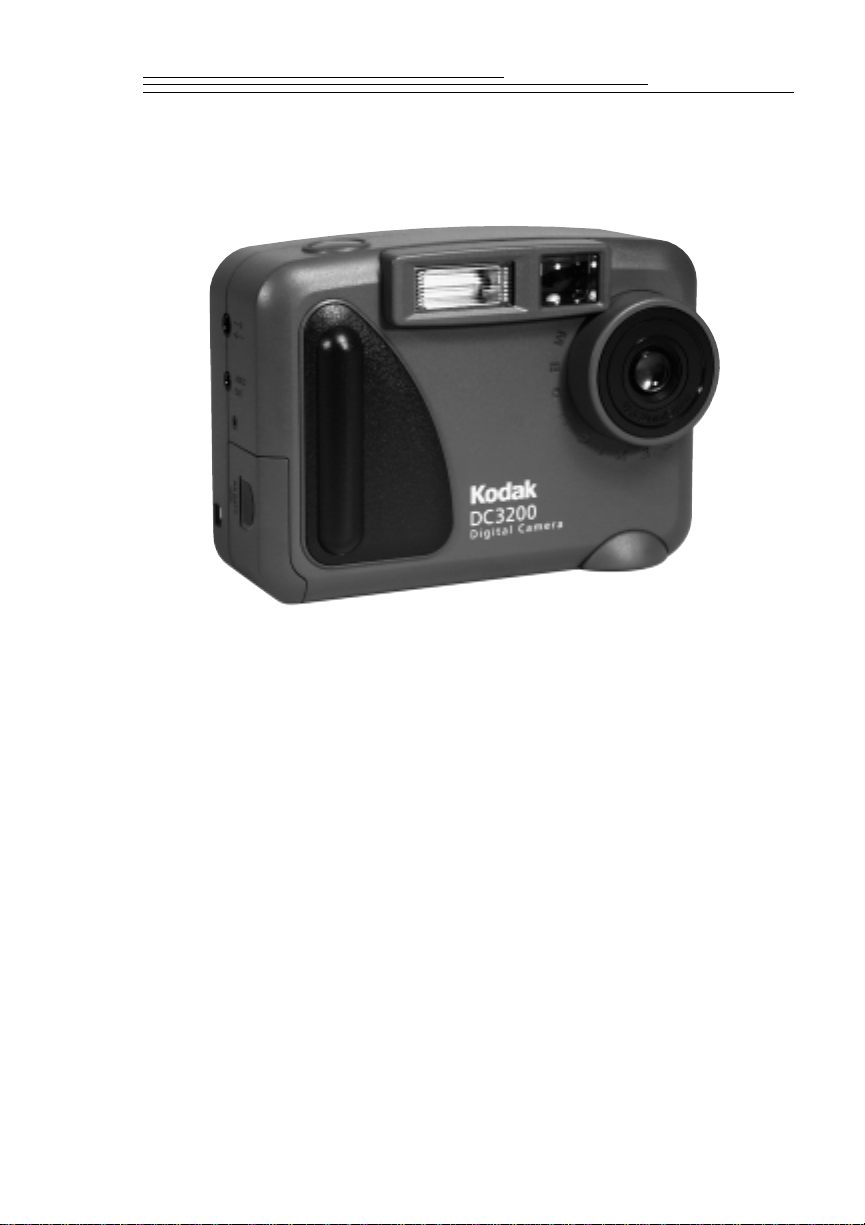

KODAK DC3200 Digital Camera
User’s Guide
Visit Kodak on the World Wide Web at www.kodak.com
©Eastman Kodak Company, 2000
Kodak and Photolife are trademarks of Eastman Kodak Company.
i
Table of Contents
1 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Preparing to Take Pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Attaching the Wrist Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Loading the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Turning the Camera On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Checking the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Inserting a Picture Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Removing a Picture Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Taking Pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Previewing a Picture Before it is Taken . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Taking a Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Zooming in on Your Subject . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Setting the Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Adjusting the Picture Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Adjusting the White Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Setting a Quickview for Each Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3 Reviewing Your Pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Viewing Your Pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Copying Pictures from the Camera to a Picture Card . . . . . . . . . . . . . . . . .17
Protecting Pictures from Deletion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Protecting a Particular Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Protecting All Stored Pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Deleting One or All of Your Pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Deleting a Particular Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Deleting All Stored Pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Selecting Pictures for Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Assigning a Print Order to a Particular Picture . . . . . . . . . . . . . . . . . . 22
ii
Assigning a Print Order to Thumbnail-format Pictures . . . . . . . . . . . . .24
Running a Slide Show on Your Television . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Formatting Your Picture Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4 Installing Your Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
KODAK DC3200 Picture Transfer Software . . . . . . . . . . . . . . . . . . . . . . . . .27
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Installing KODAK DC3200 Picture Transfer Software . . . . . . . . . . . . . . . 28
Uninstalling KODAK DC3200 Picture Transfer Software . . . . . . . . . . . . . 28
5 Using the Camera with Your Computer . . . . . . . . . . . . . . . . . . . . 29
Connecting the Camera to Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . 30
Using the DC3200 Picture Transfer Software . . . . . . . . . . . . . . . . . . . . . . 32
Navigating to Your Pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
7 Where to Get Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Software Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Kodak Online Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Kodak Fax Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Telephone Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
8 Warranty and Regulatory Information . . . . . . . . . . . . . . . . . . . . 43
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
FCC Compliance and Advisory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Canadian DOC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
9 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Original Camera Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Camera Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Getting Better Results from Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . 49
Using Your Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
General Maintenance and Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
1
1
1 Getting
Started
Congratulations on your purchase of a new KODAK DC3200 Digital Camera—
the camera that takes pictures digitally, without the use of film. With your new
camera, picture-taking and print-making are fun and easy.
Here are just a few examples of what you can do with your camera:
Take digital pictures in unbelievable detail, color, and sharpness.
Transfer your pictures to a computer for editing, enhancement, and
placement into your document.
E-mail your pictures to friends, family, and business associates anywhere
in the world.
Print high-quality pictures at home using KODAK Inkjet Photo Paper, or
take your optional KODAK Picture Card to a KODAK Picture Maker
System and create photo-quality enlargements at a touch of a button.
Display your pictures to a large audience on a television or video monitor
using a KODAK-specified video cable.
2
Preparing to Take Pictures
Before you can start taking pictures, you need to install the batteries or connect a
KODAK AC Adapter (Cat# 122-0557) for power. The AC adapter is available as
an accessory from a dealer of KODAK products or from our Web site at http://
www.kodak.com/go/accessories.
Your camera offers 2 MB of internal memory for picture storage. This internal
memory retains pictures even if the power supply is interrupted. To record a
greater number of pictures, insert an optional KODAK Picture Card into the
camera. When a Picture Card is inserted into the camera, pictures are stored on
the card.
Attaching the Wrist Strap
Loading the Batteries
Your camera comes with four AA batteries so you can start taking pictures
immediately. For guidelines for battery usage, see page 50.
1 Thread the small loop end of the wrist strap
through the wrist strap eyelet, located on the
side of the camera.
2 Thread the large loop end of the strap
through the small loop and pull the large
loop end to tighten the strap.
1 Make sure that the Power/Mode switch is
set to OFF.
2 Slide and open the battery compartment
cover (located on the side of the camera) in
the direction of the arrow.
3 Insert the batteries into the battery
compartment, making sure their plus and
minus ends are facing as indicated in the
diagram.
4 Close the battery compartment cover and
slide it in until it locks in place.
3
1
Turning the Camera On and Off
Turn the camera on and off using the Power/Mode switch, located on the back of
the camera.
To turn the camera on in the Capture
mode (to take pictures), set the Power/
Mode switch to the position. To
turn the camera on in the Review mode
(to review captured pictures), set the
Power/Mode switch to the position.
The green Ready light (next to the
viewfinder) and the LCD turn on. A
message appears on the LCD for several
seconds to indicate which medium
(internal memory or a Picture Card) you
are accessing.
To turn the camera off, set the Power/
Mode switch to OFF.
If you are using the batteries for power, and
the camera is idle for approximately five
minutes, the Auto Power Off function
automatically turns the power off. To turn
the camera on again, set the Power/Mode
switch to OFF and then back to the
or position.
4
Checking the Batteries
The DC3200 Digital Camera displays a battery symbol to indicate the battery
power level. For guidelines on battery usage, See “Using Your Batteries” on
page 50.
Since digital cameras are demanding on batteries, keep extra sets of batteries
handy. Consider purchasing either a KODAK AC Adapter (Cat# 122-0557) or a
KODAK Ni-MH/Ni-Cd Battery Charger with KODAK Ni-MH Rechargeable
Batteries. Both are available as accessories from a dealer of KODAK products or
from our Web site at http://www.kodak.com/go/accessories.
1 Set the Power/Mode switch to the
or position.
2 Check the battery status symbol that appears
on the LCD.
In the Capture mode, you can turn on the
LCD by pressing the SELECT button. You
can also use the Preview feature to keep the
LCD on constantly while the camera power
is turned on. (See “Previewing a Picture
Before it is Taken” on page 8.)
Full—indicates the batteries are charged
and ready to use.
Low—indicates the batteries are not
fully charged and will soon need to be
replaced or recharged.
Exhausted (flashing)—indicates the
batteries are too weak to power the
camera and need to be replaced.
The red Ready light (next to the
viewfinder) blinks when the batteries are
exhausted.
Accessed
i n t e r na l memo r y .
To access card,
insert memory card
005
5
1
Inserting a Picture Card
Your camera accepts an optional KODAK Picture Card, which stores pictures.
The Picture Card (also known as a CompactFlash or camera memory card) is
removable and reusable for easy storage and transfer of your pictures. KODAK
Picture Cards are available as an accessory through a dealer of KODAK products
or from our Web site at http://www.kodak.com/go/accessories.
Removing a Picture Card
WARNING: Do not insert or eject a Picture Card while the green
Ready light (next to the viewfinder) is blinking; this may damage
your pictures or camera. Use only certified Picture Cards that carry
the CompactFlash logo.
1 Slide and open the card slot cover (located on
the bottom of the camera) in the direction of
the arrow.
2 Hold the Picture Card so the connection end
(with tiny holes) is pointed at the camera, and
the small lip on the other end is facing the front
of the camera.
The Picture Card can only be inserted one way
into the camera. Forcing the card may damage
your camera or the card.
3 Push the center of the Picture Card edge so the
card is inserted all the way into the card slot.
4 Close the card slot cover and slide it in until it
locks in place.
1 Open the card slot cover.
2 Push the Eject button.
The Picture Card partially slides out of the
slot.
3 Remove the Picture Card from the slot, and
close the card slot cover.
7
2
2 Taking Pictures
Your KODAK DC3200 Digital Camera makes taking pictures fun. Just set the
camera to the Capture mode and you are on your way to creating great pictures.
Everything you need is at your fingertips. With the DC3200 Digital Camera, you
can:
Zoom in digitally (two times closer) on your subject.
Vary the flash settings to give you control over the type of flash needed
for specific conditions.
Select a picture quality setting to meet your picture-taking needs.
Adjust the white balance to obtain the natural color of a subject under
different lighting conditions.
Preview a picture before it is taken.
Review a picture you just took.
8
Previewing a Picture Before it is Taken
If you want to see what a picture looks like before you take it, you can preview
the image on the LCD on the back of your camera. The live image that appears is
helpful for framing your subject.
NOTE: Because any LCD is demanding on batteries, consider purchasing a
KODAK Ni-MH/Ni-Cd Battery Charger with KODAK Ni-MH Rechargeable
Batteries, available as an accessory through a dealer of KODAK products or
from our Web site at http://www.kodak.com/go/accessories.
1 Set the Power/Mode switch to the
position.
2 Press the MENU button to display the Menu
screen.
3 Press a button until PREVIEW is
highlighted, and then press the SELECT
button.
The Preview screen appears. The current
setting is checked.
4 Press a button until ON is
highlighted, and then press the SELECT
button.
The camera accepts the change and returns
to the Menu screen.
5 Press the MENU button to turn off the Menu
screen.
The LCD displays a live image with status
icons.
You can turn the LCD on and off by pressing
the SELECT button. To turn Preview off,
highlight OFF on the Preview screen, and
then press the SELECT button.
Accessed
i n t e r na l memo r y .
To access card,
insert memory card
ON
OFF
PREVIE
W
00 5005
WHITE BALANCE
QU I CKV I EW
QUAL I TY
PREVIEW
/
/
9
2
Taking a Picture
Taking pictures is a snap with your DC3200 Digital Camera. You can take a
picture of a subject as close as 2 ft (0.6 m).
Zooming in on Your Subject
You can zoom from Wide Angle (giving you more of the surrounding area) to
TelePhoto, which brings the subject two times closer. To use the Zoom feature,
you need to select the Good picture quality setting. For information on selecting
the picture quality, see “Adjusting the Picture Quality” on page 11.
1 Set the Power/Mode switch to the
position.
2 Center the subject in the viewfinder, or turn
Preview on (see page 8) and use the LCD to
frame your subject.
3 Press the Shutter button half-way down to
lock in the exposure on the subject.
The green Ready light turns on when the
camera is ready to take a picture.
4 Press the Shutter button completely down to
take a picture.
The green Ready light blinks as the picture
is stored in the memory or on a Picture
Card.
If the orange Ready light comes on, then the
flash is not fully charged. Wait for the flash
to charge before taking a picture.
1 Set the Power/Mode switch to the
position.
2 Press the button.
The subject on the LCD is magnified.
3 To return to the normal size, press the
button.
Accessed
i n t e r na l memo r y .
To access card,
insert memory card
10
Setting the Flash
Use the flash when taking pictures at night, indoors, or outdoors in heavy
shadows. Your camera has three different flash options and a range of 8 ft
(2.4 m), to accommodate most picture-taking situations.
WARNING: Never use the flash while the camera is close to the eyes of the
subject, especially young children. Intense light from the flash can cause
permanent eye damage if used too close to the eyes. When using the flash,
the camera should be at least 5 ft (1.5 m) away from the subject.
1 Set the Power/Mode switch to the
position.
2 Press the Flash button to scroll though the
flash options.
The flash option changes each time you press
the Flash button.
Auto—flash fires automatically, when
needed. Ideal for everyday picture-taking.
This is the default flash setting.
Off—flash does not fire. Ideal for taking
pictures where flash is prohibited, as in
museums.
Fill—flash fires every time you take a
picture. Ideal for outdoor pictures, when
your subject is in heavy shadow.
3 To return to the Auto setting, press the Flash
button, or turn the camera off.
Accessed
i n t e r na l memo r y .
To access card,
insert memory card
11
2
Adjusting the Picture Quality
Your camera compresses pictures according to the picture quality setting. If you
intend to make large prints, you can capture more detail in the picture using the
Best setting (but you will use more space in the internal memory or on a Picture
Card). For everyday pictures, use the Better setting, which gives you more
pictures using less storage space. If you need to take a large number of pictures,
or you are going to e-mail or use the pictures online, use the Good setting.
1 Set the Power/Mode switch to the
position.
2 Press the MENU button to display the Menu
screen.
3 Press a button until QUALITY is
highlighted, and then press the SELECT
button.
The Quality screen appears. The current
setting is checked.
4 Press a button until the desired Quality
option is highlighted, and then press the
SELECT button.
BEST—captures a 1,152 x 864-pixel
picture in low compression.
BETTER—captures a 1,152 x 864-pixel
picture in high compression.
GOOD—captures a 576 x 432-pixel
picture in low compression.
The camera accepts the change and returns to
the Menu screen.
5 Press the MENU button to turn the Menu
screen off.
The Picture Quality icon for the selected
setting is displayed when the LCD is on.
You can switch freely among these settings
when taking pictures.
WHITE BALANCE
QU I CKV I EW
QUAL I TY
PREVIEW
BEST
BETTER
GOOD
QUAL I TY
/
/
005
12
Adjusting the White Balance
The color of the image may look different from that of the actual subject,
depending on the type of lighting source. For recording pictures in as natural
colors as possible, your camera has four white balance options.
1 Set the Power/Mode switch to the
position.
2 Press the MENU button to display the Menu
screen.
3 Press a button until WHITE
BALANCE is highlighted, and then press the
SELECT button.
The White Balance screen appears. The
current setting is checked.
4 Press a button until the desired white
balance option is highlighted, and then press
the SELECT button.
AUTO—adjusts the white balance
automatically for the current lighting
conditions. Ideal for everyday pictures.
This is the default white balance setting.
DAYLIGHT—ideal for outdoor pictures,
or indoor pictures under natural lighting
conditions.
FLUORESCENT—balances the green
color of indoor pictures under fluorescent
lighting.
TUNGSTEN—balances the red/orange
color of indoor pictures under tungsten
lighting.
The camera accepts the change and returns
to the Menu screen.
5 Press the MENU button to turn the Menu
screen off.
To return to the Auto setting, highlight
AUTO on the White Balance screen, and
then press the SELECT button.
Accessed
i n t e r na l memo r y .
To access card,
insert memory card
WHITE BALANCE
QU I CKV I EW
QUAL I TY
PREVIEW
AUTO
DAYLIGHT
FLUORESCENT
TUNGSTEN
W
HITE BALANCE
/
/
13
2
Setting a Quickview for Each Picture
You can turn the Quickview feature on so that a picture just taken is displayed on
the LCD for a few seconds. This lets you confirm a picture immediately after it
has been taken.
1 Set the Power/Mode switch to the
position.
2 Press the MENU button to display the Menu
screen.
3 Press a button until QUICKVIEW is
highlighted, and then press the SELECT
button.
The Quickview screen appears. The current
setting is checked.
4 Press a button until ON is highlighted,
and then press the SELECT button.
The camera accepts the change and returns
to the Menu screen.
5 Press the MENU button to turn the Menu
screen off.
To turn Quickview off, highlight OFF on the
Quickview screen, and then press the
SELECT button.
Accessed
i n t e r na l memo r y .
To access card,
insert memory card
WHITE BALANCE
QU I CKV I EW
QUAL I TY
PREVIEW
/
ON
OFF
QUI CKV I E
W
/
15
3
3 Reviewing Your
Pictures
Now that you have taken pictures, you can review them by setting the camera to
the Review mode. Here, you can:
View your pictures.
Copy pictures stored in the internal memory to an optional KODAK
Picture Card.
Protect your important pictures from accidental erasure.
Delete unwanted pictures to free up space in the internal memory or on a
Picture Card.
Select specific pictures and quantities to be printed.
Display and run a slide show from the camera to your television using a
KODAK-specified video cable.
Format other Picture Cards for use in your camera.
16
Viewing Your Pictures
Pictures can be displayed individually in full LCD size, or as six thumbnail-size
pictures at one time.
NOTE: Because any LCD is demanding on batteries, consider purchasing a
KODAK Ni-MH/Ni-Cd Battery Charger with KODAK Ni-MH Rechargeable
Batteries, available as an accessory through a dealer of KODAK products or
from our Web site at http://www.kodak.com/go/accessories.
1 Set the Power/Mode switch to the
position.
The LCD turns on, and the access message
appears. Then the last picture taken is
displayed in full LCD size with the status
icons and the Picture Number indicator.
2 Use the buttons to scroll through the
pictures.
3 To view the pictures in a thumbnail format,
press the SELECT button.
4 Use the buttons to scroll through the
thumbnails.
The selected picture is indicated by a frame.
The selection frame moves as you advance or
go back through the pictures.
5 To return to the full LCD size, press the
SELECT button.
00 0 3
0003
Accessed
i n t e r na l memo r y .
To access card,
insert memory card
0003
/
/
17
3
Copying Pictures from the Camera to a Picture Card
You can copy all the pictures stored in the internal memory to a Picture Card.
1 Insert a Picture Card.
2 Set the Power/Mode switch to the
position.
3 Press the MENU button to display the Menu
screen.
4 Press a button until COPY is
highlighted, and then press the SELECT
button.
The Copy screen appears.
5 Press a button until YES is
highlighted.
6 Press the SELECT button to copy the
pictures.
“Copying completed.” is displayed, and then
the Menu screen reappears.
If copying fails (because not all the pictures
fit on the Picture Card), a message appears.
Insert a Picture Card with more available
storage, then repeat Steps 2-6.
7 Press the MENU button to turn the Menu
screen off.
Accessed
memo r y c a r d .
To access
internal memory,
remove card.
COPY
FORMAT
SL IDE SHO
W
Copy all from
EXIT
internal memory
to card.
YES
/
/
18
Protecting Pictures from Deletion
Use the Delete-protection feature to prevent your important pictures (in the
internal memory or on a Picture Card) from being accidentally erased.
Protecting a Particular Picture
1 Set the Power/Mode switch to the
position.
2 Press a button until the desired picture
is displayed in full LCD size or is selected in
the thumbnail format.
3 Press the MENU button to display the Menu
screen.
4 Press a button until PROTECT is
highlighted, and then press the SELECT
button.
The main Protect screen appears.
5 Press a button until CURRENT is
highlighted, and then press the SELECT
button.
The Protect screen appears.
6 Press a button until YES is
highlighted, and then press the SELECT
button.
The Protect icon appears.
To protect another picture, highlight NEXT
or PREVIOUS, press the SELECT button
until the desired picture appears, and then
repeat the same procedure.
7 Highlight DONE, and then press the
SELECT button to turn the Protect screen off.
The protection setting is assigned to the
picture or pictures.
Accessed
i n t e r na l memo r y .
To access card,
insert memory card
PC CONNECT
PRINT ORDER
DELETE
PROTECT
CURRENT
EXIT
ALL
PROTECT
DONE
NO
YES
NEXT
PREVIOUS
PROTECT
/
/
/
/
19
3
Protecting All Stored Pictures
8 Press the MENU button to turn the main
Protect screen off.
To cancel the protection setting for a
particular picture, display the desired picture
on the Protect screen. Highlight NO, press
the SELECT button, highlight DONE, and
press the SELECT button.
1 Set the Power/Mode switch to the
position.
2 Press the MENU button to display the Menu
screen.
3 Press a button until PROTECT is
highlighted, and then press the SELECT
button.
The main Protect screen appears.
4 Press a button until ALL is
highlighted, and then press the SELECT
button.
The Protect All screen appears.
5 Press a button until YES is
highlighted, and then press the SELECT
button.
The protection setting is assigned to all the
pictures.
6 Press the MENU button to turn the Protect
All screen off. To cancel the protection
setting for all the pictures, highlight NO on
the Protect All screen, and then press the
SELECT button.
Accessed
i n t e r na l memo r y .
To access card,
insert memory card
PC CONNECT
PRINT ORDER
DELETE
PROTECT
/
CURRENT
EXIT
ALL
PROTECT
PROTECT ALL
EXIT
NO
YES
/
/
20
Deleting One or All of Your Pictures
If you decide that you do not want the pictures in the internal memory or on a
Picture Card, or you want to free up space, use the Delete feature. You can erase
one or all of the pictures in the memory (except those that are delete-protected).
Deleting a Particular Picture
1 Set the Power/Mode switch to the
position.
2 Press a button until the desired picture
is displayed in full LCD size or is selected in
the thumbnail format.
3 Press the MENU button to display the Menu
screen.
4 Press a button until DELETE is
highlighted, and then press the SELECT
button.
The main Delete screen appears.
5 Press a button until CURRENT is
highlighted, and then press the SELECT
button.
The Delete screen appears.
6 Press a button until YES is
highlighted, and then press the SELECT
button.
The picture is deleted.
To delete another picture, highlight NEXT or
PREVIOUS, press the SELECT button until
the desired picture appears, and then repeat
the same procedure.
7 Press the MENU button to turn the Delete
screen off.
Accessed
i n t e r na l memo r y .
To access card,
insert memory card
PC CONNECT
PRINT ORDER
DELETE
PROTECT
/
/
/
/
CURRENT
EXIT
ALL
DELETE?
YES
EXIT
NEXT
PREVIOUS
DELETE?
21
3
Deleting All Stored Pictures
1 Set the Power/Mode switch to the
position.
2 Press the MENU button to display the Menu
screen.
3 Press a button until DELETE is
highlighted, and then press the SELECT
button.
The main Delete screen appears.
4 Press a button until ALL is
highlighted, and then press the SELECT
button.
The Delete All screen appears, indicating the
medium in which you are deleting the
pictures.
5 Press a button until YES is
highlighted, and then press the SELECT
button to delete all the pictures.
“No picture in internal memory (on memory
card).” appears when the deleting ends.
If pictures that are delete-protected exist in
the memory, the camera deletes all other
pictures and returns to the main Delete
screen. Press the MENU button to turn the
main Delete screen off.
Accessed
i n t e r na l memo r y .
To access card,
insert memory card
PC CONNECT
PRINT ORDER
DELETE
PROTECT
CURRENT
EXIT
ALL
DELETE?
/
/
Delete all in
internal memory?
YES
NO
/
22
Selecting Pictures for Printing
With the Print Order feature, you can select certain pictures on an optional
KODAK Picture Card, then print them on the KODAK Picture Maker System (or
on a printer that accepts Picture Cards).
Assigning a Print Order to a Particular Picture
1 Insert a Picture Card with pictures for
printing. Set the Power/Mode switch to the
position.
2 Press a button until the desired picture
is displayed in full LCD size or is selected in
the thumbnail format.
3 Press the MENU button to display the Menu
screen.
4 Press a button until PRINT ORDER
is highlighted, and then press the SELECT
button.
The main Print Order screen appears.
5 Press a button until CURRENT is
highlighted, and then press the SELECT
button.
The Print Order screen appears.
6 Press a button until +COPIES is
highlighted, and then press the SELECT
button until the desired number of prints
appears.
To assign another picture to this print order,
highlight NEXT or PREVIOUS, press the
SELECT button until the desired picture
appears, and then repeat the procedure.
7 Highlight DONE, and then press the
SELECT button to turn off the Print Order
screen.
The print order is accepted.
8 Press the MENU button to turn the main Print
Order screen off.
Accessed
memo r y c a r d .
To access
internal memory,
remove card.
PC CONNECT
PRINT ORDER
DELETE
PROTECT
INDEX
PRINT ORDER
CURRENT
EXIT
ALL
2
DONE
–COPIES
+COPIES
NEXT
PREVIOUS
PRINT ORDER
/
/
/
/
23
3
Assigning a Print Order to All Stored Pictures
To cancel the print order for a particular
picture, display the desired picture on the
Print Order screen, highlight – COPIES, and
press the SELECT button until “0” appears.
Then highlight DONE and press the
SELECT button.
1 Insert a Picture Card with pictures for
printing.
2 Set the Power/Mode switch to the
position.
3 Press the MENU button to display the Menu
screen.
4 Press a button until PRINT ORDER is
highlighted, and then press the SELECT
button.
The main Print Order screen appears.
5 Press a button until ALL is
highlighted, and then press the SELECT
button.
The Print All screen appears.
6 Press a button until +COPIES is
highlighted, and then press the SELECT
button until the desired number of prints
appears.
7 Highlight DONE, and then press the
SELECT button to turn off the Print All
screen.
The print order is accepted.
8 Press the MENU button to turn off the main
Print Order screen.
To cancel the print order for all the pictures,
highlight – COPIES on the Print All screen,
and press the SELECT button until “0”
appears. Then highlight DONE and press the
SELECT button.
Accessed
memo r y c a r d .
To access
internal memory,
remove card.
PC CONNECT
PRINT ORDER
DELETE
PROTECT
INDEX
PRINT ORDER
CURRENT
EXIT
ALL
#
1
–COPI ES
+COPIES
PRINT ALL
DONE
/
/
/
24
Assigning a Print Order to Thumbnail-format Pictures
Using the Index Print Order feature, you can create an index of all the pictures
stored on a Picture Card by printing them as a group of small, thumbnail images.
You can make only one index print.
1 Insert a Picture Card with pictures for
printing.
2 Set the Power/Mode switch to the
position.
3 Press the MENU button to display the Menu
screen.
4 Press a button until PRINT ORDER is
highlighted, and then press the SELECT
button.
The main Print Order screen appears.
5 Press a button until INDEX is
highlighted, and then press the SELECT
button.
The Index Print screen appears.
6 Press a button until YES is
highlighted, and then press the SELECT
button.
The index print order is accepted.
7 Press the MENU button to turn the main Print
Order screen off.
To cancel the index print order, highlight
CANCEL on the Index Print screen, and then
press the SELECT button.
Accessed
memo r y c a r d .
To access
internal memory,
remove card.
PC CONNECT
PRINT ORDER
DELETE
PROTECT
INDEX
PRINT ORDER
CURRENT
EXIT
ALL
EXIT
YES
INDEX PRINT
/
/
/
25
3
Running a Slide Show on Your Television
You can show your pictures to an audience by connecting your camera to a
television with a KODAK Video Cable (Cat# 181-7774) and using the Slide
Show feature. With Slide Show activated, the camera consecutively displays
stored pictures at the selected intervals. To conserve batteries, use a KODAK-
specified AC adapter.
1 Turn off your television and camera.
2 Insert a video cable into the VIDEO OUT
port on the side of your camera, and connect
the other end of the cable to the video-in port
on the television.
3 Set the Power/Mode switch to the
position.
4 Turn the television on, and select the correct
channel for video input.
The picture appears on the television.
5 Press a button until the picture from
which you want to begin the slide show
appears on the television.
6 Press the MENU button to display the Menu
screen on the television.
7 Press a button until SLIDE SHOW is
highlighted, and then press the SELECT
button.
The Slide Show screen appears.
8 Press a button until the time interval
option you want is highlighted, and then press
the SELECT button.
The pictures change according to the selected
time interval. After showing all the stored
pictures once, the slide show automatically
stops.
To stop a Slide Show, press the SELECT
button.
/
Accessed
i n t e r na l memo r y .
To access card,
insert memory card
COPY
FORMAT
SL IDE SHO
W
SLIDE SHO
W
EXIT
3 Sec
5 Sec
10 Sec
20 Sec
30 Sec
/
/
26
Formatting Your Picture Card
If you own Picture Cards that have been used in other digital cameras, the cards
may not be properly formatted for use in your DC3200 Digital Camera (or the
data on the cards may have become corrupted). When these issues arise, your
camera indicates that the Picture Card needs to be formatted.
Formatting a Picture Card erases all of the information on the card, including any
delete-protected pictures. Be sure to copy important data to your computer or
other recording medium before formatting the card.
You can also format the internal memory so that all pictures in the internal
memory are erased, freeing up space for new pictures.
1 Insert a Picture Card to be formatted, or
remove the card from the camera to format
the internal memory.
2 Set the Power/Mode switch to the
or position.
3 Press the MENU button to display the Menu
screen.
4 Press a button until FORMAT is
highlighted, and then press the SELECT
button.
The Format screen appears.
5 Press a button until CONTINUE is
highlighted, and then press the SELECT
button to begin formatting.
“No picture on memory card (in internal
memory).” appears as formatting ends.
Accessed
memo r y c a r d .
To access
internal memory,
remove card.
COPY
FORMAT
SL IDE SHO
W
Format ting
CANCEL
CONTINUE
wil l delete
everything
on memory card!
/
/
27
4
4 Installing Your
Software
The KODAK DC3200 Installation Software (Installer) included with your
camera contains software for Windows-based personal computers. The features
let you access and use the pictures stored in the camera memory or on an optional
KODAK Picture Card.
KODAK DC3200 Picture Transfer Software
Picture Transfer Software is included on the supplied CD-ROM, and provides an
easy way to transfer pictures from the camera memory or Picture Card to your
computer.
System Requirements
Windows 95, Windows 98, Windows 98 Second Edition, Windows NT
Workstation 4.0 SP3 – SP6, or Windows 2000 Professional operating
system
PC/AT-compatible personal computer with Pentium 90-MHz
microprocessor (minimum) with CD-ROM drive
Color display monitor with a minimum resolution of 640 x 480 and 256
colors (16- or 24-bit recommended)
32 MB or more of available RAM for Windows 95 and Windows 98
64 MB or more of available RAM for Windows NT 4.0 and Windows
2000
100 MB of hard disk space available
Available serial port or CF card reader
28
Installing KODAK DC3200 Picture Transfer Software
Take a few minutes to register your product. This allows you to receive
information regarding software updates and registers some of the products
included with the camera.
1 Close all other software programs (including any background applications)
before starting the Installer.
2 Place the Installer CD into the CD-ROM drive.
3 Load the software.
With Auto Play enabled, the KODAK CD Software will start.
If the first install window does not automatically appear, open My Computer,
double-click the CD icon, then double-click the Setup (Setup.exe)
application.
4 Follow the on-screen instructions to install the software.
5 Restart the computer when the software installation is complete. The system
will not operate normally unless the computer is restarted after installation.
Uninstalling KODAK DC3200 Picture Transfer Software
1 Click the Start button on the desktop. From the Programs menu, choose
Kodak, then DC3200, and then Uninstall KODAK DC3200.
2 Follow the prompts to uninstall the software.
29
5
5 Using the
Camera with
Your Computer
To transfer pictures from your camera, you need to connect the camera to your
computer. The camera can communicate with your computer using:
An RS-232 serial cable connection for Windows-based computers, to
transfer pictures stored in the camera memory or on an optional KODAK
Picture Card.
A CompactFlash card reader, to transfer pictures stored on a Picture Card.
CF card readers provide a fast and easy alternative to serial cable
connections. For details about available accessories, ask a dealer of
KODAK products, or visit our Web site at http://www.kodak.com/go/
accessories.
Once the camera is connected to a computer and the software is installed, you are
ready to copy pictures from the camera to your computer.
30
Connecting the Camera to Your Computer
An RS-232 serial cable is provided, so you can connect your camera to a
Windows-based computer. When connecting the camera, use a KODAK-
specified AC adapter. For details about available accessories, ask a dealer of
KODAK products, or visit our Web site at http://www.kodak.com/go/
accessories.
1 With the computer turned off, plug the
appropriate end of the serial cable into an
available 9-pin serial port on the computer.
Serial ports are usually labeled COM1 and
COM2, or A and B. If your computer has a
25-pin port, you need to attach a 9-pin adapter
(available at your local computer store) to the
port before attaching the serial cable to the
computer.
If the ports are not labeled, see your computer
User’s Guide for a diagram that illustrates the
external ports.
2 Plug the other end of the serial cable into the
serial port on the side of your camera.
3 Turn the computer on.
4 Set the camera Power/Mode switch to the
position.
5 Press the MENU button to display the Menu
screen on the LCD.
31
5
6 Press a button until PC CONNECT is
highlighted, and then press the SELECT
button.
The PC Connect screen appears.
7 Press a button until ON is highlighted,
and then press the SELECT button.
The camera is ready to communicate with the
computer.
If you get a message on your computer stating
that the camera is not connected, refer to the
“Troubleshooting” chapter.
To cancel the PC Connection mode, press the
MENU button.
PC CONNECT
PRINT ORDER
DELETE
PROTECT
PC CONNECT
EXIT
ON
/
/
32
Using the DC3200 Picture Transfer Software
With the camera connected to your computer, you are ready to open and use the
software that you installed. (See “4 Installing Your Software” on page 27.)
NOTE: The DC3200 Picture Transfer Software will display pictures from the
camera internal memory unless a Picture Card is present in the camera. To
display pictures from the internal memory, eject the Picture Card before starting
the software. To display pictures from a Picture Card, insert the Picture Card
before starting the software.
1 To start the DC3200 Picture Transfer Software, click the Start button on the
desktop. From the Programs menu, choose Kodak, then DC3200, then
KODAK DC3200.
The DC3200 Picture Transfer Software communicates with the camera and
retrieves pictures from the camera. Pictures are displayed as thumbnails.
Select All button
Save button
Thumbnail image
Settings button
Close button
33
5
2 Click the picture you want to copy to your computer.
The border of the selected thumbnail picture turns light blue.
To select all pictures, click the Select All button.
To select multiple pictures, hold down the Ctrl key and click the desired
pictures. To select all pictures that reside between two pictures, hold down
the Shift key and click the first and last desired pictures.
3 Click the Save button.
The Select Folder dialog box appears.
4 Specify the destination folder and click the OK button.
The pictures are copied to your computer.
Unless you specify a different folder name and location, a folder is
created based on the current date using the format [YYYY-MM-DD] in
this location: c:\My Documents\My Pictures. Pictures are copied into this
new folder.
Example: If the date is August 1, 2000, the pictures are copied into the
folder named “2000-08-01”.
If a picture has the same name as a file in the destination folder, it is
automatically saved using a name with a “_n” suffix (where “n” is a
number).
Example: If the file “DCP_0001.JPG” already exists, a picture having the
same name is saved using the name “DCP_0001_1.JPG”.
5 To exit the DC3200 Picture Transfer Software, click the Close button.
After you save pictures to your computer, you can delete them from the camera
memory or Picture Card to make room for new pictures.
Changing Communication Settings—If connection errors occur, you may need
to adjust the serial port and speed settings by following these steps:
1 Click the Settings button.
The Communication Port Setting dialog box appears.
2 Adjust the serial port and port speed and click the OK button.
34
Navigating to Your Pictures
Pictures are stored in the memory of the camera or on a Picture Card according to
a standard agreed upon by many camera manufacturers. This standard allows you
to use the Picture Card in different cameras.
The KODAK DC3200 Picture Transfer Software application guides you to your
pictures in the memory. However, if you use a card reader to retrieve your
pictures on the Picture Card or cannot locate your pictures using the software
provided, the following description of the camera file structure may be helpful.
Root level folder is named \DCIM. Each time you turn on the camera or
insert a Picture Card, any empty folders within the \DCIM folder are
removed.
Typically, all pictures taken with the DC3200 Digital Camera are stored
in the \DCIM\100K3200 folder.
Pictures are numbered in the order in which they are taken. The first
picture in the \DCIM\100K3200 folder is DCP_0001.JPG.
When you copy pictures to the computer or delete pictures from the
memory, the camera uses consecutive numbers for subsequent pictures.
For example, if the last picture taken was DCP_0007.JPG, the next
picture is DCP_0008.JPG.
When you insert the Picture Card into another DC3200 Digital Camera,
the next picture is derived by incrementing either the highest existing
picture number, or the highest picture number previously taken by that
camera.
Once you take picture DCP_9999.JPG in the \DCIM\100K3200 folder,
subsequent pictures appear in a new folder (\DCIM\101K3200) on the Picture
Card, beginning with picture DCP_0001.JPG.
If you use the Picture Card in a camera other than the KODAK DC3200 Digital
Camera, and that camera manufacturer adheres to this file structure standard, the
\DCIM folder will contain a folder named by that camera. Pictures taken with
that camera are stored in the folder using the naming conventions established by
the manufacturer. For more information, refer to the documentation
accompanying that camera.
35
6
6
Troubleshooting
If you are experiencing difficulties with your camera, check the following table
for possible solutions.
Camera
Problem Cause Solution
The camera
does not
turn on.
The batteries are not
properly installed.
Remove and reinstall the
batteries. See page 2.
The camera
does not
work.
The batteries are low or
dead.
The batteries need to be
replaced. See page 2.
The camera is not
turned on.
Turn on the camera. See page 3.
The shutter
button does
not work.
The camera is not
turned on.
Turn on the camera. See page 3.
The Power/Mode
switch is not set to
.
Set the Power/Mode switch to
.
The green Ready light
is blinking. The camera
is processing a picture.
Wait until the Ready light stops
blinking before attempting to
take another picture.
The red Ready light is
on. The internal
memory or Picture
Card is full.
Transfer pictures
to a computer (see page 30),
delete pictures (see page 20), or
insert a Picture Card with
available memory (see page 5).
The Menu screen is
displayed.
Turn off the Menu screen by
pressing the MENU button.
36
Camera
Problem Cause Solution
The Pictures
Remaining
indicator does not
decrease after
taking a picture.
The quality setting
does not use up
enough space for the
Pictures Remaining
indicator to decrease.
The camera is operating
normally. Continue taking
pictures.
The number of
pictures remaining is
more than 999.
The Pictures Remaining
indicator begins counting
when the number of
pictures remaining is
below 998. The camera is
operating normally.
The power
suddenly turns
off.
The camera was not
operated for more than
five minutes and the
Auto Power Off
function turned off the
power.
Set the Power/Mode
switch to OFF and then
back to or .
Part of the picture
is missing.
Something was
blocking the lens
when the picture was
taken.
Keep hands, fingers, or
other objects away from
the lens when taking
pictures.
Your eye or the
picture was not
centered correctly in
the viewfinder.
Leave space around the
subject when centering a
picture in the viewfinder.
37
6
Camera
Problem Cause Solution
The picture is
too dark.
The flash is not on or did
not function.
Turn on the flash. See
page 10.
The subject is too far
away for the flash to
have an effect.
Move to within 8 ft
(2.4 m) of subject.
The subject is in front of
a bright light.
Change your position so
light is not behind the
subject.
The picture is
too light.
The flash is not needed. Change to Auto flash.
See page 10.
The subject was too
close when the flash was
used.
Move at least 5 ft
(1.5 m) from the subject.
Stored pictures
are damaged.
The Picture Card was
inserted or removed
when the green Ready
light was blinking.
Make sure the Ready
light is not blinking
before inserting or
removing a Picture Card.
The picture is
not clear.
The lens is dirty. Clean the lens. See page
52.
The subject was too
close when a picture was
taken.
Stand at least 2 ft (0.6 m)
away from the subject.
The subject or camera
moved while a picture
was taken.
Hold the camera steady
until a picture is taken.
Subject was too far away
for the flash to have an
effect.
Move to within 8 ft
(2.4 m) of the subject.
Cannot delete a
picture.
The picture is delete-
protected.
Cancel the protection
setting. See page 19.
38
Camera Communications
Problem Cause Solution
The computer cannot
communicate with the
camera.
The camera is not set
to PC Connect mode.
Set the camera to PC
Connect mode. See
page 30.
The camera is not
connected to a serial
cable, or the cable is
not connected to a
computer serial port.
Connect the serial
cable to the camera
and computer port.
See page 30.
The port setting in the
software is set to an
incorrect COM port.
Change the COM port
setting to Auto-Search
or to a specific COM
port.
The communication
speed setting in the
software is not
adjusted.
Set the speed setting to
9,600 bps. If
communication is
successful, gradually
raise the speed to
optimize
communication time.
There is a conflict
with another serial
device, such as
infrared
communication,
internal fax modem, or
other communication
system.
Refer to the serial
device and/or
operating system
User’s Guide, or
consult the computer
manufacturer.
The software that
generates frequent
interrupts (such as a
Web browser or
e-mail software) is
running.
Exit that software
before starting the
KODAK Software.
39
6
Camera Communications
Problem Cause Solution
The computer cannot
communicate with the
camera.
The computer is
connected to a LAN or
to a special network
line.
Communications may
be hindered due to the
generation of forcible
interrupts in the
environment where
the computer is
connected to the LAN
or to a special network
line.
Some Advanced
Power Management
utilities on laptops can
turn off ports to save
battery life.
See the Power
Management section
of the laptop User’s
Guide to disable this
feature.
The Battery Monitor
or other such software
runs constantly.
Close that software
before starting the
KODAK Software.
Computer Monitor
Problem Cause Solution
The image on the
monitor is jagged or
inappropriately colored.
The monitor is not set
correctly.
Refer to the computer
User’s Guide for
information on how to
adjust the monitor
display settings.
40
Picture Card
Problem Cause Solution
The camera does not recognize
the Picture Card.
The Picture Card is
not CompactFlash
certified.
Purchase a certified
CompactFlash Picture
Card. See page 5.
The Picture Card is
corrupt or formatted
for use in other digital
cameras.
Reformat the Picture
Card. See page 26.
The Picture Card is
not inserted in the
camera.
Insert a Picture Card.
See page 5.
Warning Messages
Message Cause Solution
Internal memory is full./
Memory card is full.
The internal memory
or Picture Card is full
and cannot hold
additional pictures.
Transfer pictures
to a computer (see
page 30), delete
pictures (see page 20),
or insert a Picture
Card with available
memory (see page 5).
Access error on memory card.
Card requires formatting.
The Picture Card is
corrupted.
Insert a new Picture
Card (see page 5) or
reformat the existing
card (see page 26).
41
7
7 Where to Get
Help
If you need help with your camera, it is available from place of purchase, the
“Troubleshooting” section of this manual, or at any of the resources listed in this
chapter.
Software Help
For help with any software packaged with your camera, contact the software
manufacturer.
Kodak Online Services
Kodak Fax Support
World Wide Web http://www.kodak.com
(click Service and Support)
U.S. and Canada 1-800-508-1531
Europe 44-0-131-458-6962
U.K. 44-0-131-458-6962
42
Telephone Customer Support
If you have questions concerning the operation of KODAK software or the
camera, you may speak directly to a customer support representative.
Before You Call
Before you call, please have the camera connected to the computer, be at your
computer, and have the following information available:
Operating system
Processor speed (MHz)
PC model
Amount of memory (MB)
Exact error message you received
Version of installation CD
Camera serial number
Telephone Numbers
U.S.—call toll free, 1-800-235-6325, between the hours of 9:00 a.m. and
8:00 p.m. (Eastern Standard Time) Monday through Friday.
Canada—call toll free, 1-800-465-6325, between the hours of 9:00 a.m.
and 8:00 p.m. (Eastern Standard Time) Monday through Friday.
Europe—call the Kodak Digital Imaging Support Centre number
associated with your location, or the U.K. toll line, 44-0-131-458-6714,
between the hours of 09.00 and 17.00 (GMT/CET) Monday through
Friday.
Outside the U.S., Canada, and Europe—visit our Worldwide Contacts
Web site at http://www.kodak.com/include/international.shtml
43
8
8 Warranty and
Regulatory
Information
Limited Warranty
Kodak warrants the KODAK DC3200 Digital Camera (excluding batteries) to be
free from malfunctions and defects in both materials and workmanship for one
year from the date of purchase.
Retain the original dated sales receipt. Proof of the date of purchase will be
required with any request for warranty repair.
Limited Warranty Coverage
THIS LIMITED WARRANTY WILL BE HONORED ONLY WITHIN THE
GEOGRAPHICAL LOCATION THAT THE KODAK DC3200 DIGITAL
CAMERA WAS PURCHASED.
Kodak will REPLACE the KODAK DC3200 Digital Camera if it fails to function
properly during the warranty period, subject to any conditions and/or limitations
stated herein. Such replacement is the sole remedy under this warranty.
If it is necessary to replace the entire product, it may be replaced with a
remanufactured product.
Limitations
Request for Warranty service will not be accepted without proof of date of
purchase, such as a copy of the original dated KODAK DC3200 Digital Camera
sales receipt. (Always keep the original for your records.)
This warranty does not apply to the batteries used in this camera. This warranty
does not cover circumstances beyond Kodak’s control, nor problems caused by
failure to follow the operating instructions in the KODAK DC3200 Digital
Camera User’s Guide.
THIS WARRANTY DOES NOT APPLY WHEN FAILURE IS DUE TO
SHIPPING DAMAGE, ACCIDENT, ALTERATION, MODIFICATION,
44
UNAUTHORIZED SERVICE, MISUSE, ABUSE, USE WITH
INCOMPATIBLE ACCESSORIES OR ATTACHMENTS, FAILURE TO
FOLLOW KODAK’S OPERATION, MAINTENANCE OR REPACKING
INSTRUCTIONS, FAILURE TO USE ITEMS SUPPLIED BY KODAK (SUCH
AS ADAPTERS AND CABLES), OR CLAIMS MADE AFTER THE
DURATION OF THIS WARRANTY.
Kodak makes no other express or implied warranty for this product. In the event
that the exclusion of any implied warranty is ineffective under the law, the
duration of the implied warranty will be one year from the purchase date.
The option of replacement is Kodak’s only obligation. Kodak will not be
responsible for any special, consequential or incidental damages resulting from
the sale, purchase, or use of this product, regardless of the cause. Liability for any
special, consequential or incidental damages (including but not limited to loss of
revenue or profit, downtime costs, loss of the use of the equipment, cost of
substitute equipment, facilities or services, or claims of your customers for such
damages resulting from the purchase, use or failure of the product), regardless of
cause or for breach of any written or implied warranty is expressly disclaimed
and excluded herefrom.
Your Rights
Some states or jurisdictions do not allow exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to
you.
Some states or jurisdictions do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you. This warranty gives
you specific rights, and you may have other rights which vary from state to state
or by jurisdiction.
Outside the United States
In countries other than the United States, the terms and conditions of this
warranty may be different. Unless specific Kodak warranty is communicated to
the purchaser in writing by a Kodak company, no warranty or liability exists
beyond any minimum requirements imposed by law, even though defect, damage,
or loss may be by negligence or other act.
Regulatory Information
FCC Compliance and Advisory
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: 1) this device may not cause harmful interference, and
45
8
2) this device must accept any interference received, including interference that
may cause undesired operation.
RESPONSIBLE PARTY
EASTMAN KODAK COMPANY
Rochester, New York 14650
www.kodak.com
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed or used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures: 1) reorient or relocate the receiving antenna; 2) increase the separation
between the equipment and the receiver; 3) connect the equipment to an outlet on
a circuit different from that to which the receiver is connected; 4) consult the
dealer or an experienced radio/TV technician for additional suggestions.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment. Where
shielded interface cables have been provided with the product or specified
additional components or accessories elsewhere defined to be used with the
installation of the product, they must be used in order to ensure compliance with
FCC regulation.
Canadian DOC Statement
DOC Class B Compliance—This Class B digital apparatus complies with
Canadian ICES-003.
Obervation des normes-Class B—Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
47
9
9 Appendix
This appendix serves as a resource for specific technical information and care for
your camera, and contains the following information:
Original default settings
Specifications
Printing guidelines
Battery usage guidelines
Care and maintenance
Original Camera Default Settings
Your camera is set to these values when you take the camera out of the box for
the first time.
Feature Setting
Preview Off
Flash Auto
Quality Better
White Balance Auto
Quickview On
Slide Show 5 seconds
PC Connect Off
48
Camera Specifications
DC3200 Camera
CCD Resolution 1,344 x 971=1.31 millions of pixels (total
number of pixels)
Picture Resolution Best/ Better 1,152 x 864=995,328 pixels
Good 576 x 432=248,832 pixels
Color 24-bit, millions of colors
Picture File Format JPEG
Picture Storage
Internal
2 MB flash memory
External
ATA-compatible CompactFlash card
Viewfinder Virtual image
ASA/ISO Sensitivity 100
Flash Range 5 to 8 ft (1.5 to 2.4 m)
Lens Type Optical quality glass
Maximum
Aperture
F/3.6
Focal Length 39 mm (equivalent to 35mm camera)
5.4 mm (actual)
Focus Distance
(fixed)
2 ft (0.6 m) to infinity
Power Batteries (4) AA size 1.5-volt alkaline or AA size
1.2-volt Ni-MH rechargeable
DC Input KODAK AC Adapter (Cat# 122-0557)
Video Out NTSC
Dimensions Width 4.4 in. (113 mm)
Depth 2.1 in. (53.4 mm)
Height 3.2 in. (81 mm)
Weight 7.6 oz. (215 g) without batteries
Operating Temperature 32 to 104° F (0 to 40° C)
49
9
Getting Better Results from Your Printer
You may notice that the colors on your computer screen do not always match
those of your documents or prints. This is because monitors and printers use
different color systems.
You may be able to achieve more predictable results in your printed
documents by:
Improving the quality of your paper. Copier paper may not offer the same
results as coated paper or paper made specially for inkjet printers.
Adjusting your printer software settings.
Using fresh ink cartridges. Do not use ink cartridges beyond their life
expectancy.
Remember these tips when printing a document:
Color printing takes more time. More complex pictures increase the
printing and drying time.
Color printing is more memory intensive than black and white. If your
computer gives you an insufficient memory message, you may need to
close some applications, change some settings, or add additional memory.
Color prints may not photocopy as clearly as black and white. If you plan
to photocopy documents, consider printing the document in grayscale.
This setting is usually changed from the Print dialog box.
Resizing the picture to a smaller size or printing the picture on glossy
paper may increase the quality of the print.
To improve the quality of your prints, you may want to print your pictures
on KODAK Inkjet Snapshot Paper (Snapshot Paper). Snapshot Paper is
made to work with most inkjet printers to give you clearer, crisper, and
more detailed images on your prints.
50
Using Your Batteries
Keep batteries away from children.
In the unlikely event that battery fluid leaks onto your skin, immediately
wash the contaminated skin with soap and plenty of water. Contact your
local health care provider, or in the U.S. contact Kodak Health, Safety,
and Environment Information at 1-716-722-5151.
In the unlikely event that battery fluid leaks inside the camera, U.S.
customers can contact the Kodak Information Center at 1-800-242-2424.
Customers outside the U.S. can contact their local Kodak Customer
Service representative.
Kodak recommends KODAK PHOTOLIFE AA Alkaline Batteries, or
KODAK AA Ni-MH Rechargeable Batteries for use in KODAK digital
cameras.
Remove the batteries when the camera is stored for extended periods of
time.
Always follow your battery manufacturer’s directions fully. Do not
attempt to disassemble, short circuit, or subject the battery to high
temperature or fire.
Your camera has been designed to operate correctly using a variety of
AA-size batteries currently available. These include 1.5-volt alkaline and
rechargeable 1.2-volt Nickel Metal Hydride (Ni-MH).
Replace all batteries of a set at the same time. New batteries should not be
mixed with used ones. Do not mix rechargeable and nonrechargeable
batteries. Do not mix alkaline or Ni-MH types of batteries. Do not mix
different grades or brands of batteries. Failure to observe this precaution
may result in some batteries in a set being driven beyond their normal
exhaust point and increase their possibility of leakage.
NOT ALL BATTERIES ARE CREATED EQUAL! Battery life depends
significantly on age, usage conditions, type, brand, and camera. Digital
camera requirements are very demanding on batteries. Not all batteries
perform well under these challenging conditions. In Kodak lab tests, Ni-
MH rechargeable batteries delivered the outstanding results in a variety of
conditions. Ni-MH batteries are designed for high-demand devices, such
as digital cameras, and do not exhibit the “memory” effects seen with
other rechargeable technologies.
If you elect to use alkaline batteries in your camera, you will obtain better
performance from “photo-flash grade” alkaline batteries, such as
KODAK PHOTOLIFE alkaline batteries. These types of batteries last
51
9
more than twice as long in digital cameras as ordinary alkaline batteries.
Alkaline batteries are not rechargeable; do not attempt to recharge them in
the battery charger.
When using your camera on battery power, we recommend you limit
continuous LCD Preview or Review to less than 10-minutes per session. If
you are using the camera for longer periods, it is recommended that you
do so with the camera powered by a KODAK-specified AC adapter.
When disposing of batteries, follow the manufacturer’s instructions and
all federal, state, and local regulations. Kodak suggests customers take
advantage of any community battery recycling programs that may exist in
your area. Contact your local waste remover or recycler for details.
Caution Hot Surface
When removing batteries, allow to cool before touching, since the
batteries may be hot.
For charging Ni-Cd or Ni-MH batteries only, with a maximum
of 4 cells, and a maximum charge of 1600mAH.
Endast för att ladda Ni-Cd eller Ni-MH batterier, med maximalt
4 celler och en maximal laddning av 1600mAH.
Do not charge nonrechargeable batteries.
Återladda inte batterier som inte är laddningsbara.
Battery Charger Tips:
52
General Maintenance and Safety
To keep from damaging your camera, avoid exposing it to moisture and
extreme temperatures.
Clean the outside of the camera by wiping with a clean, dry cloth. Never
use harsh or abrasive cleaners or organic solvents on the camera or any of
its parts.
Do not allow any chemicals, such as suntan lotion to come into contact
with the painted surface of the camera.
Never disassemble or touch the inside of the camera. This could result in
electrical shock.
If you notice smoke or a strange smell coming from the camera,
immediately turn off the camera, wait a few minutes until the camera
cools, and then remove the batteries.
Clean the lens and back LCD screen:
Do not use cleaning solutions unless they are designed specifically for
camera lenses. Do not wipe the camera lens or LCD screen with chem-
ically treated eyeglass lens tissue as it may scratch
the lens.
1 Blow gently on the lens or LCD screen to remove dust and dirt.
2 Moisten the lens or LCD screen by breathing lightly on it.
3 Wipe the lens or LCD screen gently with a soft, lint-free cloth or an
untreated lens-cleaning tissue.
Service agreements are available in some countries. Please contact a dealer of
KODAK products for more information.
53
Index
A
AC Adapter 2
Appendix 47
Auto Flash 10
B
Battery
Charging Tips 51
Checking Power Level 4
Compartment 2
Disposal 51
Icon 4
Loading 2
Using 50
C
Camera Memory Card 5
Camera Specifications 48
Canadian DOC Statement 45
Caution
Batteries 51
Flash 10
Green Ready Light 5
Orange Ready Light 9
Red Ready Light 4
Cleaning 52
Close-up Mode 9
CompactFlash
Card 5
Card Reader 29
Card Slot 5
Computer
Communication Settings 33
Connecting 30
Connecting
Computer 30
Television 25
Copying Pictures 17
D
Daylight Setting 12
DC3200 Picture Transfer Software 27
Default Camera Settings 47
Deleting Pictures 20
Difficulties 35
E
Ejecting a Picture Card 5
F
FCC Compliance and Advisory 44
Flash
Auto 10
Fill 10
Off 10
Setting 10
Warning 10
Fluorescent Setting 12
Formatting a Picture Card 26
G
Green Ready Light 5
54
H
Help
Fax Support 41
Online Services 41
Telephone Support 42
Troubleshooting 35
I
Inserting a Picture Card 5
Installing Software 27
Internal Memory 2
K
KODAK
AC Adapter 2
Alkaline Batteries 50
Inkjet Paper 49
Ni-MH Rechargeable Batteries
50
Software 27
Video Cable 25
L
LCD 3
Light
Green 5
Orange 9
Red 4
Loading Batteries 2
M
Maintenance 52
Memory Card 5
Memory, Internal 2
N
Navigating to Pictures 34
O
Off Flash 10
On/Off, Camera 3
Orange Ready Light 9
P
Paper, KODAK Inkjet 49
Picture Card
Card Slot 5
Ejecting 5
Formatting 26
Inserting 5
Reader 29
Picture Quality Setting 11
Pictures
Copying 17
Deleting 20
Navigating to 34
Printing 22
Protecting 18
Reviewing 15
Taking 7
Preparing to Take Pictures 2
Printer, Improving Results 49
Printing Pictures 22
Problem Solving 35
Protecting Pictures 18
Q
Quality Setting 11
Quickview Setting 13
R
Ready Light
Green 5
Orange 9
Red 4
Red Ready Light 4
55
Regulatory Information 43
Removing a Picture Card 5
Reviewing Pictures 15
RS-232 Serial Cable 29
S
Safety 52
Selecting Pictures for Printing 22
Serial Cable 29
Serial Port 30
Settings
Communication 33
Daylight 12
Default 47
Flash 10
Fluorescent 12
Picture Quality 11
Quickview 13
Tungsten 12
White Balance 12
Shutter Button 9
Slide Show 25
Software
DC3200 Picture Transfer 27
Help 41
Installing 27
Using 32
Specifications 48
System Requirements 27
T
Taking Pictures 7
TelePhoto 9
Television, Connecting 25
Troubleshooting 35
Tungsten Setting 12
U
Using the Batteries 50
Using the Software 32
V
Video Cable 25
Video Out 25
W
Warning
Batteries 51
Flash 10
Green Ready Light 5
Orange Ready Light 9
Red Ready Light 4
Warranty 43
White Balance Setting 12
Wide Angle 9
Wrist Strap, Attaching 2
Z
Zoom 9
