User Manual
DIGITAL CAMERA
KODAK PIXPRO FZ43
1
Declaration of Conformity
Responsible Party: JK Imaging Ltd.
Address: JK Imaging Ltd., 17239 So. Main Street, Gardena, CA 90248 USA
JK Imaging Europe, 71 Clarendon Road, Watford, WD17 1DS, UK
Company Website: kodakpixpro.com
For Customers in the U.S.A.
Tested to Comply with FCC Standards FOR HOME OR OFFICE USE
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired camera operation.
For Customers in Europe
"CE" mark indicates that this product complies with the European requirements for safety, health,
environment and customer protection. "CE" marked cameras are intended for sales in Europe.
This symbol [crossed-out wheel bin WEEE Annex IV] indicates separate collection of electrical
waste and electronic equipment in the European countries. Please do not throw the equipment into
domestic refuse. Please use the return and collection systems available in your country for proper,
safe disposal of this product.
Packaging: Please follow local regulations for the recycling of packaging.
Batteries: Please dispose of used batteries at designated collection centers.
BEFORE YOU START
2
About this Manual
Thank you for purchasing this KODAK PIXPRO Digital Camera. Please read this manual carefully and keep it
in a safe place for future reference.
JK Imaging Ltd. reserves all rights of this document. No part of this published manual may be reproduced,
transmitted, transcribed, stored in a retrieval system or translated into any language or computer
language, in any form, by any means, without the prior written permission of JK Imaging Ltd..
All trademarks mentioned in this manual are used for identification purposes only and are properties of
their respective owners.
This manual provides you with instructions on how to use your new KODAK PIXPRO Digital Camera. Every
eort has been made to ensure that the contents of this manual are accurate; however JK Imaging Ltd.
reserves the right to make changes without notice.
Throughout this manual, the following symbols are used to help you locate information quickly and easily:
Indicates useful information.
Indicates precautions are to be taken while operating the camera.
The following symbols may be used throughout this manual to facilitate your understanding of how to
operate the camera:
[Item properties]: The optional properties in the camera interface are indicated by the [ ] symbol.
3
SAFETY NOTES
Safety Notes for this Camera
Do not drop the camera or allow it to hit solid
objects.
Do not attempt to disassemble or repair the
camera.
Do not use or store the camera in dusty places
or on a beach to help prevent dust or sand from
entering the camera, causing possible damage.
Do not use or store the camera in a hot
environment or in direct sunlight.
Do not use or store the camera near powerful
magnetic fields, such as a magnet or
transformer.
Avoid touching the lens of the camera.
Do not expose the camera to direct sunlight for
a long period of time.
To prevent the camera from being damaged by
moisture, do not use or store the camera in very
humid environments, such as in rain or near
bodies of water.
If water accidentally comes in contact with
the camera, turn the camera o immediately,
remove the battery and the memory card and
dry it completely within 24 hours.
When you take the camera from a cold
environment to a warmer environment,
condensation may occur. Please wait for a
reasonable period of time before you turn the
camera on.
Before you remove the battery and memory
card, the camera should be turned o.
When you clean the body of the camera, do
not use abrasive, alcohol-based or organic
cleansers or solvents.
Use a professional lens cleaning cloth and
appropriate cleaner to wipe and clean the lens.
Download your photos and remove the memory
card when you are going to store the camera
for long periods of time.
If this camera is not in use for a long period of
time, please keep it in a dry and clean storage
location.
Our company will not pay compensation for
any failure of playback including: pictures or
videos damaged or unrecoverable by improper
operation.
4
Safety Notes for Batteries
If battery fluid leaks inside the camera, contact
our customer service department immediately.
If battery fluid leaks onto your skin, rinse your
skin immediately with clean water and seek
immediate medical attention.
Disposal of used batteries should be carried
out in accordance with your local (national or
regional) regulations.
To prevent batteries from being damaged, do
not drop batteries or allow them to hit solid
objects or to be scratched by foreign objects.
Do not let batteries come in contact with
metal objects (including coins) to avoid short
circuiting, discharging, excessive heat or
possible leakage.
Do not attempt to disassemble batteries.
Do not expose batteries to water. Always keep
battery contacts dry.
Do not heat batteries or throw them into a fire
to avoid a possible explosion.
Do not store batteries in a hot environment or in
direct sunlight.
When the camera is stored for a long period of
time, remove the batteries and keep them in a
safe, dry place that is not accessible to infants
and children.
In colder environments, the performance of the
batteries could be noticeably reduced.
When you install the batteries, align the
battery markings according to the positive and
negative markings inside the camera battery
compartment. Never force batteries into the
battery compartment.
5
Safety Notes for Memory Cards
We highly suggest buying only well-known,
name brand memory cards to ensure peak
performance and reliability.
Format the memory card using the camera
before you use it or insert a new one.
Do not drop the memory card or allow it to hit
solid objects to avoid damaging it.
Do not attempt to disassemble or repair the
memory card.
Do not expose the memory card to water.
Always keep it dry.
Do not remove the memory card when
the camera is turned on. Otherwise, the
memory card and photo/video files could be
permanently damaged.
Do not directly edit the data on the memory
card. Copy the data to your computer before
you edit files.
When the camera is stored for long periods
of time, be sure to download your photos and
remove the memory card. Store the memory
card in a dry environment.
Do not modify the name of the files or folders
of the memory card using your computer.
Modifying the file names may cause the files to
not be recognized on the camera or a possible
permanent error may occur.
A photo taken with the camera will be stored
in the folder that is automatically generated on
the memory card. Do not store photos that are
not taken using this camera in these folders
as the pictures cannot be recognized during
playback.
When you insert the memory card, make sure
the notch of the card matches the markings on
the top of the camera card slot.
6
Other Safety Notes
Do not disconnect the power or turn the camera o during the update process. Doing so may cause
incorrect data to be written and the camera may not power on later.
When using your camera on an airplane, observe the relevant rules specified by the airline and FAA
regulations.
Due to the limitations of manufacturing technology, the LCD may have a few dead or bright pixels. These
pixels do no eect the quality or performance of the camera, photos or video.
Do not expose the camera’s LCD to water. In a humid environment, only wipe it with a soft, dry, cleaning
cloth.
If the LCD is damaged and the liquid crystal comes into contact with your skin, wipe your skin with a dry
cloth immediately and rinse it with clean water. If liquid crystal comes into contact with your eyes, wash
them with clean water at least for 15 minutes and seek immediate medical attention. If you accidentally
swallow liquid crystal, rinse your mouth immediately and seek medical attention.
7
BEFORE YOU START ............................ 1
SAFETY NOTES ................................... 3
CONTENTS .......................................... 7
GETTING READY .................................. 11
Accessories Included ................................... 11
Part Names ................................................... 12
Installing Battery and Memory Card ............ 14
Turning Camera On and O......................... 16
Set your Language, Date/Time .................... 17
Set your Language, Date/Time after the
First Power-On ........................................ 17
Resetting your Language ....................... 18
Resetting Date/Time .............................. 19
MODE OVERVIEW ............................... 20
Display Setting ............................................. 20
LCD Display................................................... 21
Overview of the Screen Icons in Photo
Shooting Mode ...................................... 21
Overview of the Screen Icons in Movie
Mode ....................................................... 22
Overview of the Screen Icons in Playback
Mode ....................................................... 23
Using the Mode Button ................................ 24
Manual Mode ............................................... 25
Auto Mode ................................................... 25
Panorama Mode ........................................... 26
CONTENTS
8
Scene Mode ................................................. 27
Auto Scene Mode .................................. 29
BASIC OPERATION .............................. 30
Flash Mode ................................................... 30
Macro Mode.................................................. 31
Self-Timer Setting ......................................... 32
EV Setting ..................................................... 33
Using the Zoom Function............................. 34
Using Quick Recording ................................ 34
PLAYBACK ........................................... 35
Viewing Photos and Videos ........................ 35
Thumbnail View ............................................ 36
Using Zoom Playback (for still pictures only) 37
Slideshow ..................................................... 38
Photos and Video Deletion .......................... 39
USING THE MENUS ............................. 40
Photo Setup Menu ....................................... 40
Image Size .............................................. 40
Continuous AF........................................ 41
Continuous Shot .................................... 41
Focus Setting ......................................... 42
Color Eect ............................................ 42
White Balance Setting ........................... 43
Scene ...................................................... 43
Photo Shooting Setting Menu ..................... 45
9
Quality .................................................... 45
AF Assist Beam ....................................... 46
Digital Zoom ........................................... 46
Date Imprint ........................................... 47
Quick Review.......................................... 47
Movie Menu .................................................. 48
Video Quality .......................................... 48
Movie Setting Menu ..................................... 49
Digital Zoom ........................................... 49
Playback Menu ............................................. 50
Red-Eye Reduction ................................. 51
Rotate ..................................................... 51
Playback Setting Menu ................................ 52
Protect .................................................... 53
Delete ..................................................... 53

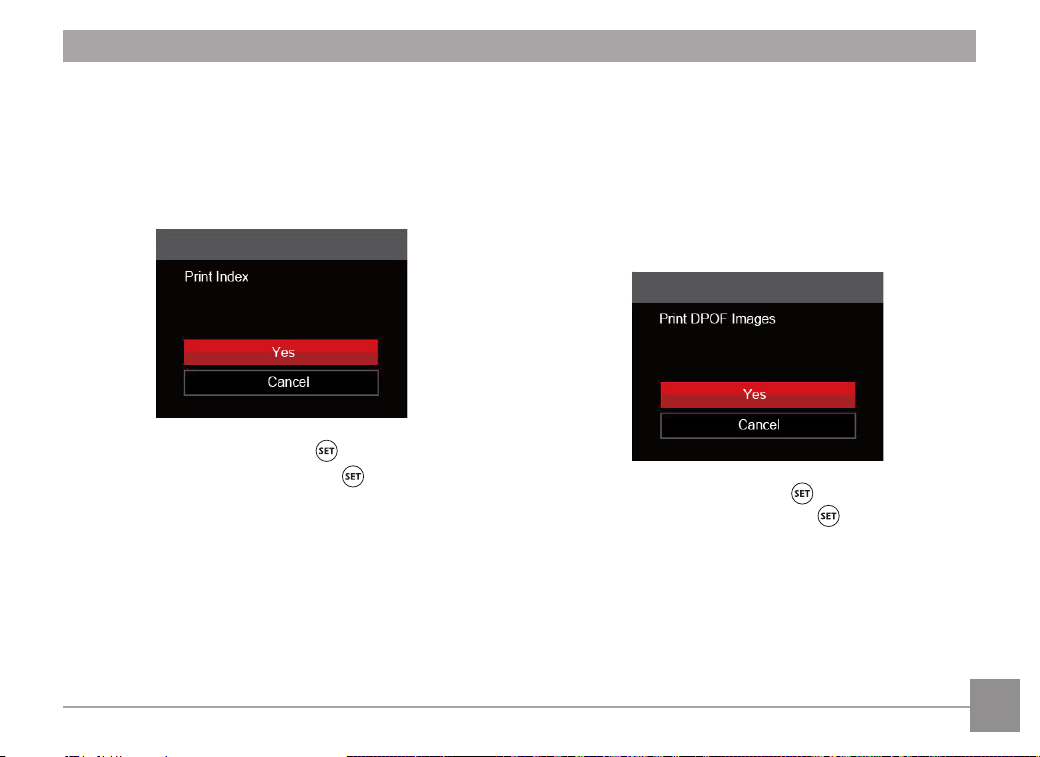

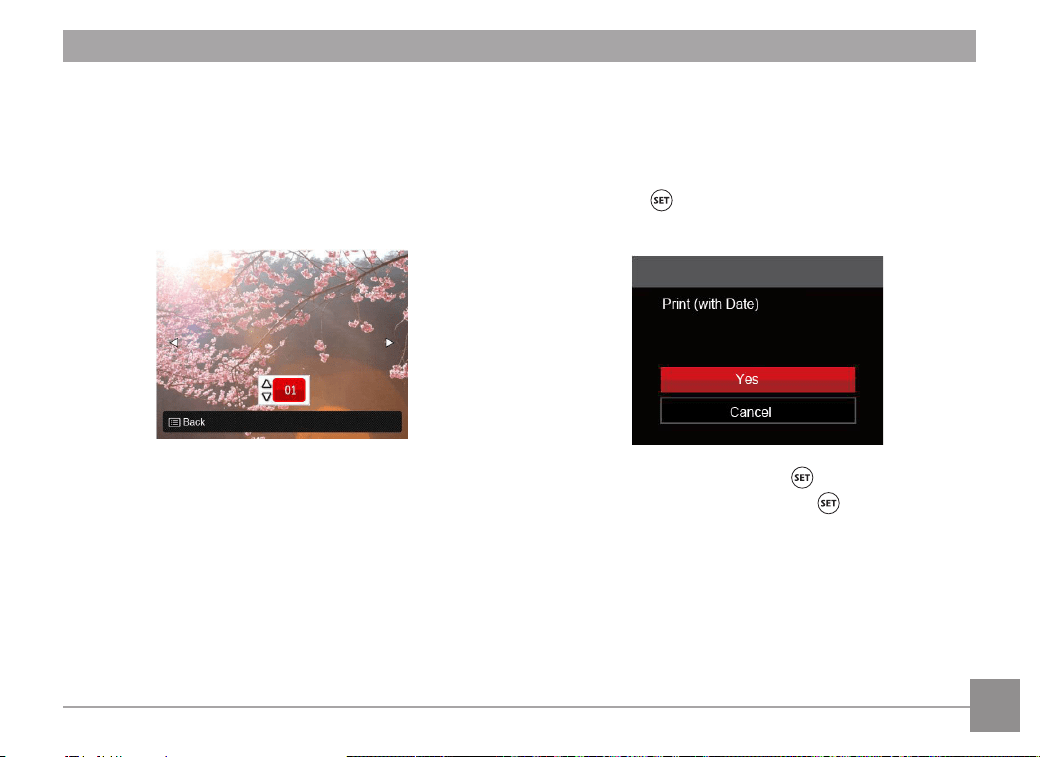

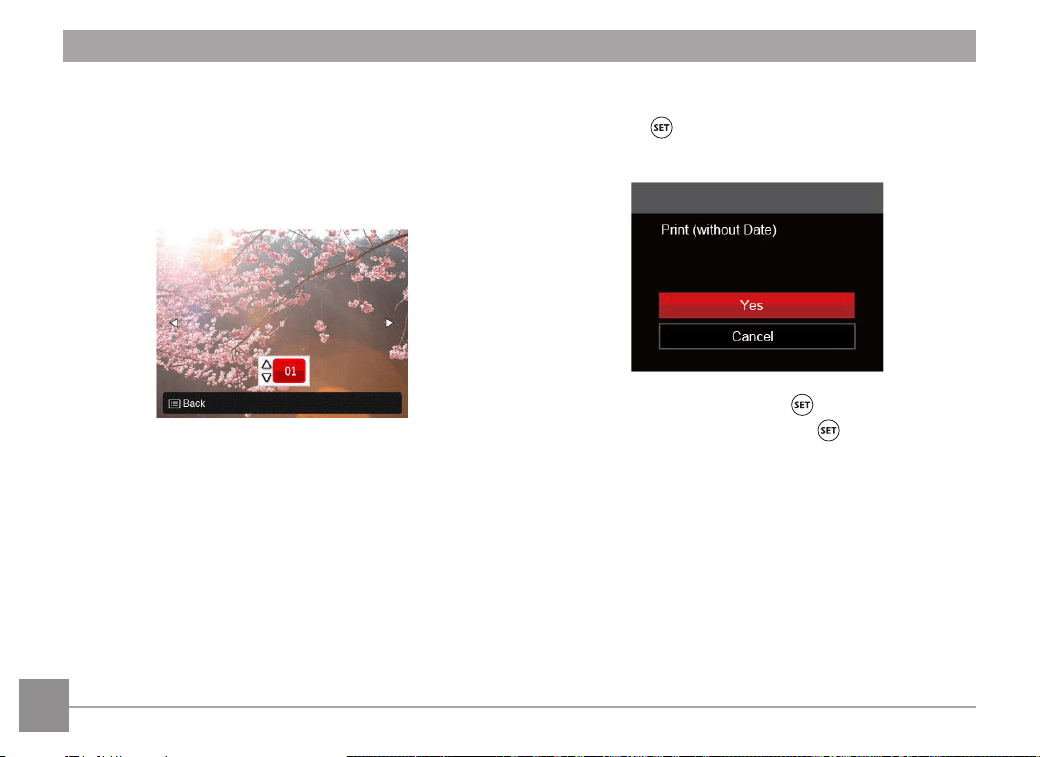

DPOF (Digital Print Order Format) ......... 54
Trim ......................................................... 54
Setup Menu .................................................. 55
Sound Settings....................................... 56
Power Saver............................................ 56
Language ................................................ 57
World Time ............................................. 57
Date & Time ............................................ 57
File / Software .............................................. 58
Format .................................................... 58
Copy to Card .......................................... 59
10
File Numbering ....................................... 60
Reset ....................................................... 61
Firmware (FW) Version ........................... 62
CONNECTIONS ................................... 63
Connecting to a Computer .......................... 63
Setting the USB Mode ........................... 63
Transferring Files to Your Computer ..... 64
Video System ............................................... 65
Connecting to a PICTBRIDGE™ Compatible
Printer ........................................................... 66
Setting the USB Mode ........................... 66
Connecting to your Printer .................... 67
Using the PICTBRIDGE™ Menu ..................... 68
Print (with Date) ..................................... 69
Print (without Date) ................................ 70
Print Index .............................................. 71
Print DPOF Images ................................. 71
Exit .......................................................... 72
APPENDICES ....................................... 73
Specifications ............................................... 73
Prompts and Warning Messages ................. 77
Troubleshooting .......................................... 81
11
GETTING READY
Your camera box should contain the camera model you purchased along with the following accessories. If
anything is missing or appears to be damaged, please contact your retailer or our customer service center.
Accessories Included
AA Alkaline Battery x 2 Wrist Strap
Quick Start Guide
Micro USB Cable
Service Card
STOP
Quick Start Guide
Warranty Card
12
Part Names
1 Flash Lamp 6 Zoom Button 11 Delete Button/Arrow Button (Down)
2
AF Assist Beam/
Self-Timer Lamp
7 Indicator Lamp 12
Macro Button/Self-Timer Button/
Arrow Button (Left)
3 Lens 8 Playback Button 13 SET Button
4
Microphone 9
Display Button/Arrow Button
(Up)
14 Menu Button
5 LCD 10
Flash Button/Arrow Button
(Right)
15 Mode Button
13
16 Strap Eyelet 19 Fast Video Recording Button 22 Battery Cover
17 Micro USB Port 20 Power Button 23 Tripod Socket
18 Shutter Button 21 Speaker
14
1. Open the battery cover door. 2. Insert the batteries into the battery slot in the
correct direction as shown in the following
diagram:
Installing Battery and Memory Card
Please use brand name batteries (such as Energizer® or Duracell®) for optimal performance. Do not mix
new and old batteries or use dierent brands of batteries. When replacing batteries, please replace all
2 batteries at the same time.
The performance and life expectancy of alkaline batteries will vary depending on the brand.
15
4. Close the battery cover door.3. Insert the memory card into the memory card
slot as shown in the diagram below:
Write Protection Toggle
Switch
A memory card (SD/SDHC) is optional and not included in all camera packaging. It needs to be
purchased separately. Please use an original memory card which is Class 4 or higher and has a capacity
of 4GB to 32GB.
To remove your memory card, open the battery cover door, gently press the memory card to eject it
and remove it carefully.
16
Press the Power button to turn the camera on. To turn the camera o, press the Power button again.
When the power is o, press and hold the play button to power on and enter Playback mode.
Power Button
Turning Camera On and O
17
Set your Language, Date/Time
1. When you turn the camera on for the first time,
the language selection screen appears.
2. Press the arrow buttons to select your desired
language.
3. After you press the button to confirm your
language selection, the Date/Time settings
screen will appear.
4. Press the left/right arrow buttons to select the
Date/Time to be adjusted: Time is displayed in
YYYY.MM.DD/HH:MM.
5. Press the up/down arrow buttons to adjust the
value for the desired Date/Time.
6. Press the button to confirm the time settings
and the snapshot screen will appear.
Set your Language, Date/Time after the First Power-On
18
Resetting your Language
After you set your language for the first time,
follow the instructions below to reset your desired
language.
1. Press the button and press the up/down
arrow buttons to select . Press the button
to enter the menu.
2. Press the up/down arrow buttons to select
and press the button or right arrow button to
enter the menu.
3. Press the up/down arrow buttons to select
[Language] and press the button or right
arrow button to enter the menu.
4. Press the arrow buttons to select your desired
language and press the button to confirm.
5. Press the button and the snapshot screen
will appear.
19
Resetting Date/Time
After you set your Date/Time for the first time,
follow the instructions below to reset date and
time.
1. Press the button and press the up/down
arrow buttons to select . Press the button
to enter the menu.
2. Press the up/down arrow buttons to select
and press the button or right arrow button to
enter the menu.
3. Press the up/down arrow buttons to select [Date
& Time] and press the button or right arrow
button to enter the menu.
4. Press the left/right arrow buttons to select the
Date/Time to be adjusted: Time is displayed in
YYYY.MM.DD/HH:MM.
5. Press the up/down arrow buttons to press the
value for your selected entry. After you finish
your settings, press the button to confirm.
6. Press the button and the following
snapshot screen will appear:
20
MODE OVERVIEW
Press the button to display the settings:
Classic, Full, O.
Classic: Displays the camera parameters on screen
-0.3
EV
400
ISO
SD
1234
x
16M
00:56:00
Full: Camera parameters with Grid and Histogram
-0.3
EV
400
ISO
SD
1234
x
16M
00:56:00
O: Does not display any additional icons on
screen
Display Setting
21
16M
-0.3
EV
15
F3.3 400
ISO
SD
1234
x
00:56:00
1. Shooting Mode
2. Macro Mode
3. Self-Timer
4. Zoom Display (Visible when pressing the Zoom
button)
5. SD Memory Card/Built-In Memory
6. Battery Status
7. White Balance (Adjustable in mode)
8. Color Eect (Adjustable in mode)
9. Number of Remaining Shots
10. Image Size
11. Video Quality
12. ISO Value (Adjustable in mode)
13. Remaining Recording Time
14. Exposure Compensation (EV value)
(Adjustable in mode)
15. Focus Frame
16. Shutter Speed
17. Histogram
18. Aperture Value
19. Continuous Shot
20. Flash Mode
21. AF Mode
LCD Display
Overview of the Screen Icons in Photo Shooting Mode
22
Overview of the Screen Icons in Movie
Mode
-0.3
EV
x
SD
00:56:00
1. Movie Mode
2. Macro Mode
3. Zoom Display (Visible when pressing the Zoom
button)
4. SD Memory Card/Built-In Memory
5. Battery Status
6. Remaining Recording Time
7. Video Quality
8. Exposure Compensation (EV value)
9. Focus Frame
10. Self-Timer
11. AF Mode
For optimal video shooting, it is
recommended that an SDHC memory card
be used. If you shoot video using only the
camera's internal memory, the end results
may have image jitter, noise and vastly
shorter recording times.
23
15:37
x2
1/45
SD
00:01:23
2015
04-01
1. Film File
2. DPOF File
3. File Protection
4. Memory Space (indicating the current number
of photos and total number of photos)
5. SD Memory Card/Built-In Memory
6. Battery Status
7. Slide Setting/Film Playing
8. Zoom Magnification Area
9. Shooting Date
10. Film Length/Number of Photos with Burst
Shooting
11. Video Quality
12. Red-Eye Reduction
Overview of the Screen Icons in Playback Mode
24
Using the Mode Button
This camera provides a convenient mode button that allows you to manually switch among dierent camera
settings with ease. Available modes are listed below:
Mode Name Icon Description
Manual Mode Many of the camera settings can be configured manually in this mode.
Auto Mode
In this mode, the optimal conditions for taking pictures will be set based on
the subject and environment. It is the most commonly used mode for taking
pictures.
Movie Mode Record videos.
Panorama Mode
In this mode, up to 4 frames can be stitched together to create a single
panoramic photo.
Scene Mode Choose from 23 dierent pre-set scene types and eects for your photos.
25
Auto mode is the most common and easiest mode
to take photos. While operating in this mode, the
camera automatically optimizes numerous camera
settings to optimally adjust settings for your
photos and videos for the best possible results.
Follow these steps:
1. Press the button to select Auto Mode ( ).
2. Compose your picture in the LCD and press the
shutter button halfway down to focus on the
subject.
3. The LCD will show a green focus frame when
the subject is in focus.
4. Fully press down the shutter button to take your
photo.
Auto Mode Manual Mode
When selecting (Manual Mode), you can set EV/
ISO.
1. Press the button to select Manual Mode
( ), press the to confirm.
2. Press the button.
-0.3 EV 400 ISO
3. Press the left/right arrow buttons to select an
adjustment setting.
4. Press the up/down button to adjust the
parameters.
5. Press the button to confirm the settings and
enter the shooting screen.
26
With Panorama Mode, you can take a series of
pictures which will be stitched automatically into
an ultra-wide panoramic picture by the camera.
Follow the steps below:
1. Press the button to select Panorama Mode
( ).
2. Use the left/right buttons to specify the
direction of picture taking, and then in
2 seconds the panoramic sequence will
commence automatically.
3. Compose the first view of the panoramic
picture on the LCD and press the shutter button
to capture the image.
Save
Cancel
Cancel Save
1/50F3.3
4. After the first shot is taken, the semi-transparent
image of the first shot will appear at the edge of
the screen. You can use this image to compose
and align your next picture before you press
the shutter button to capture and finish manual
stitching.
5. If continuous pictures are less than 4
shots, press the button, the camera will
automatically stitch the pictures together. Press
the Playback button to enter Playback Mode to
see the finished eect.
6. If you take 4 pictures, the camera will stitch
the pictures together automatically. Press the
Playback button to enter Playback Mode to see
the finished eect.
In Panorama Mode, the Flash, Self-Timer,
Macro Modes and Exposure Compensation
are not available.
In Panorama Mode, up to 4 photos can be
captured when the image size is set at 2MP.
Panorama Mode
27
You can select your desired scene from the 23 preset modes according to the type of environment you are
shooting in. The camera then automatically configures the most appropriate settings for the best possible
photos.
Press the button to select Mode. Press the arrow buttons to select a scene, and press the
button to confirm.
Scene Description
Auto Scene
Identifies the scene automatically; Portrait, Backlit Portrait, Landscape, Macro,
Night Landscape, Night Portrait and Auto.
Landscape For landscapes and outdoor shots. Vivid reproduction of greens and blues.
Sport
For fast-moving subjects. Captures sharp, action shots with minimal blur. This
mode is not recommended for shooting indoors.
Beach For taking pictures in areas with strong sunlight.
Sunset For sunsets. Captures subjects in strong sunlight.
Fireworks For fireworks at night. Use of a tripod is recommended with this setting.
Night Landscape For night scenes. Use of a tripod is recommended with this setting.
Snow For snowy conditions. Reproduces natural, clear, white scenes.
Children
Turns flash o automatically. Avoids disturbing the subject and is suitable for
taking photos of children and pets.
ID
For shooting ID size photos. (It is recommended to print using 6-inch 4R (4" X 6")
photographic paper).
Scene Mode
28
Scene Description
Glass For objects behind transparent glass.
Photo Frame For adding interesting frame eects to the photo.
Panning Shot
Suitable for capturing fast moving objects to have a clear subject with a blurred
background.
Text For taking pictures of text, documents or white boards.
Portrait
Most suitable for capturing people with focus on their face.
Fish Eye For an interesting fish eye eect.
Party
Suitable for taking indoor party pictures, even under complicated lighting
conditions.
Indoor For indoor settings. Reduces blur and improves color accuracy.
Leaf For plants. Captures brilliant shots of greenery and blossoms.
Museum
For museums or flash-free areas. Retains color and reduces blur.
Night Portrait
For portraits against night scenery.
Sketch For taking photos with pencil sketch eect.
Anti-Shake
Digital image stabilization to take clear pictures in the handheld state.
29
Auto Scene Mode
In Scene Mode ( ), the camera can intelligently detect dierent environments and automatically select
the best scene and photo settings for you.
1. Press the button to select Mode, then select Function.
2. Hold the camera steadily and aim at the subject. The optimum Scene Mode
will be selected automatically.
3. Press the shutter button half-way down to focus.
4. Press the shutter button all the way down to take pictures.
Mode Name Description
Landscape Mode
For landscapes, automatically adjusts the exposure and reproduces vivid green
and blue colors.
Portrait Mode Most suitable for capturing people with focus on their faces.
Night Portrait
When you take portraits at night, or in low light conditions, automatically adjusts
the exposure for people and night scenes.
Backlit Portrait
When the sun or any other light source is behind you, automatically adjusts the
foreground exposure to produce the best pictures possible.
Night Landscape
Mode
For night scenes, automatically increases the ISO value to compensate for low
light.
Macro Mode The macro setting is ideal for shooting small objects or close-up photos.
Auto Mode
The camera automatically adjusts the exposure and focus to ensure the best
possible pictures.
SD
1234
16M
30
Flash Mode
The Flash is used to illuminate a subject in low light
or for fill-in lighting to achieve better illumination
of a subject with pronounced shadows.
1. Press the right arrow button ( ) to enter the
Flash Settings Menu.
Flash Auto
2. Press the left/right arrow buttons to select one
of the following 6 modes:
• Force O
Flash is turned o.
• Flash Auto
Camera flash goes o automatically
based on existing light conditions.
• Fill Flash
The flash will engage with each shot
even if there is enough available light to
take the photo without flash.
• Slow Sync.
This allows for night scenery photos that
include people in the foreground. The
use of a tripod is recommended when
shooting with this setting.
• Slow Sync. + Red-Eye
Use this mode for slow synchro shots
with red-eye reduction.
• Red-Eye Reduction
The camera emits a brief pre-flash
before the picture is taken to reduce
red-eye eects.
3. Press the button to confirm the settings and
exit this option.
BASIC OPERATION
31
Macro Mode
The Macro Setting is ideal for shooting small
objects or close-up photos. This mode allows you
to focus on subjects very close to the camera.
1. Press the left arrow button ( ) to enter the
Macro Menu.
Macro On
2. Press the left/right buttons to select the
following 2 modes:
• Macro O
Select this option to disable Macro.
• Macro On
Select this to focus on subjects 5cm from
the lens.
3. Press the button to confirm the settings and
exit the menu.
32
Self-Timer Setting
Use this function to take pictures at pre-set
intervals. The camera shutter speed can be set to 2
seconds, 10 seconds or Smile Detection.
1. Press the left arrow button ( ) to enter the
Marco Menu.
Self-timer 10sec
2. Press the up/down buttons to enter Self-Timer
Function Menu.
3. Press left/right buttons to select the following 4
modes:
• Self-Timer O
Disables the Self-Timer.
• Self-Timer 2sec
A single picture is shot 2 seconds after
the shutter button is pressed.
• Self-Timer 10sec
A single picture is shot 10 seconds after
the shutter button is pressed.
• Self-Timer Smile
Press the shutter button and a picture
will be taken immediately after a smile is
detected.
4. Press the button to confirm the settings and
exit the menu.
33
The adjustable range of exposure value is
from EV -2.0 to EV +2.0.
The ISO Function allows you to set the
sensitivity of the camera’s light sensor based
on the brightness of the scene. To improve
the camera’s sensor performance in darker
environments, a higher ISO value is required.
A lower ISO value is needed when shooting in
brighter conditions. Pictures taken at higher
ISO settings will generally have more noise
than those taken at lower ISO settings.
The camera's ISO settings include: Auto, 80,
100, 200, 400, 800 and 1600.
EV function menu of the camera consists of EV
adjustment (This can be adjusted mode) and
ISO adjustment (This can be adjusted mode).
With proper function setting, the user can take
pictures with better eects.
-0.3 EV 400 ISO
-0.3 EV 800 ISO
Please refer to manual mode on page 25 for
EV setting operation steps.
EV Setting
34
Your camera is equipped with two types of Zoom
Functions: Optical Zoom and Digital Zoom. Press
the Zoom button of the camera to zoom in or out
on the subject while taking pictures.
-0.3
EV
400
ISO
SD
1234
x
16M
00:56:00
When reaching the critical point of optical/digital
zoom, the camera will temporarily stop zooming; if
you release and press the zoom button again, it will
automatically switch between optical and digital
zoom.
Zoom Indicator
Using the Zoom Function Using Quick Recording
In the Photo Shooting Mode, press the Recording
Short Cut button to begin recording video.
00:00:06
x
Once you are finished, press the Recording Short
Cut button or the Shutter Button to stop and
store the video. The camera will return to the
Shooting Mode automatically.
35
To view the captured photos and video clips on the LCD:
1. After pressing the button, the last photo or video clip taken will be displayed on the LCD.
2. Use the left/right navigation buttons to scroll through the photos or video clips stored on the built-in
memory or on the Memory Card in the camera.
3. To play a selected video clip, press the button to enter the Movie Playback Mode.
During video playback, the operating instructions will appear on the screen. Press the appropriate buttons
to engage the following actions:
6 Return to the Beginning of the
Video
7 Play
8 Play Video Forward
9 Cancel Playback
10 Play Video Backward
1 Increase Volume
2 Pause
3 Fast Forward
4 Decrease Volume
5 Rewind
00:00:47 00:01:23
00:00:47 00:01:23
Mute
Viewing Photos and Videos
PLAYBACK
36
When in Playback Mode, press the button on the Zoom button to display thumbnail images of photos
and videos on the screen.
1. Slide the Zoom button to switch between 3 x 3 and 4 x 4 thumbnails.
2. When a 3 x 3 or 4 x 4 thumbnail is displayed, press the arrow buttons to select a picture or video clip to view.
If the indicator appears on the LCD, then a movie file is currently being displayed.
Press the button to restore a preview icon to its original image size.
Thumbnail View
37
Using Zoom Playback (for still pictures only)
When playing back photos, you can also use the Zoom Button to zoom in on the photos, 2 to 8 times their
original magnification.
1. Press the left/right buttons to select the picture on which to use the zoom feature.
2. Press the button on the Zoom button to zoom in.
3. The bottom right corner of the screen will display the amount zoomed in as well as the area of the photo
shown.
x2
4. Press the arrow buttons to navigate and select the desired portion of the photo to be zoomed in on.
5. Press the button to return the image to its original scale.
Movie images cannot be magnified.
38
This setting allows you to view all the stored pictures as a slideshow.
1. Press the button to enter playback screen.
2. Press the button to enter slide option.
3. Press the left/right buttons to select Slideshow playing or [Cancel] to return to the playback screen.
Cancel
4. Press the button to confirm the setting.
Slideshow
39
In Playback Mode, press the down arrow button ( ) to select your photos and videos.
To delete photos or videos:
1. Press the button to switch to Playback Mode.
2. Press the left/right arrow buttons to select the photos and videos to be deleted.
3. Press the down arrow button ( ) and the deletion screen is displayed.
Delete One
Exit
4. Press the up/down arrow buttons to select [Delete One] or [Exit] and press the button to confirm.
Erased photos/video clips cannot be recovered.
Photos and Video Deletion
40
Image Size
The size setting refers to the image resolution in
pixels. A higher image resolution allows you to
print that image in larger sizes without degrading
the photo image quality.
5M
16M
16M
Size: High quality printing
The bigger the number of recorded pixels is,
the better the image quality becomes. As the
number of recorded pixels lessens, you will
be able to record more images on a memory
card.
Mode:
1. In Photo Shooting Mode, press the button
to enter the Photo Shooting Menu.
2. Press the up/down arrow buttons to select the
Photo Shooting Menu to be set.
3. Press the left/right arrow buttons to select the
Photo Shooting Menu to be set and press the
button to confirm.
5M
16M
16M
Size: High quality printing
Refer to the following pages (P40~43) for more
details about each setting.
Photo Setup Menu
USING THE MENUS
41
Continuous AF
Use the Continuous AF setting to be able to
continuously focus automatically when taking
pictures.
16M
Cont. AF:Off
Cont.AF: Off
There are 2 options:
• O
• On
Setting Continuous AF to On will reduce
battery life.
Continuous Shot
Use this setting to perform continuous shooting.
16M
Single
There are 2 options:
• Single
• Continuous Shot
Press the shutter button to start continuous
shooting.
42
Focus Setting
In dierent photo shooting modes, you can select
dierent focus methods.
16M
Single-AF
There are 2 options:
• Single-AF: The focus frame appears on the
center of the LCD to help you focus
on the subject.
• Multi-AF: The camera automatically focuses
the subject in a wider area to find
the focal point.
Color Eect
This setting allows you to select dierent modes
for optimum focus.
Normal
There are 4 options:
• Normal
• Vivid
• Sepia
• Black and White
43
White Balance Setting
The White Balance Setting allows you to adjust the
color temperature for dierent lighting scenes to
ensure the most accurate color reproduction.
AWB
There are 7 options:
• AWB
• Daylight
• Cloudy
• Fluorescent
• Fluorescent CWF
• Incandescent
• Manual WB (Fully press the shutter button to
detect the white balance value)
Scene
Select the Scene Mode under the SCN Mode.
Night Landscape
Press SET To Select Scene
Night Landscape
44
•
Options in the shooting mode (O: Available X: Unavailable)
Options
Shooting Modes
Image Size O O X O
Continuous AF O O X X
Continuous Shot O O X X
Focus Setting O O X X
Color Eect O X X X
White Balance Setting O X X X
Scene X X X O
45
Mode:
1. Press the button in Photo Shooting Mode
and press the up/down button to select .
⥺ٵ
Press SET To Enter
MENU
Press SET to Enter
Menu
2. Press the button to enter the menu.
3. Press the up/down arrow buttons to select
and press the button or right arrow button to
enter the menu.
4. Press the up/down arrow buttons to pick the
item to be selected and press the button or
right arrow button to enter the menu.
5. Press the up/down arrow buttons to select an
option and press the button to confirm.
Quality
The Quality Setting can be used to adjust the
image compression ratio.
There are 3 options:
• Best (16M Average File Size: 4.0MB)
• Fine (16M Average File Size: 2.5MB)
• Normal (16M Average File Size: 2.0MB)
Photo Shooting Setting Menu
46
AF Assist Beam
In a darker environment the AF Assist Beam setting
can be turned on for better focus.
There are 2 options:
• O
• On
Digital Zoom
Turn on or o the digital zoom.
There are 2 options:
• O
• On
47
Date Imprint
Include a Date/Time stamp on the photo image.
There are 3 options:
• O
• Date
• Date / Time
Quick Review
This option allows quick review of the photos
immediately after they are taken. Each photo is
displayed on the LCD screen based on the selected
time.
There are 4 options:
• O
• 1 sec
• 2 sec
• 3 sec
A shorter quick review time will improve
battery life.
48
Video Quality
Set the image resolution used during video recording.
Size: 720p 30fps
The speed requirements for reading and writing high
image pixel images to SD card are as follows:
No. Image Pixel Frame Recommendation
Approximate
Recording
Time (4GB)
1 1280 x 720 * 30 Class 4 15 Minutes
2 1280 x 720 15 Class 4 31 Minutes
3 640 x 480 30 Class 4 47 Minutes
4 320 x 240 30 Class 4 200 Minutes
* The longest recording time is 29 minutes at one
time.
Mode:
1. Press the button, select the mode
and press the button to enter the Movie
Menu.
Size: 720p 30fps
2. Press the up/down arrow buttons to select
the Movie Menu to be set.
3. Press the left/right arrow buttons to select
the Movie Menu to be set and press the
button to confirm.
Movie Menu
49
Mode:
1. Press the button, select the mode and
press the button to enter the Movie Menu.
2. Press the up/down arrow buttons to select ,
and press the button to enter the menu.
Press SET To Enter
MENU
Press SET to Enter
Menu
3. Press the up/down arrow buttons to select ,
and press the button or right arrow button to
enter the menu.
4. Select the items to be set and press the
button or the right arrow button to enter the
menu.
5. Press the up/down arrow buttons to select an
option and press the button to confirm.
Digital Zoom
Turn on or o the digital zoom.
There are 2 options:
• O
• On
Movie Setting Menu
50
Playback Menu
1. Press the button to display the playback screen and press the button to enter the menu.
2. Press the up/down arrow buttons to select the playback desired and press the button to enter.
3. Press the left/right arrow buttons to select an option and press the button to confirm.
Red-Eye Reduction
Press SET to confirm
Refer to the following pages (P 51) for more details about each setting.
51
Rotate
You can use this setting to change the orientation
of the picture.
Turn Right
There are 3 options:
• Turn Right
• Turn Left
• Cancel
Videos and panoramic pictures cannot be
rotated.
The rotated picture file will replace the
original photo.
Red-Eye Reduction
Use this setting to remove red eye in your photos.
Red-Eye Reduction
There are 2 options:
• Red-Eye Reduction
• Cancel
52
1. Press the button to show the playback screen, press the button, and press the up/down button
to select .
2. Press the button to enter the menu.
Press SET To Enter
MENU
Press SET to Enter
Menu
3. Press the up/down arrow buttons to select and press the button or right arrow button to enter the
menu.
4. Press the up/down arrow buttons to select the item to be set and press the button or right arrow
button to enter the menu.
5. Press the up/down arrow buttons to select an option and press the button to confirm.
Refer to the following pages for more details about each setting.
Playback Setting Menu
53
Protect
To prevent any pictures or videos from being
accidentally erased, use this setting to lock one or
all of the files.
There are 3 options:
• One: Lock the selected photo or video
if they are unprotected; unlock the
selected photo or video if they are
protected.
• All: Lock all photos or videos.
• Reset: Cancel all locked photos or videos.
Delete
You can delete one or all photo/video files.
There are 2 options:
• One: Delete one photo or video.
• All: Delete all photos or videos.
The " " indicator means a file is protected.
File protection must be removed before a file
can be deleted.
Deleting files will cause DPOF settings to be
reset.
Deleted files will be permanently deleted and
will not be able to be recovered or restored.
54
DPOF (Digital Print Order Format)
The DPOF feature allows you to compile and select
a group of pictures that you would like to print and
will save your selection on the memory card so that
you can use the SD memory card to print without
having to individually specify the photos you want
to print.
There are 3 options:
• One
• All
• Reset
The printer that supports DPOF is needed for
printing.
Trim
The Trim Setting allows you to crop photos and
save them as new pictures.
1. Press the up/down arrow buttons to select [Trim]
and press the button or right arrow button to
enter the menu.
2. Select [Yes] to confirm trim. Select a section of
the photo to be trimmed using the zoom button
and arrow buttons to trim a photo.
2X
3. Press the button and the [Save change?]
prompt appears. Select [ ] to change and
save the picture. Select [ ] to cancel changes
and return to the trim prompt screen.
The image cannot be clipped/trimmed again
once it has been clipped to 640 X 480.
55
Setup Menu
1. Press the button in any mode and press the up/down button to select .
2. Press the button to enter the menu.
3. Press the up/down arrow buttons to select and press the button or right arrow button to enter the
menu.
4. Press the up/down arrow buttons to select the item to be set and press the button or right arrow
button to enter the menu.
5. Press the up/down arrow buttons to select an option and press the button to confirm.
Refer to the following pages (P 56~P 57) for more details about each setting.
56
Power Saver
This setting allows you to save power and get the
maximum possible running time for your camera's
batteries. Follow the steps below to turn the LCD
and camera o automatically after a consecutive
period of inactivity.
1. Select [Power Saver] in the basic settings menu.
Press the button or right arrow button to
enter the menu.
2. Press the up/down arrow buttons to select an
option.
3. Press the button to confirm.
Sound Settings
To change this setting:
1. Select [Sound Settings] in the basic settings
menu. Press the button or right arrow button
to enter the menu.
2. Press the left/right arrow buttons to select an
option.
3. Press the button to confirm.
57
Language
Refer to the “Reset your language” section on page 18.
World Time
The Zone setting is a useful function for your overseas trips. This feature enables you to display the local
time on the LCD while you are abroad.
1. Select [World Time] in the basic settings menu. The World Time screen appears.
2. Press the up/down to select the departure place ( ) and destination ( ) fields.
3. Press the left/right arrow buttons to select a city located in the same time zone as that of the field. Press
the button to confirm settings.
Date & Time
Refer to the “Reset Date/Time” section on page 19.
58
5. If you select [Yes] the camera will format its
memory.
If there is no memory card in the camera, the
built-in memory will be formatted; if there is
a memory card, only the memory card will be
formatted
.
Format
Please Note: formatting enables you to delete all
contents on the memory card and camera’s built-in
memory, including protected photo and movie files.
To use this setting:
1. Press the button, press the up/down arrow
buttons to select and press the button to
enter the menu.
2. Press the up/down arrow buttons to select
and press the button or right arrow button to
enter the menu.
3. Press the up/down arrow buttons to select
[Format] and press the button or right arrow
button to enter the menu.
4. Press the up/down arrow buttons to select [Yes]
or [No] and press the button to confirm.
File / Software
59
Copy to Card
Use this setting to copy the files stored in the internal memory to an SD memory card.
1. Press the button, press the up/down arrow buttons to select and press the button to enter the
menu.
2. Press the up/down arrow buttons to select and press the button or right arrow button to enter the
menu.
3. Press the up/down arrow buttons to select [Copy to Card] and press the button or right arrow button
to enter the menu.
4. Press the up/down arrow buttons to select [Yes] or [No] and press the button to confirm.
If there is no card available in the camera, this function will not be displayed.
60
File Numbering
After you take a picture or video clip, the camera will automatically save it with a sequential number. You
can use this to reset the file numbering to 1.
1. Press the button, press the up/down arrow buttons to select and press the button to enter the
menu.
2. Press the up/down arrow buttons to select and press the button or right arrow button to enter the
menu.
3. Press the up/down arrow buttons to select [File Numbering] and press the button or right arrow
button to enter the menu.
4. Press the up/down arrow buttons to select [Yes] or [No] and press the button to confirm.
61
Reset
Use this setting to restore the camera to its original factory default settings.
1. Press the button, press the up/down arrow buttons to select and press the button to enter the
menu.
2. Press the up/down arrow buttons to select and press the button or right arrow button to enter the
menu.
3. Press the up/down arrow buttons to select [Reset] and press the button or right arrow button to enter
the menu.
4. Press the up/down arrow buttons to select [Yes] or [No] and press the button to confirm.
62
Firmware (FW) Version
Use this setting to view the current camera firmware version.
1. Press the button, press the up/down arrow buttons to select and press the button to enter the
menu.
2. Press the up/down arrow buttons to select and press the button or right arrow button to enter the
menu.
3. Press the up/down arrow buttons to select [FW Version] and press the button or right arrow button to
enter the menu.
4. When there is a new firmware version in the SD card, select [Yes] to update.
63
Connecting to a Computer
CONNECTIONS
You can use a micro USB cable to connect the camera and copy (transmit) photos to a computer, printer or
other device.
Setting the USB Mode
The camera’s USB port can be used to connect to either a computer or a printer. The following steps will
allow you to ensure that the camera is correctly configured to connect with a computer.
1. Press the button, press the up/down arrow buttons to select and press the button to enter the
menu.
2. Press the up/down arrow buttons to select and press the button or right arrow button to enter the
menu.
3. Press the up/down arrow buttons to select [USB] and press the button or right arrow button to enter the
menu.
4. Press the up/down arrow buttons to select [PC] and press the button to confirm.
64
Transferring Files to Your Computer
The computer will automatically detect the camera as a removable drive. Double-click the My Computer
icon on the desktop to locate the removable drive and to copy folders and files in the drive to a directory on
your computer as you would copy any typical folder or file.
Follow the steps below to connect the camera to a computer:
1. Make sure both the camera and computer are turned on.
2. Connect one end of the supplied micro USB cable to the micro USB port on your camera.
3. Connect the other end of the cable to an available USB port on your computer.
4. After the transmission is complete, disconnect the USB cable according to your computer manufacturer's
instructions specifying how to safely remove USB devices.
65
Video System
Use this feature to switch the video system from either NTSC or PAL.
1. Press the button, press the up/down arrow buttons to select and press the button to enter the
menu.
2. Press the up/down arrow buttons to select and press the button or right arrow button to enter the
menu.
3. Press the up/down arrow buttons to select [TV-System] and press the button or right arrow button to
enter the menu.
4. Press the up/down arrow buttons to select [NTSC] or [PAL] and press the button to confirm.
The video output system will change accordingly based upon the selected language.
NTSC: English, Chinese (Traditional), Japanese, French, Korean, Russian, Vietnamese, Greek,
Hungarian
PAL: German, Spanish, Italian, Chinese (Simplified), Portuguese, Swedish, Danish, Finnish, Indonesia,
Norwegian, Dutch, Turkish, Polish, Thai, Croatian, Czech, Arabic, Hindi
66
PICTBRIDGE™ technology allows printing
of the photos saved in the memory card
by a printer.
To find out if a printer is PICTBRIDGE™
compatible, simply look for the PICTBRIDGE™ logo
on the packaging or check the owner's manual for
specifications. With the PICTBRIDGE™ function on
your camera, you can print the captured photos
directly to a PICTBRIDGE™ compatible printer using
the supplied micro USB cable, without the need for
a PC.
Setting the USB Mode
The camera’s USB port can be set to connect with
either a PC or a printer. The following steps will
ensure that the camera is correctly configured to
connect with a compatible printer.
1. Press the button, press the up/down arrow
buttons to select and press the button to
enter the menu.
2. Press the up/down arrow buttons to select
and press the button or right arrow button to
enter the menu.
3. Press the up/down arrow buttons to select [USB]
and press the
button or right arrow button to
enter the menu.
4. Press the up/down arrow buttons to select [Printer]
and press the button to confirm.
After the camera is reset, it will switch to PC
mode automatically from USB mode.
See “Using the PICTBRIDGE™ Menu“ section
on page 68.
Connecting to a PICTBRIDGE™ Compatible Printer
67
Connecting to your Printer
1. Make sure both the camera and printer are
turned on.
2. Connect one end of the supplied micro USB
cable to the micro USB port on your camera.
3. Connect the other end of the cable to the USB
port on the printer.
If the camera is not connected to a PICTBRIDGE™
compatible printer, the following error message
will appear on the LCD.
The error message above will also appear
if the USB mode is set incorrectly, in which
case you should disconnect the USB cable,
check the USB mode settings, ensure that the
printer is turned on, and then try connecting
the micro USB cable again.
68
After setting the USB mode to Printer, the PICTBRIDGE™ Menu will appear.
Press the up/down arrow buttons to select a menu item and press the button or right arrow button to
enter the item.
Refer to the following sections for more detailed information on each setting.
Using the PICTBRIDGE™ Menu
69
Print (with Date)
If you have set the date and time on your camera,
the date and time will be recorded and saved with
each photo you take.
1. In the PICTBRIDGE™ menu, select [Print (with
Date)] and the screen as shown below appears.
2. Press the left/right arrow buttons to select a
photo to be printed.
3. Press the up/down arrow buttons to select the
number of copies for the currently displayed
photo.
4. Press the button and the following screen
will appear.
5. Select [Yes] and press the button to confirm;
select [Cancel] and press the button to
cancel printing.
70
Print (without Date)
Use this setting to print the photos without dates
on them.
1. In the PICTBRIDGE™ menu, select [Print (without
Date)] and the screen as shown below appears.
2. Press the left/right arrow buttons to select a
photo to be printed.
3. Press the up/down arrow buttons to select the
number of copies for the currently displayed
photo.
4. Press the button and the following screen
will appear.
5. Select [Yes] and press the button to confirm;
select [Cancel] and press the button to
cancel printing.
71
Print Index
You can print all photos in the camera via this
function.
1. In the PICTBRIDGE™ menu, select [Print Index]
and the screen as shown below appears.
2. Select [Yes] and press the button to confirm;
select [Cancel] and press the button to
cancel printing.
Print DPOF Images
To use DPOF printing, you must select your photos
for printing using the DPOF settings before hand.
See “DPOF” section on page 54.
1. In the PICTBRIDGE™ menu, select [Print DPOF
Images] and the screen as shown below
appears.
2. Select [Yes] and press the button to confirm;
select [Cancel] and press the button to
cancel printing.
72
Exit
Select [Exit] to exit the PICTBRIDGE™ menu. At this time, the message [Remove USB Cable!] will appear on
the screen.
Disconnect the micro USB cable from the camera and printer.
73
Specifications
APPENDICES
Design and specifications are subject to change without notice.
Sensor
Type 1/2.3" CCD
Eective Ective Pixels 16.15 Megapixels
Total Pixels 16.44 Megapixels
Lens
Focal Length 4.9 mm (Wide) — 19.6 mm (Tele)
35mm Film Equivalent 27 mm (Wide) — 108 mm (Tele)
F Number F3.0 (Wide) — F6.6 (Tele)
Lens Construction 7 groups 7 elements
Optical Zoom 4x
Focusing Range
Normal: (Wide) 60 cm ~
∞
,
(Tele) 100 cm ~
∞
;
Macro: 5 cm ~
∞
(Wide Only)
Autofocus System TTL Autofocus
Anti-Handshake Digital Image Stabilization
Digital Zoom 6x Digital Zoom (Combined Zoom: 24x)
74
Number of
Recording
Pixels
Still Image
(4:3)
16MP: 4608 X 3456
10MP: 3648 X 2736
5MP: 2592 X 1944
3MP: 2048 X 1536
0.3MP: 640 X 480
(3:2)
14MP: 4608 X 3072
(16:9)
12MP: 4608 X 2592
2MP: 1920 X 1080
Movie 1280 X 720 (15/30fps), 640 X 480 (30fps), 320 X 240 (30fps)
Image Compression Best, Fine, Normal
DCF, DPOF (Ver1.1) Support Yes
File Format
Still Image Exif 2.3 (JPEG)
Movie Movie Format: MOV (Motion JPEG), Audio: G.711 [Monaural]
Shooting Modes
Auto Mode, Manual Mode, Panorama Mode, Scene Mode (Auto Scene,
Landscape, Sport, Beach, Sunset, Fireworks, Night Landscape, Sketch,
Snow, Children, ID, Glass, Photo Frame, Panning Shot, Text, Portrait,
Fish Eye, Party, Indoor, Leaf, Museum, Night Portrait, Anti-shake), Movie
Mode
Detection Features Face, Smile, Blink
Red-Eye Removal Yes
Panorama Capture Up to 180° (Horizontal)
75
LCD Display 2.7 inch (230k Pixels)
ISO Sensitivity Auto, ISO80/100/200/400/800/1600
AF Method Single AF, Multi-AF (TTL 9-point), Face-Detection
Exposure Metering Method Artificial Intelligence AE (AiAE), Face AE
Exposure Control Method Program AE (AE-Lock Available)
Exposure Compensation ±2 EV in 1/3 Step Increments
Shutter Speed 1/2000 ~ 4 Seconds
Continuous Shooting Yes
Playback Modes
Single Photo, Index (9/16 Thumbnails), Slide Show
Zoom in (2 to 8 times)
White Balance Control
AWB, Daylight, Cloudy, Fluorescent, Fluorescent CWF, Incandescent,
Manual WB
Flash
Flash Method Internal
Flash Modes
Force O, Flash Auto, Fill Flash, Slow Sync., Slow Sync. + Red-Eye,
Red-Eye Reduction
76
Recording Media
Internal Memory: Approx. 8 MB
SD/SDHC Card (Up to 32 GB Support) [MMC Card Not supported ]
PictBridge, ExifPrint Support Yes
Multi-Language Support 27 Languages
Jacks AV-OUT/USB 2.0 (Micro 5 pin USB)
Power 2 x AA Alkaline Battery, AA NiMH Battery [Not Included]
Shooting Capability
(Battery Performance)
AA Alkaline Batteries: Approx. 120 shots (Based on CIPA standards)
Operation Environment Temperature: 0 ~ 40 °C, Humidity: 0 ~ 90%
Dimensions (W X H X D) Approx. 93.0 X 60.2 X 26.6 mm (Based on CIPA Standards)
Weight Approx. 117g (Body only)
77
Prompts and Warning Messages
Message Description Action
Warning! Battery exhausted.
The camera batteries are depleted. It is a
warning indicating that the camera is going
to shut o.
Replace with new batteries.
The camera will shut down in 2
seconds.
Lens obstruction, Re-start
Camera.
The lens is jammed or some foreign object
is preventing the lens from functioning
properly.
Turn the camera o and restart it to
reset the lens.
Suggest using tripod.
When continuous exposure is enabled,
this prompt message is displayed when
the photo shooting screen is displayed
for the first time.
This message will disappear after
2 seconds
Built-in memory error!
An error has occurred in the internal
memory.
Try shutting down the camera
and turning it on again. This
message will disappear after 2
seconds
Warning! Do not turn o
your camera during update!
The message appears during the firmware
update process.
The message disappears after
the camera update and restart.
78
Message Description Action
Connection Failed!
Failure to connect to your PC, printer,
TV
Remove micro USB cable and retry
connection
Write Protect! The SD card is locked.
Remove SD card and switch the lever
on the side of card to UNLOCK. The
message will disappear after 2 seconds.
Card Full!
Indicates that the SD card is full.
Replace SD card with another that has
available memory. This message will
disappear after 2 seconds.
Memory Full!
Indicates that the camera memory
is full.
It will disappear after 2 seconds.
Card Error!
During power-on, the SD card cannot
be recognized or a read/write error
occurs has occurred.
Format the SD card. WARNING:
Formatting the SD card will erase all
data on the card. Copy the data from
the SD card to another storage, such as
a computer. Otherwise, all data will be
erased after the format. This message
will disappear after 2 seconds.
79
Message Description Action
Card is not
formatted.
When an error occurs with the
memory card, the message “Not
Formatted” will appear.
Format the memory card. WARNING:
Formatting the SD card will erase all data on
the card. Copy the data from the memory
card to another storage device, such as a
computer. Otherwise, all data will be erased
after the format. This message will disappear
after 2 seconds.
Slow access
When a memory card lower than
Class 4 is used to record a HD movie,
the writing speed will be slower and
recording will not continue.
Replace the memory card with a Class 4 or
higher SD card. This message will disappear
after 2 seconds.
Cannot write to SD
card.
The photo shooting or video
recording has been interrupted, so
recording cannot continue.
Turn the camera o. Then unload and reload
the SD card and turn on the camera to
restart. Also check if SD card is full or in the
locked position.
No Red-Eye
Detected!
Red eyes have not been detected in
the image.
This message will disappear after 2 seconds.
This image cannot
be edited.
The file format does not support
editing or the edited file cannot be
edited again.
This message will disappear after 2 seconds.
80
Message Description Action
Exceeded
maximum folder
number.
This indicates that the SD card
exceeded the maximum number
of folders (999). This could cause a
long read time during the camera's
power up.
Copy the data to your PC, and format the
memory card using the camera.
Too many
pictures for quick
processing.
During the playback by date, the
images exceed specifications so that
it is not possible to play by date.
This message disappears after 2 seconds
and the camera returns to normal playback
mode.
Unable to
recognize files.
The format of the file to be viewed is
not supported or the file is corrupted
so it cannot be properly read.
This message disappears only after the file is
deleted.
No Picture!
When you press the play button, no
image files exist in the camera or
memory card.
This message disappears after 2 seconds and
returns to the photo shooting screen.
Protected!
Undeletable!
The file is protected. The message
appears when you go into delete
mode.
Remove SD card and switch the lever on the
side of card to UNLOCK. Place card back into
the camera and try again. This message will
disappear after 2 seconds.
81
Troubleshooting
Problem Possible causes Solution
Camera does not turn on
The batteries have been
depleted.
The batteries are not inserted
correctly.
Replace the batteries.
Correctly reinstall the batteries.
Camera turns o suddenly
during operation
The batteries have been
depleted.
Replace the batteries.
The picture is blurred
Camera shakes while taking a
picture.
Turn on OIS Feature.
Please use tripod for high
magnification (above 15X) Optical
Zoom.
Images and video files cannot
be saved
The memory card is full.
The memory card is locked.
Use another memory card or delete
unnecessary files.
Unlock the memory card.
Images will not print from the
connected printer
The camera is not connected to
the printer correctly.
The printer is not PICTBRIDGE™
compatible.
The printer is out of paper or
ink.
The printer paper is jammed.
Check the connection between the
camera and printer.
Use a PICTBRIDGE™ compatible
printer.
Load paper into the printer or
replace the ink cartridge in the
printer.
Remove the jammed paper.
82
Problem Possible causes Solution
Saving data to memory
card is slow
Using a memory card below Class
4 may result in slower recording
times.
Use a memory card with write Class
4 or higher to improve performance.
Cannot write to the
memory card
The SD memory card has been
locked.
The camera may experience
trouble recording HD movies to
SD cards with a rating lower than
Class 4.
Release the write lock of the
memory card or replace with
another card.
Use a memory card with write
Class 4 or higher to improve
performance.
Too many movies to
process
The number of pictures or folders
in the memory card exceed the
specifications, so the playback of
data folder can not be displayed.
Delete unwanted files.
© 2017 JK Imaging Ltd. All Rights Reserved.
The Kodak trademark, logo and trade dress are used under license from Eastman Kodak Company.
All other logos, products or company names that are referred to in this document are trade names, trademarks or
registered trademarks of their holders. The holders are not ailiated with JK Imaging Ltd., our products or our website.
JK Imaging Ltd., 17239 So. Main Street, Gardena, CA 90248 USA
JK Imaging Europe, 71 Clarendon Road, Watford, WD17 1DS, UK
kodakpixpro.com
Made in Myanmar
Ver. 3
