3-862-481-11 (2)
Installation/Connections
Subwoofer
Sony Corporation 1998 Printed in U.S.A.
XS-122X/102X
Specifications
XS-102X
Speaker Woofer 25 cm (10 in.),
cone type
Maximum input power
400 watts
Rated input power 120 watts
Impedance 4 ohms
Sensitivity 87 dB/W/m
Frequency response 25 – 3,500 Hz
Mass Approx. 3.1 kg per speaker
XS-122X
Speaker Woofer 30 cm (12 in.),
cone type
Maximum input power
450 watts
Rated input power 150 watts
Impedance 4 ohms
Sensitivity 89 dB/W/m
Frequency response 20 – 3,000 Hz
Mass Approx. 5.2 kg per
speaker
Dimensions
Unit: mm
A
D
B
C
ABCD
XS-102X
φ
245
φ
256
φ
235 120
XS-122X
φ
294
φ
307
φ
283 136
Power amplifier
Cassette car stereo
or CD player
Speaker
system
Electronic crossover network
Power amplifier
Right
Left
XS-102X
XS-122X
Subwoofer
Connections
Precautions
• Be careful not to drive the speaker system continuously with the power exceeding the power
handling capacity.
• Keep recorded tapes, watches, and personal credit cards using magnetic coding away from the speaker
system to prevent their possible damage caused by the magnets in the speakers.
• When installing the unit, be careful not to damage the diaphragm by hand or tools.
• The subwoofer is heavy,so attach it firmly to a solid thick, baffle plate or metal board.

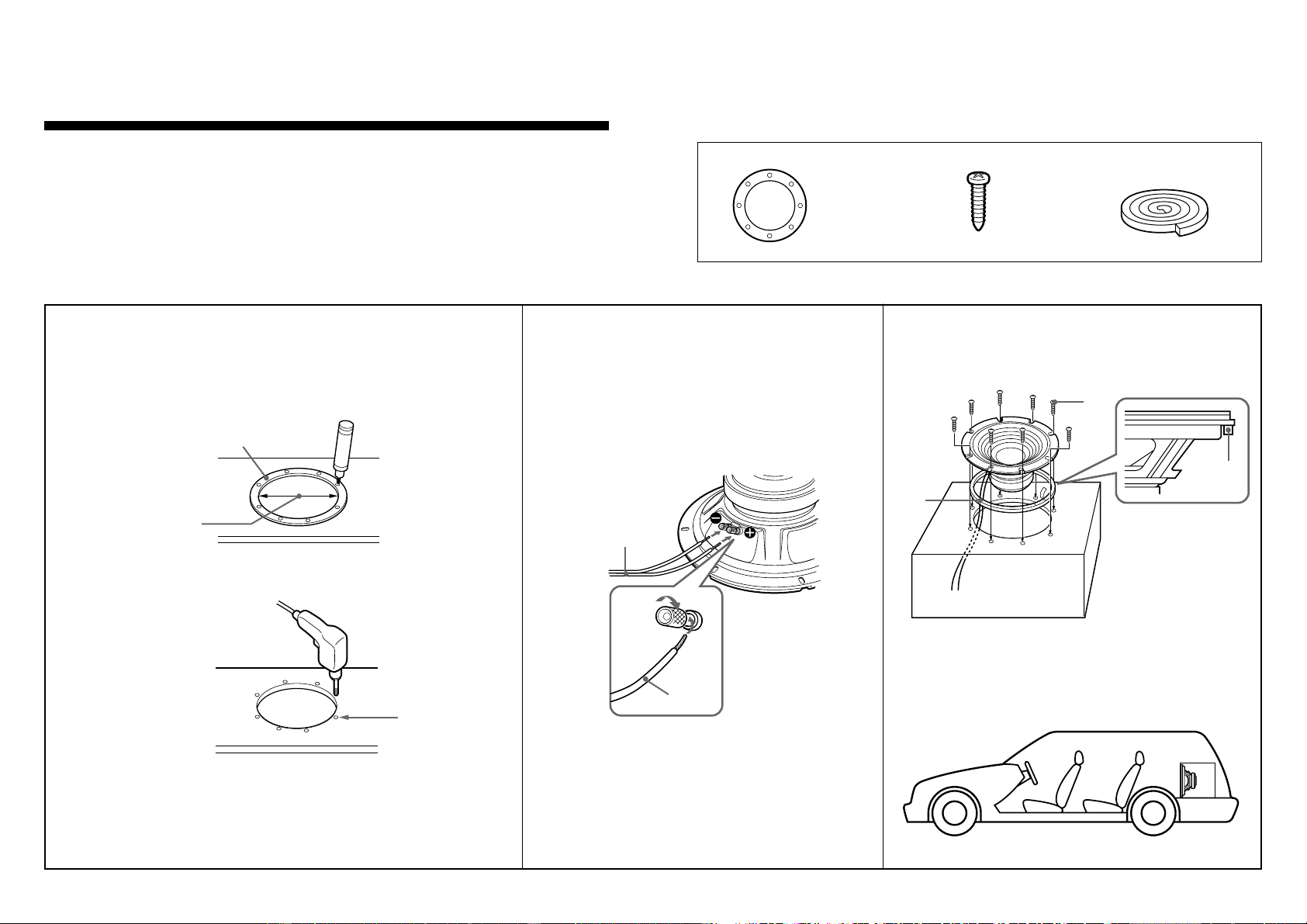

Installation
Parts for installation and connections
1
× 1
× 1
2
3
× 8
3
2
3
1
2
In separate enclosures
3
Speaker cord
(not supplied)
Speaker
cord
XS-102X:
ø236
XS-122X:
ø284
Unit: mm
1
µ
ø3.2 (
1
/8)
