©1997 by Sony Corporation
Integrated
Amplifier/Video
Cassette Recorder
3-859-466-11 (1)
Operating Instructions
SLV-AV100U/C
j
G
Introduction
2
• Do not install the unit in an inclined position. It is
designed to be operated in a horizontal position only.
• Keep the unit and cassettes away from equipment with
strong magnets, such as microwave ovens or large
loudspeakers.
• Do not place heavy objects on the unit.
• If the unit is brought directly from a cold to a warm
location, moisture may condense inside the VCR and cause
damage to the video head and tape. When you first install
the unit, or when you move it from a cold to a warm
location, wait for about one hour before operating the unit.
Information
For customers in the USA
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority
to operate this equipment.
Caution
Television programs, films, video tapes and other materials
may be copyrighted. Unauthorized recording of such
material may be contrary to the provisions of the copyright
laws. Also, use of this recorder with cable television
transmission may require authorization from the cable
television transmission and/or program owner.
Owner’s record
The model number is located at the rear and front of the unit
and the serial number on the top. Record these numbers in
the spaces provided below. Refer to them whenever you call
upon your Sony dealer regarding this product.
Model No. _____________________
Serial No.______________________
WARNING
To prevent fire or shock hazard, do not expose
the unit to rain or moisture.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
CAUTION
To prevent electric shock, do not use this polarized AC plug
with an extension cord, receptacle or other outlet unless the
blades can be fully inserted to prevent blade exposure.
Precautions
Safety
• Operate the unit only on 120 V AC, 60 Hz.
• If anything falls into the cabinet, unplug the unit and
have it checked by qualified personnel before operating it
any further.
• One blade of the plug is wider than the other for the
purpose of safety and will fit into the power outlet only
one way. If you are unable to insert the plug fully into the
outlet, contact your Sony dealer.
• Unplug the unit from the wall outlet if you do not intend
to use it for an extended period of time. To disconnect the
cord, pull it out by the plug, never by the cord.
Installing
• Allow adequate air circulation to prevent internal heat
buildup.
• Do not place the unit on surfaces (rugs, blankets, etc.) or
near materials (curtains, draperies) that may block the
ventilation slots.
• Do not install the appliance in a confined space, such as a
bookcase or built-in cabinet.
• Do not install the unit near heat sources such as radiators
or air ducts, or in a place subject to direct sunlight,
excessive dust, mechanical vibration or shock.
This symbol is intended to alert the user to
the presence of uninsulated “dangerous
voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute
a risk of electric shock to persons.
This symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
3
Introduction
Table of contents
Getting Started
4 Step 1: Unpacking
5 Step 2: Setting up the remote commander
6 Step 3: Speaker systems hookup
8 Step 4: Various audio/video hookups
11 Step 5: TV antenna or cable hookups

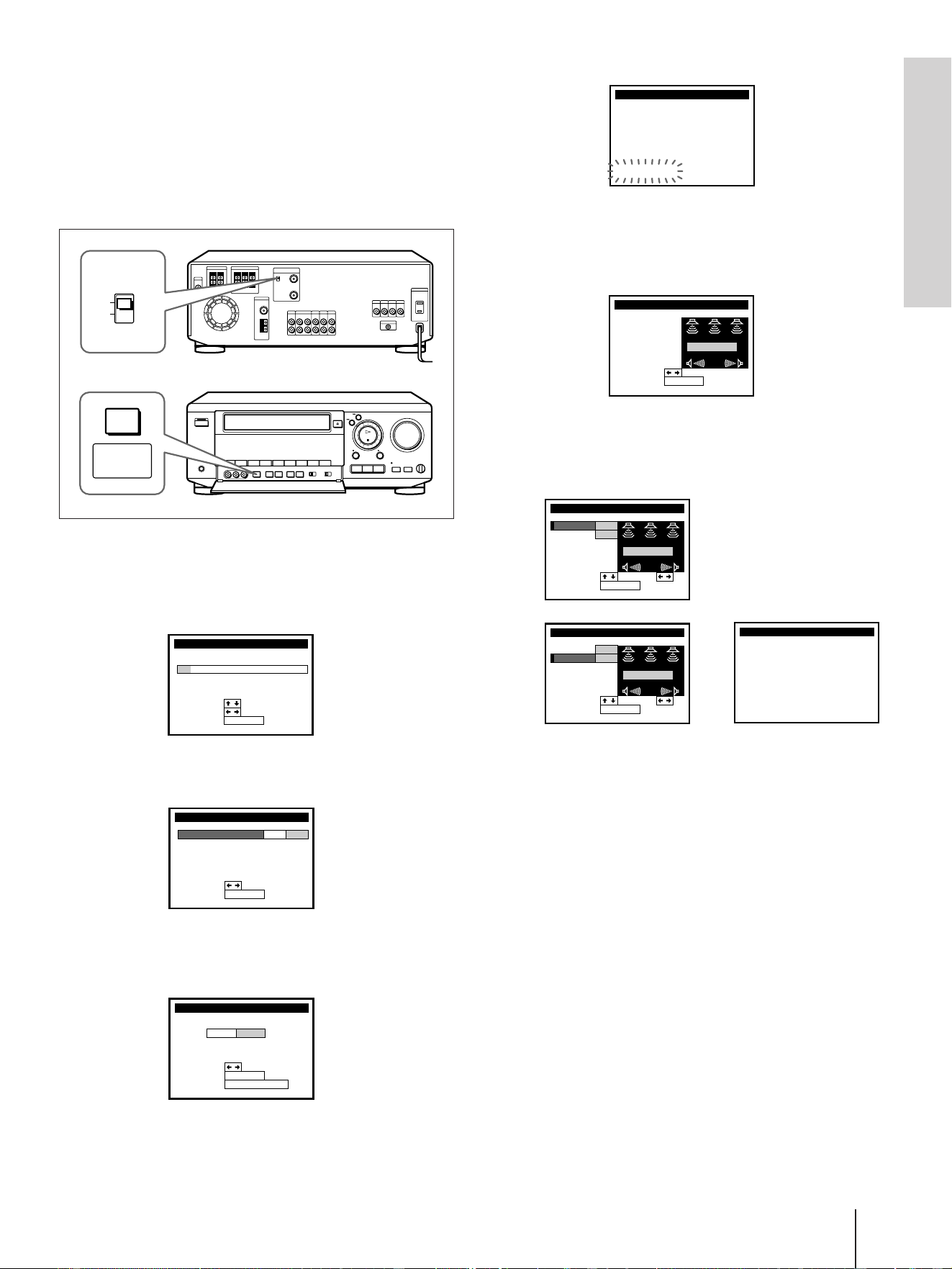

30 Adjusting the SOUND SET with EASY SET UP
33 Setting the clock
35 Setting up cable box control
39 Presetting channels
43 Setting up VCR Plus+ *
1

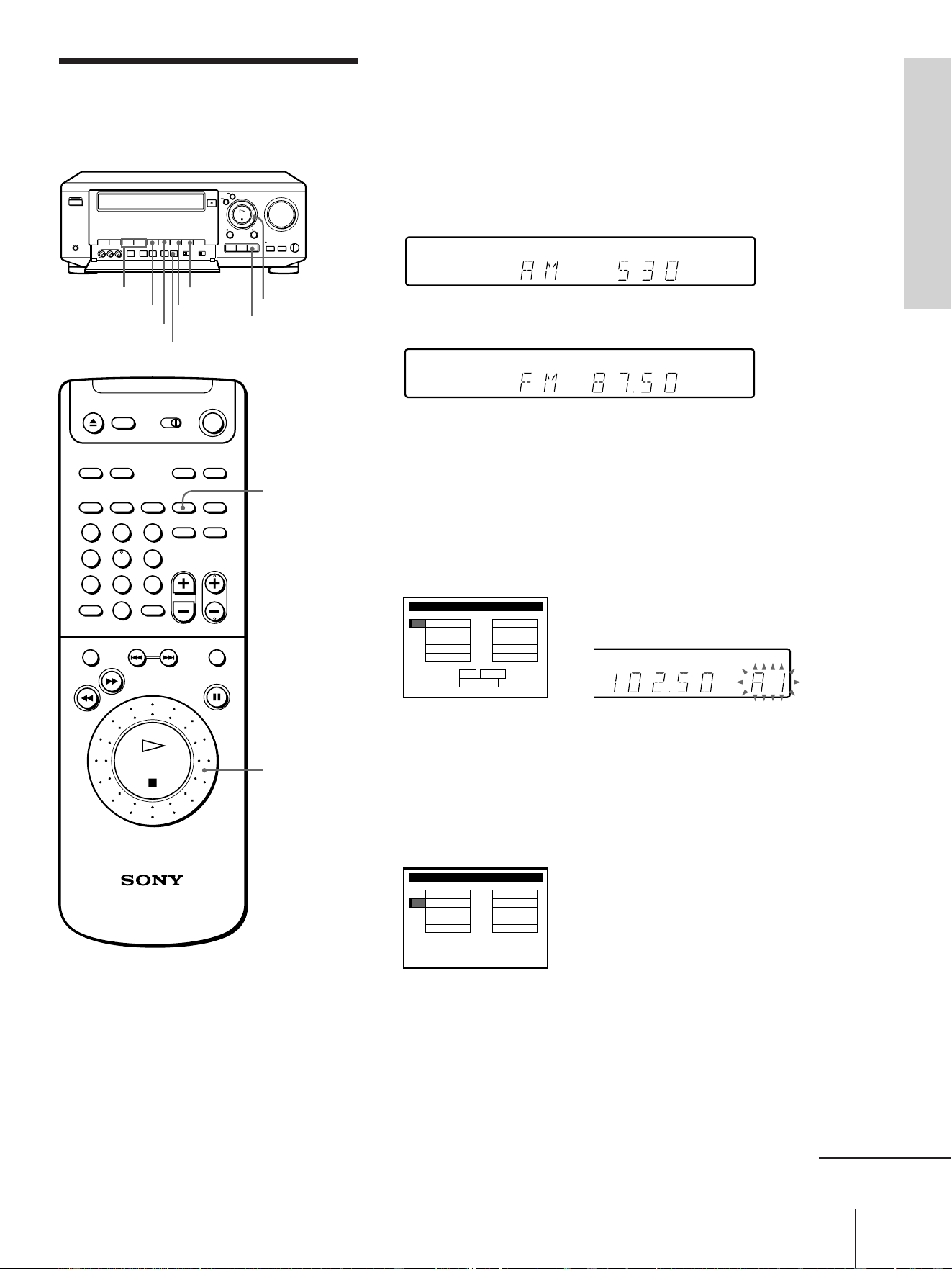

45 Presetting radio stations
Basic VCR / Radio Operations

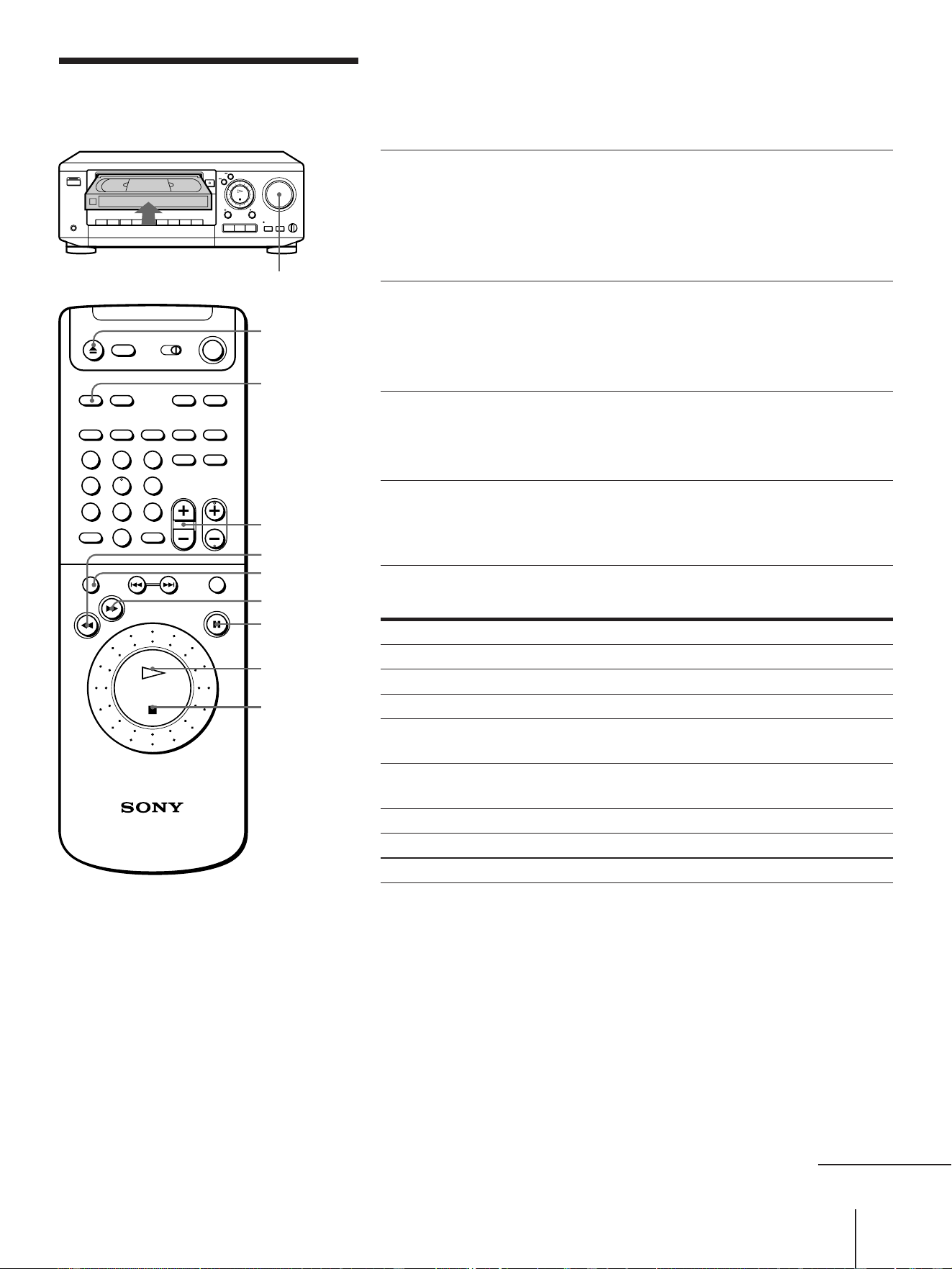

47 Playing a video tape
49 Using the pre-programed sound fields
50 Recording TV programs
51 Recording TV programs using VCR Plus+
54 Setting the timer manually
56 Checking/changing/cancelling timer settings
58 Listening to the radio
Audio/Video Equipment Operations
59 Selecting the equipment
62 Controlling VCRs
64 Controlling the TV
66 Playing back a CD
67 Controlling a cassette deck
69 Controlling a DAT deck
71 Controlling an MD deck
73 Controlling an LD player
Sound Field Operations
75 Taking advantage of the sound fields
77 Getting the most out of Dolby Pro Logic Surround*
2
sound
78 Customizing the sound fields
82 Reconfiguring the PROLOGIC and THEATER sound fields
Advanced VCR Operations
84 Playing/searching at various speeds
85 Recording TV programs using the quick timer
86 Recording stereo and bilingual programs
87 Searching using the index function
88 Adjusting the picture
89 Changing menu options
Editing
90 Recording from another VCR or LD player
Additional Information
91 Customizing the remote commander function buttons
92 General setup information
94 Troubleshooting
97 Specifications

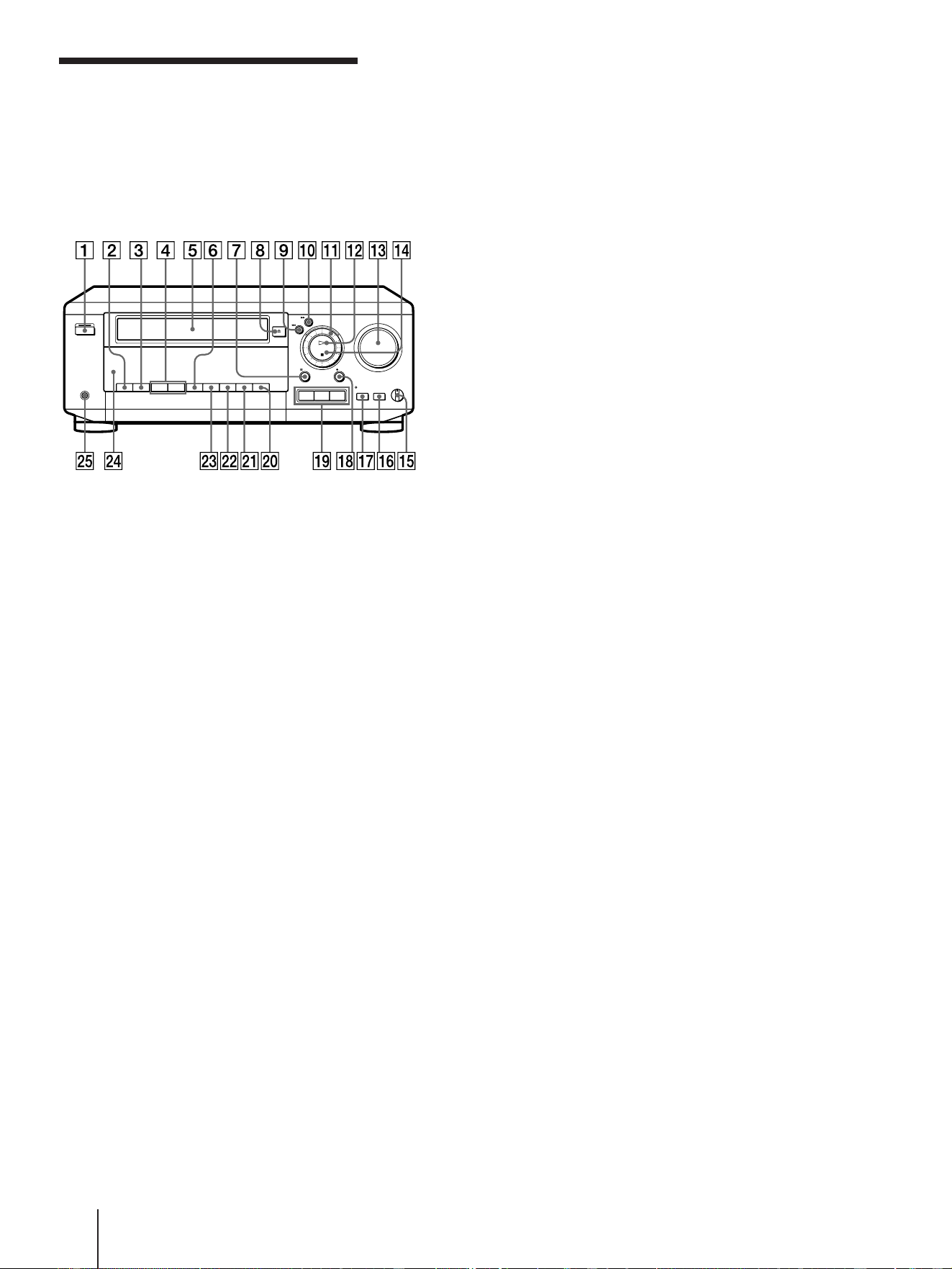

98 Index to parts and controls
103 Index
Quick reference to using the VCR
*
1
VCR Plus+ and PlusCode
are trademarks of Gemstar
Development Corporation.
VCR Plus+ system is
manufactured under
license from Gemstar
Development Corporation.
*
2
This unit uses the Dolby
Surround system,
manufactured under
license from Dolby
Laboratories Licensing
Corporation.
DOLBY, the double-D
symbol a, and PRO
LOGIC are trademarks of
Dolby Laboratories
Licensing Corporation.
Back
Cover
Getting Started
4

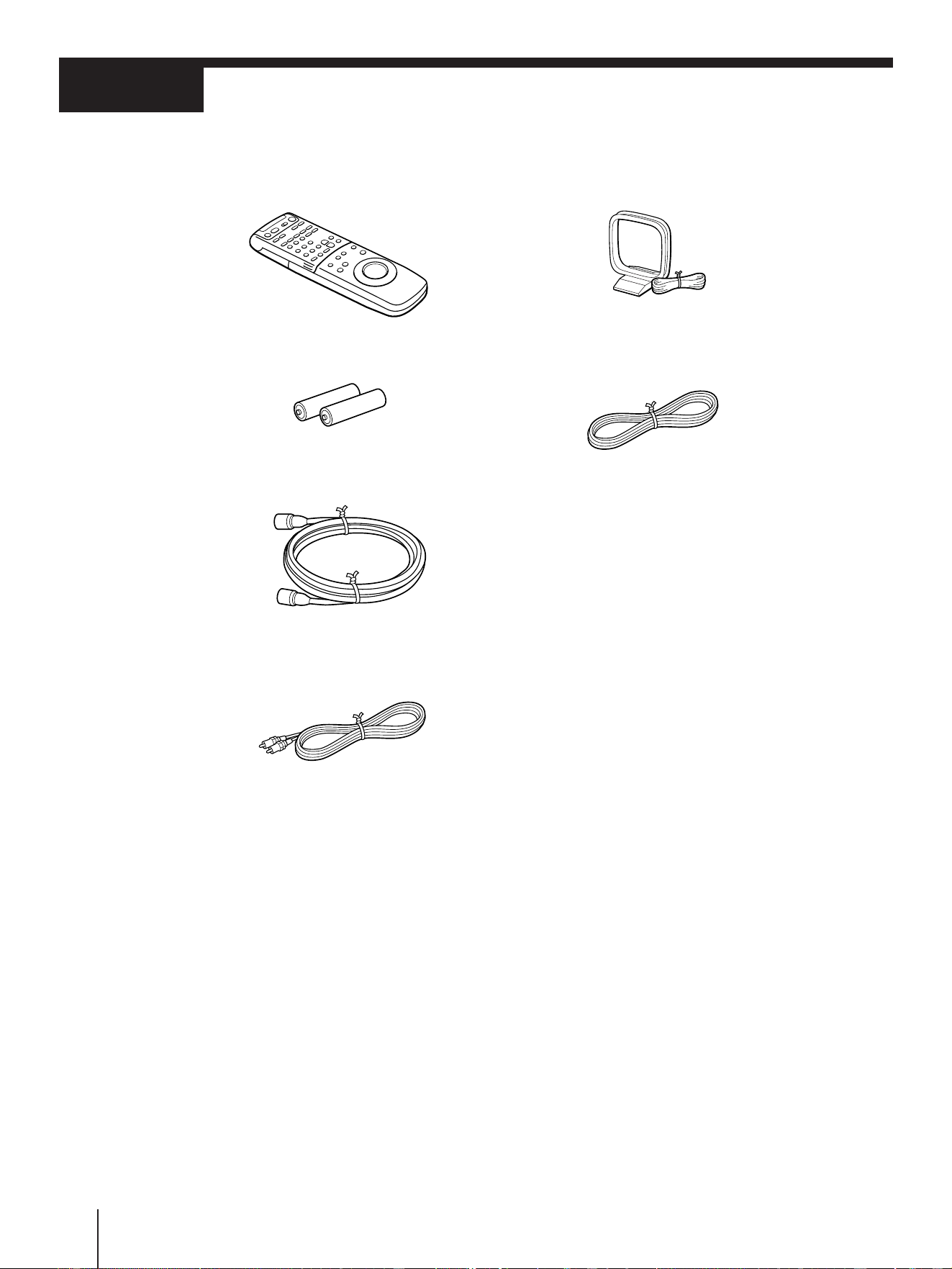

Unpacking
• Remote commander
• Size AA (R6) batteries
Step 1
• 75-ohm coaxial cable with
F-type connectors

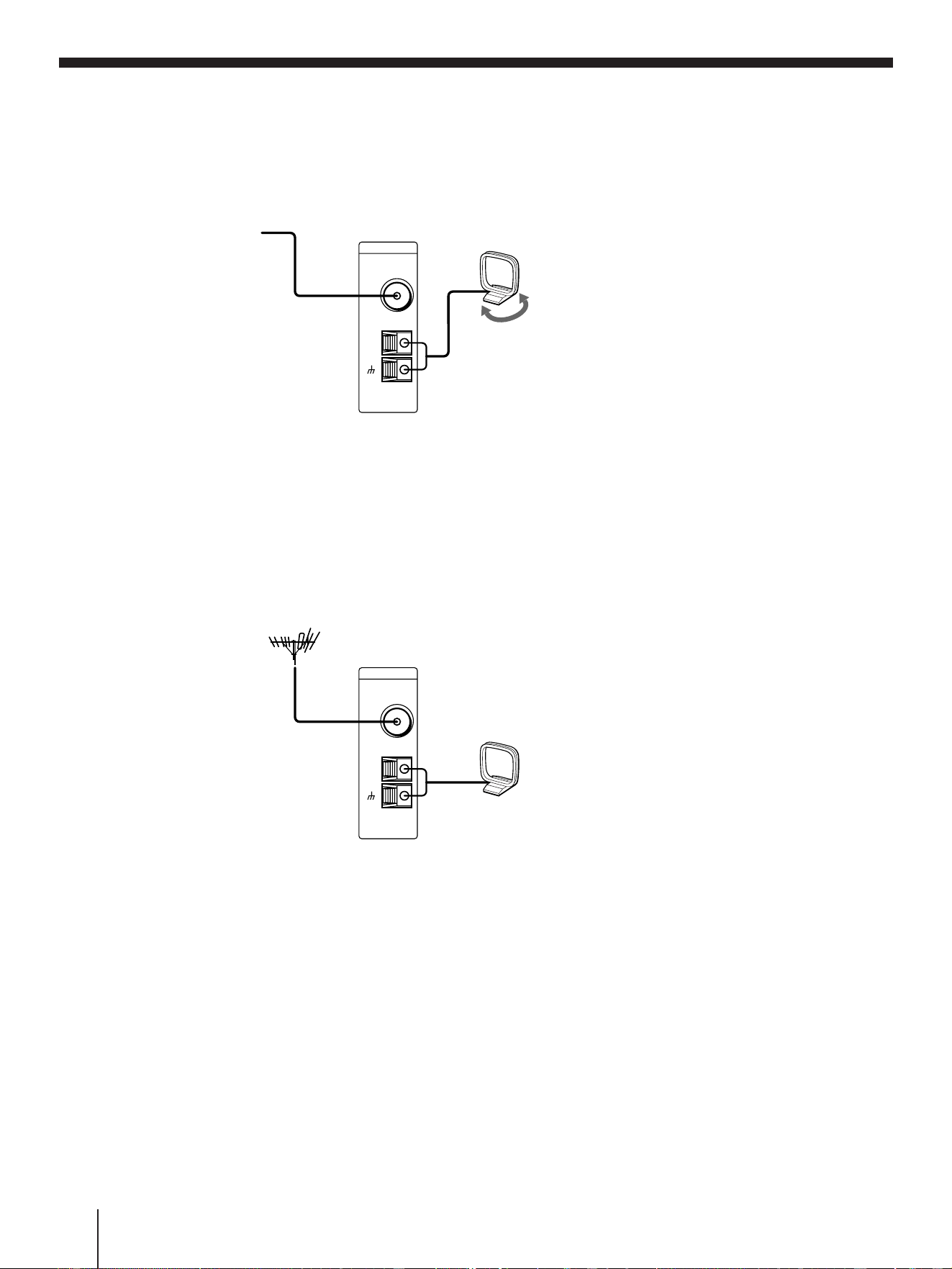

• AM loop antenna
Check that you have received the following items with the unit:
• Video cable
(1 phono to 1 phono)
• FM wire antenna
5
Getting Started
Getting Started

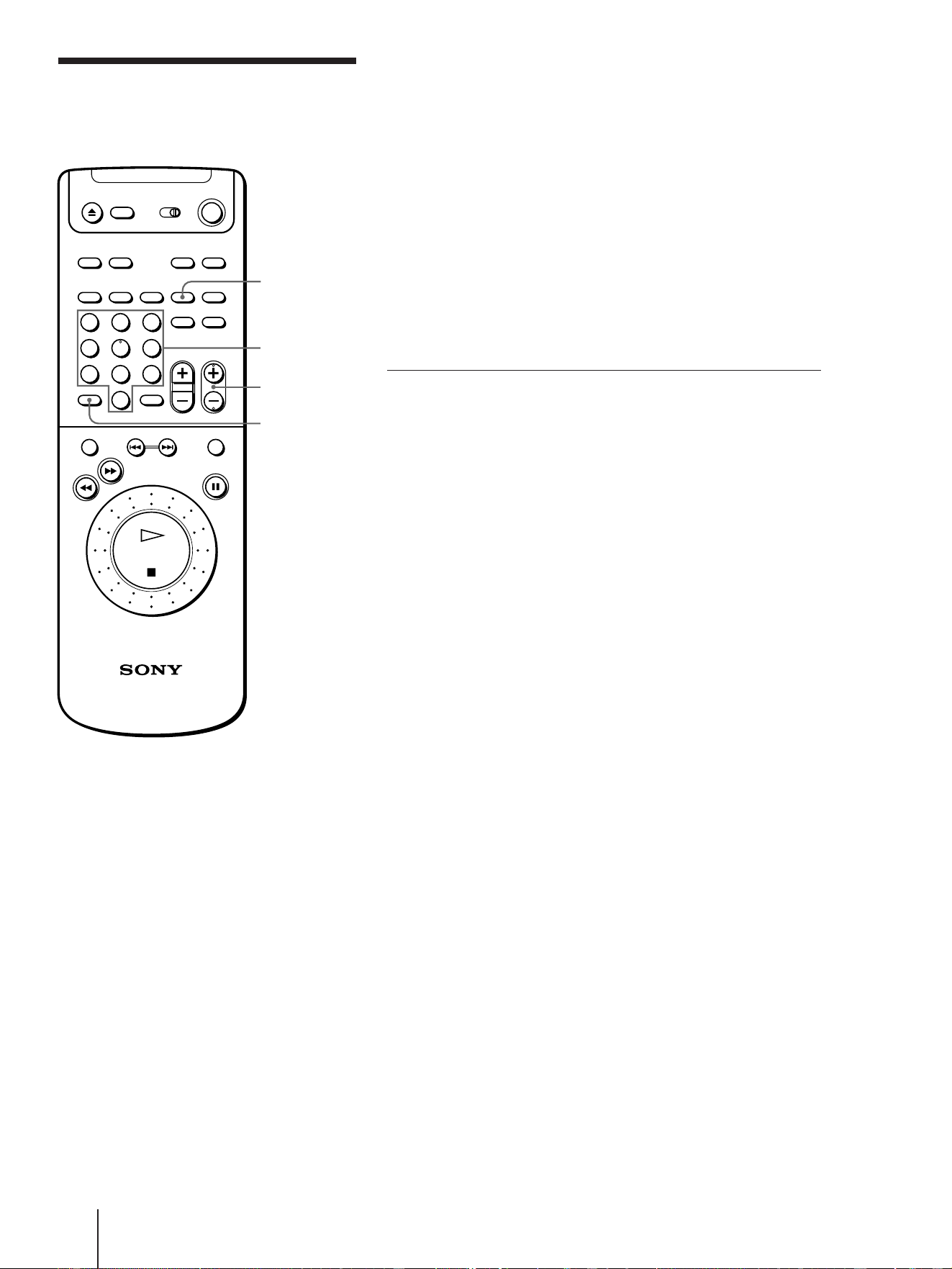

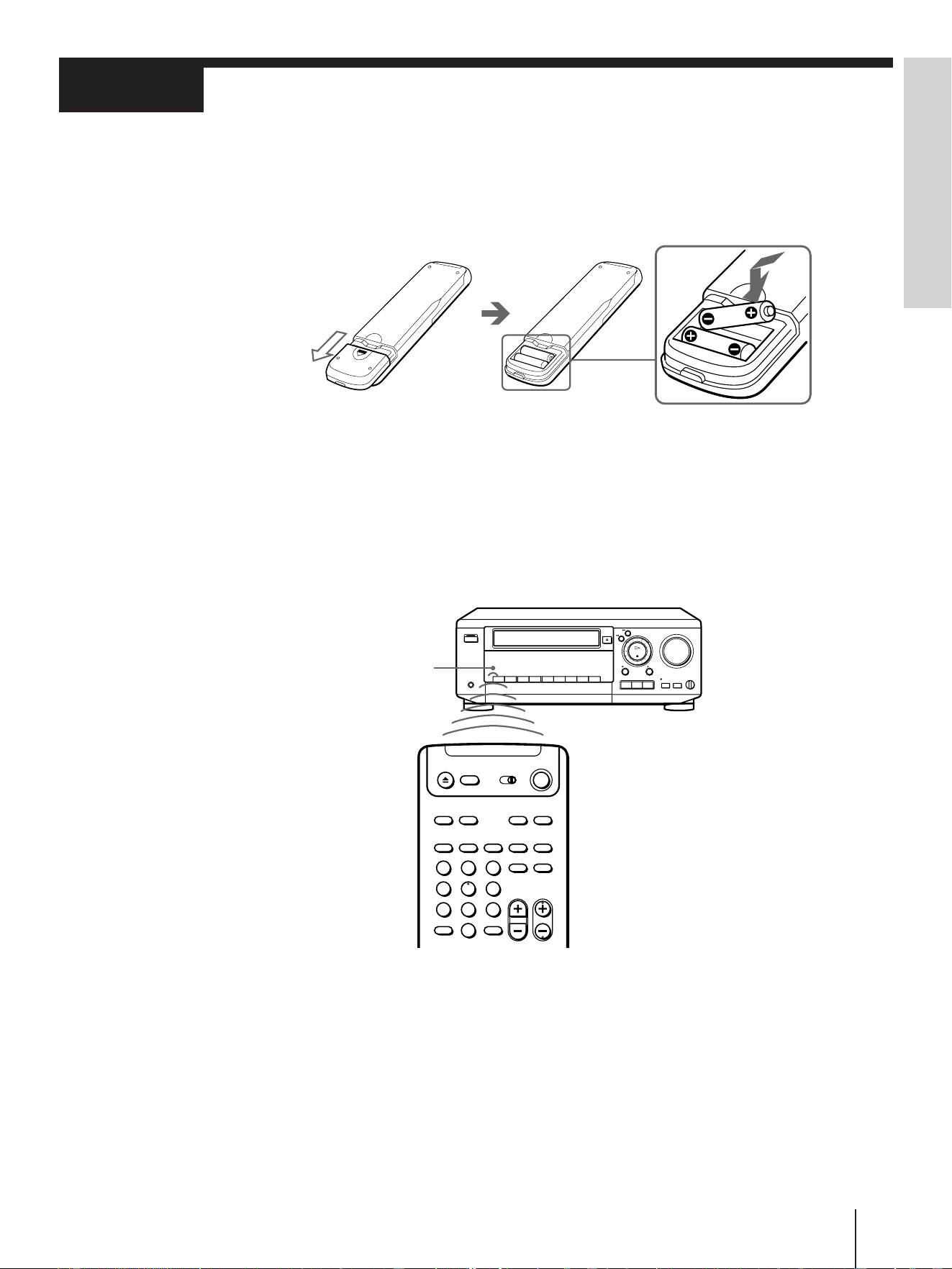

Setting up the remote commander
Step 2
Using the remote commander
You can use this remote commander to operate this unit, a TV, other VCRs, an LD deck, CD
player, cassette deck, DAT deck, and MD deck (all equipment must be made by Sony).
For details on how to operate other equipment with this remote commander, see “Audio/
Video Equipment Operations” from page 59.
Inserting the batteries
Insert two size AA (R6) batteries matching the + and – on the batteries to the diagram inside
the battery compartment.
Notes
• The remote commander is initially set to control this unit. However, if it doesn’t control the unit, press
VHS TUNER first. If the remote commander still doesn’t operate, read “Controlling VCRs” on page 62
first.
• With normal use, the batteries should last about three to six months.
• If you do not use the remote commander for an extended period of time, remove the batteries to avoid
possible damage from battery leakage.
• Do not use a new battery with an old one.
• Do not use different types of batteries.
123
456
789
0
>
10
Remote sensor
Getting Started
6

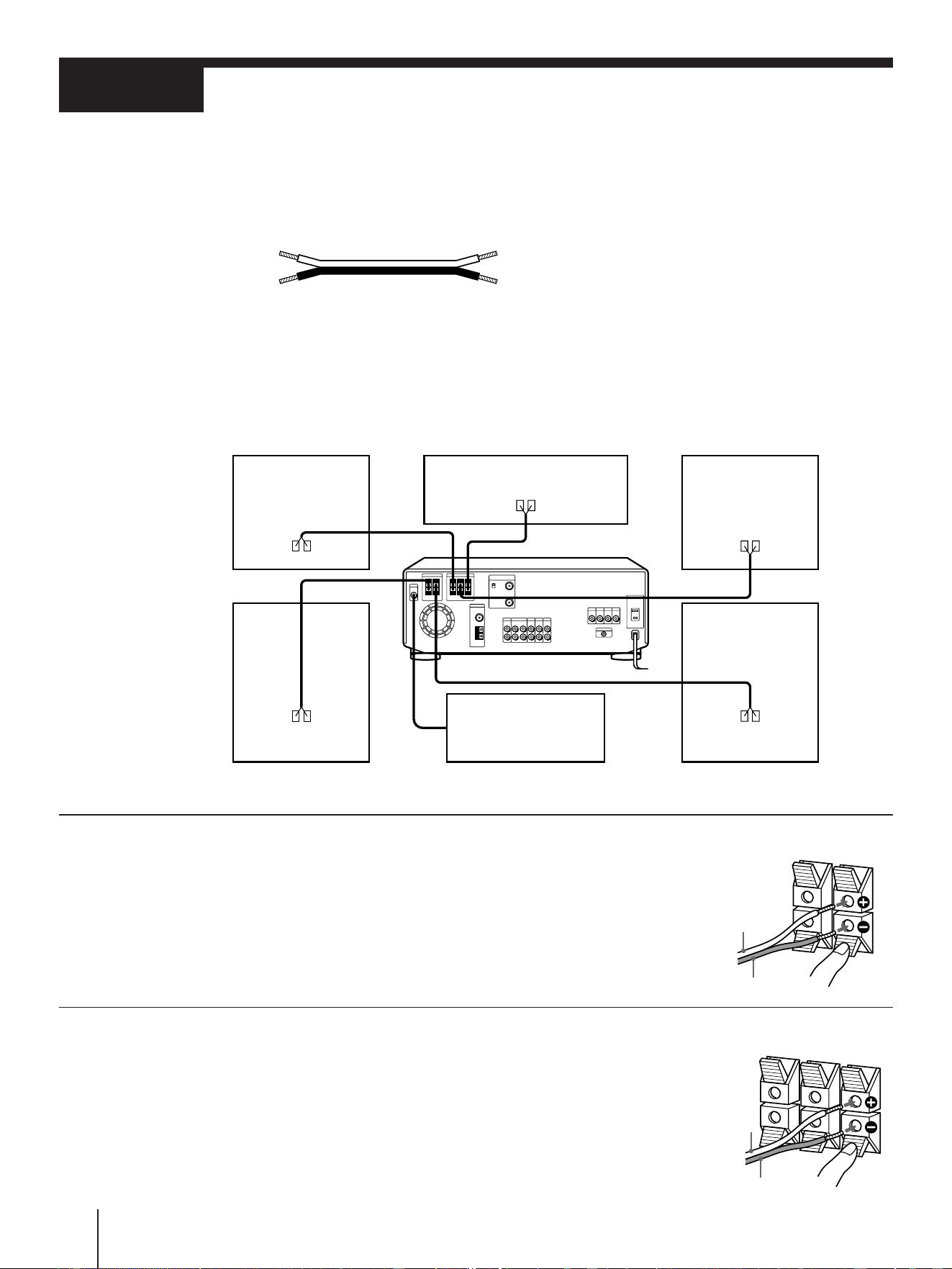

Speaker systems hookup
To get the best possible sound from the unit, connect front (left and right), center, and rear
(left and right) speakers. You need to connect either the center or rear speakers as well as the
front speakers to enjoy Dolby Pro Logic Surround sound.
Before you connect...
• Prepare speaker cords (one for each speaker) (not supplied).
• Be sure to match the speaker cords to the appropriate terminals on the components: + to +,
and – to –. (If the cords are reversed, the sound will be distorted and the bass sound will
not be reproduced well.)
• Do not connect the AC power cord until you finish all the connections through “Step 5 :
TV antenna or cable hookups” on page 11.
• Be sure to make connections firmly to avoid hum and noise.
1
Connect the front speakers to the FRONT
SPEAKERS L/R connectors.
Twist about 15 mm of the stripped ends of the cord. Then
insert the stripped ends into the connectors as shown on the
right.
2
Connect the center speaker to the SURROUND
SPEAKERS CENTER connectors.
Repeat step 1 above for the center speaker.
If you don’t have a center speaker, skip this step.
(+)
(–)
(+)
(–)
Rear right speaker Center speaker Rear left speaker
Front right speaker Front left speaker
Active woofer
FRONT SPEAKERS
L
R
(+)
(–)
CENTER
R-REAR-L
SURROUND SPEAKERS
(+)
(–)
Step 3
7
Getting Started
Getting Started
3
Connect the rear speakers to the SURROUND
SPEAKERS REAR L/R connectors.
Repeat step 1 above for the surround speakers.
If you don’t have rear speakers, skip this step.
Note
• Be sure to connect both left and right speakers. If you connect only
one speaker, the rear speaker won’t reproduce the sound.

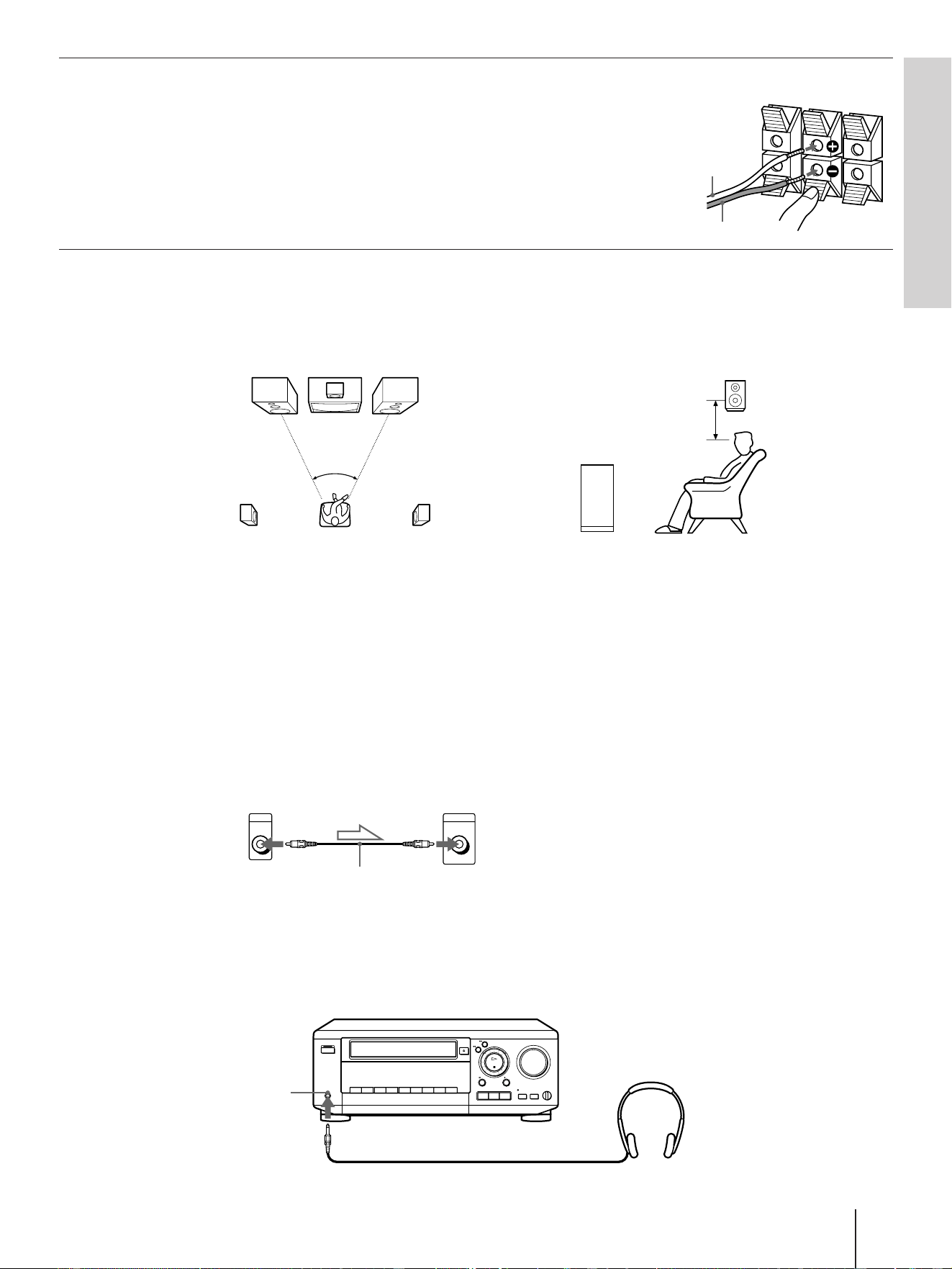

Placing the speakers
For optimum surround sound effect, place your speakers as shown below.
Tips
• Position the center speaker so the face of the speaker is aligned evenly with, or slightly behind the faces of
the front left and right speakers.
• Mount the surround (rear) left and right speakers on the walls so they face each other.
• Position the front left and right speakers and center speaker as close to the same height as possible.
Connecting an active woofer
For further sound improvement, connect an active woofer to MIX OUT with an audio cable
(not supplied). The active woofer will increase bass response. The position of the active
woofer does not affect the sound quality very much.
Listening through the headphones
Connect the headphones to PHONES. No sound will be reproduced from the speakers.
CENTER
R-REAR-L
SURROUND SPEAKERS
(+)
(–)
45º
Front speaker
60-90 cm
Rear speaker
OUT
MIX INPUT
This unit Active woofer
Audio cable (not supplied)
PHONES
Getting Started
8

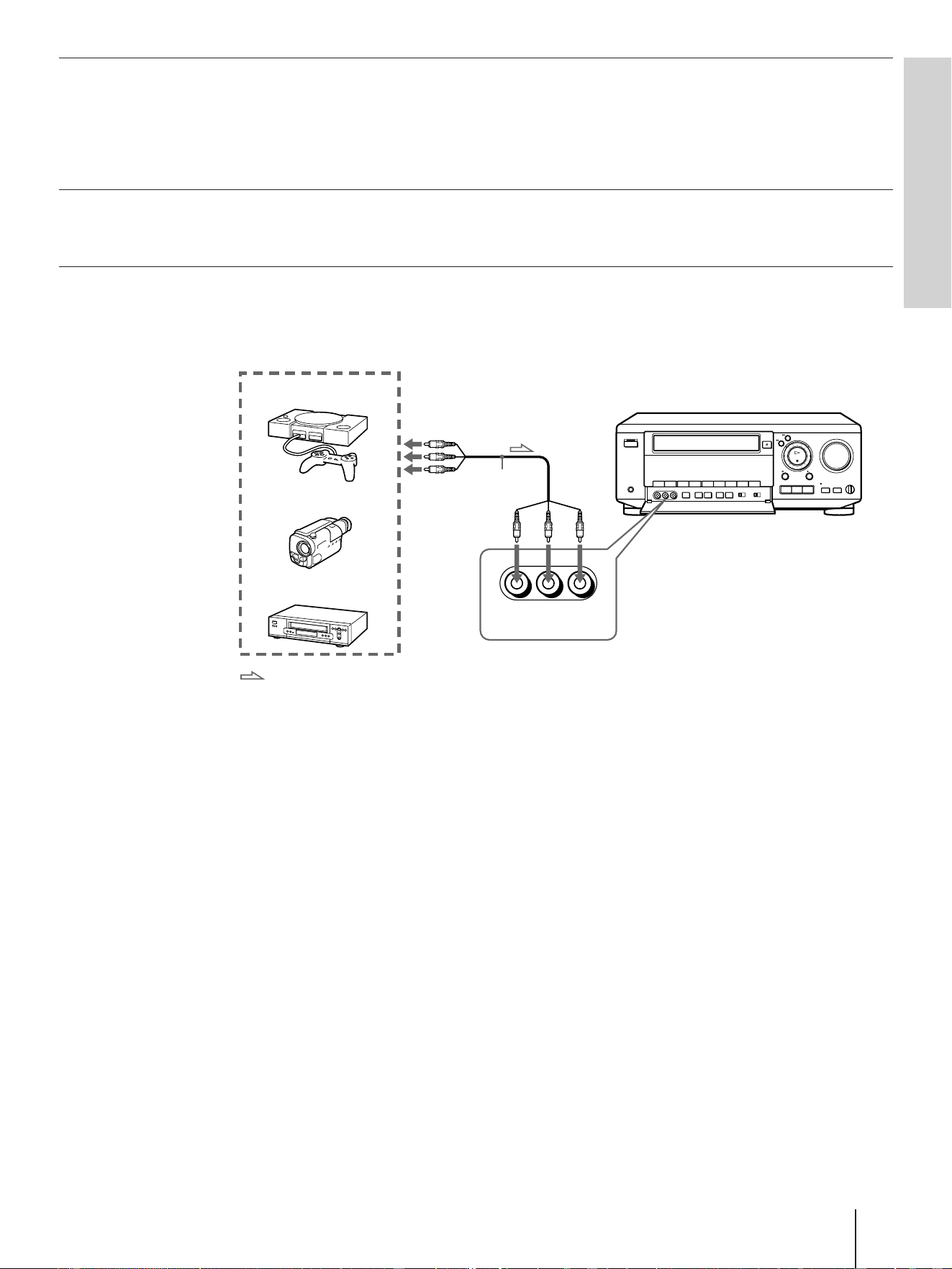

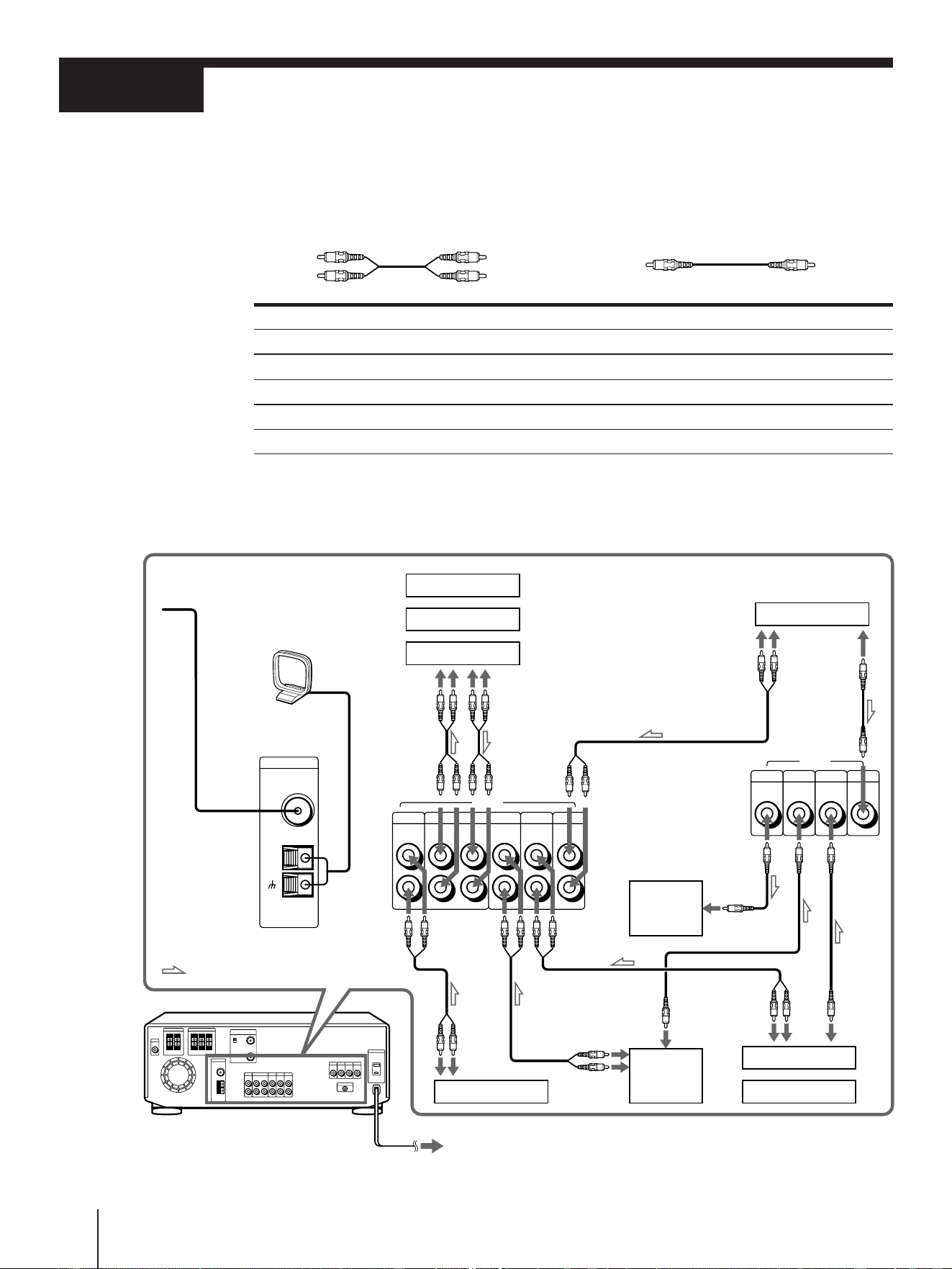

Various audio/video hookups
The following connections with various audio/video equipment are recommended
examples. The actual connections may vary depending on the equipment you have.
Before you connect....
• Prepare audio (not supplied) and video cables referring to the following table.
Equipment
Tuner/CD player
MD deck/DAT deck/cassette deck
Satellite tuner/LD player/other VCR
TV
Monitor
• Turn off the power to all equipment before making any connections.
• Do not connect the AC power cord until all of the connections are complete.
• Be sure to make connections firmly to avoid hum and noise.
Step 4
Red (R)
White (L)
Red (R)
Yellow
Yellow
Video cableAudio cable
White (L)
Necessary cable for each piece of equipment
One audio cable
Two audio cables
One video cable and one audio cable
One video cable and one audio cable
One video cable
CD
VIDEO 1
MONITOR
VIDEO 1
IN IN
VIDEO OUT
IN
R
L
TVTAPE / MD LINE
IN IN
LINE
IN
IN
REC OUT
AUDIO
VIDEO
TV
IN
ANTENNA
FM
AM
VIDEO
IN
: Signal flow
TV
(Monitor)
MD deck
DAT deck
Cassette deck
or
or
REC OUTREC IN
AM loop
antena
to wall outlet
CD player
OUT
AUDIO
OUT
VIDEO
OUT
AUDIO
OUT
VIDEO
OUT
LD player
Other VCR
or
TV
DSS receiver
VIDEO
OUT
AUDIO
OUT
FM wire antenna
9
Getting Started
Getting Started
Notes
• Make sure you connect the audio/video plugs to jacks of the same color.
• If the other VCR is a monaural type, connect only the VIDEO and AUDIO L jacks.
Connecting to the AC OUTLET
You can connect an audio component (or components through an optional multi-outlet
extension cord) to AC OUTLET on the rear of the unit. The power is supplied to AC
OUTLET while the unit is turned on. The power supply stops when you turn off the unit.
Using this function, you can turn on and turn off all the audio components connected to AC
OUTLET at the same time if you leave those components’ power switches on.
Cautions
• Make sure you comply with the laws and regulations in your country for this connection.
• Make sure that the power consumption of the components connected to AC OUTLET doesn’t exceed 120
watts. Do not connect high-wattage electrical home appliances such as electric irons, fans, or TVs to this
outlet.
Notes
• The power will not be supplied to the components as long as the unit is turned off. Any electronic memory
of the components may be cleared if you make this connection.
• Some audio components may not turn on with this connection.
1
Connect your audio/video equipment using audio
and video cables (not supplied) referring to the
illustration on page 8.
Make sure you connect the audio and video cable plugs to
jacks of the same color.
2
Connect the AC power cord to the wall outlet.
Connecting to the front VIDEO 2 INPUT jacks
AUDIO OUT
Video game
Camcorder
Other VCR
VIDEO
VIDEO 2 INPUT
L AUDIO R
: Signal flow
VIDEO
OUT
Audio/video
cable (not
supplied)
Getting Started
10
Step 4 Various audio/video hookups (continued)
Connecting FM/AM antennas
To receive radio broadcasts with this unit, connect the FM/AM antennas (supplied).
If AM reception is poor
We recommend that you purchase and connect the optional Sony antenna to the unit if
reception is weakened by ferroconcrete used in the construction of your apartment or
building.
If you have poor FM reception
Connect a 75-ohm coaxial cable (not supplied) to an FM outdoor antenna.
Note
• To prevent noise pick-up, keep the AM loop antenna away from the unit and TV. When the noise is not
cleared yet, turn off the TV.
FM wire antenna
ANTENNA
FM
AM
After connecting
the wire antenna,
keep it as
horizontal as
possible.
AM loop antenna
Adjust the
direction.
ANTENNA
FM
AM
FM outdoor antenna
Receiver
11
Getting Started
Getting Started
TV antenna or cable hookups
Selecting the best hookup option
There are many ways in which your VCR can be hooked up. To hook up your VCR so that it
works best for you, first scan through the table below. Then use the accompanying diagrams
and procedures on the following pages to set up your VCR.
Step 5
After you’ve completed the connections, follow the instructions for setup. During setup, if
you need more details on the procedure described, page numbers are provided where you
can find complete, step-by-step instructions.
After you’ve completed the setup, you’re ready to use your unit’s VCR. Procedures differ
depending on the hookup you used. For an overview, refer to “Quick reference to using the
VCR” on the back cover.
Before you get started
• Turn off the power to all equipment.
• Do not connect the AC power cords until all of the
connections are completed.
• Be sure you make connections firmly. Loose connections
may cause picture distortion.
• If your TV doesn’t match any of the examples provided,
see your nearest Sony dealer or qualified technician.
* DSS
is a registered
trademark of
DIRECTV, Inc., a
unit of Hughes
Electronics
Corporation.
If you have
TV that has video input
Cable box that is compatible with the
VCR’s cable box control feature
No cable box or incompatible cable box
with only a few scrambled channels
Antenna only, no cable TV
Incompatible cable box with many
scrambled channels
DSS
*
receiver
Incompatible cable box with only a few
scrambled channels, using an A/B switch
Use
Video (V) hookup, then follow one
of the hookups below.
Hookup 1
Hookup 2
Hookup 3
Hookup 4
Hookup 5
Hookup 6
Refer to
Page 12
Pages 13 to 15
Pages 16 to18
Pages 19 to 21
Pages 22 to 24
Pages 25 to 26
Pages 27 to 29
Getting Started
12
Step 5 TV antenna or cable hookups (continued)
Video (V) hookup
You will get a better picture by connecting your TV (monitor) to MONITOR VIDEO OUT
jack as the illustration shown on page 8.
If you’re no planning to use your unit’s VCR to record programs
You’re finished setting up the unit’s VCR after you’ve made the connections shown on page
8.
If you want to record off-air or off your cable TV system
Complete these connections first, and then go to the following pages for antenna or cable
hookups.
Caution
Connections between the VCR’s VHF/UHF connector and the antenna terminals of the TV receiver should
be made only as shown in the following instructions. Failure to do so may result in operation that violates
the regulations of the Federal Communications Commission regarding the use and operation of RF devices.
Never connect the output of the VCR to an antenna or make simultaneous (parallel) antenna and VCR
connections at the antenna terminals or your receiver.
Notes to CATV system installer
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the point of cable entry as practical.
13
Getting Started
Getting Started
IN
OUT
OUT
CONTROL S OUT
IN
VHF/UHF
Pages 10 to 12

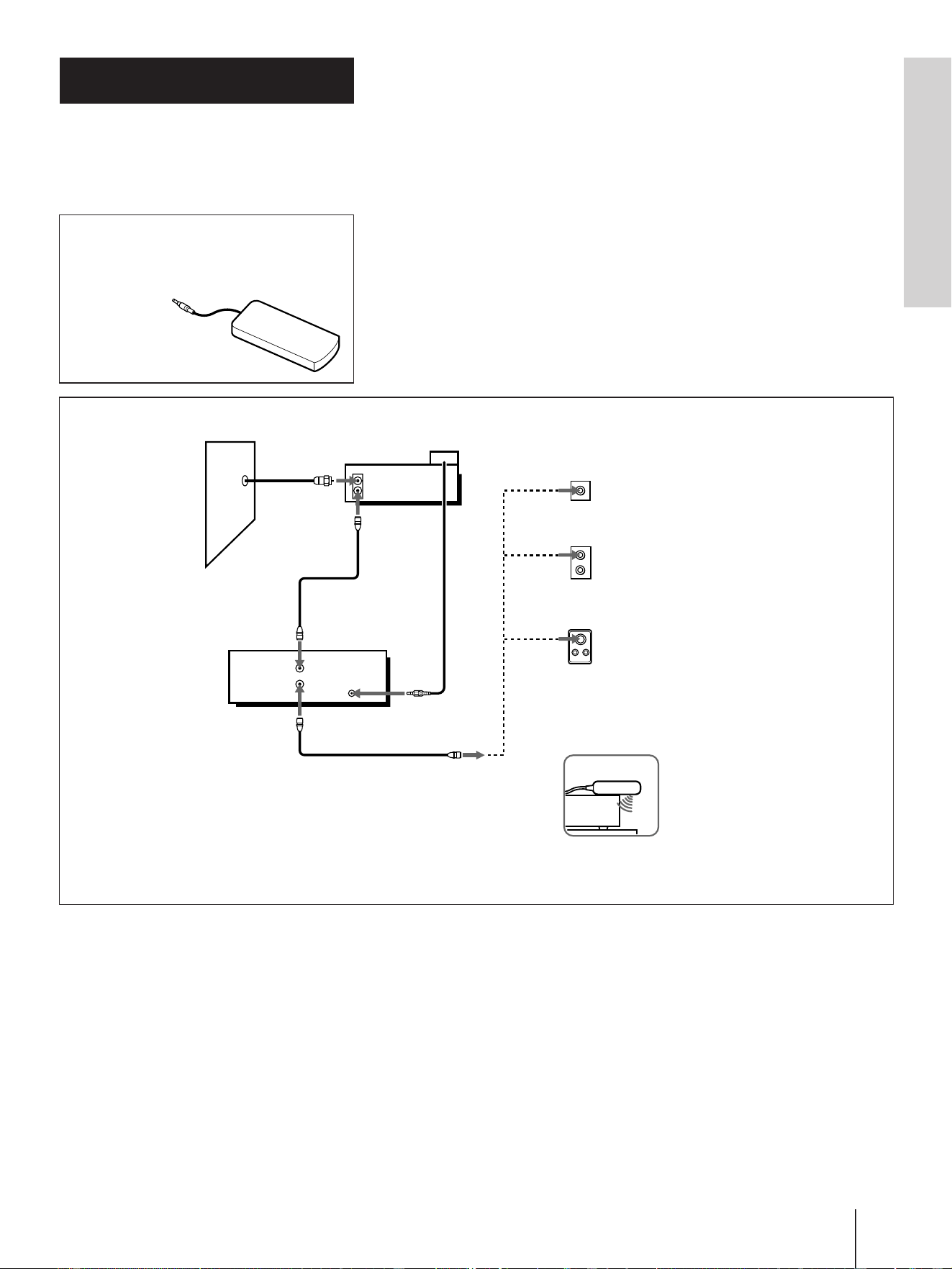

Hookup 1
Using cable box
control
Recommended use
You should use this hookup if you have a cable box, especially if your
cable system scrambles all or most channels. This hookup allows the
VCR’s cable box control feature to control the channel on the cable box,
simplifying the recording process. A list of compatible cable boxes is on
page 36.
What you can do with this hookup
• Record any channel using the VCR’s cable box control feature to select
channels on the cable box
What you can’t do
• Record with the cable box turned off
• Record one channel while watching another channel
Rear of TV
VHF/UHF
VHF
UHF
Wall
A
Match the type of
connector on your
TV: A, B, or C.
B For connector types
B and C, no UHF
connection is
required.
C
UHF
VHF
Side view
or
or

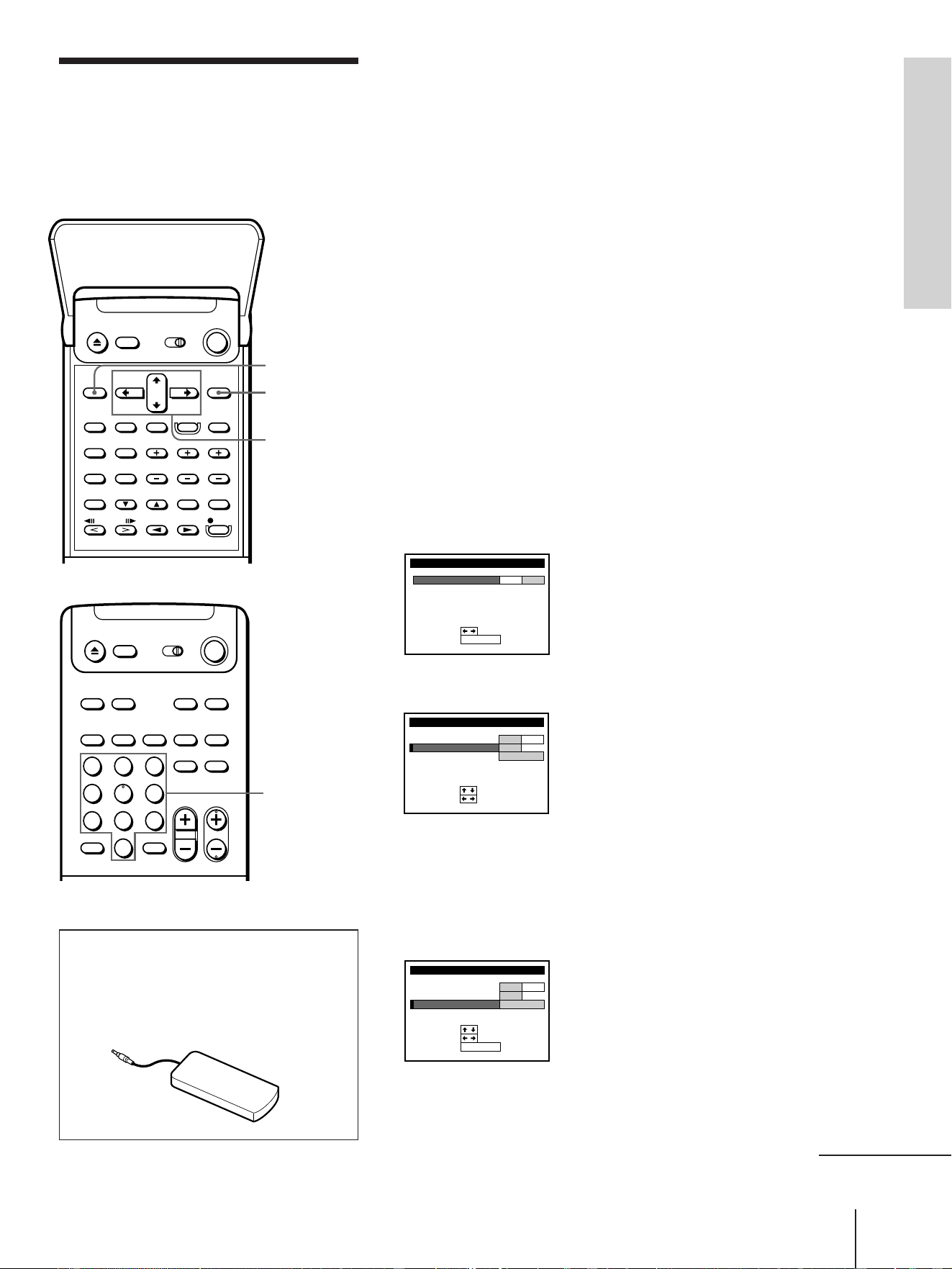

Positioning the Cable Mouse
Place the Cable Mouse so that it hangs out
over the cable box front.
VCR
Cable box
Cable Mouse
(not supplied)
A Cable Mouse is available as an optional
accessory for this model. You can order
directly from Sony by calling 1-800-488-7669
and asking for Cable Mouse
RM-CM101.
$14.95 + $3.00
(shipping, handling
and aplicable sales tax)
Getting Started
14
RF UNIT
CH3
CH4
Step 5 TV antenna or cable hookups (continued)

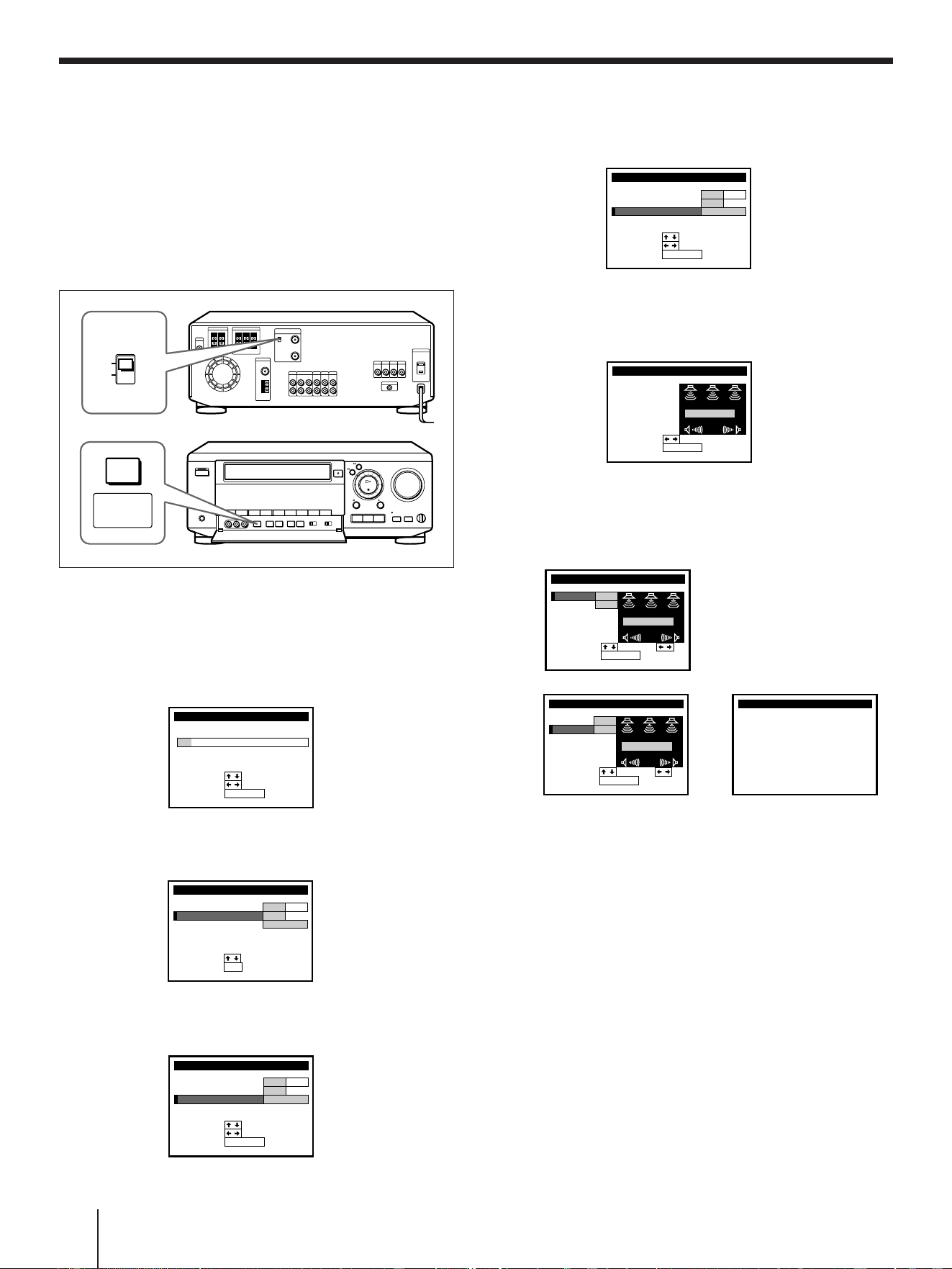

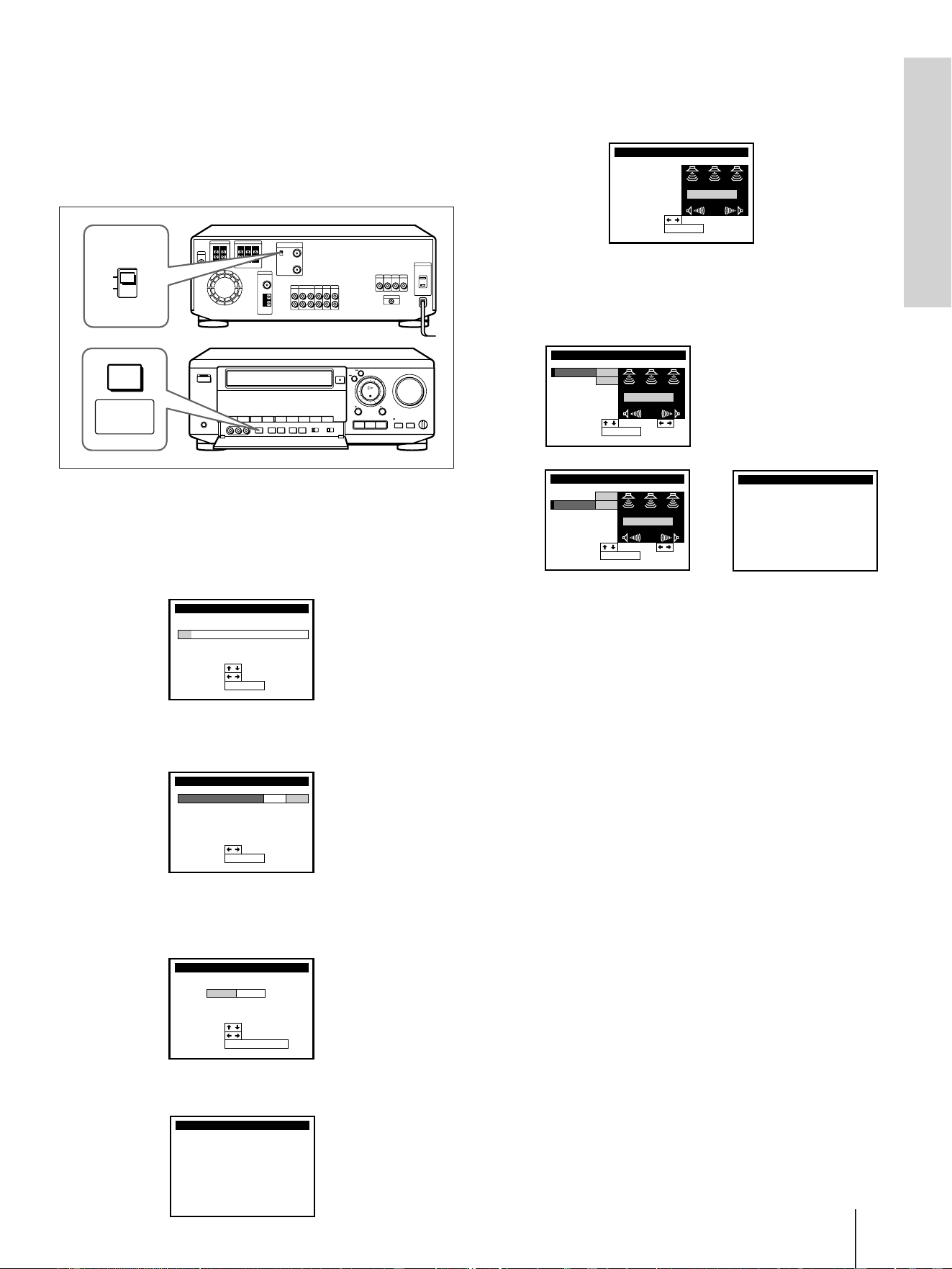

Hookup 1: VCR setup

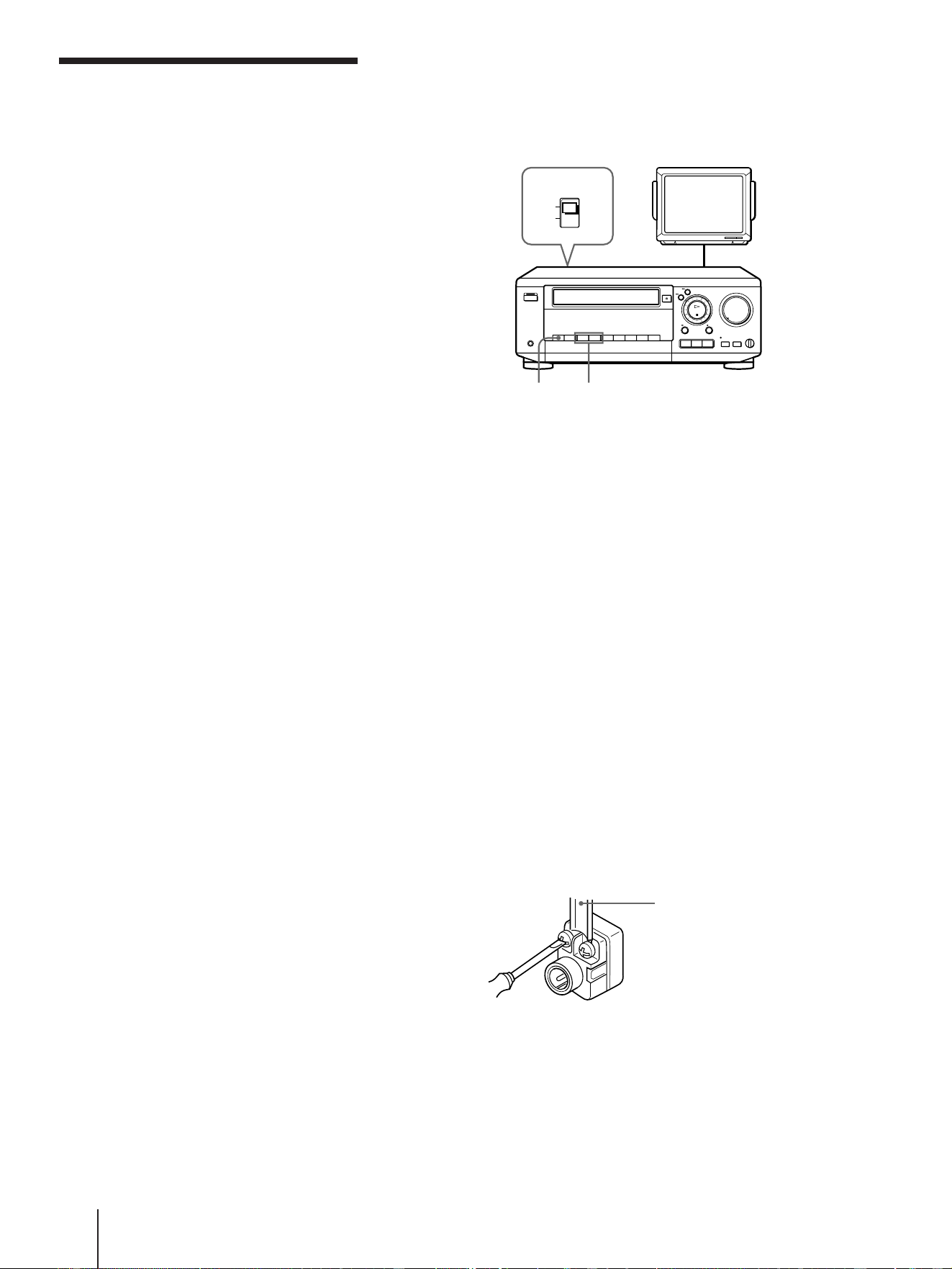

1 Set the RF UNIT switch to CH 3 or CH 4, whichever
channel is not used in your area. If both are used, set
the switch to either channel.
For details, see page 92.
If you made V connections (from page 12), you can
skip this step.
2 Turn on your cable box.
3 Press EASY SET UP on the VCR.
1 The CLOCK SET menu appears. Set the date and time
and press EXECUTE. For details, see page 33.
2 The CABLE BOX CONTROL menu appears. Select
ON. For details, see page 35.
3 Enter your cable box code number and press
CURSOR..
4 Select your cable box output channel and press
EXECUTE.
5 The CENTER MODE selection menu appears.
Select the center mode and press EXECUTE.
For details, see page 30.
6 The TEST TONE selection menu appears.
Set the volume of the center and rear speakers and
press EXECUTE.
For details, see page 31.
EASY
SET UP
NEXT
SET
:
:
SELECT
:
EXECUTE
SET UP CLOCK SET
WED/1 1/997
2:00
1
1
AM
SET UP CABLE BOX
OFFON
CABLE MOUSE
CABLE BOX CONTROL
BOX CODE NO.
CH3
BOX OUTPUT CH
–––
keys
0–9
SET
:
SELECT
:
SET UP CABLE BOX
OFFON
CABLE MOUSE
CABLE BOX CONTROL
BOX CODE NO.
CH3
BOX OUTPUT CH
018
NEXT
SET
:
:
SELECT
:
EXECUTE
SET UP CABLE BOX
OFFON
CABLE MOUSE
CABLE BOX CONTROL
BOX CODE NO.
CH3
BOX OUTPUT CH
018
NEXT
SET
:
:
SELECT
:
EXECUTE
NEXT
SET
:
:
CENTER MODE
EXECUTE
NORMAL
SET UP SOUND SET
END
SELECT
:
:
TEST TONE
EXECUTE
TEST TONE
SET UP SOUND SET
CENTER
REAR
+
–
5
15
dB
dB
SET
:
/
.
Normal display
SET UP
SET UP i s done
END
SELECT
:
:
TEST TONE
EXECUTE
TEST TONE
SET UP SOUND SET
CENTER
REAR
+
–
5
5
dB
dB
SET
:
15
Getting Started
Getting Started

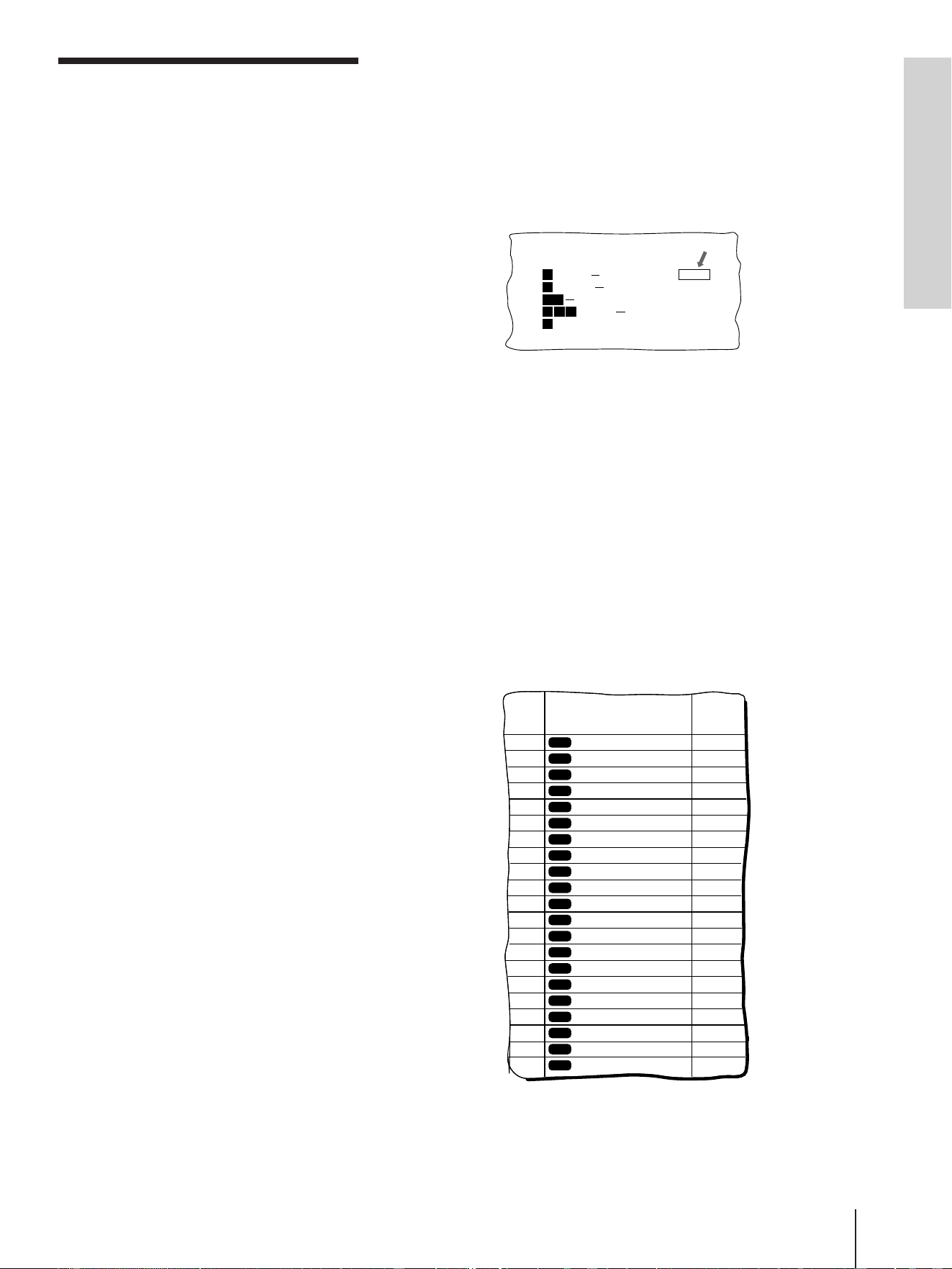

Hookup 1: VCR Plus + channel setup
1 Find the VCR Plus+ Channel Listing in your
program guide. For details, see page 43.
2 If the channels in the program guide are different
from the channels that you actually use on your TV,
set the channels that are different as follows. For
details, see page 44.
1 Press MENU and select VHS MENU.
2 Select SET VCR Plus+ CHANNELS.
3 Enter the program guide channel, then the channel
you use on your TV.
4 Press EXECUTE.
MENU
VHS MENU
SOUND SET
QUIT
SET
:
:
SELECT
:
EXECUTE
MENU
MENU
ADVANCED OPTIONS
CLOCK SET
TUNER PRESET
TIMER SET / CHECK
CABLE BOX CONTROL
SET VCR Plus+ CHANNELS
QUIT
SET
:
:
SELECT
:
EXECUTE
MENU
SET VCR Plus+ CHANNELS
GUIDE
VCR Plus+ CHANNEL LIST
Or to
CH TV CH
25 – 15
Push 0–9 keys to set
P r og r am GUIDE CH
,
push
see
EXECUTE
Your actual TV channel
Program guide channel
Getting Started
16
OUT
IN
VHF/UHF
IN
OUT
Hookup 2
No cable box, or
incompatible cable
box with only a few
scrambled channels
Recommended use
Use this hookup if you do not have a cable box. Also use this hookup if
your cable company cannot supply a cable box that is compatible with
the VCR’s cable box control feature, and your cable system scrambles
only a few channels.
What you can do with this hookup
• Record any unscrambled channel by selecting the channel on the VCR
What you can’t do
• Record scrambled channels that require a cable box
Step 5 TV antenna or cable hookups (continued)
Rear of TV
VHF/UHF
A Match the type
of connector on
your TV: A, B, or
C.
For connector
types B and C, no
UHF connection
is required.
VHF
UHF
VHF
UHF
Wall
or
or
C
B
VCR
Connect this cable
directly to your TV if
you don't have a
cable box.
Cable box
17
Getting Started
Getting Started
RF UNIT
CH3
CH4

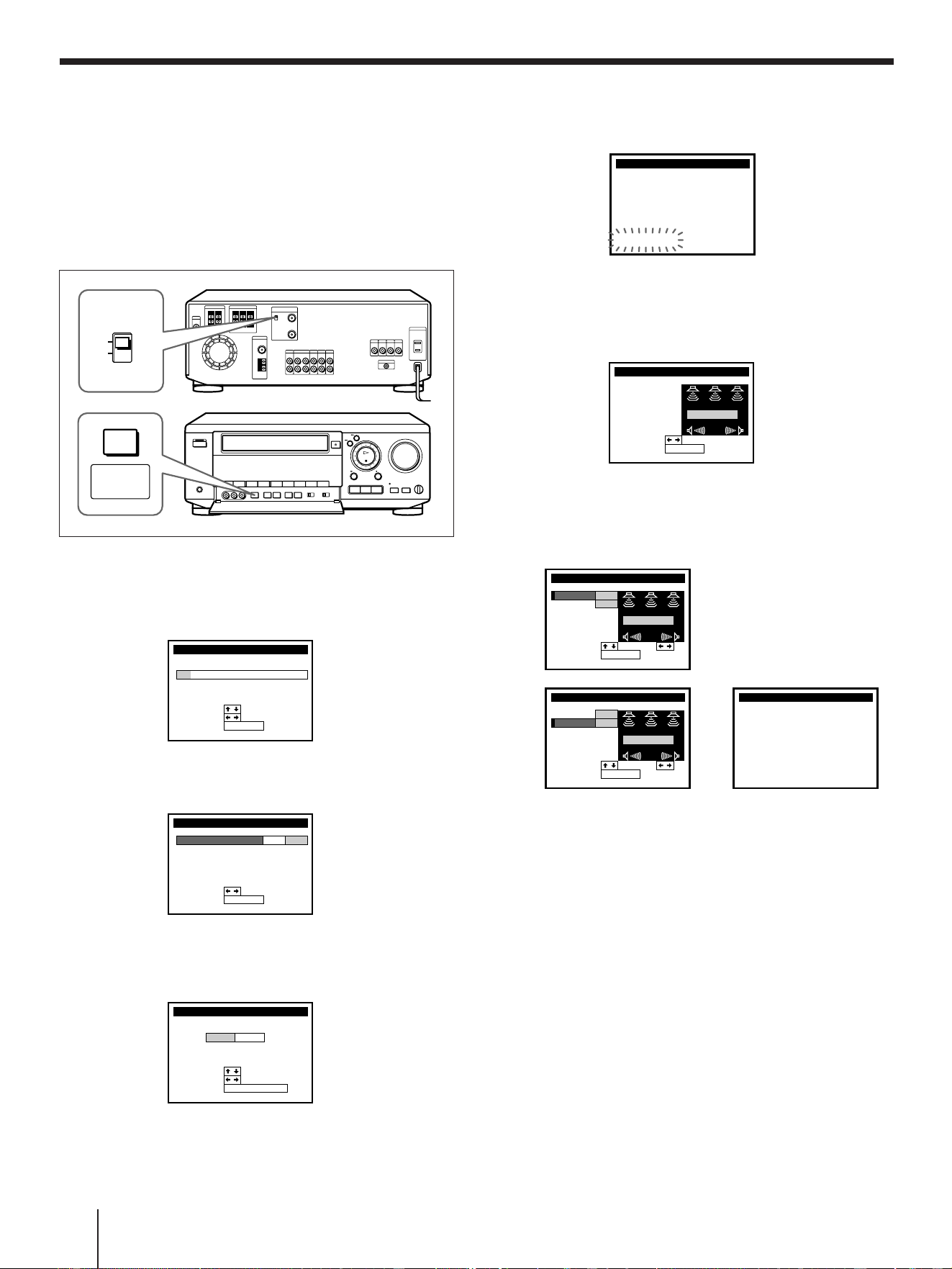

Hookup 2: VCR setup
1 Set the RF UNIT switch to CH 3 or CH 4, whichever
channel is not used in your area. If both are used,
set the switch to either channel.
For details, see page 92.
If you made V connections (from page 12), you can
skip this step.

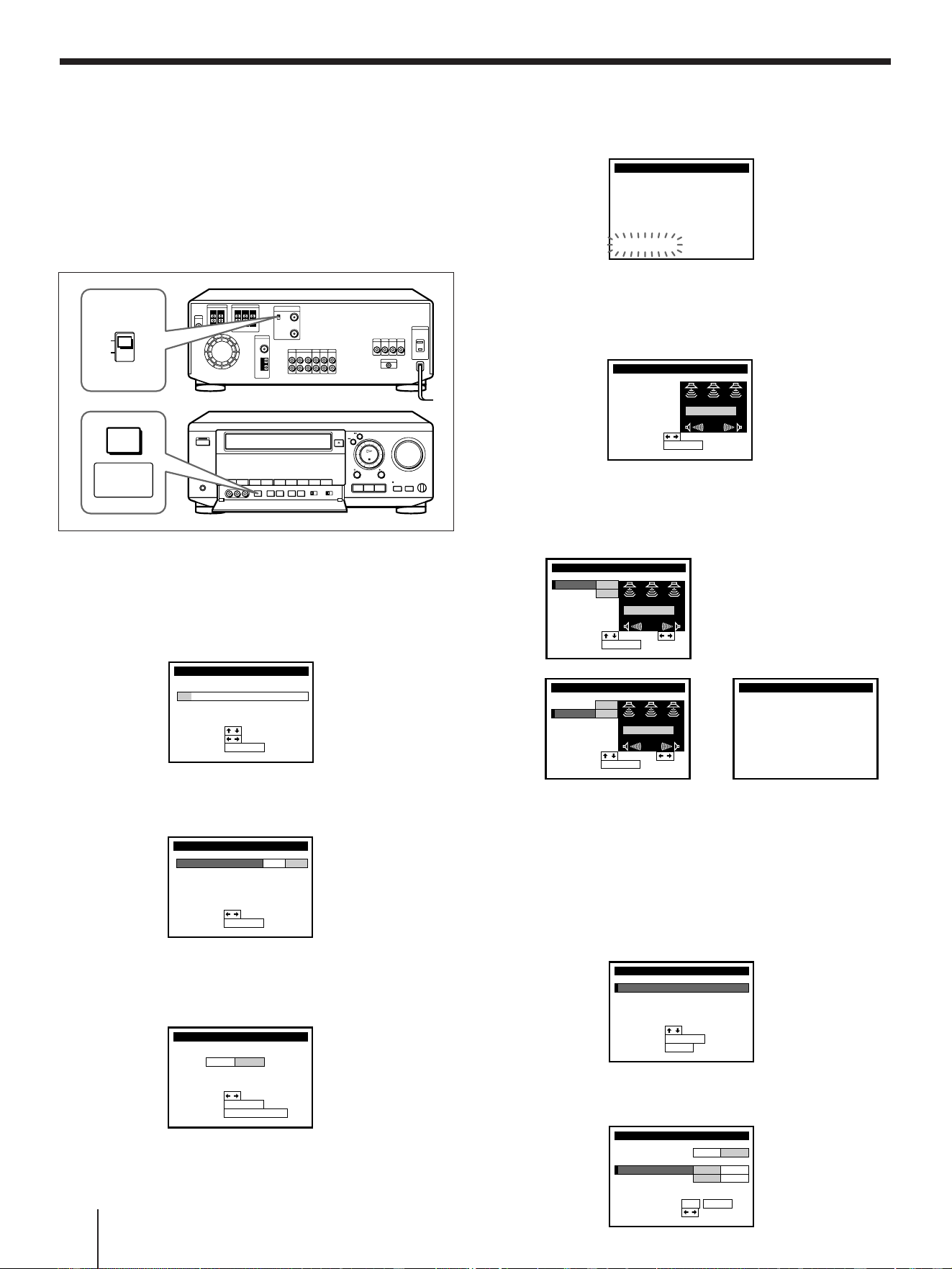

2 Press EASY SET UP on the VCR.
1 The CLOCK SET menu appears. Set the date and time
and press EXECUTE. For details, see page 33.
2 The CABLE BOX CONTROL menu appears. Select
OFF and press EXECUTE. For details, see page 35.
3 The TUNER PRESET menu appears. Set ANTENNA/
CABLE to CABLE and press EXECUTE. For details,
see page 39.
4 The AUTO PRESET starts.
5 After completing AUTO PRESET, the CENTER MODE
selection menu appears.
Select the center mode, and press EXECUTE.
For details, see page 30.
6 The TEST TONE selection menu appears.
Set the volume of the center and rear speakers and
press EXECUTE.
For details, see page 31.
EASY
SET UP
NEXT
SET
:
:
SELECT
:
EXECUTE
SET UP CLOCK SET
WED/1 1/997
2:00
1
1
AM
SET UP CABLE BOX
CABLE BOX CONTROL
OFFONCABLE MOUSE
NEXT
SET
:
:
EXECUTE
ANTENNA / CABLE
SET UP TUNER PRESET
ANT CABLE
CANCEL
NEXT
:
:
SELECT
:
EXECUTE
EASY UPSET
NEXT
SET
:
:
CENTER MODE
EXECUTE
NORMAL
SET UP SOUND SET
END
SELECT
:
:
TEST TONE
EXECUTE
TEST TONE
SET UP SOUND SET
CENTER
REAR
+
–
5
15
dB
dB
SET
:
/
SET UP
SET UP i s done
.
Normal display
END
SELECT
:
:
TEST TONE
EXECUTE
TEST TONE
SET UP SOUND SET
CENTER
REAR
+
–
5
5
dB
dB
SET
:
AUTO PRESET
Plea
EXECUTING
se wai t
SET UP TUNER PRESET
Getting Started
18
Step 5 TV antenna or cable hookups (continued)
Hookup 2: VCR Plus+ channel setup
1 Find the VCR Plus+ Channel Listing in your
program guide. For details, see page 43.
2 If the channels in the program guide are different
from the channels that you actually use on your TV,
set the channels that are different as follows. For
details, see page 44.
1 Press MENU and select VHS MENU.
2 Select SET VCR Plus+ CHANNELS.
3 Enter the program guide channel, then the channel
you use on your TV.
4 Press EXECUTE.
MENU
ADVANCED OPTIONS
CLOCK SET
TUNER PRESET
TIMER SET / CHECK
CABLE BOX CONTROL
SET VCR Plus+ CHANNELS
QUIT
SET
:
:
SELECT
:
EXECUTE
MENU
SET VCR Plus+ CHANNELS
GUIDE
VCR Plus+ CHANNEL LIST
Or to
CH TV CH
25 – 15
Push 0–9 keys to set
P r og r am GUIDE CH
,
push
see
EXECUTE
Program guide channel
Your actual TV channel
MENU
VHS MENU
SOUND SET
QUIT
SET
:
:
SELECT
:
EXECUTE
MENU
19
Getting Started
Getting Started
OUT
IN
VHF/UHF
OUT
IN
VHF/UHF

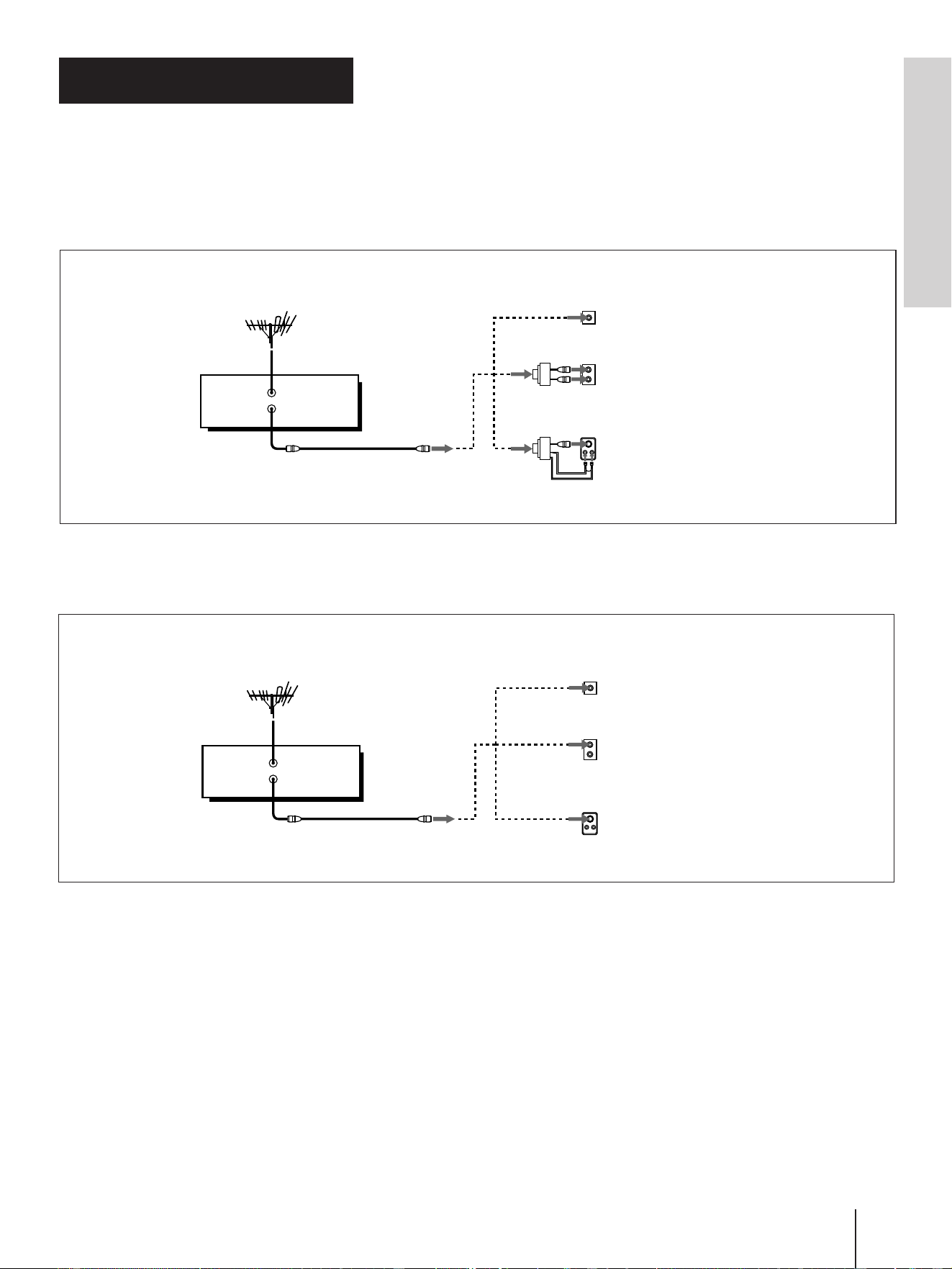

Hookup 3
Antenna hookup
Make the following connections if you’re using an antenna (if you don’t
have cable TV).
AUse this hookup if you’re using:
• VHF/UHF antenna (you get channels 2–13 and channels 14 and
higher)
• UHF-only antenna (you get channels 14 and higher)
• Separate VHF and UHF antennas
BUse this hookup if you’re using a VHF-only antenna
(you get channels 2–13 only)
or
or
Rear of TV
VHF/UHF
VHF
UHF
VHF
UHF
Match the type of
connector on your
TV: A, B, or C.
B For connector types
B and C, no UHF
connection is
required.
A
C
or
or
UHF
Match the type of
connector on your
TV: A, B, or C.
A
Rear of TV
VHF/UHF
VHF
B
C
VHF
UHF
If you cannot connect your antenna cable to the VCR directly
If your antenna cable is a flat cable (300-ohm twin lead cable), attach an
external antenna connector (not supplied) so you can connect the cable to
the VHF/UHF IN connector. If you have separate cables for VHF and
UHF antennas, you should use a U/V band mixer (not supplied). For
details, see page 92.
VCR
VCR
(not supplied)
(not supplied)
Getting Started
20
RF UNIT
CH3
CH4
Step 5 TV antenna or cable hookups (continued)
Hookup 3: VCR setup
1 Set the RF UNIT switch to CH 3 or CH 4, whichever
channel is not used in your area. If both are used, set
the switch to either channel.
For details, see page 92. If you made V connection
(from page 12), you can skip this step.
2 Press EASY SET UP on the VCR.
1 The CLOCK SET menu appears. Set the date and time
and press EXECUTE. For details, see page 33.
2 The CABLE BOX CONTROL menu appears. Select
OFF and press EXECUTE. For details, see page 35.
3 The TUNER PRESET menu appears. Set ANTENNA/
CABLE to ANT and press EXECUTE. For details, see
page 39.
4 The AUTO PRESET starts.
5 After completing AUTO PRESET, the CENTER MODE
selection menu appears.
Select the center mode, and press EXECUTE.
For details, see page 30.
6 The TEST TONE selection menu appears.
Set the volume of the center and rear speakers and
press EXECUTE.
For details, see page 31.
EASY
SET UP
NEXT
SET
:
:
SELECT
:
EXECUTE
SET UP CLOCK SET
WED/1 1/997
2:00
1
1
AM
SET UP CABLE BOX
CABLE BOX CONTROL
OFFONCABLE MOUSE
NEXT
SET
:
:
EXECUTE
ANTENNA / CABLE
SET UP TUNER PRESET
ANT CABLE
CANCEL
SET
:
:
SELECT
:
EASY UPSET
NEXT
SET
:
:
CENTER MODE
EXECUTE
NORMAL
SET UP SOUND SET
END
SELECT
:
:
TEST TONE
EXECUTE
TEST TONE
SET UP SOUND SET
CENTER
REAR
+
–
5
5
dB
dB
SET
:
SET UP
SET UP i s done
/
.
Normal display
END
SELECT
:
:
TEST TONE
EXECUTE
TEST TONE
SET UP SOUND SET
CENTER
REAR
+
–
5
15
dB
dB
SET
:
AUTO PRESET
Plea
EXECUTING
se wai t
SET UP TUNER PRESET
21
Getting Started
Getting Started

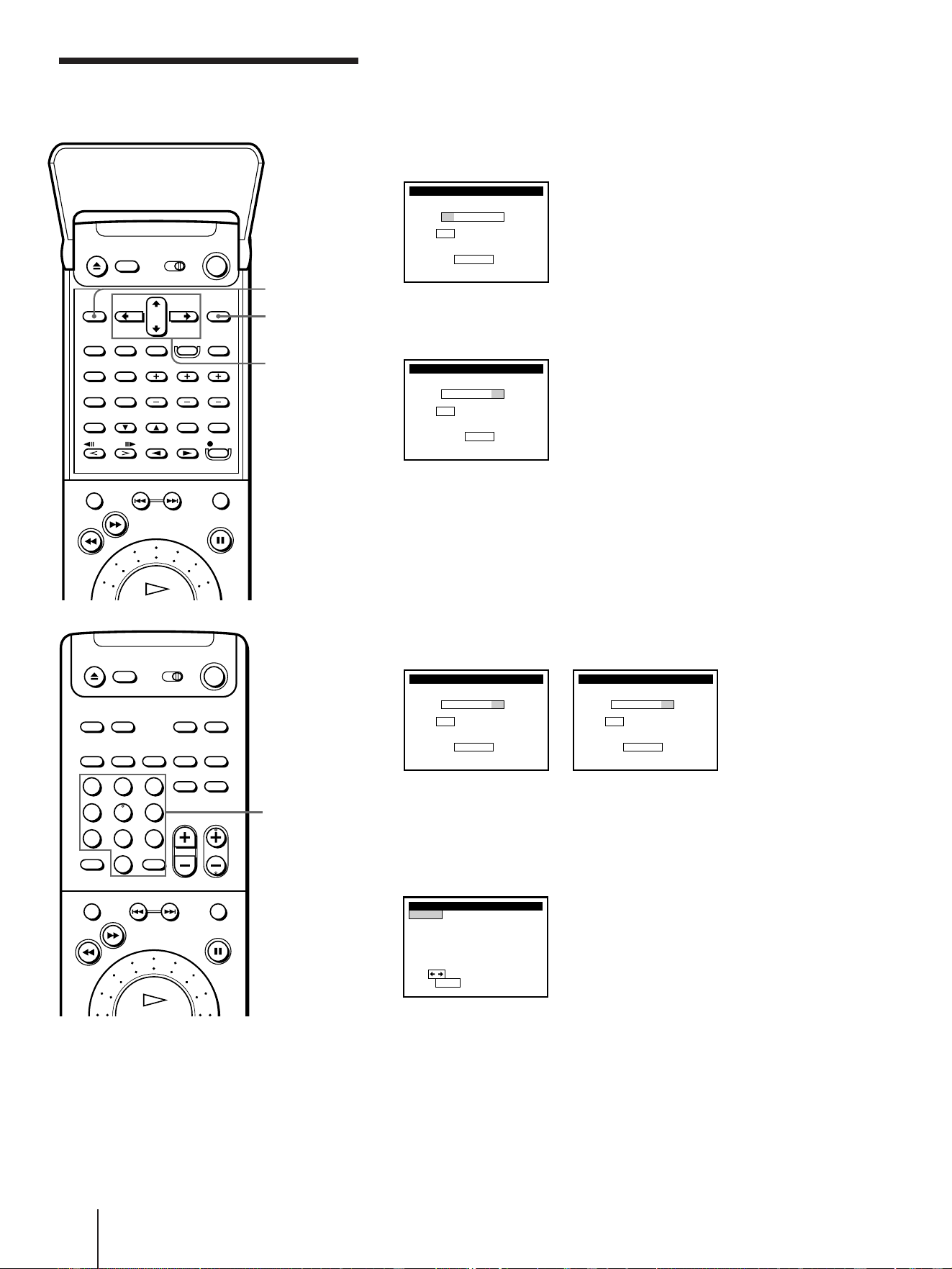

Hookup 3: VCR Plus+ channel setup
1 Find the VCR Plus+ Channel Listing in your
program guide. For details, see page 43.
2 If the channels in the program guide are different
from the channels that you actually use on your TV,
set the channels that are different as follows. For
details, see page 44.
1 Press MENU and select VHS MENU.
2 Select SET VCR Plus+ CHANNELS.
3 Enter the program guide channel, then the channel
you use on your TV.
4 Press EXECUTE.
MENU
ADVANCED OPTIONS
CLOCK SET
TUNER PRESET
TIMER SET / CHECK
CABLE BOX CONTROL
SET VCR Plus+ CHANNELS
QUIT
SET
:
:
SELECT
:
EXECUTE
MENU
SET VCR Plus+ CHANNELS
GUIDE
VCR Plus+ CHANNEL LIST
Or to
CH TV CH
25 – 15
Push 0–9 keys to set
P r og r am GUIDE CH
,
push
see
EXECUTE
Program guide channel
Your actual TV channel
MENU
VHS MENU
SOUND SET
QUIT
SET
:
:
SELECT
:
EXECUTE
MENU
Getting Started
22
OUT
IN
VHF/UHF
IN
OUT
Hookup 4
Pages 19 to 21
Hookup 4
Pages 19 to 21
Step 5 TV antenna or cable hookups (continued)
Hookup 4
Incompatible cable
box with many
scrambled channels
Recommended use
Use this hookup if your cable company cannot supply a cable box that is
compatible with the VCR’s cable box control feature, and your cable
system scrambles all or most channels.
What you can do with this hookup
• Record any channel by selecting the channel on the cable box
What you can’t do
• Record with the cable box turned off
• Record one channel while watching another channel
• Select channels directly on the VCR
Wall
VHF/UHF
Rear of TV
A
VHF
or
or
B
For connector
types B and C, no
UHF connection
is required.
UHF
VHF
UHF
C
Match the type of
connector on your
TV: A, B, or C.
Cable box
VCR
23
Getting Started
Getting Started
RF UNIT
CH3
CH4
Hookup 4: VCR setup
1 Set the RF UNIT switch to CH 3 or CH 4, whichever
channel is not used in your area. If both are used,
set the switch to either channel.
For details, see page 92. If you made V connection
(from page 12), you can skip this step.
2 Turn on your cable box.
3 Press EASY SET UP on the VCR.
1 The CLOCK SET menu appears. Set date and time
and press EXECUTE. For details, see page 33.
2 The CABLE BOX CONTROL menu appears. Select
OFF and press EXECUTE. For details, see page 35.
3 The TUNER PRESET menu appears. Set ANTENNA/
CABLE to ANT and press EXECUTE. For details, see
page 39.
4 The AUTO PRESET starts.
5 After completing AUTO PRESET, the CENTER MODE
selection menu appears.
Select the center mode, and press EXECUTE.
For details, see page 30.
6 The TEST TONE selection menu appears.
Set the volume of the center and rear speakers and
press EXECUTE.
For details, see page 31.
EASY
SET UP
NEXT
SET
:
:
SELECT
:
EXECUTE
SET UP CLOCK SET
WED/1 1/997
2:00
1
1
AM
SET UP CABLE BOX
CABLE BOX CONTROL
OFFONCABLE MOUSE
NEXT
SET
:
:
EXECUTE
ANTENNA / CABLE
SET UP TUNER PRESET
ANT CABLE
CANCEL
SET
:
:
SELECT
:
EASY UPSET
AUTO PRESET
Plea
EXECUTING
se wai t
SET UP TUNER PRESET
NEXT
SET
:
:
CENTER MODE
EXECUTE
NORMAL
SET UP SOUND SET
END
SELECT
:
:
TEST TONE
EXECUTE
TEST TONE
SET UP SOUND SET
CENTER
REAR
+
–
5
15
dB
dB
SET
:
/
.
Normal display
END
SELECT
:
:
TEST TONE
EXECUTE
TEST TONE
SET UP SOUND SET
CENTER
REAR
+
–
5
5
dB
dB
SET
:
SET UP
SET UP i s done
Getting Started
24
Step 5 TV antenna or cable hookups (continued)
Hookup 4: VCR Plus+ channel setup
1 Find the VCR Plus+ Channel Listing in your
program guide. For details, see page 43.
2 Enter all the channels you want to record and the
cable box output channel (usually 2, 3, or 4). For
details, see page 44.
1 Press MENU and select VHS MENU.
2 Select SET VCR Plus+ CHANNELS.
3 Enter the program guide channel, then the cable box
output channel.
4 Press EXECUTE.
MENU
VHS MENU
SOUND SET
QUIT
SET
:
:
SELECT
:
EXECUTE
MENU
MENU
ADVANCED OPTIONS
CLOCK SET
TUNER PRESET
TIMER SET / CHECK
CABLE BOX CONTROL
SET VCR Plus+ CHANNELS
QUIT
SET
:
:
SELECT
:
EXECUTE
MENU
SET VCR Plus+ CHANNELS
GUIDE
VCR Plus+ CHANNEL LIST
Or to
CH TV CH
33 – 3
Push 0–9 keys to set
P r og r am GUIDE CH
,
push
see
EXECUTE
Program guide channel
Cable box output channel
25
Getting Started
Getting Started
VHF/UHF
OUT
CONTROL S OUT
IN
IN
IN
LINE
AUDIO
VIDEO
LINE
AUDIO VIDEO
LINE
OUT
OUT
VHF/UHF
IN

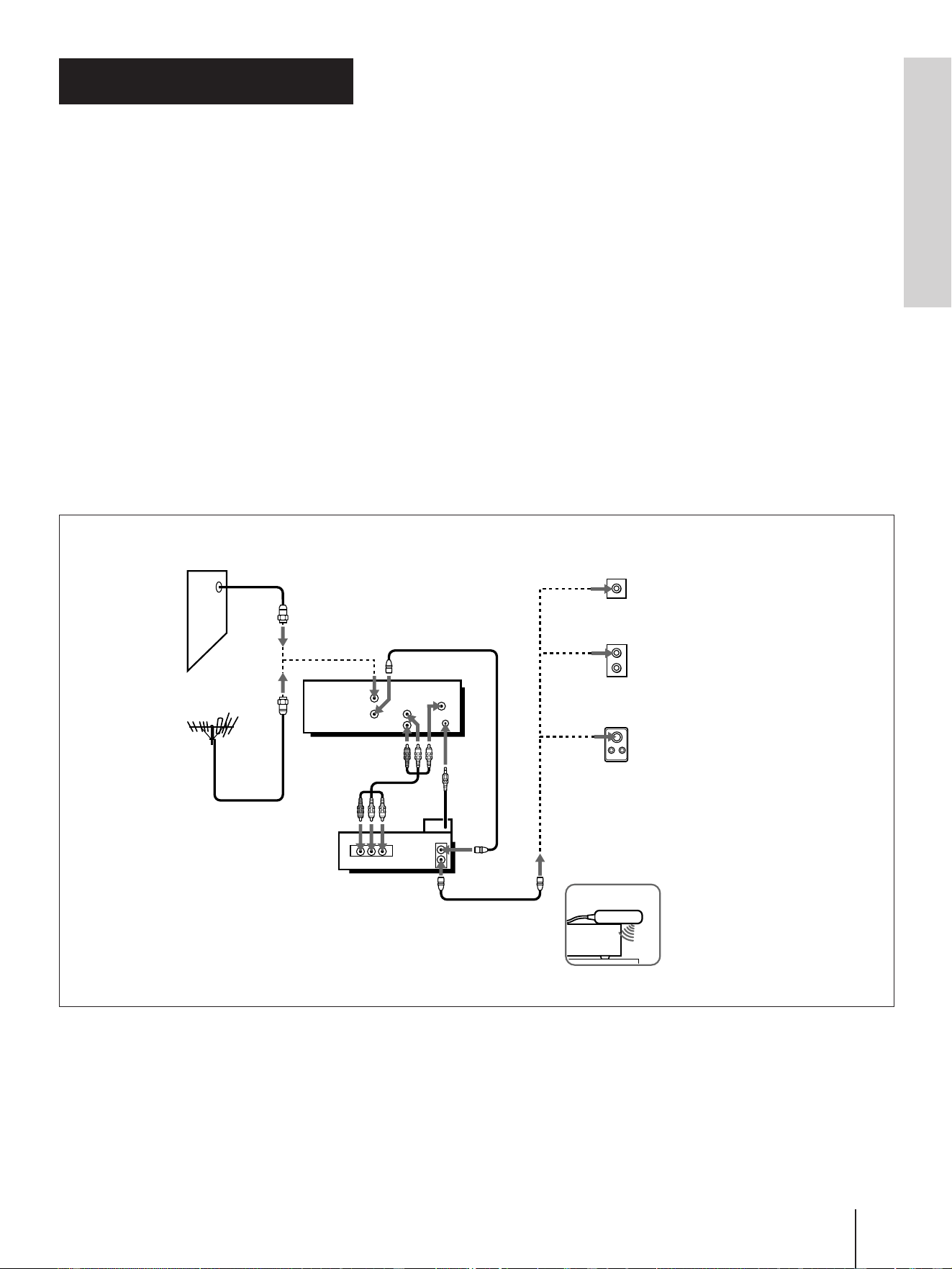

Hookup 5
DSS (Digital Satellite
System) receiver
Recommended use
Use this hookup if you have a DSS receiver. It allows the VCR’s cable
box control feature to control the channel on the DSS receiver,
simplifying the recording process. A list of compatible DSS receivers is
on page 37.
DSS (Digital Satellite System) is a satellite broadcast that provides
superior digital-quality video and crisp digital-quality audio. A variety
of program packages are available through your program providers. It
also has program guides that are sorted by program categories.
What you can do with this hookup
• Record any channels using the VCR’s cable box control feature to select
channels on the DSS receiver.
What you can’t do
• Record with the DSS receiver turned off
• Record any channels from cable or an antenna (To record channels
from cable or an antenna, turn off the cable box control feature.)
• Use a cable box
• Record programs with VCR Plus+
A Match the type
of connector on
your
TV: A,B or C
B For connector
types
B and C, no UHF
connection is
required.
C
or
or
Rear of TV
VHF/UHF
Side view
VHF
VHF
UHF
Wall
or
DSS receiver

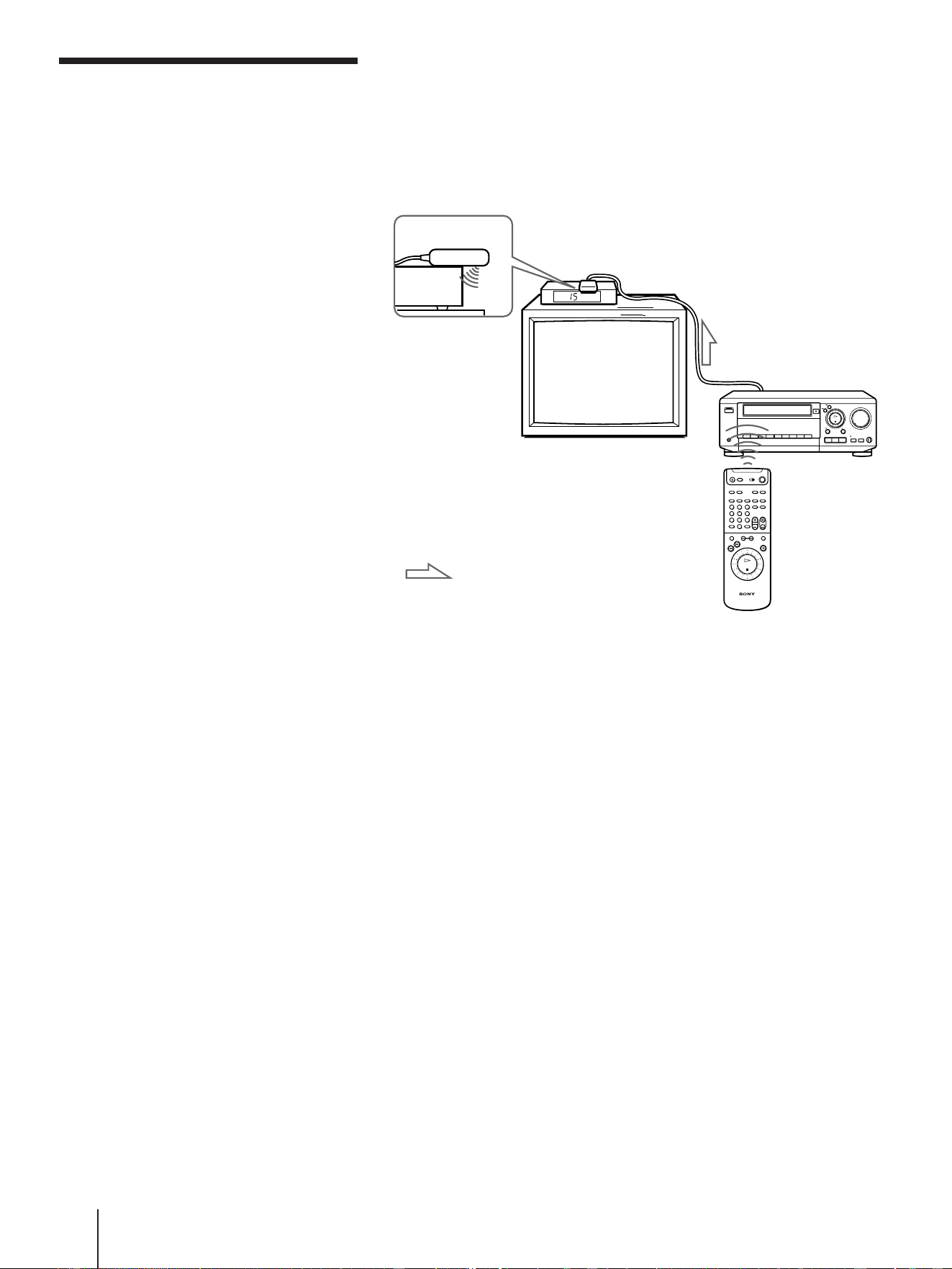

Positioning the Cable
Mouse
Place the Cable Mouse so
that it hangs out over the DSS
receiver front.
VCR
Cable
Mouse
(not
supplied)
Getting Started
26
RF UNIT
CH3
CH4

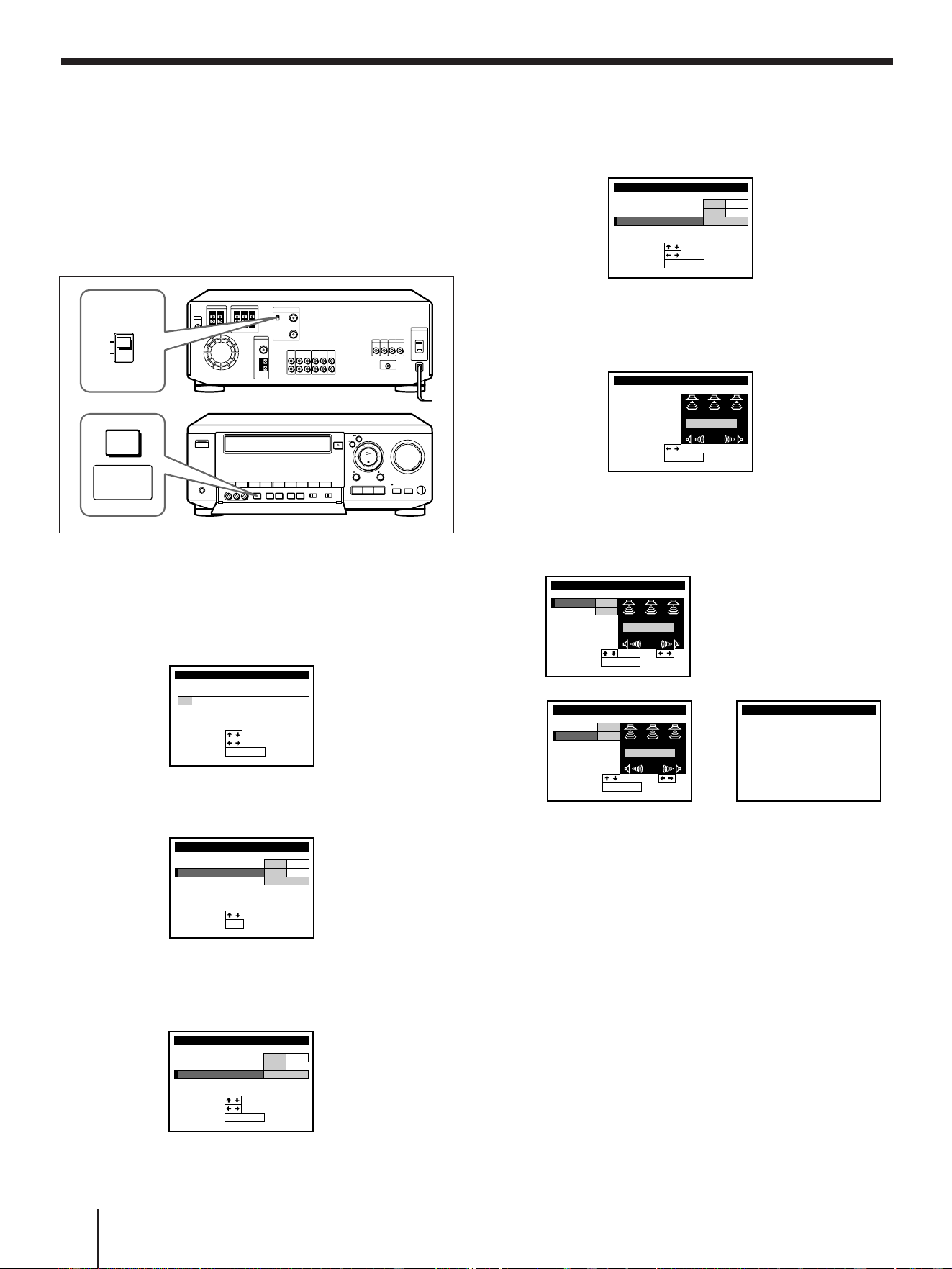

Step 5 TV antenna or cable hookups (continued)
Hookup 5: VCR setup
1 Set the RF UNIT switch to CH 3 or CH4, whichever
channel is not used in your area. If both are used,
set the switch to either channel.
For details, see page 92. If you made V connection
(from page 12), you can skip this step.
2 Turn on your DSS receiver.
3 Press EASY SET UP on the VCR.
1 The CLOCK SET menu appears. Set the date and time
and press EXECUTE. For details, see page 33.
2 The CABLE BOX CONTROL menu appears.
Select ON. For details, see page 35.
3 Enter your DSS receiver code number and press
CURSOR..
For details, see page 35.
4 Set your DSS receiver output channel (BOX OUTPUT
CH) to LINE and press EXECUTE.
5 The CENTER MODE selection menu appears.
Select the center mode and press EXECUTE.
For details, see page 30.
6 The TEST TONE selection menu appears.
Set the volume of the center and rear speakers and
press EXECUTE.
For details, see page 31.
EASY
SET UP
NEXT
SET
:
:
SELECT
:
EXECUTE
SET UP CLOCK SET
WED/1 1/997
2:00
1
1
AM
SET UP CABLE BOX
OFFON
CABLE MOUSE
CABLE BOX CONTROL
BOX CODE NO.
CH3
BOX OUTPUT CH
–––
keys
0–9
SET
:
SELECT
:
SET UP CABLE BOX
OFFON
CABLE MOUSE
CABLE BOX CONTROL
BOX CODE NO.
CH3
BOX OUTPUT CH
650
NEXT
SET
:
:
SELECT
:
EXECUTE
NEXT
SET
:
:
CENTER MODE
EXECUTE
NORMAL
SET UP SOUND SET
END
SELECT
:
:
TEST TONE
EXECUTE
TEST TONE
SET UP SOUND SET
CENTER
REAR
+
–
5
15
dB
dB
SET
:
/
.
Normal display
END
SELECT
:
:
TEST TONE
EXECUTE
TEST TONE
SET UP SOUND SET
CENTER
REAR
+
–
5
5
dB
dB
SET
:
SET UP
SET UP i s done
Notes
To successfully record a program from the DSS receiver, proceed
as follows:
• Leave the DSS receiver on all the time.
• Turn off the display (menu screen, channel number, etc.) of the
DSS receiver.
• To record or receive locked channels, unlock the channel before
the VCR starts recording.
• To set pay-per-view programs in the timer setting, order the
pay-per-view program before the VCR starts recording.
• Some programs are copy protected. You cannot record these
programs.
SET UP CABLE BOX
OFFON
CABLE MOUSE
CABLE BOX CONTROL
BOX CODE NO.
LINE
BOX OUTPUT CH
650
NEXT
SET
:
:
SELECT
:
EXECUTE
27
Getting Started
Getting Started
Hookup 6
Incompatible cable
box with only a few
scrambled channels,
using an A/B switch
Recommended use
By using an A/B switch (not supplied), this hookup allows you to record
both scrambled and unscrambled channels conveniently.
What you can do with this hookup
• Record any unscrambled channel by selecting the channel directly on
the VCR (the A/B switch is set to A)
• Record any scrambled channel by selecting the channel on the cable
box (the A/B switch is set to B)
What you can’t do
• Record one scrambled channel while watching another channel (the
A/B switch is set to B)
or
or
Wall
A/B switch
A
B
Rear of TV
VHF/UHF
VHF
UHF
VHF
C
A
B
UHF
Match the type of
connector on your
TV: A, B, or C.
For connector
types B and C, no
UHF connection is
required.
Cable box
VCR
OUT
IN
VHF/UHF
IN
OUT
Splitter
(not supplied)
Getting Started
28
RF UNIT
CH3
CH4

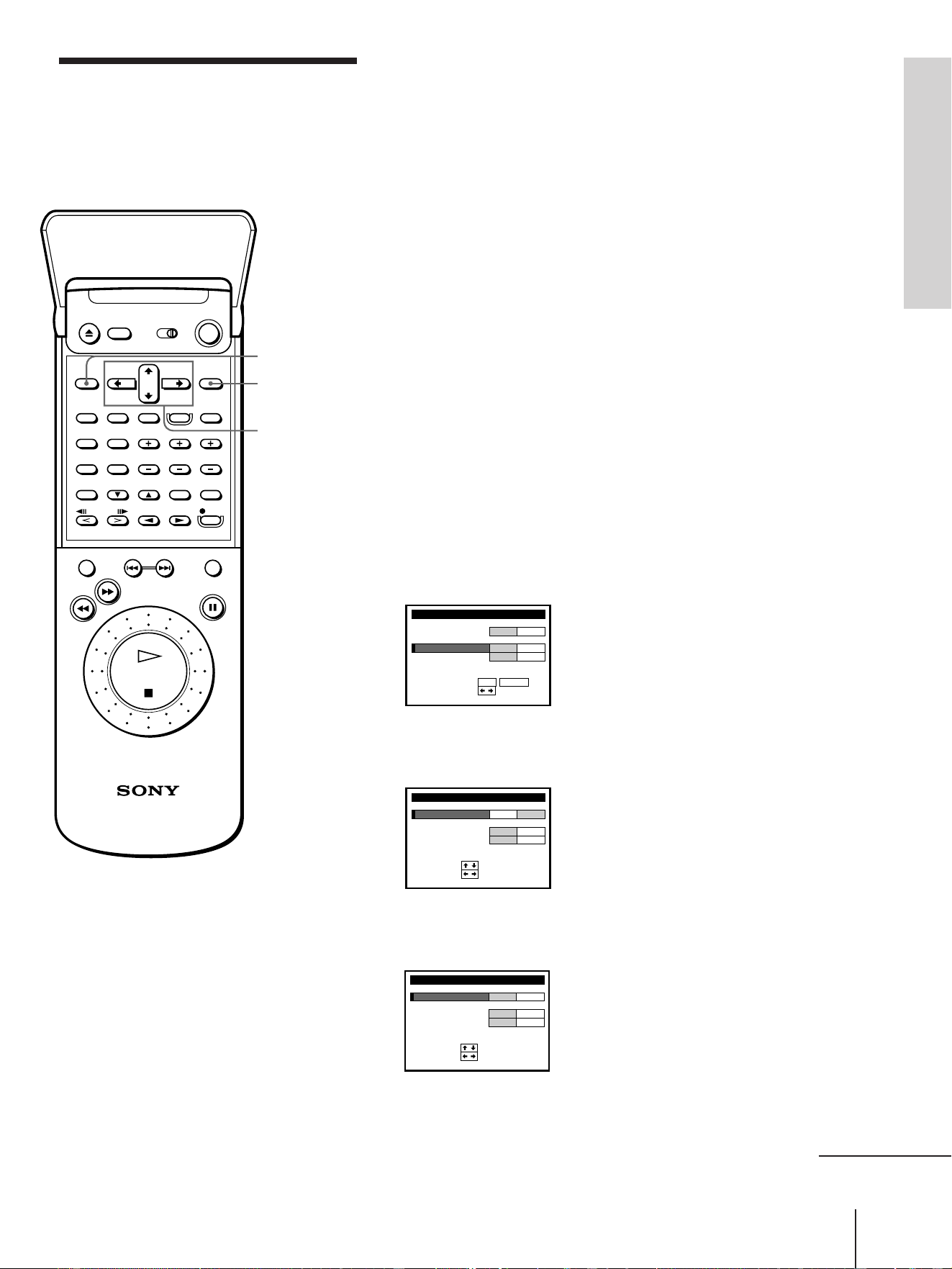

Hookup 6: VCR setup
1 Set the RF UNIT switch to CH 3 or CH 4, whichever
channel is not used in your area. If both are used, set
the switch to either channel.
For details, see page 92. If you made V connection
(from page 12), you can skip this step.
2 Set the A/B switch to “A.”
3 Press EASY SET UP on the VCR.
1 The CLOCK SET menu appears. Set the date and time
and press EXECUTE. For details, see page 33.
2 The CABLE BOX CONTROL menu appears. Select
OFF and press EXECUTE. For details, see page 35.
3 The TUNER PRESET menu appears. Set ANTENNA/
CABLE to CABLE and press EXECUTE. For details,
see page 39.
Step 5 TV antenna or cable hookups (continued)
4 The AUTO PRESET starts.
5 After completing AUTO PRESET, the CENTER MODE
selection menu appears.
Select the center mode, and press EXECUTE.
For details, see page 30.
6 The TEST TONE selection menu appears.
Set the volume of the center and rear speakers and
press EXECUTE.
For details, see page 31.
EASY
SET UP
NEXT
SET
:
:
SELECT
:
EXECUTE
SET UP CLOCK SET
WED/1 1/997
2:00
1
1
AM
ANTENNA / CABLE
SET UP TUNER PRESET
ANT CABLE
CANCEL
NEXT
:
:
SELECT
:
EXECUTE
EASY UPSET
AUTO PRESET
Plea
EXECUTING
se wai t
SET UP TUNER PRESET
NEXT
SET
:
:
CENTER MODE
EXECUTE
NORMAL
SET UP SOUND SET
END
SELECT
:
:
TEST TONE
EXECUTE
TEST TONE
SET UP SOUND SET
CENTER
REAR
+
–
5
5
dB
dB
SET
:
SET UP
SET UP i s done
/
.
Normal display
4 Preset the cable box output channel (usually 2, 3 or
4). For details, see page 35.
1 Press MENU. Then press CURSOR >/. to move the
cursor (I) to VHS MENU, and press EXECUTE.
2 Select TUNER PRESET.
3 Enter the cable box output channel. Set MANUAL
SET to ADD and press EXECUTE.
MENU
ADVANCED OPTIONS
CLOCK SET
TUNER PRESET
TIMER SET / CHECK
CABLE BOX CONTROL
SET VCR Plus+ CHANNELS
QUIT
SET
:
:
SELECT
:
EXECUTE
MENU
TUNER PRESET CH3
CABLEANT
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
ADD / ERASE :
ERASEADD
AFT
OFFON
FINE TUNING
SELECT CH :
0–9,ENTER
END
SELECT
:
:
TEST TONE
EXECUTE
TEST TONE
SET UP SOUND SET
CENTER
REAR
+
–
5
15
dB
dB
SET
:
SET UP CABLE BOX
CABLE BOX CONTROL
OFFONCABLE MOUSE
NEXT
SET
:
:
EXECUTE
29
Getting Started
Getting Started

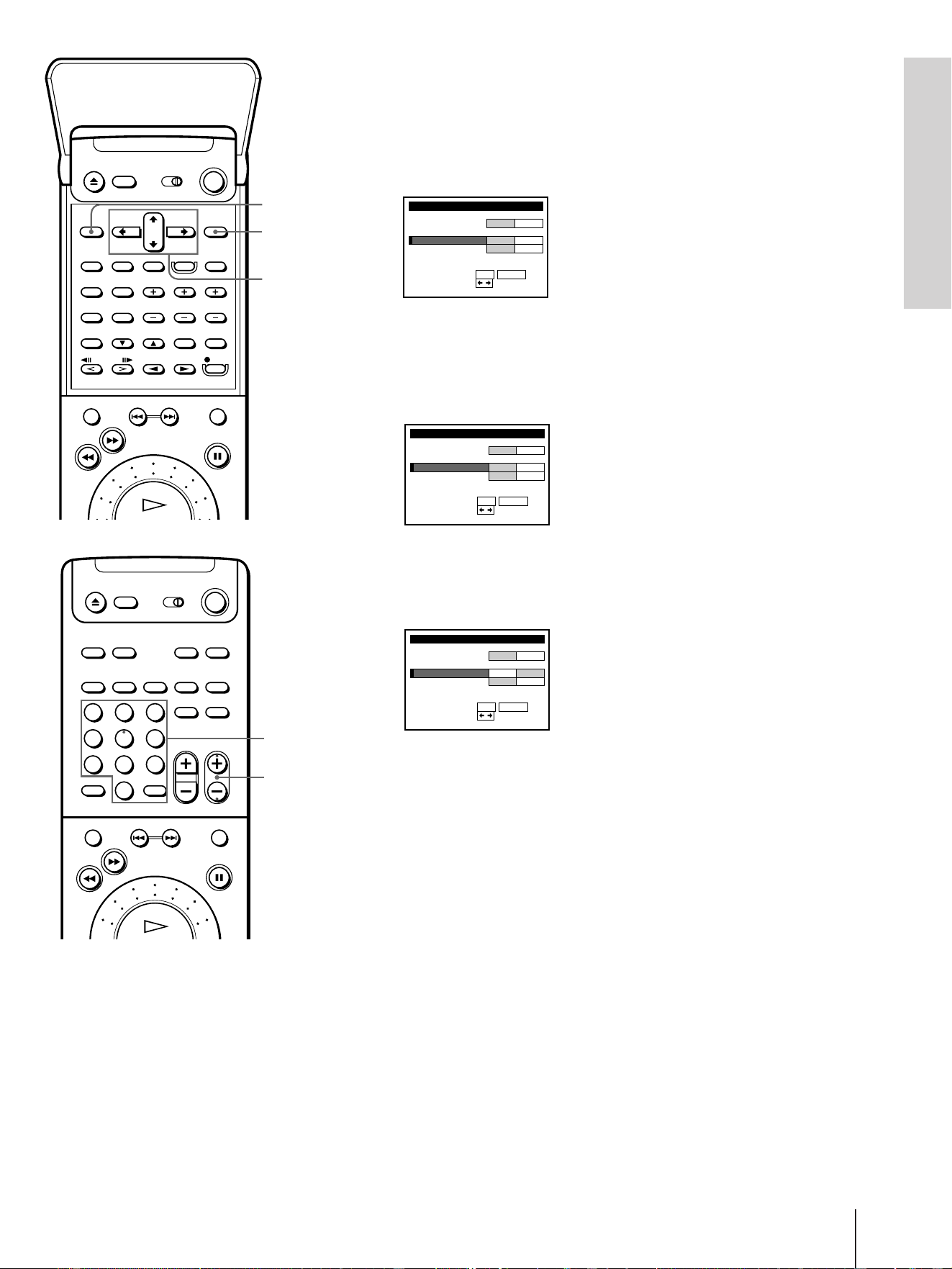

Hookup 6: VCR Plus+ channel setup
1 Find the VCR Plus+ Channel Listing in your
program guide. For details, see page 43.
2 For unscrambled channels, if the channels in the
program guide are different from the channels that
you actually use on your TV, set the channels that
are different as follows. For details, see page 44.
1 Press MENU and select VHS MENU.
2 Select SET VCR Plus+ CHANNELS.
3 Enter the program guide channel, then the channel
you use on your TV.
4 Press EXECUTE.
MENU
ADVANCED OPTIONS
CLOCK SET
TUNER PRESET
TIMER SET / CHECK
CABLE BOX CONTROL
SET VCR Plus+ CHANNELS
QUIT
SET
:
:
SELECT
:
EXECUTE
MENU
SET VCR Plus+ CHANNELS
GUIDE
VCR Plus+ CHANNEL LIST
Or to
CH TV CH
25 – 15
Push 0–9 keys to set
P r og r am GUIDE CH
,
push
see
EXECUTE
Your actual TV channel
Program guide channel
MENU
VHS MENU
SOUND SET
QUIT
SET
:
:
SELECT
:
EXECUTE
MENU
3 For scrambled channels, enter all the scambled
channels you want to record and the cable box
output channel (usually 2, 3, or 4). For details, see
page 44.
1 Press MENU and select VHS MENU.
2 Select SET VCR Plus+ CHANNELS.
3 Enter the program guide channel, then the cable box
output channel.
MENU
ADVANCED OPTIONS
CLOCK SET
TUNER PRESET
TIMER SET / CHECK
CABLE BOX CONTROL
SET VCR Plus+ CHANNELS
QUIT
SET
:
:
SELECT
:
EXECUTE
MENU
SET VCR Plus+ CHANNELS
GUIDE
VCR Plus+ CHANNEL LIST
Or to
CH TV CH
25 – 3
Push 0–9 keys to set
P r og r am GUIDE CH
,
push
see
EXECUTE
Cable box output channel
Program guide channel
MENU
VHS MENU
SOUND SET
QUIT
SET
:
:
SELECT
:
EXECUTE
MENU
Getting Started
30

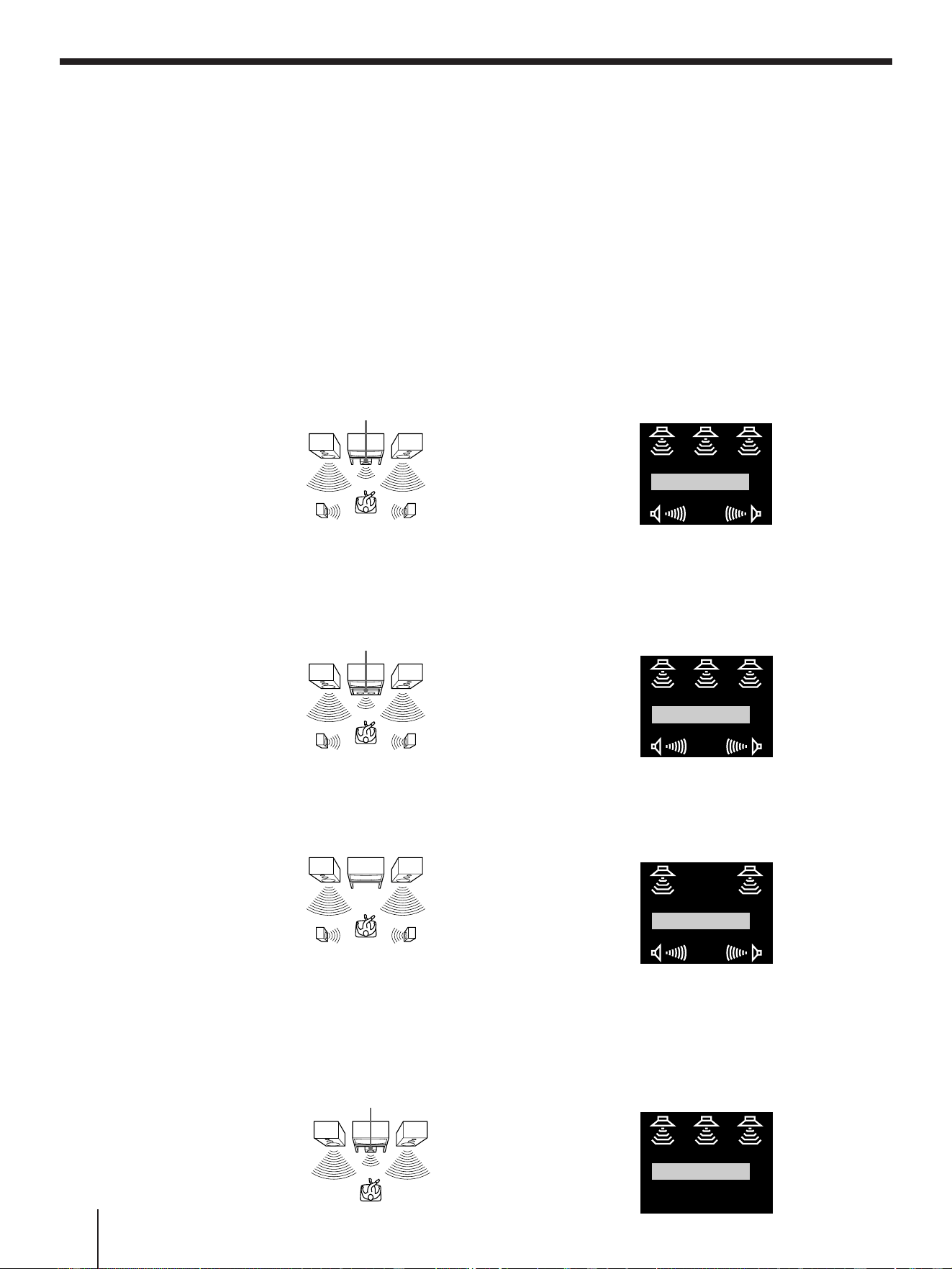

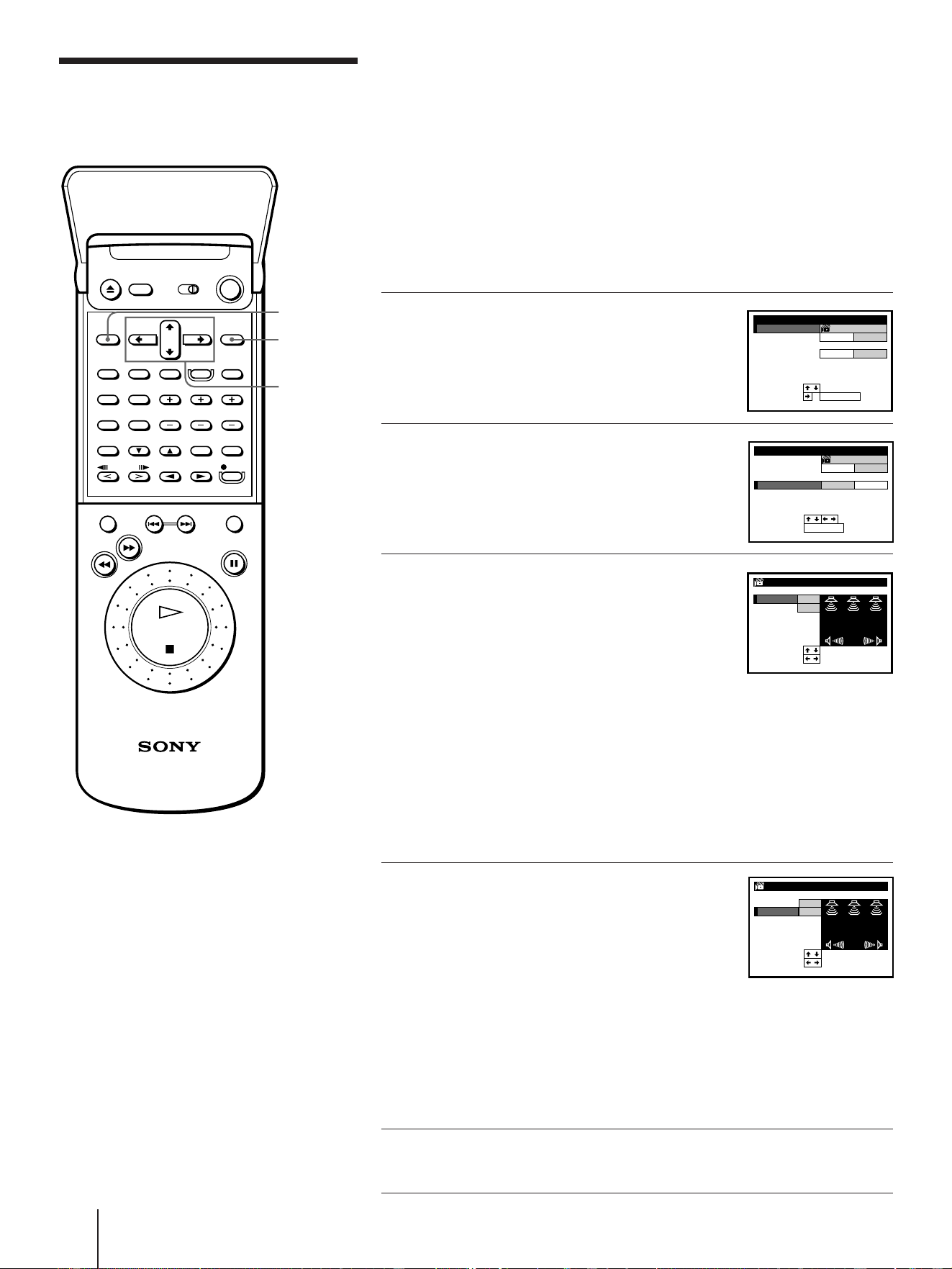

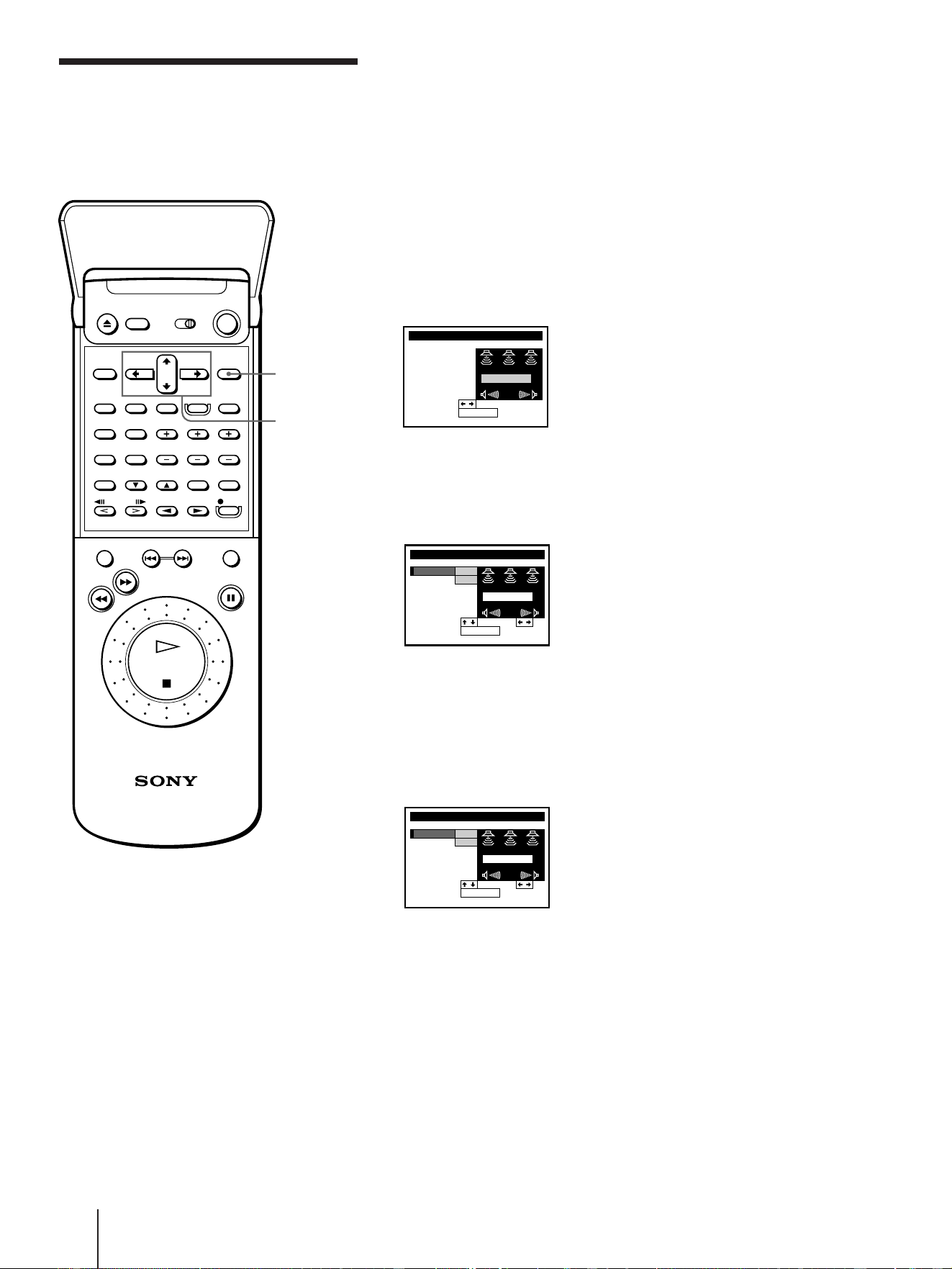

You can set the center mode for the PROLOGIC and THEATER sound
fields, and the relative volume level of the center and rear speakers for
the PROLOGIC sound field with EASY SET UP. (For sound field
explanations, see page 75.)
1 Complete each operation other than SOUND SET with EASY SET UP
referring to pages 13 to 30.
2 After the CENTER MODE selection menu appears, press ?// to
select the center mode.
See “Selecting the center mode” on page 32 for details.
3 Press EXECUTE.
Each speaker emits the test tone in turn (the speaker emitting the test
tone is indicated by the red speaker mark).
Check each speaker’s relative volume balance with the test tones.
4 Press CURSOR >/. to move the cursor (I) to CENTER. Then, press
CURSOR ?// to increase or decrease the volume of the center
speaker so you have an equal volume balance with the other
speakers at your listening position.
If you selected PHANTOM in step 2, skip this step.
This volume adjustment affects only the PROLOGIC sound field.
Adjusting the
SOUND SET with
EASY SET UP
CENTER MODE
SET UP SOUND SET
NEXT
SET
:
:
EXECUTE
WIDE
END
SELECT
:
:
EXECUTE
SET
:
CENTER MODE
SET UP SOUND SET
CENTER
REAR
0
0
dB
dB
TEST TONE
CENTER MODE
SET UP SOUND SET
CENTER
REAR
+8
0
dB
dB
TEST TONE
END
SELECT
:
:
EXECUTE
SET
:
EXECUTE
CURSOR
>/./?//
31
Getting Started
Getting Started
5 Press CURSOR >/. to move the cursor (I) to REAR. Then, press
CURSOR ?// to increase or decrease the volume of the rear
speakers so you have an equal volume balance with the other
speakers at your listening position.
If you selected 3CH LOGIC in step 2, skip this step.
The surround speakers’ volume balance is always even.
This volume adjustment affects only the PROLOGIC sound field.
6 Press EXECUTE.
After “SET UP is done” screen is appears, a channel appears on the
TV screen.
Tips
• To adjust the relative volume balance between the front left and right speakers, use
BALANCE L/R on the unit.
• If you change the speaker configuration, reset the modes. See “Reconfiguring the
PROLOGIC and THEATER sound fields” on page 82.
• If you need to further increase the volume of the rear speakers from the maximum
level (+10 dB), see “Increasing the maximum rear speaker level” on page 83.
CENTER MODE
SET UP SOUND SET
TEST TONE
CENTER
REAR
+
+
8
10
dB
dB
END
SELECT
:
:
EXECUTE
SET
:
Getting Started
32
Front speaker (R)Front speaker (L)
Rear speaker (L) Rear speaker (R)
Selecting the center mode
The center mode is related to the PROLOGIC and THEATER sound fields. (See “Taking
advantage of the sound fields” on page 75 for a detailed explanation on sound fields.) You
must have rear left and right speakers, or one center speaker other than the front left and
right speakers for these sound fields.
You can select NORMAL, WIDE, PHANTOM, or 3CH LOGIC as the center mode. Each
mode is designed for a different speaker configuration. Select the most suitable mode
considering the following conditions:
If you have front and rear speakers, and a small center speaker
Select NORMAL. The center channel bass sound is output from the front speakers. This is
because small center speakers cannot reproduce bass sound sufficiently.
If you have front and rear speakers, and a large center speaker
Select WIDE. The combination of this speaker configuration and mode selection is ideal for
Dolby Pro Logic Surround sound.
If you have only front and rear speakers
Select PHANTOM. The center channel sound is output from the front speakers.
If you have only front and center speakers
Select 3CH LOGIC (3 Channel Logic). The rear channel sound is output from the front
speakers. You can enjoy some surround sound atmosphere, even if you don’t have surround
(rear) speakers.
Front speaker (R)
Front speaker (L)
Rear speaker (L)
Rear speaker (R)
Center speaker
NORMAL
Speaker arrangement display on the TV screen
Speaker arrangement display on the TV screen
WIDE
Speaker arrangement display on the TV screen
Front speaker (R)Front speaker (L)
Rear speaker (L) Rear speaker (R)
PHANTOM
Front speaker (R)Front speaker (L)
Center speaker
Speaker arrangement display on the TV screen
3CH LOGIC
Center speaker
Adjusting the SOUND SET with EASY SET UP (continued)
33
Getting Started
Getting Started

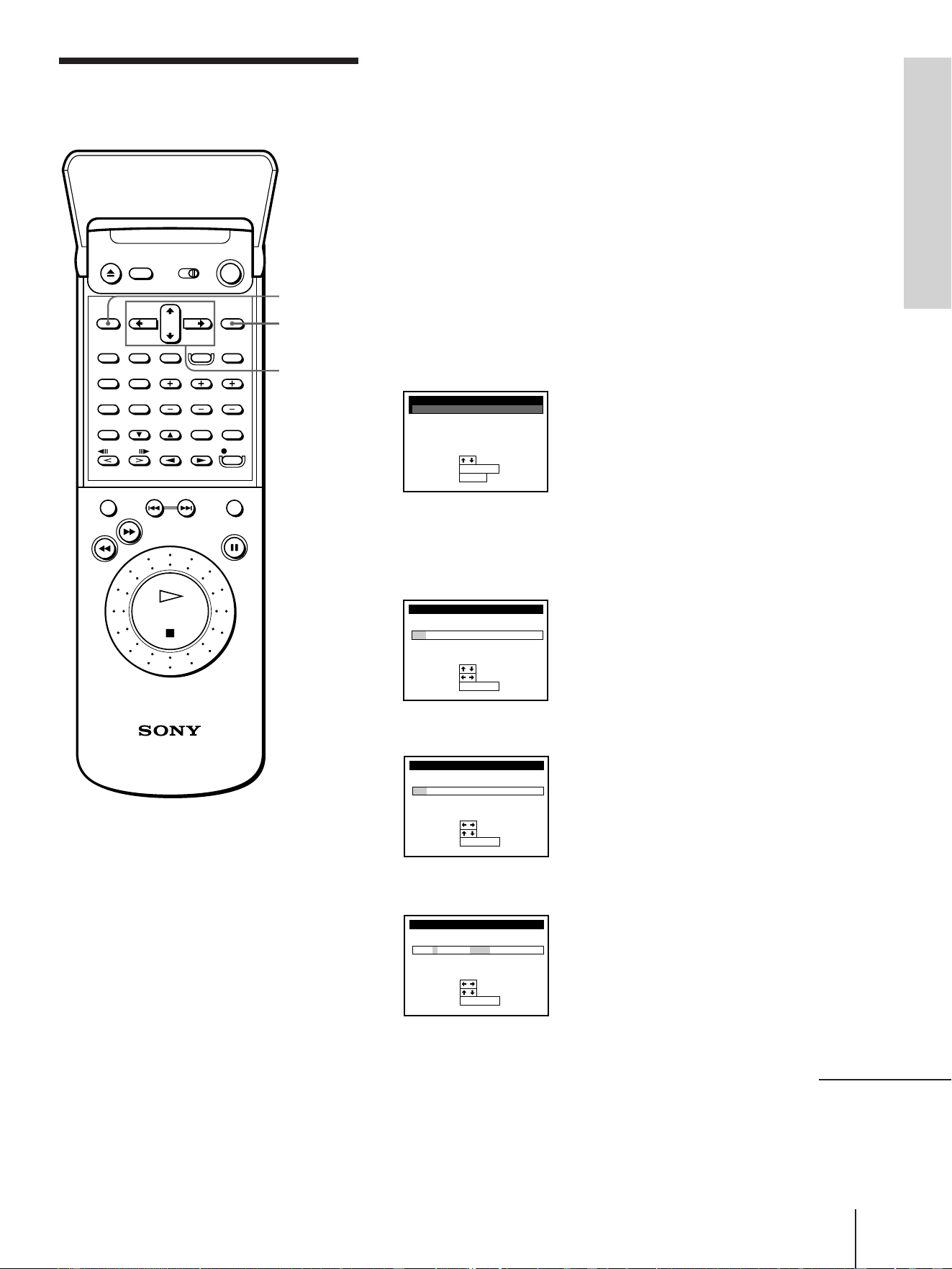

Setting the clock
You must set the time and date on the unit to be able to use the timer
recording features. If the unit clock was not set in the EASY SET UP
procedure, you need to set it manually.
Before you start…
• Press VHS TUNER.
– If the TV doesn’t turn on, turn it on manually.
– If connected with only the antenna cable, set the TV to the video
channel.
Setting the clock
1 Lift the top cover of the remote commander.
Press MENU. Then press CURSOR >/. to move the cursor (I) to
VHS MENU, and press EXECUTE.
2 Press CURSOR >/. to move the cursor (I) to CLOCK SET and press
EXECUTE.
When using the EASY SET UP procedure, skip this step.
3 Set the month using CURSOR >/..
4 Press CURSOR / to highlight the date and the day of the week.
EXECUTE
MENU
CURSOR
>/./?//
Tip
• To change the digits during
setting, press CURSOR ?
to return to the item to be
changed, and select the
digits using CURSOR >/..
Note
• The menu disappears
automatically if you don’t
proceed within a few
minutes.
VHS MENU
ADVANCED OPTIONS
CLOCK SET
TUNER PRESET
TIMER SET / CHECK
CABLE BOX CONTROL
SET VCR Plus+ CHANNELS
EXIT
SET
:
:
SELECT
:
EXECUTE
MENU
CLOCK SET
END
SET
:
:
SELECT
:
WED/1 1/997
0:00
1
AM
EXECUTE
CLOCK SET
END
SET
:
:
SELECT
:
EXECUTE
SAT/1 1/997
0:00
11
AM
END
SET
:
:
SELECT
:
EXECUTE
CLOCK SET
SAT/1 1/997
0:00
11
AM
continued
Getting Started
34
5 Press CURSOR >/. to set the date.
The day of the week is set automatically.
6 Set the year, hour, and minutes in sequence using CURSOR / to
highlight the item to be set, and CURSOR >/. to select the digits.
7 Press EXECUTE to confirm the setting.
Setting the clock (continued)
CLOCK SET
END
SET
:
:
SELECT
:
EXECUTE
THU/
27
1/997
3:30
11
AM
CLOCK SET
THU/
27
1/997
0:00
11
END
SET
:
:
SELECT
:
EXECUTE
AM
35
Getting Started
Getting Started

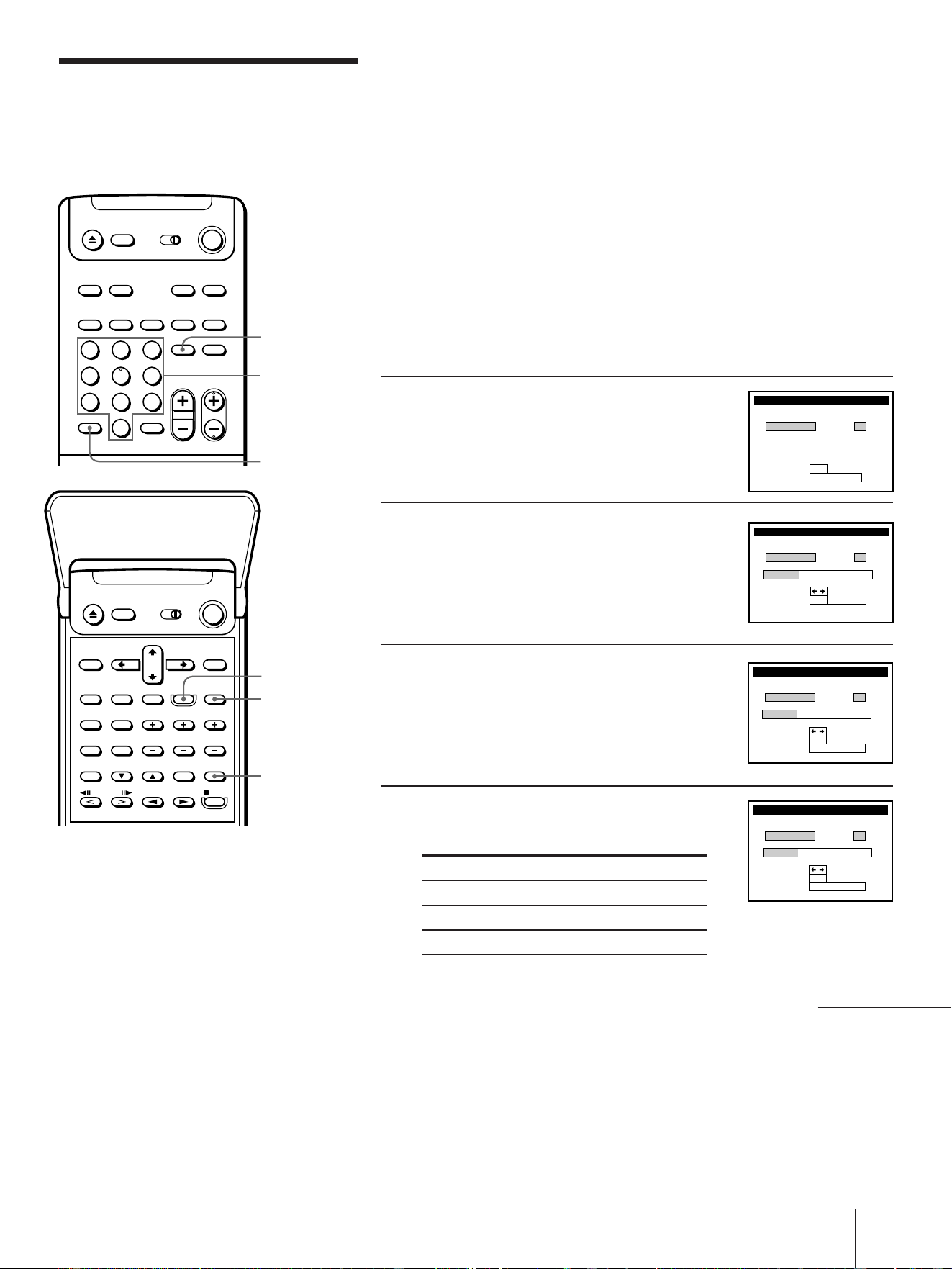

Setting up cable box
control
(Skip this section if you are
using Hookup 2, 3, 4 or 6.)
Your unit’s VCR includes a cable box control feature that allows the
unit’s VCR to control most brands of cable boxes/DSS receivers via the
Cable Mouse. With cable box control, the unit’s VCR controls channels
on the cable box/DSS receiver for timer recording. You can also use the
VCR’s remote commander to change channels on the cable box/DSS
receiver whenever the cable box/DSS receiver is turned on even if the
unit’s VCR is turned off. To use cable box control, you need to connect
the Cable Mouse (pages 13 and 25) and set the code number and output
channel.
This unit is programed with codes necessary to control channel selection
on most brands of cable boxes at the time this unit was manufactured. If
you have a cable box that is incompatible with this VCR, contact your
cable operator –– they may be able to provide you with a compatible
cable box.
1 Lift the top cover of the remote commander.
Press MENU. Then press CURSOR >/. to move the cursor (I) to
VHS MENU, and press EXECUTE.
2 Press CURSOR >/. to move the cursor (I) to CABLE BOX
CONTROL and press EXECUTE.
When using the EASY SET UP procedure, skip this step.
3 Press CURSOR ?// to select ON.
4 Close the top cover of the remote commander.
Press the number buttons to enter the cable box/DSS receiver code
number, then press CURSOR ..
Find your cable box/DSS receiver code number from the chart
below.
MENU
EXECUTE
CURSOR
>/./?//
CABLE BOX CONTROL
OFFONCABLE MOUSE
END
SET
:
:
EXECUTE
CABLE BOX CONTROL
OFFON
CABLE MOUSE
BOX CODE NO.
CH3
BOX OUTPUT CH
–––
SET
:
SELECT
:
CABLE BOX CONTROL
OFFON
CABLE MOUSE
BOX CODE NO.
CH3
BOX OUTPUT CH
123
END
SET
:
:
SELECT
:
EXECUTE
continued
A Cable Mouse is available as an optional
accessory for this model. You can order
directly from Sony by calling 1-800-488-7669
and asking for Cable Mouse RM-CM101.
$14.95 + $3.00 (shipping, handling and
aplicable sales tax)
123
456
789
0
>
10
Number
buttons
Getting Started
36
5 If you want to control a cable box, press CURSOR ?// to select
the output channel for the cable box, then press EXECUTE.
If you want to control a DSS receiver, select LINE, then press
EXECUTE.
Cable box and DSS receiver brand and the corresponding code
numbers
If more than one code number is listed, try entering them one by one,
until you come to the correct code for your equipment.
Cable box
brand
ABC
Antronix
Archer
BBT
Cable Star
Cabletenna
Cable time
Century
Citizen
Clyde Cablevision
Colour Voice
Comband
Comtronics
Decsat
Diamond
Eagle Comtronics
Code numbers
018, 022, 024, 028, 217
218
033, 050, 164, 218
278
067
033
172, 282, 388, 459
164
164, 326, 327
097
036, 042
243, 244
051, 071
434
046
051
Cable box
brand
Eastern
Electricord
Electus
Filmnet
Focus
Garrard
GC Electronics
GE
GEC
Gemini
General Instrument
Hamlin
Hitachi
Jasco
Jerrold
Code numbers
013, 285
089
055
454
411
164
027, 067, 341
243, 244
097
026, 068, 081, 253
022, 287, 487
020, 031, 045, 270, 284
022
164, 326
014, 022, 025, 026, 035,
037, 058, 109, 287, 487
Setting up cable box control
(continued)
37
Getting Started
Getting Started
Cable box
brand
Linsay
Macom
Magnavox
Memorex
Movie Time
Northcoast
Novaplex
NSC
Oak
Omniview
Panasonic
Paragon
Philips
Philips ECG
Pioneer
Popular Mechanics
Pulsar
RCA
Realistic
Recoton
Regal
Regency
Rembrandt
RK
Samsung
Satbox
Scientific Atlanta
Seam
Sharp
Signal
Signature
SL Marx
Spectravision
Sprucer
Standard Components
Starcom
Code numbers
451
044
038, 043, 080, 345
011
089, 167, 214
325
629
074, 081, 167, 214
018, 030, 259
382
032, 118
011
036, 038, 039, 040, 041, 042,
071, 301, 345
253
034, 155, 271, 544
411
011
032
218
411
031, 270, 284, 290
013
081
315, 317, 490
051, 155
386
017, 019, 028, 288, 338
521
324
051
022
051
069
032, 318
107, 166
014, 026, 058, 109
Cable box
brand
Stargate
STS
Sylvania
T-Cable Teletext
Tandy
Tatung
Teknica
Tele +1
TeleCaption
Teleservice
Texscan
TFC
Timeless
Tocom
Toshiba
Tudi
TV86
TV COM
Uniden
Unika
United Artists
United Cable
Universal
Videoway
Vidtech
Viewstar
Westminster cable
Zenith
Zentek
Wave Master
Code numbers
026, 051
167
012
116
269
108
157
454
232
292
012, 107
321
429
023, 024, 070
011
297
074
018, 030, 259
236
033, 164, 218
018
014
033, 050, 067, 088, 089, 164,
202, 218, 333
261
255
038, 071, 074, 122, 222, 269,
300
116
011, 065, 536
411
576
DSS receiver
brand
Sony
RCA
Code numbers
650
577
Getting Started
38
Setting up cable box control
(continued)
To ensure correct operation
• Place the Cable Mouse so that it hangs out over the cable box/DSS
receiver front.
• Do not place the cable box/DSS receiver on top of the VCR.
• Position the cable box/DSS receiver away from the VCR.
• Point the remote commander at the VCR, not at the cable box/DSS
receiver.
To check the cable box control setting
1 Press CH +/– on the remote commander. Does the channel indicator
on the cable box/DSS receiver change? (Point the remote
commander at the VCR, not at the cable box/DSS receiver.)
2 Press all 10 number buttons (0 to 9) on the remote commander. Does
the channel indicator on the cable box/DSS receiver change?
If the answer to both 1 and 2 is “yes,” you have made the correct setting.
If you cannot get your unit’s VCR to control the cable box/DSS
receiver
• Check that the Cable Mouse is connected to the CABLE BOX
CONTROL jack on the VCR.
• Check the position of the Cable Mouse.
• Place the cable box/DSS receiver and VCR away from each other. Do
not place the cable box/DSS receiver on top of the VCR.
• Try the setup again making sure to use the correct control code. If the
cable box still does not respond, try the other codes that are listed.
If your cable box still does not operate with the Cable Mouse, contact
your cable company to see if they can provide you with a compatible
cable box.
Note
• Make sure you turn off the VCR when you plug in or unplug the Cable Mouse. If
you unplug the Cable Mouse and plug it in again, turn on the VCR before you use
the cable box/DSS receiver control feature.
123
456
789
0
>
10
: Signal flow
Side view
39
Getting Started
Getting Started
This unit’s VCR is capable of receiving VHF channels 2 to 13, UHF
channels 14 to 69 and unscrambled CATV channels 1 to 125. First, we
recommend that you preset the receivable channels in your area using
automatic presetting. Then, if there are any unwanted channels, disable
them manually. If you have decided which channels you wish to preset,
set them directly using manual presetting.
Before you start…
• Turn on the VCR and the TV.
• Set the TV to the VCR channel (channel 3 or 4). If your TV is
connected to the VCR using V connections, set the TV to video input.
• Press TV/VTR to display the VTR indicator in the VCR’s display
window.
• Press VHS TUNER so that a channel number appears in the VCR’s
display window.
Presetting all receivable channels automatically
1 Press MENU. Then press CURSOR >/. to move the cursor (I) to
VHS MENU, and press EXECUTE.
2 Press CURSOR >/. to move the cursor (I) to TUNER PRESET and
press EXECUTE.
When using the EASY SET UP procedure, skip this step.
3 • To preset cable TV channels:
Press CURSOR ?// to set ANTENNA/CABLE to CABLE.
• To preset VHF and UHF channels:
Press CURSOR ?// to set ANTENNA/CABLE to ANT.
Presetting channels
(Skip this section if you are
using cable box/DSS receiver
control.)
MENU
EXECUTE
CURSOR
>/./?//
TUNER PRESET CH2
CABLEANT
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
ADD / ERASE :
ERASEADD
AFT
OFFON
FINE TUNING
SELECT CH :
0–9,ENTER
TUNER PRESET CH1
CABLEANT
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
ERASEADD
AFT
OFFON
FINE TUNING
SET
:
SELECT
:
TUNER PRESET CH2
CABLEANT
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
ERASEADD
AFT
OFFON
FINE TUNING
SET
:
SELECT
:
continued
Getting Started
40
Presetting channels
(continued)
4 Press CURSOR >/. to select AUTO PRESET then press EXECUTE.
All receivable channels are preset in numerical sequence. When no more
receivable channels can be found, presetting stops and the picture from
the lowest numbered channel is displayed on the TV screen.
Tip
• When receiving a VHF, UHF or CATV channel, the display changes as follows
each time you press the DISPLAY button.
Channel number, sound field mark and muting mark
No display
TUNER PRESET CH2
CABLEANT
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
ERASEADD
AFT
OFFON
FINE TUNING
START
:
EXECUTE
,
41
Getting Started
Getting Started
Presetting/disabling channels manually
1 Press MENU. Then press CURSOR >/. to move the cursor (I) to
VHS MENU, and press EXECUTE.
2 Select TUNER PRESET.
3 • To preset a channel:
1 Press the number buttons to enter the channel number, then press
ENTER.
2 Press CURSOR ?// to set MANUAL SET to ADD.
• To disable a channel:
1 Press CH/PRESET +/– to select the channel number.
2 Press CURSOR ?// to set MANUAL SET to ERASE.
4 Repeat step 3 to preset or disable channels as required, then press
EXECUTE.
TUNER PRESET CH2
CABLEANT
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
ADD / ERASE :
ERASEADD
AFT
OFFON
FINE TUNING
SELECT CH :
0–9,ENTER
TUNER PRESET CH5
CABLEANT
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
ERASEADD
AFT
OFFON
FINE TUNING
ADD / ERASE :
SELECT CH :
0–9,ENTER
TUNER PRESET CH5
CABLEANT
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
ERASEADD
AFT
OFFON
FINE TUNING
ADD / ERASE :
SELECT CH :
0–9,ENTER
MENU
EXECUTE
CURSOR
>/./?//
123
456
789
0
>
10
Number
buttons,
ENTER
CH/PRESET
+/–
Getting Started
42

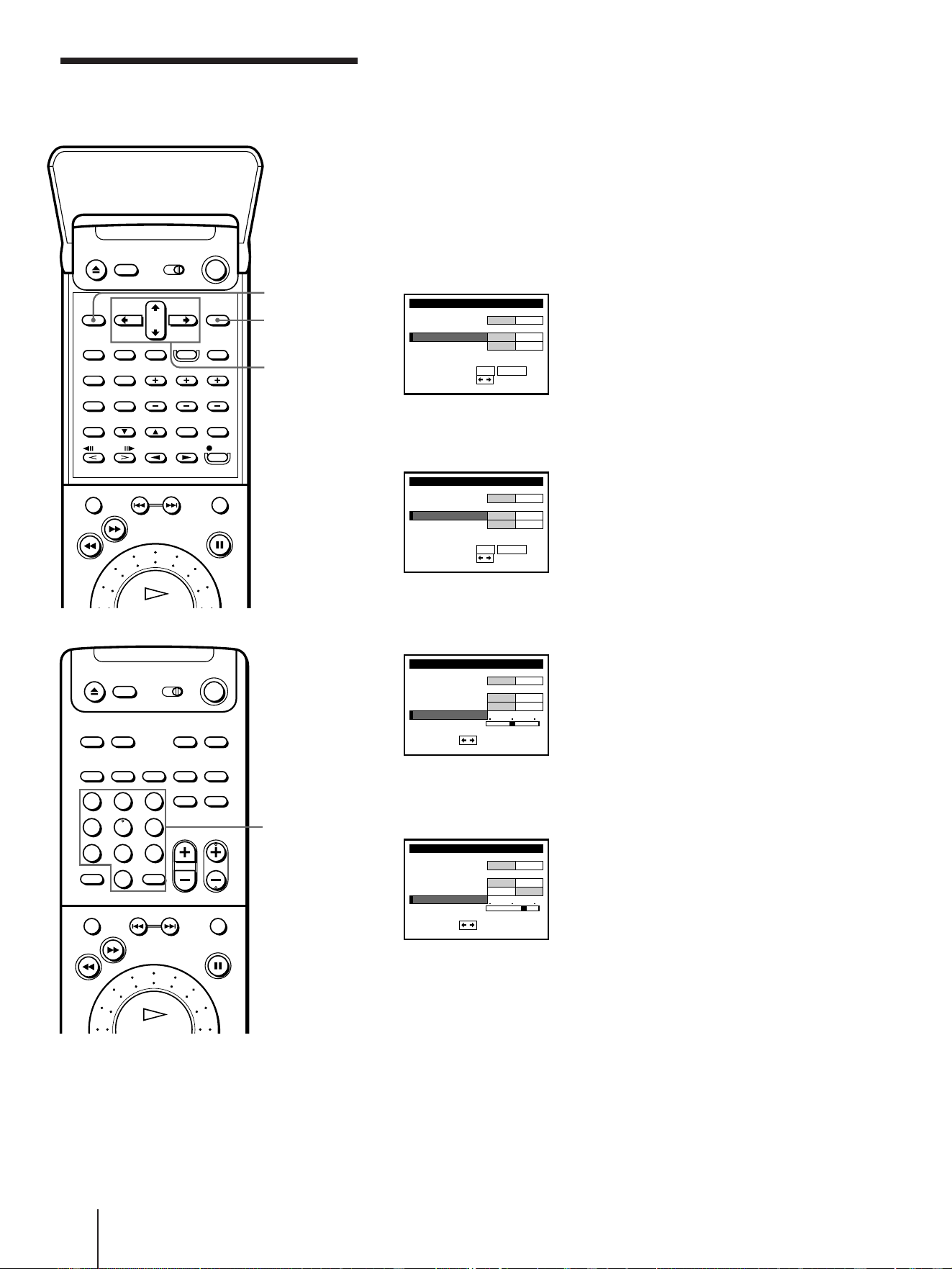

Presetting channels
(continued)
If the picture is not clear
Normally, the Auto Fine Tuning (AFT) function automatically tunes in
channels clearly. If, however, the picture of a channel is not clear, you
can also use the manual tuning function.
1 Press MENU. Then press CURSOR >/. to move the cursor (I) to
VHS MENU, and press EXECUTE.
2 Select TUNER PRESET.
3 Press the number buttons to select the channel you want to fine-tune,
then press ENTER.
4 Press CURSOR >/. to select FINE TUNING.
The fine tuning meter appears.
5 Press CURSOR ?// to adjust to a clearer picture.
Note that the AFT setting switches to OFF.
TUNER PRESET CH2
CABLEANT
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
ADD / ERASE :
ERASEADD
AFT
OFFON
FINE TUNING
SELECT CH :
0–9,ENTER
TUNER PRESET CH5
CABLEANT
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
ERASEADD
AFT
OFFON
FINE TUNING
ADD / ERASE :
SELECT CH :
0–9,ENTER
ADJUST :
TUNER PRESET CH5
CABLEANT
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
ERASEADD
AFT
OFFON
FINE TUNING
TUNER PRESET CH5
CABLEANT
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
ERASEADD
AFT
OFFON
FINE TUNING
ADJUST :
MENU
EXECUTE
CURSOR
>/./?//
123
456
789
0
>
10
Number
buttons,
ENTER
43
Getting Started
Getting Started
Setting up VCR Plus+
How VCR Plus+ works
Whenever you want to record a TV program, all you need to do is look
up the program’s “PlusCode,” a number assigned to each program
that’s published in the TV section of most newspapers, cable TV listings,
and even TV GUIDE magazine. Then, just enter the PlusCode of the
program you want and the VCR is automatically programmed to record
that show. It’s that simple.
How to set up your unit’s VCR
Setting up your VCR involves coordinating the TV channel number (the
number you turn to on your TV or VCR to watch a program) with the
guide channel (the number that’s assigned to that channel in your
program guide). To get the guide channel numbers, find the “Channel
Line-up Chart” in the program guide for your area that features VCR
PlusCodes. It usually looks like the example below.
For each channel your VCR receives, use the Channel Line-up Chart to
check that the channel numbers match. For example, if HBO is listed in
the Channel Line-up Chart on channel 33, and your VCR receives HBO
on channel 5, you need to coordinate these numbers using the following
procedure. For channels in which the numbers are the same, you can
skip this procedure.
Example of “PlusCode”
Example of “Channel Line-up Chart”
5:30
6:30
PlusCode
14
2
CNN
23
4
5
SCIENCE AND TECHNOLOGY
(1hr. 15min.) 73457
DRAMA
WS 9974
SPORT
MOVIE Musical (2hrs.)
33044
Golf (1hr. 25min.) 42060
Comedy (2hrs.) 17390
SAMPLE
CABLE TV
AMC
BRV
CNN
CSP
DIS
DSC
ESN
FAM
HBO
LIF
MAX
MTV
NIK
SC
SCA
SHO
TBS
TMC
TNN
TNT
USA
VCR Plus+
GUIDE CH
35
54
42
28
53
37
34
47
33
46
45
48
38
59
70
41
43
58
49
52
44
American Movie Classics
Bravo (program grid only)
Cable News Network
C-SPAN
The Disney Channel
The Discovery Channel
ESPN
The Family Channel
Home Box Office
Lifetime
Cinemax
Music Television
Nickelodeon
Sports Channel
Sports Channel America
Showtime
TBS SuperStation
The Movie Channel
The Nashville Network
Turner Network Television
USA Network
CABLE
CH
16
17
20
21
22
25
34
35
5
27
29
31
38
39
45
17
44
49
50
51
30
Getting Started
44
Setting up VCR Plus+
(continued)
1 Press MENU. Then press CURSOR >/. to move the cursor (I) to
VHS MENU, and press EXECUTE.
2 Move the cursor (I) to SET VCR Plus+ CHANNELS and press
EXECUTE.
3 Enter the channel number assigned in the program guide and press
ENTER.
4 • If you made Hookup 1, 2 or 3: Enter the actual number on your TV
(and VCR) and press ENTER.
• If you made Hookup 4: Enter the cable output channel (usually 2,
3 or 4) and press ENTER.
• If you made Hookup 6: Enter the actual number on your TV (and
VCR) for an unscrambled channel and press ENTER. For a
scrambled channel, enter the cable box output channel (usually 2,
3 or 4) and press ENTER.
5 Repeat steps 3 and 4 for each channel whose numbers don’t match.
6 When you have set all channels, press EXECUTE to confirm your
channel settings.
7 When you’ve finished, press MENU to exit.
123
456
789
0
>
10
Number
buttons,
ENTER
MENU
EXECUTE
CURSOR
>/./?//
SET VCR Plus+ CHANNELS
GUIDE
VCR Plus+ CHANNEL LIST
Or to
CH TV CH
–– – ––
Push 0–9 keys to set
P r og r am GUIDE CH
,
push
see
EXECUTE
y
Then push
ou r TV CH
SET VCR Plus+ CHANNELS
GUIDE CH TV CH
33 – 33
Push 0–9 keys to set
ENTER
SET VCR Plus+ CHANNELS
GUIDE CH TV CH
33 – 5
VCR Plus+ CHANNEL LIST
Or to
Push 0–9 keys to set
P r og r am GUIDE CH
,
push
see
EXECUTE
SET VCR Plus+ CHANNELS
GUIDE CH TV CH
33 – 3
VCR Plus+ CHANNEL LIST
Or to
Push 0–9 keys to set
P r og r am GUIDE CH
,
push
see
EXECUTE
GUIDE TV
2–73
5– 4
7–55
8– 9
3– 5
1
2
3
GUIDE TV
9–47
1– 3
7–35
6– 0
0–22
7
8
9
5
6
21
Pus h
to quit
Use to change page
SET VCR Plus+ CHANNELS
p1age
MENU
45
Getting Started
Getting Started
You can preset up to 30 FM or AM stations so that you don’t have to
tune in the station every time. The preset numbers are combined 3
characters (A, B, C) and numbers (0-9). For example, you can store a
station as preset number A1, B6, or C9, etc.
1 Press AUDIO repeatedly until “FM” or “AM” appears (or press
TUNER on the remote).
2 Press TUNING MODE repeatedly until “AUTO” appears.
3 Press FM/AM to select “FM” or “AM”.
4 Turn the Shuttle ring clockwise or anticlockwise.
Turn it clockwise for a higher station number; turn it anticlockwise
for a lower one. The frequency indication changes and scanning
stops when the unit tunes in a station.
5 Press MEMORY.
The MEMORY menu appears on the TV screen while MEMORY
appears in the display window.
6 Press SHIFT to select a character.
Each time you press SHIFT, the character “A”, “B” or “C” appears in
the display window.
If “MEMORY” disappears, start again from step 3.
7 While MEMORY is displayed, press the CH/PRESET +/– to select
the number and press MEMORY.
8 Repeat steps 2 through 5 to preset other stations.
Presetting radio
stations
Tips
• If the STEREO indicator
remains off, press FM
MODE when an FM stereo
broadcast is received.
• If an FM stereo program is
distorted, the STEREO
indicator flashes. Press FM
MODE to change to
monaural (MONO). You
will not have the stereo
effect but the distortion will
be reduced. To return to
stereo mode, press this
button again.
continued
AUTO TRACKING
SP
MHz
AUTO
AUTO TRACKING
SP
kHz
AUTO
Shuttle ring
AUDIO
FM MODE
TUNING
MODE
MEMORY
SHIFT
CH/PRESET +/–
FM/AM
123
456
789
0
>
10
TUNER
Shuttle ring
MEMORY
A1
A2
A3
A4
A5
FM
AM
FM
90 . 00
6901
89 . 50
A6
A7
A8
A9
A0
FM
FM
10 . 00
05 . 50
1
1
FM
02 . 501
MEMORY
A1
SELECT
:
MEMORY
SET
:
FM
102.50MHz
A2
A3
A4
A5
FM
AM
FM
90 . 00
6901
89 . 50
A6
A7
A8
A9
A0
FM
FM
10 . 00
05 . 50
1
1
SHIFT
+ –
MHz
MEMORY
AUTO
Getting Started
46

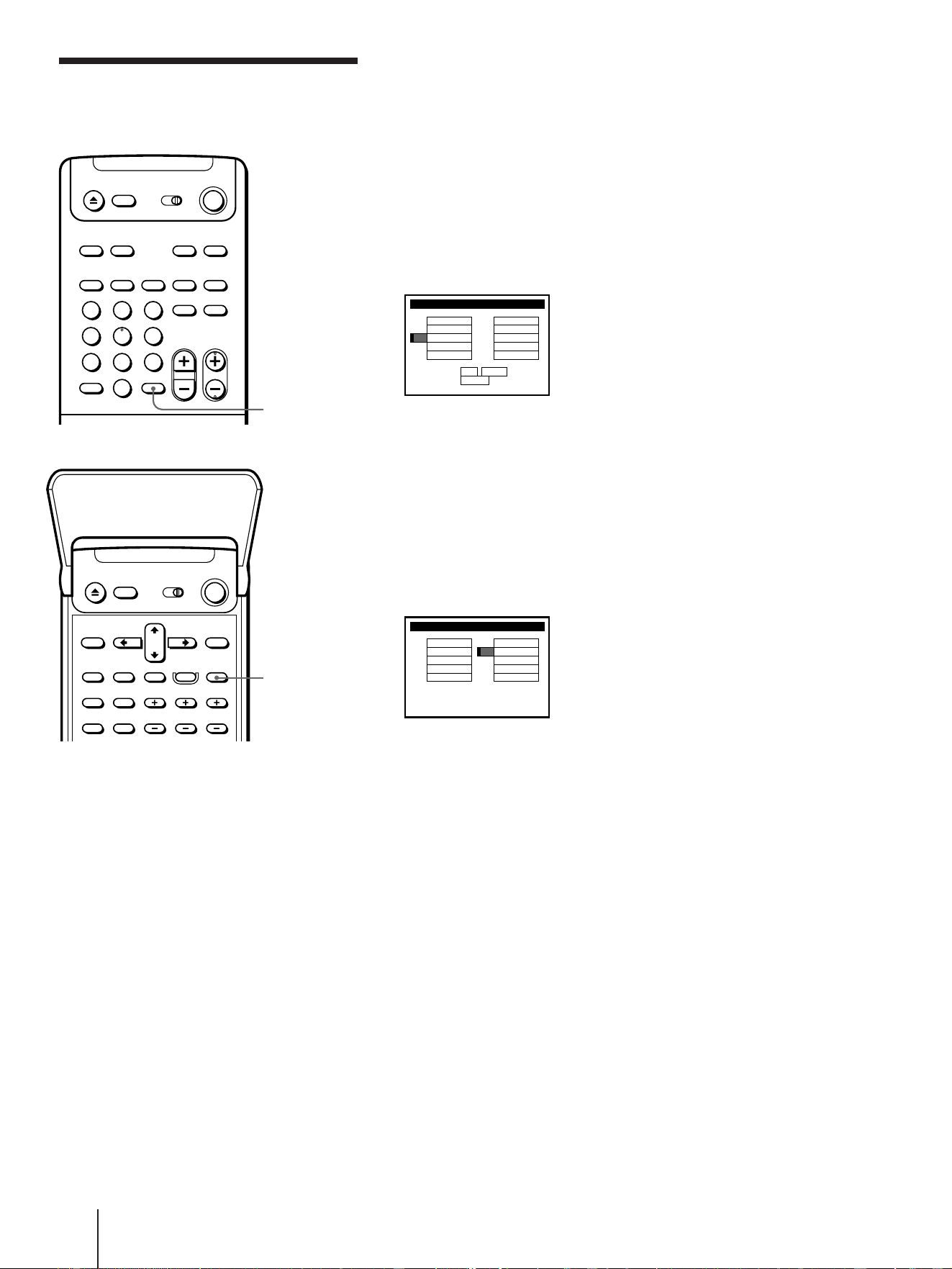

To tune in a station with a weak signal
1
Press TUNING MODE repeatedly until “MANUAL” appears in step 2.
2 Press FM/AM to select “FM” or “AM”.
3 Turn the Shuttle ring clockwise or anticlockwise until your desired
station is tuned in.
To check preset stations
If you don’t know which stations are preset on which numbers, you can
display the list of preset stations on the TV screen. Press ENTER. Then,
press SHIFT while FM/AM TUNER LIST appears.
To change a preset station
Preset a new station on the number you want to change.
To erase the memory of the preset number
1 Press CH/PRESET +/– to select the preset number you want to
erase.
2 Press MEMORY.
3 While MEMORY is displayed, press TIMER CLEAR.
Presetting radio stations
(continued)
FM / AM TUNER LIST
A1
SET
:
ENTER
QUIT
:
A2
A3
A4
A5
FM
AM
FM
90 . 00
6901
89 . 50
A6
A7
A8
A9
A0
FM
FM
10 . 00
05 . 50
1
1
FM
02 . 501
SHIFT
+ –
MEMORY
A1
A2
A3
A4
A5
FM
AM
FM
90 . 00
6901
89 . 50
A6
A7
A8
A9
A0
FM
05 . 501
FM
02 . 501
Preset data i s erased
123
456
789
0
>
10
ENTER
TIMER
CLEAR
47
Basic VCR / Radio Operations
Basic VCR / Radio Operations
Playing a video tape
MASTER VOLUME
Tips
• The unit turns on if you
insert a tape while the
power is off.
• The counter resets to
“0H00M00S” whenever a
tape is inserted.
Note
• The unit’s sound won’t be
reproduced through the TV
unless the speaker
connectors or TAPE/MD
REC OUT jacks are
connected to the TV.
Normally, the speakers
connected to the unit
reproduce the sound.
Before you start...
• Turn MASTER VOLUME to the leftmost position (0) to avoid
damaging your speakers.
1 Press VHS TUNER.
• If the TV doesn’t turn on, turn it on
manually.
• If connected with only the antenna
cable, set the TV to the video channel.
2 Insert a video tape.
The unit’s VCR starts playing
automatically if you insert a tape with
its safety tab removed.
3 Press · PLAY.
When the tape reaches the end, it will
rewind automatically.
4 Press MASTER VOL +/– on the
remote commander to adjust the
volume.
Additional tasks
To
Stop play
Pause play
Resume play after pause
Search forward
Search backward
Fast-forward the tape
Rewind the tape
Eject the tape
Press
p STOP
P PAUSE
P PAUSE or · PLAY
During playback, press and hold ) FF.
To resume normal playback, release the button.
During playback, press and hold 0 REW.
To resume normal playback, release the button.
) FF during stop
0 REW during stop
6 EJECT
123
456
789
0
>
10
p STOP
· PLAY
P PAUSE
MASTER VOL
+/–
)FF
To skip playback
You can skip a portion of playback you don’t want to watch such as a
commercial and restart playback by pressing a single button.
Press SMART CUE during playback of s scene you want to skip. The
VCR starts searching.
Press SMART CUE again when you find the scene you want to watch.
The VCR stops searching, rewinds a few seconds, then resumes normal
playback.
continued
VHS TUNER
0REW
SMART CUE
6 EJECT
Basic VCR / Radio Operations
48

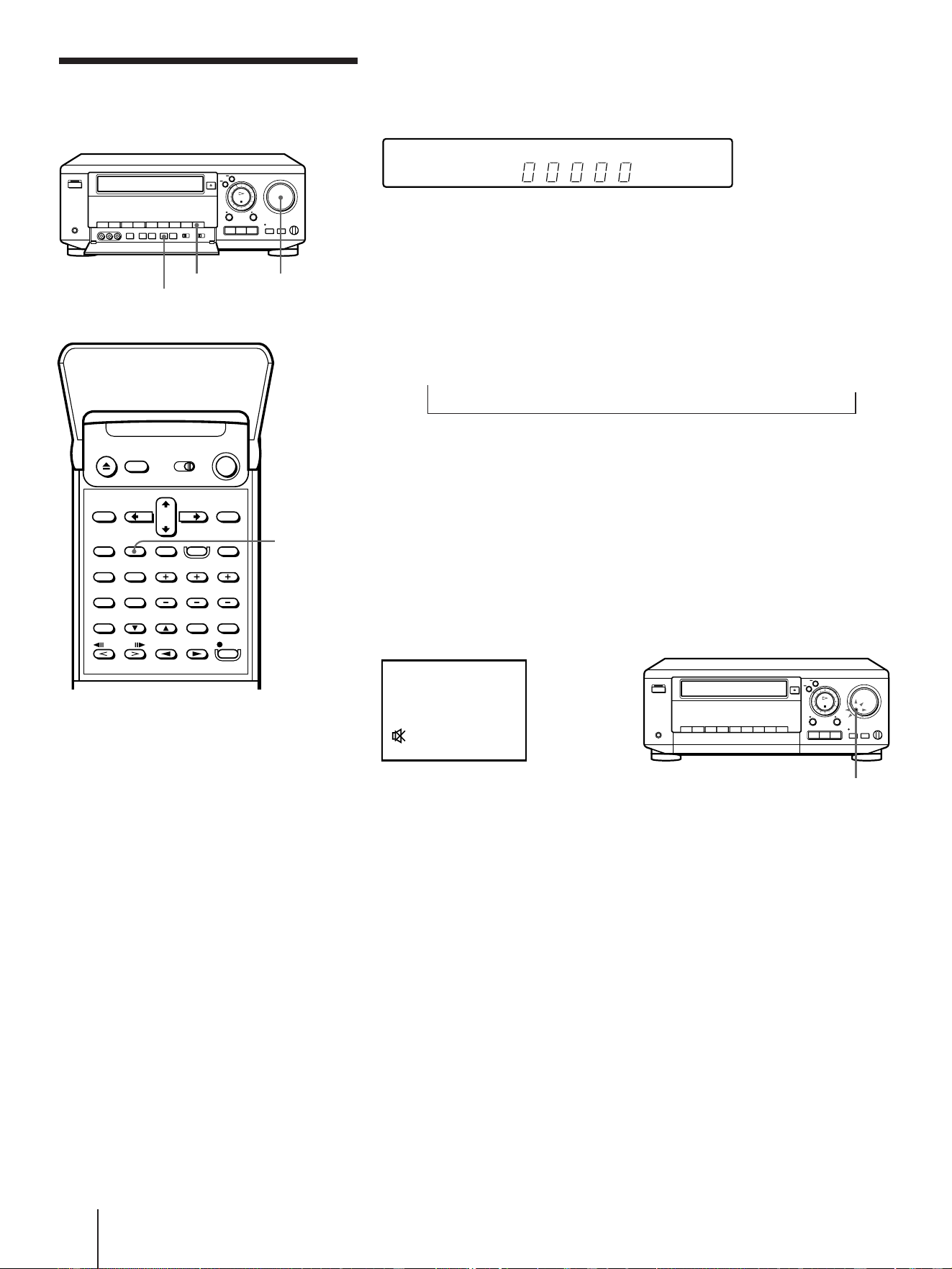

To use the time counter
At the point on the tape that you want to find later, press COUNTER
RESET. The counter in the display window resets to “0H00M00S.”
To display the time counter on the TV screen, press DISPLAY.
To change the information in the display window
Press STATUS repeatedly.
Each press changes the indication in the following way:
Current time n Counter n Tape remaining time n Operating function n Sound field
(See page 49 and 75.)
Regardless of the selected indication, the operational function and
selected sound field appears in the display window momentarily. To
display only the indication selected with the STATUS button, set
INDICATION in the ADVANCED OPTIONS to OFF (see page 89).
To mute the sound
Press MUTING on the remote commander or unit. The muting mark
appears on the TV screen if the on-screen display function is on, and the
MASTER VOLUME indicator on the unit flashes.
To restore the sound, press MUTING again.
Basic VCR / Radio Operations
Playing a video tape
(continued)
HMS
n
MASTER VOLUME indicator
STATUS
COUNTER
RESET
MASTER
VOLUME
DISPLAY
Notes
• Tapes recorded in the LP
mode on other VCRs can be
played back on this VCR but
the picture quality cannot be
guaranteed.
• The counter stops counting
when it comes to an
unrecorded portion.
• If the muting mark doesn’t
appear on the TV screen,
press DISPLAY.
49
Basic VCR / Radio Operations

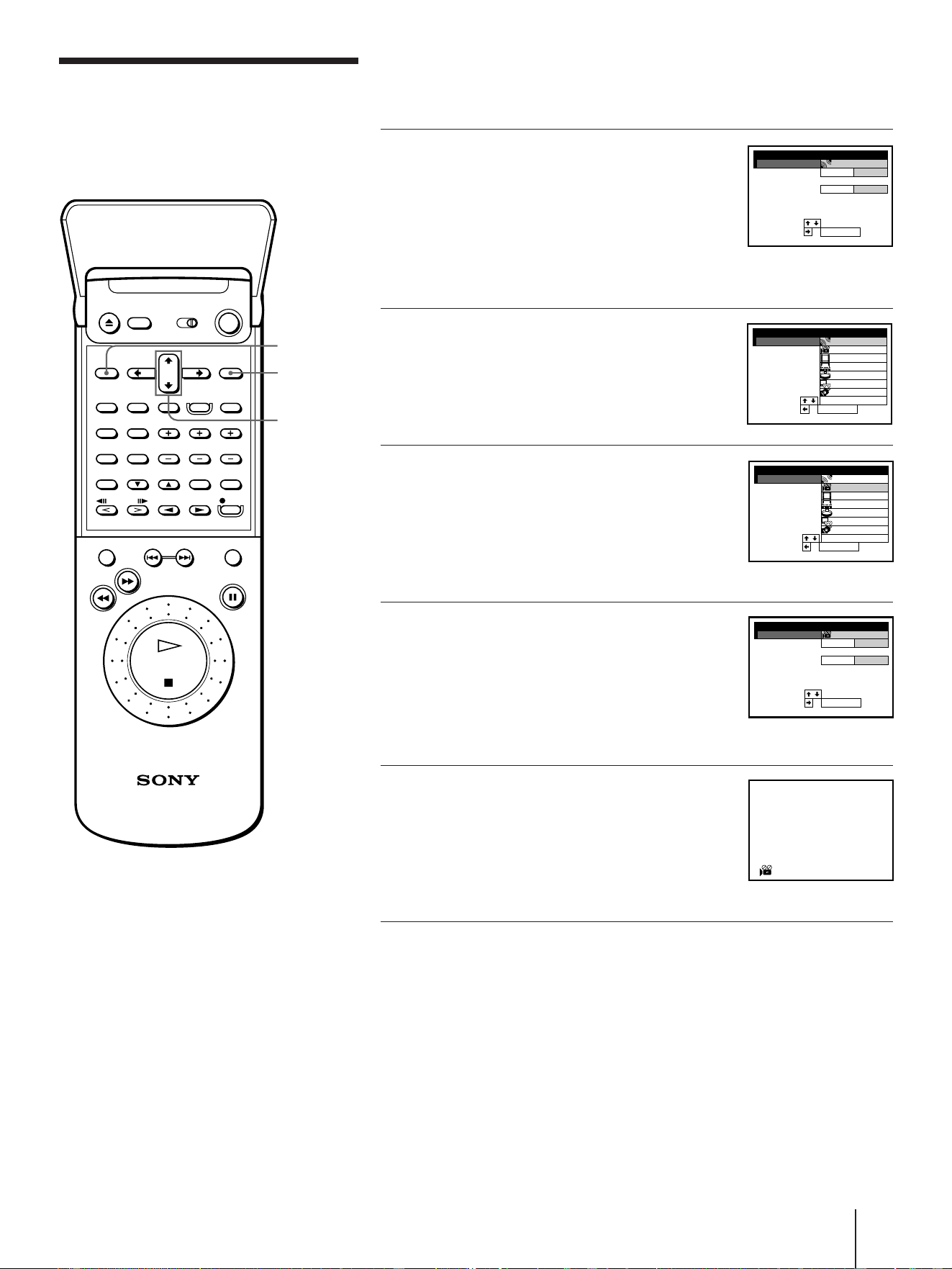

Using the pre-
programed sound
fields
You can enjoy the surround sound effect by simply selecting one of the
pre-programed sound fields according to the type of playback source.
1 Lift the top cover of the remote
commander.
While playing any source, press
MENU. Then press CURSOR >/. to
move the cursor (I) to SOUND SET,
and press EXECUTE.
2 Press CURSOR >/. to move the
cursor (I) to SOUND FIELD and
press EXECUTE (or CURSOR /).
The current sound field mark is
highlighted.
3 Press CURSOR >/. to highlight the
most suitable sound field for the
playback source.
See “Taking advantage of the sound
fields” on page 75 for details on
selecting a suitable sound field.
4 Press EXECUTE (or CURSOR ?).
The customizing menu for the selected
sound field appears.
If you want to customize the sound
field, see “Customizing the sound
fields” on page 78.
5 Press MENU to return to the
original screen.
The selected sound field mark appears
on the TV screen if the display function
is on (see “To check the remaining tape
length” on the next page).
MENU
EXECUTE
CURSOR
>/.
SET
SELECT
:
:
SOUND SET
SOUND FIELD
ON
LEVEL
OFF
DELAY
TONE EDIT
BASS BOOST
SUR EDIT
PRO LOGIC
CENTER MODE
TEST TONE
EXECUTE,
RETURN
SET
:
SOUND SET
SOUND FIELD
THEATER
MONO MOVIE
HALL
STADIUM
GAME
ACOUSTIC
SF OFF
PRO LOGIC
:
EXECUTE
,
RETURN
SET
:
:
EXECUTE
,
SOUND SET
SOUND FIELD
THEATER
MONO MOVIE
HALL
STADIUM
GAME
ACOUSTIC
SF OFF
PRO LOGIC
SET
SELECT
:
:
SOUND SET
SOUND FIELD
ON
LEVEL
OFF
EFFECT
TONE EDIT
BASS BOOST
SUR EDIT
THEATER
CENTER MODE
EXECUTE,
Basic VCR / Radio Operations
50

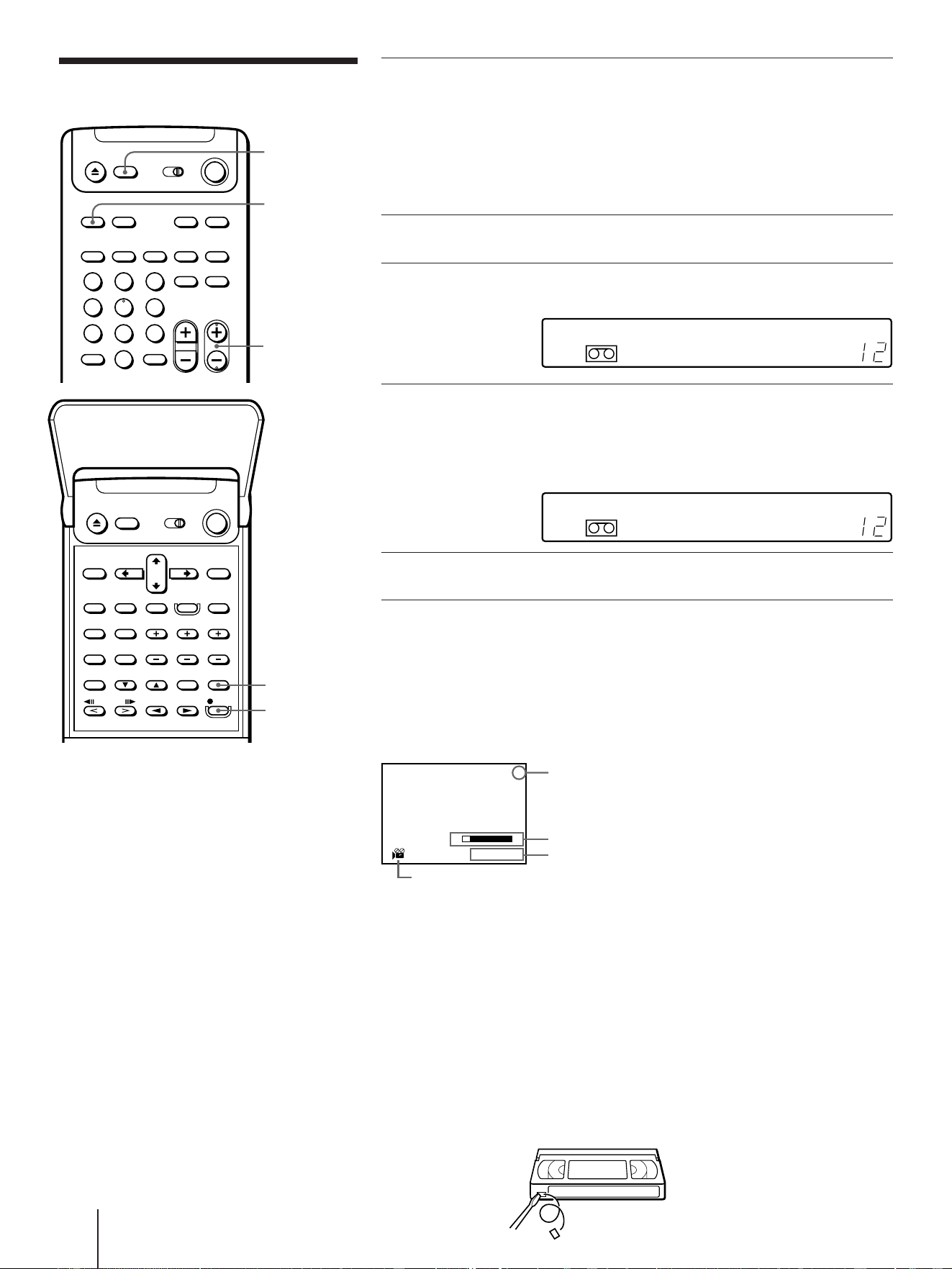

Recording TV programs
1 Press VHS TUNER.
• If the TV doesn’t turn on or the LINE 1 is not selected on the TV,
turn it on manually.
• If connected with only the antenna cable, set the TV to the video
channel.
• To record from a cable box, turn it on.
2 Insert a tape with its safety tab in place.
3 Press CH/PRESET +/– to select the channel you want to
record.
4 Lift the top cover of the remote commander and press
TAPE SPEED to select the tape speed, SP or EP.
EP provides recording time three times as long as SP, however, SP
produces better picture and audio quality.
5 Press r REC to start recording.
123
456
789
0
>
10
CH/PRESET +/–
Tips
•
To select a channel, you can use
the number buttons and ENTER
on the remote commander.
• You can select a video source
(e.g. a DSS receiver, etc.)
connected to the LINE IN jacks
by pressing VHS LINE
repeatedly, until “LINE” is
displayed on the TV screen.
• Information about the tape
appears on the TV screen, but
the information won’t be
recorded on the tape.
• If you don’t want to watch TV
while recording, you can turn
off the TV. When using a cable
box, be sure to leave it on.
• You can enjoy watching or
listening to another input
source even while recording.
Note
• The display does not appear
during still (pause) mode or
slow-motion playback.
TAPE SPEED
(SP/EP)
r REC
SP
VTR
EP
VTR
To stop recording
Press p STOP.
To check the remaining tape length
Press DISPLAY. The display function turns on. The white bar indicates
the approximate length of tape remaining.
To watch another TV program while recording
1 Press TV/VTR to clear the VTR indicator in the display window.
2 If the TV is connected to the MONITOR VIDEO OUT jacks, set the
TV to TV input; if not, skip this step.
3 Press TV CONTROL ON on the remote commander.
4 Select another channel on the TV.
To save a recording
To prevent accidental erasure, break off the safety tab as illustrated. To
record on that tape again, cover the tab hole with adhesive tape.
S
0 : 00 : 22
E
1
Sound field mark (See page 49.)
Channel/Input source
indication (See page 59.)
Remaining tape length
Time counter
Safety tab
VHS TUNER
TV CONTROL
ON
51
Basic VCR / Radio Operations
Recording TV
programs using VCR
Plus+
Tip
• To cancel the procedure,
press VCR Plus+ before
pressing ENTER.
Note
• If the unit’s VCR beeps
repeatedly, the Plus Code is
incorrect.
Just enter the program’s Plus Code listed in the TV program guide. The
date, times and channel number of that program are set automatically.
You can preset up to eight programs at a time.
Before you start…
• Check that the unit’s clock is set to the correct time.
• Insert a tape with its safety tab in place. Make sure the tape is longer
than the total recording time.
• Press VHS TUNER.
– If the TV doesn’t turn on or the LINE 1 is not selected on the TV,
turn it on manually.
– If connected with only the antenna cable, set the TV to the video
channel manually.
– When using a cable box, turn it on.
1 Press VCR Plus+.
2 Press the number buttons to enter
the program’s Plus Code.
If you make a mistake, press TIMER
CLEAR and enter the correct number.
3 Lift the top cover of the remote
commander, then press TAPE
SPEED to select SP or EP.
4 Press CURSOR ?// to select
ONCE, DAILY or WEEKLY.
Number
buttons
TIMER REC
ON/OFF
TIMER
CLEAR
TAPE SPEED
(SP/EP)
continued
VCR Plus+
TAPE
PlusC deo
SPEED
SP
69147782 –
CONFIRM
:
:CANCEL
TIMER CLEAR
SELECT :
SET
ONCE DA WEEKLYILY
VCR Plus+
TAPE
PlusC deo
SPEED
EP
69147782 –
CONFIRM
:
:CANCEL
TIMER CLEAR
SELECT :
SET
ONCE DA WEEKLYILY
VCR Plus+
TAPE
PlusC deo
SPEED
EP
69147782 –
CONFIRM
:
:CANCEL
TIMER CLEAR
SELECT :
SET
ONCE DA WEEKLYILY
To record Select
Only once ONCE
Everyday Monday to Friday
DAILY
Once a week WEEKLY
VCR Plus+
SP
SET
:
:
TAPE
–
P
0–9
SP / EP TAPE SPEED
––––––––
lusC deo
SPEED
keys
SET
VCR Plus+
123
456
789
0
>
10
Basic VCR / Radio Operations
52
Recording TV programs using
VCR Plus+ (continued)
5 Close the top cover of the remote
commander, then press SET to
confirm.
The date, start and stop times, channel
number, and tape speed appear on the
TV screen.
If the information is not correct, press
TIMER CLEAR to cancel the setting.
6 To enter another setting, repeat
steps 1 through 5.
7 Press TIMER REC ON/OFF.
The TIMER indicator appears in the
display window and the unit’s VCR
stands by for timer recording.
The picture switches to the video source.
To record from a DSS receiver or other
source, leave the connected equipment
switched on.
Tip
• TIMER REC on the unit has
the same function as TIMER
REC ON/OFF on the
remote commander.
Note
• If you selected any audio
input while watching the
unit’s VCR picture before
the unit’s VCR enters
recording standby, only the
picture switches to the TV
after you press TIMER REC
ON/OFF.
To stop recording
To stop the unit‘s VCR while recording, press TIMER REC ON/OFF.
To record satellite broadcasts
If you connect a DSS receiver and the unit, you can record satellite
programs.
1 Turn on the DSS receiver.
2 Press VHS LINE (if the DSS receiver is connected to the unit with the
LINE jacks).
3 On the DSS receiver, select the satellite program for which you wish
to make a timer setting.
4 Repeat the steps 1 through 7 starting on page 51.
5 Keep the DSS receiver turned on until the unit’s VCR finishes the
timer recording.
VCR Plus+
TAPE
PlusC deo
SPEED
EP69147782 –
CANCEL
RECORDI NG T IME
:
DATE START STOP CH
SP
2500
10
:
0080/
TUE12
1
PM PM
: TIMER CLEAR
53
Basic VCR / Radio Operations
Using the unit after setting the timer
You can use the unit to select and listen to or watch other input sources
(see “Audio/Video Equipment Operations” from page 59) during timer
recording standby and timer recording.
To use the unit’s VCR before a timer recording begins, just press TIMER
REC ON/OFF. The TIMER indicator turns off and the unit’s VCR
switches on. Remember to press TIMER REC ON/OFF again to reset
the timer after using the unit‘s VCR.
You can also do the following VCR related tasks while the unit’s VCR is
recording:
• Reset the counter.
• Display tape information on the TV screen.
• Check the timer settings.
Basic VCR / Radio Operations
54

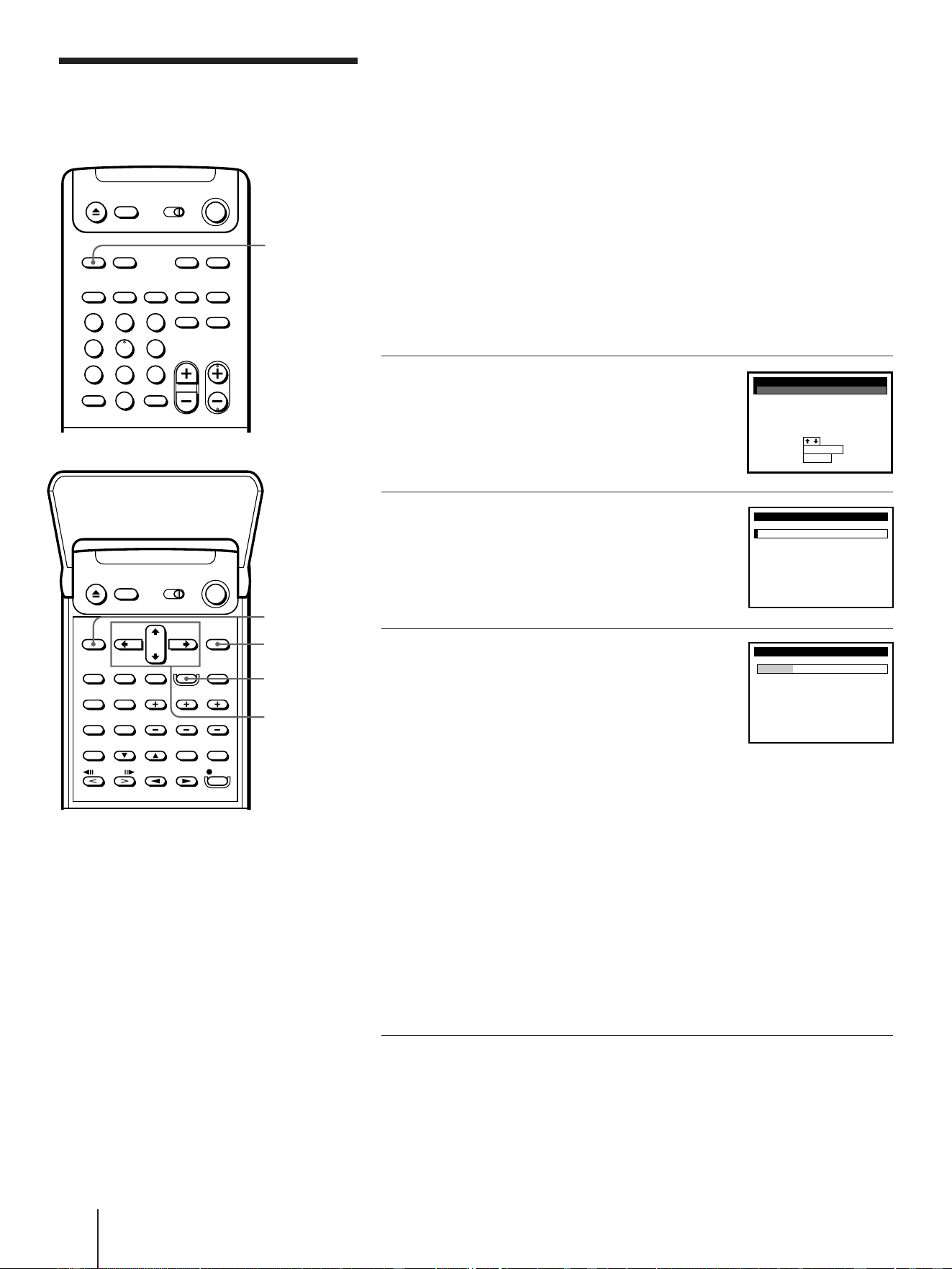

Setting the timer
manually
If VCR Plus+ is not available in your area, follow the instructions below
to set the timer to record programs.
Before you start…
• Check that the unit’s clock is set to the correct time.
• Insert a tape with its safety tab in place. Make sure the tape is longer
than the total recording time.
• Press VHS TUNER.
– If the TV doesn’t turn on or the LINE 1 is not selected on the TV,
turn it on manually.
– If connected with only the antenna cable, set the TV to the video
channel.
• When using a cable box, turn it on.
1 Lift the top cover of the remote
commander.
Press MENU. Then press CURSOR
>/. to move the cursor (I) to VHS
MENU, and press EXECUTE.
2 Press CURSOR >/. to move the
cursor (I) to TIMER SET/CHECK,
then press EXECUTE.
3 Set the date, start and stop times,
channel number, and tape speed:
1 Press CURSOR / to highlight each
item in turn.
2 Press CURSOR >/. to set each item.
To correct a setting, press CURSOR
? to return to that setting and reset.
To record the same program every
day or on the same day every week,
press CURSOR . while the date is
highlighted. For details, see “Daily/
weekly recording” on the next page.
To record from a DSS receiver or
other source connected to the LINE
jacks, press CURSOR >/. in the
“CH” column repeatedly to display
“LINE.”
4 Press CURSOR / to confirm the
setting.
The cursor (I) appears at the beginning
of the line. To enter another setting,
move the cursor to the next line and
repeat step 3.
123
456
789
0
>
10
Tip
• To set the channel, you can
also use the CH/PRESET +/
– or number buttons.
Notes
• “TIMER” flashes in the
display window if you press
TIMER REC ON/OFF with
no tape inserted.
• You can only timer record
TV programs from the
unit’s VCR tuner, or LINE
input sources.
CURSOR
>/./?//
TIMER REC
ON/OFF
EXECUTE
MENU
VHS MENU
ADVANCED OPTIONS
CLOCK SET
TUNER PRESET
TIMER SET / CHECK
CABLE BOX CONTROL
SET VCR Plus+ CHANNELS
QUIT
SET
:
:
SELECT
:
EXECUTE
MENU
:
SP
–––––
:
–––/
12
9
:
––––––
:
––––/––
:
––––––
:
––––/––
:
––––––
:
––––/––
:
––––––
:
––––/––
:
––––––
:
––––/––
:
––––––
:
––––/––
:
––––––
:
––––/––
TIMER SET / CHECK 2 /
MON
DATE START STOP CH
19
MON
TIMER SET / CHECK
:
2/
MON
DATE START STOP CH
––––––
:
––––/–
19
–
:
––––––
:
––––/––
:
––––––
:
––––/––
:
––––––
:
––––/––
:
––––––
:
––––/––
:
––––––
:
––––/––
:
––––––
:
––––/––
:
––––––
:
––––/––
VHS TUNER
55
Basic VCR / Radio Operations
5 Press EXECUTE.
6 Press TIMER REC ON/OFF.
The TIMER indicator appears in the
display window and the unit’s VCR
stands by for recording.
The picture and sound switch to the
video source.
To record from a DSS receiver or other
source, leave the connected equipment
switched on.
To stop recording
To stop the unit’s VCR while recording, press TIMER REC ON/OFF.
Daily/weekly recording
In step 3 above, press CURSOR . in the “DATE” column to select the
recording pattern. Each time you press CURSOR ., the indication
changes as shown below.
Using the unit after setting the timer
You can use the unit to select and listen to or watch other input sources
(see “Audio/Video Equipment Operations” from page 59) during timer
recording standby and timer recording.
To use the unit’s VCR before a timer recording begins, just press TIMER
REC ON/OFF. The TIMER indicator turns off and the unit’s VCR
switches on. Remember to press TIMER REC ON/OFF again to reset
the timer after using the unit‘s VCR.
You can also do the following VCR related tasks while the unit’s VCR is
recording:
• Reset the counter.
• Display tape information on the TV screen.
• Check the timer settings.
Note
• If you selected any audio
input while watching the
unit’s VCR picture before
the unit’s VCR enters
recording standby, only the
picture switches to the video
source after you press
TIMER REC ON/OFF.
the current date n SUN-SAT n MON-SAT n MON-FRI n EVERY SAT .....
n EVERY MON n EVERY SUN n 1 month later n (dates count down)
n the current date
Basic VCR / Radio Operations
56

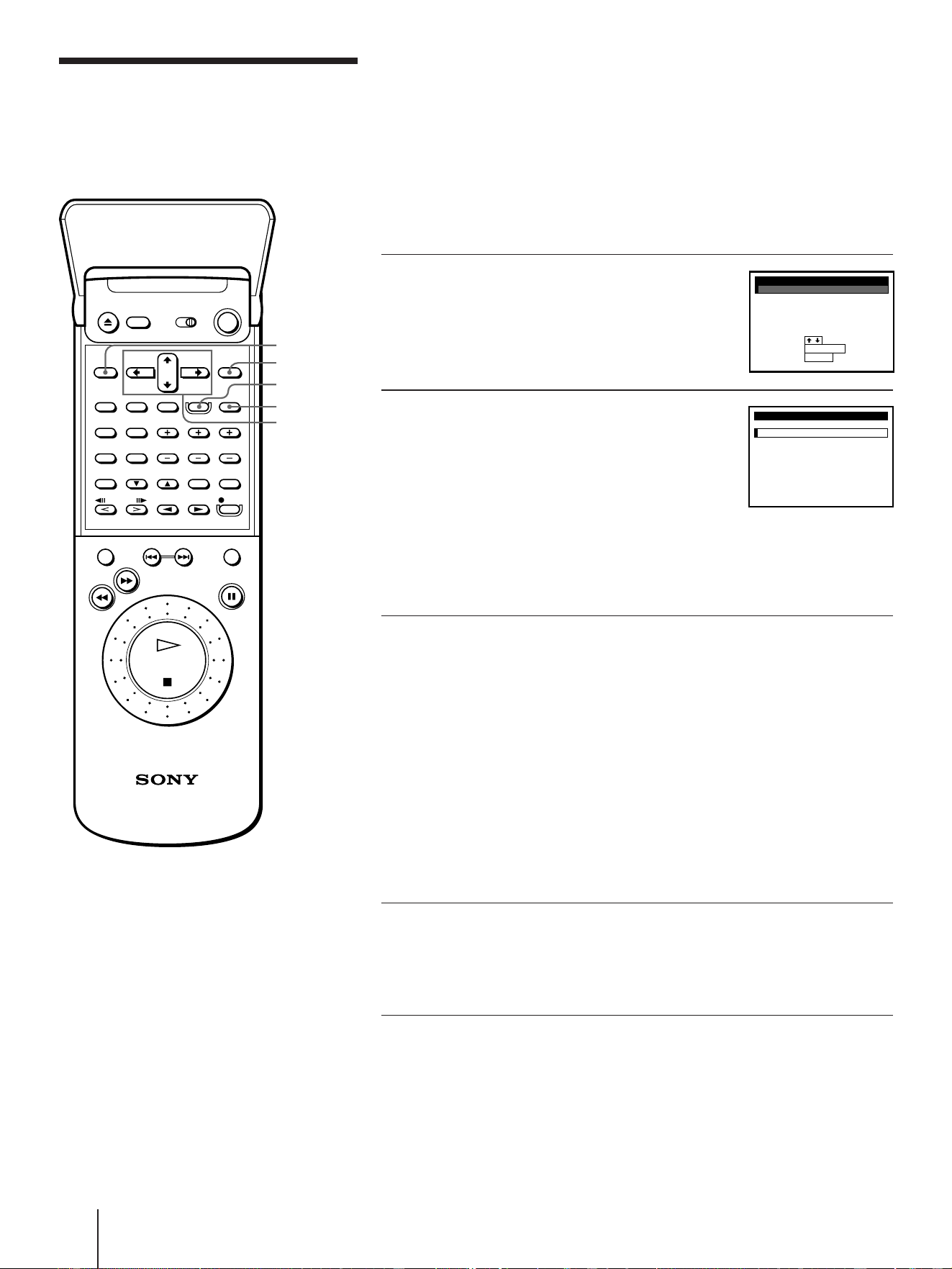

Before you start…
• When the unit is in timer recording standby mode, press TIMER REC
ON/OFF to clear the TIMER indicator.
• Press VHS TUNER.
– If the TV doesn’t turn on or the LINE 1 is not selected on the TV,
turn it on manually.
– If connected with only the antenna cable, set the TV to the video
channel.
1 Lift the top cover of the remote
commander.
Press MENU. Then press CURSOR
>/. to move the cursor (I) to VHS
MENU, and press EXECUTE.
2 Press CURSOR >/. to move the
cursor (I) to TIMER SET/CHECK,
then press EXECUTE.
• If you want to change a setting, go
on to the next step.
• If you do not need to change the
settings, press EXECUTE, then press
TIMER REC ON/OFF to return to
recording standby.
3 Press CURSOR >/. to select the
setting you want to change or
cancel:
• To change the setting, press CURSOR
?// to highlight the item you
want to change, then press CURSOR
>/. to reset it.
Then, press CURSOR / repeatedly
until the cursor (I) appears at the
beginning of the line.
• To cancel the setting, press TIMER
CLEAR.
4 Press EXECUTE.
If any settings remain, press TIMER
REC ON/OFF to return to recording
standby.
Checking/changing/
cancelling timer
settings
MENU
EXECUTE
CURSOR
>/./?//
TIMER CLEAR
TIMER REC
ON/OFF
VHS MENU
ADVANCED OPTIONS
CLOCK SET
TUNER PRESET
TIMER SET / CHECK
CABLE BOX CONTROL
SET VCR Plus+ CHANNELS
QUIT
SET
:
:
SELECT
:
EXECUTE
MENU
TIMER SET / CHECK 2 /
MON
DATE START STOP CH
19
:
EP
8500
10
:
008/
12
1
:
SP
6008
:
007/16
:
EP
1L51
10
:
0388/
12
2
:
EP
2L00
12
:
00
10
7/
12
1
:
EP
72001
:
210
:
SP
1L000
:
00
11
:
––––––
:
––––/––
:
––––––
:
––––/––
TUE
0
MON
SAT
TUE
SAT
SUN
––
MON
EVERY
PM
AM
AM
AM
PM
PM
PM
AM
AM
PM
PM
AM
57
Basic VCR / Radio Operations
When the timer settings overlap
The program that starts first has priority and the second program starts
recording only after the first program has finished. If the programs start
at the same time, the program listed first in the menu has priority.
20 seconds will be cut off
20 Seconds
Will be cut off
Program 1
Program 2
Program 1
Program 2
Audio/Video Equipment Operations
58
Listening to preset radio stations
Before using this function, preset radio stations in the tuner’s memory
(see “Presetting radio stations” on page 45.)
1 Press AUDIO repeatedly until “FM” or “AM” appears (or press
TUNER on the remote).
2 Press SHIFT repeatedly to select A, B, or C, then press the number.
For example, select A and press 7 to tune in the station preset as A7.
To scan the preset stations
Press CH/PRESET +/– . Each press changes the preset number as
follows:
A1 ˜ A2 ˜ ... ˜ A0 ˜ B1 ˜ B2 ˜ ... ˜ B0 ˜ C1 ˜ C2 ˜ ... ˜ C0
You can select only the preset number.
Press and hold this button to keep changing the preset numbers.
To listen to non-preset radio stations
1 Press AUDIO repeatedly until “FM” or “AM” appears (or press
TUNER on the remote.)
2 Press TUNING MODE repeatedly until “MANUAL” appears.
3 Press FM/AM to select “FM” or “AM”.
4 Turn the Shuttle ring clockwise or anticlockwise until your desired
station is tuned in.
Listening to the
radio
SHIFT
123
456
789
0
>
10
CH/PRESET +/–
Number
buttons
TUNER
n
n
59
Audio/Video Equipment Operations

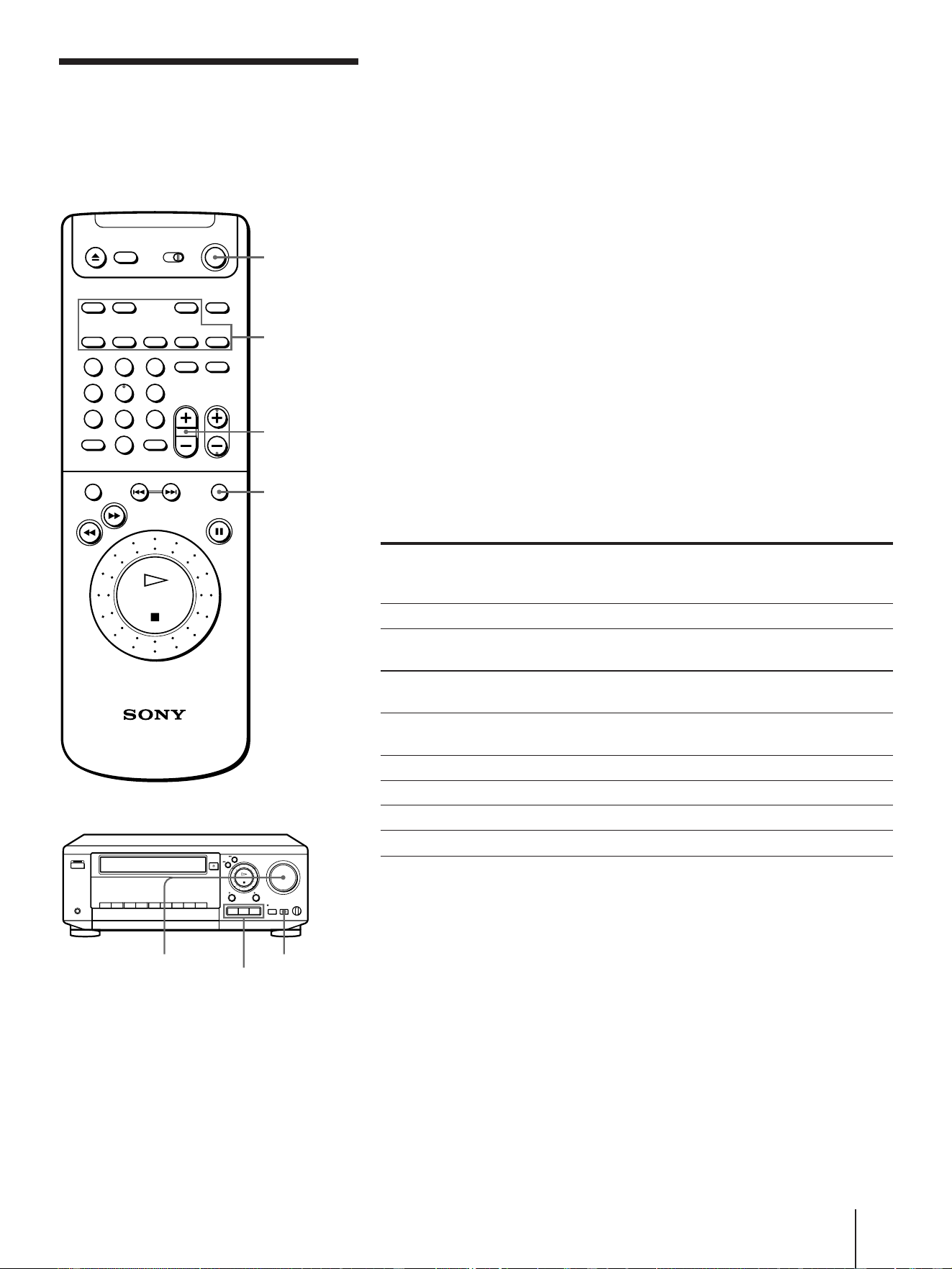

You can control the connected audio and video equipment with this
remote commander. Before operating any equipment, press the function
button corresponding to the equipment. Note that all equipment must
be made by Sony to control with the remote commander.
Controlling the function buttons
The function buttons of the remote commander have the following three
roles.
• Turning on the unit and related piece of equipment (excluding audio
components).
• Switching the input source.
• Switching the remote commander to operate the selected equipment
(see the sections for controlling each piece of equipment from page 62
to 74).
To change the input source, you can also use the function buttons on the
unit.
The following tables show the relationship between the function buttons
(on the remote commander and unit) and the input source.
Function buttons on the remote commander (SYSTEM CONTROL/
FUNCTION)
Press
VHS TUNER
VHS LINE
VIDEO1
VIDEO2
TV*
1
CD
TUNER
TAPE/MD
*
1
If the TV is connected to the unit with only the antenna cable, the unit’s speakers
do not reproduce the sound even if you press this button. When you use the TV
tuner, press TV CONTROL ON (see “Controlling other TVs with the remote
commander” on page 65).
*
2
“TV” usually doesn’t appear on the TV screen. If another monitor is connected to
the MONITOR VIDEO OUT jack, “TV” appears on the monitor screen.
Audio/Video Equipment
Operations
Selecting the
equipment
The following
indication appears on
the TV screen
channel number
LINE
VIDEO1
VIDEO2
(TV)*
2
CD
TUNER
TAPE/MD
And the unit’s input switches
to the
Unit’s VCR
LINE (VIDEO IN, AUDIO L/R
IN) jacks
VIDEO1 (VIDEO IN, AUDIO L/R
IN) jacks
VIDEO2 INPUT (VIDEO, AUDIO
L/R) jacks
TV (VIDEO, AUDIO L/R IN) jacks
CD (AUDIO L/R IN) jacks
Unit’s FM/AM tuner
TAPE/MD (AUDIO L/R IN) jacks
123
456
789
0
>
10
SYSTEM OFF
Function
buttons
MASTER VOL
+/–
MUTING
Function buttons
MUTINGMASTER VOLUME
Audio/Video Equipment Operations
60
Function buttons on the unit (FUNCTION)
Press the
following button
repeatedly
VHS
VIDEO*
1
AUDIO
Until the following
indication appears on
the TV screen
Channel number
LINE
(TV)*
2
VIDEO1
VIDEO2
TUNER
CD
TAPE/MD
*
1
If the TV is connected to the unit with only the antenna cable, the unit’s speakers
do not reproduce the sound even if you select the TV with this button. When you
use the TV tuner, press TV CONTROL ON (see “Controlling other TVs with the
remote commander” on page 65).
*
2
“TV” usually doesn’t appear on the TV screen. If another monitor is connected to
the MONITOR VIDEO OUT jack, “TV” appears on the monitor screen.
Watching a picture while listening to audio
equipment
If you change the input from a video source to an audio source, the
sound will be switched to the audio source but the picture continues to
be output. The last selected video source’s indicator remains lit in the
display window.
Before operating audio/video equipment
• Connect all the components securely and correctly as indicated on
pages 6 through 10.
• Turn MASTER VOLUME to the leftmost position (0) to avoid
damaging the speakers.
• Note that you may not be able to control all the functions of the
equipment described in these Operating Instructions with the remote
commander. In this case, refer to the operating instructions of each
piece of equipment.
If there is any function you cannot control with the remote
commander, use the remote control of each piece of equipment.
VIDEO1
Then the unit’s input
switches to the
Unit’s VCR
LINE (VIDEO IN, AUDIO L/
R IN) jacks
TV (VIDEO IN, AUDIO L/R
IN) jacks
VIDEO1 (VIDEO IN, AUDIO
L/R IN) jacks
VIDEO2 INPUT (VIDEO,
AUDIO L/R) jacks
Unit’s FM/AM tuner
CD (AUDIO L/R IN) jacks
TAPE/MD (AUDIO L/R IN)
jacks
Selecting the equipment
(continued)
Note
• When the TV is selected, no
picture appears in the
display window.
61
Audio/Video Equipment Operations
Using the operations common to all equipment
To increase or decrease the volume
Press MASTER VOL +/– on the remote commander, or turn MASTER
VOLUME on the unit clockwise or anticlockwise.
To mute the sound
Press MUTING. To restore the sound, press it again.
To turn off the whole system
Press SYSTEM OFF.
Note
• You cannot turn off the
power of the non-Sony TVs.
Audio/Video Equipment Operations
62

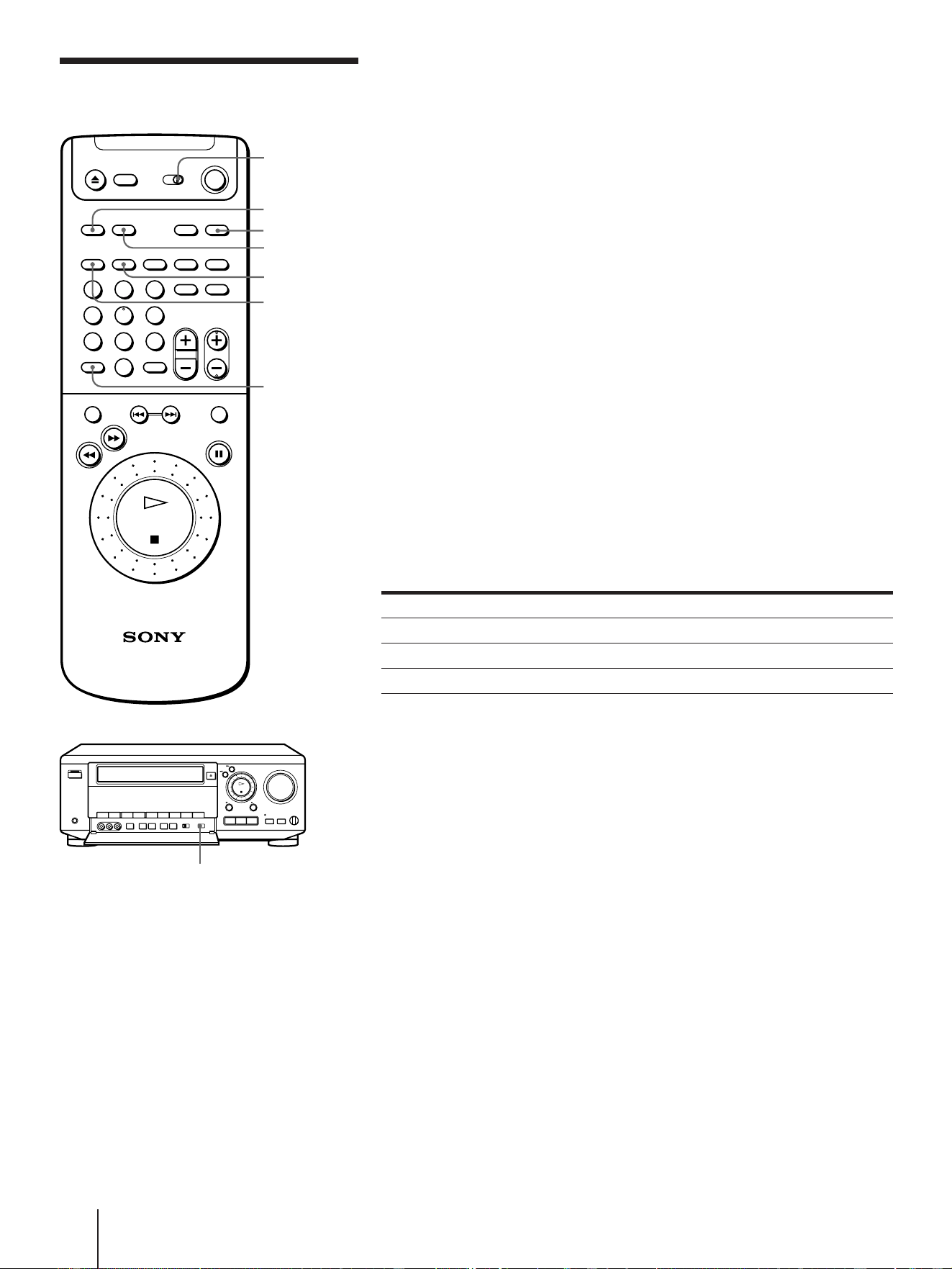

Controlling VCRs which have the COMMAND MODE
selector
To control a VCR with the remote commander, set the COMMAND
MODE selectors on the remote commander and the VCR to the same
position. The COMMAND MODE*
1
selectors on both the unit and
remote commanders are factory set to VTR3. Be sure to set the
COMMAND MODE selector on each VCR to a different position to
operate each VCR independently.
If the COMMAND MODE selector on a VCR is set to OFF, you cannot
control that VCR with the remote commander.
If the COMMAND MODE selector on this unit is set to OFF, although
you cannot control the unit‘s VCR with the remote commander,
MASTER VOL +/–, MUTING, and the function buttons on the remote
commander can operate the unit.
*
1
The selector’s name on the unit is VTR COMMAND MODE, however, it is
described as COMMAND MODE in these Operating Instructions for the sake of
convenience.
Controlling a VCR which doesn’t have a COMMAND
MODE selector
If a VCR has no COMMAND MODE selector, set COMMAND MODE
on the remote commander in the following way.
If your VCR is a Set COMMAND MODE to
Sony Betamax format VCR VTR1
Sony 8mm formatVCR VTR2
Sony VHS format VCR VTR3
If you have another VHS format VCR, set COMMAND MODE on the
unit to VTR1 or VTR2.
Turning on and controlling the unit’s VCR
1 Set COMMAND MODE on the remote commander to the same
position as COMMAND MODE on the unit.
2 Press VHS TUNER.
• If the TV doesn’t turn on or the LINE 1 is not selected on the TV,
turn it on manually.
• If connected with only the antenna cable, set the TV to the video
channel.
Controlling VCRs
VHS TUNER
VHS LINE
VTR COMMAND MODE OFF/1/2/3
123
456
789
0
>
10
VIDEO 1
VISUAL POWER
COMMAND
MODE
VIDEO 2
SHIFT
63
Audio/Video Equipment Operations
Turning on and controlling another VCR
1 Set COMMAND MODE on the remote commander to the same
position as COMMAND MODE on the other VCR.
If the other VCR doesn’t have a COMMAND MODE selector, set
COMMAND MODE on the remote commander according to the
table in “Controlling a VCR which has no COMMAND MODE
selector” on the previous page.
2 Press VIDEO1, VIDEO2, or VHS LINE depending on which jacks the
other VCR is connected to.
The other VCR and TV turn on, and the corresponding input source
is selected.
Customizing the remote commander to make
controlling other VCRs easier
Initially VIDEO1 and VIDEO2 only select the input source, and
COMMAND MODE on the remote commander determines which VCR
you can control with the remote commander.
However, you can customize VIDEO1 and VIDEO2 on the remote
commander to control the other VCR.
While pressing either VIDEO1 or VIDEO2,
• press number button 7 to control the VCR with its COMMAND
MODE selector set to VTR1, or Betamax format VCR;
• press number button 8 to control the VCR with its COMMAND
MODE selector set to VTR2, or 8mm format VCR; or,
• press number button 9 to control the VCR with its COMMAND
MODE selector set to VTR3, or VHS format VCR.
The customized button is no longer related to the COMMAND MODE
position. To turn on and control the other VCR with the remote
commander, simply press the customized VIDEO1 or VIDEO2 button.
To relate VIDEO1 or VIDEO2 with COMMAND MODE again
While pressing VIDEO1 or VIDEO2, press SHIFT.
Using the remote commander buttons to control
the other VCR
You can control the other VCR with the same buttons you use to control
this unit’s VCR. Note that the VCR Plus+, DISPLAY, MENU, CURSOR
>/./?//, TIMER REC ON/OFF, and TIMER CLEAR buttons, and
the CLICK SHUTTLE ring don’t operate other VCRs.
Turning off the selected VCR
Press VISUAL POWER while the remote commander is in the selected
VCR operation mode.
Note
• You cannot do this
customizing for VHS
TUNER or VHS LINE.
These buttons are always
related to the COMMAND
MODE position.
Audio/Video Equipment Operations
64

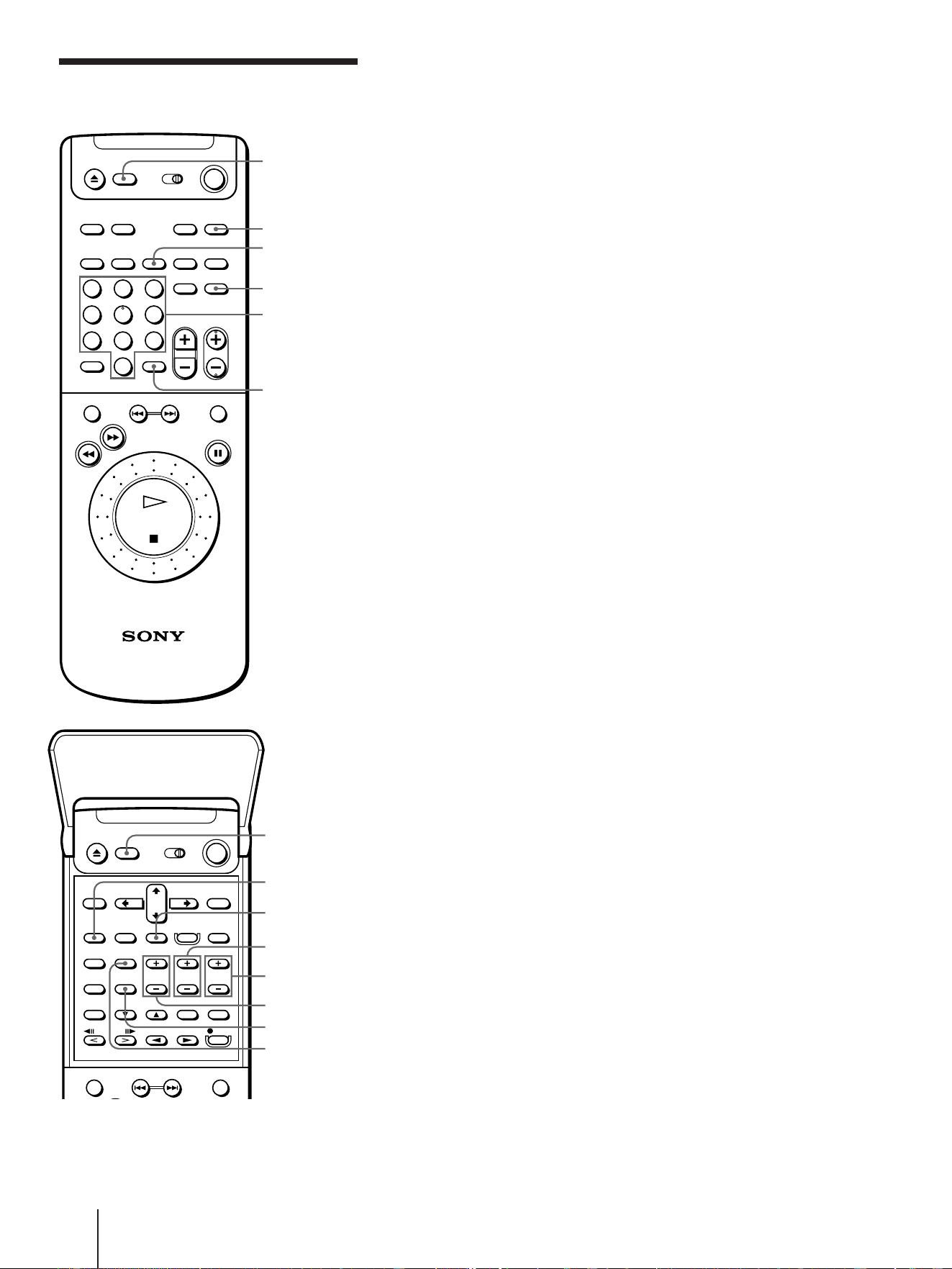

Watching a TV program
1 Press TV.
The TV and unit turn on.
2 Press the number buttons to select the channel and press ENTER.
To scan through channel, lift the top cover of the remote commander,
then press CH +/–.
Selecting a stereo or bilingual program
Press AUDIO MONITOR. Each press changes the sound between
bilingual and stereo.
Using the WIDE function
Press TV WIDE. Each press changes the WIDE mode.
Controlling the TV
Number
buttons
TV/VIDEO
123
456
789
0
>
10
ENTER
TV WIDE
TV VOL +/–
CH +/–
TV CH
TV/VIDEO buttons
TV POWER
Note
• You cannot use the on-
screen display while the
unit is in TV control mode.
VISUAL
POWER
TV
TV CONTROL
ON
AUDIO
MONITOR
TV CONTROL
ON
65
Audio/Video Equipment Operations
Controlling other TVs with the remote commander
The remote commander is preprogramed to control non-Sony TVs. If
your TV is listed in the table below, set the appropriate manufacturer’s
code number.
Hold down TV CONTROL ON, and enter your TV’s code number(s)
using the number buttons. Then release TV CONTROL ON.
Now you can use the TV POWER, TV VOL +/–, TV CH +/– and TV/
VIDEO buttons to control your TV.
Code numbers of controllable TVs
If more than one code number is listed, try entering them one at a time
until you find the one that works with your TV.
Manufacturer
KMC
Magnavox
Marantz
MGA/Mitsubishi
NEC
Panasonic
Philco
Philips
Pioneer
Portland
Quasar
Radio Shack
Manufacturer
RCA
Sampo
Sanyo
Scott
Sears
Sharp
Sylvania
Teknika
Toshiba
Wards
Yorx
Zenith
Code
number
03
03,08,12
04,13
04,12,13,17
04,12
06,19
03,04
08
16
03
06,18
05,14
Code
number
04,10
12
11
12
07,10,11
03,05,18
08,12
03,08,14
07
03,04,12
12
15
Manufacturer
Sony
Akai
AOC
Centurion
Coronado
Curis-Mathes
Daytron
Fisher
General Electric
Hitachi
J.C.Penny
JVC
Code
number
01
04
04
12
03
12
12
11
06,10
02,03
04,12
09
Notes
• If the TV uses a different remote control system from the one programed to work
with the VCR, you cannot control your TV with the remote commander.
• If you enter a new code number, the code number previously entered will be
erased.
• When you replace the batteries of the remote commander, the code number
automatically resets to 1 (Sony). Reset the appropriate code number.
Audio/Video Equipment Operations
66
123
456
789
0
>
10

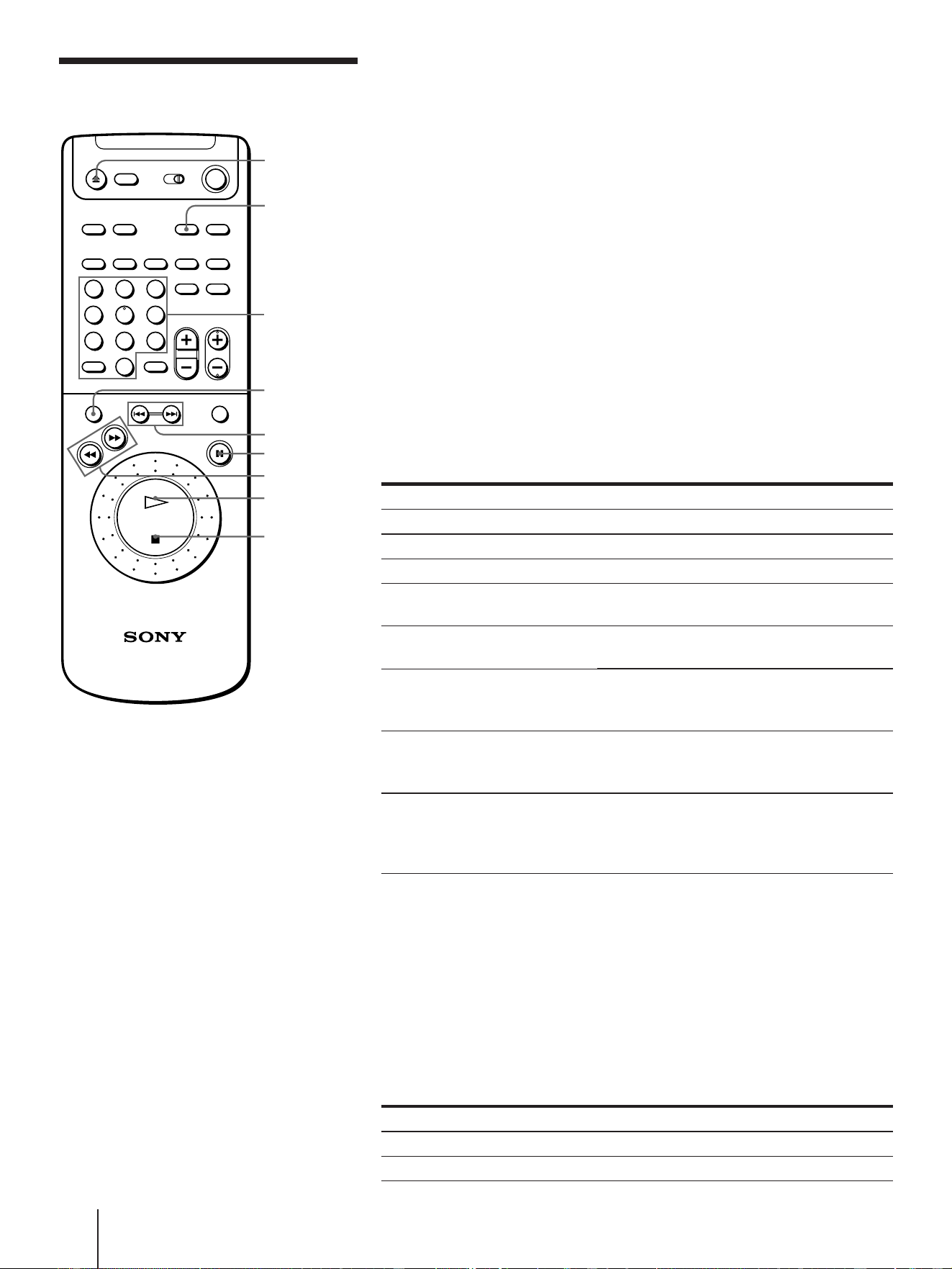

Playing back a CD
1 Press CD and turn on the CD player.
The unit turns on and switches the input source to the CD player
connected to the CD jacks.
2 Press 6 OPEN/CLOSE to open the disc tray.
If the disc tray or cover doesn’t open, refer to your CD player’s
operating instructions.
3 Load a CD or CDs referring to your CD player’s operating
instructions.
4 Press 6 OPEN/CLOSE to close the disc tray.
If the disc tray or cover doesn’t close, refer to your CD player’s
operating instructions.
Depending on the CD player, you can skip this step. Refer to your
CD player’s operating instructions.
5 Press · PLAY.
Depending on the CD player, you can skip this step. Refer to your
CD player’s operating instructions.
Additional tasks
To
Stop play
Pause play
Resume play after pause
Scan forward or backward
Locate the beginning of other
tracks
(Stop and) remove the CD
This function doesn’t operate
some CD players.
Close the tray
This function doesn’t operate
some CD players.
Select other discs
This function only works for
CD players with a built-in
multi-disc changer.
To locate a track with the number buttons
Press one of the number buttons for single digit track numbers (except
0).
To locate the 10th track, press 1, then 0.
To enter a track number over 10, first press >10, then any number
button for the tens digit except 0, and the number button for the ones
digit.
Examples of entering the two-digit number
To Press
Enter 30 >10, then 3, and 0
Enter 24 >10, then 2, and 4
Number
buttons/>10
SKIP/D.SKIP
P PAUSE
) FF/0 REW
· PLAY
p STOP
Press
p STOP
P PAUSE
P PAUSE or · PLAY
And hold ) FF or 0 REW during
playback
=/+ AMS repeatedly
6 OPEN/CLOSE
6 OPEN/CLOSE
SKIP/D.SKIP repeatedly during playback or
before playback
6 OPEN/CLOSE
=/+ AMS
CD
67
Audio/Video Equipment Operations

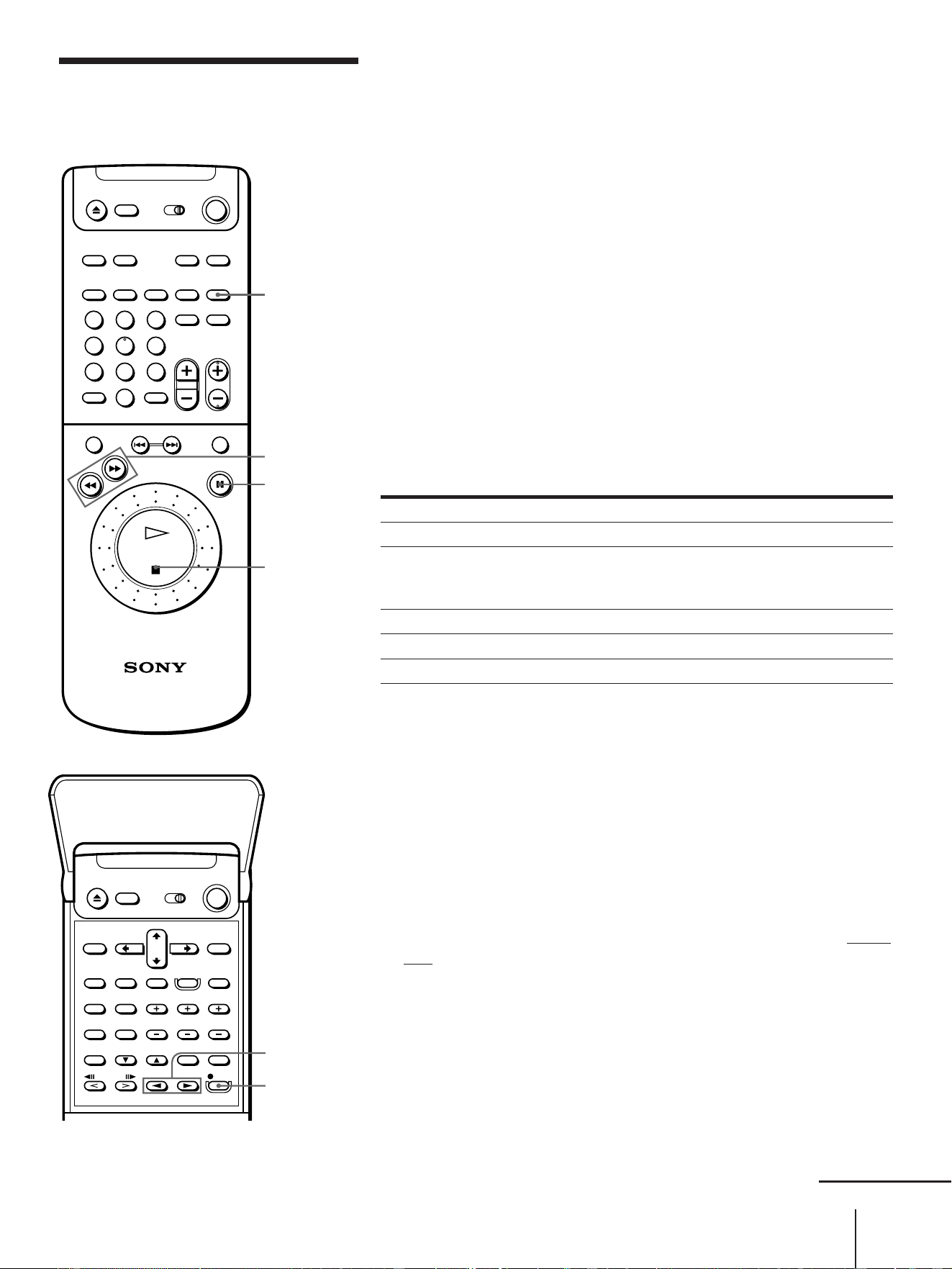

Controlling a
cassette deck
The remote commander’s TAPE/MD button is factory set to work for
single-cassette decks or deck B if you have a double-cassette deck. If
you want the remote commander operate deck A, you need to
customize your remote commander. See “Customizing the remote
commander for deck A of a double-cassette deck” on the next page.
Playing a tape
1 Press TAPE/MD, and turn on the cassette deck.
The unit turns on and switches the input source to the cassette deck
connected to the TAPE/MD jacks.
2 Insert a recorded cassette (into deck B for double-cassette decks)
referring to your cassette deck’s operating instructions.
3 Lift the top cover of the remote commander and press
( DIRECTION.
For reverse side playback, lift the top cover of the remote
commander and press 9 DIRECTION.
Additional tasks
To Press
Stop play p STOP
Pause play P PAUSE
This function doesn’t
operate some cassette decks.
Resume play after pause ( DIRECTION, 9 DIRECTION, or P PAUSE
Fast-forward ) FF
Rewind 0 REW
Recording on a tape
1 Press TAPE/MD, and turn on the cassette deck.
The unit turns on and switches the input source to the cassette deck
connected to the TAPE/MD jacks.
2 Insert a blank cassette with its erasure prevention tabs in place (into
deck B for a double-cassette deck) referring to your cassette deck’s
operating instructions.
3 Select the input source by pressing one of the function buttons on the
unit.
If you want to select the unit’s VCR or piece of equipment connected
the LINE jacks, press VHS repeatedly to display a channel or “LINE”
on the TV screen.
If you want to select a piece of equipment connected to the VIDEO 1
or VIDEO 2 jacks, press VIDEO repeatedly to display “VIDEO 1” or
“VIDEO 2” on the TV screen.
If you want to select the CD player or tuner, press AUDIO repeatedly
to display “CD” or “TUNER” on the TV screen.
TAPE/MD
) FF/0 REW
P PAUSE
p STOP
123
456
789
0
>
10
continued
r REC
9/(
DIRECTION
Audio/Video Equipment Operations
68
Controlling a cassette deck
(continued)
4 Lift the top cover of the remote commander and press r REC to set
the cassette deck to recording pause.
5 Press ( DIRECTION (or 9 DIRECTION to record on the reverse
side).
Recording starts.
6 Play back the program source.
Additional tasks
To Press
Stop recording p STOP
Pause recording P PAUSE
Resume recording P PAUSE, ( DIRECTION, or 9 DIRECTION
Customizing the remote commander for deck A of
a double-cassette deck
The remote commander’s TAPE/MD button is factory set to operate
single-cassette decks or deck B if you have a double-cassette deck.
To control deck A, first you need to customize one of the function
buttons for deck A.
You can customize the VIDEO 1, VIDEO 2, CD, TAPE/MD, or TV
function buttons. While pressing the selected function button, press the
number button 5. (You must select the function button corresponding to
the input jacks the cassette deck is connected to.)
Now that function button operates deck A. To change the button’s
function again, see “Customizing the remote commander function
buttons” on page 91.
To play back a tape, follow the instructions in “Playing a tape” on the
previous page. During the procedure, press the function button you
customized for deck A in step 1 instead of TAPE/MD, and insert a
recorded cassette into deck A in step 2 instead of deck B.
69
Audio/Video Equipment Operations

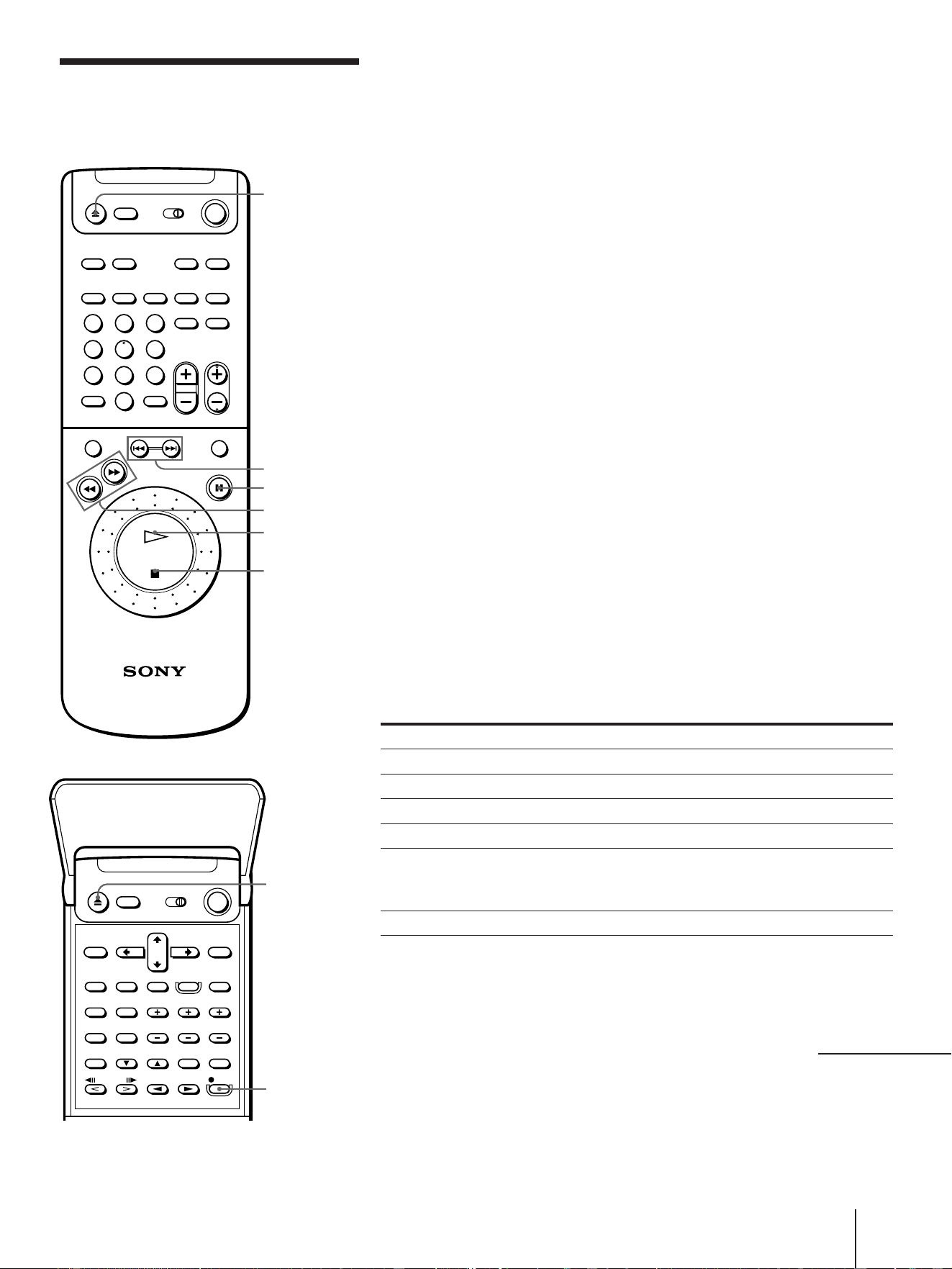

Customizing the remote commander for a DAT
deck
The remote commander is not factory set to control DAT decks. So you
need to customize the function button corresponding to the jacks the
DAT deck is connected to. For example, if you connect the DAT deck to
the TAPE/MD jacks, customize TAPE/MD for the DAT deck in the
following way.
While pressing the function button (e.g. TAPE/MD), press number
button 2.
The function button is customized to control the DAT deck.
You can customize the VIDEO 1, VIDEO 2, CD, TAPE/MD, or TV
function buttons. To change the button’s function again, see
“Customizing the remote commander function buttons” on page 91.
Playing a tape
1 Press the function button you customized for the DAT deck, and turn
on the DAT deck.
The unit turns on and switches the input source to the jacks the DAT
deck is connected to.
2 Press 6 OPEN/CLOSE to open the cassette cover/holder.
If the cassette cover/holder doesn’t open, refer to your DAT deck’s
operating instructions.
3 Insert a cassette.
4 Press · PLAY.
The deck starts playing a tape.
Additional tasks
To
Stop playing
Go to the next track
Go to the preceding track
Fast-forward or rewind
Monitor the sound during
fast-forward or rewind
Eject the cassette
Controlling a DAT
deck
continued
123
456
789
0
>
10
) FF/0 REW
P PAUSE
p STOP
· PLAY
Press
p STOP
+ AMS
= AMS
) FF or 0 REW during stop
) FF or 0 REW during playback.
To resume normal playback, release
the button.
6 OPEN/CLOSE during stop
r REC
6 OPEN/CLOSE
=/+ AMS
6 OPEN/
CLOSE
Audio/Video Equipment Operations
70
Recording on a tape
1 Press the function button you customized for the DAT deck, and turn
on the DAT deck.
The unit turns on and switches the input source to the TAPE/MD
jacks the DAT deck is connected to.
2 Insert a cassette with the record-protect tab closed.
3 Select an input source by pressing one of the function buttons on the
unit.
If you want to select the unit’s VCR or piece of equipment connected
the LINE jacks, press VHS repeatedly to display a program position
or “LINE” on the TV screen.
If you want to select a piece of equipment connected to the VIDEO 1
or VIDEO 2 jacks, press VIDEO repeatedly to display “VIDEO 1” or
“VIDEO 2” on the TV screen.
If you want to select the CD player or tuner, press AUDIO repeatedly
to display “CD” or “TUNER” on the TV screen.
4 Locate the point you want to start recording from.
To record from the beginning of the tape, press 0 REW to rewind
the tape to the beginning.
To record from the end of the recorded portion, press ) FF.
The deck locates the end of the recorded portion on the tape and
stops automatically.
5 Lift the top cover of the remote commander and press r REC to set
the MD deck to recording pause.
6 Press · PLAY or P PAUSE.
Recording starts.
7 Play back the program source.
Additional tasks
To Press
Stop recording p STOP
Pause recording P PAUSE
To resume recording, press the button again.
Resume recording P PAUSE or · PLAY
Controlling a DAT deck
(continued)
Note
• You must connect the DAT
deck to the TAPE/MD jacks
to record on a tape with the
DAT deck.
71
Audio/Video Equipment Operations

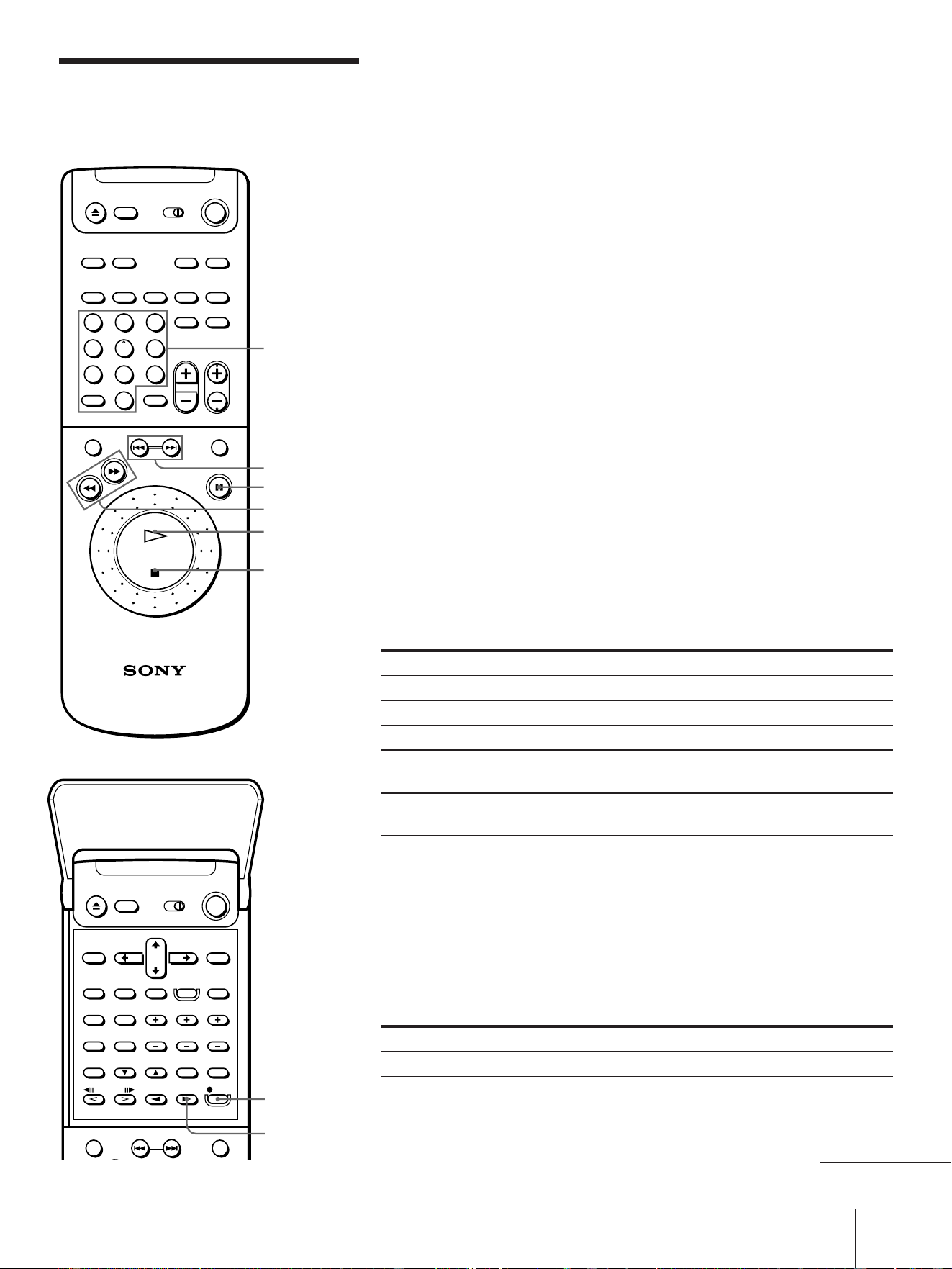

Controlling an MD
deck
continued
123
456
789
0
>
10
Number
buttons/>10
) FF/0 REW
P PAUSE
p STOP
· PLAY
Customizing the remote commander for an MD
deck
The remote commander is not factory set to control MD decks. So you
need to customize the function button corresponding to the jacks the
MD deck is connected to. For example, if you connect the MD deck to
the TAPE/MD jacks, customize TAPE/MD for the MD deck in the
following way.
While pressing the function button (e.g. TAPE/MD), press number
button 3.
The function button is customized to control the MD deck.
You can customize the VIDEO 1, VIDEO 2, CD, TAPE/MD, or TV
function buttons. To change the button’s function again, see
“Customizing the remote commander function buttons” on page 91.
Playing an MD
1 Press the function button you customized for the MD deck, and turn
on the MD deck.
The unit turns on and switches the input source to the jacks the MD
deck is connected to.
2 Insert an MD referring to your MD deck’s operating instructions.
3 Press · PLAY.
The MD deck starts playing.
Additional tasks
To
Stop play
Pause play
Resume play after pause
Scan forward or backward
Locate the beginning of other
tracks
To locate a track with the number buttons
Press one of the number buttons for single digit numbers (except 0). To
locate the 10th track, press 1, then 0.
To enter a track number over 10, first press >10, then any number button
for the tens digit except 0, and the number button for the ones digit.
Examples of entering the two-digit number
To Press
Enter 30 >10, then 3, and 0
Enter 24 >10, then 2, and 4
Press
p STOP
P PAUSE
P PAUSE or · PLAY
And hold ) FF or 0 REW during
playback
=/+ AMS repeatedly
r REC
(
=/+ AMS
Audio/Video Equipment Operations
72
Recording on an MD
1 Press the function button you have customized for the MD deck, and
turn on the MD deck.
The unit turns on and switches the input source to the TAPE/MD
jacks the MD deck is connected to.
2 Insert an MD with its erasure prevention tab closed, referring to your
MD deck’s operating instructions.
3 Select the input source by pressing one of the function buttons on the
unit.
If you want to select the unit’s VCR or piece of equipment connected
to the LINE jacks, press VHS repeatedly to display a program
position or “LINE” on the TV screen.
If you want to select a piece of equipment connected to the VIDEO 1
or VIDEO 2 jacks, press VIDEO repeatedly to display “VIDEO 1” or
“VIDEO 2” on the TV screen.
If you want to select the CD player or tuner, press AUDIO
repeatedly to display “CD” or “TUNER” on the TV screen.
4 Lift the top cover of the remote commander and press r REC to set
the MD deck to recording pause.
5 Press ( (or · PLAY)
Recording starts.
6 Play back the program source.
Additional tasks
To Press
Stop recording p STOP
Pause recording P PAUSE. Press the button again to resume recording.
Resume recording P PAUSE or · PLAY
Controlling an MD deck
(continued)
Note
• You must connect the MD
deck to the TAPE/MD jacks
to record on an MD with the
MD deck.
73
Audio/Video Equipment Operations

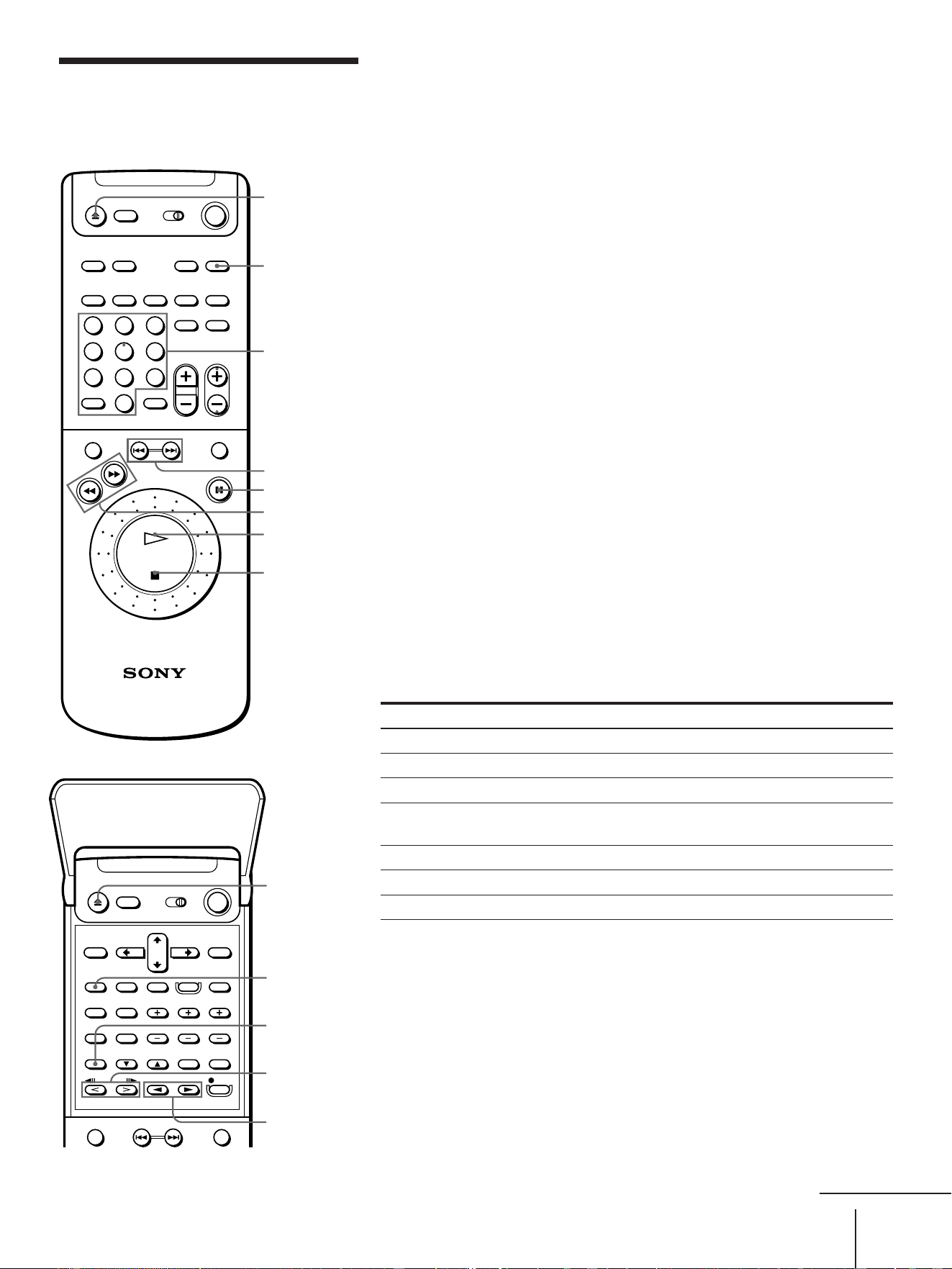

Controlling an LD
player
Customizing the remote commander for an LD
player
The remote commander is not factory set to control LD players. So you
need to customize the function button corresponding to the jacks the LD
player is connected to. For example, if you connect the LD player to the
VIDEO 1 jacks, customize VIDEO1 for the LD player in the following
way.
While pressing the function button (e.g. VIDEO1), press number button
6.
The function button is customized to control the LD player.
You can customize the VIDEO 1, VIDEO 2, CD, TAPE/MD, or TV
function buttons. To change the button’s function again, see
“Customizing the remote commander function buttons” on page 91.
Playing back an LD
1 Press the function button you customized for the LD player, and turn
on the LD player.
The unit turns on and switches the input source to the jacks the LD
player is connected to.
2 Press 6 OPEN/CLOSE to open the disc tray.
3 Place an LD on the disc tray.
4 Press · PLAY.
The disc tray closes and side A of the LD starts playing.
When playback of side A ends, side B starts playing automatically.
Additional tasks
To Press
Stop play p STOP
Pause play P PAUSE
Resume play after pause P PAUSE or · PLAY
Scan forward or backward And hold ) FF or 0 REW during
playback
Skip chapters or tracks =/+ repeatedly
(Stop and) remove the LD 6 OPEN/CLOSE
Close the tray 6 OPEN/CLOSE
To start playback from the beginning of either LD side
Press ( SIDE A to play side A of the LD from the beginning.
Press 9 SIDE B to play side B of the LD from the beginning.
To pause playing just before starting
Press P PAUSE instead of · PLAY after you place an LD on the disc
tray.
The disc tray closes and the player waits at the start of the LD until you
press · PLAY or P PAUSE. If you want to start from side B, press
9 SIDE B after you press P PAUSE.
Number
buttons/>10
) FF/0 REW
P PAUSE
· PLAY
p STOP
continued
ANALOG/´
'/7
FRAME
( SIDE A/
9 SIDE B
123
456
789
0
>
10
6 OPEN/CLOSE
VISUAL
POWER
=/+
6 OPEN/
CLOSE
AUDIO
MONITOR
Audio/Video Equipment Operations
74
To locate a particular chapter or track
Press any number button to enter the single digit chapter/track number
(except 0).
For two-digit numbers, press >10 repeatedly to enter the tens digit (the
number of times you press the button becomes the tens digit number).
Then press any number button to enter the ones digit.
Examples of entering a two-digit number
To Press
Enter 30 >10 three times, then press 0
Enter 14 >10 once, then press 4
To play a chapter or track on the opposite side of the LD, press
9 SIDE B while playing SIDE A (or ( SIDE A while playing SIDE B),
then enter the chapter or track number.
To play frame-by-frame (Step Play)
Press '/7 FRAME repeatedly. Each press shifts the picture to the
next frame.
For continuous frame playback, press and hold '/7 FRAME.
To resume normal playback, press · PLAY.
To listen to analog sound from an LD
If your LD contains digital sound tracks, the player automatically
outputs digital sound. To listen to the sound recorded on analog
soundtracks, press ANALOG/´. To resume the digital mode, press
ANALOG/´ again.
To play a stereo disc or Second Audio Programme (SAP) disc
When playing SAP discs such as bilingual discs, you can alternate the
sound output by pressing AUDIO MONITOR. Each press changes the
sound as follows.
Stereo disc SAP disc
Left channel Sound track 1 (Left channel)
Right channel Sound track 2 (Right channel)
Stereo (Both channels) Both tracks (Left and right channels)
To play an LD with the ´ (CX) logo
LDs with the ´ logo are recorded with the CX noise reduction system
for analog sound. Although LD players usually detect and activate this
system, you can manually set the LD player to use the system.
Press ANALOG/´.
To cancel this function, press ANALOG/´ again.
Turning off the LD player
Press VISUAL POWER while the remote commander is in LD control
mode.
Controlling an LD player
(continued)
75
Sound Field Operations
Sound Field Operations
Taking advantage of
the sound fields
You can enjoy the surround sound effect by simply selecting one of the
pre-programed sound fields according to the type of playback source.
1 Select the input source.
2 Select the sound field. (See “Using the pre-programed sound fields”
on page 49.)
You can set the sound effect independently for each input source.
Selecting the sound field
Select To You need the following speakers
PROLOGIC
THEATER
MONO MOVIE
HALL
STADIUM
GAME
ACOUSTIC
OFF
Fully enjoy programs processed with Dolby Pro Logic
Surround sound (See “What’s Dolby Surround and Dolby Pro
Logic Surround?” on the next page.)
Add the acoustic reflections of a theater to the decoded Dolby
Surround signals (See “What’s Dolby Surround and Dolby
Pro Logic Surround?” on the next page.)
Create a theater-like environment for movies with monaural
soundtracks (See “What’s surround sound?” on the next
page.)
Reproduce the acoustics of a hall (See “What’s surround
sound?” on the next page.)
Reproduce the feeling of a large open-air stadium (See
“What’s surround sound?” on the next page.)
Obtain maximum audio impact from video game software
(See “What’s surround sound?” on the next page.)
Reproduce normal 2 channel stereo
Turn off the sound effect
See “Selecting the center mode” on page 32.
See “Selecting the center mode” on page 32.
The surround (rear left and right) speakers as
well as the front left and right speakers
The surround (rear left and right) speakers as
well as the front left and right speakers
The surround (rear left and right) speakers as
well as the front left and right speakers
The surround (rear left and right) speakers as
well as the front left and right speakers
Only the front left and right speakers
Only the front left and right speakers
continued
To temporarily turn off the sound effect you set
1 Select the input source for the sound effect you want to turn off.
2 Press SURROUND on the unit to turn off the sound effect.
To resume the previous sound effect, press SURROUND again.
Sound Field Operations
76
What’s Dolby Surround and Dolby Pro Logic Surround?
Dolby Surround is a system that decodes the extra channels of Dolby
Surround encoded sound tracks on movie videos and TV programs, and
produces sound effects and echoes that make the action seem to envelop
you.
Dolby Pro Logic Surround is a more advanced system developed after
Dolby Surround. The sound image is improved by using four separate
channels: off-screen audio effects, on-screen dialogue, left-to-right
panning, and music. These channels manipulate the sound and enhance
the action as it happens on the screen.
The unit offers PROLOGIC mode for these systems as one of the sound
fields. You can tell if a video tape or laser disc uses Dolby Surround or
Dolby Pro Logic Surround encoded software by looking at the
packaging. (Some video tapes and laser discs may use Dolby Surround
even if it’s not indicated on the package.)
What’s surround sound?
Surround sound consists of three elements, direct sound, early reflected
sound (early reflections), and reverberated sound (reverberation). The
acoustics of the venue affect the way these three sound elements are
heard.
The unit combines the three sound elements in such a way that you can
actually feel the size and type of a particular venue such as a concert
hall. The unit also varies the combination of the sound elements to offer
you a variety of sound fields (THEATER, MONO MOVIE, HALL,
STADIUM, and GAME).
The three sound elements in an actual concert hall
Transition of sound from rear speakers
Taking advantage of the
sound fields (continued)
Early reflections
Reverberation
Direct sound
Level
Early
reflections
Reverberation
Direct sound
Early reflections time
Time
77
Sound Field Operations

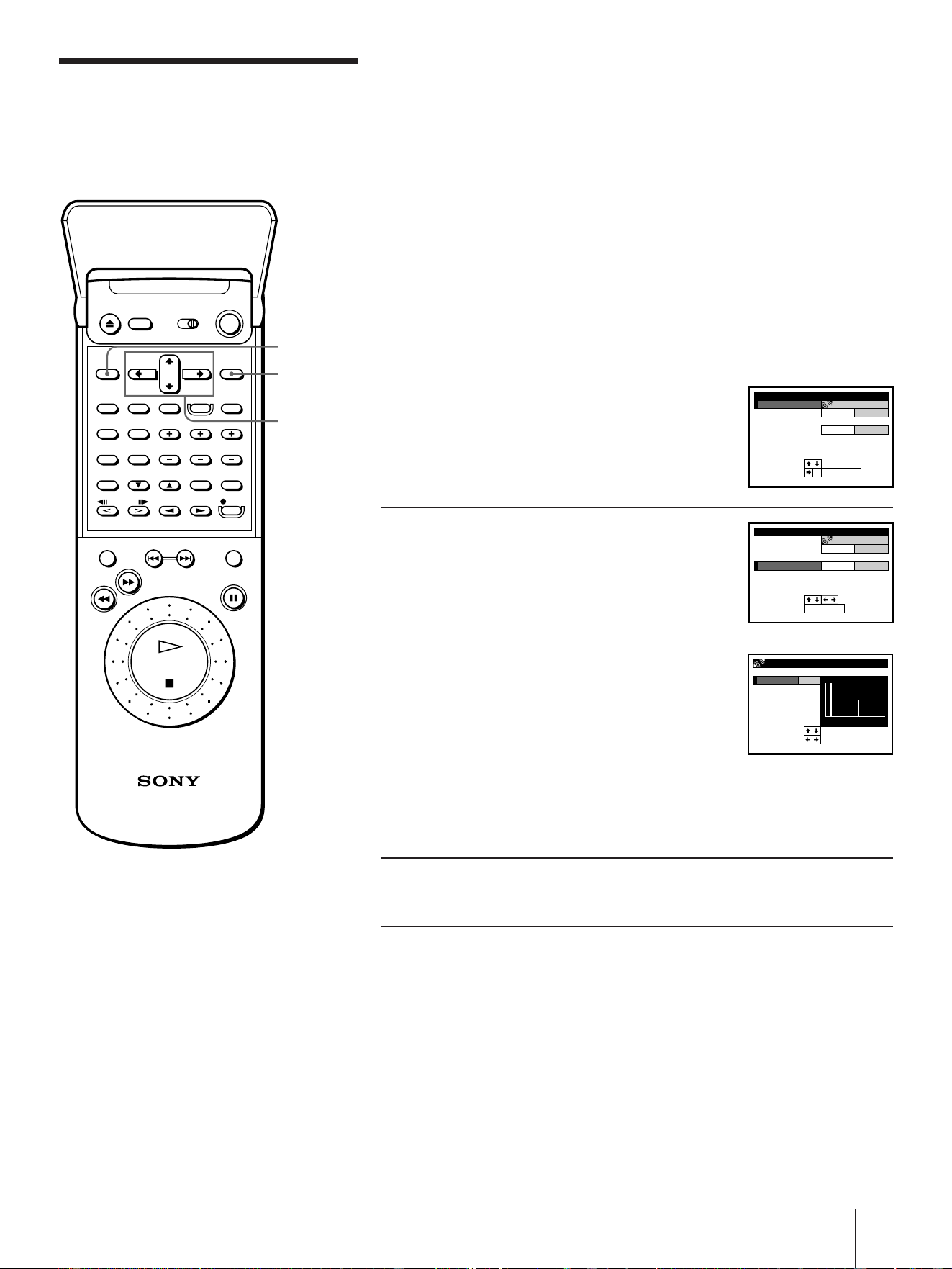

Getting the most out
of Dolby Pro Logic
Surround sound
To obtain the best possible Dolby Pro Logic Surround sound, you need
to adjust the delay time. The center mode and speaker levels were set in
EASY SET UP, so you don’t have to change those settings unless you
change the speaker configuration.
If you change the speaker configuration, see “Reconfiguring the
PROLOGIC and THEATER sound fields” on page 82.
Adjusting the delay time
You can make the surround sound more effective by delaying the
output from the rear speakers (delay time) relative to the front speakers.
You don’t have to adjust the delay time if you select 3CH LOGIC for
CENTER MODE.
1 Repeat steps 1 through 4 in
“Using the pre-programed sound
fields” on page 49 and select
PROLOGIC in step 3.
2 Press CURSOR >/./?// to move
the cursor (I) to SUR EDIT, then
highlight DELAY.
3 Press EXECUTE, then press CURSOR
?// to select 15ms, 20ms, 25ms,
or 30ms as the delay time.
Make the delay time longer when you
have placed the rear speakers in a small
room or close to your listening position,
and make it shorter when you have
placed them in a large room or far from
your listening position.
4 Press MENU to return to the
original screen.
MENU
EXECUTE
CURSOR
>/./?//
SET
SELECT
:
:
SOUND SET
SOUND FIELD
ON
LEVEL
OFF
DELAY
TONE EDIT
BASS BOOST
SUR EDIT
PRO LOGIC
CENTER MODE
TEST TONE
EXECUTE,
SET
SELECT
:
:
SOUND SET
SOUND FIELD
ON
LEVEL
OFF
DELAY
TONE EDIT
BASS BOOST
SUR EDIT
PRO LOGIC
CENTER MODE
TEST TONE
EXECUTE
SUR EDIT DELAY
DELAY 20ms
SET
:
SELECT
:
RETURN
Sound Field Operations
78
Customizing the
sound fields
Each sound field is composed of an equalizer (bass, midrange, and
treble) and surround sound parameters: sound variables that create the
sound image. You can customize the sound fields by adjusting the
speaker levels, effects, and surround sound parameters to suit your
listening situation.
Once you customize the sound fields, they are stored in memory.
Adjusting the speaker level for THEATER, MONO
MOVIE, HALL, STADIUM, or GAME
1 Start playing a program source,
then repeat steps 1 through 4 in
“Using the pre-programed sound
fields” on page 49 and select one
of the above sound fields in step 3.
2 Press CURSOR >/./?// to move
the cursor (I) to SUR EDIT, then
highlight LEVEL.
3 Press EXECUTE. Then, press
CURSOR >/. to move the cursor to
CENTER, and press CURSOR ?//
to increase or decrease the
volume of the center speaker to a
preferable level.
If you select MONO MOVIE, HALL,
STADIUM, or GAME in step 1, skip this
step.
If you select THEATER in step 1, and
you set the center mode to PHANTOM
(see “Selecting the center mode” on
page 32), skip this step.
4 Press CURSOR >/. to move the
cursor (I) to REAR, then press
CURSOR ?// to increase or
decrease the volume of the rear
speakers to a preferable level.
If you select THEATER in step 1 and
3CH LOGIC is selected as the center
mode (see “Selecting the center mode”
on page 32), skip this step.
The rear speakers’ volume balance is
always even.
5 Press MENU to return to the
original screen.
MENU
EXECUTE
CURSOR
>/./?//
Tips
• To adjust the relative
volume balance between the
front left and right speakers,
use BALANCE L/R on the
unit.
• To restore the factory
settings of the sound fields,
turn on the unit while
pressing SURROUND.
SET
SELECT
:
:
SOUND SET
SOUND FIELD
ON
LEVEL
OFF
EFFECT
TONE EDIT
BASS BOOST
SUR EDIT
THEATER
CENTER MODE
EXECUTE,
SET
SELECT
:
:
SOUND SET
SOUND FIELD
ON
LEVEL
OFF
EFFECT
TONE EDIT
BASS BOOST
SUR EDIT
THEATER
CENTER MODE
EXECUTE
CENTER
RETURN
SUR EDIT LEVEL
REAR
+
10
0
dB
dB
SET
:
SELECT
:
CENTER
RETURN
SUR EDIT LEVEL
REAR
+
+
10
10
dB
dB
SET
:
SELECT
:
79
Sound Field Operations
To return to the previous menu
Select RETURN instead of pressing MENU in step 5, then press
EXECUTE.
Adjusting the tone for all sound fields
Adjust the tone of the front, center and rear speakers for optimum
sound. You can adjust the tone for all sounds fields, including
PROLOGIC.
1 Start playing a program source,
then repeat steps 1 through 4 in
“Using the pre-programed sound
fields” on page 49 and select one
of the sound fields in step 3.
2 Press CURSOR >/. to move the
cursor (I) to TONE EDIT.
3 Press EXECUTE. Then, press
CURSOR >/. to move the cursor (I)
to BASS, and press CURSOR ?//
to adjust the level of the low
frequencies as you like.
4 Press CURSOR >/. to move the
cursor (I) to TREBLE, then press
CURSOR ?// to adjust the level
of the high frequencies as you
like.
5 Press MENU to return to the
original screen.
To return to the previous menu
Select RETURN instead of pressing MENU in step 5, then press
EXECUTE.
To start your adjustment from a flat equalizer curve
Select FLAT after pressing EXECUTE in step 3 above, then adjust BASS
and TREBLE.
continued
SET
SELECT
:
:
SOUND SET
SOUND FIELD
ON
LEVEL
OFF
EFFECT
TONE EDIT
BASS BOOST
SUR EDIT
THEATER
CENTER MODE
EXECUTE,
SET
SELECT
:
:
SOUND SET
SOUND FIELD
ON
LEVEL
OFF
EFFECT
TONE EDIT
BASS BOOST
SUR EDIT
THEATER
CENTER MODE
EXECUTE
TONE EDIT
BASS
TREBLE
FLAT
RETURN
+4
0
dB
dB
+10
–10
SET
:
SELECT
:
TONE EDIT
BASS
TREBLE
FLAT
RETURN
+
–
4
2
dB
dB
+10
–10
SET
:
SELECT
:
Note
• When SF OFF is selected,
the tone cannot be adjusted.
Sound Field Operations
80
Adjusting the effect level for THEATER, MONO
MOVIE, HALL, STADIUM, or GAME
You can adjust the influence of the sound field to the level you like.
1 Start playing a program source,
then repeat steps 1 through 4 in
“Using the pre-programed sound
fields” on page 49 and select one
of the above sound fields in step
3.
2 Press CURSOR >/./?// to move
the cursor (I) to SUR EDIT, then
highlight EFFECT.
3 Press EXECUTE, then press CURSOR
>/. to select 1, 2, 3, or 4 as the
effect level.
If you select THEATER in step 1, and
you set the center mode to PHANTOM
(see “Selecting the center mode” on page
32), skip this step.
4 Press MENU to return to the
original screen.
To return to the previous menu
Select RETURN in stead of pressing MENU in step 4, then press
EXECUTE.
Customizing the sound fields
(continued)
SET
SELECT
:
:
SOUND SET
SOUND FIELD
ON
LEVEL
OFF
EFFECT
TONE EDIT
BASS BOOST
SUR EDIT
THEATER
CENTER MODE
EXECUTE,
SET
SELECT
:
:
SOUND SET
SOUND FIELD
ON
LEVEL
OFF
EFFECT
TONE EDIT
BASS BOOST
SUR EDIT
THEATER
CENTER MODE
EXECUTE
EFFECT
RETURN
SUR EDIT EFFECT
4
SET
:
SELECT
:
81
Sound Field Operations
Reinforcing the bass sound for all sound fields
In addition to the other sound effects, you can reinforce the bass sound
for all sounds fields including PROLOGIC.
1 Start playing a program source,
then repeat steps 1 through 4 in
“Using the pre-programed sound
fields” on page 49 and select one
of the sound fields in step 3.
2 Press CURSOR >/./?// to move
the cursor (I) to BASS BOOST, then
highlight ON.
3 Press MENU to return to the
original screen.
SET
SELECT
:
:
SOUND SET
SOUND FIELD
ON
LEVEL
OFF
EFFECT
TONE EDIT
BASS BOOST
SUR EDIT
THEATER
CENTER MODE
EXECUTE,
SOUND SET
SOUND FIELD
ON
LEVEL
OFF
EFFECT
TONE EDIT
BASS BOOST
SUR EDIT
THEATER
CENTER MODE
SET
:
SELECT
:
Sound Field Operations
82

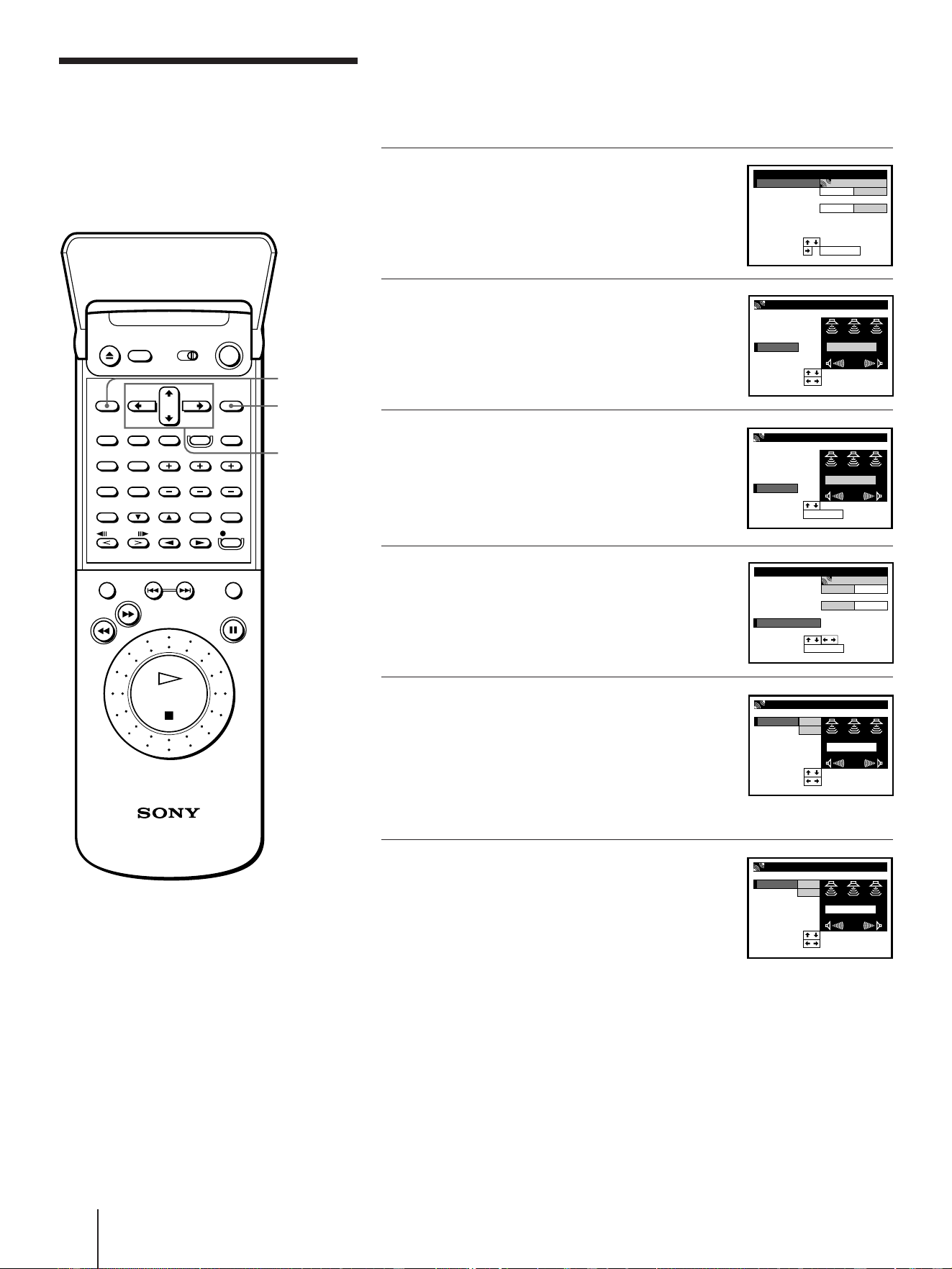

Reconfiguring the
PROLOGIC and
THEATER sound
fields
MENU
CURSOR
>/./?//
EXECUTE
If you change your speaker configuration, you need to readjust the
center mode and speaker levels for the PROLOGIC and THEATER
sound fields.
1 Repeat steps 1 through 4 in
“Using the pre-programed sound
fields” on page 49 and select
PROLOGIC or THEATRE in step 3.
2 Press CURSOR >/. to move the
cursor (I) to CENTER MODE, then
press EXECUTE.
3 Press CURSOR ?// to select the
center mode, then press CURSOR
. to highlight RETURN.
See “Selecting the center mode” on page
32.
4 Press EXECUTE, then press CURSOR
>/. to highlight TEST TONE.
5 Press EXECUTE.
Each speaker emits the test tone in turn
(the speaker emitting the test tone is
indicated by the red speaker mark).
Check each speaker’s relative volume
balance with the test tones.
6 Press CURSOR ?// to increase or
decrease the volume of the center
speaker.
If you selected PHANTOM in step 3,
skip this step.
For PROLOGIC sound, you should have
an equal volume balance with the other
speakers at your listening position.
For THEATER sound, you can adjust the
speaker level as you like.
Tip
• To adjust the relative
volume balance between the
front left and right speakers,
use BALANCE L/R on the
unit.
SET
SELECT
:
:
SOUND SET
SOUND FIELD
ON
LEVEL
OFF
DELAY
TONE EDIT
BASS BOOST
SUR EDIT
PRO LOGIC
CENTER MODE
TEST TONE
EXECUTE,
WIDE
CENTER MODE SET
C MODE
RETURN
SET
:
SELECT
:
NORMAL
CENTER MODE SET
C MODE
RETURN
SET
SELECT
:
:
EXECUTE
CENTER
RETURN
TEST TONE
REAR
+
+
8
10
dB
dB
SET
:
SELECT
:
TEST TONE
CENTER
RETURN
TEST TONE
REAR
+
+
10
10
dB
dB
SET
:
SELECT
:
TEST TONE
SET
SELECT
:
:
SOUND SET
SOUND FIELD
ON
LEVEL
OFF
DELAY
TONE EDIT
BASS BOOST
SUR EDIT
PRO LOGIC
CENTER MODE
EXECUTE
TEST TONE
83
Sound Field Operations
7 Press CURSOR >/. to move the
cursor (I) to REAR, then press
CURSOR ?// to increase or
decrease the volume of the rear
speakers.
If you selected 3CH LOGIC in step 3,
skip this step.
For PROLOGIC sound, you should have
an equal volume balance with the other
speakers at your listening position.
For THEATER sound, you can adjust the
speaker level as you like.
The surround speakers’ volume balance
is always even.
8 Press MENU to return to the
original screen.
Adjusting the speaker level by listening to the
program source
1 Start playing a program source, then repeat step 1 through 4 in
“Using the pre-programmed sound fields” on page 49 and select
PROLOGIC or THEATER in step 3.
2 Press CURSOR >/./?// to move the cursor (I) to SUR EDIT,
then highlight LEVEL.
3 Repeat steps 5 through 8 on the previous page.
Increasing the maximum rear speaker level
Although the adjustment range of the rear speakers is preset from –15 to
+10 dB, you can shift the range up 5 dB (–10 to +15 dB). Hold down
MUTING on the unit while turning on the power. “GAIN UP” appears
in the display window.
The values for the rear level remain fixed at –15 to +10 dB on the menu,
but you will be able to hear the difference in the actual output level.
To reset the rear level adjustment range, repeat this procedure so “GAIN
NOR” appears in the display window.
CENTER
RETURN
TEST TONE
REAR
+
+
10
7
dB
dB
SET
:
SELECT
:
TEST TONE
Advanced VCR Operations
84

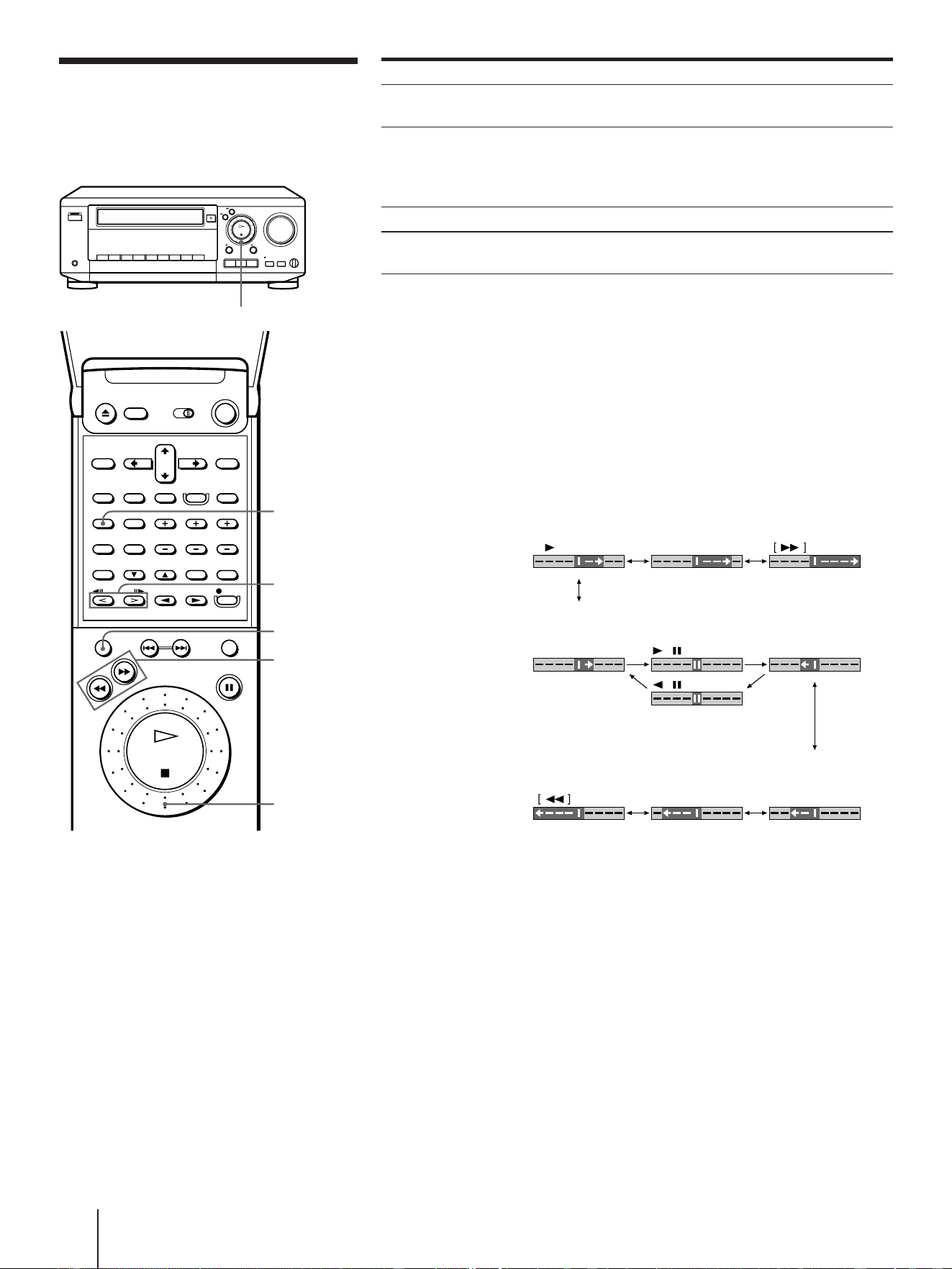

Advanced VCR Operations
Playing/searching at
various speeds
Playback options
View the picture during fast-
forward or rewind
Play frame by frame
Play in reverse
Rewind and start play
Operation
During fast-forward, press and hold ) FF.
During rewind, press and hold 0 REW.
During pause, lift the top cover of the remote
commander and press 7 FRAME or
' FRAME. Hold down either button to play
one frame each second.
During playback, press <.
During stop, lift the top cover of the remote
commander and press AUTO PB.
Tip
• Adjust the picture using $/4
STILL ADJUST if:
– Streaks appear while playing
in slow motion.
– Bands appear at the top or
bottom while pausing.
– The picture shakes while
pausing.
Notes
• The playback sound is muted
during these modes except for
normal speed playback.
• Tapes recorded in the LP mode
on other VCRs can be played
back on this unit’s VCR but the
picture quality cannot be
guaranteed.
• If the playback mode mark
doesn’t appear on the TV
screen, press DISPLAY.
) FF/
0 REW
Shuttle ring
Using the Shuttle ring
With the Shuttle ring, you can operate a variety of playback options.
During playback or pause, turn the Shuttle ring clockwise or
anticlockwise. Each change in the Shuttle ring position changes the
playback mode, and the corresponding mark appears on the TV screen
for a few seconds in the following way if the on-screen display function
is on:
Mark on the TV screen
Slow motion Pause Slow motion
in reverse
Playback mode Normal speed Double speed High speed
High speed Double speed Normal speed
in reverse in reverse in reverse
X2
SLO
W
SLO
W
–
X2–X1–
SMART CUE/
D.SKIP
Shuttle ring
AUTO PB
'(<)/7
FRAME
85
Advanced VCR Operations
Recording TV
programs using the
quick timer
After you start recording a TV program from the unit’s VCR tuner, or a
DSS receiver connected to the LINE jacks in the normal way, you can
have the unit’s VCR stop recording automatically after a specified
duration.
1 While recording, press QUICK TIMER once.
2 Press QUICK TIMER repeatedly to set the duration.
Each press advances the time in 30 minute increments.
The duration decreases minute by minute to 0:00, then the unit’s
VCR stops recording and turns off automatically.
To extend the duration
Press QUICK TIMER repeatedly to set to the new duration.
To stop recording
To stop the unit’s VCR while recording, press TIMER REC ON/OFF.
0:00 0:30 1:00 10:30 11:00
QUICK TIMER
Tips
• You can also set the quick
timer and start recording
during stop mode. In this
case, the unit must be
turned on before you start
recording.
• You can turn off the unit
while recording with the
quick timer. This doesn’t
affect the quick timer
recording.
• You can enjoy watching or
listening to another input
source even during quick
timer recording.
Note
• You can use the quick timer
only for recording TV
programs from the unit’s
VCR tuner or LINE input
source.
TIMER
Advanced VCR Operations
86

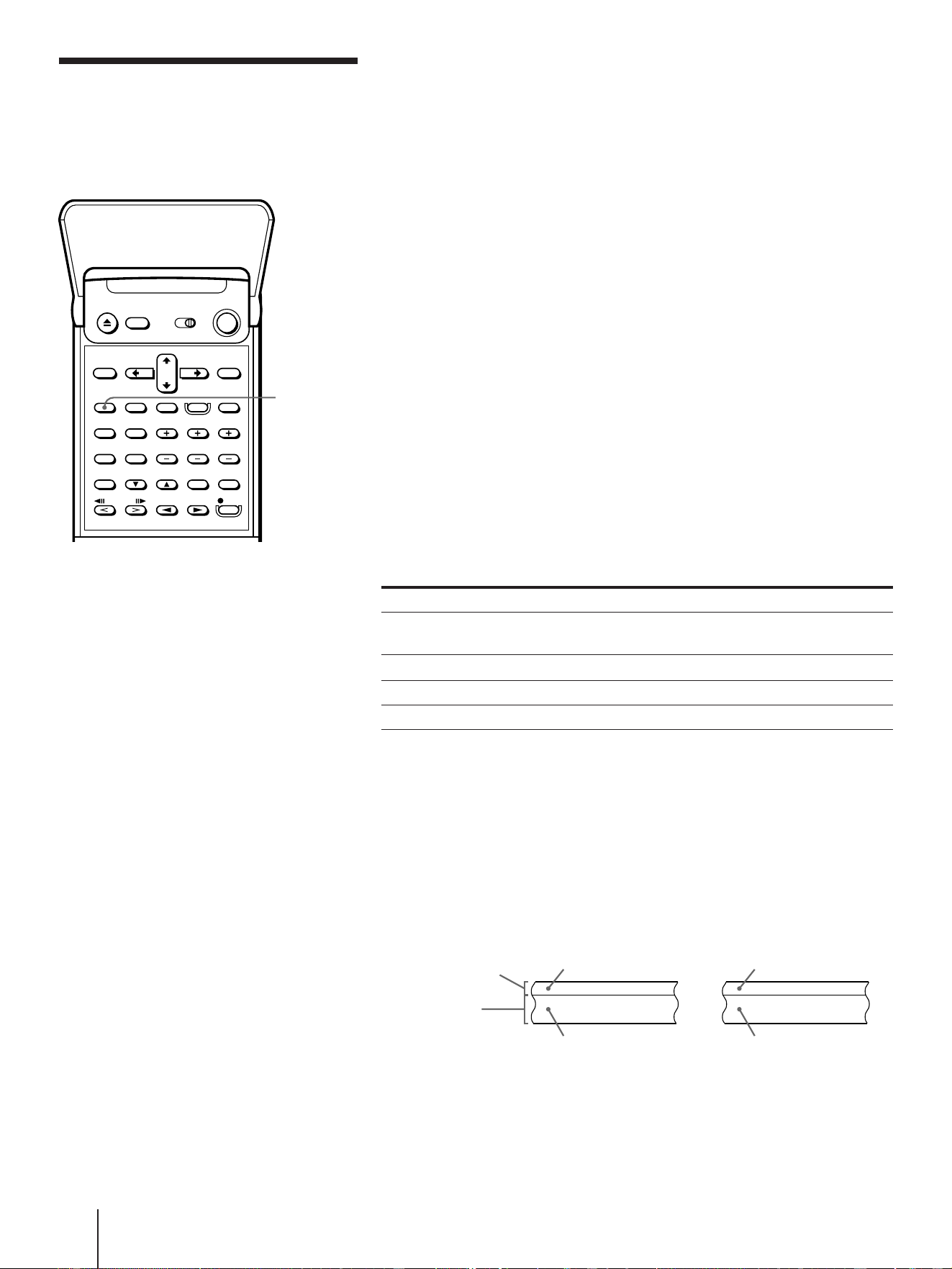

Recording stereo
and bilingual
programs
Notes
• If the AUDIO MONITOR
button does not function,
check that AUDIO MIX in
the SET UP MENU is set to
OFF.
• When you play a tape
recorded in monaural, the
sound is heard in monaural
regardless of the AUDIO
MONITOR setting.
Recording stereo programs
This VCR automatically receives and records stereo programs. When a
stereo program is received, the STEREO indicator lights up. If there is
noise in the stereo program, set AUTO STEREO in the ADVANCED
OPTIONS menu to OFF. The sound will be recorded in monaural (on
both hi-fi and normal audio tracks) but with less noise. For details, see
page 89.
Recording bilingual programs
Normally, this VCR records only the main sound on both hi-fi and
normal audio tracks. To record SAP (Second Audio Program) sound on
the normal audio track, set NORMAL AUDIO in the ADVANCED
OPTIONS menu to SAP (the SAP indicator lights up). For details, see
page 89.
To select the bilingual sound while recording
Press AUDIO MONITOR to select the sound you want.
Selecting the sound during playback
Press AUDIO MONITOR to select the sound you want.
To listen to
Stereo/main
(left and right channels)
Left channel only
Right channel only
Monaural (SAP)
Display window
STEREO
STEREO
STEREO
No indicator
On-screen display
STEREO
LEFT CH
RIGHT CH
No indicator
How sound is recorded on a video tape
The unit’s VCR records sound onto two separate tracks. Hi-fi audio is
recorded onto the main track along with the picture. Monaural sound is
recorded onto the normal audio track along the edge of the tape.
Stereo
Usually mixed
left/right channels
Stereo sound
(left/right channels)
Bilingual
Main (left channel)
Sub (right channel)
Main or SAP sound
Normal audio track
(monaural)
Hi-fi audio track
(main track)
AUDIO
MONITOR
87
Advanced VCR Operations

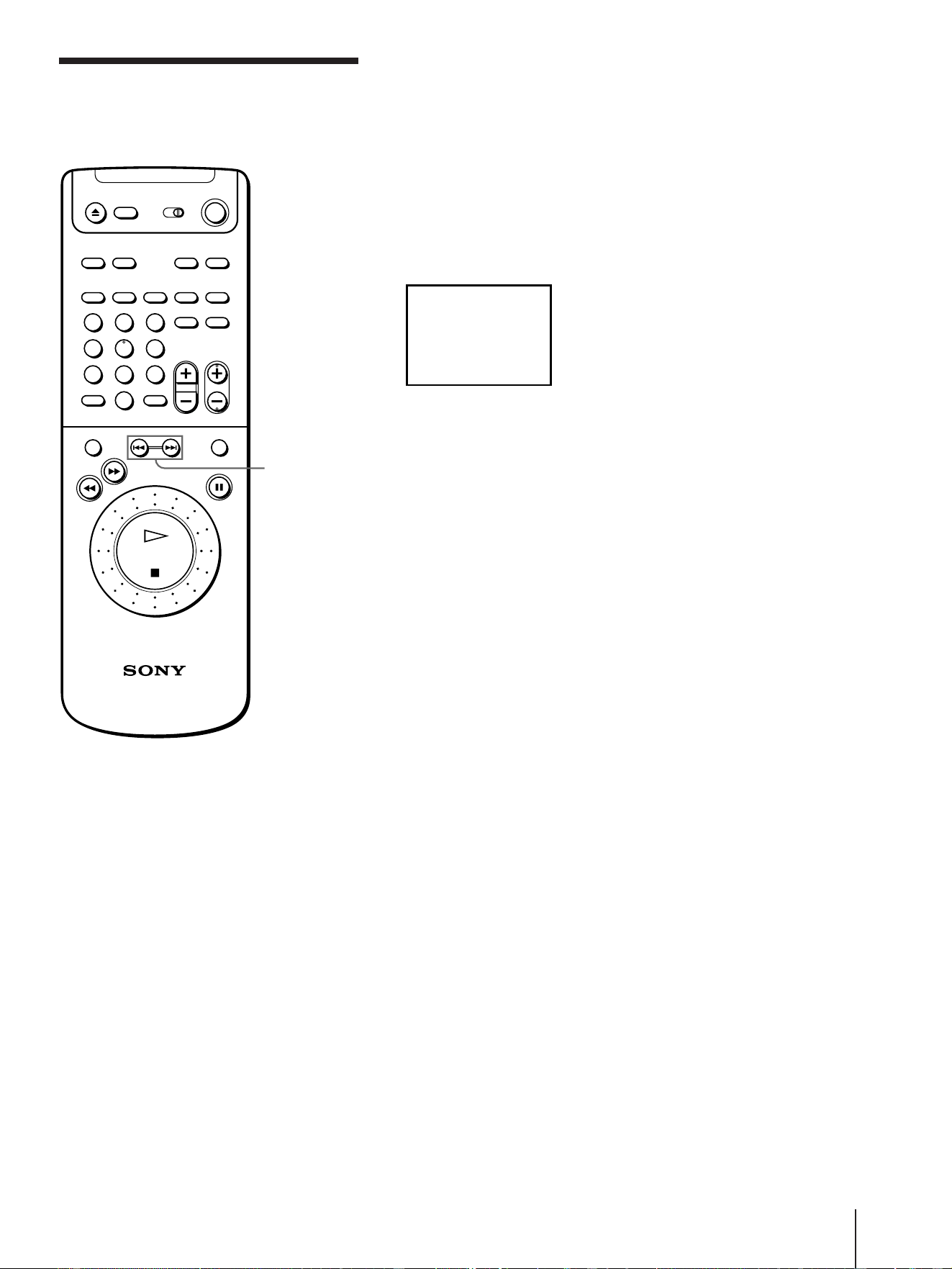

Searching using the
index function
The unit’s VCR marks the tape with an index signal at the point where
each recording begins. Use these signals as references to find a specific
recording. The unit’s VCR can search up to 99 index signals ahead of or
behind the current position.
1 Insert an indexed tape into the unit.
2 Press =/+ INDEX SEARCH repeatedly to specify how many
index signals ahead or behind you want to search:
• To search ahead, press + INDEX SEARCH.
• To search behind, press = INDEX SEARCH.
The unit’s VCR starts searching and the index number on the TV
screen counts down to zero. Playback starts automatically from that
point.
To stop searching
Press p STOP.
123
456
789
0
>
10
Note
• No index signal will be
added when recording
starts from recording pause.
However, an index signal
will be marked if you
change the channel during
recording pause.
INDEX
SEARCH
8
=/+
INDEX
SEARCH
Advanced VCR Operations
88

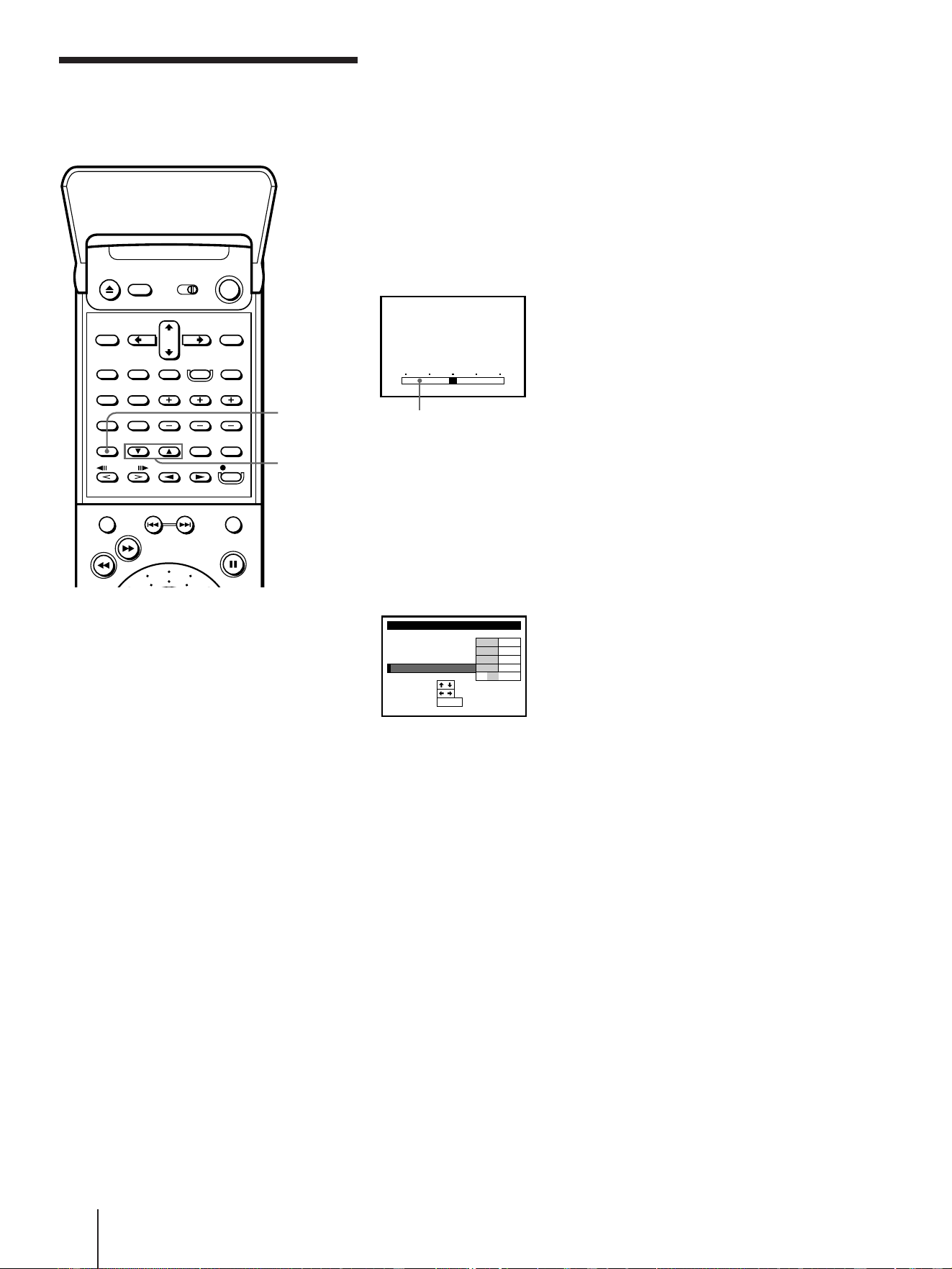

Adjusting the
Adjusting the tracking
Although the unit’s VCR automatically adjusts the tracking when
playing a tape (the AUTO TRACKING indicator flashes in the display
window, then lights steadily), distortion may occur if the tape was
poorly recorded. If picture distortion occurs, manually adjust the
tracking.
Press $/4 TRACKING NORMAL/SLOW to display the tracking meter.
The distortion should disappear as you press one of the two buttons. If
you cannot get a clear picture with manual adjustment, press
TRACKING AUTO/MANUAL to return to automatic adjustment.
About Adaptive Picture Control (APC)
Adaptive Picture Control (APC) automatically improves recording and
playback quality by adjusting the unit’s VCR to the condition of the
video heads and tape. To maintain better picture quality, we
recommend that you set APC to ON in the ADVANCED OPTIONS
menu (with the APC indicator in the display window lit).
See “changing menu options.”
APC playback
The APC function automatically works on all types of tapes, including
rental tapes and tapes that were not recorded with APC.
APC recording
Whenever you insert a tape and first start recording, the unit’s VCR
adjusts to the tape using the APC function (the APC indicator flashes
rapidly). This adjustment remains in effect until the tape is ejected.
To deactivate the APC
Press MENU and select SET UP MENU, then set APC to OFF. The APC
indicator in the display window goes off.
Tracking meter
AUTO/
MANUAL
NORMAL TRACKING
Notes
• Auto tracking adjustment
cannot be used on tapes
recorded in the LP mode on
other VCRs.
• The APC function does not
work if the tape speed is
automatically changed from
the SP to EP mode during a
timer recording, unless the
tape has been recorded in
the EP mode with the APC
function.
• There is a delay of a few
seconds before the unit’s
VCR actually starts
recording while the unit’s
VCR analyses the tape. To
avoid the delay, first set the
unit’s VCR to recording
pause (the APC indicator
flashes slowly) and press r
REC to have the unit’s VCR
analyse the tape (the APC
indicator flashes rapidly).
After the APC indicator
stops flashing, press P
PAUSE to start recording
immediately. If you want to
start recording quickly
without using the APC
function, first set the unit’s
VCR to recording pause (the
APC indicator flashes
slowly) and press P PAUSE
to start recording.
ADVANCED OPTIONS
TAPE SELECT
INDICATION
SHARPNESS
ON OFF
AUTO TAPE SPEED
SET
:
SELECT
:
~
ON OFF
LH
APC
ON OFF
120~160
––
MENU
QUIT
:
page2
$/4
TRACKING
NORMAL/
SLOW
89
Advanced VCR Operations
Changing menu
options
1 Press MENU. Then select VHS MENU and press EXECUTE.
2 Press CURSOR >/. to select ADVANCED OPTIONS and press
EXECUTE.
3 Press CURSOR >/. to select the option to change, then press
CURSOR ?// to change the setting.
4 Press EXECUTE to return to the original screen.
Menu choices
Initial settings are indicated in bold print.
Menu option
AUTO ANT SEL
AUTO STEREO
DIMMER
AUDIO MIX
NORMAL AUDIO
INDICATION
TAPE SELECT
AUTO TAPE SPEED
APC
SHARPNESS
Set this option to
ON if your TV is connected only to VHF/UHF OUT
on the VCR. To play a tape , set the TV to the VCR
channel (channel 3 or 4). OFF if your TV is connected
to both VHF/UHF OUT and VIDEO OUT on the
VCR. To play a tape, set the TV to the VCR input.
ON to receive stereo programs, OFF to reduce noise.
The sound changes to monaural.
ON to make the display window dim, OFF to make it
brighter.
ON to listen to the hi-fi and normal audio tracks at
the same time. The AUDIO MONITOR button will
not function.
OFF to listen to the hi-fi and normal audio tracks
separately. Select the sound using the AUDIO
MONITOR button.
For details, see page 86.
MAIN to record the main sound on both hi-fi and
normal audio tracks. SAP to record the SAP (Second
Audio Program) sound on the normal audio track.
The main sound is recorded on the hi-fi audio track.
ON to display the operational function and selected
sound field for a few seconds in the display window.
OFF to display only the indication selected with the
STATUS button on the unit.
For details, see page 48.
“~120” or “~160” to select the tape length and display
the remaining time correctly.
ON to change the timer recording tape speed
automatically to the EP mode when the remaining
tape becomes shorter than the recording time, OFF to
keep the tape speed.
ON to switch on the APC (Adaptive Picture Control)
function and improve the picture quality, OFF to
switch off APC.
For details, see page 88.
L (Low) through H (High) to adjust the sharpness of
the picture. L to turn off the sharpness control.
ADVANCED OPTIONS
AUTO STEREO
AUTO ANT SEL
NORMAL AUDIO
ON OFF
DIMMER
SET
:
SELECT
:
ON
ON OFF
AUDIO MIX
ON OFF
OFF
MENU
QUIT
:
page1
MAIN SAP
ADVANCED OPTIONS
TAPE SELECT
INDICATION
SHARPNESS
ON OFF
AUTO TAPE SPEED
SET
:
SELECT
:
~
ON OFF
LH
APC
ON OFF
120~160
––
MENU
QUIT
:
page2
Editing
90
Editing
Recording from
another VCR or LD
player
Before you start editing
• Connect another VCR or LD player to the unit referring to the
connections on pages 8 and 9.
• Press VHS TUNER.
– If the TV doesn’t turn on, turn it on manually.
– If connected with only the antenna cable, set the TV to the video
channel.
• Press TAPE SPEED to select the tape speed, SP or EP.
• On this unit, set the EDIT switch to ON. If the other VCR has a
similar switch, set it to ON as well.
• Do not use the remote commander in the following procedure.
1 Insert a tape with its safety tab in
place into the unit (recording
VCR).
Search for the point to start
recording and press P PAUSE.
2 Press r REC on the unit to set it to
recording pause.
3 • Insert a source tape with its
safety tab removed into the
other (playback) VCR when
recording from another VCR.
• Insert an LD into the LD player,
when recording from an LD
player.
4 Press VIDEO or VHS repeatedly to
select the input (playback) source
(VIDEO1, VIDEO2, or LINE).
5 Search for the point to start
playback and set it to playback
pause.
6 To start editing, press P PAUSE on
this unit and release the pause
mode on the other equipment at
the same time.
To stop editing
Press the p STOP buttons on both units.
EDIT
P PAUSE
VHS
VIDEO
r REC
Tips
• To cut out unwanted
scenes while editing,
press P PAUSE on the
unit when an unwanted
scene begins. When it
ends, press P PAUSE
again to resume recording
(Assemble Editing).
• You can record audio sound
from the desired input
source on the video tape by
pressing AUDIO repeatedly
in step 4.
Note
• If you follow this procedure
to start recording, the unit’s
VCR won’t record with the
APC function. To record a
tape with the APC function,
press r REC again during
recording pause in step 2 so
the unit’s VCR analyses the
tape. Then when you start
recording in step 6, press
P PAUSE after the APC
indicator stops flashing. If
you press P PAUSE
before
the APC indicator stops
flashing, the APC function is
cancelled.
91
Additional Information
Additional Information

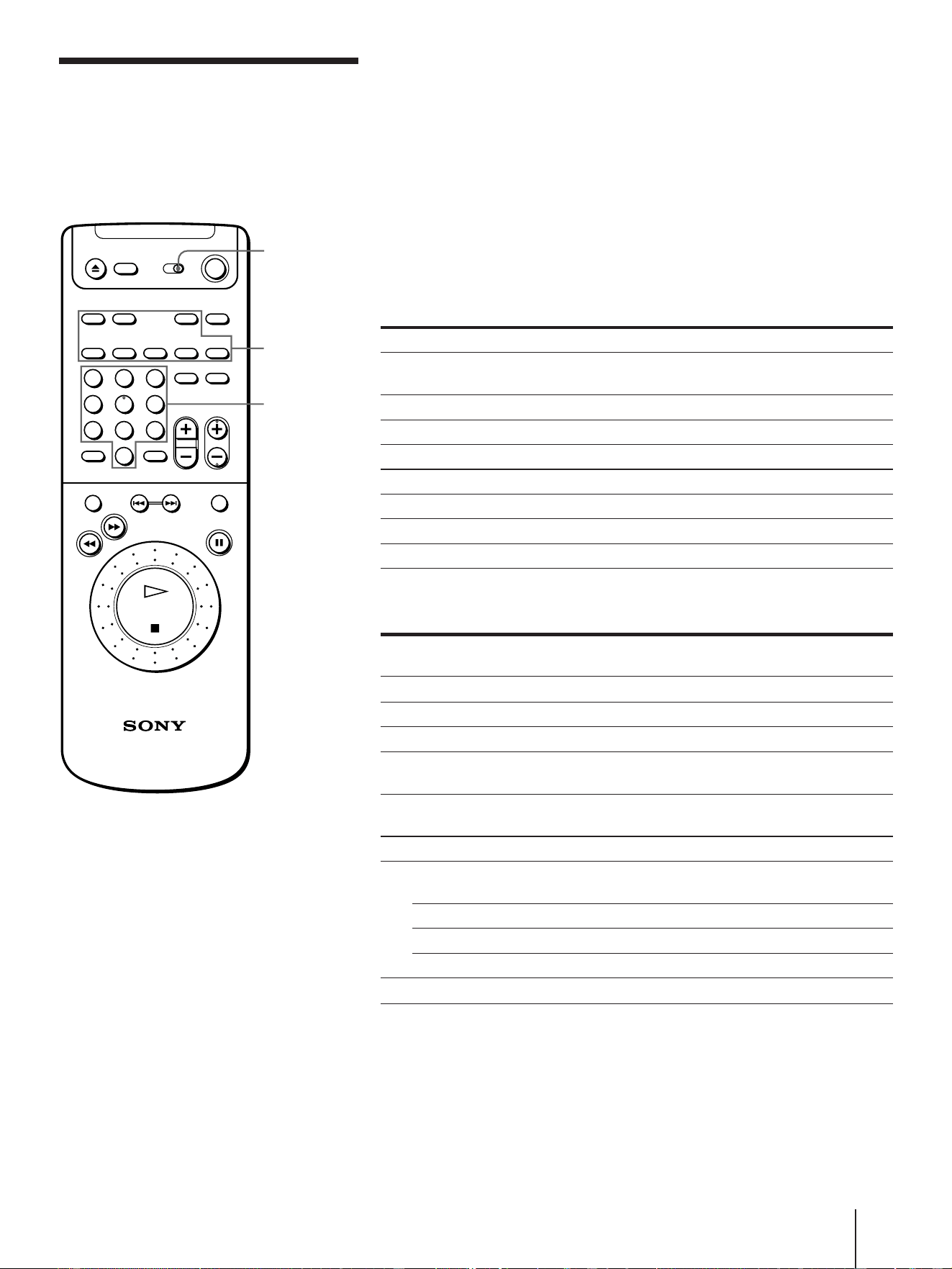

Customizing the
remote commander
function buttons
Notes
• You cannot customize the
VHS TUNER, VHS LINE,
and TUNER function
buttons.
• The COMMAND MODE
selectors on both the remote
commander and unit (the
actual selector’s name on
the unit is VTR COMMAND
MODE) are factory set to
VTR3.
123
456
789
0
>
10
Function
buttons
Number
buttons
The function buttons on the remote commander have two roles. One is
to select the input sources (see “Selecting the equipment” on page 59)
and the other is to switch the remote commander to operate the selected
piece of equipment. The function buttons are factory set for the unit’s
VCR, a radio tuner, CD player, cassette deck (deck B for double-cassette
decks), and TV connected to the source inputs. If you want to control
other piece of equipment or restore the factory settings, you need to
customize the function buttons. For detailed customizing explanations,
see the sections for controlling each piece of equipment (see pages 62
through 74). This section shows you the factory settings of, and the way
to customize, the remote commander function buttons.
Factory set functions
Press
VHS TUNER
VHS LINE
VIDEO 1
VIDEO 2
TUNER
CD
TAPE/MD
TV
Then, the remote commander operates
The unit’s VCR (The COMMAND MODE selector
determines the controllable VCR.)
Same as above
Same as above
Same as above
Same as above
A CD player
A single cassette deck or deck B of a double-cassette deck
A TV
To customize the function buttons
To control
A CD player
A DAT deck
An MD deck
A single cassette deck or
Deck B of a double-cassette deck
A single cassette deck or
Deck A of a double-cassette deck
An LD player
A VCR if its COMMAND MODE
position/format is
VTR1/Betamax
VTR2/8mm
VTR3/VHS
A TV
To restore the factory settings for all the function buttons
Remove the batteries from the remote commander, and insert the
batteries again.
To restore the factory settings for VIDEO1 or VIDEO2
See “To relate VIDEO1 or VIDEO2 with COMMAND MODE again” on
page 63.
While pressing one of the
function buttons, press
1
2
3
4
5
6
7
8
9
0
COMMAND
MODE
Additional Information
92
General setup
information
Setting the RF unit
When connecting this unit to the TV using only the antenna cable, you
must set the RF UNIT switch on the rear of the unit so that the TV can
receive the correct signal from the this unit.
1 Set the RF UNIT switch to CH3 or CH4, whichever channel is not
used in your area. If both are used, set the switch to either channel.
2 Press POWER to turn on this unit.
3 Press TV/VTR to turn on the VTR indicator in the unit’s display
window.
4 Press CH/PRESET +/– to display a channel number in the display
window. Select an active channel number in your area.
5 Turn on your TV and set it to the channel you selected in step 1
(channel 3 or 4).
The selected TV channel broadcast appears on the TV screen. If the
channels change when you press CH/PRESET +/– on this unit, you
have made the correct setting.
Whenever you use this unit, set the TV to the channel selected in step
1.
Attaching the external antenna connector
When using a 300-ohm twin lead cable for VHF/UHF antenna, use the
EAC-32 antenna connector (not supplied) to connect the antenna to the
VCR.
1 Loosen the screws on the antenna connector.
2 Wind the twin leads around the screws on the antenna connector.
3 Retighten the screws.
EAC-32 Antenna
connector (not
supplied)
300-ohm twin
lead cable
TV
TV/VTR CH/PRESET TUNING +/–
RF UNIT
CH3
CH4
93
Additional Information
Attaching a UHF/VHF band mixer
When using both 75-ohm coaxial cable and 300-ohm twin lead cable for
VHF/UHF antenna, use the EAC-66 UHF/VHF band separator/mixer (not
supplied) to connect the antenna to the VCR.
1 Loosen the screws on the mixer.
2 Wind the twin leads around the screws on the mixer.
3 Retighten the screws.
4 Connect the 75-ohm coaxial cable to the mixer.
EAC-66
UHF/VHF
band
separator/
mixer (not
supplied)
300-ohm twin
lead cable
75-ohm coaxial
cable
Additional Information
94

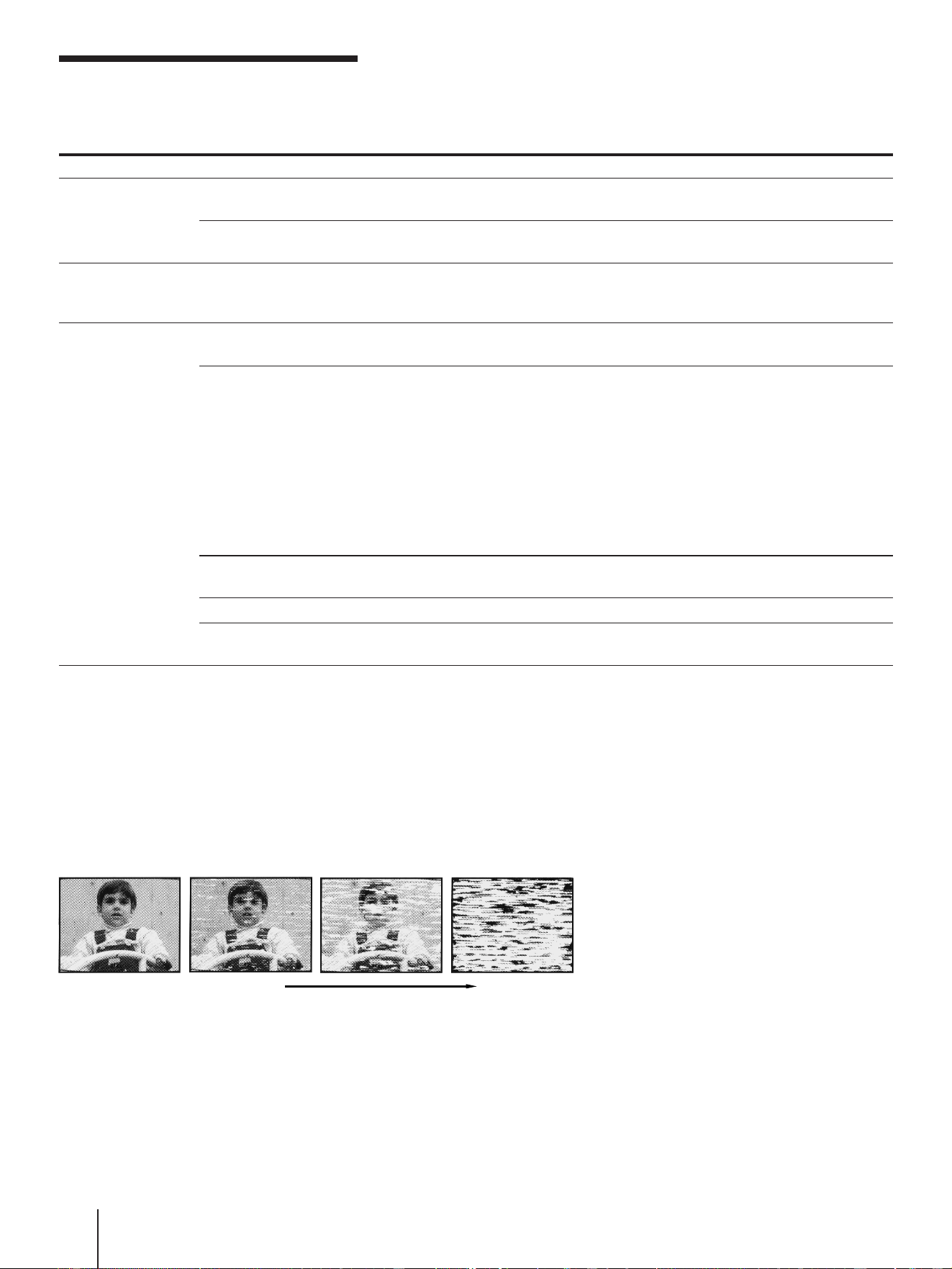

If you have any questions or problems not covered below, please consult
your nearest Sony service facility.
Symptom Remedy
Unit’s power The POWER switch doesn’t
function.
The power is turned on but
the unit doesn’t operate.
Clock The clock has stopped and
“-:--” lights in the display
window.
Playback The playback picture does not
appear on the TV screen.
The picture is not clear.
The picture rolls vertically
during picture search.
The picture has no sound.
Both main and SAP sounds
are heard.
• Connect the AC power cord securely.
• Moisture condensation has occurred. Turn the power off, unplug the
AC power cord and leave the unit to dry for over one hour.
• The clock stops if the unit is disconnected from the wall outlet for
more than one hour. Reset the clock (and timer).
• Make sure the TV is set to the channel for the VCR. If you are using
a monitor, set it to video input.
• Adjust the tracking with the TRACKING NORMAL/SLOW buttons.
• The video heads are dirty (see below). Clean the video heads using
the Sony V-25CL video head cleaning cassette. If this cleaning
cassette is not available in your area, have the heads cleaned at your
nearest Sony service facility (a standard service charge will be
required). Do not use a commercially available wet-type cleaning
cassette, as it may damage the video heads.
• The video heads may have to be replaced. Consult your local Sony
service facility for more information.
• Place the TV away from the audio components.
• Adjust the vertical hold control on the TV or monitor.
• The tape is defective. Use a new tape.
• When you play a bilingual tape, make sure the AUDIO MIX option
in the ADVANCED OPTIONS is set to OFF.
Troubleshooting
• Normal picture • No picture (or
black & white
screen appears)
• Unclear picture• Rough picture
Symptoms caused by contaminated video heads
terminalinitial
95
Additional Information
continued
Symptom Remedy
No TV program appears on the
TV screen.
TV reception is poor.
The tape starts playing as soon
as it is inserted.
The tape is ejected when you
press r REC.
Nothing happens when you
press r REC.
Timer recording The timer does not operate.
A tape cannot be inserted.
The tracking indicator does not
appear on the screen.
The unit needs to be cleaned.
Recording and TV
reception
• Make sure the TV is set to the video channel. If you are using a
monitor, set it to video input.
• Adjust the TV antenna.
• Place the TV away from the audio components.
• The safety tab has been removed. To record on this tape, cover
the tab hole.
• Check that the safety tab has not been removed.
• Make sure the tape is not at its end.
• If you want to record from other equipment, select the correct
source with the function buttons
on the unit. If you select the
input source with the remote commander function buttons, the
remote commander may be switched to control other
equipment. Make sure the remote commander is set for the
unit’s VCR control if you use r REC on the remote
commander.
If you want to record TV programs, press VHS TUNER on the
remote commander, then select a channel.
• Check that the clock is set.
• Make sure a tape has been inserted.
• Check that the safety tab has not been removed.
• Make sure the tape is not at its end.
• Make sure a program has been set for timer recording.
• Make sure you press TIMER REC ON/OFF to set the unit to
timer recording standby.
• Make sure the current time has not already passed your timer
settings.
• Check that the cable box is turned on.
• Check that the DSS receiver is turned on.
• The clock stops if the unit is disconnected from the wall outlet
for more than one hour. Reset the clock and timer.
• Check that a tape isn’t already in the tape compartment.
• The recording condition of the tape is very poor and tracking
cannot be adjusted.
• Clean the cabinet, panel and controls with a soft, dry cloth, or a
soft cloth slightly moistened with a mild detergent solution.
Do not use any type of solvent, such as alcohol or benzine.
Other VCR
problems
Additional Information
96
Symptom Remedy
Amplifier There’s no sound or only a
very low-level sound is heard.
The left and right sounds are
unbalanced or reversed.
Severe hum or noise is heard.
No sound or a very low-level
sound is heard from the rear
speakers or center speaker.
The surround effect cannot be
heard.
The remote commander does
not function.
• Check that the speakers and components are connected
securely.
• Press MUTING if the
(muting) indicator is displayed on the
TV screen or the MASTER VOLUME indicator on the unit
flashes.
• The headphones are connected to PHONES. Disconnect the
headphones.
• The protective device on the unit has been activated because of
a short circuit. (“PROTECT” appears in the display window.)
Turn off the unit, then eliminate the cause of the short-circuit
and turn on the unit again.
• Check that the speakers and components are connected
correctly and securely.
• Adjust BALANCE L/R on the unit.
• Check that the speakers and components are connected
correctly and securely.
• Check that the connecting cords and cables are away from a
transformer or motor, and at least 3 meters away from a TV set
or fluorescent light.
• Place your TV away from the audio components.
• The plugs and jacks are dirty. Wipe them with a cloth slightly
moistened with alcohol.
• Select the appropriate center mode.
• Adjust the speaker volume appropriately.
• Make sure you turn on the sound field surround mode
function.
• Make sure you select a suitable sound field for the playback
source.
• Make sure you turn on the sound field function.
• Make sure you select a suitable sound field for the playback
source.
• Make sure you are pointing the remote commander at the
remote sensor on the unit or equipment you want to control.
• Replace all the batteries in the remote commander with new
ones if they are weak.
• Make sure you press the correct remote commander function
button to set the remote commander for the equipment you
want to control.
• Remove obstacles in the path of the remote commander and
the receiver.
Remote
commander
Troubleshooting (continued)
97
Additional Information
Specifications
Canadian model:
(8 ohms at 1 kHz, THD 0.8%)
Front 70 W/ch
Center 70 W
(only in the PRO LOGIC
and THEATER mode)
Rear 70 W
Dynamic power output
8 ohms: 95 W + 95 W
4 ohms: 130 W + 130 W
Frequency response
CD, TAPE/MD, VIDEO 1, VIDEO 2,
TV, and LINE : 10 Hz - 50 kHz ± 1 dB
Inputs
CD
Sensitivity 220 mV
Impedance 50 kilohms
S/N 82 dB,
(Weighting
network, input
level)
TAPE/MD, VIDEO1, VIDEO2, TV,
and LINE
Sensitivity 180 mV
Impedance 50 kilohms
S/N 82 dB,
(Weighting
network, input
level)
Outputs
TAPE/MD REC OUT
Voltage 180 mV,
Impedance 10 kilohms
MIX AUDIO OUT
Voltage : 2 V
Impedance : 10 kilohms
PHONES
Accepts low and high impedance
headphones
Muting
–20 dB
BASS BOOST
+10 dB at 70 Hz
TONE
±8 dB at 100 Hz and 10 kHz
FM tuner section
Tuning range
87.5 - 108.0 MHz
Antenna terminal
75 ohms, unbalanced
AM tuner section
Tuning range
With 10 kHz interval**:
530 - 1710 kHz
With 9 kHz interval:
531 - 1710 kHz
Antenna Loop antenna
**You can change the AM tuning interval to
9 kHz. After turning in any AM station,
turn off the power, hold down the FM/AM
button and press the POWER switch. To
reset the interval to 10 kHz, repeat the
prodecure.
General
Power requirements
120 V AC, 60 Hz
Power consumption
190 W
AC outlet
Switched 120 W / 1A MAX
Operating temperature
5°C to 40°C
Storage temperature
–20°C to 60°C
Dimensions
Approx. 430 × 157 × 430 mm
(17 × 6
1
/
4
× 17 inches) (w/h/d)
including projecting parts and
controls
Mass
USA model:
Approx. 13.3 kg (29 lb 6 oz)
Canadian model:
Approx. 13.0 kg (28 lb 11 oz)
Supplied accessories
Remote commander (1)
Size AA (R6) batteries (2)
75-ohm coaxial cable with F-type
connectors (1)
Video cable (1 phono to 1 phono) (1)
AM loop antenna (1)
FM wire antenna (1)
Design and specifications are subject to
change without notice.
System
Channel coverage
VHF 2 to 13
UHF 14 to 69
CATV A-8 to A-1, A to W, W+1 to
W+84
Antenna
75-ohm antenna terminal for VHF/
UHF
VCR Inputs and outputs
VIDEO 1 IN
VIDEO 2 INPUT
LINE IN
VIDEO IN, phono jack (1)
Input signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
AUDIO IN, phono jacks (2)
Input level: 327 mVrms
Input impedance: more than 47
kilohms
MONITOR VIDEO OUT
Phono jack (1)
Output signal: 1 Vp-p, 75 ohm
(unbalanced), sync negative
TV IN
VIDEO IN, phono jack (1)
Input signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
AUDIO IN, phono jack (2)
Input level: 327 mVrms
Input impedance: more than 47
kilohms
Amplifier
USA model:
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION
With 8-ohm load, both channels
driven, from 20-20,000 Hz, rated 80
watts per channel minimum RMS
power, with no more than 0.09%
total harmonic distortion from 250
milliwatts to rated output.
Power output
Canadian model:
Stereo mode (8 ohms at 20 Hz - 20
kHz less than 0.09% total harmonic
distortion)
70 W + 70 W
Surround mode
USA model:
(8 ohms at 1 kHz, THD 0.8%)
Front 80 W/ch
Center 80 W
(only in the PRO LOGIC
and THEATER mode)
Rear 80 W
Dynamic power output
8 ohms: 125 W + 125 W
4 ohms: 165 W + 165 W
82 dB (’78 IHF)
(A, 0.5 V)
82 dB (’78 IHF)
(A, 0.5 V)
Additional Information
98
Front panel
Index to parts and
controls
1 POWER switch/indicator
2 TV/VTR button (39, 92)
3 TAPE SPEED button (50)
4 CH/PRESET TUNING +/– buttons (41)
5 Tape compartment (47)
6 FM/AM button (45)
7 P PAUSE button (90)
8 6 EJECT button (47)
9 0 REW button (47)
0 ) FF button (47)
!¡ Shuttle ring (45, 84)
!™ · PLAY button (47)
!£ MASTER VOLUME control/indicator (47, 48)
!¢ p STOP button (90)
!∞ BALANCE L/R control (31, 82)
!§ MUTING button (48)
!¶ SURROUND button/indicator (75, 78)
!• r REC button (90)
!ª FUNCTION buttons (45, 60, 67, 70, 72, 90)
@º STATUS button (48)
@¡ FM MODE button (90)
@™ TUNING MODE button (45)
@£ SHIFT button (46)
@¢ Remote sensor (5)
@∞ PHONES jack (7)
99
Additional Information

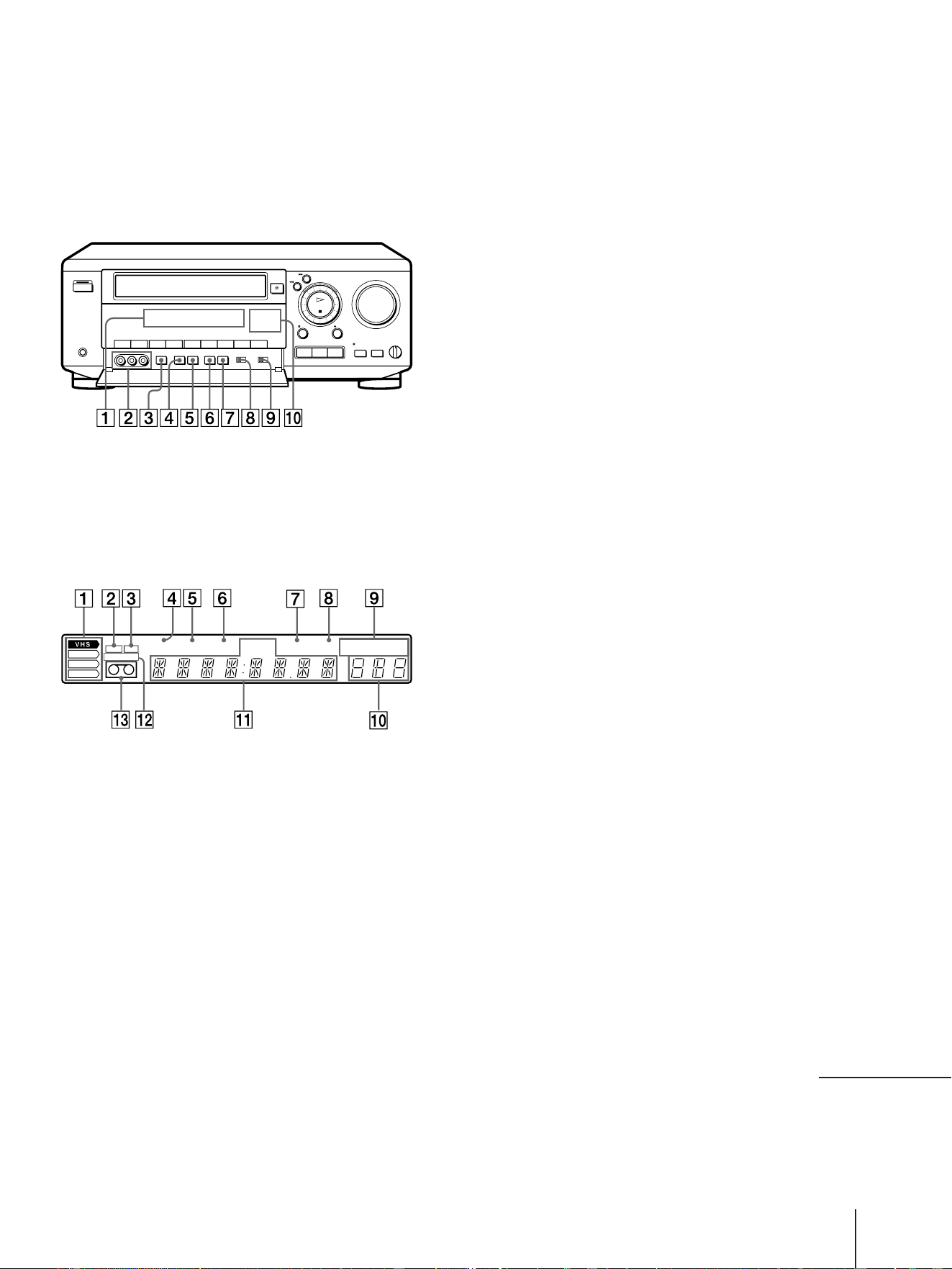

Front panel, with cover opened
1 Display window (48)
2 VIDEO 2 INPUT VIDEO/AUDIO L/R jacks (9)
3 EASY SET UP button (14, 17, 20, 23, 26, 28)
4 TIMER REC (ON/OFF) button (52)
5 QUICK TIMER button (85)
6 COUNTER RESET button (48)
7 MEMORY button (46)
8 EDIT ON/OFF switch (90)
9 VTR COMMAND MODE OFF/1/2/3 selector (62)
0 Tape operation indicators
Display window
1 Video input indicators (60)
2 TIMER indicator (52, 55, 85)
3 REC indicator (85)
4 VTR indicator (92)
5 APC indicator (88, 89)
6 MONO indicator (45)
7 STEREO indicator (45)
8 SAP indicator (86)
9 AUTO/MANUAL/MEMORY indicators (45, 46)
!º Line/channel indicator (50)
!¡ Time counter/clock/operating function/sound field
indications (48)
!™ Tape speed indicators (50)
!£ Ò (tape) indicator
continued
AUTO TRACKING
TIMER
LINE
VIDEO1
VIDEO2
REC
LPEPSP
VTR APC MONO AM STEREO SAP
HMS
PM
MEMORY
AUTO MANUAL
Additional Information
100
Rear panel 1 MIX OUT jack (7)
2 FRONT SPEAKERS L/R connectors (6)
3 SURROUND SPEAKERS REAR L/R connectors (7)
4 SURROUND SPEAKERS CENTER connectors (6)
5 RF UNIT switch (92)
6 VHF/UHF IN/OUT connectors (13, 16, 19, 22, 25, 27)
7 MONITOR VIDEO OUT jack (8)
8 TV IN VIDEO jack (8)
9 VIDEO 1 IN VIDEO jack (8)
!º LINE IN VIDEO jack (8)
!¡ AC OUTLET (9)
!™ AC power cord (9)
!£ CONTROL S OUT jack (13, 25)
!¢ LINE IN AUDIO L/R jacks (8)
!∞ VIDEO 1 IN AUDIO L/R jacks (8)
!§ TV IN AUDIO L/R jacks (8)
!¶ TAPE/MD REC OUT/IN AUDIO L/R jacks (8)
!• CD IN AUDIO L/R jacks (8)
!ª ANTENNA terminal (8)
Index to parts and controls
(continued)
101
Additional Information

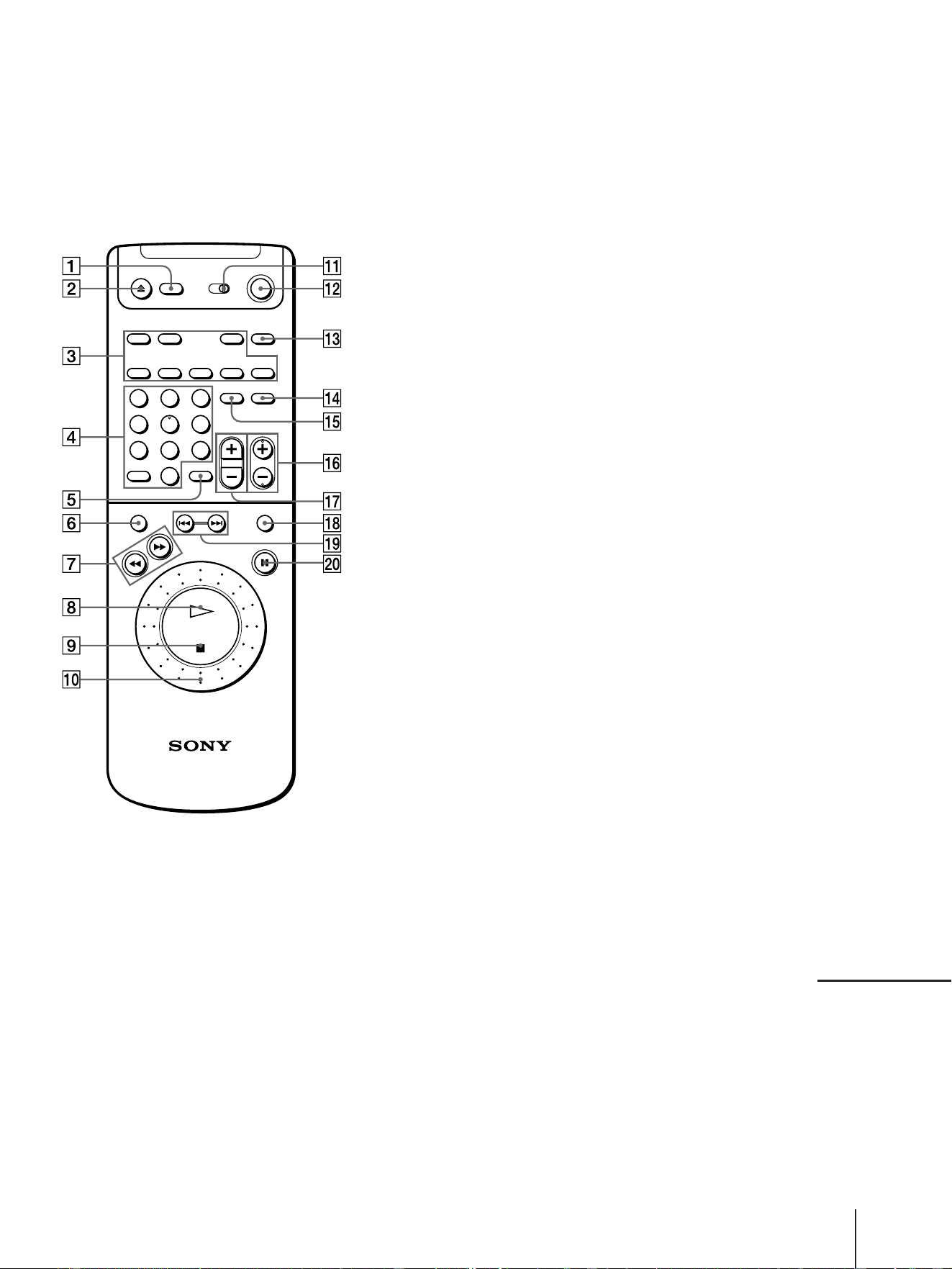

Remote commander 1 TV CONTROL ON button (65)
2 6 EJECT button (47)
3 SYSTEM CONTROL/FUNCTION buttons (59~74,
91)
4 Number/>10 (66, 71, 74)/SHIFT (58) /SET (52)
buttons
5 ENTER/RMS/START button (50)
6 SMART CUE/D.SKIP button (66, 84)
7 0 REW/) FF buttons (47, 66, 67, 69, 71, 73, 84)
8 · PLAY button (47, 66, 69, 71, 63)
9 p STOP button (47, 66, 67, 69, 71, 73)
0 Shuttle ring (45, 84)
!¡ COMMAND MODE VTR1/2/3 selector (62, 91)
!™ SYSTEM OFF button (61)
!£ VISUAL POWER button (62, 65, 74)
!¢ TV/VIDEO button (65)
!∞ VCR Plus+ button (51)
!§ CH/PRESET +/– buttons (41)
!¶ MASTER VOL +/– buttons (47, 61)
!• MUTING button (48, 61)
!ª =/+ INDEX SEARCH (76)/AMS (66, 69, 71,
73) buttons
@º P PAUSE button (47, 66, 67, 70, 71, 73)
continued
123
456
789
0
>
10
Additional Information
102

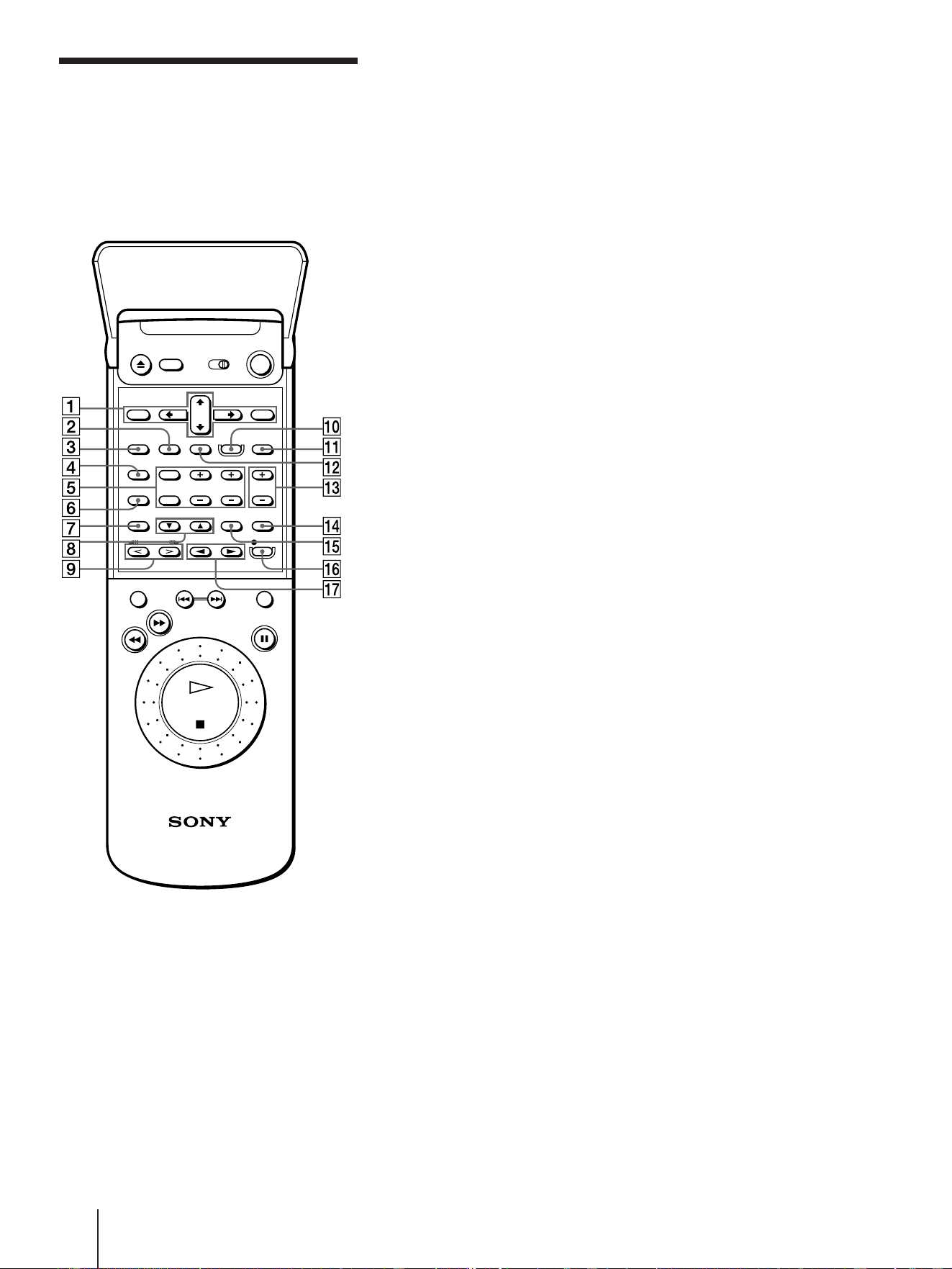

Remote commander, with top cover
opened
1 MENU/CURSOR >/./?///EXECUTE buttons
(30, 33)
2 DISPLAY button (48-50)
3 AUDIO MONITOR button (86, 89)
4 AUTO button (84)
5 TV POWER/TV/VIDEO/TV CH+/–/TV VOL +/–
buttons (65)
6 COUNTER RESET (48) button
7 TRACKING AUTO/MANUAL (88)/ANALOG/´
(CX) (74) button
8 $/4 TRACKING NORMAL/SLOW (88)/$/4
STILL ADJUST (84) buttons
9 '/7 FRAME buttons (74, 84)
0 TIMER REC ON/OFF button (52, 55)
!¡ TIMER CLEAR button (52, 56)
!™ TV WIDE button (64)
!£ CH +/– (64) buttons
!¢ TAPE SPEED (SP/EP) button (50)
!∞ STATUS button (48)
!§ r REC button (50, 68, 70, 72)
!¶ 9/( DIRECTION (67, 72, 74)/( SIDE A/9
SIDE B (73) buttons
Index to parts and controls
(continued)
103
Additional Information
Index
A, B
Accessories supplied 4
Adjusting
delay time 77
picture 84, 88
speaker volume 31, 47, 82
tone 79
tracking 88
AFT (Auto Fine Tuning) 42
APC (Adaptive Picture Control) 88
Audio component hookups 8, 9
Audio track 86
Audio/video equipment control 59
Automatic tuning 39
C
Cable Box Control
Cable box code number chart 36
setting 35
Cable hookup 13
Cable Mouse 13, 38
Cancelling timer settings 56
Center mode 32
NORMAL mode 32
PHANTOM mode 32
3CH LOGIC mode 32
WIDE mode 32
Changing timer settings 56
Cleaning the video heads 94
Clock setting 33
Connecting
Cable TV 12
external antenna connector 92
UHF/VHF band mixer 93
to audio/video equipment 8, 9
to speaker systems 6
Counter 48
D
Delay time 77
Display 48
Dolby Pro Logic Surround 75, 77
Dolby Surround sound 77
center mode 32
DSS (Digital Satellite System) 35
E, F, G
EASY SET UP 14, 17, 20, 23, 26, 28
Editing 90
EP mode 51
H
Hi-fi audio track 86
Hookups. See Connecting
I, J, K, L
Index
searching 87
M
Monitoring
during playback 86
during recording 86
N, O
Normal audio track 86
NORMAL mode 32
P
PHANTOM mode 32
Picture adjustment. See Adjusting
Playback 47
at various speeds 47, 84
frame-by-frame 84
skip 84
slow motion 84
Presetting
channels 39
radio stations 45
Program source selection 59
Q
Quick timer 85
R
Recording 50
bilingual programs 86
SAP broadcasts 86
stereo programs 86
using VCR Plus+ 51
while watching another
program 50
Receiving broadcasts
directly 58
using preset stations 45
Remote commander 5
Audio/video control 59
S
Safety tab 50
SAP (Second Audio Program) 86
Scanning
preset stations 45
radio stations 45
Searching
at various speeds 47, 84
using the index
function 87
SP mode 50
Speakers
connection 6
impedance 97
placement 7
selecting speaker system 32
Storing radio stations. See Presetting
Surround sound 75, 76
T, U
Test tone 31, 82
3CH LOGIC mode 32
Timer recording 51, 54, 85
cancelling timer
settings 56
changing timer
settings 56
checking timer
settings 56
daily/weekly
recording 55
overlapping timer
recordings 57
using VCR Plus+ 51
Tracking adjustment. See Adjusting
TV antenna or cable hookups 11
V
VCR Plus+
channel setup 43
recording 51
W, X, Y
WIDE mode 32
Additional Information
104
uick reference to using the VCR
Q
Sony Corporation Printed in Japan
To record a program
1 Press VCR Plus+ on the remote
commander.
2 Enter the program’s PlusCode
number.
3 Select ONCE, DAILY, or WEEKLY in
the VCR Plus menu.
4 Insert a tape.
5 Press POWER to turn off the VCR.
To watch TV
1 Turn off your VCR, or press the VCR’s
TV/VTR button until the VTR
indicator in the display window goes
off.
2 Select the channel with your cable box
(if you have one) or with your TV.
Hookup 3
To play a tape
1 Set the TV to channel 3 or 4 (or to
video input, if you made V
connection.)
2 Insert a tape and press · PLAY. If
there’s no picture on your TV, press
the VCR’s TV/VTR button until the
VTR indicator comes on in the display
window.
To record a program
1 Press VCR Plus+ on the remote
commander.
2 Enter the program’s PlusCode
number.
3 Select ONCE, DAILY, or WEEKLY in
the VCR Plus menu.
4 Insert a tape.
5 Press POWER to turn off the VCR.
To watch TV
1 Turn off the VCR, or press the VCR’s
TV/VTR button until the VTR
indicator in the display window goes
off.
2 Set the TV to the channel you want to
watch.
Hookup 1
To play a tape
1 Set the TV to channel 3 or 4 (or to
video input, if you made V
connection.)
2 Insert a tape and press PLAY.
To record a program
1 Turn on the cable box.
2 Press VCR Plus+ on the remote
commander.
3 Enter the program’s PlusCode
number.
4 Select ONCE, DAILY, or WEEKLY in
the VCR Plus menu.
5 Insert a tape.
6 Press POWER to turn off the VCR.
7 Leave the cable box on.
To watch TV
1 Turn off your VCR, or press the VCR’s
TV/VTR button until the VTR
indicator in the display window goes
off.
2 Turn on your cable box.
3 Set the TV to the cable box output
channel (usually 2, 3, or 4).
4 Set the cable box to the channel you
want to watch.
Hookup 2
To play a tape
1 If you made V connection, set the TV
to video input.
If you didn’t use V hookup:
• Turn on the cable box.
• Set the cable box to channel 3 or 4.
• Set the TV to the output channel of the
cable box (usually 2, 3 or 4).
2 Insert a tape and press · PLAY.
If you have any questions about this product, you may call: Sony Customer
Information Center 1-800-222-SONY (7669) or write to: Sony Customer Information
Center Sony Drive, Mail Drop #T1-11, Park Ridge, NJ 07656
Hookup 4
To play a tape
1 Set the TV to channel 3 or 4 (or to
video input, if you madeV
connection.)
2 Insert a tape and press · PLAY.
To record a program
1 Turn on the cable box.
2 Set the cable box to the channel you
want to record.
3 Press VCR Plus+ on the remote
commander.
4 Enter the program’s PlusCode
number.
5 Select ONCE, DAILY, or WEEKLY in
the VCR Plus menu.
6 Insert a tape.
7 Press POWER to turn off the VCR.
8 Leave the cable box on.
To watch TV
1 Turn off your VCR, or press the VCR’s
TV/VTR button until the VTR
indicator in the display window goes
off.
2 Turn on your cable box.
3 Set the TV to the cable box output
channel (usually 2, 3, or 4).
4 Set the cable box to the channel you
want to watch.
