Please read this user manual first!
Dear Customer,
Thank you for prefering a Euromed product. We hope that your product which has been
manufactured with high quality and technology will give you the best results. We advise you
to read through this manual and the other accompanying documentation carefully before
using your product and keep it for future reference. If you transfer the product to someone
else, give its manual as well. Pay attention to all details and warnings specified in the user
manual and follow the instructions given therein.
Use this user manual for the model indicated on the cover page.
Read the instructions.
Explanation of symbols
Throughout this user manual the following symbols are used:
C
Important information or useful hints about usage.
A
Warning for hazardous situations with regard to life and property.
B
Warning against electric shock.
Warning against hot surfaces.
Warning against fire hazard.
Warning against scalding hazard.
Packaging materials of the product are manufactured from recyclable materials in
accordance with our National Environment Regulations.
Do not dispose of the packaging wastes with the domestic waste or other wastes, discard
them to the dedicated collection points designated by the local authorities.
This product was manufactured using the latest technology in environmentally friendly conditions.
HPD7KG 7KG Heat Pump Dryer Page 1
3 / EN
Dryer / User Manual
1 Important instructions for safety and
environment
This section contains safety instructions that will help
protect from risk of personal injury or property damage.
Failure to follow these instructions shall void any warranty.
1.1 General safety
•
The dryer can be used by children at and above 8
years old and by persons whose physical, sensory or
mental capabilities were not fully developed or who
lack experience and knowledge provided that they are
supervised or trained on the safe usage of the product
and the risks it brings out. Children should not play with
the product. Cleaning and maintenance works should not
be performed by children unless they are supervised by
someone.
•
Children of less than 3 years should be kept away unless
continously supervised.
•
Adjustable feet should not be removed. The gap between
the dryer and the floor should not be reduced with
materials such as carpet, wood and tape. This will cause
problems with the dryer.
•
Always have the installation and repairing procedures
carried out by the Authorized Service. Manufacturer
shall not be held liable for damages that may arise from
procedures carried out by unauthorized persons.
•
Never wash the dryer by spraying or pouring water onto it!
There is the risk of electric shock!
For the products with a steam function:
•
Use only distilled water or water condensed in the water
tank of the machine in steam programs. Do not use mains
water or additives. When using condensed water in the
water tank, it should be filtered and cleared of fibres.
•
Do not open the door when steam programs are running.
Hot water may be expelled.
Page 2 HPD7KG 7KG Heat Pump Dryer
4 / EN
Dryer / User Manual
Important instructions for safety and
environment
• Before putting laundry in a steam program, stains on it
should be removed.
• You may only put laundry that is not dirty or stained
but permeated with unpleasant odour in steam (odour
removal) program.
• Do not use any dry cleaning sets or additional materials in
a steam program or in any program.
1.1.1 Electrical safety
A
Electrical safety instructions should be followed
while electrical connection is made during the
installation.
A
The appliance must not be supplied through an
external switching device, such as a timer,or
connected to a circuit that is regularly switched on
and off by utility.
• Connect the dryer to a grounded outlet protected by a
fuse at the value specified on the type label. Have the
grounding installation performed by a qualified electrician.
Our company shall not be liable for any damages that
will arise when the dryer is used without grounding in
accordance with the local regulations.
• The voltage and allowed fuse protection is stated on the
type label plate.
• The voltage specified on the type label must be equal to
your mains voltage.
• Unplug the dryer when it is not in use.
• Unplug the dryer from the mains during installation,
maintenance, cleaning and repair works.
• Do not touch the plug with wet hands! Never unplug by
pulling on the cable, always pull out by grabbing the plug.
• Do not use extension cords, multi-plugs or adaptors to
connect the dryer to power supply in order to decrease the
risk of fire and electric shock.
HPD7KG 7KG Heat Pump Dryer Page 3
5 / EN
Dryer / User Manual
Important instructions for safety and
environment
• Power cable plug must be easily accessible after
installation.
B
Damaged mains cable should be changed notifying
the Authorized Service.
B
If the dryer is faulty, it must not be operated unless
it is repaired by an authorized service agent! There is
the risk of electric shock!
1.1.2 Product safety
Superheating of the clothes inside of the dryer can
occur if you cancel the programme or in the event
of a power failure whilst the dryer is running, this
concentration of heat can cause self-combustion and
fire so always activate the ventilation programme
to cool down or quickly remove all laundry from the
dryer in order to hang them up and dissipate the
heat.
Points to be taken into consideration for fire
hazard:
Below specified laundry or items must not be dried in
the dryer considering fire hazard.
• Unwashed laundry items
• Items soiled with oil, acetone, alcohol, fuel oil,
kerosene, stain removers, turpentine, paraffin or
paraffin removers must be washed in hot water
with plenty of detergent before being dried in the
dryer.
For this reason especially the items containing the
above specified stains must be washed very well, to
do this use adequate detergent and choose a high
washing temperature.
Page 4 HPD7KG 7KG Heat Pump Dryer
6 / EN
Dryer / User Manual
Important instructions for safety and
environment
Below specified laundry or items must not be
dried in the dryer due to the fire hazard:
• Garments or pillows bolstered with rubber foam
(latex foam), shower bonnets, water resistant
textiles, materials with rubber reinforcement and
rubber foam pads.
• Clothing cleaned with industrial chemicals.
Items such as lighter, match, coins, metal parts,
needle etc. may damage the drum set or may lead to
functional problems. Therefore check all the laundry
that you will load into your dryer.
Never stop your dryer before the programme
completes. If you must do this, remove all laundry
quickly and lay them out to dissipate the heat.
Clothes that are washed inadequately may ignite on
their own and even may ignite after drying ends.
Oil-affected items can ignite spontaneously,
especially when exposed to heat sources such as in
a tumble dryer. The items become warm, causing an
oxidation reaction in the oil. Oxidation creates heat.
If the heat cannot escape, the items can become hot
enough to catch fire. Piling, stacking or storing oil-
affected items can prevent heat from escaping and
so create a fire hazard.
If it is unavoidable that fabrics that contain vegetable
or cooking oil or have been contaminated by hair care
products be placed in a tumble dryer they should first
be washed in hot water with extra detergent - this
will reduce, but not eliminate, the hazard.
• You must provide enough ventilation in order to prevent
gases exiting from devices operating with other types of
fuels including the naked flame from accumulating in the
room due to the back fire effect.
HPD7KG 7KG Heat Pump Dryer Page 5
7 / EN
Dryer / User Manual
Important instructions for safety and
environment
A
Underwear that contains metal reinforcements
should not be dried in the dryer. Dryer may be
damaged if metal reinforcements come loose and
break off during drying.
C
Use softeners and similar products in accordance
with the instructions of their manufacturers.
C
Always clean the lint filter before or after each
loading. Never operate the dryer without the lint
filter installed.
• Never attempt to repair the dryer by yourself. Do not
perform any repair or replacement procedures on the
product even if you know or have the ability to perform
the required procedure unless it is clearly suggested in the
operating instructions or the published service manual.
Otherwise, you will be putting your life and others’ lives in
danger.
• There must not be a lockable, sliding or hinged door that
may block the opening of the loading door in the place
where your dryer is to be installed.
• Install your dryer at places suitable for home use.
(Bathroom, closed balcony, garage etc.)
• Make sure that pets do not enter the dryer. Check the
inside of the dryer before operating it.
• Do not lean on the loading door of your dryer when it is
open, otherwise it may fall over.
• The lint must not be allowed to accumulate around the
tumble dryer
• The tumble dryer is not to be used if industrial chemicals
have been used for cleaning.
• Fabric softeners, or similar products.should be used as
specified by the fabric softener instructions.
Page 6 HPD7KG 7KG Heat Pump Dryer
8 / EN
Dryer / User Manual
Important instructions for safety and
environment
• Exhaust air must not be discharged into a flue which is
used for exhausting fumes from appliances burning gas or
other fuels.
• The final step of the drying cycle (cool-down cycle) occurs
without applying heat to ensure that the items are left at a
temperature that will not damage them.
1.2 Mounting over a washing machine
• A fixing device should be used between the two machines
when installing the dryer above a washing machine. The
fitting device must be installed by the authorized service
agent.
• Total weight of the washing machine and the dryer -with
full load- when they are placed on top of each other
reaches to approx. 180 kilograms. Place the products on a
solid floor that has sufficient load carrying capacity!
A
Washing machine cannot be placed on the dryer.
Pay attention to the above warnings during the
installation on your washing machine.
Installation Table for Washing Machine and Dryer
Dryer
Depth
Washing Machine Depth
62 cm 60 cm 54 cm 50 cm 49 cm 45 cm 40 cm
54 cm
Can be installed
Can be
installed
Cannot be
installed
60 cm
Can be installed
Cannot be
installed
HPD7KG 7KG Heat Pump Dryer Page 7
9 / EN
Dryer / User Manual
Important instructions for safety and
environment
1.3 Intended use
• Dryer has been designed for domestic use. It is not suitable
for commercial use and it must not be used out of its
intended use.
• Use the dryer only for drying laundry that are marked
accordingly.
• The manufacturer waives any responsibility arisen from
incorrect usage or transportation.
• The service life of the dryer that you purchased is 10 years.
During this period, original spare parts will be available to
operate the dryer properly.
1.4 Child safety
• Packaging materials are dangerous for the children. Keep
packaging materials away from children.
• Electrical products are dangerous for the children. Keep
children away from the product when it is operating. Do
not let them tamper with the dryer. Use the child-proof
lock in order to prevent the children to tamper with the
dryer.
C
Child-proof lock is on the control panel.
(See Child lock)
• Keep loading door closed even when the dryer is not in
use.
Page 8 HPD7KG 7KG Heat Pump Dryer
10 / EN
Dryer / User Manual
Important instructions for safety and
environment
1.5 Compliance with the WEEE regulation
and disposing of the waste product
This product complies with EU WEEE Directive
(2012/19/EU). This product bears a classification
symbol for waste electrical and electronic equipment
(WEEE).
This product has been manufactured with high
quality parts and materials which can be reused and are
suitable for recycling. Do not dispose of the waste product
with normal domestic and other wastes at the end of its
service life. Take it to the collection center for the recycling
of electrical and electronic equipment. Please consult your
local authorities to learn about these collection centers.
1.6 Compliance with RoHS Directive:
The product you have purchased complies with EU RoHS
Directive (2011/65/EU). It does not contain harmful and
prohibited materials specified in the Directive.
1.7 Package information
Packaging materials of the product are manufactured
from recyclable materials in accordance with our National
Environment Regulations. Do not dispose of the packaging
materials together with the domestic or other wastes. Take
them to the packaging material collection points designated
by the local authorities.
HPD7KG 7KG Heat Pump Dryer Page 9
11 / EN
Dryer / User Manual
Important instructions for safety and
environment
EN
Height (Min. / Max.) 84,6 cm / 86,6 cm*
Width 59,5 cm
Depth 54 cm
Capacity (max.) 7 kg**
Net weight (± 4 kg) 46 kg
Width
See type label***Voltage
Rated power input
1.8 Technical Specifications
* Min. height: Height with adjustable feet are closed.
Max. height: Height with adjustable feet are opened
maximum.
** Dry laundry weight before washing.
*** Type label is located behind the loading door.
C
Technical specifications of the dryer are subject to
specification without notice to improve the quality of
the product.
C
Figures in this manual are schematic and may not
match the product exactly.
C
Values stated on markers on the dryer or in the other
published documentation accompanying with the
dryer are obtained in laboratory in accordance with
the relevant standards. Depending on operational and
environmental conditions of the dryer, these values
may vary.
Page 10 HPD7KG 7KG Heat Pump Dryer
12 / EN
Dryer / User Manual
2 Your Dryer
2.1 Overview
11
10
1
2
3
4
5
6
7
8
9
1. Top panel
2. Control panel
3. Loading door
4. Kick plate opening button
5. Ventilation grids
6. Adjustable legs
7. Kick plate
8. Type label
9. Lint filter
10. Water tank drawer
11. Power cord
2.2 Package Contents
1
2 3
5
6
4
7 8
1. Water drain hose *
2. Filter drawer spare sponge*
3. User Manual
4. Drying basket*
5. Drying basket user manual*
6. Water Filling Container*
7. Pure Water*
8. Fragrance Capsules Group*
*It can be supplied with your machine depending on its model.
HPD7KG 7KG Heat Pump Dryer Page 11
13 / EN
Dryer / User Manual
3 Installaton
Before the calling the nearest Authorized
Service for the installation of the dryer,
ensure that electrical installation and water
drain is appropriate referring to the user’s
manual. If they are not suitable, contact a
qualified electrician and technician to make
necessary arrangements.
C
Preparation of the dryer's location
as well as the electrical and
waste water installations is under
customer's responsibility.
A
Prior to installation, visually check
if the dryer has any defects on
it. If the drier is damaged, do
not have it installed. Damaged
products cause risks for your
safety.
A
Let your dryer wait for 12 hours
before starting to use it.
3.1 Appropriate installation
location
Install the dryer on a stable and level surface.
Dryer is heavy. Do not move it by yourself.
• Operate your dryer in a well ventilated,
dust-free environment.
• The gap between the dryer and the
surface should not be reduced by the
materials such as carpet, wood and tape.
• Do not cover the ventilation grills of the
dryer.
• There must not be a lockable, sliding or
hinged door that may block the opening
of the loading door in the place where
your dryer is to be installed.
• Once the dryer is installed, it should stay
at the same place where its connections
have been made. When installing the
dryer, make sure that its rear wall does
not touch anywhere (tap, socket, etc.).
• Place the dryer at least 1 cm away from
the edges of other furniture.
• Your dryer can be operated at
temperatures between +5°C and +35°C.
If the operating conditions fall outside
of this range, operation of the dryer
will be adversely affected and it can get
damaged.
• The rear surface of the tumble dryer
shall be placed against a wall.
B
Do not place the dryer on the
power cable.
3.2 Removing the
transportation safety
assembly
A
Remove the transportation safety
assembly before using the dryer
for the first time.
3.3 Connecting to the drain
You can directly drain accumulated water
through the water drain hose supplied with
the product instead of periodically draining
the water collected in the water tank.
Connecting the water drain hose
1-2 Pull hose at the behnd of the dryer
by hand n order to dsconnect t from
where t s connected. Do not use any
tools to remove the hose.
3 Connect one end of the dran hose
suppled wth the dryer to the
connecton pont from where you
removed the hose of the product n
prevous step.
4 Connect the other end of the dran hose
drectly to the wastewater dran or to
the washbasn.
Page 12 HPD7KG 7KG Heat Pump Dryer
14 / EN
Dryer / User Manual
Installation
1
3 4
2
C
Water drain hose should be
attached to a height of maximum
80 cm.
C
Make sure that the water drain
hose is not stepped on and it is not
folded between the drain and the
machine.
C
If there is an accessories pack
supplied with your product, please
see the detailed description.
3.4 Adjusting the feet
• Turn the feet to left or right until the
dryer stands level and firmly.
3.5 Transportation of the dryer
Drain all water that has remained in the dryer.
If direct water drain connection is made, then
remove the hose connections.
A
We recommend carrying the
dryer in upright position. If it is
not possible to carry the machine
in the upright position, we
recommend carrying it by tilting
towards the right side when
looked from the front.
3.6 Warnings about sounds
C
It is normal to hear a metallic noise
from the compressor sometimes
during operation.
C
Water collected during operation is
pumped to water tank. It is normal
to hear pumping noise during this
process.
3.7 Changing the illumination
lamp
In case an illumination lamp is used in your
laundry dryer.To change the Bulb/LED used
for illumination of your tumble dryer, call your
Authorized Service.The lamp(s) used in this
appliance is not suitable for household room
illumination. The intended purpose of this
lamp is to assist the user to place laundry
in the tumble dryer in a comfortable way.
The lamps used in this appliance have to
withstand extreme physical conditions such
as vibrations and temperatures above 50 °C
HPD7KG 7KG Heat Pump Dryer Page 13
15 / EN
Dryer / User Manual
4 Preparation
4.1 Laundry suitable for drying
in the dryer
Always obey the instructions given on the
garment tags. Dry only the laundry having a
label stating that they are suitable for drying
in a dryer and make sure that you select the
appropriate programme.
Do not dry with
dryer
At high
temperature
At medium
temperature
At low
temperature
4.2 Laundry not suitable for
drying in the dryer
C
Delicate embroidered fabrics,
woollen, silk garments, delicate
and valuable fabrics, airtight
items and tulle curtains are not
suitable for machine drying.
4.3 Preparing laundry for
drying
• Laundry may be tangled with each other
after washing. Separate the laundry
items before placing them into the dryer.
• Dry garments having metal accessories
such as zippers, inside out.
• Fasten the zippers, hooks and buckles
and button sheets.
4.4 Things to be done for
energy saving
• Spin your laundry at the highest speed
possible when washing them. Thus, the
drying time is shortened and energy
consumption is reduced.
• Sort out the laundry depending on their
type and thickness. Dry the same type
of laundry together. For example thin
kitchen towels and tableclothes dries
earlier than thick bathroom towels.
• Follow the instructions in the user
manual for programme selection.
• Do not open the loading door of the
machine during drying unless necessary.
If you must open the loading door, do not
keep it open for a long time.
• Do not add wet laundry while the dryer is
in operation
• For models with a condenser unit: clean
the condenser once in a month or after
every 30 operations regularly. .
• For models with heat pump unit: clean
the filter drawer periodically when there
is a visible accumulation of fluff or when
the filter drawer cleaning indicator «
» lights up.
• For models with flue unit: comply with
the flue connection instructions and
clean the flue.
• During the drying process, air the
room well where your tumble dryer is
operating.
4.5 Correct load capacity
Follow the instructions in the “Programme
selection and consumption table”. Do not
load more than the capacity values stated in
the table.
Page 14 HPD7KG 7KG Heat Pump Dryer
16 / EN
Dryer / User Manual
Preparation
Following weights are given as examples.
Laundry
Approximate
weights (g)*
Cotton quilt covers
(double)
1500
Cotton quilt covers
(single)
1000
Bed sheets (double) 500
Bed sheets (single) 350
Large tablecloths 700
Small tablecloths 250
Tea napkins 100
Bath towels 700
Hand towels 350
Blouses 150
Cotton shirts 300
Shirts 250
Cotton dresses 500
Dresses 350
Jeans 700
Handkerchiefs (10
pieces)
100
T-Shirts 125
*Dry laundry weight before washing.
HPD7KG 7KG Heat Pump Dryer Page 15
17 / EN
Dryer / User Manual

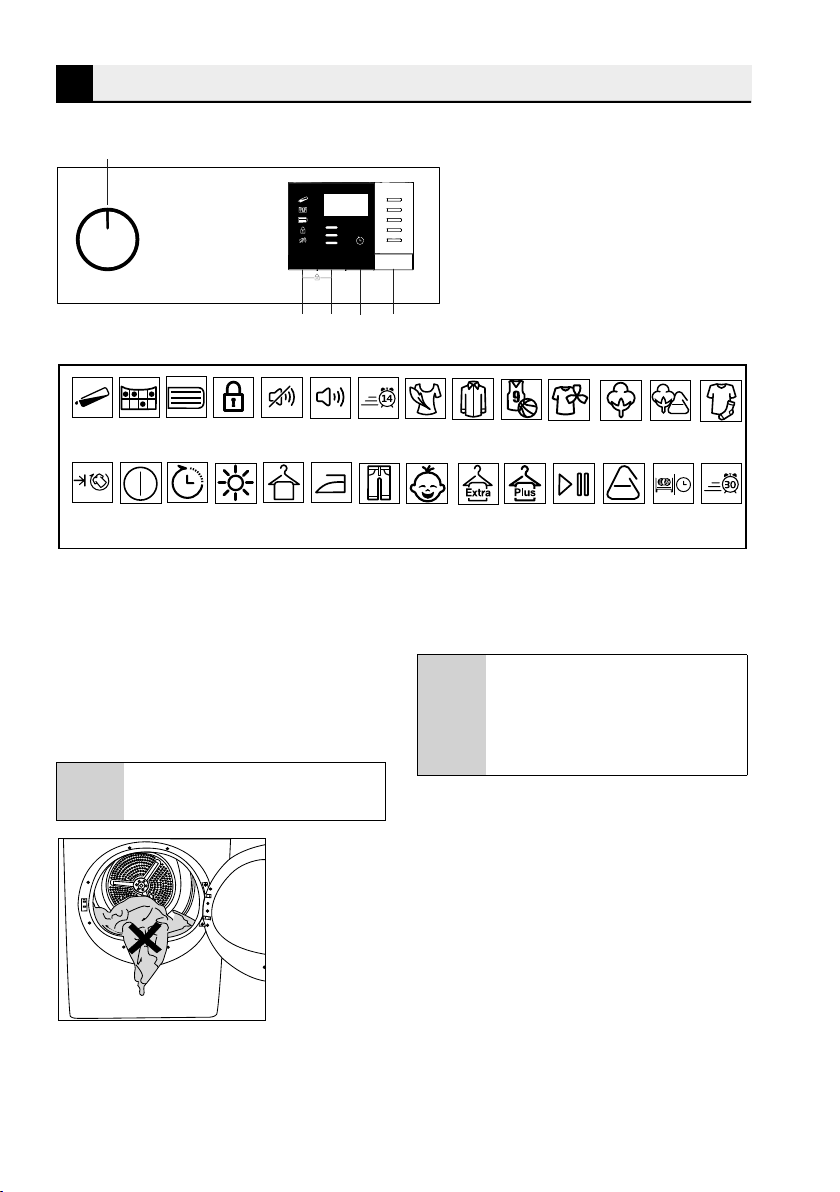

5 Operating the product
5.1 Control Panel
1. On/Off/Program selection button
2. Start/Stand-by button
3. End Time button
4. Drying Level Button
5. Buzzer volume/Time programs selection
button
5.2 Symbols
Volume up
Filter
cleaning
Tank
full
Child-proof
lock
Mute
Cleaning the
lter drawer /
Condenser
End/anti-
creasing
On/O
Timer
Delay
Dryness
Level
Cupboard
Dry
Iron Dry
Express
14’
Delicates
Shirts
Jeans
BabyProtect
Extra dry
Cupboard
dry plus
Sport
Freshen Up
Start
pause
cancel
Cottons
Synthetics
Mix
Express
30’
Drying Rack/
TimeDry
Daily
5.3. Preparation of drying
machine
• Plug the drying machine.
• Open the loading door.
• Place the laundry to the drying machine
without jamming them.
• Push and close the loading door.
A
Ensure that no laundry is jammed
to the loading door.
Select the desired program using the On/
Off/Program selection knob, the machine will
turn on.
C
Selecting a program using the
On/Off/Program selection
button does not mean that the
program started. Press the Start
/ Stand-by button to start the
program.
3
4
5
2
1
Page 16 HPD7KG 7KG Heat Pump Dryer
18 / EN
Dryer / User Manual
Operating the product
EN
Programmes Programme Description
Capacity (kg)
Spin speed
in washing
machine
(rpm)
Drying Time
(minutes)
Cotton Iron Dry
You may dry your cotton laundry to be ironed in
this programme to have them slightly damp for
ease ofironing. (Shirt, T-shirt, tablecloth, etc.)
7 1000 139
Cotton Cupboard Dry
You may dry all your cotton laundry in this
programme.(T-shirt, pants, pyjamas, baby
clothes, underwear,linen, etc.) You can put
your laundry in the wardrobe without ironing.
7 / 3,5 1000 174 / 107
Cotton Extra Dry
You may dry your thick cotton laundry in this
programme such as towels, bathrobe, etc. You
can put your laundry in the wardrobe without
ironing.
7 1000 184
Synthetic Iron Dry
You may dry your synthetic laundry to be
ironed in this programme to have them slightly
damp for ease of ironing. (Shirt, T-shirt,
tablecloth, etc.)
3,5 800 59
Synthetic Cupboard
Dry
You may dry all your synthetic laundry in
this programme. (Shirt, T-shirt, underwear,
tablecloth, etc.) You can put your laundry in
the wardrobe without ironing.
3,5 800 70
Daily
You can dry both cotton and synthetic laundry
with this programme.
4 1000 110
Sport
You may dry your sports clothes that
are appropriate for tumble drying in this
programme.
4 1000 110
Freshen up
It just provides airing for 10 minutes without
any hot air. You can air the cotton and linen
laundry that have been stored for a long time ,
and eliminate the odour in them.
- - 10
Drying Rack/ TimeDry
You may select from time programmes
between 30 and 60 minutes to achieve the
desired drying level at low temperature. In this
programme, tumble drier’s operation lasts for
the set time independently from the dryness
of laundry. This product is available to be used
with a drying basket as option. For products
that are sold without a basket, you can obtain a
basket from an authorized service and use the
drying programs specified above. For details of
use, see the drying basket user guide.
- - -
Delicates
You can dry your delicates suitable for drying
or laundry that is recommended to hand
wash (silk blouses, thin underwear etc.) in low
temperature.
2 600 50
5.4 Program selection and consumption chart
HPD7KG 7KG Heat Pump Dryer Page 17
19 / EN
Dryer / User Manual
Operating the product
Mix
Use this programme to dry non-pigmenting
synthetic and cotton laundry items together.
4 1000 120
Babyprotect
Program used for baby clothing with can be
dried
approval on the label.
3 1200 90
Jeans
You may dry denim pants, skirts, shirts or
jackets in
this programme.
4 1200 125
Gentle Care / Shirts
It dries the shirts in a more sensitive manner,
and causes less creasing and easier ironing.
1,5 1200 55
Express Super Short
Dries shirts more delicately and thus causes
less wrinkles for easy ironing.
0,5 1200 30
Energy consumption values
Programmes Capacity (kg)
Energy consumption value
kWh per year
Energy rating
star
Cotton Extra dry,
Dryness Level 3
7 - 2
Contains fluorinated greenhouse gases covered by the Kyoto
Protocol. Hermetically sealed.
R134a / 0,225 kg - GWP:1430 - 0,321 tCO2e
* : Energy Label standard program (EN 61121:2012) All values in the table are determined
according to EN 61121:2012 standard. Consumption values may vary from the values in the
chart depending on laundry type, wringing speed, ambient conditions and voltage levels.
* : Energy Label standard program (AS/NZS 2442) “All the filters must be cleaned prior to test
series.”
All values given in the table have been fixed according to standard laboratory conditions.
These values may deviate from the table according to the laundry type, laundry spin speed,
environmental conditions and voltage fluctuations.
Page 18 HPD7KG 7KG Heat Pump Dryer
20 / EN
Dryer / User Manual
Operating the product
5.5 Auxiliary functions
Buzzer / tme
Drying machine makes an audible warning
when the program is completed. If you
don’t want the machine to make an audible
warning, press the “Buzzer / Time” button.
When you press the Buzzer/Time button, a
light will illuminate and no audible warning
will be made when the program ends.
C
You can select this function
before or after the program
starts.
Buzzer/Time button is used to adjust
program duration while the Rack/Time
programs are selected.
Drying Level
Drying Level button is used for adjusting to
desired dryness level. Program duration may
change depending on the selection.
C
You can activate this function
only prior to start of program.
End tme
You can delay the end time of the program up
to 24 hours with End time function.
1. Open the loading door and place the
laundry.
2. Select the drying program.
3. Press the End Time selection button and
set the delay time you wish. End Time
LED will illuminate. (When pressed and
hold the button, End Time proceeds non-
stop).
4. Press the Start / Stand-by button. End
Time countdown starts. “:” Separator
in the middle of displayed delay time
flashes.
C
You can add or remove laundry
within end time. Displayed time
is the sum of normal drying time
and end time. End Time LED will
turn off at the end of countdown,
drying starts and drying LED will
illuminate.
Changing the end time
If you want to change the duration during
the countdown:
Cancel the program by turning the On/Off/
Program selection knob. Select the program
you want and repeat the End Time selection
process.
Cancelling the end time function
If you want to cancel the end time
countdown and start the program
immediately:
Cancel the program by turning the On/Off/
Program selection knob. Select the program
you want and press the Start/Stand-by
button.
5.6 Warning indicators
C
Warning indicators may vary
depending on the model of your
dryer.
Filter cleaning
When the program is completed, the warning
indicator for filter cleaning turns on.
Water tank
When the program is completed, the warning
indicator to empty the water tank turns on.
If the water tank fills up while the program
continues, the warning indicator starts
flashing and the machine goes into stand-by.
In this case, empty the water tank and start
the program by pressing the Start / Stand-
by button. Warning indicator turns off and
program resumes.
5.7 Starting the program
Press the Start/Stand-by button to start the
program.
Start/Stand-by and Drying indicators will
illuminate to indicate that program started.
HPD7KG 7KG Heat Pump Dryer Page 19
21 / EN
Dryer / User Manual
Operating the product
Adding and removing clothes during
stand-by
If you want to add or remove clothes to/from
the drying machine after the drying program
starts:
• Press the Start/Stand-by button to put
the drying machine in Stand-by state.
The drying operation stops.
• Open the loading door while in Stand-
by state, and close the door after you
remove or add laundry.
• Press the Start/Stand-by button to start
the program.
C
Adding laundry after the drying
operation starts may cause the
dried laundry inside the machine to
mix with wet laundry and leave the
laundry damp at the end of operation.
C
Adding or removing laundry
during drying may be repeated as
many times as you wish. But this
operation continuously interrupts
the drying operation, and thus
increases program duration and
energy consumption. So, it is
recommended to add laundry
before the program starts.
C
If a new program is selected by
turning the program selection
knob while the drying machine is
in stand-by, the running program
terminates.
Do not touch the inner surface
of the drum while adding or
removing clothes during a
continuing program. The drum
surface is hot.
5.8 Child Lock
The drying machine has a child lock which
prevents the program flow from being
interrupted when the buttons are pressed
during a program. When the child lock is
activated, all buttons on the panel except
the On/Off/Program selection knob are
deactivated.
Press the Drying Level and Buzzer buttons
simultaneously for 3 buttons to activate the
child lock.
The child lock has to be deactivated to be
able to start a new program after the current
program is finished or to be able to interfere
with the program. To deactivate the child
lock, keep the same buttons pressed for 3
seconds.
C
When the child lock is activated,
the child lock warning indicator
on the screen turns on.
C
Child lock deactivates when the
drying machine is turned off and
on by the On/Off/Cancel knob.
When the child lock is active:
When the drying machine runs, or in stand-
by state, the indicator symbols won’t change
upon changing the position of the program
selection knob.
C
When the drying machine runs
and the child lock is active, it beeps
twice when the program selection
knob is turned. If the child lock is
deactivated without returning
the program selection knob to its
previous position, program will
terminate due to the change in the
program selection knob position.
5.9 Changing the program
after it is started
You can change the program you selected
to dry your laundry with a different program
after the drying machine starts running
• For instance, select Extra Dry program
by turning the On/Off/Program selection
knob to select Extra Dry instead of Iron
Dry.
• Press the Start/Stand-by button to start
the program.
Page 20 HPD7KG 7KG Heat Pump Dryer
22 / EN
Dryer / User Manual
Operating the product
5.10 Cancelling the program
If you want to cancel the program and
terminate the drying operation for any
reason after the drying machine starts
running, turn the On/Off/Cancel knob, the
program will be cancelled.
A
The inside of the drying machine
shall be extremely hot when
you cancel the program during
machine operation, so run the
refresh program to allow it to
cool down.
5.11 End of program
When the program ends, the Fibre Filter
Cleaning and Water Tank warning symbols on
the program observation indicator turn on.
Loading door may be opened and the dryer
machine becomes ready for another run.
Bring the On/Off/Program selection knob to
On/Off position to turn the drying machine
off.
C
If the laundry is not removed
after the program is completed,
the wrinkle prevention function
activates for 2 hours to prevent
the laundry inside the machine
to get wrinkled. The program
tumbles the laundry with
10-minute intervals to prevent
them from wrinkling.
HPD7KG 7KG Heat Pump Dryer Page 21
23 / EN
Dryer / User Manual
6 Maintenance and cleaning
Service life of product extends and
frequently experienced problems will be
reduced if it is cleaned at regular intervals.
6.1 Cleaning Lint Filter /
Loading Door Inner Surface
Lint and fiber released from the laundry to
the air during the drying cycle are collected in
the Lint Filter.
C
Such fiber and lint are generally
formed during wearing and
washing.
A
Always clean the lint filter and the
inner surfaces of the loading door
after each drying process.
C
You can clean the lint filter
housing with a vacuum cleaner.
To clean the lint filter:
• Open the loading door.
• Remove the lint filter by pulling it up and
open the lint filter.
• Clean lint, fiber, and cotton raveling by
hand or with a soft piece of cloth.
• Close the lint filter and place it back into
its housing.
• A layer can build up on the filter pores
that can cause clogging of the filter after
using the dryer for a while. Wash the
lint filter with warm water to remove
the layer that builds up on the lint filter
surface. Dry the lint filter completely
before reinstalling it.
• Clean the entire inner surface of the
loading door and loading door gasket
with a soft damp cloth.
6.2 Cleaning the sensor
There are dampness sensors in the dryer
that detect whether the laundry is dry or not.
To clean the sensors:
• Open the loading door of the dryer.
• Allow the machine to cool down if it is
still hot due to the drying process.
• Wipe the metal surfaces of the sensor
with a soft cloth, dampened with vinegar
and dry them.
Page 22 HPD7KG 7KG Heat Pump Dryer
24 / EN
Dryer / User Manual
Maintenance and cleaning
C
Clean metal surfaces of the
sensors 4 times a year.
C
Do not use metal tools when
cleaning metal surfaces of the
sensors.
A
Never use solvents, cleaning
agents or similar substances for
cleaning due to the risk of fire and
explosion!
6.3 Draining the water tank
Dampness of the laundry is removed and
condensed during drying process and the
water that arise accumulates in the water
tank. Drain the water tank after each drying
cycle.
A
Condensed water is not drinkable!
A
Never remove the water tank
when the program is running!
If you forget to drain the water tank, the
machine will stop during the subsequent
drying cycles when the water tank is full and
the Water Tank warning symbol will flash.
If this is the case, drain the water tank and
press Start / Pause button to resume the
drying cycle.
To drain the water tank:
1. Remove the water tank in the drawer or
container carefully.
2. Drain the water in the tank.
• If there is lint accumulation in the funnel
of the water tank, clean it under running
water.
• Place the water tank into its seat.
C
If the direct water draining is used
as an option, there is no need to
empty the water tank.
6.4 Cleaning the filter drawer
Lint and fiber that could not be captured
by the lint filter are blocked in the filter
drawer behind the kick plate. Clean the
filter periodically when there is visible air
collection on it or when the symbol lights up,
if there is a filter drawer cleaning warning
symbol «
» available.
There is an one stage filter. This one stage
filter is from sponge
To clean the filter drawer:
• Press the kick plate button to open the
kick plate.
HPD7KG 7KG Heat Pump Dryer Page 23
25 / EN
Dryer / User Manual
Maintenance and cleaning
• Open the filter drawer cap turning the
cap lock on it and pull it out..
• Open the filter drawer by pressing the
red button.
• Take out the filter drawer sponge.
• Clean the fluff and lint over the filter
sponge washing it with your hands.
Remove the moisture squeezing the
sponge with your hands after washing it.
• Clean the fluff, lint and cotton pellets
with your hands or with a soft cloth.
• If you observe a layer over the filter
which can block the filter, remove the
layer washing with a water and then
cleaning it. Dry the filter cloth properly
before replacing the filter drawer.
C
There may be no cloth in the filter
cassette of your drying machine,
depending on its model.
• Place the sponge back into its place.
C
Please place the sponge carefully
inside the frame of the filter
cassette shown by arrows in order
to avoid squeezing when filter
drawer closed”.:
• Close the filter drawer as to lock the red
button.
• Replace the filter drawer and tighten
the cap turning the filter drawer lock
turning it in the arrow direction.
Page 24 HPD7KG 7KG Heat Pump Dryer
26 / EN
Dryer / User Manual
Maintenance and cleaning
• Close the kick plate cover.
A
Drying without the filter drawer
sponge in place will damage the
machine!
C
A dirty lint filter and filter drawer
will cause longer drying periods
and higher energy consumption.
6.5 Cleaning the evaporator
Clean the lint accumulated on the fins of the
evaporator located behind the filter drawer
with a vacuum cleaner.
A
You can also clean by hand
provided that you wear protective
gloves. Do not attempt to clean
with bare hands. Evaporator fins
can harm your hand.
HPD7KG 7KG Heat Pump Dryer Page 25
27 / EN
Dryer / User Manual
7 Troubleshooting
Drying operation takes too long.
• Fibre filter pores might be clogged. >>> Wash the filter with warm water.
• Filter drawer might be clogged. >>> Clean the sponge and filter cloth (if any) in the
filter drawer. (for the products with a heat pump)
• The condenser might be blocked. >>> Wash the condenser.(for the products with a
condenser )
• The ventilation grills in front of the machine may be closed. >>> Remove any objects in
front of the ventilation grills that blocks air.
• Ventilation may be inadequate because the area the machine is installed in is too small.
>>> Open the door or windows to prevent the room temperature from rising very high.
• A lime layer may have accumulated on the humidity sensor. >>> Clean the humidity
sensor.
• Excessive amount of laundry might be loaded. >>> Do not load the drying machine
excessively.
• Laundry might not have been wrung adequately. >>> Perform a higher speed wringing
on the washing machine.
Clothes come out damp after drying.
• A program not suitable for the laundry type may have been used.>>> Check the
maintenance labels on the clothes and select a program suitable for the clothes’ type or
use time programs as extra.
• Fibre filter pores might be clogged. >>> Wash the filter with warm water.
• The condenser might be blocked. >>> Wash the condenser. (for the products with a
condenser)
• Filter drawer might be clogged. >>> Clean the sponge and filter cloth (if any) in the
filter drawer.(For the products with a heat pump)
• Excessive amount of laundry might be loaded. >>> Do not load the drying machine
excessively.
• Laundry might not have been wrung adequately. >>> Perform a higher speed wringing
on the washing machine.
Drying machine does not turn on or program cannot be started. Drying machine does not
run after it is configured.
• Power plug might be unplugged. >>> Make sure the power cord is plugged in.
• Loading door might be open. >>> Ensure that the loading door is properly closed.
• A program might not be set or Start/Stand-by button might not be pressed. >>> Check
that the program is set and it is not in Stand-by position.
• Child lock may be activated. >>> Turn off the child lock.
Program terminated prematurely for no reason.
• Loading door might not be closed completely. >>> Ensure that the loading door is
properly closed.
• There might be a power outage. >>> Press the Start/Stand-by button to start the
program.
• Water tank may be full. >>> Empty the water tank.
Page 26 HPD7KG 7KG Heat Pump Dryer
28 / EN
Dryer / User Manual
Troubleshooting
Clothes have shrunk, hardened or spoiled.
• A program not suitable with the laundry type might have been used. >>> Check the
maintenance labels on the clothes and select a program suitable for the clothes.
The lighting inside the drying machine does not turn on. (For models with a lamp)
• Drying machine might not be turned on with the On/Off button or program might not
be selected for machines without an On/Off button. >>> Make sure that the drying
machine is turned on.
• Lamp might be malfunctioning. >>> Contact Authorized Service to replace the lamp.
Filter cleaning warning symbol/LED is on/flashing.
• Fibre filter might not be cleaned. >>> Clean the filter.
• The filter slot might be clogged with lints. >>> Clean the filter slot.
• A layer of fluff might have accumulated clogging up the lint filter pores. >>> Wash the
filter with warm water.
• The condenser might be blocked. >>> Wash the condenser.
Water drips from the loading door.
• Fibres might have gathered on the inner sides of the loading door and the loading door
gasket. >>> Clean the inner surfaces of the loading door and the loading door gasket
surfaces.
Loading door opens by itself.
• Loading door might not be closed completely. >>> Push the loading door until the
closing sound is heard.
Water tank warning symbol / led is on/flashing.
• Water tank may be full. >>> Empty the water tank.
• Water discharge hose might have collapsed. >>> If the product is connected directly to
the water drain check the water discharge hose.
Steam symbol is flashing.(For the products with a steam function)
• Steam tank may be empty => Fill the steam tank with distilled or condensed water.
Steam programs do not start (For the products with a steam function)
• Steam tank may be empty, steam tank warning icon may light up on the screen => Fill
the steam tank until the steam icon goes off.
Wrinkles are not removed with wrinkle removing program. (For the products with a steam
function)
• Excess amount of laundry may have been placed => Place specified amount of laundry.
• Steam application time may be selected in low level => Choose a program with high
amount of steam.
• After completion of the program, the laundry may have stayed in the machine for a long
time => Take the laundry out as soon as the program finishes, and hang it out.
Laundry odour not lessened with the odour removal program.(For the products with an
odour removal program)
• Excess amount of laundry may have been placed => Place specified amount of laundry.
• Steam application time may be selected in low level => Choose a program with high
amount of steam.
A
If the problem persists after following the instructions in this section, contact your
vendor or an Authorized Service. Never try to repair your product yourself.
For all product enquiries (including warranty support),
please contact our Customer Care team on
